User Manual
Lenovo YOGA Mouse
Quick Start Guide
Introduction
Option package list:
Lenovo® YOGA™ Mouse (referred to as mouse)
Universal Serial Bus (USB) receiver
USB charging cable
Documentation
Parts and locations
Middle key Touch bar*
Right key Windows® key
Power key USB charging connector
Wireless mode switch Indicator*
Left key Compartment cover
*Touch bar:
Swipe up and down: vertical scroll.
*Indicator status:
Indicator activity Working status
Flashing in white Bluetooth paring
Flashing in orange Battery low
Illuminated in orange Charging
Illuminated in white Fully charged
Connecting the mouse
Connect through the USB receiver
Ensure that the wireless mode switch is on the right-side position
. Then, the computer automatically identifies the mouse.
Connect through the Bluetooth feature
Software requirements:
Bluetooth 4.0 or later
Microsoft® Windows 8 operating system or later
To connect the mouse, do the following:
1. Enable the Bluetooth feature on your computer.
2. Slide the wireless mode switch on the mouse to the left-side
position . Hold it there for three seconds until the indicator
flashes in white.
3. Select Lenovo YOGA Mouse from the Bluetooth device list
and starts pairing.
4. Disable Allow the computer to turn off this device to save
power.
For more information, refer to the Windows help information
system.
Using the mouse
Turn on the mouse
Press and hold the power key for two seconds until the indicator
is illuminated in white for three seconds.
Turn on the mouse
Press and hold the power key for two seconds until the indicator
is off.

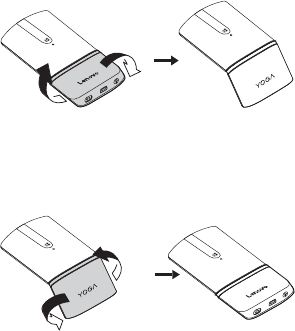

Switch between the mouse mode and the presenter mode
After connecting the mouse, you can use it in either the mouse
mode or the presenter mode.
Mouse mode
Function: mouse
How to enter: rotate clockwise
Presenter mode
Function: media controller or presenter
How to enter: rotate counterclockwise
The media controls or presenter controls are illuminated.
Media controls Presenter controls
Volume down Presenting from first slide
Volume up Presenting from current slide
Play / Pause Black screen / Back to
presentation
Previous track Previous slide
Next track Next slide
Notes:
To switch between the two functions, press the middle key.
The mouse hibernates if it is not used for over three minutes
as a media controller or over 10 minutes as a presenter.
To wake the mouse, press the middle key or the Windows key.
Troubleshooting
Problem: The mouse is not working.
Solution:
Ensure that the wireless mode switch is in the correct
position.
Ensure that the mouse is fully charged and turned on.
Use the mouse on a different surface.
For connection through the USB receiver:
- Ensure that the USB receiver is securely connected.
- Connect the USB receiver to another USB connector.
For connection through the Bluetooth 4.0 feature:
- Ensure that the mouse has been disconnected from other
devices before pairing.
- If the Bluetooth connection is lost, re-pair the mouse first.
If the problem persists, try restarting the computer and
then re-pairing.
In the presenter mode, if the controls are not illuminated,
ensure that the mouse is connected to the computer.
In the presenter function, if the black-screen control is not
working, ensure that the current input language is English.
If the indicator does not respond anyway, reset the mouse. To
reset the mouse, press and hold the power key, charge the
mouse using the USB charging cable, and then release the
power key.
If the battery power consumes fast, always turn off the mouse
to save power when you finish using the mouse.
