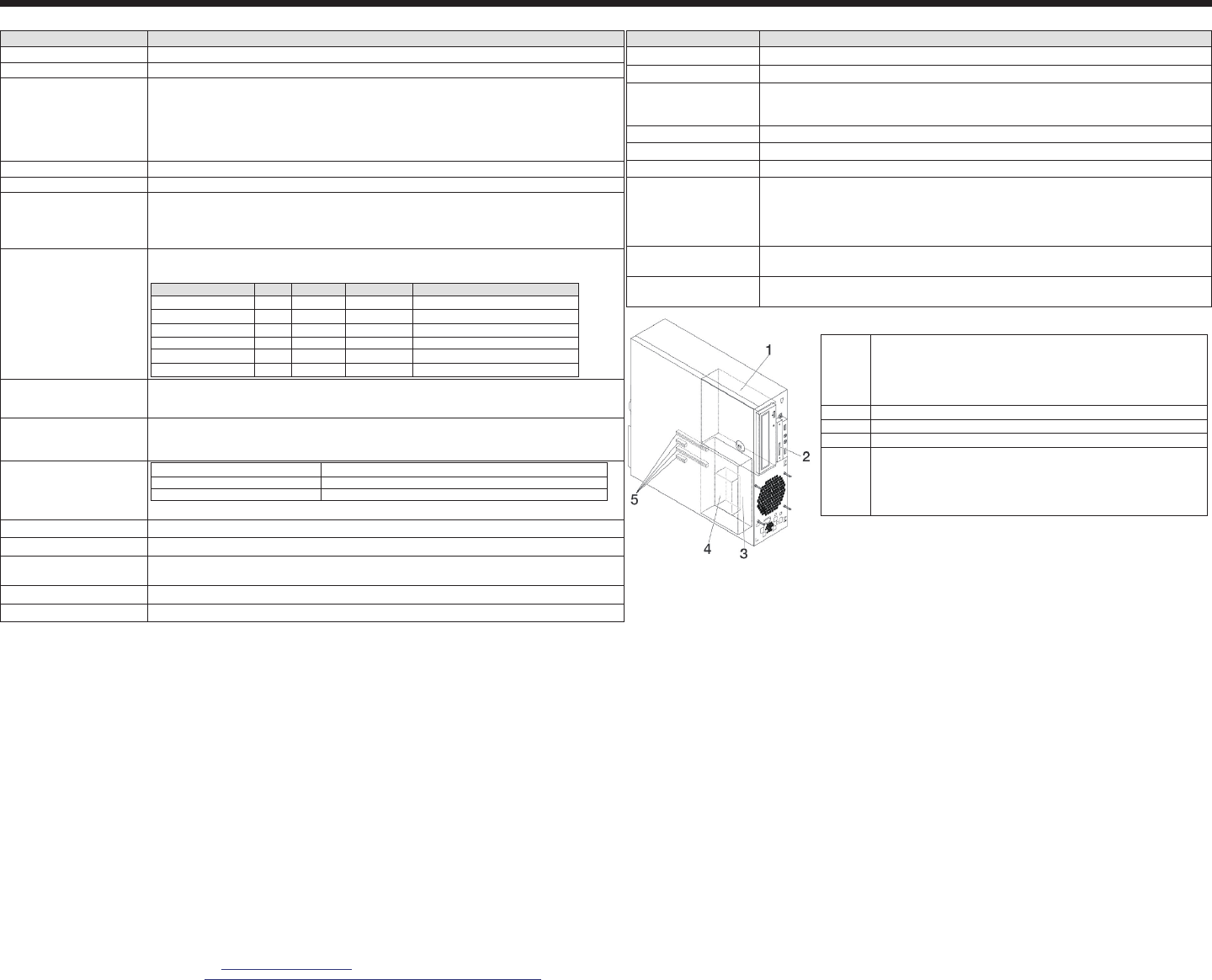

ThinkStation P310 SFF Platform Specifications

Components Specification

Chipset Intel C236 Chipset

Intel AMT Intel Active Management Technology 11 supported on Xeon models

Processor

One LGA1151 socket, supports one the following processors:

• Xeon E3-12x0 v5: up to 4C/3.7GHz/2133MHz/8MB

• Xeon E3-12x5 v5: up to 4C/3.6GHz/2133MHz/8MB

• Core i7: up to 4C/3.4GHz/2133MHz/8MB

• Core i5: up to 4C/3.3GHz/2133MHz/6MB

• Core i3: up to 2C/3.9GHz/2133MHz/4MB

Memory DIMM slots 4 DIMM slots, 2-channel (integrated memory controller in processor)

Memory type/capacity Up to 64GB ECC/non-ECC (4 x 16GB), 2133MHz DDR4, UDIMM

Intel HD Graphics

in processor

Integrated Intel HD P530 in Xeon E3-12x5 v5 processors; or Intel HD 530 in

Core i7, i5, or i3 processors. Works along with discrete graphics to support

multi-display, enables three display connectors (2 DP, 1 VGA) on rear.

Max Resolution: 4096 x 2304

Discrete graphics

Two PCI Express 3.0 x16 slots for graphics adapters. Up to two Quadro K1200.

Supports the following NVIDIA graphics adapters:

Adapter Cores Memory Power Connector

NVS 310 48 1GB 19.5W 2xDP

NVS 315 48 1GB 19.5W 2xDVI-I SL/2xDP

NVS 510 192 2GB 33.4W 4xmini DP

Quadro K420 192 2GB 41W 1xDVI-I DL+1xDP

Quadro K620 384 2GB 45W 1xDVI-I DL+1xDP

Quadro K1200 512 4GB 45W 4xminiDP

Onboard drive

controller

Five onboard SATA 6.0Gb/s connectors for optical and disk drives plus one

SATA connector for optional eSATA. RAID 0, 1, 5* support

* RAID 5 supports three 2.5" SSDdrives only.

Drive Bays

One external 5.25" bay, one internal 3.5" bay (see right).

Up to one 9.5mm optical + 2 x 3.5" disk drive bays + 1 x 2.5" disk drive bay +

one M.2 NVMe SSD

Supporting disk drives

3.5" SATA HDD (7.2K 6Gbs) 500GB/1TB/2TB/3TB/4TB/1TB hybrid/2TB hybrid

2.5" SATA SSD (6Gbs) 128GB/180GB*/240GB*/256GB*/480GB*/512GB/1TB*

M.2 NVMe SSD 256GB*/512GB, via PCIe 3.0 x4 adapter

** Includes OPAL options

Max internal storage 9TB (2 x 4TB 3.5" HDDs + 1 x 1TB 2.5" SSD) plus one 512GB M.2 NVMe SSD

Media reader 9-in-1 card reader. Optional 29-in-1 card reader on selected models

Power supply 210 watts with variable speed fan, autosensing, 85% PSU,

Climate Savers Computing Bronze, 80 PLUS Bronze qualified

Onboard Ethernet One onboard gigabit ethernet, Intel I219LM, supports Wake-on-LAN

HD Audio Realtek ALC662 codec

For the latest list of ISV certifications, please vist www.lenovo.com/support/ISV

For a list of all supported options, please see https://download.lenovo.com/pccbbs/options_iso/ocm_december_2015.xlsx sheet

 Copyright Lenovo 2015. All rights reserved.

Components Specification

TPM Standard, TCG 1.2-compliant

Front ports Two USB 3.0, microphone (3.5mm), headphone (3.5mm)

Rear ports

1 VGA and 2 DisplayPort (functional only on Intel HD Graphics models),

two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45),

three analog audio ports (line-in, line-out, mic-in)

IEEE 1394 Optional. One front port in flex module and one rear port

e S ATA Optional. One front port in flex module

Keyboard/Mouse 104-key Keyboard and optical mouse, USB connector

Mechanical

• Raven black color; metal case

• 4.02"W x 15.53"D x 13.31"H

• 102mm W x 394.5mm D x 338mm H

• 17.2 lb (7.9kg) max configuration

• 12.9-liter

Environmental

certifications

GREENGUARD certified/RoHS-compliant/EPEAT Gold rating/

ENERGY STAR 6.1 qualified

Limited warranty 1 or 3-year limited onsite service with 9x5/NBD. Some parts are Customer

Replaceable Units.

Drive Bays and PCIe Slots

Bay 1

5.25”, supports one of the following:

HH optical/flex module***/9.5mm optical+3.5" HDD bay/

3.5" HDD bay/Front Access Storage Enclosure

*** Flex module supports one or more of the following: 9.5mm optical/

29-in-1 reader/front IEEE 1394/front eSATA.

Up to one flex module is supported per system.

Bay 2 Optional 9-in-1 single slot reader

Bay 3 Standard 3.5" HDD bay

Bay 4 Optional 2.5" HDD bay (under Bay 3)

5 -Slots

Four PCIe slots (top-down):

Slot 1: Low Profile, PCIe

3.0

x16

(near CPU)

Slot 2: Low Profile, PCIe 3.0 x1

Slot 3: Low Profile, PCIe 3.0 x16 (x4 elec)

Slot 4: Low Profile, PCIe 3.0 x1

Product Specifications Reference (PSREF)
