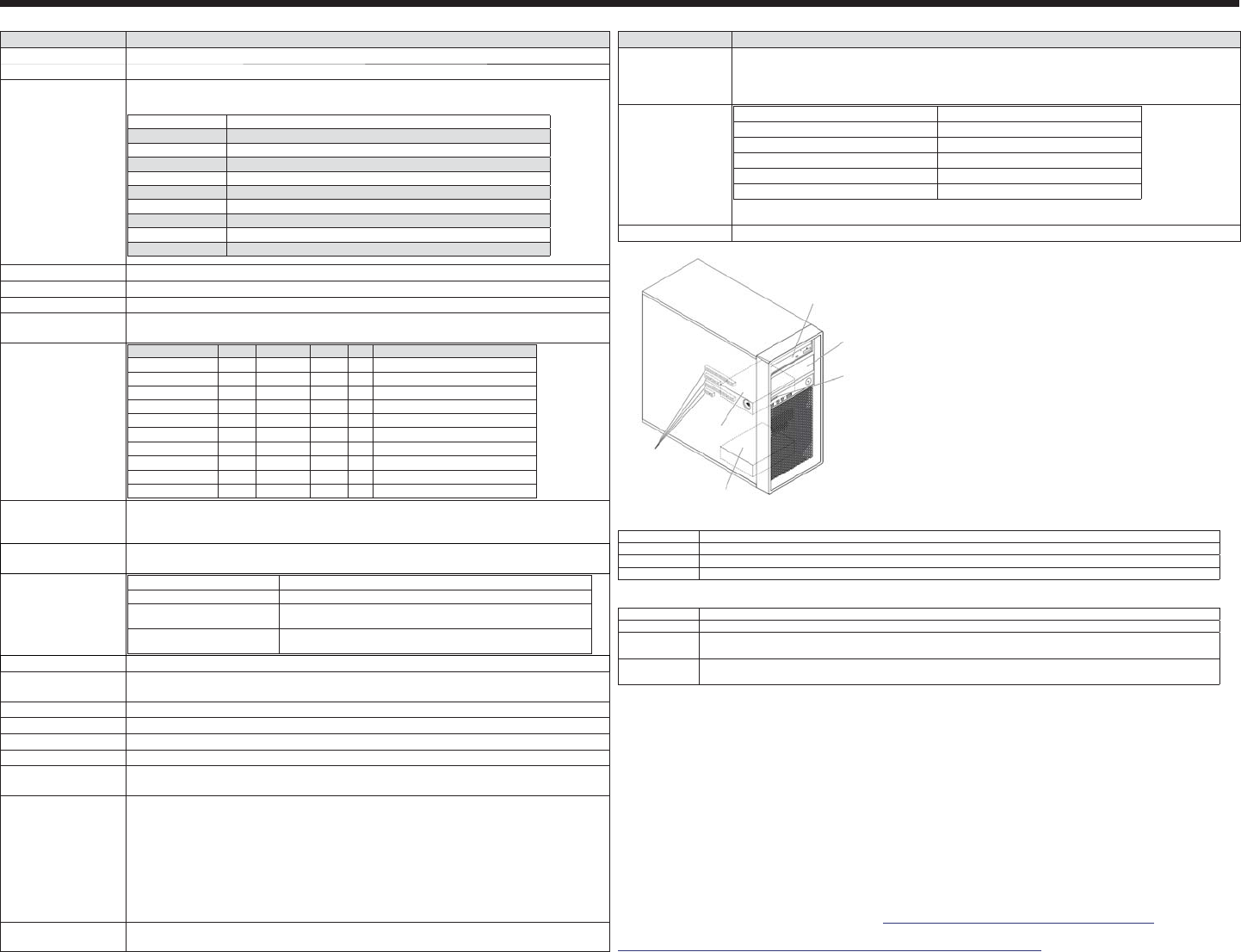

ThinkStation P410 Platform Specifi cations Product Specifi cations Reference (PSREF)

© Copyright Lenovo 2016. All rights reserved.

Components Specifi cation

Chipset Intel C612 Platform Controller Hub (PCH)

System mgmt Intel Active Management Technology 9

Processor

Up to one 140W Intel Xeon E5-1600 v4 family processors. Some Intel Xeon

E5-2600 v4 processers are also available:

E5-2637 v4 4C/3.5GHz/15MB/135W/DDR4-2400

E5-2623 v4 4C/2.6GHz/10MB/85W/DDR4-2133

E5-2620 v4 8C/2.1GHz/20MB/85W/DDR4-2133

E5-1680 v4 8C/3.4GHz/20MB/140W/DDR4-2400 333

E5-1660 v4 8C/3.2GHz/20MB/140W/DDR4-2400

E5-1650 v4 6C/3.6GHz/15MB/140W/DDR4-2400

E5-1630 v4 4C/3.7GHz/10MB/140W/DDR4-2400

E5-1620 v4 4C/3.5GHz/10MB/140W/DDR4-2400

E5-1607 v4 4C/3.1GHz/10MB/140W/DDR4-2133

E5-1603 v4 4C/2.8GHz/10MB/140W/DDR4-2133

Coprocessor None

Memory DIMM slots 4 DIMM sockets. 4-channel capable. RDIMM. ECC. DDR4-2400

Memory capacity 128GB (32GB x 4)

Graphics Two PCIe 3.0 x16 slots, up to two NVIDIA Quadro M4000, or up to one Quadro

M5000

Supporting Graphics

and

GPU computing

Adapter Cores Memory Power SLI Connector***

NVS 310 48 1GB 19.5W 2xDP

NVS 315 48 1GB 19.5W 2xDVI-I SL/2xDP

NVS 510 192 2GB 35W 4xmini DP

NVS 810 1024 4GB 68W 8xmini DP

Quadro K420 192 2GB 41W DVI-I DL+DP

Quadro K620 384 2GB 45W DVI-I DL+DP

Quadro K1200 512 4GB 45W 4xmini DP

Quadro M2000 768 4GB 75W 4xDP

Quadro M4000 1664 8GB 120W 4xDP

Quadro M5000 2048 8GB 150W DVI-I DL+4xDP

Disk drive

controller

RAID 0, 1, 5, 10 with onboard SATA controller in chipset, SATA 6Gb/s.

Optional RAID 0, 1, 10 with optional LSI 9340-8i PCIe adapter, 12Gb/s SAS

and SATA, optional upgrade to RAID 5 is available

Drive Bays Two external 5.25" fl ex bays, two internal 3.5" bays. Up to one 9.5mm optical

plus four 3.5"/2.5" disk drives plus three M.2 PCIe SSD (see right)

Supporting storage

3.5" HDD, 7.2K SATA6Gbs 500GB/1TB/2TB/3TB/4TB, 1TB/2TB hybrid

2.5" HDD, 10K SAS12Gbs 300GB/600GB

2.5" SSD, SATA6Gbs 180GB/240GB/256GB/480GB with OPAL,

256GB/512GB/1TB without OPAL

PCIe SSD, M.2 via PCIe

3.0 x4 adapter 256GB/512GB/1TB, NVMe

Flex connector None

Network interfaces One onboard gigabit ethernet, Intel I218LM, supports Wake-on-LAN. Optional

discrete ethernet adapters are available

HD Audio Realtek ALC662 codec

TPM TCG 1.2-compliant

Power supply One fi xed 450 watts, autosensing, 92%, 80 PLUS Platinum qualifi ed

Front ports Two USB 3.0, microphone (3.5mm), headphone (3.5mm)

Rear ports Two USB 2.0, four USB 3.0, one ethernet (RJ-45),

three analog audio ports (line-in, line-out, mic-in)

Additional ports

Supports the following optional ports:

Two IEEE 1394 (one on rear and one on front fl ex module) via PCIe adpater,

up to one adapter per system.

Two rear USB 3.0 per PCIe adapter, up to three adapters per system.

One rear Thunderbolt via PCIe adapter, or two front Thunderbolt (on fl ex

module) via PCIe adapter, front and rear Thunderbolt cannot be intermixed.

One rear serial via cable, up to one per system.

One front eSATA (on fl ex module), or one rear eSATA via cable and PCIe slot

bracket, up to one eSATA port per system

Media reader 9-in-1 USB 2.0 card reader. Optional 29-in-1 USB 2.0 card reader on fl ex

module

Expansion slots

Slot 1 PCIe 3.0 x16, full length, full height

Slot 2 PCIe 3.0 x8, full length, full height

Slot 3 PCIe 3.0 x16, full length, full height

Slot 4 PCIe 2.0 x4, half length, full height

Drive Bays

HDD bay 1 3.5", for one 3.5"/2.5" drive

HDD bay 2 3.5", for one 3.5"/2.5" drive

Flex bay 1 HH optical, or 3.5" HDD bay via optional conversion kit, or slim optical+3.5" HDD bay

kit via optional conversion kit, or fl ex module

Flex bay 2 HH optical, or 3.5" HDD bay via optional conversion kit, or slim optical+3.5" HDD bay

kit via optional conversion kit, or fl ex module

Note:

1. HDD bay 2 is not available when one Quadro M5000, two Quadro M4000, or two NVS 810 are used.

2. Flex module supports one or more of the following options: 9.5mm optical/29-in-1 USB 2.0 reader/one front IEEE 1394/one front

eSATA/two front Thinderbolt. Up to one fl ex module is supported per system.

3. Up to one slim optical+3.5" HDD bay kit is supported per system.

For the list of ISV certifi cations, please visit www.thinkworkstations.com/isv-certifi cations

For a list of all supported options, please visit

https://download.lenovo.com/pccbbs/options_iso/ocm_april_2016.xlsx sheet

Components Specifi cation

Mechanical

• 6.89"W x 16.77"D x 14.8"H

• 175mm W x 426mm D x 376mm H

• 34.17 lb (15.5kg) max confi guration

• 25-liter

Environmental

specifi cation

Temperature - operating 50 o F to 95 o F (10 o C to 35 o C)

Temperature - non operating (no package) 14 o F to 140 o F (-10 o C to 60 o C)

Temperature - non operating (with package) -40 o F to 140 o F (-40 o C to 60 o C)

Altitude - operating (Unpressurized): 0-10000ft (0-3048m)

Humidity - operating 10%~80%, non-condensing

Humidity - storage (with package) 10%~90%, non-condensing

RoHS-compliant, GREENGUARD on all models. EPEAT Gold rating, ENERGY STAR 6.1

qualifi ed on selected models.

Base warranty 1 or 3-year limited onsite service with 9x5/NBD

Flex bay 1

Flex bay 2

Front ports

HDD

bay 1

HDD bay 2

PCIe slots

1-4

(top-down)
