 Copyright Lenovo 2016. All rights reserved.

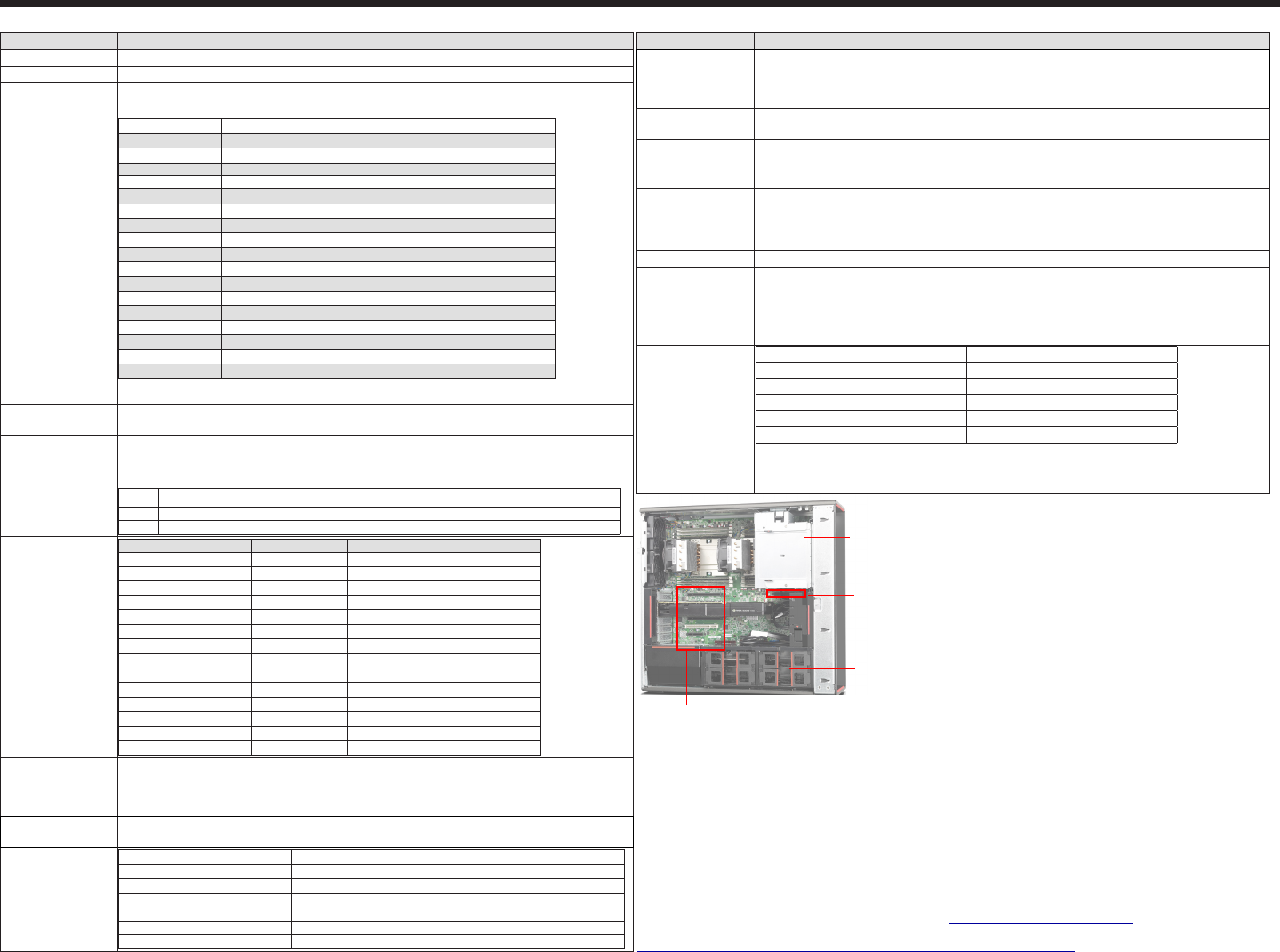

Components Specification

Chipset Intel C612 Platform Controller Hub (PCH)

System mgmt Intel Active Management Technology 9

Processor

Up to two 145W Intel Xeon E5-2600 v4 family processors.

Or up to two Intel Xeon E5-2620 v3 or E5-2609 v3 processors.

E5-2699 v4 22C/2.2GHz/55MB/145W/DDR4-2400

E5-2697A v4 16C/2.6GHz/40MB/145W/DDR4-2400

E5-2690 v4 14C/2.6GHz/35MB/135W/DDR4-2400

E5-2680 v4 14C/2.4GHz/35MB/120W/DDR4-2400

E5-2667 v4 8C/3.2GHz/25MB/135W/DDR4-2400

E5-2660 v4 14C/2GHz/35MB/105W/DDR4-2400

E5-2658 v4 14C/2.3GHz/35MB/105W/DDR4-2400

E5-2650 v4 12C/2.2GHz/30MB/105W/DDR4-2400

E5-2643 v4 6C/3.4GHz/20MB/135W/DDR4-2400

E5-2640 v4 10C/2.4GHz/25MB/90W/DDR4-2133

E5-2637 v4 4C/3.5GHz/15MB/135W/DDR4-2400

E5-2630 v4 8C/2.2GHz/20MB/85W/DDR4-2133

E5-2623 v4 4C/2.6GHz/10MB/85W/DDR4-2133

E5-2620 v4 8C/2.1GHz/20MB/85W/DDR4-2133

E5-2609 v4 8C/1.7GHz/20MB/85W/DDR4-1866

E5-2603 v4 6C/1.7GHz/15MB/85W/DDR4-1866

E5-2620 v3 6C/2.4GHz/15MB/85W/DDR4-1866

E5-2609 v3 6C/1.9GHz/15MB/85W/DDR4-1600

Coprocessor None

Memory DIMM

slots

12 DIMM sockets (6 DIMMs per processor), 8-channel capable (4-channel per

processor). RDIMM, ECC, DDR4-2400

Memory capacity 384GB, 2nd CPU is needed

Graphics,

GPU computing

Three PCIe 3.0 x16 slots, two via CPU1, one via CPU2.

Up to three graphics and GPU computing adapters, 2nd CPU is needed

PSU Maximum quantity of PCIe x16 adapters per system (by power)

650W 1x150W+2x75W with onboard SATA controller and up to two 120W CPU each

850W 1x300W+2x75W (up to two 120W CPU each), or 2x150W+1x75W

Supporting

Graphics and

GPU computing

Adapter Cores Memory Power SLI Connector***

NVS 310 48 1GB 19.5W 2xDP

NVS 315 48 1GB 19.5W 2xDVI-I SL/2xDP

NVS 510 192 2GB 35W 4xmini DP

NVS 810 1024 4GB 68W 8xmini DP

Quadro K420 192 2GB 41W DVI-I DL+DP

Quadro K620 384 2GB 45W DVI-I DL+DP

Quadro K1200 512 4GB 45W 4xmini DP

Quadro K2200 640 4GB 68W DVI-I DL+2xDP

Quadro K4200 1344 4GB 108W DVI-I DL+2xDP

Quadro K5200 2304 8GB 150W SLI DVI-I DL+DVI-D DL+2xDP

Quadro M4000 1664 8GB 120W 4xDP

Quadro M5000 2048 8GB 150W SLI DVI-I DL+4xDP

Quadro M6000 3072 24GB 250W DVI-I DL+4xDP

Tesla K40 2880 12GB 235W

Disk drive

controller

RAID 0, 1, 5, 10 with onboard SATA controller in chipset, SATA 6Gb/s.

RAID 0, 1, 5, 10 with optional LSI RAID flex adapter, 12Gb/s SAS and SATA.

RAID 0, 1, 5, 6, 10 with optional LSI 9364-8i PCIe adapter, 1GB memory,

optional 1GB flash with super capacitor, 12Gb/s SAS and SATA

Drive Bays Two external 5.25" flex bays, four 3.5" internal bays. Each 3.5" bay can support

dual drives on selected models (see right)

Supporting

storage

3.5" SATA HDD, 7.2K 6Gbs 500GB/1TB/2TB/3TB/4TB/1TB hybrid

2.5" SAS HDD, 15K 12Gbs 300GB/600GB

2.5" SAS SSD, 12Gbs 200GB/400GB/800GB

2.5" SATA SSD, 6Gbs 180GB/240GB/256GB/480GB/512GB/1TB, optional OPAL

PCIe SSD, 2.5" 400GB

PCIe SSD, M.2 256 GB/512GB

PCIe SSD adapter 400GB (up to 4 per system)

Expansion slots

Slot 1: PCIe 3.0 x16, half length, full height, CPU2 needed

(full length, full height if no flex adapter)

Slot 2: PCIe 3.0 x16, full length, full height

Slot 3: PCIe 3.0 x8, full length, full height, CPU2 needed

Slot 4: PCIe 3.0 x16, full length, full height

Slot 5: PCI, full length, full height

Slot 6: PCIe 2.0 x4, half length, full height

Also supports one flex connector

HDD 1 HDD 3

HDD 2 HDD 4

Expansion slots 1-6

(top-down)

Flex connector

ThinkStation P710 Platform Specifications Product Specifications Reference (PSREF)

For the latest list of ISV certifications, please visit www.lenovo.com/support/ISV

For a list of all supported options, please visit

https://download.lenovo.com/pccbbs/options_iso/ocm_april_2016.xlsx sheet

Components Specification

Flex connector

One flex connectors (see right), supports one of the following:

• Up to one LSI RAID flex adapter for SATA/SAS RAID

• Up to one Multi-I/O flex adapters for two PCIe SSD

• Up to one M.2 flex adapters for two M.2 PCIe SSD

Network

interfaces

Integrated two-port gigabit ethernet (Intel i218LM and i210AT), supports Wake-

on-LAN. Optional discrete ethernet adapters are available

HD Audio Realtek ALC662 codec

TPM TCG 1.2-compliant

Power supply One fixed 650 watts or 850 watts, autosensing, 92%, 80 PLUS Platinum qualified

Front ports Four USB 3.0 (one Diagnostic, one Always On),

one combo audio/microphone jack (3.5mm)

Rear ports Four USB 2.0, four USB 3.0 (blue), one serial (9-pin), two ethernet (RJ-45),

three analog audio ports (line-in, line-out, mic-in), two PS/2

Media reader 9-in-1 USB 2.0 card reader. Optional 29-in-1 USB 3.0 card reader on flex module

IEEE 1394 Optional. Up to one 6-pin port on rear, one 6-pin port on flex module

Thunderbolt Optional. Up to one port on rear, or two ports on flex module

Mechanical

• 36-liter: 175mm/6.89" W x 485mm/19.1" D x 446mm/17.6" H (with feet)

• Tool-less parts: all except CPU fansink

• 28.66 lb (13kg) max configuration

Environmental

specification

Temperature - operating 50 o F to 95 o F (10 o C to 35 o C)

Temperature - non operating (no package) 14 o F to 140 o F (-10 o C to 60 o C)

Temperature - non operating (with package) -40 o F to 140 o F (-40 o C to 60 o C)

Altitude - operating (Unpressurized): 0-10000ft (0-3048m)

Humidity - operating 10%~80%, non-condensing

Humidity - storage (with package) 10%~90%, non-condensing

RoHS-compliant, GREENGUARD on all models. EPEAT Gold rating, ENERGY STAR 6.1

qualified on selected models.

Base warranty 3-year limited onsite service with 9x5/NBD

Drive Bays

HDD 1-4: Standard 3.5" HDD bay, up to four 3.5" or 2.5" disk drives.

On selected models, each 3.5" bay can supports 2.5" (9mm or less) drive plus 3.5"drive, or

two 2.5" (15mm or less) drives.

Flex bay: Two 5.25" flex bays, for HH optical drives.

Or up to one optional flex module (Flex module supports one or more of the following

options: 9.5mm optical/29-in-1 USB 3.0 reader/front IEEE 1394/front eSATA).

Or up to two HDD bays for two drives, front access, 3.5" or 2.5" each

Two 5.25"

flex bays
