Lenovo S6000H TABLET PC IDEATAB S6000-H User Manual

Lenovo (Shanghai) Electronics Technology Co., Ltd TABLET PC IDEATAB S6000-H

Contents

User Manual

Quick Start GuideY
IdeaTab
S6000
Welcome
Please read this guide carefully before using your IdeaTab. The guide will help you learn
tips on setting and using IdeaTab.
The information in this guide is based on default settings. Illustrations and screenshots
used here may differ from the actual product appearance and screen displays.
Earphone jack
Power button Front camera
Microphone
Getting started
Screen lock/unlock
In standby mode, press the Power button to lock your IdeaTab. To unlock the screen,
press the Power button, and then drag the on-screen slider to enter the interface displayed
before it locks.
Sleep/Wake
If you do not touch the screen for a while, IdeaTab dims its screen to enter sleep mode
for power saving.
Turning IdeaTab off
While in standby mode, press and hold the Power button and then follow the on-screen
instructions to confirm shutdown.
Speaker
HDMI
Micro USB
SD &SIM Card Slot
Volume button
Speaker Back camera
Technical specifications
L × W × H: 260mm x 180mm x 8.6mm
6350 mAh
Weight: Appr. 560g
Color: Black
Android 4.2 (Jelly Bean)
Bluetooth 4.0
10.1", 16:10, 1,280 x 800 dpi
Micro USB
*5.0 M (back) 0.3 M (front)
64 GB (max.)
The compatibility issue may occur with some device with
Bluetooth 4.0 on the market.
WLAN
MTK MT8389/8125 (quad-core)
Dimensions/Weight/Color
Integrated camera
Screen
Battery
CPU
* GPS
3.5 mm
earphone jack SD card slot
Operating system
Hardware
Operating system
Interface
Communication
* Based on actual measurements.
* SIMCard
* 3G WWAN
(3G data only)
Model: IdeaTab S6000-F
Version: WLAN
IdeaTab S6000-H
3G+WLAN
Charging IdeaTab
You can charge your IdeaTab whether it is on or off.
When the battery level falls below the threshold, IdeaTab will alert you with a tone and
the battery status icon will change into . We recommend you plug the AC power
adapter into your IdeaTab in the direction of the orange arrow as shown above figure.
If your IdeaTab is being charged while it is on, the battery status icon (located on the
status bar of the screen) will appear as . After the battery has finished charging, the
status bar will show the fully charged icon .
For more information on battery safety, see the Important Product
Information Guide.
Inserting SIM card & SD card
IdeaTab supports SIM card and SD card extension. To insert SIM card and SD card, do
the following:
Step , Open the side cover.
Step , Insert the SIM card and the SD card as shown in the figure.
Close the side cover.
* SIM card for 3G data only.
SIM Card
SD Card

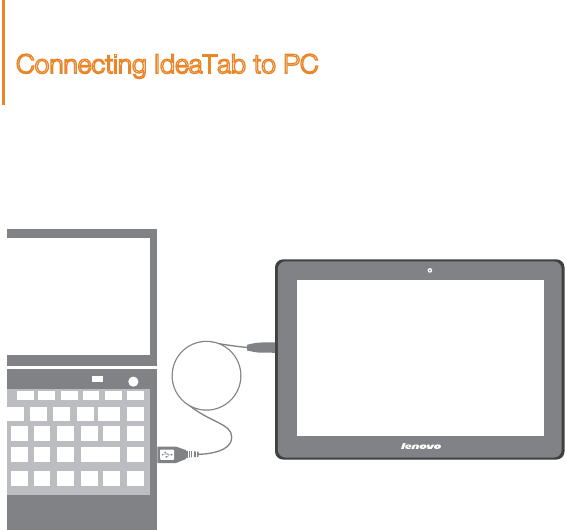

Connecting IdeaTab to PC
You can connect IdeaTab to the PC's USB port with the cable provided for battery
charging or data transferring with the PC.
Installing apps and games
Transfer the APK setup file from the PC to IdeaTab, and then open it in the file manager
on IdeaTab. The installer will run automatically.

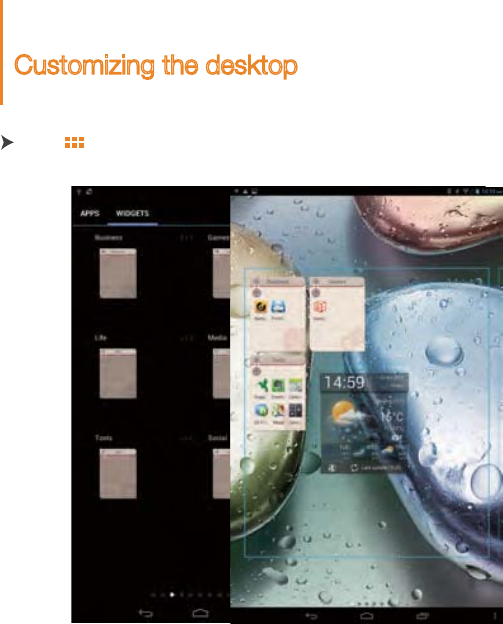

Customizing the desktop
Adding apps/widgets to the desktop
Tap and hold the icon of your desired application or widget, until the desktop
background pattern appears on the screen, and then place the icon wherever you wish.
Touch > WIDGETS. You can drag your favorite applications and widgets onto the
desktop.
Tap and hold any icon on the desktop and then drag it to your preferred location or
delete it from the desktop.
Editing the desktop

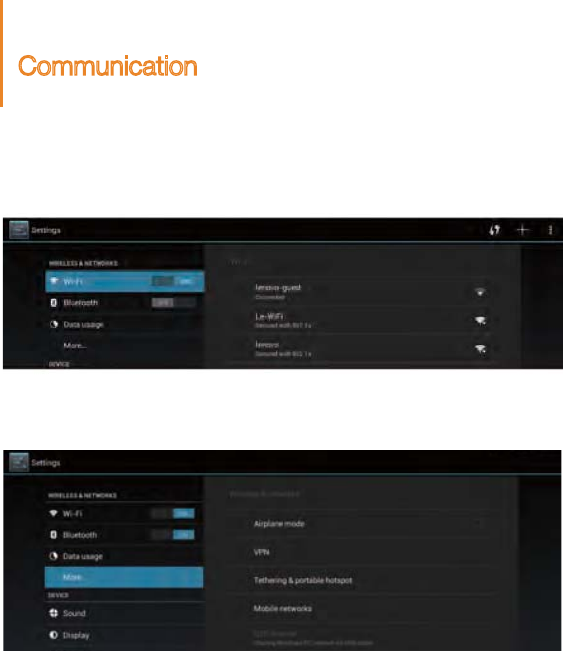

Communication
If your computer has an integrated Bluetooth adapter card, it can connect to and transfer
data wirelessly with other Bluetooth enabled devices, such as notebook computers, PDAs
and cell phones. You can transfer data between these devices without cables and up to
10 meters range in open space.
Bluetooth connection
The actual maximum range may vary due to interference and transmission barriers.
Wi-Fi connection
You can connect your IdeaTab to the Internet using Wi-Fi. When Wi-Fi is on, your IdeaTab
will automatically scan for Wi-Fi hotspots within range. Select the Wi-Fi hotspot you want
to connect to.
Mobile networks
You can enable/disable mobile data connection and change the network mode and
access point in Mobile data settings.
China unicom
Browsing the web
Add a bookmark
Search or type a URL
Bookmarks, history and saved pages
The above functions require your IdeaTab to connect to the Internet via wirelless network.
Touch > Browser. Now you can browse the Web and download applications.
Camera
Camera
The camera has following functions: photo, video, panorama and multi-angle etc.
Touch > Camera. Now you can record the wonderful moments of your life with
the camera.
Touch > Gallery. Now you can view photos/videos from your IdeaTab.
Album
You can zoom in/out a photo by double-tapping or moving your two fingers apart/together
while touching the screen.
Learn more
148511231
For more information about IdeaTab functions and useful manuals, go to
http://support.lenovo.com/. To read this manual on your IdeaTab, please
access “User Guide” from the Browser favorites in your IdeaTab.
Getting support
For support on network service and billing, please contact your wireless
network operator. For instructions on how to use your IdeaTab, go to
http://support.lenovo.com/.
Legal notices
Lenovo, the Lenovo logo, and IdeaTab are trademarks of Lenovo in the
United States, other countries, or both.
Other company, product, or service names may be trademarks or service
marks of others.
First Edition (October 2013)
© Copyright Lenovo 2013.
LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is
delivered pursuant a General Services Administration “GSA” contract, use,
reproduction, or disclosure is subject to restrictions set forth in Contract No.
GS-35F-05925.
Printed in China
