T2224zD Flat Panel Monitor
User’s Guide
Product Number
60CB-MAR6-WW
First Edition (October 2014)
© Copyright Lenovo 2014
All rights reserved.
LENOVO products, data, computer software, and services have been developed exclusively at private expense and are sold to
governmental entities as commercial items as defined by 47 C.F.R. 2.101 with limited and restricted rights to use, reproduction and
disclosure.
LIMITED AND RESTRICTED RIGHTS NOTICE: IF products, data, computer software, or services are delivered pursuant a
General Services Administration "GSA" contract, use, reproduction, or disclosure is subject to restrictions set forth in
Contract No. GS-35F-05925.
© Copyright Lenovo 2014
i

 
 
  
 

 
 
 
 
 
 
Contents
Product Number ............................................................................................................................................................................................................. i
Contents ........................................................................................................................................................................................................................ ii
Safety information..........................................................................................................................................................................................................iii
Safety and Maintenance Guidelines............................................................................................................................................................................. iv
Chapter 1 Getting started ......................................................................................................................................................................................... 1‐1
Shipping contents.......................................................................................................................................................................................................1‐1
Product overview .......................................................................................................................................................................................................1‐2
Types of adjustments ................................................................................................................................................................................................1‐2
User controls................................................................................................................................................................................................................1‐3
Cable lock slot..............................................................................................................................................................................................................1‐3
Web‐Camera...................................................................................................................................................................................................................1‐4
Speaker ............................................................................................................................................................................................................................1‐4
Setting up your monitor...........................................................................................................................................................................................1‐5
Connecting and turning on your monitor..........................................................................................................................................................1‐5
Registering your option............................................................................................................................................................................................1‐8
Chapter 2 Adjusting and using your monitor...........................................................................................................................................................2‐1
Comfort and accessibility ........................................................................................................................................................................................2‐1
Arranging your work area........................................................................................................................................................................................2‐1
Quick tips for healthy work habits .......................................................................................................................................................................2‐2
Accessibility information .........................................................................................................................................................................................2‐2
Adjusting your monitor image...............................................................................................................................................................................2‐3
Using the direct access controls............................................................................................................................................................................2‐3
Using the On‐Screen Display (OSD) controls ....................................................................................................................................................2‐3
Selecting a supported display mode....................................................................................................................................................................2‐6
Image rotation ................................................................................................................................................................................................................2‐6
Audio description ...........................................................................................................................................................................................................2‐7
Understanding power management ...................................................................................................................................................................2‐7
Caring for your monitor ...........................................................................................................................................................................................2‐7
Detaching the monitor stand .................................................................................................................................................................................2‐8
Wall Mounting (Optional) .............................................................................................................................................................................................2‐8
Chapter 3 Reference information.............................................................................................................................................................................3‐1
Monitor specifications..............................................................................................................................................................................................3‐1
Troubleshooting..........................................................................................................................................................................................................3‐2
Manually installing the monitor driver...............................................................................................................................................................3‐4
Service information ...................................................................................................................................................................................................3‐7
Appendix A. Service and Support ............................................................................................................................................................................A‐2
Registering your option........................................................................................................................................................................................... A‐2
Online technical support ........................................................................................................................................................................................ A‐2
Telephone technical support................................................................................................................................................................................. A‐2
Worldwide telephone list ....................................................................................................................................................................................... A‐2
Appendix B. Notices .................................................................................................................................................................................................B‐5
Recycling information ...............................................................................................................................................................................................B‐6
Collecting and recycling a disused Lenovo computer or monitor .............................................................................................................B‐6
Disposing of Lenovo computer components....................................................................................................................................................B‐6
Trademarks...................................................................................................................................................................................................................B‐7
Turkish statement of compliance .........................................................................................................................................................................B‐8
Ukraine RoHS ..................................................................................................................................................................................................................B‐8
India RoHS .......................................................................................................................................................................................................................B‐8
© Copyright Lenovo 2014
ii
Safety information
General Safety guidelines
For tips to help you use your computer safety, go to:
http://www.lenovo.com/safety

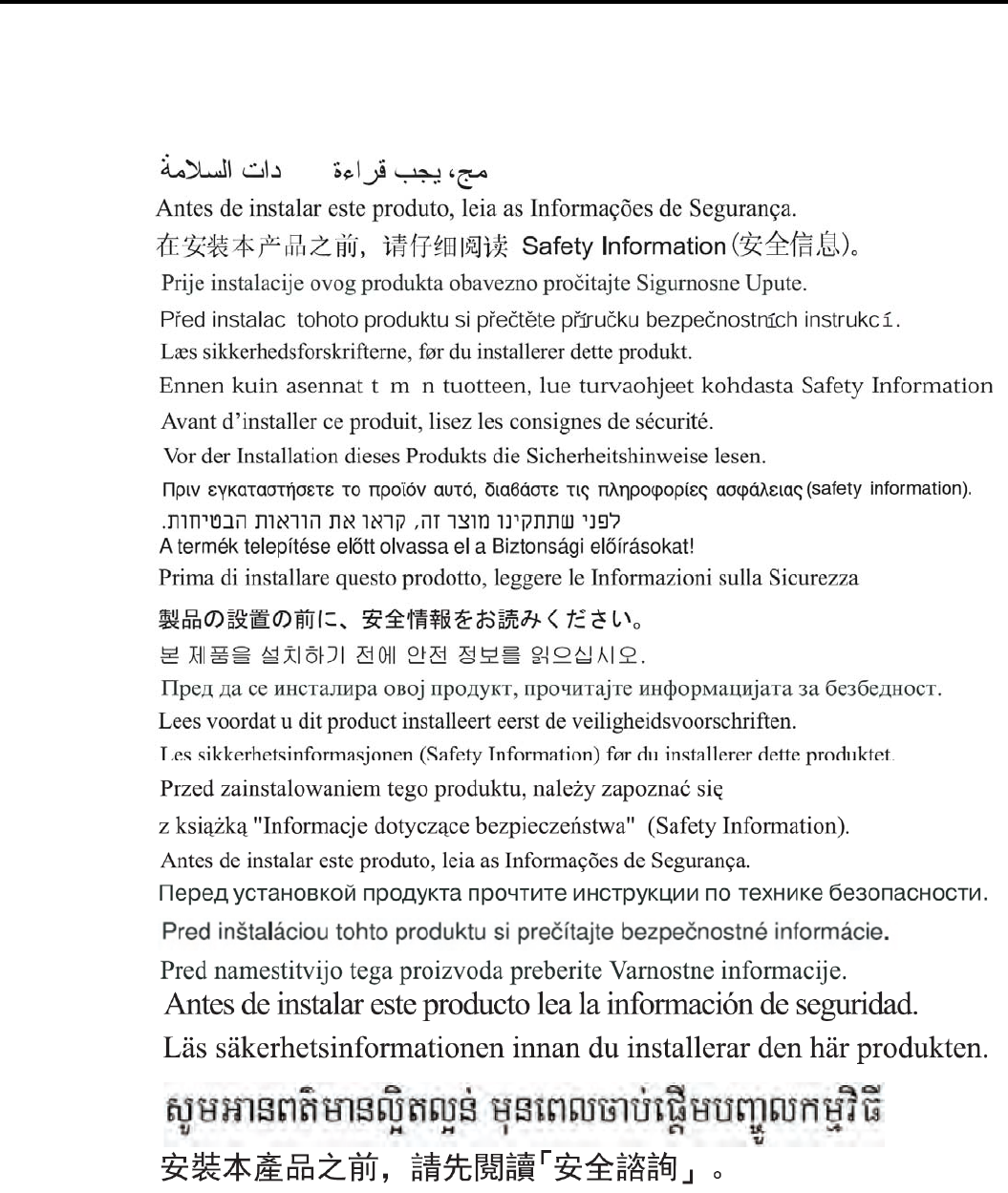

Before installing this product, read the Safety Information.
© Copyright Lenovo 2014
iii
Safety and Maintenance Guidelines
Important Safety Information
The power cord is designed for use with your monitor. To use a different cord, use only a power source and
connection compatible with this monitor.
WARNING: Always connect your monitor, the computer, and other equipment to a grounded (earthed) power
outlet. To reduce the risk of electric shock or damage to your equipment, do not disable the power cord grounding
feature. The grounding plug is an important safety feature.
WARNING: For your safety, be sure that the grounded power outlet you plug the power cord into is easily
accessible to the operator and located as close to the equipment as possible. To disconnect power from the
equipment, unplug the power cord from the power outlet by grasping the plug firmly. Never pull on the cord.
CAUTION: To protect your monitor, as well as your computer, connect all power cords for your computer
and its peripheral devices (such as a monitor, printer, or scanner) to a surge protection device such as a power
strip with surge protection or uninterruptible power supply (UPS). Not all power strips provide surge
protection; the power strips must be specifically labelled as having this ability. Use a power strip whose
manufacturer offers a damage replacement policy, so you can replace your equipment if surge protection fails.
CAUTION: A certified power supply cord has to be used with this equipment. The relevant national installation
and/or equipment regulations shall be considered. A certified power supply cord not lighter than ordinary polyvinyl
chloride flexible cord according to IEC 60227 (designation H05VV-F 3G 0.75mm² or H05VVH2-F2 3G 0.75mm²) shall
be used. An alternative flexible cord is synthetic rubber.
Safety Precautions
■Use only a power source and connection compatible with this monitor, as indicated on the label/back plate
of the monitor.
■Be sure the total ampere rating of the products connected to the outlet does not exceed the current rating of the
electrical outlet, and the total ampere rating of the products connected to the power cord does not exceed the
rating of the power cord. Look on the power label to determine the ampere rating (Amps or A) for each device.
■ Install your monitor near a power outlet that you can easily reach. Disconnect the monitor by grasping the plug
firmly and pulling it from the outlet. Never disconnect the monitor by pulling the cord.
■ Do not allow anything to rest on the power cord. Do not walk on the cord.
■ While using VESA mount application, the AC Inlet must face to down side. Do not face any other position.
Maintenance Guidelines
To enhance the performance and extend the life of your monitor:
■ Do not open your monitor cabinet or attempt to service this product yourself. If your monitor is not operating
properly or has been dropped or damaged, contact your Lenovo authorized dealer, reseller, or service provider.
■ Adjust only those controls that are described in the operating instructions.
■ Turn your monitor off when not in use. You can substantially increase the life expectancy of the monitor by using a
screen saver program and turning off the monitor when not in use.
■ Keep your monitor in a well-ventilated area, away from excessive light, heat, or moisture.
■ Slots and openings in the cabinet are provided for ventilation. These openings must not be blocked or covered.
Never push objects of any kind into cabinet slots or other openings.
■ Unplug the monitor from the power outlet before cleaning. Do not use liquid cleaners or aerosol cleaners.
■ Do not drop the monitor or place it on an unstable surface.
■ When removing the monitor base, you must lay the monitor face down on a soft area to prevent it from getting
scratched, defaced, or broken.
Cleaning the Monitor
The monitor is a high-quality optical device that requires special care when cleaning. To clean the monitor, follow
these steps:
1. Turn off the computer and the monitor.
2. Unplug your monitor from the power outlet before cleaning.
CAUTION: Do not use benzene, thinner, ammonia, or any volatile substance to clean the monitor screen or cabinet.
These chemicals may damage the monitor. Do not use liquid or aerosol cleaners. Never use water to clean an LCD
screen.
3. Wipe the screen with a dry, soft, clean cloth. If the screen requires additional cleaning, use an antistatic screen
cleaner.
4. Dust the monitor housing. Use a damp cloth to clean the cabinet. If the cabinet requires additional cleaning, use a
clean cloth dampened with isopropyl alcohol.
5. Plug in the monitor.
6. Turn on the monitor and the computer.
© Copyright Lenovo 2014
iv
Chapter 1 Getting started
This User’s Guide contains detailed information on the ThinkVision® T2224zD Flat Panel Monitor. For a quick overview,
please see the Setup Poster that was shipped with your monitor.
Shipping contents
The product package should include the following items:
● Information Flyer
● Flat Panel Monitor
● Power Cord
● Analog signal Cable
● USB 3.0 Cable
Note: To attach a VESA mount, please see
“Detaching the monitor stand” on page 2-8.
Chapter 1. Getting started 1-1
Product overview
This section will provide information on adjusting monitor positions, setting user controls, and using the cable lock
slot.
Types of adjustments
Tilt
Please see the illustration below for an example of the tilt range.
Swivel
With the built-in pedestal, you can tilt and swivel the monitor for the most comfortable viewing angle.
Height Adjustment
After pressing the top of the monitor, you can adjust the height of the monitor.
1-2 T2224zD Flat Panel Monitor User’s Guide
Monitor Pivot
- Adjust height to the top position before rotation the monitor.
- Rotate clockwise until the monitor stops at 90°.
User controls
Your monitor has controls on the front which are used to adjust the display.
For information on how to use these controls, please see “Adjusting your monitor image” on page 2-3.
Cable lock slot
Your monitor is equipped with a cable lock slot located on the rear of your monitor. Please follow
the instructions that came with the cable lock to attach it.
Chapter 1. Getting started 1-3
Web-Camera
Your monitor has embedded FHD Web-Camera Module; you can use it on living meeting and other net
communication.
Speaker
Your monitor has embedded a pair of speaks with 3W, and it can support DP audio output and
USB audio output. The USB cable need plug in when you use USB audio channel (picture2). DP
audio output doesn't need USB cable but DP cable (picture 1).
You can push side volume control key to adjust sound of speaker.
1-4 T2224zD Flat Panel Monitor User’s Guide
Setting up your monitor
This section provides information to help you set up your monitor.
Connecting and turning on your monitor
Note: Be sure to read the Safety Information located in the Flyer before carrying out this procedure.
1. Power off your computer and all attached devices, and unplug the computer power cord.
2. Connect the analog signal cable to the D-SUB connector of the monitor and the other end
on the back of the computer.
Chapter 1. Getting started 1-5
3. Connect one end of the DP cable to the DP connector on the back of the computer, and the
other end to the DP connector on the monitor. Lenovo recommends that customers who
require to use the DisplayPort input on their monitor purchase the "Lenovo DisplayPort to
DisplayPort cable 0A36537".
For more information, go to the following:
www.lenovo.com/support/monitoraccessories
4. Connect one end of the USB 3.0 cable to the USB connector on the back of the computer,
and the other end to the upstream USB connector on the monitor.
1-6 T2224zD Flat Panel Monitor User’s Guide
Note: In som
e circumstances when using USB 3.0 devices (hard drives or flash drives) and 2.4GHz
USB wireless devices(for example wireless mouse, keyboard, or headphone) at the same time ,USB
3.0 devices radio frequency interference may impact on 2.4GHz USB wireless devices, result in a
drop in throughput on the wireless transmission.
User may feel delayed response to mouse or keyboard inputs, missing keyboard characters or mouse
commands, decreased operating distance between the 2.4 GHz USB wireless device and its receiver.
Please refer to the following ways which helps to reduce this radio frequency interference.
1. Wireless dongle was moved away from the USB 3.0 device as possible as you can.
2. If the USB wireless receiver and USB 3.0 device have to be connected at the same side, Position your
USB wireless receiver as close as possible to your wireless peripheral device (mouse, keyboard,
headphones, etc.) Or use a standard USB-extender cable or Hub to position your USB wireless
receiver as far away as possible from your USB 3.0 port.
5. Connect one end of the HDMI cable to the HDMI connector on the back of the computer,
and the other end to the HDMI connector on the monitor. Lenovo recommends that
customers who require to use the HDMI input on their monitor purchase the “Lenovo
HDMI to HDMI cableOB47070”.
For more information, go to the following:
www.lenovo.com/support/monitoraccessories
6. Plug the monitor power cord and the computer cord into grounded electrical outlets.
Note: A certified power supply cord has to be used with this equipment. The relevant national
installation and/or equipment regulations shall be considered. A certified power supply cord not
lighter than ordinary polyvinyl chloride flexible cord according to IEC 60227 (designation
H05VV-F 3G 0.75mm² or H05VVH2-F2 3G 0.75mm²) shall be used. Alternative a flexible cord be
of synthetic rubber according to IEC 60245 (designation H05RR-F 3G 0.75mm²) shall be used.
7. Rotate the head of the monitor into portrait view.
Chapter 1. Getting started 1-7
8. Assembled Line Cleaner as shown below.
9. Power on the monitor and the computer.
10. To install the monitor driver, you must download it from Lenovo website，
(http://support.lenovo.com/us/en/documents/T2224zD) and follow the instructions on page 3-4.
Registering your option
Thank you for purchasing this Lenovo® product. Please take a few moments to register your
product and provide us with information that will help Lenovo to better serve you in the future.
Your feedback is valuable to us in developing products and services that are important to you, as
well as in developing better ways to communicate with you. Register your option on the
following Web site:
http://www.lenovo.com/register
Lenovo will send you information and updates on your registered product unless you indicate
on the Web site questionnaire that you do not want to receive further information.
1-8 T2224zD Flat Panel Monitor User’s Guide
Chapter 2 Adjusting and using your monitor
This section will give you information on adjusting and using your monitor.
Comfort and accessibility
Good ergonomic practice is important to get the most from your personal computer
and to avoid discomfort. Arrange your workplace and the equipment you use to suit
your individual needs and the kind of work that you perform. In addition, use
healthy work habits to maximize your performance and comfort while using your
computer.
Arranging your work area
Use a work surface of appropriate height and available working area to allow you to
work in comfort.
Organize you work area to match the way you use materials and equipment. Keep
your work area clean and clear for the materials that you typically use and place the
items that you use most frequently, such as the computer mouse or telephone, within
the easiest reach.
Equipment layout and setup play a large role in your working posture. The
following topics describe how to optimize equipment setup to achieve and maintain
good working posture.
Positioning and viewing your monitor
Position and adjust your computer monitor for comfortable viewing by considering
the following items:
● Viewing distance: Optimal viewing distances for monitors range from
approximately 510mm to 760mm (20 in to 30 in) and can vary depending on ambient
light and time of day. You can achieve different viewing distances by repositioning
your monitor or by modifying your posture or chair position. Use a viewing distance
that is most comfortable for you.
● Monitor height: Position the monitor so your head and neck are in a comfortable
and neutral (vertical, or upright) position. If your monitor does not have height
adjustments, you might have to place books or other sturdy objects under the base of
the monitor to achieve the desired height. A general guideline is to position the
monitor such that the top of the screen is at or slightly below your eye-height when
you are comfortably seated. However, be sure to optimize your monitor height so
the line of site between your eyes and the centre of the monitor suits your
preferences for visual distance and comfortable viewing when your eye muscles are
in a relaxed stated.
● Tilt : Adjust the tilt of your monitor to optimize the appearance of the screen
content and to accommodate your preferred head and neck posture.
● General location: Position your monitor to avoid glare or reflections on the
screen from overhead lighting or nearby windows.
The following are some other tips for comfortable viewing of your monitor:
● Use adequate lighting for the type of work you are performing.
● Use the monitor brightness, contrast, and image adjustment controls, if equipped,
to optimize the image on your screen to meet your visual preferences.
● Keep your monitor screen clean so you can focus on the screen’s contents.
Any concentrated and sustained visual activity can be tiring for your eyes. Be sure to
periodically look away from your monitor screen and focus on a far object to allow
your eye muscles to relax. If you have questions on eye fatigue or visual discomfort,
consult a vision care specialist for advice.
2-1T2224zD Flat Panel Monitor User’s Guide
Quick tips for healthy work habits
The following information is a summary of some important factors to consider to
help you remain comfortable and productive while you use your computer.
● Good posture starts with equipment setup: The layout of your work area and
the setup of your computer equipment have a large effect on your posture while
using your computer. Be sure to optimize the position and orientation of your
equipment by following the tips outlined in “Arranging your work area ” on page
2-1 so you can maintain a comfortable and productive posture. Also, be sure to use
the adjustment capabilities of your computer components and office furniture to best
suit your preferences now and as your preferences change over time.
● Minor changes in posture can help avoid discomfort: The longer you sit and
work in front of your computer, the more important it is to observe your working
posture. Avoid as summing any one posture for an extended period of time.
Periodically make minor modifications in your posture to help deter any discomforts
that might arise. Make use of any adjustments that your office furniture or
equipment provide to accommodate changes in posture
● Short, periodic breaks help ensure healthy computing: Because computing is
primarily a static activity, it is particularly important to take short breaks from your
work. Periodically, stand up in front of your work area, stretch, walk for a drink of
water, or otherwise take a short break from using your computer. A short break from
work gives your body a welcome change in posture and helps to ensure you remain
comfortable and productive while you do work.
Accessibility information
Lenovo is committed to providing greater access to information and technology to
people with disabilities. With assistive technologies, users can access information in
the way most appropriate to their disability. Some of these technologies are already
provided in your operating system; others can be purchased through vendors or
accessed at:
https://lenovo.ssbbartgroup.com/lenovo/request_vpat.php
Chapter 2. Adjusting and Using your monitor 2-2
Adjusting your monitor image
This section describes the user control features used to adjust your monitor image.
Using the direct access controls
The direct access controls can be used when the On Screen Display (OSD) is not displayed.
Table 2-1 Direct access controls
Icon Control Description
Microphone
Mute
Use the Microphone Mute button to mute
microphone.
Mute Use the Mute button to mute audio.
Hook Use the Hook button to accept an incoming
invite notification.
Main menu Open main OSD menu
Using the On-Screen Display (OSD) controls
The settings adjustable with the user controls are viewed through the On-Screen Display (OSD),
as shown below.
To use the controls:
1. Press to open the main OSD menu.
2. Use or to move among the icons. Select an icon and press to access that
function. If there is a sub-menu, you can move between options using or
then press to select that function. Use
,
or to make adjustments. Press
to save.
3. Press to move backwards through the sub-menus and exit from the OSD.
4. Press and hold for 10 seconds to lock the OSD. This will prevent accidental
adjustments to the OSD. Press and hold for 10 seconds to unlock the OSD
and allow adjustments to the OSD.
5.
Enables DDC/CI by default.
Use OSD Exit Key, press and hold the buttons for 10
seconds to disable/enable DDC/CI function. The words " DDC/CI
Disable/DDC/CI/Enable" shows on the screen.
2-3T2224zD Flat Panel Monitor User’s Guide
Table. 2-2 OSD functions
OSD Icon on Main
Menu
Submenu Description Controls and
Adjustments
Brightness/Contrast Brightness Adjusts overall brightness
Brightness/Contrast Contrast Adjusts difference between
light and dark areas.
Brightness/Contrast DCR Enable dynamic contrast ratio.
On
Off
Image Position
Horizontal Position
Vertical Position
Moves the image left or right.
Moves the image up or Down.
Image Setup
Automatic
Manual
Automatically optimizes the
image.
Manually optimizes the image.
See “Manual image setup” on
page 3-3
● Clock
● Phase
Properties
Input Signal
Analog
DISPLAYPORT
HDMI
Select Analog Signal
Select DP Signal
Select HDMI Signal
Image Properties
Color
Adjusts intensity of red, green,
and blue.
Preset mode
● Neutral
● sRGB
● Reddish
● Bluish
Custom
● Red: Increases or decreases
the saturation of ‘red’ in the
image.
● Green: Increases or
decreases the saturation of
‘green’ in the image.
● Blue: Increases or
decreases the saturation of
‘blue’ in the image.
● Save: Saves the
custom colour choices.
Image Properties
Scaling ● Full Screen
● Original AR
Image Properties
Over Drive
Response time enhancement
● On
● Off
Chapter 2. Adjusting and Using your monitor 2-4
Table 2-2 OSD functions
OSD Icon on Main
Menu Submenu Description
Options
Information
Shows resolution, refresh rate, and product details.
Note: This screen does not allow any changes to the settings.
This section lists the languages supported by your monitor.
Options
Language Note: The language chosen only affects the language of the OSD. It has
no effect on any software running on the computer.
Options
Menu Position
Default
Custom
Menu position adjusts menu location on the screen.
Returns the menu position to the default settings.
● Horizontal: Changes the horizontal position of the OSD
● Vertical: Changes the vertical position of the OSD.
Options Factory Default
● Cancel
● Reset
Resets monitor to the original factory settings.
Controls button and menu settings for accessibility preferences.
Options
Accessibility
Button repeat rate:
Select or to change.
● Off
● Default
● Slow
Menu time out: Sets the length of time the OSD will remain active after
the last time a button is pressed.
Options
DP Select
Select DP1.1 or DP1.2:
● DP1.1
● DP1.2
Controls button and menu settings for DP transmit speed.
2-5T2224zD Flat Panel Monitor User’s Guide
Selecting a supported display mode
The display mode the monitor uses is controlled by the computer. Therefore, refer to your computer
documentation for details on how to change display modes.
The image size, position and shape might change when the display mode changes. This is normal
and the image can be readjusted using automatic image setup and the image controls.
Unlike CRT monitors, which require a high refresh rate to minimize flicker, LCD or Flat Panel
technology is inherently flicker-free.
Note: If your system has previously been used with a CRT monitor and is currently configured to a
display mode outside the range of this monitor, you may need to re-attach the CRT monitor
temporarily until you have re-configured the system; preferably to 1920x1080 @ 60Hz, which is the
Native Resolution Display mode.
The display modes shown below have been optimized at the factory.
Table 2-3.Factory set display modes
Addressability Refresh rate
PAL VGA 50Hz
640x350 70Hz
640x480 60Hz,72Hz,75Hz
700x570 50Hz
720x400 70Hz
800x600 56Hz,60Hz,72Hz,75Hz
832x624 75Hz
1024x768 60Hz,70Hz,75Hz
1152x864 75Hz
1280x1024 60Hz,70Hz,75Hz
1366x768 60Hz
1440x900 60Hz,R60Hz
1600x900 60Hz,75Hz
1680x1050 60Hz,R60Hz
1920x1080 60Hz
Image rotation
Before rotating the monitor, you should set-up your computer to rotate the image. Rotating
the image may require special rotation software or you may find that your computer is
preloaded with video graphic drivers that allows image rotation. Check the Graphic
Properties setting on your computer to see if this feature is available. Try these steps to check
if image rotation is available on your computer.
1.Right-click on the desktop and click Properties.
2. Select the Settings tab and click Advanced.
3. If you have ATI, select the Rotation tab and set the preferred rotation. If you have nVidia,
click the nVidia tab, in the left-hand column select NV Rotate, and then select the preferred
rotation. If you have Intel, select the Intel graphics tab, click Graphic Properties, select the
Rotation tab, and then set the preferred rotation.
Check with the manufacturer of your computer to see if graphic drivers with image rotation
can be downloaded from their support website.
Chapter 2. Adjusting and Using your monitor 2-6
Audio description
If your Operation System(OS) is XP, for the XP limitation, 2 phenomena will be happened:
A) The USB audio is recognized as a speaker phone by PC, Speaker volume control icon will
be disappeared when you plug in the USB cable.
B) Because PC doesn't set the USB audio as the prior audio output automatically when you
first plug in the USB cable, and the monitor will not audio output.
You must setup it manually once, please refer to below step:
1> Open your “control panel” from the start.
2> Then open the “sounds and audio devices”.
3> Select the “audio” tab.
4> Select T2224zD as default audio output.
5> Apply it.
Understanding power management
Power management is invoked when the computer recognizes that you have not using your
mouse or keyboard for a user-definable period. There are several states as described in the table
below.
For optimal performance, switch off your monitor at the end of each working day, or whenever you
expect to leave it unused for long periods during the day.
Table2-4.Power indicator
State Power
Indicator
Screen Restoring Operation Compliance
On Steady green Normal
Standby/
Suspend
Steady amber Blank Press a key or move the
mouse.
There may be a slight
delay reappears.
Note: Standby also occurs
if there is no image output to
the monitor.
ENERGY
STAR
Off Off Off
Press power key to switch on
There may be a slight delay
before the image reappears.
ENERGY
STAR
Caring for your monitor
Be sure to turn off the power before you perform any maintenance on the monitor.
Do not:
● Apply water or liquid directly to your monitor.
● Use solvents or abrasives.
● Use flammable cleaning materials to clean your monitor or any other electrical equipment.
● Touch the screen area of your monitor with sharp or abrasive items. This type of contact may
cause permanent damage to your screen.
● Use any cleaner which contains an anti-static solution or similar additives. This may harm the
coating of the screen area.
Do:
● Lightly dampen a soft cloth with water and use this to gently wipe the covers and the screen.
● Remove grease or finger marks with a damp cloth and a little mild detergent.
2-7T2224zD Flat Panel Monitor User’s Guide
Detaching the monitor stand
After placing the monitor face down on a clean and soft surface, push the hook of the stand and lift
the stand up to remove it from the monitor .
Wall Mounting (Optional)
Refer to the instructions that come with the VESA compatible base mounting kit.
1. Place the monitor face down on a non-abrasive surface on stable flat table.
2. Remove the stand.
3. Attach the mounting bracket from the wall mounting kit to the monitor.
4. Mount the monitor on the wall by following the instructions that come with the base
mounting kit.
NOTE: For use only with UL(expand UL) Listed Wall Mount Bracket with minimum
weight/load bearing capacity of 6.00 kg. In order to fulfil TCO Certification for this wall
mounting option, shielded power cable is mandatory to be used.
Chapter 2. Adjusting and Using your monitor 3-8
Chapter 3 Reference information
This section contains monitor specifications, instructions to manually install the monitor driver,
troubleshooting information, and service information.
Monitor specifications
Table 3-1. Monitor specifications for type-model 60CB-MAR6-WW
Dimensions Height
Depth
With
356.79 mm (14.05 in.)
244.01 mm (9.61 in.)
512.86 mm (20.19 in.)
Stand Tilt range
Swivel
Lift
Pivot
Range: -5°/+30°
Range: -45°/+45°
Range: 110mm
Yes (clock wise 90 degree)
VESA mount Supported 100 mm (3.94 in.)
Image Viewable image size
Maximum height
Maximum width
Pixel pitch
546.1 mm (21.5 in.)
267.79 mm (10.54 in.)
476.06 mm (18.74 in.)
0.248mm (0.0098 in.) (V)
Power input Supply voltage
Max supply
current
100-240 VAC, 60/50 Hz
1.5A
Power consumption
Note: Power consumption figures
are for the monitor and the power
supply combined.
Max Consumption
Typical Consumption
Standby/Suspend
Off
＜45W
17.6W
＜0.5W
＜0.3W
Video input (Analog) Input signal
Horizontal addressability
Vertical addressability
Clock frequency
Analog Direct Drive, 75 ohm
0.7 V
1920 pixels (max)
1080 lines (max)
205 MHz
Video input (Digital) Input signal
Horizontal addressability
Vertical addressability
Clock frequency
DP
1920 pixels (max)
1080 lines (max)
10.8Gpbs(max)
Video input (Digital) Input signal
Horizontal addressability
Vertical addressability
Clock frequency
HDMI
1920 pixels (max)
1080 lines (max)
10.8Gpbs (max)
Communications VESA DDC CI
Altitude Test Operation 16404 ft
Supported Display Modes
(VESA Standard modes
between noted ranges)
Horizontal frequency
Vertical frequency
Native Resolution
30 kHz – 81 kHz
50 Hz – 75 Hz
1920 x 1080 at 60 Hz
3-1 T2224zD Flat Panel Monitor User’s Guide
Temperature Operating
Storage
Shipping
0° to 40°C (32° to 104° F)
-20° to 60°C (-4° to 140° F)
-20° to 60°C (-4° to 140° F)
Humidity Operating
Storage
Shipping
10% to 80%
5%° to 95%
5% to 95%
Troubleshooting
If you have a problem setting up or using your monitor, you might be able to solve it yourself.
Before calling your dealer or Lenovo, try the suggested actions that are appropriate to your
problem.
Table3-2.Troubleshooting
Problem Possible cause Suggested action Reference
The words” Out The system is set ● If you are replacing an old “Selecting a supported
of Range” are to a display monitor, reconnect it and display mode” on page
shown on the mode which is adjust the display mode to 2-6
screen, and the not supported b
y
within the specified range
power indicator is the monitor. for your new monitor.
flashing green. ● If using a Windows
system, restart the system
in safe mode, then select a
supported display mode
for your computer.
● If these options do not
work, contact the
Customer Support Centre.
The image quality The video signal Be sure the signal cable is “Connecting and turning
is unacceptable. cable is not
connected with
the monitor or
system
completely.
firmly plugged into the
system and monitor.
on your monitor” on
page 1-5
The image quality
is unacceptable. The color
settings may be
incorrect.
Select another colour setting
from the OSD menu.
“Adjusting your monitor
image” on page 2-3
The image quality The automatic Perform automatic image “Adjusting your monitor
is unacceptable. image setup
function was not
performed.
setup. image” on page 2-3
The power ● The monitor’s ● Be sure the power cord is “Connecting and turning
indicator is not lit power switch connected properly. on your monitor
and there is no is not switched ● Be sure the outlet has ” on page 1-5
image. on.
● The power
cord is loose or
disconnected.
● There is no
power at the
outlet.
power.
● Power on the monitor.
● Try using another power
cord.
● Try using another
electrical outlet.
Chapter 3. Reference information 3-2
Table3-2.Troubleshooting(continued)
Problem Possible cause Suggested action Reference
Screen is blank The monitor is in ●Press any key on the “Understanding power
and power Standby/Suspend keyboard or move the management” on page
indicator is mode mouse to restore 2-7
steady amber or operation.
flashing green ●Check the Power
options settings on
your computer.
The power The video signal Be sure the video cable is “Connecting and turning
indicator is cable is loose or connected with the on your monitor
green, but there disconnected from system properly. ” on
is no image. the system or
monitor.
page 1-5
The power The monitor Ad
j
ust the bri
g
htness and “Adjusting your monitor
indicator is brightness and contrast setting on the image” on page 2-3
green, but there contrast are at the OSD menu.
is no image. lowest setting.
One or more of This is a If there are more than Appendix A, “Service
the pixels appear characteristic of the five pixels missing, and Support” on page
discoloured LCD technology
and is not an LCD
defect.
contact the Customer
Support Centre.
A-2
●Fuzzy lines in ● Image setup has Adjust the resolution “Adjusting your monitor
text or a not been settings on your system image” on page 2-3
blurry image. optimized to match the native
●Horizontal or ● Your system resolution for this
vertical lines Display monitor:
through the Properties setting 1920 x 1080 at 60 Hz.
image. have not been
optimized.
●Fuzzy lines in ● Image setup has Perform automatic image “Selecting a supported
text or a not been setup. If automatic image display mode” on page
blurry image. optimized setup does not help, 2-6
●Horizontal or ● Your system perform manual image
vertical lines Display setup.
through the Properties setting
image. have not been
optimized.
●Fuzzy lines in ● Image setup has When working in the See the Advanced section
text or a not been native resolution, you of your system’s display
blurry image. optimized may find additional properties.
●Horizontal or ● Your system improvements by
vertical lines Display adjusting the Dots Per
through the Properties setting Inch (DPI) setting on
image. have not been
optimized.
your system.
The image is not It has not set the ●Use ThinkVision Duo “Using the direct access
acceptable when optimum resolution software to optimize controls” on page 2-3
switching to for each mode the dual screen
dual mode operation
●Adjust graphic card
resolution manually
Manual image setup
If automatic image setup does not establish the image that you prefer, perform
manual image setup.
3-3 T2224zD Flat Panel Monitor User’s Guide
Note: Have your monitor powered on for about 15 minutes, until the monitor warms up.
1.Press at the bottom of the
monitor to open the OSD menu.
2.Use or to select and press to access.
3.Use or to select Manual and press to access.
4.Use or to select Clock and Phase adjustment.
●Clock (pixel frequency) adjusts the number of pixels scanned by one Horizontal
sweep. If the frequency is not correct, the screen shows vertical Stripes and the
picture does not have the correct width.
●Phase adjusts the phase of the pixel clock signal. With a wrong phase adjustment,
the picture has horizontal disturbances in light picture.
4.When the image no longer looks distorted, save the Clock and Phase adjustments.
5.Press
to leave the OSD menu.
Manually installing the monitor driver
Below are steps for manually installing the monitor driver in Microsoft Windows 8.1,
Microsoft Windows 8, Microsoft Windows 7.
Installing the monitor driver in Windows 8.1
To install the device driver in Microsoft® Windows 8.1, do the following:
Note: You must download the driver of your operation system from the Lenovo
website (http://support.lenovo.com/us/en/documents/T2224zD)
1. Turn off the computer and all attached devices.
2. Ensure that the monitor is connected correctly.
3. Turn on the monitor and then turn on the computer. Allow your computer to boot
into Windows 8.1 operating system.
4. On the Desktop, move mouse to low-right corner of screen, choose Setting, double click
Control Panel, and then double click the icon of Hardware and Sound, and then clicking
Display.
5. Click the Change the display settings tab.
6. Click the Advanced Settings icon.
7. Click the Monitor tab.
8. Click the Properties button.
9. Click the Driver tab.
10. Click Update Driver, then click Browse the computer to find the driver program.
11. Select Pick from the list of device driver program on the computer.
12. Click the Have Disk button. Click the Browse button and navigate to the directory that you
put your download drivers in.
13. Select the “T2224zD.inf” file and click the Open button. Click the OK button.
14. Select Lenovo T2224zD and click Next. The files will be copied from the directory to your
hard disk drive.
15. Close all open windows.
16. Restart the system. The system will automatically select the maximum refresh rate and
corresponding Colour Matching Profiles.
The system will automatically select the maximum refresh rate and corresponding color
Chapter 3. Reference information 3-4
matching profiles.
Note: On LCD monitors, unlike CRTs, a faster refresh rate does not improve display
quality. Lenovo recommends using either 1920 x 1080 at a refresh rate of 60 Hz, or
640 x 480 at refresh rate of 60 Hz.
Installing the monitor driver in Windows 8
To use the Plug and Play feature in Microsoft Windows 8, do the following:
Note: You must download the driver of your operation system from the Lenovo
website (http://support.lenovo.com/us/en/documents/T2224zD)
1.Turn off the computer and all attached devices.
2.Ensure that the monitor is connected correctly.
3.Turn on the monitor and then turn on the computer. Allow your computer to boot into
Windows 8 operating system.
4.On the Desktop, move mouse to low-right corner of screen, choose Setting, double click
Control Panel, then double click the icon of Hardware and Sound, and then clicking Display.
5.Click the Change the display settings tab.
6.Click the Advanced Settings icon.
7.Click the Monitor tab.
8.Click the Properties button.
9.Click the Driver tab.
10.Click Update Driver, then click Browse the computer to find the driver program.
11.Select Pick from the list of device driver program on the computer.
12. Click the Have Disk button. Click the Browse button and navigate to the
directory that you put your download drivers in.
13.Select the " T2224zD.inf "file and click the Open button. Click the OK button.
14. Select Lenovo T2224zD and click Next. The files will be copied from the directory to your
hard disk drive.
15. Close all open windows.
16. Restart the system. The system will automatically select the maximum refresh rate and
corresponding Colour Matching Profiles.
The system will automatically select the maximum refresh rate and corresponding
color matching profiles.
Note: On LCD monitors, unlike CRTs, a faster refresh rate does not improve display
quality. Lenovo recommends using either 1920 x 1080 at a refresh rate of 60 Hz, or
640 x 480 at a refresh rate of 60 Hz.
3-5 T2224zD Flat Panel Monitor User’s Guide
Installing the monitor driver in Windows 7
To use the Plug and Play feature in Microsoft Windows 7, do the following:
Note: You must download the driver of your operation system from the Lenovo
website (http://support.lenovo.com/us/en/documents/T2224zD)
1. Turn off the computer and all attached devices.
2. Ensure that the monitor is connected correctly.
3. Turn on the monitor and then turn on the computer. Allow your computer to boot
into Windows 7 operating system.
4. Open the Display Properties window by clicking Start, Control Panel and then
click the Hardware and Sound icon.
5. Click the Display icon.
6. Click the Adjust Resolution button.
7. Click the Advanced Settings button.
8. Click the Monitor tab.
9. Click the Properties button.
10. Click the Driver tab.
11. Open the "Update Driver Software-Generic PnP Monitor" window by clicking on Update
Driver and then click the "Browse my computer for driver software" button.
12. Select “Let me pick from a list of device drivers on my computer”.
13. Click the Have Disk button. Click the Browse button and navigate to the
directory that you put your download drivers in.
14. Select the “T2224zD.inf” file and click the Open button. Click the OK button.
15. Select Lenovo T2224zD and click Next. The files will be copied from the directory to
your hard disk drive.
16. Close all open windows.
17. Restart the computer.
The system will automatically select the maximum refresh rate and corresponding
color matching profiles.
Note: On LCD monitors, unlike CRTs, a faster refresh rate does not improve display
quality. Lenovo recommends using either 1920 x 1080 at a refresh rate of 60 Hz, or
640 x 480 at a refresh rate of 60 Hz.
Chapter 3. Reference information 3-6
Service information
Product numbers
The product number for your monitor is located on the side of the display bezel as shown below.
Customer responsibilities
The warranty does not apply to a product which has been damaged due to accident, misuse, abuse,
improper installation, usage not in accordance with product specifications and instructions, natural
or personal disaster, or unauthorized alterations, repairs or modifications.
The following are examples of misuse or abuse and not covered by warranty:
● Images burned on to the screen of a CRT monitor. Burned image is preventable by utilizing a
moving screen saver or power management.
● Physical damage to covers, bezel, base and cables.
● Scratches or punctures on monitor screens.
Getting further help
If you still can’t solve your problem, please contact the Customer Support Centre.
For more information on contacting the Customer Support Centre, please see
Appendix A, “Service and Support” on page A-2.
Service parts
The following parts are for use by Lenovo service, or Lenovo authorized dealers to support the
customer warranty. Parts are for service use only. The table below shows information for model
60CB-MAR6-WW.
Table 3-3. List of service parts
FRU (Field
Replaceable Unit)
Part number
Description colour
Machine Type
Model (MTM)
00PC012 T2224z - 21.5" FRU Monitor
(HDMI) Raven Black 60CB-MAR6-WW
00PC009 T2224z - Analog cable (1.8m,
RoHS) Raven Black 60CB-MAR6-WW
00PC010 T2224z - USB 3.0 cable (1.8m,
RoHS) Raven Black 60CB-MAR6-WW
00PC011 T2224z - FRU Stand and Base Raven Black 60CB-MAR6-WW
3-7 T2224zD Flat Panel Monitor User’s Guide
Appendix A. Service and Support
The following information describes the technical support that is available for your
product, during the warranty period or throughout the life of the product. Refer to
your Lenovo Statement of Limited Warranty for a fully explanation of Lenovo
warranty terms.
Registering your option
Register to receive product service and support updates, as well as free and
discounted computer Accessories and content. Go to:
http://www.lenovo.com/support
Online technical support
Online technical support is available during the life of your product through the
Lenovo Support Web site at http://www.lenovo.com/ support
Product replacement assistance or exchange of defective components also is
available during the warranty period, assistance for replacement or exchange of
defective components is available. In addition, if your option is installed in a Lenovo
computer, you might be entitled to service at your location. Your technical support
representative can help you determine the best alternative.
Telephone technical support
Installation and configuration support through the Customer Support Center will be
withdrawn or made available for a fee, at Lenovo’s discretion, 90 days after the
option has been withdrawn from marketing, Additional support offerings, including
step-by-step installation assistance, are available for a nominal fee.
To assist the technical support representative, have available as much of the
following information as possible:
●Option name
●Option number
●Proof of purchase
●Computer manufacturer, model, serial number, and manual
●Exact wording of the error message (if any)
●Description of the problem
●Hardware and software configuration information for your system
If possible, be at your computer. Your technical support representative might want
to walk you through the problem during the call.
Worldwide telephone list
Phone numbers are subject to change without notice. For the most current phone
Numbers,go to http://www.lenovo.com/support/phone
A-2 T2224zD Flat Panel Monitor User’s Guide
Country or Region Telephone Number
Argentina 0800-666-0011 (Spanish, English)
Australia 1-800-041-267 (English )
Austria 0810-100-654 (local phone) (German)
Belgium Warrant service and support: 02-339-36-11 (Dutch, French)
Bolivia 0800-10-0189 ( Spanish)
Brazil Calls made from within the Sao Paulo region: 11-3889-8986
Calls made from outside the Sao Paulo region: 0800-701-4815
(Portuguese)
Brunei Darussalam 800-1111 (English)
Canada 1-800-565-3344 (English, French)
Chile 800-361-213
(Spanish )
China Technical Support Line: 400-100-6000 (Mandarin)
China
(Hong Kong S.A.R.)
(852) 3516-8977
(Cantonese, English, Mandarin)
China
(Macau S.A.R.)
0800-807 / (852) 3071-3559
(Cantonese, English, Mandarin)
Colombia 1-800-912-3021 (Spanish)
Costa Rica 0-800-011-1029( Spanish )
Croatia 385-1-3033-120(Croatian)
Cyprus 800-92537(Greek)
Czech Republic 800-353-637(Czech)
Denmark Warranty service and support: 7010-5150 (Danish)
Dominican Republic 1-866-434-2080(Spanish )
Ecuador 1-800-426911 (OPCION 4) (Spanish )
Egypt Primary: 0800-0000-850
Secondary:0800-0000-744
(Arabic,English)
El Salvador 800-6264 (Spanish)
Estonia 372-66-0-800
(Estonian, Russian, English)
Finland Warranty service and support: +358-800-1-4260(Finnish)
France Warranty service and support (hardware): 0810-631-213(French)
Germany Warranty service and support: 0800-500-4618 (toll-free)(German)
Greece Lenovo Business Partner (Greek)
Guatemala Dial 999-9190, wait for operator, and request to reach 877-404-9661 (Spanish)
Honduras Dial 800-0123
(Spanish)
Hungary +36-13-825-716
(English, Hungarian)
India Primary: 1800-419-4666 (Tata)
Secondary: 1800-3000-8465 (Reliance)
Email: commercialts@lenovo.com
(English and Hindi)
Indonesia 1-803-442-425
62 213-002-1090 (Standard Charges Apply)
(English, Bahasa Indonesia)
Ireland Warranty service and support: 01-881-1444 (English)
Israel Givat Shmuel Service and Center: +972-3-531-3900
(Hebrew, English)
Italy Warranty service and support: +39-800-820094 (Italian)
Japan 0120-000-817
(Japanese, English)
Kazakhstan 77-273-231-427(Standard charges Apply) (Russian , English)
Korea 080-513-0880 (Collect Call)
02-3483-2829 (Toll Call) (Korean)
Latvia 371-6707-360(Latvian, Russian, English)
Notices A-3
Country or Region Telephone Number
Lithuania 370 5278 6602
(Italian, Russian, English )
Luxembourg ThinkServer and ThinkStation: 352-360-385-343 ThinkCentre and
ThinkPad: 352-360-385-222 (French)
Malaysia 1-800-88-0013
03-7724-8023 (Standard Charges Apply) (English)
Malta 356-21-445-566
(English, Italian, Maltese Arabic)
Mexico 001-866-434-2080(Spanish)
Netherlands 020-513-3939 (Dutch)
New Zealand 0508-770-506 (English )
Nicaragua 001-800-220-2282 (Spanish)
Norway 8152-1550(Norwegian)
Panama Lenovo Customer Support Center: 001-866-434(Toll-Free)(Spanish)
Peru 0-800-50-866 (OPCION 2) (Spanish)
Philippines 1-800-8908-6454 (GLOBE subscribers)
1-800-1441-0719 (PLDT subscribers)
(Tagalog, English)
Poland Laptops and tablets branded with logo Think: 48-22-273-9777
ThinkStation and ThinkServer: 48-22-878-6999
(Polish, English )
Portugal 808-225-115 (Standard Charges Apply)
(Portuguese)
Romania 4-021-224-4015
(Romanian)
Russia +7-499-705-6204
+7-495-240-8558
(Standard Charges Apply)(Russian)
Singapore 1-800-415-5529
6818-5315 (Standard Charges Apply)
(English, Mandarin, Bahasa Malaysia)
Slovakia ThinkStation and ThinkServer: 421-2-4954-5555
Slovenia 386-1-2005-60 (Slovenian)
Spain 34-917-147-833(Spanish)
Sri Lanka +9477-7357-123 (Sumathi Information systems) (English)
Sweden Warranty service and support: 077-117-1040 (Swedish)
Switzerland Warranty service and support: 0800-55-54-54 (German, French, Italian)
Taiwan 0800-000-702 (Mandarin)
Thailand 001-800-4415-734
(+662) 787-3067 (Standard Charges Apply)
(Thai, English)
Turkey 444-04-26 (Turkish)
United Kingdom Standard warranty support: 03705-500-900 ( local rate) Standard warranty
support: 08705-500-900
(English)
United States 1-800-426-7378 (English)
Uruguay 000-411-005-6649 (Spanish)
Venezuela 0-800-100-2011 (Spanish)
Vietnam 120-11072 (Toll Free)
84-8-4458-1042 (Standard Charges Apply) (Vietnamese, English)
B-4 T2224zD Flat Panel Monitor User’s Guide
Appendix B. Notices
Lenovo may not offer the products, services, or features discussed in this document
in all countries. Consult your local Lenovo representative for information on the
products and services currently available in your area. Any reference to a Lenovo
product, program, or service is not intended to state or imply that only that Lenovo
product, program, or service may be used. Any functionally equivalent product,
program, or service that does not infringe any Lenovo intellectual property right
may be used instead. However, it is the user’s responsibility to evaluate and verify
the operation of any other product, program, or service.
Lenovo may have patents or pending patent applications covering subject matter
described in this document. The furnishing of this document does not give you any
license to these patents. You can send license inquiries, in writing to:
Lenovo (United States),inc.
1009 Think Place – Building One
Morrisville, NC 27560
U.S.A.
Attention: Lenovo Director of Licensing
LENOVO PROVIDES THIS PUBLICATION “AS IS” WITHOUT WARRANTY OF
ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED
TO THE IMPLIED WARRANTIES OF NON-INFRINGEMENT,
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
Some jurisdictions do not allow disclaimer of express or implied warranties in
certain transactions, therefore, this statement may not apply to you.
This information could include technical inaccuracies or typographical errors.
Changes are periodically made to the information herein; these changes will be
incorporated in new editions of the publication. Lenovo may make improvements
and/or changes in the product(s) and/or the program(s) described in this
publication at any time without notice.
The products described in this document are not intended for use in implantation or
other life support applications where malfunction may result in injury or death to
persons. The information contained in this document does not affect or change
Lenovo product specifications or warranties. Nothing in this document shall operate
as an express or implied license or indemnity under the intellectual property rights
of Lenovo or third parties. All information contained in this document was obtained
from specific environments and presented as an illustration. The result obtained in
other operating environments may vary.
Lenovo may use or distribute any of the information you supply in any way it
believe appropriate without incurring any obligation to you.
Any references in this publication to non-Lenovo Web sites are provided for
convenience only and do not in any manner serve as an endorsement of those Web
sites. The materials at those Web sites are not part of the materials for this Lenovo
product, and use of those Web sites is at your own risk.
Any performance data contained herein was determined in a controlled environment.
Therefore, the result obtained in other operating environments may vary
significantly. Some measurements may have been made on development-level
systems and there is no guarantee that these measurements
will be the same on generally available systems. Furthermore, some measurements
may have been estimated through extrapolation. Actual results may vary. Users of
this document should verify the applicable data for their specific environment.
Notices B-5
Recycling information
Lenovo encourage owners of information technology (IT) equipment to responsibly
recycle their equipment when it is no longer needed. Lenovo offers a variety of
programs and services to assist equipment owners in recycling their IT products. For
information on recycling Lenovo products, go to:
http://www.lenovo.com/lenovo/environment/recycling
Collecting and recycling a disused Lenovo computer or monitor
If you are a company employee and need to dispose of a Lenovo computer or
monitor that is the property of the company, you must do so in accordance with the
Law for Promotion of Effective Utilization of Resources. Computers and monitors
are categorized as industrial waste and should be properly disposed of by an
industrial waste disposal contractor certified by a local government. In accordance
with the Law for Promotion of Effective Utilization of Resources, Lenovo Japan
provides, through its PC Collecting and Recycling Services, for the collecting, reuse,
and recycling of disused computers and monitors. For details, visit the Lenovo Web
site at
www.ibm.com/jp/pc/service/recycle/pcrecycle/. Pursuant to the Law for
Promotion of Effective Utilization of Resources, the collecting and recycling of
home-used computers and monitors by the manufacturer was begun in October 1,
2003. This service is provided free of charge for home-used computers sold after
October 1, 2003. For details, visit the Lenovo Web site at
www.ibm.com/jp/pc/service/recycle/personal/.
Disposing of Lenovo computer components
Some Lenovo computer products sold in Japan may have components that contain
heavy metals or other environmental sensitive substances. To properly dispose of
disused components, such as a printed circuit board or drive, use the methods
described above for collecting and recycling a disused computer or monitor.
B-6 T2224zD Flat Panel Monitor User’s Guide
Trademarks
The following terms are trademarks of Lenovo in the United States, other countries, or
both:
Lenovo
The Lenovo logo
ThinkCentre
ThinkPad
ThinkVision
Microsoft, Windows, and Windows NT are trademarks of the Microsoft group of
companies.
Other company, product, or service names may be trademarks or service marks of
others.
Notices B-7
Turkish statement of compliance
The Lenovo product meets the requirements of the Republic of Turkey Directive on the
Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment
(EEE).
Lenovo and the Lenovo logo are trademarks of Lenovo in the United States, other countries,
or both.
Ukraine RoHS
India RoHS
RoHS compliant as per E-Waste(Management & Handling)Rules,2011.
B-8 T2224zD Flat Panel Monitor User’s Guide

Navigation menu
