Lenovo TAB 7 Essential
Safety, Warranty & Quick Start Guide
Lenovo TB-7304F
Lenovo TB-7304I
Lenovo TB-7304X
Read this guide carefully before using your device.
All information labeled with * in this guide only refers to Lenovo TB-7304I and
Lenovo TB-7304X.
Reading before using your device
Reading first - regulatory information
Device models equipped with wireless communications comply with the radio
frequency and safety standards of any country or region in which it has been
approved for wireless use. In addition, if your product contains a telecom modem,
it complies with the requirements for connection to the telephone network in your
country.
Be sure to read the Regulatory Notice for your country or region before using the
wireless devices contained in your device. To obtain a PDF version of the Regulatory
Notice, refer to the “Downloading publications” section below.
Getting support
To get support on network services and billing, contact your wireless network
operator. To learn how to use your device and view its technical specifications, go to
http://support.lenovo.com.
Downloading publications
Electronic versions of your publications are available from http://support.lenovo.com.
To download the publications for your device, go to http://support.lenovo.com and
follow the instructions on the screen.
Accessing your User Guide
Your User Guide contains detailed information about your device. To access your
User Guide, go to http://support.lenovo.com and follow the instructions on the
screen.
Legal notices
Lenovo and the Lenovo logo are trademarks of Lenovo in the United States, other
countries, or both.
Other company, product, or service names may be trademarks or service marks of
others.
LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered
pursuant a General Services Administration “GSA” contract, use, reproduction, or
disclosure is subject to restrictions set forth in Contract No. GS-35F-05925.
1
The WLAN version (Lenovo TB-7304F) does not have a Nano-SIM card tray.
All pictures and illustrations in this document are for your reference only and may
differ from the final product.
Device overview
Model Name Version
Lenovo TB-7304F WLAN
Lenovo TB-7304I WLAN + WCDMA
Lenovo TB-7304X WLAN + LTE
1Front camera 2Speaker/Receiver 3Indicator
4Touch screen 5Power button 6Volume buttons
7Rear camera 8Micro USB connector Headset connector
Card tray 11 Microphone
1
2
5
3
56
7
8
9
10
11
4
10
9
2
Preparing your device
Use a microSD card (sold separately) for extra storage.
*To access cellular networks with your device (model number Lenovo TB-7304I and
Lenovo TB-7304X), insert a Nano-SIM card provided by your carrier into the tray as
shown below.

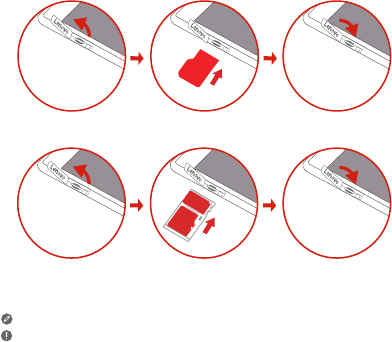

Step 1. Open the card tray cover.
Step 2. Insert the *Nano-SIM and microSD cards as shown.
Step 3. Replace the card tray cover.
1Front camera 2Speaker/Receiver 3Indicator
4Touch screen 5Power button 6Volume buttons
7Rear camera 8Micro USB connector Headset connector
Card tray 11 Microphone
Only Nano-SIM cards work with your device.
Do not insert or remove the Nano-SIM card while your device is powered on.
Doing so may cause permanent damage to your Nano-SIM card or device.
Figure 1: WLAN
Figure 2: WLAN + WCDMA/LTE
microSD
SIMSD
Nano-SIM
microSD
3
Using your device for the first time
You might need to charge the battery before using your device.
Insert the charger into the charging port as shown below.
Connect your device to a power outlet using the cable and USB power adapter
provided.
Turning on/o
Turn on: Press and hold the Power button until the screen
lights up.
Turn o: Press and hold the Power button for a few seconds,
then tap Power o.
Restart: Press and hold the Power button for about 10
seconds.
Low battery Fully charged Charging
4
Important safety and handling information
Plastic bag notice
Danger: Plastic bags can be dangerous. Keep plastic bags away from babies and
children to avoid danger of suocation.
Built-in rechargeable battery notice
Danger: Do not attempt to replace the internal rechargeable lithium ion battery.
Risk of explosion if the battery is replaced with an incorrect type. Contact Lenovo
Support for factory replacement.
Caution about high volume usage
Warning: Exposure to loud noise from any source for extended periods of time
may aect your hearing. The louder the sound, the less time is required before your
hearing could be aected. To protect your hearing:
• Limit the amount of time you use headsets or headphones at high volume.
• Avoid turning up the volume to block out noisy surroundings.
• Turn the volume down if you can’t hear people speaking near you.
If you experience hearing discomfort, including the sensation of pressure or fullness
in your ears, ringing in your ears or mued speech, you should stop listening to the
device through your headset or headphones and have your hearing checked.
To prevent possible hearing damage, do not listen at high volume levels for long
periods.
Safety instructions for parents and adult supervisors
Your mobile device is not a toy. Not recommended for children under 3 years of
age to play with it. As with all electrical products, precautions should be observed
during handling and using of electrical products to reduce the risk of electric shock. If
parents choose to allow children 3 or older to use the device, they should caution his
or her child about the potential hazard while using and handling the mobile device.
Parental should inspect the mobile device (including the ac power adapter and the
small part, as applicable) periodically for damage. Routinely check this mobile device
to ensure that the device is working properly and is safe for children to use.
5
Service and support information
The following information describes the technical support that is available for your
product, during the warranty period or throughout the life of your product. Refer to
the Lenovo Limited Warranty (LLW) for a full explanation of Lenovo warranty terms.
See “Lenovo Limited Warranty notice” later in this document for details on accessing
the full warranty.
Online technical support
Online technical support is available during the lifetime of a product at:
https://support.lenovo.com
Telephone technical support
You can get help and information from the Customer Support Center by telephone.
Before contacting a Lenovo technical support representative, please have the
following information available: model and serial number, the exact wording of any
error message, and a description of the problem.
Your technical support representative might want to walk you through the problem
while you are at your device during the call.
Worldwide Lenovo Support telephone list
Important: Telephone numbers are subject to change without notice. The most up-
to-date telephone list for the Customer Support Center is always available at:
http://www.lenovo.com/support/phone
If the telephone number for your country or region is not listed, contact your Lenovo
reseller or Lenovo marketing representative.
6
Warranty information
Lenovo Limited Warranty notice
This product is covered by the terms of the LLW, version L505-0010-02 08/2011.
Read the LLW at http://www.lenovo.com/warranty/llw_02. You can read the LLW
in a number of languages from this Web site. If you cannot view the LLW from the
Web site, contact your local Lenovo oce or reseller to obtain a printed version of
the LLW.
Warranty period and type of warranty service
Country or region Warranty period Type of
warranty service
United Kingdom, Israel, Australia, New
Zealand
Parts and Labor - 1 year
Battery Pack - 1 year1,3
Guatemala, Costa Rica, Venezuela, Peru,
Uruguay, Ecuador, Colombia, Chile,
Argentina, Indonesia, Vietnam, India,
Malaysia, Thailand, Philippines, Singapore,
Hong Kong, El Salvador, Taiwan, South
Korea, Mexico
Parts and Labor - 1 year
Battery Pack - 1 year 1,4
Russia, Ukraine, Egypt, Lebanon,
Morocco, South Africa, Tunisia, Mauritius,
Mozambique, United Arab Emirates,
Jordan, Kenya, Nigeria, Uganda, Ghana,
Oman, Tanzania, Namibia
Parts and Labor - 1 year
Battery Pack - 1 year 4
United States of America, Canada, Japan Parts and Labor - 1 year
Battery Pack - 1 year 1,5
Panama Parts and Labor - 1 year
Battery Pack - 1 year 2,4
Brazil Parts and Labor - 1 year
Battery Pack - 1 year 2,5
Spain, Switzerland, Portugal, Netherlands,
Belgium, Sweden, Denmark, Norway,
Finland, Estonia, Latvia, Lithuania, Iceland,
France, Germany, Italy, Austria
Parts and Labor - 2 years
Battery Pack - 1 year 1,3
Czech Republic, Hungary, Romania,
Bulgaria, Greece, Croatia, Slovenia,
Slovakia, Cyprus, Poland
Parts and Labor - 2 years
Battery Pack - 1 year 1,5
7
* Excludes some components. 90-day limited warranty for power adapters,
keyboards, plastics, and hinges.
Type of warranty service
1. Customer Replaceable Unit (“CRU”) Service
2. On-site Service
3. Courier or Depot Service
4. Customer Carry-In Service
5. Mail-in Service
6. Customer Two-Way Mail-in Service
7. Product Exchange Service
For a full explanation of the types of warranty service, refer to the full warranty.
See “Lenovo Limited Warranty notice” for details on accessing the full warranty.
EurAsia compliance mark
Country or region Warranty period Type of
warranty service
Turkey Parts and Labor - 2 years
Battery Pack - 2 years 3,4
Saudi Arabia Parts and Labor - 2 years
Battery Pack - 2 years 4
Serbia Parts and Labor - 2 years
Battery Pack - 1 year 1,4
8
Environmental, recycling, and disposal information
General recycling statement
Lenovo encourages owners of information technology (IT) equipment to responsibly
recycle their equipment when it is no longer needed. Lenovo oers a variety of
programs and services to assist equipment owners in recycling their IT products. For
information on recycling Lenovo products, go to http://www.lenovo.com/recycling.
Important battery and WEEE information
Recycling information for Japan
Recycling and disposal information for Japan is available at:
http://www.lenovo.com/recycling/japan
Additional recycling statements
Additional information about recycling device components and batteries is in your
User Guide. See “Accessing your User Guide” for details.
Battery recycling marks
Battery recycling information for Taiwan
ᔘ䴱⊖䄁ഔ᭬
Battery recycling information for the United States and Canada
Batteries and electrical and electronic equipment marked with the
symbol of a crossed-out wheeled bin may not be disposed as unsorted
municipal waste. Batteries and waste of electrical and electronic
equipment (WEEE) shall be treated separately using the collection
framework available to customers for the return, recycling, and treatment
of batteries and WEEE. When possible, remove and isolate batteries from
WEEE prior to placing WEEE in the waste collection stream. Batteries are
to be collected separately using the framework available for the return,
recycling, and treatment of batteries and accumulators.
Country-specific information is available at: http://www.lenovo.com/
recycling
9
Battery recycling information for the European Union
Energy eciency mark
Restriction of Hazardous Substances Directive (RoHS)
Turkey
The Lenovo product meets the requirements of the Republic of Turkey Directive on
the Restriction of the Use of Certain Hazardous Substances in Waste Electrical and
Electronic Equipment (WEEE).
Türkiye AEEE Yönetmeligine Uygunluk Beyanı
Bu Lenovo ürünü, T.C. Çevre ve Orman Bakanlıgı’nın “Atık Elektrikli ve Elektronik
Esya Bazı Zararlı Maddelerin Kullanımının Sınırlandırılmasına Dair Yönetmelik (AEEE)”
direktierine uygundur.
AEEE Yönetmeligine Uygundur.
Ukraine
Цим підтверджуємо, що продукція Леново відповідає вимогам нормативних
актів України, які обмежують вміст небезпечних речовин
India
RoHS compliant as per E-waste (Management) Rules.
Vietnam
Lenovo products sold in Vietnam, on or after September 23, 2011, meet the
requirements of the Vietnam Circular 30/2011/TT-BCT (“Vietnam RoHS”).
European Union
Lenovo products sold in the European Union, on or after 3 January 2013 meet
the requirements of Directive 2011/65/EU on the restriction of the use of certain
hazardous substances in electrical and electronic equipment (“RoHS recast” or
“RoHS 2”).For more information about Lenovo progress on RoHS, go to:
http://www.lenovo.com/social_responsibility/us/en/RoHS_Communication.pdf
10
European Union compliance statement
European Union conformity
EU contact: Lenovo, Einsteinova 21, 851 01 Bratislava, Slovakia
Compliance with the RE Directive
Lenovo PC HK Limited declares that the radio equipment type Lenovo TB-7304F,
Lenovo TB-7304I, Lenovo TB-7304X is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet
address:
https://download.lenovo.com/consumer/mobiles_pub/lenovo_tb_7304f_doc.pdf
https://download.lenovo.com/consumer/mobiles_pub/lenovo_tb_7304i_doc.pdf
https://download.lenovo.com/consumer/mobiles_pub/lenovo_tb_7304x_doc.pdf
This radio equipment operates with the following frequency bands and maximum
radio-frequency power:
Model Name Frequency Bands Maximum Conducted
Power (dBm)
Lenovo TB-7304F 802.11 b/g/n 2.4GHz 17
Bluetooth 2.4G 7
Lenovo TB-7304I
GSM: B2/3 32
GSM: B5/8 35
WCDMA: B1/2/5/8 25
802.11 b/g/n 2.4GHz 17
Bluetooth 2.4G 7
Lenovo TB-7304X
GSM: B2/3 32
GSM: B5/8 35
WCDMA: B1/2/5/8 25
LTE: B1/3/7/8/20 (ROW) 24
802.11 b/g/n 2.4GHz 17
Bluetooth 2.4G 7
The above information is for EU countries only. Please refer to the actual product
for supported frequency bands in other countries.
Specific Absorption Rate information
YOUR MOBILE DEVICE MEETS INTERNATIONAL GUIDELINES FOR EXPOSURE TO
RADIO WAVES.
Your mobile device is a radio transmitter and receiver. It is designed not to exceed
the limits for exposure to radio waves (radio frequency electromagnetic fields)
recommended by international guidelines. The guidelines were developed by an
independent scientific organization (ICNIRP) and include a substantial safety margin
designed to assure the safety of all persons, regardless of age and health.
The radio wave exposure guidelines use a unit of measurement known as the
Specific Absorption Rate, or SAR. The SAR limit for mobile devices is 2W/kg.
Tests for SAR are conducted using standard operating positions with the device
transmitting at its highest certified power level in all tested frequency bands. The
highest SAR values under the ICNIRP guidelines for your device model are listed
below:
Maximum SAR for this model and conditions under which it was recorded.
Europe 10g
SAR Limit
(2.0 W/kg)
Lenovo TB-7304F Body-worn WLAN, Bluetooth 0.49
During use, the actual SAR values for your device are usually well below the
values stated. This is because, for purposes of system eciency and to minimize
interference on the network, the operating power of your mobile device is
automatically decreased when full power is not needed for the data connection.
The lower the power output of the device, the lower its SAR value.
If you are interested in further reducing your RF exposure then you can easily do so
by limiting your usage or simply using a hands-free kit to keep the device away from
the body.
11
© Copyright Lenovo 2017. V1.0_20170707
HQ60113471000 MC
Printed in China

Navigation menu
