Lenovo TAB4 8
Safety, Warranty & Quick Start Guide
Lenovo TB-8504F
Lenovo TB-8504X
Read this guide carefully before using your device.
All information labeled with * in this guide only refers to the WLAN + LTE
model (Lenovo TB-8504X).
Reading before using your device
Reading first - regulatory information
Device models equipped with wireless communications comply with the radio frequency
and safety standards of any country or region in which it has been approved for wireless
use. In addition, if your product contains a telecom modem, it complies with the
requirements for connection to the telephone network in your country.
Be sure to read the Regulatory Notice for your country or region before using the wireless
devices contained in your device. To obtain a PDF version of the Regulatory Notice, refer
to the “Downloading publications” section below.
Getting support
To get support on network services and billing, contact your wireless network operator.
To learn how to use your device and view its technical specifications, go to
http://support.lenovo.com/.
Downloading publications
Electronic versions of your publications are available from http://support.lenovo.com.
To download the publications for your device, go to http://support.lenovo.com and
follow the instructions on the screen.
Accessing your User Guide
Your User Guide contains detailed information about your device. To access your
User Guide, go to http://support.lenovo.com and follow the instructions on the screen.
Legal notices
Lenovo and the Lenovo logo are trademarks of Lenovo in the United States, other
countries, or both.
Other company, product, or service names may be trademarks or service marks of
others.
Manufactured under license from Dolby Laboratories. Dolby, Dolby Atmos, and the
double-D symbol are trademarks of Dolby Laboratories.
LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant
a General Services Administration “GSA” contract, use, reproduction, or disclosure is
subject to restrictions set forth in Contract No. GS-35F-05925.
1
Device overview
Model Version
Lenovo TB-8504F WLAN
Lenovo TB-8504X WLAN + LTE
1Front camera 2Speakers 3Micro USB connector
4Indicator 5Volume buttons 6Power button
7Touch screen 8Microphone 9Rear camera
10 Headset jack 11 Card tray
• The WLAN version (Lenovo TB-8504F) does not have a Nano-SIM card tray.
• All pictures and illustrations in this document are for your reference only and may
differ from the final product.
1
8
23
4
5
6
7
3
2
910
11
3
2
Preparing your device
Use a microSD card (sold separately) for extra storage.
*To access cellular networks with your device (WLAN + LTE version only - model number
Lenovo TB-8504X), insert a Nano-SIM card provided by your carrier into the slot as
shown below.

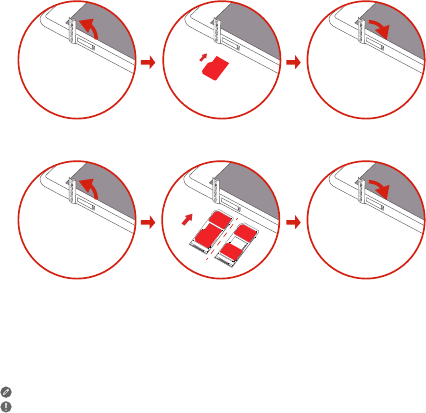

Step 1. Open the card slot cover.
Step 2. Insert the *Nano-SIM and microSD cards as shown.
Step 3. Replace the card slot cover.
microSD
microSD
microSD
Figure 1: WLAN
microSD
microSD
Nano-SIM
Nano-SIM
microSD
Nano-SIM
Figure 2: WLAN + LTE
Only Nano-SIM cards work with your device.
Do not insert or remove the Nano-SIM card while your device is powered on. Doing so
may cause permanent damage to your Nano-SIM card or device.
3
Using your device for the first time

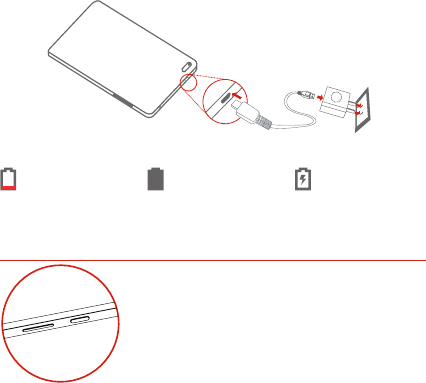

You might need to charge the battery before using your device. Insert the charger into the
charging port as shown below.
Connect your device to a power outlet using the cable and USB power adapter
provided.
The indicator is lit when the device is charging.
Turning on/off
Turn on: Press and hold the power button until the Lenovo
logo appears.
Turn off: Press and hold the power button for a few seconds,
then tap Power off.
Restart: Press and hold the power button for about 10
seconds.
Low battery Fully charged Charging
4
Important safety and handling information
Plastic bag notice
Danger: Plastic bags can be dangerous. Keep plastic bags away from babies and
children to avoid danger of suffocation.
Built-in rechargeable battery notice
Danger: Do not attempt to replace the internal rechargeable lithium ion battery. Risk of
explosion if the battery is replaced with an incorrect type. Contact Lenovo Support for
factory replacement. Dispose of used batteries according to the instructions.
Caution about high volume usage
Warning: Exposure to loud noise from any source for extended periods of time may affect
your hearing. The louder the sound, the less time is required before your hearing could be
affected. To protect your hearing:
• Limit the amount of time you use headsets or headphones at high volume.
• Avoid turning up the volume to block out noisy surroundings.
• Turn the volume down if you can’t hear people speaking near you.
If you experience hearing discomfort, including the sensation of pressure or fullness in
your ears, ringing in your ears or muffled speech, you should stop listening to the device
through your headset or headphones and have your hearing checked.
To prevent possible hearing damage, do not listen at high volume levels for long periods.
Service and support information
The following information describes the technical support that is available for your
product, during the warranty period or throughout the life of your product. Refer to the
Lenovo Limited Warranty (LLW) for a full explanation of Lenovo warranty terms. See
Lenovo Limited Warranty notice” later in this document for details on accessing the full
warranty.
Online technical support
Online technical support is available during the lifetime of a product at:
http://www.lenovo.com/support
5
Telephone technical support
You can get help and information from the Customer Support Center by telephone.
Before contacting a Lenovo technical support representative, please have the following
information available: model and serial number, the exact wording of any error message,
and a description of the problem.
Your technical support representative might want to walk you through the problem while
you are at your device during the call.
Worldwide Lenovo Support telephone list
Important: Telephone numbers are subject to change without notice. The most up-to-
date telephone list for the Customer Support Center is always available at:
http://www.lenovo.com/support/phone
If the telephone number for your country or region is not listed, contact your Lenovo
reseller or Lenovo marketing representative.
6
Country or region Warranty period Type of warranty
service
Germany, Italy, Austria, United Kingdom,
Israel, Australia, New Zealand
Parts and Labor - 1 year
Battery Pack - 1 year1,3
Guatemala, Costa Rica, Venezuela, Peru,
Uruguay, Ecuador, Colombia, Chile,
Argentina, Indonesia, Vietnam, India,
Malaysia, Thailand, Philippines, Singapore,
Hong Kong, El Salvador, Taiwan, South Korea
Parts and Labor - 1 year
Battery Pack - 1 year 1,4
Russia, Ukraine, Egypt, Lebanon, Morocco,
South Africa, Tunisia, Mauritius, Mozambique,
United Arab Emirates, Jordan, Kenya, Nigeria,
Uganda, Ghana, Oman,Tanzania, Namibia
Parts and Labor - 1 year
Battery Pack - 1 year 4
United States of America, Canada, Mexico,
Japan
Parts and Labor - 1 year
Battery Pack - 1 year 1,5
Panama Parts and Labor - 1 year
Battery Pack - 1 year 2,4
Brazil Parts and Labor - 1 year
Battery Pack - 1 year 2,5
Spain, Switzerland, Portugal, Netherlands,
Belgium, Sweden, Denmark, Norway, Finland,
Estonia, Latvia, Lithuania, Iceland, France
Parts and Labor - 2 years
Battery Pack - 1 year 1,3
Warranty information
Lenovo Limited Warranty notice
This product is covered by the terms of the LLW, version L505-0010-02 08/2011. Read
the LLW at http://www.lenovo.com/warranty/llw_02. You can read the LLW in a number
of languages from this Web site. If you cannot view the LLW from the Web site, contact
your local Lenovo office or reseller to obtain a printed version of the LLW.
Warranty period and type of warranty service
7
* Excludes some components. 90-day limited warranty for power adapters, keyboards,
plastics, and hinges.
Type of warranty service
1. Customer Replaceable Unit (“CRU”) Service
2. On-site Service
3. Courier or Depot Service
4. Customer Carry-In Service
5. Mail-in Service
6. Customer Two-Way Mail-in Service
7. Product Exchange Service
For a full explanation of the types of warranty service, refer to the full warranty.
See “Lenovo Limited Warranty notice” for details on accessing the full warranty.
EurAsia compliance mark
Country or region Warranty period Type of warranty
service
Czech Republic, Hungary, Romania, Bulgaria,
Greece, Croatia, Slovenia, Slovakia, Cyprus,
Poland
Parts and Labor - 2 years
Battery Pack - 1 year 1,5
Turkey Parts and Labor - 2 years
Battery Pack - 2 years 3,4
Saudi Arabia Parts and Labor - 2 years
Battery Pack - 2 years 4
Serbia Parts and Labor - 2 years
Battery Pack - 1 year 1,4
8
Environmental, recycling, and disposal information
General recycling statement
Lenovo encourages owners of information technology (IT) equipment to responsibly
recycle their equipment when it is no longer needed. Lenovo offers a variety of programs
and services to assist equipment owners in recycling their IT products. For information on
recycling Lenovo products, go to http://www.lenovo.com/recycling.
Important battery and WEEE information
Recycling information for Japan
Recycling and disposal information for Japan is available at:
http://www.lenovo.com/recycling/japan
Additional recycling statements
Additional information about recycling device components and batteries is in your User
Guide. See “Accessing your User Guide” for details.
Battery recycling marks
Battery recycling information for Taiwan
ᔘ䴱⊖䄁ഔ
Battery recycling information for the United States and Canada
Batteries and electrical and electronic equipment marked with the symbol
of a crossed-out wheeled bin may not be disposed as unsorted municipal
waste. Batteries and waste of electrical and electronic equipment (WEEE)
shall be treated separately using the collection framework available to
customers for the return, recycling, and treatment of batteries and WEEE.
When possible, remove and isolate batteries from WEEE prior to placing
WEEE in the waste collection stream. Batteries are to be collected separately
using the framework available for the return, recycling, and treatment of
batteries and accumulators.
Country-specific information is available at: http://www.lenovo.com/recycling
9
Battery recycling information for the European Union
Energy efficiency mark
Restriction of Hazardous Substances Directive (RoHS)
Turkey
The Lenovo product meets the requirements of the Republic of Turkey Directive on the
Restriction of the Use of Certain Hazardous Substances in Waste Electrical and Electronic
Equipment (WEEE).
Türkiye AEEE Yönetmeligine Uygunluk Beyanı
Bu Lenovo ürünü, T.C. Çevre ve Orman Bakanlıgı’nın “Atık Elektrikli ve Elektronik Esya Bazı
Zararlı Maddelerin Kullanımının Sınırlandırılmasına Dair Yönetmelik (AEEE)” direktierine
uygundur.
AEEE Yönetmeligine Uygundur.
Ukraine
Цим підтверджуємо, що продукція Леново відповідає вимогам нормативних актів
України, які обмежують вміст небезпечних речовин
India
RoHS compliant as per E-Waste (Management & Handling) Rules, 2011.
Vietnam
Lenovo products sold in Vietnam, on or after September 23, 2011, meet the requirements
of the Vietnam Circular 30/2011/TT-BCT (“Vietnam RoHS”).
European Union
Lenovo products sold in the European Union, on or after 3 January 2013 meet the
requirements of Directive 2011/65/EU on the restriction of the use of certain hazardous
substances in electrical and electronic equipment (“RoHS recast” or “RoHS 2”).For more
information about Lenovo progress on RoHS, go to:
http://www.lenovo.com/social_responsibility/us/en/RoHS_Communication.pdf
10
European Union compliance statement
European Union conformity
EU contact: Lenovo, Einsteinova 21, 851 01 Bratislava, Slovakia
Compliance with the RE Directive
Lenovo PC HK Limited declares that the radio equipment type Lenovo TB-8504F, Lenovo
TB-8504X is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet
address:
https://download.lenovo.com/consumer/mobiles_pub/lenovo_tb_8504f_doc.pdf
https://download.lenovo.com/consumer/mobiles_pub/lenovo_tb_8504x_doc.pdf
This radio equipment operates with the following frequency bands and maximum radio-
frequency power:
Model Frequency Bands Maximum Conducted
Power (dBm)
Lenovo TB-8504X
GSM 900 33
GSM 1800 30
UMTS B1/B8 24
LTE B1/3/7/8/20/38/40 23
802.11b/g/n 2.4GHz <20
Bluetooth 2.4GHz <20
Lenovo TB-8504F
802.11b/g/n 2.4GHz <20
Bluetooth 2.4GHz <20
The above information is for EU countries only. Please refer to the actual product for
supported frequency bands in other countries.
11
Specific Absorption Rate information
YOUR MOBILE DEVICE MEETS INTERNATIONAL GUIDELINES FOR EXPOSURE TO
RADIO WAVES.
Your mobile device is a radio transmitter and receiver. It is designed not to exceed the
limits for exposure to radio waves (radio frequency electromagnetic fields) recommended
by international guidelines. The guidelines were developed by an independent scientific
organization (ICNIRP) and include a substantial safety margin designed to assure the
safety of all persons, regardless of age and health.
The radio wave exposure guidelines use a unit of measurement known as the Specific
Absorption Rate, or SAR. The SAR limit for mobile devices is 2W/kg. Tests for SAR are
conducted using standard operating positions with the device transmitting at its highest
certified power level in all tested frequency bands. The highest SAR values under the
ICNIRP guidelines for your device model are listed below:
Maximum SAR for this model and conditions under which it was recorded.
Europe 10g
SAR Limit
(2.0 W/kg)
Lenovo TB-8504F
Head Wi-Fi, Bluetooth 0.153 W/kg
Body-worn Wi-Fi, Bluetooth 0.448 W/kg
During use, the actual SAR values for your device are usually well below the values stated.
This is because, for purposes of system efficiency and to minimize interference on the
network, the operating power of your mobile device is automatically decreased when full
power is not needed for the data connection.
The lower the power output of the device, the lower its SAR value.
If you are interested in further reducing your RF exposure then you can easily do so by
limiting your usage or simply using a hands-free kit to keep the device away from the
head and body.
© Copyright Lenovo 2017. V1.0_20170401
70111443 MC
Printed in China

Navigation menu
