Lenovo TB8704V Portable Tablet Computer User Manual

Lenovo (Shanghai) Electronics Technology Co., Ltd Portable Tablet Computer

Contents

User Manual

Lenovo TAB4 8 Plus
Safety, Warranty & Quick Start Guide
TB-8704V
Read this guide carefully before using your device.
Reading before using your tablet
Reading first - regulatory information
Device models equipped with wireless communications comply with the radio frequency
and safety standards of any country or region in which it has been approved for wireless
use. In addition, if your product contains a telecom modem, it complies with the
requirements for connection to the telephone network in your country.
Be sure to read the Regulatory Notice for your country or region before using the wireless
devices contained in your device. To obtain a PDF version of the Regulatory Notice, refer
to the “Downloading publications” section below.
Getting support
To get support on network services and billing, contact your wireless network operator.
To learn how to use your tablet and view its technical specifications, go to
http://support.lenovo.com/.
Downloading publications
Electronic versions of your publications are available from http://support.lenovo.com.
To download the publications for your tablet, go to http://support.lenovo.com and
follow the instructions on the screen.
Accessing your User Guide
Your User Guide contains detailed information about your tablet. To access your
User Guide, go to http://support.lenovo.com and follow the instructions on the screen.
Legal notices
Lenovo and the Lenovo logo are trademarks of Lenovo in the United States, other
countries, or both.
Other company, product, or service names may be trademarks or service marks of
others.
Manufactured under license from Dolby Laboratories. Dolby, Dolby Atmos, and the
double-D symbol are trademarks of Dolby Laboratories.
LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant
a General Services Administration “GSA” contract, use, reproduction, or disclosure is
subject to restrictions set forth in Contract No. GS-35F-05925.
1
Device overview
Model Version
TB-8704V Wi-Fi + LTE
All pictures and illustrations in this document are for your reference only and may
differ from the final product.
1Front camera 2Speakers 3Indicator
4Light/Proximity sensor 5Volume buttons 6Power button/Fingerprint
sensor
7Touch screen 8Microphone 9Flash
10 Rear camera 11 Type C USB 3.0
connector 12 Headset connector
13 Card tray
13
4
5
6
10 12
11
13
8
2
9
2
7
2
Preparing your device
Use a microSD card (sold separately) for extra storage.
To access cellular networks with your device, insert a Nano-SIM card provided by your
carrier into the slot as shown below.

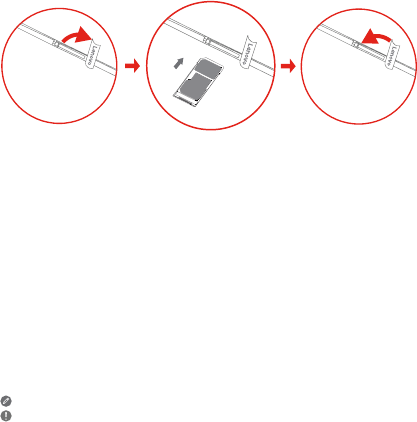

Step 1. Open the card slot cover.
Step 2. Insert the Nano-SIM and microSD cards as shown.
Step 3. Replace the card slot cover.
Only Nano-SIM cards work with your device.
Do not insert or remove the Nano-SIM card while your device is powered on. Doing so
may cause permanent damage to your Nano-SIM card or device.
microSD
Nano-SIM
3
Using your device for the first time
You might need to charge the battery before using your device. Insert the charger into the
charging port as shown below.
Connect your tablet to a power outlet using the cable and USB power adapter
provided.
Turning on/off
Turn on: Press and hold the power button until the Lenovo
logo appears.
Turn off: Press and hold the power button for a few seconds,
then tap Power off.
Restart: Press and hold the power button for about 10
seconds.
Low battery Fully charged Charging
4
Important safety and handling information
Plastic bag notice
Danger: Plastic bags can be dangerous. Keep plastic bags away from babies and
children to avoid danger of suffocation.
Built-in rechargeable battery notice
Danger: Do not attempt to replace the internal rechargeable lithium ion battery. Risk of
explosion if the battery is replaced with an incorrect type. Contact Lenovo Support for
factory replacement. Dispose of used batteries according to the instructions.
a) Do not disassemble or open crush, bend or deform, puncture or shred.
b) Do not modify or remanufacture, attempt to insert foreign objects into the battery,
immerse or expose to water or other liquids, expose to fire, explosion or other hazard.
c) Only use the battery for the system for which it is specified.
d) Only use the battery with a charging system that has been qualified with the system
per CTIA Certification Requirements for Battery System Compliance to IEEE 1725. Use
of an unqualified battery or charger may present a risk of fire, explosion, leakage, or other
hazard.
e) Do not short circuit a battery or allow metallic conductive objects to contact battery
terminals.
f) Replace the battery only with another battery that has been qualified with the system
per this standard, IEEE-Std-1725. Use of an unqualified battery may present a risk of
fire, explosion, leakage or other hazard. Only authorized service providers shall replace
battery. (If the battery is non-user replaceable).
g) Promptly dispose of used batteries in accordance with local regulations.
h) Battery usage by children should be supervised.
i) Avoid dropping the phone or battery. If the phone or battery is dropped, especially on a
hard surface, and the user suspects damage, take it to a service center for inspection.
j) Improper battery use may result in a fire, explosion or other hazard.
Water resistance
Advanced nano-coating technology creates a water repellent barrier to help protect
against moderate exposure to water such as accidental spills, splashes or light rain. Not
designed to be submersed in water, or exposed to pressurized water, or other liquids;
not waterproof.
Caution about high volume usage
Warning: Exposure to loud noise from any source for extended periods of time may affect
your hearing. The louder the sound, the less time is required before your hearing could be
5
affected. To protect your hearing:
• Limit the amount of time you use headsets or headphones at high volume.
• Avoid turning up the volume to block out noisy surroundings.
• Turn the volume down if you can’t hear people speaking near you.
If you experience hearing discomfort, including the sensation of pressure or fullness in
your ears, ringing in your ears or muffled speech, you should stop listening to the device
through your headset or headphones and have your hearing checked.
Safety instructions for parents and adult supervisors
Your mobile device is not a toy. Not recommended for children under 3 years of age
to play with it. As with all electrical products, precautions should be observed during
handling and using of electrical products to reduce the risk of electric shock. If parents
choose to allow children 3 or older to use the device, they should caution his or her
child about the potential hazard while using and handling the mobile device. Parental
should inspect the mobile device (including the ac power adapter and the small part, as
applicable) periodically for damage. Routinely check this mobile device to ensure that the
device is working properly and is safe for children to use.
Service and support information
The following information describes the technical support that is available for your
product, during the warranty period or throughout the life of your product. Refer to the
Lenovo Limited Warranty (LLW) for a full explanation of Lenovo warranty terms. See
“Lenovo Limited Warranty notice” later in this document for details on accessing the full
warranty.
Online technical support
Online technical support is available during the lifetime of a product at:
http://www.lenovo.com/support
Telephone technical support
You can get help and information from the Customer Support Center by telephone.
Before contacting a Lenovo technical support representative, please have the following
information available: model and serial number, the exact wording of any error message,
and a description of the problem.
6
Your technical support representative might want to walk you through the problem while
you are at your device during the call.
Worldwide Lenovo Support telephone list
Important: Telephone numbers are subject to change without notice. The most up-to-
date telephone list for the Customer Support Center is always available at:
http://www.lenovo.com/support/phone
If the telephone number for your country or region is not listed, contact your Lenovo
reseller or Lenovo marketing representative.
Warranty information
Lenovo Limited Warranty notice
This product is covered by the terms of the LLW, version L505-0010-02 08/2011. Read
the LLW at http://www.lenovo.com/warranty/llw_02. You can read the LLW in a number
of languages from this Web site. If you cannot view the LLW from the Web site, contact
your local Lenovo office or reseller to obtain a printed version of the LLW.
Warranty period and type of warranty service
* Excludes some components. 90-day limited warranty for power adapters, keyboards,
plastics, and hinges.
Type of warranty service
1. Customer Replaceable Unit (“CRU”) Service
5. Mail-in Service
For a full explanation of the types of warranty service, refer to the full warranty.
See “Lenovo Limited Warranty notice” for details on accessing the full warranty
Country or region Warranty period Type of warranty
service
United States of America, Canada Parts and Labor - 1 year
Battery Pack - 1 year 1,5
7
Environmental, recycling, and disposal information
General recycling statement
Lenovo encourages owners of information technology (IT) equipment to responsibly
recycle their equipment when it is no longer needed. Lenovo offers a variety of programs
and services to assist equipment owners in recycling their IT products. For information on
recycling Lenovo products, go to http://www.lenovo.com/recycling.
Important battery and WEEE information
Additional recycling statements
Additional information about recycling device components and batteries is in your User
Guide. See “Accessing your User Guide” for details.
Battery recycling marks
Battery recycling information for the United States and Canada
Batteries and electrical and electronic equipment marked with the symbol
of a crossed-out wheeled bin may not be disposed as unsorted municipal
waste. Batteries and waste of electrical and electronic equipment (WEEE)
shall be treated separately using the collection framework available to
customers for the return, recycling, and treatment of batteries and WEEE.
When possible, remove and isolate batteries from WEEE prior to placing
WEEE in the waste collection stream. Batteries are to be collected separately
using the framework available for the return, recycling, and treatment of
batteries and accumulators.
Country-specific information is available at: http://www.lenovo.com/recycling
8
Energy efficiency mark
Restriction of Hazardous Substances Directive (RoHS)
Lenovo products sold in California, on or after January 1, 2007, meet the requirements of
”Califorrninia’s RoHS” (SB20, 50).
Lenovo products sold to the New York City government, on or after March 1, 2007, meet
the requirements of the City’s environmental preferred purchasing regulations.
© Copyright Lenovo 2017. V1.0_20170527
70119200 MC
Printed in China
