Lenovo Smart Tab
Safety, Warranty & Quick Start Guide
Read this guide carefully before using your device.
All information labeled with * in this guide only refers to the WLAN
+ LTE model.
Read before using your device
Read first - regulatory information
Device models equipped with wireless communications comply with the radio
frequency and safety standards of all countries and regions in which they have been
approved for wireless use. In addition, if your product contains a telecom modem,
it complies with the requirements to connect to the telephone network in your
country.
Be sure to read the Regulatory Notice for your country or region before using
the wireless devices contained in your device. To obtain a PDF version of the
Regulatory Notice, refer to the “Downloading publications” section below.
Getting support
To get support on network services and billing, contact your wireless network
operator. To learn how to use your device and view its technical specifications, go
to https://support.lenovo.com.
Downloading publications
Electronic versions of your publications are available from
https://support.lenovo.com. To download the publications for your device, go to
https://support.lenovo.com and follow the instructions on the screen.
Accessing your tablet User Guide
Your User Guide contains detailed information about your device. To access your
User Guide, go to https://support.lenovo.com and follow the instructions on the
screen.
Legal notices
Lenovo and the Lenovo logo are trademarks of Lenovo in the United States, other
countries, or both.
Other company, product, or service names may be trademarks or service marks of
others.
Manufactured under license from Dolby Laboratories. Dolby, Dolby Atmos, and the
double-D symbol are trademarks of Dolby Laboratories.
LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered
pursuant a General Services Administration “GSA” contract, use, reproduction, or
disclosure is subject to restrictions set forth in Contract No. GS-35F-05925.
1
Marketing name Model Version
Lenovo Tab P10
Lenovo TB-X705F WLAN
Lenovo TB-X705L WLAN + LTE
Lenovo Tab M10
Lenovo TB-X605F WLAN
Lenovo TB-X605L WLAN + LTE
1Touch screen 2Speakers 3Front camera
4Light sensor※5Indicator 6Fingerprint sensor※
7Card tray 8Microphone 9Type C USB 2.0 connector
10 Headset connector 11 Rear camera 12 Flash※
13 Volume buttons 14 Power button 15 Smart connector
2
1
3
6
5
4
2
2 2
7
8
9
10
11
12
13
14
15
• Connect your device to other Lenovo accessories through Smart Connector. The
accessories vary by country/region.
• Your device supports CTIA earphones.
• The WLAN version does not have a Nano-SIM card slot.
• All information labeled with ※ in this guide only refers to the Lenovo Tab P10.
Device overview
2
Marketing name Model
Lenovo Smart Dock Lenovo HA-200
1Speakers 2Stability support 3 Power adapter connector
4Bluetooth button 5Microphone 6Volume buttons
7Microphone On/O
button 8Smart connector
Indicator
Bluetooth button
Slow blinking blue Bluetooth not connected
Solid blue Bluetooth connected
Fast blinking blue Pairing mode
O Bluetooth off
Microphone On/Off
button
Red Microphone disabled
O Microphone on
• The microphone on/off button will stay red until the first time you log into your
Amazon account while docked.
• All pictures and illustrations in this document are for reference only and may differ
from the final product.
2
3
6
8
1
1
5
7
5
4
3

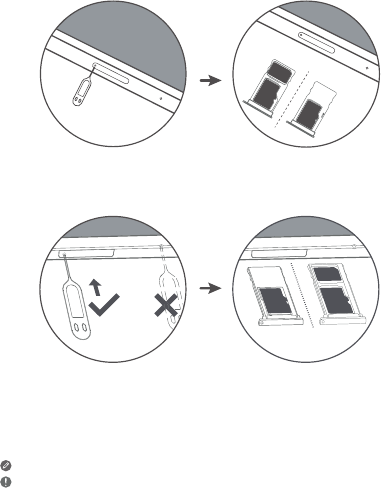

Installing cards
Use a microSD card (sold separately) for extra storage.
*To access cellular networks with your tablet (WLAN + LTE version only), insert a
Nano-SIM card provided by your carrier into the slot as shown below.
Only Nano-SIM cards work with your tablet.
• Do not insert or remove the Nano-SIM card while your tablet is powered on. Doing so
may cause permanent damage to your Nano-SIM card or tablet.
• Do not insert the eject tool into the microphone. Doing so may cause permanent
damage to your tablet.
Figure 1: Lenovo Tab P10
Figure 2: Lenovo Tab M10
microSD
microSD
Nano-SIM
microSD
microSD
Nano-SIM
4

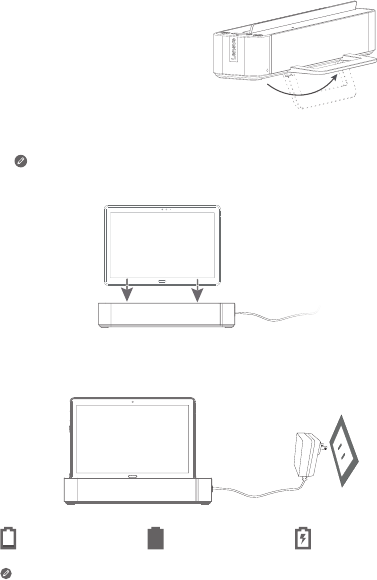

Getting started
1. Open the stability support.
2. Plug the power adaptor into the dock and then into a power outlet.
3. Place your tablet in the dock.
Make sure to correctly align the smart connector on the dock with the
smart connector on the tablet. The tablet will vibrate and the display will
change when docked correctly.
Charging your tablet
You might need to charge the battery before using your device.
As shown in the picture below, you can charge the battery through the dock.
Low battery Fully charged Charging
You can check the charging status through the battery status icon in the
notification panel when the tablet is powered on and being charged.
5
Turning on/o the tablet
Turn on: Press and hold the power button until the Lenovo
logo appears.
Turn o: Press and hold the power button for a few
seconds, then tap Power o.
Restart: Press and hold the power button for about 10
seconds until the device turns o. Then turn it on again in
the normal way.
Connecting your tablet to your dock via Bluetooth
1. Place your tablet in the dock.
2. Log in to your Amazon account on the tablet.
3. Make sure the Bluetooth of the tablet and the dock are turned on. They will
connect automatically.
If the tablet cannot connect to your dock automatically, press and hold the
Bluetooth button on the dock for a few seconds to enter pairing mode. In
pairing mode, you can manually pair the dock with the tablet.
Talking to your Lenovo Smart Tab
1. Log in to your Amazon account on the tablet.
2. Enable the hands free feature on the tablet’s Quick Settings panel.
3. Say “Alexa” to get your device’s attention.
Things to try
The things to try provides examples of things you can ask.
Alexa, what’s the weather?
Alexa, play my Flash Briefing.
Alexa, how tall is Mt. Everest?
Alexa, add “Dinner with Mom” to my
calendar.
Alexa, what are some top-rated Indian
restaurants?
Alexa, set an alarm for 6 a.m.
Alexa, set a timer for 20 minutes.
Alexa, is it going to rain today?
Alexa, what movies are playing nearby?
Alexa, how far away is the Statue of
Liberty?
To learn more about the app and access additional features, check out “Things to
Try” in the Amazon Alexa app.
Please make sure the default voice assistant on your tablet settings is set
to “Alexa”.
6
