ThinkCentre Tiny-in-One 24
User Guide
Machine Type: 10LL
Product number
10LL-PAR6-WW
First Edition (Mar 2016)
© Copyright Lenovo 2016. All rights reserved.
LENOVO products, data, computer software, and services have been developed exclusively at private expense and are sold to -governmental
entities as commercial items as defined by 47 C.F.R. 2.101 with limited and restricted rights to use, reproduction and -disclosure. LIMITED
AND RESTRICTED RIGHTS NOTICE: IF products, data, computer software, or services are delivered pursuant a -General Services
Administration "GSA" contract, use, reproduction, or disclosure is subject to restrictions set forth in Contract No. -GS-35F-05925.
Copyright Lenovo 2016. i
Contents
Product number .......................................................................................................................................................................... i
Contents…………………………………………………………………………………………………………………………………………………………………………………..ii
Safety information ..................................................................................................................................................................... iii
Safety and maintenance guidelines ........................................................................................................................................... iv
Chapter 1 Getting started .......................................................................................................................................................... 1
Shipping contents ................................................................................................................................................................. 1
Locating connectors and controls on your monitor .............................................................................................................. 2
Setting up your monitor........................................................................................................................................................ 3
Chapter 2 Adjusting and using your monitor .............................................................................................................................. 9
Adjusting the full-function monitor stand ............................................................................................................................ 9
Installing the monitor driver ............................................................................................................................................... 10
Comfort and accessibility .................................................................................................................................................... 10
Arranging your work area ................................................................................................................................................... 10
Quick tips for healthy work habits ...................................................................................................................................... 11
Accessibility information .................................................................................................................................................... 11
Adjusting your monitor image ............................................................................................................................................ 12
Using the user controls ....................................................................................................................................................... 12
Using the OSD controls ....................................................................................................................................................... 12
Using the USB connectors ................................................................................................................................................... 13
Using the audio ................................................................................................................................................................... 13
Selecting a supported display mode ................................................................................................................................... 16
Understanding power management ................................................................................................................................... 16
Caring for your monitor ...................................................................................................................................................... 17
Chapter 3 Reference information ............................................................................................................................................. 18
Disassembling your monitor ............................................................................................................................................... 18
Monitor specifications ........................................................................................................................................................ 21
Troubleshooting .................................................................................................................................................................. 22
Manual image setup ........................................................................................................................................................... 23
Manually installing the monitor driver ............................................................................................................................... 24
Service information ............................................................................................................................................................ 28
Appendix A Service and support .............................................................................................................................................. 29
Registering your option ...................................................................................................................................................... 29
Online technical support .................................................................................................................................................... 29
Telephone technical support .............................................................................................................................................. 29
Worldwide telephone list ................................................................................................................................................... 29
Appendix B Notices .................................................................................................................................................................. 33
Recycling information ......................................................................................................................................................... 34
Collecting and recycling a disused Lenovo computer or monitor ....................................................................................... 34
Disposing of Lenovo computer components ...................................................................................................................... 34
Turkish statement of compliance ........................................................................................................................................ 35
Trademarks ......................................................................................................................................................................... 35
ii Copyright Lenovo 2016.
Safety information
General Safety guidelines
For safety tips about using your monitor, go to:

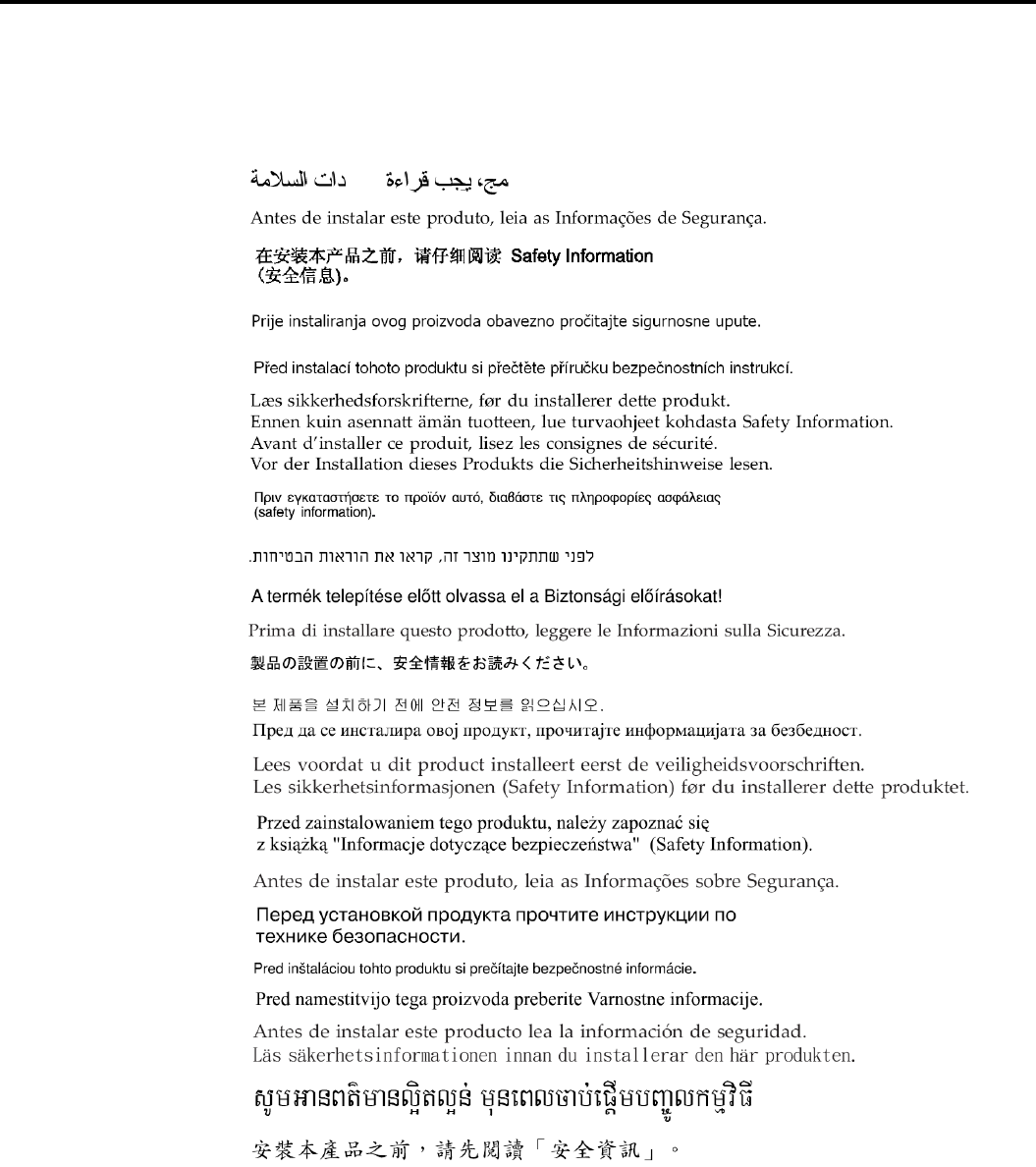

http://www.lenovo.com/safety Before installing this product,
read the Safety Information.
Copyright Lenovo 2016. iii
Safety and maintenance guidelines
Important Safety Information
The power cord is designed for use with your monitor. Don’t use a different cord, use only a power source and
connection compatible with this monitor.
WARNING: Always connect your monitor, the computer, and other equipment to a grounded (earthed) power outlet.
To reduce the risk of electric shock or damage to your equipment, do not disable the power cord grounding feature.
The grounding plug is an important safety feature.
WARNING: For your safety, be sure that the grounded power outlet you plug the power cord into is easily
accessible to the operator and located as close to the equipment as possible. To disconnect power from the
equipment, unplug the power cord from the power outlet by grasping the plug firmly. Never pull on the cord.
CAUTION: To protect your monitor, as well as your computer, connect all power cords for your computer
and its peripheral devices (such as a monitor, printer, or scanner) to a surge protection device such as a power
strip with surge protection or uninterruptible power supply (UPS). Not all power strips provide surge
protection; the power strips must be specifically labelled as having this ability. Use a power strip whose
manufacturer offers a damage replacement policy, so you can replace your equipment if surge protection fails.
CAUTION: A certified power supply cord has to be used with this equipment. The relevant national installation
and/or equipment regulations shall be considered. A certified power supply cord not lighter than ordinary polyvinyl
chloride flexible cord according to IEC 60227 (designation H05VV-F 3G 0.75mm² or H05VVH2-F2 3G 0.75mm²) shall
be used. An alternative flexible cord is synthetic rubber.
Safety Precautions
■Use only a power source and connection compatible with this monitor, as indicated on the label/back plate of
the monitor.
■Be sure the total ampere rating of the products connected to the outlet does not exceed the current rating of the
electrical outlet, and the total ampere rating of the products connected to the power cord does not exceed the
rating of the power cord. Look on the power label to determine the ampere rating (Amps or A) for each device.
■ Install your monitor near a power outlet that you can easily reach. Disconnect the monitor by grasping the plug firmly
and pulling it from the outlet. Never disconnect the monitor by pulling the cord.
■ Do not allow anything to rest on the power cord. Do not walk on the cord.
■ While using VESA mount application, the AC Inlet must face to down side. Do not face any other position.
Maintenance Guidelines
To enhance the performance and extend the life of your monitor:
■ Do not open your monitor cabinet or attempt to service this product yourself. If your monitor is not operating
properly or has been dropped or damaged, contact your Lenovo® authorized dealer, reseller, or service provider.
■ Adjust only those controls that are described in the operating instructions.
■ Turn your monitor off when not in use. You can substantially increase the life expectancy of the monitor by using a
screen saver program and turning off the monitor when not in use.
■ Keep your monitor in a well-ventilated area, away from excessive light, heat, or moisture.
■ Slots and openings in the cabinet are provided for ventilation. These openings must not be blocked or covered.
Never push objects of any kind into cabinet slots or other openings.
■ Unplug the monitor from the power outlet before cleaning. Do not use liquid cleaners or aerosol cleaners.
■ Do not drop the monitor or place it on an unstable surface.
■ When removing the monitor base, you must lay the monitor face down on a soft area to prevent it from getting
scratched, defaced, or broken.
Cleaning the Monitor
The monitor is a high-quality optical device that requires special care when cleaning. To clean the monitor, follow
these steps:
1. Turn off the computer and the monitor.
2. Unplug your monitor from the power outlet before cleaning.
CAUTION: Do not use benzene, thinner, ammonia, or any volatile substance to clean the monitor screen or cabinet.
These chemicals may damage the monitor. Do not use liquid or aerosol cleaners. Never use water to
clean an LCD screen.
3. Wipe the screen with a dry, soft, clean cloth. If the screen requires additional cleaning, use an antistatic screen cleaner.
4. Dust the monitor housing. Use a damp cloth to clean the cabinet. If the cabinet requires additional cleaning, use a
clean cloth dampened with isopropyl alcohol.
5. Plug in the monitor.
6. Turn on the monitor and the computer.
iv Copyright Lenovo 2016.
Chapter 1 Getting started
This User Guide contains detailed information on the Lenovo ThinkCentre® Tiny-in-One 24 Monitor. For a quick
overview, please see the Setup Poster that was shipped with your monitor.
Shipping contents
The product package should include the following items:
●ac power adapter
●Flat panel monitor
●Information flyer
●Monitor stand
●Monitor base
●Power cord
●Reference and driver CD
Chapter 1 Getting started 1
***Your monitor supports the following Tinys that can be installed in your monitor:
· M53, M73, M83, M93
· M600, M700, M900
· ThinkCentre Chromebox
Before you install your Tiny into your monitor, ensure that the Tiny is listed above.
***Turning on your monitor and Tiny computer
1.
Install your computer into the Tiny-in-One 24.
2. Connect a Lenovo keyboard to USB port 3 on the rear of the computer. (See Figure 1)
3.
Press ALT+P on the keyboard to power on the computer and Tiny-in-One 24.
Note: ThinkCentre M53, M83, M600, M700, M900, Chromebox Tiny may also be
powered on with the Tiny-In-One 24 power button. (See Figure 2)
ThinkCentre M53,M83
√ √
ThinkCentre M600,M700,M900
√ √
ThinkCentre Chromebox √
ThinkCentre M73,M93
√ ×
××
×
×
××
×
Locating connectors and controls on your monitor
Front view
Headset connector USB 3.0 connectors (2)
Mode-switching button / Back button Left shift button
Brightness control / Right shift button Selection button / Menu-opening button
Power button
Rear view
Security-lock slot USB 3.0 upstream connector
DisplayPort® connector ac power adapter connector
2 ThinkCentre Tiny-in-One 24 User Guide
Setting up your monitor
This section provides the following information:
● Assembling your monitor
● Connecting cables
● Turning on your monitor and computer
Note: Before setting up your monitor, ensure that you have read and understood the “Safety information” on page iii.
Assembling your monitor
To assemble your monitor, follow the four parts below one by one:
Part 1: Install the full-function monitor stand.
Part 2: Install the Tiny.
Part 3: Install the rear Wi-Fi antenna (optional).
Part 4: Install the Kensington-style cable lock (optional).
Part 1: Install the full-function monitor stand.
Note: The full-function monitor stand includes one monitor stand and one stand base.
1. Place a soft, clean towel or cloth on the desk or surface. Hold the sides of your monitor and gently lay it
down so that the screen is against the surface and the cover is facing up.
2. Insert the three metal studs on the base into the corresponding holes in the stand. Then, tighten the screw as shown
to secure the stand.
3. Insert the two metal tabs on the stand into the corresponding holes on the rear of the monitor. Then, pivot the stand
downward until it clicks into position.
Part 2: Install the Tiny.
1. Press the decorative cover 1 as shown to remove it. Then, press the button 2 to open the cable cover.
Note: Keep the decorative cover for future use.
Chapter 1 Getting started 3
2. With the Lenovo logo facing you, insert your Tiny into the computer bay until it rests on the stoppers.
3. Press the computer from the front until it completely snaps into position.
Note: Make sure the Tiny is aligned with the back cover.
4. Tighten the screw to secure the Tiny.
4 ThinkCentre Tiny-in-One 24 User Guide
Part 3: Install the rear Wi-Fi antenna (optional).
1. Pivot the cable cover as shown to the open position. Then, press the decorative cover 2 from the inner side of the
cable cover to remove the decorative cover.
2. Screw the rear Wi-Fi antenna to the antenna connector on the rear of the computer. Then, adjust the angle of the
antenna to 90 degrees.
3. Pivot the cable cover as shown to the closed position.
Chapter 1 Getting started 5
Part 4: Install the Kensington-style cable lock (optional).
With the key of the Kensington-style cable lock, attach the lock to the security-lock slot on the rear panel of your
computer as shown. The lock secures your monitor to a desk, table, or other non-permanent fixture. It also locks the
3-in-1 cable so that the Tiny cannot be removed from the monitor.
Connecting cables
After assembling your monitor, you must connect cables correctly to use the monitor and computer. Your
monitor can be used with either the Tiny installed in the monitor or an external desktop computer. To connect
cables, do one of the following:
● If you use the Tiny installed in the monitor, connect the ac power adapter cable and power cord that comes
with the monitor. First connect the ac power adapter cable to the ac power adapter connector on the monitor.
Then, connect one end of the power cord to the ac power adapter and the other end to a properly-grounded
electrical outlet.
● If you use the external desktop computer, do the following:
1. Use a DisplayPort cable of this type as shown. Connect one end of the DisplayPort cable to the DisplayPort
connector on the monitor and the other end to a DisplayPort connector on the computer. To locate the
DisplayPort connector on the monitor, see “Locating connectors and controls on your monitor” on page 2.
6 ThinkCentre Tiny-in-One 24 User Guide
2. Use a type B-to-type A USB cable as shown. Connect type B connector of this cable to the USB 3.0 upstream
connector on the monitor. Then, connect type A connector of the cable to a USB connector on the computer.
To locate the USB 3.0 upstream connector on the monitor, see “Locating connectors and controls on your
monitor” on page 2.
3. Connect the ac power adapter cable of the monitor to the ac power adapter connector on the monitor first.
Then, connect one end of the monitor power cord to the ac power adapter and the other end to a
properly-grounded electrical outlet.
Chapter 1 Getting started 7
Turning on your monitor and computer
To turn on your monitor and computer, do one of the following:
- If you only have the Tiny installed in the monitor, press the power button on the monitor to turn on your monitor
and computer. To locate the power button, see “Locating connectors and controls on your monitor” on page 2.
- If you only have the external desktop computer connected to the monitor, press the power button on the monitor to
turn on your monitor. Then, press the power button on the computer to turn on your computer. To locate the power
button, see “Locating connectors and controls on your monitor” on page 2.
- If you have both the Tiny installed in the monitor and the external desktop computer connected to the monitor, do
one of the following:
- If you use the Tiny, press the power button on the monitor to turn on your monitor and computer. To locate the
power button, see “Locating connectors and controls on your monitor” on page 2.
- If you use the external desktop computer, press the mode-switching button on the monitor to select the DP mode so
that the monitor is turned on. Then, press the power button on the computer to turn on your computer. To locate the
mode-switching button, see “Locating connectors and controls on your monitor” on page 2.
Note: When both the Tiny and the external desktop computer are working, you can press the mode-switching button
to switch between the two computers. When you select the AIO mode, you will use the Tiny. When you select the DP
mode, you will use the external desktop computer.
When you switch between the AIO mode and the DP mode, ensure that no data is being transmitted between
your computer and any USB device that is connected to your monitor. If you switch between the two modes
while the USB data is being transmitted, the transmission will be interrupted and loss of data may result.
When you switch between the AIO mode and the DP mode the following is required to wake your computer
from sleep or hibernation:
-DP mode to AIO mode. If the Tiny installed in your monitor is in sleep or hibernation mode, press the power button of
the monitor to wake up the Tiny.
-AIO mode to the DP mode. If the external desktop computer is in sleep or hibernation mode, press the power button of
the external desktop computer to wake up it.
Note: When you switch between AIO mode and DP mode, the keyboard and mouse that are connected to your
monitor are also switched and cannot waken your computer.
8 ThinkCentre Tiny-in-One 24 User Guide
Chapter 2 Adjusting and using your monitor
This section will give you information on adjusting and using your monitor.
Adjusting the full-function monitor stand
You can use the full-function monitor stand to adjust the monitor to your comfortable position.
1. The following illustration shows that you can adjust the monitor at an angle of -5° to the front and 35° to the rear.
2. The following illustration shows that you can turn the monitor at an angel of 45° to the left and 45° to the right.
3. The following illustration shows that you can adjust the height of the full-function monitor stand within a length
of 110 mm.
Note: Before you adjust the height, ensure that you pull out the latch that secures the stand and read the
instructions on the label of the latch.
Chapter 2 Adjusting and using your monitor 9
Installing the monitor driver
To enjoy a better monitor performance, it is recommended that you install the monitor driver before using the monitor.
To install the monitor driver, do one of the following:
•If the optical drive is available, insert the CD that comes with the monitor into the optical drive. Then, follow the
instructions on the screen.
•If the optical drive is not available, download the driver from the Lenovo Web site at
http://support.lenovo.com/docs/TIO24D. Then, follow the instructions in “Manually installing the monitor driver”
on page 24.
Comfort and accessibility
Good ergonomic practice is important to get the most from your personal computer and to avoid discomfort.
Arrange your workplace and the equipment you use to suit your individual needs and the kind of work that you
perform. In addition, use healthy work habits to maximize your performance and comfort while using your
computer.
Arranging your work area
Use a work surface of appropriate height and available working area to allow you to work in comfort.
Organize you work area to match the way you use materials and equipment. Keep your work area clean and clear for the
materials that you typically use and place the items that you use most frequently, such as the computer mouse or
telephone, within the easiest reach.
Equipment layout and setup play a large role in your working posture. The following topics describe how to optimize
equipment setup to achieve and maintain good working posture.
●Positioning and viewing your monitor:
Position and adjust your computer monitor for comfortable viewing by considering the following items:
●Viewing distance:
Optimal viewing distances for monitors range from approximately 510mm to 760mm (20 in to 30 in) and can vary
depending on ambient light and time of day. You can achieve different viewing distances by repositioning your
monitor or by modifying your posture or chair position. Use a viewing distance that is most comfortable for you.
●Monitor height:
Position the monitor so your head and neck are in a comfortable and neutral (vertical, or upright) position. If your
monitor does not have height adjustments, you might have to place books or other sturdy objects under the base of
the monitor to achieve the desired height. A general guideline is to position the monitor such that the top of the
screen is at or slightly below your eye-height when you are comfortably seated. However, be sure to optimize your
monitor height so the line of site between your eyes and the centre the monitor suits your preferences for visual
distance and comfortable viewing when your eye muscles are in a relaxed stated.
●Tilt :
Adjust the tilt of your monitor to optimize the appearance of the screen content and to accommodate your
preferred head and neck posture.
●General location:
Position your monitor to avoid glare or reflections on the screen from overhead lighting or nearby windows.
The following are some other tips for comfortable viewing of your monitor:
●Use adequate lighting for the type of work you are performing.
●Use the monitor brightness, contrast, and image adjustment controls, if equipped, to optimize the image on
your screen to meet your visual preferences.
●Keep your monitor screen clean so you can focus on the screen’s contents.
Any concentrated and sustained visual activity can be tiring for your eyes. Be sure to periodically look away from
your monitor screen and focus on a far object to allow your eye muscles to relax. If you have questions on eye
fatigue or visual discomfort, consult a vision care specialist for advice.
10 ThinkCentre Tiny-in-One 24 User Guide
Quick tips for healthy work habits
The following information is a summary of some important factors to consider to help you remain comfortable and
productive while you use your computer.
● Good posture starts with equipment setup:
The layout of your work area and the setup of your computer equipment have a large effect on your posture
while using your computer. Be sure to optimize the position and orientation of your equipment by following
the tips outlined in “Arranging your work area ” on page 10 so you can maintain a comfortable and
productive posture. Also, be sure to use the adjustment capabilities of your computer components and office
furniture to best suit your preferences now and as your preferences change over time.
● Minor changes in posture can help avoid discomfort:
The longer you sit and work in front of your computer, the more important it is to observe your working
posture. Avoid assuming any one posture for an extended period of time. Periodically make minor
modifications in your posture to help deter any discomforts that might arise. Make use of any adjustments that
your office furniture or equipment provide to accommodate changes in posture
● Short, periodic breaks help ensure healthy computing:
Because computing is primarily a static activity, it is particularly important to take short breaks from your
work. Periodically, stand up in front of your work area, stretch, walk for a drink of water, or otherwise take a
short break from using your computer. A short break from work gives your body a welcome change in
posture and helps to ensure you remain comfortable and productive while you do work.
Accessibility information
Lenovo is committed to providing greater access to information and technology to people with disabilities. With
assistive technologies, users can access information in the way most appropriate to their disability. Some of these
technologies are already provided in your operating system; others can be purchased through vendors or accessed
at:
https://lenovo.ssbbartgroup.com/lenovo/request_vpat.php
Chapter 2 Adjusting and using your monitor 11
Adjusting your monitor image
This section describes the user control features used to adjust your monitor image.
Using the user controls
Your monitor has four user controls on the front panel. To locate the user controls, see “Locating connectors and
controls on your monitor” on page 2. You can use the user controls to adjust some settings of your monitor on the
On Screen Display (OSD) main menu.
•Mode-switching button / back button
Used to switch between the AIO mode (using the Tiny installed) and the DP mode (using an external desktop
computer). You also can press the button to move back and exit from the OSD menu.
•Left shift button
Used to move to the left on the OSD menu.
•Right shift button / brightness control
Used to move to the right on the OSD menu and adjust the brightness.
•Selection button / menu-opening button
Used to open the OSD main menu and select an option.
Using the OSD controls
The settings adjustable with the user controls are viewed through the OSD, as shown below.
Note: When switching to AIO mode, the monitor and the Tiny share the same power button on the monitor,
However, if the enhanced power saving mode is enabled in the BIOS of the Tiny, you can only use the
power button of the computer to turn on the computer.
To use the controls:
1.Press to open the main OSD menu.
2.Use or to move among the icons. Select an icon and press to access that
function. If there is a sub-menu, you can move between options using or
then press to select that
function. Use
,
or to make
adjustments. Press
to save.
3.Press to move backwards through the sub-menus and exit from the OSD.
4.Press and hold for 10 seconds to lock
the OSD. This will
prevent accidental
adjustments to the OSD. Press and hold for 10 seconds to unlock the OSD and allow
adjustments to the OSD.
5.Enables DDC/CI by default. Use OSD Left
Arrow Key, press
and hold the
buttons for 5
seconds to disable/enable DDC/CI function. The words " DDC/CI
Disable/DDC/CI/Enable" shows on the screen.
12 ThinkCentre Tiny-in-One 24 User Guide
Using the USB connectors
Your monitor has three USB connectors. To locate the USB connectors, see “Locating connectors and controls on
your monitor” on page 2.
•USB 3.0 connectors
Used to attach a device that requires a USB 2.0 or USB 3.0 connection, such as a keyboard, a mouse, a scanner,
or a printer.
Note: The two USB 3.0 connectors on the front panel can only be used as USB 2.0 connectors in one of
the following conditions:
- You use the Tiny installed in the monitor and the 3-in-1 cable is connected to a USB 2.0 connector on the
computer.
- You use an external desktop computer and the USB cable is connected to a USB 2.0 connector on the
computer.
•USB 3.0 upstream connector
Used to transfer signals from the external desktop computer to the monitor.
Using the audio
Your monitor has only one headset connector that also is known as audio jack. To locate the headset connector,
see “Locating connectors and controls on your monitor” on page 2. You can connect a headset to the headset
connector. After adjusting the audio setting, you can use the headset to listen to and record audio. To adjust the
audio setting, do the following:
1. Right-click the volume icon on the taskbar at the bottom-right corner of the desktop. Then, select Volume
control options. The Volume Control Options opens.
2. In the Sound devices area, select TinyinOne24.
3. Click Apply to save the setting.
Chapter 2 Adjusting and using your monitor 13
Warning: Excessive sound pressure from ear-/headphones can cause hearing damage /hearing loss.
Table 2-1. OSD functions
OSD Icon on
Main Menu Submenu Description Controls and
Adjustments
(DP)
Brightness/Contrast Brightness Adjusts overall brightness
－ ＋
Brightness/Contrast Contrast Adjusts difference between light
and dark areas
－ ＋
Image Properties
Input Signal
●AIO Mode
Switch between the AIO mode
(using the Tiny installed) and the
DP mode (using an external
desktop computer).
Use the source from the Tiny.
Image Properties
Input Signal
●DP
Use the source from DP
connector of external desktop
computer.
Image Properties
Color
Adjusts intensity of red, green,
and blue.
Preset mode
●Neutral
●sRGB
●Reddish
●Bluish
Custom：
●Red: Increases or decreases
the saturation of ‘red’ in the
image.
●Green: Increases or decreases
the saturation of
‘green’ in the image.
●Blue: Increases or decreases
the saturation of ‘blue’ in the
image.
Image Properties
Scaling
●
Original AR
Same Aspect Ratio with input
signal
●Full
Expand image to full screen
Image Properties Over Drive
On
Off
14 ThinkCentre Tiny-in-One 24 User Guide
Table 2-2. OSD functions
OSD Icon on Main
Menu
Submenu Description
Options
Information
Shows resolution, refresh rate, and product details.
Note: This screen does not allow any changes to the settings.
This section lists the languages supported by your monitor.
Options
Language
Note: The language chosen only affects the language of the OSD. It has
no effect on any software running on the computer.
Options
Menu position adjusts menu location on the screen.
Menu Position
Default
Custom
Returns the menu position to the default settings.
● Horizontal: Changes the horizontal position of the OSD
● Vertical: Changes the vertical position of the OSD.
● Save
Options
Factory Default
Resets monitor to the original factory settings.
● Cancel
● Reset
Options
Accessibility
Controls button and menu settings for accessibility preferences.
Button repeat rate:
Select or to change.
● Off
● Default
● Slow
Menu time out: Sets the length of time the
OSD will remain active after the last time a button is pressed.
Exit
Exit the main menu
Chapter 2 Adjusting and using your monitor 15
Selecting a supported display mode
The display mode that monitor uses is controlled by the computer. Therefore, refer to your
computer documentation for details on how to change display modes.
The image size, position and shape might change when the display mode changes. This is
normal and the image can be readjusted using automatic image setup and the image
controls.
Unlike CRT monitors, which require a high refresh rate to minimize flicker, LCD or Flat
Panel technology is inherently flicker-free.
Note: If your system has previously been used with a CRT monitor and is currently
configured to a display mode outside the range of this monitor, you may need to re-attach
the CRT monitor temporarily until you have re-configured the system; preferably to
1920x1080 at 60Hz, which is the Native Resolution Display mode.
The display modes shown below have been optimized at the factory.
Table 2-3.Factory set display modes
Addressability
Refresh rate
640x350
70Hz
640x480
60Hz, 66Hz,72Hz,75Hz
720x400
70Hz
800x600
60Hz,72Hz,75Hz
1024x768
60Hz,70Hz,75Hz
1152x864
75Hz
1280x768
60Hz
1280x800
60Hz
1280x1024
60Hz,72Hz,75Hz
1366x768
60Hz
1440x900
60Hz, 75Hz
1600x1200
60Hz, 70Hz,75Hz
1680x1050
60Hz
1920x1080
R60Hz
Understanding power management
Power management is invoked when the computer recognizes that you have not using your
mouse or keyboard for a user-definable period. There are several states as described in the
table below.
For optimal performance, switch off your monitor at the end of each working day, or
whenever you expect to leave it unused for long periods during the day.
Table2-4.Power indicator
State
Power Indicator
Screen
Restoring Operation
Compliance
On
Steady green
(AIO Mode/DP)
Normal
Standby/
Suspend
Blinking green
(AIO Mode)
Steady amber
(DP)
Blank
Press a key or move the
mouse.
There may be a slight
delay reappears.
Note: Standby also occurs
if there is no image output to
the monitor.
ENERGY
STAR
Off
Off
(AIO Mode/DP)
Off
Press power key to switch on
There may be a slight delay
before the image reappears.
ENERGY
STAR
16 ThinkCentre Tiny-in-One 24 User Guide
Caring for your monitor
Be sure to turn off the power before you perform any maintenance on the monitor.
Do not:
● Apply water or liquid directly to your monitor.
● Use solvents or abrasives.
● Use flammable cleaning materials to clean your monitor or any other
electrical equipment.
● Touch the screen area of your monitor with sharp or abrasive items. This
type of contact may cause permanent damage to your screen.
● Use any cleaner which contains an anti-static solution or similar additives.
This may harm the coating of the screen area.
Do:
● Lightly dampen a soft cloth with water and use this to gently wipe the covers and
the screen.
● Remove grease or finger marks with a damp cloth and a little mild detergent.
Chapter 2 Adjusting and using your monitor 17
Chapter 3 Reference information
This section contains Disassembling your monitor, monitor specifications, instructions to manually install the monitor
driver, troubleshooting information, and service information.
Disassembling your monitor
To disassemble your monitor, follow the four parts below one by one:
Part 1: Remove the Kensington-style cable lock (optional).
Part 2: Remove the rear Wi-Fi antenna (optional).
Part 3: Remove the Tiny.
Part 4: Remove the full-function monitor stand.
Part 1: Remove the Kensington-style cable lock (optional).
With the key of the Kensington-style cable lock, unlock the lock that is attached to the rear panel of your
computer.
Part 2: Remove the rear Wi-Fi antenna (optional).
1. Press the cable cover 1 to open it. Then, pivot the cable cover as shown to the open position.
2. Pivot the rear Wi-Fi antenna downward at an angle of about 90°. Then, hold the thicker end of the rear Wi-Fi
antenna and unscrew it from the computer.
18 ThinkCentre Tiny-in-One 24 User Guide
Part 3: Remove the Tiny.
1. Release the screw that secures the computer.
2. Push the computer from the rear as shown to disconnect it completely from the 3 in 1 cable.
3. Pull the computer out of the computer bay. Then, pivot the cable cover as shown to the closed position.
4. If the two decorative covers of the computer bay are available, insert the two covers into the corresponding
slots.
Chapter 3 Reference information 19
Part 4: Remove the full-function monitor stand.
1. Place a soft, clean towel or cloth on the desk or surface. Hold the sides of your monitor and gently lay it down
so that the screen is against the surface and the cover is facing up.
2. Slide the latch upward as shown. Then, pivot the monitor stand upward to remove it.
3. If you want to hang your monitor on the wall, you can install a VESA mount bracket that can be
ordered from Lenovo.
20 ThinkCentre Tiny-in-One 24 User Guide
Monitor specifications
Table 3-1. Monitor specifications for type-model 10LL-PAR6-WW
Dimensions Height
Depth
Width
385 mm (15.16 in.)
251 mm (9.90 in.)
539 mm (21.24 in.)
Stand
Tilt range
Range: -5°/+35°
Stand Swivel Range: -45°, +45°
Stand
Lift
Range: 110.0 mm
VESA mount Supported 100 mm (3.94 in.)
Image Viewable image size
Maximum height
Maximum width
Pixel pitch
605 mm (23.8 in.)
297 mm (11.69 in.)
527 mm (20.74 in.)
0.275mm (H)x0.275 mm (V)
Power input Supply voltage
Max supply current
20VDC
4.5 A
Power consumption
Note: Power consumption figures
are for the monitor and the power
supply combined.
Max Consumption
Typical Consumption
Standby/Suspend
Off
35 W
16.7 W
<0.5 W
≦0.5 W
Video input (Digital) Interface
Horizontal addressability
Vertical addressability
Clock frequency
DP
1920 pixels (max)
1080 lines (max)
10.8 Gbps(max)
Communications
VESA DDC
CI
Altitude Test
Operation
16404.2 ft
Supported Display Modes
(VESA Standard modes
between noted ranges)
Horizontal frequency
Vertical frequency
Native Resolution
DP: 30 kHz – 83 kHz
30 Hz – 75 Hz
1920 x 1080 at 60 Hz
Temperature Operating
Storage
Shipping
0° to 40°C (32°F to 104° F)
-20° to 60°C (-4°F to 140° F)
-20° to 60°C (-4° F to 140° F)
Humidity Operating
Storage
Shipping
8% to 80%
10% to 90%
10% to 90%
Chapter 3 Reference information 21
Troubleshooting
If you have a problem setting up or using your monitor, you might be able to solve it yourself.
Before calling your dealer or Lenovo, try the suggested actions that are appropriate to your
problem.
Table3-2.Troubleshooting
Problem Possible cause Suggested action Reference
The words” Out
of Range” are
shown on the
screen, and the
power indicator is
flashing green.
The system is set
to a display
mode which is
not supported by
the monitor.
●If you are replacing an old
monitor, reconnect it and
adjust the display mode to
within the specified range
for your new monitor.
●If using a
Windows® system, restart
the system in safe mode,
then select a supported
display mode for your
computer.
●If these options do not
work, contact the
Customer Support Centre.
“Selecting a supported
display mode” on page 16
The image quality
is unacceptable.
The video signal
cable is not
connected with
the monitor or
system
completely.
Be sure the signal cable is
firmly plugged into the
system and monitor.
“Setting up your monitor
“on page 3
The image quality
is unacceptable. The color
settings may be
incorrect.
Select another color setting
from the OSD menu.
“Adjusting your monitor
image” on page 12
The image quality
is unacceptable. The automatic
image setup
function was not
performed.
Perform automatic image
setup.
“Adjusting your monitor
image” on page 12
The power
indicator is not lit
and there is no
image.
●The monitor’s
power switch
is not switched
on.
●The power
cord is loose or
disconnected.
●There is no
power at the
outlet.
●Be sure the power cord is
connected properly.
●Be sure the outlet has
power.
●Power on the monitor.
●Try using another power
cord.
●Try using another
electrical outlet.
“Setting up your monitor
“on page 3
22 ThinkCentre Tiny-in-One 24 User Guide
Table3-2.Troubleshooting(continued)
Problem Possible cause Suggested action Reference
Screen is blank
and power
indicator is
steady amber
or flashing
green
The monitor is in
Standby/Suspend
mode
● Press any key on the
keyboard or move the
mouse to restore
operation.
● Check the Power options
settings on your
computer.
“Understanding power
management” on page 16
The power
indicator is
green, but
there is no
image.
The video signal
cable is loose or
disconnected from
the system or
monitor.
Be sure the video cable is
connected with the system
properly.
“Setting up your monitor
“on page 3
The power
indicator is
green, but
there is no
image.
The monitor
brightness and
contrast are at the
lowest setting.
Adjust the brightness and
contrast setting on the OSD
menu.
“Adjusting your monitor
image” on page 12
One or more
of the pixels
appear
discoloured
This is a
characteristic of the
LCD technology
and is not an LCD
defect.
If there are more than five
pixels missing, contact the
Customer Support Centre.
“Service and support” on
page 29
● Fuzzy lines
in text or a
blurry image.
● Horizontal
or vertical
lines through
the image.
● Image setup has
not been
optimized
● Your system
Display
Properties setting
have not been
optimized.
Adjust the resolution
settings on your system to
match the native resolution
for this monitor: 1920x1080
at 60 Hz.
“Adjusting your monitor
image” on page 12
● Fuzzy lines
in text or a
blurry image.
● Horizontal
or vertical
lines through
the image.
● Image setup has
not been
optimized
● Your system
Display
Properties setting
have not been
optimized.
Perform automatic image
setup. If automatic image
setup does not help,
perform manual image
setup.
“Selecting a supported
display mode” on page 16
● Fuzzy lines
in text or a
blurry image.
● Horizontal
or vertical
lines through
the image.
● Image setup has
not been
optimized
● Your system
Display
Properties setting
have not been
optimized.
When working in the native
resolution, you may find
additional improvements by
adjusting the Dots Per Inch
(DPI) setting on your
system.
See the Advanced section
of your system’s display
properties.
The image is
not acceptable
when
switching to
dual mode
It has not set the
optimum
resolution for each
mode
● Use ThinkVision® Duo
software to optimize the
dual screen operation
● Adjust graphic card
resolution manually
“Using the user controls”
on page 12
Manual image setup
If automatic image setup does not establish the image that you prefer, perform
manual image setup.
Chapter 3 Reference information 23
Note: Have your monitor powered on for about 15 minutes, until the monitor warms
up.
1.Press at the bottom of the monitor to open the OSD menu.
2.Use or to select and press to access.
3.Use or to select Clock and Phase adjustment.
●Clock (pixel frequency) adjusts the number of pixels scanned by one
Horizontal sweep. If the frequency is not correct, the screen shows vertical
Stripes and the picture does not have the correct width.
●Phase adjusts the phase of the pixel clock signal. With a wrong phase
adjustment, the picture has horizontal disturbances in light picture.
4.When the image no longer looks distorted, save the Clock and Phase adjustments.
5.Press to leave the OSD menu.
Manually installing the monitor driver
Below are steps for manually installing the monitor driver in Microsoft® Windows 7,
Microsoft Windows 8, Microsoft Windows 8.1 and Microsoft Windows 10.
Installing the monitor driver in Windows 7
To use the Plug and Play feature in Microsoft Windows 7, do the following:
Note: You must download file from the Reference and Driver CD to use the Plug and
Play feature in Windows 7.
1. Turn off the computer and all attached devices.
2. Ensure that the monitor is connected correctly.
3. Turn on the monitor and then turn on the computer. Allow your computer to
boot into Windows 7 operating system.
4. Open the Display Properties window by clicking Start, Control Panel and
then click the Hardware and Sound icon.
5. Click the Display icon.
6. Click the Adjust Resolution button.
7. Click the Advanced Settings button.
8. Click the Monitor tab.
9. Click the Properties button.
10. Click the Driver tab.
11. Open the "Update Driver Software-Generic PnP Monitor" window by clicking on
Update Driver and then click the "Browse my computer for driver software" button.
12. Select “Let me pick from a list of device drivers on my computer”.
13. Insert the Lenovo Monitor CD into the CD drive and click the Have Disk button.
14. Click on the Browse button and navigate to the following directory:
X:\Monitor Drivers\ (where X is the drive letter designator for the CD-ROM drive).
15. Select the “TinyinOne24.inf”file and click the Open button. Click the OK button.
16. Select ThinkCentre Tiny-in-One 24 and click Next. The files will be copied
from the CD to your hard disk drive.
17. Close all open windows and remove the CD.
18. Restart the computer.
24 ThinkCentre Tiny-in-One 24 User Guide
The system will automatically select the maximum refresh rate and
corresponding color matching profiles.
Note: On LCD monitors, unlike CRTs, a faster refresh rate does not improve display
quality. Lenovo recommends using either 1920 x 1080 at a refresh rate of 60 Hz, or 640
x 480 at a refresh rate of 60 Hz.
Installing the monitor driver in Windows 8
To use the Plug and Play feature in Microsoft Windows 8, do the following:
Note: You must download file from the Reference and Driver CD to use the Plug and
Play feature in Windows 8.
1. Turn off the computer and all attached devices.
2. Ensure that the monitor is connected correctly.
3. Turn on the monitor and then turn on the computer. Allow your computer to boot into
Windows 8 operating system.
4. On the Desktop, move mouse to low-right corner of screen, choose Setting, double
click Control Panel, then double click the icon of Hardware and Sound, and then clicking
Display.
5. Click the Change the display settings tab.
6. Click the Advanced Settings icon.
7. Click the Monitor tab.
8. Click the Properties button.
9. Click the Driver tab.
10. Click Update Driver, then click Browse the computer to find the driver program.
11. Select Pick from the list of device driver program on the computer.
12. Click the Have Disk button. Click the Browse button and navigate to the
following directory:
X:\Monitor Drivers(where X is the drive letter designator for the CD-ROM drive).
13. Select the " TinyinOne24.inf "file and click the Open button. Click the OK button.
14. Select ThinkCentre Tiny-in-One 24 and click Next. The files will be copied from the
CD to your hard disk drive.
15. Close all open windows and remove the CD.
16. Restart the system. The system will automatically select the maximum refresh rate and
corresponding Color Matching Profiles.
The system will automatically select the maximum refresh rate and corresponding color
matching profiles.
Note: On LCD monitors, unlike CRTs, a faster refresh rate does not improve display
quality. Lenovo recommends using either 1920 x 1080 at a refresh rate of 60 Hz, or
640 x 480 at a refresh rate of 60 Hz.
Chapter 3 Reference information 25
Installing the monitor driver in Windows 8.1
To install the device driver in Microsoft Windows 8.1, do the following:
Note: You must download files from the Lenovo Monitor CD to use the Plug and Play
feature in Windows 8.1.
1. Turn off the computer and all attached devices.
2. Ensure that the monitor is connected correctly.
3. Turn on the monitor and then turn on the computer. Allow your computer to
boot into Windows 8.1 operating system.
4. On the Desktop, move mouse to low-right corner of screen, choose Setting, double
click Control Panel, and then double click the icon of Hardware and Sound, and
then clicking Display.
5. Click the Change the display settings tab.
6. Click the Advanced Settings icon.
7. Click the Monitor tab.
8. Click the Properties button.
9. Click the Driver tab.
10. Click Update Driver, then click Browse the computer to find the driver program.
11. Select Pick from the list of device driver program on the computer.
12. Click the Have Disk button. Click the Browse button and navigate to the following
directory:
X:\Monitor Drivers (where X is the drive letter designator for the CD-ROM drive).
13. Select the “TinyinOne24.inf” file and click the Open button. Click the OK button.
14. Select ThinkCentre Tiny-in-One 24 and click Next. The files will be copied from the CD
to your hard disk drive.
15. Close all open windows and remove the CD.
16. Restart the system. The system will automatically select the maximum refresh rate and
corresponding Color Matching Profiles.
The system will automatically select the maximum refresh rate and corresponding
color matching profiles.
Note: On LCD monitors, unlike CRTs, a faster refresh rate does not improve display quality.
Lenovo recommends using either 1920 x 1080 at a refresh rate of 60 Hz, or 640 x 480 at
refresh rate of 60 Hz.
26 ThinkCentre Tiny-in-One 24 User Guide
Installing the monitor driver in Windows 10
To install the device driver in Microsoft Windows 10, do the following:
Note: You must download files from the Lenovo Monitor CD to use the Plug and Play feature
in Windows 10.
1. Turn off the computer and all attached devices.
2. Ensure that the monitor is connected correctly.
3. Turn on the monitor and then turn on the computer. Allow your computer to
boot into Windows 10 operating system.
4. On the Desktop, move the mouse cursor to the small Window Icon on the lower left corner
of screen and right click, then choose Control Panel, then double click the Hardware and
Sound icon and then click the Display.
5. Click the Change the display settings tab.
6. Click the Advanced Settings icon.
7. Click the Monitor tab.
8. Click the Properties button.
9. Click the Driver tab.
10. Click Update Driver, then click Browse the computer to find the driver program.
11. Select Pick from the list of device driver program on the computer.
12. Click the Have Disk button. Click the Browse button and navigate to the following
directory:
X:\Monitor Drivers (where X is the drive letter designator for the CD-ROM drive).
13. Select the “TinyinOne24.inf” file and click the Open button. Click the OK button.
14. Select ThinkCentre Tiny-in-One 24 and click Next. The files will be copied from the CD
to your hard disk drive.
15. Close all open windows and remove the CD.
16. Restart the system. The system will automatically select the maximum refresh rate and
corresponding Color Matching Profiles.
Chapter 3 Reference information 27
Service information
Product numbers
The product number for your monitor is located on the side of the display bezel as shown
below.
Customer responsibilities
The warranty does not apply to a product which has been damaged due to accident, misuse,
abuse, improper installation, usage not in accordance with product specifications and
instructions, natural or personal disaster, or unauthorized alterations, repairs or
modifications.
The following are examples of misuse or abuse and not covered by warranty:
●Images burned on to the screen of a CRT monitor. Burned image is preventable by
utilizing a moving screen saver or power management.
●Physical damage to covers, bezel, base and cables.
●Scratches or punctures on monitor screens.
●Pivot the monitor when working in AIO mode.
Getting further help
If you still can’t solve your problem, please contact the Customer Support Centre. For
more information on contacting the Customer Support Centre, please see “Service and
support,” on page 29.
Service parts
The following parts are for use by Lenovo service, or Lenovo authorized dealers to
support the customer warranty. Parts are for service use only. The table below
shows information for model 10LL-PAR6-WW.
Table 3-3. List of service parts
FRU (Field
Replaceable
Unit)
Part number
Description color
Machine Type
Model (MTM)
00PC117 Tiny-in-One 24 Monitor
(24inch Monitor, DP& 3in1 port) Raven Black
10LL-PAR6-WW
54Y8966 90w Power Brick (DT&AIO
Common 90W with CMN)
00PC118 Tiny-in-One 24 Monitor - FRU
Stand and Base Raven Black
10LL-PAR6-WW
28 ThinkCentre Tiny-in-One 24 User Guide
Appendix A Service and support
The following information describes the technical support that is available for your
product, during the warranty period or throughout the life of the product. Refer to your
Lenovo Statement of Limited Warranty for a fully explanation of Lenovo warranty
terms.
Registering your option
Register to receive product service and support updates, as well as free and discounted
computer Accessories and content. Go to:
http://www.lenovo.com/support
Online technical support
Online technical support is available during the life of your product through the Lenovo
Support Web site at http://www.lenovo.com/ support
Product replacement assistance or exchange of defective components also is available
during the warranty period, assistance for replacement or exchange of defective
components is available. In addition, if your option is installed in a Lenovo computer,
you might be entitled to service at your location. Your technical support
representative can help you determine the best alternative.
Telephone technical support
Installation and configuration support through the Customer Support Centre will be
withdrawn or made available for a fee, at Lenovo’s discretion, 90 days after the option
has been withdrawn from marketing, Additional support offerings, including
step-by-step installation assistance, are available for a nominal fee.
To assist the technical support representative, have available as much of the following
information as possible:
● Option name
● Option number
● Proof of purchase
● Computer manufacturer, model, serial number, and manual
● Exact wording of the error message (if any)
● Description of the problem
● Hardware and software configuration information for your system
If possible, be at your computer. Your technical support representative might
want to walk you through the problem during the call.
Worldwide telephone list
Phone numbers are subject to change without notice. For the most current phone
Numbers, go to http://www.lenovo.com/support/phone
Appendix A Service and support 29
Country or Region Telephone Number
Africa
Africa: +44 (0) 1475-555-055
South Africa: +27-11-3028888 and 0800110756
Central Africa: Contact the nearest Lenovo
Business Partner
Argentina
0800-666-0011 (Spanish)
Australia
131-426 (English )
Austria
Warrant service and support: 01-211-454-610 (German )
Belgium
Warrant service and support: 02-225-3611 (Dutch, French)
Bolivia
0800-10-0189 ( Spanish)
Brazil
Sao Paulo region: (11) 3889-8986
Outside Sao Paulo region: 0800-701-4815
(Brazilian Portuguese)
Brunei
801-1041 (English , Bahasa Melayu)
Canada
Toronto:416-383-3344
Outside Toronto: 1-800-565-3344
(English , French)
Chile
Toll Free: 188-800-442-488
800-361-213
(Spanish )
China
86-10-58851110
800-990-8888
(Mandarin)
China
(Hong Kong S.A.R.)
(852)3071-3561
(Cantonese, English, Mandarin)
China
(Macau S.A.R.)
ThinkCentre Commercial PC: 795-9892
Multimedia Home PC: 0800-336
(Cantonese, English, Mandarin)
Colombia
1-800-912-3021 (Spanish)
Costa Rica
0-800-011-1029( Spanish )
Croatia
0800-0426
Cyprus
+357-22-841100
Czech Republic
+420-2-7213-1316
Denmark
Warranty service and support: 7010-5150 (Danish)
Dominican Republic
1-866-434-2080(Spanish )
Ecuador
1-800-426911(Spanish )
Egypt
+202-35362525
El Salvador
800-6264 (Spanish)
Estonia
+372 6776793
+372 66 00 800
Finland
Warranty service and support: +358-800-1-4260(Finnish)
France
Warranty service and support (hardware): 0810-631-213
Warranty service and support (software): 0810-631-020
(French)
Germany Warranty service and support: 01805-00-46-18 (German )
Greece +30-210-680-1700
Guatemala 1800-624-0051 (Spanish )
Honduras
Tegucigalpa: 232-4222
San Pedro Sula: 552-2234
(Spanish)
Hungary
+36-1-382-5716
+36-1-382-5720
(English, Hungarian)
India
1800-425-2666
+91-80-2535-9182
(English )
Indonesia
021 5238 823
Local number only: 001-803-606-282
DID (Direct Inward Dialing): +603 8315 6859
(English, Bahasa Indonesia)
30 ThinkCentre Tiny-in-One 24 User Guide
Country or Region Telephone Number
Ireland Warranty service and support: 01-881-1444 (English)
Israel
Givat Shmuel Service and Center: +972-3-531-3900
(Hebrew, English)
Italy Warranty service and support: +39-800-820094 (Italian)
Japan
Toll Free: 0120-20-5550
International: +81-46-266-4716
The above numbers will be answered with a Japanese language voice
prompt. For telephone support in English, please wait for the Japanese
voice prompt to end, and an operator will answer. Please say “English
support please”, and your call will be transferred to an English-speaking
operator.
PC software: 0120-558-695
Overseas calls: +81-44-200-8666(Japanese)
Kazakhstan Call center: +77273231427(Standard charges Apply) (Russian , English)
Kingdom of Saudi Arabia 800 85 000 52 (Standard Charges Apply)
Korea 1588-6782 (Korea)
Latvia +371 7070360
Lithuania +370 5 278 66 00
Luxembourg +352-360-385-343(French)
Malaysia
Local number only: 1800-88-1889
DID: +603 8315 6855
(English, Bahasa Melayu)
Malta +35621445566
Mexico 001-866-434-2080(Spanish)
Middle East +44 (0)1475-555-055
Netherlands +31-20-514-5770 (Dutch)
New Zealand 0800-733-222 (English )
Nicaragua 001-800-220-1830 (Spanish)
Norway Warranty service and support: 8152-1550(Norwegian)
Panama
Lenovo Customer Support Center: 001-866-434-2080 (Toll Free)
206-6047(Spanish)
Peru 0-800-50-866 (Spanish)
Philippines 1800-1601-0033 (English, Filipino)
Poland +48-22-878-6999 (Polski)
Portugal +351-21-892-7046 (Portuguese)
Romania +4-021-224-4015
Russia Moscow: +7-(495)-258-6300
Toll Free: +8-800-200-6300 (Russian)
Singapore Local number only: 800-6011-343 DID: +603 8315 6859 (English)
Slovakia +421-2-4954-5555
Slovenia +386-1-200-50-60 (Slovenian)
Spain 91-714-7983,0901-100-000 (Spanish)
Sri Lanka +9411 2493547 +9411 2493548 (English)
Sweden Warranty service and support: 077-117-1040 (Swedish)
Appendix A Service and support 31
Country or Region Telephone Number
Switzerland Warranty service and support: 0800-55-54-54 (German, French,
Italian)
Taiwan 886-2-8723-9799,0800-000-700 (Mandarin)
Thailand Local number only: 1-800-060-066
66 2273 4088
DID: +603 8315 6857 (Thai, English)
Turkey 02123360366
00800448825165 (Turkish)
Ukraine 044 362 42 81 (Standard Charges Apply)
United Arab Emirates 800035702810 (Standard Charges Apply)
United Kingdom Standard warranty support: 08705-500-900 (English)
United States 1-800-426-7378 (English)
Uruguay 000-411-005-6649 (Spanish)
Venezuela 0-800-100-2011 (Spanish)
Vietnam For Northern Area and Hanoi City: 844 3 946 2000 or 844 3 942 6457
For Southern Area and Ho Chi Minh City: 848 3 829 5160 or 844 3
942 6457(Vietnamese, English)
32 ThinkCentre Tiny-in-One 24 User Guide
Appendix B Notices
Lenovo may not offer the products, services, or features discussed in this document
in all countries. Consult your local Lenovo representative for information on the
products and services currently available in your area. Any reference to a Lenovo
product, program, or service is not intended to state or imply that only that Lenovo
product, program, or service may be used. Any functionally equivalent product,
program, or service that does not infringe any Lenovo intellectual property right may
be used instead. However, it is the user’s responsibility to evaluate and verify the
operation of any other product, program, or service.
Lenovo may have patents or pending patent applications covering subject matter
described in this document. The furnishing of this document does not give you any
license to these patents. You can send license inquiries, in writing to:
Lenovo (United States),inc.
1009 Think Place – Building One
Morrisville, NC 27560
U.S.A.
Attention: Lenovo Director of Licensing
LENOVO PROVIDES THIS PUBLICATION “AS IS” WITHOUT WARRANTY OF
ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO
THE IMPLIED WARRANTIES OF NON-INFRINGEMENT,
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
Some jurisdictions do not allow disclaimer of express or implied warranties in
certain transactions, therefore, this statement may not apply to you.
This information could include technical inaccuracies or typographical errors.
Changes are periodically made to the information herein; these changes will be
incorporated in new editions of the publication. Lenovo may make improvements
and/or changes in the product(s) and/or the program(s) described in this publication
at any time without notice.
The products described in this document are not intended for use in implantation or
other life support applications where malfunction may result in injury or death to
persons. The information contained in this document does not affect or change
Lenovo product specifications or warranties. Nothing in this document shall operate
as an express or implied license or indemnity under the intellectual property rights of
Lenovo or third parties. All information contained in this document was obtained
from specific environments and presented as an illustration. The result obtained in
other operating environments may vary.
Lenovo may use or distribute any of the information you supply in any way it believe
appropriate without incurring any obligation to you.
Any references in this publication to non-Lenovo Web sites are provided for
convenience only and do not in any manner serve as an endorsement of those Web
sites. The materials at those Web sites are not part of the materials for this Lenovo
product, and use of those Web sites is at your own risk.
Any performance data contained herein was determined in a controlled
environment. Therefore, the result obtained in other operating environments may
vary significantly. Some measurements may have been made on development-level
systems and there is no guarantee that these measurements
will be the same on generally available systems. Furthermore, some measurements
may have been estimated through extrapolation. Actual results may vary.
Users of this document should verify the applicable data for their specific
environment.
Appendix B Notices 33
Recycling information
Lenovo encourages owners of information technology (IT) equipment to responsibly recycle
their equipment when it is no longer needed. Lenovo offers a variety of programs and services
to assist equipment owners in recycling their IT products. For information on recycling Lenovo
products, go to http://www.lenovo.com/recycling. The latest environmental information
about our products is available at http://www.lenovo.com/ecodeclaration.
Collecting and recycling a disused Lenovo computer or monitor
If you are a company employee and need to dispose of a Lenovo computer or monitor
that is the property of the company, you must do so in accordance with the Law for
Promotion of Effective Utilization of Resources. Computers and monitors are
categorized as industrial waste and should be properly disposed of by an industrial
waste disposal contractor certified by a local government. In accordance with the Law
for Promotion of Effective Utilization of Resources, Lenovo Japan provides, through its
PC Collecting and Recycling Services, for the collecting, reuse, and recycling of disused
computers and monitors. For details, visit the Lenovo Web site at
www.ibm.com/jp/pc/service/recycle/pcrecycle/. Pursuant to the Law for
Promotion of Effective Utilization of Resources, the collecting and recycling of
home-used computers and monitors by the manufacturer was begun in October 1, 2003.
This service is provided free of charge for home-used computers sold after October 1,
2003. For details, visit the Lenovo Web site at:
www.ibm.com/jp/pc/service/recycle/personal/.
Disposing of Lenovo computer components
Some Lenovo computer products sold in Japan may have components that contain heavy
metals or other environmental sensitive substances. To properly dispose of disused
components, such as a printed circuit board or drive, use the methods described above for
collecting and recycling a disused computer or monitor.
34 ThinkCentre Tiny-in-One 24 User Guide
Turkish statement of compliance
The Lenovo product meets the requirements of the Republic of Turkey Directive on the
Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic
Equipment (EEE).
Trademarks
The following terms are trademarks of Lenovo in the United States, other
countries, or both:
Lenovo
The Lenovo logo
ThinkCentre
The ThinkCentre logo
ThinkVision
Microsoft and Windows are trademarks of the Microsoft group of companies.
DisplayPort is a trademark of the Video Electronics Standards Association.
Other company, product, or service names may be trademarks or service marks
of others.
Appendix B Notices 35
Power cords and power adapters
Use only the power cords and power adapters supplied by the product manufacturer.
Do not use the ac power cord for other devices.

Navigation menu
