X270

Safety, Warranty, and Setup Guide

Lenovo support: http://www.lenovo.com/support

Lenovo user forums: https://forums.lenovo.com/

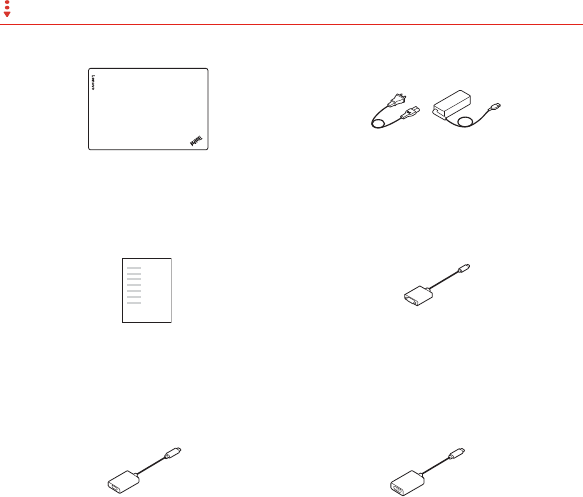

Unpack

ThinkPad® computer

Power cord and adapter

Documentation

Lenovo HDMI to VGA Adapter＊

Lenovo USB-C to DisplayPort

Adapter＊

Lenovo USB-C to VGA Adapter＊

＊ Optional accessories, available on some models

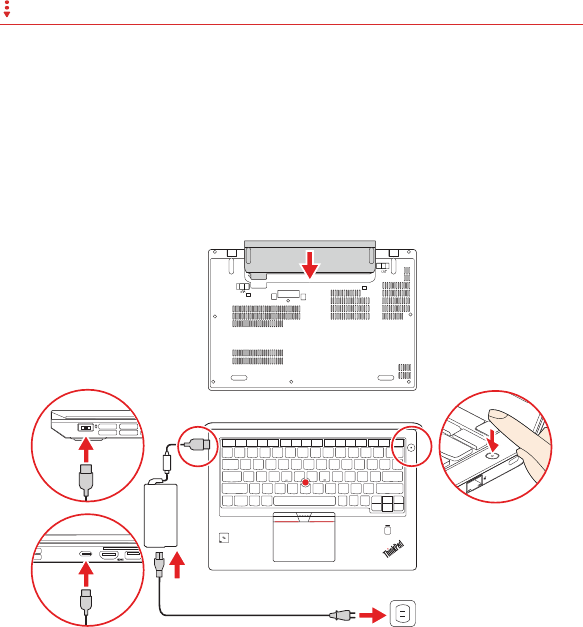

Initial setup

1. Install the battery.

2. Connect the power cord to the ac power adapter.

3. Connect the ac power adapter to the power connector 3a on the computer.

If your computer is shipped with a USB-CTM type adapter, connect the

adapter to the USB-C connector 3b.

4. Connect the power cord to a properly grounded ac power outlet.

5. Press the power button to turn on the computer. Then follow the on-screen

instructions to complete the initial setup.

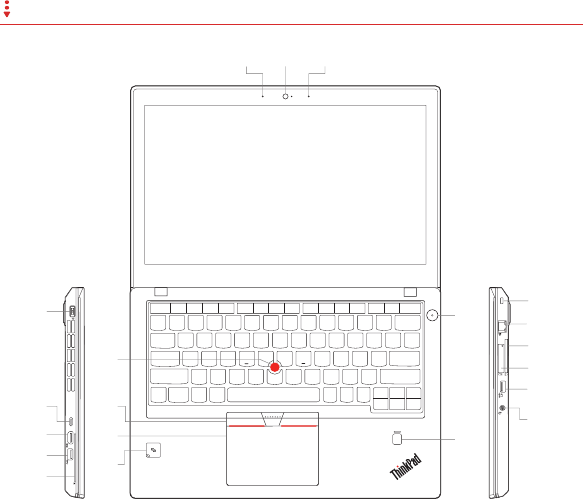

Controls and connectors

1. Power connector 2. USB-C connector

3. HDMITM connector 4. USB 3.0 connector

5. Smart-card slot* 6. TrackPoint® pointing stick

7. TrackPoint buttons 8. Trackpad

9. NFC label* 10. Microphones*

11. Camera* 12. Power button

13. Fingerprint reader* 14. Security lock slot

15. Ethernet connector 16. Media-card slot

17. Micro-SIM-card tray* 18. Always On USB connector

19. Audio connector

* Available on some models

10 11 10

Accessing your User Guide

Your User Guide contains detailed information about your computer. To access

your User Guide, do the following:

Windows 10:

1. Open the Start menu and then click Lenovo Companion.

2. Click SUPPORT  User Guide.

Windows 7:

1. From the Windows desktop, click Start and then click Help and Support.

The Windows Help and Support window opens.

2. Click Lenovo User Guide.

Lenovo® makes constant improvements to the User Guide of your computer. To

ensure that you have the up-to-date information of your computer, see

“Downloading publications” for information about downloading the latest User

Guide.

Downloading publications

Electronic versions of your computer publications are available from the Lenovo

Support Web site. To download the publications for your computer, go to:

http://www.lenovo.com/support

Recovery notice

Your computer might not come with a Windows® recovery disc set or USB key.

To restore the Microsoft® Windows operating system, see the recovery

information in the User Guide. See “Accessing your User Guide” for additional

information.

Read this documentation before

using your computer

This documentation provides critical safety and regulatory

information for Lenovo computers.

Safety information

Plastic bag notice

DANGER

Plastic bags can be dangerous. Keep plastic

bags away from babies and children to avoid

danger of suffocation.

General battery notice

DANGER

Batteries supplied by Lenovo for use with your

product have been tested for compatibility and

should only be replaced with approved parts. A

battery other than the one specified by Lenovo,

or a disassembled or modified battery is not

covered by the warranty.

Battery abuse or mishandling can cause

overheat, liquid leakage, or an explosion. To

avoid possible injury, do the following:

 Do not open, dissemble, or service any

battery.

 Do not crush or puncture the battery.

 Do not short-circuit the battery, or expose it

to water or other liquids.

 Keep the battery away from children.

 Keep the battery away from fire.

Stop using the battery if it is damaged, or if you

notice any discharge or the buildup of foreign

materials on the battery leads.

Store the rechargeable batteries or products

containing the rechargeable batteries at room

temperature, charged to approximately 30% to

50% of capacity. We recommend that the

batteries be charged about once per year to

prevent overdischarge.

Do not put the battery in trash that is disposed of

in landfills. When disposing of the battery,

comply with local ordinances or regulations.

Notice for built-in rechargeable battery

DANGER

Do not attempt to remove or replace the built-in

rechargeable battery. Replacement of the battery

must be done by a Lenovo-authorized repair facility

or technician.

Only recharge the battery strictly according to

instructions included in the product

documentation.

The Lenovo-authorized repair facilities or

technicians recycle Lenovo batteries according to

local laws and regulations.

Notice for removable rechargeable battery

DANGER

Only recharge the battery strictly according to

instructions included in the product

documentation.

If the battery is incorrectly replaced, there is

danger of an explosion. The battery contains a

small amount of harmful substances.

Notice for non-rechargeable coin-cell

battery

DANGER

Do not attempt to replace the non-rechargeable

coin-cell battery. Replacement of the battery must

be done by a Lenovo-authorized repair facility or

technician.

The Lenovo-authorized repair facilities or

technicians recycle Lenovo batteries according to

local laws and regulations.

The following statement applies to users in the

state of California, U.S.A.

California Perchlorate Information:

Products containing manganese dioxide lithium

coin-cell batteries may contain perchlorate.

Perchlorate Material - special handling may apply,

See

www.dtsc.ca.gov/hazardouswaste/perchlorate

Using headphones or earphones

CAUTION:

Excessive sound pressure from earphones and

headphones can cause hearing loss. Adjustment of

the equalizer to maximum increases the earphone

and headphone output voltage and the sound

pressure level. Therefore, to protect your hearing,

adjust the equalizer to an appropriate level.

Excessive use of headphones or earphones for a long

period of time at high volume can be dangerous if the

output of the headphone or earphone connectors do not

comply with specifications of EN 50332-2. The

headphone output connector of your computer complies

with EN 50332-2 Sub clause 7. This specification limits

the computer’s maximum wide band true RMS output

voltage to 150 mV. To help protect against hearing loss,

ensure that the headphones or earphones you use also

comply with EN 50332-2 (Clause 7 Limits) or a wide band

characteristic voltage of 75 mV. Using headphones that

do not comply with EN 50332-2 can be dangerous due to

excessive sound pressure levels.

If your Lenovo computer came with headphones or

earphones in the package, as a set, the combination of

the headphones or earphones and the computer already

complies with the specifications of EN 50332-1. If different

headphones or earphones are used, ensure that they

comply with EN 50332-1 (Clause 6.5 Limitation Values).

Using headphones that do not comply with EN 50332-1

can be dangerous due to excessive sound pressure

levels.

Service, support, and warranty

information

The following information describes the technical support

that is available for your product during the warranty

period and throughout the life of your product. Online

technical support is available during the lifetime of a

product at http://www.lenovo.com/support.

If you purchased Lenovo services, refer to the following

terms and conditions for detailed information:

 For Lenovo Warranty Service Upgrades or

Extensions, go to:

http://support.lenovo.com/lwsu

 For Lenovo Accidental Damage Protection

Services, go to:

http://support.lenovo.com/ladps

Warranty information

Lenovo provides a warranty period for your computer. To

check the warranty status of your computer, go to

http://www.lenovo.com/warranty-statusH, and then follow

the instructions on the screen.

Your computer is covered by the terms of the Lenovo

Limited Warranty (LLW), version L505-0010-02 08/2011.

The LLW is displayed on your computer during the initial

setup. If you cannot view the LLW either from your

computer or from the Web site

Printed in China

PN: SP40P05746

(http://www.lenovo.com/warranty/llw_02), contact your

local Lenovo office or reseller to obtain a printed version.

After the initial setup has been completed, you can view

the warranty information from your computer by doing the

following:

Windows 10:

1. Open the Start menu and then click Lenovo

Companion.

2. Click SUPPORT. The warranty information is listed in

the WARRANTY & SERVICES section.

Windows 7:

From the Windows desktop, click Start → All Programs

→ Lenovo PC Experience → Lenovo Warranty.

Customer Replaceable Units

Customer Replaceable Units (CRUs) are parts that can

be upgraded or replaced by the customer. To view the

instructions on replacing the CRUs, see the respective

section in the User Guide. See “Accessing your User

Guide” for additional information.

The CRUs for your computer are listed as following:

Self-service CRUs

 Power cord and adapter

 Removable battery

 Base cover assembly

 Micro-SIM-card tray

Optional-service CRUs

 Internal storage drive

 Internal storage drive cable

 Memory module

 dc-in cable

 Wireless LAN card

 Wireless WAN card*

* Available on some models.

Worldwide telephone technical support

This section lists Lenovo Support telephone numbers. If

you cannot find the support telephone number for your

country or region, contact your Lenovo reseller or Lenovo

marketing representative.

Before contacting a Lenovo technical support

representative, have the following information available:

model and serial number, the exact wording of any error

message, and a description of the problem.

Important: Telephone numbers are subject to

change without notice. The most up-to-date

telephone list for the Customer Support Center is

always available at:

http://www.lenovo.com/support/phone

Country or

region

Telephone numbe

Algeria 33-6-7348 1739 (French, Spanish)

Anguilla 1-800-426-7378 (English)

Antigua and

Barbuda

1-800-426-7378 (English)

Argentina 0800-666-0011

(Spanish, English)

Armenia 0-606-90-077

(Standard charges apply)

(Russian, English)

Australia 1-800-041-267 (English)

Austria 0810-100-654 (German)

Bahamas 1-800-426-7378 (English)

Bahrain Kanoo IT: 00-973-1771-1722

Bahrain Business Machine LLC:

00-973-1758-4302

(Arabic, English)

Bangladesh AWSP Flora Limited:

70-200-6853 88-0171-000-0000 (Mobile)

Email: hasan_reaz@globalbrand.com.bd

Barbados 02-339-36-11 (Warranty service and

support)

(Dutch, French)

1-800-426-7378 (English)

Belarus 8-256-400-184

(Standard charges apply)

Country or

region

Telephone numbe

(Russian, English)

Bermuda 1-800-426-7378 (English)

Bolivia 0800-10-0189 (Spanish)

Bosnia and

Herzegovina

387-3356-3170 (Bosnian)

Brazil Calls made from within the Sao Paulo

region: 11-3889-8986

Calls made from outside the Sao Paulo

region: 0800-701-4815

(Portuguese)

Brunei

Darussalam

Dial 800-1111, and then dial

866-273-5446

(Bahasa Melayu, English)

Canada 1-800-565-3344 (English, French)

Cayman Islands 1-800-426-7378 (English)

Chile 800-361-213 (Spanish)

China Technical Support Line:

400-100-6000

(Mandarin)

Colombia 01-800-912-3021

(Spanish)

Costa Rica 0-800-011-1029 (Spanish)

Croatia 385-1-3033-120 (Hrvatski)

Cyprus 800-92537 (Greek)

Czech Republic 800-353-637 (Czech)

Denmark 7010-5150 (Warranty service and

support) (Danish)

Dominican

Republic

1-866-434-2080 (Spanish)

Ecuador 1-800-426911-OPCION 4 (Spanish)

Egypt Primary: 0800-0000-850

Secondary: 0800-0000-744

(Arabic, English)

El Salvador 800-6264 (English)

Estonia 372-66-00-800

(Estonian, Russian, English)

Finland 358-800-1-4260

(Warranty service and support) (Finnish)

France 33-243-166-035 (Warranty service and

support) (French)

Georgia 995-706-777-826

(Standard charges apply)

(Russian, English)

Germany 0800-500-4618 (Toll Free)

(Warranty service and support) (German)

Greece Lenovo authorized warranty service

provider (Greek)

Grenada 1-800-426-7378 (English)

Guatemala 999-9190 (Spanish)

Honduras 800-0123 (Spanish)

Hong Kong (852) 3516-8977

(Cantonese, English, Mandarin)

Hungary +36-13-825-716

(English, Hungarian)

India (Primary) 1800-419-4666 (Tata)

(Secondary) 1800-3000-8465 (Reliance)

Email: commercialts@lenovo.com

(English, Hindi)

Indonesia 1-803-442-425

62 213-002-1090

(Standard charges apply)

(English, Bahasa Indonesia)

Ireland 1-890-928-860 (English)

Italy 39-800-820-094 (Warranty service and

support) (Italian)

Jamaica 1-800-426-7378 (English)

Japan 0120-000-817 (Japanese, English)

Jordan Jordan Business Systems:

00-962-6-500-0999 Ext 713/127

General Computer & Electronic (GCE):

00-962-6-551-3879

(Arabic, English)

Kazakhstan 77-273-231-427

(Standard charges apply)

(Russian, English)

Kenya 080-0733-256 (English)

Korea 1670-0088

(Standard charges apply)

(Korean)

Kuwait Easa Hussain Al Yousifi:

00-965-2244-5280

AM. KHORAFI:

00-965-2200-1100 1127

Khorafi Business Machines (KBM): 00-

965-2259-4611

Country or

region

Telephone numbe

Diyar United Company:

00-965-4378-383

Redington Kuwait:

00-965-2433-3203;

2545-6250 / 2545-6251

(Arabic, English)

Latvia 371-6707-0360

(Latvian, Russian, English)

Lebanon Quantech: 00-961-1999-500

Computer Business Machine (CBM): 00-

961-1680-180

El Haceb S.A.L: 00-961-1771-300

(Arabic, English, French)

Lithuania 370 5278 6602 (Lithuanian, Russian,

English)

Luxembourg 352-360-385-222 (French)

Macao 0800-807 / (852) 3071-3559

(Cantonese, English, Mandarin)

Macedonia 389-2309-625 (Macedonian)

Malaysia 1-800-88-0013

03-7724-8023 (Standard charges apply)

(English)

Malta 356-21-445-566

(English, Italian, Maltese, Arabic)

Mexico 001-866-434-2080

(Spanish)

Moldova 0-602-23-433

(Standard charges apply)

(Russian, English)

Morocco 212-5-22-509-35 (Arabic)

Nepal 977-1-423-3501 (Hunting), 977-980-113-

3667 (Mobile)

Netherlands 020-513-3939 (Dutch)

New Zealand 0508-770-506 (English)

Nicaragua 001-800-220-2282 (Spanish)

Nigeria 070-8060-1481 (English)

Norway 8152-1550 (Norwegian)

Oman Khimji Ramdas Computer Communication

Systems:

00-968-2469-6255

Overseas Business Machines (OBM):

00-968-2460-1072, 2460-5018

Gulf Business Machines Services

(GBMS):

00-968-2455-9831

Pakistan International Office Products (pvt) Ltd.:

00-92-212-422-569

00-92-213-241-2023

Selling Business Systems:

00-92-21-568-9823

Panama 001-866-434 (Lenovo Customer Support

Center- toll free)

(Spanish)

Paraguay 009-800-52-10026

(Spanish)

Peru 0-800-50-866 OPCION 2 (Spanish)

Philippines +48-22-295-4950

+48-22-116-8656

(Tagalog, English)

Poland +48-22-295-4950

+48-22-116-8656

(Polish, English)

Portugal 808-225-115

(Standard charges apply) (Portuguese)

Qatar Al Mana Computer Services:

00-9744-4489-966 (ext. 1992)

Qatar Computer Services W.L.L:

00-9744-4441-212 (Arabic)

Romania MB Distribution: +4021-231-79-88,

MBL Computers: +4021-204-67-34,

Sysco: +4021-323-72-52,

Asseco See: +4021-206-45-00,

Net Brinel: +40264-41-46-10,

Eta2U: +40256-27-75-77,

S&T Romania: +4021-208-58-00

(Romanian)

Russia 7-499-705-6204

7-495-240-8558

(Standard charges apply)

(Russian)

Saint Kitts and

Nevis

1-800-426-7378 (English)

Saint Lucia 1-800-426-7378 (English)

Saudi Arabia 800-84-451-28

(Standard charges apply)

(Arabic)

Country or

region

Telephone numbe

Singapore 6818-5315 (Standard charges apply)

1-800-415-5529

(English, Mandarin, Bahasa Malaysia)

Slovakia 00421-2-4974-8888

(Slovak)

Slovenia 386-1-2005-60 (Slovenian)

South Africa 0800-110-756 (English)

Spain 917-147-833 (Spanish)

Sri Lanka 9477-7357-123

(Sumathi Information systems) (English)

Sweden 077-117-1040 (Warranty service and

support) (Swedish)

Switzerland 0800-55-54-54 (Warranty service and

support)

(German, French, Italian)

Taiwan 0800-000-702 (Mandarin)

Thailand 001-800-4415-734

(+662) 787-3067 (Standard charges

apply)

(Thai, English)

Tortola 1-800-426 7378 (English)

Turkey 444-04-26 (Turkish)

Turks and

Caicos

1-800-426-7378 (English)

Ukraine 044-362-42-81 (Standard charges apply)

089-320-24-92 (Standard charges apply)

(Ukraine, Russian, English)

United Arab

Emirates

8000-3570-2810 (Standard charges

apply) (Arabic)

United Kingdom 0333-777-3991 (National Rate)

(English)

United States 1-800-426-7378 (English)

Uruguay 000-411-005-6649 (Spanish)

Venezuela 0-800-100-2011 (Spanish)

Vietnam 120-11072 (Toll Free)

84-8-4458-1042 (Standard charges apply)

Yemen Al Khirbash and Agencies:

00-967-1209-8278

Yemen Business Machines (YBM):

00-967-3-213324

00-967-3-214655

00-967-3-213909

(Arabic)

Lenovo product service information for

Taiwan

Recycling and environmental

information

Lenovo encourages owners of information technology (IT)

equipment to responsibly recycle their equipment when it

is no longer needed. Lenovo offers a variety of programs

and services to assist equipment owners in recycling their

IT products.

For information on recycling Lenovo products, go to:

http://www.lenovo.com/recycling

For additional recycling and environmental statements,

refer to your User Guide. See “Accessing your User

Guide” for details.

The latest environmental information about our products

is available at http://www.lenovo.com/ecodeclaration.

Important battery and WEEE information

Batteries and electrical and electronic equipment marked

with the symbol of a crossed-out wheeled bin may not be

disposed as unsorted municipal waste. Batteries and

waste of electrical and electronic equipment (WEEE) shall

be treated separately using the collection framework

available to customers for the return, recycling, and

treatment of batteries and WEEE. When possible, remove

and isolate batteries from WEEE prior to placing WEEE in

the waste collection stream. Batteries are to be collected

separately using the framework available for the return,

recycling, and treatment of batteries and accumulators.

Country-specific information is available at:

http://www.lenovo.com/recycling

WEEE information (Hungary)

A magyar törvények értelmében, a 197/2014 (VIII.1.)

kormányrendelet 12. szakaszának (1)-(5) cikkében

foglaltak szerint Lenovo mint gyártó állja a keletkező

költségeket.

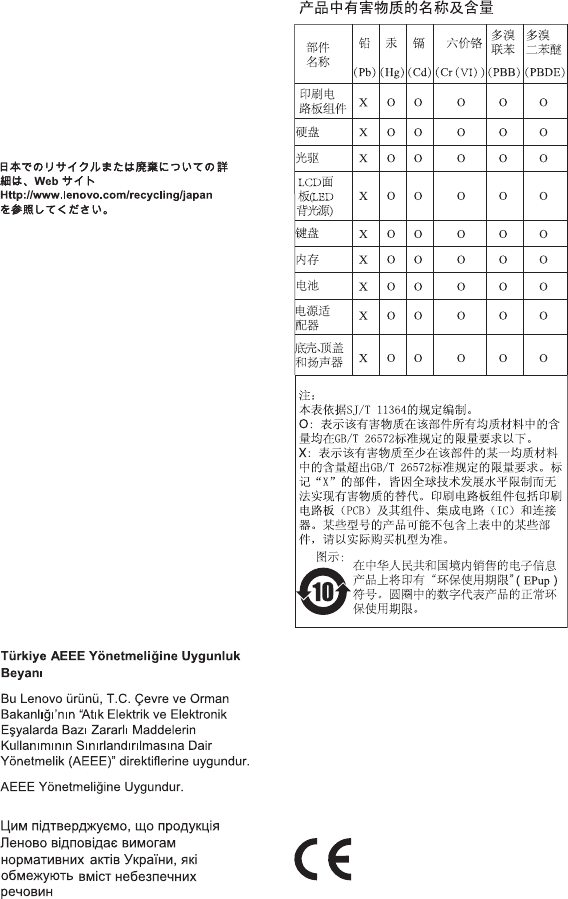

Recycling information for Japan

Recycling information for China

《废弃电器电子产品回收处理管理条例》提示性

说明

联想鼓励拥有联想品牌产品的用户当不再需要此

类产品时，遵守国家废弃电器电子产品回收处理

相关法律法规，将其交给当地具有国家认可的回

收处理资质的厂商进行回收处理。更多回收服务

信息，请点击进入

http://support.lenovo.com.cn/activity/551/htm。

Restriction of Hazardous Substances

(RoHS) Directive

European Union RoHS

This Lenovo product, with included parts (cables, cords,

and so on) meets the requirements of Directive

2011/65/EU on the restriction of the use of certain

hazardous substances in electrical and electronic

equipment (“RoHS recast” or “RoHS 2”).

For more information about Lenovo worldwide compliance

on RoHS, go to:

http://www.lenovo.com/social_responsibility/us/en/RoHS_

Communication.pdf

Turkish RoHS

The Lenovo product meets the requirements of the

Republic of Turkey Directive on the Restriction of the Use

of Certain Hazardous Substances in Waste Electrical and

Electronic Equipment (WEEE).

Ukraine RoHS

India RoHS

RoHS compliant as per E-Waste (Management) Rules.

China RoHS

The information in the following table is applicable for

products manufactured on or after January 1, 2015 for

sale in the People’s Republic of China.

Compliance information

The latest compliance information is available at:

http://www.lenovo.com/compliance

Electronic emission notices

This device has been tested and found to comply with the

limits for a Class B digital device. The User Guide for this

product provides the complete Class B compliance

statements that are applicable for this device. See

“Accessing your User Guide” for additional information.

European Union conformity

EU contact: Lenovo, Einsteinova 21, 851 01 Bratislava,

Slovakia

Compliance to Directives for Information Technology

Equipment (ITE) and Radio Equipment

Models without a radio device: This product is in

conformity with the protection requirements of EU Council

Directive 2014/30/EU on the approximation of the laws of

the Member States relating to electromagnetic

compatibility. The full compliance statement is located in

the User Guide. See “Accessing your User Guide” in this

document for additional information.

Models with a radio device:

Compliance with the Radio Equipment Directive

Hereby, Lenovo (Singapore) Pte. Ltd., declares that the

radio equipment type ThinkPad X270 is in compliance

with Directive 2014/53/EU.

The full text of the system EU declaration of conformity

and the EU wireless module declarations are available at

the following Internet addresses.

 For notebook computers:

http://www3.lenovo.com/us/en/social_responsibility/

EU_DoC_notebooks

 For tablets:

http://www3.lenovo.com/us/en/social_responsibility/

EU_DoC_tablets

This radio equipment operates with the following

frequency bands and maximum radio-frequency power:

Technology Frequency

band [MHz]

Maximum

transmit

power [dBm]

(less than)

WLAN

802.11b/g/n 2400 - 2483.5 20

WLAN

802.11a/n/ac 5150 - 5725 23

WLAN

802.11a/n/ac 5725 - 5875 13.98

WiGig

802.11ad 58210 - 62640 25

Bluetooth

BR/EDR/LE 2400 - 2483.5 20

WWAN UMTS 1/3/8 24.5

WWAN LTE 1/3/7/8/20/28 24

NFC 13.56 -38.11

Note: The list of wireless modules used in this product is

available in the Regulatory Notice. You can download the

latest Regulatory Notice for this product from the Lenovo

Support Web site:

http://www.lenovo.com/support

Wireless-radio compliance information

Computer models equipped with wireless

communications comply with the radio frequency and

safety standards of any country or region in which it has

been approved for wireless use.

Besides this document, ensure that you read the

Regulatory Notice for your country or region before using

the wireless devices contained in your computer. To

obtain a PDF version of the Regulatory Notice, see

“Downloading publications” in this document.

Brazil wireless-radio compliance information

Este equipamento opera em caráter secundário, isto é,

não tem direito a proteção contra interferência prejudicial,

mesmo de estações do mesmo tipo, e não pode causar

interferência a sistemas operando em caráter primário.

This equipment is a secondary type device, that is, it is

not protected against harmful interference, even if the

interference is caused by a device of the same type, and

it also cannot cause any interference to primary type

devices.

Mexico wireless-radio compliance information

Advertencia: En Mexico la operación de este equipo está

sujeta a las siguientes dos condiciones: (1) es posible

que este equipo o dispositivo no cause interferencia

perjudicial y (2) este equipo o dispositivo debe aceptar

cualquier interferencia, incluyendo la que pueda causar

su operación no deseada.

Singapore wireless-radio compliance information

Korean wireless-radio compliance information

기기 준수 사항

무선설비 전파 혼신 (사용주파수 2400∼2483.5, 5725∼

5825 무선제품해당).

해당 무선설비가 전파혼신 가능성이 있으므로 인명안전과

Lenovo X270 Swsg En X270_swsg_en_SP40P05746x User Manual (English) Safety, Warranty And Setup Guide Think Pad (Type 20HN, 20HM) Laptop (Think Pad) Type 20HM

Navigation menu

Versions of this User Manual:

Views

Navigation
