Lenovo
YOGA 310-11IAP
Hardware
Maintenance
Manual
Note:
Before using this information and the product it supports, be sure to read the general information under
“Notices” on page 61.
First Edition (Aug. 2016)
© Copyright Lenovo 2016. All rights reserved.
LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant a General
Services Administration “GSA” contract, use, reproduction, or disclosure is subject to restrictions set
forth in Contract No. GS-35F-05925.
© 2016 Lenovo
iii
Contents
About this manual ....................................... iv
Safety information ........................................ 1
General safety ................................................ 2
Electrical safety .............................................. 3
Safety inspection guide .................................. 5
Handling devices that are sensitive to
electrostatic discharge .................................... 6
Grounding requirements ................................. 6
Safety notices: multilingual translations.......... 7
Laser compliance statement......................... 14
Important service information ................... 16
Strategy for replacing FRUs ......................... 16
Strategy for replacing a hard disk drive ............17
Important notice for replacing a
system board ...................................................17
Important information about replacing
RoHS compliant FRUs ................................. 18
General checkout ...................................... 19
What to do rst ............................................. 20
Power system checkout................................ 21
Checking the AC adapter .................................21
Checking operational charging .........................22
Checking the battery pack ................................22
Related service information ...................... 23
Restoring the factory contents by using
OneKey Recovery ........................................ 23
Restore of factory default .................................23
Passwords .................................................... 24
Power-on password .......................................... 24
Hard-disk password .......................................... 24
Supervisor password ........................................24
Power management ..................................... 25
Putting the computer to sleep or shutting
it down ..............................................................25
Putting your computer to sleep ......................... 25
Shutting down the computer ............................. 25
Lenovo YOGA 310-11IAP ........................... 26
Specications ............................................... 26

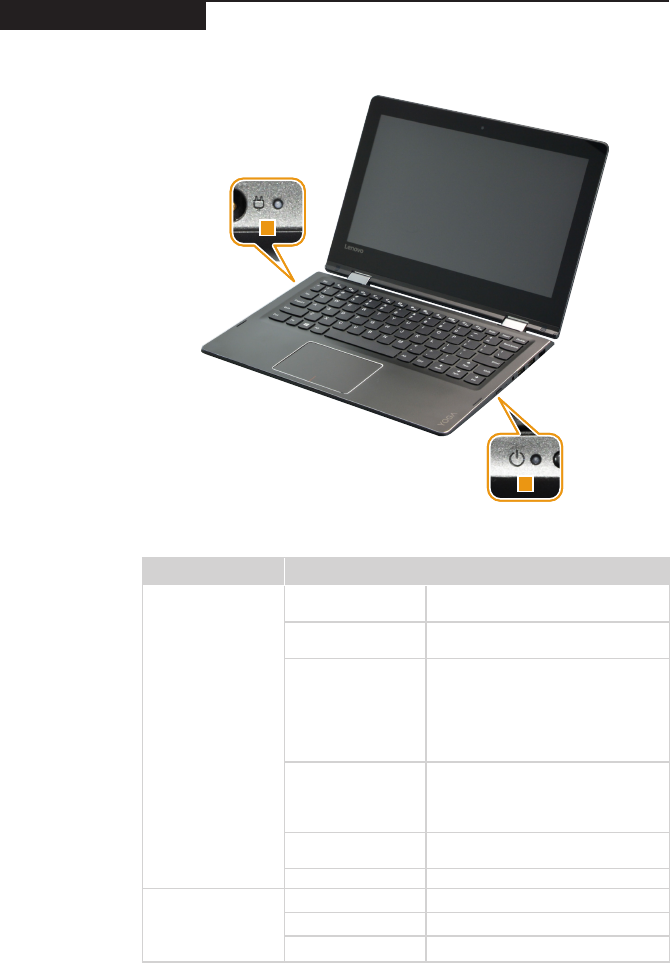

Status indicators ........................................... 27

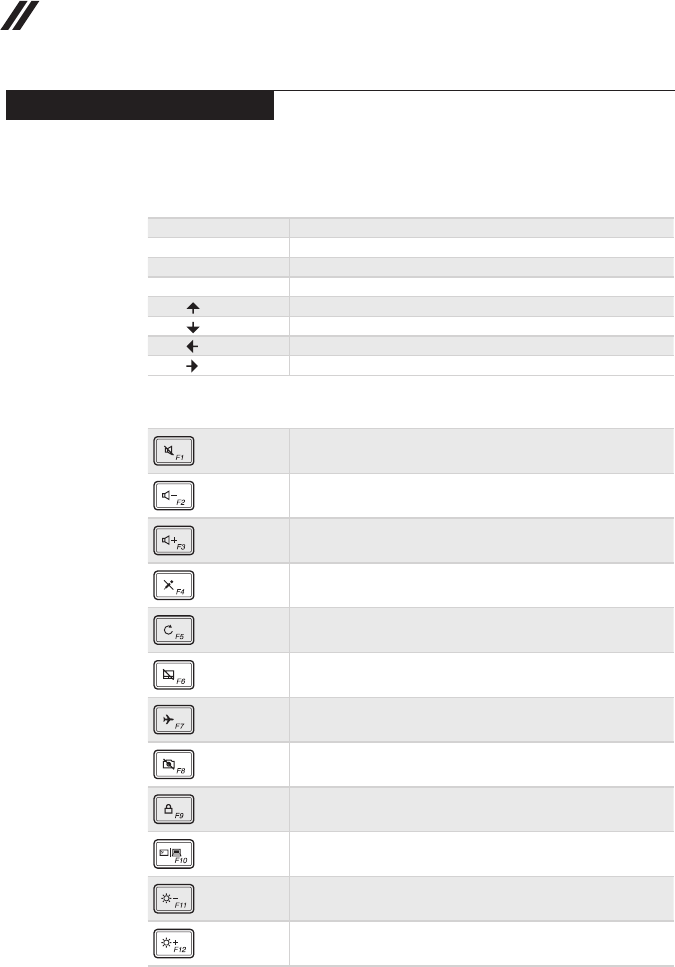

Keyboard function keys ................................ 28
FRU replacement notices ............................. 29

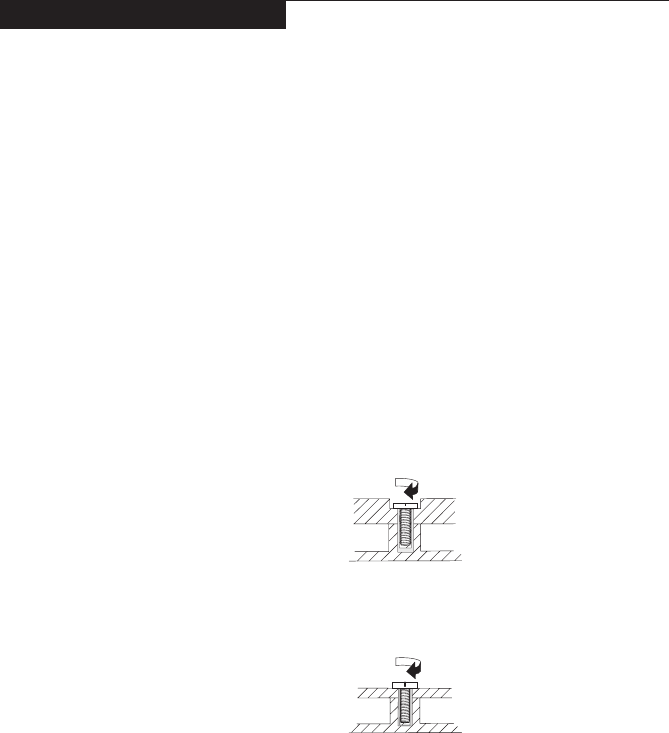

Screw notices ..................................................29
Removing and replacing an FRU ................. 30
1010 Base cover ...............................................31
1020 Battery pack .............................................33
1030 Hard disk drive .........................................34

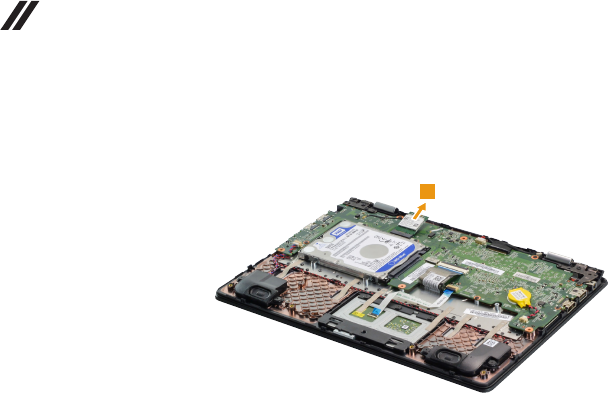

1040 PCI Express Mini Card for
wireless LAN .....................................................35
1050 Touchpad module ....................................37
1060 Speakers .................................................39

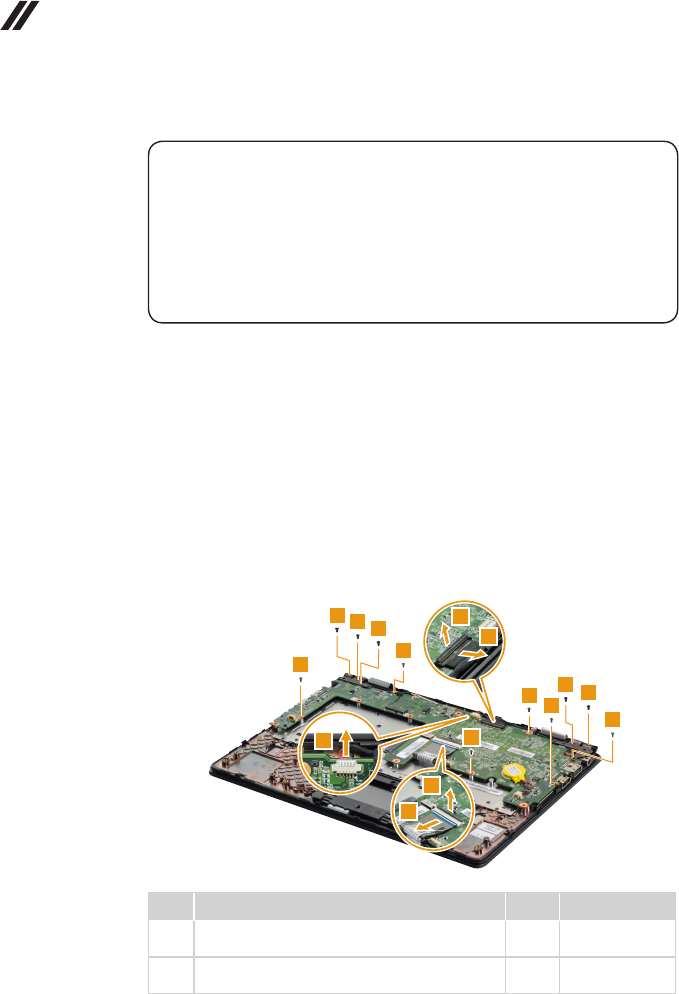

1070 System board ..........................................40
1080 Thermal module .......................................42
1090 Upper case ..............................................44
1100 LCD unit ................................................... 45
1110 Integrated camera and EDP cable ...........47
1120 LCD hinges .............................................. 50
Locations ...................................................... 51

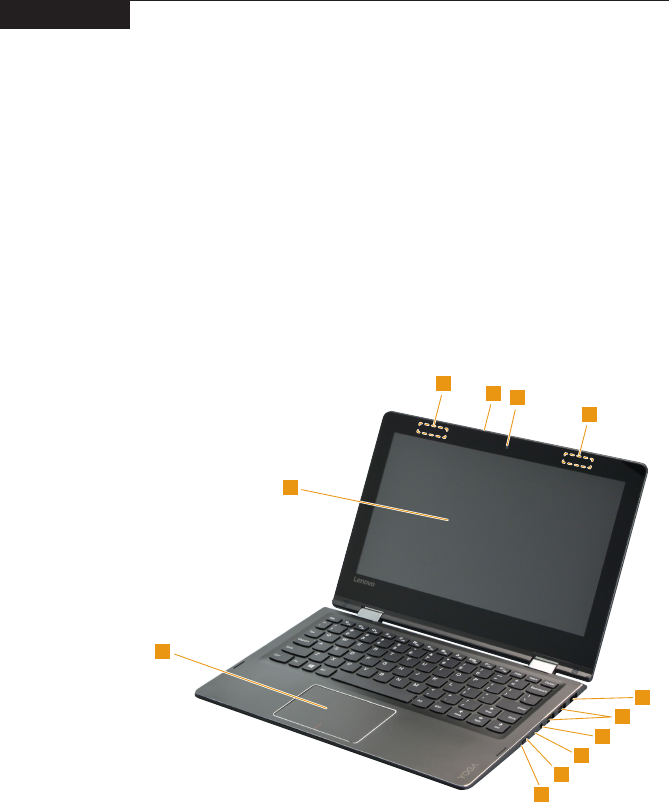

Front and right-side view ..................................51

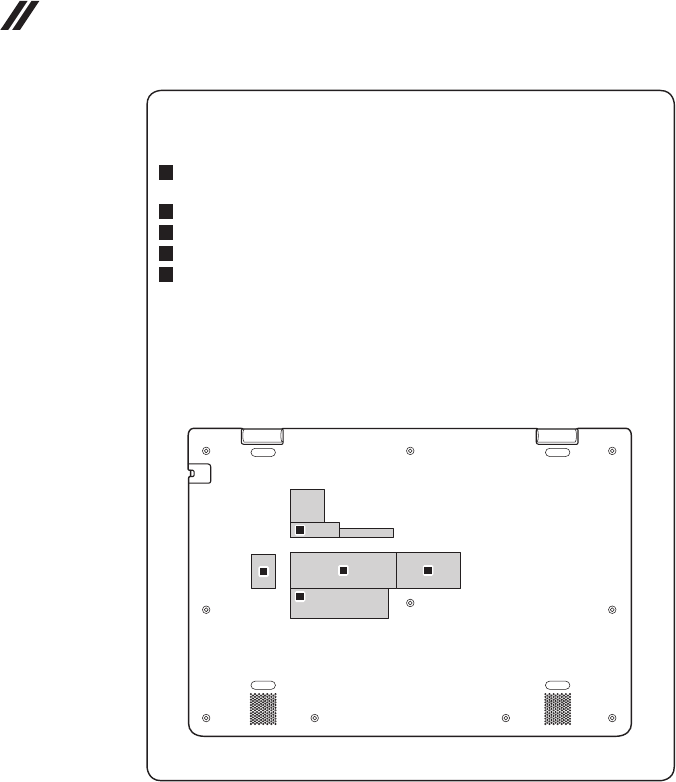

Bottom and left-side view ................................52
Parts list ........................................................ 53
Overall ..............................................................54

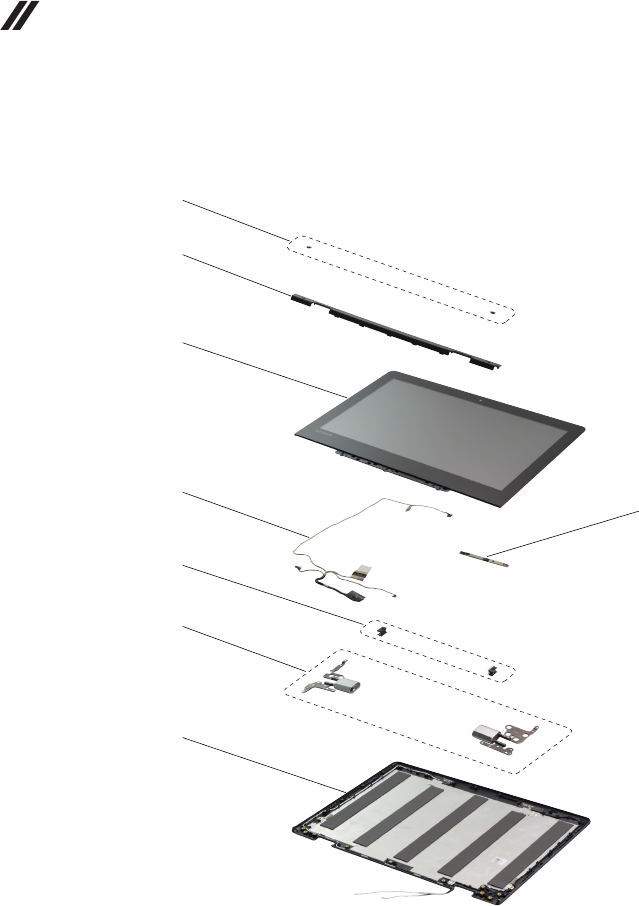

LCD FRUs ........................................................58
Miscellaneous parts .......................................... 60
AC adapters ......................................................60
Screws .............................................................. 60
Notices......................................................... 61
Trademarks .................................................. 62
iv
About this manual
This manual contains service and reference information for the following
Lenovo product:
Lenovo YOGA 310-11IAP
Use this manual to troubleshoot problems.
The manual is divided into the following sections:
• The common sections provide general information, guidelines, and safety
information required for servicing computers.
• The product-specic section includes service, reference, and product-specic
parts information.
Important:
This manual is intended only for trained servicers who are familiar with Lenovo
products. Use this manual to troubleshoot problems effectively.
Before servicing a Lenovo product, make sure to read all the information under
“Safety information” on page 1 and “Important service information” on page 16.
1
Safety information
Safety information
This chapter presents the following safety information that you need to get familiar
with before you service a Lenovo YOGA 310-11IAP computer:
• “General safety” on page 2
• “Electrical safety” on page 3
• “Safety inspection guide” on page 5
• “Handling devices that are sensitive to electrostatic discharge” on page 6
• “Grounding requirements” on page 6
• “Safety notices: multilingual translations” on page 7
• “Laser compliance statement” on page 14
2
Lenovo YOGA 310-11IAP Hardware Maintenance Manual
General safety
Follow these rules below to ensure general safety:
• Observe a good housekeeping in the area where the machines are put
during and after the maintenance.
• When lifting any heavy object:
1. Make sure that you can stand safely without slipping.
2. Distribute the weight of the object equally between your feet.
3. Use a slow lifting force. Never move suddenly or twist when you attempt
to lift it.
4. Lift it by standing or pushing up with your leg muscles; this action could
avoid the strain from the muscles in your back. Do not attempt to lift any
object that weighs more than 16 kg (35 lb) or that you think is too heavy
for you.
• Do not perform any action that causes hazards to the customer, or that
makes the machine unsafe.
• Before you start the machine, make sure that other service representatives
and the customer are not in a hazardous position.
• Please remove covers and other parts in a safe place, away from all
personnel, while you are servicing the machine.
• Keep your toolcase away from walk areas so that other people will not trip
over it.
• Do not wear loose clothing that can be trapped in the moving parts of the
machine. Make sure that your sleeves are fastened or rolled up above your
elbows. If your hair is long, fasten it.
• Insert the ends of your necktie or scarf inside clothing or fasten it with the
nonconductive clip, about 8 centimeters (3 inches) from the end.
• Do not wear jewelry, chains, metal-frame eyeglasses, or metal fasteners for
your clothing.
Attention: Metal objects are good electrical conductors.
• Wear safety glasses when you are hammering, drilling, soldering, cutting
wire, attaching springs, using solvents, or working in any other conditions
that may be hazardous to your eyes.
• After service, reinstall all safety shields, guards, labels, and ground wires.
Replace any safety device that is worn or defective.
• Reinstall all covers correctly before returning the machine to the customer.
• Fan louvers on the machine help to prevent the overheating of internal
components. Do not obstruct fan louvers or cover them with labels or
stickers.
3
Safety information
Electrical safety
Observe the following rules when working on electrical equipments.
Important:
Use only approved tools and test equipments. Some hand tools have handles
covered with a soft material that does not insulate you when working with live
electrical currents.
Many customers have rubber floor mats near their machines that contain small
conductive bers to decrease electrostatic discharges. Do not use such kind of mat
to protect yourself from electrical shock.
• Find the room emergency power-off (EPO) switch, disconnecting switch or
electrical outlet. If an electrical accident occurs, you can then operate the
switch or unplug the power cord quickly.
• Do not work alone under hazardous conditions or near the equipment that
has hazardous voltages.
• Disconnect all power before:
– Performing a mechanical inspection
– Working near power supplies
– Removing or installing main units
• Before you start to work on the machine, unplug the power cord. If you
cannot unplug it, ask the customer to power-off the wall box that supplies
power to the machine, and to lock the wall box in the off position.
• If you need to work on a machine that has exposed electrical circuits,
observe the following precautions:
– Ensure that another person, familiar with the power-off controls, is near
you.
Attention: Another person must be there to switch off the power, if
necessary.
– Use only one hand when working with powered-on electrical equipment;
keep the other hand in your pocket or behind your back.
Attention: An electrical shock can occur only when there is a complete
circuit. By observing the above rule, you may prevent a current from
passing through your body.
– When using testers, set the controls correctly and use the approved
probe leads and accessories for that tester.
– Stand on suitable rubber mats (obtained locally, if necessary) to insulate
you from grounds such as metal oor strips and machine frames.
Observe the special safety precautions when you work with very high voltages;
instructions for these precautions are in the safety sections of maintenance
information. Be extremely careful when you measure the high voltages.
• Regularly inspect and maintain your electrical hand tools for safe operational
condition.
• Do not use worn or broken tools and testers.
• Never assume that power has been disconnected from a circuit. First, check
it to make sure that it has been powered off.
4
Lenovo YOGA 310-11IAP Hardware Maintenance Manual
• Always look carefully for possible hazards in your work area. Examples of
these hazards are moist oors, nongrounded power extension cables, power
surges, and missing safety grounds.
• Do not touch live electrical circuits with the reflective surface of a plastic
dental mirror. The surface is conductive; such touching can cause personal
injury and machine damage.
• Do not service the following parts with the power on when they are removed
from their normal operating places in a machine:
– Power supply units
– Pumps
– Blowers and fans
– Motor generators
and similar units. (This practice ensures correct grounding of the units.)
• If an electrical accident occurs:
– Caution: do not become a victim yourself.
– Switch off the power.
– Send the victim to get medical aid.
5
Safety information
Safety inspection guide
The purpose of this inspection guide is to assist you in identifying potential
unsafe conditions. As each machine was designed and built, required safety
items were installed to protect users and service personnel from injury. This
guide addresses only those items. You should use good judgment to identify
potential safety hazards according to the attachment of non-Lenovo features or
options not covered by this inspection guide.
If any unsafe conditions are present, you must determine how serious the
apparent hazard could be and whether you can continue without rst correcting
the problem.
Consider these conditions and the safety hazards they present:
• Electrical hazards, especially primary power (primary voltage on the frame
can cause serious or fatal electrical shock)
• Explosive hazards, such as a damaged CRT face or a bulging capacitor
• Mechanical hazards, such as loose or missing hardware
To determine whether there are any potential unsafe conditions, use the
following checklist at the beginning of every service task. Begin the checks with
the power off, and the power cord disconnected.
Checklist:
1. Check exterior covers for damage (loose, broken, or sharp edges).
2. Turn off the computer. Disconnect the power cord.
3. Check the power cord for:
a. A third-wire ground connector in good condition. Use a meter to measure
third-wire ground continuity for 0.1 ohm or less between the external
ground pin and the frame ground.
b. The power cord should be the type specied in the parts list.
c. Insulation must not be frayed or worn.
4. Check for cracked or bulging batteries.
5. Remove the cover.
6. Check for any obvious non-Lenovo alterations. Use good judgment as to the
safety of any non-Lenovo alterations.
7. Check inside the unit for any obvious unsafe conditions, such as metal
filings, contamination, water or other liquids, or signs of fire or smoke
damage.
8. Check for worn, frayed, or pinched cables.
9. Check that the power-supply cover fasteners (screws or rivets) have not
been removed or tampered with.
6
Lenovo YOGA 310-11IAP Hardware Maintenance Manual
Handling devices that are sensitive to electrostatic discharge
Any computer part containing transistors or integrated circuits (ICs) should be
considered sensitive to electrostatic discharge (ESD). ESD damage can occur
when there is a difference in charge between objects. Protect against ESD
damage by equalizing the charge so that the machine, the part, the work mat,
and the person handling the part are all at the same charge.
Notes:
1. Use product-specific ESD procedures when they exceed the requirements
noted here.
2. Make sure that the ESD protective devices you use have been certied (ISO
9000) as fully effective.
When handling ESD-sensitive parts:
• Keep the parts in protective packages until they are inserted into the product.
• Avoid contact with other people.
• Wear a grounded wrist strap against your skin to eliminate static on your
body.
• Prevent the part from touching your clothing. Most clothing is insulative and
retains a charge even when you are wearing a wrist strap.
• Use the black side of a grounded work mat to provide a static-free work
surface. The mat is especially useful when handling ESD-sensitive devices.
• Select a grounding system, such as those listed below, to provide protection
that meets the specic service requirement.
Note:
The use of a grounding system to guard against ESD damage is desirable but not
necessary.
– Attach the ESD ground clip to any frame ground, ground braid, or green-
wire ground.
– When working on a double-insulated or battery-operated system, use an
ESD common ground or reference point. You can use coax or connector-
outside shells on these systems.
– Use the round ground prong of the ac plug on ac-operated computers.
Grounding requirements
Electrical grounding of the computer is required for operator safety and correct
system function. Proper grounding of the electrical outlet can be veried by a
certied electrician.
7
Safety information
Safety notices: multilingual translations
The safety notices in this section are provided in English, French, German,
Hebrew, Italian, Japanese, and Spanish.
Safety notice 1
Before the computer is powered on after FRU replacement, make sure all screws,
springs, and other small parts are in place and are not left loose inside the
computer. Verify this by shaking the computer and listening for rattling sounds.
Metallic parts or metal akes can cause electrical shorts.
Avant de remettre l’ordinateur sous tension après remplacement d’une unité en
clientèle, vériez que tous les ressorts, vis et autres pièces sont bien en place et
bien xées. Pour ce faire, secouez l’unité et assurez-vous qu’aucun bruit suspect
ne se produit. Des pièces métalliques ou des copeaux de métal pourraient causer
un court-circuit.
Bevor nach einem FRU-Austausch der Computer wieder angeschlossen wird,
muß sichergestellt werden, daß keine Schrauben, Federn oder andere Kleinteile
fehlen oder im Gehäuse vergessen wurden. Der Computer muß geschüttelt und auf
Klappergeräusche geprüft werden. Metallteile oder-splitter können Kurzschlüsse
erzeugen.
Prima di accendere l’elaboratore dopo che é stata effettuata la sostituzione di una
FRU, accertarsi che tutte le viti, le molle e tutte le altri parti di piccole dimensioni
siano nella corretta posizione e non siano sparse all’interno dell’elaboratore.
Vericare ciò scuotendo l’elaboratore e prestando attenzione ad eventuali rumori;
eventuali parti o pezzetti metallici possono provocare cortocircuiti pericolosi.
Antes de encender el sistema despues de sustituir una FRU, compruebe que
todos los tornillos, muelles y demás piezas pequeñas se encuentran en su sitio
y no se encuentran sueltas dentro del sistema. Compruébelo agitando el sistema
y escuchando los posibles ruidos que provocarían. Las piezas metálicas pueden
causar cortocircuitos eléctricos.
8
Lenovo YOGA 310-11IAP Hardware Maintenance Manual
Safety notice 2
DANGER
Some standby batteries contain a small amount of nickel and cadmium. Do not
disassemble a standby battery, recharge it, throw it into fire or water, or short-
circuit it. Dispose of the battery as required by local ordinances or regulations.
Use only the battery in the appropriate parts listing. Use of an incorrect battery can
result in ignition or explosion of the battery.
Certaines batteries de secours contiennent du nickel et du cadmium. Ne les
démontez pas, ne les rechargez pas, ne les exposez ni au feu ni à l’eau. Ne
les mettez pas en court-circuit. Pour les mettre au rebut, conformez-vous à la
réglementation en vigueur. Lorsque vous remplacez la pile de sauvegarde ou celle
de l’horloge temps réel, veillez à n’utiliser que les modèles cités dans la liste de
pièces détachées adéquate. Une batterie ou une pile inappropriée risque de prendre
feu ou d’exploser.
Die Bereitschaftsbatterie, die sich unter dem Diskettenlaufwerk befindet,
kann geringe Mengen Nickel und Cadmium enthalten. Sie darf nicht zerlegt,
wiederaufgeladen, kurzgeschlossen, oder Feuer oder Wasser ausgesetzt werden.
Bei der Entsorgung die örtlichen Bestimmungen für Sondermüll beachten. Beim
Ersetzen der Bereitschafts-oder Systembatterie nur Batterien des Typs verwenden,
der in der Ersatzteilliste aufgeführt ist. Der Einsatz falscher Batterien kann zu
Entzündung oder Explosion führen.
Alcune batterie di riserva contengono una piccola quantità di nichel e cadmio.
Non smontarle, ricaricarle, gettarle nel fuoco o nell’acqua né cortocircuitarle.
Smaltirle secondo la normativa in vigore (DPR 915/82, successive disposizioni e
disposizioni locali). Quando si sostituisce la batteria dell’RTC (real time clock) o
la batteria di supporto, utilizzare soltanto i tipi inseriti nell’appropriato Catalogo
parti. L’impiego di una batteria non adatta potrebbe determinare l’incendio o
l’esplosione della batteria stessa.
Algunas baterías de reserva contienen una pequeña cantidad de níquel y cadmio.
No las desmonte, ni recargue, ni las eche al fuego o al agua ni las cortocircuite.
Deséchelas tal como dispone la normativa local. Utilice sólo baterías que se
encuentren en la lista de piezas. La utilización de una batería no apropiada puede
provocar la ignición o explosión de la misma.
9
Safety information
Safety notice 3
DANGER
The battery pack contains small amounts of nickel. Do not disassemble it, throw
it into re or water, or short-circuit it. Dispose of the battery pack as required by
local ordinances or regulations. Use only the battery in the appropriate parts listing
when replacing the battery pack. Use of an incorrect battery can result in ignition
or explosion of the battery.
La batterie contient du nickel. Ne la démontez pas, ne l’exposez ni au feu ni à l’eau.
Ne la mettez pas en court-circuit. Pour la mettre au rebut, conformez-vous à la
réglementation en vigueur. Lorsque vous remplacez la batterie, veillez à n’utiliser
que les modèles cités dans la liste de pièces détachées adéquate. En effet, une
batterie inappropriée risque de prendre feu ou d’exploser.
Akkus enthalten geringe Mengen von Nickel. Sie dürfen nicht zerlegt,
wiederaufgeladen, kurzgeschlossen, oder Feuer oder Wasser ausgesetzt werden.
Bei der Entsorgung die örtlichen Bestimmungen für Sondermüll beachten. Beim
Ersetzen der Batterie nur Batterien des Typs verwenden, der in der Ersatzteilliste
aufgeführt ist. Der Einsatz falscher Batterien kann zu Entzündung oder Explosion
führen.
La batteria contiene piccole quantità di nichel. Non smontarla, gettarla nel fuoco
o nell’acqua né cortocircuitarla. Smaltirla secondo la normativa in vigore (DPR
915/82, successive disposizioni e disposizioni locali). Quando si sostituisce la
batteria, utilizzare soltanto i tipi inseriti nell’appropriato Catalogo parti. L’impiego
di una batteria non adatta potrebbe determinare l’incendio o l’esplosione della
batteria stessa.
Las baterías contienen pequeñas cantidades de níquel. No las desmonte, ni
recargue, ni las eche al fuego o al agua ni las cortocircuite. Deséchelas tal como
dispone la normativa local. Utilice sólo baterías que se encuentren en la lista de
piezas al sustituir la batería. La utilización de una batería no apropiada puede
provocar la ignición o explosión de la misma.
10
Lenovo YOGA 310-11IAP Hardware Maintenance Manual
Safety notice 4
DANGER
The lithium battery can cause a fire, an explosion, or a severe burn. Do not
recharge it, remove its polarized connector, disassemble it, heat it above 100°C
(212°F), incinerate it, or expose its cell contents to water. Dispose of the battery as
required by local ordinances or regulations. Use only the battery in the appropriate
parts listing. Use of an incorrect battery can result in ignition or explosion of the
battery.
La pile de sauvegarde contient du lithium. Elle présente des risques d’incendie,
d’explosion ou de brûlures graves. Ne la rechargez pas, ne retirez pas son
connecteur polarisé et ne la démontez pas. Ne l’exposez pas à une temperature
supérieure à 100°C, ne la faites pas brûler et n’en exposez pas le contenu à l’eau.
Mettez la pile au rebut conformément à la réglementation en vigueur. Une pile
inappropriée risque de prendre feu ou d’exploser.
Die Systembatterie ist eine Lithiumbatterie. Sie kann sich entzünden, explodieren
oder schwere Verbrennungen hervorrufen. Batterien dieses Typs dürfen nicht
aufgeladen, zerlegt, über 100 C erhitzt oder verbrannt werden. Auch darf ihr
Inhalt nicht mit Wasser in Verbindung gebracht oder der zur richtigen Polung
angebrachte Verbindungsstecker entfernt werden. Bei der Entsorgung die örtlichen
Bestimmungen für Sondermüll beachten. Beim Ersetzen der Batterie nur Batterien
des Typs verwenden, der in der Ersatzteilliste aufgeführt ist. Der Einsatz falscher
Batterien kann zu Entzündung oder Explosion führen.
La batteria di supporto e una batteria al litio e puo incendiarsi, esplodere o
procurare gravi ustioni. Evitare di ricaricarla, smontarne il connettore polarizzato,
smontarla, riscaldarla ad una temperatura superiore ai 100 gradi centigradi,
incendiarla o gettarla in acqua. Smaltirla secondo la normativa in vigore (DPR
915/82, successive disposizioni e disposizioni locali). L’impiego di una batteria
non adatta potrebbe determinare l’incendio o l’esplosione della batteria stessa.
La batería de repuesto es una batería de litio y puede provocar incendios,
explosiones o quemaduras graves. No la recargue, ni quite el conector polarizado,
ni la desmonte, ni caliente por encima de los 100°C (212°F), ni la incinere ni
exponga el contenido de sus celdas al agua. Deséchela tal como dispone la
normativa local.
11
Safety information
Safety notice 5
If the LCD breaks and the uid from inside the LCD gets into your eyes or on your
hands, immediately wash the affected areas with water at least for 15 minutes.
Seek medical care if any symptoms caused by the uid are present after washing.
Si le panneau d’afchage à cristaux liquides se brise et que vous recevez dans les
yeux ou sur les mains une partie du uide, rincez-les abondamment pendant au
moins quinze minutes. Consultez un médecin si des symptômes persistent après le
lavage.
Die Leuchtstoffröhre im LCD-Bildschirm enthält Quecksilber. Bei der Entsorgung
die örtlichen Bestimmungen für Sondermüll beachten. Der LCD-Bildschirm
besteht aus Glas und kann zerbrechen, wenn er unsachgemäß behandelt wird
oder der Computer auf den Boden fällt. Wenn der Bildschirm beschädigt ist und
die darin befindliche Flüssigkeit in Kontakt mit Haut und Augen gerät, sollten
die betroffenen Stellen mindestens 15 Minuten mit Wasser abgespült und bei
Beschwerden anschließend ein Arzt aufgesucht werden.
Nel caso che caso l’LCD si dovesse rompere ed il liquido in esso contenuto
entrasse in contatto con gli occhi o le mani, lavare immediatamente le parti
interessate con acqua corrente per almeno 15 minuti; poi consultare un medico se i
sintomi dovessero permanere.
Si la LCD se rompe y el uido de su interior entra en contacto con sus ojos o sus
manos, lave inmediatamente las áreas afectadas con agua durante 15 minutos
como mínimo. Obtenga atención medica si se presenta algún síntoma del uido
despues de lavarse.
12
Lenovo YOGA 310-11IAP Hardware Maintenance Manual
Safety notice 6
DANGER
To avoid shock, do not remove the plastic cover that protects the lower part of the
inverter card.
An d’éviter tout risque de choc électrique, ne retirez pas le cache en plastique
protégeant la partie inférieure de la carte d’alimentation.
Aus Sicherheitsgründen die Kunststoffabdeckung, die den unteren Teil der
Spannungswandlerplatine umgibt, nicht entfernen.
Per evitare scosse elettriche, non rimuovere la copertura in plastica che avvolge la
parte inferiore della scheda invertitore.
Para evitar descargas, no quite la cubierta de plástico que rodea la parte baja de la
tarjeta invertida.
Safety notice 7
DANGER
Though the main batteries have low voltage, a shorted or grounded battery can
produce enough current to burn personnel or combustible materials.
Bien que le voltage des batteries principales soit peu élevé, le court-circuit ou la
mise à la masse d’une batterie peut produire sufsamment de courant pour brûler
des matériaux combustibles ou causer des brûlures corporelles graves.
Obwohl Hauptbatterien eine niedrige Spannung haben, können sie doch bei
Kurzschluß oder Erdung genug Strom abgeben, um brennbare Materialien zu
entzünden oder Verletzungen bei Personen hervorzurufen.
Sebbene le batterie di alimentazione siano a basso voltaggio, una batteria in
corto circuito o a massa può fornire corrente sufficiente da bruciare materiali
combustibili o provocare ustioni ai tecnici di manutenzione.
Aunque las baterías principales tienen un voltaje bajo, una batería cortocircuitada
o con contacto a tierra puede producir la corriente suciente como para quemar
material combustible o provocar quemaduras en el personal.
13
Safety information
Safety notice 8
DANGER
Before removing any FRU, turn off the computer, unplug all power cords from
electrical outlets, remove the battery pack, and then disconnect any interconnecting
cables.
Avant de retirer une unité remplaçable en clientèle, mettez le système hors tension,
débranchez tous les cordons d’alimentation des socles de prise de courant, retirez
la batterie et déconnectez tous les cordons d’interface.
Die Stromzufuhr muß abgeschaltet, alle Stromkabel aus der Steckdose gezogen,
der Akku entfernt und alle Verbindungskabel abgenommen sein, bevor eine FRU
entfernt wird.
Prima di rimuovere qualsiasi FRU, spegnere il sistema, scollegare dalle prese
elettriche tutti i cavi di alimentazione, rimuovere la batteria e poi scollegare i cavi
di interconnessione.
Antes de quitar una FRU, apague el sistema, desenchufe todos los cables de
las tomas de corriente eléctrica, quite la batería y, a continuación, desconecte
cualquier cable de conexión entre dispositivos.
14
Lenovo YOGA 310-11IAP Hardware Maintenance Manual
Laser compliance statement
Some models of Lenovo computer are equipped from the factory with an
optical storage device such as a CD-ROM drive or a DVD-ROM drive. Such
devices are also sold separately as options. If one of these drives is installed,
it is certied in the U.S. to conform to the requirements of the Department of
Health and Human Services 21 Code of Federal Regulations (DHHS 21 CFR)
Subchapter J for Class 1 laser products. Elsewhere, the drive is certified to
conform to the requirements of the International Electrotechnical Commission
(IEC) 825 and CENELEC EN 60 825 for Class 1 laser products.
If a CD-ROM drive, a DVD-ROM drive, or another laser device is installed, note
the following:
CAUTION
Use of controls or adjustments or performance of procedures other than those
specied herein might result in hazardous radiation exposure.
O uso de controles, ajustes ou desempenho de procedimentos diferentes daqueles
aqui especicados pode resultar em perigosa exposição à radiação.
Pour éviter tout risque d’exposition au rayon laser, respectez les consignes de
réglage et d’utilisation des commandes, ainsi que les procédures décrites.
Werden Steuer- und Einstellelemente anders als hier festgesetzt verwendet, kann
gefährliche Laserstrahlung auftreten.
L’utilizzo di controlli, regolazioni o l’esecuzione di procedure diverse da quelle
specicate possono provocare l’esposizione a.
El uso de controles o ajustes o la ejecución de procedimientos distintos de los aquí
especicados puede provocar la exposición a radiaciones peligrosas.
Opening the CD-ROM drive, the DVD-ROM drive, or any other optical storage
device could result in exposure to hazardous laser radiation. There are no
serviceable parts inside those drives. Do not open.
15
Safety information
A CD-ROM drive, a DVD-ROM drive, or any other storage device installed may
contain an embedded Class 3A or Class 3B laser diode. Note the following:
DANGER
Emits visible and invisible laser radiation when open. Do not stare into the beam,
do not view directly with optical instruments, and avoid direct exposure to the
beam.
Radiação por raio laser ao abrir. Não olhe fixo no feixe de luz, não olhe
diretamente por meio de instrumentos óticos e evite exposição direta com o feixe
de luz.
Rayonnement laser si carter ouvert. Évitez de fixer le faisceau, de le regarder
directement avec des instruments optiques, ou de vous exposer au rayon.
Laserstrahlung bei geöffnetem Gerät. Nicht direkt oder über optische Instrumente
in den Laserstrahl sehen und den Strahlungsbereich meiden.
Kinyitáskor lézersugár ! Ne nézzen bele se szabad szemmel, se optikai
eszközökkel. Kerülje a sugárnyalábbal való érintkezést!
Aprendo l’unità vengono emesse radiazioni laser. Non fissare il fascio, non
guardarlo direttamente con strumenti ottici e evitare l’esposizione diretta al fascio.
Radiación láser al abrir. No mire jamente ni examine con instrumental óptico el
haz de luz. Evite la exposición directa al haz.
16
Lenovo YOGA 310-11IAP Hardware Maintenance Manual
Important service information
This chapter presents the following important service information:
• “Strategy for replacing FRUs” on page 16
– “Strategy for replacing a hard disk drive” on page 17
– “Important notice for replacing a system board” on page 17
• “Important information about replacing RoHS compliant FRUs” on page 18
Important:
BIOS and device driver xes are customer-installable. The BIOS and device drivers
are posted on the customer support site:
http://support.lenovo.com.
Strategy for replacing FRUs
Before replacing parts:
Make sure that all software xes, drivers, and BIOS downloads are installed
before replacing any FRUs listed in this manual.
After a system board is replaced, ensure that the latest BIOS is loaded to the
system board before completing the service action.
To download software xes, drivers, and BIOS, follow the steps below:
1. Go to http://support.lenovo.com.
2. Enter the serial number or select a product or use Lenovo smart
downloading.
3. Select the BIOS/Driver/Applications and download.
4. Follow the directions on the screen and install the necessary software.
17
Important service information
Use the following strategy to prevent unnecessary expense for replacing and
servicing FRUs:
• If you are instructed to replace an FRU, but the replacement does not solve
the problem, reinstall the original FRU before you continue.
• Some computers have both a processor board and a system board. If you
are instructed to replace either of them, and replacing one of them does not
solve the problem, reinstall that board, and then replace the other one.
• If an adapter or a device consists of more than one FRU, any of the FRUs
may be the cause of the error. Before replacing the adapter or device,
remove the FRUs one by one to see if the symptoms change. Replace only
the FRU that changed the symptoms.
Attention: The setup configuration on the computer you are servicing may
have been customized. Running Automatic Configuration may alter the
settings. Note the current conguration settings (using the View Conguration
option); then, when service has been completed, verify that those settings
remain in effect.
Strategy for replacing a hard disk drive
Always try to run a low-level format before replacing a hard disk drive. This
will cause all customer data on the hard disk to be lost. Make sure that the
customer has a current backup of the data before performing this action.
Attention: The drive startup sequence in the computer you are servicing may
have been changed. Be extremely careful during write operations such as
copying, saving, or formatting. If you select an incorrect drive, data or programs
can be overwritten.
Important notice for replacing a system board
Some components mounted on a system board are very sensitive. Improper
handling can cause damage to those components, and may cause a system
malfunction.
Attention: When handling a system board:
• Do not drop the system board or apply any excessive force to it.
• Avoid rough handling of any kind.
• Avoid bending the system board and hard pushing to prevent cracking at
each BGA (Ball Grid Array) chipset.
18
Lenovo YOGA 310-11IAP Hardware Maintenance Manual
Important information about replacing RoHS compliant FRUs
RoHS, The Restriction of Hazardous Substances in Electrical and
Electronic Equipment Directive (2002/95/EC) is a European Union legal
requirement affecting the global electronics industry. RoHS requirements
must be implemented on Lenovo products placed on the market after
June 2006. Products on the market before June 2006 are not required to
have RoHS compliant parts. If the original FRU parts are non-compliant,
replacement parts can also be non-compliant. In all cases if the original
FRU parts are RoHS compliant, the replacement part must also be RoHS
compliant.
Note: RoHS and non-RoHS FRU part numbers with the same t and function
are identied with unique FRU part numbers.
Lenovo plans to transit to RoHS compliance well before the implementation
date and expects its suppliers to be ready to support Lenovo’s requirements
and schedule in the EU. Products sold in 2005 and 2006 will contain some
RoHS compliant FRUs. The following statement pertains to these products and
any product Lenovo produces containing RoHS compliant FRUs.
RoHS compliant FRUs have unique FRU part numbers. Before or after the
RoHS implementation date, failed RoHS compliant parts must always be
replaced with RoHS compliant ones, so only the FRUs identied as compliant
in the system HMM or direct substitutions for those FRUs may be used.
Products marketed before June 2006 Products marketed after June 2006
Current or
original part
Replacement FRU Current or
original part
Replacement FRU
Non-RoHS Can be Non-RoHS
Must be RoHS Must be RoHS
Non-RoHS Can be RoHS
Non-RoHS Can sub to RoHS
RoHS Must be RoHS
Note: A direct substitution is a part with a different FRU part number that is
automatically shipped by the distribution center at the time of the order.
19
General checkout
General checkout
This chapter presents the following information:
• “What to do rst” on page 20
• “Power system checkout” on page 21
Before you go to the checkout, make sure to read the following important notes:
Important notes:
• Onlycertiedtrainedpersonnelcanservicethecomputer.
• BeforereplacinganyFRU,readthe entirepageonremovingandreplacing
FRUs.
• CarefullyremovescrewsforreusewhenreplacingFRUs.
• Beextremelycarefulduringsuchwriteoperationsascopying,saving,or
formatting. Drives in the computer that you are servicing sequence might
have been altered. If you select an incorrect drive, data or programs might be
overwritten.
• ReplaceanFRUonlywithanotherFRUofthecorrectmodel. When you
replace an FRU, make sure that the machine model and the FRU part number are
correct by referring to the FRU parts list.
• AnFRUshouldnotbereplacedjustbecauseofasingle,unreproduciblefailure.
Single failures can occur for a variety of reasons that have nothing to do with a
hardware defect, such as cosmic radiation, electrostatic discharge, or software
errors. Consider replacing an FRU only when a problem recurs. If you suspect that
an FRU is defective, clear the error logs and run the test again. If the error does
not recur, do not replace the FRU.
• BecarefulnottoreplaceanondefectiveFRU.
20
Lenovo YOGA 310-11IAP Hardware Maintenance Manual
What to do rst
When you do return an FRU, you must include the following information in the
parts exchange form or parts return form that you attach to it:
1. Name and phone number of servicer
2. Date of service
3. Date on which the machine failed
4. Date of purchase
5. Procedure index and page number in which the failing FRU was detected
6. Failing FRU name and part number
7. Machine type, model number, and serial number
8. Customer’s name and address
Note for warranty: During the warranty period, the customer may be
responsible for repair costs if the computer damage was caused by misuse,
accident, modification, unsuitable physical or operating environment, or
improper maintenance by the customer.
The following is a list of some common items that are not covered under
warranty and some symptoms that might indicate that the system was
subjected to stress beyond normal use.
Before checking problems with the computer, determine whether the damage is
covered under the warranty by referring to the following list:
The following are not covered under warranty:
• LCD panel cracked from the application of excessive force or from being
dropped
• Scratched (cosmetic) parts
• Distortion, deformation, or discoloration of the cosmetic parts
• Plastic parts, latches, pins, or connectors that have been cracked or broken
by excessive force
• Damage caused by liquid spilled into the system
• Damage caused by the improper insertion of a PC Card or the installation of
an incompatible card
• Improper disk insertion or use of an optical drive
• Diskette drive damage caused by pressure on the diskette drive cover,
foreign material in the drive, or the insertion of a diskette with multiple labels
• Damaged or bent diskette eject button
• Fuses blown by attachment of a nonsupported device
• Forgotten computer password (making the computer unusable)
• Sticky keys caused by spilling a liquid onto the keyboard
• Use of an incorrect AC adapter on laptop products
The following symptoms might indicate damage caused by nonwarranted
activities:
• Missing parts might be a symptom of unauthorized service or modication.
• If the spindle of a hard disk drive becomes noisy, it may have been subjected
to excessive force, or dropped.
21
General checkout
Power system checkout
To verify a symptom, follow the steps below:
1. Turn off the computer.
2. Connect the AC adapter.
3. Make sure that power is supplied when you turn on the computer.
4. Turn off the computer.
5. Disconnect the AC adapter.
6. Make sure that the battery pack supplies power when you turn on the
computer.
If you suspect a power problem, see the appropriate power supply checkout:
• “Checking the AC adapter” on page 21
• “Checking operational charging” on page 22
Checking the AC adapter
You are here because the computer fails only when the AC adapter is used.
• If the power-on indicator does not turn on, check the power cord of the AC
adapter for correct continuity and installation.
• If the computer does not charge during operation, go to “Checking
operational charging”.
To check the AC adapter, follow the steps below:
1. Unplug the AC adapter cable from the computer.
2. Measure the output voltage at the plug of the AC adapter cable. See the
following gure:
1
2
Voltage (V DC)
+20
0
Pin
1
2
Note: Output voltage for the AC adapter pin No. 2 may differ from the one you
are servicing.
3. If the voltage is not correct, replace the AC adapter.
4. If the voltage is acceptable, do the following:
• Replace the system board.
• If the problem persists, go to “Lenovo YOGA 310-11IAP” on page 26.
Note: Noise from the AC adapter does not always indicate a defect.
22
Lenovo YOGA 310-11IAP Hardware Maintenance Manual
Checking operational charging
To check whether the battery charges properly during operation, use a
discharged battery pack or a battery pack that has less than 50% of the total
power remaining when installed in the computer.
Perform operational charging. If the battery status indicator or icon is not lit,
remove the battery pack and let it return to room temperature. Reinstall the
battery pack. If the charge indicator or icon is still off, replace the battery pack.
If the charge indicator is still not lit, replace the system board.
Checking the battery pack
Battery charging does not start until the Power Meter shows that less than 95%
of the total power remains; under this condition the battery pack can charge to
100% of its capacity. This protects the battery pack from being overcharged or
from having a shortened life.
To check your battery, move your cursor to the Power Meter icon in the icon
tray of the Windows® taskbar and wait for a moment (but do not click it), and
the
percentage of battery power remaining is displayed. To get detailed information
about the battery, double-click the Power Meter icon.
Note: If the battery pack becomes hot, it may not be able to be charged.
Remove it from the computer and leave it at room temperature for a while. After
it cools down, reinstall and recharge it.
23
Related service information
Related service information
This chapter presents the following information:
• “Restoring the factory contents by using OneKey Recovery” on page 23
• “Passwords” on page 24
• “Power management” on page 25
Restoring the factory contents by using OneKey Recovery
Restore of factory default
The Lenovo YOGA 310-11IAP computer comes with pre-installed OneKey
Recovery System.In order to save application files and the initial backed up
files of the system, the hard disk in a Lenovo computer includes a hidden
partition when it is shipped. If you need to restore the system to the point of
your rst boot up, just enter Lenovo OneKey Recovery System and run System
Recovery. For details of OneKey Recovery System, see the User Guide for
Lenovo OneKey Recovery system.
Note: This will delete all the new data on the system partition (C drive), which
is not recoverable. Make sure to back up your critical data before you perform this
action.
24
Lenovo YOGA 310-11IAP Hardware Maintenance Manual
Passwords
As many as three passwords may be needed for any Lenovo computer: the
power-on password (POP), the hard disk password (HDP), and the supervisor
password.
If any of these passwords has been set, a prompt for it appears on the screen
whenever the computer is turned on. The computer does not start until the
password is entered.
Power-on password
A power-on password (POP) protects the system from being powered on by
an unauthorized person. The password must be entered before an operating
system can be booted.
Hard-disk password
There are two hard-disk passwords (HDPs):
+ User HDP - for the user
+ Master HDP - for the system administrator, who can use it to get access to
the hard disk drive even if the user has changed the user HDP
Attention: If the user HDP has been forgotten, check whether a master HDP
has been set. If it has, it can be used for access to the hard disk drive. If
no master HDP is available, neither Lenovo nor Lenov authorized service
technicians provide any services to reset either the user or the master HDP, or
to recover data from the hard disk drive. The hard disk drive can be replaced
for a scheduled fee.
Supervisor password
A supervisor password protects the system information stored in the BIOS. The
user must enter the supervisor password to get access to the BIOS and change
the system conguration.
Attention: If you forget the password, there is no service procedure to reset
the password. The system board must be replaced for a scheduled fee.
25
Related service information
Power management
Note: Power management modes are not supported for an APM operating
system.
Putting the computer to sleep or shutting it down
When you have nished working with your computer, you can put it to sleep or
shut it down.
Putting your computer to sleep
If you will be away from your computer for only a short time, put the computer to
sleep. When the computer is in sleep mode, you can quickly wake it to resume
use, bypassing the startup process.
To put the computer to sleep, do one of the following:
• Close the display lid.
• Press the Power button.
• Open the start menu, and then select Power → Sleep.
Attention: Wait until the power indicator light starts blinking (indicating that
the computer is in sleep mode) before you move your computer. Moving your
computer while the hard disk is spinning can damage the hard disk, causing
loss of data.
To wake the computer, do one of the following:
• Press any key on the keyboard. (Notebook mode only)
• Press the Power button.
Shutting down the computer
If you are not going to use your computer for a long time, shut it down.
To shut down your computer, do one of the following:
• Open the start menu, and then select Power → Shut down.
• Press and hold or right-click the Start button in the lower-left corner and
select Shut down or sign out → Shut down.
26
Lenovo YOGA 310-11IAP Hardware Maintenance Manual
Lenovo YOGA 310-11IAP
This chapter presents the following product-specific service references and
product-specic parts information:
• “Specications” on page 26
• “Status indicators” on page 27
• “Keyboard function keys” on page 28
• “FRU replacement notices” on page 29
• “Removing and replacing an FRU” on page 30
• “Locations” on page 51
• “Parts list” on page 53
Specications
The following table lists the specifications of the Lenovo YOGA 310-11IAP:
Table 1. Specications
Feature Description
Processor View the system properties of your computer.
You can do this as follows: Open the Control Panel, and then select
System and Security → System.
Graphic Chipset • Intel Gen9 Integrated Graphics
Display • 11.6-inch, 16:9, 1,366 × 768 pixels HD
Standard
memory • DDR3L-1600 MHz (max 8 GB)
SSD • 32 GB / 64 GB, eMMC
I/O port • USB 3.0 × 1, USB 2.0 × 2
• Combo audio jack × 1
• HDMI port × 1
• RJ-45 × 1 (100/1000 Mbps)
• Memory card slot (SD/SDHC/SDXC/MMC)
Audio • 1/8" Combo audio jack
• JBL Branded Speaker, 1.5W x 2
• Built-in microphone × 2
Bluetooth
wireless • Combo with Wi-Fi card
Keyboard • 6 Row, Lenovo Keyboard
Touch pad • Multi-touch type
Integrated
camera • 1 M
Battery • 2 cells, 30 Wh
AC adapter • 20 V, 45 W
Pre-installed
operating
system
• Win10
27
Lenovo YOGA 310-11IAP
Status indicators
The system status indicators below show the computer status:
2
1
Table 2. Status indicators
Indicator Indicator status Meaning
1
Battery status
indicator
On (solid white) The battery has more than 80%
charge.
On (solid amber) The battery has between 5% and
20% charge.
Blinking slowly
(white)
The battery has between 20% and
80% charge. When the battery
reaches 80% charge, the light will
stop blinking. However, charging
will continue until the battery is fully
charged.
Blinking slowly
(amber)
The battery has less than 20%
charge. When the battery charge
reaches 20%, the blinking color will
change to white.
Blinking quickly
(amber) The battery has less than 5% charge.
Off The battery has more than 20% charge.
2
Power status
indicator
On (solid white) The computer is powered on.
Blinking The computer is in sleep mode.
Off The computer is powered off.
28
Lenovo YOGA 310-11IAP Hardware Maintenance Manual
Keyboard function keys
You can access certain system settings quickly by pressing the appropriate
function keys.
Table 3. Fn key combinations
Fn + B: Activates the break function.
Fn + P: Activates the pause function.
Fn + C: Enables/disables the scroll lock.
Fn + S: Activates the system request .
Fn + : Activates the Pgup key function.
Fn + : Activates the Pgdn key function.
Fn + : Activates the home key function.
Fn + : Activates the end key function.
Table 4. Hotkeys
: Mutes/unmutes the sound.
: Decreases the volume level.
: Increases the volume level.
: Enables/disables the microphone.
: Refreshes the desktop or the currently active window.
: Enables/disables the touchpad.
: Enables/disables Airplane mode.
: Enables/disables the integrated camera.
: Locks the screen.
: Toggles the display between the computer and an external
device.
: Decreases display brightness.
: Increases display brightness.
Note: You can use the Lenovo Setting to enable/disable the hotkey function.
29
Lenovo YOGA 310-11IAP
FRU replacement notices
This section presents notices related to removing and replacing parts. Read
this section carefully before replacing any FRU.
Screw notices
Loose screws can cause a reliability problem. In the Lenovo computer, this
problem is addressed with special nylon-coated screws that have the following
characteristics:
• They maintain tight connections.
• They do not easily come loose, even with shock or vibration.
• They are harder to tighten.
Do the following when you service this machine:
• Keep the screw kit in your tool bag.
• Carefully remove screws for reuse when replacing FRUs.
• Use a torque screwdriver if you have one.
Tighten screws as follows:
• Plastic to plastic
Turn an additional 90° after the screw head touches the surface of the
plastic part:
more than 90°
(Cross-section)
• Logic card to plastic
Turn an additional 180° after the screw head touches the surface of the
logic card:
more than 180°
(Cross-section)
• Torque driver
If you have a torque screwdriver, refer to the “Torque” column for each step.
• Make sure that you use the correct screws. If you have a torque screwdriver,
tighten all screws rmly to the torque shown in the table. Carefully remove
screws for reuse when replacing FRUs. Make sure that all screws are
tightened rmly.
• Ensure torque screwdrivers are calibrated correctly following country
specications.
30
Lenovo YOGA 310-11IAP Hardware Maintenance Manual
Removing and replacing an FRU
This section presents exploded gures with the instructions to indicate how to
remove and replace the FRU. Make sure to observe the following general rules:
1. Do not attempt to service any computer unless you have been trained and
certied. An untrained person runs the risk of damaging parts.
2. Before replacing any FRU, review “FRU replacement notices” on page 29.
3. Begin by removing any FRUs that have to be removed before the failing
FRU. Any of such FRUs are listed at the top of the page. Remove them in
the order in which they are listed.
4. Follow the correct sequence in the steps to remove the FRU, as given in the
gures by the numbers in square callouts.
5. When turning a screw to replace an FRU, turn it in the direction as given by
the arrow in the gure.
6. When removing the FRU, move it in the direction as given by the arrow in
the gure.
7. To put the new FRU in place, reverse the removal procedures and follow
any of the notes that pertain to replacement. For information about
connecting and arranging internal cables, see “Locations” on page 51.
8. When replacing an FRU, use the correct screw as shown in the procedures.
DANGER
Before removing any FRU, turn off the computer, unplug all power cords from
electrical outlets, remove the battery pack, and then disconnect any of the
interconnecting cables.
Attention: After replacing an FRU, do not turn on the computer until you have
made sure that all screws, springs, and other small parts are in place and none
are loose inside the computer. Verify this by shaking the computer gently and
listening for rattling sounds. Metallic parts or metal akes can cause electrical
short circuits.
Attention: The system board is sensitive to, and can be damaged by,
electrostatic discharge. Before touching it, establish personal grounding by
touching a ground point with one hand or using an electrostatic discharge (ESD)
strap (P/N 6405959) to remove potential shock reasons.
31
Lenovo YOGA 310-11IAP
1010 Base cover
Figure 1. Removal steps of base cover
Remove the screws 1.
1
1
1
1
1
1
1
1
1
1
Step Screw (quantity) Color Torque
1M2.0 x 6.5 mm, Phillips head, nylok-coated (10)
D cover to C cover
Silver/
Black
1.8-2.0 kg_cm
Insert a prying tool between the base cover and the C cover and slide it around
the directions shown by arrows 2, 3, 4 and 5 to separate the base cover
from the C cover. Then remove the base cover in the direction shown by arrow 6.
2
3
4
5
6
32
Lenovo YOGA 310-11IAP Hardware Maintenance Manual
Note: Applying labels to the base cover
If you see the following labels on base cover, it needs to be peeled off from
the old base cover, and put on the new base cover.
a South africa/Canada/Taiwan/USA/Israel/Malaysia/India/Indonesia/
Brazil/Argentina Label
b Win10 GML label
c Rating label
d Rating print label
e Argentina label/KCC label
For some models, you also need to apply one or two FCC labels. Check the
old base cover; if it has one or two FCC labels, nd duplicates of them in the
label kit and apply them to the new base cover.
For the location of each label, refer to the following gure:
a
bcd
e
33
Lenovo YOGA 310-11IAP
1020 Battery pack
For access, remove this FRU:
• “1010 Base cover” on page 31
DANGER
Only use the battery specied in the parts list for your computer. Any other battery
could ignite or explode.
Figure 2. Removal steps of battery pack
Unplug the battery connector 1 and remove the screws 2. Then remove the
battery pack 3.
2
2
2
2
3
1
Step Screw (quantity) Color Torque
2M2 x 4 mm, Phillips-head, nylok-coated (4)
Battery to C Cover
Black 1.8-2.0 kg_cm
When installing: Make sure that the battery connector is attached rmly.
34
Lenovo YOGA 310-11IAP Hardware Maintenance Manual
1030 Hard disk drive
For access, remove these FRUs in order:
• “1010 Base cover” on page 31
• “1020 Battery pack” on page 33
Figure 3. Removal steps of hard disk drive
Remove the screws 1, then remove the hard disk drive in the direction shown
by arrow 2.
1
1
1
1
2
Step Screw (quantity) Color Torque
1M2 x 4 mm, Phillips-head, nylok-coated (4)
HDD bracket to C cover
Black 1.8-2.0 kg_cm
Remove the screws 3, and then take out the metal frame.
3
3
3
3
Step Screw (quantity) Color Torque
3M3 × 3 mm, Phillips head, nylok-coated (4)
HDD bracket to HDD
Black 1.8-2.0 kg_cm
35
Lenovo YOGA 310-11IAP
1040 PCI Express Mini Card for wireless LAN
For access, remove these FRUs in order:
• “1010 Base cover” on page 31
• “1020 Battery pack” on page 33
Important: The preinstalled WLAN module may only be replaced with a Lenovo
approved module in order to comply with FCC and IC regulations. Refer to
“Table 5. Parts list—Overall” on page 55 for Lenovo part numbers for the
approved modules.
Figure 4. Removal steps of PCI Express Mini Card for wireless LAN
Disconnect the two wireless LAN cables (black, white) 1, and then remove the
screw 2.
2
1
In step 1, unplug the jacks by using the removal tool antenna RF connector
(P/N: 08K7159), or pick up the connectors with your ngers and gently unplug
them in the direction shown by the arrows.
Notes: The wireless LAN card has 2 cables in step 1.
The wireless LAN card in some models might have 3 cables in step 1.
Step Screw (quantity) Color Torque
2M2 x 4 mm, Phillips-head, nylok-coated (1)
WiFi to C cover
Black 1.8-2.0 kg_cm
36
Lenovo YOGA 310-11IAP Hardware Maintenance Manual
Figure 4. Removal steps of PCI Express Mini Card for wireless LAN (continued)
Remove the card in the direction shown by arrow 3.
3
When installing: When installing the wireless LAN card, plug the black cable
into the jack labeled MAIN and the white cable into the jack labeled AUX.
37
Lenovo YOGA 310-11IAP
1050 Touchpad module
For access, remove these FRUs in order:
• “1010 Base cover” on page 31
• “1020 Battery pack” on page 33
Figure 5. Removal steps of touchpad module
Peel off the tape 1.
111111
Detach the connector in the directions shown by arrows 2 and 3.
Then remove the screws 4.
444
2
3
Step Screw (quantity) Color Torque
4M2 x 2 mm, Phillips-head, nylok-coated (3)
touchpad to C Cover
Silver 1.8-2.0 kg_cm
38
Lenovo YOGA 310-11IAP Hardware Maintenance Manual
Figure 5. Removal steps of touchpad module (continued)
Turn the C cover over, open the display panel, then remove the touchpad
module 5.
5
39
Lenovo YOGA 310-11IAP
1060 Speakers
For access, remove these FRUs in order:
• “1010 Base cover” on page 31
• “1020 Battery pack” on page 33
• “1050 Touchpad module” on page 37
Figure 6. Removal steps of speakers
Release the speaker cables from the cable guide. Unplug the speaker
connector in the direction shown by arrow 1. Remove the screws 2.
Then remove the two speakers 3.
1
2
2
2
2
3
3
Step Screw (quantity) Color Torque
2M2 x 2.5 mm, Phillips-head, nylok-coated (4)
Speaker to C Cover
Black 1.8-2.0 kg_cm
40
Lenovo YOGA 310-11IAP Hardware Maintenance Manual
1070 System board
Important notices for handling the system board:
When handling the system board, bear the following in mind.
• Be careful not to drop the system board on a bench top that has a hard surface,
such as metal, wood, or composite.
• Avoid rough handling of any kind.
• During the whole process, make sure not to drop or stack the system board.
• If you put a system board down, make sure to put it only on a padded surface, such
as an ESD mat or conductive corrugated material.
For access, remove these FRUs in order:
• “1010 Base cover” on page 31
• “1020 Battery pack” on page 33
• “1030 Hard disk drive” on page 34
• “1040 PCI Express Mini Card for wireless LAN” on page 35
• “1050 Touchpad module” on page 37
• “1060 Speakers” on page 39
Figure 7. Removal steps of system board
Detach the three connectors in the directions shown by arrows 1, 2and 3.
Then remove the screws 4 and 5.
4
4
4
4
4
4
5
5
5
5
5
1
3
1
2
2
Step Screw (quantity) Color Torque
4M2 x 4 mm, Phillips-head, nylok-coated (6)
MB to C Cover
Black 1.8-2.0 kg_cm
5M2.5 x 4 mm, Phillips-head, nylok-coated (5)
HINGE to C cover
Black 1.8-2.0 kg_cm
When installing: Make sure that the connectors are attached rmly.
41
Lenovo YOGA 310-11IAP
Figure 7. Removal steps of system board (continued)
Open the hinges 6.
6
6
Remove the system board 7.
7
42
Lenovo YOGA 310-11IAP Hardware Maintenance Manual
1080 Thermal module
For access, remove these FRUs in order:
• “1010 Base cover” on page 31
• “1020 Battery pack” on page 33
• “1030 Hard disk drive” on page 34
• “1040 PCI Express Mini Card for wireless LAN” on page 35
• “1050 Touchpad module” on page 37
• “1060 Speakers” on page 39
• “1070 System board” on page 40
Figure 8. Removal steps of thermal module
Peel off the tape 1.
1
1
1
1
1
1
1
Remove the screws 2. Then remove the thermal module in the direction
shown by arrow 3.
2
2
2
3
Step Screw (quantity) Color Torque
2M2 x 4 mm, Phillips-head, nylok-coated (3)
Thermal Module to PCB
Black 1.8-2.0 kg_cm
Attention: Do not handle the heat sink assembly roughly. Improper handling
can cause distortion or deformation and imperfect contact with components.
43
Lenovo YOGA 310-11IAP
Figure 8. Removal steps of thermal module (continued)
a
When installing: Before you attach the fan assembly to the computer, apply
thermal grease, at an amount of 0.2 grams, to part a shown in the figure
above. Either too much or too little grease application can cause a thermal
problem due to imperfect contact with a component.
44
Lenovo YOGA 310-11IAP Hardware Maintenance Manual
1090 Upper case
For access, remove these FRUs in order:
• “1010 Base cover” on page 31
• “1020 Battery pack” on page 33
• “1030 Hard disk drive” on page 34
• “1040 PCI Express Mini Card for wireless LAN” on page 35
• “1050 Touchpad module” on page 37
• “1060 Speakers” on page 39
• “1070 System board” on page 40
Figure 9. Removal steps of upper case
Remove the upper case from LCD unit in the direction shown by arrow 1.
1
Remove the DC-in cable in the direction shown by arrow 2.
2
45
Lenovo YOGA 310-11IAP
1100 LCD unit
For access, remove these FRUs in order:
• “1010 Base cover” on page 31
• “1020 Battery pack” on page 33
• “1030 Hard disk drive” on page 34
• “1040 PCI Express Mini Card for wireless LAN” on page 35
• “1050 Touchpad module” on page 37
• “1060 Speakers” on page 39
• “1070 System board” on page 40
• “1090 Upper case” on page 44
Figure 10. Removal steps of LCD unit
Remove the screw pads 1 and the screws 2. Then insert a prying tool
between the hinge cover and the LCD cover and slide it in the direction shown
by arrow 3. Remove the hinge cover in the direction shown by arrows 4.
2
2
1
4
4
1
3
Step Screw (quantity) Color Torque
2M2 × 3.5 mm, Phillips-head, nylok-coated (2)
B cover to A cover
Silver 1.8-2.0 kg_cm
46
Lenovo YOGA 310-11IAP Hardware Maintenance Manual
Figure 10. Removal steps of LCD unit (continued)
Remove the hinge rubbers 5. Then remove the screws 6. Remove the LCD
module in the direction shown by arrow 7.
5
5
6
6
6
7
Step Screw (quantity) Color Torque
6M2 × 3 mm, Phillips-head, nylok-coated (3)
LCD bracket to A cover
Black 1.8-2.0 kg_cm
47
Lenovo YOGA 310-11IAP
1110 Integrated camera and EDP cable
For access, remove these FRUs in order:
• “1010 Base cover” on page 31
• “1020 Battery pack” on page 33
• “1030 Hard disk drive” on page 34
• “1040 PCI Express Mini Card for wireless LAN” on page 35
• “1050 Touchpad module” on page 37
• “1060 Speakers” on page 39
• “1070 System board” on page 40
• “1090 Upper case” on page 44
• “1100 LCD unit” on page 45
Figure 11. Removal steps of integrated camera and EDP cable
Peel off the tape that secures the camera 1.
1
Lift the camera board slightly 2, then unplug the connector in the direction
shown by arrow 3.
23
48
Lenovo YOGA 310-11IAP Hardware Maintenance Manual
Figure 11. Removal steps of integrated camera and EDP cable (continued)
Unplug the connectors in the directions shown by arrows 4.
4
4
4
Peel off the tape 5.
5
49
Lenovo YOGA 310-11IAP
Figure 11. Removal steps of integrated camera and EDP cable (continued)
Release the cables from the cable guide 6.
6
Remove the EDP cable in the direction shown by arrow 7.
7
When installing: Make sure that the connector are attached rmly.
50
Lenovo YOGA 310-11IAP Hardware Maintenance Manual
1120 LCD hinges
For access, remove these FRUs in order:
• “1010 Base cover” on page 31
• “1020 Battery pack” on page 33
• “1030 Hard disk drive” on page 34
• “1040 PCI Express Mini Card for wireless LAN” on page 35
• “1050 Touchpad module” on page 37
• “1060 Speakers” on page 39
• “1070 System board” on page 40
• “1090 Upper case” on page 44
• “1100 LCD unit” on page 45
• “1110 Integrated camera and EDP cable” on page 47
Figure 11. Removal steps of LCD hinges
Remove the screws 1 and 2.
22
2
2
2
1
1
Step Screw (quantity) Color Torque
1M2 × 3 mm, Phillips head, nylok-coated (2)
HINGE bracket to A cover
Black 1.8-2.0 kg_cm
2M2 × 2.5 mm, Phillips head, nylok-coated (5)
HINGE bracket to A cover
Black 1.8-2.0 kg_cm
Release the two hinges in the direction shown by arrows 3.
3
3
51
Lenovo YOGA 310-11IAP
Locations
Front and right-side view
a Integrated camera
b Built-in microphone
c Wireless LAN antennas
d Multi-touch screen
e Touchpad
f Power status indicator
Note: For the description of each indicator, see “Status indicators” on page 27.
g Power button
h Novo button
i Combo audio jack
j USB ports
k RJ-45 port
1
2
3
4
5
3
8
7
6
9
10
11
52
Lenovo YOGA 310-11IAP Hardware Maintenance Manual
Bottom and left-side view
a Speakers
b Memory card slot
c HDMI port
d USB 3.0 port
e Battery status indicator
Note: For the description of each indicator, see “Status indicators” on page 27.
f AC power adapter jack
2
3
4
5
6
1
1
53
Lenovo YOGA 310-11IAP
Parts list
This section presents the following service parts:
• “Overall” on page 54
• “LCD FRUs” on page 58
• “Miscellaneous parts” on page 60
• “AC adapters” on page 60
• “Screws” on page 60
Note:
• Each FRU is available for all types or models, unless specic types or models
are specied.
Attention:
DonotattempttoreplaceanFRUonyourown.IfanFRUisdamaged,contact
aLenovoauthorizedserviceroramarketingrepresentativeforreplacement
orrepair.Onlyqualiedtechnicianscaninspectorrepairthisproduct.
54
Lenovo YOGA 310-11IAP Hardware Maintenance Manual
Overall
1
2
b
3
4
a
5
7
6
8
9
10
55
Lenovo YOGA 310-11IAP
Table 5. Parts list—Overall
No. FRU FRU no. CRU
ID.
a-b see “Miscellaneous parts” on page 60.
1 LCD unit (see “LCD FRUs” on page 58.)
2 Upper Case B 80U2 BK BKW/KB ARE 5CB0M36292 N
2 Upper Case B 80U2 BK BKW/KB BE 5CB0M36241 N
2 Upper Case B 80U2 BK BKW/KB BZ 5CB0M36269 N
2 Upper Case B 80U2 BK BKW/KB BU 5CB0M36363 N
2 Upper Case B 80U2 BK BKW/KB CZSK 5CB0M36227 N
2 Upper Case B 80U2 BK BKW/KB NL 5CB0M36344 N
2 Upper Case B 80U2 BK BKW/KB US 5CB0M36239 N
2 Upper Case B80U2BK BKW/KB US INT'E 5CB0M36361 N
2 Upper Case B 80U2 BK BKW/KB EF 5CB0M36296 N
2 Upper Case B 80U2 BK BKW/KB UK 5CB0M36301 N
2 Upper Case B 80U2 BK BKW/KB FR 5CB0M36326 N
2 Upper Case B 80U2 BK BKW/KB FR+AR 5CB0M36280 N
2 Upper Case B 80U2 BK BKW/KB GR 5CB0M36225 N
2 Upper Case B 80U2 BK BKW/KB GK 5CB0M36244 N
2 Upper Case B 80U2 BK BKW/KB HE 5CB0M36268 N
2 Upper Case B 80U2 BK BKW/KB INDIA 5CB0M36384 N
2 Upper Case B 80U2 BK BKW/KB HG 5CB0M36291 N
2 Upper Case B 80U2 BK BKW/KB ICE 5CB0M36406 N
2 Upper Case B 80U2 BK BKW/KB IT 5CB0M36369 N
2 Upper Case B 80U2 BK BKW/KB JA 5CB0M36270 N
2 Upper Case B 80U2 BK BKW/KB KO 5CB0M36287 N
2 Upper Case B 80U2 BK BKW/KB LA 5CB0M36360 N
2 Upper Case B 80U2 BK BKW/KB ND 5CB0M36300 N
2 Upper Case B 80U2 BK BKW/KB PO 5CB0M36231 N
2 Upper Case B 80U2 BK BKW/KB RU 5CB0M36341 N
2 Upper Case B 80U2 BK BKW/KB SA 5CB0M36218 N
2 Upper Case B 80U2 BK BKW/KB SP 5CB0M36329 N
2 Upper Case B 80U2 BK BKW/KB SW 5CB0M36284 N
2 Upper Case B 80U2 BK BKW/KB TC 5CB0M36290 N
2 Upper Case B 80U2 BK BKW/KB TI 5CB0M36408 N
2 Upper Case B 80U2 BK BKW/KB TR 5CB0M36376 N
2 Upper Case B 80U2 WT WTW/KB ARE 5CB0M36398 N
2 Upper Case B 80U2 WT WTW/KB BE 5CB0M36371 N
2 Upper Case B 80U2 WT WTW/KB BZ 5CB0M36305 N
2 Upper Case B 80U2 WT WTW/KB BU 5CB0M36396 N
2 Upper Case B 80U2 WT WTW/KB CZSK 5CB0M36350 N
2 Upper Case B 80U2 WT WTW/KB NL 5CB0M36330 N
2 Upper Case B 80U2 WT WTW/KB US 5CB0M36334 N
2 Upper Case B80U2WT WTW/KB US INT'E 5CB0M36303 N
2 Upper Case B 80U2 WT WTW/KB EF 5CB0M36377 N
2 Upper Case B 80U2 WT WTW/KB UK 5CB0M36242 N
2 Upper Case B 80U2 WT WTW/KB FR 5CB0M36409 N
2 Upper Case B 80U2 WT WTW/KB FR+AR 5CB0M36308 N
2 Upper Case B 80U2 WT WTW/KB GR 5CB0M36382 N
2 Upper Case B 80U2 WT WTW/KB GK 5CB0M36306 N
2 Upper Case B 80U2 WT WTW/KB HE 5CB0M36390 N
2 Upper Case B 80U2 WT WTW/KB INDIA 5CB0M36322 N
56
Lenovo YOGA 310-11IAP Hardware Maintenance Manual
Table 5. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID.
2 Upper Case B 80U2 WT WTW/KB HG 5CB0M36309 N
2 Upper Case B 80U2 WT WTW/KB ICE 5CB0M36281 N
2 Upper Case B 80U2 WT WTW/KB IT 5CB0M36413 N
2 Upper Case B 80U2 WT WTW/KB JA 5CB0M36317 N
2 Upper Case B 80U2 WT WTW/KB KO 5CB0M36323 N
2 Upper Case B 80U2 WT WTW/KB LA 5CB0M36257 N
2 Upper Case B 80U2 WT WTW/KB ND 5CB0M36232 N
2 Upper Case B 80U2 WT WTW/KB PO 5CB0M36385 N
2 Upper Case B 80U2 WT WTW/KB RU 5CB0M36243 N
2 Upper Case B 80U2 WT WTW/KB SA 5CB0M36261 N
2 Upper Case B 80U2 WT WTW/KB SP 5CB0M36351 N
2 Upper Case B 80U2 WT WTW/KB SW 5CB0M36328 N
2 Upper Case B 80U2 WT WTW/KB TC 5CB0M36332 N
2 Upper Case B 80U2 WT WTW/KB TI 5CB0M36260 N
2 Upper Case B 80U2 WT WTW/KB TR 5CB0M36219 N
3 MB B 80U3 NOK N3350 2G 5B20M36399 N
3 MB B 80U3 WIN N3350 2G 5B20M36352 N
3 MB B 80U3 NOK N3350 2G 32G 5B20M36259 N
3 MB B 80U3 WIN N3350 2G 32G 5B20M36412 N
3 MB B 80U3 NOK N3350 2G 64G 5B20M36295 N
3 MB B 80U3 WIN N3350 2G 64G 5B20M36358 N
3 MB B 80U3 NOK N3350 4G 5B20M36331 N
3 MB B 80U3 WIN N3350 4G 5B20M36235 N
3 MB B 80U3 NOK N3350 4G 32G 5B20M36286 N
3 MB B 80U3 WIN N3350 4G 32G 5B20M36405 N
3 MB B 80U3 NOK N3350 4G 64G 5B20M36221 N
3 MB B 80U3 WIN N3350 4G 64G 5B20M36333 N
3 MB B 80U3 NOK N3350 8G 5B20M36278 N
3 MB B 80U3 WIN N3350 8G 5B20M36379 N
3 MB B 80U3 NOK N3350 8G 32G 5B20M36394 N
3 MB B 80U3 WIN N3350 8G 32G 5B20M36285 N
3 MB B 80U3 NOK N3350 8G 64G 5B20M36246 N
3 MB B 80U3 WIN N3350 8G 64G 5B20M36237 N
3 MB B 80U3 NOK N3450 2G 5B20M36252 N
3 MB B 80U3 WIN N3450 2G 5B20M36321 N
3 MB B 80U3 NOK N3450 2G 32G 5B20M36263 N
3 MB B 80U3 WIN N3450 2G 32G 5B20M36327 N
3 MB B 80U3 NOK N3450 2G 64G 5B20M36366 N
3 MB B 80U3 WIN N3450 2G 64G 5B20M36383 N
3 MB B 80U3 NOK N3450 4G 5B20M36256 N
3 MB B 80U3 WIN N3450 4G 5B20M36316 N
3 MB B 80U3 NOK N3450 4G 32G 5B20M36380 N
3 MB B 80U3 WIN N3450 4G 32G 5B20M36375 N
3 MB B 80U3 NOK N3450 4G 64G 5B20M36223 N
3 MB B 80U3 WIN N3450 4G 64G 5B20M36224 N
3 MB B 80U3 NOK N3450 8G 5B20M36279 N
3 MB B 80U3 WIN N3450 8G 5B20M36275 N
3 MB B 80U3 NOK N3450 8G 32G 5B20M36299 N
57
Lenovo YOGA 310-11IAP
No. FRU FRU no. CRU
ID.
3 MB B 80U3 WIN N3450 8G 32G 5B20M36304 N
3 MB B 80U3 NOK N3450 8G 64G 5B20M36325 N
3 MB B 80U3 WIN N3450 8G 64G 5B20M36318 N
3 MB B 80U3 NOK N4200 2G 5B20M36233 N
3 MB B 80U3 WIN N4200 2G 5B20M36349 N
3 MB B 80U3 NOK N4200 2G 32G 5B20M36319 N
3 MB B 80U3 WIN N4200 2G 32G 5B20M36336 N
3 MB B 80U3 NOK N4200 2G 64G 5B20M36393 N
3 MB B 80U3 WIN N4200 2G 64G 5B20M36250 N
3 MB B 80U3 NOK N4200 4G 5B20M36364 N
3 MB B 80U3 WIN N4200 4G 5B20M36222 N
3 MB B 80U3 NOK N4200 4G 32G 5B20M36395 N
3 MB B 80U3 WIN N4200 4G 32G 5B20M36389 N
3 MB B 80U3 NOK N4200 4G 64G 5B20M36414 N
3 MB B 80U3 WIN N4200 4G 64G 5B20M36266 N
3 MB B 80U3 NOK N4200 8G 5B20M36277 N
3 MB B 80U3 WIN N4200 8G 5B20M36245 N
3 MB B 80U3 NOK N4200 8G 32G 5B20M36297 N
3 MB B 80U3 WIN N4200 8G 32G 5B20M36274 N
3 MB B 80U3 NOK N4200 8G 64G 5B20M36307 N
3 MB B 80U3 WIN N4200 8G 64G 5B20M36248 N
4 Thermal Module B 80U3 5H40M36312 N
5 WLAN, Intel 3165 1x1AC+BT PCIE M.2 WLAN SW10H24486 N
5 WLAN, LTN NFA435A M2 WLAN SW10K97461 N
5WLAN, Cbt RTL8821AE 1x1AC+BT4.0 PCIE M.2 WLAN SW10A11648 N
6 Touchpad Module B 80U3 W/FFC BK 5T60M36400 N
6 Touchpad Module B 80U3 W/FFC WT 5T60M36272 N
7HDD,WD WD2500LPCX-24VHAT0 5H20J35763 N
7 HDD,ST500LT012 6G 7mm 5.4K 500G HDD 16200383 N
7HDD,WD5000LPCX-24VHAT0 7mm 5400rpm 500G
HDD
5H20J35762 N
7 HDD,MQ01ABF050 6G 7mm 5.4K 500G HDD 16200433 N
7 HDD,HTS545050A7E660 6G 7mm 5.4K 500G HDD 5H20H14223 N
7 HDD,ST500LM000 6G 7mm 500G+8G SSHD 5H20H24608 N
7 HDD,Toshiba MQ02ABF050H 7mm 5.4k
500GB+8GB SSHD
5H20H12631 N
7 SSD, Samsung MZYLF128HCHP 2.5'' 5mm 128GB
SSD
5SD0H45117
7 SSD, HFS128G3BMND-3210A 2.5” 5mm 128GB
SSD
5SD0K44056
8 Speaker B 80U3 L+R 5SB0M36368 N
9Battery,Soa SP/A L15M2PB6 7.5V30Wh2cell bty 5B10L13949 N
9Battery,Soa SP/C L15M2PB6 7.5V30Wh2cell bty 5B10L13948 N
10 Lower Case B 80U3 Black 5CB0M36320 N
10 Lower Case B 80U3 White 5CB0M36381 N
— AC adapter (see “AC adapters” on page 60).
Table 5. Parts list—Overall (continued)
58
Lenovo YOGA 310-11IAP Hardware Maintenance Manual
LCD FRUs
In Lenovo YOGA 310-11IAP, there are following types of LCDs.
• “11.6-in. HD LED”
5
1
2
3
4
6
7
8
59
Lenovo YOGA 310-11IAP
Table 6. Parts list—LCD FRUs
No. FRU FRU no. CRU
ID.
1 Screw Rubber B 80U3 White 5R60M36234 N
1 Screw Rubber B 80U3 Black 5R60M36417 N
2 Hinge Cover B 80U3 White PAI 5CB0M36370 N
2 Hinge Cover B 80U3 Black PAI 5CB0M36402 N
3 LCD Module B 80U3 TN 5D10M36226 N
3 LCD Module B 80U3 IPS 5D10M36310 N
4 LCD Cable B 80U3 5C10M36311 N
5 Camera B 80U3 HD 720P 5C20M36253 N
6 Hinge Rubber B 80U3 Black 5R60M36220 N
7 Hinge B 80U3 W/Rubber L+R 5H50M36339 N
8 LCD Cover B 80U2 W/Antenna Black 5CB0M36264 N
8 LCD Cover B 80U2 W/Antenna White 5CB0M36356 N
60
Lenovo YOGA 310-11IAP Hardware Maintenance Manual
Miscellaneous parts
Table 7. Parts list—Miscellaneous parts
FRU P/N
CRU
ID.
System miscellaneous parts:
• (a) HDD Bracket B 80U3 5B40M36288 N
Cable miscellaneous parts:
• (b) DC-IN Cable B 80U3 5C10M36298 N
Note: Italicized letters in parentheses are references to the exploded view in
“Overall” on page 54.
AC adapters
Table 8. Parts list—AC adapters
FRU P/N CRU
ID.
Delta ADP-45DW AA 20V2.25A adapter 5A10H43620 *
Delta ADP-45DW JA 20V2.25A adapter 5A10H43623 *
Delta ADP-45DW BA 20V2.25A adapter 5A10H43630 *
Delta ADP-45DW DA 20V2.25A adapter 5A10H43621 *
Delta ADP-45DW HA 20V2.25A adapter 5A10H43627 *
Delta ADP-45DW GA 20V2.25A adapter 5A10H43617 *
Delta ADP-45DW EA 20V2.25A adapter 5A10H43626 *
Delta ADP-45DW CA 20V2.25A adapter 5A10H43632 *
Delta ADP-45DW KA 20V2.25A adapter 5A10H43624 *
Liteon PA-1450-55LN 20V2.25A adapter 5A10H42921 *
Liteon PA-1450-55LG 20V2.25A adapter 5A10H42920 *
Liteon PA-1450-55LL 20V2.25A adapter 5A10H42923 *
Liteon PA-1450-55LK 20V2.25A adapter 5A10H42917 *
Liteon PA-1450-55LI 20V2.25A adapter 5A10H42926 *
Liteon PA-1450-55LR 20V2.25A adapter 5A10H42919 *
Liteon PA-1450-55LS 20V2.25A adapter 5A10H42922 *
Liteon PA-1450-55LU 20V2.25A adapter 5A10H42925 *
Liteon PA-1450-55LZ 20V2.25A adapter 5A10H42918 *
Chicony ADL45WCA 20V2.25A adapter 5A10H43629 *
Chicony ADL45WCB 20V2.25A adapter 5A10H43618 *
Chicony ADL45WCC 20V2.25A adapter 5A10H43625 *
Chicony ADL45WCD 20V2.25A adapter 5A10H43631 *
Chicony ADL45WCK 20V2.25A adapter 5A10H43619 *
Chicony ADL45WCE 20V2.25A adapter 5A10H43633 *
Chicony ADL45WCF 20V2.25A adapter 5A10H43622 *
Chicony ADL45WCG 20V2.25A adapter 5A10H43628 *
Chicony ADL45WCH 20V2.25A adapter 5A10H43616 *
Screws
Table 9. Parts list—Screws
FRU P/N CRU
ID.
Screw Pack B 80U3 5S10M36240 N
61
Notices
Notices
Lenovo may not offer the products, services, or features discussed in this
document in all countries. Consult your local Lenovo representative for
information on the products and services currently available in your area. Any
reference to a Lenovo product, program, or service is not intended to state or
imply that only that Lenovo product, program, or service may be used. Any
functionally equivalent product, program, or service that does not infringe
any Lenovo intellectual property right may be used instead. However, it is the
user’s responsibility to evaluate and verify the operation of any other product,
program, or service.
Lenovo may have patents or pending patent applications covering subject matter
described in this document. The furnishing of this document does not give you
any license to these patents.
LENOVO GROUP LTD. PROVIDES THIS PUBLICATION “AS IS”
WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF NON-
INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE. Some jurisdictions do not allow disclaimer of express or implied
warranties in certain transactions, therefore, this statement may not apply to you.
This information could include technical inaccuracies or typographical errors.
Changes are periodically made to the information herein; these changes
will be incorporated in new editions of the publication. Lenovo may make
improvements and/or changes in the product(s) and/or the program(s)
described in this publication at any time without notice.
The products described in this document are not intended for use in
implantation or other life support applications where malfunction may result in
injury or death to persons. The information contained in this document does not
affect or change Lenovo product specications or warranties. Nothing in this
document shall operate as an express or implied license or indemnity under the
intellectual property rights of Lenovo or third parties. All information contained
in this document was obtained in specic environments and is presented as an
illustration. The result obtained in other operating environments may vary.
Lenovo may use or distribute any of the information you supply in any way it
believes appropriate without incurring any obligation to you.
Any references in this publication to non-Lenovo Web sites are provided for
convenience only and do not in any manner serve as an endorsement of those
Web sites. The materials at those Web sites are not part of the materials for
this Lenovo product, and use of those Web sites is at your own risk.
Any performance data contained herein was determined in a controlled
environment. Therefore, the result obtained in other operating environments
may vary significantly. Some measurements may have been made on
development-level systems and there is no guarantee that these measurements
will be the same on generally available systems. Furthermore, some
measurements may have been estimated through extrapolation. Actual results
may vary. Users of this document should verify the applicable data for their
specic environment.
62
Lenovo YOGA 310-11IAP Hardware Maintenance Manual
Trademarks
The following terms are either registered trademarks or trademarks of Lenovo
in the United States and/or other countries:
Lenovo®
Lenovo logo®
OneKey
The following term is trademark of Microsoft Corporation in the United States,
other countries, or both:
Windows®
The following term is trademark of Intel Corporation or its subsidiaries in the
United States, other countries, or both:
Intel®
Other company, product, or service names may be the trademarks or service
marks of others.

Navigation menu
