Lenovo
YOGA 710-11ISK
YOGA 710-11IKB
Hardware
Maintenance
Manual
Notes:
• Beforeusingthisinformationandtheproductitsupports,besuretoreadthegeneralinformationunder
“Notices”onpage63.
• TheillustrationsusedinthismanualareforLenovoYOGA710-11ISKunlessotherwisestated.
First Edition (Jul. 2016)
© Copyright Lenovo 2016. All rights reserved.
LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant a General
Services Administration “GSA” contract, use, reproduction, or disclosure is subject to restrictions set
forth in Contract No. GS-35F-05925.
© 2016 Lenovo
iii
Contents
About this manual ....................................... iv
Safety information ........................................ 1
General safety ................................................ 2
Electrical safety .............................................. 3
Safety inspection guide .................................. 5
Handling devices that are sensitive to
electrostatic discharge .................................... 6
Grounding requirements ................................. 6

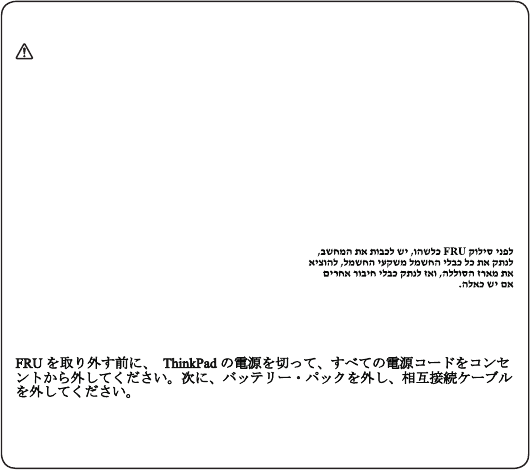

Safety notices: multilingual translations.......... 7

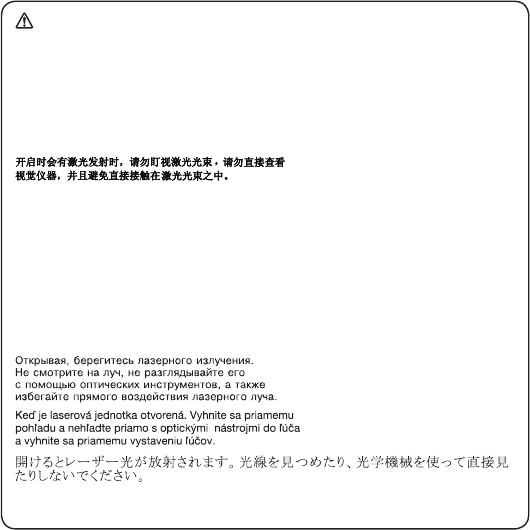

Laser compliance statement......................... 14
Important service information ................... 16
Strategy for replacing FRUs ......................... 16
Strategy for replacing a hard disk drive ............17
Important notice for replacing a system
board ................................................................17
Important information about replacing
RoHS compliant FRUs ................................. 18
General checkout ...................................... 19
What to do rst ............................................. 20
Power system checkout................................ 21
Checking the AC adapter .................................21
Checking operational charging .........................22
Related service information ...................... 23
Restoring the factory contents by using
OneKey Recovery ........................................ 23
Restore of factory default .................................23
Passwords .................................................... 24
Power-on password .......................................... 24
Hard-disk password .......................................... 24
Supervisor password ........................................24
Power management ..................................... 25
Putting the computer to sleep or shutting
it down ..............................................................25
Putting your computer to sleep ......................... 25
Shutting down the computer ............................. 26
Lenovo YOGA 710-11ISK/
Lenovo YOGA 710-11IKB ........................... 27
Specications ............................................... 27
Status indicators ........................................... 28

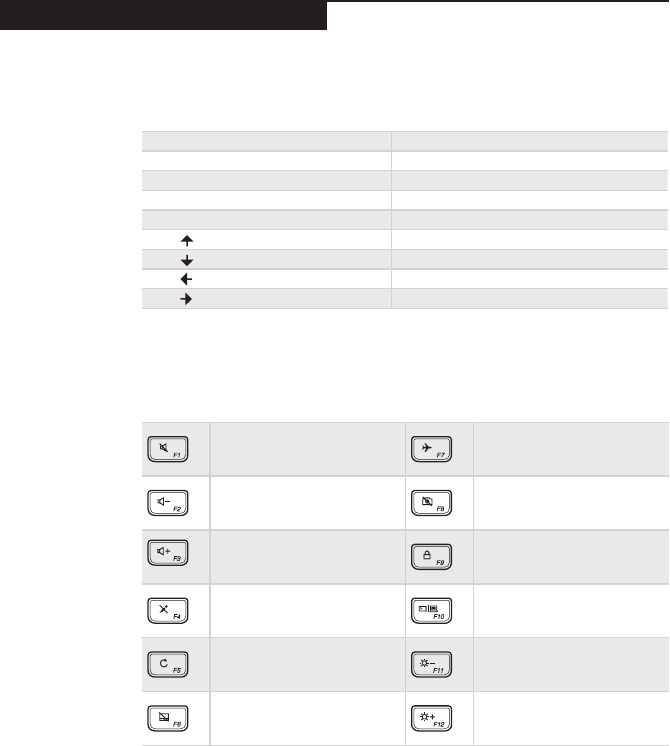

Fn key combinations/Hotkeys....................... 29
FRU replacement notices ............................. 30
Screw notices ..................................................30
Removing and replacing an FRU ................. 31

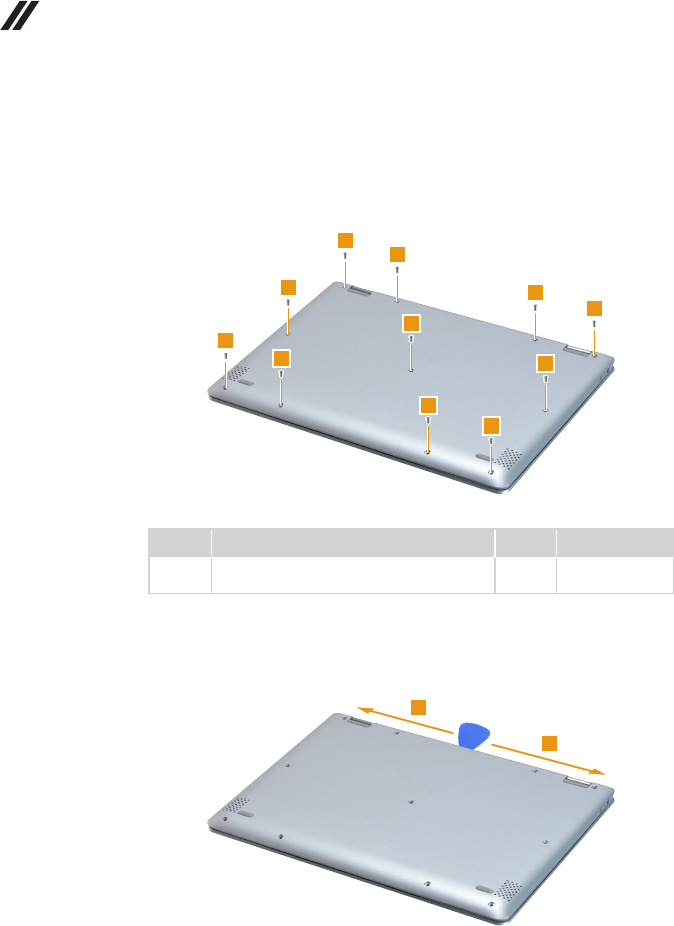

1010 Base cover ...............................................32
1020 Battery pack .............................................35

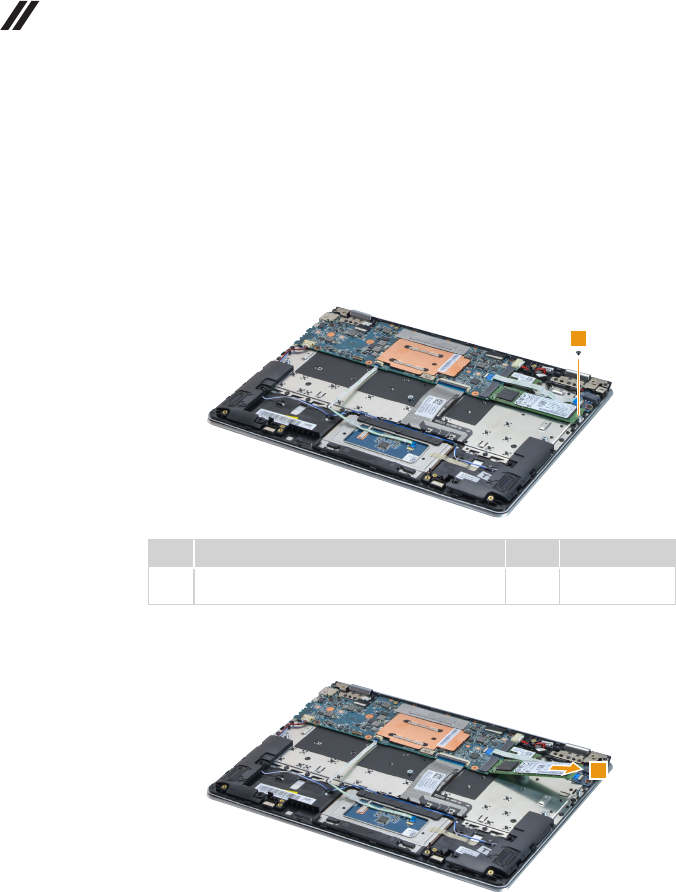

1030 Solid state disk .......................................36

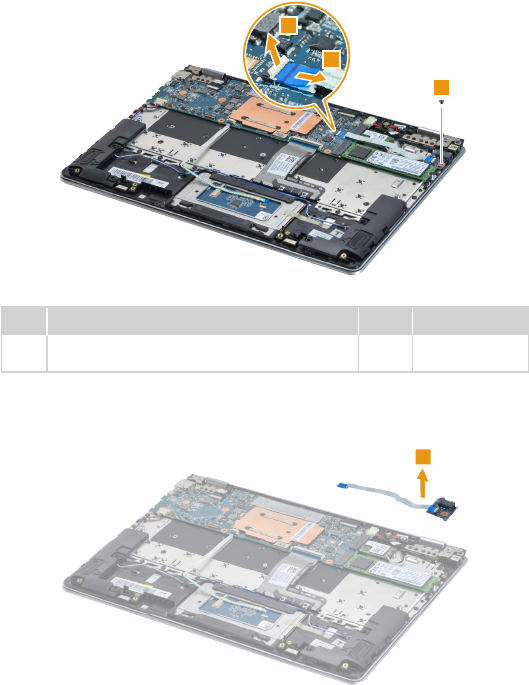

1040 Audio board .............................................37

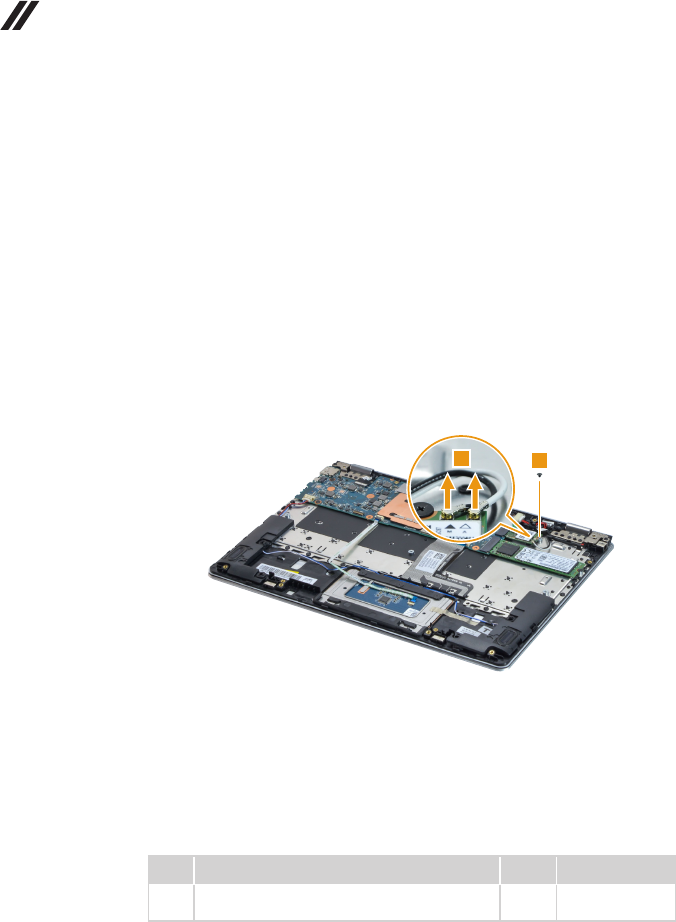

1050 PCI Express Mini Card for
wireless LAN .....................................................38

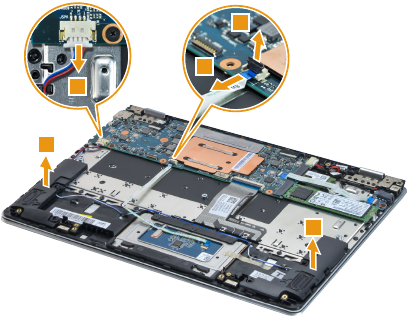

1060 System board ..........................................40

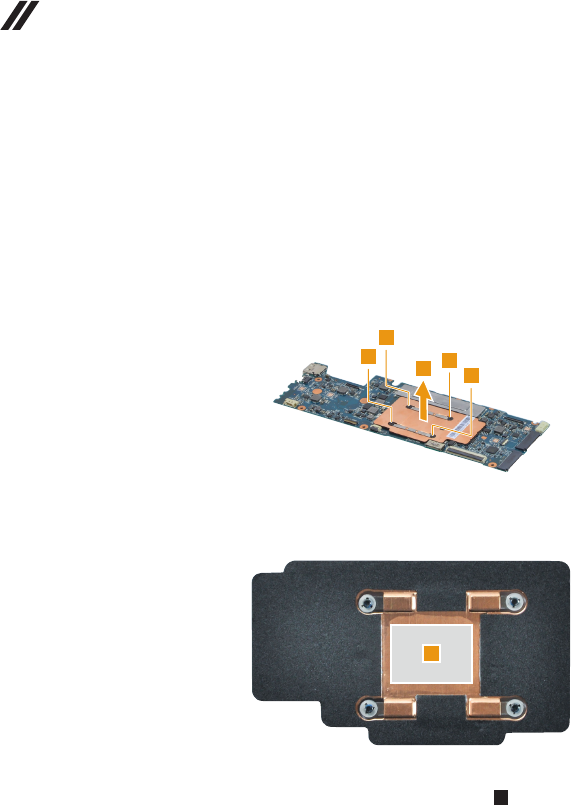

1070 Thermal module .......................................42

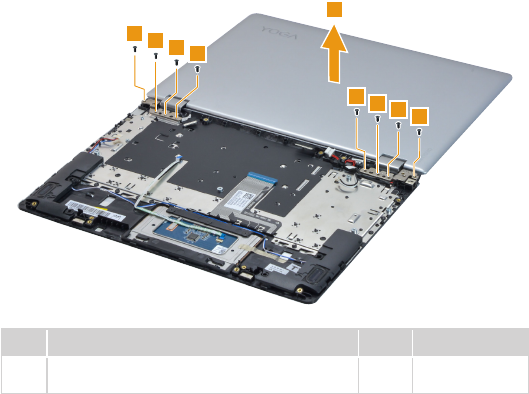

1080 LCD unit ...................................................43

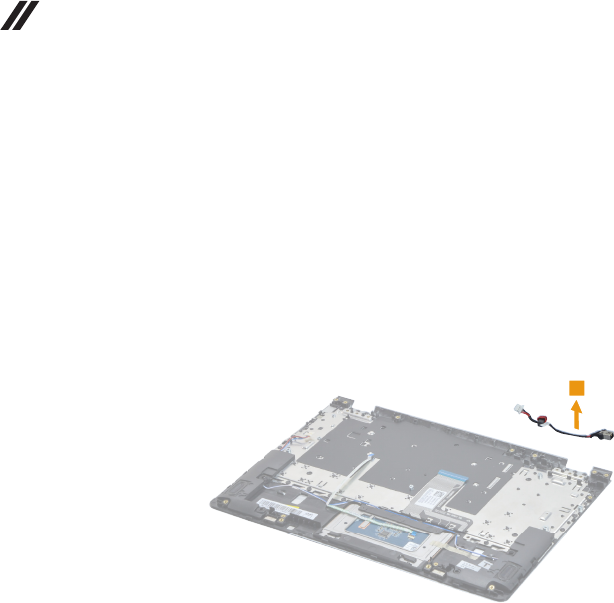

1090 DC-in cable .............................................. 44
1100
Speaker ..................................................... 45
1110 LCD front cover ........................................46
1120 Hinges and LCD cover .............................47
1130 Integrated camera, microphone board
and cables ........................................................49
Locations ...................................................... 52
Front view and right-side view ..........................52

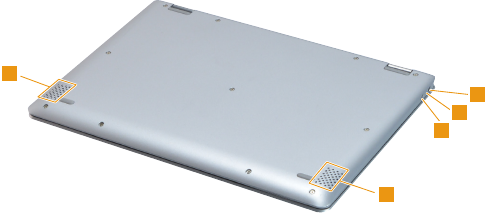

Bottom and Left-side view ...............................53
Parts list ........................................................ 54
Overall ..............................................................55

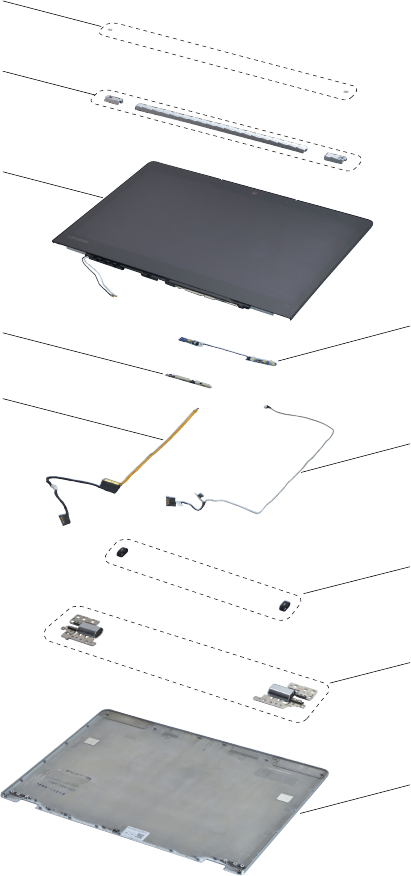

LCD FRUs ........................................................59
Miscellaneous parts .......................................... 61
Screw ................................................................61
AC adapters ......................................................62
Notices......................................................... 63
Trademarks .................................................. 64
iv
About this manual
This manual contains service and reference information for the following
Lenovo product:
Lenovo YOGA 710-11ISK/Lenovo YOGA 710-11IKB
Use this manual to troubleshoot problems.
The manual is divided into the following sections:
The common sections provide general information, guidelines, and safety
information required for servicing computers.
The product-specic section includes service, reference, and product-specic
parts information.
Important:
ThismanualisintendedonlyfortrainedservicerswhoarefamiliarwithLenovo
products.Usethismanualtotroubleshootproblemseffectively.
BeforeservicingaLenovoproduct,makesuretoreadalltheinformationunder
“Safetyinformation”onpage1and“Importantserviceinformation”onpage16.
1
Safety information
Safety information
This chapter presents the following safety information that you need to get
familiar with before you service a Lenovo YOGA 710-11ISK/
Lenovo YOGA 710-11IKB computer:
“General safety” on page 2
“Electrical safety” on page 3
“Safety inspection guide” on page 5
“Handling devices that are sensitive to electrostatic discharge” on page 6
“Grounding requirements” on page 6
“Safety notices: multilingual translations” on page 7
“Laser compliance statement” on page 14
2
YOGA 710-11ISK/YOGA 710-11IKB Hardware Maintenance Manual
General safety
Follow these rules below to ensure general safety:
Observe a good housekeeping in the area where the machines are put
during and after the maintenance.
When lifting any heavy object:
1. Make sure that you can stand safely without slipping.
2. Distribute the weight of the object equally between your feet.
3. Use a slow lifting force. Never move suddenly or twist when you attempt
to lift it.
4. Lift it by standing or pushing up with your leg muscles; this action could
avoid the strain from the muscles in your back. Do not attempt to lift any
object that weighs more than 16 kg (35 lb) or that you think is too heavy
for you.
Do not perform any action that causes hazards to the customer, or that
makes the machine unsafe.
Before you start the machine, make sure that other service representatives
and the customer are not in a hazardous position.
Please remove covers and other parts in a safe place, away from all
personnel, while you are servicing the machine.
Keep your toolcase away from walk areas so that other people will not trip
over it.
Do not wear loose clothing that can be trapped in the moving parts of the
machine. Make sure that your sleeves are fastened or rolled up above your
elbows. If your hair is long, fasten it.
Insert the ends of your necktie or scarf inside clothing or fasten it with the
nonconductive clip, about 8 centimeters (3 inches) from the end.
Do not wear jewelry, chains, metal-frame eyeglasses, or metal fasteners for
your clothing.
Attention: Metal objects are good electrical conductors.
Wear safety glasses when you are hammering, drilling, soldering, cutting
wire, attaching springs, using solvents, or working in any other conditions
that may be hazardous to your eyes.
After service, reinstall all safety shields, guards, labels, and ground wires.
Replace any safety device that is worn or defective.
Reinstall all covers correctly before returning the machine to the customer.
Fan louvers on the machine help to prevent the overheating of internal
components. Do not obstruct fan louvers or cover them with labels or
stickers.
3
Safety information
Electrical safety
Observe the following rules when working on electrical equipments.
Important:
Useonlyapprovedtoolsandtestequipments.Somehandtoolshavehandles
coveredwithasoftmaterialthatdoesnotinsulateyouwhenworkingwithlive
electricalcurrents.
Manycustomershaverubberfloormatsneartheirmachinesthatcontainsmall
conductiveberstodecreaseelectrostaticdischarges.Donotusesuchkindofmat
toprotectyourselffromelectricalshock.
Find the room emergency power-off (EPO) switch, disconnecting switch or
electrical outlet. If an electrical accident occurs, you can then operate the
switch or unplug the power cord quickly.
Do not work alone under hazardous conditions or near the equipment that
has hazardous voltages.
Disconnect all power before:
Performing a mechanical inspection
Working near power supplies
Removing or installing main units
Before you start to work on the machine, unplug the power cord. If you
cannot unplug it, ask the customer to power-off the wall box that supplies
power to the machine, and to lock the wall box in the off position.
If you need to work on a machine that has exposed electrical circuits,
observe the following precautions:
Ensure that another person, familiar with the power-off controls, is near
you.
Attention: Another person must be there to switch off the power, if
necessary.
Use only one hand when working with powered-on electrical equipment;
keep the other hand in your pocket or behind your back.
Attention: An electrical shock can occur only when there is a complete
circuit. By observing the above rule, you may prevent a current from
passing through your body.
When using testers, set the controls correctly and use the approved
probe leads and accessories for that tester.
Stand on suitable rubber mats (obtained locally, if necessary) to insulate
you from grounds such as metal oor strips and machine frames.
Observe the special safety precautions when you work with very high voltages;
instructions for these precautions are in the safety sections of maintenance
information. Be extremely careful when you measure the high voltages.
Regularly inspect and maintain your electrical hand tools for safe operational
condition.
Do not use worn or broken tools and testers.
Never assume that power has been disconnected from a circuit. First, check
it to make sure that it has been powered off.
4
YOGA 710-11ISK/YOGA 710-11IKB Hardware Maintenance Manual
Always look carefully for possible hazards in your work area. Examples of
these hazards are moist oors, nongrounded power extension cables, power
surges, and missing safety grounds.
Do not touch live electrical circuits with the reflective surface of a plastic
dental mirror. The surface is conductive; such touching can cause personal
injury and machine damage.
Do not service the following parts with the power on when they are removed
from their normal operating places in a machine:
Power supply units
– Pumps
Blowers and fans
Motor generators
and similar units. (This practice ensures correct grounding of the units.)
If an electrical accident occurs:
Caution: do not become a victim yourself.
Switch off the power.
Send the victim to get medical aid.
5
Safety information
Safety inspection guide
The purpose of this inspection guide is to assist you in identifying potential
unsafe conditions. As each machine was designed and built, required safety
items were installed to protect users and service personnel from injury. This
guide addresses only those items. You should use good judgment to identify
potential safety hazards according to the attachment of non-Lenovo features or
options not covered by this inspection guide.
If any unsafe conditions are present, you must determine how serious the
apparent hazard could be and whether you can continue without rst correcting
the problem.
Consider these conditions and the safety hazards they present:
Electrical hazards, especially primary power (primary voltage on the frame
can cause serious or fatal electrical shock)
Explosive hazards, such as a damaged CRT face or a bulging capacitor
Mechanical hazards, such as loose or missing hardware
To determine whether there are any potential unsafe conditions, use the
following checklist at the beginning of every service task. Begin the checks with
the power off, and the power cord disconnected.
Checklist:
1. Check exterior covers for damage (loose, broken, or sharp edges).
2. Turn off the computer. Disconnect the power cord.
3. Check the power cord for:
a. A third-wire ground connector in good condition. Use a meter to measure
third-wire ground continuity for 0.1 ohm or less between the external
ground pin and the frame ground.
b. The power cord should be the type specied in the parts list.
c. Insulation must not be frayed or worn.
4. Check for cracked or bulging batteries.
5. Remove the cover.
6. Check for any obvious non-Lenovo alterations. Use good judgment as to the
safety of any non-Lenovo alterations.
7. Check inside the unit for any obvious unsafe conditions, such as metal
filings, contamination, water or other liquids, or signs of fire or smoke
damage.
8. Check for worn, frayed, or pinched cables.
9. Check that the power-supply cover fasteners (screws or rivets) have not
been removed or tampered with.
6
YOGA 710-11ISK/YOGA 710-11IKB Hardware Maintenance Manual
Handling devices that are sensitive to electrostatic discharge
Any computer part containing transistors or integrated circuits (ICs) should be
considered sensitive to electrostatic discharge (ESD). ESD damage can occur
when there is a difference in charge between objects. Protect against ESD
damage by equalizing the charge so that the machine, the part, the work mat,
and the person handling the part are all at the same charge.
Notes:
1. Useproduct-specificESDprocedureswhentheyexceedtherequirements
notedhere.
2. MakesurethattheESDprotectivedevicesyouusehavebeencertied(ISO
9000)asfullyeffective.
When handling ESD-sensitive parts:
Keep the parts in protective packages until they are inserted into the product.
Avoid contact with other people.
Wear a grounded wrist strap against your skin to eliminate static on your
body.
Prevent the part from touching your clothing. Most clothing is insulative and
retains a charge even when you are wearing a wrist strap.
Use the black side of a grounded work mat to provide a static-free work
surface. The mat is especially useful when handling ESD-sensitive devices.
Select a grounding system, such as those listed below, to provide protection
that meets the specic service requirement.
Note:
TheuseofagroundingsystemtoguardagainstESDdamageisdesirablebutnot
necessary.
Attach the ESD ground clip to any frame ground, ground braid, or green-
wire ground.
When working on a double-insulated or battery-operated system, use an
ESD common ground or reference point. You can use coax or connector-
outside shells on these systems.
Use the round ground prong of the ac plug on ac-operated computers.
Grounding requirements
Electrical grounding of the computer is required for operator safety and correct
system function. Proper grounding of the electrical outlet can be veried by a
certied electrician.
7
Safety information
Safety notices: multilingual translations
The safety notices in this section are provided in English, French, German,
Hebrew, Italian, Japanese, and Spanish.
Safety notice 1
BeforethecomputerispoweredonafterFRUreplacement,makesureallscrews,
springs,andothersmallpartsareinplaceandarenotleftlooseinsidethe
computer.Verifythisbyshakingthecomputerandlisteningforrattlingsounds.
Metallicpartsormetalakescancauseelectricalshorts.
Avantderemettrel’ordinateursoustensionaprèsremplacementd’uneunitéen
clientèle,vériezquetouslesressorts,visetautrespiècessontbienenplaceet
bienxées.Pourcefaire,secouezl’unitéetassurez-vousqu’aucunbruitsuspect
neseproduit.Despiècesmétalliquesoudescopeauxdemétalpourraientcauser
uncourt-circuit.
BevornacheinemFRU-AustauschderComputerwiederangeschlossenwird,
mußsichergestelltwerden,daßkeineSchrauben,FedernoderandereKleinteile
fehlenoderimGehäusevergessenwurden.DerComputermußgeschütteltundauf
Klappergeräuschegeprüftwerden.Metallteileoder-splitterkönnenKurzschlüsse
erzeugen.
Primadiaccenderel’elaboratoredopocheéstataeffettuatalasostituzionediuna
FRU,accertarsichetutteleviti,lemolleetuttelealtripartidipiccoledimensioni
sianonellacorrettaposizioneenonsianosparseall’internodell’elaboratore.
Vericareciòscuotendol’elaboratoreeprestandoattenzioneadeventualirumori;
eventualipartiopezzettimetallicipossonoprovocarecortocircuitipericolosi.
AntesdeencenderelsistemadespuesdesustituirunaFRU,compruebeque
todoslostornillos,muellesydemáspiezaspequeñasseencuentranensusitio
ynoseencuentransueltasdentrodelsistema.Compruébeloagitandoelsistema
yescuchandolosposiblesruidosqueprovocarían.Laspiezasmetálicaspueden
causarcortocircuitoseléctricos.
8
YOGA 710-11ISK/YOGA 710-11IKB Hardware Maintenance Manual
Safety notice 2
DANGER
Somestandbybatteriescontainasmallamountofnickelandcadmium.Donot
disassembleastandbybattery,rechargeit,throwitintofireorwater,orshort-
circuitit.Disposeofthebatteryasrequiredbylocalordinancesorregulations.
Useonlythebatteryintheappropriatepartslisting.Useofanincorrectbatterycan
resultinignitionorexplosionofthebattery.
Certainesbatteriesdesecourscontiennentdunickeletducadmium.Neles
démontezpas,nelesrechargezpas,nelesexposezniaufeuniàl’eau.Ne
lesmettezpasencourt-circuit.Pourlesmettreaurebut,conformez-vousàla
réglementationenvigueur.Lorsquevousremplacezlapiledesauvegardeoucelle
del’horlogetempsréel,veillezàn’utiliserquelesmodèlescitésdanslalistede
piècesdétachéesadéquate.Unebatterieouunepileinappropriéerisquedeprendre
feuoud’exploser.
DieBereitschaftsbatterie,diesichunterdemDiskettenlaufwerkbefindet,
kanngeringeMengenNickelundCadmiumenthalten.Siedarfnichtzerlegt,
wiederaufgeladen,kurzgeschlossen,oderFeueroderWasserausgesetztwerden.
BeiderEntsorgungdieörtlichenBestimmungenfürSondermüllbeachten.Beim
ErsetzenderBereitschafts-oderSystembatterienurBatteriendesTypsverwenden,
derinderErsatzteillisteaufgeführtist.DerEinsatzfalscherBatterienkannzu
EntzündungoderExplosionführen.
Alcunebatteriediriservacontengonounapiccolaquantitàdinichelecadmio.
Nonsmontarle,ricaricarle,gettarlenelfuocoonell’acquanécortocircuitarle.
Smaltirlesecondolanormativainvigore(DPR915/82,successivedisposizionie
disposizionilocali).Quandosisostituiscelabatteriadell’RTC(realtimeclock)o
labatteriadisupporto,utilizzaresoltantoitipiinseritinell’appropriatoCatalogo
parti.L’impiegodiunabatterianonadattapotrebbedeterminarel’incendioo
l’esplosionedellabatteriastessa.
Algunasbateríasdereservacontienenunapequeñacantidaddeníquelycadmio.
Nolasdesmonte,nirecargue,nilasechealfuegooalaguanilascortocircuite.
Deséchelastalcomodisponelanormativalocal.Utilicesólobateríasquese
encuentrenenlalistadepiezas.Lautilizacióndeunabateríanoapropiadapuede
provocarlaigniciónoexplosióndelamisma.
9
Safety information
Safety notice 3
DANGER
Thebatterypackcontainssmallamountsofnickel.Donotdisassembleit,throw
itintoreorwater,orshort-circuitit.Disposeofthebatterypackasrequiredby
localordinancesorregulations.Useonlythebatteryintheappropriatepartslisting
whenreplacingthebatterypack.Useofanincorrectbatterycanresultinignition
orexplosionofthebattery.
Labatteriecontientdunickel.Neladémontezpas,nel’exposezniaufeuniàl’eau.
Nelamettezpasencourt-circuit.Pourlamettreaurebut,conformez-vousàla
réglementationenvigueur.Lorsquevousremplacezlabatterie,veillezàn’utiliser
quelesmodèlescitésdanslalistedepiècesdétachéesadéquate.Eneffet,une
batterieinappropriéerisquedeprendrefeuoud’exploser.
AkkusenthaltengeringeMengenvonNickel.Siedürfennichtzerlegt,
wiederaufgeladen,kurzgeschlossen,oderFeueroderWasserausgesetztwerden.
BeiderEntsorgungdieörtlichenBestimmungenfürSondermüllbeachten.Beim
ErsetzenderBatterienurBatteriendesTypsverwenden,derinderErsatzteilliste
aufgeführtist.DerEinsatzfalscherBatterienkannzuEntzündungoderExplosion
führen.
Labatteriacontienepiccolequantitàdinichel.Nonsmontarla,gettarlanelfuoco
onell’acquanécortocircuitarla.Smaltirlasecondolanormativainvigore(DPR
915/82,successivedisposizioniedisposizionilocali).Quandosisostituiscela
batteria,utilizzaresoltantoitipiinseritinell’appropriatoCatalogoparti.L’impiego
diunabatterianonadattapotrebbedeterminarel’incendiool’esplosionedella
batteriastessa.
Lasbateríascontienenpequeñascantidadesdeníquel.Nolasdesmonte,ni
recargue,nilasechealfuegooalaguanilascortocircuite.Deséchelastalcomo
disponelanormativalocal.Utilicesólobateríasqueseencuentrenenlalistade
piezasalsustituirlabatería.Lautilizacióndeunabateríanoapropiadapuede
provocarlaigniciónoexplosióndelamisma.
10
YOGA 710-11ISK/YOGA 710-11IKB Hardware Maintenance Manual
Safety notice 4
DANGER
Thelithiumbatterycancauseafire,anexplosion,orasevereburn.Donot
rechargeit,removeitspolarizedconnector,disassembleit,heatitabove100°C
(212°F),incinerateit,orexposeitscellcontentstowater.Disposeofthebatteryas
requiredbylocalordinancesorregulations.Useonlythebatteryintheappropriate
partslisting.Useofanincorrectbatterycanresultinignitionorexplosionofthe
battery.
Lapiledesauvegardecontientdulithium.Elleprésentedesrisquesd’incendie,
d’explosionoudebrûluresgraves.Nelarechargezpas,neretirezpasson
connecteurpolariséetneladémontezpas.Nel’exposezpasàunetemperature
supérieureà100°C,nelafaitespasbrûleretn’enexposezpaslecontenuàl’eau.
Mettezlapileaurebutconformémentàlaréglementationenvigueur.Unepile
inappropriéerisquedeprendrefeuoud’exploser.
DieSystembatterieisteineLithiumbatterie.Siekannsichentzünden,explodieren
oderschwereVerbrennungenhervorrufen.BatteriendiesesTypsdürfennicht
aufgeladen,zerlegt,über100Cerhitztoderverbranntwerden.Auchdarfihr
InhaltnichtmitWasserinVerbindunggebrachtoderderzurrichtigenPolung
angebrachteVerbindungssteckerentferntwerden.BeiderEntsorgungdieörtlichen
BestimmungenfürSondermüllbeachten.BeimErsetzenderBatterienurBatterien
desTypsverwenden,derinderErsatzteillisteaufgeführtist.DerEinsatzfalscher
BatterienkannzuEntzündungoderExplosionführen.
Labatteriadisupportoeunabatteriaallitioepuoincendiarsi,esplodereo
procuraregraviustioni.Evitarediricaricarla,smontarneilconnettorepolarizzato,
smontarla,riscaldarlaadunatemperaturasuperioreai100gradicentigradi,
incendiarlaogettarlainacqua.Smaltirlasecondolanormativainvigore(DPR
915/82,successivedisposizioniedisposizionilocali).L’impiegodiunabatteria
nonadattapotrebbedeterminarel’incendiool’esplosionedellabatteriastessa.
Labateríaderepuestoesunabateríadelitioypuedeprovocarincendios,
explosionesoquemadurasgraves.Nolarecargue,niquiteelconectorpolarizado,
niladesmonte,nicalienteporencimadelos100°C(212°F),nilaincinereni
expongaelcontenidodesusceldasalagua.Deséchelatalcomodisponela
normativalocal.
11
Safety information
Safety notice 5
IftheLCDbreaksandtheuidfrominsidetheLCDgetsintoyoureyesoronyour
hands,immediatelywashtheaffectedareaswithwateratleastfor15minutes.
Seekmedicalcareifanysymptomscausedbytheuidarepresentafterwashing.
Silepanneaud’afchageàcristauxliquidessebriseetquevousrecevezdansles
yeuxousurlesmainsunepartieduuide,rincez-lesabondammentpendantau
moinsquinzeminutes.Consultezunmédecinsidessymptômespersistentaprèsle
lavage.
DieLeuchtstoffröhreimLCD-BildschirmenthältQuecksilber.BeiderEntsorgung
dieörtlichenBestimmungenfürSondermüllbeachten.DerLCD-Bildschirm
bestehtausGlasundkannzerbrechen,wennerunsachgemäßbehandeltwird
oderderComputeraufdenBodenfällt.WennderBildschirmbeschädigtistund
diedarinbefindlicheFlüssigkeitinKontaktmitHautundAugengerät,sollten
diebetroffenenStellenmindestens15MinutenmitWasserabgespültundbei
BeschwerdenanschließendeinArztaufgesuchtwerden.
Nelcasochecasol’LCDsidovesserompereedilliquidoinessocontenuto
entrasseincontattocongliocchiolemani,lavareimmediatamenteleparti
interessateconacquacorrenteperalmeno15minuti;poiconsultareunmedicosei
sintomidovesseropermanere.
SilaLCDserompeyeluidodesuinteriorentraencontactoconsusojososus
manos,laveinmediatamentelasáreasafectadasconaguadurante15minutos
comomínimo.Obtengaatenciónmedicasisepresentaalgúnsíntomadeluido
despuesdelavarse.
12
YOGA 710-11ISK/YOGA 710-11IKB Hardware Maintenance Manual
Safety notice 6
DANGER
Toavoidshock,donotremovetheplasticcoverthatprotectsthelowerpartofthe
invertercard.
And’évitertoutrisquedechocélectrique,neretirezpaslecacheenplastique
protégeantlapartieinférieuredelacarted’alimentation.
AusSicherheitsgründendieKunststoffabdeckung,diedenunterenTeilder
Spannungswandlerplatineumgibt,nichtentfernen.
Perevitarescosseelettriche,nonrimuoverelacoperturainplasticacheavvolgela
parteinferioredellaschedainvertitore.
Paraevitardescargas,noquitelacubiertadeplásticoquerodealapartebajadela
tarjetainvertida.
Safety notice 7
DANGER
Thoughthemainbatterieshavelowvoltage,ashortedorgroundedbatterycan
produceenoughcurrenttoburnpersonnelorcombustiblematerials.
Bienquelevoltagedesbatteriesprincipalessoitpeuélevé,lecourt-circuitoula
miseàlamassed’unebatteriepeutproduiresufsammentdecourantpourbrûler
desmatériauxcombustiblesoucauserdesbrûlurescorporellesgraves.
ObwohlHauptbatterieneineniedrigeSpannunghaben,könnensiedochbei
KurzschlußoderErdunggenugStromabgeben,umbrennbareMaterialienzu
entzündenoderVerletzungenbeiPersonenhervorzurufen.
Sebbenelebatteriedialimentazionesianoabassovoltaggio,unabatteriain
cortocircuitooamassapuòfornirecorrentesufficientedabruciaremateriali
combustibilioprovocareustioniaitecnicidimanutenzione.
Aunquelasbateríasprincipalestienenunvoltajebajo,unabateríacortocircuitada
oconcontactoatierrapuedeproducirlacorrientesucientecomoparaquemar
materialcombustibleoprovocarquemadurasenelpersonal.
13
Safety information
Safety notice 8
DANGER
BeforeremovinganyFRU,turnoffthecomputer,unplugallpowercordsfrom
electricaloutlets,removethebatterypack,andthendisconnectanyinterconnecting
cables.
Avantderetireruneunitéremplaçableenclientèle,mettezlesystèmehorstension,
débrancheztouslescordonsd’alimentationdessoclesdeprisedecourant,retirez
labatterieetdéconnecteztouslescordonsd’interface.
DieStromzufuhrmußabgeschaltet,alleStromkabelausderSteckdosegezogen,
derAkkuentferntundalleVerbindungskabelabgenommensein,bevoreineFRU
entferntwird.
PrimadirimuoverequalsiasiFRU,spegnereilsistema,scollegaredalleprese
elettrichetuttiicavidialimentazione,rimuoverelabatteriaepoiscollegareicavi
diinterconnessione.
AntesdequitarunaFRU,apagueelsistema,desenchufetodosloscablesde
lastomasdecorrienteeléctrica,quitelabateríay,acontinuación,desconecte
cualquiercabledeconexiónentredispositivos.
14
YOGA 710-11ISK/YOGA 710-11IKB Hardware Maintenance Manual
Laser compliance statement
Some models of Lenovo computer are equipped from the factory with an
optical storage device such as a CD-ROM drive or a DVD-ROM drive. Such
devices are also sold separately as options. If one of these drives is installed,
it is certied in the U.S. to conform to the requirements of the Department of
Health and Human Services 21 Code of Federal Regulations (DHHS 21 CFR)
Subchapter J for Class 1 laser products. Elsewhere, the drive is certified to
conform to the requirements of the International Electrotechnical Commission
(IEC) 825 and CENELEC EN 60 825 for Class 1 laser products.
If a CD-ROM drive, a DVD-ROM drive, or another laser device is installed, note
the following:
CAUTION
Useofcontrolsoradjustmentsorperformanceofproceduresotherthanthose
speciedhereinmightresultinhazardousradiationexposure.
Ousodecontroles,ajustesoudesempenhodeprocedimentosdiferentesdaqueles
aquiespecicadospoderesultaremperigosaexposiçãoàradiação.
Pourévitertoutrisqued’expositionaurayonlaser,respectezlesconsignesde
réglageetd’utilisationdescommandes,ainsiquelesprocéduresdécrites.
WerdenSteuer-undEinstellelementeandersalshierfestgesetztverwendet,kann
gefährlicheLaserstrahlungauftreten.
L’utilizzodicontrolli,regolazioniol’esecuzionediprocedurediversedaquelle
specicatepossonoprovocarel’esposizionea.
Elusodecontrolesoajustesolaejecucióndeprocedimientosdistintosdelosaquí
especicadospuedeprovocarlaexposiciónaradiacionespeligrosas.
Opening the CD-ROM drive, the DVD-ROM drive, or any other optical storage
device could result in exposure to hazardous laser radiation. There are no
serviceable parts inside those drives. Do not open.
15
Safety information
A CD-ROM drive, a DVD-ROM drive, or any other storage device installed may
contain an embedded Class 3A or Class 3B laser diode. Note the following:
DANGER
Emitsvisibleandinvisiblelaserradiationwhenopen.Donotstareintothebeam,
donotviewdirectlywithopticalinstruments,andavoiddirectexposuretothe
beam.
Radiaçãoporraiolaseraoabrir.Nãoolhefixonofeixedeluz,nãoolhe
diretamentepormeiodeinstrumentosóticoseeviteexposiçãodiretacomofeixe
deluz.
Rayonnementlasersicarterouvert.Évitezdefixerlefaisceau,deleregarder
directementavecdesinstrumentsoptiques,oudevousexposeraurayon.
LaserstrahlungbeigeöffnetemGerät.NichtdirektoderüberoptischeInstrumente
indenLaserstrahlsehenunddenStrahlungsbereichmeiden.
Kinyitáskorlézersugár!Nenézzenbeleseszabadszemmel,seoptikai
eszközökkel.Kerüljeasugárnyalábbalvalóérintkezést!
Aprendol’unitàvengonoemesseradiazionilaser.Nonfissareilfascio,non
guardarlodirettamenteconstrumentiotticieevitarel’esposizionedirettaalfascio.
Radiaciónláseralabrir.Nomirejamenteniexamineconinstrumentalópticoel
hazdeluz.Evitelaexposicióndirectaalhaz.
16
YOGA 710-11ISK/YOGA 710-11IKB Hardware Maintenance Manual
Important service information
This chapter presents the following important service information:
“Strategy for replacing FRUs” on page 16
“Strategy for replacing a hard disk drive” on page 17
“Important notice for replacing a system board” on page 17
“Important information about replacing RoHS compliant FRUs” on page 18
Important:
BIOSanddevicedriverxesarecustomer-installable.TheBIOSanddevicedrivers
arepostedonthecustomersupportsite:
http://support.lenovo.com.
Strategy for replacing FRUs
Before replacing parts:
Make sure that all software xes, drivers, and BIOS downloads are installed
before replacing any FRUs listed in this manual.
After a system board is replaced, ensure that the latest BIOS is loaded to the
system board before completing the service action.
To download software xes, drivers, and BIOS, follow the steps below:
1. Go to http://support.lenovo.com.
2. Enter the serial number or select a product or use Lenovo smart
downloading.
3. Select the BIOS/Driver/Applications and download.
4. Follow the directions on the screen and install the necessary software.
17
Important service information
Use the following strategy to prevent unnecessary expense for replacing and
servicing FRUs:
If you are instructed to replace an FRU, but the replacement does not solve
the problem, reinstall the original FRU before you continue.
Some computers have both a processor board and a system board. If you
are instructed to replace either of them, and replacing one of them does not
solve the problem, reinstall that board, and then replace the other one.
If an adapter or a device consists of more than one FRU, any of the FRUs
may be the cause of the error. Before replacing the adapter or device,
remove the FRUs one by one to see if the symptoms change. Replace only
the FRU that changed the symptoms.
Attention: The setup configuration on the computer you are servicing may
have been customized. Running Automatic Configuration may alter the
settings. Note the current conguration settings (using the View Conguration
option); then, when service has been completed, verify that those settings
remain in effect.
Strategy for replacing a hard disk drive
Always try to run a low-level format before replacing a hard disk drive. This
will cause all customer data on the hard disk to be lost. Make sure that the
customer has a current backup of the data before performing this action.
Attention: The drive startup sequence in the computer you are servicing may
have been changed. Be extremely careful during write operations such as
copying, saving, or formatting. If you select an incorrect drive, data or programs
can be overwritten.
Important notice for replacing a system board
Some components mounted on a system board are very sensitive. Improper
handling can cause damage to those components, and may cause a system
malfunction.
Attention: When handling a system board:
Do not drop the system board or apply any excessive force to it.
Avoid rough handling of any kind.
Avoid bending the system board and hard pushing to prevent cracking at
each BGA (Ball Grid Array) chipset.
18
YOGA 710-11ISK/YOGA 710-11IKB Hardware Maintenance Manual
Important information about replacing RoHS compliant FRUs
RoHS, The Restriction of Hazardous Substances in Electrical and
Electronic Equipment Directive (2002/95/EC) is a European Union legal
requirement affecting the global electronics industry. RoHS requirements
must be implemented on Lenovo products placed on the market after
June 2006. Products on the market before June 2006 are not required to
have RoHS compliant parts. If the original FRU parts are non-compliant,
replacement parts can also be non-compliant. In all cases if the original
FRU parts are RoHS compliant, the replacement part must also be RoHS
compliant.
Note: RoHS and non-RoHS FRU part numbers with the same t and function
are identied with unique FRU part numbers.
Lenovo plans to transit to RoHS compliance well before the implementation
date and expects its suppliers to be ready to support Lenovo’s requirements
and schedule in the EU. Products sold in 2005 and 2006 will contain some
RoHS compliant FRUs. The following statement pertains to these products and
any product Lenovo produces containing RoHS compliant FRUs.
RoHS compliant FRUs have unique FRU part numbers. Before or after the
RoHS implementation date, failed RoHS compliant parts must always be
replaced with RoHS compliant ones, so only the FRUs identied as compliant
in the system HMM or direct substitutions for those FRUs may be used.
Products marketed before June 2006 Products marketed after June 2006
Current or
original part
Replacement FRU Current or
original part
Replacement FRU
Non-RoHS Can be Non-RoHS
Must be RoHS Must be RoHS
Non-RoHS Can be RoHS
Non-RoHS Can sub to RoHS
RoHS Must be RoHS
Note: A direct substitution is a part with a different FRU part number that is
automatically shipped by the distribution center at the time of the order.
19
General checkout
General checkout
This chapter presents the following information:
“What to do rst” on page 20
“Power system checkout” on page 21
Before you go to the checkout, make sure to read the following important notes:
Important notes:
• Onlycertiedtrainedpersonnelcanservicethecomputer.
• BeforereplacinganyFRU,readthe entirepageonremovingandreplacing
FRUs.
• CarefullyremovescrewsforreusewhenreplacingFRUs.
• Beextremelycarefulduringsuchwriteoperationsascopying,saving,or
formatting.Drivesinthecomputerthatyouareservicingsequencemight
havebeenaltered.Ifyouselectanincorrectdrive,dataorprogramsmightbe
overwritten.
• ReplaceanFRUonlywithanotherFRUofthecorrectmodel.Whenyou
replaceanFRU,makesurethatthemachinemodelandtheFRUpartnumberare
correctbyreferringtotheFRUpartslist.
• AnFRUshouldnotbereplacedjustbecauseofasingle,unreproduciblefailure.
Singlefailurescanoccurforavarietyofreasonsthathavenothingtodowitha
hardwaredefect,suchascosmicradiation,electrostaticdischarge,orsoftware
errors.ConsiderreplacinganFRUonlywhenaproblemrecurs.Ifyoususpectthat
anFRUisdefective,cleartheerrorlogsandrunthetestagain.Iftheerrordoes
notrecur,donotreplacetheFRU.
• BecarefulnottoreplaceanondefectiveFRU.
20
YOGA 710-11ISK/YOGA 710-11IKB Hardware Maintenance Manual
What to do rst
When you do return an FRU, you must include the following information in the
parts exchange form or parts return form that you attach to it:
1. Name and phone number of servicer
2. Date of service
3. Date on which the machine failed
4. Date of purchase
5. Procedure index and page number in which the failing FRU was detected
6. Failing FRU name and part number
7. Machine type, model number, and serial number
8. Customer’s name and address
Note for warranty: During the warranty period, the customer may be
responsible for repair costs if the computer damage was caused by misuse,
accident, modification, unsuitable physical or operating environment, or
improper maintenance by the customer.
The following is a list of some common items that are not covered under
warranty and some symptoms that might indicate that the system was
subjected to stress beyond normal use.
Before checking problems with the computer, determine whether the damage is
covered under the warranty by referring to the following list:
The following are not covered under warranty:
LCD panel cracked from the application of excessive force or from being
dropped
Scratched (cosmetic) parts
Distortion, deformation, or discoloration of the cosmetic parts
Plastic parts, latches, pins, or connectors that have been cracked or broken
by excessive force
Damage caused by liquid spilled into the system
Damage caused by the improper insertion of a PC Card or the installation of
an incompatible card
Improper disk insertion or use of an optical drive
Diskette drive damage caused by pressure on the diskette drive cover,
foreign material in the drive, or the insertion of a diskette with multiple labels
Damaged or bent diskette eject button
Fuses blown by attachment of a nonsupported device
Forgotten computer password (making the computer unusable)
Sticky keys caused by spilling a liquid onto the keyboard
Use of an incorrect AC adapter on laptop products
The following symptoms might indicate damage caused by nonwarranted
activities:
Missing parts might be a symptom of unauthorized service or modication.
If the spindle of a hard disk drive becomes noisy, it may have been subjected
to excessive force, or dropped.
21
General checkout
Power system checkout
To verify a symptom, follow the steps below:
1. Turn off the computer.
2. Connect the AC adapter.
3. Make sure that power is supplied when you turn on the computer.
4. Turn off the computer.
5. Disconnect the AC adapter.
6. Make sure that the battery pack supplies power when you turn on the
computer.
If you suspect a power problem, see the appropriate power supply checkout:
“Checking the AC adapter” on page 21
“Checking operational charging” on page 22
Checking the AC adapter
You are here because the computer fails only when the AC adapter is used.
If the power-on indicator does not turn on, check the power cord of the AC
adapter for correct continuity and installation.
If the computer does not charge during operation, go to “Checking
operational charging”.
To check the AC adapter, follow the steps below:
1. Unplug the AC adapter cable from the computer.
2. Measure the output voltage at the plug of the AC adapter cable. See the
following gure:
1
2
Voltage (V DC)
+20
0
Pin
1
2
Note: Output voltage for the AC adapter pin No. 5 may differ from the one you
are servicing.
3. If the voltage is not correct, replace the AC adapter.
4. If the voltage is acceptable, do the following:
Replace the system board.
If the problem persists, go to “Lenovo YOGA 710-11ISK/Lenovo YOGA 710-
11IKB” on page 27.
Note: Noise from the AC adapter does not always indicate a defect.
22
YOGA 710-11ISK/YOGA 710-11IKB Hardware Maintenance Manual
Checking operational charging
To check whether the battery charges properly during operation, use a
discharged battery pack or a battery pack that has less than 50% of the total
power remaining when installed in the computer.
Perform operational charging. If the battery status indicator or icon is not lit,
remove the battery pack and let it return to room temperature. Reinstall the
battery pack. If the charge indicator or icon is still off, replace the battery pack.
If the charge indicator is still not lit, replace the system board.
23
Related service information
Related service information
This chapter presents the following information:
“Restoring the factory contents by using OneKey Recovery” on page 23
“Passwords” on page 24
“Power management” on page 25
Restoring the factory contents by using OneKey Recovery
Restore of factory default
The Lenovo YOGA 710-11ISK/Lenovo YOGA 710-11IKB computer comes with
pre-installed OneKey Recovery System.In order to save application les and
the initial backed up les of the system, the hard disk in a Lenovo computer
includes a hidden partition when it is shipped. If you need to restore the system
to the point of your rst boot up, just enter Lenovo OneKey Recovery System
and run System Recovery. For details of OneKey Recovery System, see the
User Guide for Lenovo OneKey Recovery system.
Note:Thiswilldeleteallthenewdataonthesystempartition(Cdrive),which
isnotrecoverable.Makesuretobackupyourcriticaldatabeforeyouperformthis
action.
24
YOGA 710-11ISK/YOGA 710-11IKB Hardware Maintenance Manual
Passwords
As many as three passwords may be needed for any Lenovo computer: the
power-on password (POP), the hard disk password (HDP), and the supervisor
password.
If any of these passwords has been set, a prompt for it appears on the screen
whenever the computer is turned on. The computer does not start until the
password is entered.
Power-on password
A power-on password (POP) protects the system from being powered on by
an unauthorized person. The password must be entered before an operating
system can be booted.
Hard-disk password
There are two hard-disk passwords (HDPs):
+ User HDP - for the user
+ Master HDP - for the system administrator, who can use it to get access to
the hard disk drive even if the user has changed the user HDP
Attention: If the user HDP has been forgotten, check whether a master HDP
has been set. If it has, it can be used for access to the hard disk drive. If
no master HDP is available, neither Lenovo nor Lenov authorized service
technicians provide any services to reset either the user or the master HDP, or
to recover data from the hard disk drive. The hard disk drive can be replaced
for a scheduled fee.
Supervisor password
A supervisor password protects the system information stored in the BIOS. The
user must enter the supervisor password to get access to the BIOS and change
the system conguration.
Attention: If you forget the password, there is no service procedure to reset
the password. The system board must be replaced for a scheduled fee.
25
Related service information
Power management
Note: Power management modes are not supported for an APM operating
system.
Putting the computer to sleep or shutting it down
When you have nished working with your computer, you can put it to sleep or
shut it down.
Putting your computer to sleep
If you will be away from your computer for only a short time, put the computer to
sleep. When the computer is in sleep mode, you can quickly wake it to resume
use, bypassing the startup process. To put the computer to sleep:
Close the display lid.
Press the Power button.
Open the start menu, and then select Power Sleep.
Attention: Wait until the power indicator light starts blinking (indicating that
the computer is in sleep mode) before you move your computer. Moving your
computer while the hard disk is spinning can damage the hard disk, causing
loss of data.
To wake the computer, do one of the following:
Press any key on the keyboard. (Notebook mode only)
Press the Power button.
26
YOGA 710-11ISK/YOGA 710-11IKB Hardware Maintenance Manual
Shutting down the computer
If you are not going to use your computer for a long time, shut it down.
To shut down your computer:
Open the start menu, and then select Power Shut down.
Press and hold or right-click the Start button in the lower-left corner and
select Shut down or sign out Shut down.
27
Lenovo YOGA 710-11ISK/Lenovo YOGA 710-11IKB
Lenovo YOGA 710-11ISK/Lenovo YOGA 710-11IKB
This chapter presents the following product-specific service references and
product-specic parts information:
“Specications” on page 27
“Status indicators” on page 28
“Fn key combinations/Hotkeys” on page 29
“FRU replacement notices” on page 30
“Removing and replacing an FRU” on page 31
“Locations” on page 52
“Parts list” on page 54
Specications
The following table lists the specifications of the Lenovo YOGA 710-11ISK/
Lenovo YOGA 710-11IKB:
Table 1. Specications
Feature Description
Processor View the system properties of your computer.
You can do this as follows: Open the Control Panel, and then select
System and Security System.
Graphic Chipset Intel Integrated
Display 11.6 inch, 1920 x 1080 (16:9) FHD
Standard
memory LPDDR3-1866 MHz (max 8 GB)
SSD 128 GB or 256 GB, SATA III
I/O port Combo audio jack × 1
Micro HDMI port × 1
USB 3.0 port × 1
Audio 1/8" Combo audio jack
1.5 W speaker × 2
Array microphone × 2
PCI Express
Mini Card slot 1 slot
Bluetooth
wireless Combined in combo card
Keyboard 6-Row, Lenovo Keyboard
Touch pad Image Sensor
Integrated
camera 1.0 Mega or 720P HD
Battery 4 cells, 40 Wh
AC adapter 20 V, 45 W
Pre-installed
operating
system
Windows 10
28
YOGA 710-11ISK/YOGA 710-11IKB Hardware Maintenance Manual
Status indicators
The system status indicators below show the computer status:
1
2
Table 2. Status indicators
Indicator Indicator status Charge status Meaning
1
Battery
status
indicator
On (solid white) Charging The battery has more than 80%
charge.
On (solid amber) Discharging The battery has between 5%
and 20% charge.
Blinking slowly
(white) Charging
The battery has between 20%
and 80% charge. When the
battery reaches 80% charge, the
light will stop blinking. However,
charging will continue until the
battery is fully charged.
Blinking slowly
(amber) Charging
The battery has less than 20%
charge. When the battery charge
reaches 20%, the blinking color
will change to white.
Blinking quickly
(amber) Discharging The battery has less than 5%
charge.
Off Discharging The battery has more than 20%
charge.
2
Power
status
indicator
On (solid white) -- The computer is powered on.
Blinking -- The computer is in sleep mode.
Off -- The computer is powered off.
29
Lenovo YOGA 710-11ISK/Lenovo YOGA 710-11IKB
Fn key combinations/Hotkeys
The following table shows the function of each combination of Fn with a
function key.
Table 3. Fn key combinations
Fn + Esc: Enables/disables the paper display feature.
Fn + B: Activates the break function.
Fn + P: Activates the pause function.
Fn + C: Enables/disables the scroll lock.
Fn + S: Activates the system request.
Fn + : Activates the Pgup key function.
Fn + : Activates the Pgdn key function.
Fn + : Activates the home key function.
Fn + : Activates the end key function.
You can access certain system settings quickly by pressing the appropriate
hotkeys.
Table 4. Hotkeys
: Mutes/unmutes the sound. : Enables/disables Airplane
mode.
: Decreases the volume level. : Enables/disables the
integrated camera.
: Increases the volume level. : Locks the screen.
: Enables/disables the
microphone. :
Toggles the display between
the computer and an external
device.
: Refreshes the desktop or the
currently active window. : Decreases the display
brightness.
: Enables/disables the
touchpad. : Increases the display
brightness.
30
YOGA 710-11ISK/YOGA 710-11IKB Hardware Maintenance Manual
FRU replacement notices
This section presents notices related to removing and replacing parts. Read
this section carefully before replacing any FRU.
Screw notices
Loose screws can cause a reliability problem. In the Lenovo computer, this
problem is addressed with special nylon-coated screws that have the following
characteristics:
They maintain tight connections.
They do not easily come loose, even with shock or vibration.
They are harder to tighten.
Do the following when you service this machine:
Keep the screw kit in your tool bag.
Carefully remove screws for reuse when replacing FRUs.
Use a torque screwdriver if you have one.
Tighten screws as follows:
Plastic to plastic
Turn an additional 90° after the screw head touches the surface of the
plastic part:
more than 90°
(Cross-section)
Logic card to plastic
Turn an additional 180° after the screw head touches the surface of the
logic card:
more than 180°
(Cross-section)
Torque driver
If you have a torque screwdriver, refer to the “Torque” column for each step.
Make sure that you use the correct screws. If you have a torque screwdriver,
tighten all screws rmly to the torque shown in the table. Carefully remove
screws for reuse when replacing FRUs. Make sure that all screws are
tightened rmly.
Ensure torque screwdrivers are calibrated correctly following country
specications.
31
Lenovo YOGA 710-11ISK/Lenovo YOGA 710-11IKB
Removing and replacing an FRU
This section presents exploded gures with the instructions to indicate how to
remove and replace the FRU. Make sure to observe the following general rules:
1. Do not attempt to service any computer unless you have been trained and
certied. An untrained person runs the risk of damaging parts.
2. Before replacing any FRU, review “FRU replacement notices” on page 30.
3. Begin by removing any FRUs that have to be removed before the failing
FRU. Any of such FRUs are listed at the top of the page. Remove them in
the order in which they are listed.
4. Follow the correct sequence in the steps to remove the FRU, as given in the
gures by the numbers in square callouts.
5. When turning a screw to replace an FRU, turn it in the direction as given by
the arrow in the gure.
6. When removing the FRU, move it in the direction as given by the arrow in
the gure.
7. To put the new FRU in place, reverse the removal procedures and follow
any of the notes that pertain to replacement. For information about
connecting and arranging internal cables, see “Locations” on page 52.
8. When replacing an FRU, use the correct screw as shown in the procedures.
DANGER
BeforeremovinganyFRU,turnoffthecomputer,unplugallpowercordsfrom
electricaloutlets,removethebatterypack,andthendisconnectanyofthe
interconnectingcables.
Attention: After replacing an FRU, do not turn on the computer until you have
made sure that all screws, springs, and other small parts are in place and none
are loose inside the computer. Verify this by shaking the computer gently and
listening for rattling sounds. Metallic parts or metal akes can cause electrical
short circuits.
Attention: The system board is sensitive to, and can be damaged by,
electrostatic discharge. Before touching it, establish personal grounding by
touching a ground point with one hand or using an electrostatic discharge (ESD)
strap (P/N 6405959) to remove potential shock reasons.
Attention: Do not use tools that contain powerful magnets during the
disassembly process.
Notes:
This manual applies to the following models: Lenovo YOGA 710-11ISK/
Lenovo YOGA 710-11IKB.
The illustrations used in this manual are for Lenovo YOGA 710-11ISK unless
otherwise stated.
32
YOGA 710-11ISK/YOGA 710-11IKB Hardware Maintenance Manual
1010 Base cover
Figure 1. Removal steps of base cover
Remove the screws 1.
1
1
1
1
1
1
1
1
1
1
1
Step Screw (quantity) Color Torque
1M2 × 4 mm, Torx-head, nylok-coated (11)
log_low to log_up
Silver 1.85 +/- 0.2 kgf*cm
Insert a prying tool (Disassembling blade) between the base cover and C cover
and slide it in the direction shown by arrows 2 to separate the base cover
from C cover.
2
2
33
Lenovo YOGA 710-11ISK/Lenovo YOGA 710-11IKB
Figure 1. Removal steps of base cover (continued)
Remove the base cover 3.
3
34
YOGA 710-11ISK/YOGA 710-11IKB Hardware Maintenance Manual
Note: Applying labels to the base cover
If you see the following labels on LCD cover, it needs to be peeled off from
the old LCD cover, and put on the new LCD cover.
a WW Rating label
b Rating label print
c OS label
d BIS label
e WLAN label
f BT label
g China Rating label
h Indonesia label
For some models, you also need to apply one or two FCC labels. Check the
old base cover; if it has one or two FCC labels, nd duplicates of them in the
label kit and apply them to the new base cover.
For the location of each label, refer to the following gure:
a
d
ef
gh
bc
35
Lenovo YOGA 710-11ISK/Lenovo YOGA 710-11IKB
1020 Battery pack
For access, remove this FRU:
“1010 Base cover” on page 32
DANGER
Onlyusethebatteryspeciedinthepartslistforyourcomputer.Anyotherbattery
couldigniteorexplode.
Figure 2. Removal steps of battery pack
Unplug the battery connector 1 and remove the screws 2. Then remove the
battery pack 3.
2
2
1
3
Step Screw (quantity) Color Torque
2M2 × 4 mm, Phillips-head, nylok-coated (2)
Battery to log_up
Black 1.85 +/- 0.2 kgf*cm
When installing: Make sure that the battery connector is attached rmly.
36
YOGA 710-11ISK/YOGA 710-11IKB Hardware Maintenance Manual
1030 Solid state disk
For access, remove these FRUs in order:
“1010 Base cover” on page 32
“1020 Battery pack” on page 35
Figure 3. Removal steps of solid state disk
Remove the screw 1.
1
Step Screw (quantity) Color Torque
1M2 × 2.3 mm, Phillips-head, nylok-coated (1)
SSD to log_up
Black 1.85 +/- 0.2 kgf*cm

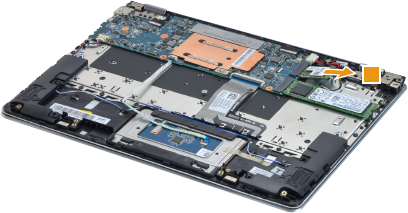

Remove the solid state disk in the direction shown by arrow 2.
2
37
Lenovo YOGA 710-11ISK/Lenovo YOGA 710-11IKB
1040 Audio board
For access, remove these FRUs in order:
“1010 Base cover” on page 32
“1020 Battery pack” on page 35
Figure 4. Removal steps of audio board
Detach the FPC connector in the directions shown by arrows 1 and 2.
Remove the screw 3.
1
2
3
Step Screw (quantity) Color Torque
3M2 × 2.3 mm, Phillips-head, nylok-coated (1)
Audio Board to log_up
Black 1.85 +/- 0.2 kgf*cm
Remove the audio board in the direction shown by arrow 4.
4
38
YOGA 710-11ISK/YOGA 710-11IKB Hardware Maintenance Manual
1050 PCI Express Mini Card for wireless LAN
For access, remove these FRUs in order:
“1010 Base cover” on page 32
“1020 Battery pack” on page 35
“1040 Audio board” on page 37
Important: The preinstalled WLAN module may only be replaced with a Lenovo
approved module in order to comply with FCC and IC regulations. Refer to
“Table 5. Parts list—Overall” on page 56 for Lenovo part numbers for the
approved modules.
Figure 5. Removal steps of PCI Express Mini Card for wireless LAN
Disconnect the two wireless LAN cables (black, white) 1, and then remove the
screw 2.
2
1
In step 1, unplug the jacks by using the removal tool antenna RF connector
(P/N: 08K7159), or pick up the connectors with your ngers and gently unplug
them in the direction shown by the arrows.
Notes: The wireless LAN card has 2 cables in step 1.
The wireless LAN card in some models might have 3 cables in step 1.
Step Screw (quantity) Color Torque
2M2 × 2.3 mm, Phillips-head, nylok-coated (1)
WLan to log_up
Black 1.85 +/- 0.2 kgf*cm
39
Lenovo YOGA 710-11ISK/Lenovo YOGA 710-11IKB
Figure 5. Removal steps of PCI Express Mini Card for wireless LAN (continued)
Remove the card in the direction shown by arrow 3.
3
When installing:
When installing the wireless LAN card, plug the black cable into the jack labeled
MAIN and the white cable into the jack labeled AUX.
40
YOGA 710-11ISK/YOGA 710-11IKB Hardware Maintenance Manual
1060 System board
Important notices for handling the system board:
Whenhandlingthesystemboard,bearthefollowinginmind.
• Becarefulnottodropthesystemboardonabenchtopthathasahardsurface,
suchasmetal,wood,orcomposite.
• Avoidroughhandlingofanykind.
• Duringthewholeprocess,makesurenottodroporstackthesystemboard.
• Ifyouputasystemboarddown,makesuretoputitonlyonapaddedsurface,such
asanESDmatorconductivecorrugatedmaterial.
For access, remove these FRUs in order:
“1010 Base cover” on page 32
“1020 Battery pack” on page 35
“1030 Solid state disk” on page 36
“1040 Audio board” on page 37
“1050 PCI Express Mini Card for wireless LAN” on page 38
Figure 6. Removal steps of system board
Disconnect the six connectors (touchpad connector, keyboard connector,
speaker connector, DC-in cable connector, EDP cable connector, microphone
and touch panel cable connector) in the directions shown by arrows 1, 2, 3
and 4.
3
1
2
1
2
4
3
4
41
Lenovo YOGA 710-11ISK/Lenovo YOGA 710-11IKB
Figure 6. Removal steps of system board (continued)
Remove the screws 5. Then remove the system board 6.
5
5
56
Step Screw (quantity) Color Torque
5M2 × 2.3 mm, Phillips-head, nylok-coated (3)
MB to log_up
Black 1.85 +/- 0.2 kgf*cm
42
YOGA 710-11ISK/YOGA 710-11IKB Hardware Maintenance Manual
1070 Thermal module
For access, remove these FRUs in order:
“1010 Base cover” on page 32
“1020 Battery pack” on page 35
Figure 7. Removal steps of thermal module
Loosen the screws 1. Then remove the thermal module in the direction shown
by arrow 2.
21
1
1
1
Attention: Do not handle the heat sink assembly roughly. Improper handling
can cause distortion or deformation and imperfect contact with components.
a
When installing: Before you attach the fan assembly to the computer, apply
thermal grease, at an amount of 0.2 grams, to the a part shown in the gure
above. Either too much or too less grease application can cause a thermal
problem due to imperfect contact with a component.
43
Lenovo YOGA 710-11ISK/Lenovo YOGA 710-11IKB
1080 LCD unit
For access, remove these FRUs in order:
“1010 Base cover” on page 32
“1020 Battery pack” on page 35
“1030 Solid state disk” on page 36
“1040 Audio board” on page 37
“1050 PCI Express Mini Card for wireless LAN” on page 38
“1060 System board” on page 40
Figure 8. Removal steps of LCD unit
Open the display panel (180°) and turn the computer over. Remove the screws 1.
Then remove the LCD unit.
1111
1111
2
Step Screw (quantity) Color Torque
1M2 × 4 mm, Phillips-head, nylok-coated (8)
Hinge to log_up
Black 1.85 +/- 0.2 kgf*cm
44
YOGA 710-11ISK/YOGA 710-11IKB Hardware Maintenance Manual
1090 DC-in cable
For access, remove these FRUs in order:
“1010 Base cover” on page 32
“1020 Battery pack” on page 35
“1030 Solid state disk” on page 36
“1040 Audio board” on page 37
“1050 PCI Express Mini Card for wireless LAN” on page 38
“1060 System board” on page 40
“1080 LCD unit” on page 43
Figure 9. Removal steps of DC-in cable
Remove the DC-in cable in the direction shown by arrow 1.
1
45
Lenovo YOGA 710-11ISK/Lenovo YOGA 710-11IKB
1100
Speaker
For access, remove these FRUs in order:
“1010 Base cover” on page 32
“1020 Battery pack” on page 35
Figure 10. Removal steps of speaker
Unplug the speaker connector in the direction shown by arrow 1.
Detach the touchpad cable in the directions shown by arrows 2 and 3.
Release the speaker cables from the cable guide, and then remove the speaker
in the direction shown by arrows 4.
2
3
1
4
4
46
YOGA 710-11ISK/YOGA 710-11IKB Hardware Maintenance Manual
1110 LCD front cover
For access, remove these FRUs in order:
“1010 Base cover” on page 32
“1020 Battery pack” on page 35
“1030 Solid state disk” on page 36
“1040 Audio board” on page 37
“1050 PCI Express Mini Card for wireless LAN” on page 38
“1060 System board” on page 40
“1080 LCD unit” on page 43
Figure 11. Removal steps of LCD front cover
Remove LCD bezel screw pads 1 and the screws 2.
2
2
1
1
Step Screw (quantity) Color Torque
2M2 × 2.5 mm, Phillips-head, nylok-coated (2)
Hinge to A cover
Silver
1.85 +/- 0.2 kgf*cm
Remove the hinge cover in the direction shown by arrows 3.
3
3
3
47
Lenovo YOGA 710-11ISK/Lenovo YOGA 710-11IKB
1120 Hinges and LCD cover
For access, remove these FRUs in order:
“1010 Base cover” on page 32
“1020 Battery pack” on page 35
“1030 Solid state disk” on page 36
“1040 Audio board” on page 37
“1050 PCI Express Mini Card for wireless LAN” on page 38
“1060 System board” on page 40
“1080 LCD unit” on page 43
“1110 LCD front cover” on page 46
Figure 12. Removal steps of hinges and LCD cover
Remove the hinge rubbers 1. Gently push the LCD module in the direction
shown by the arrows 2.
1
1
2
2
When installing: Make sure that the connector is attached rmly.
Remove the LCD module in the direction shown by arrow 3.
3
48
YOGA 710-11ISK/YOGA 710-11IKB Hardware Maintenance Manual
Figure 12. Removal steps of hinges and LCD cover (continued)
Remove the screws 4.
444
444
Step Screw (quantity) Color Torque
4M2 × 2 mm, Phillips-head, nylok-coated (6)
Hinge to A Cover
Black
1.85 +/- 0.2 kgf*cm
Remove the hinges 5.
5
5
49
Lenovo YOGA 710-11ISK/Lenovo YOGA 710-11IKB
1130 Integrated camera, microphone board and cables
For access, remove these FRUs in order:
“1010 Base cover” on page 32
“1020 Battery pack” on page 35
“1110 LCD front cover” on page 46
“1120 Hinges and LCD cover” on page 47
Figure 13. Removal steps of integrated camera, microphone board and cables
Lift the camera board slightly 1. Disconnect the camera board cable in the
direction shown by arrows 2 and 3. Then remove the camera board.
1
2
3
Detch the EDP cable connector in the direction shown by arrows 4 and 5.
Then remove the EDP cable 6.
4
5
6
50
YOGA 710-11ISK/YOGA 710-11IKB Hardware Maintenance Manual
Figure 13. Removal steps of integrated camera, microphone board and cables
(continued)
Lift the microphone board slightly 7. Detach the microphone connector in the
direction shown by arrow 8.
7
7
8
Peel off the adhesive tape securing the antenna boards 9. Detach the
microphone and touch panel cable connector J. Release the cable from the
cable guide.
10
9
51
Lenovo YOGA 710-11ISK/Lenovo YOGA 710-11IKB
Figure 13. Removal steps of integrated camera, microphone board and cables
(continued)

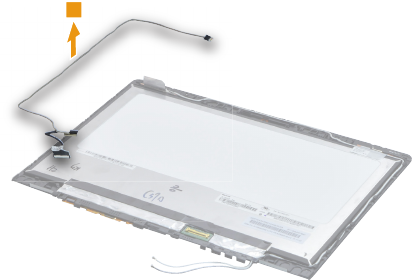

Remove the microphone and touch panel cable K.
11
When installing: Put the integrated camera and the microphone board to
the LCD module and adjust the placement of the boards to make sure the
connectors are attached rmly.
52
YOGA 710-11ISK/YOGA 710-11IKB Hardware Maintenance Manual
Locations
Front view and right-side view
1 Integrated camera
2 Built-in microphones
3 Wireless LAN antennas
4 Multi-touch screen
5 Touchpad
6 Power status indicator
Note: For the description of each indicator, see “Status indicators” on page 28.
7 Power button
8 Novo button
9 Micro HDMI port
J USB 3.0 port
1
2
2
3
3
4
5
6
7
8
9
10
53
Lenovo YOGA 710-11ISK/Lenovo YOGA 710-11IKB
Bottom and Left-side view
1 Speakers
2 Combo audio jack
3 Battery status indicator
Note: For the description of each indicator, see “Status indicators” on page 28.
4 AC power adapter jack
2
1
1
3
4
54
YOGA 710-11ISK/YOGA 710-11IKB Hardware Maintenance Manual
Parts list
This section presents the following service parts:
“Overall” on page 55
“LCD FRUs” on page 59
“Miscellaneous parts” on page 61
“Screw” on page 61
“AC adapters” on page 62
Notes:
• EachFRUisavailableforalltypesormodels,unlessspecictypesormodels
arespecied.
Attention:
DonotattempttoreplaceanFRUonyourown.IfanFRUisdamaged,contact
aLenovoauthorizedserviceroramarketingrepresentativeforreplacement
orrepair.Onlyqualiedtechnicianscaninspectorrepairthisproduct
55
Lenovo YOGA 710-11ISK/Lenovo YOGA 710-11IKB
Overall
1
2
3
a
4
6
8
5
7
9
10
56
YOGA 710-11ISK/YOGA 710-11IKB Hardware Maintenance Manual
Table 5. Parts list—Overall
No. FRU FRU no. CRU ID.
YOGA
710-11ISK
YOGA
710-11IKB
a See “Miscellaneous parts” on page 61.
1 LCD unit (see “LCD FRUs” on page 59.)
2 Upper Case L 80TX W/KB Silver US 5CB0L46169 N ● ●
2 Upper Case L 80TX W/KB Silver GK 5CB0L46128 N ● ●
2 UpperCaseL 80TXW/KBSilver US INT'E 5CB0L46181 N ● ●
2 Upper Case L 80TX W/KB Silver KO 5CB0L46125 N ● ●
2 Upper Case L 80TX W/KB Silver CH 5CB0L46157 N ● ●
2 Upper Case L 80TX W/KB Silver RU 5CB0L46196 N ● ●
2 Upper Case L 80TX W/KB Silver AR-E 5CB0L46168 N ● ●
2 Upper Case L 80TX W/KB Silver HB 5CB0L46153 N ● ●
2 Upper Case L 80TX W/KB Silver TI 5CB0L46123 N ● ●
2 UpperCase L 80TX W/KB Silver INDIA 5CB0L46180 N ● ●
2 Upper Case L 80TX W/KB Silver UK 5CB0L46151 N ● ●
2 Upper Case L 80TX W/KB Silver IT 5CB0L46129 N ● ●
2 Upper Case L 80TX W/KB Silver SP 5CB0L46145 N ● ●
2 Upper Case L 80TX W/KB Silver TR 5CB0L46130 N ● ●
2 Upper Case L 80TX W/KB Silver PO 5CB0L46116 N ● ●
2 Upper Case L 80TX W/KB Silver LA 5CB0L46197 N ● ●
2 Upper Case L 80TX W/KB Silver CF-E 5CB0L46198 N ● ●
2 Upper Case L 80TX W/KB Silver ND 5CB0L46146 N ● ●
2 Upper Case L 80TX W/KB Silver FR 5CB0L46174 N ● ●
2 Upper Case L 80TX W/KB Silver GR 5CB0L46114 N ● ●
2 Upper Case L 80TX W/KB Silver NL 5CB0L46189 N ● ●
2 Upper Case L 80TX W/KB Silver HG 5CB0L46135 N ● ●
2 Upper Case L 80TX W/KB Silver BE 5CB0L46147 N ● ●
2 Upper Case L 80TX W/KB Silver ICE 5CB0L46185 N ● ●
2 Upper Case L 80TX W/KB Silver SA 5CB0L46182 N ● ●
2 Upper Case L 80TX W/KB Silver SW 5CB0L46166 N ● ●
2 Upper Case L 80TX W/KB Silver BU 5CB0L46134 N ● ●
2 UpperCase L 80TX W/KB Silver CZ-SK 5CB0L46137 N ● ●
2 Upper Case L 80TX W/KB Silver BZ 5CB0L46192 N ● ●
2 UpperCase L 80TX W/KB Silver AR-FR 5CB0L46126 N ● ●
2 Upper Case L 80TX W/KB Silver JA 5CB0L46120 N ● ●
2 Upper Case L 80TX W/KB Black US 5CB0L46156 N ● ●
2 Upper Case L 80TX W/KB Black GK 5CB0L46155 N ● ●
2 UpperCase L80TX W/KBBlack US INT'E 5CB0L46115 N ● ●
2 Upper Case L 80TX W/KB Black KO 5CB0L46127 N ● ●
2 Upper Case L 80TX W/KB Black CH 5CB0L46188 N ● ●
2 Upper Case L 80TX W/KB Black RU 5CB0L46175 N ● ●
2 Upper Case L 80TX W/KB Black AR-E 5CB0L46112 N ● ●
2 Upper Case L 80TX W/KB Black HB 5CB0L46176 N ● ●
2 Upper Case L 80TX W/KB Black TI 5CB0L46107 N ● ●
2 Upper Case L 80TX W/KB Black INDIA 5CB0L46132 N ● ●
2 Upper Case L 80TX W/KB Black UK 5CB0L46148 N ● ●
2 Upper Case L 80TX W/KB Black IT 5CB0L46179 N ● ●
2 Upper Case L 80TX W/KB Black SP 5CB0L46184 N ● ●
2 Upper Case L 80TX W/KB Black TR 5CB0L46113 N ● ●
57
Lenovo YOGA 710-11ISK/Lenovo YOGA 710-11IKB
No. FRU FRU no. CRU ID.
YOGA
710-11ISK
YOGA
710-11IKB
2 Upper Case L 80TX W/KB Black PO 5CB0L46154 N ● ●
2 Upper Case L 80TX W/KB Black LA 5CB0L46108 N ● ●
2 Upper Case L 80TX W/KB Black CF-E 5CB0L46191 N ● ●
2 Upper Case L 80TX W/KB Black ND 5CB0L46133 N ● ●
2 Upper Case L 80TX W/KB Black FR 5CB0L46163 N ● ●
2 Upper Case L 80TX W/KB Black GR 5CB0L46143 N ● ●
2 Upper Case L 80TX W/KB Black NL 5CB0L46165 N ● ●
2 Upper Case L 80TX W/KB Black HG 5CB0L46117 N ● ●
2 Upper Case L 80TX W/KB Black BE 5CB0L46187 N ● ●
2 Upper Case L 80TX W/KB Black ICE 5CB0L46136 N ● ●
2 Upper Case L 80TX W/KB Black SA 5CB0L46138 N ● ●
2 Upper Case L 80TX W/KB Black SW 5CB0L46190 N ● ●
2 Upper Case L 80TX W/KB Black BU 5CB0L46194 N ● ●
2 Upper Case L 80TX W/KB Black CZ-SK 5CB0L46106 N ● ●
2 Upper Case L 80TX W/KB Black BZ 5CB0L46124 N ● ●
2 Upper Case L 80TX W/KB Black AR-FR 5CB0L46149 N ● ●
2 Upper Case L 80TX W/KB Black JA 5CB0L46111 N ● ●
3 Speaker L 80TX L+R 5SB0L46140 N ● ●
4 Audio Board L 80TX W/Cable 5C50L46173 N
4 Audio Board L 80V6 W/Cable 5C50M41941 N
5 MB L 80TX NOK 4405 UMA 4G 5B20L46177 N
5 MB L 80TX WIN 4405 UMA 4G 5B20L46167 N
5 MB L 80TX NOK 6Y30 UMA 4G 5B20L46193 N
5 MB L 80TX WIN 6Y30 UMA 4G 5B20L46160 N
5 MB L 80TX NOK 6Y30 UMA 8G 5B20L46109 N
5 MB L 80TX WIN 6Y30 UMA 8G 5B20L46152 N
5 MB L 80TX NOK 6Y54 UMA 4G 5B20L46144 N
5 MB L 80TX WIN 6Y54 UMA 4G 5B20L46159 N
5 MB L 80TX NOK 6Y54 UMA 8G 5B20L46118 N
5 MB L 80TX WIN 6Y54 UMA 8G 5B20L46161 N
5 MB L 80V6 NOK M37Y30 UMA 4G 5B20M35845 N
5 MB L 80V6 WIN M37Y30 UMA 4G 5B20M35843 N
5 MB L 80V6 NOK M37Y30 UMA 8G 5B20M35840 N
5 MB L 80V6 WIN M37Y30 UMA 8G 5B20M35846 N
5 MB L 80V6 NOK I57Y54 UMA 4G 5B20M35841 N
5 MB L 80V6 WIN I57Y54 UMA 4G 5B20M35842 N
5 MB L 80V6 NOK I57Y54 UMA 8G 5B20M35839 N
5 MB L 80V6 WIN I57Y54 UMA 8G 5B20M35844 N
6 SSD, Liteon CV1-8B128 5SD0J21066 N ● ●
6 SSD, CV3-8D128 M.2 2280128G SSD(QSCQ4
2015)
5SD0L02318 N● ●
6 SSD, Samsung MZNLN128HCGR M.2 5SD0H00094 N ● ●
6 SSD, TBD (QS CQ1 2016) TBD N ● ●
6 SSD, HY HFS128G39MND-3310A M.2 5SD0H43484 N ● ●
6 SSD, Liteon CV1-8B256 5SD0J21061 N ● ●
6 SSD, CV3-8D256 M.2 2280 256G SSD (Q3 CQ4
2015)
5SD0L02320 N● ●
Table 5. Parts list—Overall
58
YOGA 710-11ISK/YOGA 710-11IKB Hardware Maintenance Manual
No. FRU FRU no. CRU ID.
YOGA
710-11ISK
YOGA
710-11IKB
6 SSD, Samsung MZNLN256HCHP M.2 5SD0H00092 N ● ●
6 SSD, HY HFS256G39MND-3310A M.2 5SD0H43486 N ● ●
7 Thermal Module L 80TX W/Fan 5H40L46178 N ● ●
8 WLAN, Intel 3165 1x1AC+BT PCIE M.2 WLAN SW10H24486 N ● ●
8 WLAN, Ltn NFA435 1x1AC+BT4.0 PCIE M.2
WLAN
SW10A11641 N● ●
8 WLAN, Cbt RTL8821AE 1x1AC+BT4.0 PCIE M.2
WLAN
SW10A11648 N● ●
8 WLAN, Intel 8260 2x2AC+BT PCIE M.2 WLAN NV
SAR
SW10A11647 N● ●
8 WLAN, Ltn NFA435 1x1AC+BT4.0 PCIE M.2
WLAN
SW10A11641 N● ●
8 WLAN, Cbt RTL8821AE 1x1AC+BT4.0 PCIE M.2
WLAN
SW10A11648 N● ●
9 Battery, Miray SP/A L15M4PC1 7.6V40Wh4cell
bty(ATL)
5B10K90767 N● ●
9 Battery, Miray LG L15L4PC1 7.6V40Wh4cell bty 5B10K90801 N ● ●
10 Lower Case L 80TX Silver 5CB0L46164 N ● ●
10 Lower Case L 80TX Black 5CB0L46186 N ● ●
AC adapter (see “AC adapters” on page 62 ).
Table 5. Parts list—Overall
59
Lenovo YOGA 710-11ISK/Lenovo YOGA 710-11IKB
LCD FRUs
In Lenovo YOGA 710-11ISK/Lenovo YOGA 710-11IKB, the type of LCD is
11.6-inch full high denition (FHD).
1
2
3
6
54
7
8
9
10
60
YOGA 710-11ISK/YOGA 710-11IKB Hardware Maintenance Manual
Table 6. Parts list—11.6-inch LCD FRUs
No. FRU FRU no. CRU ID.
YOGA
710-11ISK
YOGA
710-11IKB
1 LCDBezel Screw Rubber L 80TX Silver 5T10L46141 N ● ●
1 LCD Bezel Screw Rubber L 80TX Black 5T10L46170 N ● ●
2 Hinge Cover L 80TX L+M+R Silver 5CB0L46110 N ● ●
2 Hinge Cover L 80TX L+M+R Black 5CB0L46171 N ● ●
3 LCDModule L 80TXW/Antenna Silver 5D10L46158 N ● ●
3 LCDModule L 80TX W/Antenna Black 5D10L60305 N ● ●
4 MIC Board L 80TX W/Cable L+R 5C50L46122 N ● ●
5 Camera L 80TX HD 5C20L46139 N ● ●
6 EDP Cable L 80TX 5C10L46142 N ● ●
7 MICBoard andTP to MB Cable L80TX 5C50L46150 N ● ●
8 Hinge Rubber L 80TX L+R 5R60L58669 N ● ●
9 Hinge L 80TX L+R 5H50L46195 N ● ●
10 LCD Cover L 80TX Silver 5CB0L46119 N ● ●
10 LCD Cover L 80TX Black 5CB0L46162 N ● ●
61
Lenovo YOGA 710-11ISK/Lenovo YOGA 710-11IKB
Miscellaneous parts
Table 7. Parts list—Miscellaneous parts
FRU P/N CRU ID.
YOGA
710-11ISK
YOGA
710-11IKB
Cable miscellaneous parts:
(
a
) DC-IN Cable L 80TX 5C10L46131 N ● ●
Note: Italicized letters in parentheses are references to the exploded view in “Overall” on page 55.
Screw
Table 8. Parts list—screws
FRU P/N CRU ID.
YOGA
710-11ISK
YOGA
710-11IKB
Screw L 80TX MM2.0D2.0L K 5.5D0.5T 5S10L58674 N● ●
Screw L 80TX MM2.0D2.5L K 4.0D0.3T 5S10L58668 N● ●
VIUU4 Screw 2D 4.0LK 3.5D 0.5T ZK NL+ 90202839 N● ●
ScrewL80TX 2.0D 2.3LK 4.5D 0.4T ZK 5S10L46172 N● ●
ScrewL80TX 2D 4LK NONE NL Silver 5S10L46183 N● ●
ScrewL80TX 2D4LK 3.3D 0.7T NLBlack 5S10L46121 N● ●
62
YOGA 710-11ISK/YOGA 710-11IKB Hardware Maintenance Manual
AC adapters
Table 9. Parts list—AC adapters
FRU P/N CRU ID.
YOGA
710-11ISK
YOGA
710-11IKB
Delta ADP-45DW AA 20V2.25A adapter 5A10H43620 *● ●
Delta ADP-45DW JA 20V2.25A adapter 5A10H43623 *● ●
Delta ADP-45DW BA 20V2.25A adapter 5A10H43630 *● ●
Delta ADP-45DW DA 20V2.25A adapter 5A10H43621 *● ●
Delta ADP-45DW HA 20V2.25A adapter 5A10H43627 *● ●
Delta ADP-45DW GA 20V2.25A adapter 5A10H43617 *● ●
Delta ADP-45DW EA 20V2.25A adapter 5A10H43626 *● ●
Delta ADP-45DW CA 20V2.25A adapter 5A10H43632 *● ●
Delta ADP-45DW KA 20V2.25A adapter 5A10H43624 *● ●
Liteon PA-1450-55LN 20V2.25A adapter 5A10H42921 *● ●
Liteon PA-1450-55LG 20V2.25A adapter 5A10H42920 *● ●
Liteon PA-1450-55LL 20V2.25A adapter 5A10H42923 *● ●
Liteon PA-1450-55LK 20V2.25A adapter 5A10H42917 *● ●
Liteon PA-1450-55LI 20V2.25A adapter 5A10H42926 *● ●
Liteon PA-1450-55LR 20V2.25A adapter 5A10H42919 *● ●
Liteon PA-1450-55LS 20V2.25A adapter 5A10H42922 *● ●
Liteon PA-1450-55LU 20V2.25A adapter 5A10H42925 *● ●
Liteon PA-1450-55LZ 20V2.25A adapter 5A10H42918 *● ●
Chicony ADL45WCA 20V2.25A adapter 5A10H43629 *● ●
Chicony ADL45WCB 20V2.25A adapter 5A10H43618 *● ●
Chicony ADL45WCC 20V2.25A adapter 5A10H43625 *● ●
Chicony ADL45WCD 20V2.25A adapter 5A10H43631 *● ●
Chicony ADL45WCK 20V2.25A adapter 5A10H43619 *● ●
Chicony ADL45WCE 20V2.25A adapter 5A10H43633 *● ●
Chicony ADL45WCF 20V2.25A adapter 5A10H43622 *● ●
Chicony ADL45WCG 20V2.25A adapter 5A10H43628 *● ●
Chicony ADL45WCH 20V2.25A adapter 5A10H43616 *● ●
63
Notices
Notices
Lenovo may not offer the products, services, or features discussed in this
document in all countries. Consult your local Lenovo representative for
information on the products and services currently available in your area. Any
reference to a Lenovo product, program, or service is not intended to state or
imply that only that Lenovo product, program, or service may be used. Any
functionally equivalent product, program, or service that does not infringe
any Lenovo intellectual property right may be used instead. However, it is the
user’s responsibility to evaluate and verify the operation of any other product,
program, or service.
Lenovo may have patents or pending patent applications covering subject matter
described in this document. The furnishing of this document does not give you
any license to these patents.
LENOVO GROUP LTD. PROVIDES THIS PUBLICATION “AS IS”
WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF NON-
INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE. Some jurisdictions do not allow disclaimer of express or implied
warranties in certain transactions, therefore, this statement may not apply to you.
This information could include technical inaccuracies or typographical errors.
Changes are periodically made to the information herein; these changes
will be incorporated in new editions of the publication. Lenovo may make
improvements and/or changes in the product(s) and/or the program(s)
described in this publication at any time without notice.
The products described in this document are not intended for use in
implantation or other life support applications where malfunction may result in
injury or death to persons. The information contained in this document does not
affect or change Lenovo product specications or warranties. Nothing in this
document shall operate as an express or implied license or indemnity under the
intellectual property rights of Lenovo or third parties. All information contained
in this document was obtained in specic environments and is presented as an
illustration. The result obtained in other operating environments may vary.
Lenovo may use or distribute any of the information you supply in any way it
believes appropriate without incurring any obligation to you.
Any references in this publication to non-Lenovo Web sites are provided for
convenience only and do not in any manner serve as an endorsement of those
Web sites. The materials at those Web sites are not part of the materials for
this Lenovo product, and use of those Web sites is at your own risk.
Any performance data contained herein was determined in a controlled
environment. Therefore, the result obtained in other operating environments
may vary significantly. Some measurements may have been made on
development-level systems and there is no guarantee that these measurements
will be the same on generally available systems. Furthermore, some
measurements may have been estimated through extrapolation. Actual results
may vary. Users of this document should verify the applicable data for their
specic environment.
64
YOGA 710-11ISK/YOGA 710-11IKB Hardware Maintenance Manual
Trademarks
The following terms are either registered trademarks or trademarks of Lenovo
in the United States and/or other countries:
Lenovo®
Lenovo logo®
OneKey
The following term is trademark of Microsoft Corporation in the United States,
other countries, or both:
Windows®
The following term is trademark of Intel Corporation or its subsidiaries in the
United States, other countries, or both:
Intel®
Other company, product, or service names may be the trademarks or service
marks of others.

Navigation menu
