A485

Setup Guide

Unpack

Standard items

Optional accessories

Lenovo USB-C to DisplayPort Adapter＊

Lenovo HDMI to VGA Adapter＊

＊ Available on some models

Initial setup

E-manual

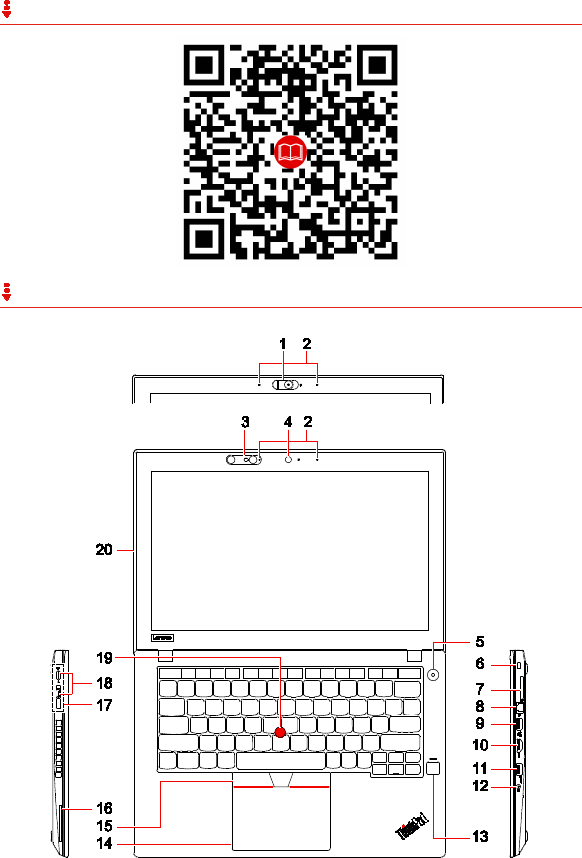

Overview

[English]

1. Conventional camera with

ThinkShutter

＊

2. Microphones

3. Infrared camera

＊

4. Conventional camera

＊

5. Power button

6. Mini security-lock slot

7. Media-card slot

8. Ethernet connector

9. Always On USB 3.1 connector

Gen 1

10. HDMITM connector

11. USB 3.1 connector Gen 2

12. Audio connector

13. Fingerprint reader

＊

14. Trackpad

15. TrackPoint

®

buttons

16. Smart-card slot

＊

17. Docking-station connector

18. USB-C

TM

connectors

19. TrackPoint pointing stick 20. Screen (multi-touch screen

available on some models)

＊ Available on some models

European Union conformity

EU contact: Lenovo, Einsteinova 21, 851 01 Bratislava,

Slovakia

Compliance to Directives for Information Technology

Equipment (ITE) and Radio Equipment

EMC Directive Statement: This product is in conformity

with the protection requirements of EU Council Directive

2014/30/EU on the approximation of the laws of the

Member States relating to electromagnetic compatibility.

The full compliance statement is located in the User

Guide.

Models with a radio device:

Compliance with the Radio Equipment Directive

Hereby, Lenovo (Singapore) Pte. Ltd., declares that the

radio equipment type ThinkPad A485 is in compliance

with Directive 2014/53/EU.

The full text of the system EU declaration of conformity

and the EU wireless module declarations are available at

the following Internet addresses:

• For notebook computers:

https://www.lenovo.com/eu-doc-notebooks

• For tablets:

https://www.lenovo.com/eu-doc-tablets

This radio equipment operates with the following

frequency bands and maximum radio-frequency power:

Technology Frequency

band [MHz]

Maximum

transmit

power

WLAN

802.11b/g/n

2400 - 2483.5 < 20 dBm

WLAN

802.11a/n/ac

5150 - 5725 < 23 dBm

Bluetooth

BR/EDR/LE

2400 - 2483.5 < 10 dBm

WWAN UMTS

1/8

< 24.5 dBm

WWAN LTE

1/3/7/8/20/28

< 24 dBm

Note: The list of wireless modules used in this product is

available in the Regulatory Notice. You can download the

latest Regulatory Notice for this product from the Lenovo

Support Web site:

https://support.lenovo.com

First Edition (June 2018)

© Copyright Lenovo 2018.

LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant to a General Services

Administration “GSA” contract, use, reproduction, or disclosure is subject to restrictions set forth in Contract No. GS-

35F-05925.
