ideacentre All-In-One 730S Computer
Hardware Maintenance Manual
Machine Types: F0DX, F0DY
ideacentre All-In-One 730S Computer
Hardware Maintenance Manual
Machine Types: F0DX, F0DY
First Edition (January 2018)
© Copyright Lenovo 2018.
LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software are delivered pursuant a General Services
Administration “GSA” contract, use, reproduction, or disclosure is subject to restrictions set forth in Contract No. GS-
35F-05925
Contents
Chapter 1. About this manual . . . . . . 1
Important Safety Information. . . . . . . . . . . 1
Chapter 2. Safety information . . . . . . 3
General safety . . . . . . . . . . . . . . . . 3
Electrical safety . . . . . . . . . . . . . . . . 3
Safety inspection guide . . . . . . . . . . . . . 5
Handling electrostatic discharge-sensitive
devices . . . . . . . . . . . . . . . . . . . 5
Grounding requirements . . . . . . . . . . . . 6
Safety notices . . . . . . . . . . . . . . . . 6
Chapter 3. General information . . . . . 9
Specifications . . . . . . . . . . . . . . . . 9
Chapter 4. General Checkout . . . . . 11
Chapter 5. Using the Setup Utility. . . 13
Starting the Lenovo BIOS Setup Utility program . . 13
Viewing and changing settings . . . . . . . . . 13
Using passwords . . . . . . . . . . . . . . 13
Enabling or disabling a device . . . . . . . . . 15
Selecting a startup device . . . . . . . . . . . 16
Exiting the Lenovo BIOS Setup Utility program. . . 17
Chapter 6. Symptom-to-FRU
Index . . . . . . . . . . . . . . . . . . 19
Hard disk drive boot error . . . . . . . . . . . 19
Power Supply Problems . . . . . . . . . . . 19
POST error codes . . . . . . . . . . . . . . 20
Undetermined problems . . . . . . . . . . . 20
Chapter 7. Locating connectors, controls
and components . . . . . . . . . . . . 21
Chapter 8. Replacing hardware . . . . 27
General information . . . . . . . . . . . . . 27
Replacing the keyboard and mouse . . . . . . . 28
Replacing the adapter . . . . . . . . . . . . 28
Removing the stand base . . . . . . . . . . . 29
Removing the rear cover . . . . . . . . . . . 29
Removing the stand holder . . . . . . . . . . 31
Replacing the hard disk drive . . . . . . . . . 32
Replacing the HDMI switch board. . . . . . . . 33
Removing the motherboard frame. . . . . . . . 34
Replacing the speaker system . . . . . . . . . 35
Replacing the power button board . . . . . . . 36
Replacing the system fan . . . . . . . . . . . 37
Replacing the heat-sink. . . . . . . . . . . . 38
Replacing the memory module . . . . . . . . . 39
Replacing the solid state drive . . . . . . . . . 40
Replacing the Wi-Fi card . . . . . . . . . . . 41
Replacing the motherboard . . . . . . . . . . 42
Replacing the camera module . . . . . . . . . 44
Replacing the microphone module . . . . . . . 45
Replacing the front decorative cover. . . . . . . 46
Replacing the LCD panel module . . . . . . . . 48
Chapter 9. FRU lists . . . . . . . . . . 53
Chapter 10. General information . . . 59
Additional Service Information . . . . . . . . . 59
© Copyright Lenovo 2018 iii
iv ideacentre All-In-One 730S Computer Hardware Maintenance Manual
Chapter 1. About this manual
This manual contains service and reference information for Lenovo All-In-One 520 series computers listed on
the cover. It is intended only for trained servicers who are familiar with Lenovo computer products.
Before servicing a Lenovo product, be sure to read the Safety Information.
The description of the TV-tuner card in this manual applies only to computers with a TV-tuner card installed.
It does not apply to computers without a TV-tuner card.
Important Safety Information
Be sure to read all CAUTION and DANGER sections in this manual before following any of the instructions.
Veuillez lire toutes les consignes de type DANGER et ATTENTION du présent document avant d’exécuter les
instructions.
Lesen Sie unbedingt alle Hinweise vom Typ “ACHTUNG” oder “VORSICHT” in dieser Dokumentation, bevor
Sie irgendwelche Vorgänge durchführen
Leggere le istruzioni introdotte da ATTENZIONE e PERICOLO presenti nel manuale prima di eseguire una
qualsiasi delle istruzioni
Certifique-se de ler todas as instruções de cuidado e perigo neste manual antes de executar qualquer uma
das instruções
Es importante que lea todas las declaraciones de precaución y de peligro de este manual antes de seguir las
instrucciones.
© Copyright Lenovo 2018 1
2ideacentre All-In-One 730S Computer Hardware Maintenance Manual
Chapter 2. Safety information
This chapter contains the safety information that you need to be familiar with before servicing a computer.
General safety
Follow these rules to ensure general safety:
• Keep the areas around the computer clear and clean during and after maintenance.
• When lifting any heavy object:
1. Ensure you can stand safely without slipping.
2. Distribute the weight of the object equally across both feet.
3. Lift slowly. Never move suddenly or twist when you attempt to lift.
4. Lift by standing or by pushing up with your leg muscles; this action removes the strain from the
muscles in your back.
Do not attempt to lift any objects that weigh more than 16 kg (35 lb) or objects that you think are too
heavy for you.
• Do not perform any action that would create a hazard for the customer, or would make the computer
unsafe.
• Before you start the computer, ensure that other service representatives and customer personnel are not
in a position that would create a hazard for them.
• Place removed covers and other parts in a safe place, away from all personnel, while you are servicing the
computer.
• Keep your tool case away from areas that people may walk through to ensure no-one trips over it.
• Do not wear loose clothing that can be trapped in the moving parts of a machine. Ensure that your sleeves
are fastened or rolled up above your elbows. If your hair is long, tie or fasten it back.
• Insert the ends of your necktie or scarf inside clothing or fasten it with a non-conductive clip,
approximately 8 centimeters (3 inches) from the end.
• Do not wear jewelry, chains, metal-frame eyeglasses, or metal fasteners for your clothing.
Remember: Metal objects are good electrical conductors.
• Wear safety glasses when you are: hammering, drilling soldering, cutting wire, attaching springs, using
solvents, or working in any other conditions that might be hazardous to your eyes.
• After service, reinstall all safety shields, guards, labels, and ground wires. Replace any safety device that
is worn or defective.
• Reattach all covers correctly before returning the computer to the customer.
Electrical safety
CAUTION:
Electrical current from power, telephone, and communication cables can be hazardous. To avoid
personal injury or equipment damage, disconnect any attached power cords, telecommunication
© Copyright Lenovo 2018 3
cables, network cables, and modem cables before you open the computer covers, unless instructed
otherwise in the installation and configuration procedures.
Observe the following rules when working on electrical equipment.
Important: Use only approved tools and test equipment. Some hand tools have handles covered with a soft
material that does not insulate you when working with live electrical currents. Many customers have rubber
floor mats near their equipment that contain small conductive fibers to decrease electrostatic discharge.
• Find the room emergency power-off (EPO) switch, disconnecting switch, or electrical outlet. If an electrical
accident occurs, you can then operate the switch or unplug the power cord quickly.
• Do not work alone under hazardous conditions or near equipment that has hazardous voltages.
• Disconnect all power before:
– Performing a mechanical inspection
– Working near power supplies
– Removing or installing Field Replaceable Units (FRUs)
• Before you start to work on the computer, unplug the power cord. If you cannot unplug it, ask the
customer to power-off the electrical outlet that supplies power to the machine and to lock the electrical
outlet in the off position.
• If you need to work on a computer that has exposed electrical circuits, observe the following precautions:
– Ensure that another person, familiar with the power-off controls, is near you.
Remember: Another person must be there to switch off the power, if necessary.
– Use only one hand when working with powered-on electrical equipment; keep the other hand in your
pocket or behind your back.
Remember: There must be a complete circuit to cause electrical shock. By observing the above rule,
you may prevent a current from passing through your body.
– When using a tester, set the controls correctly and use the approved probe leads and accessories for
that tester.
– Stand on suitable rubber mats (obtained locally, if necessary) to insulate you from grounds such as
metal floor strips and machine frames.
Observe the special safety precautions when you work with very high voltages; these instructions are in
the safety sections of the maintenance information. Use extreme care when measuring high voltages.
• Regularly inspect and maintain your electrical hand tools to ensure they are safe to use.
• Do not use worn or broken tools and testers.
• Never assume that power has been disconnected from a circuit. First, check that it has been powered off.
• Always look carefully for possible hazards in your work area. Examples of these hazards are wet floors,
non-grounded power extension cables, conditions that may cause or allow power surges, and missing
safety grounds.
• Do not touch live electrical circuits with the reflective surface of a plastic dental mirror. This surface is
conductive, and touching a live circuit can cause personal injury and damage to the computer.
• Do not service the following parts with the power on when they are removed from their normal operating
positions in a computer:
– Power supply units
– Pumps
– Blowers and fans
– Motor generators
and similar units. (This practice ensures correct grounding of the units.)
4ideacentre All-In-One 730S Computer Hardware Maintenance Manual
• If an electrical accident occurs:
– Use caution; do not become a victim yourself.
– Switch off power.
– Send another person to get medical aid.
Safety inspection guide
The intent of this inspection guide is to assist you in identifying potential hazards posed by these products.
Each computer, as it was designed and built, had required safety items installed to protect users and service
personnel from injury. This guide addresses only those items. However, good judgment should be used to
identify potential safety hazards due to attachment of features or options not covered by this inspection
guide.
If any hazards are present, you must determine how serious the apparent hazard could be and whether you
can continue without first resolving the problem.
Consider the following items and the safety hazards they present:
• Electrical hazards, especially primary power (primary voltage on the frame can cause serious or fatal
electrical shock).
• Explosive hazards, such as a damaged CRT face or bulging capacitor
• Mechanical hazards, such as loose or missing hardware
The guide consists of a series of steps presented as a checklist. Begin the checks with the power off, and the
power cord disconnected.
Checklist:
1. Check exterior covers for damage (loose, broken, or sharp edges).
2. Power-off the computer. Disconnect the power cord.
3. Check the power cord for:
a. A third-wire ground connector in good condition. Use a meter to measure third-wire ground
continuity for 0.1 ohm or less between the external ground pin and frame ground.
b. The power cord should be the appropriate type as specified in the parts listings.
c. Insulation must not be frayed or worn.
4. Remove the cover.
5. Check for any obvious alterations. Use good judgment as to the safety of any alterations.
6. Check inside the unit for any obvious hazards, such as metal filings, contamination, water or other
liquids, or signs of fire or smoke damage.
7. Check for worn, frayed, or pinched cables.
8. Check that the power-supply cover fasteners (screws or rivets) have not been removed or tampered
with.
Handling electrostatic discharge-sensitive devices
Any computer part containing transistors or integrated circuits (ICs) should be considered sensitive to
electrostatic discharge (ESD). ESD damage can occur when there is a difference in charge between objects.
Protect against ESD damage by equalizing the charge so that the computer, the part, the work mat, and the
person handling the part are all at the same charge.
Notes:
Chapter 2.Safety information 5
1. Use product-specific ESD procedures when they exceed the requirements noted here.
2. Make sure that the ESD protective devices you use have been certified (ISO 9000) as fully effective.
When handling ESD-sensitive parts:
• Keep the parts in protective packages until they are inserted into the product.
• Avoid contact with other people while handling the part.
• Wear a grounded wrist strap against your skin to eliminate static on your body.
• Prevent the part from touching your clothing. Most clothing is insulative and retains a charge even when
you are wearing a wrist strap.
• Use the black side of a grounded work mat to provide a static-free work surface. The mat is especially
useful when handling ESD-sensitive devices.
• Select a grounding system, such as those listed below, to provide protection that meets the specific
service requirement.
Note: The use of a grounding system is desirable but not required to protect against ESD damage.
– Attach the ESD ground clip to any frame ground, ground braid, or green-wire ground.
– Use an ESD common ground or reference point when working on a double-insulated or battery-
operated system. You can use coax or connector-outside shells on these systems.
– Use the round ground-prong of the AC plug on AC-operated computers.
Grounding requirements
Electrical grounding of the computer is required for operator safety and correct system function. Proper
grounding of the electrical outlet can be verified by a certified electrician.
Safety notices
The CAUTION and DANGER safety notices in this section are provided in the language of English.
DANGER
Electrical current from power, telephone and communication cables is hazardous.
To avoid a shock hazard:
• Do not connect or disconnect any cables or perform installation, maintenance, or reconfiguration
of this product during an electrical storm.
• Connect all power cords to a properly wired and grounded electrical outlet.
• Connect any equipment that will be attached to this product to a properly wired outlet.
• When possible, use one hand only to connect or disconnect signal cables.
• Never turn on any equipment when there is evidence of fire, water, or structural damage.
• Disconnect the attached power cords, telecommunications cables, network cables, and modem
cables before you open the device covers, unless instructed otherwise in the installation and
configuration procedures.
6ideacentre All-In-One 730S Computer Hardware Maintenance Manual
• Connect and disconnect cables as described in the following table when installing, moving, or
opening covers on this product or attached devices.
To Connect To Disconnect
1. Turn everything OFF.
2. First, attach all cables to devices.
3. Attach signal cables to connectors.
4. Attach power cords to outlet.
5. Turn device ON.
1. Turn everything OFF.
2. First, remove power cords from outlets.
3. Remove signal cables from connectors.
4. Remove all cables from devices.
CAUTION:
When replacing the lithium battery, use only Part Number 45C1566 or an equivalent type battery
recommended by the manufacturer. If your system has a module containing a lithium battery, replace
it only with the same module type made by the same manufacturer. The battery contains lithium and
can explode if not properly used, handled, or disposed of.
Do not:
• Throw into or immerse in water
• Heat to more than 100°C (212°F)
• Repair or disassemble
Dispose of the battery as required by local ordinances or regulations.
CAUTION:
When laser products (such as CD-ROMs, DVD-ROM drives, fiber optic devices, or transmitters) are
installed, note the following:
• Do not remove the covers. Removing the covers of the laser product could result in exposure to
hazardous laser radiation. There are no serviceable parts inside the device.
• Use of controls or adjustments or performance of procedures other than those specified herein
might result in hazardous radiation exposure.
DANGER
Some laser products contain an embedded Class 3A or Class 3B laser diode. Note the following:
These diodes emit radiation when open. Do not stare into the beam, do not view directly with optical
instruments, and avoid direct exposure to the beam.
Chapter 2.Safety information 7
≥18 kg (37 lbs) ≥32 kg (70.5 lbs) ≥55 kg (121.2 lbs)
CAUTION:
Use safe practices when lifting.
CAUTION:
The power control button on the device and the power switch on the power supply do not turn off the
electrical current supplied to the device. The device also might have more than one power cord. To
remove all electrical current from the device, ensure that all power cords are disconnected from the
power source.
1
2
CAUTION:
Do not place any object weighing more than 82 kg (180 lbs.) on top of rack-mounted devices.
8ideacentre All-In-One 730S Computer Hardware Maintenance Manual
Chapter 3. General information
This chapter provides general information that applies to all computer models covered by this manual.
Specifications
This section lists the physical specifications for your computer.
This section lists the physical specifications for your computer.
Type Lenovo All-In-One 730S
This section lists the physical specifications.
Environment
Air temperature:
Operating: 10° to 35°C
Transit: -20° to 55°C
Humidity:
Operating: 35% to 80%
Transit: 20% to 90% (40°C)
Altitude: 86KPa to 106KPa
Electrical input:
Input voltage: 90V-264V(AC)
Input frequency: 47Hz-63Hz
© Copyright Lenovo 2018 9
10 ideacentre All-In-One 730S Computer Hardware Maintenance Manual
Chapter 4. General Checkout
Attention: The drives in the computer you are servicing might have been rearranged or the drive startup
sequence may have been changed. Be extremely careful during write operations such as copying, saving, or
formatting. Data or programs can be overwritten if you select an incorrect drive.
General error messages appear if a problem or conflict is found by an application, the operating system, or
both. For an explanation of these messages, refer to the information supplied with that software package.
Use the following procedure to help determine the cause of the problem:
1. Power-off the computer and all external devices.
2. Check all cables and power cords.
3. Set all display controls to the middle position.
4. Power-on all external devices.
5. Power-on the computer.
• Look for displayed error codes.
• Look for readable instructions or a main menu on the display.
If you did not receive the correct response, proceed to step 6.
If you did receive the correct response, proceed to step 7.
6. If one of the following happens, follow the instruction given:
• If the computer displays a POST error, go to “POST error codes”.
• If the computer hangs and no error is displayed, continue at step 7.
7. If the test stops and you cannot continue, replace the last device tested.
© Copyright Lenovo 2018 11
12 ideacentre All-In-One 730S Computer Hardware Maintenance Manual
Chapter 5. Using the Setup Utility
The Setup Utility program is used to view and change the configuration settings of your computer, regardless
of which operating system you are using. However, the operating system settings might override any similar
settings in the Setup Utility program.
Starting the Lenovo BIOS Setup Utility program
To start the Lenovo BIOS Setup Utility program, do the following:
1. If your computer is already on when you start this procedure, shut down the operating system and turn
off the computer.
2. Press and hold the F1 key then turn on the computer. When the Lenovo BIOS Setup Utility program is
displayed, release the F1 key.
Note: If a Power-On Password or an Administrator Password has been set, the Setup Utility program menu
will not be displayed until you type your password. For more information, see “Using passwords.”
Viewing and changing settings
System configuration options are listed in the Lenovo BIOS Setup Utility program menu. To view or change
settings, see “Starting the Setup Utility program.”
You must use the keyboard when using the Lenovo BIOS Setup Utility menu. The keys used to perform
various tasks are displayed on the bottom of each screen.
Using passwords
You can use the Lenovo BIOS Setup Utility program to set passwords to prevent unauthorized persons from
gaining access to your computer and data. See “Starting the Setup Utility program.” The following types of
passwords are available:
• Administrator Password
• Power-On Password
You do not have to set any passwords to use your computer. However, if you decide to set passwords, read
the following sections.
Password considerations
A password can be any combination of letters and numbers up to 16 characters (a-z and 0-9). For security
reasons, it is a good idea to use a strong password that cannot be easily compromised. We suggest that
passwords should follow these rules:
• For a strong password, use 7-16 characters and a mix of letters and numbers.
• Do not use your name or your user name.
• Do not use a common word or a common name.
• Use something significantly different from your previous password.
Attention: Administrator and Power-On passwords are not case sensitive.
© Copyright Lenovo 2018 13
Administrator Password
Setting an Administrator Password deters unauthorized persons from changing configuration settings. You
might want to set an Administrator Password if you are responsible for maintaining the settings of several
computers.
After you set an Administrator Password, a password prompt is displayed every time you access the Lenovo
BIOS Setup Utility program.
If both the Administrator and Power-On Password are set, you can type either password. However, you must
use your Administrator Password to change any configuration settings.
Setting, changing, or deleting an Administrator password
To set an Administrator Password, do the following:
Note: A password can be any combination of letters and numbers up to 16 characters (a-z and 0-9). For
more information, see “Password considerations” on page 13.
1. Start the Lenovo BIOS Setup Utility program (see “Starting the Lenovo BIOS Setup Utility program” on
page 13).
2. From the Security menu, select Set Administrator Password and press the Enter key.
3. The password dialog box will be displayed. Type the password then press the Enter key.
4. Re-type the password to confirm, then press the Enter key. If you typed the password correctly, the
password will be installed.
To change an Administrator Password, do the following:
1. Start the Lenovo BIOS Setup Utility program (see “Starting the Lenovo BIOS Setup Utility program” on
page 13).
2. From the Security menu, select Set Administrator Password and press the Enter key.
3. The password dialog box will be displayed. Type the current password then press the Enter key.
4. Type the new password, then press the Enter key. Re-type the password to confirm the new password.
If you typed the new password correctly, the new password will be installed. A Setup Noticed confirming
that changes have been saved will be displayed.
To delete a previously set Administrator Password, do the following :
1. From the Security menu, select Set Administrator Password and press the Enter key.
2. The password dialog box will be displayed. Type the current password and press the Enter key.
3. To delete an Administrator Password, leave each new password line item blank, then press the Enter
key. A Setup Notice confirming that changes have been saved will be displayed.
4. Return to the Lenovo BIOS Setup Utility program menu and select the Exit option.
5. Select Save changes and Exit from the menu.
Power-On Password
When a Power-On Password is set, you cannot start the Lenovo BIOS Setup Utility program until a valid
password is typed from the keyboard.
Setting, changing, or deleting a Power-On Password
14 ideacentre All-In-One 730S Computer Hardware Maintenance Manual
Note: A password can be any combination of letters and numbers up to 16 characters (a-z and 0-9).
To set a Power-On Password, do the following:
1. Start the Lenovo BIOS Setup Utility program (See ”Starting the Lenovo BIOS Setup Utility program” on
page 13.)
2. From the Security menu, select Set Power-On Password and press the Enter key.
3. The password dialog box will be displayed. Type the password, then press the Enter key.
4. Re-type the password to confirm. If you typed the password correctly, the password will be installed.
To change a Power-On Password, do the following:
1. Start the Lenovo BIOS Setup Utility program (See ”Starting the Lenovo BIOS Setup Utility program” on
page 13.)
2. From the Security menu, select Set Power-On Password and press the Enter key.
3. The password dialog box will be displayed. Type the current password then press the Enter key.
4. Type the new password, then press the Enter key. Re-type the password to confirm the new password.
If you typed the new password correctly, the new password will be installed. A Setup Noticed confirming
that changes have been saved will be displayed.
To delete a previously set Power-On Password, do the following :
1. From the Security menu, select Set Power-On Password and press the Enter key.
2. The password dialog box will be displayed. Type the current password and press the Enter key.
3. To delete the Power-On Password, leave each new password line item blank, then press Enter. A
Setup Notice confirming that changes have been saved will be displayed.
4. Return to the Lenovo BIOS Setup Utility program menu and select the Exit option.
5. Select Save changes and Exit from the menu.
Enabling or disabling a device
The Devices options is used to enable or disable user access to the following devices:
USB Functions Select whether to enable or disable USB (Universal Serial
Bus) functions. If the functions are disabled, no USB
devices can be used.
SATA Mode When this feature is set to Disabled, all devices
connected to the SATA connectors (e.g. hard disk drives
or the optical disk drive) are disabled and cannot be
accessed.
Onboard Audio Controller Select whether to enable or disable the Onboard Audio
Controller. When this feature is set to Disabled all
devices connected to the audio connectors (e.g.
headphones or a microphone) are disabled and cannot be
used.
Onboard Ethernet Controller or LAN Boot Agent Select whether to enable or disable the Onboard
Ethernet Controller, or select whether to enable or
disable load onboard PXE (Preboot Execution
Environment).
To enable or disable a device, do the following:
Chapter 5.Using the Setup Utility 15
1. Start the Setup Utility program (see “Starting the Setup Utility program” on page 13).
2. From the Setup Utility program menu, select Devices.
3. Select an option as follows:
Select USB Setup, press the Enter key, then select USB Functions.
Select ATA Device Setup, press the Enter key, then select SATA Mode.
Select Audio Setup, press the Enter key, then select Onboard Audio Controller.
Select Network Setup, press the Enter key, then select Onboard Ethernet Support or LAN Boot
Agent.
4. Select Disabled or Enabled and press the Enter key.
5. Return to the Lenovo BIOS Setup Utility program menu and select the Exit option.
6. Select Save changes and Exit from the menu.
Notes:
a. If you do not want to save the settings, select Discard changes and Exit from the menu.
b. Select IDE/AHCI Mode: Device driver support is required for ACHI. Depending on how the hard disk
image was installed, changing this setting may prevent the system from booting.
Selecting a startup device
If your computer does not boot from a device such as the CD/DVD-ROM drive disk or hard disk as expected,
follow one of the procedures below.
Selecting a temporary startup device
Use this procedure to start up from any boot device.
Note: Not all CDs, DVDs or hard disk drives are bootable.
1. Turn off your computer.
2. Press and hold the F12 key then turn on the computer. When the Startup Device Menu appears,
release the F12 key.
Note: If the Startup Device Menu does not display using these steps, repeatedly press and release the
F12 key rather than keeping it pressed when turning on the computer.
3. Use ↑ and ↓ arrows to select the desired startup device from the Startup Device Menu and press the
Enter key to begin.
Note: Selecting a startup device from the Startup Device Menu does not permanently change the
startup sequence.
Selecting or changing the startup device sequence
To view or permanently change the configured startup device sequence, do the following:
1. Start the Lenovo BIOS Setup Utility program (see “Starting the Lenovo BIOS Setup Utility program” on
page 13).
2. From the Lenovo BIOS Setup Utility program main menu, select the Startup option.
3. Press the Enter key, and select the devices for the Primary Boot Sequence. Read the information
displayed on the right side of the screen.
4. Use ↑ and ↓ arrows to select a device. Use the <+> or <-> keys to move a device up or down. Use the
<×> key to exclude the device from or include the device in the boot sequence.
16 ideacentre All-In-One 730S Computer Hardware Maintenance Manual
5. Return to the Lenovo BIOS Setup Utility program menu and select the Exit option.
6. Select Save changes and Exit from the menu.
Notes:
a. If you do not want to save the settings, select Discard changes and Exit from the menu.
b. If you have changed these settings and want to return to the default settings, select Load Optimal
Defaults from the menu.
Exiting the Lenovo BIOS Setup Utility program
After you finish viewing or changing settings, press the Esc key to return to the Lenovo BIOS Setup Utility
program main menu. You might have to press the Esc key several times. Do one of the following:
• If you want to save the new settings, select Save changes and Exit from the menu. When the Save &
reset window shows, select the Yes button, and then press the Enter key to exit the Lenovo BIOS Setup
Utility program.
• If you do not want to save the settings, select Discard changes and Exit from the menu. When the Reset
Without Saving window shows, select the Yes button, and then press the Enter key to exit the Lenovo
BIOS Setup Utility program.
Chapter 5.Using the Setup Utility 17
18 ideacentre All-In-One 730S Computer Hardware Maintenance Manual
Chapter 6. Symptom-to-FRU Index
The Symptom-to-FRU index lists error symptoms and possible causes. The most likely cause is listed first.
Always begin with Chapter 4, “General Checkout,” on page 11. This index can also be used to help you
decide which FRUs to have available when servicing a computer. If you are unable to correct the problem
using this index, go to “Undetermined problems” on page 20.
Notes:
• If you have both an error message and an incorrect audio response, diagnose the error message first.
• If you cannot run the diagnostic tests or you get a diagnostic error code when running a test but did
receive a POST error message, diagnose the POST error message first.
• If you did not receive any error message look for a description of your error symptoms in the first part of
this index.
Hard disk drive boot error
A hard disk drive boot error can be caused by the following.
Error FRU/Action
The startup drive is not included in the boot sequence
configuration.
Check the configuration and ensure the startup drive is in
the boot sequence.
No operating system is installed on the boot drive. Install an operating system on the boot drive.
The boot sector on the startup drive is corrupted. The drive must be formatted. Do the following:
1. Attempt to back up the data on the failing hard disk
drive.
2. Use the operating system to format the hard disk
drive.
The drive is defective. Replace the hard disk drive.
Power Supply Problems
Follow these procedures if you suspect there is a power supply problem.
Check/Verify FRU/Action
Check that the following are properly installed:
• Power Cord
• On/Off Switch connector
• System Board Power Supply connectors
• Microprocessor connections
Reseat connectors
Check the power cord. Power Cord
Check the power-on switch. Power-on Switch
© Copyright Lenovo 2018 19
POST error codes
Each time you turn the computer on, it performs a series of tests to check that the system is operating
correctly and that certain options are set. This series of tests is called the Power-On Self-Test, or POST.
POST does the following:
• Checks some basic motherboard operations
• Checks that the memory is working correctly
• Starts video operations
• Verifies that the boot drive is working
POST Error Message Description/Action
Keyboard error Cannot initialize the keyboard. Make sure the keyboard is
properly connected to the computer and that no keys are
held pressed during POST. To purposely configure the
computer without a keyboard, select Keyboardless
operation in Startup and set the option to Enabled. The
BIOS then ignores the missing keyboard during POST.
Reboot and Select proper Boot device or Insert Boot
Media in selected Boot device
The BIOS was unable to find a suitable boot device. Make
sure the boot drive is properly connected to the
computer. Make sure you have bootable media in the
boot device.
Undetermined problems
1. Power-off the computer.
2. Remove or disconnect the following components (if connected or installed) one at a time.
a. External devices (modem, printer, or mouse)
b. Extended video memory
c. External Cache
d. External Cache RAM
e. Hard disk drive
f. Disk drive
3. Power-on the computer to re-test the system.
4. Repeat steps 1 through 3 until you find the failing device or component.
If all devices and components have been removed and the problem continues, replace the system board.
20 ideacentre All-In-One 730S Computer Hardware Maintenance Manual
Chapter 7. Locating connectors, controls and components
This section provides illustrations to help locate the various connectors, controls and components of the
computer.
Font view
The following illustration shows the location of controls and components on the front of the computer.
Attention: Be careful not to block any air vents on the computer. Blocked air vents can cause overheating.
OR
1. Infrared LEDs 4. Built-in camera
2. Built-in camera 5. Power indicator
3. Infrared LEDs
© Copyright Lenovo 2018 21
Bottom view of the computer
The following illustration shows the location of connectors, controls and components on the bottom of the
computer.
1. Camera sliding cover 3. Memory card reader
2. Combo audio jack 4. Air vents
22 ideacentre All-In-One 730S Computer Hardware Maintenance Manual
Rear view
The following illustration shows the location of connectors and components on the rear of the computer.
1. Power button 6. USB 3.1 Gen 1 (5Gbps) Type-C connector (only
supports USB data transmission)
2. HDMITM in/out switch 7. USB 3.0 connector
3. HDMITM 1.4 in/out connector 8. USB 3.0 connector
4. Power connector 9. USB 3.0 connector
5. Ethernet connector
Chapter 7.Locating connectors, controls and components 23
Hardware components
The following illustration shows the components that make up your computer.
1. Stand base 14. Rear cover
2. Cable clip 15. Front decorative cover
3. Stand holder 16. Speakers module
4. Hinge cover 17. Wi-Fi antennas
5. Wi-Fi card 18. LED panel
6. Solid state drive 19. LED frame
7. Memory card 20. Heatsink
8. Power cord and adapter 21. System fan
9. Keyboard and mouse 22. Motherboard top frame
10. Motherboard base frame 23. Camera module
11. Motherboard 24. Wi-Fi cover
12. HDD bracket 25. HDMI switch board
13. Hard disk drive 26. Power button board
24 ideacentre All-In-One 730S Computer Hardware Maintenance Manual
Identifying parts on the motherboard
The motherboard (sometimes called the planar or system board) is the main circuit board in your computer. It
provides basic computing functions and supports a variety of devices that are factory-installed or that you
can install later. The following illustration shows the location of connectors and components on the front of
the motherboard.
AIO 730S–24IKB
1
2
3
4
5678910 11 12 13
14
15
16
17
18
19
20
21
1. LVDS connector 12. USB 3.0 connectors(3)
2. Backlight connector 13. Speaker connector
3. Touch panel connector 14. DMIC connector
4. Power switch board connector 15. IR Web camera connector
5. Wifi connector 16. System fan connector
6. CPU 17. DC—IN connector
7. HDMI in/out connector 18. SATA connector
8. Card reader 19. Battery
9. Audio Combo Jack 20. RAM connector
10. Ethernet connector 21. SSD connector
11. USB 3.1 Gen 1 Type-C connector
Chapter 7.Locating connectors, controls and components 25
26 ideacentre All-In-One 730S Computer Hardware Maintenance Manual
Chapter 8. Replacing hardware
Attention: Do not remove the computer cover or attempt any repair before reading the “Important safety information”
in the Safety and Warranty Guide that was included with your computer. To obtain copies of the Safety and Warranty
Guide, go to the Support Web site at: http://consumersupport.lenovo.com.
Note: Use only parts provided by Lenovo.
General information
Pre-disassembly instructions
Before starting the disassembly procedure, make sure that you do the following:
1. Turn off the power to the system and all peripherals.
2. Unplug all power and signal cables from the computer.
3. Place the system on a flat, stable surface.
© Copyright Lenovo 2018 27
Replacing the keyboard and mouse
Note: Your keyboard will be connected to a USB connector at either side or at the rear of the computer.
To replace the keyboard and mouse:
Step 1. Remove any media from the drives, shut down the computer, and turn off all attached devices.
Step 2. Unplug all power cords from electrical outlets.
Step 3. Disconnect all cables attached to the computer. This includes power cords, input/output (I/O)
cables, and any other cables that are connected to the computer. .
Step 4. Locate the connector for the keyboard. Refer to Locating connectors, controls and components to
locate the various connectors.
Step 5. Disconnect the defective keyboard cable from the computer and connect the new keyboard cable
to the same connector.
Step 6. The mouse can be replaced using the same method.
Replacing the adapter
Attention: Turn off the computer and wait 3 to 5 minutes to let it cool down before removing the cover.
Step 1. Remove any media from the drives, shut down the operating system, and turn off the computer and
all attached devices.
Step 2. Disconnect the adapter from the connector on the computer, then unplug the adapter from
electrical outlet.
Step 3. Connect the new adapter as shown.
28 ideacentre All-In-One 730S Computer Hardware Maintenance Manual
Removing the stand base
Attention: Turn off the computer and wait 3 to 5 minutes to let it cool down before removing the cover.
Note: It may be helpful to place the computer face-down on a soft flat surface for this procedure. Lenovo
recommends that you use a blanket, towel, or other soft cloth to protect the touch screen from scratches or
other damage.
Step 1. Remove any media from the drives, shut down the operating system, and turn off the computer and
all attached devices.
Step 2. Unplug all power cords from electrical outlets.
Step 3. Disconnect all cables attached to the computer. This includes power cords, input/output (I/O)
cables, and any other cables that are connected to the computer. Refer to Locating connectors,
controls and components to locate the various connectors.
Step 4. Twist the hand screw ring counter-clockwise until the stand base is loosened. a
Step 5. Remove the stand base from the stand holder and put it aside. b
Removing the rear cover
Attention: Turn off the computer and wait 3 to 5 minutes to let it cool down before removing the cover.
Note: It may be helpful to place the computer face-down on a soft flat surface for this procedure. Lenovo
recommends that you use a blanket, towel, or other soft cloth to protect the touch screen from scratches or
other damage.
Chapter 8.Replacing hardware 29
Step 1. Remove any media from the drives, shut down the operating system, and turn off the computer and
all attached devices.
Step 2. Unplug all power cords from electrical outlets.
Step 3. Disconnect all cables attached to the computer. This includes power cords, input/output (I/O)
cables, and any other cables that are connected to the computer. Refer to Locating connectors,
controls and components to locate the various connectors.
Step 4. Remove the stand base. Refer to Removing the stand base.
Step 5. Remove the hinge covers, and then rotate the screwdriver 90 degrees to the right.
1
2
2
Step 6. lift up the rear cover and slide it out to the bottom direction.
1
2
Step 7. Unplug the cables that connect to the Motherboard.
Step 8. To reattach the rear cover:
a. Align the rear cover with the chassis.
b. Press the rear cover until it snaps into position.
30 ideacentre All-In-One 730S Computer Hardware Maintenance Manual
Removing the stand holder
Attention: Turn off the computer and wait 3 to 5 minutes to let it cool down before removing the cover.
Note: It may be helpful to place the computer face-down on a soft flat surface for this procedure. Lenovo
recommends that you use a blanket, towel, or other soft cloth to protect the touch screen from scratches or
other damage.
Step 1. Remove any media from the drives, shut down the operating system, and turn off the computer and
all attached devices.
Step 2. Unplug all power cords from electrical outlets.
Step 3. Disconnect all cables attached to the computer. This includes power cords, input/output (I/O)
cables, and any other cables that are connected to the computer. Refer to Locating connectors,
controls and components to locate the various connectors.
Step 4. Remove the stand base. Refer to Removing the stand base.
Step 5. Remove the rear cover. Refer to Removing the rear cover.
Step 6. Remove the four screws.
Step 7. To reattach the stand holder:
a. Align the holes in the stand holder with the corresponding holes in the chassis.
b. Secure the stand holder to the chassis with screws.
Step 8. Reattach the rear cover, and stand base.
Chapter 8.Replacing hardware 31
Replacing the hard disk drive
Attention: Turn off the computer and wait 3 to 5 minutes to let it cool down before removing the cover.
Note: It may be helpful to place the computer face-down on a soft flat surface for this procedure. Lenovo
recommends that you use a blanket, towel, or other soft cloth to protect the touch screen from scratches or
other damage.
To replace the hard disk drive:
Step 1. Remove any media from the drives, shut down the operating system, and turn off the computer and
all attached devices.
Step 2. Unplug all power cords from electrical outlets.
Step 3. Disconnect all cables attached to the computer. This includes power cords, input/output (I/O)
cables, and any other cables that are connected to the computer. Refer to Locating connectors,
controls and components to locate the various connectors.
Step 4. Remove the stand base. Refer to Removing the stand base.
Step 5. Remove the rear cover. Refer to Removing the rear cover.
Step 6. Remove the four screws that secure the hard disk drive to the bracket.
Step 7. Disconnect the signal cable from the hard disk drive.
Step 8. Remove the HDD cover show as below:
32 ideacentre All-In-One 730S Computer Hardware Maintenance Manual
Step 9. To install the new hard disk drive:
a. Line up the new hard disk drive with the bracket and secure it with four screws.
b. Connect the data and power cables to the new hard disk drive.
c. Slide the hard disk drive and bracket back into position.
Step 10. Reattach the rear cover and stand base.
Replacing the HDMI switch board
Note: Turn off the computer and wait 3 to 5 minutes to let it cool down before removing the cover.
Note: It may be helpful to place the computer face-down on a soft flat surface for this procedure. Lenovo
recommends that you use a blanket, towel, or other soft cloth to protect the computer screen from scratches
or other damage.
To replace the HDMI switch board
Step 1. Remove any media from the drives, shut down the operating system, and turn off the computer and
all attached devices.
Step 2. Unplug all power cords from electrical outlets.
Step 3. Disconnect all cables attached to the computer. This includes power cords, input/output (I/O)
cables, and any other cables that are connected to the computer. Refer to Locating connectors,
controls and components to locate the various connectors.
Step 4. Remove the stand base. Refer to Removing the stand base.
Step 5. Remove the rear cover. Refer to Removing the rear cover.
Step 6. Disconnect the cable from the HDMI switch board.
Step 7. Remove the two screws that secure the HDMI switch board to the motherboard frame, and then lift
it up.
Chapter 8.Replacing hardware 33
Step 8. To install the new HDMI switch board:
a. Align the holes in the DMI switch board with the mounting holes in the motherboard frame.
b. Secure the HDMI switch board to the chassis with two screws.
Removing the motherboard frame
Note: Turn off the computer and wait 3 to 5 minutes to let it cool down before removing the cover.
Note: It may be helpful to place the computer face-down on a soft flat surface for this procedure. Lenovo
recommends that you use a blanket, towel, or other soft cloth to protect the computer screen from scratches
or other damage.
To remove the middle cover:
Step 1. Remove any media from the drives, shut down the operating system, and turn off the computer and
all attached devices.
Step 2. Unplug all power cords from electrical outlets.
Step 3. Disconnect all cables attached to the computer. This includes power cords, input/output (I/O)
cables, and any other cables that are connected to the computer. Refer to Locating connectors,
controls and components to locate the various connectors.
Step 4. Remove the stand base. Refer to Removing the stand base.
Step 5. Remove the rear cover. Refer to Removing the rear cover.
Step 6. Remove the HDMI switch board. Refer to Replacing the HDMI switch board.

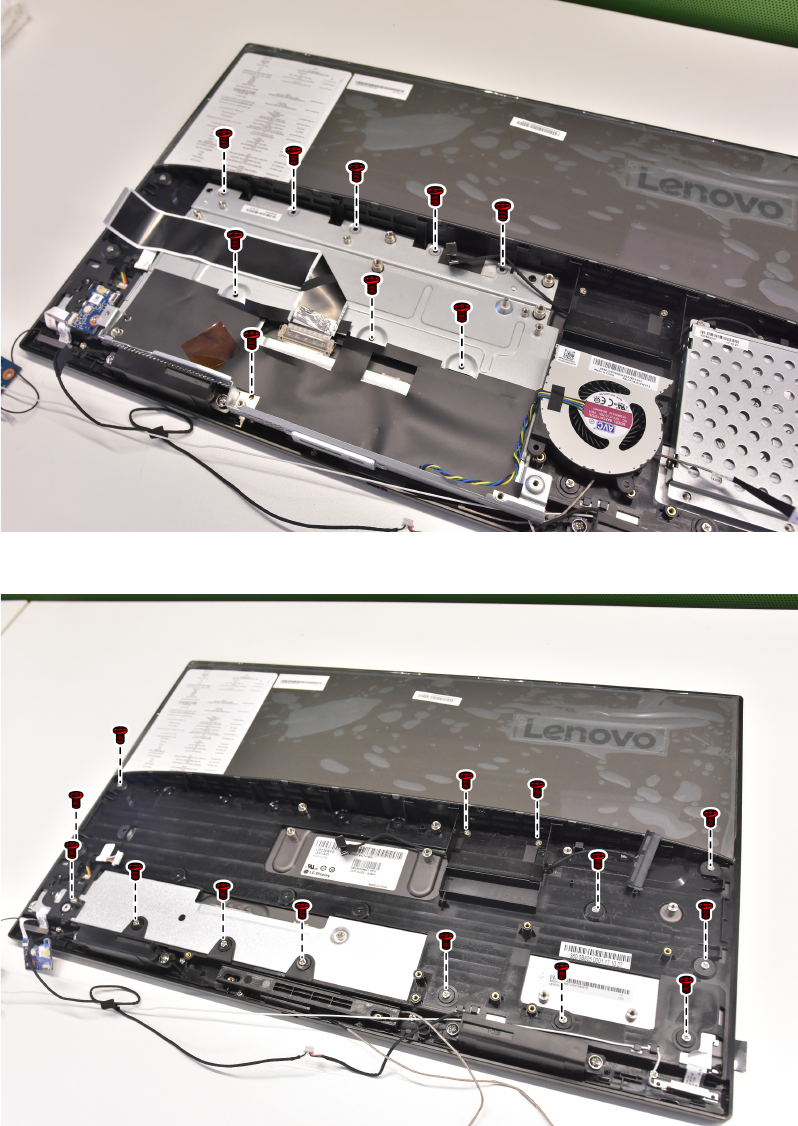

Step 7. Remove the four screws that secure the motherboard frame to the chassis. Lift up the middle cover
as shown.
34 ideacentre All-In-One 730S Computer Hardware Maintenance Manual
Step 8. To reattach the motherboard frame:
a. Line up the motherboard frame with the chassis.
b. Secure the motherboard frame to the chassis with four screws.
Step 9. Reattach the rear cover, and stand base.
Replacing the speaker system
Note: Turn off the computer and wait 3 to 5 minutes to let it cool down before removing the cover.
Note: It may be helpful to place the computer face-down on a soft flat surface for this procedure. Lenovo
recommends that you use a blanket, towel, or other soft cloth to protect the computer screen from scratches
or other damage.
To replace the speaker system:
Step 1. Remove any media from the drives, shut down the operating system, and turn off the computer and
all attached devices.
Step 2. Unplug all power cords from electrical outlets.
Step 3. Disconnect all cables attached to the computer. This includes power cords, input/output (I/O)
cables, and any other cables that are connected to the computer. Refer to Locating connectors,
controls and components to locate the various connectors.
Step 4. Remove the stand base. Refer to Removing the stand base.
Step 5. Remove the rear cover. Refer to Removing the rear cover.
Step 6. Remove the motherboard frame. Refer to Removing the motherboard frame.
Step 7. Disconnect the speaker system cable from the connector on the motherboard, and then remove
the screws that secure the speakers to the chassis.
Step 8. Lift up the speaker system to remove it.
Chapter 8.Replacing hardware 35
Step 9. To install the new speaker system:
a. Secure the new speaker system to the chassis with screws.
b. Connect the cable to the motherboard.
Step 10. Reattach the motherboard frame, rear cover, and stand base.
Replacing the power button board
Note: Turn off the computer and wait 3 to 5 minutes to let it cool down before removing the cover.
Note: It may be helpful to place the computer face-down on a soft flat surface for this procedure. Lenovo
recommends that you use a blanket, towel, or other soft cloth to protect the computer screen from scratches
or other damage.
To replace the power button board
Step 1. Remove any media from the drives, shut down the operating system, and turn off the computer and
all attached devices.
Step 2. Unplug all power cords from electrical outlets.
Step 3. Disconnect all cables attached to the computer. This includes power cords, input/output (I/O)
cables, and any other cables that are connected to the computer. Refer to Locating connectors,
controls and components to locate the various connectors.
Step 4. Remove the stand base. Refer to Removing the stand base.
Step 5. Remove the rear cover. Refer to Removing the rear cover.
Step 6. Disconnect the cables from the power button board.
Step 7. Remove the screw that secure the power button board to the chassis, and then lift it up.
36 ideacentre All-In-One 730S Computer Hardware Maintenance Manual
Step 8. To install the new power button board:
a. Align the holes in the power button board with the mounting holes in the chassis.
b. Secure the power button board to the chassis with the screw.
Step 9. Reattach the rear cover, and stand base.
Replacing the system fan
Note: Turn off the computer and wait 3 to 5 minutes to let it cool down before removing the cover.
Note: It may be helpful to place the computer face-down on a soft flat surface for this procedure. Lenovo
recommends that you use a blanket, towel, or other soft cloth to protect the computer screen from scratches
or other damage.
To replace the system fan
Step 1. Remove any media from the drives, shut down the operating system, and turn off the computer and
all attached devices.
Step 2. Unplug all power cords from electrical outlets.
Step 3. Disconnect all cables attached to the computer. This includes power cords, input/output (I/O)
cables, and any other cables that are connected to the computer. Refer to Locating connectors,
controls and components to locate the various connectors.
Step 4. Remove the stand base. Refer to Removing the stand base.
Step 5. Remove the rear cover. Refer to Removing the rear cover.
Step 6. Remove the motherboard frame. Refer to Removing the motherboard frame.
Step 7. Disconnect the system fan power cable from the motherboard.
Step 8. Remove the three screws that secures the system fan to the chassis.
Chapter 8.Replacing hardware 37
Step 9. Lift the system fan up to remove it.
Step 10. To install the new system fan:
a. Place the new system fan into position, and then secure it to the chassis with three screws.
b. Connect the system fan power cable to the connector on the motherboard.
Step 11. Reattach the motherboard frame, rear cover and stand base.
Replacing the heat-sink
Note: Turn off the computer and wait 3 to 5 minutes to let it cool down before removing the cover.
Note: It may be helpful to place the computer face-down on a soft flat surface for this procedure. Lenovo
recommends that you use a blanket, towel, or other soft cloth to protect the computer screen from scratches
or other damage.
To replace the heat-sink:
Step 1. Remove any media from the drives, shut down the operating system, and turn off the computer and
all attached devices.
Step 2. Unplug all power cords from electrical outlets.
Step 3. Disconnect all cables attached to the computer. This includes power cords, input/output (I/O)
cables, and any other cables that are connected to the computer. Refer to Locating connectors,
controls and components to locate the various connectors.
Step 4. Remove the stand base. Refer to Removing the stand base.
Step 5. Remove the rear cover. Refer to Removing the rear cover.
Step 6. Remove the motherboard frame. Refer to Removing the motherboard frame.
Step 7. Loosen the seven screws that secure the heat-sink to the motherboard, and then lift up the heat-
sink and remove it.
38 ideacentre All-In-One 730S Computer Hardware Maintenance Manual
Attention: Place the heat-sink upside down on a flat surface to prevent thermal grease from contaminating
other components.
Attention: Use an alcohol pad to wipe the thermal grease off the CPU.
Step 8. To install the new heat-sink:
a. Position the new heat-sink on the motherboard so that the seven screws are aligned with the
holes in the motherboard and wind shielding.
b. Tighten the screws in numeric order to secure the new heat-sink to the motherboard.
Step 9. Reattach the motherboard frame, rear cover and stand base.
Replacing the memory module
Attention: Turn off the computer and wait 3 to 5 minutes to let it cool down before removing the cover.
Note: It may be helpful to place the computer face-down on a soft flat surface for this procedure. Lenovo
recommends that you use a blanket, towel, or other soft cloth to protect the touch screen from scratches or
other damage.
To replace the memory module:
Step 1. Remove any media from the drives, shut down the operating system, and turn off the computer and
all attached devices.
Step 2. Unplug all power cords from electrical outlets.
Step 3. Disconnect all cables attached to the computer. This includes power cords, input/output (I/O)
cables, and any other cables that are connected to the computer. Refer to Locating connectors,
controls and components to locate the various connectors.
Step 4. Remove the stand base. Refer to Removing the stand base.
Step 5. Remove the rear cover. Refer to Removing the rear cover.
Chapter 8.Replacing hardware 39
Step 6. Remove the motherboard frame. Refer to Removing the motherboard frame.
Step 7. Push out the latches on both sides of the memory socket to release the memory module and gently
pull the memory module upward to remove it from its socket.
Step 8.
Step 9. To install the new memory module:
a. Position the new memory module over the memory slot. Ensure that the notch 2 on the
memory module aligns correctly with the slot key 1 in the memory socket. Press the memory
module down until snaps into position.
b. Reinstall the memory cover.
Step 10. Reattach the motherboard frame, rear cover and stand base.
Replacing the solid state drive
Attention: Turn off the computer and wait 3 to 5 minutes to let it cool down before removing the cover.
Note: It may be helpful to place the computer face-down on a soft flat surface for this procedure. Lenovo
recommends that you use a blanket, towel, or other soft cloth to protect the touch screen from scratches or
other damage.
40 ideacentre All-In-One 730S Computer Hardware Maintenance Manual
To replace the solid state drive:
Step 1. Remove any media from the drives, shut down the operating system, and turn off the computer and
all attached devices.
Step 2. Unplug all power cords from electrical outlets.
Step 3. Disconnect all cables attached to the computer. This includes power cords, input/output (I/O)
cables, and any other cables that are connected to the computer. Refer to Locating connectors,
controls and components to locate the various connectors.
Step 4. Remove the stand base. Refer to Removing the stand base.
Step 5. Remove the rear cover. Refer to Removing the rear cover.
Step 6. Remove the motherboard frame. Refer to Removing the motherboard frame.
Step 7. Remove the screw that secure the solid state drive to the motherboard, and then slide out the solid
state drive.
Step 8. To install the new solid state drive:
a. Insert the solid state drive into the slot.
b. Secure the new solid state drive to motherboard with one screw.
Step 9. Reattach the motherboard frame, rear cover and stand base.
Replacing the Wi-Fi card
Note: Turn off the computer and wait 3 to 5 minutes to let it cool down before removing the cover.
Note: It may be helpful to place the computer face-down on a soft flat surface for this procedure. Lenovo
recommends that you use a blanket, towel, or other soft cloth to protect the computer screen from scratches
or other damage.
To replace the Wi-Fi card:
Chapter 8.Replacing hardware 41
Step 1. Remove any media from the drives, shut down the operating system, and turn off the computer and
all attached devices.
Step 2. Unplug all power cords from electrical outlets.
Step 3. Disconnect all cables attached to the computer. This includes power cords, input/output (I/O)
cables, and any other cables that are connected to the computer. Refer to Locating connectors,
controls and components to locate the various connectors.
Step 4. Remove the stand base. Refer to Removing the stand base.
Step 5. Remove the rear cover. Refer to Removing the rear cover.
Step 6. Remove the motherboard frame. Refer to Removing the motherboard frame.
Step 7. Remove the screw that secures the Wi-Fi card to the motherboard.
Step 8. Disconnect the antenna cables from the Wi-Fi card.
Step 9. Pull the Wi-Fi card out of the slot.
Step 10. To install the new Wi-Fi card:
a. Insert the new Wi-Fi card into the Wi-Fi card slot.
b. Connect the antenna cables to the new Wi-Fi card.
c. Secure new the Wi-Fi card to the motherboard with the screw.
Step 11. Reattach the motherboard frame, rear cover and stand base.
Replacing the motherboard
Note: Turn off the computer and wait 3 to 5 minutes to let it cool down before removing the cover.
Note: It may be helpful to place the computer face-down on a soft flat surface for this procedure. Lenovo
recommends that you use a blanket, towel, or other soft cloth to protect the computer screen from scratches
or other damage.
To replace the motherboard:
42 ideacentre All-In-One 730S Computer Hardware Maintenance Manual
Step 1. Remove any media from the drives, shut down the operating system, and turn off the computer and
all attached devices.
Step 2. Unplug all power cords from electrical outlets.
Step 3. Disconnect all cables attached to the computer. This includes power cords, input/output (I/O)
cables, and any other cables that are connected to the computer. Refer to Locating connectors,
controls and components to locate the various connectors.
Step 4. Remove the stand base. Refer to Removing the stand base.
Step 5. Remove the rear cover. Refer to Removing the rear cover.
Step 6. Remove the motherboard frame. Refer to Removing the motherboard frame.
Step 7. Remove the heat-sink. Refer to Replacing the heat-sink.
Step 8. Remove the memory modules. Refer to Replacing the memory module.
Step 9. Remove the solid state drive. Refer to Replacing the solid state drive.
Step 10. Remove the Wi-Fi card. Refer to Replacing the Wi-Fi card.
Step 11. Remove all the cables from the motherboard.
Step 12. Remove the six screws that secure the motherboard to the chassis, and then lift the motherboard
up to remove it.
Step 13. To install the new motherboard:
a. Align the six screw holes in the new motherboard with the screw holes in the chassis.
b. Secure the new motherboard to the chassis with six screws.
c. Connect all the cables to the new motherboard.
Step 14. Install the following parts to the new motherboard:
• Wi-Fi card
• Heat-sink
• Solid state drive
Chapter 8.Replacing hardware 43
• Memory module
Step 15. Reattach the motherboard frame, rear cover and stand base.
Replacing the camera module
Note: Turn off the computer and wait 3 to 5 minutes to let it cool down before removing the cover.
Note: It may be helpful to place the computer face-down on a soft flat surface for this procedure. Lenovo
recommends that you use a blanket, towel, or other soft cloth to protect the computer screen from scratches
or other damage.
To replace the camera module:
Step 1. Remove any media from the drives, shut down the operating system, and turn off the computer and
all attached devices.
Step 2. Unplug all power cords from electrical outlets.
Step 3. Disconnect all cables attached to the computer. This includes power cords, input/output (I/O)
cables, and any other cables that are connected to the computer. Refer to Locating connectors,
controls and components to locate the various connectors.
Step 4. Remove the stand base. Refer to Removing the stand base.
Step 5. Remove the rear cover. Refer to Removing the rear cover.
Step 6. Remove the stand holder. Refer to Removing the stand holder.
Step 7. Remove the motherboard frame. Refer to Removing the motherboard frame.
Step 8. Remove the motherboard. Refer toReplacing the motherboard
Step 9. Disconnect the camera cable from the corresponding connector on the motherboard.
Step 10. Remove the LVDS cable from the connectors in the LCD panel.
Step 11. Remove the motherboard base frame.
44 ideacentre All-In-One 730S Computer Hardware Maintenance Manual
Step 12. Remove the screws that secure the camera module to the chassis, and lift it up.
Step 13. To install the new camera module:
a. Place the new camera module into position, secure the module to the chassis with screws
b. Connect the camera cable to the motherboard.
Step 14. Reattach the motherboard base frame, motherboard, motherboard top frame, rear cover and stand
base.
Replacing the microphone module
Note: Turn off the computer and wait 3 to 5 minutes to let it cool down before removing the cover.
Note: It may be helpful to place the computer face-down on a soft flat surface for this procedure. Lenovo
recommends that you use a blanket, towel, or other soft cloth to protect the computer screen from scratches
or other damage.
To replace the speaker system:
Step 1. Remove any media from the drives, shut down the operating system, and turn off the computer and
all attached devices.
Step 2. Unplug all power cords from electrical outlets.
Step 3. Disconnect all cables attached to the computer. This includes power cords, input/output (I/O)
cables, and any other cables that are connected to the computer. Refer to Locating connectors,
controls and components to locate the various connectors.
Step 4. Remove the stand base. Refer to Removing the stand base.
Step 5. Remove the rear cover. Refer to Removing the rear cover.
Step 6. Remove the stand holder. Refer to Removing the stand holder.
Step 7. Remove the motherboard frame. Refer to Removing the motherboard frame.
Step 8. Remove the motherboard. Refer toReplacing the motherboard
Chapter 8.Replacing hardware 45
Step 9. Remove the camera module. Refer toReplacing the camera module
Step 10. Disconnect the microphone module cable and lift up the microphone module to remove it.
Step 11. To install the new microphone module:
a. Secure the new microphone module to the frame.
b. Connect the cable to the motherboard.
Step 12. Reattach the motherboard base frame, motherboard, motherboard top frame, rear cover and stand
base.
Replacing the front decorative cover
Note: Turn off the computer and wait 3 to 5 minutes to let it cool down before removing the cover.
Note: It may be helpful to place the computer face-down on a soft flat surface for this procedure. Lenovo
recommends that you use a blanket, towel, or other soft cloth to protect the computer screen from scratches
or other damage.
To replace the front decorative cover
Step 1. Remove any media from the drives, shut down the operating system, and turn off the computer and
all attached devices.
Step 2. Unplug all power cords from electrical outlets.
Step 3. Disconnect all cables attached to the computer. This includes power cords, input/output (I/O)
cables, and any other cables that are connected to the computer. Refer to Locating connectors,
controls and components to locate the various connectors.
Step 4. Remove the stand base. Refer to Removing the stand base.
Step 5. Remove the rear cover. Refer to Removing the rear cover.
Step 6. Remove the stand holder. Refer to Removing the stand holder.
Step 7. Remove the motherboard frame. Refer to Removing the motherboard frame.
46 ideacentre All-In-One 730S Computer Hardware Maintenance Manual
Step 8. Remove the motherboard. Refer toReplacing the motherboard
Step 9. Remove the LVDS and touch(touch model only) cables from the connectors in the LCD panel.
Step 10. Remove the motherboard base frame.
Step 11. Remove the four screws that secure the front decorative cover to the chassis.
Step 12. Lift up the front decorative cover as shown to remove it.
Chapter 8.Replacing hardware 47
Step 13. To install the new front decorative cover:
a. Align the new front decorative cover with the chassis.
b. Secure the new front decorative cover to the chassis with screws.
c. Connect the touch(touch model only), LVDS cables to the connectors in the new LCD panel.
Step 14. Reattach the stand holder, rear cover and stand base.
Replacing the LCD panel module
Note: Turn off the computer and wait 3 to 5 minutes to let it cool down before removing the cover.
Note: It may be helpful to place the computer face-down on a soft flat surface for this procedure. Lenovo
recommends that you use a blanket, towel, or other soft cloth to protect the computer screen from scratches
or other damage.
To replace the LCD panel module:
Step 1. Remove any media from the drives, shut down the operating system, and turn off the computer and
all attached devices.
Step 2. Unplug all power cords from electrical outlets.
Step 3. Disconnect all cables attached to the computer. This includes power cords, input/output (I/O)
cables, and any other cables that are connected to the computer. Refer to Locating connectors,
controls and components to locate the various connectors.
Step 4. Remove the stand base. Refer to Removing the stand base.
Step 5. Remove the rear cover. Refer to Removing the rear cover.
Step 6. Remove the stand holder. Refer to Removing the stand holder.
Step 7. Remove the motherboard frame. Refer to Removing the motherboard frame.
Step 8. Remove the motherboard. Refer to Replacing the motherboard.
Step 9. Remove the front decorative cover. Refer to Replacing the front decorative cover
48 ideacentre All-In-One 730S Computer Hardware Maintenance Manual
Step 10. Remove the LVDS and Touch cables from the connectors in the LCD panel.
Step 11. Remove the motherboard base frame.
Step 12. Remove the screws that secure the main frame to the LCD panel.
Chapter 8.Replacing hardware 49
Step 13. Separate the LCD panel from the main frame as shown.
50 ideacentre All-In-One 730S Computer Hardware Maintenance Manual
Step 14. To install the new the LCD panel module:
a. Align the new LCD panel with the main frame.
b. Secure the new LCD panel to the main frame with screws.
c. Connect the touch(touch model only) and LVDS cables to the connectors in the new LCD
panel.
Step 15. Reattach the motherboard base frame, motherboard, motherboard top frame, stand holder, rear
cover and stand base.
Chapter 8.Replacing hardware 51
52 ideacentre All-In-One 730S Computer Hardware Maintenance Manual
Chapter 9. FRU lists
This chapter lists the information on the field replaceable units (FRUs) for ideacentre All-In-One 730S
desktop computer.
Attention: Be sure to read and understand all the safety information before replacing any FRUs.
Notes: FRUs that have a 1 or 2 in the CRU column are Customer Replaceable Units (CRUs).
• 1– identifies parts that are fairly simple to replace, requiring few or no tools.
• 2– identifies parts that are slightly more difficult to replace.
• N-identifies parts that are not to be replaced by the customer.
ideacentre AIO 730S-24IKB Service Parts Listing
MT: F0DX F0DY
FruP/N Description
AC_ADAPTER
00PC758 AC_ADAPTER,90W,100-240Vac,3P
ANTENNA
00XJ129 Fru, AIO 730S Antenna
BDPLANAR
01LM416 i5-8250U UMA HDMI NO DPK
01LM419 i3-7020U UMA HDMI WIN DPK
01LM422 i5-8250U R530 2G HDMI NO DPK
01LM414 i7-8550U UMA HDMI NO DPK
01LM417 i5-8250U UMA HDMI WIN DPK
01LM415 i7-8550U UMA HDMI WIN DPK
01LM424 i3-7020U R530 2G HDMI NO DPK
01LM423 i5-8250U R530 2G HDMI WIN DPK
01LM418 i3-7020U UMA HDMI NO DPK
01LM420 i7-8550U R530 2G HDMI NO DPK
01LM425 i3-7020U R530 2G HDMI WIN DPK
01LM421 i7-8550U R530 2G HDMI WIN DPK
CABLE
02CW052 C.A Touch Cable AIO730S
02CW045 C.A. MIC TO MB AIO730S
02CW050 C.A HDMI cable, LGD AIO730S
02CW048 C.A. POWER_BD AIO730S
02CW049 C.A LVDS cable, AIO730S
02CW051 C.A Touch ,CONVERTER,AIO730S
© Copyright Lenovo 2018 53
02CW053 NT CONVERTER PANEL LGD T,AIO730S
02CW044 C.A. HDD SATA,AIO730S
02CW043 C.A. FR_LED_BD, AIO730S
02CW047 C.A. IR CAMERA CABLE, AVC ,AIO730S
02CW046 C.A. 2D CAMERA CABLE, AVC ,AIO730S
CARDPOP
01LM582 Power Button Board,AIO 730S
01LM583 HDMI Switch Board,AIO 730S
DISPLAY
01AG980 LGD Iron grey LM238WF2-SSKP
01AG979 LGD Iron grey touch
FAN
01YW272 70X12 Sysfan,AIO 730s
HDD_ASM
00PC559 2.5" 2TB SMR 7mm HDD FRU
00FC428 HDD,500G,5400,7mm,DT2,SATA3,STD
00PC557 HDD,1TB,5400,7mm,DT2,SATA3,SMR
HEATSINK
01YW271 DIS Thermal Module
01YW270 UMA Thermal Module
KYB_MOUSE
00PH147 Liteon SB8861 Iron Grey TW
00XH883 WL KM Calliope SR TUR
00XH881 WL KM Calliope SR THAI
00PH146 Liteon SB8861 Iron Grey US
00PH164 Liteon SB8861 Iron Grey BE_EN
00PH163 Liteon SB8861 Iron Grey EN_FR
00PH162 Liteon SB8861 Iron Grey JP
00XH867 WL KM Calliope SR JPN
00XH866 WL KM Calliope SR ITA
00PH154 Liteon SB8861 Iron Grey LA
00PH153 Liteon SB8861 Iron Grey NORDIC
00XH860 WL KM Calliope SR GER
00XH869 WL KM Calliope SR KOR
00XH857 WL KM Calliope SR FRA
00XH846 Primax RFBU71 2.4G SVG US
00XH996 2.4G SVG CZ_SL
54 ideacentre All-In-One 730S Computer Hardware Maintenance Manual
00XH894 WL KM Calliope SR CAN ENG/FRA
00XH892 WL KM Calliope SR Nordic
00XH889 WL KM Calliope SR IND ENG
00XH875 WL KM Calliope SR RUS
00PH152 Liteon SB8861 Iron Grey UK
00PH151 Liteon SB8861 Iron Grey RU
00PH150 Liteon SB8861 Iron Grey US_IN
00PH158 Liteon SB8861 Iron Grey ES
00PH169 Liteon SB8861 Iron Grey PT
00XH854 WL KM Calliope SR CZE
00PH160 Liteon SB8861 Iron Grey FR
00XH864 WL KM Calliope SR HUN
00XH863 WL KM Calliope SR HBW
00XH861 WL KM Calliope SR GRE/UK
00XH873 WL KM Calliope SR POR
00XH851 WL KM Calliope SR NoBAT BRL
00XH870 WL KM Calliope SR LA SPA
00PH149 Liteon SB8861 Iron Grey CZ_SL
00XH850 WL KM Calliope SR BEL ENG
00XH847 WL KM Calliope SR ARA
00PH148 Liteon SB8861 Iron Grey TH
00XH878 WL KM Calliope SR SPA
00XH877 WL KM Calliope SR SLK
00PH166 Liteon SB8861 Iron Grey SWISS
00PH156 Liteon SB8861 Iron Grey DE
00PH165 Liteon SB8861 Iron Grey US_EU
00PH155 Liteon SB8861 Iron Grey SA
00XH880 WL KM Calliope SR SWS
00XH885 WL KM Calliope SR Euro ENG
00XH884 WL KM Calliope SR UKE
00XH853 WL KM Calliope SR TC/ENG
00XH852 WL KM Calliope SR BUL
00XH895 WL KM Calliope SR NoBAT LA SPA
00XH886 WL KM Calliope SR SLV
LINECORD
00XL065 Fru, EU/KR,1M,3P,NON-LH
Chapter 9.FRU lists 55
00XL071 Fru, LINECORD,CH,1M,3P,NON-LH
00XL093 Fru, LINECORD,TW,1M,3P,NON-LH
00XL053 Fru, US/CA,1M,3P,NON-LH
00XL082 Fru, LINECORD,ZA,1M,3P,NON-LH
00XL076 Fru, LINECORD,GB,1M,3P,NON-LH
00XL084 Fru, LINECORD,IL,1M,3P,NON-LH
00XL003 Fru, JP,Anti-TR,1M,2P,NON-LH
00XL063 Fru, EU/KR,1M,3P,NON-LH
00XL080 Fru, LINECORD,AU,1M,3P,NON-LH
00XL073 Fru, LINECORD,IT,1M,3P,NON-LH
00XL061 Fru, LINECORD,BR,1M,3P,NON-LH
00XL087 Fru, LINECORD,CN,1M,3P,NON-LH
01YW107 Fru, LINECORD,TW,1M,3P,NON-LH
00XL059 Fru, LINECORD,AR,1M,3P,NON-LH
00XL057 Fru, LINECORD,AR,1M,3P,NON-LH
00XL058 Fru, LINECORD,AR,1M,3P,NON-LH
00XL066 Fru, LINECORD,DK,1M,3P,NON-LH
00XL070 Fru, LINECORD,CH,1M,3P,NON-LH
00XL078 Fru, LINECORD,AU,1M,3P,NON-LH
00XL092 Fru, LINECORD,TW,1M,3P,NON-LH
00XL089 Fru, LINECORD,CN,1M,3P,NON-LH
00XL090 Fru, LINECORD,CN,1M,3P,NON-LH
00XL081 Fru, LINECORD,ZA,1M,3P,NON-LH
00XL075 Fru, LINECORD,GB,1M,3P,NON-LH
00XL067 Fru, LINECORD,DK,1M,3P,NON-LH
00XL072 Fru, LINECORD,IT,1M,3P,NON-LH
00XL086 Fru, LINECORD,IL,1M,3P,NON-LH
00XL060 Fru, LINECORD,BR,1M,3P,NON-LH
01YW103 Fru, LINECORD,TW,1M,3P,NON-LH
00XL069 Fru, LINECORD,CH,1M,3P,NON-LH
00XL077 Fru, LINECORD,GB,1M,3P,NON-LH
00XL085 Fru, LINECORD,IL,1M,3P,NON-LH
00XL052 Fru, US/CA,1M,3P,NON-LH
00XL002 Fru, JP,Anti-TR,1M,2P,NON-LH
00XL062 Fru, LINECORD,BR,1M,3P,NON-LH
00XL083 Fru, LINECORD,ZA,1M,3P,NON-LH
00XL094 Fru, LINECORD,IN,1M,3P,NON-LH
56 ideacentre All-In-One 730S Computer Hardware Maintenance Manual
00XL068 Fru, LINECORD,DK,1M,3P,NON-LH
00XL097 Fru, LINECORD,TH,1M,3P,NON-LH
00XL096 Fru, LINECORD,IN,1M,3P,NON-LH
00XL051 Fru,US/CA,1M,3P,NON-LH
00XL074 Fru, LINECORD,IT,1M,3P,NON-LH
00XL091 Fru, LINECORD,TW,1M,3P,NON-LH
00XL079 Fru, LINECORD,AU,1M,3P,NON-LH
01YW105 Fru, LINECORD,TW,1M,3P,NON-LH
00XL064 Fru, EU/KR,1M,3P,NON-LH
MECH_ASM
02CW039 ASSY Speaker Cover, IR AIO730S
02CW203 Camera,CA.2D,Silver 730S
02CW204 THERMAL_PAD_SSD_730S
02CW042 ASSY HDD Cage, AVC,AIO730S
02CW038 ASSY Speaker Cover, 2D AIO730S
02CW035 ASSY BACKCOVER_G 2D AIO730S
02CW029 Camera Module,CA.2D 730S
01AH963 ASSY Harman Kardon 3W Speaker
02CW032 ASSY Bezel Grey 2D AIO730s
02CW040 ASSY MAIN Bracket ,AVC, AIO730S
02CW041 ASSY MB Shielding,AVC, AIO730S
02CW031 Assy Mic Module , AIO720
02CW030 Camera Module,CA.IR 730S
02CW034 ASSY Bezel Silver 2D AIO730s
02CW033 ASSY Bezel Grey IR AIO730s
02CW037 ASSY BACKCOVER_S 2D AIO730S
02CW036 ASSY BACKCOVER_G IR AIO730S
MEMORY
01AG836 4GB DDR4 2666 SoDIMM,Samsung
01AG838 16GB DDR4 2666 SoDIMM,Samsung
01AG829 4GB DDR4 2666 SODIMM,Ramaxel
01AG824 8GB DDR4 2666 SOIMM,Hynix
01AG842 16GB DDR4 2666 SoDIMM,Micron
01AG843 8GB DDR4 2666 SoDIMM,Ramaxel
01AG841 8GB DDR4 2666 SoDIMM,Micron
01AG831 4GB DDR4 2666 SoDIMM,Micron
01AG825 16GB DDR4 2666 SOIMM,Hynix
Chapter 9.FRU lists 57
01AG844 16GB DDR4 2666 SoDIMM,Ramaxel
01AG823 4GB DDR4 2666 SOIMM,Hynix
01AG837 8GB DDR4 2666 SoDIMM,Samsung
OPT_DRIVE
00XG043 EX-ODD DVD Burner DB65
SSD_ASM
00UP436 256G,M.2,2280,PCIe3x4,SAM,OPAL
00UP480 16G,M.2,2280,PCIe3x2,INT,STD
00UP650 128G,M.2,2242,PCIe3x2,TOS
00UP448 128G,M.2,2280,PCIe3x4,SAMSG,STD
00UP646 256G,M.2,2280,PCIe3x4,TOS,OPAL
STAND
02CW027 ASSY Stand Deep Grey AIO730S
02CW028 ASSY Stand Deep silver AIO730s
WIRELESS
00JT497 Wireless,CMB,IN,3165 ac
58 ideacentre All-In-One 730S Computer Hardware Maintenance Manual
Chapter 10. General information
This chapter provides general information that applies to all computer models covered by this manual.
Additional Service Information
This chapter provides additional information that the service representative might find helpful.
Power management
Power management reduces the power consumption of certain components of the computer such as the
system power supply, processor, hard disk drives, and some monitors.
Advanced configuration and power interface (ACPI) BIOS
As this computer has an ACPI BIOS system, the operating system is allowed to control the power
management features of the computer and the settings for Advanced Power Management (APM) BIOS mode
is ignored. Not all operating systems support ACPI BIOS mode.
Automatic Power-On features
The Automatic Power-On features within the Power Management menu allow you to enable and disable
features that turn on the computer automatically.
• Wake Up on Alarm: You can specify a date and time at which the computer will be turned on
automatically. This can be either a single event , a daily event or a weekly event.
• Wake Up on LAN: This feature allows LAN adapter card to wake the System.
© Copyright Lenovo 2018 59

Navigation menu
