Lenovo Legion Y530 15ICH HMM Hardware Maintenance Manual Laptop (Lenovo) Legiony530 201805

User Manual: Lenovo Hardware Maintenance Manual - Legion Y530-15ICH Legion Y530-15ICH Laptop (Lenovo) Legion Y530-15ICH Laptop

Open the PDF directly: View PDF .
Page Count: 74

Lenovo

Legion Y530-15ICH

Hardware

Maintenance

Manual

Note:

• Before using this information and the product it supports, be sure to read the general information under

“Notices” on page 69.

First Edition (May. 2018)

© Copyright Lenovo 2018. All rights reserved.

LIMITEDANDRESTRICTEDRIGHTSNOTICE:IfdataorsoftwareisdeliveredpursuantaGeneral

ServicesAdministration“GSA”contract,use,reproduction,ordisclosureissubjecttorestrictionsset

forthinContractNo.GS-35F-05925.

©2018Lenovo

iii

Contents

About this manual ....................................... iv

Safety information ........................................ 1

Generalsafety................................................ 2

Electricalsafety.............................................. 3

Safetyinspectionguide.................................. 5

Handlingdevicesthataresensitiveto

electrostaticdischarge.................................... 6

Groundingrequirements................................. 6

Safetynotices:multilingualtranslations.......... 7

Lasercompliancestatement......................... 14

Important service information ................... 16

StrategyforreplacingFRUs......................... 16

Strategyforreplacingaharddiskdrive............17

Importantnoticeforreplacingasystem

board................................................................17

Importantinformationaboutreplacing

RoHScompliantFRUs................................. 18

General checkout ...................................... 19

Whattodorst............................................. 20

Powersystemcheckout................................ 21

CheckingtheACadapter.................................21

Checkingoperationalcharging.........................22

Checkingthebatterypack................................22

Related service information ...................... 23

Restoringthefactorycontentsbyusing

recoverysystem........................................... 23

Restoreoffactorydefault.................................23

Passwords.................................................... 24

Power-onpassword..........................................24

Hard-diskpassword..........................................24

Administratorpassword....................................24

Powermanagement..................................... 25

Puttingthecomputertosleeporshutting

itdown..............................................................25

Puttingyourcomputertosleep.........................25

Shuttingdownthecomputer.............................25

Lenovo Legion Y530-15ICH ....................... 26

Specications............................................... 26

Statusindicators........................................... 28

Fnkeycombinations/Hotkeys....................... 29

FRUreplacementnotices............................. 30

Screwnotices..................................................30

RemovingandreplacinganFRU................. 31

1010Basecover...............................................32

1020Batterypack.............................................34

1030Speaker...................................................35

1040PCIExpressMiniCardforwireless

LAN...................................................................36

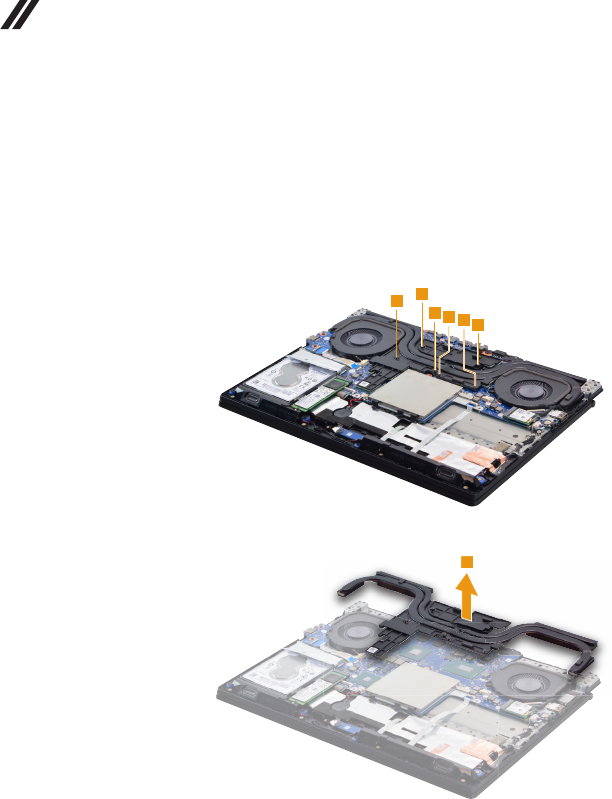

1050Heatsinkassembly.................................38

1060Fan..........................................................40

1070Solidstatedisk........................................41

1080Harddiskdrive.........................................42

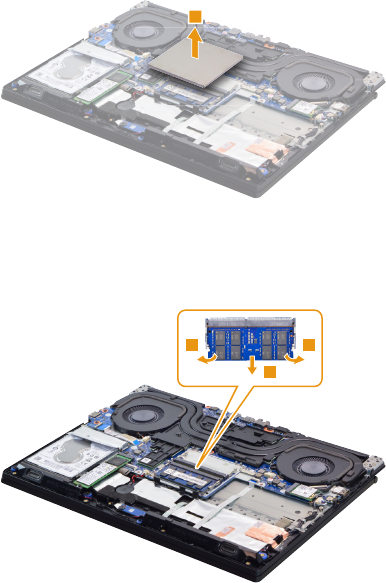

1090DIMM.......................................................43

1100IOboard...................................................44

1110RTCbattery..............................................45

1120Powerboardbracket................................46

1130Touchpadboard.......................................47

1140

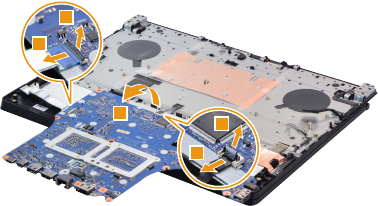

Systemboard............................................ 48

1150Uppercase...............................................50

1160LCDunit...................................................53

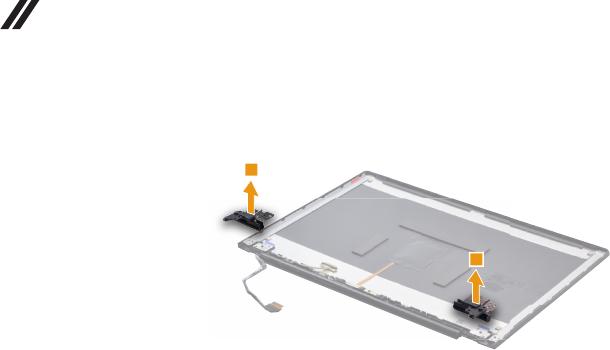

1170LCDhinges..............................................55

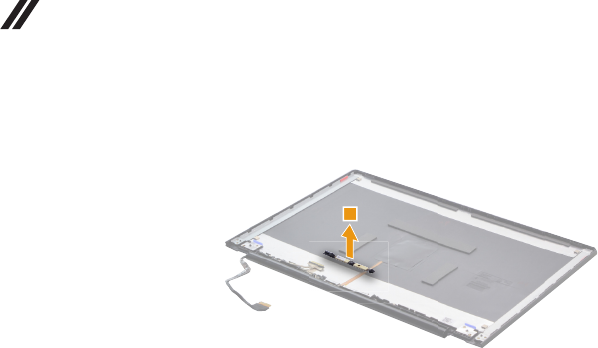

1180Integratedcamera....................................57

Locations...................................................... 59

Frontandright-sideview..................................59

Bottomandleft-sideview................................60

Rearview..........................................................60

Partslist........................................................ 61

Overall..............................................................62

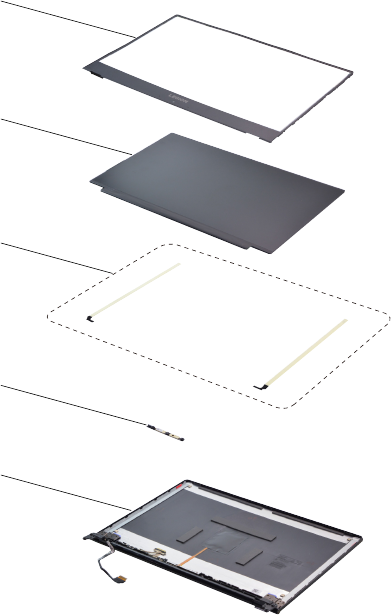

LCDFRUs........................................................65

Miscellaneousparts..........................................66

ACadapters......................................................67

Screws..............................................................67

Powercords......................................................67

Notices......................................................... 69

Trademarks.................................................. 70

iv

About this manual

Thismanualcontainsserviceandreferenceinformationforthefollowing

Lenovoproduct:

Lenovo Legion Y530-15ICH

Usethismanualtotroubleshootproblems.

Themanualisdividedintothefollowingsections:

• Thecommonsectionsprovidegeneralinformation,guidelines,andsafety

informationrequiredforservicingcomputers.

• Theproduct-specicsectionincludesservice,reference,andproduct-specic

partsinformation.

Important:

This manual is intended only for trained servicers who are familiar with Lenovo

products. Use this manual to troubleshoot problems effectively.

Before servicing a Lenovo product, make sure to read all the information under

“Safety information” on page 1 and “Important service information” on page 16.

1

Safety information

Safety information

Thischapterpresentsthefollowingsafetyinformationthatyouneedtoget

familiarwithbeforeyouserviceaLenovoLegionY530-15ICHcomputer:

• “Generalsafety”onpage2

• “Electricalsafety”onpage3

• “Safetyinspectionguide”onpage5

• “Handlingdevicesthataresensitivetoelectrostaticdischarge”onpage6

• “Groundingrequirements”onpage6

• “Safetynotices:multilingualtranslations”onpage7

• “Lasercompliancestatement”onpage14

2

Lenovo Legion Y530-15ICH Hardware Maintenance Manual

General safety

Followtheserulesbelowtoensuregeneralsafety:

• Observeagoodhousekeeping inthe areawherethemachinesareput

duringandafterthemaintenance.

• Whenliftinganyheavyobject:

1. Makesurethatyoucanstandsafelywithoutslipping.

2. Distributetheweightoftheobjectequallybetweenyourfeet.

3. Useaslowliftingforce.Nevermovesuddenlyortwistwhenyouattempt

toliftit.

4. Liftitbystandingorpushingupwithyourlegmuscles;thisactioncould

avoidthestrainfromthemusclesinyourback.Donotattempttoliftany

objectthatweighsmorethan16kg(35lb)orthatyouthinkistooheavy

foryou.

• Donotperformany actionthatcauseshazardstothecustomer,or that

makesthemachineunsafe.

• Beforeyou startthe machine,makesurethatotherservicerepresentatives

andthecustomerarenotinahazardousposition.

• Pleaseremovecoversand otherparts ina safeplace,awayfromall

personnel,whileyouareservicingthemachine.

• Keepyourtoolcaseawayfromwalkareassothatotherpeoplewillnot trip

overit.

• Donotwearlooseclothingthatcanbetrappedinthemovingparts ofthe

machine.Makesurethatyoursleevesarefastenedorrolledupaboveyour

elbows.Ifyourhairislong,fastenit.

• Inserttheendsofyournecktieorscarfinsideclothingor fastenit withthe

nonconductiveclip,about8centimeters(3inches)fromtheend.

• Donotwearjewelry,chains,metal-frameeyeglasses,ormetalfastenersfor

yourclothing.

Attention:Metalobjectsaregoodelectricalconductors.

• Wearsafetyglasses whenyouarehammering,drilling,soldering,cutting

wire,attachingsprings,usingsolvents,orworkinginanyotherconditions

thatmaybehazardoustoyoureyes.

• Afterservice, reinstallall safetyshields,guards,labels,and groundwires.

Replaceanysafetydevicethatiswornordefective.

• Reinstallallcoverscorrectlybeforereturningthemachinetothecustomer.

• Fanlouversonthemachinehelp toprevent theoverheating ofinternal

components.Donotobstructfanlouvers orcover themwith labelsor

stickers.

3

Safety information

Electrical safety

Observethefollowingruleswhenworkingonelectricalequipments.

Important:

Use only approved tools and test equipments. Some hand tools have handles

covered with a soft material that does not insulate you when working with live

electrical currents.

Many customers have rubber floor mats near their machines that contain small

conductive bers to decrease electrostatic discharges. Do not use such kind of mat

to protect yourself from electrical shock.

• Findtheroomemergency power-off(EPO)switch,disconnectingswitchor

electricaloutlet.Ifanelectricalaccident occurs,you canthen operatethe

switchorunplugthepowercordquickly.

• Donotworkalone underhazardousconditionsornear theequipment that

hashazardousvoltages.

• Disconnectallpowerbefore:

– Performingamechanicalinspection

– Workingnearpowersupplies

– Removingorinstallingmainunits

• Beforeyoustarttoworkonthemachine,unplug thepower cord.Ifyou

cannotunplugit,askthecustomerto power-offthewall boxthatsupplies

powertothemachine,andtolockthewallboxintheoffposition.

• Ifyouneedtoworkonamachinethathasexposedelectricalcircuits,

observethefollowingprecautions:

– Ensurethatanotherperson,familiarwiththepower-offcontrols,isnear

you.

Attention:Anotherperson mustbetheretoswitchoffthepower,if

necessary.

– Useonlyonehandwhenworkingwithpowered-onelectricalequipment;

keeptheotherhandinyourpocketorbehindyourback.

Attention:Anelectricalshockcanoccuronlywhenthereisacomplete

circuit.Byobservingtheaboverule,you maypreventacurrentfrom

passingthroughyourbody.

– Whenusingtesters,setthecontrolscorrectlyandusetheapproved

probeleadsandaccessoriesforthattester.

– Standonsuitablerubbermats(obtainedlocally,ifnecessary)toinsulate

youfromgroundssuchasmetaloorstripsandmachineframes.

Observethespecialsafetyprecautionswhenyouworkwithveryhighvoltages;

instructionsfortheseprecautionsareinthesafetysectionsofmaintenance

information.Beextremelycarefulwhenyoumeasurethehighvoltages.

• Regularlyinspectandmaintainyourelectricalhandtoolsforsafeoperational

condition.

• Donotusewornorbrokentoolsandtesters.

• Neverassumethatpowerhasbeendisconnectedfromacircuit.First,check

ittomakesurethatithasbeenpoweredoff.

4

Lenovo Legion Y530-15ICH Hardware Maintenance Manual

• Alwayslookcarefullyforpossiblehazardsinyourworkarea.Examplesof

thesehazardsaremoistoors,nongroundedpowerextensioncables,power

surges,andmissingsafetygrounds.

• Donottouchliveelectricalcircuits withthe reflectivesurface ofaplastic

dentalmirror.Thesurfaceisconductive;suchtouchingcancausepersonal

injuryandmachinedamage.

• Donotservicethefollowingpartswiththepoweronwhentheyareremoved

fromtheirnormaloperatingplacesinamachine:

– Powersupplyunits

– Pumps

– Blowersandfans

– Motorgenerators

andsimilarunits.(Thispracticeensurescorrectgroundingoftheunits.)

• Ifanelectricalaccidentoccurs:

– Caution:donotbecomeavictimyourself.

– Switchoffthepower.

– Sendthevictimtogetmedicalaid.

5

Safety information

Safety inspection guide

Thepurpose ofthis inspectionguideistoassistyouinidentifyingpotential

unsafeconditions.Aseachmachine wasdesigned andbuilt, requiredsafety

itemswereinstalledtoprotectusersandservicepersonnelfrominjury.This

guideaddressesonlythoseitems.You shoulduse goodjudgment toidentify

potentialsafetyhazardsaccordingtotheattachmentofnon-Lenovofeaturesor

optionsnotcoveredbythisinspectionguide.

Ifanyunsafeconditionsarepresent,youmustdetermine howserious the

apparenthazardcouldbeandwhetheryoucancontinuewithoutrstcorrecting

theproblem.

Considertheseconditionsandthesafetyhazardstheypresent:

• Electricalhazards,especiallyprimarypower(primaryvoltageontheframe

cancauseseriousorfatalelectricalshock)

• Explosivehazards,suchasadamagedCRTfaceorabulgingcapacitor

• Mechanicalhazards,suchaslooseormissinghardware

Todeterminewhetherthereareanypotentialunsafeconditions, usethe

followingchecklistatthebeginningofeveryservicetask.Beginthecheckswith

thepoweroff,andthepowercorddisconnected.

Checklist:

1. Checkexteriorcoversfordamage(loose,broken,orsharpedges).

2. Turnoffthecomputer.Disconnectthepowercord.

3. Checkthepowercordfor:

a. Athird-wiregroundconnectoringoodcondition.Useametertomeasure

third-wiregroundcontinuityfor0.1ohmorlessbetweentheexternal

groundpinandtheframeground.

b. Thepowercordshouldbethetypespeciedinthepartslist.

c. Insulationmustnotbefrayedorworn.

4. Checkforcrackedorbulgingbatteries.

5. Removethecover.

6. Checkforanyobviousnon-Lenovoalterations.Usegoodjudgmentastothe

safetyofanynon-Lenovoalterations.

7. Check insidethe unitfor anyobvious unsafeconditions,suchasmetal

filings,contamination,waterorotherliquids,orsignsoffireorsmoke

damage.

8. Checkforworn,frayed,orpinchedcables.

9. Checkthatthepower-supplycover fasteners(screwsorrivets)havenot

beenremovedortamperedwith.

6

Lenovo Legion Y530-15ICH Hardware Maintenance Manual

Handling devices that are sensitive to electrostatic discharge

Anycomputerpartcontainingtransistorsorintegratedcircuits(ICs)shouldbe

consideredsensitivetoelectrostaticdischarge(ESD).ESDdamagecanoccur

whenthere isa differenceinchargebetween objects.Protect againstESD

damagebyequalizingthechargesothatthemachine,thepart,theworkmat,

andthepersonhandlingthepartareallatthesamecharge.

Notes:

1. Use product-specific ESD procedures when they exceed the requirements

noted here.

2. Make sure that the ESD protective devices you use have been certied (ISO

9000) as fully effective.

WhenhandlingESD-sensitiveparts:

• Keepthepartsinprotectivepackagesuntiltheyareinsertedintotheproduct.

• Avoidcontactwithotherpeople.

• Wearagroundedwriststrapagainstyourskintoeliminate staticonyour

body.

• Preventthepartfromtouchingyourclothing.Mostclothingisinsulativeand

retainsachargeevenwhenyouarewearingawriststrap.

• Usetheblacksideofagroundedworkmattoprovideastatic-freework

surface.ThematisespeciallyusefulwhenhandlingESD-sensitivedevices.

• Selectagroundingsystem,suchasthoselistedbelow,toprovideprotection

thatmeetsthespecicservicerequirement.

Note:

The use of a grounding system to guard against ESD damage is desirable but not

necessary.

– AttachtheESDgroundcliptoanyframeground,groundbraid,orgreen-

wireground.

– Whenworkingonadouble-insulatedorbattery-operatedsystem,usean

ESDcommongroundorreferencepoint.Youcanusecoaxorconnector-

outsideshellsonthesesystems.

– Usetheroundgroundprongoftheacplugonac-operatedcomputers.

Grounding requirements

Electricalgroundingofthecomputerisrequiredforoperatorsafetyandcorrect

systemfunction.Propergroundingoftheelectricaloutletcanbeveriedbya

certiedelectrician.

7

Safety information

Safety notices: multilingual translations

Thesafetynoticesin thissection areprovidedinEnglish,French,German,

Hebrew,Italian,Japanese,andSpanish.

Safety notice 1

Before the computer is powered on after FRU replacement, make sure all screws,

springs, and other small parts are in place and are not left loose inside the

computer. Verify this by shaking the computer and listening for rattling sounds.

Metallic parts or metal akes can cause electrical shorts.

Avant de remettre l’ordinateur sous tension après remplacement d’une unité en

clientèle, vériez que tous les ressorts, vis et autres pièces sont bien en place et

bien xées. Pour ce faire, secouez l’unité et assurez-vous qu’aucun bruit suspect

ne se produit. Des pièces métalliques ou des copeaux de métal pourraient causer

un court-circuit.

Bevor nach einem FRU-Austausch der Computer wieder angeschlossen wird,

muß sichergestellt werden, daß keine Schrauben, Federn oder andere Kleinteile

fehlen oder im Gehäuse vergessen wurden. Der Computer muß geschüttelt und auf

Klappergeräusche geprüft werden. Metallteile oder-splitter können Kurzschlüsse

erzeugen.

Prima di accendere l’elaboratore dopo che é stata effettuata la sostituzione di una

FRU, accertarsi che tutte le viti, le molle e tutte le altri parti di piccole dimensioni

siano nella corretta posizione e non siano sparse all’interno dell’elaboratore.

Vericare ciò scuotendo l’elaboratore e prestando attenzione ad eventuali rumori;

eventuali parti o pezzetti metallici possono provocare cortocircuiti pericolosi.

Antes de encender el sistema despues de sustituir una FRU, compruebe que

todos los tornillos, muelles y demás piezas pequeñas se encuentran en su sitio

y no se encuentran sueltas dentro del sistema. Compruébelo agitando el sistema

y escuchando los posibles ruidos que provocarían. Las piezas metálicas pueden

causar cortocircuitos eléctricos.

8

Lenovo Legion Y530-15ICH Hardware Maintenance Manual

Safety notice 2

DANGER

Some standby batteries contain a small amount of nickel and cadmium. Do not

disassemble a standby battery, recharge it, throw it into fire or water, or short-

circuit it. Dispose of the battery as required by local ordinances or regulations.

Use only the battery in the appropriate parts listing. Use of an incorrect battery can

result in ignition or explosion of the battery.

Certaines batteries de secours contiennent du nickel et du cadmium. Ne les

démontez pas, ne les rechargez pas, ne les exposez ni au feu ni à l’eau. Ne

les mettez pas en court-circuit. Pour les mettre au rebut, conformez-vous à la

réglementation en vigueur. Lorsque vous remplacez la pile de sauvegarde ou celle

de l’horloge temps réel, veillez à n’utiliser que les modèles cités dans la liste de

pièces détachées adéquate. Une batterie ou une pile inappropriée risque de prendre

feu ou d’exploser.

Die Bereitschaftsbatterie, die sich unter dem Diskettenlaufwerk befindet,

kann geringe Mengen Nickel und Cadmium enthalten. Sie darf nicht zerlegt,

wiederaufgeladen, kurzgeschlossen, oder Feuer oder Wasser ausgesetzt werden.

Bei der Entsorgung die örtlichen Bestimmungen für Sondermüll beachten. Beim

Ersetzen der Bereitschafts-oder Systembatterie nur Batterien des Typs verwenden,

der in der Ersatzteilliste aufgeführt ist. Der Einsatz falscher Batterien kann zu

Entzündung oder Explosion führen.

Alcune batterie di riserva contengono una piccola quantità di nichel e cadmio.

Non smontarle, ricaricarle, gettarle nel fuoco o nell’acqua né cortocircuitarle.

Smaltirle secondo la normativa in vigore (DPR 915/82, successive disposizioni e

disposizioni locali). Quando si sostituisce la batteria dell’RTC (real time clock) o

la batteria di supporto, utilizzare soltanto i tipi inseriti nell’appropriato Catalogo

parti. L’impiego di una batteria non adatta potrebbe determinare l’incendio o

l’esplosione della batteria stessa.

Algunas baterías de reserva contienen una pequeña cantidad de níquel y cadmio.

No las desmonte, ni recargue, ni las eche al fuego o al agua ni las cortocircuite.

Deséchelas tal como dispone la normativa local. Utilice sólo baterías que se

encuentren en la lista de piezas. La utilización de una batería no apropiada puede

provocar la ignición o explosión de la misma.

9

Safety information

Safety notice 3

DANGER

The battery pack contains small amounts of nickel. Do not disassemble it, throw

it into re or water, or short-circuit it. Dispose of the battery pack as required by

local ordinances or regulations. Use only the battery in the appropriate parts listing

when replacing the battery pack. Use of an incorrect battery can result in ignition

or explosion of the battery.

La batterie contient du nickel. Ne la démontez pas, ne l’exposez ni au feu ni à l’eau.

Ne la mettez pas en court-circuit. Pour la mettre au rebut, conformez-vous à la

réglementation en vigueur. Lorsque vous remplacez la batterie, veillez à n’utiliser

que les modèles cités dans la liste de pièces détachées adéquate. En effet, une

batterie inappropriée risque de prendre feu ou d’exploser.

Akkus enthalten geringe Mengen von Nickel. Sie dürfen nicht zerlegt,

wiederaufgeladen, kurzgeschlossen, oder Feuer oder Wasser ausgesetzt werden.

Bei der Entsorgung die örtlichen Bestimmungen für Sondermüll beachten. Beim

Ersetzen der Batterie nur Batterien des Typs verwenden, der in der Ersatzteilliste

aufgeführt ist. Der Einsatz falscher Batterien kann zu Entzündung oder Explosion

führen.

La batteria contiene piccole quantità di nichel. Non smontarla, gettarla nel fuoco

o nell’acqua né cortocircuitarla. Smaltirla secondo la normativa in vigore (DPR

915/82, successive disposizioni e disposizioni locali). Quando si sostituisce la

batteria, utilizzare soltanto i tipi inseriti nell’appropriato Catalogo parti. L’impiego

di una batteria non adatta potrebbe determinare l’incendio o l’esplosione della

batteria stessa.

Las baterías contienen pequeñas cantidades de níquel. No las desmonte, ni

recargue, ni las eche al fuego o al agua ni las cortocircuite. Deséchelas tal como

dispone la normativa local. Utilice sólo baterías que se encuentren en la lista de

piezas al sustituir la batería. La utilización de una batería no apropiada puede

provocar la ignición o explosión de la misma.

10

Lenovo Legion Y530-15ICH Hardware Maintenance Manual

Safety notice 4

DANGER

The lithium battery can cause a fire, an explosion, or a severe burn. Do not

recharge it, remove its polarized connector, disassemble it, heat it above 100°C

(212°F), incinerate it, or expose its cell contents to water. Dispose of the battery as

required by local ordinances or regulations. Use only the battery in the appropriate

parts listing. Use of an incorrect battery can result in ignition or explosion of the

battery.

La pile de sauvegarde contient du lithium. Elle présente des risques d’incendie,

d’explosion ou de brûlures graves. Ne la rechargez pas, ne retirez pas son

connecteur polarisé et ne la démontez pas. Ne l’exposez pas à une temperature

supérieure à 100°C, ne la faites pas brûler et n’en exposez pas le contenu à l’eau.

Mettez la pile au rebut conformément à la réglementation en vigueur. Une pile

inappropriée risque de prendre feu ou d’exploser.

Die Systembatterie ist eine Lithiumbatterie. Sie kann sich entzünden, explodieren

oder schwere Verbrennungen hervorrufen. Batterien dieses Typs dürfen nicht

aufgeladen, zerlegt, über 100 C erhitzt oder verbrannt werden. Auch darf ihr

Inhalt nicht mit Wasser in Verbindung gebracht oder der zur richtigen Polung

angebrachte Verbindungsstecker entfernt werden. Bei der Entsorgung die örtlichen

Bestimmungen für Sondermüll beachten. Beim Ersetzen der Batterie nur Batterien

des Typs verwenden, der in der Ersatzteilliste aufgeführt ist. Der Einsatz falscher

Batterien kann zu Entzündung oder Explosion führen.

La batteria di supporto e una batteria al litio e puo incendiarsi, esplodere o

procurare gravi ustioni. Evitare di ricaricarla, smontarne il connettore polarizzato,

smontarla, riscaldarla ad una temperatura superiore ai 100 gradi centigradi,

incendiarla o gettarla in acqua. Smaltirla secondo la normativa in vigore (DPR

915/82, successive disposizioni e disposizioni locali). L’impiego di una batteria

non adatta potrebbe determinare l’incendio o l’esplosione della batteria stessa.

La batería de repuesto es una batería de litio y puede provocar incendios,

explosiones o quemaduras graves. No la recargue, ni quite el conector polarizado,

ni la desmonte, ni caliente por encima de los 100°C (212°F), ni la incinere ni

exponga el contenido de sus celdas al agua. Deséchela tal como dispone la

normativa local.

11

Safety information

Safety notice 5

If the LCD breaks and the uid from inside the LCD gets into your eyes or on your

hands, immediately wash the affected areas with water at least for 15 minutes.

Seek medical care if any symptoms caused by the uid are present after washing.

Si le panneau d’afchage à cristaux liquides se brise et que vous recevez dans les

yeux ou sur les mains une partie du uide, rincez-les abondamment pendant au

moins quinze minutes. Consultez un médecin si des symptômes persistent après le

lavage.

Die Leuchtstoffröhre im LCD-Bildschirm enthält Quecksilber. Bei der Entsorgung

die örtlichen Bestimmungen für Sondermüll beachten. Der LCD-Bildschirm

besteht aus Glas und kann zerbrechen, wenn er unsachgemäß behandelt wird

oder der Computer auf den Boden fällt. Wenn der Bildschirm beschädigt ist und

die darin befindliche Flüssigkeit in Kontakt mit Haut und Augen gerät, sollten

die betroffenen Stellen mindestens 15 Minuten mit Wasser abgespült und bei

Beschwerden anschließend ein Arzt aufgesucht werden.

Nel caso che caso l’LCD si dovesse rompere ed il liquido in esso contenuto

entrasse in contatto con gli occhi o le mani, lavare immediatamente le parti

interessate con acqua corrente per almeno 15 minuti; poi consultare un medico se i

sintomi dovessero permanere.

Si la LCD se rompe y el uido de su interior entra en contacto con sus ojos o sus

manos, lave inmediatamente las áreas afectadas con agua durante 15 minutos

como mínimo. Obtenga atención medica si se presenta algún síntoma del uido

despues de lavarse.

12

Lenovo Legion Y530-15ICH Hardware Maintenance Manual

Safety notice 6

DANGER

To avoid shock, do not remove the plastic cover that protects the lower part of the

inverter card.

An d’éviter tout risque de choc électrique, ne retirez pas le cache en plastique

protégeant la partie inférieure de la carte d’alimentation.

Aus Sicherheitsgründen die Kunststoffabdeckung, die den unteren Teil der

Spannungswandlerplatine umgibt, nicht entfernen.

Per evitare scosse elettriche, non rimuovere la copertura in plastica che avvolge la

parte inferiore della scheda invertitore.

Para evitar descargas, no quite la cubierta de plástico que rodea la parte baja de la

tarjeta invertida.

Safety notice 7

DANGER

Though the main batteries have low voltage, a shorted or grounded battery can

produce enough current to burn personnel or combustible materials.

Bien que le voltage des batteries principales soit peu élevé, le court-circuit ou la

mise à la masse d’une batterie peut produire sufsamment de courant pour brûler

des matériaux combustibles ou causer des brûlures corporelles graves.

Obwohl Hauptbatterien eine niedrige Spannung haben, können sie doch bei

Kurzschluß oder Erdung genug Strom abgeben, um brennbare Materialien zu

entzünden oder Verletzungen bei Personen hervorzurufen.

Sebbene le batterie di alimentazione siano a basso voltaggio, una batteria in

corto circuito o a massa può fornire corrente sufficiente da bruciare materiali

combustibili o provocare ustioni ai tecnici di manutenzione.

Aunque las baterías principales tienen un voltaje bajo, una batería cortocircuitada

o con contacto a tierra puede producir la corriente suciente como para quemar

material combustible o provocar quemaduras en el personal.

13

Safety information

Safety notice 8

DANGER

Before removing any FRU, turn off the computer, unplug all power cords from

electrical outlets, remove the battery pack, and then disconnect any interconnecting

cables.

Avant de retirer une unité remplaçable en clientèle, mettez le système hors tension,

débranchez tous les cordons d’alimentation des socles de prise de courant, retirez

la batterie et déconnectez tous les cordons d’interface.

Die Stromzufuhr muß abgeschaltet, alle Stromkabel aus der Steckdose gezogen,

der Akku entfernt und alle Verbindungskabel abgenommen sein, bevor eine FRU

entfernt wird.

Prima di rimuovere qualsiasi FRU, spegnere il sistema, scollegare dalle prese

elettriche tutti i cavi di alimentazione, rimuovere la batteria e poi scollegare i cavi

di interconnessione.

Antes de quitar una FRU, apague el sistema, desenchufe todos los cables de

las tomas de corriente eléctrica, quite la batería y, a continuación, desconecte

cualquier cable de conexión entre dispositivos.

14

Lenovo Legion Y530-15ICH Hardware Maintenance Manual

Laser compliance statement

SomemodelsofLenovocomputerareequippedfromthefactorywithan

opticalstorage devicesuchasaCD-ROMdriveor aDVD-ROM drive.Such

devicesarealsosoldseparatelyasoptions.Ifoneofthesedrivesisinstalled,

itiscertiedintheU.S.toconformto therequirementsoftheDepartmentof

HealthandHumanServices21CodeofFederalRegulations(DHHS21CFR)

SubchapterJforClass1laserproducts.Elsewhere,the driveis certifiedto

conformtotherequirements ofthe InternationalElectrotechnicalCommission

(IEC)825andCENELECEN60825forClass1laserproducts.

IfaCD-ROMdrive,aDVD-ROMdrive,oranotherlaserdeviceisinstalled,note

thefollowing:

CAUTION

Use of controls or adjustments or performance of procedures other than those

specied herein might result in hazardous radiation exposure.

O uso de controles, ajustes ou desempenho de procedimentos diferentes daqueles

aqui especicados pode resultar em perigosa exposição à radiação.

Pour éviter tout risque d’exposition au rayon laser, respectez les consignes de

réglage et d’utilisation des commandes, ainsi que les procédures décrites.

Werden Steuer- und Einstellelemente anders als hier festgesetzt verwendet, kann

gefährliche Laserstrahlung auftreten.

L’utilizzo di controlli, regolazioni o l’esecuzione di procedure diverse da quelle

specicate possono provocare l’esposizione a.

El uso de controles o ajustes o la ejecución de procedimientos distintos de los aquí

especicados puede provocar la exposición a radiaciones peligrosas.

OpeningtheCD-ROMdrive,theDVD-ROMdrive,oranyotheropticalstorage

devicecouldresultinexposuretohazardouslaser radiation.Thereareno

serviceablepartsinsidethosedrives.Do not open.

15

Safety information

ACD-ROMdrive,aDVD-ROMdrive,oranyotherstoragedeviceinstalledmay

containanembeddedClass3AorClass3Blaserdiode.Notethefollowing:

DANGER

Emits visible and invisible laser radiation when open. Do not stare into the beam,

do not view directly with optical instruments, and avoid direct exposure to the

beam.

Radiação por raio laser ao abrir. Não olhe xo no feixe de luz, não olhe diretamente

por meio de instrumentos óticos e evite exposição direta com o feixe de luz.

Rayonnement laser si carter ouvert. Évitez de fixer le faisceau, de le regarder

directement avec des instruments optiques, ou de vous exposer au rayon.

Laserstrahlung bei geöffnetem Gerät. Nicht direkt oder über optische Instrumente

in den Laserstrahl sehen und den Strahlungsbereich meiden.

Kinyitáskor lézersugár ! Ne nézzen bele se szabad szemmel, se optikai

eszközökkel. Kerülje a sugárnyalábbal való érintkezést!

Aprendo l’unità vengono emesse radiazioni laser. Non fissare il fascio, non

guardarlo direttamente con strumenti ottici e evitare l’esposizione diretta al fascio.

Radiación láser al abrir. No mire jamente ni examine con instrumental óptico el

haz de luz. Evite la exposición directa al haz.

16

Lenovo Legion Y530-15ICH Hardware Maintenance Manual

Important service information

Thischapterpresentsthefollowingimportantserviceinformation:

• “StrategyforreplacingFRUs”onpage16

– “Strategyforreplacingaharddiskdrive”onpage17

– “Importantnoticeforreplacingasystemboard”onpage17

• “ImportantinformationaboutreplacingRoHScompliantFRUs”onpage18

Important:

BIOS and device driver xes are customer-installable. The BIOS and device drivers

are posted on the customer support site:

http://support.lenovo.com.



Strategy for replacing FRUs

Before replacing parts:

Makesurethatall softwarexes, drivers,andBIOSdownloadsareinstalled

beforereplacinganyFRUslistedinthismanual.

Afterasystemboardisreplaced,ensurethatthelatestBIOSisloadedtothe

systemboardbeforecompletingtheserviceaction.

Todownloadsoftwarexes,drivers,andBIOS,followthestepsbelow:

1. Gotohttp://support.lenovo.com.

2. Enterthe serialnumber orselectaproductoruseLenovosmart

downloading.

3. SelecttheBIOS/Driver/Applicationsanddownload.

4. Followthedirectionsonthescreenandinstallthenecessarysoftware.

17

Important service information

Usethefollowingstrategytopreventunnecessaryexpenseforreplacingand

servicingFRUs:

• IfyouareinstructedtoreplaceanFRU,butthereplacementdoesnotsolve

theproblem,reinstalltheoriginalFRUbeforeyoucontinue.

• Somecomputers havebothaprocessorboardand asystem board.Ifyou

areinstructedtoreplaceeitherofthem,andreplacingoneofthemdoesnot

solvetheproblem,reinstallthatboard,andthenreplacetheotherone.

• IfanadapteroradeviceconsistsofmorethanoneFRU,anyoftheFRUs

maybethecauseofthe error.Beforereplacing theadapter ordevice,

removetheFRUsonebyonetoseeifthesymptomschange.Replaceonly

theFRUthatchangedthesymptoms.

Attention:Thesetup configurationonthecomputeryouareservicingmay

havebeencustomized.RunningAutomaticConfiguration mayalter the

settings.Notethecurrentcongurationsettings(usingtheViewConguration

option);then,whenservice hasbeen completed,verifythatthosesettings

remainineffect.

Strategy for replacing a hard disk drive

Alwaystrytorun alow-level formatbeforereplacingaharddiskdrive.This

willcauseallcustomerdataontheharddisk tobe lost.Make surethatthe

customerhasacurrentbackupofthedatabeforeperformingthisaction.

Attention:Thedrivestartupsequenceinthecomputeryouareservicingmay

havebeenchanged.Beextremelycareful duringwrite operationssuch as

copying,saving,orformatting.Ifyouselectanincorrectdrive,dataorprograms

canbeoverwritten.

Important notice for replacing a system board

Somecomponentsmountedon asystem boardare verysensitive. Improper

handlingcancausedamagetothosecomponents,andmaycauseasystem

malfunction.

Attention:Whenhandlingasystemboard:

• Donotdropthesystemboardorapplyanyexcessiveforcetoit.

• Avoidroughhandlingofanykind.

• Avoidbendingthe systemboardandhardpushingtopreventcrackingat

eachBGA(BallGridArray)chipset.

18

Lenovo Legion Y530-15ICH Hardware Maintenance Manual

Important information about replacing RoHS compliant FRUs

RoHS, The Restriction of Hazardous Substances in Electrical and

Electronic Equipment Directive (2002/95/EC) is a European Union legal

requirement affecting the global electronics industry. RoHS requirements

must be implemented on Lenovo products placed on the market after

June 2006. Products on the market before June 2006 are not required to

have RoHS compliant parts. If the original FRU parts are non-compliant,

replacement parts can also be non-compliant. In all cases if the original

FRU parts are RoHS compliant, the replacement part must also be RoHS

compliant.

Note:RoHS andnon-RoHS FRUpartnumberswiththesametandfunction

areidentiedwithuniqueFRUpartnumbers.

Lenovoplans totransit toRoHScompliancewellbeforetheimplementation

dateandexpectsits suppliersto bereadytosupportLenovo’srequirements

andscheduleintheEU.Productssoldin2005and2006willcontainsome

RoHScompliantFRUs.Thefollowingstatementpertainstotheseproductsand

anyproductLenovoproducescontainingRoHScompliantFRUs.

RoHScompliantFRUshaveuniqueFRUpartnumbers.Before orafter the

RoHSimplementationdate,failed RoHScompliant partsmust alwaysbe

replacedwithRoHScompliantones,so onlythe FRUsidentied ascompliant

inthesystemHMMordirectsubstitutionsforthoseFRUsmaybeused.

Products marketed before June 2006 Products marketed after June 2006

Current or

original part

Replacement FRU Current or

original part

Replacement FRU

Non-RoHS CanbeNon-RoHS

MustbeRoHS MustbeRoHS

Non-RoHS CanbeRoHS

Non-RoHS CansubtoRoHS

RoHS MustbeRoHS

Note:Adirectsubstitutionisapart witha differentFRUpartnumberthatis

automaticallyshippedbythedistributioncenteratthetimeoftheorder.

19

General checkout

General checkout

Thischapterpresentsthefollowinginformation:

• “Whattodorst”onpage20

• “Powersystemcheckout”onpage21

Beforeyougotothecheckout,makesuretoreadthefollowingimportantnotes:

Important notes:

• Onlycertiedtrainedpersonnelcanservicethecomputer.

• BeforereplacinganyFRU, readthe entirepageonremovingandreplacing

FRUs.

• CarefullyremovescrewsforreusewhenreplacingFRUs.

• Beextremelycarefulduringsuchwriteoperationsascopying,saving,or

formatting. Drives in the computer that you are servicing sequence might

have been altered. If you select an incorrect drive, data or programs might be

overwritten.

• ReplaceanFRUonlywithanotherFRUofthecorrectmodel. When you

replace an FRU, make sure that the machine model and the FRU part number are

correct by referring to the FRU parts list.

• AnFRUshouldnotbereplacedjustbecauseofasingle,unreproduciblefailure.

Single failures can occur for a variety of reasons that have nothing to do with a

hardware defect, such as cosmic radiation, electrostatic discharge, or software

errors. Consider replacing an FRU only when a problem recurs. If you suspect that

an FRU is defective, clear the error logs and run the test again. If the error does

not recur, do not replace the FRU.

• BecarefulnottoreplaceanondefectiveFRU.

20

Lenovo Legion Y530-15ICH Hardware Maintenance Manual

What to do rst

WhenyoudoreturnanFRU,youmustincludethefollowinginformationinthe

partsexchangeformorpartsreturnformthatyouattachtoit:

1. Nameandphonenumberofservicer

2. Dateofservice

3. Dateonwhichthemachinefailed

4. Dateofpurchase

5. ProcedureindexandpagenumberinwhichthefailingFRUwasdetected

6. FailingFRUnameandpartnumber

7. Machinetype,modelnumber,andserialnumber

8. Customer’snameandaddress

Note for warranty:During thewarrantyperiod,thecustomer maybe

responsiblefor repaircosts ifthe computerdamagewascausedbymisuse,

accident,modification,unsuitablephysicaloroperatingenvironment,or

impropermaintenancebythecustomer.

Thefollowingisa listof somecommon itemsthatarenotcoveredunder

warrantyandsomesymptoms thatmight indicatethat thesystemwas

subjectedtostressbeyondnormaluse.

Beforecheckingproblemswiththecomputer,determinewhetherthedamageis

coveredunderthewarrantybyreferringtothefollowinglist:

The following are not covered under warranty:

• LCDpanelcrackedfromtheapplicationofexcessive forceor frombeing

dropped

• Scratched(cosmetic)parts

• Distortion,deformation,ordiscolorationofthecosmeticparts

• Plasticparts,latches,pins,orconnectorsthathavebeencrackedorbroken

byexcessiveforce

• Damagecausedbyliquidspilledintothesystem

• DamagecausedbytheimproperinsertionofaPCCardortheinstallationof

anincompatiblecard

• Improperdiskinsertionoruseofanopticaldrive

• Diskettedrivedamagecausedbypressure onthe diskettedrive cover,

foreignmaterialinthedrive,ortheinsertionofadiskettewithmultiplelabels

• Damagedorbentdisketteejectbutton

• Fusesblownbyattachmentofanonsupporteddevice

• Forgottencomputerpassword(makingthecomputerunusable)

• Stickykeyscausedbyspillingaliquidontothekeyboard

• UseofanincorrectACadapteronlaptopproducts

The following symptoms might indicate damage caused by nonwarranted

activities:

• Missingpartsmightbeasymptomofunauthorizedserviceormodication.

• Ifthespindleofaharddiskdrivebecomesnoisy,itmayhavebeensubjected

toexcessiveforce,ordropped.

21

General checkout

Power system checkout

Toverifyasymptom,followthestepsbelow:

1. Turnoffthecomputer.

2. Removethebatterypack.

3. ConnecttheACadapter.

4. Makesurethatpowerissuppliedwhenyouturnonthecomputer.

5. Turnoffthecomputer.

6. DisconnecttheACadapterandinstallthechargedbatterypack.

7. Makesurethatthebatterypacksuppliespower whenyou turnon the

computer.

Ifyoususpectapowerproblem,seetheappropriateoneofthefollowingpower

supplycheckouts:

• “CheckingtheACadapter”onpage21

• “Checkingoperationalcharging”onpage22

• “Checkingthebatterypack”onpage22

Checking the AC adapter

YouareherebecausethecomputerfailsonlywhentheACadapterisused.

• Ifthepower-onindicatordoesnotturnon,checkthepower cordof theAC

adapterforcorrectcontinuityandinstallation.

• Ifthecomputerdoes notcharge duringoperation, goto“Checking

operationalcharging”.

TochecktheACadapter,followthestepsbelow:

1. UnplugtheACadaptercablefromthecomputer.

2. Measuretheoutput voltageattheplugoftheACadapter cable.See the

followinggure:

1

2

Voltage (V DC)

+20

0

Pin

1

2

Note:OutputvoltagefortheACadapterpinNo.2maydifferfromtheoneyou

areservicing.

3. Ifthevoltageisnotcorrect,replacetheACadapter.

4. Ifthevoltageisacceptable,dothefollowing:

• Replacethesystemboard.

• Iftheproblempersists,goto“LenovoLegionY530-15ICH”onpage26.

Note:NoisefromtheACadapterdoesnotalwaysindicateadefect.

22

Lenovo Legion Y530-15ICH Hardware Maintenance Manual

Checking operational charging

Tocheck whetherthebattery chargesproperly duringoperation,usea

dischargedbattery packorabatterypackthathas lessthan50%ofthetotal

powerremainingwheninstalledinthecomputer.

Performoperationalcharging.Ifthebatterystatus indicatoror icondoesnot

lighton,removethebatterypackandletitreturntoroomtemperature.Reinstall

thebatterypack.Ifthechargeindicatororicon isstilloff,replacethebattery

pack.

Ifthechargeindicator stilldoesnotlighton,replacethesystemboard.Then

reinstallthebatterypack.Ifitisstillnotcharged,gotothenextsection.

Checking the battery pack

BatterychargingdoesnotstartuntilthePowerMetershowsthatlessthan95%

ofthetotalpowerremains;underthisconditionthebatterypackcanchargeto

100%ofitscapacity.Thisprotectsthebatterypackfrombeingoverchargedor

fromhavingashortenedlife.

Tocheckyourbattery,moveyourcursortothePowerMeter iconin theicon

trayoftheWindows®taskbarandwaitforamoment(butdonotclickit),andthe

percentageofbatterypowerremainingisdisplayed.Togetdetailedinformation

aboutthebattery,double-clickthePowerMetericon.

Note:Ifthebatterypackbecomeshot,itmaynotbe ableto becharged.

Removeitfromthecomputerandleaveitatroomtemperatureforawhile.After

itcoolsdown,reinstallandrechargeit.

23

Related service information

Related service information

Thischapterpresentsthefollowinginformation:

• “Restoringthefactorycontentsbyusingrecoverysystem”onpage23

• “Passwords”onpage24

• “Powermanagement”onpage25

Restoring the factory contents by using recovery system

Restore of factory default

TheLenovoLegionY530-15ICHcomputercomewithpre-installedrecovery

system.Inordertosaveapplicationlesandtheinitialbackeduplesofthe

system,theharddiskinaLenovocomputerincludesahiddenpartitionwhen

itisshipped.Ifyouneedtorestorethesystemtothepointofyourrstboot

up,justentertherecoverysystem.FordetailsoftheRecoverysystem,see

the User Guide for Recovery system.

Note: This will delete all the new data on the system partition (C drive), which

is not recoverable. Make sure to back up your critical data before you perform this

action.

24

Lenovo Legion Y530-15ICH Hardware Maintenance Manual

Passwords

Asmany asthree passwordsmaybeneededforanyLenovo computer:

thepower-onpassword(POP), thehard diskpassword(HDP),andthe

administratorpassword.

Ifanyofthesepasswordshasbeenset,apromptforitappearsonthescreen

wheneverthecomputeristurnedon.Thecomputerdoesnotstartuntilthe

passwordisentered.

Power-on password

Apower-onpassword(POP)protectsthesystemfrombeingpoweredonby

anunauthorized person.Thepasswordmust beenteredbefore anoperating

systemcanbebooted.

Hard-disk password

Therearetwohard-diskpasswords(HDPs):

+UserHDP-fortheuser

+MasterHDP-for thesystemadministrator,whocanuse itto getaccess to

theharddiskdriveeveniftheuserhaschangedtheuserHDP

Attention:IftheuserHDPhasbeen forgotten,check whethera masterHDP

hasbeenset.Ifithas,itcanbeusedforaccesstotheharddiskdrive.If

nomasterHDPisavailable, neitherLenovo norLenovoauthorizedservice

techniciansprovideanyservicestoreseteithertheuserorthemasterHDP,or

torecoverdatafromtheharddiskdrive.Thehard diskdrive canbereplaced

forascheduledfee.

Administrator password

Administratorpasswordcontrolstheaccessofthewholesetuputility.Only

AdministratorpasswordwassetthenUserpasswordcanbeset.IfAdministrator

passwordwascleared,theUserpasswordwasclearedtoo.

25

Related service information

Power management

Note:PowermanagementmodesarenotsupportedforAPMoperatingsystem.

Putting the computer to sleep or shutting it down

Whenyouhavenishedworkingwithyourcomputer,youcanputittosleepor

shutitdown.

Putting your computer to sleep

Ifyouwillbeawayfromyourcomputerforonlyashorttime,putthecomputerto

sleep.Whenthecomputerisinsleepmode,youcanquicklywakeittoresumeuse,

bypassingthestartupprocess.

Toputthecomputertosleep,dooneofthefollowing:

• Closethedisplaylid.

• PressthePowerbutton.

• Openthestartmenu,andthenselectPower → Sleep.

Attention:Waituntilthe powerindicatorlightstartsblinking(indicatingthat

thecomputerisinsleepmode)before youmoveyourcomputer.Movingyour

computerwhile thehard diskisspinningcandamagetheharddisk,causing

lossofdata.

Towakethecomputer,dooneofthefollowing:

• Pressanykeyonthekeyboard.

• PressthePowerbutton.

Shutting down the computer

Ifyouarenotgoingtouseyourcomputerforalongtime,shutitdown.

Toshutdownthecomputer,dooneofthefollowing:

• Openthestartmenu,andthenselectPower → Shut down.

• Right-clicktheStartbuttoninthelower-leftcornerandselectShut down or

sign out→Shut down.

26

Lenovo Legion Y530-15ICH Hardware Maintenance Manual

Lenovo Legion Y530-15ICH

Thischapter presentsthefollowingproduct-specificservice referencesand

product-specicpartsinformation:

• “Specications”onpage26

• “Statusindicators”onpage28

• “Fnkeycombinations/Hotkeys”onpage29

• “FRUreplacementnotices”onpage30

• “RemovingandreplacinganFRU”onpage31

• “Locations”onpage59

• “Partslist”onpage61

Specications

ThefollowingtableliststhespecicationsoftheLenovoLegionY530-15ICH:

Table 1. Specications

Feature Description

Processor • Viewthesystempropertiesofyourcomputer.

 Youcandothisasfollows:OpentheControl Panel,andthen

selectSystem and Security → System.

Graphicmemory

chip

• N17P-G0GTX1050

 N17P-G1GTX1050Ti

 N18EGTX1160*(AllTBD)

 (andnextgenerationGPUs)

• GTX1050-2GB/4GB

 GTX1050Ti-2GB/4GB

 GTX1160*-3GB/6GB

Display • 15.6"16:9,1920×1080pixelsFHD

Standard

memory • DDR4-2666MHz(max16GB)

Storagedevices • SSD:128GB/256GB,PCIE

I/Oport • USB3.1×3

• Comboaudiojack×1

• HDMIport×1

• DisplayPortminiconnector×1

• Type-C×1(compatiblewithUSB3.1&DisplayPort1.2)

• RJ-45×1(1000Mbps)

27

Lenovo Legion Y530-15ICH

Table 1. Specications (continued)

Feature Description

Audio • 2.0Wspeaker×2

• DigitalarrayMIC×2

Bluetooth

wireless • Combinedwithwicard

Integrated

camera • HD720P

Battery • Li-ionbatterypack,/3cells,52.5Wh/57Wh

ACadapter • 20VDC,135W/170W

Pre-installed

operating

system

• Windows10

• FreeDOS

• SignatureOS

28

Lenovo Legion Y530-15ICH Hardware Maintenance Manual

Status indicators

Thesystemstatusindicatorsbelowshowthecomputerstatus:

2

1

Table 2. Status indicators

Symbol Indicator Indicator

status

Charge

status Meaning

1Charging

status

indicator

On

(solidwhite) Charging Thebatteryhasbetween80%and

100%charge.

On

(solidamber)

Charging Thebatteryhasbetween0%and

79%charge.

Off Discharging DisconnecttheACpoweradapter

fromthecomputer.

Symbol Indicator Indicator

status Meaning

2Power

status

indicator

On

(solidwhite)

Thecomputeristurnedonandthebatteryhas

between20%and100%charge.

Fastblinking

white

Thecomputeristurnedonandthebatteryhas

between1%and20%charge.

Slowblinking

white

Thecomputerisinsleepmodeorthecomputer

displaylidisclosed.

Off Thecomputeristurnedoff.

29

Lenovo Legion Y530-15ICH

Fn key combinations/Hotkeys

Thefollowing tableshows thefunctionofeachcombination ofFn witha

functionkey.

Table 3. Fn key combinations

Fn + F1: Mutes/unmutesthesound.

Fn + F2: Decreasesthevolumelevel.

Fn + F3: Increasesthevolumelevel.

Fn + F4: Enables/disablesthemicrophone.

Fn + F5: Decreasesthedisplaybrightness.

Fn + F6: Increasesthedisplaybrightness.

Fn + F7: Togglesthedisplaybetweenthecomputerandan

externaldevice.

Fn + F8: Enables/disablesAirplanemode.

Fn + F9: OpenstheSettingsinterface.

Fn + F10: Enables/disablestheintegratedcamera.

Fn + F11: Enables/disablesthetouchpad.

Fn + F12: Activatestheinsertfunction.

Fn + B: Activatesthebreakfunction.

Fn + P: Activatesthepausefunction.

Fn + K: Enables/disablesthescrolllock.

Fn + S: Activatesthesystemrequest.

Fn + :ActivatesthePgupkeyfunction.

Fn + :ActivatesthePgdnkeyfunction.

Fn + :Activatesthehomekeyfunction.

Fn + :Activatestheendkeyfunction.

Fn + Space: Adjuststhekeyboardbacklight(off→dim→bright→off).

30

Lenovo Legion Y530-15ICH Hardware Maintenance Manual

FRU replacement notices

Thissection presentsnoticesrelatedtoremoving andreplacingparts. Read

thissectioncarefullybeforereplacinganyFRU.

Screw notices

Loosescrewscancause areliability problem.IntheLenovocomputer,this

problemisaddressedwithspecialnylon-coatedscrewsthathavethefollowing

characteristics:

• Theymaintaintightconnections.

• Theydonoteasilycomeloose,evenwithshockorvibration.

• Theyarehardertotighten.

Dothefollowingwhenyouservicethismachine:

• Keepthescrewkitinyourtoolbag.

• CarefullyremovescrewsforreusewhenreplacingFRUs.

• Useatorquescrewdriverifyouhaveone.

Tightenscrewsasfollows:

• Plastic to plastic

 Turnanadditional90° afterthe screwhead touchesthe surfaceof the

plasticpart:

more than 90°

(Cross-section)

• Logic card to plastic

 Turnanadditional180°afterthescrewheadtouchesthesurfaceofthe

logiccard:

more than 180°

(Cross-section)

• Torque driver

 Ifyouhaveatorquescrewdriver,refertothe“Torque”columnforeachstep.

• Makesurethatyouusethecorrectscrews.Ifyouhaveatorquescrewdriver,

tightenallscrewsrmlytothetorqueshowninthetable.Carefully remove

screws for reuse when replacing FRUs. Make sure that all screws are

tightened rmly.

• Ensuretorque screwdriversarecalibratedcorrectlyfollowing country

specications.

31

Lenovo Legion Y530-15ICH

Removing and replacing an FRU

Thissectionpresentsexplodedgures withtheinstructionstoindicatehowto

removeandreplacetheFRU.Makesuretoobservethefollowinggeneralrules:

1. Donotattempttoserviceanycomputerunlessyouhavebeentrainedand

certied.Anuntrainedpersonrunstheriskofdamagingparts.

2. BeforereplacinganyFRU,review“FRUreplacementnotices”onpage30.

3. Beginby removingany FRUsthat haveto beremoved beforethe failing

FRU.AnyofsuchFRUsarelistedatthetopofthepage.Removethemin

theorderinwhichtheyarelisted.

4. FollowthecorrectsequenceinthestepstoremovetheFRU,asgiveninthe

guresbythenumbersinsquarecallouts.

5. WhenturningascrewtoreplaceanFRU,turnitinthedirectionasgivenby

thearrowinthegure.

6. WhenremovingtheFRU,move itinthedirectionasgivenbythearrow in

thegure.

7. Toputthe newFRUinplace,reversetheremovalproceduresandfollow

anyofthenotesthatpertain toreplacement. Forinformation about

connectingandarranginginternalcables,see“Locations”onpage59.

8. WhenreplacinganFRU,usethecorrectscrewasshownintheprocedures.

DANGER

Before removing any FRU, turn off the computer, unplug all power cords from

electrical outlets, remove the battery pack, and then disconnect any of the

interconnecting cables.

Attention:AfterreplacinganFRU,donotturnonthecomputeruntilyouhave

madesurethatallscrews,springs,andothersmallpartsareinplaceandnone

areloose insidethe computer.Verifythis byshakingthecomputergently and

listeningforrattlingsounds.Metallic partsormetalakescancauseelectrical

shortcircuits.

Attention:Thesystem boardissensitiveto,andcanbe damagedby,

electrostaticdischarge. Beforetouchingit,establishpersonal groundingby

touchingagroundpointwithonehandorusinganelectrostaticdischarge(ESD)

strap(P/N6405959)toremovepotentialshockreasons.

Note:

• This manual applies to the following model: Lenovo Legion Y530-15ICH.

32

Lenovo Legion Y530-15ICH Hardware Maintenance Manual

1010 Base cover

Figure 1. Removal steps of base cover

Removethescrews1and2fromthebottom.

1

11

1

1

2

2

2

2

2

2

Step Screw (quantity) Color Torque

1M2.0×8.0mm,Phillips-head,nylok-coated(5)

DtoC

Black 1.0~1.5kgf*cm

2M2.0×4.0mm,Phillips-head,nylok-coated(6)

DtoC

Black 1.0~1.5kgf*cm

Removethebasecover3.

3

33

Lenovo Legion Y530-15ICH

Note: Applying labels to the base cover

Ifyouseethefollowinglabelsonbasecover,itneedstobepeeledofffrom

theoldbasecover,andputonthenewbasecover.

a Ratinglabel

b Ratinglabel

c OSlabel

d Adapterlabel

e WL/BTlabel

Forsomemodels,youalsoneedtoapplyoneortwoFCClabels.Checkthe

oldbasecover;ifithasoneortwoFCClabels,ndduplicatesoftheminthe

labelkitandapplythemtothenewbasecover.

Forthelocationofeachlabel,refertothefollowinggures:

abcde

34

Lenovo Legion Y530-15ICH Hardware Maintenance Manual

1020 Battery pack

Foraccess,removethisFRU:

• “1010Basecover”onpage32

DANGER

Only use the battery specied in the parts list for your computer. Any other battery

could ignite or explode.

Figure 2. Removal steps of battery pack

Detachthebatterypackconnectorinthedirectionshown byarrow1,then

removethescrews2.Removethebatterypackin thedirection shownby

arrow3.

2

2

2

2

2

3

1

Step Screw (quantity) Color Torque

2M2.0x5.0 mm,Phillips-head,nylok-coated(5)

BatttoC-cover

Silver 1.0~1.5kgf*cm

When installing:Makesurethatthebatteryconnectorisattachedrmly.

35

Lenovo Legion Y530-15ICH

1030 Speaker

Foraccess,removetheseFRUsinorder:

• “1010Basecover”onpage32

• “1020Batterypack”onpage34

Figure 3. Removal step of speaker

Unplugthespeakerconnectorinthedirectionshownbyarrow1.Releasethe

speakercablefromthecableguides.Removethescrews2.Peeloffthetape

inthedirectionshownbyarrow3.

2

2

3

1

Step Screw (quantity) Color Torque

2M2.0x3.0 mm,Phillips-head,nylok-coated(2)

SpeakertotoC-cover

Black 1.0~1.5kgf*cm

Removethetwospeakers4.

4

4

When installing:Makesurethattheconnectorisattachedrmly.

36

Lenovo Legion Y530-15ICH Hardware Maintenance Manual

1040 PCI Express Mini Card for wireless LAN

Foraccess,removetheseFRUsinorder:

• “1010Basecover”onpage32

• “1020Batterypack”onpage34

Important: Thepreinstalled WLANmodulemayonlybereplacedwith aLenovo

approvedmoduleinordertocomplywithFCCandICregulations.Referto“Table5.

Partslist—Overall”onpage63forLenovopartnumbersfortheapprovedmodules.

Figure 4. Removal steps of PCI Express Mini Card for wireless LAN

DisconnectthetwowirelessLANcables(black,white)1,andthenremovethe

screw2.

1

2

Instep1,unplugthejacksbyusingthe removaltoolantennaRFconnector

(P/N:08K7159),orpickuptheconnectorswithyourngersandgentlyunplug

theminthedirectionshownbythearrows.

Notes: ThewirelessLANcardhas2cablesinstep1.

ThewirelessLANcardinsomemodelsmighthave3cablesinstep1.

Step Screw (quantity) Color Torque

2M2.0x3.5mm,Phillips-head,nylok-coated(1)

WlantoC-cover

Silver 1.0~1.5kgf*cm

37

Lenovo Legion Y530-15ICH

Figure 4. Removal steps of PCI Express Mini Card for wireless LAN (continued)

Removethecardinthedirectionshownbyarrow3.

3

When installing:

• InmodelswithawirelessLANcardthathas twoantennaconnectors,plug

theblackcable(1st)(MAIN)intothejacklabeledMAIN,andthewhitecable

(2nd)(AUX)intothejacklabeledAUXonthecard.

• InmodelswithawirelessLANcardthathasthreeantennaconnectors,plug

theblackcable(1st)(MAIN)intothejacklabeled1,thegreycable(3rd)into

thejacklabeled3,andthewhitecable(2nd)(AUX)intothejacklabeled2on

thecard.

38

Lenovo Legion Y530-15ICH Hardware Maintenance Manual

1050 Heat sink assembly

Foraccess,removetheseFRUsinorder:

• “1010Basecover”onpage32

• “1020Batterypack”onpage34

Figure 5. Removal steps of heat sink assembly

Loosenthescrews1.

11

1111

Lifttheheatsinkassemblyinthedirectionshownbyarrow2.

2

39

Lenovo Legion Y530-15ICH

Figure 5. Removal steps of heat sink assembly (continued)

Attention:Do nothandle theheatsinkassemblyroughly.Improperhandling

cancausedistortionordeformationandimperfectcontactwithcomponents.

ab

When installing: Beforeyouattachthefanassemblytothecomputer,apply

thermalgrease,atanamountof0.2grams,tothe aand bpartsshownin

thegureabove.Eithertoomuchortoolittle greaseapplicationcancausea

thermalproblemduetoimperfectcontactwithacomponent.

40

Lenovo Legion Y530-15ICH Hardware Maintenance Manual

1060 Fan

Foraccess,removetheseFRUsinorder:

• “1010Basecover”onpage32

• “1020Batterypack”onpage34

• “1050Heatsinkassembly”onpage38

Figure 6. Removal steps of fan

Unplugthe fanconnectors inthe directionsshownbyarrows1.Removethe

screws2.

1

1

2

2

22

Step Screw (quantity) Color Torque

2M2.0x5.0 mm,Phillips-head,nylok-coated(4)

FantoC-cover

Black 1.0~1.5kgf*cm

Liftthefaninthedirectionshownbyarrows3.

3

3

When installing:Makesurethattheconnectorsareattachedrmly.

41

Lenovo Legion Y530-15ICH

1070 Solid state disk

Foraccess,removetheseFRUsinorder:

• “1010Basecover”onpage32

• “1020Batterypack”onpage34

Figure 7. Removal steps of solid state disk

Removethescrew1.

1

Step Screw (quantity) Color Torque

1M2.0x5.0mm,Phillips-head,nylok-coated(1)

2280SSDtoC-cover&M2.0x3.5mm,

Phillips-head,nylok-coated(1)2242SSDto

C-cover

Black 1.0~1.5kgf*cm

Removethesolidstatediskinthedirectionshownbyarrow2.

2

42

Lenovo Legion Y530-15ICH Hardware Maintenance Manual

1080 Hard disk drive

Foraccess,removetheseFRUsinorder:

• “1010Basecover”onpage32

• “1020Batterypack”onpage34

Figure 8. Removal steps of Hard disk drive

Detachtheharddiskdriveconnectorsinthedirectionsshownbyarrow1and2.

Thenremovethescrews3.Removetheharddiskdriveinthedirectionshownby

arrow4.

2

1

3

3

3

3

4

Step Screw (quantity) Color Torque

2M2.0×3.5 mm,Phillips-head,nylok-coated (4)

HDDAssytoC-cover

Silver 1.0~1.5kgf*cm

RemovetheHDDcable5.Removethescrews6,thentakeoutthemetal

frame.

6

6

6

6

5

Step Screw (quantity) Color Torque

6M3.0×3.0 mm,Phillipshead,nylok-coated(4)

HDDtoHDDbracket

Silver 1.85±0.15kgf*cm

43

Lenovo Legion Y530-15ICH

1090 DIMM

Foraccess,removetheseFRUsinorder:

• “1010Basecover”onpage32

• “1020Batterypack”onpage34

Figure 9. Removal steps of DIMM

CarefullyremovetheDIMMEMIshielding1.

1

Releasethetwolatchesonbothedgesofthesocketat thesame timein the

directionsshownbyarrows2,andthenunplugtheDIMMinthedirectionshown

byarrow3.

22

3

When installing:InsertthenotchedendoftheDIMMintothesocket.Pushthe

DIMMrmly,andpivotituntilitsnapsintoplace.Makesurethatitisrmlyxed

intheslotandisdifculttomove.

Note:Whenreplacingthememoryiscompleted,youneed torestartthe

computeraftertherstreboot.

44

Lenovo Legion Y530-15ICH Hardware Maintenance Manual

1100 IO board

Foraccess,removetheseFRUsinorder:

• “1010Basecover”onpage32

• “1020Batterypack”onpage34

Figure 10. Removal steps of IO board

DetachtheIOboard connectorin thedirections shownbyarrows1and2.

Removethescrews3.

3

3

2

1

Step Screw (quantity) Color Torque

3M2.0×3.5mm,Phillips-head,nylok-coated(2)

IOboardtoC-cover

Black 1.0~1.5kgf*cm

RemovetheIOboard4.

4

When installing:Makesurethattheconnectorisattachedrmly.

45

Lenovo Legion Y530-15ICH

1110 RTC battery

Foraccess,removetheseFRUsinorder:

• “1010Basecover”onpage32

• “1020Batterypack”onpage34

Figure 11. Removal steps of RTC battery

UnplugtheRTCbatteryconnectorinthedirectionshownbyarrow1.Remove

theRTCbattery2.

1

2

When installing:Makesurethattheconnectorisattachedrmly.

46

Lenovo Legion Y530-15ICH Hardware Maintenance Manual

1120 Power board bracket

Foraccess,removetheseFRUsinorder:

• “1010Basecover”onpage32

• “1020Batterypack”onpage34

Figure 12. Removal steps of power board bracket

Removethescrews1.

1

1

Step Screw (quantity) Color Torque

1M2.0×5.0mm,Phillips-head,nylok-coated(2)

K-locktoC-cover

Black 1.85±0.15kgf*cm

Removethepowerboardbracketinthedirectionshownbyarrow2.

2

47

Lenovo Legion Y530-15ICH

1130 Touchpad board

Foraccess,removetheseFRUsinorder:

• “1010Basecover”onpage32

• “1020Batterypack”onpage34

Figure 13. Removal steps of touchpad board

Detachthe twoconnectors inthedirectionsshownbyarrows1 and2.

Removethescrews3.

2

2

1

1

3

3

Step Screw (quantity) Color Torque

3M2.0×3.0mm,Phillips-head,nylok-coated(2)

TPboardtoC-cover

Black 1.85±0.15kgf*cm

Removethetouchpadboardinthedirectionshownbyarrow4.

4

When installing:Makesurethattheconnectorsareattachedrmly.

48

Lenovo Legion Y530-15ICH Hardware Maintenance Manual

1140

System board

Important notices for handling the system board:

When handling the system board, bear the following in mind.

• Be careful not to drop the system board on a bench top that has a hard surface,

such as metal, wood, or composite.

• Avoid rough handling of any kind.

• In the whole process, make sure not to drop or stack the system board.

• If you put a system board down, make sure to put it only on a padded surface such

as an ESD mat or conductive corrugated material.

Foraccess,removetheseFRUsinorder:

• “1010Basecover”onpage32

• “1020Batterypack”onpage34

• “1030Speaker”onpage35

• “1040PCIExpressMiniCardforwirelessLAN”onpage36

• “1050Heatsinkassembly”onpage38

• “1060Fan”onpage40

• “1070Solidstatedisk”onpage41

• “1080Harddiskdrive”onpage42

• “1100IOboard”onpage44

• “1110RTCbattery”onpage45

• “1120Powerboardbracket”onpage46

• “1130Touchpadboard”onpage47

Figure 14. Removal steps of system board

Detachthetwoconnectors(KBFPCconnectorandEDPcable connector)in

thedirectionsshownbyarrows1and2.Removethescrews3and4.

2

1

2

1

4

3

3

3

Step Screw (quantity) Color Torque

3M2.0×3.5mm,Phillips-head,nylok-coated(3)

Mainboard

Silver 1.0~1.5kgf*cm

4M2.0×5.0mm,Phillips-head,nylok-coated(1)

Mainboard

Black 1.0~1.5kgf*cm

49

Lenovo Legion Y530-15ICH

Figure 14. Removal steps of system board (continued)

Turnthesystemboardover5.Detachthetwo connectors(IOboardcable

connectorandKBbacklightconnector)inthedirectionsshownbyarrows

6and7.

5

7

7

6

6

When installing:Makesurethattheconnectorsareattachedrmly.

50

Lenovo Legion Y530-15ICH Hardware Maintenance Manual

1150 Upper case

Foraccess,removetheseFRUsinorder:

• “1010Basecover”onpage32

• “1020Batterypack”onpage34

• “1030Speaker”onpage35

• “1040PCIExpressMiniCardforwirelessLAN”onpage36

• “1050Heatsinkassembly”onpage38

• “1060Fan”onpage40

• “1070Solidstatedisk”onpage41

• “1080Harddiskdrive”onpage42

• “1100IOboard”onpage44

• “1110RTCbattery”onpage45

• “1120Powerboardbracket”onpage46

• “1130Touchpadboard”onpage47

• “1140Systemboard”onpage48

Figure 15. Removal steps of upper case

Removethescrews1and2.

2

2

2

2

1

1

Step Screw (quantity) Color Torque

1M2.5×7mm,Phillips-head,nylok-coated(2)

HingetoC-cover

Black 1.85±0.15kgf*cm

2M2.0×2.3mm,Phillips-head,nylok-coated(2)

HingetoC-cover

Silver 1.0~1.5kgf*cm

51

Lenovo Legion Y530-15ICH

Figure 15. Removal steps of upper case (continued)

Removethehingecapinthedirectionshownbyarrows3.

3

3

Removethescrews4.

4

4

Step Screw (quantity) Color Torque

4M2.0×2.3mm,Phillips-head,nylok-coated(2)

LCDhingecap+Hinge

Silver 1.0~1.5kgf*cm

52

Lenovo Legion Y530-15ICH Hardware Maintenance Manual

Figure 15. Removal steps of upper case (continued)

ThenremovetheLCDunitfromuppercaseinthedirectionshownbyarrow5.

5

53

Lenovo Legion Y530-15ICH

1160 LCD unit

Foraccess,removetheseFRUsinorder:

• “1010Basecover”onpage32

• “1020Batterypack”onpage34

• “1030Speaker”onpage35

• “1040PCIExpressMiniCardforwirelessLAN”onpage36

• “1050Heatsinkassembly”onpage38

• “1060Fan”onpage40

• “1070Solidstatedisk”onpage41

• “1080Harddiskdrive”onpage42

• “1100IOboard”onpage44

• “1110RTCbattery”onpage45

• “1120Powerboardbracket”onpage46

• “1130Touchpadboard”onpage47

• “1140Systemboard”onpage48

• “1150Uppercase”onpage50

Figure 16. Removal steps of LCD unit

RemovetheLCDfrontbezelinthedirectionshownbyarrows1.

1

1

1

1

54

Lenovo Legion Y530-15ICH Hardware Maintenance Manual

Figure 16. Removal steps of LCD unit (continued)

Peeloffthetapeinthedirectionshownbyarrows2.Gentlypull outthe two

piecesofadhesivetape.

2

2

LifttheLCDpanelslightly3.OpenthelatchontheEDPconnectorinthe

directionshownbyarrow4,thenunplugtheEDPconnector5.Thenremove

theLCDpanel.

3

4

5

When installing:Makesurethatthemetalconnectorisattachedrmly.

55

Lenovo Legion Y530-15ICH

1170 LCD hinges

Foraccess,removetheseFRUsinorder:

• “1010Basecover”onpage32

• “1020Batterypack”onpage34

• “1030Speaker”onpage35

• “1040PCIExpressMiniCardforwirelessLAN”onpage36

• “1050Heatsinkassembly”onpage38

• “1060Fan”onpage40

• “1070Solidstatedisk”onpage41

• “1080Harddiskdrive”onpage42

• “1100IOboard”onpage44

• “1110RTCbattery”onpage45

• “1120Powerboardbracket”onpage46

• “1130Touchpadboard”onpage47

• “1140Systemboard”onpage48

• “1150Uppercase”onpage50

• “1160LCDunit”onpage53

Figure 17. Removal steps of LCD hinges

Removethescrews1.

1111

1111

Step Screw (quantity) Color Torque

1M2.5×3.5mm,Phillips-head,nylok-coated(8)

HingetoA-Cover

Silver 1.85±0.15kgf*cm

56

Lenovo Legion Y530-15ICH Hardware Maintenance Manual

Figure 17. Removal steps of LCD hinges (continued)

Releasethetwohingesinthedirectionshownbyarrows2.

2

2

57

Lenovo Legion Y530-15ICH

1180 Integrated camera

Foraccess,removetheseFRUsinorder:

• “1010Basecover”onpage32

• “1020Batterypack”onpage34

• “1030Speaker”onpage35

• “1040PCIExpressMiniCardforwirelessLAN”onpage36

• “1050Heatsinkassembly”onpage38

• “1060Fan”onpage40

• “1070Solidstatedisk”onpage41

• “1080Harddiskdrive”onpage42

• “1100IOboard”onpage44

• “1110RTCbattery”onpage45

• “1120Powerboardbracket”onpage46

• “1130Touchpadboard”onpage47

• “1140Systemboard”onpage48

• “1150Uppercase”onpage50

• “1160LCDunit”onpage53

• “1170LCDhinges”onpage55

Figure 18. Removal steps of integrated camera

Note:TheintegratedcameraisstuckonthetopcenteroftheLCDcover.

Unplugtheconnectorinthedirectionshownbyarrow1.

1

58

Lenovo Legion Y530-15ICH Hardware Maintenance Manual

Figure 18. Removal steps of integrated camera and EDP cable (continued)

Removethecameraboardinthedirectionshownbyarrow2.

2

When installing:Stick theintegrated cameratothetopcenteroftheLCD

coverandadjusttheplacementofittomakesuretheconnectorisattached

rmly.

59

Lenovo Legion Y530-15ICH

Locations

Front and right-side view

1 Computerdisplay

2 Integratedcamera

3 Built-inmicrophone

4 Powerbutton

5 WirelessLANantennas

6 Touchpad

7 USB3.1port

8 Novobutton

9 Powerstatusindicator

Note:Forthedescriptionofeachindicator,see“Statusindicators”onpage28.

j Ventilationslots

23

3

1

6

5

5

4

7

8

9

10

60

Lenovo Legion Y530-15ICH Hardware Maintenance Manual

Bottom and left-side view

1 Speakers

2 Louvers

3 Comboaudiojack

4 USB3.1port

5 Ventilationslots

3

2

1

1

4

5

Rear view

1 Type-Cport

2 DisplayPortminiconnector

3 USB3.1port

4 HDMIport

5 RJ-45port

6 ACpoweradapterjack

7 Chargingstatusindicator

Note:Forthedescriptionofeachindicator,see“Statusindicators”onpage28.

8 Kensingtonminisecurityslot

9 Ventilationslots

9

9

12345678

61

Lenovo Legion Y530-15ICH

Parts list

Thissectionpresentsthefollowingserviceparts:

• “Overall”onpage62

• “LCDFRUs”onpage65

• “Miscellaneousparts”onpage66

• “ACadapters”onpage67

• “Powercords”onpage67

• “Screws”onpage67

Note:

Each FRU is available for all types or models, unless specic types or models are

specied.

Attention:

DonotattempttoreplaceanFRUonyourown.IfanFRUisdamaged,contact

aLenovoauthorizedserviceroramarketing representativeforreplacement

orrepair.Onlyqualiedtechnicianscaninspectorrepairthisproduct.

62

Lenovo Legion Y530-15ICH Hardware Maintenance Manual

Overall

1

2

3

4

6

7

8

b

12

15

16

5

14

d

c

13

11

10

a

9

63

Lenovo Legion Y530-15ICH

Table 5. Parts list—Overall

No.

FRU

FRU no. CRU ID.

a-d See“Miscellaneousparts”onpage66.

1

LCDunit(see“LCDFRUs”onpage65.)

2 HingeCoverL81FV 5CB0R40164 N

3 UpperCaseL81FVW/KBWHBLBE 5CB0R40211 N

3 UpperCaseL81FVW/KBWHBLCF-E 5CB0R40206 N

3 UpperCaseL81FVW/KBWHBLTI 5CB0R40207 N

3 UpperCaseL81FVW/KBWHBLHG 5CB0R40178 N

3 UpperCaseL81FVW/KBWHBLAR-FR 5CB0R40180 N

3 UpperCaseL81FVW/KBWHBLRU 5CB0R40181 N

3 UpperCaseL81FVW/KBWHBLUS 5CB0R40196 N

3 UpperCaseL81FVW/KBWHBLSW 5CB0R40177 N

3 UpperCaseL81FVW/KBWHBLTR 5CB0R40199 N

3 UpperCaseL81FVW/KBWHBLAR-E 5CB0R40169 N

3 UpperCaseL81FVW/KBWHBLCZ-SK 5CB0R40200 N

3 UpperCaseL81FVW/KBWHBLGR 5CB0R40201 N

3 UpperCaseL81FVW/KBWHBLLA 5CB0R40203 N

3 UpperCaseL81FVW/KBWHBLIT 5CB0R40176 N

3 UpperCaseL81FVW/KBWHBLSP 5CB0R40192 N

3 UpperCaseL81FVW/KBWHBLGK 5CB0R40165 N

3 UpperCaseL81FVW/KBWHBLUK 5CB0R40188 N

3 UpperCaseL81FVW/KBWHBLUKR 5CB0R40189 N

3 UpperCaseL81FVW/KBWHBLCH 5CB0R40163 N

3 UpperCaseL81FVW/KBWHBLSA 5CB0R40172 N

3 UpperCaseL81FVW/KBWHBLINT'E 5CB0R40174 N

3 UpperCaseL81FVW/KBWHBLKO 5CB0R40159 N

3 UpperCaseL81FVW/KBWHBLFR 5CB0R40217 N

3 UpperCaseL81FVW/KBWHBLPO 5CB0R40183 N

3 UpperCaseL81FVW/KBWHBLBU 5CB0R40187 N

3 UpperCaseL81FVW/KBWHBLBZ 5CB0R40160 N

3 UpperCaseL81FVW/KBWHBLUSA 5CB0R40212 N

3 UpperCaseL81FVW/KBWHBLICE 5CB0R40162 N

3 UpperCaseL81FVW/KBWHBLND 5CB0R40215 N

3 UpperCaseL81FVW/KBWHBLINDIA 5CB0R40218 N

3 UpperCaseL81FVW/KBWHBLHB 5CB0R40219 N

4 MBL81FVNOKI58300GT1050TI2GWHBL 5B20R40208 N

4 MBL81FVNOKI58300GT1050TI4GWHBL 5B20R40209 N

4 MBL81FVWINI78750GT1050TI2GWHBL 5B20R40205 N

4 MBL81FVWINI58300GT1050TI2GWHBL 5B20R40213 N

4 MBL81FVNOKI78750GT1050TI4GWHBL 5B20R40161 N

4 MBL81FVWINI78750GTX10502GWHBL 5B20R40216 N

4 MBL81FVWINI78750GT1050TI4GWHBL 5B20R40167 N

4 MBL81FVWINI78750GTX10504GWHBL 5B20R40185 N

4 MBL81FVNOKI78750GTX10504GWHBL 5B20R40198 N

4 MBL81FVWINI58300GT1050TI4GWHBL 5B20R40204 N

4 MBL81FVNOKI78750GT1050TI2GWHBL 5B20R40197 N

4 MBL81FVNOKI58300GTX10502GWHBL 5B20R40193 N

4 MBL81FVNOKI78750GTX10502GWHBL 5B20R40195 N

4 MBL81FVNOKI58300GTX10504GWHBL 5B20R40191 N

4 MBL81FVWINI58300GTX10502GWHBL 5B20R40186 N

64

Lenovo Legion Y530-15ICH Hardware Maintenance Manual

Table 5. Parts list—Overall (continued)

No.

FRU

FRU no. CRU ID.

4 MBL81FVWINI58300GTX10504GWHBL 5B20R40190 N

5 I/OBoardL81FVW/FFC 5C50R40194 N

6FanL81FVL+R 5F10R40214 N

7HeatsinkL81FVDIS 5H40R40202 N

7HeatsinkL81FVDIS1050TI 5H40R45323 N

8 Wireless,CMB,IN,3165ac 00JT497 N

8 Wireless,CMB,FXN,8822BEM2 01AX712 N

8 Wireless,CMB,IN,9560NVM2 01AX768 N

9 4GBDDR42666SODIMM,Ramaxel 01AG829 N

9 8GBDDR42666SoDIMM,Samsung 01AG837 N

9 16GBDDR42666SoDIMM,Micron 01AG842 N

9 8GBDDR42666SoDIMM,Ramaxel 01AG843 N

9 4GBDDR42666SOIMM,Hynix 01AG823 N

9 4GBDDR42666SoDIMM,Micron 01AG831 N

9 8GBDDR42666SoDIMM,Micron 01AG841 N

9 8GBDDR42666SOIMM,Hynix 01AG824 N

9 4GBDDR42666SoDIMM,Samsung 01AG836 N

9 16GBDDR42666SoDIMM,Ramaxel 01AG844 N

10 RTCBatteryL80WK 5B10N00276 N

11 StorageSSDPM981256GM.2SAM 01FR544 N

11 16G,M.2,2280,PCIe3x2,INT,STD 00UP480 N

12 Y530-15Dain1224Speaker 5SB0Q74972 N

12 Y530-15Veco1224Speaker 5SB0Q84785 N

13 TPBoardL81FVW/FFC 5C50R40168 N

14 Storage,HDD,1T,7200,7mm,SATA,ST 01FR405 N

14 Storage,HDD,1T,5400,7mm,SATA,WD 01FR402 N

14 STRosewood2D7mm2TBHDD 5H20M37521 N

15 CP/CL17C3PG111.4V52.5Wh3cell 5B10Q88561 N

15 SP/AL17M3PG111.25V52.5Wh3cell 5B10Q80766 N

16 LowerCaseL81FVBK 5CB0R40221 N

— BatterySpongeL81FV 5T10R40222 N

— MICRubberL81FV 5R60R40173 N

— ACadapter(see“ACadapters”onpage67).

65

Lenovo Legion Y530-15ICH

LCD FRUs

InLenovoLegionY530-15ICH,thereisfollowingtypeofLCD.

• “14.0-in.HD/FHD”

3

2

1

4

5

66

Lenovo Legion Y530-15ICH Hardware Maintenance Manual

Table 6. Parts list—LCD FRUs

No. FRU FRU no. CRU ID.

1 LCDBezelL81FVBK 5B30R40182 N

2 LGLP156WF9-SPK1FHDIAGSNB 5D10M42873 N

2 LGLP156WFGSPB2FHDIAGSNB 5D10R19779 N

2 AUB156HAN02.17AFHDIAGSNB 5D10R04645 N

2 BONV156FHM-N61FHDIAGSNB 5D10M42889 N

2 BONV156FHM-N4GFHDIAGSNB 5D10R00685 N

3 LCDRemovableTapesL81FVL+R 5T10R40170 N

4 Camera,720P,Front,2MIC,WTB,Ltn 01HW029 N

4 Camera,720P,Front,2MIC,WTB,Bsn 01HW027 N

4 Camera,720P,Front,2MIC,WTB,Chy 01HW028 N

4 Camera,720P,Front,2MIC,WTB,Azw 01HW037 N

5 LCDCoverL81FVFHDAGW/EDPCable 5CB0R44851 N

5 LCDCoverL81FVFHDAG2.6W/EDPCable 5CB0R44853 N

5 LCDCoverL81FVFHDAG144W/EDPCable 5CB0R44854 N

Miscellaneous parts

Table 7. Parts list—Miscellaneous parts

FRU P/N CRU ID.

Systemmiscellaneousparts:

• (a)K-LockBracketL81FV 5B40R40210 N

• (b)ShieldingofMemoryL81FV 5S60R40166 N

• (c)HDDBracketL81FV 5B40R40179 N

Cablemiscellaneousparts:

• (d)HDDCableL81FV 5C10R40220 N

Note:Italicizedlettersinparenthesesarereferencestotheexplodedviewin“Overall”onpage62.

67

Lenovo Legion Y530-15ICH

AC adapters

Table 8. Parts list—AC adapters

FRU P/N CRU ID.

135W,20VDC,3P,WW,CHY 00HM670 *

ADL135NDC3A20V6.75ACOO 01FR042 *

ADL135NLC3A20V6.75AADBIS 5A10J75112 *

Screws

Table 9. Parts list—Screws

FRU P/N

CRU ID.

QIQY6SCREW2D3LK8DZKNL+ 90201998 N

SCREWL80XKMM2.5D7.0LK4.5D0.8TNINL 5S10N82325 N

ScrewL81A82.7LK4.2D0.3TZK 5S10P19039 N

SCREWMM2.0D5.0LZKL80RQ 5S10K81649 N

AILZAScrewMM3.0D3.0LK4.9D 90203986 N

ScrewL81FVDCovertoCCover 5S10R40175 N

ScrewL81FVKBBKTtoHingeCover 5S10R40184 N

Power cords

ALenovopowercordforaspecificcountryorregionisusuallyavailableonlyinthatcountryor

region:

Table 10. Parts list — power cords

FRU P/N

CRU ID.

LINETEKLS15+H03VV-F+PE-3641mcord 145000586 *

LINETEKLS15+H03VV-F+LP-371mcord 145000597 *

VOLEXCH10S3+H03VV-F+VAC5S1mcord 145000527 *

LINETEKLS15+H03VV-F+LP-411mcord 145000595 *

LINETEKPE-361+H05VV-F+LS151mcord 145000592 *

LINETEKLS15+H03VV-F+LP-23A1mcord 145000589 *

VOLEXVAC5S+VCTF+M7551mcord 145000530 *

LongwellLP-61L+H03VV-F+LS-181mcord 145000561 *

LongwellLP-37+H03VV-F+LS-181mcord 145000565 *

VOLEXM2511+KETIIEC+VAC5S1mcord 145000533 *

VOLEXAU10S3+H03VV-F+VAC5S1mcord 145000532 *

LINETEKLS15+H03VV-F+PE-3361mcord 145000591 *

LINETEKLS15H03VV-FLP26A1mcord 145000596 *

LINETEKPC323+RVV300/300+LS151mcord 145000600 *

VOLEXGB10S3+RVV300/500+VAC5S1mcord 145000538 *

LongwellLP-30B+SPT-218AWG+LS-181mcord 145000562 *

VOLEXMP5004+H03VV-F+VAC5S1mcord 145000605 *

LongwellLP-41+H03VV-F+LS-181mcord 145000563 *

VOLEXVA2073+H03VV-F+VAC5S1mcord 145000528 *

LongwellLP-54+VCTF+LS-181mcord 145000555 *

LINETEKLP-34+H03VV-F+LS151mcord 145000585 *

VOLEXSI16S3+H03VV-F+VAC5S1mcord 145000526 *

LongwellLP-67+BIS+LS-181mcord 145000560 *

LongwellLP-34A+H03VV-F+LS-181mcord 145000553 *

LINETEKLS15+H03VV-F+LP391mcord 145000599 *

68

Lenovo Legion Y530-15ICH Hardware Maintenance Manual

FRU P/N

CRU ID.

LongwellLP-39+H03VV-F+LS-181mcord 145000554 *

LongwellLP-24+H03VV-F+LS-181mcord 145000567 *

LongwellLP-486+KTLH03VV-F+LS-51mcord 145000558 *

LongwellLSG-31+RVV300/300+LS-181mcord 145000568 *

VOLEXM2511+HO3VV-F+VAC5S1mcord 145000525 *

LongwellLP-22+H03VV-F+LS-181mcord 145000559 *

LongwellLP-23A+LFC-3R+LS-181mcord 145000557 *

VOLEXMP232+H03VV-F+VAC5S1mcord 145000524 *

LINETEKLP-61L+H03VV-F+LS151mcord 145000593 *

LINETEKLS15+H05VV-F+LP-E04A1mcord 145000590 *

LongwellLP-46+H03VV-F+LS-181mcord 145000564 *

LINETEKLS15+VCTF+LP-541mcord 145000587 *

VOLEXIT10S3+HO3VV-F+VAC5S1mcord 145000535 *

VolexUS15S3+SPT-2￡?VAC5S1mcord 145000537 *

LINETEKLP-30B+SPT-2+LS151mcord 145000594 *

lux0033+H03VV-F0.75/3C+00111mcord 145500008 *

Fru,LINECORD,TW,1M,3P,NON-LH 01YW107 *

lux0031+H03VV-F0.75/3C+00111mcord 145500000 *

TW,1M,3P,NON-LH,LTK 00HM693 *

lux0033+H03VV-F0.75/3C+00111mcord 145500001 *

lux0041+H03VV-F0.75/3C+00111mcord 145500012 *

lux0014+SPT-260°C18/3C+00161mcord 145500002 *

lux0018(E)+VCTF0.75/3C+00211mcord 145500005 *

Fru,LINECORD,TW,1M,3P,NON-LH 01YW105 *

lux0027+H03VV-F0.75/3C+00111mcord 145500013 *

lux0014+H03VV-F0.75/3C+0011 5L60J33143 *

lux0034+H03VV-F0.75/3C+00111mcord 145500011 *

lux0038+H03VV-F0.75/3C+00111mcord 145500006 *

lux0036+RVV300/3000.75/3C+00021mcord 145500003 *

lux0040+H03VV-F0.75/3C+00111mcord 145500015 *

Fru,LINECORD,TW,1M,3P,NON-LH 01YW103 *

lux0044+H03VV-F0.75/3C+00111mcord 145500010 *

lux0046+IS6940.75/3C+00111mcord 145500004 *

lux0029+H03VV-F0.75/3C+00111mcord 145500009 *

Table 10. Parts list — power cords (continued)

69

Notices

Notices

Lenovomaynotoffertheproducts,services,orfeaturesdiscussedinthis

documentinallcountries.ConsultyourlocalLenovorepresentativefor

informationontheproducts andservices currentlyavailableinyourarea.Any

referencetoaLenovoproduct,program,orserviceisnot intendedtostateor

implythatonlythatLenovoproduct,program,orservicemaybeused.Any

functionallyequivalent product,program, orservicethatdoesnotinfringe

anyLenovo intellectualpropertyrightmaybeusedinstead. However,itisthe

user’sresponsibilitytoevaluateandverifytheoperationofanyotherproduct,

program,orservice.

Lenovomayhavepatentsorpendingpatentapplicationscoveringsubjectmatter

describedinthisdocument.The furnishingofthisdocumentdoesnotgiveyou

anylicensetothesepatents.

LENOVOGROUPLTD.PROVIDESTHISPUBLICATION“ASIS”

WITHOUTWARRANTY OFANYKIND,EITHEREXPRESS ORIMPLIED,

INCLUDING,BUTNOTLIMITEDTO,THEIMPLIEDWARRANTIESOFNON-

INFRINGEMENT,MERCHANTABILITYORFITNESSFORAPARTICULAR

PURPOSE.Somejurisdictionsdonotallowdisclaimerofexpressorimplied

warrantiesincertaintransactions,therefore,thisstatementmaynotapplytoyou.

Thisinformation couldinclude technicalinaccuraciesor typographicalerrors.

Changesareperiodicallymade tothe informationherein; thesechanges

willbeincorporatedin neweditions ofthe publication.Lenovomaymake

improvementsand/or changesin theproduct(s)and/ortheprogram(s)

describedinthispublicationatanytimewithoutnotice.

Theproductsdescribedin thisdocument arenotintendedforusein

implantationorotherlifesupportapplicationswheremalfunctionmay resultin

injuryordeathtopersons.Theinformationcontainedinthisdocumentdoesnot

affectorchange Lenovoproduct specicationsor warranties.Nothinginthis

documentshalloperateasanexpressorimpliedlicenseorindemnityunderthe

intellectualpropertyrightsofLenovoorthird parties.Allinformationcontained

inthisdocumentwasobtainedinspecicenvironmentsandispresentedasan

illustration.Theresultobtainedinotheroperatingenvironmentsmayvary.

Lenovomayuseordistributeanyoftheinformationyousupplyinanywayit

believesappropriatewithoutincurringanyobligationtoyou.

Anyreferencesinthispublicationtonon-LenovoWebsitesareprovidedfor

convenienceonlyanddonotinanymannerserveasanendorsementofthose

Websites.Thematerials atthoseWebsitesarenotpartofthematerials for

thisLenovoproduct,anduseofthoseWebsitesisatyourownrisk.

Anyperformance datacontainedherein wasdetermined inacontrolled

environment.Therefore,theresultobtainedin otheroperating environments

mayvarysignificantly.Some measurementsmayhavebeenmadeon

development-levelsystemsandthereisnoguaranteethatthesemeasurements

willbethesameongenerallyavailablesystems.Furthermore,some

measurementsmayhavebeenestimatedthroughextrapolation.Actualresults

mayvary.Usersofthisdocument shouldverify theapplicable datafortheir

specicenvironment.

70

Lenovo Legion Y530-15ICH Hardware Maintenance Manual

Trademarks

LenovoisatrademarkorregisteredtrademarkofLenovointheUnitedStates,

othercountries,orboth.

MicrosoftandWindowsaretrademarksofMicrosoftCorporationin theUnited

States,othercountries,orboth.

Othercompany, products,or servicenames maybetrademarksorservice

marksofothers.
