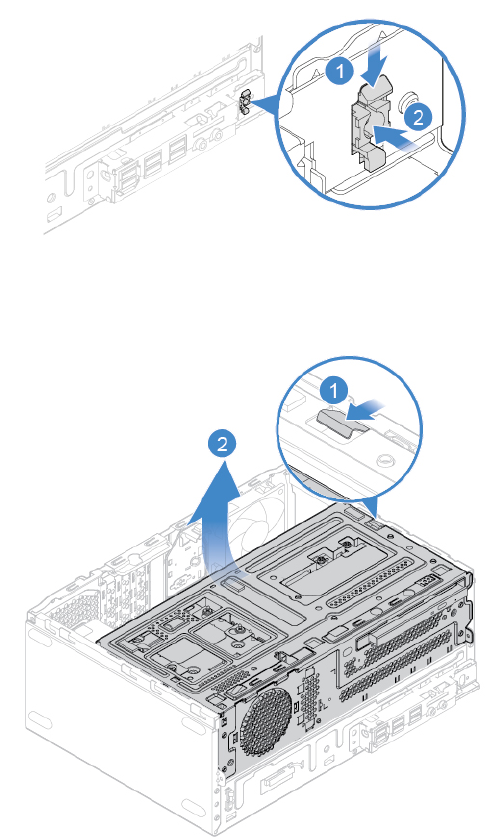

- Pivoting the drive bay assembly upward and downward
- Replacing the storage drive

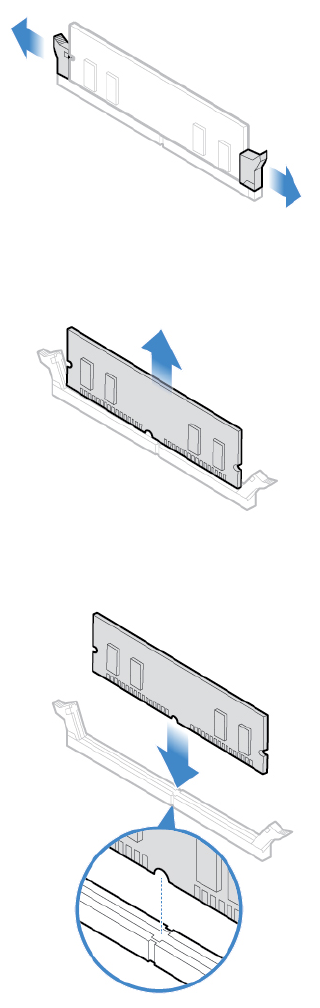

- Replacing a memory module
- Replacing the heat sink and fan assembly

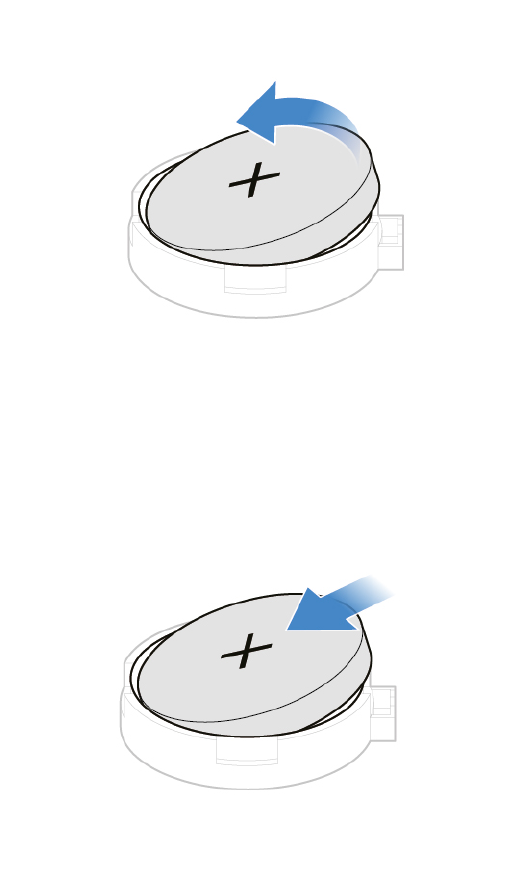

- Replacing the coin-cell battery
- Replacing a PCI Express card

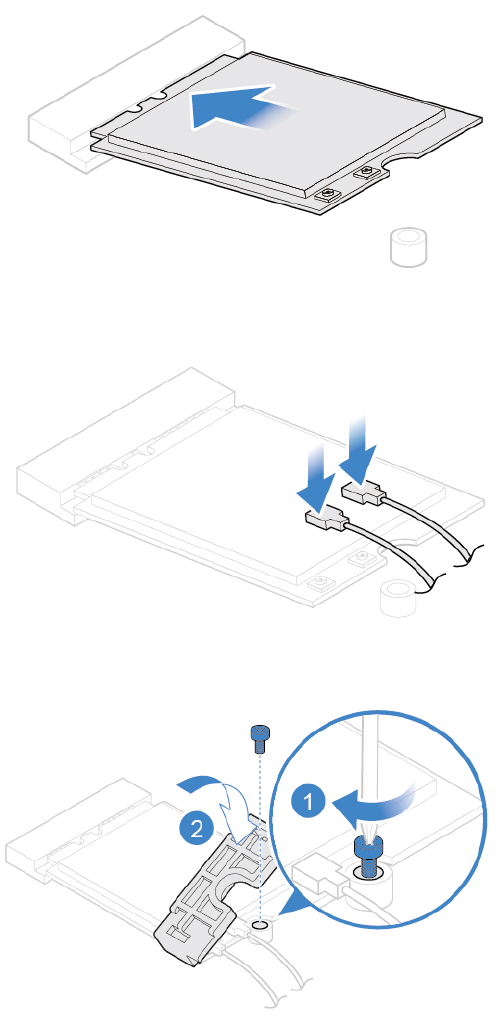

- Replacing the Wi-Fi card

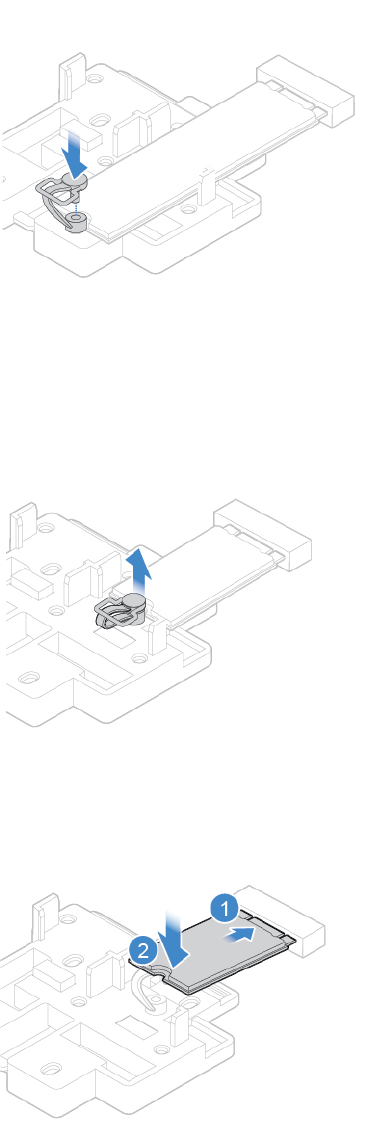

- Replacing the M.2 solid-state drive
- Replacing the M.2 solid-state drive bracket
- Replacing the power supply assembly
- Replacing the internal speaker
- Replacing the thermal sensor
- Replacing the front fan
- Replacing the Wi-Fi antennas
- Replacing the power button board
- Replacing the card reader

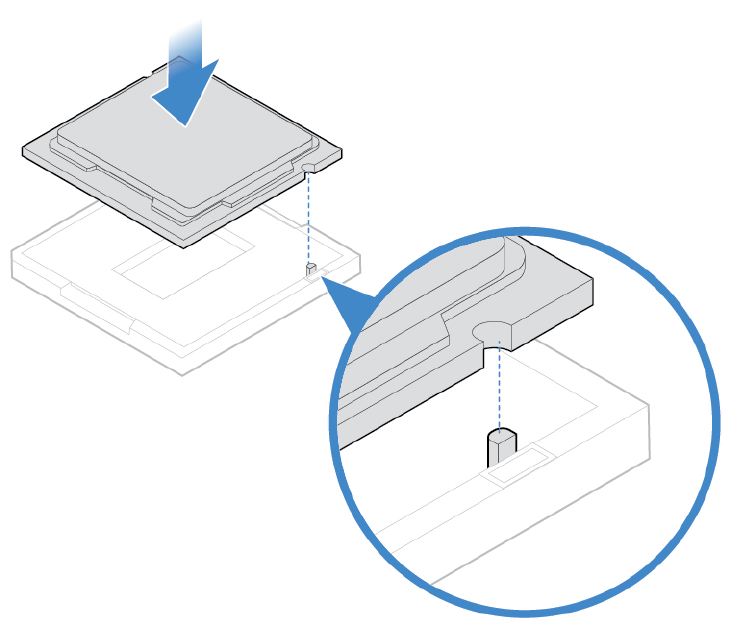

- Replacing the microprocessor
- Replacing the rear fan
- Replacing the system board
- Completing the parts replacement
- Appendix A. Notices
- Appendix B. Trademarks
V530-15ICB User Guide and Hardware
Maintenance Manual
Energy Star Machine Types: 10TV, 10TW, 10XS, and 10XT
Note: Before using this information and the product it supports, be sure to read and understand the
Important Product Information Guide and Appendix A “Notices” on page 57.
First Edition (May 2018)
© Copyright Lenovo 2018.
LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant to a General Services
Administration “GSA” contract, use, reproduction, or disclosure is subject to restrictions set forth in Contract No. GS-
35F-05925.
Contents
Chapter 1. Overview . . . . . . . . . . . 1
Front view . . . . . . . . . . . . . . . . . . 1
Rear view . . . . . . . . . . . . . . . . . . 3
System board . . . . . . . . . . . . . . . . 5
Machine type and model label . . . . . . . . . . 6
Chapter 2. Specifications . . . . . . . . 7
Chapter 3. Computer locks . . . . . . . 9
Locking the computer cover . . . . . . . . . . . 9
Attaching a Kensington-style cable lock . . . . . 10
Chapter 4. Replacing hardware . . . . 11
Before replacing hardware . . . . . . . . . . 11
Knowing FRUs (including CRUs) . . . . . . . . 11
Locating FRUs (including CRUs) . . . . . . . . 12
Removing the computer cover . . . . . . . . . 14
Replacing the front bezel . . . . . . . . . . . 15
Replacing the optical drive . . . . . . . . . . 16
Replacing the optical drive bracket . . . . . . . 17
Pivoting the drive bay assembly upward and
downward . . . . . . . . . . . . . . . . . 18
Replacing the storage drive . . . . . . . . . . 19
Replacing a memory module. . . . . . . . . . 22
Replacing the heat sink and fan assembly . . . . 24
Replacing the coin-cell battery . . . . . . . . . 25
Replacing a PCI Express card . . . . . . . . . 28
Replacing the Wi-Fi card . . . . . . . . . . . 29
Replacing the M.2 solid-state drive . . . . . . . 33
Replacing the M.2 solid-state drive bracket . . . . 36
Replacing the power supply assembly . . . . . . 37
Replacing the internal speaker . . . . . . . . . 39
Replacing the thermal sensor . . . . . . . . . 40
Replacing the front fan . . . . . . . . . . . . 41
Replacing the Wi-Fi antennas . . . . . . . . . 42
Replacing the power button board . . . . . . . 44
Replacing the card reader . . . . . . . . . . . 47
Replacing the microprocessor . . . . . . . . . 49
Replacing the rear fan . . . . . . . . . . . . 53
Replacing the system board . . . . . . . . . . 54
Completing the parts replacement . . . . . . . 55
Appendix A. Notices . . . . . . . . . . 57
Appendix B. Trademarks . . . . . . . 59
© Copyright Lenovo 2018 i
ii V530-15ICB User Guide and Hardware Maintenance Manual
Chapter 1. Overview
This chapter provides basic information to help you get familiar with your computer.
Front view
Note: Your computer model might look slightly different from the illustration.
Figure 1. Front view
1 Optical drive eject/close button 2 Optical drive activity indicator
3 Internal speaker (optional) 4 Card reader slot (optional)
5 Power indicator 6 Power button
7 Microphone connector 8 Headphone connector
9 USB 3.1 Gen 1 connectors (4) 10 USB 3.1 Gen 2 connectors (2)
11 Storage drive activity indicator
1 Optical drive eject/close button
Used to eject the tray of the optical drive. After you insert a disc into the tray, press the eject/close button to
close the tray.
© Copyright Lenovo 2018 1
2 Optical drive activity indicator
This indicator is on when the optical drive is in use.
3 Internal speaker
Used to listen to the sounds from your computer without using a headset or headphones.
4 Card reader slot
Used to read data from a supported memory card.
5 Power indicator
This indicator is on when the computer is on.
6 Power button
Used to turn on your computer. When you cannot shut down the computer from the operating system, press
and hold the power button for four or more seconds to turn off the computer.
7 Microphone connector
Used to connect a microphone to your computer when you want to record sound or interact with the
computer using speech recognition software.
8 Headphone connector
Used to connect headphones to your computer.
9 USB 3.1 Gen 1 connector
Used to connect a USB-compatible device. For optimal data transfer, connect a USB 3.1 Gen 1 device to a
USB 3.1 Gen 2 or USB 3.1 Gen 1 connector instead of a USB 2.0 connector.
10 USB 3.1 Gen 2 connector
Used to connect a USB-compatible device. For optimal data transfer, connect a USB 3.1 Gen 2 device to a
USB 3.1 Gen 2 connector instead of a USB 3.1 Gen 1 or USB 2.0 connector.
11 Storage drive activity indicator
This indicator is on when the storage drive is in use.
2V530-15ICB User Guide and Hardware Maintenance Manual
Rear view
Note: Your computer model might look slightly different from the illustration.
Figure 2. Rear view
1 Microphone connector 2 VGA-out connector
3 DisplayPort® 1.2 out connector 4 HDMITM 1.4 out connector
5 USB 2.0 connectors (4) 6 Audio line-out connector
7 Audio line-in connector 8 Serial connector
9 Ethernet connector 10 Serial connector (optional)
11 PCI-Express card area 12 Padlock loop
13 Security-lock slot 14 Power cord connector
1 Microphone connector
Used to connect a microphone to your computer when you want to record sound or interact with the
computer using speech recognition software.
2 VGA-out connector
Used to send video signals from the computer to another video device, such as a monitor.
Chapter 1.Overview 3
3 DisplayPort 1.2 out connector
Used to send audio and video signals from the computer to another audio or video device, such as a high-
performance monitor.
4 HDMI 1.4 out connector
Used to send audio and video signals from the computer to another audio or video device, such as a high-
performance monitor.
5 USB 2.0 connector
Used to connect a device that requires a USB 2.0 connection.
6 Audio line-out connector
Used to send audio signals from the computer to external devices, such as powered stereo speakers,
headphones, or multimedia keyboards. To connect a stereo system or other external recording device,
connect a cable between the audio line-in connector of the device and the audio line-out connector of the
computer.
Note: If your computer has both an audio line-out connector and a headset or headphone connector, always
use the headset connector or headphone connector for earphones, headphones, or a headset. The
headphone connector does not support headset microphones.
7 Audio line-in connector
Used to receive audio signals from an external audio device, such as a stereo system. To connect an external
audio device, connect a cable between the audio line-out connector of the device and the audio line-in
connector of the computer.
8 Serial connector
Used to connect an external modem, a serial printer, or other devices that use a serial connector.
9 Ethernet connector
Used to connect an Ethernet cable for network access.
10 Serial connector (optional)
Used to connect an external modem, a serial printer, or other devices that use a serial connector.
11 PCI-Express card area
To improve the operating performance of the computer, you can connect PCI-Express cards into this area.
Depending on the computer model, the connectors in this area vary.
12 Padlock loop
Used to secure a padlock.
13 Security-lock slot
Used to secure a Kensington-style cable lock.
14 Power cord connector
4V530-15ICB User Guide and Hardware Maintenance Manual
Used to connect the power cord to your computer for power supply.
System board
Note: See “Front view” and “Rear view” for additional component descriptions.
Figure 3. System board
1 4-pin power connector 2 Microprocessor fan connector
3 Buzzer 4 Auxiliary fan connector 2
5 Memory slot (DIMM2) 6 Memory slot (DIMM4)
7 Power button board connector 8 Internal speaker connector
9 10-pin power connector 10 SATA power connectors (2)
11 Auxiliary fan connector 1 12 Clear CMOS /Recovery jumper
13 SATA 3.0 connectors (3) 14 M.2 solid-state drive slot
15 M.2 Wi-Fi card slot 16 PCH
17 Thermal sensor connector 18 Front USB 2.0 connector 1 (card reader connector)
19 Parallel connector 20 Serial (COM2) connector
21 PCI Express x1 card slot 22 PCI Express x16 graphics card slot
23 Coin-cell battery 24 System fan connector
25 Microprocessor socket
Chapter 1.Overview 5
Machine type and model label
The machine type and model label identifies the computer. When you contact Lenovo for help, the machine
type and model information helps support technicians to identify the computer and provide faster service.
The machine type and model label is attached on the computer as shown.
Figure 4. Machine type and model label
6V530-15ICB User Guide and Hardware Maintenance Manual
Chapter 2. Specifications
Power supply
180-watt automatic voltage-sensing power supply
Storage drives
• 3.5-inch storage drive
• 2.5-inch storage drive
• M.2 solid-state drive
Video features
• The integrated graphics card supports the following:
– DisplayPort 1.2 out connector
– HDMI 1.4 out connector
– VGA-out connector
• The optional discrete graphics card provides an enhanced video experience and extended capabilities.
Audio features
• The integrated audio card supports the following:
– Audio line-in connector
– Audio line-out connector
– Headphone connector
– Internal speaker (optional)
– Microphone connector
• The optional discrete audio card provides an enhanced audio experience and extended capabilities.
Input/Output (I/O) features
• Audio connectors (audio line-in, audio line-out, headphone, and microphone)
• Card reader slot (optional)
• Display connectors (DisplayPort 1.2 out, HDMI 1.4 out, and VGA-out)
• Ethernet connector
• Serial connector
• USB connector
Expansion
• Card reader (optional)
• Memory slot
• M.2 solid-state drive slot
• Optical drive
• PCI Express x1 card slot
• PCI Express x16 graphics card slot
• Storage drive bay
© Copyright Lenovo 2018 7
Network features
• Ethernet LAN
• Wireless LAN (optional)
• Bluetooth (optional)
Physical dimensions
• Width: 145.0 mm (5.7 inches)
• Height: 366.0 mm (14.4 inches)
• Depth: 276.0 mm (10.9 inches)
Weight (without the package)
Maximum configuration as shipped: 6.2 kg (13.7 lb)
8V530-15ICB User Guide and Hardware Maintenance Manual
Chapter 3. Computer locks
This chapter provides instructions on how to lock your computer with the locking devices to keep your
computer safe.
Locking the computer cover
Locking the computer cover helps prevent unauthorized access to the inside of your computer. Your
computer features a padlock loop so that the computer cover cannot be removed when a padlock is
installed.
Figure 5. Locking the computer cover
© Copyright Lenovo 2018 9
Attaching a Kensington-style cable lock
You can use a Kensington-style cable lock to secure your computer to a desk, table, or other nonpermanent
fixture. The cable lock connects to the security-lock slot at the rear of your computer. Depending on the type
selected, the cable lock can be operated with a key or a combination. The cable lock also locks the buttons
used to open the computer cover. This is the same type of lock used with many notebook computers. You
can order such a cable lock directly from Lenovo by searching for Kensington at:
http://www.lenovo.com/support
Figure 6. Attaching a Kensington-style cable lock
10 V530-15ICB User Guide and Hardware Maintenance Manual
Chapter 4. Replacing hardware
This chapter provides instructions on how to replace hardware for your computer.
Before replacing hardware
Attention: Do not open your computer or attempt any repairs before reading this section and the Important
Product Information Guide.
Notes before replacing hardware
• Use computer components provided only by Lenovo.
• When installing or replacing an option, use the appropriate instructions explained in this manual along with
the instructions that come with the option.
• In most areas of the world, Lenovo requires the return of defective CRUs. Information about this will come
with the CRU or will come a few days after the CRU arrives.
Handling static-sensitive devices
Do not open the static-protective package containing the new part until the defective part has been removed
and you are ready to install the new part. Static electricity, although harmless to you, can seriously damage
computer components and options.
When you handle options and other computer components, take these precautions to avoid static-electricity
damage:
• Limit your movement. Movement can cause static electricity to build up around you.
• Always handle options and other computer components carefully. Handle PCI/PCIe cards, memory
modules, system boards, and microprocessors by the edges. Never touch any exposed circuitry.
• Prevent others from touching the options and other computer components.
• Touch the static-protective package containing the part to a metal expansion-slot cover or other
unpainted metal surface on the computer for at least two seconds. This reduces static electricity from the
package and your body before you install or replace a new part.
• When possible, remove the new part from the static-protective package, and install it directly in the
computer without setting the part down. When this is not possible, place the static-protective package on
a smooth, level surface and place the part on the package.
• Do not place the part on the computer cover or other metal surface.
Knowing FRUs (including CRUs)
• Field Replaceable Units (FRUs) are computer parts that a trained technician can upgrade or replace. FRUs
include all CRUs. For detailed FRU information, such as the FRU part numbers and supported computer
models, go to:
http://www.lenovo.com/serviceparts-lookup
• Customer Replaceable Units (CRUs) are computer parts that a user can upgrade or replace.
– Self-service CRUs: You can install self-service CRUs easily. These CRUs might be stand-alone,
latched, or secured by up to two screws. Examples of self-service CRUs include the keyboard, mouse,
any USB device. You are responsible for replacing all self-service CRUs.
– Optional-service CRUs: Handling optional-service CRUs requires some technical skills and simple tools
(such as a screwdriver). These CRUs are isolated parts within the computer. They are usually
© Copyright Lenovo 2018 11
concealed by an access panel that is secured by more than two screws. You must remove the screws
and panel to access the specific CRU. Optional-service CRUs can be removed and installed by users
or, during the warranty period, by a Lenovo service technician.
Before replacing FRUs
Before replacing any FRU, read the following:
• Only certified and trained personnel can service the computer.
• Before replacing an FRU, read the entire section about replacing the part.
• Be extremely careful during writing operations such as copying, saving, or formatting.
The sequence of the drives in the computer that you are servicing might have been altered. If you select
an incorrect drive, data or programs might be overwritten.
• Replace an FRU only with another FRU of the correct model.
When you replace an FRU, ensure that the model of the machine and the FRU part number are correct.
• An FRU should not be replaced because of a single, unreproducible failure.
Single failures can occur for a variety of reasons that have nothing to do with a hardware defect, such as
cosmic radiation, electrostatic discharge, or software errors. Consider replacing an FRU only when a
problem recurs. If you suspect that an FRU is defective, clear the error log and run the test again. If the
error does not recur, do not replace the FRU.
• Only replace a defective FRU.
Locating FRUs (including CRUs)
Notes:
• Self-service CRUs: 1, 6, 8, 10 , 11 , 19 , 20 , 21 , 22 , 23 , 24 , 25 , 27 , 28 , 32
• Optional-service CRUs: 2, 4, 5, 30
• Some of the following components are optional.
• To replace a component that is not in the list below, contact a Lenovo service technician. For a list of
Lenovo Support phone numbers, go to:
http://www.lenovo.com/support/phone
12 V530-15ICB User Guide and Hardware Maintenance Manual
Figure 7. Locating FRUs (including CRUs)
1 Computer cover 2 Heat sink and fan assembly
3 Rear fan 4 Wi-Fi card
5 Wi-Fi card shield 6 Coin-cell battery
7 Microprocessor 8 Memory module
9 System board 10 M.2 solid-state drive
11 M.2 solid-state drive bracket 12 Power button board
13 Optical drive cable 14 Card reader
15 Internal speaker 16 Wi-Fi antennas (2)
17 Rear Wi-Fi antenna cover 18 Thermal sensor
Chapter 4.Replacing hardware 13
19 Optical drive bracket 20 Optical drive
21 Front bezel 22 Card reader slot cover
23 Keyboard 24 Mouse
25 Power cord 26 Storage drive cable
27 Storage converter 28 Primary or secondary storage drive (a 2.5-inch or 3.5-
inch storage drive)
29 Front fan 30 Power supply assembly
31 Chassis 32 PCI Express card
Removing the computer cover
Attention: Do not open your computer or attempt any repairs before reading the Important Product
Information Guide.
CAUTION:
Before you open the computer cover, turn off the computer and wait several minutes until the
computer is cool.
1. Remove any media from the drives and turn off all connected devices and the computer.
2. Disconnect all power cords from electrical outlets and disconnect all cables from the computer.
3. Unlock any locking device that secures the computer cover.
4. Remove the computer cover.
Figure 8. Removing the computer cover
5. Complete the replacement. See “Completing the parts replacement” on page 55.
14 V530-15ICB User Guide and Hardware Maintenance Manual
Replacing the front bezel
Attention: Do not open your computer or attempt any repairs before reading the Important Product
Information Guide.
1. Remove the computer cover. See “Removing the computer cover” on page 14.
2. Replace the front bezel.
Figure 9. Removing the front bezel
Figure 10. Installing the front bezel
3. Complete the replacement. See “Completing the parts replacement” on page 55.
Chapter 4.Replacing hardware 15
Replacing the optical drive
Attention: Do not open your computer or attempt any repairs before reading the Important Product
Information Guide.
1. Remove the computer cover. See “Removing the computer cover” on page 14.
2. Remove the front bezel. See “Replacing the front bezel” on page 15.
3. Disconnect the signal cable and the power cable from the optical drive.
4. Replace the optical drive.
Figure 11. Removing the optical drive
Figure 12. Installing the optical drive
5. Connect the signal cable and the power cable to the new optical drive.
16 V530-15ICB User Guide and Hardware Maintenance Manual
6. Reinstall the removed parts. To complete the replacement, see “Completing the parts replacement” on
page 55.
Replacing the optical drive bracket
Attention: Do not open your computer or attempt any repairs before reading the Important Product
Information Guide.
1. Remove the computer cover. See “Removing the computer cover” on page 14.
2. Remove the front bezel. See “Replacing the front bezel” on page 15.
3. Remove the optical drive. See “Replacing the optical drive” on page 16.
4. Replace the optical drive bracket.
Figure 13. Removing the optical drive bracket
Figure 14. Installing the optical drive bracket
Chapter 4.Replacing hardware 17
5. Reinstall the removed parts. To complete the replacement, see “Completing the parts replacement” on
page 55.
Pivoting the drive bay assembly upward and downward
Attention: Do not open your computer or attempt any repairs before reading the Important Product
Information Guide.
1. Remove the computer cover. See “Removing the computer cover” on page 14.
2. Remove the front bezel. See “Replacing the front bezel” on page 15.
3. Pivot the drive bay assembly upward and downward.
Figure 15. Pivoting the drive bay assembly upward
Figure 16. Pivoting the drive bay assembly downward
18 V530-15ICB User Guide and Hardware Maintenance Manual
4. Reinstall the removed parts. To complete the replacement, see “Completing the parts replacement” on
page 55.
Replacing the storage drive
Attention: Do not open your computer or attempt any repairs before reading the Important Product
Information Guide.
Replacing the 3.5-inch storage drive
1. Remove the computer cover. See “Removing the computer cover” on page 14.
2. Remove the front bezel. See “Replacing the front bezel” on page 15.
3. Pivot the drive bay assembly upward. See “Pivoting the drive bay assembly upward and downward” on
page 18.
4. Disconnect the signal cable and the power cable from the 3.5-inch storage drive.
5. Refer to the following to replace the 3.5-inch storage drive.
• 3.5-inch primary storage drive
Figure 17. Removing the 3.5-inch primary storage drive
Chapter 4.Replacing hardware 19
Figure 18. Installing the 3.5-inch primary storage drive
• 3.5-inch secondary storage drive
Figure 19. Removing the 3.5-inch secondary storage drive
20 V530-15ICB User Guide and Hardware Maintenance Manual
Figure 20. Installing the 3.5-inch secondary storage drive
6. Connect the signal cable and the power cable to the new 3.5-inch storage drive.
7. Reinstall the removed parts. To complete the replacement, see “Completing the parts replacement” on
page 55.
Replacing the 2.5-inch storage drive
1. Remove the storage converter with the 2.5-inch storage drive. See “Replacing the 3.5-inch storage
drive”.
2. Replace the 2.5-inch storage drive in the storage converter.
Figure 21. Removing the 2.5-inch storage drive from the storage converter
Chapter 4.Replacing hardware 21
Figure 22. Installing the 2.5-inch storage drive into the storage converter
3. Reinstall the storage converter with the 2.5-inch storage drive. See “Replacing the 3.5-inch storage
drive”.
Replacing a memory module
Attention: Do not open your computer or attempt any repairs before reading the Important Product
Information Guide.
Ensure that you follow the installation order for memory modules shown in the following figure.
1. Remove the computer cover. See “Removing the computer cover” on page 14.
2. Remove the front bezel. See “Replacing the front bezel” on page 15.
22 V530-15ICB User Guide and Hardware Maintenance Manual
Figure 26. Securing a memory module with the latches
5. Reinstall the removed parts. To complete the replacement, see “Completing the parts replacement” on
page 55.
Replacing the heat sink and fan assembly
Attention: Do not open your computer or attempt any repairs before reading the Important Product
Information Guide.
CAUTION:
The heat sink and microprocessor might be very hot. Before you open the computer cover, turn off the
computer and wait several minutes until the computer is cool.
1. Remove the computer cover. See “Removing the computer cover” on page 14.
2. Remove the front bezel. See “Replacing the front bezel” on page 15.
3. Pivot the drive bay assembly upward. See “Pivoting the drive bay assembly upward and downward” on
page 18.
4. Disconnect the microprocessor fan cable from the system board.
5. Replace the heat sink and fan assembly.
24 V530-15ICB User Guide and Hardware Maintenance Manual
Figure 27. Removing the heat sink and fan assembly
Figure 28. Installing the heat sink and fan assembly
6. Connect the new microprocessor fan cable to the system board.
7. Reinstall the removed parts. To complete the replacement, see “Completing the parts replacement” on
page 55.
Replacing the coin-cell battery
Attention: Do not open your computer or attempt any repairs before reading the Important Product
Information Guide.
Chapter 4.Replacing hardware 25
Note: To dispose of the coin-cell battery, refer to “Lithium coin-cell battery notice” in the Safety and
Warranty Guide.
Your computer has a special type of memory that maintains the date, time, and settings for built-in features,
such as parallel connector assignments (configurations). A coin-cell battery keeps this information active
when you turn off the computer.
The coin-cell battery normally requires no charging or maintenance throughout its life; however, no coin-cell
battery lasts forever. If the coin-cell battery fails, the date, time, and configuration information (including
passwords) are lost. An error message is displayed when you turn on the computer.
1. Remove the computer cover. See “Removing the computer cover” on page 14.
2. Remove the front bezel. See “Replacing the front bezel” on page 15.
3. Pivot the drive bay assembly upward. See “Pivoting the drive bay assembly upward and downward” on
page 18.
4. Replace the coin-cell battery.
Figure 29. Disengaging the latch
26 V530-15ICB User Guide and Hardware Maintenance Manual
Figure 32. Securing the coin-cell battery with the latch
5. Reinstall the removed parts. To complete the replacement, see “Completing the parts replacement” on
page 55.
Replacing a PCI Express card
Attention: Do not open your computer or attempt any repairs before reading the Important Product
Information Guide.
1. Remove the computer cover. See “Removing the computer cover” on page 14.
2. Remove the front bezel. See “Replacing the front bezel” on page 15.
3. Pivot the drive bay assembly upward. See “Pivoting the drive bay assembly upward and downward” on
page 18.
4. Replace a PCI Express card.
Figure 33. Removing a PCI Express card
28 V530-15ICB User Guide and Hardware Maintenance Manual
Note: If the card is held in place by a retaining latch, press the latch as shown to disengage the latch.
Then, gently remove the card from the slot.
Figure 34. Installing a PCI Express card
5. Reinstall the removed parts. To complete the replacement, see “Completing the parts replacement” on
page 55.
Replacing the Wi-Fi card
Attention: Do not open your computer or attempt any repairs before reading the Important Product
Information Guide.
1. Remove the computer cover. See “Removing the computer cover” on page 14.
2. Remove the front bezel. See “Replacing the front bezel” on page 15.
3. Pivot the drive bay assembly upward. See “Pivoting the drive bay assembly upward and downward” on
page 18.
4. Depending on your computer model, refer to one of the following to replace the Wi-Fi card.
• Type 1
Chapter 4.Replacing hardware 29
Figure 35. Removing the Wi-Fi card shield
Figure 36. Disconnecting the Wi-Fi antenna cables
Figure 37. Removing the Wi-Fi card
30 V530-15ICB User Guide and Hardware Maintenance Manual
Figure 41. Removing the Wi-Fi card shield
Figure 42. Disconnecting the Wi-Fi antenna cables
Figure 43. Removing the Wi-Fi card
32 V530-15ICB User Guide and Hardware Maintenance Manual
Figure 44. Installing the Wi-Fi card
Figure 45. Connecting the Wi-Fi antenna cables
Figure 46. Installing the Wi-Fi card shield
5. Reinstall the removed parts. To complete the replacement, see “Completing the parts replacement” on
page 55.
Replacing the M.2 solid-state drive
Attention: Do not open your computer or attempt any repairs before reading the Important Product
Information Guide.
1. Remove the computer cover. See “Removing the computer cover” on page 14.
Chapter 4.Replacing hardware 33
2. Remove the front bezel. See “Replacing the front bezel” on page 15.
3. Pivot the drive bay assembly upward. See “Pivoting the drive bay assembly upward and downward” on
page 18.
4. Depending on your computer model, refer to one of the following to replace the M.2 solid-state drive.
• Type 1
Figure 47. Pulling out the stopper
Figure 48. Removing the M.2 solid-state drive
Figure 49. Installing the M.2 solid-state drive
34 V530-15ICB User Guide and Hardware Maintenance Manual
Figure 53. Installing the M.2 solid-state drive
Figure 54. Inserting the stopper
5. Reinstall the removed parts. To complete the replacement, see “Completing the parts replacement” on
page 55.
Replacing the M.2 solid-state drive bracket
Attention: Do not open your computer or attempt any repairs before reading the Important Product
Information Guide.
1. Remove the computer cover. See “Removing the computer cover” on page 14.
2. Remove the front bezel. See “Replacing the front bezel” on page 15.
3. Pivot the drive bay assembly upward. See “Pivoting the drive bay assembly upward and downward” on
page 18.
4. Remove the M.2 solid-state drive. See “Replacing the M.2 solid-state drive” on page 33.
5. Replace the M.2 solid-state drive bracket.
36 V530-15ICB User Guide and Hardware Maintenance Manual
Figure 55. Removing the M.2 solid-state drive bracket
Figure 56. Installing the M.2 solid-state drive bracket
6. Reinstall the removed parts. To complete the replacement, see “Completing the parts replacement” on
page 55.
Replacing the power supply assembly
Attention: Do not open your computer or attempt any repairs before reading the Important Product
Information Guide.
Although there are no moving parts in the computer after the power cord has been disconnected, the
following warnings are required for your safety and proper Underwriters Laboratories (UL) certification.
CAUTION:
Chapter 4.Replacing hardware 37
Hazardous moving parts. Keep fingers and other body parts away.
CAUTION:
Never remove the cover on a power supply or any part that has the following label attached.
Hazardous voltage, current, and energy levels are present inside any component that has this label
attached. There are no serviceable parts inside these components. If you suspect a problem with one
of these parts, contact a service technician.
1. Remove the computer cover. See “Removing the computer cover” on page 14.
2. Remove the front bezel. See “Replacing the front bezel” on page 15.
3. Pivot the drive bay assembly upward. See “Pivoting the drive bay assembly upward and downward” on
page 18.
4. Disconnect the power supply assembly cables from the system board.
5. Replace the power supply assembly.
Figure 57. Removing the power supply assembly
38 V530-15ICB User Guide and Hardware Maintenance Manual
Figure 58. Installing the power supply assembly
6. Connect the new power supply assembly cables to the system board.
7. Reinstall the removed parts. To complete the replacement, see “Completing the parts replacement” on
page 55.
Replacing the internal speaker
Attention: Do not open your computer or attempt any repairs before reading the Important Product
Information Guide.
1. Remove the computer cover. See “Removing the computer cover” on page 14.
2. Remove the front bezel. See “Replacing the front bezel” on page 15.
3. Pivot the drive bay assembly upward. See “Pivoting the drive bay assembly upward and downward” on
page 18.
4. Disconnect the internal speaker cable from the system board.
5. Replace the internal speaker.
Figure 59. Removing the internal speaker
Chapter 4.Replacing hardware 39
Figure 60. Installing the internal speaker
6. Connect the new internal speaker cable to the system board.
7. Reinstall the removed parts. To complete the replacement, see “Completing the parts replacement” on
page 55.
Replacing the thermal sensor
Attention: Do not open your computer or attempt any repairs before reading the Important Product
Information Guide.
1. Remove the computer cover. See “Removing the computer cover” on page 14.
2. Remove the front bezel. See “Replacing the front bezel” on page 15.
3. Pivot the drive bay assembly upward. See “Pivoting the drive bay assembly upward and downward” on
page 18.
4. Disconnect the thermal sensor cable from the system board.
5. Replace the thermal sensor.
Figure 61. Removing the thermal sensor
40 V530-15ICB User Guide and Hardware Maintenance Manual
Figure 62. Installing the thermal sensor
6. Connect the new thermal sensor cable to the system board.
7. Reinstall the removed parts. To complete the replacement, see “Completing the parts replacement” on
page 55.
Replacing the front fan
Attention: Do not open your computer or attempt any repairs before reading the Important Product
Information Guide.
1. Remove the computer cover. See “Removing the computer cover” on page 14.
2. Remove the front bezel. See “Replacing the front bezel” on page 15.
3. Pivot the drive bay assembly upward. See “Pivoting the drive bay assembly upward and downward” on
page 18.
4. Disconnect the front fan cable from the system board.
5. Replace the front fan.
Figure 63. Removing the front fan
Chapter 4.Replacing hardware 41
Figure 64. Installing the front fan
6. Connect the new front fan cable to the system board.
7. Reinstall the removed parts. To complete the replacement, see “Completing the parts replacement” on
page 55.
Replacing the Wi-Fi antennas
Attention: Do not open your computer or attempt any repairs before reading the Important Product
Information Guide.
1. Remove the computer cover. See “Removing the computer cover” on page 14.
2. Remove the front bezel. See “Replacing the front bezel” on page 15.
3. Disconnect the Wi-Fi antenna cables from the Wi-Fi card. See “Replacing the Wi-Fi card” on page 29.
4. Refer to the following to replace the Wi-Fi antennas.
• Front Wi-Fi antenna
Figure 65. Removing the front Wi-Fi antenna
42 V530-15ICB User Guide and Hardware Maintenance Manual
Figure 69. Installing the rear Wi-Fi antenna
Figure 70. Installing the rear Wi-Fi antenna cover
5. Connect the new Wi-Fi antenna cables to the Wi-Fi card.
6. Reinstall the removed parts. To complete the replacement, see “Completing the parts replacement” on
page 55.
Replacing the power button board
Attention: Do not open your computer or attempt any repairs before reading the Important Product
Information Guide.
1. Remove the computer cover. See “Removing the computer cover” on page 14.
2. Remove the front bezel. See “Replacing the front bezel” on page 15.
3. Disconnect the power button board cable from the system board.
4. Replace the power button board.
44 V530-15ICB User Guide and Hardware Maintenance Manual
Figure 73. Removing the power button board
Figure 74. Installing the power button board
46 V530-15ICB User Guide and Hardware Maintenance Manual
Figure 75. Pivoting the drive bay assembly downward
5. Connect the new power button board cable to the system board.
6. Reinstall the removed parts. To complete the replacement, see “Completing the parts replacement” on
page 55.
Replacing the card reader
Attention: Do not open your computer or attempt any repairs before reading the Important Product
Information Guide.
1. Remove the computer cover. See “Removing the computer cover” on page 14.
2. Remove the front bezel. See “Replacing the front bezel” on page 15.
3. Remove the power button board. See “Replacing the power button board” on page 44.
4. Disconnect the card reader cable from the system board.
5. Replace the card reader.
Chapter 4.Replacing hardware 47
Figure 76. Removing the front I/O bracket
Figure 77. Removing the card reader
Figure 78. Installing the card reader
48 V530-15ICB User Guide and Hardware Maintenance Manual
Figure 79. Installing the front I/O bracket
6. Connect the new card reader cable to the system board.
7. Reinstall the removed parts. To complete the replacement, see “Completing the parts replacement” on
page 55.
Replacing the microprocessor
Attention: Do not open your computer or attempt any repairs before reading the Important Product
Information Guide.
CAUTION:
The heat sink and microprocessor might be very hot. Before you open the computer cover, turn off the
computer and wait several minutes until the computer is cool.
1. Remove the computer cover. See “Removing the computer cover” on page 14.
2. Remove the front bezel. See “Replacing the front bezel” on page 15.
3. Pivot the drive bay assembly upward. See “Pivoting the drive bay assembly upward and downward” on
page 18.
4. Remove the heat sink and fan assembly. See “Replacing the heat sink and fan assembly” on page 24.
5. Record the cable routing and cable connections, and then disconnect all cables from the system board.
See “System board” on page 5.
6. Replace the microprocessor.
Notes:
• Your microprocessor and socket might look different from the one illustrated.
• Touch only the edges of the microprocessor. Do not touch the gold contacts on the bottom.
• Do not drop anything onto the microprocessor socket while it is exposed. The socket pins must be
kept as clean as possible.
Chapter 4.Replacing hardware 49
Figure 80. Releasing the handle
Figure 81. Opening the retainer
Figure 82. Removing the microprocessor
50 V530-15ICB User Guide and Hardware Maintenance Manual
Figure 84. Closing the retainer
7.
Figure 85. Securing the retainer with the handle
8. Route all the cables that you disconnected from the system board, and then reconnect the cables to the
system board.
9. Reinstall the removed parts. To complete the replacement, see “Completing the parts replacement” on
page 55.
52 V530-15ICB User Guide and Hardware Maintenance Manual
Replacing the rear fan
Attention: Do not open your computer or attempt any repairs before reading the Important Product
Information Guide.
1. Remove the computer cover. See “Removing the computer cover” on page 14.
2. Remove the front bezel. See “Replacing the front bezel” on page 15.
3. Pivot the drive bay assembly upward. See “Pivoting the drive bay assembly upward and downward” on
page 18.
4. Disconnect the rear fan cable from the system board.
5. Replace the rear fan.
Figure 86. Removing the rear fan
Figure 87. Installing the rear fan
Chapter 4.Replacing hardware 53
6. Connect the new rear fan cable to the system board.
7. Reinstall the removed parts. To complete the replacement, see “Completing the parts replacement” on
page 55.
Replacing the system board
Attention: Do not open your computer or attempt any repairs before reading the Important Product
Information Guide.
1. Remove the computer cover. See “Removing the computer cover” on page 14.
2. Remove the front bezel. See “Replacing the front bezel” on page 15.
3. Remove the front I/O bracket and the card reader. See “Replacing the card reader” on page 47.
4. Pivot the drive bay assembly upward. See “Pivoting the drive bay assembly upward and downward” on
page 18.
5. Remove all memory modules. See “Replacing a memory module” on page 22.
6. Remove the heat sink and fan assembly. See “Replacing the heat sink and fan assembly” on page 24.
7. Remove the microprocessor. See “Replacing the microprocessor” on page 49.
8. Remove all PCI Express cards. See “Replacing a PCI Express card” on page 28.
9. Remove the Wi-Fi card. See “Replacing the Wi-Fi card” on page 29.
10. Remove the M.2 solid-state drive. See “Replacing the M.2 solid-state drive” on page 33.
11. Record the cable routing and cable connections, and then disconnect all cables from the system board.
See “System board” on page 5.
12. Replace the system board.
Notes:
• The numbers in the following figure show the locations of the screws instead of a specific order for
removing and reinstalling the screws.
• Handle the system board carefully by its edges.
• The failing system board must be returned with a microprocessor socket cover to protect the pins
during shipping and handling.
13. Route and connect all the cables to the new system board.
54 V530-15ICB User Guide and Hardware Maintenance Manual
14. Reinstall the removed parts. To complete the replacement, see “Completing the parts replacement” on
page 55.
Completing the parts replacement
After completing the installation or replacement for all parts, reinstall the computer cover and reconnect the
cables.
To reinstall the computer cover and reconnect the cables to your computer, do the following:
1. Ensure that all components have been reassembled correctly and that no tools or loose screws are left
inside your computer.
2. Ensure that the cables are routed correctly before reinstalling the computer cover. Keep cables clear of
the hinges and sides of the computer chassis to avoid interference when reinstalling the computer
cover.
3. Reinstall the computer cover.
Figure 88. Reinstalling the computer cover
4. Place the computer in an upright position.
5. If a locking device is available, use it to lock the computer. See “Computer locks”.
6. Reconnect the external cables and power cords to the corresponding connectors on the computer.
Chapter 4.Replacing hardware 55
56 V530-15ICB User Guide and Hardware Maintenance Manual
Appendix A. Notices
Lenovo may not offer the products, services, or features discussed in this document in all countries. Consult
your local Lenovo representative for information on the products and services currently available in your
area. Any reference to a Lenovo product, program, or service is not intended to state or imply that only that
Lenovo product, program, or service may be used. Any functionally equivalent product, program, or service
that does not infringe any Lenovo intellectual property right may be used instead. However, it is the user's
responsibility to evaluate and verify the operation of any other product, program, or service.
Lenovo may have patents or pending patent applications covering subject matter described in this
document. The furnishing of this document does not give you any license to these patents. You can send
license inquiries, in writing, to:
Lenovo (United States), Inc.
1009 Think Place - Building One
Morrisville, NC 27560
U.S.A.
Attention: Lenovo Director of Licensing
LENOVO PROVIDES THIS PUBLICATION "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS
OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF NON-INFRINGEMENT,
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow
disclaimer of express or implied warranties in certain transactions, therefore, this statement may not apply to
you.
This information could include technical inaccuracies or typographical errors. Changes are periodically made
to the information herein; these changes will be incorporated in new editions of the publication. Lenovo may
make improvements and/or changes in the products and/or the programs described in this publication at any
time without notice.
The products described in this document are not intended for use in implantation or other life support
applications where malfunction may result in injury or death to persons. The information contained in this
document does not affect or change Lenovo product specifications or warranties. Nothing in this document
shall operate as an express or implied license or indemnity under the intellectual property rights of Lenovo or
third parties. All information contained in this document was obtained in specific environments and is
presented as an illustration. The result obtained in other operating environments may vary.
Lenovo may use or distribute any of the information you supply in any way it believes appropriate without
incurring any obligation to you.
Any references in this publication to non-Lenovo Web sites are provided for convenience only and do not in
any manner serve as an endorsement of those Web sites. The materials at those Web sites are not part of the
materials for this Lenovo product, and use of those Web sites is at your own risk.
Any performance data contained herein was determined in a controlled environment. Therefore, the result
obtained in other operating environments may vary significantly. Some measurements may have been made
on development-level systems and there is no guarantee that these measurements will be the same on
generally available systems. Furthermore, some measurements may have been estimated through
extrapolation. Actual results may vary. Users of this document should verify the applicable data for their
specific environment.
© Copyright Lenovo 2018 57
58 V530-15ICB User Guide and Hardware Maintenance Manual
Appendix B. Trademarks
The following terms are trademarks of Lenovo in the United States, other countries, or both:
Lenovo
The Lenovo logo
DisplayPort and Mini DisplayPort are trademarks of the Video Electronics Standards Association.
The terms HDMI and HDMI High-Definition Multimedia Interface are trademarks or registered trademarks of
HDMI Licensing LLC in the United States and other countries.
Other company, product, or service names may be trademarks or service marks of others.
© Copyright Lenovo 2018 59
60 V530-15ICB User Guide and Hardware Maintenance Manual
