Lenovo

YOGA C930-13IKB |

YOGA C930-13IKB Glass

Hardware

Maintenance

Manual

Note:

• Before using this information and the product it supports, be sure to read the general information under

“Notices” on page 67.

First Edition (August 2018)

© Copyright Lenovo 2018. All rights reserved.

LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant a General

Services Administration “GSA” contract, use, reproduction, or disclosure is subject to restrictions set

forth in Contract No. GS-35F-05925.

© 2018 Lenovo

iii

Contents

About this manual ....................................... iv

Safety information ........................................ 1

General safety ................................................ 2

Electrical safety .............................................. 3

Safety inspection guide .................................. 5

Handling devices that are sensitive to

electrostatic discharge .................................... 6

Grounding requirements ................................. 6

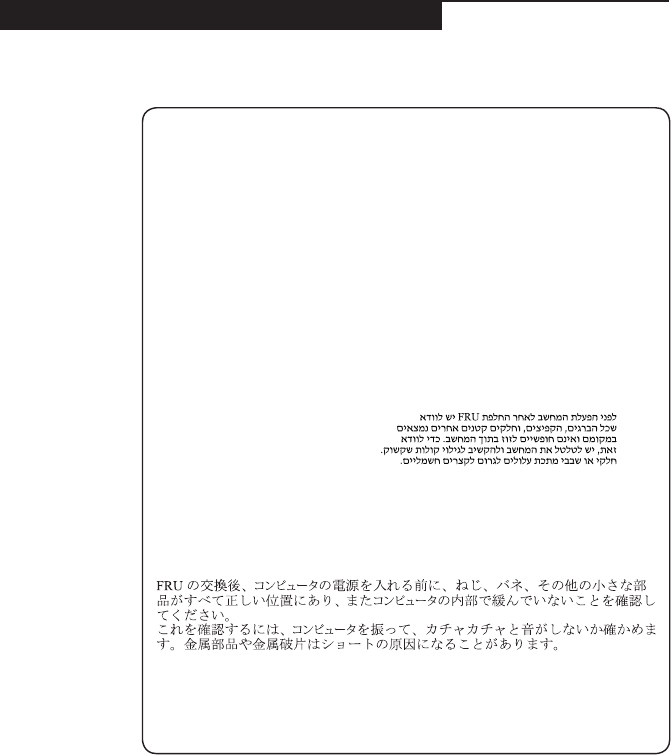

Safety notices: multilingual translations.......... 7

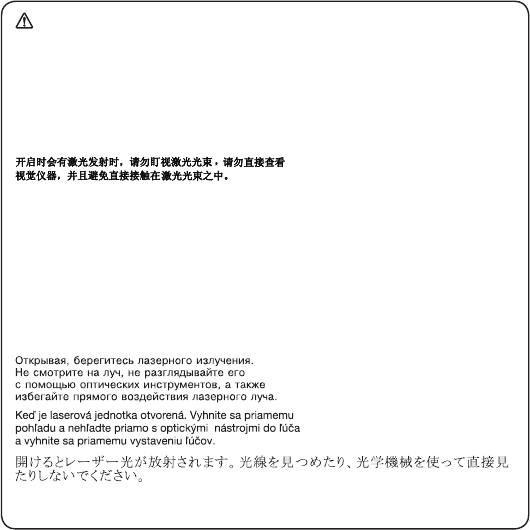

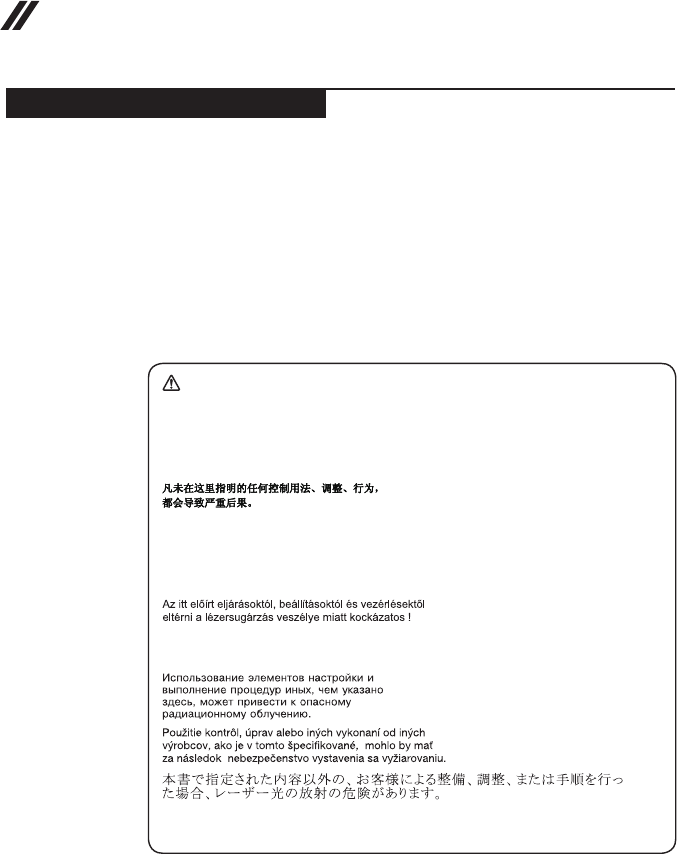

Laser compliance statement......................... 14

Important service information ................... 16

Strategy for replacing FRUs ......................... 16

Strategy for replacing a hard disk drive ............17

Important notice for replacing a system board

......17

Important information about replacing RoHS

compliant FRUs ............................................ 18

General checkout ...................................... 19

What to do rst ............................................. 20

Power system checkout................................ 21

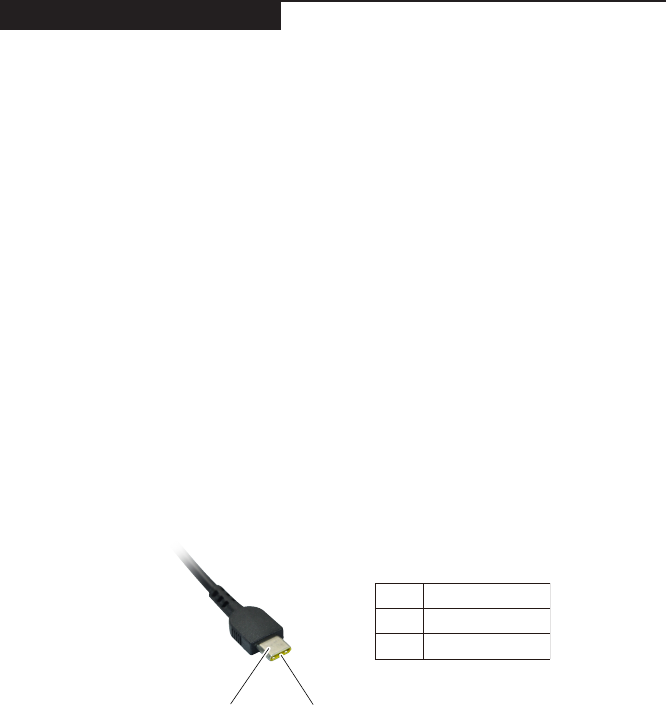

Checking the ac adapter ..................................21

Checking operational charging .........................22

Checking the battery pack ................................22

Related service information ...................... 23

Restoring the factory contents by

using recovery system .................................. 23

Restore of factory default .................................23

Passwords .................................................... 24

Power-on password .......................................... 24

Hard-disk password .......................................... 24

Supervisor password ........................................24

Power-saving modes .................................... 25

Putting your computer to sleep ......................... 25

Shutting down the computer ............................. 25

Lenovo YOGA C930-13IKB/

Lenovo YOGA C930-13IKB Glass.............. 26

Specications ............................................... 26

Camera status indicator ....................................27

ac power status indicator .................................. 27

Caps Lock indicator ..........................................27

System status indicator ....................................27

Status indicators ........................................... 27

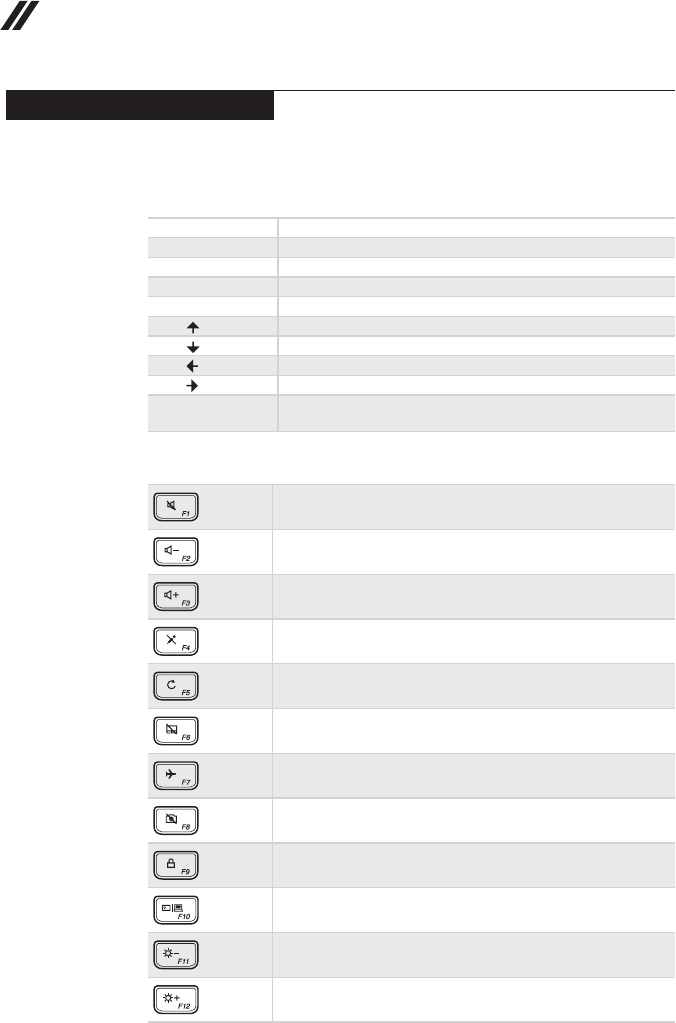

Keyboard function keys ................................ 28

Setting hotkey mode ......................................... 29

FRU replacement notices ............................. 30

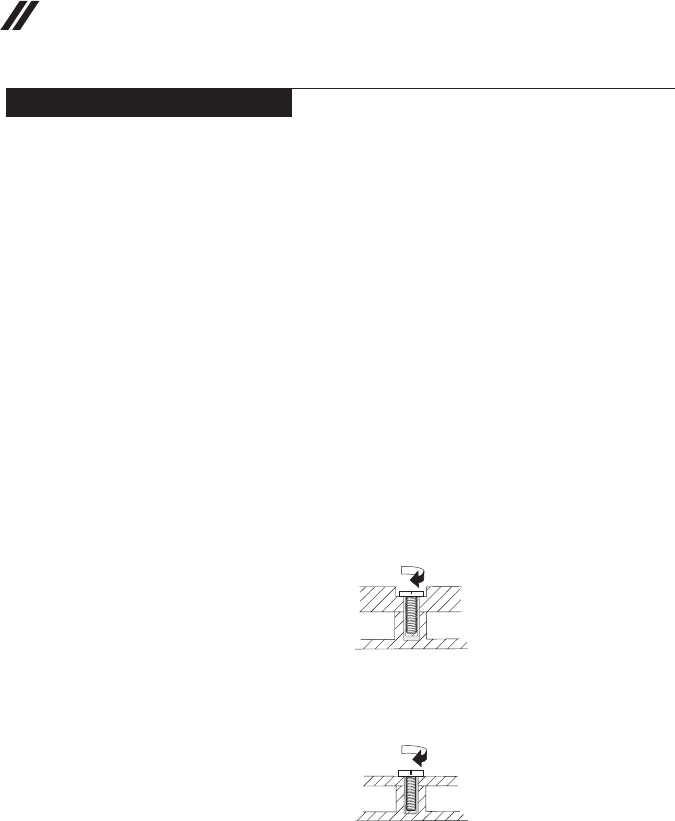

Screw notices ..................................................30

Removing and replacing an FRU ................. 31

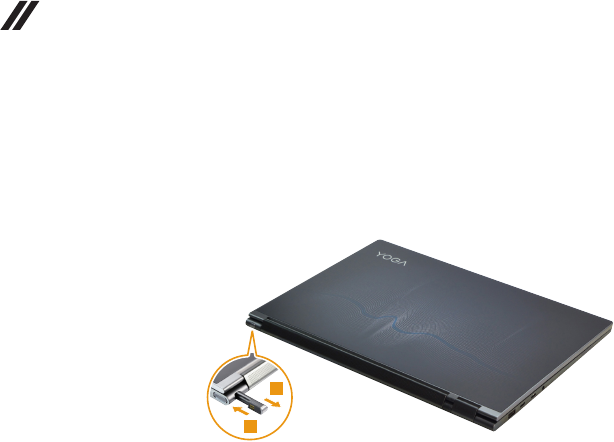

1010 YOGA Pen ...............................................32

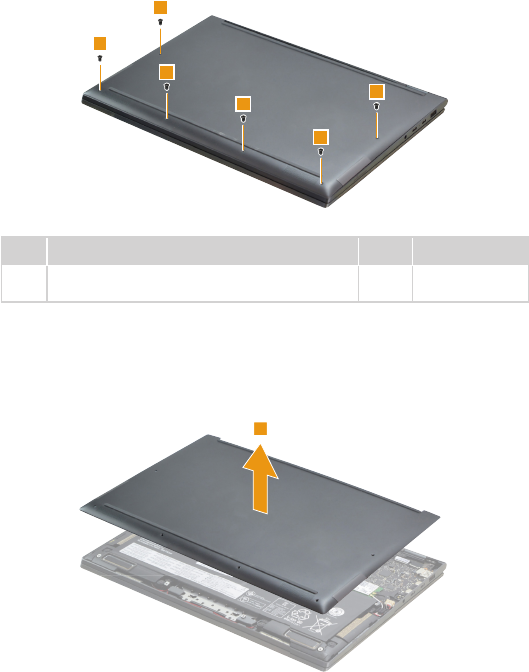

1020 Base cover ...............................................33

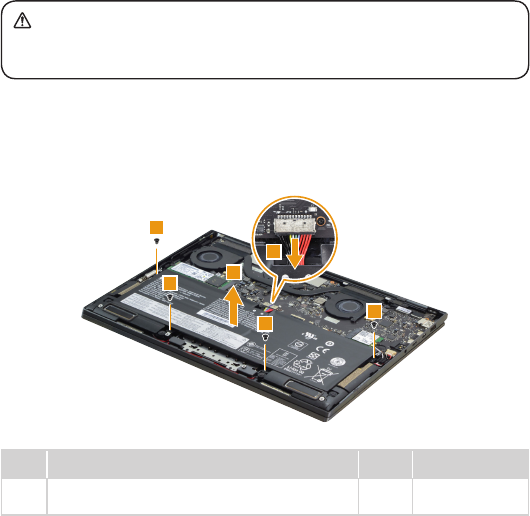

1030 Battery pack .............................................35

1040 Solid state disk ........................................36

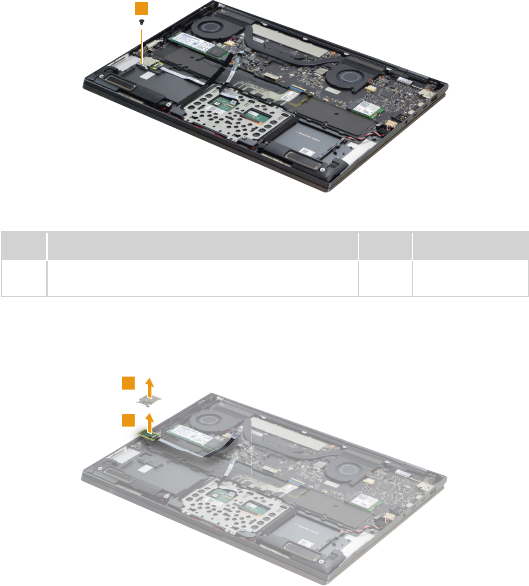

1050

PCI Express Mini Card for wireless LAN

....... 37

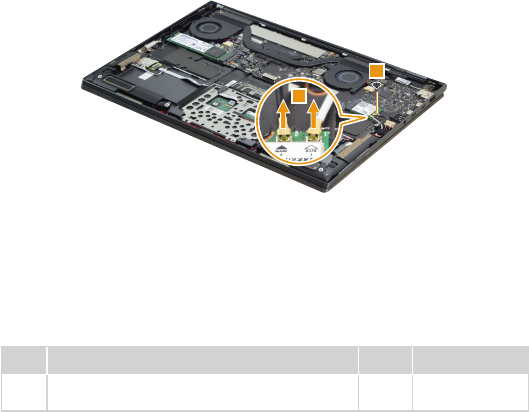

1060 Antenna ...................................................39

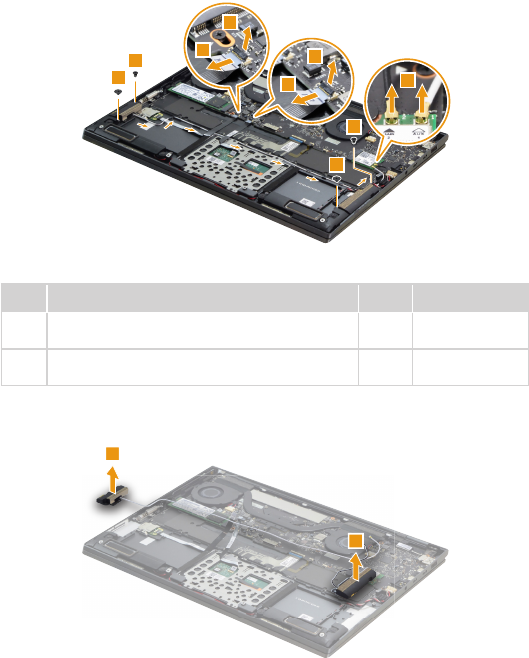

1070 Speakers .................................................40

1080 Fingerprint module ...................................41

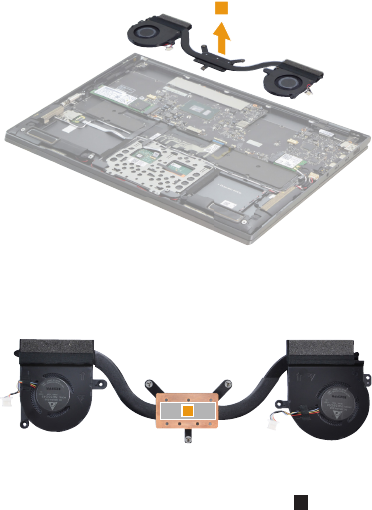

1090 Fan and heat sink assembly .................... 42

1100 Pen holder and power board....................44

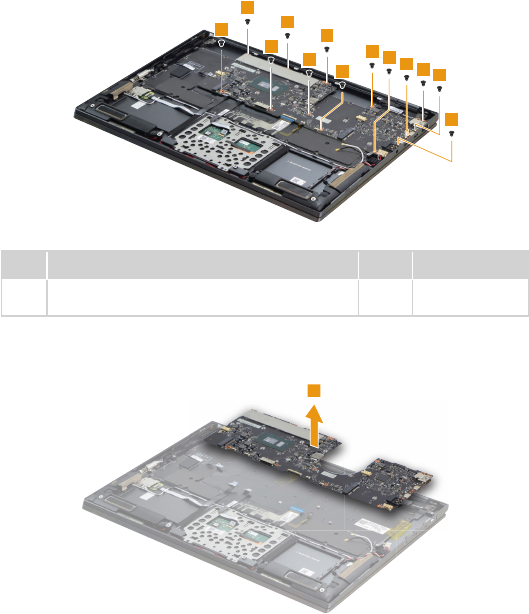

1110 System board ...........................................46

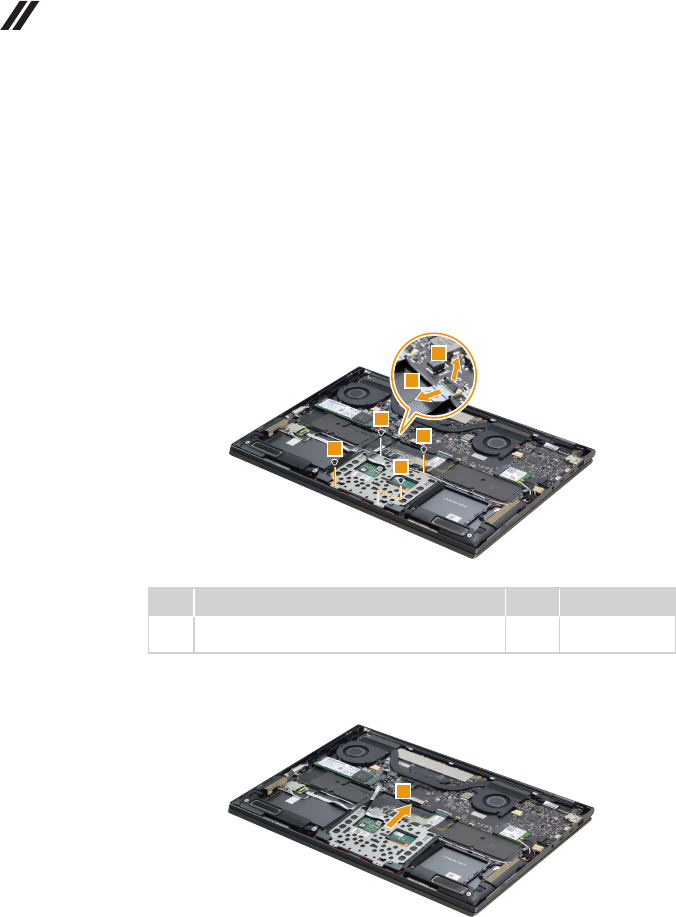

1120 Touchpad module .....................................48

1130 LCD unit ................................................... 49

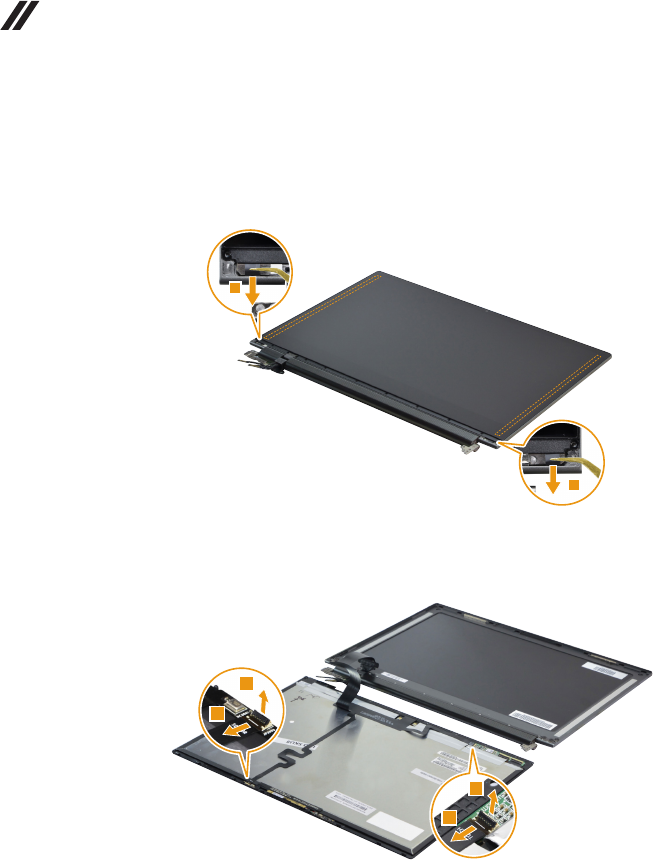

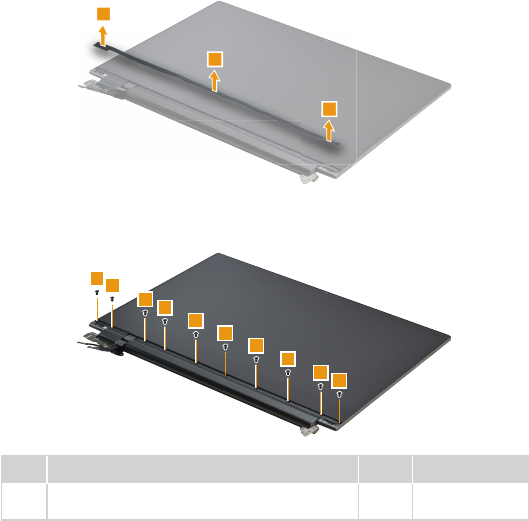

1140 LCD panel ................................................ 51

1150 Microphone board and camera board ...... 54

1160 Strip cover ................................................55

1170 Hinge module ...........................................56

Locations ...................................................... 57

Front and right-side view ..................................57

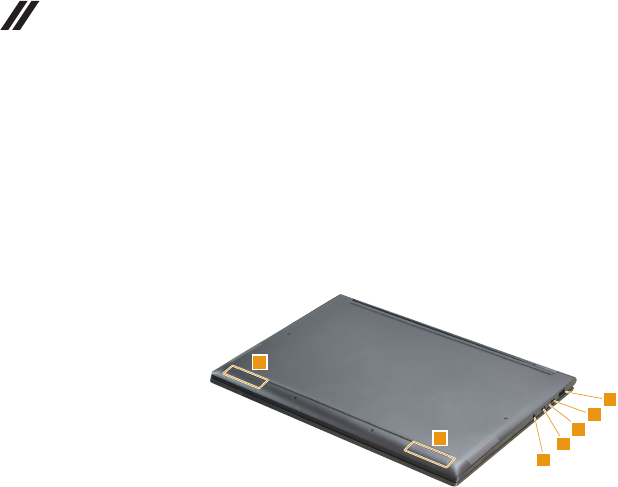

Bottom and left-side view ................................58

Parts list ........................................................ 59

Overall ..............................................................60

LCD FRUs ........................................................63

ac adapters ....................................................... 64

Screws .............................................................. 64

Power cords ......................................................65

Notices......................................................... 67

Trademarks .................................................. 68

iv

About this manual

This manual contains service and reference information for the following

Lenovo product:

Lenovo YOGA C930-13IKB/Lenovo YOGA C930-13IKB Glass

Use this manual to troubleshoot problems.

The manual is divided into the following sections:

• The common sections provide general information, guidelines, and safety

information required for servicing computers.

• The product-specic section includes service, reference, and product-specic

parts information.

Important:

This manual is intended only for trained servicers who are familiar with Lenovo

products. Use this manual to troubleshoot problems eectively.

Before servicing a Lenovo product, make sure to read all the information under

“Safety information” on page 1 and “Important service information” on page 16.

1

Safety information

Safety information

This chapter presents the following safety information that you need to get familiar with

before you service a Lenovo YOGA C930-13IKB/Lenovo YOGA C930-13IKB Glass

computer:

• “General safety” on page 2

• “Electrical safety” on page 3

• “Safety inspection guide” on page 5

• “Handling devices that are sensitive to electrostatic discharge” on page 6

• “Grounding requirements” on page 6

• “Safety notices: multilingual translations” on page 7

• “Laser compliance statement” on page 14

2

Lenovo YOGA C930-13IKB/Lenovo YOGA C930-13IKB Glass

Hardware Maintenance Manual

General safety

Follow these rules below to ensure general safety:

• Observe a good housekeeping in the area where the machines are put

during and after the maintenance.

• When lifting any heavy object:

1. Make sure that you can stand safely without slipping.

2. Distribute the weight of the object equally between your feet.

3. Use a slow lifting force. Never move suddenly or twist when you attempt

to lift it.

4. Lift it by standing or pushing up with your leg muscles; this action could

avoid the strain from the muscles in your back. Do not attempt to lift any

object that weighs more than 16 kg (35 lb) or that you think is too heavy

for you.

• Do not perform any action that causes hazards to the customer, or that

makes the machine unsafe.

• Before you start the machine, make sure that other service representatives

and the customer are not in a hazardous position.

• Please remove covers and other parts in a safe place, away from all

personnel, while you are servicing the machine.

• Keep your toolcase away from walk areas so that other people will not trip

over it.

• Do not wear loose clothing that can be trapped in the moving parts of the

machine. Make sure that your sleeves are fastened or rolled up above your

elbows. If your hair is long, fasten it.

• Insert the ends of your necktie or scarf inside clothing or fasten it with the

nonconductive clip, about 8 centimeters (3 inches) from the end.

• Do not wear jewelry, chains, metal-frame eyeglasses, or metal fasteners for

your clothing.

Attention: Metal objects are good electrical conductors.

• Wear safety glasses when you are hammering, drilling, soldering, cutting

wire, attaching springs, using solvents, or working in any other conditions

that may be hazardous to your eyes.

• After service, reinstall all safety shields, guards, labels, and ground wires.

Replace any safety device that is worn or defective.

• Reinstall all covers correctly before returning the machine to the customer.

• Fan louvers on the machine help to prevent the overheating of internal

components. Do not obstruct fan louvers or cover them with labels or

stickers.

3

Safety information

Electrical safety

Observe the following rules when working on electrical equipments.

Important:

Use only approved tools and test equipments. Some hand tools have handles

covered with a soft material that does not insulate you when working with live

electrical currents.

Many customers have rubber floor mats near their machines that contain small

conductive bers to decrease electrostatic discharges. Do not use such kind of mat

to protect yourself from electrical shock.

• Find the room emergency power-o (EPO) switch, disconnecting switch or

electrical outlet. If an electrical accident occurs, you can then operate the

switch or unplug the power cord quickly.

• Do not work alone under hazardous conditions or near the equipment that

has hazardous voltages.

• Disconnect all power before:

– Performing a mechanical inspection

– Working near power supplies

– Removing or installing main units

• Before you start to work on the machine, unplug the power cord. If you

cannot unplug it, ask the customer to power-o the wall box that supplies

power to the machine, and to lock the wall box in the o position.

• If you need to work on a machine that has exposed electrical circuits,

observe the following precautions:

– Ensure that another person, familiar with the power-o controls, is near

you.

Attention: Another person must be there to switch off the power, if

necessary.

– Use only one hand when working with powered-on electrical equipment;

keep the other hand in your pocket or behind your back.

Attention: An electrical shock can occur only when there is a complete

circuit. By observing the above rule, you may prevent a current from

passing through your body.

– When using testers, set the controls correctly and use the approved

probe leads and accessories for that tester.

– Stand on suitable rubber mats (obtained locally, if necessary) to insulate

you from grounds such as metal oor strips and machine frames.

Observe the special safety precautions when you work with very high voltages;

instructions for these precautions are in the safety sections of maintenance

information. Be extremely careful when you measure the high voltages.

• Regularly inspect and maintain your electrical hand tools for safe operational

condition.

• Do not use worn or broken tools and testers.

• Never assume that power has been disconnected from a circuit. First, check

it to make sure that it has been powered o.

4

Lenovo YOGA C930-13IKB/Lenovo YOGA C930-13IKB Glass

Hardware Maintenance Manual

• Always look carefully for possible hazards in your work area. Examples of

these hazards are moist oors, nongrounded power extension cables, power

surges, and missing safety grounds.

• Do not touch live electrical circuits with the reflective surface of a plastic

dental mirror. The surface is conductive; such touching can cause personal

injury and machine damage.

• Do not service the following parts with the power on when they are removed

from their normal operating places in a machine:

– Power supply units

– Pumps

– Blowers and fans

– Motor generators

and similar units. (This practice ensures correct grounding of the units.)

• If an electrical accident occurs:

– Caution: do not become a victim yourself.

– Switch o the power.

– Send the victim to get medical aid.

5

Safety information

Safety inspection guide

The purpose of this inspection guide is to assist you in identifying potential

unsafe conditions. As each machine was designed and built, required safety

items were installed to protect users and service personnel from injury. This

guide addresses only those items. You should use good judgment to identify

potential safety hazards according to the attachment of non-Lenovo features or

options not covered by this inspection guide.

If any unsafe conditions are present, you must determine how serious the

apparent hazard could be and whether you can continue without rst correcting

the problem.

Consider these conditions and the safety hazards they present:

• Electrical hazards, especially primary power (primary voltage on the frame

can cause serious or fatal electrical shock)

• Explosive hazards, such as a damaged CRT face or a bulging capacitor

• Mechanical hazards, such as loose or missing hardware

To determine whether there are any potential unsafe conditions, use the

following checklist at the beginning of every service task. Begin the checks with

the power o, and the power cord disconnected.

Checklist:

1. Check exterior covers for damage (loose, broken, or sharp edges).

2. Turn o the computer. Disconnect the power cord.

3. Check the power cord for:

a. A third-wire ground connector in good condition. Use a meter to measure

third-wire ground continuity for 0.1 ohm or less between the external

ground pin and the frame ground.

b. The power cord should be the type specied in the parts list.

c. Insulation must not be frayed or worn.

4. Check for cracked or bulging batteries.

5. Remove the cover.

6. Check for any obvious non-Lenovo alterations. Use good judgment as to the

safety of any non-Lenovo alterations.

7. Check inside the unit for any obvious unsafe conditions, such as metal

filings, contamination, water or other liquids, or signs of fire or smoke

damage.

8. Check for worn, frayed, or pinched cables.

9. Check that the power-supply cover fasteners (screws or rivets) have not

been removed or tampered with.

6

Lenovo YOGA C930-13IKB/Lenovo YOGA C930-13IKB Glass

Hardware Maintenance Manual

Handling devices that are sensitive to electrostatic discharge

Any computer part containing transistors or integrated circuits (ICs) should be

considered sensitive to electrostatic discharge (ESD). ESD damage can occur

when there is a difference in charge between objects. Protect against ESD

damage by equalizing the charge so that the machine, the part, the work mat,

and the person handling the part are all at the same charge.

Notes:

1. Use product-specific ESD procedures when they exceed the requirements

noted here.

2. Make sure that the ESD protective devices you use have been certied (ISO

9000) as fully eective.

When handling ESD-sensitive parts:

• Keep the parts in protective packages until they are inserted into the product.

• Avoid contact with other people.

• Wear a grounded wrist strap against your skin to eliminate static on your

body.

• Prevent the part from touching your clothing. Most clothing is insulative and

retains a charge even when you are wearing a wrist strap.

• Use the black side of a grounded work mat to provide a static-free work

surface. The mat is especially useful when handling ESD-sensitive devices.

• Select a grounding system, such as those listed below, to provide protection

that meets the specic service requirement.

Note:

The use of a grounding system to guard against ESD damage is desirable but not

necessary.

– Attach the ESD ground clip to any frame ground, ground braid, or green-

wire ground.

– When working on a double-insulated or battery-operated system, use an

ESD common ground or reference point. You can use coax or connector-

outside shells on these systems.

– Use the round ground prong of the ac plug on ac-operated computers.

Grounding requirements

Electrical grounding of the computer is required for operator safety and correct

system function. Proper grounding of the electrical outlet can be veried by a

certied electrician.

7

Safety information

Safety notices: multilingual translations

The safety notices in this section are provided in English, French, German,

Hebrew, Italian, Japanese, and Spanish.

Safety notice 1

Before the computer is powered on after FRU replacement, make sure all screws,

springs, and other small parts are in place and are not left loose inside the

computer. Verify this by shaking the computer and listening for rattling sounds.

Metallic parts or metal akes can cause electrical shorts.

Avant de remettre l’ordinateur sous tension après remplacement d’une unité en

clientèle, vériez que tous les ressorts, vis et autres pièces sont bien en place et

bien xées. Pour ce faire, secouez l’unité et assurez-vous qu’aucun bruit suspect

ne se produit. Des pièces métalliques ou des copeaux de métal pourraient causer

un court-circuit.

Bevor nach einem FRU-Austausch der Computer wieder angeschlossen wird,

muß sichergestellt werden, daß keine Schrauben, Federn oder andere Kleinteile

fehlen oder im Gehäuse vergessen wurden. Der Computer muß geschüttelt und auf

Klappergeräusche geprüft werden. Metallteile oder-splitter können Kurzschlüsse

erzeugen.

Prima di accendere l’elaboratore dopo che é stata eettuata la sostituzione di una

FRU, accertarsi che tutte le viti, le molle e tutte le altri parti di piccole dimensioni

siano nella corretta posizione e non siano sparse all’interno dell’elaboratore.

Vericare ciò scuotendo l’elaboratore e prestando attenzione ad eventuali rumori;

eventuali parti o pezzetti metallici possono provocare cortocircuiti pericolosi.

Antes de encender el sistema despues de sustituir una FRU, compruebe que

todos los tornillos, muelles y demás piezas pequeñas se encuentran en su sitio

y no se encuentran sueltas dentro del sistema. Compruébelo agitando el sistema

y escuchando los posibles ruidos que provocarían. Las piezas metálicas pueden

causar cortocircuitos eléctricos.

8

Lenovo YOGA C930-13IKB/Lenovo YOGA C930-13IKB Glass

Hardware Maintenance Manual

Safety notice 2

DANGER

Some standby batteries contain a small amount of nickel and cadmium. Do not

disassemble a standby battery, recharge it, throw it into fire or water, or short-

circuit it. Dispose of the battery as required by local ordinances or regulations.

Use only the battery in the appropriate parts listing. Use of an incorrect battery can

result in ignition or explosion of the battery.

Certaines batteries de secours contiennent du nickel et du cadmium. Ne les

démontez pas, ne les rechargez pas, ne les exposez ni au feu ni à l’eau. Ne

les mettez pas en court-circuit. Pour les mettre au rebut, conformez-vous à la

réglementation en vigueur. Lorsque vous remplacez la pile de sauvegarde ou celle

de l’horloge temps réel, veillez à n’utiliser que les modèles cités dans la liste de

pièces détachées adéquate. Une batterie ou une pile inappropriée risque de prendre

feu ou d’exploser.

Die Bereitschaftsbatterie, die sich unter dem Diskettenlaufwerk befindet,

kann geringe Mengen Nickel und Cadmium enthalten. Sie darf nicht zerlegt,

wiederaufgeladen, kurzgeschlossen, oder Feuer oder Wasser ausgesetzt werden. Bei

der Entsorgung die örtlichen Bestimmungen für Sondermüll beachten. Beim Ersetzen

der Bereitschafts-oder Systembatterie nur Batterien des Typs verwenden, der in der

Ersatzteilliste aufgeführt ist. Der Einsatz falscher Batterien kann zu Entzündung oder

Explosion führen.

Alcune batterie di riserva contengono una piccola quantità di nichel e cadmio. Non

smontarle, ricaricarle, gettarle nel fuoco o nell’acqua né cortocircuitarle. Smaltirle

secondo la normativa in vigore (DPR 915/82, successive disposizioni e disposizioni

locali). Quando si sostituisce la batteria dell’RTC (real time clock) o la batteria di

supporto, utilizzare soltanto i tipi inseriti nell’appropriato Catalogo parti. L’impiego

di una batteria non adatta potrebbe determinare l’incendio o l’esplosione della

batteria stessa.

Algunas baterías de reserva contienen una pequeña cantidad de níquel y cadmio.

No las desmonte, ni recargue, ni las eche al fuego o al agua ni las cortocircuite.

Deséchelas tal como dispone la normativa local. Utilice sólo baterías que se

encuentren en la lista de piezas. La utilización de una batería no apropiada puede

provocar la ignición o explosión de la misma.

9

Safety information

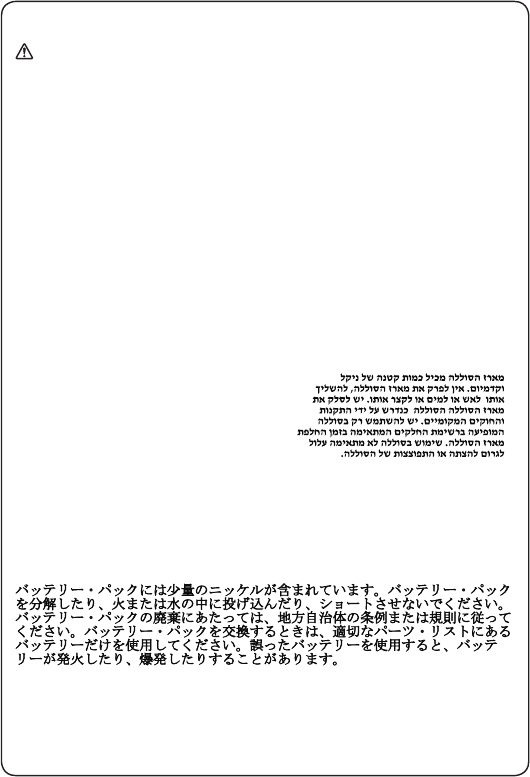

Safety notice 3

DANGER

The battery pack contains small amounts of nickel. Do not disassemble it, throw

it into re or water, or short-circuit it. Dispose of the battery pack as required by

local ordinances or regulations. Use only the battery in the appropriate parts listing

when replacing the battery pack. Use of an incorrect battery can result in ignition

or explosion of the battery.

La batterie contient du nickel. Ne la démontez pas, ne l’exposez ni au feu ni à l’eau.

Ne la mettez pas en court-circuit. Pour la mettre au rebut, conformez-vous à la

réglementation en vigueur. Lorsque vous remplacez la batterie, veillez à n’utiliser

que les modèles cités dans la liste de pièces détachées adéquate. En effet, une

batterie inappropriée risque de prendre feu ou d’exploser.

Akkus enthalten geringe Mengen von Nickel. Sie dürfen nicht zerlegt,

wiederaufgeladen, kurzgeschlossen, oder Feuer oder Wasser ausgesetzt werden.

Bei der Entsorgung die örtlichen Bestimmungen für Sondermüll beachten. Beim

Ersetzen der Batterie nur Batterien des Typs verwenden, der in der Ersatzteilliste

aufgeführt ist. Der Einsatz falscher Batterien kann zu Entzündung oder Explosion

führen.

La batteria contiene piccole quantità di nichel. Non smontarla, gettarla nel fuoco

o nell’acqua né cortocircuitarla. Smaltirla secondo la normativa in vigore (DPR

915/82, successive disposizioni e disposizioni locali). Quando si sostituisce la

batteria, utilizzare soltanto i tipi inseriti nell’appropriato Catalogo parti. L’impiego

di una batteria non adatta potrebbe determinare l’incendio o l’esplosione della

batteria stessa.

Las baterías contienen pequeñas cantidades de níquel. No las desmonte, ni

recargue, ni las eche al fuego o al agua ni las cortocircuite. Deséchelas tal como

dispone la normativa local. Utilice sólo baterías que se encuentren en la lista de

piezas al sustituir la batería. La utilización de una batería no apropiada puede

provocar la ignición o explosión de la misma.

10

Lenovo YOGA C930-13IKB/Lenovo YOGA C930-13IKB Glass

Hardware Maintenance Manual

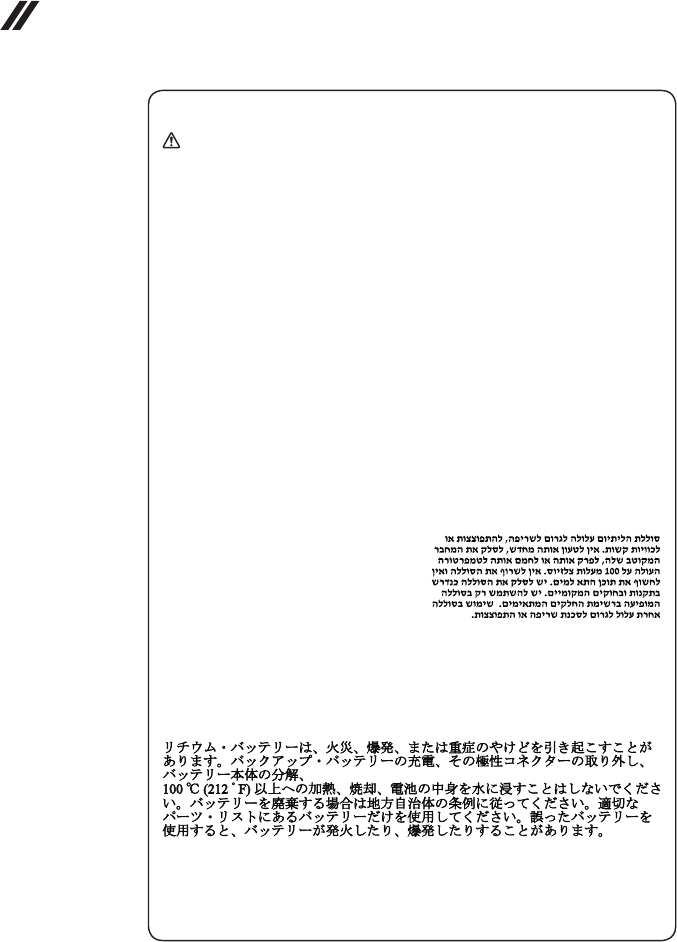

Safety notice 4

DANGER

The lithium battery can cause a fire, an explosion, or a severe burn. Do not

recharge it, remove its polarized connector, disassemble it, heat it above 100°C

(212°F), incinerate it, or expose its cell contents to water. Dispose of the battery as

required by local ordinances or regulations. Use only the battery in the appropriate

parts listing. Use of an incorrect battery can result in ignition or explosion of the

battery.

La pile de sauvegarde contient du lithium. Elle présente des risques d’incendie,

d’explosion ou de brûlures graves. Ne la rechargez pas, ne retirez pas son

connecteur polarisé et ne la démontez pas. Ne l’exposez pas à une temperature

supérieure à 100°C, ne la faites pas brûler et n’en exposez pas le contenu à l’eau.

Mettez la pile au rebut conformément à la réglementation en vigueur. Une pile

inappropriée risque de prendre feu ou d’exploser.

Die Systembatterie ist eine Lithiumbatterie. Sie kann sich entzünden, explodieren

oder schwere Verbrennungen hervorrufen. Batterien dieses Typs dürfen nicht

aufgeladen, zerlegt, über 100 C erhitzt oder verbrannt werden. Auch darf ihr

Inhalt nicht mit Wasser in Verbindung gebracht oder der zur richtigen Polung

angebrachte Verbindungsstecker entfernt werden. Bei der Entsorgung die örtlichen

Bestimmungen für Sondermüll beachten. Beim Ersetzen der Batterie nur Batterien

des Typs verwenden, der in der Ersatzteilliste aufgeführt ist. Der Einsatz falscher

Batterien kann zu Entzündung oder Explosion führen.

La batteria di supporto e una batteria al litio e puo incendiarsi, esplodere o

procurare gravi ustioni. Evitare di ricaricarla, smontarne il connettore polarizzato,

smontarla, riscaldarla ad una temperatura superiore ai 100 gradi centigradi,

incendiarla o gettarla in acqua. Smaltirla secondo la normativa in vigore (DPR

915/82, successive disposizioni e disposizioni locali). L’impiego di una batteria

non adatta potrebbe determinare l’incendio o l’esplosione della batteria stessa.

La batería de repuesto es una batería de litio y puede provocar incendios,

explosiones o quemaduras graves. No la recargue, ni quite el conector polarizado,

ni la desmonte, ni caliente por encima de los 100°C (212°F), ni la incinere ni

exponga el contenido de sus celdas al agua. Deséchela tal como dispone la

normativa local.

11

Safety information

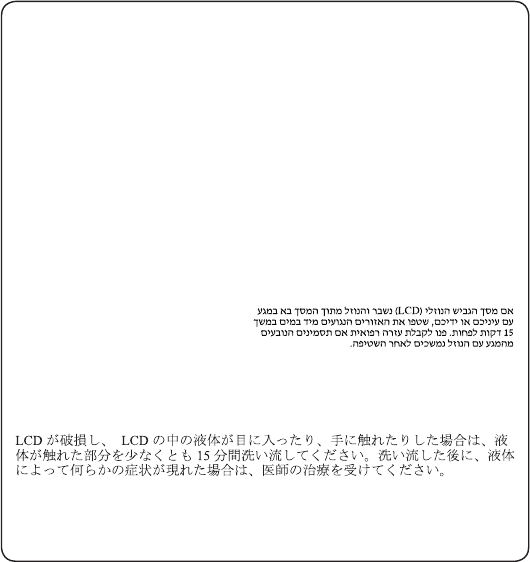

Safety notice 5

If the LCD breaks and the uid from inside the LCD gets into your eyes or on your

hands, immediately wash the affected areas with water at least for 15 minutes.

Seek medical care if any symptoms caused by the uid are present after washing.

Si le panneau d’achage à cristaux liquides se brise et que vous recevez dans les

yeux ou sur les mains une partie du uide, rincez-les abondamment pendant au

moins quinze minutes. Consultez un médecin si des symptômes persistent après le

lavage.

Die Leuchtstoröhre im LCD-Bildschirm enthält Quecksilber. Bei der Entsorgung

die örtlichen Bestimmungen für Sondermüll beachten. Der LCD-Bildschirm

besteht aus Glas und kann zerbrechen, wenn er unsachgemäß behandelt wird

oder der Computer auf den Boden fällt. Wenn der Bildschirm beschädigt ist und

die darin befindliche Flüssigkeit in Kontakt mit Haut und Augen gerät, sollten

die betroffenen Stellen mindestens 15 Minuten mit Wasser abgespült und bei

Beschwerden anschließend ein Arzt aufgesucht werden.

Nel caso che caso l’LCD si dovesse rompere ed il liquido in esso contenuto

entrasse in contatto con gli occhi o le mani, lavare immediatamente le parti

interessate con acqua corrente per almeno 15 minuti; poi consultare un medico se i

sintomi dovessero permanere.

Si la LCD se rompe y el uido de su interior entra en contacto con sus ojos o sus

manos, lave inmediatamente las áreas afectadas con agua durante 15 minutos

como mínimo. Obtenga atención medica si se presenta algún síntoma del uido

despues de lavarse.

12

Lenovo YOGA C930-13IKB/Lenovo YOGA C930-13IKB Glass

Hardware Maintenance Manual

Safety notice 6

DANGER

To avoid shock, do not remove the plastic cover that protects the lower part of the

inverter card.

An d’éviter tout risque de choc électrique, ne retirez pas le cache en plastique

protégeant la partie inférieure de la carte d’alimentation.

Aus Sicherheitsgründen die Kunststoffabdeckung, die den unteren Teil der

Spannungswandlerplatine umgibt, nicht entfernen.

Per evitare scosse elettriche, non rimuovere la copertura in plastica che avvolge la

parte inferiore della scheda invertitore.

Para evitar descargas, no quite la cubierta de plástico que rodea la parte baja de la

tarjeta invertida.

Safety notice 7

DANGER

Though the main batteries have low voltage, a shorted or grounded battery can

produce enough current to burn personnel or combustible materials.

Bien que le voltage des batteries principales soit peu élevé, le court-circuit ou la

mise à la masse d’une batterie peut produire susamment de courant pour brûler

des matériaux combustibles ou causer des brûlures corporelles graves.

Obwohl Hauptbatterien eine niedrige Spannung haben, können sie doch bei

Kurzschluß oder Erdung genug Strom abgeben, um brennbare Materialien zu

entzünden oder Verletzungen bei Personen hervorzurufen.

Sebbene le batterie di alimentazione siano a basso voltaggio, una batteria in

corto circuito o a massa può fornire corrente sufficiente da bruciare materiali

combustibili o provocare ustioni ai tecnici di manutenzione.

Aunque las baterías principales tienen un voltaje bajo, una batería cortocircuitada

o con contacto a tierra puede producir la corriente suciente como para quemar

material combustible o provocar quemaduras en el personal.

13

Safety information

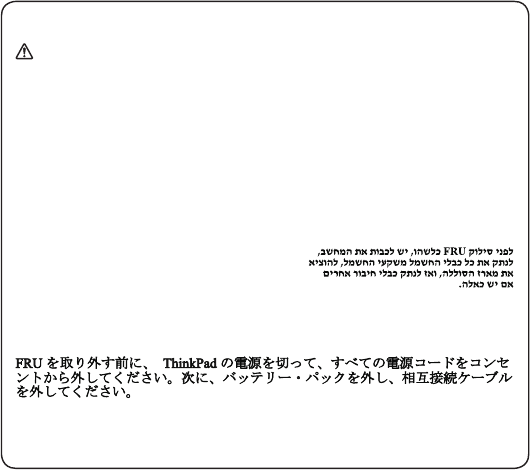

Safety notice 8

DANGER

Before removing any FRU, turn o the computer, unplug all power cords from

electrical outlets, remove the battery pack, and then disconnect any interconnecting

cables.

Avant de retirer une unité remplaçable en clientèle, mettez le système hors tension,

débranchez tous les cordons d’alimentation des socles de prise de courant, retirez

la batterie et déconnectez tous les cordons d’interface.

Die Stromzufuhr muß abgeschaltet, alle Stromkabel aus der Steckdose gezogen,

der Akku entfernt und alle Verbindungskabel abgenommen sein, bevor eine FRU

entfernt wird.

Prima di rimuovere qualsiasi FRU, spegnere il sistema, scollegare dalle prese

elettriche tutti i cavi di alimentazione, rimuovere la batteria e poi scollegare i cavi

di interconnessione.

Antes de quitar una FRU, apague el sistema, desenchufe todos los cables de

las tomas de corriente eléctrica, quite la batería y, a continuación, desconecte

cualquier cable de conexión entre dispositivos.

14

Lenovo YOGA C930-13IKB/Lenovo YOGA C930-13IKB Glass

Hardware Maintenance Manual

Laser compliance statement

Some models of Lenovo computer are equipped from the factory with an

optical storage device such as a CD-ROM drive or a DVD-ROM drive. Such

devices are also sold separately as options. If one of these drives is installed,

it is certied in the U.S. to conform to the requirements of the Department of

Health and Human Services 21 Code of Federal Regulations (DHHS 21 CFR)

Subchapter J for Class 1 laser products. Elsewhere, the drive is certified to

conform to the requirements of the International Electrotechnical Commission

(IEC) 825 and CENELEC EN 60 825 for Class 1 laser products.

If a CD-ROM drive, a DVD-ROM drive, or another laser device is installed, note

the following:

CAUTION

Use of controls or adjustments or performance of procedures other than those

specied herein might result in hazardous radiation exposure.

O uso de controles, ajustes ou desempenho de procedimentos diferentes daqueles

aqui especicados pode resultar em perigosa exposição à radiação.

Pour éviter tout risque d’exposition au rayon laser, respectez les consignes de

réglage et d’utilisation des commandes, ainsi que les procédures décrites.

Werden Steuer- und Einstellelemente anders als hier festgesetzt verwendet, kann

gefährliche Laserstrahlung auftreten.

L’utilizzo di controlli, regolazioni o l’esecuzione di procedure diverse da quelle

specicate possono provocare l’esposizione a.

El uso de controles o ajustes o la ejecución de procedimientos distintos de los aquí

especicados puede provocar la exposición a radiaciones peligrosas.

Opening the CD-ROM drive, the DVD-ROM drive, or any other optical storage

device could result in exposure to hazardous laser radiation. There are no

serviceable parts inside those drives. Do not open.

15

Safety information

A CD-ROM drive, a DVD-ROM drive, or any other storage device installed may

contain an embedded Class 3A or Class 3B laser diode. Note the following:

DANGER

Emits visible and invisible laser radiation when open. Do not stare into the beam,

do not view directly with optical instruments, and avoid direct exposure to the

beam.

Radiação por raio laser ao abrir. Não olhe fixo no feixe de luz, não olhe

diretamente por meio de instrumentos óticos e evite exposição direta com o feixe

de luz.

Rayonnement laser si carter ouvert. Évitez de fixer le faisceau, de le regarder

directement avec des instruments optiques, ou de vous exposer au rayon.

Laserstrahlung bei geönetem Gerät. Nicht direkt oder über optische Instrumente

in den Laserstrahl sehen und den Strahlungsbereich meiden.

Kinyitáskor lézersugár ! Ne nézzen bele se szabad szemmel, se optikai

eszközökkel. Kerülje a sugárnyalábbal való érintkezést!

Aprendo l’unità vengono emesse radiazioni laser. Non fissare il fascio, non

guardarlo direttamente con strumenti ottici e evitare l’esposizione diretta al fascio.

Radiación láser al abrir. No mire jamente ni examine con instrumental óptico el

haz de luz. Evite la exposición directa al haz.

16

Lenovo YOGA C930-13IKB/Lenovo YOGA C930-13IKB Glass

Hardware Maintenance Manual

Important service information

This chapter presents the following important service information:

• “Strategy for replacing FRUs” on page 16

– “Strategy for replacing a hard disk drive” on page 17

– “Important notice for replacing a system board” on page 17

• “Important information about replacing RoHS compliant FRUs” on page 18

Important:

BIOS and device driver xes are customer-installable. The BIOS and device drivers

are posted on the customer support site:

http://support.lenovo.com.

Strategy for replacing FRUs

Before replacing parts:

Make sure that all software xes, drivers, and BIOS downloads are installed

before replacing any FRUs listed in this manual.

After a system board is replaced, ensure that the latest BIOS is loaded to the

system board before completing the service action.

To download software xes, drivers, and BIOS, follow the steps below:

1. Go to http://support.lenovo.com.

2. Enter the serial number or select a product or use Lenovo smart

downloading.

3. Select the BIOS/Driver/Applications and download.

4. Follow the directions on the screen and install the necessary software.

17

Important service information

Use the following strategy to prevent unnecessary expense for replacing and

servicing FRUs:

• If you are instructed to replace an FRU, but the replacement does not solve

the problem, reinstall the original FRU before you continue.

• Some computers have both a processor board and a system board. If you

are instructed to replace either of them, and replacing one of them does not

solve the problem, reinstall that board, and then replace the other one.

• If an adapter or a device consists of more than one FRU, any of the FRUs

may be the cause of the error. Before replacing the adapter or device,

remove the FRUs one by one to see if the symptoms change. Replace only

the FRU that changed the symptoms.

Attention: The setup configuration on the computer you are servicing may

have been customized. Running Automatic Configuration may alter the

settings. Note the current conguration settings (using the View Conguration

option); then, when service has been completed, verify that those settings

remain in eect.

Strategy for replacing a hard disk drive

Always try to run a low-level format before replacing a hard disk drive. This

will cause all customer data on the hard disk to be lost. Make sure that the

customer has a current backup of the data before performing this action.

Attention: The drive startup sequence in the computer you are servicing may

have been changed. Be extremely careful during write operations such as

copying, saving, or formatting. If you select an incorrect drive, data or programs

can be overwritten.

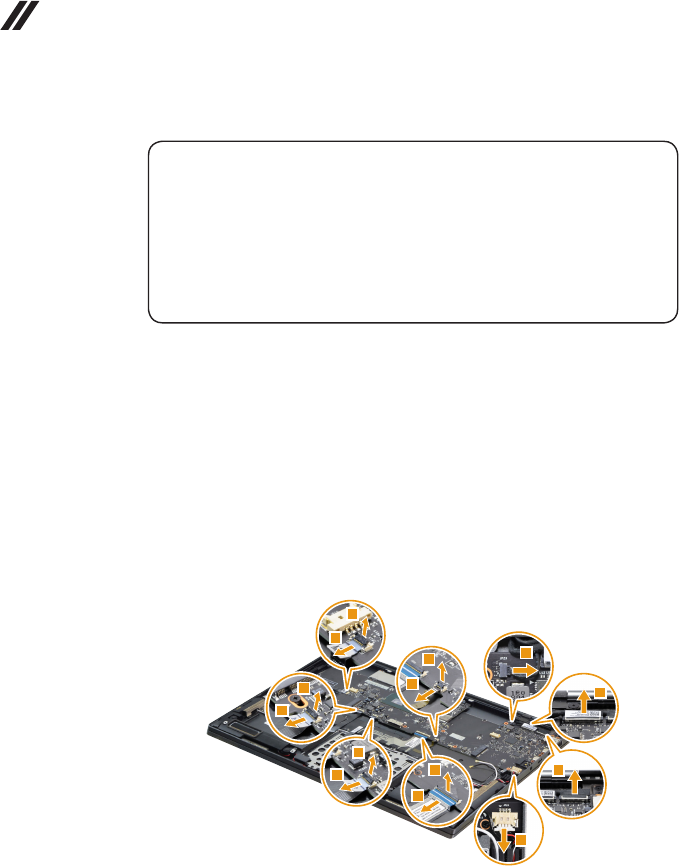

Important notice for replacing a system board

Some components mounted on a system board are very sensitive. Improper

handling can cause damage to those components, and may cause a system

malfunction.

Attention: When handling a system board:

• Do not drop the system board or apply any excessive force to it.

• Avoid rough handling of any kind.

• Avoid bending the system board and hard pushing to prevent cracking at

each BGA (Ball Grid Array) chipset.

18

Lenovo YOGA C930-13IKB/Lenovo YOGA C930-13IKB Glass

Hardware Maintenance Manual

Important information about replacing RoHS compliant FRUs

RoHS, The Restriction of Hazardous Substances in Electrical and

Electronic Equipment Directive (2002/95/EC) is a European Union legal

requirement aecting the global electronics industry. RoHS requirements

must be implemented on Lenovo products placed on the market after

June 2006. Products on the market before June 2006 are not required to

have RoHS compliant parts. If the original FRU parts are non-compliant,

replacement parts can also be non-compliant. In all cases if the original

FRU parts are RoHS compliant, the replacement part must also be RoHS

compliant.

Note: RoHS and non-RoHS FRU part numbers with the same t and function

are identied with unique FRU part numbers.

Lenovo plans to transit to RoHS compliance well before the implementation

date and expects its suppliers to be ready to support Lenovo’s requirements

and schedule in the EU. Products sold in 2005 and 2006 will contain some

RoHS compliant FRUs. The following statement pertains to these products and

any product Lenovo produces containing RoHS compliant FRUs.

RoHS compliant FRUs have unique FRU part numbers. Before or after the

RoHS implementation date, failed RoHS compliant parts must always be

replaced with RoHS compliant ones, so only the FRUs identied as compliant

in the system HMM or direct substitutions for those FRUs may be used.

Products marketed before June 2006 Products marketed after June 2006

Current or

original part

Replacement FRU Current or

original part

Replacement FRU

Non-RoHS Can be Non-RoHS

Must be RoHS Must be RoHS

Non-RoHS Can be RoHS

Non-RoHS Can sub to RoHS

RoHS Must be RoHS

Note: A direct substitution is a part with a dierent FRU part number that is

automatically shipped by the distribution center at the time of the order.

19

General checkout

General checkout

This chapter presents the following information:

• “What to do rst” on page 20

• “Power system checkout” on page 21

Before you go to the checkout, make sure to read the following important notes:

Important notes:

• Onlycertiedtrainedpersonnelcanservicethecomputer.

• BeforereplacinganyFRU,readtheentirepageon removingandreplacing

FRUs.

• CarefullyremovescrewsforreusewhenreplacingFRUs.

• Beextremelycarefulduringsuchwriteoperationsascopying,saving,or

formatting. Drives in the computer that you are servicing sequence might

have been altered. If you select an incorrect drive, data or programs might be

overwritten.

• ReplaceanFRUonlywithanotherFRUofthecorrectmodel. When you

replace an FRU, make sure that the machine model and the FRU part number are

correct by referring to the FRU parts list.

• AnFRUshouldnotbereplacedjustbecauseofasingle,unreproduciblefailure.

Single failures can occur for a variety of reasons that have nothing to do with a

hardware defect, such as cosmic radiation, electrostatic discharge, or software

errors. Consider replacing an FRU only when a problem recurs. If you suspect that

an FRU is defective, clear the error logs and run the test again. If the error does

not recur, do not replace the FRU.

• BecarefulnottoreplaceanondefectiveFRU.

20

Lenovo YOGA C930-13IKB/Lenovo YOGA C930-13IKB Glass

Hardware Maintenance Manual

What to do rst

When you do return an FRU, you must include the following information in the

parts exchange form or parts return form that you attach to it:

1. Name and phone number of servicer

2. Date of service

3. Date on which the machine failed

4. Date of purchase

5. Procedure index and page number in which the failing FRU was detected

6. Failing FRU name and part number

7. Machine type, model number, and serial number

8. Customer’s name and address

Note for warranty: During the warranty period, the customer may be

responsible for repair costs if the computer damage was caused by misuse,

accident, modification, unsuitable physical or operating environment, or

improper maintenance by the customer.

The following is a list of some common items that are not covered under

warranty and some symptoms that might indicate that the system was

subjected to stress beyond normal use.

Before checking problems with the computer, determine whether the damage is

covered under the warranty by referring to the following list:

The following are not covered under warranty:

• LCD panel cracked from the application of excessive force or from being

dropped

• Scratched (cosmetic) parts

• Distortion, deformation, or discoloration of the cosmetic parts

• Plastic parts, latches, pins, or connectors that have been cracked or broken

by excessive force

• Damage caused by liquid spilled into the system

• Damage caused by the improper insertion of a PC Card or the installation of

an incompatible card

• Improper disk insertion or use of an optical drive

• Diskette drive damage caused by pressure on the diskette drive cover,

foreign material in the drive, or the insertion of a diskette with multiple labels

• Damaged or bent diskette eject button

• Fuses blown by attachment of a nonsupported device

• Forgotten computer password (making the computer unusable)

• Sticky keys caused by spilling a liquid onto the keyboard

• Use of an incorrect ac adapter on laptop products

The following symptoms might indicate damage caused by nonwarranted

activities:

• Missing parts might be a symptom of unauthorized service or modication.

• If the spindle of a hard disk drive becomes noisy, it may have been subjected

to excessive force, or dropped.

21

General checkout

Power system checkout

To verify a symptom, follow the steps below:

1. Turn o the computer.

2. Connect the ac adapter.

3. Make sure that power is supplied when you turn on the computer.

4. Turn o the computer.

5. Disconnect the ac adapter.

6. Make sure that the battery pack supplies power when you turn on the

computer.

If you suspect a power problem, see the appropriate power supply checkout:

• “Checking the ac adapter” on page 21

• “Checking operational charging” on page 22

Checking the ac adapter

You are here because the computer fails only when the ac adapter is used.

•If the power-on indicator does not turn on, check the power cord of the ac

adapter for correct continuity and installation.

•If the computer does not charge during operation, go to “Checking

operational charging”.

To check the ac adapter, follow the steps below:

1. Unplug the ac adapter cable from the computer.

2. Measure the output voltage at the plug of the ac adapter cable. See the

following gure:

1

2

Voltage (V DC)

+3.3

0

Pin

1

2

Note: Output voltage for the ac adapter pin No. 2 may dier from the one you

are servicing.

3. If the voltage is not correct, replace the ac adapter.

4. If the voltage is acceptable, do the following:

• Replace the system board.

• If the problem persists, go to “Lenovo YOGA C930-13IKB/Lenovo YOGA

C930-13IKB Glass” on page 26.

Note: Noise from the ac adapter does not always indicate a defect.

22

Lenovo YOGA C930-13IKB/Lenovo YOGA C930-13IKB Glass

Hardware Maintenance Manual

Checking operational charging

To check whether the battery charges properly during operation, use a

discharged battery pack or a battery pack that has less than 50% of the total

power remaining when installed in the computer.

Perform operational charging. If the battery status indicator or icon is not lit,

remove the battery pack and let it return to room temperature. Reinstall the

battery pack. If the charge indicator or icon is still o, replace the battery pack.

If the charge indicator is still not lit, replace the system board.

Checking the battery pack

Battery charging does not start until the Power Meter shows that less than 95%

of the total power remains; under this condition the battery pack can charge to

100% of its capacity. This protects the battery pack from being overcharged or

from having a shortened life.

To check your battery, move your cursor to the Power Meter icon in the icon

tray of the Windows® taskbar and wait for a moment (but do not click it), and the

percentage of battery power remaining is displayed. To get detailed information

about the battery, double-click the Power Meter icon.

Note: If the battery pack becomes hot, it may not be able to be charged.

Remove it from the computer and leave it at room temperature for a while. After

it cools down, reinstall and recharge it.

23

Related service information

Related service information

This chapter presents the following information:

• “Restoring the factory contents by using recovery system” on page 23

• “Passwords” on page 24

• “Power-saving modes” on page 25

Restoring the factory contents by using recovery system

Restore of factory default

The Lenovo YOGA C930-13IKB/Lenovo YOGA C930-13IKB Glass computer

comes with pre-installed recovery system.In order to save application les and

the initial backed up les of the system, the hard disk in a Lenovo computer

includes a hidden partition when it is shipped. If you need to restore the system

to the point of your rst boot up, just enter the Recovery System. For details of

the Recovery system, see the User Guide for Recovering or restoring Windows.

Note: This will delete all the new data on the system partition (C drive), which

is not recoverable. Make sure to back up your critical data before you perform this

action.

24

Lenovo YOGA C930-13IKB/Lenovo YOGA C930-13IKB Glass

Hardware Maintenance Manual

Passwords

As many as three passwords may be needed for any Lenovo computer: the

power-on password (POP), the hard disk password (HDP), and the supervisor

password.

If any of these passwords has been set, a prompt for it appears on the screen

whenever the computer is turned on. The computer does not start until the

password is entered.

Power-on password

A power-on password (POP) protects the system from being powered on by

an unauthorized person. The password must be entered before an operating

system can be booted.

Hard-disk password

There are two hard-disk passwords (HDPs):

+ User HDP - for the user

+ Master HDP - for the system administrator, who can use it to get access to

the hard disk drive even if the user has changed the user HDP

Attention: If the user HDP has been forgotten, check whether a master HDP

has been set. If it has, it can be used for access to the hard disk drive. If

no master HDP is available, neither Lenovo nor Lenov authorized service

technicians provide any services to reset either the user or the master HDP, or

to recover data from the hard disk drive. The hard disk drive can be replaced

for a scheduled fee.

Supervisor password

A supervisor password protects the system information stored in the BIOS. The

user must enter the supervisor password to get access to the BIOS and change

the system conguration.

Attention: If you forget the password, there is no service procedure to reset

the password. The system board must be replaced for a scheduled fee.

25

Related service information

Power-saving modes

When you have nished working with your computer, you can put it to sleep or

shut it down.

Putting your computer to sleep

When the computer is in sleep mode, you can quickly wake it to resume use,

bypassing the startup process.

To put the computer to sleep, do one of the following:

• Close the display lid.

• Press the Power button.

• Open the Start menu and then select Power > Sleep.

To wake the computer, do one of the following:

• Press any key on the keyboard. (Notebook mode only)

• Press the Power button.

Shutting down the computer

If you are not going to use your computer for a long time, shut it down.

To shut down your computer, do one of the following:

• Open the Start menu and then select Power > Shut down.

• Press and hold or right-click the Start button in the lower-left corner and

select Shut down or sign out > Shut down.

26

Lenovo YOGA C930-13IKB/Lenovo YOGA C930-13IKB Glass

Hardware Maintenance Manual

Lenovo YOGA C930-13IKB/Lenovo YOGA C930-13IKB Glass

This chapter presents the following product-specific service references and

product-specic parts information:

• “Specications” on page 26

• “Status indicators” on page 27

• “Keyboard function keys” on page 28

• “FRU replacement notices” on page 30

• “Removing and replacing an FRU” on page 31

• “Locations” on page 57

• “Parts list” on page 59

Specications

The following table lists the specications of the Lenovo YOGA C930-13IKB/

Lenovo YOGA C930-13IKB Glass:

Table 1. Specications

Feature Description

Processor View the system properties of your computer.

You can do this as follows: Open the Control Panel and then select

System and Security → System.

Display • 13.9-inch, 16:9, 1,920 × 1,080 pixels FHD /

3,840 × 2,160 pixels UHD

Standard

memory • DDR4-2400 MHz (max: 16 GB)

SSD • 256 GB, 512 GB, 1 TB or 2 TB

I/O port • USB (Type-A) connector × 1

• USB (Type-C) connector × 2 (support Thunderbolt™ 3 technology;

compatible with DisplayPort®; also work as power connectors)

• Combo audio jack × 1

Audio • 1/8" Combo audio jack

• JBL Branded Speaker

• Built-in microphone × 2

Bluetooth

wireless • BT 4.1, combo with Wi-Fi card

Keyboard • 6 Row, Lenovo Keyboard Back-light

Touch pad • Multi-touch type

Integrated

camera • 1M, 720P HD

Battery • 60 Wh

ac adapter • 20 V, 65 W

Pre-installed

operating

system

• Win10 (Redstone) (x64)

27

Lenovo YOGA C930-13IKB/Lenovo YOGA C930-13IKB Glass

Status indicators

This section helps you locate and identify the various status indicators on your computer.

Note: Depending on the model, your computer might look different from the

illustrations below.

1

2

3

4

1 Camera status indicator 2 ac power status indicator

3 Caps Lock indicator 4 System status indicator

Camera status indicator

When this indicator is on, the camera is in use.

ac power status indicator

This indicator shows the ac power and charging status of the computer.

• On (solid white): The computer is connected to ac power (battery power 91% - 100%).

• On (solid amber): The computer is connected to ac power (battery power 1% - 90%).

• O: The computer is not connected to ac power.

Caps Lock indicator

When this indicator is on, you can type uppercase letters by directly pressing

the letter keys.

System status indicator

The indicator in the power button shows the system status of your computer.

• On (solid white): The computer is on (battery power 21% - 100%).

• Quick blinking (white): The computer has low battery (battery power 1% - 20%).

• Slow blinking (white): The computer is in sleep mode.

• O: The computer is o.

28

Lenovo YOGA C930-13IKB/Lenovo YOGA C930-13IKB Glass

Hardware Maintenance Manual

Keyboard function keys

You can access certain system settings quickly by pressing the appropriate

function keys.

Table 3. Fn key combinations

Fn + B: Activates the break function.

Fn + P: Activates the pause function.

Fn + C: Enables/disables the scroll lock.

Fn + S: Activates the system request.

Fn + Q: Enables/disables Quiet mode.

Fn + : Activates the Pgup key function.

Fn + : Activates the Pgdn key function.

Fn + : Activates the home key function.

Fn + : Activates the end key function.

Fn + Space: Cycles through dierent levels of lighting (o > half-bright >

bright > o) of the keyboard backlight.

Table 4. Hotkeys

: Mutes/unmutes the sound.

: Decreases the volume level.

: Increases the volume level.

: Enables/disables the microphone.

: Refreshes the desktop or the currently active window.

: Enables/disables the touchpad.

: Enables/disables Airplane mode.

: Enables/disables the camera.

: Locks the screen.

: Toggles the display between the computer and an external device.

: Decreases display brightness.

: Increases display brightness.

29

Lenovo YOGA C930-13IKB/Lenovo YOGA C930-13IKB Glass

Setting hotkey mode

By default, hotkey functions are accessible by pressing the appropriate hotkey.

However, you can disable Hotkey mode in the BIOS setup utility.

To disable Hotkey mode:

1. Shut down the computer.

2. Press the Fn + Power button to open the Novo Button Menu and then select

BIOS Setup.

3. In the BIOS setup utility, open the Configuration menu, and change the

HotKey Mode setting from Enabled to Disabled.

4. Open the Exit menu, and select Exit Saving Changes.

When Hotkey mode is disabled, press the Fn key and the appropriate hotkey to

access the corresponding hotkey function.

30

Lenovo YOGA C930-13IKB/Lenovo YOGA C930-13IKB Glass

Hardware Maintenance Manual

FRU replacement notices

This section presents notices related to removing and replacing parts. Read

this section carefully before replacing any FRU.

Screw notices

Loose screws can cause a reliability problem. In the Lenovo computer, this

problem is addressed with special nylon-coated screws that have the following

characteristics:

• They maintain tight connections.

• They do not easily come loose, even with shock or vibration.

• They are harder to tighten.

Do the following when you service this machine:

• Keep the screw kit in your tool bag.

• Carefully remove screws for reuse when replacing FRUs.

• Use a torque screwdriver if you have one.

Tighten screws as follows:

• Plastic to plastic

Turn an additional 90° after the screw head touches the surface of the

plastic part:

more than 90°

(Cross-section)

• Logic card to plastic

Turn an additional 180° after the screw head touches the surface of the

logic card:

more than 180°

(Cross-section)

• Torque driver

If you have a torque screwdriver, refer to the “Torque” column for each step.

• Make sure that you use the correct screws. If you have a torque screwdriver,

tighten all screws rmly to the torque shown in the table. Carefully remove

screws for reuse when replacing FRUs. Make sure that all screws are

tightened rmly.

• Ensure torque screwdrivers are calibrated correctly following country

specications.

31

Lenovo YOGA C930-13IKB/Lenovo YOGA C930-13IKB Glass

Removing and replacing an FRU

This section presents exploded gures with the instructions to indicate how to

remove and replace the FRU. Make sure to observe the following general rules:

1. Do not attempt to service any computer unless you have been trained and

certied. An untrained person runs the risk of damaging parts.

2. Before replacing any FRU, review “FRU replacement notices” on page 30.

3. Begin by removing any FRUs that have to be removed before the failing

FRU. Any of such FRUs are listed at the top of the page. Remove them in

the order in which they are listed.

4. Follow the correct sequence in the steps to remove the FRU, as given in the

gures by the numbers in square callouts.

5. When turning a screw to replace an FRU, turn it in the direction as given by

the arrow in the gure.

6. When removing the FRU, move it in the direction as given by the arrow in

the gure.

7. To put the new FRU in place, reverse the removal procedures and follow

any of the notes that pertain to replacement. For information about

connecting and arranging internal cables, see “Locations” on page 57.

8. When replacing an FRU, use the correct screw as shown in the procedures.

DANGER

Before removing any FRU, turn off the computer, unplug all power cords from

electrical outlets, remove the battery pack, and then disconnect any of the

interconnecting cables.

Attention: After replacing an FRU, do not turn on the computer until you have

made sure that all screws, springs, and other small parts are in place and none

are loose inside the computer. Verify this by shaking the computer gently and

listening for rattling sounds. Metallic parts or metal akes can cause electrical

short circuits.

Attention: The system board is sensitive to, and can be damaged by,

electrostatic discharge. Before touching it, establish personal grounding by

touching a ground point with one hand or using an electrostatic discharge (ESD)

strap (P/N 6405959) to remove potential shock reasons.

32

Lenovo YOGA C930-13IKB/Lenovo YOGA C930-13IKB Glass

Hardware Maintenance Manual

1010 YOGA Pen

Figure 1. Removal steps of YOGA Pen

To remove the YOGA Pen from the pen slot, press it into the slot 1 until you

hear a click and then pull it all the way out 2.

1

2

33

Lenovo YOGA C930-13IKB/Lenovo YOGA C930-13IKB Glass

1020 Base cover

For access, remove this FRU:

• “1010 YOGA Pen” on page 32

Figure 2. Removal steps of base cover

Remove the screws 1.

1

1

1

1

1

1

Step Screw (quantity) Color Torque

1M2.0 x 3.5 mm, Torx-head, nylok-coated (6)

D cover to C cover

Black 1.8-2.0kg_cm

Remove the base cover 2.

Note: Be careful when separating the base cover. Do not force apart the base

cover, otherwise the cover hooks could be damaged.

2

34

Lenovo YOGA C930-13IKB/Lenovo YOGA C930-13IKB Glass

Hardware Maintenance Manual

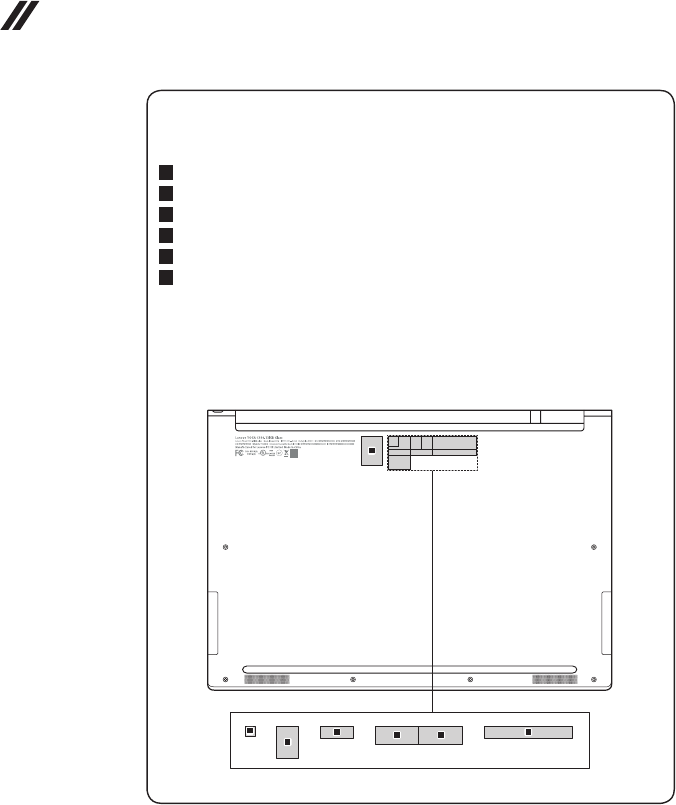

Note: Applying labels to the base cover

If you see the following labels on the base cover, it needs to be peeled o

from the old base cover, and put on the new base cover.

a OS label

b Malaysia label

c QR label

d Indonesia label

e Wlan/BT Label

f TW warning label

For some models, you also need to apply one or two FCC labels. Check the

old base cover; if it has one or two FCC labels, nd duplicates of them in the

label kit and apply them to the new base cover.

For the location of each label, refer to the following gure:

a

b

c

de e f

35

Lenovo YOGA C930-13IKB/Lenovo YOGA C930-13IKB Glass

1030 Battery pack

For access, remove these FRUs in order:

• “1010 YOGA Pen” on page 32

• “1020 Base cover” on page 33

DANGER

Only use the battery specied in the parts list for your computer. Any other battery

could ignite or explode.

Figure 3. Removal steps of battery pack

Unplug the battery connector in the direction shown by arrow 1. Remove the

screws 2 and then remove the battery pack 3.

1

2

2

2

2

3

Step Screw (quantity) Color Torque

2M2.0 x 2.7 mm, Phillips-head, nylok-coated (4)

Battery to up

Black 1.8-2.0kg_cm

When installing: Make sure that the battery connector is attached rmly.

36

Lenovo YOGA C930-13IKB/Lenovo YOGA C930-13IKB Glass

Hardware Maintenance Manual

1040 Solid state disk

For access, remove these FRUs in order:

• “1010 YOGA Pen” on page 32

• “1020 Base cover” on page 33

• “1030 Battery pack” on page 35

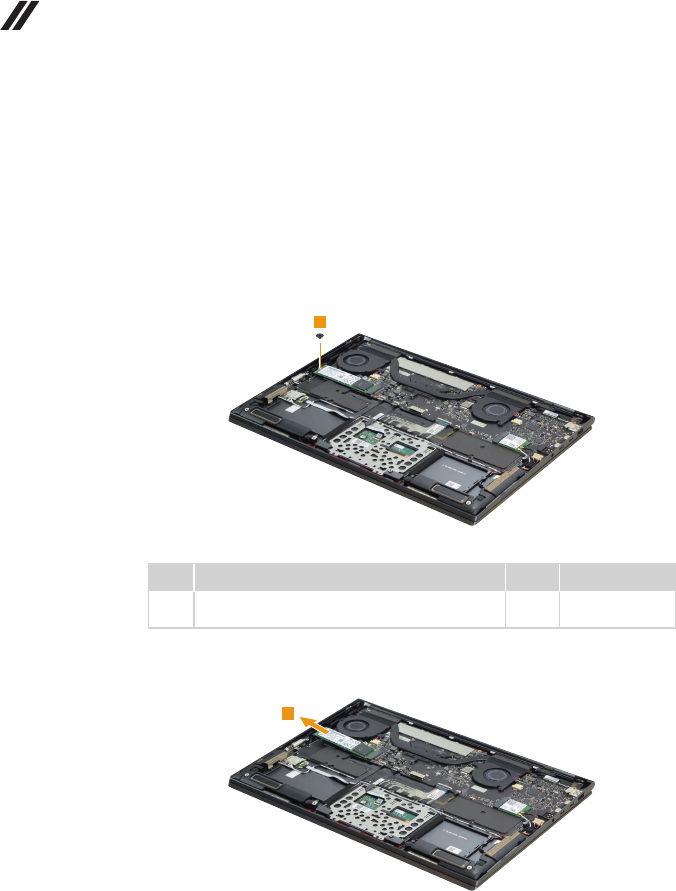

Figure 4. Removal steps of solid state disk

Remove the screw 1.

1

Step Screw (quantity) Color Torque

1M2.0 x 2.0 mm, Phillips-head, nylok-coated (1)

SSD to MB

Black 1.8-2.0kg_cm

Remove the solid state disk in the direction shown by arrow 2.

2

37

Lenovo YOGA C930-13IKB/Lenovo YOGA C930-13IKB Glass

1050 PCI Express Mini Card for wireless LAN

For access, remove these FRUs in order:

• “1010 YOGA Pen” on page 32

• “1020 Base cover” on page 33

• “1030 Battery pack” on page 35

Important: The preinstalled WLAN module may only be replaced with a Lenovo

approved module in order to comply with FCC and IC regulations. Refer to

“Table 5. Parts list—Overall” on page 61 for Lenovo part numbers for the

approved modules.

Figure 5. Removal steps of PCI Express Mini Card for wireless LAN

Disconnect the two wireless LAN cables (black, white) 1 and then remove the

screw 2.

2

1

In step 1, unplug the jacks by using the removal tool antenna RF connector

(P/N: 08K7159), or pick up the connectors with your ngers and gently unplug

them in the direction shown by the arrows.

Notes: The wireless LAN card has 2 cables in step 1.

The wireless LAN card in some models might have 3 cables in step 1.

Step Screw (quantity) Color Torque

3M2.0 x 2.0 mm, Phillips-head, nylok-coated (1)

WIFI to MB

Black 1.8-2.0kg_cm

38

Lenovo YOGA C930-13IKB/Lenovo YOGA C930-13IKB Glass

Hardware Maintenance Manual

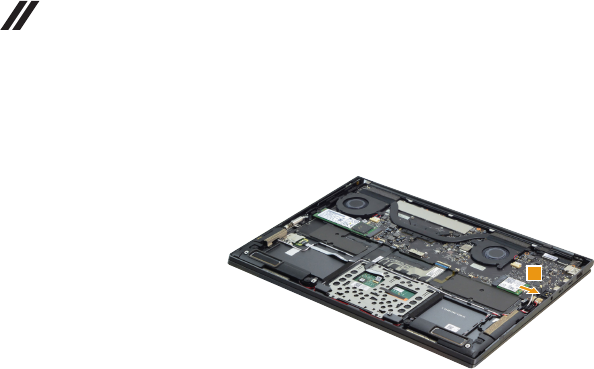

Figure 5. Removal steps of PCI Express Mini Card for wireless LAN (continued)

Remove the card in the direction shown by arrow 3.

3

When installing: When installing the wireless LAN card, plug the black cable

into the jack labeled MAIN and the white cable into the jack labeled AUX.

39

Lenovo YOGA C930-13IKB/Lenovo YOGA C930-13IKB Glass

1060 Antenna

For access, remove these FRUs in order:

• “1010 YOGA Pen” on page 32

• “1020 Base cover” on page 33

• “1030 Battery pack” on page 35

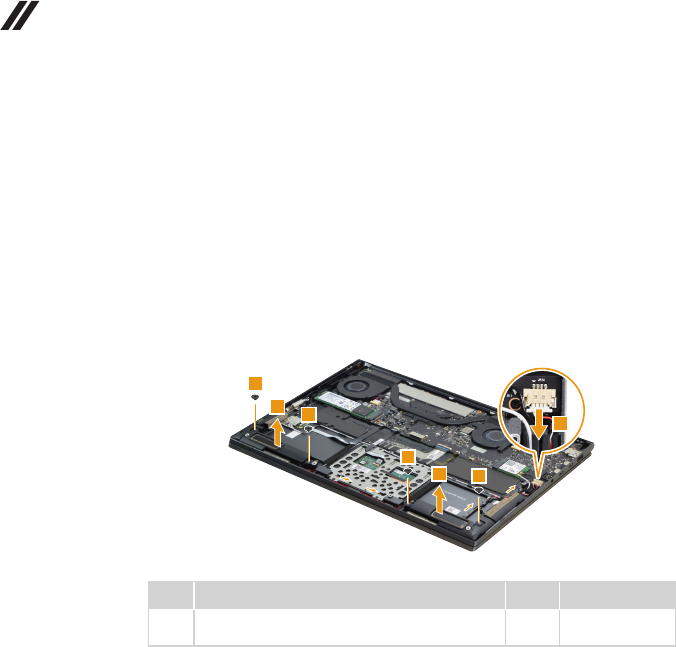

Figure 6. Removal steps of antenna

Disconnect the two wireless LAN cables (black, white) 1. Detach the ngerprint

reader connector and touchpad connector in the direction shown by arrows 2

and 3. Remove the screws 4 and 5.

1

3

2

3

2

4

5

4

5

Step Screw (quantity) Color Torque

4M2.0 x 2.7 mm, Phillips-head, nylok-coated (2)

Antenna to C cover

Black 1.8-2.0kg_cm

5M2.0 x 2.0 mm, Phillips-head, nylok-coated (2)

Antenna to C cover

Black 1.8-2.0kg_cm

Remove the antenna 6.

6

6

40

Lenovo YOGA C930-13IKB/Lenovo YOGA C930-13IKB Glass

Hardware Maintenance Manual

1070 Speakers

For access, remove these FRUs in order:

• “1010 YOGA Pen” on page 32

• “1020 Base cover” on page 33

• “1030 Battery pack” on page 35

Figure 7. Removal steps of speakers

Unplug the speaker connector in the direction shown by arrow 1. Release the

speaker cables from the cable guides. Remove the screws 2. Remove the two

speakers 3.

1

2

2

2

2

3

3

Step Screw (quantity) Color Torque

2M2.0 x 2.0 mm, Phillips-head, nylok-coated (4)

Speaker to C cover

Black 1.8-2.0kg_cm

When installing: Make sure that the connector is attached rmly.

41

Lenovo YOGA C930-13IKB/Lenovo YOGA C930-13IKB Glass

1080 Fingerprint module

For access, remove these FRUs in order:

• “1010 YOGA Pen” on page 32

• “1020 Base cover” on page 33

• “1030 Battery pack” on page 35

• “1060 Antenna” on page 39

Figure 8. Removal steps of ngerprint module

Remove the screw 1.

1

Step Screw (quantity) Color Torque

1M2.0 x 2.0 mm, Phillips-head, nylok-coated (1)

Fingerprint to C cover

Black 1.8-2.0kg_cm

Remove the ngerprint bracket and ngerprint board in the direction shown by

arrows 2 and 3.

3

2

42

Lenovo YOGA C930-13IKB/Lenovo YOGA C930-13IKB Glass

Hardware Maintenance Manual

1090 Fan and heat sink assembly

For access, remove these FRUs in order:

• “1010 YOGA Pen” on page 32

• “1020 Base cover” on page 33

• “1030 Battery pack” on page 35

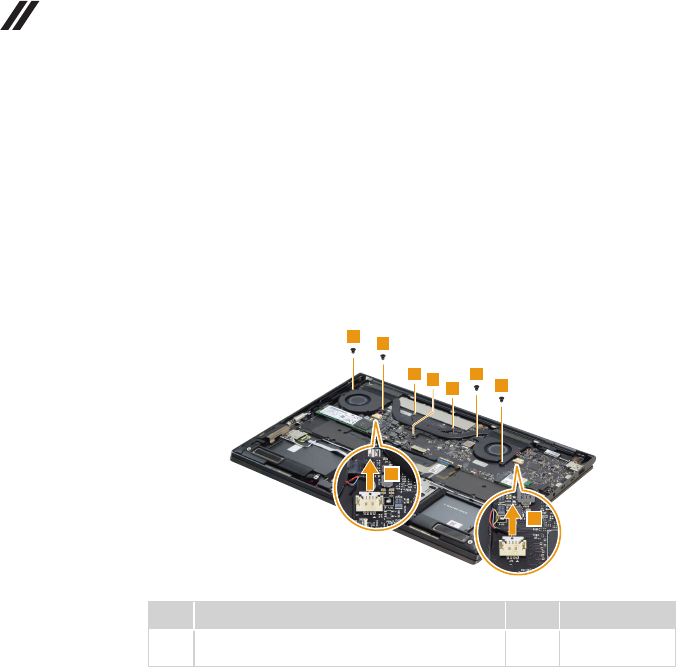

Figure 9. Removal steps of fan and heat sink assembly

Detach the connectors in the directions shown by arrows 1. Remove the

screws 2 and then loosen the screws 3.

1

1

2

2

2

3

3

32

Step Screw (quantity) Color Torque

2M2.0 x 2.7 mm, Phillips-head, nylok-coated (4)

Thermal Module to C Cover/MB

Black 1.8-2.0kg_cm

When installing: Make sure that the connectors are attached rmly.

43

Lenovo YOGA C930-13IKB/Lenovo YOGA C930-13IKB Glass

Figure 9. Removal steps of fan and heat sink assembly (continued)

Remove the fan and heat sink assembly in the direction shown by arrow 4.

4

Attention: Do not handle the heat sink assembly roughly. Improper handling

can cause distortion or deformation and imperfect contact with components.

a

When installing: Before you attach the fan assembly to the computer, apply

thermal grease, at an amount of 0.2 grams, to part a shown in the figure

above. Either too much or too little grease application can cause a thermal

problem due to imperfect contact with a component.

44

Lenovo YOGA C930-13IKB/Lenovo YOGA C930-13IKB Glass

Hardware Maintenance Manual

1100 Pen holder and power board

For access, remove these FRUs in order:

• “1010 YOGA Pen” on page 32

• “1020 Base cover” on page 33

• “1030 Battery pack” on page 35

• “1040 Solid state disk” on page 36

• “1090 Fan and heat sink assembly” on page 42

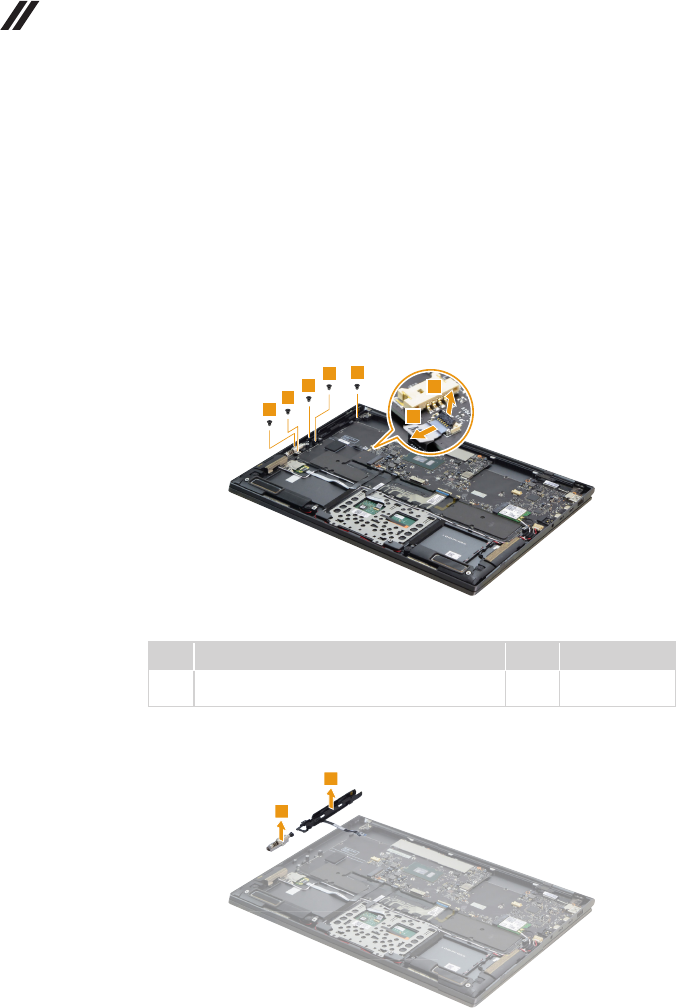

Figure 10. Removal steps of pen holder and power board

Detach the pen holder connector in the directions shown by arrows 1 and 2.

Remove the screws 3.

2

1

3

3

3

3

3

Step Screw (quantity) Color Torque

3M2.0 x 2.7 mm, Phillips-head, nylok-coated (5)

Pen holder to C cover & Push push module to C cover

Black 1.8-2.0kg_cm

Remove the pen holder in the direction shown by arrows 4 and 5.

4

5

45

Lenovo YOGA C930-13IKB/Lenovo YOGA C930-13IKB Glass

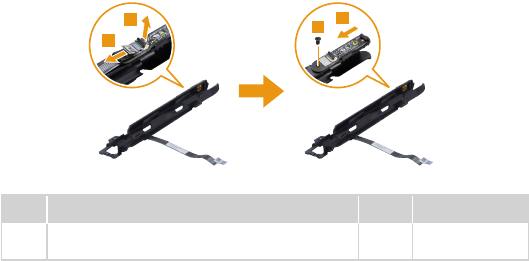

Figure 10. Removal steps of pen holder and power board (continued)

Turn the pen holder over. Detach the connector in the directions shown by

arrows 6 and 7. Remove the screw 8. Remove the power board 9.

7

689

Step Screw (quantity) Color Torque

8M1.6 x 1.5 mm, Phillips-head, nylok-coated (1)

Power board to C cover

Black 1.0-1.2kg_cm

46

Lenovo YOGA C930-13IKB/Lenovo YOGA C930-13IKB Glass

Hardware Maintenance Manual

1110 System board

Important notices for handling the system board:

When handling the system board, bear the following in mind.

• Be careful not to drop the system board on a bench top that has a hard surface,

such as metal, wood, or composite.

• Avoid rough handling of any kind.

• During the whole process, make sure not to drop or stack the system board.

• If you put a system board down, make sure to put it only on a padded surface, such

as an ESD mat or conductive corrugated material.

For access, remove these FRUs in order:

• “1010 YOGA Pen” on page 32

• “1020 Base cover” on page 33

• “1030 Battery pack” on page 35

• “1040 Solid state disk” on page 36

• “1050 PCI Express Mini Card for wireless LAN” on page 37

• “1090 Fan and heat sink assembly” on page 42

• “1100 Pen holder and power board” on page 44

Figure 11. Removal steps of system board

Detach the nine connectors in the directions shown by arrows 1, 2, 3 and 4.

2

1

3

2

1

2

1

2

1

2

13

4

4

When installing: Make sure that the connectors are attached rmly.

47

Lenovo YOGA C930-13IKB/Lenovo YOGA C930-13IKB Glass

Figure 11. Removal steps of system board (continued)

Remove the screws 5.

5

5

5

5

5

5

5

55

5

5

5

5

Step Screw (quantity) Color Torque

5M2.0 x 2.7 mm, Phillips-head, nylok-coated (14)

MB to C cover

Black 1.8-2.0kg_cm

Remove the system board 6.

6

48

Lenovo YOGA C930-13IKB/Lenovo YOGA C930-13IKB Glass

Hardware Maintenance Manual

1120 Touchpad module

For access, remove these FRUs in order:

• “1010 YOGA Pen” on page 32

• “1020 Base cover” on page 33

• “1030 Battery pack” on page 35

Figure 12. Removal steps of touchpad module

Detach the touchpad connector in the directions shown by arrows 1 and 2.

Remove the screws 3.

2

1

3

3

3

3

Step Screw (quantity) Color Torque

3M2.0 × 2.0 mm, Phillips-head, nylok-coated (4)

Clickpad to C cover

Black 1.8-2.0kg_cm

Remove the touchpad module in the direction shown by arrow 4.

4

49

Lenovo YOGA C930-13IKB/Lenovo YOGA C930-13IKB Glass

1130 LCD unit

For access, remove these FRUs in order:

• “1010 YOGA Pen” on page 32

• “1020 Base cover” on page 33

• “1030 Battery pack” on page 35

• “1090 Fan and heat sink assembly” on page 42

Figure 13. Removal steps of LCD unit

Rotate the upper case to 180 degrees as shown by the following illustration.

Detach the three connectors in the direction shown by arrows 1 and 2.

1

2

2

When installing: Make sure that the connectors are attached rmly.

Remove the screws 3 and 4.

3

3

3

3

4

4

Step Screw (quantity) Color Torque

3

M2.0 x 2.7 mm, Phillips-head & Torx-head, nylok-coated (6)

Hinge to C Cover

Black/

Silver

1.8-2.0kg_cm

4M2.0 x 2.0 mm, Phillips-head, nylok-coated (2)

Hinge joint base to C cover

Black 1.8-2.0kg_cm

50

Lenovo YOGA C930-13IKB/Lenovo YOGA C930-13IKB Glass

Hardware Maintenance Manual

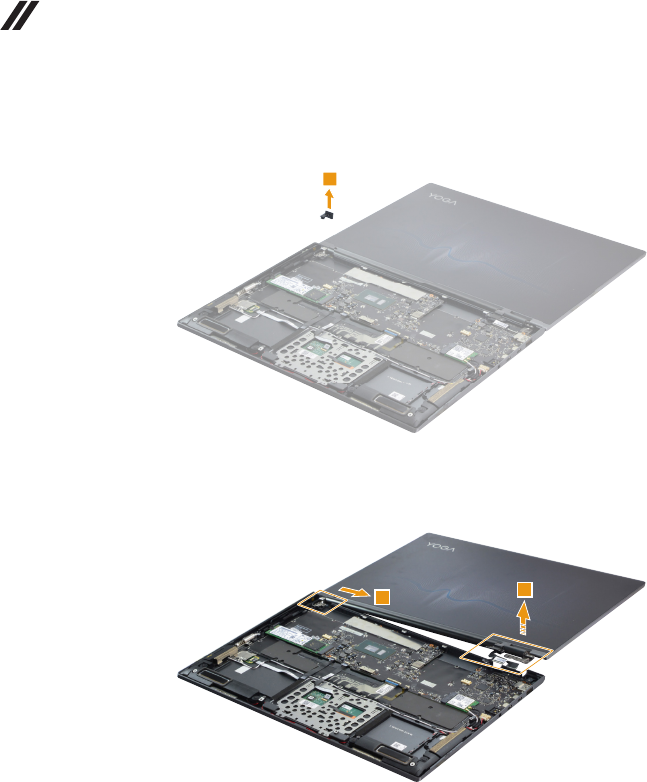

Figure 13. Removal steps of LCD unit (continued)

Remove the block 5.

5

Lift the right of LCD unit slightly 6 and then remove the LCD unit in the

direction shown by arrow 7.

6

7

51

Lenovo YOGA C930-13IKB/Lenovo YOGA C930-13IKB Glass

1140 LCD panel

For access, remove these FRUs in order:

• “1010 YOGA Pen” on page 32

• “1020 Base cover” on page 33

• “1030 Battery pack” on page 35

• “1090 Fan and heat sink assembly” on page 42

• “1130 LCD unit” on page 49

Figure 14. Removal steps of LCD panel

Remove the LCD bezel with tweezers 1.

1

1

1

Remove the screws 2.

22

22

2

2

2

2

22

Step Screw (quantity) Color Torque

2M1.6 × 2.6 mm, Phillips-head, nylok-coated (10)

Bezel to A Cover

Black 1.5-1.7kg_cm

52

Lenovo YOGA C930-13IKB/Lenovo YOGA C930-13IKB Glass

Hardware Maintenance Manual

Figure 14. Removal steps of LCD panel (continued)

Gently pull out the two pieces of adhesive tape with tweezers in the direction

shown by arrows 3.

3

3

Gently separate the LCD panel and LCD cover and then turn over the LCD

panel. Detach the connectors in the direction shown by arrows 4 and 5.

5

4

5

4

53

Lenovo YOGA C930-13IKB/Lenovo YOGA C930-13IKB Glass

Figure 14. Removal steps of LCD panel (continued)

Peel o the adhesive tape 6. Open the latch on the EDP connector in the

direction shown by arrow 7 and then unplug the EDP connector 8. Remove

the LCD panel.

7

6

8

54

Lenovo YOGA C930-13IKB/Lenovo YOGA C930-13IKB Glass

Hardware Maintenance Manual

1150 Microphone board and camera board

For access, remove these FRUs in order:

• “1010 YOGA Pen” on page 32

• “1020 Base cover” on page 33

• “1030 Battery pack” on page 35

• “1090 Fan and heat sink assembly” on page 42

• “1130 LCD unit” on page 49

• “1140 LCD panel” on page 51

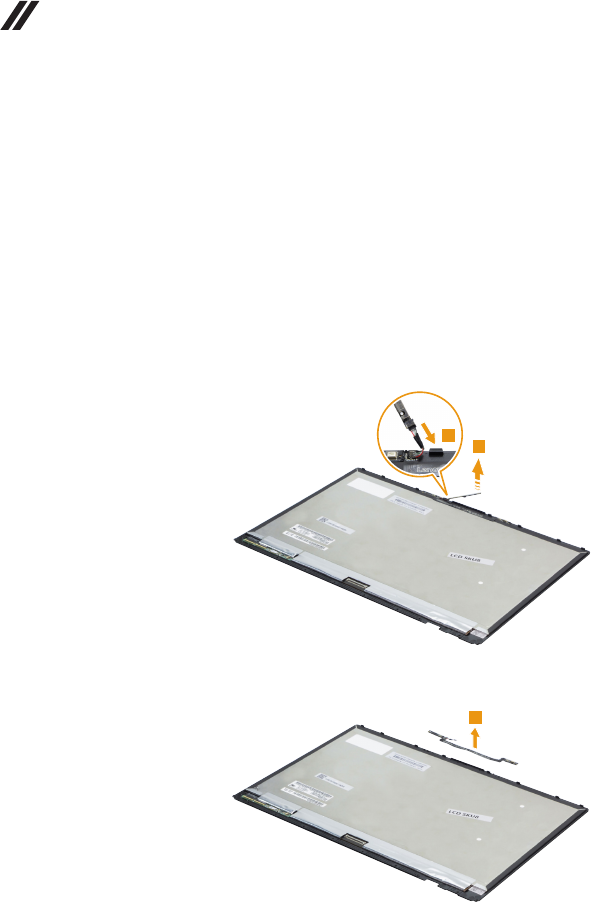

Figure 15. Removal steps of microphone board and camera board

Lift the right of the camera board slightly 1, unplug the connector 2. Remove

the camera board.

1

2

Remove the microphone board 3.

3

55

Lenovo YOGA C930-13IKB/Lenovo YOGA C930-13IKB Glass

1160 Strip cover

For access, remove these FRUs in order:

• “1010 YOGA Pen” on page 32

• “1020 Base cover” on page 33

• “1030 Battery pack” on page 35

• “1090 Fan and heat sink assembly” on page 42

• “1130 LCD unit” on page 49

• “1140 LCD panel” on page 51

• “1150 Microphone board and camera board” on page 54

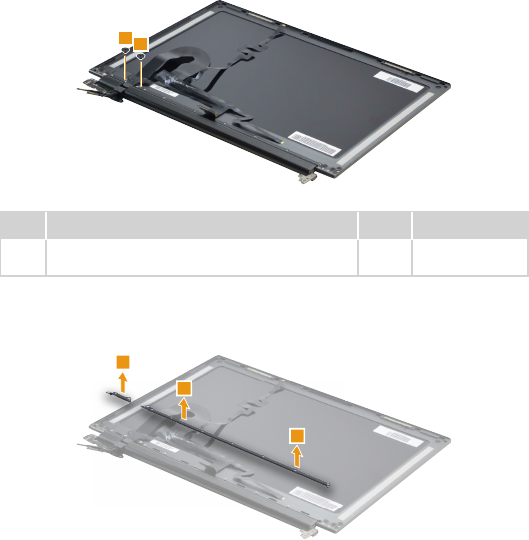

Figure 16. Removal steps of strip cover

Remove the screws 1.

11

Step Screw (quantity) Color Torque

1M2.0 × 2.0 mm, Phillips-head, nylok-coated (2)

Strip cover to A Cover

Black 1.8-2.0kg_cm

Remove the strip cover in the direction shown by arrows 2.

2

2

2

56

Lenovo YOGA C930-13IKB/Lenovo YOGA C930-13IKB Glass

Hardware Maintenance Manual

1170 Hinge module

For access, remove these FRUs in order:

• “1010 YOGA Pen” on page 32

• “1020 Base cover” on page 33

• “1030 Battery pack” on page 35

• “1090 Fan and heat sink assembly” on page 42

• “1130 LCD unit” on page 49

• “1140 LCD panel” on page 51

• “1150 Microphone board and camera board” on page 54

• “1160 Strip cover” on page 55

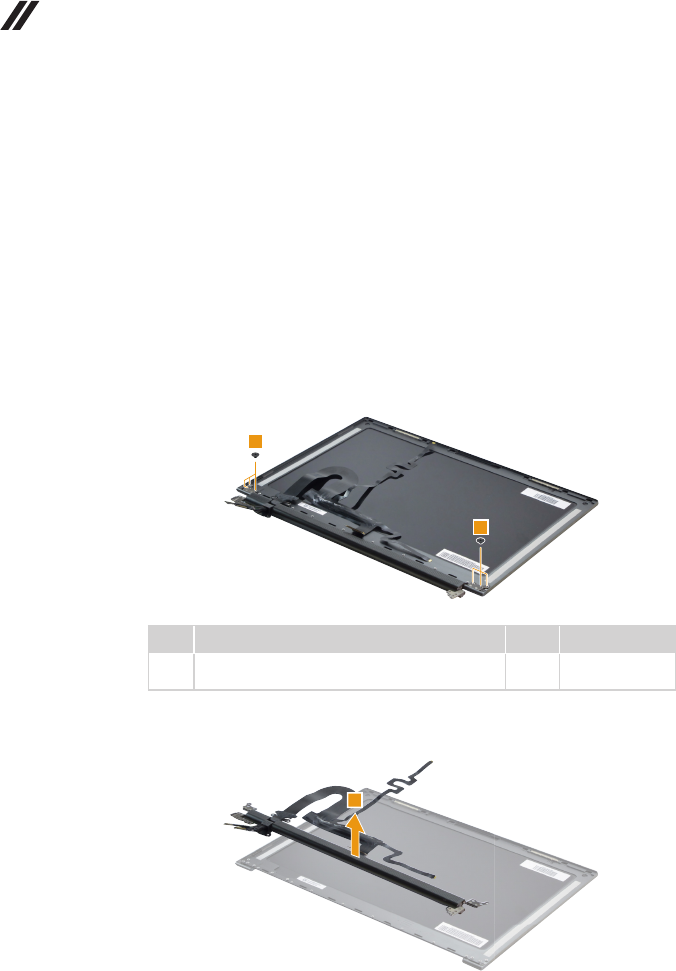

Figure 17. Removal steps of hinge module

Remove the screws 1.

1

1

Step Screw (quantity) Color Torque

1M2.0 × 2.0 mm, Phillips-head, nylok-coated (6)

Hinge to A cover

Black 1.8-2.0kg_cm

Remove the hinge module in the direction shown by arrow 2.

2

57

Lenovo YOGA C930-13IKB/Lenovo YOGA C930-13IKB Glass

Locations

Front and right-side view

a Camera

b Microphones

c Multi-touch screen

d Speakers

e Wireless antennas

f Touchpad

g Fingerprint reader

h Power button

Note: For the description of each indicator, see “Status indicators” on page 27.

i YOGA Pen

12

2

3

4

7

6

5

5

8

9

58

Lenovo YOGA C930-13IKB/Lenovo YOGA C930-13IKB Glass

Hardware Maintenance Manual

Bottom and left-side view

1 Speakers

2 Combo audio connector

3 USB (Type-C) connector

4 ac power status indicator

Note: For the description of each indicator, see “Status indicators” on page 27.

5 USB (Type-A) connector

2

1

13

4

3

5

59

Lenovo YOGA C930-13IKB/Lenovo YOGA C930-13IKB Glass

Parts list

This section presents the following service parts:

• “Overall” on page 60

• “LCD FRUs” on page 63

• “ac adapters” on page 64

• “Screws” on page 64

• “Power cords” on page 65

Notes:

• Each FRU is available for all types or models, unless specic types or models

are specied.

Attention:

DonotattempttoreplaceanFRUonyourown.IfanFRUisdamaged,contact

aLenovoauthorizedserviceroramarketingrepresentativeforreplacement

orrepair.Onlyqualiedtechnicianscaninspectorrepairthisproduct.

60

Lenovo YOGA C930-13IKB/Lenovo YOGA C930-13IKB Glass

Hardware Maintenance Manual

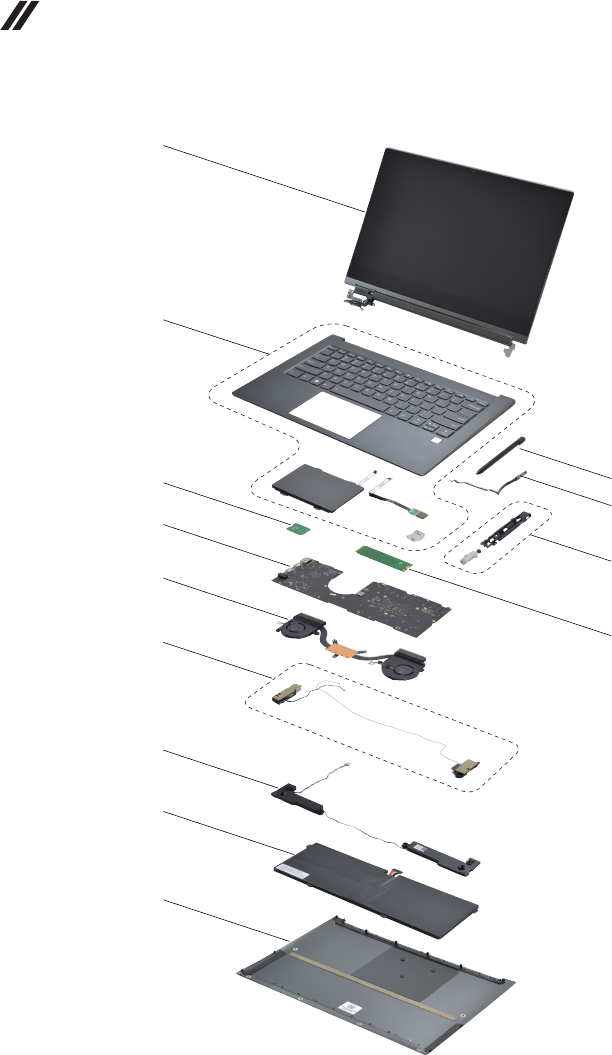

Overall

1

2

3

4

5

7

6

8

9

10

11

12

13

61

Lenovo YOGA C930-13IKB/Lenovo YOGA C930-13IKB Glass

Table 5. Parts list—Overall

No. FRU FRU no. CRU

ID.

YOGA

C930-13IKB

YOGA

C930-13IKB

Glass

1 LCD unit (see “LCD FRUs” on page 63.)

2 Upper Case ASM_US L 81C4 IG 5CB0S72607 N ● ●

2 Upper Case ASM_UK L 81C4 IG 5CB0S72608 N ● ●

2 Upper Case ASM_IT L 81C4 IG 5CB0S72609 N ● ●

2 Upper Case ASM_SP L 81C4 IG 5CB0S72610 N ● ●

2 Upper Case ASM_TR L 81C4 IG 5CB0S72611 N ● ●

2 Upper Case ASM_TI L 81C4 IG 5CB0S72612 N ● ●

2 Upper Case ASM_PO L 81C4 IG 5CB0S72613 N ● ●

2 Upper Case ASM_CF-E L 81C4 IG 5CB0S72614 N ● ●

2 Upper Case ASM_KO L 81C4 IG 5CB0S72615 N ● ●

2 Upper Case ASM_CH L 81C4 IG 5CB0S72616 N ● ●

2 Upper Case ASM_RU L 81C4 IG 5CB0S72617 N ● ●

2 Upper Case ASM_FR L 81C4 IG 5CB0S72618 N ● ●

2 Upper Case ASM_GR L 81C4 IG 5CB0S72619 N ● ●

2 Upper Case ASM_AR-E L 81C4 IG 5CB0S72620 N ● ●

2 Upper Case ASM_BZ L 81C4 IG 5CB0S72621 N ● ●

2 Upper Case ASM_GK L 81C4 IG 5CB0S72622 N ● ●

2 Upper Case ASM_HB L 81C4 IG 5CB0S72623 N ● ●

2 Upper Case ASM_HG L 81C4 IG 5CB0S72624 N ● ●

2 Upper Case ASM_ND L 81C4 IG 5CB0S72625 N ● ●

2 Upper Case ASM_BE L 81C4 IG 5CB0S72626 N ● ●

2 Upper Case ASM_ICE L 81C4 IG 5CB0S72627 N ● ●

2 Upper Case ASM_SA L 81C4 IG 5CB0S72628 N ● ●

2 Upper Case ASM_SW L 81C4 IG 5CB0S72629 N ● ●

2 Upper Case ASM_CZ-SK L 81C4 IG 5CB0S72630 N ● ●

2 Upper Case ASM_BU L 81C4 IG 5CB0S72631 N ● ●

2 Upper Case ASM_INDIA L 81C4 IG 5CB0S72632 N ● ●

2 Upper Case ASM_FR-AR L 81C4 IG 5CB0S72633 N ● ●

2 Upper Case ASM_UKR L 81C4 IG 5CB0S72634 N ● ●

2 Upper Case ASM_US INTE L 81C4 IG 5CB0S72635 N ● ●

2 Upper Case ASM_USA L 81C4 IG 5CB0S72636 N ● ●

2 Upper Case ASM_JA L 81C4 IG 5CB0S72637 N ● ●

2 Upper Case ASM_LA L 81C4 IG 5CB0S72638 N ● ●

2 Upper Case ASM_US L 81C4 MC 5CB0S72639 N ●

2 Upper Case ASM_UK L 81C4 MC 5CB0S72640 N ●

2 Upper Case ASM_IT L 81C4 MC 5CB0S72641 N ●

2 Upper Case ASM_SP L 81C4 MC 5CB0S72642 N ●

2 Upper Case ASM_TR L 81C4 MC 5CB0S72643 N ●

2 Upper Case ASM_TI L 81C4 MC 5CB0S72644 N ●

2 Upper Case ASM_PO L 81C4 MC 5CB0S72645 N ●

2 Upper Case ASM_CF-E L 81C4 MC 5CB0S72646 N ●

2 Upper Case ASM_KO L 81C4 MC 5CB0S72647 N ●

2 Upper Case ASM_CH L 81C4 MC 5CB0S72648 N ●

2 Upper Case ASM_RU L 81C4 MC 5CB0S72649 N ●

2 Upper Case ASM_FR L 81C4 MC 5CB0S72650 N ●

2 Upper Case ASM_GR L 81C4 MC 5CB0S72651 N ●

2 Upper Case ASM_AR-E L 81C4 MC 5CB0S72652 N ●

2 Upper Case ASM_BZ L 81C4 MC 5CB0S72653 N ●

2 Upper Case ASM_GK L 81C4 MC 5CB0S72654 N ●

2 Upper Case ASM_HB L 81C4 MC 5CB0S72655 N ●

2 Upper Case ASM_HG L 81C4 MC 5CB0S72656 N ●

62

Lenovo YOGA C930-13IKB/Lenovo YOGA C930-13IKB Glass

Hardware Maintenance Manual

Table 5. Parts list—Overall (continued)

No. FRU FRU no. CRU

ID.

YOGA

C930-13IKB

YOGA

C930-13IKB

Glass

2 Upper Case ASM_ND L 81C4 MC 5CB0S72657 N ●

2 Upper Case ASM_BE L 81C4 MC 5CB0S72658 N ●

2 Upper Case ASM_ICE L 81C4 MC 5CB0S72659 N ●

2 Upper Case ASM_SA L 81C4 MC 5CB0S72660 N ●

2 Upper Case ASM_SW L 81C4 MC 5CB0S72661 N ●

2 Upper Case ASM_CZ-SK L 81C4 MC 5CB0S72662 N ●

2 Upper Case ASM_BU L 81C4 MC 5CB0S72663 N ●

2 Upper Case ASM_INDIA L 81C4 MC 5CB0S72664 N ●

2 Upper Case ASM_FR-AR L 81C4 MC 5CB0S72665 N ●

2 Upper Case ASM_UKR L 81C4 MC 5CB0S72666 N ●

2 Upper Case ASM_US INTE L 81C4 MC 5CB0S72667 N ●

2 Upper Case ASM_USA L 81C4 MC 5CB0S72668 N ●

2 Upper Case ASM_JA L 81C4 MC 5CB0S72669 N ●

2 Upper Case ASM_LA L 81C4 MC 5CB0S72670 N ●

3 WCM 11025B6 D6.5 BK A Pen 01FR713 * ● ●

3 WCM 11024B6 D6.5 BK A Pen 01FR712 * ● ●

4 Power Board L 81C4 W/FPC/Pbutton 5C50S73005 N ● ●

5 Pen Holder L 81C4 5M20S73055 N ● ●

6 Wireless,CMB,IN,9260 NV M2 01AX769 N ● ●

7 Storage SSD PM981 256G M.2 SAM 01FR544 N ● ●

7 Storage SSD PC401 1T M.2 Hynix 01FR539 N ● ●

7 Storage SSD PC401 256G M.2 Hynix 01FR537 N ● ●

7 Storage SSD PC401 512G M.2 Hynix 01FR538 N ● ●

7 Storage SSD PM981 PCIe 512G SAM 01FR511 N ● ●

7 Storage SSD PM871 2T M.2 SAM 01FR548 N ● ●

7 Storage SSD PM981 PCIe 1T SAM 01FR510 N ● ●

8 MB L 81C4 WIN I5-8250U UMA 12G 5B20S72100 N ● ●

8 MB L 81C4 WIN I7-8550U UMA 12G 5B20S72103 N ● ●

8 MB L 81C4 WIN I5-8250U UMA 16G 5B20S72098 N ● ●

8 MB L 81C4 WIN I5-8250U UMA 8G 5B20S72099 N ● ●

8 MB L 81C4 WIN I7-8550U UMA 16G 5B20S72101 N ● ●

8 MB L 81C4 WIN I7-8550U UMA 8G 5B20S72102 N ● ●

9 Thermal Module L 81C4 UMA 5H40S72899 N ● ●

10 Antenna L 81C4 5A30S73619 N ● ●

11 Yoga930-13 LS 4013 Speaker 5SB0Q94048 N ● ●

12 SP/A L17M4PH1 7.68V60Wh4cell 5B10Q82426 N ● ●

12 CP/C L17C4PH1 7.68V60Wh4cell 5B10Q82425 N ● ●

13 Lower Case L 81C4 IG 5CB0S72599 N ● ●

13 Lower Case L 81C4 MC 5CB0S72600 N ●

— ac adapter (see “ac adapters” on page 64).

63

Lenovo YOGA C930-13IKB/Lenovo YOGA C930-13IKB Glass

LCD FRUs

In Lenovo YOGA C930-13IKB/Lenovo YOGA C930-13IKB Glass, there are

following types of LCDs.

• “13.9-in. FHD/UHD LED”

1

2

3

4

5

6

7

8

64

Lenovo YOGA C930-13IKB/Lenovo YOGA C930-13IKB Glass

Hardware Maintenance Manual

Table 6. Parts list—LCD FRUs

No. FRU FRU no. CRU

ID.

YOGA

C930-13IKB

YOGA

C930-13IKB

Glass

1 Hinge cover L 81C4 IG 5CB0S72601 N ● ●

1 Hinge cover L 81C4 MC 5CB0S72602 N ●

2 LCD Module L 81C4 13.9FHD 5D10S73319 N ● ●

2 LCD Module L 81C4 13.9UHD 5D10S73320 N ● ●

3 Comn CAM Slim HD w/o MIC Azw Ad-s 01FR812 N ● ●

3 Comn CAM Slim HD w/o MIC Bsn Ad-s 01FR810 N ● ●

3 Comn CAM Slim HD w/o MIC Chy Ad-s 01FR811 N ● ●

4 Camera cable L 81C4 W/MIC FPC 5C10S73157 N ● ●

5 Removable Tape L 81C4 5T10S73207 N ●

5 Removable Tape L 81EQ 5T10S73216 N ●

6 Strip cover L 81C4 IG L+S 5CB0S72603 N ● ●

6 Strip cover L 81C4 MC L+S 5CB0S72604 N ●

7 Hinge L 81EQ IG W/Soundbar/FHD eDP 5H50S73125 N ●

7 Hinge L 81EQ IG W/Soundbar/UHD eDP 5H50S73126 N ●

7 Hinge L 81C4 IG W/Soundbar/FHD eDP 5H50S73107 N ●

7 Hinge L 81C4 IG W/Soundbar/UHD eDP 5H50S73108 N ●

7 Hinge L 81C4 MC W/Soundbar/FHD eDP 5H50S73109 N ●

7 Hinge L 81C4 MC W/Soundbar/UHD eDP 5H50S73110 N ●

8 LCD Cover L 81C4 IG glass STD 5CB0S72826 N ●

8 LCD Cover L 81C4 IG 5CB0S72605 N ●

8 LCD Cover L 81C4 MC 5CB0S72606 N ●

ac adapters

Table 8. Parts list—ac adapters

FRU P/N CRU

ID.

YOGA

C930-13IKB

YOGA

C930-13IKB

Glass

Liteon ADLX65YLC3A 20V3.25A 01FR024 *● ●

Delta ADLX65YDC3A 20V3.25A 01FR030 *● ●

Acbel ADLX65YAC3A 20V3.25A 01FR028 *● ●

Chicony ADLX65YCC3A 20V3.25A 01FR026 *● ●

Screws

Table 9. Parts list—Screws

FRU P/N CRU

ID.

YOGA

C930-13IKB

YOGA

C930-13IKB

Glass

Screw pack L 81C4 5S10S73269 N● ●

Screw pack L 81C4 MC 5S10S73270 N●

65

Lenovo YOGA C930-13IKB/Lenovo YOGA C930-13IKB Glass

Power cords

A Lenovo power cord for a specific country or region is usually available only in that country or

region:

Table 10. Parts list—power cords

FRU FRU no. CRU

ID.

YOGA

C930-13IKB

YOGA

C930-13IKB

Glass

Longwell LP-34A+H03VV-F+LS-18 1m cord 145000553 * ● ●

LINETEK LS15+H03VV-F+PE-364 1m cord 145000586 * ● ●

LINETEK LS15+H03VV-F+LP-37 1m cord 145000597 * ● ●

VOLEX CH10S3+H03VV-F+VAC5S 1m cord 145000527 * ● ●

LINETEK LS15+H03VV-F+LP-41 1m cord 145000595 * ● ●

LINETEK PE-361+ H05VV-F+ LS15 1m cord 145000592 * ● ●

LINETEK LS15+H03VV-F+LP-23A 1m cord 145000589 * ● ●

VOLEX VAC5S+VCTF+M755 1m cord 145000530 * ● ●

Longwell LP-61L+H03VV-F+LS-18 1m cord 145000561 * ● ●

Longwell LP-37+H03VV-F+LS-18 1m cord 145000565 * ● ●

VOLEX M2511+KETI IEC+VAC5S 1m cord 145000533 * ● ●

VOLEX AU10S3+H03VV-F+VAC5S 1m cord 145000532 * ● ●

LINETEK LS15+H03VV-F+PE-336 1m cord 145000591 * ● ●

LINETEK LS15 H03VV-F LP26A 1m cord 145000596 * ● ●

LINETEK PC323+RVV300/300+LS15 1m cord 145000600 * ● ●

VOLEX GB10S3+RVV 300/500+VAC5S 1m cord 145000538 * ● ●

Longwell LP-30B+SPT-2 18AWG+LS-181mcord 145000562 * ● ●

VOLEX MP5004+H03VV-F+VAC5S 1m cord 145000605 * ● ●

Longwell LP-41+H03VV-F+LS-18 1m cord 145000563 * ● ●

VOLEX VA2073+H03VV-F+VAC5S 1m cord 145000528 * ● ●

Longwell LP-54+VCTF+LS-18 1m cord 145000555 * ● ●

LINETEK LP-34+H03VV-F + LS15 1m cord 145000585 * ● ●

VOLEX SI16S3+H03VV-F+VAC5S 1m cord 145000526 * ● ●

Longwell LP-67+BIS+LS-18 1m cord 145000560 * ● ●

LINETEK LS15+H03VV-F+LP39 1m cord 145000599 * ● ●

Longwell LP-39+H03VV-F+LS-18 1m cord 145000554 * ● ●

Longwell LP-24+H03VV-F+LS-18 1m cord 145000567 * ● ●

VOLEX M2511+HO3VV-F+VAC5S 1m cord 145000525 * ● ●

Longwell LP-486+KTLH03VV-F+LS-5 1m cord 145000558 * ● ●

Longwell LSG-31+RVV300/300+LS-18 1mcord 145000568 * ● ●

Longwell LP-22+H03VV-F+LS-18 1m cord 145000559 * ● ●

Longwell LP-23A+LFC-3R+LS-18 1m cord 145000557 * ● ●

VOLEX MP232+H03VV-F+VAC5S 1m cord 145000524 * ● ●

LINETEK LP-61L+ H03VV-F+ LS15 1m cord 145000593 * ● ●

LINETEK LS15+H05VV-F+LP-E04A 1m cord 145000590 * ● ●

Longwell LP-46+H03VV-F+LS-18 1m cord 145000564 * ● ●

LINETEK LS15+VCTF+LP-54 1m cord 145000587 * ● ●

VOLEX IT10S3+HO3VV-F+VAC5S 1m cord 145000535 * ● ●

Volex US15S3+SPT-2 £?VAC5S 1m cord 145000537 * ● ●

LINETEK LP-30B + SPT-2 + LS15 1m cord 145000594 * ● ●

lux 0033+H03VV-F 0.75/3C+0011 1m cord 145500008 * ● ●

lux 0031+H03VV-F 0.75/3C+0011 1m cord 145500000 * ● ●

Fru, LINECORD,TW,1M,3P,NON-LH 01YW105 * ● ●

TW,1M,3P,NON-LH,LTK 00HM693 * ● ●

lux 0041+H03VV-F 0.75/3C+0011 1m cord 145500012 * ● ●

lux 0014+SPT-2 60°C 18/3C+0016 1m cord 145500002 * ● ●

lux 0018(E)+VCTF 0.75/3C+0021 1m cord 145500005 * ● ●

66

Lenovo YOGA C930-13IKB/Lenovo YOGA C930-13IKB Glass

Hardware Maintenance Manual

FRU FRU no. CRU

ID.

YOGA

C930-13IKB

YOGA

C930-13IKB

Glass

Fru, LINECORD,TW,1M,3P,NON-LH 01YW103 * ● ●

lux 0027+H03VV-F 0.75/3C+0011 1m cord 145500013 * ● ●

lux 0014+H03VV-F 0.75/3C+0011 5L60J33143 * ● ●

lux 0034+H03VV-F 0.75/3C+0011 1m cord 145500011 * ● ●

lux 0033+H03VV-F 0.75/3C+0011 1m cord 145500001 * ● ●

lux 0038+H03VV-F 0.75/3C+0011 1m cord 145500006 * ● ●

lux0036+RVV 300/300 0.75/3C+0002 1mcord 145500003 * ● ●

lux 0040+H03VV-F 0.75/3C+0011 1m cord 145500015 * ● ●

Fru, LINECORD,TW,1M,3P,NON-LH 01YW107 * ● ●

lux 0044+H03VV-F 0.75/3C+0011 1m cord 145500010 * ● ●

lux 0046+IS694 0.75/3C+0011 1m cord 145500004 * ● ●

lux 0029+H03VV-F 0.75/3C+0011 1m cord 145500009 * ● ●

Table 10. Parts list—power cords (continued)

67

Notices

Notices

Lenovo may not offer the products, services, or features discussed in this

document in all countries. Consult your local Lenovo representative for

information on the products and services currently available in your area. Any

reference to a Lenovo product, program, or service is not intended to state or

imply that only that Lenovo product, program, or service may be used. Any

functionally equivalent product, program, or service that does not infringe

any Lenovo intellectual property right may be used instead. However, it is the

user’s responsibility to evaluate and verify the operation of any other product,

program, or service.

Lenovo may have patents or pending patent applications covering subject matter

described in this document. The furnishing of this document does not give you

any license to these patents.

LENOVO GROUP LTD. PROVIDES THIS PUBLICATION “AS IS”

WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED,

INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF NON-

INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR

PURPOSE. Some jurisdictions do not allow disclaimer of express or implied

warranties in certain transactions, therefore, this statement may not apply to you.

This information could include technical inaccuracies or typographical errors.

Changes are periodically made to the information herein; these changes

will be incorporated in new editions of the publication. Lenovo may make

improvements and/or changes in the product(s) and/or the program(s)

described in this publication at any time without notice.

The products described in this document are not intended for use in

implantation or other life support applications where malfunction may result in

injury or death to persons. The information contained in this document does not

aect or change Lenovo product specications or warranties. Nothing in this

document shall operate as an express or implied license or indemnity under the

intellectual property rights of Lenovo or third parties. All information contained

in this document was obtained in specic environments and is presented as an

illustration. The result obtained in other operating environments may vary.

Lenovo may use or distribute any of the information you supply in any way it

believes appropriate without incurring any obligation to you.

Any references in this publication to non-Lenovo Web sites are provided for

convenience only and do not in any manner serve as an endorsement of those

Web sites. The materials at those Web sites are not part of the materials for

this Lenovo product, and use of those Web sites is at your own risk.

Any performance data contained herein was determined in a controlled

environment. Therefore, the result obtained in other operating environments

may vary significantly. Some measurements may have been made on

development-level systems and there is no guarantee that these measurements

will be the same on generally available systems. Furthermore, some

measurements may have been estimated through extrapolation. Actual results

may vary. Users of this document should verify the applicable data for their

specic environment.

68

Lenovo YOGA C930-13IKB/Lenovo YOGA C930-13IKB Glass

Hardware Maintenance Manual

Trademarks

LENOVO and LENOVO logo are trademarks of Lenovo. Microsoft and Windows

are trademarks of the Microsoft group of companies. USB Type-C and USB-C

are trademarks of USB Implementers Forum. Thunderbolt is a trademark

of Intel Corporation or its subsidiaries in the U. S. and/or other countries.

DisplayPort is trademark of the Video Electronics Standards Association. Wi-Fi

is registered trademark of Wi-Fi Alliance. All other trademarks are the property

of their respective owners. © 2018 Lenovo.
