WARNINGS AND CAUTIONS:
• To be installed and/or used in accordance with appropriate electrical codes and regulations.
• If you are unsure about any part of these instructions, consult a qualified electrician.
• To avoid overheating and possible damage to this device and other equipment, do not install to control a receptacle, fluorescent lighting, a motor- or a transformer
operated appliance.
• Use with magnetic low-voltage transformers, incandescent, or 120V halogen fixtures only. Use a Leviton electronic low-voltage dimmer to control electronic
(solid state) low-voltage transformers.
• When magnetic low-voltage circuits are operated at a dim level, with all lamps inoperative, excess current may flow through the transformer. To avoid possible
transformer failure due to overcurrent, use a transformer that incorporates thermal protection or a fuse at the primary windings.
• ViziaTM RF dimmers are not compatible with standard 3-way or 4-way switches. They must be used with compatible ViziaTM RF controllers for multi-location dimming.
WARNINGS AND CAUTIONS:
• Use only one (1) ViziaTM RF dimmer in a multi-location circuit with up to 9 coordinating ViziaTM remotes without LEDs or ViziaTM RF remotes for multi-location. The remote(s)
will turn the light on at the brightness level selected at the dimmer.
• Total minimum load must exceed 40W.
• Dimmer may feel warm to the touch during normal operation.
• Recommended minimum wall box depth is 2-1/2".
• Maximum wire length from dimmer to all installed remotes cannot exceed 300 ft.
• Disconnect power at circuit breaker or fuse when servicing, installing or removing fixture.
• Use this device only with copper or copper clad wire. With aluminum wire use only devices marked CO/ALR or CU/AL.
Single Pole (One location) or 3-Way (Multi-location)
Scene Capable Magnetic Low-Voltage Dimmer
Cat. No. RZM10-1L, 1000VA (Lighted)
120VAC, 60Hz
INSTALLATION INSTRUCTIONS
IMPORTANT : For 3-Way applications, note that one of the screw
terminals from the old switch being removed will usually be a different
color (Black) or labeled Common. Tag that wire with electrical tape and
identify as the common (Line or Load) in both the dimmer wall box and
remote wall box.
For non-standard wiring applications, refer
to Wire Nut and Connector Size Chart
1 - #12 w/ 1 to 3 #14, #16 or #18
2 - #12 w/ 1 or 2 #16 or #18
1 - #14 w/ 1 to 4 #16 or #18
2 - #14 w/ 1 to 3 #16 or #18
WIRE CONNECTOR / # OF COND.
COMBINATION CHART
DI-000-RZM10-00A-X2
• Pull off pre-cut insulation from dimmer leads.
• Make sure that the ends of the wires from the wall box are straight
(cut if necessary).
• Remove insulation from each wire in the wall box as shown.
• For Single-Pole Application, go to Step 4a.
• For 3-Way Coordinating Remote (no LEDs) Application, go to
Step 4b.
WIRING DIMMER:
Connect wires per WIRING DIAGRAM as follows:
WARNING: CONNECT A MAGNETIC LOW-VOLTAGE DIMMER
ONLY TO THE PRIMARY (HIGH-VOLTAGE) SIDE OF A MAGNETIC
LOW-VOLTAGE TRANSFORMER.
• Green or bare copper wire in wall box to Green dimmer lead.
• Line Hot wall box wire to Black dimmer lead.
• Load wall box wire to Red dimmer lead.
• Line Neutral wall box wire to White dimmer lead.
• Yellow/Red dimmer lead should have Red insulation label affixed.
NOTE: If insulating label is not affixed to Yellow/Red dimmer lead,
use electrical tape to cover.
• Proceed to Step 5.
3-Way Wiring with Coordinating Dimming or
Switching Remote (no LEDs) Application:
Step 4b
BL
YL/RD
RD
Coordinating Remote Dimmer
5
2
1
4
3
1
4
3
Black
White
Green
Red
Yellow/Red
2
5
Hot (Black)
Neutral (White)
Coordinating Remote (no LEDs)
YL/RD
RD
Load
Black BK
WH
White
Line
120VAC, 60Hz
Green
Ground
Dimmer
BlackRed
Yellow/
Red
(PRIMARY SIDE OF
MAGNETIC LOW-VOLTAGE
TRANSFORMER)
White
Green
Ground
WIRING DIMMER:
Connect wires per WIRING DIAGRAM as follows:
WARNING: FOR MAGNETIC LOW-VOLTAGE APPLICATIONS,
CONNECT DIMMER ONLY TO THE PRIMARY (HIGH-VOLTAGE)
SIDE OF A MAGNETIC LOW-VOLTAGE TRANSFORMER.
NOTE: When using the coordinating remote without LEDs, the
dimmer can be installed on either the Line or Load side of the 3-way
circuit.
NOTE: Maximum wire length from dimmer to all installed remotes
cannot exceed 300 ft.
• Green or bare copper wire in wall box to Green dimmer lead.
• Line Hot (common) wall box wire identified (tagged) when
removing old switch to Black dimmer lead.
• First Traveler wall box wire to Red dimmer lead (note wire color).
This traveler from the dimmer must go to the terminal screw on
the remote marked “RD”.
• Remove Red insulating label from Yellow/Red dimmer lead.
• Second Traveler wall box wire to Yellow/Red dimmer lead (note
wire color). This traveler from the dimmer must go to the terminal
screw on the remote marked “YL/RD”.
• Line Neutral wall box wire to White dimmer lead.
Tools needed to install your Dimmer:
Slotted/Phillips Screwdriver Electrical Tape
Pliers Pencil
Cutters Ruler
MULTI-DEVICE APPLICATION
In multi-dimmer installations, the reduction of the dimmer’s capacity
is required. Refer to the chart for maximum load per dimmer.
If installing Dimmer in a single device application, proceed with the
INSTALLING YOUR DIMMER section. If installing Dimmer in a multi-
device application, proceed as follows:
Installing Dimmer by itself or with other devices:
Changing the color of your Dimmer:
Your Dimmer includes three color options. The Dimmer ships with the
White frame attached. To change color of frame, proceed as follows:
Line up tabs and
press in side to attach
Push in side at
tab to release
INSTALLING YOUR DIMMER
NOTE: Use check boxes when Steps are completed.
WARNING: TO AVOID FIRE SHOCK OR DEATH; TURN
OFF POWER at circuit breaker or fuse and test that power
is off before wiring!
Step 1
Step 2
2
4
3
1
Single Pole
1. Line (Hot)
2. Neutral
3. Ground
4. Load
Identifying your wiring application (most common):
NOTE: If the wiring in your wall box does not resemble any
of these configurations, consult a qualified electrician.
3-Way
1. Line or Load
(see important instruction)
2. Neutral
3. Ground
4. First Traveler – note color
5. Second Traveler – note color
2
4
1
5
3
Cut
(if necessary)
5/8"
(1.6 cm) Strip Gage
(measure bare
wire here)
Preparing and connecting wires:
Pull off pre-cut insulation from dimmer leads. Make sure that
the ends of the wires from the wall box are straight (cut if
necessary). Remove insulation from each wire in the wall
box as shown:
Step 3
Dimmer
Insulating
Label
Black
Hot (Black)Black
Line
120 VAC, 60Hz
Neutral (White)
Red
Yellow/
Red
White (PRIMARY SIDE OF
MAGNETIC LOW-VOLTAGE
TRANSFORMER)
White
Green
Ground
Single Pole Wiring Application:
Insulating label:
This wire is used in 3-way installations only.
For single pole installations, do not remove
this insulating label.
1
4
3
Black
White
Green
Red
Yellow/Red
2
Step 4a
MAXIMUM BULB WATTAGE
Low-voltage dimmers are rated in Volt-Amps (VA). The maximum bulb
wattage is determined by the efficiency of the transformer in the low-
voltage lighting system. Transformer efficiencies will vary from different
manufacturers; consider 80% efficient as average. Use the chart to
determine maximum bulb wattage for typical transformer efficiency ratings.
Remove all
inner side
sections
Do not
remove
outer side
sections
Bend back
and forth to
remove side
section
Compatible with enabled products!
TM
MAXIMUM LOAD PER DIMMER FOR MULTI-DEVICE
More than
2 Devices
650W
650VA
Two Devices
800W
800VA
Single
1000W
1000VA
Load
Incand
Mag LV
MAXIMUM BULB WATTAGE AT 75% EFFICIENCY
More than
2 Gang
520W
Two Gang
640W
Single
800W
Rating
1000VA
Step 2 cont'd
This equipment has been tested and found to comply with the limits for
a Class B Digital Device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment OFF and ON, the user is encouraged to try
to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving Antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/tv technician for help.
U.S. & Foreign Patents Pending
Copyright© 2006 Leviton Manufacturing Co., Inc.
All Rights Including Trade Dress Rights Reserved
DI-000-RZM10-00A-X2
Restore Power:
Restore power at circuit breaker or fuse.
Installation is complete.
NOTE: The locator light will illuminate when the load is in the OFF
position to facilitate access in the dark.
NOTE: If using the dimmer in a 3-way application, the lights will turn
ON at brightness set on dimmer’s DIM/BRIGHT bar. The lighting can be
controlled from either the dimmer or the remote location.

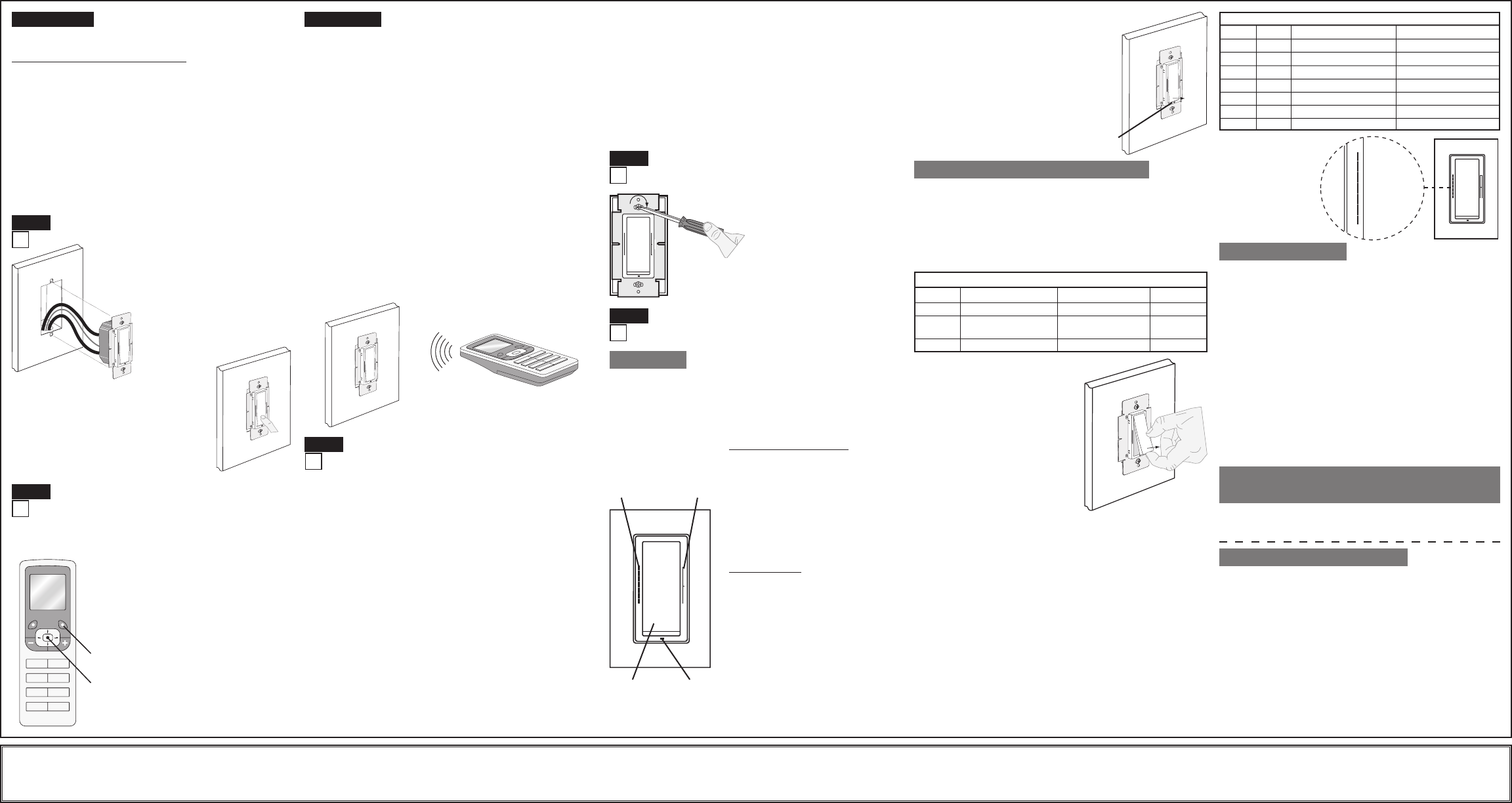

Advanced Features Summary
Mode
1
2
3
Description
Set Min. Brightness
Set Dim-Lock Level
Select Fade Rate
Default
25 %
0
Preset #1
Range
1 - 50 %
0 - 100 %,
0 = no lock
1, 2, 3, 4, 5, 6 or 7
Mode 1 – Set Minimum Brightness: Set the minimum brightness level
that the lights can dim to prior to turning full OFF.
Mode 2 – Set Dim-Lock: Set the brightness level that the lights will turn
on to regardless of the previous light level at which they were turned
OFF.
Mode 3 – Set Fade Rate: Set the amount of time (in seconds) that
the lights will have to turn ON or OFF. Fade rates can be set to one of
seven different settings.
To Program:
NOTE: Have a flashlight handy if this
dimmer controls the only light source in
the room.
1. On the dimmer only, engage the
air-gap switch by gently pulling the
bottom of the push pad until it lifts
completely out of the frame and a
click is heard. Refer to figure.
2. Press push pad back into frame and
hold the push pad for 7 seconds until
the locator light and the top LED
(LED 1) start blinking.
3. Upon releasing the push pad, the
locator light will continue to blink
once per second indicating the dimmer is in Mode 1, Set Minimum
Brightness mode. To change the minimum Brightness level from
1-50%, use the DIM/BRIGHT Bar. This setting will automatically be
saved.
4. Tap the push pad to change to Mode 2, Set Dim-Lock Level mode.
The locator LED will blink twice per second. To change the current
Dim-Lock level from 0-100%, use the DIM/BRIGHT Bar. If this
feature is not desired, press and hold the lower half of the
DIM/BRIGHT Bar until no LED is lit. This setting will automatically be
saved.
5. Tap the push pad to change to Mode 3, Set Fade Rate mode. The
locator LED will blink 3 times per second. To change the current
Fade Rate, use the DIM/BRIGHT Bar to move the LED to the desired
preset level. The setting will automatically be saved by tapping the
push pad to exit programming mode.
The LED Brightness Display is separated into 7 segments. Each LED
represents a preset level with LED 1 (Preset 1) located at the top and
LED 7 (Preset 7) located at the bottom. Refer to chart for settings and
defaults.
NOTE: The dimmer will exit program mode after 3 minutes of inactivity.
Fade Rate Presets
Preset Fade On Fade OffLED**
7 Approx. 1.5s from full off Approx. 10s from full on7
6 Approx. 1.5s from full off Approx. 5s from full on6
5 Approx. 0.5s from full off Approx. 1.5s from full on5
4 Approx. 0.5s from full off Approx. 3s from full on4
3 No Fade Approx. 3s from full on3
2*** No Fade No Fade2
1* Approx. 1.5s from full off Approx. 3s from full on1
* default
** LED #1 is located
at the top
*** The press and
hold feature for
the 10 second
delayed off is
disabled in this
mode.
1
2
3
4
5
6
7
LED
Brightness
Display
LIMITED 5 YEAR WARRANTY AND EXCLUSIONS
Leviton warrants to the original consumer purchaser and not for the benefit of anyone else that this product at the time of its sale by Leviton is free of defects in materials and workmanship under normal and proper use for five years from the purchase date. Leviton’s only obligation is to correct such defects by repair or replacement, at its option, if within such five year period the product is returned prepaid, with proof
of purchase date, and a description of the problem to Leviton Manufacturing Co., Inc., Att: Quality Assurance Department, 59-25 Little Neck Parkway, Little Neck, New York 11362-2591. This warranty excludes and there is disclaimed liability for labor for removal of this product or reinstallation. This warranty is void if this product is installed improperly or in an improper environment, overloaded, misused,
opened, abused, or altered in any manner, or is not used under normal operating conditions or not in accordance with any labels or instructions. There are no other or implied warranties of any kind, including merchantability and fitness for a particular purpose, but if any implied warranty is required by the applicable jurisdiction, the duration of any such implied warranty, including merchantability and fitness
for a particular purpose, is limited to five years. Leviton is not liable for incidental, indirect, special, or consequential damages, including without limitation, damage to, or loss of use of, any equipment, lost sales or profits or delay or failure to perform this warranty obligation. The remedies provided herein are the exclusive remedies under this warranty, whether based on contract, tort or otherwise.
Push Pad (Default settings)
Turn ON from OFF position:
Tap – Lights turn ON to preset level.
Press and Hold – Lights turn ON to full
bright.
Turn OFF from ON position:
Tap – Lights turn OFF.
Press and Hold until lights DIM to lowest
level and LED in LED Brightness Display
starts to blink – Lights remain ON for 10
seconds and then turn OFF.
DIM/BRIGHT Bar
BRIGHTEN:
Press the upper half of the DIM/BRIGHT
Bar – Lights brighten to desired level.
DIM:
Press the lower half of the DIM/BRIGHT
Bar – Lights dim to desired level.
If you continue to hold, the lights will DIM
to minimum level and then turn OFF.
NOTE: When lights are OFF you can
change the light level that the lights will
turn ON to using the DIM/BRIGHT Bar.
If there is a power outage, when the power
is restored, the lights will return to the last
setting before the power interruption.
Push
Pad
Locator
Light
LED
Brightness
Display
DIM/
BRIGHT
Bar
Air-Gap Switch: On the dimmer only,
engage the air-gap switch by gently pulling
the bottom of the push pad until it lifts
completely out of the frame and a click is
heard. Refer to figure. This will cut power
to the fixture to replace the bulb. After
servicing is complete, push the push pad
back for normal operation.
Cleaning: Clean with a damp cloth.
DO NOT use chemical cleaners.
Gently lift bottom
of push pad out
Step 4b cont'd
• Position all wires to provide room
in outlet wall box for device.
• Ensure that the word “TOP” is
facing up on device strap.
• Partially screw in mounting screws
in wall box mounting holes.
NOTE: Dress wires with a bend
as shown in diagram in order to
relieve stress when mounting
device.
• Restore power at circuit breaker or fuse.
• Press pad until locator light is OFF. Lights
should turn ON. If lights do not turn ON,
press the upper half of the DIM/BRIGHT
Bar until the lights brighten.
If lights still do not turn ON, refer to the
TROUBLESHOOTING section.
Testing your Dimmer prior to mounting in
wall box:
Step 5
Dimmer Mounting:
TURN OFF POWER AT CIRCUIT BREAKER OR FUSE.
Installation may now be completed by
tightening mounting screws into wall box.
Attach wallplate.
Step 8
Step 9
For additional information, contact Leviton’s Techline
at 1-800-824-3005 or visit Leviton’s
website at www.leviton.com
OPERATION
ADVANCED PROGRAMMING FEATURES
• Lights Flickering
- Lamp has a bad connection.
- Wires not secured firmly with wire connectors of dimmer or
terminal screws of remote.
• Light does not turn ON and Locator LED does not turn ON
- Circuit breaker or fuse has tripped.
- Lamp is burned out.
- Neutral not wired to Dimmer (White wire).
- Confirm that the device is being supplied from a 120V, 60 Hz AC
source ONLY.
- Confirm that unit is programmed properly. Repeat "TO INSTALL"
section to verify that it has been included in the Z-WaveTM
network.
• I ntermittent dimmer operation
- Minimum load is under 40W.
- Confirm that the Load being controlled does not exceed the
600W dimmer limit.
• Remote does not operate lights
- Ensure that total wire length does not exceed 300 ft.
- Ensure wiring is correct.
TROUBLESHOOTING
FCC COMPLIANCE STATEMENT
3-Way Wiring with Coordinating
Dimming or Switching Remote
(no LEDs) Application:
WIRING COORDINATING REMOTE:
Connect wires per WIRING DIAGRAM as follows:
NOTE: Maximum wire length from dimmer to last remote is 300 ft.
• Green or bare copper wire in wall box to Green terminal screw.
• Load wall box wire identified (tagged) when removing old switch
to terminal screw marked “BK”.
• First Traveler wall box wire (note color as above) to terminal
screw marked “RD”. This traveler from the remote must go to the
Red dimmer lead.
• Second Traveler wall box wire (note color as above) to terminal
screw marked “YL/RD”. This traveler from the remote must go to
the Yellow/Red dimmer lead.
• Line Neutral wall box wire to terminal screw marked "WH".
• Proceed to Step 5.
Menu Button
Center Button
Step 6 Including Dimmer into Z-WaveTM Network:
1 ON
2 ON
3 ON
4 ON
OFF
OFF
OFF
OFF
NOTES:
• If using a non-Leviton Programmer/
Controller, refer to the Programmer/
Controller instruction sheet for Including
a device.
A) If using a Leviton Z-WaveTM Programmer/
Controller, Cat. No. RZCPG, press the
Menu button and scroll down to System
Setup. Press the center button to select
System Setup Menu. Press the center
button to select Network.
Programmer/
Controller
Cat. No. RZCPG
B) While standing close to the dimmer (approximately 2-5 ft.), press
the center button to <Include> device in the network.
NOTE: Only one device may be included at a time. DO NOT put
multiple devices into the Inclusion mode at any time.
C) While the Programmer/Controller is in the Inclusion mode and the
Locator LED is ON on the Dimmer, press the push pad to turn on
the Dimmer. The Programmer/Controller will verify inclusion and the
Locator LED will turn OFF.
If the Dimmer is flashing Amber while in the Inclusion mode, the
Programmer/Controller is still trying to communicate with the
Dimmer. Wait until the device stops flashing, then press the
push pad.
NOTE: If the Locator LED on the Dimmer turns solid Red while
including, there has been a communication error. Refer to
Troubleshooting section.
D) The Primary Programmer/Controller will assign a node ID number
(Name) for this device.
NOTE: This ID number (Name) will be stored in the controller to be
used for future reference.
NOTE: You may name or edit the node of this device at this time.
E) The Dimmer is now installed in the network.
NOTE: If the Dimmer has been successfully Included in the network
and the user tries to Include it again without first excluding it from the
network, the dimmer will retain the first node ID it had received and
ignore the second.
Step 6 cont'd
Programmer/Controller
Cat. No. RZCPG
NOTE: Programmer/Controller must
be in close proximity to dimmer when
including in the network.
Step 7 Excluding Dimmer from Z-WaveTM Network:
NOTE: It is very important to accurately Exclude devices from the
network when moving or removing a device from a Z-WaveTM network.
This ensures that all information has been removed from your Primary
Programmer/Controller's information table and is not counted on to be
part of the mesh network.
A) If using a Leviton Z-WaveTM Programmer/Controller, Cat. No.
RZCPG, press the Menu button and scroll down to System Setup.
Press the center button to select System Setup Menu. Press the
center button to select Network.
B) While standing close to the dimmer (approximately 2-5 ft.), press
the center button to <Exclude> device from the network.
C)
While the Programmer/Controller is in the Exclusion mode and the
locator LED is ON on the Dimmer, press the push pad to turn on the
Dimmer. The Programmer/Controller will verify Exclusion and the
locator LED will turn OFF.
If the Dimmer is flashing Amber while in the Exclusion mode, the
Programmer/Controller is still trying to communicate with the Dimmer.
Wait until the device stops flashing, then press the push pad.
Factory Default:
If your dimmer is not responding, or you are unable to control it after
you have tried to Include/Exclude it multiple times, it may be necessary
to reset the dimmer to its original factory settings. To accomplish this,
proceed as follows:
• On the dimmer, engage the air-gap switch (refer to Operation
section) and wait 5 seconds. Press the push pad back into the frame
and hold push pad until the locator LED flashes Amber and turns
solid Red. The dimmer is now reset. Once the dimmer is reset, it will
be necessary to Re-Include it to a network before it can be used.
CAUTION: SETTING A DEVICE TO A FACTORY DEFAULT DOES
NOT EXCLUDE THAT DEVICE FROM A NETWORK. THE EXCLUSION
PROCEDURE MUST STILL BE FOLLOWED TO REMOVE THE
DEVICE FROM THE PRIMARY CONTROLLER’S INFORMATION
TABLE. FAILURE TO DO SO MAY RESULT IN SYSTEM THAT IS
SLOW TO RESPOND, OR MAY FAIL TO RESPOND TO SOME
DEVICES.
