Leviton RZP15 Plug-In Appliance Module User Manual DI 000 ACI06 00A

Leviton Manufacturing Co., Inc. Plug-In Appliance Module DI 000 ACI06 00A

Exhibit D Users Manual per 2 1033 b3

PRELIMINARY
RF Plug-In Appliance Module
Cat. No. RZP15
Incandescent 1800W Fluorescent: 1800VA Resistive: 15A Motor: 1/2HP TV: 8A
120VAC, 60Hz
INSTALLATION INSTRUCTIONS
DI-000-RZP15-00A-X1
WARNINGS AND CAUTIONS:
•To be installed and/or used in accordance with appropriate electrical codes and regulations.
If you are unsure about any part of these instructions, consult a qualified electrician.
INTRODUCTION
Leviton’s Vizia™ Z-wave™ components are
designed to communicate with each other via
Radio Frequency (RF) to provide remote control of
your lighting. Using RF technology allows Leviton
to provide the greatest signal integrity possible.
Each module in Leviton’s Vizia™ RF component
line is a Z-wave™ enabled device. In a Z-wave™
network, each device is designed to act as a router.
These routers will re-transmit the RF signal from
one device to another until the intended device is
reached. This ensures that the signal is received by
its intended device by routing the signal around
obstacles and radio dead spots. The RZP15 Plug-In
Appliance Module is fully compatible with any
Z-wave™ enabled network, regardless of the
manufacturer and can also be used with other
devices displaying the Z-wave™ logo.
CAUTION:
Remember to exercise good common sense when
using the Home Automation features of your
Remote – especially when scheduling unattended
devices. There can be some unexpected
consequences if not used with care. For example,
an empty coffee pot can be remotely turned on. If
that should happen, your coffee pot could be
damaged from overheating. If an electric heater is
turned on by remote control while clothing is
draped over it, a fire could result. DO NOT USE the
remote for the control of high power heating
appliances such as portable heaters. This device
will not control lighting that is used with electronic
low-voltage and high frequency power supply
transformers, nor high pressure discharge lamps
(HID lighting). This includes mercury-vapor, sodium
vapor and metal halide lamps.
FEATURES
Switch ON/OFF
•Works with Z-wave™ compatible Controllers
Scene Capable
ON/OFF LED indicates status of load
•Two way communication to provide status
reporting to controllers
RF reliability
Ease of installation – No new wiring
Compatible with other Z-wave™ enabled
devices
INSTALLING YOUR APPLIANCE
MODULE
NOTE: Use check boxes when Steps are
completed.

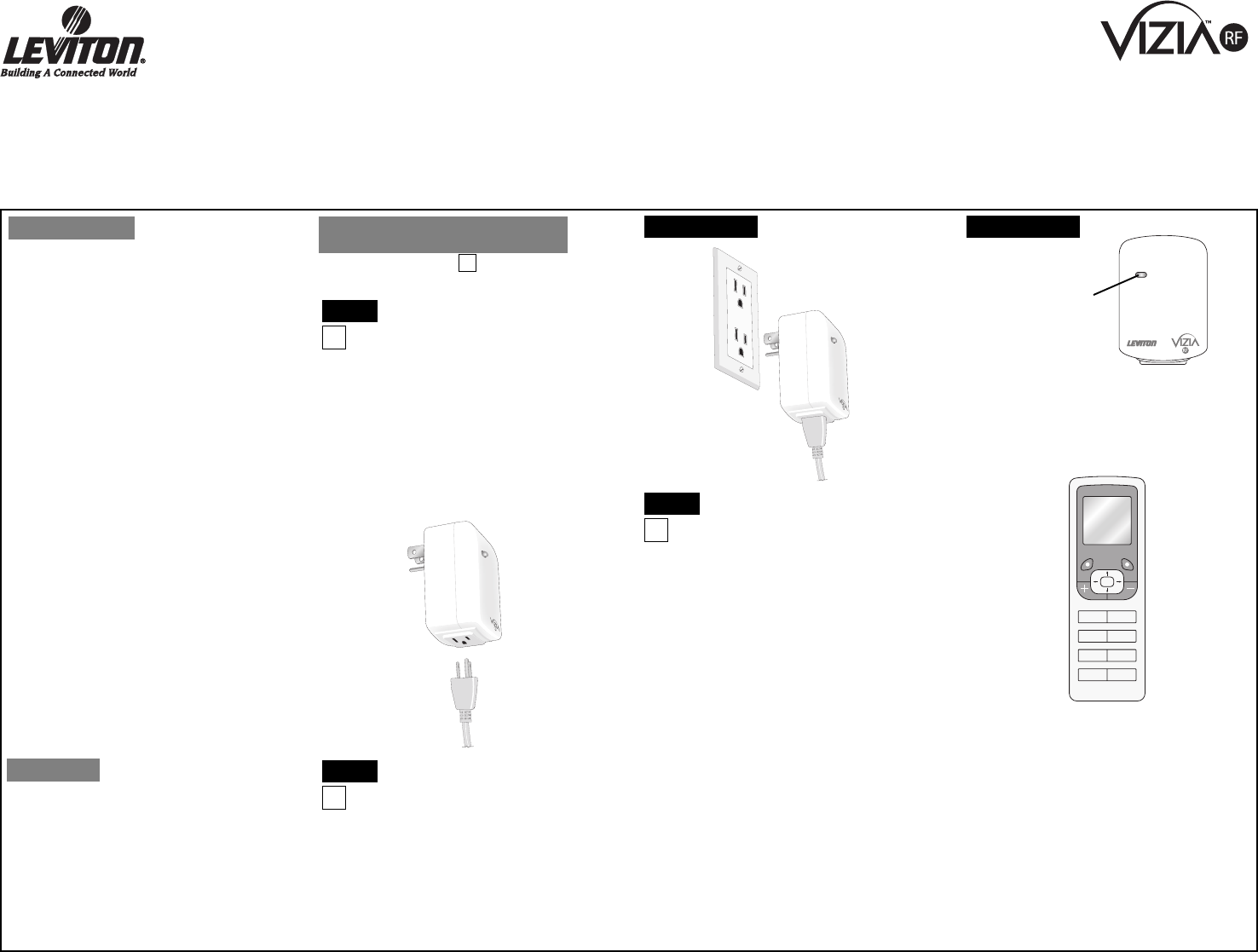

Attaching Load to Plug-In
Appliance Module:
NOTE: In order to use your Vizia™ RF module in a
Z-Wave™ network, it must be Enrolled in the network
using a Primary Programmer/Controller, such as
Leviton’s Cat. No., RZCPG-1LG. Before Enrolling your
module, please refer to the Primary Controller/
Programmer instruction sheet for complete
information. Refer to Step 3 for further details.
Locate Load to be controlled by Plug-In Appliance
Module and ensure it is fully operational. Attach
Load plug into Plug-In Appliance Module
receptacle noting proper polarity of blades.
Attaching Plug-In Appliance
Module to Wall Receptacle:
Plug the Plug-In Appliance Module into wall
receptacle. Verify that receptacle is live. If
controlled by a wall switch, the switch must be
kept ON at all times.
Step 1
Enrolling Plug-In Appliance
Module into Network:
NOTES:
Some non-Leviton programmers may be built on
older Z-Wave™ libraries which may require your
module to be replicated in the network instead
of enrolling it in the network. First try to enroll
module in your network. If it is unable to enroll,
refer to the Primary Controller/Programmer
instruction sheet for replicating a device.
A) When first powering Plug-In Appliance Module,
there is a 30 second enrollmemnt access period
before your device times out.
Within 30 seconds, depress and hold the
programming button located on the front of the
module until the LED beneath the button turns to
solid Amber (approx. 10 seconds).
NOTE: If Plug-In Appliance Module times out,
unplug device from receptacle and plug back in.
The 30 second enrollment access period will
then begin again.
B) After LED turns solid Amber, release the
button. The LED will start to blink Amber.
The unit is now in the Enrollment/Un-Enrollment
mode.
If necessary to exit the Enrollment/Un-Enrollment
mode, press the programming button.
Step 2
Step 3
WARNINGS AND CAUTIONS:
Unplug unit when servicing fixture or changing bulbs.
•Save this instruction sheet. It contains important technical data along with testing and troubleshooting
information which will be useful after installation is complete.
Step 2 cont’d.

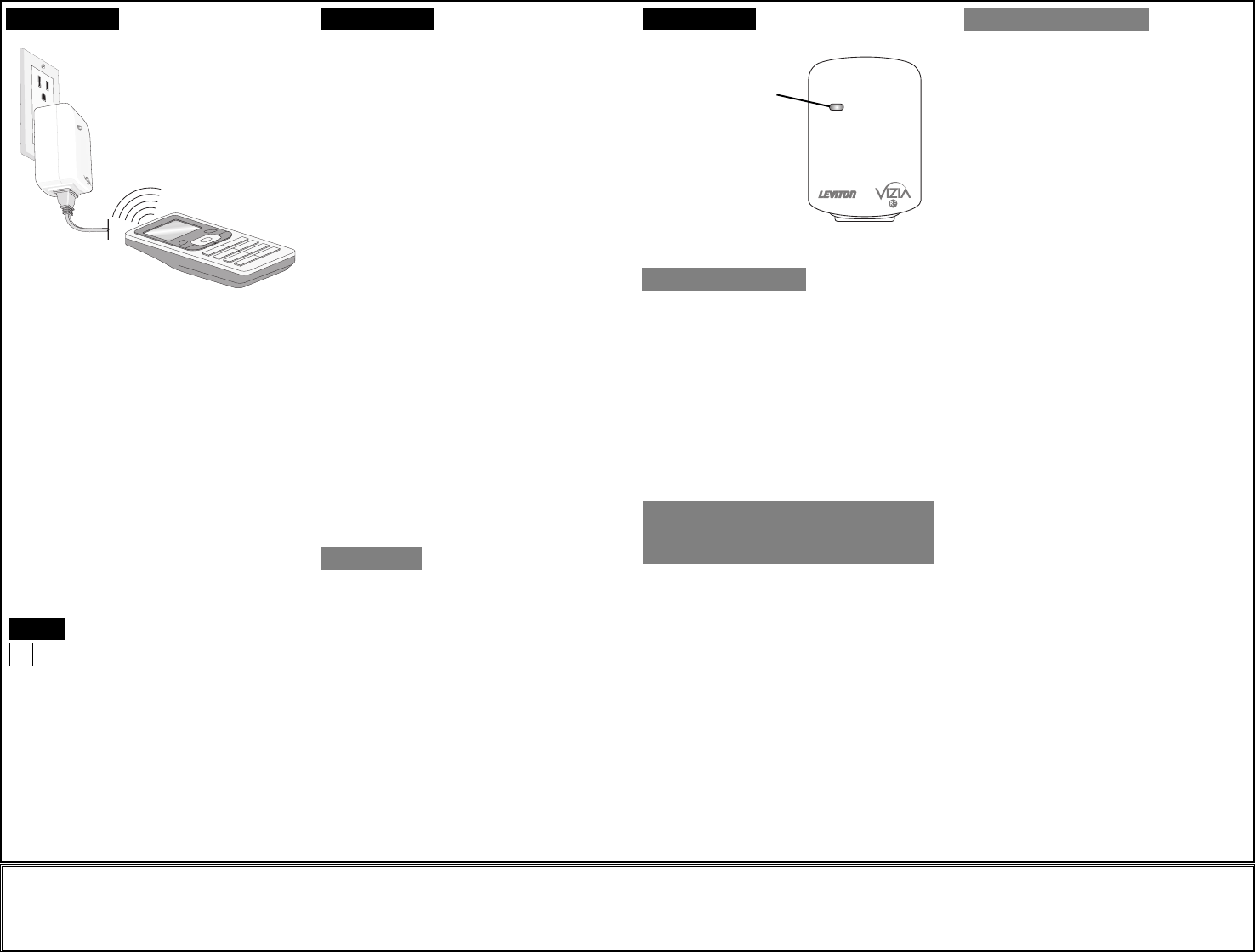

C) If using a Leviton Z-wave™ Programmer/
Controller, Cat. No. RZCPG, select the Menu
Screen, then select Network and scroll down
to the Enrollment screen.
D) While standing close to the module, select it
to enroll it in the network.
NOTE: Only one device may be enrolled at
a time. DO NOT put multiple devices into
the Enrollment mode at any time.
Step 3 cont’d.
Programming and
ON/OFF Button
1
ON
2
ON
3
ON
4
ON
OFF
OFF
OFF
OFF
PRELIMINARY
LIMITED 5 YEAR WARRANTY AND EXCLUSIONS
Leviton warrants to the original consumer purchaser and not for the benefit of anyone else that this product at the time of its sale by Leviton is free of defects in materials and workmanship under normal and proper use for five years from the purchase date. Leviton’s only obligation
is to correct such defects by repair or replacement, at its option, if within such five year period the product is returned prepaid, with proof of purchase date, and a description of the problem to Leviton Manufacturing Co., Inc., Att: Quality Assurance Department, 59-25 Little
Neck Parkway, Little Neck, New York 11362-2591. This warranty excludes and there is disclaimed liability for labor for removal of this product or reinstallation. This warranty is void if this product is installed improperly or in an improper environment, overloaded, misused, opened,
abused, or altered in any manner, or is not used under normal operating conditions or not in accordance with any labels or instructions. There are no other or implied warranties of any kind, including merchantability and fitness for a particular purpose, but if any implied
warranty is required by the applicable jurisdiction, the duration of any such implied warranty, including merchantability and fitness for a particular purpose, is limited to five years. Leviton is not liable for incidental, indirect, special, or consequential damages, including
without limitation, damage to, or loss of use of, any equipment, lost sales or profits or delay or failure to perform this warranty obligation. The remedies provided herein are the exclusive remedies under this warranty, whether based on contract, tort or otherwise.
E) The Primary Programmer/Controller will
prompt you to chose a node ID number
(Name) for this module.
NOTE: This ID number (Name) will be stored
in the controller library to be used for future
reference.
F) After the device is enrolled, the Z-wave™
Programmer/Controller will give a
confirmation message and the LED on the
Plug-In Appliance Module will turn Green.
G) The module is now installed in the
network.
NOTE: If a module has been successfully enrolled in
the network and the user tries to enroll it again
without first un-enrolling it from the network, the
module will retain the first node ID it had received
and ignore the second.
Un-enrolling Plug-In Appliance
Module from Network:
NOTE: It is very important to accurately Un-enroll
devices from the network. This ensures that all
information has been removed from your Primary
Programmer/Controller’s information table and is not
counted on to be a part of the mesh network.
A) To Un-Enroll module, refer to Step 3A and
3B to enter programming for Enrollment/
Un-Enrollment mode.
B) With the module now in the Enrollment/
Un-enrollment mode, use your Primary
Programmer/Controller to Un-enroll or to
remove the module from your network.
NOTE: Only one module may be removed
at a time.
NOTE: After initial enrollment, some Z-wave™
Programmer/Controllers will allow you to enter
Enrollment/Un-enrollment mode using just the
Z-wave™ Programmer/Controller and not having to
press the programming button on the module. Follow
the directions for the Z-wave™ Primary Programmer/
Controller for that module.
Factory Default:
If your module is not responding, or you are unable
to control it after you have tried to Enroll/Un-Enroll it
multiple times, it may be necessary to reset the
module to its original factory settings. To accomplish
this, proceed as follows:
Unplug the module and wait 5 seconds. Plug the
module back in and within 20 seconds press and
hold the programming button until the LED turns
RED. The module is now reset. Once the module
is reset, it will be necessary to re-enroll it to a
network before it can be used.
CAUTION: SETTING A DEVICE TO A FACTORY
DEFAULT DOES NOT UN-ENROLL THAT DEVICE
FROM A NETWORK. THE UN-ENROLLMENT
PROCEDURE MUST STILL BE FOLLOWED TO
REMOVE THE DEVICE FROM THE PRIMARY
CONTROLLER’S INFORMATION TABLE. FAILURE
TO DO SO MAY RESULT IN A SYSTEM THAT IS
SLOW TO RESPOND, OR MAY FAIL TO RESPOND
TO SOME DEVICES.
OPERATION
NOTE: For complete details on operating the Primary
Programmer/Controller, refer to the individual device’s
instruction sheet.
ON: Press the ON/OFF button on the Plug-In
Appliance Module or appropriate address “ON”
button on the applicable transmitter. The
Load will turn ON.
OFF: Press the button on the Plug-In Appliance
Module or appropriate address “OFF” button
on the applicable transmitter. The Load will
turn OFF.
MANUAL ON/OFF PRIOR TO ENROLLING IN
NETWORK: The RZP15 Plug-in Appliance Module
can control the Load before being enrolled in the
Z-Wave™ network. After powering up Plug-In
Appliance Module, wait 10 seconds then use ON/
OFF button to turn the Load ON or OFF.
NOTE: If a power interruption should occur while the
module in ON, the light load will return to its previous
state when power is restored.
TROUBLESHOOTING
If Cat. No. RZP15 appears to be functioning improperly,
proceed with the following steps:
1. Confirm that the device is being supplied from a
120V, 60Hz AC source ONLY.
2. Confirm that the load being controlled is in proper
working order. Local switch, ON (check for burned-
out bulbs).
3. Confirm that the load being controlled does not
exceed the module limit.
4. Confirm that unit is programmed properly. Repeat
“TO INSTALL section to verify that it has been
enrolled into Z-wave network.
For additional information, contact
Leviton’s Techline at
1-800-824-3005
or
visit Leviton's website at
www.leviton.com
U.S. & Foreign Patents Pending
Copyright© 2006 Leviton Manufacturing Co., Inc.
All Rights Including Trade Dress Rights Reserved
Press ON/OFF Button
DI-000-RZP15-00A-X1
FIGURE 5
Wall Receptacle
Load plug
RF Plug-In
Appliance Module
NOTE: Remote must be in close proximity to
RF Plug-In Module when enrolling into network
RZCPG
Programmer/Controller
Step 3 cont’d.
Step 4
Step 4 cont’d. Step 4 cont’d. FCC COMPLIANCE STATEMENT
This equipment has been tested and found to comply
with the limits for a Class B Digital Device, pursuant to
Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment
OFF and ON, the user is encouraged to try to correct
the interference by one or more of the following
measures:
Reorient or relocate the receiving Antenna.
Increase the separation between the equipment
and the receiver.
Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/tv
technician for help.
DOCUMENTATION
DOCUMENTATION
LEVITON INSTRUCTION SHEET/MANUAL
LEVITON INSTRUCTION SHEET/MANUAL
SPECIFICATIONS
SPECIFICATIONS
KKC 10/31/05
Helvetica
DI-000-RZP15-00A-X1
Black
N/A
Final fold size:
Final fold size:
50 Lb. offset
2.83" X 4.25"
Overall size:
Overall size:
11" X 8.5"
Paper size:
Paper size:
FOLD SCHEME
8.5¨
11.0¨
Fold Line
Panel Line
Cat. No.
Cat. No.
Cat. No. Cat. No.
Cat. No.
FINAL FOLD

Navigation menu
