Leviton RZSD1 In Wall Relay User Manual DI 000 RZCS1 00A X3
Leviton Manufacturing Co., Inc. In Wall Relay DI 000 RZCS1 00A X3
Leviton >
Exhibit D Users Manual per 2 1033 b3

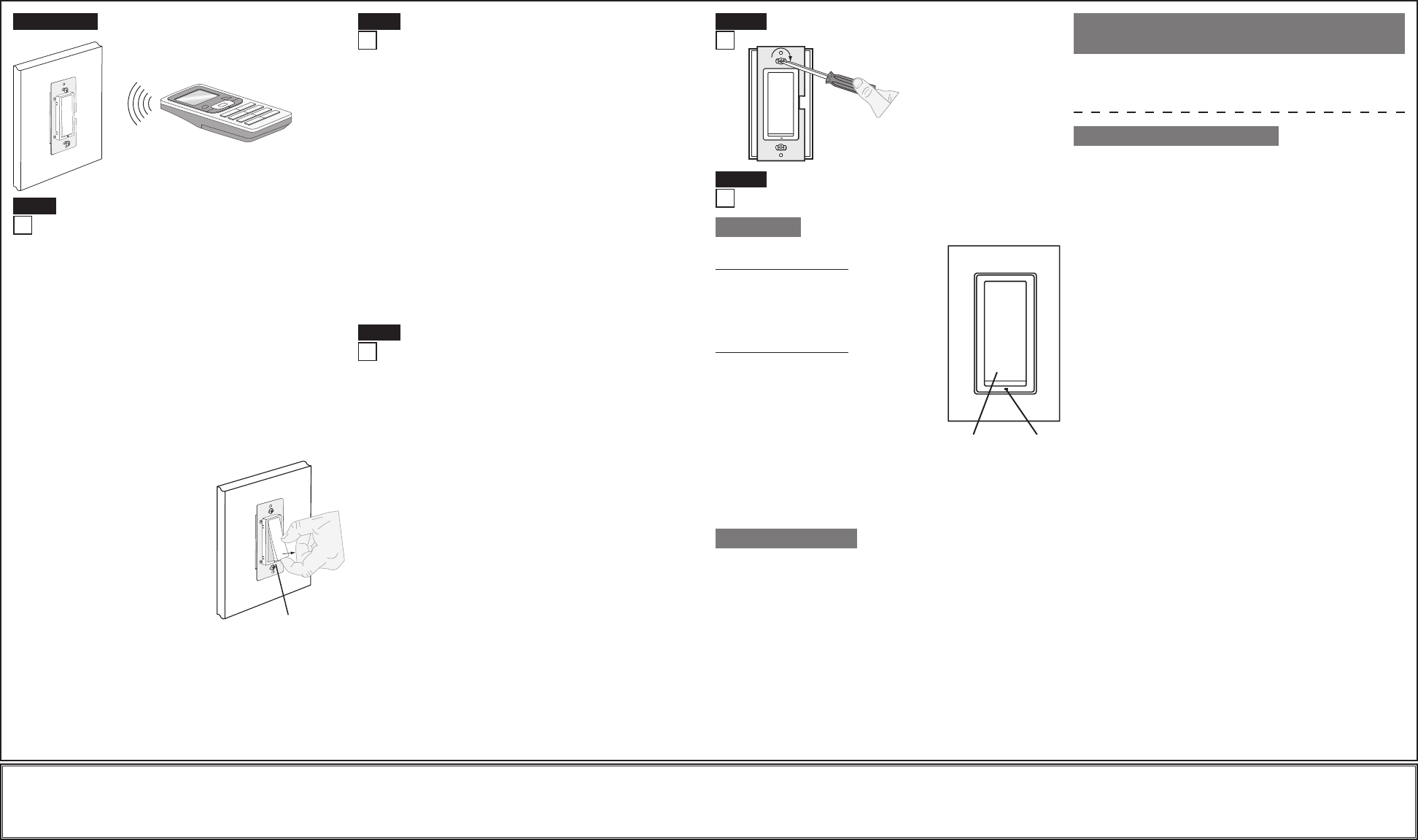

B) If using RZCPG Programmer/Contoller, you will be prompted to
place 1-scene controller into programming mode.
C) To access Program mode, engage the air gap switch by gently
pulling the bottom of the push pad until it lifts out of the frame and
a click is heard (refer to figure). Wait 5 seconds and then press
the push pad back into the frame and hold push pad until the LED
flashes Amber. Release the push pad and the LED should blink
Amber. You are now in Programming mode.
NOTE: If the LED on the 1-scene controller turns solid Red
while including, there has been a communication error. Refer to
Troubleshooting section.
D) While standing close to the 1-scene
controller (approximately 2-5 ft.), press
the center button to <Include> device
in the network. NOTE: Only one device
may be included at any time.
E) The Primary Programmer/Controller
will assign a node ID number (Name)
for this device.
NOTE: This ID number (Name) will be
stored in the Programmer/Controller to
be used for future reference.
NOTE: You may name or edit the node
of this device at this time.
F) The 1-scene controller is now
installed in the network.
G) After all devices are included into the
network, the controller must be updated to allow it to be associated
with all devices in the network. To update controller proceed as
follows:
• If using a non-Leviton Programmer/Controller, refer to the
Programmer/Controller instruction sheet for updating controller.
• If using Leviton Z-WaveTM Programmer/Controller, Cat. No.
RZCPG, press the Menu button and
scroll down to System Setup. Press
the center button to select System
Setup Menu. Press the center button
to select Network. Press the center
button to select Update cntrl. Press
rocker on the 1-scene controller.
• Wait until the RZCPG Programmer/
Controller confirms completion.
Update is done.
NOTE: If the 1-scene controller has
been successfully Included in the
network and the user tries to Include
it again without first excluding it from
the network, the controller will retain
the first node ID it had received and
ignore the second.
WARNINGS AND CAUTIONS:
• ON/OFF LED shows status of remote load control.
• To be installed and/or used in accordance with appropriate electrical codes and regulations.
• If you are unsure about any part of these instructions, consult a qualified electrician.
• Vizia™ RF RZCS1 remote does not control the load, but provides 3-way or 4-way applications to operate with ViziaTM RF switches.
• Recommended minimum wall box depth is 2-1/2".
WARNINGS AND CAUTIONS:
• No traveler wires are needed. Remote controls via radio frequency (RF) technology.
• Can call one (1) scene ON/OFF with advanced Programmer/Controller (see RZCPG).
• Disconnect power at circuit breaker or fuse when servicing, installing or removing fixture.
• Use this device only with copper or copper clad wire. With aluminum wire use only devices marked CO/ALR or CU/AL.
1-Scene Controller/
Matching Switch Remote
Cat. No. RZCS1
120VAC, 60Hz

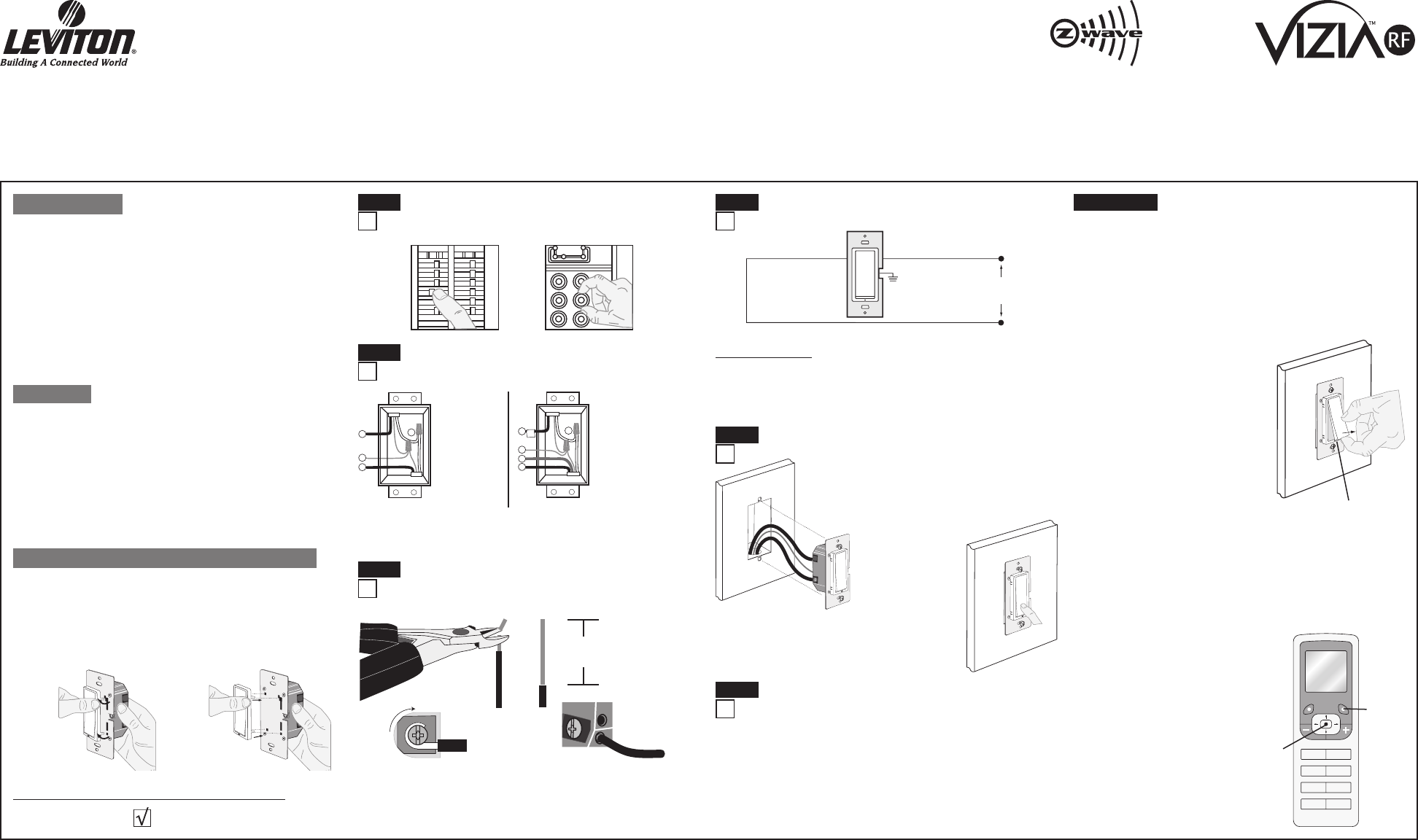

INSTALLATION INSTRUCTIONS
DI-000-RZCS1-00A-X3
Tools needed to install your 1-Scene Controller:
Slotted/Phillips Screwdriver Electrical Tape Pliers
Pencil Cutters Ruler
Changing the color of your 1-Scene Controller:
Your 1-scene controller includes three color options. The controller ships
with the White frame attached. To change color of frame, proceed as
follows:
Line up tabs
and press in
side to attach
Push in
side at tab
to release
INSTALLING YOUR 1-SCENE CONTROLLER
NOTE: Use check boxes when Steps are completed.
WARNING: TO AVOID FIRE SHOCK OR DEATH; TURN
OFF POWER at circuit breaker or fuse and test that power is off
before wiring!
Step 1
Step 3
Compatible with enabled products!
TM
IMPORTANT : For 3-Way applications, note that only one (1) switch can be
controlled by the 1-scene controller.
Preparing and connecting wires:
This 1-scene controller can be wired using side wire terminal
screws or through backwire openings. Choose appropriate wire
stripping specifications accordingly.
• Make sure that the ends of the wires from the wall box are
straight (cut if necessary).
5/8"
(1.6 cm) Strip Gage
(measure bare
wire here)
Cut
(if necessary)
Side Wire Connection
Side wire terminals accept #14
AWG solid wire copper only.
Back Wire (either hole may be used)
Back wire openings use #14-12 AWG
solid wire copper only.
WIRING SWITCH:
Connect wires per WIRING DIAGRAM as follows:
• Green or bare copper wire in wall box to Green terminal screw.
• Line Hot wall box wire to terminal screw marked "BK".
• Line Neutral wall box wire to terminal screw marked "WH".
• Proceed to Step 5.
• Position all wires to provide room in
outlet wall box for device.
• Ensure that the word “TOP” is facing up
on device strap.
• Partially screw in mounting screws in
wall box mounting holes.
NOTE: Dress wires
with a bend as
shown in diagram
in order to relieve
stress when
mounting device.
• Restore power at circuit breaker or fuse.
• LED should turn ON.
If LED does not turn ON, refer to the
TROUBLESHOOTING section.
Testing your 1-Scene Controller prior to
mounting in wall box:
Step 5
Step 6 cont'd
Cat. No. RZCPG
1 ON
2 ON
3 ON
4 ON
OFF
OFF
OFF
OFF
Menu
Button
Center
Button
Gently lift bottom of
push pad out
Wiring Application:
Hot (Black)
Neutral (White)
Line
120VAC, 60Hz
BKWH
Green
Ground
1-Scene Controller
Step 4
2
4
3
1
2
4
1
5
3
Single Pole
1. Line (Hot)
2. Neutral
3. Ground
4. Load
3-Way
1. Line or Load
(see important
instruction)
2. Neutral
3. Ground
4. First Traveler
– note color
5. Second Traveler
– note color
Identifying your wiring application (most common):
NOTE: If the wiring in your wall box does not resemble any of
these configurations, consult a qualified electrician.
Step 2
INTRODUCTION
Leviton’s ViziaTM RF components are designed to communicate with
each other via Radio Frequency (RF) to provide remote control of your
lighting. Using RF technology allows Leviton to provide the greatest
signal integrity possible. Each module in Leviton’s ViziaTM RF component
line is a Z-WaveTM enabled device. In a Z-WaveTM network, each device
is designed to act as a router. These routers will re-transmit the RF signal
from one device to another until the intended device is reached. This
ensures that the signal is received by its intended device by routing the
signal around obstacles and radio dead spots. The 1-Scene Controller/
Matching Switch Remote is compatible with any Z-Wave™ enabled
network, regardless of the manufacturer and can also be used with other
devices displaying the Z-Wave™ logo.
• 3-way or 4-way control without traveler wires
• Can call 1 scene
• ON/OFF LED indicates status of load
• Two way communication to provide status from dimmers/switches
• RF reliability
• Ease of installation – No new wiring
• Compatible with other Z-Wave™ enabled devices
FEATURES
Step 6 Including 1-Scene Controller into Z-WaveTM
Network:
NOTES:
• If using a non-Leviton Programmer/Controller, refer to the Programmer/
Controller instruction sheet for Including a device.
• 1-scene controllers included into a Z-WaveTM network must be updated
after you have included all other devices.
A) If using a Leviton Z-WaveTM Programmer/Controller, Cat. No. RZCPG,
press the Menu button and scroll down to System Setup. Press the
center button to select System Setup Menu. Press the center button to
select Network. Press the center button to <Include Node>.
A) If using a Leviton Z-WaveTM Programmer/Controller, Cat. No.
RZCPG, press the Menu button and scroll down to System Setup.
Press the center button to select System Setup Menu. Press the
center button to select Network. Scroll down to <Exclude Node> and
press the center button.
B) If using RZCPG Programmer/Contoller, you will be prompted to
place 1-scene controller into programming mode.
C) To access Program mode, engage the air gap switch by gently
pulling the bottom of the push pad until it lifts out of the frame and
a click is heard (refer to figure). Wait 5 seconds and then press
the push pad back into the frame and hold push pad until the LED
flashes Amber. Release the push pad and the LED should blink
Amber. You are now in Programming mode.
NOTE: If the LED on the 1-scene controller turns solid Red
while excluding, there has been a communication error. Refer to
Troubleshooting section.
D) While standing close to the 1-scene controller (approximately 2-5 ft.),
press the center button to <Exclude> device from the network.
Factory Default:
If your 1-scene controller is not responding,
or you are unable to control it after you
have tried to Include/Exclude it multiple
times, it may be necessary to reset the
1-scene controller to its original factory
settings. To accomplish this, proceed as
follows:
• On the 1-scene controller, engage
the air-gap switch by gently pulling
the bottom of the push pad until it lifts
completely out of the frame and a
click is heard (refer to figure). Wait 5
seconds and then press the push pad
back into the frame and hold push pad until
the locator LED flashes Amber and turns solid
Red. The 1-scene controller is now reset. Once the controller is reset,
it will be necessary to Re-Include it to a network before it can be used.
CAUTION: SETTING A DEVICE TO A FACTORY DEFAULT DOES
NOT EXCLUDE THAT DEVICE FROM A NETWORK. THE EXCLUSION
PROCEDURE MUST STILL BE FOLLOWED TO REMOVE THE DEVICE
FROM THE PRIMARY CONTROLLER’S INFORMATION TABLE.
FAILURE TO DO SO MAY RESULT IN SYSTEM THAT IS SLOW TO
RESPOND, OR MAY FAIL TO RESPOND TO SOME DEVICES. DI-000-RZCS1-00A-X3
LIMITED 5 YEAR WARRANTY AND EXCLUSIONS
Leviton warrants to the original consumer purchaser and not for the benefit of anyone else that this product at the time of its sale by Leviton is free of defects in materials and workmanship under normal and proper use for five years from the purchase date. Leviton’s only obligation is to correct such defects by repair or replacement,
at its option, if within such five year period the product is returned prepaid, with proof of purchase date, and a description of the problem to Leviton Manufacturing Co., Inc., Att: Quality Assurance Department, 59-25 Little Neck Parkway, Little Neck, New York 11362-2591. This warranty excludes and there is disclaimed liability
for labor for removal of this product or reinstallation. This warranty is void if this product is installed improperly or in an improper environment, overloaded, misused, opened, abused, or altered in any manner, or is not used under normal operating conditions or not in accordance with any labels or instructions. There are no other or
implied warranties of any kind, including merchantability and fitness for a particular purpose, but if any implied warranty is required by the applicable jurisdiction, the duration of any such implied warranty, including merchantability and fitness for a particular purpose, is limited to five years. Leviton is not liable for incidental,
indirect, special, or consequential damages, including without limitation, damage to, or loss of use of, any equipment, lost sales or profits or delay or failure to perform this warranty obligation. The remedies provided herein are the exclusive remedies under this warranty, whether based on contract, tort or otherwise.
Restore Power:
Restore power at circuit breaker or fuse.
Installation is complete.
Step 11
Step 6 cont'd
Programmer/Controller
Cat. No. RZCPG
NOTE: Programmer/Controller must be
in close proximity to 1-scene controller
when including in the network.
Step 7 Excluding 1-Scene Controller from
Z-WaveTM Network:
For additional information, contact Leviton’s
Techline at 1-800-824-3005 or visit Leviton’s
website at www.leviton.com
U.S. & Foreign Patents Pending
Copyright© 2006 Leviton Manufacturing Co., Inc.
All Rights Including Trade Dress Rights Reserved
This equipment has been tested and found to comply with the limits for
a Class B Digital Device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined
by turning the equipment OFF and ON, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving Antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/tv technician for help.
FCC COMPLIANCE STATEMENT
Push
Pad
Locator
Light
Matching Remote Application:
Push Pad (Default settings)
Turn ON from OFF position:
Tap – Lights turn ON, LED turns OFF.
Turn OFF from ON position:
Tap – Lights turn OFF, LED turns ON.
Scene Application:
Push Pad (Default settings)
Turn ON from OFF position:
Tap – Scene is activated, Scene LED turns ON.
LED will blink until Scene is reached.
NOTE: While LED is blinking, a button press
will be ignored.
Turn OFF from ON position:
Tap – Scene is no longer activated, Scene LED
turns OFF.
If there is a power outage, when the power is
restored, the lights will return to the last setting
before the power interruption.
Cleaning: Clean with a damp cloth. DO NOT
use chemical cleaners.
OPERATION
TROUBLESHOOTING
• Lights Flickering
- Lamp has a bad connection.
- Wires not secured firmly under terminal screws of 1-scene controller
and/or remote.
• Light does not turn ON and Locator LED does not turn ON
- Circuit breaker or fuse has tripped.
- Lamp is burned out or lamp switch is OFF.
- Lamp Neutral connection is not wired.
- If 1-scene controller is powered up and LED does not turn ON,
check wiring.
- If no lights react to a button press, then the association of devices was
not done properly. Consult troubleshooting guide at www.leviton.com.
• Remote does not operate lights
- Check association.
- Ensure that controller was properly updated.
Step 8
Gently lift bottom of
push pad out
Including 1-Scene Controller into
Z-WaveTM Network:
1-Zone (Matching Remote) Application
Association:
Step 9
NOTE: One (1) Z-WaveTM device can only be associated to five (5)
controllers.
• To control a Z-waveTM enabled device from 1-scene controller you must
associate the device to the controller.
• If using a non-Leviton Programmer/Controller, refer to the Programmer/
Controller instruction sheet for Associating a device.
A) If using RZCPG Programmer/Controller, press the Menu button and
scroll down to System Setup. Press the center button to select System
setup Menu.
B) Choose <Controller Association>.
C) Choose your Controller.
D) Choose button one.
E) Choose <Area Association> (where you choose a pre-defined area).
OR
<Association> (where you choose the Z-WaveTM enabled device(s) from
a list). Choose your device by pressing the <+> button (pressing the
<–> button de-selects the device). This is the device that will react to a
Scene (ON/OFF) command.
F) Select a scene.
NOTE: For scene application you can associate up to 32 devices to one
scene controller.
To Set a Scene:
• Press and hold button on 1-Scene Controller until LED blinks Green.
• Adjust devices in area.
• Press button again on 1-Scene Controller and the LED will stop
blinking.
• The scene has now been set.
1-Scene Application Association:
1-Scene Controller Mounting:
TURN OFF POWER AT CIRCUIT BREAKER OR FUSE.
Installation may now be completed by
tightening mounting screws into wall box.
Attach wallplate.
Step 10
NOTE: One (1) Z-WaveTM device can only be associated to five (5)
controllers.
• To control a Z-waveTM enabled device from 1-scene controller you must
associate the device to the controller.
• If using a non-Leviton Programmer/Controller, refer to the Programmer/
Controller instruction sheet for Associating a device.
A) If using RZCPG Programmer/Controller, press the Menu button and
scroll down to System Setup. Press the center button to select System
setup Menu.
B) Choose <Controller Association>.
C) Choose your Controller.
D) Choose button one.
E) Choose <Association> (where you choose the Z-WaveTM enabled
device from a list). Choose your device by pressing the <+> button
(pressing the <–> button de-selects the device). This is the device that
will react to an (ON/OFF) command.
F) Select area ON/OFF.
NOTE: For matching remote application you can associate only one
(1) switch. You also must select area ON/OFF action (see Primary
Programmer/Controller instruction sheet).
