LX Power Amplifiers
US MSRP:
LX-7 $5,995 • LX-5 $4,995
HIGHLIGHTS
• 200W per channel, each with four custom designed, hand-graded output transistors
• Bridgeable architecture for higher power output (400W at 8Ω)
• Oversized toroidal power transformer with extraordinarily low DC resistance
and thermal protection
• High-power supply voltage (160V) for extra headroom at the outputs
• THX Ultra Certification
• Junction Temperature Simulation (JTS) to provide maximum
performance from output transistors
• Thermal protection against overheating
• Speaker protection against DC and frequencies below 10Hz
• Protection against short circuits, device failures, miswiring, and internal faults
• Stable with mismatched, reactive, or unusual loads
• Quiet, microprocessor controlled, forced-air cooling to minimize chassis size
• Compatible with 2Ωspeaker impedances (INDIVIDUAL Mode)
• Trigger input for power control from an external device
• RCA, XLR, and 1/4-inch Tip/Ring/Sleeve inputs
• Ground lift switch
• Heavy-duty gold plated outputs
• Multi-color channel status LEDs
• Rack-mount option available
LX-7 7 Channels x 200 Watts
LX-5 5 Channels x 200 Watts
Powerful • Quiet • Stable • Accurate
LX Power Amplifiers

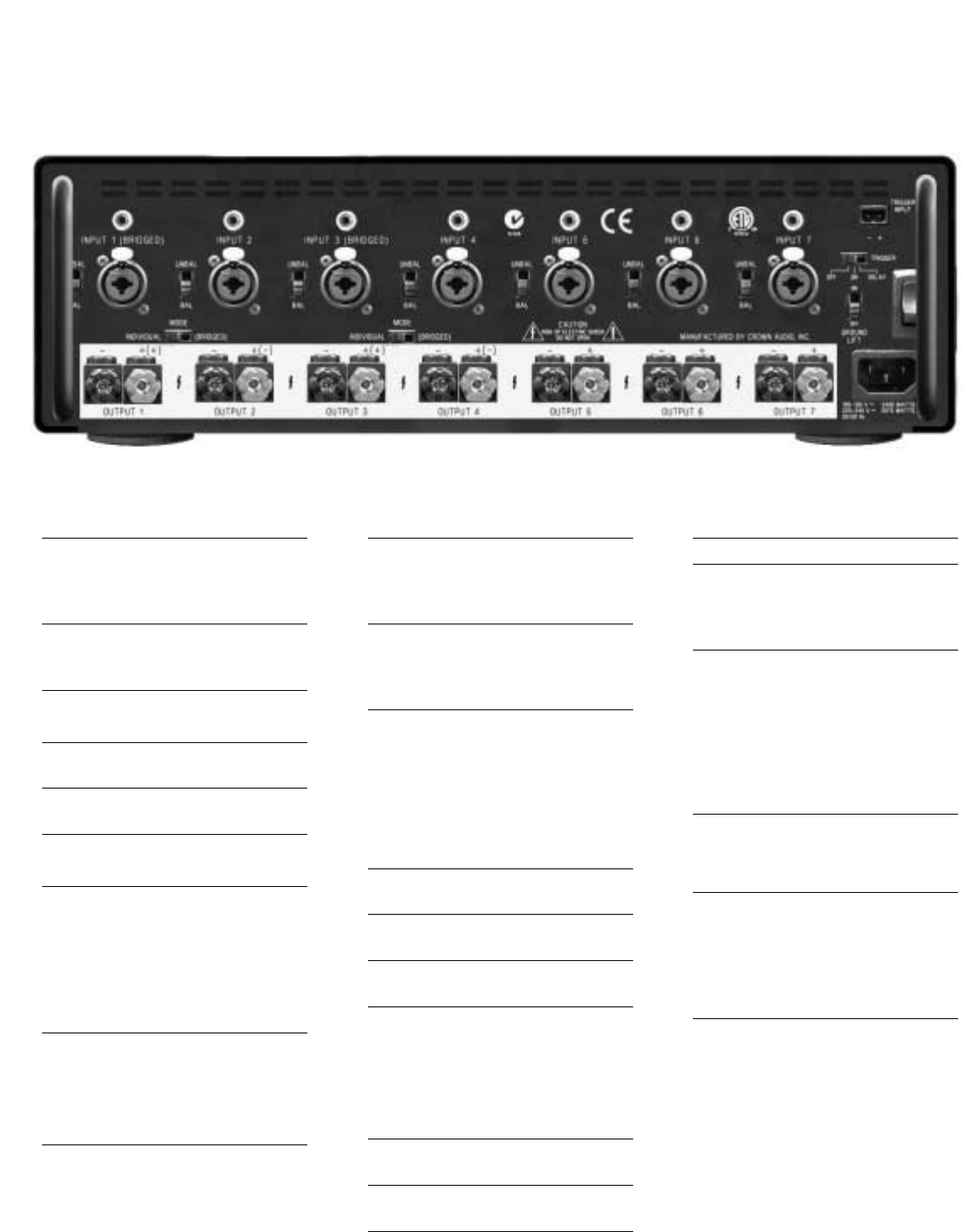

Audio Inputs
LX-7 7 RCA, 7 XLR
(including
1/4-inch
Tip/Ring/Sleeve)
LX-5 5 RCA, 5 XLR
(including 1/4-inch
Tip/Ring/Sleeve)
Audio Outputs
LX-7 7 pairs of heavy-
duty binding posts
LX-5 5 pairs of heavy-
duty binding posts
Performance
Amplifier performance specifica-
tions are identical in INDIVIDUAL
and (BRIDGED) Modes, with the
exception of Output Power and
Minimum Speaker Impedance.
(BRIDGED) Mode includes channels
1 & 2 and 3 & 4 only.
Output Power 200W at 8Ω,
all channels driven
20Hz to 20kHz
400W at 8Ω,
{BRIDGED)
Minimum 2Ω, INDIVIDUAL
Mode
Speaker 4Ω, (BRIDGED)
Mode
Impedance
Performance (continued)
Frequency 20Hz to 20kHz
±0.1dB
Response 10Hz to 100kHz
+0.5/-3dB
THD Below 0.02%,
200W at 8Ω,
all channels driven
20Hz to 20kHz
Signal-to- 111dB
Noise Ratio 22kHz bandwidth,
balanced inputs
109dB
22kHz bandwidth,
unbalanced inputs
(Ref 200W at 8Ω)
IM Distortion Below 0.03% at
200W
Crosstalk -80dB at 1kHz,
minimum
Damping Factor 250 at 20Hz, mini-
mum
Input 2V in for 100W out
at 8Ω,
Sensitivity balanced inputs
1V in for 100W out
at 8Ω,unbalanced inputs
Input 20kΩ, balanced
Impedance 10kΩ, unbalanced
Gain 23dB, balanced
29dB, unbalanced
Other
Trigger Input 12V DC +/- 10%
Power 120V 60Hz 20A
(Domestic)
Requirements 230V 50Hz 12.5A
(Export)
Dimensions
Height 5.65 inches
(144mm)
Width 17.3 inches
(440mm)
Depth 19 inches
(483mm)
Weight
LX-7 56lbs (25.4kg)
LX-5 52lbs (23.6kg)
Rack Mounting Optional brackets
are available for
mounting either
amplifier in a
standard 19-inch
equipment rack
Specifications are subject to
change without notice
SPECIFICATIONS
