Lexmark C790 Users Manual User's Guide
2015-01-23
: Lexmark Lexmark-C790-Users-Manual-268933 lexmark-c790-users-manual-268933 lexmark pdf
Open the PDF directly: View PDF
.
Page Count: 234 [warning: Documents this large are best viewed by clicking the View PDF Link!]
- Contents
- Safety information
- Learning about the printer
- Understanding the home screen
- Customizing the home screen
- Additional printer setup
- Installing internal options
- Order of installation
- Installing optional trays
- Supported finishing features
- Attaching cables
- Verifying printer setup
- Setting up the printer software
- Setting up wireless printing
- Installing the printer on a wired network
- Changing port settings after installing a new network Internal Solutions Port
- Setting up serial printing
- Minimizing your printer's environmental impact
- Loading paper and specialty media
- Paper and specialty media guide
- Printing
- Understanding printer menus
- Securing the printer hard disk and other installed memory
- Maintaining the printer
- Administrative support
- Clearing jams
- Troubleshooting
- Checking an unresponsive printer
- Understanding printer messages
- Adjusting color
- An error has occurred with the USB drive. Please remove and reinsert drive.
- Change [paper source] to [custom type name]
- Change [paper source] to [custom type name] load [orientation]
- Change [paper source] to [custom string]
- Change [paper source] to [custom string] load [orientation]
- Change [paper source] to [paper size] [paper type]
- Change [paper source] to [paper size] [paper type] load [orientation]
- Close paper transport cover
- Close left side door
- Close [tray] door
- Close finisher side door
- Close finisher top cover
- Close front door
- Disk corrupted
- Disk near full. Securely clearing disk space.
- Disk problem
- Empty the hole punch box
- Error reading USB drive. Remove USB.
- Insert staple cartridge
- Insert Tray [x]
- Insert the hole punch box
- Install bin [x]
- Install envelope feeder
- Install Tray [x]
- Load [src] with [custom type name]
- Load [src] with [custom string]
- Load [src] with [size]
- Load [src] with [type] [size]
- Load Manual Feeder with [custom type name]
- Load Manual Feeder with [custom string]
- Load Manual Feeder with [paper type] [paper size]
- Load staples
- Paper changes needed
- Reattach bin [x]
- Reattach bin [x] – [y]
- Remove paper from standard output bin
- Remove paper from bin [x]
- Remove paper from all bins
- Remove paper from [linked bin set name]
- Remove packaging material, [area name]
- Restore held jobs?
- Slide finisher to the left
- Some held jobs were not restored
- Supply needed to complete job
- Unsupported disk
- 31.xx Missing or defective [color] cartridge
- 32.xx [color] cartridge part number unsupported by device
- 34 Incorrect paper size, open [src]
- 35 Insufficient memory to support Resource Save feature
- 36 Printer service required
- 37 Insufficient memory to collate job
- 37 Insufficient memory for Flash Memory Defragment operation
- 37 Insufficient memory, some Held Jobs were deleted
- 37 Insufficient memory, some held jobs will not be restored
- 38 Memory full
- 39 Complex page, some data may not have printed
- 40 [color] invalid refill, change cartridge
- 51 Defective flash detected
- 52 Not enough free space in flash memory for resources
- 53 Unformatted flash detected
- 54 Serial option [x] error
- 54 Standard network software error
- 54 Network [x] software error
- 55 Unsupported option in slot [x]
- 56 Parallel port [x] disabled
- 56 Serial port [x] disabled
- 56 Standard USB port disabled
- 56 Standard parallel port disabled
- 56 USB port [x] disabled
- 57 Configuration change, some held jobs were not restored
- 58 Input config error
- 58 Too many bins attached
- 58 Too many disks installed
- 58 Too many flash options installed
- 58 Too many trays attached
- 59 Incompatible output bin [x]
- 61 Remove defective disk
- 62 Disk full
- 80.xx Fuser near life warning
- 80.xx Fuser life warning
- 80.xx Replace fuser
- 80.xx Fuser missing
- 82.xx Waste toner bottle nearly full
- 82.xx Replace waste toner bottle
- 82.xx Waste toner bottle missing
- 83.xx Transfer module life warning
- 83.xx Transfer module missing
- 83.xx Replace transfer module
- 88.xx [color] cartridge nearly low
- 88.xx [color] cartridge low
- 88.xx [Color] cartridge very low
- 88.xx [Color] cartridge critically low
- 1565 Emulation error, load emulation option
- Solving printing problems
- Multiple-language PDF files do not print
- Printer control panel display is blank or displays only diamonds
- Error message about reading USB drive appears
- Print jobs do not print
- Confidential and other held jobs do not print
- Print job takes longer than expected
- Job prints from the wrong tray or on the wrong paper
- Incorrect characters print
- Tray linking does not work
- Large jobs do not collate
- Unexpected page breaks
- Solving home screen applications problems
- Solving option problems
- Option does not operate correctly or quits after it is installed
- Paper tray problems
- 2,000-sheet drawer problems
- Cannot detect flash memory card
- Cannot detect printer hard disk
- Internal Solutions Port does not operate correctly
- Internal print server does not operate correctly
- Memory card
- USB/parallel interface card does not operate correctly
- Solving paper feed problems
- Solving print quality problems
- Printer is printing blank pages
- Characters have jagged or uneven edges
- Clipped images
- Fine horizontal lines appear on color pages
- Shadow images appear on prints
- Gray background on prints
- Incorrect margins
- Light colored line, white line, or incorrectly colored line appears on prints
- Paper curl
- Print irregularities
- Print is too dark
- Print is too light
- Repeating defects appear on prints
- Skewed print
- Solid color or black pages appear on prints
- Black or white streaks appear on transparencies or paper
- Streaked horizontal lines appear on prints
- Toner fog or background shading appears on a page
- Toner rubs off
- Transparency print quality is poor
- Uneven print density
- Solving color quality problems
- Embedded Web Server does not open
- Contacting customer support
- Notices
- Product information
- Edition notice
- UNITED STATES GOVERNMENT RIGHTS
- Trademarks
- Federal Communications Commission (FCC) compliance information statement
- Modular component notice
- Licensing notices
- Noise emission levels
- Waste from Electrical and Electronic Equipment (WEEE) directive
- Static sensitivity notice
- ENERGY STAR
- Temperature information
- Laser notice
- Laser advisory label
- Power consumption
- European Community (EC) directives conformity
- Radio interference notice
- Regulatory notices for wireless products
- Exposure to radio frequency radiation
- Industry Canada (Canada)
- Notice to users in the European Union
- Statement of Limited Warranty
- LEXMARK SOFTWARE LIMITED WARRANTY AND LICENSE AGREEMENT
- ADOBE SYSTEMS INCORPORATED NOTICE
- Index
Contents
Safety information.......................................................................................6
Learning about the printer...........................................................................8
Thank you for choosing this printer!.........................................................................................................8
Finding information about the printer......................................................................................................8
Selecting a location for the printer............................................................................................................9
Printer configurations.............................................................................................................................10
Understanding the printer control panel................................................................................................11
Understanding the home screen................................................................13
Understanding the home screen.............................................................................................................13
Using the touch-screen buttons..............................................................................................................14
Customizing the home screen.....................................................................17
Accessing the Embedded Web Server.....................................................................................................17
Activating the home screen applications................................................................................................17
Exporting and importing a configuration using the Embedded Web Server...........................................19
Additional printer setup.............................................................................21
Installing internal options........................................................................................................................21
Order of installation................................................................................................................................39
Installing optional trays...........................................................................................................................39
Supported finishing features...................................................................................................................40
Attaching cables......................................................................................................................................42
Verifying printer setup............................................................................................................................43
Setting up the printer software...............................................................................................................44
Setting up wireless printing.....................................................................................................................45
Installing the printer on a wired network...............................................................................................51
Changing port settings after installing a new network Internal Solutions Port......................................53
Setting up serial printing.........................................................................................................................54
Minimizing your printer's environmental impact........................................56
Saving paper and toner...........................................................................................................................56
Saving energy..........................................................................................................................................57
Recycling..................................................................................................................................................59
Contents
2
Loading paper and specialty media............................................................61
Setting the paper size and type...............................................................................................................61
Configuring Universal paper settings......................................................................................................61

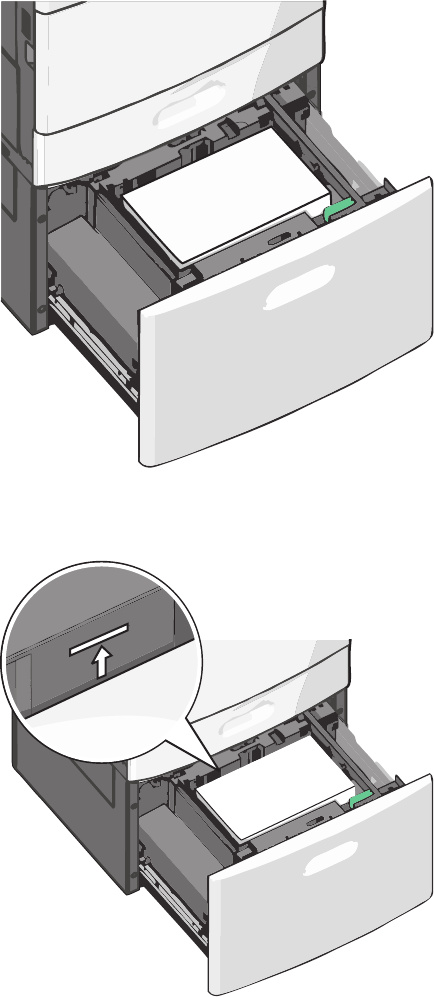

Loading the standard or optional 550-sheet tray....................................................................................62
Loading the 2000-sheet high-capacity feeder.........................................................................................65
Loading the multipurpose feeder............................................................................................................67
Linking and unlinking trays......................................................................................................................69
Paper and specialty media guide................................................................72
Paper guidelines......................................................................................................................................72
Storing paper...........................................................................................................................................74
Supported paper sizes, types, and weights.............................................................................................75
Printing......................................................................................................78
Printing a document................................................................................................................................78
Printing from a flash drive.......................................................................................................................79
Printing specialty documents..................................................................................................................81
Printing confidential and other held jobs................................................................................................83
Printing information pages......................................................................................................................84
Canceling a print job................................................................................................................................85
Understanding printer menus....................................................................87
Menus list................................................................................................................................................87
Supplies menu.........................................................................................................................................88
Paper menu.............................................................................................................................................89
Reports menu........................................................................................................................................101
Network/Ports menu.............................................................................................................................102
Security menu.......................................................................................................................................115
Settings menu........................................................................................................................................119
Help menu.............................................................................................................................................143
Securing the printer hard disk and other installed memory......................145
Statement of Volatility..........................................................................................................................145
Erasing volatile memory........................................................................................................................146
Erasing non-volatile memory................................................................................................................146
Erasing printer hard disk memory.........................................................................................................147
Configuring printer hard disk encryption..............................................................................................148
Contents
3
Maintaining the printer............................................................................150
Cleaning the exterior of the printer......................................................................................................150
Cleaning the printhead lenses...............................................................................................................150
Storing supplies.....................................................................................................................................151
Checking the status of supplies.............................................................................................................152
Ordering supplies..................................................................................................................................152
Replacing supplies.................................................................................................................................154
Moving the printer................................................................................................................................158
Administrative support............................................................................160
Finding advanced networking and administrator information.............................................................160
Using the Embedded Web Server.........................................................................................................160
Checking the virtual display...................................................................................................................160
Checking the status of the printer.........................................................................................................160
Setting up e-mail alerts.........................................................................................................................161
Viewing reports.....................................................................................................................................161
Restoring factory default settings.........................................................................................................162
Clearing jams............................................................................................163
Avoiding jams........................................................................................................................................163
Understanding jam numbers and locations..........................................................................................163
200 paper jam.......................................................................................................................................165
201 paper jam.......................................................................................................................................165
202–203 paper jams..............................................................................................................................166
230 paper jam.......................................................................................................................................167
231–239 paper jams..............................................................................................................................168
24x paper jam........................................................................................................................................168
250 paper jam.......................................................................................................................................169
400–403 and 460–461 paper jams........................................................................................................170
431–454, and 456–458 paper jams.......................................................................................................171
455 staple jam.......................................................................................................................................171
Troubleshooting.......................................................................................174
Checking an unresponsive printer.........................................................................................................174
Understanding printer messages..........................................................................................................174
Solving printing problems.....................................................................................................................189
Contents
4
Solving home screen applications problems.........................................................................................193
Solving option problems........................................................................................................................193
Solving paper feed problems.................................................................................................................196
Solving print quality problems..............................................................................................................197
Solving color quality problems..............................................................................................................208
Embedded Web Server does not open.................................................................................................211
Contacting customer support................................................................................................................211
Notices.....................................................................................................212
Product information..............................................................................................................................212
Edition notice........................................................................................................................................212
Power consumption..............................................................................................................................216
Index........................................................................................................227
Contents
5
Safety information
Connect the power cord to a properly grounded electrical outlet that is near the product and easily accessible.
Do not place or use this product near water or wet locations.
CAUTION—POTENTIAL INJURY: This product uses a laser. Use of controls or adjustments or performance of
procedures other than those specified herein may result in hazardous radiation exposure.
This product uses a printing process that heats the print media, and the heat may cause the media to release emissions.
You must understand the section in your operating instructions that discusses the guidelines for selecting print media
to avoid the possibility of harmful emissions.
CAUTION—POTENTIAL INJURY: The lithium battery in this product is not intended to be replaced. There is a
danger of explosion if a lithium battery is incorrectly replaced. Do not recharge, disassemble, or incinerate a lithium
battery. Discard used lithium batteries according to the manufacturer's instructions and local regulations.
CAUTION—HOT SURFACE: The inside of the printer might be hot. To reduce the risk of injury from a hot component,
allow the surface to cool before touching.
CAUTION—POTENTIAL INJURY: The printer weight is greater than 18 kg (40 lb) and requires two or more trained
personnel to lift it safely.
CAUTION—POTENTIAL INJURY: Before moving the printer, follow these guidelines to avoid personal injury or
printer damage:
•Turn the printer off using the power switch, and then unplug the power cord from the wall outlet.
•Disconnect all cords and cables from the printer before moving it.
•Lift the printer off the optional drawer, and set it aside instead of trying to lift the drawer and printer at the same
time.
Note: Use the handholds located on both sides of the printer to lift it off the optional drawer.
Use only the power cord provided with this product or the manufacturer's authorized replacement.
CAUTION—SHOCK HAZARD: If you are accessing the system board or installing optional hardware or memory
devices sometime after setting up the printer, then turn the printer off, and unplug the power cord from the wall
outlet before continuing. If you have any other devices attached to the printer, then turn them off as well, and
unplug any cables going into the printer.
CAUTION—SHOCK HAZARD: Make sure that all external connections (such as Ethernet and telephone system
connections) are properly installed in their marked plug-in ports.
This product is designed, tested, and approved to meet strict global safety standards with the use of specific
manufacturer's components. The safety features of some parts may not always be obvious. The manufacturer is not
responsible for the use of other replacement parts.
CAUTION—POTENTIAL INJURY: Do not cut, twist, bind, crush, or place heavy objects on the power cord. Do not
subject the power cord to abrasion or stress. Do not pinch the power cord between objects such as furniture and
walls. If any of these things happen, a risk of fire or electrical shock results. Inspect the power cord regularly for
signs of such problems. Remove the power cord from the electrical outlet before inspecting it.
Refer service or repairs, other than those described in the user documentation, to a professional service person.
CAUTION—SHOCK HAZARD: To avoid the risk of electric shock when cleaning the exterior of the printer, unplug
the power cord from the wall outlet and disconnect all cables from the printer before proceeding.
Safety information
6
CAUTION—SHOCK HAZARD: Do not set up this product or make any electrical or cabling connections, such as the
fax feature, power cord, or telephone, during a lightning storm.
CAUTION—TIPPING HAZARD: Floor-mounted configurations require additional furniture for stability. You must
use either a printer stand or printer base if you are using a high-capacity input tray, a duplex unit and an input
option, or more than one input option. If you purchased a multifunction printer (MFP) that scans, copies, and faxes,
you may need additional furniture. For more information, see www.lexmark.com/multifunctionprinters.
CAUTION—POTENTIAL INJURY: To reduce the risk of equipment instability, load each paper drawer or tray
separately. Keep all other drawers or trays closed until needed.
SAVE THESE INSTRUCTIONS.
Safety information
7
Learning about the printer
Thank you for choosing this printer!
We've worked hard to make sure it will meet your needs.
To start using your new printer right away, use the setup materials that came with the printer, and then skim the User’s
Guide to learn how to perform basic tasks. To get the most out of your printer, read the User’s Guide carefully, and
make sure you check the latest updates on our Web site.
We're committed to delivering performance and value with our printers, and we want to make sure you're satisfied. If
you do encounter any problems along the way, one of our knowledgeable support representatives will be delighted to
help you get back on track fast. And if you find something we could do better, please let us know. After all, you are the
reason we do what we do, and your suggestions help us do it better.
Finding information about the printer
What are you looking for? Find it here
Initial setup instructions:
•Connecting the printer
•Installing the printer software
Setup documentation—The setup documentation came
with the printer and is also available on the Lexmark Web
site at http://support.lexmark.com.
Additional setup and instructions for using the printer:
•Selecting and storing paper and specialty media
•Loading paper
•Configuring printer settings
•Viewing and printing documents and photos
•Setting up and using the printer software
•Configuring the printer on a network (depending on your
printer model)
•Caring for and maintaining the printer
•Troubleshooting and solving problems
User's Guide—The User's Guide is available on the
Software and Documentation CD.
For updates, check our Web site at
http://support.lexmark.com.
Instructions for:
•Installing the printer using Guided or Advanced wireless setup
•Connecting the printer to an Ethernet or a wireless network
•Troubleshooting printer connection problems
Networking Guide— Open the Software and
Documentation CD, and then look for Printer and
Software Documentation under the Pubs folder. From
the list of publications, click the Networking Guide link.
Learning about the printer
8
What are you looking for? Find it here
Help using the printer software Windows or Mac Help—Open a printer software program
or application, and then click Help.
Click
?
to view context-sensitive information.
Notes:
•The Help installs automatically with the printer
software.
•The printer software is located in the printer
Program folder or on the desktop, depending on
your operating system.
Latest supplemental information, updates, and technical support:
•Documentation
•Driver downloads
•Live chat support
•E-mail support
•Telephone support
Lexmark Support Web site—
http://support.lexmark.com
Note: Select your country or region, and then select your
product to view the appropriate support site.
Support telephone numbers and hours of operation for
your country or region can be found on the Support Web
site or on the printed warranty that came with your
printer.
Record the following information (located on the store
receipt and at the back of the printer), and have it ready
when you contact support so they may serve you faster:
•Machine Type number
•Serial number
•Date purchased
•Store where purchased
Warranty information Warranty information varies by country or region:
•In the US—See the Statement of Limited Warranty
included with this printer, or at
http://support.lexmark.com.
•In other countries and regions—See the printed
warranty that came with your printer.
Selecting a location for the printer
CAUTION—POTENTIAL INJURY: The printer weight is greater than 18 kg (40 lb) and requires two or more trained
personnel to lift it safely.
When selecting a location for the printer, leave enough room to open trays, covers, and doors. If you plan to install any
options, leave enough room for them too. It is important to:
•Make sure airflow in the room meets the latest revision of the ASHRAE 62 standard or the CEN Technical Committee
156 standard.
•Provide a flat, sturdy, and stable surface.
•Keep the printer:
–Away from the direct airflow of air conditioners, heaters, or ventilators
–Free from direct sunlight, humidity extremes, or temperature fluctuations
Learning about the printer
9
–Clean, dry, and free of dust
•Allow the following recommended amount of space around the printer for proper ventilation:
1
2
3
4
5
1152.4 mm (6.0 in.)
2101.6 mm (4.0 in.)
3609.6 mm (24.0 in.)
4381 mm (15.0 in.)
5304.8 mm (12.0 in.)
Printer configurations
CAUTION—TIPPING HAZARD: Floor-mounted configurations require additional furniture for stability. You must
use either a printer stand or printer base if you are using a high-capacity input tray, a duplex unit and an input
option, or more than one input option. If you purchased a multifunction printer (MFP) that scans, copies, and faxes,
you may need additional furniture. For more information, see www.lexmark.com/multifunctionprinters.
Learning about the printer
10
You can configure your basic printer by adding optional trays.
12
3
47
6
5
1Standard exit bin
2Wire bail
3Printer control panel
4Standard 550-sheet tray
5Optional 550-sheet tray
6Optional 2000-sheet high-capacity feeder
7Multipurpose feeder
Understanding the printer control panel
#
7
123
4
5
6
Item Description
1Display Shows the status of the printer
2Home Lets you navigate back to the home screen
3Keypad Allows you to enter numbers, letters, or symbols on the printer
Learning about the printer
11
Item Description
4Sleep Enables Sleep Mode or Hibernate Mode
The following are the statuses of the indicator light and the Sleep button:
•Entering or waking from Sleep Mode—The indicator light is illuminated solid green, Sleep button
is unilluminated.
•Operating in Sleep Mode—The indicator light is illuminated solid green, Sleep button is
illuminated solid amber.
•Entering or waking from Hibernate Mode—The indicator light is illuminated solid green, Sleep
button is illuminated blinking amber.
•Operating in Hibernate Mode—The indicator light is unilluminated, Sleep button is blinking
amber for 1/10 of a second, then go completely unilluminated for 1.9 seconds in pulsing pattern.
The following actions wake the printer from Sleep Mode:
•Touching the screen or any hard button presses.
•Opening an input tray, cover, or door.
•Sending a print job from the computer.
•Performing a Power On Reset (POR) with the main power switch.
5Indicator light Off—The printer is off.
Blinking green—The printer is warming up, processing data, or printing.
Solid green—The printer is on, but idle.
Solid red—Operator intervention is needed.
6Stop/Cancel Stops all printer activity
Note: A list of options is displayed once Stopped appears on the display.
7USB port Allows you to connect a USB Bluetooth adapter, or a flash drive to the printer
Note: Only the front USB port supports flash drives.
Learning about the printer
12
Understanding the home screen
Understanding the home screen
When the printer is turned on, the display shows a basic screen, referred to as the home screen. Use the home screen
buttons and icons to initiate an action.
Note: Your home screen, icons, and the buttons may vary depending on your home screen customization settings,
administrative setup, and active embedded solutions.
1 2 3
5678
4
Touch To
1Change Language Change the primary language of the printer.
2Bookmarks Create, organize, and save a set of bookmarks (URLs) into a tree view of folders and file
links.
Note: The tree view does not include bookmarks created within Forms and Favorites, and
the ones in the tree are not usable from within Forms and Favorites.
3Held Jobs Display all current held jobs.
4USB or USB Thumbdrive View, select, or print photos and documents from a flash drive.
Note: This icon appears only when you return to the home screen while a memory card
or flash drive is connected to the printer.
5Menus Access printer menus.
Note: These menus are available only when the printer is in the Ready state.
6Status message bar •Show the current printer status such as Ready or Busy.
•Show printer conditions such as Fuser missing or Cartridge Low.
•Show intervention messages and the instructions on how to clear them.
7Status/Supplies •Display a warning or error message whenever the printer requires intervention to
continue processing.
•Access the messages screen for more information on the message, and how to clear
it.
Understanding the home screen
13
Touch To
8Tips Open a context-sensitive Help information on the touch screen.
This may also appear on the home screen:
Touch To
Search Held Jobs Search current held jobs.
Using the touch-screen buttons
Note: Your home screen, icons, and buttons may vary depending on your home screen customization settings,
administrative setup, and active embedded solutions.
Sample touch screen
1 2 3 4
5678910
Touch To
1Up arrow Scroll up.
2Delete folder Delete the file you selected.
3Left arrow Scroll to the left.
Understanding the home screen
14
Touch To
4Right arrow Scroll to the right.
5Right scroll increase Scroll to another value in increasing order.
6Left scroll decrease Scroll to another value in decreasing order.
7Down arrow Scroll down.
8Accept Save a setting.
9Cancel •Cancel an action or a selection.
•Cancel out a screen and return to the previous screen.
10 Back Navigate back to the previous screen.
Other touch-screen buttons
Touch To
Exit Exit from the current screen to the home screen.
Radio button Select or clear an item.
Understanding the home screen
15
Features
Feature Description
Menu trail line:
Menus > Settings > Print Settings >
Number of Copies
A menu trail line is located at the top of each menu screen. This feature acts as a
trail, showing the path taken to arrive at the current menu. It gives the exact location
within the menus.
Number of Copies is not underlined since this is the current screen. If you touch an
underlined word on the Number of Copies screen before the Number of Copies is
set and saved, then the selection is not saved, and does not become the default
setting.
Attendance message alert If an attendance message affects a function, then this icon appears and the red
indicator light blinks.
Warning If an error condition occurs, then this icon appears.
Understanding the home screen
16
Customizing the home screen
Notes:
•Your home screen, icons, and buttons may vary depending on your home screen customization settings,
administrative setup, and active embedded applications. Some applications are supported only on select printer
models.
•There may be additional solutions and applications available for purchase. To learn more, visit
www.lexmark.com. Or, inquire at your point of purchase.
Accessing the Embedded Web Server
Type your printer IP address or host name in the address field of your Web browser.
Note: If you do not know the IP address or host name of the printer, then you can:
•View the information on the printer control panel home screen, or in the TCP/IP section under the Network/Ports
menu.
•Print a network setup page or menu settings page, and then locate the information in the TCP/IP section.
Showing or hiding icons on the home screen
1From the Embedded Web Server, click Settings > General Settings > Home screen customization.
A list of basic printer functions appears.
2Select the check boxes to specify which icons appear on the printer home screen.
Cleared check box items are hidden.
3Click Submit.
Activating the home screen applications
For detailed information about configuring and using home screen applications, visit the Lexmark Web site at
http://support.lexmark.com.
Background and Idle Screen
Icon Description
The application lets you customize the background and idle screen of your printer home screen.
Customizing the home screen
17
To change the background of the printer home screen using the printer control panel, do the following:
1From the home screen, navigate to:
Change Background > select background to use
2Touch .
Forms and Favorites
Icon Description
The application helps you simplify and streamline work processes by letting you quickly find and print
frequently used online forms directly from the home screen. For example, you can print the latest version
of a form exactly when you need it. This eliminates inventories of printed forms that can easily become
outdated.
Note: The printer must have permission to access the network folder, FTP site, or Web site where the
bookmark is stored. From the computer where the bookmark is stored, use sharing, security, and firewall
settings to allow the printer at least a read access. For help, see the documentation that came with your
operating system.
To configure Forms and Favorites, do the following:
1From the Embedded Web Server, click Settings > Device Solutions > Solutions (eSF) > Forms and Favorites.
2Define the bookmarks, and then customize the settings.
3Click Apply.
To use the application, touch Forms and Favorites on the home screen, and then navigate through form categories, or
search for forms based on a form number, name, or description.
Eco-Settings
Icon Description
The application lets you easily manage energy consumption, noise, toner, and paper usage settings to
help reduce the environmental impact of your printer.
Customizing the home screen
18
Showroom
Icon Description
The application lets you create and display a customized slide show on the touch screen of your printer.
You can specify how long each slide is displayed, and images can be loaded either from a flash drive or
through the printer Embedded Web Server.
Remote Operator Panel
This application shows the printer control panel on your computer screen and lets you interact with the printer control
panel, even when you are not physically near the printer. From your computer screen, you can view the printer status,
release held print jobs, create bookmarks, and do other print-related tasks you might normally do while standing at
the printer.
To activate Remote Operator Panel, do the following:
1From the Embedded Web Server, click Settings > Device Solutions > Solutions (eSF) > Remote Operator Panel.
2Select the Enabled check box, and then customize the settings.
3Click Apply.
To use Remote Operator Panel, from the Embedded Web Server, click Applications > Remote Operator Panel > Launch
VNC Applet.
Exporting and importing a configuration using the Embedded
Web Server
You can export configuration settings into a text file that can then be imported and used to apply the settings to one
or more additional printers.
Exporting a configuration
1From the Embedded Web Server, click Settings or Configuration.
2Click Device Solutions > Solutions (eSF), or click Embedded Solutions.
3From Installed Solutions, click the name of the application you want to configure.
4Click Configure > Export.
5Follow the instructions on the computer screen to save the configuration file, and then enter a unique file name or
use the default name.
Note: If a JVM Out of Memory error occurs, then repeat the export until the configuration file is saved.
Customizing the home screen
19
Importing a configuration
1From the Embedded Web Server, click Settings or Configuration.
2Click Device Solutions > Solutions (eSF), or click Embedded Solutions.
3From Installed Solutions, click the name of the application you want to configure.
4Click Configure > Import.
5Browse to the saved configuration file, and then load or preview it.
Note: If a timeout occurs and a blank screen appears, then refresh the browser, and then click Apply.
Customizing the home screen
20
Additional printer setup
Installing internal options
CAUTION—SHOCK HAZARD: If you are accessing the system board or installing optional hardware or memory
devices sometime after setting up the printer, then turn the printer off, and unplug the power cord from the wall
outlet before continuing. If you have any other devices attached to the printer, then turn them off as well, and
unplug any cables going into the printer.
You can customize your printer connectivity and memory capacity by adding optional cards. The instructions in this
section explain how to install the available cards; you can also use them to locate a card for removal.
Available internal options
•Memory cards
–Printer memory
–Flash memory
–Fonts
•Firmware cards
–Bar Code
–PrintCryptionTM
•Printer hard disk
•LexmarkTM Internal Solutions Ports (ISP)
–RS-232-C Serial ISP
–Parallel 1284-B ISP
–MarkNetTM N8250 802.11 b/g/n Wireless ISP
–MarkNet N8130 10/100 Fiber ISP
–MarkNet N8120 10/100/1000 Ethernet ISP
Additional printer setup
21
Using the security lock feature
The printer is equipped with a security lock feature. When a lock compatible with most laptop computers is attached,
the printer is locked. Once locked, the metal plate and the system board cannot be removed. Attach a security lock to
the printer in the location shown.
Additional printer setup
22
Accessing the system board
CAUTION—SHOCK HAZARD: If you are accessing the system board or installing optional hardware or memory
devices sometime after setting up the printer, then turn the printer off, and unplug the power cord from the wall
outlet before continuing. If you have any other devices attached to the printer, then turn them off as well, and
unplug any cables going into the printer.
Note: This task requires a flathead screwdriver.
1Open the cover.
2Remove the metal panel.
aTurn the screws on the panel counterclockwise to remove them.
Additional printer setup
23
bShift the metal panel to the left to disengage the hooks, then pull forward to remove it.
3Use the following illustration to locate the appropriate connectors.
Warning—Potential Damage: System board electronic components are easily damaged by static electricity. Touch
something metal on the printer before touching any system board electronic components or connectors.
1
2
3
4
1Memory card connector
2Firmware and flash memory card connectors
3Internal print server connector
4Hard disk connector
Additional printer setup
24
4Reattach the system board cover.
Warning—Potential Damage: System board electronic components are easily damaged by static electricity.
Touch something metal on the printer before touching any system board electronic components or connectors.
aReinstall the hooks on the left side of the metal panel into the slots on the system board cage, and then shift
to the right.
bAlign and then turn each screw clockwise to tighten.
cClose the cover.
Additional printer setup
25
Installing a memory card
CAUTION—SHOCK HAZARD: If you are accessing the system board or installing optional hardware or memory
devices sometime after setting up the printer, then turn the printer off, and unplug the power cord from the wall
outlet before continuing. If you have any other devices attached to the printer, then turn them off as well, and
unplug any cables going into the printer.
Warning—Potential Damage: System board electronic components are easily damaged by static electricity. Touch
something metal on the printer before touching any system board electronic components or connectors.
An optional memory card can be purchased separately and attached to the system board.
1Access the system board.
For more information, see “Accessing the system board” on page 23.
Note: This task requires a flathead screwdriver.
2Unpack the memory card.
Note: Avoid touching the connection points along the edge of the card.
3On the system board, open the memory card connector latches.
Additional printer setup
26
4Align the notches on the memory card to the ridges on the connector.
1
2
1Notch
2Ridge
5Push the memory card straight into the connector until it clicks into place.
6Reattach the system board cover.
Additional printer setup
27
Installing a flash memory or firmware card
The system board has two connections for an optional flash memory or firmware card. Only one of each may be installed,
but the connectors are interchangeable.
CAUTION—SHOCK HAZARD: If you are accessing the system board or installing optional hardware or memory
devices sometime after setting up the printer, then turn the printer off, and unplug the power cord from the wall
outlet before continuing. If you have any other devices attached to the printer, then turn them off as well, and
unplug any cables going into the printer.
Warning—Potential Damage: System board electronic components are easily damaged by static electricity. Touch
something metal on the printer before touching any system board electronic components or connectors.
1Access the system board.
Note: This task requires a flathead screwdriver.
2Unpack the card.
Note: Avoid touching the connection points along the edge of the card.
3Holding the card by its sides, align the plastic pins on the card with the holes on the system board.
2
1
1Plastic pins
2Metal pins
4Push the card firmly into place.
Additional printer setup
28
Notes:
•The entire length of the connector on the card must touch and be flush against the system board.
•Be careful not to damage the connectors.
5Reattach the system board cover.
Installing an Internal Solutions Port
The system board supports one optional Lexmark Internal Solutions Port (ISP).
Note: This task requires a flathead screwdriver.
CAUTION—SHOCK HAZARD: If you are accessing the system board or installing optional hardware or memory
devices sometime after setting up the printer, then turn the printer off, and unplug the power cord from the wall
outlet before continuing. If you have any other devices attached to the printer, then turn them off as well, and
unplug any cables going into the printer.
Warning—Potential Damage: System board electronic components are easily damaged by static electricity. Touch
something metal on the printer before touching any system board electronic components or connectors.
1Access the system board.
For more information, see “Accessing the system board” on page 23.
2Unpack the ISP and plastic tee.
Note: Avoid touching the components on the card.
3Locate the appropriate connector on the system board.
4Remove the printer hard disk.
For more information, see “Removing a printer hard disk” on page 38.
Additional printer setup
29
5Remove the metal cover from the ISP opening.
2
1
6Align the posts of the plastic tee to the holes on the system board, and press down until the tee clicks into place.
Be sure each post of the tee has latched completely, and the tee is seated firmly on the system board.
Additional printer setup
30
7Install the ISP on the plastic tee. Angle the ISP over the plastic tee, and then slant it toward the plastic tee so that
any overhanging connectors will pass through the ISP opening in the system board cage.
8Lower the ISP toward the plastic tee until the ISP is seated between the guides of the plastic tee.
Additional printer setup
31
9Insert the long thumbscrew and turn it clockwise, enough to hold the ISP in place, but do not yet tighten the
thumbscrew.
10 Attach the two provided screws to secure the ISP mounting bracket to the system board cage.
11 Tighten the long thumbscrew.
Warning—Potential Damage: Do not overtighten the thumbscrew.
12 Insert the plug of the ISP interface cable into the receptacle of the system board.
Note: The plugs and receptacles are color-coded.
Additional printer setup
32
13 Reattach the system board cover.
Installing a printer hard disk
Note: This task requires a flathead screwdriver.
CAUTION—SHOCK HAZARD: If you are accessing the system board or installing optional hardware or memory
devices sometime after setting up the printer, then turn the printer off, and unplug the power cord from the wall
outlet before continuing. If you have any other devices attached to the printer, then turn them off as well, and
unplug any cables going into the printer.
Warning—Potential Damage: System board electronic components are easily damaged by static electricity. Touch
something metal on the printer before touching any system board electronic components or connectors.
1Access the system board.
For more information, see “Accessing the system board” on page 23.
2Unpack the printer hard disk.
Additional printer setup
33
3Locate the appropriate connector on the system board.
Note: If an optional ISP is currently installed, then the printer hard disk must be installed onto the ISP.
To install a printer hard disk onto the ISP:
aUsing a flathead screwdriver, loosen the screws.
bRemove the screws attached to the printer hard disk mounting bracket, and then remove the bracket.
Additional printer setup
34
cAlign the standoffs of the printer hard disk to the holes in the ISP, and then press down on the printer hard disk
until the standoffs are in place.
dInsert the plug of the printer hard disk interface cable into the receptacle of the ISP.
Note: The plugs and receptacles are color-coded.
Additional printer setup
35
To install a printer hard disk directly on the system board:
aAlign the standoffs of the printer hard disk to the holes in the system board, and then press down on the printer
hard disk until the standoffs are in place.
bUse the two provided screws to attach the printer hard disk mounting bracket.
cInsert the plug of the printer hard disk interface cable into the receptacle of the system board.
Note: The plugs and receptacles are color-coded.
Additional printer setup
36
4Reattach the system board cover.
Additional printer setup
37
Removing a printer hard disk
Note: This task requires a flathead screwdriver.
Warning—Potential Damage: System board electronic components are easily damaged by static electricity. Touch
something metal on the printer before touching any system board electronic components or connectors.
1Access the system board.
For more information, see “Accessing the system board” on page 23.
2Unplug the printer hard disk interface cable from the system board, leaving the cable attached to the printer hard
disk. To unplug the cable, squeeze the paddle at the plug of the interface cable to disengage the latch before pulling
the cable out.
3Remove the screws while holding the printer hard disk in place, and then remove the printer hard disk.
1
2
Additional printer setup
38
4Set the printer hard disk aside.
5Reattach the system board cover.
Order of installation
CAUTION—POTENTIAL INJURY: The printer weight is greater than 18 kg (40 lb) and requires two or more trained
personnel to lift it safely.
CAUTION—TIPPING HAZARD: Floor-mounted configurations require additional furniture for stability. You must
use either a printer stand or printer base if you are using a high-capacity input tray, a duplex unit and an input
option, or more than one input option. If you purchased a multifunction printer (MFP) that scans, copies, and faxes,
you may need additional furniture. For more information, see www.lexmark.com/multifunctionprinters.
CAUTION—SHOCK HAZARD: If you are accessing the system board or installing optional hardware or memory
devices sometime after setting up the printer, then turn the printer off, and unplug the power cord from the wall
outlet before continuing. If you have any other devices attached to the printer, then turn them off as well, and
unplug any cables going into the printer.
Install the printer and any options you have purchased in the following order:
•Caster base
•Optional spacer
•Optional 550-sheet trays or 2,000-sheet high-capacity feeder
•Standard 550-sheet trays
•Printer
For information on installing a caster base, a 550- or 2,000-sheet optional tray, spacer, or any of the finishers, see the
setup documentation that came with the option.
Installing optional trays
The printer supports the following optional input sources:
•550-sheet tray
•2,000-sheet high-capacity feeder
CAUTION—POTENTIAL INJURY: The printer weight is greater than 18 kg (40 lb) and requires two or more trained
personnel to lift it safely.
CAUTION—SHOCK HAZARD: If you are accessing the system board or installing optional hardware or memory
devices sometime after setting up the printer, then turn the printer off, and unplug the power cord from the wall
outlet before continuing. If you have any other devices attached to the printer, then turn them off as well, and
unplug any cables going into the printer.
CAUTION—TIPPING HAZARD: Floor-mounted configurations require additional furniture for stability. You must
use either a printer stand or printer base if you are using a high-capacity input tray, a duplex unit and an input
option, or more than one input option. If you purchased a multifunction printer (MFP) that scans, copies, and faxes,
then you may need additional furniture. For more information, see www.lexmark.com/multifunctionprinters.
1Unpack the optional tray, and then remove all packing material.
2Place the tray near the printer.
3Turn the printer off.
Additional printer setup
39
4Align the printer with the tray, and then lower the printer into place.
Note: Optional trays lock together when stacked. When necessary, remove stacked trays one at a time from the
top down.
2
1
1Standard 550-sheet tray (Tray 1)
2Optional 550-sheet trays
5Turn the printer back on.
6Set the printer software to recognize the optional input source.
For more information, see “Updating available options in the printer driver” on page 45.
Supported finishing features
The printer supports the following finishing features:
•500-Sheet Offset Stacker
•500-Sheet Staple Finisher
•500-Sheet Staple, Hole Punch Finisher
•5-bin mailbox
Additional printer setup
40
2
1
1Standard bin
2Finisher bin
Standard bin
•The paper capacity is 500 sheets.
•Finishing options are not supported in this bin.
•Envelopes are routed here.
Finisher bin
•The paper capacity is 500 sheets.
•Envelopes, A5, A6 and statement paper sizes are not supported in this bin.
Additional printer setup
41
Finishing features
Paper size Two-hole punch Three- or four-hole
punch
5-bin mailbox 500-Sheet Staple
Finisher
A4
A5 X X X
Executive
Folio X
JIS B5
Legal
Letter
Statement X X
Universal X X
Envelopes (any size) X X X
Oficio
Attaching cables
CAUTION—SHOCK HAZARD: Do not set up this product or make any electrical or cabling connections, such as a
power cord, a fax feature, or USB cable, during a lightning storm.
Connect the printer to the computer using a USB cable or Ethernet cable.
Be sure to match the following:
•The USB symbol on the cable with the USB symbol on the printer
•The appropriate Ethernet cable to the Ethernet port
Additional printer setup
42
1
2
1USB port
Warning—Potential Damage: Do not touch the USB cable, any network adapter, or the printer in the area shown
while actively printing. A loss of data or a malfunction can occur.
2Ethernet port
Verifying printer setup
Once all hardware and software options are installed and the printer is turned on, verify that the printer is set up
correctly by printing the following:
•Menu settings page—Use this page to verify that all printer options are installed correctly. A list of installed options
appears toward the bottom of the page. If an option you installed is not listed, then it is not installed correctly.
Remove the option and install it again.
•Network setup page—If your printer is a network model and is attached to a network, print a network setup page
to verify the network connection. This page also provides important information that aids network printing
configuration.
Printing a menu settings page
From the home screen, navigate to:
> Reports > Menu Settings Page
Additional printer setup
43
Printing a network setup page
If the printer is attached to a network, then print a network setup page to verify the network connection. This page
also provides important information that aids network printing configuration.
1From the home screen, navigate to:
> Reports > Network Setup Page
2Check the first section of the network setup page, and confirm that the status is Connected.
If the status is Not Connected, then the LAN drop may not be active, or the network cable may be malfunctioning.
Consult a system support person for a solution, and then print another network setup page.
Setting up the printer software
Installing the printer software
Note: If you installed the printer software on this computer before but need to reinstall the software, then uninstall
the current software first.
For Windows users
1Close all open software programs.
2Insert the installation software CD.
If the installation dialog screen does not appear after a minute, then launch the CD manually:
aClick , or click Start and then click Run.
bIn the Start Search or Run box, type D:\setup.exe, where D is the letter of your CD or DVD drive.
cPress Enter, or click OK.
3Click Install, and then follow the instructions on the computer screen.
For Macintosh users
1Close all open applications.
2Insert the installation software CD.
If the installation dialog does not appear after a minute, then click the CD icon on the desktop.
3Double-click the software installer package, and then follow the instructions on the computer screen.
Using the Internet
1Go to the Lexmark Web site at www.lexmark.com.
2Navigate to:
SUPPORT & DOWNLOADS > select your printer > select your operating system
3Download the driver and install the printer software.
Note: Updated printer software may be available at http://support.lexmark.com.
Additional printer setup
44
Updating available options in the printer driver
Once the printer software and any options are installed, it may be necessary to manually add the options in the printer
driver to make them available for print jobs.
For Windows users
1Open the printers folder:
aClick , or click Start and then click Run.
bIn the Start Search or Run box, type control printers.
cPress Enter, or click OK.
2Select the printer.
3Right-click the printer, and then select Properties.
4Click the Configuration tab.
5Click Update Now - Ask Printer or manually add any installed hardware options under Configuration Options.
6Click Apply.
For Macintosh users
In Mac OS X version 10.5 or later
1From the Apple menu, navigate to:
System Preferences > Print & Fax > select your printer > Options & Supplies > Driver
2Add any installed hardware options, and then click OK.
In Mac OS X version 10.4 or earlier
1From the Finder, navigate to:
Go > Applications > Utilities
2Double-click Printer Setup Utility or Print Center.
3Select your printer.
4From the Printers menu, choose Show Info.
5Add any installed hardware options, and then click Apply Changes.
Setting up wireless printing
Note: A Service Set Identifier (SSID) is a name assigned to a wireless network. Wireless Encryption Protocol (WEP) and
Wi-Fi Protected Access (WPA) are types of security used on a network.
Information you will need to set up the printer on a wireless network
Note: Do not connect the installation or network cables until prompted to do so by the setup software.
Additional printer setup
45
•SSID—The SSID is also referred to as the network name.
•Wireless Mode (or Network Mode)—The mode will be either infrastructure or ad hoc.
•Channel (for ad hoc networks)—The channel defaults to auto for infrastructure networks.
Some ad hoc networks will also require the auto setting. Check with your system support person if you are not sure
which channel to select.
•Security Method—There are three basic options for Security Method:
–WEP key
If your network uses more than one WEP key, enter up to four in the provided spaces. Select the key currently
in use on the network by selecting the Default WEP Transmit Key.
or
–WPA or WPA2 passphrase
WPA includes encryption as an additional layer of security. The choices are AES or TKIP. Encryption must be set
for the same type on the router and on the printer, or the printer will not be able to communicate on the
network.
–No security
If your wireless network does not use any type of security, then you will not have any security information.
Note: Using an unsecured wireless network is not recommended.
If you are installing the printer on an 802.1X network using the Advanced method, then you may need the following:
•Authentication type
•Inner authentication type
•802.1X username and password
•Certificates
Note: For more information on configuring 802.1X security, see the Networking Guide on the Software and
Documentation CD.
Installing the printer on a wireless network (Windows)
Before installing the printer on a wireless network, make sure:
•Your wireless network is set up and working properly.
•The computer you are using is connected to the same wireless network where you want to set up the printer.
Additional printer setup
46
1Connect the power cable to the printer and then to a properly grounded electrical outlet, and then turn the printer
on.
1
2
Make sure the printer and computer are fully on and ready.
Do not connect the USB cable until instructed to do so on the computer screen.
2Insert the Software and Documentation CD.
3Click Install, and then follow the instructions on the computer screen.
4Select Wireless connection when asked to choose a connection type.
5From the Wireless Configuration dialog, select Guided Setup (Recommended).
Note: Choose Advanced Setup only if you want to customize your installation.
Additional printer setup
47
6Temporarily connect a USB cable between the computer on the wireless network and the printer.
Note: After the printer is configured, the software will instruct you to disconnect the temporary USB cable so you
can print wirelessly.
7Follow the instructions on the computer screen.
Note: For more information on allowing other computers on the network to use the wireless printer, see the Networking
Guide.
Installing the printer on a wireless network (Macintosh)
Make sure to disconnect the Ethernet cable when installing the printer on a wireless network.
Prepare to configure the printer
1Connect the power cable to the printer and then to a properly grounded electrical outlet, and then turn the printer
on.
1
2
2Locate the printer MAC address.
aFrom the home screen, navigate to:
> Reports > Network Setup Page
bIn the Standard Network Card section, look for UAA (MAC).
Note: You will need this information later.
Additional printer setup
48
Enter the printer information
1Access the AirPort options:
In Mac OS X version 10.5 or later
From the Apple menu, navigate to:
System Preferences > Network > AirPort
In Mac OS X version 10.4 or earlier
From the Finder, navigate to:
Applications > Internet Connect > AirPort
2From the Network Name pop-up menu, select print server [yyyyyy], where the y's are the last six digits of the MAC
address located on the MAC address sheet.
3Open a Web browser.
4From the Bookmarks menu, select Show or Show All Bookmarks.
5Under COLLECTIONS, select Bonjour or Rendezvous, and then double-click the printer name.
Note: The application referred to as Rendezvous in Mac OS X version 10.2 is now called Bonjour by Apple Inc.
6From the Embedded Web Server, navigate to where the wireless settings information are stored.
Configure the printer for wireless access
1Type the network name (SSID) in the appropriate field.
2Select Infrastructure as your Network Mode setting if you are using an access point (wireless router).
3Select the type of security you want to use to protect your wireless network.
4Enter the security information necessary for the printer to connect to the wireless network.
5Click Submit.
6Open the AirPort application on your computer:
In Mac OS X version 10.5 or later
From the Apple menu, navigate to:
System Preferences > Network > AirPort
In Mac OS X version 10.4 or earlier
From the Finder, navigate to:
Applications > Internet Connect > AirPort
7From the Network pop-up menu, select the name of your wireless network.
Additional printer setup
49
Configure your computer to use the printer wirelessly
To print on a network printer, each Macintosh user must install a custom printer driver file and create a print queue in
the Printer Setup Utility or Print Center.
1Install a printer driver file on the computer:
aInsert the Software and Documentation CD, and then double-click the installer package for the printer.
bFollow the instructions on the computer screen.
cSelect a destination, and then click Continue.
dFrom the Easy Install screen, click Install.
eType the user password, and then click OK.
All necessary applications are installed in the computer.
fClick Close when installation is complete.
2Add the printer:
aFor IP printing:
In Mac OS X version 10.5 or later
1From the Apple menu, navigate to:
System Preferences > Print & Fax
2Click +, and then click the IP tab.
3Type the IP address of the printer in the address field, and then click Add.
In Mac OS X version 10.4 or earlier
1From the Finder, navigate to:
Applications > Utilities
2Double-click Printer Setup Utility or Print Center.
3From the Printer List, choose Add, and then click IP Printer.
4Type the IP address of the printer in the address field, and then click Add.
bFor AppleTalk printing:
Note: Make sure AppleTalk is activated on your printer.
In Mac OS X version 10.5
1From the Apple menu, navigate to:
System Preferences > Print & Fax
2Click +, and then navigate to:
AppleTalk > select the printer from the list > Add
In Mac OS X version 10.4 or earlier
1From the Finder, navigate to:
Applications > Utilities
2Double-click Printer Setup Utility or Print Center.
3From the Printer List, click Add.
4Click Default Browser tab > More Printers.
5From the first pop-up menu, select AppleTalk.
Additional printer setup
50
6From the second pop-up menu, select Local AppleTalk Zone.
7Select the printer from the list, and then click Add.
Installing the printer on a wired network
These instructions apply to Ethernet and fiber optic network connections.
Note: Make sure you have completed the initial setup of the printer.
For Windows users
1Insert the Software and Documentation CD.
If the installation screen does not appear after a minute, then launch the CD manually:
aClick , or click Start and then click Run.
bIn the Start Search or Run box, type D:\setup.exe, where D is the letter of the CD or DVD drive.
cPress Enter, or click OK.
2Click Install, and then follow the instructions on the computer screen.
Note: To configure the printer using a static IP address, IPv6, or scripts, select Advanced Options > Administrator
Tools.
3Select Ethernet connection, and then click Continue.
4Attach the appropriate cable to the computer and to the printer when instructed to do so.
5Select the printer from the list, and then click Continue.
Note: If the configured printer does not appear on the list, then click Modify Search.
6Follow the instructions on the computer screen.
For Macintosh users
1Allow the network DHCP server to assign an IP address to the printer.
2Obtain the printer IP address. You can:
aView the information on the printer control panel home screen, or in the TCP/IP section under the
Networks/Ports menu.
bPrint a network setup page or menu settings page and locate the information in the TCP/IP section.
Note: You will need the IP address if you are configuring access for computers on a different subnet than the
printer.
3Install the printer drivers, and then add the printer.
aInstall a printer driver file on the computer:
1Insert the Software and Documentation CD, and then double-click the installer package for the printer.
2Follow the instructions on the computer screen.
3Select a destination, and then click Continue.
4From the Easy Install screen, click Install.
Additional printer setup
51
5Type the user password, and then click OK.
All the necessary applications are installed in the computer.
6Click Close when installation is complete.
bAdd the printer:
•For IP printing:
In Mac OS X version 10.5 or later
1From the Apple menu, navigate to:
System Preferences > Print & Fax
2Click +, and then click the IP tab.
3Type the printer IP address in the address field, and then click Add.
In Mac OS X version 10.4 or earlier
1From the Finder, navigate to:
Applications > Utilities
2Double-click Printer Setup Utility or Print Center.
3From the Printer List, click Add, and then click IP Printer.
4Type in the printer IP address in the address field, and then click Add.
•For AppleTalk printing:
Note: Make sure AppleTalk is activated on your printer.
In Mac OS X version 10.5
1From the Apple menu, navigate to:
System Preferences > Print & Fax
2Click +, and then navigate to:
AppleTalk > select the printer from the list > Add
In Mac OS X version 10.4 or earlier
1From the Finder, navigate to:
Applications > Utilities
2Double-click Printer Setup Utility or Print Center.
3From the Printer List, click Add.
4Click Default Browser tab > More Printers.
5From the first pop-up menu, select AppleTalk.
6From the second pop-up menu, select Local AppleTalk Zone.
7Select the printer from the list, and then click Add.
Note: If the printer does not show up in the list, then you may need to add it using the IP address. For more
information, contact your system support person.
Additional printer setup
52
Changing port settings after installing a new network Internal
Solutions Port
When a new Lexmark Internal Solutions Port (ISP) is installed in the printer, the printer configurations on computers
that access the printer must be updated since the printer will be assigned a new IP address. All computers that access
the printer must be updated with this new IP address.
Notes:
•If the printer has a static IP address, then you do not need to make any changes to the computer configurations.
•If the computers are configured to use network name that will stay the same, instead of by IP address, then you
do not need to make any changes to your computer configurations.
•If you are adding a wireless ISP to a printer previously configured for a wired connection, then make sure the wired
network is disconnected when you configure the printer to operate wirelessly. If the wired connection remains
connected, then the wireless configuration will complete, but the wireless ISP will not be active. In the event that
the printer was configured for a wireless ISP while still attached to a wired connection, disconnect the wired
connection, turn the printer off, and then turn the printer back on again. This will enable the wireless ISP.
•Only one network connection at a time is active. If you want to switch the connection type between wired and
wireless, you must first turn the printer off, connect the cable (to switch to a wired connection) or disconnect the
cable (to switch to a wireless connection), and then turn the printer on.
For Windows users
1Type the printer IP address into the address field of your Web browser.
If you do not know the IP address of the printer, you can:
•View the IP address on the printer control panel in the TCP/IP section under the Networks/Ports menu.
•Print a network setup page or the menu settings pages and locate the IP address in the TCP/IP section.
2Click , or click Start and then click Run.
3In the Start Search or Run box, type control printers.
4Press Enter, or click OK.
The printer folder opens.
5Locate the printer that has changed.
Note: If there is more than one copy of the printer, then update all of them with the new IP address.
6Right-click the printer.
7Click Properties > Ports tab.
8Select the port from the list, and then click Configure Port.
9Type the new IP address in the “Printer Name or IP Address” field.
10 Click OK > Close.
For Macintosh users
1Type the printer IP address into the address field of your Web browser.
Additional printer setup
53
If you do not know the IP address of the printer, you can:
•View the IP address on the printer control panel in the TCP/IP section under the Networks/Ports menu.
•Print a network setup page or the menu settings pages and locate the IP address in the TCP/IP section.
Note: You will need the IP address if you are configuring access for computers on a different subnet than the
printer.
2Add the printer:
•For IP printing:
In Mac OS X version 10.5 or later
aFrom the Apple menu, navigate to:
System Preferences > Print & Fax
bClick +, and then click the IP tab.
cType the IP address of your printer in the Address field, and then click Add.
In Mac OS X version 10.4 or earlier
aFrom the Finder, navigate to:
Applications > Utilities
bDouble-click Printer Setup Utility or Print Center.
cFrom the Printer List, click Add, and then click IP Printer.
dType the IP address of your printer in the Address field, and then click Add.
•For AppleTalk printing:
Note: Make sure AppleTalk is activated on your printer.
In Mac OS X version 10.5
aFrom the Apple menu, navigate to:
System Preferences > Print & Fax
bClick +, and then navigate to:
AppleTalk > select the printer from the list > Add
In Mac OS X version 10.4 or earlier
aFrom the Finder, navigate to:
Applications > Utilities
bDouble-click Printer Setup Utility or Print Center.
cFrom the Printer List, click Add.
dClick the Default Browser tab > More Printers.
eFrom the first pop-up menu, select AppleTalk.
fFrom the second pop-up menu, select Local AppleTalk Zone.
gSelect the printer from the list, and then click Add.
Setting up serial printing
In serial printing, data is transferred one bit at a time. Although serial printing is usually slower than parallel printing,
it is the preferred option when there is a great deal of distance between the printer and computer or when an interface
with a better transfer rate is not available.
Additional printer setup
54
After installing the serial or communication (COM) port, configure the printer and the computer so they can
communicate. Make sure you have connected the serial cable to the COM port on your printer.
1Set the parameters in the printer:
aFrom the printer control panel, navigate to the menu with port settings.
bLocate the menu with serial port settings.
cMake any necessary changes to the serial settings.
dSave the new settings, and then print a menu settings page.
2Install the printer driver:
aInsert the Software and Documentation CD.
If the installation screen does not appear after a minute, then launch the CD manually::
1Click , or click Start and then click Run.
2In the Start Search or Run box, type D:\setup.exe, where D is the letter of the CD or DVD drive.
3Press Enter, or click OK.
bClick Advanced Options > Custom Install.
cFollow the instructions on the computer screen
dFrom the Configure Printer Connection dialog, select Connect through a port discovered on your computer,
and then select a port.
eIf the port is not in the list, then click Refresh.
or
Navigate to:
Add port > select a port type > enter necessary information > OK
fClick Continue.
1If you want to add another printer, then click Add Another.
2If you want to make changes, then select a printer, and then click Edit.
3Follow the instructions on the computer screen.
gClick Finish.
3Set the COM port parameters:
After installing the printer driver, set the serial parameters in the COM port assigned to the printer driver.
Note: Make sure the serial parameters in the COM port match the serial parameters you set in the printer.
aOpen the Device Manager.
1Click , or click Start and then click Run.
2In the Start Search or Run box, type devmgmt.msc.
3Press Enter, or click OK.
bLook for Ports, and then click + to expand the list of available ports.
cRight-click the COM port where you attached the serial cable to your computer (example: COM1).
dClick Properties.
eOn the Port Settings tab, set the serial parameters to the same serial parameters in the printer.
Check the serial heading of the menu settings page for the printer settings.
fClick OK, and then close all the windows.
gPrint a test page to verify printer installation.
Additional printer setup
55
Minimizing your printer's environmental impact
Lexmark is committed to environmental sustainability and is continually improving its printers to reduce their impact
on the environment. We design with the environment in mind, engineer our packaging to reduce materials, and provide
collection and recycling programs. For more information, see:
•The Notices chapter
•The Environmental Sustainability section of the Lexmark Web site at www.lexmark.com/environment
•The Lexmark recycling program at www.lexmark.com/recycle
By selecting certain printer settings or tasks, you may be able to reduce your printer's impact even further. This chapter
outlines the settings and tasks that may yield a greater environmental benefit.
Saving paper and toner
Studies show that as much as 80% of the carbon footprint of a printer is related to paper usage. You can significantly
reduce your carbon footprint by using recycled paper and the following printing suggestions, such as printing on both
sides of the paper and printing multiple pages on one side of a sheet of paper.
For information on how you can quickly save paper and energy using one printer setting, see “Using Eco-Mode” on
page 57.
Using recycled paper
As an environmentally conscious company, Lexmark supports the use of recycled office paper produced specifically for
use in laser printers. For more information on recycled papers that work well with your printer, see “Using recycled
paper and other office papers” on page 74.
Conserving supplies
Use both sides of the paper
If your printer model supports duplex printing, you can control whether print appears on one or two sides of the paper
by selecting 2-sided printing from the Print dialog or from the Lexmark Toolbar.
Place multiple pages on one sheet of paper
You can print up to 16 consecutive pages of a multiple-page document onto one side of a single sheet of paper by
selecting a setting from the Multipage printing (N-Up) section of the Print dialog screen.
Check your first draft for accuracy
Before printing or making multiple copies of a document:
•Use the preview feature, which you can select from the Print dialog or from the Lexmark Toolbar to see how the
document will look like before you print it.
•Print one copy of the document to check its content and format for accuracy.
Minimizing your printer's environmental impact
56
Avoid paper jams
Correctly set the paper type and size to avoid paper jams. For more information, see “Avoiding jams” on page 163.
Print in black and white
To print all text and graphics using only the black print cartridge, set the printer to Black Only. For more information,
see “Printing in black and white” on page 78.
Saving energy
Using Eco-Mode
1Type the printer IP address into the address field of your Web browser.
If you do not know the IP address of the printer, you can:
•View the IP address on the printer control panel in the TCP/IP section under the Networks/Ports menu.
•Print a network setup page or the menu settings pages and locate the IP address in the TCP/IP section.
2Click Settings > General Settings > Eco-Mode > select a setting > Submit.
Choose To
Off Use factory default settings for all settings associated with Eco-Mode. This setting supports the performance
specifications of your printer.
Energy Reduce energy use, especially when the printer is idle.
•The printer enters Sleep mode after one minute of inactivity.
•When the printer enters Sleep mode, the printer control panel display is turned off.
Energy/Paper Use all the settings associated with Energy mode and Paper mode.
Paper •Enable the automatic duplex feature.
•Turn off print log features.
Reducing printer noise
To select a Quiet Mode setting using the Embedded Web Server:
1Type the printer IP address into the address field of your Web browser.
If you do not know the IP address of the printer, you can:
•View the IP address on the printer control panel in the TCP/IP section under the Networks/Ports menu.
•Print a network setup page or the menu settings pages and locate the IP address in the TCP/IP section.
2Click Settings > General Settings > Quiet Mode > select a setting > Submit
Minimizing your printer's environmental impact
57
Choose To
Off
Note: Selecting Photo from the driver may disable Quiet
Mode.
Use factory default settings. This setting supports the
performance specifications of your printer.
On Reduce printer noise.
•Print jobs will process at reduced speed.
•Fans run at reduced speed or are turned off.
•If your printer has faxing capability, fax sounds are
reduced or disabled, including those made by the fax
speaker and ringer. The fax is placed in standby mode.
•The alarm control and cartridge alarm sounds are turned
off.
Adjusting Sleep Mode
To save energy, you can decrease the number of minutes before the printer enters Sleep Mode.
Available settings range from 1–240 minutes. The factory default setting is 30 minutes.
Using the Embedded Web Server
1Type the printer IP address into the address field of your Web browser.
If you do not know the IP address of the printer, you can:
•View the IP address on the printer control panel in the TCP/IP section under the Networks/Ports menu.
•Print a network setup page or the menu settings pages and locate the IP address in the TCP/IP section.
2Click Settings > General Settings > Timeouts.
3In the Sleep Mode field, enter the number of minutes you want the printer to wait before it enters Sleep Mode.
4Click Submit.
Using the printer control panel
1From the home screen, navigate to:
> Settings > General Settings > Timeouts > Sleep Mode
2In the Sleep Mode field, select the number of minutes you want the printer to wait before it enters Sleep Mode.
3Touch .
Using Hibernate Mode
Hibernate is an ultra-low power operating mode. When operating in Hibernate mode, all other systems and devices
are powered down safely.
Using the Embedded Web Server
1Type the printer IP address into the address field of your Web browser.
Minimizing your printer's environmental impact
58
If you do not know the IP address of the printer, you can:
•View the IP address on the printer control panel in the TCP/IP section under the Networks/Ports menu.
•Print a network setup page or the menu settings pages and locate the IP address in the TCP/IP section.
2Click Settings > General Settings > Sleep Button Settings.
3From the Press Sleep Button or Press and Hold Sleep Button drop-down, select Hibernate.
4Click Submit.
Using the printer control panel
1From the home screen, navigate to:
> Settings > General Settings > Press Sleep Button or Press and Hold Sleep Button > Hibernate
2Touch .
Adjusting the brightness of the display
To save energy, or if you are have trouble reading your display, adjust the brightness of the display.
Available settings range from 20–100. The factory default setting is 100.
Using the Embedded Web Server
1Type the printer IP address into the address field of your Web browser.
If you do not know the IP address of the printer, you can:
•View the IP address on the printer control panel in the TCP/IP section under the Networks/Ports menu.
•Print a network setup page or the menu settings pages and locate the IP address in the TCP/IP section.
2Click Settings > General Settings.
3In the Screen Brightness field, enter the brightness percentage you want for the display.
4Click Submit.
Using the printer control panel
1From the home screen, navigate to:
> Settings > General Settings
2Touch the down arrow until Screen Brightness appears, and then select a setting.
3Touch .
Recycling
Lexmark provides collection programs and environmentally progressive approaches to recycling. For more information,
see:
•The Notices chapter
•The Environmental Sustainability section of the Lexmark Web site at www.lexmark.com/environment
•The Lexmark recycling program at www.lexmark.com/recycle
Minimizing your printer's environmental impact
59
Recycling Lexmark products
To return Lexmark products for recycling:
1Visit our Web site at www.lexmark.com/recycle.
2Find the product type you want to recycle, and then select your country or region from the list.
3Follow the instructions on the computer screen.
Note: Printer supplies and hardware not listed in a Lexmark collection program may be recycled through your local
recycling center. Contact your local recycling center to determine the items they accept.
Recycling Lexmark packaging
Lexmark continually strives to minimize packaging. Less packaging helps to ensure that Lexmark printers are transported
in the most efficient and environmentally sensitive manner and that there is less packaging to dispose of. These
efficiencies result in fewer greenhouse emissions, energy savings, and natural resource savings.
Lexmark cartons are 100% recyclable where corrugated recycling facilities exist. Facilities may not exist in your area.
The foam used in Lexmark packaging is recyclable where foam recycling facilities exist. Facilities may not exist in your
area.
When you return a cartridge to Lexmark, you can reuse the box that the cartridge came in. Lexmark will recycle the
box.
Returning Lexmark cartridges for reuse or recycling
The Lexmark Cartridge Collection Program diverts millions of Lexmark cartridges from landfills annually by making it
both easy and free for Lexmark customers to return used cartridges to Lexmark for reuse or recycling. One hundred
percent of the empty cartridges returned to Lexmark are either reused or demanufactured for recycling. Boxes used
to return the cartridges are also recycled.
To return Lexmark cartridges for reuse or recycling, follow the instructions that came with your printer or cartridge and
use the pre-paid shipping label. You can also:
1Visit our Web site at www.lexmark.com/recycle.
2From the Toner Cartridges section, select your country from the list.
3Follow the instructions on the computer screen.
Minimizing your printer's environmental impact
60
Loading paper and specialty media
This section explains how to load the 550-sheet tray, an optional 2,000-sheet tray, a multipurpose feeder, and an
optional 550-sheet specialty media drawer. It also includes information about paper orientation, setting the Paper Size
and Paper Type, and linking and unlinking trays.
Setting the paper size and type
The Paper Size setting is automatically sensed according to the position of the paper guides in each tray except the
multipurpose feeder. The Paper Size setting for the multipurpose feeder must be set manually from the Paper Size
menu. The Paper Type setting must be set manually for all trays that do not contain plain paper.
From the home screen navigate to:
> Paper Menu > Paper Size/Type > select a tray > select the paper size or type >
The factory default Paper Type setting is Plain Paper.
Configuring Universal paper settings
The Universal Paper Size is a user-defined setting that lets you print on paper sizes that are not preset in the printer
menus. Set the Paper Size for the specified tray to Universal when the size you want is not available from the Paper
Size menu. Then, specify all of the following Universal size settings for your paper:
•Units of Measure
•Portrait Width
•Portrait Height
Notes:
•The largest supported Universal size is 216 x 1219 mm (8.5 x 48 in.).
•The smallest supported Universal size is 76 x 127 mm (3 x 5 in.) and loaded in the multipurpose feeder only.
From the home screen, navigate to:
> Paper Menu > Universal Setup > Units of Measure > select unit of measure > Portrait Width or Portrait
Height > select width or height >
Loading paper and specialty media
61
Loading the standard or optional 550-sheet tray
The printer has one standard 550-sheet tray (Tray 1), and may have one or more optional 550-sheet trays. All 550-sheet
trays support the same paper sizes and types.
CAUTION—POTENTIAL INJURY: To reduce the risk of equipment instability, load each paper drawer or tray
separately. Keep all other drawers or trays closed until needed.
1Pull the tray out.
Notice the size indicators on the bottom of the tray. Use these indicators to help position the length and width
guides.
LTR
LGL
A4
A4
LTR
LGL
Loading paper and specialty media
62
2Squeeze and then slide the width guide to the correct position for the paper size you are loading.
3Squeeze and then slide the length guide to the correct position for the paper size you are loading.
Note: The length guide has a locking device. To unlock, push the button on top of the length guide backward. To
lock, push the button forward when a length has been selected.
3
2
1
4Flex the sheets back and forth to loosen them. Do not fold or crease the paper. Straighten the edges on a level
surface.
5Load the paper stack with the recommended print side faceup.
Loading paper and specialty media
63
Notes:
•Place the print side facedown for duplex printing.
•Place pre-punched paper with the holes toward the front of the tray.
•Place letterheads faceup with the header on the left side of the tray.
•Place letterheads facedown with the header on the right side of the tray for duplex printing.
•Make sure the paper is below the maximum fill line located on the edge of the paper tray. Overloading the tray
can cause paper jams and possible printer damage.
6Insert the tray.
7From the printer control panel, verify the Paper Size and Paper Type for the tray based on the paper you loaded.
Loading paper and specialty media
64
Loading the 2000-sheet high-capacity feeder
The high-capacity feeder can hold up to 2,000 sheets of A4-, letter-, or legal-size paper (80 g/m2 or 20 lb).
CAUTION—POTENTIAL INJURY: To reduce the risk of equipment instability, load each paper drawer or tray
separately. Keep all other drawers or trays closed until needed.
1Pull the tray out.
2Adjust the width guide as necessary.
1
2
3Flex the sheets back and forth to loosen them. Do not fold or crease the paper. Straighten the edges on a level
surface.
Loading paper and specialty media
65
4Load paper into the tray with the print side faceup.
ABC
Note: Make sure the paper is below the maximum fill line located on the edge of the paper tray. Overloading the
tray can cause paper jams.
Notes:
•Place pre-punched paper with the holes toward the front of the tray.
•Place letterheads faceup with the header on the left side of the tray.
•Place letterheads facedown with the header on the right side of the tray for duplex printing.
5Insert the tray.
Loading paper and specialty media
66
Loading the multipurpose feeder
The multipurpose feeder can hold several sizes and types of print media, such as transparencies, labels, card stock, and
envelopes. It can be used for single-page or manual printing, or as an additional tray.
The multipurpose feeder can hold approximately:
•100 sheets of 75-g/m2 (20-lb) paper
•10 envelopes
•75 transparencies
The multipurpose feeder accepts paper or specialty media within the following dimensions:
•Width—89 mm (3.5 in.) to 229 mm (9.02 in.)
•Length—127 mm (5 in.) to 1270 mm (50 in.)
Note: Maximum width and length can be applied only to short-edge feeding.
Note: Do not add or remove paper or specialty media when the printer is printing from the multipurpose feeder or
when the printer control panel indicator light is blinking. Doing so may cause a jam.
1Pull down the multipurpose feeder door.
2For paper or specialty media that is longer than letter-size paper, gently pull the extension until it is fully extended.
Loading paper and specialty media
67
3Flex the sheets of paper or specialty media back and forth to loosen them. Do not fold or crease them. Straighten
the edges on a level surface.
Paper
Envelopes
Transparencies
Note: Avoid scratching or touching the print side.
4Push the paper pick tab, and then load the paper or specialty media. Slide the stack gently into the multipurpose
feeder until it comes to a stop, and then release the paper pick tab.
1
2
Warning—Potential Damage: Pulling the paper out, without pushing the paper pick tab first, may cause jams or
the paper pick tab to break.
•Load paper and transparencies with the recommended print side facedown and the short edge entering the
printer first.
•For duplex letterhead printing, place the letterhead faceup and the header entering the printer last.
Loading paper and specialty media
68
•Load envelopes with the flap side up and to the right.
Warning—Potential Damage: Never use envelopes with stamps, clasps, snaps, windows, coated linings, or
self-stick adhesives. These envelopes may severely damage the printer.
Notes:
•Do not exceed the maximum stack height by forcing paper or transparencies under the stack height limiter.
•Load only one size and type of paper at a time.
5Adjust the width guide to lightly touch the edge of the stack. Make sure the paper or specialty media fits loosely in
the multipurpose feeder, lies flat, and is not bent or wrinkled.
6From the printer control panel, set the Paper Size and Paper Type for the multipurpose feeder (MP Feeder Size and
MP Feeder Type) based on the paper or specialty media loaded.
Linking and unlinking trays
Linking trays
Tray linking is useful for large print jobs or for printing multiple copies. When one linked tray is empty, paper feeds
from the next linked tray. When the Paper Size and Paper Type settings are the same for any trays, the trays are
automatically linked. The Paper Size setting is automatically sensed according to the position of the paper guides in
each tray except Tray 1 and the multipurpose feeder. The Paper Size setting for the multipurpose feeder must be set
manually from the Paper Size menu. The Paper Type setting must be set for all trays from the Paper Type menu. The
Paper Type menu and the Paper Size menu are both available from the Paper Size/Type menu.
Loading paper and specialty media
69
Unlinking trays
Note: Trays that do not have the same settings as any other tray are not linked.
Change one of the following tray settings:
•Paper Type
Paper Type names describe the paper characteristics. If the name that best describes your paper is used by linked
trays, assign a different Paper Type name to the tray, such as Custom Type [x], or define your own custom name.
•Paper Size
Load a different paper size to automatically change the Paper Size setting for a tray. Paper Size settings for the
multipurpose feeder are not automatic; they must be set manually from the Paper Size menu.
Warning—Potential Damage: Do not assign a Paper Type name that does not accurately describe the type of paper
loaded in a tray. The temperature of the fuser varies according to the specified Paper Type. Prints may not be properly
processed if an inaccurate Paper Type is selected.
Linking exit bins
Link exit bins to create a single output source. The printer automatically uses the next available bin as the output source.
The standard exit bin holds up to 550 sheets of 20-lb paper. If you need additional output capacity, you can purchase
other optional exit bins.
Note: Not all exit bins support every paper size and type.
1From the home screen, navigate to:
> Paper Menu > Bin Setup
2Touch the bin or bins you want to link, and then touch Configure Bins > Link.
Creating a custom name for a paper type
If the printer is on a network, you can use the Embedded Web Server to define a name other than Custom Type [x] for
each of the custom paper types loaded into the printer.
1Type the printer IP address into the address field of your Web browser.
Note: If you do not know the IP address of the printer, then you can:
•View the IP address on the printer control panel in the TCP/IP section under the Networks/Ports menu.
•Print a network setup page or the menu settings pages and locate the IP address in the TCP/IP section.
2Click Settings > Paper Menu > Custom Name > type a name > Submit.
Note: This custom name will replace the Custom Type [x] name under the Custom Types and Paper Size and Type
menus.
3Click Custom Types > select a paper type > Submit.
Loading paper and specialty media
70
Assigning a custom paper type name
1From the home screen, navigate to:
> Paper Menu > Paper Size/Type
2Select the tray number or MP Feeder Type.
3Touch the left or right arrow until Custom Type [x] or another custom name appears.
4Touch .
Configuring a custom name
If the printer is on a network, then you can use the Embedded Web Server to define a name other than Custom Type [x]
for each of the custom paper types loaded into the printer.
1Type the printer IP address in the address field of your Web browser.
Note: If you do not know the IP address of the printer, then you can:
•View the IP address on the printer control panel in the TCP/IP section under the Networks/Ports menu.
•Print a network setup page or the menu settings pages and locate the IP address in the TCP/IP section.
2Click Settings > Paper Menu > Custom Types > select the custom name you want to configure > select a paper or
specialty media type > Submit.
Loading paper and specialty media
71
Paper and specialty media guide
Paper guidelines
Paper characteristics
The following paper characteristics affect print quality and reliability. Consider these characteristics when evaluating
new paper stock.
Weight
The printer can automatically feed paper weights from 60 to 220 g/m2 (16 to 58 lb bond) grain long. Paper lighter than
60 g/m2 (16 lb) might not be stiff enough to feed properly, causing jams. For best performance, use 75-g/m2 (20-lb
bond) grain long paper. For paper smaller than 182 x 257 mm (7 x 10 in.), we recommend 90 g/m2 (24 lb) or heavier
paper.
Note: Duplex is supported only for 60-g/m2–120-g/m2 (16-lb–32-lb bond) paper.
Curl
Curl is the tendency for paper to curl at its edges. Excessive curl can cause paper feeding problems. Curl can occur after
the paper passes through the printer, where it is exposed to high temperatures. Storing paper unwrapped in hot, humid,
cold, or dry conditions, even in the trays, can contribute to paper curling prior to printing and can cause feeding
problems.
Smoothness
Paper smoothness directly affects print quality. If paper is too rough, toner cannot fuse to it properly. If paper is too
smooth, it can cause paper feeding or print quality issues. Always use paper between 100 and 300 Sheffield points;
however, smoothness between 150 and 200 Sheffield points produces the best print quality.
Moisture content
The amount of moisture in paper affects both print quality and the ability of the printer to feed the paper correctly.
Leave paper in its original wrapper until it is time to use it. This limits the exposure of paper to moisture changes that
can degrade its performance.
Condition paper before printing by storing it in its original wrapper in the same environment as the printer for 24 to
48 hours before printing. Extend the time several days if the storage or transportation environment is very different
from the printer environment. Thick paper may also require a longer conditioning period.
Grain direction
Grain refers to the alignment of the paper fibers in a sheet of paper. Grain is either grain long, running the length of
the paper, or grain short, running the width of the paper.
For 60- to 135-g/m2 (16- to 36-lb bond) paper, grain long paper is recommended. For papers heavier than 135 g/m2,
grain short is recommended.
Paper and specialty media guide
72
Fiber content
Most high-quality xerographic paper is made from 100% chemically treated pulped wood. This content provides the
paper with a high degree of stability resulting in fewer paper feeding problems and better print quality. Paper containing
fibers such as cotton can negatively affect paper handling.
Unacceptable paper
The following paper types are not recommended for use with the printer:
•Chemically treated papers used to make copies without carbon paper, also known as carbonless papers, carbonless
copy paper (CCP), or no carbon required (NCR) paper
•Preprinted papers with chemicals that may contaminate the printer
•Preprinted papers that can be affected by the temperature in the printer fuser
•Preprinted papers that require a registration (the precise print location on the page) greater than ±2.3 mm (±0.9 in.),
such as optical character recognition (OCR) forms
In some cases, registration can be adjusted with a software application to successfully print on these forms.
•Coated papers (erasable bond), synthetic papers, thermal papers
•Rough-edged, rough or heavily textured surface papers, or curled papers
•Recycled papers that fail EN12281:2002 (European)
•Paper weighing less than 60 g/m2 (16 lb)
•Multiple-part forms or documents
Selecting paper
Using appropriate paper prevents jams and helps ensure trouble-free printing.
To help avoid jams and poor print quality:
•Always use new, undamaged paper.
•Before loading paper, know the recommended print side of the paper. This information is usually indicated on the
paper package.
•Do not use paper that has been cut or trimmed by hand.
•Do not mix paper sizes, types, or weights in the same source; mixing results in jams.
•Do not use coated papers unless they are specifically designed for electrophotographic printing.
Selecting preprinted forms and letterhead
Use these guidelines when selecting preprinted forms and letterhead:
•Use grain long for 60 to 90 g/m2 (16 to 24 lb) weight paper.
•Use only forms and letterhead printed using an offset lithographic or engraved printing process.
•Avoid papers with rough or heavily textured surfaces.
Use papers printed with heat-resistant inks designed for use in xerographic copiers. The ink must be able to withstand
temperatures up to 190°C (374°F) without melting or releasing hazardous emissions. Use inks that are not affected by
the resin in toner. Inks that are oxidation-set or oil-based generally meet these requirements; latex inks might not.
When in doubt, contact the paper supplier.
Paper and specialty media guide
73
Preprinted papers such as letterhead must be able to withstand temperatures up to 190°C (374°F) without melting or
releasing hazardous emissions.
Using recycled paper and other office papers
As an environmentally conscious company, Lexmark supports the use of recycled office paper produced specifically for
use in laser (electrophotographic) printers. In 1998, Lexmark presented to the US government a study demonstrating
that recycled paper produced by major mills in the US fed as well as non-recycled paper. However, no blanket statement
can be made that all recycled paper will feed well.
Lexmark consistently tests its printers with recycled paper (20–100% post-consumer waste) and a variety of test paper
from around the world, using chamber tests for different temperature and humidity conditions. Lexmark has found no
reason to discourage the use of today's recycled office papers, but generally the following property guidelines apply
to recycled paper.
•Low moisture content (4–5%)
•Suitable smoothness (100–200 Sheffield units, or 140–350 Bendtsen units, European)
Note: Some much smoother papers (such as premium 24 lb laser papers, 50–90 Sheffield units) and much rougher
papers (such as premium cotton papers, 200–300 Sheffield units) have been engineered to work very well in laser
printers, despite surface texture. Before using these types of paper, consult your paper supplier.
•Suitable sheet-to-sheet coefficient of friction (0.4–0.6)
•Sufficient bending resistance in the direction of feed
Recycled paper, paper of lower weight (<60 g/m2 [16 lb bond]) and/or lower caliper (<3.8 mils [0.1 mm]), and paper
that is cut grain-short for portrait (or short-edge) fed printers may have lower bending resistance than is required for
reliable paper feeding. Before using these types of paper for laser (electrophotographic) printing, consult your paper
supplier. Remember that these are general guidelines only and that paper meeting these guidelines may still cause
paper feeding problems in any laser printer (for example, if the paper curls excessively under normal printing
conditions).
Storing paper
Use these paper storage guidelines to help avoid jams and uneven print quality:
•For best results, store paper where the temperature is 21°C (70°F) and the relative humidity is 40%. Most label
manufacturers recommend printing in a temperature range of 18 to 24°C (65 to 75°F) with relative humidity between
40 and 60%.
•Store paper in cartons when possible, on a pallet or shelf, rather than on the floor.
•Store individual packages on a flat surface.
•Do not store anything on top of individual paper packages.
Paper and specialty media guide
74
Supported paper sizes, types, and weights
The following tables provide information on standard and optional paper input sources and the types of paper they
support.
Note: To use a paper size that is unlisted, configure a Universal Paper Size.
For more information, see the Card Stock & Label Guide available on the Lexmark Web site at
http://support.lexmark.com.
Supported paper sizes
Measurements apply to simplex (one-sided) printing only. For duplex (two-sided) printing, the minimum size is
139.7 x 210 mm (5.50 x 8.27 in.).
Paper size Dimensions Standard
550-sheet tray
(Tray 1)
Optional
550-sheet tray
Optional
2,000-sheet
tray
Multipurpose
feeder
Duplexer
A4 210 x 297 mm
(8.27 x 11.7 in.)
A5 148 x 210 mm
(5.83 x 8.27 in.)
X
A6 105 x 148 mm
(4.13 x 5.83 in.)
X X X X
JIS B5 182 x 257 mm
(7.17 x 10.1 in.)
X
Letter 215.9 x 279.4 mm
(8.5 x 11 in.)
Legal 215.9 x 355.6 mm
(8.5 x 14 in.)
Executive 184.2 x 266.7 mm
(7.25 x 10.5 in.)
X
Oficio (México) 215.9 x 340.4 mm
(8.5 x 13.4 in.)
X
Folio 215.9 x 330.2 mm
(8.5 x 13 in.)
X
Statement 139.7 x 215.9 mm
(5.5 x 8.5 in.)
X
1 Supported by C792 models only.
2 This formats the envelope size setting for 215.9 x 355.6 mm (8.5 x 14 in.) unless the size is specified by the software
application.
Paper and specialty media guide
75
Paper size Dimensions Standard
550-sheet tray
(Tray 1)
Optional
550-sheet tray
Optional
2,000-sheet
tray
Multipurpose
feeder
Duplexer
Universal
Note: Turn size
sensing off to
support
universal sizes
that are close to
standard media
sizes.
148 x 210 mm to
215.9 x 355.6 mm
(5.83 x 8.27 in. to
8.5 x 14 in.)
X
76.2 x 127 mm
(3 x 5 in.) to
215.9 x 355.6
mm (8.5 x 14 in.)
X X X X
76.2 x 127 mm
(3 x 5 in.) to
215.9 x 914.4
mm (8.5 x 36 in.)1
X X X X
76.2 x 127 mm
(3 x 5 in.) to
215.9 x 1219.2
mm (8.5 x 48 in.)1
X X X X
7 3/4 Envelope
(Monarch)
98.4 x 190.5 mm
(3.875 x 7.5 in.)
X X X X
9 Envelope 98.4 x 226.1 mm
(3.875 x 8.9 in.)
X X X X
Com 10
Envelope
104.8 x 241.3 mm
(4.12 x 9.5 in.)
X X X X
DL Envelope 110 x 220 mm
(4.33 x 8.66 in.)
X X X X
C5 Envelope 162 x 229 mm
(6.38 x 9.01 in.)
X X X X
B5 Envelope 176 x 250 mm
(6.93 x 9.84 in.)
X X X X
Other Envelope285.7 x 165 mm to
215.9 x 355.6 mm
(3.375 x 6.50 in. to
8.5 x 14 in.)
X X X X
1 Supported by C792 models only.
2 This formats the envelope size setting for 215.9 x 355.6 mm (8.5 x 14 in.) unless the size is specified by the software
application.
Paper and specialty media guide
76
Supported paper types and weights
The printer supports 60–176 g/m2 (16–47 lb) paper weights for one-sided printing. Two-sided printing is supported on
64–176 g/m2 (17–47 lb) paper weights.
Note: Labels, transparencies, envelopes, and card stock always print at reduced speed.
Paper type Standard
550-sheet tray
(Tray 1)
Optional
550-sheet tray
Optional
2,000-sheet tray
Multipurpose
feeder
Duplexer
Paper
•Plain
•Recycled
•Glossy
•Heavy Glossy
•Bond
•Letterhead
•Preprinted
•Colored
•Light
•Heavy
•Rough/Cotton
•Custom Type [x]
Card stock X
Transparencies1, 2 X X X X
Labels3
•Paper
•Vinyl
X
Envelopes4X X X X
1 This media is supported only in the multipurpose feeder.
2 Do not use inkjet or 3M CG3710 transparencies.
3 Paper labels are supported. Other media such as vinyl may show print quality defects in some environments, and prolonged
vinyl label usage may reduce fuser life. For more information, see the Card Stock & Label Guide available on the Lexmark
Web site at http://support.lexmark.com.
4 Use envelopes that lie flat when individually placed facedown on a table.
Paper and specialty media guide
77
Printing
This chapter covers printing, printer reports, and job cancelation. The selection and handling of paper and specialty
media can affect how reliably documents print. For more information, see “Avoiding jams” on page 163 and “Storing
paper” on page 74.
Printing a document
Printing a document
1From the printer control panel Paper menu, set the Paper Type and Paper Size to match the loaded paper.
2Send the print job:
For Windows users
aWith a document open, click File > Print.
bClick Properties, Preferences, Options, or Setup.
cAdjust settings as necessary.
dClick OK > Print.
For Macintosh users
aCustomize the settings as needed in the Page Setup dialog:
1With a document open, choose File > Page Setup.
2Choose a paper size or create a custom size to match the loaded paper.
3Click OK.
bCustomize the settings as needed in the Print dialog:
1With a document open, choose File > Print.
If necessary, click the disclosure triangle to see more options.
2From the Print dialog and pop-up menus, adjust the settings as needed.
Note: To print on a specific paper type, adjust the paper type setting to match the loaded paper, or select
the appropriate tray or feeder.
3Click Print.
Printing in black and white
From the home screen, navigate to:
> Settings > Print Settings > Quality Menu > Print Mode > Black Only >
Adjusting toner darkness
1Type the printer IP address into the address field of your Web browser.
Printing
78
If you do not know the IP address of the printer, you can:
•View the IP address on the printer control panel in the TCP/IP section under the Networks/Ports menu.
•Print a network setup page or the menu settings pages and locate the IP address in the TCP/IP section.
2Click Settings > Print Settings > Quality Menu > Toner Darkness.
3Adjust the toner darkness setting.
4Click Submit.
Printing from a flash drive
Printing from a flash drive
Notes:
•Before printing an encrypted PDF file, enter the file password from the printer control panel.
•You cannot print files for which you do not have printing permissions.
1Insert a flash drive into the USB port.
Notes:
•If you insert the flash drive when the printer requires attention, such as when a jam has occurred, then the
printer ignores the flash drive.
•If you insert the flash drive while the printer is processing other print jobs, then Busy appears. After these
print jobs are processed, you may need to view the held jobs list to print documents from the flash drive.
Warning—Potential Damage: Do not touch the USB cable, any network adapter, any connector, the memory
device, or the printer in the areas shown while actively printing, reading, or writing from the memory device. A
loss of data can occur.
Printing
79
2From the printer control panel, touch the document you want to print.
3Touch the arrows to increase the number of copies to print, and then touch Print.
Notes:
•Do not remove the flash drive from the USB port until the document has finished printing.
•If you leave the flash drive in the printer after leaving the initial USB menu screen, then you can still print files
from the flash drive as held jobs.
Supported flash drives and file types
Flash drive File type
•Lexar JumpDrive 2.0 Pro (256MB, 512MB, or 1GB sizes)
•SanDisk Cruzer Mini (256MB, 512MB, or 1GB sizes)
Notes:
•Hi-Speed USB flash drives must support the Full-Speed standard. Devices supporting only USB low-speed
capabilities are not supported.
•USB flash drives must support the FAT (File Allocation Tables) system. Devices formatted with NTFS
(New Technology File System) or any other file system are not supported.
Documents:
•.pdf
•.xps
Images:
•.dcx
•.pcx
•.TIFF
•.tif
Printing
80
Printing specialty documents
Tips on using letterhead
•Use letterhead designed specifically for laser printers.
•Print samples on the letterhead being considered for use before buying large quantities.
•Before loading letterhead, flex the sheets to prevent them from sticking together.
•Observe proper page orientation.
Source Print side Paper orientation
–Standard 550-sheet tray
–Optional 550-sheet tray
–Optional 2000-sheet
high-capacity feeder
Preprinted letterhead design is placed
faceup.
The top edge of the sheet with the logo is
placed at the left side of the tray.
Duplex (two-sided) printing
from trays
Preprinted letterhead design is placed
facedown.
The top edge of the sheet with the logo is
placed at the right side of the tray.
Multipurpose feeder (simplex
printing)
Preprinted letterhead design is placed
facedown.
The top edge of the sheet with the logo
should enter the multipurpose feeder
first.
Multipurpose feeder (duplex
printing)
Preprinted letterhead design is placed
faceup.
The top edge of the sheet with the logo
should enter the multipurpose feeder last.
Note: Check with the manufacturer or vendor to determine whether the chosen preprinted letterhead is acceptable
for laser printers.
Tips on using transparencies
•Print a test page on the transparencies being considered for use before buying large quantities.
•Feed transparencies from the multipurpose feeder only.
•From the Paper menu, set the MP Feeder Type to Transparency.
•Use transparencies designed specifically for laser printers. Transparencies must be able to withstand temperatures
of 230°C (446°F) without melting, discoloring, offsetting, or releasing hazardous emissions.
•To prevent print quality problems, avoid getting fingerprints on the transparencies.
•Before loading transparencies, flex the stack to prevent sheets from sticking together.
•We recommend Lexmark transparencies. For ordering information, see the Lexmark Web site at
www.lexmark.com.
Tips on using envelopes
Print samples on the envelopes being considered for use before buying large quantities.
•Use envelopes designed specifically for laser printers. Check with the manufacturer or vendor to ensure that the
envelopes can withstand temperatures up to 220°C (446°F) without sealing, wrinkling, curling excessively, or
releasing hazardous emissions.
•For best performance, use envelopes made from 90-g/m2 (24-lb bond) paper or 25% cotton. All-cotton envelopes
must not exceed 70-g/m2 (20-lb bond) weight.
Printing
81
•Use only new envelopes from undamaged packages.
•To optimize performance and minimize jams, do not use envelopes that:
–Have excessive curl or twist.
–Are stuck together or damaged in any way.
–Have windows, holes, perforations, cutouts, or embossing.
–Have metal clasps, string ties, or folding bars.
–Have an interlocking design.
–Have postage stamps attached.
–Have any exposed adhesive when the flap is in the sealed or closed position.
–Have bent corners.
–Have rough, cockle, or laid finishes.
•Adjust the width guides to fit the width of the envelopes.
Note: A combination of high humidity (over 60%) and high printing temperature may wrinkle or seal envelopes.
Tips on using labels
Note: Use paper label sheets for occasional use only. Vinyl, pharmacy, and dual-sided labels are not supported.
For detailed information on label printing, characteristics, and design, see the Card Stock & Label Guide available on
the Lexmark Web site at http://support.lexmark.com.
When printing on labels:
•Use labels designed specifically for laser/LED printers. Check with the manufacturer or vendor to verify that:
–The labels can withstand temperatures up to 210°C (410°F) without sealing, excessive curling, wrinkling, or
releasing hazardous emissions.
Note: Labels can be printed at a higher fusing temperature up to 220°C (428°F) if Label Weight is set to Heavy.
Select this setting using the Embedded Web Server, or from the printer control panel Paper menu.
–Label adhesives, face sheet (printable stock), and topcoats can withstand up to 25 psi (172 kPa) pressure without
delaminating, oozing around the edges, or releasing hazardous fumes.
•Do not use labels with slick backing material.
•Use full label sheets. Partial sheets may cause labels to peel off during printing, resulting in a jam. Partial sheets
also contaminate the printer and the cartridge with adhesive, and could void the printer and cartridge warranties.
•Do not use labels with exposed adhesive.
•Do not print within 1 mm (0.04 in.) of the edge of the label, of the perforations, or between die-cuts of the label.
•Be sure adhesive backing does not reach to the sheet edge. Zone coating of the adhesive at least 1 mm (0.04 in.)
away from edges is recommended. Adhesive material contaminates the printer and could void the warranty.
•If zone coating of the adhesive is not possible, remove a 1.6 mm (0.06 in.) strip on the leading and driver edge, and
use a non-oozing adhesive.
•Portrait orientation works best, especially when printing bar codes.
Printing
82
Tips on using card stock
Card stock is heavy, single-ply specialty media. Many of its variable characteristics, such as moisture content, thickness,
and texture, can significantly impact print quality. Print samples on the card stock being considered for use before
buying large quantities.
•From the Paper menu, set the Paper Type to Card Stock.
•Select the appropriate Paper Texture setting.
•Be aware that preprinting, perforation, and creasing may significantly affect the print quality and cause jams or
other paper handling problems.
•Check with the manufacturer or vendor to ensure the card stock can withstand temperatures up to 220°C (446°F)
without releasing hazardous emissions.
•Do not use preprinted card stock manufactured with chemicals that may contaminate the printer. Preprinting
introduces semi-liquid and volatile components into the printer.
•Use grain short card stock when possible.
Printing confidential and other held jobs
Storing print jobs in the printer
You can set the printer to store print jobs in the printer memory until you start the print job from the printer control
panel.
All print jobs that can be initiated by the user at the printer are called held jobs.
Note: Confidential, Verify, Reserve, and Repeat print jobs may be deleted if the printer requires extra memory to process
additional held jobs.
Print job type Description
Confidential Confidential lets you hold print jobs in the computer until you enter the PIN from
the control panel.
Note: The PIN is set from the computer. It must be four digits, using the numbers
0–9.
Verify Verify lets you print one copy of a print job while the printer holds the remaining
copies. It allows you to examine if the first copy is satisfactory. The print job is
automatically deleted from the printer memory once all copies are printed.
Reserve Reserve allows the printer to store print jobs for printing at a later time. The print
jobs are held until deleted from the Help Jobs menu.
Repeat Repeat prints and stores print jobs in the printer memory for reprinting.
Printing
83
Printing confidential and other held jobs
Note: Confidential and Verify print jobs are automatically deleted from memory after printing. Repeat and Reserve
jobs are held in the printer until you choose to delete them.
For Windows users
1With a document open, click File > Print.
2Click Properties, Preferences, Options, or Setup.
3Click Print and Hold.
4Select the print job type (Confidential, Repeat, Reserve, or Verify), and then assign a user name. For a confidential
print job, also enter a four-digit PIN.
5Click OK or Print.
6From the printer home screen, release the print job.
•For confidential print jobs, navigate to:
Held jobs > your user name > Confidential Jobs > enter PIN > select print job > specify number of copies >
Print
•For other print jobs, navigate to:
Held jobs > your user name > select print job > specify number of copies > Print
For Macintosh users
1With a document open, choose File > Print.
If necessary, click the disclosure triangle to see more options.
2From the print options or Copies & Pages pop-up menu, choose Job Routing.
3Select the print job type (Confidential, Repeat, Reserve, or Verify), and then assign a user name. For a confidential
print job, also enter a four-digit PIN.
4Click OK or Print.
5From the printer home screen, release the print job.
•For confidential print jobs, navigate to:
Held jobs > your user name > Confidential Jobs > enter PIN > select print job > specify number of copies >
Print
•For other print jobs, navigate to:
Held jobs > your user name > select print job > specify number of copies > Print
Printing information pages
Printing a font sample list
1From the home screen, navigate to:
> Reports > Print Fonts
2Touch PCL Fonts or PostScript Fonts.
Printing
84
Printing a directory list
A directory list shows the resources stored in a flash memory or on the printer hard disk.
From the home screen, navigate to:
> Reports > Print Directory
Canceling a print job
There are several methods for canceling a print job. The following sections explain how to cancel a print job from the
printer control panel, or from a computer depending on the operating system.
Canceling a print job from the printer control panel
1Touch Cancel Jobs on the touch screen, or press on the keypad.
2Touch the job you want to cancel, and then touch Delete Selected Jobs.
Canceling a print job from the computer
For Windows users
1Open the printers folder:
aClick , or click Start and then click Run.
bIn the Start Search or Run box, type control printers.
cPress Enter, or click OK.
2Double-click the printer icon.
3Select the print job you want to cancel.
4From the keyboard, press Delete.
For Macintosh users
In Mac OS X version 10.5 or later:
1From the Apple menu, choose System Preferences > Print & Fax > Open Print Queue.
2From the printer window, select the print job you want to cancel.
3From the icon bar at the top of the window, click the Delete icon.
In Mac OS X version 10.4 or earlier:
1From the Finder, navigate to:
Go > Applications
2Double-click Utilities > Print Center or Printer Setup Utility.
3Double-click the printer icon.
Printing
85
4From the printer window, select the print job you want to cancel.
5From the icon bar at the top of the window, click the Delete icon.
Printing
86
Understanding printer menus
Menus list
Supplies Paper Menu Reports Settings
Cyan Cartridge
Magenta Cartridge
Yellow Cartridge
Black Cartridge
Waste Toner Bottle
Fuser
Transfer Module
Staples
Hole Punch Box
Default Source
Paper Size/Type
Configure MP
Substitute Size
Paper Texture
Paper Weight
Paper Loading
Custom Types
Custom Names
Custom Bin Names
Universal Setup
Bin Setup
Menu Settings Page
Device Statistics
Network Setup Page
Network [x] Setup Page
Profiles List
Print Fonts
Print Directory
Asset Report
General Settings
Flash Drive Menu
Print Settings
Setup Menu
Finishing Menu
Quality Menu
Job Accounting Menu
Utilities Menu
XPS Menu
PDF Menu
PostScript Menu
PCL Emul Menu
HTML Menu
Image Menu
Security Network/Ports Help
Miscellaneous Security Settings
Confidential Print
Disk Wiping
Security Audit Log
Set Date and Time
Active NIC
Standard Network or Network [x]*
Standard USB
Parallel [x]
Serial [x]
SMTP Setup
Print All Guides
Color Quality
Print Quality
Printing Guide
Media Guide
Print Defects Guide
Menu Map
Information Guide
Connection Guide
Moving Guide
Supplies Guide
* Depending on the printer setup, this menu appears as Standard Network, Network [x], or Wireless Network.
Understanding printer menus
87
Supplies menu
Menu item Description
Cyan Cartridge
Early Warning
Invalid
Critically Low
Missing
Defective
OK
Unsupported
Shows the status of the cyan print cartridge
Magenta Cartridge
Early Warning
Invalid
Critically Low
Missing
Defective
OK
Unsupported
Shows the status of the magenta print cartridge
Yellow Cartridge
Early Warning
Invalid
Critically Low
Missing
Defective
OK
Unsupported
Shows the status of the yellow print cartridge
Black Cartridge
Early Warning
Invalid
Critically Low
Missing
Defective
OK
Unsupported
Shows the status of the black print cartridge
Waste Toner Bottle
Near Full
Replace
Missing
OK
Shows the status of the waste toner bottle
Understanding printer menus
88
Menu item Description
Fuser
Early Warning
Low
Replace
Missing
OK
Shows the status of the fuser
Transfer module
Early Warning
Low
Replace
Missing
OK
Shows the status of the transfer module
Staple Cartridge
Early Warning
Low
Replace
Missing
OK
Shows the status of the staple cartridge
Hole Punch Box
Near Full
Replace
Missing
OK
Shows the status of the hole punch box
Paper menu
Default Source menu
Menu item Description
Default Source
Tray [x]
MP Feeder
Manual Paper
Manual Envelope
Sets a default paper source for all print jobs
Notes:
•Tray 1 (standard tray) is the factory default setting.
•From the Paper menu, Configure MP feeder must be set to Cassette for MP
feeder to appear as a menu setting.
•If the same size and type of paper are in two trays and the Paper Size and
Paper Type settings match, then the trays are automatically linked. When
one tray is empty, the print job continues using the linked tray.
Understanding printer menus
89
Paper Size/Type menu
Menu item Description
Tray [x] Size
Letter
Legal
Executive
Oficio (Mexico)
Folio
Statement
Universal
A4
A5
JIS B5
Specifies the paper size loaded in each tray
Notes:
•Letter is the US factory default setting. A4 is the international factory
default setting.
•For trays with automatic size sensing, only the size detected by the
hardware appears.
•If the same size and type of paper are in two trays and the Paper Size and
Paper Type settings match, then the trays are automatically linked. When
one tray is empty, the print job uses the linked tray.
Tray [x] Type
Plain Paper
Card Stock
Transparency
Recycled
Glossy
Heavy Glossy
Labels
Vinyl Labels
Bond
Letterhead
Preprinted
Colored Paper
Light Paper
Heavy Paper
Rough/Cotton Paper
Custom Type [x]
Specifies the type of paper loaded in each tray
Notes:
•Plain Paper is the factory default setting for Tray 1. Custom Type [x] is the
factory default setting for all other trays.
•If available, a user-defined name will appear instead of Custom Type [x].
•Use this menu item to configure automatic tray linking.
Note: Only installed trays are listed in this menu.
Understanding printer menus
90
Menu item Description
MP Feeder Size
Letter
Legal
Executive
Oficio (Mexico)
Folio
Statement
Universal
7 3/4 Envelope
9 Envelope
10 Envelope
DL Envelope
C5 Envelope
B5 Envelope
Other Envelope
A4
A5
A6
JIS B5
Specifies the paper size loaded in the multipurpose feeder
Notes:
•Letter is the US factory default setting. A4 is the international factory
default setting.
•From the Paper menu, Configure MP Feeder must be set to Cassette for
MP Feeder to appear as a menu item.
MP Feeder Type
Custom Type [x]
Plain Paper
Card Stock
Transparency
Recycled
Glossy
Heavy Glossy
Labels
Vinyl Labels
Bond
Envelope
Rough Envelope
Letterhead
Preprinted
Colored Paper
Light Paper
Heavy Paper
Rough/Cotton Paper
Specifies the type of paper loaded in the multipurpose feeder
Notes:
•Custom Type [x] is the factory default setting.
•From the Paper menu, Configure MP Feeder must be set to Cassette for
MP Feeder to appear as a menu item.
Note: Only installed trays are listed in this menu.
Understanding printer menus
91
Menu item Description
Manual Paper Size
Letter
Legal
Executive
Oficio (Mexico)
Folio
Statement
Universal
A4
A5
A6
JIS B5
Specifies the size of the paper being manually loaded
Note: Letter is the US factory default setting. A4 is the international factory
default setting.
Manual Paper Type
Plain Paper
Card Stock
Transparency
Recycled
Glossy
Heavy Glossy
Labels
Vinyl Labels
Bond
Letterhead
Preprinted
Colored Paper
Light Paper
Heavy Paper
Rough/Cotton Paper
Custom Type [x]
Specifies the type of paper being manually loaded
Note: Plain Paper is the factory default setting.
Manual Envelope Size
10 Envelope
DL Envelope
C5 Envelope
B5 Envelope
Other Envelope
7 3/4 Envelope
9 Envelope
Specifies the size of the envelope being manually loaded
Note: 10 Envelope is the US factory default setting. DL Envelope is the
international factory default setting.
Manual Envelope Type
Envelope
Rough Envelope
Custom Type [x]
Specifies the type of envelope being manually loaded
Note: Envelope is the factory default setting.
Note: Only installed trays are listed in this menu.
Understanding printer menus
92
Configure MP menu
Menu item Description
Configure MP
Cassette
Manual
First
Determines when the printer selects paper from the multipurpose feeder
Notes:
•Cassette is the factory default setting. Cassette configures the multipurpose
feeder as the automatic paper source.
•Manual sets the multipurpose feeder only for manual feed print jobs.
•First configures the multipurpose feeder as the primary paper source.
Substitute Size menu
Menu item Description
Substitute Size
All Listed
Off
Statement/A5
Letter/A4
Substitutes a specified paper size if the requested paper size is not available
Notes:
•All Listed is the factory default setting. All available size substitutions are
allowed.
•Off indicates no size substitutions are allowed.
•Setting a size substitution lets a print job continue without a Change Paper
message appearing.
Paper Texture menu
Menu item Description
Plain Texture
Normal
Rough
Smooth
Specifies the relative texture of the plain paper loaded
Note: Normal is the factory default setting.
Card Stock Texture
Normal
Rough
Smooth
Specifies the relative texture of the card stock loaded
Notes:
•Normal is the factory default setting.
•Settings appear only if card stock is supported.
Transparency Texture
Normal
Rough
Smooth
Specifies the relative texture of the transparencies loaded
Note: Normal is the factory default setting.
Recycled Texture
Normal
Rough
Smooth
Specifies the relative texture of the recycled paper loaded
Note: Normal is the factory default setting.
Understanding printer menus
93
Menu item Description
Glossy Texture
Normal
Rough
Smooth
Specifies the relative texture of the glossy paper loaded
Note: Normal is the factory default setting.
Heavy Glossy Texture
Normal
Rough
Smooth
Specifies the relative texture of the glossy paper loaded
Note: Normal is the factory default setting.
Labels Texture
Normal
Rough
Smooth
Specifies the relative texture of the labels loaded
Note: Normal is the factory default setting.
Vinyl Labels Texture
Normal
Rough
Smooth
Specifies the relative texture of the vinyl labels loaded
Note: Normal is the factory default setting.
Bond Texture
Rough
Smooth
Normal
Specifies the relative texture of the bond paper loaded
Note: Rough is the factory default setting.
Envelope Texture
Normal
Rough
Smooth
Specifies the relative texture of the envelopes loaded
Note: Normal is the factory default setting.
Rough Envelope Texture
Rough
Specifies the relative texture of the envelopes loaded
Note: Rough is the factory default setting.
Letterhead Texture
Normal
Rough
Smooth
Specifies the relative texture of the letterhead loaded
Note: Normal is the factory default setting.
Preprinted Texture
Normal
Rough
Smooth
Specifies the relative texture of the preprinted paper loaded
Note: Normal is the factory default setting.
Colored Texture
Normal
Rough
Smooth
Specifies the relative texture of the colored paper loaded
Note: Normal is the factory default setting.
Light Texture
Normal
Rough
Smooth
Specifies the relative texture of the paper loaded
Note: Normal is the factory default setting.
Understanding printer menus
94
Menu item Description
Heavy Texture
Normal
Rough
Smooth
Specifies the relative texture of the paper loaded
Note: Normal is the factory default setting.
Rough/Cotton Texture
Rough
Specifies the relative texture of the cotton paper loaded
Note: Rough is the factory default setting.
Custom [x] Texture
Normal
Rough
Smooth
Specifies the relative texture of the custom paper loaded
Notes:
•Normal is the factory default setting.
•Settings appear only if the custom type is supported.
Paper Weight menu
Menu item Description
Plain Weight
Normal
Heavy
Light
Specifies the relative weight of the plain paper loaded
Note: Normal is the factory default setting.
Card Stock Weight
Normal
Heavy
Light
Specifies the relative weight of the card stock loaded
Notes:
•Normal is the factory default setting.
•Settings appear only if card stock is supported.
Transparency Weight
Normal
Heavy
Light
Specifies the relative weight of the transparencies loaded
Note: Normal is the factory default setting.
Recycled Weight
Normal
Heavy
Light
Specifies the relative weight of the recycled paper loaded
Note: Normal is the factory default setting.
Glossy Weight
Normal
Heavy
Light
Specifies the relative weight of the glossy paper loaded
Note: Normal is the factory default setting.
Heavy Glossy Weight
Heavy
Specifies the relative weight of the glossy paper loaded
Note: Heavy is the factory default setting.
Labels Weight
Normal
Heavy
Light
Specifies the relative weight of the labels loaded
Note: Normal is the factory default setting.
Understanding printer menus
95
Menu item Description
Vinyl Labels Weight
Normal
Heavy
Light
Specifies the relative weight of vinyl labels loaded
Note: Normal is the factory default setting.
Bond Weight
Normal
Heavy
Light
Specifies the relative weight of the bond paper loaded
Note: Normal is the factory default setting.
Envelope Weight
Normal
Heavy
Light
Specifies the relative weight of the envelopes loaded
Note: Normal is the factory default setting.
Rough Envelope Weight
Heavy
Light
Normal
Specifies the relative weight of the envelopes loaded
Note: Heavy is the factory default setting.
Letterhead Weight
Normal
Heavy
Light
Specifies the relative weight of the letterhead loaded
Note: Normal is the factory default setting.
Preprinted Weight
Normal
Heavy
Light
Specifies the relative weight of the preprinted paper loaded
Note: Normal is the factory default setting.
Colored Weight
Normal
Heavy
Light
Specifies the relative weight of the colored paper loaded
Note: Normal is the factory default setting.
Light Weight
Light
Specifies the relative weight of the paper loaded
Note: Light is the factory default setting.
Heavy Weight
Heavy
Specifies the relative weight of the paper loaded
Note: Heavy is the factory default setting.
Rough/Cotton Weight
Normal
Heavy
Light
Specifies the relative weight of the cotton paper loaded
Note: Normal is the factory default setting.
Custom [x] Weight
Normal
Heavy
Light
Specifies the relative weight of the custom paper loaded
Notes:
•Normal is the factory default setting.
•Settings appear only if the custom type is supported.
Understanding printer menus
96
Paper Loading menu
Menu item Description
Card Stock Loading
Off
Duplex
Determines whether 2-sided printing occurs for all print jobs that
specify Card Stock as the paper type
Note: Off is the factory default setting.
Recycled Loading
Off
Duplex
Determines whether 2-sided printing occurs for all print jobs that
specify Recycled as the paper type
Note: Off is the factory default setting.
Glossy Loading
Off
Duplex
Determines whether 2-sided printing occurs for all print jobs that
specify Glossy as the paper type
Note: Off is the factory default setting.
Heavy Glossy Loading
Off
Duplex
Determines whether 2-sided printing occurs for all print jobs that
specify Heavy Glossy as the paper type
Note: Off is the factory default setting.
Labels Loading
Off
Duplex
Determines whether 2-sided printing occurs for all print jobs that
specify Labels as the paper type
Note: Off is the factory default setting.
Vinyl Labels Loading
Off
Duplex
Determines whether 2-sided printing occurs for all print jobs that
specify Vinyl Labels as the paper type
Note: Off is the factory default setting.
Bond Loading
Off
Duplex
Determines whether 2-sided printing occurs for all print jobs that
specify Bond as the paper type
Note: Off is the factory default setting.
Letterhead Loading
Off
Duplex
Determines whether 2-sided printing occurs for all print jobs that
specify Letterhead as the paper type
Note: Off is the factory default setting.
Preprinted Loading
Off
Duplex
Determines whether 2-sided printing occurs for all print jobs that
specify Preprinted as the paper type
Note: Off is the factory default setting.
Colored Loading
Off
Duplex
Determines whether 2-sided printing occurs for all print jobs that
specify Colored as the paper type
Note: Off is the factory default setting.
Light Loading
Off
Duplex
Determines whether 2-sided printing occurs for all print jobs that
specify Light as the paper type
Note: Off is the factory default setting.
Notes:
•Duplex sets the printer default to 2-sided printing for every print job unless 1-sided printing is selected from Print
Properties.
•If Duplex is selected, then all print jobs are sent through the duplex unit, including 1-sided print jobs.
Understanding printer menus
97
Menu item Description
Heavy Loading
Off
Duplex
Determines whether 2-sided printing occurs for all print jobs that
specify Heavy as the paper type
Note: Off is the factory default setting.
Rough/Cotton Loading
Off
Duplex
Determines whether 2-sided printing occurs for all print jobs that
specify Rough or Cotton as the paper type
Note: Off is the factory default setting.
Custom [x] Loading
Off
Duplex
Determines whether 2-sided printing occurs for all print jobs that
specify Custom [x] as the paper type
Notes:
•Off is the factory default setting.
•Custom [x] Loading is available only if the custom paper type is
supported.
Notes:
•Duplex sets the printer default to 2-sided printing for every print job unless 1-sided printing is selected from Print
Properties.
•If Duplex is selected, then all print jobs are sent through the duplex unit, including 1-sided print jobs.
Custom Types menu
Menu item Description
Custom Type [x]
Paper
Card Stock
Transparency
Glossy
Rough/Cotton
Labels
Vinyl Labels
Envelope
Associates a paper or specialty media type with a factory default Custom
Type [x] name or a user-defined Custom Name created from the Embedded
Web Server or from MarkVisionTM Professional
Notes:
•Paper is the factory default setting.
•The custom media type must be supported by the selected tray or
multipurpose feeder in order to print from that source.
Recycled
Paper
Card Stock
Transparency
Glossy
Rough/Cotton
Labels
Vinyl Labels
Envelope
Specifies a paper type when the Recycled setting is selected in other menus
Notes:
•Paper is the factory default setting.
•The custom media type must be supported by the selected tray or
multipurpose feeder in order to print from that source.
Understanding printer menus
98
Custom Names menu
Menu item Definition
Custom Name [x]
[none]
Specify a custom name for a paper type. This name replaces the Custom
Type [x] name in the printer menus.
Custom Bin Names menu
Menu Item Description
Standard Bin Specifies a custom name for the Standard Bin
Bin [x] Specifies a custom name for Bin [x]
Universal Setup menu
These menu items are used to specify the height and width of the Universal paper size. The Universal paper size is a
user-defined paper size setting. It is listed with the other paper size settings and includes similar options, such as support
for duplex printing and printing multiple pages on one sheet.
Menu item Description
Units of Measure
Inches
Millimeters
Identifies the unit of measure
Note: Inches is the US factory default setting. Millimeters is the
international factory default setting.
Portrait Width
3–48 inches
76–1219 mm
Sets the portrait width
Notes:
•If the width exceeds the maximum, then the printer uses the maximum
width allowed.
•8.5 inches is the US factory default setting. 216 mm is the international
factory default setting.
•The width can be increased in 0.01-inch or in 1-mm increments.
Portrait Height
3–48 inches
76–1219 mm
Sets the portrait height
Notes:
•If the height exceeds the maximum, then the printer uses the
maximum height allowed.
•14 inches is the US factory default setting. 356 mm is the international
factory default setting.
•The height can be increased in 0.01-inch or in 1-mm increments.
Feed Direction
Short Edge
Long Edge
Specifies the feed direction
Notes:
•Short Edge is the factory default setting.
•Long Edge appears only if the longest edge is shorter than the
maximum width supported in the tray.
Understanding printer menus
99
Bin Setup menu
Menu item Description
Output Bin
Standard Bin
Bin [x]
Specifies the default exit bin
Note: Standard Bin is the factory default setting.
Configure Bins
Mailbox
Link
Mail Overflow
Link Optional
Type Assignment
Specifies configuration options for exit bins
Notes:
•Mailbox is the factory default setting. This setting
treats each bin as a separate mailbox.
•Link configures all available bins as one large exit bin.
•Mail Overflow assigns an overflow bin when the
mailbox bins become full.
•Link Optional links together all available exit bins
except the standard bin and only appears when at least
two optional bins are installed.
•Type Assignment assigns each paper type to an exit bin
or linked bin set.
•Bins assigned the same name are automatically linked
unless Link Optional is selected.
Overflow Bin
Standard Bin
Bin [x]
Specifies an alternate exit bin when a designated bin is full
Note: Standard Bin is the factory default setting.
Assign Type/Bin
Plain Paper Bin
Card Stock Bin
Transparency Bin
Recycled Bin
Glossy Bin
Heavy Glossy Bin
Labels Bin
Vinyl Labels Bin
Bond Bin
Envelope Bin
Rough Envelope Bin
Letterhead Bin
Preprinted Bin
Colored Bin
Light Paper Bin
Heavy Paper Bin
Rough/Cotton Bin
Custom [x] Bin
Selects an exit bin for each supported paper type
Select from the following options for each type:
Disabled
Standard Bin
Bin [x]
Note: Disabled is the factory default setting.
Understanding printer menus
100
Reports menu
Reports menu
Menu item Description
Menu Settings Page Prints a report containing information about the paper loaded into trays, installed
memory, total page count, alarms, timeouts, printer control panel language,
TCP/IP address, status of supplies, status of the network connection, and other
information
Device Statistics Prints a report containing printer statistics such as supply information and details
about printed pages
Network Setup Page Prints a report containing information about the network printer settings, such
as the TCP/IP address information
Note: This menu item appears only in network printers or in printers connected
to print servers.
Network [x] Setup Page Prints a report containing information about the network printer settings, such
as the TCP/IP address information
Notes:
•This selection is available when more than one network option is installed.
•This menu item appears only in network printers or in printers connected to
print servers.
Profiles List Prints a list of profiles stored in the printer
Print Fonts
PCL Fonts
PostScript Fonts
Prints a report of all the fonts available for the printer language currently set in
the printer
Note: A separate list is available for PCL and PostScript emulations.
Print Directory Prints a list of all the resources stored on an optional flash memory card or printer
hard disk
Notes:
•Job Buffer Size must be set to 100%.
•Make sure the optional flash memory or printer hard disk is installed correctly
and working properly.
Asset Report Prints a report containing printer asset information, such as serial number and
model name
Note: The report contains text and UPC barcodes that can be scanned into an
asset database.
Understanding printer menus
101
Network/Ports menu
Active NIC menu
Menu item Description
Active NIC
Auto
[list of available network cards]
Notes:
•Auto is the factory default setting.
•This menu item appears only if an optional network card is installed.
Standard Network or Network [x] menus
Note: Only active ports appear in this menu; all inactive ports are omitted.
Menu item Description
PCL SmartSwitch
On
Off
Sets the printer to automatically switch to PCL emulation when a print job requires
it, regardless of the default printer language
Notes:
•On is the factory default setting.
•When Off is used, the printer does not examine incoming data. The printer uses
PostScript emulation if PS SmartSwitch is set to On. It uses the default printer
language specified in the Setup menu if PS SmartSwitch is set to Off.
PS SmartSwitch
On
Off
Sets the printer to automatically switch to PS emulation when a print job requires
it, regardless of the default printer language
Notes:
•On is the factory default setting.
•When Off is used, the printer does not examine incoming data. The printer uses
PCL emulation if PCL SmartSwitch is set to On. It uses the default printer
language specified in the Setup menu if PCL SmartSwitch is set to Off.
NPA Mode
Auto
Off
Sets the printer to perform the special processing required for bidirectional
communication following the conventions defined by the NPA protocol
Notes:
•Auto is the factory default setting.
•Changing this setting from the printer control panel and then exiting the menus
causes the printer to restart. The menu selection is then updated.
Understanding printer menus
102
Menu item Description
Network Buffer
Auto
3KB to [maximum size allowed]
Sets the size of the network input buffer
Notes:
•Auto is the factory default setting.
•The value can be changed in 1-KB increments.
•The maximum size allowed depends on the amount of memory in the printer,
the size of the other link buffers, and whether Resource Save is set to On or Off.
•To increase the maximum size range for the Network Buffer, disable or reduce
the size of the parallel, serial, and USB buffers.
•Changing this setting from the printer control panel and then exiting the menus
causes the printer to restart. The menu selection is then updated.
Job Buffering
Off
On
Auto
Temporarily stores print jobs on the printer hard disk before printing. This menu
only appears if a formatted disk is installed.
Notes:
•Off is the factory default setting.
•On buffers print jobs on the printer hard disk.
•Auto buffers print jobs only if the printer is busy processing data from another
input port.
•Changing this setting from the printer control panel and then exiting the menus
causes the printer to restart. The menu selection is then updated.
Mac Binary PS
Auto
On
Off
Sets the printer to process Macintosh binary PostScript print jobs
Notes:
•Auto is the factory default setting.
•Off filters print jobs using the standard protocol.
•On processes raw binary PostScript print jobs.
Standard Network Setup
Reports
Network Card
TCP/IP
IPv6
Wireless
AppleTalk
Displays and sets the printer network settings.
Note: The Wireless menu appears only when the printer is connected to a wireless
network.
Network [x] Setup
Reports
Network Card
TCP/IP
IPv6
Wireless
AppleTalk
Network Reports menu
This menu is available from the Network/Ports menu:
Understanding printer menus
103
Network/Ports > Standard Network or Network [x] > Standard Network Setup or Network [x] Setup > Reports or
Network Reports
Menu item Description
Print Setup Page Prints a report containing information about the network printer settings, such as the TCP/IP address
Network Card menu
This menu is available from the Network/Ports menu:
Network/Ports > Standard Network or Network [x] > Standard Network Setup or Network [x] Setup > Network Card
Menu item Description
View Card Status
Connected
Disconnected
Lets you view the connection status of the Network Card
View Card Speed Lets you view the speed of a currently active network card
Network Address
UAA
LAA
Lets you view the network addresses
Job Timeout
0
10–225
Sets the amount of time in seconds before a network print job is canceled
Note: 90 seconds is the factory default setting.
Banner Page
Off
On
Allows the printer to print a banner page
Note: Off is the factory default setting.
TCP/IP menu
This menu is available from the Network/Ports menu:
Network/Ports > Standard Network or Network [x] > Standard Network Setup or Network [x] Setup > TCP/IP
Note: This menu is available only in network models or printers attached to print servers.
Menu item Description
Activate
On
Off
Activates TCP/IP
Note: On is the factory default setting.
Set Hostname Lets you set the current TCP/IP hostname
Note: This can be changed only from the Embedded Web Server.
IP Address Lets you view or change the current TCP/IP address
Note: Manually setting the IP address sets the Enable DHCP and Enable Auto IP settings
to Off. It also sets Enable BOOTP and Enable RARP to Off on systems that support
BOOTP and RARP.
Understanding printer menus
104
Menu item Description
Netmask Lets you view or change the current TCP/IP netmask
Gateway Lets you view or change the current TCP/IP gateway
Enable DHCP
On
Off
Specifies the DHCP address and parameter assignment setting
Note: On is the factory default setting.
Enable RARP
On
Off
Specifies the RARP address assignment setting
Note: On is the factory default setting.
Enable BOOTP
On
Off
Specifies the BOOTP address assignment setting
Note: On is the factory default setting.
Enable AutoIP
Yes
No
Specifies the Zero Configuration Networking setting
Note: Yes is the factory default setting.
Enable FTP/TFTP
Yes
No
Enables the built-in FTP server, which allows you to send files to the printer using File
Transfer Protocol.
Note: Yes is the factory default setting.
Enable HTTP Server
Yes
No
Enables the built-in web server (Embedded Web Server). When enabled, the printer
can be monitored and managed remotely using a web browser.
Note: Yes is the factory default setting.
WINS Server Address Lets you view or change the current WINS server address
Enable DDNS
Yes
No
Lets you view or change the current DDNS setting
Note: Yes is the factory default setting.
Enable mDNS
Yes
No
Lets you view or change the current mDNS setting
Note: Yes is the factory default setting.
DNS Server Address Lets you view or change the current DNS server address
Enable HTTPS
Yes
No
Lets you view or change the current HTTPS setting
Note: Yes is the factory default setting.
IPv6 menu
Note: This menu is available only in network models or in printers attached to print servers.
This menu is available from the Network/Ports menu:
Understanding printer menus
105
Network/Ports > Standard Network or Network [x] > Standard Network Setup or Network [x] Setup > IPv6
Menu item Description
Enable IPv6
On
Off
Enables IPv6 in the printer
Note: On is the factory default setting.
Auto Configuration
On
Off
Specifies whether the network adapter accepts the automatic IPv6
address configuration entries provided by a router
Note: On is the factory default setting.
Set Hostname Lets you set the printer host name
View Address Shows the printer IPv6 address
Note: The IPv6 address can be changed only from the Embedded Web
Server.
View Router Address Shows the router address
Note: The router address can be changed only from the Embedded Web
Server.
Enable DHCPv6
On
Off
Enables DHCPv6 in the printer
Note: On is the factory default setting.
Wireless menu
Use the following menu items to view or configure the wireless internal print server settings.
Note: This menu is available only for models connected to a wireless network.
The Wireless menu is available from the Network/Ports menu:
Network/Ports > Standard Network or Network [x] > Standard Network Setup or Network [x] Setup > Wireless
Menu item Description
WPS PBC Mode Lets you connect the printer to a wireless network by pressing buttons on
both the printer and the access point (wireless router) within a given
period of time
WPS PIN Mode Lets you connect the printer to a wireless network by using a PIN on the
printer and entering it into the wireless settings of the access point
WPS Auto Detect
Disable
Enable
Automatically detects the connection method that an access point with
WPS uses— WPS Push Button Configuration (PBC) or WPS Personal
Identification Number (PIN)
Note: Disable is the factory default setting.
Network Mode
Ad hoc
Infrastructure
Specifies the network mode
Notes:
•Ad hoc is the factory default setting. This configures wireless
connection directly between the printer and a computer.
•Infrastructure lets the printer access a network using an access point.
Understanding printer menus
106
Menu item Description
Compatibility
802.11b/g/n
802.11n
802.11b/g
Specifies the wireless standard for the wireless network
Note: The 802.11b/g/n is the factory default setting.
Choose Network
[list of available networks]
Lets you select an available network for the printer to use
View Signal Quality Lets you view the quality of the wireless connection
View Security Mode Lets you view the encryption method that a wireless network uses
Note: Wi-Fi Protected Setup (WPS) is a simple and secure configuration that allows you to establish a wireless network
and enable network security without requiring prior knowledge of Wi-Fi technology. It is no longer necessary to
configure the network name (SSID) and WEP key or WPA passphrase for network devices.
AppleTalk menu
This menu is available from the Network/Ports menu:
Network/Ports > Standard Network or Network [x] > Standard Network Setup or Network [x] Setup > AppleTalk
Menu item Description
Activate
Yes
No
Activates AppleTalk support
Note: Yes is the factory default setting.
View Name Shows the assigned AppleTalk name
Note: The name can be changed only from the Embedded Web Server.
View Address Shows the assigned AppleTalk address
Note: The address can be changed only from the Embedded Web Server.
Set Zone
[default]
[list of zones available on the network]
Provides a list of AppleTalk zones available on the network
Note: When “default” is selected, the printer uses the AppleTalk zone that the
router identifies as the default zone for the network. If no default zone exists,
then the zone marked with an * is the default setting.
Standard USB menu
Menu item Description
PCL SmartSwitch
On
Off
Sets the printer to automatically switch to PCL emulation when a print job received
through a USB port requires it, regardless of the default printer language
Notes:
•On is the factory default setting.
•When set to Off, the printer does not examine incoming data. The printer uses
PostScript emulation if the PS SmartSwitch is set to On. It uses the default printer
language specified in the Setup menu if the PS SmartSwitch is set to Off.
Understanding printer menus
107
Menu item Description
PS SmartSwitch
On
Off
Sets the printer to automatically switch to PS emulation when a print job received
through a USB port requires it, regardless of the default printer language
Notes:
•On is the factory default setting.
•When set to Off, the printer does not examine incoming data. The printer uses
PCL emulation if the PCL SmartSwitch is set to On. It uses the default printer
language specified in the Setup menu if the PCL SmartSwitch is set to Off.
NPA Mode
Auto
On
Off
Sets the printer to perform the special processing required for bidirectional
communication following the conventions defined by the NPA protocol
Notes:
•Auto is the factory default setting. Auto sets the printer to examine data,
determine the format, and then process it appropriately.
•Changing this setting from the printer control panel and then exiting the menus
causes the printer to restart. The menu selection is then updated.
USB Buffer
Auto
3KB to [maximum size allowed]
Disabled
Sets the size of the USB input buffer
Notes:
•Auto is the factory default setting.
•Disabled turns off job buffering. Any jobs already buffered on the printer hard
disk are printed before normal processing resumes.
•The USB buffer size value can be changed in 1-KB increments.
•The maximum size allowed depends on the amount of memory in the printer,
the size of the other link buffers, and whether Resource Save is set to On or Off.
•To increase the maximum size range for the USB Buffer, disable or reduce the
size of the parallel, serial, and network buffers.
•Changing this setting from the printer control panel and then exiting the menus
causes the printer to restart. The menu selection is then updated.
Job Buffering
Off
On
Auto
Temporarily stores print jobs on the printer hard disk before printing
Notes:
•Off is the factory default setting.
•On buffers jobs on the printer hard disk.
•Auto buffers print jobs only if the printer is busy processing data from another
input port.
•Changing this setting from the printer control panel and then exiting the menus
causes the printer to restart. The menu selection is then updated.
Mac Binary PS
Auto
On
Off
Sets the printer to process Macintosh binary PostScript print jobs
Notes:
•Auto is the factory default setting.
•On processes raw binary PostScript print jobs.
•Off filters print jobs using the standard protocol.
Understanding printer menus
108
Menu item Description
ENA Address
yyy.yyy.yyy.yyy
Sets the network address information for an external print server
Note: This menu item is available only if the printer is attached to an external print
server through the USB port.
ENA Netmask
yyy.yyy.yyy.yyy
Sets the netmask information for an external print server
Note: This menu item is available only if the printer is attached to an external print
server through the USB port.
ENA Gateway
yyy.yyy.yyy.yyy
Sets the gateway information for an external print server
Note: This menu item is available only if the printer is attached to an external print
server through the USB port.
Parallel [x] menu
Menu item Description
PCL SmartSwitch
On
Off
Sets the printer to automatically switch to PCL emulation when a print job received
through a serial port requires it, regardless of the default printer language
Notes:
•On is the factory default setting.
•When set to Off, the printer does not examine incoming data. The printer uses
PostScript emulation if PS SmartSwitch is set to On. It uses the default printer
language specified in the Setup menu if PS SmartSwitch is set to Off.
PS SmartSwitch
On
Off
Sets the printer to automatically switch to PS emulation when a print job received
through a serial port requires it, regardless of the default printer language
Notes:
•On is the factory default setting.
•When set to Off, the printer does not examine incoming data. The printer uses
PCL emulation if PCL SmartSwitch is set to On. It uses the default printer language
specified in the Setup menu if PCL SmartSwitch is set to Off.
NPA Mode
Auto
On
Off
Sets the printer to perform the special processing required for bidirectional
communication following the conventions defined by the NPA protocol
Notes:
•Auto is the factory default setting.
•Changing this setting from the printer control panel and then exiting the menus
causes the printer to restart. The menu selection is then updated.
Understanding printer menus
109
Menu item Description
Parallel Buffer
Auto
3KB to [maximum size allowed]
Disabled
Sets the size of the parallel input buffer
Notes:
•Auto is the factory default setting.
•Disabled turns off job buffering. Any print jobs already buffered on the printer
hard disk are printed before normal processing resumes.
•The parallel buffer size setting can be changed in 1-KB increments.
•The maximum size allowed depends on the amount of memory in the printer,
the size of the other link buffers, and whether Resource Save is set to On or Off.
•To increase the maximum size range for the Parallel Buffer, disable or reduce the
size of the USB, serial, and network buffers.
•Changing this setting from the printer control panel and then exiting the menus
causes the printer to restart. The menu selection is then updated.
Job Buffering
Off
On
Auto
Temporarily stores print jobs on the printer hard disk before printing
Notes:
•Off is the factory default setting.
•On buffers print jobs on the printer hard disk.
•Auto buffers print jobs only if the printer is busy processing data from another
input port.
•Changing this setting from the printer control panel and then exiting the menus
causes the printer to restart. The menu selection is then updated.
Advanced Status
On
Off
Enables bidirectional communication through the parallel port
Notes:
•On is the factory default setting.
•Off disables parallel port negotiation.
Protocol
Fastbytes
Standard
Specifies the parallel port protocol
Notes:
•Fastbytes is the factory default setting. It provides compatibility with most
existing parallel ports and is the recommended setting.
•Standard tries to resolve parallel port communication problems.
Honor Init
Off
On
Determines if the printer honors printer hardware initialization requests from the
computer
Notes:
•Off is the factory default setting.
•The computer requests initialization by activating the Init signal from the parallel
port. Many personal computers activate the Init signal each time the computer
is turned on.
Parallel Mode 2
On
Off
Determines if the parallel port data is sampled on the leading or trailing edge of a
strobe
Note: On is the factory default setting.
Understanding printer menus
110
Menu item Description
Mac Binary PS
Auto
On
Off
Sets the printer to process Macintosh binary PostScript print jobs
Notes:
•Auto is the factory default setting.
•Off filters print jobs using the standard protocol.
•On processes raw binary PostScript print jobs.
ENA Address
yyy.yyy.yyy.yyy
Sets the network address information for an external print server
Note: This menu item is available only if the printer is attached to an external print
server through the USB port.
ENA Netmask
yyy.yyy.yyy.yyy
Sets the netmask information for an external print server
Note: This menu item is available only if the printer is attached to an external print
server through the USB port.
ENA gateway
yyy.yyy.yyy.yyy
Sets the gateway information for an external print server
Note: This menu item is available only if the printer is attached to an external print
server through the USB port.
Serial [x] menu
Menu item Description
PCL SmartSwitch
On
Off
Sets the printer to automatically switch to PCL emulation when a print job received
through a serial port requires it, regardless of the default printer language
Notes:
•On is the factory default setting.
•When set to Off, the printer does not examine incoming data. The printer uses
PostScript emulation if PS SmartSwitch is set to On. It uses the default printer
language specified in the Setup menu if PS SmartSwitch is set to Off.
PS SmartSwitch
On
Off
Sets the printer to automatically switch to PS emulation when a print job received
through a serial port requires it, regardless of the default printer language
Notes:
•On is the factory default setting.
•When set to Off, the printer does not examine incoming data. The printer uses
PCL emulation if PCL SmartSwitch is set to On. It uses the default printer language
specified in the Setup menu if PCL SmartSwitch is set to Off.
Understanding printer menus
111
Menu item Description
NPA Mode
Auto
On
Off
Sets the printer to perform the special processing required for bidirectional
communication following the conventions defined by the NPA protocol
Notes:
•Auto is the factory default setting. Auto sets the printer to examine data,
determine the format, and then processes it appropriately.
•When set to On, the printer performs NPA processing. If the data is not in NPA
format, it is rejected as bad data.
•When set to Off, the printer does not perform NPA processing.
•Changing this setting from the printer control panel and then exiting the menus
causes the printer to restart. The menu selection is then updated.
Serial Buffer
Auto
3KB to [maximum size allowed]
Disabled
Sets the size of the serial input buffer
Notes:
•Auto is the factory default setting.
•Disabled turns off job buffering. Any jobs already buffered on the disk are printed
before normal processing is resumed.
•The serial buffer size setting can be changed in 1-KB increments.
•The maximum size allowed depends on the amount of memory in the printer,
the size of the other link buffers, and whether Resource Save is set to On or Off.
•To increase the maximum size range for the Serial Buffer, disable or reduce the
size of the parallel, serial, and network buffers.
•Changing this setting from the printer control panel and then exiting the menus
causes the printer to restart. The menu selection is then updated.
Job Buffering
Off
On
Auto
Temporarily stores print jobs on the printer hard disk before printing
Notes:
•Off is the factory default setting. The printer does not buffer print jobs on the
printer hard disk.
•On buffers print jobs on the printer hard disk.
•Auto buffers print jobs only if the printer is busy processing data from another
input port.
•Changing this setting from the printer control panel and then exiting the menus
causes the printer to restart. The menu selection is then updated.
Protocol
DTR
DTR/DSR
XON/XOFF
XON/XOFF/DTR
XONXOFF/DTRDSR
Selects the hardware and software handshaking settings for the serial port
Notes:
•DTR is the factory default setting.
•DTR/DSR is a hardware handshaking setting.
•XON/XOFF is a software handshaking setting.
•XON/XOFF/DTR and XON/XOFF/DTR/DSR are combined hardware and software
handshaking settings.
Understanding printer menus
112
Menu item Description
Robust XON
Off
On
Determines whether the printer communicates availability to the computer
Notes:
•Off is the factory default setting.
•This menu item applies only to the serial port if Serial Protocol is set to XON/XOFF.
Baud
9600
19200
38400
57600
115200
138200
172800
230400
345600
1200
2400
4800
Specifies the rate at which data can be received through the serial port
Notes:
•9600 is the factory default setting.
•138200, 172800, 230400, and 345600 baud rates are only displayed in the
Standard Serial menu. These settings do not appear in the Serial Option 1, Serial
Option 2, or Serial Option 3 menus.
Data Bits
8
7
Specifies the number of data bits sent in each transmission frame
Note: 8 is the factory default setting.
Parity
None
Ignore
Even
Odd
Sets the parity for serial input and output data frames
Note: None is the factory default setting.
Honor DSR
Off
On
Determines whether the printer uses the DSR Signal
Notes:
•Off is the factory default setting.
•DSR is a handshaking signal used by most serial cables. The serial port uses DSR
to distinguish data sent by the computer from data created by electrical noise in
the serial cable. The electrical noise can cause stray characters to print. Set this
to On to prevent stray characters from printing.
SMTP Setup menu
Menu item Description
Primary SMTP Gateway Specifies SMTP server gateway and port information
Note: 25 is the default SMTP gateway port.
Primary SMTP Gateway Port
Secondary SMTP Gateway
Secondary SMTP Gateway Port
Understanding printer menus
113
Menu item Description
SMTP Timeout
5–30
Specifies the amount of time in seconds before the server stops trying to
send an e-mail
Note: 30 seconds is the factory default setting.
Reply Address Specifies a reply address of up to 128 characters in the e-mail sent by the
printer
Use SSL
Disabled
Negotiate
Required
Sets the printer to use SSL for increased security when connecting to the
SMTP server
Notes:
•Disabled is the factory default setting.
•When the Negotiate setting is used, the SMTP server determines if
SSL will be used.
SMTP Server Authentication
No authentication required
Login/Plain
CRAM-MD5
Digest-MD5
NTLM
Kerberos 5
Specifies the type of user authentication required for scan to e-mail
privileges
Note: “No authentication required” is the factory default setting.
Device-Initiated E-mail
None
Use Device SMTP Credentials
Specifies what credentials will be used when communicating to the SMTP
server. Some SMTP servers require credentials to send an e-mail.
Notes:
•None is the factory default setting for Device and User-Initiated
E-mail.
•Device Userid and Device Password are used to log in to the SMTP
server when Use Device SMTP Credentials is selected.
User-Initiated E-mail
None
Use Device SMTP Credentials
Use Session User ID & Password
Use Session E-mail address & Password
Prompt User
Device Userid
Device Password
Kerberos 5 Realm
NTLM Domain
Understanding printer menus
114
Security menu
Miscellaneous Security Settings menu
Menu item Description
Login Restriction
Login failures
1–10
Failure time frame
1–60
Lockout time
1–60
Panel Login Timeout
1–900
Remote Login Timeout
1–120
Limits the number and time frames of failed login attempts from the printer control
panel before all users are locked out
Notes:
•“Login failures” specifies the number of failed login attempts before users are
locked out. 3 attempts is the factory default setting.
•“Failure time frame” specifies the time frame during which failed login attempts
can be made before users are locked out. 5 minutes is the factory default setting.
•“Lockout time” specifies how long users are locked out after exceeding the login
failures limit. 5 minutes is the factory default setting.
•Panel Login Timeout specifies how long the printer remains idle on the home
screen before automatically logging the user off. 30 seconds is the factory default
setting.
•Remote Login Timeout specifies how long a remote interface (for example, a
Web page) can remain idle before automatically logging the user off. 10 minutes
is the factory default setting.
Confidential Print menu
Menu item Description
Max Invalid PIN
Off
2–10
Limits the number of times an invalid PIN can be entered
Notes:
•This menu appears only if a formatted, non-defective printer hard disk is installed.
•Once the limit is reached, the print job for that user name and that PIN are deleted.
Confidential Job Expiration
Off
1 hour
4 hours
24 hours
1 week
Limits the amount of time a confidential print job stays in the printer before it is deleted
Notes:
•If the Job Expiration setting is changed while confidential print jobs reside on the printer
RAM or printer hard disk, then the expiration time for those print jobs does not change
to the new default value.
•If the printer is turned off, then all confidential jobs held in printer RAM are deleted.
Repeat Job Expiration
Off
1 hour
4 hours
24 hours
1 week
Sets a time limit on how long the printer stores print jobs
Note: Off is the factory default setting.
Understanding printer menus
115
Menu item Description
Verify Job Expiration
Off
1 hour
4 hours
24 hours
1 week
Sets a time limit on how long the printer stores print jobs needing verification
Reserve Job Expiration
Off
1 hour
4 hours
24 hours
1 week
Sets a time limit on how long the printer stores print jobs for printing at a later time
Note: Off is the factory default setting.
Disk Wiping menu
Disk Wiping erases only print job data on the printer hard disk that are not currently in use by the file system. All
permanent data on the printer hard disk are preserved, such as downloaded fonts, macros, and held jobs.
Note: This menu appears only if a formatted, non-defective printer hard disk is installed.
Menu item Description
Wiping Mode
Auto
Manual
Off
Disk Wiping erases only print job data that is not currently in use by the file system
from the printer hard disk. All permanent data on the printer hard disk is preserved,
such as downloaded fonts, macros, and held jobs.
Notes:
•Auto is the factory default setting.
•Due to the large amount of resources required for Automatic Wiping, activating
this option may decrease printer performance, especially if the printer requires
hard disk space faster than it can be wiped and returned to service.
Manual Wiping
Do not start now
Start now
Manual Wiping overwrites all disk space that has been used to hold data from a print
job that has been processed (printed). This type of wipe does not erase any
information related to an unprocessed print job.
Notes:
•“Do not start now” is the factory default setting.
•If the Disk Wiping access control is activated, then a user must successfully
authenticate and have the required authorization in order to initiate the disk
wipe.
Understanding printer menus
116
Menu item Description
Automatic Method
Single pass
Multiple pass
Automatic wiping marks all disk space used by a previous print job and does not
permit the file system to reuse this space until it has been cleared.
Only Automatic wiping enables users to activate disk wiping without having to turn
the printer off for an extended amount of time.
Notes:
•“Single pass” is the factory default setting.
•Highly confidential information should be wiped using only the Multiple pass
method.
Manual Method
Single pass
Multiple pass
Both manual and scheduled wiping allow the file system to reuse marked disk space
without having to wipe it first.
Notes:
•“Single pass” is the factory default setting.
•Highly confidential information should be wiped using only the Multiple pass
method.
Scheduled Method
Single pass
Multiple pass
Both manual and scheduled wiping allow the file system to reuse marked disk space
without having to wipe it first.
Notes:
•“Single pass” is the factory default setting.
•Highly confidential information should be wiped using only the Multiple Pass
method .
•Scheduled wipes are initiated without displaying a user warning or confirmation
message.
Security Audit Log menu
Menu item Description
Export Log Enables an authorized user to export the audit log
Notes:
•To export the audit log from the printer control panel, a flash drive must be
attached to the printer.
•From the Embedded Web Server, the audit log can be downloaded to a computer.
Delete Log
Yes
No
Specifies whether audit logs are deleted
Note: “Yes” is the factory default setting.
Understanding printer menus
117
Menu item Description
Configure Log
Enable Audit
No
Yes
Enable Remote Syslog
No
Yes
Remote Syslog Facility
0–23
Severity of events to log
0–7
Specifies whether and how audit logs are created
Notes:
•Enable Audit determines if events are recorded in the secure audit log and
remote syslog. No is the factory default setting.
•Enable Remote Syslog determines if logs are sent to a remote server. No is the
factory default setting.
•Remote Syslog Facility determines the value used to send logs to the remote
syslog server. 4 is the factory default setting.
•With the security audit log activated, the severity value of each event is recorded.
4 is the factory default setting.
Set Date and Time menu
Menu item Description
Current Date and Time Shows the current date and time settings for the printer
Manually Set Date and Time
[input date/time]
Notes:
•Date and Time is set in YYYY-MM-DD HH:MM format.
•Manually setting the date and time sets Enable NTP to Off.
Time Zone
[list of time zones]
Note: GMT is the factory default setting.
Automatically observe DST
On
Off
Note: On is the factory default setting. This uses the applicable Daylight Saving Time
associated with the Time Zone setting.
Enable NTP
On
Off
Enables Network Time Protocol, which synchronizes the clocks of devices on a
network
Notes:
•On is the factory default setting.
•The setting is turned off if you manually set the date and time.
Understanding printer menus
118
Settings menu
General Settings menu
Menu item Description
Display Language
English
Francais
Deutsch
Italiano
Espanol
Greek
Dansk
Norsk
Nederlands
Svenska
Portuguese
Suomi
Russian
Polski
Magyar
Turkce
Cesky
Simplified Chinese
Traditional Chinese
Korean
Japanese
Sets the language of the text appearing on the display
Note: Some languages may not be available for all printers.
Eco-Mode
Off
Energy
Energy/Paper
Paper
Minimizes the use of energy, paper, or specialty media
Notes:
•Off is the factory default setting. Off resets the printer to its
factory default settings.
•Energy minimizes the power used by the printer.
Performance may be affected, but print quality is not.
•Energy/Paper minimizes the use of power, paper and
specialty media.
•Paper minimizes the amount of paper and specialty media
needed for a print job by duplexing each page. Performance
may be affected, but print quality is not.
Understanding printer menus
119
Menu item Description
Quiet Mode
Off
On
Reduces the amount of noise produced by the printer
Notes:
•Off is the factory default setting. This setting supports the
performance specifications of your printer.
•On configures the printer to produce as little noise as
possible.
•For optimal printing of color-rich documents, set Quiet Mode
to Off.
•Selecting Photo from the driver may disable Quiet Mode.
Run Initial setup
Yes
No
Runs the setup wizard
Notes:
•Yes is the factory default setting.
•After completing the setup wizard, the default setting
becomes No.
Keyboard
Keyboard Type
English
Francais
Francais Canadien
Deutsch
Italiano
Espanol
Greek
Dansk
Norsk
Nederlands
Svenska
Suomi
Portuguese
Russian
Polski
Swiss German
Swiss French
Korean
Magyar
Turkce
Cesky
Simplified Chinese
Traditional Chinese
Japanese
Custom Key 1
Specifies the language for the printer control panel keyboard
Notes:
•Keyboard Type specifies the language for the printer control
panel keyboard.
•Custom Key 1 allows the user to assign a value to a custom
key setting. A maximum of 6 characters is allowed.
Understanding printer menus
120
Menu item Description
Paper Sizes
US
Metric
Specifies the default paper measurement
Notes:
•The initial setting is determined by your country or region
selection in the initial setup wizard.
•Changing this also changes the default setting for each input
source in the Paper Size/Type menu.
Displayed Information
Left side
Right side
Custom Text [x]
[x] Toner
Fuser
Transfer Module
Specifies what is displayed on the upper left and right corners of
the home screen
For the Left side and Right side menus, select from the following
options:
None
IP Address
Hostname
Contact Name
Location
Date/Time
mDNS/DDNS Service Name
Zero Configuration Name
Custom Text [x]
Model Name
For the [x] Toner, [x] Fuser, and Transfer Module menus, select
from the following options:
When to display
Do not display
Display
Message to Display
Default
Alternate
Default
[text entry]
Alternate
[text entry]
Notes:
•IP Address is the factory default setting for Left side.
•Date/Time is the factory default setting for Right side.
•“Do not display” is the factory default setting for “When to
display.”
•Default is the factory default setting for Message to Display.
Understanding printer menus
121
Menu item Description
Displayed Information
Waste Toner Bottle
Paper Jam
Load Paper
Service Errors
Lets you customize the displayed information for Waste Toner
Bottle, Paper Jam, Load Paper, and Service Errors
Choose from the following options:
Display
No
Yes
Message to Display
Default
Alternate
Default
[text entry]
Alternate
[text entry]
Notes:
•No is the factory default setting for Display.
•Default is the factory default setting for Message to Display.
Home screen customization
Change Language
Search Held Jobs
Held Jobs
USB Drive
Profiles and Solutions
Bookmarks
Jobs by user
Forms and Favorites
Eco-Settings
Showroom
Change Background
Lets you add or remove icons and buttons that appear on the
home screen
Available options for each button are:
Display
Do Not Display
Date Format
[MM-DD-YYYY]
[DD-MM-YYYY]
[YYYY-MM-DD]
Specifies the format for the printer date
Time Format
12 hour
24 hour
Specifies the format for the printer time
Note: 12 hour is the factory default setting.
Screen Brightness
20–100
Specifies the brightness of the printer control panel screen
Note: 100 is the factory default setting.
Understanding printer menus
122
Menu item Description
Output Lighting
Normal/Standby Mode
Off
Dim
Bright
Sleep Mode
Off
Dim
Bright
Sets the amount of light from the optional exit bin
Notes:
•Dim is the factory default setting for Normal/Standby Mode
if Eco-Mode is set to Energy or Energy/Paper.
•Bright is the factory default setting for Normal/Standby
Mode if Eco-Mode is set to Off or Paper.
•Off is the factory default setting for Sleep Mode if Eco-Mode
is set to Energy or Energy/Paper.
•Dim is the factory default setting for Sleep Mode if Eco-Mode
is set to Off or Paper.
Error Lighting
On
Off
Determines if indicator lights will blink when the printer
encounters errors.
Note: On is the factory default setting.
Audio Feedback
Button Feedback
On
Off
Volume
1–10
Notes:
•On is the factory default setting for Button Feedback.
•5 is the factory default setting for Volume.
Show Bookmarks
Yes
No
Determines whether the Bookmarks icon is displayed
Notes:
•Yes is the factory default setting.
•The Bookmarks icon appears inside Held Jobs. If Show
Bookmarks is set to No, then the Held Jobs icon is only
displayed on the home screen if one or more held jobs exist
on the printer.
Web Page Refresh Rate
30–300
Specifies the number of seconds between Embedded Web Server
refreshes
Note: 120 seconds is the factory default setting.
Contact Name Specifies a contact name for the printer
Location Specifies the location of the printer
Note: The location will be stored on the Embedded Web Server.
Understanding printer menus
123
Menu item Description
Alarms
Alarm Control
Cartridge Alarm
Staple Alarm
Hole Punch Alarm
Sets an alarm to sound when the printer requires user
intervention
Available options for each alarm type are:
Off
Single
Continuous
Notes:
•Single is the factory default setting for Alarm Control and
Cartridge Alarm. Single sounds three quick beeps.
•Off is the factory default setting for Staple Alarm and Hole
Punch Alarm. Off means no alarm will sound.
•Continuous repeats three beeps every 10 seconds.
Timeouts
Standby Mode
Disabled
1–240
Specifies the number of minutes of inactivity before the system
enters a lower power state
Note: 15 minutes is the factory default setting.
Timeouts
Sleep Mode
Disabled
1–240
Specifies the number of minutes of inactivity before some
systems begin entering a minimum power state
Notes:
•30 minutes is the factory default setting.
•A lower setting conserves more energy, but may require
longer warm-up times.
•Select the lowest setting if the printer shares an electrical
circuit with room lighting.
•Select a high setting if the printer is in constant use. Under
most circumstances, this keeps the printer ready to print with
minimum warm-up time.
•Sleep mode does not interact with Standby mode.
Timeouts
Screen Timeout
15–300
Sets the amount of time (in seconds) the printer waits before
returning to a ready state
Note: 30 seconds is the factory default setting.
Timeouts
Print Timeout
Disabled
1–255
Sets the amount of time (in seconds) the printer waits to receive
an end-of-job message before canceling the remainder of the
print job
Notes:
•90 seconds is the factory default setting.
•When the timer expires, any partially printed page still in the
printer is printed, and then the printer checks to see if any
new print jobs are waiting.
•Print Timeout is available only when using PCL emulation.
This setting has no effect on PostScript emulation print jobs.
Understanding printer menus
124
Menu item Description
Timeouts
Wait Timeout
Disabled
15–65535
Sets the amount of time (in seconds) the printer waits for
additional data before canceling a print job
Notes:
•40 seconds is the factory default setting.
•Wait Timeout is available only when the printer is using
PostScript emulation. This setting has no effect on PCL
emulation print jobs.
Timeouts
Job Hold Timeout
5–255
Sets the amount of time (in seconds) the printer waits for user
intervention before it holds jobs that require unavailable
resources and continues to process other jobs in the print queue
Notes:
•30 seconds is the factory default setting.
•This menu appears only when a printer hard disk is installed.
Print Recovery
Auto Continue
Disabled
5–255
Lets the printer automatically continue printing from certain
offline situations when not resolved within the specified time
period
Note: Disabled is the factory default setting.
Print Recovery
Jam Recovery
Auto
On
Off
Specifies whether the printer reprints jammed pages
Notes:
•Auto is the factory default setting. The printer reprints
jammed pages unless the memory required to hold the pages
is needed for other printer tasks.
•On sets the printer to always reprint jammed pages.
•Off sets the printer to never reprint jammed pages.
Print Recovery
Page Protect
Off
On
Lets the printer successfully print a page that may not have
printed otherwise
Notes:
•Off is the factory default setting. Off prints a partial page
when there is not enough memory to print the whole page.
•On sets the printer to process the whole page so the entire
page prints.
Understanding printer menus
125
Menu item Description
Press Sleep Button
Sleep
Hibernate
Do Nothing
Determines how the printer, while in Idle state, reacts to a short
press of the Sleep button
Notes:
•Sleep is the factory default setting.
•Sleep or Hibernate sets the printer to operate at a lower
power configuration.
•If the printer is in Sleep Mode, then the touch screen appears
off and the Sleep button turns amber in color.
•Touch anywhere on the touch screen or press a button on
the printer control panel to exit Sleep Mode.
•If the printer is in Hibernate mode, then the touch screen is
completely off and the Sleep button turns amber in color and
is blinking.
•
Press and Hold Sleep Button
Do Nothing
Sleep
Hibernate
Determines how the printer, while in Idle state, reacts to a long
press of the Sleep button
Notes:
•Do Nothing is the factory default setting.
•Sleep or Hibernate sets the printer to operate at a lower
power configuration.
•If the printer is in Sleep Mode, then the touch screen appears
off and the Sleep button turns amber in color.
•Press and hold the Sleep button for 3 seconds or longer to
enter Hibernate mode.
•Touch anywhere on the touch screen or press a button on
the printer control panel to exit Sleep Mode.
Factory Defaults
Do Not Restore
Restore Now
Returns the printer settings to the factory default settings
Notes:
•Do Not Restore is the factory default setting. Do Not Restore
keeps the user-defined settings.
•Restore Now returns all printer settings to the factory default
settings except Network/Ports menu settings. All downloads
stored in RAM are deleted. Downloads stored in flash
memory or on a printer hard disk are not affected.
Flash Drive menu
Menu item Description
Copies
1–999
Specifies a default number of copies for each print job
Note: 1 is the factory default setting.
Understanding printer menus
126
Menu item Description
Paper Source
Tray [x]
MP Feeder
Manual Paper
Manuel Envelope
Sets a default paper source for all print jobs
Note: Tray 1 (standard tray) is the factory default setting.
Color
Color
Black Only
Generates color outputs
Note: Color is the factory default setting.
Collate
On (1,2,1,2,1,2)
Off (1,1,1,2,2,2)
Stacks the pages of a print job in sequence when printing multiple copies
Note: On is the factory default setting.
Sides (Duplex)
1 sided
2 sided
Specifies whether prints are on one side or on both sides of the paper
Note: 1 sided is the factory default setting.
Staple
Off
On
Specifies whether prints are stapled
Notes:
•Off is the factory default setting.
•This menu appears only when a stapler is installed.
Hole Punch
Off
On
Specifies whether prints have punched holes
Notes:
•Off is the factory default setting.
•This menu appears only when a puncher is installed.
Hole Punch Mode
2 holes
3 holes
4 holes
Determines the type of punch finishing performed on a printed output
Notes:
•3 holes is the US factory default setting. 4 holes is the international factory default
setting.
•This menu appears only when a puncher is installed.
Duplex Binding
Long Edge
Short Edge
Defines the way duplex pages are bound and how the printing on the back of the
page is oriented in relation to the printing on the front of the page
Notes:
•Long Edge is the factory default setting. Long edge assumes binding along the
long edge of the page (left edge for portrait and top edge for landscape).
•Short edge assumes binding along the short edge of the page (top edge for
portrait and left edge for landscape).
Paper Saver Orientation
Auto
Landscape
Portrait
Specifies the orientation of a multiple-page document
Note: Auto is the factory default setting. The printer chooses between portrait and
landscape.
Understanding printer menus
127
Menu item Description
Paper Saver
Off
2-Up
3-Up
4-Up
6-Up
9-Up
12-Up
16-Up
Specifies that multiple-page images be printed on one side of a paper
Notes:
•Off is the factory default setting.
•The number selected is the number of page images that will print per side.
Paper Saver Border
None
Solid
Prints a border on each page image when using Paper Saver Border
Note: None is the factory default setting.
Paper Saver Ordering
Horizontal
Reverse Horizontal
Reverse Vertical
Vertical
Specifies the positioning of multiple-page images when using Paper Saver Ordering
Notes:
•Horizontal is the factory default setting.
•Positioning depends on the number of page images and whether they are in
portrait or landscape orientation.
Separator Sheets
Off
Between Copies
Between Jobs
Between Pages
Specifies whether blank separator sheets are inserted
Notes:
•Off is the factory default setting.
•Between Copies inserts a blank sheet between each copy of a print job if Collation
is set to On. If Collation is set to Off, then a blank page is inserted between each
set of printed pages, such as after all page 1's and after all page 2's.
•Between Jobs inserts a blank sheet between print jobs.
•Between Pages inserts a blank sheet between each page of the print job. This
setting is useful when printing transparencies or inserting blank pages in a
document for notes.
Separator Sheet Source
Tray [x]
Manual Feeder
Specifies the paper source for separator sheets
Notes:
•Tray 1 (standard tray) is the factory default setting.
•From the Paper menu, Configure MP must be set to Cassette in order for Manual
Feeder to appear as a menu setting.
Blank Pages
Do Not Print
Print
Specifies whether blank pages are inserted in a print job
Note: Do Not Print is the factory default setting.
Understanding printer menus
128
Setup menu
Menu item Description
Printer Language
PS Emulation
PCL Emulation
Sets the default printer language
Notes:
•PS Emulation is the factory default setting. PostScript
emulation uses a PS interpreter for processing print jobs.
•PCL Emulation uses a PCL interpreter for processing print jobs.
•Setting a printer language default does not prevent a software
program from sending print jobs that use another printer
language.
Job Waiting
Off
On
Specifies if print jobs are removed from the print queue when they
require unavailable printer options or custom settings. These print
jobs are stored in a separate print queue, so other jobs print
normally. When the missing information and/or options are
obtained, the stored jobs print.
Notes:
•Off is the factory default setting.
•This menu item appears only if a non-read-only printer hard
disk is installed. This requirement ensures that stored jobs are
not deleted if the printer loses power.
Print Area
Normal
Fit to Page
Whole Page
Sets the logical and physical printable area
Notes:
•Normal is the factory default setting. When attempting to print
data in the non-printable area defined by the Normal setting,
the printer clips the image at the boundary.
•Fit to Page fits the page content into the selected paper size.
•Whole Page allows the image to be moved into the
non-printable area defined by the Normal setting, but the
printer clips the image at the Normal setting boundary. This
setting affects only pages printed using a PCL 5e interpreter
and has no effect on pages printed using the PCL XL or
PostScript interpreter.
Black Only Mode
Off
On
Sets the printer to print text and graphics using only the black print
cartridge
Note: Off is the factory default setting.
Understanding printer menus
129
Menu item Description
Download Target
RAM
Flash
Disk
Sets the storage location for downloads
Notes:
•RAM is the factory default setting. Storing downloads in RAM
is temporary.
•Storing downloads in flash memory or on a printer hard disk
places them in permanent storage. Downloads remain in flash
memory or on the printer hard disk even when the printer is
turned off.
•This menu item appears only if a flash and/or disk option is
installed.
Resource Save
Off
On
Specifies how the printer handles temporary downloads, such as
fonts and macros stored in RAM, when the printer receives a print
job that requires more memory than is available
Notes:
•Off is the factory default setting. Off sets the printer to retain
downloads only until memory is needed. Downloads are
deleted in order to process print jobs.
•On sets the printer to retain downloads during language
changes and printer resets. If the printer runs out of memory,
38 Memory Full appears, but downloads are not deleted.
Print All Order
Alphabetical
Oldest First
Newest First
Specifies the order in which held and confidential jobs are printed
when Print All is selected
Notes:
•Alphabetical is the factory default setting.
•Print jobs always appear in alphabetical order on the printer
control panel.
Job Accounting menu
Note: This menu item appears only if a formatted, non-defective printer hard disk is installed. The printer hard disk
cannot be read/write- or write-protected.
Menu item Description
Job Accounting Log
Off
On
Determines if the printer creates a log of the print jobs it receives
Note: Off is the factory default setting.
Job Accounting Utilities Lets you print and delete log files or export them to a flash drive
Accounting Log Frequency
Monthly
Weekly
Determines how often a log file is created
Note: Monthly is the factory default setting.
Understanding printer menus
130
Menu item Description
Log Action at End of Frequency
None
E-mail Current Log
E-mail & Delete Current Log
Post Current Log
Post & Delete Current Log
Determines how the printer responds when the frequency threshold expires
Note: None is the factory default setting.
Disk Near Full Level
1–99
Off
Specifies the maximum size of the log file before the printer executes the Disk Near
Full Action
Note: 5MB is the factory default setting.
Disk Near Full Action
None
E-mail Current Log
E-mail & Delete Current Log
E-mail & Delete Oldest Log
Post Current Log
Post & Delete Current Log
Post & Delete Oldest Log
Delete Current Log
Delete Oldest Log
Delete All Logs
Delete All But Current
Determines how the printer responds when the printer hard disk is nearly full
Notes:
•None is the factory default setting.
•The value defined in Disk Near Full Level determines when this action is triggered.
Disk Full Action
None
E-mail & Delete Current Log
E-mail & Delete Oldest Log
Post & Delete Current Log
Post & Delete Oldest Log
Delete Current Log
Delete Oldest Log
Delete All Logs
Delete All But Current
Determines how the printer responds when disk usage reaches the maximum limit
(100MB)
Note: None is the factory default setting.
URL to Post Logs Determines where the printer posts job accounting logs
E-mail Address to Send Logs Specifies the e-mail address to which the device sends job accounting logs
Log File Prefix Note: The current host name defined in the TCP/IP menu is used as the default log
file prefix.
Understanding printer menus
131
Finishing menu
Menu item Description
Sides (Duplex)
1 sided
2 sided
Specifies whether duplex (2-sided) printing is set as the default for all print jobs
Notes:
•1 sided is the factory default setting.
•You can set 2-sided printing from the software program. For Windows users, click
File > Print, and then click Properties, Preferences, Options, or Setup. For
Macintosh users, choose File > Print, and then adjust the settings from the print
dialog and pop-up menus.
Duplex Binding
Long Edge
Short Edge
Defines the way duplexed pages are bound and how the printing on the back of the
page is oriented in relation to the printing on the front of the page
Notes:
•Long Edge is the factory default setting. Long edge assumes binding along the
long edge of the page (left edge for portrait and top edge for landscape).
•Short edge assumes binding along the short edge of the page (top edge for
portrait and left edge for landscape).
Copies
1–999
Specifies the default number of copies for each print job
Note: 1 is the factory default setting.
Blank Pages
Do Not Print
Print
Specifies whether blank pages are inserted in a print job
Note: Do Not Print is the factory default setting.
Collate
Off (1,1,1,2,2,2)
On (1,2,1,2,1,2)
Stacks the pages of a print job in sequence when printing multiple copies
Notes:
•Off is the factory default setting.
•On stacks the print job in sequence.
Separator Sheets
Off
Between Copies
Between Jobs
Between Pages
Specifies whether blank separator sheets are inserted
Notes:
•Off is the factory default setting.
•Between Copies inserts a blank sheet between each copy of a print job if Collate
is set to On. If Collate is set to Off, then a blank page is inserted between each
set of printed pages, such as after all page 1's and after all page 2's.
•Between Jobs inserts a blank sheet between print jobs.
•Between Pages inserts a blank sheet between each page of a print job. This
setting is useful when printing transparencies or when inserting blank pages in
a document.
Separator Source
Tray [x]
Manual Feeder
Specifies the paper source for separator sheets
Notes:
•Tray 1 (standard tray) is the factory default setting.
•From the Paper menu, Configure MP must be set to Cassette for Manual Feeder
to appear as a menu setting.
Understanding printer menus
132
Menu item Description
Paper Saver
Off
2-Up
3-Up
4-Up
6-Up
9-Up
12-Up
16-Up
Specifies that multiple-page images be printed on one side of a paper
Notes:
•Off is the factory default setting.
•The number selected is the number of page images that will print per side.
Paper Saver Ordering
Horizontal
Reverse Horizontal
Reverse Vertical
Vertical
Specifies the positioning of multiple-page images
Notes:
•Horizontal is the factory default setting.
•Positioning depends on the number of page images and whether they are in
portrait or landscape orientation.
Paper Saver Orientation
Auto
Landscape
Portrait
Specifies the orientation of a multiple-page document
Note: Auto is the factory default setting. The printer chooses between portrait and
landscape.
Paper Saver Border
None
Solid
Prints a border on each page image
Note: None is the factory default setting.
Staple Job
Off
On
Specifies whether prints are stapled
Note: This menu appears only when a stapler is installed.
Hole Punch
Off
On
Specifies whether prints have punched holes
Note: This menu appears only when a puncher is installed.
Hole Punch Mode
2 holes
3 holes
4 holes
Determines the type of punch finishing performed on a print
Notes:
•3 holes is the US factory default setting. 4 holes is the international factory default
setting.
•This menu appears only when a puncher is installed.
Offset Pages
None
Between Copies
Between Jobs
Offsets pages at certain instances
Notes:
•None is the factory default setting.
•Between Copies offsets each copy of a print job if Collate is set to On. If Collate
is set to Off, then each set of printed pages are offset, such as all page 1's and
all page 2's.
•Between Jobs sets the same offset position for the entire print job regardless of
the number of copies printed.
•This menu appears only when a stapler is installed.
Understanding printer menus
133
Quality menu
Menu item Description
Print Mode
Color
Black Only
Specifies whether images are printed in monochrome grayscale or in color
Notes:
•Color is the factory default setting.
•The printer driver is capable of overriding this setting.
Color Correction
Auto
Off
Manual
Adjusts the color output on the printed page
Notes:
•Auto is the factory default setting. Auto applies different color conversion tables to
each object on the printed page.
•Manual allows customization of color tables using the settings available from the
Manual Color menu.
•Due to the differences in additive and subtractive colors, certain colors that appear
on computer screens are impossible to duplicate on a printed page.
Print Resolution
4800 CQ
1200 dpi
Specifies the printed output resolution
Notes:
•4800 CQ is the factory default setting.
•1200 dpi provides the highest resolution output, and increases gloss.
Toner Darkness
1–5
Lightens or darkens the printed output
Notes:
•4 is the factory default setting.
•Selecting a smaller number can help conserve toner.
•If Print Mode is set to Black Only, a setting of 5 increases toner density and darkness
for all print jobs.
•If Print Mode is set to Color, a setting of 5 is the same as a setting of 4.
Enhance Fine Lines
Off
On
Enables a print mode preferable for files such as architectural drawings, maps, electrical
circuit diagrams, and flow charts
Notes:
•Off is the factory default setting.
•You can set this option from the software program. For Windows users, click File >
Print, and then click Properties, Preferences, Options, or Setup. For Macintosh
users, choose File > Print, and then adjust the settings from the print dialog and
pop-up menus.
•To set this option using the Embedded Web Server, type the network printer IP
address in a browser window.
Color Saver
Off
On
Reduces the amount of toner used for graphics and images. The amount of toner used
for text is not reduced.
Notes:
•Off is the factory default setting.
•On overrides Toner Darkness settings.
Understanding printer menus
134
Menu item Description
RGB Brightness
-6 to 6
Adjusts brightness in color outputs
Notes:
•0 is the factory default setting.
•This does not affect files where CMYK color specifications are used.
RGB Contrast
0–5
Adjusts contrast in color outputs
Notes:
•0 is the factory default setting.
•This does not affect files where CMYK color specifications are used.
RGB Saturation
0–5
Adjusts saturation in color outputs
Notes:
•0 is the factory default setting.
•This does not affect files where CMYK color specifications are used.
Color Balance
Cyan
-5 to 5
Magenta
-5 to 5
Yellow
-5 to 5
Black
-5 to 5
Reset Defaults
Adjusts color in printed output by increasing or decreasing the amount of toner used
for each color
Note: 0 is the factory default setting.
Color Samples
sRGB Display
sRGB Vivid
Display—True Black
Vivid
Off—RGB
US CMYK
Euro CMYK
Vivid CMYK
Off—CMYK
Prints sample pages for each of the RGB and CMYK color conversion tables used in the
printer
Notes:
•Selecting any setting prints the sample.
•Color samples consist of a series of colored boxes along with the RGB or CMYK
combination that creates the color observed. These pages can be used to help
decide which combinations to use to get the desired printed output.
•From a browser window, type the IP address of the printer to access a complete list
of color sample pages from the Embedded Web Server.
Understanding printer menus
135
Menu item Description
Manual Color
RGB Image
sRGB Display
Display—True Black
sRGB Vivid
Off
Vivid
RGB Text
sRGB Vivid
Off
Vivid
sRGB Display
Display—True Black
RGB Graphics
sRGB Vivid
Off
Vivid
sRGB Display
Display—True Black
Customizes the RGB color conversions
Notes:
•sRGB Display is the factory default setting for RGB Image. This applies a color
conversion table to an output that matches the colors displayed on a computer
monitor.
•sRGB Vivid is the factory default setting for RGB Text and RGB Graphics. sRGB Vivid
applies a color table that increases saturation. This is preferred for business graphics
and text.
•Vivid applies a color conversion table that produces brighter, more saturated colors.
•Display—True Black applies a color conversion table that uses only black toner for
neutral gray colors.
Manual Color
CMYK Image
US CMYK
Euro CMYK
Vivid CMYK
Off
CMYK Text
US CMYK
Euro CMYK
Vivid CMYK
Off
CMYK Graphics
US CMYK
Euro CMYK
Vivid CMYK
Off
Customizes the CMYK color conversions
Notes:
•US CMYK is the US factory default setting. US CMYK applies a color conversion table
that tries to produce output that matches SWOP color output.
•Euro CMYK is the international factory default setting. Euro CMYK applies a color
conversion table that tries to produce output that matches EuroScale color output.
•Vivid CMYK increases color saturation for the US CMYK color conversion table.
Spot Color Replacement Provides the capability to assign specific CMYK values to named spot colors
Color Adjust Initiates a recalibration of color conversion tables and allows the printer to make
adjustments for color variations in output
Notes:
•Calibrating starts when the menu is selected. Calibrating appears on the
display until the process is finished.
•Color variations in output sometimes result from changeable conditions such as
room temperature and humidity. Color adjustments are made on printer
algorithms. Color alignment is also recalibrated in this process.
Understanding printer menus
136
Utilities menu
Menu item Description
Remove Held Jobs
Confidential
Held
Not Restored
All
Removes confidential and held jobs from the printer hard disk
Notes:
•Selecting a setting affects only print jobs that are resident in the printer.
Bookmarks, print jobs on flash drives, and other types of held jobs are not
affected.
•Not Restored removes all Print and Hold jobs that are not restored from the
printer hard disk or memory.
Format Flash
Yes
No
Formats the flash memory
Warning—Potential Damage: Do not turn off the printer while the flash memory is
being formatted.
Notes:
•Yes deletes all data stored in flash memory.
•No cancels the format request.
•Flash memory refers to the memory added by installing a flash memory option
card in the printer.
•A flash memory option card must be installed in the printer and operating
properly for this menu item to be available.
•The flash memory option card must not be read/write- or write-protected.
Delete Downloads on Disk
Delete Now
Do Not Delete
Removes downloads from the printer hard disk, including all held jobs, buffered jobs,
and parked jobs
Notes:
•Delete Now configures the printer control panel to return to the originating
screen after the deletion process is completed.
•Do Not Delete sets the printer control panel to return to the main Utilities menu.
Activate Hex Trace Assists in isolating the source of a print job problem
Notes:
•When activated, all data sent to the printer is printed in hexadecimal and
character representation, and control codes are not executed.
•To exit or deactivate Hex Trace, turn the printer off or reset the printer.
Coverage Estimator
Off
On
Provides an estimate of the percentage coverage of toner on a page. The estimate is
printed on a separate page at the end of each print job.
Note: Off is the factory default setting.
XPS menu
Menu item Description
Print Error Pages
Off
On
Prints a page containing information on errors, including XML markup errors
Note: Off is the factory default setting.
Understanding printer menus
137
PDF menu
Menu item Description
Scale to Fit
No
Yes
Scales page content to fit the selected paper size
Note: No is the factory default setting.
Annotations
Do Not Print
Print
Prints annotations in a PDF
Note: Do Not Print is the factory default setting.
PostScript menu
Menu item Description
Print PS Error
Off
On
Prints a page containing the PostScript error
Note: Off is the factory default setting.
Lock PS Startup Mode
Off
On
Enables users to disable the SysStart file
Note: Off is the factory default setting.
Font Priority
Resident
Flash/Disk
Establishes the font search order
Notes:
•Resident is the factory default setting.
•This menu item is available only if a formatted flash memory option card or
printer hard disk is installed and operating properly.
•Make sure the flash memory option or printer hard disk is not read/write-,
write-, or password-protected.
•Job Buffer Size must not be set to 100%.
Image Smoothing
Off
On
Enhances the contrast and sharpness of low-resolution images and smooths
their color transitions
Notes:
•Off is the factory default setting.
•Image Smoothing has no effect on images that are 300 dpi or higher in
resolution.
Understanding printer menus
138
PCL Emul menu
Menu item Description
Font Source
Resident
Disk
Download
Flash
All
Specifies the set of fonts used by the Font Name menu item
Notes:
•Resident is the factory default setting. It shows the factory default set of
fonts downloaded in RAM.
•Flash and Disk settings show all fonts resident in that option. Make sure the
flash option is properly formatted and is not read/write-, or
password-protected.
•Download shows all the fonts downloaded in RAM.
•All shows all fonts available to any option.
Font Name
RO Courier
Identifies a specific font and where it is stored
Note: RO Courier is the factory default setting. The RO Courier format shows the
font name, font ID, and storage location in the printer. The font source
abbreviation is R for Resident, F for Flash, K for Disk, and D for Download.
Symbol Set
10U PC-8
12U PC-850
Specifies the symbol set for each font name
Notes:
•10U PC-8 is the US factory default setting. 12U PC-850 is the international
factory default setting.
•A symbol set is a set of alphabetical and numeric characters, punctuation,
and special symbols. Symbol sets support the different languages or specific
programs such as math symbols for scientific text. Only the supported
symbol sets are shown.
PCL Emulation Settings
Point Size
1.00–1008.00
Changes the point size for scalable typographic fonts
Notes:
•12 is the factory default setting.
•Point Size refers to the height of the characters in the font. One point equals
approximately 1/72 of an inch.
•Point sizes can be increased or decreased in 0.25-point increments.
PCL Emulation Settings
Pitch
0.08–100
Specifies the font pitch for scalable monospaced fonts
Notes:
•10 is the factory default setting.
•Pitch refers to the number of fixed-space characters per inch (cpi).
•Pitch can be increased or decreased in 0.01-cpi increments.
•For non-scalable monospaced fonts, the pitch appears on the display but
cannot be changed.
PCL Emulation Settings
Orientation
Portrait
Landscape
Specifies the orientation of text and graphics on a page
Notes:
•Portrait is the factory default setting.
•Portrait prints text and graphics parallel to the short edge of the page.
•Landscape prints text and graphics parallel to the long edge of the page.
Understanding printer menus
139
Menu item Description
PCL Emulation Settings
Lines per Page
1–255
Specifies the number of lines that print on each page
Notes:
•60 is the US factory default setting. 64 is the international default setting.
•The printer sets the amount of space between each line based on the Lines
per Page, Paper Size, and Orientation settings. Select the desired Paper Size
and Orientation before setting Lines per Page.
PCL Emulation Settings
A4 Width
198 mm
203 mm
Sets the printer to print on A4-size paper
Notes:
•198 mm is the factory default setting.
•The 203-mm setting sets the width of the page to allow the printing of eighty
10-pitch characters.
PCL Emulation Settings
Auto CR after LF
Off
On
Specifies whether the printer automatically performs a carriage return (CR) after
a line feed (LF) control command
Note: Off is the factory default setting.
PCL Emulation Settings
Auto LF after CR
Off
On
Specifies whether the printer automatically performs a line feed (LF) after a
carriage return (CR) control command
Note: Off is the factory default setting.
Tray Renumber
Assign MP Feeder
Off
None
0–199
Assign Tray [x]
Off
None
0–199
Assign Manual Paper
Off
None
0–199
Assign Manual Env
Off
None
0–199
Configures the printer to work with printer software or programs that use
different source assignments for trays, drawers, and feeders
Notes:
•Off is the factory default setting.
•None ignores the Select Paper Feed command. This selection is displayed
only when it is selected by the PCL 5e interpreter.
•0–199 allows a custom setting to be assigned.
Understanding printer menus
140
Menu item Description
Tray Renumber
View Factory Defaults
MPF Default = 8
T1 Default = 1
T2 Default = 4
T3 Default = 5
T4 Default = 20
T5 Default = 21
Env Default = 6
MPaper Default = 2
MEnv Default = 3
Displays the factory default setting assigned to each tray, drawer, or feeder
Tray Renumber
Restore Defaults
Yes
No
Returns all tray, drawer, and feeder assignments to the factory default settings
Understanding printer menus
141
HTML menu
Menu Item Description
Font Name
Albertus MT
Antique Olive
Apple Chancery
Arial MT
Avant Garde
Bodoni
Bookman
Chicago
Clarendon
Cooper Black
Copperplate
Coronet
Courier
Eurostile
Garamond
Geneva
Gill Sans
Goudy
Helvetica
Hoefler Text
Intl CG Times
Intl Courier
Intl Univers
Joanna MT
Letter Gothic
Lubalin Graph
Marigold
MonaLisa Recut
Monaco
New CenturySbk
New York
Optima
Oxford
Palatino
StempelGaramond
Taffy
Times
TimesNewRoman
Univers
Zapf Chancery
NewSansMTCS
NewSansMTCT
New SansMTJA
NewSansMTKO
Sets the default font for HTML documents
Note: The Times font is used in HTML documents that do not
specify a font.
Menu item Description
Font Size
1–255 pt
Sets the default font size for HTML documents
Notes:
•12 pt is the factory default setting.
•Font size can be increased in 1-point increments.
Scale
1–400%
Scales the default font for HTML documents
Notes:
•100% is the factory default setting.
•Scaling can be increased in 1% increments.
Orientation
Portrait
Landscape
Sets the page orientation for HTML documents
Note: Portrait is the factory default setting.
Understanding printer menus
142
Menu item Description
Margin Size
8–255 mm
Sets the page margin for HTML documents
Notes:
•19 mm is the factory default setting.
•Margin size can be increased in 1-mm increments.
Backgrounds
Print
Do Not Print
Specifies whether to print backgrounds on HTML documents
Note: Print is the factory default setting.
Image menu
Menu item Description
Auto Fit
On
Off
Selects the optimal paper size, scaling, and orientation
Note: On is the factory default setting. It overrides scaling and orientation settings
for some images.
Invert
Off
On
Inverts bi-tonal monochrome images
Notes:
•Off is the factory default setting.
•This setting does not apply to GIF or JPEG images.
Scaling
Best Fit
Anchor Center
Fit Height/Width
Fit Height
Fit Width
Anchor Top Left
Scales the image to fit the selected paper size
Notes:
•Best Fit is the factory default setting.
•When Auto Fit is set to On, Scaling is automatically set to Best Fit.
Orientation
Portrait
Landscape
Rev Portrait
Rev Landscape
Sets the image orientation
Note: Portrait is the factory default setting.
Help menu
The Help menu consists of a series of Help pages that are stored in the printer as PDF files. They contain information
about using the printer and performing printing tasks.
Understanding printer menus
143
English, French, German, and Spanish translations are stored in the printer. Other translations are available on the
Lexmark Web site at www.lexmark.com.
Menu item Description
Print All Guides Prints all the guides
Color Quality Provides information about adjusting and customizing color printing
Print Quality Provides information about solving print quality issues
Printing Guide Provides information about loading paper and other speciality media
Media Guide Provides a list of the paper sizes supported in trays, drawers, and feeders
Print Defects Guide Provides help in determining the printer part causing a repetitive defect
Menu Map Provides a list of the printer control panel menus and settings
Information Guide Provides help in locating additional information
Connection Guide Provides information about connecting the printer locally (USB) or to a network
Moving Guide Provides instructions for safely moving the printer
Supplies Guide Provides part numbers for ordering supplies
Understanding printer menus
144
Securing the printer hard disk and other installed
memory
Statement of Volatility
Your printer contains various types of memory that are capable of storing device and network settings, information
from embedded solutions, and user data. The types of memory—along with the types of data stored by each—are
described below.
•Volatile memory—Your device utilizes standard Random Access Memory (RAM) to temporarily buffer user data
during simple print and copy jobs.
•Non-volatile memory—Your device may utilize two forms of non-volatile memory: EEPROM and NAND (flash
memory). Both types are used to store the operating system, device settings, network information, scanner and
bookmark settings, and embedded solutions.
•Hard disk memory—Some devices have a hard disk drive installed. The printer hard disk is designed for
device-specific functionality and cannot be used for long term storage for data that is not print-related. The hard
disk does not provide the capability for users to extract information, create folders, create disk or network file
shares, or FTP information directly from a client device. The hard disk can retain buffered user data from complex
scan, print, copy, and fax jobs, as well as form data, and font data.
There are several circumstances under which you might wish to erase the contents of the memory devices installed in
your printer. A partial list includes:
•The printer is being decommissioned
•The printer hard drive is being replaced
•The printer is being moved to a different department or location
•The printer is being serviced by someone from outside your organization
•The printer is being removed from your premises for service
Disposing of a hard drive
Note: Not all printers have a hard disk installed.
In high-security environments, it may be necessary to take additional steps to ensure that confidential data stored on
the printer hard disk cannot be accessed once the printer—or its hard disk—is removed from your premises. While
most data can be erased electronically, you may want to consider one or more of the following actions before disposing
of a printer or hard disk:
•Degaussing—Flushes the hard drive with a magnetic field that erases stored data
•Crushing—Physically compresses the hard disk to break component parts and render them unreadable
•Milling—Physically shreds the hard disk into small metal bits
Note: While most data can be erased electronically, the only way to guarantee that all data is completely erased is to
physically destroy each memory device on which data could have been stored.
Securing the printer hard disk and other installed memory
145
Erasing volatile memory
The volatile memory (RAM) installed on your printer requires a power source to retain information. To erase the
buffered data, simply power down the device.
Erasing non-volatile memory
There are several methods available for erasing data stored in non-volatile memory, depending on the type of memory
device installed, and the type of data stored by that device. For information about how to erase each type of information,
see the Embedded Web Server Administrator Guide.
•Individual settings—Erase individual printer settings using the printer control panel or the printer Embedded Web
Server.
•Device and network settings—Erase device and network settings and restore factory defaults by resetting the
NVRAM using the printer Config menu.
•Security settings—Restore factory defaults or erase security settings by selecting a behavior for the Security Reset
Jumper in the Embedded Web Server, and then moving a hardware jumper located on the motherboard.
•Fax data—Erase fax settings and data by resetting the NVRAM using the printer Config menu. Use this when the
printer does not contain a hard disk or if you have chosen NAND for fax storage.
Note: If the printer hard disk is partitioned for fax storage, then you must reformat that partition to erase fax data
and settings.
•Embedded solutions—Erase information and settings associated with embedded solutions by uninstalling the
solutions or applications, or by restoring factory defaults using the printer Config menu.
Using the printer control panel
1Turn the printer off.
2Hold down and
6
MNO
while turning the printer on. Release the buttons only when the screen with the progress
bar appears.
The printer performs a power-on sequence, and then the Configuration menu appears. Once the printer is fully
powered up, the touch screen displays a list of functions, instead of the standard home screen icons such as Copy
or Fax.
3Touch Wipe All Settings.
The printer will reboot several times during this process.
Note: Wipe All Settings securely removes device settings, solutions, jobs, faxes, and passwords on the printer.
4Touch Back, and then Exit Config Menu.
The printer will power-on reset, and then return to normal operating mode.
Securing the printer hard disk and other installed memory
146
Erasing printer hard disk memory
Note: Not all printers have a hard disk installed.
Configuring Disk Wiping in the printer menus enables you to remove residual confidential material left by scan, print,
copy, and fax jobs, by securely overwriting files that have been marked for deletion.
Using the Embedded Web Server
1From the Embedded Web Server, click Settings > Security > Disk Wiping.
Note: Printers without a hard disk will not display Disk Wiping in the Security menu.
2For Wiping Mode, select one of the following:
•Auto—Use this to automatically wipe data following each use (can increase the time between jobs).
•Manual—Use this to set up a schedule for disk wiping.
3Click Submit.
4From the Security menu, click Disk Wiping.
5If you have enabled Manual mode and wish to set up a schedule for disk wiping, click Scheduled Disk Wiping.
Notes:
•Scheduled Disk Wiping will not be displayed until after Manual mode has been selected and submitted.
•If you do not wish to schedule disk wiping, you can skip steps 5 and 6.
6Use the Time and Day(s) options to designate when disk wiping should occur, and then click Add. Repeat as needed
to schedule additional times for disk wiping. When finished, use the browser Back button to return to the Disk
Wiping setup screen.
Note: Disk wiping can take from several minutes to more than an hour, during which time the printer will be
unavailable for other user tasks.
7From the Disk Wiping settings screen, select one of the following for each method of disk wiping (Automatic, Manual,
and Scheduled):
•Single Pass— This lets you overwrite the printer hard disk in a single pass with a repeating bit pattern.
•Multi-pass—This lets you overwrite the printer hard disk with random bit patterns several times, followed by
a verification pass. A secure overwrite is compliant with the DoD 5220.22-M standard for securely erasing data
from a hard disk. Highly confidential information should be wiped using this method.
8Click Submit.
Using the printer control panel
1Turn the printer off.
2Hold down and
6
MNO
while turning the printer on. It takes approximately a minute to boot into the Configuration
menu.
Once the printer is fully powered up, the touch screen should display a list of functions, instead of standard home
screen icons such as Copy or Fax.
3Release the buttons when the screen with the progress bar appears. The printer performs a power-on sequence,
and then the Configuration menu appears.
Securing the printer hard disk and other installed memory
147
4Touch Wipe Disk, and then touch one of the following:
•Wipe disk (fast)—This lets you overwrite the disk with all zeroes in a single pass.
•Wipe disk (secure)—This lets you overwrite the disk with random bit patterns several times, followed by a
verification pass. A secure overwrite is compliant with the DoD 5220.22-M standard for securely erasing data
from a hard disk. Highly confidential information should be wiped using this method.
5Touch Yes to proceed with disk wiping. A status bar will indicate the progress of the disk wiping task.
Note: Disk wiping can take from several minutes to more than an hour, during which the printer will be unavailable
for other user tasks.
6Touch Back, and then Exit Config Menu.
The printer will power-on reset, and then return to normal operating mode.
Configuring printer hard disk encryption
Note: Your printer may not have a hard disk installed.
Enabling hard disk encryption helps prevent the loss of sensitive data in the event your printer or its hard disk is stolen.
Using the Embedded Web Server
1From the Embedded Web Server, click Settings > Security > Disk Encryption.
Note: Disk Encryption appears in the Security Menu only when a formatted, non-defective printer hard disk is
installed.
2From the Disk encryption menu, select Enable.
Notes:
•Enabling disk encryption will erase the content of the printer hard disk.
•Disk encryption can take from several minutes to more than an hour, during which the printer will be unavailable
for other user tasks.
3Click Submit.
Using the printer control panel
1Turn off the printer.
2Hold down and
6
MNO
while turning the printer on. Release the buttons only when the screen with the progress
bar appears.
The printer performs a power-on sequence, and then the Configuration menu appears. Once the printer is fully
powered up, the touch screen displays a list of functions, instead of standard home screen icons such as Copy or
Fax.
3Touch Disk Encryption > Enable.
Note: Enabling disk encryption will erase the contents of the printer hard disk.
4Touch Yes to proceed with disk wiping.
A status bar will indicate the progress of the disk wiping task. After the disk has been encrypted, the printer will
return to the Enable/Disable screen.
Securing the printer hard disk and other installed memory
148
Notes:
•Do not turn off the printer during the encryption process. Doing so may result in loss of data.
•Disk encryption can take from several minutes to more than an hour, during which the printer will be unavailable
for other user tasks.
5Touch Back, and then Exit Config Menu.
The printer will power-on reset, and then return to normal operating mode.
Securing the printer hard disk and other installed memory
149
Maintaining the printer
Periodically, certain tasks are required to maintain optimum print quality.
Cleaning the exterior of the printer
1Make sure that the printer is turned off and unplugged from the wall outlet.
CAUTION—SHOCK HAZARD: To avoid the risk of electric shock when cleaning the exterior of the printer,
unplug the power cord from the wall outlet and disconnect all cables to the printer before proceeding.
2Remove paper from the standard exit bin.
3Dampen a clean, lint-free cloth with water.
Warning—Potential Damage: Do not use household cleaners or detergents, as they may damage the finish of the
printer.
4Wipe only the outside of the printer, making sure to include the standard exit bin.
Warning—Potential Damage: Using a damp cloth to clean the interior may cause damage to your printer.
5Make sure the paper support and standard exit bin are dry before beginning a new print job.
Cleaning the printhead lenses
Clean the printhead lenses when you encounter print quality problems.
1Open the front door.
2Remove all print cartridges.
Warning—Potential Damage: Do not touch the shiny area on the photoconductor drum. Doing so can damage the
photoconductor.
Maintaining the printer
150
3Locate the four printhead lenses.
4Clean the lenses using compressed air.
Warning—Potential Damage: Do not touch the printhead lenses.
5Reinstall the print cartridges.
6Close the front door.
Storing supplies
Choose a cool, clean storage area for the printer supplies. Store supplies right side up in their original packing until you
are ready to use them.
Do not expose supplies to:
•Direct sunlight
•Temperatures above 35°C (95°F)
Maintaining the printer
151
•High humidity above 80%
•Salty air
•Corrosive gases
•Heavy dust
Checking the status of supplies
A message appears on the display when a replacement supply item is needed or when maintenance is required.
Checking the status of supplies from the printer control panel
From the home screen, touch Status/Supplies > View Supplies.
Checking the status of supplies from a network computer
Note: The computer must be connected to the same network as the printer.
1Type the printer IP address into the address field of your Web browser.
If you do not know the IP address of the printer, you can:
•View the IP address on the printer control panel in the TCP/IP section under the Networks/Ports menu.
•Print a network setup page or the menu settings pages and locate the IP address in the TCP/IP section.
2Click Device Status.
The Device Status page appears, displaying a summary of supply levels.
Ordering supplies
To order supplies in the U.S., contact Lexmark at 1-800-539-6275 for information about Lexmark authorized supplies
dealers in your area. In other countries or regions, visit the Lexmark Web Site at www.lexmark.com or contact the
place where you purchased the printer.
Note: All life estimates for printer supplies assume printing on letter- or A4-size plain paper.
Ordering a print cartridge
When 88 [color] cartridge low or 88 [color] cartridge nearly low appears, order a new
cartridge.
Estimated cartridge yield is based on the ISO/IEC 19798 standard. Extremely low print coverage (less than 1.25%) for
extended periods of time may negatively affect actual yield and may cause cartridge parts to fail prior to exhaustion
of toner.
Maintaining the printer
152
Recommended print cartridge and part number
Part name Lexmark Return Program Cartridge Regular cartridge
Cyan Print Cartridge
Cyan Extra High Yield Print Cartridge
C792A1CG
C792X1CG
C792A2CG
C792X2CG
Magenta Print Cartridge
Magenta Extra High Yield Print Cartridge
C792A1MG
C792X1MG
C792A2MG
C792X2MG
Yellow Print Cartridge
Yellow Extra High Yield Print Cartridge
C792A1YG
C792X1YG
C792A2YG
C792X2YG
Black Print Cartridge
Black Extra High Yield Print Cartridge
C792A1KG
C792X1KG
C792A2KG
C792X2KG
Ordering a fuser or a transfer module
When 80 Fuser Life Warning or 83 Transfer Module Life Warning appears, order a replacement
fuser or a transfer module.
When 80 Replace Fuser or 83 Replace Transfer Module appears, install the new fuser or the new
transfer module. For installation information, see the documentation that came with the part.
Part name Part number
Fuser 40X7102 (100 volts)
40X7100 (115 volts)
40X7101 (230 volts)
Transfer Module 40X7103
Ordering a waste toner bottle
When 82 Waste toner bottle nearly full appears, order a replacement waste toner bottle.
When 82 Replace waste toner bottle appears, replace the waste toner bottle.
Note: Waste toner bottle reuse is not recommended.
Part name Part number
Waste toner bottle C792X77G
Ordering staple cartridges
When Staples Low or Staples Empty appears, order the specified staple cartridge.
For more information, see the illustrations inside the stapler door.
Part name Part number
Staple Cartridges–3 pack
(Since a pack contains 5,000 staples, a 3-pack contains 15,000 staples.)
25A0013
Maintaining the printer
153
Ordering a cleaning kit
Use the wet and dry wipes from the cleaning kit to clean the touch screen.
Part name Part number
Cleaning kit (wet and dry wipes) 40X0392
Replacing supplies
Replacing a print cartridge
1Open the front door.
2Lift the green handle and pull the print cartridge. Grasp the top handle and lift the cartridge out of the machine.
Maintaining the printer
154
3Place the old cartridge in the replacement cartridge shipping box, and then attach the return label to the box for
shipping.
4Unpack a new print cartridge.
Warning—Potential Damage: Be careful not to touch the photoconductor drum. Doing so may affect the print
quality of future print jobs.
1
2
Maintaining the printer
155
5Shake the new cartridge front-to-back and side-to-side to evenly distribute the toner.
6Remove the red packing strip from the new cartridge.
7Insert the new cartridge into the printer, and then push the green handle back in place.
Note: Make sure the cartridge is fully pushed in.
Maintaining the printer
156
8Close the front door.
Replacing the waste toner bottle
Replace the waste toner bottle when 82.xx Replace waste toner bottle appears. The printer will not
continue printing until the waste toner bottle is replaced.
1Remove the replacement waste toner bottle from its shipping box, and then unpack it.
2
1
2Open the printer front door, and then open tray 1.
3Pull the green tabs sideways, and then grasp and pull the tabs with both hands to remove the waste toner bottle.
1
2
1
4Place the waste toner bottle in the recycling bag.
Maintaining the printer
157
5Place the bag into the shipping box you removed the replacement part from.
2
1
6Peel the recycling label off, and place it on the shipping box.
1 2
7Insert the new waste toner bottle into the printer.
2
2
1
8Close tray 1, and then close the front door.
Moving the printer
Before moving the printer
CAUTION—POTENTIAL INJURY: The printer weight is greater than 18 kg (40 lb) and requires two or more trained
personnel to lift it safely.
CAUTION—POTENTIAL INJURY: Before moving the printer, follow these guidelines to avoid personal injury or
printer damage:
Maintaining the printer
158
•Turn the printer off using the power switch, and then unplug the power cord from the wall outlet.
•Disconnect all cords and cables from the printer before moving it.
•Lift the printer off of the optional drawer and set it aside instead of trying to lift the drawer and printer at the same
time.
Note: Use the handholds located on both sides of the printer to lift it off the optional drawer.
Warning—Potential Damage: Damage to the printer caused by improper moving is not covered by the printer warranty.
Moving the printer to another location
The printer and options can be safely moved to another location by following these precautions:
•Any cart used to move the printer must have a surface able to support the full footprint of the printer. Any cart
used to move the options must have a surface able to support the dimensions of the options.
•Keep the printer in an upright position.
•Avoid severe jarring movements.
Shipping the printer
When shipping the printer, use the original packaging or call the place of purchase for a relocation kit.
Maintaining the printer
159
Administrative support
Finding advanced networking and administrator information
This chapter covers basic administrative support tasks using the Embedded Web Server. For more advanced system
support tasks, see the Networking Guide on the Software and Documentation CD and the Embedded Web Server
Administrator's Guide on the Lexmark Web site at http://support.lexmark.com.
Using the Embedded Web Server
If the printer is installed on a network, then the Embedded Web Server is available for a range of functions including:
•Viewing a virtual display of the printer control panel
•Checking the status of the printer supplies
•Configuring printer settings
•Configuring network settings
•Viewing reports
To access the Embedded Web Server for your printer:
1Type the printer IP address into the address field of your Web browser.
Notes:
•If you do not know the IP address of the printer, then print a network setup page, and then locate the IP address
in the TCP/IP section.
•If you are using a proxy server, then temporarily disable it to load the Embedded Web Server correctly.
2Press Enter.
Checking the virtual display
1Open an Embedded Web Server associated with your printer.
Type the printer IP address into the address field of your Web browser.
If you do not know the IP address of the printer, you can:
•View the IP address on the printer control panel in the TCP/IP section under the Networks/Ports menu.
•Print a network setup page or the menu settings pages and locate the IP address in the TCP/IP section.
2Check the virtual display that appears in the top left corner of the screen.
The virtual display works as an actual display would work on a printer control panel, showing printer messages.
Checking the status of the printer
1Type the printer IP address into the address field of your Web browser.
Administrative support
160
If you do not know the IP address of the printer, you can:
•View the IP address on the printer control panel in the TCP/IP section under the Networks/Ports menu.
•Print a network setup page or the menu settings pages and locate the IP address in the TCP/IP section.
2Click Device Status.
The device status shows the following:
•Paper tray settings
•Level of toner in the print cartridge
•Percentage of life remaining in the maintenance kit
•Capacity measurements of certain printer parts
Setting up e-mail alerts
Configure the printer to send you e-mail alerts when the supplies are getting low or when the paper needs to be changed
or added, or when there is a paper jam.
1Type the printer IP address into the address field of your Web browser.
If you do not know the IP address of the printer, you can:
•View the IP address on the printer control panel in the TCP/IP section under the Networks/Ports menu.
•Print a network setup page or the menu settings pages and locate the IP address in the TCP/IP section.
2Click Settings.
3Under Other Settings, click E-mail Alert Setup.
4Select the items for notification, and type the e-mail addresses.
5Click Submit.
Note: For information on setting up the e-mail server, contact your system support person.
Viewing reports
You can view some reports from the Embedded Web Server. These reports are useful for assessing the status of the
printer, the network, and supplies.
To view reports from a network printer:
1Type the printer IP address into the address field of your Web browser.
If you do not know the IP address of the printer you can:
•View the IP address on the printer control panel in the TCP/IP section under the Networks/Ports menu.
•Print a network setup page or the menu settings pages and locate the IP address in the TCP/IP section.
2Click Reports, and then click the type of report you want to view.
Administrative support
161
Restoring factory default settings
If you want to retain a list of the current menu settings for reference, then print a menu settings page before restoring
the factory default settings.
Warning—Potential Damage: Restoring factory defaults returns most printer settings to the original factory default
settings. Exceptions include the display language, custom sizes and messages, and network/port menu settings. All
downloads stored in RAM are deleted. Downloads stored in flash memory or on a printer hard disk are not affected.
From the home screen, navigate to:
> Settings > General Settings > Factory Defaults > Restore Now >
Administrative support
162
Clearing jams
By carefully selecting papers and specialty media and loading it properly, you should be able to avoid most jams. For
more information, see “Avoiding jams” on page 163. If jams do occur, follow the steps outlined in this chapter.
To resolve the jam messages, you must clear the entire paper path, and touch Continue to clear the message and
resume printing. The printer prints a new copy of the page that jammed if Jam Recovery is set to On or Auto; however,
the Auto setting does not guarantee the page will print.
Note: Jam recovery is set to Auto by default. The printer reprints jammed pages unless the memory required to hold
the pages is needed for other printer tasks.
Avoiding jams
Paper tray recommendations
•Make sure the paper lies flat in the tray.
•Do not remove a tray while the printer is printing.
•Do not load a tray while the printer is printing. Load it prior to printing, or wait for a prompt to load it.
•Do not load too much paper. Make sure the stack height does not exceed the indicated maximum height.
•Make sure the guides in the tray or the multipurpose feeder are properly positioned and are not pressing too tightly
against the paper or envelopes.
•Push the tray in firmly after loading paper.
Paper recommendations
•Use only recommended paper or specialty media.
•Do not load wrinkled, creased, damp, bent, or curled paper.
•Flex and straighten paper before loading it.
•Do not use paper that has been cut or trimmed by hand.
•Do not mix paper sizes, weights, or types in the same stack.
•Make sure all sizes and types are set correctly in the printer control panel menus.
•Store paper per manufacturer recommendations.
Understanding jam numbers and locations
When a jam occurs, a message indicating the jam location appears on the display. To resolve any paper jam message,
you must clear all jammed paper from the paper path.
Clearing jams
163
6
5
4
1
2
3
Area Jam numbers What to do
1200-239 Open side door, and then remove the jammed paper.
224x Open side door of the specified tray, and then remove the jammed paper.
3250 Remove all paper from the multipurpose feeder, and then remove the jammed paper.
4400-403, 460-461 Open the Horizontal Transport Unit (HTU) door, and then remove the jammed paper.
5431-458 Push the button to slide the finisher or mailbox to the right, open the finisher or mailbox door,
and then remove the jammed paper.
6455 Open staple door, remove the staple cartridge, and then remove the jammed staple.
Clearing jams
164
200 paper jam
1Open the side door of the printer.
CAUTION—HOT SURFACE: The inside of the printer might be hot. To reduce the risk of injury from a hot
component, allow the surface to cool before touching.
2Firmly grasp the jammed paper, and then gently pull it out.
Note: Make sure all paper fragments are removed.
3Close the side door of the printer.
4From the printer control panel, touch Continue, jam cleared.
201 paper jam
1Open the side door of the printer.
CAUTION—HOT SURFACE: The inside of the printer might be hot. To reduce the risk of injury from a hot
component, allow the surface to cool before touching.
2Determine where the jam is located, and then remove it:
aIf paper is inside the fuser unit, then open the fuser access door.
1
2
bFirmly grasp the jammed paper on each side, and then gently pull it out.
Warning—Potential Damage: Do not touch the center of the fuser unit. Doing so will damage the fuser.
Note: Make sure all paper fragments are removed.
3Close the side door of the printer.
4From the printer control panel, touch Continue, jam cleared.
Clearing jams
165
202–203 paper jams
If paper is visible in the standard exit bin, then firmly grasp the paper on each side, and then gently pull it out.
Note: Make sure all paper fragments are removed.
Paper jam in the fuser
1Open the side door of the printer.
CAUTION—HOT SURFACE: The inside of the printer might be hot. To reduce the risk of injury from a hot
component, allow the surface to cool before touching.
2If paper is visible inside the fuser unit, then open the fuser access door.
1
2
3Firmly grasp the jammed paper on each side, and then gently pull it out.
Warning—Potential Damage: Do not touch the center of the fuser unit. Doing so will damage the fuser.
Note: Make sure all paper fragments are removed.
4Close the side door.
Paper jam under the fuser
1Open the side door of the printer.
CAUTION—HOT SURFACE: The inside of the printer might be hot. To reduce the risk of injury from a hot
component, allow the surface to cool before touching.
2If paper is visible under the fuser, then firmly grasp the jammed paper on each side, and then gently pull it out.
Note: Make sure all paper fragments are removed.
Clearing jams
166
3Close the side door of the printer.
4From the printer control panel, touch Continue, jam cleared.
230 paper jam
1Open the side door of the printer.
CAUTION—HOT SURFACE: The inside of the printer might be hot. To reduce the risk of injury from a hot
component, allow the surface to cool before touching.
2Slide the latch to open the duplex cover.
1
2
3Grasp the jammed paper, and then gently pull it out.
Note: Make sure all paper fragments are removed.
4Close the duplex cover.
5Close the side door of the printer.
6From the printer control panel, touch Continue, jam cleared.
Clearing jams
167
231–239 paper jams
1Open the side door of the printer.
CAUTION—HOT SURFACE: The inside of the printer might be hot. To reduce the risk of injury from a hot
component, allow the surface to cool before touching.
2Slide the latch to open the duplex cover.
1
2
3Grasp the jammed paper, and then gently pull it out.
Note: Make sure all paper fragments are removed.
4Close the duplex cover.
5Close the side door of the printer.
6From the printer control panel, touch Continue, jam cleared.
24x paper jam
Paper jam in Tray 1
1Open the side door.
2Grasp the jammed paper on each side, and then gently pull it out.
3Close the side door.
4From the printer control panel, touch Continue, jam cleared.
Clearing jams
168
Paper jam in the optional trays
1Open the side door of the specified optional tray.
2Grasp the jammed paper on each side, and then gently pull it out.
3Close the side door.
4From the printer control panel, touch Continue, jam cleared.
250 paper jam
1Push the paper pick tab, and then remove all paper from the multipurpose feeder.
1
2
Warning—Potential Damage: Pulling the paper out, without pushing the paper pick tab first, may cause the paper
pick tab to break.
Clearing jams
169
2Grasp the jammed paper on each side, and then gently pull it out.
1
2
Note: Make sure all paper fragments are removed.
3Reload paper into the multipurpose feeder, and then adjust the paper guides.
4From the printer control panel, touch Continue, jam cleared.
400–403 and 460–461 paper jams
1Open the paper transport unit door.
2Firmly grasp the jammed paper, and then gently pull it out.
Note: Make sure all paper fragments are removed.
3Close the paper transport unit door.
4From the printer control panel, touch Continue, jam cleared.
Clearing jams
170
431–454, and 456–458 paper jams
1Push the button, and then slide the output finisher or mailbox to the right.
1
2
2Open the finisher or mailbox access door.
3Grasp the jammed paper, and then gently pull it out.
Note: Make sure all paper fragments are removed.
4Close the finisher or mailbox access door.
5Slide the finisher or mailbox to the left until it clicks in place.
6From the printer control panel, touch Continue, jam cleared.
455 staple jam
1Press the latch to open the stapler door.
Note: The stapler door is located behind the finisher.
Clearing jams
171
2Lower the latch of the staple cartridge holder, and then pull the staple cartridge holder out of the printer.
1
2
3Use the metal tab to lift the staple guard, and then remove any jammed or loose staples.
Clearing jams
172
4Close the staple guard.
5Press down on the staple guard until it clicks into place.
6Push the staple cartridge holder firmly back into the stapler unit until the staple cartridge holder clicks into place.
7Close the stapler door.
8From the printer control panel, touch Continue, jam cleared.
Clearing jams
173
Troubleshooting
Checking an unresponsive printer
If your printer is not responding, make sure:
•The power cord is plugged into the printer and a properly grounded electrical outlet.
•The electrical outlet is not turned off by any switch or breaker.
•The printer is not plugged into any surge protectors, uninterrupted power supplies, or extension cords.
•Other electrical equipment plugged into the outlet is working.
•The printer is turned on.
•The printer cable is securely attached to the printer and the host computer, print server, option, or other network
device.
Once you have checked each of these possibilities, turn the printer off and then back on. This often fixes the problem.
Understanding printer messages
Adjusting color
Wait for the process to complete.
An error has occurred with the USB drive. Please remove and reinsert drive.
Try one or more of the following:
•Remove and reinsert the flash drive.
•If the error message remains, the flash memory may be defective and require replacement.
Change [paper source] to [custom type name]
Try one or more of the following:
•Touch Use current [paper source] to ignore the message and print from the selected tray.
•Load the correct paper size and type in the tray, verify the paper size and type settings are specified in the printer
control panel Paper menu, and then touch Paper changed, continue.
•Touch Cancel job to cancel the print job.
Change [paper source] to [custom type name] load [orientation]
Try one or more of the following
•Touch Use current [paper source] to ignore the message and print from the selected tray.
•Load the correct paper size and type in the tray, verify the paper size and type settings are specified in the printer
control panel Paper menu, and then touch Paper changed, continue.
•Touch Cancel job to cancel the print job.
Troubleshooting
174
Change [paper source] to [custom string]
Try one or more of the following:
•Touch Use current [paper source] to ignore the message and print from the selected tray.
•Load the correct paper size and type in the tray, verify the paper size and type settings are specified in the printer
control panel Paper menu, and then touch Paper changed, continue.
•Touch Cancel job to cancel the print job.
Change [paper source] to [custom string] load [orientation]
Try one or more of the following:
•Touch Use current [paper source] to ignore the message and print from the selected tray.
•Load the correct paper size and type in the tray, verify the paper size and type settings are specified in the printer
control panel Paper menu, and then touch Paper changed, continue.
•Touch Cancel job to cancel the print job.
Change [paper source] to [paper size] [paper type]
Try one or more of the following:
•Touch Use current [paper source] to ignore the message and print from the selected tray.
•Load the correct paper size and type in the tray, verify the paper size and type settings are specified in the printer
control panel Paper menu, and then touch Paper changed, continue.
•Touch Cancel job to cancel the print job.
Change [paper source] to [paper size] [paper type] load [orientation]
Try one or more of the following:
•Touch Use current [paper source] to ignore the message and print from the selected tray.
•Load the correct paper size and type in the tray, verify the paper size and type settings are specified in the printer
control panel Paper menu, and then touch Paper changed, continue.
•Touch Cancel job to cancel the print job.
Close paper transport cover
Close the paper transport unit cover or door.
Close left side door
Close the left side door of the printer.
Close [tray] door
Close the specified tray door.
Troubleshooting
175
Close finisher side door
Close the side door of the finisher.
Close finisher top cover
Close the top cover of the finisher.
Close front door
Close the front door of the printer.
Disk corrupted
The printer attempted a hard disk recovery on a corrupted hard disk, and the hard disk cannot be repaired. The hard
disk must be reformatted.
Touch Format disk to reformat the printer hard disk and clear the message.
Note: Formatting deletes all the files stored on the printer hard disk.
Disk near full. Securely clearing disk space.
Try one or more of the following:
•Touch Continue to clear the message and continue printing.
•Delete fonts, macros, and other data stored on the printer hard disk.
•Install a hard disk with higher capacity.
Disk problem
The printer hard disk must be reformatted.
Touch Format disk to reformat the printer hard disk and clear the message.
Note: Formatting deletes all the files stored on the printer hard disk.
Empty the hole punch box
1Empty the hole punch box.
For instructions on emptying the hole punch box, from the printer control panel touch More Information.
2Reinsert the hole punch box into the finisher, and then touch Continue to clear the message.
Error reading USB drive. Remove USB.
An unsupported USB device has been inserted. Remove the USB device, and then install a supported one.
Troubleshooting
176
Insert staple cartridge
Try one or more of the following:
•Insert a staple cartridge.
•Touch Continue to clear the message and print without using the staple finisher.
Insert Tray [x]
Insert the specified tray into the printer.
Insert the hole punch box
Insert the hole punch box into the finisher, and then touch Continue to clear the message.
Install bin [x]
Try one or more of the following:
•Install the specified bin:
1Turn the printer off.
2Unplug the power cord from the wall outlet.
3Install the specified bin.
4Connect the power cord to a properly grounded electrical outlet.
5Turn the printer back on.
•Cancel the print job.
Install envelope feeder
Try one or more of the following:
•Install the envelope feeder:
1Turn the printer off.
2Unplug the power cord from the wall outlet.
3Install the envelope feeder.
4Connect the power cord to a properly grounded electrical outlet.
5Turn the printer back on.
•Cancel the print job.
Install Tray [x]
Try one or more of the following:
•Install the specified tray:
1Turn the printer off.
2Unplug the power cord from the wall outlet.
3Install the specified tray.
Troubleshooting
177
4Connect the power cord to a properly grounded electrical outlet.
5Turn the printer back on.
•Cancel the print job.
Load [src] with [custom type name]
Try one or more of the following:
•Load the specified paper in the tray or feeder.
•Touch Paper loaded, continue to clear the message and continue printing.
If the printer finds a tray that has the correct paper type and size, it feeds from that tray. If the printer cannot find
a tray with the correct paper type and size, it prints from the default paper source.
•Cancel the print job.
Load [src] with [custom string]
Try one or more of the following:
•Load the specified paper in the tray or feeder.
•Touch Paper loaded, continue to clear the message and continue printing.
If the printer finds a tray that has the correct paper type and size, it feeds from that tray. If the printer cannot find
a tray with the correct paper type and size, it prints from the default paper source.
•Cancel the print job.
Load [src] with [size]
Try one or more of the following:
•Load the specified paper in the tray or feeder.
•Touch Paper loaded, continue to clear the message and continue printing.
If the printer finds a tray that has the correct paper type and size, it feeds from that tray. If the printer cannot find
a tray with the correct paper type and size, it feeds from the default paper source.
•Cancel the print job.
Load [src] with [type] [size]
Try one or more of the following:
•Load the specified paper in the tray or feeder.
•Touch Paper loaded, continue to clear the message and continue printing.
If the printer finds a tray that has the correct paper type and size, it feeds from that tray. If the printer cannot find
a tray with the correct paper type and size, it feeds from the default paper source.
•Cancel the print job.
Troubleshooting
178
Load Manual Feeder with [custom type name]
Try one or more of the following:
•Load the specified paper in the manual feeder.
•Touch Prompt each page, paper loaded or Do not prompt, paper loaded to clear the message and continue printing.
•Touch Automatically select paper to use the paper loaded in the tray.
•Cancel the print job.
Load Manual Feeder with [custom string]
Try one or more of the following:
•Load the specified paper in the manual feeder.
•Touch Prompt each page, paper loaded or Do not prompt, paper loaded to clear the message and continue printing.
•Touch Automatically select paper to use the paper loaded in the tray.
•Cancel the print job.
Load Manual Feeder with [paper type] [paper size]
Try one or more of the following:
•Load the specified paper in the manual feeder.
•Touch Prompt each page, paper loaded or Do not prompt, paper loaded to clear the message and continue printing.
•Touch Automatically select paper to use the paper loaded in the tray.
•Cancel the print job.
Load staples
Try one or more of the following:
•Replace the specified staple cartridge in the finisher.
•Touch Continue to clear the message and continue printing.
•Touch Cancel job to cancel the print job.
Paper changes needed
Try one or more of the following:
•Touch Use current supplies to clear the message and continue printing.
•Cancel the current print job.
Troubleshooting
179
Reattach bin [x]
Try one or more of the following:
•Turn the printer off and then back on.
•Reattach the specified bin:
1Turn the printer off.
2Unplug the power cord from the wall outlet.
3Remove the specified bin.
4Reattach the bin.
5Connect the power cord to a properly grounded electrical outlet.
6Turn the printer back on.
•Remove the specified bin:
1Turn the printer off.
2Unplug the power cord from the wall outlet.
3Remove the specified bin.
4Contact Customer Support.
•Touch Continue to clear the message and print without using the specified bin.
Reattach bin [x] – [y]
Try one or more of the following:
•Turn the printer off and then back on.
•Reattach the specified bins:
1Turn the printer off.
2Unplug the power cord from the wall outlet.
3Remove the specified bins.
4Reattach the bins.
5Connect the power cord to a properly grounded electrical outlet.
6Turn the printer back on.
•Remove the specified bins:
1Turn the printer off.
2Unplug the power cord from the wall outlet.
3Remove the specified bins.
4Contact Customer Support.
•Touch Continue to clear the message and print without using the specified bins.
Remove paper from standard output bin
Remove the stack of paper from the standard exit bin.
Troubleshooting
180
Remove paper from bin [x]
Remove the paper from the specified bin. The printer automatically senses paper removal and resumes printing.
If removing the paper does not clear the message, then touch Continue.
Remove paper from all bins
Output bins have reached their capacity. Remove paper from all output bins to clear the message and continue printing.
Remove paper from [linked bin set name]
Remove the paper from the specified bin. The printer automatically senses paper removal and resumes printing.
If removing the paper does not clear the message, then touch Continue.
Remove packaging material, [area name]
Remove any remaining packaging material from the specified location.
Restore held jobs?
Try one or more of the following:
•Touch Restore to restore all held jobs stored on the printer hard disk.
•Touch Do not restore if you do not want any print jobs to be restored.
Slide finisher to the left
Slide the mailbox or finisher to the left until it clicks into place.
Some held jobs were not restored
Touch Continue to delete the specified job.
Note: Held jobs that are not restored stay on the hard disk and are inaccessible.
Supply needed to complete job
A supply needed to complete the job is missing. Touch Cancel to clear the message.
Unsupported disk
An unsupported disk has been inserted. Remove the unsupported disk, and then install a supported one.
Troubleshooting
181
31.xx Missing or defective [color] cartridge
Try one or more of the following:
1Remove and reinstall the specified print cartridge.
For instructions on removing a print cartridge, touch More Information.
2Touch Continue to clear the message.
Note: If the message is not cleared, then replace the defective print cartridge.
32.xx [color] cartridge part number unsupported by device
1Remove the unsupported print cartridge, and then install a supported one.
For instructions on removing a print cartridge, touch More Information.
2Touch Continue to clear the message.
34 Incorrect paper size, open [src]
Try one or more of the following:
•Load the appropriate paper or specialty media in the proper tray.
•Confirm that the wheel on tray 1 is set to the paper size loaded in the tray. Make sure this size is the size you are
trying to print.
•Touch Continue to clear the message and print using a different tray.
•Check length and width guides of the tray and make sure the paper is properly loaded in the tray.
•Make sure the Print Properties or Print dialog settings have the correct paper size and type.
•Check that the paper size is correctly set. For example, if the MP Feeder Size is set to Universal, make sure the paper
is large enough for the data being printed.
•Cancel the print job.
35 Insufficient memory to support Resource Save feature
Try one or more of the following:
•Touch Continue to disable Resource Save and continue printing.
•To enable Resource Save after receiving this message, make sure the link buffers are set to Auto, and then exit the
menus to activate the link buffer changes. When Ready appears, enable Resource Save.
•Install additional memory.
36 Printer service required
Touch Continue to clear the message or contact customer support.
Troubleshooting
182
37 Insufficient memory to collate job
Try one or more of the following:
•Touch Continue to print the portion of the job already stored and begin collating the rest of the print job.
•Cancel the current print job.
37 Insufficient memory for Flash Memory Defragment operation
Try one or more of the following:
•Touch Continue to stop the defragment operation and continue printing.
•Delete fonts, macros, and other data in printer memory.
•Install additional printer memory.
37 Insufficient memory, some Held Jobs were deleted
The printer deleted some held jobs in order to process current jobs.
Touch Continue to clear the message.
37 Insufficient memory, some held jobs will not be restored
The printer was unable to restore some or all of the confidential or held jobs on the printer hard disk.
Touch Continue to clear the message.
38 Memory full
Try one or more of the following:
•Touch Continue to clear the message.
•Cancel the current print job.
•Install additional printer memory.
39 Complex page, some data may not have printed
Try one or more of the following:
•Touch Continue to clear the message and continue printing.
•Cancel the current print job.
•Install additional printer memory.
40 [color] invalid refill, change cartridge
Replace the specified cartridge to continue printing.
Troubleshooting
183
51 Defective flash detected
Try one or more of the following:
•Touch Continue to clear the message and continue printing.
•Cancel the current print job.
52 Not enough free space in flash memory for resources
Try one or more of the following:
•Touch Continue to clear the message and continue printing.
Downloaded fonts and macros not previously stored in flash memory are deleted.
•Delete fonts, macros, and other data stored in flash memory.
•Upgrade to a larger capacity flash memory card.
53 Unformatted flash detected
Try one or more of the following:
•Touch Continue to stop the defragment operation and continue printing.
•Format the flash memory. If the error message remains, the flash memory may be defective and require replacing.
54 Serial option [x] error
Try one or more of the following:
•Check that the serial cable is connected properly and is the correct one for the serial port.
•Check that the serial interface parameters (protocol, baud, parity, and data bits) are set correctly on the printer
and on the host computer.
•Touch Continue to continue printing.
•Turn the printer power off and then back on to reset the printer.
54 Standard network software error
Try one or more of the following:
•Touch Continue to continue printing.
•Turn the printer off and then back on to reset the printer.
•Upgrade (flash) the network firmware in the printer or print server.
54 Network [x] software error
Try one or more of the following:
•Touch Continue to continue printing.
•Turn the printer off, wait for about 10 seconds, and then turn the printer back on.
•Upgrade (flash) the network firmware in the printer.
Troubleshooting
184
55 Unsupported option in slot [x]
1Turn the printer off.
2Unplug the power cord from the wall outlet.
3Remove the unsupported option card from the printer system board, and then replace it with a supported card.
4Connect the power cord to a properly grounded electrical outlet.
5Turn the printer back on.
56 Parallel port [x] disabled
Try one or more of the following:
•Touch Continue to clear the message.
The printer discards any data received through the parallel port.
•Make sure the Parallel Buffer menu item is not set to Disabled.
56 Serial port [x] disabled
Try one or more of the following:
•Touch Continue to clear the message.
The printer discards any data received through the serial port.
•Make sure the Serial Buffer menu is not set to Disabled.
56 Standard USB port disabled
Try one or more of the following:
•Touch Continue to clear the message.
The printer discards any data received through the USB port.
•Make sure the USB Buffer menu item is not set to Disabled.
56 Standard parallel port disabled
Try one or more of the following:
•Touch Continue to clear the message.
The printer discards any data received through the parallel port.
•Make sure the Parallel Buffer menu item is not set to Disabled.
56 USB port [x] disabled
Try one or more of the following:
•Touch Continue to clear the message.
The printer discards any data received through the USB port.
•Make sure the USB Buffer menu is not set to Disabled.
Troubleshooting
185
57 Configuration change, some held jobs were not restored
Something has changed in the printer to invalidate the held jobs. Possible changes include:
•The printer firmware has been updated.
•Paper input options needed for the print job were removed.
•The print job was created using data from a device in the USB port and the device is no longer in the USB port.
•The printer hard disk contains print jobs that were stored while installed in a different printer model.
Touch Continue to clear the message.
58 Input config error
1Turn the printer off.
2Unplug the power cord from the wall outlet.
3Check if all tray configurations are correct. Remove unnecessary trays if needed.
4Connect the power cord to a properly grounded electrical outlet.
5Turn the printer back on.
58 Too many bins attached
1Turn the printer off.
2Unplug the power cord from the wall outlet.
3Remove the additional bins.
4Connect the power cord to a properly grounded electrical outlet.
5Turn the printer back on.
58 Too many disks installed
1Turn the printer off.
2Unplug the power cord from the wall outlet.
3Remove the excess disks.
4Connect the power cord to a properly grounded electrical outlet.
5Turn the printer back on.
58 Too many flash options installed
1Turn the printer off.
2Unplug the power cord from the wall outlet.
3Remove the excess flash memory.
Troubleshooting
186
4Connect the power cord to a properly grounded outlet.
5Turn the printer back on.
58 Too many trays attached
1Turn the printer off.
2Unplug the power cord from the wall outlet.
3Remove the additional trays.
4Connect the power cord to a properly grounded outlet.
5Turn the printer back on.
59 Incompatible output bin [x]
Try one or more of the following:
•Remove the specified output bin.
•Touch Continue to clear the message and continue printing without using the specified output bin.
61 Remove defective disk
Try one or more of the following:
•Touch Continue to clear the message and continue printing.
•Install a different printer hard disk before performing any operations that require a printer hard disk.
62 Disk full
Try one or more of the following:
•Touch Continue to clear the message and continue processing.
•Delete fonts, macros, and other data stored on the printer hard disk.
•Install a printer hard disk with larger capacity.
80.xx Fuser near life warning
1Order a replacement fuser immediately.
2When print quality is reduced, install the new fuser, following the instruction sheet that came with the replacement
part.
3Touch Continue to clear the message and continue printing.
80.xx Fuser life warning
•Order a replacement fuser immediately. When print quality is reduced, install the new fuser, following the
instruction sheet that came with the replacement part.
•Touch Continue to clear the message and continue printing.
Troubleshooting
187
80.xx Replace fuser
Replace the fuser using the instruction sheet that came with the replacement part.
80.xx Fuser missing
1Replace the fuser, following the instruction sheet that came with the replacement part.
2Touch Continue to clear the message and continue printing.
82.xx Waste toner bottle nearly full
Order a replacement waste toner bottle immediately.
1Replace the waste toner bottle.
For instructions on installing the waste toner bottle, from the printer control panel touch More Information.
2Touch Continue to clear the message and continue printing.
82.xx Replace waste toner bottle
1Replace the waste toner bottle.
For instructions on replacing the waste toner bottle, from the printer control panel touch More Information.
2Touch Continue to clear the message and continue printing.
82.xx Waste toner bottle missing
Reinsert the waste toner bottle into the printer.
83.xx Transfer module life warning
1Replace the transfer module, following the instruction sheet that came with the replacement part.
2Touch Continue to clear the message and continue printing.
83.xx Transfer module missing
Insert the transfer module into the printer.
83.xx Replace transfer module
Replace the transfer module, following the instruction sheet that came with the replacement part.
88.xx [color] cartridge nearly low
Order a replacement for the specified print cartridge.
Troubleshooting
188
88.xx [color] cartridge low
1Remove the specified cartridge.
Warning—Potential Damage: Be careful not to touch the photoconductor drum. Doing so may affect the print
quality of future print jobs.
2Firmly shake the cartridge side-to-side and front-to-back several times to redistribute the toner.
3Reinsert the cartridge, and then touch Continue to clear the message and continue printing.
Notes:
•Repeat this procedure multiple times until the print remains faded. When the print remains faded, replace the
cartridge.
•Have a new cartridge available when the current one no longer prints satisfactorily.
88.xx [Color] cartridge very low
The specified print cartridge is very low.
1For instructions on replacing a print cartridge, from the printer control panel touch More Information.
2Touch Continue to clear the message and continue printing.
88.xx [Color] cartridge critically low
The specified print cartridge is critically low.
1For instructions on replacing a print cartridge, from the printer control panel touch More Information.
2Touch Continue to clear the message and continue printing.
1565 Emulation error, load emulation option
The printer automatically clears the message in 30 seconds and then disables the download emulator on the firmware
card.
To fix this, download the correct download emulator version from the Lexmark Web site at www.lexmark.com.
Solving printing problems
Multiple-language PDF files do not print
The PDF files may contain unavailable fonts.
1Open the document you want to print in Adobe Acrobat.
2Click the printer icon > Advanced > Print as image > OK > OK.
Troubleshooting
189
Printer control panel display is blank or displays only diamonds
The printer self test failed. Turn the printer off, wait about 10 seconds, and then turn the printer back on.
If Performing Self Test and Ready do not appear, turn the printer off and contact Customer Support.
Error message about reading USB drive appears
Make sure the flash drive is supported.
Print jobs do not print
Try one or more of the following:
MAKE SURE THERE IS NO PROBLEM WITH YOUR PRINTER
From the printer control panel, check the status. If necessary, follow the recovery instructions.
MAKE SURE THE PRINTER IS READY TO PRINT
Make sure Ready appears on the display before sending a print job.
CHECK IF A SUPPLY IS MISSING OR NEEDS REPLACEMENT
Remove and then reinstall or replace the supply.
CHECK IF THE STANDARD EXIT BIN IS FULL
Remove the paper stack from the standard exit bin.
CHECK IF THE PAPER TRAY IS EMPTY
Load paper in the tray.
MAKE SURE THE CORRECT PRINTER SOFTWARE IS INSTALLED
•Verify that you are using the correct printer software.
•If the printer is connected to your computer through a USB port, then make sure you are running a supported
operating system and using a compatible printer software.
MAKE SURE THE INTERNAL PRINT SERVER IS WORKING PROPERLY
•Make sure the internal print server is properly installed and that the printer is connected to the network.
•Print a network setup page and check that the status shows Connected. If the status is Not Connected,
then check the network cables, and then try printing the network setup page again. Contact your system support
person to make sure the network is functioning correctly.
The printer software is available on the Lexmark Web site at http://support.lexmark.com.
Troubleshooting
190
MAKE SURE YOU ARE USING A RECOMMENDED USB, SERIAL, OR ETHERNET CABLE
For more information, visit the Lexmark Web site at http://support.lexmark.com.
MAKE SURE PRINTER CABLES ARE SECURELY CONNECTED
Check the cable connections to the printer and print server to make sure they are secure.
For more information, see the setup documentation that came with the printer.
Confidential and other held jobs do not print
These are possible solutions. Try one or more of the following:
PARTIAL JOB, NO JOB, OR BLANK PAGE PRINTS
The print job may contain a formatting error or invalid data.
•Delete the print job, and then print it again.
•For PDF documents, recreate the PDF and then print it again.
If you are printing from the Internet, then the printer may be reading multiple job titles as duplicates and deleting
all jobs except the first one.
•For Windows users, open Print Properties. From the Print and Hold dialog, select the "Keep duplicate documents"
check box under the User name text box before entering a PIN number.
•For Macintosh users, save each print job, naming each job differently, and then send the individual jobs to the
printer.
MAKE SURE THE PRINTER HAS SUFFICIENT MEMORY
Free up additional printer memory by scrolling through the list of held jobs and deleting some of them.
Print job takes longer than expected
Try one or more of the following:
REDUCE THE COMPLEXITY OF THE PRINT JOB
Eliminate the number and size of fonts, the number and complexity of images, and the number of pages in the print
job.
TURN OFF THE PAGE PROTECT SETTING
From the home screen, navigate to:
> Settings > General Settings > Print Recovery > Page Protect > Off >
CHANGE THE ENVIRONMENTAL SETTINGS
When using Eco-Mode or Quiet Mode settings, you may notice a reduction in performance.
Troubleshooting
191
Job prints from the wrong tray or on the wrong paper
CHECK THE PAPER TYPE AND PAPER SIZE SETTINGS
Make sure the paper type setting matches the paper loaded in the tray:
1From the printer control panel Paper menu, check the paper type and paper size settings.
2Before sending the job to print, specify the correct type setting:
•For Windows users, specify the paper type from Print Properties.
•For Macintosh users, specify the paper type from the Print dialog.
Incorrect characters print
•Make sure the printer is not in Hex Trace mode. If Ready Hex appears on the display, you must exit Hex Trace
mode before you can print your job. Turn the printer off and back on to exit Hex Trace mode.
•Make sure the SmartSwitch settings are set to On in the Network and USB menus.
Tray linking does not work
These are possible solutions. Try one or more of the following:
LOAD THE SAME SIZE AND TYPE OF PAPER
•Load the same size and type of paper in each tray to be linked.
•Move the paper guides to the correct positions for the paper size loaded in each tray.
USE THE SAME PAPER SIZE AND PAPER TYPE SETTINGS
•Print a menu settings page and compare the settings for each tray.
•If necessary, adjust the settings from the Paper Size/Type menu.
Note: The standard 550-sheet tray and the multipurpose feeder do not automatically sense the paper size. You must
set the size from the Paper Size/Type menu.
Large jobs do not collate
These are possible solutions. Try one or more of the following:
MAKE SURE COLLATE IS SET TO ON
From the Finishing menu or Print Properties, set Collate to On.
Note: Setting Collate to Off in the software overrides the setting in the Finishing menu.
REDUCE THE COMPLEXITY OF THE PRINT JOB
Reduce the complexity of the print job by eliminating the number and size of fonts, the number and complexity of
images, and the number of pages in the job.
Troubleshooting
192
MAKE SURE THE PRINTER HAS ENOUGH MEMORY
Add printer memory or an optional hard disk.
Unexpected page breaks
INCREASE THE PRINT TIMEOUT VALUE
1From the home screen, navigate to:
> Settings > General Settings > Timeouts > Print Timeout
2Increase the Print Timeout value, and then touch .
Solving home screen applications problems
An application error has occurred
CHECK THE SYSTEM LOG FOR RELEVANT DETAILS
1Type the printer IP address or host name in the address field of your Web browser.
If you do not know the IP address or host name of the printer, then you can:
•View the information on the printer control panel home screen, or in the TCP/IP section under the
Networks/Ports menu.
•Print a network setup page or menu settings page and locate the information in the TCP/IP section.
2Click Settings or Configuration.
3Click Device Solutions > Solutions (eSF) > System tab > Log.
4From the Filter menu, select an application status.
5From the Application menu, select an application, and then click Submit.
CONTACT CUSTOMER SUPPORT
If you still cannot isolate the problem, then contact customer support.
Solving option problems
Option does not operate correctly or quits after it is installed
These are possible solutions. Try one or more of the following:
RESET THE PRINTER
Turn the printer off, wait for about 10 seconds, and then turn the printer on.
Troubleshooting
193
CHECK TO SEE IF THE OPTION IS CONNECTED TO THE PRINTER
1Turn the printer off.
2Unplug the printer.
3Check the connection between the option and the printer.
MAKE SURE THE OPTION IS INSTALLED
Print a menu settings page and check to see if the option is listed in the Installed Options list. If the option is not
listed, reinstall it.
MAKE SURE THE OPTION IS AVAILABLE IN THE PRINTER DRIVER
It may be necessary to manually add the option in the printer driver to make it available for print jobs. For more
information, see “Updating available options in the printer driver” on page 45.
MAKE SURE THE OPTION IS SELECTED
From the program you are using, select the option. Mac OS 9 users should make sure the printer is set up in the
Chooser.
Paper tray problems
Try one or more of the following:
MAKE SURE THE PAPER IS LOADED CORRECTLY
1Open the paper tray.
2Check for paper jams or misfeeds.
3Make sure the paper guides are aligned against the edges of the paper.
4Make sure the paper tray closes properly.
RESET THE PRINTER
Turn the printer off, wait about 10 seconds, and then turn the printer on.
MAKE SURE THE PAPER TRAY IS INSTALLED CORRECTLY
If the paper tray is listed on the menu settings page, but paper jams when it enters or exits the tray, then it may not
be properly installed. Reinstall the paper tray. For more information, see the hardware setup documentation that
came with the paper tray, or go to http://support.lexmark.com to view the paper tray instruction sheet.
2,000-sheet drawer problems
CHECK THE DRAWER CONNECTION
Make sure the 2,000-sheet drawer is properly connected to the printer.
Troubleshooting
194
LOAD PAPER
If the tray is empty, then load paper in the tray or feeder
CLEAR ANY JAMS
Open the side door of the tray or feeder, and then remove any jammed paper.
AVOID PAPER JAMS
•Flex the paper.
•Make sure the drawer is properly installed.
•Make sure paper is loaded correctly.
•Make sure the paper stack you load does not exceed the maximum stack height indicated in the tray.
•Make sure the paper or specialty media meets specifications and is not damaged.
•Make sure the guides are positioned correctly for the paper size loaded.
Cannot detect flash memory card
Make sure the flash memory card is securely connected to the printer system board.
Cannot detect printer hard disk
Make sure the printer hard disk is securely connected to the printer system board.
Internal Solutions Port does not operate correctly
Try one or more of the following:
CHECK THE INTERNAL SOLUTIONS PORT (ISP) CONNECTIONS
Make sure the ISP is securely connected to the printer system board.
CHECK THE CABLE
Make sure you are using the correct cable and that it is securely connected to the Internal Solutions (ISP) port.
MAKE SURE THE NETWORK SOFTWARE IS CONFIGURED CORRECTLY
For information on installing the network printing software, see the Networking Guide on the Software and
Documentation CD.
Troubleshooting
195
Internal print server does not operate correctly
Try one or more of the following:
CHECK THE PRINT SERVER CONNECTIONS
•Make sure the internal print server is attached securely to the printer system board.
•Make sure you are using the correct cable and that it is securely connected.
MAKE SURE THE NETWORK SOFTWARE IS CONFIGURED CORRECTLY
For more information on installing the network printing software, do the following:
1Open the Software and Documentation CD.
2Click Additional.
3Under Publications on this CD, select Networking Guide.
Memory card
Make sure the memory card is securely connected to the printer system board.
USB/parallel interface card does not operate correctly
CHECK THE USB/PARALLEL INTERFACE CARD CONNECTION
Make sure the USB/parallel interface card is securely connected to the printer system board.
CHECK THE CABLE
Make sure you are using the correct cable and that it is securely connected.
Solving paper feed problems
Paper frequently jams
These are possible solutions. Try one or more of the following:
CHECK THE PAPER
Use recommended paper and specialty media. For more information, see the chapter about paper and specialty
media guidelines.
MAKE SURE THERE IS NOT TOO MUCH PAPER IN THE PAPER TRAY
Make sure the stack of paper you load does not exceed the maximum stack height indicated in the tray or on the
multipurpose feeder.
Troubleshooting
196
CHECK THE PAPER GUIDES
Move the guides in the tray to the correct positions for the paper size loaded.
THE PAPER MAY HAVE ABSORBED MOISTURE DUE TO HIGH HUMIDITY
•Load paper from a fresh package.
•Store paper in its original wrapper until you use it.
Paper jam message remains after jam is cleared
CHECK THE PAPER PATH
The paper path is not clear. Clear jammed paper from the entire paper path, and then touch Continue.
Jammed pages are not reprinted
TURN ON JAM RECOVERY
1From the home screen, navigate to:
> Settings > General Settings > Print Recovery
2Touch the arrows next to Jam Recovery until On or Auto appears.
3Touch .
Solving print quality problems
If the solutions here do not correct the problem, contact customer support. You may have a printer part that requires
adjustment or replacement.
Printer is printing blank pages
Try one or more of the following:
MAKE SURE THERE IS NO PACKING MATERIAL LEFT ON THE TONER OR PRINT CARTRIDGE
Remove the cartridge and make sure the packing material is properly removed. Reinstall the cartridge.
Troubleshooting
197
MAKE SURE THE TONER OR PRINT CARTRIDGE IS NOT LOW ON TONER
When 88.xx [color] cartridge low appears, make sure that toner is distributed evenly among all four
cartridges:
1Remove the cartridge.
Warning—Potential Damage: Be careful not to touch the photoconductor drum. Doing so may affect the print
quality of future print jobs.
2Firmly shake the cartridge side-to-side and front-to-back several times to redistribute the toner.
3Reinsert the cartridge.
Note: If print quality does not improve, then replace the cartridge of the color that is not printing.
If the problem continues, then the printer may need to be serviced. For more information, contact customer support.
Characters have jagged or uneven edges
If you are using downloaded fonts, verify that the fonts are supported by the printer, the host computer, and the
software program.
Clipped images
Try one or more of the following:
CHECK THE GUIDES
Move the width and length guides in the tray to the correct positions for the paper size loaded.
CHECK THE PAPER SIZE SETTING
Make sure the paper size setting matches the paper loaded in the tray:
1From the printer control panel Paper menu, check the Paper Size setting.
2Before sending the job to print, specify the correct size setting:
•For Windows users, specify the size from Print Properties.
•For Macintosh users, specify the size from the Page Setup dialog.
Fine horizontal lines appear on color pages
You may notice fine, horizontal lines in photographs or pages with a high concentration of color. This can occur when
the printer is in Quiet Mode. To fix this, set Quiet Mode to Off (Image/Photo).
Troubleshooting
198
Shadow images appear on prints
Try one or more of the following:
CHECK THE PAPER TYPE AND WEIGHT SETTINGS
Make sure the paper type and weight settings match the paper loaded in the tray or feeder:
1From the printer control panel Paper menu, check the Paper Type and Paper Weight settings.
2Before sending the print job, specify the correct paper type setting:
•For Windows users, specify the paper type from Print Properties.
•For Macintosh users, specify the paper type from the Print dialog.
MAKE SURE THE PRINT CARTRIDGE IS NOT LOW ON TONER
When 88.xx [color] cartridge low appears, make sure that toner is distributed evenly among all four
print cartridges or whichever color has the shadow images.
1Remove the print cartridge.
Warning—Potential Damage: Be careful not to touch the photoconductor drum. Doing so may affect the print
quality of future print jobs.
2Firmly shake the cartridge side-to-side and front-to-back several times to redistribute the toner.
3Reinsert the print cartridge.
Note: If print quality does not improve, replace the print cartridge of the color that is giving a shadow.
If the problem continues, the printer may need to be serviced. For more information, contact customer support.
Gray background on prints
ABCDE
ABCDE
ABCDE
MAKE SURE THERE IS NO WORN OR DEFECTIVE PRINT CARTRIDGE
Replace the worn or defective print cartridge.
Troubleshooting
199
Incorrect margins
These are possible solutions. Try one or more of the following:
CHECK THE PAPER GUIDES
Move the guides in the tray to the correct positions for the paper size loaded.
CHECK THE PAPER SIZE SETTING
Make sure the paper size setting matches the paper loaded in the tray:
1From the printer control panel Paper menu, check the Paper Size setting.
2Before sending the job to print, specify the correct size setting:
•For Windows users, specify the size from Print Properties.
•For Macintosh users, specify the size from the Page Setup dialog.
Light colored line, white line, or incorrectly colored line appears on prints
ABCDE
ABCDE
ABCDE
ABCDE
ABCDE
Try one or more of the following:
MAKE SURE THERE IS NO DEFECTIVE PRINT CARTRIDGE
Replace the defective print cartridge.
MAKE SURE THE TRANSFER BELT IS NOT DEFECTIVE
Replace the defective transfer belt. For more information, see the instruction sheet that came with the replacement
part.
Troubleshooting
200
Paper curl
Try one or more of the following:
CHECK THE PAPER TYPE AND WEIGHT SETTINGS
Make sure the paper type and weight settings match the paper loaded in the tray or feeder:
1From the printer control panel Paper menu, check the Paper Type and Paper Weight settings.
2Before sending the print job, specify the correct paper type setting:
•For Windows users, specify the paper type from Print Properties.
•For Macintosh users, specify the paper type from the Print dialog.
LOAD PAPER FROM A FRESH PACKAGE
Paper absorbs moisture due to high humidity. Store paper in its original wrapper until you use it.
Print irregularities
Try one or more of the following:
LOAD PAPER FROM A FRESH PACKAGE
The paper may have absorbed moisture due to high humidity. Store paper in its original wrapper until you use it.
CHECK THE PAPER TYPE AND WEIGHT SETTINGS
Make sure the paper type and weight settings match the paper loaded in the tray or feeder:
1From the printer control panel Paper menu, check the Paper Type and Paper Weight settings.
2Before sending the print job, specify the correct paper type setting:
•For Windows users, specify the paper type from Print Properties.
•For Macintosh users, specify the paper type from the Print dialog.
AVOID TEXTURED PAPER WITH ROUGH FINISHES
MAKE SURE THERE IS NO DEFECTIVE PRINT CARTRIDGE
Replace the worn or defective print cartridge.
Troubleshooting
201
MAKE SURE THE TRANSFER BELT IS NOT DEFECTIVE
Replace the defective transfer belt. For more information, see the instruction sheet that came with the replacement
part.
MAKE SURE THE FUSER IS NOT DEFECTIVE
Replace the defective fuser. For more information, see the instruction sheet that came with the replacement part.
Print is too dark
Try one or more of the following:
LOAD PAPER FROM A FRESH PACKAGE
The paper may have absorbed moisture due to high humidity. Store paper in its original wrapper until you use it.
AVOID TEXTURED PAPER WITH ROUGH FINISHES
CHECK THE PAPER TYPE SETTING
Make sure the Paper Type setting matches the paper loaded in the tray or feeder:
•From the printer control panel Paper menu, check the Paper Type setting.
•For Windows users, check this setting from Print Properties.
•For Macintosh users, check this setting from the Print dialog.
MAKE SURE THERE IS NO DEFECTIVE PRINT CARTRIDGE
Replace the defective print cartridge.
Print is too light
Troubleshooting
202
Try one or more of the following:
LOAD PAPER FROM A FRESH PACKAGE
The paper may have absorbed moisture from high humidity. Store paper in its original wrapper until you use it.
AVOID TEXTURED PAPER WITH ROUGH FINISHES
CHECK THE PAPER TYPE SETTING
Make sure the Paper Type setting matches the paper loaded in the tray or feeder:
•From the printer control panel Paper menu, check the Paper Type setting.
•For Windows users, check this setting from Print Properties.
•For Macintosh users, check this setting from the Print dialog.
MAKE SURE THE PRINT CARTRIDGE IS NOT LOW ON TONER
When 88.xx [color] cartridge low appears, make sure the toner is distributed evenly within the print
cartridge.
1Remove the print cartridge.
Warning—Potential Damage: Be careful not to touch the photoconductor drum. Doing so may affect the print
quality of future print jobs.
2Firmly shake the cartridge side-to-side and front-to-back several times to redistribute the toner.
3Reinsert the print cartridge.
Note: If print quality does not improve, then replace the print cartridge.
If the problem continues, then the printer may need to be serviced. For more information, contact customer support.
MAKE SURE THERE IS NO DEFECTIVE PRINT CARTRIDGE
Replace the defective print cartridge.
Repeating defects appear on prints
Try one or more of the following:
Troubleshooting
203
REPLACE THE PRINT CARTRIDGE
Replace the print cartridge of the color with the repeating defect, if the print defects occur in the following instances:
•in every 37.7 mm (1.48 in.) of the page
•in every 41.6 mm (1.64 in.) of the page
•in every 42.7 mm (1.68 in.) of the page
•in every 94.3 mm (3.71 in.) of the page
REPLACE THE FUSER
Replace the fuser if print defects occur in the following instances:
•in every 95.0 mm (3.74 in.) of the page
•in every 146.7 mm (5.78 in.) of the page
Skewed print
These are possible solutions. Try one or more of the following:
CHECK THE PAPER GUIDES
Move the length and width guides in the tray to the correct positions for the paper size loaded.
•Make sure the guides are not too far from the paper stack.
•Make sure the guides are not pressing too lightly against the paper stack.
CHECK THE PAPER
Make sure you are using paper that meets the printer specifications.
Solid color or black pages appear on prints
MAKE SURE THE PRINT CARTRIDGES ARE INSTALLED CORRECTLY, ARE NOT DEFECTIVE AND NOT LOW ON TONER
•Remove the print cartridges.
Warning—Potential Damage: Be careful not to touch the photoconductor drum. Doing so may affect the print
quality of future print jobs.
•Reinsert the print cartridges.
Note: If the quality does not improve, replace the print cartridges.
•If the problem continues, the printer may need to be serviced. For more information, contact customer support.
Troubleshooting
204
Black or white streaks appear on transparencies or paper
Try one or more of the following:
ENSURE THAT THE FILL PATTERN IS CORRECT
If the fill pattern is incorrect, choose a different fill pattern from your software program.
CHECK THE PAPER TYPE
•Use only the recommended transparencies.
•Ensure that the Paper Type setting matches what is loaded in the tray or feeder.
•Ensure that the Paper Texture setting is correct for the type of paper or specialty media loaded in the tray or
feeder.
MAKE SURE THE PRINT CARTRIDGE IS NOT LOW ON TONER
When 88.xx [color] cartridge low appears, make sure the toner is distributed evenly within the print
cartridge:
1Remove the print cartridge.
Warning—Potential Damage: Be careful not to touch the photoconductor drum. Doing so may affect the print
quality of future print jobs.
2Firmly shake the cartridge side-to-side and front-to-back several times to redistribute the toner.
3Reinsert the print cartridge.
If the problem continues, the printer may need to be serviced. For more information, contact Customer Support.
Streaked horizontal lines appear on prints
ABCDE
ABCDE
ABCDE
Try one or more of the following:
Troubleshooting
205
SELECT ANOTHER TRAY OR FEEDER
•From the printer control panel Paper Menu, select Default Source.
•For Windows users, select the paper source from Print Properties.
•For Macintosh users, select the paper source from the Print dialog and pop-up menus.
MAKE SURE THERE IS NO WORN, DEFECTIVE, OR EMPTY PRINT CARTRIDGE
Replace the worn, defective, or empty print cartridge.
Toner fog or background shading appears on a page
Try one or more of the following:
MAKE SURE PRINT CARTRIDGES ARE INSTALLED CORRECTLY AND ARE NOT DEFECTIVE
Reinstall or replace the print cartridge.
MAKE SURE THE TRANSFER BELT IS NOT WORN OR DEFECTIVE
Replace the transfer belt. For more information, see the instruction sheet that came with the replacement part.
MAKE SURE THE FUSER IS NOT WORN OR DEFECTIVE
Replace the fuser. For more information, see the instruction sheet that came with the replacement part.
MAKE SURE THERE IS NO TONER IN THE PAPER PATH
Clean any visible toner from the paper path. If the problem persists, then contact customer support.
RECALIBRATE THE PRINTER
Perform color adjust from the printer control panel Quality menu.
CHECK THE SOFTWARE PROGRAM OR APPLICATION
The software program or application may have specified an off-white background.
Toner rubs off
Try one or more of the following:
Troubleshooting
206
CHECK THE PAPER TYPE AND WEIGHT SETTINGS
Make sure the paper type and weight settings match the paper loaded in the tray or feeder:
1From the printer control panel Paper menu, check the Paper Type and Paper Weight settings. Change the Paper
Weight setting from Normal to Heavy.
2Before sending the print job, specify the correct paper type setting:
•For Windows users, specify the paper type from Print Properties.
•For Macintosh users, specify the paper type from the Print dialog.
CHECK THE PAPER TEXTURE SETTING
From the printer control panel Paper menu, make sure the Paper Texture setting matches the paper loaded in the
tray or feeder. If necessary, change the Paper Texture setting from Normal to Rough.
MAKE SURE THE FUSER IS NOT WORN OR DEFECTIVE
Replace the worn or defective fuser. For more information, see the instruction sheet that came with the replacement
part.
Transparency print quality is poor
Try one or more of the following:
CHECK THE TRANSPARENCIES
Use only transparencies that meet the printer specifications.
CHECK THE PAPER TYPE SETTING
Make sure the paper type setting is set to Transparency:
1From the printer control panel Paper menu, check the Paper Type setting.
2Before sending the job to print, specify the correct type setting:
•For Windows users, specify the type from Print Properties.
•For Macintosh users, specify the type from the Print dialog.
Uneven print density
ABCDE
ABCDE
ABCDE
Troubleshooting
207
MAKE SURE THERE IS NO DEFECTIVE OR WORN PRINT CARTRIDGE
Replace the worn or defective print cartridge.
Solving color quality problems
This section helps answer some basic color-related questions and describes how some of the features provided in the
Quality Menu can be used to solve typical color problems.
FAQ about color printing
What is RGB color?
Red, green, and blue light can be added together in various amounts to produce a large range of colors observed in
nature. For example, red and green can be combined to create yellow. Televisions and computer monitors create
colors in this manner. RGB color is a method of describing colors by indicating the amount of red, green, or blue
needed to produce a certain color.
What is CMYK color?
Cyan, magenta, yellow, and black inks or toners can be printed in various amounts to produce a large range of colors
observed in nature. For example, cyan and yellow can be combined to create green. Printing presses, inkjet printers,
and color laser printers create colors in this manner. CMYK color is a method of describing colors by indicating the
amount of cyan, magenta, yellow, and black needed to reproduce a particular color.
How is color specified in a document to be printed?
Software programs typically specify document color using RGB or CMYK color combinations. Additionally, they allow
users to modify the color of each object in a document. For more information, see the software program Help topics.
How does the printer know what color to print?
When a user prints a document, information describing the type and color of each object is sent to the printer. The
color information is passed through color conversion tables that translate the color into the appropriate amounts of
cyan, magenta, yellow, and black toner needed to produce the desired color. The object information determines the
application of color conversion tables. For example, it is possible to apply one type of color conversion table to text
while applying a different color conversion table to photographic images.
Why doesn't the printed color match the color I see on the computer screen?
The color conversion tables used in Auto Color Correction mode generally approximate the colors of a standard
computer monitor. However, because of technology differences that exist between printers and monitors, there are
many colors that can also be affected by monitor variations and lighting conditions. For recommendations on how
the printer color sample pages may be useful in solving certain color-matching problems, see the question, “How
can I match a particular color (such as a corporate logo)?”
The printed page appears tinted. Can I adjust the color?
Sometimes a printed page may appear tinted (for example, everything printed seems to be too red). This can be
caused by environmental conditions, paper type, lighting conditions, or user preference. In these instances, adjust
the Color Balance setting to create a more preferable color. Color Balance provides the user with the ability to make
subtle adjustments to the amount of toner being used in each color plane. Selecting positive or negative values for
cyan, magenta, yellow, and black (from the Color Balance menu) will slightly increase or decrease the amount of
toner used for the chosen color. For example, if a printed page has a red tint, then decreasing both magenta and
yellow could potentially improve the color balance.
Troubleshooting
208
My color transparencies seem dark when they are projected. Is there anything I can do to improve the color?
This problem most commonly occurs when projecting transparencies with reflective overhead projectors. To obtain
the highest projected color quality, transmissive overhead projectors are recommended. If a reflective projector
must be used, then adjusting the Toner Darkness setting to 1, 2, or 3 will lighten the transparency. Make sure to print
on the recommended type of color transparencies.
What is manual color correction?
When manual color correction is enabled, the printer employs user-selected color conversion tables to process
objects. However, Color Correction must be set to Manual, or no user-defined color conversion will be implemented.
Manual color correction settings are specific to the type of object being printed (text, graphics, or images), and how
the color of the object is specified in the software program (RGB or CMYK combinations).
Notes:
•Manual color correction is not useful if the software program does not specify colors with RGB or CMYK
combinations. It is also not effective in situations in which the software program or the computer operating
system controls the adjustment of colors.
•The color conversion tables—applied to each object when Color Correction is set to Auto—generate preferred
colors for the majority of documents.
To manually apply a different color conversion table:
1From the Quality menu, select Color Correction, and then select Manual.
2From the Quality menu, select Manual Color, and then select the appropriate color conversion table for the
affected object type.
Manual Color menu
Object type Color conversion tables
RGB Image
RGB Text
RGB Graphics
•Vivid—Produces brighter, more saturated colors and may be applied
to all incoming color formats.
•sRGB Display—Produces an output that approximates the colors
displayed on a computer monitor. Black toner usage is optimized for
printing photographs.
•Display—True Black—Produces an output that approximates the
colors displayed on a computer monitor. Uses only black toner to create
all levels of neutral gray.
•sRGB Vivid—Provides an increased color saturation for the sRGB
Display color correction. Black usage is optimized for printing business
graphics.
•Off—No color correction is implemented.
CMYK Image
CMYK Text
CMYK Graphics
•US CMYK—Applies color correction to approximate the SWOP
(Specifications for Web Offset Publishing) color output.
•Euro CMYK—Applies color correction to approximated EuroScale color
output.
•Vivid CMYK—Increases the color saturation of the US CMYK color
correction setting.
•Off—No color correction is implemented.
Troubleshooting
209
How can I match a particular color (such as a corporate logo)?
From the printer Quality menu, nine types of Color Samples sets are available. These are also available from the Color
Samples page of the Embedded Web Server. Selecting any sample set generates a multiple-page printout consisting
of hundreds of colored boxes. Either a CMYK or RGB combination is located on each box, depending on the table
selected. The observed color of each box is obtained by passing the CMYK or RGB combination labeled on the box
through the selected color conversion table.
By examining Color Samples sets, a user can identify the box whose color is the closest to the desired color. The color
combination labeled on the box can then be used for modifying the color of the object in a software program. For
more information, see the software program Help topics. Manual color correction may be necessary to utilize the
selected color conversion table for the particular object.
Selecting which Color Samples set to use for a particular color-matching problem depends on the Color Correction
setting being used (Auto, Off, or Manual), the type of object being printed (text, graphics, or images), and how the
color of the object is specified in the software program (RGB or CMYK combinations). When the printer Color
Correction setting is set to Off, the color is based on the print job information; and no color conversion is implemented.
Note: The Color Samples pages are not useful if the software program does not specify colors with RGB or CMYK
combinations. Additionally, certain situations exist in which the software program or the computer operating system
adjusts the RGB or CMYK combinations specified in the program through color management. The resulting printed
color may not be an exact match of the Color Samples pages.
What are detailed Color Samples and how do I access them?
Detailed Color Samples sets are available only through the Embedded Web Server of a network printer. A detailed
Color Samples set contains a range of shades (displayed as colored boxes) that are similar to a user-defined RGB or
CMYK value. The likeness of the colors in the set are dependent on the value entered in the RGB or CMYK Increment
box.
To access a detailed Color Samples set from the Embedded Web Server:
1Type the printer IP address or host name in the address field of your Web browser.
Note: If you do not know the IP address or host name of the printer, then you can:
•View the information on the printer control panel home screen, or in the TCP/IP section under the
Networks/Ports menu.
•Print a network setup page or menu settings page and locate the information in the TCP/IP section.
2Click Configuration > Color Samples > Detailed Options.
3Select a color conversion table.
4Enter the RGB or CMYK color number.
5Enter an increment value from 1–255.
Note: The closer the value is to 1, the narrower the color sample range will appear.
6Click Print.
Troubleshooting
210
Embedded Web Server does not open
Try one or more of the following:
CHECK THE NETWORK CONNECTION
Make sure the printer and computer are turned on and connected to the same network.
CHECK THE ADDRESS ENTERED IN THE WEB BROWSER
•Depending on the network settings, you may need to type “https://” instead of “http://” before the printer
IP address to access the Embedded Web Server. For more information, contact your system support person.
•Make sure printer IP address is correct.
TEMPORARILY DISABLE WEB PROXY SERVERS
Proxy servers may block or restrict you from accessing certain Web sites including the Embedded Web Server. For
more information, contact your system support person.
Contacting customer support
When you call customer support, describe the problem you are experiencing, the message on the display, and the
troubleshooting steps you have already taken to find a solution.
You need to know your printer model type and serial number. For more information, see the label on the inside top
front cover of the printer. The serial number is also listed on the menu settings page.
In the U.S. or Canada, call 1-800-539-6275. For other countries or regions, visit the Lexmark Web site at
http://support.lexmark.com.
Troubleshooting
211
Notices
Product information
Product name:
Lexmark C792e, C792de, C792dte, C792dhe
Machine type:
5062
Model(s):
210, 230, 235
Edition notice
January 2011
The following paragraph does not apply to any country where such provisions are inconsistent with local law:
LEXMARK INTERNATIONAL, INC., PROVIDES THIS PUBLICATION “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER
EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE. Some states do not allow disclaimer of express or implied warranties in certain
transactions; therefore, this statement may not apply to you.
This publication could include technical inaccuracies or typographical errors. Changes are periodically made to the
information herein; these changes will be incorporated in later editions. Improvements or changes in the products or
the programs described may be made at any time.
References in this publication to products, programs, or services do not imply that the manufacturer intends to make
these available in all countries in which it operates. Any reference to a product, program, or service is not intended to
state or imply that only that product, program, or service may be used. Any functionally equivalent product, program,
or service that does not infringe any existing intellectual property right may be used instead. Evaluation and verification
of operation in conjunction with other products, programs, or services, except those expressly designated by the
manufacturer, are the user’s responsibility.
For Lexmark technical support, visit support.lexmark.com.
For information on supplies and downloads, visit www.lexmark.com.
If you don't have access to the Internet, you can contact Lexmark by mail:
Lexmark International, Inc.
Bldg 004-2/CSC
740 New Circle Road NW
Lexington, KY 40550
USA
© 2010 Lexmark International, Inc.
All rights reserved.
Notices
212
UNITED STATES GOVERNMENT RIGHTS
This software and any accompanying documentation provided under this agreement are commercial computer
software and documentation developed exclusively at private expense.
Trademarks
Lexmark, Lexmark with diamond design, MarkNet, and MarkVision are trademarks of Lexmark International, Inc.,
registered in the United States and/or other countries.
MarkTrack, PrintCryption, and StapleSmart are trademarks of Lexmark International, Inc.
PCL® is a registered trademark of the Hewlett-Packard Company. PCL is Hewlett-Packard Company’s designation of a
set of printer commands (language) and functions included in its printer products. This printer is intended to be
compatible with the PCL language. This means the printer recognizes PCL commands used in various application
programs, and that the printer emulates the functions corresponding to the commands.
The following terms are trademarks or registered trademarks of these companies:
Albertus The Monotype Corporation plc
Antique Olive Monsieur Marcel OLIVE
Apple-Chancery Apple Computer, Inc.
Arial The Monotype Corporation plc
CG Times Based on Times New Roman under license from The Monotype Corporation plc, is a product of
Agfa Corporation
Chicago Apple Computer, Inc.
Clarendon Linotype-Hell AG and/or its subsidiaries
Eurostile Nebiolo
Geneva Apple Computer, Inc.
GillSans The Monotype Corporation plc
Helvetica Linotype-Hell AG and/or its subsidiaries
Hoefler Jonathan Hoefler Type Foundry
ITC Avant Garde Gothic International Typeface Corporation
ITC Bookman International Typeface Corporation
ITC Mona Lisa International Typeface Corporation
ITC Zapf Chancery International Typeface Corporation
Joanna The Monotype Corporation plc
Marigold Arthur Baker
Monaco Apple Computer, Inc.
New York Apple Computer, Inc.
Oxford Arthur Baker
Palatino Linotype-Hell AG and/or its subsidiaries
Notices
213
Stempel Garamond Linotype-Hell AG and/or its subsidiaries
Taffy Agfa Corporation
Times New Roman The Monotype Corporation plc
Univers Linotype-Hell AG and/or its subsidiaries
All other trademarks are the property of their respective owners.
Federal Communications Commission (FCC) compliance information statement
This product has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the
FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including interference that may cause undesired operation.
The FCC Class A limits are designed to provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case
the user will be required to correct the interference at his own expense.
The manufacturer is not responsible for any radio or television interference caused by using other than recommended
cables or by unauthorized changes or modifications to this equipment. Unauthorized changes or modifications could
void the user's authority to operate this equipment.
Note: To assure compliance with FCC regulations on electromagnetic interference for a Class A computing device, use
a properly shielded and grounded cable such as Lexmark part number 1021231 for parallel attach or 1021294 for USB
attach. Use of a substitute cable not properly shielded and grounded may result in a violation of FCC regulations.
Modular component notice
This product may contain the following modular component(s):
Lexmark regulatory type/model LEX-M01-003; FCC ID: IYLM01003; IC: 2376A-M01003
Licensing notices
The following documents can be viewed from the installation software CD.
Directory File
CD:\LEGAL FW_License.pdf
mDNS.tar.gz
Expat.txt
Inst_lib.txt
Instgui.txt
Instgui.zip
Notices
214
Noise emission levels
The following measurements were made in accordance with ISO 7779 and reported in conformance with ISO 9296.
Note: Some modes may not apply to your product.
1-meter average sound pressure, dBA
Printing 53 color, 52 mono
Ready 30
Values are subject to change. See www.lexmark.com for current values.
Waste from Electrical and Electronic Equipment (WEEE) directive
The WEEE logo signifies specific recycling programs and procedures for electronic products in countries of the European
Union. We encourage the recycling of our products. If you have further questions about recycling options, visit the
Lexmark Web site at www.lexmark.com for your local sales office phone number.
Static sensitivity notice
This symbol identifies static-sensitive parts. Do not touch in the areas near these symbols without first touching the
metal frame of the printer.
ENERGY STAR
Any Lexmark product bearing the ENERGY STAR emblem on the product or on a start-up screen is certified to comply
with Environmental Protection Agency (EPA) ENERGY STAR requirements as configured when shipped by Lexmark.
Notices
215
Temperature information
Ambient temperature 15.6 to 32.2° C (60 to 90° F)
Shipping and storage temperature -40° to 40° C (104° F)
Laser notice
This product contains a Class I (1) laser producing invisible laser radiation. The printer is certified in the U.S. to conform
to the requirements of DHHS 21 CFR Subchapter J for Class I (1) laser products, and elsewhere is certified as a Class I
laser product conforming to the requirements of IEC 60825-1.
Class I laser products are not considered to be hazardous. The printer contains internally a Class IIIb (3b) AlGaAs dual
beam laser enclosed in a non-serviceable printhead assembly operating in the wavelength of 775-800 nanometers. The
laser system and printer are designed so there is never any human access to laser radiation exceeding Class I levels
during normal operation, user maintenance, or prescribed service condition.
Laser advisory label
A laser notice label may be affixed to this printer as shown:
Power consumption
Product power consumption
The following table documents the power consumption characteristics of the product.
Note: Some modes may not apply to your product.
Mode Description Power consumption (Watts)
Active The product is generating hard-copy output from electronic inputs. 850 W
Idle The product is waiting for a print job. 50 W
Sleep Mode The product is in a high-level energy-saving mode. 10 W
Notices
216
Mode Description Power consumption (Watts)
Hibernate The product is in a low-level energy-saving mode. 0.55 W
Off The product is plugged into a wall outlet, but the power switch is turned off. 0 W
The power consumption levels listed in the previous table represent time-averaged measurements. Instantaneous
power draws may be substantially higher than the average.
Values are subject to change. See www.lexmark.com for current values.
Sleep Mode
This product is designed with an energy-saving mode called Sleep Mode. The Sleep Mode saves energy by lowering
power consumption during extended periods of inactivity. The Sleep Mode is automatically engaged after this product
is not used for a specified period of time, called the Sleep Mode Timeout.
Factory default Sleep Mode Timeout for this product (in minutes): 30
By using the configuration menus, the Sleep Mode Timeout can be modified between 1 minute and 240 minutes. Setting
the Sleep Mode Timeout to a low value reduces energy consumption, but may increase the response time of the product.
Setting the Sleep Mode Timeout to a high value maintains a fast response, but uses more energy.
Off mode
If this product has an off mode which still consumes a small amount of power, then to completely stop product power
consumption, disconnect the power supply cord from the wall outlet.
Total energy usage
It is sometimes helpful to calculate the total product energy usage. Since power consumption claims are provided in
power units of Watts, the power consumption should be multiplied by the time the product spends in each mode in
order to calculate energy usage. The total product energy usage is the sum of each mode's energy usage.
Industry Canada compliance statement
This Class A digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Standard
ICES-003.
Avis de conformité aux normes de l’industrie du Canada
Cet appareil numérique de classe A est conforme aux exigences de la norme canadienne relative aux équipements
pouvant causer des interférences NMB-003.
European Community (EC) directives conformity
This product is in conformity with the protection requirements of EC Council directives 2004/108/EC and 2006/95/EC
on the approximation and harmonization of the laws of the Member States relating to electromagnetic compatibility
and safety of electrical equipment designed for use within certain voltage limits.
Notices
217
The manufacturer of this product is: Lexmark International, Inc., 740 West New Circle Road, Lexington, KY, 40550 USA.
The authorized representative is: Lexmark International Technology Hungária Kft., 8 Lechner Ödön fasor, Millennium
Tower III, 1095 Budapest HUNGARY, A declaration of conformity to the requirements of the Directives is available upon
request from the Authorized Representative.
This product satisfies the Class A limits of EN 55022 and safety requirements of EN 60950.
Radio interference notice
Warning
This is a product that complies with the emission requirements of EN55022 Class A limits and immunity requirements
of EN55024. This product is not intended to be used in residential/domestic environments.
This is a Class A product. In a domestic environment, this product may cause radio interference, in which case the user
may be required to take adequate measures.
Regulatory notices for wireless products
This section contains the following regulatory information pertaining to wireless products that contain transmitters,
for example, but not limited to, wireless network cards or proximity card readers.
Exposure to radio frequency radiation
The radiated output power of this device is far below the radio frequency exposure limits of the FCC and other regulatory
agencies. A minimum separation of 20 cm (8 inches) must be maintained between the antenna and any persons for
this device to satisfy the RF exposure requirements of the FCC and other regulatory agencies.
Industry Canada (Canada)
This device complies with Industry Canada specification RSS-210. Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device must accept any interference, including interference that
may cause undesired operation of the device.
This device has been designed to operate only with the antenna provided. Use of any other antenna is strictly prohibited
per regulations of Industry Canada.
To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from
windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to
licensing.
The installer of this radio equipment must ensure that the antenna is located or pointed such that it does not emit RF
fields in excess of Health Canada limits for the general population; consult Safety Code 6, obtainable from Health
Canada's Web site www.hc-sc.gc.ca/rpb.
The term "IC:" before the certification/registration number only signifies that the Industry Canada technical
specifications were met.
Industry Canada (Canada)
Cet appareil est conforme à la norme RSS-210 d'Industry Canada. Son fonctionnement est soumis aux deux conditions
suivantes :
Notices
218
(1) cet appareil ne doit pas provoquer d'interférences et (2) il doit accepter toute interférence reçue, y compris celles
risquant d'altérer son fonctionnement.
Cet appareil a été conçu pour fonctionner uniquement avec l'antenne fournie. L'utilisation de toute autre antenne est
strictement interdite par la réglementation d'Industry Canada.
En application des réglementations d'Industry Canada, l'utilisation d'une antenne de gain supérieur est strictement
interdite.
Pour empêcher toute interférence radio au service faisant l'objet d'une licence, cet appareil doit être utilisé à l'intérieur
et loin des fenêtres afin de garantir une protection optimale.
Si le matériel (ou son antenne d'émission) est installé à l'extérieur, il doit faire l'objet d'une licence.
L'installateur de cet équipement radio doit veiller à ce que l'antenne soit implantée et dirigée de manière à n'émettre
aucun champ HF dépassant les limites fixées pour l'ensemble de la population par Santé Canada. Reportez-vous au
Code de sécurité 6 que vous pouvez consulter sur le site Web de Santé Canada www.hc-sc.gc.ca/rpb.
Le terme « IC » précédant le numéro de d'accréditation/inscription signifie simplement que le produit est conforme
aux spécifications techniques d'Industry Canada.
Notice to users in the European Union
This product is in conformity with the protection requirements of EC Council directives 2004/108/EC, 2006/95/EC and
2005/32/EC on the approximation and harmonization of the laws of the Member States relating to electromagnetic
compatibility, safety of electrical equipment designed for use within certain voltage limits and the ecodesign of energy-
using products.
Compliance is indicated by the CE marking.
The manufacturer of this product is: Lexmark International, Inc., 740 West New Circle Road, Lexington, KY, 40550 USA.
The authorized representative is: Lexmark International Technology Hungária Kft., 8 Lechner Ödön fasor, Millennium
Tower III, 1095 Budapest HUNGARY, A declaration of conformity to the requirements of the Directives is available upon
request from the Authorized Representative.
This product satisfies the Class A limits of EN 55022 and safety requirements of EN 60950.
Products equipped with 2.4GHz Wireless LAN option are in conformity with the protection requirements of EC Council
directives 2004/108/EC, 2006/95/EC, and 1999/5/EC on the approximation and harmonization of the laws of the
Member States relating to electromagnetic compatibility, safety of electrical equipment designed for use within certain
voltage limits and on radio equipment and telecommunications terminal equipment.
Compliance is indicated by the CE marking.
Operation is allowed in all EU and EFTA countries, but is restricted to indoor use only.
The manufacturer of this product is: Lexmark International, Inc., 740 West New Circle Road, Lexington, KY, 40550 USA.
The authorized representative is: Lexmark International Technology Hungária Kft., 8 Lechner Ödön fasor, Millennium
Notices
219
Tower III, 1095 Budapest HUNGARY, A declaration of conformity to the requirements of the Directives is available upon
request from the Authorized Representative.
This product may be used in the countries indicated in the table below.
AT BE BG CH CY CZ DE DK EE
EL ES FI FR HR HU IE IS IT
LI LT LU LV MT NL NO PL PT
RO SE SI SK TR UK
Česky Společnost Lexmark International, Inc. tímto prohlašuje, že výrobek tento výrobek je ve shodě se základními
požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES.
Dansk Lexmark International, Inc. erklærer herved, at dette produkt overholder de væsentlige krav og øvrige relevante
krav i direktiv 1999/5/EF.
Deutsch Hiermit erklärt Lexmark International, Inc., dass sich das Gerät dieses Gerät in Übereinstimmung mit den
grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG
befindet.
Ελληνική ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Η LEXMARK INTERNATIONAL, INC. ΔΗΛΩΝΕΙ ΟΤΙ ΑΥΤΟ ΤΟ ΠΡΟΪΟΝ
ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ
ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.
English Hereby, Lexmark International, Inc., declares that this type of equipment is in compliance with the
essential requirements and other relevant provisions of Directive 1999/5/EC.
Español Por medio de la presente, Lexmark International, Inc. declara que este producto cumple con los requisitos
esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.
Eesti Käesolevaga kinnitab Lexmark International, Inc., et seade see toode vastab direktiivi 1999/5/EÜ
põhinõuetele ja nimetatud direktiivist tulenevatele muudele asjakohastele sätetele.
Suomi Lexmark International, Inc. vakuuttaa täten, että tämä tuote on direktiivin 1999/5/EY oleellisten vaatimusten
ja muiden sitä koskevien direktiivin ehtojen mukainen.
Français Par la présente, Lexmark International, Inc. déclare que l'appareil ce produit est conforme aux exigences
fondamentales et autres dispositions pertinentes de la directive 1999/5/CE.
Magyar Alulírott, Lexmark International, Inc. nyilatkozom, hogy a termék megfelel a vonatkozó alapvetõ
követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.
Íslenska Hér með lýsir Lexmark International, Inc. yfir því að þessi vara er í samræmi við grunnkröfur og aðrar
kröfur, sem gerðar eru í tilskipun 1999/5/EC.
Italiano Con la presente Lexmark International, Inc. dichiara che questo questo prodotto è conforme ai requisiti
essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
Latviski Ar šo Lexmark International, Inc. deklarē, ka šis izstrādājums atbilst Direktīvas 1999/5/EK būtiskajām
prasībām un citiem ar to saistītajiem noteikumiem.
LietuviųŠiuo Lexmark International, Inc. deklaruoja, kad šis produktas atitinka esminius reikalavimus ir kitas
1999/5/EB direktyvos nuostatas.
Malti Bil-preżenti, Lexmark International, Inc., jiddikjara li dan il-prodott huwa konformi mal-ħtiġijiet
essenzjali u ma dispożizzjonijiet oħrajn relevanti li jinsabu fid-Direttiva 1999/5/KE.
Nederlands Hierbij verklaart Lexmark International, Inc. dat het toestel dit product in overeenstemming is met de essentiële
eisen en de andere relevante bepalingen van richtlijn 1999/5/EG.
Notices
220
Norsk Lexmark International, Inc. erklærer herved at dette produktet er i samsvar med de grunnleggende krav og
øvrige relevante krav i direktiv 1999/5/EF.
Polski Niniejszym Lexmark International, Inc. oświadcza, że niniejszy produkt jest zgodny z zasadniczymi
wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC.
Português A Lexmark International Inc. declara que este este produto está conforme com os requisitos essenciais e outras
disposições da Diretiva 1999/5/CE.
Slovensky Lexmark International, Inc. týmto vyhlasuje, že tento produkt spĺňa základné požiadavky a všetky
príslušné ustanovenia smernice 1999/5/ES.
Slovensko Lexmark International, Inc. izjavlja, da je ta izdelek v skladu z bistvenimi zahtevami in ostalimi
relevantnimi določili direktive 1999/5/ES.
Svenska Härmed intygar Lexmark International, Inc. att denna produkt står i överensstämmelse med de väsentliga
egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.
Statement of Limited Warranty
Lexmark C792e, C792de, C792dte, C792dhe
Lexmark International, Inc., Lexington, KY
This limited warranty applies to the United States and Canada. For customers outside the U.S., refer to the country-
specific warranty information that came with your product.
This limited warranty applies to this product only if it was originally purchased for your use, and not for resale, from
Lexmark or a Lexmark Remarketer, referred to in this statement as “Remarketer.”
Limited warranty
Lexmark warrants that this product:
—Is manufactured from new parts, or new and serviceable used parts, which perform like new parts
—Is, during normal use, free from defects in material and workmanship
If this product does not function as warranted during the warranty period, contact a Remarketer or Lexmark for repair
or replacement (at Lexmark's option).
If this product is a feature or option, this statement applies only when that feature or option is used with the product
for which it was intended. To obtain warranty service, you may be required to present the feature or option with the
product.
If you transfer this product to another user, warranty service under the terms of this statement is available to that user
for the remainder of the warranty period. You should transfer proof of original purchase and this statement to that
user.
Limited warranty service
The warranty period starts on the date of original purchase as shown on the purchase receipt and ends 12 months later
provided that the warranty period for any supplies and for any maintenance items included with the printer shall end
earlier if it, or its original contents, are substantially used up, depleted, or consumed.
Notices
221
To obtain warranty service you may be required to present proof of original purchase. You may be required to deliver
your product to the Remarketer or Lexmark, or ship it prepaid and suitably packaged to a Lexmark designated location.
You are responsible for loss of, or damage to, a product in transit to the Remarketer or the Lexmark designated location.
When warranty service involves the exchange of a product or part, the item replaced becomes the property of the
Remarketer or Lexmark. The replacement may be a new or repaired item.
The replacement item assumes the remaining warranty period of the original product.
Replacement is not available to you if the product you present for exchange is defaced, altered, in need of a repair not
included in warranty service, damaged beyond repair, or if the product is not free of all legal obligations, restrictions,
liens, and encumbrances.
Before you present this product for warranty service, remove all print cartridges, programs, data, and removable storage
media (unless directed otherwise by Lexmark).
For further explanation of your warranty alternatives and the nearest Lexmark authorized servicer in your area contact
Lexmark on the World Wide Web at http://support.lexmark.com.
Remote technical support is provided for this product throughout its warranty period. For products no longer covered
by a Lexmark warranty, technical support may not be available or only be available for a fee.
Extent of limited warranty
Lexmark does not warrant uninterrupted or error-free operation of any product or the durability or longevity of prints
produced by any product.
Warranty service does not include repair of failures caused by:
—Modification or unauthorized attachments
—Accidents, misuse, abuse or use inconsistent with Lexmark user’s guides, manuals, instructions or guidance
—Unsuitable physical or operating environment
—Maintenance by anyone other than Lexmark or a Lexmark authorized servicer
—Operation of a product beyond the limit of its duty cycle
—Use of printing media outside of Lexmark specifications
—Refurbishment, repair, refilling or remanufacture by a third party of products, supplies or parts
—Products, supplies, parts, materials (such as toners and inks), software, or interfaces not furnished by Lexmark
TO THE EXTENT PERMITTED BY APPLICABLE LAW, NEITHER LEXMARK NOR ITS THIRD PARTY SUPPLIERS OR
REMARKETERS MAKE ANY OTHER WARRANTY OR CONDITION OF ANY KIND, WHETHER EXPRESS OR IMPLIED, WITH
RESPECT TO THIS PRODUCT, AND SPECIFICALLY DISCLAIM THE IMPLIED WARRANTIES OR CONDITIONS OF
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, AND SATISFACTORY QUALITY. ANY WARRANTIES THAT
MAY NOT BE DISCLAIMED UNDER APPLICABLE LAW ARE LIMITED IN DURATION TO THE WARRANTY PERIOD. NO
WARRANTIES, EXPRESS OR IMPLIED, WILL APPLY AFTER THIS PERIOD. ALL INFORMATION, SPECIFICATIONS, PRICES,
AND SERVICES ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE.
Limitation of liability
Your sole remedy under this limited warranty is set forth in this document. For any claim concerning performance or
nonperformance of Lexmark or a Remarketer for this product under this limited warranty, you may recover actual
damages up to the limit set forth in the following paragraph.
Notices
222
Lexmark's liability for actual damages from any cause whatsoever will be limited to the amount you paid for the product
that caused the damages. This limitation of liability will not apply to claims by you for bodily injury or damage to real
property or tangible personal property for which Lexmark is legally liable. IN NO EVENT WILL LEXMARK BE LIABLE FOR
ANY LOST PROFITS, LOST SAVINGS, INCIDENTAL DAMAGE, OR OTHER ECONOMIC OR CONSEQUENTIAL DAMAGES.
This is true even if you advise Lexmark or a Remarketer of the possibility of such damages. Lexmark is not liable for any
claim by you based on a third party claim.
This limitation of remedies also applies to claims against any Suppliers and Remarketers of Lexmark. Lexmark's and its
Suppliers' and Remarketers' limitations of remedies are not cumulative. Such Suppliers and Remarketers are intended
beneficiaries of this limitation.
Additional rights
Some states do not allow limitations on how long an implied warranty lasts, or do not allow the exclusion or limitation
of incidental or consequential damages, so the limitations or exclusions contained above may not apply to you.
This limited warranty gives you specific legal rights. You may also have other rights that vary from state to state.
LEXMARK SOFTWARE LIMITED WARRANTY AND LICENSE AGREEMENT
PLEASE READ CAREFULLY BEFORE USING THIS PRODUCT: BY USING THIS PRODUCT, YOU AGREE TO BE BOUND BY ALL
THE TERMS AND CONDITIONS OF THIS SOFTWARE LIMITED WARRANTY AND LICENSE AGREEMENT. IF YOU DO NOT
AGREE WITH THE TERMS OF THIS SOFTWARE LIMITED WARRANTY AND LICENSE AGREEMENT, PROMPTLY RETURN THE
PRODUCT UNUSED AND REQUEST A REFUND OF THE AMOUNT YOU PAID. IF YOU ARE INSTALLING THIS PRODUCT FOR
USE BY OTHER PARTIES, YOU AGREE TO INFORM THE USERS THAT USE OF THE PRODUCT INDICATES ACCEPTANCE OF
THESE TERMS.
LEXMARK SOFTWARE LICENSE AGREEMENT
This License Agreement (“Software License Agreement”) is a legal agreement between you (either an individual or a
single entity) and Lexmark International, Inc. (“Lexmark”) that, to the extent your Lexmark product or Software Program
is not otherwise subject to a written software license agreement between you and Lexmark or its suppliers, governs
your use of any Software Program installed on or provided by Lexmark for use in connection with your Lexmark product.
The term “Software Program” includes machine-readable instructions, audio/visual content (such as images and
recordings), and associated media, printed materials and electronic documentation, whether incorporated into,
distributed with or for use with your Lexmark product.
1STATEMENT OF SOFTWARE LIMITED WARRANTY. Lexmark warrants that the media (e.g., diskette or compact disk)
on which the Software Program (if any) is furnished is free from defects in materials and workmanship under normal
use during the warranty period. The warranty period is ninety (90) days and commences on the date the Software
Program is delivered to the original end-user. This limited warranty applies only to Software Program media
purchased new from Lexmark or an Authorized Lexmark Reseller or Distributor. Lexmark will replace the Software
Program should it be determined that the media does not conform to this limited warranty.
2DISCLAIMER AND LIMITATION OF WARRANTIES. EXCEPT AS PROVIDED IN THIS SOFTWARE LICENSE AGREEMENT
AND TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, LEXMARK AND ITS SUPPLIERS PROVIDE THE
SOFTWARE PROGRAM "AS IS" AND HEREBY DISCLAIM ALL OTHER WARRANTIES AND CONDITIONS, EITHER EXPRESS
OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, TITLE, NON-INFRINGEMENT, MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE, AND ABSENCE OF VIRUSES, ALL WITH REGARD TO THE SOFTWARE PROGRAM. TO THE
EXTENT LEXMARK CANNOT BY LAW DISCLAIM ANY COMPONENT OF THE IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, LEXMARK LIMITS THE DURATION OF SUCH
WARRANTIES TO THE 90-DAY TERM OF THE EXPRESS SOFTWARE LIMITED WARRANTY.
Notices
223
This Agreement is to be read in conjunction with certain statutory provisions, as that may be in force from time to
time, that imply warranties or conditions or impose obligations on Lexmark that cannot be excluded or modified.
If any such provisions apply, then to the extent Lexmark is able, Lexmark hereby limits its liability for breach of those
provisions to one of the following: providing you a replacement copy of the Software Program or reimbursement
of the price paid for the Software Program.
The Software Program may include internet links to other software applications and/or internet web pages hosted
and operated by third parties unaffiliated with Lexmark. You acknowledge and agree that Lexmark is not responsible
in any way for the hosting, performance, operation, maintenance, or content of, such software applications and/or
internet web pages.
3LIMITATION OF REMEDY. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, ANY AND ALL LIABILITY OF
LEXMARK UNDER THIS SOFTWARE LICENSE AGREEMENT IS EXPRESSLY LIMITED TO THE GREATER OF THE PRICE PAID
FOR THE SOFTWARE PROGRAM AND FIVE U.S. DOLLARS (OR THE EQUIVALENT IN LOCAL CURRENCY). YOUR SOLE
REMEDY AGAINST LEXMARK IN ANY DISPUTE UNDER THIS SOFTWARE LICENSE AGREEMENT SHALL BE TO SEEK TO
RECOVER ONE OF THESE AMOUNTS, UPON PAYMENT OF WHICH LEXMARK SHALL BE RELEASED AND DISCHARGED
OF ALL FURTHER OBLIGATIONS AND LIABILITY TO YOU.
IN NO EVENT WILL LEXMARK, ITS SUPPLIERS, SUBSIDIARIES, OR RESELLERS BE LIABLE FOR ANY SPECIAL, INCIDENTAL,
INDIRECT, EXEMPLARY, PUNITIVE, OR CONSEQUENTIAL DAMAGES (INCLUDING BUT NOT LIMITED TO LOST PROFITS
OR REVENUES, LOST SAVINGS, INTERRUPTION OF USE OR ANY LOSS OF, INACCURACY IN, OR DAMAGE TO, DATA
OR RECORDS, FOR CLAIMS OF THIRD PARTIES, OR DAMAGE TO REAL OR TANGIBLE PROPERTY, FOR LOSS OF PRIVACY
ARISING OUT OR IN ANY WAY RELATED TO THE USE OF OR INABILITY TO USE THE SOFTWARE PROGRAM, OR
OTHERWISE IN CONNECTION WITH ANY PROVISION OF THIS SOFTWARE LICENSE AGREEMENT), REGARDLESS OF
THE NATURE OF THE CLAIM, INCLUDING BUT NOT LIMITED TO BREACH OF WARRANTY OR CONTRACT, TORT
(INCLUDING NEGLIGENCE OR STRICT LIABILITY), AND EVEN IF LEXMARK, OR ITS SUPPLIERS, AFFILIATES, OR
REMARKETERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, OR FOR ANY CLAIM BY YOU BASED
ON A THIRD-PARTY CLAIM, EXCEPT TO THE EXTENT THIS EXCLUSION OF DAMAGES IS DETERMINED LEGALLY INVALID.
THE FOREGOING LIMITATIONS APPLY EVEN IF THE ABOVE-STATED REMEDIES FAIL OF THEIR ESSENTIAL PURPOSE.
4U.S.A. STATE LAWS. This Software Limited Warranty gives you specific legal rights. You may also have other rights
that vary from state to state. Some states do not allow limitations on how long an implied warranty lasts or the
exclusion of limitation of incidental or consequential damages, so the above limitations may not apply to you.
5LICENSE GRANT. Lexmark grants you the following rights provided you comply with all terms and conditions of this
License Agreement:
aUse. You may Use one (1) copy of the Software Program. The term “Use” means storing, loading, installing,
executing, or displaying the Software Program. If Lexmark has licensed the Software Program to you for
concurrent use, you must limit the number of authorized users to the number specified in your agreement with
Lexmark. You may not separate the components of the Software Program for use on more than one computer.
You agree that you will not Use the Software Program, in whole or in part, in any manner that has the effect of
overriding, modifying, eliminating, obscuring, altering or de-emphasizing the visual appearance of any
trademark, trade name, trade dress or intellectual property notice that appears on any computer display screens
normally generated by, or as a result of, the Software Program.
bCopying. You may make one (1) copy of the Software Program solely for purposes of backup, archiving, or
installation, provided the copy contains all of the original Software Program’s proprietary notices. You may not
copy the Software Program to any public or distributed network.
cReservation of Rights. The Software Program, including all fonts, is copyrighted and owned by Lexmark
International, Inc. and/or its suppliers. Lexmark reserves all rights not expressly granted to you in this License
Agreement.
dFreeware. Notwithstanding the terms and conditions of this License Agreement, all or any portion of the
Software Program that constitutes software provided under public license by third parties (“Freeware”) is
licensed to you subject to the terms and conditions of the software license agreement accompanying such
Freeware, whether in the form of a discrete agreement, shrink-wrap license, or electronic license terms at the
Notices
224
time of download. Use of the Freeware by you shall be governed entirely by the terms and conditions of such
license.
6TRANSFER. You may transfer the Software Program to another end-user. Any transfer must include all software
components, media, printed materials, and this License Agreement and you may not retain copies of the Software
Program or components thereof. The transfer may not be an indirect transfer, such as a consignment. Prior to the
transfer, the end-user receiving the transferred Software Program must agree to all these License Agreement terms.
Upon transfer of the Software Program, your license is automatically terminated. You may not rent, sublicense, or
assign the Software Program except to the extent provided in this License Agreement, and any attempt to do so
shall be void.
7UPGRADES. To Use a Software Program identified as an upgrade, you must first be licensed to the original Software
Program identified by Lexmark as eligible for the upgrade. After upgrading, you may no longer use the original
Software Program that formed the basis for your upgrade eligibility.
8LIMITATION ON REVERSE ENGINEERING. You may not alter, decrypt, reverse engineer, reverse assemble, reverse
compile or otherwise translate the Software Program, except as and to the extent expressly permitted to do so by
applicable law for the purposes of inter-operability, error correction, and security testing. If you have such statutory
rights, you will notify Lexmark in writing of any intended reverse engineering, reverse assembly, or reverse
compilation. You may not decrypt the Software Program unless necessary for the legitimate Use of the Software
Program.
9ADDITIONAL SOFTWARE. This License Agreement applies to updates or supplements to the original Software
Program provided by Lexmark unless Lexmark provides other terms along with the update or supplement.
10 TERM. This License Agreement is effective unless terminated or rejected. You may reject or terminate this license
at any time by destroying all copies of the Software Program, together with all modifications, documentation, and
merged portions in any form, or as otherwise described herein. Lexmark may terminate your license upon notice
if you fail to comply with any of the terms of this License Agreement. Upon such termination, you agree to destroy
all copies of the Software Program together with all modifications, documentation, and merged portions in any
form.
11 TAXES. You agree that you are responsible for payment of any taxes including, without limitation, any goods and
services and personal property taxes, resulting from this Agreement or your Use of the Software Program.
12 LIMITATION ON ACTIONS. No action, regardless of form, arising out of this Agreement may be brought by either
party more than two years after the cause of action has arisen, except as provided under applicable law.
13 APPLICABLE LAW. This Agreement is governed by the laws of the Commonwealth of Kentucky, United States of
America. No choice of law rules in any jurisdiction shall apply. The UN Convention on Contracts for the International
Sale of Goods shall not apply.
14 UNITED STATES GOVERNMENT RESTRICTED RIGHTS. The Software Program has been developed entirely at private
expense. Rights of the United States Government to use the Software Program is as set forth in this Agreement and
as restricted in DFARS 252.227-7014 and in similar FAR provisions (or any equivalent agency regulation or contract
clause).
15 CONSENT TO USE OF DATA. You agree that Lexmark, its affiliates, and agents may collect and use information you
provide in relation to support services performed with respect to the Software Program and requested by you.
Lexmark agrees not to use this information in a form that personally identifies you except to the extent necessary
to provide such services.
16 EXPORT RESTRICTIONS. You may not (a) acquire, ship, transfer, or reexport, directly or indirectly, the Software
Program or any direct product therefrom, in violation of any applicable export laws or (b) permit the Software
Program to be used for any purpose prohibited by such export laws, including, without limitation, nuclear, chemical,
or biological weapons proliferation.
17 AGREEMENT TO CONTRACT ELECTRONICALLY. You and Lexmark agree to form this License Agreement
electronically. This means that when you click the “Agree” or “Yes” button on this page or use this product, you
acknowledge your agreement to these License Agreement terms and conditions and that you are doing so with the
intent to “sign” a contract with Lexmark.
Notices
225
18 CAPACITY AND AUTHORITY TO CONTRACT. You represent that you are of the legal age of majority in the place you
sign this License Agreement and, if applicable, you are duly authorized by your employer or principal to enter into
this contract.
19 ENTIRE AGREEMENT. This License Agreement (including any addendum or amendment to this License Agreement
that is included with the Software Program) is the entire agreement between you and Lexmark relating to the
Software Program. Except as otherwise provided for herein, these terms and conditions supersede all prior or
contemporaneous oral or written communications, proposals, and representations with respect to the Software
Program or any other subject matter covered by this License Agreement (except to the extent such extraneous
terms do not conflict with the terms of this License Agreement, any other written agreement signed by you and
Lexmark relating to your Use of the Software Program). To the extent any Lexmark policies or programs for support
services conflict with the terms of this License Agreement, the terms of this License Agreement shall control.
MICROSOFT CORPORATION NOTICES
1This product may incorporate intellectual property owned by Microsoft Corporation. The terms and conditions
upon which Microsoft is licensing such intellectual property may be found at
http://go.microsoft.com/fwlink/?LinkId=52369.
2This product is based on Microsoft Print Schema technology. You may find the terms and conditions upon which
Microsoft is licensing such intellectual property at http://go.microsoft.com/fwlink/?LinkId=83288.
ADOBE SYSTEMS INCORPORATED NOTICE
Contains Flash®, Flash® Lite™ and/or Reader® technology by Adobe Systems Incorporated
This Product contains Adobe® Flash® player software under license from Adobe Systems Incorporated, Copyright ©
1995-2007 Adobe Macromedia Software LLC. All rights reserved. Adobe, Reader and Flash are trademarks of Adobe
Systems Incorporated.
Notices
226
Index
Numerics
1565 Emulation error, load
emulation option 189
2,000-sheet high-capacity feeder
installing 39
200 paper jam 165
2000-sheet high-capacity feeder
loading 65
201 paper jam 165
202–203 paper jams 166
230 paper jam 167
231–239 paper jams 168
24x paper jam 168
250 paper jam 169
31.xx Missing or Defective [color]
cartridge 182
32.xx [color] cartridge part number
unsupported by device 182
34 Incorrect paper size, open
[src] 182
35 Insufficient memory to support
Resource Save feature 182
36 Printer service required 182
37 Insufficient memory for Flash
Memory Defragment
operation 183
37 Insufficient memory to collate
job 183
37 Insufficient memory, some Held
Jobs were deleted 183
37 Insufficient memory, some held
jobs will not be restored 183
38 Memory full 183
39 Complex page, some data may not
have printed 183
40 [color] invalid refill, change
cartridge 183
400–403 paper jams 170
431–454 paper jams 171
455 staple jam 171
456–458 paper jams 171
460–461 paper jams 170
51 Defective flash detected 184
52 Not enough free space in flash
memory for resources 184
53 Unformatted flash detected 184
54 Network [x] software error 184
54 Serial option [x] error 184
54 Standard network software
error 184
55 Unsupported option in slot
[x] 185
550-sheet tray
installing 39
550-sheet tray (standard or
optional)
loading 62
56 Parallel port [x] disabled 185
56 Serial port [x] disabled 185
56 Standard parallel port
disabled 185
56 Standard USB port disabled 185
56 USB port [x] disabled 185
57 Configuration change, some held
jobs were not restored 186
58 Input config error 186
58 Too many bins attached 186
58 Too many disks installed 186
58 Too many flash options
installed 186
58 Too many trays attached 187
59 Incompatible output bin [x] 187
61 Remove defective disk 187
62 Disk full 187
80.xx Fuser life warning 187
80.xx Fuser missing 188
80.xx Fuser near life warning 187
80.xx Replace fuser 188
82.xx Replace waste toner
bottle 188
82.xx Waste toner bottle
missing 188
82.xx Waste toner bottle nearly
full 188
83.xx Replace transfer module 188
83.xx Transfer module life
warning 188
83.xx Transfer module missing 188
88.xx [Color] cartridge critically
low 189
88.xx [color] cartridge low 189
88.xx [color] cartridge nearly
low 188
A
accessing the Embedded Web
Server 17
accessing the system board 23
Active NIC menu 102
Adjusting color 174
adjusting display brightness 59
adjusting Sleep Mode 58
adjusting toner darkness 78
AppleTalk menu 107
applications list
home screen 17
applications, home screen
Background and Idle Screen 17
Eco-Settings 17
Forms and Favorites 17
Remote Operator Panel 17
Showroom 17
assigning a custom paper type
name 71
attaching cables 42
attaching the system board
cover 23
available internal options 21
avoiding paper jams 163
B
Background and Idle Screen 17
Bin Setup menu 100
black-and-white printing 78
blank pages 197
buttons, printer control panel 11
buttons, touch screen
using 14
C
cables
Ethernet 42
USB 42
calling customer support 211
canceling
print job, from computer 85
canceling a print job
from a computer 85
from the printer control panel 85
cannot open Embedded Web
Server 211
Index
227
card stock
loading in multipurpose feeder 67
tips 83
Change [paper source] to [custom
string] 175
Change [paper source] to [custom
string] load [orientation] 175
Change [paper source] to [custom
type name] 174
Change [paper source] to [custom
type name] load [orientation] 174
Change [paper source] to [paper
size] [paper type] 175
Change [paper source] to [paper
size] [paper type] load
[orientation] 175
checking an unresponsive
printer 174
checking printer status
on Embedded Web Server 160
checking printer status using the
Embedded Web Server 160
checking status of supplies 152
checking the status of supplies 152
checking the virtual display
using the Embedded Web
Server 160
checking virtual display
using the Embedded Web
Server 160
cleaning
exterior of the printer 150
cleaning kit
ordering 154
cleaning the printhead lenses 150
Close [tray] door 175
Close finisher side door 176
Close finisher top cover 176
Close front door 176
Close left side door 175
Close paper transport cover 175
confidential print jobs 83
printing from a Macintosh
computer 84
printing from Windows 84
Confidential Print menu 115
configuration information
wireless network 45
Configure MP menu 93
configuring port settings 53
conservation settings
brightness, adjusting 59
Eco-Mode 57
Hibernate Mode 58
Quiet Mode 57
Sleep Mode 58
conserving supplies 56
contacting customer support 211
corrupted printer hard disk 176
Custom Bin Names menu 99
custom name
configuring 71
Custom Names menu 99
custom paper type
assigning 71
custom paper type name
creating 70
Custom Type [x]
changing name 70
changing paper type 71
Custom Types menu 98
D
Default Source menu 89
directory list
printing 85
disk wiping 147
Disk Wiping menu 116
display troubleshooting
display is blank 190
display shows only diamonds 190
display, printer control panel 11
adjusting brightness 59
disposing of printer hard disk 145
documents, printing
from Macintosh 78
from Windows 78
E
Eco-Mode setting 57
Eco-Settings 18
Embedded Web Server
accessing 17, 160
administrator settings 160
checking printer status 160
checking supplies 152
functions 160
networking settings 160
problem accessing 211
setting up e-mail alerts 161
using 160
Embedded Web Server
Administrator's Guide
where to find 160
emission
notices 214, 215, 217, 218, 219
Empty the hole punch box 176
encrypting the printer hard
disk 148
envelopes
loading in multipurpose feeder 67
tips on using 81
environmental settings
conserving supplies 56
display brightness, adjusting 59
Eco-Mode 57
Hibernate Mode 58
Quiet Mode 57
Sleep Mode 58
erasing hard disk memory 147
erasing non-volatile memory 146
erasing volatile memory 146
Ethernet networking
Macintosh 51
Windows 51
Ethernet port 42
exit bins
linking 70
exporting a configuration
using the Embedded Web
Server 19
exporting a configuration using the
Embedded Web Server 19
exterior of the printer
cleaning 150
e-mail alerts
low supply levels 161
paper jam 161
setting up 161
F
factory defaults
restoring 162
FAQ about color printing 208
FCC notices 214, 218
fiber optic
network setup 51
finding more information about the
printer 8
finisher
finishing features 40
supported paper sizes 40
finisher features 40
Index
228
Finishing menu 132
firmware card
installing 28
flash drive
printing from 79
Flash Drive menu 126
flash drives
supported file types 80
flash memory card
installing 28
troubleshooting 195
font sample list
printing 84
Forms and Favorites 18
fuser or transfer module
ordering 153
G
General Settings menu 119
Green settings
Eco-Mode 57
Hibernate Mode 58
Quiet Mode 57
H
hard disk
wiping 147
hard disk memory
erasing 147
held jobs 83
printing from a Macintosh
computer 84
printing from Windows 84
Help menu 143
Hibernate Mode
using 58
hiding icons on the home screen 17
home screen
applications 17
buttons, understanding 13
hiding icons 17
showing icons 17
home screen applications
using 17
home screen buttons
understanding 13
HTML menu 142
I
Image menu 143
importing a configuration
using the Embedded Web
Server 19
importing a configuration using the
Embedded Web Server 19
Insert hole punch box 177
Insert staple cartridge 177
Install bin [x] 177
Install envelope feeder 177
Install Tray [x] 177
installing a memory card 26
installing an Internal Solutions
Port 29
installing on a wireless network
using Windows 46
installing options
order of installation 39
installing printer
on wireless network 46
installing printer hard disk 33
installing printer on a network
wired networking 51
installing printer on a wireless
network
using Macintosh 48
installing printer software 44
adding options 45
installing the 2,000-sheet
high-capacity feeder 39
installing the 550-sheet tray 39
internal print server
troubleshooting 196
Internal Solutions Port
changing port settings 53
installing 29
troubleshooting 195
IPv6 menu 105
J
jam locations 163
jam numbers
meaning 163
jams
avoiding 163
locating 163
jams, clearing
200 paper jam 165
201 paper jam 165
202–203 paper jams 166
230 paper jam 167
231–239 paper jams 168
24x paper jam 168
250 paper jam 169
400–403 paper jams 170
431–454 paper jams 171
455 staple jam 171
456–458 paper jams 171
460–461 paper jams 170
Job Accounting menu 130
L
labels, paper
tips 82
letterhead
loading, 2000-sheet high-capacity
feeder 65
loading, multipurpose feeder 81
loading, trays 81
letterhead printing 81
light colored line, white line, or
incorrectly colored line appears on
prints 200
linking
exit bins 70
linking exit bins 70
linking trays 69
Load Manual Feeder with [custom
string] 179
Load Manual Feeder with [custom
type name] 179
Load Manual Feeder with [paper
type] [paper size] 179
Load staples 179
loading
2000-sheet high-capacity
feeder 65
550-sheet tray (standard or
optional) 62
letterhead in 2000-sheet
high-capacity feeder 65
letterhead in multipurpose
feeder 81
multipurpose feeder 67
loading card stock
in multipurpose feeder 67
loading envelopes
in multipurpose feeder 67
loading the multipurpose feeder 67
loading the standard tray 62
loading transparencies
in multipurpose feeder 67
lock, security 22
Index
229
M
memory
types installed on printer 145
memory card
installing 26
troubleshooting 196
menu settings page
printing 43
menus
Active NIC 102
AppleTalk 107
Bin Setup 100
Confidential Print 115
Configure MP 93
Custom Bin Names 99
Custom Names 99
Custom Types 98
Default Source 89
diagram of 87
Disk Wiping 116
Finishing 132
Flash Drive 126
General Settings 119
Help 143
HTML 142
Image 143
IPv6 105
Job Accounting 130
Miscellaneous Security
Settings 115
Network [x] 102
Network Card 104
Network Reports 103
Paper Loading 97
Paper Size/Type 90
Paper Texture 93
Paper Weight 95
Parallel [x] 109
PCL Emul 139
PDF 138
PostScript 138
Quality 134
Reports 101
Security Audit Log 117
Serial [x] 111
Set Date and Time 118
Setup 129
SMTP Setup menu 113
Standard Network 102
Standard USB 107
Substitute Size 93
Supplies 88
TCP/IP 104
Utilities 137
Wireless 106
XPS 137
menus diagram 87
Miscellaneous Security Settings
menu 115
moving the printer 158, 159
moving your printer 9
multipurpose feeder
loading 67
N
Network [x] menu 102
Network Card menu 104
network options 21
Network Reports menu 103
network setup page
printing 44
Networking Guide
where to find 160
noise emission levels 215
non-volatile memory 145
erasing 146
notices 213, 214, 215, 216, 217,
218, 219, 220
O
options
2,000-sheet high-capacity feeder,
installing 39
550-sheet tray, installing 39
firmware card 28
firmware cards 21
flash memory card 28
Internal Solutions Port,
installing 29
list 21
memory card, installing 26
memory cards 21
network 21
order of installation 39
ports 21
printer hard disk, installing 33
printer hard disk, removing 38
updating in printer driver 45
ordering
cleaning kit 154
fuser or transfer module 153
print cartridges 152
staple cartridges 153
waste toner bottle 153
ordering a print cartridge 152
P
paper
characteristics 72
letterhead 73
preprinted forms 73
recycled 74
selecting 73
storing 74
unacceptable 73
Universal Paper Size 99
Universal size setting 61
using recycled 56
Paper changes needed 179
paper feed troubleshooting
message remains after jam is
cleared 197
paper jams
avoiding 163
paper jams, clearing
200 paper jam 165
201 paper jam 165
202–203 paper jams 166
230 paper jam 167
231–239 paper jams 168
24x paper jam 168
250 paper jam 169
400–403 paper jams 170
431–454 paper jams 171
456–458 paper jams 171
460–461 paper jams 170
Paper Loading menu 97
paper size
setting 61
Paper Size/Type menu 90
paper sizes
supported by printer 75
Paper Texture menu 93
paper type
setting 61
paper types
duplex support 77
supported by printer 77
where to load 77
Paper Weight menu 95
Parallel [x] menu 109
PCL Emul menu 139
PDF menu 138
Index
230
port settings
configuring 53
PostScript menu 138
print cartridge
replacing 154
print cartridges
ordering 152
print irregularities 201
print job
canceling, from computer 85
print quality
cleaning the printhead lenses 150
print quality troubleshooting
black streaks on a page 205
blank pages 197
characters have jagged edges 198
clipped images 198
fine horizontal lines 198
gray background on prints 199
light colored line, white line, or
incorrectly colored line appears
on prints 200
poor transparency quality 207
print irregularities 201
print is too dark 202
print is too light 202
repeating print defects 203
shadow images appear on
prints 199
skewed print 204
solid color or black pages appear on
prints 204
streaked horizontal lines appear on
prints 205
toner fog or background
shading 206
toner rubs off 206
uneven print density 207
white streaks on a page 205
print troubleshooting
error reading flash drive 190
held jobs do not print 191
incorrect characters print 192
incorrect margins 200
jammed pages are not
reprinted 197
job prints from wrong tray 192
job prints on wrong paper 192
jobs do not print 190
Large jobs do not collate 192
multiple-language PDF files do not
print 189
paper curl 201
paper frequently jams 196
print job takes longer than
expected 191
tray linking does not work 192
unexpected page breaks 193
printer
configured models 10
finishing features 40
minimum clearances 9
moving 9, 158, 159
selecting a location 9
shipping 159
printer configurations 10
printer control panel
adjusting brightness 59
factory defaults, restoring 162
understanding 11
printer hard disk
disposing of 145
encrypting 148
installing 33
removing 38
troubleshooting 195
printer hard disk encryption 148
printer information
where to find 8
printer messages
1565 Emulation error, load
emulation option 189
31.xx Missing or Defective [color]
cartridge 182
32.xx [color] cartridge part number
unsupported by device 182
34 Incorrect paper size, open
[src] 182
35 Insufficient memory to support
Resource Save feature 182
36 Printer service required 182
37 Insufficient memory for Flash
Memory Defragment
operation 183
37 Insufficient memory to collate
job 183
37 Insufficient memory, some Held
Jobs were deleted 183
37 Insufficient memory, some held
jobs will not be restored 183
38 Memory full 183
39 Complex page, some data may
not have printed 183
40 [color] invalid refill, change
cartridge 183
51 Defective flash detected 184
52 Not enough free space in flash
memory for resources 184
53 Unformatted flash
detected 184
54 Network [x] software error 184
54 Serial option [x] error 184
54 Standard network software
error 184
55 Unsupported option in slot
[x] 185
56 Parallel port [x] disabled 185
56 Serial port [x] disabled 185
56 Standard parallel port
disabled 185
56 Standard USB port
disabled 185
56 USB port [x] disabled 185
57 Configuration change, some
held jobs were not restored 186
58 Input config error 186
58 Too many bins attached 186
58 Too many disks installed 186
58 Too many flash options
installed 186
58 Too many trays attached 187
59 Incompatible output bin
[x] 187
61 Remove defective disk 187
62 Disk full 187
80.xx Fuser life warning 187
80.xx Fuser missing 188
80.xx Fuser near life warning 187
80.xx Replace fuser 188
82.xx Replace waste toner
bottle 188
82.xx Waste toner bottle
missing 188
82.xx Waste toner bottle nearly
full 188
83.xx Replace transfer
module 188
83.xx Transfer module life
warning 188
83.xx Transfer module
missing 188
88.xx [Color] cartridge critically
low 189
88.xx [color] cartridge low 189
Index
231
88.xx [color] cartridge nearly
low 188
Adjusting color 174
an error has occurred with the USB
drive 174
Change [paper source] to [custom
string] 175
Change [paper source] to [custom
string] load [orientation] 175
Change [paper source] to [custom
type name] 174
Change [paper source] to [custom
type name] load
[orientation] 174
Change [paper source] to [paper
size] [paper type] 175
Change [paper source] to [paper
size] [paper type] load
[orientation] 175
Close [tray] door 175
Close finisher side door 176
Close finisher top cover 176
Close front door 176
Close left side door 175
Close paper transport cover 175
Disk corrupted 176
Disk near full. Securely clearing disk
space. 176
Disk problem 176
Empty the hole punch box 176
Insert hole punch box 177
Insert staple cartridge 177
Insert Tray [x] 177
Install bin [x] 177
Install envelope feeder 177
Install Tray [x] 177
Load [src] with [custom
string] 178
Load [src] with [custom type
name] 178
Load [src] with [size] 178
Load [src] with [type] [size] 178
Load Manual Feeder with [custom
string] 179
Load Manual Feeder with [custom
type name] 179
Load Manual Feeder with [paper
type] [paper size] 179
Load staples 179
Paper changes needed 179
Reattach bin [x] 180
Reattach bin [x] – [y] 180
Remove packaging material, [area
name] 181
Remove paper from [linked bin set
name] 181
Remove paper from all bins 181
Remove paper from bin [x] 181
Remove paper from standard
output bin 180
Restore held jobs? 181
Slide finisher to the left 181
Some held jobs were not
restored 181
Supply needed to complete
job 181
Unsupported disk 181
Unsupported USB device, please
remove 176
printer options troubleshooting
2,000-sheet drawer problems 194
cannot detect flash memory
card 195
cannot detect printer hard
disk 195
internal print server 196
Internal Solutions Port 195
memory card 196
option not working 193
paper tray problems 194
USB/parallel interface card 196
printer software
installing 44
printhead lenses
cleaning 150
printing
black-and-white 78
canceling, from printer control
panel 85
directory list 85
font sample list 84
from flash drive 79
from Macintosh 78
from Windows 78
menu settings page 43
network setup page 44
on letterhead 81
printing a directory list 85
printing a document 78
printing a font sample list 84
printing a menu settings page 43
printing a network setup page 44
printing confidential and other held
jobs
from a Macintosh computer 84
from Windows 84
printing from a flash drive 79
printing in black and white 78
printing on letterhead 81
publications
where to find 8
Q
Quality menu 134
Quiet Mode
print quality troubleshooting 198
R
Reattach bin [x] 180
Reattach bin [x] – [y] 180
reattaching the system board
cover 23
recycled paper
using 56, 74
recycling
Lexmark packaging 60
Lexmark products 60
toner cartridges 60
WEEE statement 215
reducing printer noise 57
Remote Operator Panel 19
Remove packaging material, [area
name] 181
Remove paper from [linked bin set
name] 181
Remove paper from all bins 181
Remove paper from bin [x] 181
Remove paper from standard output
bin 180
removing printer hard disk 38
repeat print jobs 83
printing from a Macintosh
computer 84
printing from Windows 84
repeating print defects 203
replacing a print cartridge 154
replacing the waste toner
bottle 157
reports
viewing 161
Reports menu 101
Index
232
reserve print jobs 83
printing from a Macintosh
computer 84
printing from Windows 84
Restore held jobs? 181
restoring factory default
settings 162
S
safety information 6, 7
Security Audit Log menu 117
security lock 22
selecting a location for the
printer 9
Serial [x] menu 111
serial printing
setting up 54
Set Date and Time menu 118
setting
TCP/IP address 104
setting the paper size 61
setting the paper type 61
setting the Universal paper size 61
setting up e-mail alerts using the
Embedded Web Server 161
setting up serial printing 54
setting up the printer
on a wired network
(Macintosh) 51
on a wired network (Windows) 51
Setup menu 129
shadow images appear on
prints 199
shipping the printer 159
showing icons on the home
screen 17
Showroom 19
Sleep Mode
adjusting 58
Slide finisher to the left 181
SMTP Setup menu 113
solid color or black pages appear on
prints 204
Some held jobs were not
restored 181
Standard Network menu 102
standard tray
loading 62
Standard USB menu 107
staple cartridges
ordering 153
staple jam, clearing
455 staple jam 171
statement of volatility 145
status of supplies
checking 152
storing
paper 74
supplies 151
storing print jobs 83
streaked horizontal lines appear on
prints 205
streaks appear on a page 205
Substitute Size menu 93
supplies
checking status 152
checking, from printer control
panel 152
checking, using the Embedded Web
Server 152
conserving 56
storing 151
using recycled paper 56
Supplies menu 88
supplies, ordering
cleaning kit 154
fuser or transfer module 153
print cartridges 152
staple cartridges 153
waste toner bottle 153
Supply needed to complete job 181
supported flash drives 80
supported paper sizes 75
supported paper types and
weights 77
system board
accessing 23
system board cover
attaching 23
reattaching 23
T
TCP/IP menu 104
tips
card stock 83
labels, paper 82
on using envelopes 81
on using letterhead 81
on using transparencies 81
tips on using envelopes 81
tips on using letterhead 81
toner cartridges
recycling 60
toner darkness
adjusting 78
toner rubs off 206
touch screen
buttons, using 14
transparencies
loading 81
loading in multipurpose feeder 67
tips on using 81
using 81
trays
linking 69
unlinking 70
troubleshooting
an application error has
occurred 193
cannot open Embedded Web
Server 211
checking an unresponsive
printer 174
contacting customer support 211
FAQ about color printing 208
troubleshooting, display
display is blank 190
display shows only diamonds 190
troubleshooting, paper feed
message remains after jam is
cleared 197
troubleshooting, print
error reading flash drive 190
held jobs do not print 191
incorrect characters print 192
incorrect margins 200
jammed pages are not
reprinted 197
job prints from wrong tray 192
job prints on wrong paper 192
jobs do not print 190
Large jobs do not collate 192
multiple-language PDF files do not
print 189
paper curl 201
paper frequently jams 196
print job takes longer than
expected 191
tray linking does not work 192
unexpected page breaks 193
troubleshooting, print quality
black streaks on a page 205
blank pages 197
characters have jagged edges 198
clipped images 198
Index
233
fine horizontal lines 198
gray background on prints 199
light colored line, white line, or
incorrectly colored line appears
on prints 200
poor transparency quality 207
print irregularities 201
print is too dark 202
print is too light 202
repeating print defects 203
shadow images appear on
prints 199
skewed print 204
solid color or black pages appear on
prints 204
streaked horizontal lines appear on
prints 205
toner fog or background
shading 206
toner rubs off 206
uneven print density 207
white streaks on a page 205
troubleshooting, printer options
2,000-sheet drawer problems 194
cannot detect flash memory
card 195
cannot detect printer hard
disk 195
internal print server 196
Internal Solutions Port 195
memory card 196
option not working 193
paper tray problems 194
USB/parallel interface card 196
U
understanding the home screen 13
understanding the printer control
panel 11
uneven print density 207
unexpected page breaks 193
Universal Paper Size 99
setting 61
Universal Setup menu 99
unlinking trays 70
Unsupported USB device, please
remove 176
updating options in printer
driver 45
USB port 42
USB/parallel interface card
troubleshooting 196
using Eco-Mode 57
using Hibernate Mode 58
using Quiet Mode 57
using recycled paper 56
using the Embedded Web
Server 160
using the touch-screen buttons 14
Utilities menu 137
V
verify print jobs 83
printing from a Macintosh
computer 84
printing from Windows 84
viewing
reports 161
virtual display
checking, using Embedded Web
Server 160
volatile memory 145
erasing 146
volatility
statement of 145
W
waste toner bottle
ordering 153
replacing 157
wiping the hard disk 147
wired network setup
using Macintosh 51
using Windows 51
Wireless menu 106
wireless network
configuration information 45
installation, using Macintosh 48
installation, using Windows 46
wireless network setup
in Windows 46
wireless printer setup
in Macintosh 48
X
XPS menu 137
Index
