www.lexmark.com
User’s Reference
October 2001
Lexmark C910
i
Table of contents
Chapter 1: Printer overview ..............................................................9
Print speed ......................................................................................................... 10
Memory .............................................................................................................. 10
Paper handling ................................................................................................... 10
Chapter 2: Avoiding print quality problems .................................11
Media and supplies ............................................................................................ 11
Transparencies .................................................................................................. 11
Chapter 3: Canceling a print job .................................................... 12
Chapter 4: Controlling printed output ...........................................13
Image Smoothing ............................................................................................... 13
Color correction .................................................................................................. 13
Print mode .......................................................................................................... 13
Toner darkness .................................................................................................. 14
Printing text ........................................................................................................ 14
Halftone screens ................................................................................................ 14
Chapter 5: Using the operator panel .............................................16
Understanding the operator panel ...................................................................... 16
Using the operator panel buttons ....................................................................... 17
Changing printer settings ................................................................................... 17
Printing the menu settings page ......................................................................... 18
ii
Chapter 6: Using the Print and Hold function ..............................20
Printing and deleting held jobs ........................................................................... 20
Accessing held jobs from the operator panel ..................................................... 21
Recognizing when format errors occur .............................................................. 21
Repeat Print ....................................................................................................... 22
Reserve Print ..................................................................................................... 22
Verify Print .......................................................................................................... 22
Confidential jobs ................................................................................................. 23
Chapter 7: Sending a job to print ................................................... 24
Chapter 8: Color correction ............................................................ 25
Auto .................................................................................................................... 25
Display ............................................................................................................... 25
CMYK ................................................................................................................. 25
Off ...................................................................................................................... 26
Vivid ................................................................................................................... 26
Manual ............................................................................................................... 26
Chapter 9: Managing color ............................................................. 27
Device profile ..................................................................................................... 27
Color calibration ................................................................................................. 27
Translation between color models ..................................................................... 27
Popular color management systems .................................................................. 28
Chapter 10: Understanding color .................................................. 29
Types of color ..................................................................................................... 29
How we see color ............................................................................................... 29
Primary colors .................................................................................................... 30
Color difference .................................................................................................. 31
Chapter 11: Choosing media .......................................................... 33
Paper characteristics .......................................................................................... 33
Recommended paper ......................................................................................... 34
Unsatisfactory paper .......................................................................................... 35
Choosing preprinted forms and letterhead ......................................................... 35
Choosing paper .................................................................................................. 35
Choosing envelopes ........................................................................................... 36
iii
Choosing labels .................................................................................................. 37
Choosing card stock ........................................................................................... 37
Choosing transparencies ................................................................................... 38
Chapter 12: Loading media ............................................................ 39
Chapter 13: Loading the high capacity feeder .............................40
Chapter 14: Loading the multipurpose feeder ..............................44
Capacity ............................................................................................................. 44
Paper dimensions .............................................................................................. 44
Trouble-free printing ........................................................................................... 45
Closing the multipurpose feeder ........................................................................ 50
Chapter 15: Output bins ................................................................. 52
Chapter 16: Loading a paper tray ..................................................53
Loading paper, card stock, or labels .................................................................. 53
Loading letterhead ............................................................................................. 57
Loading transparencies ...................................................................................... 57
Chapter 17: Using the heavy media tray .......................................58
Set the paper size .............................................................................................. 58
Set the paper type .............................................................................................. 58
Chapter 18: Media guidelines .........................................................62
Paper .................................................................................................................. 63
Transparencies .................................................................................................. 64
Envelopes .......................................................................................................... 64
Labels ................................................................................................................. 65
Card stock .......................................................................................................... 66
Chapter 19: Tray linking .................................................................67
Chapter 20: Tips for successful printing ...................................... 68
Storing paper ...................................................................................................... 68
Avoiding paper jams ........................................................................................... 68
Chapter 21: Determining supply status ........................................69
iv
Chapter 22: Cleaning the LEDs ......................................................70
Chapter 23: Closing the top cover .................................................72
Chapter 24: Conserving supplies .................................................. 74
Chapter 25: Replacing a photodeveloper .....................................75
Chapter 26: Replacing supplies ..................................................... 80
Chapter 27: Replacing the fuser .................................................... 82
Chapter 28: Replacing the oil coating roll ....................................90
Chapter 29: Replacing the transfer belt ........................................95
Chapter 30: Replacing a toner cartridge .....................................104
Chapter 31: Opening the top cover .............................................110
Chapter 32: Storing supplies .......................................................112
Chapter 33: Resetting the maintenance counter ........................113
Chapter 34: Removing memory and network options ...............115
Removing the system board access cover ...................................................... 115
Locating memory and network options ............................................................ 116
Removing a memory card ................................................................................ 117
Removing an option card ................................................................................. 118
Removing a firmware card ............................................................................... 119
Removing a hard disk ...................................................................................... 120
Installing the system board access cover ........................................................ 122
Chapter 35: Removing an optional drawer .................................124
Chapter 36: Removing the duplex unit ........................................126
Chapter 37: Removing the high capacity feeder ........................129
Chapter 38: Recycling used supplies ..........................................132
v
Chapter 39: Ordering supplies .....................................................133
Chapter 40: Calling for service ....................................................135
Chapter 41: Contacting Lexmark customer service
on the Web ......................................................................................136
Chapter 42: Solving display problems ........................................137
Chapter 43: Solving network printing problems ........................138
Chapter 44: Checking an unresponsive printer .........................139
Chapter 45: Solving printing problems .......................................140
Chapter 46: Solving print quality problems ................................143

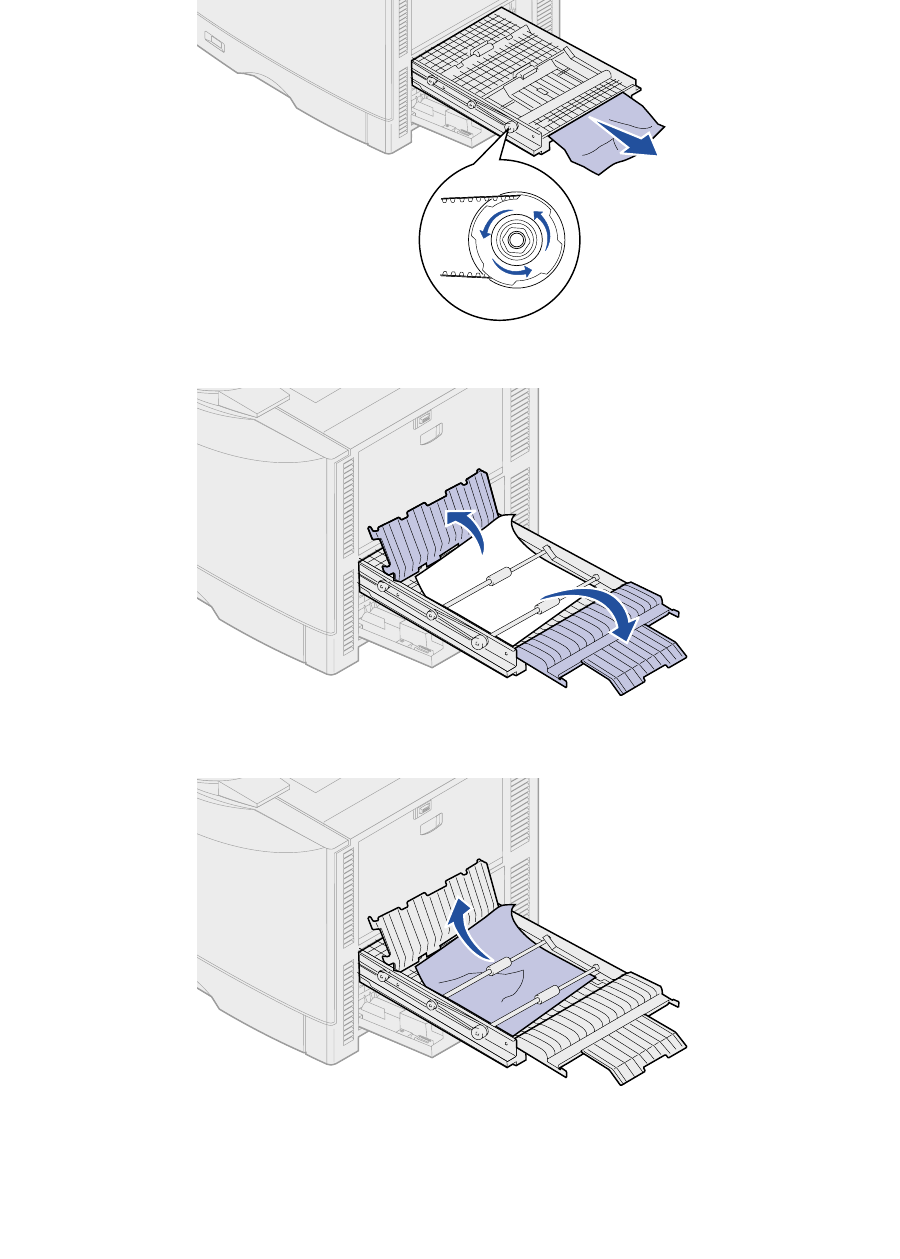

Chapter 47: Clearing paper jams .................................................146
200 Paper Jam
<x> Pages Jammed (Check Areas A-F, T1-5, MPF) ............... 147
240 Paper Jam
Check MP Feeder ............................................. 163
24<x> Paper Jam
Check Tray <x> .............................................. 164
Chapter 48: Resolving other problems and questions ..............168
Chapter 49: Configuring printer alerts ........................................170
Chapter 50: Disabling operator panel menus .............................171
Chapter 51: Understanding fonts ................................................172
Resident fonts .................................................................................................. 172
Symbol sets ...................................................................................................... 177
Downloadable fonts .......................................................................................... 177
vi
Chapter 52: Managing memory ....................................................179
Printer memory ................................................................................................. 179
Adding memory ................................................................................................ 179
Flash memory .................................................................................................. 180
Hard disk .......................................................................................................... 181
Managing resources downloaded to flash or disk ............................................ 182
Chapter 53: Printer specifications ...............................................183
Dimensions ...................................................................................................... 183
Chapter 54: Restoring factory default settings ..........................184
Chapter 55: Printing sample fonts ...............................................185
Chapter 56: Understanding printer messages ...........................186
Chapter 57: Using printer menus .................................................235
Chapter 58: Color Menu ................................................................239
Chapter 59: Finishing Menu .........................................................242
Chapter 60: Infrared Menu ............................................................248
Chapter 61: Job Menu ...................................................................253
Chapter 62: LocalTalk Menu .........................................................255
Chapter 63: Network Menu ...........................................................259
Chapter 64: Paper Menu ...............................................................263
Chapter 65: Parallel Menu ............................................................269
Chapter 66: PCL Emul Menu ........................................................274
Chapter 67: PostScript Menu .......................................................279
Chapter 68: Serial Menu ...............................................................281
vii
Chapter 69: Setup Menu ...............................................................288
Chapter 70: Supplies Menu ..........................................................295
Chapter 71: USB Menu ..................................................................299
Chapter 72: Utilities Menu ............................................................302
Notices ............................................................................................307
Edition notice .................................................................................................... 307
Trademarks ...................................................................................................... 308
Licensing notice ............................................................................................... 309
Safety information ............................................................................................ 310
Cautions and warnings ..................................................................................... 310
Electronic emission notices .............................................................................. 311
Noise emission levels ....................................................................................... 312
Energy Star ...................................................................................................... 312
Index ................................................................................................313
viii
9
1Printer overview
The following illustrations show a Lexmark™ C910 standard model configuration and a fully configured
network printer. If you have attached paper handling options to your printer, it may look more like the
fully configured model. For information on other possible configurations, refer to the Setup Guide.
The Lexmark C910 is a network color printer that uses electrophotographic technology to deliver high
quality images, presentation graphics, line art, and text. Its fast output, up to 28 pages per minute
(ppm) for both four-color and monochrome print jobs-makes it the ideal solution for businesses where
performance is critical.
The printer's flexible design allows it to support a variety of printing needs. For example, if you print a
mixture of color and mono (black only) jobs, you can choose to maximize print speed or maximize
supplies yield. If you need the printer to match the color process used in a particular application, you
can select RGB or CMYK color corrections. You can also adjust the printed colors to more closely
represent the colors on your computer display.
A variety of connectivity options make the printer an excellent choice for all types of system
environments. You can attach up to two internal adapters to support network configurations requiring
Ethernet, Token-Ring, LocalTalk, serial, infrared, or additional parallel ports. You can even attach a
class 1 fax modem to the optional serial port and receive faxes directly to your printer.
Standard model configuration Fully configured
10
The printer also offers flexible paper handling. It supports a wide variety of paper sizes, from A5 to A3
and 11x17 in., and has a standard multipurpose feeder that makes it easy to print on envelopes,
transparencies, labels, card stock, and non-standard size paper. You can add up to three optional
drawers to the base printer, which can increase the printer's paper capacity to 2300 sheets. You can
also add an optional high capacity feeder making the total paper capacity 5300 sheets.
Print speed
Your printer can print four-color and mono jobs at up to 28 ppm. With all printers, print speed varies
depending on specific characteristics of the job, such as the size of the formatted page, the number of
fonts, the number and complexity of images and graphics, and so on. Printing a mix of color and mono
jobs may also slow printing, depending on the printer settings you have chosen.
Memory
Your printer ships with 64MB of memory for fast, efficient processing of color jobs. (Some models may
ship with more memory.)
You can install an optional hard disk for storing downloaded resources and job statistics, and for
spooling or collating print jobs. Resources stored in flash memory or on disk are retained in memory
even after the printer is turned off and back on.
Paper handling
The printer comes equipped with a 550-sheet paper tray and a multipurpose feeder. (Some models
may ship with a second 550-sheet tray.) The multipurpose feeder lets you load a stack of envelopes,
transparencies, labels, or card stock for multiple-page jobs. To increase paper feeding capacity, you
can attach up to three optional drawers, each with a 550-sheet tray, and one optional 3000-sheet high
capacity feeder.
11
2Avoiding print quality problems
To prevent print quality problems, do not touch the roller on the bottom of the toner cartridge, the shiny
green tube on the photodeveloper, the film on the transfer belt, or the fuser rollers. Scratches or
fingerprints on any of these surfaces can affect print quality.
Media and supplies
Always use media that meets the recommended guidelines. Refer to the Card Stock & Label Guide for
more information.
Feeding media that is too heavy, too light, damp, damaged, or otherwise unacceptable for this printer
may result in damage to the printer, paper jams, or print quality problems.
Some print quality problems may indicate it is time to replace certain printer supplies. Check the
operator panel display, the Supplies Menu, or MarkVision for an indication of any supply items that may
need to be replaced.
Depending on the type of jobs you print and the media you use, some parts or supplies may wear or
become expended faster than anticipated. See Maintenance for more information about supplies and
when to replace them.
Transparencies
To ensure high quality output on transparencies, we recommend using the following Lexmark
transparencies. They have been designed specifically for your printer:
P/N 12A5940 (letter size)
P/N 12A5941 (A4 size)
These transparencies have characteristics that minimize curl and optimize toner transfer in a wide
range of printing environments. If you use other transparencies, the print quality may be unacceptable
or if you use transparencies not intended for laser printers, you could cause damage to the printer.
Handle transparencies carefully because fingerprints may affect the adhesion of toner. Always set the
Paper Type to Transparency before printing transparencies. This adjusts the fuser temperature and
slows the print speed to ensure the best possible transfer of toner.
See Loading paper and transparencies for more information.
12
3Canceling a print job
To cancel a print job:
1Press Menu.
Job Menu appears on the first line of the display and Cancel Job appears on the second line.
2Press Select.
Canceling Job briefly appears on the display. The printer finishes printing any page already
being printed, and then stops. The printer returns to the Ready state.
13
4Controlling printed output
Your printer driver provides you with the best quality output for various types of printing needs.
However, you may want more control over how your printed document will look.
Your printer default is set to give you the best screen frequency setting for high quality business
graphics. You can however control the image smoothing, color correction, print mode, and toner
darkness settings used during printing. Adjusting any of these settings affects the output of your
documents. These setting adjustments can easily be made through your printer driver, operator panel,
or MarkVision remote operator panel. Refer to the drivers CD for information on MarkVision.
Different printing needs do require different screen frequency settings; for example, offset printing
requires a higher setting, whereas newsprint generally requires a lower setting. Your printer default is
set to give you the best screen frequency setting for high quality business graphics.
Image Smoothing
You can turn Image Smoothing on from the graphics tab of your printer driver or from the operator
panel. This increases the contrast and sharpness of bitmapped images and smooths color transitions.
This setting is useful for images downloaded from the World Wide Web at 72 dpi. The setting has no
effect on images downloaded at 300 dpi resolution or higher.
Color correction
Color Correction lets you modify the color settings used to print your documents. The Color Correction
settings you can choose from are: Auto, Display, CMYK, Off, Vivid, and Manual. Auto is the default
setting when the printer is shipped from the factory. It uses different color profiles for the different
objects on the page (text, graphics, and images).
For more information refer to the Color correction section of the Color Menu.
Print mode
You can select between color or black and white printing. The Black and White setting converts any
colors in your document to solid black. This setting produces output just like any standard
monochrome printer using various shades of gray. This setting can be especially useful when you have
replaced a monochrome printer and want to print occasional color. Cost conscious users benefit most
by using this setting as a default and print color only when needed.
14
Toner darkness
This setting lets you adjust the amount of toner released during printing. Your printer offers five Toner
Darkness settings. The values range from 1 (lightest setting) to 5 (darkest setting). The default toner
darkness setting is 4.
Printing text
In both PostScript and PCL emulations, 100% black text prints using black toner (K of CMYK). This
results in sharp, crisp text characters. The printer applies a unique screening algorithm to small text
(less than 24 points in size). This helps ensure that small point size text has smooth, crisp edges.
Halftone screens
The term halftone screen refers to the pattern of dots applied to an object on the page (text, graphics,
or images). If you look at a black and white photograph in a magazine, it appears to contain many
shades of gray. If you place the same picture under a magnifying glass, you see that it is actually
composed of a large number of small dots. These dots, also known as pels, may be of varying sizes or
varying tones. Without halftoning, it would not be possible to produce quality photographic images on a
page printer. This process of representing an image as a series of halftones is known as halftone
screening.
Attributes
Halftone screens have three main attributes: screen frequency, screen angle, and spot function. The
halftone screen is further divided into halftone cells. These cells contain the individual pel spaces. The
screen frequency and angle attributes determine both the number of halftone cells that make up a
halftone screen and the orientation of the cell.
The spot function determines which of the individual pels in the halftone cell is turned on to represent a
particular gray level or color tone. The following illustration shows a halftone screen and halftone cells
rotated 45 degrees.
Frequency (cells
per inch)
Angle
Spot function
15
Screen frequency
The screen frequency is the number of halftone cells per inch. A higher screen frequency setting
increases the number of halftone cells per inch. Increasing the number of halftone cells per inch does
not necessarily give you better quality. The reason for this is the higher settings may make the colors or
halftones seem to run together or bleed.
Different printing needs do require different screen frequency settings; for example, offset printing
requires a higher setting, whereas newsprint generally requires a lower setting. Your printer default is
set to give you the best screen frequency setting for high quality business graphics.
Screen angle
The default angle of the halftone screen and cells place the dots so they are the least noticeable to the
eye. It also ensures the alignment of color through all four color planes. By avoiding the placement of
halftone cells at an angle of 90 degrees, the viewer’s eyes are focused on the image and not on the
dots.
Spot function
The spot function determines the shape of the dots by controlling the order in which the pels in the
halftone cell are turned on. The printer code defines the order by assigning a priority to each individual
pel within the halftone cell. By turning on or printing a portion of the pels within the halftone cell and
then combining the different halftone screens, your printer is able to print millions of colors.
16
5Using the operator panel
This section contains information about understanding the operator panel, changing printer settings,
and understanding operator panel menus.
You can change most printer settings from your software application or printer driver. Settings you
change from the application or printer driver apply only to the job you are preparing to send to the
printer.
Changes made to printer settings from a software application override changes made from the
operator panel.
If you cannot change a setting from your application, use the operator panel or the remote operator
panel available from MarkVision. Changing a printer setting from the operator panel or from
MarkVision makes that setting the user default. Refer to the drivers CD for information about
MarkVision.
Understanding the operator panel
The printer operator panel has a 2-line by 16-character liquid crystal display (LCD), five buttons, and
one indicator light.
Indicator light
The indicator light gives information about the status of your printer. If the light is:
•Off, the printer is off
•On, the printer is on, but idle
•Blinking, the printer is on and is busy
LCD
Light
Ready
1 Menu 2Select 3
Go 5
Return 4
Stop 6
17
Using the operator panel buttons
Use the five operator panel buttons to open a menu, scroll through a list of values, change printer
settings, and respond to printer messages.
The numbers 1 through 6 appear beside the operator panel buttons; these numbers are used to enter
personal identification numbers (PIN) for Print and Hold jobs. For more information, see Using the
Print and Hold function.
The following information describes the functions of each button.
Note: Buttons act upon the information displayed on the second line of the operator
panel.
Changing printer settings
From the operator panel, you can select menu items and associated values to print your jobs
successfully. You can also use the panel to alter the setup and operating environment of the printer.
See Using printer menus for an explanation of all the menu items.
Go Press the Go button to:
•Return to the Ready state if the printer is in an offline situation (the Ready
message does not display on the operator panel).
•Exit printer menus and return to the Ready state.
•Clear operator panel error messages.
If you’ve changed printer settings from the operator panel menus, press Go
before sending a job to print. The printer must display Ready for jobs to print.
Menu Each end of the button has a function. Press Menu:
•When Ready is displayed, to take the printer offline (out of the Ready state)
and scroll through the menus.
•When Busy is displayed, to take the printer to the Job Menu.
•When the printer is offline, press Menu> to scroll through the menus.
–Press <Menu to go to the previous item in the menus.
For menu items with numeric values, such as Copies, press and hold Menu to
scroll through the values. Release the button when the number you want is
displayed.
Select Press Select to:
•Select the menu displayed on the second line of the operator panel.
Depending on the type of menu, this action:
–Opens the menu and displays the first item in the menu.
–Opens the menu item and displays the default setting.
•Save the displayed menu item as the default setting. The printer displays the
Saved message and returns to the menu item.
•Clear certain messages from the operator panel.
Return Press Return to return to the previous menu level or menu item.
Stop Press Stop at the Ready, Busy, or Waiting message to temporarily stop all
activity and take the printer offline. The operator panel status message changes
to Not Ready.
Press Go to return the printer to the Ready, Busy, or Waiting state.
18
You can modify printer settings by:
•Selecting a setting from a list of values
•Changing an On/Off setting
•Changing a numerical setting
To select a new value as a setting:
1From a Ready status message, press Menu. The menu names appear.
2Continue to press and release Menu until you see the menu you need.
3Press Select to select the menu or menu item displayed on the second line of the display.
–If the selection is a menu, the menu opens and the first printer setting in the menu
appears.
–If the selection is a menu item, the default setting for the menu item appears.
(The current user default setting has an asterisk [*] beside it.)
Each menu item has a list of values for the menu item. A value can be:
–A phrase or word to describe a setting
–A numerical value that can be changed
–An On or Off setting
4Press Menu to move to the value you need.
5Press Select to select the value on the second line of the operator panel. An asterisk appears
beside the value to indicate that it is now the user default setting. The new setting appears for
one second, clears, displays the word Saved, and then displays the previous list of menu
items.
6Press Return to go back to previous menus. Make additional menu selections to set new
default settings. Press Go if this is the last setting to change.
User default settings remain in effect until you save new settings or restore the factory defaults.
Settings you choose from your software application can also change or override the user default
settings you select from the operator panel.
Printing the menu settings page
Complete the following steps to print a list of the current user default settings and installed printer
options:
1Make sure the printer power is on and the Ready status message appears.
2Press Menu until you see Utilities Menu, and then press Select.
3Press Menu until you see Print Menus, and then press Select.
The message Printing Menu Settings appears and remains until the page prints. The
printer returns to Ready when the page or pages finish printing.
If a message appears, see Understanding printer messages for more information.
19
4Verify that the options you installed are correctly listed under “Installed Features.”
If an option you installed is not listed, turn the printer off, unplug the power cord, and reinstall
the option.
Note: To prevent an electrical overload, plug your printer into a well-grounded outlet on a
non-ground fault interrupter (GFI) circuit.
5Verify the amount of memory installed is correctly listed under “Printer Information.”
6Verify that the paper trays are configured for the sizes and types of paper you loaded.
The diagram in Using printer menus shows the menu items in each menu.
An asterisk (*) next to a value indicates the factory default setting. Factory defaults may differ for
different countries.
Factory defaults are the function settings in effect the first time you turn your printer on. These remain
in effect until you change them. Factory defaults are restored if you select the Restore value for the
Factory Defaults menu item in the Utilities Menu. See Restoring factory default settings for more
information.
When you select a new setting from the operator panel, the asterisk moves next to the selected setting
to identify it as the current user default.
User defaults are the settings you select for different printer functions and store in printer memory.
Once stored, these settings remain active until new ones are stored or the factory defaults are
restored. See Changing printer settings.
Note: Settings you choose from your software application may override the settings you
select from the operator panel.
Menus Disabled
If your printer is configured as a network printer available to a number of users, Menus Disabled may
appear when you press Menu from the Ready state. Disabling the menus prevents users from using the
operator panel to inadvertently change a printer default that has been set by the person managing the
printer. You can still use Print and Hold features, clear messages, and select items from the Job Menu
when printing a job, but you cannot change other printer settings. You can, however, use your printer
driver to override printer defaults and select settings for individual print jobs.
20
6Using the Print and Hold function
When sending a job to the printer, you can specify in the driver that you want the printer to hold the job
in memory. When you are ready to print the job, you must go to the printer and use the operator panel
menus to identify which held job you want to print.
To learn more about this function, click a topic:
Printing and deleting held jobs
Once held jobs are stored in printer memory, you can use the operator panel to specify what you want
to do with one or more of the jobs. You can select either Confidential Job or Held Jobs (Repeat Print,
Reserve Print, and Verify Print jobs) from the Job Menu. If you select Confidential Job, you must enter
the personal identification number (PIN) you specified in the driver when you sent the job. See
Confidential jobs for more information.
From either the Confidential Job or the Held Jobs menu items, you have five choices:
•Print All Jobs
•Print A Job
•Delete All Jobs
•Delete A Job
•Print Copies
•Printing and deleting held
jobs
•Recognizing when format
errors occur
•Verifying print jobs
•Reserving print jobs
•Accessing held jobs from
the operator panel
•Repeating print jobs at a
later time
•Printing confidential jobs
21
Accessing held jobs from the operator panel
1To access held jobs from the operator panel:
–If the printer is Busy, press Menu and the Job Menu appears.
–If the printer is Ready, continue to step 2.
2Press Menu until you see Held Jobs or Confidential Job on the operator panel display,
depending on the type of job you want to access.
3Press Select.
Note: If you are looking for a Confidential Job, you are prompted to enter your PIN. See
Confidential jobs for more information.
4Press Menu until the action you want to take appears on the second line of the operator panel
(print a job, delete a job, and so on).
5Press Select.
–If you are looking for one particular job, press Menu to scroll through the list of jobs
available, and press Select when the correct job is displayed. An asterisk (*) appears next
to the job name indicating you have chosen to print or delete that job.
–If you are prompted to enter the number of copies you want to print, use Menu to increase
or decrease the number on the operator panel, and press Select.
6Press Go to print or delete specific jobs you have marked.
The printer briefly displays messages indicating what print and hold functions it is performing,
and then returns to the Ready state.
Recognizing when format errors occur
If the symbol appears on the display, it indicates that the printer had trouble formatting one or more
of the held jobs. These formatting problems are most commonly the result of insufficient printer
memory or invalid data that might cause the printer to flush the job.
When a symbol appears next to a held job, you can:
•Print the job. Be aware, however, that only part of the job may print.
•Delete the job. You may want to free up additional printer memory by scrolling through the list
of held jobs and deleting others you have sent to the printer.
If formatting errors are a recurring problem with held jobs, your printer may require more memory.
22
Repeat Print
If you send a Repeat Print job, the printer prints all requested copies of the job and stores the job in
memory so you can print additional copies later. You can print additional copies as long as the job
remains stored in memory.
Note: Repeat Print jobs are automatically deleted from printer memory when the printer
requires extra memory to process additional held jobs.
Reserve Print
If you send a Reserve Print job, the printer does not print the job immediately, but stores the job in
memory so you can print the job later. The job is held in memory until you delete it from the Held Jobs
menu. Reserve Print jobs may be deleted if the printer requires extra memory to process additional
held jobs.
See Printing and deleting held jobs for information.
Verify Print
If you send a Verify Print job, the printer prints one copy and holds the remaining copies you requested
from the driver in printer memory. Use Verify Print to examine the first copy to see if it is satisfactory
before printing the remaining copies.
See Printing and deleting held jobs if you need help printing the additional copies stored in memory.
Note: Once all copies are printed, the Verify Print job is deleted from printer memory.
23
Confidential jobs
When you send a job to the printer, you can enter a personal identification number (PIN) from the
driver. The PIN must be four digits using the numbers 1–6. The job is then held in printer memory until
you enter the same four-digit PIN from the operator panel and choose to print or delete the job. This
ensures that the job does not print until you are there to retrieve it, and no one else using the printer
can print the job.
When you select Confidential Job from the Job Menu and then select your user name, the following
prompt is displayed:
Enter PIN:
=____
Use the buttons on the operator panel to enter the four-digit PIN associated with your confidential job.
The numbers next to the button names identify which button to press for each digit (1–6). As you enter
the PIN, asterisks are displayed on the operator panel to ensure confidentiality.
If you enter an invalid PIN, the message No Jobs Found. Retry? appears. Press Go to reenter the
PIN, or press Stop to exit the Confidential Job menu.
When you enter a valid PIN, you have access to all print jobs matching the user name and PIN you
entered. The print jobs matching the PIN you entered appear on the display when you enter the Print A
Job, Delete A Job, and Print Copies menu items. You can then choose to print or delete jobs matching
the PIN you entered. (See Printing and deleting held jobs for more information.) After printing the
job, the printer deletes the confidential job from memory.
Enter PIN
=****
1 Menu 2 Select 3Return 4
Go 5Stop 6
24
7Sending a job to print
To send a job to the printer:
1Open the file you want to print.
2From the File menu, choose Print.
3Verify that the correct printer is selected in the dialog box.
4Adjust the printer settings according to your need.
The printer settings available are determined by the application that opens your file.
Note: Click Properties or Setup to adjust printer settings not available from the first
screen, and then click OK.
5Click OK or Print to send the job to the selected printer.
25
8Color correction
Color Correction lets you modify the color settings used to print your documents. The Color Correction
settings you can choose from are: Auto, Display, CMYK, Off, Vivid, and Manual. Auto is the default
setting when the printer is shipped from the factory. It uses different color profiles for the different
objects on the page (text, graphics, and images).
You can use these settings to adjust your printed color to better match the colors of other output
devices or standard color systems. You can also use these settings to adjust the brightness and
saturation of your text and business graphics. You can access and change these settings through your
printer driver Color tab or the operator panel Color Menu.
The following is an overview of the Color settings and their applications.
Auto
When your Color Correction is set to Auto, the printer applies different color profiles to each object on
the printed page. This setting provides high quality output for text, graphics, images, line art, and
charts. This setting is most useful for documents that contain a variety of objects.
Display
You can use this setting to print color that approximates the colors on your computer screen. This
setting uses common color tables to translate the color settings displayed on your monitor into the
color values used by the printer CMYK color model.
This setting is generally used when your application does not do its own color correction and defines
colors as RGB (Red, Green, Blue), HLS (Hue, Lightness, Saturation), or HSB (Hue, Saturation,
Brightness).
Note: Due to the difference between additive and subtractive colors, your printer can
produce colors that are impossible to duplicate on your monitor and your monitor
can display colors that cannot be duplicated on any printer. For more information,
see Color difference.
CMYK
When you select CMYK as your color correction, the printer expects to receive CMYK color values
from your software. Use this setting when attempting to reproduce standard CMYK colors such as
Pantone or when printing CMYK images.
26
If you use this setting without the necessary color management software or your application does not
provide the correct information, your printed output may have unexpected results.
Off
When you select Off as your color correction, the printer expects to receive the necessary color
correction from your software. Use this setting when you have software that manages its own color
correction or if you use another color management tool.
If you use this setting without the necessary color management software or your application does not
provide the correct information, your printed output may have unexpected results.
Vivid
This setting can help you print brighter colors. The Vivid setting adjusts the CMYK components,
resulting in more saturated colors. You may want to use this setting when creating overhead
transparencies to enhance or sharpen your colors if they seem faded. This setting is especially useful
if you like saturated colors and color matching is not a concern. For example, you can saturate your
business graphics to be more pleasant or make presentations more dynamic. Since you are saturating
your color, flesh tones and other colors may not seem lifelike.
Manual
When your Color Correction is set to Manual, you can apply customized color correction to each type
of object on the page. See Manual Color for more information.
27
9Managing color
There are many color management systems on the market today. They range from simple
swatchbooks to specially designed and designated color servers. A color management system (CMS)
helps you match colors across a number of devices, including scanners, monitors, and printers. A CMS
ensures what you see at every step of the publishing process matches the printed output. Color
management systems compensate for device limitations by taking into account the varying capabilities
of different brands of monitors and printers. There are three major elements of a CMS: they are the
device profile, color calibration, and translation.
Device profile
Each piece of equipment is characterized or profiled. The profile reveals the color capabilities of the
equipment. The profile includes details about which colors the device is capable of detecting,
displaying, or printing. The device profile is used to convert different color values from one device to
another.
Color calibration
Even the best equipment ages over time. For example, a monitor capable of displaying very accurate
colors when purchased eventually dims as it ages. Calibration ensures consistency by returning colors
to their original specifications. You should calibrate your equipment at the interval your CMS specifies.
Without calibration, your output may be different than you expect.
Translation between color models
Translation is the most complex element of a CMS. Because each device is based on a device-
dependent color model, such as RGB or CMYK, the range of colors each device supports is different.
It is difficult and sometimes impossible to produce a particular color on different devices when each
device uses a different color model.
Translation requires a device-independent color model. Most color management systems are based on
the CIE color space model. This color space specification was devised by the Commission
Internationale de l'Eclairage (CIE). Rather than translating RGB to CIE and CIE to CMYK, most CMS’s
translate directly from RGB to CMYK using the CIE color space as a reference.
28
Popular color management systems
There are many color management systems for you to choose from. The type of CMS you choose
impacts the color quality of your printed output. Choose a CMS that best meets your cost and
performance needs. Some popular color management systems are described here.
Windows ICM
Microsoft Windows 95/98/Me, Windows 2000, and Windows NT support Image Color Management
(ICM). ICM is an operating system-level CMS based on the CIE independent color model. It helps to
translate color values between RGB and CMYK.
ColorSync 3
ColorSync 3 is an operating system-level CMS developed by Apple. It also uses the CIE independent
model to translate between RGB and CMYK values.
Agfa FotoTune
Agfa FotoTune also uses the CIE independent color model to translate between RGB and CMYK
values. It only works with certain applications, however, such as Adobe Photoshop.
29
10 Understanding color
Your printer gives you the power to communicate in color. Color attracts attention, commands respect,
and adds value to your printed material or information. Using color increases readership and is read
more often than the same material printed in black and white. Color can be used to motivate people
and speed the analysis of complex data. When you print on-demand color, you save money.
To enhance your use and understanding about color printing, this section provides information about
color and how to select, use, and adjust color for your network and desktop printing.
Types of color
To be effective, the use of color needs to be planned. The reason for this is how the eye sees color.
When light is used to produce color on your monitor or TV, it uses three primary colors. They are red,
green, and blue (also known as RGB color). All printed output such as newspapers, magazines,
brochures, and of course your documents use the colors cyan, magenta, yellow, and black (known as
CMYK color). Because the colors are presented to the eye differently, what you see on your monitor
may look different than what you have printed. By understanding how we see color on the screen and
how we see color in printed documents, we can better plan the use of color.
How we see color
When we see color, we actually see light that is passed through or reflected from an object. What our
eyes perceive as visible light are wavelengths. Our eyes are sensitive to three specific wavelength
colors: red, green, and blue.
When you look at your monitor, you see red, green, and blue light that is projected into your eyes. This
additive color begins with black and adds red, green, and blue to produce the colors you can see. If you
add equal amounts of red, green, and blue, you produce white. The images and colors you see on your
screen are created using various amounts of red, green, and blue.
30
Primary colors
Notice the three primary additive colors red, green, and blue in the illustration. You can see that when
all three colors are combined, you get white. However, look at the area where any two colors overlap.
What you see is cyan, magenta, or yellow. Equal amounts of green and blue produce cyan. Equal
amounts of blue and red produce magenta, and equal amounts of red and green produce yellow. The
toner colors used to place color on your printed material are cyan, magenta, yellow, and black.
The colors in newspapers, magazines, and the documents you print are based on the light being
reflected from the printed material and into your eyes. The color you see is subtractive color.
Subtractive color begins with white light. Portions of the white light wavelength are then subtracted
based on the colors present on the printed page. What this means is the light reaching your
document is partially absorbed by the toner placed on the page. For example, when white light
encounters cyan, it absorbs the red wavelength in the light and reflects blue and green toward your
eyes.
If you add equal amounts of cyan, magenta, and yellow, you create black. When you combine these
colors equally in your printed material you create what is known as process black. When printed,
process black looks like a very dirty or muddy brown. Because of this, your printer has a black toner
cartridge to provide you with true black for all your printing needs.
31
Color difference
Most software applications today provide us with a WYSIWYG (What You See Is What You Get)
environment. This helps us develop the look of our document. However, the difference between the
additive and subtractive colors may sometimes cause a problem between what you see and what you
get. This is due to the difference between additive and subtractive colors. The reason for this lies in the
color spectrum of the different devices.
Your printer is capable of delivering over 16 million colors. With such a large variety of colors to choose
from, you'll probably be able to closely match most of your screen designs. There are, however, colors
your printer can produce that are impossible to duplicate on your monitor and there are colors your
monitor can display that cannot be duplicated on any printer.
There are many ways you can ensure the color on the screen and the color you print are the same or
at least a very close match. When you create a swatch like the one below, you can choose and
compare your printed and screen colors.
The easiest way for you to get consistent color from your screen to your printer is to select standard
colors. When you produce color on your screen, it is produced using a color model. A color model is a
system that defines color according to a set of basic properties. Most software applications can use
this color model to closely match the colors you have on your screen.
As stated earlier, one simple method to aid in planning the use of color is to produce a color swatch of
the colors you plan to use. Then, you can see how these colors will look when printed.
32
As your monitor ages, the colors on the screen also change. Changing the toner cartridges,
photodeveloper cartridge, and paper in your printer also has a major impact on the color in your printed
document. Always print a new swatch of the colors you plan on using before you invest a lot of time
creating your screen designs.
33
11 Choosing media
The print quality and feed reliability of your printer and options can vary with the type and size of print
media you use. This section provides guidelines for each type of print media. For information on card
stock and labels, refer to the Card Stock & Label Guide located on the Lexmark Web site at
www.lexmark.com.
Always print samples on the print media you are considering before buying large quantities.
Click a topic for more information:
Paper characteristics
The following paper characteristics affect print quality and reliability. Keep these guidelines in mind
when evaluating new paper stock.
Weight
The printer can feed paper weights from 60 to 163 g/m2 (16 to 43 lb bond) grain long. Paper lighter
than 60 g/m2 (16 lb) might not be stiff enough to feed properly, causing paper jams. For best
performance, use 90 g/m2 (24 lb) Hammermill Laser Print paper. To use paper narrower than 182 x
257 mm (7.2 x 10.1 in.), we recommend the weight be greater than or equal to 90 g/m2 (24 lb bond).
Curl
Curl is the tendency of paper to curve at its edges. Excessive curl can cause paper feeding problems.
Curl usually occurs after the paper passes through the printer fuser, where it is exposed to high
temperatures. Excessively high toner coverage, humid conditions, and paper types can contribute to
paper curling.
•Paper characteristics
•Recommended paper
•Unsatisfactory paper
•Choosing preprinted forms
and letterhead
•Choosing paper
•Choosing envelopes
•Choosing labels
•Choosing card stock
•Choosing transparencies
34
Smoothness
The degree of smoothness of paper directly affects print quality. If the paper is too rough, the toner
does not fuse to the paper properly, resulting in poor print quality. If the paper is too smooth, it can
cause paper feeding problems.
Moisture content
The amount of moisture in the paper affects both print quality and the ability of the printer to feed the
paper properly. Leave the paper in its original wrapper until you are ready to use it. This limits the
exposure of the paper to moisture changes that can degrade its performance.
Fiber content
Most high-quality xerographic paper is made from 100% chemically pulped wood. This content
provides the paper with a high degree of stability resulting in fewer paper feeding problems and better
print quality. Paper containing fibers such as cotton possess characteristics that can result in degraded
paper handling.
Recommended paper
To ensure the best print quality and feed reliability, use 90 g/m2 (24 lb) Hammermill Laser Print paper.
Business papers designed for general business use may also provide acceptable print quality.
Always print several samples before buying large quantities of any type of paper. When choosing any
papers, consider the weight, fiber content, and color of the paper.
The laser printing process heats paper to high temperatures of 165°C (329°F). Use only papers that
are able to withstand these temperatures without discoloring, bleeding, or releasing hazardous
emissions. Check with the manufacturer or vendor to determine whether the paper you’ve chosen is
acceptable for laser printers.
35
Unsatisfactory paper
The following papers are not recommended for use with the printer:
•Chemically treated papers used to make copies without carbon paper, also known as
carbonless papers, carbonless copy paper (CCP), or no carbon required (NCR) paper
•Coated papers (erasable bond)
•Multiple-part forms or documents
•Preprinted papers that require a registration (the precise print location on the page) greater
than ±0.09 in., such as optical character recognition (OCR) forms
In some cases, you can adjust registration with your software application to successfully print
on these forms.
•Preprinted papers with chemicals that may contaminate the printer
•Preprinted papers that can be affected by the temperature in the printer fuser
•Rough-edged or curled papers
•Synthetic papers
•Thermal papers
•Less than 60 g/m2 (16 lb) recycled paper
•Recycled papers containing more than 25% post-consumer waste that do not meet DIN 19
309
Choosing preprinted forms and letterhead
Use the following guidelines when selecting preprinted forms and letterhead paper:
•Use only forms and letterhead printed using an offset lithographic or engraved printing
process.
•Choose papers that absorb ink, but do not bleed.
•Avoid papers with rough or heavily textured surfaces.
Use papers printed with heat-resistant inks designed for use in xerographic copiers. The ink must
withstand temperatures of 165°C (329°F) without melting or releasing hazardous emissions. Use inks
that are not affected by the resin in the toner. Inks that are oxidation-set or oil-based should meet these
requirements. Latex inks might not meet these requirements. If you are in doubt, contact your paper
supplier.
Choosing paper
Proper paper loading helps prevent paper jams and ensure trouble-free printing.
36
To help avoid jams or poor print quality:
•Always use new, undamaged paper.
•Before loading paper, know the recommended print side of the paper you’re using. This
information is usually indicated on the paper package.
•Do not use paper that you have cut or trimmed yourself.
•Do not mix paper sizes, weights, or types in the same paper source;
mixing results in jams.
•Do not use coated papers.
•Do not remove trays while a job is printing or Busy is displayed on the operator panel.
•Make sure the Paper Type, Paper Texture, and Paper Weight settings are correct. (See Paper
Menu for detailed information about these settings.)
•Make sure the paper is properly loaded in the paper source.
•Flex paper back and forth. Do not fold or crease the paper. Straighten the edges on a level
surface.
Choosing envelopes
When printing on envelopes:
•To achieve the best possible print quality, use only high-quality envelopes that are designed for
use in laser printers.
•Use only new, undamaged envelopes.
•Load only one size of envelope at a time in the multipurpose feeder.
•Make sure the glue is not exposed.
•Do not use envelopes that contain moisture or high humidity.
Moist envelopes or envelopes containing high humidity (over 60%) may become sealed from
the high fuser temperature.
•Be sure to select MP Feeder as the paper source in the Paper Menu and set the correct
envelope size.
The laser printing process heats envelopes to a temperature of 165°C (329°F). Use only envelopes
that are able to withstand these temperatures without sealing, excessive curling, wrinkling, or releasing
hazardous emissions. If you have any doubts about the envelopes you are considering using, check
with the envelope supplier.
37
For best performance, use envelopes made from 75 g/m2 (20 lb bond) paper. You can use up to 105 g/
m2 (28 lb bond) weight for the multipurpose feeder as long as the cotton content is 25% or less.
Envelopes with 100% cotton content must not exceed 90 g/m2 (24 lb bond) weight.
Do not use envelopes that:
•Have excessive curl or twist
•Are stuck together or damaged in any way
•Contain windows, holes, perforations, cutouts, or embossing
•Use metal clasps, string ties, or metal folding bars
•Have an interlocking design
•Have postage stamps attached
•Have any exposed adhesive when the flap is in the sealed or closed position
•Have nicked edges or bent corners
•Have rough, cockle, or laid finishes
Choosing labels
The printer can print on many labels designed for use with laser printers. These labels are supplied in
letter size and A4 size sheets.
When printing on labels:
•Be sure to select Labels in the Paper Type menu item in the Paper Menu. (See Paper Type for
detailed information about these settings.)
•Do not load labels together with paper or transparencies in the same paper tray; mixing print
media can cause feeding problems.
•Do not load partial sheets with areas exposed by missing labels; this can cause labels to peel
off during printing, jam, and contaminate your printer and your toner cartridge with adhesive. It
can also void your printer and cartridge warranties.
•Avoid using labels that may release hazardous emissions when heated.
Note: Labels are one of the most difficult print media for laser printers. Your printer
requires a special fuser cleaner for label applications in order to optimize feed
reliability.
For detailed information on label printing, characteristics, and design, refer to the Card Stock & Label
Guide, available on Lexmark Web site at www.lexmark.com.
Choosing card stock
Card stock is single-ply and has a large array of properties. The orientation of paper fibers, moisture
content, thickness, and texture can all affect printing on card stock.
38
When printing on card stock:
•Be sure to select Card Stock in the Paper Type menu item in the Paper Menu. (See Paper
Type for detailed information about these settings.)
•Be aware that preprinting, perforation, and creasing can significantly affect the print quality and
cause paper handling or jamming problems.
•Avoid using card stock that may release hazardous emissions when heated.
For more information, refer to the Card Stock & Label Guide, available on the Lexmark Web site at
www.lexmark.com.
Choosing transparencies
The printer can print directly on transparencies designed for use in laser printers. Print quality and
durability depend on the transparency used. Always print samples on the transparencies you are
considering before buying large quantities.
To ensure high quality output on transparencies, we recommend using the following Lexmark
transparencies. They have been designed specifically for your printer:
P/N 12A5940 (letter size)
P/N 12A5941 (A4 size)
The Paper Type setting should be set to Transparency to help prevent jams. (See Paper Type for
detailed information about this setting.) Check with the manufacturer or vendor to determine whether
your transparencies are compatible with laser printers that heat transparencies to 212°C (414°F). Use
only transparencies that are able to withstand these temperatures without melting, discoloring,
offsetting, or releasing hazardous emissions. For detailed information, refer to the Card Stock & Label
Guide, which is available on the Lexmark Web site at www.lexmark.com.
Note: Transparencies cannot be fed from trays other than the optional heavy media tray
and the multipurpose feeder.
Be careful when you handle transparencies. Fingerprints on the surface of the transparency cause
poor print quality.
39
12 Loading media
This section provides information about loading media in the input options. Proper paper loading helps
prevent paper jams and ensure trouble-free printing.
Before loading paper, find the recommended print side of the paper you’re using. This information is
usually indicated on the paper package.
Click below for information on:
•Loading envelopes
•Loading the high capacity
feeder
•Loading letterhead
•Loading the multipurpose
feeder
•Loading a paper tray
•Loading transparencies
40
13 Loading the high capacity feeder
You can attach an optional high capacity feeder to your printer. This can provide an additional input of
3,000 sheets of paper.
Note: Do not load any print media other than paper in the high capacity feeder. The high
capacity feeder must be properly adjusted for A4 or Letter size paper. If the paper
guides are in the wrong position, you may experience paper feeding problems.
To load the high capacity feeder:
1Open the top cover as shown.
The paper guides are set at the factory and may already be configured for your size paper.
2Inspect the position of the paper guides.
If the paper guides are correctly set for the size paper you are loading, go to step 6, if not
continue with step 3.
Note: The high capacity feeder must be properly adjusted for A4 or Letter size paper. If
the paper guides are in the wrong position, you may experience paper feeding
problems.
41

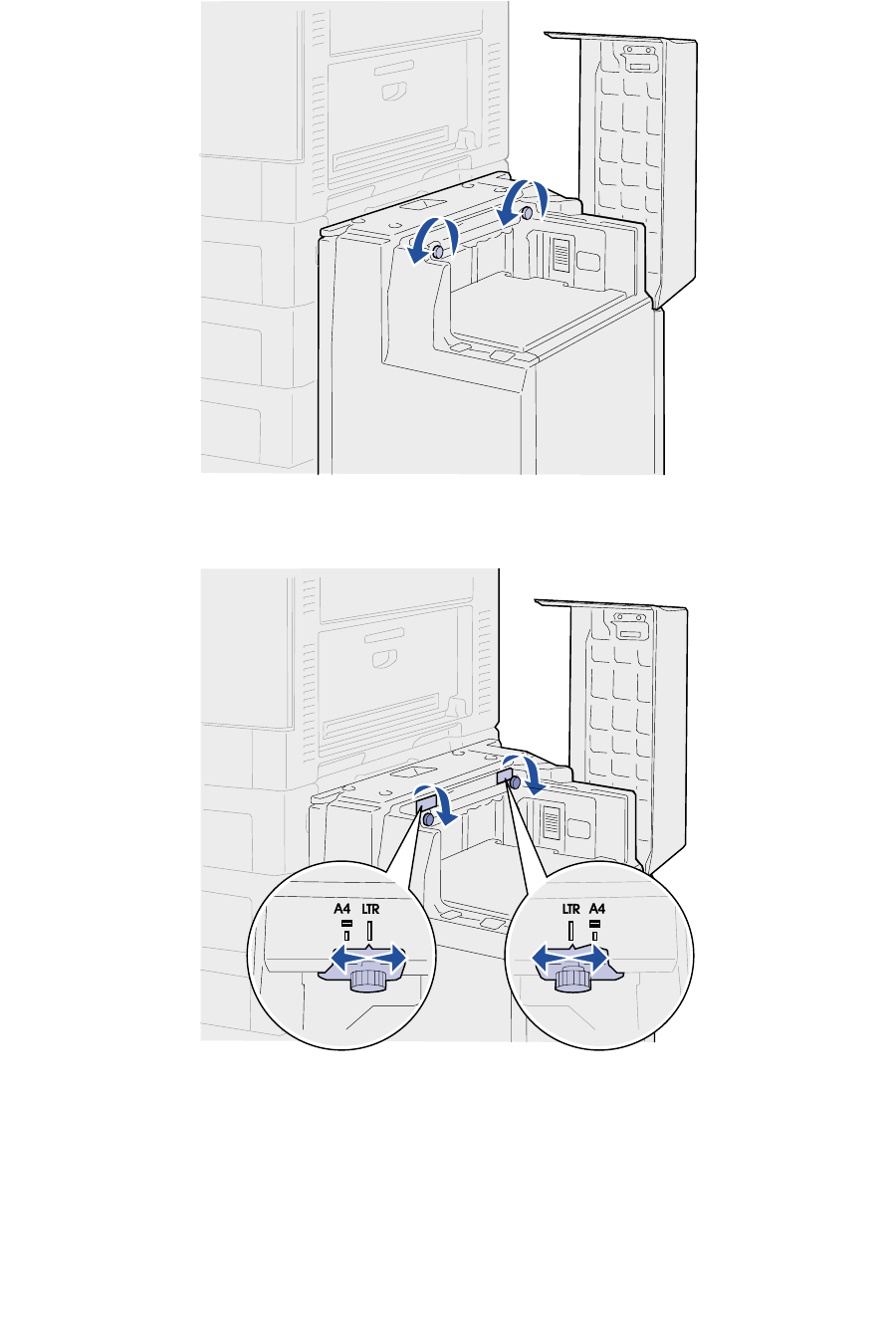

3Loosen the left and right paper guide thumbscrews.
4Slide the guides left or right to the correct position for the size paper you are loading (A4 or
Letter).
5Tighten the left and right paper guide thumbscrews.
42
6Flex the sheets back and forth to loosen them, and then fan them.
Do not fold or crease the paper. Straighten the edges of the stack on a level surface.
Note: Do not exceed the maximum stack height. Overfilling the tray may cause jams.
7Place the paper against the paper guides with the print side up.
43
8Press the paper tray button
The paper tray lowers to let you load up another 500 sheets of paper.
Note: If there is only a partial stack of paper in the tray, the paper low sensor will not allow
the tray to go down. Add more paper to lower the tray.
9Place the paper against the paper guides with the print side up.
10 Repeat step 8 and step 9 until you have filled the tray or loaded the desired quantity.
11 Close the top cover.
Make sure the high capacity feeder is pushed completely against the printer.
44
14 Loading the multipurpose feeder
The multipurpose feeder can hold several sizes and types of paper, such as transparencies and
envelopes. It is useful for single page printing on letterhead, colored paper, or other special paper.
Refer to the Card Stock & Label Guide for more information on paper types and sizes.
You can use the multipurpose feeder one of two ways:
•Paper tray—Load paper or other print media in the feeder with the intention of leaving the
media in the feeder.
•Manual bypass feeder—Send a print job to the feeder while specifying the type and size of
media from your computer. The printer then prompts you to load the appropriate print media
before it prints.
Keep in mind the following capacities, paper dimensions, and operating tips when loading the
multipurpose feeder.
Capacity
The maximum stack height is 10 mm (0.4 in.). The multipurpose feeder can hold approximately:
•100 sheets of 75 g/m2 (20 lb) paper
•50 sheets of glossy paper
•10 envelopes
•50 transparencies
•50 sheets of card stock
•30 sheets of labels
Paper dimensions
The multipurpose feeder accepts paper within the following dimensions:
•Width—90 mm (3.54 in.) to 297 mm (11.69 in.)
•Length—148 mm (5.83 in.) to 432 mm (17 in.)
45
Trouble-free printing
•Load only one size of paper or envelopes at a time in the multipurpose feeder.
•To achieve the best possible print quality, use only high-quality print media that is designed for
use in laser printers. For more guidelines on paper, see Choosing media.
•To prevent paper jams, do not add or remove paper when there is still paper in the
multipurpose feeder. This applies to other types of print media, too.
•Never add print media to the multipurpose feeder while the printer is printing from the
multipurpose feeder. Doing so may cause a jam.
•Load media with the recommended print side up.
•Do not place objects on the multipurpose feeder. Also, avoid pressing down or applying
excessive force on it.
•Do not remove any paper tray while a job is printing from the multipurpose feeder or Busy is
displayed on the operator panel. Doing so may cause a jam.
To load the multipurpose feeder:

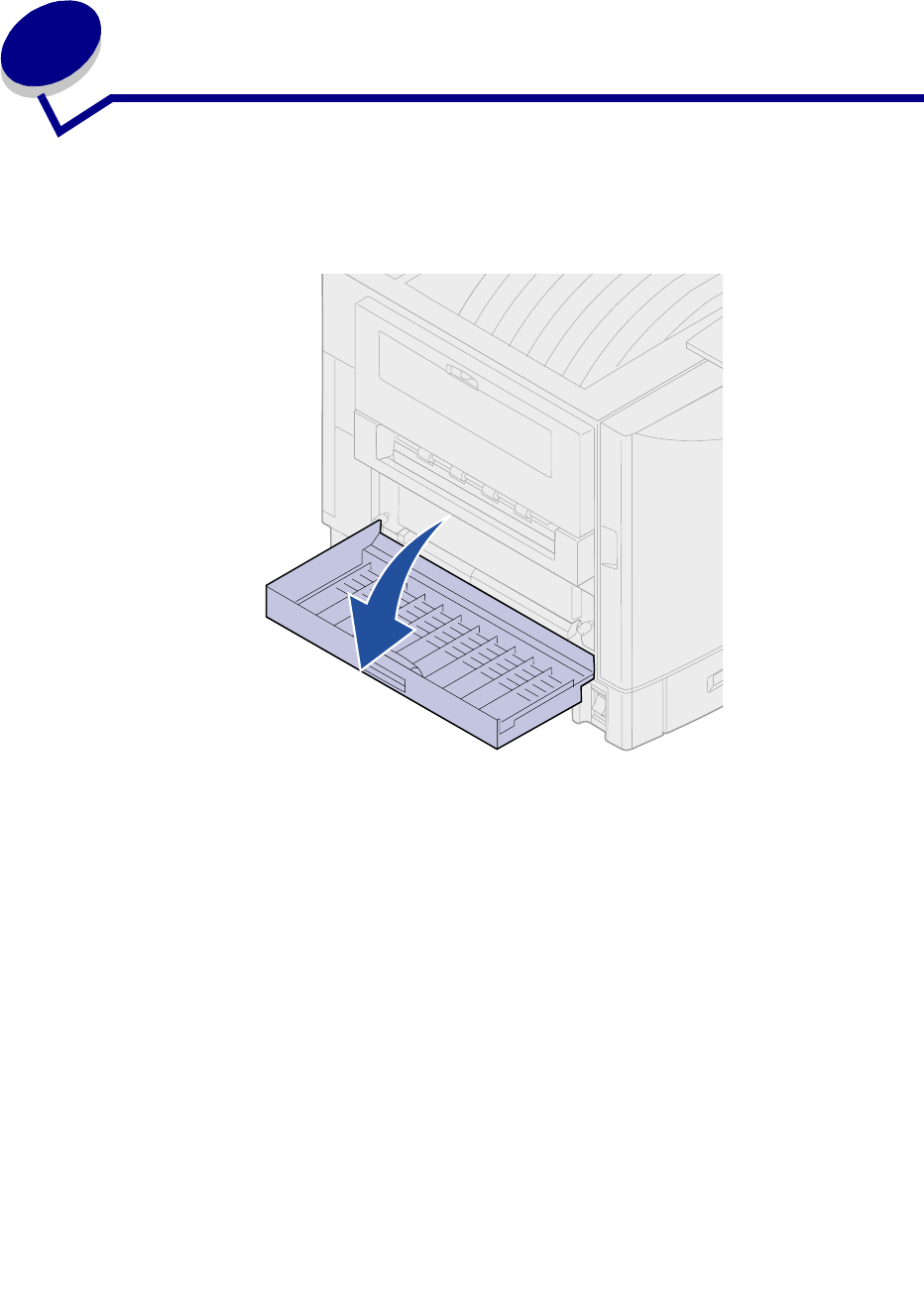

1Open the multipurpose feeder door, and then extend the recessed tray to accommodate the
paper you will be using.
46
2Slide the paper width guides to the correct position for the size paper you are loading.
3Push down the bottom plate until it locks into place.
47
4Prepare the print media for loading.
–Flex paper or fan envelopes back and forth. Do not fold or crease the paper. Straighten the
edges on a level surface.
–Hold transparencies by the edges and avoid touching the print side. Fan the stack of
transparencies to prevent jams. Be careful not to scratch or leave fingerprints on the
transparencies.
5Load one type of print media in the multipurpose feeder. Do not mix types. Click a topic for
loading instructions:
–Loading paper and transparencies
–Loading envelopes
–Loading letterhead
48
Loading paper and transparencies
aLoad paper or transparencies in the center of the tray with the recommended print side
face up.
bContinue with step 6.
Loading envelopes
aLoad envelopes flap side down with the stamp area on the right. The end of the envelope
with the return address area enters the multipurpose feeder last.
WARNING:Never use envelopes with stamps, clasps, snaps, windows, coated linings, or self-
stick adhesives. These envelopes may severely damage the printer.
Note: If envelopes jam while printing, try reducing the number of envelopes in the
multipurpose feeder.
bContinue with step 6.
49
Loading letterhead
aFor both simplex (single-sided) and duplex printing on letterhead, place the printed side
face up.
bContinue with step 6.
6Gently slide the print media into the multipurpose feeder.
Note: Forcing the print media may cause it to buckle.
7Slide the width guides until they lightly rest against the edges of the print media. Do not bend
the print media.
8Push the SET button to the left to unlock the bottom plate.
50
9Select the paper source, size, and type from your software application and select paper size
and type from the operator panel.
aMake sure the Paper Size and Paper Type for the multipurpose feeder (MP Feeder Size
and MP Feeder Type) are set to the correct value for the print media you are loading. (See
Paper Size and Paper Type for detailed information about these settings.)
bPress Go to return to Ready.
Note: Software settings may override operator panel settings.
Closing the multipurpose feeder
1Remove print media from the multipurpose feeder.
2If necessary, push the extended tray in to collapse the multipurpose feeder to its short-length
position.
3Push down the bottom plate until it locks into place.
51
4Close the multipurpose feeder door.
52
15 Output bins
Your printer has two output bins: the standard output bin on top of the printer and an exit tray (bin 1).
Your printer directs all media except transparencies and envelopes to the standard output bin.
Transparencies are automatically directed to the exit tray (bin 1) to reduce curling.
Note: Make sure the exit tray is down when printing transparencies or envelopes.
If other print media curls, you can divert it from the standard bin to the exit tray (bin 1) through your
printer driver, operator panel, or the MarkVision remote operator panel.
Standard output bin
Exit tray (bin 1)
53
16 Loading a paper tray
The printer lets you know when you need to load paper. If a tray has less than 50 sheets of paper, Tray
x Low appears on the display, where x corresponds to a paper tray. Open the tray and load paper to
remove the message.
When you change the paper in the tray, make sure the paper guides are in the correct positions. The
position of the left paper guide informs the printer of the size paper loaded in the tray. Feeding paper
when the left or front paper guides are not in the correct position may result in misfeeds or paper jams.
If you load a different type of media, change the Paper Type setting in the Paper Menu.
•Loading paper, card stock, or labels
•Loading letterhead
•Loading transparencies
Loading paper, card stock, or labels
Complete these instructions to load print materials into any of the standard or optional trays.
1Pull the paper tray out until it stops.
54
2Press the metal plate down until it locks.
3Squeeze the left guide and slide it to the position for the size paper you are loading.
4Release the paper guide.
Note: The position of the left paper guide tells the printer the size of the paper in the tray.
If the left paper guide is in the wrong position, you may experience paper feeding
problems or incorrect page formatting.
55
5Flex the sheets back and forth to loosen them, and then fan them.
Do not fold or crease the paper. Straighten the edges of the stack on a level surface.
6Place the paper in the tray, print side down.
Note: Do not exceed the maximum stack height. Overfilling the tray may cause jams.
56
7Squeeze the front paper guide lever and slide the guide until it lightly touches the stack of
paper.
8Rotate the paper size dial until the size of the paper in the tray is indicated.
Note: This setting serves as a visual reminder only; it has no effect on the operation of
the printer.
57
9Push the tray in.
Loading letterhead
See Loading the multipurpose feeder for instructions on loading letterhead in the multipurpose
feeder.
Follow the steps in Loading paper, card stock, or labels to load transparencies in the tray.
Loading transparencies
See Loading the multipurpose feeder for instructions on loading transparencies in the multipurpose
feeder.
58
17 Using the heavy media tray
The optional heavy media tray replaces tray 1. For instructions on removing and installing tray 1, see
Exchanging tray 1. The heavy media tray is specially designed for use with heavier plain paper,
glossy paper, transparencies, labels, and card stock.
Note: Using the heavy media tray with light paper such as 16–26 lb plain paper may
cause jams.
When the heavy media tray is installed, it turns the auto size sensing off. You must set the operator
panel to the size and type of media you have placed in the tray.
Set the paper size
1See Loading a paper tray for instructions on placing print media in the heavy media tray.
For more information about using the operator panel and changing menu settings, see Using
the operator panel.
2Press Menu until you see Paper Menu, and then press Select.
3Press Menu until you see Paper Size, and then press Select.
4Press Menu until you see Tray 1 Size, and then press Select.
5Press Menu until the size of paper you placed into the tray appears,
and then press Select.
Set the paper type
1Press Return once.
Paper Menu appears on the first line and Paper Size appears on the second line.
2Press Menu until you see Paper Type, and then press Select.
3Press Menu until you see Tray 1 Type, and then press Select.
4Press Menu until you see Custom Type 1, and then press Select.
5Press Return once.
Paper Menu appears on the first line and Paper Type appears on the second line.
6Press Menu until you see Custom Types, and then press Select.
59
7Press Menu until you see Custom Type 1, and then press Select.
8Press Menu until you see the type of media you loaded in the heavy media tray, and then
press Select.
9Press Go.
The printer returns to the Ready state.
Exchanging tray 1
1Pull tray 1 out until it stops.
2Lift the front of tray 1 and pull the tray forward.
Note: You only need to lift the tray high enough for the tray stop to move over the slide
stop.
Tray stop
Slide stop
60
3Lower the front of the tray and pull the tray from the drawer slides.
4Align the rollers on the side of the paper tray with slots on the left and right drawer slides.
5Place the drawer rollers into the drawer slides and slide the drawer in until it stops.
Note: If the slides move when you are installing the tray, you can hold one slide while you
insert the drawer, and then pull the other slide out and over the drawer roller until it
stops.
6Lift the front of the tray.
61
7Slide the tray in until both tray stops pass the slide stops.
Note: You only need to lift the tray high enough for the tray stop to move over the slide
stop. If the slides move when you are installing the tray, you can hold one slide while
you insert the drawer, and then hold the other slide.
8Lower the front of the tray and slide it in.
9Move the tray in and out to make sure it functions properly.
Note: If the tray does not function properly, remove the tray and repeat steps 4 through 8.
For instructions on loading the paper tray, See Loading a paper tray.
Tray stop
Slide stop
62
18 Media guidelines
Use recommended media (paper, transparencies, envelopes, card stock and labels) for your printer to
avoid printing problems. For detailed information about media characteristics, refer to the Card Stock &
Label Guide located on the Lexmark Web site at www.lexmark.com. Brief guidelines for choosing
paper and other media follow.
Your printer supports a wide variety of paper types, sizes, and weights. The standard tray (tray 1) and
optional trays 2, 3, and 4 are marked with stack height letters A, B, C. The optional heavy media tray is
marked with stack height letters D, E, and F.
Your printer supports a wide variety of paper types, sizes, and weights. The standard tray (tray 1) and
optional trays 2, 3, and 4 are marked with stack height letters A, B, C. The optional heavy media tray is
marked with stack height letters D, E, and F.
Sources Paper sizes supported Paper types supported Capacity
Tray 1 Letter, A4, Legal, Tabloid1,
A3, B4 Paper, transparencies, glossy
paper 550 sheets of 20 lb paper
130 sheets of glossy paper
Trays 2-4 Letter, A4, Legal, Tabloid,1
A3, B4, Universal2Paper 550 sheets of 20 lb paper
Heavy media
tray Letter, A4, Legal, Tabloid1,
A3, Universal2Paper, glossy paper,
transparencies, labels 150 transparencies
250 sheets of labels
330 sheets of glossy paper
Multipurpose
feeder Letter, A4, A5, Legal,
Tabloid1, A3, Executive, B4,
JIS B5, Universal2
Paper, glossy paper,
transparencies, labels, card
stock
100 sheets of 20 lb paper
50 sheets of glossy paper
50 transparencies
30 sheets of labels
50 sheets card stock
7¾, 9, 10, DL, C4, C5, B5 Envelopes 10 envelopes
High capacity
feeder Letter, A4 Paper 3000 sheets of 20 lb paper
1 Tabloid paper is 278.8 x 430.8 mm (11 x 17 in.)
2 Universal setting lets you select the following custom sizes:
139.7 x 210 mm to 215.9 x 355.6 mm (5.5 x 8.27 to 8.5 x 14 in.),
69.85 x 127 mm to 229 x 355.6 mm (2.75 x 5 to 9.01 x 14 in.)
148 x 182 mm to 215.9 x 355.6 mm (5.83 x 7.17 to 8.5 x 14 in.)
63
The following table lists recommended media, weights, and the stack height guide to use when loading
the paper trays.
Paper
Note: Using low quality paper may result in unsatisfactory performance and may degrade
print quality.
When printing photographic quality images, use a high-quality laser printer paper. We recommend the
following paper for optimum results:
For printing text and typical business graphics, you may find 75 g/m2 (20 lb) paper designed for laser
printers or photocopiers produces acceptable print quality. Always try a sample of any paper before
buying large quantities.
Before loading paper, note the recommended print side identified on the paper package. Load paper
with the recommended print side face down in the paper trays. For paper loading instructions, see
Loading media.
Stack height letter Recommended media
ALexmark Glossy Paper*: Letter (P/N 12A5950), A4 (P/N 12A5951)
B11x17, Legal, B4, A3 (90–105 g/m2, 24–28 lb bond)
CLetter, A4 (60–105 g/m2, 16–28 lb bond)
11x17, Legal, B4, A3 (60 - 90 g/m2, 16 - 24 lb bond)
DLexmark Transparency**: Letter (P/N 12A5940), A4 (P/N 12A5941)
ELexmark Glossy Paper*: Letter (P/N 12A5950), A4 (P/N 12A5951)
Card stock: Letter, A4 (128–163 g/m2, 90 lb index)
Paper Labels: Letter, A4 (up to 180 g/m2, 48 lb bond)
FLetter, A4 (105–128 g/m2, 28–34 lb bond)
*Lexmark Glossy Paper is 120 g/m2, 80 lb. book, 32 lb bond.
** Lexmark Transparency weight is 120 g/m2.
Paper Weight Size Part Number
Hammermill Laser Print 90 g/m2 (24 lb)
Lexmark Glossy Laser Paper 120 g/m2 (32 lb) Letter 12A5950
A4 12A5951
64
The following are not recommended for your printer:
•Paper with a large cotton content
•Paper with a rough or heavily textured surface
•Coated papers, such as erasable bond
•Preprinted papers manufactured with chemicals that may contaminate the printer
•Paper designed for inkjet printers
•Deformed or damaged paper
•Paper that is wet or has absorbed moisture
•Paper that is punched, embossed, or perforated
•Multiple-part forms
•Synthetic papers
•Thermal papers
•Recycled paper having a weight less than 75 g/m2 (20 lb)
Preprinted papers such as letterhead must be able to withstand temperatures up to 175°C (347°F)
without melting or releasing hazardous emissions. Use inks that are not affected by the resin in toner
or the silicone in the fuser. Inks that are oxidation-set or oil-based should meet these requirements.
Latex inks may melt.
Transparencies
For best results, use the following Lexmark transparencies:
These transparencies are designed to provide optimal print quality. Using other transparencies
designed for laser printers may yield unpredictable results and possibly cause damage to your printer.
Transparencies must be able to withstand temperatures of 175°C (347°F) without melting, discoloring,
offsetting, or releasing hazardous emissions.
To order transparencies in the U.S., call 1-800-438-2468. In other countries, visit www.lexmark.com
on the World Wide Web.
For transparency loading instructions, see Loading transparencies.
Envelopes
You can load up to 10 envelopes in the multipurpose feeder. Load envelopes flap side down with the
stamp area on the right. The end of the envelope with the return address area enters the multipurpose
feeder last. Do not load stamped envelopes. Before loading envelopes, fan the stack to prevent them
from sticking together. For envelope loading instructions, see Loading envelopes.
To ensure the best print quality, set Paper Type to Envelope and select the correct envelope size before
sending the job to print.
Description Size Part number
Professional color laser transparencies Letter 12A5940
A4 12A5941
65
When printing on envelopes:
•Try a sample of any envelopes before buying large quantities.
•Use envelopes made from 90 to 105 g/m2 (24 to 28 lb) bond paper. Do not use envelopes that:
–Have excessive curl
–Are stuck together
–Are damaged
–Contain windows, holes, perforations, cutouts, or embossing
–Use metal clasps or string ties
–Have postage stamps attached
–Have any exposed adhesive when the flap is in the sealed or closed position
•Use envelopes that can withstand temperatures of 175°C (347°F) without sealing, excessive
curling, wrinkling, or releasing hazardous emissions.
•Adjust the left, and front paper guides to fit the envelope width.
Labels
Use only labels designed for laser printers. Use only label sheets that have no gaps between the
labels, as shown. Try a sample of any labels before purchasing a large quantity.
Labels must be able to withstand temperatures of 175°C (347°F) without melting, discoloring,
offsetting, or releasing hazardous emissions. For detailed information on label printing, characteristics,
and design, refer to the Card Stock & Label Guide on the drivers CD.
Feed labels only from the multipurpose feeder. When printing on labels:
•Use only paper labels. Do not use vinyl labels.
•Do not print a large number of labels consecutively.
•Do not use labels that have adhesive exposed on the sheets.
•Do not use labels that have coating or sizing applied to make the labels liquid-resistant.
•From the operator panel or from MarkVision, set the Paper Type to Labels.
For label loading instructions, see Loading paper, card stock, or labels.
Acceptable labels Unacceptable labels
66
Card stock
Note: Load card stock in the multipurpose feeder and heavy media tray only. Do not load
more than 50 sheets of card stock into the multipurpose feeder. Loading more than
50 sheets of card stock or using the wrong paper source may cause paper jams or
a failure to feed.
You can load 250 sheets of card stock in the heavy media tray. The properties of the card stock you
choose—such as the orientation of the paper fibers, moisture content, thickness, and texture—can
affect the print quality.
For optimum results, we recommend using Springhill Index Plus 90 lb card stock.
Card stock must be able to withstand temperatures up to 175°C (347°F) without melting or releasing
hazardous emissions.
For more information on card stock your printer supports, refer to the Card Stock & Label Guide on the
drivers CD.
Always set the Paper Type to Card Stock when printing on heavier paper. The printer then adjusts the
fuser temperature and engine speed to ensure the best print quality.
For card stock loading instructions, see Loading paper, card stock, or labels.
67
19 Tray linking
Tray linking enables the automatic linking feature for trays when you use the same size and type of
print media in multiple paper sources (trays).
For example, let’s say you have loaded two optional trays with the same size print media and both are
set to the same paper type. When one tray becomes empty, the printer automatically selects print
media from the other tray since the printer sees the trays as linked.
If you use different print media in the trays, each source with a different print media must have the
Paper Type set to a unique value to disable the automatic linking feature. If all the trays do not have the
same paper type when they are linked, you could mistakenly print a job on the wrong paper type.
To initiate tray linking:
1Load paper of the same size and type in all the trays you want to link.
2Make sure the paper guide is set to the proper position for the paper size you’ve loaded.
The position of the paper guide informs the printer of the paper size loaded in the tray.
If you want to link the multipurpose feeder to a tray, select the appropriate MP Feeder Size
setting from the Paper Size menu.
3Select the same Paper Type setting for all the sources.
68
20 Tips for successful printing
Storing paper
Properly storing the media helps ensure trouble-free printing. Use the following guidelines:
•For best results, store media in an environment where the temperature is approximately 21°C
(70°F) and the relative humidity is 40%.
•Store cartons of paper on a pallet or shelf, rather than directly on the floor.
•If you store individual packages of paper out of the original carton, make sure they rest on a
flat surface so the edges do not buckle or curl.
•Do not place anything on top of the paper packages.
Avoiding paper jams
By carefully selecting print media and loading them properly, you should be able to avoid most paper
jams. If jams do occur, follow the steps outlined in Clearing paper jams. If jams occur frequently,
make sure you follow these tips to avoid jams:
•See Loading media to load paper properly. Make sure the adjustable guides are positioned
correctly.
•Do not overload the paper trays. Make sure the paper is under the paper capacity mark on the
inside of the tray.
•Do not remove trays while print jobs are in process.
•Flex, fan, and straighten the paper before loading it.
•Fan stacks of labels or transparencies before loading them into trays or the multipurpose
feeder. If jams do occur using the multipurpose feeder, try feeding one sheet at a time.
•Do not load wrinkled, creased, damp, or curled paper.
•Do not mix paper types or paper sizes in one tray.
•Use only recommended print media. See Recommended paper.
•Make sure the recommended print side is face up when placed in the multipurpose feeder or
high capacity feeder.
•Make sure the recommended print side is face down when loading trays 1 through 4.
•Keep print media stored in an acceptable environment. See Moisture content.
69
21 Determining supply status
Print the menu settings page to check the status of printer supply items. See Printing the menu
settings page for detailed instructions.
One or two pages print depending on the number of menu settings you have. Look for “Supplies Menu”
on the page; each item indicates the percentage of remaining life.
You can also check the status of printer supply items using the operator panel.
1Press Menu until you see Supplies Menu.
2Press Select.
3Press Menu until you see Supplies Life.
4Press Select.
5Press Menu to scroll through the printer supply items.
70
22 Cleaning the LEDs
If you are experiencing print quality problems such as voids, light streaks, or light print, you may need
to clean the LEDs inside the top cover.
Note: For instructions on opening the top cover, see Opening the top cover.
1Complete the steps to open the top cover.
2Remove all toner cartridges. See Removing a toner cartridge for more information.
CAUTION: The photodevelopers are hot! Allow the photodevelopers to cool before touching.
WARNING:Exposing the photodeveloper to light for prolonged periods of time can damage it.
Do not expose the photodeveloper to light for more than ten minutes. Fingerprints
71
can affect the performance of the photodeveloper. Avoid touching the
photodeveloper anywhere except the handles.
Note: The toner inside the toner cartridges can soil clothing. Do not clean clothing soiled
with toner in hot water; this permanently adheres the toner to the clothing. Use cold
water to remove toner that has soiled clothing.
3Wipe the glass lenses of all four LED heads with a clean, dry cloth or tissue paper.
4Reinstall all toner cartridges. See Installing a toner cartridge for more information.
CAUTION: Before closing the top cover make sure everyone is away from the printer and the
area under the cover is free of hands, clothing, and other items.
5Close the top cover and the front door.
Note: For instructions on how to close the top cover, see Closing the top cover.
72
23 Closing the top cover
CAUTION: Before closing the top cover make sure everyone is away from the printer and the
area under the cover is free of hands, clothing, and other items.

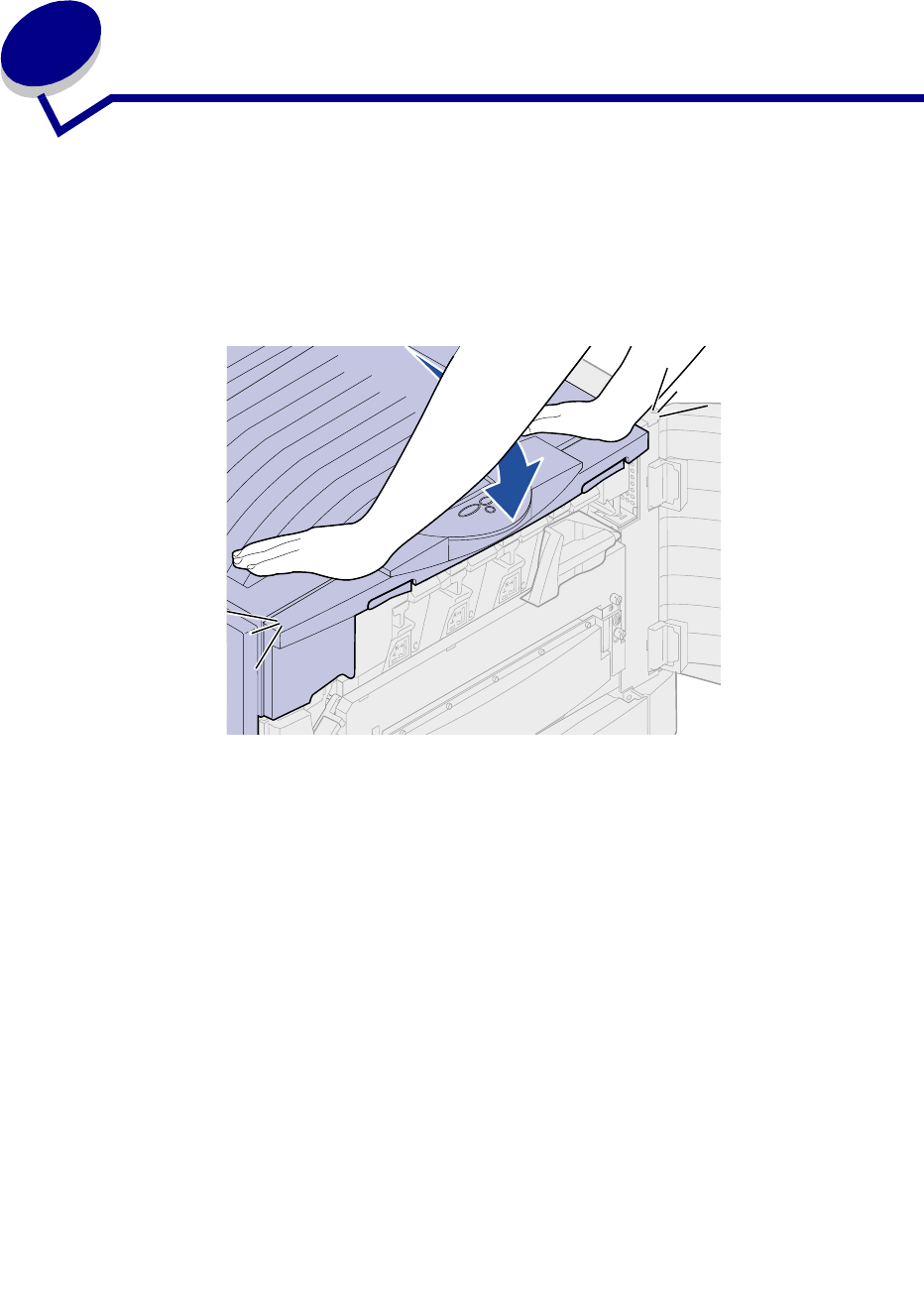

1Place both hands on the top cover as shown.
2Press down firmly until the top cover clicks into place.
73
3Rotate the top cover locking lever to the right.
Note: If you cannot rotate the locking lever, the cover is not fully closed. Open the top
cover and press down firmly until the top cover clicks into place.
4Close the front door.
74
24 Conserving supplies
Several settings in your application software or on the display let you conserve toner and paper:
Supply Setting What the setting does For more information,
see...
Toner Toner Darkness in
the Color Menu Lets you adjust the amount of toner
released on a sheet of paper. The values
range from 1 (lightest setting) to 4
(darkest setting).
Toner Darkness
Paper and
specialty media Multipage Print in
the Finishing
Menu
Prints two or more page images on one
side of a sheet.
Values for Multipage Print are 2 Up, 3 Up,
4 Up, 6 Up, 9 Up, 12 Up, and 16 Up.
Combined with the duplex setting,
Multipage Print lets you print up to 32
pages on one sheet of paper (16 images
on the front and 16 on the back).
Multipage Print
Duplex in the
Finishing Menu Available when you attach an optional
duplex unit. Duplex
Paper and
specialty media Use your software
application or
printer driver to
send a Verify Print
job.
Use Held Jobs in
the Job Menu to
access your Verify
Print job.
Lets you examine the first copy of a
multiple-copy job to be sure it is
satisfactory before you print the other
copies. If the job is unsatisfactory, cancel
the job.
Verify Print
Canceling a print job
Using the Print and
Hold function
75
25 Replacing a photodeveloper
Your printer monitors the life of your photodevelopers. When a photodeveloper reaches the end of its
life, the printer displays 84 Black Photo Dev Exhausted or 84 Color Photo Devs Exhausted.
This message indicates it is time to replace one or more specified photodevelopers. For best print
quality, make sure you replace the fuser when the printer displays 84 Black Photo
Dev Life Warning or 84 Color Photo Dev Life Warning.
Press Go to clear the message. The Supplies message appears on the second line of the display to
remind you that supplies need attention. You can open the Supplies Menu to see which
photodeveloper is nearly exhausted.
The printer continues to display the Supplies message until you replace the photodeveloper or until it
is exhausted.
To replace a photodeveloper, use the following steps or the instruction sheet supplied with the
photodeveloper.
Removing a photodeveloper
Note: If you need instructions on how to open the top cover, see Opening the top cover.
1Complete the steps to open the top cover.
Note: The excess toner on the photodevelopers can soil clothing. Do not clean clothing
soiled with toner in hot water; this permanently adheres the toner to the clothing.
Use cold water to remove toner.
76
2Pull the waste toner arm away from the photodeveloper.
3Use the tab to pull the photodeveloper approximately halfway out of the printer.
Some force is initially required to pull the photodeveloper past the locking spring.
4Grasp the photodeveloper handle and continue to pull the photodeveloper out.
77
Installing a photodeveloper
Note: Your printer has four color-coded photodevelopers. Each photodeveloper has its
own color-coded position.
1Remove the replacement photodeveloper from the packing material.
Note: The photodeveloper has a cover over the green developer film. Do not remove the
cover until you begin installing the photodeveloper.
2Remove the tape from the photodeveloper and photodeveloper cover.
Note: The photodevelopers are color matched to a specific toner color and must be
placed in a specific location inside the printer.
78
3Align the photodeveloper with the slot under the matching color label.
4While holding the photodeveloper with the left hand and the photodeveloper cover with the
right hand slide the photodeveloper into the slot until it is fully seated.
As the photodeveloper slides in, slide off the photodeveloper cover.
Photodeveloper
cover
79
5Push the waste toner arm until it connects with the photodeveloper and snaps into place.
6Repeat Removing a photodeveloper step 2 through Installing a photodeveloper step 5 to
install additional photodevelopers.
CAUTION: Before closing the top cover make sure everyone is away from the printer and the
area under the cover is free of hands, clothing, and other items.
7Close the top cover and the front door.
Note: If you need instructions on how to close the top cover, see Closing the top cover.
For instructions about replacing other supply items, click one of the following headings:
Replacing a toner cartridge
Replacing the fuser
Replacing the transfer belt
Replacing the oil coating roll
80
26 Replacing supplies
For information about replacing an individual supply item, click the headings below:
The printer calculates and stores information on the number of images that have been printed. When a
count for a supply nears the end of the supplies life, the Supplies status message appears on the
second line of the display to remind you there are supplies that need attention.
Open the Supplies Menu to view the supplies that need to be replaced. Replacement of these parts
ensures peak printer performance and prevents print quality and paper feed problems resulting from
worn parts.
The printer counter keeps track of your toner cartridges, photodevelopers, fuser cleaner, fuser, and
transfer belt. It posts a Low, Empty, Life Warning, or an Exhausted message on the display when
one of these supplies nears or reaches an end of life condition. If you do not have the appropriate
supply item, order one when the Low, Empty, or Life Warning message appears.
Replacing a photodeveloper
Replacing the fuser
Replacing the oil coating roll
Replacing the transfer belt
Replacing a toner cartridge
1 Menu 2Select 3
Go 5
Return 4
Stop 6
Ready
SUPPLIES
81
Press Go to clear the message. The Supplies status message appears on the second line of the
display to remind you there are supplies that need attention. Press Menu to open the Supplies Menu
and quickly determine the supply items that need to be replaced.
The printer continues to display the Supplies status message until you replace the required supply
items.
After the Supplies status message appears, the printer continues to monitor the required supply
items until the supply is exhausted. The printer displays Low, Empty, Life Warning, or Exhausted.
To prevent damage to your printer or its components, some supply items do not allow the printer to
operate when the item is exhausted. When this occurs, you must install the appropriate new supplies
before you can continue printing.
82
27 Replacing the fuser
Your printer monitors the life of your fuser. When the fuser reaches the end of its life, the printer
displays 80 Fuser Exhausted. This message indicates it is time for you to replace the fuser. For best
print quality, make sure you replace the fuser when the printer displays 80 Fuser Life Warning.
Press Go to clear the message. The Supplies message appears on the second line of the display to
remind you that supplies need attention. You can open the Supplies Menu to see the 80 Fuser
Exhausted and 80 Fuser Life Warning messages.
The printer continues to display the Supplies message until you replace the fuser. To replace the
fuser, use the following steps or the instruction sheet supplied with the fuser.
Preparing for maintenance
1Turn the printer on.
2Follow the instructions in the table for the message your printer is displaying.
The Preparing for Maintenance message appears while the printer moves parts into
position. After the parts are in position, the message Printer Ready for Maintenance
appears, followed by Power Off to Replace Items.
3Turn the printer off.
Removing the fuser
1Complete the steps in Preparing for maintenance on page 82.
2Make sure the printer is turned off.
Primary message Secondary message What you should do
80 Fuser Life Warning Select = Replace
Go = Continue
Press Select if you want to
replace the fuser now.
Press Go if you want to wait to
replace the fuser.
80 Fuser Exhausted Select = Replace Press Select to replace the fuser.
80 Belt/Fuser Life Warning Select = Replace
Go = Continue
Press Select if you want to
replace the fuser now.
Press Go if you want to wait to
replace the fuser.
80 Belt/Fuser Exhausted Select = Replace Press Select to replace the fuser.
83
3Turn off or unplug any optional devices connected to the printer.
WARNING:Do not touch, drop, or place anything on the transfer belt. Touching the surface of
the transfer belt or placing items on it may cause damage.
4Complete the steps to open the top cover.
Transfer belt
84
5Lift the fuser pressure release lever up.
WARNING:Removing or replacing the fuser while the fuser pressure release lever is in the
down position will damage the lever.
CAUTION: The fuser may be hot! Allow the fuser to cool before touching.
6Grasp the fuser handles and press both fuser release buttons.
85
7Lift the fuser up and out.
Note: Do not discard the old fuser at this time. The oil coating roll will be installed in the
new fuser.
Installing the fuser
1Remove the replacement fuser from the packing material, and remove any packing material
from the fuser.
86
2Align the new fuser with the opening in the printer.
3Lower the fuser until it snaps into place.
4Remove the oil coating roll from the old fuser.
87
CAUTION: The oil coating roll may be hot! Allow the oil coating roll to cool before touching.
aPull up on the locking tab to unlock the oil coating roll.
bSlide out the oil coating roll.
Hold the oil coating roll by the top, as indicated by the dark areas in the illustration.
Note: The underside of the oil coating roll may be covered with oil. If you are not ready to
slide the coating roll into the fuser immediately, place the coating roll on a sheet of
plastic or other protective material to prevent stains.
Locking tab
Oil coating
roll
Hold here
88
5Install the oil coating roll.
Make sure the oil coating roll drops down into position. It should click into place with no gap
between it and the fuser.
CAUTION: Before closing the top cover make sure everyone is away from the printer and the
area under the cover is free of hands, clothing, and other items.
6Close the top cover and the front door.
7Reconnect any optional devices to the printer.
8Turn the optional devices on.
9Turn the printer on.
The message Did you replace Fuser? appears.
89
10 Press Go to reset the fuser counter.
Note: If you replaced the fuser after receiving the 80 Belt/Fuser Life Warning
message or the 80 Belt/Fuser Exhausted message, see Replacing the
transfer belt for instructions on replacing the transfer belt.
For instructions about replacing other supply items, click one of the following headings:
Replacing a photodeveloper
Replacing a toner cartridge
Replacing the transfer belt
Replacing the oil coating roll
90
28 Replacing the oil coating roll
Your printer monitors the life of your oil coating roll. When the oil coating roll reaches the end of its life,
the printer displays 85 Coating Roll Exhausted. This message indicates that you must replace the
oil coating roll to continue printing.
For best print quality, make sure you replace the oil coating roll when the printer displays
85 Coating Roll Life Warning. Press Go to clear the message. The printer continues to display
the Supplies message until you replace the oil coating roll.
To replace the oil coating roll, use the following steps or the instruction sheet supplied with the oil
coating roll.
Removing the oil coating roll
1Turn the printer off.
2Tur n off or unplug any optional devices connected to the printer.
WARNING:Do not touch, drop, or place anything on the transfer belt. Touching the surface of
the transfer belt or placing items on it may cause damage.
91
3Complete the steps to open the top cover.
CAUTION: The oil coating roll may be hot! Allow the oil coating roll to cool before touching.
4Pull up on the locking tab to unlock the oil coating roll.
Transfer belt
Locking tab
Oil coating rollOil coating roll
92
5Slide the oil coating roll out of the fuser.
Hold the oil coating roll by the top, as indicated by the dark areas in the illustration.
6Remove packing material from the new oil coating roll.
Hold here
93
7Slide the oil coating roll into the fuser.
Make sure the oil coating roll drops down into position. It should click into place with no gap
between it and the fuser.
CAUTION: Before closing the top cover make sure everyone is away from the printer and the
area under the cover is free of hands, clothing, and other items.
8Close the top cover and the front door.
9Reconnect any optional devices to the printer.
10 Turn the optional devices on.
94
11 Turn the printer on.
For instructions about replacing other supply items, click one of the following headings:
Replacing a toner cartridge
Replacing the fuser
Replacing the transfer belt
Replacing a photodeveloper
95
29 Replacing the transfer belt
Your printer monitors the life of your transfer belt. When the transfer belt reaches the end of its life, the
printer displays 80 Belt Exhausted. This message indicates it is time for you to replace the transfer
belt. For best print quality, make sure you replace the transfer belt when the printer displays 80 Belt
Life Warning.
Press Go to clear the message. The Supplies message appears on the second line of the display to
remind you that supplies need attention. You can open the Supplies Menu to see 80 Belt Exhausted
or 80 Belt Life Warning messages.
The printer continues to display the Supplies message until you replace the transfer belt. To replace
the transfer belt, use the following steps or the instruction sheet supplied with the transfer belt.
Preparing for maintenance
1Turn the printer on.
2Follow the instructions in the table for the message your printer is displaying.
The Preparing for Maintenance message appears while the printer moves parts into
position. After the parts are in position, the message Printer Ready for Maintenance
appears, followed by Power Off to Replace Items.
3Turn the printer off.
Primary message Secondary message What you should do
80 Belt Life Warning Select = Replace
Go = Continue
Press Select if you want to
replace the transfer belt now.
Press Go if you want to wait to
replace the transfer belt.
80 Belt Exhausted Select = Replace Press Select to replace the
transfer belt.
80 Belt/Fuser Life Warning Select = Replace
Go = Continue
Press Select if you want to
replace the transfer belt now.
Press Go if you want to wait to
replace the transfer belt.
80 Belt/Fuser Exhausted Select = Replace Press Select to replace the
transfer belt.
96
Removing the transfer belt
1Complete the steps in Preparing for maintenance on page 95.
2Make sure the printer is turned off.
3Turn off or unplug any optional devices connected to the printer.
WARNING:Do not touch, drop, or place anything on the transfer belt. Touching the surface of
the transfer belt or placing items on it may cause damage.
4Complete the steps to open the top cover.
CAUTION: The inside of the printer may be hot! Allow the printer to cool before touching.
Transfer belt
97
5Loosen the thumbscrews on each side of the transfer belt cover.
6Lift and remove the transfer belt cover.
98
7Loosen the thumbscrews on each side of the transfer belt.
8Pull the transfer belt out.
99
Installing the transfer belt
1Remove the replacement transfer belt from the packing material.
2Align the transfer belt with the opening in the printer.
100
3Slide the transfer belt in until it is fully seated.
4Tighten the transfer belt thumbscrews.
101
5Align and place the transfer belt cover as shown.
6Tighten the transfer belt cover thumbscrews.
WARNING:Do not touch, drop, or place anything on the transfer belt. Touching the surface of
the transfer belt or placing items on it may cause damage.
102
7Lift and remove the four shipping spacers from the transfer belt.
Note: If you do not remove the four shipping spacers from the transfer belt, you may not
be able to close the top cover.
CAUTION: Before closing the top cover make sure everyone is away from the printer and the
area under the cover is free of hands, clothing, and other items.
8Close the top cover and the front door.
9Reconnect any optional devices to the printer.
10 Turn the optional devices on.
11 Turn the printer on.
The message Did you replace Belt? appears.
Transfer belt
103
12 Press Go to reset the transfer belt counter.
Once the counter is reset, the Printing Alignment Page message appears and a test page
prints. After the test page has printed, you are prompted to enter alignment values for each
setting.
13 Press Menu to choose the alignment value.
14 Press Select to enter the value and continue to the next value.
After you have entered values for each alignment setting, the transfer belt should be aligned
and the printer ready to print.
Note: If you replaced the transfer belt after receiving the 80 Belt/Fuser
Life Warning message or the 80 Belt/Fuser Exhausted message, see
Replacing the fuser for instructions on replacing the fuser.
For instructions about replacing other supply items, click one of the following headings:
Replacing a photodeveloper
Replacing a toner cartridge
Replacing the fuser
Replacing the oil coating roll
104
30 Replacing a toner cartridge
Your printer monitors the toner level of your toner cartridges. When the toner is getting low, the printer
displays 88 <color> Toner Low. This message indicates it is time for you to replace one or more
specified toner cartridges. Press Go to clear the attendance message.
The Supplies status message appears on the second line of the display to remind you there are
supplies that need attention. You can open the Supplies Menu to see which toner cartridge is low.
The printer continues to display the Supplies message until you replace the toner cartridge or until it
is empty.
When the life of the toner cartridge has expired, the printer displays 88 <color> Toner Empty. You
must replace the toner cartridge to continue printing.
Use the following steps or the instruction sheet supplied with the toner cartridge to replace toner
cartridges.
105
Removing a toner cartridge
Note: If you need instructions on how to open the top cover, see Opening the top cover.
WARNING:Do not touch, drop, or place anything on the transfer belt. Touching the surface of
the transfer belt or placing items on it may cause damage.
1Complete the steps to open the top cover.
Note: The toner can soil clothing. Do not clean clothing soiled with toner in hot water; this
permanently adheres the toner to the clothing. Use cold water to remove toner.
2Pull the waste toner arm away from the photodeveloper.
Transfer belt
106
3Pull the toner cartridge approximately halfway out of the printer.
4Grasp the toner cartridge handle and continue to pull the toner cartridge out.
Installing a toner cartridge
1Remove the replacement toner cartridge from the packing material.
2Gently shake the toner cartridge to distribute the toner evenly.
107
3Remove the shipping tape and any additional packing material.
4Align the toner cartridge with its slot in the printer. The toner cartridge is placed to the right of
the corresponding colored label.
Colored label
108
5Slide the toner cartridge in until the cartridge is fully seated.
6Push the waste toner arm until it snaps into place over the photodeveloper.
7Repeat Removing a toner cartridge step 2 through Installing a toner cartridge step 6 to
install additional toner cartridges.
CAUTION: Before closing the top cover make sure everyone is away from the printer and the
area under the cover is free of hands, clothing, and other items.
109
8Close the top cover and the front door.
Note: If you need instructions on how to close the top cover, see Closing the top cover.
For instructions about replacing other supply items, click one of the following headings:
Replacing a photodeveloper
Replacing the fuser
Replacing the transfer belt
Replacing the oil coating roll
110

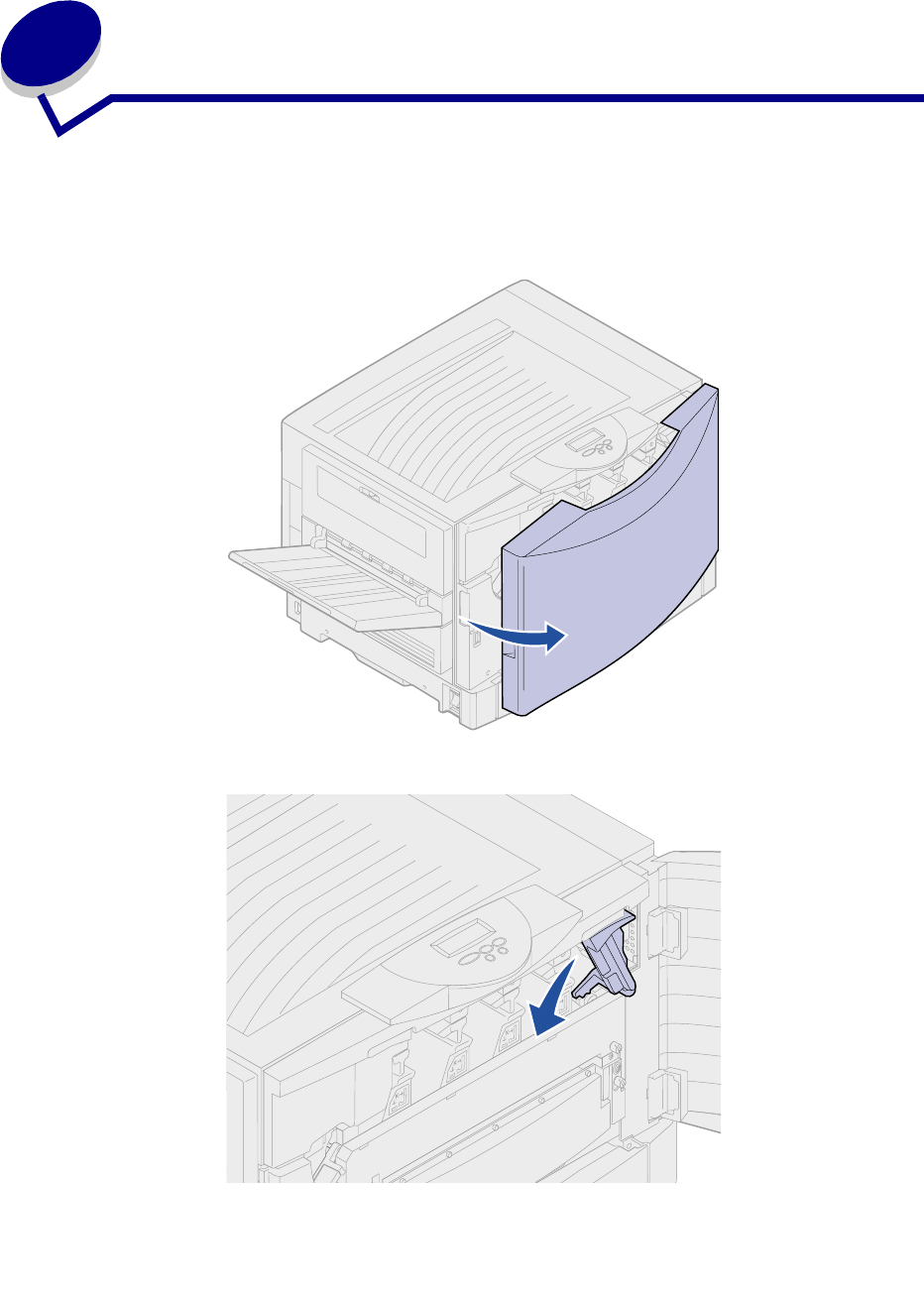

31 Opening the top cover
To access the printer supplies and some of the paper jam areas, open the top cover:
1Open the front door.
2Rotate the top cover locking lever to the left.
111
3Push up on the right top cover locking button and lift at the points shown below.
4Lift the top cover until it stops.
For information about replacing an individual supply item or paper jams, click one of the following
headings:
Replacing a toner cartridge
Replacing a photodeveloper
Replacing the fuser
Clearing paper jams
112
32 Storing supplies
Store supplies in their original packaging until you are ready to install them.
Do not store supplies in:
•Temperatures greater than 43°C (110°F)
•An environment with extreme changes in humidity or temperature
•Direct sunlight
•Dusty places
•A car for a long period of time
•An environment where corrosive gases are present
•An environment with salty air
113
33 Resetting the maintenance counter
After replacing the fuser or transfer belt, you must reset the maintenance counter.
If the message Did you replace Fuser? or Did you replace Belt? appears, press Go.
Otherwise, use the following steps to reset the fuser or transfer belt counter.
Note: Although the fuser is shown, the same procedure is used to clear the transfer belt.
1Press Menu until Supplies Menu appears on the second line of the display.
2Press Select to open the Supplies Menu.
3Press Menu until Replace Supplies appears on the second line of the display.
4Press Select to open Replace Supplies.
1 Menu 2Select 3
Go 5
Return 4
Stop 6
SUPPLIES MENU
1 Menu 2Select 3
Go 5
Return 4
Stop 6
SUPPLIES MENU
REPLACE SUPPLIES
114
5Press Menu until Fuser appears on the second line of the display.
6Press Select to open the Fuser menu item.
7Press Menu until =Replaced appears on the second line of the display.
8Press Select to reset the fuser counter to zero.
9Press Go.
1 Menu 2Select 3
Go 5
Return 4
Stop 6
REPLACE SUPPLIES
Fuser
1 Menu 2Select 3
Go 5
Return 4
Stop 6
Fuser
=Replaced
115
34 Removing memory and network
options
Previously installed memory and interface options can easily be removed by using the procedures on
the following pages.
1Turn the printer off.
2Unplug the power cord.
3Disconnect the parallel or Ethernet cable from the printer.
If you have any other devices connected to the printer, turn them off as well and unplug any
cables going to the printer.
Removing the system board access cover
You must remove the system board access cover to install memory cards, a firmware card, a hard disk,
or an option card.
CAUTION: This printer weighs 69.9 kg (154 Ib) and requires four people to lift. Anytime you
move or lift the printer make sure you have enough people to help. Use the
handholds located on the sides to lift the printer.
1Move the printer or place it in an area that will be convenient for removing the cover and
components.
You need a number 2 Phillips screwdriver to remove the cover and system board.
2Loosen the eight screws on the cover. Do not remove the screws completely.
116
3Slide the cover up and away from the printer.
WARNING:The system board access cover must be replaced before operating the printer.
Locating memory and network options
Use the following illustration to locate the connector for the card you want to remove.
Screws
Screws
Memory and flash memory
card connectors
Option card
connector
Parallel
connector
USB
connector
Ethernet
connector
Optional hard disk
Optional
ImageQuick™
firmware card
117
Removing a memory card
Complete the following steps if you need to remove a memory card. Otherwise, go to Installing the
system board access cover.
1Make sure the printer is turned off and the power cord is unplugged.
2Follow the steps for Removing the system board access cover if it is still installed.
WARNING:Memory cards are easily damaged by static electricity. Touch something metal
such as the printer frame before you touch a memory card.
3Push the latches at each end of the connector away from the card.
The memory card moves out of the connector as the latches open.
4Gently pull the card out.
5Place the card into the original packaging.
If you do not have the original packaging, wrap the card in paper and store it in a box.
6Close both latches.
7Repeat steps 3 through 6 to remove additional memory cards.
118
Removing an option card
You need a number 2 Phillips screwdriver to remove an option card.
1Make sure the printer is turned off and the power cord is unplugged.
2Complete the steps for Removing the system board access cover if it is still installed.
WARNING:Option cards are easily damaged by static electricity. Touch something metal such
as the printer frame before you touch an option card.
3Remove the screws securing the option card to the cover.
119
4Gently pull the option card completely out.
5Place the option card in its original packaging.
If you do not have the original packaging, wrap the option card in paper and store it in a box.
6If you are not installing another option card in the connector, cover the opening with a blank
internal print server cover.
Cover the opening to ensure proper airflow around the system board. If you do not have a
blank cover, contact your service representative and request one.
Removing a firmware card
1Make sure the printer is turned off and the power cord is unplugged.
2Complete the steps for Removing the system board access cover if it is still installed.
WARNING:Firmware cards are easily damaged by static electricity. Touch something metal
such as the printer frame before you touch a firmware card.
If an option card has been installed, you need to remove the option card before removing the firmware
card.
120
3Holding the firmware card by its sides, gently pull the card completely out.
Avoid touching the metal pins on the bottom of the card.
4Place the firmware card in its original packaging.
If you do not have the original packaging, wrap the firmware card in paper and store it in a box.
5If you removed an option card to access the firmware card, reinstall the option card.
Removing a hard disk
1Make sure the printer is turned off and the power cord is unplugged.
2Complete the steps for Removing the system board access cover if it is still installed.
WARNING:Hard disks are easily damaged by static electricity. Touch something metal such as
the printer frame before you touch a hard disk.
If an option card has been installed, you need to remove the option card before removing the hard disk.
3Pull the hard disk out of the holes on the system board. It is attached by three posts on the
mounting plate.
121
4Flip the hard disk over, and then unplug the ribbon cable connector from the connector on the
system board.
5Remove the ribbon cable from the hard disk.
6Place the hard disk in the original packaging.
If you do not have the original packaging, wrap the parts in paper and store them in a box.
122
Installing the system board access cover
After you have removed the options, complete the following steps to install the cover and system
board.
You need a number 2 Phillips screwdriver to install the cover.
1Make sure the printer is off and unplugged.
2Align the holes on the access cover with the screws.
123
3Place the cover against the printer and slide it down.
4Tighten the eight screws.
5Connect the printer cables and power cord, and turn the printer on.
Note: To prevent an electrical overload, plug your printer into a well-grounded outlet on a
non-ground fault interrupter (GFI) circuit.
124
35 Removing an optional drawer
1Turn the printer off.
2Unplug the power cord.
Note: To prevent an electrical overload, plug your printer into a well-grounded outlet on a
non-ground fault interrupter (GFI) circuit.
3Disconnect the parallel or Ethernet cable from the printer.
If you have any other devices connected to the printer, turn them off and unplug any cables
going to the printer.

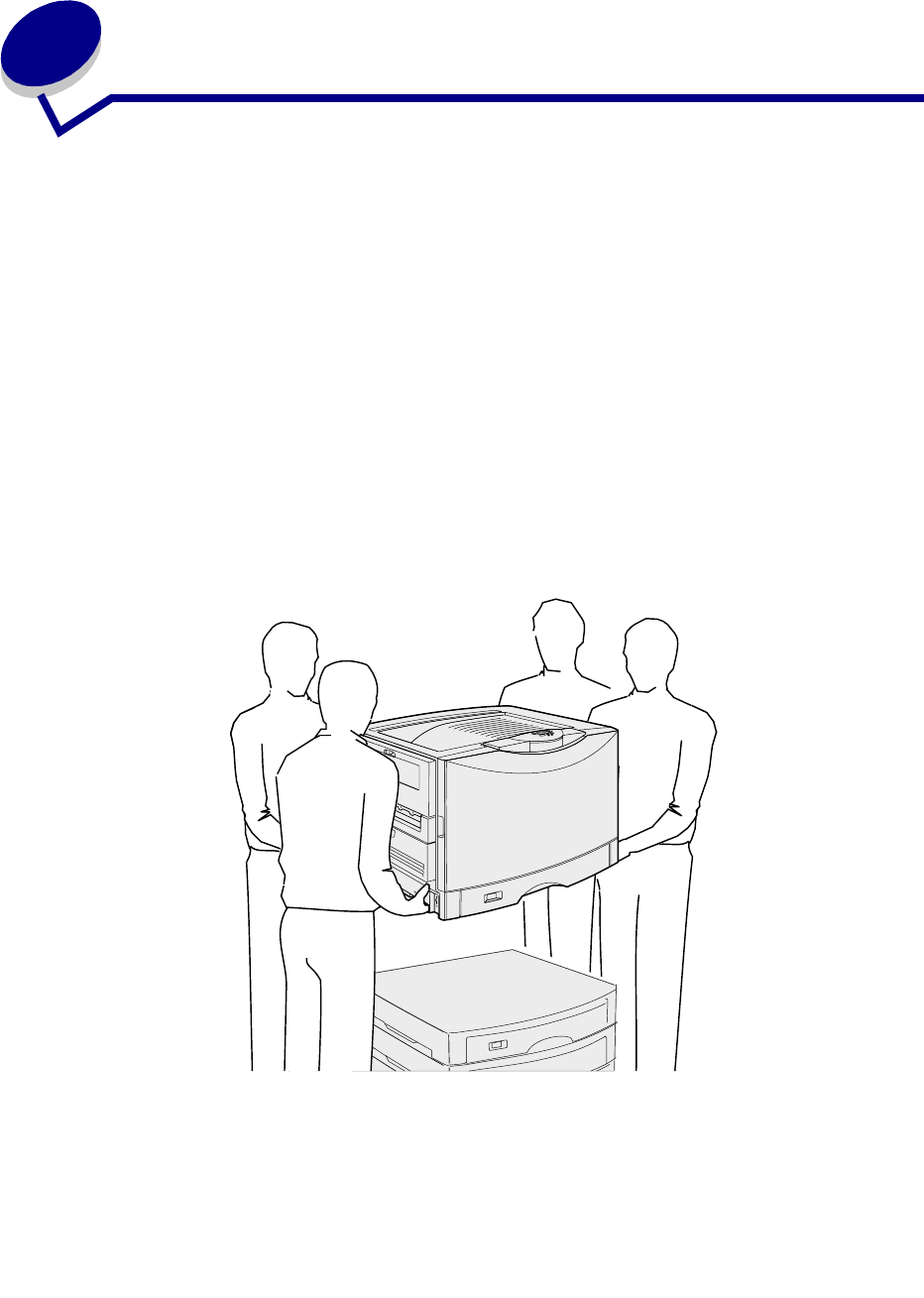

CAUTION: This printer weighs 69.9 kg (154 Ib) and requires four people to lift. Anytime you
move or lift the printer make sure you have enough people to help. Use the
handholds located on the sides to lift.
4Lift the printer and move it away from the optional drawer.
CAUTION: An optional drawer weighs 18.5 kg (40.8 Ib). Have someone help when lifting.
125
5Lift the optional drawer.
126
36 Removing the duplex unit
1Turn the printer off.
2Open the duplex unit door.
127
3Loosen the thumbscrews securing the duplex unit.
4Slide the duplex unit out.
128
5Close the duplex unit door.
129
37 Removing the high capacity feeder
1Turn the printer off.

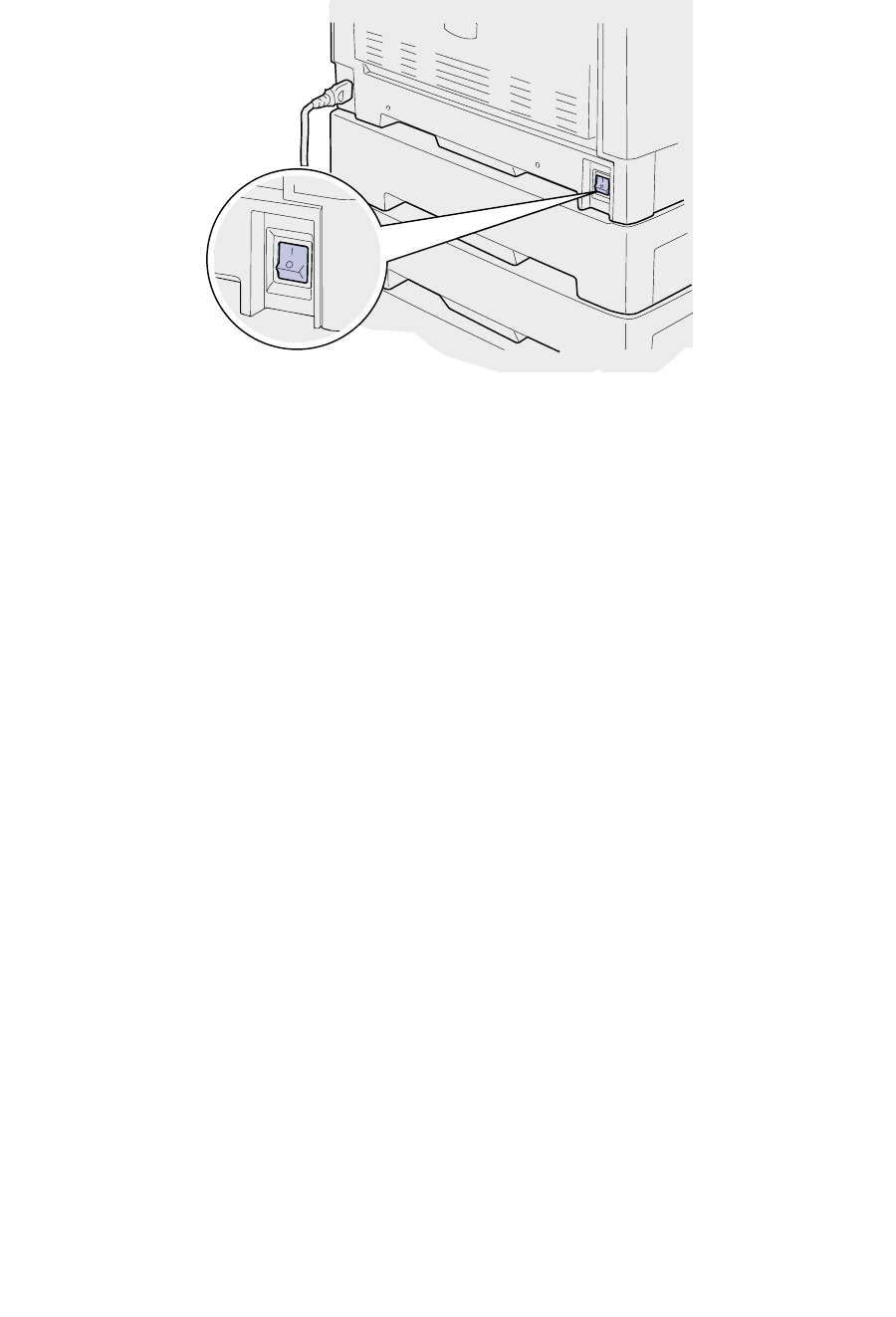

2Unplug the high capacity feeder power cord from the electrical outlet.
3Disconnect the interface cable from the side of the high capacity feeder.
4Roll the high capacity feeder away from the printer.
5Remove the high capacity feeder from the guide rail.
130
6Raise the guide rail and pull it away from the docking frame.
7Remove the wrench from the holder in the high capacity feeder.
131
8Remove the four screws securing the docking frame.
9Insert the two side covers into the screw holes on the optional drawer until they snap into
place.
132
38 Recycling used supplies
Lexmark’s Operation ReSourceSM program lets you participate in a worldwide recycling effort at no
cost to you.
Pack your old toner cartridge in the new toner cartridge shipping box. Follow the instructions in the box
to send the old cartridge back to Lexmark.
You can also recycle some replacement hardware parts, such as the transfer belt and the fuser.
If a prepaid shipping label is not available for your country, contact the place where you bought your
printer for additional recycling information.
WARNING:Lexmark does not recommend refilling used toner cartridges or purchasing refilled
cartridges from a third party. Print quality and printer reliability cannot be
guaranteed if you do. The printer warranty does not cover damage caused by using
refilled cartridges.
133
39 Ordering supplies
In the U.S. or Canada, call 1-800-438-2468 for information about Lexmark Authorized Supplies
Dealers in your area. In other countries, contact the place where you bought your printer.
You can also visit the Lexmark online store at www.lexmark.com to order supplies. Click the Web link
on the bottom of this page.
Replacing maintenance items as needed helps you maintain top performance, optimize print quality,
and avoid printing problems.
Ordering a fuser
When the 80 Fuser Life Warning message appears on the display, you should order a new fuser.
Use P/N 56P9900 to order a fuser for a 120 V printer. Use P/N 56P9901 to order a fuser for a 230 V
printer. See Replacing the fuser for more information.
Ordering an oil coating roll
When the 85 Coating Roll Life Warning message appears on the display, you should order a
new oil coating roll.
Use P/N 12N0774 to order an oil coating roll. See Replacing the oil coating roll for more information.
Ordering a transfer belt
When the 80 Belt Life Warning message appears on the display, you should order a new fuser.
Use P/N 56P9903 to order a transfer belt. See Replacing the transfer belt for more information.
134
Ordering a toner cartridge
When the 88 <color> Toner Low message appears on the display, you should order a new toner
cartridge. You can continue to print after the 88 <color> Toner Low message appears for a few
hundred pages until the print fades or no longer prints satisfactorily, or until the 88 <color>
Toner Empty message appears, at which time you must replace the toner cartridge to continue
printing.
Order the appropriate toner cartridge:
See Replacing a toner cartridge for more information.
Part number Toner cartridge
12N0771 Black toner cartridge
12N0770 Yellow toner cartridge
12N0768 Cyan toner cartridge
12N0769 Magenta toner cartridge
135
40 Calling for service
When you call for printer service, describe the problem you are experiencing, the message on the
display, and the troubleshooting steps you have already taken to find a solution.
You need your printer model type and serial number. Refer to the label on the inside of the front cover
for this information.
Note: The serial number is also listed on the menu settings page you can print from the
Utilities Menu. See Printing the menu settings page for more information.
For service in the U.S. or Canada, call 1-800-Lexmark (1-800-539-6275). For other countries, refer to
the numbers listed on the drivers CD.
136
41 Contacting Lexmark customer
service on the Web
Technical support and information is available on the Web at www.lexmark.com. You can look for
solutions to your printing problems using the Lexmark Technical Library, FAQs, and the Lexmark
Knowledge Base. You can also contact the Customer Support Center (CSC) by e-mail.
When you contact the Lexmark CSC, describe the problem you are experiencing, the message on the
display, and the troubleshooting steps you have already taken to find a solution.
You need your printer model type and serial number. Refer to the label on the back of the printer near
the power cord for this information.
Note: The serial number is also listed on the menu settings page you can print from the
Utilities Menu. See Printing the menu settings page for more information.
137
42 Solving display problems
If the suggested corrective action does not fix the problem, call your service representative.
Problem Action
Operator panel displays only
diamonds or is blank. •Turn the printer off, wait about 10 seconds, and turn the printer on.
•Performing Self Test appears on the operator panel. When the test is
completed, Ready is displayed. If these messages do not appear, turn the
printer off and call the Lexmark Customer Support Center.
Menu settings changed from
the operator panel have no
effect.
Settings in the software application, the printer driver, or the printer utilities are
overriding the settings made from the operator panel.
•Change the menu settings from the printer driver, the printer utilities, or the
software application instead of the operator panel.
•Disable the settings in the printer driver, the printer utilities, or the software
application so you can change settings from the operator panel.
138
43 Solving network printing problems
If a job did not print or incorrect characters printed, verify that the Lexmark internal print server or
external print server is set up properly and the network cable is connected.
Note: Refer to the drivers CD for more details.
For Novell users:
•Make sure the netware.drv file is dated October 24, 1994, or later.
•Make sure the NT (no tabs) flag is included in the capture statement.
For Macintosh users:
•The printer may need an optional internal print server to allow Macintosh connection.
•Verify that the printer is set up correctly in Chooser.
139
44 Checking an unresponsive printer
If your printer is not responding, first make sure that:
•The printer cable is securely attached to the printer and the host computer.
•The power cord is plugged into the printer and a properly grounded electrical outlet.
•The printer power switch is on.
•The electrical outlet is not turned off by any switch or breaker.
•The printer top cover is completely closed.
•All printer options are properly installed.
•Your printer driver settings are correct.
Once you’ve checked each of these, turn the printer off, wait about 10 seconds, and turn the printer
back on. This often fixes the problem.
Note: If a message appears on the operator panel display, see Understanding printer
messages for more information.
140
45 Solving printing problems
If the suggested corrective action does not fix the problem, call your service representative.
Problem Action
Job did not print or incorrect
characters printed. Make sure Ready appears on the operator panel before you send a job to
print. Press Go to return to Ready.
Make sure print media is loaded. Press Go to return to Ready.
Verify the printer is using the correct printer language.
Verify you are using the correct printer driver.
Make sure the parallel, serial, ethernet, or USB cable is firmly plugged in at
the back of the printer. Make sure you are using the correct cable. Use IEEE
1284-compliant parallel cable. We recommend Lexmark part number
1329605 (10 ft) or 1427498 (20 ft). If you use RS-232 Serial, verify that a null
modem cable is used.
If the printer is connected through a switch box, try a direct connection.
Verify the correct paper size is selected through the operator panel, in the
printer driver, or in the software application.
Make sure PCL SmartSwitch and PS SmartSwitch are set to On.
Job did not print or incorrect
characters printed (continued). If you are using a print spooler, verify the spooler is not stalled.
If you print across a network or on a Macintosh computer, see Solving
network printing problems.
Check the printer interface from the Setup Menu.
Determine which host interface you are using. Print a menu settings page to
verify the current interface settings are correct. See Printing the menu
settings page.
If you are using a serial interface:
•Make sure Honor DSR is set to Off.
•Check the protocol, baud, parity, and data bit settings. The settings on the
printer and on the host computer should match.
Printer seems to print slowly. Make sure you select the appropriate Paper Type setting before sending a job
to print.
If the Paper Type is set to Transparency, the printer adjusts the fuser
temperature and slows printing to improve the print quality. After printing on
this media, the printer requires additional time to warm the fuser after you
select another Paper Type setting (such as Plain Paper or Letterhead).
Reduce the complexity of your print job. Eliminating the number and size of
fonts, the number and complexity of images, and the number of pages in a job
may increase print speed.
Set Page Protect Off from the Setup Menu. See Page Protect for more
information.
141
Unexpected page breaks
appear. Increase the Print Timeout value in the Setup Menu.
Transparencies jam. If you just turned the printer on or the printer has been idle for a period of
time, print on paper before trying to print on transparencies.
Disabling Power Saver may also prevent transparencies from jamming after
the printer has been idle. See Power Saver for more information.

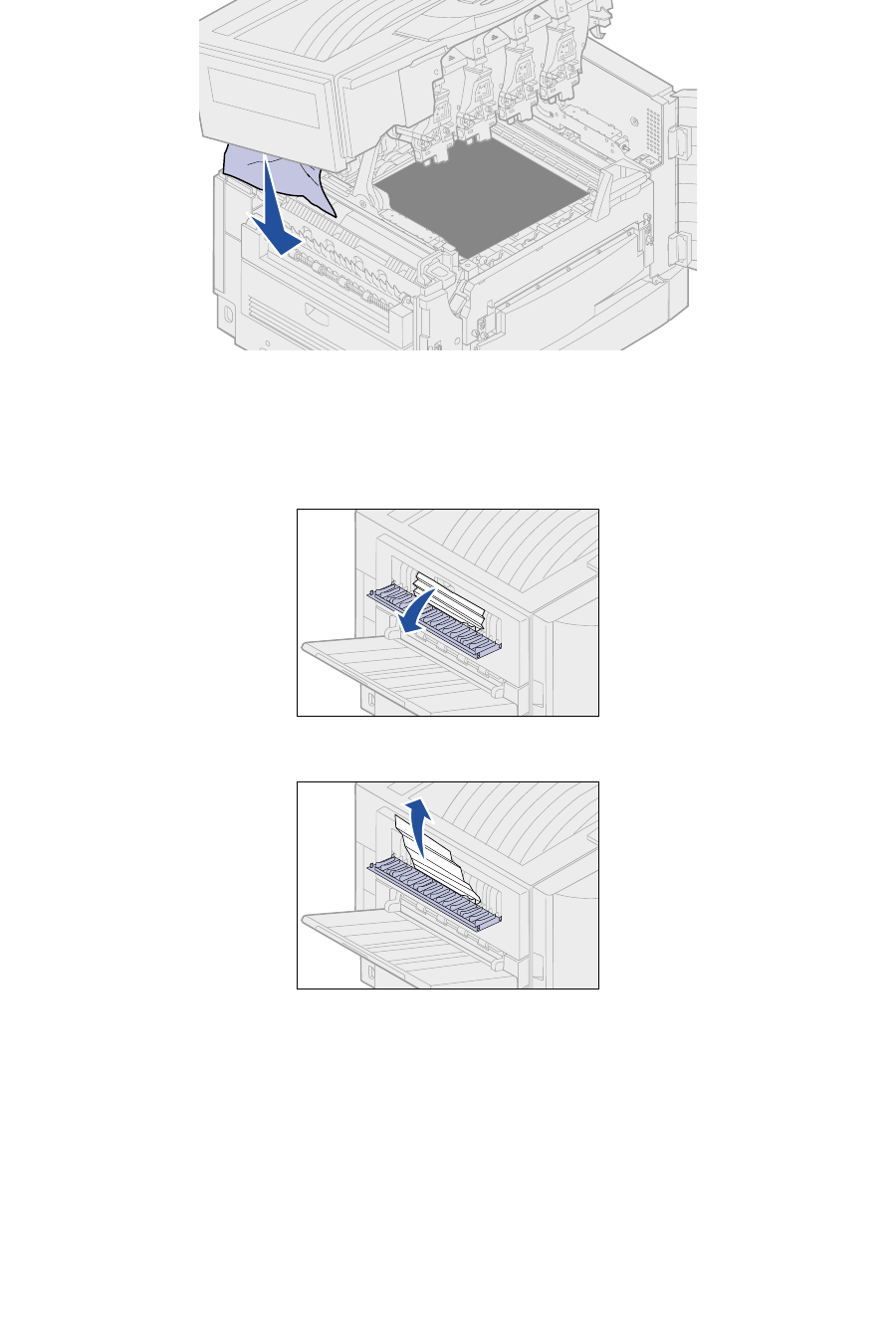

Paper is jammed in the fuser. Rotate the fuser pressure release lever down and remove the jammed paper.
See Clearing paper jams for more information.
Part of the printed page was
clipped or is cut off. Make sure you have the correct size paper in the paper tray and the paper
size is set correctly for the paper in the tray.
Printer is connected to the USB
port, but will not print. Make sure you are using Windows 98, Windows 2000, Windows Me, or
another USB-capable operating system supported by Lexmark.
Paper does not feed properly. Make sure you’re using recommended media. Do not use 16 lb paper or
paper greater than 32 lb with the duplex unit.
Make sure the adjustable guides in the paper tray are adjusted properly for
the media you loaded.
Make sure the stack of media does not exceed the maximum stack height
indicated on the tray.
Print media misfeeds or multiple
feeds occur. Make sure the print media you are using meets the specifications for your
printer. Refer to the Card Stock & Label Guide for more information.
Flex print media before loading it in any of the paper sources.
Make sure the print media is loaded correctly.
Make sure the paper width and length guides on the paper sources are
adjusted correctly.
Do not overfill the paper sources.
Do not force print media into the multipurpose feeder when you load it;
otherwise, it may skew or buckle.
Remove any curled print media from paper sources.
Print media misfeeds or multiple
feeds occur (continued). Load the recommended print side correctly for the type of print media you are
using. See Loading media for more information.
Load less print media in the paper sources.
Turn the print media over or around and try printing again to see if feeding
improves.
Do not mix print media types.
Do not mix reams of print media.
Remove the top and bottom sheets of a ream before loading the print media.
Load a paper source only when it is empty.
Envelope misfeeds or
multiple feeds occur. Remove the stack of envelopes from the multipurpose feeder. Load one
envelope, feed it through the printer, and then reload the stack of envelopes in
the multipurpose feeder.
Push down the bottom plate until it locks into place. See Loading the
multipurpose feeder for an illustration.
Problem Action
142
Job prints from the wrong paper
source or on the wrong print
media.
Check the Paper Type setting in the Paper Menu from the printer operator
panel and in the printer driver.
Printer does not duplex pages. •Make sure Duplex is selected in either the Finishing Menu or the
application you are printing from.
•Make sure you have enough printer memory installed.
Problem Action
143
46 Solving print quality problems
Problem Action
Print is too light, or printed
images or characters have voids
or dropouts.
Make sure you’re using recommended paper or other media. Use media
from a new package. See Media guidelines.
Make sure you have selected the correct Paper Type setting for the media
you’re using.
Set Toner Darkness to 4 in the Color Menu.
Clean the LEDs. See Cleaning the LEDs.
If you suspect a toner cartridge is low on toner, remove the appropriate
cartridge and gently shake it back-and-forth to distribute the toner evenly.
Reinsert the cartridge and try printing the job again.
Replace the toner cartridge that matches the color on the page that is too
light or not present in the void areas. See Replacing a toner cartridge.
Replace the photodevelopers. If only black print appears light, you can
replace just the black photodeveloper. If one of the colors prints too light,
replace all three of the color photodevelopers. See Replacing a
photodeveloper.
Colored lines, streaks, or
smudges appear on the printed
page, or print appears blurred or
unclear.
Clean the LEDs. See Cleaning the LEDs.
Remove the affected toner cartridge and gently shake it back-and-forth to
distribute the toner evenly. Reinsert the cartridge and try printing the job
again. See Replacing a toner cartridge.
Replace the toner cartridge that matches the color of the lines, streaks, or
smudges on the page. See Replacing a toner cartridge.
Replace the photodevelopers. If only black print appears light, you can
replace just the black photodeveloper. If one of the colors prints too light,
replace all three of the color photodevelopers. See Replacing a
photodeveloper.
Toner specks appear on the
page. Replace the oil coating roll. See Ordering supplies.
144
Toner covers the background of
the page. Make sure the affected toner cartridge is completely installed.
The page has 100% coverage of
one color. Replace the photodevelopers. If the page is black, you can replace just the
black photodeveloper. If the page is another color, replace all three of the
color photodevelopers. See Replacing a photodeveloper.
Light lines or streaks appear on
the printed page. Clean the LEDs. See Cleaning the LEDs.
Remove the toner cartridge that matches the color of the lines or streaks and
gently shake it back and forth to distribute the toner evenly. Reinsert the
toner cartridge and try printing the job again.
Replace the photodevelopers. If the problem only occurs when printing black,
you can replace just the black photodeveloper. If the problem occurs when
printing one of the colors, replace all three of the color photodevelopers. See
Replacing a photodeveloper.
Replace the toner cartridge that matches the color of the lines or streaks on
the page. See Replacing a toner cartridge.
The page is blank or one of the
colors is missing. Replace the toner cartridge that matches the missing color on the page. See
Replacing a toner cartridge.
Toner smears or rubs off the
page. Make sure you’re using recommended paper or other media. Refer to the
Card Stock & Label Guide for more information.
Make sure you have selected the correct Paper Type setting for the media
you’re using.
You may need to replace the fuser. See Replacing the fuser.
Problem Action
145
Printed materials delivered by
the postal service arrive with
ghosting or mirror images of the
text visible on the page.
When preparing printed materials for mailing:
•Use 24 lb (90 g/m2) paper.
•Avoid rough paper; select paper with a smoothness from 100 to 150
Sheffield points.
•Fold sheets with the text facing outward.
•Meter envelopes or use precanceled stamps.
•Place envelopes in trays and deliver to the post office; do not drop
envelopes into mailboxes.
Quality of printed transparencies
is inadequate. Make sure you’re using recommended Lexmark transparencies. See
Transparencies.
Make sure you’re loading transparencies properly. See Loading
transparencies
When printing transparencies, always set the Paper Type to Transparency.
See Paper Type.
Set the Color Correction menu item to Vivid. See Color Correction.
Avoid getting fingerprints on transparencies before printing.
Quality of printed images is
inadequate. Set Toner Darkness to 4 in the Color Menu.
A white gap is noticeable
between color fills. Turn the printer off and back on. The printer calibrates the photodevelopers
and drive gears, which may improve registration. See Print Alignment for
more information.
Colors do not print as you
expect. Make sure you have selected the appropriate Color Correction and Print
Mode values for the job you’re printing. See Color Menu for more
information.
Problem Action
146
47 Clearing paper jams
By carefully selecting print media and loading them properly, you should be able to avoid most paper
jams. If jams do occur, follow the steps outlined in this section.
To resolve the paper jam messages, you must clear the jammed area and then press Go to clear the
message and resume printing. The printer prints a new copy of the page that jammed if Jam Recovery
is set to On or Auto; however, the Auto setting does not guarantee the page will print.
Identifying paper jam areas
See the diagram on page 146 for the path the paper travels through the printer and options, and areas
where jams may occur. The path varies depending on the paper source and output bin.
Click a message below for more information.
200 Paper Jam
Check Areas A,B
241 Paper Jam
240 Paper Jam
242 Paper Jam
243 Paper Jam
244 Paper Jam
249 Paper Jam
200 Paper Jam
Check Areas C
200 Paper Jam
Check Area F
200 Paper Jam
Check Area E
200 Paper Jam
Check Area D
T 5
T 1
T 2
T 3
T 4
147
200 Paper Jam
<x> Pages Jammed (Check Areas A-F, T1-5, MPF)
This message identifies the areas (A–F, M P F, or T1–T5) you need to check to remove the paper or to
clear the message. The display will alternate between 200 Paper Jam <x> Pages Jammed and
Check Areas A-F., T1-5, MPF:
Note: If there is a paper jam when you turn the printer on, the second line of the 200
Paper Jam message will be blank. To resolve the message, you must clear all
paper from the paper path.
Check Areas
A,B
This message indicates a paper jam in the transfer belt, fuser, or output roller area. To clear areas A–
B:
1Complete the steps to open the top cover.
Note: If you need instructions on how to open the top cover, see Opening the top cover.
WARNING:Never touch the photodeveloper drum on the underside of the toner cartridge.
Note: The paper may be covered with unfused toner, which can stain garments.
Jam message Jam message
Check Areas A,B Check Area F
Check Area C Check MPF
Check Area D Check T1–T4
Check Area E Check T5
Photodeveloper
148
2Remove any paper on the transfer belt.
If the paper source was the multipurpose feeder, check the area between the multipurpose
feeder and the transfer belt.
WARNING:Do not use any pointed objects to remove the paper. This could cause permanent
damage to the transfer belt.
3Check the fuser area and top cover for additional jams.
If there is no jam in the fuser area or top cover, close the top cover and front door, and then
press Go. If a jam is present, continue with step 4.
Note: If you need instructions on how to close the top cover, see Closing the top cover.
4Lift the fuser pressure release lever.
Transfer belt
149
5Slowly pull the paper out of the fuser toward the inside of the printer.
6Rotate the fuser pressure release lever down.
Note: The top cover will not close until the lever is in the down position.
7Check the top cover for additional jams.
If there is no jam in the top cover, close the top cover and front door. If a jam is present,
continue with step 8.
Note: If you need instructions on how to close the top cover, see Closing the top cover.
150
8Remove the jam from the top cover.
9Close the top cover and the front door.
Note: If you need instructions on how to close the top cover, see Closing the top cover.
10 Open the jam access door on the left side of the printer.
11 Remove any paper inside the printer.
151
12 Close the jam access door.
To prevent additional paper jams, make sure both sides of the door are closed.
13 Press Go.
Check Area C
Jams that cause a Check Area C message require opening the duplex jam access door. If you are
printing on small paper, the following steps may not clear the jam. See Removing small size paper
from the duplex unit.
1Open the duplex jam access door on the right side of the printer.
2Remove the jam.
152
3Press Go.
If the paper jam message continues, check and clear all paper from the paper path.
Check Area D
This message indicates a paper jam in the duplex unit area. To clear area D:
1Open the duplex jam access door on the right side of the printer.
2Gently pull out the duplex unit.
153
3Turn the paper forwarding dial counterclockwise.
If the paper advances out of the duplex unit, remove the jam and go to step 7. If the paper
does not advance, go to step step 4.
4Open the duplex unit covers.
5Remove the jam.
154
6Close the duplex unit covers.
7Push the duplex unit until it stops.
8Close the access door.
9Press Go.
If the paper jam message continues, check and clear all paper from the paper path.
155
Removing small size paper from the duplex unit
When printing on both sides of A5 or other small size paper, you may need to partially remove the
duplex unit to clear the jam.
1Turn off the printer.
2Open the duplex unit door.
156
3Loosen the two screws shown.
4Pull out the duplex unit far enough to see the duplex unit inlet.
157
5Remove jam from the duplex unit inlet.
6Slide the duplex unit in.
7Align the thumbscrews on the duplex unit with the holes in the printer.
8Tighten the thumbscrews to secure the duplex unit.
158
9Close the duplex unit door.
Check Area E
This message indicates a jam in the top, middle, or bottom optional drawer paper path area.
Note: If you have a high capacity feeder, pull the feeder away from the printer.
1Open the jam access door on the top optional drawer.
159
2Remove the jam.
3Close the jam access door.
4Open the jam access door on the middle optional drawer.
5Remove the jam.
6Close the jam access door.
160
7Open the jam access door on the bottom optional drawer.
8Remove the jam.
9Close the jam access door.
10 Press Go.
If the paper jam message continues, check and clear all paper from the paper path.
161
Check Area F
1Pull the high capacity feeder away from the printer.
2Open the jam access door on the top optional drawer.
162
3Remove any jams.
4Close the jam access door.
5Slide the high capacity feeder until the feeder locks to the docking frame.
When the feeder is in the correct position, you hear a click.
6Press Go.
If the paper jam message continues, check and clear all paper from the paper path.
163
240 Paper Jam
Check MP Feeder
1Slowly pull the jam straight out of the multipurpose feeder.
If the paper will not come out, proceed with step 2.
2Open the top cover.
Note: If you need instructions on how to open the top cover, see Opening the top cover.
3Remove the paper on the transfer belt.
WARNING:Do not touch, drop, or place anything on the transfer belt. Touching the surface of
the transfer belt or placing items on it may cause damage.
4Close the top cover.
Note: If you need instructions on how to close the top cover, see Closing the top cover.
Transfer belt
164
5Press Go.
24<x> Paper Jam
Check Tray <x>
Jams in five areas result in a 24<x> Paper Jam message, where x represents the tray number where
the jam has occurred. Paper jam messages 241–244 indicate a jam has occurred in one of the paper
trays. A 249 Paper Jam Check Tray <x> message indicates a jam has occurred in the high capacity
feeder. See Identifying paper jam areas for tray numbering.
241-244 Paper Jam
1Pull out the tray indicated on the display.
2Remove any wrinkled or creased paper.
165
3Push down on the remaining paper in the tray until the bottom plate clicks into place.
4Close the tray.
5Press Go.
If the paper jam message continues, check and clear all paper from the paper path.
166
249 Paper Jam Check Tray <x>
A 249 Paper Jam Check Tray <x> message indicates a jam has occurred in the high capacity
feeder.
Note: If you have an optional printer cabinet, the high capacity feeder will be identified as
tray 3.
1Open the top cover.
2Remove the jam.
167
3Close the top cover.
4Press Go.
168
48 Resolving other problems and
questions
Problem Action
Need updated printer drivers or
utilities. •Refer to the drivers CD that came with your printer. It contains printer
drivers and utilities.
•Visit the Lexmark Web site, www.lexmark.com, for the most current
printer drivers or utilities.
Need to attach a serial cable to
the printer. If your printer is configured with a serial port, or you have installed an
optional interface card, refer to the Setup Guide.
Cannot find the printer escape
codes. Refer to the Technical Reference available on the Lexmark Web site at
www.lexmark.com.
Cannot print color. Make sure the Print Mode menu item is not set to Black and White.
Make sure you’re using a color printer driver.
Make sure color printing is selected from the printer driver.
If you are printing on a network, make sure your network settings allow you
to print in color.
Cannot print the menu settings
page. Make sure the selected paper source holds A4, letter, or legal size paper.
Make sure the Paper Type setting for the selected source is Plain Paper.
Cannot print using the infrared
port. Make sure neither the Infrared Port nor Infrared Buffer is set to Disabled in
the Infrared Menu. Also check the Window Size and Transmit Delay settings.
See Infrared Menu.
Make sure the distance between the two infrared ports is 3 m (10 ft) or less.
If necessary, move the ports closer together.
Make sure no objects are between the two ports.
Make sure the computer is on a level surface.
Bright light, such as direct sunshine or nearby artificial lights, may interfere
with communication. If necessary, turn off lights or close window shades or
blinds.
Cannot print using the
LocalTalk port. Make sure neither LocalTalk Port nor LocalTalk Buffer is set to Disabled in
the LocalTalk Menu.
Verify the printer is set up correctly in the Macintosh Chooser.
169
Cannot receive faxes. Make sure neither Fax Port nor Fax Buffer is set to Disabled in the Fax Menu.
Make sure the fax machine you have connected is a class 1 fax modem.
If power to the modem has been interrupted, complete the following steps in
the order listed:
1Turn the printer power off.
2Turn the modem power on.
3Turn the printer power on.
Large jobs will not collate. Reduce the complexity of your print job. Eliminate the number and size of
fonts, the number and complexity of images, and the number of pages.
Add more printer memory. See Adding memory, or refer to the Setup Guide
for more information.
Install an optional hard disk. See Hard disk, or refer to the Setup Guide for
more information.
Transparencies curl excessively. Make sure you’re using recommended Lexmark transparencies. See
Transparencies for more information.
Make sure exit tray is fully open.
Paper jam message does not
clear. To clear the paper jam messages, you must press Go. If the paper jam
message continues, remove all paper from the paper path. Check both inside
the printer as well as the paper source you were using. Close all doors and
press Go. See Clearing paper jams for more information.
Page that jammed does not
reprint after you clear the jam. Set Jam Recovery to Auto or to On in the Setup Menu. See Auto Continue
for more information.
Cannot insert a toner cartridge
into the printer. Make sure the cartridge is aligned properly and is being installed in the
correct location. See Replacing a toner cartridge for more information.
Toner accumulates inside the
printer. Replace the toner cartridge that matches the color of the toner that has
accumulated inside the printer. See Replacing a toner cartridge.
Problem Action
170
49 Configuring printer alerts
You can configure the printer several ways to let you know when it requires attention.
Using the Setup Menu
Selecting Auto Continue may affect how the printer alerts execute. This setting defines how long the
printer waits after displaying a message before it resumes printing.
Using MarkVision Professional
MarkVision™ Professional, Lexmark’s network printer management utility, indicates when it is time to
replace supplies and points out actual or potential problems. When a printer needs attention, it alerts
the network administrator with a detailed graphic of the printer showing the cause for the alert (for
example, an empty paper tray). For more information about MarkVision Professional, refer to the
drivers CD that shipped with your printer.
Using MarkVision Messenger
MarkVision Messenger lets you create Actions that execute specific commands whenever messages
like Tray <x> Missing or 88 <color> Toner Low appear on the display. For example, you can
create an Action that sends an e-mail to the administrator when the printer runs out of paper.
Actions can be set up to occur automatically, as well as conditionally or repeatedly. For more
information about MarkVision Messenger, refer to the drivers CD that shipped with your printer.
Menu item Function Value Result
Alarm Control Lets you establish whether
the printer sounds an alarm
when the printer requires
operator intervention.
Off The alarm does not sound, but printing
stops until the interventions are
cleared.*
Single The printer stops printing, displays a
message, and activates the selected
alarm type.
Continuous
*If multiple attendance conditions are pending, the alarm only sounds when the first message is displayed. No
additional alarms sound as subsequent attendance conditions arise.
171
50 Disabling operator panel menus
To disable the operator panel menus so that changes cannot be made to the printer default settings:
1Turn the printer off.
Note: Disabling the operator panel menus does not prevent access to the Job Menu or to
the Print and Hold function.
2Press and hold Select and Return and turn the printer on.
3Release the buttons when you see Performing Self Test.
Config Menu appears on the first line of the display.
4Press Menu until you see Panel Menus, and then press Select.
Disable appears on the second line of the display.
5Press Select.
Locking Menus appears briefly.
6Press Menu until you see Exit Config Menus, and then press Select.
The menus are disabled. If you press Menu, the message Menus Disabled appears.
Enabling operator panel menus
1Repeat steps 1 through 4.
2Press Menu until you see Enable.
3Continue with steps 5 and 6.
172
51 Understanding fonts
Resident fonts
Your printer is equipped with resident fonts stored permanently in printer memory. Different fonts are
available in PCL 6 and PostScript 3 emulations. Some of the most popular typefaces, like Courier and
Times New Roman, are available for all printer languages.
The fonts in the PCL emulation are compatible with the fonts in the HP4500 and include four additional
fonts and many extra symbol sets to support extra languages and applications. The fonts in the
PostScript emulation are compatible with Adobe PostScript 3 and include 20 additional fonts.
The following tables list all the fonts resident in your printer. See Printing sample fonts for instructions
on how to print samples of the fonts. You can select the resident fonts from your software application,
or from the operator panel if you are using PCL 6 emulation.
PCL 6 emulation PostScript 3 emulation
Albertus Medium AlbertusMT
AlbertusMT-Italic
AlbertusMT-Light
Albertus Extra Bold
Antique Olive AntiqueOlive-Roman
Antique Olive Italic AntiqueOlive-Italic
Antique Olive Bold AntiqueOlive-Bold
AntiqueOlive-Compact
Arial ArialMT
Arial Italic Arial-ItalicMT
Arial Bold Arial-BoldMT
Arial Bold Italic Arial-BoldItalicMT
ITC Avant Garde Book AvantGarde-Book
ITC Avant Garde Book Oblique AvantGarde-BookOblique
ITC Avant Garde Demi AvantGarde-Demi
ITC Avant Garde Demi Oblique AvantGarde-DemiOblique
ITC Bookman Light Bookman-Light
ITC Bookman Light Italic Bookman-LightItalic
ITC Bookman Demi Bookman-Demi
173
ITC Bookman Demi Italic Bookman-DemiItalic
Clarendon Condensed Bold
Coronet Coronet-Regular
CourierPS Courier
CourierPS Oblique Courier-Oblique
CourierPS Bold Courier-Bold
CourierPS Bold Oblique Courier-BoldOblique
CG Omega
CG Omega Bold
CG Omega Italic
CG Omega Bold Italic
Garamond Antiqua Garamond-Antiqua
Garamond Halbfett Garamond-Halbfett
Garamond Kursiv Garamond-Kursiv
Garamond Kursiv Halbfett Garamond-KursivHalbfett
Helvetica Light Helvetica-Light
Helvetica Light Oblique Helvetica-LightOblique
Helvetica Black Helvetica-Black
Helvetica Black Oblique Helvetica-BlackOblique
Helvetica Helvetica
Helvetica Italic Helvetica-Oblique
Helvetica Bold Helvetica-Bold
Helvetica Bold Italic Helvetica-BoldOblique
Helvetica Narrow Helvetica-Narrow
Helvetica Narrow Italic Helvetica-Narrow-Oblique
Helvetica Narrow Bold Helvetica-Narrow-Bold
Helvetica Narrow Bold Italic Helvetica-Narrow-BoldOblique
CG Times Intl-CG-Times
CG Times Italic Intl-CG-Times-Italic
CG Times Bold Intl-CG-Times-Bold
CG Times Bold Italic Intl-CG-Times-BoldItalic
Univers Medium Intl-Univers-Medium
Univers Medium Italic Intl-Univers-MediumItalic
Univers Bold Intl-Univers-Bold
Univers Bold Italic Intl-Univers-BoldItalic
Courier Intl-Courier
Courier Italic Intl-Courier-Oblique
PCL 6 emulation PostScript 3 emulation
174
Courier Bold Intl-Courier-Bold
Courier Bold Italic Intl-Courier-BoldOblique
Letter Gothic LetterGothic
Letter Gothic Italic LetterGothic-Slanted
Letter Gothic Bold LetterGothic-Bold
LetterGothic-BoldSlanted
Marigold Marigold
Century Schoolbook Roman NewCenturySchlbk-Roman
Century Schoolbook Italic NewCenturySchlbk-Italic
Century Schoolbook Bold NewCenturySchlbk-Bold
Century Schoolbook Bold Italic NewCenturySchlbk-BoldItalic
Optima
Optima-Bold
Optima-BoldItalic
Optima-Italic
Palatino Roman Palatino-Roman
Palatino Italic Palatino-Italic
Palatino Bold Palatino-Bold
Palatino Bold Italic Palatino-BoldItalic
SymbolPS Symbol
Symbol
Times Roman Times-Roman
Times Italic Times-Italic
Times Bold Times-Bold
Times Bold Italic Times-BoldItalic
Times New Roman TimesNewRomanPSMT
Times New Roman Italic TimesNewRomanPS-ItalicMT
Times New Roman Bold TimesNewRomanPS-BoldMT
Times New Roman Bold Italic TimesNewRomanPS-BoldItalicMT
Univers
Univers-Oblique
Univers-Bold
Univers-BoldOblique
Univers Condensed Medium Univers-Condensed
Univers Condensed Medium Italic Univers-CondensedOblique
Univers Condensed Bold Univers-CondensedBold
Univers Condensed Bold Italic Univers-CondensedBoldOblique
PCL 6 emulation PostScript 3 emulation
175
Wingdings Wingdings-Regular
ITC Zapf Chancery Medium Italic ZapfChancery-MediumItalic
ITC Zapf Dingbats ZapfDingbats
Univers-Extended
Univers-ExtendedObl
Univers-BoldExt
Univers-BoldExtObl
Univers-Light
Univers-LightOblique
Clarendon
Clarendon-Light
Clarendon-Bold
Helvetica-Condensed
Helvetica-Condensed-Bold
Helvetica-Condensed-BoldObl
Helvetica-Condensed-Oblique
StempelGaramond-Bold
StempelGaramond-BoldItalic
StempelGaramond-Italic
StempelGaramond-Roman
Apple-Chancery
Chicago
Geneva
Monaco
NewYork
Oxford
Taffy
MonaLisa-Recut
Candid
Bodoni
Bodoni-Italic
Bodoni-Bold
Bodoni-BoldItalic
Bodoni-Poster
Bodoni-PosterCompressed
CooperBlack
CooperBlack-Italic
PCL 6 emulation PostScript 3 emulation
176
Copperplate-ThirtyTwoBC
Copperplate-ThirtyThreeBC
Eurostile
Eurostile-Bold
Eurostile-ExtendedTwo
Eurostile-BoldExtendedTwo
GillSans
GillSans-Italic
GillSans-Bold
GillSans-BoldItalic
GillSans-Condensed
GillSans-BoldCondensed
GillSans-Light
GillSans-LightItalic
GillSans-ExtraBold
Goudy
Goudy-Italic
Goudy-Bold
Goudy-BoldItalic
Goudy-ExtraBold
HoeflerText-Regular
HoeflerText-Italic
HoeflerText-Black
HoeflerText-BlackItalic
HoeflerText-Ornaments
JoannaMT
JoannaMT-Italic
JoannaMT-Bold
JoannaMT-BoldItalic
LubalinGraph-Book
LubalinGraph-BookOblique
LubalinGraph-Demi
LubalinGraph-DemiOblique
PCL 6 emulation PostScript 3 emulation
177
Resident bitmapped fonts
Symbol sets
A symbol set is an encoded collection of alphabetic and numeric characters, punctuation, and special
characters available in the font you select. Symbol sets support the requirements for different
languages or specific applications, such as math symbols used for scientific text.
The symbol set encoding also defines which character will print for each key on the keyboard (or more
specifically, for each code point). Some applications require different characters at some code points.
To support multiple applications and languages, your printer has 83 symbol sets for the resident PCL 6
emulation fonts.
Symbol sets for PCL 6 emulation
Not all fonts support all of the symbol sets listed in Downloadable fonts. Refer to the Technical
Reference to determine which symbols sets are supported by each font name.
Downloadable fonts
PCL 6 emulation PostScript 3 emulation
Line Printer 16
POSTNET Bar code
ABICOMP Brazil/Portugal Wingdings ISO 25: French
ABICOMP International POSTNET Bar code ISO 57: Chinese
DeskTop ISO : German ISO 60: Norwegian version 1
Legal ISO : Spanish ISO 61: Norwegian version 2
MC Text ISO 2: IRV (Int'l Ref Version) ISO 69: French
Microsoft Publishing ISO 4: United Kingdom ISO 84: Portuguese
Russian-GOST ISO 6: ASCII ISO 85: Spanish
Ukrainian ISO 10: Swedish ISO 8859-1 Latin 1
(ECMA-94)
PCL ITC Zapf Dingbats ISO 11: Swedish for Names ISO 8859-2 Latin 2
PS ITC Zapf Dingbats ISO 14: JIS ASCII ISO 8859-5 Latin/Cyrillic
PS Math ISO 15: Italian ISO 8859-7 Latin/Greek
PS Text ISO 16: Portuguese ISO 8859-9 Latin 5
Pi Font ISO 17: Spanish ISO 8859-10 Latin 6
Symbol ISO 21: German ISO 8859-15 Latin 9
PC-8 Bulgarian PC-857 Latin 5 (Turkish) Roman-9
PC-8 Danish/Norwegian (437N) PC-858 Multilingual Euro Roman Extension
178
You can download scalable fonts in PostScript 3 emulation and either scalable or bitmapped fonts in
PCL 6 emulation. Fonts can be downloaded to printer memory, or to a flash memory option or hard
disk option. Fonts downloaded to flash memory or hard disk remain in memory even after the printer
language changes, the printer resets, or the printer is turned off.
Euro support
Support for the euro currency character is included in all applicable fonts for both the PostScript and
PCL emulations. Twelve of the PCL symbol sets support the euro character, including all seven
Windows symbol sets.
Hebrew and Arabic fonts
A variety of downloadable fonts for Hebrew and Arabic are included on the CD that shipped with the
printer.
FontVision
Also included on the CD is the FontVision™ Management utility and screen fonts to match the resident
scalable fonts. An additional 48 TrueType fonts are available on the Lexmark Web site when you
register the printer.
PC-8 Greek Alternate (437G) PC-860 Portugal Ventura ITC Zapf Dingbats
PC-8 Turkish (437T) PC-861 Iceland Ventura International
PC-8 Latin/Greek PC-863 Canadian French Ventura Math
PC-8 PC Nova PC-865 Nordic Ventura US
PC-8 Polish Mazovia PC-866 Cyrillic Windows 3.0 Latin 1
PC-8 Code Page 437 PC-869 Greece Windows 98 Cyrillic
PC-775 Baltic (PC-8 Latin 6) PC-911 Katakana Windows 98 Greek
PC-850 Multilingual PC-1004 OS/2 Windows 98 Latin 1
PC-851 Greece Math-8 Windows 98 Latin 2
PC-852 Latin 2 Greek-8 Windows 98 Latin 5
PC-853 Latin 3 (Turkish) Turkish-8 Windows 98 Latin 6 (Baltic)
PC-855 Cyrillic Roman-8
179
52 Managing memory
Printer memory
Your printer ships with at least 64MB of memory. To determine the amount of memory currently
installed in your printer, select Print Menus from the Utilities Menu. The total installed memory appears
on the printout. For more information about printing the menu settings page, see Printing the menu
settings page.
The memory shipped in your printer and the memory options available use SDRAM DIMM memory
technology. Unpredictable results may occur if you attempt to operate your printer with memory other
than SDRAM DIMM memory installed.
When purchasing memory for your printer, make sure you use SDRAM DIMM memory cards that meet
the following criteria:
–100MHz or greater
–100 pin
–4KB refresh rate
–Unbuffered, non ECC
–x32
–3.3 V
Adding memory
Your printer has three memory slots. The maximum amount of usable memory is 512MB. You may add
SDRAM DIMM memory cards in any memory combination to suit your needs; however, the maximum
amount of memory your printer can use is 512MB.
Note: Memory options designed for other Lexmark laser printers may not work with your
printer.
Lexmark offers three memory options for your printer: 64MB, 128MB and 256MB. For memory
installation instructions, refer to the Setup Guide.
Additional memory lets the printer print complex jobs, collate large jobs, and operate more efficiently.
You can also download fonts and macros to printer memory. However, this type of memory is
temporary storage. Anything stored in printer memory is lost when the printer power is turned off.
180
Solving memory problems
If your printer encounters a memory shortage when trying to print a job, it may post an error message
(37 Insufficient Collation Area, 37 Insufficient Defrag Memory, 38 Memory Full, or
39 Complex Page), depending on the task it is trying to complete. See Understanding printer
messages for more information about these and other messages.
If these messages appear frequently, you probably want to install additional printer memory. If they
only occur rarely, try reducing the following:
•The number of pages in the job
•The number of fonts or graphics on each page
•The size of scalable fonts used in the document
•The number of fonts or macros downloaded to printer memory
•Deleting Held Jobs
You may also try adjusting the following settings:
•Print resolution to 600 dpi
•Page Protect On from the Setup Menu
•Resource Save Off from the Setup Menu
Allocating memory
A portion of printer memory is reserved for input buffers that hold print jobs sent from your software
application. Your printer has an input buffer for each interface (parallel, serial, network, LocalTalk, or
infrared). You can change the amount of memory allocated to each buffer, depending on your system
requirements. For more information about using printer menus to allocate memory for each interface,
see Using printer menus and select the interface menu you want information about.
The size of the input buffers varies with the amount of memory installed in the printer. The following
table lists the default size of the input buffers for each interface. If your printer is not using a particular
interface, the allocated memory is reserved for job processing.
For more detailed information about these input buffers and memory allocation, refer to the Technical
Reference.
Flash memory
You can add optional flash memory to your printer. If you frequently download fonts, macros, forms, or
symbol sets to your printer, you may want to use flash memory storage rather than RAM. Resources
stored in flash memory are not lost when the printer power is turned off.
Default input buffer size
Installed
memory Each parallel
port Each serial
port Each
network port LocalTalk
port Infrared port USB port
64MB
128MB
2MB 300KB 2MB 1MB 300KB 300KB
1 1MB allocated to standard parallel port if no optional adapter is installed.
181
Hard disk
If you have a large number of permanent resources you’d like to download to your printer, you may
want to install an optional hard disk. The hard disk works much like flash memory, but has a larger
storage capacity for downloaded resources. You can also use the hard disk for job buffering, collating
large jobs, and gathering job statistics.
For instructions on installing a hard disk, refer to the Setup Guide.
Job buffering
You can partition a portion of the hard disk for job buffering. In some cases, spooling jobs to a disk may
decrease the time required for the printer to accept the print job data from the application. The job also
remains stored on the disk until the entire job prints. Since disk memory acts as permanent storage,
your jobs remain secure in the event of a power failure.
You can enable or disable job buffering for each of the available printer ports (parallel, serial, fax,
network, infrared, and LocalTalk) by doing the following:
1Using the printer operator panel or MarkVision, select Job Buffer Size under the Setup
Menu.
2Set the percentage of the disk you want to use for job buffering.
3Press Go to return the printer to Ready status.
Collating jobs
If you are collating a large job and printer memory is not sufficient, the printer automatically uses
storage area available on an installed hard disk to finish collating the job. See Collation for more
information.
Storing job statistics
You can also use an installed hard disk to gather statistics about a specified number of the most recent
print jobs. The statistics include whether the job printed with or without errors, the time required to print
the job, the size (in bytes) of the job, the requested paper size and paper type, the color settings used,
the total number of printed pages, and the number of copies requested.
See Job Accounting for more information about setting up your printer to gather job statistics and
printing the accumulated data. Or, if you’re using the MarkVision utility, refer to the MarkVision online
Help or the MarkVision documentation on the drivers CD.
182
Managing resources downloaded to flash or disk
Use the MarkVision utility to manage the resources you store on flash memory or hard disk.
MarkVision offers tools for;
•Setting the download target, formatting the storage devices
•Downloading resources
•Deleting files
•Moving files from one storage device to the other on the same printer or from one printer to
another printer
•Printing a directory listing the resources stored on a device
•Read/write and write passwords to protect resources stored on flash memory or hard disk, or
to protect individual files
For more information about the specific resource management tools that MarkVision offers, see the
drivers CD or refer to the MarkVision online Help. For more information about setting passwords, refer
to the Technical Reference.
183
53 Printer specifications
Dimensions
Dimension C910 C910n C910dn
Height 497 mm (19.6 in.) 626 mm (24.6 in.) 626 mm (24.6 in.)
Width 695 mm (27.4 in.) 695 mm (27.4 in.) 695 mm (27.4 in.)
Depth 655 mm (25.8 in.) 655 mm (25.8 in.) 655 mm (25.8 in.)
Weight180.5 kg (177.1 lb) 99.0 kg (217.8 lb) 104.9 kg (230.8 lb)
1 Includes cartridges
184
54 Restoring factory default settings
1Make sure the printer is on and the Ready message appears.
2Press Menu until you see Utilities Menu, and then press Select.
3Press Menu until you see Factory Defaults, and then press Select.
4When Restore appears, press Select. The message Restoring Factory Defaults
appears followed by the Ready message.
When you select Restore:
–No other button actions are available on the operator panel while Restoring Factory
Defaults appears.
–All downloaded resources (fonts, macros, and symbol sets) in printer memory (RAM) are
deleted. (Resources residing in flash memory or on the optional hard disk are unaffected.)
–All menu settings are returned to the factory default values, except the settings in the
Parallel Menu, Serial Menu, Network Menu, Infrared Menu, LocalTalk Menu, USB Menu,
and the operator panel Display Language setting in the Setup Menu.
If you need more information about changing menu settings or selecting new user default settings, see
Changing printer settings.
185
55 Printing sample fonts
Your printer has resident fonts stored permanently its memory. Different fonts may be available in PCL
and PostScript emulations.
To print samples of all the fonts currently available for your printer:
1Make sure the printer is on and Ready appears on the display.
2Press Menu until you see Utilities Menu, and then press Select.
3Press Menu until you see Print Fonts, and then press Select.
4Press Menu to display either PCL Fonts or PS Fonts.
–Select PCL Fonts to print a listing of the fonts available in PCL emulation.
–Select PS Fonts to print a listing of the fonts available in PostScript 3 emulation.
5Press Select.
The message Printing Font List remains on the display until all pages print. The printer
returns to the Ready message after the font sample list prints.
Refer to the Technical Reference on Lexmark’s Web site for more information about font and symbol
set support.
186
56 Understanding printer messages
The operator panel displays messages describing the current state of the printer and indicates
possible printer problems you must resolve. This topic provides a list of all printer messages, explains
what they mean, and tells you how to clear the messages.
Click a letter or number at the bottom of the page to locate information about a message beginning
with that character.
Ready
1 Menu 2Select 3
Go 5
Return 4
Stop 6
187
A
Activating Menu Changes
B
Bin <x> Full
Busy
C
Canceling Fax
Canceling Job
Change <x>
Check <device> Connection
Clearing Job Accounting Stat
Close Front Door
Close Side Door
Close Top Door
Close Tray <x> Top Cover
Copying
D
Defragmenting
Delete All Jobs
Deleting Jobs
Disabling Menus
Disk Corrupted. Reformat?
Disk Recovery x/5 yyy%
E
Enabling Menus
Engine Warming
Enter PIN: =___
F
Fax <x>
Flushing Buffer
Formatting Disk yyy%
Formatting Flash
Fuser Maintenance
G
H
Held Jobs may be lost
I
Infrared <x>
Insert Tray <x>
Install <device> or Cancel Job
Invalid Engine Code
Invalid Network <x> Code
Invalid Standard Network Code
J
K
L
Load <x>
Load Manual
LocalTalk <x>
M
Menus Disabled
N
Network Card Busy
Network <x>
Network <x>, <y>
No Jobs Found. Retry?
Not Ready
188
O
P
Parallel <x>
Performing Self Test
Power Saver
Print Jobs on Disk
Printer Calibrating
Printing Alignment Page
Printing Directory List
Printing Font List
Printing Job Accounting Stat
Printing Menu Settings
Prog Engine Code
Prog System Code
Program Flash
Programming Disk
Programming Error P<x>
Q
Queuing and Deleting Jobs
Queuing Jobs
R
Ready
Ready Hex
Remove Paper <specified bin>
Resetting Maint Cnt Value
Resetting the Printer
Restore Held Jobs. Go/Stop?
Restoring Factory Defaults
Restoring Held Jobs
S
Serial <x>
Std Bin Full
Supplies
T
Tray <x> Empty
Tray <x> Low
Tray <x> Missing
U
Unsupported Disk
USB <x>
V
W
Waiting
X
Y
Z
0
1
1565 Emul Error Load Emul Option
2
2<xx> Paper Jam
3
30 Coating Roll Missing
30 <color> Print Unit Missing
32 Unsupported <color> Cartridge
33 Tray <x> Config Error
34 Short Paper
189
35 Res Save Off Deficient Memory
37 Insufficient Collation Area
37 Insufficient Defrag Memory
37 Insufficient Memory
38 Memory Full
39 Complex Page
4
4<x> Unsupported Firmware Card
40 Tray <x> Size Sense Error
41 Open Bin 1 Exit Tray
5
51 Defective Flash
52 Flash Full
53 Unformatted Flash
54 Network <x> Software Error
54 Par <x> ENA Connection Lost
54 Serial Option <x> Error
54 Std Network Software Error
54 Std Par ENA Connection Lost
56 Parallel Port <x> Disabled
56 Serial Port <x> Disabled
56 Standard USB Port Disabled
56 Std Parallel Port Disabled
56 USB Port <x> Disabled
58 Too Many Bins Attached
58 Too Many Disks Installed
58 Too Many Flash Options
58 Too Many Trays Attached
6
61 Defective Disk
62 Disk Full
63 Unformatted Disk
64 Unsupported Disk Format
7
8
80 Belt Exhausted
80 Belt/Fuser Exhausted
80 Belt/Fuser Life Warning
80 Belt Life Warning
80 Fuser Exhausted
80 Fuser Life Warning
81 Engine Code CRC Failure
84 <color> Print Cart Abnormal
84 All Photo Devs Exhausted
84 Black Photo Dev Abnormal
84 Black Photo Dev Exhausted
84 Black Photo Dev Life Warning
85 Coating Roll Exhausted
85 Coating Roll Life Warning
84 Color Photo Dev Abnormal
84 Color Photo Devs Exhausted
84 Color Photo Dev Life Warning
85 Coating Roll Exhausted
85 Coating Roll Life Warning
86 Abnormal Coating Roll
88 <color> Toner Empty
88 <color> Toner Low
9
900–999 Service <message>
190
Activating Menu
Changes
What this message means:
The printer is activating changes made to the printer settings.
What you can do:
Wait for the message to clear.
See also:
Disabling operator panel menus
Bin <x> Full
What this message means:
The specified bin is full.
What you can do:
Remove the stack of paper from the bin to clear the message. If you assigned the bin a name,
the bin name is displayed instead of the bin number.
Busy
What this message means:
The printer is busy receiving, processing, or printing data.
What you can do:
•Wait for the message to clear.
•Press Menu to open the Job Menu and cancel the current job.
Canceling Fax
What this message means:
The printer is processing a request to cancel a fax job.
What you can do:
Wait for the message to clear.
191
Canceling Job
What this message means:
The printer is processing a request to cancel the current print job.
What you can do:
Wait for the message to clear.
See also:
Canceling a print job
Change <x>
What this message means:
The printer is requesting that a different type of paper be loaded in one of the input sources.
What you can do:
Change the paper type in the specified source.
See also:
Loading a paper tray; Setup Guide
Check <device>
Connection
What this message means:
The specified device is either not fully connected to the printer or is experiencing a hardware
failure.
What you can do:
•Reestablish communication by removing the specified device and reattaching it to the printer.
•Press Go to clear the message and continue printing.
•If a hardware failure, turn the printer off and back on. If the error recurs, turn the printer off,
remove the specified device, and call for service.
192
Clearing Job
Accounting Stat
What this message means:
The printer is deleting all job statistics stored on the hard disk.
What you can do:
Wait for the message to clear.
Close Front Door
What this message means:
The printer front door is open.
What you can do:
Close the printer front door to clear the message.
Close Side Door
What this message means:
The printer side door is open.
What you can do:
Close the printer side door to clear the message.
Close Top Door
What this message means:
The printer top door is open.
What you can do:
Close the printer top door to clear the message.
See also:
Closing the top cover
193
Close Tray <x>
Top Cover
What this message means:
The high capacity feeder door is open.
Note: The high capacity feeder can only be installed as Tray 3 or Tray 5.
What you can do:
Close the top cover to clear the message.
Copying
What this message means:
The printer is processing a copy job originating from an OptraImage™ scanner.
What you can do:
Wait for the message to clear.
Defragmenting
What this message means:
The printer is defragmenting the flash memory to reclaim storage space occupied by deleted
resources.
What you can do:
Wait for the message to clear.
WARNING:Do not turn the printer off while this message is displayed.
Delete All Jobs
What this message means:
The printer is requesting confirmation to delete all held jobs.
What you can do:
•Press Go to continue. The printer deletes all held jobs.
•Press Stop to cancel the operation.
194
Deleting Jobs
What this message means:
The printer is deleting one or more held jobs.
What you can do:
Wait for the message to clear.
Disabling Menus
What this message means:
The printer is responding to a request to disable the menus.
What you can do:
Wait for the message to clear.
Note: While the menus are disabled, you cannot change the printer settings from the
operator panel.
See also:
Disabling operator panel menus
Disk Corrupted.
Reformat?
What this message means:
The printer has attempted a disk recovery process and cannot repair the disk.
What you can do:
•Press Go to reformat the disk and delete all files currently stored on the disk.
•Press Stop to clear the message without reformatting the disk. The printer may display Disk
Recovery and attempt to recover the disk.
See also:
Disk Recovery x/5 yyy%
195
Disk Recovery
x/5 yyy%
What this message means:
The printer is attempting to recover the hard disk. Disk recovery takes place in five phases; the
second line on the operator panel display shows the percent complete of the current phase.
What you can do:
Wait for the message to clear.
WARNING:Do not turn the printer off while this message is displayed.
Enabling Menus
What this message means:
The printer is responding to a request to make the menus available to all users.
What you can do:
Wait for the message to clear, and then press Menu to view the menus from the operator
panel.
See also:
Enabling operator panel menus
Engine Warming
What this message means:
The printer is warming the fuser assembly to prepare for printing.
What you can do:
Wait for the message to clear.
196
Enter PIN:
=___
What this message means:
The printer is waiting for you to enter your four-digit personal identification number (PIN).
What you can do:
Use the operator panel buttons to enter the PIN you identified in the driver when you sent the
confidential job to the printer.
See also:
Using the Print and Hold function
Fax <x>
What this message means:
The printer is processing an incoming fax.
What you can do:
Wait for the message to clear.
Flushing Buffer
What this message means:
The printer is flushing corrupted print data and discarding the current print job.
What you can do:
Wait for the message to clear.
197
Formatting Disk
yyy%
What this message means:
The printer is formatting the hard disk. When formatting takes longer than usual, the second
line of the display shows the percent complete.
What you can do:
Wait for the message to clear.
WARNING:Do not turn the printer off while this message is displayed.
Formatting Flash
What this message means:
The printer is formatting the flash memory.
What you can do:
Wait for the message to clear.
WARNING:Do not turn the printer off while this message is displayed.
Fuser
Maintenance
What this message means:
The counter that tracks wear on the fuser has reached its limit.
What you can do:
•Press Go to continue printing.
•If print quality is unacceptable, replace the fuser.
See also:
Replacing the fuser
198
Held Jobs may be
lost
What this message means:
The printer memory is too full to continue processing print jobs.
What you can do:
•Press Go to clear the message and continue printing. The printer frees memory by deleting the
oldest held job and continues deleting held jobs until there is enough printer memory to
process the job.
•Press Stop to clear the message without deleting any held jobs. The current job may not print
correctly.
•Press Menu to open the Job Menu and cancel the current job.
•To avoid this error in the future:
–Delete fonts, macros, and other data stored in printer memory.
–Install more printer memory.
Note: The messages 37 Insufficient Memory and Held Jobs may be lost
alternate on the display.
See also:
Using the Print and Hold function; 37 Insufficient Memory
Infrared <x>
What this message means:
An infrared interface is the active communication link.
Insert Tray <x>
What this message means:
The specified tray is either missing or not fully inserted.
What you can do:
Insert the specified tray completely.
See also:
Loading a paper tray
199
Install <device>
or Cancel Job
What this message means:
The printer is requesting that a specified device be installed so it can print a job.
What you can do:
•Turn the printer off, install the specified device, and restart the printer.
•Press Menu to open the Job Menu and cancel the current job.
Invalid Engine Code
What this message means:
The printer engine code has not been programmed or is not valid.
What you can do:
Call for service.
See also:
Calling for service
What this message means:
The code in an internal print server is not valid. The printer cannot receive and process jobs
until valid code is programmed into the internal print server.
What you can do:
Download valid code to the printer internal print server.
Note: You can download network code while this message is displayed.
Invalid
Network <x> Code Invalid Standard
Network Code
200
Load <x>
What this message means:
The printer is trying to feed paper from a source it detects is empty.
What you can do:
•Load paper of the size and type requested in the second line of the display in the specified
tray. The printer automatically clears the message and continues printing the job.
•Press Menu to open the Job Menu and cancel the current job.
See also:
Loading a paper tray
Load Manual
What this message means:
A request for a manual feed job has been sent to the printer. The printer is ready for insertion
of a single sheet into the manual feed slot.
What you can do:
•Load a sheet of the paper specified in the second line of the display in the manual feed tray or
multipurpose feeder.
•Press Select or Go to ignore the manual feed request and print on the paper already in one of
the input sources. If the printer finds a tray that has paper of the correct type and size, it feeds
paper from that tray. If the printer cannot find a tray with the correct paper type and size, it
prints on the paper installed in the default input source.
•Press Menu to open the Job Menu and cancel the current job.
See also:
Loading the multipurpose feeder
LocalTalk <x>
What this message means:
A LocalTalk interface is the active communication link.
201
Menus Disabled
What this message means:
The printer menus are disabled. You cannot change the printer settings from the operator
panel.
What you can do:
You can still open the Job Menu to cancel a job that is printing or to select a confidential job or
a held job that you want to print. If you need access to the printer menus, contact your network
administrator.
See also:
Disabling operator panel menus
Network Card
Busy
What this message means:
An internal print server (also called an internal network adapter or INA) is being reset.
What you can do:
Wait for the message to clear.
Network <x>
What this message means:
A network interface is the active communication link.
Network <x>, <y>
What this message means:
A network interface is the active communication link, where <x> represents the active
communication link and <y> represents the channel.
202
No Jobs Found.
Retry?
What this message means:
The four-digit personal identification number (PIN) you entered is not associated with any
confidential print job.
What you can do:
•Press Go to enter another PIN.
•Press Stop to clear the PIN entry prompt.
See also:
Using the Print and Hold function
Not Ready
What this message means:
The printer is not ready to receive or process data. Someone pressed Stop to take the printer
offline.
What you can do:
Press Go to make the printer ready to receive jobs.
Parallel <x>
What this message means:
A parallel interface is the active communication link.
Performing
Self Test
What this message means:
The printer is running the series of start-up tests it performs after it is turned on.
What you can do:
Wait for the message to clear.
203
Power Saver
What this message means:
The printer is ready to receive and process data. It is reducing its electricity consumption while
idle. If the printer remains inactive for the period of time specified in the Power Saver menu
item (20 minutes is the factory default), the Power Saver message replaces the Ready
message.
What you can do:
•Send a job to print.
•Press Go to quickly warm the printer to normal operating temperature and display the Ready
message.
Print Jobs on
Disk
What this message means:
Jobs that were spooled to the hard disk before the printer was last turned off have not yet
printed.
What you can do:
•Press Go to print the jobs.
•Press Return or Stop to delete the jobs from the hard disk without printing them.
Printer Calibrating
What this message means:
The printer is adjusting the color tables to correct variations caused by environmental
conditions.
What you can do:
Wait for the message to clear.
See also:
Color Menu
204
Printing Alignment Page
What this message means:
The printer is processing or printing a test page that shows alignment values.
What you can do:
Wait until the page has completed printing.
See also:
Replacing the transfer belt; Print Alignment
Printing
Directory List
What this message means:
The printer is processing or printing a directory of all files stored in flash memory or on a hard
disk.
What you can do:
Wait for the message to clear.
See also:
Print Directory
Printing
Font List
What this message means:
The printer is processing or printing a list of all available fonts for the specified printer
language.
What you can do:
Wait for the message to clear.
See also:
Print Fonts
205
Printing Job
Accounting Stat
What this message means:
The printer is processing or printing all job accounting statistics stored on the hard disk.
What you can do:
Wait for the message to clear.
See also:
Job Acct Stat
Printing Menu
Settings
What this message means:
The printer is processing or printing the menu settings page.
What you can do:
Wait for the message to clear.
See also:
Print Menus; Printing the menu settings page
Prog Engine Code
What this message means:
The printer is programming new code into the flash memory.
What you can do:
Wait for the message to clear.
WARNING:Do not turn the printer off while this message is displayed.
206
Prog System Code
What this message means:
The printer is programming new system code.
What you can do:
Wait for the message to clear and the printer to reset.
WARNING:Do not turn the printer off while this message is displayed.
Program Flash
What this message means:
The printer is storing resources, such as fonts or macros, in flash memory.
What you can do:
Wait for the message to clear.
WARNING:Do not turn the printer off while this message is displayed.
Programming Disk
What this message means:
The printer is storing resources, such as fonts or macros, on the hard disk.
What you can do:
Wait for the message to clear.
WARNING:Do not turn the printer off while this message is displayed.
207
Programming Error P<x>
What this message means:
An error occurred while the printer was programming code into memory.
What you can do:
Correct the problem specified on the second line of the display:
Queuing and
Deleting Jobs
What this message means:
The printer is deleting one or more held jobs and sending one or more jobs to print.
What you can do:
Wait for the message to clear.
See also:
Using the Print and Hold function
Queuing Jobs
What this message means:
The printer is sending one or more held jobs to print.
What you can do:
Wait for the message to clear.
See also:
Using the Print and Hold function
P105 A network file was used to program a non-network printer, or a non-network file
was used to program a network printer.
P109 An update file was used to program the printer, but the information did not fit
within the space allocated in the Master Boot Record.
P112 An upddle.fls file was used to update the DLE code on a printer with a firmware
card installed, but the DLE was not found on the firmware card.
P200 No firmware card is installed.
208
Ready
What this message means:
The printer is ready to receive and process print jobs.
What you can do:
Send a job to print.
Ready Hex
What this message means:
The printer is in Hex Trace mode and is ready to receive and process print jobs.
What you can do:
•Send a job to print. All data sent to the printer is printed in hexadecimal and character
representation. Control strings are printed, not executed.
•Turn the printer off and then on to exit Hex Trace mode and return to Ready status.
Remove Paper
<specified bin>
What this message means:
The specified output bin, or bins, is full.
What you can do:
Remove the stack of paper from the specified bin(s) to clear the message.
Resetting
Maint Cnt Value
What this message means:
The printer is resetting the counter that tracks wear on the fuser.
What you can do:
Wait for the message to clear.
209
Resetting the
Printer
What this message means:
The printer is resetting to the current default settings. Any active print jobs are canceled.
What you can do:
Wait for the message to clear.
See also:
Changing printer settings
Restore Held
Jobs. Go/Stop?
What this message means:
Someone reset the printer or turned it on, and the printer detects Print and Hold jobs stored on
the hard disk.
What you can do:
•Press Go. All Print and Hold jobs on the hard disk are restored to printer memory.
•Press Return or Stop. No Print and Hold jobs are restored to printer memory. The printer
returns to the Ready state.
See also:
Using the Print and Hold function
210
Restoring Factory
Defaults
What this message means:
The printer is restoring the factory default printer settings. When factory default settings are
restored:
•All downloaded resources (fonts, macros, symbol sets) in the printer memory are deleted.
•All menu settings return to the factory default setting except the Display Language setting in
the Setup Menu, and all settings in the Parallel Menu, Serial Menu, Network Menu, Infrared
Menu, LocalTalk Menu, USB Menu, and Fax Menu.
What you can do:
Wait for the message to clear.
See also:
Restoring factory default settings
Restoring Held Jobs
What this message means:
The printer is restoring held jobs from the hard disk.
What you can do:
Wait for the message to clear.
See also:
Using the Print and Hold function
Serial <x>
What this message means:
A serial interface is the active communication link.
211
Std Bin Full
What this message means:
The standard bin is full.
What you can do:
Remove the stack of paper in the bin to clear the message.
Supplies
What this message means:
At least one of the printer supplies requires attention. For example, you may have a toner
cartridge that is low on toner.
What you can do:
Press Menu to open the Supplies Menu and identify which supply item needs replacing.
Replace the appropriate printer supplies.
Tray <x> Empty
What this message means:
The specified tray is out of paper.
What you can do:
Load paper in the tray to clear the message.
See also:
Loading a paper tray
212
Tray <x> Low
What this message means:
The specified tray is low on paper.
What you can do:
Add paper to the tray to clear the message.
See also:
Loading a paper tray
Tray <x> Missing
What this message means:
The specified tray is either missing or not fully inserted.
What you can do:
Insert the tray completely.
See also:
Loading a paper tray
Unsupported Disk
What this message means:
The printer detects an unsupported disk.
What you can do:
•Press Go to clear the message.
•Format the disk.
Note: Disk operations are not allowed until the disk is formatted.
USB <x>
What this message means:
The printer is processing data through the specified USB port.
213
Waiting
What this message means:
The printer has received a page of data to print but is waiting for an End of Job command, a
Form Feed command, or additional data.
What you can do:
•Press Go to print the contents of the buffer.
•Press Menu to open the Job Menu and cancel the current job.
See also:
Canceling a print job
1565 Emul Error
Load Emul Option
What this message means:
The download emulator version on the firmware card does not match the printer code version.
This error can occur if you update printer firmware or move a firmware card from one printer to
another.
What you can do:
The printer automatically clears the message in 30 seconds, and then disables the download
emulator on the firmware card.
Download the correct download emulator version from Lexmark’s Web site.
2<xx> Paper Jam
What this message means:
The printer detects a paper jam.
What you can do:
Clear the paper path.
See also:
Clearing paper jams
214
30 Coating Roll
Missing
What this message means:
The oil coating roll is either missing or incorrectly installed.
What you can do:
Correctly install the oil coating roll to clear the message and continue printing.
See also:
Replacing the oil coating roll
30 <color> Print
Unit Missing
What this message means:
One or more of the color print units is either missing or incorrectly installed.
What you can do:
Correctly install the color print units to clear the message and continue printing.
See also:
Replacing a toner cartridge; Replacing a photodeveloper
32 Unsupported
<color> Cartridge
What this message means:
The printer detects an unsupported toner cartridge.
What you can do:
•Replace the unsupported toner cartridge.
215
33 Tray <x>
Config Error
What this message means:
The optional Heavy Media tray is inserted into any tray location except Tray 1.
What you can do:
Remove the Heavy Media Tray from the invalid location to clear the message.
34 Short Paper
What this message means:
The printer has determined that the length of the paper in the source specified on the second
line of the display is too short to print the formatted data.
What you can do:
•Press Go to clear the message and continue printing. The printer does not automatically
reprint the page that prompted the message.
•Make sure the Paper Size setting in the Paper Menu is correct for the size paper you are using.
If MP Feeder Size is set to Universal, make sure your paper is large enough for the formatted
data.
•Press Menu to open the Job Menu and cancel the current job.
35 Res Save Off
Deficient Memory
What this message means:
The printer lacks the memory needed to enable Resource Save. This message usually
indicates too much memory is allocated for one or more of the printer link buffers.
What you can do:
•Press Go to disable Resource Save and continue printing.
•To enable Resource Save after you get this message:
–Make sure the link buffers are set to Auto, and exit the menus to activate the link buffer
changes.
–When Ready is displayed, enable Resource Save from the Setup Menu.
•Install additional memory.
216
37 Insufficient
Collation Area
What this message means:
The printer memory (or hard disk, if installed) does not have the free space necessary to
collate the print job.
What you can do:
•Press Go to print the portion of the job already stored and begin collating the rest of the job.
•Press Menu to open the Job Menu and cancel the current job.
See also:
Canceling a print job
37 Insufficient
Defrag Memory
What this message means:
The printer cannot defragment flash memory, because the printer memory used to store
undeleted flash resources is full.
What you can do:
•Delete fonts, macros, and other data in printer memory.
•Install additional printer memory.
217
37 Insufficient
Memory
What this message means:
The printer memory is full and cannot continue processing current print jobs.
What you can do:
•Press Go to clear the message and continue the current print job. The printer frees memory by
deleting the oldest held job and continues deleting held jobs until there is enough printer
memory to process the job.
•Press Stop to clear the message without deleting any held jobs. The current job may not print
correctly.
•Press Menu to open the Job Menu and cancel the current job.
•To avoid this error in the future:
–Delete fonts, macros, and other data in printer memory.
–Install additional printer memory.
Note: The messages 37 Insufficient Memory and Held Jobs may be lost
alternate on the display.
See also:
Using the Print and Hold function; Held Jobs may be lost
38 Memory Full
What this message means:
The printer is processing data, but the memory used to store pages is full.
What you can do:
•Press Go to clear the message and continue printing the job. The job may not print correctly.
•Press Menu to open the Job Menu and cancel the current job.
•To avoid this error in the future:
–Simplify the print job by reducing the amount of text or graphics on a page and deleting
unnecessary downloaded fonts or macros.
–Install additional printer memory.
See also:
Canceling a print job
218
39 Complex Page
What this message means:
The page may not print correctly because the print information on the page is too complex.
What you can do:
•Press Go to clear the message and continue printing the job. The job may not print correctly.
•Press Menu to open the Job Menu and cancel the current job.
•To avoid this error in the future:
–Reduce the complexity of the page by reducing the amount of text or graphics on the page
and deleting unnecessary downloaded fonts or macros.
–Set Page Protect to On in the Setup Menu.
–Install additional printer memory.
See also:
Setup Menu
4<x> Unsupported Firmware Card
What this message means:
The printer detects an unsupported version of firmware on the installed firmware card.
What you can do:
•Turn the printer off, and then press and hold Go while turning it on. The printer reads the code
on the system card and bypasses the code on the firmware card.
•Remove the firmware card.
See also:
Setup Guide
219
40 Tray <x> Size
Sense Error
What this message means:
The high capacity feeder detects an error in the size sensing mechanism.
What you can do:
•Turn off printer and make sure that all the high capacity feeder connectors are installed
correctly.
•Have the high capacity feeder size sensor checked by a service technician.
41 Open Bin 1
Exit Tray
What this message means:
The printer wants to send paper to the Bin 1 output tray, but the tray is closed.
What you can do:
•Open Bin 1 to clear the message and continue printing.
•Press Go to clear the message and continue printing. The paper will be diverted to the
Standard bin.
51 Defective Flash
What this message means:
The printer detects defective flash memory.
What you can do:
Press Go to clear the message and continue printing. You must install different flash memory
before you can download any resources to flash.
220
52 Flash Full
What this message means:
There is not enough free space in the flash memory to store the data you are trying to
download.
What you can do:
•Press Go to clear the message and continue printing. Downloaded fonts and macros not
previously stored in flash memory are deleted.
•Delete fonts, macros, and other data stored on the flash memory.
•Install flash memory with more storage capacity.
53 Unformatted
Flash
What this message means:
The printer detects unformatted flash memory.
What you can do:
•Press Go to clear the message and continue printing. You must format the flash memory
before you can store any resources on it.
•If the error message remains, the flash memory may be defective and require replacing.
54 Serial
Option <x> Error
What this message means:
The printer has detected a serial interface error on a serial port.
What you can do:
•Make sure the serial link is set up correctly and you are using the appropriate cable.
•Press Go to clear the message and continue printing. The job may not print correctly.
•Press Menu to open the Job Menu and reset the printer.
221
What these messages mean:
The printer cannot establish communications with an installed network port.
What you can do:
•Press Go to clear the message and continue printing. The job may not print correctly.
•Program new firmware for the network interface by way of the parallel port.
•Press Menu to open the Job Menu and reset the printer.
What this message means:
The printer has lost the connection to an external print server (also called an external network
adapter or ENA).
What you can do:
•Make sure the cable connecting the ENA and the printer is securely attached. Turn the printer
off and then on to reset the printer.
•Press Go to clear the message. The printer erases any reference to the ENA and then resets.
56 Serial
Port <x> Disabled
What this message means:
Data has been sent to the printer through a serial port, but the serial port is disabled.
What you can do:
•Press Go to clear the message. The printer discards any data received through the serial port.
•Make sure the Serial Buffer menu item in the Serial Menu is not set to Disabled.
See also:
Serial Buffer
54 Network <x>
Software Error 54 Std Network
Software Error
54 Std Par ENA
Connection Lost 54 Par <x> ENA
Connection Lost
222
What this message means:
Data has been sent to the printer through a parallel port, but the parallel port is disabled.
What you can do:
•Press Go to clear the message. The printer discards any data received through the parallel
port.
•Make sure the Parallel Buffer menu item in the Parallel Menu is not set to Disabled.
See also:
Parallel Buffer
What this message means:
Data has been sent to the printer through a USB port, but the USB port is disabled.
What you can do:
•Press Go to clear the message. The printer discards any data received through the USB port.
•Make sure the USB Buffer menu item in the USB Menu is not set to Disabled.
See also:
USB Buffer
56 Parallel
Port <x> Disabled 56 Std Parallel
Port Disabled
56 USB Port <x>
Disabled 56 Standard USB
Port Disabled
223
58 Too Many
Bins Attached
What this message means:
•Too many output bins are installed.
•An unsupported configuration of output bins is installed.
What you can do:
Turn off and unplug the printer. Remove or reconfigure the output bins. Plug in the printer and
turn it on.
Note: To prevent an electrical overload, plug your printer into a well-grounded outlet on a
non-ground fault interrupter (GFI) circuit.
58 Too Many
Disks Installed
What this message means:
Too many hard disks are installed. The printer only supports one hard disk at a time.
What you can do:
Turn off and unplug the printer. Remove the excess hard disks. Plug in the printer and turn it
on.
Note: To prevent an electrical overload, plug your printer into a well-grounded outlet on a
non-ground fault interrupter (GFI) circuit.
See also:
Removing memory and network options
224
58 Too Many
Flash Options
What this message means:
Too many flash memory options are installed.
What you can do:
Turn off and unplug the printer. Remove the excess flash memory. Plug in the printer and turn
it on.
Note: To prevent an electrical overload, plug your printer into a well-grounded outlet on a
non-ground fault interrupter (GFI) circuit.
See also:
Removing memory and network options
58 Too Many
Trays Attached
What this message means:
Too many drawers with matching trays are installed.
What you can do:
Turn off and unplug the printer. Remove the additional drawers. Plug in the printer and turn it
on.
Note: To prevent an electrical overload, plug your printer into a well-grounded outlet on a
non-ground fault interrupter (GFI) circuit.
See also:
Setup Guide
225
61 Defective Disk
What this message means:
The printer detects a defective hard disk.
What you can do:
•Press Go to clear the message and continue printing.
•Install a different hard disk before you perform any operations that require one.
See also:
Setup Guide
62 Disk Full
What this message means:
There is not enough memory on the hard disk to store the data sent to the printer.
What you can do:
•Press Go to clear the message and continue processing. Any information not previously stored
on the hard disk is deleted.
•Delete fonts, macros, and other data stored on the hard disk.
63 Unformatted Disk
What this message means:
The printer detects an unformatted hard disk.
What you can do:
•Press Go to clear the message and continue printing.
•Format the disk before performing any disk operations. To format the disk, select Format Disk
from the Utilities Menu.
•If the error message remains, the hard disk may be defective and require replacing. Install a
new hard disk and format it.
See also:
Format Disk
226
64 Unsupported Disk Format
What this message means:
The printer detects an unsupported disk format.
What you can do:
•Press Go to clear the message.
•Format the disk.
Note: Disk operations are not allowed until the disk is formatted.
80 Belt
Exhausted
What this message means:
The transfer belt has reached its end of life.
What you can do:
•Replace the transfer belt.
See also:
Replacing the transfer belt
80 Belt/Fuser
Exhausted
What this message means:
The transfer belt and fuser have reached their end of life.
What you can do:
•Replace the transfer belt and fuser.
See also:
Replacing the transfer belt; Replacing the fuser
227
80 Belt/Fuser
Life Warning
What this message means:
The transfer belt and fuser are nearing their end of life. If you do not have a transfer belt and
fuser on hand, order them now. You can print approximately 500 pages before the 80 Belt/
Fuser Exhausted message appears.
What you can do:
Press Go to clear the message and continue printing. The Supplies message is displayed
until you replace the transfer belt and fuser.
See also:
Replacing the transfer belt; Replacing the fuser
80 Belt
Life Warning
What this message means:
The transfer belt is nearing its end of life. If you do not have a transfer belt on hand, order one
now. You can print approximately 500 pages before the 80 Belt Exhausted message
appears.
What you can do:
Press Go to clear the message and continue printing. The Supplies message is displayed
until you replace the transfer belt.
See also:
Replacing the transfer belt
228
80 Fuser
Exhausted
What this message means:
The fuser has reached its end of life.
What you can do:
•Replace the fuser.
See also:
Replacing the fuser
80 Fuser
Life Warning
What this message means:
The fuser is nearing its end of life. If you do not have a fuser on hand, order one now. You can
print approximately 500 pages before the 80 Fuser Exhausted message appears.
What you can do:
Press Go to clear the message and continue printing. The Supplies message is displayed
until you replace the fuser.
See also:
Replacing the fuser
81 Engine Code
CRC Failure
What this message means:
Microcode in the engine flash code module has failed a system check.
What you can do:
Press Go to clear the message and discard the code. Retransmit the microcode data from the
host computer.
229
84 <color> Print
Cart Abnormal
What this message means:
The printer has detected an abnormal photodeveloper.
What you can do:
Install a new photodeveloper to clear the message and continue printing.
See also:
Replacing a photodeveloper
84 All Photo
Devs Exhausted
What this message means:
All of the photodevelopers have reached their end of life.
What you can do:
•Replace all of the photodevelopers. Make sure you also install the new fuser coating roll that is
included in each photodeveloper kit.
•If the print quality is still acceptable and you do not want to replace the photodevelopers yet,
press Go to clear the message and continue printing.
See also:
Replacing a photodeveloper
84 Black Photo
Dev Abnormal
What this message means:
The printer has detected an abnormal black photodeveloper.
What you can do:
Install a new black photodeveloper to clear the message and continue printing.
See also:
Replacing a photodeveloper
230
84 Black Photo
Dev Exhausted
What this message means:
The black photodeveloper has reached its end of life.
What you can do:
•Replace the black photodeveloper. Make sure you also install the new fuser coating roll that is
included in the black photodeveloper kit.
•If the print quality is still acceptable and you do not want to replace the photodeveloper yet,
press Go to clear the message and continue printing.
See also:
Replacing a photodeveloper
84 Black Photo
Dev Life Warning
What this message means:
The black photodeveloper is nearing its end of life. If you do not have a black photodeveloper
kit on hand, order one now. You can print approximately 100 pages before the
84 Black Photo Dev Exhausted message appears.
What you can do:
Press Go to clear the message and continue printing. The Supplies message is displayed
until you replace the photodeveloper.
See also:
Replacing a photodeveloper
231
84 Color Photo
Dev Abnormal
What this message means:
The printer has detected an abnormal color photodeveloper.
What you can do:
Install a new color photodeveloper to clear the message and continue printing.
See also:
Replacing a photodeveloper
84 Color Photo
Devs Exhausted
What this message means:
The color photodevelopers have reached the end of their lives.
What you can do:
•Replace the color photodevelopers. Make sure you replace all three (Cyan, Magenta, and
Yellow) at the same time.
•If the print quality is still acceptable and you do not want to replace the photodevelopers yet,
press Go to clear the message and continue printing.
See also:
Replacing a photodeveloper
232
84 Color Photo
Dev Life Warning
What this message means:
The color photodevelopers are nearing the end of their lives. If you do not have a new color
photodeveloper kit, order one now. You can print approximately 100 pages before the
84 Color Photo Devs Exhausted message appears.
What you can do:
Press Go to clear the message and continue printing. The Supplies message is displayed
until you replace the photodevelopers.
Note: The Cyan, Magenta, and Yellow photodevelopers are packaged together. You
cannot order them separately.
See also:
Replacing a photodeveloper
85 Coating Roll
Exhausted
What this message means:
The oil coating roll has reached its end of life.
What you can do:
•Replace the oil coating roll.
•If the print quality is still acceptable and you do not want to replace the oil coating roll yet,
press Go to clear the message and continue printing.
See also:
Replacing the oil coating roll
233
85 Coating Roll
Life Warning
What this message means:
The oil coating roll is nearing its end of life. If you do not have an oil coating roll on hand, order
one now. You can print approximately 500 pages before the 85 Coating Roll Exhausted
message appears.
What you can do:
Press Go to clear the message and continue printing. The Supplies message is displayed
until you replace the oil coating roll.
See also:
Replacing the oil coating roll
86 Abnormal
Coating Roll
What this message means:
The printer has detected an abnormal coating roll.
What you can do:
Install a normal coating roll to clear the message and continue printing.
See also:
Replacing the oil coating roll
88 <color>
Toner Empty
What this message means:
The printer has ceased operating because the specified toner cartridge is empty. You cannot
print until you replace the specified toner cartridge.
What you can do:
Install a new toner cartridge.
See also:
Replacing a toner cartridge
234
88 <color> Toner
Low
What this message means:
The printer has detected that the toner supply in the specified cartridge is low. If you do not
have the specified toner cartridge, order one now. You can print approximately 250 more
pages before the cartridge becomes empty.
What you can do:
•Replace the specified toner cartridge.
•Press Go to clear the message and continue printing. The Supplies message is displayed
until you replace the specified toner cartridge.
See also:
Replacing a toner cartridge
900–999 Service <message>
What these messages mean:
Messages 900–999 relate to printer problems that may require service.
What you can do:
Turn the printer off and check all cable connections. Turn the printer back on. If the service
message recurs, call for service and report the message number and description of the
problem.
See also:
Calling for service
235
57 Using printer menus
Select a menu from the following list for more information. Or, click a letter in the index at the bottom of
the page to find a specific menu item that starts with that letter.
Click here for a one-page overview of all the menus and their menu items.
Select a menu or menu item for more details.
•Color Menu •PCL Emul Menu
•Finishing Menu •PostScript Menu
•Infrared Menu •Serial Menu
•Job Menu •Setup Menu
•LocalTalk Menu •Supplies Menu
•Network Menu •USB Menu
•Paper Menu •Utilities Menu
•Parallel Menu
Paper Menu
Paper Source
Paper Size
Paper Type
Custom Types
Configure Bins
Assign Type/Bin
Substitute Size
Configure MP
Paper Weight
Paper Loading
Universal Setup
Supplies Menu
Belt
Black Photo Dev
Coating Roll
Color Photo Dev
<color> Toner
Fuser
Replace Supplies
Supplies Life
Finishing Menu
Duplex
Duplex Bind
Copies
Blank Pages
Collation
Separator Sheets
Separator Source
Multipage Print
Multipage Order
Multipage View
Multipage Border
Color Menu
Color Correction
Manual Color
Print Mode
Toner Darkness
Job Menu
Reset Printer
Cancel Fax
Confidential Job
Held Jobs
Utilities Menu
Color Samples
Print Alignment
Print Menus
Print Net <x> Setup
Print Fonts
Print Directory
Factory Defaults
Format Flash
Defragment Flash
Format Disk
Job Acct Stat
Hex Trace
Setup Menu
Printer Language
Printer Usage
Power Saver
Resource Save
Download Target
Print Timeout
Auto Continue
Wait Timeout
Jam Recovery
Page Protect
Display Language
Alarm Control
Job Accounting
Job Acct Limit
PCL Emul Menu
Font Source
Font Name
Point Size
Pitch
Symbol Set
Orientation
Lines per Page
A4 Width
Auto CR after LF
Auto LF after CR
Tray Renumber
PostScript Menu
Print PS Error
Font Priority
Image Smoothing
Serial Menu
PCL SmartSwitch
PS SmartSwitch
NPA Mode
Serial Buffer
Job Buffering
RS-232/RS-422
RS-422 Polarity
Serial Protocol
Robust XON
Baud
Data Bits
Parity
Honor DSR
Network Menu
PCL SmartSwitch
PS SmartSwitch
MAC Binary PS
NPA Mode
Network Buffer
Job Buffering
Network <x> Setup
Std Net Setup
Infrared Menu
Infrared Port
PCL SmartSwitch
PS SmartSwitch
NPA Mode
Infrared Buffer
Job Buffering
Window Size
Transmit Delay
Max Baud Rate
LocalTalk Menu
LocalTalk Port
PCL SmartSwitch
PS SmartSwitch
NPA Mode
LocalTalk Buffer
Job Buffering
NPA Hosts
LocalTalk Name
LocalTalk Addr
LocalTalk Zone
USB Menu
PCL SmartSwitch
PS SmartSwitch
MAC Binary PS
NPA Mode
USB Buffer
Job Buffering
Parallel Menu
PCL SmartSwitch
PS SmartSwitch
MAC Binary PS
NPA Mode
Parallel Buffer
Job Buffering
Advanced Status
Protocol
Honor Init
Parallel Mode 1
Parallel Mode 2
236
A
A4 Width
Advanced Status
Alarm Control
Assign Type/Bin
Auto Continue
Auto CR after LF
Auto LF after CR
B
Baud
Belt
Black Photo Dev
Blank Pages
C
Cancel Fax
Coating Roll
Collation
Color Photo Dev
Color Samples
<color> Toner
Color Correction
Color Menu
Confidential Job
Configure Bins
Configure MP
Copies
Custom Types
D
Data Bits
Defragment Flash
Display Language
Download Target
Duplex
Duplex Bind
E
F
Factory Defaults
Finishing Menu
Font Name
Font Priority
Font Source
Format Disk
Format Flash
Fuser
G
H
Held Jobs
Hex Trace
Honor DSR
Honor Init
I
Image Smoothing
Infrared Buffer
Infrared Port
Infrared Menu
J
Jam Recovery
Job Acct Limit
Job Acct Stat
237
Job Accounting
Job Buffering
Infrared Menu
LocalTalk Menu
Network Menu
Parallel Menu
Serial Menu
USB Menu
Job Menu
K
L
Lines per Page
LocalTalk Addr
LocalTalk Buffer
LocalTalk Menu
LocalTalk Name
LocalTalk Port
LocalTalk Zone
M
Mac Binary PS
Network Menu
Parallel Menu
USB Menu
Manual Color
Max Baud Rate
Multipage Border
Multipage Order
Multipage Print
Multipage View
N
Network Buffer
Network Menu
Network <x> Setup
NPA Hosts
NPA Mode
Infrared Menu
LocalTalk Menu
Network Menu
Parallel Menu
Serial Menu
USB Menu
O
Orientation
P
Page Protect
Paper Loading
Paper Menu
Paper Size
Paper Source
Paper Type
Paper Weight
Parallel Buffer
Parallel Menu
Parallel Mode 1
Parallel Mode 2
Parity
PCL Emul Menu
PCL SmartSwitch
Infrared Menu
LocalTalk Menu
Network Menu
Parallel Menu
Serial Menu
USB Menu
Pitch
Point Size
PostScript Menu
238
Power Saver
Print Alignment
Print Directory
Print Fonts
Print Menus
Print Mode
Print Net <x> Setup
Print PS Error
Print Timeout
Printer Language
Printer Usage
Protocol
PS SmartSwitch
Infrared Menu
LocalTalk Menu
Network Menu
Parallel Menu
Serial Menu
USB Menu
Q
R
Replace Supplies
Reset Printer
Resource Save
Robust XON
RS-422 Polarity
RS-232/RS-422
S
Separator Sheets
Separator Source
Serial Buffer
Serial Menu
Serial Protocol
Setup Menu
Substitute Size
Supplies Menu
Std Net Setup
Supplies Life
Symbol Set
T
Toner Darkness
Transmit Delay
Tray Renumber
U
Universal Setup
USB Buffer
USB Menu
Utilities Menu
V
W
Wait Timeout
Window Size
X
Y
Z
239
58 Color Menu
Use the Color Menu to adjust print quality and customize color printing.
Select a menu item for more details:
Note: Values marked by an asterisk (*) are the factory default settings.
Color Correction
Purpose:
To adjust the printed color to better match the colors of other output devices or standard color systems.
Values:
•Color Correction
•Manual Color
•Print Mode
•Toner Darkness
Auto* Applies different color correction to each object on the printed page
depending upon the type of object and how the color for each object is
specified.
Vivid Applies a color correction algorithm that produces brighter, more
saturated colors.
Off No color correction is implemented.
CMYK Applies color correction to approximate SWOP color output.
Manual Similar to Auto. Lets users customize color correction output for each
type of object on the page. See “Manual Color” on page 240 for details.
Display Applies color correction to approximate the colors on a computer
display.
Note: Due to the differences between additive and subtractive colors, certain colors that appear
on your monitor are impossible to duplicate on your printer.
240
Manual Color
Purpose:
To let users customize color correction output from the operator panel.
Values:
RGB Image Vivid: Applies a color correction algorithm that produces brighter, more
saturated colors. May be selected for all incoming color formats.
sRGB Display*: Applies color correction to produce output that
approximates the colors displayed on a computer monitor.
sRGB Vivid: Increases color saturation for the sRGB Display color
correction.
Off: No color correction is implemented.
RGB Text Vivid
sRGB Display
sRGB Vivid*
Off
RGB Graphics Vivid
sRGB Display
sRGB Vivid*
Off
CMYK Image US CMYK: Applies color correction to approximate SWOP color output.
Euro CMYK*: Applies color correction to approximate EuroScale color
output.
Vivid: Applies a color correction algorithm that produces brighter, more
saturated colors. May be selected for all incoming color formats.
Vivid CMYK: Increases color saturation for the US CMYK color correction.
Off: No color correction is implemented.
CMYK Text US CMYK
Euro CMYK*
Vivid
Vivid CMYK
Off
CMYK Graphics US CMYK
Euro CMYK*
Vivid
Vivid CMYK
Off
241
Print Mode
Purpose:
To determine whether images are printed in a monochrome grayscale or in color.
Values:
Toner Darkness
Purpose:
To lighten or darken text images, or conserve toner.
Values:
Select a lower value for lighter grayscale images. Select a higher value for darker grayscale images.
Select a value of less than 4 to conserve toner.
Color*
Black & White
1–4 (4*) 1 is lightest; 4 is darkest.
242
59 Finishing Menu
Use the Finishing Menu to define how the printer delivers the printed output.
Select a menu item for more details:
Note: Values marked by an asterisk (*) are the factory default settings.
Blank Pages
Purpose:
To specify whether to include application-generated blank pages as part of your printed output.
Values:
•Blank Pages
•Collation
•Copies
•Duplex
•Duplex Bind
•Multipage Border
•Multipage Order
•Multipage Print
•Multipage View
•Separator Sheets
•Separator Source
Do Not Print* Does not print application-generated blank pages as part of your job.
Print Prints application-generated blank pages as part of your job.
243
Collation
Purpose:
To keep the pages of a print job stacked in sequence, particularly when printing multiple copies of the
job.
Values:
Copies
Purpose:
To set the number of copies you want for the printer default value. (Set the number of copies required
for a specific job from the printer driver. Values selected from the printer driver always override values
selected from the operator panel.)
Values:
See also:
Collation
Duplex
Purpose:
To set duplexing as the default for all print jobs. (Select Duplex from the printer driver to duplex only
specific jobs.)
Values:
See also:
Duplex Bind
Off* Prints each page of a job the number of times specified by the Copies menu item. For
example, if you set Copies to 2 and send three pages to print, the printer prints page 1, page
1, page 2, page 2, page 3, page 3.
On Prints entire job the number of times specified by the Copies menu item. For example, if you
set Copies to 2 and send three pages to print, the printer prints page 1, page 2, page 3, page
1, page 2, page 3.
1...999 (1*)
Off* Prints on one side of the paper.
On Prints on both sides of the paper.
244
Duplex Bind
Purpose:
To define the way to bind duplexed pages, and how the printing on the back of the sheet (even-
numbered pages) is oriented in relation to the printing on the front (odd-numbered pages).
Values:
See also:
Duplex
Multipage Border
Purpose:
To print a border around each page image when using Multipage Print.
Values:
See also:
Multipage Print
Long Edge* Assumes binding along the long end of the page (left edge for portrait orientation
and top edge for landscape orientation).
Short Edge Assumes binding along the short edge of the page (top edge for portrait orientation
and left edge for landscape orientation).
None* Does not print a border around each page image.
Solid Prints a solid line border around each page image.
245
Multipage Order
Purpose:
To determine the positioning of multiple page images when using Multipage Print. The positioning
depends on the number of images and whether the images are portrait or landscape in orientation.
For example, if you select 4-Up multipage printing and portrait orientation, the results differ depending
on the Multipage Order value you select:
Values:
See also:
Multipage Print
Horizontal*
Vertical
Rev Horizontal
Rev Vertical
page 1 page 2
page 3 page 4
Horizontal Order Vertical Order
page 1 page 3
page 2 page 4
page 2 page 1
page 4 page 3
page 3 page 1
page 4 page 2
Reverse Vertical OrderReverse Horizontal
Order
246
Multipage Print
Purpose:
To print multiple page images on one side of a sheet of paper. Also called n-up or Paper Saver.
Values:
See also:
Multipage Border; Multipage Order; Multipage View
Multipage View
Purpose:
To determine the orientation of a multipage sheet.
Values:
See also:
Multipage Print
Off* Prints 1 page image per side. 6 Up Prints 6 page images per side.
2 Up Prints 2 page images per side. 9 Up Prints 9 page images per side.
3 Up Prints 3 page images per side. 12 Up Prints 12 page images per side.
4 Up Prints 4 page images per side. 16 Up Prints 16 page images per side.
Auto* Lets the printer choose between portrait and landscape orientation.
Long Edge Sets the long edge of the paper as the top of the page (landscape).
Short Edge Sets the short edge of the paper as the top of the page (portrait).
247
Separator Sheets
Purpose:
To insert blank separator sheets between jobs, between multiple copies of a job, or between each
page of a job.
Values:
See also:
Separator Source; Collation
Separator Source
Purpose:
To specify the paper source that holds separator sheets.
Values:
See also:
Separator Sheets; Configure MP
None* Does not insert separator sheets.
Between Copies Inserts a blank sheet between each copy of a job. If Collation is Off, a blank
page is inserted between each set of printed pages (all page 1’s, all page 2’s,
and so on). If Collation is On, a blank page is inserted between each collated
copy of the job.
Between Jobs Inserts a blank sheet between jobs.
Between Pages Inserts a blank sheet between each page of a job. This is useful if you are
printing transparencies or want to insert blank pages in a document for notes.
Tray <x> (Tray 1*) Selects separator sheets from the specified tray.
MP Feeder Selects separator sheets from the multipurpose feeder. (You must also set
Configure MP to Cassette.)
248
60 Infrared Menu
Use the Infrared Menu to change printer settings affecting jobs sent to the printer through an infrared
port.
Select a menu item for more details:
Note: Values marked by an asterisk (*) are the factory default settings.
•Infrared Buffer
•Infrared Port
•Job Buffering
•Max Baud Rate
•NPA Mode
•PCL SmartSwitch
•PS SmartSwitch
•Transmit Delay
•Window Size
249
Infrared Buffer
Purpose:
To configure the size of the infrared input buffer.
Values:
Note: Changing the Infrared Buffer menu item automatically resets the printer.
See also:
Resource Save
Infrared Port
Purpose:
To activate the infrared port.
Values:
Job Buffering
Purpose:
To temporarily store jobs on the printer hard disk before printing.
Values:
Note: Changing the Job Buffering menu item automatically resets the printer.
Disabled Disables job buffering. Any jobs already buffered on the disk are printed before
normal processing of incoming jobs resumes.
Auto* Printer automatically calculates the Infrared Buffer size (recommended
setting).
36K to maximum
size allowed User specifies the Infrared Buffer size. The maximum size setting depends on
the amount of memory in your printer, the size of the other link buffers, and
whether Resource Save is set to On or Off. To maximize the range for the
Infrared Buffer size, disable or reduce the size of the parallel, serial, network,
LocalTalk, and USB buffers.
Disabled* Disables the infrared port and all other menu items in the Infrared Menu.
IR Option <x> Activates the specified infrared port.
Off* Does not buffer print jobs to the hard disk.
On Buffers print jobs to the hard disk.
Auto Buffers print jobs only if the printer is busy processing data from another input port.
250
Max Baud Rate
Purpose:
To specify the rate at which data can be received through the infrared port.
Values:
The maximum baud possible for both the printer and the infrared adapter is automatically set during a
power on reset. However, if your printer is situated in a bright or highly reflective environment, you may
experience intermittent communication problems. If you do, select a lower baud for the infrared
connection.
NPA Mode
Purpose:
To specify whether the printer performs the special processing required for bidirectional
communication, following the conventions defined in the Network Printing Alliance (NPA) Protocol.
Values:
Changing this menu item automatically resets the printer.
2400 115200
9600 576000
19200 1152000*
38400 4000000
57600
Off Printer does not perform NPA processing.
Auto* Printer examines the data to determine the format and then processes it appropriately.
251
PCL SmartSwitch
Purpose:
To configure the printer so it automatically switches to PCL emulation when a print job received
through the infrared port requires it, regardless of the default printer language.
Values:
See also:
PS SmartSwitch; Printer Language
PS SmartSwitch
Purpose:
To configure the printer so it automatically switches to PostScript emulation when a print job received
through the infrared port requires it, regardless of the default printer language.
Values:
See also:
PCL SmartSwitch; Printer Language
On* Printer examines the data on the infrared interface and selects PCL emulation if the data
indicates that is the required printer language.
Off Printer does not examine the incoming data. The printer uses PostScript emulation to
process the job if PS SmartSwitch is On, or uses the default printer language specified in the
Setup Menu if PS SmartSwitch is Off.
On* Printer examines data on the infrared interface and selects PostScript emulation if the data
indicates that is the required printer language.
Off Printer does not examine the incoming data. The printer uses PCL emulation to process the
job if PCL SmartSwitch is On, or uses the default printer language specified in the Setup
Menu if PCL SmartSwitch is Off.
252
Transmit Delay
Purpose:
To define the amount of time, in seconds, the printer must wait before transmitting meaningful infrared
data to the host computer, as well as the amount of time the printer requests that the host computer
wait before transmitting infrared data.
Values:
Window Size
Purpose:
To specify the maximum number of infrared frames the printer can receive before sending an
acknowledgment to the host computer.
Values:
Auto* Printer sets the Transmit Delay value during a power-on reset to maximize link
performance (recommended).
None No delay is imposed by the printer. However, not all host computers can communicate
without some transmission delays.
1...15 User selects a Transmit Delay value between 1 and 15 seconds. If you have trouble
printing using the infrared port, selecting a high Transmit Delay value, such as 15, may
resolve the problem.
Auto* Printer sets the Window Size value during a power-on reset to maximize link performance
(recommended).
1User sets the Window Size to one frame (1). If you have trouble printing using the infrared
port, changing the Window Size menu item to 1 may resolve the problem.
253
61 Job Menu
The Job Menu is only available when the printer is busy processing or printing a job, when a printer
message is displayed, or when the printer is in Hex Trace mode. Press Menu to open the Job Menu.
Select a menu item for more details:
Cancel Fax
Purpose:
To cancel outgoing faxes before they are transmitted or to cancel incoming faxes before they finish
printing.
Values:
Confidential Job
Purpose:
To print confidential jobs stored in printer memory. (When the Confidential Job prints, it is automatically
deleted from printer memory.)
First enter the Personal Identification Number (PIN) associated with your Confidential Job:
•Cancel Fax
•Confidential Job
•Held Jobs
•Reset Printer
RCancels an incoming fax. When the fax number for the sending machine is displayed, press
Select to cancel the incoming fax.
DCancels an outgoing fax. When the fax number for the receiving machine is displayed, press
Select to cancel the fax job. If the telephone number of the fax you want to cancel is not
displayed, use the Menu button to scroll through the list. The printer can display up to five
outgoing fax numbers in the outgoing fax queue. When more than five faxes are in the queue,
the next fax job appears on the display as an outgoing fax is transmitted or canceled.
Enter PIN Use the operator panel buttons to enter the PIN associated with your
Confidential Job.
254
Then select a value:
Held Jobs
Purpose:
To print Reserve Print, Repeat Print, or Verify Print jobs stored in printer memory.
Values:
Reset Printer
Purpose:
To reset the printer to the user default value for each menu item, delete all downloaded resources
(fonts, macros, and symbol sets) stored in printer memory (RAM), and delete all data in the interface
link buffer.
Note: Before selecting Reset Printer, exit the software application you
are using.
Print All Jobs Prints all jobs associated with your PIN.
Print A Job Prints the specified Confidential Job. Press Menu to scroll through the list of
confidential jobs associated with your PIN. Press Select to print a specific job.
Delete All Jobs Deletes all jobs associated with your PIN.
Delete A Job Deletes the specified Confidential Job. Press Menu to scroll through the list of
Confidential Jobs associated with your PIN. Press Select to delete a specific
job.
Copies Determines the number of copies printed for each Confidential Job. Press Menu
to scroll through the list of Confidential Jobs associated with your PIN. Press
Select to specify the job you want to print. Press Menu to increase or decrease
the number of copies, and then press Select.
Print All Jobs Prints all held jobs.
Print A Job Prints the specified held job. Press Menu to scroll through the list of held jobs.
Press Select to print the specific job.
Delete All Jobs Deletes all held jobs.
Delete A Job Deletes the designated held job. Press Menu to scroll through the list of held
jobs. Press Select to delete the job.
Copies Determines the number of copies for each held job. Press Menu to scroll
through the list of held jobs. Press Select to specify the job you want to print.
Press Menu to increase or decrease the number of copies, and then press
Select.
255
62 LocalTalk Menu
Use the LocalTalk Menu to change printer settings affecting jobs sent to the printer through a LocalTalk
port.
Select a menu item for more details:
Note: Values marked by an asterisk (*) are the factory default settings.
Job Buffering
Purpose:
To temporarily store jobs on the printer hard disk before printing.
Values:
Note: Changing the Job Buffering menu item automatically resets the printer.
•Job Buffering
•LocalTalk Addr
•LocalTalk Buffer
•LocalTalk Name
•LocalTalk Port
•LocalTalk Zone
•NPA Hosts
•NPA Mode
•PCL SmartSwitch
•PS SmartSwitch
Off* Does not buffer the print job to the hard disk.
On Buffers print jobs to the hard disk.
Auto Buffers print jobs only if the printer is busy processing data from another input port.
256
LocalTalk Addr
Purpose:
To identify the LocalTalk Node number assigned to the printer. This menu item cannot be modified
through the operator panel.
LocalTalk Buffer
Purpose:
To configure the size of the LocalTalk input buffer.
Values:
Note: Changing the LocalTalk Buffer menu item automatically resets the printer.
See also:
Resource Save
LocalTalk Name
Purpose:
To identify the printer model name stored in printer memory. This menu item cannot be modified
through the operator panel.
LocalTalk Port
Purpose:
To activate the LocalTalk port.
Values:
Disabled Disables job buffering. Any jobs already buffered on the disk are printed before
normal processing of incoming jobs resumes.
Auto* Printer automatically calculates LocalTalk Buffer size (recommended).
6K to maximum
size allowed User specifies the LocalTalk Buffer size. The maximum size depends on the
amount of memory in your printer, the size of the other link buffers, and
whether Resource Save is set to On or Off. To maximize the range for the
LocalTalk Buffer size, disable or reduce the size of the parallel, serial, network,
infrared, and USB buffers.
Disabled* Disables the LocalTalk port and all other menu items in the LocalTalk Menu.
LTalk Option <x> Activates the specified LocalTalk port.
257
LocalTalk Zone
Purpose:
To identify the LocalTalk Zone provided by the LocalTalk network. This menu item cannot be modified
through the operator panel.
NPA Hosts
Purpose:
To specify the maximum number of NPA hosts that can register for NPA alerts.
Values:
NPA Mode
Purpose:
To specify whether the printer performs the special processing required for bidirectional
communication, following the conventions defined in the Network Printing Alliance (NPA) Protocol.
Values:
Note: Changing this menu item automatically resets the printer.
1...10 (2*)
Off Printer does not perform NPA processing.
Auto* Printer examines the data to determine the format and then processes it appropriately.
258
PCL SmartSwitch
Purpose:
To configure the printer so it automatically switches to PCL emulation when a print job received
through the LocalTalk port requires it, regardless of the default printer language.
Values:
See also:
PS SmartSwitch; Printer Language
PS SmartSwitch
Purpose:
To configure the printer so it automatically switches to PostScript emulation when a print job received
through the LocalTalk port requires it, regardless of the default printer language.
Values:
See also:
PCL SmartSwitch; Printer Language
On* Printer examines data on the LocalTalk interface and selects PCL emulation if the data
indicates that is the required printer language.
Off Printer does not examine the incoming data. The printer uses PostScript emulation to
process the job if PS SmartSwitch is On, or uses the default printer language specified in the
Setup Menu if PS SmartSwitch is Off.
On* Printer examines data on the LocalTalk interface and selects PostScript emulation if the data
indicates that is the required printer language.
Off Printer does not examine the incoming data. The printer uses PCL emulation to process the
job if PCL SmartSwitch is On, or uses the default printer language specified in the Setup
Menu if PCL SmartSwitch is Off.
259
63 Network Menu
Use the Network Menu to change printer settings affecting jobs sent to the printer through a network
port (either Standard Network or Network Opt <x>).
Select a menu item for more details:
Note: Values marked by an asterisk (*) are the factory default settings.
Job Buffering
Purpose:
To temporarily store jobs on the printer hard disk before printing.
Values:
Note: Changing the Job Buffering menu item automatically resets the printer.
•Job Buffering
•MAC Binary PS
•Network Buffer
•Network <x> Setup
•NPA Mode
•PCL SmartSwitch
•PS SmartSwitch
•Std Net Setup
Off* Does not buffer jobs to the hard disk.
On Buffers print jobs to the hard disk.
Auto Buffers print jobs only if the printer is busy processing data from another input port.
260
MAC Binary PS
Purpose:
To configure the printer to process Macintosh binary PostScript print jobs.
Values:
Network Buffer
Purpose:
To configure the size of the network input buffer.
Values:
Note: Changing the Network Buffer menu item automatically resets the printer.
See also:
Resource Save
Network <x> Setup
Purpose:
To configure an internal print server.
Values:
Values for this menu item are supplied by the specific print server. Select the menu item to see the
available values.
Note: Refer to the documentation on the drivers CD for more information.
On Printer processes raw binary PostScript print jobs from computers using the Macintosh
operating system.
Note: This setting often causes Windows print jobs to fail.
Off Printer filters PostScript print jobs using standard protocol.
Auto* Printer processes print jobs from computers using either Windows or Macintosh operating
systems.
Auto* Printer automatically calculates the Network Buffer size (recommended
setting).
3K to maximum
size allowed User specifies the Network Buffer size. The maximum size depends on the
amount of memory in your printer, the size of the other link buffers, and
whether Resource Save is set to On or Off. To maximize the range for the
Network Buffer size, disable or reduce the size of the parallel, serial, infrared,
LocalTalk, and USB buffers.
261
NPA Mode
Purpose:
To specify whether the printer performs the special processing required for bidirectional
communication, following the conventions defined in the Network Printing Alliance (NPA) Protocol.
Values:
Note: Changing this menu item automatically resets the printer.
PCL SmartSwitch
Purpose:
To configure the printer so it automatically switches to PCL emulation when a print job received
through the network port requires it, regardless of the default printer language.
Values:
See also:
PS SmartSwitch; Printer Language
Off Printer does not perform NPA processing.
Auto* Printer examines the data to determine the format and then processes it appropriately.
On* Printer examines data on the network interface and selects PCL emulation if the data
indicates that is the required printer language.
Off Printer does not examine the incoming data. The printer uses PostScript emulation to
process the job if PS SmartSwitch is On, or uses the default printer language specified in the
Setup Menu if PS SmartSwitch is Off.
262
PS SmartSwitch
Purpose:
To configure the printer so it automatically switches to PostScript emulation when a print job received
through the network port requires it, regardless of the default printer language.
Values:
See also:
PCL SmartSwitch; Printer Language
Std Net Setup
Purpose:
To configure an internal print server.
Values:
Values for this menu item are supplied by the specific print server. Select the menu item to see the
available values.
Note: Refer to the documentation on the drivers CD for more information.
On* Printer examines data on the network interface connection and selects PostScript emulation
if the data indicates that is the required printer language.
Off Printer does not examine the incoming data. The printer uses PCL emulation to process the
job if PCL SmartSwitch is On, or uses the default printer language specified in the Setup
Menu if PCL SmartSwitch is Off.
263
64 Paper Menu
Use the Paper Menu to define the paper loaded in each paper tray and the default paper source and
output bin.
Select a menu item for more details:
Note: Values marked by an asterisk (*) are the factory default settings.
Assign Type/Bin
Purpose:
To send print jobs to a specific output bin based on the requested paper type.
Values (for Standard Bin* and Bin 1):
Note: If a user-defined name is available, it is displayed instead of Custom <x> Bin. The
name is truncated to 14 characters. If two or more bins share the same name, the
name only appears once in the Assign Type/Bin value list.
•Assign Type/Bin
•Configure Bins
•Configure MP
•Custom Types
•Paper Loading
•Paper Size
•Paper Source
•Paper Type
•Paper Weight
•Substitute Size
•Universal Setup
Plain Paper Bin Envelope Bin
Card Stock Bin Letterhead Bin
Bond Bin Preprinted Bin
Glossy Paper Bin Colored Bin
Labels Bin Custom <x> Bin (where <x> represents 1 through 6)
264
Configure Bins
Purpose:
To determine which output bin(s) the printer uses for a particular job.
Values:
Configure MP
Purpose:
To determine when the printer selects paper loaded in the multipurpose feeder.
Values:
Custom Types
Purpose:
To specify the kind of paper associated with each of the Custom Types available in the Paper Type
menu item.
Values (for Custom Type <x>, where <x> represents 1 through 6):
Note: If a user-defined name is available, it is displayed instead of Custom Type <x>. The
user-defined name is truncated to 14 characters. If two or more custom types share
the same name, the name only appears once in the Custom Types value list.
Mailbox* Sends print jobs to the output bin designated for that user.
Mail Overflow Sends print jobs to the output bin designated for that user until it is full, and
then sends jobs to the designated overflow bin.
Type Assignment Sends each job to the output bin specified for that paper type.
Cassette* Printer treats the multipurpose feeder like any other paper tray. If a print job requests
a paper size or type that is only loaded in the multipurpose feeder, the printer pulls
paper from the multipurpose feeder for the job.
Manual Printer treats the multipurpose feeder like a manual feed tray, and displays Load
Manual when you need to insert a single sheet of paper in the feeder.
First Printer pulls paper from the multipurpose feeder until it is empty, regardless of the
paper source or paper size requested for the job.
Paper* Glossy Paper
Card Stock Labels
Transparency Envelope
265
Paper Loading
Purpose:
To properly handle preprinted paper loaded in a tray, whether the job is a duplexed job or a single-
sided job.
Values:
First select a paper type:
Then select a value:
Note: If a user-defined name is available, it is displayed instead of Custom <x> Loading.
The name is truncated to 14 characters.
Paper Size
Purpose:
To identify the default paper size for each paper source.
Values:
First select a paper source:
Then select a value (*denotes country-specific factory default values):
Bond Loading Colored Loading Ltrhead Loading
Glossy Loading Custom <x> Loading Preprint Loading
Duplex Notifies the printer that the specified paper type is loaded properly for duplex printing. If
the printer receives a single-sided job using that paper type, the printer inserts blank
pages as necessary to print the job properly on preprinted forms. This setting may slow
single-sided printing.
Off* Printer assumes preprinted material is loaded for single-sided printing. Duplexed jobs
may not print properly.
Tray <x> Size
Manual Pap Size
MP Feeder Size
Manual Env Size
Letter* A4* A3 7 3/4 Envelope 11 x 17
Legal A5 9 Envelope DL Envelope* Folio
Executive JIS B4 Other Envelope C5 Envelope
Statement JIS B5 10* Envelope* B5 Envelope
Universal Select Universal when you load paper that does not match any of the other available
sizes. The printer automatically formats the page for the maximum possible size.
You can then set the actual page size from your application software.
266
Paper Source
Purpose:
To identify the default paper source.
Values:
If you loaded the same size and type of paper in two paper sources (and the Paper Size and Paper
Type menu items are correctly set), the trays are automatically linked. When one paper source is
empty, paper automatically feeds from the next linked source.
Paper Type
Purpose:
To identify the type of paper installed in each paper source.
Values:
First select a paper source:
Then select a value:
The Paper Type default for each envelope source is Envelope. The Paper Type default for each paper
tray is as follows:
Note: If a user-defined name is available, it is displayed instead of Custom Type <x>. The
user-defined name is truncated to 14 characters. If two or more custom types share
the same name, the name only appears once in the Paper Type value list.
Tray <x> (Tray 1*)
MP Feeder
Manual Paper
Manual Env
Tray <x> Type MP Feeder Type
Manual Pap Type Manual Env Type
Plain Paper Labels Preprinted Envelope
Card Stock Bond Custom Type <x> Colored Paper
Transparency Letterhead Glossy Paper
Tray 1–Plain Paper Tray 4–Custom Type 4
Tray 2–Custom Type 2 Tray 5–Custom Type 5
Tray 3–Custom Type 3 Manual Pap Type–Plain Paper
267
Use this menu item to:
•Optimize print quality for the specified paper.
•Select paper sources through your software application by selecting type and size.
•Automatically link paper sources. Any sources containing the same type and size of paper are
automatically linked by the printer, if you have set the Paper Size and the Paper Type to the
correct values.
See also:
Output bins
Paper Weight
Purpose:
To identify the relative weight of the paper loaded in a specific source and ensure that the toner
adheres properly to the printed page.
Values:
First select a paper type:
Then select a value:
Note: If a user-defined name is available, it is displayed instead of Custom <x> Weight.
The name is truncated to 14 characters.
Plain Weight Preprint Weight Bond Weight
Ltrhead Weight Colored Weight Custom <x> Weight
Light 16–20 lb
Normal* 20–24 lb
Heavy 24–28 lb
268
Substitute Size
Purpose:
To have the printer substitute the specified paper size if the requested size is not loaded.
Values:
Universal Setup
Purpose:
To determine the default size when the Paper Size setting for a tray or feeder is Universal.
Values:
First select a unit of measure (* denotes a country-specific factory default value):
Then select the values:
Off Printer prompts the user to load the requested paper size.
Statement/A5 Prints A5 size jobs on statement size paper if only statement size paper is loaded,
and prints statement size jobs on A5 paper if only A5 paper is loaded.
11x17/A3 Prints A3 size jobs on 11x17 size paper if only 11x17 size paper is loaded, and prints
11x17 size jobs on A3 size paper if only A3 size paper is loaded.
Letter/A4 Prints A4 size jobs on letter size paper if only letter size paper is loaded, and prints
letter size jobs on A4 size paper if only A4 size paper is loaded.
All Listed* Substitutes Letter/A4.
Inches*
Millimeters*
Portrait Width =3.00–17.00 in. =76–432 mm
(11.69 in.*) (297 mm*)
Portrait Height =3.00–17.00 in. =76–432 mm
(17.00 in.*) (432 mm*)
Feed Direction =Short Edge*
=Long Edge
269
65 Parallel Menu
Use the Parallel Menu to change printer settings affecting jobs sent to the printer through a parallel
port (either Std Parallel or Parallel Opt <x>).
Select a menu item for more details:
Note: Values marked by an asterisk (*) are the factory default settings.
Advanced Status
Purpose:
To enable bidirectional communication through the parallel port.
Values:
•Advanced Status
•Honor Init
•Job Buffering
•MAC Binary PS
•NPA Mode
•Parallel Buffer
•Parallel Mode 1
•Parallel Mode 2
•PCL SmartSwitch
•PS SmartSwitch
•Protocol
Off Disables parallel port negotiation.
On* Enables bidirectional communication through the parallel interface.
270
Honor Init
Purpose:
To determine whether the printer honors hardware initialization requests from the computer. The
computer requests initialization by activating the INIT signal on the parallel interface. Many personal
computers activate the INIT signal each time the computer is turned on and off.
Values:
Job Buffering
Purpose:
To temporarily store jobs on the printer hard disk before printing.
Values:
Note: Changing the Job Buffering menu item automatically resets the printer.
MAC Binary PS
Purpose:
To configure the printer to process Macintosh binary PostScript print jobs.
Values:
Off* Printer does not honor hardware initialization requests from the computer.
On Printer honors hardware initialization requests from the computer.
Off* Does not buffer print jobs to the hard disk.
On Buffers print jobs to the hard disk.
Auto Buffers print jobs only if the printer is busy processing data from another input port.
On Printer processes raw binary PostScript print jobs from computers using the Macintosh
operating system.
Note: This setting often causes Windows print jobs to fail.
Off Printer filters PostScript print jobs using standard protocol.
Auto* Printer processes print jobs from computers using either Windows or Macintosh operating
systems.
271
NPA Mode
Purpose:
To specify whether the printer performs the special processing required for bidirectional
communication, following the conventions defined in the Network Printing Alliance (NPA) Protocol.
Values:
Note: Changing this menu item automatically resets the printer.
Parallel Buffer
Purpose:
To configure the size of the parallel input buffer.
Values:
Note: Changing the Parallel Buffer menu item automatically resets the printer.
See also:
Resource Save
On Printer performs NPA processing. If data is not in NPA format, it is rejected as bad data.
Off Printer does not perform NPA processing.
Auto* Printer examines data and determines the format and then processes it appropriately.
Disabled Disables job buffering. Any jobs already buffered on the disk are printed before
normal processing of incoming jobs resumes.
Auto* Printer automatically calculates the Parallel Buffer size (recommended setting).
3K to maximum
size allowed User specifies the Parallel Buffer size. The maximum size depends on the
amount of memory in your printer, the size of the other link buffers, and
whether Resource Save is set to On or Off. To maximize the range for the
Parallel Buffer size, disable or reduce the size of the serial, infrared, LocalTalk,
and USB buffers.
272
Parallel Mode 1
Purpose:
To control the pull-up resistors on the parallel port signals. This menu item is useful for personal
computers that have open collector outputs on the parallel port signals.
Values:
Parallel Mode 2
Purpose:
To determine whether the parallel port data is sampled on the leading or trailing edge of strobe.
Values:
PCL SmartSwitch
Purpose:
To configure the printer so it automatically switches to PCL emulation when a print job received
through the parallel port requires it, regardless of the default printer language.
Values:
See also:
Printer Language; PS SmartSwitch
On Disables the resistors.
Off* Enables the resistors.
On* Samples parallel port data on the leading edge of strobe.
Off Samples parallel port data on the trailing edge of strobe.
On* Printer examines data on the parallel interface and selects PCL emulation if the data
indicates that is the required printer language.
Off Printer does not examine the incoming data. The printer uses PostScript emulation to
process the job if PS SmartSwitch is On, or uses the default printer language specified in the
Setup Menu if PS SmartSwitch is Off.
273
PS SmartSwitch
Purpose:
To configure the printer so it automatically switches to PostScript emulation when a print job received
through the parallel port requires it, regardless of the default printer language.
Values:
See also:
PCL SmartSwitch; Printer Language
Protocol
Purpose:
To specify the parallel interface protocol.
Values:
See also:
Technical Reference
On* Printer examines data on the parallel interface and selects PostScript emulation if the data
indicates that is the required printer language.
Off Printer does not examine the incoming data. The printer uses PCL emulation to process the
job if PCL SmartSwitch is On, or uses the default printer language specified in the Setup
Menu if PCL SmartSwitch is Off.
Standard May resolve some parallel interface problems.
Fastbytes* Provides compatibility with most existing parallel interface implementations
(recommended setting).
274
66 PCL Emul Menu
Use the PCL Emul Menu to change printer settings that only affect jobs using the PCL emulation
printer language.
Select a menu item for more details:
Note: Values marked by an asterisk (*) are the factory default settings.
A4 Width
Purpose:
To select the width of the logical page for A4 size paper.
Values:
•A4 Width
•Auto CR after LF
•Auto LF after CR
•Font Name
•Font Source
•Lines per Page
•Orientation
•Pitch
•Point Size
•Symbol Set
•Tray Renumber
198 mm* Makes the logical page compatible with the Hewlett-Packard LaserJet 5
Printer.
203 mm Makes the logical page wide enough to print eighty 10-pitch characters.
275
Auto CR after LF
Purpose:
To specify whether the printer automatically performs a carriage return after a line feed control
command.
Values:
Auto LF after CR
Purpose:
To specify whether the printer automatically performs a line feed after a carriage return control
command.
Values:
Font Name
Purpose:
To choose a specific font from the specified font source.
Values:
The font name and font ID for all fonts in the selected font source are displayed. The font source
abbreviation is R for resident, F for flash, K for disk, and D for download.
See also:
Font Source
Off* Printer does not perform a carriage return after a line feed control command.
On Printer performs a carriage return after a line feed control command.
Off* Printer does not perform a line feed after a carriage return control command.
On Printer performs a line feed after a carriage return control command.
R0 Courier 10*
276
Font Source
Purpose:
To determine the set of fonts displayed in the Font Name menu item.
Values:
See also:
Font Name
Lines per Page
Purpose:
To determine the number of lines that print on each page.
Values:
The printer sets the amount of space between each line (vertical line spacing) based on the Lines per
Page, Paper Size, and Orientation menu items. Select the correct Paper Size and Orientation before
changing Lines per Page.
See also:
Orientation; Paper Size
Resident* Displays all fonts resident in printer RAM when the printer ships from the factory.
Download Displays all fonts downloaded to printer RAM.
Flash Displays all fonts stored in flash memory.
Disk Displays all fonts stored on the printer hard disk.
All Displays all fonts available to the printer from all sources.
1...255
60* (country-specific factory default values)
64* (country-specific factory default values)
277
Orientation
Purpose:
To determine how text and graphics are oriented on the page.
Values:
Pitch
Purpose:
To specify the font pitch for scalable monospaced fonts.
Values:
Pitch refers to the number of fixed-space characters in a horizontal inch of type. You can select a pitch
from 0.08 to 100 characters per inch (cpi) in increments of 0.01 cpi. For nonscalable monospaced
fonts, the pitch is displayed, but cannot be changed.
Note: Pitch is only displayed for fixed, or monospaced, fonts.
Point Size
Purpose:
To change the point size for scalable typographic fonts.
Values:
Point size refers to the height of the characters in the font. One point equals approximately
1/72 of an inch. You can select point sizes from 1 to 1008 in increments of 0.25 points.
Note: Point Size is only displayed for typographic fonts.
Portrait* Prints text and graphics parallel to the short edge of the paper.
Landscape Prints text and graphics parallel to the long edge of the paper.
0.08...100 (in increments of 0.01 cpi)
10*
1...1008 (in increments of 0.25 points)
12*
278
Symbol Set
Purpose:
To choose a symbol set for a specified font name.
Values:
A symbol set is a set of alphabetic and numeric characters, punctuation, and special symbols used
when printing with a selected font. Symbol sets support the different requirements for languages or
specific applications, such as math symbols for scientific text. Only the symbol sets supported for the
selected font name are displayed.
See also:
Font Name
Tray Renumber
Purpose:
To configure your printer to work with printer drivers or applications that use different source
assignments for the paper trays.
First select a paper source:
Then select a value:
Other Tray Renumber selections:
Note: Refer to the Technical Reference for more information about assigning source
numbers.
PC-8* (country-specific factory default values)
PC-850* (country-specific factory default values)
Assign Tray <x> Assign Man Env
Assign MP Feeder Assign Man Paper
Off* Printer uses factory default paper source assignments.
0...199 Select a numeric value to assign a custom value to a paper source.
None Paper source ignores the Select Paper Feed command.
View Factory Def Press Menu to display the factory default value assigned to each paper
source.
Restore Defaults Select Yes to return all tray assignments to factory default values.
279
67 PostScript Menu
Use the PostScript Menu to change printer settings that only affect jobs using the PostScript emulation
printer language.
Select a menu item for more details:
Note: Values marked by an asterisk (*) are the factory default settings.
Font Priority
Purpose:
To establish the font search order.
Values:
Note: Font Priority is only displayed when a formatted flash or hard disk is installed, is
neither defective nor Read/Write or Write protected, and Job Buffer Size is not set
to 100%.
•Font Priority
•Image Smoothing
•Print PS Error
Resident* Printer searches printer memory for the requested font before searching flash
memory or hard disk.
Flash/Disk Printer searches the hard disk and flash memory for the requested font before
searching printer memory.
280
Image Smoothing
Purpose:
To enhance the contrast and sharpness of low resolution bitmapped images (such as images
downloaded from the World Wide Web) and smooth their color transitions.
Values:
Note: Image Smoothing has no effect on images that are 300 dpi or higher resolution.
Print PS Error
Purpose:
To print a page defining the PostScript emulation error when an error occurs.
Values:
Off* Uses default resolution when printing all images.
On Enhances low resolution images, such as graphics with a resolution of 72 dpi.
Off* Discards the print job without printing an error message.
On Prints an error message before it discards the job.
281
68 Serial Menu
Use the Serial Menu to change printer settings affecting jobs sent to the printer through a serial port
(either Standard Serial or Serial Opt <x>).
Select a menu item for more details:
Note: Values marked with an asterisk (*) are the factory default settings.
•Baud
•Data Bits
•Honor DSR
•Job Buffering
•NPA Mode
•Parity
•PCL SmartSwitch
•PS SmartSwitch
•Robust XON
•RS-232/RS-422
•RS-422 Polarity
•Serial Buffer
•Serial Protocol
282
Baud
Purpose:
To specify the rate at which data can be received through the serial port.
Values:
See also:
Technical Reference
Data Bits
Purpose:
To specify the number of data bits that are sent in each transmission frame.
Values:
See also:
Technical Reference
1200 57600
2400 115200
4800 138200
9600* 172800
19200 230400
38400 345600
7
8*
283
Honor DSR
Purpose:
To determine whether the printer uses the Data Set Ready (DSR) signal. DSR is one of the
handshaking signals for most serial interface cables.
Values:
The serial interface uses DSR to distinguish data sent by the computer from data created by electrical
noise in the serial cable. This electrical noise can cause stray characters to print. Select On to prevent
stray characters from printing.
Job Buffering
Purpose:
To temporarily store jobs on the printer hard disk before printing.
Values:
Note: Changing the Job Buffering menu item automatically resets the printer.
NPA Mode
Purpose:
To specify whether the printer performs the special processing required for bidirectional
communication, following the conventions defined in the Network Printing Alliance (NPA) Protocol.
Values:
Note: Changing this menu item automatically resets the printer.
Off* All data received by the serial port is treated as valid data.
On Only data received while the DSR signal is high is treated as valid.
Off* Does not buffer print jobs to the hard disk.
On Buffers print jobs to the hard disk.
Auto Buffers print jobs only if the printer is busy processing data from another input port.
On Printer performs NPA processing. If data is not in NPA format, it is rejected as bad data.
Off Printer does not perform NPA processing.
Auto* Printer examines the data to determine the format and then processes it appropriately.
284
Parity
Purpose:
To select the parity for serial input and output data frames.
Values:
See also:
Technical Reference
PCL SmartSwitch
Purpose:
To configure the printer so it automatically switches to PCL emulation when a print job received
through the serial port requires it, regardless of the default printer language.
Values:
See also:
PS SmartSwitch; Printer Language
Even
Odd
None*
Ignore
On* Printer examines data on the serial interface and selects PCL emulation if the data indicates
that is the required printer language.
Off Printer does not examine the incoming data. The printer uses PostScript emulation to
process the job if PS SmartSwitch is On, or uses the default printer language specified in the
Setup Menu if PS SmartSwitch is Off.
285
PS SmartSwitch
Purpose:
To configure the printer so it automatically switches to PostScript emulation when a print job received
through the serial port requires it, regardless of the default printer language.
Values:
See also:
PCL SmartSwitch; Printer Language
Robust XON
Purpose:
To determine whether the printer communicates availability to the computer.
Values:
This menu item only applies to the serial port if Serial Protocol is set to XON/XOFF.
RS-232/RS-422
Purpose:
To specify the type of serial communication.
Values:
Note: Selecting RS-422 automatically sets Serial Protocol to XON/XOFF.
On* Printer examines data on the serial interface and selects PostScript emulation if the data
indicates that is the required printer language.
Off Printer does not examine the incoming data. The printer uses PCL emulation to process the
job if PCL SmartSwitch is On, or uses the default printer language specified in the Setup
Menu if PCL SmartSwitch is Off.
Off* Printer waits to receive data from the computer.
On Printer sends a continuous stream of XONs to the host computer to indicate that the serial
port is ready to receive more data.
RS-232*
RS-422
286
RS-422 Polarity
Purpose:
To establish the behavior of the positive and negative signals when using RS-422 serial
communication.
Values:
Serial Buffer
Purpose:
To configure the size of the serial input buffer.
Values:
Note: Changing the Serial Buffer menu item automatically resets the printer.
See also:
Resource Save
Normal* Uses default definition of one and zero.
Reverse Reverses the definition of one and zero, thereby allowing a positive connection to a host
computer’s negative terminal without changing the physical cable.
Disabled Disables job buffering. Any jobs already buffered on the disk are printed before
normal processing of incoming jobs resumes.
Auto* Printer automatically calculates the Serial Buffer size (recommended setting).
3K to maximum
size allowed User specifies the Serial Buffer size. The maximum size depends on the
amount of memory in your printer, the size of the other link buffers, and
whether Resource Save is set to On or Off. To maximize the range for the
Serial Buffer size, disable or reduce the size of the parallel, infrared, LocalTalk,
and USB buffers.
287
Serial Protocol
Purpose:
To select the hardware and software handshaking values for the serial interface.
Values:
See also:
Technical Reference
DTR* Hardware handshaking.
DTR/DSR Hardware handshaking.
XON/XOFF Software handshaking.
XON/XOFF/DTR Combined hardware and software handshaking.
XONXOFF/DTRDSR Combined hardware and software handshaking.
288
69 Setup Menu
Use the Setup Menu to configure a variety of printer features.
Select a menu item for more details:
Note: Values marked by an asterisk (*) are the factory default settings.
Alarm Control
Purpose:
To establish whether the printer sounds an alarm when the printer requires operator intervention.
Values:
•Alarm Control
•Auto Continue
•Display Language
•Download Target
•Jam Recovery
•Job Accounting
•Job Acct Limit
•Page Protect
•Power Saver
•Print Timeout
•Printer Language
•Printer Usage
•Resource Save
•Wait Timeout
Off Printer does not sound an alarm.
Single* Printer sounds three quick beeps.
Continuous Printer repeats three beeps every 10 seconds.
289
Auto Continue
Purpose:
To define the amount of time (in seconds) the printer waits after displaying an operator intervention
error message before it resumes printing.
Values:
Display Language
Purpose:
To determine the language of the text on the operator panel display.
Values:
Note: All values may not be available.
Download Target
Purpose:
To specify the storage location for downloaded resources.
Values:
Storing downloaded resources in flash memory or on a hard disk is permanent storage rather than the
temporary storage that RAM provides. The resources remain in the flash memory or on the hard disk
even when the printer is turned off. Use MarkVision to download resources to the printer.
Disabled* Printer does not resume printing until someone clears the error message.
5...255 Printer waits the specified amount of time, and then automatically resumes printing.
This timeout value also applies if the menus are displayed (and the printer is offline) for
the specified period of time.
English Norsk Russian
Français Nederlands Polski
Deutsch Svenska Hungarian
Italiano PortuguêsTurkish
Español Suomi Czech
Dansk Japanese
RAM* All downloaded resources are automatically stored in printer memory (RAM).
Flash All downloaded resources are automatically stored in flash memory.
Disk All downloaded resources are automatically stored on the hard disk.
290
Jam Recovery
Purpose:
To establish whether the printer reprints jammed pages.
Values:
Job Accounting
Purpose:
To store statistical information about your most recent print jobs on the hard disk. The statistics include
whether the job printed with or without errors, the print time, the job size (in bytes), the requested
paper size and paper type, the total number of printed pages, and the number of copies requested.
Values:
Note: Job Accounting is only displayed when a hard disk is installed, is neither defective
nor Read/Write or Write protected, and Job Buffer Size is not set to 100%.
See also:
Job Acct Limit; Job Acct Stat
On Printer reprints jammed pages.
Off Printer does not reprint jammed pages.
Auto* Printer reprints a jammed page unless the memory required to hold the page is needed for
other printer tasks.
Off* Printer does not store job statistics on disk.
On Printer stores job statistics for the most recent print jobs.
291
Job Acct Limit
Purpose:
To specify the number of print jobs for which statistics are maintained on your printer hard disk.
Values:
If you set Job Acct Limit to 10, the statistics from the 10 most recent print jobs are stored on the hard
disk. When the limit is reached, statistics for the oldest print job are discarded and replaced with the
statistics from the current print job. If you change the Job Accounting Limit, all job statistics currently
stored on the hard disk are deleted.
Note: Job Acct Limit is only displayed when a hard disk is installed, is neither defective
nor Read/Write or Write protected, Job Buffer Size is not set to 100%, and Job
Accounting is set to On.
See also:
Job Accounting, Job Acct Stat
Page Protect
Purpose:
To successfully print a page that may otherwise generate Complex Page errors.
Values:
If, after selecting On, you still cannot print the page, you may also have to reduce the size and number
of fonts on the page, or increase the installed printer memory.
For most print jobs, you do not need to select On. When On is selected, printing may be slower.
Disabled Stores statistics for each print job until the hard disk is full.
10...1000 (1000*) Stores statistics for the specified number of print jobs.
Off* Prints a partial page of data if memory is insufficient to process the entire page.
On Ensures that an entire page is processed before it prints.
292
Power Saver
Purpose:
To specify the amount of time (in minutes) the printer waits after a job is printed before it goes into a
reduced power state.
Values:
The factory default Power Saver setting depends on your printer model. Print the menu settings page
to determine the current Power Saver setting. When the printer is in Power Saver mode, it is still ready
to receive print jobs.
Select 1 to put the printer in Power Saver mode one minute after it finishes a print job. This uses much
less energy, but requires more warm-up time for the printer. Select 1 if your printer shares an electrical
circuit with room lighting and you notice lights flickering.
Select a high value if your printer is in constant use. Under most circumstances, this keeps the printer
ready to print with minimum warm-up time. Select a value between 1 and 240 minutes if you want a
balance between energy consumption and a shorter warm-up period.
See also:
Technical Reference
Print Timeout
Purpose:
To specify the amount of time (in seconds) the printer waits before printing the last page of a print job
that does not end with a command to print the page. The print timeout counter does not start until
Waiting is displayed.
Values:
Disabled Disables Power Saver.
1...240 Specifies the amount of time after a print job before the printer goes into Power Saver
mode. (Your printer may not support the entire range of values.)
Disabled The printer does not print the last page of a print job until one of the following occurs:
•The printer receives enough information to fill the page.
•The printer receives a Form Feed command.
•You select Print Buffer from the Job Menu.
1...255 (90*) The printer prints the last page after the specified time. (Your printer may not support
the entire range of values.)
293
Printer Language
Purpose:
To establish the default printer language used to communicate data from the computer to the printer.
Values:
Note: Setting a printer language as the default does not prevent a software application
from sending print jobs that use the other language.
Printer Usage
Purpose:
To determine the behavior of the transfer belt during printing.
Values:
Resource Save
Purpose:
To determine what the printer does with downloaded resources, such as fonts and macros stored in
RAM, if the printer receives a job that requires more memory than is available.
Values:
PCL Emulation PCL emulation, compatible with Hewlett-Packard printers.
PS Emulation* PostScript emulation, compatible with Adobe PostScript language.
Max Speed* The transfer belt is engaged throughout the print job. This gives your printer
greater printing speed.
Max Yield The transfer belt position is engaged based on page content. This may help
you get more life out of your printer supplies.
Off* Printer retains downloaded resources only until memory is needed. It then deletes those
resources associated with the inactive printer language.
On Printer retains all downloaded resources for all printer languages during language changes
and printer resets. If the printer runs out of memory,
38 Memory Full is displayed.
294
Wait Timeout
Purpose:
To specify the amount of time (in seconds) the printer waits to receive additional bytes of data from the
computer. When this timeout expires, the print job is canceled.
Values:
Note: Wait Timeout is only available when you use PostScript emulation. This menu item
has no effect on PCL emulation print jobs.
Disabled Disables Wait Timeout.
15...65535 (40*) Specifies the amount of time the printer waits for additional data before it cancels
the job.
295
70 Supplies Menu
The Supplies Menu provides information about printer supplies that require attention. It is only
available when a supply is low or needs replacement.
Select a menu item for more details:
Belt
Purpose:
To view the status of the transfer belt.
Values:
Note: Continued use of the transfer belt after the warning appears on the display may
result in print quality problems and paper jams.
See also:
Replacing the transfer belt
•Belt
•Black Photo Dev
•Coating Roll
•Color Photo Dev
•<color> Toner
•Fuser
•Replace Supplies
•Supplies Life
80 Belt Life Warning It’s time to order a new transfer belt.
80 Belt Exhausted It’s time to replace the transfer belt.
80 Belt/Fuser Life Warning It’s time to order a new fuser and transfer belt.
80 Belt/Fuser Exhausted It’s time to replace the fuser and the transfer belt.
296
Black Photo Dev
Purpose:
To view the status of the black photodeveloper.
Values:
See also:
Replacing a photodeveloper
Coating Roll
Purpose:
To view the status of the oil coating roll.
Values:
Note: Continued use of the oil coating roll after the warning appears on the display may
result in poor toner adhesion to print media, other print quality problems, and paper
jams.
See also:
Replacing the oil coating roll
Color Photo Dev
Purpose:
To view the status of the color photodeveloper.
Values:
See also:
Replacing a photodeveloper
Life Warning
Exhausted
85 Coating Roll Life Warning It’s time to order a new oil coating roll.
85 Coating Roll Exhausted It’s time to replace the oil coating roll.
Life Warning
Exhausted
297
<color> Toner
Purpose:
To view the status of the color toner cartridges.
Values:
See also:
Replacing a toner cartridge
Fuser
Purpose:
To view the status of the fuser.
Values:
See also:
Replacing the fuser
Low
Empty
80 Fuser Life Warning It’s time to order a new fuser.
80 Fuser Exhausted It’s time to replace the fuser.
80 Belt/Fuser Life Warning It’s time to order a new fuser and transfer belt.
80 Belt/Fuser Exhausted It’s time to replace the fuser and the transfer belt.
298
Replace Supplies
Purpose:
To view the status of printer supplies.
Values:
Supplies Life
Purpose:
To view the status of printer supplies.
Values:
Fuser =Not Replaced
=Replaced
=Replace Now
Belt =Not Replaced
=Replaced
=Replace Now
<color> Toner =Low
=Empty
=xxx%
Coating Roll =Life Warning
=Exhausted
Color Photo Dev =Life Warning
=Exhausted
Black Photo Dev =Life Warning
=Exhausted
299
71 USB Menu
Use the USB Menu to change printer settings affecting a Universal Serial Bus (USB) port (USB
Option <x>).
Select a menu item for more details:
Note: Values marked by an asterisk (*) are the factory default settings.
Job Buffering
Purpose:
To temporarily store jobs on the printer hard disk before printing.
Values:
Note: Changing the Job Buffering menu item automatically resets the printer.
•Job Buffering
•MAC Binary PS
•NPA Mode
•PCL SmartSwitch
•PS SmartSwitch
•USB Buffer
Off* Does not buffer print jobs to the hard disk.
On Buffers print jobs to the hard disk.
Auto Buffers print jobs only if the printer is busy processing data from another input port.
300
MAC Binary PS
Purpose:
To configure the printer to process Macintosh binary PostScript print jobs.
Values:
NPA Mode
Purpose:
To specify whether the printer performs the special processing required for bidirectional
communication, following the conventions defined in the Network Printing Alliance (NPA) Protocol.
Values:
Note: Changing this menu item automatically resets the printer.
PCL SmartSwitch
Purpose:
To configure the printer so it automatically switches to PCL emulation when a print job received
through the USB port requires it, regardless of the default printer language.
Values:
See also:
PS SmartSwitch; Printer Language
On Printer processes raw binary PostScript print jobs from computers using the Macintosh
operating system.
Note: This setting often causes Windows print jobs to fail.
Off Printer filters PostScript print jobs using standard protocol.
Auto* Printer processes print jobs from computers using either Windows or Macintosh operating
systems.
On Printer performs NPA processing. If data is not in NPA format, it is rejected as bad data.
Off Printer does not perform NPA processing.
Auto* Printer examines the data to determine the format and then processes it appropriately.
On* Printer examines the data on the USB interface and selects PCL emulation if the data
indicates that is the required printer language.
Off Printer does not examine the incoming data. The printer uses PostScript emulation to
process the job if PS SmartSwitch is On, or uses the default printer language specified in the
Setup Menu if PS SmartSwitch is Off.
301
PS SmartSwitch
Purpose:
To configure the printer so it automatically switches to PostScript emulation when a print job received
through the USB port requires it, regardless of the default printer language.
Values:
See also:
PCL SmartSwitch; Printer Language
USB Buffer
Purpose:
To configure the size of the USB input buffer.
Values:
Note: Changing the USB Buffer menu item automatically resets the printer.
See also:
Resource Save
On* Printer examines data on the USB interface and selects PostScript emulation if the data
indicates that is the required printer language.
Off Printer does not examine the incoming data. The printer uses PCL emulation to process the
job if PCL SmartSwitch is On, or uses the default printer language specified in the Setup
Menu if PCL SmartSwitch is Off.
Disabled Job buffering is disabled. Any jobs already buffered on the disk are printed
before normal processing of incoming jobs resumes.
Auto* Printer automatically calculates the USB Buffer size (recommended setting).
3K to maximum
size allowed User specifies the USB Buffer size. The maximum size depends on the amount
of memory in your printer, the size of the other link buffers, and whether
Resource Save is set to On or Off. To maximize the range for the USB Buffer
size, disable or reduce the size of the parallel, serial, network, infrared, and
LocalTalk buffers.
302
72 Utilities Menu
Use the Utilities Menu to print a variety of listings relating to available printer resources, printer
settings, and print jobs. Other menu items let you set up printer hardware and troubleshoot printer
problems.
Select a menu item for more details:
Color Samples
Purpose:
To assist in selecting colors used by certain applications.
•Color Samples
•Defragment Flash
•Factory Defaults
•Format Disk
•Format Flash
•Hex Trace
•Job Acct Stat
•Print Alignment
•Print Directory
•Print Fonts
•Print Menus
•Print Net <x> Setup
303
Defragment Flash
Purpose:
To retrieve storage area lost when resources are deleted from flash memory.
Values:
WARNING:Do not turn off the printer while the flash is defragmenting.
Factory Defaults
Purpose:
To return your printer settings to the factory default values.
Values:
See also:
Restoring factory default settings
Format Disk
Purpose:
To format the printer hard disk.
Values:
WARNING:Do not turn off the printer while the hard disk is formatting.
Yes Printer transfers all resources stored in flash memory to printer memory and then reformats
the flash memory option. When the format operation is complete, the resources are loaded
back into flash memory.
No Printer cancels the request to defragment the flash memory.
Restore •All menu items are returned to the factory default values except:
–Display Language.
–All settings in the Parallel Menu, Serial Menu, Network Menu, Infrared
Menu, LocalTalk Menu, and USB Menu.
•All downloaded resources (fonts, macros, and symbol sets) in printer
memory (RAM) are deleted. (Resources residing in flash memory or on the
hard disk are unaffected.)
Do Not Restore User-defined settings remain.
Yes Deletes any data stored on the hard disk and prepares the device to receive new resources.
No Cancels the request to format the hard disk and leaves current resources stored on the disk.
304
Format Flash
Purpose:
To format the flash memory.
Values:
WARNING:Do not turn off the printer while the flash is formatting.
Hex Trace
Purpose:
To help isolate the source of a print job problem. With Hex Trace selected, all data sent to the printer is
printed in hexadecimal and character representation. Control codes are not executed.
To exit Hex Trace, turn the printer off or reset the printer from the Job Menu.
Job Acct Stat
Purpose:
To print a listing of all job statistics stored on the hard disk, or to clear all statistics on the disk.
Values:
See also:
Job Accounting, Job Acct Limit
Yes Deletes any data stored in flash memory and prepares the flash memory to receive new
resources.
No Cancels the request to format the flash memory and leaves current resources stored in flash
memory.
Print Prints all statistics available for the most recent print jobs.
Clear Deletes all accumulated job statistics from the hard disk.
305
Print Alignment
Purpose:
To perform a transfer belt alignment procedure by entering a series of alignment values.
Values:
See also:
Replacing the transfer belt; Printing Alignment Page
Print Directory
Purpose:
To print a list of all the resources stored in flash memory or on the hard disk.
Note: Print Directory is available only when either a nondefective flash or disk is installed
and formatted, and Job Buffer Size is not set to 100%.
See also:
Technical Reference
Print Fonts
Purpose:
To print a sample of all the fonts available for the selected printer language.
Values:
A–L
PCL Fonts Prints a sample of all printer fonts available for PCL emulation.
PS Fonts Prints a sample of all printer fonts available for PostScript emulation.
306
Print Menus
Purpose:
To print a listing of the current user default values, the installed options, the amount of installed printer
memory, and the status of printer supplies.
Print Net <x> Setup
Purpose:
To print information relating to the internal print server and the network settings defined by the
Network <x> Setup menu item in the Network Menu.
307
73 Notices
•Edition notice
•Trademarks
•Licensing notice
•Safety information
•Cautions and warnings
•Electronic emission notices
•Noise emission levels
•Energy Star
Edition notice
October 2001
The following paragraph does not apply to any country where such provisions are inconsistent
with local law: LEXMARK INTERNATIONAL, INC., PROVIDES THIS PUBLICATION “AS IS”
WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT
LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE. Some states do not allow disclaimer of express or implied warranties in
certain transactions; therefore, this statement may not apply to you.
This publication could include technical inaccuracies or typographical errors. Changes are periodically
made to the information herein; these changes will be incorporated in later editions. Improvements or
changes in the products or the programs described may be made at any time.
Comments about this publication may be addressed to Lexmark International, Inc., Department F95/
032-2, 740 West New Circle Road, Lexington, Kentucky 40550, U.S.A. In the United Kingdom and Eire,
send to Lexmark International Ltd., Marketing and Services Department, Westhorpe House,
Westhorpe, Marlow Bucks SL7 3RQ. Lexmark may use or distribute any of the information you supply
in any way it believes appropriate without incurring any obligation to you. You can purchase additional
copies of publications related to this product by calling 1-800-553-9727. In the United Kingdom and
Eire, call 0628-481500. In other countries, contact your point of purchase.
308
References in this publication to products, programs, or services do not imply that the manufacturer
intends to make these available in all countries in which it operates. Any reference to a product,
program, or service is not intended to state or imply that only that product, program, or service may be
used. Any functionally equivalent product, program, or service that does not infringe any existing
intellectual property right may be used instead. Evaluation and verification of operation in conjunction
with other products, programs, or services, except those expressly designated by the manufacturer,
are the user’s responsibility.
© Copyright 2001 Lexmark International, Inc.
All rights reserved.
UNITED STATES GOVERNMENT RESTRICTED RIGHTS
This software and documentation are provided with RESTRICTED RIGHTS. Use, duplication or
disclosure by the Government is subject to restrictions as set forth in subparagraph (c)(1)(ii) of the
Rights in Technical Data and Computer Software clause at DFARS 252.227-7013 and in applicable
FAR provisions: Lexmark International, Inc., Lexington, KY 40550.
Trademarks
Lexmark, Lexmark with diamond design, FontVision and MarkVision are trademarks of Lexmark
International, Inc., registered in the United States and/or other countries.
ImageQuick and OptraImage are trademarks of Lexmark International, Inc.
Operation ReSource is a service mark of Lexmark International, Inc.
PCL® is a registered trademark of the Hewlett-Packard Company. PCL is Hewlett-Packard Company’s
designation of a set of printer commands (language) and functions included in its printer products. This
printer is intended to be compatible with the PCL language. This means the printer recognizes PCL
commands used in various application programs, and that the printer emulates the functions
corresponding to the commands.
PostScript® is a registered trademark of Adobe Systems Incorporated. PostScript 3 is Adobe Systems’
designation of a set of printer commands (language) and functions included in its software products.
This printer is intended to be compatible with the PostScript 3 language. This means the printer
recognizes PostScript 3 commands used in various application programs, and that the printer
emulates the functions corresponding to the commands.
Details relating to compatibility are included in the Technical Reference.
The following terms are trademarks or registered trademarks of these companies:
Albertus The Monotype Corporation plc
Antique Olive Monsieur Marcel OLIVE
Apple-Chancery Apple Computer, Inc.
Arial The Monotype Corporation plc
Candid Agfa Corporation
CG Omega Product of Agfa Corporation
CG Times Based on Times New Roman under license from The
Monotype Corporation plc, is a product of Agfa
Corporation
Chicago Apple Computer, Inc.
309
Other trademarks are the property of their respective owners.
Licensing notice
The printer resident software contains:
•Software developed and copyrighted by Lexmark
•Lexmark modified software licensed under the provisions of the GNU General Public License
version 2 and the GNU Lesser General Public License version 2.1
•Software licensed under the BSD license and warranty statements
Clarendon Linotype-Hell AG and/or its subsidiaries
Eurostile Nebiolo
Geneva Apple Computer, Inc.
GillSans The Monotype Corporation plc
Helvetica Linotype-Hell AG and/or its subsidiaries
Hoefler Jonathan Hoefler Type Foundry
ITC Avant Garde
Gothic International Typeface Corporation
ITC Bookman International Typeface Corporation
ITC Lubalin Graph International Typeface Corporation
ITC Mona Lisa International Typeface Corporation
ITC Zapf Chancery International Typeface Corporation
Joanna The Monotype Corporation plc
Marigold Arthur Baker
Monaco Apple Computer, Inc.
New York Apple Computer, Inc.
Oxford Arthur Baker
Palatino Linotype-Hell AG and/or its subsidiaries
Stempel Garamond Linotype-Hell AG and/or its subsidiaries
Taffy Agfa Corporation
Times New Roman The Monotype Corporation plc
TrueType Apple Computer, Inc.
Univers Linotype-Hell AG and/or its subsidiaries
Wingdings Microsoft Corporation
310
Click the title of the document you want to review:
The Lexmark modified GNU licensed software is free software; you can redistribute it and/or modify it
under the terms of the licenses referenced above. These licenses do not provide you any rights to the
Lexmark copyrighted software in this printer.
Since the GNU licensed software that the Lexmark modifications are based upon is supplied explicitly
without warranty, use of the Lexmark modified version is similarly provided without warranty. See the
warranty disclaimers in the referenced licenses for additional details.
To obtain source code files for the Lexmark modified GNU licensed software, launch the drivers CD
that shipped with your printer and click Contact Lexmark.
Safety information
•If your product is NOT marked with this symbol , it MUST be connected to an electrical
outlet that is properly grounded.
•The power cord must be connected to an electrical outlet that is near the product and easily
accessible.
•Refer service or repairs, other than those described in the operating instructions, to a
professional service person.
•This product is designed, tested, and approved to meet strict global safety standards with the
use of specific Lexmark components. The safety features of some parts may not always be
obvious. Lexmark is not responsible for the use of other replacement parts.
CAUTION: Use of controls or adjustments or performance of procedures other than
those specified herein may result in hazardous radiation exposure.
•Your product uses a printing process that heats the print media, and the heat may cause the
media to release emissions. You must understand the section in your operating instructions
that discusses the guidelines for selecting print media to avoid the possibility of harmful
emissions.
Cautions and warnings
CAUTION: A caution identifies something that might cause you harm.
WARNING:A warning identifies something that might damage your printer hardware or
software.
BSD License and Warranty statements
GNU General Public License
311
Electronic emission notices
Federal Communications Commission (FCC) compliance information statement
The Lexmark C910 has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
The FCC Class A limits are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference, in which case the user will be required to correct
the interference at his own expense.
The manufacturer is not responsible for any radio or television interference caused by using other than
recommended cables or by unauthorized changes or modifications to this equipment. Unauthorized
changes or modifications could void the user's authority to operate this equipment.
Note: To assure compliance with FCC regulations on electromagnetic interference for a
Class A computing device, use a properly shielded and grounded cable such as
Lexmark part number 1329605 (parallel) or Lexmark part number 12A2405 (USB).
Use of a substitute cable not properly shielded and grounded may result in a
violation of FCC regulations.
Industry Canada compliance statement
This Class A digital apparatus meets all requirements of the Canadian Interference-Causing
Equipment Regulations.
Avis de conformité aux normes d’Industrie Canada
Cet appareil numérique de la classe A respecte toutes les exigences du Règlement sur le matériel
brouilleur du Canada.
European Community (EC) directives conformity
This product is in conformity with the protection requirements of EC Council directives 89/336/EEC
and 73/23/EEC on the approximation and harmonization of the laws of the Member States relating to
electromagnetic compatibility and safety of electrical equipment designed for use within certain voltage
limits.
A declaration of conformity with the requirements of the directives has been signed by the Director of
Manufacturing and Technical Support, Lexmark International, S.A., Boigny, France.
This product satisfies the Class A limits of EN 55022 and safety requirements of EN 60950.
WARNING:This is a Class A product. In a domestic environment, this product may cause radio
interference, in which case, the user may be required to take adequate measures.
312
Japanese VCCI notice
The United Kingdom Telecommunications Act 1984
This apparatus is approved under the approval number NS/G/1234/J/100003 for the indirect
connections to the public telecommunications systems in the United Kingdom.
Noise emission levels
The following measurements were made in accordance with ISO 7779 and reported in conformance
with ISO 9296.
Energy Star
The EPA ENERGY STAR Office equipment program is a partnership effort with computer
manufacturers to promote the introduction of energy-efficient products and to reduce air pollution
caused by power generation.
Companies participating in this program introduce personal computers, printers, monitors, or fax
machines that power down when they are not being used. This feature will cut the energy used by up to
50 percent. Lexmark is proud to be a participant in this program.
As an ENERGY STAR Partner, Lexmark International, Inc. has determined that this product meets the
ENERGY STAR guidelines for energy efficiency.
1-meter average sound pressure, dBA
Printing 56 dBA
Idling 39 dBA
313
Index
Numerics
1565 Emul Error Load Emul Option
213
2<xx> Paper Jam 213
30 <color> Print Unit Missing 214
30 Coating Roll Missing 214
32 Unsupported <color> Cartridge
214
33 Tray <x> Config Error 215
34 Short Paper 215
35 Res Save Off Deficient Memory
215
37 Insufficient Collation Area 216
37 Insufficient Defrag Memory 216
37 Insufficient Memory 217
38 Memory Full 217
39 Complex Page 218
4<x> Unsupported Firmware Card
218
40 Tray <x> Size Sense Error 219
41 Open Bin 1 Exit Tray 219
51 Defective Flash 219
52 Flash Full 220
53 Unformatted Flash 220
54 Network <x> Software Error
221
54 Par <x> ENA Connection Lost
221
54 Serial Option <x> Error 220
54 Std Network Software Error
221
54 Std Par ENA Connection Lost
221
56 Parallel Port <x> Disabled 222
56 Serial Port <x> Disabled 221
56 Standard USB Port Disabled
222
56 Std Parallel Port Disabled 222
56 USB Port <x> Disabled 222
58 Too Many Bins Attached 223
58 Too Many Disks Installed 223
58 Too Many Flash Options 224
58 Too Many Trays Attached 224
61 Defective Disk 225
62 Disk Full 225
63 Unformatted Disk 225
64 Unsupported Disk Format 226
80 Belt Exhausted 226
80 Belt Life Warning 227
80 Belt/Fuser Exhausted 226
80 Belt/Fuser Life Warning 227
80 Fuser Exhausted 228
80 Fuser Life Warning 228
81 Engine Code CRC Failure 228
84 <color> Print Cart Abnormal
229
84 Abnormal Coating Roll 233
84 All Photo Devs Exhausted 229
84 Black Photo Dev Abnormal 229
84 Black Photo Dev Exhausted
230
84 Black Photo Dev Life Warning
230
84 Color Photo Dev Abnormal 231
84 Color Photo Dev Life Warning
232
84 Color Photo Devs Exhausted
231
85 Coating Roll Exhausted 232
85 Coating Roll Life Warning 233
88 <color> Toner Empty 233
88 <color> Toner Low 234
900–999 Service <message> 234
A
A4 Width (PCL Emul Menu) 274
Activating Menu Changes 190
adjusting
color 240, 241, 293
adjusting color 239
Advanced Status (Parallel Menu)
269
Alarm Control (Setup Menu) 288
alarms
error messages 289
setting 288
Assign Type/Bin (Paper Menu)
263
Auto Continue (Setup Menu) 289
Auto CR after LF (PCL Emul Menu)
275
Auto LF after CR (PCL Emul Menu)
275
avoiding paper jams 68
B
Baud (Serial Menu) 282
Belt (Supplies Menu) 295
Bin <x> Full 190
bins
assigning 263
configuring 264
Blank Pages (Finishing Menu) 242
buffer sizes, adjusting
infrared 249
LocalTalk 256
network 260
parallel 271
serial 286
USB 301
Busy 190
C
calling for service 135
Cancel Fax (Job Menu) 253
canceling a print job 12
Canceling Fax 190
Canceling Job 191
card stock 66
guidelines 37
loading 53
Change <x> 191
changing
fuser 82
oil coating roll 90
photodeveloper 75
supplies 80
toner cartridges 104
transfer belt 95
Check <device> Connection 191
Clearing Job Accounting Stat 192
clearing paper jams 146
Close Front Door 192
Close Side Door 192
Close Top Door 192
Close Tray <x> Top Cover 193
Coating Roll (Supplies Menu) 296
coating roll status 296
Collation (Finishing Menu) 243
collation, enabling 243
color
314
additive 30
adjusting 239, 240, 241, 293
calibration 27
capability 31
consistency 31
controlling 13
correcting 13, 25
device profile 27
difference 31
how we see 29
media 11
primary 30
settings 25
subtractive 30
supplies 11
translation 27
types 29
Color Correction (Color Menu) 239
color management systems 28
Color Menu 239
Color Correction 239
Manual Color 240
Print Mode 241
Toner Darkness 241
color models 27
Color Samples (Utilities Menu)
302
color, managing 27
<color> Toner (Supplies Menu)
297
<color> toner status 297
Black Photo Dev (Supplies Menu)
296
Black photodeveloper status 296
Color Photo Dev (Supplies Menu)
296
Color photodeveloper status 296
complex page errors 291
Confidential Job (Job Menu) 253
Configure Bins (Paper Menu) 264
Configure MP (Paper Menu) 264
Copies (Finishing Menu) 243
copies, specifying number 243
Copying 193
counter
fuser 113
transfer belt 113
current menu settings 18
Custom Types (Paper Menu) 264
D
Data Bits (Serial Menu) 282
Defragment Flash (Utilities Menu)
303
Defragmenting 193
Delete All Jobs 193
Deleting Jobs 194
Disabling Menus 194
disabling operator panel menus
171
disk
See hard disk
Disk Corrupted. Reformat? 194
Disk Recovery x/5 yyy% 195
Display Language (Setup Menu)
289
Download Target (Setup Menu)
289
downloadable fonts 177
downloaded resources
printing 305
resource save 293
storing 289
duplex
binding 244
enabling 243
Duplex (Finishing Menu) 243
Duplex Bind (Finishing Menu) 244
E
Enabling Menus 195
Engine Warming 195
Enter PIN
=___ 196
envelopes
choosing 36
loading 64
multipurpose feeder 48
exit tray, using 52
F
Factory Defaults (Utilities Menu)
303
factory defaults, restoring 303
Fax <x> 196
fax, canceling 253
Finishing Menu 242
Blank Pages 242
Collation 243
Copies 243
Duplex 243
Duplex Bind 244
Multipage Border 244
Multipage Order 245
Multipage Print 246
Multipage View 246
Separator Sheets 247
Separator Source 247
firmware card, removing 119
flash memory
defragmenting 303
formatting 304
printing downloaded resources
305
setting as download target 289
Flushing Buffer 196
Font Name (PCL Emul Menu) 275
Font Priority (PostScript Menu)
279
Font Source (PCL Emul Menu)
276
fonts
choosing in PCL emulation 275
downloadable 177
printing font samples 185
printing samples 305
priority 279
resident 172, 185
symbol sets supported 278
symbol sets, PCL 6 emulation
177
Format Disk (Utilities Menu) 303
Format Flash (Utilities Menu) 304
Formatting Disk yyy% 197
Formatting Flash 197
fuser
ordering 133
Fuser (Supplies Menu) 297
fuser counter 113
resetting 89
Fuser Maintenance 197
fuser status 297
G
guide 54
guidelines
card stock 37
envelopes 36
paper
recommended 34
storing 68
unacceptable 35
H
halftone screens 14
hard disk
formatting 303
printing downloaded resources
305
setting as download target 289
hard disk, removing 120
heavy media tray
capacity 62
loading 58
paper sizes supported 62
paper types supported 62
setting paper size 58
setting paper type 58
heavy paper 66
Held jobs 20
Held Jobs (Job Menu) 254
Held Jobs may be lost 198
315
Hex Trace (Utilities Menu) 304
high capacity feeder
capacity 62
clearing jams in 164, 166
loading 40
paper sizes supported 62
paper types supported 62
removing 129
successful printing in 68
Honor DSR (Serial Menu) 283
Honor Init (Parallel Menu) 270
I
Image Smoothing (PostScript
Menu) 280
indicator light 16
Infrared <x> 198
Infrared Buffer (Infrared Menu)
249
Infrared Menu 248
Infrared Buffer 249
Infrared Port 249
Job Buffering 249
Max Baud Rate 250
NPA Mode 250
PCL SmartSwitch 251
PS SmartSwitch 251
Transmit Delay 252
Window Size 252
infrared port
activating 249
adjusting
transmission speeds 250
configuring
buffer size 249
NPA Mode 250
PCL SmartSwitch 251
PS SmartSwitch 251
transmit delay 252
window size 252
Infrared Port (Infrared Menu) 249
Insert Tray <x> 198
Install <device> or Cancel Job 199
installing
fuser 82
oil coating roll 90
photodeveloper 75
supplies 80
system board access cover 122
toner cartridges 104
transfer belt 95
interfaces
infrared 248
LocalTalk 255
network 259
parallel 269
serial 281
USB 299
Invalid Engine Code 199
Invalid Network <x> Code 199
Invalid Standard Network Code
199
J
Jam Recovery (Setup Menu) 290
jams
avoiding 68
clearing paper 146
See paper jams
jobaccounting limit 291
confidential 253
held 254
statistics 290
Job Accounting (Setup Menu) 290
Job Acct Limit (Setup Menu) 291
Job Acct Stat (Utilities Menu) 304
Job Buffering (Infrared Menu) 249
Job Buffering (LocalTalk Menu)
255
Job Buffering (Network Menu) 259
Job Buffering (Parallel Menu) 270
Job Buffering (Serial Menu) 283
Job Buffering (USB Menu) 299
Job Menu 253
Cancel Fax 253
Confidential Job 253
Held Jobs 254
Reset Printer 254
L
labels
choosing 37
usage 65
letterhead 35
choosing 35
loading
multipurpose feeder 49
paper tray 57
Lines per Page (PCL Emul Menu)
276
linking trays 67
Load <x> 200
Load Manual 200
loading
card stock 53
envelopes
multipurpose feeder 48
heavy media tray 58
high capacity feeder 40
letterhead
multipurpose feeder 49
paper tray 57
paper
multipurpose feeder 48
multipurpose tray 44
paper tray 53
transparencies
multipurpose feeder 48
paper tray 53
LocalTalk <x> 200
LocalTalk Addr (LocalTalk Menu)
256
LocalTalk Buffer (LocalTalk Menu)
256
LocalTalk Menu 255
Job Buffering 255
LocalTalk Addr 256
LocalTalk Buffer 256
LocalTalk Name 256
LocalTalk Port 256
LocalTalk Zone 257
NPA Hosts 257
NPA Mode 257
PCL SmartSwitch 258
PS SmartSwitch 258
LocalTalk Name (LocalTalk Menu)
256
LocalTalk port
activating 256
configuring
buffer size 256
NPA hosts 257
NPA mode 257
PCL SmartSwitch 258
PS SmartSwitch 258
LocalTalk Port (LocalTalk Menu)
256
LocalTalk Zone (LocalTalk Menu)
257
M
MAC Binary PS (Network Menu)
260
MAC Binary PS (Parallel Menu)
270
MAC Binary PS (USB Menu) 300
maintenance counter 113
Manual Color (Color Menu) 240
Max Baud Rate (Infrared Menu)
250
maximum stack height 47
550-sheet trays 55
trays 1, 2, 3 42
media guidelines 62
memory 10
adding 179
allocating 180
flash 180, 182
hard disk 181, 182
locating 116
managing 179
Print and Hold function 20
316
problem-solving 180
removing memory cards 117
memory card, removing 117
menu map 235
menu settings page, printing 18
menus
language 289
main list of 235
printing menu settings page 18
Menus Disabled 201
messages
1565 Emul Error Load Emul
Option 213
2<xx> Paper Jam 213
30 <color> Print Unit Missing
214
30 Coating Roll Missing 214
32 Unsupported <color>
Cartridge 214
33 Tray <x> Config Error 215
34 Short Paper 215
35 Res Save Off Deficient
Memory 215
37 Insufficient Collation Area
216
37 Insufficient Defrag Memory
216
37 Insufficient Memory 217
38 Memory Full 217
39 Complex Page 218
4<x> Unsupported Firmware
Card 218
40 Tray <x> Size Sense Error
219
41 Open Bin 1 Exit Tray 219
51 Defective Flash 219
52 Flash Full 220
53 Unformatted Flash 220
54 Network <x> Software Error
221
54 Par <x> ENA Connection
Lost 221
54 Serial Option <x> Error 220
54 Std Network Software Error
221
54 Std Par ENA Connection
Lost 221
56 Parallel Port <x> Disabled
222
56 Serial Port <x> Disabled 221
56 Standard USB Port Disabled
222
56 Std Parallel Port Disabled
222
56 USB Port <x> Disabled 222
58 Too Many Bins Attached
223
58 Too Many Disks Installed
223
58 Too Many Flash Options
224
58 Too Many Trays Attached
224
61 Defective Disk 225
62 Disk Full 225
63 Unformatted Disk 225
64 Unsupported Disk Format
226
80 Belt Exhausted 226
80 Belt Life Warning 227
80 Belt/Fuser Exhausted 226
80 Belt/Fuser Life Warning 227
80 Fuser Exhausted 228
80 Fuser Life Warning 228
81 Engine Code CRC Failure
228
84 <color> Print Cart Abnormal
229
84 All Photo Devs Exhausted
229
84 Black Photo Dev Abnormal
229
84 Black Photo Dev Exhausted
230
84 Black Photo Dev Life
Warning 230
84 Color Photo Dev Abnormal
231
84 Color Photo Dev Life
Warning 232
84 Color Photo Devs Exhausted
231
85 Coating Roll Exhausted 232
85 Coating Roll Life Warning
233
86 Abnormal Coating Roll 233
88 <color> Toner Empty 233
88 <color> Toner Low 234
900–999 Service <message>
234
Activating Menu Changes 190
Bin <x> Full 190
Busy 190
Canceling Fax 190
Canceling Job 191
Change <x> 191
Check <device> Connection
191
Clearing Job Accounting Stat
192
Close Front Door 192
Close Side Door 192
Close Top Door 192
Close Tray <x> Top Cover 193
Copying 193
Defragmenting 193
Delete All Jobs 193
Deleting Jobs 194
Disabling Menus 194
Disk Corrupted. Reformat? 194
Disk Recovery x/5 yyy% 195
Enabling Menus 195
Engine Warming 195
Enter PIN
=___ 196
Fax <x> 196
Flushing Buffer 196
Formatting Disk yyy% 197
Formatting Flash 197
Fuser Maintenance 197
Held Jobs may be lost 198
Infrared <x> 198
Insert Tray <x> 198
Install <device> or Cancel Job
199
Invalid Engine Code 199
Invalid Network <x> Code 199
Invalid Standard Network Code
199
Load <x> 200
Load Manual 200
LocalTalk <x> 200
Menus Disabled 201
Network <x> 201
Network <x>,<y> 201
Network Card Busy 201
No Jobs Found. Retry? 202
Not Ready 202
Parallel <x> 202
Performing Self Test 202
Power Saver 203
Print Jobs on Disk 203
Printer Calibrating 203
Printing Alignment Page 204
Printing Directory List 204
Printing Font List 204
Printing Job Accounting Stat
205
Printing Menu Settings 205
Prog Engine Code 205
Prog System Code 206
Program Flash 206
Programming Disk 206
Programming Error P<x> 207
Queuing and Deleting Jobs 207
Queuing Jobs 207
Ready 208
Ready Hex 208
Remove Paper <specified bin>
208
Resetting Maint Cnt Value 208
Resetting the Printer 209
Restore Held Jobs. Go/Stop?
209
Restoring Factory Defaults 210
Restoring Held Jobs 210
Serial <x> 210
317
Std Bin Full 211
Supplies 211
Tray <x> Empty 211
Tray <x> Low 212
Tray <x> Missing 212
Unsupported Disk 212
USB <x> 212
Waiting 213
Multipage Border (Finishing Menu)
244
Multipage Order (Finishing Menu)
245
multipage print
border settings 244
configuring 246
order settings 245
view settings 246
Multipage Print (Finishing Menu)
246
Multipage View (Finishing Menu)
246
multipurpose feeder
closing 50
configuring 264
guidelines 44
print material
envelopes 47
loading 47
paper 47
transparencies 47
N
Network <x> 201
Network <x> Setup (Network
Menu) 260
Network <x>,<y> 201
Network Buffer (Network Menu)
260
Network Card Busy 201
Network Menu 259
Job Buffering 259
MAC Binary PS 260
Network <x> Setup 260
Network Buffer 260
NPA Mode 261
PCL SmartSwitch 261
PS SmartSwitch 262
Std Net Setup 262
network port
configuring
buffer size 260
NPA mode 261
PCL SmartSwitch 261
PS SmartSwitch 262
No Jobs Found. Retry? 202
Not Ready 202
NPA Hosts (LocalTalk Menu) 257
NPA Mode (Infrared Menu) 250
NPA Mode (LocalTalk Menu) 257
NPA Mode (Network Menu) 261
NPA Mode (Parallel Menu) 271
NPA Mode (Serial Menu) 283
NPA Mode (USB Menu) 300
NPA mode, setting
infrared port 250
LocalTalk port 257
See also NPA hosts 257
network port 261
parallel port 271
serial port 283
USB port 300
O
oil coating roll
ordering 133
operator panel
disabling 171
LCD 16
light 16
using 17
option card, removing 118
options
locating 116
verifying installation with menu
settings page 18
ordering 133
fuser 133
oil coating roll 133
supplies 133
toner cartridge 134
transfer belt 133
Orientation (PCL Emul Menu) 277
output bin
using 52
P
Page Protect (Setup Menu) 291
paper
avoiding jams 68
clearing jams 146
letterhead 35, 64
preprinted forms 35
recommendations 63
recommended types 34
storing 68
unsatisfactory types 35
paper guide 54
paper guidelines
recommended papers 34
paper handling 10
paper jams
clearing 141
reprinting jammed pages 290
transparency jams 141
Paper Loading (Paper Menu) 265
Paper Menu 263
Assign Type/Bin 263
Configure Bins 264
Configure MP 264
Custom Types 264
Paper Loading 265
Paper Size 265
Paper Source 266
Paper Type 266
Paper Weight 267
Substitute Size 268
Universal Setup 268
Paper Size (Paper Menu) 265
paper size window 56
paper size, setting 58
Paper Source (Paper Menu) 266
paper tray
guide 54
Paper Type (Paper Menu) 266
paper type, setting 58
Paper Weight (Paper Menu) 267
paper, specifying
custom type 264
if requested size not loaded
268
preprinted forms 265
size 265
source 266
type 266
weight 267
Parallel <x> 202
Parallel Buffer (Parallel Menu) 271
Parallel Menu 269
Advanced Status 269
Honor Init 270
Job Buffering 270
MAC Binary PS 270
NPA Mode 271
Parallel Buffer 271
Parallel Mode 1 272
Parallel Mode 2 272
PCL SmartSwitch 272
Protocol 273
PS SmartSwitch 273
Parallel Mode 1 (Parallel Menu)
272
Parallel Mode 2 (Parallel Menu)
272
parallel port
configuring
bidirectional communication
269
buffer size 271
data sampling 272
hardware initialization 270
NPA mode 271
PCL SmartSwitch 272
protocol 273
PS SmartSwitch 273
318
enabling
resistors 272
Parity (Serial Menu) 284
PCL Emul Menu 274
A4 Width 274
Auto CR after LF 275
Auto LF after CR 275
Font Name 275
Font Source 276
Lines per Page 276
Orientation 277
Pitch 277
Point Size 277
Symbol Set 278
Tray Renumber 278
PCL emulation
A4 width 274
automatic carriage return 275
automatic line feed 275
font name 275
font sample print 305
font source 276
font support 185
lines per page 276
orientation 277
pitch 277
point size 277
resident fonts 172
symbol set 278
tray renumber 278
PCL SmartSwitch (Infrared Menu)
251
PCL SmartSwitch (LocalTalk
Menu) 258
PCL SmartSwitch (Network Menu)
261
PCL SmartSwitch (Parallel Menu)
272
PCL SmartSwitch (Serial Menu)
284
PCL SmartSwitch (USB Menu)
300
PCL SmartSwitch, setting
See also printer language
infrared port 251
LocalTalk port 258
network port 261
parallel port 272
serial port 284
USB port 300
Performing Self Test 202
photodeveloper
status 296
Pitch (PCL Emul Menu) 277
Point Size (PCL Emul Menu) 277
ports
infrared 248
LocalTalk 255
network 259
parallel 269
serial 281
USB 299
PostScript emulation
font priority 279
font sample print 305
font support 185
image smoothing 280
printing PS errors 280
resident fonts 172
PostScript Menu 279
Font Priority 279
Image Smoothing 280
Power Saver 203
power saver
configuring 292
Power Saver (Setup Menu) 292
preprinted forms 35
Print Alignment (Utilities Menu)
305
Print and Hold function
see Held jobs 20
Print Directory (Utilities Menu) 305
Print Fonts (Utilities Menu) 305
Print Jobs on Disk 203
print material specifications
characteristics 33
Print Menus (Utilities Menu) 306
Print Mode (Color Menu) 241
Print Net<x> Setup (Utilities Menu)
306
print options
separator sheets 247
See also separator source
247
Print PS Error (PostScript Menu)
280
print quality, adjusting
color correction 239, 240, 241,
293
print speed 10, 140
print statistics
job accounting 290
job accounting limit 291
printing job statistics 304
print timeout
configuring 292
Print Timeout (Setup Menu) 292
printed output, controlling 13
image smoothing 13
printer
memory 179
model with paper handling
options 9
resetting 254
Printer Calibrating 203
Printer Language (Setup Menu)
293
printer messages
Enter PIN 23
No Jobs Found. Retry? 23
printer testing
Hex Trace mode 304
print defaults 306
print hardware statistics 306
Printer Usage (Setup Menu) 293
printing
font samples 185
jobs 24
menu settings page 18
text 14
Printing Alignment Page 204
Printing Directory List 204
Printing Font List 204
Printing Job Accounting Stat 205
Printing Menu Settings 205
problem solving
paper jams 146
printer settings 16
problems
calling for service 135
Prog Engine Code 205
Prog System Code 206
Program Flash 206
Programming Disk 206
Programming Error P<x> 207
Protocol (Parallel Menu) 273
PS emulation
See PostScript emulation
PS SmartSwitch (Infrared Menu)
251
PS SmartSwitch (LocalTalk Menu)
258
PS SmartSwitch (Network Menu)
262
PS SmartSwitch (Parallel Menu)
273
PS SmartSwitch (Serial Menu)
285
PS SmartSwitch (USB Menu) 301
PS SmartSwitch, setting
See also printer language 293
infrared port 251
LocalTalk port 258
network port 262
parallel port 273
serial port 285
USB port 301
Q
Queuing and Deleting Jobs 207
Queuing Jobs 207
R
Ready 208
Ready Hex 208
319
recommended papers 34
recycling supplies 132
Remove Paper <specified bin>
208
removing
firmware card 119
hard disk 120
memory card 117
option card 118
system board access cover 115
Replace Supplies (Supplies Menu)
298
replacing
fuser 82
oil coating roll 90
photodeveloper 75
supplies 79, 80, 89, 103, 109,
111
toner cartridges 104
transfer belt 95
Reset Printer (Job Menu) 254
resetting
fuser counter 89
transfer belt counter 103
Resetting Maint Cnt Value 208
resetting printer 254
resetting the maintenance counter
113
Resetting the Printer 209
resident fonts 172
Resource Save (Setup Menu) 293
Restore Held Jobs. Go/Stop? 209
Restoring Factory Defaults 210
Restoring Held Jobs 210
Robust XON (Serial Menu) 285
RS-232/RS-422 (Serial Menu) 285
RS-422 Polarity (Serial Menu) 286
S
safety information 310
scalable fonts, resident 172
screen angle 15
screen frequency 15
Separator Sheets (Finishing Menu)
247
Separator Source (Finishing Menu)
247
Serial <x> 210
Serial Buffer (Serial Menu) 286
Serial Menu 281
Baud 282
Data Bits 282
Honor DSR 283
Job Buffering 283
NPA Mode 283
Parity 284
PCL SmartSwitch 284
PS SmartSwitch 285
Robust XON 285
RS-232/RS-422 285
RS-422 Polarity 286
Serial Buffer 286
Serial Protocol 287
serial port
adjusting
transmission speeds 282
configuring
buffer size 286
NPA mode 283
parity 284
PCL SmartSwitch 284
polarity 286
protocol 287
PS SmartSwitch 285
robust XON 285
enabling
DSR (Data Set Ready)
signals 283
Serial Protocol (Serial Menu) 287
service, calling for 135
Setup Menu 288
Alarm Control 288
Auto Continue 289
Display Language 289
Download Target 289
Jam Recovery 290
Job Accounting 290
Job Acct Limit 291
Page Protect 291
Power Saver 292
Print Timeout 292
Printer Language 293
Printer Usage 293
Resource Save 293
Wait Timeout 294
speed
print 10
spot function 15
stack height, maximum
550-sheet trays 55
trays 1, 2, 3 42
statistics
printing 304
storing 290
Std Bin Full 211
Std Net Setup (Network Menu)
262
storing
paper 68
supplies 112
Substitute Size (Paper Menu) 268
Supplies 211
supplies
ordering 133
recycling 132
replacing 79, 89, 103, 109, 111
storing 112
Supplies Life (Supplies Menu) 298
