Lexmark All In One Printer Xm1100 Series Users Manual User's Guide

Lexmark-Lexmark-Xm1145-Owner-S-Manual lexmark-lexmark-xm1145-owner-s-manual

XM1100 Series to the manual 824ff252-2ed0-4636-bdf4-b1a8d4d91ea9

2015-01-23

: Lexmark Lexmark-Lexmark-All-In-One-Printer-Xm1100-Series-Users-Manual-268550 lexmark-lexmark-all-in-one-printer-xm1100-series-users-manual-268550 lexmark pdf

Open the PDF directly: View PDF PDF.
Page Count: 331 [warning: Documents this large are best viewed by clicking the View PDF Link!]

XM1100 Series
User's Guide
September 2012 www.lexmark.com
Machine type(s):
7015
Model(s):
679
Contents
Safety information.......................................................................................7
Learning about the printer...........................................................................9
Finding information about the printer......................................................................................................9
Selecting a location for the printer..........................................................................................................10
Printer configurations.............................................................................................................................11
Understanding the basic functions of the scanner..................................................................................12
Using the ADF and scanner glass.............................................................................................................13
Understanding the printer control panel....................................................14
Using the printer control panel...............................................................................................................14
Understanding the colors of the Sleep button and indicator lights........................................................14
Understanding the home screen.............................................................................................................15
Using the touch-screen buttons..............................................................................................................16
Setting up and using the home screen applications....................................18
Finding the IP address of the computer..................................................................................................18
Finding the IP address of the printer.......................................................................................................19
Accessing the Embedded Web Server.....................................................................................................19
Customizing the home screen.................................................................................................................19
Understanding the different applications...............................................................................................20
Activating the home screen applications................................................................................................20
Finding information about the home screen applications................................................................................20
Setting up Forms and Favorites ........................................................................................................................20
Setting up Card Copy ........................................................................................................................................21
Using MyShortcut .............................................................................................................................................22
Setting up Multi Send .......................................................................................................................................22
Setting up Scan to Network ..............................................................................................................................23
Setting up Remote Operator Panel...................................................................................................................24
Exporting and importing a configuration................................................................................................24
Additional printer setup.............................................................................26

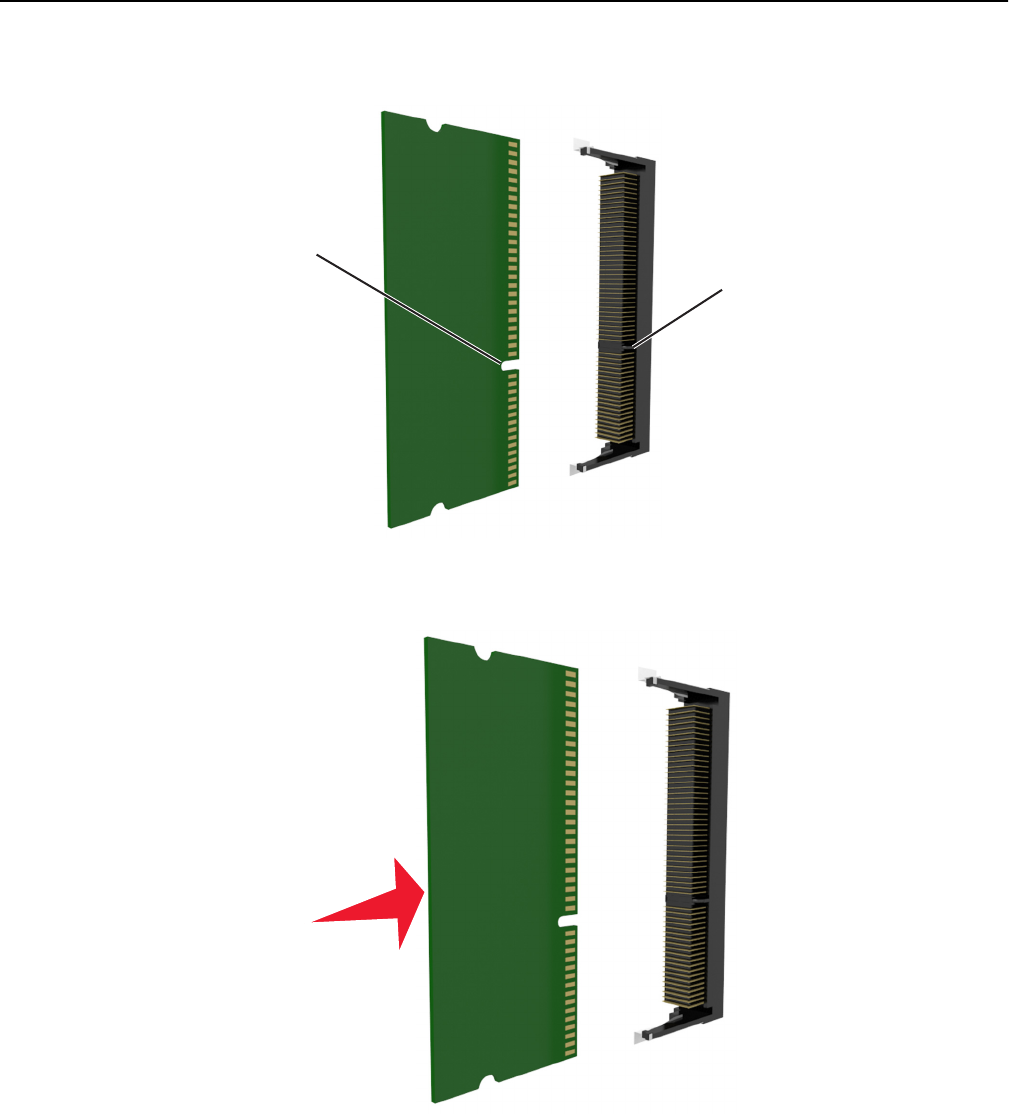

Installing internal options........................................................................................................................26
Installing hardware options.....................................................................................................................42
Setting up the printer software...............................................................................................................45
Attaching cables......................................................................................................................................46
Contents 2
Networking..............................................................................................................................................48
Verifying printer setup............................................................................................................................56
Loading paper and specialty media............................................................57
Setting the paper size and type...............................................................................................................57
Configuring Universal paper settings......................................................................................................57
Loading trays...........................................................................................................................................57

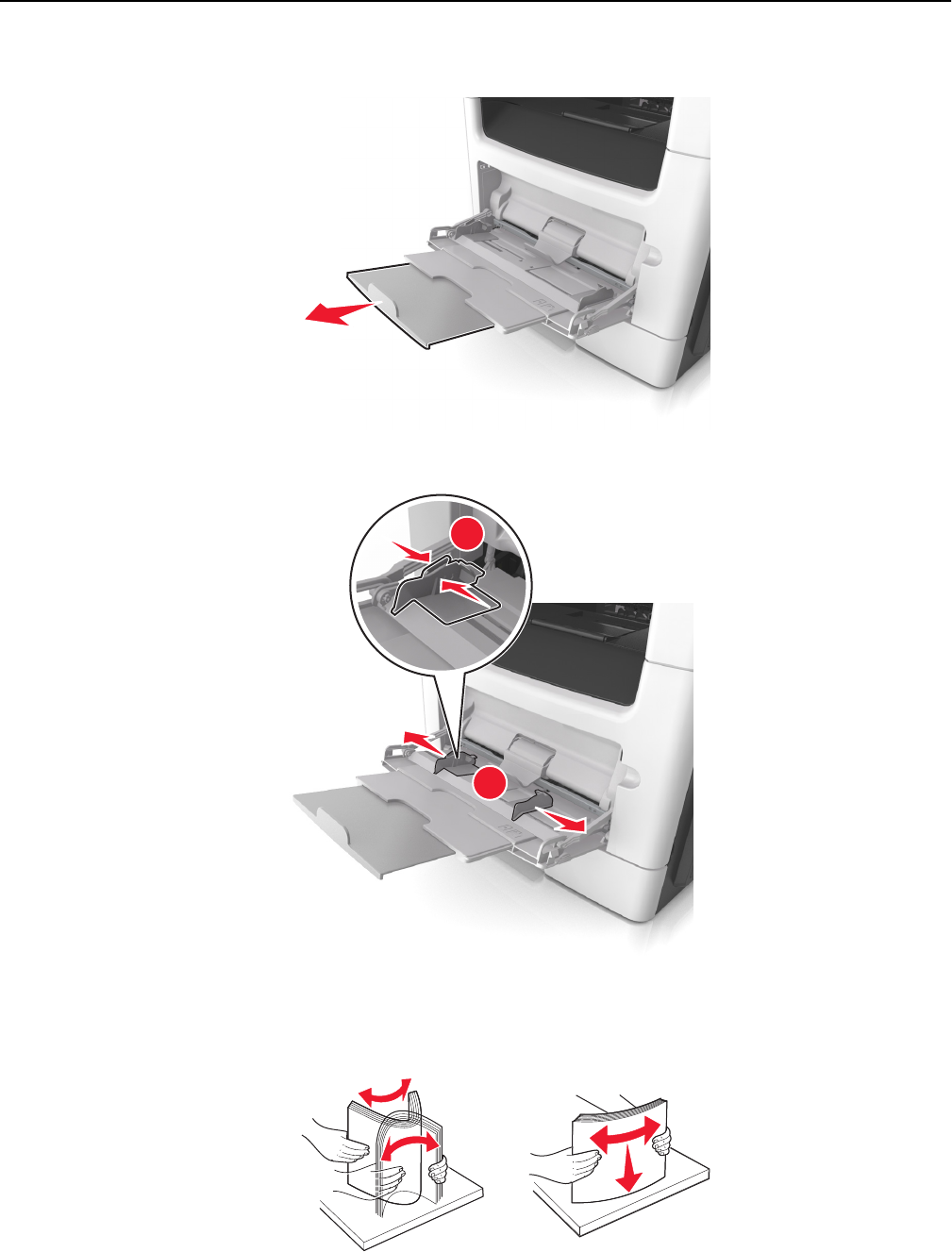

Loading the multipurpose feeder............................................................................................................62
Linking and unlinking trays......................................................................................................................66
Paper and specialty media guide................................................................69
Using specialty media..............................................................................................................................69
Paper guidelines......................................................................................................................................71
Supported paper sizes, types, and weights.............................................................................................74
Printing......................................................................................................77
Printing forms and a document...............................................................................................................77
Printing from a mobile device.................................................................................................................78

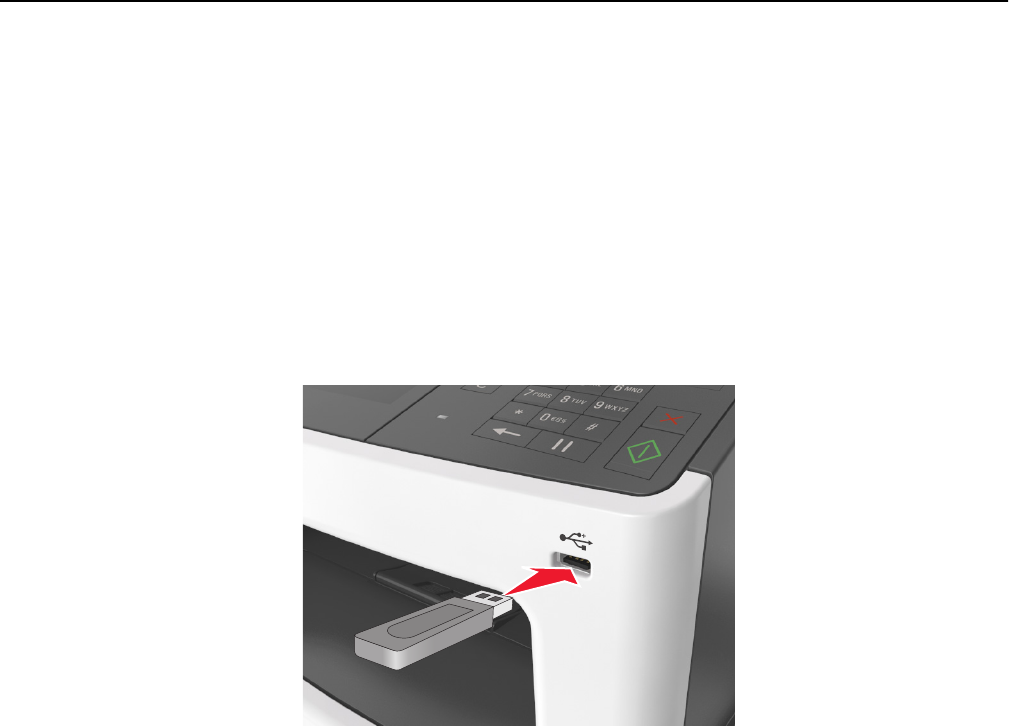

Printing from a flash drive.......................................................................................................................79
Printing confidential and other held jobs................................................................................................81
Printing information pages......................................................................................................................83
Canceling a print job................................................................................................................................83
Copying......................................................................................................85
Making copies.........................................................................................................................................85
Copying photos........................................................................................................................................86
Copying on specialty media.....................................................................................................................86
Customizing copy settings.......................................................................................................................87
Placing information on copies.................................................................................................................92
Canceling a copy job................................................................................................................................93
Understanding the copy options.............................................................................................................93
E-mailing....................................................................................................97
Setting up the printer to e-mail...............................................................................................................97
Creating an e-mail shortcut.....................................................................................................................97
E-mailing a document..............................................................................................................................98
Customizing e-mail settings...................................................................................................................100
Canceling an e-mail...............................................................................................................................101
Contents 3
Understanding the e-mail options........................................................................................................101
Faxing......................................................................................................104

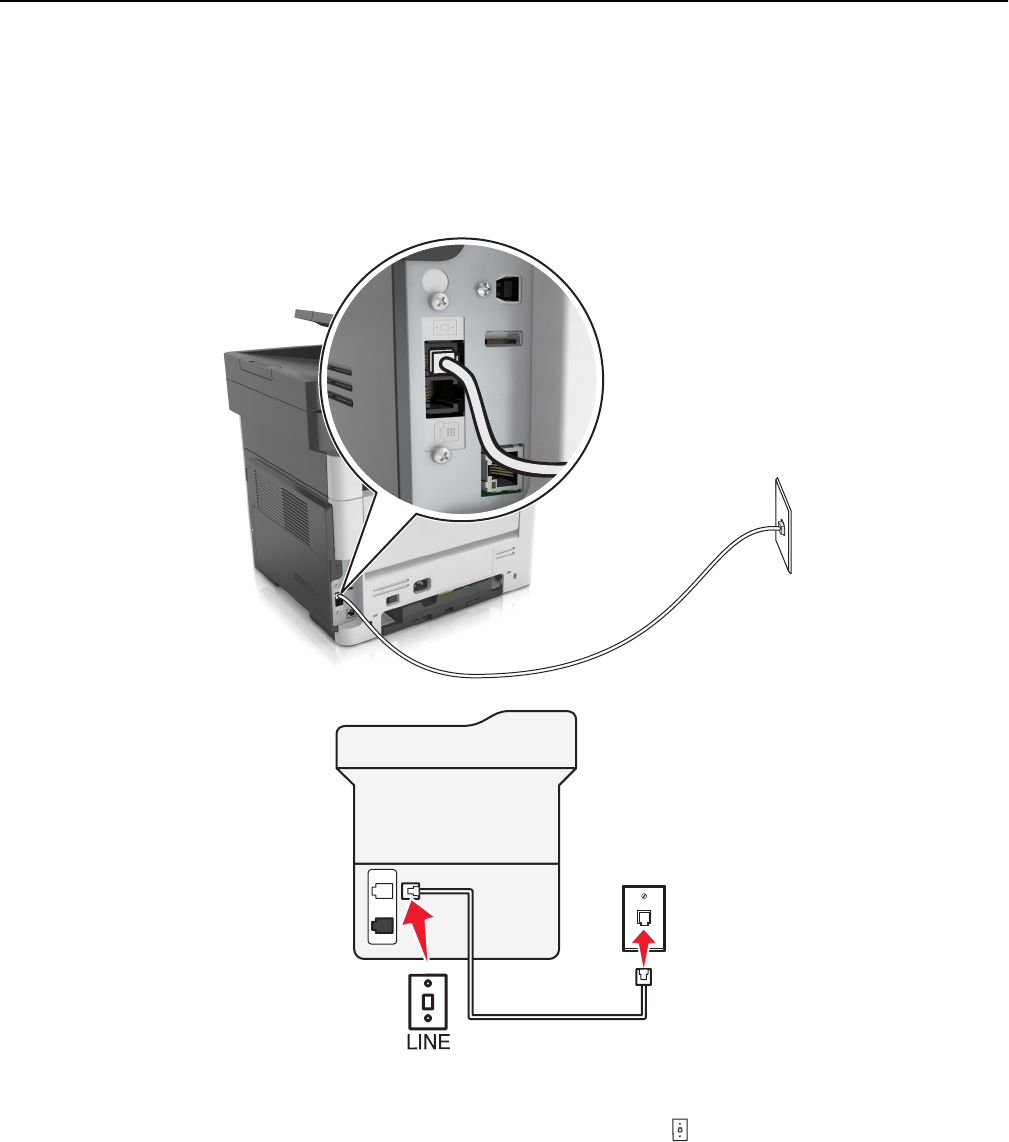

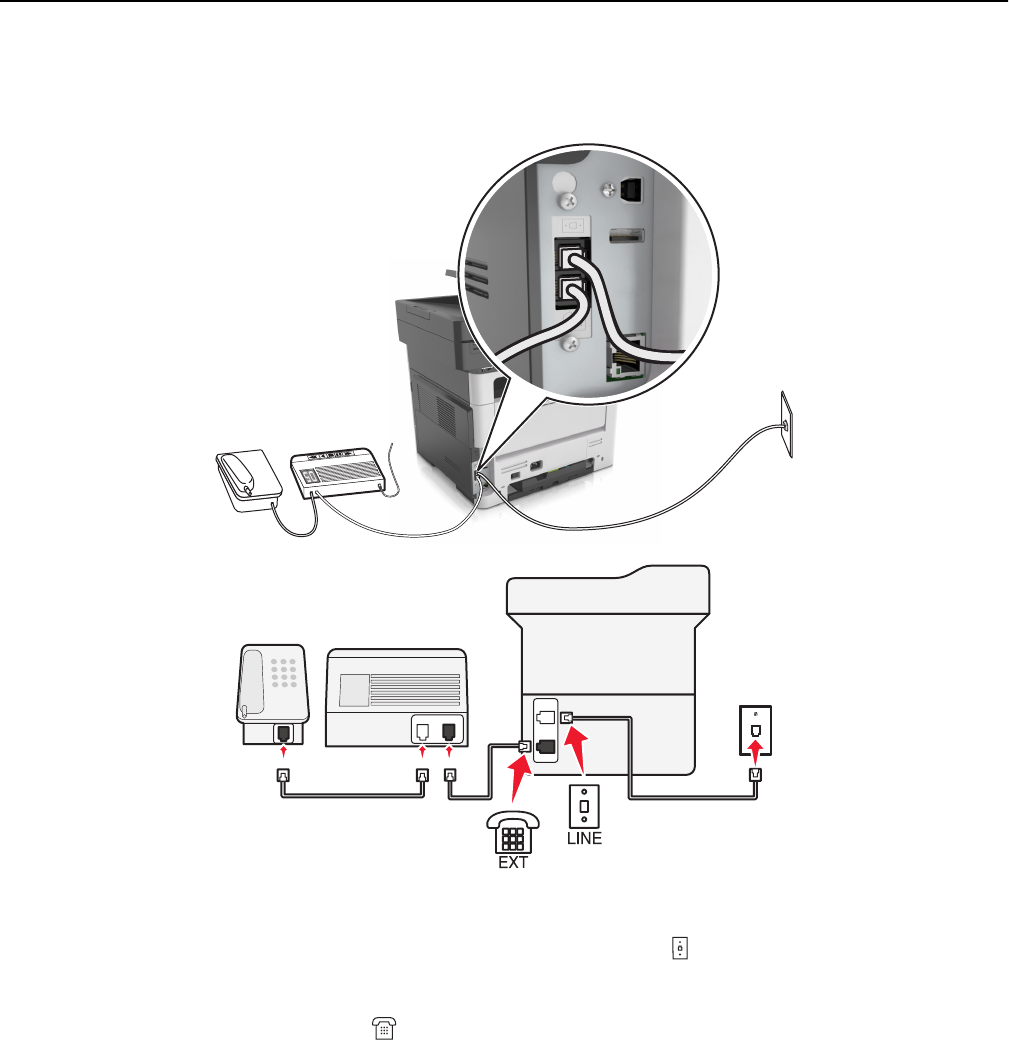

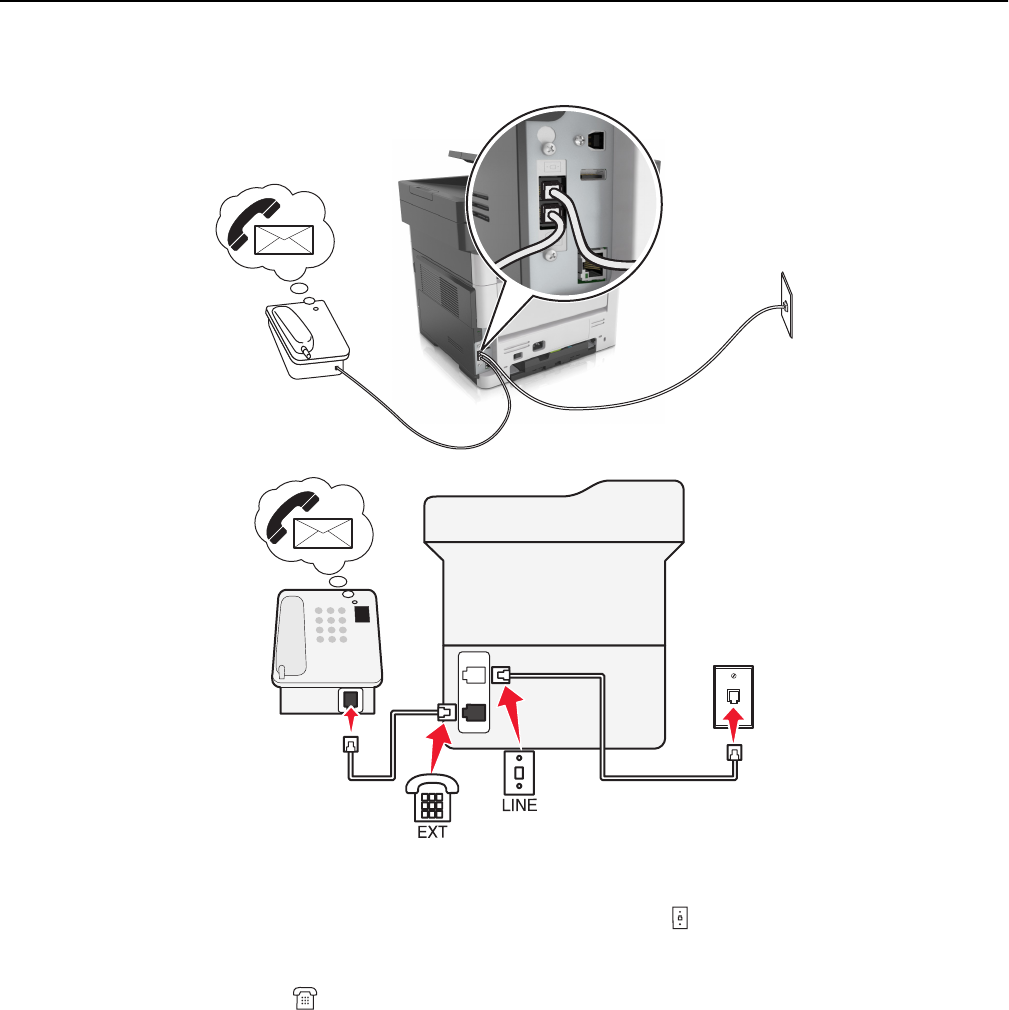

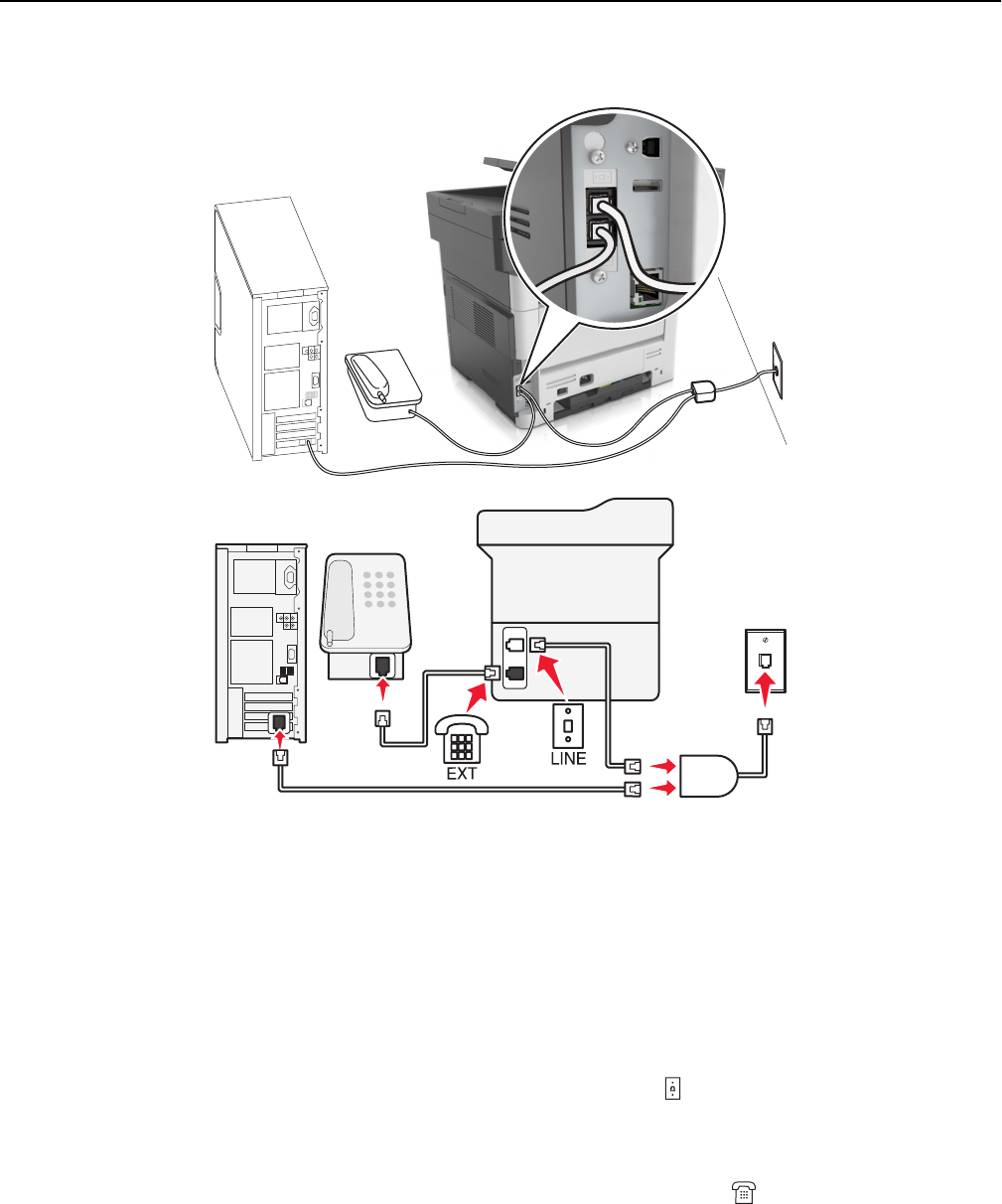

Setting up the printer to fax..................................................................................................................104
Sending a fax.........................................................................................................................................118
Creating shortcuts.................................................................................................................................121
Customizing fax settings........................................................................................................................122
Canceling an outgoing fax.....................................................................................................................123
Holding and forwarding faxes...............................................................................................................124
Understanding the fax options..............................................................................................................125
Scanning...................................................................................................127
Using Scan to Network..........................................................................................................................127
Scanning to an FTP address...................................................................................................................127
Scanning to a computer or flash drive..................................................................................................130
Understanding the scan options...........................................................................................................132
Understanding the printer menus............................................................135
Menus list..............................................................................................................................................135
Paper menu...........................................................................................................................................136
Reports Menu........................................................................................................................................145
Network/Ports menu.............................................................................................................................146
Security menu.......................................................................................................................................155
Settings menu........................................................................................................................................158
Help menu.............................................................................................................................................202
Saving money and the environment.........................................................204
Saving paper and toner.........................................................................................................................204
Saving energy........................................................................................................................................205
Recycling................................................................................................................................................208
Securing the printer..................................................................................210
Statement of Volatility..........................................................................................................................210
Erasing volatile memory........................................................................................................................210
Erasing non‑volatile memory................................................................................................................211
Erasing printer hard disk memory.........................................................................................................211
Configuring printer hard disk encryption..............................................................................................212
Finding printer security information.....................................................................................................213
Contents 4
Maintaining the printer............................................................................214
Cleaning the printer parts.....................................................................................................................214
Checking the status of parts and supplies.............................................................................................216
Estimated number of remaining pages.................................................................................................216
Ordering supplies..................................................................................................................................216
Storing supplies.....................................................................................................................................218
Replacing supplies.................................................................................................................................218
Moving the printer................................................................................................................................222
Managing the printer...............................................................................224
Finding advanced networking and administrator information.............................................................224
Checking the virtual display...................................................................................................................224
Setting up e‑mail alerts.........................................................................................................................224
Viewing reports.....................................................................................................................................224
Configuring supply notifications from the Embedded Web Server.......................................................225
Restoring factory default settings.........................................................................................................226
Clearing jams............................................................................................227
Avoiding jams........................................................................................................................................227
Understanding jam messages and locations.........................................................................................228
[x]‑page jam, open front door. [20y.xx]................................................................................................230

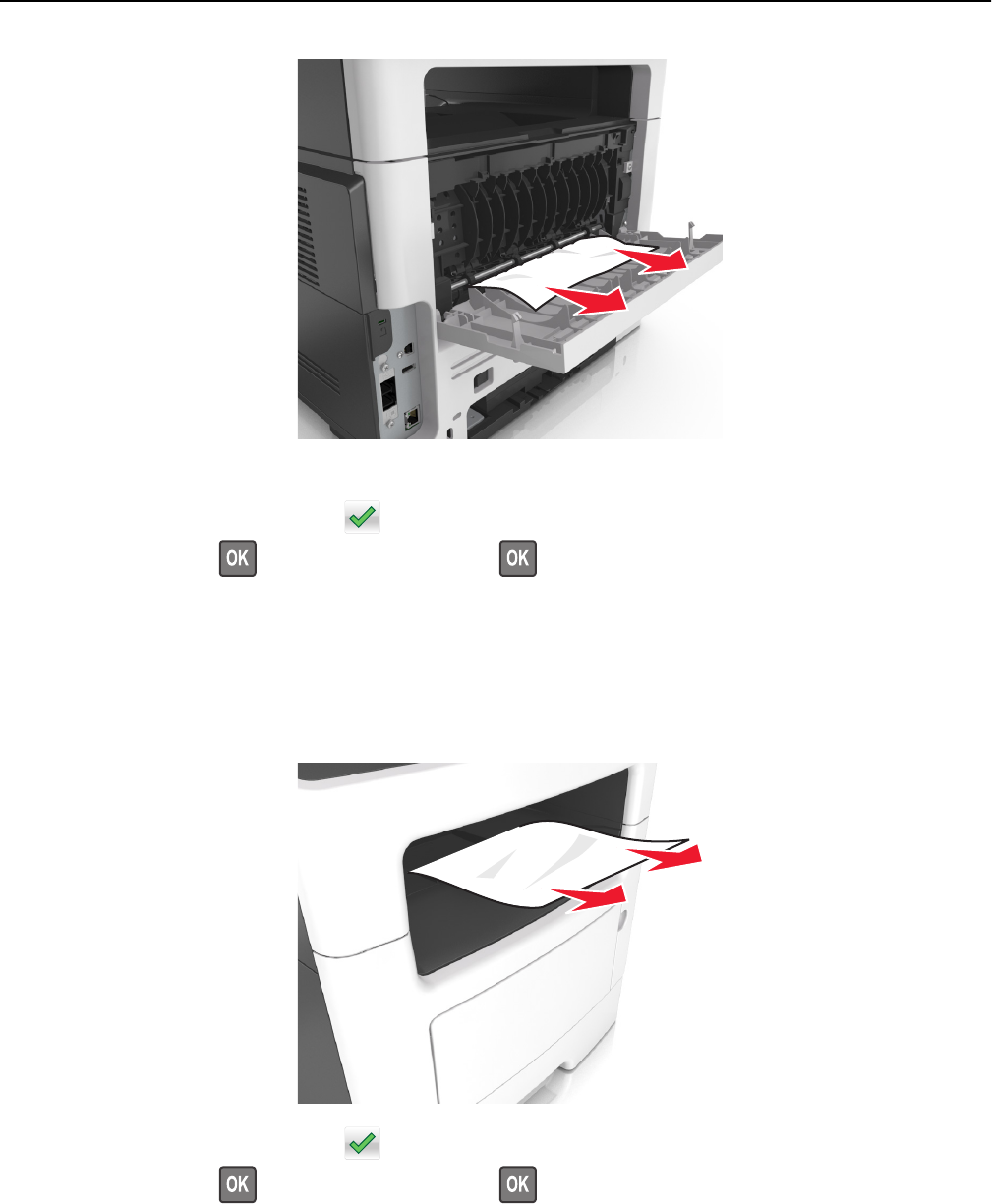

[x]‑page jam, open rear door. [20y.xx]..................................................................................................233
[x]‑page jam, clear standard bin. [20y.xx].............................................................................................234
[x]‑page jam, remove tray 1 to clear duplex. [23y.xx]...........................................................................235
[x]‑page jam, open tray [x]. [24y.xx].....................................................................................................236
[x]‑page jam, clear manual feeder. [25y.xx]..........................................................................................237
[x]‑page jam, open automatic feeder top cover. [28y.xx].....................................................................238
Troubleshooting.......................................................................................240
Understanding printer messages..........................................................................................................240
Solving printer problems.......................................................................................................................254
Solving print problems..........................................................................................................................261
Solving copy problems..........................................................................................................................287
Solving fax problems.............................................................................................................................290
Solving scanner problems.....................................................................................................................296
Solving home screen applications problems.........................................................................................301
Contents 5
Embedded Web Server does not open.................................................................................................301
Contacting customer support................................................................................................................303
Notices.....................................................................................................304
Product information..............................................................................................................................304
Edition notice........................................................................................................................................304
Power consumption..............................................................................................................................309
Index........................................................................................................321
Contents 6
Safety information
Connect the power cord to a properly grounded electrical outlet that is near the product and easily accessible.
Do not place or use this product near water or wet locations.
CAUTION—SHOCK HAZARD: Do not use the fax feature during a lightning storm. Do not set up this product or
make any electrical or cabling connections, such as the fax feature, power cord, or telephone, during a lightning
storm.
Refer service or repairs, other than those described in the user documentation, to a service representative.
This product is designed, tested, and approved to meet strict global safety standards with the use of specific
manufacturer's components. The safety features of some parts may not always be obvious. The manufacturer is not
responsible for the use of other replacement parts.
CAUTION—SHOCK HAZARD: Make sure that all external connections (such as Ethernet and telephone system
connections) are properly installed in their marked plug-in ports.
CAUTION—POTENTIAL INJURY: This product uses a laser. Use of controls or adjustments or performance of
procedures other than those specified herein may result in hazardous radiation exposure.
This product uses a printing process that heats the print media, and the heat may cause the media to release emissions.
You must understand the section in your operating instructions that discusses the guidelines for selecting print media
to avoid the possibility of harmful emissions.
CAUTION—HOT SURFACE: The inside of the printer might be hot. To reduce the risk of injury from a hot
component, allow the surface to cool before touching.
CAUTION—POTENTIAL INJURY: The lithium battery in this product is not intended to be replaced. There is a
danger of explosion if a lithium battery is incorrectly replaced. Do not recharge, disassemble, or incinerate a
lithium battery. Discard used lithium batteries according to the manufacturer's instructions and local
regulations.
Use only the telecommunications (RJ‑11) cord provided with this product or a 26 AWG or larger replacement when
connecting this product to the public switched telephone network.
CAUTION—POTENTIAL INJURY: Do not cut, twist, bind, crush, or place heavy objects on the power cord. Do not
subject the power cord to abrasion or stress. Do not pinch the power cord between objects such as furniture
and walls. If any of these things happen, a risk of fire or electrical shock results. Inspect the power cord regularly
for signs of such problems. Remove the power cord from the electrical outlet before inspecting it.
CAUTION—POTENTIAL INJURY: To reduce the risk of equipment instability, load each tray separately. Keep all
other trays closed until needed.
CAUTION—SHOCK HAZARD: To avoid the risk of electrical shock when cleaning the exterior of the printer,
unplug the power cord from the electrical outlet and disconnect all cables from the printer before proceeding.
Use only the power cord provided with this product or the manufacturer's authorized replacement.
CAUTION—TIPPING HAZARD: Floor-mounted configurations require additional furniture for stability. You must
use either a printer stand or printer base if you are using multiple input options. If you purchased a
multifunction printer (MFP) that scans, copies, and faxes, then you may need additional furniture. For more
information, see www.lexmark.com/multifunctionprinters.
Safety information 7
CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or
memory devices sometime after setting up the printer, then turn the printer off, and unplug the power cord
from the electrical outlet before continuing. If you have any other devices attached to the printer, then turn
them off as well, and unplug any cables going into the printer.
CAUTION—POTENTIAL INJURY: The printer weight is greater than 18 kg (40 lb) and requires two or more
trained personnel to lift it safely.
CAUTION—POTENTIAL INJURY: Before moving the printer, follow these guidelines to avoid personal injury or
printer damage:
•Turn the printer off using the power switch, and then unplug the power cord from the electrical outlet.
•Disconnect all cords and cables from the printer before moving it.
•If an optional tray is installed, then remove it from the printer. To remove the optional tray, slide the latch on the
right side of the tray toward the front of the tray until it clicks into place.
•Use the handholds located on both sides of the printer to lift it.
•Make sure your fingers are not under the printer when you set it down.
•Before setting up the printer, make sure there is adequate clearance around it.
SAVE THESE INSTRUCTIONS.
Safety information 8
Learning about the printer
Finding information about the printer
What are you looking for? Find it here
Initial setup instructions:
•Connecting the printer
•Installing the printer software
Setup documentation—The setup documentation came
with the printer and is also available at
http://support.lexmark.com.
Additional setup and instructions for using the printer:
•Selecting and storing paper and specialty media
•Loading paper
•Configuring printer settings
•Viewing and printing documents and photos
•Setting up and using the printer software
•Configuring the printer on a network
•Caring for and maintaining the printer
•Troubleshooting and solving problems
User's Guide and Quick Reference Guide—The guides are
available on the Documentation CD.
For more information, visit
http://support.lexmark.com.
Instructions for:
•Connecting the printer to an Ethernet network
•Troubleshooting printer connection problems
Networking Guide—Open the Software CD, and then look
for Printer and Software Documentation under the Pubs
folder. From the list of publications, click the Networking
Guide link.
Help using the printer software Windows or Mac Help—Open a printer software program
or application, and then click Help.
Click
?
to view context‑sensitive information.
Notes:
•Help is automatically installed with the printer
software.
•The printer software is located in the printer
program folder or on the desktop, depending on
your operating system.
Learning about the printer 9
What are you looking for? Find it here
The latest supplemental information, updates, and customer
support:
•Documentation
•Driver downloads
•Live chat support
•E‑mail support
•Voice support
Lexmark Support Web site—
http://support.lexmark.com
Note: Select your country or region, and then select
your product to view the appropriate support site.
Support telephone numbers and hours of operation for
your country or region can be found on the Support Web
site or on the printed warranty that came with your
printer.
Record the following information (located on the store
receipt and at the back of the printer), and have it ready
when you contact customer support so that they may
serve you faster:
•Machine Type number
•Serial number
•Date purchased
•Store where purchased
Warranty information Warranty information varies by country or region:
•In the U.S.—See the Statement of Limited Warranty
included with this printer, or at
http://support.lexmark.com.
•In other countries and regions—See the printed
warranty that came with your printer.
Selecting a location for the printer
CAUTION—POTENTIAL INJURY: The printer weight is greater than 18 kg (40 lb) and requires two or more
trained personnel to lift it safely.
When selecting a location for the printer, leave enough room to open trays, covers, and doors. If you plan to install any
options, then leave enough room for them also. It is important to:
•Set up the printer near a properly grounded and easily accessible electrical outlet.
•Make sure airflow in the room meets the latest revision of the ASHRAE 62 standard or the CEN Technical Committee
156 standard.
•Provide a flat, sturdy, and stable surface.
•Keep the printer:
–Clean, dry, and free of dust.
–Away from stray staples and paper clips.
–Away from the direct airflow of air conditioners, heaters, or ventilators.
–Free from direct sunlight and humidity extremes.
•Observe the recommended temperatures and avoid fluctuations:
Ambient temperature 15.6 to 32.2°C (60 to 90°F)
Storage temperature ‑40 to 60°C (-40 to 140°F)
•Allow the following recommended amount of space around the printer for proper ventilation:
Learning about the printer 10
4
3
2
1
5
1Right side 30 cm (12 in.)
2Front 51 cm (20 in.)
3Left side 20 cm (8 in.)
4Rear 20 cm (8 in.)
5Top 75 cm (29 in.)
Printer configurations
CAUTION—TIPPING HAZARD: Floor-mounted configurations require additional furniture for stability. You must
use either a printer stand or printer base if you are using multiple input options. If you purchased a
multifunction printer (MFP) that scans, copies, and faxes, then you may need additional furniture. For more
information, see www.lexmark.com/multifunctionprinters.
CAUTION—POTENTIAL INJURY: To reduce the risk of equipment instability, load each tray separately. Keep all
other trays closed until needed.
You can configure your printer by adding an optional 250‑ or 550‑sheet tray. For instructions on installing the optional
tray, see “Installing optional trays” on page 42.
Learning about the printer 11
1
2
3
4
9
10
6
5
8
7
1Printer control panel
2Automatic document feeder (ADF)
3ADF tray
4ADF bin
5Front door release button
6Standard 250‑sheet tray
7Optional 250‑ or 550‑sheet tray
8100‑sheet multipurpose feeder
9Paper stop
10 Standard bin
Understanding the basic functions of the scanner
•Make quick copies or set the printer to perform specific copy jobs.
•Send a fax using the printer control panel.
•Send a fax to multiple fax destinations at the same time.
•Scan documents and send them to your computer, an e-mail address, or an FTP destination.
•Scan documents and send them to another printer (PDF through an FTP).
Learning about the printer 12
Using the ADF and scanner glass
Automatic document feeder (ADF) Scanner glass
ABC
Use the ADF for multiple‑page documents including
two-sided (duplex) pages.
Use the scanner glass for single‑page documents, book pages, small
items (such as postcards or photos), transparencies, photo paper,
or thin media (such as magazine clippings).
Using the ADF
When using the ADF:
•Load the document into the ADF tray faceup, short edge first.
•Load up to 50 sheets of plain paper into the ADF tray.
•Scan sizes from 105 x 148 mm (4.1 x 5.8 inches) wide to 216 x 368 mm (8.5 x 14.5 inches) long.
•Scan media weights from 52 to 120 g/m2 (14–32 lb).
•Do not load postcards, photos, small items, transparencies, photo paper, or thin media (such as magazine clippings)
into the ADF tray. Place these items on the scanner glass.
Using the scanner glass
When using the scanner glass:
•Place a document facedown on the scanner glass in the corner with the green arrow.
•Scan or copy documents up to 216 x 355.6 mm (8.5 x 14 inches) long.
•Copy books up to 25.3 mm (1 inch) thick.
Learning about the printer 13
Understanding the printer control panel
Using the printer control panel
1
7
8
2 3 456
9
Use the To
1Display •View the printer status and messages.
•Set up and operate the printer.
2Home button Go to the home screen.
3Tips Open a context-sensitive Help dialog.
4Clear all / Reset button Reset the default settings of a function, such as copying, faxing, or scanning.
5Keypad Enter numbers, letters, or symbols.
6Sleep button Enable Sleep mode or Hibernate mode.
Do one of the following to wake the printer from Sleep mode:
•Press any hard button.
•Open a door or cover.
•Send a print job from the computer.
•Perform a power‑on reset with the main power switch.
7Stop or Cancel button Stop all printer activity.
8Submit button Submit changes made in the printer settings.
9Indicator light Check the status of the printer.
Understanding the colors of the Sleep button and indicator
lights
The colors of the Sleep button and indicator lights on the printer control panel signify a certain printer status or condition.
Understanding the printer control panel 14
Indicator light color and its corresponding printer status
Indicator light Printer status
Off The printer is off or in Hibernate mode.
Blinking green The printer is warming up, processing data, or printing.
Solid green The printer is on, but idle.
Blinking red The printer requires user intervention.
Sleep button light color and its corresponding printer status
Sleep button light Printer status
Off The printer is off, idle or in Ready state.
Solid amber The printer is in Sleep mode.
Blinking amber The printer is entering or waking from Hibernate mode.
Blinking amber for 0.1 second, then goes
completely off for 1.9 seconds in a slow,
pulsing pattern
The printer is in Hibernate mode.
Understanding the home screen
When the printer is turned on, the display shows a basic screen, referred to as the home screen. Use the home screen
buttons and icons to initiate an action such as copying, faxing, or scanning; to open the menu screen; or respond to
messages.
Note: Your home screen may vary depending on your home screen customization settings, administrative setup, and
active embedded solutions.
1 2 3 4
5
6
7
Touch To
1Copy Access the Copy menus and make copies.
2Fax Access the Fax menus and send fax.
3E‑mail Access the E-mail menus and send e‑mails.
Understanding the printer control panel 15
Touch To
4FTP Access the File Transfer Protocol (FTP) menus and scan documents directly to an FTP server.
5Menu icon Access printer menus.
Note: The menus are available only when the printer is in ready state.
6Status message bar •Show the current printer status such as Ready or Busy.
•Show printer supply conditions such as Imaging unit low or Cartridge Low.
•Show intervention messages and the instructions on how to clear them.
7Status/Supplies •Show a printer warning or error message whenever the printer requires intervention to
continue processing.
•View more information on the printer warning or message, and on how to clear it.
This may also appear on the home screen:
Touch To
Search Held Jobs Search current held jobs.
Jobs by user Access print jobs saved by user.
Profiles and Solutions Access profiles and solutions.
Features
Feature Description
Attendance message alert If an attendance message affects a function, then this icon appears and the red
indicator light blinks.
Warning If an error condition occurs, then this icon appears.
Printer IP address
Example: 123.123.123.123
The IP address of your printer is located at the top left corner of the home screen
and appears as four sets of numbers separated by periods. You can use the IP address
when accessing the Embedded Web Server to view and remotely configure printer
settings even when you are not physically near the printer.
Using the touch-screen buttons
Note: Your home screen may vary, depending on your home screen customization settings, administrative setup,
and active embedded solutions.
Understanding the printer control panel 16
12
3
4
5
Touch the To
1Radio button Select or clear an item.
2Up arrow Scroll up.
3Down arrow Scroll down.
4Accept button Save a setting.
5Cancel button •Cancel an action or a selection.
•Return to the previous screen.
Other touch-screen buttons
Touch To
Return to the home screen.
Open a context-sensitive Help dialog on the printer control panel.
Scroll to the left.
Scroll to the right.
Understanding the printer control panel 17
Setting up and using the home screen applications
Notes:
•Your home screen may vary, depending on your home screen customization settings, administrative setup, and
active embedded applications. Some applications are supported only in select printer models.
•There may be additional solutions and applications available for purchase. For more information, visit
www.lexmark.com or inquire at your point of purchase.
Finding the IP address of the computer
Note: Make sure that you know how your printer and computer are connected to the network (Ethernet or
wireless).
The computer IP address is required when setting up home screen applications, such as:
•Forms and Favorites
•Multi Send
•Scan to Network
For Windows users
1Open the command window.
In Windows 8
From the Search charm, type run, and then navigate to:
Apps list > Run > type cmd > OK
In Windows 7 or earlier
aClick or click Start, and then click Run.
bIn the Start Search or Run dialog, type cmd.
cPress Enter, or click OK.
2Type ipconfig, and then click Go or press Enter.
Note: Type ipconfig /all to see additional useful information.
3Look for IP Address.
The IP address appears as four sets of numbers separated by periods, such as 123.123.123.123.
For Macintosh users
Note: This is applicable only in Mac OS X version 10.5 or later.
1From the Apple menu, navigate to:
System Preferences > Network
2Click Ethernet, Wi‑Fi, or AirPort.
Setting up and using the home screen applications 18
3Click Advanced > TCP/IP.
4Look for IPv4 Address.
Finding the IP address of the printer
Note: Make sure your printer is connected to a network or to a print server.
You can find the printer IP address:
•From the top left corner of the printer home screen.
•From the TCP/IP section in the Network/Ports menu.
•By printing a network setup page or menu settings page, and then finding the TCP/IP section.
Note: An IP address appears as four sets of numbers separated by periods, such as 123.123.123.123.
Accessing the Embedded Web Server
The Embedded Web Server is the printer Web page that lets you view and remotely configure printer settings even
when you are not physically near the printer.
1Obtain the printer IP address:
•From the printer control panel home screen
•From the TCP/IP section in the Network/Ports menu
•By printing a network setup page or menu settings page, and then finding the TCP/IP section
Note: An IP address appears as four sets of numbers separated by periods, such as 123.123.123.123.
2Open a Web browser, and then type the printer IP address in the address field.
3Press Enter.
Note: If you are using a proxy server, then temporarily disable it to load the Web page correctly.
Customizing the home screen
1Open a Web browser, and then type the printer IP address in the address field.
Note: View the printer IP address on the printer home screen. The IP address appears as four sets of numbers
separated by periods, such as 123.123.123.123.
2Do one or more of the following:
•Show or hide the icons of basic printer functions.
aClick Settings > General Settings > Home screen customization.
bSelect the check boxes to specify which icons appear on the home screen.
Note: If you clear a check box beside an icon, then the icon does not appear on the home screen.
cClick Submit.
•Customize the icon for an application. For more information, see “Finding information about the home screen
applications” on page 20 or see the documentation that came with the application.
Setting up and using the home screen applications 19
Understanding the different applications
Use To
Card Copy Scan and print both sides of a card on a single page. For more information, see “Setting up Card Copy”
on page 21.
Fax Scan a document, and then send it to a fax number. For more information, see “Faxing” on page
104.
Forms and Favorites Quickly find and print frequently used online forms directly from the printer home screen. For more
information, see “Setting up Forms and Favorites” on page 20.
Multi Send Scan a document, and then send it to multiple destinations. For more information, see “Setting up
Multi Send” on page 22.
MyShortcut Create shortcuts directly on the printer home screen. For more information, see “Using MyShortcut”
on page 22.
Scan to E‑mail Scan a document, and then send it to an e‑mail address. For more information, see “E-mailing” on
page 97.
Scan to Computer Scan a document, and then save it to a predefined folder on a host computer. For more information,
see “Setting up Scan to Computer” on page 131.
Scan to FTP Scan documents directly to a File Transfer Protocol (FTP) server. For more information, see “Scanning
to an FTP address” on page 129.
Scan to Network Scan a document, and then send it to a network shared folder. For more information, see “Setting
up Scan to Network” on page 23.
Activating the home screen applications
Finding information about the home screen applications
Your printer comes with preinstalled home screen applications. Before you can use these applications, you must first
activate and set up these applications using the Embedded Web Server. For more information on accessing the
Embedded Web Server, see “Accessing the Embedded Web Server” on page 19.
For more information on configuring and using the home screen applications, do the following:
1Go to http://support.lexmark.com, and then do either of the following:
•Click Business Solutions, and then select the name of the application.
•Click Software and Solutions, and then select either of the following:
–Scan to Network—Find information about the Scan to Network application.
–Other Applications—Find information about the other applications.
2Click the Manuals tab, and then select the document for the home screen application.
Setting up Forms and Favorites
Note: A later version of this User's Guide may contain a direct link to the Administrator’s Guide of this application. To
check for updates of this User’s Guide, go to http://support.lexmark.com.
Setting up and using the home screen applications 20
Use To
Streamline work processes by letting you quickly find and print frequently used online forms directly
from the printer home screen.
Note: The printer must have permission to access the network folder, FTP site, or Web site where the
bookmark is stored. From the computer where the bookmark is stored, use sharing, security, and
firewall settings to allow the printer at least a read access. For help, see the documentation that
came with your operating system.
1Open a Web browser, and then type the printer IP address in the address field.
Note: View the printer IP address on the printer home screen. The IP address appears as four sets of numbers
separated by periods, such as 123.123.123.123.
2Click Settings > Apps > Apps Management > Forms and Favorites.
3Click Add, and then customize the settings.
Notes:
•See the mouse-over help beside each field for a description of the setting.
•To make sure the location settings of the bookmark are correct, type the correct IP address of the host
computer where the bookmark is located. For more information on obtaining the IP address of the host
computer, see “Finding the IP address of the computer” on page 18.
•Make sure the printer has access rights to the folder where the bookmark is located.
4Click Apply.
To use the application, touch Forms and Favorites on the printer home screen, and then navigate through form
categories, or search for forms based on a form number, name, or description.
Setting up Card Copy
Note: A later version of this User's Guide may contain a direct link to the Administrator's Guide of this application. To
check for updates of this User's Guide, go to http://support.lexmark.com.
Use To
Quickly and easily copy insurance, identification, and other wallet‑size cards.
You can scan and print both sides of a card on a single page, saving paper and showing the information
on the card in a more convenient manner.
1Open a Web browser, and then type the printer IP address in the address field.
Note: View the printer IP address on the printer home screen. The IP address appears as four sets of numbers
separated by periods, such as 123.123.123.123.
2Click Settings > Apps > Apps Management > Card Copy.
Setting up and using the home screen applications 21
3Change the default scanning options, if necessary.
•Default tray—Select the default tray to be used for printing scan images.
•Default number of copies—Specify the number of copies that should automatically print when the application
is used.
•Default contrast setting—Specify a setting to increase or decrease the level of contrast when a copy of the
scanned card is printed. Select Best for Content if you want the printer to adjust the contrast automatically.
•Default scale setting—Set the size of the scanned card when printed. The default setting is 100% (full size).
•Resolution setting—Adjust the quality of the scanned card.
Notes:
–When scanning a card, make sure the scan resolution is not more than 200 dpi for color, and 400 dpi for
black and white.
–When scanning multiple cards, make sure the scan resolution is not more than 150 dpi for color, and
300 dpi for black and white.
•Print Borders—Select the check box to print the scan image with a border around it.
4Click Apply.
To use the application, touch Card Copy on the printer home screen, and then follow the instructions.
Using MyShortcut
Note: A later version of this User's Guide may contain a direct link to the Administrator's Guide of this application. To
check for updates of this User's Guide, go to http://support.lexmark.com.
Use To
Create shortcuts on the printer home screen, with settings for up to 25 frequently used copy, fax, or e-
mail jobs.
To use the application, touch MyShortcut, and then follow the instructions on the printer display.
Setting up Multi Send
Note: A later version of this User's Guide may contain a direct link to the Administrator's Guide of this application. To
check for updates of this User's Guide, go to http://support.lexmark.com.
Use To
Scan a document, and then send the scanned document to multiple destinations.
Note: Make sure there is enough space in the printer hard disk.
Setting up and using the home screen applications 22
1Open a Web browser, and then type the printer IP address in the address field.
Note: View the printer IP address on the printer home screen. The printer IP address appears as four sets of
numbers separated by periods, such as 123.123.123.123.
2Click Settings > Apps > Apps Management > Multi Send.
3From the Profiles section, click Add, and then customize the settings.
Notes:
•See the mouse‑over help beside each field for a description of the setting.
•If you select FTP or Share Folder as a destination, then make sure the location settings of the destination are
correct. Type the correct IP address of the host computer where the specified destination is located. For
more information on obtaining the IP address of the host computer, see “Finding the IP address of the
computer” on page 18.
4Click Apply.
To use the application, touch Multi Send on the printer home screen, and then follow the instructions on the printer
display.
Setting up Scan to Network
Note: A later version of this User's Guide may contain a direct link to the Administrator’s Guide of this application. To
check for updates of this User's Guide, go to http://support.lexmark.com.
Use To
Scan a document and send it to a shared network folder. You can define up to 30 unique folder
destinations.
Notes:
•The printer must have permission to write to the destinations. From the computer where the
destination is specified, use sharing, security, and firewall settings to allow the printer at least a
write access. For help, see the documentation that came with your operating system.
•The Scan to Network icon appears only when one or more destinations are defined.
1Open a Web browser, and then type the printer IP address in the address field.
Note: View the printer IP address on the printer home screen. The IP address appears as four sets of numbers
separated by periods, such as 123.123.123.123.
2Click Settings > Apps > Apps Management > Scan to Network.
3Specify the destinations, and then customize the settings.
Notes:
•See the mouse-over help beside some of the fields for a description of the setting.
•To make sure the location settings of the destination are correct, type the correct IP address of the host
computer where the specified destination is located. For more information on obtaining the IP address of
the host computer, see “Finding the IP address of the computer” on page 18.
•Make sure the printer has access rights to the folder where the specified destination is located.
4Click Apply.
Setting up and using the home screen applications 23
To use the application, touch Scan to Network on the printer home screen, and then follow the instructions on the
printer display.
Setting up Remote Operator Panel
This application shows the printer control panel on your computer screen and lets you interact with the printer control
panel, even when you are not physically near the network printer. From your computer screen, you can view the printer
status, release held print jobs, create bookmarks, and do other print-related tasks you might normally do while standing
at the network printer.
1Open a Web browser, and then type the printer IP address in the address field.
Note: View the printer IP address on the printer home screen. The IP address appears as four sets of numbers
separated by periods, such as 123.123.123.123.
2Click Settings > Remote Operator Panel Settings.
3Select the Enabled check box, and then customize the settings.
4Click Submit.
To use the application, click Remote Operator Panel > Launch VNC Applet.
Exporting and importing a configuration
You can export configuration settings into a text file, and then import the file to apply the settings to other printers.
1Open a Web browser, and then type the printer IP address in the address field.
Note: View the printer IP address on the printer home screen. The IP address appears as four sets of numbers
separated by periods, such as 123.123.123.123.
2To export or import a configuration for one application, do the following:
aClick Settings > Apps > Apps Management.
bFrom the list of installed applications, click the name of the application you want to configure.
cClick Configure, and then do either of the following:
•To export a configuration to a file, click Export, and then follow the instructions on the computer screen to
save the configuration file.
Notes:
–When saving the configuration file, you can type a unique file name or use the default name.
–If a "JVM Out of Memory” error occurs, then repeat the export process until the configuration file is
saved.
•To import a configuration from a file, click Import, and then browse to the saved configuration file that was
exported from a previously configured printer.
Notes:
–Before importing the configuration file, you can choose to preview it first or load it directly.
–If a timeout occurs and a blank screen appears, then refresh the Web browser, and then click Apply.
Setting up and using the home screen applications 24
3To export or import a configuration for multiple applications, do the following:
aClick Settings > Import/Export.
bDo either of the following:
•To export a configuration file, click Export Embedded Solutions Settings File, and then follow the instructions
on the computer screen to save the configuration file.
•To import a configuration file, do the following:
1Click Import Embedded Solutions Settings File > Choose File, and then browse to the saved configuration
file that was exported from a previously configured printer.
2Click Submit.
Setting up and using the home screen applications 25
Additional printer setup
Installing internal options
CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or
memory devices sometime after setting up the printer, then turn the printer off, and unplug the power cord
from the electrical outlet before continuing. If you have any other devices attached to the printer, then turn
them off as well, and unplug any cables going into the printer.
Warning—Potential Damage: Controller board electronic components are easily damaged by static electricity.
Touch a metal surface on the printer before touching any controller board electronic components or connectors.
Available internal options
•Memory card
–DDR3 DIMM
–Flash memory
•Fonts
•Firmware cards
–Forms Barcode
–Prescribe
–IPDS
–Printcryption
•Printer hard disk
•LexmarkTM Internal Solutions Ports (ISP)
–Parallel 1284‑B interface
–MarkNetTM N8350 802.11 b/g/n wireless printer server
–MarkNet N8130 10/100 fiber interface
–RS‑232‑C serial interface
Additional printer setup 26
Accessing the controller board
CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or
memory devices sometime after setting up the printer, then turn the printer off, and unplug the power cord
from the electrical outlet before continuing. If you have any other devices attached to the printer, then turn
them off as well, and unplug any cables going into the printer.
1Open the controller board access door.
2Open the controller board shield using the green handle.
2
1
3Use the following illustration to locate the appropriate connector.
Warning—Potential Damage: Controller board electronic components are easily damaged by static electricity.
Touch something metal on the printer before touching any controller board electronic components or
connectors.
Additional printer setup 27
21
3
4
1Memory card connector
2Option card connector
3Printer hard disk connector
4Lexmark Internal Solutions Port connector
4Close the shield, and then the access door.
1
2
Installing a memory card
CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or
memory devices sometime after setting up the printer, then turn the printer off, and unplug the power cord
from the electrical outlet before continuing. If you have any other devices attached to the printer, then turn
them off as well, and unplug any cables going into the printer.
Warning—Potential Damage: Controller board electronic components are easily damaged by static electricity.
Touch something metal on the printer before touching any controller board electronic components or connectors.
Note: An optional memory card can be purchased separately and attached to the controller board.
1Access the controller board.
For more information, see “Accessing the controller board” on page 27.
2Unpack the memory card.
Warning—Potential Damage: Do not touch the connection points along the edge of the card. Doing so may
cause damage.
Additional printer setup 28
3Align the notch (1) on the memory card with the ridge (2) on the connector.
1
2
4Push the memory card straight into the connector, and then push the card toward the controller board wall until
it clicks into place.
5Close the controller board shield, and then the controller board access door.
Note: When the printer software and any hardware options are installed, you may need to manually add the
options in the printer driver to make them available for print jobs. For more information, see “Updating
available options in the printer driver” on page 45.
Additional printer setup 29
Installing an optional card
CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or
memory devices sometime after setting up the printer, then turn the printer off, and unplug the power cord
from the electrical outlet before continuing. If you have other devices attached to the printer, then turn them
off as well, and unplug any cables going into the printer.
Warning—Potential Damage: Controller board electronic components are easily damaged by static electricity.
Touch something metal on the printer before touching any controler board electronic components or connectors.
1Access the controller board.
For more information, see “Accessing the controller board” on page 27.
2Unpack the optional card.
Warning—Potential Damage: Avoid touching the connection points along the edge of the card.
3Holding the card by its sides, align the plastic pins (1) on the card with the holes (2) on the controller board.
2
1
Additional printer setup 30
4Push the card firmly into place as shown in the illustration.
Warning—Potential Damage: Improper installation of the card may cause damage to the card and the
controller board.
Note: The entire length of the connector on the card must touch and be flushed against the controller board.
5Close the controller board shield, and then the controller board access door.
Note: When the printer software and any hardware options are installed, it may be necessary to manually add
the options in the printer driver to make them available for print jobs. For more information, see “Updating
available options in the printer driver” on page 45.
Additional printer setup 31
Installing an Internal Solutions Port
The controller board supports one optional Lexmark Internal Solutions Port (ISP).
Note: This task requires a flat‑head screwdriver.
CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or
memory devices sometime after setting up the printer, then turn the printer off, and unplug the power cord
from the electrical outlet before continuing. If you have any other devices attached to the printer, then turn
them off as well, and unplug any cables going into the printer.
Warning—Potential Damage: Controller board electronic components are easily damaged by static electricity.
Touch a metal surface on the printer before touching any controller board electronic components or connectors.
1Open the controller board access door.
Additional printer setup 32
2Lightly press the stop on the left side of the controller board access door, and then slide the access door to remove.
3
1
2
3Unpack the ISP kit.
Note: Make sure to remove and discard the small cable attached to the white connector.
1
2
4
3
5
6
1ISP solution
2Screw to attach the ISP to the bracket
3ISP exterior cover
4Screws to attach the ISP metal bracket to the printer cage
5Plastic bracket
6Long ISP cable
Additional printer setup 33
4Place the plastic bracket inside the ISP exterior cover until it clicks into place.
5Slide and push the ISP solution into the plastic bracket.
12
6Secure the ISP solution to the plastic bracket using the long screw.
Additional printer setup 34
7Tighten the two screws on the end of the ISP solution.
8Attach the white plug of the ISP solution interface cable into the white receptacle on the ISP.
Additional printer setup 35
9Slightly close the ISP exterior cover up to 65 degrees, and then slide the cover to attach.
1
234
10 Run the ISP cable through the controller board shield.
Additional printer setup 36
11 Open the controller board shield using the green handle.
2
1
12 Attach the blue plug of the ISP solution interface cable into the blue receptacle on the controller board.
Note: If you have installed a printer hard disk, then you need to remove it. For more information, see
“Removing a printer hard disk” on page 41. To reinstall the printer hard disk, see “Installing a printer hard
disk” on page 38.
Additional printer setup 37
13 Close the controller board shield.
14 Close the ISP exterior cover.
Note: When the printer software and any hardware options are installed, it may be necessary to manually add the
options in the printer driver to make them available for print jobs. For more information, see “Updating available
options in the printer driver” on page 45.
Installing a printer hard disk
CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or
memory devices sometime after setting up the printer, then turn the printer off, and unplug the power cord
from the electrical outlet before continuing. If you have any other devices attached to the printer, then turn
them off as well, and unplug any cables going into the printer.
Warning—Potential Damage: Controller board electronic components are easily damaged by static electricity.
Touch a metal surface on the printer before touching any controller board electronic components or connectors.
1Access the controller board.
For more information, see “Accessing the controller board” on page 27.
2Unpack the printer hard disk.
3Install the printer hard disk on the controller board.
Warning—Potential Damage: Hold only the edges of the printed circuit board assembly. Do not touch or press
on the center of the printer hard disk. Doing so may cause damage.
Additional printer setup 38
aUsing a flat‑head screwdriver, loosen the screws.
bInsert the plug of the printer hard disk interface cable into the receptacle of the controller board.
Note: The plug and the receptacle are color‑coded blue.
Additional printer setup 39
cAlign the screws on the printer hard disk to the slots on the controller board bracket, and then slide the printer
hard disk onto the brackets.
dTighten the two screws.
4Close the controller board shield, and then close the controller board access door.
Note: When the printer software and any hardware options are installed, you may need to manually add the
options in the printer driver to make them available for print jobs. For more information, see “Updating
available options in the printer driver” on page 45.
Additional printer setup 40
Removing a printer hard disk
Warning—Potential Damage: Controller board electronic components are easily damaged by static electricity.
Touch a metal surface on the printer before touching any controller board electronic components or connectors.
1Access the controller board.
For more information, see “Accessing the controller board” on page 27.
Note: This task requires a flat‑head screwdriver.
2Loosen the screws that connect the printer hard disk to the controller board bracket.
3Unplug the printer hard disk interface cable from the receptacle in the controller board, leaving the cable attached
to the printer hard disk. To unplug the cable, squeeze the paddle at the plug of the interface cable to disengage the
latch before pulling the cable out.
4Hold the printer hard disk by the edges, and then remove it from the printer.
5Close the controller board shield, and then close the access door.
Additional printer setup 41
Installing hardware options
Order of installation
CAUTION—POTENTIAL INJURY: The printer weight is greater than 18 kg (40 lb) and requires two or more
trained personnel to lift it safely.
CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or
memory devices sometime after setting up the printer, then turn the printer off, and unplug the power cord
from the electrical outlet before continuing. If you have any other devices attached to the printer, then turn
them off as well, and unplug any cables going into the printer.
CAUTION—TIPPING HAZARD: Floor-mounted configurations require additional furniture for stability. You must
use either a printer stand or printer base if you are using multiple input options. If you purchased a
multifunction printer (MFP) that scans, copies, and faxes, then you may need additional furniture. For more
information, see www.lexmark.com/multifunctionprinters.
Install the printer and any hardware options you have purchased in the following order:
•Printer stand
•Optional 250‑ or 550‑sheet tray
•Printer
For more information on installing a printer stand, optional 250‑ or 550‑sheet tray, or spacer, see the setup sheet that
came with the option.
Installing optional trays
CAUTION—POTENTIAL INJURY: The printer weight is greater than 18 kg (40 lb) and requires two or more
trained personnel to lift it safely.
CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or
memory devices sometime after setting up the printer, then turn the printer off, and unplug the power cord
from the electrical outlet before continuing. If you have any other devices attached to the printer, then turn
them off as well, and unplug any cables going into the printer.
CAUTION—TIPPING HAZARD: Floor-mounted configurations require additional furniture for stability. You must
use either a printer stand or printer base if you are using multiple input options. If you purchased a
multifunction printer (MFP) that scans, copies, and faxes, then you may need additional furniture. For more
information, see www.lexmark.com/multifunctionprinters.
1Turn off the printer using the power switch, and then unplug the power cord from the electrical outlet.
Additional printer setup 42
2
1
2Unpack the tray, and then remove all packing material.
3Pull out the tray from the base.
4Remove any packing material from inside the tray.
5Insert the tray into the base.
6Place the tray near the printer.
7Align the printer with the tray, and then slowly lower the printer into place.
Note: Optional trays lock together when stacked.
Additional printer setup 43
8Connect the power cord to the printer, then to a properly grounded electrical outlet, and then turn on the printer.
1
2
Notes:
•When the printer software and any hardware options are installed, you may need to manually add the
options in the printer driver to make them available for print jobs. For more information, see “Updating
available options in the printer driver” on page 45.
•To uninstall the optional trays, slide the latch on the right side of the printer toward the front of the printer
until it clicks into place, and then remove stacked trays one at a time from the top to the bottom.
Additional printer setup 44
Setting up the printer software
Installing the printer software
Notes:
•If you installed the printer software on the computer before but need to reinstall the software, then uninstall
the current software first.
•Close all open software programs before installing the printer software.
•For Macintosh users, you may download all the drivers and utilities from our Web site.
1Obtain a copy of the software installer package.
•From the Software CD that came with your printer
•From our Web site:
Go to http://support.lexmark.com, and then navigate to:
SUPPORT & DOWNLOAD > select your printer > select your operating system
2Double‑click the software installer package.
Wait for the installation dialog to appear.
If you are using the Software CD and the installation dialog does not appear, then do the following:
In Windows 8
From the Search charm, type run, and then navigate to:
Apps list > Run > type D:\setup.exe > OK.
In Windows 7 or earlier
aClick or click Start, and then click Run.
bIn the Start Search or Run dialog, type D:\setup.exe.
cPress Enter, or click OK.
Note: D is the letter of your CD or DVD drive.
3Click Install, and then follow the instructions on the computer screen.
Updating available options in the printer driver
When any hardware options are installed, you may need to manually add the options in the printer driver to make
them available for use.
For Windows users
1Open the printers folder.
In Windows 8
From the Search charm, type run, and then navigate to:
Apps list > Run > type control printers > OK
Additional printer setup 45
In Windows 7 or earlier
aClick or click Start, and then click Run.
bIn the Start Search or Run dialog, type control printers.
cPress Enter, or click OK.
2Depending on your device, do either of the following:
•Press and hold the printer you want to update.
•Right‑click the printer you want to update.
3From the menu that appears, do either of the following:
•For Windows 7 or later, select Printer properties.
•For earlier versions, select Properties.
4Click the Configuration tab.
5Do either of the following:
•Click Update Now ‑ Ask Printer.
•Under Configuration Options, manually add any installed hardware options.
6Click Apply.
For Macintosh users
1From the Apple menu, navigate to either of the following:
•System Preferences > Print & Scan > select your printer > Options & Supplies > Driver
•System Preferences > Print & Fax > select your printer > Options & Supplies > Driver
2Add any installed hardware options, and then click OK.
Attaching cables
CAUTION—POTENTIAL INJURY: Do not use the fax feature during a lightning storm. Do not set up this product
or make any electrical or cabling connections, such as the fax feature, power cord, or telephone, during a
lightning storm.
Connect the printer to the computer using a USB cable or to the network using an Ethernet cable.
Make sure to match the following:
•The USB symbol on the cable with the USB symbol on the printer
•The appropriate Ethernet cable with the Ethernet port
Warning—Potential Damage: Do not touch the USB cable, any network adapter, or the printer in the area shown
while actively printing or scanning. Loss of data or a malfunction can occur.
Additional printer setup 46
1
2
3
4
6
8
7
5
Use the To
1Printer power cord
socket
Connect the printer to a properly grounded electrical outlet.
2Power switch Turn the printer on or off.
3Ethernet port Connect the printer to an Ethernet network.
4EXT port Connect additional devices (telephone or answering machine) to the printer and the
telephone line. Use this port if you do not have a dedicated fax line for the printer and if this
connection method is supported in your country or region.
Note: Remove the adapter plug to access the port.
5LINE port Connect the printer to an active telephone line through a standard wall jack (RJ‑11), DSL filter,
or VoIP adapter, or any other adapter that allows you to access the telephone line to send
and receive faxes.
6USB port Attach a supported printer keyboard.
7USB printer port Connect the printer to a computer.
8Security slot Attach a lock that will secure the printer in place.
Additional printer setup 47
Networking
Notes:
•Purchase a MarkNet N8350 wireless network adapter first before setting up the printer on a wireless network.
For more information on installing the wireless network adapter, see the setup sheet that came with the
adapter.
•A Service Set Identifier (SSID) is a name assigned to a wireless network. Wired Equivalent Privacy (WEP), Wi-Fi
Protected Access (WPA), and WPA2 are types of security used on a network.
Preparing to set up the printer on an Ethernet network
To configure your printer to connect to an Ethernet network, organize the following information before you begin:
Note: If your network automatically assigns IP addresses to computers and printers, continue on to installing the
printer.
•A valid, unique IP address for the printer to use on the network
•The network gateway
•The network mask
•A nickname for the printer (optional)
Note: A printer nickname can make it easier for you to identify your printer on the network. You can choose to
use the default printer nickname, or assign a name that is easier for you to remember.
You will need an Ethernet cable to connect the printer to the network and an available port where the printer can
physically connect to the network. Use a new network cable when possible to avoid potential problems caused by a
damaged cable.
Installing the printer on an Ethernet network
For Windows users
1Obtain a copy of the software installer package.
•From the Software CD that came with your printer
•From our Web site:
Go to http://support.lexmark.com, and then navigate to:
SUPPORT & DOWNLOAD > select your printer > select your operating system
2Double‑click the software installer package.
Wait for the installation dialog to appear.
If you are using the Software CD and the installation dialog does not appear, then do the following:
In Windows 8
From the Search charm, type run, and then navigate to:
Apps list > Run > type D:\setup.exe > OK
Additional printer setup 48
In Windows 7 or earlier
aClick or click Start, and then click Run.
bIn the Start Search or Run dialog, type D:\setup.exe.
cPress Enter, or click OK.
Note: D is the letter of your CD or DVD drive.
3Click Install, and then follow the instructions on the computer screen.
4Select Ethernet connection, and then click Continue.
5Attach the Ethernet cable when instructed to do so.
6Select the printer from the list, and then click Continue.
Note: If the configured printer does not appear in the list, then click Modify Search.
7Follow the instructions on the computer screen.
For Macintosh users
1Allow the network DHCP server to assign an IP address to the printer.
2Obtain the printer IP address either:
•From the printer control panel
•From the TCP/IP section in the Network/Ports menu
•By printing a network setup page or menu settings page, and then finding the TCP/IP section
Note: You will need the IP address if you are configuring access for computers on a different subnet than the printer.
3Install the printer driver on the computer.
aDownload the driver at http://support.lexmark.com.
bDouble‑click the installer package for the printer, and then follow the instructions on the computer screen.
cSelect a destination, and then click Continue.
dFrom the Easy Install screen, click Install.
eType the user password, and then click OK.
All the necessary applications are installed on the computer.
fClick Close when installation is complete.
4Add the printer.
•For IP printing:
aFrom the Apple menu, navigate to either of the following:
–System Preferences > Print & Scan
–System Preferences > Print & Fax
bClick +.
cClick the IP tab.
dType the printer IP address in the address field, and then click Add.
•For AppleTalk printing:
Notes:
–Make sure AppleTalk is activated on your printer.
Additional printer setup 49
–This feature is supported only in Mac OS X version 10.5.
aFrom the Apple menu, navigate to:
System Preferences > Print & Fax
bClick +, and then navigate to:
AppleTalk > select your printer > Add
Preparing to set up the printer on a wireless network
Notes:
•Make sure your wireless network adapter is installed in your printer and working properly. For more
information, see the instruction sheet that came with the wireless network adapter.
•Make sure your access point (wireless router) is turned on and is working properly.
Make sure you have the following information before setting up the printer on a wireless network:
•SSID—The SSID is also referred to as the network name.
•Wireless Mode (or Network Mode)—The mode is either infrastructure or ad hoc.
•Channel (for ad hoc networks)—The channel defaults to automatic for infrastructure networks.
Some ad hoc networks will also require the automatic setting. Check with your system support person if you are
not sure which channel to select.
•Security Method—There are four basic options for Security Method:
–WEP key
If your network uses more than one WEP key, then enter up to four in the provided spaces. Select the key
currently in use on the network by selecting the default WEP transmit key.
–WPA or WPA2 preshared key or passphrase
WPA includes encryption as an additional layer of security. The choices are AES or TKIP. Encryption must be set
for the same type on the router and on the printer, or the printer will not be able to communicate on the
network.
–802.1X–RADIUS
If you are installing the printer on an 802.1X network, then you may need the following:
•Authentication type
•Inner authentication type
•802.1X user name and password
•Certificates
–No security
If your wireless network does not use any type of security, then you will not have any security information.
Note: We do not recommend using an unsecured wireless network.
Notes:
–If you do not know the SSID of the network that your computer is connected to, then launch the wireless utility
of the computer network adapter, and then look for the network name. If you cannot find the SSID or the
security information for your network, then see the documentation that came with the access point, or contact
your system support person.
Additional printer setup 50
–To find the WPA/WPA2 preshared key or passphrase for the wireless network, see the documentation that
came with the access point, see the Embedded Web Server associated with the access point, or consult your
system support person.
Connecting the printer using the Wireless Setup Wizard
Before you begin, make sure that:
•A wireless network adapter is installed in the printer and is working properly. For more information, see the
instruction sheet that came with the wireless network adapter.
•An Ethernet cable is disconnected from the printer.
•Active NIC is set to Auto. To set this to Auto, navigate to:
> Network/Ports > Active NIC > Auto > Submit
Note: Make sure to turn off the printer, then wait for at least five seconds, and then turn the printer back on.
1From the printer control panel, navigate to:
> Network/Ports > Network [x] > Network [x] Setup > Wireless > Wireless Connection Setup
2Select a wireless connection setup.
Use To
Search for networks Show available wireless connections.
Note: This menu item shows all broadcast secured or unsecured SSIDs.
Enter a network name Manually type the SSID.
Note: Make sure to type the correct SSID.
Wi‑Fi Protected Setup Connect the printer to a wireless network using Wi‑Fi Protected Setup.
3Follow the instructions on the printer display.
Connecting the printer to a wireless network using Wi‑Fi Protected Setup
Before you begin, make sure that:
•The access point (wireless router) is Wi‑Fi Protected Setup (WPS) certified or WPS‑compatible. For more
information, see the documentation that came with your access point.
•A wireless network adapter installed in your printer is attached and working properly. For more information, see
the instruction sheet that came with the wireless network adapter.
Using the Push Button Configuration method
1From the printer control panel, navigate to:
> Network/Ports > Network [x] > Network [x] Setup > Wireless > Wireless Connection Setup > Wi‑Fi Protected
Setup > Start Push Button Method
2Follow the instructions on the printer display.
Additional printer setup 51
Using the Personal Identification Number (PIN) method
1From the printer control panel, navigate to:
> Network/Ports > Network [x] > Network [x] Setup > Wireless > Wireless Connection Setup > Wi‑Fi Protected
Setup > Start PIN Method
2Copy the eight‑digit WPS PIN.
3Open a Web browser, and then type the IP address of your access point in the address field.
Notes:
•The IP address appears as four sets of numbers separated by periods, such as 123.123.123.123.
•If you are using a proxy server, then temporarily disable it to load the Web page correctly.
4Access the WPS settings. For more information, see the documentation that came with your access point.
5Enter the eight‑digit PIN, and then save the setting.
Connecting the printer to a wireless network using the Embedded Web Server
Before you begin, make sure that:
•Your printer is connected temporarily to an Ethernet network.
•A wireless network adapter is installed in your printer and working properly. For more information, see the
instruction sheet that came with the wireless network adapter.
1Open a Web browser, and then type the printer IP address in the address field.
Notes:
•View the printer IP address on the printer control panel. The IP address appears as four sets of numbers
separated by periods, such as 123.123.123.123.
•If you are using a proxy server, then temporarily disable it to load the Web page correctly.
2Click Settings > Network/Ports > Wireless.
3Modify the settings to match the settings of your access point (wireless router).
Note: Make sure to enter the correct SSID, security method, preshared key or passphrase, network mode, and
channel.
4Click Submit.
5Turn off the printer, and then disconnect the Ethernet cable. Then wait for at least five seconds, and then turn the
printer back on.
6To verify if your printer is connected to the network, print a network setup page. Then in the Network Card [x]
section, see if the status is Connected.
Additional printer setup 52
Changing port settings after installing a new network Internal Solutions Port
When a new Lexmark Internal Solutions Port (ISP) is installed in the printer, the printer configurations on computers
that access the printer must be updated since the printer will be assigned a new IP address. All computers that access
the printer must be updated with this new IP address.
Notes:
•If the printer has a static IP address, then you do not need to make any changes to the computer configurations.
•If the computers are configured to use the network name, instead of an IP address, then you do not need to
make any changes to your computer configurations.
•If you are adding a wireless ISP to a printer previously configured for an Ethernet connection, then make sure
the printer is disconnected from the Ethernet network when you configure the printer to operate wirelessly. If
the printer is connected to the Ethernet network, then the wireless configuration completes, but the wireless
ISP is inactive. To activate the wireless ISP, disconnect the printer from the Ethernet network, turn off the
printer, and then turn it back on.
•Only one network connection is active at a time. To switch between Ethernet and wireless connection types,
turn off the printer, connect the cable (to switch to an Ethernet connection) or disconnect the cable (to switch
to a wireless connection), and then turn the printer back on.
For Windows users
1Open a Web browser, and then type the printer IP address in the address field.
Notes:
•View the printer IP address on the printer control panel. The IP address appears as four sets of numbers
separated by periods, such as 123.123.123.123.
•If you are using a proxy server, then temporarily disable it to load the Web page correctly.
2Open the printers folder.
In Windows 8
From the Search charm, type Run and then navigate to:
Apps list > Run > type control printers > OK
In Windows 7 or earlier
aClick , or click Start and then click Run.
bIn the Start Search or Run dialog, type control printers.
cPress Enter, or click OK.
3To select the printer that has changed, do either of the following:
•Press and hold the printer, and then select Printer properties.
•Right‑click the printer, and then select Printer properties (Windows 7 or later) or Properties (earlier versions).
Note: If there is more than one copy of the printer, then update all of them with the new IP address.
4Click the Ports tab.
5Select the port from the list, and then click Configure Port.
Additional printer setup 53
6Type the new IP address in the “Printer Name or IP Address” field.
7Click OK > Close.
For Macintosh users
1Open a Web browser, and then type the printer IP address in the address field.
Notes:
•View the printer IP address on the printer control panel. The IP address appears as four sets of numbers
separated by periods, such as 123.123.123.123.
•If you are using a proxy server, then temporarily disable it to load the Web page correctly.
2Add the printer.
•For IP printing:
aFrom the Apple menu, navigate to either of the following:
–System Preferences > Print & Scan
–System Preferences > Print & Fax
bClick +.
cClick the IP tab.
dType the printer IP address in the address field, and then click Add.
•For AppleTalk printing:
Notes:
–Make sure AppleTalk is activated on your printer.
–This feature is supported only in Mac OS X version 10.5.
aFrom the Apple menu, navigate to:
System Preferences > Print & Fax
bClick +, and then navigate to:
AppleTalk > select the printer > Add
Setting up serial printing
Use serial printing to print when the computer is far from the printer or to print at a reduced speed.
After installing the serial or communication (COM) port, configure the printer and the computer. Make sure you have
connected the serial cable to the COM port on your printer.
1Set the parameters in the printer.
aFrom the printer control panel, navigate to the menu for the port settings.
bLocate the menu for the serial port settings, and then adjust the settings, if necessary.
cSave the modified settings, and then print a menu settings page.
2Install the printer driver.
aObtain a copy of the software installer package.
•From the Software CD that came with your printer
•From our Web site:
Go to http://support.lexmark.com, and then navigate to:
SUPPORT & DOWNLOAD > select your printer > select your operating system
Additional printer setup 54
bDouble‑click the software installer package.
Wait for the installation dialog to appear.
If you are using the Software CD and the installation dialog does not appear, then do the following:
In Windows 8
From the Search charm type run, and then navigate to:
Apps list > Run > type D:\setup.exe > OK
In Windows 7 or earlier
1Click or click Start, and then click Run.
2In the Start Search or Run dialog, type D:\setup.exe.
3Press Enter or click OK.
Note: D is the letter of your CD or DVD drive.
cClick Install.
dFollow the instructions on the computer screen.
eSelect Advanced, and then click Continue.
fFrom the Configure Printer Connection dialog, select a port.
gIf the port is not in the list, then click Refresh or navigate to:
Add port > select a port type > enter the necessary information > OK
hClick Continue > Finish.
3Set the COM port parameters.
After installing the printer driver, set the serial parameters in the COM port assigned to the printer driver.
Note: Make sure the serial parameters in the COM port match the serial parameters you set in the printer.
aOpen Device Manager.
In Windows 8
From the Search charm type run, and then navigate to:
Apps list > Run > type devmgmt.msc > OK
In Windows 7 or earlier
1Click or click Start, and then click Run.
2In the Start Search or Run dialog, type devmgmt.msc.
3Press Enter or click OK.
bDouble‑click Ports (COM & LPT) to expand the list of available ports.
cDo either of the following:
•Press and hold the COM port where you attached the serial cable to your computer (example: COM1).
•Right‑click the COM port where you attached the serial cable to your computer (example: COM1).
dClick Properties.
eOn the Port Settings tab, set the serial parameters to the same serial parameters set in the printer.
Check the serial heading of the menu settings page for the printer settings.
Additional printer setup 55
fClick OK, and then close all the dialogs.
gPrint a test page to verify printer installation.
Verifying printer setup
When all hardware and software options are installed and the printer is turned on, verify that the printer is set up
correctly by printing the following:
•Menu settings page—Use this page to verify that all printer options are installed correctly. If an option you installed
is not listed, then it is not installed correctly. Remove the option, and then install it again.
•Network setup page—If your printer has networking support, then use this page to verify that the network
connection is working. This page also provides important information that aids network printing configuration.
Printing a menu settings page
From the home screen, navigate to:
> Reports > Menu Settings Page
Printing a network setup page
If the printer is attached to a network, then print a network setup page to verify the network connection. This page
also provides important information that aids network printing configuration.
1From the home screen, navigate to:
> Reports > Network Setup Page
2Check the first section of the network setup page, and confirm that the status is Connected.
If the status is Not Connected, then the LAN drop may not be active, or the network cable may be malfunctioning.
Consult a system support person for a solution, and then print another network setup page.
Additional printer setup 56
Loading paper and specialty media
The selection and handling of paper and specialty media can affect how reliably documents print. For more information,
see “Avoiding jams” on page 227 and “Storing paper” on page 74.
Setting the paper size and type
From the home screen navigate to:
> Paper Menu > Paper Size/Type > select a tray > select the paper size or type >
Configuring Universal paper settings
The Universal paper size is a user‑defined setting that lets you print on paper sizes that are not preset in the printer
menus.
Notes:
•The smallest supported Universal size is 76.2 x 76.2 mm (3 x 3 inches).
•The largest supported Universal size is 215.9 x 359.92 mm (8.5 x 14.17 inches).
1From the home screen, navigate to:
> Paper Menu > Universal Setup > Units of Measure > select the unit of measure >
2Touch Portrait Width or Portrait Height.
3Select the width or height, and then touch .
Loading trays
CAUTION—POTENTIAL INJURY: To reduce the risk of equipment instability, load each tray separately. Keep all
other trays closed until needed.
1Pull out the tray completely.
Note: Do not remove trays while a job prints or while Busy appears on the printer display. Doing so may cause
a jam.
Loading paper and specialty media 57
2Squeeze and then slide the width guide tab to the correct position for the size of the paper you are loading.
1
LTR
LG L
EXEC
A4B5A5
2
Loading paper and specialty media 58
3Squeeze and then slide the length guide tab to the correct position for the size of the paper you are loading.
1
2
Notes:
•For some paper sizes like letter, legal, and A4, squeeze and slide the length guide tab backward to
accommodate their length.
•When loading legal‑size paper, the length guide extends beyond the base leaving the paper exposed to dust.
To protect the paper from dust, you can purchase a dust cover separately. For more information, contact
customer support.
•If you are loading A6-size paper in the standard tray, then squeeze and then slide the length guide tab
toward the center of the tray to the A6‑size position.
•Make sure the width and length guides are aligned with the paper size indicators on the bottom of the tray.
Loading paper and specialty media 59
A4
LTR
EXEC
B5
A5
LTR
LGLA4
EXEC
B5A5A6
4Flex the sheets back and forth to loosen them, and then fan them. Do not fold or crease the paper. Straighten the
edges on a level surface.
5Load the paper stack.
Loading paper and specialty media 60
Notes:
•Load with the printable side facedown when using recycled or preprinted paper.
•Load prepunched paper with the holes on the top edge toward the front of the tray.
•Load letterhead facedown, with the top edge of the sheet toward the front of the tray. For two‑sided
printing, load letterhead faceup with the bottom edge of the sheet toward the front of the tray.
•Make sure the paper is below the maximum paper fill indicator located on the side of the width guide.
6Insert the tray.
7From the printer control panel, set the paper size and paper type in the Paper menu to match the paper loaded in
the tray.
Note: Set the correct paper size and type to avoid paper jams and print quality problems.
Loading paper and specialty media 61
Loading the multipurpose feeder
Use the multipurpose feeder when printing on different paper sizes and types or specialty media, such as card stock,
transparencies, paper labels, and envelopes. You can also use it for single‑page print jobs on letterhead.
1Open the multipurpose feeder.
1
2
aPull the multipurpose feeder extender.
Loading paper and specialty media 62
bPull the extender gently so that the multipurpose feeder is fully extended and open.
2Squeeze the tab on the left width guide, and then move the guides for the paper you are loading.
1
2
3Prepare the paper or specialty media for loading.
•Flex sheets of paper back and forth to loosen them, and then fan them. Do not fold or crease the paper. Straighten
the edges on a level surface.
Loading paper and specialty media 63
•Hold transparencies by the edges. Flex the stack of transparencies back and forth to loosen them, and then fan
them. Straighten the edges on a level surface.
Note: Avoid touching the printable side of the transparencies. Be careful not to scratch them.
•Flex the stack of envelopes back and forth to loosen them, and then fan them. Straighten the edges on a level
surface.
4Load the paper or specialty media.
Notes:
•Do not force paper or specialty media into the multipurpose feeder.
•Make sure the paper or specialty media is below the maximum paper fill indicator located on the paper
guides. Overfilling may cause paper jams.
•Load paper, transparencies, and card stock with the recommended printable side faceup and the top edge
entering the printer first. For more information on loading transparencies, see the packaging that the
transparencies came in.
Loading paper and specialty media 64
Note: When loading A6‑size paper, make sure the multipurpose feeder extender rests lightly against the
edge of the paper so that the last few sheets of paper remain in place.
•Load letterhead faceup with the top edge entering the printer first. For two‑sided (duplex) printing, load
letterhead facedown with the bottom edge entering the printer first.
Loading paper and specialty media 65
•Load envelopes with the flap on the left side facedown.
Warning—Potential Damage: Never use envelopes with stamps, clasps, snaps, windows, coated linings, or
self‑stick adhesives. These envelopes may severely damage the printer.
5From the printer control panel, set the paper size and paper type in the Paper menu to match the paper or specialty
media loaded in the multipurpose feeder.
Linking and unlinking trays
When one linked tray becomes empty, paper feeds from the next linked tray. We recommend giving all custom paper,
such as letterhead and different colored plain papers, a different custom type name so that the trays they are in do
not automatically link.
Linking and unlinking trays
1Open a Web browser, and then type the printer IP address in the address field.
Notes:
•View the printer IP address on the printer home screen. The IP address appears as four sets of numbers
separated by periods, such as 123.123.123.123.
•If you are using a proxy server, then temporarily disable it to load the Web page correctly.
2Click Settings > Paper Menu.
3Change the paper size and type settings for the trays you are linking.
•To link trays, make sure the paper size and type for the tray match that of the other tray.
•To unlink trays, make sure the paper size or type for the tray does not match that of the other tray.
4Click Submit.
Note: You can also change the paper size and type settings using the printer control panel. For more information,
see “Setting the paper size and type” on page 57.
Warning—Potential Damage: Paper loaded in the tray should match the paper type name assigned in the printer.
The temperature of the fuser varies according to the specified paper type. Printing issues may occur if settings are
not properly configured.
Loading paper and specialty media 66
Creating a custom name for a paper type
Using the Embedded Web Server
1Open a Web browser, and then type the printer IP address in the address field.
Notes:
•View the printer IP address on the printer home screen. The IP address appears as four sets of numbers
separated by periods, such as 123.123.123.123.
•If you are using a proxy server, then temporarily disable it to load the Web page correctly.
2Click Settings > Paper Menu > Custom Names.
3Select a custom name, and then type a custom paper type name.
4Click Submit.
5Click Custom Types, and then verify if the new custom paper type name has replaced the custom name.
Using the printer control panel
1From the home screen, navigate to:
> Paper Menu > Custom Names
2Select a custom name, and then type a custom paper type name.
3Touch .
4Touch Custom Types, and then verify that the new custom paper type name has replaced the custom name.
Assigning a custom paper type
Using the Embedded Web Server
Assign a custom paper type name to a tray when linking or unlinking trays.
1Open a Web browser, and then type the printer IP address in the address field.
Notes:
•View the printer IP address on the printer home screen. The IP address appears as four sets of numbers
separated by periods, such as 123.123.123.123.
•If you are using a proxy server, then temporarily disable it to load the Web page correctly.
2Click Settings > Paper Menu > Custom Types.
3Select a custom paper type name, and then select a paper type
Note: Paper is the factory default paper type for all user‑defined custom names.
4Click Submit.
Loading paper and specialty media 67
Using the printer control panel
1From the home screen, navigate to:
> Paper Menu > Custom Types
2Select a custom paper type name, and then select a paper type
Note: Paper is the factory default paper type for all user‑defined custom names.
3Touch .
Configuring a custom name
Using the Embedded Web Server
1Open a Web browser, and then type the printer IP address in the address field.
Notes:
•View the printer IP address on the printer home screen. The IP address appears as four sets of numbers
separated by periods, such as 123.123.123.123.
•If you are using a proxy server, then temporarily disable it to load the Web page correctly.
2Click Settings > Paper Menu > Custom Types.
3Select a custom name you want to configure, then select a paper or specialty media type, and then click Submit.
Using the printer control panel
1From the home screen, navigate to:
> Paper Menu > Custom Types
2Select a custom name you want to configure, and then touch .
Loading paper and specialty media 68
Paper and specialty media guide
Using specialty media
Tips on using letterhead
•Use letterhead designed specifically for laser printers.
•Print samples on the letterhead being considered for use before buying large quantities.
•Before loading letterhead, flex, fan, and straighten the stack to prevent sheets from sticking together.
•Page orientation is important when printing on letterhead. For information on how to load letterhead, see:
–“Loading trays” on page 57
–“Loading the multipurpose feeder” on page 62
Tips on using transparencies
•Print a test page on the transparencies being considered for use before buying large quantities.
•Feed transparencies from the standard tray, or the multipurpose feeder.
•Use transparencies designed specifically for laser printers. Transparencies must be able to withstand temperatures
up to 185°C (365°F) without melting, discoloring, offsetting, or releasing hazardous emissions.
Note: If the transparency weight is set to Heavy and the transparency texture is set to Rough in the Paper menu,
then transparencies can be printed at a temperature up to 195°C (383°F).
•Avoid getting fingerprints on the transparencies to prevent print quality problems.
•Before loading transparencies, flex, fan, and straighten the stack to prevent sheets from sticking together.
Tips on using envelopes
Print samples on the envelopes being considered for use before buying large quantities.
•Use envelopes designed specifically for laser printers. Check with the manufacturer or vendor to ensure that the
envelopes can withstand temperatures up to 230°C (446°F) without sealing, wrinkling, curling excessively, or
releasing hazardous emissions.
•For best performance, use envelopes made from 90‑g/m2 (24‑lb bond) paper or 25% cotton. All‑cotton envelopes
must not exceed 70‑g/m2 (20‑lb bond) weight.
•Use only new envelopes from undamaged packages.
•To optimize performance and minimize jams, do not use envelopes that:
–Have excessive curl or twist
–Are stuck together or damaged in any way
–Have windows, holes, perforations, cutouts, or embossing
–Have metal clasps, string ties, or folding bars
–Have an interlocking design
–Have postage stamps attached
Paper and specialty media guide 69
–Have any exposed adhesive when the flap is in the sealed or closed position
–Have bent corners
–Have rough, cockle, or laid finishes
•Adjust the width guides to fit the width of the envelopes.
Note: A combination of high humidity (over 60%) and high printing temperature may wrinkle or seal envelopes.
Tips on using labels
Print samples on the labels being considered for use before buying large quantities.
Note: Use only paper label sheets. Vinyl, pharmacy, and two‑sided labels are not supported.
For more information on label printing, characteristics, and design, see the Card Stock & Label Guide available at
http://support.lexmark.com.
When printing on labels:
•Use labels designed specifically for laser printers. Check with the manufacturer or vendor to verify that:
–The labels can withstand temperatures up to 240°C (464°F) without sealing, excessive curling, wrinkling, or
releasing hazardous emissions.
–Label adhesives, face sheet (printable stock), and topcoats can withstand up to 172‑kPa (25‑psi) pressure without
delaminating, oozing around the edges, or releasing hazardous fumes.
•Do not use labels with slick backing material.
•Use full label sheets. Partial sheets may cause labels to peel off during printing, resulting in a jam. Partial sheets
also contaminate the printer and the cartridge with adhesive, and could void the printer and toner cartridge
warranties.
•Do not use labels with exposed adhesive.
•Do not print within 1 mm (0.04 inch) of the edge of the label, of the perforations, or between die‑cuts of the label.
•Make sure the adhesive backing does not reach to the edge of the sheet. Zone coating of the adhesive should be
at least 1 mm (0.04 inch) away from edges. Adhesive material contaminates the printer and could void the warranty.
•If zone coating of the adhesive is not possible, then remove a 2‑mm (0.08‑inch) strip on the leading and driver edge,
and then use a non‑oozing adhesive.
•Portrait orientation is recommended, especially when printing bar codes.
Tips on using card stock
Card stock is heavy, single‑ply specialty media. Many of its variable characteristics, such as moisture content, thickness,
and texture, can significantly impact print quality. Print samples on the card stock being considered for use before
buying large quantities.
When printing on card stock:
•Make sure the Paper Type is Card Stock.
•Select the appropriate Paper Texture setting.
•Be aware that preprinting, perforation, and creasing may significantly affect the print quality and cause jams or
other paper handling problems.
•Check with the manufacturer or vendor to ensure that the card stock can withstand temperatures up to 240°C
(464°F) without releasing hazardous emissions.
Paper and specialty media guide 70
•Do not use preprinted card stock manufactured with chemicals that may contaminate the printer. Preprinting
introduces semi‑liquid and volatile components into the printer.
•Use grain short card stock when possible.
Paper guidelines
Selecting the correct paper or specialty media reduces printing problems. For the best print quality, try a sample of the
paper or specialty media before buying large quantities.
Paper characteristics
The following paper characteristics affect print quality and reliability. Consider these characteristics when evaluating
new paper stock.
Weight
The printer trays can automatically feed paper weights up to 120‑g/m2 (32‑lb) bond grain long paper. The multipurpose
feeder can automatically feed paper weights up to 163‑g/m2 (43‑lb) bond grain long paper. Paper lighter than
60 g/m2 (16 lb) might not be stiff enough to feed properly, causing jams. For best performance, use 75‑g/m2 (20‑lb)
bond grain long paper. For paper smaller than 182 x 257 mm (7.2 x 10.1 inches), we recommended to use 90 g/m2
(24 lb) or heavier paper.
Note: Two‑sided printing is supported only for 60–90‑g/m2 (16–24‑lb) bond paper.
Curl
Curl is the tendency for paper to curl at its edges. Excessive curl can cause paper feeding problems. Curl can occur after
the paper passes through the printer, where it is exposed to high temperatures. Storing paper unwrapped in hot, humid,
cold, or dry conditions, even in the trays, can contribute to paper curling prior to printing and can cause feeding
problems.
Smoothness
Paper smoothness directly affects print quality. If paper is too rough, then toner cannot fuse to it properly. If paper is
too smooth, then it can cause paper feeding or print quality issues. Always use paper between 100 and 300 Sheffield
points; however, smoothness between 150 and 250 Sheffield points produces the best print quality.
Moisture content
The amount of moisture in paper affects both print quality and the ability of the printer to feed the paper correctly.
Leave paper in its original wrapper until it is time to use it. This limits the exposure of paper to moisture changes that
can degrade its performance.
Store paper in its original wrapper in the same environment as the printer for 24 to 48 hours before printing. Extend
the time to several days if the storage or transportation environment is very different from the printer environment.
Thick paper may also require a longer conditioning period.
Grain direction
Grain refers to the alignment of the paper fibers in a sheet of paper. Grain is either grain long, running the length of
the paper, or grain short, running the width of the paper.
Paper and specialty media guide 71
For 60–90‑g/m2 (16–24‑lb) bond paper, grain long paper is recommended.
Fiber content
Most high‑quality xerographic paper is made from 100% chemically treated pulped wood. This content provides the
paper with a high degree of stability resulting in fewer paper feeding problems and better print quality. Paper containing
fibers such as cotton can negatively affect paper handling.
Selecting paper
Using the appropriate paper prevents jams and helps ensure trouble‑free printing.
To help avoid paper jams and poor print quality:
•Always use new, undamaged paper.
•Before loading paper, know the recommended printable side of the paper. This information is usually indicated on
the paper package.
•Do not use paper that has been cut or trimmed by hand.
•Do not mix paper sizes, types, or weights in the same tray; mixing results in jams.
•Do not use coated papers unless they are specifically designed for electrophotographic printing.
Selecting preprinted forms and letterhead
Use these guidelines when selecting preprinted forms and letterhead:
•Use grain long for 60 to 90 g/m2 (16 to 24 lb) weight paper.
•Use only forms and letterhead printed using an offset lithographic or engraved printing process.
•Avoid papers with rough or heavily textured surfaces.
Use papers printed with heat‑resistant inks designed for use in xerographic copiers. The ink must be able to withstand
temperatures up to 230°C (446°F) without melting or releasing hazardous emissions. Use inks that are not affected by
the resin in toner. Inks that are oxidation‑set or oil‑based generally meet these requirements; latex inks might not.
When in doubt, contact the paper supplier.
Preprinted papers such as letterhead must be able to withstand temperatures up to 230°C (446°F) without melting or
releasing hazardous emissions.
Using recycled paper and other office papers
As an environmentally conscientious company, Lexmark supports the use of recycled paper produced specifically for
use in laser (electrophotographic) printers.
While no blanket statement can be made that all recycled paper will feed well, Lexmark consistently tests papers that
represent recycled cut size copier papers available on the global market. This scientific testing is conducted with rigor
and discipline. Many factors are taken into consideration both separately and as a whole, including the following:
•Amount of post-consumer waste (Lexmark tests up to 100% post-consumer waste content.)
•Temperature and humidity conditions (Testing chambers simulate climates from all over the world.)
•Moisture content (Business papers should have low moisture: 4–5%.)
•Bending resistance and proper stiffness means optimum feeding through the printer.
•Thickness (impacts how much can be loaded into a tray)
Paper and specialty media guide 72
•Surface roughness (measured in Sheffield units, impacts print clarity and how well toner fuses to the paper)
•Surface friction (determines how easily sheets can be separated)
•Grain and formation (impacts curling, which also influences the mechanics of how the paper behaves as it moves
through the printer)
•Brightness and texture (look and feel)
Recycled papers are better than ever; however, the amount of recycled content in a paper affects the degree of control
over foreign matter. And while recycled papers are one good path to printing in an environmentally responsible manner,
they are not perfect. The energy required to de-ink and deal with additives such as colorants and “glue” often generates
more carbon emissions than does normal paper production. However, using recycled papers enables better resource
management overall.
Lexmark concerns itself with the responsible use of paper in general based on life cycle assessments of its products. To
gain a better understanding of the impact of printers on the environment, the company commissioned a number of
life cycle assessments and found that paper was identified as the primary contributor (up to 80%) of carbon emissions
caused throughout the entire life of a device (from design to end-of-life). This is due to the energy-intensive
manufacturing processes required to make paper.
Thus, Lexmark seeks to educate customers and partners on minimizing the impact of paper. Using recycled paper is
one way. Eliminating excessive and unnecessary paper consumption is another. Lexmark is well-equipped to help
customers minimize printing and copying waste. In addition, the company encourages purchasing paper from suppliers
who demonstrate their commitment to sustainable forestry practices.
Lexmark does not endorse specific suppliers, although a converter’s product list for special applications is maintained.
However, the following paper choice guidelines will help alleviate the environmental impact of printing:
1Minimize paper consumption.
2Be selective about the origin of wood fiber. Buy from suppliers who carry certifications such as the Forestry
Stewardship Council (FSC) or the Program for the Endorsement of Forest Certification (PEFC). These certifications
guarantee that the paper manufacturer uses wood pulp from forestry operators that employ environmentally and
socially responsible forest management and restoration practices.
3Choose the most appropriate paper for printing needs: normal 75 or 80 g/m2 certified paper, lower weight paper,
or recycled paper.
Unacceptable paper examples
Test results indicate that the following paper types are at risk for use with laser printers:
•Chemically treated papers used to make copies without carbon paper, also known as carbonless papers
•Preprinted papers with chemicals that may contaminate the printer
•Preprinted papers that can be affected by the temperature in the printer fuser
•Preprinted papers that require a registration (the precise location on the page) greater than ± 2.3 mm (± 0.9 in.),
such as optical character recognition (OCR) forms. In some cases, registration can be adjusted with a software
application to successfully print on these forms.)
•Coated papers (erasable bond), synthetic papers, thermal papers
•Rough-edged, rough or heavily textured surface papers or curled papers
•Recycled papers that fail EN12281:2002 (European testing)
•Paper weighing less than 60 g/m2 (16 lb)
•Multiple part forms or documents
Paper and specialty media guide 73
For more information about Lexmark, visit www.lexmark.com. General sustainability-related information can be found
at the Environmental Sustainability link.
Storing paper
Use these paper storage guidelines to help avoid jams and uneven print quality:
•For best results, store paper where the temperature is 21°C (70°F) and the relative humidity is 40 percent. Most
label manufacturers recommend printing in a temperature range of 18–24°C (65–75°F) with relative humidity
between 40 and 60 percent.
•Store paper in cartons, on a pallet or shelf, rather than on the floor.
•Store individual packages on a flat surface.
•Do not store anything on top of individual paper packages.
•Take paper out of the carton or wrapper only when you are ready to load it in the printer. The carton and wrapper
help keep the paper clean, dry, and flat.
Supported paper sizes, types, and weights
Supported paper sizes
Paper size and dimension Standard
250‑sheet tray
Optional 250‑ or
550‑sheet tray
Multipurpose
feeder
ADF Scanner
glass
Duplex
mode
Business card X X X X X
3 x 5 in. X X X X
4 x 6 in. X X X X
A4
210 x 297 mm
(8.27 x 11.7 in.)
A5
148 x 210 mm
(5.83 x 8.27 in.)
X
A6
105 x 148 mm
(4.13 x 5.83 in.)
X X
JIS B5
182 x 257 mm
(7.17 x 10.1 in.)
X
Letter
215.9 x 279.4 mm
(8.5 x 11 in.)
* Universal is supported in duplex mode only if the width is at least 210 mm (8.27 in.) and the length is at least 279.4 mm
(11 in.). The smallest supported Universal size is supported only in the multipurpose feeder.
Paper and specialty media guide 74
Paper size and dimension Standard
250‑sheet tray
Optional 250‑ or
550‑sheet tray
Multipurpose
feeder
ADF Scanner
glass
Duplex
mode
Legal
215.9 x 355.6 mm
(8.5 x 14 in.)
Executive
184.2 x 266.7 mm
(7.25 x 10.5 in.)
X
Oficio (México)
215.9 x 340.4 mm
(8.5 x 13.4 in.)
X
Folio
215.9 x 330.2 mm
(8.5 x 13 in.)
X
Statement
139.7 x 215.9 mm
(5.5 x 8.5 in.)
X
Universal*
76.2 x 127 mm (3 x 5 in.) to
215.9 x 359.92 mm
(8.5 x 14.17 in.)
7 3/4 Envelope (Monarch)
98.4 x 190.5 mm
(3.875 x 7.5 in.)
XX XX X
9 Envelope
98.4 x 226.1 mm
(3.875 x 8.9 in.)
XX XX X
10 Envelope
104.8 x 241.3 mm
(4.12 x 9.5 in.)
XX XX X
DL Envelope
110 x 220 mm
(4.33 x 8.66 in.)
XX XX X
C5 Envelope
162 x 229 mm
(6.38 x 9.01 in.)
XX XX X
B5 Envelope
176 x 250 mm
(6.93 x 9.84 in.)
XX XX X
* Universal is supported in duplex mode only if the width is at least 210 mm (8.27 in.) and the length is at least 279.4 mm
(11 in.). The smallest supported Universal size is supported only in the multipurpose feeder.
Paper and specialty media guide 75
Paper size and dimension Standard
250‑sheet tray
Optional 250‑ or
550‑sheet tray
Multipurpose
feeder
ADF Scanner
glass
Duplex
mode
Other Envelope
85.7 x 165 mm to
215.9 x 355.6 mm
(3.375 x 6.50 in. to
8.5 x 14 in.)
XX XX X
* Universal is supported in duplex mode only if the width is at least 210 mm (8.27 in.) and the length is at least 279.4 mm
(11 in.). The smallest supported Universal size is supported only in the multipurpose feeder.
Supported paper types and weights
The standard tray supports 60–90‑g/m2 (16–24‑lb) paper weights. The optional tray supports 60–120‑g/m2 (16–32‑lb)
paper weights. The multipurpose feeder supports 60–163‑g/m2 (16–43‑lb) paper weights.
Paper type 250‑ or
550‑sheet tray
Multipurpose feeder Duplex mode ADF Scanner glass
Plain paper
Card stock X X
Transparencies X
Recycled
Paper labels1X
Bond
Envelope2XXX
Rough envelope X XX
Letterhead
Preprinted
Colored paper
Light paper
Heavy paper
Rough/Cotton X
Custom Type [x]
1 One‑sided paper labels designed for laser printers are supported for occasional use. We recommend printing only up to
20 pages of paper labels per month. Vinyl, pharmacy, and two‑sided labels are not supported.
2 Use envelopes that lie flat when individually placed on a table facedown.
Paper and specialty media guide 76
Printing
Printing forms and a document
Printing forms
Use the Forms and Favorites application to quickly and easily access frequently used forms or other information that
is regularly printed. Before you can use this application, first set it up on the printer. For more information, see “Setting
up Forms and Favorites” on page 20.
1From the printer home screen, navigate to:
Forms and Favorites > select the form from the list > enter the number of copies > adjust other settings
2Depending on your printer model, touch , , or Submit.
Printing a document
1From the Paper menu on the printer control panel, set the paper type and size to match the paper loaded.
2Send the print job:
For Windows users
aWith a document open, click File > Print.
bClick Properties, Preferences, Options, or Setup.
cAdjust the settings, if necessary.
dClick OK > Print.
For Macintosh users
aCustomize the settings in the Page Setup dialog:
1With a document open, choose File > Page Setup.
2Choose a paper size or create a custom size to match the paper loaded.
3Click OK.
bCustomize the settings in the Print dialog:
1With a document open, choose File > Print.
If necessary, click the disclosure triangle to see more options.
2From the Print dialog and pop‑up menus, adjust the settings if necessary.
Note: To print on a specific paper type, adjust the paper type setting to match the paper loaded, or
select the appropriate tray or feeder.
3Click Print.
Printing 77
Adjusting toner darkness
Using the Embedded Web Server
1Open a Web browser, and then type the printer IP address in the address field.
Notes:
•View the printer IP address on the printer home screen. The IP address appears as four sets of numbers
separated by periods, such as 123.123.123.123.
•If you are using a proxy server, then temporarily disable it to load the Web page correctly.
2Click Settings > Print Settings > Quality Menu > Toner Darkness.
3Adjust the setting, and then click Submit.
Using the printer control panel
1From the home screen, navigate to:
> Settings > Print Settings > Quality Menu > Toner Darkness
2Adjust the setting, and then touch .
Printing from a mobile device
For the list of supported mobile devices and to download a compatible mobile printing application, visit
http://lexmark.com/mobile.
Note: Mobile printing applications may also be available from your mobile device manufacturer.
Printing 78
Printing from a flash drive
Printing from a flash drive
Notes:
•Before printing an encrypted PDF file, you will be prompted to type the file password from the printer control
panel.
•You cannot print files for which you do not have printing permissions.
1Insert a flash drive into the USB port.
Notes:
•A flash drive icon appears on the printer home screen when a flash drive is inserted.
•If you insert the flash drive when the printer requires attention, such as when a jam has occurred, then the
printer ignores the flash drive.
•If you insert the flash drive while the printer is processing other print jobs, then Busy appears on the printer
display. After these print jobs are processed, you may need to view the held jobs list to print documents
from the flash drive.
Warning—Potential Damage: Do not touch the USB cable, any wireless network adapter, any connector, the
memory device, or the printer in the areas shown while actively printing, reading, or writing from the memory
device. Loss of data can occur.
Printing 79
2From the printer control panel, touch the document you want to print.
3Touch the arrows to get a preview of the document.
4Use or to specify the number of copies to be printed, and then touch Print.
Notes:
•Do not remove the flash drive from the USB port until the document has finished printing.
•If you leave the flash drive in the printer after leaving the initial USB menu screen, then touch Held Jobs on
the home screen to print files from the flash drive.
Supported flash drives and file types
Notes:
•High‑speed USB flash drives must support the full‑speed standard. Low-speed USB devices are not supported.
•USB flash drives must support the File Allocation Table (FAT) system. Devices formatted with New Technology
File System (NTFS) or any other file system are not supported.
Printing 80
Recommended flash drives File type
•Lexar JumpDrive FireFly (512MB and 1GB)
•SanDisk Cruzer Micro (512MB and 1GB)
•Sony Micro Vault Classic (512MB and 1GB)
Documents:
•.pdf
•.xps
Images:
•.dcx
•.jpeg or .jpg
•.pcx
•.tiff or .tif
•.fls
Printing confidential and other held jobs
Storing print jobs in the printer
1From the home screen, navigate to:
> Security > Confidential Print > select a print job type
Use To
Max Invalid PIN Limit the number of times an invalid PIN can be entered.
Note: When the limit is reached, the print jobs for that user name and PIN
are deleted.
Confidential Job Expiration Hold print jobs in the computer until you enter the PIN from the printer control
panel.
Note: The PIN is set from the computer. It must be four digits, using the
numbers 0–9.
Repeat Job Expiration Print and store print jobs in the printer memory.
Verify Job Expiration Print one copy of a print job and hold the remaining copies. It lets you examine
if the first copy is satisfactory or not. The print job is automatically deleted
from the printer memory when all copies are printed.
Reserve Job Expiration Store print jobs for printing at a later time.
Note: The print jobs are held until deleted from the Held Jobs menu.
Notes:
•Confidential, Verify, Reserve, and Repeat print jobs may be deleted if the printer requires extra memory to
process additional held jobs.
•You can set the printer to store print jobs in the printer memory until you start the print job from the printer
control panel.
•All print jobs that can be initiated by the user at the printer are called held jobs.
Printing 81
2Touch .
Printing confidential and other held jobs
Note: Confidential and Verify print jobs are automatically deleted from memory after printing. Repeat and Reserve
jobs are held in the printer until you delete them.
For Windows users
1With a document open, click File > Print.
2Click Properties, Preferences, Options, or Setup.
3Click Print and Hold.
4Select the print job type (Confidential, Repeat, Reserve, or Verify), and then assign a user name. For a confidential
print job, also enter a four‑digit PIN.
5Click OK or Print.
6From the printer home screen, release the print job.
•For confidential print jobs, navigate to:
Held jobs > select your user name > Confidential Jobs > enter the PIN > Print
•For other print jobs, navigate to:
Held jobs > select your user name > select the print job > specify the number of copies > Print
For Macintosh users
1With a document open, choose File > Print.
If necessary, click the disclosure triangle to see more options.
2From the print options or Copies & Pages pop‑up menu, choose Job Routing.
3Select the print job type (Confidential, Repeat, Reserve, or Verify), and then assign a user name. For a confidential
print job, also enter a four‑digit PIN.
4Click OK or Print.
5From the printer home screen, release the print job.
•For confidential print jobs, navigate to:
Held jobs > select your user name > Confidential Jobs > enter the PIN > Print
•For other print jobs, navigate to:
Held jobs > select your user name > select the print job > specify the number of copies > Print
Modifying confidential print settings
Note: This feature is available only in network printers or printers connected to print servers.
1Open a Web browser, and then type the printer IP address in the address field.
Notes:
•View the printer IP address on the printer home screen. The IP address appears as four sets of numbers
separated by periods, such as 123.123.123.123.
Printing 82
•If you are using a proxy server, then temporarily disable it to load the Web page correctly.
2Click Configuration > Other Settings tab > Security > Confidential Print Setup.
3Modify the settings:
•Set a maximum number of PIN entry attempts. When a user exceeds that number, all of the jobs for that user
are deleted.
•Set an expiration time for confidential print jobs. When a user has not printed the jobs within that time, all of
the jobs for that user are deleted.
4Save the modified settings.
Printing information pages
Printing a font sample list
1From the home screen, navigate to:
> Reports > Print Fonts
2Touch PCL Fonts or PostScript Fonts.
Printing a directory list
A directory list shows the resources stored in a flash memory or in the printer hard disk.
From the home screen, navigate to:
> Reports > Print Directory
Canceling a print job
Canceling a print job from the printer control panel
1From the home screen, touch Cancel Jobs, or press on the keypad.
2Touch the job you want to cancel, and then touch .
3Press on the keypad to return to the home screen.
Canceling a print job from the computer
For Windows users
1Open the printers folder.
Printing 83
In Windows 8
From the Search charm, type run, and then navigate to:
Apps list > Run > type control printers > OK
In Windows 7 or earlier
aClick or click Start, and then click Run.
bIn the Start Search or Run dialog, type control printers.
cPress Enter, or click OK.
2Double‑click the printer icon.
3Select the print job you want to cancel.
4Click Delete.
For Macintosh users
1From the Apple menu, navigate to either of the following:
•System Preferences > Print & Scan > select your printer > Open Print Queue
•System Preferences > Print & Fax > select your printer > Open Print Queue
2From the printer window, select the print job you want to cancel, and then delete it.
Printing 84
Copying
Automatic document feeder (ADF) Scanner glass
ABC
Use the ADF for multiple‑page documents including
two-sided (duplex) pages.
Use the scanner glass for single-page documents, book pages, small
items (such as postcards or photos), transparencies, photo paper,
or thin media (such as magazine clippings).
Making copies
Making a quick copy
1Load an original document faceup, short edge first into the ADF tray or facedown on the scanner glass.
Notes:
•Do not load postcards, photos, small items, transparencies, photo paper, or thin media (such as magazine
clippings) into the ADF tray. Place these items on the scanner glass.
•The ADF indicator light comes on when the paper is loaded properly.
2If you are loading a document into the ADF tray, then adjust the paper guides.
Note: To avoid a cropped image, make sure the size of the original document and the size of the copy paper are
the same.
3From the printer control panel, press .
Copying using the ADF
1Load an original document faceup, short edge first into the ADF tray.
Notes:
•Do not load postcards, photos, small items, transparencies, photo paper, or thin media (such as magazine
clippings) into the ADF tray. Place these items on the scanner glass.
Copying 85
•The ADF indicator light comes on when the paper is loaded properly.
2Adjust the paper guides.
3From the home screen, navigate to:
Copy > specify the copy settings > Copy It
Copying using the scanner glass
1Place an original document facedown on the scanner glass in the upper left corner.
2From the home screen, navigate to:
Copy > specify the copy settings > Copy It
If you have more pages to scan, then place the next document on the scanner glass, and then touch Scan the next
page.
3Touch Finish the Job.
Copying photos
1Place a photo facedown on the scanner glass in the upper left corner.
2From the home screen, navigate to:
Copy > Content > Photo >
3From the Content Source menu, select the appropriate setting that best matches the original photo.
4Touch > Copy It
Note: If you have more photos to copy, then place the next photo on the scanner glass, and then touch Scan the
next page.
5Touch Finish the Job.
Copying on specialty media
Copying on transparencies
1Load an original document faceup, short edge first into the ADF tray or facedown on the scanner glass.
Notes:
•Do not load postcards, photos, small items, transparencies, photo paper, or thin media (such as magazine
clippings) into the ADF tray. Place these items on the scanner glass.
•The ADF indicator light comes on when the paper is loaded properly.
2From the home screen, navigate to:
Copy > Copy from > select the size of the original document
Copying 86
3Navigate to:
Copy to > select the tray that contains transparencies > Copy It
If there are no trays that support transparencies, then navigate to:
Manual Feeder > select the size of the transparencies > Transparency
4Load transparencies into the multipurpose feeder, and then touch Copy It.
Copying on letterhead
1Load an original document faceup, short edge first into the ADF tray or facedown on the scanner glass.
Notes:
•Do not load postcards, photos, small items, transparencies, photo paper, or thin media (such as magazine
clippings) into the ADF tray. Place these items on the scanner glass.
•The ADF indicator light comes on when the paper is loaded properly.
2From the home screen, navigate to:
Copy > Copy from > select the size of the original document
3Touch Copy to > Manual Feeder.
4Place the letterhead faceup, top edge first into the multipurpose feeder.
5Select the size of the letterhead, and then touch Letterhead > Copy It.
Customizing copy settings
Copying to a different size
1Load an original document faceup, short edge first into the ADF tray or facedown on the scanner glass.
Notes:
•Do not load postcards, photos, small items, transparencies, photo paper, or thin media (such as magazine
clippings) into the ADF tray. Place these items on the scanner glass.
•The ADF indicator light comes on when the paper is loaded properly.
2If you are loading a document into the ADF tray, then adjust the paper guides.
3From the home screen, navigate to:
Copy > Copy from > select the size of the original document
4Navigate to:
Copy to > select a new size for the copy > Copy It
Note: If the selected paper size is different from the “Copy from” size, then the printer scales the size
automatically.
Making copies using paper from a selected tray
1Load an original document faceup, short edge first into the ADF tray or facedown on the scanner glass.
Copying 87
Notes:
•Do not load postcards, photos, small items, transparencies, photo paper, or thin media (such as magazine
clippings) into the ADF tray. Place these items on the scanner glass.
•The ADF indicator light comes on when the paper is loaded properly.
2If you are loading a document into the ADF tray, then adjust the paper guides.
3From the home screen, navigate to:
Copy > Copy from > select the size of the original document
4Touch Copy to, and then select the tray that contains the paper type you want to use.
5Touch Copy It.
Copying different paper sizes
Use the ADF to copy original documents with different paper sizes. Depending on the paper sizes loaded and the “Copy
to” and “Copy from” settings, each copy is either printed on mixed paper sizes (Example 1) or scaled to fit a single paper
size (Example 2).
Example 1: Copying on mixed paper sizes
1Load an original document faceup, short edge first into the ADF tray or facedown on the scanner glass.
Notes:
•Do not load postcards, photos, small items, transparencies, photo paper, or thin media (such as magazine
clippings) into the ADF tray. Place these items on the scanner glass.
•The ADF indicator light comes on when the paper is loaded properly.
2If you are loading a document into the ADF tray, then adjust the paper guides.
3From the home screen, navigate to:
Copy > Copy from > Mixed Sizes > Copy to > Auto Size Match > Copy It
The scanner identifies the different paper sizes as they are scanned. Copies are printed on mixed paper sizes
corresponding to the paper sizes of the original document.
Example 2: Copying on a single paper size
1Load an original document faceup, short edge first into the ADF tray or facedown on the scanner glass.
Notes:
•Do not load postcards, photos, small items, transparencies, photo paper, or thin media (such as magazine
clippings) into the ADF tray. Place these items on the scanner glass.
•The ADF indicator light comes on when the paper is loaded properly.
2If you are loading a document into the ADF tray, then adjust the paper guides.
3From the home screen, navigate to:
Copy > Copy from > Mixed Sizes > Copy to > Letter > Copy It
The scanner identifies the different paper sizes as they are scanned, and then scales the mixed paper sizes to fit on
the paper size selected.
Copying 88
Copying on both sides of the paper (duplexing)
1Load an original document faceup, short edge first into the ADF tray or facedown on the scanner glass.
Notes:
•Do not load postcards, photos, small items, transparencies, photo paper, or thin media (such as magazine
clippings) into the ADF tray. Place these items on the scanner glass.
•The ADF indicator light comes on when the paper is loaded properly.
2If you are loading a document into the ADF tray, then adjust the paper guides.
3From the home screen, navigate to:
Copy > Sides (Duplex) > select the preferred duplexing method
Note: For the preferred duplexing method, the first number represents sides of the original documents while
the second number represents sides of the copy. For example, select “2 sided to 2 sided” if you have two-sided
original documents and you want two‑sided copies.
4Touch > Copy It.
Reducing or enlarging copies
Copies can be scaled from 25% to 400% of the original document size.
1Load an original document faceup, short edge first into the ADF tray or facedown on the scanner glass.
Notes:
•Do not load postcards, photos, small items, transparencies, photo paper, or thin media (such as magazine
clippings) into the ADF tray. Place these items on the scanner glass.
•The ADF indicator light comes on when the paper is loaded properly.
2If you are loading a document into the ADF tray, then adjust the paper guides.
3From the home screen, touch Copy.
4From the Scale area, touch or to enlarge or reduce your copies.
Notes:
•The factory default setting for Scale is Auto.
•If you leave Scale set to Auto, then the content of your original document will be scaled to fit the size of the
paper onto which you are copying.
•Touching Copy to or Copy from after setting Scale manually changes the scale value back to Auto.
5Touch Copy It.
Adjusting copy quality
1Load an original document faceup, short edge first into the ADF tray or facedown on the scanner glass.
Notes:
•Do not load postcards, photos, small items, transparencies, photo paper, or thin media (such as magazine
clippings) into the ADF tray. Place these items on the scanner glass.
Copying 89
•The ADF indicator light comes on when the paper is loaded properly.
2If you are loading a document into the ADF tray, then adjust the paper guides.
3From the home screen, navigate to:
Copy > Content
4Touch the button that best represents the content type of the document you are copying.
•Text—The content of the original document is mostly text or line art.
•Text/Photo—The original document is a mixture of text, graphics, and photos.
•Photo—The original document is mostly a photo or an image.
•Graphics—The original document is mostly business‑type graphics, such as pie charts, bar charts, and
animations.
5Touch .
6Touch the button that best represents the content source of the document you are copying.
•Color Laser—The original document was printed using a color laser printer.
•Inkjet—The original document was printed using an inkjet printer.
•Magazine—The original document is from a magazine.
•Press—The original document was printed using a printing press.
•Black/White Laser—The original document was printed using a mono laser printer.
•Photo/Film—The original document is a photo from a film.
•Newspaper—The original document is from a newspaper.
•Other—The original document was printed using an alternate or unknown printer.
7Touch > Copy It.
Collating copies
If you print multiple copies of a document, then you can choose to print the copies as a set (collated) or to print the
copies as groups of pages (not collated).
Collated Not collated
1Load an original document faceup, short edge first into the ADF tray or facedown on the scanner glass.
Notes:
•Do not load postcards, photos, small items, transparencies, photo paper, or thin media (such as magazine
clippings) into the ADF tray. Place these items on the scanner glass.
•The ADF indicator light comes on when the paper is loaded properly.
2If you are loading a document into the ADF tray, then adjust the paper guides.
Copying 90
3From the home screen, navigate to:
Copy > enter the number of copies > Collate > select the preferred order of pages > > Copy It
Placing separator sheets between copies
1Load an original document faceup, short edge first into the ADF tray or facedown on the scanner glass.
Notes:
•Do not load postcards, photos, small items, transparencies, photo paper, or thin media (such as magazine
clippings) into the ADF tray. Place these items on the scanner glass.
•The ADF indicator light comes on when the paper is loaded properly.
2If you are loading a document into the ADF tray, then adjust the paper guides.
3From the home screen, navigate to:
Copy > Separator Sheets
Note: Set Collate to “1,2,3 ‑ 1,2,3” to place separator sheets between copies. If Collate is set to “1,1,1 ‑ 2,2,2,”
then the separator sheets are added to the end of the copy job. For more information, see “Collating copies” on
page 90.
4Select one of the following:
•Between Copies
•Between Jobs
•Between Pages
•Off
5Touch > Copy It.
Copying multiple pages onto a single sheet
In order to save paper, you can copy either two or four consecutive pages of a multiple‑page document onto a single
sheet of paper.
Notes:
•Make sure to set the paper size to letter, legal, A4, or JIS B5.
•Make sure to set the copy size to 100%.
1Load an original document faceup, short edge first into the ADF tray or facedown on the scanner glass.
Notes:
•Do not load postcards, photos, small items, transparencies, photo paper, or thin media (such as magazine
clippings) into the ADF tray. Place these items on the scanner glass.
•The ADF indicator light comes on when the paper is loaded properly.
2If you are loading a document into the ADF tray, then adjust the paper guides.
Copying 91
3From the home screen, navigate to:
Copy > Paper Saver > select the output you want > > Copy It
Note: If Paper Saver is set to Off, then the Print Page Borders option is unavailable.
Placing information on copies
Placing a header or footer on pages
1Load an original document faceup, short edge first into the ADF tray or facedown on the scanner glass.
Notes:
•Do not load postcards, photos, small items, transparencies, photo paper, or thin media (such as magazine
clippings) into the ADF tray. Place these items on the scanner glass.
•The ADF indicator light comes on when the paper is loaded properly.
2If you are loading a document into the ADF tray, then adjust the paper guides.
3From the home screen, navigate to:
Copy > Header/Footer
4Select Header or Footer, and then touch .
5Select where you want to insert the header or footer, then select a text option, and then touch .
6Select where you want to print the header or footer, and then touch .
7From the Header/Footer menu, touch > Copy It.
Placing an overlay message on each page
1Load an original document faceup, short edge first into the ADF tray or facedown on the scanner glass.
Notes:
•Do not load postcards, photos, small items, transparencies, photo paper, or thin media (such as magazine
clippings) into the ADF tray. Place these items on the scanner glass.
•The ADF indicator light comes on when the paper is loaded properly.
2If you are loading a document into the ADF tray, then adjust the paper guides.
3From the home screen, navigate to:
Copy > Overlay > select an overlay message > .
Note: The message choices are Urgent, Confidential, Copy, Custom, and Draft.
4Touch Copy It.
Copying 92
Canceling a copy job
Canceling a copy job while the original document is in the ADF
When the ADF begins processing a document, touch Cancel Job on the printer control panel.
Canceling a copy job while copying pages using the scanner glass
From the home screen, touch Cancel Job.
Canceling appears on the display. When the job is canceled, the Copy screen appears.
Canceling a copy job while pages are being printed
1From the printer control panel, press .
2Touch the job you want to cancel, and then touch .
3Press to return to the home screen.
Understanding the copy options
Copy from
This option opens a screen where you can select the paper size of the original document.
•Touch the paper size that matches the original document.
•To copy an original document that contains mixed paper sizes with the same width, touch Mixed Sizes.
•To set the printer to automatically detect the size of the original document, touch Auto Size Sense.
Copy to
This option opens a screen where you can enter the paper size and type on which your copies will be printed.
•Touch the paper size and type that matches the paper loaded.
•If the settings for “Copy from” and “Copy to” are different, then the printer automatically adjusts the Scale setting
to accommodate the difference.
•If the paper type or size that you want to copy onto is not loaded in one of the trays, then touch Manual Feeder,
and manually load the paper in the multipurpose feeder.
•When “Copy to” is set to Auto Size Match, each copy matches the paper size of the original document. If a matching
paper size is not in one of the trays, then Paper size not found appears and prompts to load a paper in a
tray or multipurpose feeder.
Copying 93
Scale
This option lets you scale the document from 25% to 400% of the original document size. You can also set automatic
scaling.
•When copying to a different paper size, such as from legal‑size to letter‑size paper, set the “Copy from” and “Copy
to” paper sizes automatically to scale the scan image to fit the size of the paper onto which you are copying.
•To decrease or increase the value by 1%, touch or on the printer control panel. To make a continuous
decrease or increase in value, hold the button for two seconds or more.
Darkness
This option lets you adjust how light or dark the copies are in relation to the original document.
Sides (Duplex)
This option lets you make one- or two-sided copies from one- or two-sided original documents.
Collate
This option keeps the pages of a print job stacked in sequence when printing multiple copies of the document.
Copies
This option lets you set the number of copies to be printed.
Content
This option lets you set the original document type and source.
Select from the following content types:
•Graphics—The original document is mostly business‑type graphics such as pie charts, bar charts, and animations.
•Photo—The original document is mostly a photo or an image.
•Text—The content of the original document is mostly text or line art.
•Text/Photo—The original document is a mixture of text, graphics, and photos.
Select from the following content sources:
•Black/White Laser—The original document was printed using a mono laser printer.
•Color Laser—The original document was printed using a color laser printer.
•Inkjet—The original document was printed using an inkjet printer.
•Magazine—The original document is from a magazine.
•Newspaper—The original document is from a newspaper.
•Other—The original document was printed using an alternate or unknown printer.
•Photo/Film—The original document is a photo from film.
•Press—The original document was printed using a printing press.
Copying 94
Advanced Duplex
This option lets you specify the document orientation, whether documents are one-sided or two-sided, and how
documents are bound.
Save As Shortcut
This option lets you save the current settings by assigning a shortcut name.
Note: Selecting this option automatically assigns the next available shortcut number.
Margin Shift
This option lets you increase or reduce the size of the margin of a page by shifting the scanned image. Touch or
to set the margin you want. If the additional margin is too large, then the copy will be cropped.
Edge Erase
This option lets you remove smudges or marks around the edges of a document. You can choose to remove an equal
area around all four sides of the paper, or pick a particular edge. Edge Erase also removes whatever is within the area
selected, leaving nothing on that portion of the scan.
Overlay
This option lets you create a watermark (or message) that overlays the content of your copy. You can choose from
Confidential, Copy, Draft, Urgent, and Custom. You can type a custom message in the ”Enter the Custom Text Overlay
and press OK” field. The message will appear, faintly, in large print across each page.
Cover Page Setup
This option lets you set up the cover page of copies and booklets.
Separator Sheets
This option lets you place a blank sheet of paper between copies, prints, pages, print jobs or copy jobs. The separator
sheets can be drawn from a tray that contains a type or color of paper that is different from the paper your copies are
printed on.
Header/Footer
This option lets you insert a header or footer and specify its location on a page.
Select one of the following:
•Bates number
•Custom text
•Date/Time
•Page number
Copying 95
Paper Saver
This option lets you print two or more pages of an original document on the same page. Paper Saver is also called N-
up printing where N stands for the number of pages. For example, 2-up would print two pages of your document on a
single page, and 4-up would print four pages of your document on a single page.
Advanced Imaging
This option lets you adjust the Auto Center, Background Removal, Color Dropout, Contrast, Mirror Image, Negative
Image, Scan Edge to Edge, Shadow Detail, Sharpness, and Temperature settings before you copy the document.
Create Booklet
This option lets you create a sequence of printed and collated pages that, when folded, forms a booklet half the page
size of the original document and with all the pages in order. You can choose between one‑sided and two‑sided.
Note: This option appears only when a printer hard disk is installed.
Custom Job
This option lets you combine multiple scan jobs into a single job and appears only when a working printer hard disk is
installed.
Fix Scan Skew
This option lets you straighten scanned images that are slightly skewed when received from the ADF tray.
Copying 96
E-mailing
Automatic document feeder (ADF) Scanner glass
ABC
Use the ADF for multiple‑page documents.
Use the scanner glass for single pages, small items (such as postcards or
photos), transparencies, photo paper, or thin media (such as magazine
clippings).
You can use the printer to e‑mail scanned documents to one or more recipients. There are three ways to send an e‑mail
from the printer. You can type the e‑mail address, use a shortcut number, or use the address book.
Setting up the printer to e-mail
Setting up the e-mail function
1Open a Web browser, and then type the printer IP address in the address field.
Notes:
•View the printer IP address on the printer home screen. The IP address appears as four sets of numbers
separated by periods, such as 123.123.123.123.
•If you are using a proxy server, then temporarily disable it to load the Web page correctly.
2Click Settings > E-mail/FTP Settings > E-mail Settings.
3Enter the appropriate information, and then click Submit.
Creating an e-mail shortcut
Creating an e-mail shortcut using the Embedded Web Server
1Open a Web browser, and then type the printer IP address in the address field.
E-mailing 97
Notes:
•View the printer IP address on the printer home screen. The IP address appears as four sets of numbers
separated by periods, such as 123.123.123.123.
•If you are using a proxy server, then temporarily disable it to load the Web page correctly.
2Click Settings.
3From the Other Settings column, click Manage Shortcuts > E-mail Shortcut Setup.
4Type a unique name for the e‑mail recipient, and then type the e‑mail address. If you are entering multiple addresses,
then separate each address with a comma.
5Click Add.
Creating an e-mail shortcut using the printer control panel
1From the home screen, navigate to:
E-mail > Recipient(s) > type the recipient’s e‑mail address >
Note: To create a group of recipients, touch , and then type the next recipient’s e-mail address.
2Touch Subject > type the e‑mail subject > .
3Touch Message > type your message > .
4Adjust the e‑mail settings.
Note: If you change the settings after the e‑mail shortcut has been created, then the settings are not saved.
5Touch Save As Shortcut.
6Type a unique name for the shortcut, and then touch .
7Verify that the shortcut name is correct, and then touch OK.
If the shortcut name is incorrect, then touch Cancel, and then reenter the information.
Notes:
•The shortcut name appears in the E-mail Shortcuts icon on the printer home screen.
•You can use the shortcut when e‑mailing another document using the same settings.
E-mailing a document
You can use the printer to e‑mail scanned documents to one or more recipients in a number of ways. You can type the
e‑mail address, use a shortcut number, or use the address book. You can also use the Multi Send or MyShortcut
application from the printer home screen. For more information, see the "Activating the home screen applications"
section.
Sending an e-mail using the printer control panel
1Load an original document faceup, short edge first into the ADF tray or facedown on the scanner glass.
E-mailing 98
Notes:
•Do not load postcards, photos, small items, transparencies, photo paper, or thin media (such as magazine
clippings) into the ADF tray. Place these items on the scanner glass.
•The ADF indicator light comes on when the paper is loaded properly.
2If you are loading a document into the ADF tray, then adjust the paper guides.
Note: To avoid a cropped image, make sure that the size of the original document and the copy paper size are
the same.
3From the home screen, navigate to:
E-mail > Recipient(s)
4Type the e‑mail address, or press # and then enter the shortcut number.
To enter additional recipients, touch , and then enter the e‑mail address or shortcut number that you want to
add.
Note: You can also enter an e‑mail address using the address book.
5Touch > E‑mail It.
Sending an e‑mail using a shortcut number
1Load an original document faceup, short edge first into the ADF tray or facedown on the scanner glass.
Notes:
•Do not load postcards, photos, small items, transparencies, photo paper, or thin media (such as magazine
clippings) into the ADF tray. Place these items on the scanner glass.
•The ADF indicator light comes on when the paper is loaded properly.
2If you are loading a document into the ADF tray, then adjust the paper guides.
3Press #, then enter the shortcut number using the keypad, and then touch .
To enter additional recipients, touch , and then enter the e‑mail address or shortcut number that you want to
add.
4Touch > E‑mail It.
Sending an e‑mail using the address book
1Load an original document faceup, short edge first into the ADF tray or facedown on the scanner glass.
Notes:
•Do not load postcards, photos, small items, transparencies, photo paper, or thin media (such as magazine
clippings) into the ADF tray. Place these items on the scanner glass.
•The ADF indicator light comes on when the paper is loaded properly.
2If you are loading a document into the ADF tray, then adjust the paper guides.
E-mailing 99
3From the home screen, navigate to:
E-mail > Recipient(s) > > type the name of the recipient >
4Touch the name of the recipient.
To search for additional recipients, touch New Search, and then type the name of the next recipient.
5Touch > E‑mail It.
Customizing e-mail settings
Adding e-mail subject and message information
1Load an original document faceup, short edge first into the ADF tray or facedown on the scanner glass.
Notes:
•Do not load postcards, photos, small items, transparencies, photo paper, or thin media (such as magazine
clippings) into the ADF tray. Place these items on the scanner glass.
•The ADF indicator light comes on when the paper is loaded properly.
2If you are loading a document into the ADF tray, then adjust the paper guides.
3From the home screen, navigate to:
E-mail > Recipient(s) > type the e‑mail address >
4Touch Subject > type the e‑mail subject > .
5Touch Message > type your message > .
Changing the output file type
1Load an original document faceup, short edge first into the ADF tray or facedown on the scanner glass.
Notes:
•Do not load postcards, photos, small items, transparencies, photo paper, or thin media (such as magazine
clippings) into the ADF tray. Place these items on the scanner glass.
•The ADF indicator light comes on when the paper is loaded properly.
2If you are loading a document into the ADF tray, then adjust the paper guides.
3From the home screen, navigate to:
E-mail > Recipient(s) > type the e‑mail address > > Send As
4Touch the button that represents the file type you want to send.
•PDF—Create a single file with multiple pages.
•Secure PDF—Create an encrypted PDF file that protects the file contents from unauthorized access.
•TIFF—Create multiple files or a single file. If Multi-page TIFF is turned off in the Settings menu of the Embedded
Web Server, then TIFF saves one page in each file. The file size is usually larger than an equivalent JPEG.
E-mailing 100
•JPEG—Create and attach a separate file for each page of your original document, viewable by most Web
browsers and graphics programs.
•XPS—Create a single XML Paper Specification (XPS) file with multiple pages, viewable using an Internet Explorer-
hosted viewer and the .NET Framework, or by downloading a third‑party standalone viewer.
5Touch > E‑mail It.
Note: If you selected Secure PDF, then you will be prompted to enter your password twice.
Canceling an e-mail
•When using the ADF, touch Cancel Job while Scanning appears.
•When using the scanner glass, touch Cancel Job while Scanning appears, or while Scan the Next Page /
Finish the Job appears.
Understanding the e-mail options
Recipient(s)
This option lets you enter the recipient of your e-mail. You may enter multiple e‑mail addresses.
Subject
This option lets you type a subject line for your e-mail.
Message
This option lets you type a message that will be sent with your scanned attachment.
File Name
This option lets you customize the attachment file name.
Save As Shortcut
This option lets you save the current settings as a shortcut by assigning a shortcut name.
Note: Selecting this option automatically assigns the next available shortcut number.
Original Size
This option lets you set the paper size of the documents you are going to e‑mail. When Original Size is set to Mixed
Sizes, you can scan an original document that contains mixed paper sizes (letter‑ and legal‑size pages).
E-mailing 101
Darkness
This option lets you adjust how light or dark your scanned documents are in relation to the original document.
Resolution
This option lets you adjust the output quality of your e-mail. Increasing the image resolution increases the e-mail file
size and the time needed to scan your original document. Decreasing the image resolution reduces the file size.
Send As
This option lets you set the output type for the scan image.
Select one of the following:
•PDF—Use this to create a single file with multiple pages.
Note: PDF is the factory default setting.
•Secure PDF—Use this to create an encrypted PDF file that protects the file contents from unauthorized access.
•TIFF—Use this to create multiple files or a single file. If Multi-page TIFF is turned off in the Settings menu of the
Embedded Web Server, then TIFF saves one page in each file. The file size is usually larger than an equivalent JPEG.
•JPEG—Use this to create and attach a separate file for each page of your original document.
•XPS—Use this to create a single XPS file with multiple pages.
Content
This option lets you set the original document type and source.
Select from the following content types:
•Graphics—The original document is mostly business‑type graphics, such as pie charts, bar charts, and animations.
•Photo—The original document is mostly a photo or an image.
•Text—The content of the original document is mostly text or line art.
•Text/Photo—The original document is a mixture of text, graphics, and photos.
Select from the following content sources:
•Black/White Laser—The original document was printed using a mono laser printer.
•Color Laser—The original document was printed using a color laser printer.
•Inkjet—The original document was printed using an inkjet printer.
•Magazine—The original document is from a magazine.
•Newspaper—The original document is from a newspaper.
•Other—The original document was printed using an alternate or unknown printer.
•Photo/Film—The original document is a photo from film.
•Press—The original document was printed using a printing press.
E-mailing 102
Page Setup
This option lets you change the following settings:
•Sides (Duplex)—This specifies if the original document is printed on only one side or on both sides of the paper.
This also identifies what needs to be scanned for inclusion in the e-mail.
•Orientation—This specifies the orientation of the original document, and then changes the Sides (Duplex) and
Binding settings to match the orientation.
•Binding—This specifies if the original document is bound on the long‑edge or short‑edge side.
Custom Job
This option lets you combine multiple scan jobs into a single job and appears only when a working printer hard disk is
installed.
Scan Preview
This option lets you view the first page of the image before it is included in the e-mail. When the first page is scanned,
the scanning is paused and a preview image appears.
Note: This option appears only when a working printer hard disk is installed.
Transmission Log
This option lets you print the transmission log or transmission error log.
Edge Erase
This option lets you remove smudges or any mark around the edges of a document. You can remove an equal area
around all four sides of the paper, or you can pick a particular edge. Edge Erase also removes whatever is within the
area selected, leaving nothing on that portion of the scan.
Advanced Imaging
This option lets you adjust the Background Removal, Color Balance, Color Dropout, Contrast, JPEG Quality, Mirror Image,
Negative Image, Scan Edge to Edge, Shadow Detail, Sharpness, and Temperature settings before you e‑mail the
document.
Fix Scan Skew
This option lets you straighten scanned images that are slightly skewed when received from the ADF tray.
E-mailing 103
Faxing
Note: The fax function is available only in select printer models.
Automatic document feeder (ADF) Scanner glass
ABC
Use the ADF for multiple‑page documents including
two-sided (duplex) pages.
Use the scanner glass for single-page documents, book pages, small
items (such as postcards or photos), transparencies, photo paper,
or thin media (such as magazine clippings).
Setting up the printer to fax
CAUTION—SHOCK HAZARD: Do not use the fax feature during a lightning storm. Do not set up this product or
make any electrical or cabling connections, such as the fax feature, power cord, or telephone, during a lightning
storm.
Note: The following connection methods are applicable only in select countries or regions.
During the initial printer setup, clear the Fax funtion and any other function you plan to set up later, and then press
Continue.
Note: The indicator light may blink red if the fax function is enabled and not fully set up.
Warning—Potential Damage: Do not touch cables or the printer in the area shown while actively sending or
receiving a fax.
Faxing 104
Initial fax setup
Many countries and regions require outgoing faxes to contain the following information in a margin at the top or bottom
of each transmitted page, or on the first page of the transmission: fax name (identification of the business, other entity,
or individual sending the message) and fax number (telephone number of the sending fax machine, business, other
entity, or individual). For more information, see “Regulatory notices for telecommunication terminal equipment” on
page 311.
To enter your fax setup information, use the printer control panel, or use your browser to access the Embedded Web
Server and then enter the Settings menu.
Note: If you do not have a TCP/IP environment, then you must use the printer control panel to enter your fax setup
information.
Using the printer control panel for fax setup
When the printer is turned on for the first time, a series of start‑up screens appear. If the printer has fax capabilities,
then the Fax Name and Fax Number screens appear.
1When the Fax Name screen appears, do the following:
aEnter the name to be printed on all outgoing faxes.
bEnter the fax name, and then touch Submit.
2When the Fax Number screen appears, enter the fax number, and then touch Submit.
Using the Embedded Web Server for fax setup
1Open a Web browser, and then type the printer IP address in the address field.
Notes:
•View the printer IP address on the printer home screen. The IP address appears as four sets of numbers
separated by periods, such as 123.123.123.123.
•If you are using a proxy server, then temporarily disable it to load the Web page correctly.
2Click Settings > Fax Settings > Analog Fax Setup.
3In the Fax Name field, type the name to be printed on all outgoing faxes.
4In the Fax Number field, enter the printer fax number.
5Click Submit.
Faxing 105
Choosing a fax connection
Scenario 1: Standard telephone line
Setup 1: Printer is connected to a dedicated fax line
To connect:
1Connect one end of the telephone cable that came with the printer to the port of the printer.
2Connect the other end of the telephone cable to an active analog wall jack.
Tips for this setup:
•You can set the printer to receive faxes automatically (Auto Answer On) or manually (Auto Answer Off).
•If you want to receive faxes automatically (Auto Answer On), then set the printer to pick up on any number of rings
that you want.
Faxing 106
Setup 2: Printer is sharing the line with an answering machine
Connected to the same telephone wall jack
PHONE
LINE
To connect:
1Connect one end of the telephone cable that came with the printer to the port of the printer.
2Connect the other end of the telephone cable to an active analog wall jack.
3Connect the answering machine to the port of the printer.
Faxing 107
Connected to different wall jacks
PHONE
LINE
To connect:
1Connect one end of the telephone cable that came with the printer to the port of the printer.
2Connect the other end of the telephone cable to an active analog wall jack.
Tips for this setup:
•If you have only one telephone number on your line, then you need to set the printer to receive faxes automatically
(Auto Answer On).
•Set the printer to pick up calls two rings after the answering machine. For example, if the answering machine picks
up calls after four rings, then set the printer to pick up after six rings. This way, the answering machine picks up
calls first and your voice calls are received. If the call is a fax, then the printer detects the fax signal on the line and
takes over the call.
•If you subscribe to a distinctive ring service provided by your telephone company, then make sure that you set the
correct ring pattern for the printer. Otherwise, the printer does not receive faxes even if you have set it to receive
faxes automatically.
Faxing 108
Setup 3: Printer is sharing the line with a telephone subscribed to voice mail service
02
To connect:
1Connect one end of the telephone cable that came with the printer to the port of the printer.
2Connect the other end of the telephone cable to an active analog wall jack.
3Connect the telephone to the port of the printer.
Tips for this setup:
•This setup works best if you subscribe to a distinctive ring service. If you have distinctive ring service, then make
sure that you set the correct ring pattern for the printer. Otherwise, the printer does not receive faxes even if you
have set it to receive faxes automatically.
•If you have only one telephone number on your line, then you need to set the printer to receive faxes manually
(Auto Answer Off).
When you answer the telephone and you hear fax tones, press *9* or the manual answer code on the telephone
to receive the fax.
•You can also set the printer to receive faxes automatically (Auto Answer On), but you need to turn off the voice
mail service when you are expecting a fax. This setting works best if you are using voice mail more often than fax.
Faxing 109
Scenario 2: Digital Subscriber Line (DSL)
A Digital Subscriber Line splits your regular telephone line into two channels: voice and Internet. Telephone and fax
signals travel through the voice channel, and Internet signals pass through the other channel. This way, you can use
the same line for analog voice calls (including faxes) and digital Internet access.
To minimize interference between the two channels and ensure a quality connection, you need to install a DSL filter
for the analog devices (fax machine, telephone, answering machine) in your network. Interference causes noise and
static on the telephone, failed and poor quality faxes for the printer, and slow Internet connection on your computer.
To install a filter for the printer:
1Connect the line port of the DSL filter to the wall jack.
2Connect one end of the telephone cable that came with your printer to the port of the printer. Connect the other
end to the phone port on the DSL filter.
3To continue using a computer for Internet access, connect the computer to the DSL HPN port on the DSL filter.
4To connect a telephone to the printer, remove any installed adapter plug from the port of the printer, and then
connect the telephone to the port.
Faxing 110
Scenario 3: VoIP telephone service
To connect:
1Connect one end of the telephone cable that came with the printer to the port of the printer.
2Connect the other end of the cable to the port labeled Phone Line 1 or Phone Port on the VoIP adapter.
Note: The port labeled Phone Line 2 or Fax Port is not always active. VoIP providers may charge additional cost
for activation of the second phone port.
3Connect the telephone to the port of the printer.
Tips for this setup:
•To make sure that the phone port on the VoIP adapter is active, plug an analog telephone into the phone port, and
then listen for a dial tone. If you hear a dial tone, then the port is active.
•If you need two phone ports for your devices, but do not want to pay additional cost, then do not plug the printer
into the second phone port. You can use a phone splitter. Plug the phone splitter into the port labeled Phone Line
1 or Phone Port, and then plug the printer and telephone into the splitter.
Note: Make sure you use a phone splitter, not a line splitter. To make sure that you are using the correct
splitter, plug an analog telephone into the splitter and then listen for a dial tone.
Faxing 111
Scenario 4: Digital telephone service through a cable provider
Setup 1: Printer is connected directly to a cable modem
1Connect one end of the telephone cable that came with your printer to the port of the printer.
2Connect the other end of the cable to the port labeled Phone Line 1 or Phone Port on the cable modem.
Note: The port labeled Phone Line 2 or Fax Port is not always active. VoIP providers may charge additional cost
for activation of the second phone port.
3Connect your analog telephone phone to the port of the printer.
Notes:
•To make sure that the telephone port on the cable modem is active, plug an analog telephone into the
telephone port, and then listen for a dial tone. If you hear a dial tone, then the port is active.
•If you need two telephone ports for your devices, but do not want to pay additional cost, then do not plug the
printer into the second telephone port. You can use a phone splitter. Plug the phone splitter into the Phone Line
1 or Phone Port, and then plug the printer and telephone into the splitter.
•Make sure you use a phone splitter, not a line splitter. To make sure that you are using the correct splitter, plug
an analog telephone into the splitter and then listen for a dial tone.
Faxing 112
Setup 2: Printer is connected to a wall jack; cable modem is installed elsewhere in the facility
1Connect one end of the telephone cable that came with your printer to the port of the printer.
2Connect the other end of the telephone cable to an active analog telephone wall jack.
3Connect your analog telephone to the port of the printer.
Scenario 5: Countries or regions with different telephone wall jacks and plugs
Some countries or regions may have different types of telephone wall jack connectors than those that came with the
printer. The standard wall jack adopted by most countries or regions is RJ-11. Your printer comes with the RJ-11 jack
and a telephone cable with the RJ-11 plug.
Faxing 113
If the wall jack or equipment in your facility is not compatible with this type of connection, then you need to use a
telephone adapter. An adapter for your country or region may not come with your printer, and you may need to
purchase it separately.
There may be an adapter plug installed in the port of the printer. If you are using a telephone adapter or a facility
that has a cascaded or serial wiring scheme, then do not remove the adapter plug from the port of the printer.
Part name Part number
Lexmark adapter plug 40X8519
Faxing 114
Connecting the printer to a non‑RJ‑11 wall jack
LINE
EXT
1Connect one end of the telephone cable that came with printer to the port of the printer.
2Connect the other end of the cable to the RJ‑11 adapter, and then connect the adapter to the wall jack.
3If you want to connect another device (telephone or answering machine) to the same wall jack, and if the device
has a non‑RJ‑11 connector, then connect it directly to the telephone adapter.
Notes:
•The port of the printer may have an adapter plug for use with the adapter. Do not remove the plug from
the port of the printer.
•In some countries or regions, the printer may not come with a telephone adapter or an adapter plug.
Faxing 115
Connecting the printer to a wall jack in Germany
The German wall jack has two kinds of ports. The N ports are for fax machines, modems, and answering machines. The
F port is for telephones.
NFN
Connect the printer to any of the N ports.
PHONE
LINE
NFN
Faxing 116
1Connect one end of the telephone cable that came the printer to the port of the printer.
2Connect the other end of the telephone cable to the RJ‑11 adapter, and then connect the adapter to an N port.
3If you want to connect a telephone and answering machine to the same wall jack, then connect the devices as
shown.
Note: Do not remove the adapter plug from the port of the printer if you are connecting to a serial or cascaded
telephone system.
Connecting to a distinctive ring service
A distinctive ring service may be available from your telephone company. This service lets you have multiple telephone
numbers on one telephone line, with each telephone number having a different ring pattern. This may be useful for
distinguishing between fax and voice calls. If you subscribe to a distinctive ring service, then follow these steps to
connect the equipment:
1Connect one end of the telephone cable that came with the printer to the printer LINE port .
2Connect the other end of the telephone cable to an active analog telephone wall jack.
3Change the distinctive rings setting to match the setting you want for the printer to answer.
Note: The factory default setting for distinctive rings is On. This sets the printer to answer single, double, and
triple ring patterns.
aFrom the home screen, navigate to:
> Settings > Fax Settings > Analog Fax Setup > Answer On
bSelect the pattern setting you want to change, and then touch .
Setting the outgoing fax name and number
1Open a Web browser, and then type the printer IP address in the address field.
Notes:
•View the printer IP address on the printer home screen. The IP address appears as four sets of numbers
separated by periods, such as 123.123.123.123.
•If you are using a proxy server, then temporarily disable it to load the Web page correctly.
2Click Settings > Fax Settings > Analog Fax Setup.
Faxing 117
3In the Fax Name field, type the name to be printed on all outgoing faxes.
4In the Fax Number field, enter the printer fax number.
5Click Submit.
Setting the date and time
You can set the date and time so that they are printed on every fax you send.
1Open a Web browser, and then type the printer IP address in the address field.
Notes:
•View the printer IP address on the printer home screen. The IP address appears as four sets of numbers
separated by periods, such as 123.123.123.123.
•If you are using a proxy server, then temporarily disable it to load the Web page correctly.
2Click Security > Set Date and Time.
3In the Manually Set Date & Time field, enter the current date and time.
4Click Submit.
Note: It is recommended to use the network time.
Configuring the printer to observe daylight saving time
The printer can be set to automatically adjust for daylight saving time:
1Open a Web browser, and then type the printer IP address in the address field.
Notes:
•View the printer IP address on the printer home screen. The IP address appears as four sets of numbers
separated by periods, such as 123.123.123.123.
•If you are using a proxy server, then temporarily disable it to load the Web page correctly.
2Click Security > Set Date and Time.
3Select the Automatically Observe DST check box, and then enter the DST start and end dates in the Custom Time
Zone Setup section.
4Click Submit.
Sending a fax
You can use the printer to send a fax to one or more recipients in a number of ways. You can type the e‑mail address,
use a shortcut number, or use the address book. You can also use the Multi Send or MyShortcut application from the
printer home screen. For more information, see the "Activating the home screen applications" section of the User’s
Guide.
Sending a fax using the printer control panel
1Load an original document faceup, short edge first into the ADF tray or facedown on the scanner glass.
Faxing 118
Notes:
•Do not load postcards, photos, small items, transparencies, photo paper, or thin media (such as magazine
clippings) into the ADF tray. Place these items on the scanner glass.
•The ADF indicator light comes on when the paper is loaded properly.
2If you are loading a document into the ADF tray, then adjust the paper guides.
3From the home screen, touch Fax.
4From the printer control panel keypad, enter the fax number or the shortcut number.
Note: To add recipients, touch , and then enter the recipient's telephone number or shortcut number, or
search the address book.
5Touch Fax It.
Sending a fax using the computer
The printer driver fax option lets you send a print job to the printer, which sends the job as a fax. The fax option works
as a normal fax machine, but is controlled through the printer driver instead of the printer control panel.
1With a document open, click File > Print.
2Select the printer, and then click Properties, Preferences, Options, or Setup.
3Navigate to:
Fax tab > Enable fax
4Enter the recipient fax number or numbers in the “Fax number(s)” field.
Note: Fax numbers can be entered manually or by using the Phone Book feature
5If necessary, enter a prefix in the “Dialing prefix” field.
6Select the appropriate paper size and page orientation.
7If you want to include a cover page with the fax, then select Include cover page with fax, and then enter the
appropriate information.
8Click OK.
Notes:
•The Fax option is available for use only with the PostScript driver or the Universal Fax Driver. For information on
installing these drivers, see the Software CD.
•The Fax option must be configured and enabled in the PostScript driver under the Configuration tab before it
can be used.
•If the Always display settings prior to faxing check box is selected, then you are prompted to verify the
recipient information before the fax is sent. If this check box is cleared, then the queued document is sent
automatically as a fax when you click OK on the Fax tab.
Faxing 119
Sending a fax using a shortcut number
Fax shortcuts are like the speed dial numbers on a telephone or a fax machine. A shortcut number (1–999) can contain
a single recipient or multiple recipients.
1Load an original document faceup, short edge first into the ADF tray or facedown on the scanner glass.
Notes:
•Do not load postcards, photos, small items, transparencies, photo paper, or thin media (such as magazine
clippings) into the ADF tray. Place these items on the scanner glass.
•The ADF indicator light comes on when the paper is loaded properly.
2If you are loading a document into the ADF tray, then adjust the paper guides.
3From the printer control panel, press #, and then enter the shortcut number using the keypad.
4Touch Fax It.
Sending a fax using the address book
The address book feature lets you search for bookmarks and network directory servers.
Note: If the address book feature is not enabled, then contact your system support person.
1Load an original document faceup, short edge first into the ADF tray or facedown on the scanner glass.
Notes:
•Do not load postcards, photos, small items, transparencies, photo paper, or thin media (such as magazine
clippings) into the ADF tray. Place these items on the scanner glass.
•The ADF indicator light comes on when the paper is loaded properly.
2If you are loading a document into the ADF tray, then adjust the paper guides.
3From the home screen, navigate to:
Fax > > type the name of the recipient >
Note: You can only search for one name at a time.
4Touch the name of the recipient, and then touch Fax It.
Sending a fax at a scheduled time
1Load an original document faceup, short edge first into the ADF tray or facedown on the scanner glass.
Notes:
•Do not load postcards, photos, small items, transparencies, photo paper, or thin media (such as magazine
clippings) into the ADF tray. Place these items on the scanner glass.
•The ADF indicator light comes on when the paper is loaded properly.
2If you are loading a document into the ADF tray, then adjust the paper guides.
Faxing 120
3From the home screen, navigate to:
Fax > enter the fax number > Options > Delayed Send
Note: If Fax Mode is set to Fax Server, then the Delayed Send button does not appear. Faxes waiting for
transmission are listed in the fax queue.
4Specify the time the fax will be transmitted, and then touch .
5Touch Fax It.
Note: The document is scanned, and then faxed at the scheduled time.
Creating shortcuts
Creating a fax destination shortcut using the Embedded Web Server
Assign a shortcut number to a single fax number or a group of fax numbers.
1Open a Web browser, and then type the printer IP address in the address field.
Notes:
•View the printer IP address on the printer home screen. The IP address appears as four sets of numbers
separated by periods, such as 123.123.123.123.
•If you are using a proxy server, then temporarily disable it to load the Web page correctly.
2Click Settings > Manage Shortcuts > Fax Shortcut Setup.
Note: A password may be required. If you do not have an ID and password, then contact your system support
person.
3Type a name for the shortcut, and then enter the fax number.
Notes:
•To create a multiple‑number shortcut, enter the fax numbers for the group.
•Separate each fax number in the group with a semicolon (;).
4Assign a shortcut number.
Note: If you enter a number that is already in use, then you are prompted to select another number.
5Click Add.
Creating a fax destination shortcut using the printer control panel
1From the home screen, touch Fax, and then enter the fax number.
To create a group of fax numbers, touch , and then enter the other fax number.
2Touch .
Faxing 121
3Type a unique name for the shortcut, and then touch .
4Verify that the shortcut name and number are correct, and then touch OK.
If the name or number is incorrect, then touch Cancel, and then reenter the information.
Customizing fax settings
Changing the fax resolution
1Load an original document faceup, short edge first into the ADF tray or facedown on the scanner glass.
Notes:
•Do not load postcards, photos, small items, transparencies, photo paper, or thin media (such as magazine
clippings) into the ADF tray. Place these items on the scanner glass.
•The ADF indicator light comes on when the paper is loaded properly.
2If you are loading a document into the ADF tray, then adjust the paper guides.
3From the home screen, touch Fax, and then enter the fax number.
4From the Resolution area, touch or to change to the resolution you want.
Note: Settings range from Standard (fastest speed) to Ultra Fine (best quality at a reduced speed).
5Touch Fax It.
Making a fax lighter or darker
1Load an original document faceup, short edge first into the ADF tray or facedown on the scanner glass.
Notes:
•Do not load postcards, photos, small items, transparencies, photo paper, or thin media (such as magazine
clippings) into the ADF tray. Place these items on the scanner glass.
•The ADF indicator light comes on when the paper is loaded properly.
2If you are loading a document into the ADF tray, then adjust the paper guides.
3From the home screen, touch Fax, and then enter the fax number.
4From the Darkness area, touch or to adjust the darkness setting of the fax.
5Touch Fax It.
Viewing a fax log
1Open a Web browser, and then type the printer IP address in the address field.
Notes:
•View the printer IP address on the printer home screen. The IP address appears as four sets of numbers
separated by periods, such as 123.123.123.123.
Faxing 122
•If you are using a proxy server, then temporarily disable it to load the Web page correctly.
2Click Settings > Reports.
3Click Fax Job Log or Fax Call Log.
Blocking junk faxes
1Open a Web browser, and then type the printer IP address in the address field.
Notes:
•View the printer IP address on the printer home screen. The IP address appears as four sets of numbers
separated by periods, such as 123.123.123.123.
•If you are using a proxy server, then temporarily disable it to load the Web page correctly.
2Click Settings > Fax Settings > Analog Fax Setup > Block No Name Fax.
Notes:
•This option blocks all incoming faxes that have a private caller ID or have no fax name.
•In the Banned Fax List field, enter the phone numbers or type the fax names of specific fax callers you want
to block.
Canceling an outgoing fax
Canceling a fax while the original documents are still scanning
•When using the ADF, touch Cancel Job on the printer control panel while Scanning appears.
•When using the scanner glass, touch Cancel Job on the printer control panel while Scanning appears or while
Scan the Next Page and Finish the Job appear.
Canceling a fax after the original documents have been scanned to memory
1On the home screen, touch Cancel Jobs.
The Cancel Jobs screen appears.
2Touch the job or jobs you want to cancel.
Only three jobs appear on the screen; touch the down arrow until the job you want appears, and then touch the
job you want to cancel.
3Touch Delete Selected Jobs.
The Deleting Selected Jobs screen appears, the selected jobs are deleted, and then the home screen appears.
Faxing 123
Holding and forwarding faxes
Holding faxes
This option lets you hold received faxes from printing until they are released. Held faxes can be released manually or
at a scheduled day or time.
1Open a Web browser, and then type the printer IP address in the address field.
Notes:
•View the printer IP address on the printer home screen. The IP address appears as four sets of numbers
separated by periods, such as 123.123.123.123.
•If you are using a proxy server, then temporarily disable it to load the Web page correctly.
2Click Settings > Fax Settings > Analog Fax Setup > Holding Faxes.
3From the Held Fax Mode menu, select one of the following:
•Off
•Always On
•Manual
•Scheduled
4If you selected Scheduled, then continue with the following steps:
aClick Fax Holding Schedule.
bFrom the Action menu, select Hold faxes.
cFrom the Time menu, select the time you want the held faxes released.
dFrom the Day(s) menu, select the day you want the held faxes released.
5Click Add.
Forwarding a fax
This option lets you print and forward received faxes to a fax number, e‑mail address, FTP site, or LDSS.
1Open a Web browser, and then type the printer IP address in the address field.
Notes:
•View the printer IP address on the printer home screen. The IP address appears as four sets of numbers
separated by periods, such as 123.123.123.123.
•If you are using a proxy server, then temporarily disable it to load the Web page correctly.
2Click Settings > Fax Settings.
3From the Fax Forwarding menu, select Print, Print and Forward, or Forward.
4From the “Forward to” menu, select Fax, E‑mail, FTP, LDSS, or eSF.
5In the “Forward to Shortcut” field, enter the shortcut number where you want the fax forwarded.
Note: The shortcut number must be valid for the setting selected in the “Forward to” menu.
6Click Submit.
Faxing 124
Understanding the fax options
Content
This option lets you specify the content type and source of the original document.
Select from the following content types:
•Graphics—The original document is mostly business‑type graphics, such as pie charts, bar charts, and animations.
•Photo—The original document is mostly a photo or an image.
•Text—The content of the original document is mostly text or line art.
•Text/Photo—The original document is a mixture of text, graphics, and photos.
Select from the following content sources:
•Black/White Laser—The original document was printed using a mono laser printer.
•Color Laser—The original document was printed using a color laser printer.
•Inkjet—The original document was printed using an inkjet printer.
•Magazine—The original document is from a magazine.
•Newspaper—The original document is from a newspaper.
•Other—The original document was printed using an alternate or unknown printer.
•Photo/Film—The original document is a photo from film.
•Press—The original document was printed using a printing press.
Resolution
This option lets you adjust the quality of the fax output. Increasing the image resolution increases the file size and the
time needed to scan your original document. Decreasing the image resolution reduces the file size.
Select one of the following:
•Standard—Use this when faxing most documents.
•Fine 200 dpi—Use this when faxing documents with small prints.
•Super fine 300 dpi—Use this when faxing documents with fine details.
•Ultra fine 600 dpi—Use this when faxing documents with pictures or photos.
Darkness
This option lets you adjust how light or dark the faxes are in relation to the original document.
Page Setup
This option lets you change the following settings:
•Sides (Duplex)—This specifies if the original document is printed on one side or on both sides of the page (duplex).
This also identifies what needs to be scanned for inclusion in the fax.
•Orientation—This specifies the orientation of the original document, and then changes the Sides (Duplex) and
Binding settings to match the orientation.
•Binding—This specifies if the original document is bound on the long‑edge or short‑edge side.
Faxing 125
Custom Job
This option lets you combine multiple scan jobs into a single job and appears only when a working printer hard disk is
installed.
Scan Preview
This option lets you view the first page of the image before it is included in the fax. When the first page is scanned, the
scanning is paused and a preview image appears.
Note: This option appears only when a working printer hard disk is installed.
Delayed Send
This option lets you send a fax at a later time or date.
Advanced Imaging
This option lets you adjust the Background Removal, Color Balance, Color Dropout, Contrast, Mirror Image, Negative
Image, Scan Edge to Edge, Shadow Detail, Sharpness, and Temperature settings before you fax the document.
Edge Erase
This option lets you remove smudges or any mark around the edges of a document. You can remove an equal area
around all four sides of the paper, or you can pick a particular edge. Edge Erase also removes whatever is within the
area selected, leaving nothing on that portion of the scan.
Transmission Log
This option lets you print the transmission log or transmission error log.
Fix Scan Skew
This option lets you straighten scanned images that are slightly skewed when received from the ADF tray.
Faxing 126
Scanning
Automatic document feeder (ADF) Scanner glass
ABC
Use the ADF for multiple‑page documents. Use the scanner glass for single pages, small items (such as postcards or
photos), transparencies, photo paper, or thin media (such as magazine
clippings).
The scanner lets you scan documents directly to a computer or a flash drive. The computer does not have to be directly
connected to the printer for you to receive Scan to PC images. You can scan the document back to the computer over
the network by creating a scan profile on the computer and then downloading the profile to the printer.
Using Scan to Network
Scan to Network lets you scan your documents to network destinations specified by your system support person. After
the destinations (shared network folders) have been established on the network, the setup process for the application
involves installing and configuring the application on the appropriate printer using its Embedded Web Server. For more
information, see “Setting up Scan to Network” on page 23.
Scanning to an FTP address
Automatic document feeder (ADF) Scanner glass
ABC
Scanning 127
Automatic document feeder (ADF) Scanner glass
Use the ADF for multiple‑page documents including
two-sided (duplex) pages.
Use the scanner glass for single-page documents, book pages, small
items (such as postcards or photos), transparencies, photo paper,
or thin media (such as magazine clippings).
The scanner lets you scan documents directly to a File Transfer Protocol (FTP) server. Only one FTP address may be
sent to the server at a time.
When an FTP destination has been configured by your system support person, the name of the destination becomes
available as a shortcut number, or it is listed as a profile under the Held Jobs icon. An FTP destination could also be
another PostScript printer; for example, a color document can be scanned and then sent to a color printer.
Creating shortcuts
Instead of entering the entire FTP site address on the printer control panel each time you want to send a document to
an FTP server, you can create a permanent FTP destination and assign a shortcut number. There are two methods for
creating shortcut numbers: using the Embedded Web Server and using the printer control panel.
Creating an FTP shortcut using the Embedded Web Server
1Open a Web browser, and then type the printer IP address in the address field.
Notes:
•View the printer IP address on the printer home screen. The IP address appears as four sets of numbers
separated by periods, such as 123.123.123.123.
•If you are using a proxy server, then temporarily disable it to load the Web page correctly.
2Navigate to:
Settings > Other Settings area > Manage Shortcuts > FTP Shortcut Setup
3Enter the appropriate information.
Note: A password may be required. If you do not have an ID and password, then contact your system support
person.
4Enter a shortcut number.
Note: If you enter a number that is already in use, then you are prompted to select another number.
5Click Add.
Creating an FTP shortcut using the printer control panel
1From the home screen, navigate to:
FTP > FTP Address > type the FTP address > > > type a name for the shortcut >
2Verify that the shortcut name and number are correct, and then touch OK.
If the name or number is incorrect, then touch Cancel, and then reenter the information. If you enter a number
that is already in use, then you will be prompted to select another number.
Scanning 128
Scanning to an FTP address
You can use the printer to send scanned documents to an FTP address in a number of ways. You can type the FTP
address, use a shortcut number, or use the address book. You can also use the Multi Send, Scan to Network, or
MyShortcut application from the printer home screen. For more information, see the "Activating the home screen
applications" section of the User’s Guide.
Scanning to an FTP address using the printer control panel
1Load an original document faceup, short edge first into the ADF tray or facedown on the scanner glass.
Notes:
•Do not load postcards, photos, small items, transparencies, photo paper, or thin media (such as magazine
clippings) into the ADF tray. Place these items on the scanner glass.
•The ADF indicator light comes on when the paper is loaded properly.
2If you are loading a document into the ADF tray, then adjust the paper guides.
3From the home screen, navigate to:
FTP > FTP Address > type the FTP address > > Scan It
Scanning to an FTP address using a shortcut number
1Load an original document faceup, short edge first into the ADF tray or facedown on the scanner glass.
Notes:
•Do not load postcards, photos, small items, transparencies, photo paper, or thin media (such as magazine
clippings) into the ADF tray. Place these items on the scanner glass.
•The ADF indicator light comes on when the paper is loaded properly.
2If you are loading a document into the ADF tray, then adjust the paper guides.
3From the printer control panel, press # on the keypad, and then enter the FTP shortcut number.
4Touch Scan It.
Scanning 129
Scanning to a computer or flash drive
Automatic Document Feeder (ADF) Scanner glass
ABC
Use the ADF for multiple‑page documents. Use the scanner glass for single pages, small items (such as postcards or
photos), transparencies, photo paper, or thin media (such as magazine
clippings).
The scanner lets you scan documents directly to a computer or a flash drive. The computer does not have to be directly
connected to the printer for you to receive Scan to PC images. You can scan the document back to the computer over
the network by creating a scan profile on the computer and then downloading the profile to the printer.
Scanning to a computer using the Embedded Web Server
1Open a Web browser, and then type the printer IP address in the address field.
Notes:
•View the printer IP address on the printer home screen. The IP address appears as four sets of numbers
separated by periods, such as 123.123.123.123.
•If you are using a proxy server, then temporarily disable it to load the Web page correctly.
2Click Scan Profile > Create Scan Profile.
3Select your scan settings, and then click Next.
4Select a location on your computer where you want to save the scan image.
5Type a scan name, and then a user name.
Note: The scan name is the name that appears in the Scan Profile list on the display.
6Click Submit.
Note: Clicking Submit automatically assigns a shortcut number. You can use this shortcut number when you are
ready to scan your documents.
7Review the instructions on the Scan Profile screen.
aLoad an original document faceup, short edge first into the ADF tray or facedown on the scanner glass.
Scanning 130
Notes:
•Do not load postcards, photos, small items, transparencies, photo paper, or thin media (such as
magazine clippings) into the ADF tray. Place these items on the scanner glass.
•The ADF indicator light comes on when the paper is loaded properly.
bIf you are loading a document into the ADF tray, then adjust the paper guides.
cDo either of the following:
•Press #, and then enter the shortcut number using the keypad.
•From the home screen, navigate to:
Held Jobs > Profiles > select your shortcut on the list
Note: The scanner scans and sends the document to the directory you specified.
8View the file from the computer.
Note: The output file is saved in the location or launched in the program you specified.
Setting up Scan to Computer
Notes:
•This feature is supported only in Windows Vista or later.
•Make sure that your computer and printer are connected to the same network.
1Open the printers folder.
In Windows 8
From the Search charm, type run, and then navigate to:
Apps list > Run > type control printers > OK
In Windows 7 or earlier
aClick or click Start, and then click Run.
bIn the Start Search or Run dialog, type control printers.
cPress Enter, or click OK.
2Depending on your operating system, click Add devices and printers, Add a device, or Add a printer.
3Select your printer from the list.
Note: To identify your printer, print a network setup page, and then look for “Fully Qualified Domain Name” in
the TCP/IP section.
4Click Next > Close.
5Depending on your device, do either of the following:
•Press and hold the printer you want to configure.
•Right‑click the printer you want to configure.
6From the menu that appears, select Scan Properties or Properties, and then change the settings as necessary.
Scanning 131
7From the printer control panel, touch Scan to Computer and then select from the following options:
•Scan—Scan and save the document directly to a selected location on the computer.
•Scan for Print—Scan and automatically print the document.
•Scan for E‑mail—Attach a scanned document to an e‑mail.
•Scan for Fax—Attach a scanned document to be sent through fax.
•Scan for OCR—Scan the document using an optical character recognition (OCR) software that turns your printed
documents into various electronic formats, including Microsoft Word, Microsoft Excel, and searchable PDF. For
help, see the documentation that came with the OCR software.
8Touch Send It.
Remote scan in progress appears on the printer display. The scanned image opens automatically on the
computer screen.
Scanning to a flash drive
1Load an original document faceup, short edge first into the ADF tray or facedown on the scanner glass.
Notes:
•Do not load postcards, photos, small items, transparencies, photo paper, or thin media (such as magazine
clippings) into the ADF tray. Place these items on the scanner glass.
•The ADF indicator light comes on when the paper is loaded properly.
2If you are loading a document into the ADF tray, then adjust the paper guides.
3Insert the flash drive into the USB port on the front of the printer.
Note: The USB Drive home screen appears.
4Select the destination folder, and then touch Scan to USB drive.
Note: The printer goes back to the home screen after 30 seconds of inactivity.
5Adjust the scan settings, and then touch Scan It.
Understanding the scan options
FTP Address
This option lets you enter the IP address for the FTP destination.
Note: An IP address appears as four sets of numbers separated by periods, such as 123.123.123.123.
File Name
This option lets you type a file name for the scan image.
Scanning 132
Save As Shortcut
This option lets you save the current settings as a shortcut by assigning a shortcut name.
Note: Selecting this option automatically assigns the next available shortcut number.
Original Size
This option lets you set the paper size of the documents you are going to scan. When Original Size is set to Mixed Sizes,
you can scan an original document that contains mixed paper sizes (letter‑ and legal‑size pages).
Darkness
This option lets you adjust how light or dark the scanned documents are in relation to the original document.
Resolution
This option lets you adjust the output quality of your file. Increasing the image resolution increases the file size and the
time needed to scan your original document. Decreasing the image resolution reduces the file size.
Send As
This option lets you set the output type for the scan image.
Select one of the following:
•PDF—Use to create a single file with multiple pages.
•Secure PDF—Use to create an encrypted PDF file that protects the file contents from unauthorized access.
•TIFF—Use to create multiple files or a single file. If Multi-page TIFF is turned off in the Settings menu, then TIFF
saves one page in each file. The file size is usually larger than an equivalent JPEG.
•JPEG—Use to create and attach a separate file for each page of the original document.
•XPS—Use to create a single XPS file with multiple pages.
Content
This option lets you set the original document type and source.
Select from the following content types:
•Graphics—The original document is mostly business‑type graphics, such as pie charts, bar charts, and animations.
•Photo—The original document is mostly a photo or an image.
•Text—The content of the original document is mostly text or line art.
•Text/Photo—The original document is a mixture of text, graphics, and photos.
Select from the following content sources:
•Black/White Laser—The original document was printed using a mono laser printer.
•Color Laser—The original document was printed using a color laser printer.
•Inkjet—The original document was printed using an inkjet printer.
•Magazine—The original document is from a magazine.
Scanning 133
•Newspaper—The original document is from a newspaper.
•Other—The original document was printed using an alternate or unknown printer.
•Photo/Film—The original document is a photo from film.
•Press—The original document was printed using a printing press.
Page Setup
This option lets you change the following settings:
•Sides (Duplex)—This specifies if the original document is printed on only one side or on both sides of the paper.
•Orientation—This specifies the orientation of the original document, and then changes the Sides (Duplex) and
Binding settings to match the orientation.
•Binding—This specifies if the original document is bound on the long‑edge or short‑edge side.
Transmission Log
This option lets you print the transmission log or transmission error log.
Scan Preview
This option lets you view the first page of the image before it is included in the file. When the first page is scanned, the
scanning is paused and a preview image appears.
Note: This option appears only when a formatted, working printer hard disk is installed.
Edge Erase
This option lets you remove smudges or any mark around the edges of a document. You can remove an equal area
around all four sides of the paper, or you can pick a particular edge. Edge Erase also removes whatever is within the
area selected, leaving nothing on that portion of the scan.
Advanced Imaging
This option lets you adjust the Background Removal, Color Balance, Color Dropout, Contrast, JPEG Quality, Mirror Image,
Negative Image, Scan Edge to Edge, Shadow Detail, Sharpness, and Temperature settings before you scan the document.
Custom Job
This option lets you combine multiple scan jobs into a single job and appears only when a working printer hard disk is
installed.
Fix Scan Skew
This option lets you straighten scan images that are slightly skewed when received from the ADF tray.
Scanning 134
Understanding the printer menus
Menus list
Paper Menu Reports Network/Ports Security Settings
Default Source
Paper Size/Type
Configure MP
Substitute Size
Paper Texture
Paper Weight
Paper Loading
Custom Types
Custom Names
Custom Scan Sizes
Universal Setup
Menu Settings Page
Device Statistics
Network Setup Page1
Shortcut List
Fax Job Log
Fax Call Log
Copy Shortcuts
E-mail Shortcuts
Fax Shortcuts
FTP Shortcuts
Profiles List
Print Fonts
Print Directory
Asset Report
Active NIC
Standard Network2
Standard USB
SMTP Setup
Confidential Print
Disk Wiping
Security Audit Log
Set Date and Time
General Settings
Copy Settings
Fax Settings
E‑mail Settings
FTP Settings
Flash Drive Menu
Print Settings
Help Manage Shortcuts Option Card Menu3
Print All Guides
Copy Guide
E-mail Guide
Fax Guide
FTP Guide
Print Defects Guide
Information Guide
Supplies Guide
Fax Shortcuts
E-mail Shortcuts
FTP Shortcuts
Copy Shortcuts
Profile Shortcuts
Note: A list of installed
DLEs (Download
Emulators) appears.
1 Depending on the printer setup, this menu item appears as Network Setup Page or Network [x] Setup Page.
2 Depending on the printer setup, this menu item appears as Standard Network or Network [x].
3 This menu is supported only in select printer models and appears only when one or more DLEs are installed.
Understanding the printer menus 135
Paper menu
Default Source menu
Use To
Default Source
Tray [x]
MP Feeder
Manual Paper
Manual Envelope
Set a default paper source for all print jobs.
Notes:
•Tray 1 (standard tray) is the factory default setting.
•From the Paper menu, set Configure MP to “Cassette” for MP Feeder to
appear as a menu setting.
•If the same size and type of paper are in two trays and the paper size and
paper type settings match, then the trays are automatically linked. When
one tray is empty, the print job continues using the linked tray.
Paper Size/Type menu
Use To
Tray [x] Size
A4
A5
A6
JIS B5
Letter
Legal
Executive
Oficio (Mexico)
Folio
Statement
Universal
Specify the size of the paper loaded in each tray.
Notes:
•Letter is the U.S. factory default setting. A4 is the international factory
default setting.
•If the same size and type of paper are loaded in two trays and the tray
settings for paper size and type match, then the trays are automatically
linked. The multipurpose feeder may also be linked. When one tray is
empty, the job prints using paper from the linked tray.
•A6 is supported only in Tray 1 and in the multipurpose feeder.
Tray [x] Type
Plain Paper
Transparency
Recycled
Labels
Bond
Letterhead
Preprinted
Colored Paper
Light Paper
Heavy Paper
Rough/Cotton
Custom Type [x]
Specify the type of the paper loaded in each tray.
Notes:
•Plain Paper is the factory default setting for Tray 1. Custom Type [x] is
the factory default setting for all other trays.
•If available, a user‑defined name will appear instead of Custom Type [x].
•Use this menu to configure automatic tray linking.
Note: Only installed trays and feeders are listed in this menu.
Understanding the printer menus 136
Use To
MP Feeder Size
A4
A5
A6
JIS B5
Letter
Legal
Executive
Oficio (Mexico)
Folio
Statement
Universal
7 3/4 Envelope
9 Envelope
10 Envelope
DL Envelope
C5 Envelope
B5 Envelope
Other Envelope
Specify the size of the paper loaded in the multipurpose feeder.
Notes:
•Letter is the U.S. factory default setting. A4 is the international factory
default setting.
•From the Paper menu, set Configure MP to “Cassette” for MP Feeder
Size to appear as a menu item.
•The multipurpose feeder does not automatically detect paper size. The
paper size value must be set.
MP Feeder Type
Plain Paper
Card Stock
Transparency
Recycled
Labels
Bond
Envelope
Rough Envelope
Letterhead
Preprinted
Colored Paper
Light Paper
Heavy Paper
Rough/Cotton
Custom Type [x]
Specify the type of the paper loaded in the multipurpose feeder.
Notes:
•Plain Paper is the factory default setting.
•From the Paper menu, set Configure MP to “Cassette” in order for MP
Feeder Type to appear as a menu item.
Note: Only installed trays and feeders are listed in this menu.
Understanding the printer menus 137
Use To
Manual Paper Size
A4
A5
A6
JIS B5
Letter
Legal
Executive
Oficio (Mexico)
Folio
Statement
Universal
Specify the size of the paper being manually loaded.
Note: Letter is the U.S. factory default setting. A4 is the international factory
default setting.
Manual Paper Type
Plain Paper
Card Stock
Transparency
Recycled
Labels
Bond
Letterhead
Preprinted
Colored Paper
Light Paper
Heavy Paper
Rough/Cotton
Custom Type [x]
Specify the type of the paper being manually loaded.
Notes:
•Plain Paper is the factory default setting.
•From the Paper menu, set Configure MP to “Manual” in order for
Manual Paper Type to appear as a menu item.
Manual Envelope Size
7 3/4 Envelope
9 Envelope
10 Envelope
DL Envelope
C5 Envelope
B5 Envelope
Other Envelope
Specify the size of the envelope being manually loaded.
Note: 10 Envelope is the U.S. factory default setting. DL Envelope is the
international factory default setting.
Manual Envelope Type
Envelope
Rough Envelope
Custom Type [x]
Specify the type of the envelope being manually loaded.
Note: Envelope is the factory default setting.
Note: Only installed trays and feeders are listed in this menu.
Understanding the printer menus 138
Configure MP menu
Use To
Configure MP
Cassette
Manual
First
Determine when the printer selects paper from the multipurpose feeder.
Notes:
•Cassette is the factory default setting. Cassette configures the
multipurpose feeder as the automatic paper source.
•Manual sets the multipurpose feeder only for manual‑feed print jobs.
•First configures the multipurpose feeder as the primary paper source.
Substitute Size menu
Use To
Substitute Size
Off
Statement/A5
Letter/A4
All Listed
Substitute a specified paper size if the requested paper size is not available.
Notes:
•All Listed is the factory default setting. All available substitutions are
allowed.
•Off indicates that no size substitutions are allowed.
•Setting a size substitution lets the print job continue without Change
Paper appearing.
Paper Texture menu
Use To
Plain Texture
Smooth
Normal
Rough
Specify the relative texture of the plain paper loaded.
Note: Normal is the factory default setting.
Card Stock Texture
Smooth
Normal
Rough
Specify the relative texture of the card stock loaded.
Notes:
•Normal is the factory default setting.
•The options appear only if card stock is supported.
Transparency Texture
Smooth
Normal
Rough
Specify the relative texture of the transparencies loaded.
Note: Normal is the factory default setting.
Recycled Texture
Smooth
Normal
Rough
Specify the relative texture of the recycled paper loaded.
Note: Normal is the factory default setting.
Understanding the printer menus 139
Use To
Labels Texture
Smooth
Normal
Rough
Specify the relative texture of the labels loaded.
Note: Normal is the factory default setting.
Bond Texture
Smooth
Normal
Rough
Specify the relative texture of the bond paper loaded.
Note: Rough is the factory default setting.
Envelope Texture
Smooth
Normal
Rough
Specify the relative texture of the envelopes loaded.
Note: Normal is the factory default setting.
Rough Envelope Texture
Rough
Specify the relative texture of the rough envelopes loaded.
Letterhead Texture
Smooth
Normal
Rough
Specify the relative texture of the letterhead loaded.
Note: Normal is the factory default setting.
Preprinted Texture
Smooth
Normal
Rough
Specify the relative texture of the preprinted paper loaded.
Note: Normal is the factory default setting.
Colored Texture
Smooth
Normal
Rough
Specify the relative texture of the colored paper loaded.
Note: Normal is the factory default setting.
Light Texture
Smooth
Normal
Rough
Specify the relative texture of the paper loaded.
Note: Normal is the factory default setting.
Heavy Texture
Smooth
Normal
Rough
Specify the relative texture of the paper loaded.
Note: Normal is the factory default setting.
Rough/Cotton Texture
Rough
Specify the relative texture of the cotton paper loaded.
Custom [x] Texture
Smooth
Normal
Rough
Specify the relative texture of the custom paper loaded.
Notes:
•Normal is the factory default setting.
•The options appear only if the custom type is supported.
Understanding the printer menus 140
Paper Weight menu
Use To
Plain Weight
Light
Normal
Heavy
Specify the relative weight of the plain paper loaded.
Note: Normal is the factory default setting.
Card Stock Weight
Light
Normal
Heavy
Specify the relative weight of the card stock loaded.
Note: Normal is the factory default setting.
Transparency Weight
Light
Normal
Heavy
Specify the relative weight of the transparencies loaded.
Note: Normal is the factory default setting.
Recycled Weight
Light
Normal
Heavy
Specify the relative weight of the recycled paper loaded.
Note: Normal is the factory default setting.
Labels Weight
Light
Normal
Heavy
Specify the relative weight of the labels loaded.
Note: Normal is the factory default setting.
Bond Weight
Light
Normal
Heavy
Specify the relative weight of the bond paper loaded.
Note: Normal is the factory default setting.
Envelope Weight
Light
Normal
Heavy
Specify the relative weight of the envelope loaded.
Note: Normal is the factory default setting.
Rough Envelope Weight
Light
Normal
Heavy
Specify the relative weight of the rough envelope loaded.
Note: Normal is the factory default setting.
Letterhead Weight
Light
Normal
Heavy
Specify the relative weight of the letterhead loaded.
Note: Normal is the factory default setting.
Preprinted Weight
Light
Normal
Heavy
Specify the relative weight of the preprinted paper loaded.
Note: Normal is the factory default setting.
Understanding the printer menus 141
Use To
Colored Weight
Light
Normal
Heavy
Specify the relative weight of the colored paper loaded.
Note: Normal is the factory default setting.
Light Weight
Light
Specify that the relative weight of the paper loaded is light.
Heavy Weight
Heavy
Specify the relative weight of the paper loaded is heavy.
Rough/Cotton Weight
Light
Normal
Heavy
Specify the relative weight of the cotton or rough paper loaded.
Note: Normal is the factory default setting.
Custom [x] Weight
Light
Normal
Heavy
Specify the relative weight of the custom paper loaded.
Notes:
•Normal is the factory default setting.
•The options appear only when the custom type is supported.
Paper Loading menu
Use To
Recycled Loading
Duplex
Off
Determine and set two‑sided printing for all print jobs that specify
Recycled as the paper type.
Bond Loading
Duplex
Off
Determine and set two‑sided printing for all print jobs that specify
Bond as the paper type.
Letterhead Loading
Duplex
Off
Determine and set two‑sided printing for all print jobs that specify
Letterhead as the paper type.
Preprinted Loading
Duplex
Off
Determine and set two‑sided printing for all print jobs that specify
Preprinted as the paper type.
Colored Loading
Duplex
Off
Determine and set two‑sided printing for all print jobs that specify
Colored as the paper type.
Notes:
•Duplex sets two‑sided printing as the default for all print jobs unless one‑sided printing is set from Printing
Preferences or Print dialog.
•If Duplex is selected, then all print jobs are sent through the duplex unit, including one‑sided jobs.
•Off is the factory default setting for all the menus.
Understanding the printer menus 142
Use To
Light Loading
Duplex
Off
Determine and set two‑sided printing for all print jobs that specify
Light as the paper type.
Heavy Loading
Duplex
Off
Determine and set two‑sided printing for all print jobs that specify
Heavy as the paper type.
Custom [x] Loading
Duplex
Off
Determine and set two‑sided printing for all print jobs that specify
Custom [x] as the paper type.
Note: Custom [x] Loading is available only if the custom type is
supported.
Notes:
•Duplex sets two‑sided printing as the default for all print jobs unless one‑sided printing is set from Printing
Preferences or Print dialog.
•If Duplex is selected, then all print jobs are sent through the duplex unit, including one‑sided jobs.
•Off is the factory default setting for all the menus.
Custom Types menu
Use To
Custom Type [x]
Paper
Card Stock
Transparency
Rough/Cotton
Labels
Envelope
Associate a paper or specialty media type with a factory default Custom Type [x]
name or a user‑defined custom name created in the Embedded Web Server or
MarkVisionTM Professional. The user‑defined name appears instead of Custom
Type [x].
Notes:
•Paper is the factory default setting for Custom Type [x].
•The custom media type must be supported in the selected tray or feeder
in order to print from that source.
Recycled
Paper
Card Stock
Transparency
Rough/Cotton
Labels
Envelope
Cotton
Specify a paper type when the Recycled setting is selected in other menus.
Notes:
•Paper is the factory default setting.
•The Recycled paper type must be supported in the selected tray or
feeder in order to print from that source.
Custom Names menu
Use To
Custom Name [x] Specify a custom name for a paper type. This name replaces Custom Type [x] in
the printer menus.
Understanding the printer menus 143
Custom Scan Sizes menu
Use To
Custom Scan Size [x]
Scan Size Name
Width
Height
Orientation
Portrait
Landscape
2 scans per side
Off
On
Specify a custom scan size name and page orientation.
Notes:
•The custom scan size name replaces Custom Scan Size [x] in the printer
menus.
•ADF Media Type is the factory default setting for custom scan sizes 3, 4,
5, and 6.
•8.5 inches is the U.S. factory default setting for Width. 210 millimeters is
the international factory default setting for Width.
•14 inches is the U.S. factory default setting for Height. 297 millimeters is
the international factory default setting for Height.
•Portrait is the factory default setting for Orientation.
•Off is the factory default setting for “2 scans per side.”
Universal Setup menu
Use To
Units of Measure
Inches
Millimeters
Identify the units of measure.
Notes:
•Inches is the US factory default setting.
•Millimeters is the international factory default setting.
Portrait Width
3–8.5 inches
76–216 mm
Set the portrait width.
Notes:
•If the width exceeds the maximum, then the printer uses the
maximum width allowed.
•8.5 inches is the US factory default setting. You can increase the
width in 0.01‑inch increments.
•216 mm is the international factory default setting. You can increase
the width in 1‑mm increments.
Portrait Height
3–14.17 inches
76–360 mm
Set the portrait height.
Notes:
•If the height exceeds the maximum, then the printer uses the
maximum height allowed.
•14 inches is the US factory default setting. You can increase the
height in 0.01‑inch increments.
•356 mm is the international factory default setting. You can increase
the height in 1‑mm increments.
Understanding the printer menus 144
Use To
Feed Direction
Short Edge
Long Edge
Specify the feed direction if the paper can be loaded in either direction.
Notes:
•Short Edge is the factory default setting.
•Long Edge appears only when the longest edge is shorter than the
maximum width supported in the tray.
Reports Menu
Reports menu
Use To
Menu Settings Page Print a report containing information about the paper loaded in trays, installed
memory, total page count, alarm settings, timeouts, printer control panel
language, TCP/IP address, status of supplies, status of the network connection,
and other information.
Device Statistics Print a report containing printer statistics such as supply information and number
of printed pages.
Network Setup Page Print a report containing information about the network printer settings, such as
the TCP/IP address information.
Note: This menu item appears only in network printers or printers connected
to print servers.
Network [x] Setup Page Print a report containing information about the network settings of the printer,
such as the TCP/IP address information.
Note: This menu item appears only in network printers or printers connected
to print servers, and when there is more than one network option installed.
Shortcut List Print a report containing information about configured shortcuts.
Fax Job Log Print a report containing information about the last 200 completed faxes.
Notes:
•This menu item appears only when Enable Job Log is set to On in the Fax
Settings menu.
•This menu is supported only in select printer models.
Fax Call Log Print a report containing information about the last 100 attempted, received, and
blocked calls.
Notes:
•This menu item appears only when Enable Job Log is set to On in the Fax
Settings menu.
•This menu is supported only in select printer models.
Copy Shortcuts Print a report containing information about copy shortcuts.
E‑mail Shortcuts Print a report containing information about e‑mail shortcuts.
Understanding the printer menus 145
Use To
Fax Shortcuts Print a report containing information about fax shortcuts.
FTP Shortcuts Print a report containing information about FTP shortcuts.
Profiles List Print a list of profiles stored in the printer.
Print Fonts Print a report of all the fonts available for the printer language currently set in
the printer.
Print Directory Print a list of all the resources stored in an optional flash memory card or printer
hard disk.
Notes:
•Job Buffer Size must be set to 100%.
•Make sure the optional flash memory or printer hard disk is working and
installed correctly.
Asset Report Print a report containing asset information including the printer serial number
and model name. The report contains text and UPC bar codes that can be scanned
into an asset database.
Network/Ports menu
Active NIC menu
Use To
Active NIC
Auto
[list of available network cards]
Notes:
•Auto is the factory default setting.
•This menu item appears only when an optional network card is installed.
Standard Network or Network [x] menu
Note: Only active ports appear in this menu. All inactive ports are omitted.
Use To
PCL SmartSwitch
On
Off
Set the printer to automatically switch to PCL emulation when a print job requires
it, regardless of the default printer language.
Notes:
•On is the factory default setting.
•If PCL SmartSwitch is disabled, then the printer does not examine incoming
data and it uses the default printer language specified in the Setup menu.
Understanding the printer menus 146
Use To
PS SmartSwitch
On
Off
Set the printer to automatically switch to PS emulation when a print job requires it,
regardless of the default printer language.
Notes:
•On is the factory default setting.
•If PS SmartSwitch is disabled, then the printer does not examine incoming
data and uses the default printer language specified in the Setup menu.
NPA Mode
Off
Auto
Set the printer to perform the special processing required for bidirectional
communication following the conventions defined by the NPA protocol.
Notes:
•Auto is the factory default setting.
•Changing this setting from the printer control panel and then exiting the
menus causes the printer to restart. The menu selection is then updated.
Network Buffer
Auto
3KB to [maximum size allowed]
Set the size of the network input buffer.
Notes:
•Auto is the factory default setting.
•The value can be changed in 1KB increments.
•The maximum size allowed depends on the amount of memory in the printer,
the size of the other link buffers, and whether Resource Save is set to On or
Off.
•To increase the maximum size range for the Network Buffer, disable or
reduce the size of the parallel, serial, and USB buffers.
•Changing this setting from the printer control panel, and then exiting the
menus causes the printer to restart. The menu selection is then updated.
Mac Binary PS
On
Off
Auto
Set the printer to process Macintosh binary PostScript print jobs.
Notes:
•Auto is the factory default setting.
•Off filters print jobs using the standard protocol.
•On processes raw binary PostScript print jobs.
Standard Network Setup or
Network [x] Setup
Reports
Network Card
TCP/IP
IPv6
Wireless
AppleTalk
Display and set the printer network settings.
Note: The Wireless menu appears only when the printer is connected to a wireless
network.
Understanding the printer menus 147
Reports menu
To access the menu, navigate to either of the following:
•Network/Ports > Standard Network > Standard Network Setup > Reports
•Network/Ports > Network [x] > Network [x] Setup > Reports
Use To
Print Setup Page Print a report containing information about the network printer settings, such as the TCP/IP address.
Network Card menu
To access the menu, navigate to either of the following:
•Network/Ports > Standard Network > Standard Network Setup > Network Card
•Network/Ports > Network [x] > Network [x] Setup > Network Card
Use To
View Card Status
Connected
Disconnected
View the connection status of the network card.
View Card Speed View the speed of an active network card.
Network Address
UAA
LAA
View the network addresses.
Job Timeout
0–255 seconds
Set the amount of time it takes for a network print job to be canceled.
Notes:
•90 seconds is the factory default setting.
•A setting value of 0 disables the timeout.
•If a value of 1–9 is selected, then the setting is saved as 10.
TCP/IP menu
To access the menu, navigate to either of the following:
•Network/Ports > Standard Network > Standard Network Setup > TCP/IP
•Network/Ports > Network [x] > Network [x] Setup > TCP/IP
Note: This menu is available only in network printers or printers attached to print servers.
Use To
Set Hostname Set the current TCP/IP host name.
Note: This can be changed only from the Embedded Web Server.
IP Address View or change the current TCP/IP address.
Note: Manually setting the IP address sets the Enable DHCP and Enable Auto IP
settings to Off. It also sets Enable BOOTP and Enable RARP to Off on systems that
support BOOTP and RARP.
Understanding the printer menus 148
Use To
Netmask View or change the current TCP/IP netmask.
Gateway View or change the current TCP/IP gateway.
Enable DHCP
On
Off
Specify the DHCP address and parameter assignment.
Note: On is the factory default setting.
Enable RARP
On
Off
Specify the RARP address assignment setting.
Note: Off is the factory default setting.
Enable BOOTP
On
Off
Specify the BOOTP address assignment setting.
Note: On is the factory default setting.
Enable AutoIP
Yes
No
Specify the Zero Configuration Networking setting.
Note: Yes is the factory default setting.
Enable FTP/TFTP
Yes
No
Enable the built-in FTP server, which lets you send files to the printer using File Transfer
Protocol.
Note: Yes is the factory default setting.
Enable HTTP Server
Yes
No
Enable the built-in Web server (Embedded Web Server). When enabled, the printer
can be monitored and managed remotely using a Web browser.
Note: Yes is the factory default setting.
WINS Server Address View or change the current WINS server address.
Enable DDNS
Yes
No
View or change the current DDNS setting.
Note: Yes is the factory default setting.
Enable mDNS
Yes
No
View or change the current mDNS setting.
Note: Yes is the factory default setting.
DNS Server Address View or change the current DNS server address.
Backup DNS Server Address View or change the backup DNS server addresses.
Backup DNS Server Address 2
Backup DNS Server Address 3
Enable HTTPS
Yes
No
View or change the current HTTPS setting.
Note: Yes is the factory default setting.
Understanding the printer menus 149
IPv6 menu
To access the menu, navigate to either of the following:
•Network/Ports > Standard Network > Standard Network Setup > IPv6
•Network/Ports > Network [x] > Network [x] Setup > IPv6
Note: This menu is available only in network printers or printers that are attached to print servers.
Use To
Enable IPv6
On
Off
Enable IPv6 in the printer.
Note: On is the factory default setting.
Auto Configuration
On
Off
Specify whether or not the wireless network adapter accepts the
automatic IPv6 address configuration entries provided by a router.
Note: On is the factory default setting.
View Hostname Set the host name.
Note: These settings can be changed only from the Embedded Web
Server.
View Address
View Router Address
Enable DHCPv6
On
Off
Enable DHCPv6 in the printer.
Note: On is the factory default setting.
Wireless menu
Note: This menu is available only in printers connected to an Ethernet network and printers with a wireless network
adapter attached.
To access the menu, navigate to either of the following:
•Network/Ports > Standard Network > Standard Network Setup > Wireless
•Network/Ports > Network [x] > Network [x] Setup > Wireless
Use To
Wi‑Fi Protected Setup (WPS)
Start Push Button Method
Start PIN Method
Establish a wireless network connection and enable network security.
Notes:
•Start Push Button Method connects the printer to a wireless
network when buttons on both the printer and the access point
(wireless router) are pressed within a given period of time.
•Start PIN Method connects the printer to a wireless network when
a PIN on the printer is entered into the wireless settings of the
access point.
Enable/Disable WPS Auto‑detection
Enable
Disable
Automatically detect the connection method that an access point with
WPS uses—Start Push Button Method or Start PIN Method.
Note: Disable is the factory default setting.
Understanding the printer menus 150
Use To
Network Mode
BSS Type
Infrastructure
Ad hoc
Specify the network mode.
Notes:
•Infrastructure is the factory default setting. This lets the printer
access a network using an access point.
•Ad hoc configures a wireless connection directly between the
printer and a computer.
Compatibility
802.11b/g
802.11b/g/n
Specify the wireless standard for the wireless network.
Note: The 802.11b/g/n is the factory default setting.
Choose Network Select an available network for the printer to use.
View Signal Quality View the quality of the wireless connection.
View Security Mode View the encryption method for the wireless network.
AppleTalk menu
Note: This menu is available only in printer models connected to a wired network or when an optional network card
is installed.
To access the menu, navigate to any of the following:
•Network/Ports > Standard Network > Standard Network Setup > AppleTalk
•Network/Ports > Network Setup [x] > AppleTalk
Use To
Activate
Yes
No
Enable or disable AppleTalk support.
Note: Yes is the factory default setting.
View Name Show the assigned AppleTalk name.
Note: The name can be changed only from the Embedded Web Server.
View Address Show the assigned AppleTalk address.
Note: The address can be changed only from the Embedded Web Server.
Set Zone
[list of zones available on the network]
Provide a list of AppleTalk zones available on the network.
Note: The factory default setting is the default zone for the network. If no
default zone exists, then the zone marked with an asterisk (*) is the default
setting.
Understanding the printer menus 151
Standard USB menu
Use To
PCL SmartSwitch
On
Off
Set the printer to automatically switch to PCL emulation when a print job received
through a USB port requires it, regardless of the default printer language.
Notes:
•On is the factory default setting.
•When set to Off, the printer does not examine incoming data. The printer uses
PostScript emulation if the PS SmartSwitch is set to On. It uses the default
printer language specified in the Setup menu if the PS SmartSwitch is set to
Off.
PS SmartSwitch
On
Off
Set the printer to automatically switch to PS emulation when a print job received
through a USB port requires it, regardless of the default printer language.
Notes:
•On is the factory default setting.
•When set to Off, the printer does not examine incoming data. The printer uses
PCL emulation if the PCL SmartSwitch is set to On. It uses the default printer
language specified in the Setup menu if the PCL SmartSwitch is set to Off.
NPA Mode
On
Off
Auto
Set the printer to perform the special processing required for bidirectional
communication following the conventions defined by the NPA protocol.
Notes:
•Auto is the factory default setting. Auto sets the printer to examine data,
determine the format, and then process it appropriately.
•The printer automatically restarts when changing the setting from the printer
control panel. The menu selection is then updated.
USB Buffer
Disabled
Auto
3K to [maximum size allowed]
Set the size of the USB input buffer.
Notes:
•Auto is the factory default setting.
•Disabled turns off job buffering. Any jobs already buffered on the printer hard
disk are printed before normal processing resumes.
•The USB buffer size value can be changed in 1-K increments.
•The maximum size allowed depends on the amount of memory in the printer,
the size of the other link buffers, and whether Resource Save is set to On or
Off.
•To increase the maximum size range for the USB Buffer, disable or reduce the
size of the parallel, serial, and network buffers.
•The printer automatically restarts when the setting is changed from the printer
control panel. The menu selection is then updated.
Understanding the printer menus 152
Use To
Job Buffering
Off
On
Auto
Temporarily store print jobs in the printer hard disk before printing.
Notes:
•Off is the factory default setting.
•On buffers jobs on the printer hard disk.
•Auto buffers print jobs only if the printer is busy processing data from another
input port.
•Changing this setting from the printer control panel and then exiting the
menus causes the printer to restart. The menu selection is then updated.
Mac Binary PS
On
Off
Auto
Set the printer to process Macintosh binary PostScript print jobs.
Notes:
•Auto is the factory default setting.
•On processes raw binary PostScript print jobs.
•Off filters print jobs using the standard protocol.
ENA Address
yyy.yyy.yyy.yyy
Set the network address information for an external print server.
Note: This menu is available only when the printer is attached to an external print
server through the USB port.
ENA Netmask
yyy.yyy.yyy.yyy
Set the netmask information for an external print server.
Note: This menu is available only when the printer is attached to an external print
server through the USB port.
ENA Gateway
yyy.yyy.yyy.yyy
Set the gateway information for an external print server.
Note: This menu is available only when the printer is attached to an external print
server through the USB port.
SMTP Setup menu
Use To
Primary SMTP Gateway Specify SMTP server gateway and port information.
Note: 25 is the default SMTP gateway port.
Primary SMTP Gateway Port
Secondary SMTP Gateway
Secondary SMTP Gateway Port
SMTP Timeout
5–30
Specify the amount of time in seconds before the server stops trying to
send an e‑mail.
Note: 30 is the factory default setting.
Reply Address Specify a reply address of up to 128 characters in the e-mail sent by the
printer.
Understanding the printer menus 153
Use To
Use SSL
Disabled
Negotiate
Required
Set the printer to use SSL for increased security when connecting to the
SMTP server.
Notes:
•Disabled is the factory default setting.
•When the Negotiate setting is used, the SMTP server determines if
SSL will be used.
SMTP Server Authentication
No authentication required
Login/Plain
CRAM‑MD5
Digest‑MD5
NTLM
Kerberos 5
Specify the type of user authentication required for scan to e‑mail
privileges.
Note: “No authentication required” is the factory default setting.
Device‑Initiated E‑mail
None
Use Device SMTP Credentials
Specify what credentials will be used when communicating to the SMTP
server.
Notes:
•None is the factory default setting for Device‑Initiated E‑mail and
User‑Initiated E‑mail.
•“Device Userid” and “Device password” are used to log in to the
SMTP server when Use Device SMTP Credentials is selected.
User‑Initiated E‑mail
None
Use Device SMTP Credentials
Use Session User ID and Password
Use Session E‑mail address and Password
Prompt user
Device Userid
Device password
Kerberos 5 Realm
NTLM Domain
Understanding the printer menus 154
Security menu
Miscellaneous Security Settings menu
Use To
Login Restrictions
Login Failures
Failure Time Frame
Lockout Time
Panel Login Timeout
Remote Login Timeout
Limit the number and time frames of failed login attempts from the printer control
panel before all users are locked out.
Notes:
•Login Failures specifies the number of failed login attempts before users are
locked out. Settings range from 1–10. 3 attempts is the factory default setting.
•Failure Time Frame specifies the time frame during which failed login attempts
can be made before users are locked out. Settings range from 1–60 minutes. 5
minutes is the factory default setting.
•Lockout Time specifies how long users are locked out after exceeding the login
failures limit. Settings range from 1–60 minutes. 5 minutes is the factory
default setting. 1 indicates the scanner does not impose a lockout time.
•Panel Login Timeout specifies how long the scanner remains idle on the home
screen before automatically logging the user off. Settings range from 1–900
seconds. 30 seconds is the factory default setting.
•Remote Login Timeout specifies how long a remote interface remains idle
before automatically logging the user off. Settings range from 1–120 minutes.
10 minutes is the factory default setting.
Minimum PIN Length
1–16
Limit the digit length of the PIN.
Note: 4 is the factory default setting.
Confidential Print menu
Use To
Max Invalid PIN
Off
2–10
Limit the number of times an invalid PIN can be entered.
Notes:
•This menu appears only when a formatted, non-defective printer hard disk is installed.
•Once the limit is reached, the print jobs for that user name and PIN are deleted.
Confidential Job Expiration
Off
1 hour
4 hours
24 hours
1 week
Limit the amount of time a confidential print job stays in the printer before it is deleted.
Notes:
•If the “Confidential Job Expiration” setting is changed while confidential print jobs
reside in the printer RAM or printer hard disk, then the expiration time for those print
jobs does not change to the new default value.
•If the printer is turned off, then all confidential jobs held in the printer RAM are
deleted.
Note: Off is the factory default setting.
Understanding the printer menus 155
Use To
Repeat Job Expiration
Off
1 hour
4 hours
24 hours
1 week
Set a time limit on how long the printer stores print jobs.
Verify Job Expiration
Off
1 hour
4 hours
24 hours
1 week
Set a time limit on how long the printer stores print jobs needing verification.
Reserve Job Expiration
Off
1 hour
4 hours
24 hours
1 week
Set a time limit on how long the printer stores print jobs for printing at a later time.
Note: Off is the factory default setting.
Disk Wiping menu
Disk Wiping erases only print job data on the printer hard disk that are not currently in use by the file system. All
permanent data on the printer hard disk are preserved, such as downloaded fonts, macros, and held jobs.
Note: This menu appears only when a formatted, working printer hard disk is installed.
Use To
Wiping Mode
Auto
Specify the mode for disk wiping.
Automatic Method
Single pass
Multiple pass
Mark all disk space used by a previous print job. This method does not permit the file
system to reuse this space until it has been cleared.
Notes:
•“Single pass” is the factory default setting.
•Only automatic wiping enables users to activate disk wiping without having to
turn off the printer for an extended amount of time.
•Highly confidential information should be wiped using only the Multiple pass
method.
Understanding the printer menus 156
Security Audit Log menu
Use To
Export Log Let an authorized user export the audit log.
Notes:
•To export the audit log from the printer control panel, a flash drive must be
attached to the printer.
•The audit log can be downloaded from the Embedded Web Server and saved
on a computer.
Delete Log
Yes
No
Specify whether or not audit logs are deleted.
Note: Yes is the factory default setting.
Configure Log
Enable Audit
Yes
No
Enable Remote Syslog
No
Yes
Remote Syslog Facility
0–23
Severity of events to log
0–7
Specify how and whether or not audit logs are created.
Notes:
•Enable Audit determines if events are recorded in the secure audit log and
remote syslog. No is the factory default setting.
•Enable Remote Syslog determines if logs are sent to a remote server. No is the
factory default setting.
•Remote Syslog Facility determines the value used to send logs to the remote
syslog server. 4 is the factory default setting.
•If the security audit log is activated, then the severity value of each event is
recorded. 4 is the factory default setting.
Set Date and Time menu
Use To
Current Date and Time View the current date and time settings for the printer.
Manually Set Date and Time
[input date/time]
Enter the date and time.
Notes:
•Manually setting the date and time sets Enable NTP to No.
•The wizard lets you set the date and time in YYYY‑MM‑DD‑HH:MM format.
Time Zone
[list of time zones]
Select the time zone.
Note: GMT is the factory default settings.
Automatically observe DST
On
Off
Set the printer to use the applicable daylight saving time (DST) start and end times
associated with the printer Time Zone setting.
Note: On is the factory default setting.
Enable NTP
On
Off
Enable Network Time Protocol, which synchronizes the clocks of devices on a
network.
Notes:
•On is the factory default setting.
•This setting is turned off if you manually set the date and time.
Understanding the printer menus 157
Settings menu
General Settings menu
Use To
Display Language
English
Francais
Deutsch
Italiano
Espanol
Dansk
Norsk
Nederlands
Svenska
Portuguese
Suomi
Russian
Polski
Greek
Magyar
Turkce
Cesky
Simplified Chinese
Traditional Chinese
Korean
Japanese
Set the language of the text appearing on the printer display.
Note: Not all languages are available for all printers, and you may
need to install special hardware for those languages to appear.
Show Supply Estimates
Show estimates
Do not show estimates
Display the estimates of the supplies on the printer control panel,
Web page, menu settings, and device statistics reports.
Note: “Show estimates” is the factory default setting.
Eco-Mode
Off
Energy
Energy/Paper
Paper
Minimize the use of energy, paper, or specialty media.
Notes:
•Off is the factory default setting. This resets the printer to its
factory default settings.
•Energy minimizes the power used by the printer.
Performance may be affected, but print quality is not.
•Energy/Paper minimizes the use of power and of paper and
specialty media.
•Paper minimizes the amount of paper and specialty media
needed for a print job. Performance may be affected, but
print quality is not.
ADF Loaded Beep
Enabled
Disabled
Specify whether or not the ADF sounds a beep when paper is
loaded.
Note: Enabled is the factory default setting.
Understanding the printer menus 158
Use To
Quiet Mode
Off
On
Reduce the amount of noise produced by the printer.
Notes:
•Off is the factory default setting. This supports the
performance specifications for your printer.
•On configures the printer to produce as little noise as
possible. This is best suited for printing text and line art.
•Selecting Photo from the printer driver may disable Quiet
Mode and provide better print quality and full‑speed
printing.
Run Initial setup
Yes
No
Run the setup wizard.
Notes:
•Yes is the factory default setting.
•After completing the setup wizard by selecting Done at the
country or region selection screen, the default becomes No.
Keyboard
Keyboard Type
English
Francais
Francais Canadien
Deutsch
Italiano
Espanol
Greek
Dansk
Norsk
Nederlands
Svenska
Suomi
Portuguese
Russian
Polski
Swiss German
Swiss French
Korean
Magyar
Turkish
Czech
Simplified Chinese
Traditional Chinese
Japanese
Custom Key [x]
Specify a language and custom key information for the printer
control panel keyboard. The additional tabs enable access to accent
marks and symbols.
Note: Customer Key 1 is the factory default setting.
Understanding the printer menus 159
Use To
Paper Sizes
US
Metric
Specify the unit of measurement for paper sizes.
Notes:
•US is the factory default setting.
•The initial setting is determined by your country or region
selection in the initial setup wizard.
Scan to PC Port Range
[port range]
Specify a valid port range for printers behind a port blocking
firewall. The valid ports are specified by two sets of numbers
separated by a semicolon.
Note: 9751:12000 is the factory default setting.
Displayed Information
Left side
Right side
Custom Text [x]
Specify what is displayed on the upper left and right corners of the
home screen.
For the “Left side” and “Right side” options, select from the
following options:
None
IP Address
Hostname
Contact Name
Location
Date/Time
mDNS/DDNS Service Name
Zero Configuration Name
Custom Text [x]
Model Name
Notes:
•IP Address is the factory default setting for Left side.
•Date/Time is the factory default setting for Right side.
Understanding the printer menus 160
Use To
Displayed Information (continued)
Black Toner
PC Kit
Customize the displayed information for Black Toner and PC Kit.
Select from the following options:
When to display
Do not display
Display
Message to display
Default
Alternate
Default
[text entry]
Alternate
[text entry]
Notes:
•“Do not display” is the factory default setting for “When to
display.”
•Default is the factory default setting for “Message to
display.”
Displayed Information (continued)
Paper Jam
Load Paper
Service Errors
Customize the displayed information for Paper Jam, Load Paper,
and Service Errors.
Select from the following options:
Display
Yes
No
Message to display
Default
Alternate
Default
[text entry]
Alternate
[text entry]
Notes:
•No is the factory default setting for Display.
•Default is the factory default setting for “Message to
display.”
Understanding the printer menus 161
Use To
Home screen customization
Change Language
Copy
Copy shortcuts
Fax
Fax shortcuts
E‑mail
E‑mail shortcuts
FTP
FTP shortcuts
Search held jobs
Held jobs
USB Drive
Profiles and Solutions
Bookmarks
Jobs by user
Forms and Favorites
Basic Card Copy
Scan to Network
My Shortcuts
Change the icons and buttons that appear on the home screen.
For each icon or button, select from the following options:
Display
Do not display
Notes:
•Display is the factory default setting for Copy, Fax, E‑mail,
FTP, Search Held Jobs, Held jobs, USB Drive, Forms and
Favorites, Basic Card Copy, Scan to Network, and My
Shortcuts.
•“Do not display” is the factory default setting for Change
language, Copy shortcuts, Fax shortcuts, E‑mail shortcuts,
FTP shortcuts, Profiles and Solutions, Bookmarks, and Jobs
by user.
Date Format
MM‑DD‑YYYY
DD‑MM‑YYYY
YYYY‑MM‑DD
Format the printer date.
Notes:
•MM-DD-YYYY is the U.S. factory default setting.
•DD‑MM‑YYYY is the international factory default setting.
Time Format
12 hour A.M./P.M.
24 hour clock
Format the printer time.
Note: “12 hour A.M./P.M.” is the factory default setting.
Screen Brightness
20–100
Set the brightness of the printer display.
Note: 100 is the factory default setting.
One Page Copy
Off
On
Set copies from the scanner to only one page at a time.
Note: Off is the factory default setting.
Audio Feedback
Button Feedback
On
Off
Volume
1–10
Specify whether icons and buttons have audio feedback.
Notes:
•On is the factory default setting for Button Feedback.
•5 is the factory default setting for Volume.
Show Bookmarks
Yes
No
Specify whether bookmarks are displayed from the Held Jobs area.
Note: Yes is the factory default setting. When Yes is selected,
bookmarks appear in the Held Jobs area.
Understanding the printer menus 162
Use To
Allow Background Removal
On
Off
Specify whether image background removal is allowed in copy, fax,
e‑mail, FTP, or scan‑to‑flash‑drive jobs.
Note: On is the factory default setting. The background of the
image will be removed.
Allow Custom Job Scans
On
Off
Scan multiple jobs to one file.
Note: On is the factory default setting. If On is selected, then
Allow Custom Job Scans can be enabled for specific jobs.
Scanner Jam recovery
Job Level
page Level
Specify how a scan job should be reloaded if a paper jam occurs in
the ADF.
Note: Job Level is the factory default setting.
Web Page Refresh Rate
30–300
Specify the number of seconds between Embedded Web Server
refreshes.
Note: 120 is the factory default setting.
Contact Name Specify a contact name for the printer.
Note: The contact name will be stored on the Embedded Web
Server.
Location Specify the location of the printer.
Note: The location will be stored on the Embedded Web Server.
Alarms
Alarm Control
Cartridge Alarm
Set an alarm to sound when the printer requires user intervention.
When activated, Alarm Control lets you set the number of times
that the alarm sounds, while Cartridge Alarm lets you stop printing
when a cartridge-low condition occurs.
For each alarm type, select from the following options:
Off
Single
Continuous
Notes:
•Single is the factory default setting for Alarm Control. This
sounds three quick beeps.
•Off is the factory default setting for Cartridge Alarm. This
means no alarm will sound.
•Continuous repeats three beeps every 10 seconds.
Timeouts
Standby Mode
Disabled
1–240
Specify the number of minutes of inactivity before the printer
enters a lower power state.
Note: 15 is the factory default setting.
Understanding the printer menus 163
Use To
Timeouts
Sleep Mode
Disabled
1–120
Set the amount of time in minutes the printer waits after a job is
printed before it goes into a reduced power state.
Notes:
•30 is the factory default setting.
•Disabled appears only when Energy Conserve is set to Off.
•Lower settings conserve more energy, but may require
longer warm‑up times.
•Select a high setting if the printer is in constant use. Under
most circumstances, this keeps the printer ready to print
with minimum warm‑up time.
Timeouts
Timeout
Disabled
1 hour
2 hours
3 hours
6 hours
1 day
2 days
3 days
1 week
2 weeks
1 month
Set the amount of time the printer waits before it goes to Hibernate
mode.
Notes:
•Disabled is the factory default setting for printers except in
European Union countries and Switzerland.
•“3 days” is the factory default setting for Class B printers in
European Union countries and Switzerland.
Hibernate Timeout on Connection
Hibernate
Do Not Hibernate
Set the printer to hibernate mode even when there is an active
Ethernet or fax connection.
Notes:
•Do Not Hibernate is the factory default setting.
•The fax function is available only in select printer models.
Timeouts
Screen Timeout
15–300
Set the amount of time in seconds the printer waits before
returning the display to the Ready state.
Note: 30 is the factory default setting.
Timeouts
Prolong Screen Timeout
On
Off
Show a message that lets you reset the screen timeout timer
instead of returning to the home screen.
Note: Off is the factory default setting.
Understanding the printer menus 164
Use To
Timeouts
Print Timeout
Disabled
1–255
Set the amount of time in seconds the printer waits to receive an
end‑of‑job message before canceling the remainder of the print
job.
Notes:
•90 is the factory default setting.
•When the timer expires, any partially printed page still in the
printer is printed, and then the scanner checks to see if any
new print jobs are waiting.
•Print Timeout is available only when using PCL emulation.
This has no effect on PostScript emulation print jobs.
Timeouts
Wait Timeout
Disabled
15–65535
Set the amount of time in seconds the printer waits for additional
data before canceling a print job.
Notes:
•40 is the factory default setting.
•Wait Timeout is available only when the scanner is using
PostScript emulation. This has no effect on PCL emulation
print jobs.
Timeouts
Job Hold Timeout
5–255
Set the amount of time the printer waits for user intervention
before it holds jobs that require unavailable resources and
continues to print other jobs in the print queue.
Notes:
•30 is the factory default setting.
•This menu item appears only when a printer hard disk is
installed.
Error Recovery
Auto Reboot
Reboot when idle
Reboot always
Reboot never
Automatically reboot the printer.
Note: “Reboot when idle” is the factory default setting.
Error Recovery
Max Auto Reboots
1–20
Determine the number of automatic reboots the printer can
perform.
Note: 5 is the factory default setting.
Print Recovery
Auto Continue
Disabled
5–255
Let the printer automatically continue printing from certain offline
situations when these are not resolved within the specified time
period.
Note: Disabled is the factory default setting.
Understanding the printer menus 165
Use To
Print Recovery
Jam Recovery
On
Off
Auto
Specify whether the printer reprints jammed pages.
Notes:
•Auto is the factory default setting. The printer reprints
jammed pages unless the memory required to hold the
pages is needed for other printer tasks.
•On sets the printer to always reprint jammed pages.
•Off sets the printer to never reprint jammed pages.
Print Recovery
Jam Assist
On
Off
Set the printer to automatically check for jammed paper.
Note: On is the factory default setting.
Print Recovery
Page Protect
Off
On
Let the printer successfully print a page that may not have printed
otherwise.
Notes:
•Off is the factory default setting. This prints a partial page
when there is not enough memory to print the whole page.
•On sets the printer to process the whole page so that the
entire page prints.
Press Sleep Button
Do nothing
Sleep
Hibernate
Determine how the printer, while in idle state, reacts to a short
press of the Sleep button.
Note: Sleep is the factory default setting.
Press and Hold Sleep Button
Do nothing
Sleep
Hibernate
Determine how the printer, while in idle state, reacts to a long press
of the Sleep button.
Note: “Do nothing” is the factory default setting.
Factory Defaults
Do Not Restore
Restore Now
Restore the printer settings to the factory default settings.
Notes:
•Do Not Restore is the factory default setting. This keeps the
user‑defined settings.
•Restore Now returns all scanner settings to the factory
default settings except Network/Ports menu settings. All
downloads stored in the RAM are deleted. Downloads stored
in the flash memory or in the printer hard disk are not
affected.
Export Configuration Package
Export
Export the printer configuration package to a flash drive.
Note: The configuration package cannot be exported unless a
flash drive is attached to the printer.
Understanding the printer menus 166
Copy Settings menu
Use To
Content Type
Text
Graphics
Text/Photo
Specify the content of the original document.
Note: Text/Photo is the factory default setting.
Content Source
Black/White Laser
Color Laser
Inkjet
Photo/Film
Magazine
Newspaper
Press
Other
Specify how the original document was produced.
Note: Black/White Laser is the factory default setting.
Sides (Duplex)
1 sided to 1 sided
1 sided to 2 sided
2 sided to 1 sided
2 sided to 2 sided
Specify whether an original document is two‑sided (duplex) or one‑sided, and then
specify whether the copy should be two‑sided or one‑sided.
Notes:
•1 sided to 1 sided—The original document has print on one side and the copy
will also have print on one side.
•1 sided to 2 sided—The original document has print on one side, while the
copy will have print on both sides.
•2 sided to 1 sided—The original document has print on both sides, while the
copy will have print on just one side.
•2 sided to 2 sided—The original document has print on both sides, and the
copy will also have print on both sides.
Paper Saver
Off
2‑up Portrait
4‑up Portrait
2‑up Landscape
4‑up Landscape
Copy two or four sheets of a document on one page.
Note: Off is the factory default setting.
Print Page Borders
On
Off
Specify whether or not a border is printed.
Note: Off is the factory default setting.
Collate
1,1,1 ‑ 2,2,2
1,2,3 ‑ 1,2,3
Keep the pages of a print job stacked in sequence when printing multiple copies.
Note: “1,2,3 ‑ 1,2,3” is the factory default setting.
Understanding the printer menus 167
Use To
Original Size
Letter
Legal
Executive
Folio
Statement
Oficio (Mexico)
Universal
Auto Size Sense
Mixed Sizes
A4
A5
A6
JIS B5
Custom Scan Size [x]
Book Original
Business Card
3 x 5 in.
4 x 6 in.
ID Card
Specify the paper size of the original document.
Notes:
•Letter is the U.S. factory default setting.
•A4 is the international factory default setting.
Copy To Source
Tray [x]
Auto Size Match
Manual Feeder
Specify the paper source for copy jobs.
Note: Tray 1 is the factory default setting.
Transparency Separators
On
Off
Place a sheet of paper between transparencies.
Note: On is the factory default setting.
Separator Sheets
Off
Between Copies
Between Jobs
Between Pages
Place a sheet of paper between pages, copies, or jobs.
Note: Off is the factory default setting.
Separator Sheet Source
Tray [x]
Specify the separator sheet source.
Note: Tray 1 is the factory default setting.
Darkness
1–9
Specify the level of darkness for the copy job.
Note: 5 is the factory default setting.
Number of Copies
1–999
Specify the number of copies for the copy job.
Note: 1 is the factory default setting.
Understanding the printer menus 168
Use To
Header/Footer
[Location]
Off
Date/Time
Page number
Custom text
Print on
All pages
First page only
All but first page
Custom text
Specify the header or footer information and its location on the page.
For the location, select from the following options:
•Top left
•Top middle
•Top right
•Bottom left
•Bottom middle
•Bottom right
Notes:
•Off is the factory default setting for the location.
•“All pages” is the factory default setting for “Print on.”
Overlay
Confidential
Copy
Draft
Urgent
Custom
Off
Specify the overlay text printed on each page of the copy job.
Note: Off is the factory default setting.
Custom Overlay Specify the custom overlay text.
Note: A maximum of 64 characters is allowed.
Allow priority copies
On
Off
Allow interruption of a print job to copy a page or document.
Note: On is the factory default setting.
Custom Job scanning
On
Off
Scan a document that contains mixed paper sizes into a single copy job.
Notes:
•Off is the factory default setting.
•This menu item appears only when a formatted, working printer hard disk is
installed.
Allow Save as Shortcut
On
Off
Save custom copy settings as shortcuts.
Note: On is the factory default setting.
Background Removal
‑4 to 4
Adjust the amount of background visible on a copy.
Note: 0 is the factory default setting.
Auto Center
Off
On
Automatically align the content at the center of the page.
Note: Off is the factory default setting.
Contrast
0–5
Best for content
Specify the contrast used for the copy job.
Note: “Best for content” is the factory default setting.
Understanding the printer menus 169
Use To
Mirror Image
Off
On
Create a mirror image of the original document.
Note: Off is the factory default setting.
Negative Image
Off
On
Create a negative image of the original document.
Note: Off is the factory default setting.
Shadow Detail
‑4 to 4
Adjust the amount of shadow detail visible on a copy.
Note: 0 is the factory default setting.
Fix Scan Skew
Auto
Off
On
Correct slight skew in the scanned image.
Note: Off is the factory default setting.
Scan edge to edge
Off
On
Specify if the original document is scanned edge‑to‑edge prior to faxing.
Note: Off is the factory default setting.
Sharpness
1–5
Adjust the amount of sharpness of a copy.
Note: 3 is the factory default setting.
Sample Copy
Off
On
Create a sample copy of the original document.
Note: Off is the factory default setting.
Fax Settings menu
Fax Mode (Analog Fax Setup) menu
Analog Fax Setup mode sends the fax job through a telephone line.
Note: The fax function is available only in select printer models.
Use To
Fax Name Specify the name of the fax in the printer.
Fax Number Specify the number assigned to the fax.
Fax ID
Fax Name
Fax Number
Specify how the fax is identified.
Enable Manual Fax
On
Off
Set the printer to fax manually, which requires a line splitter and a telephone handset.
Notes:
•Off is the factory default setting.
•Use a regular telephone to answer an incoming fax job and to dial a fax
number.
•Press # 0 on the numeric keypad to go directly to the Manual Fax function.
Understanding the printer menus 170
Use To
Memory Use
All receive
Mostly receive
Equal
Mostly send
All send
Define the allocation of non-volatile memory between sending and receiving fax jobs.
Notes:
•Equal is the factory default setting. This splits the memory for sending and
receiving fax jobs into equal amounts.
•“Mostly send” specifies that most of the memory is set to send fax jobs.
•“All send” specifies that all the memory is set to send fax jobs.
•“All receive” specifies that all the memory is set to receive fax jobs.
•“Mostly receive” specifies that most of the memory is set to receive fax jobs.
Cancel Faxes
Allow
Don't Allow
Specify whether or not the printer cancels fax jobs.
Note: Allow is the factory default setting.
Caller ID
Off
Primary
Alternate
Specify the type of caller ID being used.
Fax number masking
Off
From left
From right
Specify the direction from where digits are masked in an outgoing fax number.
Notes:
•Off is the factory default setting.
•The number of characters masked is determined by the “Digits to mask”
setting.
Digits to Mask
0–58
Specify the number of digits to mask in an outgoing fax number.
Note: 0 is the factory default setting.
Understanding the printer menus 171
Use To
Fax Cover Page
Fax Cover Page
Off by default
On by default
Never use
Always use
Include to Field
On
Off
Include from Field
On
Off
From
Include Message Field
On
Off
Message
Include Logo
On
Off
Include Footer [x]
On
Off
Footer [x]
Configure the fax cover page.
Notes:
•“Off by default” is the factory default setting for Fax Cover Page option.
•Off is the factory default setting for the “Include to Field,” “Include from Field,”
“Include Message Field,” “Include Logo,” and “Include Footer [x]” options.
•A maximum of 255 characters is allowed for the “From” option.
•A maximum of 80 characters is allowed for the “Footer [x]” option.
Fax Send Settings menu items and their descriptions
Use To
Resolution
Standard
Fine 200 dpi
Super Fine 300 dpi
Specify quality in dots per inch (dpi). A higher resolution gives better print quality, but
increases the fax transmission time for outgoing faxes.
Note: Standard is the factory default setting.
Understanding the printer menus 172
Use To
Original Size
Letter
Legal
Executive
Folio
Statement
Oficio (Mexico)
Universal
Auto Size Sense
Mixed Sizes
A4
A5
A6
JIS B5
Custom Scan Size [x]
Book Original
Business Card
3 x 5 in.
4 x 6 in.
Specify the paper size of the original document.
Note: Mixed Sizes is the U.S. factory default setting. A4 is the international factory
default setting.
Sides (Duplex)
Off
Long edge
Short edge
Specify the page orientation of text and graphics.
Notes:
•Off is the factory default setting.
•Long edge assumes binding along the long edge of the page (left edge for
portrait and top edge for landscape).
•Short edge assumes binding along the short edge of the page (top edge for
portrait and left edge for landscape).
Content Type
Text
Graphics
Text/Photo
Specify the content of the original document.
Note: Text is the factory default setting.
Content Source
Black/White Laser
Color Laser
Inkjet
Photo/Film
Magazine
Newspaper
Press
Other
Specify how the original document was produced.
Note: Black/White Laser is the factory default setting.
Darkness
1–9
Lighten or darken the output.
Note: 5 is the factory default setting.
Dial Prefix Enter a dialing prefix, such as 99. A numeric entry field is provided.
Understanding the printer menus 173
Use To
Dialing Prefix Rules
Prefix Rule [x]
Establish a dialing prefix rule.
Automatic Redial
0–9
Specify the number of times the printer tries to send the fax to a specified number.
Note: 5 is the factory default setting.
Redial frequency
1–200
Specify the number of minutes between redials.
Note: 3 is the factory default setting.
Behind a PABX
Yes
No
Enable or disable switchboard blind dialing without a dial tone.
Note: No is the factory default setting.
Enable ECM
Yes
No
Enable or disable Error Correction Mode for fax jobs.
Note: Yes is the factory default setting.
Enable Fax Scans
On
Off
Fax files that are scanned at the printer.
Note: On is the factory default setting.
Driver to fax
Yes
No
Allow the printer driver to send fax jobs.
Note: Yes is the factory default setting.
Allow Save as Shortcut
On
Off
Save fax numbers as shortcuts in the printer.
Note: On is the factory default setting.
Dial Mode
Tone
Pulse
Specify the dialing sound, either as a tone or as a pulse.
Note: Tone is the factory default setting.
Max Speed
2400
4800
9600
14400
33600
Specify the maximum speed in baud at which faxes are sent.
Note: 33600 is the factory default setting.
Custom Job scanning
On
Off
Scan a document that contains mixed paper sizes into a single file.
Notes:
•Off is the factory default setting.
•This menu item appears only when a formatted, working printer hard disk is
installed.
Scan Preview
On
Off
Specify whether a preview will appear on the display for scan jobs.
Notes:
•Off is the factory default setting.
•This menu item appears only when a formatted, working printer hard disk is
installed.
Understanding the printer menus 174
Use To
Background Removal
‑4 to 4
Adjust the amount of background visible on a scanned image.
Note: 0 is the factory default setting.
Contrast
0–5
Best for content
Specify the contrast in the scanned image.
Note: “Best for content” is the factory default setting.
Mirror Image
Off
On
Create a mirror image of the original document.
Note: Off is the factory default setting.
Negative Image
Off
On
Create a negative image of the original document.
Note: Off is the factory default setting.
Shadow Detail
‑4 to 4
Adjust the amount of shadow detail visible.
Note: 0 is the factory default setting.
Fix Scan Skew
Auto
Off
On
Correct the slight skew in the scanned image.
Notes:
•Off is the factory default setting.
•This menu item is supported only in select printer models.
Scan edge to edge
Off
On
Specify if the original document is scanned edge-to‑edge prior to faxing.
Note: Off is the factory default setting.
Sharpness
1–5
Adjust the sharpness of a fax.
Note: 3 is the factory default setting.
Temperature
‑4 to 4
Specify “warm” or “cool” outputs. "Cool” values generate a bluer output than the
default while “warm” values generate a redder output than the default.
Note: 0 is the factory default setting.
Auto Convert Color Faxes to Mono
Faxes
On
Off
Convert all outgoing faxes to black and white.
Note: On is the factory default setting.
Fax Receive Settings menu items and their descriptions
Use To
Enable Fax Receive
On
Off
Allow the printer to receive fax jobs.
Note: On is the factory default setting.
Fax Job Waiting
None
Toner
Toner and Supplies
Remove fax jobs from the print queue when the job requires specific unavailable
resources.
Note: None is the factory default setting.
Understanding the printer menus 175
Use To
Rings to Answer
1–25
Specify the number of rings before answering an incoming fax job.
Note: 3 is the factory default setting.
Auto Reduction
On
Off
Scale an incoming fax job so that it fits the size of the paper loaded in the designated
fax source.
Note: On is the factory default setting.
Paper Source
Auto
Tray [x]
Multi‑Purpose Feeder
Manual Feeder
Specify the paper source for printing incoming fax jobs.
Note: Auto is the factory default setting.
Sides (Duplex)
Off
On
Enable two‑sided (duplex) printing for incoming fax jobs.
Notes:
•Off is the factory default setting.
•This menu item appears only when a print duplexer is installed.
Separator Sheets
Off
Before Job
After Job
Enable the printer to include separator sheets for incoming fax jobs.
Note: Off is the factory default setting.
Separator Sheet Source
Tray [x]
Manual Feeder
Specify where the printer will pick the separator sheet.
Note: Tray 1 is the factory default setting.
Fax Footer
On
Off
Print the transmission information at the bottom of each page from a received fax.
Note: Off is the factory default setting.
Max Speed
2400
4800
9600
14400
33600
Specify the maximum speed in baud at which faxes are received.
Note: 33600 is the factory default setting.
Fax Forwarding
Print
Print and Forward
Forward
Enable forwarding of received faxes to another recipient.
Note: Print is the factory default setting.
Forward to
Fax
E‑mail
FTP
LDSS
eSF
Specify the type of recipient to which faxes will be forwarded.
Notes:
•Fax is the factory default setting.
•This menu item is available only from the Embedded Web Server.
Understanding the printer menus 176
Use To
Forward to Shortcut Enter the shortcut number which matches the recipient type (Fax, E-mail, FTP, LDSS,
or eSF).
Note: You can enter up to 16 characters.
Block No Name Fax
Off
On
Enable blocking of incoming faxes sent from devices with no station ID or fax ID
specified.
Note: Off is the factory default setting.
Banned Fax List Enable the list of blocked fax numbers stored in the printer.
Note: You can enter up to 512 characters.
Fax Log Settings menu items and their descriptions
Use To
Transmission Log
Print log
Do not print log
Print only for error
Enable printing of a transmission log after each fax job.
Note: “Print log” is the factory default setting.
Receive Error Log
Print Never
Print on Error
Enable printing of a receive error log following a receive error.
Note: Print Never is the factory default setting.
Auto Print Logs
On
Off
Enable automatic printing of fax logs.
Notes:
•On is the factory default setting.
•Logs print after every 200 fax jobs.
Log Paper Source
Tray [x]
Manual Feeder
Specify the source of the paper used for printing logs.
Note: Tray 1 is the factory default setting.
Logs Display
Remote Station Name
Dialed Number
Specify whether printed logs display the dialed number or the station name or fax
name returned.
Note: Remote Station Name is the factory default setting.
Enable Job Log
On
Off
Enable access to the Fax Job log.
Note: On is the factory default setting.
Enable Call Log
On
Off
Enable access to the Fax Call log.
Note: On is the factory default setting.
Understanding the printer menus 177
Speaker Settings menu items and their descriptions
Use To
Speaker Mode
Always Off
On until Connected
Always On
Specify the mode of the speaker.
Notes:
•On until Connected is the factory default setting. A sound is issued until the fax
connection is made.
•Always On turns the speaker on.
•Always Off turns the speaker off.
Speaker Volume
High
Low
Control the volume setting.
Note: High is the factory default setting.
Ringer Volume
Off
On
Control the fax speaker ringer volume.
Note: On is the factory default setting.
Answer On menu items and their descriptions
Use To
All Rings
Single Ring Only
Double Ring Only
Triple Ring Only
Single or Double Rings Only
Single or Triple Rings Only
Double or Triple Rings Only
Specify ring patterns when the printer is answering calls.
Note: All Rings is the factory default setting.
E‑mail Settings menu
Use To
E‑mail Server Setup
Subject
Message
File Name
Specify e‑mail server information.
Notes:
•You can enter up to 255 characters in the Subject field.
•You can enter up to 512 characters in the Message field.
•You can enter up to 53 characters in the File Name field.
E‑mail Server Setup
Send me a copy
Never appears
On by default
Off by default
Always On
Send a copy of the e-mail to the sender.
Note: “Never appears” is the factory default setting.
Understanding the printer menus 178
Use To
E‑mail Server Setup
Max E‑mail size
0–65535 KB
Specify the maximum e-mail size in kilobytes.
Note: E-mails above the specified size are not sent.
E‑mail Server Setup
Size Error Message
Send a message when an e-mail is greater than the configured size limit.
Note: You can enter up to 1024 characters.
E‑mail Server Setup
Limit destinations
Specify a domain name, such as a company domain name, and then limit e‑mail
destinations only to that domain name.
Note: You can specify only one domain.
E‑mail Server Setup
Web Link Setup
Server
Login
Password
Path
File Name
Web Link
Define the e‑mail server path name, for example: /directory/path.
Notes:
•The characters * : ? < > | are invalid entries for a path name.
•You can enter up to 128 characters for Server, Login, Password, Path, and Web
Link.
•You can enter up to 53 characters for File Name.
Format
PDF (.pdf)
Secure PDF
TIFF (.tif)
JPEG (.jpg)
XPS (.xps)
Specify the format of the scanned file.
Note: “PDF (.pdf)” is the factory default setting.
PDF Version
1.2–1.6
A–1a
Set the version of the PDF file that will be scanned for e‑mailing.
Note: 1.5 is the factory default setting.
Content Type
Graphics
Text
Text/Photo
Specify the content of the original document.
Note: Text/Photo is the factory default setting.
Content Source
Black/White Laser
Color Laser
Inkjet
Photo/Film
Magazine
Newspaper
Press
Other
Specify how the original document was produced.
Note: Black/White Laser is the factory default setting.
Understanding the printer menus 179
Use To
Resolution
75 dpi
150 dpi
200 dpi
300 dpi
400 dpi
600 dpi
Specify the resolution of the scan in dots per inch.
Note: “150 dpi” is the factory default setting.
Darkness
1–9
Lighten or darken the output.
Note: 5 is the factory default setting.
Orientation
Portrait
Landscape
Specify the page orientation of the scanned image.
Note: Portrait is the factory default setting.
Original Size
Letter
Legal
Executive
Folio
Statement
Oficio (Mexico)
Universal
Auto Size Sense
Mixed Sizes
A4
A5
A6
JIS B5
Custom Scan Size [x]
Book Original
Business Card
3 x 5 in.
4 x 6 in.
Specify the paper size of the document being scanned.
Notes:
•Letter is the U.S. factory default setting.
•A4 is the international factory default setting.
Sides (Duplex)
Off
Long edge
Short edge
Specify the page orientation of text and graphics.
Notes:
•Off is the factory default setting.
•“Long edge” assumes binding along the long edge of the page (left edge for
portrait and top edge for landscape).
•“Short edge” assumes binding along the short edge of the page (top edge for
portrait and left edge for landscape).
Understanding the printer menus 180
Use To
JPEG Quality
Best for content
5–90
Set the quality of a JPEG photo image in relation to file size and quality of the image.
Notes:
•“Best for content” is the factory default setting.
•5 reduces the file size and quality of the image.
•90 provides the best image quality, but the file size is very large.
•This menu item applies to all scan functions.
Text Default
5–90
Set the quality of a text image in relation to file size and quality of the image.
Note: 75 is the factory default setting.
Text/Photo Default
5–90
Set the quality of a text or photo image in relation to file size and the quality of the
image.
Note: 75 is the factory default setting.
Photo Default
5–90
Set the quality of a photo image in relation to file size and the quality of the image.
Note: 50 is the factory default setting.
E‑mail images sent as
Attachment
Web Link
Specify how the images are sent.
Note: Attachment is the factory default setting.
Use Multi‑Page Tiff
On
Off
Provide a choice between single-page TIFF files and multiple‑page TIFF files. For a
multiple-page scan‑to‑e-mail job, either one TIFF file is created containing all the
pages, or multiple TIFF files are created with one file for each page of the job.
Notes:
•On is the factory default setting.
•This menu item applies to all scan functions.
Transmission Log
Print log
Do not print log
Print only for error
Specify whether or not the transmission log prints.
Note: “Print log “is the factory default setting.
Log Paper Source
Tray [x]
Manual Feeder
Specify the paper source for printing e-mail logs.
Note: Tray 1 is the factory default setting.
E‑mail Bit Depth
1 bit
8 bit
Enable the Text/Photo mode to produce smaller file sizes by using 1‑bit images.
Note: “8 bit” is the factory default setting.
Custom Job scanning
On
Off
Copy a document that contains mixed paper sizes.
Notes:
•Off is the factory default setting.
•This menu item appears only when a formatted, working printer hard disk is
installed.
Understanding the printer menus 181
Use To
Scan Preview
On
Off
Specify whether or not a preview will appear on the display for scan jobs.
Notes:
•Off is the factory default setting.
•This menu item appears only when a formatted, working printer hard disk is
installed.
Allow Save as Shortcut
On
Off
Save e-mail addresses as shortcuts.
Notes:
•On is the factory default setting.
•When set to Off, the Save as Shortcut button does not appear on the e-mail
Destination screen.
Background Removal
‑4 to 4
Adjust the amount of background visible on a scanned image.
Note: 0 is the factory default setting.
Contrast
0–5
Best for content
Specify the contrast of the output.
Note: “Best for content” is the factory default setting.
Mirror Image
Off
On
Create a mirror image of the original document.
Note: Off is the factory default setting.
Negative Image
Off
On
Create a negative image of the original document.
Note: Off is the factory default setting.
Shadow Detail
‑4 to 4
Adjust the amount of shadow detail visible on a scanned image.
Note: 0 is the factory default setting.
Fix Scan Skew
Auto
Off
On
Correct slight skew in the scanned image.
Notes:
•Off is the factory default setting.
•This menu item appears only in select printer models.
Scan edge to edge
Off
On
Specify whether the original document is scanned edge-to-edge.
Note: Off is the factory default setting.
Sharpness
1–5
Adjust the amount of sharpness on a scanned image.
Note: 3 is the factory default setting.
Temperature
‑4 to 4
Enable the user to specify “warm” or “cool” outputs. "Cool” values generate a bluer
output than the default, while “warm” values generate a redder output than the
default.
Note: 0 is the factory default setting.
Use cc:/bcc:
Off
On
Enable the use of the cc and bcc fields.
Note: Off is the factory default setting.
Understanding the printer menus 182
FTP Settings menu
Use To
Format
PDF (.pdf)
Secure PDF (.pdf)
TIFF (.tif)
JPEG (.jpg)
XPS (.xps)
Specify the format of the file for FTP sending.
Note: PDF (.pdf) is the factory default setting.
PDF Version
1.2–1.6
A–1a
Set the version level of the PDF file for FTP sending.
Note: 1.5 is the factory default setting.
Content Type
Text
Graphics
Text/Photo
Specify the content of the original document.
Note: Text/Photo is the factory default setting.
Content Source
Black/White Laser
Color Laser
Inkjet
Photo/Film
Magazine
Newspaper
Press
Other
Specify how the original document was produced.
Note: Black/White Laser is the factory default setting.
Resolution
75 dpi
150 dpi
200 dpi
300 dpi
400 dpi
600 dpi
Specify the quality of the scan in dots per inch (dpi).
Note: “150 dpi” is the factory default setting.
Darkness
1–9
Lighten or darken the output.
Note: 5 is the factory default setting.
Orientation
Portrait
Landscape
Specify the page orientation of the scanned image.
Note: Portrait is the factory default setting.
Understanding the printer menus 183
Use To
Original Size
Letter
Legal
Executive
Folio
Statement
Oficio (Mexico)
Universal
Auto Size Sense
Mixed Sizes
A4
A5
A6
JIS B5
Custom Scan Size [x]
Book Original
Business Card
3 x 5 in.
4 x 6 in.
Specify the paper size of the original document.
Notes:
•Letter is the U.S. factory default setting.
•A4 is the international factory default setting.
Sides (Duplex)
Off
Long edge
Short edge
Specify the page orientation of text and graphics.
Notes:
•Off is the factory default setting.
•“Long edge” assumes binding along the long edge of the page (left edge for
portrait and top edge for landscape ).
•“Short edge” assumes binding along the short edge of the page (top edge for
portrait and left edge for landscape ).
JPEG Quality
Best for content
5–90
Set the quality of a JPEG photo image in relation to the file size and quality of the
image.
Notes:
•“Best for content” is the factory default setting.
•5 reduces the file size, but the quality of the image is lessened.
•90 provides the best image quality, but the file size is very large.
•This menu item applies to all scan functions.
Text Default
5–90
Set the quality of the text in relation to the file size and quality of the image.
Note: 75 is the factory default setting.
Text/Photo Default
5–90
Set the quality of a text/photo image in relation to the file size and quality of the
image.
Note: 75 is the factory default setting.
Photo Default
5–90
Set the quality of a photo image in relation to the file size and quality of the image.
Note: 50 is the factory default setting.
Understanding the printer menus 184
Use To
Use Multi‑Page TIFF
On
Off
Provide a choice between single-page TIFF files and multiple‑page TIFF files. For a
multiple-page scan‑to‑FTP job, either one TIFF file is created containing all the pages,
or multiple TIFF files are created with one file for each page of the job.
Notes:
•On is the factory default setting.
•This menu item applies to all scan functions.
Transmission Log
Print log
Do not print log
Print only for error
Specify whether the transmission log prints.
Note: “Print log” is the factory default setting.
Log Paper Source
Tray [x]
Manual Feeder
Specify a paper source when printing FTP logs.
Note: Tray 1 is the factory default setting.
FTP bit Depth
1 bit
8 bit
Enable the Text/Photo mode to have smaller file sizes by using 1‑bit images.
Note: 8 bit is the factory default setting.
File Name Type a base file name.
Note: You can enter up to 53 characters.
Custom Job Scanning
On
Off
Copy a document that contains mixed paper sizes into a single scan job.
Note: Off is the factory default setting.
Scan Preview
On
Off
Specify whether a preview will appear on the display for scan jobs.
Notes:
•Off is the factory default setting.
•This menu item appears only when a formatted, working printer hard disk is
installed.
Allow Save as Shortcut
On
Off
Enable shortcut creation for FTP addresses.
Note: On is the factory default setting.
Background Removal
‑4 to 4
Adjust the amount of background visible on a copy.
Note: 0 is the factory default setting.
Contrast
0–5
Best for content
Specify the contrast of the output.
Note: “Best for content” is the factory default setting.
Mirror Image
Off
On
Create a mirror image of the original document.
Note: Off is the factory default setting.
Negative Image
Off
On
Create a negative image of the original document.
Note: Off is the factory default setting.
Understanding the printer menus 185
Use To
Shadow Detail
‑4 to 4
Adjust the amount of shadow detail visible on a scanned image.
Note: 0 is the factory default setting.
Fix Scan Skew
Auto
Off
On
Correct slight skew in the scanned image.
Notes:
•Off is the factory default setting.
•This menu item is supported only in select printer models.
Scan edge to edge
Off
On
Specify whether the original document is scanned edge-to-edge.
Note: Off is the factory default setting.
Sharpness
1–5
Adjust the amount of sharpness of a scanned image.
Note: 3 is the factory default setting.
Temperature
‑4 to 4
Enable the user to specify “warm” or “cool” outputs. "Cool” values generate a bluer
output than the default while “warm” values generate a redder output than the
default.
Note: 0 is the factory default setting.
Flash Drive menu
Scan Settings
Use To
Format
PDF (.pdf)
Secure PDF
TIFF (.tif)
JPEG (.jpg)
XPS (.xps)
Specify the format of the file to be sent through FTP.
Note: “PDF (.pdf)” is the factory default setting.
PDF Version
1.2–1.6
A‑1a
Set the version of the PDF file to be sent through FTP.
Note: 1.5 is the factory default setting.
Content Type
Text
Graphics
Text/Photo
Specify the content of the original document.
Note: Text/Photo is the factory default setting.
Understanding the printer menus 186
Use To
Content Source
Black/White Laser
Color Laser
Inkjet
Photo/Film
Magazine
Newspaper
Press
Other
Specify how the original document was produced.
Note: Black/White Laser is the factory default setting.
Resolution
75 dpi
150 dpi
200 dpi
300 dpi
400 dpi
600 dpi
Specify the resolution of the scan in dots per inch (dpi).
Note: “150 dpi” is the factory default setting.
Darkness
1–9
Lighten or darken the output.
Note: 5 is the factory default setting.
Orientation
Portrait
Landscape
Specify the orientation of the scanned image.
Note: Portrait is the factory default setting.
Original Size
Letter
Legal
Executive
Folio
Statement
Oficio (Mexico)
Universal
Auto Size Sense
Mixed Sizes
A4
A5
A6
JIS B5
Custom Scan Size [x]
Book Original
Business Card
3 x 5 in.
4 x 6 in.
Specify the paper size of the original document.
Note: Letter is the U.S. factory default setting. A4 is the international factory
default setting.
Understanding the printer menus 187
Use To
Sides (Duplex)
Off
Long edge
Short edge
Specify the page orientation of text and graphics.
Notes:
•Off is the factory default setting.
•“Long edge” assumes binding along the long edge of the page (left edge for
portrait and top edge for landscape).
•“Short edge” assumes binding along the short edge of the page (top edge for
portrait and left edge for landscape).
JPEG Quality
Best for content
5–90
Set the quality of a JPEG photo image in relation to file size and quality.
Notes:
•“Best for content” is the factory default setting.
•5 reduces the file size, but the quality of the image is lessened.
•90 provides the best image quality, but the file size is very large.
•This menu setting applies to all scan functions.
Text Default
5–90
Set the quality of the text in relation to file size and the quality of the image.
Note: 75 is the factory default setting.
Text/Photo Default
5–90
Set the quality of a text or photo image in relation to file size and quality.
Note: 75 is the factory default setting.
Photo Default
5–90
Set the quality of a photo image in relation to file size and quality.
Note: 50 is the factory default setting.
Use Multi‑Page TIFF
On
Off
Provide a choice between single-page TIFF files and multiple‑page TIFF files. For a
multiple-page scan‑to‑FTP job, either one TIFF file is created containing all the pages,
or multiple TIFF files are created with one file for each page.
Notes:
•On is the factory default setting.
•This menu setting applies to all scan functions.
Scan Bit Depth
1 bit
8 bit
Enable the Text/Photo mode to have smaller file sizes by using 1‑bit images.
Note: “8 bit” is the factory default setting.
File Name Type a base file name.
Note: You can enter a maximum of 53 characters.
Custom Job Scanning
On
Off
Copy a document containing mixed paper sizes in a single copy job.
Note: Off is the factory default setting.
Scan Preview
On
Off
Specify whether a preview appears on the display for scan jobs.
Notes:
•Off is the factory default setting.
•This menu item appears only when a formatted, working printer hard disk is
installed.
Understanding the printer menus 188
Use To
Background Removal
‑4 to 4
Adjust the amount of background visible on a copy.
Note: 0 is the factory default setting.
Contrast
0–5
Best for content
Specify the contrast of the scanned image.
Note: “Best for content” is the factory default setting.
Mirror Image
Off
On
Create a mirror image of the original document.
Note: Off is the factory default setting.
Negative Image
Off
On
Create a negative image of the original document.
Note: Off is the factory default setting.
Shadow Detail
‑4 to 4
Adjust the amount of shadow detail visible on a scanned image.
Note: 0 is the factory default setting.
Fix Scan Skew
Auto
Off
On
Specify whether or not to fix slight skew on the scanned image.
Notes:
•Off is the factory default setting
•This menu item appears only in select printer models.
Scan edge to edge
Off
On
Specify whether the original document is scanned edge-to-edge.
Note: Off is the factory default setting.
Sharpness
1–5
Adjust the amount of sharpness on a scanned image.
Note: 3 is the factory default setting.
Temperature
‑4 to 4
Enable the user to specify “warm” or “cool” outputs. "Cool” values generate a bluer
output than the default while “warm” values generate a redder output than the
default.
Note: 0 is the factory default setting.
Print Settings menu items and their descriptions
Copies
1–999
Specify a default number of copies for each print job.
Note: 1 is the factory default setting.
Paper Source
Tray [x]
MP Feeder
Manual Paper
Manual Envelope
Set a default paper source for all print jobs.
Note: Tray 1 is the factory default setting.
Collate
1,1,1 ‑ 2,2,2
1,2,3 ‑ 1,2,3
Stack the pages of a print job in sequence when printing multiple copies.
Note: “1,2,3 ‑ 1,2,3” is the factory default setting.
Understanding the printer menus 189
Sides (Duplex)
1 sided
2 sided
Specify whether prints are on one side or on both sides of the page.
Note: “1 sided” is the factory default setting.
Duplex Binding
Long Edge
Short Edge
Define binding for duplexed pages in relation to the page orientation of the printed document.
Notes:
•Long Edge is the factory default setting. This assumes binding along the long edge of the
page (left edge for portrait and top edge for landscape).
•Short Edge assumes binding along the short edge of the page (top edge for portrait and
left edge for landscape).
Paper Saver Orientation
Auto
Landscape
Portrait
Specify the orientation of a multiple‑page document.
Note: Auto is the factory default setting. The printer chooses between portrait and landscape.
Paper Saver
Off
2‑Up
3‑Up
4‑Up
6‑Up
9‑Up
12‑Up
16‑Up
Specify that multiple‑page images be printed on one side of a paper.
Notes:
•Off is the factory default setting.
•The number selected is the number of page images that will print per side.
Paper Saver Border
None
Solid
Print a border on each page image.
Note: None is the factory default setting.
Paper Saver Ordering
Horizontal
Reverse Horizontal
Reverse Vertical
Vertical
Specify the positioning of multiple‑page images.
Notes:
•Horizontal is the factory default setting.
•Positioning depends on the number of page images and whether they are in portrait or in
landscape orientation.
Separator Sheets
Off
Between Copies
Between Jobs
Between Pages
Specify whether blank separator sheets are inserted.
Notes:
•Off is the factory default setting.
•Between Copies inserts a blank sheet between each copy of a print job if Collate is set to
“1,2,3 ‑ 1,2,3”. If Collate is set to “1,1,1 ‑ 2,2,2”, then a blank page is inserted between
each set of printed pages, such as after all page 1's and after all page 2's.
•Between Jobs inserts a blank sheet between print jobs.
•Between Pages inserts a blank sheet between each page of the print job. This setting is
useful when printing transparencies or when inserting blank pages in a document .
Separator Sheet Source
Tray [x]
Manual Feeder
Specify the paper source for separator sheets.
Note: Tray 1 is the factory default setting.
Understanding the printer menus 190
Blank Pages
Do Not Print
Print
Specify whether blank pages are inserted in a print job.
Note: Do Not Print is the factory default setting.
Print Settings
Setup menu
Use To
Printer Language
PCL Emulation
PS Emulation
Set the printer language.
Notes:
•PCL Emulation is the factory default setting.
•Setting a printer language as the default does not prevent a
software program from sending print jobs that use another
printer language.
Job Waiting
On
Off
Specify that print jobs be removed from the print queue if they
require unavailable printer options or custom settings.
Print jobs removed from the print queue are stored in a separate
print queue, so other jobs print normally. When the missing
information or options are obtained, the stored jobs print.
Notes:
•Off is the factory default setting.
•This menu setting appears only when a formatted, working
printer hard disk is installed. This requirement ensures that
stored jobs are not deleted if the printer loses power.
Print Area
Normal
Whole Page
Set the logical and physical printable area.
Notes:
•Normal is the factory default setting. When attempting to
print data in the non‑printable area defined by the Normal
setting, the printer clips the image at the boundary.
•Whole Page allows the image to be moved into the
non‑printable area defined by the Normal setting, but the
printer will clip the image at the Normal setting boundary.
This affects only pages printed using a PCL 5e interpreter.
This has no effect on pages printed using the PCL XL or
PostScript interpreter.
Understanding the printer menus 191
Use To
Download Target
RAM
Flash
Disk
Set the storage location for downloads.
Notes:
•RAM is the factory default setting. Storing downloads in the
RAM is temporary.
•Storing downloads in flash memory or on a printer hard disk
places them in permanent storage. Downloads remain in
flash memory or on the printer hard disk even when the
printer is turned off.
•This menu setting appears only when a formatted, working
flash drive or printer hard disk is installed.
Resource Save
On
Off
Specify how the printer handles temporary downloads, such as
fonts and macros stored in the RAM, when the printer receives a
job that requires more memory than is available.
Notes:
•Off is the factory default setting. This sets the printer to
retain the downloads only until memory is needed.
Downloads are deleted in order to process print jobs.
•On retains the downloads during language changes and
printer resets. If the printer runs out of memory, then
Memory Full [38] appears, and downloads are not
deleted.
Print All Order
Alphabetical
Oldest First
Newest First
Specify the order in which held and confidential jobs are printed
when Print All is selected.
Note: Alphabetical is the factory default setting. Print jobs always
appear in alphabetical order on the printer control panel.
Finishing menu
Use To
Sides (Duplex)
1 sided
2 sided
Specify whether two‑sided (duplex) printing is set as the user default setting for all
print jobs.
Notes:
•“1 sided” is the factory default setting.
•You can set two‑sided printing from the software program.
For Windows users:
Click File > Print, and then click Properties, Preferences, Options, or Setup.
For Macintosh users:
Choose File > Print, and then adjust the settings from the print dialog and
pop‑up menus.
Understanding the printer menus 192
Use To
Duplex Binding
Long Edge
Short Edge
Define the way two‑sided pages are bound and printed.
Notes:
•Long Edge is the factory default setting. This assumes binding along the long
edge of the page (left edge for portrait and top edge for landscape).
•Short Edge assumes binding along the short edge of the page (top edge for
portrait and left edge for landscape).
Copies
1–999
Specify the default number of copies for each print job.
Note: 1 is the factory default setting.
Blank Pages
Do Not Print
Print
Specify whether or not blank pages are inserted in a print job.
Note: Do Not Print is the factory default setting.
Collate
(1,1,1) (2,2,2)
(1,2,3) (1,2,3)
Stack the pages of a print job in sequence when printing multiple copies.
Note: “(1,2,3) (1,2,3)” is the factory default setting.
Separator Sheets
Off
Between Copies
Between Jobs
Between Pages
Specify whether or not blank separator sheets are inserted.
Notes:
•Off is the factory default setting.
•Between Copies inserts a blank sheet between each copy of a print job if
Collate is set to “(1,2,3) (1,2,3).” If Collate is set to “(1,1,1) (2,2,2),” then a
blank page is inserted between each set of printed pages, such as after all
page 1's and after all page 2's.
•Between Jobs inserts a blank sheet between print jobs.
•Between Pages inserts a blank sheet between each page of a print job. This
setting is useful when printing transparencies or when inserting blank pages in
a document.
Separator Source
Tray [x]
Manual Feeder
Specify the paper source for separator sheets.
Notes:
•Tray 1 (standard tray) is the factory default setting.
•From the Paper menu, set Configure MP to “Cassette” for Manual Feeder to
appear as a menu setting.
Paper Saver
Off
2‑Up
3‑Up
4‑Up
6‑Up
9‑Up
12‑Up
16‑Up
Print multiple pages on one sheet of paper.
Notes:
•Off is the factory default setting.
•When the number of pages per sheet is selected, each page is scaled so that
the number of pages you want can be displayed on the sheet.
Understanding the printer menus 193
Use To
Paper Saver Ordering
Horizontal
Reverse Horizontal
Reverse Vertical
Vertical
Specify the order in which pages are printed on a single sheet when using Paper Saver.
Notes:
•Horizontal is the factory default setting.
•Positioning depends on the number of pages and whether they are in portrait
or landscape orientation.
Paper Saver Orientation
Auto
Landscape
Portrait
Specify the orientation in which pages are printed on a single sheet.
Note: Auto is the factory default setting. The printer chooses between portrait and
landscape.
Paper Saver Border
None
Solid
Print a border when using Paper Saver.
Note: None is the factory default setting.
Quality menu
Use To
Print Resolution
300 dpi
600 dpi
1200 dpi
1200 Image Q
2400 Image Q
Specify the printed output resolution in dots per inch.
Note: 600 dpi is the factory default setting.
Pixel Boost
Off
Fonts
Horizontally
Vertically
Both directions
Isolated
Enable more pixels to print in clusters for clarity, in order to enhance images horizontally
or vertically, or to enhance fonts.
Note: Off is the factory default setting.
Toner Darkness
1–10
Lighten or darken the printed output.
Notes:
•8 is the factory default setting.
•Selecting a smaller number can help conserve toner.
Understanding the printer menus 194
Use To
Enhance Fine Lines
On
Off
Enable a print mode preferable for files such as architectural drawings, maps, electrical
circuit diagrams, and flow charts.
Notes:
•Off is the factory default setting.
•You can set this option from the printer software. For Windows users, click File >
Print, and then click Properties, Preferences, Options, or Setup. For Macintosh
users, choose File > Print, and then adjust the settings from the Print dialog and
pop‑up menus.
•To set this option using the Embedded Web Server, type the network printer IP
address in the Web browser address field.
Gray Correction
Auto
Off
Automatically adjust the contrast enhancement applied to images.
Note: Auto is the factory default setting.
Brightness
‑6 to 6
Adjust the printed output either by lightening or darkening it. You can conserve toner
by lightening the output.
Note: 0 is the factory default setting.
Contrast
0–5
Adjust the contrast of printed objects.
Note: 0 is the factory default setting.
Job Accounting menu
Note: This menu item appears only when a formatted, non-defective printer hard disk is installed. Make sure the
printer hard disk is not read/write‑ or write‑protected.
Use To
Job Accounting Log
Off
On
Determine and set if the printer creates a log of the print jobs it receives.
Note: Off is the factory default setting.
Job Accounting Utilities Print and delete log files or export them to a flash drive.
Accounting Log Frequency
Weekly
Monthly
Determine and set how often a log file is created.
Note: Monthly is the factory default setting.
Log Action at End of Frequency
None
E‑mail Current Log
E‑mail & Delete Current Log
Post Current Log
Post & Delete Current Log
Determine and set how the printer responds when the frequency threshold expires.
Note: None is the factory default setting.
Disk Near Full Level
Off
1–99
Specify the maximum size of the log file before the printer executes the Disk Near
Full Action.
Note: 5 is the factory default setting.
Understanding the printer menus 195
Use To
Disk Near Full Action
None
E‑mail Current Log
E‑mail & Delete Current Log
E‑mail & Delete Oldest Log
Post Current Log
Post & Delete Current Log
Post & Delete Oldest Log
Delete Current Log
Delete Oldest Log
Delete All Logs
Delete All But Current
Determine and set how the printer responds when the printer hard disk is nearly full.
Notes:
•None is the factory default setting.
•The value defined in Disk Near Full Level determines when this action is
triggered.
Disk Full Action
None
E‑mail & Delete Current Log
E‑mail & Delete Oldest Log
Post & Delete Current Log
Post & Delete Oldest Log
Delete Current Log
Delete Oldest Log
Delete All Logs
Delete All But Current
Determine and set how the printer responds when disk usage reaches the maximum
limit (100MB).
Note: None is the factory default setting.
URL to Post Logs Determine and set where the printer posts job accounting logs.
E‑mail Address to Send Logs Specify the e‑mail address to which the device sends job accounting logs.
Log File Prefix Specify the prefix you want for the log file name.
Note: The current host name defined in the TCP/IP menu is used as the default log
file prefix.
Utilities menu
Use To
Remove Held Jobs
Confidential
Held
Not Restored
All
Delete confidential and held jobs from the printer hard disk.
Notes:
•Selecting a setting affects only print jobs that are resident in the printer.
Bookmarks, print jobs on flash drives, and other types of held jobs are not
affected.
•Not Restored removes all Print and Hold jobs that are not restored from the
printer hard disk or memory.
Understanding the printer menus 196
Use To
Format Flash
Yes
No
Format the flash memory.
Warning—Potential Damage: Do not turn off the printer while the flash memory is
being formatted.
Notes:
•Yes deletes all data stored in flash memory.
•No cancels the format request.
•Flash memory refers to the memory added by installing a flash memory card in
the printer.
•The flash memory option card must not be read/write‑ or write‑protected.
•This menu item appears only when a non‑defective flash memory card is
installed.
Delete Downloads on Disk
Delete Now
Do Not Delete
Delete downloads from the printer hard disk, including all held jobs, buffered jobs,
and parked jobs.
Notes:
•Delete Now sets the printer to delete the downloads and allows the display to
return to the originating screen after the deletion.
•Do Not Delete sets the printer display to return to the main Utilities menu for
touch‑screen printer models. When selected in non‑touch‑screen printer
models, Do Not Delete sets the printer to return to the originating screen after
the deletion.
Activate Hex Trace Assist in isolating the source of a print job problem.
Notes:
•When activated, all data sent to the printer is printed in hexadecimal and
character representation, and control codes are not executed.
•To exit or deactivate Hex Trace, turn off or reset the printer.
Coverage Estimator
Off
On
Provide an estimate of the percentage coverage of toner on a page. The estimate is
printed on a separate page at the end of each print job.
Note: Off is the factory default setting.
XPS menu
Use To
Print Error Pages
Off
On
Print a page containing information on errors, including XML markup errors.
Note: Off is the factory default setting.
PDF menu
Use To
Scale to Fit
Yes
No
Scale page content to fit the selected paper size.
Note: No is the factory default setting.
Understanding the printer menus 197
Use To
Annotations
Do Not Print
Print
Print annotations in a PDF.
Note: Do Not Print is the factory default setting.
PostScript menu
Use To
Print PS Error
On
Off
Print a page containing the PostScript error.
Note: Off is the factory default setting.
Lock PS Startup Mode
On
Off
Disable the SysStart file.
Note: Off is the factory default setting.
Font Priority
Resident
Flash/Disk
Establish the font search order.
Notes:
•Resident is the factory default setting.
•This menu item is available only when a formatted flash memory option
card or printer hard disk is installed and operating properly.
•Make sure the flash memory option or printer hard disk is not
read/write‑, write‑, or password‑protected.
•Job Buffer Size must not be set to 100%.
PCL Emul menu
Use To
Font Source
Resident
Download
All
Specify the set of fonts used in the Font Name menu.
Notes:
•“Resident” is the factory default setting. It shows the factory default set
of fonts downloaded in the RAM.
•“Download” shows all the fonts downloaded in the RAM.
•“All” shows all fonts available to any option.
Font Name
Courier 10
Identify a specific font and where it is stored.
Note: Courier 10 is the factory default setting.
Symbol Set
10U PC‑8
12U PC‑850
Specify the symbol set for each font name.
Notes:
•10U PC‑8 is the US factory default setting. 12U PC‑850 is the international
factory default setting.
•A symbol set is a set of alphabetical and numeric characters, punctuation,
and special symbols. Symbol sets support the different languages or
specific programs, such as math symbols for scientific text. Only the
supported symbol sets are shown.
Understanding the printer menus 198
Use To
PCL Emulation Settings
Point Size
1.00–1008.00
Change the point size for scalable typographic fonts.
Notes:
•12 is the factory default setting.
•Point size refers to the height of the characters in the font. One point
equals approximately 0.014 of an inch. This can be increased or decreased
in 0.25‑point increments.
PCL Emulation Settings
Pitch
0.08–100.00
Specify the font pitch for scalable monospaced fonts.
Notes:
•10 is the factory default setting.
•Pitch refers to the number of fixed‑space characters per inch (cpi). This
can be increased or decreased in 0.01‑cpi increments.
•For non‑scalable monospaced fonts, the pitch appears on the display but
cannot be changed.
PCL Emulation Settings
Orientation
Portrait
Landscape
Specify the orientation of text and graphics on a page.
Notes:
•Portrait is the factory default setting. It prints text and graphics parallel to
the short edge of the page.
•Landscape prints text and graphics parallel to the long edge of the page.
PCL Emulation Settings
Lines per Page
1–255
Specify the number of lines that print on each page.
Notes:
•60 is the US factory default setting. 64 is the international default setting.
•The printer sets the amount of space between each line based on the
Lines per Page, Paper Size, and Orientation settings. Select the paper size
and orientation before setting Lines per Page.
PCL Emulation Settings
A4 Width
198 mm
203 mm
Set the printer to print on A4‑size paper.
Notes:
•198 mm is the factory default setting.
•The 203‑mm setting sets the width of the page to allow the printing of
eighty 10‑pitch characters.
PCL Emulation Settings
Auto CR after LF
On
Off
Specify whether the printer automatically performs a carriage return (CR) after
a line feed (LF) control command.
Note: Off is the factory default setting.
PCL Emulation Settings
Auto LF after CR
On
Off
Specify whether the printer automatically performs a line feed (LF) after a
carriage return (CR) control command.
Note: Off is the factory default setting.
Understanding the printer menus 199
Use To
Tray Renumber
Assign MP Feeder
Off
None
0–199
Assign Tray [x]
Off
None
0–199
Assign Manual Paper
Off
None
0–199
Assign Manual Envelope
Off
None
0–199
Configure the printer to work with printer software or programs that use
different source assignments for trays and feeders.
Notes:
•“Off” is the factory default setting.
•“None” ignores the Select Paper Feed command. This option appears only
when it is selected by the PCL 5e interpreter.
•“0–199” allows a custom setting to be assigned.
Tray Renumber
View Factory Defaults
MPF Default = 8
T1 Default = 1
T2 Default = 4
T3 Default = 5
T4 Default = 20
T5 Default = 21
Env Default = 6
MPaper Default = 2
MEnv Default = 3
Show the factory default setting assigned to each tray or feeder.
Tray Renumber
Restore Defaults
Yes
No
Restore all tray and feeder assignments to the factory default settings.
Understanding the printer menus 200
HTML menu
Use To
Font Name
Albertus MT
Antique Olive
Apple Chancery
Arial MT
Avant Garde
Bodoni
Bookman
Chicago
Clarendon
Cooper Black
Copperplate
Coronet
Courier
Eurostile
Garamond
Geneva
Gill Sans
Goudy
Helvetica
Hoefler Text
Intl CG Times
Intl Courier
Intl Univers
Joanna MT
Letter Gothic
Lubalin Graph
Marigold
MonaLisa Recut
Monaco
New CenturySbk
New York
Optima
Oxford
Palatino
StempelGaramond
Taffy
Times
TimesNewRoman
Univers
Zapf Chancery
NewSansMTCS
NewSansMTCT
New SansMTJA
NewSansMTKO
Set the default font for HTML documents.
Note: The Times font is used in HTML documents that do not
specify a font.
Use To
Font Size
1–255 pt
Set the default font size for HTML documents.
Notes:
•12 pt is the factory default setting.
•Font size can be increased in 1‑point increments.
Scale
1–400%
Scale the default font for HTML documents.
Notes:
•100% is the factory default setting.
•Scaling can be increased in 1% increments.
Orientation
Portrait
Landscape
Set the page orientation for HTML documents.
Note: Portrait is the factory default setting.
Understanding the printer menus 201
Use To
Margin Size
8–255 mm
Set the page margin for HTML documents.
Notes:
•19 mm is the factory default setting.
•Margin size can be increased in 1‑mm increments.
Backgrounds
Do Not Print
Print
Specify whether to print backgrounds on HTML documents.
Note: Print is the factory default setting.
Image menu
Use To
Auto Fit
On
Off
Select the optimal paper size, scaling, and orientation.
Note: On is the factory default setting. It overrides scaling and orientation settings
for some images.
Invert
On
Off
Invert bitonal monochrome images.
Notes:
•Off is the factory default setting.
•This setting does not apply to GIF or JPEG images.
Scaling
Anchor Top Left
Best Fit
Anchor Center
Fit Height/Width
Fit Height
Fit Width
Scale the image to fit the selected paper size.
Notes:
•Best Fit is the factory default setting.
•When Auto Fit is set to On, Scaling is automatically set to Best Fit.
Orientation
Portrait
Landscape
Reverse Portrait
Reverse Landscape
Set the image orientation.
Note: Portrait is the factory default setting.
Help menu
The Help menu consists of a series of Help pages that are stored in the multifunction printer (MFP) as PDF files. They
contain information about using the printer and performing various tasks, including copying, scanning, and faxing.
English, French, German, and Spanish translations are stored in the printer. Other translations are available at
http://support.lexmark.com.
Menu item Description
Print All Guides Prints all the guides
Copy Guide Provides information about making copies and changing settings
Understanding the printer menus 202
Menu item Description
E‑mail Guide Provides information about sending e‑mails using addresses, shortcut numbers, or
the address book, and about changing settings
Fax Guide Provides information about sending faxes using fax numbers, shortcut numbers,
or the address book, and about changing settings
FTP Guide Provides information about scanning documents directly to an FTP server using an
FTP address, shortcut numbers, or the address book, and about changing settings
Print Defects Guide Provides help in resolving repeating defects in copies or prints
Information Guide Provides help in locating additional information
Supplies Guide Provides part numbers for ordering supplies
Understanding the printer menus 203
Saving money and the environment
Lexmark is committed to environmental sustainability and is continually improving its printers to reduce their impact
on the environment. We design with the environment in mind, engineer our packaging to reduce materials, and provide
collection and recycling programs. For more information, see:
•The Notices chapter
•The Environmental Sustainability section of the Lexmark Web site at www.lexmark.com/environment
•The Lexmark recycling program at www.lexmark.com/recycle
By selecting certain printer settings or tasks, you may be able to reduce your printer's impact even further. This chapter
outlines the settings and tasks that may yield a greater environmental benefit.
Saving paper and toner
Studies show that as much as 80% of the carbon footprint of a printer is related to paper usage. You can significantly
reduce your carbon footprint by using recycled paper and the following printing suggestions, such as printing on both
sides of the paper and printing multiple pages on one side of a single sheet of paper.
For information on how you can quickly save paper and energy using one printer setting, see “Using Eco‑Mode” on
page 205.
Using recycled paper
As an environmentally conscious company, Lexmark supports the use of recycled office paper produced specifically for
use in laser/LED printers. For more information on recycled papers that work well with your printer, see “Using recycled
paper and other office papers” on page 72.
Conserving supplies
Use both sides of the paper
If your printer model supports duplex printing, then you can control whether print appears on one or two sides of the
paper by selecting 2‑sided printing from the Print dialog or from the Lexmark Toolbar.
Place multiple pages on one sheet of paper
You can print up to 16 consecutive pages of a multiple‑page document onto one side of a single sheet of paper by
selecting a setting from the Multipage printing (N‑Up) section of the Print dialog screen.
Check your first draft for accuracy
Before printing or making multiple copies of a document:
•Use the preview feature, which you can select from the Print dialog or from the Lexmark Toolbar to see how the
document will look like before you print it.
•Print one copy of the document to check its content and format for accuracy.
Saving money and the environment 204
Avoid paper jams
Correctly set the paper type and size to avoid paper jams. For more information, see “Avoiding jams” on page 227.
Saving energy
Using Eco‑Mode
1Open a Web browser, and then type the printer IP address in the address field.
Notes:
•View the printer IP address on the printer home screen. The IP address appears as four sets of numbers
separated by periods, such as 123.123.123.123.
•If you are using a proxy server, then temporarily disable it to load the Web page correctly.
2Click Settings > General Settings > Eco‑Mode > select a setting
Use To
Off Use the factory default settings for all settings associated with Eco‑Mode. Off supports the performance
specifications of the printer.
Energy Reduce energy use, especially when the printer is idle.
•Printer engine motors do not start until it is ready to print. You may notice a short delay before the
first page is printed.
•The printer enters Sleep mode after one minute of inactivity.
Energy/Paper Use all the settings associated with Energy and Paper modes.
Plain Paper •Enable the automatic two‑sided (duplex) feature.
•Turn off print log features.
3Click Submit.
Reducing printer noise
Enable Quiet Mode to reduce printer noise.
1Open a Web browser, and then type the printer IP address in the address field.
Notes:
•View the printer IP address on the printer home screen. The IP address appears as four sets of numbers
separated by periods, such as 123.123.123.123.
•If you are using a proxy server, then temporarily disable it to load the Web page correctly.
2Click Settings > General Settings > Quiet Mode > select a setting
Saving money and the environment 205
Use To
On Reduce printer noise.
Notes:
•Print jobs are processed at a reduced speed.
•Printer engine motors do not start until a document
is ready to print. There will be a short delay before
the first page is printed.
Off Use factory default settings.
Note: This setting supports the performance
specifications of the printer.
3Click Submit.
Adjusting Sleep mode
To save energy, decrease the number of minutes the printer waits before it enters Sleep mode. Select from 1 to 120.
The factory default setting is 30 minutes.
Note: The printer still accepts print jobs when in Sleep mode.
Using the Embedded Web Server
1Open a Web browser, and then type the printer IP address in the address field.
Notes:
•View the printer IP address on the printer home screen. The IP address appears as four sets of numbers
separated by periods, such as 123.123.123.123.
•If you are using a proxy server, then temporarily disable it to load the Web page correctly.
2Click Settings > General Settings > Timeouts.
3In the Sleep Mode field, enter the number of minutes you want for the printer to wait before it enters Sleep mode.
4Click Submit.
Using the printer control panel
1From the home screen, navigate to:
> Settings > General Settings > Timeouts > Sleep Mode
2In the Sleep Mode field, select the number of minutes you want for the printer to wait before it enters Sleep mode.
3Touch .
Saving money and the environment 206
Using Hibernate Mode
Hibernate is an ultra‑low power operating mode. When operating in Hibernate mode, the printer is essentially off, and
all other systems and devices are powered down safely.
Note: The Hibernate and Sleep modes can be scheduled.
Using the Embedded Web Server
1Open a Web browser, and then type the printer IP address in the address field.
Notes:
•View the printer IP address on the printer home screen. The IP address appears as four sets of numbers
separated by periods, such as 123.123.123.123.
•If you are using a proxy server, then temporarily disable it to load the Web page correctly.
2Click Settings > General Settings > Sleep Button Settings.
3From the Press Sleep Button or Press and Hold Sleep Button drop‑down menu, select Hibernate.
4Click Submit.
Using the printer control panel
1From the home screen, navigate to:
> Settings > General Settings
2Touch Press Sleep Button or Press and Hold Sleep Button.
3Touch Hibernate > .
Adjusting the brightness of the display
To save energy, or if you are have trouble reading your display, adjust the brightness of the display.
Available settings range from 20–100. The factory default setting is 100.
Using the Embedded Web Server
1Open a Web browser, and then type the printer IP address in the address field.
Notes:
•View the printer IP address on the home screen. The IP address appears as four sets of numbers separated
by periods, such as 123.123.123.123.
•If you are using a proxy server, then temporarily disable it to load the Web page correctly.
2Click Settings > General Settings.
3In the Screen Brightness field, enter the brightness percentage you want for the display.
4Click Submit.
Saving money and the environment 207
Using the printer control panel
1From the home screen, navigate to:
> Settings > General Settings > Screen Brightness
2In the Screen Brightness field, enter the brightness percentage you want for the display.
3Touch .
Recycling
Lexmark provides collection programs and environmentally progressive approaches to recycling. For more information,
see:
•The Notices chapter
•The Environmental Sustainability section of the Lexmark Web site at www.lexmark.com/environment
•The Lexmark recycling program at www.lexmark.com/recycle
Recycling Lexmark products
To return Lexmark products for recycling:
1Go to www.lexmark.com/recycle.
2Find the product type you want to recycle, and then select your country or region from the list.
3Follow the instructions on the computer screen.
Note: Printer supplies and hardware not listed in the Lexmark collection program may be recycled through your local
recycling center. Contact your local recycling center to determine the items they accept.
Recycling Lexmark packaging
Lexmark continually strives to minimize packaging. Less packaging helps to ensure that Lexmark printers are transported
in the most efficient and environmentally sensitive manner and that there is less packaging to dispose of. These
efficiencies result in fewer greenhouse emissions, energy savings, and natural resource savings.
Lexmark cartons are 100% recyclable where corrugated recycling facilities exist. Facilities may not exist in your area.
The foam used in Lexmark packaging is recyclable where foam recycling facilities exist. Facilities may not exist in your
area.
When you return a cartridge to Lexmark, you can reuse the box that the cartridge came in. Lexmark will recycle the
box.
Returning Lexmark cartridges for reuse or recycling
Lexmark Cartridge Collection Program diverts millions of Lexmark cartridges from landfills annually by making it both
easy and free for Lexmark customers to return used cartridges to Lexmark for reuse or recycling. One hundred percent
of the empty cartridges returned to Lexmark are either reused or demanufactured for recycling. Boxes used to return
the cartridges are also recycled.
Saving money and the environment 208
To return Lexmark cartridges for reuse or recycling, follow the instructions that came with your printer or cartridge and
use the prepaid shipping label. You can also do the following:
1Go to www.lexmark.com/recycle.
2From the Toner Cartridges section, select your country or region.
3Follow the instructions on the computer screen.
Saving money and the environment 209
Securing the printer
Statement of Volatility
Your printer contains various types of memory that can store device and network settings, and user data.
Types of memory Description
Volatile memory Your printer uses standard Random Access Memory (RAM) to
temporarily buffer user data during simple print and copy
jobs.
Non-volatile memory Your printer may use two forms of non-volatile memory:
EEPROM and NAND (flash memory). Both types are used to
store the operating system, device settings, network
information, scanner and bookmark settings, and embedded
solutions.
Hard disk memory Some printers have a hard disk drive installed. The printer
hard disk is designed for device-specific functionality. This lets
the device retain buffered user data from complex scan, print,
copy, and fax jobs, as well as form data, and font data.
Erase the content of any installed printer memory in the following circumstances:
•The printer is being decommissioned.
•The printer hard disk is being replaced.
•The printer is being moved to a different department or location.
•The printer is being serviced by someone from outside your organization.
•The printer is being removed from your premises for service.
•The printer is being sold to another organization.
Disposing of a printer hard disk
Note: Some printer models may not have a printer hard disk installed.
In high‑security environments, it may be necessary to take additional steps to make sure that confidential data stored
in the printer hard disk cannot be accessed when the printer—or its hard disk—is removed from your premises.
•Degaussing—Flushes the hard disk with a magnetic field that erases stored data
•Crushing—Physically compresses the hard disk to break component parts and render them unreadable
•Milling—Physically shreds the hard disk into small metal bits
Note: Most data can be erased electronically, but the only way to guarantee that all data is completely erased is to
physically destroy each hard disk where data is stored.
Erasing volatile memory
The volatile memory (RAM) installed in your printer requires a power source to retain information. To erase the buffered
data, simply turn off the printer.
Securing the printer 210
Erasing non‑volatile memory
•Individual settings, device and network settings, security settings, and embedded solutions—Erase information
and settings by selecting Wipe All Settings in the Configuration menu.
•Fax data—Erase fax settings and data by selecting Wipe All Settings in the Configuration menu.
1Turn off the printer.
2Hold down 2 and 6 while turning the printer on. Release the buttons only when the screen with the progress bar
appears.
The printer performs a power-on sequence, and then the Configuration menu appears. When the printer is fully
powered up, the touch screen displays a list of functions, instead of the standard home screen icons.
3Touch Wipe All Settings.
The printer will restart several times during this process.
Note: Wipe All Settings securely removes device settings, solutions, jobs, faxes, and passwords from the printer
memory.
4Touch Back > Exit Config Menu.
The printer will perform a power‑on reset, and then return to normal operating mode.
Erasing printer hard disk memory
Note: Some printer models may not have a printer hard disk installed.
Configuring Disk Wiping in the printer menus lets you remove residual confidential material left by print jobs by securely
overwriting files that have been marked for deletion.
Using the printer control panel
1Turn off the printer.
2Hold down 2 and 6 while turning the printer on. Release the buttons only when the screen with the progress bar
appears.
The printer performs a power-on sequence, and then the Configuration menu appears. When the printer is fully
turned on, the touch screen displays a list of functions.
3Touch Wipe Disk, and then touch one of the following:
•Wipe disk (fast)—This lets you overwrite the disk with all zeroes in a single pass.
•Wipe disk (secure)—This lets you overwrite the disk with random bit patterns several times, followed by a
verification pass. A secure overwrite is compliant with the DoD 5220.22‑M standard for securely erasing data
from a hard disk. Highly confidential information should be wiped using this method.
4Touch Yes to proceed with disk wiping.
Notes:
•A status bar will indicate the progress of the disk wiping task.
•Disk wiping can take from several minutes to more than an hour, during which the printer will be unavailable
for other user tasks.
5Touch Back > Exit Config Menu.
Securing the printer 211
The printer will perform a power‑on reset, and then return to normal operating mode.
Configuring printer hard disk encryption
Enable hard disk encryption to prevent loss of sensitive data in the event the printer or its hard disk is stolen.
Note: Some printer models may not have a printer hard disk installed.
Using the Embedded Web Server
1Open a Web browser, and then type the printer IP address in the address field.
Notes:
•View the printer IP address on the printer home screen. The IP address appears as four sets of numbers
separated by periods, such as 123.123.123.123.
•If you are using a proxy server, then temporarily disable it to load the Web page correctly.
2Click Settings > Security > Disk Encryption.
Note: Disk Encryption appears in the Security Menu only when a formatted, non‑defective printer hard disk is
installed.
3From the Disk encryption menu, select Enable.
Notes:
•Enabling disk encryption will erase the contents of the printer hard disk.
•Disk encryption can take from several minutes to more than an hour, during which the printer will be
unavailable for other user tasks.
4Click Submit.
Using the printer control panel
1Turn off the printer.
2Hold down 2 and 6 while turning the printer on. Release the buttons only when the screen with the progress bar
appears.
The printer performs a power-on sequence, and then the Configuration menu appears. When the printer is fully
turned on, a list of functions appears on the printer display.
3Touch Disk Encryption > Enable.
Note: Enabling disk encryption will erase the contents of the printer hard disk.
4Touch Yes to proceed with disk wiping.
Notes:
•Do not turn off the printer during the encryption process. Doing so may result in loss of data.
•Disk encryption can take from several minutes to more than an hour, during which the printer will be
unavailable for other user tasks.
•A status bar will indicate the progress of the disk wiping task. After the disk has been encrypted, the printer
will return to the Enable/Disable screen.
5Touch Back > Exit Config Menu.
Securing the printer 212
The printer will perform a power‑on reset, and then return to normal operating mode.
Finding printer security information
In high-security environments, it may be necessary to take additional steps to make sure that confidential data stored
in the printer cannot be accessed by unauthorized persons. For more information, visit the
Lexmark security Web page.
You can also see the Embedded Web Server Administrator’s Guide for additional information:
1Go to http://support.lexmark.com, and then navigate to Software and Solutions > Other Applications.
2Click the Manuals tab, and then select the Embedded Web Server Administrator’s Guide.
Securing the printer 213
Maintaining the printer
Warning—Potential Damage: Failure to maintain optimum printer performance, or to replace parts and supplies,
may cause damage to your printer.
Cleaning the printer parts
Cleaning the printer
Note: You may need to perform this task after every few months.
Warning—Potential Damage: Damage to the printer caused by improper handling is not covered by the printer
warranty.
1Make sure that the printer is turned off and unplugged from the electrical outlet.
CAUTION—SHOCK HAZARD: To avoid the risk of electrical shock when cleaning the exterior of the printer,
unplug the power cord from the electrical outlet and disconnect all cables from the printer before
proceeding.
2Remove paper from the standard bin and multipurpose feeder.
3Remove any dust, lint, and pieces of paper around the printer using a soft brush or vacuum.
4Dampen a clean, lint-free cloth with water, and use it to wipe the outside of the printer.
Warning—Potential Damage: Do not use household cleaners or detergents to prevent damage to the exterior
of the printer.
5Make sure all areas of the printer are dry before sending a new print job.
Maintaining the printer 214
Cleaning the scanner glass
Clean the scanner glass if you encounter print quality problems, such as streaks on copied or scanned images.
1Slightly dampen a soft, lint-free cloth or paper towel with water.
2Open the scanner cover.
3Clean all the areas shown, and then let them dry.
1
23
4
1White underside of the scanner cover
2Scanner glass
3ADF glass
4White underside of the ADF cover
4Close the scanner cover.
Maintaining the printer 215
Checking the status of parts and supplies
Checking the status of parts and supplies on the printer control panel
From the home screen, touch Status/Supplies > View Supplies.
Checking the status of parts and supplies from the Embedded Web Server
Note: Make sure the computer and the printer are connected to the same network.
1Open a Web browser, and then type the printer IP address in the address field.
Notes:
•View the printer IP address on the home screen. The IP address appears as four sets of numbers separated
by periods, such as 123.123.123.123.
•If you are using a proxy server, then temporarily disable it to load the Web page correctly.
2Click Device Status > More Details.
Estimated number of remaining pages
The estimated number of remaining pages is based on the recent printing history of the printer. Its accuracy may
vary significantly and is dependent on many factors, such as actual document content, print quality settings, and
other printer settings.
The accuracy of the estimated number of remaining pages may decrease when the actual printing consumption is
different from the historical printing consumption. Consider the variable level of accuracy before purchasing or replacing
supplies based on the estimate. Until an adequate print history is obtained on the printer, the estimated cartridge yield is
based on approximately 5% coverage per page.
Ordering supplies
To order supplies in the U.S., contact Lexmark at 1-800-539-6275 for information about Lexmark authorized supplies
dealers in your area. In other countries or regions, visit the Lexmark Web site at www.lexmark.com or contact the
place where you purchased the printer.
Note: All life estimates for printer supplies assume printing on letter‑ or A4‑size plain paper.
Using genuine Lexmark parts and supplies
Your Lexmark printer is designed to function best with genuine Lexmark supplies and parts. Use of third-party supplies
or parts may affect the performance, reliability, or life of the printer and its imaging components. Use of third-party
supplies or parts can affect warranty coverage. Damage caused by the use of third-party supplies or parts is not covered
by the warranty. All life indicators are designed to function with Lexmark supplies and parts, and may deliver
unpredictable results if third-party supplies or parts are used. Imaging component usage beyond the intended life may
damage your Lexmark printer or its associated components.
Maintaining the printer 216
Ordering a toner cartridge
Notes:
•The estimated cartridge yield is based on approximately 5% coverage per page.
•Extremely low print coverage for extended periods of time may negatively affect actual yield.
Lexmark Return Program toner cartridge
Part name Part number
Extra High Yield Toner Cartridge 24B6035
Ordering an imaging unit
Extremely low print coverage for extended periods of time may cause imaging unit parts to fail prior to exhaustion of
toner from toner cartridge.
For more information on replacing the imaging unit, see the instruction sheet that came with the supply.
Lexmark Return Program imaging unit
Part name Part number
Imaging unit 24B6040
Ordering a maintenance kit
Notes:
•Using certain types of paper may require more frequent replacement of the maintenance kit.
•The separator roller, fuser, pick rollers, transfer roller, and redrive assembly are all included in the maintenance
kit and can be individually ordered and replaced if necessary.
•Contact your service representative to replace the maintenance kit.
Recommended maintenance kits and part numbers
Maintenance kit Part number
100‑V maintenance kit*40X9146
110‑V maintenance kit 40X9135
220‑V maintenance kit 40X9136
* This is available only in Japan.
Ordering an ADF separator roller
Order an ADF separator roller when the ADF fails to pick paper or picks more than one sheet of paper at a time.
For information on replacing the ADF separator roller, see the instruction sheet that came with the part.
Maintaining the printer 217
Recommended part numbers
Part name Part number
Separator roller 40X9108
Storing supplies
Choose a cool, clean storage area for the printer supplies. Store supplies right side up in their original packing until you
are ready to use them.
Do not expose supplies to:
•Direct sunlight
•Temperatures above 35°C (95°F)
•High humidity above 80%
•Salty air
•Corrosive gases
•Heavy dust
Replacing supplies
Replacing the toner cartridge
1Press the button on the right side of the printer, and then open the front door.
2
1
Maintaining the printer 218
2Pull the toner cartridge out using the handle.
3Unpack the toner cartridge, and then remove all packing materials.
4Shake the new cartridge to redistribute the toner.
5Insert the toner cartridge into the printer by aligning the side rails of the cartridge with the arrows on the side rails
inside the printer.
Warning—Potential Damage: Do not expose the imaging unit to direct light for more than 10 minutes.
Extended exposure to light may cause print quality problems.
6Close the front door.
Maintaining the printer 219
Replacing the imaging unit
1Press the button on the right side of the printer, and then open the front door.
2
1
2Pull the toner cartridge out using the handle.
3Lift the green handle, and then pull the imaging unit out of the printer.
Maintaining the printer 220
4Unpack the new imaging unit, and then shake it.
5Remove all packing materials from the imaging unit.
Warning—Potential Damage: Do not expose the imaging unit to direct light for more than 10 minutes.
Extended exposure to light may cause print quality problems.
Warning—Potential Damage: Do not touch the photoconductor drum. Doing so may affect the print quality of
future print jobs.
6Insert the imaging unit into the printer by aligning the arrows on the side rails of the imaging unit with the arrows
on the side rails inside the printer.
Maintaining the printer 221
7Insert the toner cartridge into the printer by aligning the side rails of the cartridge with the arrows on the side rails
inside the printer.
8Close the front door.
Moving the printer
CAUTION—POTENTIAL INJURY: The printer weight is greater than 18 kg (40 lb) and requires two or more
trained personnel to lift it safely.
Before moving the printer
CAUTION—POTENTIAL INJURY: Before moving the printer, follow these guidelines to avoid personal injury or
printer damage:
•Turn the printer off using the power switch, and then unplug the power cord from the electrical outlet.
•Disconnect all cords and cables from the printer before moving it.
•If an optional tray is installed, then remove it from the printer. To remove the optional tray, slide the latch on the
right side of the tray toward the front of the tray until it clicks into place.
Maintaining the printer 222
•Use the handholds located on both sides of the printer to lift it.
•Make sure your fingers are not under the printer when you set it down.
•Before setting up the printer, make sure there is adequate clearance around it.
Use only the power cord provided with this product or the manufacturer's authorized replacement.
Warning—Potential Damage: Damage to the printer caused by improper moving is not covered by the printer
warranty.
Moving the printer to another location
The printer and its hardware options can be safely moved to another location by following these precautions:
•Any cart used to move the printer must have a surface able to support the full footprint of the printer.
•Any cart used to move the hardware options must have a surface able to support the dimensions of the hardware
options.
•Keep the printer in an upright position.
•Avoid severe jarring movements.
Shipping the printer
When shipping the printer, use the original packaging or call the place of purchase for a relocation kit.
Maintaining the printer 223
Managing the printer
Finding advanced networking and administrator information
This chapter covers basic administrative support tasks using the Embedded Web Server. For more advanced system
support tasks, see the Networking Guide on the Software CD or the Embedded Web Server Administrator's Guide at
http://support.lexmark.com.
Checking the virtual display
1Open a Web browser, and then type the printer IP address in the address field.
Notes:
•View the printer IP address on the printer home screen. The IP address appears as four sets of numbers
separated by periods, such as 123.123.123.123.
•If you are using a proxy server, then temporarily disable it to load the Web page correctly.
2Check the virtual display that appears at the top left corner of the screen.
The virtual display works as an actual display would work on a printer control panel.
Setting up e‑mail alerts
Configure the printer to send you e‑mail alerts when the supplies are getting low or when the paper needs to be changed
or added, or when there is a paper jam.
1Open a Web browser, and then type the printer IP address in the address field.
Notes:
•View the printer IP address on the printer home screen. The IP address appears as four sets of numbers
separated by periods, such as 123.123.123.123.
•If you are using a proxy server, then temporarily disable it to load the Web page correctly.
2Click Settings.
3From the Other Settings menu, click E‑mail Alert Setup.
4Select the items you want to be notified on, and then type the e‑mail addresses.
5Click Submit.
Note: For information on setting up the e‑mail server, contact your system support person.
Viewing reports
You can view some reports from the Embedded Web Server. These reports are useful for assessing the status of the
printer, network, and supplies.
1Open a Web browser, and then type the printer IP address in the address field.
Managing the printer 224
Notes:
•View the printer IP address on the printer home screen. The IP address appears as four sets of numbers
separated by periods, such as 123.123.123.123.
•If you are using a proxy server, then temporarily disable it to load the Web page correctly.
2Click Reports, and then click the type of report you want to view.
Configuring supply notifications from the Embedded Web
Server
You can determine how you would like to be notified when supplies run nearly low, low, very low, or reach their
end‑of‑life by setting the selectable alerts.
Notes:
•Selectable alerts can be set on the toner cartridge, imaging unit, and maintenance kit.
•All selectable alerts can be set for nearly low, low, and very low supply conditions. Not all selectable alerts can
be set for the end‑of‑life supply condition. E‑mail selectable alert is available for all supply conditions.
•The percentage of estimated remaining supply that prompts the alert can be set on some supplies for some
supply conditions.
1Open a Web browser, and then type the printer IP address in the address field.
Notes:
•View the printer IP address on the printer home screen. The IP address appears as four sets of numbers
separated by periods, such as 123.123.123.123.
•If you are using a proxy server, then temporarily disable it to load the Web page correctly.
2Click Settings > Print Settings > Supply Notifications.
3From the drop‑down menu for each supply, select one of the following notification options:
Notification Description
Off The normal printer behavior for all supplies occurs.
E‑mail Only The printer generates an e‑mail when the supply condition is reached. The status of the
supply appears on the menus page and status page.
Warning The printer displays the warning message and generates an e‑mail about the status of the
supply. The printer does not stop when the supply condition is reached.
Continuable Stop1The printer stops processing jobs when the supply condition is reached, and the user needs
to press a button to continue printing.
Non Continuable Stop1,2 The printer stops processing jobs when the supply condition is reached. The supply must be
replaced to continue printing.
1 The printer generates an e-mail about the status of the supply when supply notification is enabled.
2 The printer stops when some supplies become empty to prevent damage.
4Click Submit.
Managing the printer 225
Restoring factory default settings
If you want to keep a list of the current menu settings for reference, then print a menu settings page before restoring
the factory default settings. For more information, see “Printing a menu settings page” on page 56.
If you want a more comprehensive method of restoring the printer factory default settings, then perform the Wipe All
Settings option. For more information, see “Erasing non‑volatile memory” on page 211.
Warning—Potential Damage: Restoring factory defaults returns most printer settings to the original factory default
settings. Exceptions include the display language, custom sizes and messages, and network/port menu settings. All
downloads stored in the RAM are deleted. Downloads stored in the flash memory or in a printer hard disk are not
affected.
From the home screen, navigate to:
> Settings > General Settings > Factory Defaults > Restore Now >
Managing the printer 226
Clearing jams
By carefully selecting paper and specialty media and loading it properly, you should be able to avoid most jams. If jams
occur, then follow the steps outlined in this chapter.
Warning—Potential Damage: Never use any tool to remove a jam. Doing so could permanently damage the fuser.
Avoiding jams
Load paper properly
•Make sure paper lies flat in the tray.
Correct loading of paper Incorrect loading of paper
•Do not remove a tray while the printer is printing.
•Do not load a tray while the printer is printing. Load it before printing, or wait for a prompt to load it.
•Do not load too much paper. Make sure the stack height is below the maximum paper fill indicator.
Clearing jams 227
•Do not slide the paper into the tray. Load paper as shown in the illustration.
•Make sure the guides in the tray or the multipurpose feeder are properly positioned and are not pressing tightly
against the paper or envelopes.
•Push the tray firmly into the printer after loading paper.
Use recommended paper
•Use only recommended paper or specialty media.
•Do not load wrinkled, creased, damp, bent, or curled paper.
•Flex, fan, and straighten paper before loading it.
•Do not use paper that has been cut or trimmed by hand.
•Do not mix paper sizes, weights, or types in the same tray.
•Make sure the paper size and type are set correctly on the computer or printer control panel.
•Store paper according to manufacturer recommendations.
Understanding jam messages and locations
When a jam occurs, a message indicating the jam location and information to clear the jam appears on the printer
display. Open the doors, covers, and trays indicated on the display to remove the jam.
Clearing jams 228
Notes:
•When Jam Assist is set to On, the printer automatically flushes blank pages or pages with partial prints to the
standard bin after a jammed page has been cleared. Check your printed output stack for discarded pages.
•When Jam Recovery is set to On or Auto, the printer reprints jammed pages. However, the Auto setting does not
guarantee that the page will reprint.
1
2
3
4
5
6
7
Jam access area Printer control panel message What to do
1Automatic document
feeder (ADF)
[x]‑page jam, open automatic
feeder top cover. [28y.xx]
Remove all paper from the ADF tray, and then remove
the jammed paper.
2Standard bin [x]‑page jam, clear standard
bin. [20y.xx]
Remove the jammed paper.
3Front door [x]‑page jam, open front
door. [20y.xx]
Open the front door, then remove the toner cartridge
and imaging unit, and then the jammed paper.
4Multipurpose feeder [x]‑page jam, clear manual
feeder. [250.xx]
Remove all paper from the multipurpose feeder, and
then remove the jammed paper.
5Tray 1 [x]‑page jam, remove tray 1 to
clear duplex. [23y.xx]
Pull out tray 1 completely, then push the front duplex
flap down, and then remove the jammed paper.
Note: You may need to open the rear door to clear
some 23y.xx paper jams.
6Tray [x] [x]‑page jam, remove tray
[x]. [24y.xx]
Pull out the indicated tray, and then remove the jammed
paper.
7Rear door [x]‑page jam, open rear
door. [20y.xx]
Open the rear door, and then remove the jammed paper.
Clearing jams 229
[x]‑page jam, open front door. [20y.xx]
CAUTION—HOT SURFACE: The inside of the printer might be hot. To reduce the risk of injury from a hot
component, allow the surface to cool before touching it.
1Press the button on the right side of the printer, and then open the front door.
2
1
2Pull the toner cartridge out using the handle.
Clearing jams 230
3Lift the green handle, and then pull the imaging unit out of the printer.
Warning—Potential Damage: Do not touch the shiny blue photoconductor drum under the imaging unit. Doing
so may affect the quality of future print jobs.
4Place the imaging unit aside on a flat, smooth surface.
Warning—Potential Damage: Do not expose the imaging unit to direct light for more than 10 minutes.
Extended exposure to light may cause print quality problems.
5Lift the green flap in front of the printer.
Clearing jams 231
6Firmly grasp the jammed paper on each side, and then gently pull it out.
Note: Make sure all paper fragments are removed.
7Insert the imaging unit by aligning the arrows on the side rails of the unit with the arrows on the side rails inside
the printer, and then insert the imaging unit into the printer.
8Insert the toner cartridge by aligning the side rails of the cartridge with the arrows on the side rails inside the printer,
and then insert the cartridge into the printer.
Clearing jams 232
9Close the front door.
10 From the printer control panel, touch to clear the message and continue printing. For non‑touch‑screen printer
models, select Next > > Clear the jam, press OK > .
[x]‑page jam, open rear door. [20y.xx]
1Open the front door to loosen the jammed paper in the rear door.
2
1
2Gently pull down the rear door.
CAUTION—HOT SURFACE: The inside of the printer might be hot. To reduce the risk of injury from a hot
component, allow the surface to cool before touching it.
3Firmly grasp the jammed paper on each side, and then gently pull it out.
Note: Make sure all paper fragments are removed.
Clearing jams 233
4Close the rear door, and then the front door.
5From the printer control panel, touch to clear the message and continue printing. For non‑touch‑screen printer
models, select Next > > Clear the jam, press OK > .
[x]‑page jam, clear standard bin. [20y.xx]
1Firmly grasp the jammed paper on each side, and then gently pull it out.
Note: Make sure all paper fragments are removed.
2From the printer control panel, touch to clear the message and continue printing. For non‑touch‑screen printer
models, select Next > > Clear the jam, press OK > .
Clearing jams 234
[x]‑page jam, remove tray 1 to clear duplex. [23y.xx]
CAUTION—HOT SURFACE: The inside of the printer might be hot. To reduce the risk of injury from a hot
component, allow the surface to cool before touching it.
1Pull the tray completely out of the printer.
2Locate the blue lever, and then pull it down to release the jam.
3Firmly grasp the jammed paper on each side, and then gently pull it out.
Note: Make sure all paper fragments are removed.
Clearing jams 235
4Insert the tray.
5From the printer control panel, touch to clear the message and continue printing. For non‑touch‑screen printer
models, select Next > > Clear the jam, press OK > .
[x]‑page jam, open tray [x]. [24y.xx]
1Pull the tray completely out of the printer.
Note: The message on the printer display indicates the tray where the jammed paper is located.
2Firmly grasp the jammed paper on each side, and then gently pull it out.
Note: Make sure all paper fragments are removed.
Clearing jams 236
3Insert the tray.
4From the printer control panel, touch to clear the message and continue printing. For non‑touch‑screen printer
models, select Next > > Clear the jam, press OK > .
[x]‑page jam, clear manual feeder. [25y.xx]
1From the multipurpose feeder, firmly grasp the jammed paper on each side, and then gently pull it out.
Note: Make sure all paper fragments are removed.
2Flex the sheets of paper back and forth to loosen them, and then fan them. Do not fold or crease the paper. Straighten
the edges on a level surface.
Clearing jams 237
3Reload paper into the multipurpose feeder.
Note: Make sure the paper guide lightly rests against the edge of the paper.
4From the printer control panel, touch to clear the message and continue printing. For non‑touch‑screen printer
models, select Next > > Clear the jam, press OK > .
[x]‑page jam, open automatic feeder top cover. [28y.xx]
1Remove all original documents from the ADF tray.
Note: The message is cleared when the pages are removed from the ADF tray.
2Open the ADF cover.
3Firmly grasp the jammed paper on each side, and then gently pull it out.
Note: Make sure all paper fragments are removed.
4Close the ADF cover.
Clearing jams 238
5Straighten the edges of the original documents, then load the original documents into the ADF, and then adjust the
paper guide.
6From the printer control panel, touch to clear the message and continue printing. For non‑touch‑screen printer
models, select Next > > Clear the jam, press OK > .
Clearing jams 239
Troubleshooting
Understanding printer messages
Cartridge low [88.xy]
You may need to order a toner cartridge. If necessary, select Continue on the printer control panel to clear the message
and continue printing. For non‑touch‑screen printer models, press to confirm.
Cartridge nearly low [88.xy]
If necessary, select Continue on the printer control panel to clear the message and continue printing. For
non‑touch‑screen printer models, press to confirm.
Cartridge very low, [x] estimated pages remain [88.xy]
You may need to replace the toner cartridge very soon. For more information, see the “Replacing supplies” section of
the User’s Guide.
If necessary, select Continue on the printer control panel to clear the message and continue printing. For
non‑touch‑screen printer models, press to confirm.
Change [paper source] to [custom string] load [paper orientation]
Try one or more of the following:
•Load the correct size and type of paper in the tray, then verify that the paper size and type settings are specified in
the Paper menu on the printer control panel, and then select Finished changing paper. For non‑touch‑screen printer
models, press to confirm.
•Cancel the print job.
Change [paper source] to [custom type name] load [orientation]
Try one or more of the following
•Load the correct paper size and type in the tray, verify the paper size and type settings are specified in the Paper
menu on the printer control panel, and then select Finished changing paper. For non‑touch‑screen printer models,
press to confirm.
•Cancel the print job.
Troubleshooting 240
Change [paper source] to [paper size] load [orientation]
Try one or more of the following:
•Load the correct paper size and type in the tray, verify the paper size and type settings are specified in the Paper
menu on the printer control panel, and then select Finished changing paper. For non‑touch‑screen printer models,
press to confirm.
•Cancel the print job.
Change [paper source] to [paper type] [paper size] load [orientation]
Try one or more of the following:
•Load the correct paper size and type in the tray, verify the paper size and type settings are specified in the Paper
menu on the printer control panel, and then select Finished changing paper. For non‑touch‑screen printer models,
press to confirm.
•Cancel the print job.
Close flatbed cover and load originals if restarting job [2yy.xx]
From the printer control panel, try one or more of the following:
•Select Scan from automatic feeder to continue scanning from the ADF immediately after the last successful scan
job.
•Select Scan from flatbed to continue scanning from the scanner glass immediately after the last successful scan
job.
•Select Finish job without further scanning to end the last successful scan job.
Note: This does not cancel the scan job. All successfully scanned pages will be processed further for copying,
faxing, or e-mailing.
•Select Cancel job to clear the message and cancel the scan job.
•For non‑touch‑screen printer models, press to confirm.
Close front door
Close the front door of the printer.
Configuration change, some held jobs were not restored [57]
Held jobs are invalidated because of any of the following possible changes in the printer:
•The printer firmware has been updated.
•The tray for the print job is removed.
•The print job is sent from a flash drive that is no longer attached to the USB port.
•The printer hard disk contains print jobs that were stored when the hard disk was installed in a different printer
model.
Troubleshooting 241
From the printer control panel, select Continue to clear the message. For non-touch-screen printer models, press
to confirm.
Complex page, some data may not have printed [39]
Try one or more of the following:
•From the printer control panel, select Continue to ignore the message and continue printing. For non‑touch‑screen
printer models, press to confirm.
•Cancel the current print job. For non‑touch‑screen printer models, press to confirm.
•Install additional printer memory.
Defective flash detected [51]
Try one or more of the following:
•Replace the defective flash memory card.
•From the printer control panel, select Continue to ignore the message and continue printing. For non‑touch‑screen
printer models, press to confirm.
•Cancel the current print job.
Disk must be formatted for use in this device
From the printer control panel, select Format disk to format the printer hard disk and clear the message. For non-
touch-screen printer models, press to confirm.
Note: Formatting deletes all the files stored in the printer hard disk.
Error reading USB drive. Remove USB.
An unsupported USB device is inserted. Remove the USB device, and then insert a supported one.
Error reading USB hub. Remove hub.
An unsupported USB hub has been inserted. Remove the USB hub, and then install a supported one.
Fax memory full
From the printer control panel, touch Continue to clear the message.
Troubleshooting 242
Fax partition inoperative. Contact system administrator.
Try either of the following:
•From the printer control panel, select Continue to clear the message. For non‑touch‑screen printer models, press
to confirm.
•Turn the printer off, and then turn it back on. If the message appears again, then contact your system support
person or see the “Setting up the printer to fax” section of the User’s Guide.
Fax server 'To Format' not set up. Contact system administrator.
Try either of the following:
•From the printer control panel, select Continue to clear the message. For non‑touch‑screen printer models, press
to confirm.
•Complete the Fax Server setup. If the message appears again, then contact your system support person.
Fax Station Name not set up. Contact system administrator.
Try either of the following:
•From the printer control panel, select Continue to clear the message. For non‑touch‑screen printer models, press
to confirm.
•Complete the Analog Fax Setup. If the message appears again after completing the setup, then contact your system
support person.
Fax Station Number not set up. Contact system administrator.
Try either of the following:
•From the printer control panel, select Continue to clear the message. For non‑touch‑screen printer models, press
to confirm.
•Complete the Analog Fax Setup. If the message appears again after completing the setup, then contact your system
support person.
Imaging unit low [84.xy]
You may need to order an imaging unit. If necessary, select Continue on the printer control panel to clear the message
and continue printing. For non‑touch‑screen printer models, press to confirm.
Imaging unit nearly low [84.xy]
If necessary, select Continue on the printer control panel to clear the message and continue printing. For
non‑touch‑screen printer models, press to confirm.
Troubleshooting 243
Imaging unit very low, [x] estimated pages remain [84.xy]
You may need to replace the imaging unit very soon. For more information, see the "Replacing supplies" section of the
User’s Guide.
If necessary, select Continue on the printer control panel to clear the message and continue printing. For
non‑touch‑screen printer models, press to confirm.
Incorrect paper size, open [paper source] [34]
Try one or more of the following:
•Load the correct size of paper in the tray.
•From the printer control panel, select Continue to clear the message and print using a different tray. For
non‑touch‑screen printer models, press to confirm.
•Check the tray length and width guides and make sure the paper is loaded properly in the tray.
•Make sure the correct paper size and type are specified in the Printing Preferences or in the Print dialog.
•Make sure the paper size and type are specified in the Paper menu on the printer control panel.
•Make sure that the paper size is correctly set. For example, if MP Feeder Size is set to Universal, then make sure
the paper is large enough for the data being printed.
•Cancel the print job.
Insufficient memory for Flash Memory Defragment operation [37]
Try one or more of the following:
•From the printer control panel, select Continue to stop the defragmentation and continue printing. For
non‑touch‑screen printer models, press to confirm.
•Delete fonts, macros, and other data from the printer memory.
•Install additional printer memory.
Insufficient memory, some Held Jobs were deleted [37]
The printer deleted some held jobs in order to process current jobs.
Select Continue to clear the message. For non-touch-screen printer models, press to confirm.
Insufficient memory, some held jobs will not be restored [37]
Try one or more of the following:
•From the printer control panel, select Continue to clear the message. For non-touch-screen printer models, press
to confirm.
•Delete other held jobs to free up additional printer memory.
Troubleshooting 244
Insufficient memory to collate job [37]
Try one or more of the following:
•From the printer control panel, select Continue to print the part of the job already stored and begin collating the
rest of the print job. For non‑touch‑screen printer models, press to confirm.
•Cancel the current print job.
Insufficient memory to support Resource Save feature [35]
Install additional printer memory or select Continue on the printer control panel to disable Resource Save, clear the
message, and continue printing. For non‑touch‑screen printer models, press to confirm.
Load manual feeder with [custom string] [paper orientation]
Try one or more of the following:
•Load the feeder with the correct size and type of paper.
•Depending on your printer model, touch Continue or press to clear the message and continue printing.
Note: If no paper is loaded in the feeder when Continue or is selected, then the printer automatically
overrides the request, and then prints from an automatically selected tray.
•Cancel the current job.
Load manual feeder with [custom type name] [paper orientation]
Try one or more of the following:
•Load the multipurpose feeder with the correct size and type of paper.
•Depending on your printer model, touch Continue or press to clear the message and continue printing.
Note: If no paper is loaded in the feeder when Continue or is selected, then the printer manually overrides
the request, and then prints from an automatically selected tray.
•Cancel the current job.
Load manual feeder with [paper size] [paper orientation]
Try one or more of the following:
•Load the multipurpose feeder with the correct size of paper.
•Depending on your printer model, touch Continue or press to clear the message and continue printing.
Note: If no paper is loaded in the feeder when Continue or is selected, then the printer manually overrides
the request, and then prints from an automatically selected tray.
•Cancel the current job.
Troubleshooting 245
Load manual feeder with [paper type] [paper size] [paper orientation]
Try one or more of the following:
•Load the multipurpose feeder with the correct size and type of paper.
•Depending on your printer model, touch Continue or press to clear the message and continue printing.
Note: If no paper is loaded in the feeder when Continue or is selected, then the printer manually overrides
the request, and then prints from an automatically selected tray.
•Cancel the current job.
Load [paper source] with [custom string] [paper orientation]
Try one or more of the following:
•Load the tray or feeder with the correct size and type of paper.
•To use the tray that has the correct size or type of paper, select Finished loading paper on the printer control panel.
For non‑touch‑screen printer models, press to confirm.
Note: If the printer finds a tray that has the correct size and type of paper, then it feeds from that tray. If the
printer cannot find a tray that has the correct size and type of paper, then it prints from the default paper
source.
•Cancel the current job.
Load [paper source] with [custom type name] [paper orientation]
Try one or more of the following:
•Load the tray or feeder with the correct size and type of paper.
•To use the tray that has the correct size or type of paper, select Finished loading paper on the printer control panel.
For non‑touch‑screen printer models, press to confirm.
Note: If the printer finds a tray that has the correct size and type of paper, then it feeds from that tray. If the
printer cannot find a tray that has the correct size and type of paper, then it prints from the default paper
source.
•Cancel the current job.
Load [paper source] with [paper size] [paper orientation]
Try one or more of the following:
•Load the tray or feeder with the correct size of paper.
•To use the tray or feeder that has the correct size of paper, select Finished loading paper on the printer control
panel. For non‑touch‑screen printer models, press to confirm.
Note: If the printer finds a tray that has the correct size and type of paper, then it feeds from that tray. If the
printer cannot find a tray that has the correct size and type of paper, then it prints from the default paper
source.
•Cancel the current job.
Troubleshooting 246
Load [paper source] with [paper type] [paper size] [paper orientation]
Try one or more of the following:
•Load the tray or feeder with the correct size and type of paper.
•To use the tray or feeder that has the correct size and type of paper, select Finished loading paper on the printer
control panel. For non‑touch‑screen printer models, press to confirm.
Note: If the printer finds a tray that has the correct size and type of paper, then it feeds from that tray. If the
printer cannot find a tray that has the correct size and type of paper, then it prints from the default paper
source.
•Cancel the current job.
Maintenance kit low [80.xy]
You may need to order a maintenance kit. For more information, contact customer support at
http://support.lexmark.com or your service representative. If necessary, select Continue to clear the message and
continue printing. For non‑touch‑screen printer models, press to confirm.
Maintenance kit nearly low [80.xy]
For more information, contact customer support at http://support.lexmark.com or your service representative. If
necessary, select Continue to clear the message and continue printing. For non‑touch‑screen printer models,
press to confirm.
Maintenance kit very low, [x] estimated pages remain [80.xy]
You may need to replace the maintenance kit very soon. For more information, contact customer support at
http://support.lexmark.com or your service representative.
If necessary, select Continue on the printer control panel to clear the message and continue printing. For
non‑touch‑screen printer models, press to confirm.
Memory full [38]
Try one or more of the following:
•From the printer control panel, select Cancel job to clear the message. For non‑touch‑screen printer models, press
to confirm.
•Install additional printer memory.
Memory full, cannot print faxes
From the printer control panel, select Continue to clear the message without printing. For non‑touch‑screen printer
models, press to confirm.
Note: Held faxes will attempt to print after the printer restarts.
Troubleshooting 247
Memory full, cannot send faxes
1From the printer control panel, select Continue to clear the message and cancel the fax job. For non‑touch‑screen
printer models, press to confirm.
2Do either of the following:
•Reduce the fax resolution, and then resend the fax job.
•Reduce the number of pages in the fax, and then resend fax job.
Network [x] software error [54]
Try one or more of the following:
•From the printer control panel, select Continue to continue printing. For non‑touch‑screen printer models, press
to confirm.
•Turn off the printer, wait for about 10 seconds, and then turn the printer back on.
•Update the network firmware in the printer or print server. For more information, contact customer support.
No analog phone line connected to modem, fax is disabled.
Connect the printer to an analog phone line.
Non‑Lexmark [supply type], see User’s Guide [33.xy]
Note: The supply type can be toner cartridge or imaging unit.
The printer has detected a non‑Lexmark supply or part installed in the printer.
Your Lexmark printer is designed to function best with genuine Lexmark supplies and parts. Use of third-party supplies
or parts may affect the performance, reliability, or life of the printer and its imaging components.
All life indicators are designed to function with Lexmark supplies and parts and may deliver unpredictable results if
third-party supplies or parts are used. Imaging component usage beyond the intended life may damage your Lexmark
printer or associated components.
Warning—Potential Damage: Use of third-party supplies or parts can affect warranty coverage. Damage caused by
the use of third-party supplies or parts may not be covered by the warranty.
To accept any and all of these risks and to proceed with the use of non-genuine supplies or parts in your printer, press
and hold and the # button on the printer control panel simultaneously for 15 seconds.
For non‑touch‑screen printer models, press and on the printer control panel simultaneously for 15 seconds
to clear the message and continue printing.
If you do not wish to accept these risks, then remove the third-party supply or part from your printer, and then install
a genuine Lexmark supply or part.
Note: For a list of supported supplies, see the “Ordering supplies” section of the User's Guide or visit
www.lexmark.com.
Troubleshooting 248
Not enough free space in flash memory for resources [52]
Try one or more of the following:
•From the printer control panel, select Continue to clear the message and continue printing. For non‑touch‑screen
printer models, press to confirm.
•Delete fonts, macros, and other data stored in the flash memory.
•Upgrade to a larger capacity flash memory card.
Note: Downloaded fonts and macros that are not previously stored in the flash memory are deleted.
Printer had to restart. Last job may be incomplete.
From the printer control panel, touch to clear the message and continue printing. For non‑touch‑screen printer
models, press to confirm.
For more information, visit http://support.lexmark.com or contact customer support.
Reinstall missing or unresponsive cartridge [31.xy]
Try one or more of the following:
•Check if the toner cartridge is missing. If missing, install the toner cartridge.
For information on installing the cartridge, see the “Replacing supplies” section of the User’s Guide.
•If the toner cartridge is installed, then remove the unresponsive toner cartridge, and then reinstall it.
Note: If the message appears after reinstalling the supply, then the cartridge is defective. Replace the toner
cartridge.
Reinstall missing or unresponsive imaging unit [31.xy]
Try one or more of the following:
•Check if the imaging unit is missing. If missing, install the imaging unit.
For information on installing the imaging unit, see the “Replacing supplies” section of the User’s Guide.
•If the imaging unit is installed, then remove the unresponsive imaging unit, and then reinstall it.
Note: If the message appears after reinstalling the supply, then the imaging unit is defective. Replace the
imaging unit.
Remove paper from standard output bin
Remove the paper stack from the standard bin. The printer automatically detects paper removal and resumes printing.
If removing the paper does not clear the message, then select Continue on the printer control panel. For non-touch-
screen printer models, press to confirm.
Troubleshooting 249
Replace all originals if restarting job.
From the printer control panel, try one or more of the following:
•Select Cancel job to clear the message and cancel the scan job.
•Select Scan from automatic feeder to continue scanning from the ADF immediately after the last successful scan
job.
•Select Scan from flatbed to continue scanning from the scanner immediately after the last successful scan job.
•Select Finish job without further scanning to end the last successful scan job.
•Select Restart job to restart the scan job with the same settings from the previous scan job.
•For non‑touch‑screen printer models, press to confirm.
Replace cartridge, 0 estimated pages remain [88.xy]
Replace the toner cartridge to clear the message and continue printing. For more information, see the instruction sheet
that came with the supply or see the “Replacing supplies” section of the User’s Guide.
Note: If you do not have a replacement cartridge, then see the “Ordering supplies” section of the User’s Guide or
visit www.lexmark.com.
Replace cartridge, printer region mismatch [42.xy]
Install a toner cartridge that matches the region number of the printer. x indicates the value of the printer region. y
indicates the value of the cartridge region. x and y can have the following values:
Printer and toner cartridge regions
Region number Region
0Global
1 United States, Canada
2 European Economic Area (EEA), Switzerland
3 Asia Pacific, Australia, New Zealand
4 Latin America
5 Africa, Middle East, rest of Europe
9Invalid
Notes:
•The x and y values represent .xy in the code that appears on the printer control panel.
•The x and y values must match for printing to continue.
Troubleshooting 250
Replace defective imaging unit [31.xy]
Replace the defective imaging unit to clear the message. For more information, see the instruction sheet that came
with the supply or see the “Replacing supplies” section of the User’s Guide.
Note: If you do not have a replacement imaging unit, then see the “Ordering supplies” section of the User’s Guide or
visit www.lexmark.com.
Replace imaging unit, 0 estimated pages remain [84.xy]
Replace the imaging unit to clear the message and continue printing. For more information, see the instruction sheet
that came with the supply or see the “Replacing supplies” section of the User’s Guide.
Note: If you do not have a replacement imaging unit, then see the “Ordering supplies” section of the User’s Guide or
visit www.lexmark.com.
Replace jammed originals if restarting job.
From the printer control panel, try one or more of the following:
•Select Cancel job to clear the message and cancel the scan job. For non‑touch‑screen printer models, press
to confirm.
•Select Scan from automatic feeder to continue scanning from the ADF immediately after the last successful scan
job. For non‑touch‑screen printer models, press to confirm.
•Select Scan from flatbed to continue scanning from the scanner immediately after the last successful scan job. For
non‑touch‑screen printer models, press to confirm.
•Select Finish job without further scanning to end the last successful scan job. For non‑touch‑screen printer models,
press to confirm.
•Select Restart job to restart the scan job with the same settings from the previous scan job. For non‑touch‑screen
printer models, press to confirm.
Replace maintenance kit, 0 estimated pages remain [80.xy]
Contact customer support at http://support.lexmark.com or your service representative, and then report the message.
The printer is scheduled for maintenance.
Replace unsupported cartridge [32.xy]
Remove the toner cartridge, and then install a supported one to clear the message and continue printing. For more
information, see the instruction sheet that came with the supply or see the “Replacing supplies” section of the User’s
Guide.
Note: If you do not have a replacement cartridge, then see the “Ordering supplies” section of the User’s Guide or
visit www.lexmark.com.
Troubleshooting 251
Replace unsupported imaging unit [32.xy]
Remove the imaging unit, and then install a supported one to clear the message and continue printing. For more
information, see the instruction sheet that came with the supply or see the “Replacing supplies” section of the User’s
Guide.
Note: If you do not have a replacement imaging unit, then see the “Ordering supplies” section of the User’s Guide or
visit www.lexmark.com.
Restore held jobs?
Try one or more of the following:
•From the printer control panel, select Restore to restore all held jobs stored in the printer hard disk. For
non‑touch‑screen printer models, press to confirm.
•From the printer control panel, select Do not restore if you do not want any print jobs to be restored. For
non‑touch‑screen printer models, press to confirm.
Scanner automatic feeder cover open
Close the ADF cover.
Scanner disabled by admin [840.01]
Print without the scanner, or contact your system support person.
Scanner disabled. Contact system administrator if problem persists. [840.02]
From the printer control panel, try one or more of the following:
•Select Continue with scanner disabled to return to the home screen, and then contact your system support person.
•Select Reboot and automatically enable scanner to cancel the job.
Note: This attempts to enable the scanner.
•For non‑touch‑screen printer models, press to confirm.
Scanner jam, remove all originals from the scanner [2yy.xx]
Remove the jammed paper from the scanner.
Scanner jam, remove jammed originals from the scanner [2yy.xx]
Remove the jammed paper from the scanner.
Troubleshooting 252
Serial option [x] error [54]
Try one or more of the following:
•Make sure that the serial cable is properly connected and is the correct one for the serial port.
•Make sure that the serial interface parameters (protocol, baud, parity, and data bits) are set correctly on the printer
and computer.
•From the printer control panel, select Continue to continue printing. For non‑touch‑screen printer models, press
to confirm.
•Turn off the printer, and then turn it back on.
SMTP server not set up. Contact system administrator.
From the printer control panel, select Continue to clear the message. For non‑touch‑screen printer models, press
to confirm.
Note: If the message appears again, then contact your system support person.
Some held jobs were not restored
From the printer control panel, select Continue to delete the specified job. For non‑touch‑screen printer models,
press to confirm.
Note: Held jobs that are not restored stay in the printer hard disk and are inaccessible.
Standard network software error [54]
Try one or more of the following:
•From the printer control panel, select Continue to continue printing. For non‑touch‑screen printer models, press
to confirm.
•Turn off the printer and then turn it back on.
•Update the network firmware in the printer or print server. For more information, contact customer support.
Standard USB port disabled [56]
From the printer control panel, select Continue to clear the message. For non‑touch‑screen printer models, press
to confirm.
Notes:
•The printer discards any data received through the USB port.
•Make sure the USB Buffer menu is not set to Disabled.
Troubleshooting 253
Supply needed to complete job
Do either of the following:
•Install the missing supply to complete the job.
•Cancel the current job.
Too many flash options installed [58]
1Turn off the printer.
2Unplug the power cord from the electrical outlet.
3Remove the extra flash memory.
4Connect the power cord to a properly grounded electrical outlet.
5Turn the printer back on.
Too many trays attached [58]
1Turn off the printer.
2Unplug the power cord from the electrical outlet.
3Remove the extra trays.
4Connect the power cord to a properly grounded electrical outlet.
5Turn the printer back on.
Unformatted flash detected [53]
Try one or more of the following:
•From the printer control, select Continue to stop the defragmentation and continue printing. For non‑touch‑screen
printer models, press to confirm.
•Format the flash memory.
Note: If the error message remains, then the flash memory may be defective and need to be replaced.
Weblink server not set up. Contact system administrator.
Select Continue to clear the message. For non‑touch‑screen printer models, press to confirm.
Note: If the message appears again, then contact your system support person.
Solving printer problems
•“Basic printer problems” on page 255
•“Hardware and internal option problems” on page 257
•“Paper feed problems” on page 260
Troubleshooting 254
Basic printer problems
The printer is not responding
Action Yes No
Step 1
Make sure the printer is turned on.
Is the printer turned on?
Go to step 2. Turn on the printer.
Step 2
Check if the printer is in Sleep mode or Hibernate mode.
Is the printer in Sleep mode or Hibernate mode?
Press the Sleep button
to wake the printer
from Sleep mode or
Hibernate mode.
Go to step 3.
Step 3
Check if one end of the power cord is plugged into the printer and the
other to a properly grounded electrical outlet.
Is the power cord plugged into the printer and a properly grounded
electrical outlet?
Go to step 4. Plug one end of the
power cord into the
printer and the other to
a properly grounded
electrical outlet.
Step 4
Check other electrical equipment plugged into the electrical outlet.
Does other electrical equipment work?
Unplug the other
electrical equipment,
and then turn on the
printer. If the printer
does not work, then
reconnect the other
electrical equipment.
Go to step 5.
Step 5
Check if the cables connecting the printer and the computer are inserted
in the correct ports.
Are the cables inserted in the correct ports?
Go to step 6. Make sure to match the
following:
•The USB symbol on
the cable with the
USB symbol on the
printer
•The appropriate
Ethernet cable with
the Ethernet port
Step 6
Make sure the electrical outlet is not turned off by a switch or breaker.
Is the electrical outlet turned off by a switch or breaker?
Turn on the switch or
reset the breaker.
Go to step 7.
Step 7
Check if the printer is plugged into any surge protectors, uninterruptible
power supplies, or extension cords.
Is the printer plugged into any surge protectors, uninterruptible power
supplies, or extension cords?
Connect the printer
power cord directly to
a properly grounded
electrical outlet.
Go to step 8.
Troubleshooting 255
Action Yes No
Step 8
Check if one end of the printer cable is plugged into a port on the printer
and the other to the computer, print server, option, or other network
device.
Is the printer cable securely attached to the printer and the computer,
print server, option, or other network device?
Go to step 9. Connect the printer
cable securely to the
printer and the
computer, print server,
option, or other
network device.
Step 9
Make sure to install all hardware options properly and remove any packing
material.
Are all hardware options properly installed and all packing material
removed?
Go to step 10. Turn off the printer,
remove all packing
materials, then
reinstall the hardware
options, and then turn
on the printer.
Step 10
Check if you have selected the correct port settings in the printer driver.
Are the port settings correct?
Go to step 11. Use correct printer
driver settings.
Step 11
Check the installed printer driver.
Is the correct printer driver installed?
Go to step 12. Install the correct
printer driver.
Step 12
Turn off the printer, then wait for about 10 seconds, and then turn the
printer back on.
Is the printer working?
The problem is solved. Contact customer
support.
Printer display is blank
Action Yes No
Step 1
Press the Sleep button on the printer control panel.
Does Ready appear on the printer display?
The problem is solved. Go to step 2.
Step 2
Turn off the printer, then wait for about 10 seconds, and then turn the
printer back on.
Do Please wait and Ready appear on the printer display?
The problem is solved. Turn off the printer,
and then contact
customer support.
Troubleshooting 256
Hardware and internal option problems
Cannot detect internal option
Action Yes No
Step 1
Turn off the printer, then wait for about 10 seconds, and then turn on the
printer.
Does the internal option operate correctly?
The problem is solved. Go to step 2.
Step 2
Check if the internal option is properly installed in the controller board.
aTurn off the printer using the power switch, and then unplug the power
cord from the electrical outlet.
bMake sure the internal option is installed in the appropriate connector
in the controller board.
cConnect the power cord to the printer, then to a properly grounded
electrical outlet, and then turn on the printer.
Is the internal option properly installed in the controller board?
Go to step 3. Connect the internal
option to the controller
board.
Step 3
Print a menu settings page, and then check to see if the internal option is
listed in the Installed Features list.
Is the internal option listed in the menu settings page?
Go to step 4. Reinstall the internal
option.
Step 4
aCheck if the internal option is selected.
It may be necessary to manually add the internal option in the printer
driver to make it available for print jobs. For more information, see
“Updating available options in the printer driver” on page 45.
bResend the print job.
Does the internal option operate correctly?
The problem is solved. Contact customer
support.
Internal Solutions Port does not operate correctly
Action Yes No
Step 1
Make sure the Internal Solutions Port (ISP) is installed.
aInstall the ISP. For more information, see “Installing an Internal
Solutions Port” on page 32.
bPrint a menu settings page, and then check if the ISP is listed in the
Installed Options list.
Is the ISP listed in the Installed Options list?
Go to step 2. Check if you have a
supported ISP.
Note: An ISP from
another printer may
not work on this
printer.
Troubleshooting 257
Action Yes No
Step 2
Check the cable and the ISP connection.
aUse the correct cable, and then make sure it is securely connected to
the ISP.
bCheck if the ISP solution interface cable is securely connected into the
receptacle of the controller board.
Note: The ISP solution interface cable and the receptacle on the
controller board are color‑coded.
Does the Internal Solutions Port operate correctly?
The problem is solved. Contact customer
support.
Tray problems
Action Yes No
Step 1
aPull out the tray, and then do one or more of the following:
•Check for paper jams or misfeeds.
•Check if the paper size indicators on the paper guides are aligned
with the paper size indicators on the tray.
•If you are printing on custom‑size paper, then make sure that the
paper guides rest against the edges of the paper.
•Make sure the paper is below the maximum paper fill indicator.
•Make sure paper lies flat in the tray.
bCheck if the tray closes properly.
Is the tray working?
The problem is solved. Go to step 2.
Step 2
aTurn off the printer, then wait about 10 seconds, and then turn the
printer back on.
bResend the print job.
Is the tray working?
The problem is solved. Go to step 3.
Step 3
Check if the tray is installed and recognized by the printer.
Print a menu settings page, and then check if the tray is listed in the
Installed Features list.
Is the tray listed in the menu settings page?
Go to step 4. Reinstall the tray. For
more information, see
the setup
documentation that
came with the tray.
Troubleshooting 258
Action Yes No
Step 4
Check if the tray is available in the printer driver.
Note: If necessary, manually add the tray in the printer driver to make it
available for print jobs. For more information, see “Updating available
options in the printer driver” on page 45.
Is the tray available in the printer driver?
The problem is solved. Contact customer
support.
USB/parallel interface card does not operate correctly
Action Yes No
Step 1
Make sure the USB or parallel interface card is installed.
aInstall the USB or parallel interface card. For more information, see
“Installing an Internal Solutions Port” on page 32.
bPrint a menu settings page, and then check if the USB or parallel
interface card is listed in the Installed Options list.
Is the USB or parallel interface card listed in the Installed Options list?
Go to step 2. Check if you have a
supported USB or
parallel interface card.
Note: A USB or parallel
interface card from
another printer may
not work on this
printer.
Step 2
Check if you are using the correct cable and if it is connected securely to
the USB or parallel interface card.
Is the correct cable securely connected to the USB or parallel interface
card?
Contact customer
support.
Connect the cable to
the USB or parallel
interface card
connector.
Troubleshooting 259
Paper feed problems
Paper frequently jams
Action Yes No
Step 1
aPull out the tray, and then do one or more of the following:
•Make sure paper lies flat in the tray.
•Check if the paper size indicators on the paper guides are aligned
with the paper size indicators on the tray.
•Check if the paper guides are aligned against the edges of the
paper.
•Make sure the paper is below the maximum paper fill indicator.
•Check if you are printing on a recommended paper size and type.
bInsert the tray properly.
If jam recovery is enabled, then the print jobs will reprint
automatically.
Do paper jams still occur frequently?
Go to step 2. The problem is solved.
Step 2
aLoad paper from a fresh package.
Note: Paper absorbs moisture due to high humidity. Store paper in
its original wrapper until you use it.
bResend the print job.
Do paper jams still occur frequently?
Go to step 3. The problem is solved.
Step 3
aReview the tips on avoiding jams. For more information, see “Avoiding
jams” on page 227.
bFollow the recommendations, and then resend the print job.
Do paper jams still occur frequently?
Contact customer
support.
The problem is solved.
Paper jam message remains after jam is cleared
Action Yes No
Check the entire paper path for jammed paper.
aRemove any jammed paper.
bFrom the printer control panel, touch Continue to clear the message.
Does the paper jam message remain?
Contact customer
support.
The problem is solved.
Troubleshooting 260
Jammed pages are not reprinted
Action Yes No
Turn on Jam Recovery.
aFrom the home screen, navigate to:
> Settings > General Settings > Print Recovery
bFrom the Jam Recovery menu, touch the arrows to scroll to On or
Auto.
cTouch Submit.
Do pages reprint after a jam?
The problem is solved. Contact customer
support.
Solving print problems
Printing problems
Multiple‑language PDF files do not print
Action Yes No
Step 1
aCheck if the print options for the PDF output are set to embed all fonts.
For more information, see the documentation that came with Adobe
Acrobat.
bGenerate a new PDF file, and then resend the print job.
Do the files print?
The problem is solved. Go to step 2.
Step 2
aOpen the document you want to print in Adobe Acrobat.
bClick File > Print > Advanced > Print As Image > OK > OK.
Do the files print?
The problem is solved. Contact customer
support.
Troubleshooting 261
Error message about reading the flash drive appears
Action Yes No
Step 1
Check if the flash drive is inserted into the front USB port.
Note: The flash drive will not work if it is inserted into the rear USB
port.
Is the flash drive inserted into the front USB port?
Go to step 2. Insert the flash drive
into the front USB port.
Step 2
Check if the indicator light on the printer control panel is blinking green.
Note: A green blinking light indicates that the printer is busy.
Is the indicator light blinking green?
Wait until the printer is
ready, then view the
held jobs list, and then
print the documents.
Go to step 3.
Step 3
aCheck for an error message on the display.
bClear the message.
Does the error message still appear?
Go to step 4. The problem is solved.
Step 4
Check if the flash drive is supported.
For more information on tested and approved USB flash drives, see
“Supported flash drives and file types” on page 80.
Does the error message still appear?
Go to step 5. The problem is solved.
Step 5
Check if the USB port is disabled by the system support person.
Does the error message still appear?
Contact customer
support.
The problem is solved.
Print jobs do not print
Action Yes No
Step 1
aFrom the document you are trying to print, open the Print dialog and
check if you have selected the correct printer.
Note: If the printer is not the default printer, then you must select
the printer for each document that you want to print.
bResend the print job.
Do the jobs print?
The problem is solved. Go to step 2.
Troubleshooting 262
Action Yes No
Step 2
aCheck if the printer is plugged in and turned on, and if Ready appears
on the printer display.
bResend the print job.
Do the jobs print?
The problem is solved. Go to step 3.
Step 3
If an error message appears on the printer display, then clear the message.
Note: The printer continues to print after clearing the message.
Do the jobs print?
The problem is solved. Go to step 4.
Step 4
aCheck if the ports (USB, serial, or Ethernet) are working and if the
cables are securely connected to the computer and the printer.
Note: For more information, see the setup documentation that
came with the printer.
bResend the print job.
Do the jobs print?
The problem is solved. Go to step 5.
Step 5
aTurn off the printer, then wait for about 10 seconds, and then turn the
printer back on.
bResend the print job.
Do the jobs print?
The problem is solved. Go to step 6.
Step 6
aRemove, and then reinstall the printer software. For more
information, see “Installing the printer software” on page 45.
Note: The printer software is available at
http://support.lexmark.com.
bResend the print job.
Do the jobs print?
The problem is solved. Contact customer
support.
Troubleshooting 263
Confidential and other held jobs do not print
Note: Confidential, Verify, Reserve, and Repeat print jobs may be deleted if the printer requires extra memory to
process additional held jobs.
Action Yes No
Step 1
Open the held jobs folder on the printer display, and then verify that your
print job is listed.
Is your print job listed in the held jobs folder?
Go to step 2. Select one of the Print
and Hold options, and
then resend the print
job. For more
information, see
“Printing confidential
and other held jobs” on
page 82.
Step 2
The print job may contain a formatting error or invalid data.
•Delete the print job, and then send it again.
•For PDF files, generate a new PDF, and then print it again.
If you are printing from the Internet, then the printer may be reading
multiple job titles as duplicates and deleting all jobs except the first one.
For Windows users
aOpen the Print Properties folder.
bFrom the Print and Hold dialog, select the “Keep duplicate documents”
check box.
cEnter a PIN number.
For Macintosh users
Save each print job, name each job differently, and then send the
individual jobs to the printer.
Does the job print?
The problem is solved. Go to step 3.
Step 3
Free up additional printer memory by deleting some of the held jobs.
Does the job print?
The problem is solved. Add additional printer
memory.
Troubleshooting 264
Print job takes longer than expected
Action Yes No
Step 1
Change the environmental settings of the printer.
aFrom the printer control panel, navigate to:
Settings > General Settings
bSelect Eco‑Mode or Quiet Mode, and then select Off.
Note: Disabling Eco-Mode or Quiet Mode may increase the
consumption of energy or supplies, or both.
Did the job print?
The problem is solved. Go to step 2.
Step 2
Reduce the number and size of fonts, the number and complexity of
images, and the number of pages in the print job, and then resend the job
Did the job print?
The problem is solved. Go to step 3.
Step 3
aRemove held jobs stored in the printer memory.
bResend the print job.
Did the job print?
The problem is solved. Go to step 4.
Step 4
aDisable the Page Protect feature.
From the printer control panel, navigate to:
Settings > General Settings > Print Recovery > Page Protect > Off
bResend the print job.
Did the job print?
The problem is solved. Go to step 5.
Step 5
aCheck if the cable connections to the printer and print server are
secure. For more information, see the setup documentation that came
with the printer.
bResend the print job.
Did the job print?
The problem is solved. Go to step 6.
Step 6
Install additional printer memory, and then resend the print job.
Did the job print?
The problem is solved. Contact customer
support.
Troubleshooting 265
Printing slows down
Notes:
•When printing using narrow paper, the printer prints at a reduced speed to prevent damage to the fuser.
•The printer speed may be reduced when printing for long periods of time, or printing at elevated temperatures.
Action Yes No
Step 1
aMake sure the size of the paper loaded in the tray matches the fuser
type.
Note: Use a 110-volt fuser for printing on letter-size paper and a
220-volt fuser for printing on A4‑size paper.
bResend the print job.
Does the print speed increase?
The problem is solved. Go to step 2.
Step 2
aReplace the fuser. For more information on installing the fuser, see
the instruction sheet that came with the part.
bResend the print job.
Does the print speed increase?
The problem is solved. Contact customer
support.
Job prints from the wrong tray or on the wrong paper
Action Yes No
Step 1
aCheck if you are printing on paper that is supported by the tray.
bResend the print job.
Did the job print from the correct tray or on the correct paper?
The problem is solved. Go to step 2.
Step 2
aFrom the Paper menu on the printer control panel, set the paper size
and type to match the paper loaded in the tray.
bResend the print job.
Did the job print from the correct tray or on the correct paper?
The problem is solved. Go to step 3.
Step 3
aDepending on your operating system, open Printing Preferences or
the Print dialog, and then specify the paper type.
bResend the print job.
Did the job print from the correct tray or on the correct paper?
The problem is solved. Go to step 4.
Troubleshooting 266
Action Yes No
Step 4
aCheck if the trays are not linked.
bResend the print job.
Did the job print from the correct tray or on the correct paper?
The problem is solved. Contact customer
support.
Incorrect characters print
Action Yes No
Step 1
Make sure the printer is not in Hex Trace mode.
Note: If Ready Hex appears on the printer display, then turn off the
printer, and then turn it back on to deactivate Hex Trace mode.
Is the printer in Hex Trace mode?
Deactivate Hex Trace
mode.
Go to step 2.
Step 2
aFrom the printer control panel, select Standard Network or
Network [x], and then set SmartSwitch to On.
bResend the print job.
Do incorrect characters print?
Contact customer
support.
The problem is solved.
Tray linking does not work
Notes:
•The trays can detect paper length.
•The multipurpose feeder does not automatically detect the paper size. You must set the size from the Paper
Size/Type menu.
Action Yes No
Step 1
aOpen the trays, and then check if they contain paper of the same size
and type.
•Check if the paper guides are in the correct positions for the size
of the paper loaded in each tray.
•Check if the paper size indicators on the paper guides are aligned
with the paper size indicators on the tray.
bResend the print job.
Do the trays link correctly?
The problem is solved. Go to step 2.
Troubleshooting 267
Action Yes No
Step 2
aFrom the printer control panel, set the paper size and type in the Paper
menu to match the paper loaded in the trays to be linked.
Note: The paper size and type must match for trays to be linked.
bResend the print job.
Do the trays link correctly?
The problem is solved. Contact customer
support.
Large jobs do not collate
Action Yes No
Step 1
aFrom the Finishing menu on the printer control panel, set Collate to
“(1,2,3) (1,2,3).”
bResend the print job.
Did the job print and collate correctly?
The problem is solved. Go to step 2.
Step 2
aFrom the printer software, set Collate to “(1,2,3) (1,2,3).”
Note: Setting Collate to “(1,1,1) (2,2,2)” in the software overrides
the setting in the Finishing menu.
bResend the print job.
Did the job print and collate correctly?
The problem is solved. Go to step 3.
Step 3
Reduce the complexity of the print job by eliminating the number and size
of fonts, the number and complexity of images, and the number of pages
in the job.
Did the job print and collate correctly?
The problem is solved. Contact customer
support.
Unexpected page breaks occur
Action Yes No
Increase the printing timeout.
aFrom the home screen, navigate to:
> Settings > General Settings > Timeouts
bIncrease the Print Timeout setting, and then touch Submit.
cResend the print job.
Did the file print correctly?
The problem is solved. Check the original file
for manual page
breaks.
Troubleshooting 268
Print quality problems
Characters have jagged or uneven edges
Action Yes No
Step 1
aPrint a font sample list to check if the fonts you are using are supported
by the printer.
1From the printer control panel, navigate to:
> Reports > Print Fonts
2Touch PCL Fonts or PostScript Fonts.
bUse a font that is supported by the printer or install the font that you
want to use. For more information, contact your system support
person.
cResend the print job.
Do prints still contain characters that have jagged or uneven edges?
Go to step 2. The problem is solved.
Step 2
aUse a font that is supported by the printer or install the font that you
want to use on your computer. For more information, contact your
system support person.
bResend the print job.
Do prints still contain characters that have jagged or uneven edges?
Contact customer
support.
The problem is solved.
Printer is printing blank pages
Troubleshooting 269
Action Yes No
Step 1
aCheck if there is packing material left on the imaging unit.
1Remove the toner cartridge, and then the imaging unit.
2Check if the packing material is properly removed from the imaging
unit.
Warning—Potential Damage: Do not expose the imaging unit to
direct light for more than 10 minutes. Extended exposure to
light may cause print quality problems.
3Reinstall the imaging unit, and then the cartridge.
bResend the print job.
Is the printer still printing blank pages?
Go to step 2. The problem is solved.
Step 2
aRedistribute the toner in the imaging unit.
1Remove the toner cartridge, and then the imaging unit.
2Firmly shake the imaging unit.
Warning—Potential Damage: Do not expose the imaging unit to
direct light for more than 10 minutes. Extended exposure to
light may cause print quality problems.
3Reinstall the imaging unit, and then the cartridge.
bResend the print job.
Is the printer still printing blank pages?
Go to step 3. The problem is solved.
Step 3
Replace the imaging unit, and then resend the print job.
Is the printer still printing blank pages?
Contact customer
support.
The problem is solved.
Clipped pages or images
Leading edge
Trailing edge
ABCDE
ABCDE
ABCDE
Troubleshooting 270
Action Yes No
Step 1
aMove the width and length guides in the tray to the correct positions
for the paper loaded.
bResend the print job.
Is the page or image clipped?
Go to step 2. The problem is solved.
Step 2
From the printer control panel, set the paper size and type in the Paper
menu to match the paper loaded in the tray.
Do the paper size and type match the paper loaded in the tray?
Go to step 3. Do one or more of the
following:
•Specify the paper
size from the tray
settings to match
the paper loaded in
the tray.
•Change the paper
loaded in the tray
to match the paper
size specified in the
tray settings.
Step 3
aDepending on your operating system, specify the paper size from
Printing Preferences or from the Print dialog.
bResend the print job.
Is the page or image clipped?
Go to step 4. The problem is solved.
Step 4
aReinstall the imaging unit.
1Remove the toner cartridge.
2Remove the imaging unit.
Warning—Potential Damage: Do not expose the imaging unit to
direct light for more than 10 minutes. Extended exposure to
light may cause print quality problems.
3Install the imaging unit, and then the cartridge.
bResend the print job.
Is the page or image clipped?
Contact customer
support.
The problem is solved.
Compressed images appear on prints
Note: Printing on letter-size paper using a 220-volt fuser compresses images.
Troubleshooting 271
Action Yes No
Step 1
aMake sure the size of the paper loaded in the tray matches the fuser
type.
Note: Use a 110-volt fuser for printing on letter-size paper and a
220-volt fuser for printing on A4‑size paper.
bResend the print job.
Do compressed images still appear?
The problem is solved. Go to step 2.
Step 2
aReplace the fuser. For more information on installing the fuser, see
the instruction sheet that came with the part.
bResend the print job.
Do compressed images still appear?
The problem is solved. Contact customer
support.
Shadow images appear on prints
ABCD
ABCD
ABCD
ABCD
Leading edge
Trailing edge
Action Yes No
Step 1
Load paper with the correct paper type and weight in the tray.
Is paper with the correct paper type and weight loaded in the tray?
Go to step 2. Load paper with the
correct paper type and
weight in the tray.
Step 2
From the printer control panel, set the paper type and weight in the Paper
menu to match the paper loaded in the tray.
Is the tray set to the type and weight of the paper loaded?
Go to step 3. Change the paper
loaded in the tray to
match the paper type
and weight specified in
the tray settings.
Step 3
aDepending on your operating system, specify the paper type and
weight from Printing Preferences or from the Print dialog.
bResend the print job.
Do shadow images still appear on prints?
Go to step 4. The problem is solved.
Troubleshooting 272
Action Yes No
Step 4
Replace the imaging unit, and then resend the print job.
Do shadow images still appear on prints?
Contact customer
support.
The problem is solved.
Gray background on prints
ABCDE
ABCDE
ABCDE
Leading edge
Trailing edge
Action Yes No
Step 1
Check if Allow Background Removal is set to Off.
aFrom the General Settings menu, set Allow Background Removal to
On.
bResend the print job.
Did the background disappear from the prints?
The problem is solved. Go to step 2.
Step 2
Adjust the toner darkness to a lighter setting.
aFrom the Quality Menu, select a lower value to reduce toner density.
•4 is the factory default setting.
•If Print Mode is set to Black Only, then a setting of 5 increases toner
density and darkness for all print jobs.
bResend the print job.
Did the background disappear from the prints?
The problem is solved. Go to step 3.
Step 3
Reinstall the toner cartridge.
aRemove the cartridge.
bInstall the cartridge.
cResend the print job.
Did the background disappear from the prints?
The problem is solved. Go to step 4.
Troubleshooting 273
Action Yes No
Step 4
Check if off-white background is selected.
aDepending on your operating system, set off-white background from
Print Properties or the Print dialog.
bResend the print job.
Did the background disappear from the prints?
The problem is solved. Contact customer
support.
Incorrect margins on prints
ABCD
ABCD
ABCD
Action Yes No
Step 1
aMove the width and length guides in the tray to the correct positions
for the paper size loaded.
bResend the print job.
Are the margins correct?
The problem is solved. Go to step 2.
Step 2
From the printer control panel, set the paper size in the Paper menu to
match the paper loaded in the tray.
Does the paper size match the paper loaded in the tray?
Go to step 3. Do one or more of the
following:
•Specify the paper
size from the tray
settings to match
the paper loaded in
the tray.
•Change the paper
loaded in the tray
to match the paper
size specified in the
tray settings.
Step 3
aDepending on your operating system, specify the paper size from
Printing Preferences or from the Print dialog.
bResend the print job.
Are the margins correct?
The problem is solved. Contact customer
support.
Troubleshooting 274
Paper curl
Action Yes No
Step 1
Move the width and length guides in the tray to the correct positions for
the size of the paper loaded.
Are the width and length guides positioned correctly?
Go to step 2. Adjust the width and
length guides.
Step 2
From the printer control panel, set the paper type and weight in the Paper
menu to match the paper loaded in the tray.
Do the paper type and weight match the type and weight of the paper in
the tray?
Go to step 3. Specify the paper type
and weight from the
tray settings to match
the paper loaded in the
tray.
Step 3
aDepending on your operating system, specify the paper type and
weight from Printing Preferences or from the Print dialog.
bResend the print job.
Is the paper still curled?
Go to step 4. The problem is solved.
Step 4
aRemove the paper from the tray, and then turn it over.
bResend the print job.
Is the paper still curled?
Go to step 5. The problem is solved.
Step 5
aLoad paper from a fresh package.
Note: Paper absorbs moisture due to high humidity. Store paper in
its original wrapper until you use it.
bResend the print job.
Is the paper still curled?
Contact customer
support.
The problem is solved.
Print irregularities
) )
ABCDE
ABCDE
ABCDE
Leading edge
Trailing edge
Troubleshooting 275
Action Yes No
Step 1
aMove the width and length guides in the tray to the correct positions
for the size of the paper loaded in the tray.
bResend the print job.
Do print irregularities still appear?
Go to step 2. The problem is solved.
Step 2
From the printer control panel, set the paper size and type in the Paper
menu to match the paper loaded in the tray.
Do the printer settings match the type and weight of the paper loaded in
the tray?
Go to step 3. Specify the paper size
and type from the tray
settings to match the
paper loaded in the
tray.
Step 3
aDepending on your operating system, specify the paper type and
weight from Printing Preferences or from the Print dialog.
bResend the print job.
Do print irregularities still appear?
Go to step 4. The problem is solved.
Step 4
Check if the paper loaded in the tray has texture or rough finishes.
Are you printing on textured or rough paper?
From the printer
control panel, set the
paper texture in the
Paper menu to match
the paper loaded in the
tray.
Go to step 5.
Step 5
aLoad paper from a fresh package.
Note: Paper absorbs moisture due to high humidity. Store paper in
its original wrapper until you use it.
bResend the print job.
Do print irregularities still appear?
Go to step 6. The problem is solved.
Step 6
Replace the imaging unit, and then resend the print job.
Do print irregularities still appear?
Contact customer
support at
http://support.lexmar
k.com or your service
representative.
The problem is solved.
Troubleshooting 276
Repeating defects appear on prints
Action Yes No
Step 1
Measure the distance between the defects.
Check for a distance between the defects that equals:
•97 mm (3.82 in.)
•47 mm (1.85 in.)
•38 mm (1.5 in.)
Is the distance between defects equal to one of the listed measurements?
Go to step 2. 1Check if the
distance between
the defects equal
to 80 mm (3.15 in.)
2Take note of the
distance, and then
contact customer
support at
http://support.le
xmark.com or
your service
representative.
Step 2
Replace the imaging unit, and then resend the print job.
Do the repeating defects still appear?
Contact customer
support at
http://support.lexma
rk.com or your service
representative.
The problem is solved.
Print is too dark
Action Yes No
Step 1
aFrom the Quality menu on the printer control panel, reduce the toner
darkness.
Note: 8 is the factory default setting.
bResend the print job.
Is the print still too dark?
Go to step 2. The problem is solved.
Troubleshooting 277
Action Yes No
Step 2
aFrom the printer control panel, set the paper type, texture and weight
in the Paper menu to match the paper loaded in the tray.
bResend the print job.
Is the tray set to the type, texture, and weight of the paper loaded?
Go to step 3. Do one or more of the
following:
•Specify the paper
type, texture, and
weight from the
tray settings to
match the paper
loaded in the tray.
•Change the paper
loaded in the tray
to match the paper
type, texture and
weight specified in
the tray settings.
Step 3
aDepending on your operating system, specify the paper type, texture
and weight from Printing Preferences or from the Print dialog.
bResend the print job.
Is the print still too dark?
Go to step 4. The problem is solved.
Step 4
Check if the paper loaded in the tray has texture or rough finishes.
Are you printing on textured or rough paper?
From the printer
control panel, change
the texture settings in
the Paper Texture
menu to match the
paper you are printing
on.
Go to step 5.
Step 5
aLoad paper from a fresh package.
Note: Paper absorbs moisture due to high humidity. Store paper in
its original wrapper until you use it.
bResend the print job.
Is the print still too dark?
Go to step 6. The problem is solved.
Step 6
Replace the imaging unit, and then resend the print job.
Is the print still too dark?
Contact customer
support.
The problem is solved.
Troubleshooting 278
Print is too light
Action Yes No
Step 1
aFrom the Quality menu on the printer control panel, increase the toner
darkness.
Note: 8 is the factory default setting.
bResend the print job.
Is the print still too light?
Go to step 2. The problem is solved.
Step 2
From the printer control panel, set the paper type, texture, and weight in
the Paper menu to match the paper loaded in the tray.
Is the tray set to the type, texture, and weight of the paper loaded?
Go to step 3. Change the paper type,
texture, and weight to
match the paper
loaded in the tray.
Step 3
aDepending on your operating system, specify the paper type, texture,
and weight from Printing Preferences or from the Print dialog.
bResend the print job.
Is the print still too light?
Go to step 4. The problem is solved.
Step 4
Make sure that the paper has no texture or rough finishes.
Are you printing on textured or rough paper?
From the printer
control panel, change
the texture settings in
the Paper Texture
menu to match the
paper you are printing
on.
Go to step 5.
Step 5
aLoad paper from a fresh package.
Note: Paper absorbs moisture due to high humidity. Store paper in
its original wrapper until you use it.
bResend the print job.
Is the print still too light?
Go to step 6. The problem is solved.
Troubleshooting 279
Action Yes No
Step 6
aRedistribute the toner in the imaging unit.
1Remove the toner cartridge, and then the imaging unit.
2Firmly shake the imaging unit.
Warning—Potential Damage: Do not expose the imaging unit to
direct light for more than 10 minutes. Extended exposure to
light may cause print quality problems.
3Install the imaging unit, and then the cartridge.
bResend the print job.
Is the print still too light?
Go to step 7. The problem is solved.
Step 7
Replace the imaging unit, and then resend the print job.
Is the print still too light?
Contact customer
support.
The problem is solved.
Skewed print
) )
ABCDE
ABCDE
ABCDE
Action Yes No
Step 1
aMove the width and length guides in the tray to the correct positions
for the size of the paper loaded.
bResend the print job.
Is the print still skewed?
Go to step 2. The problem is solved.
Step 2
aCheck if you are printing on a paper that is supported by the tray.
bResend the print job.
Is the print still skewed?
Contact customer
support.
The problem is solved.
Troubleshooting 280
Printer is printing solid black pages
Action Yes No
Step 1
aReinstall the imaging unit.
1Remove the toner cartridge, and then the imaging unit.
Warning—Potential Damage: Do not expose the imaging unit to
direct light for more than 10 minutes. Extended exposure to
light may cause print quality problems.
2Install the imaging unit, and then the cartridge.
bResend the print job.
Is the printer printing solid black pages?
Go to step 2. The problem is solved.
Step 2
Replace the imaging unit, and then resend the print job.
Is the printer printing solid black pages?
Contact customer
support.
The problem is solved.
Transparency print quality is poor
Action Yes No
Step 1
From the printer control panel, set the paper type in the Paper menu to
match the paper loaded in the tray.
Is the paper type for the tray set to Transparency?
Go to step 2. Set the paper type to
Transparency.
Step 2
aCheck if you are using a recommended type of transparency.
bResend the print job.
Is the print quality still poor?
Contact customer
support.
The problem is solved.
Troubleshooting 281
Streaked horizontal lines appear on prints
ABCDE
ABCDE
ABCDE
Action Yes No
Step 1
aDepending on your operating system, specify the tray or feeder from
Printing Preferences or the Print dialog.
bResend the print job.
Do streaked horizontal lines appear on prints?
Go to step 2. The problem is solved.
Step 2
From the printer control panel, set the paper type and weight in the Paper
menu to match the paper loaded in the tray.
Do the paper type and weight match the type and weight of the paper in
the tray?
Go to step 3. Change the paper type
and weight to match
the paper loaded in the
tray.
Step 3
aLoad paper from a fresh package.
Note: Paper absorbs moisture due to high humidity. Store paper in
its original wrapper until you use it.
bResend the print job.
Do streaked horizontal lines appear on prints?
Go to step 4. The problem is solved.
Step 4
aReinstall the imaging unit.
1Remove the toner cartridge, and then the imaging unit.
Warning—Potential Damage: Do not expose the imaging unit to
direct light for more than 10 minutes. Extended exposure to
light may cause print quality problems.
2Install the imaging unit, and then the cartridge.
bResend the print job.
Do streaked horizontal lines appear on prints?
Go to step 5. The problem is solved.
Step 5
Replace the imaging unit, and then resend the print job.
Do streaked horizontal lines appear on prints?
Contact customer
support.
The problem is solved.
Troubleshooting 282
Streaked vertical lines appear on prints
ABCDE
ABCDE
ABCDE
Leading edge
Trailing edge
Action Yes No
Step 1
aDepending on your operating system, specify the paper type, texture,
and weight from Printing Preferences or from the Print dialog.
bResend the print job.
Do streaked vertical lines appear on prints?
Go to step 2. The problem is solved.
Step 2
From the printer control panel, set the paper texture, type, and weight in
the Paper menu to match the paper loaded in the tray.
Do the paper texture, type, and weight match the paper in the tray?
Go to step 3. Do one or more of the
following:
•Specify the paper
texture, type, and
weight from the
tray settings to
match the paper
loaded in the tray.
•Change the paper
loaded in the tray
to match the paper
texture, type, and
weight specified in
the tray settings.
Step 3
aLoad paper from a fresh package.
Note: Paper absorbs moisture due to high humidity. Store paper in
its original wrapper until you use it.
bResend the print job.
Do streaked vertical lines appear on prints?
Go to step 4. The problem is solved.
Step 4
aReinstall the imaging unit.
1Remove the toner cartridge, and then the imaging unit.
Warning—Potential Damage: Do not expose the imaging unit to
direct light for more than 10 minutes. Extended exposure to
light may cause print quality problems.
2Install the imaging unit, and then the cartridge.
bResend the print job.
Do streaked vertical lines appear on prints?
Go to step 5. The problem is solved.
Troubleshooting 283
Action Yes No
Step 5
Replace the imaging unit, and then resend the print job.
Do streaked vertical lines appear on prints?
Contact customer
support at
http://support.lexmar
k.com or your service
representative.
The problem is solved.
Horizontal voids appear on prints
Leading edge
Trailing edge
Action Yes No
Step 1
aMake sure your software program is using a correct fill pattern.
bResend the print job.
Do horizontal voids appear on prints?
Go to step 2. The problem is solved.
Step 2
aLoad the specified tray or feeder with a recommended type of paper.
bResend the print job.
Do horizontal voids appear on prints?
Go to step 3. The problem is solved.
Step 3
aRedistribute the toner in the imaging unit.
1Remove the toner cartridge, and then the imaging unit.
2Firmly shake the imaging unit.
Warning—Potential Damage: Do not expose the imaging unit to
direct light for more than 10 minutes. Extended exposure to
light may cause print quality problems.
3Reinstall the imaging unit, and then the cartridge.
bResend the print job.
Do horizontal voids appear on prints?
Go to step 4. The problem is solved.
Step 4
Replace the imaging unit, and then resend the print job.
Do horizontal voids appear on prints?
Contact customer
support.
The problem is solved.
Troubleshooting 284
Vertical voids appear on prints
Leading edge
Trailing edge
Action Yes No
Step 1
aMake sure your software program is using a correct fill pattern.
bResend the print job.
Do vertical voids appear on prints?
Go to step 2. The problem is solved.
Step 2
aFrom the printer control panel, set the paper type and weight in the
Paper menu to match the paper loaded in the tray.
bResend the print job.
Do vertical voids appear on prints?
Go to step 3. The problem is solved.
Step 3
Check if you are using a recommended type of paper.
aLoad the specified tray or feeder with a recommended type of paper.
bResend the print job.
Do vertical voids appear on prints?
Go to step 4. The problem is solved.
Step 4
aRedistribute the toner in the imaging unit.
1Remove the toner cartridge, and then the imaging unit.
2Firmly shake the imaging unit.
Warning—Potential Damage: Do not expose the imaging unit to
direct light for more than 10 minutes. Extended exposure to
light may cause print quality problems.
3Reinstall the imaging unit, and then the cartridge.
bResend the print job.
Do vertical voids appear on prints?
Go to step 5. The problem is solved.
Step 5
Replace the imaging unit, and then resend the print job.
Do vertical voids appear on prints?
Contact customer
support.
The problem is solved.
Troubleshooting 285
Toner specks appear on prints
Action Yes No
Replace the imaging unit, and then resend the print job.
Do toner specks appear on prints?
Contact customer
support.
The problem is solved.
Toner fog or background shading appears on prints
ABCDE
ABCDE
ABCDE
Action Yes No
Step 1
Reinstall the imaging unit.
aRemove, and then install the imaging unit.
bResend the print job.
Does fog or shading appear on prints?
Go to step 2. The problem is solved.
Step 2
Replace the imaging unit, and then resend the print job.
Does fog or shading appear on prints?
Contact customer
support at
http://support.lexmar
k.com or your service
representative.
The problem is solved.
Toner rubs off
Leading edge
Trailing edge
ABC
DEF
Troubleshooting 286
Action Yes No
Step 1
From the Paper menu on the printer control panel, check the paper type
and weight.
Do the paper type and texture match the paper loaded in the tray?
Go to step 2. Specify the paper type
and weight from the
tray settings to match
the paper loaded in the
tray.
Step 2
Check if you are printing on paper with texture or rough finishes.
Are you printing on textured or rough paper?
From the Paper menu
on the printer control
panel, set the paper
texture.
Contact customer
support.
Uneven print density
Action Yes No
Replace the imaging unit, and then resend the print job.
Is the print density uneven?
Contact customer
support.
The problem is solved.
Solving copy problems
•“Copier does not respond” on page 288
•“Scanner unit does not close” on page 288
•“Poor copy quality” on page 288
•“Partial document or photo copies” on page 290
Troubleshooting 287
Copier does not respond
Action Yes No
Step 1
Check if an error or status message appears on the display.
Does an error or status message appear?
Clear the error or status
message.
Go to step 2.
Step 2
Check if the power cord is plugged into the printer and a properly
grounded electrical outlet.
Is the power cord plugged into the printer and a properly grounded
electrical outlet?
Go to step 3. Connect the power
cord to the printer and
a properly grounded
electrical outlet.
Step 3
Turn off the printer, then wait for about 10 seconds, and then turn it back
on.
Did Performing Self Test and Ready appear?
The problem is solved. Contact customer
support.
Scanner unit does not close
Action Yes No
Check if there are no obstructions between the scanner unit and the
printer.
aLift the scanner unit.
bRemove any obstruction that keeps the scanner unit open.
cLower the scanner unit.
Did the scanner unit close properly?
The problem is solved. Contact customer
support.
Poor copy quality
Action Yes No
Step 1
Check if an error or status message appears on the display.
Does an error or status message appear?
Clear the error or status
message.
Go to step 2.
Step 2
Check the quality of the original document.
Is the quality of the original document satisfactory?
Go to step 3. Increase the scan
resolution setting for a
higher‑quality output.
Troubleshooting 288
Action Yes No
Step 3
If dark marks appear on prints, then clean the scanner glass and the ADF
glass using a clean, lint-free cloth dampened with water.
Is the scanner glass clean?
Go to step 4. See “Cleaning the
scanner glass” on
page 215.
Step 4
Send a print job, and then check for print quality problems.
aFrom the General Settings menu, adjust the Eco‑Mode settings.
bFrom the Copy menu, adjust the Darkness setting.
cIf the print remains faded, then replace the toner cartridge.
Is the print quality satisfactory?
Go to step 5. See “Print quality
problems” on
page 269.
Step 5
Check the placement of the document or photo.
Make sure the document or photo is loaded facedown on the scanner
glass in the upper left corner.
Is the document or photo loaded correctly?
Go to step 6. Place the document or
photo facedown on the
scanner glass in the
upper left corner.
Step 6
Check the copy settings.
From the Copy screen, check if the Content Type and Content Source
settings are correct for the document being scanned.
Are the Content Type and Content Source settings correct for the
document being scanned?
Go to step 7. Change the Content
Type and Content
Source settings to
match the document
being scanned.
Step 7
Check for patterns on print.
aFrom the printer control panel, navigate to:
Copy > Sharpness > select a lower setting
Note: Make sure no scaling is being selected.
bResend the copy job.
Do patterns appear on prints?
Go to step 8. The problem is solved.
Step 8
Check for missing or faded text on prints.
aFrom the Copy screen, adjust the settings of the following:
•Sharpness—Increase the sharpness setting.
•Contrast—Increase the contrast setting.
bResend the copy job.
Do prints have missing or faded text?
Go to step 9. The problem is solved.
Troubleshooting 289
Action Yes No
Step 9
Check for washed‑out or overexposed output.
aFrom the Copy screen, adjust the settings of the following:
•Background Removal—Reduce the current setting.
•Darkness—Increase the current setting.
bResend the copy job.
Do pages show washed‑out or overexposed prints?
Contact customer
support.
The problem is solved.
Partial document or photo copies
Action Yes No
Step 1
Check the placement of the document or photo.
Make sure the document or photo is loaded facedown on the scanner
glass in the upper left corner.
Is the document or photo loaded correctly?
Go to step 2. Place the document or
photo facedown on the
scanner glass in the
upper left corner.
Step 2
Check if the paper size setting matches the size of the paper loaded in the
tray.
From the Paper menu on the printer control panel, check the Paper
Size setting.
Does the paper size setting match the size of the paper loaded in the tray.
Go to step 3. Change the paper size
setting to match the
paper loaded in the
tray, or load the tray
with paper that
matches the paper size
setting.
Step 3
aSpecify the paper size. Depending on your operating system, specify
the paper size in Printing Preferences or the Print dialog.
bResend the print job.
Do copies print properly?
The problem is solved. Contact customer
support.
Solving fax problems
•“Fax and e-mail functions are not set up” on page 291
•“Caller ID is not shown” on page 291
•“Cannot send or receive a fax” on page 292
•“Can send but not receive faxes” on page 294
•“Can receive but not send faxes” on page 295
•“Received fax has poor print quality” on page 296
Troubleshooting 290
Fax and e-mail functions are not set up
Notes:
•Before you troubleshoot, check if the fax cables are connected.
•The indicator light is blinking red until you set up fax and e‑mail.
Action Yes No
aFrom the home screen, navigate to:
> Settings > General Settings > Run initial setup > Yes > Submit
bTurn off the printer, and then turn it back on.
The “Select your language” screen appears on the printer display.
cSelect a language, and then touch .
dSelect a country or region, and then touch Next.
eSelect a time zone, and then touch Next.
fSelect Fax and E‑mail, and then touch Next.
Are fax and e‑mail functions set up?
The problem is solved. Contact customer
support.
Caller ID is not shown
Action Yes No
Contact your telephone company to check if your telephone line is
subscribed to the caller ID service.
Notes:
•If your region supports multiple caller ID patterns, then you may
have to change the default setting. There are two settings
available: FSK (pattern 1) and DTMF (pattern 2).
•The availability of these settings in the Fax menu depends on
whether your country or region supports multiple caller ID
patterns.
•Contact your telephone company to determine which pattern or
switch setting to use.
Does the caller ID appear?
The problem is solved. Contact customer
support.
Troubleshooting 291
Cannot send or receive a fax
Action Yes No
Step 1
Check if an error or status message appears on the display.
Is there an error or status message on the display?
Clear the error or status
message.
Go to step 2.
Step 2
Check if the power cord is plugged into the printer and a properly
grounded electrical outlet.
Is the power cord plugged into the printer and a properly grounded
electrical outlet?
Go to step 3. Connect the power
cord to the printer and
a properly grounded
electrical outlet.
Step 3
Check the power.
Check if the printer is plugged in and turned on, and if Ready appears
on the display.
Is the printer turned on, and does Ready appear on the display?
Go to step 4. Turn on the printer,
and then wait until
Ready appears on the
display.
Step 4
Check the printer connections.
If applicable, check if the cable connections for the following
equipment are secure:
•Telephone
•Handset
•Answering machine
Are the cable connections secure?
Go to step 5. Securely connect the
cables.
Step 5
aCheck the telephone wall jack.
1Plug the telephone cable into the wall jack.
2Listen for a dial tone.
3If you do not hear a dial tone, then plug a different telephone cable
into the wall jack.
4If you still do not hear a dial tone, then plug the telephone cable
into a different wall jack.
5If you hear a dial tone, then connect the printer to that wall jack.
bTry sending or receiving a fax.
Can you send or receive a fax?
The problem is solved. Go to step 6.
Troubleshooting 292
Action Yes No
Step 6
Check if the printer is connected to an analog phone service or the correct
digital connector.
The fax modem is an analog device. Certain devices can be connected
to the printer so that digital telephone services can be used.
•If you are using an ISDN telephone service, then connect the
printer to an analog telephone port (an R-interface port) on an
ISDN terminal adapter. For more information and to request an R-
interface port, contact your ISDN provider.
•If you are using DSL, then connect to a DSL filter or router that will
support analog use. For more information, contact your DSL
provider.
•If you are using a PBX telephone service, then make sure you are
connecting to an analog connection on the PBX. If none exists, then
consider installing an analog telephone line for the fax machine.
Is the printer connected to an analog phone service or the correct digital
connector?
Go to step 7. Connect the printer to
an analog phone
service or the correct
digital connector.
Step 7
Check for a dial tone.
Did you hear a dial tone?
Go to step 8. •Try calling the fax
number to make
sure that it is
working properly.
•If the telephone
line is being used by
another device,
then wait until the
other device is
finished before
sending a fax.
•If you are using the
On Hook Dial
feature, then turn
up the volume to
check if you hear a
dial tone.
Step 8
Temporarily disconnect other equipment (such as answering machines,
computers with modems, or telephone line splitters) between the printer
and the telephone line, and then try sending or receiving a fax.
Can you send or receive a fax?
The problem is solved. Go to step 9.
Step 9
aTemporarily disable call waiting. Contact your telephone company to
obtain the keypad sequence for temporarily disabling call waiting.
bTry sending or receiving a fax.
Can you send or receive a fax?
The problem is solved. Go to step 10.
Troubleshooting 293
Action Yes No
Step 10
aTemporarily disable voice mail service. For more information, contact
your telephone company.
Note: If you want to use both voice mail and the printer, then
consider adding a second telephone line for the printer.
bTry sending or receiving a fax.
Can you send or receive a fax?
The problem is solved. Go to step 11.
Step 11
Scan the original document one page at a time.
aDial the fax number.
bScan the document one page at a time.
Can you send or receive a fax?
The problem is solved. Contact customer
support.
Can send but not receive faxes
Action Yes No
Step 1
Check the tray or feeder.
If empty, then load paper in the tray or feeder.
Can you receive faxes?
The problem is solved. Go to step 2.
Step 2
Check the ring count delay settings.
aOpen a Web browser, and then type the printer IP address in the
address field.
Notes:
•View the printer IP address on the printer home screen. The IP
address appears as four sets of numbers separated by periods,
such as 123.123.123.123.
•If you are using a proxy server, then temporarily disable it to
load the Web page correctly.
bClick Settings > Fax Settings > Analog Fax Setup.
cIn the “Rings to Answer” field, enter the number of times you want
the phone to ring before the printer answers.
dClick Submit.
Can you receive faxes?
The problem is solved. Go to step 3.
Troubleshooting 294
Action Yes No
Step 3
Replace the toner cartridge. For more information, see the instruction
sheet that came with the supply.
Can you receive faxes?
The problem is solved. Contact customer
support.
Can receive but not send faxes
Action Yes No
Step 1
Check if the printer is in Fax mode.
From the home screen, touch Fax to put the printer in Fax mode, and
then send the fax.
Note: The Multi Send application does not support the XPS output type.
To use XPS, use the regular faxing method.
Can you send faxes?
The problem is solved. Go to step 2.
Step 2
Load the original document properly.
Load the original document faceup, short edge first into the ADF tray
or facedown on the scanner glass in the upper left corner.
Note: Do not load postcards, photos, small items, transparencies, photo
paper, or thin media (such as magazine clippings) into the ADF tray.
Place these items on the scanner glass.
Can you send faxes?
The problem is solved. Go to step 3.
Step 3
Set up the shortcut number properly.
•Check if the shortcut number has been set for the telephone number
that you want to dial.
•Dial the telephone number manually.
Can you send faxes?
The problem is solved. Contact customer
support.
Troubleshooting 295
Received fax has poor print quality
Action Yes No
Step 1
Ask the person who sent you the fax to:
aCheck if the quality of the original document is satisfactory.
bIncrease the fax scan resolution, if possible.
cResend the fax.
Is the fax print quality satisfactory?
The problem is solved. Go to step 2.
Step 2
Decrease the incoming fax transmission speed.
aOpen a Web browser, and then type the printer IP address in the
address field.
Notes:
•View the printer IP address on the printer home screen. The IP
address appears as four sets of numbers separated by periods,
such as 123.123.123.123.
•If you are using a proxy server, then temporarily disable it to
load the Web page correctly.
•Print a network setup page or menu settings page, and then
locate the IP address in the TCP/IP section.
bClick Settings > Fax Settings > Analog Fax Setup.
cIn the Max Speed menu, click one of the following:
•2400
•4800
•9600
•14400
•33600
dClick Submit, and then resend the fax.
Is the fax print quality satisfactory?
The problem is solved. Go to step 3.
Step 3
Replace the toner cartridge.
When Cartridge low [88.xy] appears, replace the cartridge,
and then resend the fax.
Is the fax print quality satisfactory?
The problem is solved. Contact customer
support.
Solving scanner problems
•“Cannot scan from a computer” on page 297
•“Partial document or photo scans” on page 297
•“Poor scanned image quality” on page 298
Troubleshooting 296
•“Scan job was not successful” on page 299
•“Scanner unit does not close” on page 299
•“Scanning takes too long or freezes the computer” on page 299
•“The scanner does not respond” on page 300
Cannot scan from a computer
Action Yes No
Step 1
Make sure the printer is turned on and that Ready appears on the printer
display before scanning a job.
Does Ready appear before scanning the job?
Go to step 3. Go to step 2.
Step 2
Turn off the printer, then wait for about 10 seconds, and then turn the
printer back on.
Is there an error message on the printer display?
Clear the error
message.
Go to step 3.
Step 3
Check the cable connections between the printer and the print server to
make sure they are secure.
For more information, see the setup documentation that came with
the printer.
Are the cable connections between the printer and the print server
secure?
Contact customer
support.
Tighten the cable
connections.
Partial document or photo scans
Action Yes No
Check the placement of the document or photo.
Make sure the document or photo is loaded facedown on the scanner
glass in the upper left corner.
Is the document or photo loaded correctly?
Contact customer
support.
Load the document or
photo facedown on the
scanner glass in the
upper left corner.
Troubleshooting 297
Poor scanned image quality
Action Yes No
Step 1
Check if an error message appears on the display.
Is there an error message on the printer display?
Clear the error
message.
Go to step 2.
Step 2
Check the quality of the original document.
Is the quality of the original document satisfactory?
Go to step 3. Increase the scan
resolution settings for a
higher‑quality output.
Step 3
Clean the scanner glass and the ADF glass using a clean, lint‑free cloth
dampened with water.
Is the scanner glass clean?
Go to step 4. See “Cleaning the
scanner glass” on
page 215.
Step 4
Check the placement of the document or photo.
Make sure the document or photo is loaded facedown on the scanner
glass in the upper left corner.
Is the document or photo loaded correctly?
Go to step 5. Place the document or
photo facedown on the
scanner glass in the
upper left corner.
Step 5
Send a print job, and then check for print quality problems.
•From the General Settings menu, adjust the Eco‑Mode settings.
•From the Copy menu, adjust the Darkness setting.
•When the print becomes faded, replace the toner cartridge.
Is the print quality satisfactory?
Go to step 6. See “Print quality
problems” on
page 269.
Step 6
Check the scan settings.
From the Scan screen, make sure the Content Type and Content Source
settings are correct for the document being scanned.
Are the Content Type and Content Source settings correct for the
document being scanned?
Go to step 7. Change the Content
Type and Content
Source settings to
match the document
being scanned.
Step 7
Increase the scan resolution settings for a higher‑quality output.
Did the increased resolution produce a higher‑quality output?
Problem solved. Contact customer
support.
Troubleshooting 298
Scan job was not successful
Action Yes No
Step 1
Check the cable connections.
Make sure the Ethernet or USB cable is securely connected to the
computer and the printer.
Are the cables securely connected?
Go to step 2. Connect the cables
properly.
Step 2
Check if the file name is already in use.
Is the file name already in use?
Change the file name. Go to step 3.
Step 3
Check if the document or photo you want to scan is open in another
application or being used by another user.
Is the file you want to scan open by another application or user?
Close the file you are
scanning.
Go to step 4.
Step 4
Check if either the Append time stamp or the Overwrite existing file check
box is selected in the destination configuration settings.
Is the Append time stamp or Overwrite existing file check box selected
in the destination configuration settings?
Contact customer
support.
Select the Append time
stamp or Overwrite
existing file check box
in the destination
configuration settings.
Scanner unit does not close
Action Yes No
Check if there are obstructions in the scanner unit.
aLift the scanner unit.
bRemove any obstruction keeping the scanner unit open.
cLower the scanner unit.
Did the scanner unit close correctly?
The problem is solved. Contact customer
support.
Scanning takes too long or freezes the computer
Action Yes No
Step 1
Check if other applications are interfering with the scan.
Close all applications that are not being used.
Does scanning still take too long or freeze the computer?
Go to step 2. The problem is solved.
Troubleshooting 299
Action Yes No
Step 2
Select a lower scan resolution.
Does scanning still take too long or freeze the computer?
Contact customer
support.
The problem is solved.
The scanner does not respond
Action Yes No
Step 1
Check if the printer is turned on.
Is the printer turned on?
Go to step 2. Turn on the printer.
Step 2
Check if the printer cable is securely attached to the printer and the
computer, print server, option, or other network device.
Is the printer cable securely attached to the printer and the computer,
print server, option, or other network device?
Go to step 3. Connect the printer
cable securely to the
printer and the
computer, print server,
option, or other
network device.
Step 3
Check if the power cord is plugged into the printer and a properly
grounded electrical outlet.
Is the power cord plugged into the printer and a properly grounded
electrical outlet?
Go to step 4. Connect the power
cord to the printer and
a properly grounded
electrical outlet.
Step 4
Check if the electrical outlet is turned off by a switch or breaker.
Is the electrical outlet turned off by a switch or breaker?
Turn on the switch or
reset the breaker.
Go to step 5.
Step 5
Check if the printer is plugged into any surge protectors, uninterruptible
power supplies, or extension cords.
Is the printer plugged into any surge protectors, uninterruptible power
supplies, or extension cords?
Connect the printer
power cord directly to
a properly grounded
electrical outlet.
Go to step 6.
Step 6
Check other electrical equipment plugged into the outlet.
Are the other electrical equipment working?
Unplug the other
electrical equipment
and turn on the printer.
If the printer does not
work, then reconnect
the other electrical
equipment and then go
to step 6.
Go to step 7.
Troubleshooting 300
Action Yes No
Step 7
Turn off the printer, then wait for about 10 seconds, and then turn the
printer back on.
Are the printer and scanner working?
The problem is solved. Contact customer
support.
Solving home screen applications problems
An application error has occurred
Action Yes No
Step 1
Check the system log for relevant details.
aOpen a Web browser, and then type the printer IP address in the
address field.
If you do not know the IP address of the printer, then you can:
•View the IP address on the printer home screen.
•Print a network setup page or the menu settings pages, and then
locate the IP address in the TCP/IP section.
Note: An IP address appears as four sets of numbers separated by
periods, such as 123.123.123.123.
bClick Settings > Apps > Apps Management > System tab > Log.
cFrom the Filter menu, select an application status.
dFrom the Application menu, select an application, and then click
Submit.
Does an error message appear in the log?
Go to step 2. Contact customer
support.
Step 2
Resolve the error.
Is the application working now?
The problem is solved. Contact customer
support.
Embedded Web Server does not open
Action Yes No
Step 1
aTurn on the printer.
bOpen a Web browser, and then type the printer IP address.
cPress Enter.
Does the Embedded Web Server open?
The problem is solved. Go to step 2.
Troubleshooting 301
Action Yes No
Step 2
Make sure the printer IP address is correct.
aView the printer IP address:
•From the TCP/IP section in the Network/Ports menu
•By printing a network setup page or menu settings page, and then
finding the TCP/IP section
Note: An IP address appears as four sets of numbers separated
by periods, such as 123.123.123.123.
bOpen a Web browser, and then type the IP address.
Note: Depending on the network settings, you may need to type
“https://” instead of “http://” before the printer IP address
to access the Embedded Web Server.
cPress Enter.
Does the Embedded Web Server open?
The problem is solved. Go to step 3.
Step 3
Check if the network is working.
aPrint a network setup page.
bCheck the first section of the network setup page and confirm that the
status is Connected.
Note: If the status is Not Connected, then the connection may be
intermittent, or the network cable may be defective. Contact your
system support person for a solution, and then print another
network setup page.
cOpen a Web browser, and then type the printer IP address.
dPress Enter.
Does the Embedded Web Server open?
The problem is solved. Go to step 4.
Step 4
Check if the cable connections to the printer and print server are secure.
aConnect the cables properly. For more information, see the setup
documentation that came with the printer.
bOpen a Web browser, and then type the printer IP address.
cPress Enter.
Does the Embedded Web Server open?
The problem is solved. Go to step 5.
Step 5
Temporarily disable the Web proxy servers.
Proxy servers may block or restrict you from accessing certain Web
sites including the Embedded Web Server.
Does the Embedded Web Server open?
The problem is solved. Contact your system
support person.
Troubleshooting 302
Contacting customer support
When you contact customer support, you will need to be able to describe the problem you are experiencing, the message
on the printer display, and the troubleshooting steps you have already taken to find a solution.
You need to know your printer model type and serial number. For more information, see the label at the back of the
printer. The serial number is also listed on the menu settings page.
Lexmark has various ways to help you solve your printing problem. Visit the Lexmark Web site at
http://support.lexmark.com, and then select one of the following:
Tech Library You can browse our library of manuals, support documentation, drivers, and other downloads to help you
solve common problems.
E-mail You can send an e-mail to the Lexmark team, describing your problem. A service representative will respond
and provide you with information to solve your problem.
Live chat You can chat directly with a service representative. They can work with you to solve your printer problem or
provide assistance through Assisted Service where the service representative can remotely connect to your
computer through the Internet to troubleshoot problems, install updates, or complete other tasks to help
you successfully use your Lexmark product.
Telephone support is also available. In the U.S. or Canada, call 1-800-539-6275. For other countries or regions, visit
http://support.lexmark.com.
Troubleshooting 303
Notices
Product information
Product name:
Lexmark XM1145
Machine type:
7015
Model(s):
679
Edition notice
September 2012
The following paragraph does not apply to any country where such provisions are inconsistent with local law:
LEXMARK INTERNATIONAL, INC., PROVIDES THIS PUBLICATION “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER
EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE. Some states do not allow disclaimer of express or implied warranties in certain
transactions; therefore, this statement may not apply to you.
This publication could include technical inaccuracies or typographical errors. Changes are periodically made to the
information herein; these changes will be incorporated in later editions. Improvements or changes in the products or
the programs described may be made at any time.
References in this publication to products, programs, or services do not imply that the manufacturer intends to make
these available in all countries in which it operates. Any reference to a product, program, or service is not intended to
state or imply that only that product, program, or service may be used. Any functionally equivalent product, program,
or service that does not infringe any existing intellectual property right may be used instead. Evaluation and verification
of operation in conjunction with other products, programs, or services, except those expressly designated by the
manufacturer, are the user’s responsibility.
For Lexmark technical support, visit http://support.lexmark.com.
For information on supplies and downloads, visit www.lexmark.com.
© 2012 Lexmark International, Inc.
All rights reserved.
GOVERNMENT END USERS
The Software Program and any related documentation are "Commercial Items," as that term is defined in 48 C.F.R.
2.101, "Computer Software" and "Commercial Computer Software Documentation," as such terms are used in 48 C.F.R.
12.212 or 48 C.F.R. 227.7202, as applicable. Consistent with 48 C.F.R. 12.212 or 48 C.F.R. 227.7202-1 through 227.7207-4,
as applicable, the Commercial Computer Software and Commercial Software Documentation are licensed to the U.S.
Government end users (a) only as Commerical Items and (b) with only those rights as are granted to all other end users
pursuant to the terms and conditions herein.
Notices 304
Trademarks
Lexmark, Lexmark with diamond design, and MarkVision are trademarks of Lexmark International, Inc., registered in
the United States and/or other countries.
PrintCryption is a trademark of Lexmark International, Inc.
Mac and the Mac logo are trademarks of Apple Inc., registered in the U.S. and other countries.
PCL® is a registered trademark of the Hewlett-Packard Company. PCL is Hewlett-Packard Company’s designation of a
set of printer commands (language) and functions included in its printer products. This printer is intended to be
compatible with the PCL language. This means the printer recognizes PCL commands used in various application
programs, and that the printer emulates the functions corresponding to the commands.
The following terms are trademarks or registered trademarks of these companies:
Albertus The Monotype Corporation plc
Antique Olive Monsieur Marcel OLIVE
Apple-Chancery Apple Computer, Inc.
Arial The Monotype Corporation plc
CG Times Based on Times New Roman under license from The Monotype Corporation plc, is a product of
Agfa Corporation
Chicago Apple Computer, Inc.
Clarendon Linotype-Hell AG and/or its subsidiaries
Eurostile Nebiolo
Geneva Apple Computer, Inc.
GillSans The Monotype Corporation plc
Helvetica Linotype-Hell AG and/or its subsidiaries
Hoefler Jonathan Hoefler Type Foundry
ITC Avant Garde Gothic International Typeface Corporation
ITC Bookman International Typeface Corporation
ITC Mona Lisa International Typeface Corporation
ITC Zapf Chancery International Typeface Corporation
Joanna The Monotype Corporation plc
Marigold Arthur Baker
Monaco Apple Computer, Inc.
New York Apple Computer, Inc.
Oxford Arthur Baker
Palatino Linotype-Hell AG and/or its subsidiaries
Stempel Garamond Linotype-Hell AG and/or its subsidiaries
Taffy Agfa Corporation
Times New Roman The Monotype Corporation plc
Notices 305
Univers Linotype-Hell AG and/or its subsidiaries
All other trademarks are the property of their respective owners.
AirPrint and the AirPrint logo are trademarks of Apple, Inc.
Federal Communications Commission (FCC) compliance information statement
This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including interference that may cause undesired operation.
The FCC Class B limits are designed to provide reasonable protection against harmful interference when the equipment
is operated in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•Consult your point of purchase or service representative for additional suggestions.
The manufacturer is not responsible for radio or television interference caused by using other than recommended
cables or by unauthorized changes or modifications to this equipment. Unauthorized changes or modifications could
void the user's authority to operate this equipment.
Note: To assure compliance with FCC regulations on electromagnetic interference for a Class B computing device,
use a properly shielded and grounded cable such as Lexmark part number 1021231 for parallel attach or 1021294 for
USB attach. Use of a substitute cable not properly shielded and grounded may result in a violation of FCC
regulations.
Any questions regarding this compliance information statement should be directed to:
Director of Lexmark Technology & Services
Lexmark International, Inc.
740 West New Circle Road
Lexington, KY 40550
(859) 232–3000
Noise emission levels
The following measurements were made in accordance with ISO 7779 and reported in conformance with ISO 9296.
Note: Some modes may not apply to your product.
1-meter average sound pressure, dBA
Printing 54 dBA
Scanning 45 dBA
Copying 55 dBA
Notices 306
1-meter average sound pressure, dBA
Ready N/A
Values are subject to change. See www.lexmark.com for current values.
Temperature information
Ambient operating temperature 15.6 to 32.2°C (60 to 90°F)
Shipping and storage temperature ‑40 to 60°C (-40 to 140°F)
Waste from Electrical and Electronic Equipment (WEEE) directive
The WEEE logo signifies specific recycling programs and procedures for electronic products in countries of the European
Union. We encourage the recycling of our products.
If you have further questions about recycling options, visit the Lexmark Web site at www.lexmark.com for your local
sales office phone number.
Product disposal
Do not dispose of the printer or supplies in the same manner as normal household waste. Consult your local authorities
for disposal and recycling options.
Static sensitivity notice
This symbol identifies static-sensitive parts. Do not touch in the areas near these symbols without first touching the
metal frame of the printer.
Notices 307
ENERGY STAR
Any Lexmark product bearing the ENERGY STAR emblem on the product or on a start-up screen is certified to comply
with Environmental Protection Agency (EPA) ENERGY STAR requirements as configured when shipped by Lexmark.
Laser notice
The printer is certified in the U.S. to conform to the requirements of DHHS 21 CFR, Chapter I, Subchapter J for Class I
(1) laser products, and elsewhere is certified as a Class I laser product conforming to the requirements of IEC 60825-1.
Class I laser products are not considered to be hazardous. The printer contains internally a Class IIIb (3b) laser that is
nominally a 7 milliwatt gallium arsenide laser operating in the wavelength of 655-675 nanometers. The laser system
and printer are designed so there is never any human access to laser radiation above a Class I level during normal
operation, user maintenance, or prescribed service condition.
Laser advisory label
A laser notice label may be affixed to this printer as shown:
DANGER - Invisible laser radiation when cartridges are removed and interlock defeated. Avoid exposure to laser beam.
PERIGO - Radiação a laser invisível será liberada se os cartuchos forem removidos e o lacre rompido. Evite a exposição aos feixes de laser.
Opasnost - Nevidljivo lasersko zračenje kada su kasete uklonjene i poništena sigurnosna veza. Izbjegavati izlaganje zracima.
NEBEZPEČÍ - Když jsou vyjmuty kazety a je odblokována pojistka, ze zařízení je vysíláno neviditelné laserové záření. Nevystavujte se působení laserového paprsku.
FARE - Usynlig laserstråling, når patroner fjernes, og spærreanordningen er slået fra. Undgå at blive udsat for laserstrålen.
GEVAAR - Onzichtbare laserstraling wanneer cartridges worden verwijderd en een vergrendeling wordt genegeerd. Voorkom blootstelling aan de laser.
DANGER - Rayonnements laser invisibles lors du retrait des cartouches et du déverrouillage des loquets. Eviter toute exposition au rayon laser.
VAARA - Näkymätöntä lasersäteilyä on varottava, kun värikasetit on poistettu ja lukitus on auki. Vältä lasersäteelle altistumista.
GEFAHR - Unsichtbare Laserstrahlung beim Herausnehmen von Druckkassetten und offener Sicherheitssperre. Laserstrahl meiden.
ΚΙΝΔΥΝΟΣ - Έκλυση αόρατης ακτινοβολίας laser κατά την αφαίρεση των κασετών και την απασφάλιση της μανδάλωσης. Αποφεύγετε την έκθεση στην ακτινοβολία laser.
VESZÉLY – Nem látható lézersugárzás fordulhat elő a patronok eltávolításakor és a zárószerkezet felbontásakor. Kerülje a lézersugárnak való kitettséget.
PERICOLO - Emissione di radiazioni laser invisibili durante la rimozione delle cartucce e del blocco. Evitare l´esposizione al raggio laser.
FARE – Usynlig laserstråling når kassettene tas ut og sperren er satt ut av spill. Unngå eksponering for laserstrålen.
NIEBEZPIECZEŃSTWO - niewidzialne promieniowanie laserowe podczas usuwania kaset i blokady. Należy unikać naświetlenia promieniem lasera.
ОПАСНО! Невидимое лазерное излучение при извлеченных картриджах и снятии блокировки. Избегайте воздействия лазерных лучей.
Pozor – Nebezpečenstvo neviditeľného laserového žiarenia pri odobratých kazetách a odblokovanej poistke. Nevystavujte sa lúčom.
PELIGRO: Se producen radiaciones láser invisibles al extraer los cartuchos con el interbloqueo desactivado. Evite la exposición al haz de láser.
FARA – Osynlig laserstrålning när patroner tas ur och spärrmekanismen är upphävd. Undvik exponering för laserstrålen.
危险 - 当移除碳粉盒及互锁失效时会产生看不见的激光辐射，请避免暴露在激光光束下。
危險 - 移除碳粉匣與安全連續開關失效時會產生看不見的雷射輻射。請避免曝露在雷射光束下。
危険 - カートリッジが取り外され、内部ロックが無効になると、見えないレーザー光が放射されます。 このレーザー光に当たらないようにしてください。
Notices 308
Power consumption
Product power consumption
The following table documents the power consumption characteristics of the product.
Note: Some modes may not apply to your product.
Mode Description Power consumption
(Watts)
Printing The product is generating hard‑copy output from electronic inputs. 600
Copy The product is generating hard‑copy output from hard‑copy original documents. 620
Scan The product is scanning hard‑copy documents. 35
Ready The product is waiting for a print job. 14
Sleep Mode The product is in a high‑level energy‑saving mode. 7
Hibernate The product is in a low‑level energy‑saving mode. 0.5
Off The product is plugged into an electrical outlet, but the power switch is turned off. 0
The power consumption levels listed in the previous table represent time-averaged measurements. Instantaneous
power draws may be substantially higher than the average.
Values are subject to change. See www.lexmark.com for current values.
Sleep Mode
This product is designed with an energy-saving mode called Sleep Mode. The Sleep Mode saves energy by lowering
power consumption during extended periods of inactivity. The Sleep Mode is automatically engaged after this product
is not used for a specified period of time, called the Sleep Mode Timeout.
Factory default Sleep Mode Timeout for this product (in minutes): 30
By using the configuration menus, the Sleep Mode Timeout can be modified between 1 minute and 120 minutes. Setting
the Sleep Mode Timeout to a low value reduces energy consumption, but may increase the response time of the product.
Setting the Sleep Mode Timeout to a high value maintains a fast response, but uses more energy.
Hibernate Mode
This product is designed with an ultra‑low power operating mode called Hibernate mode. When operating in Hibernate
Mode, all other systems and devices are powered down safely.
The Hibernate mode can be entered in any of the following methods:
•Using the Hibernate Timeout
•Using the Schedule Power modes
•Using the Sleep/Hibernate button
Notices 309
Factory default Hibernate Timeout for this product in all countries or regions except for EU countries and
Switzerland
Disabled
Factory default value for this product in EU countries or regions and Switzerland 3 days
The amount of time the printer waits after a job is printed before it enters Hibernate mode can be modified between
one hour and one month.
Off mode
If this product has an off mode which still consumes a small amount of power, then to completely stop product power
consumption, disconnect the power supply cord from the electrical outlet.
Total energy usage
It is sometimes helpful to calculate the total product energy usage. Since power consumption claims are provided in
power units of Watts, the power consumption should be multiplied by the time the product spends in each mode in
order to calculate energy usage. The total product energy usage is the sum of each mode's energy usage.
Industry Canada compliance statement
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Standard
ICES-003.
Avis de conformité aux normes de l’industrie du Canada
Cet appareil numérique de classe B est conforme aux exigences de la norme canadienne relative aux équipements
pouvant causer des interférences NMB-003.
Licensing notices
All licensing notices associated with this product can be viewed from the root directory of the documentation CD.
European Community (EC) directives conformity
This product is in conformity with the protection requirements of EC Council directives 2004/108/EC, 2006/95/EC and
2009/125/EC on the approximation and harmonization of the laws of the Member States relating to electromagnetic
compatibility, safety of electrical equipment designed for use within certain voltage limits and the ecodesign of energy-
related products.
The manufacturer of this product is: Lexmark International, Inc., 740 West New Circle Road, Lexington, KY, 40550 USA.
The authorized representative is: Lexmark International Technology Hungária Kft., 8 Lechner Ödön fasor, Millennium
Tower III, 1095 Budapest HUNGARY, A declaration of conformity to the requirements of the Directives is available upon
request from the Authorized Representative.
This product satisfies the Class B limits of EN 55022 and safety requirements of EN 60950.
Notices 310
Regulatory notices for telecommunication terminal equipment
This section contains regulatory information pertaining to products that contain telecommunication terminal
equipment such as facsimile.
Notice to users of the US telephone network: FCC requirements
This equipment complies with Part 68 of the FCC rules and the requirements adopted by the Administrative Council
for Terminal Attachments (ACTA). On the back of this equipment is a label that contains, among other information, a
product identifier in the format US:AAAEQ##TXXXX. If requested, this number must be provided to your telephone
company.
This equipment uses the RJ-11C Universal Service Order Code (USOC) jack.
A plug and jack used to connect this equipment to the premises’ wiring and telephone network must comply with the
applicable FCC Part 68 rules and requirements adopted by the ACTA. A compliant telephone cord and modular plug is
provided with this product. It is designed to be connected to a compatible modular jack that is also compliant. See your
setup documentation for more information.
The Ringer Equivalence Number (REN) is used to determine the number of devices that may be connected to a telephone
line. Excessive RENs on a telephone line may result in the devices not ringing in response to an incoming call. In most
but not all areas, the sum of RENs should not exceed five (5.0). To be certain of the number of devices that may be
connected to a line, as determined by the total RENs, contact your local telephone company. For products approved
after July 23, 2001, the REN for this product is part of the product identifier that has the format US:AAAEQ##TXXXX.
The digits represented by ## are the REN without a decimal point (for example, 03 is a REN of 0.3). For earlier products,
the REN is shown separately on the label.
If this equipment causes harm to the telephone network, the telephone company will notify you in advance that
temporary discontinuance of service may be required. If advance notice is not practical, the telephone company will
notify the customer as soon as possible. You will also be advised of your right to file a complaint with the FCC.
The telephone company may make changes in its facilities, equipment, operations or procedures that could affect the
operation of this equipment. If this happens, the telephone company will provide advance notice in order for you to
make necessary modifications to maintain uninterrupted service.
If you experience trouble with this equipment, for repair or warranty information, contact Lexmark International, Inc.
at www.lexmark.com or your Lexmark representative. If the equipment is causing harm to the telephone network, the
telephone company may request that you disconnect the equipment until the problem is resolved.
This equipment contains no user serviceable parts. For repair and warranty information, contact Lexmark International,
Inc. See the previous paragraph for contact information.
Connection to party line service is subject to state tariffs. Contact the state public utility commission, public service
commission, or corporation commission for information.
If your home has specially wired alarm equipment connected to the telephone line, ensure the installation of this
equipment does not disable your alarm equipment. If you have questions about what will disable alarm equipment,
consult your telephone company or a qualified installer.
Telephone companies report that electrical surges, typically lightning transients, are very destructive to customer
terminal equipment connected to AC power sources. This has been identified as a major nationwide problem. It is
recommended that the customer install an appropriate AC surge arrestor in the AC outlet to which this device is
connected. An appropriate AC surge arrestor is defined as one that is suitably rated, and certified by UL (Underwriter's
Laboratories), another NRTL (Nationally Recognized Testing Laboratory), or a recognized safety certification body in
the country/region of use. This is to avoid damage to the equipment caused by local lightning strikes and other electrical
surges.
Notices 311
The Telephone Consumer Protection Act of 1991 makes it unlawful for any person to use a computer or other electronic
device, including fax machines, to send any message unless said message clearly contains in a margin at the top or
bottom of each transmitted page or on the first page of the transmission, the date and time it is sent and an identification
of the business or other entity, or other individual sending the message, and the telephone number of the sending
machine or such business, other entity, or individual. (The telephone number provided may not be a 900 number or
any other number for which charges exceed local or long-distance transmission charges.)
See your user documentation in order to program this information into your fax machine.
Notice to users of the Canadian telephone network
This product meets the applicable Industry Canada technical specifications. The Ringer Equivalence Number (REN) is
an indication of the maximum number of terminals allowed to be connected to a telephone interface. The terminus of
an interface may consist of any combination of devices, subject only to the requirement that the sum of the RENs of
all the devices does not exceed five. The modem REN is located on the rear of the equipment on the product labeling.
Telephone companies report that electrical surges, typically lightning transients, are very destructive to customer
terminal equipment connected to AC power sources. This has been identified as a major nationwide problem. It is
recommended that the customer install an appropriate AC surge arrestor in the AC outlet to which this device is
connected. An appropriate AC surge arrestor is defined as one that is suitably rated, and certified by UL (Underwriter’s
Laboratories), another NRTL (Nationally Recognized Testing Laboratory), or a recognized safety certification body in
the country/region of use. This is to avoid damage to the equipment caused by local lightning strikes and other electrical
surges.
This equipment uses CA11A telephone jacks.
Avis réservé aux utilisateurs du réseau téléphonique du Canada
Ce produit est conforme aux spécifications techniques d’Industrie Canada. Le numéro REN (ringer equivalence number :
numéro d’équivalence de sonnerie) fournit une indication du nombre maximum de terminaux pouvant être connectés
à l’interface téléphonique. En bout de ligne, le nombre d’appareils qui peuvent être connectés n’est pas directement
limité, mais la somme des REN de ces appareils ne doit pas dépasser cinq. Le numéro REN du modem est indiqué sur
l’étiquette produit située à l’arrière de l’équipement.
Les compagnies de téléphone constatent que les surtensions électriques, en particulier celles dues à la foudre,
entraînent d'importants dégâts sur les terminaux privés connectés à des sources d’alimentation CA. Il s’agit-là d’un
problème majeur d’échelle nationale. En conséquence, il vous est recommandé de brancher un parasurtenseur dans
la prise de courant à laquelle l’équipement est connecté. Utilisez un parasurtenseur répondant à des caractéristiques
nominales satisfaisantes et certifié par le laboratoire d’assureurs UL (Underwriter’s Laboratories), un autre laboratoire
agréé de type NRTL (Nationally Recognized Testing Laboratory) ou un organisme de certification agréé dans votre région
ou pays. Ceci prévient tout endommagement de l’équipement causé par les orages et autres surtensions électriques.
Cet équipement utilise des prises de téléphone CA11A.
Notice to users of the New Zealand telephone network
The following are special conditions for the Facsimile User Instructions. The grant of a telepermit for any item of terminal
equipment indicates only that Telecom has accepted that the item complies with minimum conditions for connection
to its network. It indicates no endorsement of the product by Telecom, nor does it provide any sort of warranty. Above
all, it provides no assurance that any item will work correctly in all respects with another item of telepermitted
equipment of a different make or model, nor does it imply that any product is compatible with all of Telecom's network
services.
Notices 312
This equipment shall not be set up to make automatic calls to the Telecom's 111 Emergency Service.
This equipment may not provide for the effective hand-over of a call to another device connected to the same line.
This equipment should not be used under any circumstances that may constitute a nuisance to other Telecom
customers.
Some parameters required for compliance with Telecom's telepermit requirements are dependent on the equipment
associated with this device. The associated equipment shall be set to operate within the following limits for compliance
to Telecom's specifications:
•There shall be no more than 10 call attempts to the same number within any 30 minute period for any single manual
call initiation, and
•The equipment shall go on-hook for a period of not less than 30 seconds between the end of one attempt and the
beginning of the next call attempt.
•The equipment shall be set to ensure that automatic calls to different numbers are spaced such that there is not
less than 5 seconds between the end of one call attempt and the beginning of another.
Using this product in Switzerland
This product requires a Swiss billing tone filter (Lexmark part number 80D1877) to be installed on any line which receives
metering pulses in Switzerland. The filter must be used, as metering pulses are present on all analog telephone lines
in Switzerland.
Utilisation de ce produit en Suisse
Cet appareil nécessite l’utilisation d’un filtre de tonalité de facturation suisse (nº de référence Lexmark : 80D1877)
devant être installé sur toute ligne recevant des impulsions de comptage en Suisse. Ce filtre doit être utilisé pour toute
installation car ces impulsions existent sur toutes les lignes téléphoniques suisses.
Verwendung dieses Produkts in der Schweiz
Für dieses Produkt muss ein schweizerischer Billing Tone Filter zur Zählzeichenübertragung (Lexmark Teilenummer
80D1877) für jede Leitung installiert werden, über die in der Schweiz Zeitsteuertakte übertragen werden. Die
Verwendung des Filters ist obligatorisch, da in allen analogen Telefonleitungen in der Schweiz Zeitsteuertakte
vorhanden sind.
Uso del prodotto in Svizzera
Questo prodotto richiede un filtro toni Billing svizzero, (codice Lexmark 80D1877) da installare su tutte le linee che
ricevono impulsi remoti in Svizzera. È necessario utilizzare il filtro poiché gli impulsi remoti sono presenti su tutte le
linee analogiche in Svizzera.
Notice to Users in the European Union
Products bearing the CE mark are in conformity with the protection requirements of EC Council directives 2004/108/EC,
2006/95/EC, 1999/5/EC, and 2009/125/EC on the approximation and harmonization of the laws of the Member States
relating to electromagnetic compatibility, safety of electrical equipment designed for use within certain voltage limits,
radio equipment and telecommunications terminal equipment and on the ecodesign of energy‑related products.
Notices 313
Compliance is indicated by the CE marking.
The manufacturer of this product is: Lexmark International, Inc., 740 West New Circle Road, Lexington, KY, 40550 USA.
The authorized representative is: Lexmark International Technology Hungária Kft., 8 Lechner Ödön fasor, Millennium
Tower III, 1095 Budapest HUNGARY, A declaration of conformity to the requirements of the Directives is available upon
request from the Authorized Representative.
This product satisfies the Class B limits of EN 55022 and safety requirements of EN 60950.
Refer to the table at the end of the Notices section for further compliance information.
Regulatory notices for wireless products
This section contains the following regulatory information pertaining to wireless products.
Modular component notice
Wireless‑equipped models contain the following modular component(s):
Lexmark Regulatory Type/Model LEX-M01-005; FCC ID:IYLLEXM01005; IC:2376A-M01005
Exposure to radio frequency radiation
The radiated output power of this device is far below the radio frequency exposure limits of the FCC and other regulatory
agencies. A minimum separation of 20 cm (8 inches) must be maintained between the antenna and any persons for
this device to satisfy the RF exposure requirements of the FCC and other regulatory agencies.
Notice to users in Brazil
Este equipamento opera em carater secundario, isto e, nao tem direito a protecao contra interferencia prejudicial,
mesmo de estacoes do mesmo tipo, e nao pode causar interferencia a sistemas operando em carater primario.
(Res.ANATEL 282/2001).
Industry Canada (Canada)
This device complies with Industry Canada specification RSS-210. Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device must accept any interference, including interference that
may cause undesired operation of the device.
This device has been designed to operate only with the antenna provided. Use of any other antenna is strictly prohibited
per regulations of Industry Canada.
To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from
windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to
licensing.
Notices 314
The installer of this radio equipment must ensure that the antenna is located or pointed such that it does not emit RF
fields in excess of Health Canada limits for the general population; consult Safety Code 6, obtainable from Health
Canada's Web site www.hc-sc.gc.ca/rpb.
The term "IC:" before the certification/registration number only signifies that the Industry Canada technical
specifications were met.
Industry Canada (Canada)
Cet appareil est conforme à la norme RSS-210 d'Industry Canada. Son fonctionnement est soumis aux deux conditions
suivantes :
(1) cet appareil ne doit pas provoquer d'interférences et (2) il doit accepter toute interférence reçue, y compris celles
risquant d'altérer son fonctionnement.
Cet appareil a été conçu pour fonctionner uniquement avec l'antenne fournie. L'utilisation de toute autre antenne est
strictement interdite par la réglementation d'Industry Canada.
En application des réglementations d'Industry Canada, l'utilisation d'une antenne de gain supérieur est strictement
interdite.
Pour empêcher toute interférence radio au service faisant l'objet d'une licence, cet appareil doit être utilisé à l'intérieur
et loin des fenêtres afin de garantir une protection optimale.
Si le matériel (ou son antenne d'émission) est installé à l'extérieur, il doit faire l'objet d'une licence.
L'installateur de cet équipement radio doit veiller à ce que l'antenne soit implantée et dirigée de manière à n'émettre
aucun champ HF dépassant les limites fixées pour l'ensemble de la population par Santé Canada. Reportez-vous au
Code de sécurité 6 que vous pouvez consulter sur le site Web de Santé Canada www.hc-sc.gc.ca/rpb.
Le terme « IC » précédant le numéro de d'accréditation/inscription signifie simplement que le produit est conforme
aux spécifications techniques d'Industry Canada.
Taiwan NCC RF notice statement
Notice to users in the European Union
This product is in conformity with the protection requirements of EC Council directives 2004/108/EC, 2006/95/EC,
1999/5/EC, and 2009/125/EC on the approximation and harmonization of the laws of the Member States relating to
electromagnetic compatibility, safety of electrical equipment designed for use within certain voltage limits, radio
equipment and telecommunications terminal equipment and on the ecodesign of energy-related products.
Notices 315
Compliance is indicated by the CE marking.
The manufacturer of this product is: Lexmark International, Inc., 740 West New Circle Road, Lexington, KY, 40550 USA.
The authorized representative is: Lexmark International Technology Hungária Kft., 8 Lechner Ödön fasor, Millennium
Tower III, 1095 Budapest HUNGARY, A declaration of conformity to the requirements of the Directives is available upon
request from the Authorized Representative.
This product satisfies the Class B limits of EN 55022 and safety requirements of EN 60950.
Products equipped with 2.4GHz Wireless LAN option are in conformity with the protection requirements of EC Council
directives 2004/108/EC, 2006/95/EC, 1999/5/EC, and 2009/125/EC on the approximation and harmonization of the
laws of the Member States relating to electromagnetic compatibility, safety of electrical equipment designed for use
within certain voltage limits and on radio equipment and telecommunications terminal equipment and on the ecodesign
of energy-related products.
Compliance is indicated by the CE marking.
Operation is allowed in all EU and EFTA countries, but is restricted to indoor use only.
The manufacturer of this product is: Lexmark International, Inc., 740 West New Circle Road, Lexington, KY, 40550 USA.
The authorized representative is: Lexmark International Technology Hungária Kft., 8 Lechner Ödön fasor, Millennium
Tower III, 1095 Budapest HUNGARY, A declaration of conformity to the requirements of the Directives is available upon
request from the Authorized Representative.
This product may be used in the countries indicated in the table below.
AT BE BG CH CY CZ DE DK EE
EL ES FI FR HR HU IE IS IT
LI LT LU LV MT NL NO PL PT
RO SE SI SK TR UK
Česky Společnost Lexmark International, Inc. tímto prohlašuje, že výrobek tento výrobek je ve shodě se základními
požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES.
Dansk Lexmark International, Inc. erklærer herved, at dette produkt overholder de væsentlige krav og øvrige relevante
krav i direktiv 1999/5/EF.
Deutsch Hiermit erklärt Lexmark International, Inc., dass sich das Gerät dieses Gerät in Übereinstimmung mit den
grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG
befindet.
Ελληνική ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Η LEXMARK INTERNATIONAL, INC. ΔΗΛΩΝΕΙ ΟΤΙ ΑΥΤΟ ΤΟ ΠΡΟΪΟΝ
ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ
ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.
English Hereby, Lexmark International, Inc., declares that this type of equipment is in compliance with the
essential requirements and other relevant provisions of Directive 1999/5/EC.
Notices 316
Español Por medio de la presente, Lexmark International, Inc. declara que este producto cumple con los requisitos
esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.
Eesti Käesolevaga kinnitab Lexmark International, Inc., et seade see toode vastab direktiivi 1999/5/EÜ
põhinõuetele ja nimetatud direktiivist tulenevatele muudele asjakohastele sätetele.
Suomi Lexmark International, Inc. vakuuttaa täten, että tämä tuote on direktiivin 1999/5/EY oleellisten vaatimusten
ja muiden sitä koskevien direktiivin ehtojen mukainen.
Français Par la présente, Lexmark International, Inc. déclare que l'appareil ce produit est conforme aux exigences
fondamentales et autres dispositions pertinentes de la directive 1999/5/CE.
Magyar Alulírott, Lexmark International, Inc. nyilatkozom, hogy a termék megfelel a vonatkozó alapvetõ
követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.
Íslenska Hér með lýsir Lexmark International, Inc. yfir því að þessi vara er í samræmi við grunnkröfur og aðrar
kröfur, sem gerðar eru í tilskipun 1999/5/EC.
Italiano Con la presente Lexmark International, Inc. dichiara che questo questo prodotto è conforme ai requisiti
essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
Latviski Ar šo Lexmark International, Inc. deklarē, ka šis izstrādājums atbilst Direktīvas 1999/5/EK būtiskajām
prasībām un citiem ar to saistītajiem noteikumiem.
LietuviųŠiuo Lexmark International, Inc. deklaruoja, kad šis produktas atitinka esminius reikalavimus ir kitas
1999/5/EB direktyvos nuostatas.
Malti Bil-preżenti, Lexmark International, Inc., jiddikjara li dan il-prodott huwa konformi mal-ħtiġijiet
essenzjali u ma dispożizzjonijiet oħrajn relevanti li jinsabu fid-Direttiva 1999/5/KE.
Nederlands Hierbij verklaart Lexmark International, Inc. dat het toestel dit product in overeenstemming is met de essentiële
eisen en de andere relevante bepalingen van richtlijn 1999/5/EG.
Norsk Lexmark International, Inc. erklærer herved at dette produktet er i samsvar med de grunnleggende krav og
øvrige relevante krav i direktiv 1999/5/EF.
Polski Niniejszym Lexmark International, Inc. oświadcza, że niniejszy produkt jest zgodny z zasadniczymi
wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC.
Português A Lexmark International Inc. declara que este este produto está conforme com os requisitos essenciais e outras
disposições da Diretiva 1999/5/CE.
Slovensky Lexmark International, Inc. týmto vyhlasuje, že tento produkt spĺňa základné požiadavky a všetky
príslušné ustanovenia smernice 1999/5/ES.
Slovensko Lexmark International, Inc. izjavlja, da je ta izdelek v skladu z bistvenimi zahtevami in ostalimi
relevantnimi določili direktive 1999/5/ES.
Svenska Härmed intygar Lexmark International, Inc. att denna produkt står i överensstämmelse med de väsentliga
egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.
STATEMENT OF LIMITED WARRANTY FOR LEXMARK LASER PRINTERS,
LEXMARK LED PRINTERS, AND LEXMARK MULTIFUNCTION LASER PRINTERS
Lexmark International, Inc., Lexington, KY
This limited warranty applies to the United States and Canada. For customers outside the U.S., refer to the country-
specific warranty information that came with your product.
Notices 317
This limited warranty applies to this product only if it was originally purchased for your use, and not for resale, from
Lexmark or a Lexmark Remarketer, referred to in this statement as “Remarketer.”
Limited warranty
Lexmark warrants that this product:
—Is manufactured from new parts, or new and serviceable used parts, which perform like new parts
—Is, during normal use, free from defects in material and workmanship
If this product does not function as warranted during the warranty period, contact a Remarketer or Lexmark for repair
or replacement (at Lexmark's option).
If this product is a feature or option, this statement applies only when that feature or option is used with the product
for which it was intended. To obtain warranty service, you may be required to present the feature or option with the
product.
If you transfer this product to another user, warranty service under the terms of this statement is available to that user
for the remainder of the warranty period. You should transfer proof of original purchase and this statement to that
user.
Limited warranty service
The warranty period starts on the date of original purchase as shown on the purchase receipt and ends 12 months later
provided that the warranty period for any supplies and for any maintenance items included with the printer shall end
earlier if it, or its original contents, are substantially used up, depleted, or consumed. Fuser Units, Transfer/Transport
Units, Paper Feed items, if any, and any other items for which a Maintenance Kit is available are substantially consumed
when the printer displays a “Life Warning” or “Scheduled Maintenance” message for such item.
To obtain warranty service you may be required to present proof of original purchase. You may be required to deliver
your product to the Remarketer or Lexmark, or ship it prepaid and suitably packaged to a Lexmark designated location.
You are responsible for loss of, or damage to, a product in transit to the Remarketer or the Lexmark designated location.
When warranty service involves the exchange of a product or part, the item replaced becomes the property of the
Remarketer or Lexmark. The replacement may be a new or repaired item.
The replacement item assumes the remaining warranty period of the original product.
Replacement is not available to you if the product you present for exchange is defaced, altered, in need of a repair not
included in warranty service, damaged beyond repair, or if the product is not free of all legal obligations, restrictions,
liens, and encumbrances.
As part of your warranty service and/or replacement, Lexmark may update the firmware in your printer to the latest
version. Firmware updates may modify printer settings and cause counterfeit and/or unauthorized products, supplies,
parts, materials (such as toners and inks), software, or interfaces to stop working. Authorized use of genuine Lexmark
products will not be impacted.
Before you present this product for warranty service, remove all print cartridges, programs, data, and removable storage
media (unless directed otherwise by Lexmark).
For further explanation of your warranty alternatives and the nearest Lexmark authorized servicer in your area contact
Lexmark on the World Wide Web.
Remote technical support is provided for this product throughout its warranty period. For products no longer covered
by a Lexmark warranty, technical support may not be available or only be available for a fee.
Notices 318
Extent of limited warranty
Lexmark does not warrant uninterrupted or error-free operation of any product or the durability or longevity of prints
produced by any product.
Warranty service does not include repair of failures caused by:
—Modification or unauthorized attachments
—Accidents, misuse, abuse or use inconsistent with Lexmark user’s guides, manuals, instructions or guidance
—Unsuitable physical or operating environment
—Maintenance by anyone other than Lexmark or a Lexmark authorized servicer
—Operation of a product beyond the limit of its duty cycle
—Use of printing media outside of Lexmark specifications
—Refurbishment, repair, refilling or remanufacture by a third party of products, supplies or parts
—Products, supplies, parts, materials (such as toners and inks), software, or interfaces not furnished by Lexmark
TO THE EXTENT PERMITTED BY APPLICABLE LAW, NEITHER LEXMARK NOR ITS THIRD PARTY SUPPLIERS OR
REMARKETERS MAKE ANY OTHER WARRANTY OR CONDITION OF ANY KIND, WHETHER EXPRESS OR IMPLIED, WITH
RESPECT TO THIS PRODUCT, AND SPECIFICALLY DISCLAIM THE IMPLIED WARRANTIES OR CONDITIONS OF
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, AND SATISFACTORY QUALITY. ANY WARRANTIES THAT
MAY NOT BE DISCLAIMED UNDER APPLICABLE LAW ARE LIMITED IN DURATION TO THE WARRANTY PERIOD. NO
WARRANTIES, EXPRESS OR IMPLIED, WILL APPLY AFTER THIS PERIOD. ALL INFORMATION, SPECIFICATIONS, PRICES,
AND SERVICES ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE.
Limitation of liability
Your sole remedy under this limited warranty is set forth in this document. For any claim concerning performance or
nonperformance of Lexmark or a Remarketer for this product under this limited warranty, you may recover actual
damages up to the limit set forth in the following paragraph.
Lexmark's liability for actual damages from any cause whatsoever will be limited to the amount you paid for the product
that caused the damages. This limitation of liability will not apply to claims by you for bodily injury or damage to real
property or tangible personal property for which Lexmark is legally liable. IN NO EVENT WILL LEXMARK BE LIABLE FOR
ANY LOST PROFITS, LOST SAVINGS, INCIDENTAL DAMAGE, OR OTHER ECONOMIC OR CONSEQUENTIAL DAMAGES.
This is true even if you advise Lexmark or a Remarketer of the possibility of such damages. Lexmark is not liable for any
claim by you based on a third party claim.
This limitation of remedies also applies to claims against any Suppliers and Remarketers of Lexmark. Lexmark's and its
Suppliers' and Remarketers' limitations of remedies are not cumulative. Such Suppliers and Remarketers are intended
beneficiaries of this limitation.
Additional rights
Some states do not allow limitations on how long an implied warranty lasts, or do not allow the exclusion or limitation
of incidental or consequential damages, so the limitations or exclusions contained above may not apply to you.
This limited warranty gives you specific legal rights. You may also have other rights that vary from state to state.
Notices 319
Patent acknowledgment
The use of this product or service is subject to the reasonable, non-discriminatory terms in the Intellectual Property
Rights (IPR) Disclosure of Certicom Corp. at the IETF for Elliptic Curve Cryptography (ECC) Cipher Suites for Transport
Layer Security (TLS) implemented in the product or service.
The use of this product or service is subject to the reasonable, non-discriminatory terms in the Intellectual Property
Rights (IPR) Disclosure of Certicom Corp. at the IETF for TLS Elliptic Curve Cipher Suites with SHA-256/382 and AES Galois
Counter Mode (GCM) implemented in the product or service.
The use of this product or service is subject to the reasonable, non-discriminatory terms in the Intellectual Property
Rights (IPR) Disclosure of Certicom Corp. at the IETF for TLS Suite B Profile for Transport Layer Security (TLS) implemented
in the product or service.
The use of this product or service is subject to the reasonable, non-discriminatory terms in the Intellectual Property
Rights (IPR) Disclosure of Certicom Corp. at the IETF for Addition of the Camellia Cipher Suites to Transport Layer Security
(TLS) implemented in the product or service.
The use of certain patents in this product or service is subject to the reasonable, non-discriminatory terms in the
Intellectual Property Rights (IPR) Disclosure of Certicom Corp. at the IETF for AES-CCM ECC Cipher Suites for TLS
implemented in the product or service.
The use of this product or service is subject to the reasonable, non-discriminatory terms in the Intellectual Property
Rights (IPR) Disclosure of Certicom Corp. at the IETF for IKE and IKEv2 Authentication Using the Eliptic Curve Digital
Signature Algorithm (ECDSA) implemented in the product or service.
The use of this product or service is subject to the reasonable, non-discriminatory terms in the Intellectual Property
Rights (IPR) Disclosure of Certicom Corp. at the IETF for Suite B Cryptographic Suites for IPSec implemented in the
product or service.
The use of this product or service is subject to the reasonable, non-discriminatory terms in the Intellectual Property
Rights (IPR) Disclosure of Certicom Corp. at the IETF for Algorithms for Internet Key Exchange version 1 (IKEv1)
implemented in the product or service.
Notices 320
Index
Numerics
250‑sheet tray
installing 42
550‑sheet tray
installing 42
Symbols
[x]‑page jam, clear manual feeder.
[25y.xx] 237
[x]‑page jam, clear standard bin.
[20y.xx] 234
[x]‑page jam, open automatic
feeder top cover. [28y.xx] 238
[x]‑page jam, open front door.
[20y.xx] 230
[x]‑page jam, open rear door.
[20y.xx] 233
[x]‑page jam, open tray [x].
[24y.xx] 236
[x]‑page jam, remove tray 1 to clear
duplex. [23y.xx] 235
A
accessing the Embedded Web
Server 19
Active NIC menu 146
adapter plug 113
ADF
copying using 85
ADF separator roller
ordering 217
adjusting brightness
Embedded Web Server 207
printer control panel 207
adjusting copy quality 89
adjusting display brightness 207
adjusting Sleep mode 206
adjusting toner darkness 78
administrator settings
Embedded Web Server 224
advanced duplex
copy options 95
advanced imaging
copy options 96
e‑mail options 103
fax options 126
scan options 134
answering machine
setting up 106
AppleTalk menu 151
applications
understanding 20
attaching cables 46
available internal options 26
avoiding jams 74
avoiding paper jams 227
B
back button
printer control panel 14
blocking junk faxes 123
buttons, touch screen
using 16
C
cables
Ethernet 46
USB 46
canceling
print job, from computer 83
canceling a copy job 93
canceling a print job
from a computer 83
from the printer control panel 83
canceling an e-mail 101
cannot open Embedded Web
Server 301
Card Copy
setting up 21
card stock
loading, multipurpose feeder 62
tips 70
Cartridge low [88.xy] 240
Cartridge nearly low [88.xy] 240
Cartridge very low, [x] estimated
pages remain [88.xy] 240
Change [paper source] to [custom
string] load [paper orientation] 240
Change [paper source] to [custom
type name] load [orientation] 240
Change [paper source] to [paper
size] load [orientation] 241
Change [paper source] to [paper
type] [paper size] load
[orientation] 241
checking an unresponsive
printer 255
checking status of parts and
supplies 216
checking the status of parts and
supplies 216
checking the virtual display
using the Embedded Web
Server 224
cleaning
exterior of the printer 214
scanner glass 215
cleaning the printer 214
Close flatbed cover and load
originals if restarting job
[2yy.xx] 241
Close front door 241
collate
copy options 94
collating copies 90
Complex page, some data may not
have printed [39] 242
compressed images appear on
prints 271
confidential data
information on securing 213
confidential jobs
modifying print settings 82
confidential print jobs 81
printing from a Macintosh
computer 82
printing from Windows 82
Confidential Print menu 155
Configuration change, some held
jobs were not restored [57] 241
configuration information
wireless network 50
Configure MP menu 139
configuring
supply notifications, imaging
unit 225
supply notifications, maintenance
kit 225
supply notifications, toner
cartridge 225
configuring port settings 53
configuring supply notifications 225
Index 321
connecting printer to distinctive
ring service 117
connecting to a wireless network
using PIN (Personal Identification
Number) method 51
using Push Button Configuration
method 51
using the Embedded Web
Server 52
using wireless setup wizard 51
conservation settings
brightness, adjusting 207
conserving supplies 204
Eco‑Mode 205
Hibernate Mode 207
Quiet Mode 205
Sleep Mode 206
conserving supplies 204
contacting customer support 303
content
e‑mail settings 102
content source
e‑mail settings 102
fax options 125
content type
e‑mail settings 102
fax options 125
control panel, printer
indicator light 14
Sleep button light 14
controller board
accessing 27
copies
copy options 94
copy job, canceling
using the ADF 93
using the scanner glass 93
copy options
advanced duplex 95
advanced imaging 96
collate 94
copies 94
cover page setup 95
create booklet 96
custom job 96
darkness 94
fix scan skew 96
header/footer 95
overlay 95
paper saver 96
Save As Shortcut 95
separator sheets 95
sides (duplex) 94
copy quality
adjusting 89
copy screen
content source 94
content type 94
options 93, 94, 95
Copy Settings menu 167
copy troubleshooting
copier does not respond 288
partial document or photo
copies 290
poor copy quality 288
poor scanned image quality 298
scanner unit does not
close 288, 299
copying
adding an overlay message 92
adjusting quality 89
canceling a copy job 93
collating copies 90
different paper sizes 88
enlarging 89
inserting a header or footer 92
multiple pages on one sheet 91
on both sides of the paper
(duplexing) 89
on letterhead 87
on transparencies 86
photos 86
placing separator sheets between
copies 91
quick copy 85
reducing 89
selecting a tray 87
to a different size 87
using the ADF 85
using the scanner glass 86
copying different paper sizes 88
copying multiple pages on one
sheet 91
copying on both sides of the paper
(duplexing) 89
copying on letterhead 87
copying on transparencies 86
cover page setup
copy options 95
create booklet
copy options 96
creating a fax destination shortcut
using the Embedded Web
Server 121
creating an FTP shortcut
using the Embedded Web
Server 128
creating custom name
paper type 67
custom job
copy options 96
e‑mail options 103
fax options 126
scan options 134
custom name
configuring 68
Custom Names menu 143
custom paper type name
assigning 67
Custom Scan Sizes menu 144
Custom Type [x]
changing paper type 68
creating custom name 67
Custom Types menu 143
customer support
contacting 303
D
darkness
copy options 94
e‑mail options 102
fax options 125
scan options 133
date and time, fax
setting 118
daylight saving time, setting 118
Default Source menu 136
Defective flash detected [51] 242
delayed send
fax options 126
different paper sizes, copying 88
Digital Subscriber Line (DSL)
fax setup 110
digital telephone service
fax setup 112
directory list
printing 83
Disk must be formatted for use in
this device 242
disk wiping 211
Disk Wiping menu 156
display troubleshooting
printer display is blank 256
display, printer control panel
adjusting brightness 207
disposing of printer hard disk 210
Index 322
distinctive ring service, fax
connecting to 117
documents, printing
from Macintosh 77
from Windows 77
DSL filter 110
duplexing 89
E
Eco‑Mode setting 205
edge erase
e‑mail options 103
fax options 126
scan options 134
Embedded Web Server
accessing 19
administrator settings 224
checking the status of parts 216
checking the status of
supplies 216
creating a fax destination
shortcut 121
creating an FTP shortcut 128
creating e‑mail shortcuts 97
initial fax setup 105
modifying confidential print
settings 82
networking settings 224
problem accessing 301
scanning to a computer using 130
setting up e‑mail alerts 224
Embedded Web Server
Administrator's Guide
where to find 213, 224
emission notices 306, 310, 314, 315
encrypting the printer hard
disk 212
enlarging a copy 89
envelopes
loading, multipurpose feeder 62
tips on using 69
environmental settings
conserving supplies 204
display brightness, adjusting 207
Eco‑Mode 205
Hibernate Mode 207
Quiet Mode 205
Sleep Mode 206
erasing hard disk memory 211
erasing non‑volatile memory 211
erasing volatile memory 210
Error reading USB drive. Remove
USB. 242
Error reading USB hub. Remove
hub. 242
Ethernet network
preparing to set up for Ethernet
printing 48
Ethernet network setup
using Macintosh 48
using Windows 48
Ethernet networking
Macintosh 48
Windows 48
Ethernet port 46
Ethernet setup
preparing for an 48
exporting a configuration
using the Embedded Web
Server 24
exterior of the printer
cleaning 214
e‑mail
canceling 101
e‑mail alerts
low supply levels 224
paper jam 224
setting up 224
e‑mail function
setting up 97
e‑mail options
advanced imaging 103
custom job 103
darkness 102
edge erase 103
message 101
original size 101
page setup 103
recipient(s) 101
resolution 102
Save As Shortcut 101
send as 102
subject 101
transmission log 103
e‑mail screen
fix scan skew 103
options 101, 103
E‑mail Settings menu 178
e‑mail shortcuts, creating
using the Embedded Web
Server 97
e‑mail, sending
using a shortcut number 99
using the address book 99
e‑mailing
adding message line 100
adding subject line 100
changing output file type 100
creating shortcuts using the
Embedded Web Server 97
creating shortcuts using the
printer control panel 98
setting up e‑mail function 97
using a shortcut number 99
using the address book 99
using the printer control panel 98
F
factory defaults
restoring 226
fax
sending 119
sending at a scheduled time 120
sending using the printer control
panel 118
fax and e‑mail functions
setting up 291
fax and e‑mail functions are not set
up 291
fax log
viewing 122
Fax memory full 242
Fax Mode (Analog Fax Setup)
menu 170
fax name, setting 117
fax number, setting 117
fax options
advanced imaging 126
content source 125
content type 125
custom job 126
darkness 125
delayed send 126
edge erase 126
fix scan skew 126
page setup 125
resolution 125
scan preview 126
transmission log 126
Fax partition inoperative. Contact
system administrator. 243
fax ports 46
Fax server 'To Format' not set up.
Contact system administrator. 243
Index 323
fax setup
country‑ or region‑specific 113
digital telephone service 112
DSL connection 110
standard telephone line
connection 106
VoIP 111
Fax Station Name not set up.
Contact system administrator. 243
Fax Station Number not set up.
Contact system administrator. 243
fax troubleshooting
caller ID is not shown 291
can receive but not send
faxes 295
can send but not receive
faxes 294
cannot send or receive a fax 292
received fax has poor print
quality 296
faxing
blocking junk faxes 123
canceling a fax job 123
changing resolution 122
configuring the printer to observe
daylight saving time 118
creating shortcuts using the
Embedded Web Server 121
creating shortcuts using the
printer control panel 121
distinctive ring service 117
fax setup 105
forwarding faxes 124
holding faxes 124
making a fax lighter or darker 122
sending a fax at a scheduled
time 120
setting the date and time 118
setting the fax number 117
setting the outgoing fax name 117
viewing a fax log 122
FCC notices 306, 311, 314
file name
scan options 132
finding more information about the
printer 9
finding printer IP address 19
Finishing menu 192
firmware card 26
fix scan skew
copy options 96
e‑mail screen 103
fax options 126
scan options 134
flash drive
printing from 79
Flash Drive menu 186
flash drives
supported file types 80
font sample list
printing 83
footer
inserting 92
Forms and Favorites
setting up 20
forwarding faxes 124
FTP address
creating shortcuts using the
printer control panel 128
FTP options 132
FTP address, scanning to
using a shortcut number 129
using the printer control
panel 129
FTP options
FTP address 132
FTP Settings menu 183
G
General Settings menu 158
green settings
Eco‑Mode 205
Hibernate Mode 207
Quiet Mode 205
H
header
inserting 92
header/footer
copy options 95
held jobs 81
printing from a Macintosh
computer 82
printing from Windows 82
Help menu 202
Hibernate Mode
using 207
hiding icons on the home screen 19
holding faxes 124
home button
printer control panel 14
home screen
buttons, understanding 15
customizing 19
hiding icons 19
showing icons 19
home screen applications
configuring 20
finding information 20
home screen buttons
understanding 15
HTML menu 201
I
icons on the home screen
hiding 19
showing 19
Image menu 202
imaging unit
ordering 217
replacing 220
Imaging unit low [84.xy] 243
Imaging unit nearly low [84.xy] 243
Imaging unit very low, [x] estimated
pages remain [84.xy] 244
importing a configuration
using the Embedded Web
Server 24
Incorrect paper size, open [paper
source] [34] 244
indicator light
printer control panel 14
initial fax setup 105
using the Embedded Web
Server 105
inserting a header or footer 92
installing an Internal Solutions
Port 32
installing an optional card 30
installing options
order of installation 42
installing printer hard disk 38
installing printer on a network
Ethernet networking 48
installing printer software
adding options 45
installing printer software
(Windows) 45
installing the 250‑sheet tray 42
installing the 550‑sheet tray 42
Insufficient memory for Flash
Memory Defragment operation
[37] 244
Insufficient memory to collate job
[37] 245
Index 324
Insufficient memory to support
Resource Save feature [35] 245
Insufficient memory, some Held
Jobs were deleted [37] 244
Insufficient memory, some held
jobs will not be restored [37] 244
internal options 26
Internal Solutions Port
changing port settings 53
installing 32
troubleshooting 257
IP address of computer
finding 18
IP address, printer
finding 19
IPv6 menu 150
J
jams
accessing 228
avoiding 227
understanding messages 228
jams, clearing
in automatic document feeder top
cover 238
in duplex area 235
in front door 230
in manual feeder 237
in rear door 233
in standard bin 234
in tray [x] 236
Job Accounting menu 195
K
keypad
printer control panel 14
L
labels, paper
tips on using 70
letterhead
copying on 87
loading, multipurpose feeder 62
tips on using 69
line filter 110
linking trays 66, 67
Load [paper source] with [custom
string] [paper orientation] 246
Load [paper source] with [custom
type name] [paper orientation] 246
Load [paper source] with [paper
size] [paper orientation] 246
Load [paper source] with [paper
type] [paper size] [paper
orientation] 247
Load manual feeder with [custom
string] [paper orientation] 245
Load manual feeder with [custom
type name] [paper orientation] 245
Load manual feeder with [paper
size] [paper orientation] 245
Load manual feeder with [paper
type] [paper size] [paper
orientation] 246
loading
multipurpose feeder 62
trays 57
loading the optional tray 57
loading the standard tray 57
M
maintenance kit
ordering 217
Maintenance kit low [80.xy] 247
Maintenance kit nearly low
[80.xy] 247
Maintenance kit very low, [x]
estimated pages remain
[80.xy] 247
making copies using paper from
selected tray 87
memory
types installed on printer 210
memory card 26
installing 28
Memory full [38] 247
Memory full, cannot print
faxes 247
Memory full, cannot send
faxes 248
menu settings page
printing 56
menus
Active NIC 146
AppleTalk 151
Confidential Print 155
Configure MP 139
Copy Settings 167
Custom Names 143
Custom Scan Sizes 144
Custom Types 143
Default Source 136
Disk Wiping 156
E‑mail Settings 178
Fax Mode (Analog Fax Setup) 170
Finishing 192
Flash Drive 186
FTP Settings 183
General Settings 158
Help 202
HTML 201
Image 202
IPv6 150
Job Accounting 195
list of 135
Miscellaneous 155
Network [x] 146
Network Card 148
Network Reports 148
Paper Loading 142
Paper Size/Type 136
Paper Texture 139
Paper Weight 141
PCL Emul 198
PDF 197
PostScript 198
Quality 194
Reports 145
Security Audit Log 157
Set Date and Time 157
Settings 191
SMTP Setup menu 153
Standard Network 146
Standard USB 152
Substitute Size 139
TCP/IP 148
Universal Setup 144
Utilities 196
Wireless 150
XPS 197
menus list 135
message
e‑mail options 101
Miscellaneous menu 155
mobile device
printing from 78
moving the printer 10, 222, 223
Multi Send
adding a profile 22
setting up 22
multipurpose feeder
loading 62
MyShortcut
about 22
Index 325
N
Network [x] menu 146
Network [x] software error
[54] 248
Network Card menu 148
Network Reports menu 148
network settings
Embedded Web Server 224
network setup page
printing 56
Networking Guide
where to find 224
No analog phone line connected to
modem, fax is disabled. 248
noise emission levels 306
Non‑Lexmark [supply type], see
User’s Guide [33.xy] 248
non‑volatile memory 210
erasing 211
Not enough free space in flash
memory for resources [52] 249
notices 305, 306, 307, 308, 309,
310, 311, 312, 313, 314, 315, 316
number of remaining pages
estimate 216
O
optional card
installing 30
optional tray
loading 57
options
250‑sheet tray, installing 42
550‑sheet tray, installing 42
firmware cards 26
Internal Solutions Port,
installing 32
memory card 28
memory cards 26
printer hard disk, installing 38
printer hard disk, removing 41
updating in printer driver 45
options, copy screen
copy from 93
edge erase 95
margin shift 95
scale 94
options, touch‑screen
copy 93
e‑mail 101, 103
ordering
imaging unit 217
maintenance kit 217
ordering supplies
toner cartridge 217
original size
e‑mail options 101
scan options 133
output file type
changing 100
overlay
copy options 95
P
page setup
e‑mail options 103
fax options 125
scan options 134
paper
characteristics 71
different sizes, copying 88
letterhead 72
loading, multipurpose feeder 62
preprinted forms 72
recycled 72
saving 91
selecting 72
storing 74
unacceptable 72
Universal size setting 57
using recycled 204
paper feed troubleshooting
message remains after jam is
cleared 260
paper jams
avoiding 227
paper jams, clearing
in automatic document feeder top
cover 238
in duplex area 235
in front door 230
in manual feeder 237
in rear door 233
in standard bin 234
in tray [x] 236
paper labels
loading, multipurpose feeder 62
Paper Loading menu 142
paper messages
[x]‑page jam, remove tray 1 to
clear duplex. [23y.xx] 235
paper saver
copy options 96
paper size
setting 57
Paper Size/Type menu 136
paper sizes
supported 74
Paper Texture menu 139
paper type
setting 57
paper types
supported by printer 76
where to load 76
Paper Weight menu 141
paper weights
supported by printer 76
parts
checking status 216
checking, from printer control
panel 216
checking, using the Embedded
Web Server 216
using genuine Lexmark 216
PCL Emul menu 198
PDF menu 197
Personal Identification Number
method
using 51
phone splitter 111
photos
copying 86
placing separator sheets between
copies 91
port settings
configuring 53
PostScript menu 198
preparing to set up the printer on
an Ethernet network 48
print irregularities 275
print job
canceling, from computer 83
print quality
cleaning the scanner glass 215
print quality troubleshooting
blank pages 269
characters have jagged edges 269
clipped pages or images 270
compressed images appear on
prints 271
gray background on prints 273
horizontal voids appear on
prints 284
Index 326
print irregularities 275
print is too dark 277
print is too light 279
printer is printing solid black
pages 281
repeating print defects appear on
prints 277
shadow images appear on
prints 272
skewed print 280
streaked horizontal lines appear
on prints 282
streaked vertical lines 283
toner fog or background
shading 286
toner rubs off 286
toner specks appear on prints 286
transparency print quality is
poor 281
uneven print density 287
white streaks 285
print troubleshooting
error reading flash drive 262
held jobs do not print 264
incorrect characters print 267
incorrect margins on prints 274
jammed pages are not
reprinted 261
job prints from wrong tray 266
job prints on wrong paper 266
jobs do not print 262
Large jobs do not collate 268
multiple‑language PDF files do not
print 261
paper curl 275
paper frequently jams 260
print job takes longer than
expected 265
tray linking does not work 267
unexpected page breaks
occur 268
printer
basic model 11
fully configured 11
minimum clearances 10
moving 10, 222, 223
selecting a location 10
shipping 223
printer configurations 11
printer control panel
factory defaults, restoring 226
indicator light 14
Sleep button light 14
using 14
printer control panel, virtual
display
using the Embedded Web
Server 224
Printer had to restart. Last job may
be incomplete. 249
printer hard disk
disposing of 210
encrypting 212
installing 38
removing 41
wiping 211
printer hard disk encryption 212
printer hard disk memory
erasing 211
printer information
where to find 9
printer IP address
finding 19
printer is printing blank pages 269
printer messages
[x]‑page jam, clear manual feeder.
[25y.xx] 237
[x]‑page jam, clear standard bin.
[20y.xx] 234
[x]‑page jam, open automatic
feeder top cover. [28y.xx] 238
[x]‑page jam, open front door.
[20y.xx] 230
[x]‑page jam, open rear door.
[20y.xx] 233
[x]‑page jam, open tray [x].
[24y.xx] 236
Cartridge low [88.xy] 240
Cartridge nearly low [88.xy] 240
Cartridge very low, [x] estimated
pages remain [88.xy] 240
Change [paper source] to [custom
string] load [paper
orientation] 240
Change [paper source] to [custom
type name] load
[orientation] 240
Change [paper source] to [paper
size] load [orientation] 241
Change [paper source] to [paper
type] [paper size] load
[orientation] 241
Close flatbed cover and load
originals if restarting job
[2yy.xx] 241
Close front door 241
Complex page, some data may not
have printed [39] 242
Configuration change, some held
jobs were not restored [57] 241
Defective flash detected [51] 242
Disk must be formatted for use in
this device 242
Error reading USB drive. Remove
USB. 242
Error reading USB hub. Remove
hub. 242
Fax memory full 242
Fax partition inoperative. Contact
system administrator. 243
Fax server 'To Format' not set up.
Contact system
administrator. 243
Fax Station Name not set up.
Contact system
administrator. 243
Fax Station Number not set up.
Contact system
administrator. 243
Imaging unit low [84.xy] 243
Imaging unit nearly low
[84.xy] 243
Imaging unit very low, [x]
estimated pages remain
[84.xy] 244
Incorrect paper size, open [paper
source] [34] 244
Insufficient memory for Flash
Memory Defragment operation
[37] 244
Insufficient memory to collate job
[37] 245
Insufficient memory to support
Resource Save feature [35] 245
Insufficient memory, some Held
Jobs were deleted [37] 244
Insufficient memory, some held
jobs will not be restored
[37] 244
Load [paper source] with [custom
string] [paper orientation] 246
Load [paper source] with [custom
type name] [paper
orientation] 246
Index 327
Load [paper source] with [paper
size] [paper orientation] 246
Load [paper source] with [paper
type] [paper size] [paper
orientation] 247
Load manual feeder with [custom
string] [paper orientation] 245
Load manual feeder with [custom
type name] [paper
orientation] 245
Load manual feeder with [paper
size] [paper orientation] 245
Load manual feeder with [paper
type] [paper size] [paper
orientation] 246
Maintenance kit low [80.xy] 247
Maintenance kit nearly low
[80.xy] 247
Maintenance kit very low, [x]
estimated pages remain
[80.xy] 247
Memory full [38] 247
Memory full, cannot print
faxes 247
Memory full, cannot send
faxes 248
Network [x] software error
[54] 248
No analog phone line connected
to modem, fax is disabled. 248
Non‑Lexmark [supply type], see
User’s Guide [33.xy] 248
Not enough free space in flash
memory for resources [52] 249
Printer had to restart. Last job
may be incomplete. 249
Reinstall missing or unresponsive
cartridge [31.xy] 249
Reinstall missing or unresponsive
imaging unit [31.xy] 249
Remove paper from standard
output bin 249
Replace all originals if restarting
job. 250
Replace cartridge, 0 estimated
pages remain [88.xy] 250
Replace cartridge, printer region
mismatch [42.xy] 250
Replace defective imaging unit
[31.xy] 251
Replace imaging unit, 0 estimated
pages remain [84.xy] 251
Replace jammed originals if
restarting job. 251
Replace maintenance kit, 0
estimated pages remain
[80.xy] 251
Replace unsupported cartridge
[32.xy] 251
Replace unsupported imaging unit
[32.xy] 252
Restore held jobs? 252
Scanner automatic feeder cover
open 252
Scanner disabled by admin
[840.01] 252
Scanner disabled. Contact system
administrator if problem persists.
[840.02] 252
Scanner jam, remove all originals
from the scanner [2yy.xx] 252
Scanner jam, remove jammed
originals from the scanner
[2yy.xx] 252
Serial option [x] error [54] 253
SMTP server not set up. Contact
system administrator. 253, 254
Some held jobs were not
restored 253
Standard network software error
[54] 253
Standard USB port disabled
[56] 253
Supply needed to complete
job 254
Too many flash options installed
[58] 254
Too many trays attached [58] 254
Unformatted flash detected
[53] 254
Unsupported USB hub, please
remove 242
printer options troubleshooting
internal option is not
detected 257
Internal Solutions Port 257
tray problems 258
USB/parallel interface card 259
printer problems, solving basic 255
printer security
information on 213
printer software, installing
(Windows) 45
printing
canceling, from printer control
panel 83
directory list 83
font sample list 83
forms 77
from a mobile device 78
from flash drive 79
from Macintosh 77
from Windows 77
menu settings page 56
network setup page 56
printing a directory list 83
printing a document 77
printing a font sample list 83
printing a menu settings page 56
printing a network setup page 56
printing confidential and other held
jobs
from a Macintosh computer 82
from Windows 82
printing forms 77
printing from a flash drive 79
printing from a mobile device 78
printing slows down 266
publications
where to find 9
Push Button Configuration method
using 51
Q
Quality menu 194
Quiet Mode 205
R
recipient(s)
e‑mail options 101
recycled paper
using 72, 204
recycling
Lexmark packaging 208
Lexmark products 208
toner cartridges 208
reducing a copy 89
reducing noise 205
Reinstall missing or unresponsive
cartridge [31.xy] 249
Reinstall missing or unresponsive
imaging unit [31.xy] 249
Remote Operator Panel
setting up 24
Index 328
Remove paper from standard
output bin 249
removing printer hard disk 41
repeat print jobs 81
printing from a Macintosh
computer 82
printing from Windows 82
repeating print defects appear on
prints 277
Replace all originals if restarting
job. 250
Replace cartridge, 0 estimated
pages remain [88.xy] 250
Replace cartridge, printer region
mismatch [42.xy] 250
Replace defective imaging unit
[31.xy] 251
Replace imaging unit, 0 estimated
pages remain [84.xy] 251
Replace jammed originals if
restarting job. 251
Replace maintenance kit, 0
estimated pages remain
[80.xy] 251
Replace unsupported cartridge
[32.xy] 251
Replace unsupported imaging unit
[32.xy] 252
replacing
imaging unit 220
toner cartridge 218
reports
viewing 224
Reports menu 145
reserve print jobs
printing from a Macintosh
computer 82
printing from Windows 82
resolution
e‑mail options 102
fax options 125
scan options 133
resolution, fax
changing 122
Restore held jobs? 252
restoring factory default
settings 226
RJ‑11 adapter 113
S
safety information 7, 8
Save As Shortcut
copy options 95
e‑mail options 101
scan options 133
saving paper 91
scan options
advanced imaging 134
custom job 134
darkness 133
edge erase 134
file name 132
fix scan skew 134
original size 133
page setup 134
resolution 133
Save As Shortcut 133
Scan Preview 134
send as 133
transmission log 134
Scan Preview
scan options 134
scan preview
fax options 126
scan screen
content source 133
content type 133
Scan to Computer
setting up 131
Scan to Network
setting up 23
using 127
scan troubleshooting
cannot scan from a computer 297
partial document or photo
scans 297
scan job was not successful 299
scanner unit does not
close 288, 299
scanning takes too long or freezes
the computer 299
scanner
automatic document feeder
(ADF) 13
functions 12
scanner glass 13
Scanner automatic feeder cover
open 252
Scanner disabled by admin
[840.01] 252
Scanner disabled. Contact system
administrator if problem persists.
[840.02] 252
scanner glass
cleaning 215
copying using 86
Scanner jam, remove all originals
from the scanner [2yy.xx] 252
Scanner jam, remove jammed
originals from the scanner
[2yy.xx] 252
scanning
from a flash drive 132
quick copy 85
to a computer 131
to a computer using the
Embedded Web Server 130
scanning to a computer 131
using the Embedded Web
Server 130
scanning to a flash drive 132
scanning to an FTP address
creating shortcuts using the
computer 128
using a shortcut number 129
using the printer control
panel 129
scanning to network
destinations 127
security
modifying confidential print
settings 82
Security Audit Log menu 157
security slot 46
security Web page
where to find 213
selecting a location for the
printer 10
selecting paper 72
send as
e‑mail options 102
scan options 133
sending a fax 119
sending a fax using the printer
control panel 118
sending an e‑mail using the printer
control panel 98
sending fax
using shortcuts 120
using the address book 120
sending fax at a scheduled
time 120
separator sheets
copy options 95
Serial option [x] error [54] 253
Index 329
serial printing
setting up 54
Set Date and Time menu 157
setting
paper size 57
paper type 57
TCP/IP address 148
setting the fax number 117
setting the outgoing fax name 117
setting the Universal paper size 57
setting up e‑mail alerts 224
setting up fax
country‑ or region‑specific 113
digital telephone service 112
DSL connection 110
standard telephone line
connection 106
VoIP connection 111
setting up fax and e‑mail
functions 291
setting up serial printing 54
setting up the printer
on an Ethernet network
(Macintosh only) 48
on an Ethernet network (Windows
only) 48
Settings menu 191
shipping the printer 223
shortcuts, creating
e‑mail 97
e‑mail screen 98
fax destination 121
FTP address 128
FTP destination 128
showing icons on the home
screen 19
sides (duplex)
copy options 94
sleep button
printer control panel 14
Sleep Mode
adjusting 206
SMTP server not set up. Contact
system administrator. 253, 254
SMTP Setup menu 153
Some held jobs were not
restored 253
Standard Network menu 146
Standard network software error
[54] 253
standard tray
loading 57
Standard USB menu 152
Standard USB port disabled
[56] 253
statement of volatility 210
status of parts
checking 216
status of supplies
checking 216
stop or cancel button
printer control panel 14
storing
paper 74
supplies 218
storing print jobs 81
streaked horizontal lines appear on
prints 282
streaked vertical lines appear on
prints 283
streaks appear 285
subject and message information
adding to e‑mail 100
submit button
printer control panel 14
Substitute Size menu 139
supplies
checking status 216
checking, from printer control
panel 216
checking, using the Embedded
Web Server 216
conserving 204
storing 218
using genuine Lexmark 216
using recycled paper 204
supplies, ordering
ADF separator roller 217
imaging unit 217
maintenance kit 217
toner cartridge 217
Supply needed to complete job 254
supply notifications
configuring 225
supported flash drives 80
supported paper sizes 74
T
TCP/IP menu 148
telecommunication
notices 311, 312, 313
the scanner does not respond 300
tips
card stock 70
letterhead 69
on using envelopes 69
on using labels 70
printer control panel 14
transparencies 69
tips on using envelopes 69
toner cartridge
ordering 217
replacing 218
toner cartridges
recycling 208
toner darkness
adjusting 78
Too many flash options installed
[58] 254
Too many trays attached [58] 254
touch screen
buttons, using 16
transmission log
e‑mail options 103
fax options 126
scan options 134
transparencies
copying on 86
loading, multipurpose feeder 62
tips 69
trays
linking 66, 67
loading 57
unlinking 66, 67
troubleshooting
an application error has
occurred 301
cannot open Embedded Web
Server 301
checking an unresponsive
printer 255
contacting customer support 303
fax and e‑mail functions are not
set up 291
solving basic printer
problems 255
the scanner does not respond 300
troubleshooting, copy
copier does not respond 288
partial document or photo
copies 290
poor copy quality 288
poor scanned image quality 298
scanner unit does not
close 288, 299
Index 330
troubleshooting, display
printer display is blank 256
troubleshooting, fax
caller ID is not shown 291
can receive but not send
faxes 295
can send but not receive
faxes 294
cannot send or receive a fax 292
received fax has poor print
quality 296
troubleshooting, paper feed
message remains after jam is
cleared 260
troubleshooting, print
error reading flash drive 262
held jobs do not print 264
incorrect characters print 267
incorrect margins on prints 274
jammed pages are not
reprinted 261
job prints from wrong tray 266
job prints on wrong paper 266
jobs do not print 262
Large jobs do not collate 268
multiple‑language PDF files do not
print 261
paper curl 275
paper frequently jams 260
print job takes longer than
expected 265
tray linking does not work 267
unexpected page breaks
occur 268
troubleshooting, print quality
blank pages 269
characters have jagged edges 269
clipped pages or images 270
compressed images appear on
prints 271
gray background on prints 273
horizontal voids appear on
prints 284
print irregularities 275
print is too dark 277
print is too light 279
printer is printing solid black
pages 281
repeating print defects appear on
prints 277
shadow images appear on
prints 272
skewed print 280
streaked horizontal lines appear
on prints 282
streaked vertical lines 283
toner fog or background
shading 286
toner rubs off 286
toner specks appear on prints 286
transparency print quality is
poor 281
uneven print density 287
white streaks on a page 285
troubleshooting, printer options
internal option is not
detected 257
Internal Solutions Port 257
tray problems 258
USB/parallel interface card 259
troubleshooting, printing
printing slows down 266
troubleshooting, scan
cannot scan from a computer 297
partial document or photo
scans 297
scan job was not successful 299
scanner unit does not
close 288, 299
scanning takes too long or freezes
the computer 299
U
understanding the home screen 15
uneven print density 287
Unformatted flash detected
[53] 254
Universal Paper Size
setting 57
Universal paper size
setting 57
Universal Setup menu 144
unlinking trays 66, 67
Unsupported USB hub, please
remove 242
updating options in printer
driver 45
USB port 46
USB/parallel interface card
troubleshooting 259
using a shortcut number
scanning to an FTP address 129
using Forms and Favorites 77
using Hibernate Mode 207
using recycled paper 204
using shortcuts
sending fax 120
using the address book
sending fax 120
using the touch‑screen buttons 16
Utilities menu 196
V
verify print jobs 81
printing from a Macintosh
computer 82
printing from Windows 82
vertical voids appear 285
viewing
reports 224
viewing a fax log 122
virtual display
checking, using Embedded Web
Server 224
voice mail
setting up 106
Voice over Internet Protocol (VoIP)
fax setup 111
voids appear 285
VoIP adapter 111
volatile memory 210
erasing 210
volatility
statement of 210
W
wiping the printer hard disk 211
Wireless menu 150
wireless network
configuration information 50
wireless network setup
using the Embedded Web
Server 52
wireless setup wizard
using 51
X
XPS menu 197
Index 331
