Lexmark X646E Owner S Manual User’s Guide
Lexmark-Lexmark-X644E-Owner-S-Manual lexmark-lexmark-x644e-owner-s-manual
Lexmark-X644E-Users-Manual-269210 lexmark-x644e-users-manual-269210
X646e ug
X644E to the manual 01da13bb-83f2-4a49-bf8a-b93d61087470
2014-07-06
: Lexmark Lexmark-Lexmark-X646E-Owner-S-Manual lexmark-lexmark-x646e-owner-s-manual lexmark pdf
Open the PDF directly: View PDF .
Page Count: 148 [warning: Documents this large are best viewed by clicking the View PDF Link!]
- Contents
- Learning about the MFP
- Copying
- Quick copy
- Multiple page copying
- Using the flatbed
- Understanding the copy screens and options
- Copying from one size to another
- Making transparencies

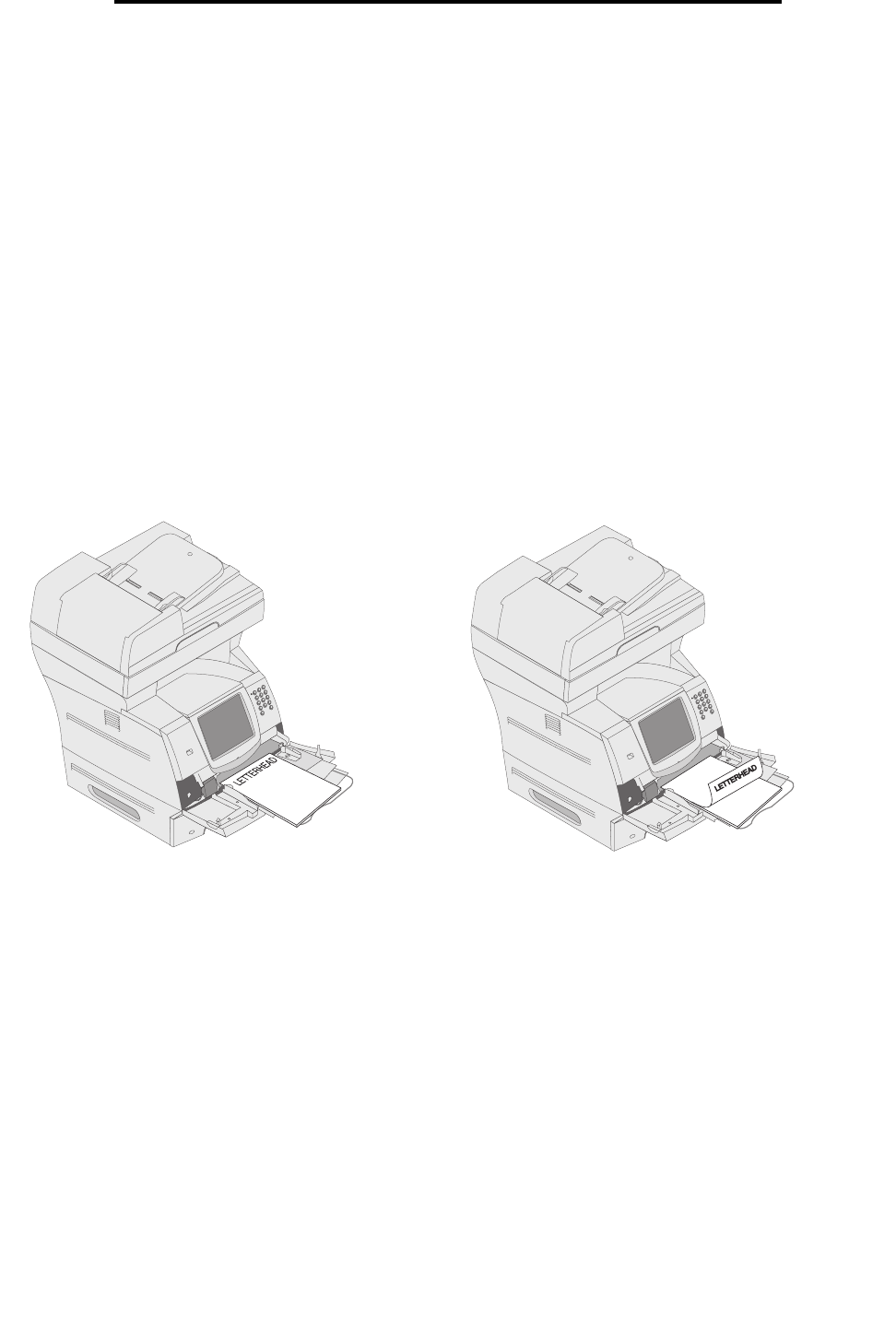

- Copying to letterhead
- Copying photographs
- Making copies using media from a selected tray
- Copying mixed-sized media
- Setting the duplex option
- Reducing and enlarging copies
- Adjusting copy quality
- Setting collation options
- Placing separator sheets between copies
- Setting paper saving options
- Placing the date and time at the top of each page
- Placing an overlay message on each page
- Creating a custom job (job build)
- Canceling a copy job
- Copy tips
- E-mail
- Entering an e-mail address
- Using a shortcut number
- Using the address book
- E-mailing to a profile
- Adding e-mail subject and message information
- Changing the output file type
- E-mailing color documents
- Creating an e-mail shortcut
- Creating an e-mail profile
- Canceling an e-mail
- Understanding e-mail options
- E-mail server setup
- Address book setup
- Faxing
- FTP
- Scanning to a PC or USB flash memory device
- Printing
- Sending a job to print
- Printing from a USB flash memory device
- Canceling a print job
- Printing the menu settings page
- Printing a network setup page
- Printing a font sample list
- Printing a directory list
- Printing confidential and held jobs
- Printing on specialty media
- Loading standard trays and optional trays
- Setting the Paper Type and Paper Size

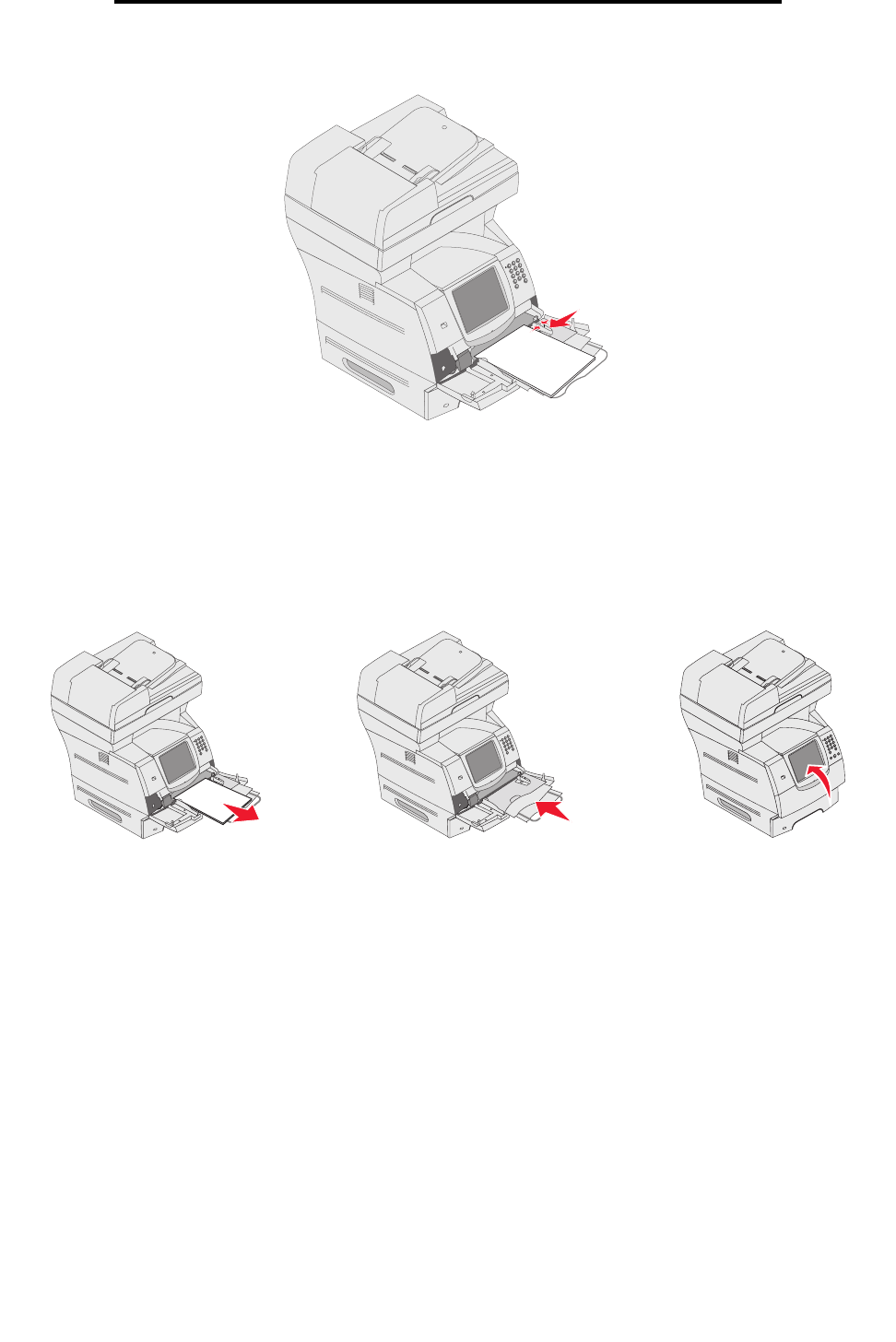

- Loading the multipurpose feeder

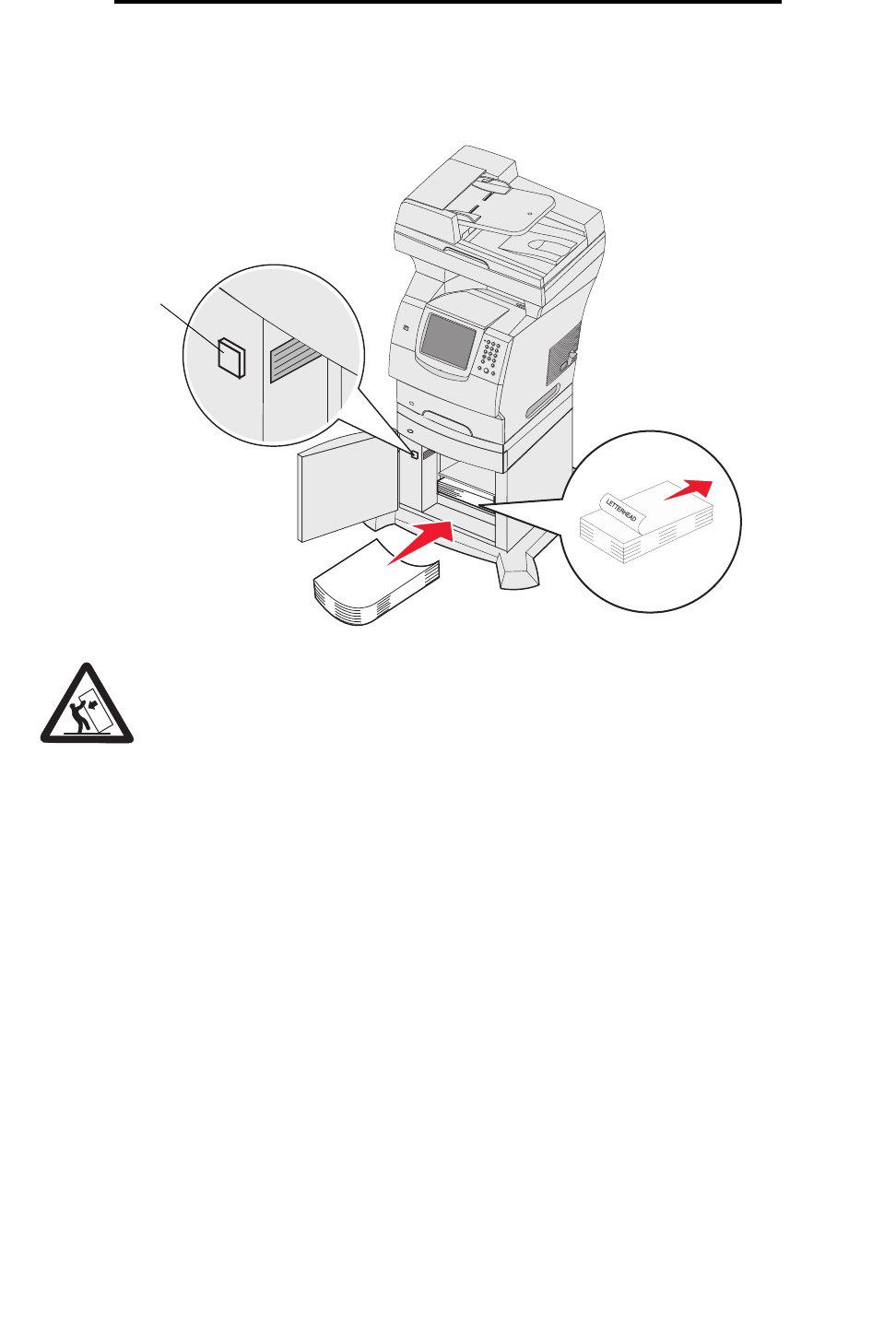

- Loading the 2000-sheet drawer
- Loading the envelope feeder
- Linking trays
- Understanding paper and specialty media guidelines

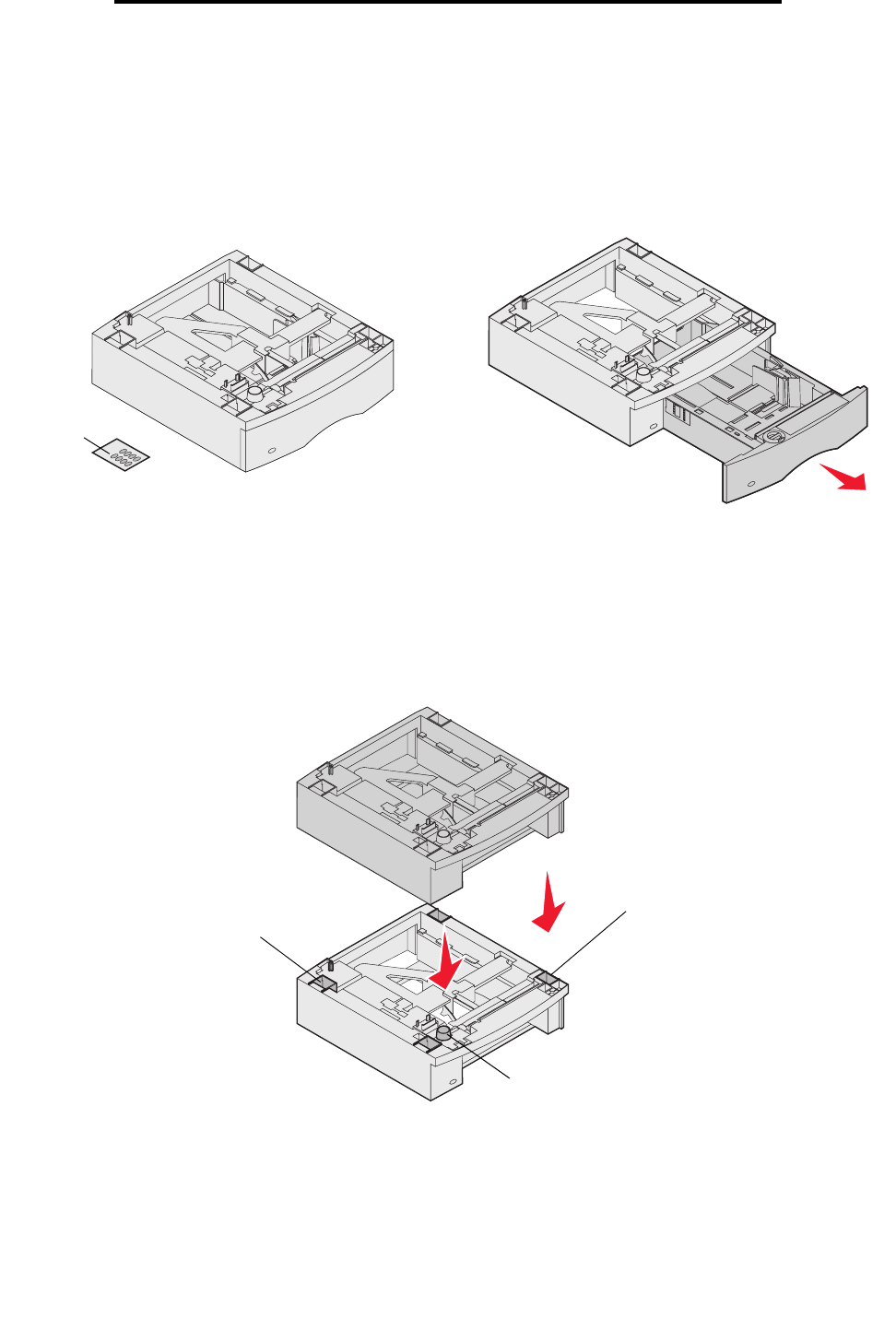

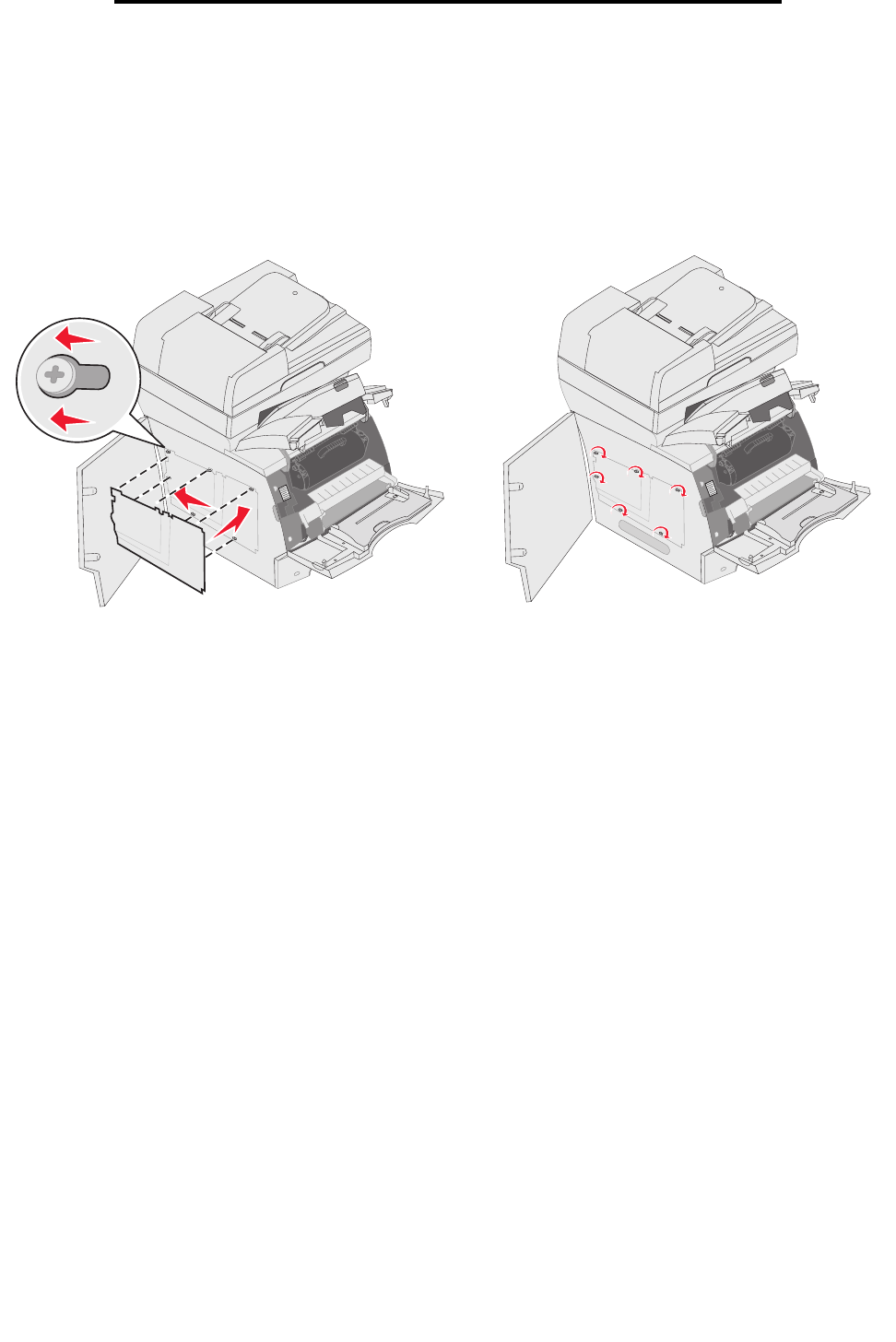

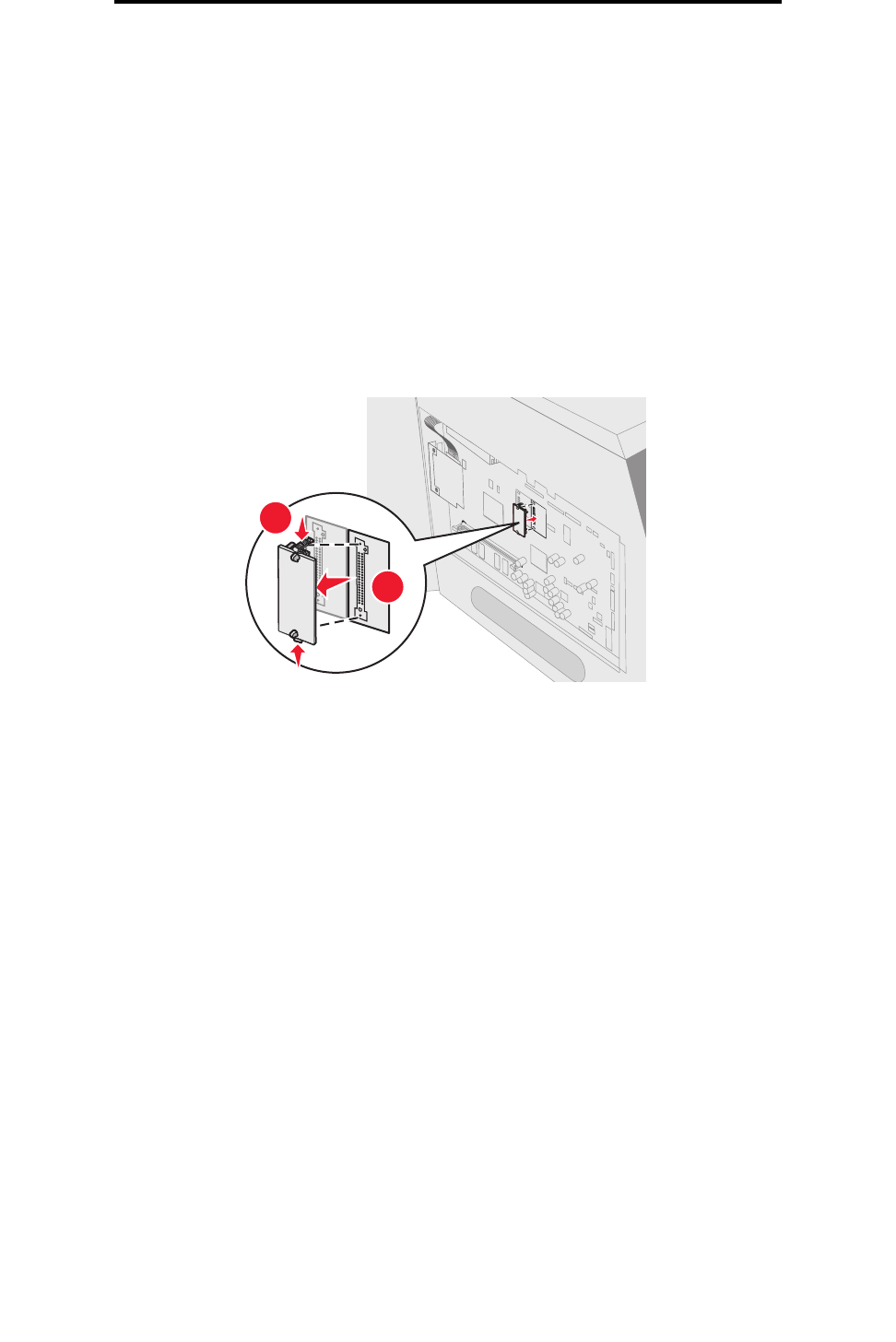

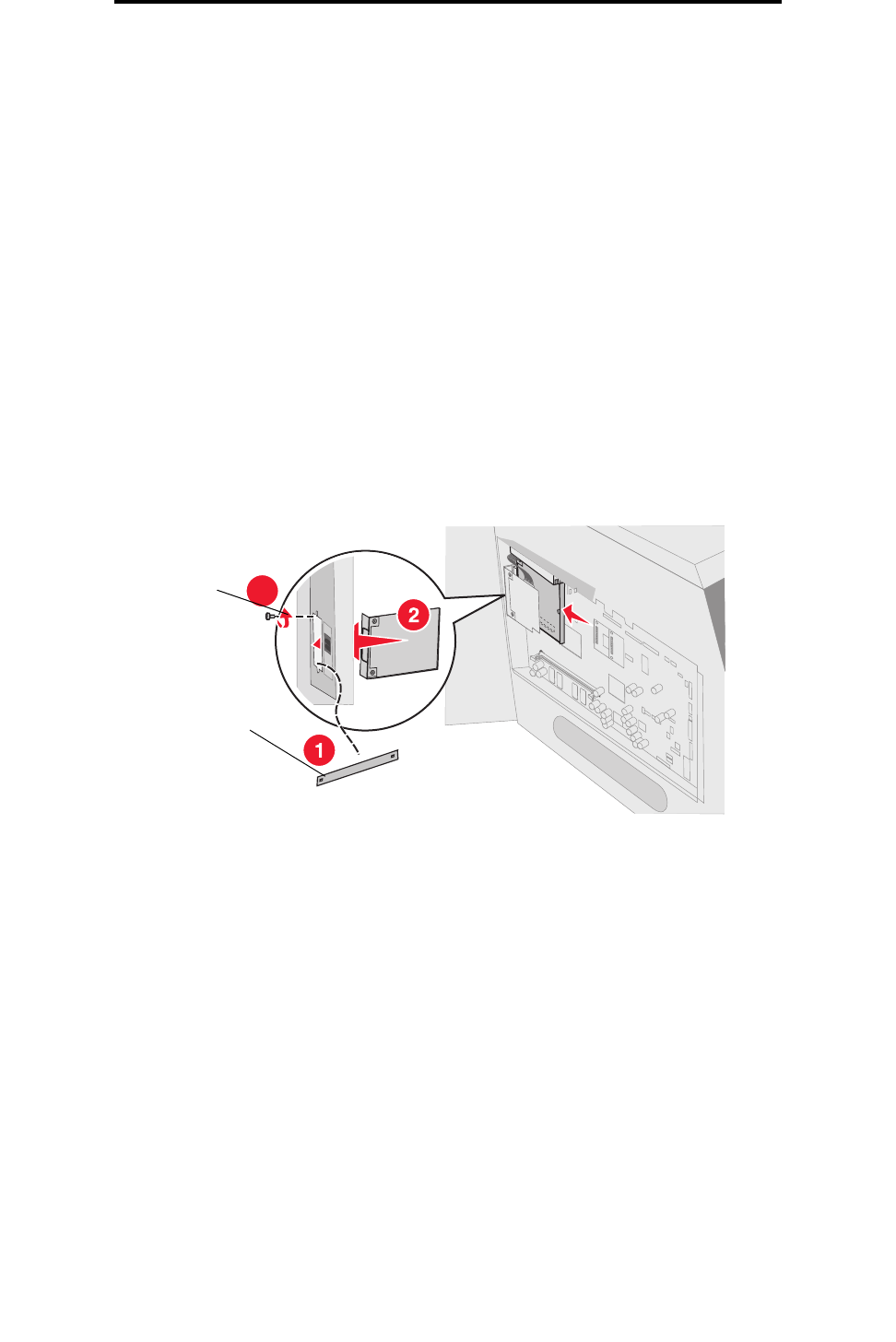

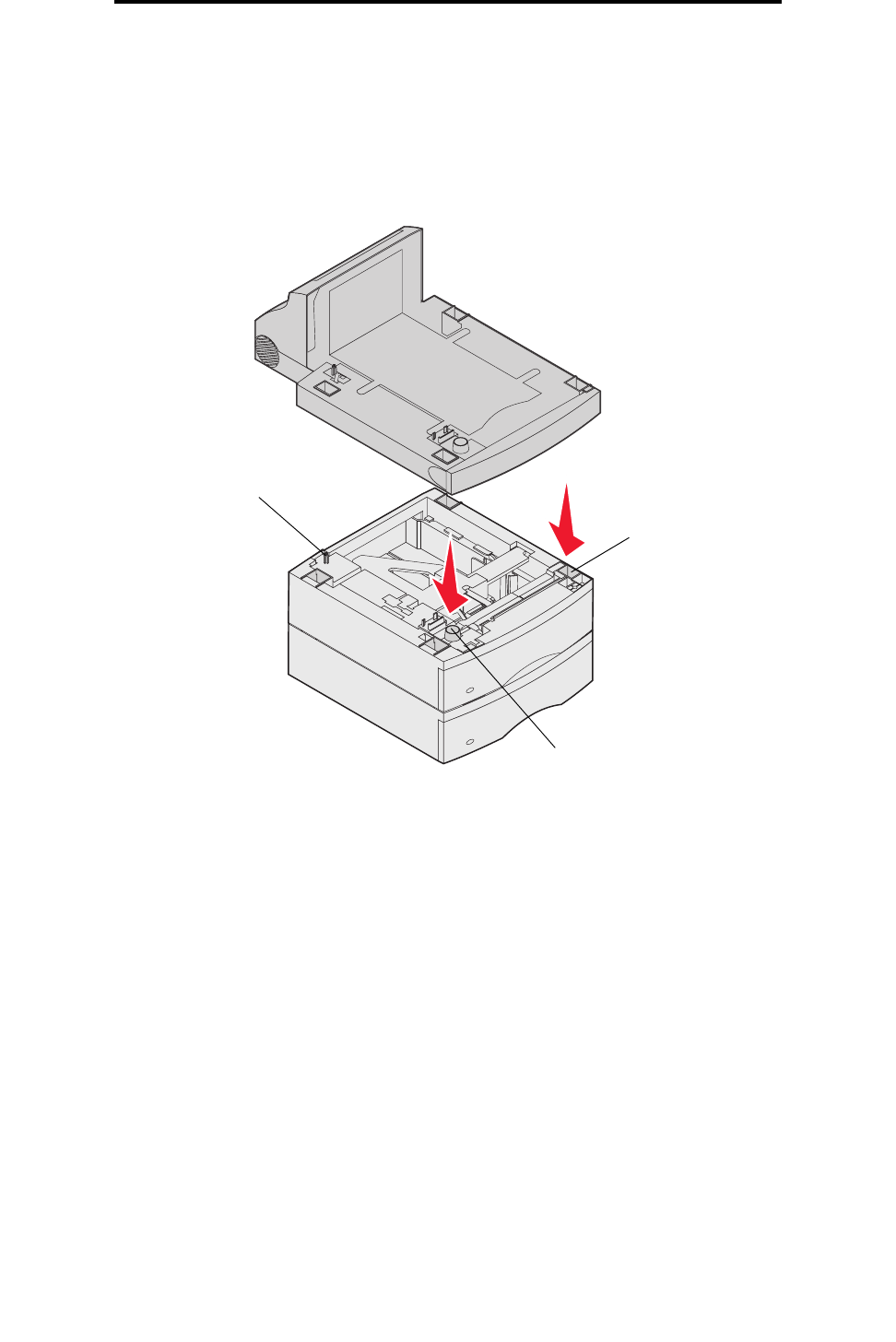

- Installing and removing options
- Maintaining the MFP

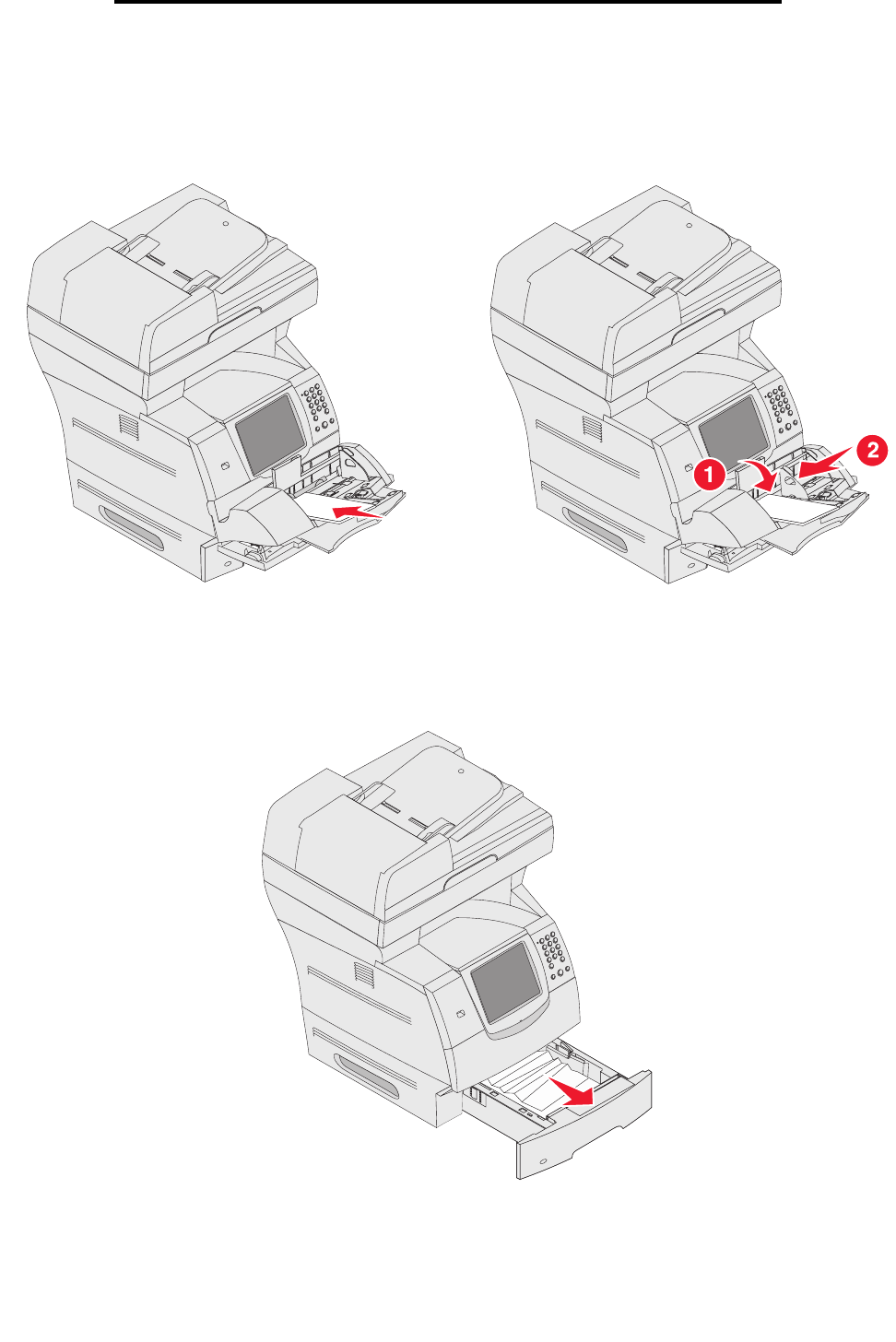

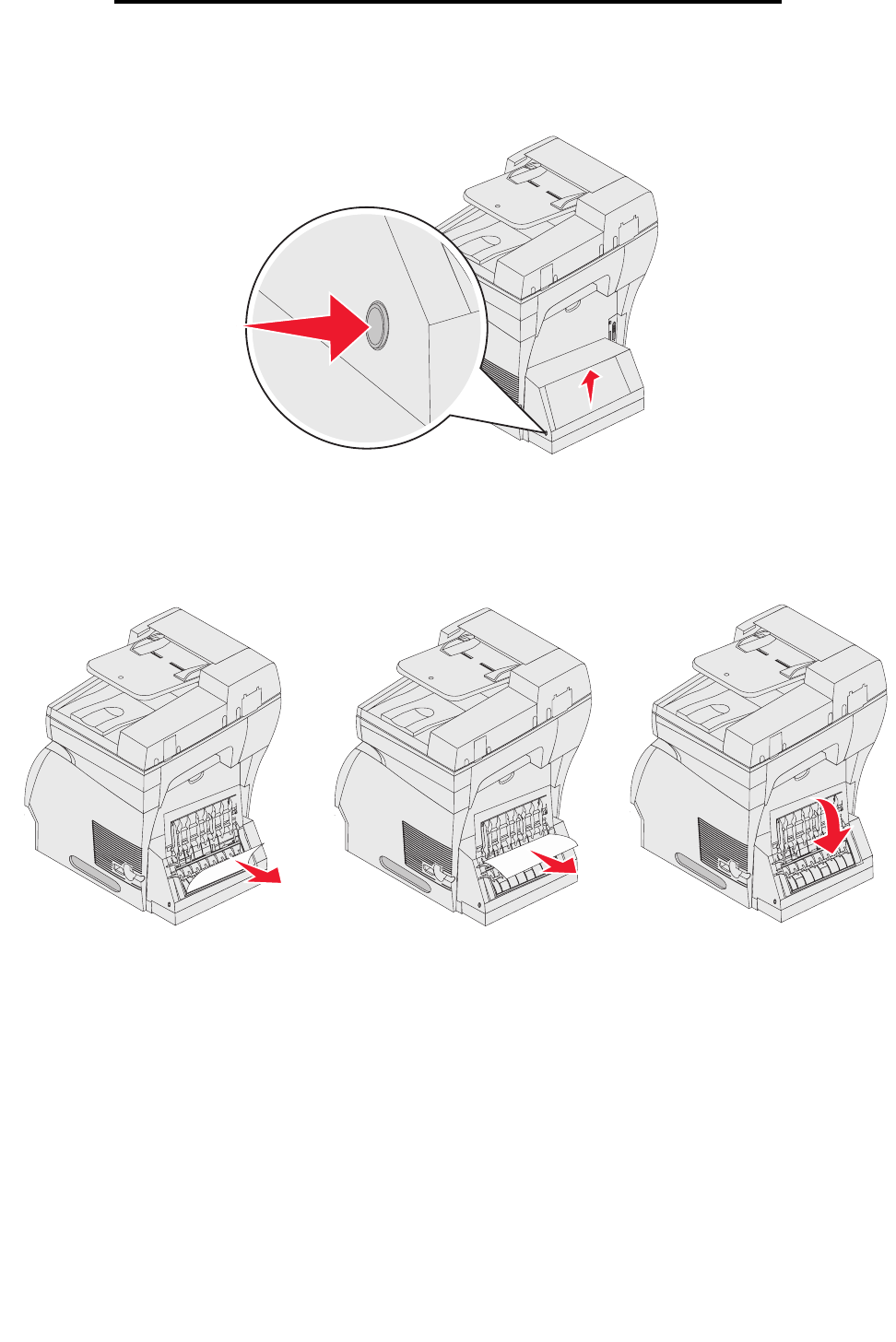

- Clearing jams
- Administrative support
- Adjusting control panel brightness
- Restoring factory default settings
- Adjusting screen timeout
- Adjusting Power Saver
- Configuring the MFP
- Setting Password Protect for the menus
- Restricting Function Access
- Preventing access to the menus from the control panel
- Disabling the Driver to Fax menu item
- Setting the Device Lockout personal identification number (PIN)
- Setting a password before printing received faxes
- Releasing held faxes for printing
- Setting security using the Embedded Web Server (EWS)
- Using the secure EWS
- Supporting SNMPv3 (Simple Network Management Protocol version 3)
- Supporting IPSec (Internet Protocol Security)
- Disabling ports and protocols
- Using 802.1x Authentication
- Confidential Print Setup
- Encrypting the hard disk
- Hard disk wiping
- Using the restricted server list function
- Troubleshooting
- Understanding MFP messages
- Online technical support
- Checking an unresponsive MFP
- Printing multiple language PDFs
- Solving printing problems
- Solving copy quality problems
- Solving scan quality problems
- Solving fax quality problems
- Solving option problems
- Solving paper feed problems
- Print quality troubleshooting
- Solving print quality problems
- Notices
- Index
2
Edition: January 2006
The following paragraph does not apply to any country where such provisions are inconsistent with local law: LEXMARK
INTERNATIONAL, INC., PROVIDES THIS PUBLICATION “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR
IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE. Some states do not allow disclaimer of express or implied warranties in certain transactions; therefore, this
statement may not apply to you.
This publication could include technical inaccuracies or typographical errors. Changes are periodically made to the information herein; these
changes will be incorporated in later editions. Improvements or changes in the products or the programs described may be made at any
time.
Comments about this publication may be addressed to Lexmark International, Inc., Department F95/032-2, 740 West New Circle Road,
Lexington, Kentucky 40550, U.S.A. In the United Kingdom and Eire, send to Lexmark International Ltd., Marketing and Services
Department, Westhorpe House, Westhorpe, Marlow Bucks SL7 3RQ. Lexmark may use or distribute any of the information you supply in
any way it believes appropriate without incurring any obligation to you. You can purchase additional copies of publications related to this
product by calling 1-800-553-9727. In the United Kingdom and Eire, call +44 (0)8704 440 044. In other countries, contact your point of
purchase.
References in this publication to products, programs, or services do not imply the manufacturer intends to make these available in all
countries in which it operates. Any reference to a product, program, or service is not intended to state or imply that only that product,
program, or service may be used. Any functionally equivalent product, program, or service that does not infringe any existing intellectual
property right may be used instead. Evaluation and verification of operation in conjunction with other products, programs, or services, except
those expressly designated by the manufacturer, are the user’s responsibility.
Trademarks
Lexmark, Lexmark with diamond design, MarkVision, and PrintCryption are trademarks of Lexmark International, Inc., registered in the
United States and/or other countries.
Operation ReSource and LEXFAX are service marks of Lexmark International, Inc.
PCL® is a registered trademark of the Hewlett-Packard Company. PCL is Hewlett-Packard Company’s designation of a set of printer
commands (language) and functions included in its printer products. This MFP is intended to be compatible with the PCL language. This
means the MFP recognizes PCL commands used in various application programs, and that the MFP emulates the functions corresponding
to the commands.
PostScript® is a registered trademark of Adobe Systems Incorporated. PostScript 3 is Adobe Systems’ designation of a set of printer
commands (language) and functions included in its software products. This MFP is intended to be compatible with the PostScript 3
language. This means the MFP recognizes PostScript 3 commands used in various application programs, and that the MFP emulates the
functions corresponding to the commands.
Details relating to compatibility are included in the Technical Reference.
Other trademarks are the property of their respective owners.
Copyright advisory
It may be illegal to copy certain materials without permission or license, including documents, images, and currency. If you are not sure
whether you have permission, seek legal advice.
UNITED STATES GOVERNMENT RIGHTS
This software and any accompanying documentation provided under this agreement are commercial computer software and documentation
developed exclusively at private expense.
Safety information
• Connect the power cord to a properly grounded electrical outlet that is near the product and easily accessible.
CAUTION: Do not use the fax feature during a lightning storm. Do not set up this product or make any electrical or cabling
connections, such as the power cord or telephone, during a lightning storm.
• Refer service or repairs, other than those described in the operating instructions, to a professional service person.
• This product is designed, tested, and approved to meet strict global safety standards with the use of specific Lexmark components.
The safety features of some parts may not always be obvious. Lexmark is not responsible for the use of other replacement parts.
CAUTION: Make sure that all external connections (such as Ethernet and telephone system connections) are properly
installed in their marked plug-in ports.
3
• Your product uses a laser.
CAUTION: Use of controls or adjustments or performance of procedures other than those specified herein may result in
hazardous radiation exposure.
• Your product uses a printing process that heats the print media, and the heat may cause the media to release emissions.
You must understand the section in your operating instructions that discusses the guidelines for selecting print media to avoid the
possibility of harmful emissions.
• Use only a 26 AWG or larger telecommunications (RJ-11) cord when connecting this product to a public switched
telephone network.
Mercury statement
This product contains mercury in the lamp (<5mg Hg). Disposal of mercury may be regulated due to environmental considerations. For
disposal or recycling information, contact your local authorities or the Electronic Industries Alliance: www.eiae.org.
Static sensitivity notice
Warning: This symbol identifies static-sensitive parts. Do not touch in the areas near these symbols without first touching the
metal frame of the MFP.
4
Contents
Chapter 1: Learning about the MFP .................................................................................. 8
Identifying the MFP ..........................................................................................................................................8
Using the scanner ............................................................................................................................................9
Configured models .........................................................................................................................................10

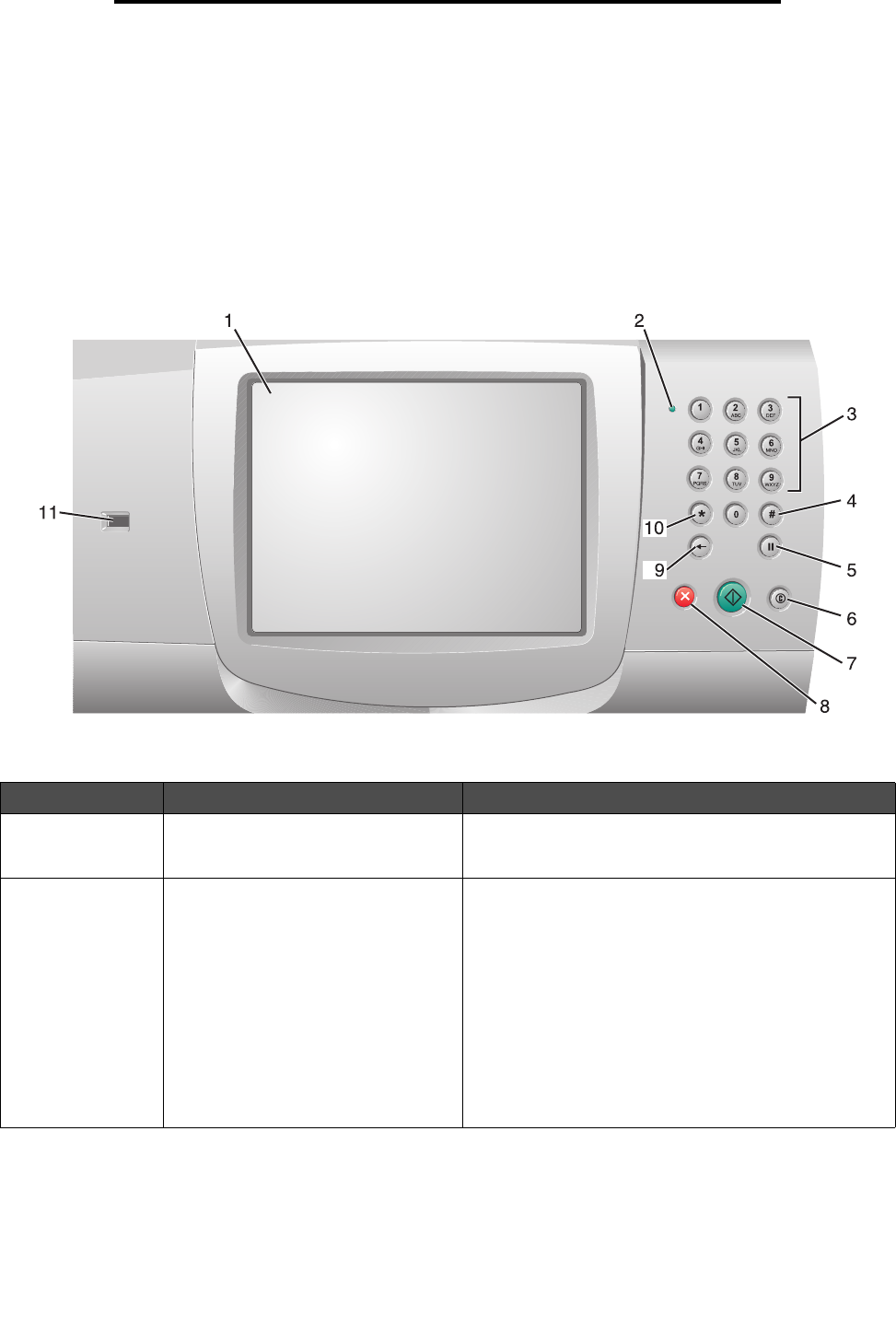

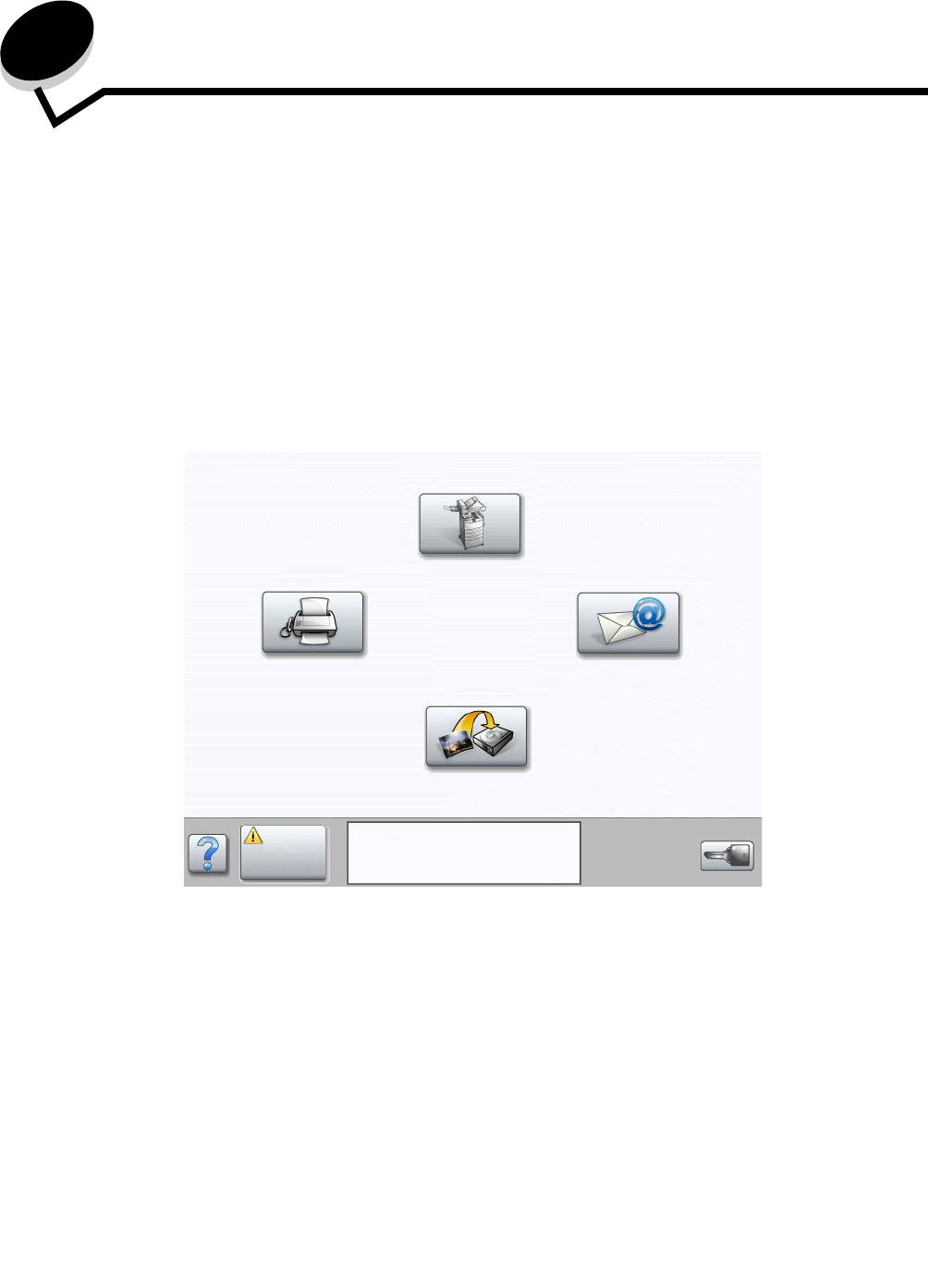

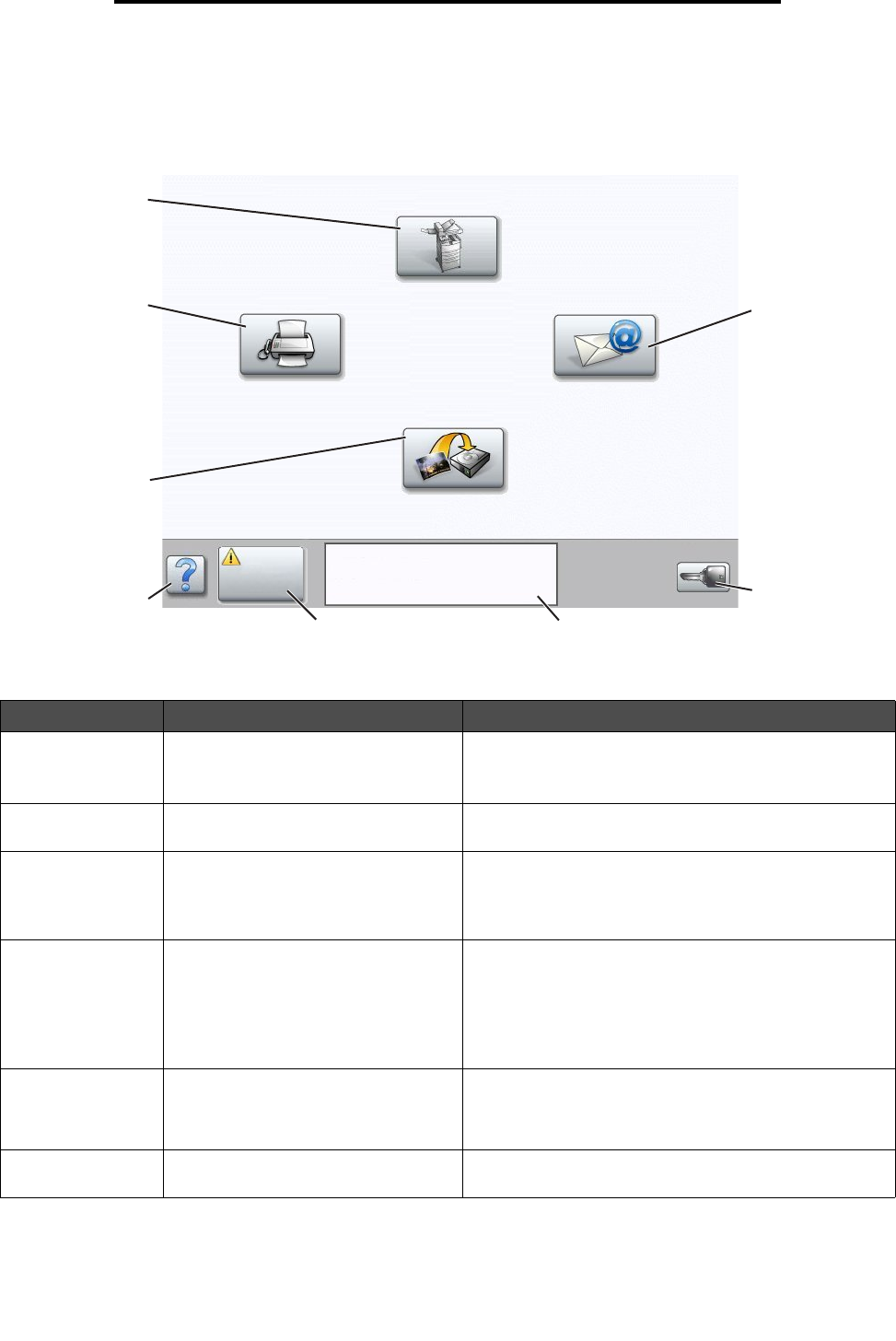

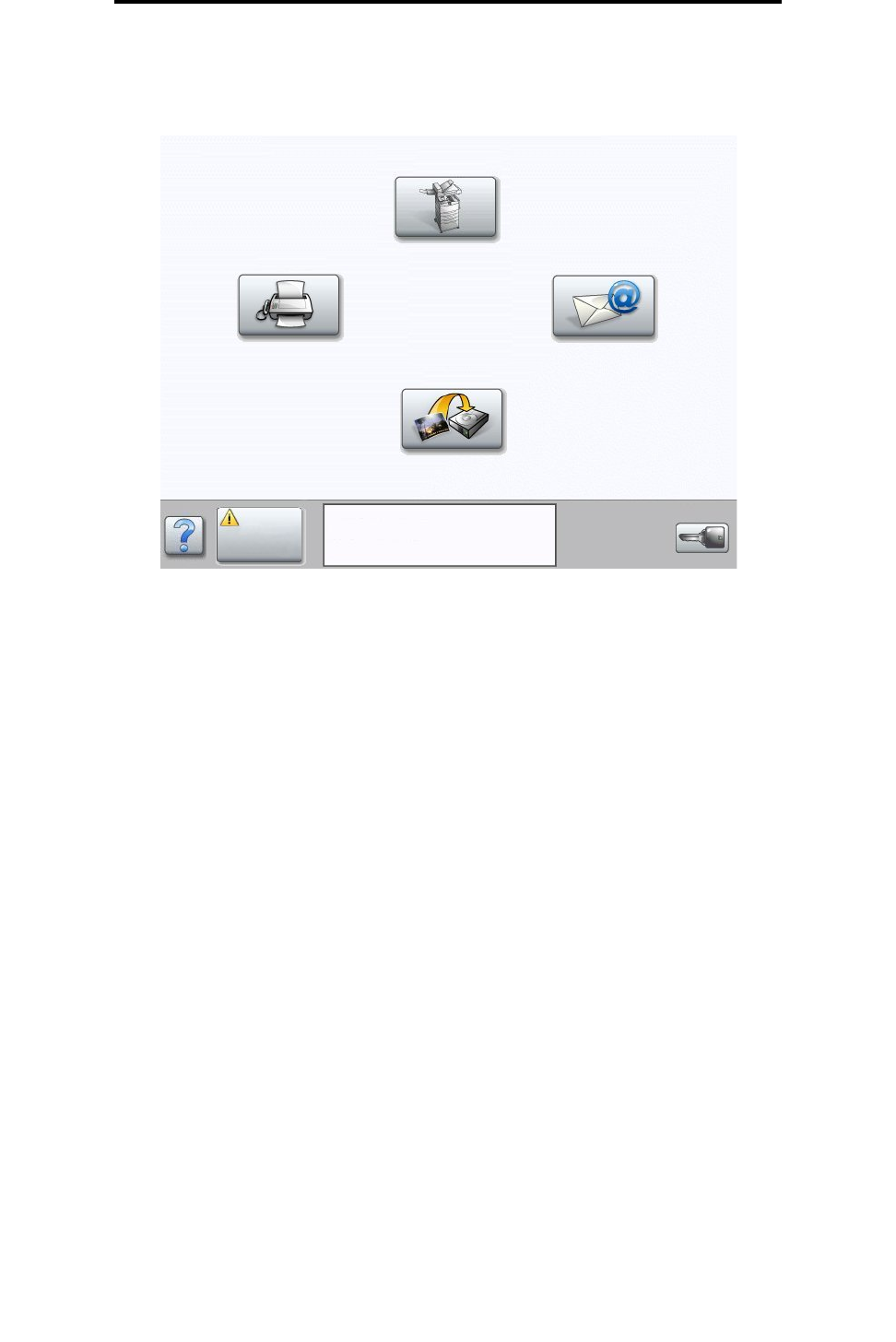

Understanding the MFP control panel ...........................................................................................................11

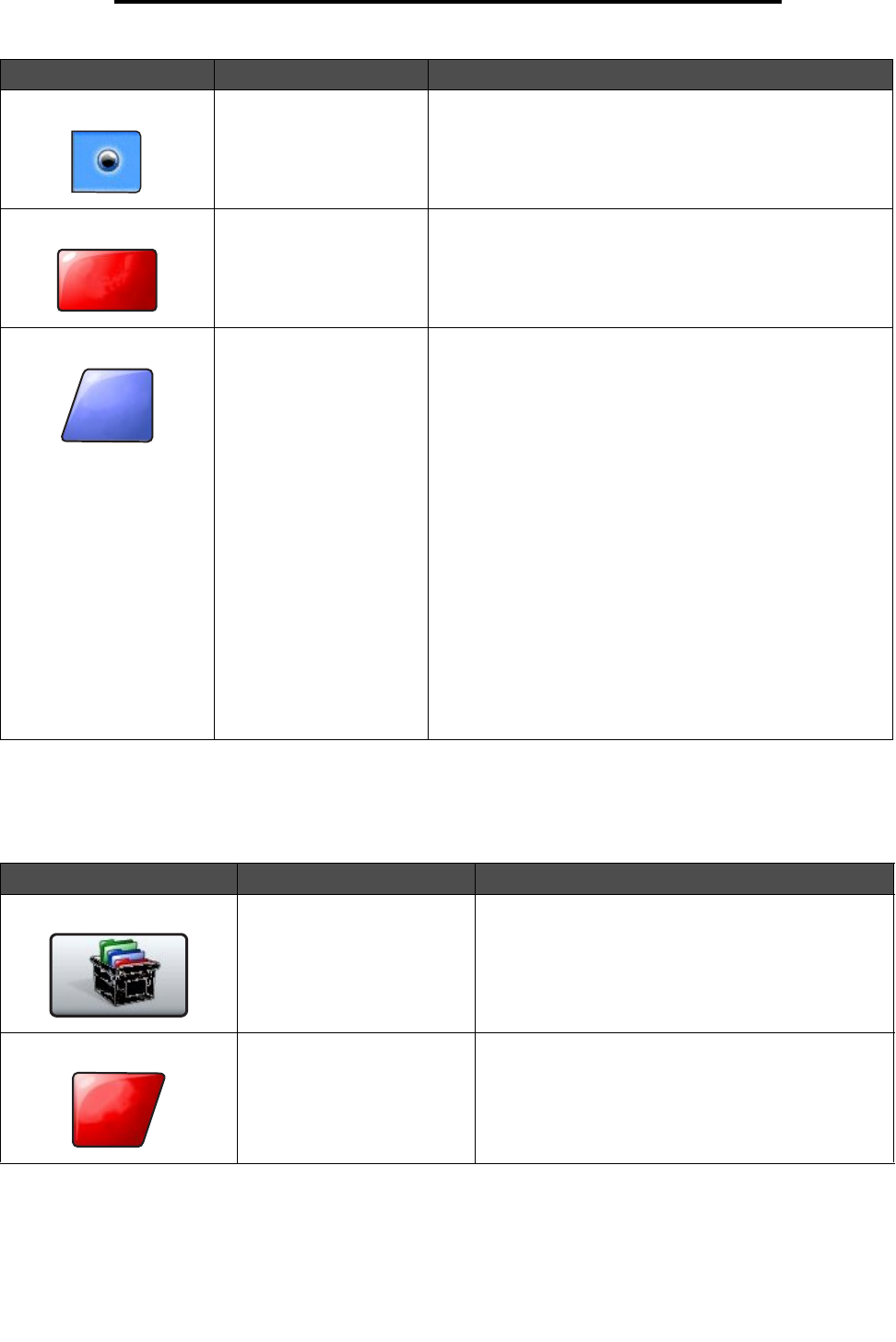

Using the LCD touch-screen buttons .............................................................................................................17
Menus ............................................................................................................................................................23
Chapter 2: Copying ........................................................................................................... 24
Quick copy .....................................................................................................................................................24
Multiple page copying ....................................................................................................................................24
Using the flatbed ............................................................................................................................................25

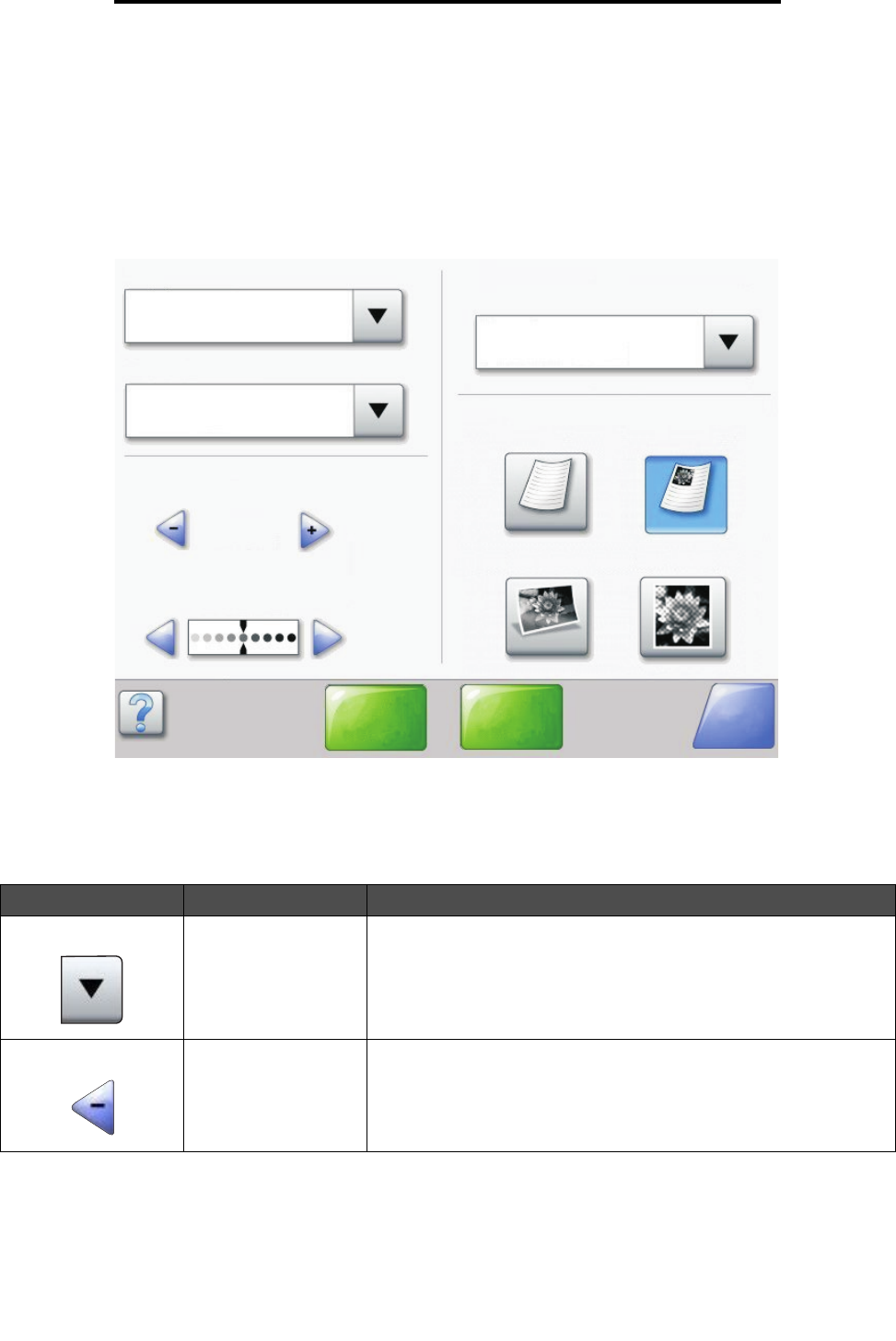

Understanding the copy screens and options ................................................................................................25
Copying from one size to another ..................................................................................................................27
Making transparencies ...................................................................................................................................27
Copying to letterhead .....................................................................................................................................27
Copying photographs .....................................................................................................................................27
Making copies using media from a selected tray ...........................................................................................28
Copying mixed-sized media ...........................................................................................................................28
Setting the duplex option ...............................................................................................................................29
Reducing and enlarging copies .....................................................................................................................29
Adjusting copy quality ....................................................................................................................................29
Setting collation options .................................................................................................................................30
Placing separator sheets between copies .....................................................................................................30
Setting paper saving options .........................................................................................................................30
Placing the date and time at the top of each page ........................................................................................31
Placing an overlay message on each page ...................................................................................................31
Creating a custom job (job build) ...................................................................................................................31
Canceling a copy job .....................................................................................................................................32
Copy tips ........................................................................................................................................................32
Chapter 3: E-mail .............................................................................................................. 33
Entering an e-mail address ............................................................................................................................33
Using a shortcut number ................................................................................................................................33
Using the address book .................................................................................................................................34
E-mailing to a profile ......................................................................................................................................34
Adding e-mail subject and message information ...........................................................................................34
Changing the output file type .........................................................................................................................35
E-mailing color documents ............................................................................................................................35
5
Contents
Creating an e-mail shortcut ............................................................................................................................35
Creating an e-mail profile ...............................................................................................................................36
Canceling an e-mail .......................................................................................................................................36
Understanding e-mail options ........................................................................................................................36
E-mail server setup ........................................................................................................................................38
Address book setup .......................................................................................................................................38
Chapter 4: Faxing .............................................................................................................. 39
Sending a fax .................................................................................................................................................39
Using fax destination shortcuts ......................................................................................................................40
Using the address book .................................................................................................................................40
Sending faxes from a computer .....................................................................................................................40
Creating shortcuts ..........................................................................................................................................41
Understanding fax options .............................................................................................................................42
Changing the fax resolution ...........................................................................................................................43
Adjusting the Darkness setting ......................................................................................................................43
Sending a fax at a later time ..........................................................................................................................43
Cancel an outgoing fax ..................................................................................................................................44
Fax tips ..........................................................................................................................................................44
Fax setup .......................................................................................................................................................45
Chapter 5: FTP ..................................................................................................................47
Entering the FTP address ..............................................................................................................................47
Using a shortcut number ................................................................................................................................47
Using the address book .................................................................................................................................47
Creating shortcuts ..........................................................................................................................................48
FTP options ...................................................................................................................................................48
FTP tips .........................................................................................................................................................50
Chapter 6: Scanning to a PC or USB flash memory device .......................................... 51
Create a scan to PC profile ............................................................................................................................51
Understanding scan to PC options ................................................................................................................52
Scanning to a USB flash memory device .......................................................................................................53
Scanning tips .................................................................................................................................................53
Chapter 7: Printing ............................................................................................................ 54
Sending a job to print .....................................................................................................................................54
Printing from a USB flash memory device .....................................................................................................54
Canceling a print job ......................................................................................................................................56
Printing the menu settings page ....................................................................................................................57
Printing a network setup page .......................................................................................................................57
Printing a font sample list ...............................................................................................................................57
Printing a directory list ...................................................................................................................................58
Printing confidential and held jobs .................................................................................................................58
Printing on specialty media ............................................................................................................................61
6
Contents
Loading standard trays and optional trays .....................................................................................................62
Setting the Paper Type and Paper Size ........................................................................................................64
Loading the multipurpose feeder ...................................................................................................................64
Loading the 2000-sheet drawer .....................................................................................................................67
Loading the envelope feeder .........................................................................................................................69
Linking trays ...................................................................................................................................................71
Chapter 8: Understanding paper and specialty media guidelines ............................... 72
Supported print media ...................................................................................................................................72
Selecting print media .....................................................................................................................................76
Storing print media .........................................................................................................................................79
Avoiding jams ................................................................................................................................................80
Chapter 9: Installing and removing options ................................................................... 81
Installing input options ...................................................................................................................................81
Installing a duplex unit ...................................................................................................................................83
Installing memory or option cards ..................................................................................................................84
Accessing the MFP system board .................................................................................................................84
Installing or removing a memory card ............................................................................................................87
Installing or removing a flash memory or firmware card ................................................................................ 89
Installing an option card .................................................................................................................................91
Replacing the shield ......................................................................................................................................92
Chapter 10: Maintaining the MFP .................................................................................... 93
Determining the status of supplies .................................................................................................................94
Conserving supplies ......................................................................................................................................95
Ordering supplies ...........................................................................................................................................95
Recycling Lexmark products ..........................................................................................................................98
Cleaning the scanner glass and backing material .........................................................................................99
Scanner registration .....................................................................................................................................100
Moving the MFP ...........................................................................................................................................101
Chapter 11: Clearing jams .............................................................................................. 102
Identifying jams ............................................................................................................................................102
Access doors and trays ...............................................................................................................................103
Understanding jam messages .....................................................................................................................103
Clearing jams ...............................................................................................................................................104
Clearing ADF Jams ......................................................................................................................................113
Chapter 12: Administrative support .............................................................................. 114
Adjusting control panel brightness ...............................................................................................................114
Restoring factory default settings ................................................................................................................114
Adjusting screen timeout .............................................................................................................................115
Adjusting Power Saver ................................................................................................................................115
Configuring the MFP ....................................................................................................................................115
Encrypting the hard disk ..............................................................................................................................121
7
Contents
Hard disk wiping ..........................................................................................................................................122
Using the restricted server list function ........................................................................................................123
Chapter 13: Troubleshooting ......................................................................................... 124
Understanding MFP messages ...................................................................................................................124
Online technical support ..............................................................................................................................124
Checking an unresponsive MFP ..................................................................................................................124
Printing multiple language PDFs .................................................................................................................125
Solving printing problems ............................................................................................................................125
Solving copy quality problems .....................................................................................................................127
Solving scan quality problems .....................................................................................................................127
Solving fax quality problems ........................................................................................................................128
Solving option problems ..............................................................................................................................128
Solving paper feed problems .......................................................................................................................130
Print quality troubleshooting ........................................................................................................................131
Solving print quality problems ......................................................................................................................132
Notices .............................................................................................................................. 136
Conventions .................................................................................................................................................136
Electronic emission notices .........................................................................................................................136
Other telecommunications notices ...............................................................................................................140
ENERGY STAR ..........................................................................................................................................143
Waste from Electrical and Electronic Equipment (WEEE) directive .............................................................143
Laser advisory label .....................................................................................................................................143
Laser notice .................................................................................................................................................143
Index .................................................................................................................................. 144
Learning about the MFP
8
1Learning about the MFP
Identifying the MFP
Use the following table to determine the features and options of your Lexmark™ X646e or X646dte MFP (multifunction
printer).
For more information about installing input options, see Installing and removing options or the instructions that came
with the option.

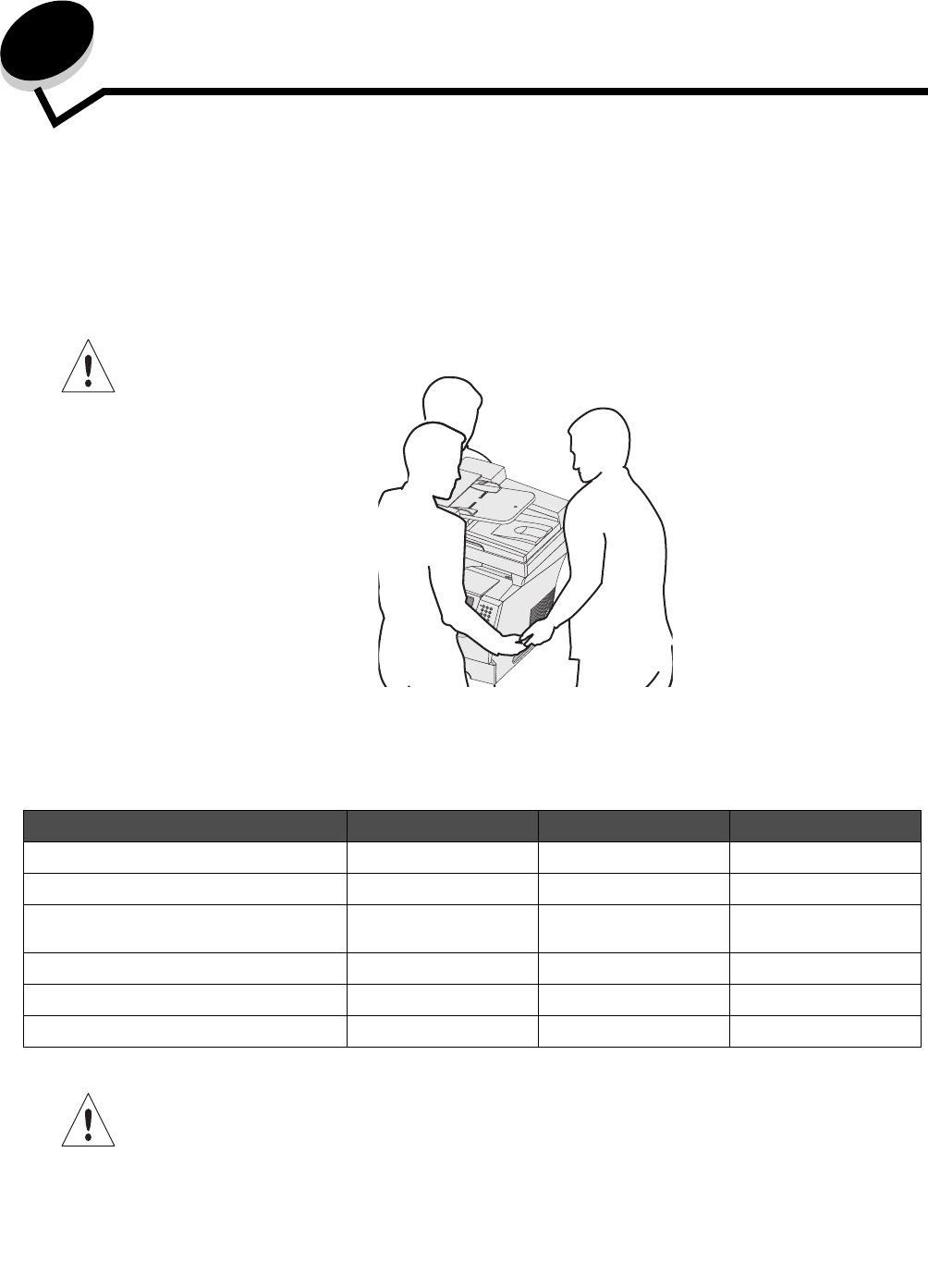

CAUTION: The MFP requires three people to lift it safely.
Models
The MFP is available in two models The following table lists some common features and differences between the models.
CAUTION: Do not set up this product or make any electrical or cabling connections, such as the power cord
or telephone, during a lightning storm.
X644e X646e X646dte
Input capacity 500 sheets 500 sheets 1000 sheets
Standard memory 256MB 256MB 256MB
Maximum memory capacity, non-network/
network 768MB 768MB 768MB
Hard drive No Yes Yes
Option card connectors 1 1 1
Duplex ability Duplex in, simplex out Duplex in, simplex out Duplex in, duplex out
Using the scanner
9
Learning about the MFP
Using the scanner
Basic functions of the scanner
The Lexmark X646e and X646dte provide copy, fax, and scan-to-network capability for large workgroups. With either of
these MFPs, you can:
•Make quick copies, or change the settings on the control panel to perform specific copying jobs.
•Send an outgoing fax using the MFP control panel.
•Send an outgoing fax to multiple fax destinations at the same time.
•Scan documents and send them to your PC, an e-mail address, or an FTP destination.
•Scan documents and send them to another printer (PDF by way of FTP).
Automatic document feeder and flatbed
Note: Color documents can be scanned to a PC, e-mail address, or an FTP destination. Printed output on
this MFP is black and grayscale only, not color.
The ADF (automatic document feeder) can scan multiple pages including duplex pages. The ADF has two scanner
elements. When using the ADF:
•Place the paper in the ADF face-up, short-edge first.
•Place up to 50 sheets of plain paper on the ADF input tray.
•Scan media from 114.0 x 139.4 mm (4.5 x 5.5 in.) to 215.9 x 355.6 mm (8.5 x 14 in.).
•Scan jobs with mixed page sizes (letter and legal).
•Scan media weight from 52 to 120 g/m2 (14 to 32 lb).
Note: Color documents can be scanned to a PC, e-mail address, or an FTP destination.
•Copy and print documents at 600 dpi
Note: Printed output is black and grayscale only, not color.
The flatbed (platen) can be used to scan or copy single pages or book pages. When using the flatbed:
•Place the document in the left rear corner.
•Scan or copy media up to 215.9 x 355.6 mm (8.5 x 14 in.).
•Copy books up to 25.3 mm (1 in.) thick.
•Copy and print documents at 600 dpi.
Configured models
10
Learning about the MFP
Configured models
The following illustrations show a standard MFP and an MFP with a duplex unit and a 500-sheet drawer. Other print media
handling options are also available.
CAUTION: Floor-mounted configurations require additional furniture for stability. You must use either
a printer stand or printer base if you are using a 2000-sheet drawer. Certain other configurations also
must have a printer stand or printer base. More information is available on our Lexmark Web site at
www.lexmark.com/multifunctionprinters.
Standard output bin
Scanner
Duplex unit
Standard With duplex and drawer
Multipurpose feeder
Tray 1
(integrated tray or standard tray)
Tray 2
(500 sheets)
Control panel
Tray 1
(integrated tray or
standard tray)
Understanding the MFP control panel
11
Learning about the MFP
Understanding the MFP control panel
MFP and scanner settings can be changed several ways: through the MFP control panel, the software application in use,
the print driver, MarkVision™ Professional, or the Web pages. Settings changed from the application or print driver apply
only to the job being sent to the MFP.
Changes made to print, fax, copy, and e-mail settings from an application override changes made from the control panel.
If a setting cannot be changed from the application, use the MFP control panel, MarkVision Professional, or the Web pages.
Changing a setting from the MFP control panel, MarkVision Professional, or the Web pages makes that setting the user
default.
The MFP control panel consists of:
Callout Control panel item Function
1LCD A liquid crystal display (LCD) which shows home screen
buttons, menus, menu items, and values. Allows for
making selections within Copy, Fax, and so on.
2Indicator lightGives information about the status of the MFP using the
colors red and green.
Status Indicates
Off MFP power is off.
Blinking green MFP is warming up, processing data,
or printing a job.
Solid green MFP is on, but idle.
Solid red Operator intervention is required.
Understanding the MFP control panel
12
Learning about the MFP
30—9
Note: Referred to as the numeric
keypad.
Press these buttons to enter numbers when the LCD
screen has a field that accepts the entry of numbers.
Also, use these buttons to dial phone numbers for faxes.
Note: If a number is pressed while on the home screen
without pressing the # button first, the Copy menu opens
and changes the Copy Quantity.
4# (Pound or number character) Press this button:
• For a shortcut identifier.
• Within phone numbers. For a Fax number with a #,
enter it twice – ##.
• From the home screen, the Fax Destination List menu
item, E-mail Destination List menu item, or Profile List
menu item to access shortcuts.
5Dial Pause Press to cause a two- or three-second dial pause in a fax
number. The button only functions within the Fax menu or
with fax functions.
Press from the home screen to redial a fax number.
When outside of the Fax menu, fax function, or home
screen, pressing Dial Pause causes an error beep.
When sending a fax, in the Fax To: field, a Dial Pause
press is represented by a comma (,).
6Clear All When in the function menus, such as Copy, Fax, E-mail,
and FTP, it returns all settings to their default values, and
then returns the MFP to the home screen.
When in any other menu while the MFP is Ready, it
cancels all changes that have not been submitted and
returns the MFP to the home screen.
7Start Press to initiate the current job indicated on the control
panel.
From the home screen, press it to start a copy job with
the default settings.
If pressed while a job runs through the scanner, the
button has no effect.
8Stop Press to cause the printing or scanning to stop.
During a scan job, the scanner finishes scanning the
current page and then stops, which means paper may
remain in the automatic document feeder (ADF).
During a print job, the print media path is cleared before
the printing stops.
Stopping appears on the control panel during this
process.
9Backspace Within the Copy menu, which is accessed by touching
the Copy button, press Backspace to delete the right-
most digit of the value in the Copy Count. The default
value of 1 appears if the entire number is deleted by
pressing Backspace numerous times.
Within the Fax Destination List, press Backspace to
delete the right-most digit of a number entered manually.
It also deletes an entire shortcut entry. Once an entire
line is deleted, another press of Backspace causes the
cursor to move up one line.
Within the E-mail Destination List, press Backspace to
delete the character to the left of the cursor. If the entry is
in a shortcut, the entire entry is deleted.
Callout Control panel item Function
Understanding the MFP control panel
13
Learning about the MFP
10 Asterisk (*) * is used as part of a fax number or as an alphanumeric
character.
11 USB Direct interface The host Universal Serial Bus (USB) direct interface on
the control panel is used to plug in a USB flash memory
device and print any Portable Document Format (PDF)
[.pdf file], Joint Photographic Experts Group (JPEG)
[.jpeg or .jpg file], Tagged Image File Format (TIFF) [.tiff
or .tif file], Graphics Interchange Format (GIF) [.gif file],
Basic Multilingual Plane (BMP) [.bmp file], Portable
Network Graphics (PNG) [.png file], PiCture eXchange
(PCX) [.pcx file], and PC Paintbrush File Format [.dcx file]
files.
The USB direct interface can also be used to scan a
document to a USB flash memory device using the PDF,
TIFF, or JPEG formats.
Callout Control panel item Function
Understanding the MFP control panel
14
Learning about the MFP
Home screen and Home screen buttons
After the MFP is turned on and a short warm-up period occurs, the LCD shows the following basic screen which is referred
to as the Home screen. Use the Home screen buttons to initiate an action such as copy, fax, or scan, to open the menu
screen, or to respond to messages.
Callout number Button Function
1 Copy Touch to access the Copy menus.
If the home screen is shown, press a number to access
the Copy menus, too.
2 E-mail Touch to access the E-mail menus. It is possible to scan
a document directly to an e-mail address.
3 Menus (A key is shown on the button.) Touch to access the menus. These menus are only
available when the MFP is in the Ready state.
The Menus button is on a gray bar called the navigation
bar. The bar contains other buttons described as follows.
4 Status message bar Shows the current MFP status such as Ready or Busy.
Shows MFP conditions such as Toner Low.
Shows intervention messages to give instructions on
what the user should do so the MFP can continue
processing, such as Close door or insert print
cartridge.
5 Status/Supplies Appears on the LCD whenever the MFP status includes a
message requiring intervention. Touch it to access the
messages screen for more information on the message
including how to clear it.
6 ? (Tips) All menus have a Tips button. Tips is a context-sensitive
Help feature within the LCD touch screens.
1
2
3
4
5
6
7
8
Copy
Fax E-mail
FTP
Status/
Supplies
Ready. Toner low.
Touch any button to begin.
Menus
Understanding the MFP control panel
15
Learning about the MFP
Other buttons may appear on the Home screen. They are:
7 FTP Touch to access the File Transfer Protocol (FTP) menus.
A document can be scanned directly to an FTP site.
8 Fax Touch to access the Fax menus.
Button Button name Function
Release Held Faxes
(or Held Faxes if in
Manual Mode)
There are held faxes with a scheduled hold time previously set. To
access the list of held faxes, touch this button.
Search Held Jobs To search on any of the following items and return any matches:
• User names for held or confidential print jobs
• Job names for held jobs, excluding confidential print jobs
• Profile names
• Bookmark container or job names
• USB container or job names for supported extensions only
Held Jobs To open a screen containing all the held jobs containers.
Lock Device This button appears on the screen when the MFP is unlocked and
Device Lockout Personal Identification Number (PIN) is not null or
empty.
To lock the MFP:
1Touch Lock Device to open a PIN entry screen.
2Enter the correct PIN to lock the control panel which locks both the
control panel buttons and the touch-screen buttons.
Once the control panel is locked, the PIN entry screen clears, and
the Lock Device button is replaced with the Unlock Device button.
Note: If an invalid PIN is entered, Invalid PIN. appears. A pop-up
screen appears with the Continue button. Touch Continue. The home
screen returns with the Lock Device button.
Callout number Button Function
Understanding the MFP control panel
16
Learning about the MFP
Unlock Device This button appears on the screen when the MFP is locked. The
control panel buttons and shortcuts cannot be used while it appears
and no default copy starts may occur.
To unlock the MFP:
1Touch Unlock Device to open a PIN entry screen.
2Enter the correct PIN to unlock the numeric keypad (0—9) and the
Backspace button on the control panel.
Note: If an invalid PIN is entered, Invalid PIN. appears. A pop-up
screen appears with the Continue button. Touch Continue. The home
screen returns with the Unlock Device button.
Cancel Jobs To open the Cancel Jobs screen. The Cancel Jobs screen shows any
of the following items under three headings on the screen which are
Print, Fax, and Network:
•print job
• copy job
•fax
• profile
•FTP
• e-mail send
Each heading has its own list of jobs shown in a column under the
heading. Each column can only show three jobs per screen. The job
appears as a button. If more than three jobs exist in a column, then the
down arrow appears at the bottom of the column. Each touch of the
down arrow accesses one job in the list. When more than three jobs
exist, once the fourth job in the list is reached, then an up arrow
appears at the top of the column. For illustrations of the up and down
arrow buttons, see Information on touch-screen buttons.
To cancel a job, see the Canceling a print job for instructions.
Button Button name Function
Cancel
Jobs
Using the LCD touch-screen buttons
17
Learning about the MFP
Using the LCD touch-screen buttons
The following section provides information on navigating through several screens. Only a few are chosen to demonstrate
the use of the buttons.
Sample screen one
Information on touch-screen buttons
Button Button name Function or description
Select button Touch the select button to have another screen appear with additional
items. On the first screen, the user default setting is shown. Once the
select button is touched, and the next screen appears, touching
another item shown on the screen changes the user default setting.
Left scroll decrease
button Touch the left scroll decrease button to scroll to another value in
decreasing order.
Copy from
Letter (8.5 x 11 in.)
Copy to
Letter (8.5 x 11 in.)
Plain Paper
Sides (Duplex)
Portrait
1-sided to 1-sided
Content
Scale
Auto
(100%)
Darkness
Scan the
ADF
Scan the
flatbed Back
Text Text/Photo
Photograph Printed Image
Using the LCD touch-screen buttons
18
Learning about the MFP
Right scroll increase
button Touch the right scroll increase button to scroll to another value in
increasing order.
Left arrow button Touch the left arrow button to scroll left to:
• Reach a decreased value shown by an illustration.
• See a full text field on the left.
Right arrow button Touch the right arrow button to scroll right to:
• Reach an increased value shown by an illustration.
• See a full text field on the right.
Scan the ADF
Scan the flatbed
On the gray navigation bar, these two choices indicate that two types
of scanning are possible. One may choose to scan from the ADF or
the flatbed.
Submit A green button indicates a choice. If a different value within a menu
item is touched, it needs to be saved to become the current user
default setting. To save the value as the new user default setting,
touch Submit.
Back When the Back button is shaped like this, no other navigation is
possible from this screen except to go back. If any other choice is
made on the navigation bar, the screen closes.
For example, in Sample screen one, all the selections for scanning
have been made. One of the preceding green buttons should be
touched. The only other button available is Back. Touch Back to return
to the previous screen, and all the settings for the scan job made on
Sample screen one are lost.
Back When the Back button is shaped like this, both forward and backward
navigation is possible from this screen, so there are other options
available on the screen besides selecting Back.
Button Button name Function or description
Scan the
ADF
Scan the
flatbed Submit
Back
Back
Using the LCD touch-screen buttons
19
Learning about the MFP
Sample screen two
Information on touch-screen buttons
Button Button name Function or description
Down arrow Touch the down arrow to move down to the next item in a list,
such as a list of menu items or values. The down arrow does
not appear on a screen with a short listing. It only appears if
the entire listing cannot be seen on one screen. On the last
screen of the listing, the down arrow is gray to indicate that it
is not active since the end of the list appears on this screen.
Up arrow Touch the up arrow to move up to the next item in a list, such
as a list of menu items or values. When on the first screen
presented with a long list, the up arrow is gray to indicate that
it is not active. On the second screen needed to show the rest
of the listed item, the up arrow is blue to show that it is active.
Unselected radio button This is an unselected radio button.
Unknown paper size. Copy from:
Letter (8.5 x 11 in.)
Legal (8.5 x 14 in.)
Executive (7.25 x 10.5 in.)
Continue
Cancel
Job
A4 (210 x 297 mm)
Folio (8. 5 x 13 in.)
Statement (5.5 x 8.5 in.)
Using the LCD touch-screen buttons
20
Learning about the MFP
Other touch-screen buttons
Selected radio button This is a selected radio button. Touch a radio button to select
it. The radio button changes color to show it is selected. In
Sample screen two, the only paper size selected is Letter.
Cancel Job See Cancel Jobs on page 16.
Continue Touch Continue after a menu item or value on a screen is
selected and more changes need to be made for a job from
the original screen. Once Continue is touched, the original
screen appears.
For example, if one touched Copy on the home screen, the
Copy screen appears like Sample screen one on page 17.
The following example shows how the Continue button
reacts.
1Touch the select button by the Copy to box and a new
screen appears.
2Touch MP Feeder and a new screen appears.
3Touch Legal and a new screen appears.
4Touch Next and a new screen appears.
5Touch Plain Paper for the type of print media needed.
6Touch Continue. The Copy screen returns to allow other
selections besides Copy to. The other settings on the Copy
screen available are Duplex, Scale, Darkness, Collate, and
Copies.
Touch Continue to return to the original screen and make
other setting changes for a copy job before the Copy it
button is touched to start the job.
Button Button name Function or description
Custom Allows for creating a custom button based on the
user’s needs.
Cancel Touch Cancel to cancel an action or a selection.
Touch to cancel out of a screen and return to the
previous screen.
Button Button name Function or description
Cancel
Job
Continue
Cancel
Using the LCD touch-screen buttons
21
Learning about the MFP
Select Touch to select a menu. The next screen appears
showing menu items.
Touch to select a menu item. The next screen appears
showing values.
Done Allows specifying that a job is finished. For example,
when scanning an original document, one could
indicate that the last page is scanned, and then printing
the job would begin.
Back Touch the Back button to return to the previous screen,
and no settings are saved on the screen where it was
touched. The Back button appears on each menu
screen except for the home screen.
Home Touch the Home button to return to the home screen.
The Home button appears on every screen except the
home screen. See the Home screen and Home
screen buttons on page 14 for more information.
Grayed out button When this button appears, it looks faded with a faded
word on it. It means the button is not active or
unavailable on this screen. It was probably active on
the previous screen, but the selections made on the
previous screen caused it to be unavailable on the
current screen.
Gray button Touch this button to select the action appearing on the
button.
Button Button name Function or description
Done
Back
Using the LCD touch-screen buttons
22
Learning about the MFP
Features
Feature Feature name Description
Menus Æ Settings
Æ Copy Settings
Æ Number of
Copies
Menu trail line A line is located at the top of each menu screen. This
feature acts as a trail. It gives the exact location within
the menus. Touch any of the underlined words to return
to that menu or menu item. The Number of Copies is not
underlined since this is the current screen.
If this feature is used on the Number of Copies screen
before the Number of Copies is set and saved, then the
selection is not saved, and it does not become the user
default setting.
Attendance message alert If an attendance message occurs which closes a
function, such as copy or fax, then a blinking red
exclamation point appears over the function button on the
home screen. This feature indicates an attendance
message exists.
Menus
23
Learning about the MFP
Menus
A number of menus are available to make it easy for you to change MFP settings or print reports. To access the menus and
settings, press the menu button in the lower right corner of the home screen.
When a value or setting is selected and saved, it is stored in MFP memory. Once stored, these settings remain active until
new ones are stored or the factory defaults are restored.
Note: Settings chosen for faxing, scanning, e-mailing, copying, and settings for printing from the application
may override the settings selected from the control panel.
The following diagram shows the touch screen menu index and the menus and items available under each menu. For more
information about menus and menu items, see the Menus and Messages Guide on the Software and Documentation CD.
Paper Menu
Reports
Network/Ports
Settings
Manage Shortcuts
Calibrate Touch Screen
Back
?
Paper Menu
Default Source
Paper Size/Type
Configure MP
Envelope Enhance
Substitute Size
Paper Texture
Paper Weight
Paper Loading
Custom Types
Custom Names
Custom Bin Name
Universal Setup
Bin Setup
Settings
General Settings
Copy Settings
Fax Settings
E-mail Settings
FTP Settings
Print Settings
Security
Set Date and Time
Reports
Menu Settings Page
Device Statistics
Network Setup Page
Shortcut List
Fax Job Log
Fax Call Log
E-mail Shortcuts
Fax Shortcuts
FTP Shortcuts
Profiles List
NetWare Setup Page
Print Fonts
Print Directory
Network/Ports
TCP/IP
IPv6
E-mail Server Setup
Address Book Setup
Wireless
Standard Network
Network <x>
Standard USB
USB <x>
Standard Parallel
Parallel <x>
Standard Serial
Serial <x>
NetWare
AppleTalk
LexLink
Help
Print all guides
Copy guide
E-mail guide
Fax guide
FTP guide
Information guide
Print defects guide
Supplies guide
Manage Shortcuts
Manage Fax Shortcuts
Manage E-mail Shortcuts
Manage FTP Shortcuts
Manage Profile Shortcuts
Copying
24
2Copying
The following copy topics are available in this and other chapters.
Quick copy
1Place the original document face-up in the automatic document feeder (ADF) or face-down on the flatbed.
Adjust the paper guides when using the ADF.
2Go on the numeric pad.
Note: If an LDSS profile has been installed, you may receive an error when attempting a quick copy. Contact your
system support person for access.
Multiple page copying
1Place the original document face-up in the automatic document feeder or face-down on the flatbed.
Adjust the paper guides when using the ADF.
2Touch Copy on the home screen, or use the numeric keypad to specify the number of copies you want.
After touching Copy or entering the number of copies, the touch screen will automatically change to the copy
settings menu.
3Change the copy options to meet your requirements.
4Touch Copy It.
Quick copy Reducing and enlarging copies
Multiple page copying Adjusting copy quality
Using the flatbed Setting collation options
Understanding the copy screens and options Placing separator sheets between copies
Copying from one size to another Setting paper saving options
Making transparencies Placing the date and time at the top of each page
Copying to letterhead Placing an overlay message on each page
Copying photographs Creating a custom job (job build)
Making copies using media from a selected tray Canceling a copy job
Copying mixed-sized media Copy tips
Setting the duplex option Solving copy quality problems
Using the flatbed
25
Copying
Using the flatbed
If you are using the flatbed (scanner glass) to make copies:
1Open the document cover.
2Place the document face-down on the scanner flatbed.
3Close the document cover.
4Touch Copy on the home screen, or press Go on the numeric pad.
For Copy, continue with step 5.
For Go, proceed with step 8.
5Set the number of copies.
6Change the copy options to meet your requirements.
7Touch Copy It.
8Touch Scan Next if you have more pages to scan, or touch Finish the Job if you are done.
Touching Finish the Job returns the MFP to the copy screen.
9Touch Home when you are finished.
Understanding the copy screens and options
Copy From: Opens a screen where you can enter the size of the documents you are going to copy.
•Touching any of the paper size icons on the follow-on screen will make that your selection and return you to the
Copy Options Screen.
•When Original Size is set to Mixed Sizes, you can scan different size original documents (letter and legal size
pages). They will be scaled automatically to fit the selected output media size.
Copy To: Opens a screen where you can enter the size and type of paper on which your copies will be printed.
•Touching any of the paper size icons on the follow-on screen will make that your selection and return you to the
Copy Options Screen.
•If the size settings for Copy From and Copy To are different, the MFP will automatically adjust the Scale setting to
accommodate the difference.
•If you have a special type or size of paper that you'd like to copy onto that is not normally in the MFP paper trays,
you can select MP Feeder, and manually send the type of paper you want through the MP feeder.
•When using Auto Match, the MFP will match the size of the original document as specified in the Copy From box.
If a matching paper size is not loaded in one of the paper trays, the MFP will scale the copy to fit loaded media.
Scale: Creates an image from your copy that is proportionally scaled anywhere between 25% and 400%. Scale can also be
set for you automatically.
•When you want to copy from one size of paper to another, such as legal size to letter size, setting your Copy From
and Copy To paper sizes will automatically change the scale to keep all the original document information on your
copy.
•Touching the arrow to the left lowers the value by 1%; touching the arrow to the right increases the value by 1%.
•Holding your finger on an arrow makes a continuous increment.
•Holding your finger on an arrow for two seconds causes the pace of the change to accelerate.
Darkness: Adjusts how light or dark your copies will turn out in relation to the original document.
Understanding the copy screens and options
26
Copying
Printed Image: Copies halftone photographs or graphics such as documents printed on a laser printer or pages from a
magazine or newspaper that are composed primarily of images. For original documents that are a mixture of text, line
drawings, or other graphics, leave Printed Image off.
Sides (Duplex): Prints copies on 1 or 2 sides, makes 2-sided copies (duplex) of 2-sided originals, 2-sided copies
from 1-sided originals or 1-sided copies (simplex) from 2-sided originals.
Note: For 2-sided output, you must have a duplex unit attached to your printer.
Collate: Keeps the pages of a print job stacked in sequence, particularly when printing multiple copies of the document.
The default setting for Collate is on; the output pages of your copies will be ordered (1,2,3) (1,2,3) (1,2,3). If you want all the
copies of each page to remain together, turn Collate off, and your copies will be ordered (1,1,1) (2,2,2) (3,3,3).
Options: Opens a screen to change Paper Saver, Advanced Imaging, Separator Sheets, Margin Shift, Edge Erase, Date/
Time Stamp, Overlay, Content, or Advance Duplex settings.
• Paper Saver: Takes two or more sheets of an original document and prints them together on the same page.
Paper Saver is also called N-up printing. The N stands for Number. For example, 2-up would print two pages of
your document on a single page, and 4-up would print four pages of your document on a single page. Touching
Print Page Borders adds or removes the outline border surrounding the original document pages on the output
page.
• Create Booklet: Creates a sequence of collated output that, when folded in half, forms a booklet half the page
size of the original document and with all the pages in order.
Note: To use Create Booklet, you must have a duplex unit attached to the MFP.
• Advanced Imaging: Adjusts Background Removal, Contrast, and Shadow Detail before you copy the document.
• Custom Job (Job Build): Combines multiple scanning jobs into a single job.
Note: Custom Job is not supported on all models.
• Separator Sheets: Places a blank piece of paper between each copy of your copying job. The separator sheets
can be drawn from a bin with a different kind or color of paper from your copies.
• Margin Shift: Increases the size of the margin the specified distance. This can be useful in providing space to
bind or hole-punch copies. Use the increase or decrease arrows to set how much of a margin you want. If the
additional margin is too large, the copy will be cropped.
• Edge Erase: Eliminates smudges or information around the edges of your document. You can choose to eliminate
an equal area around all four sides of the paper, or pick a particular edge. Edge Erase will erase whatever is within
the selected area, leaving nothing printed on that portion of the paper.
• Date/Time Stamp: Turns the Date/Time Stamp on and prints the date and time at the top of every page.
• Overlay: Creates a watermark (or message) that overlays the content of your copy. You can choose between
Urgent, Confidential, Copy, and Draft. The word you pick will appear, faintly, in large print across each page.
Note: A custom overlay can be created by the System Administrator. An additional icon with that message
will then be available.
• Content: Enhances copy quality. Choose Text for original documents that are mostly text or line art. Choose Text/
Photo when the original documents are a mixture of text and graphics or pictures. Choose Photograph when the
original document is a high-quality photograph or inkjet print. Choose Printed Image when copying halftone
photographs or graphics such as documents printed on a laser printer or pages from a magazine or newspaper.
• Advanced Duplex: Controls how many sides and what orientation your original documents have, and whether
your original documents are bound along the long edge or the short edge.
Copying from one size to another
27
Copying
Copying from one size to another
1Place your original document in the automatic document feeder face-up, short-edge first.
2Adjust the paper guides.
3Touch Copy on the home screen.
4Touch Copy from:, and then identify the size of your original document.
For example, Legal.
5Touch Copy to:, and then select the size you want the copy to be.
Note: If you select a paper size that is different from the “Copy from” size, the MFP will scale the size
automatically.
6Touch Copy It.
Making transparencies
1Place your original document in the automatic document feeder face-up, short-edge first.
2Adjust the paper guides.
3Touch Copy on the home screen.
4Touch Copy from:, and then identify the size of your original document.
5Touch Copy to:, and then touch the tray that contains transparencies.
Note: If you do not see Transparency as an option, speak with your system support person.
6Touch Copy It.
Copying to letterhead
1Place your original document in the automatic document feeder face-up, short-edge first.
2Adjust the paper guides.
3Touch Copy on the home screen.
4Touch Copy from:, and then identify the size of your original document.
5Touch Copy to:, and then touch the tray that contains letterhead.
Note: If you do not see Letterhead as an option, speak with your system support person.
6Touch Copy It.
Copying photographs
1Open the document cover.
2Place the photograph face down on the flatbed.
3Touch Copy on the home screen.
4Touch Options.
Making copies using media from a selected tray
28
Copying
5Touch Content.
6Touch Photograph.
7Touch Copy It.
8Touch Scan Next or Done.
Making copies using media from a selected tray
During the copy process, you can select the input tray that contains the media type of choice. For example, if a special
media type is located in the multipurpose feeder, and you want to make copies on that media:
1Place your original document in the automatic document feeder face-up, short-edge first.
2Adjust the paper guides.
3Touch Copy on the home screen.
4Touch Copy from:, and then identify the size of your original document.
5Touch Copy to:, and then touch multipurpose feeder or the tray that contains the media type you want.
6Touch Copy It.
Copying mixed-sized media
You can place mixed-sized original documents in the ADF and then copy them. Depending on the paper size loaded in the
trays, the scanner will print on the same size media or scale the document to fit the media in the tray.
Example 1, the MFP has two paper trays, one tray loaded with letter and the other with legal paper. A document mixed with
letter and legal pages needs to be copied.
1Place your original document in the automatic document feeder face-up, short-edge first.
2Adjust the paper guides.
3Touch Copy on the home screen.
4Touch Copy From, and then touch Mixed Sizes.
5Touch Copy To, and then touch Auto Size Match.
6Touch Copy It.
The scanner will identify the different size pages as they scan, and then print them on the correct size paper.
Example 2, the MFP has one paper tray, loaded with letter-size paper. A document mixed with letter and legal pages needs
to be copied.
1Place your original document in the automatic document feeder face-up, short-edge first.
2Adjust the paper guides.
3Touch Copy on the home screen.
4Touch Copy From, and then touch Mixed Sizes.
5Touch Copy It.
The scanner will identify the different size pages as they scan, and then scale the legal size pages to print on
letter-size paper.
Setting the duplex option
29
Copying
Setting the duplex option
1Place your original document in the automatic document feeder face-up, short-edge first.
2Adjust the paper guides.
3Touch Copy on the home screen.
4Touch the button that looks the way you want your copies duplexed.
The first number represents sides of the original documents; the second number represents sides of the copy.
For example, select 1 --> 2-sided if you have 1-sided original documents and you want 2-sided copies.
5Touch Copy It.
Reducing and enlarging copies
Copies can be reduced to 25% of the original document size or enlarged to 400% of the original document size. The default
for Scale is Auto. If you leave Scale set to Auto, the content of your original document will be scaled to fit the size of the
paper onto which you are copying.
To reduce or enlarge a copy:
1Place your original document in the automatic document feeder face-up, short-edge first.
2Adjust the paper guides.
3Touch Copy on the home screen.
4From Scale, touch + or — to enlarge or reduce your output.
Note: Touching Copy To or Copy From after setting Scale manually will turn the scale value back to Auto.
5Touch Copy It.
Adjusting copy quality
1Place your original document in the automatic document feeder face-up, short-edge first.
2Adjust the paper guides.
3Touch Copy on the home screen.
4Touch Options.
5Touch Content.
6Touch the icon that best represents what you are copying (for example, Text, Text/Photo, Photograph, or Printed
Image).
•Text: Used for original documents that are mostly text or line art.
•Text/Photo: Used when the original documents are a mixture of text and graphics or pictures.
•Photograph: Used when the original document is a high-quality photograph or inkjet print.
•Printed Image: Used when copying halftone photographs, graphics such as documents printed on a laser
printer, or pages from a magazine or newspaper that are composed primarily of images.
7Touch Copy It.
Setting collation options
30
Copying
Setting collation options
If you want your copies collated, you don’t need to do anything; this is the default setting.
For example, two copies of three pages will print page 1, page 2, page 3, page 1, page 2, page 3.
If you don’t want your copies collated, you can change the setting.
For example, two copies of three pages will print page 1, page 1, page 2, page 2, page 3, page 3.
To turn collation off:
1Place your original document in the automatic document feeder face-up, short-edge first.
2Adjust the paper guides.
3Touch Copy on the home screen.
4Use the numeric keypad to enter the number of copies you want.
5Touch Off if you do not want your copies collated.
6Touch Copy It.
Placing separator sheets between copies
1Place your original document in the automatic document feeder face-up, short-edge first.
2Adjust the paper guides.
3Touch Copy on the home screen.
4Touch Options.
5Touch Separator Sheets.
Note: Collation must be On for the separator sheets to be placed between copies. If Collation is Off, the
separator sheets are inserted after the job has been printed.
6Touch Copy It.
Setting paper saving options
1Place your original document in the automatic document feeder face-up, short-edge first.
2Adjust the paper guides.
3Touch Copy on the home screen.
4Make your duplex choice.
5Touch Options.
6Touch Paper Saver.
7Select the output you want.
For example, if you have four portrait-oriented original documents that you want copied to the same side of one
sheet, touch 4 on 1 Portrait.
8Touch Print Page Borders if you want a box drawn around each page on the copies.
9Touch Copy It.
Placing the date and time at the top of each page
31
Copying
Placing the date and time at the top of each page
1Place your original document in the automatic document feeder face-up, short-edge first.
2Adjust the paper guides.
3Touch Copy on the home screen.
4Touch Options.
5Touch Date/Time Stamp.
6Touch On.
7Touch Done.
8Touch Copy It.
Placing an overlay message on each page
An overlay message can be placed on each page. The message choices are Urgent, Confidential, Copy, or Draft. To place
a message on the copies:
1Place your original document in the automatic document feeder face-up, short-edge first.
2Adjust the paper guides.
3Touch Copy on the home screen.
4Touch Options.
5Touch the button containing the overlay you want to use.
6Touch Done.
7Touch Copy It.
Creating a custom job (job build)
The custom job or job build is used to combine one or more sets of original documents into a single copy job. Each set may
be scanned using different job parameters. When a copy job is submitted and Custom Job is enabled, the scanner will
scan the first set of original documents using the supplied parameters, then scan the next set with the same or different
parameters.
The definition of a set depends on the Scan Source:
•From the flatbed, a set consists of one page.
•From the ADF, a set consists of all scanned pages until the ADF becomes empty.
•When one page is sent through the ADF, a set consists of one page.
For example:
1Place your original document in the automatic document feeder face-up, short-edge first.
2Adjust the paper guides.
3Touch Copy on the home screen.
4Touch Options.
5Touch Custom Job.
6Touch On.
Canceling a copy job
32
Copying
7Touch Done.
8Touch Copy It.
When the end of a set is reached, the “Scan the next page” screen appears. Touch Scan the next page or touch Done. For
more information on the Custom job or the job build setting, see the Menus and Messages Guide on the Software and
Documentation CD.
Canceling a copy job
While the document is in the ADF
When the ADF begins processing a document, the scanning screen is displayed. You can cancel the copy job by touching
Cancel Job on the touch screen.
Touching Cancel Job cancels the entire job that is being scanned. The scanning screen will be replaced with a
“Canceling scan job” screen. The ADF will clear any page that has started scanning and leave the other pages in
the ADF.
While copying pages using the flatbed
During the copy process, the “Scan the next page” screen appears. To cancel the copy job, touch Cancel Job on the touch
screen.
Touching Cancel Job cancels the entire job that has been scanned. The scanning screen will be replaced with a
“Canceling scan job” screen. Once the job has been flushed, the touch screen will return to the copy screen.
When the pages are being printed
To cancel the print job, touch Cancel Job on the touch screen, or press cancel on the numeric keypad.
Touching Cancel Job or pressing cancel on the keypad cancels the remaining print job. Once the job has been
deleted, the touch screen will return to the home screen.
Copy tips
The following tips may improve the MFP copy quality. For additional information or to solve copy problems, see Solving
copy quality problems.
Question Tip
When should I use Text mode? • Text mode should be used when text preservation is the main goal of the copy, and
preserving images copied from the original document is not a concern.
• Text is best used for receipts, carbon copy forms, and documents that only contain
text or fine line art.
When should I use Text/Photo
mode? • Text/Photo mode should be used when copying an original document that contains
a mixture of text and graphics.
• Text/Photo is best used for magazine articles, business graphics, and brochures.
When should I use
Printed Image mode? Printed Image mode should be used when copying halftone photographs, graphics
such as documents printed on a laser printer, or pages from a magazine or
newspaper.
When should I use Photograph
mode? Photograph mode should be used when the original document is a high-quality
photograph or inkjet print.
E-mail
33
3E-mail
The MFP can be used to e-mail scanned documents to one or more recipients.
There are four ways to send an e-mail from the MFP. You can type the e-mail address, use a shortcut number, use the
address book, or a profile. Permanent e-mail destinations can be created in the Manage Destinations link located under the
Configuration tab on the Web page.
For more information or detailed instructions, select one of the following:
Entering an e-mail address
1Place the original document in the automatic document feeder face-up or on the flatbed face-down.
Adjust the paper guides when using the ADF.
2Touch E-mail on the home screen.
3Enter the recipient's address.
You can enter additional recipients by pressing next and then entering the recipient's address or shortcut number.
4Touch E-mail It.
Using a shortcut number
1Place the original document in the automatic document feeder face-up or on the flatbed face-down.
Adjust the paper guides when using the ADF.
2Touch E-mail on the home screen.
Entering an e-mail address
Using a shortcut number
Using the address book
E-mailing to a profile
Adding e-mail subject and message information
Changing the output file type
E-mailing color documents
Creating an e-mail shortcut
Creating an e-mail profile
Canceling an e-mail
Understanding e-mail options
E-mail server setup
Address book setup
Using the address book
34
E-mail
3Press #, and then enter the recipient's shortcut number.
You can enter additional recipients by pressing next and then entering the recipient's shortcut number or address.
4Touch E-mail It.
Using the address book
1Place the original document in the automatic document feeder face-up or on the flatbed face-down.
Adjust the paper guides when using the ADF.
2Touch E-mail on the home screen.
3Touch Search Address Book.
4Enter the name or part of the name you are searching for, and then touch Search.
5Touch the name that you want to add to the To: field.
You can enter additional recipients by pressing next and then entering the recipient's address or shortcut number,
or searching the address book.
6Touch E-mail It.
E-mailing to a profile
1Place the original document in the automatic document feeder face-up or on the flatbed face-down.
Adjust the paper guides when using the ADF.
2Touch Held Jobs on the home screen.
3Touch Profiles.
4Select your e-mail destination from the profile list.
5Touch E-mail It.
Adding e-mail subject and message information
1Place the original document in the automatic document feeder face-up or on the flatbed face-down.
Adjust the paper guides when using the ADF.
2Touch E-mail on the home screen.
3Touch Options.
4Touch Subject.
5Enter the e-mail subject.
6Touch Done.
7Touch Message.
8Enter an e-mail message.
9Touch Done.
10 Touch E-mail It.
Changing the output file type
35
E-mail
Changing the output file type
1Place the original document in the automatic document feeder face-up or on the flatbed face-down.
Adjust the paper guides when using the ADF.
2Touch E-mail on the home screen.
3Enter an e-mail address.
4Touch Options.
5Touch the button that represents the file type you want to send.
•PDF: This creates a single file with multiple pages, viewable with Adobe Reader. Adobe Reader is provided
free by Adobe at http://www.adobe.com.
•TIFF: Creates multiple files or a single file. If Multi-page TIFF is turned off in the Configuration menu, then
TIFF saves one page in each file. The file size is usually larger than an equivalent JPEG.
• JPEG: Creates and attaches a separate file for each page of your original document, and is viewable by most
Web browsers and graphics programs.
6Touch E-mail It.
E-mailing color documents
1Place the original document in the automatic document feeder face-up or on the flatbed face-down.
Adjust the paper guides when using the ADF.
2Touch E-mail on the home screen.
3Enter an e-mail address.
4Touch Options.
5Touch Color.
6Touch E-mail It.
Creating an e-mail shortcut
From a computer
1Enter the IP address of the MFP into the URL field (address bar) of the Web browser.
2Click Configuration (in the left frame), and then click Manage Destinations (in the right frame).
Note: You may be asked to enter a password. If you do not have an ID and password, get one from your
system support person.
3Click E-mail Destination Setup.
4Enter a unique name for the recipient, and specify the e-mail address.
Note: If you are entering multiple addresses, separate each address with a comma (,).
5Choose your scan settings (Format, Content, Color, and Resolution).
6Enter a shortcut number, and then click Add.
If you enter a number that is already in use, you are prompted to select another number.
Creating an e-mail profile
36
E-mail
7Go to the MFP, and place your original document in the automatic document feeder face-up, short-edge first.
8Press #, and then enter the recipient's shortcut number.
9Touch E-mail It.
From the MFP
1Load the original document in the ADF face-up, short-edge first, and adjust the paper guides.
2Touch E-mail on the home screen.
3Enter the recipient's e-mail address.
To create a group of recipients, touch Next number, and enter the next recipient’s e-mail address.
4Touch Save as Shortcut.
5Enter a unique name for the shortcut.
6Verify the shortcut name and number are correct, and then touch OK.
If the name or number is incorrect, touch Cancel, and reenter the information.
7Touch E-mail It.
Creating an e-mail profile
1Open your Web browser. In the address line, enter the IP address of the MFP you want to configure using the
format: http://ip_address/.
2Click Configuration.
3Click E-mail/FTP Settings.
4Click Manage E-mail Shortcuts.
5Fill in the fields with the appropriate information.
6Click Add.
Canceling an e-mail
1When using the automatic document feeder, touch Cancel while Scanning… is displayed on the touch screen.
2When using the scanner bed, touch Cancel while Scan the Next Page / Finish the Job is displayed on the
touch screen.
Understanding e-mail options
Original Size: Opens a screen where you can enter the size of the documents you are going to e-mail.
•Touching any of the paper size icons on the follow-on screen will make that your selection and return you to the
e-mail Options screen.
•When Original Size is set to Mixed Sizes, you can scan different size original documents (letter and legal size
pages). They will be scaled automatically to fit the selected output media size.
Sides (Duplex): Tells the MFP if your original document is simplex (printed on one side) or duplex (printed on both sides).
This lets the scanner know what needs to be scanned for inclusion in the e-mail.
Understanding e-mail options
37
E-mail
Orientation: Tells the MFP whether the original document is portrait or landscape and then changes the Sides and Binding
settings to match the original document orientation.
Binding: Tells the MFP whether the original document is bound on the long-edge or short-edge side.
E-mail Subject: Lets you enter a subject line to your e-mail. You can enter up to 255 characters.
E-mail Message: Lets you enter a message that will be sent with your scanned attachment.
Resolution: Adjusts the output quality of your e-mail. Increasing the image resolution increases the e-mail file size and the
time needed to scan your original document. Image resolution can be decreased to reduce the e-mail file size.
Send As: Sets the output (PDF, TIFF, or JPEG) for the scanned image.
PDF output is a single file.
TIFF output is a single file. If Multi-page TIFF is turned off in the Configuration menu, then TIFF saves one page
each in a series of files.
JPEG saves one page in each file. When multiple pages are scanned, the output will be a series of files.
Content: Tells the MFP the original document type. Choose from Text, Text/Photo, or Photo. Color can be turned on or off
with any of the Content choices. Content affects the quality and size of your e-mail.
Text: Emphasize sharp, black, high-resolution text against a clean, white background.
Text/Photo: Used when the original documents are a mixture of text and graphics or pictures.
Photo: Tells the scanner to pay extra attention to graphics and pictures. This setting takes longer to scan but
emphasizes a reproduction of the full dynamic range of tones in the original. This increases the amount of
information saved.
Color: Sets the scan type and output for the e-mail. Color documents can be scanned and sent to an e-mail
address.
Note: The MFP will print color documents in grayscale only.
Advanced Options: Lets you change Advanced Imaging, Custom Job, Transmission Log, Scan Preview, Edge Erase, or
Darkness settings.
Advanced Imaging: Adjusts Background Removal, Contrast, and Shadow Detail before you copy the document.
Custom Job (Job Build): Combines multiple scanning jobs into a single job.
Note: Custom Job is not supported on all models.
Transmission Log: Prints the transmission log or transmission error log.
Scan Preview: Displays the first pages of the image before it is included in the e-mail. When the first page is
scanned, the scanning is paused and a preview image appears.
Note: Scan Preview is not supported on all models.
Edge Erase: Eliminates smudges or information around the edges of your document. You can choose to eliminate
an equal area around all four sides of the paper, or pick a particular edge.
Darkness: Adjusts how light or dark your scanned e-mails will turn out.
E-mail server setup
38
E-mail
E-mail server setup
For e-mail to operate, it must be turned on in the MFP configuration and have a valid IP address or gateway address. To set
up the e-mail function:
1Open your Web browser. In the address line, enter the IP address of the MFP you want to configure using the
format: http://ip_address/.
2Click Configuration.
3Click E-mail/FTP Settings.
4Click Email Server Setup.
5Fill in the fields with the appropriate information.
6Click Submit.
Address book setup
1Open your Web browser. In the address line, enter the IP address of the MFP you want to configure using the
format: http://ip_address/.
2Click Configuration.
3Click E-mail/FTP Settings.
4Click Manage E-mail Shortcuts.
5Fill in the fields with the appropriate information.
6Click Add.
Faxing
39
4Faxing
Note: Faxing is not supported on all models.
The fax function lets you scan items and fax them to one or more recipients directly from the MFP. When you touch Fax, it
opens the fax destination screen. You enter the fax number and touch Fax It to send your fax. You can also change the fax
settings to fit your personal needs.
During initial MFP setup, you may be required to configure the MFP for faxing. For additional information, see Fax setup.
The following fax topics are available in this and other chapters.
Sending a fax
There are two ways to send a fax: enter the number using a numeric keypad or use a shortcut number. Use the instructions
below to send a fax using the keypad, or see Using fax destination shortcuts to fax your documents using a shortcut.
1Place your original document in the automatic document feeder face-up, short-edge first.
2Adjust the paper guides.
3Touch Fax on the home screen.
4Enter the fax number using the numbers on the touch screen or keypad.
Add recipients by touching next and then entering the recipient's telephone number or shortcut number, or search
the address book.
Note: To place a two-second dialing pause within a fax number, use the Dial Pause button.
The dial pause will appear as a comma in the Fax to: box. Use this feature if you need to dial an outside line first.
5Touch Fax It.
Sending a fax Adjusting the Darkness setting
Using fax destination shortcuts Sending a fax at a later time
Using the address book Cancel an outgoing fax
Sending faxes from a computer Fax tips
Creating shortcuts Fax setup
Understanding fax options Solving fax quality problems
Changing the fax resolution Viewing a fax log
Using fax destination shortcuts
40
Faxing
Using fax destination shortcuts
Fax destination shortcuts are just like the speed dial numbers on a telephone or fax machine. You can assign shortcut
numbers when creating permanent fax destinations. Permanent fax destinations or speed dial numbers are created in the
Manage Destinations link located under the Configuration tab on the Web page. A shortcut number (1—99999) can contain
a single recipient or multiple recipients. By creating a group fax destination with a shortcut number, you can quickly and
easily fax broadcast information to an entire group.
1Place your original document in the automatic document feeder face-up, short-edge first.
2Adjust the paper guides.
3Press # followed by the shortcut number on the keypad.
Press # followed by the shortcut number on the keypad, or touch Next Number to enter another address.
For information on creating shortcut numbers, see Creating shortcuts.
4Touch Fax It.
Using the address book
Note: If the address book feature is not enabled, contact your system support person.
1Place your original document in the automatic document feeder face-up, short-edge first.
2Touch Fax on the home screen.
3Touch Search Address Book.
4Using the touch screen keyboard, enter the name or part of the name of the person for whom you'd like to find a
fax number. (Do not attempt to search for multiple names at the same time.)
5Touch Enter.
6Touch the name, to add it to the Fax to: list.
7Repeat steps 5 through 6 to enter additional destinations.
8Touch Fax It.
Sending faxes from a computer
Faxing from a computer lets you send electronic documents without leaving your desk. This gives you the flexibility of
faxing documents directly from software applications.
1From your software application, click File Æ
ÆÆ
Æ Print.
2From the Print window, select your MFP, and then click Properties.
Note: In order to perform this function from your computer, you must use the PostScript printer driver for
your MFP.
3Choose the Paper tab, and change Output format: to Fax.
4Click OK. At the next screen, click OK.
5From the Fax screen, enter the name and number for the fax recipient.
6Click Send to send your job.
Creating shortcuts
41
Faxing
Creating shortcuts
Instead of entering the entire phone number of a fax recipient on the control panel each time you want to send a fax, you
can create a permanent fax destination and assign a shortcut number. A single shortcut number or a multiple number
shortcut can be created. There are two methods for creating shortcut numbers: from a computer or from the MFP touch
screen.
From a computer
1Enter the IP address of the MFP in the URL field (address bar) of your Web browser. If you do not know the IP
address, see your administrator.
2Click Configuration (in the left frame of your browser window), and then click Manage Destinations (in the right
frame of your browser window).
Note: A password may be required. If you do not have an ID and password, get one from your system
support person.
3Click Fax Shortcut Setup.
4Enter a unique name for the shortcut, and specify the fax number.
To create a multiple number shortcut, enter the fax numbers for the group.
Note: Separate each fax number in the group with a semicolon (;).
5Assign a shortcut number.
If you enter a number that is already in use, you are prompted to select another number.
6Click Add.
7Go to the MFP, and load your original document in the automatic document feeder face-up, short-edge first.
8From the numeric keypad, press #, and then enter your shortcut number.
9Touch Fax It.
From the MFP
1Load the original document in the ADF face-up, short-edge first, and adjust the paper guides.
2Touch Fax on the home screen.
3Enter the recipient's fax number.
To create a group of recipients, touch Next number, and enter the next recipient’s fax number.
4Touch Save as Shortcut.
5Enter a unique name for the shortcut.
6Verify the shortcut name and number are correct, and then touch OK.
If the name or number is incorrect, touch Cancel, and reenter the information.
7Touch Fax It.
Understanding fax options
42
Faxing
Understanding fax options
Original: Opens a screen where you can choose the size of the documents you are going to fax.
•Touching any of the paper size buttons on the follow-on screen will make that your selection and return you to the
Fax Options Screen.
•When Original Size is set to Mixed Sizes, you can scan different size original documents (letter and legal size
pages). They will be scaled automatically to fit the selected output media size.
Content: Used to select the type of document you are scanning (for example, Text, Text/Photo, or Photo). Content affects
the quality and size of your scan by selecting how the scanner will handle the information on the original document.
•The Text setting will emphasize sharp, black, high-resolution text against a clean, white background.
The Text/Photo setting is used when the original documents are a mixture of text and graphics or pictures.
•The Photo setting tells the scanner to pay extra attention to graphics and pictures. This setting takes longer to
scan but emphasizes a reproduction of the full dynamic range of tones in the original document. This increases
the amount of information saved.
Sides: Informs the MFP if your original document is simplex (printed on one side) or duplex (printed on both sides). This
lets the scanner know what needs to be scanned for inclusion in the fax.
Resolution: Increases how closely the scanner examines the document you wish to fax. If you are faxing a photograph, a
drawing with fine lines, or a document with very small text, increase the Resolution setting. This will increase the amount of
time required for the scan and will increase the quality of the fax output. Standard is suitable for most documents. Fine is
recommended for documents with small print. Super fine is recommended for original documents with fine detail. Ultra fine
is recommended for documents with pictures or photographs.
Darkness: Adjusts how light or dark your faxes will turn out in relation to the original document.
Advanced Options: Accesses the Delayed Send, Advanced Imaging, Custom Job, Transmission Log, Scan Preview,
Edge Erase, Advanced Duplex, or Fax Queue settings.
Delayed Send: Sets up a fax that will be sent at a later time or date. After setting up your fax, select Delayed
Send, enter the time and date you would like to transmit your fax, and then touch Done. This setting can be
especially useful in sending information to fax lines that are not readily available during certain hours, or when
transmission times are cheaper.
Note: If the device is powered off when the delayed fax is due to be sent, the fax is sent the next time the
MFP is powered up.
Advanced Imaging: Select this feature to adjust Background Removal, Contrast, and Shadow Detail before you
copy the document.
Custom Job (Job Build): Combines multiple scanning jobs into a single job.
Note: Custom Job is not supported on all models.
Transmission Log: Prints the transmission log or transmission error log.
Scan Preview: Displays the image before it is included in the fax. When a page is scanned, the scanning is
paused and a preview image appears.
Note: Scan Preview is not supported on all models.
Edge Erase: Eliminates smudges or information around the edges of your document. You can choose to eliminate
an equal area around all four sides of the paper or pick a particular edge. Edge Erase will erase whatever is within
the area selected, leaving nothing printed on that portion of the paper.
Advanced Duplex: Controls how many sides and what orientation your original document has, and whether your
original documents are bound along the long edge or the short edge.
Changing the fax resolution
43
Faxing
Changing the fax resolution
1Place your original document in the automatic document feeder face-up, short-edge first.
2Adjust the paper guides.
3Touch Fax on the home screen.
4Enter the fax number.
5Touch Options.
6Touch the button that represents the resolution you want.
7Touch Fax It.
Adjusting the Darkness setting
1Place your original document in the automatic document feeder face-up, short-edge first.
2Adjust the paper guides.
3Touch Fax on the home screen.
4Enter the fax number.
5Touch Options.
6Touch the left Darkness arrow to reduce the darkness of the fax or touch the right Darkness arrow to increase the
darkness of the fax.
7Touch Fax It.
Sending a fax at a later time
1Place your original document in the automatic document feeder face-up, short-edge first.
2Adjust the paper guides.
3Touch Fax on the home screen.
4Enter the fax number.
5Touch Options.
6Touch Advanced Options.
7Touch Delayed Send.
Note: If Fax Mode is set to Fax Server, the Delayed Send button will not appear. Faxes waiting for
transmission are listed in the Fax Queue.
8Touch the left arrow to reduce the time or the right arrow to increase the time the fax will be transmitted.
Note: Touching the increase or decrease arrow increments the time by 30 minutes. If the current time is
shown, the left arrow is grayed out.
9Touch Done.
Cancel an outgoing fax
44
Faxing
Cancel an outgoing fax
There are two ways to cancel an outgoing fax:
While the original documents are still scanning
1When using the automatic document feeder, touch Cancel while Scanning… is displayed on the touch screen.
2When using the scanner bed, touch Cancel while Scan the Next Page / Finish the Job is displayed on the touch
screen.
After the original documents have been scanned to memory
1Touch Cancel Jobs on the home screen.
The Cancel Jobs screen will appear.
2Touch the job or jobs you want to cancel.
Only three jobs appear on the screen, touch the down arrow until the job you want appears and then touch the job
you want to cancel.
3Touch Delete Selected Jobs.
The Deleting Selected Jobs screen appears, the selected jobs are deleted, and then the home screen appears.
Fax tips
The following tips may improve the MFP fax quality. For additional information or to solve copy problems, see Solving fax
quality problems
Question Tip
When should I use Text mode? • Text mode should be used when text preservation is the main goal of the fax, and
preserving images copied from the original document is not a concern.
• Text is best used for receipts, carbon copy forms, and documents that only contain
text or fine line art.
When should I use
Text/Photo mode? • Text/Photo mode should be used when faxing an original document that contains a
mixture of text and graphics.
• Text/Photo is best used for magazine articles, business graphics, and brochures.
When should I use Photo mode? Photo mode should be used for faxing photos printed on a laser printer or taken from
a magazine or newspaper.
Fax setup
45
Faxing
Fax setup
When you first turn on the MFP or if the MFP has been off for an extended time, Set clock will appear. Additionally, many
countries and regions require outgoing faxes to contain the following information in a margin at the top or bottom of each
transmitted page, or on the first page of the transmission:
•Date and time (date and time fax is sent)
•Station name (identification of the business, other entity, or individual sending the message)
•Station number (telephone number of the sending fax machine, business, other entity, or individual)
Note: See Electronic emission notices and Other telecommunications notices for FCC information.
There are two methods to enter your fax setup information. They are 1) manually entering the information through the MFP
control panel, or 2) using your browser to access the MFP IP address and then entering the Configure menu.
Note: If you do not have a TCP/IP environment, you must use the MFP control panel to set your basic fax
information.
Select one of the following to find the instructions for the method you want to use.
Performing manual fax setup
1Touch the menu button on the home screen.
2Touch Settings.
3Touch Fax Settings.
4Touch General Fax Settings.
5Touch Station Name.
6Enter the Station Name (enter your name or company name).
7Touch Done to save your choice.
8Touch Station Number.
9Enter your fax phone number.
10 Touch Done.
Performing browser fax setup
Note: Configuration is a task usually done by a network administrator. If you are prompted for a password
during the following instructions, see your network administrator for help.
1Type the IP address of the MFP in the URL field of your browser (for example, http://192.168.236.24), and then
press Enter.
2Click Configuration.
3Under the MFP heading, click Fax Setup.
Performing manual fax setup
Performing browser fax setup
Fax setup
46
Faxing
4Click Configuration.
If you are changing fax modes, you must click Submit before you can access the configuration page.
Note: During MFP power up, if the print server is configured to use Network Time Protocol (NTP) time, the
current date and time are provided. However, you must set the time zone to get the correct time.
5Enter the required FCC information:
•Date and time (current date and time)
•Station name (personal name or company name)
•Station number (fax phone line number)
6Select the Time Zone, such as Eastern (USA and Canada, Eastern Standard Time). This sets the required
information.
7Set your options for Rings to Answer, and so on.
8After you finish entering the information, click Submit.
Changing optional settings such as setting up a fax transmission log, creating permanent fax destinations, and enabling the
fax server function can be changed through your browser, or the MFP control.
Viewing a fax log
When you send or receive a fax, an entry of the activity is recorded in a file. You can view or print this file when you want.
To view the fax log:
1Type the IP address of the MFP in the URL field of your browser, and then press Enter.
2Click Reports.
3Click Fax Settings.
4Click Fax Job Log or Fax Call Log.
FTP
47
5FTP
The MFP scanner lets you scan documents directly to a File Transfer Protocol (FTP) server.
Note: Only one FTP address may be sent to at a time.
Once an FTP destination has been configured by your system administrator, the name of the destination becomes available
as a shortcut number or listed as a profile under the Held Jobs icon. An FTP location could also be another PostScript
printer: for example, a color document can be scanned and then sent to a color printer. Sending a document to an FTP
server is similar to sending a fax. The difference is that you are sending the information over your network instead of the
phone line.
For more information or detailed instructions, select one of the following:
Entering the FTP address
1Place your original document in the automatic document feeder face-up, short-edge first.
2Touch FTP on the home screen.
3Enter the FTP address.
4Touch Send It.
Using a shortcut number
1Place your original document in the automatic document feeder face-up, short-edge first.
2Touch FTP on the home screen.
3Press #, and then enter the FTP shortcut number.
4Touch Send It.
Using the address book
1Place your original document in the automatic document feeder face-up, short-edge first.
2Touch FTP on the home screen.
3Touch Search Address Book.
4Enter name or part of the name you are searching for, and then touch Search.
5Touch the name that you want to add to the To: field.
6Touch Send It.
Entering the FTP address Using the address book
Using a shortcut number FTP tips
Creating shortcuts
48
FTP
Creating shortcuts
Instead of entering the entire FTP site address on the control panel each time you want to send a document to an FTP, you
can create a permanent FTP destination and assign a shortcut number. A single shortcut number or a multiple number
shortcut can be created. There are two methods for creating shortcut numbers: from a computer or from the MFP touch
screen.
From a computer
1Enter the IP address of the MFP in the URL field (address bar) of your Web browser. If you do not know the IP
address, see your administrator.
2Click Configuration (in the left frame of your browser window) and then click Manage Destinations (in the right
frame of your browser window).
Note: A password may be required. If you do not have an ID and password, get one from your system
support person.
3Click FTP Shortcut Setup.
4Enter the appropriate information into the fields.
5Assign a shortcut number.
If you enter a number that is already in use, you are prompted to select another number.
6Click Add.
7Go to the MFP, and load your original document in the automatic document feeder face-up, short-edge first.
8From the numeric keypad, press #, and then enter your shortcut number.
9Touch Send It.
From the MFP
1Load the original document in the ADF face-up, short-edge first, and adjust the paper guides.
2Touch FTP on the home screen.
3Enter the FTP site.
4Touch Save as Shortcut.
5Enter a unique name for the shortcut.
6Verify the shortcut name and number are correct, and then touch OK.
If the name or number is incorrect, touch Cancel, and reenter the information.
7Touch Send It.
FTP options
Original Size: Opens a screen where you can enter the size of the documents you are going to copy.
•Touching any of the paper size icons on the follow-on screen will make that your selection and return you to the
FTP Options Screen.
•When Original Size is set to Mixed Sizes, you can scan different size original documents (letter and legal size
pages). They will be scaled automatically to fit the selected output media size.
FTP options
49
FTP
Sides (Duplex): Tells the MFP if your original document is simplex (printed on one side) or duplex (printed on both sides).
This lets the scanner know what needs to be scanned for inclusion in the e-mail.
Binding: Tells the MFP whether the original document is bound on the long-edge or short-edge side.
Base File Name: Lets you enter a file name. The default value is the word image. A timestamp is added to the file name to
prevent overwriting files of the same name at the FTP site.
Note: There is a 53-character limit for the file name.
Resolution: Adjusts the output quality of your file. Increasing the image resolution increases the file size and the time
needed to scan your original document. Image resolution can be decreased to reduce the file size.
Send As: Sets the output (PDF, TIFF, or JPEG) for the scanned image.
PDF output is a single file.
TIFF output is a single file. If Multi-page TIFF is turned off in the Configuration menu, then TIFF saves one page
each in a series of files.
JPEG saves one page in each file. When multiple pages are scanned, the output will be a series of files.
Content: Tells the MFP the original document type. Choose from Text, Text/Photo, or Photo. Color can be turned on or off
with any of the Content choices. Content affects the quality and size of your FTP file.
Text: Emphasizes sharp, black, high-resolution text against a clean, white background.
Text/Photo: Used when the original documents are a mixture of text and graphics or pictures.
Photo: Tells the scanner to pay extra attention to graphics and pictures. This setting takes longer to scan but
emphasizes a reproduction of the full dynamic range of tones in the original document. This increases the amount
of information saved.
Color: Sets the scan type and output for the copy. Color documents can be scanned and sent to an FTP site, PC,
or e-mail address. The MFP will print color documents in grayscale only.
Advanced Options: Accesses the Advanced Imaging, Custom Job, Transmission Log, Scan Preview, Edge Erase, or
Darkness settings.
Advanced Imaging: Select this feature to adjust Background Removal, Contrast, and Shadow Detail before you
scan the document.
Custom Job (Job Build): Combines multiple scanning jobs into a single job.
Note: Custom Job is not supported on all models.
Transmission Log: Prints the transmission log or transmission error log.
Scan Preview: Displays the first pages of the image before it is included in the FTP file. When the first page is
scanned, the scanning is paused and a preview image appears.
Note: Scan Preview is not supported on all models.
Edge Erase: Eliminates smudges or information around the edges of your document. You can choose to eliminate
an equal area around all four sides, or pick a particular edge. Edge Erase will erase whatever is within the area
selected and leave nothing printed on that portion of the paper.
Darkness: Adjusts how light or dark your scanned documents will turn out.
FTP tips
50
FTP
FTP tips
The following tips may improve the MFP FTP quality.
Question Tip
When should I use Text mode? • Text mode should be used when text preservation is the main goal of sending a
document to an FTP site, and preserving images copied from the original document
is not a concern.
• Text is best used for receipts, carbon copy forms, and documents that only contain
text or fine line art.
When should I use
Text/Photo mode? • Text/Photo mode should be used when sending a document to an FTP site that
contains a mixture of text and graphics.
• Text/Photo is best used for magazine articles, business graphics, and brochures.
When should I use Photo mode? Photo mode should be used when the original is composed mostly of photos printed
on a laser printer or taken from a magazine or newspaper.
Scanning to a PC or USB flash memory device
51
6Scanning to a PC or USB flash memory device
The MFP scanner lets you scan documents directly to your PC or a USB flash memory device.
Your computer does not have to be directly connected to the MFP for you to receive Scan to PC images. You can scan the
document back to your computer over the network by creating a scan profile on your computer and then downloading the
profile to the MFP.
For more information or detailed instructions, select one of the following:
Create a scan to PC profile
1Type the IP address of the MFP in the URL field of your browser, and then press Enter.
If the Java applet screen appears, click Yes.
2Click Scan Profile.
3Click Create Scan Profile.
4Select your scan settings, and then click Next.
5Select a location for saving the scanned output file somewhere on your computer.
6Enter a profile name.
The profile name is the name that will appear on the SCAN PROFILE list on the MFP control panel.
7Click Submit.
8Review the instructions on the Scan to PC screen.
A shortcut number was automatically assigned when you clicked Submit. You can use this shortcut number when
you are ready to scan your documents.
aGo to the MFP, and place your original document in the automatic document feeder face-up, long-edge first.
bPress # followed by the shortcut number on the keypad, or touch Profiles on the home screen.
cAfter you enter the shortcut number, the scanner will scan and send the document to the directory or
application you specified. If you touch Profiles on the home screen, locate your shortcut on the list.
9Return to your computer to view your file.
Your output file is saved in the location you specified or launched in the application you specified.
Create a scan to PC profile
Understanding scan to PC options
Scanning to a USB flash memory device
Scanning tips
Understanding scan to PC options
52
Scanning to a PC or USB flash memory device
Understanding scan to PC options
To change the options for the scan to PC Profile, you must click the Quick Setup box, and select Custom. Quick Setup lets
you select preset formats or customize your scan job settings. You can select:
Format Type: Sets the output (PDF, TIFF, or JPEG) for the scanned image.
PDF output is a single file.
TIFF output is a single file. If Multi-page TIFF is turned off in the Configuration menu, then TIFF saves one page
each in a series of files.
JPEG saves one page in each file. When multiple pages are scanned, the output will be a series of files.
Compression: Sets the compression format used to compress the scanned output file.
Default Content: Tells the MFP the original document type. Choose from Text, Text/Photo, or Photo. Content affects the
quality and size of your scanned file.
Text: Emphasizes sharp, black, high-resolution text against a clean, white background.
Text/Photo: Used when the original documents are a mixture of text and graphics or pictures.
Photo: Tells the scanner to pay extra attention to graphics and pictures. This setting takes longer to scan but
emphasizes a reproduction of the full dynamic range of tones in the original document. This increases the amount
of information saved.
Color: Tells the MFP the color of the original documents. You can select Gray, BW (Black and White), or Color.
Original Size: Opens a field where you can select the size of the document you are going to scan.
Orientation: Tells the MFP whether the original document is portrait or landscape and then changes the Sides and Binding
settings to match the original document orientation.
Duplex: Tells the MFP if your original document is simplex (printed on one side) or duplex (printed on both sides). This lets
the scanner know what needs to be scanned for inclusion in the e-mail.
Darkness: Adjusts how light or dark your scanned documents will turn out.
Resolution: Adjusts the output quality of your file. Increasing the image resolution increases the file size and the time
needed to scan your original document. Image resolution can be decreased to reduce the file size.
Advanced Imaging: Select this feature to adjust Background Removal, Contrast, and Shadow Detail before you scan the
document.
Custom Photo - Color JPEG
Text - BW PDF Photo - Color TIFF
Text - BW TIFF Photo - Gray JPEG
Photo - Gray TIFF
Scanning to a USB flash memory device
53
Scanning to a PC or USB flash memory device
Scanning to a USB flash memory device
1Place the original document in the automatic document feeder (ADF) face-up or on the flatbed face-down.
Adjust the paper guides when using the ADF.
2Insert the USB flash memory device into the USB direct interface on the front of the MFP.
The Held Jobs screen appears.
3Touch Scan to USB drive.
4Enter the name of the file.
5Select your scan settings.
6Touch Scan It.
Scanning tips
The following tips may improve the MFP scanning quality. For additional information or to solve copy problems, see
Solving scan quality problems.
Question Tip
When should I use Text mode? • Text mode should be used when text preservation is the main goal of the scan, and
preserving images copied from the original document is not a concern.
• Text is best used for receipts, carbon copy forms, and documents that only contain
text or fine line art.
When should I use
Text/Photo mode? • Text/Photo mode should be used when scanning an original document that
contains a mixture of text and graphics.
• Text/Photo is best used for magazine articles, business graphics, and brochures.
When should I use Photo mode? Photo mode should be used when scanning photos printed on a laser printer or taken
from a magazine or newspaper.
Printing
54
7Printing
This chapter covers information about sending a job to print, printing confidential jobs, canceling a print job, printing a menu
settings page, a font list, and a directory list. This chapter also provides information on printing folio and statement size
media. For tips on paper jam prevention and print media storage, see Avoiding jams and Storing print media.
Sending a job to print
An MFP driver is software that lets your computer communicate with the MFP. When you choose Print from a software
application, a window representing the MFP driver opens. You can then select the appropriate settings for the specific job
you are sending to the MFP. Print settings selected from the driver override the default settings selected from the MFP
control panel.
You may need to click Properties or Setup from the initial Print dialog to see all of the available MFP settings you can
change. If you are not familiar with a feature in the MFP driver window, open the online Help for more information.
To support all the MFP features, use the Lexmark custom drivers supplied with the MFP. Updated drivers, as well as a
complete description of the driver packages and Lexmark driver support, are available from the Lexmark Web site.
To print a job from a typical Windows application:
1Open the file you want to print.
2From the File menu, select Print.
3Select the MFP in the dialog. Modify the MFP settings as appropriate (such as the pages you want to print or the
number of copies).
4Click Properties or Setup to adjust MFP settings that were not available on the first screen, and then click OK.
5Click OK or Print to send the job to the MFP.
Printing from a USB flash memory device
A USB Direct interface is located on the control panel so you can insert a USB flash memory device and print the following
types of documents:
•Portable Document Format (PDF) [.pdf file]
•Joint Photographic Experts Group (JPEG) [.jpeg or .jpg file]
•Tagged Image File Format (TIFF) [.tiff or .tif file]
•Graphics Interchange Format (GIF) [.gif file]
•Basic Multilingual Plane (BMP) [.bmp file]
•Portable Network Graphics (PNG) [.png file]
•PiCture eXchange (PCX) [.pcx file]
•PC Paintbrush File Format [.dcx file].
Printing a document from a USB flash memory device is similar to printing a held job.
Note: You cannot print encrypted files or files without printing permissions.
Printing from a USB flash memory device
55
Printing
We recommend using the following tested and approved USB flash memory devices in the 256 MB, 512 MB, and 1 GB
sizes:
•Lexar JumpDrive 2.0 Pro
•SanDisk Cruzer Mini
Other USB flash memory devices must:
•Be compatible with the USB 2.0 standard.
•Support the Full-Speed standard as well.
Devices only supporting USB low speed capabilities are not supported.
•Use the FAT file system.
Devices formatted with NTFS or any other file system s are not supported.
To print from a USB flash memory device:
1Make sure the MFP is on and Ready or Busy appears.
2Insert a USB flash memory device into the USB Direct interface.
Note: If you insert the memory device when the MFP requires attention such as when a paper jam has
occurred, the MFP ignores the memory device.
3Touch the arrow next to the document you want to print.
A screen asking the number of copies to be printed will appear.
4To print only one copy, touch Print, or touch + to enter the number of copies.
Note: Do not remove the USB flash memory device from the USB Direct interface until the document has
finished printing.
The document will begin printing.
Note: If you insert the memory device when the MFP is busy printing other jobs, the message Printer
Busy appears. Select Continue, and your job prints after the other jobs finish.
If you leave the device in the MFP after exiting the USB drive menu, you can still print PDFs on the device as held jobs. See
Printing confidential and held jobs.
Canceling a print job
56
Printing
Canceling a print job
There are several methods for canceling a print job.
• Canceling a job from the MFP control panel
• Canceling a job from a computer running Windows
— Canceling a job from the taskbar
— Canceling a job from the desktop
• Canceling a job from a Macintosh computer
— Canceling a print job from a computer running Mac OS 9
— Canceling a job from a computer running Mac OS X
Canceling a job from the MFP control panel
If the job is formatting, scanning, or already printing, touch Cancel Job on the display.
Canceling a job from a computer running Windows
Canceling a job from the taskbar
When you send a job to print, a small printer icon appears in the right corner of the taskbar.
1Double-click the printer icon.
A list of print jobs appears in the printer window.
2Select the job you want to cancel.
3Press the Delete key on the keyboard.
Canceling a job from the desktop
1Minimize all programs to reveal the desktop.
2Double-click the My Computer icon.
Note: If you do not have the My Computer icon, select Start Æ Settings Æ Control Panel, and then go
to step 4.
3Double-click the Printers icon.
A list of available printers appears.
4Double-click the printer you selected when you sent the job.
A list of print jobs appears in the printer window.
5Select the job you want to cancel.
6Press the Delete key on the keyboard.
Printing the menu settings page
57
Printing
Canceling a job from a Macintosh computer
Canceling a print job from a computer running Mac OS 9
When you send a job to print, the printer icon for your selected MFP appears on the desktop.
1Double-click the printer icon on your desktop.
A list of print jobs appears in the printer window.
2Select the print job you want to cancel.
3Click the trash can button.
Canceling a job from a computer running Mac OS X
When you send a job to print, the printer icon for your selected MFP appears in the dock.
1Open Applications Æ Utilities, and then double-click Print Center or Printer Setup.
2Double-click the MFP you are printing to.
3In the printer window, select the print job you want to cancel, and then press Delete.
Printing the menu settings page
You can print a menu settings page to review the default MFP settings and to verify the MFP options are installed correctly.
1Make sure the MFP is on and the Ready message appears.
2Touch the menu button on the control panel.
3Touch Reports.
4Touch Menu Settings Page.
Printing a network setup page
You can print a network setup page to review the default MFP settings and to verify the MFP options are installed correctly.
1Make sure the MFP is on and the Ready message appears.
2Touch the menu button on the control panel.
3Touch Reports.
4Touch Network Setup Page.
Printing a font sample list
To print samples of the fonts currently available for the MFP:
1Make sure the MFP is on and the Ready message appears.
2Touch the menu button on the control panel.
3Touch Reports.
4Touch the down arrow until Print Fonts appears, then touch Print Fonts.
5Touch PCL Fonts or PostScript Fonts.
Printing a directory list
58
Printing
Printing a directory list
A directory listing shows the resources stored in flash memory or on the hard disk. To print a listing:
1Make sure the MFP is on and the Ready message appears.
2Touch the menu button on the control panel.
3Touch Reports.
4Touch the down arrow until Print Directory appears, then touch Print Directory.
Printing confidential and held jobs
The term held job refers to any type of print job that can be initiated by the user at the MFP. This includes a confidential job,
a verify print job, a reserve print job, a repeat print job, a bookmark, a profile, or a file on a USB flash memory device. When
sending a job to the MFP, you can specify in the driver that you want the MFP to hold the job in memory. Once your job is
stored in MFP memory, go to the MFP, and use the MFP control panel to specify what you want to do with your print job.
All confidential and held jobs have a user name associated with them. To access confidential or held jobs, you must first
select the type of job (confidential or held), and then select your user name from the user name list. Once you select your
user name, you can print all your confidential jobs, or select an individual print job. You can then choose the number of
copies for the print job, or you can delete the print job.
Printing a confidential job
When you send a confidential job to the MFP, you must enter a personal identification number (PIN) from the driver. The
PIN must be four digits using the numbers 0—9. The job is held in MFP memory until you enter the same four-digit PIN from
the control panel and choose to print or delete the job. This ensures the job does not print until you are there to retrieve it.
No one else using the MFP can print the job without the PIN.
Windows
1From a word processor, spreadsheet, browser, or other application, select File Æ Print.
2Click Properties. (If there is no Properties button, click Setup, and then click Properties.)
3Depending on the operating system, you may have to click the Other Options tab, and then click Print and Hold.
Note: If you have difficulty finding Print and Hold Æ Confidential Print, click Help, see the topic Confidential
Print or Print and Hold, and then follow the driver instructions.
4Enter a User Name and PIN.
5Send your job to the MFP.
Go to the MFP when you are ready to retrieve your confidential print job, and follow the At the MFP steps.
Macintosh
1From a word processor, spreadsheet, browser, or other application, select File Æ Print.
2In the Copies & Pages or General pop-up menu, select Job Routing.
aWhen using Mac OS 9, if Job Routing is not a choice on the pop-up menu, select Plug-in Preferences Æ
Print Time Filters.
bTurn down the disclosure triangle to the left of Print Time Filters, and select Job Routing.
cIn the pop-up menu, select Job Routing.
3In the radio group, select Confidential Print.
Printing confidential and held jobs
59
Printing
4Enter a User Name and PIN.
5Send your job to the MFP.
Go to the MFP when you are ready to retrieve your confidential print job, and follow the At the MFP steps.
At the MFP
1Touch Held jobs on the home screen.
2Touch your user name.
Note: A maximum of 500 results can be displayed for held jobs. If your name does not appear, touch the
down arrow until your name appears, or touch Search Held Jobs if there are a large number of held
jobs in the MFP.
3Select Confidential Jobs.
4Enter your PIN.
For more information, see Entering a personal identification number (PIN).
5Touch the job you want to print.
6Touch Print, or touch + to input the number of copies, and then touch Print.
Note: After your job prints, it is deleted from MFP memory.
Entering a personal identification number (PIN)
After you select a Confidential Job, the Enter PIN screen appears.
Use the touch screen number pad or the numeric pad to the right of the display to enter the four-digit PIN
associated with the confidential job.
Note: As you enter the PIN, asterisks appear on the display to ensure confidentiality.
If you enter an invalid PIN, the Invalid PIN screen appears.
Reenter the PIN, or touch Cancel.
Note: After your job prints, it is deleted from MFP memory.
Printing and deleting held jobs
Held jobs (Verify Print, Reserve Print, or Repeat Print) are printed or deleted from the MFP control panel and do not require
a PIN.
Verify Print
If you send a Verify Print job, the MFP prints one copy and holds the remaining copies you requested in MFP memory. Use
Verify Print to examine the first copy to see if it is satisfactory before printing the remaining copies. Once all copies are
printed, the Verify Print job is automatically deleted from MFP memory.
Reserve Print
If you send a Reserve Print job, the MFP does not print the job immediately. It stores the job in memory so you can print the
job later. The job is held in memory until you delete it from the Held Jobs menu. Reserve Print jobs may be deleted if the
MFP requires extra memory to process additional held jobs.
Printing confidential and held jobs
60
Printing
Repeat Print
If you send a Repeat Print job, the MFP prints all requested copies of the job and stores the job in memory so you can print
additional copies later. You can print additional copies as long as the job remains stored in memory.
Note: Repeat Print jobs are automatically deleted from MFP memory when the MFP requires extra memory
to process additional held jobs.
Windows
1From a word processor, spreadsheet, browser, or other application, select File Æ Print.
2Click Properties. (If there is no Properties button, click Setup, and then click Properties.)
3Depending on the operating system, you may have to click the Other Options tab, and then click Print and Hold.
Note: If you have difficulty finding Print and Hold Æ Held Jobs, click Help, and see the topic Held Jobs or
Print and Hold, then follow the driver instructions.
4Select the type of held job you want, and then send your job to the MFP.
Go to the MFP when you are ready to retrieve your confidential print job, and follow the At the MFP steps.
Macintosh
1From a word processor, spreadsheet, browser, or other application, select File Æ Print.
2In the Copies & Pages or General pop-up menu, select Job Routing.
aWhen using Mac OS 9, if Job Routing is not a choice on the pop-up menu, select Plug-in Preferences Æ
Print Time Filters.
bTurn down the disclosure triangle to the left of Print Time Filters, and select Job Routing.
cIn the pop-up menu, select Job Routing.
3In the radio group, select the type of held job you want, enter a user name, and then send your job to the MFP.
Go to the MFP when you are ready to retrieve your confidential print job, and follow the At the MFP steps.
At the MFP
1Touch Held jobs on the home screen.
2Touch your user name.
Note: A maximum of 500 results can be displayed for held jobs. If your name does not appear, touch the
down arrow until your name appears, or touch Search <your name> if you have a large number of
held jobs in the MFP.
3Touch the job you want to print.
Touch the down arrow, or touch Search <your name> if you have a large number of held jobs in the MFP.
4Touch Print, or touch + to input the number of copies, and then touch Print.
Note: You can also choose to Print All or Delete All.
Printing on specialty media
61
Printing
Printing on specialty media
Media is paper, card stock, transparencies, labels, and envelopes. The last four are sometimes referred to as specialty
media. Follow these instructions to print on specialty media.
1Load the media as specified for the tray being used. See Loading standard trays and optional trays for help.
2From the MFP control panel, set the Paper Type and Paper Size according to the media you loaded. See Setting
the Paper Type and Paper Size for help.
3From the computer software application, set the paper type, size, and source according to the media you loaded.
Windows
aFrom a word processor, spreadsheet, browser, or other application, select File Æ Print.
bClick Properties (or Options, Printer, or Setup, depending on the application) to view the MFP driver settings.
cClick the Paper tab.
A paper tray list will appear.
dSelect the tray containing the specialty media.
Note: If you have difficulty, click Help, and then follow the driver instructions.
eSelect the media type (transparencies, envelopes, and so on) from the Paper Type list box.
fSelect the size of the specialty media from the Paper Size list box.
gClick OK, and then send the print job as usual.
Mac OS 9
aSelect File Æ Page Setup.
bSelect the size of the specialty media from the Paper pop-up menu, and then click OK.
cSelect File Æ Print.
dWith General selected on the top pop-up menu, go to the Paper Source pop-up menu, and select the tray
containing the specialty media or the name of the media.
eClick Print.
Mac OS X
aSelect File Æ Page Setup.
bSelect the MFP from the Format for pop-up menu.
cSelect the size of the specialty media from the Paper pop-up menu, and then click OK.
dSelect File Æ Print.
eOn the Copies & Pages pop-up menu, select Imaging.
fSelect the specialty media on the Paper Type pop-up menu.
gOn the Imaging pop-up menu, select Paper Feed.
hSelect the tray containing the specialty media from the All pages from or First page from / Remaining from
pop-up menus.
iClick Print.
Loading standard trays and optional trays
62
Printing
Loading standard trays and optional trays
The MFP has a 500-sheet standard tray. You may have also purchased one or more 250-sheet or 500-sheet optional trays
or a 2000-sheet drawer. The steps for loading a 250-sheet tray or 500-sheet tray are the same.

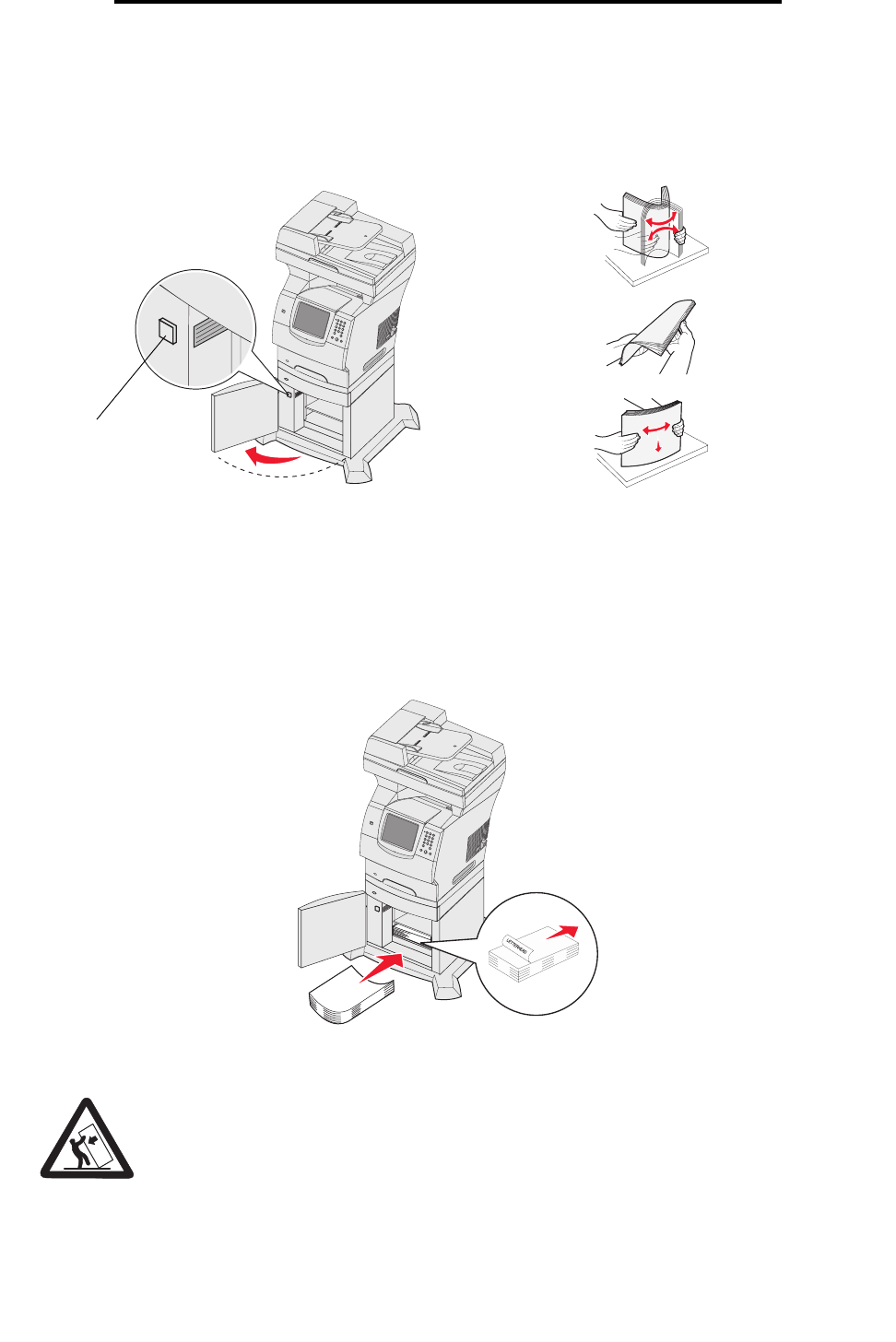

Note: The steps for loading a 2000-sheet drawer are different than the steps for loading a 250-sheet tray or
500-sheet tray.
To load print media:
Note: Do not remove a tray when a job is printing or when the control panel green indicator light is blinking.
Doing so may cause a jam.
1Remove the tray from the MFP, and place it on a flat, level surface.
2Squeeze the side guide tab, and slide the guide to the outer edge of the tray.
3Squeeze the rear guide tab, and slide the guide to the correct position for the size media you are loading.

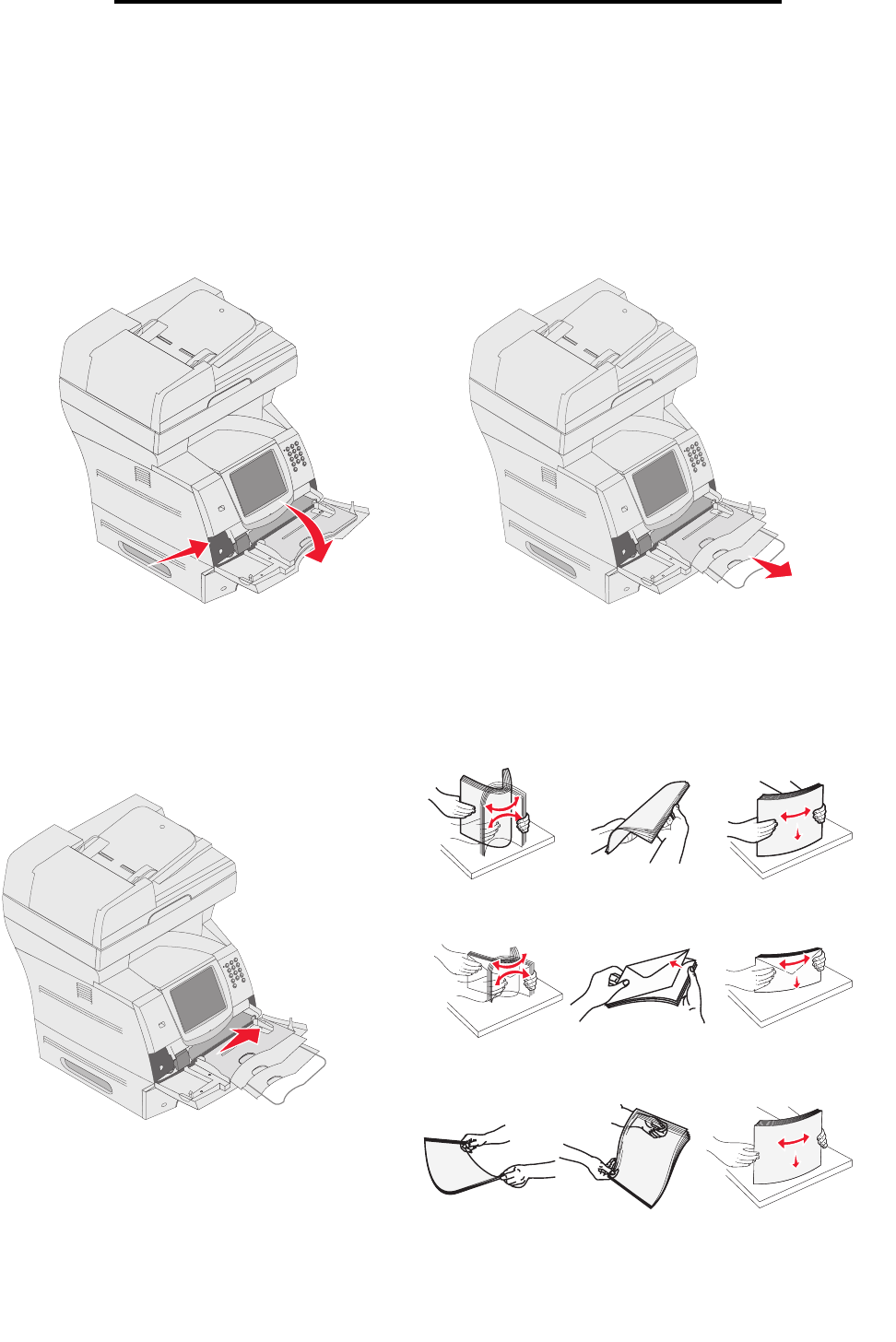

4Flex the sheets back and forth to loosen them, then fan them. Do not fold or crease the print media. Straighten the
edges on a level surface.
Size indicators
Loading standard trays and optional trays
63
Printing
5Place the print media in the tray:
Note: Paper must be loaded differently in the trays, depending on the options you have installed.
•Print side face-down for simplex (single-sided) printing
•Print side face-up for duplex printing
Note: Do not fill paper above the load line. Overfilling the tray may cause jams.
6Squeeze the side guide tab, and slide the guide toward the inside of the tray until it lightly rests against the edge of
the media.
7Insert the tray into the MFP.
Simplex Duplex
Setting the Paper Type and Paper Size
64
Printing
Setting the Paper Type and Paper Size
After setting the Paper Type and Paper Size to the correct values for the type and size used in the trays, then any trays
containing the same size and type are automatically linked by the MFP.
Note: If the size of the media you are loading is the same size of the media previously loaded, do not change
the Paper Size setting.
To change the Paper Size and Paper Type setting:
1Make sure the MFP is on.
2Touch the menu button on the control panel.
3Touch Paper Menu.
4Touch Paper Size.
5Touch the left or right arrow to change the size for the desired tray.
6Touch Submit.
7Touch Paper Type.
8Touch the left or right arrow to change the media type for the desired tray.
9Touch Submit.
10 Touch the home icon.
Loading the multipurpose feeder
The multipurpose feeder can hold several sizes and types of print media, such as transparencies, postcards, note cards,
and envelopes. It can be used for single-page or manual printing or as an additional tray.
Note: If you install an optional envelope feeder, you can still use the multipurpose feeder.
The multipurpose feeder can hold approximately:
•100 sheets of 75 g/m2 (20 lb) paper
•10 envelopes
•75 transparencies
The multipurpose feeder accepts print media within the following dimensions:
•Width–69.85 mm (2.75 in.) to 215.9 mm (8.5 in.)
•Length–127 mm (5 in.) to 355.6 mm (14 in.)
The icons on the multipurpose feeder show you how to load the multipurpose feeder with paper, how to turn an envelope
for printing, and how to load letterhead paper for simplex and duplex printing. A finisher affects how letterhead documents
should be loaded for duplexing. You can print simplex jobs on letterhead (or other preprinted media) that has been loaded
specifically for duplex printing by changing the value in the Paper Loading menu.
Simplex
letterhead Duplex
letterhead Envelope
Loading the multipurpose feeder
65
Printing
To load print media:
Note: Do not add or remove print media when the MFP is printing from the multipurpose feeder or when the
control panel indicator light is blinking. Doing so may cause a jam.
1Push the release latch, and lower the multipurpose feeder.
2Pull the tray extension out.
Note: Do not place objects on the multipurpose feeder. Also, avoid pressing down or applying excessive
force on it.
3Slide the width guide to the far right.
4Flex the sheets or envelopes back and forth to loosen them, then fan them. Do not fold or crease the print media.
Straighten the edges on a level surface.
Note: Hold transparencies by the edges, and avoid touching the print side. Fan the stack of transparencies
to prevent jams. Be careful not to scratch or leave fingerprints on the transparencies.
Paper
Envelopes
Transparencies
Loading the multipurpose feeder
66
Printing
5Load the media in the tray.
Use the stack height label as a guide for stack height when loading print media.
Loading paper, transparencies, or envelopes
Note: Letterhead or other preprinted paper must be loaded differently depending on the options you have
installed.
•Load paper or transparencies with the left edge of the stack against the stack height label and with the
recommended print side face-up.
•Load envelopes flap side down with the stamp area and flap on the left. The end of the envelope with the
stamp area enters the multipurpose feeder first.
Never use envelopes with stamps, clasps, snaps, windows, coated linings, or self-stick adhesives. These
envelopes may severely damage the MFP.
Note: Load only one size and type of print media at a time in the multipurpose feeder. Do not mix sizes and
types in the same tray.
Loading letterhead or preprinted paper
•Follow the illustrations for loading the paper according to your options.
•Do not fill paper above the load line. Overfilling the tray may cause jams.
Simplex (single sided) Duplex
Loading the 2000-sheet drawer
67
Printing
6Slide the side guide toward the inside of the tray until it lightly rests against the edge of the media.
7Set the Paper Size and Paper Type for the multipurpose feeder to the correct value for the print media you loaded.
See Setting the Paper Type and Paper Size for more information.
Closing the multipurpose feeder
1Remove print media from the multipurpose feeder.
2Push the extension tray in.
3Close the multipurpose feeder cover.
Loading the 2000-sheet drawer
The optional 2000-sheet drawer can be used for plain paper, letterhead or other preprinted paper, labels, or transparencies.
For trouble-free printing, make sure you:
•Do not load print media above the load line.
•Do not fold or crease the paper.
•Do not mix sizes or weights in the same source.
•Do not open the door or remove any print media when a job is printing or when the control panel indicator light is
blinking. Doing so may cause a jam.
Note: Before loading print media in the drawer, you should know the recommended print side of the paper
you are using. This information is usually on the paper package.
Loading the 2000-sheet drawer
68
Printing
To load the 2000-sheet drawer:
1Open the loading door. If the elevator tray is not already in the lowered position, push the elevator button to lower
the tray.
2Flex the sheets back and forth to loosen them, then fan them. Do not fold or crease the print media. Straighten the
edges on a level surface.
3Slightly bend the stack of print media as shown, and place it on the elevator tray with the preferred print side
facing down. Align the stack of print media to the back of the drawer.
Note: For duplex printing, letterhead or other preprinted paper must be loaded differently.
Carefully align each stack as you load it to ensure a smooth edge where the stacks meet. Do not load print media
above the load line.
Note: When loading more than one ream of paper, we recommend you remove the top and bottom sheet.
4Close the loading door.
CAUTION: Floor-mounted configurations require additional furniture for stability. You must use either
a printer stand or printer base if you are using a 2000-sheet drawer. Certain other configurations also
must have a printer stand or printer base. More information is available on our Lexmark Web site at
www.lexmark.com/multifunctionprinters.
123
456
789
0#
Elevator button
123
456
789
0#
Simplex (single sided)
Duplex
Loading the envelope feeder
69
Printing
Loading the envelope feeder
The optional envelope feeder can accept a variety of envelope sizes. However, the envelope feeder must be adjusted
correctly to ensure trouble-free printing. To load the envelope feeder:
1Adjust the envelope support for the length of envelope you are loading.
•Fully closed (pushed in toward the MFP) for short envelopes
•Extended to the middle position for medium-length envelopes
•Fully open (extended to its full length) for long envelopes
Warning: Do not place objects on the envelope feeder. Avoid pressing down on it or applying excessive force.
2Lift the envelope weight back toward the MFP. It stays in place.
3Slide the width guide to the far right.
4Flex a stack of envelopes back and forth, and then straighten the edges on a level surface. Press down the
corners to flatten them.
Fan the envelopes. This prevents the edges of the envelopes from sticking together and helps them feed properly.
Loading the envelope feeder
70
Printing
5Load the stack of envelopes flap side down with the stamp area and the flap on the left. The end of the envelopes
with the stamp area enters the envelope feeder first.
Let the envelopes at the bottom of the stack slide into the envelope feeder slightly more than the ones at the top of
the stack.
Warning: Never use envelopes with stamps, clasps, snaps, windows, coated linings, or self-stick adhesives.
These envelopes may severely damage the MFP.
Note: When you load envelopes, do not exceed the maximum stack height. Use the stack height label as a
guide for the correct stack height when loading. Do not try to load more envelopes indicated by the
stack height label; overloading can cause jams.
6Slide the width guide to the left until it lightly touches the stack. Make sure the envelopes do not buckle.
7Lower the envelope weight to touch the stack.
8Set the Paper Size and Paper Type for the envelope feeder to the correct value for the print media you loaded.
See Setting the Paper Type and Paper Size for more information.
Linking trays
71
Printing
Linking trays
Tray linking enables the automatic linking feature for trays when you load the same size and type of print media in multiple
sources. The MFP automatically links the trays; when one tray is empty, print media feeds from the next linked tray.
For example, if you have the same size and type of print media loaded in tray 2 and tray 4, the MFP selects print media
from tray 2 until it becomes empty, and then the MFP automatically feeds print media from the next linked tray–tray 4.
By linking all trays (standard and optional), you effectively create a single source with a capacity of up to 4,100 sheets.
Make sure you load the same size and type of print media in each tray and then, using the Paper menu, set the same paper
size and type for the trays to link.
Set the paper size and type for each tray. See Setting the Paper Type and Paper Size for more information.
To disable tray linking, set the Paper Type to a unique value for each tray.
If all the trays do not have the same type of print media loaded when linked, you could mistakenly print a job on the wrong
paper.
Understanding paper and specialty media guidelines
72
8Understanding paper and specialty media
guidelines
Print media is paper, card stock, transparencies, labels, and envelopes. The MFP provides high-quality printing on a variety
of print media. You must consider a number of things concerning print media before you print. This chapter provides
information to help you make print media selections.
For more details about the types of paper and specialty media the MFP supports, see the Card Stock & Label Guide
available on our Lexmark Web site at www.lexmark.com.
We recommend that you try a limited sample of any paper or specialty media you are considering using with the MFP
before purchasing large quantities.
Supported print media
The following tables provide information on standard and optional sources for both input and output trays and bins.
Note: If you use a print media size not listed, select the next larger size.
• Supported print media
• Selecting print media
• Storing print media
• Avoiding jams
• Print media sizes
• Print media types
• Print media weights
Supported print media
73
Understanding paper and specialty media guidelines
Print media sizes
Legend ✓ – indicates support
250-sheet tray
500-sheet tray
Multipurpose feeder
2000-sheet drawer (option)
Envelope feeder (option)
Duplex unit (option)
Output bin
Print media size Dimensions
A4 210 x 297 mm (8.27 x 11.7 in.) ✓✓✓✓ ✓✓
A5 148 x 210 mm (5.83 x 8.27 in.) ✓✓✓✓ ✓✓
JIS B5 182 x 257 mm (7.17 x 10.1 in.) ✓✓✓✓ ✓✓
Letter 215.9 x 279.4 mm (8.5 x 11 in.) ✓✓✓✓ ✓✓
Legal 215.9 x 355.6 mm (8.5 x 14 in.) ✓✓✓✓ ✓✓
Executive 184.2 x 266.7 mm (7.25 x 10.5 in.) ✓✓✓✓ ✓✓
Folio1216 x 330 mm (8.5 x 13 in.) ✓✓✓ ✓✓
Statement1139.7 x 215.9 mm (5.5 x 8.5 in.) ✓✓✓ ✓
Universal2139.7 x 210 mm to 215.9 x 355.6 mm
(5.5 x 8.27 in. to 8.5 x 14 in.) ✓✓✓ ✓
69.85 x 127 mm to 215.9 x 355.6 mm
(2.75 x 5 in. to 8.5 x 14 in.) ✓✓
69.85 x 127 mm to 229 x 355.6 mm
(2.75 x 5 in. to 9.01 x 14 in.) ✓✓✓ ✓✓
148 x 182 mm to 215.9 x 355.6 mm
(5.83 x 7.17 in. to 8.5 x 14 in.) ✓✓✓ ✓✓
7 ¾ Envelope 98.4 x 190.5 mm (3.875 x 7.5 in.) ✓✓✓
9 Envelope 98.4 x 225.4 mm (3.875 x 8.87 in.) ✓✓✓
10 Envelope 104.8 x 241.3 mm (4.12 x 9.5 in.) ✓✓✓
DL Envelope 110 x 220 mm (4.33 x 8.66 in.) ✓✓✓
B5 Envelope 176 x 250 mm (6.93 x 9.84 in.) ✓✓✓
C5 Envelope 162 x 229 mm (6.38 x 9.01 in.) ✓✓✓
Other Envelope198.4 x 162 mm to 176 x 250 mm
(3.87 x 6.38 in. to 6.93 x 9.84 in.) ✓✓✓
1 This size does not appear in the Paper Size menu until Tray Size Sensing is turned off. See “Printing folio and
statement sizes” for more information.
2 This size setting formats the page for 215.9 x 355.6 mm (8.5 x 14 in.) unless the size is specified by the software
application.
Supported print media
74
Understanding paper and specialty media guidelines
Print media types
Print media
250-sheet drawer
500-sheet drawer
Multipurpose feeder
2000-sheet drawer
Duplex unit
Output bin
Paper ✓✓✓✓ ✓ ✓
Card stock ✓✓✓ ✓
Transparencies ✓✓✓ ✓
Vinyl labels*✓✓✓ ✓
Paper labels*✓✓✓ ✓
Polyester label*✓✓✓ ✓
Dual-web and integrated labels* ✓✓✓ ✓
* Printing label applications on the printer requires a special label fuser cleaner. The label fuser cleaner is included with a
special label cartridge for label applications. See Ordering supplies for more information on obtaining a label fuser
cleaner.
Print media weights
Print media Type
Print media weight
Integrated tray and
optional
500-sheet drawer
Multipurpose feeder
and optional
250-sheet drawer Envelope feeder
Paper Xerographic or
business paper 60 to 176 g/m2
grain long
(16 to 47 lb bond)
60 to 135 g/m2
grain long
(16 to 36 lb bond)
n/a
Card stock–
maximum (grain long)1Index Bristol 163 g/m2 (90 lb) 120 g/m2 (67 lb)
Tag 163 g/m2 (100 lb) 120 g/m2 (74 lb)
Cover 176 g/m2 (65 lb) 135 g/m2 (50 lb)
1 Grain short is preferred for papers over 135 g/m2.
2 Includes envelopes fed from the multipurpose feeder only.
3 28 lb bond envelopes are limited to 25% cotton content.
4 Printing label applications on the MFP requires a special label fuser cleaner. See Ordering supplies for more
information on obtaining a fuser cleaner.
5 Information on whether your vinyl label converter has passed Lexmark criteria is available at the Lexmark Web site
(www.lexmark.com); search for “converter list.” You can also check the Lexmark Automated Fax system (LEXFAXSM).
Supported print media
75
Understanding paper and specialty media guidelines
Card stock–
maximum (grain short)1Index Bristol 199 g/m2 (110 lb) 163 g/m2 (90 lb) n/a
Tag 203 g/m2 (125 lb) 163 g/m2 (100 lb)
Cover 216 g/m2 (80 lb) 176 g/m2 (65 lb)
Transparencies Laser printer 138 to 146 g/m2
(37 to 39 lb bond) 138 to 146 g/m2
(37 to 39 lb bond)
Labels–maximum4Paper 180 g/m2
(48 lb bond) 163 g/m2
(43 lb bond)
Note: Not supported in
the multipurpose
feeder.
n/a
Dual-web paper 180 g/m2
(48 lb bond) 163 g/m2
(43 lb bond)
Note: Not supported in
the multipurpose
feeder.
Polyester 220 g/m2
(59 lb bond) 220 g/m2
(59 lb bond)
Note: Not supported in
the multipurpose
feeder.
Vinyl5300 g/m2
(92 lb liner) 260 g/m2
(78 lb liner)
Note: Not supported in
the multipurpose
feeder.
Integrated forms Pressure-
sensitive area
(must enter the
MFP first)
140 to 175 g/m2140 to 175 g/m2
Paper base (grain
long) 75 to 135 g/m2
(20 to 36 lb bond) 75 to 135 g/m2
(20 to 36 lb bond)
Envelopes
100% cotton content
maximum
weight–24 lb
Sulfite, wood-free,
or up to 100%
cotton bonds
Not recommended 60 to 105 g/m2
(16 to 28 lb bond)2, 3 60 to 105 g/m2
(16 to 28 lb bond)3
Note: 28 lb envelopes are limited to 25% cotton
content.
Print media weights (continued)
Print media Type
Print media weight
Integrated tray and
optional
500-sheet drawer
Multipurpose feeder
and optional
250-sheet drawer Envelope feeder
1 Grain short is preferred for papers over 135 g/m2.
2 Includes envelopes fed from the multipurpose feeder only.
3 28 lb bond envelopes are limited to 25% cotton content.
4 Printing label applications on the MFP requires a special label fuser cleaner. See Ordering supplies for more
information on obtaining a fuser cleaner.
5 Information on whether your vinyl label converter has passed Lexmark criteria is available at the Lexmark Web site
(www.lexmark.com); search for “converter list.” You can also check the Lexmark Automated Fax system (LEXFAXSM).
Selecting print media
76
Understanding paper and specialty media guidelines
Selecting print media
Selecting the appropriate print media for the MFP helps you avoid printing problems. The following sections contain
guidelines for choosing the correct print media for the MFP.
Paper
For the best print quality, use 75 g/m2 (20 lb) xerographic, grain long paper. Try a sample of any paper you are considering
using with the MFP before buying large quantities.
When loading paper, note the recommended print side on the paper package, and load paper accordingly. See Loading
standard trays and optional trays, Loading the multipurpose feeder, or Loading the 2000-sheet drawer for detailed
tray-loading instructions.
Paper characteristics
The following paper characteristics affect print quality and reliability. We recommend that you follow these guidelines when
evaluating new paper stock.
For detailed information, see the Card Stock & Label Guide located on the Lexmark Web site at www.lexmark.com.
The laser printing process heats paper to high temperatures of 230°C (446°F). For Magnetic Ink Character Recognition
(MICR) applications and for non-MICR applications, use only paper able to withstand these temperatures without
discoloring, bleeding, or releasing hazardous emissions. Check with the manufacturer or vendor to determine whether the
paper you have chosen is acceptable for laser printers.
Weight
The MFP can automatically feed paper weights from 60 to 176 g/m2 (16 to 47 lb bond) grain long in the integrated and
optional 500-sheet trays and paper weights from 60 to 135 g/m2 (16 to 36 lb bond) grain long in the multipurpose feeder
and optional 250-sheet trays. Paper lighter than 60 g/m2 (16 lb) might not be stiff enough to feed properly, causing jams.
For best performance, use 75 g/m2 (20 lb bond) grain long paper. When using paper narrower than 182 x 257 mm (7.2 x
10.1 in.), make sure the weight is greater than or equal to 90 g/m2 (24 lb bond).
Unacceptable paper
The following papers are not recommended for use with the MFP:
•Some chemically treated papers used to make copies without carbon paper, also known as carbonless papers,
carbonless copy paper (CCP), or no carbon required (NCR) paper (see the Card Stock & Label Guide located on
the Lexmark Web site at www.lexmark.com for supported chemically treated papers)
•Preprinted papers with chemicals that may contaminate the MFP
•Preprinted papers that can be affected by the temperature in the MFP fuser
•Preprinted papers that require a registration (the precise print location on the page) greater than ±0.09 in., such as
optical character recognition (OCR) forms
In some cases, you can adjust registration with your software application to successfully print on these forms.
•Coated papers (erasable bond), synthetic papers, thermal papers
•Rough-edged, rough or heavily textured surface papers or curled papers
•Recycled papers containing more than 25% post-consumer waste that do not meet DIN 19 309
•Recycled paper having a weight less than 60 g/m2 (16 lb)
•Multiple-part forms or documents
• Paper • Card stock • Labels
• Envelopes • Transparencies
Selecting print media
77
Understanding paper and specialty media guidelines
Transparencies
The MFP can print directly on transparencies designed for use in laser printers. Print quality and durability depend on the
transparency used. Always print samples on the transparencies you are considering before buying large quantities.
The Paper Type setting should be set to Transparency to help prevent jams. In Macintosh, be sure to set the Paper Type to
Transparency in the Print dialog on the Imaging choice in the Copies & Pages pop-up menu.
Use transparencies designed specifically for laser printers. Check with the manufacturer or vendor to determine whether
your transparencies are compatible with laser printers that heat transparencies to 230°C (446°F). Use only transparencies
that are able to withstand these temperatures without melting, discoloring, offsetting, or releasing hazardous emissions. For
detailed information, see the Card Stock & Label Guide, which is available on the Lexmark Web site at www.lexmark.com.
Transparencies can be fed automatically from the multipurpose feeder and all standard and optional trays, except the 2000-
sheet drawer. Before loading transparencies, fan the stack to prevent sheets from sticking together.
Be careful when you handle transparencies. Fingerprints on the surface of the transparency cause poor print quality.
Envelopes
You can load up to 10 envelopes in the multipurpose feeder and 85 envelopes in the envelope feeder. Try a sample of any
envelopes you are considering using with the MFP before buying large quantities. See Loading the multipurpose feeder
and Loading the envelope feeder for instructions on loading envelopes.
When printing on envelopes:
•To achieve the best possible print quality, use only high-quality envelopes that are designed for use in laser
printers.
•Set the Paper Size/Type in the Paper menu to MP Feeder, Manual Env, or Env Feeder depending on the source
you are using. Set the paper type to Envelope, and select the correct envelope size from the control panel, the
MFP driver, or from MarkVision™.
•For best performance, use envelopes made from 75 g/m2 (20 lb bond) paper. You can use up to 105 g/m2 (28 lb
bond) weight for the multipurpose feeder or 105 g/m2 (28 lb bond) weight for the envelope feeder as long as the
cotton content is 25% or less. Envelopes with 100% cotton content must not exceed 90 g/m2 (24 lb bond) weight.
•Use only new, undamaged envelopes.
•For best performance and to minimize jams, do not use envelopes that:
—Have excessive curl or twist.
—Are stuck together or damaged in any way.
—Contain windows, holes, perforations, cutouts or embossing.
—Use metal clasps, string ties, or metal folding bars.
—Have an interlocking design.
—Have postage stamps attached.
—Have any exposed adhesive when the flap is in the sealed or closed position.
—Have nicked edges or bent corners.
—Have rough, cockle, or laid finishes.
•Use envelopes that can withstand temperatures of 230°C (446°F) without sealing, excessive curling, wrinkling, or
releasing hazardous emissions. If you have any doubts about the envelopes you are considering using, check
with the envelope supplier.
•Load only one size of envelope at a time in the envelope feeder.
•A combination of high humidity (over 60%) and the high printing temperatures may seal the envelopes.
Selecting print media
78
Understanding paper and specialty media guidelines
Labels
The MFP can print on many labels designed for use with laser printers. These labels are supplied in letter size, A4 size, and
legal size sheets. Label adhesives, face sheet (printable stock), and topcoats must be able to withstand temperatures of
230°C (446°F) and pressure of 25 pounds per square inch (psi).
Try a sample of any labels you are considering using with the MFP before purchasing a large quantity.
For detailed information on label printing, characteristics, and design, see the Card Stock & Label Guide available on the
Lexmark Web site at www.lexmark.com/publications.
Note: Labels are one of the most difficult print media for laser MFPs. All MFP models require a special fuser
cleaner for label applications to optimize feed reliability. See Ordering supplies for information on
obtaining a label fuser cleaner.
After printing approximately 10,000 pages of labels (or each time you replace the print cartridge), complete the following
steps to maintain MFP feeding reliability:
1Print five sheets of paper.
2Wait approximately five seconds.
3Print five more sheets of paper.
When printing on labels:
•Set the Paper Size/Type menu item to Labels in the Paper menu. You can set the Paper Size/Type from the MFP
control panel, the MFP driver, or from MarkVision.
•Feed vinyl labels from the standard 250- or 500-sheet trays or the optional 250- or 500-sheet drawers. For vinyl
labels, set the Paper Type to Labels, the Labels Texture to Smooth, and the Label Weight to Heavy, or set the
Paper Type to vinyl labels and the texture and weight to normal.
•Do not load labels with paper or transparencies in the same source; mixing print media can cause feeding
problems and print quality problems.
•Do not use label sheets with a slick backing material.
•Use full label sheets. Partial sheets may cause labels to peel off during printing, resulting in a jam. Partial sheets
also contaminate the MFP and your cartridge with adhesive, and could void the MFP and cartridge warranties.
•Use labels that can withstand temperatures of 230°C (446°F) without sealing, excessive curling, wrinkling, or
releasing hazardous emissions.
•Do not print within 1 mm (0.04 in.) of the edge of the label, of the perforations, or between die-cuts of the label.
•Do not use label sheets that have adhesive to the edge of the sheet. We recommend zone coating of the adhesive
at least 1 mm (0.04 in.) away from edges. Adhesive material contaminates the MFP and could void the warranty.
•If zone coating of the adhesive is not possible, a 1.6 mm (0.1 in.) strip should be removed on the leading and
driver edge, and a non-oozing adhesive should be used.
•Remove a 1.6 mm (0.1 in.) strip from the leading edge to prevent labels from peeling inside the MFP.
•Portrait orientation is preferred, especially when printing bar codes.
•Do not use labels that have exposed adhesive.
Storing print media
79
Understanding paper and specialty media guidelines
Card stock
Card stock is single ply, and has a large array of properties, such as the moisture content, thickness, and texture, that can
significantly affect print quality. See Supported print media for information on the preferred weight and for the grain
direction of print media.
Try a sample of any card stock you are considering using with the MFP before purchasing a large quantity.
After printing approximately 10,000 pages of card stock (or each time you replace the print cartridge), complete the
following steps to maintain MFP feeding reliability:
1Print five sheets of paper.
2Wait approximately five seconds.
3Print five more sheets of paper.
When printing on card stock:
•Set the Paper Type menu item in the Paper menu to Card Stock from the control panel, from the MFP driver, or
from MarkVision.
•Be aware that preprinting, perforation, and creasing can significantly affect the print quality and cause print media
handling or jamming problems.
•Avoid using card stock that may release hazardous emissions when heated.
•Do not use preprinted card stock manufactured with chemicals that may contaminate the MFP. Preprinting
introduces semi-liquid and volatile components into the MFP.
•We recommend the use of grain short card stock.
Storing print media
Use the following guidelines to avoid paper feeding problems and uneven print quality.
•Store paper in an environment where the temperature is approximately 21°C (70°F) and the relative humidity is
40%.
•Store cartons of paper on a pallet or shelf rather than directly on the floor.
•If you store individual packages of paper out of the original carton, make sure they rest on a flat surface so the
edges do not buckle or curl.
•Do not place anything on top of paper packages.
•Store paper in its original wrapper until you load it into the MFP.
Avoiding jams
80
Understanding paper and specialty media guidelines
Avoiding jams
Use appropriate print media (paper, transparencies, labels, and card stock) to help ensure trouble-free printing. See
Supported print media for more information.
Note: Try a limited sample of any print media you are considering using with the MFP before purchasing
large quantities.
By selecting the appropriate print media and loading it properly, you can avoid most jams. See Loading standard trays
and optional trays, Loading the multipurpose feeder, or Loading the 2000-sheet drawer for detailed tray-loading
instructions.
The following hints can help you avoid jams:
•Use only recommended print media.
•Do not overload the print media sources. Make sure the stack height does not exceed the maximum height
indicated by the stack line on the labels in the sources.
•Do not load wrinkled, creased, damp, or curled print media.
•Flex, fan, and straighten print media before you load it. If jams do occur with print media, try feeding one sheet at
a time through the multipurpose feeder.
•Do not use print media that you have cut or trimmed yourself.
•Do not mix print media sizes, weights, or types in the same print media source.
•Make sure the recommended print side is loaded in the source according to your simplex or duplex needs.
•Keep print media stored in an acceptable environment. See Storing print media.
•Do not remove trays during a print job.
•Push all trays in firmly after loading them.
•Make sure the guides in the trays are properly positioned for the size of print media you have loaded. Make sure
the guides are not placed too tightly against the stack of print media.
•If a jam occurs, clear the entire media path. See Clearing jams for more information.
Note: If you have a recurring paper jam, see Paper frequently jams.
Installing and removing options
81
9Installing and removing options
Installing input options
Order of installation
Floor-mounted configurations require additional furniture. You must use either a printer stand or printer base if you are
using a 2000-sheet drawer, a duplex unit and an input option, or more than one input option. If you purchased an MFP that
scans, copies, and faxes, you may need additional furniture. More information is available on our Lexmark Web site at
www.lexmark.com/multifunctionprinters.
Install the MFP and any options you have purchased in the following order:
CAUTION: If you are installing options after setting up the MFP, turn the MFP off, and unplug the power cord
from the wall outlet before continuing.
•MFP stand or MFP base
•2000-sheet drawer
•250-sheet or 500-sheet drawer
•Duplex unit
•MFP
CAUTION: The MFP requires three people to lift it safely.
For information on installing an MFP stand, MFP base, or 2000-sheet drawer, see the instructions included with the option.
Installing input options
82
Installing and removing options
Installing a 250-sheet or 500-sheet drawer
Optional drawers attach under the MFP and optional duplex unit. The MFP automatically recognizes any drawer that is
installed.
A drawer consists of a tray and a support unit. The 250-sheet drawer and the 500-sheet drawer are installed the same way.
1Remove the tray from the support unit. Remove all packing material and tape from both the support unit and the
tray.
2Place the support unit on top of any previously installed drawers or the table or MFP cabinet where you plan to
use the MFP.
The tab, round peg, and square holes on top of any drawer help you position the support unit so the edges are
aligned properly. Make sure the support unit is securely in place.
3Attach another optional drawer, a duplex unit, or the MFP.
You can attach a label to the trays to indicate the tray number.
Decals
Square hole
Round peg
Tab
Installing a duplex unit
83
Installing and removing options
Installing a duplex unit
The duplex unit attaches under the MFP, below the standard tray and above any drawers.
Place the duplex unit on top of any installed drawers or the table or MFP cabinet where you plan to use the MFP.
The tab, round peg, and square holes on top of any drawer help you position the duplex unit so the edges are
aligned properly. Make sure it is securely in place.
Square hole
Round peg
Tab
Installing memory or option cards
84
Installing and removing options
Installing memory or option cards
CAUTION: If you are installing memory or option cards sometime after setting up the MFP, turn the MFP off
and unplug the power cord from the wall outlet before continuing.
You can customize the MFP memory capacity and connectivity by adding optional cards. The instructions in this section
help you install any of the following options:
•Memory cards
—MFP memory
—Flash memory
•Firmware cards
—Bar Code
—IPDS and SCS/TNe
—PrintCryption™
•Other options
—RS-232 serial interface card
—Parallel 1284-B interface card
—Ethernet 100BaseFX-SC
—Ethernet 100BaseFX-MTRJ
—802g Wireless Adapter
Accessing the MFP system board
You must access the MFP system board to install MFP memory, flash memory, a firmware card, or an option card.
Note: Use a Phillips screwdriver to remove the system board access cover.
1Push the release latch, and lower the multipurpose feeder.
2Push both release latches, and open the top front cover.
Accessing the MFP system board
85
Installing and removing options
3Press both side door latches, and open the side door.
4Loosen, but do not remove, the six screws on the shield.
5Slide the shield to the right, and then remove it.
Accessing the MFP system board
86
Installing and removing options
6Set the shield aside.
Use the illustration to locate the connector for the card you want to install.
Option card connector
Memory card connector
Flash and firmware card connectors
Installing or removing a memory card
87
Installing and removing options
Installing or removing a memory card
Installation
Note: MFP or printer memory cards designed for other Lexmark MFPs or printers may not work with this
MFP.
1Remove the system board access cover. (See Accessing the MFP system board.)
Warning: MFP memory cards are easily damaged by static electricity. Touch something metal such as the MFP
frame before you touch a memory card.
2Push open the latches on both ends of the memory card connector.
3Unpack the memory card.
Avoid touching the connection points along the edge of the card. Save the packaging.
4Align the notches on the bottom of the card with the notches on the connector.
5Push the memory card firmly into the connector until the latches on either end of the connector snap into place.
It may require some force to fully seat the card.
6Make sure each latch fits over the notch on the end of the card.
Memory connector
Memory card
Installing or removing a memory card
88
Installing and removing options
Removal
1Remove the system board access cover. (See Accessing the MFP system board.)
Warning: MFP memory cards are easily damaged by static electricity. Touch something metal such as the MFP
frame before you touch a memory card.
2Push the latches away from the card on both ends of the memory card connector.
The memory card moves out of the connector as the latches open.
3Pull the memory card out of the connector.
Avoid touching the connection points along the edge of the card.
4Place the card into the original packaging.
If you do not have the original packaging, wrap the card in paper, and store it in a box.
5Close both latches.
Installing or removing a flash memory or firmware card
89
Installing and removing options
Installing or removing a flash memory or firmware card
Installation
Note: Flash memory or firmware cards designed for other Lexmark MFPs may not work with this MFP.
1Remove the system board access cover. (See Accessing the MFP system board.)
Note: If an option card has been installed, you may need to remove the option card before installing the
flash memory or firmware card.
2Unpack the flash memory or firmware card.
3Holding the flash memory or firmware card by the locking clips, align the plastic pins on the card with the holes on
the system board.
4Push the flash memory or firmware card firmly into place, and release the locking clips.
The entire length of the connector on the flash memory or firmware card must touch the system board and be
locked into the connector.
Be careful not to damage the connectors.
Connector
Flash memory or firmware card
Installing or removing a flash memory or firmware card
90
Installing and removing options
Removal
1Remove the system board access cover. (See Accessing the MFP system board.)
Note: If an option card has been installed, you may need to remove the option card before removing the
flash memory or firmware card.
2Squeeze the flash memory or firmware card locking clips.
3Pull the card out.
Avoid touching the metal pins on the bottom of the card.
4Place the flash memory or firmware card in its original packaging.
If you do not have the original packaging, wrap the flash memory or firmware card in paper, and store it in a box.
5If you removed an option card to access the flash memory or firmware card, reinstall the option card.
1
2

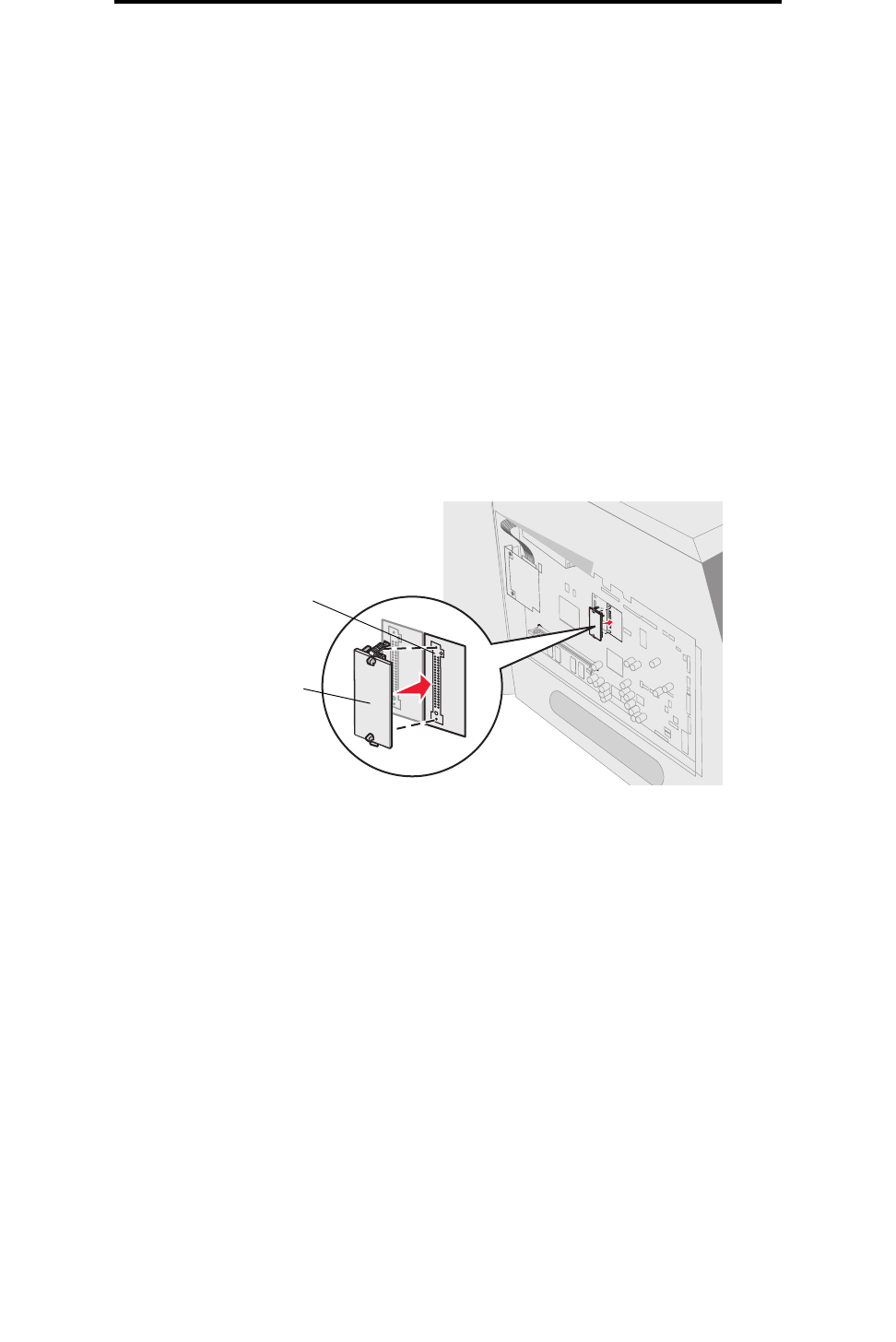

Installing an option card
91
Installing and removing options
Installing an option card
The MFP has one connector that supports the following option cards:
•MarkNet N8000 series internal print server
•RS-232 Serial Interface Card
•Parallel 1284-B Interface Card
•Coax/Twinax Adapter for SCS
Warning: Option cards are easily damaged by static electricity. Touch something metal such as the MFP frame
before you touch an option card.
1Locate the card connectors on the system board.
2Remove the screw and the cover plate, and save them.
3Unpack the card. Save the packaging materials.
4Align the connection points on the card with the connector on the system board, and push the card firmly into the
system board connector.
5Insert the screw saved from the cover plate (or the extra screw shipped with the card).
6Tighten the screw to secure the card.
3
Screw
Cover plate
Replacing the shield
92
Installing and removing options
Replacing the shield
After you have installed options on the MFP system board, follow these steps to reattach the shield and close the doors.
1Align the keyholes on the shield with the screws on the frame.
2Slide the shield down onto the screws.
3Tighten the screws.
4Close the side door.
5Close the top front cover.
6Close the multipurpose feeder.
Maintaining the MFP
93
10 Maintaining the MFP
Periodically, you need to complete certain tasks to maintain optimum print quality. These tasks are covered in this chapter.
If several people are using the MFP, you may want to designate a key operator to do the setup and maintenance of the
MFP. Refer printing problems and maintenance tasks to this key operator.
In the U.S., contact Lexmark at 1-800-539-6275 for information about Lexmark Authorized Supplies Dealers in your area. In
other countries or regions, visit the Lexmark Web site at www.lexmark.com, or contact the place where you bought the
MFP.
Storing supplies
Choose a cool, clean storage area for the MFP supplies. Store supplies right side up in their original packaging until you are
ready to use them.
Do not expose supplies to:
•Direct sunlight
•Temperatures above 35°C (95°F)
•High humidity (above 80%)
•Salty air
•Corrosive gases
•Heavy dust
Determining the status of supplies
94
Maintaining the MFP
Determining the status of supplies
The MFP control panel alerts you once a supply item or maintenance is required. The Print status message bar at the
bottom of the touch screen indicates if the MFP is Ready and lets you know if any supplies are low or empty. Touching
Status / Supplies on the bottom of the touch screen will open the Status / Supplies screen where you can view the
status of the various trays and other supply items.
Copy
Fax E-mail
FTP
Status/
Supplies
Ready. 88 Toner low.
Touch any button to begin.
Menus
Conserving supplies
95
Maintaining the MFP
Conserving supplies
Several settings in your application software or through the touch screen let you conserve toner and paper. For more
information on changing these settings, see the Menus and Messages Guide on the Software and Documentation CD.
Ordering supplies
To order supplies in the U.S., contact Lexmark at 1-800-539-6275 for information about Lexmark Authorized Supplies
Dealers in your area. In other countries or regions, visit the Lexmark Web site at www.lexmark.com, or contact the place
where you bought the MFP.
Ordering a print cartridge
When the 88 Toner is low message appears or when you experience faded print, remove the toner cartridge. Firmly
shake it side-to-side and front-to-back several times to redistribute the toner, then reinsert it and continue printing. Repeat
this procedure multiple times until the print remains faded. When the print remains faded, replace the print cartridge.
Have a new cartridge available when the current one no longer prints satisfactorily.
Supply Menu selection item What the setting does
Toner Toner Darkness, touch the menu
button Æ Printer Settings Æ
Quality Menu
Lets you adjust the level of toner released on a sheet of print media.
The values range from 1 (lightest setting) to 10 (darkest setting).
Note: When toner is low, firmly shake the cartridge to redistribute
any remaining toner. See Ordering a print cartridge for more
information.
Print media Multipage Print, touch the menu
button Æ Printer Settings Æ
Finishing Menu
Causes the MFP to print two or more page images on one side of a
sheet. Values for Multipage Print are 2 Up, 3 Up, 4 Up, 6 Up, 9 Up,
12 Up, and 16 Up. Combined with the duplex setting, Multipage Print
lets you print up to 32 pages on one sheet of paper (16 images on
the front and 16 on the back).
Duplex, touch the menu button Æ
Printer Settings Æ Finishing Menu Duplex printing is available when you have a duplex unit. It lets you
print on both sides of a sheet of paper.
Use your software application or
MFP driver to send a Verify Print
job.
Lets you examine the first copy of a multiple-copy job to be sure it is
satisfactory before you print the other copies. If the job is
unsatisfactory, you can cancel the job.
See Printing and deleting held jobs for more information about a
Verify Print job.
Ordering supplies
96
Maintaining the MFP
The recommended print cartridges specifically designed for the MFP are:
Part number Description Average cartridge yield1
For the USA and Canada2
X644A11A Return Program Print Cartridge 10,000 standard pages
X644H11A High Yield
Return Program Print Cartridge 21,000 standard pages
X644X11A Extra High Yield
Return Program Print Cartridge 32,000 standard pages
X644H01A High Yield Return Program Print Cartridge for Label Applications 21,000 standard pages
X644X01A Extra High Yield Return Program Print Cartridge for Label Applications 32,000 standard pages
Other available print cartridges
X644A21A Print Cartridge 10,000 standard pages
X644H21A High Yield Print Cartridge 21,000 standard pages
X644X21A Extra High Yield Print Cartridge 32,000 standard pages
For Europe, the Middle East and Africa3
X644A11E Return Program Print Cartridge 10,000 standard pages
X644H11E High Yield
Return Program Print Cartridge 21,000 standard pages
X644X11E Extra High Yield
Return Program Print Cartridge 32,000 standard pages
Other available print cartridges
X644A21E Print Cartridge 10,000 standard pages
X644H21E High Yield Print Cartridge 21,000 standard pages
X644X21E Extra High Yield Print Cartridge 32,000 standard pages
For the Asia Pacific Region4
X644A11P Return Program Print Cartridge 10,000 standard pages
X644H11P High Yield
Return Program Print Cartridge 21,000 standard pages
X644X11P Extra High Yield
Return Program Print Cartridge 32,000 standard pages
X644H01P High Yield Return Program Print Cartridge for Label Applications 21,000 standard pages
X644X01P Extra High Yield Return Program Print Cartridge for Label Applications 32,000 standard pages
Other available print cartridges
X644A21P Print Cartridge 10,000 standard pages
X644H21P High Yield Print Cartridge 21,000 standard pages
1 Declared yield value in accordance with ISO/IEC 19752
2 Designed for use only in the USA and Canada
3 Designed for use only in Europe, Middle East, and Africa
4 Designed for use only in Asia Pacific Region
5 Designed for use only in Latin America
Ordering supplies
97
Maintaining the MFP
You can use the packing material from the new cartridge to ship the old cartridge back to Lexmark for recycling. See
Recycling Lexmark products for more information.
Ordering a maintenance kit
80 Scheduled maintenance advised appears on the display after 300,000 pages have printed to let you know it is time
to replace MFP maintenance items. Order a maintenance kit when 80 Scheduled maintenance advised first appears
on the display. The maintenance kit contains all the items necessary to replace the pick rollers, the charge roll, transfer
roller, and the fuser.
Note: Using certain types of media may require more frequent replacement of the maintenance kit. Although
the charge roll, transfer roller, and pick rollers are contained within the maintenance kit, they should
also be individually ordered and replaced as necessary.
See the following table for the maintenance kit part number for your specific MFP.
Replacement of the fuser must be performed by an authorized service technician.
X644X21P Extra High Yield Print Cartridge 32,000 standard pages
For Latin America5
X644A11L Return Program Print Cartridge 10,000 standard pages
X644H11L High Yield
Return Program Print Cartridge 21,000 standard pages
X644X11L Extra High Yield
Return Program Print Cartridge 32,000 standard pages
X644H01L High Yield Return Program Print Cartridge for Label Applications 21,000 standard pages
X644X01L Extra High Yield Return Program Print Cartridge for Label Applications 32,000 standard pages
Other available print cartridges
X644A21L Print Cartridge 10,000 standard pages
X644H21L High Yield Print Cartridge 21,000 standard pages
X644X21L Extra High Yield Print Cartridge 32,000 standard pages
Maintenance kit for Part numbers
X644e and X646e 40X0102 (100 V)
40X0100 (110 V)
40X0101 (220 V)
Part number Description Average cartridge yield1
1 Declared yield value in accordance with ISO/IEC 19752
2 Designed for use only in the USA and Canada
3 Designed for use only in Europe, Middle East, and Africa
4 Designed for use only in Asia Pacific Region
5 Designed for use only in Latin America
Recycling Lexmark products
98
Maintaining the MFP
Ordering charge rolls
We recommend ordering new charge rolls when toner fog or background shading appears on printed pages. Order
Lexmark part number 40X0127.
Ordering a transfer roller
Order Lexmark part number 40X0130.
Ordering pick rollers
Order Lexmark part number 40X0070.Order new pick rolls when the paper fails to properly feed from the tray.
When ordering pick rollers, you need one set per input tray excluding the multipurpose feeder.
Ordering an ADF pick mechanism
Order Lexmark part number 40X0453.Order a new pick mechanism if you experience problems with paper double-feeding
through the automatic document feeder or if you have scanned 120,000 pages.
Ordering an ADF separator roller
Order Lexmark part number 40X0454.Order a new separator roller when the paper fails to properly feed from the automatic
document feeder or if you have scanned 120,000 pages.
Ordering a label fuser cleaner
A special label fuser cleaner should be used for label applications to optimize feeding reliability. To order this item, visit our
Web site at www.lexmark.com, or contact your Lexmark representative.
Label fuser cleaners are not recommended for duplex printing.
Recycling Lexmark products
To return Lexmark products to Lexmark for recycling:
1Visit our Web site:
www.lexmark.com/recycle
2Follow the instructions on the computer screen.
Cleaning the scanner glass and backing material
99
Maintaining the MFP
Cleaning the scanner glass and backing material
1Open the document cover.
2Dampen a clean, lint-free cloth or cotton swab with isopropyl alcohol (95%).
3Wipe the scanner glass and backing material by moving the cloth or swab from side to side.
4Open the scan unit access door.
5Wipe the scanner glass and backing material by moving the cloth or swab from side to side.
6Close the scan unit access door.
7Close the document cover.
Backing material
Scanner glass
Backing material
Scanner glass
Scanner registration
100
Maintaining the MFP
Scanner registration
Scanner Registration is a process to align the scan area with the paper location. Two pieces of either letter or A4
dark colored paper are needed for this process.
1Turn the MFP off.
2Open the document cover.
3Clean the scanner glass and backing material.
For more information, see Cleaning the scanner glass and backing material.
4Hold down the number 2 and number 6 keys on the numeric pad.
5Continue to hold the buttons, and turn the MFP on.
Hold the buttons for about 10 seconds while the MFP is powering up, then release the buttons. The MFP will enter
the Configuration menu.
6Touch the down arrow until Automatic Scanner Registration appears.
7Touch Automatic Scanner Registration.
8Load the dark colored paper.
aPlace a blank piece of dark colored paper (A4 or Letter) on the flatbed.
Position the paper so it is aligned with the upper corner of the plastic guides.
bClose the document cover.
cPlace a blank piece of dark colored paper (A4 or Letter) in the ADF, and adjust the guides.
Make sure the paper guides are snug against the paper; do not bend the paper.
9Press Start.
The registration process will scan the pages in the flatbed and ADF, and then display a sucess or failure message.
If a failure message appeared, do another scanner registration, realign the paper, and verify each step as it is
performed. If a second failure message appears, contact an authorized service representative.
10 Touch Exit Configuration Menu.
The printer will reboot and return to the home page.
Moving the MFP
101
Maintaining the MFP
Moving the MFP
Follow these guidelines to move the MFP within the office or to prepare the MFP for shipment.
CAUTION: Follow these guidelines to avoid injuring yourself or damaging the MFP.
•Always use at least three people to lift the MFP.
•Always turn off the MFP using the power switch.
•Disconnect all cords and cables from the MFP before attempting to move the MFP.
•Failure to repackage the MFP properly for shipment can result in damage to the MFP not covered by the MFP
warranty.
•Damage to the MFP caused by improper moving is not covered by the MFP warranty.
Moving the MFP within the office
The MFP can be safely moved from one location within an office to another following these precautions:
•The MFP must remain in an upright position.
•Any cart used to move the MFP should have a surface able to support the full footprint of the MFP.
•Severe jarring movements may cause damage to the MFP and must be avoided.
Preparing the MFP for shipment
To transport the MFP by vehicle or by commercial carrier, the MFP must be repackaged for shipment using the proper
packaging. The MFP package must be securely fastened to its pallet. Do not use a shipping or transport method that
requires the MFP to be shipped without a pallet. The MFP must stay upright throughout the shipment. If you do not have all
the original packaging, contact your local service representative to order the repackaging kit. Additional instructions for
repackaging the MFP are provided in the repackaging kit.
Clearing jams
102
11 Clearing jams
By carefully selecting print media and loading it properly, you should be able to avoid most paper jams. For more
information on avoiding paper jams, see Avoiding jams. If jams do occur, follow the steps outlined in this section.
To resolve the paper jam messages, you must clear the entire paper path, and then touch Continue to clear the message
and resume printing. The MFP prints a new copy of the page that jammed if Jam Recovery is set to On or Auto; however,
the Auto setting does not guarantee the page will print.
Identifying jams
If the MFP jams, the appropriate jam message will be displayed on the touch screen Print status message bar.
See the diagram on page 103 for an overview of the paper path and areas where jams may occur. The path varies
depending on the MFP paper sources.
Copy
Fax E-mail
FTP
Status/
Supplies
200.01 Paper jam, [x] pages
jammed. Leave paper in bin.
Menus
Access doors and trays
103
Clearing jams
Access doors and trays
The following illustration shows the path that print media travels through the MFP. The path varies depending on the input
source (trays, multipurpose feeder, envelope feeder) you are using.
The numbers in following illustration indicate the numbers that can appear on the control panel and designate the general
area of a paper jam.
CAUTION: Floor-mounted configurations require additional furniture for stability. You must use either
a printer stand or printer base if you are using a 2000-sheet drawer. Certain other configurations also
must have a printer stand or printer base. More information is available on our Lexmark Web site at
www.lexmark.com/multifunctionprinters.
Understanding jam messages
The following table lists the jam messages that can occur and the action necessary to clear the message. The jam
message indicates the area where the jam occurred. However, it is best to clear the entire paper path to ensure you have
cleared all possible jams.
Message What to do*
200 and 201 Paper Jam Remove
Cartridge Open the bottom then top front covers, remove the print cartridge, and then
remove the jam.
202 Paper Jam Open Rear Door Open the rear door on the MFP, and remove the jam.
23x Paper Jam Check Duplex Remove the duplex tray from the duplex unit, raise duplex deflector, and
remove the jam. Open the rear duplex door, and remove the jam.
24x Paper Jam Check Tray <x> Open each tray, and remove any jammed media.
250 Paper Jam Check MP Feeder Remove all media from the multipurpose feeder, flex and stack the media,
reload the multipurpose feeder, and adjust the guide.
202 Paper
Jam
23x Paper
Jam
24x Paper Jam
201 Paper Jam
200 Paper Jam
260 Paper Jam
23x Paper Jam
250 Paper Jam
Doors and trays
200 Paper
Jam
201 Paper
Jam
250 Paper
Jam
260 Paper
Jam
24x Paper
Jam
23x Paper
Jam
23x Paper
Jam
Path and locations
202 Paper
Jam
Clearing jams
104
Clearing jams
Clearing jams
Although there are several places a jam can occur, clearing the paper path is fairly easy. Paper jams can occur in three
areas: the front of the MFP, inside the MFP, and at the rear of the MFP. Jams in the front of the MFP occur in the input
options or the duplex tray. Jams inside the MFP occur in two locations and require the removal of the print cartridge. Jams
can also occur at the rear of the MFP or duplex unit.
Note: The following clearing jam instructions may seem out of numerical sequence. However, they have
been grouped to help you quickly clear the print path. To go to a specific jam, see Understanding
jam messages.
250 Paper Jam Check MP Feeder
1Remove the paper from the multipurpose feeder.
2Flex, fan, and restack the media, and place it into the multipurpose feeder.
3Load the print media.
4Slide the side guide toward the inside of the tray until it lightly rests against the edge of the media.
5Touch Continue.
260 Paper Jam Check Env Feeder Lift the envelope weight, remove all envelopes, flex and stack the envelopes,
reload the envelope feeder, and adjust the guide.
290, 291, 292, and 294 Scanner Jams Remove all original documents from the ADF. Open the ADF cover, and
remove any jammed pages. Open the document cover, and remove any
jammed pages. Open the scan unit access door, and remove any jammed
pages.
Message What to do*
Clearing jams
105
Clearing jams
260 Paper Jam Check Env Feeder
The envelope feeder feeds envelopes from the bottom of the stack; the bottom envelope will be the one that is jammed.
1Lift the envelope weight.
2Remove all envelopes.
If the jammed envelope has entered the MFP and cannot be pulled out, remove the envelope feeder.
aLift the envelope feeder out of the MFP, and then set it aside.
bRemove the envelope from the MFP.
Note: If you cannot remove the envelope, the print cartridge will have to be removed. See 200 and 201
Paper Jam Remove Cartridge for more information.
cReinstall the envelope feeder. Make sure it snaps into place.
3Flex and stack the envelopes.
Clearing jams
106
Clearing jams
4Load the envelope feeder.
5Adjust the guide.
6Lower the envelope weight.
7Touch Continue.
23x and 24x jams
Paper jams in these areas can occur on the incline surface of a tray or across more than one tray. To clear these areas:
1Open the MFP paper tray, and remove any jammed media.
Clearing jams
107
Clearing jams
2Open the duplex tray.
To remove the media, pull up.
3Open any optional trays beginning at the top, and remove any jammed media.
Pull the print media either up or down. If it does not pull easily one way, try the other way.
CAUTION: Floor-mounted configurations require additional furniture for stability. You must use either
a printer stand or printer base if you are using a 2000-sheet drawer. Certain other configurations also
must have a printer stand or printer base. More information is available on our Lexmark Web site at
www.lexmark.com/multifunctionprinters.
Clearing jams
108
Clearing jams
4If you have an optional 2000-sheet feeder, open the front door, press the elevator button to lower the tray, remove
the jam, and make sure the stack of print media is neat and aligned.
5Touch Continue.
CAUTION: Floor-mounted configurations require additional furniture for stability. You must use either
a printer stand or printer base if you are using a 2000-sheet drawer. Certain other configurations also
must have a printer stand or printer base. More information is available on our Lexmark Web site at
www.lexmark.com/multifunctionprinters.
123
456
789
0#
Elevator button
Clearing jams
109
Clearing jams

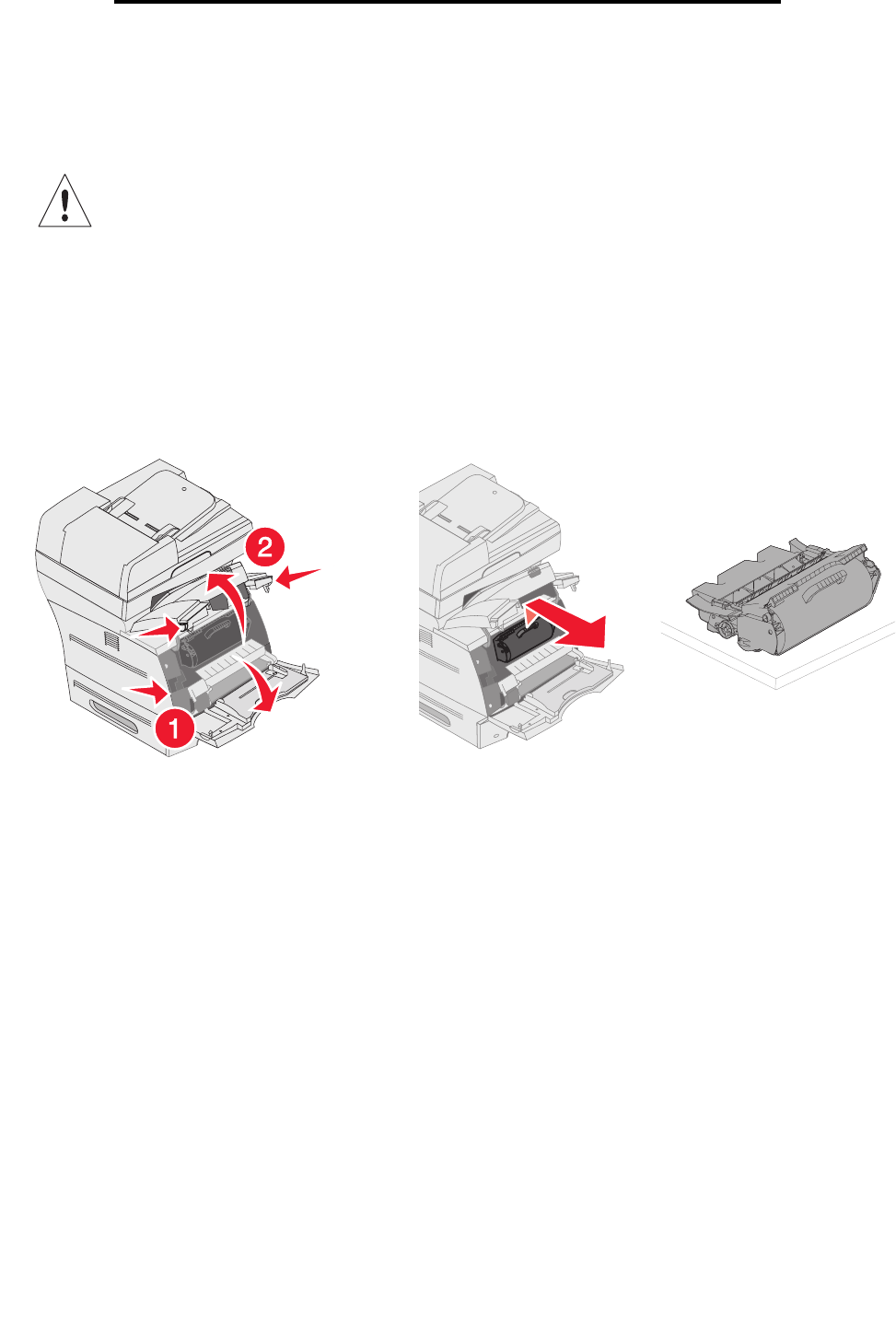

200 and 201 Paper Jam Remove Cartridge
1Push the release latch, and lower the multipurpose feeder.
2Push the release latch, and open the top front cover.
CAUTION: The inside of the MFP may be hot. Allow the MFP to cool before touching any internal
components.
3Lift and pull the print cartridge out of the MFP.
Warning: Do not touch the photoconductor drum on the underside of the cartridge. Use the cartridge handle
whenever you are holding the cartridge.
4Place the print cartridge aside.
Note: Do not leave the cartridge exposed to light for extended periods.
Note: The print media may be covered with unfused toner, which can stain garments and skin.
Clearing jams
110
Clearing jams
5Pull the print media up and toward you.
CAUTION: Do not use any pointed objects to remove the paper. This could cause personal injury or damage
to the MFP.
Warning:If the print media does not move immediately when you pull, stop pulling. You need to access the
print media from the MFP rear door.
6Align and reinstall the toner cartridge.
7Close the top front cover.
8Close the multipurpose feeder.
9Touch Continue.
Clearing jams
111
Clearing jams
202 Paper Jam Open Rear Door
1If the paper is exiting the MFP, pull the media straight out, and then touch Continue. Otherwise, continue with
step 2.
2Open the MFP rear door.
CAUTION: The inside of the MFP may be hot. Allow the MFP to cool before touching any internal
components.
CAUTION: Do not use any pointed objects to remove the paper. This could cause personal injury or damage
to the MFP.
3Remove the jammed media.
4Close the rear door.
5Touch Continue.
Clearing jams
112
Clearing jams
23x Paper Jam Open Duplex Rear Door
1Open the duplex rear door.
2Remove the jammed media.
Depending on the media location, pull the media either up or down.
3Close the duplex rear door. Make sure it snaps into place.
4Touch Continue.
Clearing ADF Jams
113
Clearing jams
Clearing ADF Jams

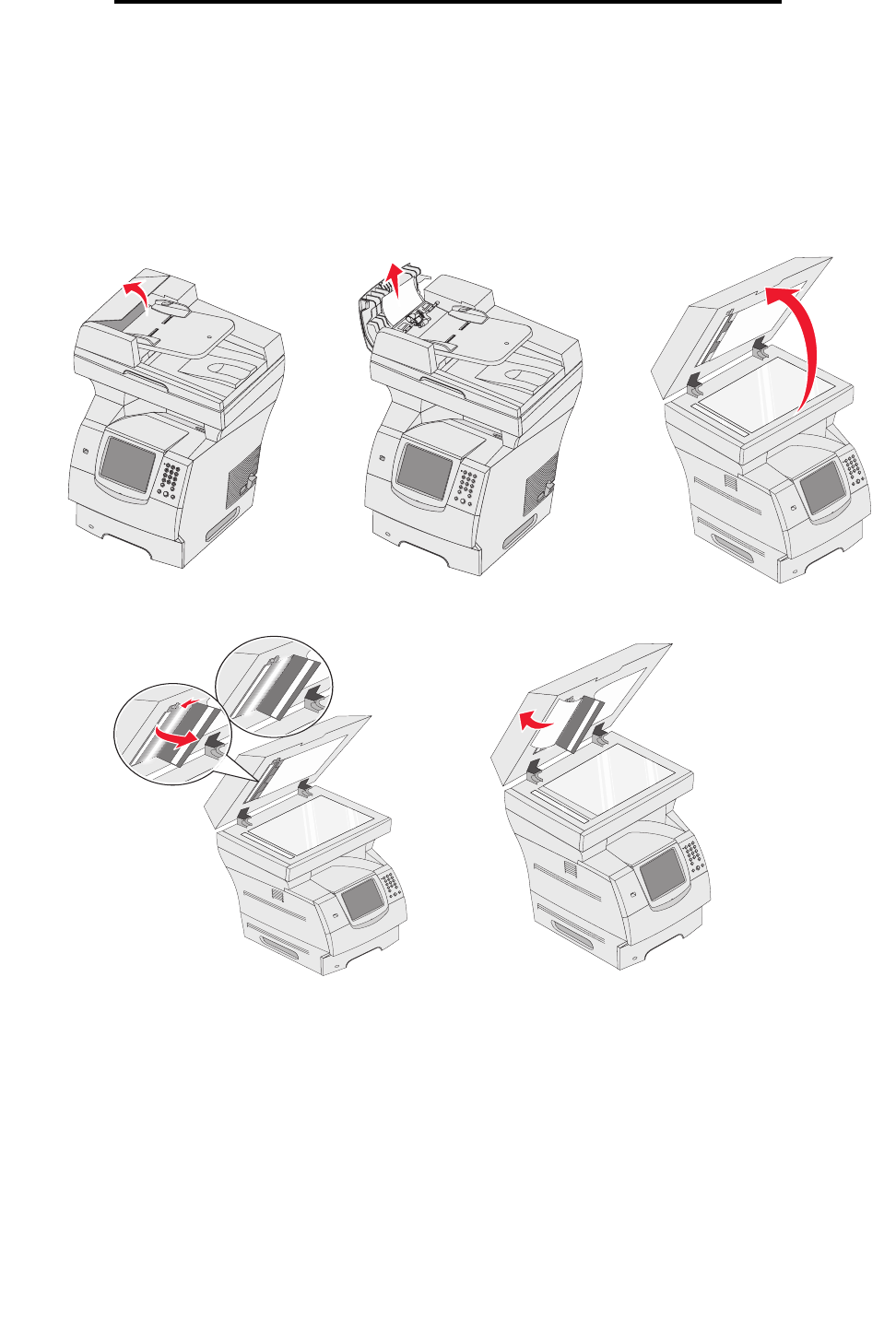

290, 291, 292, and 294 Scanner Jams
1Remove all original documents from the ADF.
2Open the ADF cover, and remove any jammed pages.
3Open the document cover, and remove any jammed pages.
4Open the scan unit access door, and remove any jammed pages.
5Close the scan unit access door.
6Close the ADF cover.
Administrative support
114
12 Administrative support
Adjusting control panel brightness
If you are having trouble reading your control panel display, the LCD brightness can be adjusted through the Settings
menu.
Brightness
1Make sure the MFP is on.
2Touch the Menus button on the home screen.
3Touch Settings.
4Touch General Settings.
5Touch the down arrow until Brightness appears.
6Touch the left arrow to decrease the brightness, or touch the right arrow to increase the brightness.
Brightness values can be adjusted from 5—100 (100 is the default value).
7Touch Submit.
8Touch Home.
Restoring factory default settings
When you first enter the MFP menus from the control panel, you may notice an asterisk (*) to the left of a value in the
menus. This asterisk indicates the factory default setting. These settings are the original MFP settings. (Factory defaults
may vary for different regions.)
When you select a new setting from the control panel, Submitting Selection appears. When the Submitting Selection
message disappears, an asterisk appears next to the setting to identify it as the current user default setting. These settings
are active until new ones are stored, or the factory defaults are restored. To restore the original MFP factory default
settings:
Warning: All downloaded resources (fonts, macros, and symbol sets) in MFP memory (RAM) will be deleted.
(Resources residing in flash memory or on the hard disk remain unaffected.)
1Make sure the MFP is on.
2Touch the Menus button on the home screen.
3Touch Settings.
4Touch General Settings.
5Touch the down arrow until Restore Defaults appears.
6Touch the left arrow or right arrow until Restore Now appears.
When you touch Restore Now, all menu settings return to the factory default values, except:
•The control panel Display Language setting in the Setup menu.
Adjusting screen timeout
115
Administrative support
•All settings in the Parallel menu, Serial menu, Network menu, and USB menu.
7Touch Submit.
8Touch Home.
Adjusting screen timeout
To adjust the Screen Timeout setting:
1Make sure the MFP is on.
2Touch the Menus button on the home screen.
3Touch Settings.
4Touch General Settings.
5Touch the down arrow until Screen Timeout appears.
6Touch the left arrow to decrease the time, or touch the right arrow to increase the time.
The settings available range from 15—300 minutes.
Adjusting Power Saver
To adjust the Power Saver setting:
1Make sure the MFP is on.
2Touch the Menus button on the home screen.
3Touch Settings.
4Touch General Settings.
5Touch the down arrow until Power Saver appears.
6Touch the left arrow to decrease the time, or touch the right arrow to increase the time.
The settings available range from 2—240 minutes.
Configuring the MFP
A variety of functions can be used to increase the level of Information Technology (IT) security for the device. The following
sections show how to configure these functions.
Setting Password Protect for the menus
Apply an administrative password to restrict unauthorized users from making changes to the MFP configuration from either
the control panel or the Embedded Web Server (EWS).
1Touch the Menus button on the home screen.
2Touch Settings.
3Touch the down arrow and then touch Security.
4Touch the down arrow and then touch Create/Change Passwords Æ Create/Change Advanced Password.
5Enter and reenter a password of both alphabetic and non-alphabetic characters. The password must be a
minimum of 8 characters.
Configuring the MFP
116
Administrative support
6Touch Submit.
7Touch Settings Æ Security Æ Password Protect to view what configuration settings are protected by the
Advanced Password.
Note: Settings Æ Security Æ Password Protect and Settings Æ Security Æ Create/Change
Passwords Æ Create Change User Password can be used to restrict access with a different
password than the Advanced Password. Use Settings Æ Security Æ Password Protect to select the
menus that are accessible with both an Advanced Password and a User Password.
Note: The Advanced Password and the User Password protect the menus on the touch screen control
panel of the MFP and the Configuration section of the EWS pages.
Restricting Function Access
The MFP supports a variety of methods for authenticating users prior to allowing access to functions.
1Open a Web browser. In the address line, enter the IP address of the MFP being configured using this format:
http://ip_address/.
2Click Configuration.
3Under Other Settings, click Security.
dSelect an authentication method.
eClick Submit.
4Click on the setup link for the authentication method previously selected in step d.
aFill out the appropriate information for the environment.
bClick Submit.
5Click Function Access.
aSet the function authentication level for each function. Select Off to prevent anyone from using a function.
bClick Submit.
Preventing access to the menus from the control panel
It is possible to prevent access to all the menus using the control panel touch screen. To prevent access:
1Touch the Menus button on the home screen.
2Touch Settings.
3Touch the down arrow.
4Touch Security Æ Function Access Æ Menus Æ Disabled.
5Touch Submit.
Disabling the Driver to Fax menu item
1Touch the Menus button on the home screen.
2Touch Settings Æ Fax Settings Æ Analog Fax Setup Æ Fax Send Settings.
3Touch the down arrow.
4Touch Driver to fax Æ Off.
5Touch Submit.
Configuring the MFP
117
Administrative support
Setting the Device Lockout personal identification number (PIN)
The Device Lockout PIN allows locking and unlocking the functional state of the MFP. A locked MFP automatically buffers
each job received to its hard disk. To initiate the printing of jobs on a locked MFP hard disk, enter the correct PIN on the
control panel to unlock the MFP.
A locked MFP also prevents all use of the control panel except to unlock the MFP.
Note: This setting is only available on MFP models with an integrated hard disk drive. Back channel data is
processed while the MFP is locked. Reports, such as user or event logs, can be retrieved from a
locked MFP.
1Touch the Menus button on the home screen.
2Touch Settings.
3Touch the down arrow and then touch Security.
4Touch the down arrow and then touch Create/Change Passwords Æ Create/Change Device Lockout PIN.
5Enter and reenter a 4-digit PIN.
6Touch Submit.
Locking the MFP using the Device Lockout PIN
1Touch the Lock Device button.
2Enter the 4-digit Device Lockout PIN.
Unlocking the MFP using the Device Lockout PIN
1Touch the Unlock Device button.
2Enter the 4-digit Device Lockout PIN.
Setting a password before printing received faxes
To prevent received faxes from being printed until a password is entered:
1Open a Web browser. In the address line, enter the IP address of the MFP being configured using this format:
http://ip_address/.
2Click Configuration.
3Under Default Settings, click Fax Settings Æ Analog Fax Setup.
4Scroll to Holding Faxes and click it.
5Select Always On for Held Fax Mode.
6Define a Print Faxes Password in the field.
7Click Submit.
Releasing held faxes for printing
1On the MFP touch screen control panel, touch the Release Held Faxes button.
Note: If the Release Held Faxes button appears as pale gray and the words appear faded on the button,
then the button is inactive because no fax jobs are being held.
Configuring the MFP
118
Administrative support
2Enter the defined password in the Print Faxes Password field.
This releases any received and held fax jobs, so they print.
Note: The defined password was created in step 6 of Setting a password before printing received faxes.
Setting security using the Embedded Web Server (EWS)
To enhance the security of network communications and MFP configuration, use the advanced security features. These
features are available through the Web page of the MFP.
Setting the Advanced Password
The Advanced Password is used to password-protect the menus. Setting the Advanced Password is required for Secure
Mode and confidential communication with MarkVision Professional.
If the Advanced Password was not created using the touch screen control panel by following the instructions in Setting
Password Protect for the menus on page 115, it can also be created from the EWS. To create it:
1Open a Web browser. In the address line, enter the IP address of the MFP being configured using this format:
http://ip_address/.
2Click Configuration.
3Under Other Settings, click Security.
4Click Create/Change Password.
5Click Create/Change Advanced Password.
6Enter and reenter a password of both alphabetic and non-alphabetic characters. The password must be a
minimum of 8 characters.
7Touch Submit.
Using the secure EWS
The SSL (Secure Sockets Layer) allows for secure connections to the Web server within the print device. To connect to the
EWS more securely, connect to the SSL port instead of the default HTTP port. The SSL port connection will encrypt all Web
server network communications between the PC and the MFP.
To connect to the SSL port:
1Open a Web browser.
2In the address line, enter the IP address of the MFP being configured using the format: https: //ip_address/.
Supporting SNMPv3 (Simple Network Management Protocol version 3)
SNMPv3 protocol allows for encrypted and authenticated network communications. It also lets the administrator select a
desired level of security. Prior to use, at least one user name and password must be established from the settings page. To
configure for SNMPv3 through the EWS of the MFP:
1Open a Web browser. In the address line, enter the IP address of the MFP being configured using the format:
http://ip_address/.
2Click Configuration.
3Under Other Settings, click Network/Ports.
4Click SNMP.
Configuring the MFP
119
Administrative support
SNMPv3 authentication and encryption has three levels of support:
•No authentication and no encryption
•Authentication with no encryption
•Authentication and encryption
Note: The selected level serves as a minimum level of protection. The MFP negotiates with the SNMPv3
requestor, and a higher level of protection may be agreed upon and used by both.
5Indicate the setting for each sub-item as required for the network environment.
6Click Submit.
Disabling SNMPv1 and SNMPv2
1Open a Web browser. In the address line, enter the IP address of the MFP being configured using the format:
http://ip_address/.
2Click Configuration.
3Under Other Settings, click Network/Ports.
4Click SNMP.
5Click to clear the Enabled check box unless SNMPv1 and SNMPv2 are used in this environment.
6Click Submit.
Supporting IPSec (Internet Protocol Security)
IP Security protocol provides authentication and encryption of communications at the network layer allowing all application
and network communications over the IP protocol to be secure. IPSec can be set up between the MFP and up to five hosts,
using both IPv4 and IPv6. To configure IPSec through the EWS:
1Open a Web browser. In the address line, enter the IP address of the MFP being configured using the format:
http://ip_address/.
2Click Configuration.
3Under Other Settings, click Network/Ports.
4Click IPSec.
Two types of authentication are supported for IPSec:
• Shared Key Authentication–Any ASCII phrase shared among all the participating hosts. This is the easiest way
to configure when only a few hosts on the network use IPSec.
• Certificate Authentication–Allows any hosts or subnet of hosts to authenticate for IPSec. Each host must have
a public/private key pair. Validate Peer Certificate is enabled by default, requiring each host to have a signed
certificate. The certificate authority certificate must be installed. Each host must have its identifier in the Subject
Alternate Name of the signed certificate.
Note: After an MFP is configured for IPSec with a host, IPSec is required for any IP communication to take
place.
5Indicate the setting for each sub-item as required for the network environment.
6Click Submit.
Configuring the MFP
120
Administrative support
Disabling ports and protocols
The TCP and UDP ports can be configured to one of three modes or values:
• Disabled–Never allows network connections to this port
• Secure and Unsecure–Allows the port to remain open, even in Secure mode
• Unsecured Only–Allows the port to only open when the MFP is not in Secure mode
Note: A password must be set to enable Secure mode. Once enabled, only the ports set to Secure and
Unsecure will be open.
To configure the mode for TCP and UDP ports from the EWS:
1Open a Web browser. In the address line, enter the IP address of the MFP being configured using the format:
http://ip_address/.
2Click Configuration.
3Under Other Settings, click Network/Ports.
4Click TCP/IP Port Access.
5For each port listed, select the appropriate value from the list previously described.
Note: Disabling ports will disable function on the MFP.
6Click Submit.
Using 802.1x Authentication
802.1x port authentication allows the MFP to join networks that require authentication before allowing access. 802.1x port
authentication can be used with the WPA (Wi-Fi Protected Access) feature of an optional internal wireless print server to
provide WPA-Enterprise security support.
Support for 802.1x requires the establishment of credentials for the MFP. The MFP must be known to the Authentication
Server (AS). The AS will allow network access to devices presenting a valid set of credentials which typically involves a
name/password combination and possibly a certificate. The AS will allow network access to MFPs presenting a valid set of
credentials. The credentials can be managed by using the EWS of the MFP. To use certificates as part of the credentials:
1Open a Web browser. In the address line, enter the IP address of the MFP being configured using the format:
http://ip_address/.
2Click Configuration.
3Under Other Settings, click Network/Ports.
4Click Certificate Management.
To enable and configure 802.1x on the EWS after installing the required certificates:
1Open a Web browser. In the address line, enter the IP address of the MFP being configured using the format:
http://ip_address/.
2Click Configuration.
3Under Other Settings, click Network/Ports.
4Click 802.1x Authentication.
Note: If an optional internal wireless print server is installed, click Wireless instead of 802.1x
Authentication.
5Select the check box next to Active to enable 802.1x Authentication.
Encrypting the hard disk
121
Administrative support
6Indicate the setting for each sub-item as required for the network environment.
7Click Submit.
Confidential Print Setup
Confidential Print Setup allows the designation of a maximum number of PIN entry attempts and allows setting an
expiration time for print jobs. When a user exceeds a specific number of PIN entry attempts, all of that user’s print jobs are
deleted. When a user has not printed their jobs within a designated time period, the print jobs are deleted. To activate
Confidential Print Setup:
1Open a Web browser. In the address line, enter the IP address of the MFP being configured using the format:
http://ip_address/.
2Click Configuration.
3Under Other Settings, click Security.
4Click Confidential Print Setup.
5Set the value for the maximum number of invalid PINs allowed. Set Job Expiration to the maximum amount of time
before a submitted confidential print job is deleted.
6Click Submit.
Encrypting the hard disk
Warning: All resources on the hard disk will be deleted. Resources residing in flash memory or in RAM remain
unaffected.
Note: This setting is only available on MFP models with an integrated internal hard disk drive.
1Turn the MFP off. Wait 10 seconds.
2Press and hold the 2 and 6 buttons on the numeric keypad while turning the MFP on.
3Release the buttons when the touch screen blinks and is blank momentarily. Wait.
The Config Menu appears.
4Touch the down arrow to scroll to Disk Encryption.
5Touch the right arrow to enter the Disk Encryption menu.
6Touch the right arrow next to Enable to encrypt the hard disk.
Contents will be lost. Continue? appears.
7Touch Yes to continue the process.
The Encrypting Disk progress bar appears.
Warning: Do not power off the MFP until the process completes.
8When hard disk encryption is finished, touch Back to return to the Config Menu.
9Touch Exit Config Menu to exit.
To disable disk encryption:
1Turn the MFP off. Wait 10 seconds.
2Press and hold the 2 and 6 buttons on the numeric keypad while turning the MFP on.
Hard disk wiping
122
Administrative support
3Release the buttons when the touch screen blinks and is blank momentarily. Wait.
The Config Menu appears.
4Touch the down arrow to scroll to Disk Encryption.
5Touch the right arrow to enter the Disk Encryption menu.
6Touch the right arrow next to Disable to decrypt the hard disk.
Contents will be lost. Continue? appears.
7Touch Yes to continue the process.
The Formatting Disk progress screen appears.
Warning: Do not power off the MFP until the process completes.
8When hard disk decryption is finished, touch Back to return to the Config Menu.
9Touch Exit Config Menu to exit.
Hard disk wiping
Warning: All resources on the hard disk will be irretrievably deleted. (Resources residing in flash memory or in
RAM remain unaffected.)
Note: This setting is only available on MFP models with an integrated internal hard disk drive.
1Turn the MFP off. Wait 10 seconds.
2Press and hold the 2 and 6 buttons on the numeric keypad while turning the MFP on.
3Release the buttons when the touch screen blinks and is blank momentarily. Wait.
The Config Menu appears.
4Touch the down arrow to scroll to Wipe Disk.
5Touch the right arrow to enter the Wipe Disk menu.
6Touch the right arrow next to Wipe Disk now to wipe the hard disk.
Contents will be lost. Continue? appears.
7Touch Yes to continue the process.
The Wiping Disk progress screen appears.
Warning: Do not power off the MFP until the process completes.
8When hard disk wiping is finished, touch Back to return to the Config Menu.
9Touch Exit Config Menu to exit.
Using the restricted server list function
123
Administrative support
Using the restricted server list function
The Restricted Server List lets a system support person restrict which hosts are allowed to communicate with the MFP over
the network which prevents other hosts from managing and printing to the MFP.
Note: The Restricted Server List only restricts TCP traffic; it does not affect UDP traffic. The Restricted
Server List supports up to ten host addresses or ten network addresses.
To configure the Restricted Server List from the EWS of the MFP:
1Open a Web browser.
2In the address line, enter the IP address of the MFP requiring configuration using the format: http://ip_address/.
3Click Configuration.
4Under Other Settings, click Network/Ports.
5Click TCP/IP.
6Enter the list of addresses in the Restricted Server List field for network communications permission separated
by commas in the following format: 111.222.333.444. To indicate an entire subnet, provide the subnet mask bits in
the format: 111.222.333.0/24.
7Click Submit.
Troubleshooting
124
13 Troubleshooting
Understanding MFP messages
The MFP displays three types of messages: status messages, attendance messages, and service messages. Status
messages provide information about the current state of the MFP. They require no action on your part. Attendance
messages alert you to MFP problems that require your intervention. Service messages also alert you to problems that
require intervention. However, the MFP will stop printing and the errors are non-recoverable. It may be possible to power
the MFP off and back on to temporarily recover from the service message error condition. For more information about MFP
messages, see the Menus and Messages Guide on the Software and Documentation CD.
If you receive the following message, see Ordering a print cartridge.
Online technical support
Technical support is available on our Lexmark Web site at www.lexmark.com.
Checking an unresponsive MFP
If the MFP is not responding, first make sure:
•The power cord is plugged into the MFP and a properly grounded electrical outlet.
•The electrical outlet is not turned off by any switch or breaker.
•The MFP is not plugged into any surge protectors, uninterrupted power supplies, or extension cords.
•Other electrical equipment plugged into the outlet is working.
•The MFP is turned on.
•The MFP cable is securely attached to the MFP and the host computer, print server, option, or other network
device.
Once you have checked each of these possibilities, turn the MFP off, wait at least 10 seconds, and then turn the MFP back
on. This often fixes the problem.
Message Action
42.xy Cartridge region mismatch
Note: x = the MFP region, y = the cartridge
region
Install the correct cartridge for the MFP region.
Region codes are:
MFP region Cartridge region Location
REGCDW 0 Worldwide
REGCDA 1 USA and Canada
REGCDE 2 EMEA
REGCDR 3 Asia Pacific Region
REGCDL 4 Latin America
Printing multiple language PDFs
125
Troubleshooting
Printing multiple language PDFs
Solving printing problems
Symptom Cause Solution
Some documents do not
print. The documents contain
unavailable fonts. 1Open the document you want to print in Adobe Reader.
2Click the printer icon.
The Print dialog appears.
3Check the Print as image box.
4Click OK.
Symptom Cause Solution
The control panel display
is blank. The MFP self test failed. Turn the MFP off, wait about 10 seconds, and turn the MFP back
on.
If the Ready message does not appear, turn the MFP off, and call
for service.
The message USB
device unsupported
appears when using a
USB device.
The USB device you are
using may not be
supported or has an
error. Only specific USB
flash memory devices
are supported.
For information regarding tested and approved USB flash memory
devices, see Printing from a USB flash memory device.
Jobs do not print. The MFP is not ready to
receive data. Make sure Ready or Power Saver appears on the display before
sending a job to print.
The output bin is full. Remove the stack of paper from the output bin.
The specified input tray
is empty. Load paper in the tray.
You are using the wrong
MFP driver or are
printing to a file.
• Verify you are using the MFP driver associated with the MFP.
• If you are using a USB port, make sure you are running
Windows 98/Me, Windows 2000, Windows XP, or
Windows Server 2003 and using a Windows 98/Me,
Windows 2000, Windows XP, or Windows Server 2003
compatible MFP driver.
Your MarkNet™ N8000
series internal print
server is not set up
properly or is not
connected properly.
Verify that you have properly configured the MFP for network
printing.
See the Software and Documentation CD or the Lexmark Web site
for information.
You are using the wrong
interface cable, or the
cable is not securely
connected.
Make sure you are using a recommended interface cable.
Make sure the connection is secure.
Solving printing problems
126
Troubleshooting
Held jobs do not print. A formatting error has
occurred. • Print the job. (Only part of the job may print.)
• Delete the job.
• Free up additional MFP memory by scrolling through the list of
held jobs and deleting others you have sent to the MFP.
The MFP has insufficient
memory.
The MFP has received
invalid data. Delete the job.
Job takes longer than
expected to print. The job is too complex. Reduce the complexity of your print job by eliminating the number
and size of fonts, the number and complexity of images, and the
number of pages in the job.
Page Protect is set to
On. Set Page Protect to Off under Settings Æ General Settings Æ
Print Recovery.
For more information, see the Menus and Messages Guide.
Job prints from the
wrong tray or on the
wrong paper or specialty
media.
The control panel menu
settings do not match the
media loaded in the tray.
Make sure the Paper Size and Paper Type specified in the MFP
driver match the paper size and type in the tray.
Incorrect characters
print. You are using an
incompatible parallel
cable.
If you are using a parallel interface, make sure you are using an
IEEE 1284-compliant parallel cable. We recommend Lexmark part
number 1329605 (10 ft) or 1427498 (20 ft) for the standard parallel
port.
The MFP is in Hex Trace
mode. If Ready Hex appears on the display, you must exit Hex Trace
mode before you can print your job. Turn the MFP off, wait 10
seconds, and then turn the MFP back on to exit Hex Trace mode.
Tray linking does not
work. Tray linking is not
configured properly. • Make sure both the size and type of media are the same in both
trays.
• Make sure the paper guides in the trays are set for the correct
size media.
• Make sure the menu values for both size and type are set
correctly in the Paper Menu.
• See Linking trays, or see the Menus and Messages Guide for
more information.
Large jobs do not collate. Collate is not set to On. Set Collation to On in the Finishing Menu or through the MFP
driver.
Note: Setting Collation to Off in the driver overrides the setting in
the Finishing Menu.
See the Menus and Messages Guide for more information.
The job is too complex. Reduce the complexity of the print job by eliminating the number
and size of fonts, the number and complexity of images, and the
number of pages in the job.
The MFP does not have
enough memory. Add MFP memory.
Unexpected page breaks
occur. The job has timed out. Set Print Timeout to a higher value from the Setup Menu.
See the Menus and Messages Guide for more information.
Symptom Cause Solution
Solving copy quality problems
127
Troubleshooting
Solving copy quality problems
The following solutions will help solve copy problems. For additional information, see Copy tips.
Solving scan quality problems
The following solutions will help solve scan problems. For additional information, see Scanning tips.
Symptom Solution
Unwanted background is visible. Adjust the Background Removal setting under Copy Æ Options Æ Advanced
Imaging. Touch the right arrow to remove more background.
Unwanted patterns (Moire)
appear when a document is
copied using Photograph mode.
Change the content mode to Printed Image under Copy Æ Options Æ Content.
Black text is too light or
disappearing. • Change the content mode to Text under Copy Æ Options Æ Content.
• Adjust the Background Removal setting under Copy Æ Options Æ Advanced
Imaging. Touch the left arrow to remove less background.
• Adjust the Contrast setting under Copy Æ Options Æ Advanced Imaging. Touch
the right arrow to add more contrast.
• Adjust the Shadow Detail setting under Copy Æ Options Æ Advanced Imaging.
Touch the left arrow to decrease shadow detail.
• Adjust the Darkness setting under the Copy menu. Touch the right arrow to
increase the darkness setting.
The copy looks washed out or
overexposed. • Adjust the Background Removal setting under Copy Æ Options Æ Advanced
Imaging. Touch the left arrow to remove less background.
• Adjust the Shadow Detail setting under Copy Æ Options Æ Advanced Imaging.
Touch the left arrow to remove more shadow detail.
Symptom Solution
The file size is too big when I
scan a document to the network. • Touch Options, then under Resolution, decrease the output resolution.
• Touch Options, then under Content, change the Color option to black and white.
• Touch Options, then under Content, change the setting to Text.
Text characters do not look sharp
when I scan a document to the
network.
• Touch Options, then under Resolution, increase the output resolution.
• Touch Options, then under Content, change the setting to Text.
Black text is too light or
disappearing. • Adjust the Darkness setting. Touch the right arrow to increase the darkness setting.
• Change the content mode to Text.
• Adjust the Background Removal setting under Advanced Imaging. Touch the left
arrow to remove less background.
• Adjust the Contrast setting under Advanced Imaging. Touch the right arrow to add
more contrast.
• Adjust the Shadow Detail setting under Advanced Imaging. Touch the left arrow to
decrease shadow detail.
Unwanted background is visible. Adjust the Background Removal setting under Advanced Imaging. Touch the right
arrow to remove more background.
Solving fax quality problems
128
Troubleshooting
Solving fax quality problems
The following solutions will help solve copy problems. For additional information, see Fax tips.
Solving option problems
If an option does not operate correctly after it is installed, or if it quits working:
•Turn the MFP off, wait for about 10 seconds, and turn the MFP on. If this does not fix the problem, unplug the
MFP, and check the connection between the option and MFP.
•Print the menu settings page, and check to see if the option is listed in the Installed Options list. If the option is not
listed, reinstall it. See Printing the menu settings page for more information.
•Make sure the option is selected in the software application you are using.
The following table lists MFP options and suggested corrective actions for related problems. If the suggested corrective
action does not fix the problem, call your service representative.
Symptom Solution
The fax document takes a long
time to transmit. Touch Options, then under Content, change the setting to Text, and then set the
resolution to Standard.
The images on the fax I sent are
not clear. Touch Options, then under Content, change the setting to Text/Photo or Photo.
Increase the output resolution.
Note: This will increase the amount of time required for the scan and will increase the
quality of the fax output.
Option Action
Drawers • Make sure the connection between drawers (250-sheet drawer, 500-sheet drawer, or 2000-sheet
drawer) or the connection between a drawer and a duplex unit or the MFP is secure.
• Make sure the print media is loaded correctly. See Loading standard trays and optional trays
for more details.
Duplex unit • Make sure the connection between the duplex unit and the MFP is secure. If the duplex unit is
listed on the menu settings page, but print media jams when it enters or exits the duplex unit, the
MFP and duplex unit may not be properly aligned.
• Make sure the duplex front access cover is securely installed.
Envelope feeder • Make sure the connection between the envelope feeder and the MFP is secure.
• Make sure the Paper Size setting is correct in both the Paper menu and in the software
application.
• Make sure the envelopes are loaded correctly. See Loading the envelope feeder for more
details.
Flash memory Make sure flash memory is securely connected to the MFP system board.
Internal print
server • Make sure the internal print server (also called an internal network adapter or INA) is securely
connected to the MFP system board.
• Make sure you are using the correct cable, that it is securely connected, and the network
software is correctly set up.
See the Software and Documentation CD that shipped with the MFP for more details.
Large capacity
feeder (2000-sheet
drawer)
See Solving 2000-sheet drawer problems.
MFP memory Make sure MFP memory is securely connected to the MFP system board.
Solving option problems
129
Troubleshooting
Solving 2000-sheet drawer problems
Problem Solution
The elevator tray does not raise when the
loading door is closed, or the elevator tray
does not lower when the door is opened and
the elevator button is pushed.
Check the following:
• The MFP is properly attached to the 2000-sheet drawer.
• The MFP is powered on.
• The power cord is plugged firmly into the back of the 2000-sheet
drawer.
• The power cord is plugged into an outlet.
• The outlet has power.
The elevator tray lowers unexpectedly. Check to see if the MFP is out of print media or has a jam.
More than one sheet of print media is fed, or a
sheet is fed improperly. Remove the print media in the MFP paper path, and check the stack to
ensure the print media has been loaded properly. Be sure to remove the
top and bottom sheets of each ream of paper that is loaded.
A jam occurs.
Rubber feed rollers do not turn to advance
print media. Check the following:
• The power cord is plugged firmly into the back of the 2000-sheet
drawer.
• The power cord is plugged into an outlet.
• The outlet has power.
Consistent misfeeds or jams in the drawer Try the following:
• Flex the paper.
• Turn the print media over.
Check the following:
• Drawer is properly installed.
• Print media is loaded correctly.
• Print media is not damaged.
• Print media meets specifications.
• Guides are positioned correctly for the print media size selected.
Service messages A service message indicates an MFP failure that may require service.
Turn the MFP off, wait about 10 seconds, and then turn the MFP on.
If the error recurs, write down the error number, the problem, and a
detailed description. Call for service.
Solving paper feed problems
130
Troubleshooting
Solving paper feed problems
Symptom Cause Solution
Paper frequently jams. You are using paper that does not
meet the MFP specifications. Use recommended paper and other specialty media.
See the Card Stock & Label Guide available on our
Lexmark Web site at www.lexmark.com for detailed
specifications.
See Avoiding jams for information that can help prevent
jams from occurring.
You have loaded too much paper
or too many envelopes. Make sure the stack of paper you load does not exceed
the maximum stack height indicated in the tray or on the
multipurpose feeder.
Guides in the selected tray are not
set to the appropriate position for
the size paper loaded.
Move the guides in the tray to the correct position.
The paper has absorbed moisture
due to high humidity. Load paper from a fresh package.
Store paper in its original wrapper until you load it.
See Storing print media for more information.
The pick rolls may be worn. Replace the pick rolls.
See Ordering pick rollers for more information.
The Paper Jam
message remains after
you remove the jammed
paper.
You have not pressed Continue
or have not cleared the entire
paper path.
Clear the entire paper path, and then press Continue.
See Clearing jams for more information.
The page that jammed
does not reprint after you
clear the jam.
Jam Recovery in the Setup menu
is set to Off. Set Jam Recovery to Auto or On.
See the Menus and Messages Guide for more
information.
Blank pages feed into
the output bin. An incorrect media type is loaded
in the tray being printed from. Load the correct type media for your print job, or change
the Paper Type to match the type of media loaded.
See the Menus and Messages Guide for more
information.
Original documents
misfeed in the ADF. The guides are not adjusted
properly. Adjust the guides toward the media until they lightly rest
against the edge of the media.
The pick roller mechanism may be
worn. Replace the roller mechanism.
See Ordering an ADF pick mechanism for more
information.
Multiple pages feed into
the ADF. The separator roll may be worn. Replace the separator roll.
See Ordering an ADF separator roller for more
information.
Print quality troubleshooting
131
Troubleshooting
Print quality troubleshooting
To help isolate print quality problems, print the “Print defects guide,” and check for repeating defects. If repeating defects
appear, print the Print Quality Test Pages.
Printing the print defects guide
1Touch the help icon (?).
2Touch Print Defects Guide.
Printing the print quality test pages
1Turn the MFP off.
2Hold down the number 2 and number 6 keys on the numeric pad.
3Continue to hold the buttons, and turn the MFP on.
Hold the buttons for about 10 seconds while the MFP is powering up, then release the buttons. The MFP enters
the Configuration menu.
4Touch Print Quality Pages.
5Touch Exit Configuration Menu.
The printer restarts and returns to the home page.
Solving print quality problems
132
Troubleshooting
Solving print quality problems
The information in the following table may help you solve print quality problems. If these suggestions still do not correct the
problem, call for service. You may have an MFP part that requires adjustment or replacement.
Problem Action
Print is too light. • The toner may be low. To utilize the remaining toner, remove the cartridge by gripping
the handles with both hands. With the cartridge arrows pointing downward, firmly
shake the print cartridge side-to-side and front-to-back several times to redistribute the
toner. Reinstall the cartridge. Repeat this procedure multiple times until the print
remains faded. When the print remains faded, replace the print cartridge.
• Change the Toner Darkness setting in the Quality menu.
• Change the Brightness setting in the Quality menu.
• Change the Contrast setting in the Quality menu.
• If you are printing on an uneven print surface, change the Paper Weight and Paper
Texture settings in the Paper menu.
• Verify the correct print media is being used.
• Verify you are using the correct MFP drivers.
• Verify the environment is 16 to 32 degrees C (60 to 90o F).
Toner smears or print comes
off the page. • If you are printing on an uneven print surface, change the Paper Weight and Paper
Texture settings in the Paper menu.
• Verify the print media is within the MFP specifications. See Understanding paper and
specialty media guidelines for more details.
Toner appears on the back of
the printed page. Toner is on the transfer roll. To help prevent this, do not load print media that is smaller
than the page size of the job to be printed.
Open and close the MFP top front cover to run the MFP setup cycle and clean the
transfer roll.
Toner fog or background
shading appears on the page. • Check the print cartridge to make sure it is installed correctly.
•The Toner Darkness setting may be too dark. Change the Toner Darkness setting in
the Quality menu.
• Verify the environment is Class B.
• Replace the charge rolls.
• Replace the print cartridge.
Solving print quality problems
133
Troubleshooting
Entire page is white. • Make sure the packaging material is removed from the print cartridge.
• Check the print cartridge to be sure it is installed correctly.
• The toner may be low. To utilize the remaining toner, remove the cartridge by gripping
the handles with both hands. With the cartridge arrows pointing downward, firmly
shake the print cartridge side-to-side and front-to-back several times to redistribute the
toner. Reinstall the cartridge. Repeat this procedure multiple times until the print
remains faded. When the print remains faded, replace the print cartridge.
Streaks appear on the page. • The toner may be low. To utilize the remaining toner, remove the cartridge by gripping
the handles with both hands. With the cartridge arrows pointing downward, firmly
shake the print cartridge side-to-side and front-to-back several times to redistribute the
toner. Reinstall the cartridge. Repeat this procedure multiple times until the print
remains faded. When the print remains faded, replace the print cartridge.
• If you are using preprinted forms, make sure the ink can withstand temperatures of
230°C (446°F).
Printing is too dark. • Change the Toner Darkness setting in the Quality menu.
• Change the Brightness setting in the Quality menu.
• Change the Contrast setting in the Quality menu.
• Verify the environment is 16 to 32 degrees C (60 to 90o F).
Note: Macintosh computer users should make sure the job lines per inch (lpi) setting is
not set too high in the software application.
Characters have jagged or
uneven edges. • Change the Print Resolution setting in the Quality menu to 600 dpi, 1200 Image Q,
1200 dpi, or 2400 Image Q.
• Enable Enhance Fine Lines.
See the tables on page 135 for more settings information.
• If you are using downloaded fonts, verify the fonts are supported by the MFP, the host
computer, and the software application.
• Verify the print media type and print tray type settings match.
• Verify you are using the correct MFP drivers.
• Verify the environment is 16 to 32 degrees C (60 to 90o F).
Problem Action
Solving print quality problems
134
Troubleshooting
Part or all of the page is
printed in black. Check the print cartridge to see if it is installed correctly.
The job prints, but the top and
side margins are incorrect. • Make sure the Paper Size setting in the Paper menu is correct.
• Make sure the margins are set correctly in your software application.
Ghost images appear. • Make sure the Paper Type setting in the Paper menu is correct.
• Verify the environment is Class B.
• Replace the charge rolls.
• Replace the print cartridge.
Some of the print is cut off on
the sides, top, or bottom of
the media.
Move the guides in the tray to the proper positions for the size loaded.
Print is skewed or
inappropriately slanted.
Transparency print quality is
poor. • Use only transparencies recommended by the MFP manufacturer.
• Make sure the Paper Type setting in the Paper menu is set to Transparency.
Problem Action
Solving print quality problems
135
Troubleshooting
The Quality menu control panel options can be adjusted to help improve print quality.
In addition, the Enhance Fine Lines and Gray Correction options can be enabled to improve print quality. These settings
are available on the driver and on the MFP Embedded Web Server (EWS) interface. For more information about these
options, see the driver Help.
Menu selection Purpose Values†
Print Resolution To select printed output resolution 600 dpi*
1200 Image Q
1200 dpi
2400 Image Q
Toner Darkness Lightens or darkens printed output and
alters toner consumption 1—10 8* is the default setting.
Select a lower number to lighten the
printed output or save toner.
Brightness Adjusts the gray value of printed
graphics and pictures -6 — +6 0* is the default setting.
Contrast Adjusts the contrast of printed
graphics and pictures 0—5 0* is the default setting.
† Values marked by an asterisk (*) are the factory default settings.
Driver option Purpose Values†
Enhance Fine Lines A selection to enable a print mode
preferable for certain files containing
fine line detail, such as architectural
drawings, maps, electronic circuit
diagrams, and flow charts
On In the driver, enable the check box.
Off* In the driver, disable the check box.
Gray Correction Automatically adjusts the contrast
enhancement applied to images Auto In the driver, enable the check box.
Off* In the driver, disable the check box.
† Values marked by an asterisk (*) are the factory default settings.
Notices
136
Notices
Conventions
Note: A note identifies something that could help you.
CAUTION: A caution identifies something that could cause you harm.
Warning: A warning identifies something that could damage your product hardware or software.
Electronic emission notices
Federal Communications Commission (FCC) compliance information statement
Part 15
The X644e and X646e machine types 7002-101, 7002-102, 7002-111, 7002-112, 7002-001, 7002-011, 7002-012, and
7002-002 have been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC
Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause undesired operation.
The FCC Class A limits are designed to provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be
required to correct the interference at his own expense.
The manufacturer is not responsible for any radio or television interference caused by using other than recommended
cables or by unauthorized changes or modifications to this equipment. Unauthorized changes or modifications could void
the user's authority to operate this equipment.
Note: To assure compliance with FCC regulations on electromagnetic interference for a Class A computing
device, use a properly shielded and grounded cable such as Lexmark part number 1329605 for
parallel attach or 12A2405 for USB attach. Use of a substitute cable not properly shielded and
grounded may result in a violation of FCC regulations.
Industry Canada compliance statement
This Class A digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations ICES-
003.
Avis de conformité aux normes de l’industrie du Canada
Cet appareil numérique de la classe A respecte toutes les exigences du Règlement ICES-003 sur le matériel brouilleur du
Canada.
Notices
137
Notices
European Community (EC) directives conformity
Declaration of Conformity with Regard to the EU Directive 1999/5/EC (R&TTE Directive) in languages of the European
Community.
English
Hereby, Lexmark International Inc., declares that this Product is in compliance with the
essential requirements and other relevant provisions of Directive 1999/5/EC.
Suomi
Valmistaja Lexmark International Inc. vakuuttaa täten että Product tyyppinen laite on direktiivin
1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.
Nederlands
Hierbij verklaart Lexmark International Inc. dat het toestel Product in overeenstemming is met
de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG
Bij deze verklaart Lexmark International Inc. dat deze Product voldoet aan de essentiële eisen
en aan de overige relevante bepalingen van Richtlijn 1999/5/EC.
Français
Par la présente Lexmark International Inc. déclare que l'appareil Product est conforme aux
exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE
Par la présente, Lexmark International Inc. déclare que ce Product est conforme aux
exigences essentielles et aux autres dispositions de la directive 1999/5/CE qui lui sont
applicables
Svenska
Härmed intygar Lexmark International Inc. att denna Product står i överensstämmelse med de
väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/
5/EG.
Dansk
Undertegnede Lexmark International Inc. erklærer herved, at følgende udstyr Product
overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF
German
Hiermit erklärt Lexmark International Inc., dass sich dieses Product in Übereinstimmung mit
den grundlegenden Anforderungen und den anderen relevanten Vorschriften der Richtlinie
1999/5/EG befindet. (BMWi)
Hiermit erklärt Lexmark International Inc. die Übereinstimmung des Gerätes Product mit den
grundlegenden Anforderungen und den anderen relevanten Festlegungen der Richtlinie 1999/
5/EG. (Wien)
Ελληνικά
Με την παρούσα Lexmark International Inc. δηλώνει οτι Product συµµορφώνεται προς τις
ουσιώδεις απαιτησεις και τις λοιπές σχετικές διατάξεις της οδηγίας 1999/5/EK.
Italiano
Con la presente Lexmark International Inc. dichiara che questo Product è conforme ai requisiti
essenziali e alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
Español
Por medio de la presente Lexmark International Inc. declara que el Product cumple con los
requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva
1999/5/CE
Português
Lexmark International Inc. declara que este Product está conforme com os requisitos
essenciais e outras provisões da Directiva 1999/5/CE.
Česky
Lexmark International Inc. tímto prohlašuje, že tento výrobek s typovým oznacením Product
vyhovuje základním požadavkům a dalším ustanovením směrnice 1999/5/ES, které se na
tento výrobek vztahují.
Magyar
Lexmark International Inc. ezennel kijelenti, hogy ez a Product termék megfelel az alapvető
követelményeknek és az 1999/5/EC irányelv más vonatkozó ndelkezéseinek.
Eesti
Käesolevaga kinnitab Lexmark International Inc. seadme Product vastavust direktiivi 1999/5/
EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.
Notices
138
Notices
This product is in conformity with the protection requirements of EC Council directives 89/336/EEC, 73/23/EEC, and 1999/
5/EC on the approximation and harmonization of the laws of the Member States relating to electromagnetic compatibility
and safety of electrical equipment designed for use within certain voltage limits and on radio equipment and
telecommunications terminal equipment. The Official Declaration of Conformity may be viewed at www.lexmark.com/rtte.
Compliance is indicated by the following CE marking:
Radio interference notice
Warning: This is a Class A product. In a domestic environment, this product may cause radio interference, in
which case, the user may be required to take adequate measures. This Class A digital device is
marketed for use in a commercial, industrial or business environment, and not intended for use in
homes, or a home office.
CCC EMC notice
Latviski
Ar šo Lexmark International Inc. deklarē, ka Product atbilst Direktīvas 1999/5/EK būtiskajām
prasībām un citiem ar to saistītajiem noteikumiem.
Lithuanian
Lexmark International Inc. deklaruoja, kad irenginys Product tenkina 1999/5/EB Direktyvos
esminius reikalavimus ir kitas sios direktyvos nuostatas
Maltese
Polski
Lexmark International Inc., deklarujemy z pelną odpowiedzialnością, że wyrób Product
spełnia podstawowe wymagania i odpowiada warunkom zawartym w dyrektywie 1999/5/EC
Slovak
Lexmark International Inc. týmto vyhlasuje, že tento Product vyhovuje technickým
požiadavkám a ďalším ustanoveniam smernice 1999/5/ES, ktoré sa na tento výrobok
vz˙ahujú.
Slovenščina
S tem dokumentom Lexmark International Inc., izjavlja, da je ta Product v skladu z bistvenimi
zahtevami in z drugimi ustreznimi določili Direktive 1999/5/EC
Notices
139
Notices
Japanese VCCI notice
If this statement appears on your product, the following statement is applicable.
Korean MIC statement
If this symbol appears on your product, the accompanying statement is applicable.
This equipment has undergone Type Approval/EMC registration as a business product. It should not be used in a
residential area.
BSMI EMC notice
If this statement appears on your product, the accompanying statement is applicable.
Part 68
This equipment complies with Part 68 of the FCC rules and the requirements adopted by the Administrative Council for
Terminal Attachments (ACTA). On the back of this equipment is a label that contains, among other information, a product
identifier in the format US:AAAEQ##TXXXX. If requested, this number must be provided to your telephone company.
This equipment uses the RJ-11C Universal Service Order Code (USOC) jack.
A plug and jack used to connect this equipment to the premises’ wiring and telephone network must comply with the
applicable FCC Part 68 rules and requirements adopted by the ACTA. A compliant telephone cord and modular plug is
provided with this product. It is designed to be connected to a compatible modular jack that is also compliant. See the
Setup Sheet for more information.
The Ringer Equivalence Number (REN) is used to determine the number of devices that may be connected to a telephone
line. Excessive RENs on a telephone line may result in the devices not ringing in response to an incoming call. In most but
not all areas, the sum of RENs should not exceed five (5.0). To be certain of the number of devices that may be connected
to a line, as determined by the total RENs, contact your local telephone company. For products approved after July 23,
2001, the REN for this product is part of the product identifier that has the format US:AAAEQ##TXXXX. The digits
represented by ## are the REN without a decimal point (for example, 03 is a REN of 0.3). For earlier products, the REN is
shown separately on the label.
If this equipment causes harm to the telephone network, the telephone company will notify you in advance that temporary
discontinuance of service may be required. If advance notice is not practical, the telephone company will notify the
customer as soon as possible. You will also be advised of your right to file a complaint with the FCC.
Notices
140
Notices
The telephone company may make changes in its facilities, equipment, operations or procedures that could affect the
operation of this equipment. If this happens, the telephone company will provide advance notice in order for you to make
necessary modifications to maintain uninterrupted service.
If you experience trouble with this equipment, for repair or warranty information, contact Lexmark International, Inc. at
www.Lexmark.com or your Lexmark representative. If the equipment is causing harm to the telephone network, the
telephone company may request that you disconnect the equipment until the problem is resolved.
This equipment contains no user serviceable parts. For repair and warranty information, contact Lexmark International, Inc.
See the previous paragraph for contact information.
Connection to party line service is subject to state tariffs. Contact the state public utility commission, public service
commission, or corporation commission for information.
If your home has specially wired alarm equipment connected to the telephone line, ensure the installation of this equipment
does not disable your alarm equipment. If you have questions about what will disable alarm equipment, consult your
telephone company or a qualified installer.
Telephone companies report that electrical surges, typically lightning transients, are very destructive to customer terminal
equipment connected to AC power sources. This has been identified as a major nationwide problem. It is recommended
that the customer install an appropriate AC surge arrestor in the AC outlet to which this device is connected. An appropriate
AC surge arrestor is defined as one that is suitably rated, and certified by UL (Underwriter's Laboratories), another NRTL
(Nationally Recognized Testing Laboratory), or a recognized safety certification body in the country/region of use. This is to
avoid damage to the equipment caused by local lightning strikes and other electrical surges.
The Telephone Consumer Protection Act of 1991 makes it unlawful for any person to use a computer or other electronic
device, including fax machines, to send any message unless said message clearly contains in a margin at the top or bottom
of each transmitted page or on the first page of the transmission, the date and time it is sent and an identification of the
business or other entity, or other individual sending the message, and the telephone number of the sending machine or
such business, other entity, or individual. (The telephone number provided may not be a 900 number or any other number
for which charges exceed local or long-distance transmission charges.)
See the section in this publication entitled Fax setup in order to program this information into your fax machine.
Other telecommunications notices
Notice to users of the Canadian telephone network
This product meets the applicable Industry Canada technical specifications.
The Ringer Equivalence Number (REN) is an indication of the maximum number of terminals allowed to be connected to a
telephone interface. The terminus of an interface may consist of any combination of devices, subject only to the
requirement that the sum of the RENs of all the devices does not exceed five. The modem REN is located on the rear of the
equipment on the product labeling.
Telephone companies report that electrical surges, typically lightning transients, are very destructive to customer terminal
equipment connected to AC power sources. This has been identified as a major nationwide problem. It is recommended
that the customer install an appropriate AC surge arrestor in the AC outlet to which this device is connected. An appropriate
AC surge arrestor is defined as one that is suitably rated, and certified by UL (Underwriter’s Laboratories), another NRTL
(Nationally Recognized Testing Laboratory), or a recognized safety certification body in the country/region of use. This is to
avoid damage to the equipment caused by local lightning strikes and other electrical surges.
This equipment uses CA11A telephone jacks.
Notices
141
Notices
Notice to users of the New Zealand telephone network
The following are special conditions for the Facsimile User Instructions.
The grant of a telepermit for any item of terminal equipment indicates only that Telecom has accepted that the item
complies with minimum conditions for connection to its network. It indicates no endorsement of the product by Telecom, nor
does it provide any sort of warranty. Above all, it provides no assurance that any item will work correctly in all respects with
another item of telepermitted equipment of a different make or model, nor does it imply that any product is compatible with
all of Telecom's network services.
This equipment shall not be set up to make automatic calls to the Telecom's 111 Emergency Service.
This equipment may not provide for the effective hand-over of a call to another device connected to the same line.
This equipment should not be used under any circumstances that may constitute a nuisance to other Telecom customers.
Some parameters required for compliance with Telecom's telepermit requirements are dependent on the equipment
associated with this device. The associated equipment shall be set to operate within the following limits for compliance to
Telecom's specifications:
•There shall be no more than 10 call attempts to the same number within any 30 minute period for any single
manual call initiation, and
•The equipment shall go on-hook for a period of not less than 30 seconds between the end of one attempt and the
beginning of the next call attempt.
•The equipment shall be set to ensure that automatic calls to different numbers are spaced such that there is not
less than 5 seconds between the end of one call attempt and the beginning of another.
South Africa telecommunications notice
This modem must be used in conjunction with an approved surge protection device when connected to the PSTN.
Using this product in Germany
This product requires a German billing tone filter (Lexmark part number 14B5123) to be installed on any line which receives
metering pulses in Germany. Metering pulses may or may not be present on analog lines in Germany. The subscriber may
request that metering pulses be placed on the line, or can have them removed by calling the German network provider.
Normally, metering pulses are not provided unless specifically requested by the subscriber at the time of installation.
Using this product in Switzerland
This product requires a Swiss billing tone filter (Lexmark part number 14B5109) to be installed on any line which receives
metering pulses in Switzerland. The Lexmark filter must be used, as metering pulses are present on all analog telephone
lines in Switzerland.
Notices
142
Notices
Noise emission levels
German GS mark notice
The following measurements were made in accordance with ISO 7779 and reported in conformance with ISO 9296.
Model: X644e, X646e
Machine types: 7002-101, 7002-102, 7002-111, 7002-112, 7002-001, 7002-011, 7002-012, and 7002-002
Mailing address
Lexmark Deutschland GmbH
Postfach 1560
63115 Dietzenbach
Physical address
Lexmark Deutschland GmbH
Max-Planck-Straße 12
63128 Dietzenbach
Phone: 0180 - 564 56 44 (Product Information)
Phone: 01805 - 00 01 15 (Technical Support)
E-mail: internet@lexmark.de
1-meter average sound pressure, dBA
MFP Model
X644 X646e
Printing 53 56
Idling 30 30
Scanning 51 53
Copying 56 57
Notices
143
Notices
ENERGY STAR
Waste from Electrical and Electronic Equipment (WEEE)
directive
The WEEE logo signifies specific recycling programs and procedures for electronic products in countries of the European
Union. We encourage the recycling of our products. If you have further questions about recycling options, visit the Lexmark
Web site at www.lexmark.com for your local sales office phone number.
Laser advisory label
A laser notice label may be affixed to this MFP.
LUOKAN 1 LASERLAITE
VAROITUS! Laitteen käyttäminen muulla kuin tässä käyttoohjeessa mainitulla tavalla saattaa altistaa käyttäjän
turvallisuusluokan 1 ylittävälle näkymättömälle lasersäteilylle.
KLASS 1 LASER APPARAT
VARNING! Om apparaten används på annat sätt än i denna bruksanvisning specificerats, kan avnändaren utsättas för
osynlig laserstrålning, som överskrider gränsen för laserklass 1.
Laser notice
This MFP is certified in the U.S. to conform to the requirements of DHHS 21 CFR Subchapter J for Class I (1) laser
products, and elsewhere is certified as a Class I laser product conforming to the requirements of IEC 60825-1.
Class I laser products are not considered to be hazardous. The MFP contains internally a Class IIIb (3b) laser that is
nominally a 5 milliwatt gallium arsenide laser operating in the wavelength region of 770-795 nanometers. The laser system
and MFP are designed so there is never any human access to laser radiation above a Class I level during normal
operation, user maintenance, or prescribed service condition.
144
Index
Numerics
42.xy Cartridge region mismatch 124
A
address book 40
adjust paper tray 62
adjusting
Power Saver 115
screen timeout 115
adjusting quality 29
Advanced Password, menu protection 116
Advanced Password, setting 118
appendix template
1-column 136
applying template to existing files
1-column appendix 136
Asterisk button 13
automatic size sensing 71
automatic tray linking 71
B
Backspace button 12
booklet 26
brightness, LCD 114
buttons
? (Tips) 14
Asterisk 13
Back 21
Backspace 12
Cancel 20
Cancel Job 19
Cancel Jobs 16
Clear All 12
Continue 20
Copy 14
Custom 20
Dial Pause 12
Done 21
down arrow 19
E-mail 14
Fax 15
FTP 15
gray 21
grayed out 21
Held Faxes 15
Held Jobs 15
Home 21
left arrow 18
left scroll decrease 17
Lock Device 15
Menus 14
numeric keypad 12
Pound 12
Release Held Faxes 15
right arrow 18
right scroll increase 18
Search Held Jobs 15
Select 21
select 17
selected radio 20
Start 12
Status/Supplies 14
Stop 12
Unlock Device 16
unselected radio 19
C
cancel email 36
Cancel Job button 19
canceling a print job 56
cancelling
copy job 32
card stock
guidelines 79
loading 62
cartridge region mismatch 124
characteristics, paper 76
characteristics, print media 76
paper 76
charge roll 98
Clear All button 12
clearing jams 102
collate 26
collation 30
color 35
confidential jobs 58
entering a PIN 58
sending 58
configuring the MFP 115
Continue button 20
contrast, LCD 114
control panel
Asterisk 13
Backspace 12
Clear All 12
Dial Pause 12
145
Index
LCD 11
numeric keypad 12
pound 12
Start 12
Stop 12
control panel menus
preventing access 116
converting existing files to standard template
1-column appendix 136
copies
flatbed 25
quick 24
copy
from 25
one size to another 27
to 25
copy quality
adjusting 29
copy screens 25
copy tray selection 28
copying 24
duplexing 29
enlarging 29
letterhead 27
multipurpose feeder 28
reducing 29
transparencies 27
create booklet 26
custom job 31
D
date stamp 26
Device Lockout PIN
locking the MFP 117
setting 117
unlocking the MFP 117
Dial Pause button 12
disabling
ports 120
protocols 120
SNMPv1 119
SNMPv2 119
down arrow button 19
Driver to Fax
disabling 116
duplex 26
advanced 26
duplex copying 29
Duplex unit 10
E
edge erase 26
edition notice 2
electrical emission statement 136
email
address book 33
addresses 33
canceling 36
color documents 35
file reduction 37, 49
file types 35
message 34
options 36
quality 37, 49
resolution 37, 49
scanning 33
shortcut creation 35
shortcuts 33
subject line 34
to a profile 33
Embedded Web Server
setting security 118
using secured 118
emission statement 136
enlarging 29
envelopes
guidelines 77
loading
envelope feeder 69
erase edge 26
F
faxaddress book 40
from a computer
computer faxing 40
sending 39
shortcuts 40
FCC statement 136
file types
email 35
Function Access, restricting 116
G
guidelines
print media 76
H
hard disk
encryption 121
wiping 122
held jobs
confidential jobs 58
entering a PIN 58
Home button 21
Home screen 14
buttons 14
home screen
status message bar 14
I
Identifying MFPs 8
146
Index
indicator light 11
integrated forms 75
Internet Protocol Security 119
J
jams
avoiding 80
clearing 102
job 31
job build 31
L
label fuser cleaner 98
labels
guidelines 78
LCD brightness 114
LCD contrast 114
LCD touch-screen features
Attendance message alert 22
Menu trail line 22
left arrow button 18
left scroll decrease button 17
letterhead
loading
input tray 63, 66, 68
letterhead copying 27
Lexmark Authorized Supplies Dealers 93
light, indicator 11
linking 71
trays 71
load line 63, 66
loading print media
card stock 62
envelopes
envelope feeder 69
letterhead
input tray 63, 66, 68
paper
input tray 62
multipurpose feeder 64
transparencies
input tray 62
M
Macintosh 56, 57, 58, 60, 61, 77, 133
maintaining the MFP 93
maintaining the printer
ordering a print cartridge 95
margin shift 26
maximum stack height 66
menus
preventing access 116
setting Password Protect 115
Menus See individual menus
mercury statement 3
MFP
locking 117
unlocking 117
mixed sizes
copying 28
models 8
multipurpose feeder
closing 67
guidelines 64
icons 64
print media
loading 66
transparencies 65
multipurpose feeder copying 28
N
navigation bar 14
notice, edition 2
numeric keypad 12
nup printing 26
O
operator panel
brightness 114
contrast 114
options
email 36
ordering, print cartridge 95
P
paper
characteristics 76
supported media 72
understanding 72
unsatisfactory 76
weight 76
paper saver 26
paper saving 30
paper tray adjustment 62
paper unacceptable 76
password
Print Faxes Password 117
setting
Print Faxes Password 117
Password Protect, setting for the menus 115
photoconductor kit
recycling 98
pick pad 98
pick rollers 98
PIN
entering at the MFP 59
entering from the driver 58
for confidential jobs 58
ports, disabling 120
Pound button 12
Power Saver, adjusting 115
print cartridge
147
Index
ordering 95
print media
guidelines 76
paper 76
transparencies
guidelines 77
Print media guidelines 76
print media jams
avoiding 80
print media specifications
characteristics 76
sizes 73
types 74
weight 74
Printing 54
problems
incorrect characters print 126
job didn’t print 125
job prints 126
from wrong tray 126
on wrong paper or specialty media 126
large jobs do not collate 126
operator panel 125
blank 125
displays black diamonds 125
paper feed
blank pages in output bin 130
frequent jams 130
jammed page does not reprint 130
Paper Jam message remains after clearing jam 130
print time seems long 126
tray linking does not work 126
unexpected page breaks 126
protocols, disabling 120
publications
Card Stock & Label Guide 72
Q
quick copies 24
R
radio button
selected 20
unselected 19
received faxes
printing
setting a password prior to 117
recycling supplies 98
reducing 29
repeat print 60
reserve print 59
resolution 37, 49
restricted server list function, using 123
right arrow button 18
right scroll increase button 18
S
safety information 2
scale 25
scanning
options 52
to a PC 51
to email 33
screen timeout 115
screens
copy 25
secure management
through MVP 123
security
802.1x Authentication 120
Confidential Print Setup 121
setting
Advanced Password 118
using Embedded Web Server 118
supporting
IPSec 119
Simple Network Management Protocol 118
using secure Embedded Web Server 118
select button 17
selecting media 28
Sending a job to print 54
separator sheets 26
setting collation 30
settings
dark 25
light 25
sheets
separator 26
shortcut 35
shortcuts 40
creating 41, 48
multinumber 41, 48
single 41, 48
side guide 62
Simple Network Management Protocol, security 118
SNMPv1, disabling 119
SNMPv2, disabling 119
standard tray 10
Start button 12
static sensitivity notice 3
status message bar 14
Stop button 12
supplies
label fuser cleaner 98
maintenance kit 97
print cartridge 95
recycling 98
T
time stamp 26
toner cartridge
recycling 98
