OWNER’S MANUAL

LED TV*

*LG LED TV applies LCD screen with LED backlights.

Please read this manual carefully before operating your set and retain it

for future reference.

P/NO : MFL67688511(1309-REV03)

Printed in Korea

LA643*

LA61**

LN54**

LN53**

ENG

ENGLISH

TABLE OF CONTENTS

3 LICENSES

3 OPEN SOURCE SOFTWARE NOTICE

4 SAFETY INSTRUCTIONS

10 - Viewing 3D Imaging (Only 3D models)

12 INSTALLATION PROCEDURE

12 ASSEMBLING AND PREPARING

12 Unpacking

14 Separate purchase

15 Parts and buttons

16 Lifting and moving the TV

17 Setting up the TV

17 - Attaching the stand

19 Mounting on a table

21 Mounting on a wall

22 Tidying cables

23 MAKING CONNECTIONS

23 Antenna Connection

24 Satellite dish Connection

24 HDMI Connection

25 MHL Connection

25 Component Connection

26 Composite Connection

26 Headphone Connection

27 Audio Connection

27 - Digital optical audio connection

27 USB Connection

28 CI module Connection

28 Euro Scart Connection

29 REMOTE CONTROL

31 ENTERTAINMENT

31 Wired network connection

31 Network setting

32 USING THE USER GUIDE

33 MAINTENANCE

33 Cleaning your TV

33 - Screen, frame, cabinet and stand

33 - Power cord

34 TROUBLESHOOTING

34 EXTERNAL CONTROL DEVICE

SETUP

35 SPECIFICATIONS

WARNING

If you ignore the warning message, you may

be seriously injured or there is a possibility

of accident or death.

CAUTION

If you ignore the caution message, you may

be slightly injured or the product may be

damaged.

NOTE

The note helps you understand and use

the product safely. Please read the note

carefully before using the product.

ENGENGLISH

LICENSES / OPEN SOURCE SOFTWARE NOTICE

LICENSES

Supported licenses may differ by model. For more information about licenses, visit www.lg.com.

Manufactured under license from Dolby Laboratories. “Dolby” and the double-D

symbol are trademarks of Dolby Laboratories.

The terms HDMI and HDMI High-Denition Multimedia Interface, and the HDMI logo

are trademarks or registered trademarks of HDMI Licensing LLC in the United States

and other countries.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a

subsidiary of Rovi Corporation. This is an ofcial DivX Certied® device that plays

DivX video. Visit divx.com for more information and software tools to convert your

les into DivX video.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certied® device must be registered

in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your

registration code, locate the DivX VOD section in your device setup menu. Go to vod.

divx.com for more information on how to complete your registration.

“DivX Certied® to play DivX® video up to HD 1080p, including premium content.”

“DivX®, DivX Certied® and associated logos are trademarks of Rovi Corporation or

its subsidiaries and are used under license.”

“Covered by one or more of the following U.S. patents :

7,295,673; 7,460,668; 7,515,710; 7,519,274”

OPEN SOURCE SOFTWARE NOTICE

To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this

product, please visit http://opensource.lge.com.

In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are

available for download.

LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of

performing such distribution (such as the cost of media, shipping and handling) upon email request to

opensource@lge.com. This offer is valid for three (3) years from the date on which you purchased the

product.

ENG

ENGLISH

SAFETY INSTRUCTIONS

Please read these safety precautions carefully before using the product.

WARNING

 Do not place the TV and/or remote control in the following environments:



- A location exposed to direct sunlight



- An area with high humidity such as a bathroom



- Near any heat source such as stoves and other devices that produce heat



- Near kitchen counters or humidifiers where they can easily be exposed to steam

or oil



- An area exposed to rain or wind



- Near containers of water such as vases

Otherwise, this may result in fire, electric shock, malfunction or product deformation.

 Do not place the product where it might be exposed to dust.

This may cause a fire hazard.

 Mains Plug is the TV connecting/disconnecting device to AC mains electric supply.

This plug must remain readily attached and operable when TV is in use.

 Do not touch the power plug with wet hands. Additionally, if the cord pin is wet or

covered with dust, dry the power plug completely or wipe dust off.

You may be electrocuted due to excess moisture.

 Make sure to connect Mains cable to compliant AC mains socket with Grounded

earth pin. (Except for devices which are not grounded on earth.)

Otherwise possibility you may be electrocuted or injured.

 Insert power cable plug completely into wall socket otherwise if not secured

completely into socket, fire ignition may break out.

 Ensure the power cord does not come into contact with hot objects such as a

heater.

This may cause a fire or an electric shock hazard.

 Do not place a heavy object, or the product itself, on power cables.

Otherwise, this may result in fire or electric shock.

 Bend antenna cable between inside and outside building to prevent rain from

flowing in.

This may cause water damaged inside the Product and could give an electric

shock.

 When mounting TV onto wall make sure to neatly install and isolate cabling from

rear of TV as to not create possibility of electric shock/fire hazard.

ENGENGLISH

SAFETY INSTRUCTIONS

 Do not plug too many electrical devices into a single multiple electrical outlet.

Otherwise, this may result in fire due to over-heating.

 Do not drop the product or let it fall over when connecting external devices.

Otherwise, this may result in injury or damage to the product.

 Keep the anti-moisture packing material or vinyl packing out of the reach of

children.

Anti-moisture material is harmful if swallowed. If swallowed by mistake, force the

patient to vomit and visit the nearest hospital. Additionally, vinyl packing can cause

suffocation. Keep it out of the reach of children.

 Do not let your children climb or cling onto the TV.

Otherwise, the TV may fall over, which may cause serious injury.

 Dispose of used batteries carefully to ensure that a small child does not consume

them.

Please seek Doctor- Medical Attention immediately if child consumes batteries.

 Do not insert any metal objects/conductors (like a metal chopstick/cutlery/

screwdriver) between power cable plug and input Wall Socket while it is connected

to the input terminal on the wall. Additionally, do not touch the power cable right

after plugging into the wall input terminal.

You may be electrocuted.

(Depending on model)

 Do not put or store inflammable substances near the product.

There is a danger of combustion/explosion or fire due to careless handling of the

inflammable substances.

 Do not drop metallic objects such as coins, hair pins, chopsticks or wire into the

product, or inflammable objects such as paper and matches. Children must pay

particular attention.

Electrical shock, fire or injury can occur. If a foreign object is dropped into the

product, unplug the power cord and contact the service centre.

 Do not spray water on the product or scrub with an inflammable substance (thinner

or benzene). Fire or electric shock accident can occur.

 Do not allow any impact, shock or any objects to fall into the unit, and do not drop

anything onto the screen.

You may be injured or the product can be damaged.

 Never touch this product or antenna during a thunder or lighting storm.

You may be electrocuted.

 Never touch the wall outlet when there is leakage of gas, open the windows and

ventilate.

It may cause a fire or a burn by a spark.

ENG

ENGLISH

SAFETY INSTRUCTIONS

 Do not disassemble, repair or modify the product at your own discretion.

Fire or electric shock accident can occur.

Contact the service centre for check, calibration or repair.

 If any of the following occur, unplug the product immediately and contact your local

service centre.



- The product has been impacted by shock



- The product has been damaged



- Foreign objects have entered the product



- The product produced smoke or a strange smell

This may result in fire or electric shock.

 Unplug the TV from AC mains wall socket if you do not intend to use the TV for a

long period of time.

Accumulated dust can cause fire hazard and insulation deterioration can cause

electric leakage/shock/fire.

 Apparatus shall not be exposed to dripping or splashing and no objects filled with

liquids, such as vases, shall be placed on the apparatus.

ENGENGLISH

SAFETY INSTRUCTIONS

CAUTION

 Install the product where no radio wave occurs.

 There should be enough distance between an outside antenna and power lines to

keep the former from touching the latter even when the antenna falls.

This may cause an electric shock.

 Do not install the product on places such as unstable shelves or inclined surfaces.

Also avoid places where there is vibration or where the product cannot be fully

supported.

Otherwise, the product may fall or flip over, which may cause injury or damage to

the product.

 If you install the TV on a stand, you need to take actions to prevent the product

from overturning. Otherwise, the product may fall over, which may cause injury.

 If you intend to mount the product to a wall, attach VESA standard mounting interface (optional

parts) to the back of the product. When you install the set to use the wall mounting bracket (optional

parts), fix it carefully so as not to drop.

 Only use the attachments / accessories specified by the manufacturer.

 When installing the antenna, consult with a qualified service technician. If not

installed by a qualified technician, this may create a fire hazard or an electric shock

hazard.

 We recommend that you maintain a distance of at least 2 to 7 times the diagonal

screen size when watching TV.

If you watch TV for a long period of time, this may cause blurred vision.

 Only use the specified type of battery.

This could cause damage to the remote control.

 Do not mix new batteries with old batteries.

This may cause the batteries to overheat and leak.

 Batteries should not be exposed to excessive heat. For example, keep away from direct sunlight,

open fireplace and electric heaters .

 Do not place non-rechargeable batteries in charging device.

 Make sure there are no objects between the remote control and its sensor.

 Signal from Remote Control can be interrupted due to external/internal lighting eg

Sunlight, fluorescent lighting.

If this occurs turn off lighting or darken viewing area.

 When connecting external devices such as video game consoles, make sure the

connecting cables are long enough.

Otherwise, the product may fall over, which may cause injury or damage the

product.

ENG

ENGLISH

SAFETY INSTRUCTIONS

 Do not turn the product On/Off by plugging-in or unplugging the power plug to the

wall outlet. (Do not use the power plug for switch.)

It may cause mechanical failure or could give an electric shock.

 Please follow the installation instructions below to prevent the product from

overheating.



- The distance between the product and the wall should be more than 10 cm.



- Do not install the product in a place with no ventilation (e.g., on a bookshelf or in

a cupboard).



- Do not install the product on a carpet or cushion.



- Make sure the air vent is not blocked by a tablecloth or curtain.

Otherwise, this may result in fire.

 Take care not to touch the ventilation openings when watching the TV for long

periods as the ventilation openings may become hot. This does not affect the

operation or performance of the product.

 Periodically examine the cord of your appliance, and if its appearance indicates damage or

deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact

replacement part by an authorized servicer.

 Prevent dust collecting on the power plug pins or outlet.

This may cause a fire hazard.

 Protect the power cord from physical or mechanical abuse, such as being twisted,

kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs,

wall outlets, and the point where the cord exits the appliance.

 Do not press strongly upon the panel with a hand or sharp object such as nail,

pencil or pen, or make a scratch on it, as it may cause damage to screen.

 Avoid touching the screen or holding your finger(s) against it for long periods of

time. Doing so may produce some temporary or permanent distortion/damage to

screen.

 When cleaning the product and its components, unplug the power first and wipe it

with a soft cloth. Applying excessive force may cause scratches or discolouration.

Do not spray with water or wipe with a wet cloth. Never use glass cleaner, car or

industrial shiner, abrasives or wax, benzene, alcohol etc., which can damage the

product and its panel.

Otherwise, this may result in fire, electric shock or product damage (deformation,

corrosion or breakage).

 As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power

source even if you turn off this unit by SWITCH.

 When unplugging the cable, grab the plug and unplug it, by pulling at the plug.

Don’t pull at the cord to unplug the power cord from the power board, as this could

be hazardous.

 When moving the product, make sure you turn the power off first. Then, unplug the

power cables, antenna cables and all connecting cables.

The TV set or power cord may be damaged, which may create a fire hazard or

cause electric shock.

ENGENGLISH

SAFETY INSTRUCTIONS

 When moving or unpacking the product, work in pairs because the product is

heavy.

Otherwise, this may result in injury.

 Contact the service centre once a year to clean the internal parts of the product.

Accumulated dust can cause mechanical failure.

 Refer all servicing to qualified service personnel. Servicing is required when the

apparatus has been damaged in any way, such as power supply cord or plug is

damaged, liquid has been spilled or objects have fallen into the apparatus, the

apparatus has been exposed to rain or moisture, does not operate normally, or has

been dropped.

 If the product feels cold to the touch, there may be a small “flicker” when it is turned

on. This is normal, there is nothing wrong with product.

 The panel is a high technology display product with resolution of two million to six

million pixels. You may see tiny black dots and/or brightly coloured dots (red, blue

or green) at a size of 1 ppm on the panel. This does not indicate a malfunction and

does not affect the performance and reliability of the product.

This phenomenon also occurs in third-party products and is not subject to

exchange or refund.

 You may find different brightness and colour of the panel depending on your

viewing position(left/right/top/down).

This phenomenon occurs due to the characteristic of the panel. It is not related with

the product performance, and it is not malfunction.

 Displaying a still image (e.g., broadcasting channel logo, on-screen menu, scene from a video

game) for a prolonged time may cause damage to the screen, resulting in retention of the image,

which is known as image sticking. The warranty does not cover the product for image sticking.

Avoid displaying a fixed image on your television’s screen for a prolonged period (2 or more hours

for LCD, 1 or more hours for Plasma).

Also, if you watch the TV at a ratio of 4:3 for a long time, image sticking may occur on the borders of

the panel.

This phenomenon also occurs in third-party products and is not subject to exchange or refund.

 Generated Sound

“Cracking” noise: A cracking noise that occurs when watching or turning off the TV is generated by

plastic thermal contraction due to tempera-ture and humidity. This noise is common for products

where thermal deformation is required. Electrical circuit humming/panel buzzing: A low level noise is

generated from a high-speed switching circuit, which supplies a large amount of current to operate a

product. It varies depending on the product.

This generated sound does not affect the performance and reliability of the product.

ENG

ENGLISH

SAFETY INSTRUCTIONS

Viewing 3D Imaging (Only 3D models)

WARNING

Viewing Environment

Viewing Time

- When watching 3D contents, take 5 - 15 minute breaks every hour. Viewing 3D contents for a long

period of time may cause headache, dizziness, fatigue or eye strain.

Those that have a photosensitive seizure or chronic illness

Some users may experience a seizure or other abnormal symptoms when they are exposed to a

ashing light or particular pattern from 3D contents.

Do not watch 3D videos if you feel nausea, are pregnant and/ or have a chronic illness such as epilepsy,

cardiac disorder, or blood pressure disease, etc.

3D Contents are not recommended to those who suffer from stereo blindness or stereo anomaly. Double

images or discomfort in viewing may be experienced.

If you have strabismus (cross-eyed), amblyopia (weak eyesight) or astigmatism, you may have trouble

sensing depth and easily feel fatigue due to double images. It is advised to take frequent breaks than

the average adult.

If your eyesight varies between your right and left eye, revise your eyesight prior to watching 3D

contents.

Symptoms which require discontinuation or refraining from watching 3D contents

Do not watch 3D contents when you feel fatigue from lack of sleep, overwork or drinking.

When these symptoms are experienced, stop using/watching 3D contents and get enough rest until the

symptom subsides.

- Consult your doctor when the symptoms persist. Symptoms may include headache, eyeball pain,

dizziness, nausea, palpitation, blurriness, discomfort, double image, visual inconvenience or fatigue.

ENGENGLISH

SAFETY INSTRUCTIONS

CAUTION

Viewing Environment

 Viewing Distance

- Maintain a distance of at least twice the screen diagonal length when watching 3D contents. If you

feel discomfort in viewing 3D contents, move further away from the TV.

Viewing Age

Infants/Children

- Usage/ Viewing 3D contents for children under the age of 6 are prohibited.

- Children under the age of 10 may overreact and become overly excited because their vision is in

development (for example: trying to touch the screen or trying to jump into it. Special monitoring

and extra attention is required for children watching 3D contents.

- Children have greater binocular disparity of 3D presentations than adults because the distance

between the eyes is shorter than one of adults. Therefore they will perceive more stereoscopic

depth compared to adults for the same 3D image.

Teenagers

- Teenagers under the age of 19 may react with sensitivity due to stimulation from light in 3D

contents. Advise them to refrain from watching 3D contens for a long time when they are tired.

Elderly

- The elderly may perceive less 3D effect compared to the youth. Do not sit closer to the TV than the

recommended distance.

Cautions when using the 3D glasses

Make sure to use LG 3D glasses. Otherwise, you may not be able to view 3D videos properly.

Do not use 3D glasses instead of your normal glasses, sunglasses or protective goggles.

Using modied 3D glasses may cause eye strain or image distortion.

Do not keep your 3D glasses in extremely high or low temperatures. It will cause deformation.

The 3D glasses are fragile and are easily scratched. Always use a soft, clean piece of cloth when wiping

the lenses. Do not scratch the lenses of the 3D glasses with sharp objects or clean/wipe them with

chemicals.

ENG

ENGLISH

INSTALLATION PROCEDURE / ASSEMBLING AND PREPARING

NOTE

Image shown may differ from your TV.

Your TV’s OSD (On Screen Display) may differ slightly from that shown in this manual.

The available menus and options may differ from the input source or product model that you are

using.

New features may be added to this TV in the future.

The TV can be placed in standby mode in order to reduce the power consumption. And the TV should

be turned off if it will not be watched for some time, as this will reduce energy consumption.

The energy consumed during use can be significantly reduced if the level of brightness of the picture

is reduced, and this will reduce the overall running cost.

INSTALLATION PROCEDURE

1 Open the package and make sure all the accessories are included.

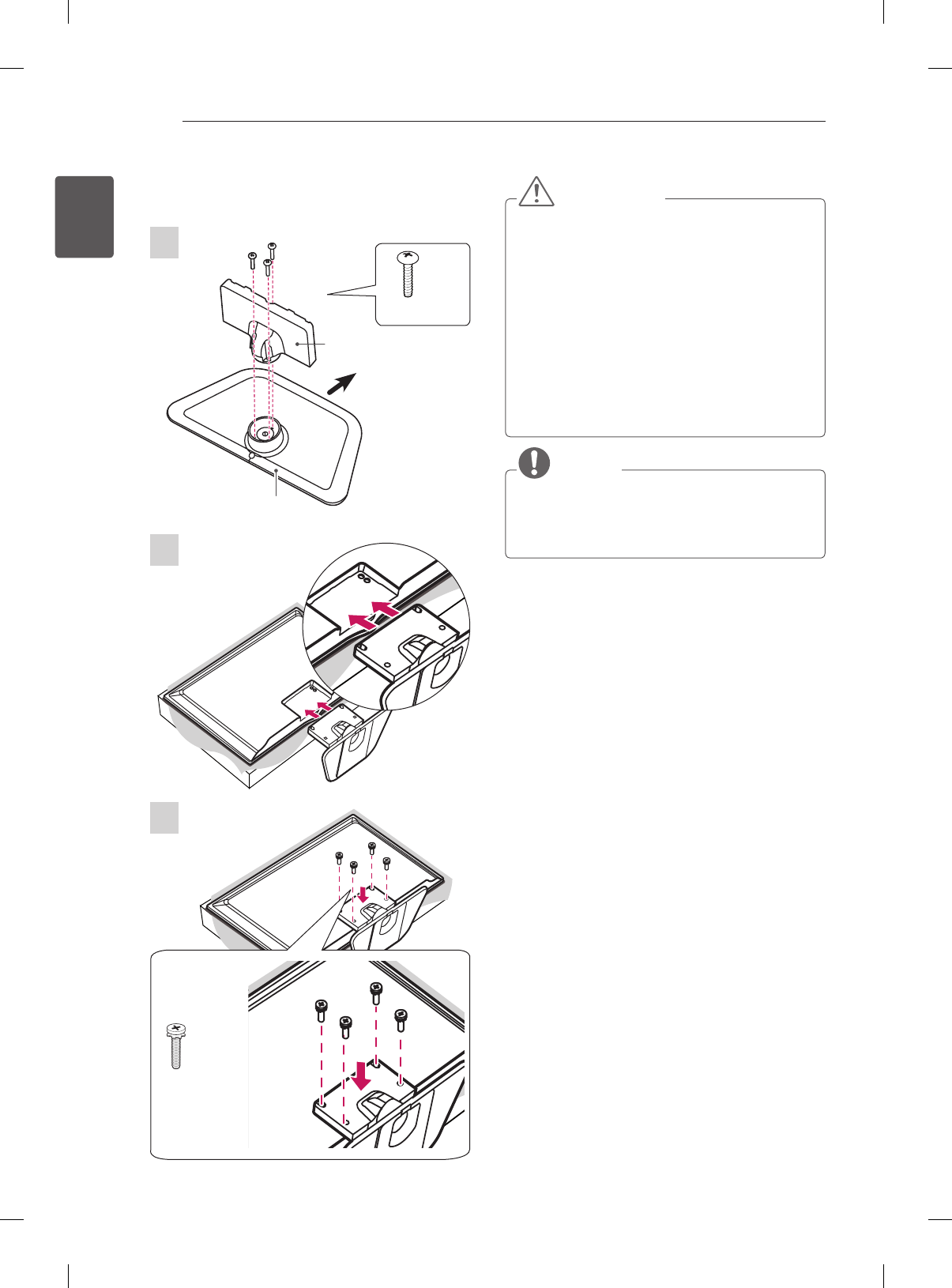

2 Attach the stand to the TV set.

3 Connect an external device to the TV set.

4 Make sure the network connection is available.

You can use the TV network functions only when the network connection is made. (Depending on model)

ASSEMBLING AND PREPARING

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local

dealer where you purchased your product. The illustrations in this manual may differ from the actual

product and item.

CAUTION

Do not use any unapproved items to ensure the safety and product life span.

Any damage or injuries caused by using unapproved items are not covered by the warranty.

Some models have a thin film attached on to the screen and this must not be removed.

NOTE

The items supplied with your product may vary depending on the model.

Product specifications or contents of this manual may be changed without prior notice due to upgrade

of product functions.

For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick

and 18 mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory

stick does not fit into your TV’s USB port.

10 mm

18 mm

ENGENGLISH

ASSEMBLING AND PREPARING

Remote control,

batteries (AAA)

(See p. 29, 30) Owner’s manual

Power Cord

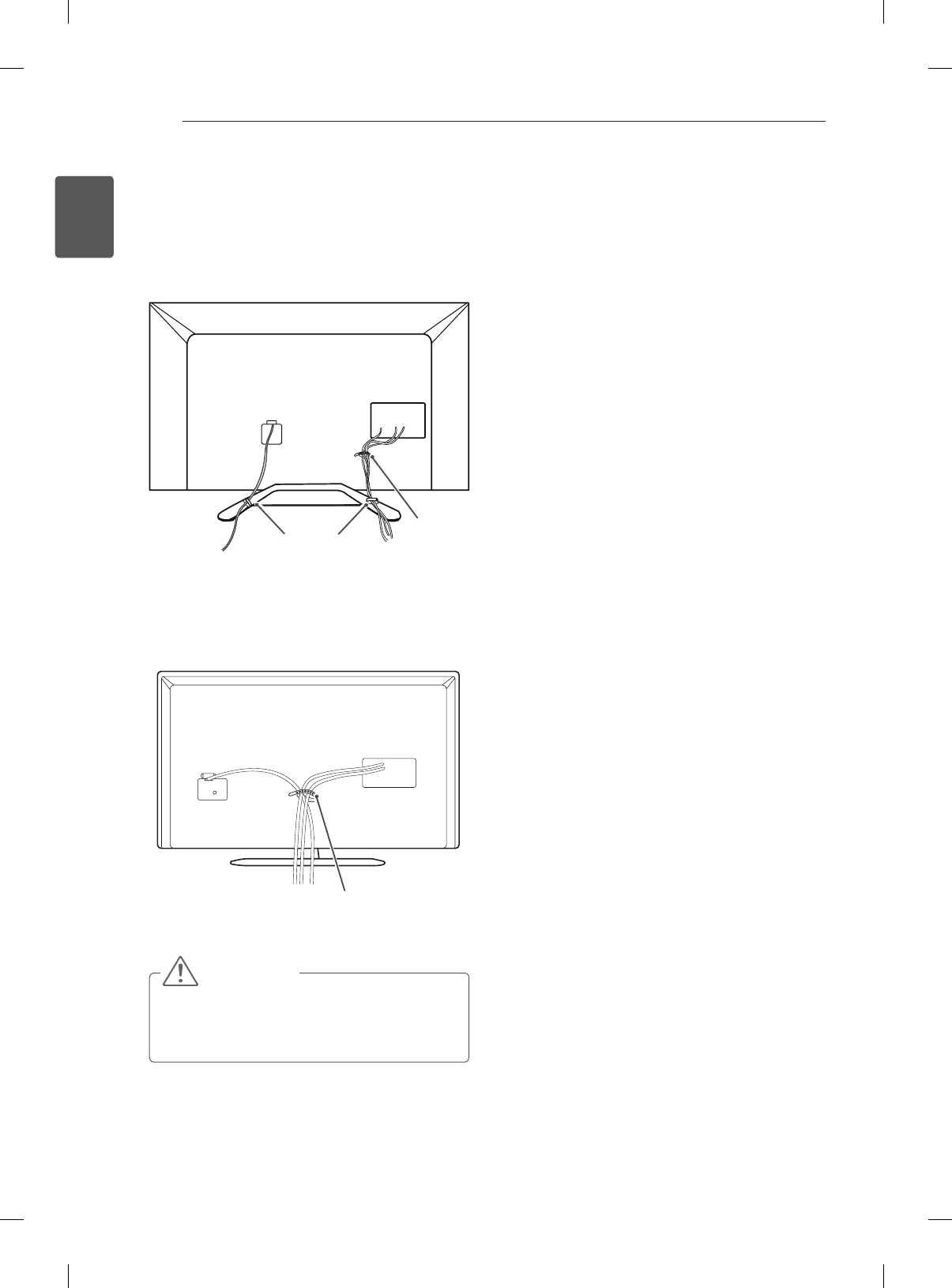

Cable holder

(Depending on model)

(See p. 22)

Cinema 3D Glasses

The number of 3D

glasses may differ

depending on the model

or country.

(Only LA643*/LA61**)

Stand Screws

8EA, M4 x 14

(Only LA643*/LA61**)

(See p. 17)

Stand Screws

3EA, P5 x 25

4EA, M4 x 14

(Only LN54/53**)

(See p. 18)

Desk-mount Screw

(2EA : Only 32/42/47LA643*,

32/42/47LA61**)

(1EA : Only LN54/53**)

(See p. 20)

Desk-mount Cable

2EA

(Only 32/42/47LA643*,

32/42/47LA61**)

(See p. 20)

Bracket Screw

2EA, M4 x 8

(Only 32/42LA643*,

32/42LA61**)

2EA, P4 x 8

(Only 47LA643*, 47LA61**)

(See p. 20)

Stand Body /

Stand Base

(Only LA643*/LA61**)

(See p. 17)

Stand Body /

Stand Base

(Only LN54/53**

)

(See p. 18)

Wall mount inner

spacers

4EA

(Only LA643*

)

(See p. 21)

ENG

ENGLISH

ASSEMBLING AND PREPARING

Separate purchase

Separate purchase items can be changed or modied for quality improvement without any notication.

Contact your dealer to buy these items.

These devices only work with certain models.

AG-F***

Cinema 3D glasses

AG-F***DP

Dual play glasses

LG Audio Device

Compatibility LA643*/LA61** LN54/53**

AG-F***

Cinema 3D glasses •

AG-F***DP

Dual play glasses

•

(Depending on model)

LG Audio Device • •

The model name or design may be changed depending on the upgrade of product functions,

manufacturer’s circumstances or policies.

ENGENGLISH

ASSEMBLING AND PREPARING

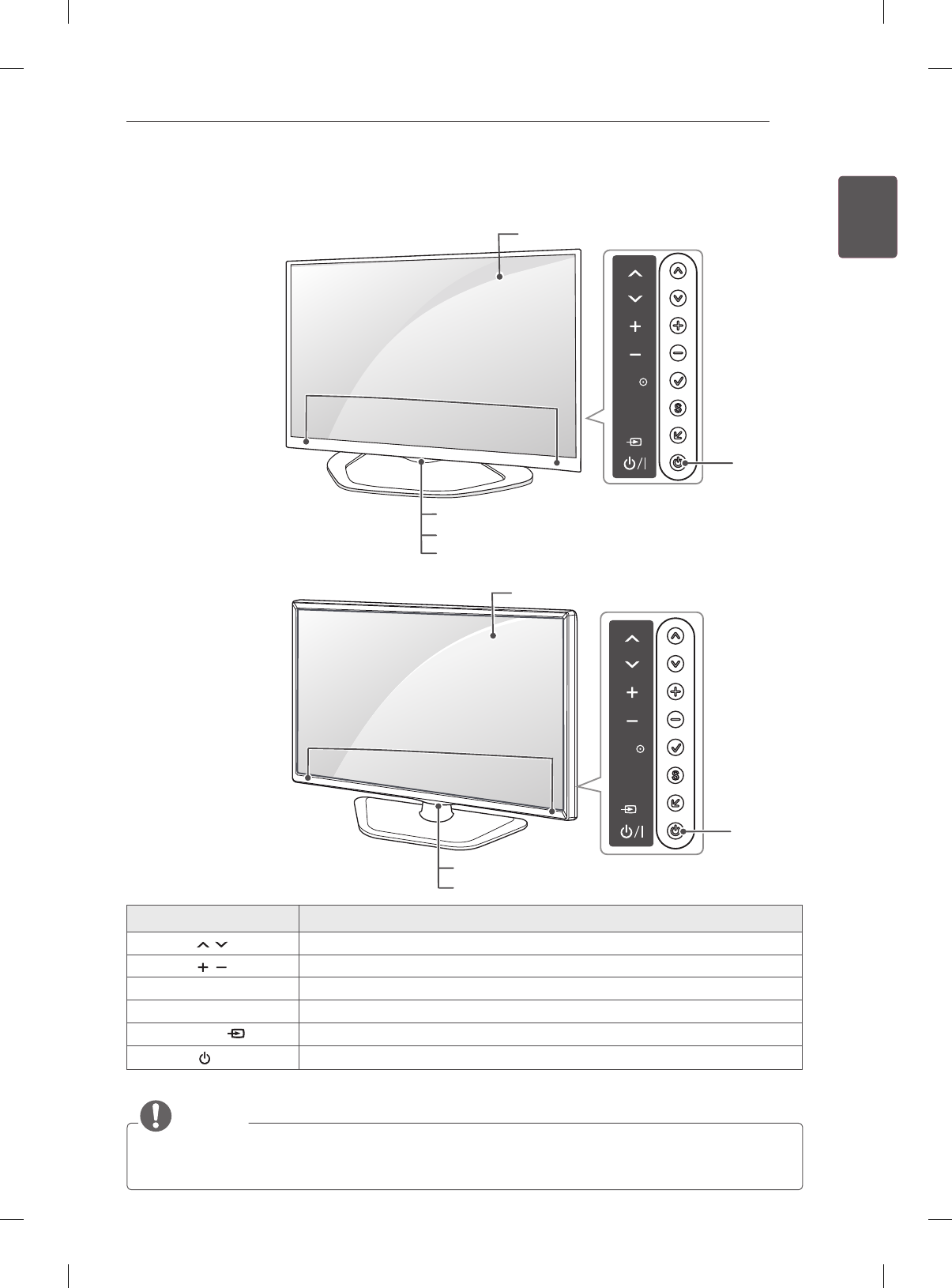

Parts and buttons

Button Description

Scrolls through the saved programmes.

Adjusts the volume level.

OK ꔉSelects the highlighted menu option or confirms an input.

SETTINGS Accesses the main menu, or saves your input and exits the menus.

INPUT Changes the input source.

/ ITurns the power on or off.

NOTE

You can set the LG Logo Light or Power Indicator Light to on or off by selecting OPTION in the main

menus.

LAN

(PC)

RGB IN

(RGB/HDMI-PC)

AUDIO

IN IN OUT

OPTICAL

DIGITAL

AUDIO

H/P

IN/OUT

(RGB)

AV1

HDD IN USB Hub

USB Appps

USB IN

11(ARC) 2 3 4(PC) 2

USB IN

ANTENNA

/CABLE

13/18V

700mA MAx

LNB IN

Satellite

COMPONENT

PRPBY

VIDEO

AUDIO

SETTINGS

INPUT

SETTINGS

INPUT

Only LA643*/LA61**

Buttons

Screen

Speakers

Remote control sensor

LG Logo Light (Only LA643*)

Power Indicator (Only LA61**)

SETTINGS

INPUT

Only LN54/53**

Speakers

Buttons

Screen

Remote control sensor

Power Indicator

ENG

ENGLISH

ASSEMBLING AND PREPARING

Lifting and moving the TV

Please note the following advice to prevent the

TV from being scratched or damaged and for safe

transportation regardless of its type and size.

CAUTION

Avoid touching the screen at all times, as

this may result in damage to the screen.

It is recommended to move the TV in the box

or packing material that the TV originally came

in.

Before moving or lifting the TV, disconnect the

power cord and all cables.

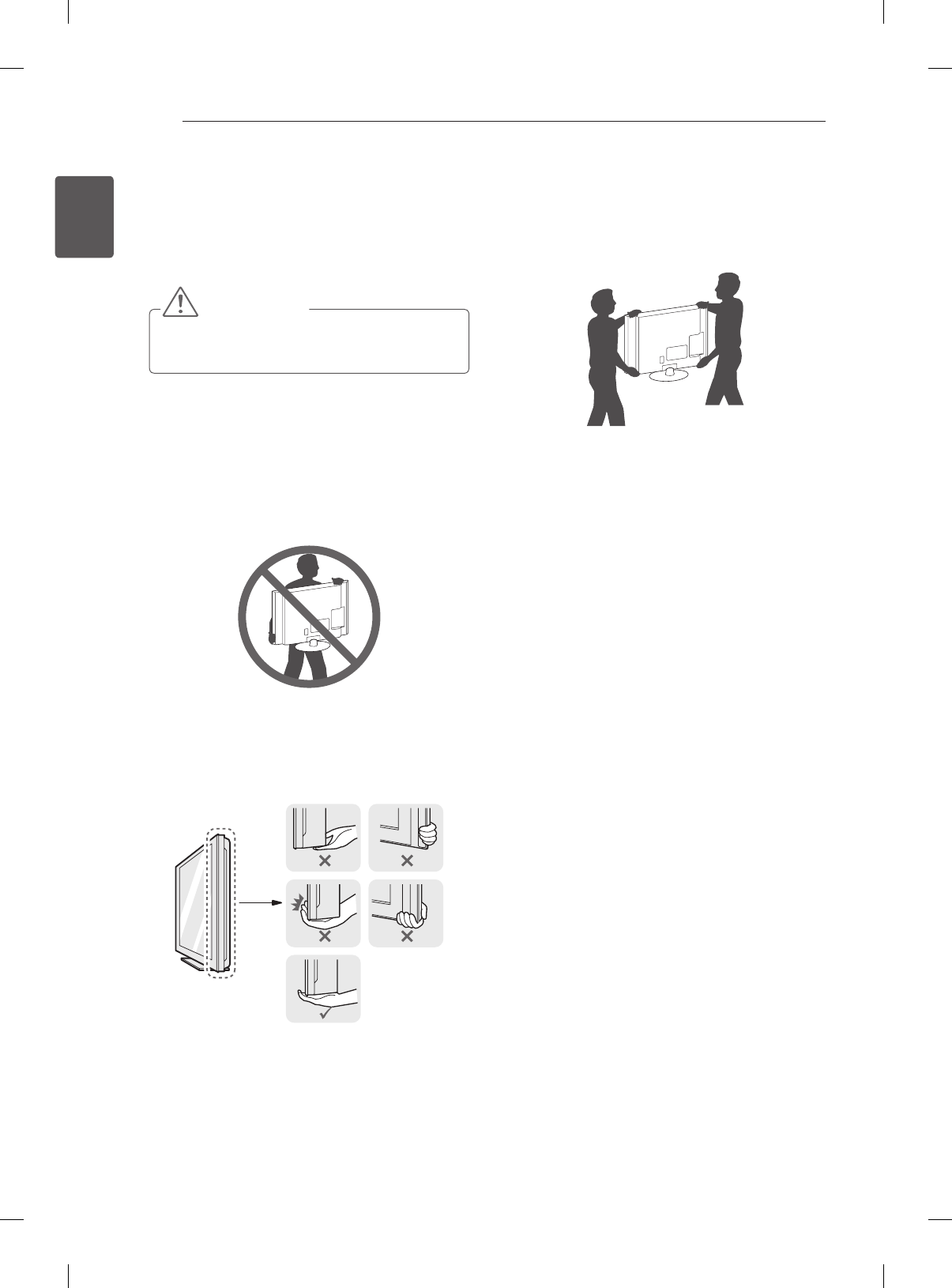

When holding the TV, the screen should face

away from you to avoid damage.

Hold the top and bottom of the TV frame rmly.

Make sure not to hold the transparent part,

speaker, or speaker grill area.

When transporting a large TV, there should be

at least 2 people.

When transporting the TV by hand, hold the TV

as shown in the following illustration.

When transporting the TV, do not expose the

TV to jolts or excessive vibration.

When transporting the TV, keep the TV upright,

never turn the TV on its side or tilt towards the

left or right.

Do not apply excessive pressure to cause

exing/bending of frame chassis as it may

damage screen.

ENGENGLISH

ASSEMBLING AND PREPARING

Setting up the TV

Image shown may differ from your TV.

Attaching the stand

Front

M4 x 14

4 EA

Stand Base

Top View

Stand Body

LA643*/LA61**

(Only LA61**)

(Only LA643*)

4EA

M4 x 14

(Only LA61**)

(Only LA643*)

4EA

M4 x 14

ENG

ENGLISH

ASSEMBLING AND PREPARING

CAUTION

When attaching the stand to the TV

set, place the screen facing down on a

cushioned table or flat surface to protect the

screen from scratches.

Make sure that the screws are inserted

correctly and fastened securely. (If they are

not fastened securely enough, the TV may

tilt forward after being installed.)

Do not use too much force and over tighten

the screws; otherwise screw may be

damaged and not tighten correctly.

NOTE

Remove the stand before installing the TV

on a wall mount by performing the stand

attachment in reverse.

Stand Body

Stand Base

P5 x 25

3EA

Front

M4 x 14

4EA

LN54/53**

ENGENGLISH

ASSEMBLING AND PREPARING

Mounting on a table

1 Lift and tilt the TV into its upright position on a

table.

- Leave a 10 cm (minimum) space from the

wall for proper ventilation.

2 Connect the power cord to a wall outlet.

CAUTION

Do not place the TV near or on sources

of heat, as this may result in fire or other

damage.

Using the Kensington security system

(This feature is not available for all models.)

Image shown may differ from your TV.

The Kensington security system connector is

located at the rear of the TV. For more information

of installation and using, refer to the manual

provided with the Kensington security system or

visit http://www.kensington.com.

Connect the Kensington security system cable

between the TV and a table.

10 cm

Adjusting the angle of the TV to suit view

(Only LA643*/LA61**)

Swivel 15 degrees to the left or right and adjust the

angle of the TV to suit your view.

1515

CAUTION

When adjusting the angle of the product,

watch out for your fingers.



»Personal injury may occur if hands or fingers

are pinched. If the product is tilted too much,

it may fall, causing damage or injury.

ENG

ENGLISH

ASSEMBLING AND PREPARING

Securing the TV to a wall

(This feature is not available for all models.)

1 Insert and tighten the eye-bolts, or TV brackets

and bolts on the back of the TV.

- If there are bolts inserted at the eye-bolts

position, remove the bolts first.

2 Mount the wall brackets with the bolts to the

wall.

Match the location of the wall bracket and the

eye-bolts on the rear of the TV.

3 Connect the eye-bolts and wall brackets tightly

with a sturdy rope.

Make sure to keep the rope horizontal with the

at surface.

CAUTION

Make sure that children do not climb on or

hang on the TV.

NOTE

Use a platform or cabinet that is strong and

large enough to support the TV securely.

Brackets, bolts and ropes are not provided.

You can obtain additional accessories from

your local dealer.

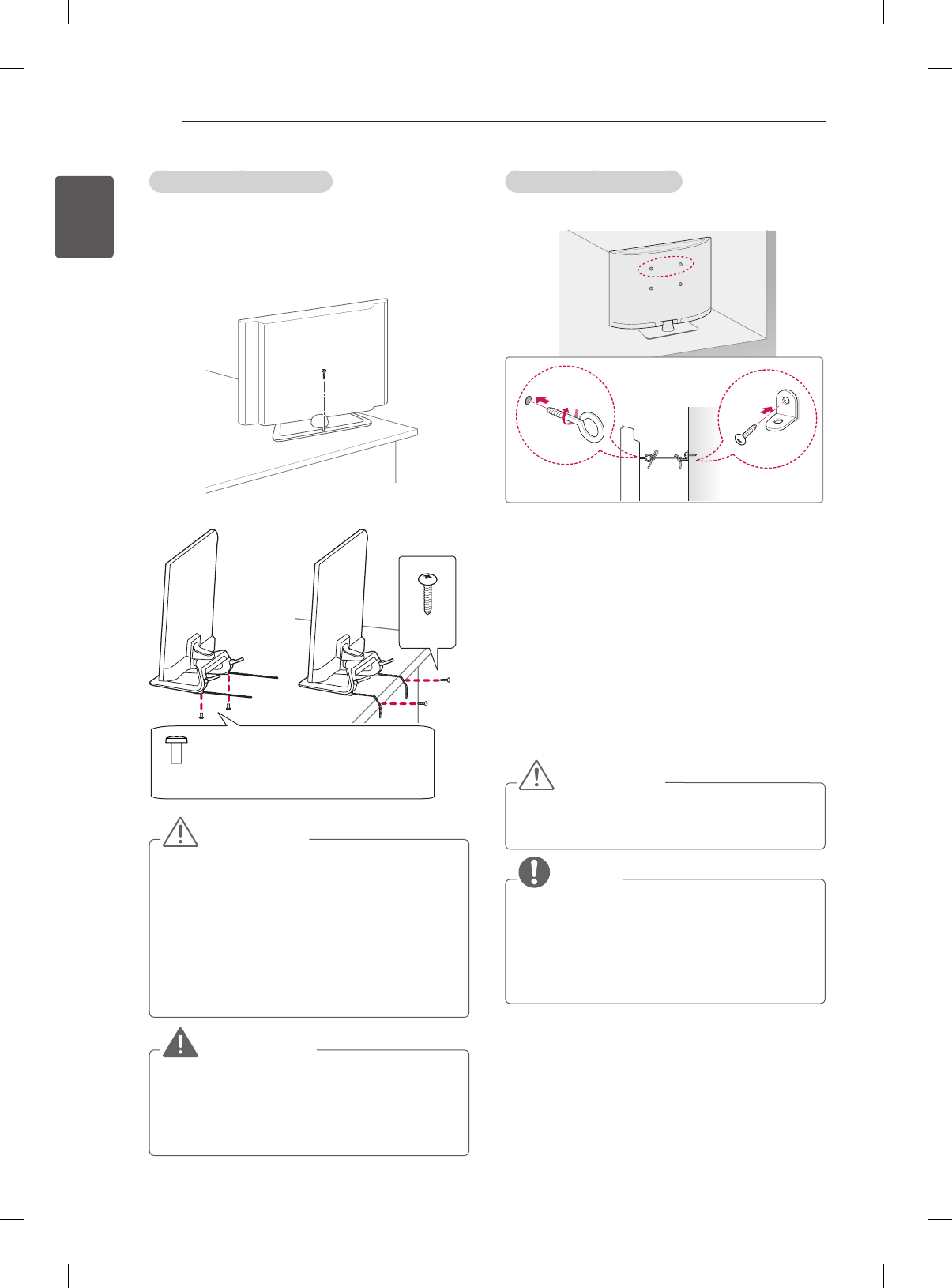

Securing the TV to a table

Fix the TV to a table to prevent from tilting forward,

damage, and potential injury.

To secure the TV to a table, insert and tighten the

supplied screw on the rear of the stand.

(Only LN54/53**)

(Only 32/42/47LA643*, 32/42/47LA61**)

2EA

2EA P4 x 8

(Only 47LA643*, 47LA61**)

M4 x 8

(Only 32/42LA643*, 32/42LA61**)

CAUTION

(Only 32/42/47LA643*, 32/42/47LA61**)

How to fix the TV to a table

1. Connect the Desk-mount Cables to the

Stand Base using the Bracket Screws.

2. Fix the Desk-mount Cables to a table using

the Desk-mount Screws.

3. Once the TV is fixed, move the table close to

the wall. Children may go in, causing injuries.

WARNING

To prevent TV from falling over, the TV

should be securely attached to the floor/

wall per installation instructions. Tipping,

shaking, or rocking the TV may cause injury.

ENGENGLISH

ASSEMBLING AND PREPARING

Mounting on a wall

Attach an optional wall mount bracket at the rear of

the TV carefully and install the wall mount bracket

on a solid wall perpendicular to the floor. When you

attach the TV to other building materials, please

contact qualified personnel.

LG recommends that wall mounting be performed

by a qualified professional installer.

10 cm

Make sure to use screws and wall mount

bracket that meet the VESA standard. Standard

dimensions for the wall mount kits are described in

the following table.

Separate purchase(Wall Mounting Bracket)

Model

32LA61**

32LN54**

32LN53**

32LA643*

42LA61**

37/39/42LN54**

VESA (A x B) 200 x 100 200 x 200

Standard

screw M4 M6

Number of

screws 44

Wall mount

bracket LSW130B LSW230B

MSW240

Model

42/47/55LA643*

47LA61**

47/50LN54**

VESA (A x B) 400 x 400

Standard

screw M6

Number of

screws 4

Wall mount

bracket

LSW430B

MSW240

Wall mount bracket

LSW130B LSW230B LSW430B MSW240

CAUTION

Disconnect the power first, and then move

or install the TV. Otherwise electric shock

may occur.

If you install the TV on a ceiling or slanted

wall, it may fall and result in severe injury.

Use an authorized LG wall mount and

contact the local dealer or qualified

personnel.

Do not over tighten the screws as this may

cause damage to the TV and void your

warranty.

Use the screws and wall mounts that meet

the VESA standard. Any damages or injuries

by misuse or using an improper accessory

are not covered by the warranty.

NOTE

Use the screws that are listed on the VESA

standard screw specifications.

The wall mount kit includes an installation

manual and necessary parts.

The wall mount bracket is not provided. You

can obtain additional accessories from your

local dealer.

The length of screws may differ depending

on the wall mount. Make sure to use the

proper length.

For more information, refer to the manual

supplied with the wall mount.

When attaching a third-party wall mounting

bracket to the TV, insert the wall mount

inner spacers into the TV wall mount holes

to move your TV in vertical angle. Please

make sure not to use the spacers for LG

wall mounting bracket. (Only LA643*)

Wall Mount Inner Spacer

ENG

ENGLISH

ASSEMBLING AND PREPARING

Tidying cables

(Only LA643*/LA61**)

1 Use Cable Holder to neatly secure and position

cables together.

2 Fix the Cable Management rmly to the TV.

(Only LN54/53**)

1 Use Cable Holder to neatly secure and position

cables together.

Cable Holder

CAUTION

Do not move the TV by holding the cable

holder, as the cable holders may break, and

injuries and damage to the TV may occur.

Cable Holder

Cable Management

ENGENGLISH

MAKING CONNECTIONS

MAKING

CONNECTIONS

This section on MAKING CONNECTIONS mainly

uses diagrams for the 47LN5400 models.

Connect various external devices to the TV

and switch input modes to select an external

device. For more information of external device’s

connection, refer to the manual provided with each

device.

Available external devices are: HD receivers,

DVD players, VCRs, audio systems, USB storage

devices, PC, gaming devices, and other external

devices.

NOTE

The external device connection may differ

from the model.

Connect external devices to the TV

regardless of the order of the TV port.

If you record a TV program on a DVD

recorder or VCR, make sure to connect the

TV signal input cable to the TV through a

DVD recorder or VCR. For more information

of recording, refer to the manual provided

with the connected device.

Refer to the external equipment’s manual for

operating instructions.

If you connect a gaming device to the TV,

use the cable supplied with the gaming

device.

In PC mode, there may be noise associated

with the resolution, vertical pattern, contrast

or brightness. If noise is present, change

the PC output to another resolution, change

the refresh rate to another rate or adjust the

brightness and contrast on the PICTURE

menu until the picture is clear.

In PC mode, some resolution settings may

not work properly depending on the graphics

card.

Antenna Connection

Connect the TV to a wall antenna socket with an

RF cable (75 Ω).

NOTE

Use a signal splitter to use more than 2 TVs.

If the image quality is poor, install a signal

amplifier properly to improve the image

quality.

If the image quality is poor with an antenna

connected, try to realign the antenna in the

correct direction.

An antenna cable and converter are not

supplied.

Supported DTV Audio: MPEG, Dolby Digital,

Dolby Digital Plus, HE-AAC

ANTENNA/

CABLE IN

Wall Antenna

Socket

ENG

ENGLISH

MAKING CONNECTIONS

Satellite dish Connection

(Only satellite models)

Connect the TV to a satellite dish to a satellite

socket with a satellite RF cable (75 Ω).

LNB

Satellite IN

13/18V

700mA Max

Satellite

Dish

HDMI Connection

Transmits the digital video and audio signals from

an external device to the TV. Connect the external

device and the TV with the HDMI cable as shown.

NOTE

It is recommended to use the TV with the

HDMI connection for the best image quality.

Use the latest High Speed HDMI™ Cable

with CEC (Customer Electronics Control)

function.

High Speed HDMI™ Cables are tested to

carry an HD signal up to 1080p and higher.

Supported HDMI Audio format : Dolby

Digital, PCM (Up to 192 KHz, 32 KHz / 44.1

KHz / 48 KHz / 88 KHz / 96 KHz / 176 KHz /

192 KHz)

- DTS Not supported.

If you use DVI to HDMI cable for PC, you

have to use external speaker for PC audio

sound.

DVD / Blu-Ray /

HD Cable Box / HD STB / PC

HDMI

(*Not Provided)

ENGENGLISH

MAKING CONNECTIONS

MHL Connection

Mobile High-denition Link (MHL) is an interface

for transmitting digital audiovisual signals from

mobile phones to television sets.

NOTE

Connect the mobile phone to the HDMI IN

(MHL) 2 or HDMI IN 2 (MHL) port to view

the phone screen on the TV.

The MHL passive cable is needed to

connect the TV and a mobile phone.

This only works for the MHL-enabled phone.

Some applications can be operated by the

remote control.

Remove the MHL passive cable from the TV when:

- The MHL function is disabled.

- Your mobile device is fully charged in

standby mode.

(MHL)

IN 2 (MHL)

Mobile phone

(*Not Provided)

MHL passive cable

Component Connection

Transmits analog video and audio signals from an

external device to the TV. Connect the external

device and the TV with a component cable as

shown.

NOTE

If cables are not installed correctly, it could

cause this image to display in black and

white or with distorted colours.

AUDIO

VIDEO

L R

DVD/ Blu-Ray / HD Cable Box

GREEN GREEN

BLUE BLUE

RED RED

WHITE WHITE

(*Not Provided)

ENG

ENGLISH

MAKING CONNECTIONS

Composite Connection

Transmits analog video and audio signals from an

external device to the TV. Connect the external

device and the TV with the composite cable as

shown.

VIDEO

MONO

( )

AUDIO

L R

VCR/ DVD/ Blu-Ray / HD Cable Box

YELLOW

RED RED

WHITE WHITE

(*Not Provided)

Headphone Connection

(Only LA643*/LA61**)

Transmits the headphone signal from the TV to

an external device. Connect the external device

and the TV with the headphone as shown.

NOTE

AUDIO menu items are disabled when

connecting a headphone.

When changing AV MODE with a

headphone connected, the change is

applied to video but not to audio.

Optical Digital Audio Out is not available

when connecting a headphone.

Headphone impedance: 16 Ω

Max audio output of headphone: 9mW to 15

Headphone jack size: 0.35 cm

H/P OUT

(*Not Provided)

ENGENGLISH

MAKING CONNECTIONS

Audio Connection

You may use an external audio system instead of

the built-in speaker.

Digital optical audio connection

Transmits a digital audio signal from the TV to an

external device. Connect the external device and

the TV with the optical audio cable as shown.

NOTE

Do not look into the optical output port.

Looking at the laser beam may damage

your vision.

Audio with ACP (Audio Copy Protection)

function may block digital audio output.

OPTICAL

AUDIO IN

OPTICAL DIGITAL

AUDIO OUT

Digital Audio System

(*Not Provided)

USB Connection

Connect a USB storage device such as a USB

ash memory, external hard drive, or a USB

memory card reader to the TV and access the My

media menu to use various multimedia les.

USB IN

USB (*Not Provided)

ENG

ENGLISH

MAKING CONNECTIONS

CI module Connection

View the encrypted (pay) services in digital TV

mode. This feature is not available in all countries.

NOTE

Check if the CI module is inserted into the

PCMCIA card slot in the right direction. If

the module is not inserted properly, this can

cause damage to the TV and the PCMCIA

card slot.

If the TV does not display any video and

audio when CI+ CAM is connected, please

contact to the Terrestrial/Cable/Satellite

Service Operator.

(*Not Provided)

Euro Scart Connection

Transmits the video and audio signals from an

external device to the TV set. Connect the external

device and the TV set with the euro scart cable as

shown.

Output

Type

Current

input mode

AV1

(TV Out1)

Digital TV Digital TV

Analogue TV, AV

Analogue TVComponent

HDMI

1 TV Out : Outputs Analogue TV or Digital TV

signals.

NOTE

Any Euro scart cable used must be signal

shielded.

When watching digital TV in 3D imaging

mode, only 2D out signals can be output

through the SCART cable. (Only 3D models)

AV 1

IN / OUT

AUDIO / VIDEO

(*Not Provided)

ENGENGLISH

REMOTE CONTROL

The descriptions in this manual are based on the buttons on the

remote control.

Please read this manual carefully and use the TV correctly.

To replace batteries, open the battery cover, replace batteries

(1.5 V AAA) matching the and ends to the label inside the

compartment, and close the battery cover.

To remove the batteries, perform the installation actions in reverse.

CAUTION

Do not mix old and new batteries, as this may damage the remote control.

Make sure to point the remote control toward the remote control sensor on the TV.

(Only LA643*, LA61**)

(POWER) Turns the TV on or off.

TV/RAD Selects Radio, TV and DTV programme.

RATIO Resizes an image.

INPUT Changes the input source.

AV MODE Selects an AV mode.

Number buttons Enters numbers.

LIST Accesses the saved programme list.

Q.VIEW Returns to the previously viewed programme.

Adjusts the volume level.

FAV Accesses your favourite programme list.

Used for viewing 3D video.

MUTE Mutes all sounds.

ꕌPꕍ

Scrolls through the saved programmes or channels.

PAGE Moves to the previous or next screen.

3D OPTION Use this to view 3D video.

SETTINGS Accesses the main menus.

INFO

Views the information of the current programme and screen.

Q.MENU Accesses the Quick menus.

Navigation buttons (up/down/left/right) Scrolls through menus or

options.

Selects menus or options and conrms your input.

BACK Returns to the previous level.

GUIDE Shows programme guide.

EXIT Clears on-screen displays and return to TV viewing.

Coloured buttons These access special functions in some menus.

( : Red, : Green, : Yellow, : Blue)

Teletext buttons (TEXT/T.OPT)

These buttons are used for teletext.

SUBTITLE Recalls your preferred subtitle in digital mode.

Control buttons

( )

Controls the MY MEDIA menus, or

the SIMPLINK compatible devices (USB,SIMPLINK).

Accesses the AV devices connected with the HDMI

cable through HDMI-CEC. Opens the SIMPLINK menu.

AD Switches the Audio Description On or Off.

RATIO

INPUT

TV/

RAD

21 3

4 5 6

7 8 9

LIST

Q.VIEW

FAV

TEXT

GUIDE

AV MODE

INFO

SETTINGS

Q.MENU

EXIT

3D OPTION

BACK

T.OPT

SUBTITLE

MUTE

ENG

ENGLISH

REMOTE CONTROL

(Only LN54/53**)

(POWER) Turns the TV on or off.

TV/RAD Selects Radio, TV and DTV programme.

SUBTITLE Recalls your preferred subtitle in digital mode.

AV MODE Selects an AV mode.

RATIO Resizes an image.

INPUT Changes the input source.

Number buttons Enters numbers.

LIST Accesses the saved programme list.

Q.VIEW Returns to the previously viewed programme.

Adjusts the volume level.

FAV Accesses your favourite programme list.

GUIDE Shows programme guide.

MUTE Mutes all sounds.

ꕌPꕍ

Scrolls through the saved programmes or channels.

ꕌ

PAGE

ꕍ

Moves to the previous or next screen.

Teletext buttons (TEXT/T.OPT)

These buttons are used for teletext.

INFO

Views the information of the current programme and screen.

SETTINGS Accesses the main menus.

Q.MENU Accesses the Quick menus.

Navigation buttons (up/down/left/right) Scrolls through menus or

options.

Selects menus or options and con rms your input.

BACK Returns to the previous level.

EXIT Clears on-screen displays and return to TV viewing.

Accesses the AV devices connected with the HDMI

cable through HDMI-CEC. Opens the SIMPLINK menu.

AD Switches the Audio Description On or Off.

Control buttons

( )

Controls the MY MEDIA menus, or

the SIMPLINK compatible devices (USB,SIMPLINK).

Coloured buttons These access special functions in some menus.

( : Red, : Green, : Yellow, : Blue)

456

789

LIST

SUBTITLE

TEXT

SETTINGS

Q.MENU

EXIT

AV MODE

INFO T.OPT

Q.VIEW

FAV

GUIDE

MUTE

2 3

RATIO INPUT

TV/

RAD

PAGE

ENGENGLISH

ENTERTAINMENT

1 Press the SETTINGS button to access the

main menu.

2 Select the NETWORK → Network Setting

menu.

NETWORK

Network Setting

Move OK

Network Status

3 Select the Start Connection.

Connect a LAN cable to the back of TV.

Setting your network will enable network-related features on the TV.

Network Setting

Start Connection

4 The device automatically tries to connect to the

network.

Network connecting...

Network Setting

Cancel

5 The connected network is displayed.

Select the Complete to confirm the network

connection.

Network Setting

For detailed settings, select [Set Expert].

Wired network is connected.

CompleteSet Expert

ENTERTAINMENT

(Depending on model)

Image shown may differ from your TV.

Wired network connection

Internet

connection

Wired router

Network setting

ENG

ENGLISH

USING THE USER GUIDE

User Guide allows you to more easily access the detailed TV information.

1 Press SETTINGS to access the main menus.

2 Press the RED button to access the Customer

Support menus.

3 Press the Navigation buttons to scroll to User

Guide and press OK.

User Guide

OPTION

PROGRAMME Setting

PICTURE, SOUND Setting

Advanced Function

To use input device

To set TV lock options

To set country

Disabled Assistance

To set other options

To set language

To set time options

Information

1Allows to select the category you want.

2Allows to select the item you want.

You can use ꕌ/ꕍ to move between pages.

3Allows to browse the description of the

function you want from the index.

User Guide OPTION > To set language

SETTING  OPTION  Language

You can select the language of the menu displayed on the screen and the digital

sound broadcasting.

 Menu Language : Selects a language for the display text.

 Audio Language [In Digital Mode Only] : Select the desired language when

watching digital broadcasting containg several voice languages.

 Subtitle Language [In Digital Mode Only] : Use the Subtitle function when two

or more subtitle languages are broadcast.

✎ If subtitle data in a selected language is not broadcast, the default

language subtitle will be displayed.

Zoom In

OPTION

PROGRAMME Setting

PICTURE, SOUND Setting

Advanced Function

Information

Zoom Out

SETTING  OPTION  Language

You can select the language of the menu displayed on the screen and the digital

sound broadcasting.



Menu Language : Selects a language for the display text.



Audio Language [In Digital Mode Only] : elect the desired language when

watching digital broadcasting containg several voice languages.



Subtitle Language [In Digital Mode Only] : Use the Subtitle function when two

or more subtitle languages are broadcast.

✎ If subtitle data in a selected language is not broadcast, the default

language subtitle will be displayed.

1Shows the description of the selected menu.

You can use ꕌ/ꕍto move between pages.

2Zooms in or out the screen.

PICTURE AUDIO SETUP TIME

MY MEDIAINPUTOPTIONLOCK

Press OK(



) to set your picture settings.

Customer Support Exit

Software Update

Picture Test

Sound Test

Signal Test

Product/Service Info.

User Guide

ENGENGLISH

MAINTENANCE

Cleaning your TV

Clean your TV regularly to keep the best performance and to extend the product lifespan.

CAUTION

Make sure to turn the power off and disconnect the power cord and all other cables first.

When the TV is left unattended and unused for a long time, disconnect the power cord from the wall

outlet to prevent possible damage from lightning or power surges.

Screen, frame, cabinet and stand

To remove dust or light dirt, wipe the surface with a dry, clean, and soft cloth.

To remove major dirt, wipe the surface with a soft cloth dampened in clean water or a diluted mild

detergent. Then wipe immediately with a dry cloth.

CAUTION

Avoid touching the screen at all times, as this may result in damage to the screen.

Do not push, rub, or hit the screen surface with your fingernail or a sharp object, as this may result in

scratches and image distortions.

Do not use any chemicals as this may damage the product.

Do not spray liquid onto the surface. If water enters the TV, it may result in fire, electric shock, or

malfunction.

Power cord

Remove the accumulated dust or dirt on the power cord regularly.

ENG

ENGLISH

TROUBLESHOOTING / EXTERNAL CONTROL DEVICE SETUP

TROUBLESHOOTING

Problem Solution

Cannot control the

TV with the remote

control.

Check the remote control sensor on the product and try again.

Check if there is any obstacle between the product and the remote control.

Check if the batteries are still working and properly installed ( to , to ).

No image display

and no sound is

produced.

Check if the product is turned on.

Check if the power cord is connected to a wall outlet.

Check if there is a problem in the wall outlet by connecting other products.

The TV turns off

suddenly.

Check the power control settings. The power supply may be interrupted.

Check if the Automatic Standby or Off Time feature is activated in the TIME

settings.

If there is no signal while the TV is on, the TV will turn off automatically after 15

minutes of inactivity.

When connecting

to the PC (HDMI),

‘No signal’ or ‘Invalid

Format’ is displayed.

Turn the TV off/on using the remote control.

Reconnect the HDMI cable.

Restart the PC with the TV on.

EXTERNAL CONTROL DEVICE SETUP

To obtain the external control device setup information, please visit www.lg.com

ENGENGLISH

SPECIFICATIONS

Product specifications may be changed without prior notice due to upgrade of product functions.

MODELS 32LA643* 42LA643* 47LA643*

32LA643V-ZB 42LA643V-ZB 47LA643V-ZB

Dimensions

(W x H x D)

With stand (mm) 743 x 518 x 241 973 x 652 x 294 1086 x 711 x 327

Without stand(mm) 743 x 461 x 36.4 973 x 591 x 36.3 1086 x 654 x 36.3

Weight With stand (kg) 9.2 14.2 17.5

Without stand (kg) 8.0 12.4 15.0

Power consumption 90 W 110 W 120 W

Power requirement

AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz

MODELS 55LA643*

55LA643V-ZB

Dimensions

(W x H x D)

With stand (mm) 1260 x 821 x 343

Without stand(mm) 1260 x 753 x 36.3

Weight With stand (kg) 24.2

Without stand (kg) 21.5

Power consumption 140 W

Power requirement

AC 100-240 V~ 50 / 60 Hz

MODELS

32LA61** 42LA61** 47LA61**

32LA613S-ZA

32LA613V-ZA

32LA6130-ZB

32LA6134-ZB

32LA6136-ZB

32LA613S-ZB

32LA613V-ZB

32LA613V-ZF

32LA613V-ZG

32LA6150-ZB

32LA6154-ZB

32LA6156-ZB

32LA615S-ZA

32LA615S-ZB

32LA615V-ZA

32LA615V-ZB

32LA615V-ZE

32LA615V-ZF

32LA616V-ZG

42LA613S-ZA

42LA613V-ZA

42LA6130-ZB

42LA6134-ZB

42LA6136-ZB

42LA613S-ZB

42LA613V-ZB

42LA613V-ZF

42LA613V-ZG

42LA6150-ZB

42LA6154-ZB

42LA6156-ZB

42LA615S-ZA

42LA615S-ZB

42LA615V-ZA

42LA615V-ZB

42LA615V-ZE

42LA615V-ZF

42LA616V-ZG

47LA613S-ZA

47LA613V-ZA

47LA6130-ZB

47LA6134-ZB

47LA6136-ZB

47LA613S-ZB

47LA613V-ZB

47LA613V-ZF

47LA613V-ZG

47LA6150-ZB

47LA6154-ZB

47LA6156-ZB

47LA615S-ZA

47LA615S-ZB

47LA615V-ZA

47LA615V-ZB

47LA615V-ZE

47LA615V-ZF

47LA616V-ZG

Dimensions

(W x H x D)

With stand (mm) 733 x 499 x 242 964 x 631 x 294 1076 x 695 x 327

Without stand(mm) 733 x 444 x 78.0 964 x 573 x 78.0 1076 x 637 x 79.4

Weight With stand (kg) 7.6 11.8 15.0

Without stand (kg) 6.4 10.0 12.8

Power consumption 80 W 110 W 130 W

Power requirement

AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz

ENG

ENGLISH

SPECIFICATIONS

MODELS

32LN54** 37LN54** 39LN54**

32LN5400-ZA

32LN5403-ZA

32LN5404-ZA

32LN5405-ZA

32LN5406-ZA

32LN540B-ZA

32LN540R-ZA

32LN540S-ZA

32LN540U-ZA

32LN540U-ZB

32LN541U-ZB

32LN540V-ZA

32LN541V-ZC

32LN542V-ZD

32LN543V-ZB

37LN5400-ZA

37LN5403-ZA

37LN5404-ZA

37LN5405-ZA

37LN5406-ZA

37LN540B-ZA

37LN540R-ZA

37LN540S-ZA

37LN540U-ZA

37LN540U-ZB

37LN541U-ZB

37LN540V-ZA

37LN541V-ZC

37LN542V-ZD

37LN543V-ZB

39LN5400-ZA

39LN5403-ZA

39LN5404-ZA

39LN5405-ZA

39LN5406-ZA

39LN540B-ZA

39LN540R-ZA

39LN540S-ZA

39LN540U-ZA

39LN540U-ZB

39LN541U-ZB

39LN540V-ZA

39LN541V-ZC

39LN542V-ZD

39LN543V-ZB

Dimensions

(W x H x D)

With stand (mm) 738 x 497 x 207 849 x 561 x 236 894 x 587 x 236

Without stand(mm) 738 x 449 x 79.0 849 x 512 x 79.0 894 x 537 x 79.0

Weight With stand (kg) 7.0 9.1 9.7

Without stand (kg) 6.4 8.0 8.6

Power consumption 80 W 100 W 100 W

Power requirement

AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz

MODELS

42LN54** 47LN54** 50LN54**

42LN5400-ZA

42LN5403-ZA

42LN5404-ZA

42LN5405-ZA

42LN5406-ZA

42LN540B-ZA

42LN540R-ZA

42LN540S-ZA

42LN540U-ZA

42LN540U-ZB

42LN541U-ZB

42LN540V-ZA

42LN541V-ZC

42LN542V-ZD

42LN543V-ZB

47LN5400-ZA

47LN5403-ZA

47LN5404-ZA

47LN5405-ZA

47LN5406-ZA

47LN540B-ZA

47LN540R-ZA

47LN540S-ZA

47LN540U-ZA

47LN540U-ZB

47LN541U-ZB

47LN540V-ZA

47LN541V-ZC

47LN542V-ZD

47LN543V-ZB

50LN5400-ZA

50LN5403-ZA

50LN5404-ZA

50LN5405-ZA

50LN5406-ZA

50LN540B-ZA

50LN540R-ZA

50LN540S-ZA

50LN540U-ZA

50LN540U-ZB

50LN541U-ZB

50LN540V-ZA

50LN541V-ZC

50LN542V-ZD

50LN543V-ZB

Dimensions

(W x H x D)

With stand (mm) 968 x 629 x 236 1080 x 694 x 264 1136 x 727 x 264

Without stand(mm) 968 x 579 x 79.0 1080 x 642 x 80.5 1136 x 673 x 82.1

Weight With stand (kg) 10.7 14.7 15.6

Without stand (kg) 9.6 13.4 14.2

Power consumption 110 W 130 W 140 W

Power requirement

AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz

ENGENGLISH

SPECIFICATIONS

MODELS

32LN53**

32LN536B-ZA

32LN536B-ZB

32LN536B-ZG

32LN536U-ZA

32LN536U-ZB

32LN536U-ZG

Dimensions

(W x H x D)

With stand (mm) 738 x 497 x 207

Without stand(mm) 738 x 449 x 79.0

Weight With stand (kg) 7.0

Without stand (kg) 6.4

Power consumption 80 W

Power requirement

AC 100-240 V~ 50 / 60 Hz

CI Module Size (W x H x D) 100.0 mm x 55.0 mm x 5.0 mm

Environment

condition

Operating Temperature 0 °C to 40 °C

Operating Humidity Less than 80 %

Storage Temperature -20 °C to 60 °C

Storage Humidity Less than 85 %

Satellite Digital TV1Digital TV2Digital TV Analogue TV

Television system DVB-T

DVB-C

DVB-S/S2

DVB-T/T2

DVB-C

DVB-S/S2

DVB-T

DVB-C

PAL/SECAM B/G/D/K,

PAL I/I’,

SECAM L/L’ 3

Programme coverage VHF, UHF

C-Band, Ku-Band VHF, UHF

VHF: E2 to E12, UHF :

E21 to E69, CATV: S1 to

S20, HYPER: S21 to S47

Maximum number of

storable programmes 6,000 1,500

External antenna impedance 75 Ω

1 Only satellite models

2 Only DVB-T2 support models

3 Except for DVB-T2 support models

ENG

ENGLISH

SPECIFICATIONS

HDMI-DTV supported mode

Resolution

Horizontal

Frequency

(kHz)

Vertical

Frequency

(Hz)

720x480 31.469

31.5

59.94

720x576 31.25 50

1280x720

37.5

44.96

59.94

1920x1080

33.72

33.75

28.125

26.97

33.716

33.75

56.25

67.43

67.5

59.94

23.97

29.976

30.00

59.94

Component port connecting information

Component ports on the TV

Y PBPR

Video output ports on

DVD player

Y PBPR

Y B-Y R-Y

Y Cb Cr

Y Pb Pr

Signal Component

480i/576i O

480p/576p O

720p/1080i O

1080p O

(50 Hz / 60 Hz only)

HDMI-PC supported mode

Resolution

Horizontal

Frequency

(kHz)

Vertical

Frequency

(Hz)

640x350 31.468 70.09

720x400 31.469 70.08

640x480 31.469 59.94

800x600 37.879 60.31

1024x768 48.363 60.00

1152x864 54.348 60.053

1360x768 47.712 60.015

1280x1024 63.981 60.020

1920x1080 67.5 60.00

(Except for LN54*B, LN54*R, LN54*U, LN54*3,

LN54*5, LN53*B, LN53*U)

ENGENGLISH

SPECIFICATIONS

3D supported mode

(Only 3D models)

Video, which is input as below media contents is switched into the 3D screen automatically.

The method for 3D digital broadcast may differ depending on the signal environment. If video is not

switched automatically into 3D, manually convert the settings to view 3D images.

Input Signal Resolution Horizontal

Frequency (kHz)

Vertical

Frequency (Hz) Playable 3D video format

HDMI

720p 1280X720

37.5 50 Side by Side(half),

Top and Bottom

45 60

75 50 Frame packing

89.9 / 90 59.94 / 60

1080i 1920X1080 28.125 50 Side by Side(half),

Top and Bottom

33.7 60

1080p 1920X1080

27 24 Side by Side(half),

Top and Bottom

33.7 30

53.95 / 54 23.98 / 24 Frame packing

56.3 50 Side by Side(half), Top and Bottom,

Single frame sequential

67.5 60

DTV 720p 1280X720 37.5 50 Side by Side, Top and Bottom

1080i 1920X1080 28.125 50

USB 1080p 1920X1080 33.75 30 Side by Side, Top and Bottom,

MPO(Photo)

DLNA 1080p 1920X1080 33.75 30 Side by Side, Top and Bottom

Record the model number and serial number of

the TV.

Refer to the label on the back cover and quote

this information to your dealer when requiring any

service.

MODEL

SERIAL

Please contact LG First.

If you have any inquiries or comments,

please contact LG customer information centre.

Customer Information Centre

Country Service Country Service

0 810 144 131 0900 543 5454

015 200 255 800 187 40

0032 15 200255 801 54 54 54

07001 54 54 808 78 54 54

810 555 810 031 228 3542

8088 5758 0850 111 154

0800 0 54 54 902 500 234

3220 54

0770 54 54 54

01806 11 54 11

(0,20€ pro Anruf

aus dem Festnetz

der DTAG;

Mobilfunk: max.

0,60€ pro Anruf)

0848 543 543

801 11 200 900,

210 4800 564

0844 847 5454

8 800 200 7676

06 40 54 54 54 800 9990

0818 27 6955 0 800 303 000

Lg 32Ln540U Owner S Manual 00_MFL67688511_eng

Navigation menu

Versions of this User Manual:

Views

Navigation
