OWNER’S MANUAL
PLASMA TV
Please read this manual carefully before operating the
set and retain it for future reference.
PA45**
PA49**
PA55**
PA65**
2
ENG
ENGLISH
LICENSES
ENG
ENGLISH
LICENSES
Supported licenses may differ by model. For more information about licenses, visit
www.lg.com.
Manufactured under license from Dolby Laboratories. “Dolby” and the double-D
symbol are trademarks of Dolby Laboratories.
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing LLC.
ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a
subsidiary of Rovi Corporation. This is an official DivX Certified® device that plays
DivX video. Visit divx.com for more information and software tools to convert your
files into DivX video.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered
in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your
registration code, locate the DivX VOD section in your device setup menu. Go to
vod.divx.com for more information on how to complete your registration.
“DivX Certified® to play DivX® video up to HD 1080p, including premium content.”
“DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation
or its subsidiaries and are used under license.”
Covered by one or more of the following U.S. patents :
7,295,673; 7,460,668; 7,515,710; 7,519,274
NOTE
Image shown may differ from your TV.
Your TV's OSD (On Screen Display) may differ slightly from that shown in this manual.
3
ENGENGLISH
LICENSES
4
ENG
ENGLISH
TABLE OF CONTENTS
TABLE OF CONTENTS
2 LICENSES
6 INSTALLATION PROCEDURE
6 ASSEMBLING AND PREPARING
6 Unpacking
9 Separate purchase
9 Parts and buttons
12 Lifting and moving the TV
13 Setting up the TV
13 - Attaching the stand
15 - Mounting on a table
16 - Mounting on a wall
17 - Tidying cables
18 REMOTE CONTROL
20 WATCHING TV
20 Connecting an antenna
20 Turning the TV on for the first time
21 Watching TV
21 Managing programmes
21 - Automatically setting up programme
23 - Cable DTV Setting (In Cable mode only)
23 - Manually setting up programme (In
digital mode)
24 - Manually setting up programme (In
analogue mode)
25 - Editing your programme list
27 - CI [Common interface] Information
28 - Selecting the programme list
29 EPG (Electronic Programme Guide) (In
digital mode)
29 - Switch on/off EPG
29 - Select a programme
30 - NOW/NEXT Guide Mode
30 - 8 Day Guide Mode
30 - Date Change Mode
30 - Extended Description Box
30 - Remind Setting Mode
31 - Schedule List Mode
31 Using additional options
31 - Adjusting aspect ratio
33 - Changing AV modes
33 - Using the input list
34 - Locking the buttons on the TV (Child Lock)
35 Using the quick menu
36 Using the customer support
36 - Testing Software Update
37 - Testing the Picture / Sound
37 - Using Signal Test
37 - Using the product or service information
38 PENTOUCH
38 Using Pentouch
39 - Step of using the Pentouch program
39 - System Requirements
39 - Installing the Pentouch Program
40 - Removing the Pentouch Program
40 - Pairing between Touch Pen and Dongle
44 - Using the Pentouch Function
44 - Display Resolution Settings for Pentouch
46 Checking the Pentouch Functions
47 - Using Toolbar
48 - Using Sketchbook
50 - Using Photo Editor
52 - Using Family Diary
52 - Using Gallery
53 - Using Internet
54 - Using the My Office function
55 NETWORK SETTING
55 - Connecting to a wired network
56 - Network Status
57 ENTERTAINMENT
57 - Connecting USB storage devices
58 - Browsing files
59 - Viewing movies
62 - Viewing photos
64 - Listening to music
66 - DivX® VOD Guide
5
ENGENGLISH
TABLE OF CONTENTS
67 CUSTOMIZING TV SETTING
67 Accessing main menus
68 Customizing settings
68 - PICTURE settings
73 - AUDIO settings
76 - SETUP settings
77 - TIME settings
78 - LOCK settings
79 - OPTION settings
81 - NETWORK Settings
82 MAKING CONNECTIONS
83 Connection overview
84 Connecting to a HD receiver, DVD, or
VCR player
84 - HDMI Connection
85 - DVI to HDMI Connection
86 - Component Connection
87 - Euro Scart connection
88 - Composite Connection
89 Connecting to a PC
89 - HDMI Connection, DVI to HDMI Con-
nection or RGB Connection
91 Connecting to an Audio System
91 - Digital Optical Audio Connection
92 Connecting to a USB
92 Connecting to a CI Module
93 SIMPLINK connection
93 - Activating the SIMPLINK feature
94 TELETEXT
94 Switch On/Off
94 Simple Text
94 - Page selection
94 Top Text
94 - Block / Group / Page Selection
94 - Direct Page Selection
95 Fastext
95 - Page selection
95 Special Teletext Function
96 DIGITAL TELETEXT
96 Teletext within digital service
96 Teletext in digital service
97 MAINTENANCE
97 Cleaning your TV
97 - Screen and frame
97 - Cabinet and stand
97 - Power cord
98 Preventing “Image burn” or “Burn-in” on
your TV screen
99 TROUBLESHOOTING
101SPECIFICATIONS
104 IR CODES
105EXTERNAL CONTROL DEVICE
SETUP
105 RS-232C Setup
105 Type of connector; D-Sub 9-Pin Male
105 RS-232C Configurations
106 Communication Parameters
106 Command reference list
107 Transmission / Receiving Protocol
112 OPEN SOURCE LICENSE
112 Open source software notice
6
ENG
ENGLISH
INSTALLATION PROCEDURE / ASSEMBLING AND PREPARING
Remote control,
Batteries (AAA)(See p.18)
Owner’s manual,
CD manual
Cable Holder(See p.17)
x 3 x 4
M5 x 16 M4 x 30
Screw for assembly
(See p.13, See p.14)
Power Cord Holder(See p.17) Power Cord
Protection Cover(See p.14) Ferrite core
(Depending on model)
Polishing cloth
(Depending on model)
Gently wipe the spots on the
cabinet with the polishing cloth.
Stand Body(See p.13) Stand Base(See p.13)
ASSEMBLING AND PREPARING
Unpacking
Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations in this manual may differ from the actual product
and item.
Only 42/50PA45**, 50/60PA55**, 50/60PA65**
INSTALLATION PROCEDURE
1 Open the package and make sure all the accessories are included.
2 Attach the stand to the TV set.
3 Connect an external device to the TV set.
7
ENGENGLISH
ASSEMBLING AND PREPARING
Only 42/50PA49**
Remote control,
Batteries (AAA)(See p.18)
Owner’s manual,
CD manual
Pentouch Caution Guidelines
x 3 x 4
M5 x 16 M4 x 30
Screw for assembly
(See p.13, See p.14)
Power Cord Holder(See p.17) D-sub 15 pin signal cable
Protection Cover(See p.14) Ferrite core
(Depending on model)
Power Cord
x 2
Cable Holder(See p.17) Eye-bolt , Wall bracket
(See p.15)
Polishing cloth
(Depending on model)
Gently wipe the spots on the
cabinet with the polishing cloth.
Home
Charging Cable(See p.43) Tip(See p.43)
The number of tip may differ
depending on the model.
Touch Pen (AN-TP300)
The number of touch pen
may differ depending on the
model.(See p.41)
Touch Pen Dongle
(AN-TD200)(See p.41)
Cradle(See p.41) Stand Base (See p.13)
Stand Body (See p.13)
8
ENG
ENGLISH
ASSEMBLING AND PREPARING
The items supplied with your product may vary depending on the model.
Product specifications or contents of this manual may be changed without prior notice due to
upgrade of product functions.
How to use the ferrite core
1 Use the ferrite core to reduce the electromagnetic interference in the PC audio cable.
Wind the PC audio cable on the ferrite core thrice. Place the ferrite core close to the TV.
2 Use the ferrite core to reduce the electromagnetic interference in the power cable.
Wind the power cable on the ferrite core once. Place the ferrite core close to the TV and a wall plug.
[to an External device]
[Figure 1]
[to the TV]
10 mm(+ / - 5 mm)
3 Use the ferrite core to reduce the electromagnetic interference in the component Y, Pb, Pr, L,
R cable.
Wind the
component Y, Pb, Pr, L, R cable
on the ferrite core once.
Place the ferrite core close to the TV.
[Cross Section of
Ferrite Core]
(Gray)
[to an External device]
[Figure 3]
[to the TV]
10 mm(+ / - 5 mm) [Cross Section of
Ferrite Core]
(Black)
[to a wall plug] [to the TV]
[Figure 2] [Cross Section of
Ferrite Core]
(Black)
- If there is one ferrite core, follow as shown in Figure 1.
- If there are three ferrite cores, follow as shown in Figures 1 and 2.
- If there are four ferrite cores, follow as shown in Figures 1, 2 and 3.
- If there is LAN port, additionally follow as shown in Figure 4.
NOTE
4 Use the ferrite core to reduce the electromagnetic interference in the LAN cable. Wind the
LAN cable thrice on the ferrite core. Place the ferrite core close to the TV and an External device.
A (Gray) B (Gray)
[Cross Section of
Ferrite Core]
[to the TV] [to an External
device]
B A A
[Figure 4]
For an optimal connection, HDMI cables and USB de-
vices should have bezels less than 10 mm thick and
18 mm width. Use an extension cable that supports
USB 2.0 if the USB cable or USB memory stick does
not fit into your TV’s USB port.
*A 10 mm
*B 18 mm
9
ENGENGLISH
ASSEMBLING AND PREPARING
Parts and buttons
TV can be placed in standby mode in order to reduce the power consumption. And TV should be
turned off if it will not be watched for some time, as this will reduce energy consumption.
The energy consumed during use can be significantly reduced if the level of brightness of the
picture is reduced, and this will reduce the overall running cost.
NOTE
Do not step on the glass stand or subject it to any impact. It may break, causing possible injury
from fragments of glass, or the TV may fall.
Do not drag the TV. The floor or the product may be damaged.
Some models have a thin film attached on to the screen and this must not be removed.
CAUTION
Do not use any pirated items to ensure the safety and product life span.
Any damages or injuries by using pirated items are not covered by the warranty.
CAUTION

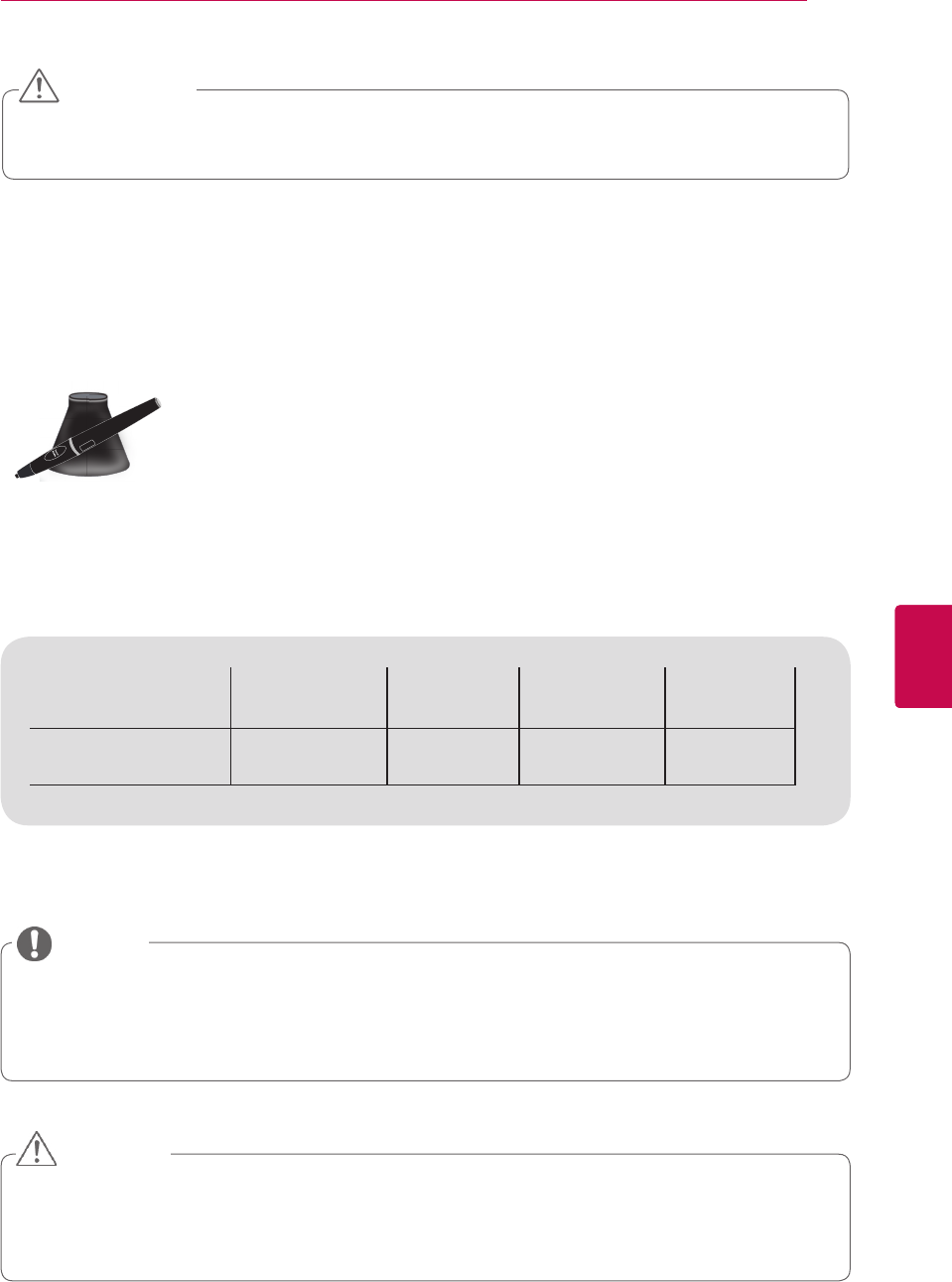

Separate purchase
Separate purchase items can be changed or modified for quality improvement without any notification.
Contact your dealer for buying these items.
This device only works with compatible LG Plasma TV.
AN-TP300
Touch Pen, Cradle
The number of touch pen and
cradle may differ depending on
the model.
Compatibility 42/50PA45** 50/60PA55** 50/60PA65** 42/50PA49**
AN-TP300
Touch Pen, Cradle •
10
ENG
ENGLISH
ASSEMBLING AND PREPARING
Screen
Connection panel
(See p.82)
Speakers
1 Intelligent sensor - Adjusts the image quality corresponding to the surrounding environment.
Button Description
Turns the power on or off
Changes the input source
Accesses the main menus, or saves your input and exits the menus
Selects the highlighted menu option or confirms an input
Adjusts the volume level
Scrolls through the saved programmes
Remote control and
intelligent1 sensors
Power Indicator
Red – In Standby
mode
Off – TV turns on
Image shown may differ from your TV.
Menu Description
1PCMCIA Card Slot
2USB input
3HDMI IN 3
4HDMI / DVI IN 2
1
2
4
3
Only
42/50PA49**,
50/60PA65**
Only
42/50PA45**,
50/60PA55**
(Only LAN PORT
model)
Only 42/50PA45**-ZA~F, 42/50PA49**-ZA~F, 50/60PA55**-ZA~F, 50/60PA65**-ZA~F
11
ENGENGLISH
ASSEMBLING AND PREPARING
Screen
Connection panel
(See p.82)
Speakers
1 Intelligent sensor - Adjusts the image quality corresponding to the surrounding environment.
Button Description
Turns the power on or off
Changes the input source
Accesses the main menus, or saves your input and exits the menus
Selects the highlighted menu option or confirms an input
Adjusts the volume level
Scrolls through the saved programmes
Remote control and
intelligent1 sensors
Power Indicator
Red – In Standby
mode
Off – TV turns on
Image shown may differ from your TV.
Menu Description
1PCMCIA Card Slot
2USB input
3HDMI IN 3
4HDMI IN 2
1
2
4
3
Only
42/50PA49**,
50/60PA65**
Only
42/50PA45**,
50/60PA55**
(Only LAN PORT
model)
Only 42/50PA45**-ZG~M, 42/50PA49**-ZG~M, 50/60PA55**-ZG~M, 50/60PA65**-ZG~M
12
ENG
ENGLISH
ASSEMBLING AND PREPARING
Lifting and moving the TV
When moving or lifting the TV, read the following to
prevent the TV from being scratched or damaged
and for safe transportation regardless of its type
and size.
It is recommended to move the TV in the box
or packing material that the TV originally came
in.
Before moving or lifting the TV, disconnect the
power cord and all cables.
When holding the TV, the screen should face
away from you to prevent the screen from
scratches.
Hold the top and bottom of the TV frame firmly.
Make sure not to hold the transparent part,
speaker, or speaker grill area.
When transporting a large TV, there should be
at least 2 people.
When transporting the TV by hand, hold the
TV as shown in the following illustration.
When transporting the TV, do not expose the
TV to jolts or excessive vibration.
When transporting the TV, keep the TV
upright, never turn the TV on its side or tilt
towards the left or right.
Avoid touching the screen at all times, as
this may result in damage on the screen
or some of the pixels used to create
images.
CAUTION
13
ENGENGLISH
ASSEMBLING AND PREPARING
Setting up the TV
Image shown may differ from your TV.
Attaching the stand
Put your TV on a pedestal stand and mount the TV on a table or wall.
If you are not mounting the TV to a wall, use the following instructions to attach the stand.
1 2
3
Front
M5 x 16
3 EA
Only 42/50PA45**, 42/50PA49**, 50/60PA55**, 50/60PA65**
When attaching the stand to the TV
set, place the screen facing down on a
cushioned table or flat surface to protect
the screen from scratches.
CAUTION
Tighten the screws firmly to prevent the TV
from tilting forward. Do not over tighten.
CAUTION
Stand Base
Stand Body
M4 x 30
4 EA
14
ENG
ENGLISH
ASSEMBLING AND PREPARING
CAUTION
Tighten the screws firmly to prevent the TV
from tilting forward. Do not over tighten.
M4 x 30
4 EA
1
2
To detach the stand,
Protection Cover
3
When attaching the stand to the TV
set, place the screen facing down on a
cushioned table or flat surface to protect
the screen from scratches.
CAUTION
This will protect the opening from accu-
mulating dust and dirt.
When installing the wall mounting brack-
et, use the Protection cover.
NOTE
M4 x 30
2 EA
15
ENGENGLISH
ASSEMBLING AND PREPARING

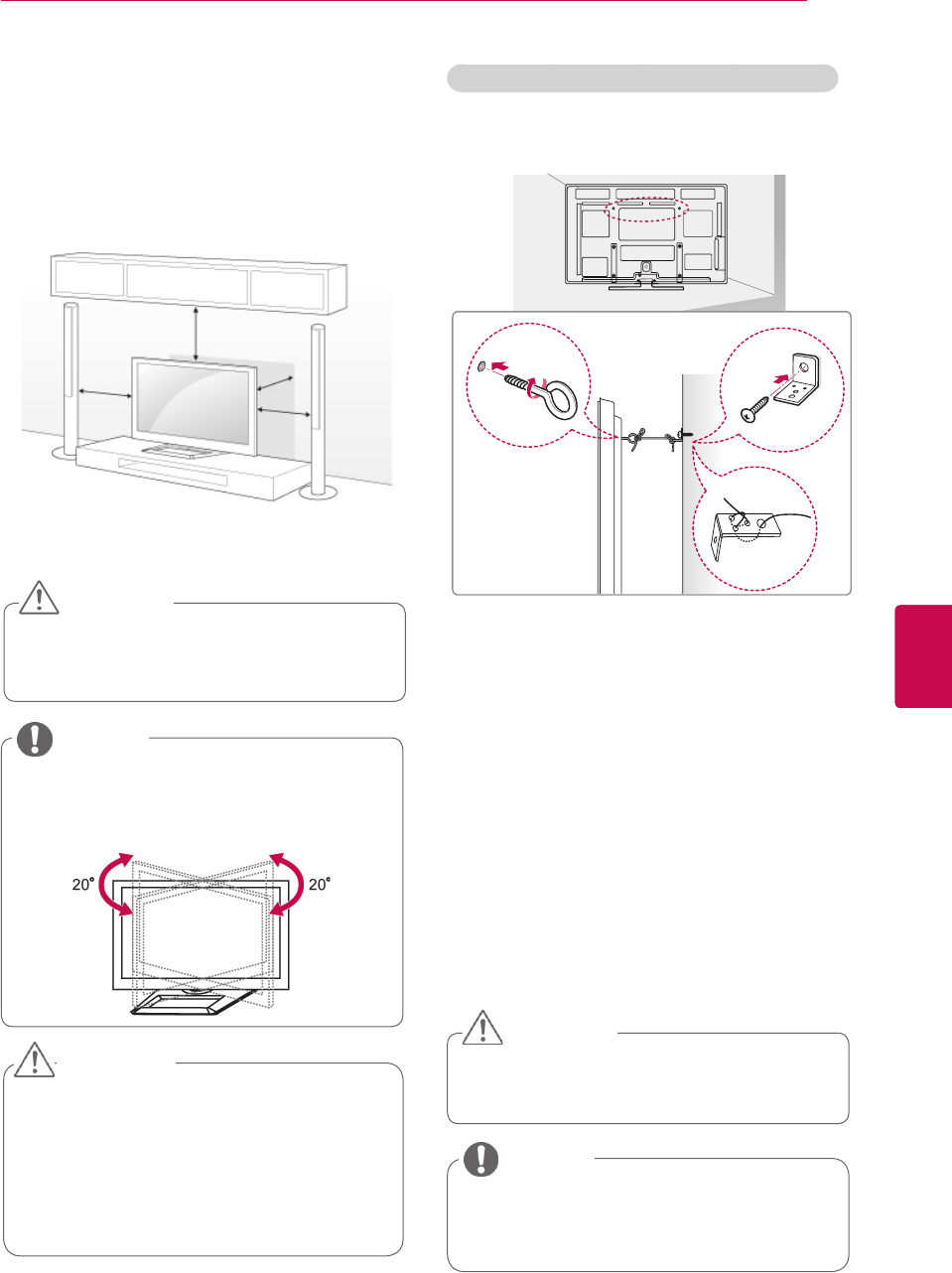

Mounting on a table
Image shown may differ from your TV.
1 Lift and tilt the TV into its upright position on a table.
- Leave a 10 cm (minimum) space from the wall for
proper ventilation.
2 Connect the power cord to a wall outlet.
10 cm
10 cm
10 cm
10 cm
Do not place the TV near or on sources
of heat, as this may result in fire or other
damage.
CAUTION
Swivel 20 degrees to the left or right and
adjust the angle of the TV to suit your
view.
NOTE
When adjusting the angle of the product,
watch out for your fingers.
- Personal injury may occur if hands or fin-
gers are pinched. If the product is tilted
too much, it may fall, causing damage or
injury.
CAUTION
Securing the TV to a wall (Depending on model)
Image shown may differ from your TV.
1 Insert and tighten the eye-bolts, or TV brackets
and bolts on the back of the TV.
- If there are bolts inserted at the eye-bolts
position, remove the bolts first.
2 Mount the wall brackets with the bolts to the
wall.
Match the location of the wall bracket and the
eye-bolts on the rear of the TV.
3 Connect the eye-bolts and wall brackets tightly
with a sturdy rope.
Make sure to keep the rope horizontal with the
flat surface.
Use a platform or cabinet that is strong
and large enough to support the TV
securely.
NOTE
Make sure that children do not climb on
or hang on the TV.
CAUTION
16
ENG
ENGLISH
ASSEMBLING AND PREPARING
Mounting on a wall
Attach a wall mount bracket at the rear of the TV
carefully and install the wall mount bracket on a
solid wall perpendicular to the floor. When you
attach the TV to other building materials, please
contact qualified personnel.
LG recommends that wall mounting be performed
by a qualified professional installer.
10 cm
10 cm
10 cm
10 cm
Make sure to use screws and wall mount
bracket that meet the VESA standard. Standard
dimensions for the wall mount kits are described in
the following table.
Separate purchase(Wall Mounting Bracket)
Model 42/50PA45**
42/50PA49**
50PA55**
50PA65**
60PA55**
60PA65**
VESA (A x B) 400 x 400 600 x 400
Standard screw M6 M8
Number of screws 4 4
Wall mount bracket PSW400B PSW600B
PSW420BX PSW620BX
Disconnect the power first, and then move
or install the TV. Otherwise electric shock
may occur.
If you install the TV on a ceiling or slanted
wall, it may fall and result in injury. Use
an authorized LG wall mount bracket
and contact the local dealer or qualified
personnel.
Do not over tighten the screws as this may
cause damage to the TV and void your
warranty.
Use the screws and wall mount bracket that
meet the VESA standard. Any damages
or injuries by misuse or using an improper
accessory are not covered by the warranty.
CAUTION
Use the screws that are listed on the
VESA standard screw specifications.
The wall mount kit includes an installation
manual and necessary parts.
The length of screws may differ
depending on the wall mount. Make sure
to use the proper length.
For more information, refer to the manual
supplied with the wall mount bracket.
NOTE
A
B
17
ENGENGLISH
ASSEMBLING AND PREPARING
Tidying cables
Image shown may differ from your TV.
Do not move the TV by holding the Cable
Holder & Power Cord Holder, as the
Cable holders may break, and injuries
and damage to the TV may occur.
CAUTION
1 Install the Power Cord Holder and Power
Cord. It will help prevent the power cable from
being removed by accident.
2 Gather and bind the cables with the Cable
Holder.
Power Cord Holder
Cable Holder
18
ENG
ENGLISH
REMOTE CONTROL
REMOTE CONTROL
The descriptions in this manual are based on the buttons on the remote control.
Please read this manual carefully and use the TV correctly.
To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching
and ends to the label inside the compartment, and close the battery cover. Be
sure to point the remote control to the remote control sensor on the TV.
To remove the batteries, perform the installation actions in reverse.
Do not mix old and new batteries, as this may damage the remote control.
CAUTION
Image shown may differ from your TV.

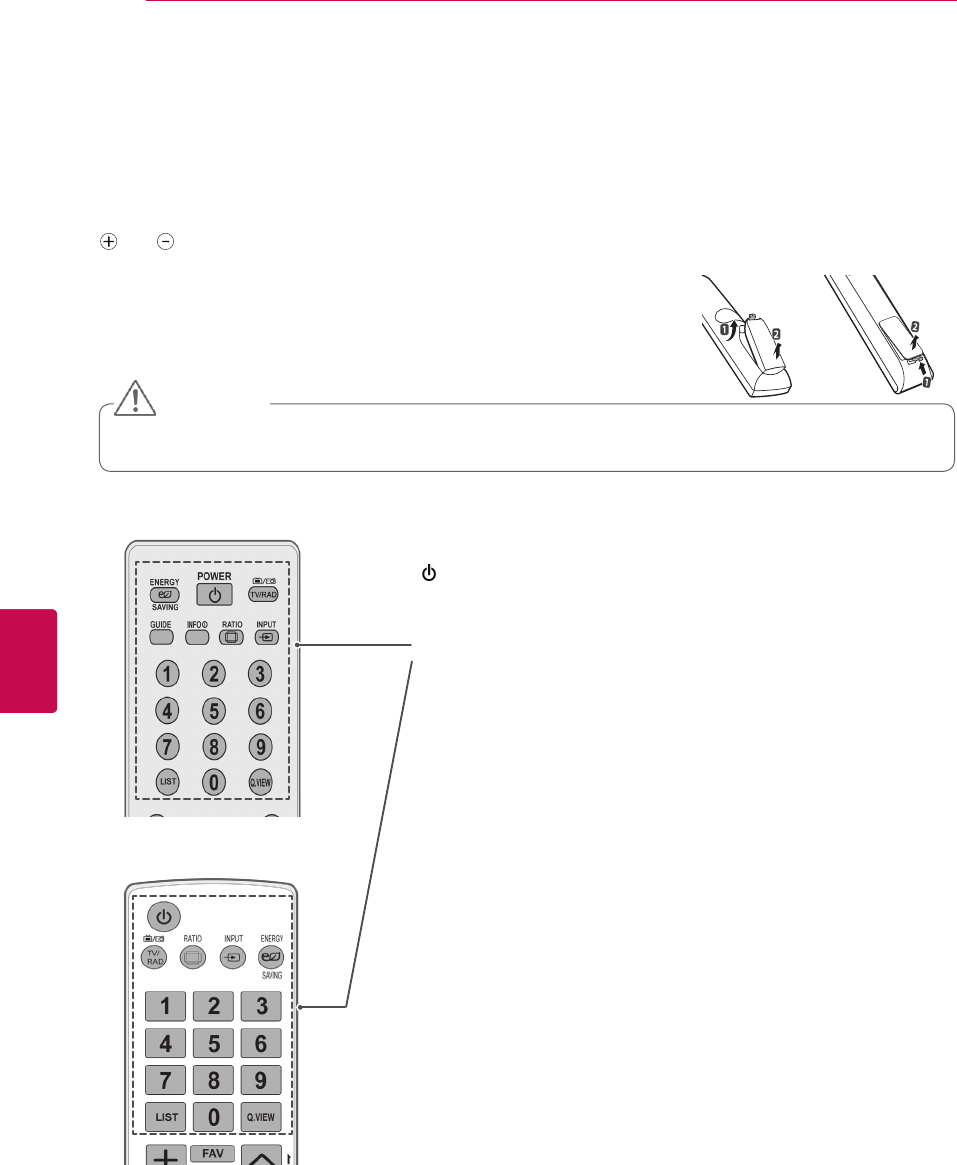

(POWER)
Turns the TV on or off.
ENERGY SAVING (See p.68)
Adjusts the brightness of the screen to reduce energy consumption.
TV/RAD
Selects Radio, TV and DTV programme.
GUIDE
Shows programme guide.
INFO (See p.29)
Views the information of the current programme and screen.
RATIO (See p.31)
Resizes an image.
INPUT (See p.33)
Changes the input source; Turns the TV on.
Number buttons
Enters numbers.
LIST (See p.28)
Accesses the saved programme list.
Q.VIEW
Returns to the previously viewed programme.
or
19
ENGENGLISH
REMOTE CONTROL
SETTINGS
Accesses the main menus, or saves your input and exit the menus.
Q. MENU (See p.35)
Accesses the quick menus.
Navigation buttons (up/down/left/right)
Scrolls through menus or options.
OK
Selects menus or options and confirms your input.
Returns to the previous level.
EXIT
Clears all on-screen displays and return to TV viewing.
+ -
Adjusts the volume level.
FAV (See p.28)
Accesses your favourite programme list.
AD
Switches the Audio Description On or Off.
MUTE
Mutes all sounds.
P
∧∨
(P + -)
Scrolls through the saved programmes.
PAGE
Moves to the previous or next screen.
Coloured buttons
These buttons are used for teletext (on TELETEXT models only),
Programme edit.
Control buttons(
, , , , )
Controls the MY MEDIA menus, or the SIMPLINK compatible devices
(USB,SIMPLINK).
SUBTITLE
Recalls your preferred subtitle in digital mode.
1 TELETEXT BUTTONS (See p.94)
These buttons are used for teletext.
For further details, see the ‘Teletext’ section.
INFO (See p.29)
Views the information of the current programme and screen.
GUIDE
Shows programme guide.
SIMPLINK (See p.93) (Depending on model)
Accesses the AV devices connected with the HDMI cable
through HDMI-CEC.
Opens the SIMPLINK menu.
AV MODE (See p.33)(Depending on model)
Selects an AV mode
1
1
20
ENG
ENGLISH
WATCHING TV
WATCHING TV
For optimum picture quality, adjust
antenna direction.
In poor signal areas, to achieve better
picture quality it may be necessary to
install a signal amplifier to the antenna.
If the image quality is poor with an
antenna connected, aim the antenna to
the correct direction.
An antenna cable and converter are not
supplied.
NOTE
Turning the TV on for the first
time
When you turn the TV on for the first time, the
Initial setting screen appears. Select a language
and customize the basic settings.
1 Connect the power cord to a power outlet.
2
In Standby mode, press (POWER) to turn the TV
on.
The Initial setting screen appears if you turn
the TV on for the first time.
You can also access Factory Reset by
accessing OPTION in the main menus.
NOTE
Wall Antenna
Socket
Connecting an antenna
Connect an antenna to watch TV while referring to
the following.
To prevent damage do not connect to the mains
outlet until all connections are made between the
devices.
Connect the TV to a wall antenna socket with an
RF cable (75 Ω).
3 Follow the on-screen instructions to customize
your TV settings according to your preferences.
Selects a language to display.
Selects Home Use for the
home environment.
Selects a country to display.
(Depending on model)
Language
Mode Setting
Country
Set Password
Time Zone
Network Setting
Auto Tuning
Selects the time zone and
daylight saving.
(When Russia is selected for
Country)
(If there is LAN port) selects
Network Setting to display.
Scans and saves
available programmes
automatically.
Set the password.
(When France or Italy is
selected for Country)
21
ENGENGLISH
WATCHING TV
For those countries without confirmed DTV
broadcasting standards, some DTV features
might not work, depending on the DTV
broadcasting environment.
When France is selected for Country,
password is not ‘0’, ‘0’, ‘0’, ‘0’ but ‘1’, ‘2’, ‘3’,
‘4’.
To display images in the best quality for your
home environment, select Home Use.
Store Demo is suitable for the retail
environment.
If you select Store Demo, any customized
settings will switch back to the default
settings of Store Demo in 5 minutes.
NOTE
4 When the basic settings are complete,
press OK.
If you do not complete the Initial setting, it
will appear whenever the TV turns on.
Disconnect the power cord from the
power outlet when you do not use the TV
for a long period of time.
NOTE
5 To turn the TV off, press
(POWER)
.
Watching TV
1 In Standby mode, press
(POWER)
to turn the
TV on.
2 Press INPUT and select Antenna.
3 To turn the TV off, press
(POWER)
.
The TV switches to Standby mode.
Managing programmes
Selecting Antenna,
Use this to automatically find and store all avail-
able programmes.
When you start auto programming, all previously
stored service information will be deleted.
1 Press SETTINGS to access the main menus.
2 Press the Navigation buttons to scroll to
SETUP and press OK.
3 Press the Navigation buttons to scroll to
Auto Tuning and press OK.
4 Press the Navigation buttons to scroll to
Antenna and press OK.
5 Select Start to start automatic tuning.
The TV scans and saves available pro-
grammes automatically.
6 When you are finished, press EXIT.
When you return to the previous menu, press
.
Automatically setting up pro-
gramme
NOTE
If the TV scans a blocked programme, you
will be prompted to enter your password to
keep the programme scanned.
You can store up to 1,800 programmes. The
number of programmes that you can store
differs depending on the broadcasting signal
environment.
When select Italy in the Country menu, if the
pop up is displayed when the conflicted pro-
gramme after Auto Tuning, select a broad-
caster for conflicting programme number to
solve.
When select UK in the Country menu, if the
pop up is displayed when the conflicted pro-
gramme after Auto Tuning, select a regions,
country for conflicting programme number to
solve.
When selected Norway in the Country menu,If
Network name is recognized more than two
after Auto Tuning, you can select your desired
one. Programme lists are arranged based
on the selected Network name. (Only Nordic
models)
22
ENG
ENGLISH
WATCHING TV
1 Press SETTINGS to access the main menus.
2 Press the Navigation buttons to scroll to
SETUP and press OK.
3 Press the Navigation buttons to scroll to
Auto Tuning and press OK.
4 Press the Navigation buttons to scroll to
Cable and press OK.
5 Press the Navigation buttons to scroll to
Major Operator or Other Operators and
press OK.
6 Press the Navigation buttons to scroll to
Quick or Full and press OK.
7 Press the Navigation buttons or Number but-
tons to scroll make appropriate adjustments
(Except for Full mode) and press OK.
8 Select Start to start automatic tuning.
The TV scans and saves available pro-
grammes automatically.
9 When you are finished, press EXIT.
When you return to the previous menu, press
.
Selecting Cable
NOTE
If the TV scans a blocked programme, you
will be prompted to enter your password to
keep the programme scanned.
When you select the Cable, the Cable
Service Operator selection screen can differ
or not exist by the Cable situation of the ap-
plicable country.
The popup window to select Service Opera-
tor is only shown initially for the 3 cases
when you accessing the Initial Setting
menu, when you change from Antenna to
Cable or when you access the menu after
changing the Country.
When you want to select Service Operator
aside from the above 3 cases, you can do so
by selecting Setup->Cable DTV Setting->
Service Operator.
Acquired certification SO :
Sweden(Comhem, Canal Digital),
Denmark(YouSee, Canal Digital, Stofa),
Norway(Canal Digital), Netherlands(Ziggo,
UPC Digitaal), Ukraine(Volia-
Cable), Germany(KDG, Unity Me-
dia), Switzerland(CableCom, UPC),
Austria(UPC Digital), Hungary(UPC
Digital), Ireland(UPC Digital), Poland(UPC
Digital), Romania(UPC Digital),
Russia(TVOE TV(St.Petersburg),TVOE
(Ekaterinburg),Dom.ru,AKADO, OnLime)
(The acquired certification SO can be
added.)
If there are not any Service Operator
that you want, select Other Operators.
If you select “Other Operators”, or the
selected country supports “Other Op-
erators” only, it may take some time to
search all the programmes, or it may not
search some of the programmes.
If some of the programmes do not ap-
pear, follow the steps below:
1. SETUP -> Auto Tuning -> Cable -> Set-
ting
2. Input additional values such as the frequen-
cy, symbol rate, modulation, and network ID.
(You can ask your cable service provider for
the above information.)
The following values are needed in order to
search all available programmes quickly and
correctly.
The commonly used values are provided as
"default".
However, for correct settings, please inquire
of the cable service provider.
When running Auto Tuning in DVB cable
mode, selecting Full will search through all
frequencies to find available programmes.
In the case when the programme is not
searched by selecting the Default, perform the
searching by selecting the Full.
However, in the case when the programme is
searched by selecting the Full, the Auto Tun-
ing time can be taken too much.
If some programmes are not detected when
Full is selected, select the In detail checkbox
and then try tuning again.
•
Frequency : Enter a user-defined fre-
quency.
• Symbol rate : Enter a user-defined symbol
rate (Symbol rate: Speed at which a
device such as modem sends symbols to
a channel).
• Modulation : Enter a user-defined modula-
tion. (Modulation: Loading of audio or
video signals onto carrier).
• Network ID : Unique identifier allocated for
each user.
• Start Frequency : Enter a user-defined
start frequency range.
• End Frequency : Enter a user-defined end
frequency range.
23
ENGENGLISH
WATCHING TV
Cable DTV Setting (In Cable mode
only)
The range that a user can select from the Service
Operator menu differs depending on number of
Service Operator supported by each country, and
if number of supported Service Operator for each
country is 1, corresponding function becomes non-
activation.
1 Press SETTINGS to access the main menus.
2 Press the Navigation buttons to scroll to
SETUP and press OK.
3 Press the Navigation buttons to scroll to Cable
DTV Setting and press OK.
4 Press the Navigation buttons to scroll to Serv-
ice Operator or Channel Auto update and
press OK.
5 Select your desired Source.
6 When you are finished, press EXIT.
When you return to the previous menu, press
.
If you select Cable, you can see Cable
DTV Setting menu.
When Channel Auto Update is On, you
can update information for all the pro-
grammes that can be updated, including
the programme currently being watched.
When Channel Auto Update is Off,
you can only update information for the
programme currently being watched.
You can not select the Cable DTV Set-
ting when the service operator is set to
"Ziggo".
NOTE
If the TV scans a blocked programme, you will be
prompted to enter your password to keep the pro-
gramme scanned.
Symbol rate : Enter a user-defined symbol rate (Sym-
bol rate: Speed at which a device such as modem
sends symbols to a channel).
Modulation : Enter a user-defined modulation. (Modu-
lation: Loading of audio or video signals onto carrier).
You can not select the Cable DTV when the service
operator is set to "Ziggo" or "Other Operators" of
Netherlands.
1 Press SETTINGS to access the main menus.
2 Press the Navigation buttons to scroll to
SETUP and press OK.
3 Press the Navigation buttons to scroll to
Manual Tuning and press OK.
4 Press the Navigation buttons to scroll to DTV
and press OK.
5 Scroll through the programme types, and then
add or delete programmes.
6 When you are finished, press EXIT.
When you return to the previous menu, press .
1 Press SETTINGS to access the main menus.
2 Press the Navigation buttons to scroll to
SETUP and press OK.
3 Press the Navigation buttons to scroll to
Manual Tuning and press OK.
4 Press the Navigation buttons to scroll to Cable
DTV and press OK.
5 Make appropriate adjustments.
6 When you are finished, press EXIT.
When you return to the previous menu, press
.
Manually setting up programme (In
digital mode)
Manual Tuning lets you manually add a pro-
gramme to your programme list.
Selecting Cable,
Selecting Antenna,
NOTE
If the TV scans a blocked programme, you
will be prompted to enter your password to
keep the programme scanned.
You can select SBAND when the country is
set to "Norway, Latvia."
24
ENG
ENGLISH
WATCHING TV
NOTE
If the TV scans a blocked programme, you
will be prompted to enter your password to
keep the programme scanned.
L : SECAM L/L’ (France)
BG : PAL B/G, SECAM B/G (Europe / East
Europe / Asia / New Zealand / M.East /
Africa)
I : PAL I (U.K. / Ireland / Hong Kong / South
Africa)
DK : PAL D/K, SECAM D/K (East Europe /
China / Africa / CIS)
To store another channel, repeat steps 5 to
10.
Manually setting up programme (In
analogue mode)
Manual Tuning lets you manually tune and arrange
the stations in whatever order you desire.
1 Press SETTINGS to access the main menus.
2 Press the Navigation buttons to scroll to
SETUP and press OK.
3 Press the Navigation buttons to scroll to
Manual Tuning and press OK.
4 Press the Navigation buttons to scroll to
TV or Cable TV and press OK.
5 Scroll through the programme types, and then
add or delete programmes.
6 Press the Navigation buttons to scroll to
TV System.
7 Press the Navigation buttons to scroll to
V/UHF or Cable.
8 Press the Navigation buttons or Number but-
tons to scroll to the desired channel number.
9 Press the Navigation buttons to scroll to
commence searching.
10 Press the Navigation buttons to scroll to
Store and press OK.
11 When you are finished, press EXIT.
When you return to the previous menu, press
.
Assigning a station name
You can assign a station name with five characters
to each programme number.
1 Press SETTINGS to access the main menus.
2 Press the Navigation buttons to scroll to
SETUP and press OK.
3 Press the Navigation buttons to scroll to
Manual Tuning and press OK.
4 Press the Navigation buttons to scroll to
TV or Cable TV.
5 Press the Navigation buttons to scroll to
Name and press OK.
6 Press the Navigation buttons to scroll Select
the position and make your choice of the sec-
ond character, and so on. You can use an the
alphabet A to Z, the number 0 to 9, +/ -, and
blank and press OK.
7 Press the Navigation buttons to scroll to
Close and press OK.
8 Press the Navigation buttons to scroll to
Store and press OK
9 When you are finished, press EXIT.
When you return to the previous menu, press
.
25
ENGENGLISH
WATCHING TV
Editing your programme list
1 Press SETTINGS to access the main menus.
2 Press the Navigation buttons to scroll to
SETUP and press OK.
3 Press the Navigation buttons to scroll to
Programme Edit and press OK.
4 Press the Navigation buttons to select a
programme to be stored or skipped.
5 When you are finished, press EXIT.
When you return to the previous menu, press
.
When a programme number is skipped, it means
that you will be unable to select it using P
∧∨
(P +
-)
button during TV viewing.
If you wish to select the skipped programme,
directly enter the programme number with the
NUMBER buttons or select it in the Programme
edit menu.
This function enables you to skip the stored pro-
grammes.
You can change the programme number using
“Move”function, if “Automatic Numbering” is un-
checked when you start Auto Tuning.
In DTV/RADIO mode
1 Press the Navigation buttons to scroll to select
a programme number to be skipped.
2 Press Blue button to turn the programme
number.
3 Press Blue button to release.
NOTE
When programmes are to be skipped, the
skipped programme shows in blue and these
programmes will not be selected by the P
∧
(P +) or P
∨
(P -) buttons during TV viewing.
If you wish to select a skipped programme,
directly enter the programme number with
the NUMBER buttons or select it in the pro-
gramme edit or EPG.
Skipping a programme number
26
ENG
ENGLISH
WATCHING TV
In TV mode
1 Press the Navigation buttons to scroll to select
a programme number to be deleted.
2 Press Red button to turn the programme
number.
NOTE
The selected programme is deleted, all the
following programmes are shifted up one.
Deleting a programme
1 Press the Navigation buttons to scroll to select
a programme number to be moved.
2 Press the Green button to turn the programme
number and press the Navigation buttons.
3 Press Green button to release.
Moving a programme
1 Press the Navigation buttons to scroll to select
a programme number to be locked.
2 Press
Yellow button
to
turn the programme
number.
3 Press
Yellow button
to release.
1 Press the Navigation buttons to scroll to select
a programme number to be edited.
2 Press Green button to turn the programme
number.
3 Press the Navigation buttons to scroll to select
your desired programme number.
4 Press Yellow button to release.
NOTE
It can be registered as Lock programme
even when Lock System is turned Off.
Locking a programme number
Editing a programme number
1 Press the Navigation buttons to scroll to select
a programme number to be skipped.
2 Press Blue button to turn the programme
number.
3 Press Blue button to release.
NOTE
When programmes are to be skipped, the
skipped programme shows in blue and these
programmes will not be selected by the
P
∧∨
(P + -) buttons during TV viewing.
If you wish to select a skipped programme,
directly enter the programme number with
the NUMBER buttons or select it in the pro-
gramme edit.
Skipping a programme number
27
ENGENGLISH
WATCHING TV
CI [Common interface] Information
1 Press SETTINGS to access the main menus.
2 Press the Navigation buttons to scroll to
SETUP and press OK.
3 Press the Navigation buttons to scroll to CI
Information and press OK.
4 Select the desired item: Module information,
smart card information, language, or software
download etc and press OK.
5 When you are finished, press EXIT.
This function enables you to watch some encrypt-
ed services (pay services). If you remove the CI
Module, you cannot watch pay services.
When the module is inserted into the CI slot, you
can access the module menu.
To purchase a module and smart card, contact
your dealer. Do not repeatedly insert or remove a
CI module from the TV. This may cause a malfunc-
tion. When the TV is turned on after inserting a CI
Module, you may not have any sound output.
This may be incompatible with the CI module and
smart card.
CI (Common Interface) functions may not be pos-
sible depending upon the country broadcasting
circumstances.
When using a CAM(Conditional Access Module),
please make sure it meets fully the requirements
of either DVB-CI or CI plus.
1 Press the Navigation buttons to scroll to select
a programme number to be locked.
2 Press
Yellow button
to
turn the programme
number.
3 Press
Yellow button
to release.
NOTE
It can be registered as Lock programme
even when Lock System is turned Off.
Locking a programme number
1 Press the Navigation buttons to start Auto Sort
and press OK.
NOTE
After activating Auto Sort once, you can no
longer edit programmes.
Auto Sort
1 Press the Navigation buttons to scroll to select
your desired programme.
2
Press the FAV to add corresponding
programme to Favourite list of current Favourite
group.
3
Press FAV
to release.
Selecting favourite programme
1 Press the Navigation buttons to scroll to select
your desired programme.
2
Press the Q.MENU to
display a pop-up window
where Favourite group can be changed.
3 Press the Navigation buttons to scroll to select
a Favourite group and press OK.
Selecting favourite programme group
NOTE
This OSD is only for illustration and the menu
options and screen format will vary according
to the Digital pay services provider.
It is possible for you to change CI (Common
Interface) menu screen and service by
consulting your dealer.
This feature is not available in all countries.
28
ENG
ENGLISH
WATCHING TV
Selecting the programme list
1 Press Navigation buttons to select pro-
gramme.
2 Press OK to switch to the chosen programme
number.
You can check which programmes are stored in
the memory by displaying the programme list.
Displaying programme LIST
1 Press LIST to access the Programme List.
2 Press Blue button to turn the programme edit.
NOTE
You may find some blue programmes. These
have been set up to be skipped by auto pro-
gramming or in the programme edit mode.
Some programmes with the channel number
shown in the programme LIST indicate there
is no station name assigned.
Selecting a programme in the programme list
NOTE
Press TV/RAD. (The mode will be switched
between TV, DTV, and Radio from the
programme you are currently watching.)
Paging through a programme list
Displaying the favourite programme list
1 Press the P
∧∨
(P + -) buttons to turn the
pages.
2 Press LIST to return normal TV viewing.
1 Press FAV to access the Favourite Programme
List.
2 When you are finished, press EXIT.
Button Description
Blue button
Turn the programme edit.
Yellow
button
Current channel is registered/
cancelled as preferred channel on
currently selected Group.
OK Selects a programme to view
<
or
>
Favourite group is changed.
29
ENGENGLISH
WATCHING TV
EPG (Electronic Programme
Guide) (In digital mode)
This system has an Electronic Programme Guide
(EPG) to help your navigation through all the pos-
sible viewing options.
The EPG supplies information such as programme
listings, start and end times for all available services.
In addition, detailed information about the pro-
gramme is often available in the EPG (the availability
and amount of these programme details will vary,
depending on the particular broadcaster).
This function can be used only when the EPG
information
is broadcast by broadcasting companies.
You must set the Clock in the Time menu, before
using EPG function.
The EPG displays the programme details for 8
days.
DTV 1 TV ONE
Good Morning
21:00 00:00 Show/Game Show
►
Watch
► Next
Pr. Change
►
16:9
HE-AAC
720p
...
▼
Up
Down
Sarah Bradley, Steve Gray and Brendon Pongia present the
latest in fashion, the arts, entertainment, lifestyle and cooking,
with regular and special guests.
Sarah Bradley, Steve Gray and Brendon Pongia present the
latest in fashion, the arts, entertainment, lifestyle and cooking,
with regular and special guests.
Press INFO to show current programme
information.
Displayed with a TV or DTV Programme.
Displayed with a Radio Programme.
Displayed with a MHEG Programme.
HE-AAC C
Displayed with a HE-AAC Programme.
Aspect ratio of broadcasting programme.
Aspect ratio of broadcasting programme.
Displayed with a Teletext Programme.
Displayed with a Subtitle Programme.
Displayed with a Scramble Programme.
Displayed with a Dolby Digital Programme.
Displayed with a Dolby Digital Plus Programme.
576i/p, 720p, 1080i/p : Resolution of broadcasting programme
Broadcasted programme with the icon may
not be displayed in Monitor Out depending
on the information of the programme.
>Shows next programme information.
ꕍ or ꕌShows other programme information.
Programme Guide
ALL NOW NEXT
1 YLE TV1
Keno
World Business
2 YLE TV2
4 TV..
Your World Today
Fantomen
Legenen om Den....
Kritiskt
Naturtimmen
ABC
Lyssna
5 YLE FST
6 CNN
▼
▲
That ’70s show
DTV 1 YLE TV1 25 Nov. 2008 09:45~10:15
RADIOWatch/Schedule
TV/RAD
Favourite
FAV
Manual Timer Schedule List
i Information
INFO
Mode
That ’70s show
Switch on/off EPG
1 Press GUIDE to switch on or off EPG.
Select a programme
OK A pop-up window for remind settings appear.
< > Select Timer Remind setting mode.
(NOW / NEXT Guide Mode)
1 Press Navigation buttons or P
∧∨
(P + -) to
select desired programme.
Yes No
Do you want to set a reminder for the
selected programme?
?
Bob The Builder Special
DTV 1 ABC TV Sydney
28 Sep. 2008 21:00~00:00
Tue. 25 Nov. 2008 10:05
30
ENG
ENGLISH
WATCHING TV
NOW/NEXT Guide Mode
You can view a programme being broadcasted and
one scheduled to follow.
Button Description
Red button Change EPG mode.
Yellow button Enter Manual Timer mode.
Blue button Enter Schedule List mode.
OK
When ‘Now’ is selected, it is moved to
selected programme and EPG disap-
pears
When ‘Next’ is selected, a reservation
pop-up window appears.
< > Select NOW or NEXT Programme.
Select the Broadcast Programme.
P
∧∨
(P + -) Page Up/Down.
GUIDE
Switch off EPG.
EXIT
TV/RAD Select DTV or RADIO Programme.
INFO Detail information on or off.
Extended Description Box
Button Description
INFO The detail information on or off.
Text Up/Down.
GUIDE Switch off EPG.
EXIT
Date Change Mode
Button Description
Green button
Switch off Date setting mode.
ꕍ
OK Change to the selected date.
< > Select a date.
GUIDE Switch off EPG.
EXIT
Remind Setting Mode
Button Description
Switch off Manual Timer mode.
OK Save Timer Remind.
< > Select Start Time or Programme.
Select Remind function setting.
8 Day Guide Mode
Button Description
Red button Change EPG mode.
Green button Enter Date setting mode.
Yellow button Enter Manual Timer mode.
Blue button Enter Schedule List mode.
OK
When ‘Currently broadcasting pro-
gramme is selected, it is moved to se-
lected programme and EPG disappears
When ‘Future broadcasting programme
is selected, a reservation pop-up window
appears.
< > Select Programme.
Select the Broadcast Programme.
P
∧∨
(P + -) Page Up/Down.
GUIDE
Switch off EPG.
EXIT
TV/RAD Select DTV or RADIO Programme.
INFO Detail information on or off.
31
ENGENGLISH
WATCHING TV
Schedule List Mode
If you’ve created a schedule list, a scheduled programme
is displayed at the scheduled time even when you are
watching a different programme at the time.
Button Description
Yellow button Change to Manual Timer mode.
Blue button Change to Guide mode.
GUIDE
OK Select your desired Option (Modify/
Delete/Delete All).
Select programme.
P
∧∨
(P + -) Page Up/Down.
Switch off Schedule List.
Using additional options
Adjusting aspect ratio
Resize an image to view at its optimal size by
pressing RATIO while you are watching TV.
- 16:9: Resizes images to fit the screen width.
You can also change the image size by
pressing Q. MENU or accessing Aspect
Ratio in the Picture menus.
For Zoom Setting, select 14:9, Zoom and
Cinema Zoom in Ratio Menu. After com-
pleting Zoom Setting, the display goes
back to Q.Menu.
You can only select 4:3, 16:9 (Wide),
14:9, Zoom/Cinema Zoom in Compo-
nent mode.
You can only select 4:3, Original, 16:9
(Wide), 14:9, Zoom/Cinema Zoom in
HDMI mode.
You can only select 4:3, 16:9 (Wide) in
RGB-PC, HDMI-PC mode only.
In DTV/HDMI/Component (over 720p)
mode, Just Scan is available.
In Analogue/DTV/AV/Scart mode, Full
Wide is available.
NOTE
- Just Scan: Displays video images in the origi-
nal size without removing parts at the edge of
the image.
If you select Just Scan, you may see
image noises at the edge of the original
signal.
NOTE
- Original: When your TV receives a wide
screen signal it will automatically change to the
picture format broadcasted.
Just Scan
Original
32
ENG
ENGLISH
WATCHING TV

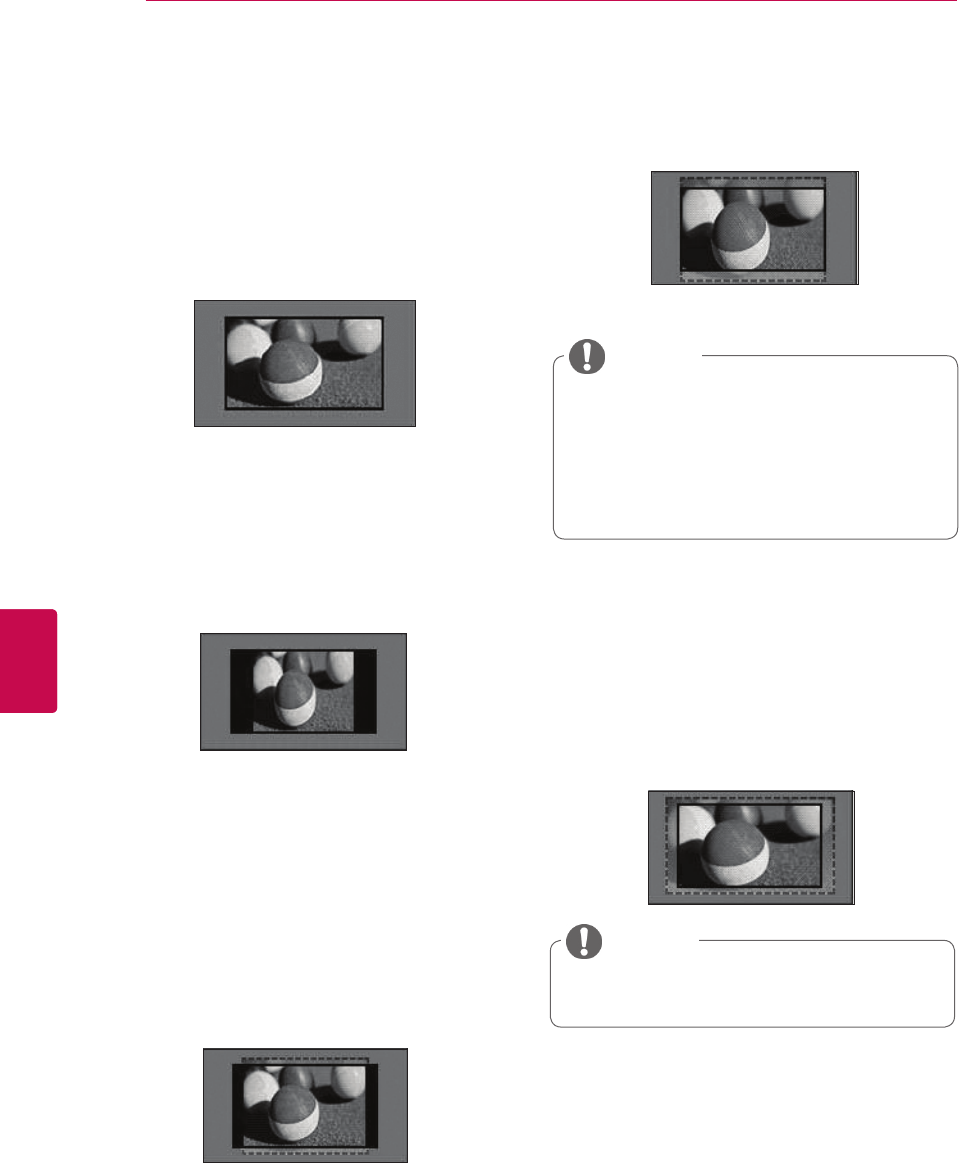

- 4:3: Resizes images to the previous standard
4:3.
- Full Wide: When TV receives the wide
screen signal, it will let you adjust the picture
horizontally or vertically, in a linear proportion,to
fill the entire screen fully.
4:3 and 14:9 video is supported in full screen
without any video distortion through DTV input.
- 14:9 : You can view a picture format of 14:9
or a general TV programme in the 14:9 mode.
The 14:9 screen is viewed in the same way as
in 4:3, but is moved to the up and down.
- Cinema Zoom: Enlarges an image in the cin-
emascope ratio, 2.35:1.
To change the ratio of the cinema zoom,
press the Navigation buttons and its range is
from 1 to 16.
To move the zoom focus up or down, press
the Navigation buttons.
If you enlarge or reduce an image, the
image may be distorted.
NOTE
Full Wide
- Zoom(Depending on model): Enlarges an
image to fit the screen width. The top and bot-
tom of the image may not appear.
If you access, Aspect Ratio in the quick
menus,
- Press the Navigation buttons to stretch
an image vertically.
- Press the Navigation buttons to move
the zoom focus up or down.
NOTE
33
ENGENGLISH
WATCHING TV
Changing AV modes
(Depending on model)
Each AV mode has the optimized image and sound
settings.
Press AV MODE repeatedly to select an appropriate
mode.
Mode Description
Off Changes to the previously customized
settings
Cinema Use the optimized image and sound
settings for the cinematic look
Game Use the optimized image and sound
settings for fast gaming
When playing a video game using
PlayStation or Xbox, it is recommended
to use the Game mode.
When in Game mode, functions related
to picture quality will be optimized
for playing games.
Using the input list
Selecting an input source
1 Press INPUT to access the input sources.
- The connected device displays on each input
source.
2 Press Navigation buttons to scroll to one of the
input sources and press OK.
Antenna USB AV1
OK
Move
Input List
Input LabelSIMPLINK Exit
If you select Off in AV mode, the picture
and image which you initially set will be
selected.
NOTE
Image shown may differ from your TV.
You can also access the input source list
by selecting INPUT in the main menus.
NOTE
The connected input sources display in black
and the disconnected input sources in grey.
- To add an input label, press the Blue button.
You can easily identify a device connected to
each input source.
HDMI1 HDMI2
HDMI1 HDMI2
RGB
RGB
Component
AV2
TOUCH
TOUCH TOUCH
HDMI3
TOUCH
▲
▼
Input source Description
Antenna or
Cable
Select it when watching the DTV/RADIO/
TV.
USB Select it when using USB depends
on connector.
AV Select it when watching the VCR or
external equipment.
Component Select it when using the DVD or
the Digital set-top box depends on
connector.
RGB
(TOUCH)
Select it when using PC depends on
connector.(For Pentouch TV)
RGB Select it when using PC depends on
connector.
HDMI
(TOUCH)
Select it when using DVD, PC or
Digital set-top box depend on connector.
(For Pentouch TV)
HDMI Select it when using DVD, PC or
Digital set-top box depend on connector.
34
ENG
ENGLISH
WATCHING TV

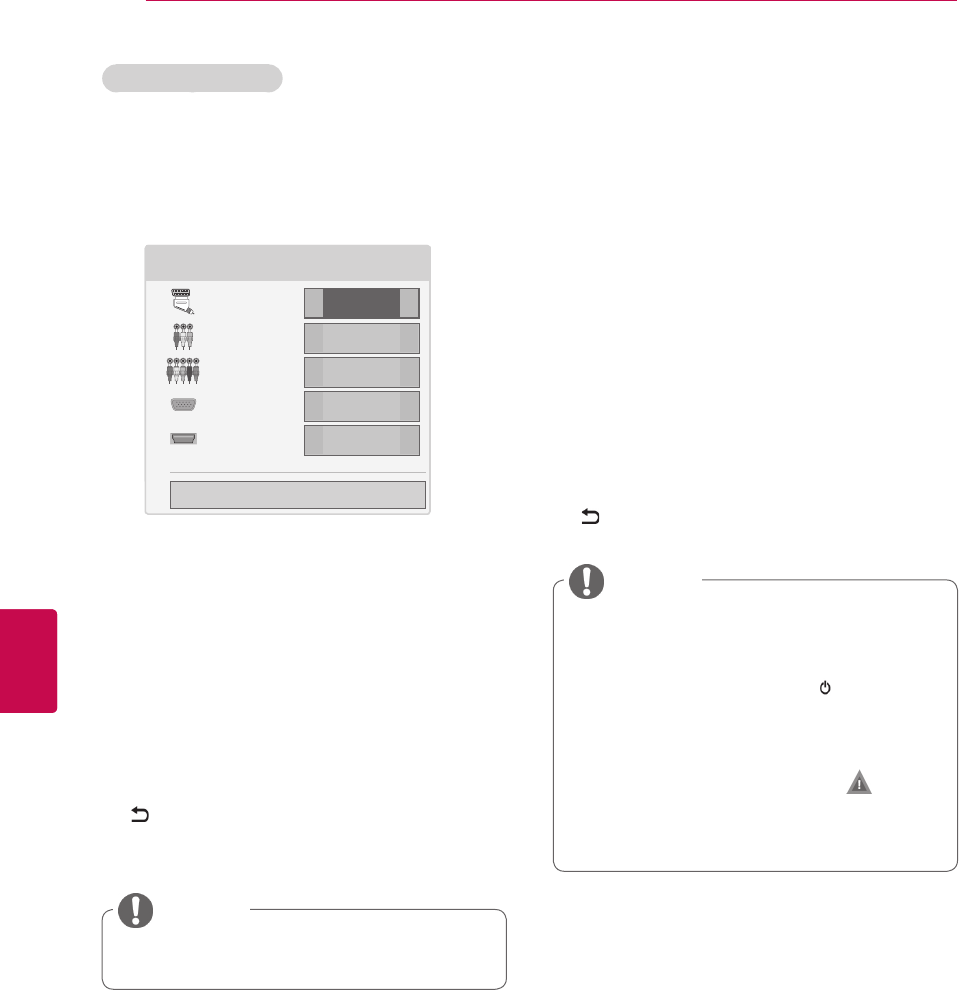

Adding an Input label
Add a label to an input source so that you can
easily identify a device connected to each input
source.
1 Press INPUT to access the input sources.
2 Press the Blue button.
3 Press the Navigation buttons to scroll to one of
the input sources.
4 Press the Navigation buttons to scroll to one of
the input labels.
5 When you are finished, press EXIT.
When you return to the previous menu, press
.
Locking the buttons on the TV
(Child Lock)
Lock the buttons on the TV to prevent any
unwanted operations or accidents by children.
1 Press SETTINGS to access the main menus.
2 Press the Navigation buttons to scroll to LOCK
and press OK.
3 Press Navigation buttons to scroll to
Key Lock and press OK.
4 Select On to activate the Key lock feature.
- To deactivate the Key lock feature, select Off.
5 When you are finished, press EXIT.
When you return to the previous menu, press
.
Image shown may differ from your TV.
Input Label
AV1
AV2
Component
RGB
HDMI1
Close
▼
◄ ►
◄ ►
◄ ►
◄ ►
◄ ►
The TV is programmed to remember the
last setting after you turn the TV off.
If you turn the TV off with the Key Lock
feature activated, press the , INPUT,
P
∧∨
(P + -)or Number buttons on the
remote control.
If you press any button on the TV with
the Key lock feature activated, Key
Lock appears on the screen.
NOTE
This function is not supported in Pentouch
mode.
NOTE
35
ENGENGLISH
WATCHING TV
Using the quick menu
Customize the frequently used menus.
1 Press Q. MENU to access the quick menus.
2 Press Navigation buttons to scroll through the
following menus and press OK.
The available menus and options may
differ from the input source that you are
using.
NOTE
3 Press Navigation buttons to scroll to the option
you want.
4 When you are finished, press Q. MENU.
Menu Description
1Aspect Ratio Changes the image size (16:9,
Just Scan, Original, Full Wide,
4:3, 14:9, Zoom, Cinema
Zoom)(Dependin on model)
2Clear Voice II By differentiating the human
sound range from others, it
helps users listen
to human voices better.
3Picture Mode
(Depending on
model)
Changes the image mode
(Vivid, Standard, APS,
Cinema, Game, Expert1,
Expert2)
4Sound Mode Changes the sound mode
(Standard, Music, Cinema,
Sport, Game)
5Audio or
Audio Language
Changes the sound output.
6Sleep Timer Sets the length of time until
the TV to turns off
7Skip Off/On Sets the Skip Off/On.
8USB Device Ejects a USB device when a
USB device is connected
Exit
Aspect Ratio
16:9
1
2
3
4
8
7
6
5
Image shown may differ from your TV.
36
ENG
ENGLISH
WATCHING TV
Using the customer support
Testing Software Update
To download software through the digital terrestrial
broadcasting system.
1 Press SETTINGS to access the main menus.
2 Press the Red button to scroll Customer Sup-
port.
3 Press the Navigation buttons to scroll Soft-
ware Update.
4 Press the Navigation buttons to scroll to On
and press OK.
- If you select On, a user confirm message box
will be displayed to notify that new software is
found.
5 When you are finished, press EXIT.
When you return to the previous menu, press
.
When setting “Software Update”
- Occasionally, a transmission of updated
digital software information will result in the
following menu on the TV screen.
Yes
No
Software update is available.
Would you like to download now?
?
- Simple Update : for current update stream
- Schedule Update : for scheduled update
stream
- When the Software Update menu is “Off”,
the message to change it to “On” appears.
Yes
No
A new software update is available at
00/00/0 00:00.
Do you want to update the software when
available?
?
- Download starts when "Yes" is selected. At
this time, progressing pop-up window does
not display.
- Download progress status can be checked
from Software Update menu.
Software Update
Close
Software downloading progress.
Ver.03.00.00 ► Ver.03.01.00
◄ On ►
4%
- TV is restarted when download is
completed.
Rebooting now.
During Progress of a Software Update,
please note the following:
- Power to the TV must not be interrupted.
- The antenna must not be disconnected.
- After Software Update, you can confirm
the updated software version in Software
Update menu.
- It may take hours to download the software,
so make sure that the power stays on
during the download.
- The software is downloaded only in
Standby mode or in MUX with Software
Update Service, and stops when the power
cord is unplugged or when viewing MUX
without Software Update Service.
- When you return to Standby mode or
MUX with Software Update Service, the
software download will resume from where
it stopped.
NOTE
37
ENGENGLISH
WATCHING TV
Using Signal Test
To view information on the Manufacturer, Model/
Type, Serial Number and Software Version.
1 Press SETTINGS to access the main menus.
2 Press the Red button to scroll Customer Sup-
port.
3 Press the Navigation buttons to scroll Signal
Test.
4 Press OK.
- Manufacturer, Model/Type, Serial Number,
Software Version and information of Channel.
5 When you are finished, press EXIT.
When you return to the previous menu, press
.
This displays the information and signal
strength of the tuned *MUX.
This displays the signal information and
service name of the selected MUX.
(*MUX: A higher directory of channels in digital
broadcasting (a single MUX contains multiple
channels.))
NOTE
Using the product or service information
To check the product or service information
1 Press SETTINGS to access the main menus.
2 Press the Red button to scroll Customer Sup-
port.
3 Press the Navigation buttons to scroll Product/
Service Info..
You can check the various product/Service
information based on your model.
4 When you are finished, press EXIT.
When you return to the previous menu, press
.
Testing the Picture / Sound
To execute picture and sound tests.
1 Press SETTINGS to access the main menus.
2 Press the Red button to scroll Customer Sup-
port.
3 Press the Navigation buttons to scroll Picture
Test or Sound Test.
4 Press the Navigation buttons to scroll to Yes
and press OK.
5 When you are finished, press EXIT.
When you return to the previous menu, press
.
38
ENG
ENGLISH
PENTOUCH
Pentouch allows you to use touch pen supported
features like Sketchbook, Photo Editor, Family
Diary, Gallery, Internet and My Office.
Do not drop or throw the touch pen and
cradle.Do not swing the touch pen and cradle
with the charging cable connected to it. This
can damage the product or cause personal
injury.
For people using pacemakers, the distance
between the touch pen and the pacemaker
should be at least 30 cm. Never use it where
wireless communication is prohibited. Protect
it from extreme vibrations or magnetic
objects.Wireless communications can cause
malfunctions or failures.
Do not use or store the touch pen and cradle
in direct sunlight, near a hot object (e.g.,
a heater or fireplace), or in dusty or high-
humidity environments.This can result in
product deformation, malfunction, failure, or
fire.
If abnormal sound, smoke, or odor is
detected, immediately remove the charging
cable and stop using the product. Contact a
service center. This can cause failures or fire.
If fluid leaks from the touch pen and cradle,
do not touch the fluid with bare hands. If fluid
comes into contact with eyes, immediately
rinse eyes with abundant tap water, then
consult a doctor. The fluid can cause
blindness. If the fluid comes into contact with
skin or clothing, immediately wash it off with
tap water. If the fluid causes skin inflammation
or injury, consult a doctor.
Do not allow the fluid to come into contact with
fire. Do not heat the product in a microwave
or convection oven.
Use the specified USB cable when charging
the battery.
Keep the touch pen and cradle out of reach
of children and away from unstable locations.
Do not let children or pets put the touch pen
and cradle in their mouths or lick the touch
pen and cradle. Playing with or swallowing it
may cause serious injury.
Do not use the touch pen and cradle with
wet hands. Do not let foreign substances
(e.g., soft drinks or water) enter the touch pen
and cradle; if this happens, do not use the
touch pen and cradle. Do not touch the optic
receiver of the touch pen and cradle with a
sharp object. This can result in electrical shock
or damage the product.
Do not use the product under extreme
temperature conditions. Do not use the
product immediately after going from the cold
outdoors to the warm indoors. This can cause
condensation in the pen. * This can result in
damaging the product. Turn off the power
and wait several hours until the moisture
evaporates before using the product.
Never disassemble or modify the touch
pen and cradle. * The product warranty
does not cover damage or injury caused by
unauthorized disassembly. This can result in
electrical shock or damage the product.
If fluid leaks from the touch pen and cradle, the
use of fire in the vicinity is strictly prohibited.
The leaked fluid or gas can ignite a fire or
cause damage.
Avoid extreme shocks or impacts to the
product, for example, placing a heavy object
on it or pressing it.
Do not display fixed characters or images on
the screen for extended periods of time. This
can cause image sticking.
Do not connect the charging cable to
peripheral devices or disks that are not
specified. This can cause malfunctions or
failures.
Do not leave the touch pen and cradle on the
floor. Stepping on it can damage the product
or cause personal injury.
Be careful when disposing of the product. The
touch pen and cradle consists of a lithium-
polymer battery and plastic material. Burning
can be dangerous, so dispose of it according
to local regulations.
Do not remove the charging cable using
excessive force. This could damage the
charging port and PC.
Do not handle the touch pen and cradle with
excessive force. If you use the touch pen and
cradle with excessive force, you may leave
foreign substances on the screen. Clean
the product with the product cleaning cloth
provided.
PENTOUCH
WARNING
Using Pentouch
(Only PENTOUCH TV)
39
ENGENGLISH
PENTOUCH
When multiple people use the touch pen and
cradle, make sure that sufficient space is
available. Collisions can cause injury or failures.
System Requirements
Installing the Pentouch Program
Follow the steps described in this manual to install
the program.
1 Prepare your computer and start it.
2 After the computer starts, insert the CD
provided. The installation screen appears
automatically.
(If the installation screen is not displayed
automatically, access My computer and then
click LG and index.htm to view the installation
screen.)
3 Click [Install the Pentouch Program] in the
installation window.
The default folder is used for installation.
A window appears to indicate that the installa-
tion was completed successfully.
4 In Windows XP, the [Found New Hardware
Wizard] installs your driver automatically.
5 Restart your computer after the installation.
Supported Operating System
Windows XP 32 bit
Windows Vista
Windows 7
32 bit
64 bit
Make sure that the drivers are installed properly to
allow proper operation of the touch pen.
Windows 7 Starter Edition is not supported.
Recommended System Requirements for
Pentouch
CPU: Dual-Core 2GHz or better
Memory: 1GB or more
HDD: 500MB or more
Display: Graphics card with 1024x768 via an
RGB or HDMI output port
Windows 7 is recommend due to its support
of multi-touch.
Follow the steps below to use the Pentouch func-
tion.
1 Check the system requirements before
installation.
2 Install the Pentouch program from the
installation CD.
3 Pair the pen and the dongle.
4 Connect the PC and the TV.
5 Configure the PC screen.
6 Activate the Pentouch mode on the TV.
7 Start the Pentouch program.
You must log in as an administrator to
install or remove the included software.
Make sure to install the drivers found on
the CD provided.
You can also download this program
from the LG Electronics website.
Make sure to close all running
applications before installing the drivers.
Remove old version of the Pentouch
program installed on your PC before re-
installing or installing new version.
NOTE
Step of using the Pentouch
program
Disconnect the USB dongle first to install
the program.
NOTE
40
ENG
ENGLISH
PENTOUCH
Removing the Pentouch Program
If there is a problem with the Pentouch program or
if an error occurs while using the program, follow
the steps below to remove the program, and then
reinstall them.
1 On your computer, select [Start] → [Control
Panel] → [Add/Remove Programs] to remove
the Pentouch program.
- The installed Pentouch program: LG Pen-
touch TV
2 Click [Yes]. A window appears telling you that
the program/driver has been removed.
3 Please reboot your PC after removing the
program.
This program allows pairing of up to two
pens and one dongle.
If you want to use two pens simultaneously,
they must be paired with your dongle one at
a time.
Pairing is not possible if a paired pen is
currently in use.
If you pair a new touch pen when two pens
have already been paired with your dongle,
all the previous pairing data is deleted.
Pairing between Touch Pen and
Dongle
You need to pair the touch pen and the dongle
before using the touch pen.
Once paired, you do not need to pair them again
unless you:
Bought a new pen
Replaced the old pen with a new one
Attempt to pair a new touch pen for using two
pens simultaneously
What is Pairing?
Things to Know Before Pairing
Pairing
Home
41
ENGENGLISH
PENTOUCH
Touch Pen
1
Indicator LED
Dongle
For more information, please refer to the
user manual(Touch Pen,Dongle).
Touch pens, dongles and cradle are sold
separately at LG Electronics stores.
When you leave your touch pen unused
for a certain period of time (10 minutes),
the pen automatically powers off.
NOTE
No. Description
1Power button / LED indicator
2USB charging port
3Touch Home button
4Touch pen tip switch
2
4
3
1
USB charging port
Cradle
42
ENG
ENGLISH
PENTOUCH
Unpairing (Resetting touch pen)
1 Pairing fails if the dongle driver is not installed
on the computer.
2 Pairing fails if the LED indicator on the dongle
is not red.
3 Remove the dongle from the PC, reinsert it and
try pairing.
1 Press the Touch Home button on the touch pen
and check that the red LED blinks once.
2 Press the Touch Home button and the (Pow-
er) button together, regardless of sequence, for
more than 4 seconds.
3 If you release the buttons after 4 seconds, the
pen will be reset. The red LED will blink three
times and the pen will be turned off.
When Pairing Fails
Caution When Unpairing
1 Be careful not to unpair the pen by mistake. If
unpaired, try pairing it again.
2 If you unpair and pair a normally functioning
touch pen, the other paired pen may not work.
In this case, unpair the nonfunctioning touch
pen and pair it again by following the steps de-
scribed in the Pairing for the First Time section.
Touch pen Operation
Once paired, you can use the touch pen in the
following ways.
1 Powering on
- Press the (Power) button once. The red
and green LEDs will remain lit to indicate that
the power is on.
2 Powering off
- Press the (Power) button for more than 3
seconds and release it. The red LED will blink
3 times and the pen will be turned off.
3 Pressing the Touch Home button while using
the touch pen
- In the Pentouch program: Shows or hides
the toolbar of the feature.
- In Windows: Works in the same way as the
right-click function.
Point the touch pen at an object you want to
right-click, then press the button.
4 The double-click function may not work as
intended in Windows XP or Windows Vista.
If this is the case, use the Touch Home button
(right-click) instead.
5 The touch pen works in the same way as the
mouse in Windows.
Pairing for the First Time
1 Check that the LED indicator on the dongle
connected to the computer is red.
2 Keep the touch pen within 30 cm of the dongle.
3 Press the (Power) button on the touch pen
once.
4 The LED indicator on the touch pen will red for
2 seconds and blinks green 3 times when pair-
ing is complete.
5 If the LED indicator is red for 4 ~ 5 seconds
and blinks red 3 times, pairing is not success-
ful. Please try pairing again.
6 Once a pen is paired, the red LED blinks once
when you press the Touch Home button.
43
ENGENGLISH
PENTOUCH
After an hour 30 minutes of a continu-
ous charge, you can use the touch pen for
about 2 hours.
Pentouch operation may not be normal
while charging.
Green LED will be turned on during using
touch pen. If you don’t use touch pen, it will
be automatically turned off after 10 minute.
Touch pen LED indicator for battery status
- Charging: Red LED
- Charging complete: Green LED
- No battery power: Red LED blinks every
second and powers off automatically.
- LED ON Sleep mode: If no switch (tip switch,
function key, power key) is pressed for 10
seconds, the device enters sleep mode but
the LED stays green.
- LED OFF Sleep mode: If there is no input
for one minute after entering LED ON Sleep
mode, the LED is turned off and the device
enters LED OFF Sleep mode.
- Power off mode: The device is powered off if
there is no input for nine minutes after it has
been in sleep mode for one minute.
If the cradle is connected to the TV, the pen
can be charged when the TV is switched on
or is on standby.
If the pen is connected directly to the TV
through the charging cable, the pen cannot
be charged when the TV is on standby.

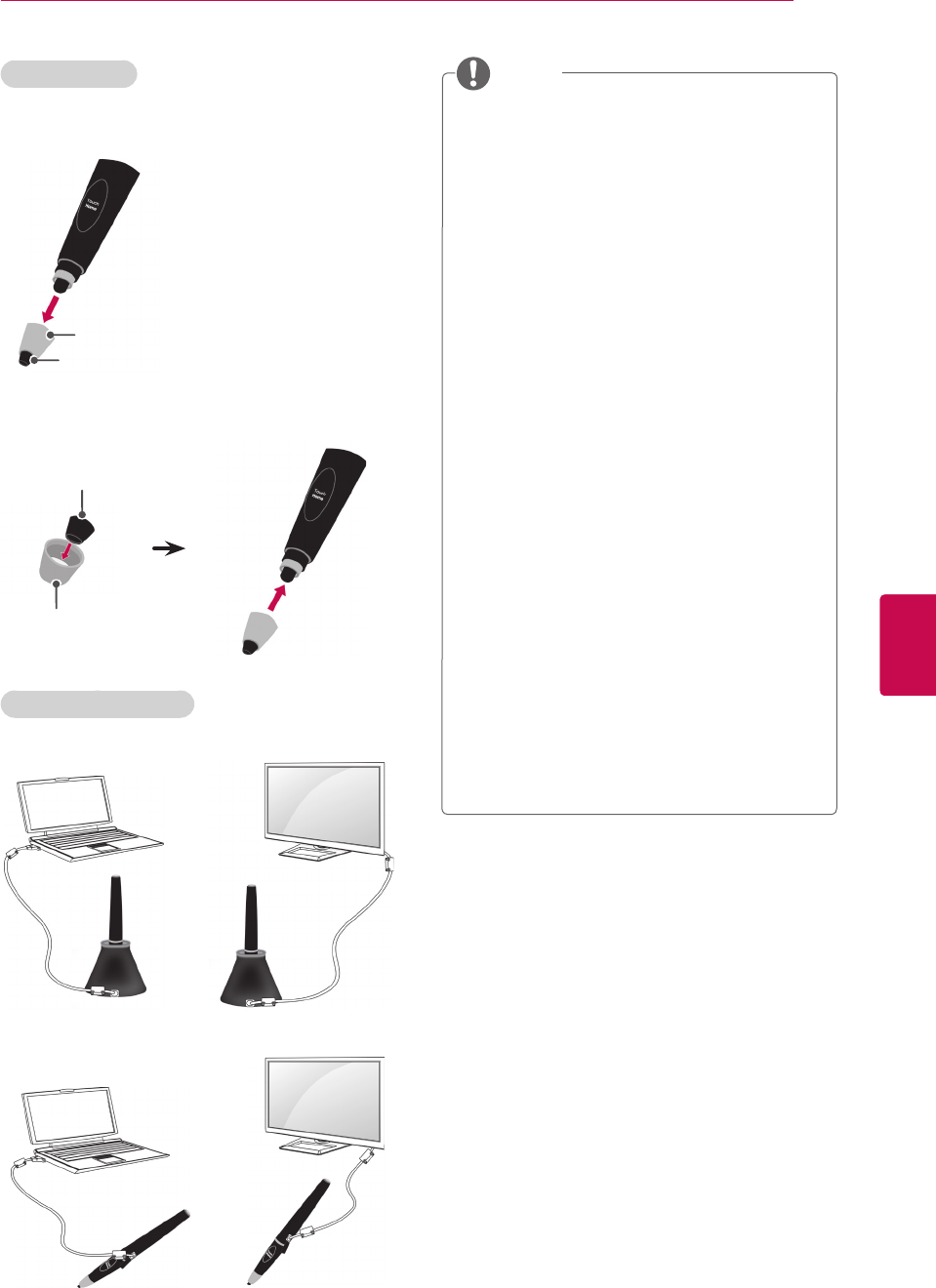

Tip replacement
1 Detach the Tip Holder and the tip to be re-
placed from the pen.
2 Insert a new tip into the detached Tip Holder
and assemble the Tip Holder with the pen.
Charging the touch pen
1 Charging on the cradle
or
2 Charging directly
or
NOTE
Tip Holder
Tip Holder
Tip
Tip
44
ENG
ENGLISH
PENTOUCH
Image shown may differ from your TV.
You need the following items to use the Pentouch
functions:
- Computer with RGB or HDMI output
- RGB or HDMI cable
1 After connecting the TV and the PC with an
RGB cable or an HDMI cable, use the INPUT
button on the remote controller and select the
input connected to the PC.
2 Configure your PC screen by referring to the
Display Resolution Setting for Pentouch section.
If your PC is a notebook computer, you should
configure the video to be displayed only on the
TV and not on the PC screen.
3 Enter the Pentouch mode on your TV.
- Press INPUT to access the input sources.
Or press SETTINGS to access the main
menus. Then press the navigation buttons to
scroll to Pentouch and press OK.
4 Select the correct computer input connection to
enter the Pentouch mode.
5 Use the touch pen or the mouse to start the
Pentouch program. Pressing the Touch Home
button on the touch pen works in the same way
as right-clicking the mouse.
Using the Pentouch Function
Select external input connected to PC which installed Pentouch program.
If you turn off the TV and turn it back on
while using the Pentouch function, the last
screen on which you were working appears.
To switch from Pentouch mode to others
mode, either press the INPUT button on the
remote control to select the desired input
or press the TV button to return to the TV
viewing screen.
NOTE
On a Desktop Computer
On a Laptop Computer
In Windows XP
Right-click the desktop and select [Properties]. In
the [Display Properties] window, set the screen
resolution to 1024 x 768 under the [Settings] tab.
In Windows Vista
Right-click the desktop and select [Personalize]
and [Display Settings]. Set the screen resolution to
1024 x 768 in the [Resolution] section.
In Windows 7
Right-click the desktop and select [Screen Resolu-
tion]. Set the screen resolution to 1024 x 768 in the
[Resolution] section.
Method 1:
On your laptop, press the "Fn + switch screen" key
on the keyboard to display the computer screen on
your TV screen, then set the computer’s display
resolution to 1024 x 768.
* Note: The switch screen key of the laptop may be
subject to change by the manufacturer.
LG Samsung HP Toshiba
Fn+F7 Fn+F4 Fn+F5 Fn+F5
Sony Acer Dell Lenovo
Fn+F7 Fn+ F5 Fn + F8 Fn + F7
Method 2:
Open the control panel for the graphics card on
your computer.
Set [Display Mode] to the [Single Display] mode,
then select [LG TV] as the display to use.
* Set the computer’s display resolution to
1024 x 768.
Display Resolution Settings for
Pentouch
45
ENGENGLISH
PENTOUCH
The method of changing display resolution
settings may vary according to the
computer’s configuration.
Pentouch does not support dual monitor
mode or duplicate (mirror) monitor mode.
Check that the PC screen is set to only be
displayed on the TV.
The switch screen key of the laptop may be
subject to change by the manufacturer.
NOTE
The double-click function may not work
as intended in Windows XP and Vista
because these operating systems do not
use touch drivers.
The Pentouch operation may become
slow depending on the computer's
performance.
The screen size may change if you
disconnect the computer's output port
and connect it again. If this happens, set
the computer resolution again.
If nothing is shown on the TV and the
laptop screen when you press the switch
screen key (Fn + manufacturer-specified
key), try pressing the key again.
The TV screen size may become smaller
when you press the switch screen key
(Fn + manufacturer-specified key). If this
happens, adjust the resolution again.
Changing the desktop icon properties
in Windows 7 may affect the Pentouch
program.
It is recommended not to run other
applications while using the Pentouch
program.
If the point you touch on the TV screen
using the touch pen and the point
indicated as touched on the computer
screen do not match when the computer
and TV are connected by a PC signal
(RGB) cable, use the TV remote control
to select [SETTINGS] → [PICTURE]
→ [SCREEN] (RGB), then select [Auto
Configure] to adjust the screen.
If the PC and TV are only connected by
a PC (RGB) signal cable, there will be no
sound from the TV. Please connect the
PC and the TV with a PC audio cable as
well.
CAUTION
The Play Video function in Photo Editor may
not work as intended, depending on the
codecs installed on your computer.
Eraser function could be slower if drawing
objects are overlapped exceed program
performance depends on PC environment.
If you want to open programs with a single
click in Window XP or Vista, On your PC, go
to Start →Control Panel → Folder Options
and select “Single-click to open an item (point
to select).”
If your PC is running Windows XP, the virtual
keyboard will only support English.
When changing to the Pentouch mode, or
when changing the resolution in Pentouch
mode for RGB input signals, images may not
be displayed properly for a while due to auto
adjustment.
Make sure that there are not many metal
obstacles between a pen and dongle. Other-
wise, the function may not work properly.
The Pentouch function may not work nor-
mally where the TV screen is too bright due
to the light from other light source.
For Windows 7, if the multi-touch gesture
option is disabled, the second pen may not
work properly.
46
ENG
ENGLISH
PENTOUCH
Checking the Pentouch
Functions
Image shown may differ from your TV.
You see the home screen shown below when you
start the Pentouch program.
1 Press INPUT button on the remote control
or SETTINGS to access the main menus.
Then press the navigation buttons to scroll to
Pentouch and press OK.
2 Touch the screen with the touch pen to select
Sketchbook, Photo Editor,Family Diary ,
Gallery, Internet or My Office.
You can also access the pentouch func-
tions by selecting Pentouch in the main
menus.
NOTE
No. Description
1
Sketchbook
Select the background you want, then draw
pictures on it.
2Photo Editor
Draw or edit pictures on photos and videos.
3
Family Diary
A journal of photos, videos, notes, and sketches
for family events by date.
4
Gallery
A collection of pictures drawn and saved in
Sketchbook ,Photo Editor, internet and My Office.
5
Internet
Launch the web browser to capture the web
contents, then draw or write on it.
6
My Office
Execute files in Microsoft Office or PDF, then
draw or write on it.
7Touch pen battery level
8Saving and opening folder location, screen saver
and language settings
9Quit the Pentouch program.
1 2 3 4 5 6
7 8 9
Sketchbook Photo Editor InternetGalleryFamily Diary My Office
Exit
Setting
Pentouch
When you select the Setting,
1 Select Setting from the Pentouch Home
screen with the touch pen.
2 Select the desired option.
Option Description
Open Folder Select a folder from which you will
open photos or video files.
Save Folder Select a folder to which you want
to save images.
Screensaver
Select the standby time for the
screensaver.
Language Select and change the language
you wish to work in.
47
ENGENGLISH
PENTOUCH
* Descriptions for the specialized toolbar functions
are provided in the menu function description
section.
1
357
689
24:
No. Description
1Reset: Remove the background and all the drawings.
2Undo: Undo up to 5 recent actions.
3Drawing tools: Ink pen, highlighter pen, magic
pen.
4Select the thickness of the current drawing tool.
5Paint bucket: Fill a closed area with the selected
colour.
6Eraser
7Colour selector: Select a colour for the current
drawing tool.
8Free colour selector: Select any colour from the
colour wheel.
9Save
:
Print
Set the printer, print range and number of copies.
Preview is also available.
There are two types of toolbars: fixed and
specialized.
The fixed toolbar provides the functions used for
all menus.
The specialized toolbar provides the functions
used for a specific menu.
You can use the draw toolbar on all menu screens.
Display the toolbar by pointing the touch pen at the
bottom of the screen.
Using Toolbar Fixed Toolbar Functions
48
ENG
ENGLISH
PENTOUCH
Menu Description
1
Select image for background.
2
Insert basic figures.
Select the desired icon, then short tap to create a
default size gure.
3
Insert text.
If you select an area to enter the text, a key-
board will be displayed on the screen.
For some operating systems, two virtual
keyboards may be displayed.
You can select the background you want, then draw
pictures on it.
1 Touch the screen with the touch pen to select
Sketchbook.
2 Touch the screen with the touch pen to select
the desired option or use the toolbar to draw a
picture.
Using Sketchbook Specialized toolbar functions
No. Description
1Enter Gallery.
2Enter the Pentouch Home menu.
3
Select them to go to the previous page or
next page.
You can move up to 3 pages.
4Current page position
5Toolbar functions
45 6
23
1
1
5
2
4
3
Gallery
Home
Sketchbook
49
ENGENGLISH
PENTOUCH
4
When dragging a line, pen or shape, you can
only move or resize a single object at a time.
If you short tap an object and drag, the area of
the selected object will be displayed.
Move
You can move an object by dragging the area
of the selected object.
Expansion / Reduction
You can expand or reduce an object by
dragging one of the 8 corners of the selected
object. The object will be resized based on the
corresponding corner/edge.
↔
Rotation
Drag in rotation to rotate the selected object.
5
Cut the range and Move / Expansion / Reduc-
tion / Rotation.
6
Delete object from the screen.
50
ENG
ENGLISH
PENTOUCH

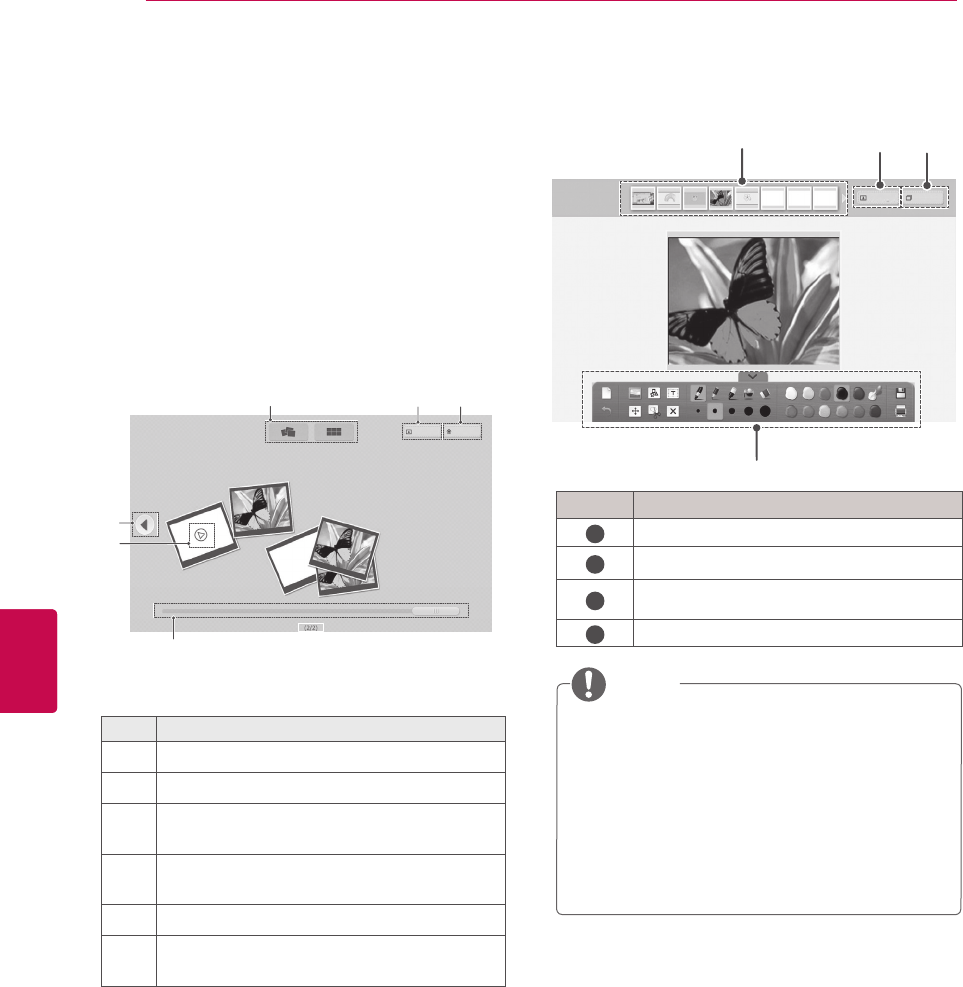

No. Description
1Enter Gallery.
2Open Photo list
3Previews of all photos and videos in the
folder are shown here. (from new to old)
4Toolbar functions
You can draw or edit image on photos and video
capture images.
1 Touch the screen with the touch pen to select
Photo Editor.
2 Touch the screen with the touch pen to select
the desired option.
Using Photo Editor 3 Select the photo or video you wish to decorate.
You can decorate the photo with the toolbar.
No. Description
1Enter Gallery.
2Enter the Pentouch Home menu.
3Select them to go to the previous page or
next page.
4Select photo list view option.
( Scattered view /Sorted view )
5Page navigation scrollbar
6Only one video can be played at a time;
the previously playing video is paused.
214
3
6
5
Gallery
Home
Photo Editor
3
4
12
Gallery
Photo List
Photo Editor
When working with a video, you can use the
pause button and extract the image of the
paused frame to use it in Photo Editor.
You can edit the photos or videos stored in
the Photo List.
The TV may not properly play the video files
in the Pentouch mode depending on your
computer.
NOTE
51
ENGENGLISH
PENTOUCH
Specialized toolbar functions
32
1
No. Description
1Frame for image.
2Move an object.
If you select an object, a mini pop-up win-
dow will display.
Bring to Front.
Send to Back.
Delete.
3Cut from the image.
After select area to cut, you can change
it’s size.
52
ENG
ENGLISH
PENTOUCH
No. Description
1Enter the Pentouch Home menu
2
Start slideshow from the first image on the
current page.
To stop the slide show, touch the screen
while the slide show is playing with the touch
pen. This will take you back to the previous
screen.
3Page button: Select them to go to the
previous page or next page.
4Page navigation scrollbar
5Enter the Gallery List
6When selected, the current image is deleted
and the next image is displayed.
This is the gallery of the images you made and
saved using Sketchbook, Photo Editor, Internet and
My office.
1 Touch the screen with the touch pen to select
Gallery.
2 Touch the screen with the touch pen to select
the desired option, and enjoy the Gallery
screen.
Using Gallery
12
3
4
Home
Gallery
My Gallery
Gallery
Gallery List
6
5
You can keep a journal of photos, videos, notes,
and sketches for family events by date.
1 Touch the screen with the touch pen to select
Family Diary.
2 Select the desired date with the touch pen.
Using Family Diary
12
3
Home
Family Diary
Jun. 2012
456
Family Diary
3 Use the toolbar to create and decorate the
family diary.
No. Description
1Enter the Pentouch Home menu.
2Select date.
3Dates with images are shown with icons.
Select a date with images to see the screen.
4Open the Family diary screen.
5Select Preview or Full Screen.
6Draw or write here.
Jun. 13. 2012
53
ENGENGLISH
PENTOUCH

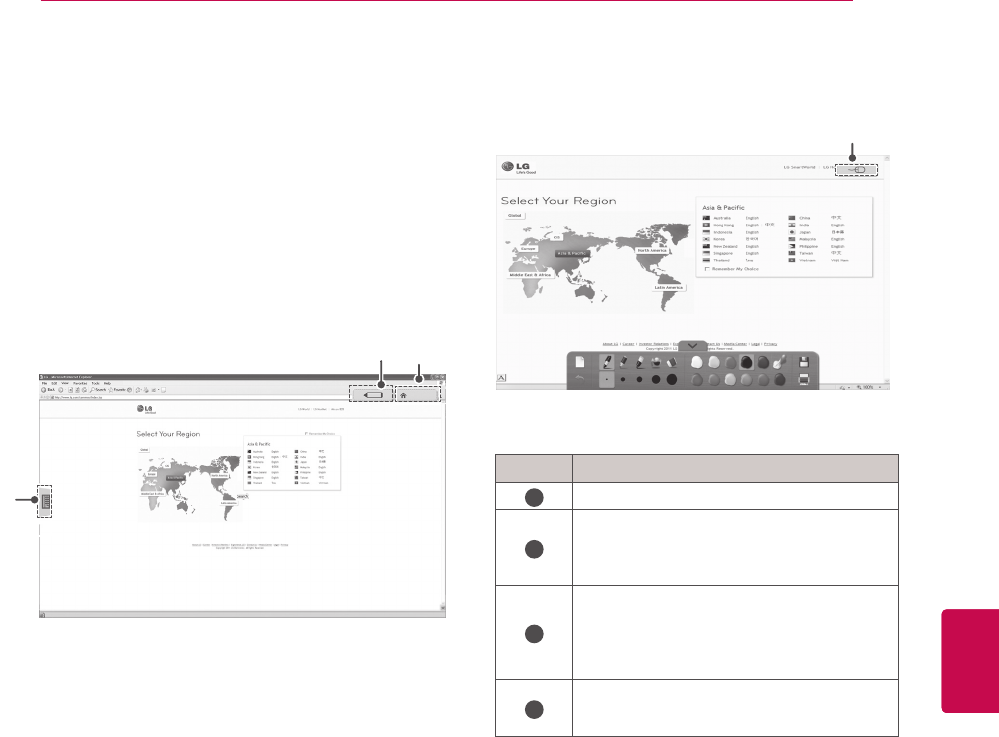

You can capture web contents to draw or write on it.
1 Touch the screen with the touch pen to select
Internet.
2 Touch the screen with the touch pen to select
the desired option or use the toolbar.
Using Internet
1
Home
3
2
4
No. Description
1Enter the Pentouch Home menu.
2
If you select a pen icon on your TV, the draw-
ing mode will be activated.
When in drawing mode, the virtual keyboard
will be hidden.
3
Virtual keyboard tab : Insert text.
Select the virtual keyboard tab to display the
keyboard on the screen.
For some operating systems, two virtual
keyboards may be displayed.
4
Returns to the previous level.
Drawings will be cleared when you exit the
drawing mode.
54
ENG
ENGLISH
PENTOUCH

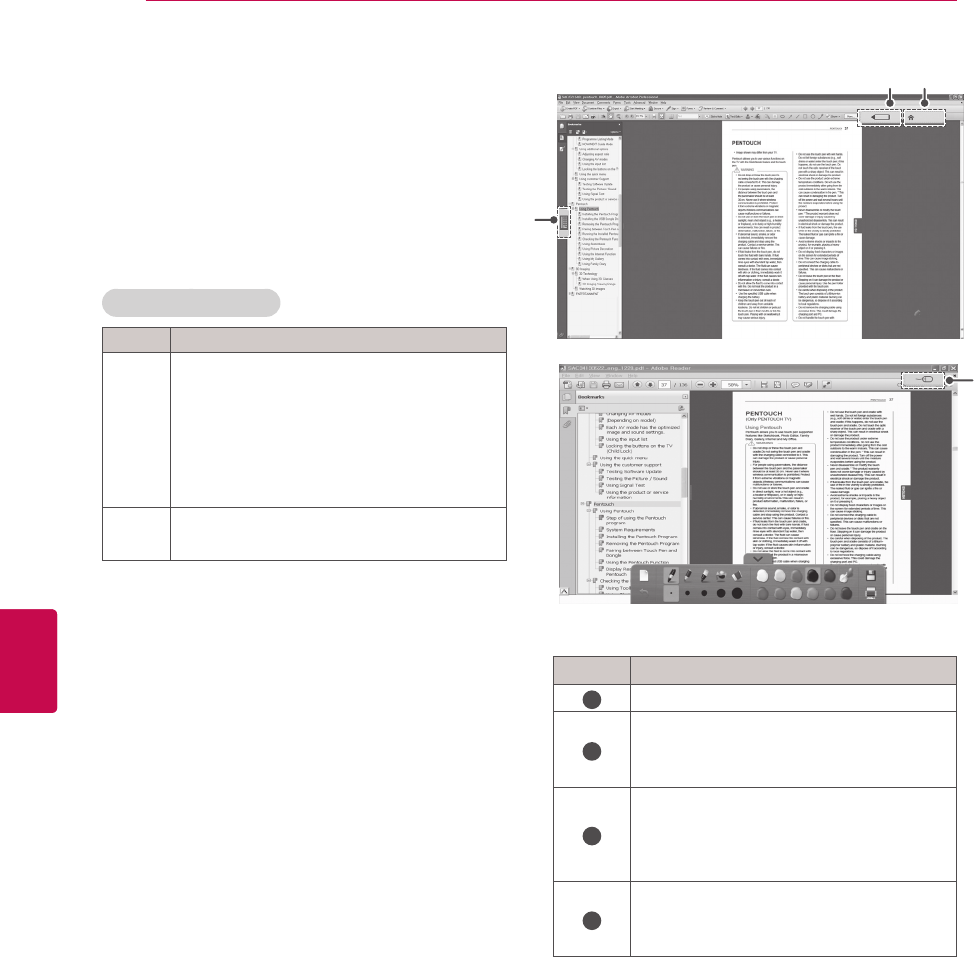

You can draw or write in Microsoft Office or PDF
files.
Applications that support Microsoft Office and
PDF files must be installed on your computer.
Folders and formats supported are displayed
in a window.
Using the My Office function
Supported file format
Type Supported file format
Office
Files
2003 version ppt, doc, xls
2007 version pptx, docx, xlsx
All Microsoft PowerPoint files (*.ppt, .pptx)
All Microsoft Word files (*.doc, .docx)
All Microsoft Excel files (*.xls, .xlsx)
Outlook data files (*.msg, *.eml)
PDF
Files
Adobe PDF files (*.pdf)
1 Touch the screen with the touch pen to select
My Office.
2 Touch the screen with the touch pen, then in
the Open popup window, select the file to open.
3 Touch the screen with the touch pen to select
the desired option or use the toolbar.
No. Description
1Enter the Pentouch Home menu.
2
If you select a pen icon on your TV, the draw-
ing mode will be activated.
When in drawing mode, the virtual keyboard
will be hidden.
3
Virtual keyboard tab : Insert text.
Select the virtual keyboard tab to display the
keyboard on the screen.
For some operating systems, two virtual
keyboards may be displayed.
4
If you select a mouse icon on your TV, the
click mode will be activated.
Drawings will be cleared when you exit the
drawing mode.
Home
1
3
2
4
55
ENGENGLISH
NETWORK SETTING
NETWORK SETTING

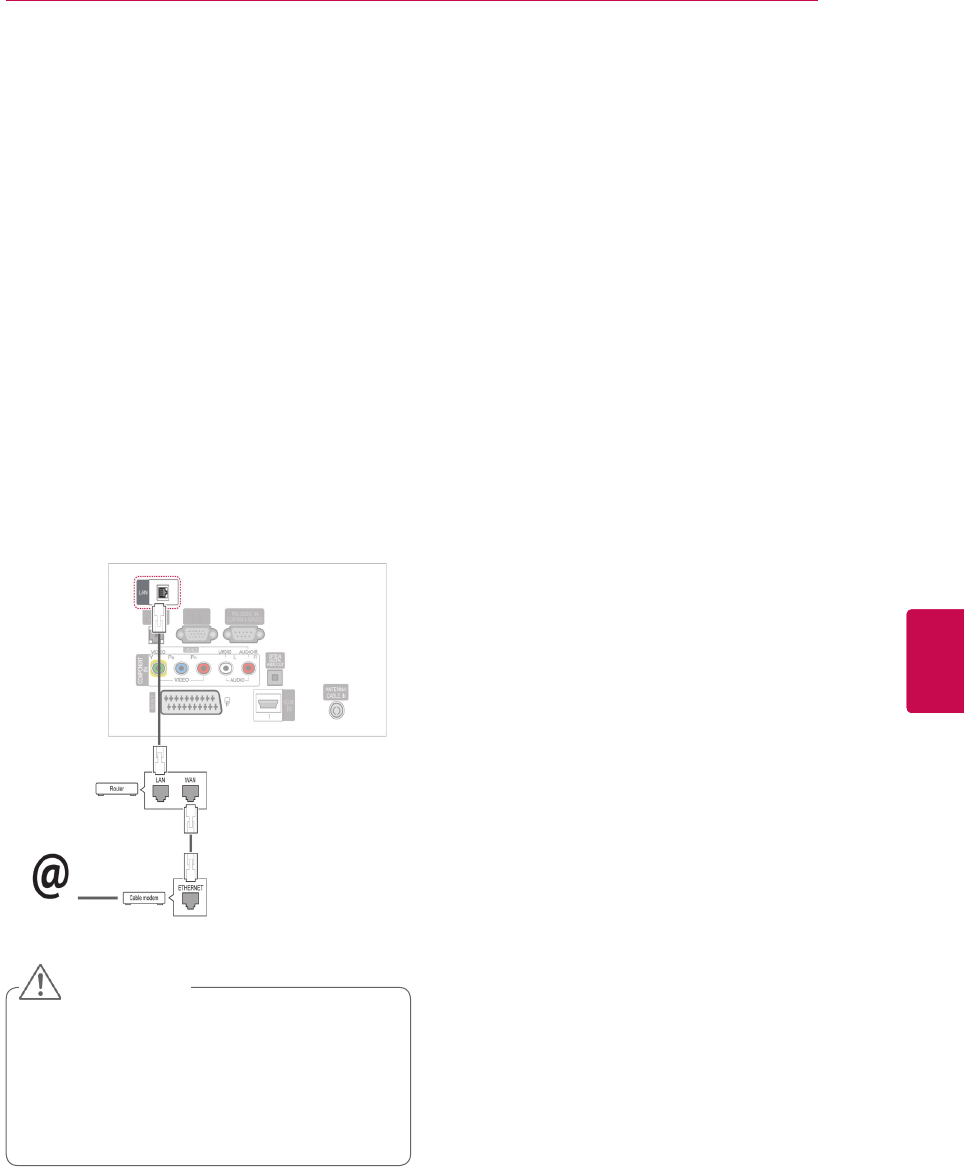

Connecting to a wired network
*LAN is available only in countries supporting HD
MHEG.
Connect the TV to a local area network (LAN) via
the LAN port as shown on the following illustration
and set up the network settings. (See p.81).
After making a physical connection, a small
number of home networks may require the TV
network settings to be adjusted. For most home
networks, the TV will connect to automatically
without any adjustments.
For detail information, contact your internet pro-
vider or router manual.
Do not connect a modular phone cable to
the LAN port.
Since there are various connection meth-
ods, please follow the specifications of
your telecommunication carrier or internet
service provider.
CAUTION
To set up the network seetings: (Even if your TV
has already connected automatically, running
setup again will not harm anything),
1 Press SETTINGS to access the main menus.
2 Press the Navigation buttons to scroll to
SETUP and press OK.
3 Press the Navigation buttons to scroll to NET-
WORK and press OK.
4 Press the Navigation buttons to select Net-
work Setting and press OK.
5 If wired and wireless are simultaneously con-
nected, press the Navigation buttons to select
Wired and press OK.
6 If you already set Network Setting, select
Resetting. The new connection settings resets
the current network settings.
7 Select IP Auto Setting or IP Manual Setting.
- If selecting IP Manual Setting, press the
Navigation and Number buttons. IP address-
es will need to be input manually.
- IP Auto Setting: Select this if there is a
DHCP server (Router) on the local area
network (LAN) via wired connection, the TV
will automatically be allocated an IP address.
If you’re using a broadband router or broad-
band modem that has a DHCP (Dynamic
Host Configuration Protocol) server function.
The IP address will automatically be deter-
mined.
8 When you are finished, press EXIT.
Internet
56
ENG
ENGLISH
NETWORK SETTING
If you want to access the Internet directly
on your TV, the broadband internet con-
nection should always be on.
If you cannot access the Internet, check
the network conditions from a PC on your
network.
When you use Network Setting, check
the LAN cable or check if DHCP in the
router is turned on.
If you do not complete the network set-
tings, the network may not work properly.
NOTE
Tips for Network setting
Use a standard LAN cable with this TV. Cat5 or
better with a RJ45 connector.
Many network connection problems during set
up can often be fixed by re-setting the router or
modem. After connecting the player to the home
network, quickly power off and/or disconnect the
power cable of the home network router or cable
modem. Then power on and/or connect the
power cable again.
Depending on the internet service provider
(ISP), the number of devices that can receive
internet service may be limited by the applicable
terms of service. For details, contact your ISP.
LG is not responsible for any malfunction of the
TV and/or the internet connection feature due
to communication errors/malfunctions associ-
ated with your broadband internet connection, or
other connected equipment.
LG is not responsible for problems within your
internet connection.
Some content available through the network
connection may not be compatible with the TV. If
you have questions about such content, please
contact the producer of the content.
You may experience undesired results if the
network connection speed does not meet the
requirements of the content being accessed.
Some internet connection operations may not
be possible due to certain restrictions set by the
Internet service provider (ISP) supplying your
broadband Internet connection.
Any fees charged by an ISP including, without
limitation, connection charges are your respon-
sibility.
A 10 Base-T or 100 Base-TX LAN port is re-
quired when using a wired connection to this TV.
If your internet service does not allow for such a
connection, you will not be able to connect the
TV.
A DSL modem is required to use DSL service
and a cable modem is required to use cable mo-
dem service. Depending on the access method
of and subscriber agreement with your ISP, you
may not be able to use the internet connection
feature contained in this TV or you may be lim-
ited to the number of devices you can connect at
the same time. (If your ISP limits sub-scription to
one device, this TV may not be allowed to con-
nect when a PC is already connected.)
The use of a “Router” may not be allowed or its
usage may be limited depending on the policies
and restrictions of your ISP. For details, contact
your ISP directly.
Network Status
1 Press SETTINGS to access the main menus.
2 Press the Navigation buttons to scroll to NET-
WORK and press OK.
3 Press the Navigation buttons to select Net-
work Status.
4 Press OK to check the network status.
5 When you are finished, press EXIT.
Option Description
Setting Return to the network setting menu.
Test Test the current network status after
setting the network.
Close Return to the previous menu.
57
ENGENGLISH
ENTERTAINMENT
Tips for using USB storage devices
Only a USB storage device is recognizable.
If the USB storage device is connected
through a USB hub, the device is not recog-
nizable.
A USB storage device using an automatic
recognition program may not be recognized.
A USB storage device which uses its own
driver may not be recognized.
The recognition speed of a USB storage
device may depend on each device.
Please do not turn off the TV or unplug the
USB device when the connected USB stor-
age device is working. When such device is
suddenly separated or unplugged, the stored
files or the USB storage device may be dam-
aged.
Please do not connect the USB storage
device which was artificially maneuvered on
the PC. The device may cause the product to
malfunction or fail to be played. Never forget
to use only a USB storage device which has
normal music files, image files or movie files.
Please use only a USB storage device which
was formatted as a FAT32 file system, NTFS
file system provided with the Windows op-
erating system. In case of a storage device
formatted as a different utility program which
is not supported by Windows, it may not be
recognized.
Please connect power to a USB storage
device(over 0.5 A) which requires an external
power supply. If not, the device may not be
recognized.
Please connect a USB storage device with
the cable offered by the device maker.
Some USB storage devices may not be sup-
ported or operated smoothly.
File alignment method of USB storage
device is similar to Window XP and filename
can recognize up to 100 English characters.
Be sure to back up important files since data
stored in a USB memory device may be
damaged. We will not be responsible for any
data loss.
If the USB HDD does not have an external
power source, the USB device may not be
detected. So be sure to connect the external
power source.
- Please use a power adaptor for an external
power source. We do not guarantee an USB
cable for an external power source.

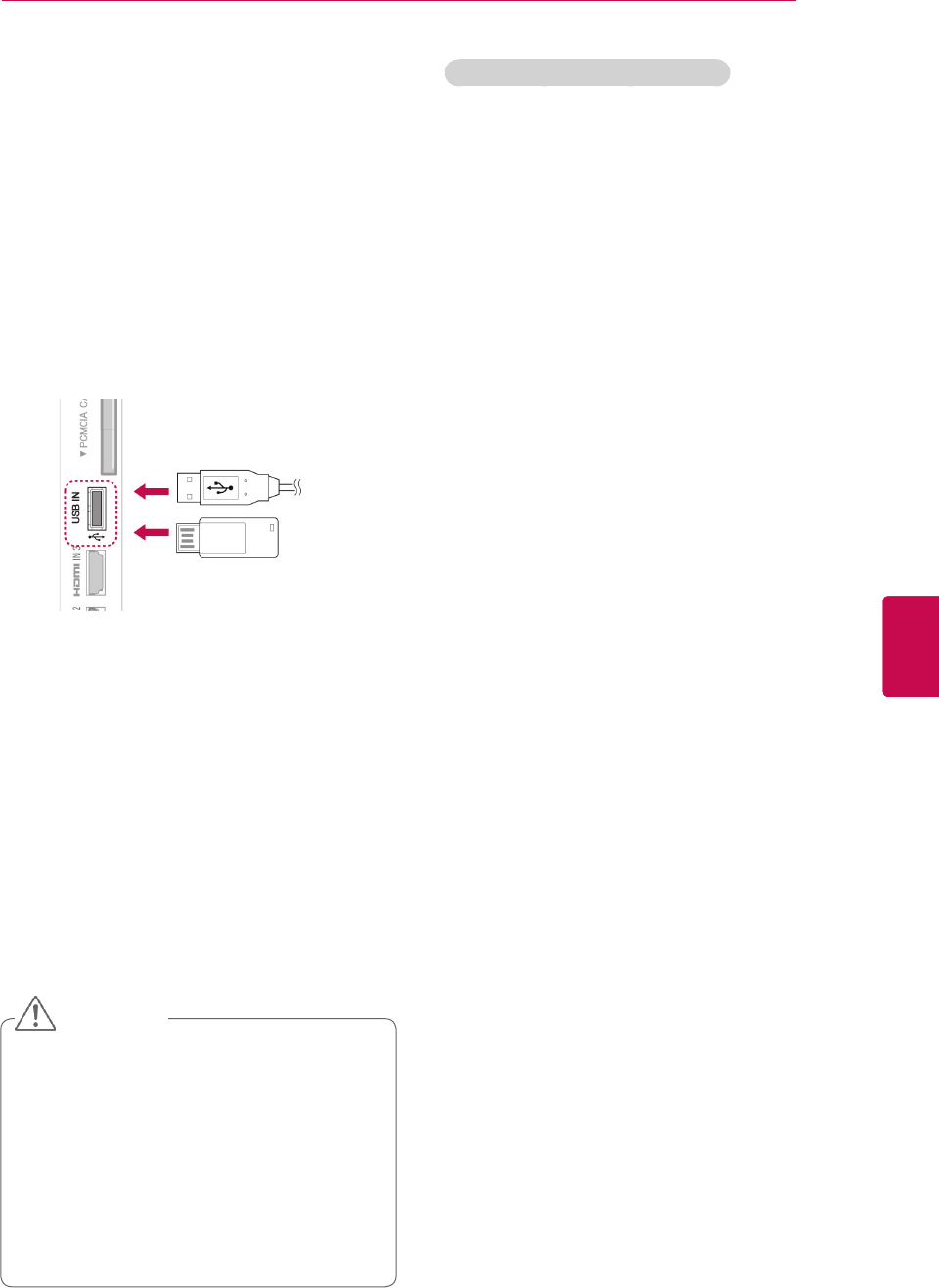

Connecting USB storage devices
Connect USB storage devices such as a USB
flash memory, external hard drive to the TV and
use multimedia features (See “Browsing files”on
p.58).
Connect a USB flash memory or USB memory
card reader to the TV as shown on the following
illustration. The My media screen appears.
or
To disconnect a USB storage device,
make sure to end the connection properly to pre-
vent damages to the TV or files.
1 Press Q.MENU to access the quick menus.
2 Press the Navigation buttons to scroll to USB
Device and press OK.
3 Press the Navigation buttons to scroll to Eject
and press OK.
4 Disconnect the USB storage device only when
the message says that it is safe to remove.
Do not turn the TV off or remove a USB
storage device while the USB storage
device is connected to the TV, as this
could result in loss of files or damage to
the USB storage device.
Back up your files saved on a USB stor-
age device frequently, as you may lose
or damage the files and this may be not
covered by the warranty.
CAUTION
ENTERTAINMENT
58
ENG
ENGLISH
ENTERTAINMENT
If your USB memory device has multiple
partitions, or if you use a USB multi-card
reader, you can use up to 4 partitions or USB
memory devices.
If a USB memory device is connected to a
USB multi-card reader, its volume data may
not be detected.
If the USB memory device does not work
properly, disconnect and reconnect it.
How fast a USB memory device is detected
differs from device to device.
If the USB is connected in Standby Mode,
specific hard disk will automatically be
loaded when the TV is turned on.
The recommended capacity is 1 TB or less
for a USB external hard disk and 32 GB or
less for USB memory.
Any device with more than the recommended
capacity may not work properly.
If a USB external hard disk with a “Energy
Saving” function does not work, turn the
hard disk off and on again to make it work
properly.
USB storage devices below USB 2.0 are
supported as well. But they may not work
properly in the movie list.
Maximum of 999 folders or files can be rec-
ognized under one folder.
If there are too many folders and files in one
folder, it may not operate properly.
Browsing files
Access the photo, music, or movie lists and browse
files.
1 Connect a USB storage device.
2 Press SETTINGS to scroll to main menus.
3 Press the Navigation buttons to scroll to My
Media and press OK.
4 Press Navigation buttons to scroll to Photo
List, Music List, or Movie List and press OK.
Movie List Music ListPhoto List
USB External
Page 1/1
Photo List
Drive1 Page 1/1
USB External
001
010 011 012 013 014 015
002 003 004 005 006 007 008 009
To Music List Change Numbers
Mark Mode
Exit
Mark
FAV
View
Page
Change
Move P
11 2
3
4
5
No. Description
1Moves to upper level folder
2Current page/Total pages
3Corresponding buttons on the
remote control
4
Current page/ total pages of
contents under the folder
focused on 1
5Contents under the folder
focused on 1
Button Description
Green
button
Repeatedly, press the GREEN button to
converted to Photo List->Music List,
Music List->Movie List or Movie List-
>Photo List.
Yellow
button
A method to view in 5 large thumbnail or
simple list.
Blue
button Convert to Mark Mode.
59
ENGENGLISH
ENTERTAINMENT

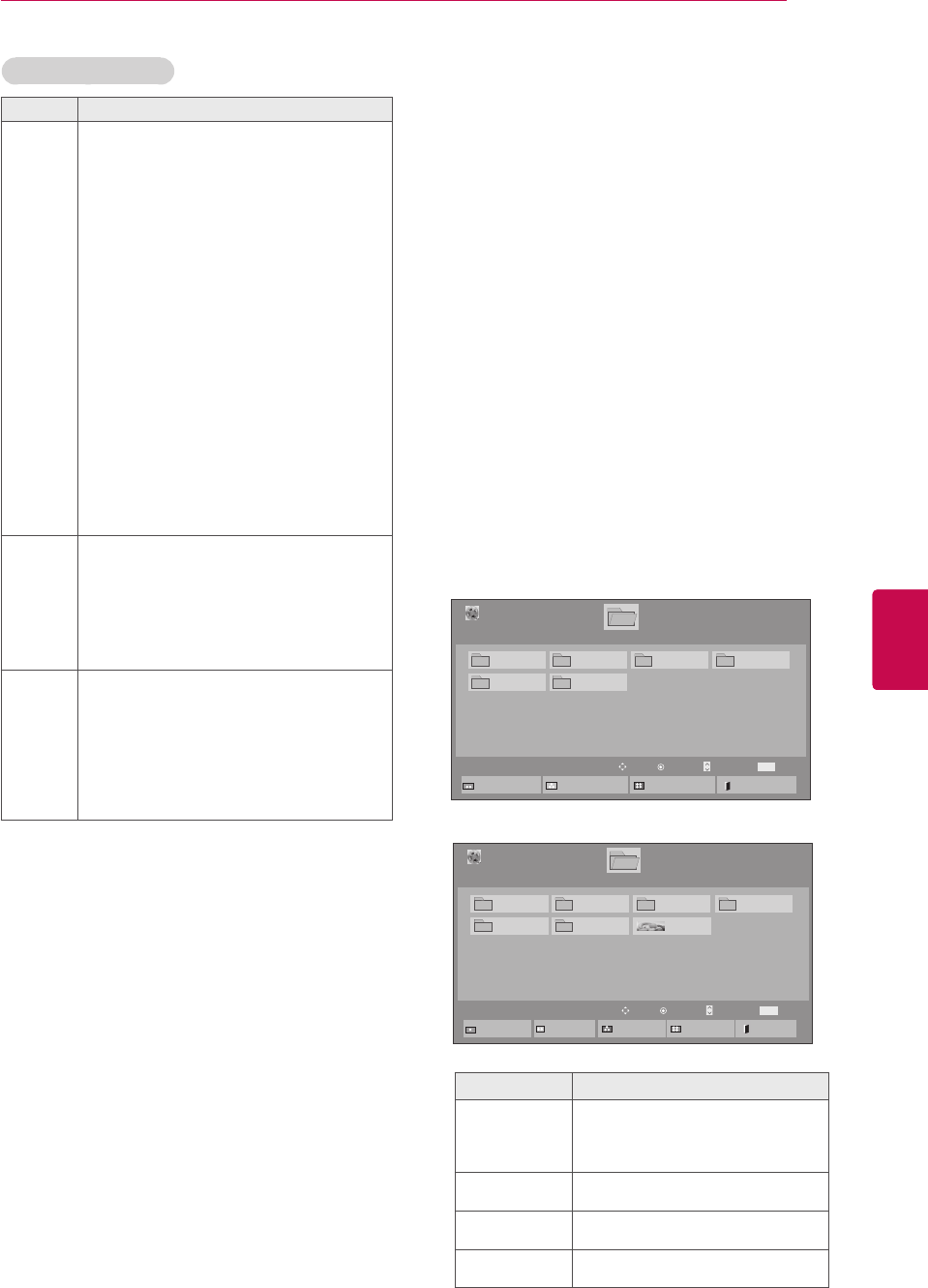

Supported file format
Type Supported file format
Movie DAT,MPG,MPEG,VOB,AVI,DIVX,MP4,MKV,
TS,TRP,TP,ASF,WMV,FLV)
Movie(*.mpg/*.mpeg/*.ts/*.trp/*.tp/*.vob/*.
mp4/*.mov/*.mkv/*.divx/*.avi/*.asf/*.wmv/*.
flv/*.avi(motion-jpeg)/*.
mp4(motion-jpeg)/*.mkv(motion-jpeg))sup-
porting file
Video format : DivX3.11, DivX4.12,
DivX5.x, DivX6, Xvid1.00, Xvid1.01,
Xvid1.02, Xvid1.03, Xvid1.10 beta-1/beta-2,
Mpeg-1, Mpeg-2, Mpeg-4, H.264/AVC, VC1,
JPEG, Sorenson H.263
Audio format : Dolby Digital, AAC, Mpeg,
MP3, LPCM, HE-AAC, ADPCM
Bit rate : within 32 kbps to 320 kbps(MP3)
External Subtitle format : *.smi/*.srt/*.sub
(MicroDVD,Subviewer1.0/2.0)/*.ass/*.ssa/*.
txt(TMPlayer)/*.psb(PowerDivX)
Internal Subtitle format : only, XSUB (It is
the subtitle format used in DivX6 files)
Photo JPEG
Baseline : 64 x 64 to 15360 x 8640
Progressive : 64 x 64 to 1920 x 1440
You can play JPEG files only.
Non-supported files are displayed in the
form of predefined icon.
Music MP3
Bit rate 32 to 320
Sampling rate MPEG1 Layer3 : 32 kHz,
44.1 kHz, 48 kHz
Sampling rate MPEG2 Layer3 : 16 kHz,
22.05 kHz, 24 kHz
Sampling rate MPEG2.5 Layer3 : 8 kHz,
11.025 kHz, 12 kHz
Viewing movies
Play video files on the TV. Your TV displays all of
the video files saved in a USB storage device or
shared folder on a PC.
1 Press SETTINGS to access the main menus.
2 Press the Navigation buttons to scroll to My
Media and press OK.
3 Press the Navigation buttons to scroll to Movie
List and press OK.
4 Select Drive1 to access the connected USB
storage device.
5 Press the Navigation buttons to scroll to a
folder you want and press OK.
6 Press the Navigation buttons to scroll to a file
you want and press OK.
Page 1/1
Movie List
USB External Drive1 Page 1/1
Mark
FAV
Play
Page
Change
Move P
To Photo List Change Numbers
Mark Mode
Exit
003
001 002 004
005 006
Page 1/1
Movie List
USB External Drive1 Page 1/1
Mark
FAV
Mark
Page
Change
Move P
Play Marked Mark All
Unmark All
Exit
003
001 002 004
005 006
Mark Mode
Exit Mark Mode
051. Apple_ ......
02:30:25
Menu Description
Play Marked
Play the selected movie file.
Once a movie file finishes playing,
the next selected one will be played
automatically.
Mark All Mark all movie files on the screen.
Unmark All Deselect all marked movie files.
Exit Mark Mode Exit the Mark Mode.
60
ENG
ENGLISH
ENTERTAINMENT
8 Control playback by using the following
buttons.
►01:02:30 / 02:30:25
Option
Q.MENU
◄►
■►II ◄◄ ►► Hide Exit
Button Description
rStops the playback
sPlays a video
tPauses or resumes the playback
vScans backward in a file
wScans forward in a file
t and wPlays videos in slow motion.
Q.MENU Show the Option menu.
Hide the menu on the full-sized
screen.
EXIT Return to Movie List.
< or >
Skips to specific points in a file
during playback. The time of a
specific point will appear on the
status bar. In some files, this
function may not work properly.
ENERGY
SAVING
Press the ENERGY SAVING
button repeatedly to increase the
brightness of your screen.
AV MODE
(Depending
on model)
Press the AV MODE button
repeatedly to select the desired
source.
Tips for using playing video files
Some user-created subtitles may not work
properly.
Some special characters are not supported in
subtitles.
HTML tags are not supported in subtitles.
Subtitles in languages other than the sup-
ported languages are not available.
The screen may suffer temporary interrup-
tions (image stoppage, faster playback, etc.)
when the audio language is changed.
A damaged movie file may not be played
correctly, or some player functions may not be
usable.
Movie files produced with some encoders
may not be played correctly.
If the video and audio structure of recorded
file is not interleaved, either video or audio is
outputted.
HD videos with a maximum of
1920x1080@25/30P or 1280x720@50/60P
are supported, depending on the frame.
Videos with resolutions higher than
1920X1080@25/30P or 1280x720@50/60P
may not work properly depending on the
frame.
Movie files other than the specified types and
formats may not work properly.
Max bitrate of playable movie file is 20 Mbps.
(only, Motion JPEG : 10 Mbps)
We do not guarantee smooth playback of
profiles encoded level 4.1 or higher in H.264/
AVC.
DTS Audio codec is not supported.
A movie file more than 30 GB in file size is not
supported for playback. The file size limit is
dependent on the encoding environment.
A DivX movie file and its subtitle file must be
located in the same folder.
A video file name and its subtitle file name
must be identical for it to be displayed.
Playing a video via a USB connection that
doesn’t support high speed may not work
properly.
Files encoded with GMC(Global Motion Com-
pensation) may not be played.
When you are watching the movie by Movie
List function, you can adjust an image by
Energy Saving and AV Mode(Depending on
model) button on the remote control. User
setup for each image mode does not operate.
Video file names that contain special charac-
ters may not be playable.
7 Play a movie.
NOTE
Non-supported files are displayed the
preview image by icon only .
Abnormal files are displayed in the form of
bitmap .
61
ENGENGLISH
ENTERTAINMENT
Sync Adjusts the time synchronisation
of the subtitle from -10 secs to
+10 secs by steps of 0.5 secs
during movie play.
Position Changes the position of the
subtitle either up or down during
movie play.
Size Selects your desired Subtitle size
during movie play.
Repeat Turn on/off repeat function of
movie playback. When turned
on, the file within the folder will
be played back repeatedly. Even
when the repeated playback
is turned off, it can run the play-
back if the file name is similar to
the previous file.
Subtitle
Language
Support Language
Latin1 English, Spanish, French, Ger-
man, Italian, Swedish, Finnish,
Dutch, Portuguese, Danish,
Romanian,
Norwegian, Albanian, Gaelic,
Welsh, Irish, Catalan,Valencian
Latin2 Bosnian, Polish, Croatian, Czech,
Slovak, Slovenian, Serbian,
Hungarian
Latin4 Estonian, Latvian, Lithuanian
Cyrillic Bulgarian, Macedonian, Russian,
Ukrainian, Kazakh
Greek Greek
Turkish Turkish
Only 10,000 of sync blocks can be supported
within the subtitle file.
When playing a video, you can adjust the
Picture Size by pressing the RATIO button.
NOTE
Video options
1 Press Q. MENU to access the Pop-Up menus.
2 Press the Navigation buttons to scroll to Set
Video Play., Set Video. or Set Audio. and
press OK.
When you select the Set Video Play.
1 Press the Navigation buttons to scroll to show
the Picture Size, Audio Language, Subtitle
Language or Repeat.
2 Press the Navigation buttons to scroll to make
appropriate adjustments.
Option values changed in Movie List does
not affect Photo List and Music List.
Option value changed in Photo List and Mu-
sic List are changed likewise in Photo List
and Music List excluding Movie List.
When replaying the video file after stopping,
you can play from where it stopped previ-
ously.
NOTE
Menu Description
Picture Size Selects your desired picture
format during movie play.
Audio Lan-
guage
Changes the Language Group of
the audio during movie play. Files
with a single audio track cannot
be selected.
Subtitle
Language
Turn on/off the subtitle.
Language Activated for SMI subtitle and
can select the language within the
subtitle.
Code Page Can select the font for subtitle.
When set to default, same font as
general menu will be used.
62
ENG
ENGLISH
ENTERTAINMENT
When you select the Set Video.
1 Press the Navigation buttons to scroll to make
appropriate adjustments. (See p.68)
When you select the Set Audio.
1 Press the Navigation buttons to scroll to show
the Sound Mode, Auto Volume, Clear Voice
II or Balance.
2 Press the Navigation buttons to scroll to make
appropriate adjustments. (See p.73)

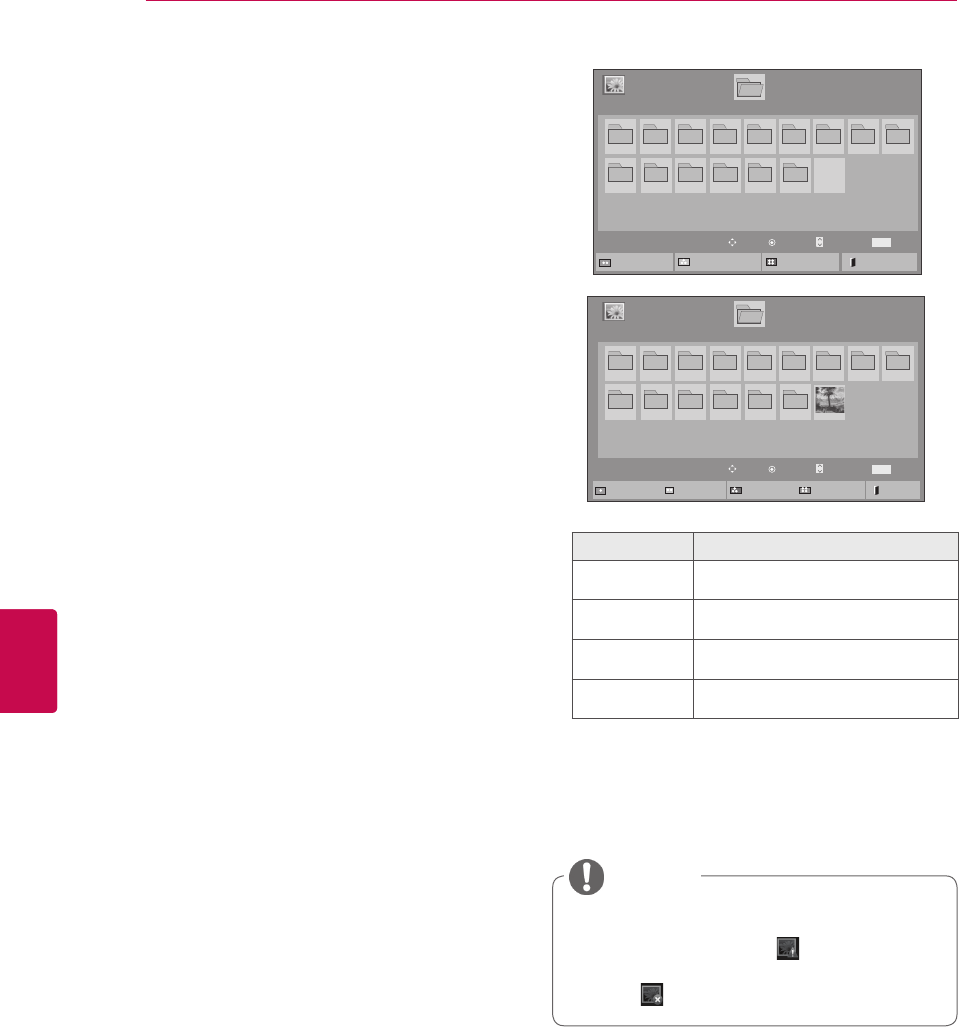

Viewing photos
View image files saved in a USB storage device
or shared folder on a PC through the network
connection. The displays on the screen may differ
from the model.
1 Press SETTINGS to access the main menus.
2 Press the Navigation buttons to scroll to My
Media and press OK.
3 Press the Navigation buttons to scroll to Photo
List and press OK.
4 Press the Navigation buttons to select Drive1
to access the connected USB storage device.
5 Press the Navigation buttons to scroll to a
folder you want and press OK.
6 Press the Navigation buttons to scroll to a file
you want and press OK.
7 View photos.
NOTE
Non-supported files are displayed the pre-
view image by icon only .
Abnormal files are displayed in the form of
bitmap .
Page 1/1
Photo List
Drive1 Page 1/1
USB External
001
010 011 012 013 014 015
002 003 004 005 006 007 008 009
To Music List Change Numbers
Mark Mode
Exit
Mark
FAV
View
Page
Change
Move P
Page 1/1
Photo List
Drive1 Page 1/1
USB External
001
010 011 012 013 014 015
002 003 004 005 006 007 008 009
Mark
FAV
Mark
Page
Change
Move P
Mark Mode
View Marked Mark All
Unmark All
Exit
Exit Mark Mode
Menu Description
View Marked Display the selected photo file.
Mark All Mark all photo files on the screen.
Unmark All Deselect all marked photo files.
Exit Mark Mode Exit the Mark Mode.
63
ENGENGLISH
ENTERTAINMENT
Photo options
1 Press Q. MENU or SETTINGS to show the Op-
tion menus.
2 Press the Navigation buttons to scroll to Set
Photo View., Set Video. or Set Audio. and
press OK.
Option values changed in Movie List does
not affect Photo List and Music List.
Option value changed in Photo List and Mu-
sic List are changed likewise in Photo List
and Music List excluding Movie List.
NOTE
When you select the Set Photo View,
1 Press the Navigation buttons to scroll to select
Slide Speed or BGM.
2 Press the Navigation buttons to scroll to make
appropriate adjustments.
Option Description
Slideshow Starts or stops a slideshow with
selected photos.
If there are no selected photos, all
photos saved in the current folder
display during a slideshow.
To set a slideshow speed, select
Option.
BGM Turns the background music on or
off. To set the background music
folder, select Option.
You can adjust Option by Q.MENU
or SETTINGS button on the remote
control.
(Rotate) Rotates photos clockwise (90°,
180°, 270°, 360°).
The supported photo size is
limited. You cannot rotate a
photo if the resolution of the
rotated width is larger than
the supported resolution size.
NOTE
ꔦView the photo by zoom in 2, 4
times.
ENERGY
SAVING Press the ENERGY SAVING button
repeatedly to change the brightness
of your screen.
Using photo options
Use the following options while viewing photos.
2008/12/10
1920 x 1080
479 KB
2/13
◄ ►
Slideshow ►BGM ■
◄
Hide
Option
Q.MENU
Number of selected photosOptions
Option Slide Speed: Selects a slideshow
speed (Fast, Medium, Slow).
BGM: Selects a music folder for the
background music.
You cannot change the music
folder while the background
music is playing.
You can only select the MP3
folder saved on the device
that currently displays the
photo.
NOTE
Hide Hides the option window.
To display the options, press OK.
EXIT Return to Photo List.
Exit
◄
64
ENG
ENGLISH
ENTERTAINMENT

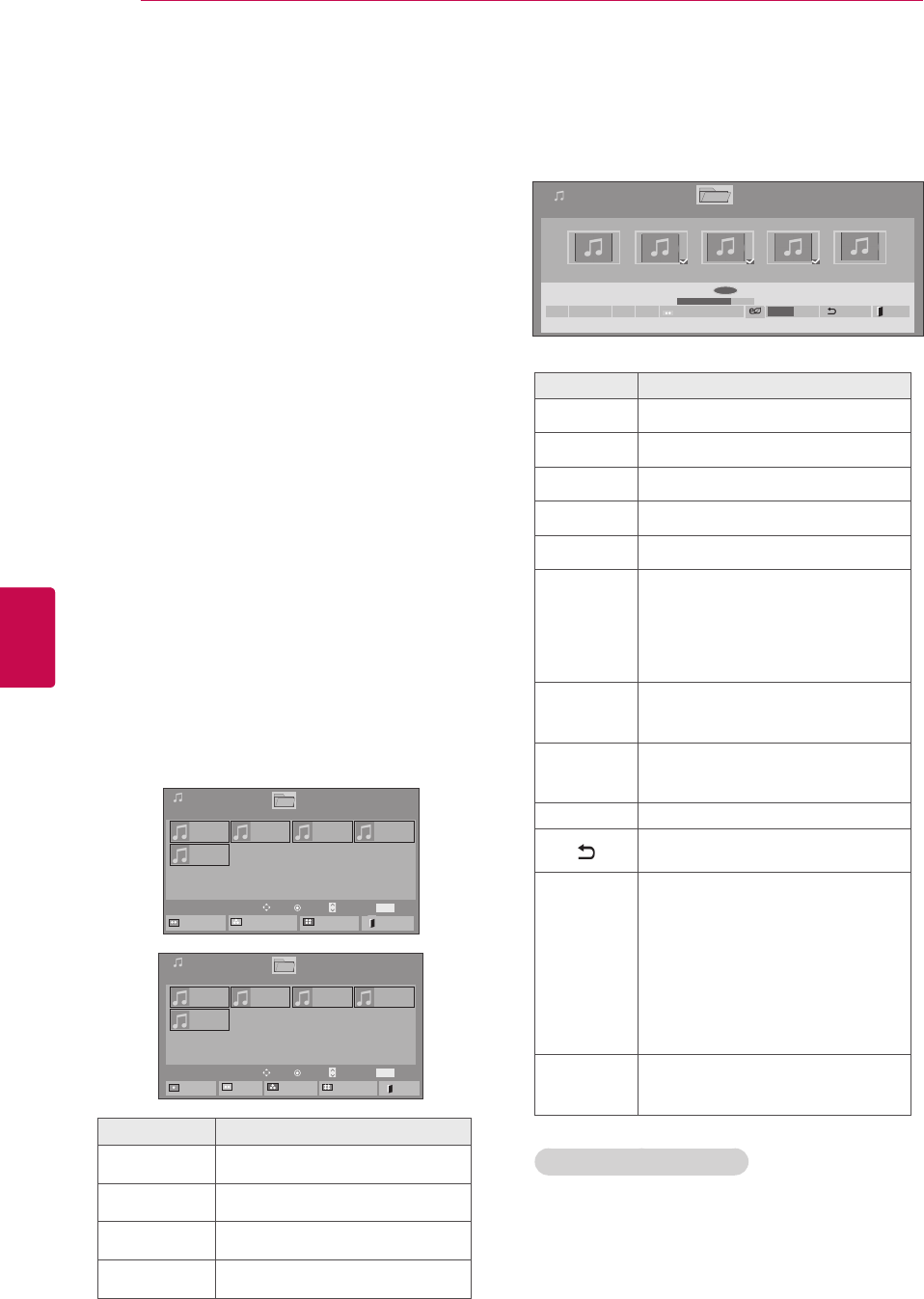

When you select the Set Video.
1 Press the Navigation buttons to scroll to make
appropriate adjustments. (See p.68)
When you select the Set Audio.
1 Press the Navigation buttons to scroll to show
the Sound Mode, Auto Volume, Clear Voice
II or Balance.
2 Press the Navigation buttons to scroll to make
appropriate adjustments. (See p.73)
7 Play music.
8 Control playback by using the following
buttons.
Page 1/1
Music List
Drive1 Page 1/1
3 le(s) Marked
004. - B04.mp3
00:00 005. - B05.mp3
00:00 006. - B06.mp3
00:00 007. - B07.mp3
00:00 008. - B08.mp3
00:00
005. - B05.mp3 ►02:30 / 03:25
Hide Exit
Option
Q.MENU
Play with Photo
◄►
■►II ◄◄ ►►
Button Description
rStops playback
sPlays a music file
tPauses or resumes playback
wSkips to the next file
vSkips to the previous file
v or wWhen playing,
When you press the v button,
the previous music file will be
played.
When you press the w button,
the next music file will be played.
Green
button Start playing the selected music
files and then move to the Photo
List.
ENERGY
SAVING Press the ENERGY SAVING
button repeatedly to change the
brightness of your screen.
Q.MENU Show the Option menu.
Hides the option window.
To display the options, press OK.
EXIT
When you press the EXIT button
while the Music player is dis-
played, only the music will be
stopped and the player will not
return to normal TV viewing.
When you press the EXIT button
while the music is stopped or
while the music player is hidden,
the player will return to normal TV
viewing.
< or > When using the < or > button dur-
ing playback a cursor indicating
the position can be played.
Listening to music
1 Press SETTINGS to access the main menus.
2 Press the Navigation buttons to scroll to My
Media and press OK.
3 Press the Navigation buttons to scroll to Music
List and press OK.
4 Press the Navigation buttons to select Drive1
to access the connected USB storage device.
5 Press the Navigation buttons to scroll to a
folder you want and press OK.
6 Press the Navigation buttons to scroll to a file
you want and press OK.
Page 1/1
Music List
Drive1 Page 1/1
001. - B01.mp3
00:00
002. -B02.mp3
00:00
003. B03.mp3
00:00
004. - B04.mp3
00:00
005. - B05.mp3
00:00
USB External
To Movie List
Change Numbers
Mark Mode
Exit
Mark
FAV
Play
Page
Change
Move P
Page 1/1
Music List
Drive1 Page 1/1
001. - B01.mp3
00:00
002. -B02.mp3
00:00
003. B03.mp3
00:00
004. - B04.mp3
00:00
005. - B05.mp3
00:00
USB External
Play Marked
Mark All
Unmark All
Exit
Mark
FAV
Mark
Page
Change
Move P
Mark Mode
Exit Mark Mode
Menu Description
Play Marked Display the selected music file.
Mark All Mark all music files on the screen.
Unmark All Deselect all marked music files.
Exit Mark Mode Exit the Mark Mode.
Tips for playing music files
This unit cannot support the ID3 Tag
embedded MP3 files.
►
65
ENGENGLISH
ENTERTAINMENT
1 Press Q. MENU to access the Pop-Up menus.
2 Press the Navigation buttons to scroll to Set
Audio Play. or Set Audio. and press OK.
Music options
Option values changed in Movie List does
not affect Photo List and Music List.
Option value changed in Photo List and Mu-
sic List are changed likewise in Photo List
and Music List excluding Movie List.
NOTE
When you select the Set Audio Play.
1 Press the Navigation buttons to scroll to select
the Repeat or Random.
2 Press the Navigation buttons to scroll to make
appropriate adjustments.
When you select the Set Audio.
1 Press the Navigation buttons to scroll to select
the Sound Mode, Auto Volume, Clear Voice
II or Balance.
2 Press the Navigation buttons to scroll to make
appropriate adjustments.(See p.73)
Non-supported files are displayed the pre-
view image by icon only .
Abnormal files are displayed in the form of
bitmap .
A damaged or corrupted music does not play
but displays 00:00 in playtime.
A music downloaded from a paid service with
copyright protection does not start but dis-
plays inappropriate information in playtime.
If you press OK, r buttons, screen saver
is stopped.
The PLAY(s), Pause(t), r , w, v
buttons on the remote control are also avail-
able in this mode.
You can use the w button to select the
next music and the v button to select the
previous music.
NOTE
Time elapsed /Duration
file name
002.B02.mp3
►00:31/04:04
66
ENG
ENGLISH
ENTERTAINMENT
DivX® VOD Guide
DivX® VOD Registration
In order to play purchased or rented DivX® VOD
contents, you should register your device with 10
digit DivX registration code from your device at
www.divx.com/vod.
1 Press SETTINGS to access the main menus.
2 Press the Navigation buttons to scroll to MY
MEDIA and press OK.
3 Press the Blue button.
4 Press the Navigation buttons to scroll to DivX
VOD Registration and press OK.
5 View the registration code of your TV.
You must register your device to
play DivX protected videos.
Registration code : **********
Register at http://vod.divx.com
Close
Movie files are supported as follows
Resolution : under 1920x1080 WxH pixels
Frame rate : under 30 frames/
sec(1920x1080), under 60 frames/
sec(under 1280x720)
Video Codec : MPEG 1, MPEG 2, MPEG
4, H.264/AVC, DivX 3.11, DivX 4.12,
DivX 5.x, DivX 6, Xvid 1.00, Xvid 1.01,
Xvid 1.02, Xvid 1.03, Xvid 1.10-beta1,
Xvid 1.10-beta2, JPEG, VC1, Sorenson
H.263/H.264.
Once the deregistration is executed, you
must register your device again to see
DivX® VOD contents.
NOTE
NOTE
DivX® VOD Deregistration
You should deregister your device with 8 digit DivX
deregistration code from your device at
www.divx.com/vod.
1 Press SETTINGS to access the main menus.
2 Press the Navigation buttons to scroll to MY
MEDIA and press OK.
3 Press the Blue button.
4 Press the Navigation buttons to scroll to DivX
Deregistration and press OK.
5 Press the Navigation buttons to select Yes to
confirm.
Deregistration code :
********
Deregister at http://vod.divx.com
Continue with registration?
Yes No
6 When you are finished, press EXIT.
When you return to the previous menu, press
.
6 When you are finished, press EXIT.
When you return to the previous menu, press
.
67
ENGENGLISH
CUSTOMIZING SETTINGS
CUSTOMIZING TV SETTING
Accessing main menus
1 Press SETTINGS to access the main menus.
2 Press the Navigation buttons to scroll to one of the following menus and press OK.
3 Press Navigation buttons to scroll to the setting or option you want and press OK.
4 When you are finished, press EXIT.
SETUP (See p.76)
Sets up and edit programmes
AUDIO (See p.73)
Adjusts the sound
quality, effect, or volume
level
TIME (See p.77)
Sets the time, date,
or Timer feature
PICTURE (See p.68)
Adjusts the image size,
quality, or effect
MY MEDIA (See p.57)
Display and play
movie, photo and
music content stored
on your USB
OPTION (See p.79)
Customizes
the general settings
LOCK (See p.78)
Locks or unlocks
channels and
programmes
Image shown may differ from your TV.
INPUT(Depending on
model) (See p.33)
Views the input sources
with their labels
NETWORK(Depending
on model) (See p.81)
Sets up the network
setting.
INPUT
AUDIOPICTURE TIME
SETUP
OPTION
LOCK
MY MEDIAPentouch
NETWORK
Pentouch(Depending
on model) (See p.38)
Pentouch allows you to
use various functions
with touch pen on the
TV.
68
ENG
ENGLISH
CUSTOMIZING SETTINGS
OK
Move
● Energy Saving : Intelligent Sensor
● Picture Mode :
● Contrast 100
● Brightness 50
● Sharpness 50
● Colour 60
● Tint 0
● Colour Temp. 0
● Advanced Control
● Picture Resest
● Picture Wizard II
● Aspect Ratio : 16:9
● Screen
RG
WC
Image shown may differ from your TV.
The available picture settings are described in the following.
Setting Description
Energy Saving Reduces the power consumption by adjusting the screen brightness.
Option
Intelligent sensor *This feature is not available for all models.
The most suitable brightness is automatically adjusted according to the sur-
rounding conditions.
Off The Energy Saving is off.
Minimum/Medium/
Maximum
Selects the brightness level.
Screen off The screen turns off in 3 seconds.
Picture Mode Selects one of the preset image or customizes options in each mode for the best TV screen perform-
ance. You are also able to customize advanced options of each mode.
The available preset picture modes vary depending on the TV.
Mode
Vivid Adjusts the video image for the retail environment by enhancing the contrast,
brightness, colour, and sharpness.
Standard Adjusts the image for the normal environment.
Optimizes power consumption.
Cinema Optimizes the video image for a cinematic look to enjoy movies as if you are in
a movie theater.
Game Optimizes the video image for a fast gaming screen such as PCs or games.
Expert1,2 Adjusts the detailed video image settings for video experts as well as general
viewers.
When you select Screen Off, the screen will be turned off in 3 seconds and Screen Off
will start.
If you adjust “Energy Saving-Intelligent Sensor”, Sharpness, Colour, Colour
Temperature feature will not work.
NOTE
Customizing settings
PICTURE settings
1 Press SETTINGS to access the main menus.
2 Press the Navigation buttons to scroll to PICTURE and press OK.
3 Press the Navigation buttons to scroll to the setting or option you
want and press OK.
- To return to the previous level, press .
4 When you are finished, press EXIT.
69
ENGENGLISH
CUSTOMIZING SETTINGS
Setting Description
Picture Wizard II Adjusts the image quality and calibrates the screen by following the on-screen instructions.
The customized options will be saved as Expert1 in the Picture Mode.
Standard
Mode to set standard picture quality.
(
Black Level, White Level, Tint, Colour, Horizontal Sharpness, Vertical
Sharpness)
Preferred
Mode to set user preferred picture quality rather than standard picture.
(
Black Level, White Level, Tint, Sharpness, Dynamic Contrast, Colour
Temperature)
If you stop the setting before the final stage, the changes will not be applied.
If you use Picture Wizard II, the Energy saving feature will turn off automatically.
To reset changes made by Picture Wizard II, operate Picture Reset when Picture Mode is
on Expert1.
In RGB-PC/HDMI-PC/DVI-PC mode, the changed Colour, Tint and H/V Sharpness values
are not applied.
NOTE
Aspect Ratio Changes the image size to view images at its optimal size (See p.31).
SCREEN Customizes the PC display options.
Option
Resolution Selects a proper resolution when your PC uses.
Auto Configure Sets the TV to optimize the options automatically for the TV display.
Position Locates the image at the proper position.
Size Adjusts the image size.
Phase Eliminates horizontal streaking.
Reset Restores the options to the default setting.
Picture Mode adjusts the TV for the best picture appearance. Select the preset value in
the Picture Mode menu based on the programme category.
When the Intelligent sensor function is on, the most suitable picture is automatically
adjusted according to the surrounding conditions.
You can also adjust Picture Mode in the Q. Menu.
(Auto Power Saving) : Maximize reducing the power consumption without hurting
the picture quality.
If you adjust “Picture Mode-“Energy Saving-Intelligent Sensor, Minimum, Medium,
Maximum” feature will not work.
If you adjust “Picture Mode- ”, “Energy Saving-Off, Minimum, Medium, Maximum”
feature will not work.
NOTE
70
ENG
ENGLISH
CUSTOMIZING SETTINGS
Basic image options
Setting Description
Contrast Increases or decreases the gradient of the video signal. You may use Contrast when the
bright part of the picture is saturated.
Brightness Adjusts the base level of the signal in the picture.
Sharpness Adjusts the level of crispness in the edges between the light and dark areas of the picture.
The lower the level, the softer the image.
Colour Adjusts intensity of all colours.
Tint Adjusts the balance between red and green levels.
Colour Temp. Set to warm to enhance hotter colours such as red, or set to cool to enhance cooler colours
such as blue.
Advanced Control or
Expert Control
Customizes the advanced options
Picture Reset Restores the options of each mode to the factory default
You cannot adjust colour, sharpness and tint in the RGB-PC/HDMI-PC mode.
NOTE
71
ENGENGLISH
CUSTOMIZING SETTINGS
Advanced image options
Setting Description
Dynamic Contrast Adjusts the contrast to keep it at the best level according to the brightness of the screen. The
picture is improved by making bright parts brighter and dark parts darker.
Noise Reduction Reduces screen noise without compromising video quality.
Gamma You can adjust brightness of dark area and middle gray level area of the picture.
»Low: Make the dark and middle gray level areas brighter.
»Medium: Express the original picture level.
»High: Make the dark and middle gray level area darker.
Black Level Sets black level of the screen to proper level. This function is available in the following modes:
AV (NTSC-M), HDMI, Component or USB
»Low: The reflection of the screen gets darker.
»High: The reflection of the screen gets brighter.
»Auto : Sets black level of the screen to High or Low automatically according to the input
signal level.
Film Mode Makes video clips recorded in film look more natural by eliminating judder effect.
DVD and Blu-ray movies are filmed at 24 frames per second (fps).
Colour Gamut Advanced Control
Maximizess the utilization of colour to increase colour quality.
»Standard: Displays standard set of colours.
»Wide: Increase number of colours used.
Expert Control
Displays colour domain of the signal.
»Standard: Displays standard set of colours.
»Wide: Increase number of colours used.
Edge Enhancer Shows clearer and distinctive yet natural edges of the video.
XVYCC
(available in Cinema
and Expert modes)
*This feature is not available for all models.
This is the function to express richer colours.
This feature represents rich colours as much as a conventional video signal.
This function is enabled in “Picture Mode - Cinema, Expert” when xvYCC signal is inputted
through HDMI.
Expert Pattern
(available in Cinema
and Expert modes)
This is the pattern necessary for expert adjustment.
This function is enabled in “Picture Mode - Cinema, Expert” when you watch DTV.
Colour Filter This is the function to filter the specific colours of the video.
You can use the RGB filter to set colour saturation and hue accurately.
72
ENG
ENGLISH
CUSTOMIZING SETTINGS
Advanced image options
Setting Description
Colour Temperature Adjusts the overall color of the screen by changing the white baseline.
a. Method : 2 Points
Pattern: Inner, Outer
Point : High/Low
Red/Green/Blue: The adjustment range
is -50 to +50.
b. Method : 20 Point IRE
IRE (Institute of Radio Engineers) is the unit
to display the size of the video signal and can
be set among 5, 10, 15 to 100 Plasma TV.
You can adjust Red, Green or Blue according
to each setting.
Red/Green/Blue: The adjustment range is -50
to +50.
c. Apply to all inputs
Colour Management
System
As the tool used by the experts to make adjustments by using the test patterns, this does not
affect other colours but can be used to selectively adjust the 6 colour areas (Red/Green/Blue/
Cyan/Magenta/Yellow).
Colour difference may not be distinctive even when you make the adjustments for the general
video.
Adjusts Red/Green/Blue/Yellow/Cyan, Magenta.
Red/Green/Blue/Yellow/Cyan, Magenta Colour: The adjustment range is -30 to +30.
Red/Green/Blue/Yellow/Cyan, Magenta Tint: The adjustment range is -30 to +30.
This feature is disable in RGB-PC and HDMI-PC mode.
73
ENGENGLISH
CUSTOMIZING SETTINGS
Setting Description
Auto Volume Activates the Auto Volume feature to keep the volume level consistent whenever you change
channels. The volume level may not be consistent due to different signal conditions of broadcasting
stations.
Clear Voice Sets whether to enhance human voice clarity. You can adjust the level of clarity when you set this
feature on.
If you select “On” for Clear Voice II, Virtual Surround feature will not work.
Select levels from ‘-6’ to ’+6’.
NOTE
Balance Adjust balance between the left and right speakers according to your room environment.
Sound Mode Selects one of the preset sound modes or customizes options in each mode.
Mode
Standard Select when you want standard-quality sound.
Music Select when you listen to music.
Cinema Select when you watch movies.
Sport Select when you watch sports events.
Game Select when you play games.
Option
Virtual Surround Virtual Surround is a patented LG proprietary sound processing technology that
strives immersive 5.1 surround sound impression with front two loudspeakers.
Treble Controls the dominant sounds in the output. When you turn up the treble, it will
increase the output to the higher frequency range.
Bass Controls the softer sounds in the output. When you turn up the bass, it will
increase the output to the lower frequency range.
Reset Resets the sound mode to the default setting.
AUDIO settings
1 Press SETTINGS to access the main menus.
2 Press the Navigation buttons to scroll to AUDIO and press OK.
3 Press the Navigation buttons to scroll to the setting or option you want
and press OK.
- To return to the previous level, press .
4 When you are finished, press EXIT.
AUDIO
OK
Move
● Auto Volume : Off
● Clear Voice II : Off 3
● Balance 0
● Sound Mode : Standard
• Virtual Surround : Off
• Treble 50
• Bass 50
• Reset
● Digital Audio Out : PCM
● TV Speaker : On
● DTV Audio Setting : Auto
LR
The available audio settings are described in the following.
(Depending on model)
Image shown may differ from your TV.
74
ENG
ENGLISH
CUSTOMIZING SETTINGS
Setting Description
Digital Audio
Out
This function allows you to select your preferred Digital Audio Output.
When Dolby Digital is available, selecting Auto in the Digital Audio Out menu will set SPDIF(Sony
Philips Digital InterFace) output to Dolby Digital.
If Auto is selected in the digital audio out menu when Dolby Digital is not available, SPDIF output will
be PCM(Pulse-code modulation).
Even if both Dolby Digital and Audio language have been set in a channel which broadcast Dolby
Digital Audio, only Dolby Digital will be played.
Item Audio Input Digital Audio output
Auto
MPEG
Dolby Digital
Dolby Digital Plus Pulse
HE-AAC
PCM
Dolby Digital
Dolby Digital
Dolby Digital
PCM
All PCM
TV Speaker Turns on the internal speaker of the TV when using an external Hi-Fi system. You can use the TV
speaker as an audio output device even if there is no video input.
When the TV speaker is turned off while the Simplink home theater is operating, the sound
output automatically switches to the Home theater speaker, but when the TV speaker is
turned on, the sound output the TV speaker.
Some menus in AUDIO are disabled when TV Speaker is set to Off.
NOTE
DTV Audio
Setting(In Dig-
ital Mode only)
When different audio types exist in an input signal, this function allows you to select the audio type
you want.
Mode
Auto Automatically outputs in the order HE-AAC > Dolby Digital+ > Dolby Digital >
MPEG.(Except for Denmark,Finland,Hungary,Italy,Latvia,Lithuania,Norway,Swed
en)
Automatically outputs in the order HE-AAC > Dolby Digital+ > MPEG > Dolby
Digital.(Only Italy,Latvia,Lithuania)
Automatically outputs in the order Dolby Digital+ > Dolby Digital > HE-AAC >
MPEG.(Only Hungary)
If Digital Audio Out is set to PCM, automatically outputs in the order MPEG > HE-
AAC > Dolby Digital+ > Dolby Digital.(Only Denmark,Finland,Norway,Sweden)
If Digital Audio Out is set to Auto, automatically outputs in the order Dolby
Digital+ > Dolby Digital > HE-AAC > MPEG.(Only Denmark,Finland,Norway,
Sweden)
HE-AAC, Dolby
Digital+, Dolby
Digital, MPEG
Allows users to select the audio type they want.
ex) If MPEG is selected, MPEG is always outputted.
If MPEG is not supported, another audio type is set in that order.
See p.79 (Audio Language Selection)
75
ENGENGLISH
CUSTOMIZING SETTINGS
Stereo/Dual Reception (In Analogue Mode Only)
When a programme is selected, the sound information for the station appears with the programme
number and station name.
1 Press Q. MENU and press the Navigation to access the Audio or Audio Language and press OK.
2 Press the Navigation button to scroll to the sound output and press OK.
Broadcast On Screen Display
Mono
Stereo
Dual
MONO
STEREO
DUAL I , DUAL II , DUAL I + II
Nicam Reception (In Analogue Mode Only)
Speaker Sound Output Selection
If the TV is equipped with a receiver for NICAM reception, high quality NICAM (Near Instantaneous
Companding Audio Multiplex) digital sound can be received.
Sound output can be selected according to the type of broadcast received.
1 When NICAM mono is received, you can select NICAM MONO or FM MONO.
2 When NICAM stereo is received, you can select NICAM STEREO or FM MONO.
If the stereo signal is weak, switch to FM MONO.
3 When NICAM dual is received, you can select NICAM DUAL I, NICAM DUAL II or NICAM DUAL I+II or
FM MONO.
In AV, Component, RGB and HDMI mode, you can select output sound for the left and right loudspeakers.
Select the sound output.
L+R: Audio signal from audio L input is sent to the left loudspeaker and audio signal from audio R input is
sent to the right loudspeaker.
L+L: Audio signal from audio L input is sent to left and right loudspeakers.
R+R: Audio signal from audio R input is sent to left and right loudspeakers.
Mono sound selection
If the stereo signal is weak in stereo reception, you can switch to mono. In mono reception, the clarityof
sound is improved.
Language selection for dual language broadcast
If a programme can be received in two languages (dual language), you can switch to DUAL I,
DUAL II or DUAL I+II.
DUAL I Sends the primary broadcast language to the loudspeakers.
DUAL I I Sends the secondary broadcast language to the loudspeakers.
DUAL I+I I Sends a separate language to each loudspeaker.
76
ENG
ENGLISH
CUSTOMIZING SETTINGS
SETUP
● Auto Tuning
● Manual Tuning
● Programme Edit
● CI Information
OK
Move
The available Programme settings are described in the following:
Setting Description
Auto Tuning Tunes and stores all available programmes through antennas or cable inputs (See p.21).
Manual Tuning Tunes and stores the programmes you want manually (See p.23).
Programme Edit Edits programmes. (See p.25).
CI information Enables you to watch some encrypted services (pay services).(See p.27).
Cable DTV Setting
(In Cable mode
only)
The range that a user can select from the Service Operator menu differs depending on number
of Service Operator supported by each country, and if number of supported Service Operator
for each country is 1, corresponding function becomes non-activation.
After changing Service Operator, a warning window saying that channel map will be deleted
when OK button is pressed or Close is selected, and a Auto-tuning pop-up window appears when
‘YES’ is selected.(See p.23).
Image shown may differ from your TV.
SETUP settings
1 Press SETTINGS to access the main menus.
2 Press the Navigation buttons to scroll to SETUP and press OK.
3 Press the Navigation buttons to scroll to the setting or option you
want and press OK.
- To return to the previous level, press .
4 When you are finished, press EXIT.
77
ENGENGLISH
CUSTOMIZING SETTINGS
Setting Description
Clock Sets the time, date, time zone, and daylight-saving time feature.
The time will be set automatically according to a digital channel signal which includes time
information provided by the broadcasting station. If not, set the time and date manually.
The TV time is set by the time offset information based on Time Zone and GMT (Greenwich
Mean Time) which is received with the broadcast signal and the time is set automatically by
a digital signal.
When if the city name in Time Zone is changed into offset, you can change time by 1 hour.
Time Zone menu can be changed in Auto mode.
NOTE
This Table means the Time Zone table of 9 area of Russia,
and when the user selects the Time Zone for his or her
area, it automatically sets the time for the corresponding
area.
However, even though the user selected his or her area, if
the broadcasting station’s local time offset is not offered, or
if the region information does not match, then the user may
select the Offset from the Time Zone to set the correct time.
Time Zone
Magadan, Kamchatka
Vladivostok
Yakutsk
Irkutsk
Krasnoyarsk
Omsk
Yekaterinburg
Moscow, Samara
Kaliningrad
TIME settings
1 Press SETTINGS to access the main menus.
2 Press the Navigation buttons to scroll to TIME and press OK.
3 Press the Navigation buttons to scroll to the setting or option you want
and press OK.
- To return to the previous level, press .
4 When you are finished, press EXIT.
TIME
OK
Move
● Clock
● Off Time : Off
● On Time : Off
● Sleep Timer : Off
● Automatic Standby : 4 hours
The available time settings are described in the following.
Image shown may differ from your TV.
78
ENG
ENGLISH
CUSTOMIZING SETTINGS

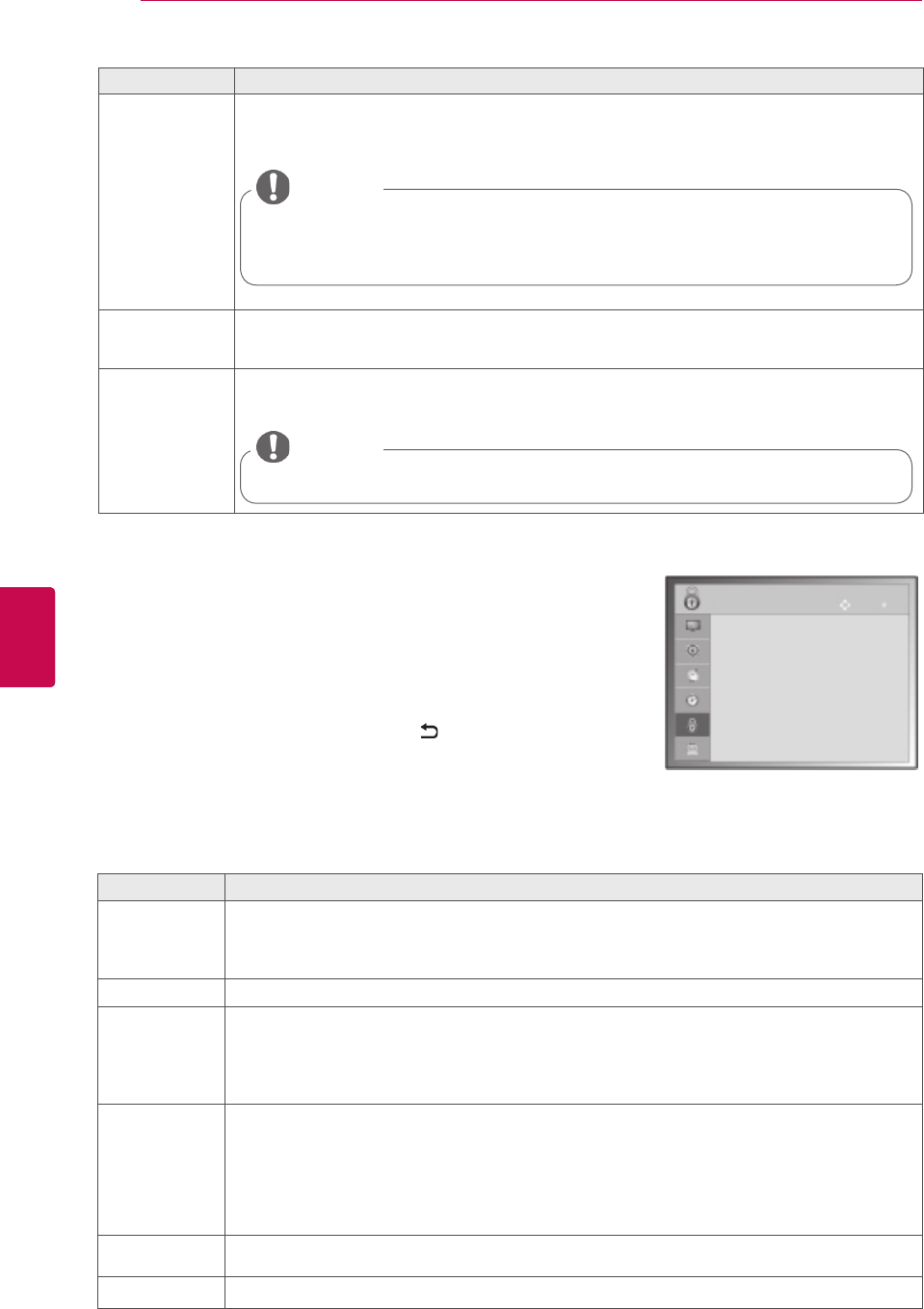

Setting Description
Set Password Changes the 4-digit password. The default PIN is “0 0 0 0”.
When France is selected for Country, password is not ‘0’,‘0’,‘0’,‘0’ but ‘1’,’2’,’3’,’4’.
When France is selected for Country, password cannot be set as ‘0’,‘0’,‘0’,‘0’ .
If you forget your password, press ‘0’, ‘3’,‘2’, ‘5’ on the remote control handset.
Lock System Activates or deactivates the lock system.
Block
Programme
Blocks the programmes that contain inappropriate contents for children by pressing the Green
button. The Lock icon appears in front of the blocked programmes. The programmes can be selected
but the screen blank and the audio is muted.
To watch a locked channel, enter the password.
It is available to use this function in Lock System ”On”
Parental
Guidance
(In Digital Mode
only)
This function operates according to information from the broadcasting station. Therefore if the signal
has incorrect information, this function does not operate.
A password is required to gain access to this menu.
This set is programmed to remember which option it was last set to even if you switch the set off.
Prevents children from watching certain adult’s TV programmes, according to the ratings limit set.
Enter a password to watch a blocked programme.
Rating differs by country.
Input Block Block the input sources.
It is available to use this function in Lock System ”On”
Key Lock Locks or unlocks the buttons on the TV.
LOCK settings
1 Press SETTINGS to access the main menus.
2 Press the Navigation buttons to scroll to LOCK and press OK.
3 Press the Navigation buttons to scroll to the setting or option you
want and press OK.
- To return to the previous level, press .
4 When you are finished, press EXIT.
LOCK
OK
Move
● Set Password
● Lock System : Off
● Block Programme
●
Parental Guidance : Blocking Off
● Input Block
● Key Lock : Off
Setting Description
Off Time/On
Time
Sets the time to turn on or off the TV automatically. To use this function, you should set the current
time and date in advance.
If you do not press any button within 2 hours after the TV turns on by the On Time feature,
the TV enters the Standby mode automatically.
If you set both Off time and On time features to the same time, the Off time feature
overrides the On time feature.
NOTE
Sleep Timer Sets the length of time until the TV to turns off. When you turn the TV off and turn it on again, the
Sleep timer feature will be set to off.
Automatic
Standby
(Depending on
model)
If you do not press any button when Automatic Standby function is on, the TV automatically
switches to the standby mode.
This function does not work on Store Demo mode or while software update.
NOTE
The available lock settings are described in the following.
Image shown may differ from your TV.
79
ENGENGLISH
CUSTOMIZING SETTINGS
OPTION settings
1 Press SETTINGS to access the main menus.
2 Press the Navigation buttons to scroll to OPTION and press OK.
3 Press the Navigation buttons to scroll to the setting or option you
want and press OK.
- To return to the previous level, press .
4 When you are finished, press EXIT.
OPTION
OK
Move
● Language(Language)
● Country : UK
● Disability Assistance
● ISM Method : Normal
● Factory Reset
● Set ID : 1
● Mode Setting : Home Use
The available general settings are described in the following.
(Depending on model)
Image shown may differ from your TV.
Setting Description
Language Selects a language for the display or audio.
Option
Menu Language Select your desired language.
Audio Language
(In Digital mode Only)
The Audio function allows selection of a preferred language.
If audio data in a selected language is not broadcast, the default lan-
guage audio will be played.
Audio Language OSD Information
Display Status
N.A Not Available
MPEG Audio
Dolby Digital Audio
Dolby Digital Plus Audio
Audio for “Visual Impaired”
Audio for “Hearing Impaired”
HE-AAC HE-AAC Audio
Subtitle Language
(In Digital mode Only)
Use the Subtitle function when two or more subtitle languages are
broadcast. If subtitle data in a selected language is not broadcast, the
default language subtitle will be displayed.
Subtitle Language OSD Information
Display Status
N.A Not Available
Teletext Subtitle
Subtitle for “Hard of Hearing”
Text Language
(In Digital mode Only)
In Digital mode, use the Text language function when two or more Text
languages are broadcast. If teletext data in a selected language is not
broadcast, the default Text language page will be displayed.
When the languages you selected as the primary for Audio Language and Subtitle Language
and Text Language are not supported, you can select language in secondary category.
The audio/subtitles can be displayed in a simpler form with 1 to 3 characters broadcast by
the service provider.
When you select supplementary Audio (Audio for “Visual/Hearing Impaired”) the TV may
output a part of the Main audio.
NOTE
80
ENG
ENGLISH
CUSTOMIZING SETTINGS
Setting Description
Country Selects a desired country.
If you do not finish the set-up Installation Guide by pressing or if you time out on
the OSD (On Screen Display) the installation menu will continuously appear until the set
up is completed whenever the TV is switched on.
If you select the wrong local country, teletext may not appear correctly on the screen
and some problems may occur during teletext operation.
The CI (Common Interface) function may not be applied based on country broadcasting
circumstances.
DTV mode control buttons may not function based on country broadcasting
circumstances.
In country that Digital broadcasting regulation isn’t fixed, some DTV function may not
work depending on digital broadcasting circumstances.
The Country Setting “UK” should only be activated in UK.
If the country setting is set to “--”, European terrestrial digital standard broadcasting
programmes are available, but some DTV functions may not work properly.
NOTE
Disabled Assist-
ance (In Digital
Mode only)
Option
Hard of Hearing This function is for the hearing impaired.
Audio Description This function is for the blind, and provides explanatory audio describ-
ing the current situation in a TV programme in addition to the basic
audio.
When Audio Description On is selected, basic audio and Audio
Description are provided only for those programmes that have Audio
Description included.
Volume Changes the Audio Description volume
Beep Beeps when a programme with Audio Description
information is selected
ISM Method A frozen or still picture displayed on the screen for prolonged periods will result in a ghost image
remaining even when you change the image. Avoid allowing a fixed image to remain on the
screen for prolonged periods.
Option
Normal Sets it if image sticking is never a problem.
Orbiter Orbiter may help prevent ghost images. However, it is best not to al-
low any fixed image to remain
on the screen. To avoid a permanent image on the screen, the screen
will move every 2 minutes.
Colour Wash The colour block with the screen moved a little and the white pat-
tern are alternately displayed. It is difficult to sense the afterimage
occurred while the temporary afterimage is removed and the colour
pattern is operating.
Data Service
(only in Ireland.)
This function allow users to choose between MHEG (Digital Teletext) and Teletext if both exist at
the same time.
Factory Reset This function initializes all settings.
In Lock System “On”, if you forget your password, press ‘0’, ‘3’, ‘2’, ‘5’ on the remote
control handset.
NOTE
Set ID Adds an ID to the connected devices
81
ENGENGLISH
CUSTOMIZING SETTINGS
NETWORK Settings
(Depending on model)
1 Press SETTINGS to access the main menus.
2 Press the Navigation buttons to scroll to NETWORK and
press OK.
3 Press the Navigation buttons to scroll to the setting or op-
tion you want and press OK.
- To return to the previous level, press .
4 When you are finished, press EXIT.
The available network settings are described in the following.
Setting Description
Network Setting Configure the network settings (See p.55).
Network Status Display the network status (See p.56).
Image shown may differ from your TV.
NETWORK
OK
Move
● Network Setting : Wired
● Network Status : Internet is connected
Setting Description
Mode Setting Default selection is “Home Use”. We recommend setting the TV to “Home Use” mode for the
best picture in your home environment.
Option
Home Use Selects it for the home environment.
Store Demo Selects it for the retail environment.
Demo Mode Sets to show special features of the TV. You can cancel the demo
mode by pressing any buttons except the Volume and Mute buttons.
It is not possible to use Demo Mode in Home Use mode.
In Store Demo, Demo Mode is automatically set to On.
Once Demo Mode is set to Off in Store Demo, Demo Mode
does not run and only the screen is reset.
The screen is reset automatically after 5 minutes in Demo
Mode.
NOTE
82
ENG
ENGLISH
MAKING CONNECTIONS
MAKING CONNECTIONS
Connect various external devices to the TV and switch input modes to select an external device. For more
information of external device’s connection, refer to the manual provided with each device.
Available external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices,
PC, gaming devices, and other external devices.
The external device connection may differ from the model.
Connect external devices to the TV regardless of the order of the TV port.
NOTE
83
ENGENGLISH
MAKING CONNECTIONS
Connection overview
Connect various external devices to the ports on the TV back panel.
1 Find an external device you want to connect to your TV as shown on the following illustration.
2 Check the connection type of the external device.
3 Go to the appropriate illustration and check the connection details.
(Depending on model)
HD Receiver DVD VCR
Speaker USB
PC Gaming device
If you connect a gaming device to the TV, use the cable supplied with the gaming device.
Refer to the external equipment’s manual for operating instructions.
NOTE
84
ENG
ENGLISH
MAKING CONNECTIONS
This part of MAKING CONNECTIONS mainly uses picture for 50/60PA6500-ZA
Connecting to a HD receiver, DVD, or VCR player
Connect a HD receiver, DVD, or VCR player to the TV and select an appropriate input mode.
HDMI Connection
HDMI is the best way to connect a device.
Transmits the digital video and audio signals from an external device to the TV. Connect the external device
and the TV with the HDMI cable as shown in the following illustration.
NOTE
Use the latest High Speed HDMI™ Cable with CEC (Customer Electronics Control) function.
High Speed HDMI™ Cables are tested to carry an HD signal up to 1080p and higher.
HDMI
IN
1
/DVI IN 2
IN 3
(*Not Provided)
DVD/ Blu-Ray / HD Cable Box / HD STB
Choose any HDMI input port to connect.
It does not matter which port you use.
85
ENGENGLISH
MAKING CONNECTIONS
DVI to HDMI Connection
Transmits the digital video signal from an external device to the TV. Connect the external device and the
TV with the DVI-HDMI cable as shown in the following illustration. To transmit an audio signal, connect an
audio cable.
(*Not Provided)
(*Not Provided)
DVD/ Blu-Ray / HD Cable Box
86
ENG
ENGLISH
MAKING CONNECTIONS
Component Connection
Transmits the analog video and audio signals from an external device to the TV. Connect the external de-
vice and the TV with the component cable as shown in the following illustration.
NOTE
If cables are installed incorrectly, it could case the image to display in black and white or with distorted
colour.
Check to ensure the cable are matched with the corresponding colour connection.
(*Not Provided)
(*Not Provided)
DVD/ Blu-Ray / HD Cable Box
GREEN GREEN
BLUE BLUE
RED RED
RED RED
WHITE WHITE
87
ENGENGLISH
MAKING CONNECTIONS

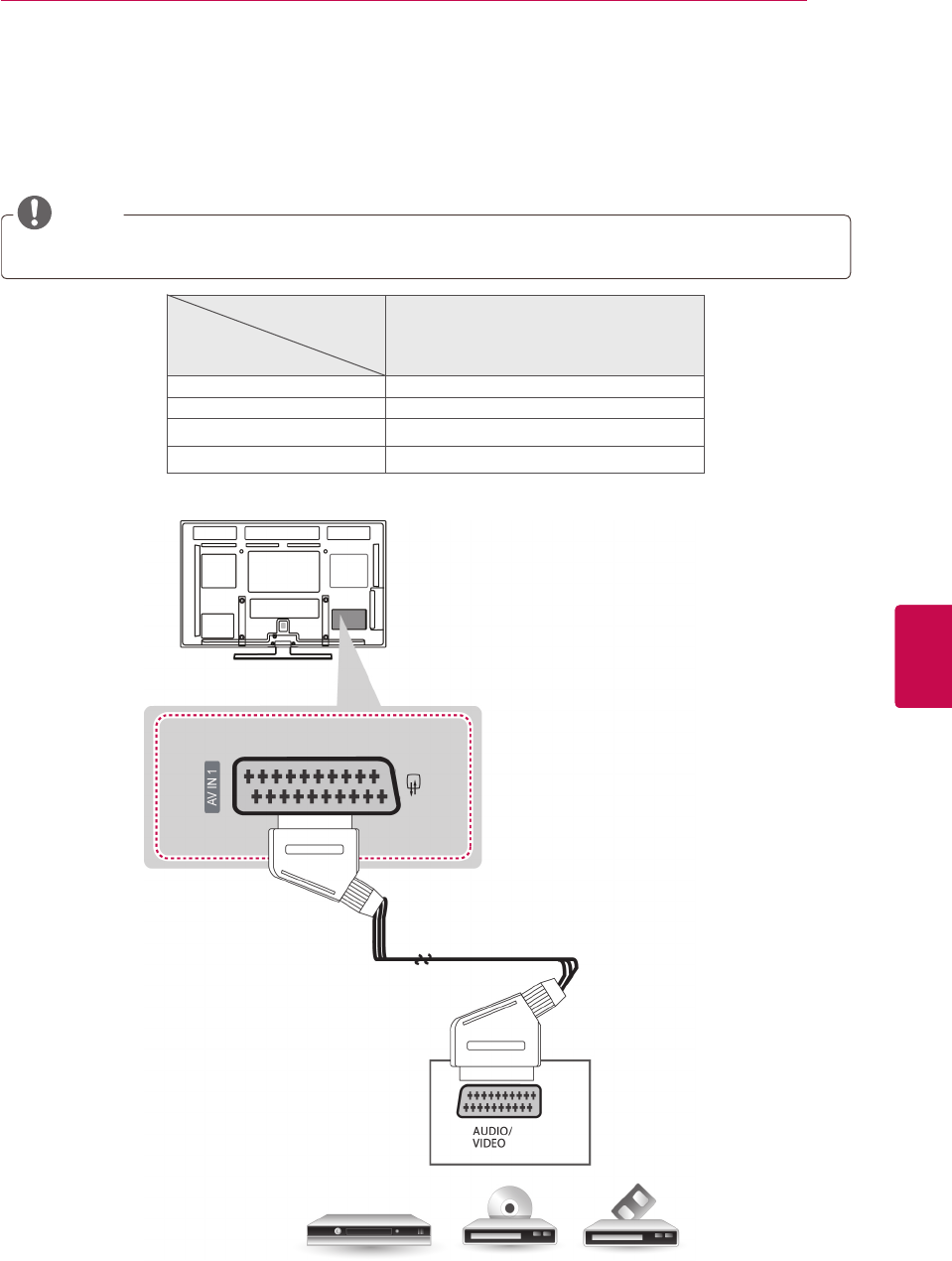

Euro Scart connection
Transmits the video and audio signals from an external device to the TV set. Connect the external device
and the TV set with the Euro Scart cable as shown on the following illustration. To display images by using
progressive scan, make sure to use the Euro Scart cable.
NOTE
Any Euro scart cable used must be signal shielded.
Output
Type
Current
input model
AV1
(TV Out1)
Digital TV O
Analogue TV, AV Analogue TV
Component / RGB Analogue TV
HDMI Analogue TV
1 TV Out : Outputs Analogue TV or Digital TV signals.
VCR / DVD/ Blu-Ray / HD Cable Box
88
ENG
ENGLISH
MAKING CONNECTIONS

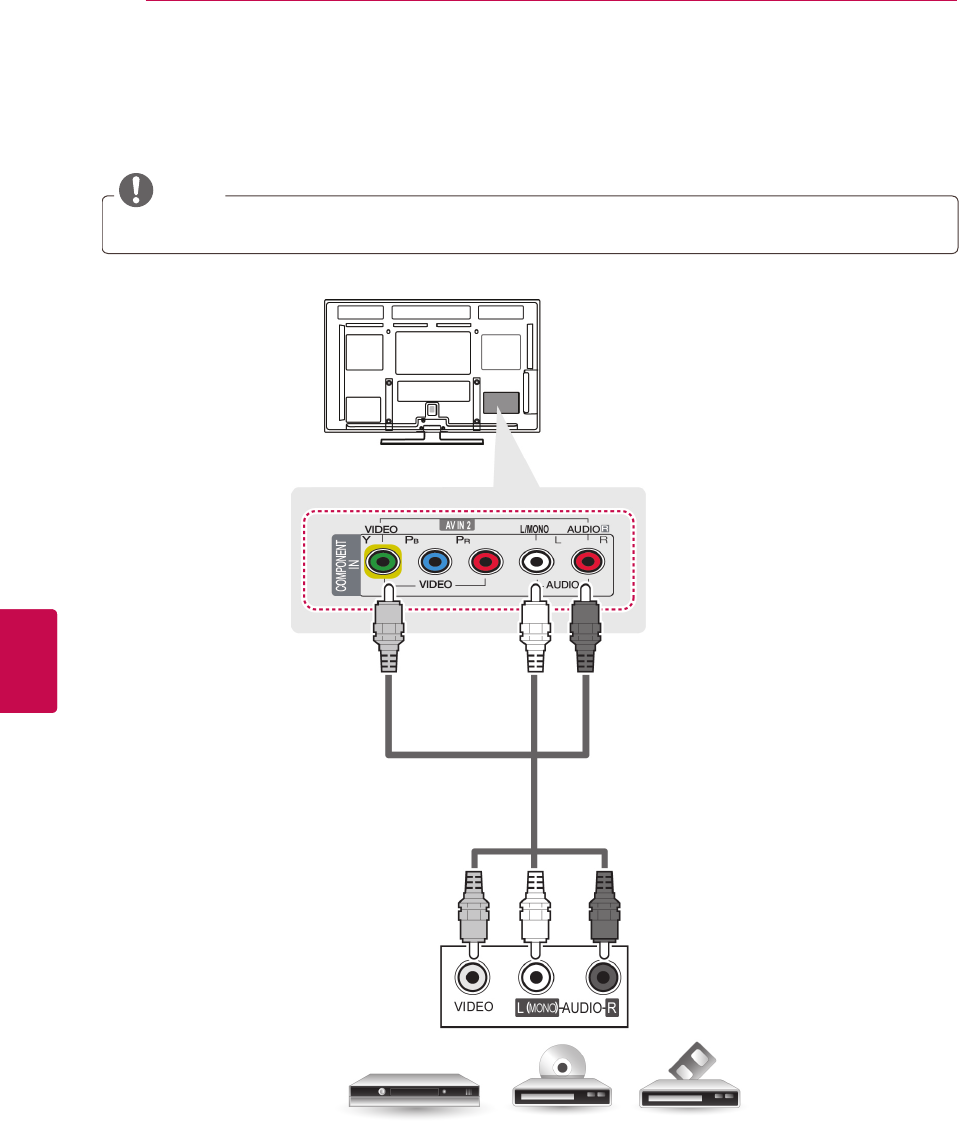

Composite Connection
Transmits the analog video and audio signals from an external device to the TV. Connect the external de-
vice and the TV with the composite cable as shown in the following illustration.
NOTE
If you have a mono VCR, connect the audio cable from the VCR to the AUDIO L/MONO jack of the TV.
VCR / DVD/ Blu-Ray / HD Cable Box
(*Not Provided)
YELLOW
WHITE
RED
YELLOW
WHITE
RED
89
ENGENGLISH
MAKING CONNECTIONS

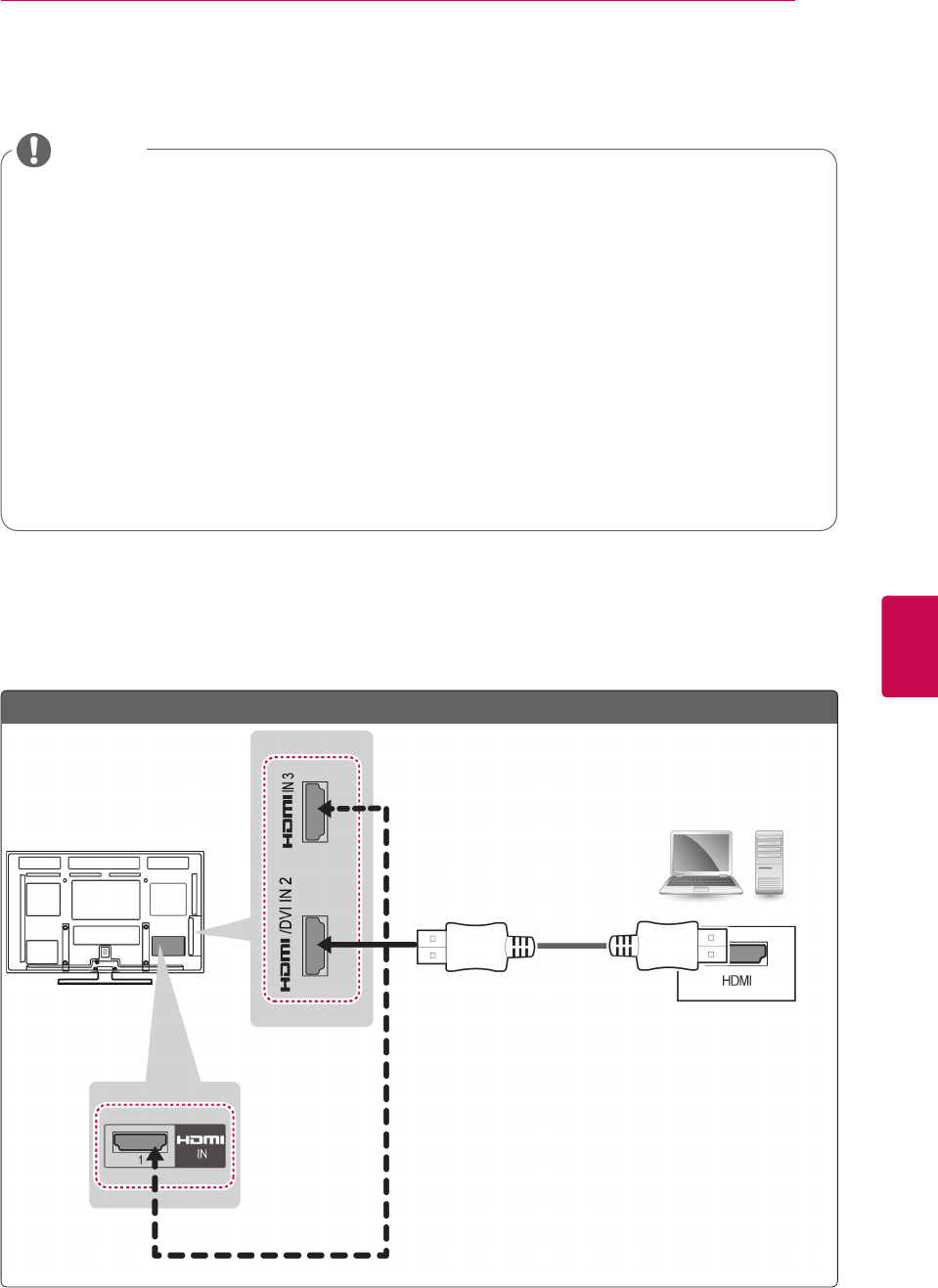

Connecting to a PC
HDMI Connection, DVI to HDMI Connection or RGB Connection
Choose method A, B, or C to make connection.
Method A: HDMI Connection
(*Not Provided)
Choose any HDMI input port to connect.
It does not matter which port you use.
PC
Avoid keeping a fixed image on the set’s screen for prolonged periods of time. The fixed image may become
permanently imprinted on the screen; use a screen saver when possible.
There may be interference relating to resolution, vertical pattern, contrast or brightness in PC mode. Change the
PC mode to another resolution or change the refresh rate to another rate or adjust the brightness and contrast
on the menu until the picture is clear. If the refresh rate of the PC graphic card can not be changed, change the
PC graphic card or consult the manufacturer of the PC graphic card.
The synchronization input waveform for Horizontal and Vertical frequencies are separate.
We recommend using 1920x1080 for the PC mode, this should provide the best picture quality.
Connect the signal cable from the monitor output port of the PC to the RGB (PC) port of the TV or the signal
cable from the HDMI output port of the PC to the HDMI IN (or HDMI/DVI IN) port on the TV.
Connect the audio cable from the PC to the Audio input on the TV. (Audio cables are not included with the TV).
If using a sound card, adjust PC sound as required.
If the graphic card on the PC does not output analogue and digital RGB simultaneously, connect only one of
either RGB or HDMI IN (or HDMI/DVI IN) to display the PC output on the TV.
DOS mode may not work depending on the video card if you use an HDMI to DVI cable.
If you use too long an RGB-PC cable, there may be interference on the screen. We recommend using under
5m of cable. This provides the best picture quality.
NOTE
90
ENG
ENGLISH
MAKING CONNECTIONS
Method C: RGB Connection
(*Not Provided)
(*Not Provided)
PC
(*Not Provided)
Method B: DVI to HDMI Connection
PC
(*Not Provided)
91
ENGENGLISH
MAKING CONNECTIONS
Connecting to an Audio System
Use an optional external audio system instead of the built-in speaker.
NOTE
If you use an optional external audio device instead of the built-in speaker, set the TV speaker feature
to off.
Digital Optical Audio Connection
Transmits the digital audio signal from the TV to an external device. Connect the external device and the
TV with the optical audio cable as shown in the following illustration.
NOTE
Do not look into the optical output port. Looking at the laser beam may damage your vision.
Audio with ACP (Audio Copy Protection) function may block digital audio output.
OPTICAL
AUDIO IN
(*Not Provided)
Digital Audio System
92
ENG
ENGLISH
MAKING CONNECTIONS
Connecting to a USB
Connect a USB storage device such as a USB flash memory, external hard drive, or a USB memory card
reader to the TV and access the Smart Share menu to use various multimedia files.
USB IN
USB
(*Not Provided)
Connecting to a CI Module
View the encrypted (pay) services in digital TV mode.
Check this point as shown
and insert the CI Module.
Check if the CI module is inserted into the PCMCIA card slotin the right direction. If the module is
not inserted properly, this can cause damage to the TV and the PCMCIA card slot.
NOTE
or
93
ENGENGLISH
MAKING CONNECTIONS
SIMPLINK connection
Use the TV remote control to play and control the
AV device connected with the HDMI cable through
HDMI-CEC. Your TV only works with the devices
that support HDMI-CEC.
Connect one end of the HDMI cable to the HDMI/
DVI IN or HDMI IN terminal on the rear of the TV
and the other end to the SIMPLINK device.
In wireless external output, SIMPLINK function is
not supported.
If the connected device does not support
HDMI-CEC, the SIMPLINK feature is
unavailable.
To operate SIMPLINK, an High Speed
HDMI Cable with *CEC function should
be used. (*CEC: Consumer Electronics
Control).
NOTE
◄ On ►
Watch TV
DISC
VCR
VCR
Speaker
TV Speaker
HDD Recorder
◄ ►
OK Exit
Selected Device
When a device is
connected (displayed
in bright colour)
When device is
not connected
(displayed in gray)
1
2
3
4
5
Activating the SIMPLINK feature
1 Press INPUT to access the input sources.
2 Press Red button to access the SIMPLINK
menus.
3 Press the Navigation buttons to scroll to On.
4 Press the Navigation buttons to scroll to one of
the devices and press OK.
5 Control the selected AV device.
- Direct Play: After connecting AV devices to the
TV, you can directly control the devices and play
media without additional settings.
- Select AV device: Enables you to select one of
the AV devices connected to the TV.
- Disc playback: Control connected AV de-
vices by pressing the Navigation buttons,
OK,
and
buttons.
- Power off all devices: When you power off the
TV, all connected devices are turned off.
- Switch audio-out: Offers an easy way to switch
audio-out.
- Sync Power on: When the equipment with SIM-
PLINK function connected HDMI terminal starts
to play, The TV will automatically turn on.
No. Description
1Displays the previously viewed TV channel.
2
Plays discs. When multiple discs are available,
the title of the disc appears at the bottom of the
screen.
3Controls the connected VCR.
4HDD recordings playback: Controls the recording
stored in HDD.
5
Audio out to home theater speaker or Audio out
to TV: Changes the audio output between Home
theater speaker and TV speaker.
- A check mark appears in front of the selected
device.
- Available devices display in a bright colour.
- Unavailable devices display in grey.
If you change the input source by
pressing INPUT, the progressing function
of the SIMPLINK device will stop.
If you select a device that has the
home theater feature, the sound output
automatically switches to the home
theater speaker and the TV speaker turns
off.
If a connected SIMPLINK home theater
system does not play the audio from the
TV, connect the DIGITAL AUDIO OUT
terminal on the rear of the TV to the
DIGITAL AUDIO IN terminal on the back
of the SIMPLINK device with an optical
cable.
NOTE
Image shown may differ from your TV.
94
ENG
ENGLISH
TELETEXT
TELETEXT
This feature is not available in all countries.
Teletext is a free service broadcast by most TV
stations which gives up-to-theminute information
on news, weather, television programmes, share
prices and many other topics.
The teletext decoder of this TV can support the
SIMPLE, TOP and FASTEXT systems. SIMPLE
(standard teletext) consists of a number of pages
which are selected by directly entering the cor-
responding page number. TOP and FASTEXT are
more modern methods allowing quick and easy
selection of teletext information.
Switch On/Off
Simple Text
Top Text
Press the TEXT button to switch to teletext. The
initial page or last page viewed appears on the
screen.
Two page numbers, TV station name, date and
time are displayed on the screen headline. The
first page number indicates your selection, while
the second shows the current page displayed.
Press the TEXT button to switch off teletext. The
previous mode reappears.
The user guide displays four fields-red, green,
yellow and blue at the bottom of the screen. The
yellow field denotes the next group and the blue
field indicates the next block.
1 Enter the desired page number as a three digit
number with the NUMBER buttons. If during
selection you press a wrong number, you must
complete the three digit number and then re-
enter the correct page number.
2 The P
∧∨
(P + -) button can be used to select
the preceding or following page.
1 With the blue button you can progress from
block to block.
2 Use the yellow button to proceed to the next
group with automatic overflow to the next
block.
3 With the green button you can proceed to the
next existing page with automatic overflow to
the next group..
4 Alternatively the P
∧
(P + )button can be used.
The red button returns to the previous selec-
tion. Alternatively the P
∨
(P -)button can be
used.
As with SIMPLE teletext mode, you can select a
page by entering it as a three digit number using
the NUMBER buttons in TOP mode.
Page selection
Block / Group / Page Selection
Direct Page Selection
95
ENGENGLISH
TELETEXT
Fastext
Special Teletext Function
Select the each index page.
When viewing a TV programme, select this
menu to display the time at the top right hand
corner of the screen.
In the teletext mode, press this button to select
a sub page number. The sub page number is
displayed at the bottom of the screen. To hold
or change the sub page, press the Red/Green,
< > or NUMBER buttons.
Stops the automatic page change which will
occur if a teletext page consists of 2 or more
sub pages.
The number of sub pages and the sub page
displayed is, usually, shown on the screen
below the time. When this menu is selected the
stop symbol is displayed at the top left-hand
corner of the screen and the automatic page
change is inactive.
Displays the TV picture on the screen while
waiting for a new teletext page. The display
will appear at the top left hand corner of the
screen. When the updated page is available
then display will change to the page number.
Select this menu again to view the updated
teletext page.
Select this menu to display concealed informa-
tion, such as solutions to riddles or puzzles.
The teletext pages are colour coded along the bot-
tom of the screen and are selected by pressing the
corresponding coloured button.
1 Press the T.OPT button and then use Naviga-
tion buttons to select menu. Display the
index page.
2 You can select the pages which are colour
coded along the bottom line with corresponding
coloured buttons.
3 AS with SIMPLE teletext mode, you can select
a page by entering its three digit page number
with the NUMBER buttons in FASTEXT mode.
4 The P
∧∨
(P + -) button can be used to select
the preceding or following page.
Page selection
ꔻ Index
ꔾ Time
ꕀ Hold
ꔼ Update
ꔽ Reveal
Text Option
Index
Time
Hold
Reveal
Update
Language
Close
Press the T. OPT button and then use Navigation
buttons to select the Text Option menu.
In UK(In digital mode), T. OPT button does
not work.
NOTE
In digital mode, Display the currently available
language information and you can change the
desired Teletext language.
Language(depending on model)
96
ENG
ENGLISH
DIGITAL TELETEXT
DIGITAL TELETEXT
This function works in UK, Ireland only.
The TV gives you access to digital teletext which is
greatly improved in various aspects such as text,
graphics etc. This digital teletext can access spe-
cial digital teletext services and specific services
which broadcast digital teletext.
Teletext within digital service
Teletext in digital service
1 Press the numeric or P
∧∨
(P + -) button to
select a digital service which broadcasts digital
teletext.
2 Follow the indications on digital teletext and
move onto the next step by pressing TEXT,
OK, Navigation button, Red, Green, Yellow,
Blue or NUMBER buttons and etc.
3 To change digital teletext service, select a dif-
ferent service by the numeric or P
∧∨
(P + -)
button.
1 Press the numeric or P
∧∨
(P + -) button to se-
lect a certain service which broadcasts digital
teletext.
2 Press the TEXT or coloured button to switch on
teletext.
3 Follow the indications on digital teletext and
move onto the next step by pressing OK, Navi-
gation button, Red, Green, Yellow, Blue or
NUMBER buttons and so on.
4 Press the TEXT or colour button to switch off
digital teletext and return to TV viewing.
Some services may allow you to access text
services by pressing the Red button.
97
ENGENGLISH
MAINTENANCE
MAINTENANCE
Update and clean your TV regularly to keep the best performance and to extend the product lifespan.
Cleaning your TV
Make sure to turn the power off and disconnect the power cord and all other cables first.
When the TV is left unattended and unused for a long time, disconnect the power cord from the wall
outlet to prevent possible damage from lightning or power surges.
CAUTION
Screen and frame
To remove dust or light dirt, wipe the surface with a dry, clean, and soft cloth.
To remove major dirt, wipe the surface with a soft cloth dampened in clean water or a diluted mild detergent.
Then wipe immediately with a dry cloth.
Do not push, rub, or hit the surface with your fingernail or a sharp object, as this may result in
scratches on the screen and image distortions.
Do not use any chemicals, such as waxes, benzene, alcohol, thinners, insecticides, air fresheners,
lubricants, as these may damage the screen’s finish and cause discolourations.
CAUTION
Cabinet and stand
To remove dust or light dirt, wipe the cabinet with a dry, clean, and soft cloth.
To remove major dirt, wipe the cabinet with a soft cloth dampened in a clean water or water containing a
small amount of mild detergent. Then wipe immediately with a dry cloth.
Do not spray liquid onto the surface. If water enters the TV, it may result in fire, electric shock, or
malfunction.
Do not use any chemicals as this may deteriorate the surface.
CAUTION
Power cord
Remove the accumulated dust or dirt on the power cord regularly.
98
ENG
ENGLISH
MAINTENANCE
Preventing “Image burn” or “Burn-in” on your TV screen
If a fixed image displays on the TV screen for a long period of time, it will be imprinted and become
a permanent disfigurement on the screen. This is “image burn” or “burn-in” and not covered by the
warranty.
If the aspect ratio of the TV is set to 4:3 for a long period of time, image burn may occur on the
letterboxed area of the screen.
Avoid displaying a fixed image on the TV screen for a long period of time (2 or more hours for LCD,
1 or more hours for the Plasma TV) to prevent image burn.
99
ENGENGLISH
TROUBLESHOOTING
TROUBLESHOOTING
Problem Solution
Cannot control the TV with the
remote control.
Check the remote control sensor on the product and try again.
Check if there is any obstacle between the product and the remote control.
Check if the batteries are still working and properly installed ( to , to ).
No image display and no sound is
produced.
Check if the product is turned on.
Check if the power cord is connected to a wall outlet.
Check if there is a problem in the wall outlet by connecting other products.
Image appears slowly when the TV
turns on.
The image is muted during the product startup process. This is normal. If the
image does not appear in a few minutes, unplug the TV for 30 seconds and try
again. If the image still does not appear, contact the authorized service center
in your local area.
Cannot connect external devices. Refer to the “Connection overview” and connect an external device.
The TV turns off suddenly. Check the power control settings. The power supply may be interrupted.
Check if the Auto sleep feature is activated in the Time settings.
Refer to the “Sleep Timer”.
If there is no signal while the TV is on, the TV will turn off automatically after 15
minutes of inactivity.
General
Problem Solution
No sound is produced while images
are displaying.
Press + or - button.
Check if the sound is muted by pressing MUTE.
Scroll to other channels. There may a problem with the broadcast.
Check if the audio cables are connected properly.
One of the speakers produce noises
or does not produce sound.
A change in ambient humidity or temperature may result in an unusual noise
when the product turns on or off.
There is no problem with your product.
Audio
100
ENG
ENGLISH
TROUBLESHOOTING
Problem Solution
An image displays in black and
white or the colour quality is poor.
Adjust the colour setting in the PICTURE menu.
Keep a sufficient distance between this product and other electronic products.
Scroll to other channels. There may a problem with the broadcast.
Horizontal or vertical bars appears
or images blur
Check if there are local interferences such as an electrical appliance or power
tool.
Lines or streaks appear on images Check the antenna or aim the antenna to the proper direction.
Afterimages (ghosts) appear when
the product turns off
Pixels may have been damaged from a fixed image displayed for a long time
(image burn). Use a screen saver to prevent the pixel damage on the screen.
The power is on but the screen
appears extremely dark.
Adjust the brightness and contrast in the PICTURE menu.
“No Signal” appears on the screen. Check if the signal cable is connected between the TV and products properly.
Check the selected input source by pressing INPUT.
The display offset is wrong. Adjust the position setting in the PICTURE menu.
Check if the video card resolution and frequency are supported by the product.
If the frequency is out of range, set to the recommended resolution using the
display settings on the external device.
Thin lines appear in the background
of the screen.
Check the video cable connections.
Horizontal noises appear or
characters blur.
Adjust the Phase setting in the PICTURE menu. Refer to the “SCREEN”.
The reception on some channels is
poor
Scroll to other channels. There may a problem with the broadcast.
The station signal may be weak. Aim the antenna to the proper direction.
Check if there is local interference such as an electrical appliance or power
tool.
Video
Problem Solution
The touch pen does not work. Check that you used the remote control to enter Pentouch mode.
Check that the Pentouch dongle is connected to the computer and the red LED
is on.
Press the button on the touch pen to check that it is powered on.
Check that the touch pen is paired for use. (The touch pen is correctly paired
if the red LED is on once when you press the Touch Home button on the touch
pen.)
Set the computer screen to display only on the TV.
The TV screen doesn’t look normal
when using Pentouch.
A Check that the computer is correctly connected to the TV.
A Check that you are using the optimal resolution.
Set the aspect ratio on the TV to Just Scan.
The touch pen is touched on wrong
positions.
Set the computer screen to display only on the TV.
If the point you touch on the TV screen using the touch pen and the point
indicated as touched on the computer screen do not match when the computer
and the TV are connected by a PC signal (RGB) cable, use the TV remote
control to select [Home] → [PICTURE] → [SCREEN] (RGB) , then select [Auto
Configure] to adjust the screen.
The touch pen movement is not
smooth.
Check whether the computer and the TV are too far from each other. Check
whether there are too many obstructions between the computer and the TV.
A Check whether many other applications are running on the computer. (Please
avoid running other applications while using the Pentouch program.)
Pentouch
101
ENGENGLISH
SPECIFICATIONS
SPECIFICATIONS
MODELS
42PA45** 42PA49**
42PA4500-ZF / 42PA450T-ZF
42PA4500-ZM / 42PA450T-ZM
42PA4510-ZA / 42PA451T-ZA
42PA4510-ZG / 42PA451T-ZG
42PA4520-ZC / 42PA452T-ZC
42PA4520-ZJ / 42PA452T-ZJ
42PA4900-ZE / 42PA490T-ZE
42PA4900-ZL / 42PA490T-ZL
Dimensions
(W x H x D)
With stand
983.6 mm x 655.0 mm x 246.7 mm 983.6 mm x 655.0 mm x 246.7 mm
Without stand
983.6 mm x 601.3 mm x 58.0 mm 983.6 mm x 601.3 mm x 58.0 mm
Weight With stand 20.6 kg 20.6 kg
Without stand 19.0 kg 19.0 kg
MODELS
50PA45** 50PA49**
50PA4500-ZF / 50PA450T-ZF
50PA4500-ZM / 50PA450T-ZM
50PA4510-ZA / 50PA451T-ZA
50PA4510-ZG / 50PA451T-ZG
50PA4520-ZC / 50PA452T-ZC
50PA4520-ZJ / 50PA452T-ZJ
50PA4900-ZE / 50PA490T-ZE
50PA4900-ZG / 50PA490T-ZG
50PA4900-ZL / 50PA490T-ZL
Dimensions
(W x H x D)
With stand
1168.0 mm x 758.0 mm x 297.0 mm 1168.0 mm x 758.0 mm x 297.0 mm
Without stand
1168.0 mm x 704.0 mm x 53.0 mm 1168.0 mm x 704.0 mm x 53.0 mm
Weight With stand 28.2 kg 28.2 kg
Without stand 25.8 kg 25.8 kg
MODELS
50PA55** 50PA65**
50PA5500-ZB / 50PA550T-ZB
50PA5500-ZH / 50PA550T-ZH
50PA6500-ZA / 50PA650T-ZA
50PA6500-ZG / 50PA650T-ZG
50PA6520-ZF / 50PA652T-ZF
50PA6520-ZM / 50PA652T-ZM
Dimensions
(W x H x D)
With stand
1168.0 mm x 758.0 mm x 297.0 mm 1168.0 mm x 758.0 mm x 297.0 mm
Without stand
1168.0 mm x 704.0 mm x 53.0 mm 1168.0 mm x 704.0 mm x 53.0 mm
Weight With stand 28.8 kg 28.8 kg
Without stand 26.4 kg 26.4 kg
MODELS
60PA55** 60PA65**
60PA5500-ZB / 60PA550T-ZB
60PA5500-ZH / 60PA550T-ZH 60PA6500-ZA / 60PA650T-ZA
60PA6500-ZG / 60PA650T-ZG
Dimensions
(W x H x D)
With stand
1386.8 mm x 883.2 mm x 354.7mm 1386.8 mm x 883.2 mm x 354.7mm
Without stand
1386.8 mm x 818.2 mm x 53.0 mm 1386.8 mm x 818.2 mm x 53.0 mm
Weight With stand 40.6 kg 40.6 kg
Without stand 36.4 kg 36.4 kg
CI Module Size
(Width x Height x Depth)
100.0 mm x 55.0 mm x 5.0 mm
Product specifications shown above may be changed without prior notice due to upgrade of product functions.
For the power supply and power consumption, refer to the label attached to the product.
102
ENG
ENGLISH
SPECIFICATIONS
HDMI/DVI-DTV supported mode
Component port connecting information
Component ports on the
TV Y PBPR
Video output ports
on DVD player
Y PBPR
Y B-Y R-Y
Y Cb Cr
Y Pb Pr
Resolution Horizontal
Frequency (kHz)
Vertical
Frequency (Hz)
720x480 31.469
31.5
59.94
60
720x576 31.25 50
1280x720
37.5
44.96
45
50
59.94
60
1920x1080
33.72
33.75
28.125
26.97
27
33.716
33.75
56.25
67.43
67.5
59.94
60
50
23.97
24
29.976
30.00
50
59.94
60.02
Signal Component
480i/576i O
480p/576p O
720p/1080i O
1080p O
(50 Hz / 60 Hz only)
RGB-PC, HDMI/DVI-PC supported mode
Resolution Horizontal
Frequency (kHz)
Vertical
Frequency (Hz)
640x350 31.468 70.09
720x400 31.469 70.08
640x480 31.469 59.94
800x600 37.879 60.31
1024x768 48.363 60.00
1360x768 47.712 60.01
1280x1024
(HDMI-PC) 63.981 60.02
1920x1080 67.5 60.02
(Except for 42/50PA45**,42/50PA49**)
Digital TV1Digital TV Analogue TV
Television System
DVB-T/T2
DVB-C
DVB-T
DVB-C
PAL/SECAM B/G/D/K, PAL I/II,
SECAM L/L
’
2
Programme Coverage
VHF, UHF VHF: E2 to E12, UHF: E21 to E69,
CATV: S1 to S20, HYPER: S21 to S47
Maximum number of storable
programmes
1,800
External Antenna Impedance
75 Ω 75 Ω
Environment condition
Operating Temperature
Operating Humidity
0 °C to 40 °C
Less than 80 %
Storage Temperature
Storage Humidity
-20 °C to 60 °C
Less than 85 %
1 Only DVB-T2 support models
2 Except for DVB-T2 support models
103
ENGENGLISH
SPECIFICATIONS
Video supported mode
File
Extension name
Video Decoder Audio Codec Max Resolution
mpg, mpeg MPEG1, MPEG2 MP2,MP3,Dolby Digital,LPCM
1920x1080@30p
(only , Motion
JPEG
640x480@30p)
ts,trp,tp MPEG2, H.264, VC1 MP2,MP3,Dolby Digital,
AAC,HE-AAC
vob MPEG1, 2 MP2,MP3,Dolby Digital,LPCM
mp4, mov, m4v
MPEG4,DivX 3.11, DivX 4.12, DivX
5.x, DivX 6, Xvid 1.00, Xvid 1.01,
Xvid 1.02, Xvid 1.03, Xvid 1.10-
beta1/2, H.264
AAC,HE-AAC,MP3
mkv H.264, MPEG-1,2,4 MP2,MP3,Dolby Digital,AAC
HE-AAC,LPCM
divx, avi
MPEG2, MPEG4,DivX 3.11, DivX
4.DivX 5, DivX 6, Xvid 1.00, Xvid
1.01, Xvid 1.02, Xvid 1.03, Xvid 1.10-
beta1/2, H.264
MP2,MP3,Dolby Digital,LPCM,
ADPCM,AAC,HE-AAC
Motion JPEG
(avi, mp4, mkv) JPEG LPCM, ADPCM
asf, wmv VC1 WMA
flv Sorenson H.263, H264 MP3, AAC
104
ENG
ENGLISH
IR CODES
Code
(Hexa) Function Note
08 (POWER) Remote control Button (Power On/Off)
95 ENERGY SAVING Remote control Button
0B INPUT Remote control Button
F0 TV/RAD Remote control Button
10-19 Number Key 0-9 Remote control Button
53 LIST Remote control Button
1A Q.VIEW Remote control Button
02 + Remote control Button
03 - Remote control Button
1E FAV Remote control Button
09 MUTE Remote control Button
00 P
∧
(P +) Remote control Button
01 P
∨
(P -) Remote control Button
43 SETTINGS Remote control Button
AB GUIDE Remote control Button
45 Q.MENU Remote control Button
28 Remote control Button
AA INFO Remote control Button
5B EXIT Remote control Button
44 OK Remote control Button
40
^
Remote control Button
41
v
Remote control Button
07
<
Remote control Button
06
>
Remote control Button
72 RED Remote control Button
71 GREEN Remote control Button
63 YELLOW Remote control Button
61 BLUE Remote control Button
20 TEXT Remote control Button
21 T.OPT(T.Option) Remote control Button
39 SUBTITLE Remote control Button
B1 nRemote control Button
B0 Remote control Button
BA yy Remote control Button
8E  Remote control Button
8F  Remote control Button
79 RATIO Remote control Button
91 AD Remote control Button
30 AV MODE Remote control Button
7E SIMPLINK Remote control Button
IR CODES
(This feature is not available for all models.)
105
ENGENGLISH
EXTERNAL CONTROL DEVICE SETUP
EXTERNAL CONTROL DEVICE SETUP
RS-232C Setup
Connect the RS-232C (serial port) input jack to an
external control device (such as a computer or an
A/V control system) to control the product’s func-
tions externally.
Connect the serial port of the control device to the
RS-232C jack on the product back panel.
Note: RS-232C connection cables are not supplied
with the product.
Type of connector; D-Sub
9-Pin Male
No. Pin name
1 No connection
2 RXD (Receive data)
3 TXD (Transmit data)
4 DTR (DTE side ready)
5 GND
6 DSR (DCE side ready)
7 RTS (Ready to send)
8 CTS (Clear to send)
9 No Connection
3-Wire Configurations(Not standard)
PC TV
RXD 2 3 TXD
TXD 3 2 RXD
GND 5 5 GND
DTR 4 6 DTR
DSR 6 4 DSR
RTS 7 7 RTS
CTS 8 8 CTS
D-Sub 9 D-Sub 9
RS-232C Configurations
7-Wire Configurations (Standard RS-232C cable)
PC TV
RXD 2 3 TXD
TXD 3 2 RXD
GND 5 5 GND
DTR 4 6 DSR
DSR 6 4 DTR
RTS 7 8 CTS
CTS 8 7 RTS
D-Sub 9 D-Sub 9
Set ID
Set ID number. “Real Data Mapping” on See p.111
1 Press SETTINGS to access the main menus.
2 Press the Navigation buttons to scroll to
OPTION and press OK.
3 Press the Navigation buttons to scroll to SET
ID and press OK.
4 Scroll left or right to select a set ID number and
select Close. The adjustment range is 1-99.
5 When you are finished, press EXIT.
1 5
69
106
ENG
ENGLISH
EXTERNAL CONTROL DEVICE SETUP
Command reference list
Communication Parameters
Baud rate: 9600 bps (UART)
Data length: 8 bits
Parity : None
Stop bit: 1 bit
Communication code: ASCII code
Use a crossed (reverse) cable.
* Note : During USB operations such as DivX or EMF, all commands except Power(ka) and Key(mc)
are not executed and treated as NG.
COMMAND1 COMMAND2
DATA
(Hexadeci-
mal)
COMMAND1 COMMAND2
DATA
(Hexadeci-
mal)
01. Power k a 00 to 01 13. Treble k r 00 to 64
02. Aspect
Ratio k c (See p.108) 14. Bass k s 00 to 64
03. Screen
Mute k d (See p.108) 15. Balance k t 00 to 64
04. Volume
Mute k e 00 to 01 16. Colour
Temperature x u 00 to 64
05. Volume
Control k f 00 to 64 17. ISM
Method j p (See p.110)
06. Contrast k g 00 to 64 18. Energy
Saving j q 00 to 05
07. Brightness k h 00 to 64 19. Auto Con-
figuration j u 01
08. Colour k i 00 to 64 20. Tune Com-
mand m a (See p.110)
09. Tint k j 00 to 64 21. Programme
Add/Skip
m b 00 to 01
10. Sharpness k k 00 to 32 22. Key m c Key Code
11. OSD Select k l 00 to 01 23. Input select
(Main)
x b (See p.111)
12. Remote
Control
Lock Mode
k m 00 to 01
107
ENGENGLISH
EXTERNAL CONTROL DEVICE SETUP
Transmission / Receiving Protocol
Transmission
[Command1][Command2][ ][Set ID][ ][Data][Cr]
[Command 1] : First command to control the TV.(j, k, m or x)
[Command 2] : Second command to control the TV.
[Set ID] : You can adjust the set ID to choose desired monitor ID number in option menu.
Adjustment range is 1 to 99. When selecting Set ID ‘0’, every connected set is controlled.
Set ID is indicated as decimal (1 to 99) on menu and as Hexa decimal (0x0 to 0x63) on
transmission/receiving protocol.
[DATA] : To transmit command data. Transmit ‘FF’ data to read status of command.
[Cr] : Carriage Return
ASCII code ‘0x0D’
[ ] : ASCII code ‘space (0x20)’
OK Acknowledgement
[Command2][ ][Set ID][ ][OK][Data][x]
* The set transmits ACK (acknowledgement) based on this format when receiving normal data. At this
time, if the data is data read mode, it indicates present status data. If the data is data write mode, it
returns the data of the PC computer.
Error Acknowledgement
[Command2][ ][Set ID][ ][NG][Data][x]
* The set transmits ACK (acknowledgement) based on this format when receiving abnormal data from
non-viable functions or communication errors.
Data 00: Illegal Code
108
ENG
ENGLISH
EXTERNAL CONTROL DEVICE SETUP
08. Colour (Command: k i)
► To adjust the screen colour.
You can also adjust colour in the PICTURE menu.
Data Min : 00 to Max : 64
* Refer to ‘Real data mapping’. See p.111.
Transmission [k][i][ ][Set ID][ ][Data][Cr]
Ack [i][ ][Set ID][ ][OK/NG][Data][x]
04. Volume Mute (Command: k e)
► To control volume mute on/off.
You can also adjust mute using the MUTE button on
remote control.
Data 00 : Volume mute on (Volume off)
01 : Volume mute off (Volume on)
Transmission [k][e][ ][Set ID][ ][Data][Cr]
Ack [e][ ][Set ID][ ][OK/NG][Data][x]
02. Aspect Ratio (
Command: k
c) (Main Picture Size)
► To adjust the screen format. (Main picture format)
You can also adjust the screen format using the Aspect
Ratio in the Q.MENU. or PICTURE menu.
Data 01 : Normal screen
(4:3)
02 : Wide screen (16:9)
04 : Zoom
06 : Original
07 : 14:9
09 : Just Scan
0B : Full Wide
10 to 1F : Cinema Zoom 1 to 16
Transmission [k][c][ ][Set ID][ ][Data][Cr]
* Using the PC input, you select either 16:9 or 4:3
screen aspect ratio.
* In DTV/HDMI (1080i 50 Hz / 60 Hz, 720p 50Hz / 60
Hz, 1080p 24 Hz / 30 Hz / 50 Hz / 60 Hz),
Component( 720p, 1080i, 1080p 50 Hz / 60 Hz) mode,
Just Scan is available.
* Full Wide is supported only for Digital,
Analogue
, AV.
Ack [c][ ][Set ID][ ][OK/NG][Data][x]
03. Screen Mute (Command: k d)
► To select screen mute on/off.
Data 00 : Screen mute off (Picture on)
Video mute off
01 : Screen mute on (Picture off)
10 : Video mute on
* In case of video mute on only, TV will display On
Screen Display(OSD). But, in case of Screen mute
on, TV will not display OSD.
Transmission [k][d][ ][Set ID][ ][Data][Cr]
Ack [d][ ][Set ID][ ][OK/NG][Data][x]
05. Volume Control (Command: k f)
► To adjust volume.
You can also adjust volume with the VOLUME but-
tons on remote control.
Data Min : 00 to Max : 64
* Refer to ‘Real data mapping’. See p.111.
Transmission [k][f][ ][Set ID][ ][Data][Cr]
Ack [f][ ][Set ID][ ][OK/NG][Data][x]
06. Contrast (Command: k g)
► To adjust screen contrast.
You can also adjust contrast in the PICTURE menu.
Data Min : 00 to Max : 64
* Refer to ‘Real data mapping’. See p.111.
Transmission [k][g][ ][Set ID][ ][Data][Cr]
Ack [g][ ][Set ID][ ][OK/NG][Data][x]
07. Brightness (Command: k h)
► To adjust screen brightness.
You can also adjust brightness in the PICTURE menu.
Data Min : 00 to Max : 64
* Refer to ‘Real data mapping’. See p.111.
Transmission [k][h][ ][Set ID][ ][Data][Cr]
Ack [h][ ][Set ID][ ][OK/NG][Data][x]
01. Power (Command: k a)
► To control Power On/Off of the set.
Data 00 : Power Off 01 : Power On
Transmission[k][a][ ][Set ID][ ][Data][Cr]
Ack [a][ ][Set ID][ ][OK/NG][Data][x]
► To show Power On/Off.
Transmission [k][a][ ][Set ID][ ][FF][Cr]
* Similarly, if other functions transmit ‘0xFF’ data based
on this format, Acknowledgement data feed back
presents status about each function.
* OK Ack., Error Ack. and other message may display
on the screen when TV is power On.
Ack [a][ ][Set ID][ ][OK/NG][Data][x]
109
ENGENGLISH
EXTERNAL CONTROL DEVICE SETUP
12. Remote control lock mode (Command: k m)
► To lock the front panel controls on the monitor and remote
control.
Transmission [k][m][ ][Set ID][ ][Data][Cr]
Data 00 : Lock off 01 : Lock on
* If you are not using the remote control, use this mode.
When main power is on/off, external control lock is
released.
* In the standby mode, if key lock is on, TV will not turn
on by power on key of IR & Local Key.
Ack [m][ ][Set ID][ ][OK/NG][Data][x]
11. OSD Select (Command: k l)
► To select OSD (On Screen Display) on/off when controlling
remotely.
Transmission [k][l][ ][Set ID][ ][Data][Cr]
Data 00 : OSD off 01 : OSD on
Ack [l][ ][Set ID][ ][OK/NG][Data][x]
09. Tint (Command: k j)
► To adjust the screen tint.
You can also adjust tint in the PICTURE menu.
Data Red : 00 to Green : 64
* Refer to ‘Real data mapping’. See p.111.
Transmission [k][j][ ][Set ID][ ][Data][Cr]
Ack [j][ ][Set ID][ ][OK/NG][Data][x]
► To adjust the screen sharpness.
You can also adjust sharpness in the PICTURE menu.
10. Sharpness (Command: k k)
Data Min : 00 to Max : 32
* Refer to ‘Real data mapping’. See p.111.
Transmission [k][k][ ][Set ID][ ][Data][Cr]
Ack [k][ ][Set ID][ ][OK/NG][Data][x]
15. Balance (Command: k t)
► To adjust balance.
You can also adjust balance in the AUDIO menu.
Data Min : 00 to Max : 64
* Refer to ‘Real data mapping’. See p.111.
Transmission [k][t][ ][Set ID][ ][Data][Cr]
Ack [t][ ][Set ID][ ][OK/NG][Data][x]
14.
Bass (Command: k s)
► To adjust bass.
You can also adjust bass in the AUDIO menu.
Data Min : 00 to Max : 64
* Refer to ‘Real data mapping’. See p.111.
Transmission [k][s][ ][Set ID][ ][Data][Cr]
Ack [s][ ][Set ID][ ][OK/NG][Data][x]
13. Treble (Command: k r)
► To adjust treble.
You can also adjust treble in the AUDIO menu.
Data Min : 00 to Max : 64
* Refer to ‘Real data mapping’. See p.111.
Transmission [k][r][ ][Set ID][ ][Data][Cr]
Ack [r][ ][Set ID][ ][OK/NG][Data][x]
16. Colour Temperature (Command: x u)
► To adjust colour temperature. You can also adjust Colour
Temperature in the PICTURE menu.
Data Min : 00 to Max : 64
* Refer to ‘Real data mapping’. See p.111.
Transmission [x][u][ ][Set ID][ ][Data][Cr]
Ack [u][ ][Set ID][ ][OK/NG][Data][x]
110
ENG
ENGLISH
EXTERNAL CONTROL DEVICE SETUP
20. Tune Command (Command: m a)
► Select channel to following physical number.
Data00 : High channel data
Data01 : Low channel data
ex. No. 47 -> 00 2F (2FH)
No. 394 -> 01 8A (18AH),
DTV No. 0 -> Don’t care
Data02 : 0x00 :
Analogue
Main
0x10 : DTV Main
0x20 : Radio
Transmission [m][a][ ][Set ID][ ][Data0][ ][Data1][ ][Data2][Cr]
Ack [a][ ][Set ID][ ][OK/NG][Data][x]
Data Min: 00 to Max: 7DH
19. Auto Configure(Command: j u)
► To adjust picture position and minimize image shaking
automatically. It works only in RGB (PC) mode.
Data 01: To set
Transmission [j][u][ ][Set ID][ ][Data][Cr]
Ack [u][ ][Set ID][ ][OK/NG][Data][x]
17. ISM Method (Command: j p)
► To control the ISM method. You can also adjust ISM
Method in OPTION menu.
Data 02: Orbiter
08: Normal
20: Colour Wash
Data 00: Off
01: Minimum
02: Medium
03: Maximum
04: Intelligent Sensor
05: Screen Off
Transmission [j][p][ ][Set ID][ ][Data][Cr]
Ack [p][ ][Set ID][ ][OK/NG][Data][x]
18. Energy Saving (Command: j q)
► To reduce the power consumption of the TV. You can also
adjust Energy Saving in
menu.
Transmission [j][q][ ][Set ID][ ][Data][Cr]
Ack [q][ ][Set ID][ ][OK/NG][Data][x]
21. Programme Add/Skip(Command: m b)
► To set skip status for the current Programme.
Data 00 : Skip 01 : Add
Transmission [m][b][ ][Set ID][ ][Data][Cr]
Ack [b][ ][Set ID][ ][OK/NG][Data][x]
22. Key(Command: m c)
► To send IR remote key code.
Data Key code - Refer to page 104.
Transmission [m][c][ ][Set ID][ ][Data][Cr]
Ack [c][ ][Set ID][ ][OK/NG][Data][x]
111
ENGENGLISH
EXTERNAL CONTROL DEVICE SETUP
* Real data mapping
00 : Step 0
A : Step 10 (Set ID 10)
F : Step 15 (Set ID 15)
10 : Step 16 (Set ID 16)
64 : Step 100
6E : Step 110
73 : Step 115
74 : Step 116
CF : Step 199
FE : Step 254
FF : Step 255
23
. Input select (
Command: x
b)
(Main Picture Input)
► To select input source for main picture.
Data Structure
MSB LSB
Transmission [x][b][ ][Set ID][ ][Data][Cr]
External Input Input Number
0 0 0 0 0 0 0 0
Ack [b][ ][Set ID][ ][OK/NG][Data][x]
External Input Data
0 0 0 0 DTV
0 0 0 1 Analogue
0 0 1 0 AV
0 1 0 0 Component
0 1 1 0 RGB
0 1 1 1
HDMI
1 0 0 0
1 0 0 1
1 0 1 0
Input Number Data
0 0 0 0 Input1
0 0 0 1 Input2
0 0 1 0 Input3
0 0 1 1 Input4
112
ENG
ENGLISH
OPEN SOURCE LICENSE
OPEN SOURCE LICENSE
Open source software notice
Please be informed that LG Electronics products may contain open source software listed in the tables
below.
License Component
OpenSSL license - openssl
MIT license - libcurl
- ncurses
expat license - expat
Freetype license - freetype
JPEG license - libjpeg
Zlib/libpng license - libmng
- libpng
- md5 checksum
- tinyxml
- zlib
X.net license - libicu
BSD license - strace
- xySSL
RSA data security license - MD5
LG Electronics products may also contain open source software listed as Components in the table below,
and you may download the complete source code thereof free of charge, from LG Electronics website
(http://opensource.lge.com) for a period of three (3) years from our last shipment of this product. Please
be informed that the open source software is subject to the terms and conditions of the applicable open
source licenses, which are provided to you hereinbelow.
License Component
GNU GPL v2.0 - Linux kernel 2.6
- busybox
- e2fsprogs
- gdbserver
- jfsutils
- mtd-utils
- procps
- u-boot
- udhcpc
GNU LGPL v2.1 - directFB
- gconv
- glibc
MPL 1.1 - nanox
113
ENGENGLISH
OPEN SOURCE LICENSE
Preamble
The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU
General Public License is intended to guarantee your freedom to share and change free software--to make sure the
software is free for all its users. This General Public License applies to most of the Free Software Foundation’s soft-
ware and to any other program whose authors commit to using it. (Some other Free Software Foundation software is
covered by the GNU Lesser General Public License instead.) You can apply it to your programs, too.
When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to
make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish), that
you receive source code or can get it if you want it, that you can change the software or use pieces of it in new free
programs; and that you know you can do these things.
To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surren-
der the rights. These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if
you modify it.
For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the
rights that you have. You must make sure that they, too, receive or can get the source code. And you must show them
these terms so they know their rights.
We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which gives you legal
permission to copy, distribute and/or modify the software.
Also, for each author’s protection and ours, we want to make certain that everyone understands that there is no war-
ranty for this free software. If the software is modified by someone else and passed on, we want its recipients to know
that what they have is not the original, so that any problems introduced by others will not reflect on the original authors’
reputations.
Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors
of a free program will individually obtain patent licenses, in effect making the program proprietary. To prevent this, we
have made it clear that any patent must be licensed for everyone’s free use or not licensed at all.
The precise terms and conditions for copying, distribution and modification follow.
TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION
0. This License applies to any program or other work which contains a notice placed by the copyright holder saying it
may be distributed under the terms of this General Public License. The “Program”, below, refers to any such program
or work, and a “work based on the Program” means either the Program or any derivative work under copyright law: that
is to say, a work containing the Program or a portion of it, either verbatim or with modifications and/or translated into
another language. (Hereinafter, translation is included without limitation in the term “modification”.) Each licensee is
addressed as “you”.
Activities other than copying, distribution and modification are not covered by this License; they are outside its scope.
The act of running the Program is not restricted, and the output from the Program is covered only if its contents consti-
tute a work based on the Program (independent of having been made by running the Program). Whether that is true
depends on what the Program does.
GNU GENERAL PUBLIC LICENSE
Version 2, June 1991
Copyright (C) 1989, 1991 Free Software Foundation, Inc.
51 Franklin Street, Fifth Floor, Boston, MA 02110-1301, USA
Everyone is permitted to copy and distribute verbatim copies
of this license document, but changing it is not allowed.
114
ENG
ENGLISH
OPEN SOURCE LICENSE
1. You may copy and distribute verbatim copies of the Program’s source code as you receive it, in any medium, provid-
ed that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of
warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and give any other
recipients of the Program a copy of this License along with the Program.
You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in
exchange for a fee.
2. You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the Program,
and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all
of these conditions:
a) You must cause the modified files to carry prominent notices stating that you changed the files and the date of any
change.
b) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the
Program or any part thereof, to be licensed as a whole at no charge to all third parties under the terms of this License.
c) If the modified program normally reads commands interactively when run, you must cause it, when started running
for such interactive use in the most ordinary way, to print or display an announcement including an appropriate copy-
right notice and a notice that there is no warranty (or else, saying that you provide a warranty) and that users may
redistribute the program under these conditions, and telling the user how to view a copy of this License. (Exception: if
the Program itself is interactive but does not normally print such an announcement, your work based on the Program is
not required to print an announcement.)
These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the
Program, and can be reasonably considered independent and separate works in themselves, then this License, and its
terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same
sections as part of a whole which is a work based on the Program, the distribution of the whole must be on the terms of
this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regard-
less of who wrote it.
Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the
intent is to exercise the right to control the distribution of derivative or collective works based on the Program.
In addition, mere aggregation of another work not based on the Program with the Program (or with a work based on
the Program) on a volume of a storage or distribution medium does not bring the other work under the scope of this
License.
3. You may copy and distribute the Program (or a work based on it, under Section 2) in object code or executable form
under the terms of Sections 1 and 2 above provided that you also do one of the following:
a) Accompany it with the complete corresponding machine-readable source code, which must be distributed under the
terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,
b) Accompany it with a written offer, valid for at least three years, to give any third party, for a charge no more than your
cost of physically performing source distribution, a complete machine-readable copy of the corresponding source code,
to be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange;
or,
c) Accompany it with the information you received as to the offer to distribute corresponding source code. (This alterna-
tive is allowed only for noncommercial distribution and only if you received the program in object code or executable
form with such an offer, in accord with Subsection b above.)
115
ENGENGLISH
OPEN SOURCE LICENSE
The source code for a work means the preferred form of the work for making modifications to it. For an executable
work, complete source code means all the source code for all modules it contains, plus any associated interface defini-
tion files, plus the scripts used to control compilation and installation of the executable. However, as a special excep-
tion, the source code distributed need not include anything that is normally distributed (in either source or binary form)
with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless
that component itself accompanies the executable.
If distribution of executable or object code is made by offering access to copy from a designated place, then offering
equivalent access to copy the source code from the same place counts as distribution of the source code, even though
third parties are not compelled to copy the source along with the object code.
4. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this License.
Any attempt otherwise to copy, modify, sublicense or distribute the Program is void, and will automatically terminate
your rights under this License. However, parties who have received copies, or rights, from you under this License will
not have their licenses terminated so long as such parties remain in full compliance.
5. You are not required to accept this License, since you have not signed it. However, nothing else grants you permis-
sion to modify or distribute the Program or its derivative works. These actions are prohibited by law if you do not accept
this License. Therefore, by modifying or distributing the Program (or any work based on the Program), you indicate
your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the
Program or works based on it.
6. Each time you redistribute the Program (or any work based on the Program), the recipient automatically receives a
license from the original licensor to copy, distribute or modify the Program subject to these terms and conditions. You
may not impose any further restrictions on the recipients’ exercise of the rights granted herein. You are not responsible
for enforcing compliance by third parties to this License.
7. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to
patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the con-
ditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to sat-
isfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you
may not distribute the Program at all. For example, if a patent license would not permit royalty-free redistribution of the
Program by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it
and this License would be to refrain entirely from distribution of the Program.
If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the sec-
tion is intended to apply and the section as a whole is intended to apply in other circumstances.
It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest
validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution
system, which is implemented by public license practices. Many people have made generous contributions to the wide
range of software distributed through that system in reliance on consistent application of that system; it is up to the
author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot
impose that choice.
This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.
8. If the distribution and/or use of the Program is restricted in certain countries either by patents or by copyrighted inter-
faces, the original copyright holder who places the Program under this License may add an explicit geographical distri-
bution limitation excluding those countries, so that distribution is permitted only in or among countries not thus exclud-
ed. In such case, this License incorporates the limitation as if written in the body of this License.
9. The Free Software Foundation may publish revised and/or new versions of the General Public License from time to
time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems
or concerns.
Each version is given a distinguishing version number. If the Program specifies a version number of this License which
116
ENG
ENGLISH
OPEN SOURCE LICENSE
applies to it and “any later version”, you have the option of following the terms and conditions either of that version or of
any later version published by the Free Software Foundation. If the Program does not specify a version number of this
License, you may choose any version ever published by the Free Software Foundation.
10. If you wish to incorporate parts of the Program into other free programs whose distribution conditions are different,
write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to
the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of
preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software gen-
erally.
NO WARRANTY
11. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE PROGRAM,
TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE
COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM “AS IS” WITHOUT WARRANTY OF
ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY
AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU
ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.
12. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT
HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED
ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING
BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY
YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS),
EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
END OF TERMS AND CONDITIONS
GNU Lesser General Public License
Version 2.1, February 1999
Copyright (C) 1991, 1999 Free Software Foundation, Inc. 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA
Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.
[This is the first released version of the Lesser GPL. It also counts as the successor of the GNU Library Public License,
version 2, hence the version number 2.1.]
Preamble
The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU
General Public Licenses are intended to guarantee your freedom to share and change free software--to make sure the
software is free for all its users.
This license, the Lesser General Public License, applies to some specially designated software packages--typically
libraries--of the Free Software Foundation and other authors who decide to use it. You can use it too, but we suggest
you first think carefully about whether this license or the ordinary General Public License is the better strategy to use in
any particular case, based on the explanations below.
When we speak of free software, we are referring to freedom of use, not price. Our General Public Licenses are
designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you
wish); that you receive source code or can get it if you want it; that you can change the software and use pieces of it in
new free programs; and that you are informed that you can do these things.
To protect your rights, we need to make restrictions that forbid distributors to deny you these rights or to ask you to sur-
117
ENGENGLISH
OPEN SOURCE LICENSE
render these rights. These restrictions translate to certain responsibilities for you if you distribute copies of the library or
if you modify it.
For example, if you distribute copies of the library, whether gratis or for a fee, you must give the recipients all the rights
that we gave you. You must make sure that they, too, receive or can get the source code. If you link other code with the
library, you must provide complete object files to the recipients, so that they can relink them with the library after making
changes to the library and recompiling it. And you must show them these terms so they know their rights.
We protect your rights with a two-step method: (1) we copyright the library, and (2) we offer you this license, which
gives you legal permission to copy, distribute and/or modify the library.
To protect each distributor, we want to make it very clear that there is no warranty for the free library. Also, if the library
is modified by someone else and passed on, the recipients should know that what they have is not the original version,
so that the original author’s reputation will not be affected by problems that might be introduced by others.
Finally, software patents pose a constant threat to the existence of any free program. We wish to make sure that a com-
pany cannot effectively restrict the users of a free program by obtaining a restrictive license from a patent holder.
Therefore, we insist that any patent license obtained for a version of the library must be consistent with the full freedom
of use specified in this license.
Most GNU software, including some libraries, is covered by the ordinary GNU General Public License. This license, the
GNU Lesser General Public License, applies to certain designated libraries, and is quite different from the ordinary
General Public License. We use this license for certain libraries in order to permit linking those libraries into non-free
programs.
When a program is linked with a library, whether statically or using a shared library, the combination of the two is legally
speaking a combined work, a derivative of the original library. The ordinary General Public License therefore permits
such linking only if the entire combination fits its criteria of freedom. The Lesser General Public License permits more
lax criteria for linking other code with the library.
We call this license the “Lesser” General Public License because it does Less to protect the user’s freedom than the
ordinary General Public License. It also provides other free software developers Less of an advantage over competing
non-free programs. These disadvantages are the reason we use the ordinary General Public License for many libraries.
However, the Lesser license provides advantages in certain special circumstances.
For example, on rare occasions, there may be a special need to encourage the widest possible use of a certain library,
so that it becomes a de-facto standard. To achieve this, non-free programs must be allowed to use the library. A more
frequent case is that a free library does the same job as widely used non-free libraries. In this case, there is little to gain
by limiting the free library to free software only, so we use the Lesser General Public License.
In other cases, permission to use a particular library in non-free programs enables a greater number of people to use a
large body of free software. For example, permission to use the GNU C Library in non-free programs enables many
more people to use the whole GNU operating system, as well as its variant, the GNU/Linux operating system.
Although the Lesser General Public License is Less protective of the users’ freedom, it does ensure that the user of a
program that is linked with the Library has the freedom and the wherewithal to run that program using a modified ver-
sion of the Library.
The precise terms and conditions for copying, distribution and modification follow. Pay close attention to the difference
between a “work based on the library” and a “work that uses the library”. The former contains code derived from the
library, whereas the latter must be combined with the library in order to run.
TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION
0. This License Agreement applies to any software library or other program which contains a notice placed by the copy-
right holder or other authorized party saying it may be distributed under the terms of this Lesser General Public License
(also called “this License”). Each licensee is addressed as “you”.
118
ENG
ENGLISH
OPEN SOURCE LICENSE
A “library” means a collection of software functions and/or data prepared so as to be conveniently linked with application
programs (which use some of those functions and data) to form executables.
The “Library”, below, refers to any such software library or work which has been distributed under these terms. A “work
based on the Library” means either the Library or any derivative work under copyright law: that is to say, a work contain-
ing the Library or a portion of it, either verbatim or with modifications and/or translated straightforwardly into another lan-
guage. (Hereinafter, translation is included without limitation in the term “modification”.)
“Source code” for a work means the preferred form of the work for making modifications to it. For a library, complete
source code means all the source code for all modules it contains, plus any associated interface definition files, plus the
scripts used to control compilation and installation of the library.
Activities other than copying, distribution and modification are not covered by this License; they are outside its scope.
The act of running a program using the Library is not restricted, and output from such a program is covered only if its
contents constitute a work based on the Library (independent of the use of the Library in a tool for writing it). Whether
that is true depends on what the Library does and what the program that uses the Library does.
1. You may copy and distribute verbatim copies of the Library’s complete source code as you receive it, in any medium,
provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer
of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and distribute a
copy of this License along with the Library.
You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in
exchange for a fee.
2. You may modify your copy or copies of the Library or any portion of it, thus forming a work based on the Library, and
copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of
these conditions:
a) The modified work must itself be a software library.
b) You must cause the files modified to carry prominent notices stating that you changed the files and the date of any
change.
c) You must cause the whole of the work to be licensed at no charge to all third parties under the terms of this License.
d) If a facility in the modified Library refers to a function or a table of data to be supplied by an application program that
uses the facility, other than as an argument passed when the facility is invoked, then you must make a good faith effort
to ensure that, in the event an application does not supply such function or table, the facility still operates, and performs
whatever part of its purpose remains meaningful.
(For example, a function in a library to compute square roots has a purpose that is entirely well-defined independent of
the application. Therefore, Subsection 2d requires that any application-supplied function or table used by this function
must be optional: if the application does not supply it, the square root function must still compute square roots.)
These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the
Library, and can be reasonably considered independent and separate works in themselves, then this License, and its
terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same
sections as part of a whole which is a work based on the Library, the distribution of the whole must be on the terms of
this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regard-
less of who wrote it.
Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the
intent is to exercise the right to control the distribution of derivative or collective works based on the Library.
In addition, mere aggregation of another work not based on the Library with the Library (or with a work based on the
119
ENGENGLISH
OPEN SOURCE LICENSE
Library) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.
3. You may opt to apply the terms of the ordinary GNU General Public License instead of this License to a given copy of
the Library. To do this, you must alter all the notices that refer to this License, so that they refer to the ordinary GNU
General Public License, version 2, instead of to this License. (If a newer version than version 2 of the ordinary GNU
General Public License has appeared, then you can specify that version instead if you wish.) Do not make any other
change in these notices.
Once this change is made in a given copy, it is irreversible for that copy, so the ordinary GNU General Public License
applies to all subsequent copies and derivative works made from that copy.
This option is useful when you wish to copy part of the code of the Library into a program that is not a library.
4. You may copy and distribute the Library (or a portion or derivative of it, under Section 2) in object code or executable
form under the terms of Sections 1 and 2 above provided that you accompany it with the complete corresponding
machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium cus-
tomarily used for software interchange.
If distribution of object code is made by offering access to copy from a designated place, then offering equivalent
access to copy the source code from the same place satisfies the requirement to distribute the source code, even
though third parties are not compelled to copy the source along with the object code.
5. A program that contains no derivative of any portion of the Library, but is designed to work with the Library by being
compiled or linked with it, is called a “work that uses the Library”. Such a work, in isolation, is not a derivative work of
the Library, and therefore falls outside the scope of this License.
However, linking a “work that uses the Library” with the Library creates an executable that is a derivative of the Library
(because it contains portions of the Library), rather than a “work that uses the library”. The executable is therefore cov-
ered by this License. Section 6 states terms for distribution of such executables.
When a “work that uses the Library” uses material from a header file that is part of the Library, the object code for the
work may be a derivative work of the Library even though the source code is not. Whether this is true is especially sig-
nificant if the work can be linked without the Library, or if the work is itself a library. The threshold for this to be true is
not precisely defined by law.
If such an object file uses only numerical parameters, data structure layouts and accessors, and small macros and
small inline functions (ten lines or less in length), then the use of the object file is unrestricted, regardless of whether it
is legally a derivative work. (Executables containing this object code plus portions of the Library will still fall under
Section 6.)
Otherwise, if the work is a derivative of the Library, you may distribute the object code for the work under the terms of
Section 6. Any executables containing that work also fall under Section 6, whether or not they are linked directly with
the Library itself.
6. As an exception to the Sections above, you may also combine or link a “work that uses the Library” with the Library
to produce a work containing portions of the Library, and distribute that work under terms of your choice, provided that
the terms permit modification of the work for the customer’s own use and reverse engineering for debugging such modi-
fications.
You must give prominent notice with each copy of the work that the Library is used in it and that the Library and its use
are covered by this License. You must supply a copy of this License. If the work during execution displays copyright
notices, you must include the copyright notice for the Library among them, as well as a reference directing the user to
the copy of this License. Also, you must do one of these things:
a) Accompany the work with the complete corresponding machine-readable source code for the Library including what-
ever changes were used in the work (which must be distributed under Sections 1 and 2 above); and, if the work is an
executable linked with the Library, with the complete machine-readable “work that uses the Library”, as object code and/
120
ENG
ENGLISH
OPEN SOURCE LICENSE
or source code, so that the user can modify the Library and then relink to produce a modified executable containing the
modified Library. (It is understood that the user who changes the contents of definitions files in the Library will not nec-
essarily be able to recompile the application to use the modified definitions.)
b) Use a suitable shared library mechanism for linking with the Library. A suitable mechanism is one that (1) uses at run
time a copy of the library already present on the user’s computer system, rather than copying library functions into the
executable, and (2) will operate properly with a modified version of the library, if the user installs one, as long as the
modified version is interface-compatible with the version that the work was made with.
c) Accompany the work with a written offer, valid for at least three years, to give the same user the materials specified in
Subsection 6a, above, for a charge no more than the cost of performing this distribution.
d) If distribution of the work is made by offering access to copy from a designated place, offer equivalent access to copy
the above specified materials from the same place.
e) Verify that the user has already received a copy of these materials or that you have already sent this user a copy.
For an executable, the required form of the “work that uses the Library” must include any data and utility programs
needed for reproducing the executable from it. However, as a special exception, the materials to be distributed need not
include anything that is normally distributed (in either source or binary form) with the major components (compiler, ker-
nel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the
executable.
It may happen that this requirement contradicts the license restrictions of other proprietary libraries that do not normally
accompany the operating system. Such a contradiction means you cannot use both them and the Library together in an
executable that you distribute.
7. You may place library facilities that are a work based on the Library side-by-side in a single library together with other
library facilities not covered by this License, and distribute such a combined library, provided that the separate distribu-
tion of the work based on the Library and of the other library facilities is otherwise permitted, and provided that you do
these two things:
a) Accompany the combined library with a copy of the same work based on the Library, uncombined with any other
library facilities. This must be distributed under the terms of the Sections above.
b) Give prominent notice with the combined library of the fact that part of it is a work based on the Library, and explain-
ing where to find the accompanying uncombined form of the same work.
8. You may not copy, modify, sublicense, link with, or distribute the Library except as expressly provided under this
License. Any attempt otherwise to copy, modify, sublicense, link with, or distribute the Library is void, and will automati-
cally terminate your rights under this License. However, parties who have received copies, or rights, from you under this
License will not have their licenses terminated so long as such parties remain in full compliance.
9. You are not required to accept this License, since you have not signed it. However, nothing else grants you permis-
sion to modify or distribute the Library or its derivative works. These actions are prohibited by law if you do not accept
this License. Therefore, by modifying or distributing the Library (or any work based on the Library), you indicate your
acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Library or
works based on it.
10. Each time you redistribute the Library (or any work based on the Library), the recipient automatically receives a
license from the original licensor to copy, distribute, link with or modify the Library subject to these terms and conditions.
You may not impose any further restrictions on the recipients’ exercise of the rights granted herein. You are not respon-
sible for enforcing compliance by third parties with this License.
11. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to
patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the con-
ditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satis-
121
ENGENGLISH
OPEN SOURCE LICENSE
fy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you
may not distribute the Library at all. For example, if a patent license would not permit royalty-free redistribution of the
Library by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and
this License would be to refrain entirely from distribution of the Library.
If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the sec-
tion is intended to apply, and the section as a whole is intended to apply in other circumstances.
It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest
validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution
system which is implemented by public license practices. Many people have made generous contributions to the wide
range of software distributed through that system in reliance on consistent application of that system; it is up to the
author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot
impose that choice.
This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.
12. If the distribution and/or use of the Library is restricted in certain countries either by patents or by copyrighted inter-
faces, the original copyright holder who places the Library under this License may add an explicit geographical distribu-
tion limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded.
In such case, this License incorporates the limitation as if written in the body of this License.
13. The Free Software Foundation may publish revised and/or new versions of the Lesser General Public License from
time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new
problems or concerns.
Each version is given a distinguishing version number. If the Library specifies a version number of this License which
applies to it and “any later version”, you have the option of following the terms and conditions either of that version or of
any later version published by the Free Software Foundation. If the Library does not specify a license version number,
you may choose any version ever published by the Free Software Foundation.
14. If you wish to incorporate parts of the Library into other free programs whose distribution conditions are incompatible
with these, write to the author to ask for permission. For software which is copyrighted by the Free Software
Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided
by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and
reuse of software generally.
NO WARRANTY
15. BECAUSE THE LIBRARY IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE LIBRARY, TO
THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE
COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE LIBRARY “AS IS” WITHOUT WARRANTY OF
ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY
AND PERFORMANCE OF THE LIBRARY IS WITH YOU. SHOULD THE LIBRARY PROVE DEFECTIVE, YOU
ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.
16. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT
HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE LIBRARY AS PERMITTED
ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE LIBRARY (INCLUDING BUT
NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU
OR THIRD PARTIES OR A FAILURE OF THE LIBRARY TO OPERATE WITH ANY OTHER SOFTWARE), EVEN IF
SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
122
ENG
ENGLISH
OPEN SOURCE LICENSE
END OF TERMS AND CONDITIONS
How to Apply These Terms to Your New Libraries
If you develop a new library, and you want it to be of the greatest possible use to the public, we recommend making it
free software that everyone can redistribute and change. You can do so by permitting redistribution under these terms
(or, alternatively, under the terms of the ordinary General Public License).
To apply these terms, attach the following notices to the library. It is safest to attach them to the start of each source file
to most effectively convey the exclusion of warranty; and each file should have at least the “copyright” line and a pointer
to where the full notice is found.
<one line to give the library’s name and an idea of what it does.> Copyright (C) <year> <name of author>
This library is free software; you can redistribute it and/or modify it under the terms of the GNU Lesser General Public
License as published by the Free Software Foundation; either version 2.1 of the License, or (at your option) any later
version.
This library is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied
warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU Lesser General Public
License for more details.
You should have received a copy of the GNU Lesser General Public License along with this library; if not, write to the
Free Software Foundation, Inc., 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA
Also add information on how to contact you by electronic and paper mail.
You should also get your employer (if you work as a programmer) or your school, if any, to sign a “copyright disclaimer”
for the library, if necessary. Here is a sample; alter the names:
Yoyodyne, Inc., hereby disclaims all copyright interest in the library `Frob’ (a library for tweaking knobs) written by
James Random Hacker.
signature of Ty Coon, 1 April 1990
Ty Coon, President of Vice
That’s all there is to it!
123
ENGENGLISH
OPEN SOURCE LICENSE
Mozilla Public License 1.1 (MPL 1.1)
1. Definitions.
1.0.1. “Commercial Use”
means distribution or otherwise making the Covered Code available to a third party.
1.1. ‘’Contributor’’
means each entity that creates or contributes to the creation of Modifications.
1.2. ‘’Contributor Version’’
means the combination of the Original Code, prior Modifications used by a Contributor, and the Modifications made by
that particular Contributor.
1.3. ‘’Covered Code’’
means the Original Code or Modifications or the combination of the Original Code and Modifications, in each case
including portions thereof.
1.4. ‘’Electronic Distribution Mechanism’’
means a mechanism generally accepted in the software development community for the electronic transfer of data.
1.5. ‘’Executable’’
means Covered Code in any form other than Source Code.
1.6. ‘’Initial Developer’’
means the individual or entity identified as the Initial Developer in the Source Code notice required by Exhibit A.
1.7. ‘’Larger Work’’
means a work which combines Covered Code or portions thereof with code not governed by the terms of this License.
1.8. ‘’License’’
means this document.
1.8.1. “Licensable”
means having the right to grant, to the maximum extent possible, whether at the time of the initial grant or subsequently
acquired, any and all of the rights conveyed herein.
1.9. ‘’Modifications’’
means any addition to or deletion from the substance or structure of either the Original Code or any previous
Modifications. When Covered Code is released as a series of files, a Modification
is:
(a) Any addition to or deletion from the contents of a file containing Original Code or previous Modifications.
(b) Any new file that contains any part of the Original Code or previous Modifications.
1.10. ‘’Original Code’’
means Source Code of computer software code which is described in the Source Code notice required by Exhibit A as
Original Code, and which, at the time of its release under this License is not already Covered Code governed by this
License.
1.10.1. “Patent Claims”
means any patent claim(s), now owned or hereafter acquired, including without limitation, method, process, and appara-
tus claims, in any patent Licensable by grantor.
1.11. ‘’Source Code’’
124
ENG
ENGLISH
OPEN SOURCE LICENSE
means the preferred form of the Covered Code for making modifications to it, including all modules it contains, plus any
associated interface definition files, scripts used to control compilation and installation of an Executable, or source code
differential comparisons against either the Original Code or another well known, available Covered Code of the
Contributor’s choice. The Source Code can be in a compressed
or archival form, provided the appropriate decompression or de-archiving software is widely available for no charge.
1.12. “You’’ (or “Your”)
means an individual or a legal entity exercising rights under, and complying with all of the terms of, this License or a
future version of this License issued under Section 6.1.For legal entities, “You’’ includes any entity which controls, is
controlled by, or is under common control with You. For purposes of this definition, “control’’ means (a) the power, direct
or indirect, to cause the direction or management of such entity, whether by contract or otherwise, or (b) ownership of
more than fifty percent (50%) of the outstanding shares or beneficial ownership of such entity.
2. Source Code License.
2.1. The Initial Developer Grant.
The Initial Developer hereby grants You a world-wide, royalty-free, non-exclusive license, subject to third party intellec-
tual property claims:
(a) under intellectual property rights (other than patent or trademark) Licensable by Initial Developer to use, reproduce,
modify, display, perform, sublicense and distribute the Original Code (or portions thereof) with or without Modifications,
and/or as part of a Larger Work; and
(b) under Patents Claims infringed by the making, using or selling of Original Code, to make, have made, use, practice,
sell, and offer for sale, and/or otherwise dispose of the Original Code (or portions thereof).
(c) the licenses granted in this Section 2.1(a) and (b) are effective on the date Initial Developer first distributes Original
Code under the terms of this License.
(d) Notwithstanding Section 2.1(b) above, no patent license is granted: 1) for code that You delete from the Original
Code; 2) separate from the Original Code; or 3) for infringements caused by: i) the modification of the Original Code or
ii) the combination of the Original Code with other software or devices.
2.2. Contributor Grant.
Subject to third party intellectual property claims, each Contributor hereby grants You a world-wide, royalty-free, non-
exclusive license
(a) under intellectual property rights (other than patent or trademark) Licensable by Contributor, to use, reproduce, mod-
ify, display, perform, sublicense and distribute the Modifications created by such Contributor (or portions thereof) either
on an unmodified basis, with other Modifications, as Covered Code and/or as part of a Larger Work; and
(b) under Patent Claims infringed by the making, using, or selling of Modifications made by that Contributor either alone
and/or in combination with its Contributor Version (or portions of such combination), to make, use, sell, offer for sale,
have made, and/or otherwise dispose of: 1) Modifications made by that Contributor (or portions thereof); and 2) the
combination of Modifications made by that Contributor with its Contributor Version (or portions of such combination).
(c) the licenses granted in Sections 2.2(a) and 2.2(b) are effective on the date Contributor first makes Commercial Use
of the Covered Code.
(d) Notwithstanding Section 2.2(b) above, no patent license is granted: 1) for any code that Contributor has deleted
from the Contributor Version; 2) separate from the Contributor Version; 3) for infringements caused by: i) third party
modifications of Contributor Version or ii) the combination of Modifications made by that Contributor with other software
(except as part of the Contributor Version) or other devices; or 4) under Patent Claims infringed by Covered Code in the
absence of Modifications made by that Contributor.
3. Distribution Obligations.
125
ENGENGLISH
OPEN SOURCE LICENSE
3.1. Application of License.
The Modifications which You create or to which You contribute are governed by the terms of this License, including with-
out limitation Section 2.2. The Source Code version of Covered Code may be distributed only under the terms of this
License or a future version of this License released under Section 6.1, and You must include a copy of this License with
every copy of the Source Code You distribute. You may not offer or impose any terms on any Source Code version that
alters or restricts the applicable version of this License or the recipients’ rights hereunder. However, You may include an
additional document offering the additional rights described in Section 3.5.
3.2. Availability of Source Code.
Any Modification which You create or to which You contribute must be made available in Source Code form under the
terms of this License either on the same media as an Executable version or via an accepted Electronic Distribution
Mechanism to anyone to whom you made an Executable version available; and if made available via Electronic
Distribution Mechanism,
must remain available for at least twelve (12) months after the date it initially became available, or at least six (6)
months after a subsequent version of that particular Modification has been made available to such recipients. You are
responsible for ensuring that the Source Code version remains available even if the Electronic Distribution Mechanism
is maintained by a third party.
3.3. Description of Modifications.
You must cause all Covered Code to which You contribute to contain a file documenting the changes You made to cre-
ate that Covered Code and the date of any change. You must include a prominent statement that the Modification is
derived, directly or indirectly, from Original Code provided by the Initial Developer and including the name of the Initial
Developer in (a) the Source Code, and (b) in any notice in an Executable version or related documentation in which You
describe the origin or ownership of the Covered Code.
3.4. Intellectual Property Matters
(a) Third Party Claims.
If Contributor has knowledge that a license under a third party’s intellectual property rights is required to exercise the
rights granted by such Contributor under Sections 2.1 or 2.2, Contributor must include a text file with the Source Code
distribution titled “LEGAL’’ which describes the claim and the party making the claim in sufficient detail that a recipient
will know whom to contact. If Contributor obtains such knowledge after the Modification is made available as described
in Section 3.2, Contributor shall promptly modify the LEGAL file in all copies Contributor makes available thereafter and
shall take other steps (such as notifying appropriate mailing lists or newsgroups) reasonably calculated to inform those
who received the Covered Code that new knowledge has been obtained.
(b) Contributor APIs.
If Contributor’s Modifications include an application programming interface and Contributor has knowledge of patent
licenses which are reasonably necessary to implement that API, Contributor must also include this information in the
LEGAL file.
(c) Representations.
Contributor represents that, except as disclosed pursuant to Section 3.4(a) above, Contributor believes that
Contributor’s Modifications are Contributor’s original creation(s) and/or Contributor has sufficient rights to grant the
rights conveyed by this License.
3.5. Required Notices.
You must duplicate the notice in Exhibit A in each file of the Source Code. If it is not possible to put such notice in a par-
ticular
Source Code file due to its structure, then You must include such notice in a location (such as a relevant directory)
where a user would be likely to look for such a notice. If You created one or more Modification(s) You may add your
name as a Contributor to the notice described in Exhibit A. You must also duplicate this License in any documentation
for the Source Code where You describe recipients’ rights or ownership rights relating to Covered Code. You may
choose to offer, and to charge a fee for, warranty, support, indemnity or liability obligations to one or more recipients of
Covered Code. However, You may do so only on Your own behalf, and not on behalf of the Initial Developer or any
Contributor You must make it absolutely clear than any such warranty, support, indemnity or liability obligation is offered
by You alone, and You hereby agree to indemnify the Initial Developer and every Contributor for any liability incurred by
the Initial Developer or such Contributor as a result of warranty, support, indemnity or liability terms You offer.
126
ENG
ENGLISH
OPEN SOURCE LICENSE
3.6. Distribution of Executable Versions.
You may distribute Covered Code in Executable form only if the requirements of Section 3.1-3.5 have been met for that
Covered Code, and if You include a notice stating that the Source Code version of the Covered Code is available under
the terms of this License, including a description of how and where You have fulfilled the obligations of Section 3.2. The
notice must be conspicuously included in any notice in an Executable version, related documentation or collateral in
which You describe recipients’ rights relating to the Covered Code. You may distribute the Executable version of
Covered Code or ownership rights under a license of Your choice, which may contain terms different from this License,
provided that You are in compliance with the terms of this License and that the license for the Executable version does
not attempt to limit or alter the recipient’s rights in the Source Code version from the rights set forth in this License. If
You distribute the Executable version under a different license You must make it absolutely clear that any terms which
differ from this License are offered by You alone, not by the Initial Developer or any Contributor. You hereby agree to
indemnify the Initial Developer and every Contributor for any liability incurred by the Initial Developer or such Contributor
as a result of any such terms You offer.
3.7. Larger Works.
You may create a Larger Work by combining Covered Code with other code not governed by the terms of this License
and distribute the Larger Work as a single product. In such a case, You must make sure the requirements of this
License are fulfilled for the Covered Code.
4. Inability to Comply Due to Statute or Regulation.
If it is impossible for You to comply with any of the terms of this License with respect to some or all of the Covered
Code due to statute, judicial order, or regulation then You must: (a) comply with the terms of this License to the maxi-
mum extent possible; and (b) describe the limitations and the code they affect. Such description must be included in the
LEGAL file described in Section 3.4 and must be included with all distributions of the Source Code. Except to the extent
prohibited by statute or regulation, such description must be sufficiently detailed for a recipient of ordinary skill to be
able to understand it.
5. Application of this License.
This License applies to code to which the Initial Developer has attached the notice in Exhibit A and to related Covered
Code.
6. Versions of the License.
6.1. New Versions.
Netscape Communications Corporation (‘’Netscape’’) may publish revised and/or new versions of the License from time
to time. Each version will be given a distinguishing version number.
6.2. Effect of New Versions.
Once Covered Code has been published under a particular version of the License, You may always continue to use it
under the terms of that version. You may also choose to use such Covered Code under the terms of any subsequent
version of the License published by Netscape. No one other than Netscape has the right to modify the terms applicable
to Covered Code created under this License.
6.3. Derivative Works.
If You create or use a modified version of this License (which you may only do in order to apply it to code which is not
already Covered Code governed by this License), You must (a) rename Your license so that the phrases ‘’Mozilla’’,
‘’MOZILLAPL’’, ‘’MOZPL’’, ‘’Netscape’’, “MPL”, ‘’NPL’’ or any confusingly similar phrase do not appear in your license
(except to note that your license differs from this License) and (b) otherwise make it clear that Your version of the
license contains terms which differ from the Mozilla Public License and Netscape Public License. (Filling in the name of
the Initial Developer, Original Code or Contributor in the notice described in Exhibit A shall not of themselves be
deemed to be modifications of this License.)
7. DISCLAIMER OF WARRANTY.
COVERED CODE IS PROVIDED UNDER THIS LICENSE ON AN “AS IS’’ BASIS, WITHOUT WARRANTY OF ANY
KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, WITHOUT LIMITATION, WARRANTIES THAT THE
COVERED CODE IS FREE OF DEFECTS, MERCHANTABLE, FIT FOR A PARTICULAR PURPOSE OR NON-
INFRINGING. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE COVERED CODE IS WITH
127
ENGENGLISH
OPEN SOURCE LICENSE
YOU. SHOULD ANY COVERED CODE PROVE DEFECTIVE IN ANY RESPECT, YOU (NOT THE INITIAL
DEVELOPER OR ANY OTHER CONTRIBUTOR) ASSUME THE COST OF ANY NECESSARY SERVICING, REPAIR
OR CORRECTION. THIS DISCLAIMER OF WARRANTY CONSTITUTES AN ESSENTIAL PART OF THIS LICENSE.
NO USE OF ANY COVERED CODE IS AUTHORIZED HEREUNDER EXCEPT UNDER THIS DISCLAIMER.
8. TERMINATION.
8.1. This License and the rights granted hereunder will terminate automatically if You fail to comply with terms herein
and fail
to cure such breach within 30 days of becoming aware of the breach. All sublicenses to the Covered Code which are
properly granted shall survive any termination of this License. Provisions which, by their nature, must remain in effect
beyond the termination of this License shall survive.
8.2. If You initiate litigation by asserting a patent infringement claim (excluding declatory judgment actions) against Initial
Developer or a Contributor (the Initial Developer or Contributor against whom You file such action is referred to as
“Participant”) alleging that:
(a) such Participant’s Contributor Version directly or indirectly infringes any patent, then any and all rights granted by
such Participant to You under Sections 2.1 and/or 2.2 of this License shall, upon 60 days notice from Participant termi-
nate prospectively, unless if within 60 days after receipt of notice You either: (i) agree in writing to pay Participant a
mutually agreeable reasonable royalty for Your past and future use of Modifications made by such Participant, or (ii)
withdraw Your litigation claim with respect to the Contributor Version against such Participant. If within 60 days of notice,
a reasonable royalty and payment arrangement are not mutually agreed upon in writing by the parties or the litigation
claim is not withdrawn, the rights granted by Participant to You under Sections 2.1 and/or 2.2 automatically terminate at
the expiration of the 60 day notice period specified above.
(b) any software, hardware, or device, other than such Participant’s Contributor Version, directly or indirectly infringes
any patent, then any rights granted to You by such Participant under Sections 2.1(b) and 2.2(b) are revoked effective as
of the date You first made, used, sold, distributed, or had made, Modifications made by that Participant.
8.3. If You assert a patent infringement claim against Participant alleging that such Participant’s Contributor Version
directly or indirectly infringes any patent where such claim is resolved (such as by license or settlement) prior to the ini-
tiation of patent infringement litigation, then the reasonable value of the licenses granted by such Participant under
Sections 2.1 or 2.2 shall be taken into account in determining the amount or value of any payment or license. 8.4. In the
event of termination under Sections 8.1 or 8.2 above, all end user license agreements (excluding distributors and resell-
ers) which have been validly granted by You or any distributor hereunder prior to termination shall survive termination.
9. LIMITATION OF LIABILITY.
UNDER NO CIRCUMSTANCES AND UNDER NO LEGAL THEORY, WHETHER TORT (INCLUDING NEGLIGENCE),
CONTRACT, OR OTHERWISE, SHALL YOU, THE INITIAL DEVELOPER, ANY OTHER CONTRIBUTOR, OR ANY
DISTRIBUTOR OF COVERED CODE, OR ANY SUPPLIER OF ANY OF SUCH PARTIES, BE LIABLE TO ANY
PERSON FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OF ANY CHARACTER
INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF GOODWILL, WORK STOPPAGE, COMPUTER
FAILURE OR MALFUNCTION, OR ANY AND ALL OTHER COMMERCIAL DAMAGES OR LOSSES, EVEN IF SUCH
PARTY SHALL HAVE BEEN INFORMED OF THE POSSIBILITY OF SUCH DAMAGES. THIS LIMITATION OF
LIABILITY SHALL NOT APPLY TO LIABILITY FOR DEATH OR PERSONAL INJURY RESULTING FROM SUCH
PARTY’S NEGLIGENCE TO THE EXTENT APPLICABLE LAW PROHIBITS SUCH LIMITATION. SOME
JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL
DAMAGES, SO THIS EXCLUSION AND LIMITATION MAY NOT APPLY TO YOU.
10. U.S. GOVERNMENT END USERS.
The Covered Code is a ‘’commercial item,’’ as that term is defined in 48 C.F.R. 2.101 (Oct. 1995), consisting of ‘’com-
mercial computer software’’ and ‘’commercial computer software documentation,’’ as such terms are used in 48 C.F.R.
12.212 (Sept. 1995). Consistent with 48 C.F.R. 12.212 and 48 C.F.R. 227.7202-1 through 227.7202-4 (June 1995), all
U.S. Government End Users acquire Covered Code with only those rights set forth herein.
11. MISCELLANEOUS.
This License represents the complete agreement concerning subject matter hereof. If any provision of this License is
128
ENG
ENGLISH
OPEN SOURCE LICENSE
held to be unenforceable, such provision shall be reformed only to the extent necessary to make it enforceable. This
License shall be governed by California law provisions (except to the extent applicable law, if any, provides otherwise),
excluding its conflict-of-law provisions. With respect to disputes in which at least one party is a citizen of, or an entity
chartered or registered to do business in the United States of America, any litigation relating to this License shall be
subject to the jurisdiction of the Federal Courts of the Northern District of California, with venue lying in Santa Clara
County, California, with the losing party responsible for costs, including without limitation, court costs and reasonable
attorneys’ fees and expenses. The application of the United Nations Convention on Contracts for the International Sale
of Goods is expressly excluded. Any law or regulation which provides that the language of a contract shall be construed
against the drafter shall not apply to this License.
12. RESPONSIBILITY FOR CLAIMS.
As between Initial Developer and the Contributors, each party is responsible for claims and damages arising, directly or
indirectly, out of its utilization of rights under this License and You agree to work with Initial Developer and Contributors
to distribute such responsibility on an equitable basis. Nothing herein is intended or shall be deemed to constitute any
admission of liability.
13. MULTIPLE-LICENSED CODE.
Initial Developer may designate portions of the Covered Code as Multiple-Licensed. Multiple-Licensed means that the
Initial Developer permits you to utilize portions of the Covered Code under Your choice of the MPL or the alternative
licenses, if any, specified by the Initial Developer in the file described in Exhibit A.
EXHIBIT A -Mozilla Public License.
``The contents of this file are subject to the Mozilla Public License
Version 1.1 (the “License”); you may not use this file except in
compliance with the License. You may obtain a copy of the License at
http://www.mozilla.org/MPL/
Software distributed under the License is distributed on an “AS IS”
basis, WITHOUT WARRANTY OF ANY KIND, either express or implied. See the
License for the specific language governing rights and limitations under the License.
The Original Code is ______________________________________.
The Initial Developer of the Original Code is ________________________.
Portions created by ______________________ are Copyright (C) ______
_______________________.All Rights Reserved.
Contributor(s): ______________________________________.
Alternatively, the contents of this file may be used under the terms
of the _____ license (the [___] License), in which case the
provisions of [______] License are applicable instead of those
above.If you wish to allow use of your version of this file only
under the terms of the [____] License and not to allow others to use
your version of this file under the MPL, indicate your decision by
deleting the provisions above and replace them with the notice and
other provisions required by the [___] License. If you do not delete
the provisions above, a recipient may use your version of this file
under either the MPL or the [___] License.”
[NOTE: The text of this Exhibit A may differ slightly from the text of the notices in the Source Code files of the Original
Code. You should use the text of this Exhibit A rather than the text found in the Original Code Source Code for Your
Modifications.]
129
ENGENGLISH
OPEN SOURCE LICENSE
OpenSSL License
Copyright (c) 1998-2008 The OpenSSL Project. All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following
conditions are met:
1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following dis-
claimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following dis-
claimer in the documentation and/or other materials provided with the distribution.
3. All advertising materials mentioning features or use of this software must display the following acknowledgment:
“This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (http://www.openssl.
org/)”
4. The names “OpenSSL Toolkit” and “OpenSSL Project” must not be used to endorse or promote products derived
from this software without prior written permission. For written permission, please contact openssl-core@openssl.org.
5. Products derived from this software may not be called “OpenSSL” nor may “OpenSSL” appear in their names without
prior written permission of the OpenSSL Project.
6. Redistributions of any form whatsoever must retain the following acknowledgment:
“This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.
org/)”
THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT ``AS IS’’ AND ANY EXPRESSED OR IMPLIED
WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE OpenSSL PROJECT OR
ITS CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR
CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR
SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON
ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE
OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE
POSSIBILITY OF SUCH DAMAGE.
This product includes cryptographic software written by Eric Young (eay@cryptsoft.com).
This product includes software written by Tim Hudson (tjh@cryptsoft.com).
Original SSLeay License
Copyright (C) 1995-1998 Eric Young (eay@cryptsoft.com) All rights reserved.
This package is an SSL implementation written by Eric Young (eay@cryptsoft.com).
The implementation was written so as to conform with Netscapes SSL.
This library is free for commercial and non-commercial use as long as the following conditions are aheared to. The fol-
lowing conditions apply to all code found in this distribution, be it the RC4, RSA, lhash, DES, etc., code; not just the
SSL code. The SSL documentation included with this distribution is covered by the same copyright terms except that
the holder is Tim Hudson (tjh@cryptsoft.com).
Copyright remains Eric Young’s, and as such any Copyright notices in the code are not to be removed. If this package
is used in a product, Eric Young should be given attribution as the author of the parts of the library used. This can be in
the form of a textual message at program startup or in documentation (online or textual) provided with the package.
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following
conditions are met:
1. Redistributions of source code must retain the copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following dis-
claimer in the documentation and/or other materials provided with the distribution.
130
ENG
ENGLISH
OPEN SOURCE LICENSE
3. All advertising materials mentioning features or use of this software must display the following acknowledgement:
“This product includes cryptographic software written by Eric Young (eay@cryptsoft.com)”
The word ‘cryptographic’ can be left out if the rouines from the library being used are not cryptographic related :-).
4. If you include any Windows specific code (or a derivative thereof) from the apps directory (application code) you must
include an acknowledgement:
“This product includes software written by Tim Hudson (tjh@cryptsoft.com)”
THIS SOFTWARE IS PROVIDED BY ERIC YOUNG ``AS IS’’ AND ANY EXPRESS OR IMPLIED WARRANTIES,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE AUTHOR OR CONTRIBUTORS BE LIABLE
FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES
(INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE,
DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN
ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
The licence and distribution terms for any publically available version or derivative of this code cannot be changed. i.e.
this code cannot simply be copied and put under another distribution licence [including the GNU Public Licence.]
MIT license
- libcurl
Copyright (c) 1996 - 2010, Daniel Stenberg, <daniel@haxx.se>.
All rights reserved.
Permission to use, copy, modify, and distribute this software for any purpose with or without fee is hereby granted, pro-
vided that the above copyright notice and this permission notice appear in all copies.
THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED,
INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR
PURPOSE AND NONINFRINGEMENT OF THIRD PARTY RIGHTS. IN NO EVENT SHALL THE AUTHORS OR
COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION
OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE
OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.
Except as contained in this notice, the name of a copyright holder shall not be used in advertising or otherwise to pro-
mote the sale, use or other dealings in this Software without prior written authorization of the copyright holder.
- ncurses
Copyright (c) 1998 Free Software Foundation, Inc.
Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documen-
tation files (the “Software”), to deal in the Software without restriction, including without limitation the rights to use, copy,
modify, merge, publish, distribute, distribute with modifications, sublicense, and/or sell copies of the Software, and to
permit persons to whom the Software is furnished to do so, subject to the following conditions:
The above copyright notice and this permission notice shall be included in all copies or substantial portions of the
Software.
THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED,
INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR
PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE ABOVE COPYRIGHT HOLDERS BE LIABLE FOR
ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE,
ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR HE USE OR OTHER DEALINGS IN THE
131
ENGENGLISH
OPEN SOURCE LICENSE
SOFTWARE.
Except as contained in this notice, the name(s) of the above copyright holders shall not be used in advertising or other-
wise to promote the ale, use or other dealings in this Software without prior written authorization.
Expat license
The source package was downloaded from <URL:http://expat.sourceforge.net>.
The original packager is Adam Di Carlo <aph@debian.org>.
The current maintainer is Ardo van Rangelrooij <ardo@debian.org>.
Copyright (c) 1998, 1999, 2000 Thai Open Source Software Center Ltd and Clark Cooper
Copyright (c) 2001, 2002, 2003, 2004, 2005, 2006 Expat maintainers.
Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documen-
tation files (the “Software”), to deal in the Software without restriction, including without limitation the rights to use, copy,
modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the
Software is furnished to do so, subject to the following conditions:
The above copyright notice and this permission notice shall be included in all copies or substantial portions of the
Software.
THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED,
INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR
PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE
LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR
OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER
DEALINGS IN THE SOFTWARE.
The FreeType Project LICENSE
Copyright 1996-2002, 2006 by David Turner, Robert Wilhelm, and Werner Lemberg
Introduction
============
The FreeType Project is distributed in several archive packages; some of them may contain, in addition to the FreeType
font engine, various tools and contributions which rely on, or relate to, the FreeType Project.
This license applies to all files found in such packages, and which do not fall under their own explicit license. The
license affects thus the FreeType font engine, the test programs, documentation and makefiles, at the very least.
This license was inspired by the BSD, Artistic, and IJG (Independent JPEG Group) licenses, which all encourage inclu-
sion and use of free software in commercial and freeware products alike. As a consequence, its main points are that:
- We don’t promise that this software works. However, we will be interested in any kind of bug reports. (`as is’ distribu-
tion)
- You can use this software for whatever you want, in parts or full form, without having to pay us. (`royalty-free’ usage)
- You may not pretend that you wrote this software. If you use it, or only parts of it, in a program, you must acknowledge
somewhere in your documentation that you have used the FreeType code. (`credits’)
We specifically permit and encourage the inclusion of this software, with or without modifications, in commercial prod-
ucts. We disclaim all warranties covering The FreeType Project and assume no liability related to The FreeType Project.
Finally, many people asked us for a preferred form for a credit/disclaimer to use in compliance with this license. We
132
ENG
ENGLISH
OPEN SOURCE LICENSE
thus encourage you to use the following text:
Portions of this software are copyright <year> The FreeType Project (www.freetype.org). All rights reserved.
Please replace <year> with the value from the FreeType version you actually use.
Legal Terms
0. Definitions
Throughout this license, the terms `package’, `FreeType Project’ and `FreeType archive’ refer to the set of files originally
distributed by the authors (David Turner, Robert Wilhelm, and Werner Lemberg) as the `FreeType Project’, be they
named as alpha, beta or final release.
`You’ refers to the licensee, or person using the project, where `using’ is a generic term including compiling the project’s
source code as well as linking it to form a `program’ or `executable’. This program is referred to as `a program using the
FreeType engine’.
This license applies to all files distributed in the original FreeType Project, including all source code, binaries and docu-
mentation, unless otherwise stated in the file in its original, unmodified form as distributed in the original archive. If you
are unsure whether or not a particular file is covered by this license, you must contact us to verify this.
The FreeType Project is copyright (C) 1996-2000 by David Turner, Robert Wilhelm, and Werner Lemberg. All rights
reserved except as specified below.
1. No Warranty
THE FREETYPE PROJECT IS PROVIDED `AS IS’ WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR
IMPLIED, INCLUDING, BUT NOT LIMITED TO, WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE. IN NO EVENT WILL ANY OF THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR
ANY DAMAGES CAUSED BY THE USE OR THE INABILITY TO USE, OF THE FREETYPE PROJECT.
2. Redistribution
This license grants a worldwide, royalty-free, perpetual and irrevocable right and license to use, execute, perform, com-
pile, display, copy, create derivative works of, distribute and sublicense the FreeType Project (in both source and object
code forms) and derivative works thereof for any purpose; and to authorize others to exercise some or all of the rights
granted herein, subject to the following conditions:
- Redistribution of source code must retain this license file (`FTL.TXT’) unaltered; any additions, deletions or changes to
the original files must be clearly indicated in accompanying documentation. The copyright notices of the unaltered, origi-
nal files must be preserved in all copies of source files.
- Redistribution in binary form must provide a disclaimer that states that the software is based in part of the work of the
FreeType Team, in the distribution documentation. We also encourage you to put an URL to the FreeType web page in
your documentation, though this isn’t mandatory.
These conditions apply to any software derived from or based on the FreeType Project, not just the unmodified files. If
you use our work, you must acknowledge us. However, no fee need be paid to us.
3. Advertising
Neither the FreeType authors and contributors nor you shall use the name of the other for commercial, advertising, or
promotional purposes without specific prior written permission. We suggest, but do not require, that you use one or
more of the following phrases to refer to this software in your documentation or advertising materials: `FreeType
Project’, `FreeType Engine’, `FreeType library’, or `FreeType Distribution’.
As you have not signed this license, you are not required to accept it. However, as the FreeType Project is copyrighted
material, only this license, or another one contracted with the authors, grants you the right to use, distribute, and modify
it. Therefore, by using, distributing, or modifying the FreeType Project, you indicate that you understand and accept all
the terms of this license.
4. Contacts
There are two mailing lists related to FreeType:
freetype@nongnu.org
Discusses general use and applications of FreeType, as well as future and wanted additions to the library and distribu-
tion. If you are looking for support, start in this list if you haven’t found anything to help you in the documentation.
freetype-devel@nongnu.org
133
ENGENGLISH
OPEN SOURCE LICENSE
Discusses bugs, as well as engine internals, design issues, specific licenses, porting, etc.
Our home page can be found at http://www.freetype.org
JPEG license
This software is copyright (C) 1991-1998, Thomas G. Lane.
All Rights Reserved except as specified below.
Permission is hereby granted to use, copy, modify, and distribute this software (or portions thereof) for any purpose,
without fee, subject to these conditions:
(1) If any part of the source code for this software is distributed, then this README file must be included, with this copy-
right and no-warranty notice unaltered; and any additions, deletions, or changes to the original files must be clearly indi-
cated in accompanying documentation.
(2) If only executable code is distributed, then the accompanying documentation must state that “this software is based
in part on the work of the Independent JPEG Group”.
(3) Permission for use of this software is granted only if the user accepts full responsibility for any undesirable conse-
quences; the authors accept NO LIABILITY for damages of any kind.
zlib/libpng License
This product may contain open source software licensed under zlib/libpng License.
Libmng : Copyright © 2000-2008 Gerard Juyn (gerard@libmng.com)
Libpng : Copyright (c) 1998-2008 Glenn Randers-Pehrson
(Version 0.96 Copyright (c) 1996, 1997 Andreas Dilger)
(Version 0.88 Copyright (c) 1995, 1996 Guy Eric Schalnat, Group 42, Inc.)
Md5 checksum : Copyright (C) 1999, 2000, 2002 Aladdin Enterprises.
Zlib : Copyright (C) 1995-2010 Jean-loup Gailly and Mark Adler
This software is provided ‘as-is’, without any express or implied warranty. In no event will the authors be held liable for
any damages arising from the use of this software.
Permission is granted to anyone to use this software for any purpose, including commercial applications, and to alter it
and redistribute it freely, subject to the following restrictions:
1. The origin of this software must not be misrepresented; you must not claim that you wrote the original software. If you
use this software in a product, an acknowledgment in the product documentation would be appreciated but is not
required.
2. Altered source versions must be plainly marked as such, and must not be misrepresented as being the original soft-
ware.
3. This notice may not be removed or altered from any source distribution.
Jean-loup Gailly
Mark Adler
X.net license
Copyright (c) 1995-2001 International Business Machines Corporation and others
All rights reserved.
Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documen-
134
ENG
ENGLISH
OPEN SOURCE LICENSE
tation files (the “Software”), to deal in the Software without restriction, including without limitation the rights to use, copy,
modify, merge, publish, distribute, and/or sell copies of the Software, and to permit persons to whom the Software is fur-
nished to do so, provided that the above copyright notice(s) and this permission notice appear in all copies of the
Software and that both the above copyright notice(s) and this permission notice appear in supporting documentation.
THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED,
INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR
PURPOSE AND NONINFRINGEMENT OF THIRD PARTY RIGHTS. IN NO EVENT SHALL THE COPYRIGHT HOLDER
OR HOLDERS INCLUDED IN THIS NOTICE BE LIABLE FOR ANY CLAIM, OR ANY SPECIAL INDIRECT OR
CONSEQUENTIAL DAMAGES, OR ANY DAMAGES WHATSOEVER RESULTING FROM LOSS OF USE, DATA OR
PROFITS, WHETHER IN AN ACTION OF CONTRACT, NEGLIGENCE OR OTHER TORTIOUS ACTION, ARISING
OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THIS SOFTWARE.
Except as contained in this notice, the name of a copyright holder shall not be used in advertising or otherwise to pro-
mote the sale, use or other dealings in this Software without prior written authorization of the copyright holder.
BSD license
- strace
Copyright (c) 1991, 1992 Paul Kranenburg <pk@cs.few.eur.nl>
Copyright (c) 1993 Branko Lankester <branko@hacktic.nl>
Copyright (c) 1993 Ulrich Pegelow <pegelow@moorea.uni-muenster.de>
Copyright (c) 1995, 1996 Michael Elizabeth Chastain <mec@duracef.shout.net>
Copyright (c) 1993, 1994, 1995, 1996 Rick Sladkey <jrs@world.std.com>
Copyright (C) 1998-2003 Wichert Akkerman <wakkerma@deephackmode.org>
Copyright (c) 2002-2008 Roland McGrath <roland@redhat.com>
Copyright (c) 2003-2008 Dmitry V. Levin <ldv@altlinux.org>
Copyright (c) 2007-2008 Jan Kratochvil <jan.kratochvil@redhat.com>
All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following
conditions are met:
1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following dis-
claimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following dis-
claimer in the documentation and/or other materials provided with the distribution.
3. Neither the names of PolarSSL or XySSL nor the names of its contributors may be used to endorse or promote prod-
ucts derived from this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS “AS IS” AND ANY
EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE
COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL,
EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF
SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION)
HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR
TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS
SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
- xyssl
Copyright (C) 2006-2008 Christophe Devine
Copyright (C) 2009 Paul Bakker <polarssl_maintainer at polarssl dot org>
All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following
conditions are met:
135
ENGENGLISH
OPEN SOURCE LICENSE
1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following dis-
claimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following dis-
claimer in the documentation and/or other materials provided with the distribution.
3. Neither the names of PolarSSL or XySSL nor the names of its contributors may be used to endorse or promote prod-
ucts derived from this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS “AS IS” AND ANY
EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE
COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL,
EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF
SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION)
HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR
TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS
SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
RSA Data Security license
Copyright (C) 1991-2, RSA Data Security, Inc. Created 1991. All rights reserved.
License to copy and use this software is granted provided that it is identified as the “RSA Data Security, Inc. MD5
Message-Digest Algorithm” in all material mentioning or referencing this software or this function.
License is also granted to make and use derivative works provided that such works are identified as “derived from the
RSA Data Security, Inc. MD5 Message-Digest Algorithm” in all material mentioning or referencing the derived work.
RSA Data Security, Inc. makes no representations concerning either the merchantability of this software or the suitability
of this software for any particular purpose. It is provided “as is” without express or implied warranty of any kind.
These notices must be retained in any copies of any part of this documentation and/or software.
The model and serial numbers of the TV is
located on the back of the TV
Record it below should you ever need service.
MODEL
SERIAL

Navigation menu
