COLOR TV

SERVICE MANUAL

CAUTION

BEFORE SERVICING THE CHASSIS,

READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

CHASSIS : MC-022A

MODEL:RT-29FB50RB/RE/RP/RX

MODEL:RT-29FB50VB/VE

website:http://biz.LGservice.com

e-mail:http://www.LGEservice.com/techsup.html

Feb.,2003

Printed in KoreaP/NO : 3828VD0118Z

- 2 -

CONTENTS

Contents ................................................................................................................. 2

Safety Precautions ............................................................................................3

Specifications ..................................................................................................... 4

Control Descriptions ........................................................................................ 5

Disassembly Instructions ............................................................................. 8

Adjustment Instructions ............................................................................... 9

Block Diagram .................................................................................................... 16

Trouble Shooting .............................................................................................. 18

Exploded View .................................................................................................. 22

Exploded View Parts List .............................................................................23

Replacement Parts List ............................................................................... 24

SVC. Sheet ................................................................................................................

- 3 -

SAFETY PRECAUTIONS

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in

the Schematic Diagram and Replacement Parts List.

It is essential that these special safety parts should be replaced with the same components as recommended in this manual to

prevent X-RADIATION, Shock, Fire, or other Hazards.

Do not modify the original design without permission of manufacturer.

General Guidance

An lsolation Transformer should always be used during

the servicing of a receiver whose chassis is not isolated from

the AC power line. Use a transformer of adequate power rating

as this protects the technician from accidents resulting in

personal injury from electrical shocks.

It will also protect the receiver and it's components from being

damaged by accidental shorts of the circuitary that may be

inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this TV receiver is blown,

replace it with the specified.

When replacing a high wattage resistor (Oxide Metal Film

Resistor, over 1W), keep the resistor 10mm away from PCB.

Keep wires away from high voltage or high temperature parts.

Due to high vacuum and large surface area of picture tube,

extreme care should be used in handling the Picture Tube.

Do not lift the Picture tube by it's Neck.

X-RAY Radiation

Warning:

To determine the presence of high voltage, use an accurate

high impedance HV meter.

Adjust brightness, color, contrast controls to minimum.

Measure the high voltage.

The meter reading should indicate

23.5 ¡1.5KV: 14-19 inch, 26 ¡1.5KV: 19-21 inch,

29.0 ¡1.5KV: 25-29 inch, 30.0 ¡1.5KV: 32 inch

If the meter indication is out of tolerance, immediate service

and correction is required to prevent the possibility of

premature component failure.

Before returning the receiver to the customer,

always perform an AC leakage current check on the exposed

metallic parts of the cabinet, such as antennas, terminals, etc.,

to be sure the set is safe to operate without damage of

electrical shock.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source,

connect an electrical jumper across the two AC plug prongs.

Place the AC switch in the on positioin, connect one lead of

ohm-meter to the AC plug prongs tied together and touch other

ohm-meter lead in turn to each exposed metallic parts such as

antenna terminals, phone jacks, etc.

If the exposed metallic part has a return path to the chassis, the

measured resistance should be between 1MΩ and 5.2MΩ.

When the exposed metal has no return path to the chassis the

reading must be infinite.

An other abnormality exists that must be corrected before the

receiver is returned to the customer.

Leakage Current Hot Check (See below Figure)

Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check.

Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor

between a known good earth ground (Water Pipe, Conduit, etc.)

and the exposed metallic parts.

Measure the AC voltage across the resistor using AC

voltmeter with 1000 ohms/volt or more sensitivity.

Reverse plug the AC cord into the AC outlet and repeat AC

voltage measurements for each esposed metallic part. Any

voltage measured must not exceed 0.75 volt RMS which is

corresponds to 0.5mA.

In case any measurement is out of the limits sepcified, there is

possibility of shock hazard and the set must be checked and

repaired before it is returned to the customer.

Leakage Current Hot Check circuit

The source of X-RAY RADIATION in this TV receiver is the

High Voltage Section and the Picture Tube.

For continued X-RAY RADIATION protection, the

replacement tube must be the same type tube as specified in

the Replacement Parts List.

1.5 Kohm/10W

To Instrument's

exposed

METALLIC PARTS

Good Earth Ground

such as WATER PIPE,

CONDUIT etc.

AC Volt-meter

IMPORTANT SAFETY NOTICE

0.15uF

- 4 -

SPECIFICATIONS

Note : Specification and others are subject to change without notice for improvement.

OVideo input system:

PAL-B/G, D/K, I/I

SECAM-B/G, D/K/L/L’

NTSC M

NTSC 4.43(AV)

NTSC- M/PAL M-N

OIntermediate Frequency (Unit : MHz)

VISION IF : 38.9MHz,33.9MHz(SECAM-L’)

COLOR IF : 34.47MHz(4.43)

35.32MHz(3.58) : NTSC-M

VIF-4.25000MHz

VIF-4.40625MHz

SOUND IF : 33.4MHz (B/G)

32.9MHz (I/I)

32.4MHz (D/K,L)

34.4MHz (M)

40.4MHz (L’)

OPower requirement : 110~240V, 50/60Hz(NON-EU)

230V, 50Hz(EU)

OPower consumption : 25”:125W

29”:135W

OTuning system :

FVS

100 Programme memory

200 Programme memory(W/O TXT Model)

Antenna input impedance : VHF/UHF 75 ohm, unbalanced

OVoice coil impedance : 8 ohm

OExternal In/Output

Audio-In:0.5Vrms ±3db,over 10Kohm

Audio-Out:0.5Vrms ±3db,below 1Kohm

Video-In/Out:1Vp-p ±3db,75ohm

R,G,B In:0.7Vp-p ±3db

OFeature & Funtion

Teletext(TOP/FLOF/LIST)

AV Input : Side or Front(1),Rear(2)

Component Input : Rear(Opt.)

PERI TV Connector(AV Input,SCART Opt.)

RGB INput

2 Carrier Stereo : BG/DK

NICAM Stereo : BG/I/L

2 Carrier Dual : BG/DK

NICAM Dual : BG/I/L

SSC(Split Screen) Mode

Multi Picture Display Mode(1:4:9 PIP)

DBS

OTuning range

Band

VHF-Low

VHF-High

Hyper

UHF

S1'-S3', S1

S2-S10,

S11-S20

S21-S41

For TV For CATV

B/G

Ch2-4

Ch5-12

D/K

Ch1-5

Ch6-12

I/I

Ch4-13

NTSC

Ch2-13

Ch21-69 Ch14-69

( ): SECAM

- 5 -

DESCRIPTION OF CONTROLS

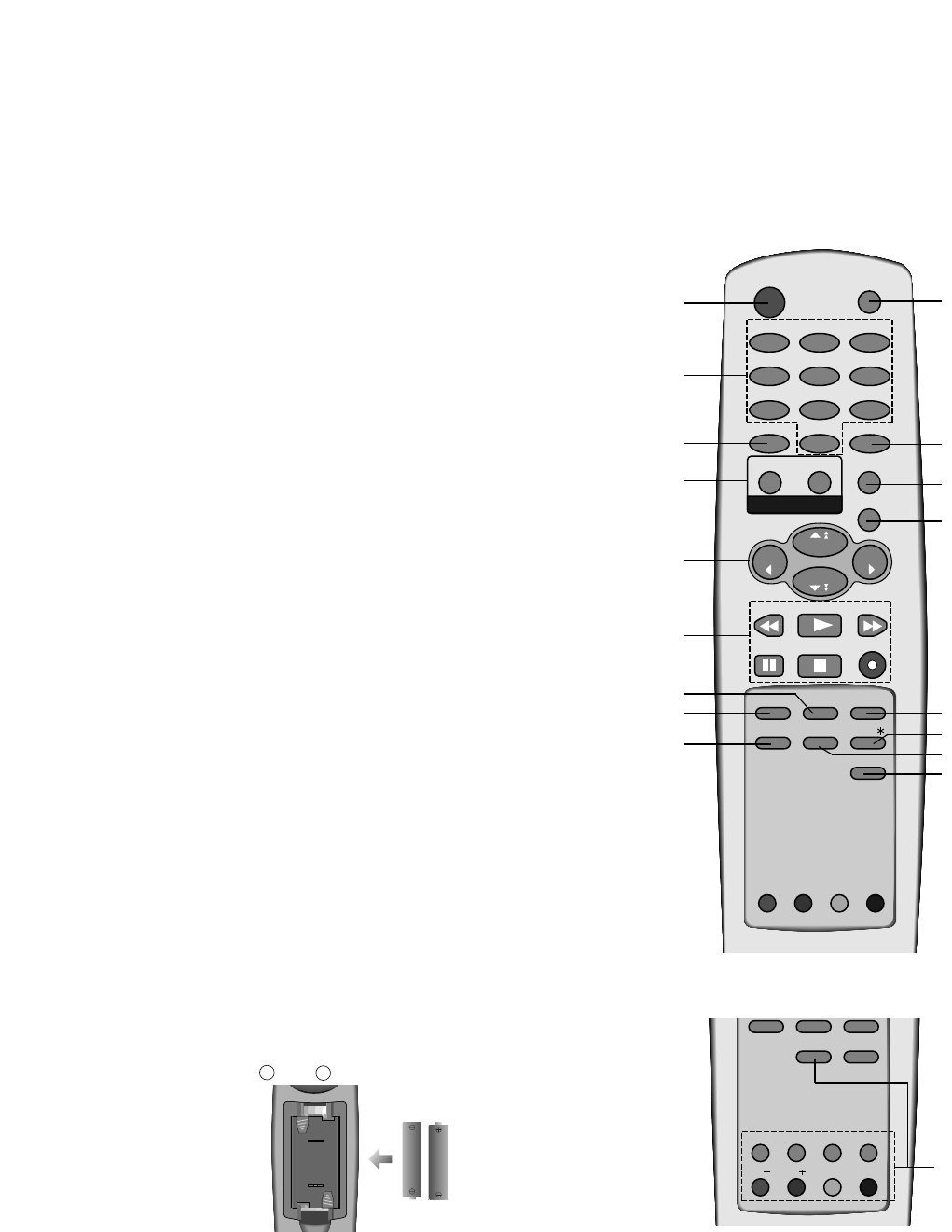

All the functions can be controlled with the remote control handset.

Some functions can also be adjusted with the buttons on the front

panel of the set.

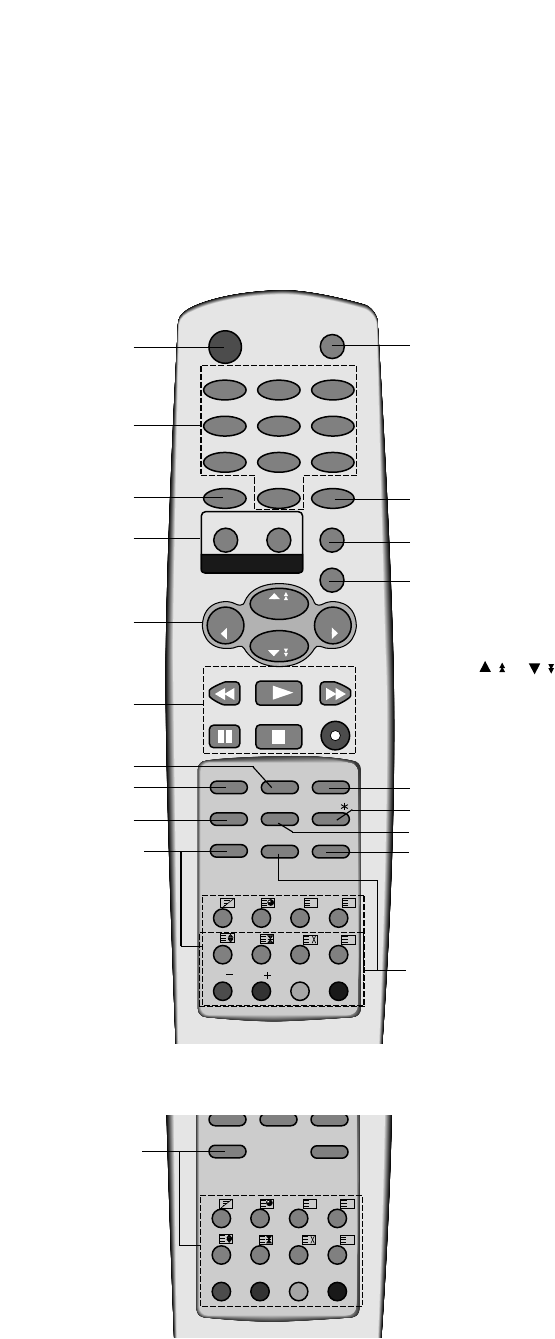

Remote control handset

Before you use the remote control handset, please install the bat-

teries. See the next page.

1. POWER

switches the set on from standby or off to standby.

2. NUMBER BUTTONS

switches the set on from standby or directly select a number.

3. ARC (Aspect Ratio Control)

changes the picture format.

4. TURBO PICTURE / SOUND BUTTON

selects Turbo picture / sound.

5. / (Programme Up/Down)

selects a programme or a menu item.

switches the set on from standby.

scans programmes automatically.

FF / GG (Volume Up/Down)

adjusts the volume.

adjusts menu settings.

6. VCR BUTTONS (option)

control a LG video cassette recorder.

7. SSM (Sound Status Memory)

recalls your preferred sound setting.

8. I/II (option)

selects the language during dual language broadcast (option).

selects the sound output.

9. PSM (Picture Status Memory)

recalls your preferred picture setting.

10. TELETEXT BUTTONS (option)

These buttons are used for teletext.

For further details, see the ‘Teletext’ section.

11. MUTE

switches the sound on or off.

12. TV/AV

selects TV or AV mode.

switches the set on from standby.

13. MENU

selects a menu.

VOL PR VOL

PLAY

P/STILL STOP REC

REW FF

I/II SSM LIST

PSM

SLEEP

PIP

Q.VIEW

MIX TIME

SWAP INPUT

REVEAL MODE

SIZE STILL

POSITION

9/4 PIP

ARC TV/AV


SOUND

12 3

45 6

78 9

POWER MUTE

TEXT

T U R B O

EYE/

( )

(With TELETEXT / PIP)

TEXT

Q.VIEW

MIX TIME

REVEAL MODE

SIZE HOLD

UPDATE

INDEX

(With TELETEXT / Without PIP)

- 6 -

14. OK

accepts your selection or displays the current mode.

15. LIST

displays the programme table.

16. EYE/*(option)

switches the eye function on or off.

17. SLEEP

sets the sleep timer.

18. Q.VIEW

returns to the previously viewed programme.

selects a favorite programme.

19. PIP BUTTONS (option)

PIP

switches the sub picture on or off.

PR +/

selects a programme for the sub picture.

SWAP

alternates between main and sub picture.

INPUT

selects the input mode for the sub picture.

SIZE

adjusts the sub picture size.

STILL

freezes motion of the sub picture.

POSITION

relocates the sub picture in clockwise direction.

9/4 PIP

switches on or off the 9 or 4 sub pictures.

COLOURED BUTTONS

These buttons are used for teletext (only TELETEXT models) or

programme edit.

Battery installation

The remote control handset is powered by two AA type batteries. To

load the batteries, turn the remote control handset over and open

the battery compartment. Install two batteries as indicated by the

polarity symbols ( and ) marked inside the compartment.

Note : To avoid damage from possible battery leakage, remove the

batteries if you do not plan to use the remote control handset for an

extended period of time.

VOL PR VOL

PLAY

P/STILL STOP REC

REW FF

I/II SSM LIST

PSM

SLEEP

Q.VIEW

ARC TV/AV


SOUND

12 3

45 6

78 9

POWER MUTE

T U R B O

EYE/

( )

(Without TELETEXT / PIP)

PIP

Q.VIEW

SWAP INPUT

SIZE STILL

POSITION

9/4 PIP

EYE/

(Without TELETEXT / With PIP)

- 7 -

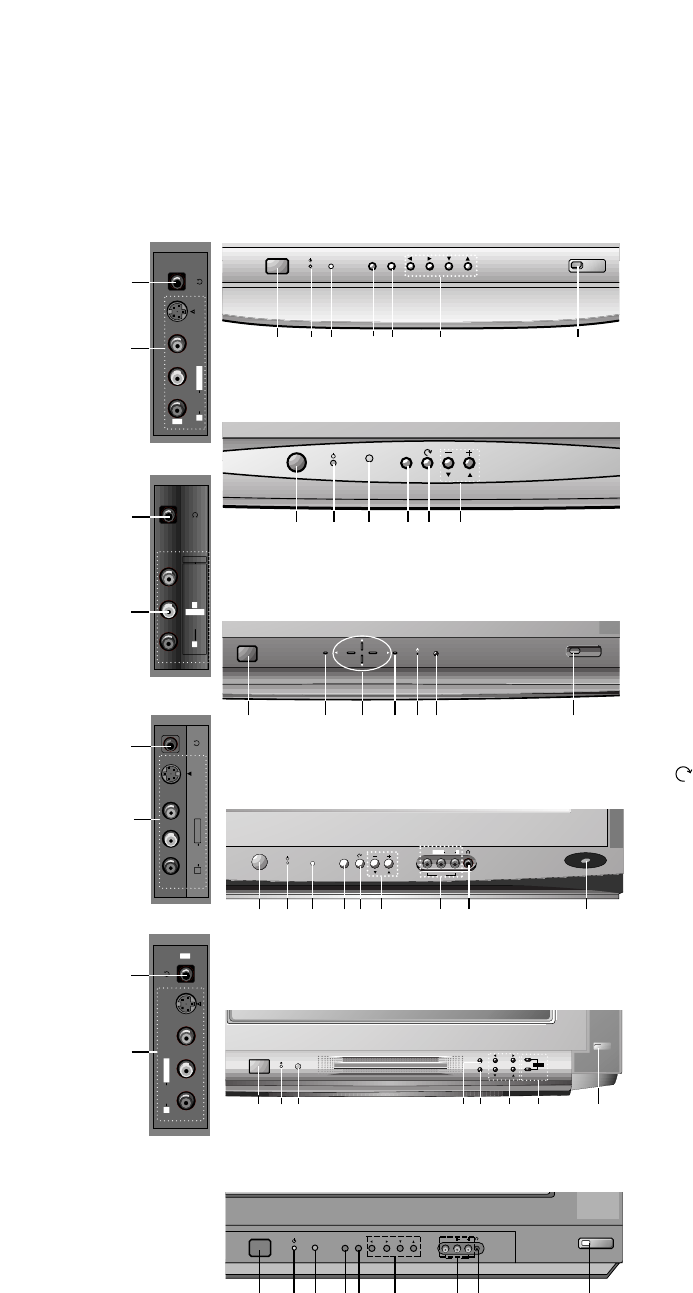

1. MAIN POWER

switches the set on or off.

2. POWER/STANDBY INDICATOR

illuminates brightly when the set is in

standby mode.

dims when the set is switched on.

3. MENU

selects a menu.

4. OK

accepts your selection or displays the

current mode.

5. DD / EE(Programme Up/Down)

selects a programme or a menu item.

switches the set on from standby.

FF / GG (Volume Down/Up)

adjusts the volume.

adjusts menu settings.

6. REMOTE CONTROL SENSOR

Note : Only use the supplied remote

control handset. (When you use others,

they’ll be not able to function.)

7. TV/AV

selects TV or AV mode.

clears the menu from the screen.

switches the set on from standby.

8. (Function)

selects volume, EYE (option), picture items

or brief auto programme while the menus

not display.

9. +/- (DD/EE)

adjusts the function or selects a pro-

gramme.

switches the set on from standby.

10.TURBO SOUND / PICTURE (option)

switches Turbo sound or Turbo picture

function on or off.

11. EYE (option)

adjusts picture according to the sur-

rounding conditions.

12.HEADPHONE SOCKET (option)

Connect the headphone plug to this

socket.

13.AUDIO/VIDEO IN SOCKETS (AV3)

Connect the audio/video out sockets of

external equipment to these sockets.

S-VIDEO/AUDIO IN SOCKETS (S-AV)

(option)

Connect the video out socket of an S-

VIDEO VCR to the S-VIDEO socket.

Connect the audio out sockets of the S-

VIDEO VCR to the audio sockets as in

AV3.

Note : Do not place any heavy objects

(over 4Kg) on the RT-29FA33 series mod-

els..

ON/OFF

TV/AV

AV3

VIDEO AUDIO

VOL PR

L/MONO R

CF/CT-25/29K30 series

126789 13 11

S-VIDEO VIDEO L/MONO RAUDIO

AV3

ON/OFF

MENU OK VOL PR

RF/RT-25/29CA40 series

12611

ON/OFF MENU O K

VOL VOL

CF/CT-25/29Q40 series

132 6

411

ON/OFF

TV/AV

VOL PR

CF/CT-25/29M30 series

1 2 6 7 8 9

VIDEO

AUDIO

MONO

AV3

L/MONO R

AUDIO

VIDEO

AV3

S-VIDEO

ON/OFF

VOL SOUND

PR PICTURE

TURBO

CF/CT-21/29Q90 series

126 54 10 11

S-VIDEO VIDEO L/MONO RAUDIO

AV3

ON/OFF

MENU OK VOL PR

VIDEO

AUDIO

RF/RT-29FB50 series

2 6 34 125 13

111

- 8 -

Fig. 2-1 Fig. 2-2

CPT

PCB

Remove

Screws

MAIN

PCB

DISASSEMBLY INSTRUCTIONS

Important note

This set is disconnected from the power supply through the

converter transformer. An isolating transformer is necessary

for service operations on the primary side of the converter

transformer.

Back Cabinet Removal

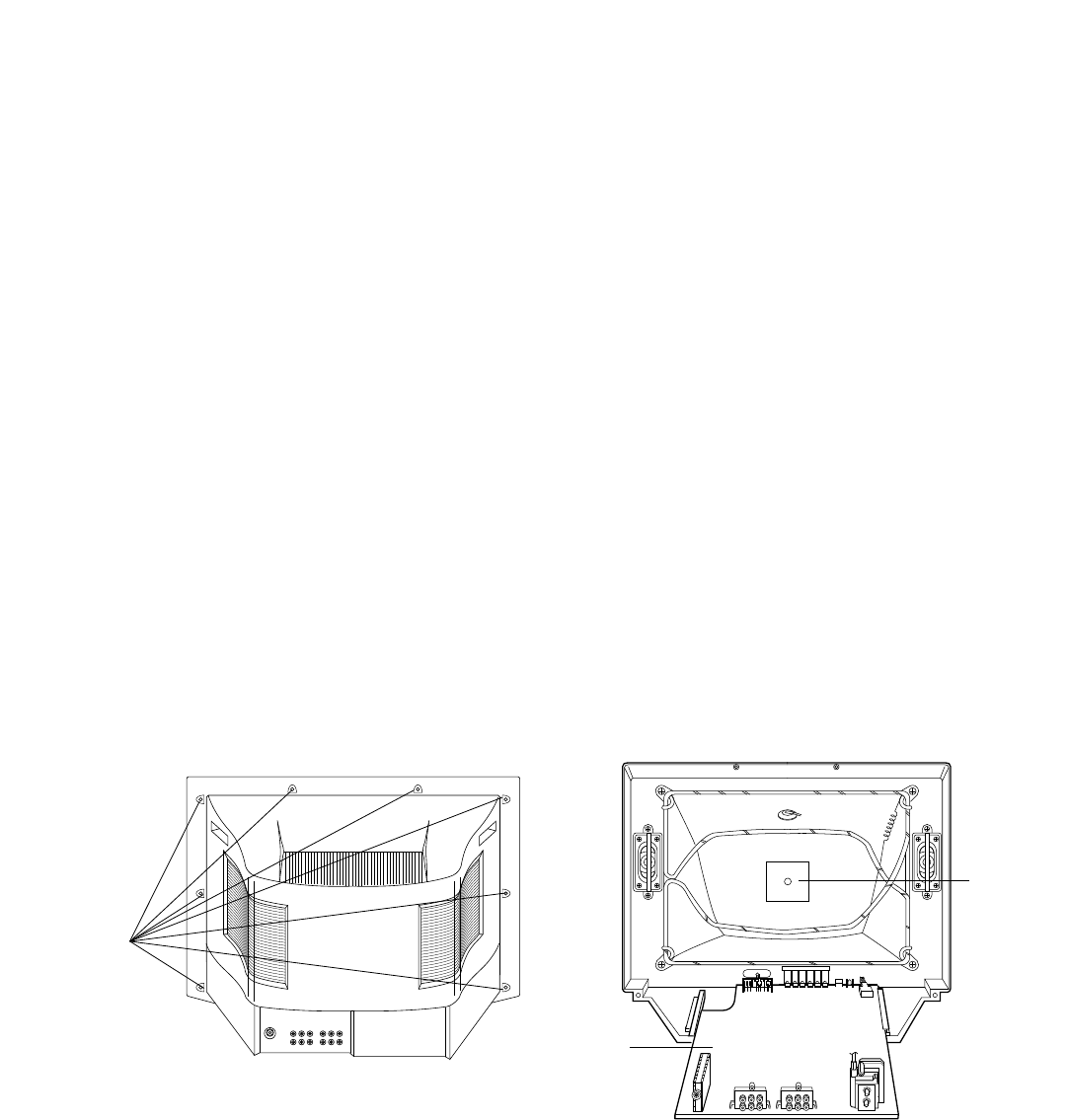

Remove the screws residing on the back cabinet and carefully

separate the back cabinet from the front cabinet. (Fig. 2-1).

Chassis Assy Removal

Grasp both side of Frame and pull it backward smoothly.

CPT Removal

1. Pull out the CPT board from the CPT neck.

2. Place the front cabinet on soft material not to mar the front

surface or damage control knobs.

3. Remove 4 screws securing the picture tube mounting

brackets to the front cabinet.

4. Carefully separate CPT from the front cabinet.

PICTURE TUBE HANDLING CAUTION

Due to high vacuum and large surface area of picture tube, great

care must be exercised when handling picture tube. Always lift

picture tube by grasping it firmly around faceplate.

NEVER LIFT TUBE BY ITS NECK! The picture tube must not be

scratched or subjected to excessive pressure as fracture of

glass may result in an implosion of considerable violence which

can cause personal injury or property damage.

- 9 -

1. Safety Precautions

1. It is safe to adjust after using insulating transformer between

the power supply line and chassis input to prevent the risk of

electric shock and protect the instrument.

2. Never disconnect leads while the TV receiver is on.

3. Don't short any portion of circuits while power is on.

4. The adjustment must be done by the correct appliances.

5. Unless otherwise noted, set the line voltage to 230Vac!10%,

50Hz.

6. The adjustment of TVshould be performed after warming up

for 15 minutes.

2. Test Equipment required

1. RF signal generator (with pattern generator)

2. DC Power Supply

3. Multimeter (volt meter)

4. Oscilloscope

5. Color analyzer

DVCO

Adjustment

1) This is for adjustment of VCT38XX,crystal oscillator

frequency after receiving a company Digital

pattern.(PAL:EU05CH,NTSC:13CH)

2) When entering adjustment mode by pressing IN-START

button,DVCO adjustment is operating automatically.

(T/X doesn’t operating occassionally during DVCO

adjustment.)

4. Focus Adjustment

4-1. Preparation for Adjustment

Tune the TV set to receive a digital pattern.

4-2. Adjustment Method

1) Single Focus CPT

Adjust the upper Focus volume of FBT for the best focus of

horizontal line A,vertical line B.

2) Double Focus CPT

1) Adjust the lower Focus volume of FBT for the best focus of

vertical line B.

2) Adjust the upper Focus volume of FBT for the best focus of

area A.

3) Repeat above step 1) and 2) for the best overall focus.

Screen Voltage & White Balance Adjustment

5-1. Adjustment of screen manually

(Using ADJ.Remote Control)

1) Receive the PAL or SECAM(NTSC) signal into RF mode

regardless of channel.

2) If you press the “ADJ”button in LINE SVC mode(IN-START

button),the LINE SVC mode changes to screen adjustment

mode.

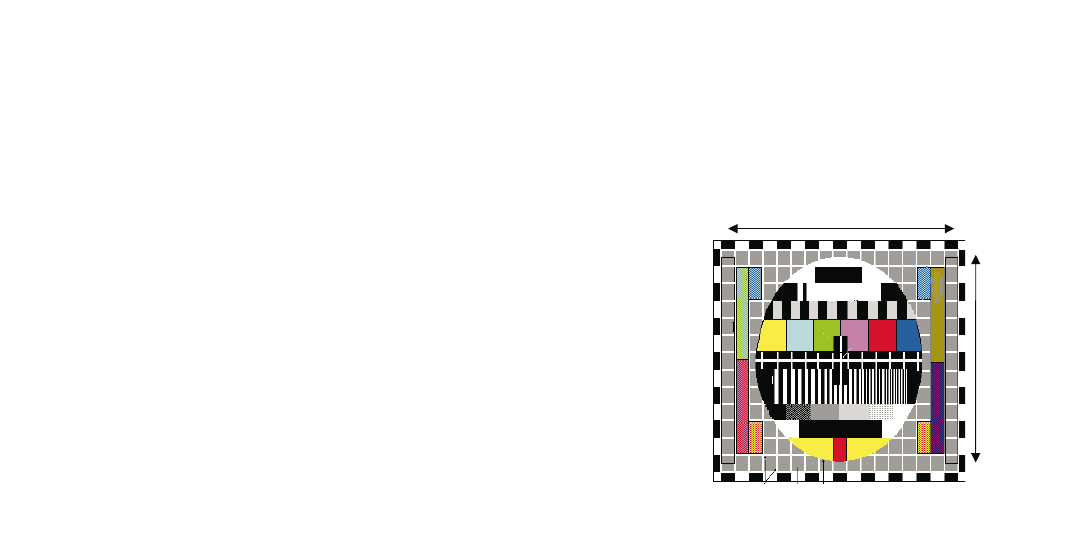

3) Turn the Sreen Volume of FBT to change luminance of

White signal center as shown below.(Deviation ! 1FL)

4) Press the EXIT button (Like TV/AV) to exit SVC mode.

5-2.

Adjustment of white balance manually(LIne-SVC 1)

1) Tune the TV set to receive an 100% white pattern.

2) Adjust LOW LIght status of CUT R,CUT B at CUT G:50.

3) Adjust HIGH LIght status of WDR R,WDR B at WDR G:380.

4) Repeat above step 2) and 3) for the best condition each

status of High Light and Low Light.

NOTE : When adjusting white balance automatically,connect the

adjustment JIG in SVC mode.(When pressing IN-

START,MUTE button on remote control for adjustment

orderly,it changes to SVC mode and screen displays

SVC.)

Luminance(Manual)

1FL

CPT & INCH

29” FLAT

25” FLAT

29” NORMAL

25” NORMAL

28” NORMAL

Note

Single Focus

ADJUSTMENT INSTRUCTIONS

Fig. 1

Color Temperature

288

295

9000

268

273

13000

EU N-EU

CUR R

CUR G

CUR B

WDR R

WDR G

WDR B

0 ~ 511

380

Range DATA

White Balance Color analyzer

White Balance Initial Data

- 10 -

6. Deflection Data Adjustment (Line SVC-2)

NOTE : How to enter into the Line Service Mode with a remocon.

1.Power off.

2.Press the Red button.

3.Press the Green button.

4.Press the Yellow button.

5.Press the Cyan button.

6.Press the OK button.

7.Power On.

6-1. Preparation for Deflection Adjustment

1) At adjustment mode(IN-START button on remote control of

adjustment),changed to LINE SVC 2 mode to adjust the

deflection.

2) Press Channel UP/DOWN button for desirous function

Adjustment.

3) Press Volume UP/DOWN button to adjust the data.

4) Tune the TV set to receive a Digital pattern.(PAL:05CH)

NOTE : If production line doesn’t the production line of LG

TV,receive available deflection adjustment pattern.

6-2. Adjustment Method

NOTE : First,adjust deflection at N50Hz,W50Hz,Z50Hz of PAL

signal.Then adjust deflection at N60Hz,W60Hz,Z60Hz of

NTSC signal.

In case of NTSC only model,adjust deflection of

N60Hz,W60Hz,Z60Hz of NTSC signal.

Store the deflection adjustment data in EEPROM by

using ENTER button before adjusting PIP position.

1) When adjusting a deflection,adjust N50Hz of PAL signal first and

adjust a deflection at W50Hz,Z50Hz,N60Hz,W60Hz,Z60Hz of PAL

signal.

2) Adjust a deflection as shown below

PAL 4:3=> PAL 16:9=>PAL ZOOM=>NTSC 4:3=>NTSC

16:9=>NTSC ZOOM.

3) After finishing deflection adjustment,press the ENTER button

to enter or exit in SVC mode.

VL (Vertical Linearity)

Adjust so that the boundary line between upper and lower half is in

accord with geometric horizontal center of the CPT.

VA (Vertical Amplitude)

Adjust so that the circle of a digital circle pattern may be

located within the effective screen of the CPT.

SC (Vertical “S” Correction)

Adjust so that all distance between each horizontal lines are to

be the same.

VS (Vertical Shift)

Adjust so that the horizontal center line of a digital circle pattern

is in accord with geometric horizontal center of the CPT.

HS (Horizontal Shift)

Adjust so that the vertical center line of a digital circle pattern is in

accord with geometric vertical center of the CPT.

EW (Horizontal Width)

Adjust to that a digital circle pattern looks like exact circle.

EP (East-west Parabolar)

Adjust so that middle portion of the outermost left and right vertical

line looks like parallel with vertical lines of the CPT.

EC (East-west Coner)

Adjust so that the vertical line at every 4 corners of the screen

looks like parallel with the vertical lines of the CPT.

ET (East-west Trapezium)

Adjust to make the length of top horizontal line same with it of

the bottom horizontal line.

PIP (PIP Position)

Adjust until the distance between PIP and main picture

becomes about 1~2mm.

Fig. 2

- 11 -

ITEM RANGE Z60Hz

W60Hz

N60HzZ50Hz

W50Hz

25” 29” 25” 29” 29” 29” 29” 29”

25” 25” 25” 25”

N50Hz

PIP P

008A

00F8

00E1

0733

001C

0C59

07F3

07BF

085F

073E

0009

-22

-16

-5

-6

-2

-5

-6

-2

-22

-5

-6

-22

-5

-6

-5

-16

-5

-16

0092

00FF

00E1

07FF

0016

0C36

07FC

07B3

0864

083F

0009

0050~00CF

0025~00BF

0000~009F

0600~0900

0000~003F

0400~0EFF

0700~08FF

06E0~0840

06A0~0AFF

0790~08E0

25/29” FST CPT

ITEM RANGE Z50Hz

N50Hz W50Hz

PIP P

-14

-22

00A3

00F5

00D0

0744

0016

0E40

07E9

07B4

0840

0000B

0050~00CF

0025~00BF

0000~009F

0600~0900

0000~003F

0400~0EFF

0700~08FF

06E0~0840

06A0~0AFF

0790~08E0

ITEM RANGE Z50Hz

N50Hz W50Hz

PIP P

-14

009A

00F3

00D0

0774

0019

0B96

07DE

07BF

085C

082B

0007

0050~00CF

0025~00BF

0000~009F

0600~0900

0000~003F

0400~0EFF

0700~08FF

06E0~0840

06A0~0AFF

0790~08E0

25/29” LG FLAT CPT(CT-25Q20RB) 29” S/S SEB FLAT CPT

ITEM RANGE 50Hz 50Hz 50Hz 50Hz60Hz 60Hz 60Hz60Hz

16: 9 14: 9 ZOOM STANDARD

0083

00FA

00F0

0753

0014

0A62

07FD

07B6

0083

00FD

00F0

0729

0016

0A6E

07FF

07B7

008F

00FD

00F0

0732

0016

0A6E

07FF

07A9

00A7

00FD

00F0

073B

0016

0A6E

07FF

078E

0083

00FD

00F0

0741

0016

0A6E

07FD

07B3

0084

00F9

00F0

0753

0014

0A68

07EA

07B6

00A7

00F8

00F0

075D

0014

0A68

07EA

078B

008E

00A

00F0

0756

0014

0A68

07E8

07AB

0050~00CF

0025~00BF

0000~009F

0600~0900

0000~003F

0400~0EFF

0700~08FF

06E0~0840

28” LGPD FLAT CPT

- 12 -

SVC Data & PSM,SSM Data.

PICTURE SETTING DATA (LINE SVC-3)

DVCO(Digital VCO)

IBRM(BLACK CURRENT)

WDRM(WHITE CURRENT)

BCLT(BCL THERSHOLD

BCLTM(BCL TIME)

BCLGA(BCL GAIN)

SVGA(SVM GAIN)

SVDEL(SVM DELAY)

SVD1(SVM DELAY1)

LDLY(L DELAY)

DSCC(Discharge Sample)

DSCV(Vertical Discharge)

0~1FFH

0~3FFH

0~7FFH

0~1FFH

0~01FF

00C8

0190

0055

0007

000D

0007

0003

FFFC

000D

FB80

00C8

0190

0055

0007

000D

0007

0003

FFFE

000D

FB80

00C8

0190

0050

0007

000D

0007

0003

FFFE

0009

FDC0

00C8

0190

0050

0007

000D

0007

0003

FFFE

00C8

0190

0050

0007

000D

0007

0003

FFFE

0007

FD80

00C8

0190

0050

0007

000D

0007

0003

0008

FB80

Range 25/29” LG Flat 29” S/S-Flat 25” FST 28” FST 29” FST 28” FLAT

OPTION Adjustment (OPTION-1,2, 3,Teletext)

8-1. Preparation for Adjustment

1) This decides funtion in accordance with model.

Press the SVC TX adjustment button(IN-START button) at SVC mode,then adjust the option at OPTION 1,2,3,4 mode.

2) Mark the option adjustment data like [111,11,111,11] in BOM.

8-2. Adjustment Method

1) Input data directly by the buttons corresponded with OPTION1 ??(0~255), OPTION2 ??(0~255), OPTION3 ???(0~127),OPTION 4

???(0 ~255).

2) Select each OPTION function by the CH Up/Down button and then set up each OPTION by the VOL Up/Down button.

[113,63,112,128]

OPTION 1

OPTION 2

OPTION 3

OPTION 4

D D D D

OMark of BOM

LEVEL PART NO. SPECIFICATION DESCRIPTION JOB EXP.

1. 3141VMN382A MAIN[MC-022A] CHASSIS ASSY OP[113,63,112,128]

The OPTION 1 data is 113,OPTION 2 data is 63,the oOPTION 3 data is 112,the OPTION 4 data is 128 in this model.

ITEM RANGE 50Hz 50Hz 50Hz 50Hz60Hz 60Hz 60Hz60Hz

16: 9 14: 9 ZOOM STANDARD

0083

00FA

0083

00FD

008F

00FD

00A7

00FD

0083

00FD

0084

00F9

00A7

00F8

008E

00A

0050~00CF

0025~00BF

- 13 -

8-3. OPTION 1 Function

8-4. OPTION 2 Function

Only Austrailia

EYE

DEG

TILT

KEY

CH+AU

ACMS

TOP

WIDE

Option Code

Function Remark

4:3 NORMAL MODEL

WIDE FLAT MODEL

W/O TOP(FLOP BASIC)

WITH TOP

Without ACMS funtion

With ACMS funtion

ALL NATION

Frequency Table

WITHOUT EYE

WITH EYE

Without DEGAUSSING

With DEGAUSSING

WITHOUT TILT

WITH TILT

6 KEY

4KEY(H80,K90,K30)

MONO MODEL

DEFAULT

EU(CE,CL Model)

NON EU(CT Model)

SCART

V-CUR

DVD

DUAL

A2 ST

HOTEL

M-VOL

With HOTEL mode

C MUTE

TURBO

Option Code

100

Function Remark

Without TURBO search

With TURBO search

Not CARRIER MUTE

CARRIER MUTE

NICAM

NICAM & FM STEREO

NO SAVE DUAL/SOUND Condition

SAVE DUAL SOUND Condition

PHONE JACK

SCART JACK

NORMAL VOLUME CURVE

RUSHED VOLUME CURVE

Without DVD INPUT

With DVD INPUT

Without HOTEL OPTION

With HOTEL OPTION

MAX VOLUME

TXT Model

W/O TXT Model

1 PIP or W/O PIP

2 PIP

CE/RE-MODEL

CL/RL-MODEL

CT/RT-MODEL

1 TUNER Model

2 PIP only

1 TUNER Model

2 PIP only

PAL model ALL

PIP

SYS

TBS

WOOF

AV2

MONO

GAME

Option Code

Function Remark

W/O GAME

GAME PACK GAME(HINDI MICOM)

FORCED MONO NOT SETTING

FORCED MONO SETTING

WITH 1 AV JACK(BACK)

WITH 2 AV JACK(BACK)

BOOSTER CONTROL disable

BOOSTER CONTROL enable

W/O WOOFER

WITH WOOFER

1 TUNER PIP or W/O PIP

2 TUNER PIP

B/G,I,D/K

B/G,I,D/K,L/L’

B/G,I,D/K,M

RESERVED

8-5. OPTION 3 Function

FP(FM PRE-SCALER)

NP(NICAM PRE-SCALER)

SP(SCART PRE-SCALER)

S1 VOL(SCART1 PRE-SCALER)

S2 VOL(SCART2 PRE-SCALER)

AGC-L(AUTO GAIN CONT.LIMIT)

0016

0056

0013

0064

00C5

DATA

8-6. SOUND PRE-SCALER

- 14 -

CODE

FUNTION

English Only(Eng.)

Arab(Eng/Fr/Arab)

Urdu(Eng/Fr/Arab/Urdu)

Asia(Eng/Fr/Indonesia)

English Only(Eng.)

Arab(Eng/Fr/Arab)

Farsi(Eng/Fr/Arab/Farsi)

English Only(Eng.)

Arab(Eng/Fr/Arab)

Urdu(Eng/Fr/Arab/Urdu)

Arab all(Eng/Fr/Arab/Urdu/Farsi)

Farsi ONly(Eng/Farsi)

Asia(Eng/Fr/Indonesia/Malay)

English Only(Eng.)

EU-7(E.Ger/Fr/Ita/Spain/Holand/Port)

EU-NORTH(E-Ger/Fr/Holand/Swe/Nor/Den/Fin)

English Only(Eng.)

Cyrilic(E.Russia)

EU-EAST(E.Ger/Rum/Pin/Hung/Chez)

EU-EAST All(E-Ger/Rum/Pol/Hung/Chez/Russia)

English Only(Eng.)

EU-7(E.Ger/Fr/Ita/Spain/Holand/Port)

EU-NORTH(E-Ger/Fr/Holand/Swe/Nor/Den/Fin)

Cyrilic(E.Russia)

EU-EAST(E.Ger/Rum/Pin/Hung/Chez)

EU-EAST All(E-Ger/Rum/Pol/Hung/Chez/Russia)

English Only(Eng.)

EU-5(E.Ger/Fr/Ita/Spain)

English Only(Eng.)

Vietnam(E.Vietnam)

Hindi(E.Hindi)

China(E.China)

Eng/Spain/Port

Spain/Port/Eng

Port/Spain/Eng

Eng/Fr

KOrean Only

Arab.Asia

3834

Farsi

3834

Arab-Asia

3804

WEST-EU

3834 Only(W/TXT)

EAST-EU

3834 Only(W/TXT)

EU-ALL

3804 Only(W/O TXT)

28” Wide Flat

3834 Only(W/TXT)

Hindi-China-Viet.

3804 Only(W/O TXT)

Korea Version

OPTION

OSD

LANG.

8-7. OPTION 4 Function

- 15 -

CODE

FUNTION

WEST-EU

EAST-EU

Turkey

Cyrillic3

Arab/English

Farsi/English

WEST-EU

EAST-EU

Turkey

Cyrillic3

Arab/English

WEST-EU

EAST-EU

Turkey

Cyrillic3

WEST-EU

EAST-EU

Turkey

Cyrillic3

WEST-EU

EAST-EU

Turkey

Cyrillic3

Arab/English

Farsi/English

Farsi only

3834 only(W/TXT)

Arab-Asia

3834 only(W/TXT)

WEST EU

3834 only(W/TXT)

EAST EU

3834 only(W/TXT)

28” WIDE FLAT

3834 only(W/TXT)

OPTION

TXT-L

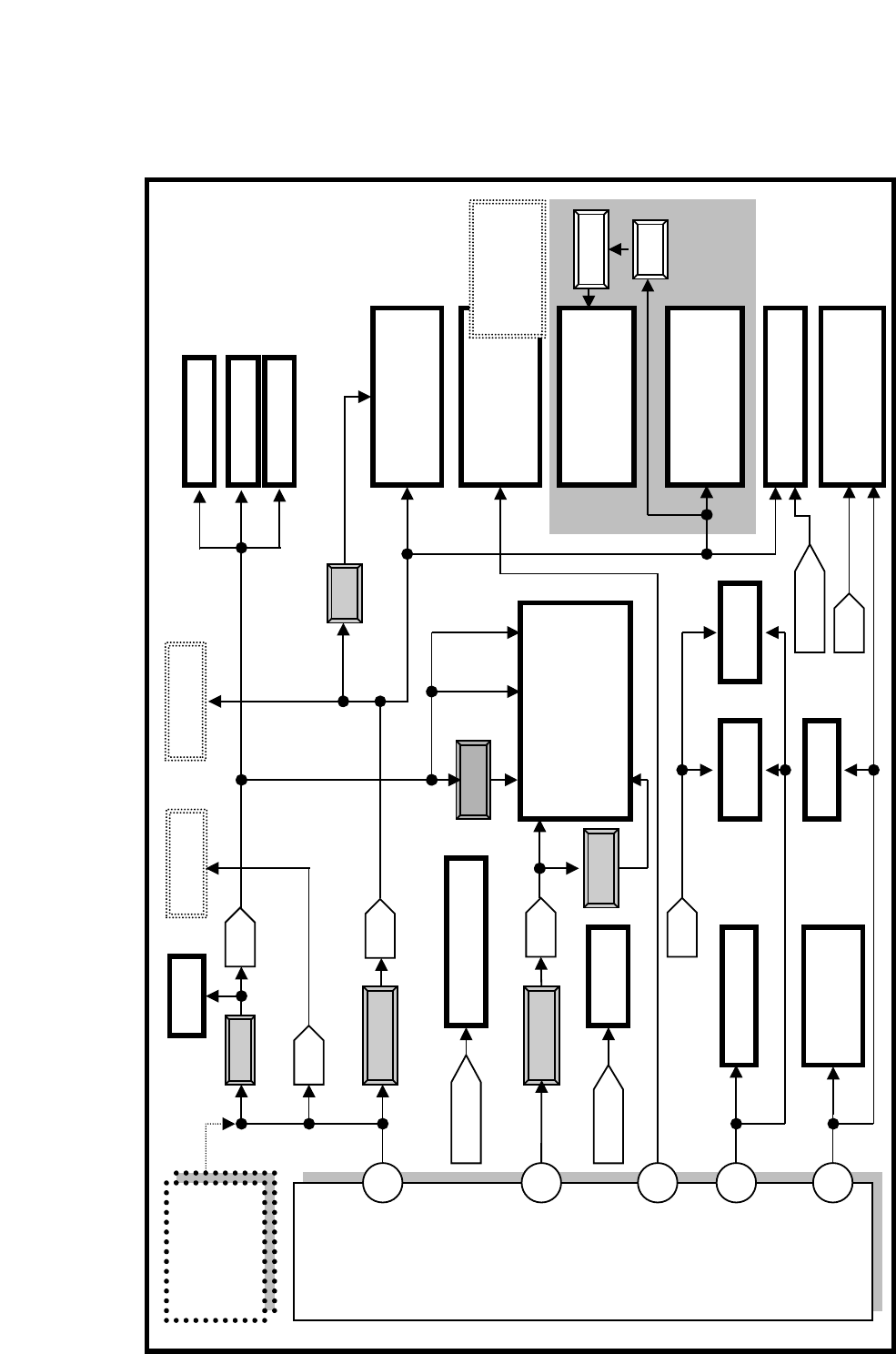

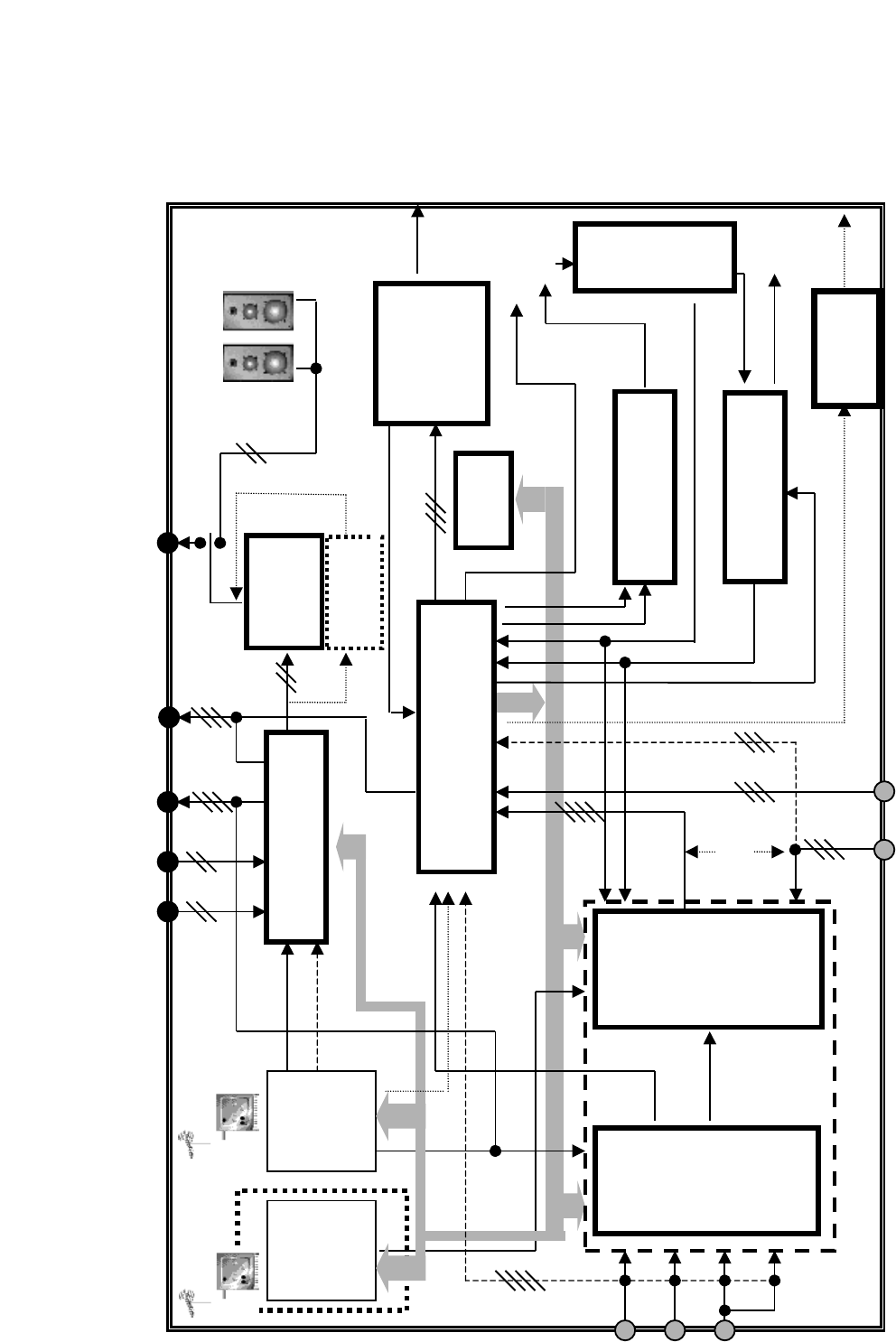

BLOCK DIAGRAM

- 16 -

MAIN SPEAKER

L R

TUNER-1

MAIN

TUNER-2

FOR PIP

(W/O PIP

Option)

AV -1

AV -2

AV -3

Y&C

AV -1 AV-2

SIF

AF(SECAM L)

CXA

CXA-

2040

SWITCH

H/P OUT

SDA

SDA-

9489X

PIP

Processor

PIP-CVBS

SCART-1

RGB & FB

SELECTED

CVBS

FOR PIP

Y, Pb,Pr

SELECTED

CVBS

FOR MAIN

H- SYNC

RGB

& FB

LA-7845

Vetical Deflection

ST-2310

Horizontal Deflection

Cathode

CPT

AT24C16

EEPROM

2C Bus

C Bus

Tilt Control

Tilt

Controller

TILT

COIL

VCT 3801/3804/3834Main

Control Processor

MSP-34xxG

Sound Processor

TDA 6109

(6107)JF

R G B AMP

R/G/B

W/O PIP CVBS

H-Out

V-Sinc

(Protect)

H-

-DY

FBT

H-Sinc

V-

-DY

H-Out

V-Out

TDA 7297

(7266)

Sound Amp.

TDA-2066

(Mono Opt.)

W/O PIP AV1,2,3, Y,C

V- SYNC

DVD

PIP &A/V SW

VM-

-COIL

COIL

L/R L/R

RF OUT MONITOR OUT

TV-CVBS

IC01

IC661 IC602

IC03

IC901

IC401

T402

IC301

ICP01

ICP101

TU101

TU102

- 17 -

110V(Flat)

120V

(Normal)

12V

33V

17V

Sound Vcc

(35V OPT.)

8V 278R05

LD3.3V

KA78A09

78L05

TDA-7297

Sound AMP

H-DRIVE

FBT

PRE-AMP

EEPROM

LED

TDA6109

MSP-34XX

(Sound Processor)

7805

Tuner

(Main)

VCT3834

LD3.3V TDA- 2006

(Mono Opt.)

SDA-9489X

(PIP Processor)

CXA-2040AQ

(Video Switch)

EYE(Opt.)

Tilt(Opt.)

STK396-110

(VM IC)

12V

SMPS

TRANS

ST-BY

TRANS

ST 5V

12V

PIP &

AV SW

(OPT.)

7805

LD3.3V

Tuner

(Sub)

Relay

VM 200V(FBT)

LA 7845(V-AMP)

¡ 14V(FBT)

EW AMP

28V(FBT)

T803

T802

IC01

IC661

IC602

ICP01

ICP101

IC901

HIC920

TROUBLE SHOOTING

- 18 -

RF- STEREO

Selected correct system

In menu

Check the waveform

At pin 17 of TU101

Check the waveform

At pin 24,25 of IC661

Check the waveform

At pin 4,12 of IC602

Check the Voltage

At pin 6, 7 of IC602

Check the waveform

At pin 1, 2, 14, 15 of IC602

Check the Voltage

At pin 3,13 of IC602

NO Check / Replace

TU 101

Check The Voltage

At pin 16,33,46, of IC661

Check / Replace

Q671, 672

Check / Replace

Q621, IC603

Check / Replace

F851, D862

Check / Replace

IC610, IC853

Check The voltage

At pin of IC610, IC853

No Raster / Sound OK

Check the

Heater voltage of CPT

(6 ~ 6.5Vrms)

Check

HV, Screen Voltage of

CPT

Check

IK Current of

IC01, pin37,39,40

Check the

Heater pulse of FBT

T402

Check / Replace

CPT Board

Components

Check

FR901, P402A

P402B, P302

Check

FBT T402

Check

FBT T402

Check

IC01, Q901, IC901

P03A, P03B, P541

OK OK NO

NONO

- 19 -

NO RASTER

CHECK B+

At D807 cathode

Is the voltage at

Pin 25, 54 of IC01 3.3V? Check

Fuse of AC line

Check / Replace

Fuse , DB801

Check the Voltage

Of C804

Check the Voltage

Pin 3 of IC801

Check / Replace

IC801, IC803, IC802

Check / Replace

Fuse DB801

Check pin 24

Of IC01(H - Out)

Check Q402

Collector waveform

Check T401

& each pin voltage

Check & Replace

T402

Is the voltage at pin3,15,45

IC02 5V?

Check the

In/out of

IC855,IC851

Check the

In/out of

IC06, IC07

Check IC01

Pin1 high?

Check / Replace

IC01

Check &

Replace

IC01

Check &

Replace

Q402

Check &

Replace

T401

Check &

Replace

IC01, IC03

Check the

Voltage at

D860 or D858

cathode

Check &

Replace

F853 ,F855

Normal Abnormal

254~380 V

Open

Yes

No Yes

Yes

No No

Yes

- 20 -

No Picture / No Sound

Is any OSD displayed?

Check receiving system in MENU

& execute Auto - Program.

Does the auto - Program

Operate properly.

Store on manual - program MENU

Check 5V, 33V & IIC Bus Line

Of Tuner.

Is the CVBS signal OK.

(IC01 pin10 or 22)

Check R,G,B signal

At IC01, pin42,43,44

Check / Replace

CPT Board component

Go to

No Sound /

Picture OK

Check IC01 pin37,42,43,44

(IK, R,G,B)

Check / Replace

IC01

Check

5V, 33V &

IIC Bus Line

Check / Replace

IC01, Tuner

Check

CVBS signal Line

& IC01

Check IK

Signal at

IC01 pin37

(similar to CBVS)

- 21 -

AV Stereo

Select correct system

In menu

Check the connection

Of AV equipment

Check the the waveform

At pin47 of IC661 Check TU101 Tuner

Check the waveform

At pin 24, 25, of IC661

Check waveform

At pin 4, 12 of IC602

Check the voltage

At pin6,7 of IC602

Check the waveform

At pin 1,2,14,15 of IC602

Check the voltage

Of pin16,20

Check / Replace

IC602

Check / Replace

Q621, IC603

Check the vpltage

At pin3, 13 of IC602

Replace IC 602

Check /Replace

F851, D862

OK OK

NONO

- 22 -

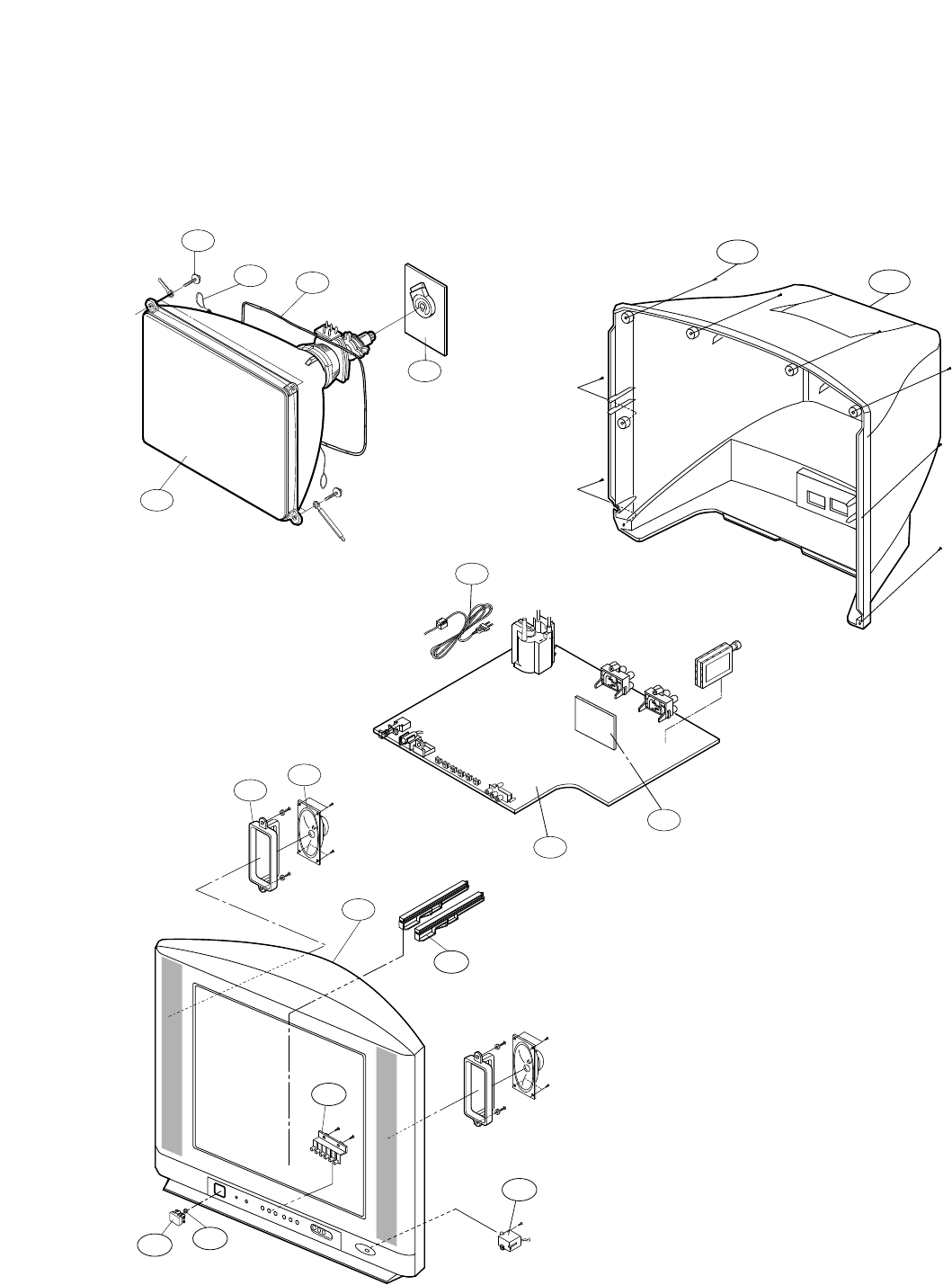

EXPLODED VIEW

913

170 150

112

510

943

400

174

520

330 320

120

300

121

310

104

530

700

- 23 -

EXPLODED VIEW PARTS LIST

LOCA. NO PART NO DESCRIPTIONS

104 343-B52A SUPPORTER,PCB

112 6341V29009A CPT ASSEMBLY,A68QCU759X ,5006C DY S-FOCUS

6334V29003A CPT

6334V29003B CPT

120 120-C77G SPEAKER,FULLRANGE C122P02K1459 MOTOR JOY 8 OHM 10/15W

121 4810V00088A BRACKET,SPEAKER

150 6140VC2005F COIL,DEGAUSSING 29 FLAT ASSY (W) SELLA TECH 2001R+D07L

153 6150V-5006C DY,DC29SFALJ

6150V-5006D DY,DC29SPFL3

170 170-844K CPT EARTH 29 98T 4LUG LEAD SET SPRING(50MM)

300 3091V00445B CABINET ASSEMBLY,RT-29FB50RB STEREO MC022A .

3091V00472B CABINET ASSEMBLY,RT-29FB50RE

3091V00445C CABINET ASSEMBLY,RT-29FB50RX

310 5020V00676A BUTTON,CONTROL

5020V00715A BUTTON,CONTROL ABS

320 320-075B SPRING,COIL NON DIA:7.5MM, H:15.5MM

320-062E SPRING,KNOB

330 5020V00677A BUTTON,POWER

5020V00716A BUTTON,POWER ABS

400 3809V00A55B BACK COVER ASSEMBLY 1SCART 1PHONE .

3809V00A55C BACK COVER ASSEMBLY 2PHONE C/SKD

3809V00321A BACK COVER ASSEMBLY 2PHONE

3809V00321B BACK COVER ASSEMBLY(40AF) 1SCART 1PHONE

3809V00321C BACK COVER ASSEMBLY

510 6871VSMB26C PWB ASSEMBLY,CPT 022A (CPT/VM) 29 LG

6871VSMD76B PWB ASSEMBLY,CPT(SY-CKD) 022A

6871VSMN22B PWB ASSEMBLY,CPT 022A 29” LG FLAT

520 6871VMMD20A PWB ASSEMBLY,MAIN MC022A RT-29FB50RB

6871VMMD20B PWB ASSEMBLY,MAIN MC022A RT-29FB50RP

6871VMMD19X PWB ASSEMBLY,MAIN MC022A RT-29FB50RE

6871VMMD19W PWB ASSEMBLY,MAIN MC022A RT-29FB50VE

6871VMMD40A PWB ASSEMBLY,MAIN MC022A RT-29FB50VB

6871VMMD40B PWB ASSEMBLY,MAIN MC022A RT-29FB50VE

6871VMMD40C PWB ASSEMBLY,MAIN MC022A RT-29FB50VE

6871VMMN10F PWB ASSEMBLY,MAIN MC022A RT-29FB50RX

530 6871VSMB25B PWB ASSEMBLY,PIP 022A W/ F-AV,W/O S-JACK

6871VSMN37A PWB ASSEMBLY,PIP(SY-CKD)

700 0IGL120104C IC,LG SEMICONDUCTOR CDS SENSOR MODULE(P1201-04C)

913 332-229H SCREW,DRAWING HEXAGON HEAD

943 1PTF0403116 SCREW,TAP TITE(P)[TRUSS HEAD]

P801 174-009V POWER CORD(W/HOLD,HOUSING)L=400,4.0

6410VEH001E POWER CORD

The components identified by mark is

critical for safety.

Replace only with part number specified.

- 24 -

REPLACEMENT PARTS LIST

LOCA. NO PART NO DESCRIPTION

“

D803

“

D804

“

D815

“

D857

“

D858

“

D860

D861

“

D862

D863

“

D864

“

D865

D866

“

D867

“

D901

D902

D903

D904

D920

“

DB801

LD01

ZD101

ZD102

ZD121

ZD302

ZD303

ZD401

ZD402

“

ZD501

ZD601

ZD610

ZD910

ZD911

ZD912

Q06

Q103

Q108

Q110

Q111

Q112

Q180

Q181

Q182

0DR100009FA

0DD100009AM

0DR100009FA

0DD414809ED

0DS141489AB

0DD060009AC

0DR060009AA

0DD414809ED

0DS141489AB

0DD420000BB

0DR200009DA

0DD420000BB

0DD060009AC

0DR060009AA

0DD420000BB

0DD414809ED

0DS141489AB

0DD414809ED

0DS141489AB

0DS113379BA

0DD410000AD

0DR400009AB

0DD414809ED

0DS141489AB

0DR210009AC

0DR140049AC

0DD060009AC

0DR060009AA

0DD560000AA

4930V00048A

0DZ330009DG

0DZ620009AK

0DZ330009DG

0DZ510009BF

0DZ180009BE

0DZ510009BF

0DZ110009AD

0DZ110009CF

0DZ510009BF

0DZ910009BD

0DZ470009EF

0TR198009BA

0TR534309AA

0TR127009AA

0TR534309AA

0TR198009BA

DIODE,RECTIFIERS EU1DGR TP

DIODE,RECTIFIERS EU1ZV(1) TP SANKEN

DIODE,RECTIFIERS EU1DGR TP

DIODE,1N4148 TA

DIODE,1N4148 TP GRADE 20V

DIODE,RECTIFIERS TVR06J TP 600V 250NSEC

DIODE,RECTIFIERS TVR06J TP

DIODE,1N4148 TA

DIODE,1N4148 TP GRADE 20V

DIODE,D4L20U SHINDENGEN

DIODE,RU2JGF

DIODE,D4L20U SHINDENGEN

DIODE,RECTIFIERS TVR06J TP 600V 250NSEC

DIODE,RECTIFIERS TVR06J TP

DIODE,D4L20U SHINDENGEN

DIODE,1N4148 TA

DIODE,1N4148 TP GRADE 20V

DIODE,1N4148 TA

DIODE,1N4148 TP GRADE 20V

DIODE,SWITCHING 1SS133 T-72 TP DO34 90V

DIODE,RECTIFIERS RU4AM,LF-L1

DIODE,RECTIFIERS RU4JGF

DIODE,1N4148 TA

DIODE,1N4148 TP GRADE 20V

DIODE,RECTIFIERS BAV21 200V 0.2A 1A 50SEC 100A

DIODE,RECTIFIERS 1N4004A T-81 TP ROHM-KOREA

DIODE,RECTIFIERS TVR06J TP 600V 250NSEC

DIODE,RECTIFIERS TVR06J TP

DIODE,RECTIFIER D5SB60 BRIDGE (5A/600V)

HOLDER DIODE,LED ASSY

DIODE,ZENERS GDZJ33B TP GRANDE DO34 0.5W 33.0V

DIODE,ZENERS GDZJ6.2B TP GRAND

DIODE,ZENERS GDZJ33B TP GRANDE DO34 0.5W 33.0V

DIODE,ZENERS GDZ5.1B TP GRANDE DO34 0.5W 5.1V 0.02A

DIODE,ZENERS GDZJ18B TP GRANDE DO34 0.5W 18.0V

DIODE,ZENERS GDZ5.1B TP GRANDE DO34 0.5W 5.1V 0.02A

DIODE,ZENERS MTZJ11B TP ROHM-K DO34 - 11V 5UA

DIODE,ZENERS GDZJ11B TP GRADE

DIODE,ZENERS GDZ5.1B TP GRANDE DO34 0.5W 5.1V 0.02A

DIODE,ZENERS GDZJ9.1B TP GRANDE DO34 0.5W 9.1V

DIODE,ZENERS GDZJ4.7B GRANDE TP DO34 0.5W 4.7V 5MA

TR,2SA1980Y TP AUK - -

TR,2SC5343Y TP AUK - -

TR,KTA1270-Y KEC TP TO92 50V 100MA

TR,2SC5343Y TP AUK - -

TR,2SA1980Y TP AUK - -

LOCA. NO PART NO DESCRIPTION

HIC920

IC01

IC03

IC06

IC07

IC09

IC301

IC302

IC602

IC603

IC610

IC661

“

IC662

IC801

IC802

IC803

IC851

IC853

IC855

IC856

IC901

ICP01

ICP02

ICP03

ICP101

D110

“

D180

“

D181

“

D301

“

D302

D401

D402

“

D403

“

D404

“

D405

D406

D408

“

D505

“

D506

“

D802

0IZZVF0018A

0ICTMMN006B

0ICTMMN015A

0ICTMMN011A

0IAL241610B

0ISG111733B

0IFA752700A

0ISA784500A

0IKE455800E

0ISG729700A

0IFA754207A

0IKE780500Q

0IMCRMN011C

0IIT346000B

0IFA753307A

0IMCRSK001A

0ILI817000G

0IKE780500P

0IMCRKE002A

0IMCRKE006A

0ISK110000A

0IMCRPH009A

0ISM948900A

0ISG111733B

0IKE780500Q

0ISO204000A

0DD414809ED

0DS141489AB

0DD414809ED

0DS141489AB

0DD414809ED

0DS141489AB

0DD150009CA

0DR150009EA

0DS113379BA

0DD410000AG

0DD410000AD

0DR400009AB

0DD150009CA

0DR150009EA

0DD150009CA

0DR150009EA

0DR150009AB

0DD060009AC

0DR060009AA

0DD414809ED

0DS141489AB

0DD414809ED

0DS141489AB

0DD100009AM

STK396-110 11P ST SCAN VELOCITY MODU. SINGLE SCAN (BW 6M)

VCT3834B LG28 MIDDLE ASIA MICRONAS 64P ST TXT MICOM

VCT3804B LG15 MICRONAS

VCT3804B LG31

AT24C16A-10PI-2.7 8PIN DIP

LD1117V33C 3SIP ST REGULATOR

KA75270Z 3 TP RE-SET IC MC-007

LA7845 7SIP V/OUT(1.5A)

KIA4558 8DIP DUAL OP AMP

TDA7297 15P,SIP BK 2CH 15W DUAL AMP

KA75420ZTA 3P,TO-92 TP 4.2V RESET IC

KIA7805API 3P TO-220 ST REGULATOR 5V

MSP3410G PO B8 V3 MICRONAS 52P DIP ST SOUND

MSP3460G PO B8 V3 52P DIP

KA75330ZTA 3P,TO-92 TP 3.3V RESET IC

STR-F6456R SANKEN 5PIN(LF1352) BK STR

LTV817M-VB 4P,DIP BK PHOTO COU

KIA78L05BP(AT) 3P 5V,150MA - - - -

KIA78R09PI KEC 4PIN,TO220IS-4 ST 1A LOW

KIA278R05PI KEC TO220IS,4P ST 2A LOW

SE110N(LF12) 3P 110V ERROR AMP

TDA6109JF PHILIPS 9SIP ST RGB

SDA9489 28PIN SOP TP PIP

LD1117V33C 3SIP ST REGULATOR

KIA7805API 3P TO-220 ST REGULATOR 5V

CXA2040AQ 32P,QFP BK IIC BUS VIDEO S/W

DIODE,1N4148 TA

DIODE,1N4148 TP GRADE 20V

DIODE,1N4148 TA

DIODE,1N4148 TP GRADE 20V

DIODE,1N4148 TA

DIODE,1N4148 TP GRADE 20V

DIODE,RECTIFIERS RGP15J TP

DIODE,SWITCHING 1SS133 T-72 TP ROHM

DIODE,RECTIFIERS RS4FS R4 1500V 2.5A 50A 1.0USEC 50UA

DIODE,RECTIFIERS RU4AM,LF-L1

DIODE,RECTIFIERS RU4JGF TP

DIODE,RECTIFIERS RGP15J TP

DIODE,RECTIFIERS RGP15G TP DO15 400V 1.5A

DIODE,RECTIFIERS TVR06J TP 600V 250NSEC

DIODE,RECTIFIERS TVR06J TP

DIODE,1N4148 TA

DIODE,1N4148 TP GRADE 20V

DIODE,1N4148 TA

DIODE,1N4148 TP GRADE 20V

DIODE,RECTIFIERS EU1ZV(1) TP SANKEN

DIODE

TRANSISTOR

- 25 -

LOCA. NO PART NO DESCRIPTION

Q183

Q184

Q185

Q186

Q187

Q201

Q202

Q301

Q302

Q303

Q401

Q402

Q505

Q506

Q507

Q508

Q509

Q621

Q671

Q672

Q806

Q807

Q853

Q855

Q856

Q901

QP01

QP02

QP03

QP04

QP05

C01

C02

C03

C04

C06

C07

C08

C10

“

C102

C103

C104

C105

C106

C107

C108

C109

C11

C110

“

C111

C114

0TR534309AA

0TR198009BA

0TR534309AA

0TR198009BA

0TR534309AA

0TR205900AB

0TR127409AB

0TRSG10001A

0TR223800AA

0TR534309AA

0TR198009BA

0TR534309AA

0TR198009BA

0TR102009AB

0TR127009AA

0TR421009CB

0TR102009AB

0TR198009BA

0TR387500AA

0CC0500K115

0CE335DK618

0CN1020K519

0CE107DF618

0CN1030F679

0CX4700K409

0CN8200K519

0CX4700K409

0CN1030F679

0CE476DD618

0CE475DK618

0CE107DD618

0CE476DK618

0CE475DK618

0CN1030F679

0CE476DD618

TR,2SC5343Y TP AUK - -

TR,2SA1980Y TP AUK - -

TR,2SC5343Y TP AUK - -

TR,2SA1980Y TP AUK - -

TR,2SC5343Y TP AUK - -

TR,KTD2059-Y TO-220IS KEC

TR,KTA1274-Y TO-92L TP KEC

TR,SGS-T ST2310HI ST TO220 1500V 1MA

TR,KTC2238A-Y BK KEC - -

TR,2SC5343Y TP AUK - -

TR,2SA1980Y TP AUK - -

TR,2SC5343Y TP AUK - -

TR,2SA1980Y TP AUK - -

TR,KRC102M(KRC1202) KEC TP NA NA NA

TR,KTA1270-Y KEC TP TO92 50V 100MA

TR,BF421L(AMMO)TO-92 TP PHILIPS

TR,KRC102M(KRC1202) KEC TP NA NA NA

TR,2SA1980Y TP AUK - -

TR,CHIP 2SC3875S(ALY) KEC

5P 50V D NP0 TS

3.3UF STD 50V 20% FL TP 5

1000P 50V K B TA52

100UF STD 16V M FL TP5

10000P 16V M Y TA52

47P 50V J SL TA52

82P 50V K B

47P 50V J SL TA52

10000P 16V M Y TA52

47UF STD 10V 20% FL TP 5

4.7UF STD 50V 20% FL TP 5

100UF STD 10V M FL TP5

47UF STD 50V M FL TP5

4.7UF STD 50V 20% FL TP5

10000P 16V M Y TA52

47UF STD 10V 20% FL TP 5

LOCA. NO PART NO DESCRIPTION

C120

C121

C125

C127

C130

C14

C16

C17

C180

C181

C183

C184

C200

C201

C202

C205

C206

C207

C209

C210

C211

C213

C215

C216

C22

C227

C228

C229

C23

C230

C232

C24

C240

C241

C242

C244

C245

C246

C248

C249

C25

C27

C28

C29

C30

C301

C302

C303

C304

C305

C306

C308

C309

C310

0CN1030F679

0CE474DK618

0CN1040K949

0CN1030F679

0CE476DF618

0CN4720F569

0CE106DK618

0CN1020K519

0CN2210K519

0CN1040K949

0CE105DK618

0CN1010K519

0CE227DF618

0CN1010K519

0CN2210K519

0CN1050K949

0CE227DF618

0CN4710K519

0CE476DF618

0CE107DD618

0CE226DF618

0CE107DD618

0CE226DF618

0CN2210K519

0CE475DK618

0CN2210K519

0CE106DF618

0CN2210K519

0CN4710K519

0CN1040K949

0CE476DF618

0CN1030F679

0CE107DD618

0CE226DF618

0CE476DD618

0CQ1031N509

0CQ3341N401

0CE107BK618

0CQ6821N509

0CQ1021N509

0CQ3331N509

0CE476DK618

0CN4710K519

0CQ1031N509

10000P 16V M Y TA52

0.4700UF STD 50V M FL TP5

0.1M 50V Z F TA52

10000P 16V M Y TA52

47UF STD 16V M FL TP5

4700P 16V K X TA52

10UF STD 50V M FL TP5

1000P 50V K B TA52

220P 50V K B TA52

0.1M 50V Z F TA52

1UF STD 50V M FL TP5

100P 50V K B TA52

220UF STD 16V M FL TP5

100P 50V K B TA52

220P 50V K B TA52

1UF D 50V 80%,-20% F(Y5V) TA52

220UF STD 16V M FL TP5

470P 50V K B TA52

47UF STD 16V M FL TP5

100UF STD 10V M FL TP5

22UF STD 16V M FL TP5

100UF STD 10V M FL TP5

22UF STD 16V M FL TP5

220P 50V K B TA52

4.7UF STD 50V 20% FL TP 5

220P 50V K B TA52

10UF STD 16V M FL TP5

220P 50V K B TA52

470P 50V K B TA52

0.1M 50V Z F TA52

47UF STD 16V M FL TP5

10000P 16V M Y TA52

100UF STD 10V M FL TP5

22UF STD 16V M FL TP5

47UF STD 10V 20% FL TP 5

0.01U 100V K POLY TP

0.33U 100V J POLY F5

100UF KME 50V M FL TP5

0.0068U 100V K POLY TP

0.001U 100V K POLY TP

0.033U 100V K POLY TP

47UF STD 50V M FL TP5

470P 50V K B TA52

0.01U 100V K POLY TP

For Capacitor & Resistors,

the charactors at 2nd and 3rd

digit in the P/No. means as

follows;

CC, CX, CK, CN : Ceramic

CQ : Polyestor

CE : Electrolytic

RD : Carbon Film

RS : Metal Oxide Film

RN : Metal Film

RF : Fusible

CAPACITOR

- 26 -

LOCA. NO PART NO DESCRIPTION

C311

C401

C402

C403

C405

C406

C407

C408

C409

C410

C411

“

C413

C415

C416

C419

C420

C422

C501

C502

C503

C504

C505

C506

C508

C509

C510

“

C511

C512

C513

C514

C515

C516

C517

C518

C520

C521

C522

C523

C559

C561

C562

C563

C564

C565

C568

C601

C604

C605

C606

“

C612

C621

C622

0CQ1031N509

0CE474DK618

0CE105DK618

0CE475DK618

0CQ1521N509

181-015Q

181-091Y

181-010A

0CE6851K652

0CK2220W515

0CE105CR636

0CF5341U460

0CF5641U470

0CE107DJ618

0CE108DH618

181-009R

0CE108DH618

181-010B

0CE475DR618

0CE107DD618

0CN1040K949

0CN1050K949

0CN1040K949

0CN1050K949

0CN1020K519

0CN1010K519

0CN1050K949

0CN1010K519

0CN1050K949

0CN1030F679

0CQ6831N509

0CN1020K519

0CN1010K519

0CQ6831N509

0CQ2242K439

0CN2210K519

0CE107DF618

0CE226DF618

0CE475DK618

0CQ3321N509

0CF2241L438

181-007F

0CE477DH618

0CQ3321N509

0CF2241L438

0.01U 100V K POLY TP

0.4700UF STD 50V M FL TP5

1UF STD 50V M FL TP5

4.7UF STD 50V 20% FL TP 5

0.0015U 100V K POLY TP

0.02UF 1.6KV H M/PP NI FM20

R 680PF 2KV 10%,-10% R/TP TP7.5

PP 400V 0.022UF J

6.8UF SM,SA 50V 20% FM7.5 BP(S)

2200P 500V K B TS

1UF SHL,SD 250V 20% BP(D) TP FM5

0.53UF D 400V 5% BULK M/PP

0.56UF D 400V 5%

100UF STD 35V M FL TP5

1000UF STD 25V M FL TP5

PP 200V 0.022UF K

1000UF STD 25V M FL TP5

PP 400V 0.056UF J

4.7UF STD 250V 20% FL TP 5

100UF STD 10V M FL TP5

0.1M 50V Z F TA52

1UF D 50V 80%,-20% F(Y5V) TA52

0.1M 50V Z F TA52

1UF D 50V 80%,-20% F(Y5V) TA52

1000P 50V K B TA52

100P 50V K B TA52

1UF D 50V 80%,-20% F(Y5V) TA52

100P 50V K B TA52

1UF D 50V 80%,-20% F(Y5V) TA52

10000P 16V M Y TA52

0.068U 100V K POLY TP

1000P 50V K B TA52

100P 50V K B TA52

0.068U 100V K POLY TP

0.22UF S 50V 5% M/PE NI TP5

220P 50V K B TA52

100UF STD 16V M FL TP5

22UF STD 16V M FL TP5

4.7UF STD 50V 20% FL TP 5

0.0033U 100V K POLY TP

0.22UF D 63V 5% TP 5 M/PE NI

ECQ-V1H224JL3,50V

470UF STD 25V M FL TP5

0.0033U 100V K POLY TP

0.22UF D 63V 5% TP 5 M/PE NI

LOCA. NO PART NO DESCRIPTION

“

C650

C651

C663

C666

C667

C668

C670

C671

C672

C673

“

C674

“

C675

C676

“

C677

“

C678

“

C679

“

C681

C682

C685

C686

C687

C688

C689

C690

C802

“

C803

C804

C806

C807

C808

C809

C813

C814

“

C815

C816

C818

C820

C821

C822

C840

C854

C855

C857

C858

C860

181-007F

0CN1030F679

0CE107DD618

0CE335DK618

0CN3320F569

0CE106DK618

0CE105DK618

0CE107DD618

0CE106DK618

0CE105DK618

0CF3341L438

181-007G

0CF3341L438

181-007G

0CE106DF618

0CF3341L438

181-007G

0CF3341L438

181-007G

0CF3341L438

181-007G

0CF3341L438

181-007G

0CE106DF618

0CF3341L438

0CE106DF618

0CX5600K409

0CC0200K115

0CQZVBK002C

181-506J

181-091U

0CE337KV6A0

181-014Y

0CK4710K515

0CE107BJ618

181-091D

0CK10201515

0CQZVBK002A

181-506K

181-091C

0CK10201515

181-120K

0CK2220W515

0CK47201510

0CE226DD618

0CN1010K519

0CE107DF618

0CE107DD618

0CE108BF618

0CE108DF618

ECQ-V1H224JL3,50V

10000P 16V M Y TA52

100UF STD 10V M FL TP5

3.3UF STD 50V 20% FL TP 5

3300P 16V K X TA52

10UF STD 50V M FL TP5

1UF STD 50V M FL TP5

100UF STD 10V M FL TP5

10UF STD 50V M FL TP5

1UF STD 50V M FL TP5

0.33UF D 63V 5% TP 5 M/PE NI

ECQ-V1H334JL3

0.33UF D 63V 5% TP 5 M/PE NI

ECQ-V1H334JL3

10UF STD 16V M FL TP5

0.33UF D 63V 5% TP 5 M/PE NI

ECQ-V1H334JL3

0.33UF D 63V 5% TP 5 M/PE NI

ECQ-V1H334JL3

0.33UF D 63V 5% TP 5 M/PE NI

ECQ-V1H334JL3

0.33UF D 63V 5% TP 5 M/PE NI

ECQ-V1H334JL3

10UF STD 16V M FL TP5

0.33UF D 63V 5% TP 5 M/PE NI

10UF STD 16V M FL TP5

56P 50V J SL TA52

2P 50V D NP0 TS

A.C 275V 0.22UF K (S=22.5)

ECQ-U 2A224KVA 0.22UF 250V

R 220PF 2KV 10%,-10% R/TP TP7.5

330UF SLT 450V M VNSN BULK

MPP 1.6KV 0.0015UF J

470PF 50V K B TR

100UF KME 35V M FL TP5

DEHR33A102KN2A 1000PF 1KV 10%,-10%

1000P 1KV K B TS

A.C 275V 0.1UF M (S=15)

ECQ-V2A104MVA 0.1UF D 250

DEHR33A471KN2A 470PF 1KV 10%,-10%

1000P 1KV K B TS

2200PF 4KV M E FMTW LEAD 4.5

2200P 500V K B TS

4700P 1KV K B S

22UF STD 10V 20% FL TP 5

100P 50V K B TA52

100UF STD 16V M FL TP5

100UF STD 10V M FL TP5

1000UF KME 16V M FL TP5

1000UF STD 16V M FL TP5

For Capacitor & Resistors,

the charactors at 2nd and 3rd

digit in the P/No. means as

follows;

CC, CX, CK, CN : Ceramic

CQ : Polyestor

CE : Electrolytic

RD : Carbon Film

RS : Metal Oxide Film

RN : Metal Film

RF : Fusible

- 27 -

LOCA. NO PART NO DESCRIPTION

C860

C861

C862

C864

C865

C867

C868

C871

C872

C873

C874

C880

C901

C902

C903

C904

C920

C921

C922

C923

C924

C925

C926

C927

C928

C929

C930

CP08

CP09

CP10

CP101

CP104

CP105

CP106

CP108

CP109

CP11

CP112

CP12

CP13

CP21

CP22

CP25

CP26

CP27

CP29

CP30

CP32

CP33

J125

J134

J219

0CE108BF618

0CE108DF618

0CE105DK618

0CE335CK636

0CE108BJ618

181-091Q

0CE227DK618

0CE227DD618

0CE227DP61A

0CE107CP618

0CQ1041N509

181-091D

181-091Y

0CE106DH618

0CE475DR618

0CQ1044R539

181-033S

0CE475DR618

0CN1030F679

0CE107DF618

0CN1510K519

0CE107DJ618

0CE107DF618

0CK1030W510

0CE106DP618

0CK1010W515

0CE107DF618

0CK1030W510

0CE106DP618

0CE476DF618

0CE107DD618

0CE337DD618

0CE106DF618

0CE107DF618

0CE106DF618

0CN1030F679

0CE106DF618

0CN1030F679

0CE476DF618

0CE105DK618

181-442Z

0CE226DF618

0LA0101K119

0LA0102K139

0LA0680K119

1000UF KME 16V M FL TP5

1000UF STD 16V M FL TP5

1UF STD 50V M FL TP5

3.3UF SHL,SD 50V 20% FM5 BP(D) TP

1000UF KME 35V M FL TP5

R 470PF 1KV 10%,-10% R/TP TP5

220UF STD 50V M FL TP5

220UF STD 10V M FL TP5

220UF STD 160V 20% FL TP 7.5

100U SHL 160V M FL TP5

0.1U 100V K POLY TP

DEHR33A102KN2A 1000PF 1KV 10%,-10% R/TP

R 680PF 2KV 10%,-10% R/TP TP7.5

10UF STD 25V M FL TP5

4.7UF STD 250V 20% FL TP 5

0.1UF TE 250V K M/PE NI TP5

2KV B 122K TP7.5

4.7UF STD 250V 20% FL TP 5

10000P 16V M Y TA52

100UF STD 16V M FL TP5

150P 50V K B TA52

100UF STD 35V M FL TP5

100UF STD 16V M FL TP5

0.01U 500V K B S

10UF STD 160V M FL TP5

100P 500V K B TS

100UF STD 16V M FL TP5

0.01U 500V K B S

10UF STD 160V M FL TP5

47UF STD 16V M FL TP5

100UF STD 10V M FL TP5

330UF STD 10V M FL TP5

10UF STD 16V M FL TP5

100UF STD 16V M FL TP5

10UF STD 16V M FL TP5

10000P 16V M Y TA52

10UF STD 16V M FL TP5

10000P 16V M Y TA52

47UF STD 16V M FL TP5

1UF STD 50V M FL TP5

PE,ECQ-B1H104KF3(TR)

22UF STD 16V M FL TP5

INDUCTOR,AXIAL LEAD1.0UH K 2.3*3.4 TP

INDUCTOR,AXIAL LEAD10UH K 4*10.5 TP

INDUCTOR,AXIAL LEAD 0.68UH K 2.3*3.4 TP

LOCA. NO PART NO DESCRIPTION

J225

J347

L01

L04

L05

L08

L101

L102

L103

L121

L210

L211

L212

L213

L214

L218

L219

L241

L242

L243

L244

L245

L401

L402

L509

L510

L512

L663

L810

L853

LP01

LP12

LP13

LP14

R242

T401

T402

T802

P01

P03A

P03B

P102

P180

P201B

P202B

P203B

P401

P402A

P402B

P601

P602

P801A

P801B

P802A

0LA0391K119

0LA0102K119

0LA0102K139

0LA0102K119

0LA0102K139

0LA0102K119

0LA0102K049

0LA0102K119

0LA0472K119

0LA0102K139

150-717K

6140VE0001J

0LA0102K119

0LA0102K139

0LA0102K119

150-C02F

0LA0472K119

0LA0102K119

0LA0391K119

151-C02F

6174V-5003A

6170VMCB01R

366-932B

366-921J

387-A10J

366-009D

366-932B

366-173G

366-173E

366-043K

366-921G

387-A08H

366-932B

366-932C

366-009D

INDUCTOR,AXIAL LEAD3.9UH K 2.3*3.4 TP
