Printed in KoreaP/NO : MFL67733207 (1304-REV00)
CHASSIS : LD34D
MODEL: 42LA86** 42LA86**-Z*
CAUTION
BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
LED TV
SERVICE MANUAL
North/Latin America http://aic.lgservice.com
Europe/Africa http://eic.lgservice.com
Asia/Oceania http://biz.lgservice.com
Internal Use Only
- 2 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
CONTENTS
CONTENTS .............................................................................................. 2
SAFETY PRECAUTIONS ........................................................................ 3
SERVICING PRECAUTIONS .................................................................... 4
SPECIFICATION ....................................................................................... 6

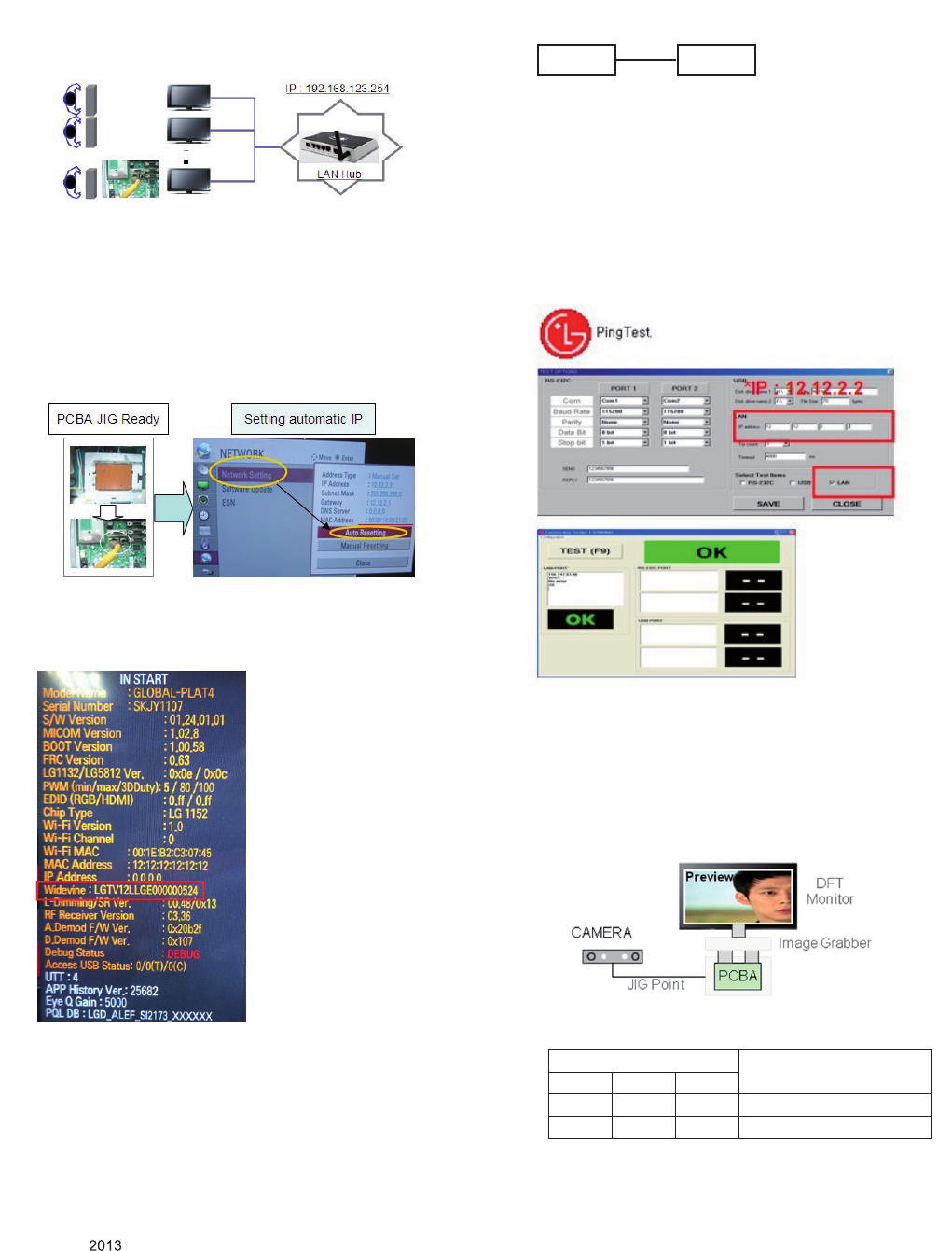

ADJUSTMENT INSTRUCTION .............................................................. 13

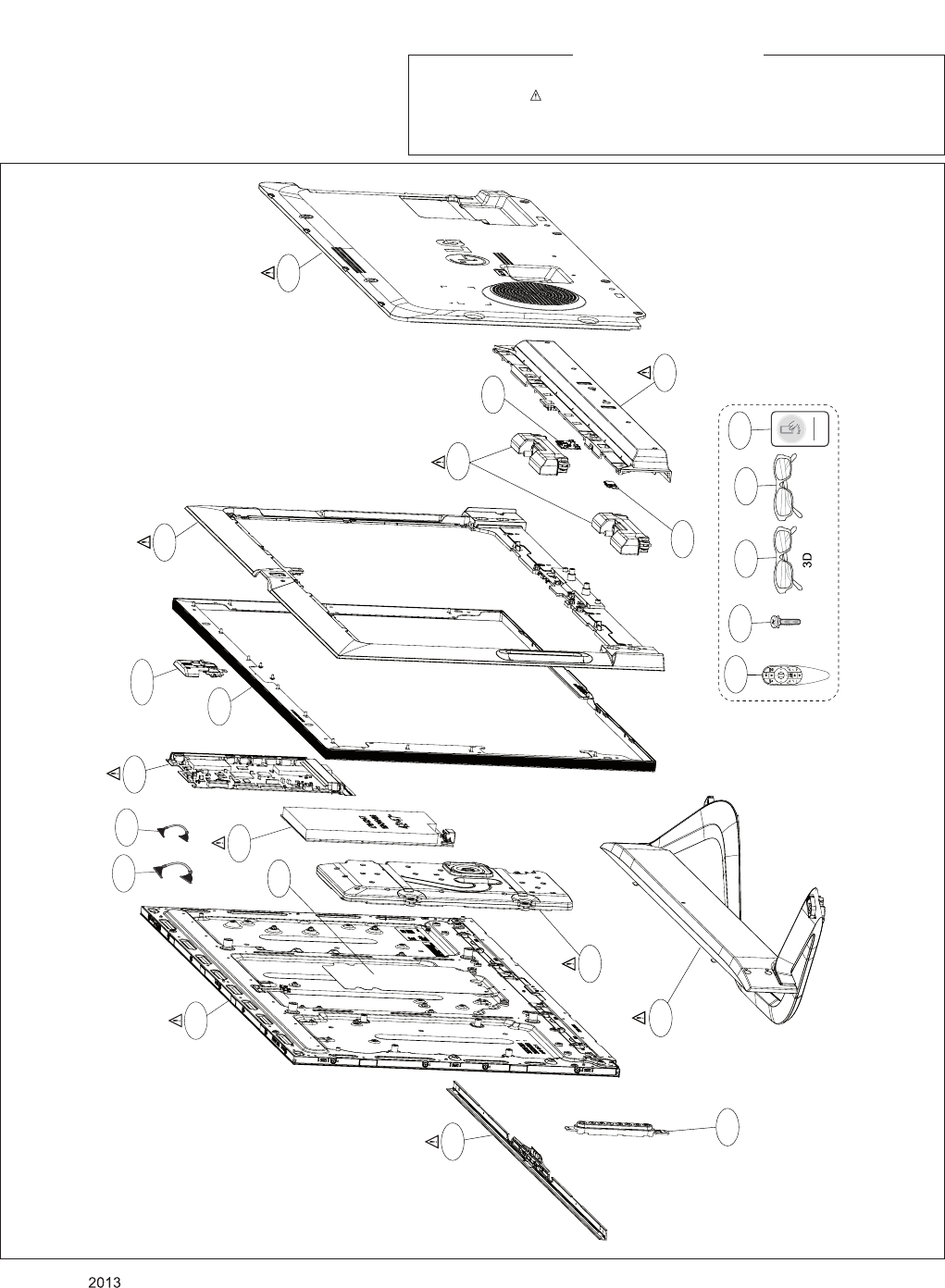

EXPLODED VIEW .................................................................................. 23

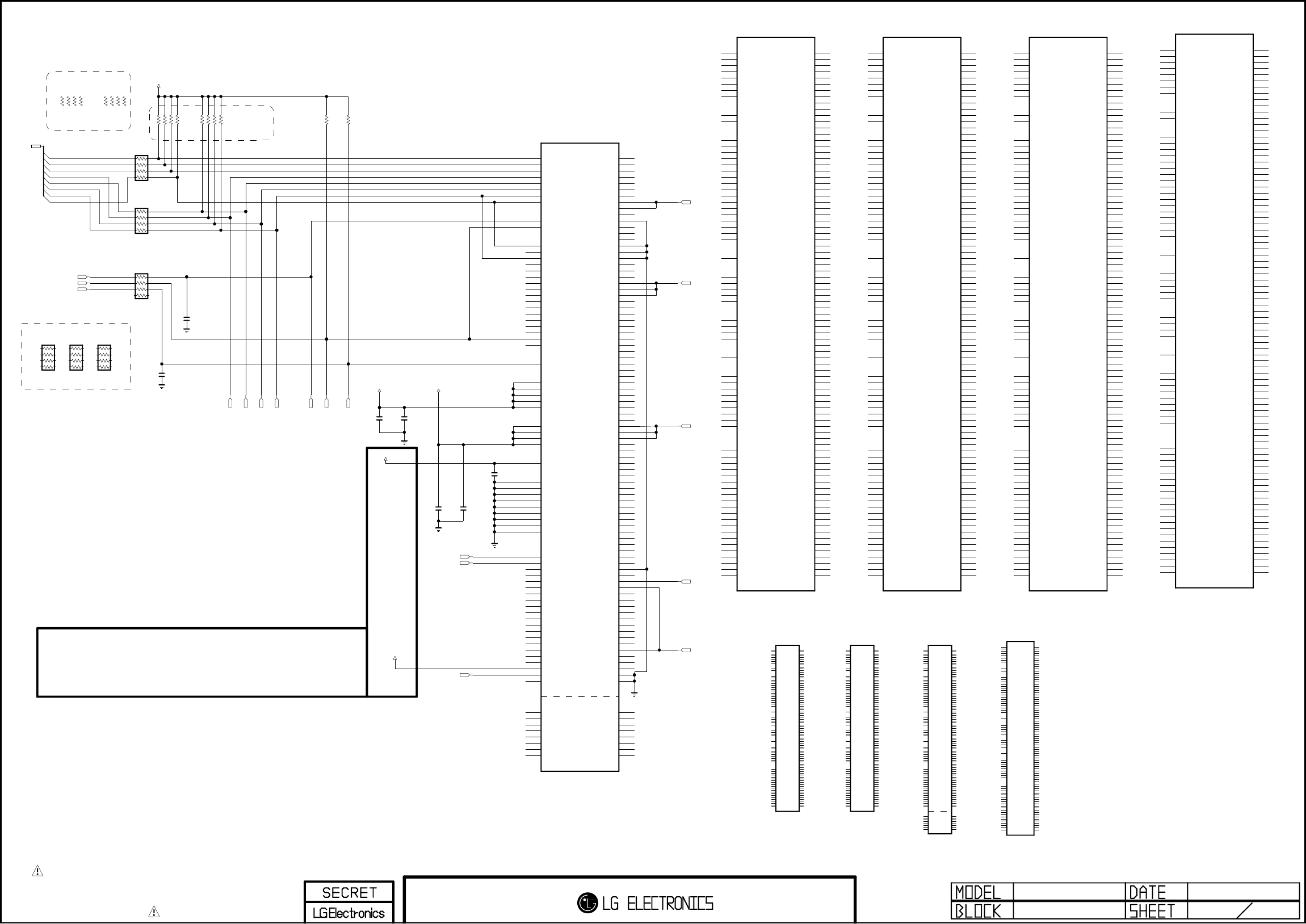

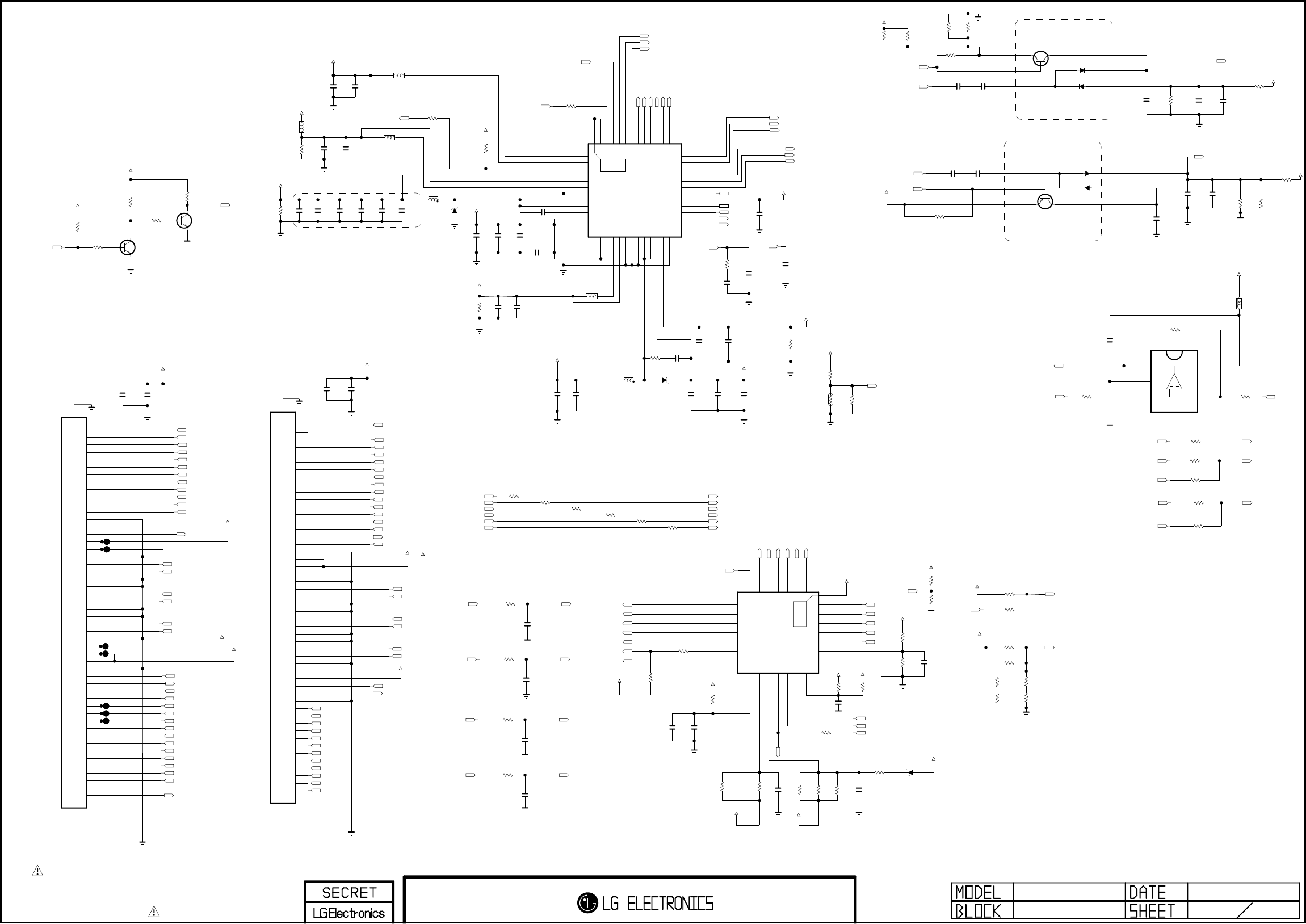

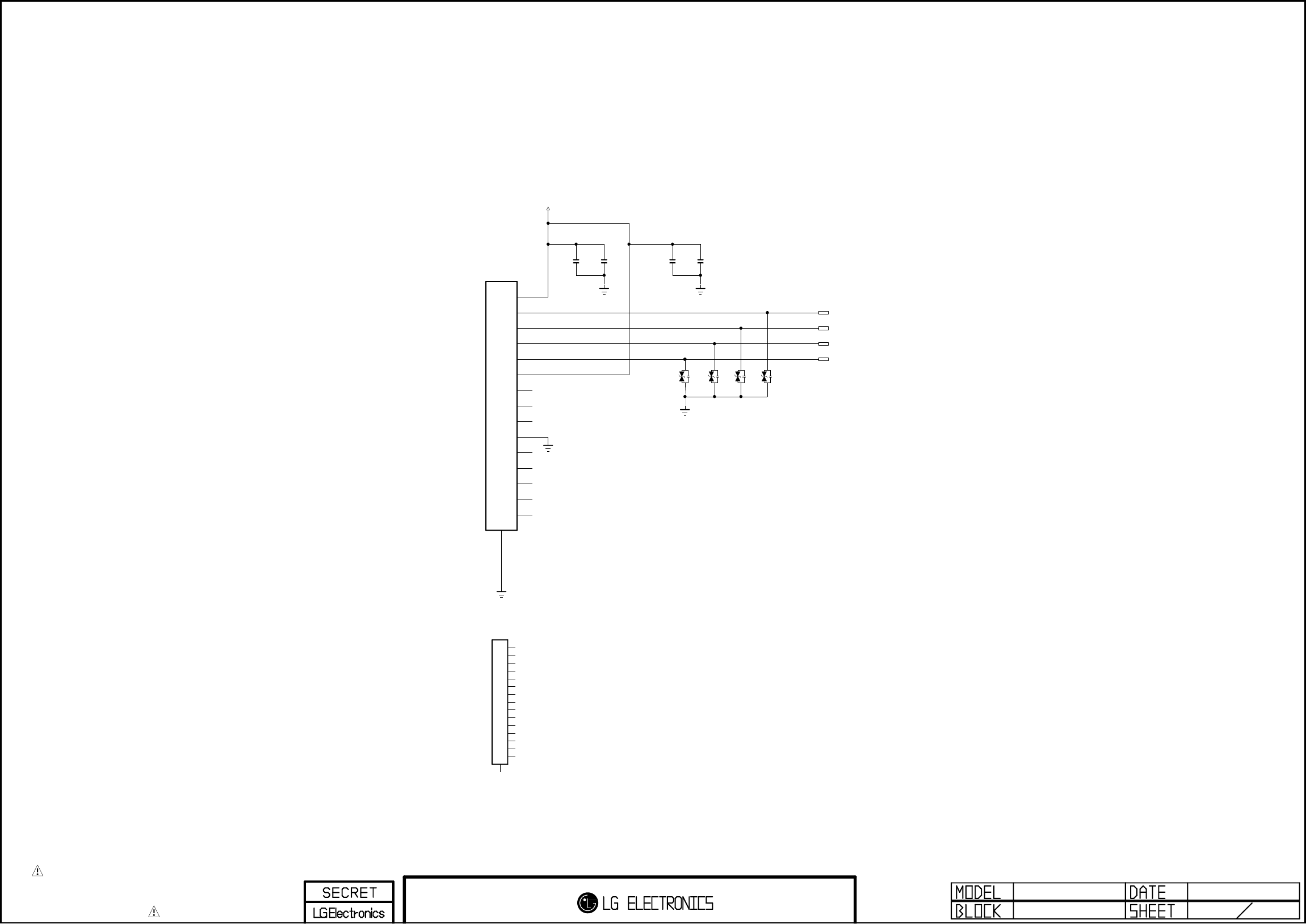

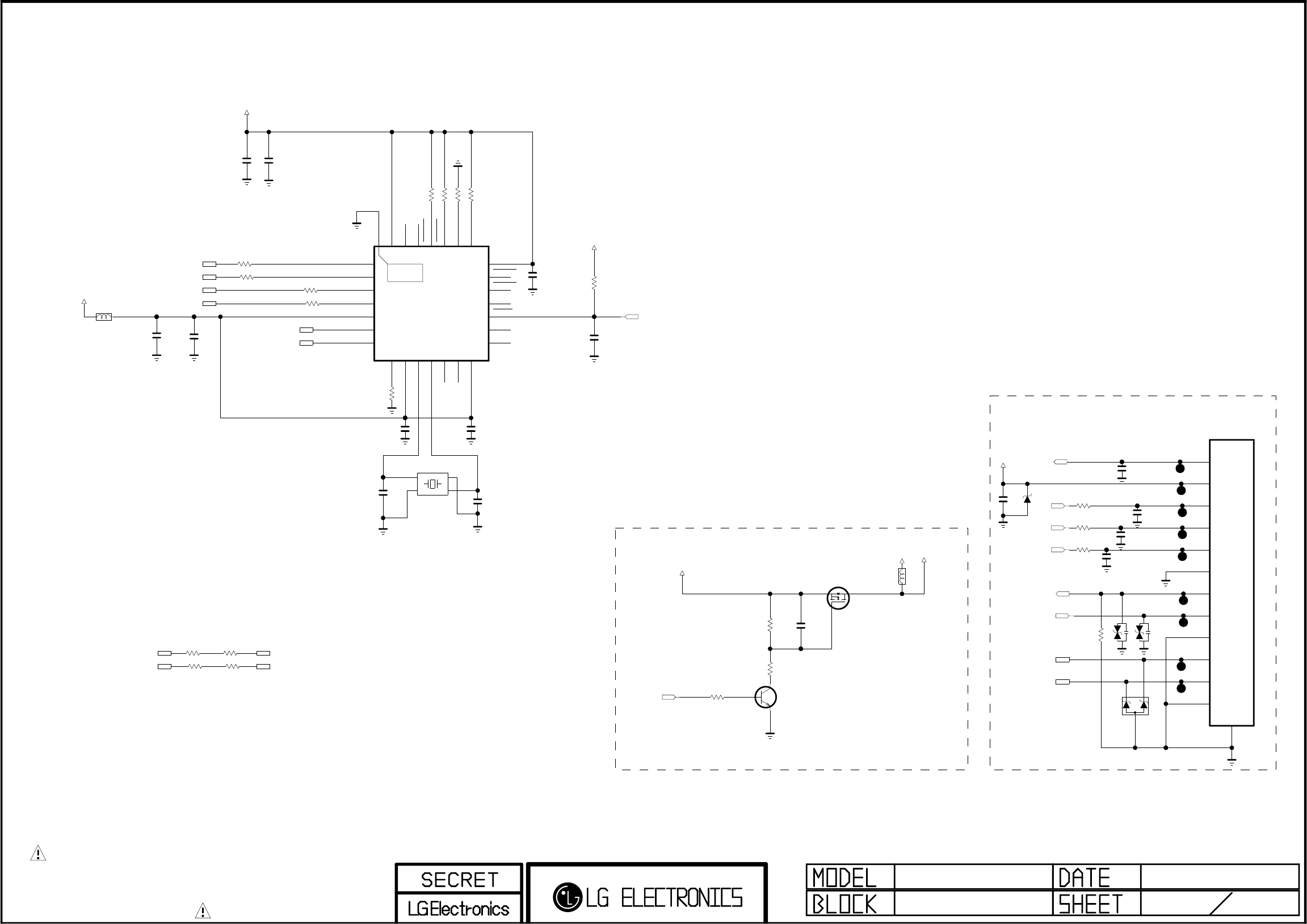

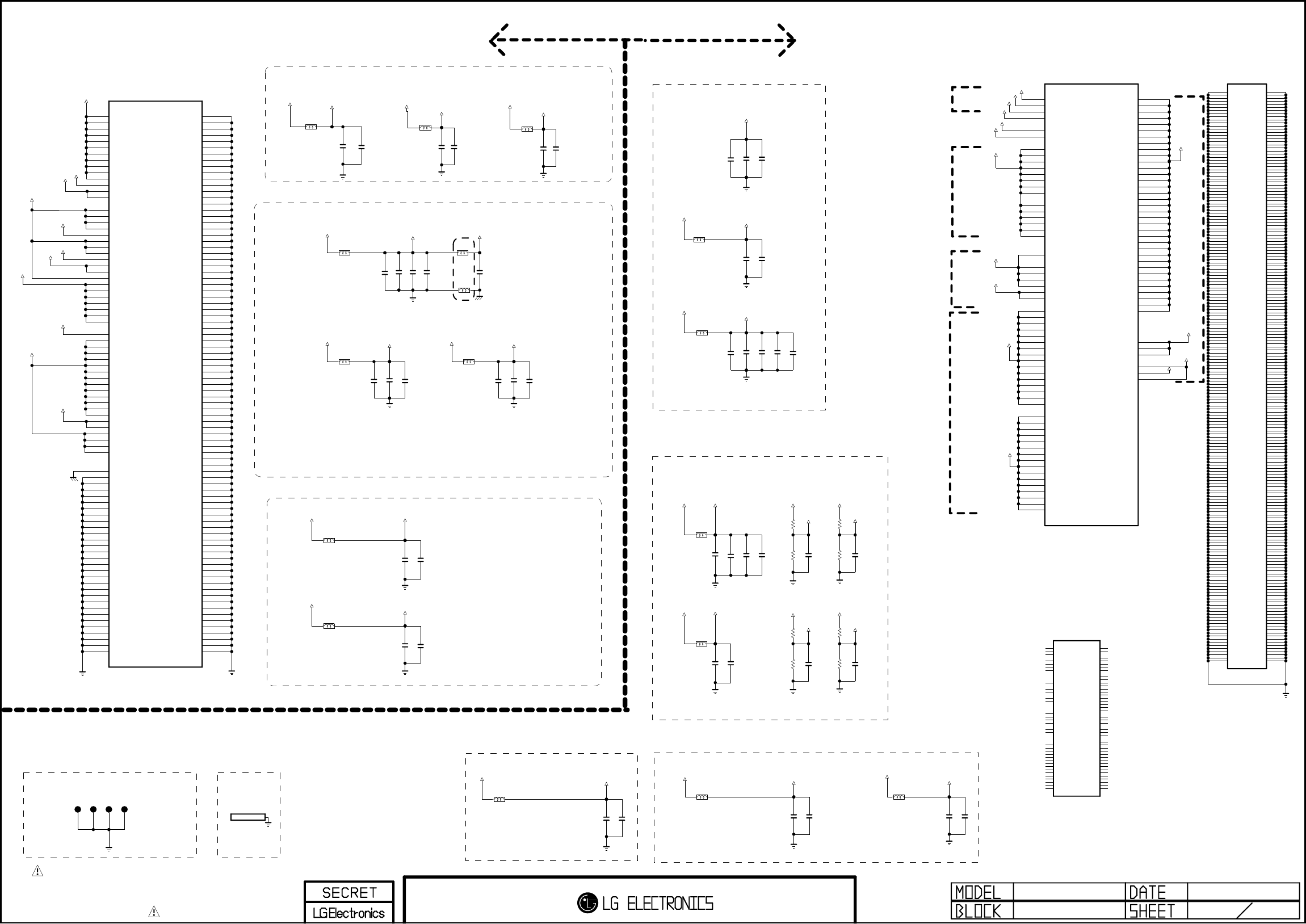

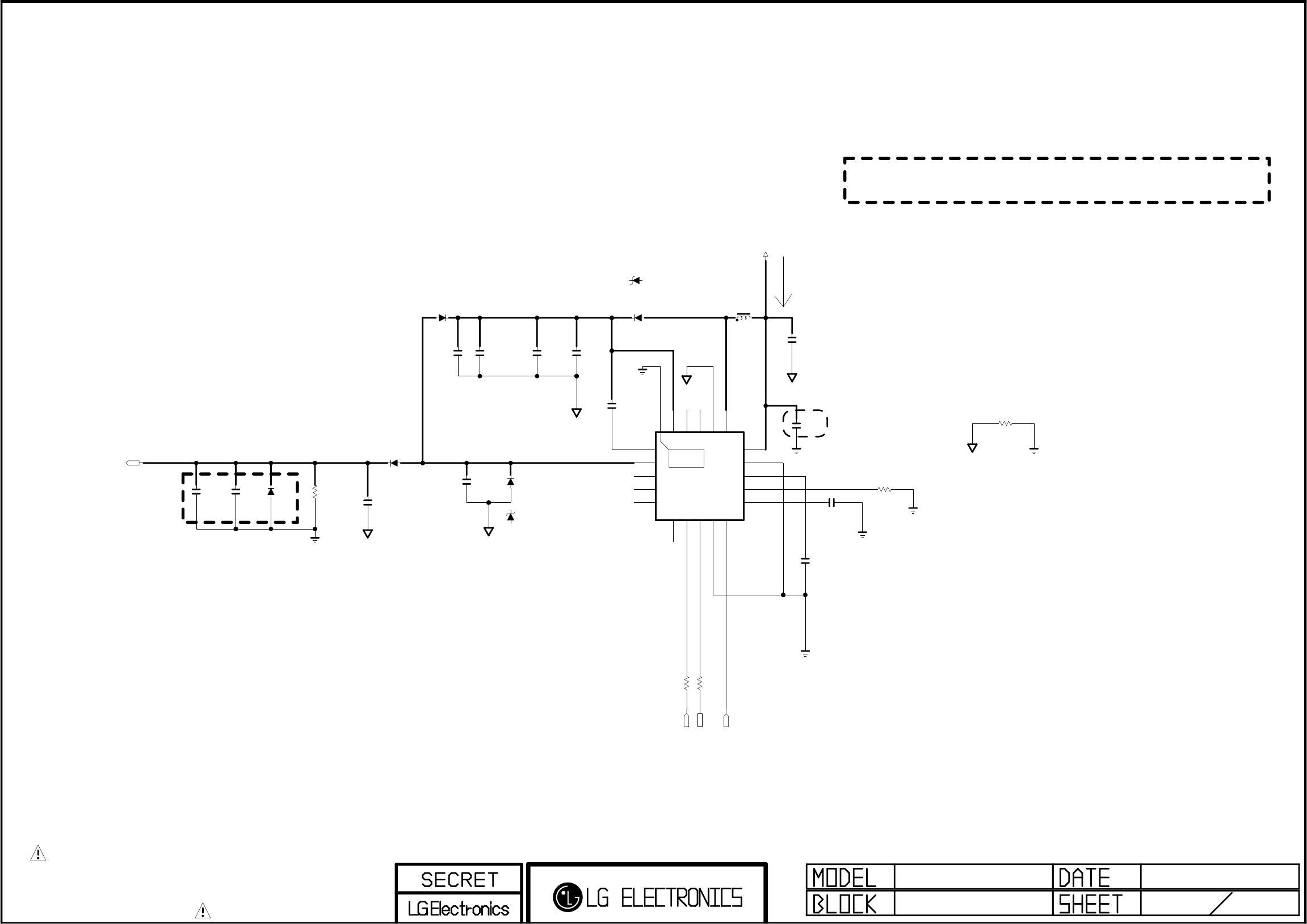

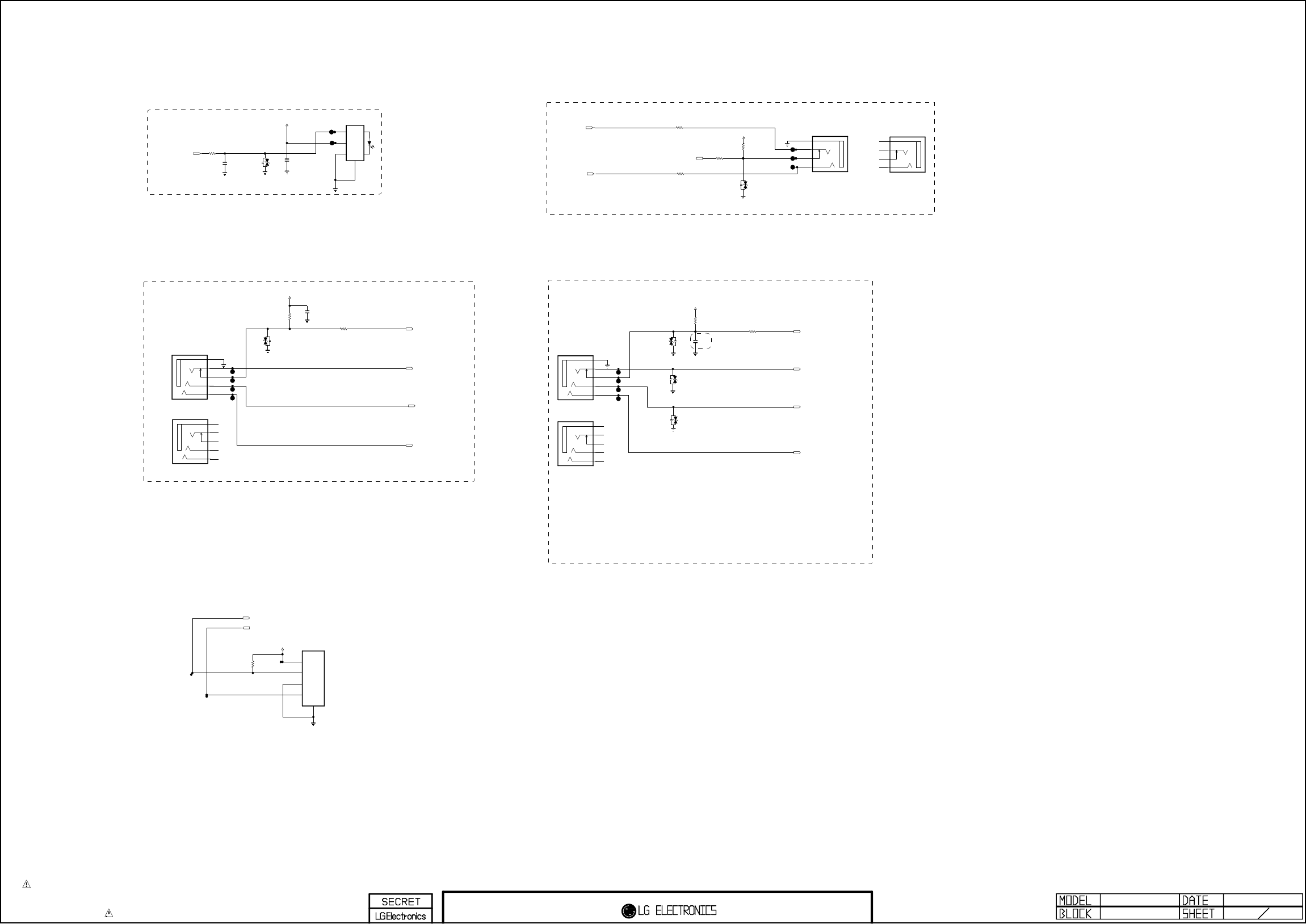

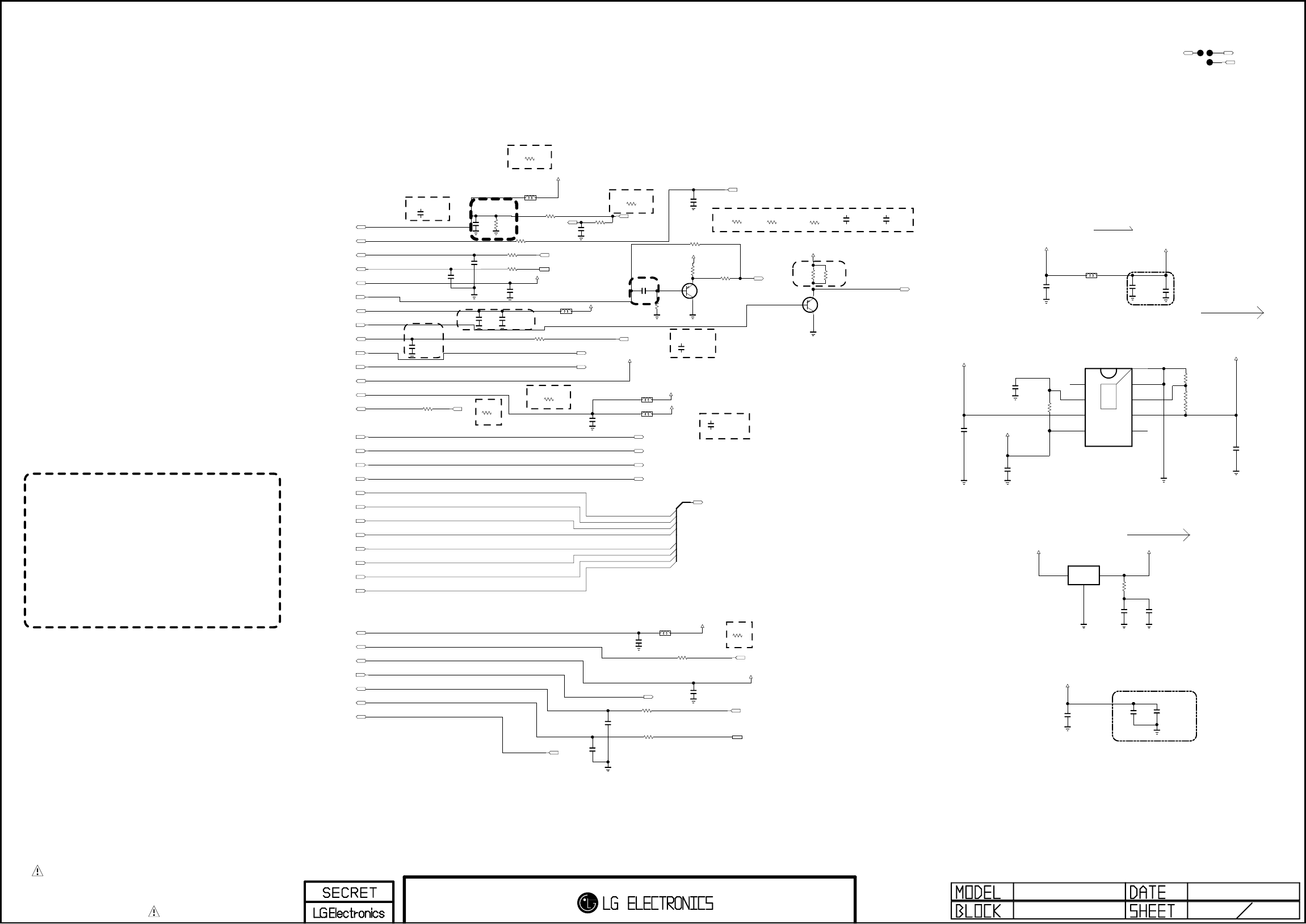

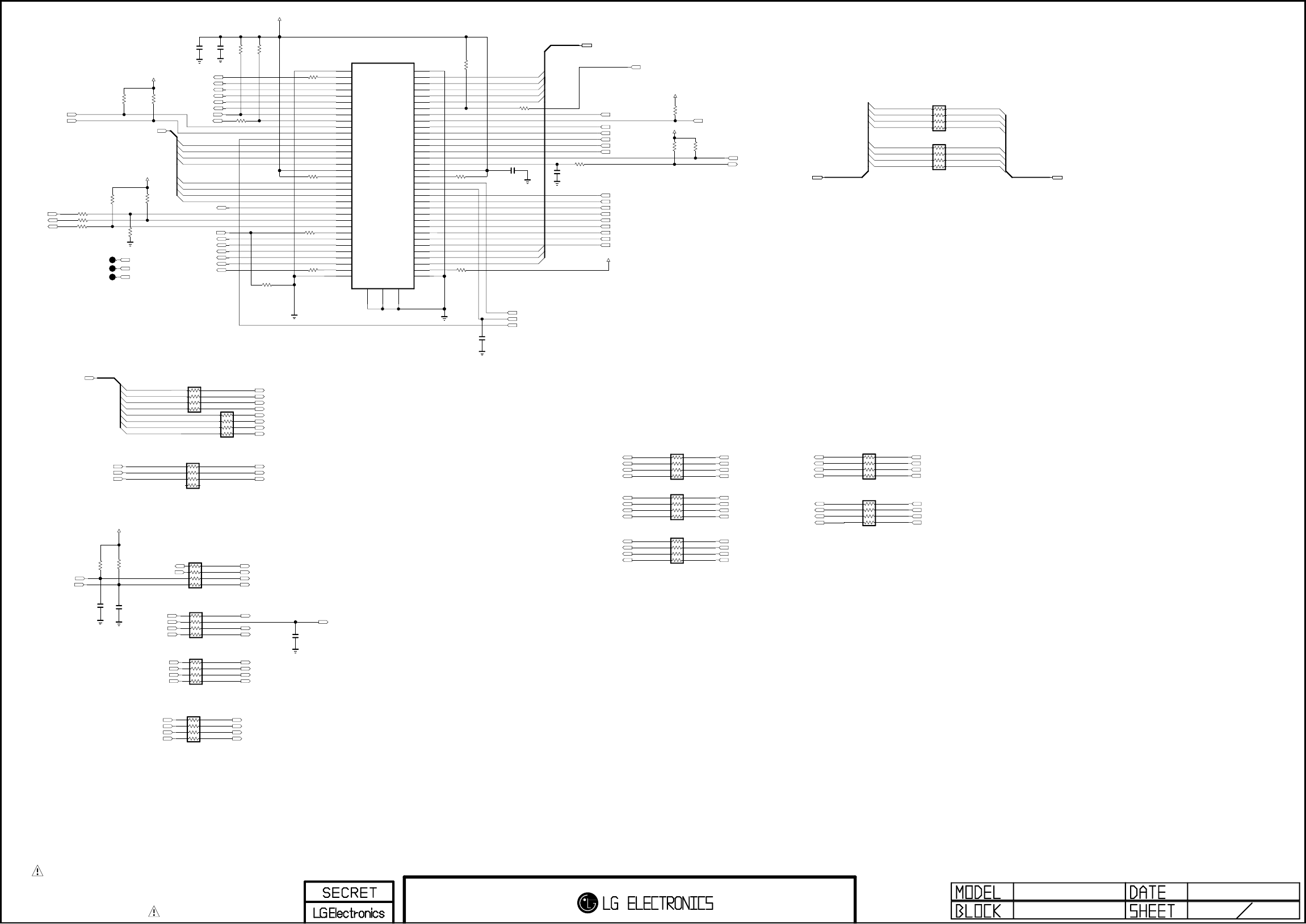

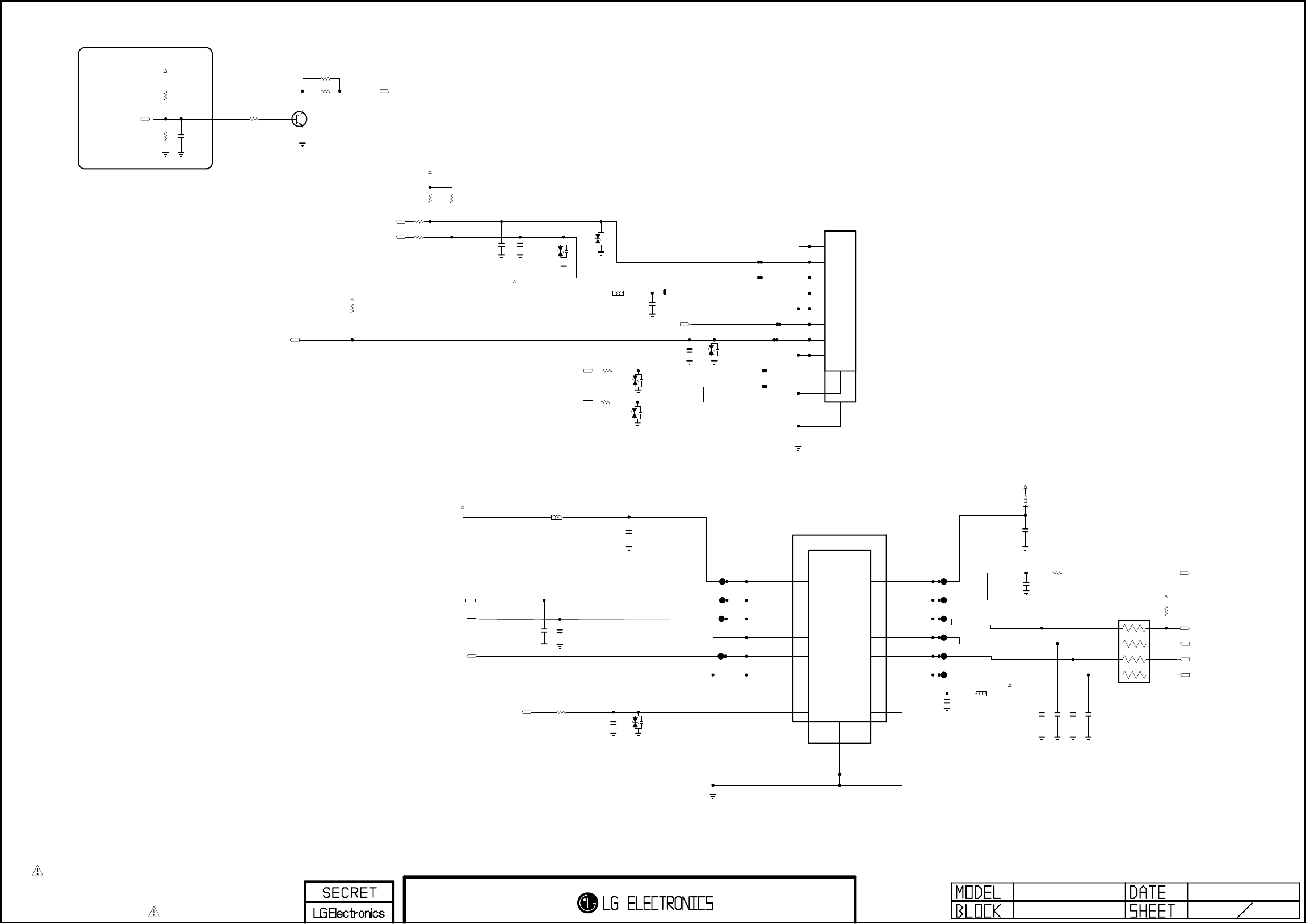

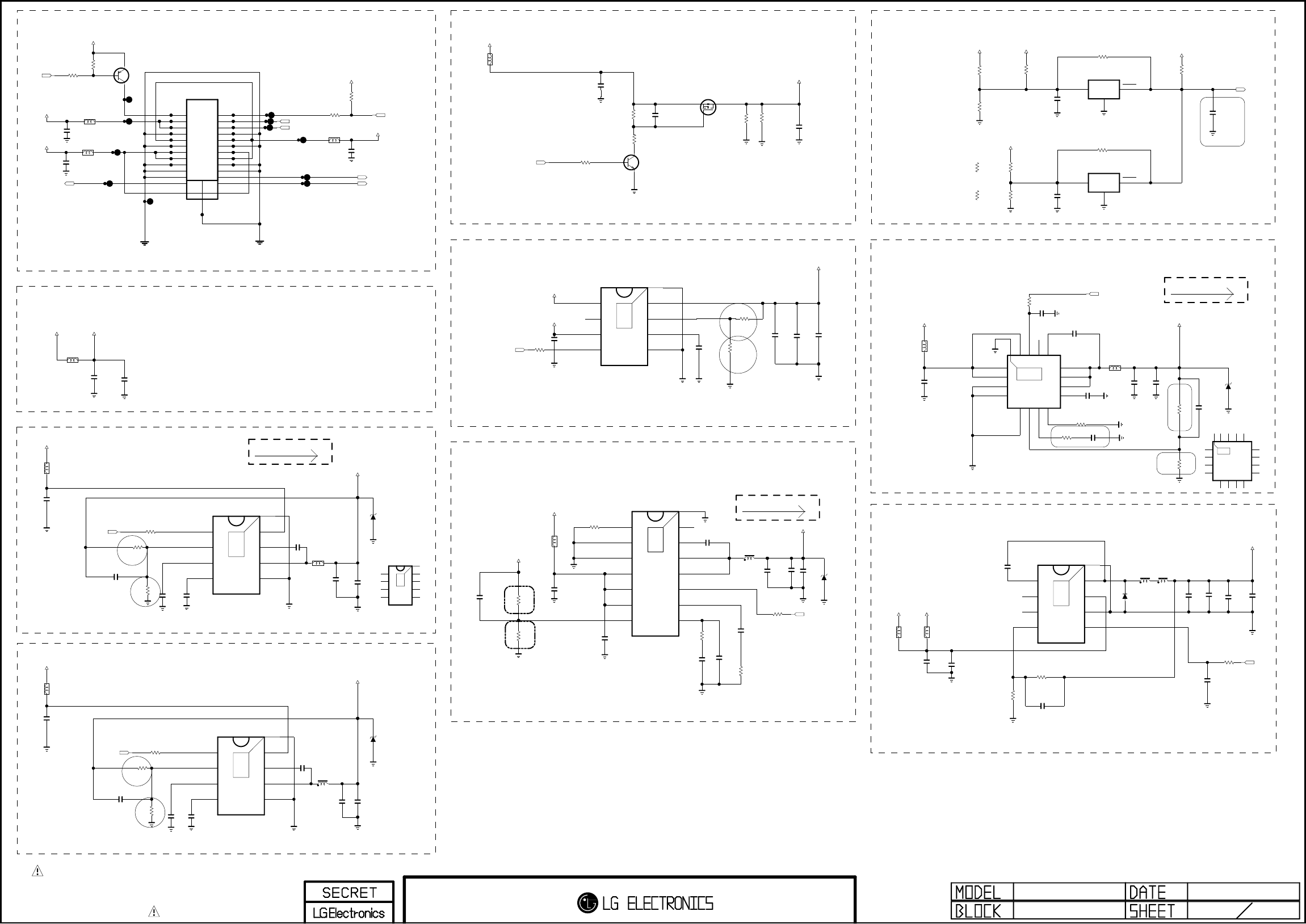

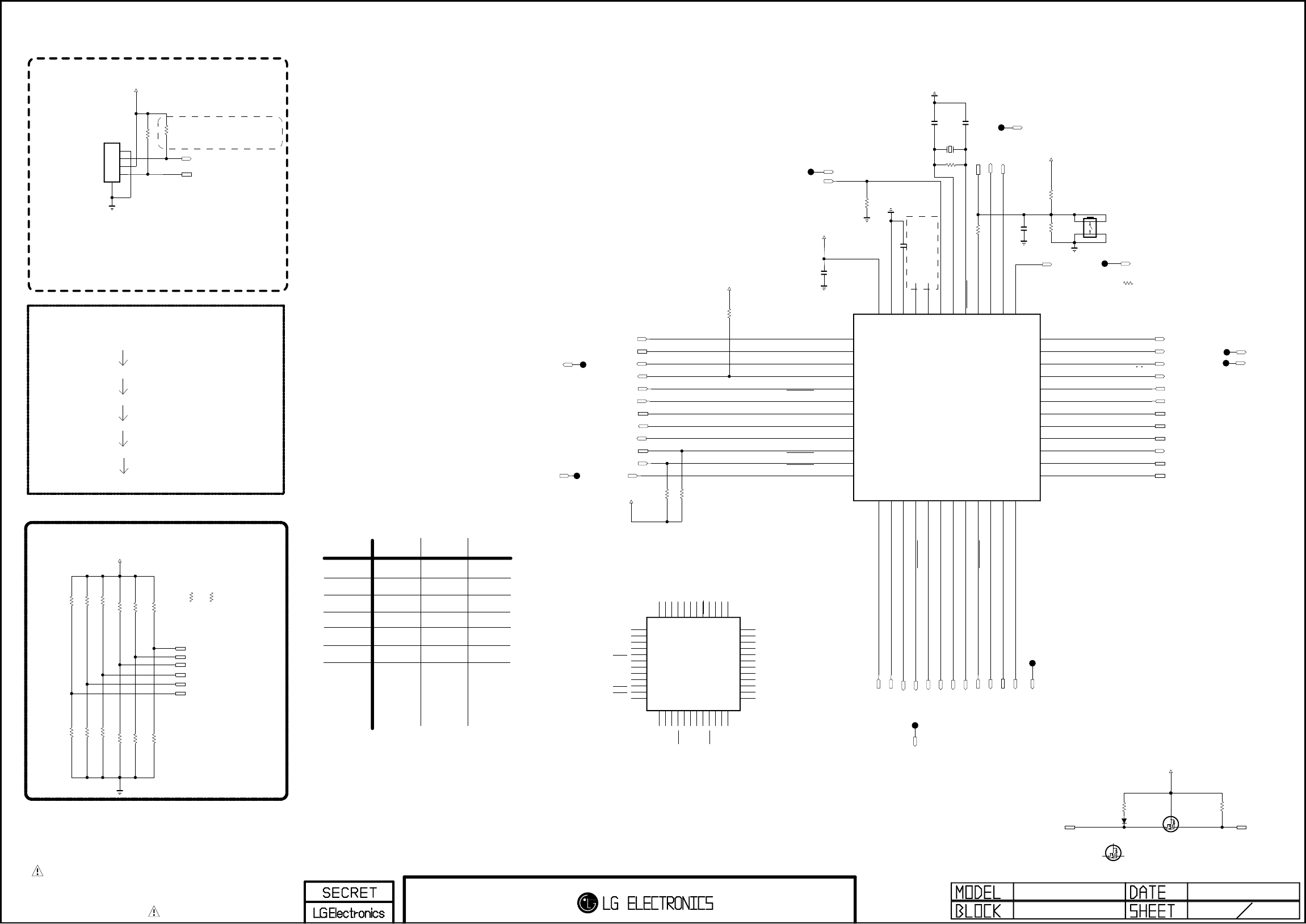

SCHEMATIC CIRCUIT DIAGRAM ..............................................................
- 3 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
Schematic Diagram and Exploded View.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
General Guidance
An isolation Transformer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC
power line. Use a transformer of adequate power rating as this
protects the technician from accidents resulting in personal injury
from electrical shocks.
It will also protect the receiver and it's components from being
damaged by accidental shorts of the circuitry that may be
inadvertently introduced during the service operation.
If any fuse (or Fusible Resistor) in this TV receiver is blown,
replace it with the specified.
When replacing a high wattage resistor (Oxide Metal Film Resistor,
over 1 W), keep the resistor 10 mm away from PCB.
Keep wires away from high voltage or high temperature parts.
Before returning the receiver to the customer,
always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to
be sure the set is safe to operate without damage of electrical
shock.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1 MΩ and 5.2 MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.
Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
Do not use a line Isolation Transformer during this check.
Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC voltage
measurements for each exposed metallic part. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to
0.5 mA.
In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.

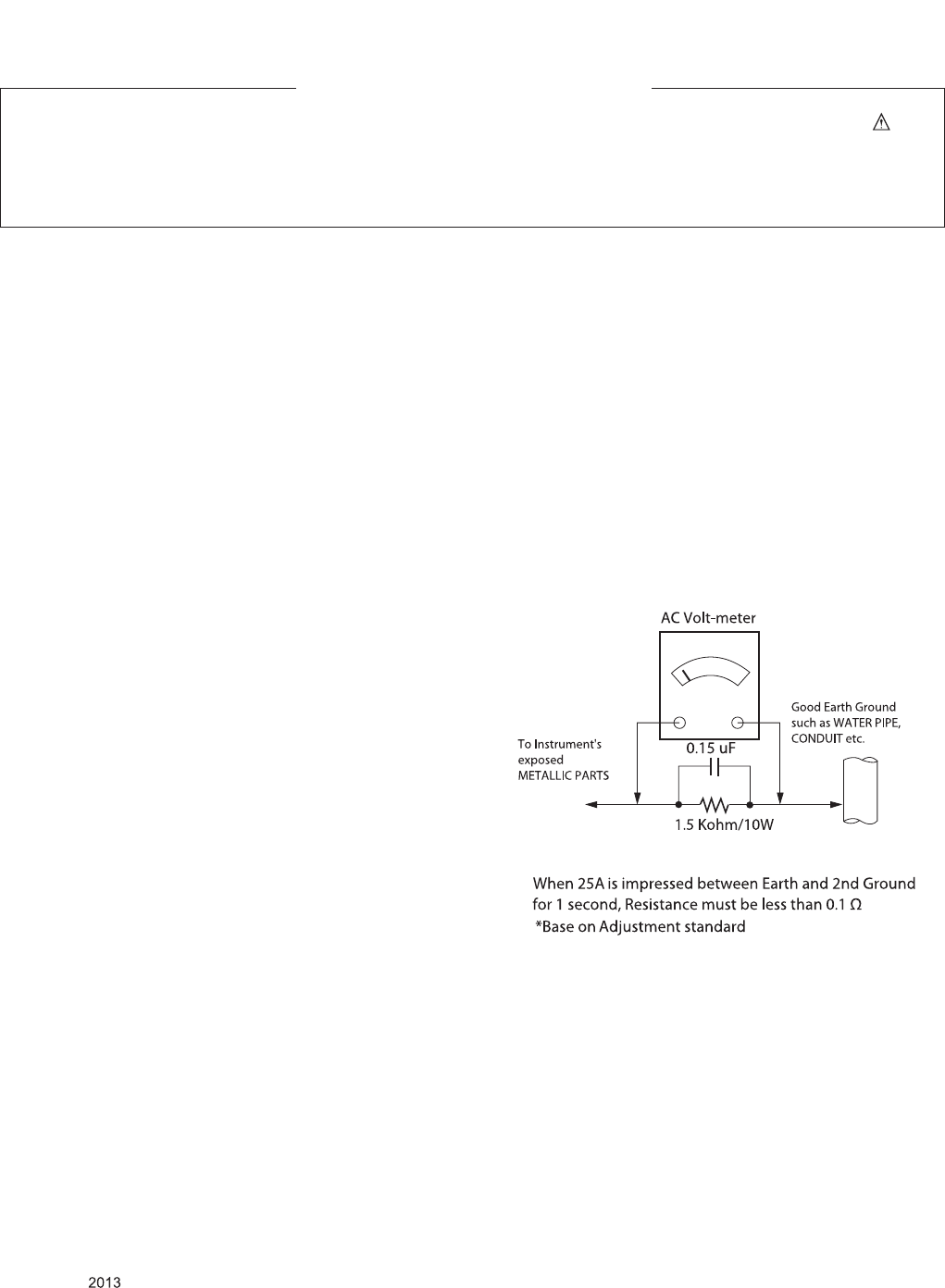

Leakage Current Hot Check circuit
IMPORTANT SAFETY NOTICE
SAFETY PRECAUTIONS
- 4 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
SERVICING PRECAUTIONS
CAUTION: Before servicing receivers covered by this service
manual and its supplements and addenda, read and follow the
SAFETY PRECAUTIONS on page 3 of this publication.
NOTE: If unforeseen circumstances create conict between the
following servicing precautions and any of the safety precautions
on page 3 of this publication, always follow the safety precautions.
Remember: Safety First.
General Servicing Precautions
1. Always unplug the receiver AC power cord from the AC power
source before;
a. Removing or reinstalling any component, circuit board mod-
ule or any other receiver assembly.
b. Disconnecting or reconnecting any receiver electrical plug or
other electrical connection.
c. Connecting a test substitute in parallel with an electrolytic
capacitor in the receiver.
CAUTION: A wrong part substitution or incorrect polarity
installation of electrolytic capacitors may result in an explo-
sion hazard.
2. Test high voltage only by measuring it with an appropriate
high voltage meter or other voltage measuring device (DVM,
FETVOM, etc) equipped with a suitable high voltage probe.
Do not test high voltage by "drawing an arc".
3. Do not spray chemicals on or near this receiver or any of its
assemblies.
4. Unless specied otherwise in this service manual, clean
electrical contacts only by applying the following mixture to the
contacts with a pipe cleaner, cotton-tipped stick or comparable
non-abrasive applicator; 10 % (by volume) Acetone and 90 %
(by volume) isopropyl alcohol (90 % - 99 % strength)
CAUTION: This is a ammable mixture.
Unless specied otherwise in this service manual, lubrication of
contacts in not required.
5. Do not defeat any plug/socket B+ voltage interlocks with which
receivers covered by this service manual might be equipped.
6. Do not apply AC power to this instrument and/or any of its
electrical assemblies unless all solid-state device heat sinks are
correctly installed.
7. Always connect the test receiver ground lead to the receiver
chassis ground before connecting the test receiver positive
lead.
Always remove the test receiver ground lead last.
8. Use with this receiver only the test xtures specied in this
service manual.
CAUTION: Do not connect the test xture ground strap to any
heat sink in this receiver.
Electrostatically Sensitive (ES) Devices
Some semiconductor (solid-state) devices can be damaged eas-
ily by static electricity. Such components commonly are called
Electrostatically Sensitive (ES) Devices. Examples of typical ES
devices are integrated circuits and some eld-effect transistors
and semiconductor “chip” components. The following techniques
should be used to help reduce the incidence of component dam-
age caused by static by static electricity.
1. Immediately before handling any semiconductor component or
semiconductor-equipped assembly, drain off any electrostatic
charge on your body by touching a known earth ground. Alter-
natively, obtain and wear a commercially available discharging
wrist strap device, which should be removed to prevent poten-
tial shock reasons prior to applying power to the unit under test.
2. After removing an electrical assembly equipped with ES
devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge buildup or expo-
sure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ES
devices.
4. Use only an anti-static type solder removal device. Some solder
removal devices not classied as “anti-static” can generate
electrical charges sufcient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate
electrical charges sufcient to damage ES devices.
6. Do not remove a replacement ES device from its protective
package until immediately before you are ready to install it.
(Most replacement ES devices are packaged with leads electri-
cally shorted together by conductive foam, aluminum foil or
comparable conductive material).
7. Immediately before removing the protective material from the
leads of a replacement ES device, touch the protective material
to the chassis or circuit assembly into which the device will be
installed.
CAUTION: Be sure no power is applied to the chassis or circuit,
and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged replace-
ment ES devices. (Otherwise harmless motion such as the
brushing together of your clothes fabric or the lifting of your
foot from a carpeted oor can generate static electricity suf-
cient to damage an ES device.)
General Soldering Guidelines
1. Use a grounded-tip, low-wattage soldering iron and appropriate
tip size and shape that will maintain tip temperature within the
range or 500 °F to 600 °F.
2. Use an appropriate gauge of RMA resin-core solder composed
of 60 parts tin/40 parts lead.
3. Keep the soldering iron tip clean and well tinned.
4. Thoroughly clean the surfaces to be soldered. Use a mall wire-
bristle (0.5 inch, or 1.25 cm) brush with a metal handle.
Do not use freon-propelled spray-on cleaners.
5. Use the following unsoldering technique
a. Allow the soldering iron tip to reach normal temperature.
(500 °F to 600 °F)
b. Heat the component lead until the solder melts.
c. Quickly draw the melted solder with an anti-static, suction-
type solder removal device or with solder braid.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.
6. Use the following soldering technique.
a. Allow the soldering iron tip to reach a normal temperature
(500 °F to 600 °F)
b. First, hold the soldering iron tip and solder the strand against
the component lead until the solder melts.
c. Quickly move the soldering iron tip to the junction of the
component lead and the printed circuit foil, and hold it there
only until the solder ows onto and around both the compo-
nent lead and the foil.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.
d. Closely inspect the solder area and remove any excess or
splashed solder with a small wire-bristle brush.
- 5 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
IC Remove/Replacement
Some chassis circuit boards have slotted holes (oblong) through
which the IC leads are inserted and then bent at against the cir-
cuit foil. When holes are the slotted type, the following technique
should be used to remove and replace the IC. When working with
boards using the familiar round hole, use the standard technique
as outlined in paragraphs 5 and 6 above.
Removal
1. Desolder and straighten each IC lead in one operation by
gently prying up on the lead with the soldering iron tip as the
solder melts.
2. Draw away the melted solder with an anti-static suction-type
solder removal device (or with solder braid) before removing
the IC.
Replacement
1. Carefully insert the replacement IC in the circuit board.
2. Carefully bend each IC lead against the circuit foil pad and
solder it.
3. Clean the soldered areas with a small wire-bristle brush.
(It is not necessary to reapply acrylic coating to the areas).
"Small-Signal" Discrete Transistor
Removal/Replacement
1. Remove the defective transistor by clipping its leads as close
as possible to the component body.
2. Bend into a "U" shape the end of each of three leads remaining
on the circuit board.
3. Bend into a "U" shape the replacement transistor leads.
4. Connect the replacement transistor leads to the corresponding
leads extending from the circuit board and crimp the "U" with
long nose pliers to insure metal to metal contact then solder
each connection.
Power Output, Transistor Device
Removal/Replacement
1. Heat and remove all solder from around the transistor leads.
2. Remove the heat sink mounting screw (if so equipped).
3. Carefully remove the transistor from the heat sink of the circuit
board.
4. Insert new transistor in the circuit board.
5. Solder each transistor lead, and clip off excess lead.
6. Replace heat sink.
Diode Removal/Replacement
1. Remove defective diode by clipping its leads as close as pos-
sible to diode body.
2. Bend the two remaining leads perpendicular y to the circuit
board.
3. Observing diode polarity, wrap each lead of the new diode
around the corresponding lead on the circuit board.
4. Securely crimp each connection and solder it.
5. Inspect (on the circuit board copper side) the solder joints of
the two "original" leads. If they are not shiny, reheat them and if
necessary, apply additional solder.
Fuse and Conventional Resistor
Removal/Replacement
1. Clip each fuse or resistor lead at top of the circuit board hollow
stake.
2. Securely crimp the leads of replacement component around
notch at stake top.
3. Solder the connections.
CAUTION: Maintain original spacing between the replaced
component and adjacent components and the circuit board to
prevent excessive component temperatures.
Circuit Board Foil Repair
Excessive heat applied to the copper foil of any printed circuit
board will weaken the adhesive that bonds the foil to the circuit
board causing the foil to separate from or "lift-off" the board. The
following guidelines and procedures should be followed whenever
this condition is encountered.
At IC Connections
To repair a defective copper pattern at IC connections use the
following procedure to install a jumper wire on the copper pattern
side of the circuit board. (Use this technique only on IC connec-
tions).
1. Carefully remove the damaged copper pattern with a sharp
knife. (Remove only as much copper as absolutely necessary).
2. carefully scratch away the solder resist and acrylic coating (if
used) from the end of the remaining copper pattern.
3. Bend a small "U" in one end of a small gauge jumper wire and
carefully crimp it around the IC pin. Solder the IC connection.
4. Route the jumper wire along the path of the out-away copper
pattern and let it overlap the previously scraped end of the
good copper pattern. Solder the overlapped area and clip off
any excess jumper wire.
At Other Connections
Use the following technique to repair the defective copper pattern
at connections other than IC Pins. This technique involves the
installation of a jumper wire on the component side of the circuit
board.
1. Remove the defective copper pattern with a sharp knife.
Remove at least 1/4 inch of copper, to ensure that a hazardous
condition will not exist if the jumper wire opens.
2. Trace along the copper pattern from both sides of the pattern
break and locate the nearest component that is directly con-
nected to the affected copper pattern.
3. Connect insulated 20-gauge jumper wire from the lead of the
nearest component on one side of the pattern break to the lead
of the nearest component on the other side.
Carefully crimp and solder the connections.
CAUTION: Be sure the insulated jumper wire is dressed so the
it does not touch components or sharp edges.
- 6 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
SPECIFICATION
NOTE : Specifications and others are subject to change without notice for improvement
.
1. Application range
This specification is applied to the LED TV used LD34D
chassis.
2. Requirement for Test
Each part is tested as below without special appointment.
1) Temperature: 25 °C ± 5 °C(77 °F ± 9 °F), CST: 40 °C ± 5 °C
2) Relative Humidity: 65 % ± 10 %
3) Power Voltage
: Standard input voltage (AC 100-240 V~, 50/60 Hz)
* Standard Voltage of each products is marked by models.
4) Specification and performance of each parts are followed
each drawing and specification by part number in
accordance with BOM.
5) The receiver must be operated for about 20 minutes prior to
the adjustment.
3. Test method
1) Performance: LGE TV test method followed
2) Demanded other specification
- Safety : CE, IEC specification
- EMC : CE, IEC
- Wireless : Wireless HD Specification (Option)
4. Model General Specification
No. Item Specication Remarks
1 Market EU(PAL Market-36Countries)/CIS
+ Morocoo(Africa)
DTV & Analog (Total 37 countries)
DTV (MPEG2/4, DVB-T) : 30 countries
Germany, Netherland, Switzerland, Hungary, Austria, Slovenia, Bul-
garia, France, Spain, Italy, Belgium, Russia, Luxemburg, Greece,
Czech, Croatia, Turkey, Moroco, Ireland, Latvia, Estonia, Lithuania,
Poland, Portugal, Romania, Albania, Bosnia, Serbia, Slovakia, Be-
ralus
DTV (MPEG2/4, DVB-T2) : 8 countries
UK(Ireland), Sweden, Denmark, Finland, Norway, Ukraine, Kaza-
khstan, Russia
DTV (MPEG2/4, DVB-C) : 37 countries
Germany, Netherland, Switzerland, Hungary, Austria, Slovenia, Bul-
garia, France, Spain, Italy, Belgium, Russia, Luxemburg, Greece,
Czech, Croatia, Turkey, Moroco, Ireland, Latvia, Estonia, Lithuania,
Poland, Portugal, Romania, Albania, Bosnia, Serbia, Slovakia, Be-
ralus, UK, Sweden, Denmark, Finland, Norway, Ukraine, Kazakhstan
DTV (MPEG2/4, DVB-S/S2) : 30 countries
Germany, Netherland, Switzerland, Hungary, Austria, Slovenia, Bul-
garia, France, Spain, Italy, Belgium, Russia, Luxemburg, Greece,
Czech, Croatia, Turkey, Moroco, Ireland, Latvia, Estonia, Lithuania,
Poland, Portugal, Romania, Albania, Bosnia, Serbia, Slovakia, Be-
ralus, UK, Sweden, Denmark, Finland, Norway, Ukraine, Kazakhstan
Supported satellite : 29 satellites
ABS1 75.0E/ AMOS 4.0W/ ASIASATS 105.5E/ ASTRA1LHMKR
19.2E/ ASTRA2ABD 28.2E/ ASTRA3AB 23.5E/ ASTRA4A 4.8E/
ATLANTICBIRD2 8.0W/ ATLANTICBIRD3 5.0W/ BADR 26.0E/ EU-
ROBIRD3 33.0E/ EUROBIRD9A 9.0E/ EUTELSATW2A 10.E/ EU-
TELSATW3A 7.0E/ EUTELSATW4W7 36.0E/ EUTELSESAT 16.0E/
EXPRESSAM1 40.0E/ EXPRESAM3 140.0E/ EXPRESSAM33
96.5E/ HELLASAT2 39.0E/ HISPASAT1CDE 30.0W/ HOTBIRD
13.0E/ INTELSAT10&7 68.5E/ INTELSAT15 85.2E/ INTELSAT904
60.0E/ NILESAT 7.0W/ THOR 0.8W/ TURKSAT 42.0E/ YAMAL201
90.0E
- 7 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
No. Item Specication Remarks
2 Broadcasting system 1) PAL-BG/DK/I/I’
2) SECAM L/L’, DK, BG, I
3) DVB-T/T2, C, S/S2
3 Program coverage
1 ) Digital TV
- VHF, UHF
- C-Band, Ku-Band
2) Analogue TV
-VHF : E2 to E12
-UHF : E21 to E69
-CATV : S1 to S20
-HYPER : S21 to S47
4 Receiving system
Analog : Upper Heterodyne
Digital : COFDM, QAM
► DVB-T
- Guard Interval(Bitrate_Mbit/s)
1/4, 1/8, 1/16, 1/32
- Modulation : Code Rate
QPSK : 1/2, 2/3, 3/4, 5/6, 7/8
16-QAM : 1/2, 2/3, 3/4, 5/6, 7/8
64-QAM : 1/2, 2/3, 3/4, 5/6, 7/8
► DVB-T2
- Guard Interval(Bitrate_Mbit/s)
1/4, 1/8, 1/16, 1/32, 1/128, 19/128, 19/256,
- Modulation : Code Rate
QPSK : 1/2, 2/5, 2/3, 3/4, 5/6
16-QAM : 1/2, 2/5, 2/3, 3/4, 5/6
64-QAM : 1/2, 2/5, 2/3, 3/4, 5/6
256-QAM : 1/2, 2/5, 2/3, 3/4, 5/6
► DVB-C
- Symbolrate : 4.0Msymbols/s to 7.2 Msymbols/s
- Modulation : 16QAM, 64-QAM, 128-QAM and 256-QAM
► DVB-S/S2
- symbolrate :
DVB-S2 (8PSK / QPSK) : 2 ~ 45 Msymbol/s
DVB-S (QPSK) : 2 ~ 45 Msymbol/s
- viterbi
DVB-S mode : 1/2, 2/3, 3/4, 5/6, 7/8
DVB-S2 mode : 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10
5 Input Voltage AC 100 ~ 240 V, 50/60 Hz
- 8 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
5. External input format
5.1. 2D Mode
(1) Component input(Y, CB/PB, CR/PR)
(2) HDMI Input (PC/DTV)
No. Resolution H-freq(kHz) V-freq(Hz)
1. 720×480 15.73 60.00 SDTV, DVD 480i
2. 720×480 15.63 59.94 SDTV, DVD 480i
3. 720×480 31.47 59.94 480p
4. 720×480 31.50 60.00 480p
5. 720×576 15.625 50.00 SDTV 576i
6. 720×576 31.25 50.00 SDTV 576p
7. 1280×720 45.00 50.00 HDTV 720p
8. 1280×720 44.96 59.94 HDTV 720p
9. 1280×720 45.00 60.00 HDTV 720p
10. 1920×1080 31.25 50.00 HDTV 1080i
11. 1920×1080 33.75 60.00 HDTV 1080i
12. 1920×1080 33.72 59.94 HDTV 1080i
13. 1920×1080 56.250 50 HDTV 1080p
14. 1920×1080 67.5 60 HDTV 1080p
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) VIC Proposed
HDMI-PC DDC
1 640*350 31.468 70.09 25.17 EGA Х
2 720*400 31.469 70.08 28.32 DOS O
3 640*480 31.469 59.94 25.17 VESA(VGA) O
4 800*600 37.879 60.31 40.00 VESA(SVGA) O
5 1024*768 48.363 60.00 65.00 VESA(XGA) O
6 1152*864 54.348 60.053 80 VESA
7 1280*1024 63.981 60.020 108 VESA(SXGA) O
8 1360*768 47.712 60.015 85.5 VESA(WXGA) O
9 1920*1080 67.5 60.00 148.5 WUXGA(CEA861D) O
HDMI-DTV
1 640*480 31.469 / 31.5 59.94/ 60 25.125 1 SDTV 480P
2 720*480 31.469 / 31.5 59.94 / 60 27.00/27.03 2,3 SDTV 480P
3 720*576 31.25 50 27 17,18 SDTV 576P
4 720*576 15.625 50 27 21 SDTV 576I
5 1280*720 37.500 50 74.25 19 HDTV 720P
6 1280*720 44.96 / 45 59.94 / 60 74.17/74.25 4 HDTV 720P
7 1920*1080 33.72 / 33.75 59.94 / 60 74.17/74.25 5 HDTV 1080I
8 1920*1080 28.125 50.00 74.25 20 HDTV 1080I
9 1920*1080 26.97 / 27 23.97 / 24 74.17/74.25 32 HDTV 1080P
10 1920*1080 25 33 HDTV 1080P
11 1920*1080 33.716 / 33.75 29.976 / 30.00 74.25 34 HDTV 1080P
12 1920*1080 56.250 50 148.5 31 HDTV 1080P
13 1920*1080 67.43 / 67.5 59.94 / 60 148.35/148.50 16 HDTV 1080P
- 9 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes

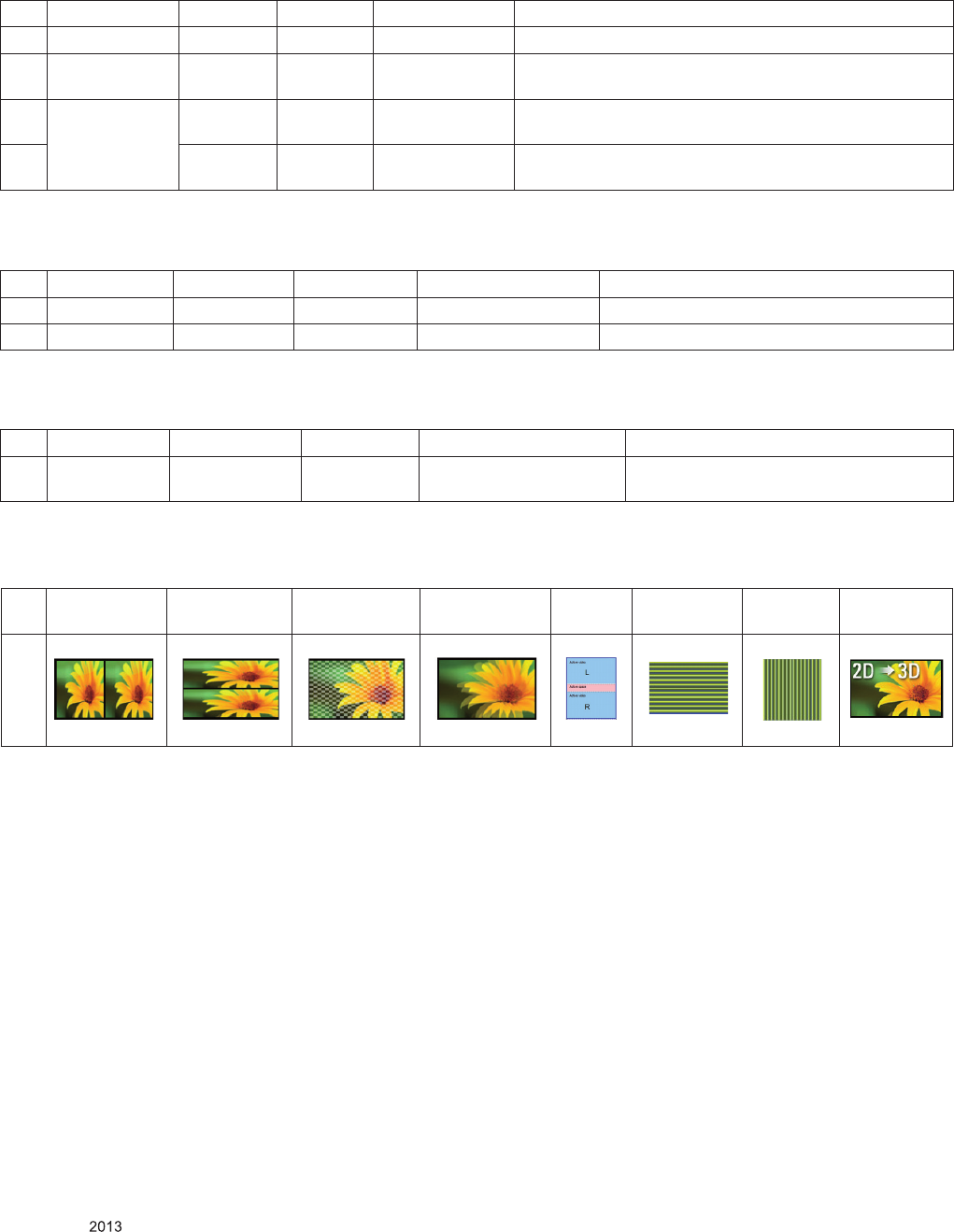

5.2. 3D Mode
(1) RF Input(3D supported mode manually)
No. Resolution Proposed 3D input proposed mode
1 HD - DTV 1080I
720P
2D to 3D
Side by Side(Half)
Top & Bottom
2 SD - DTV 576P
576I
3 SD - ATV(CVBS/SCART)
(3) HDMI 1.3 (3D supported mode manually)
No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed 3D input proposed mode
1 720*480 31.5 60 27.03 SDTV 480P
2D to 3D, Side by Side(Half), Top & Bottom,
Checker Board, Frame Sequential, Row
Interleaving, Column Interleaving
2 720*576 31.25 50 27 SDTV 576P
3 1280*720 45.00 60.00 74.25 HDTV 720P
4 1280*720 37.500 50 74.25 HDTV 720P
5 1920*1080 33.75 60.00 74.25 HDTV 1080I 2D to 3D, Side by Side(Half), Top & Bottom
6 1920*1080 28.125 50.00 74.25 HDTV 1080I
7 1920*1080 27.00 24.00 74.25 HDTV 1080P 2D to 3D, Side by Side(Half), Top & Bottom,
Checker Board, Row Interleaving, Column
Interleaving
8 1920*1080 28.12 25 74.25 HDTV 1080P
9 1920*1080 33.75 30.00 74.25 HDTV 1080P
10 1920*1080 67.50 60.00 148.5 HDTV 1080P 2D to 3D, Side by Side(Half), Top & Bottom,
Checker Board, Single Frame Sequential,
Row Interleaving, Column Interleaving
11 1920*1080 56.250 50 148.5 HDTV 1080P
(2) RF Input(3D supported mode automatically)
No. Signal 3D input proposed mode
1 Frame Compatible Side by Side(Half),
Top & Bottom
- 10 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
(4) HDMI 1.4b (3D supported mode automatically)
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) VIC 3D input proposed mode Proposed
1
640*480
31.469 / 31.5 59.94/ 60 25.125/25.2 1 Top-and-Bottom
Side-by-side(half)
Secondary(SDTV 480P)
Secondary(SDTV 480P)
2 62.938/63 59.94/ 60 50.35/50.4 1 Frame packing
Line alternative
Secondary(SDTV 480P)
(SDTV 480P)
3 31.469 / 31.5 59.94/ 60 50.35/50.4 1 Side-by-side(Full) (SDTV 480P)
4
720*480
31.469 / 31.5 59.94 / 60 27.00/27.03 2,3 Top-and-Bottom
Side-by-side(half)
Secondary(SDTV 480P)
Secondary(SDTV 480P)
5 62.938/63 59.94 / 60 54/54.06 2,3 Frame packing
Line alternative
Secondary(SDTV 480P)
(SDTV 480P)
6 31.469 / 31.5 59.94 / 60 54/54.06 2,3 Side-by-side(Full) (SDTV 480P)
7
720*576
31.25 50 27 17,18 Top-and-Bottom
Side-by-side(half)
Secondary(SDTV 576P)
Secondary(SDTV 576P)
8 62.5 50 54 17,18 Frame packing
Line alternative
Secondary(SDTV 576P)
(SDTV 576P)
9 31.25 50 54 17,18 Side-by-side(Full) (SDTV 576P)
10
1280*720
37.500 50 74.25 19 Top-and-Bottom
Side-by-side(half)
Primary(HDTV 720P)
Primary(HDTV 720P)
11 75 50 148.5 19 Frame packing
Field alternative
Primary(HDTV 720P)
(HDTV 720P)
12 37.500 50 148.5 19 Side-by-side(Full) (HDTV 720P)
13 44.96 / 45 59.94 / 60 74.18/74.25 4 Top-and-Bottom
Side-by-side(half)
Primary(HDTV 720P)
Primary(HDTV 720P)
14 89.91/90 59.94 / 60 148.35/148.5 4 Frame packing
Line alternative
Primary(HDTV 720P)
(HDTV 720P)
15 44.96 / 45 59.94 / 60 148.35/148.5 4 Side-by-side(Full) (HDTV 720P)
16
1920*1080
33.72 / 33.75 59.94 / 60 74.18/74.25 5 Top-and-Bottom
Side-by-side(half)
Secondary(HDTV 1080I)
Primary(HDTV 1080I)
17 67.432/67.50 59.94 / 60 148.35/148.5 5 Frame packing
Line alternative
Primary(HDTV 1080I)
(HDTV 1080I)
18 33.72 / 33.75 59.94 / 60 148.35/148.5 5 Side-by-side(Full) (HDTV 1080I)
19 28.125 50.00 74.25 20 Top-and-Bottom
Side-by-side(half)
Secondary(HDTV 1080I)
Primary(HDTV 1080I)
20 56.25 50.00 148.5 20 Frame packing
Field alternative
Primary(HDTV 1080I)
(HDTV 1080I)
21 28.125 50.00 148.5 20 Side-by-side(Full) (HDTV 1080I)
22 26.97 / 27 23.97 / 24 74.18/74.25 32 Top-and-Bottom
Side-by-side(half)
Primary(HDTV 1080P)
Primary(HDTV 1080P)
23 43.94/54 23.97 / 24 148.35/148.5 32 Frame packing
Field alternative
Primary(HDTV 1080P)
(HDTV 1080P)
24 26.97 / 27 23.97 / 24 148.35/148.5 32 Side-by-side(Full) (HDTV 1080P)
25 28.12 25 74.25 33 Top-and-Bottom
Side-by-side(half)
Primary(HDTV 1080P)
Primary(HDTV 1080P)
26 56.24 25 148.5 33 Frame packing
Line alternative
Primary(HDTV 1080P)
(HDTV 1080P)
27 28.12 25 148.5 33 Side-by-side(Full) (HDTV 1080P)
28 33.716 / 33.75 29.976 / 30.00 74.18/74.25 34 Top-and-Bottom
Side-by-side(half)
Secondary(HDTV 1080P)
Secondary(HDTV 1080P)
29 67.432 / 67.5 29.976 / 30.00 148.35/148.5 34 Frame packing
Line alternative
Secondary(HDTV 1080P)
(HDTV 1080P)
30 33.716 / 33.75 29.976 / 30.00 148.35/148.5 34 Side-by-side(Full) (HDTV 1080P)
31 56.250 50 148.5 31 Top-and-Bottom
Side-by-side(half)
Primary(HDTV 1080P)
Secondary(HDTV 1080P)
32 67.43 / 67.5 59.94 / 60 148.35/148.50 16 Top-and-Bottom
Side-by-side(half)
Primary(HDTV 1080P)
Secondary(HDTV 1080P)
- 11 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode Proposed
1 1024*768 48.36 60 65 2D to 3D, Side by Side(half)
Top & Bottom HDTV 768P
2 1360*768 47.71 60 85.5 2D to 3D, Side by Side(half)
Top & Bottom HDTV 768P
3 1920*1080 67.500 60 148.50
2D to 3D, Side by Side(half)
Top & Bottom, Checker Board,
Single Frame Sequential,
Row Interleaving,
Column Interleaving
HDTV 1080P
4 Others - - - 2D to 3D
640*350
720*400
640*480
800*600
1152*864
(5) HDMI-PC Input (3D) (3D supported mode manually)
(6) Component Input ( 3D) (3D supported mode manually)
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock 3D input proposed mode Proposed
1 1280*720 37.5 50 74.25 2D to 3D, Side by Side, Top & Bottom HDTV 720P
2 1280*720 45.00 60.00 74.25 2D to 3D, Side by Side, Top & Bottom HDTV 720P
3 1280*720 44.96 59.94 74.176 2D to 3D, Side by Side, Top & Bottom HDTV 720P
4 1920*1080 33.75 60.00 74.25 2D to 3D, Side by Side, Top & Bottom HDTV 1080I
5 1920*1080 33.72 59.94 74.176 2D to 3D, Side by Side, Top & Bottom HDTV 1080I
6 1920*1080 28.12 50 74.25 2D to 3D, Side by Side, Top & Bottom HDTV 1080I
7 1920*1080 67.500 60 148.50 2D to 3D, Side by Side, Top & Bottom HDTV 1080P
8 1920*1080 67.432 59.94 148.352 2D to 3D, Side by Side, Top & Bottom HDTV 1080P
9 1920*1080 27.000 24.000 74.25 2D to 3D, Side by Side, Top & Bottom HDTV 1080P
10 1920*1080 28.12 25 74.25 2D to 3D, Side by Side, Top & Bottom HDTV 1080P
11 1920*1080 56.25 50 74.25 2D to 3D, Side by Side, Top & Bottom HDTV 1080P
12 1920*1080 26.97 23.976 74.176 2D to 3D, Side by Side, Top & Bottom HDTV 1080P
13 1920*1080 33.75 30.000 74.25 2D to 3D, Side by Side, Top & Bottom HDTV 1080P
14 1920*1080 33.71 29.97 74.176 2D to 3D, Side by Side, Top & Bottom HDTV 1080P
- 12 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode
1 Under 704x480 2D to 3D
2Over 704x480
interlaced 2D to 3D, Side by Side(Half), Top & Bottom
3Over 704x480
progressive
50 / 60 2D to 3D, Side by Side(Half), Top & Bottom, Checker Board,
Row Interleaving, Column Interleaving, Frame Sequential
4 others 2D to 3D, Side by Side(Half), Top & Bottom, Checker Board,
Row Interleaving, Column Interleaving
(7) USB, DLNA – Movie (3D) (3D supported mode manually)
(9) USB, DLNA (3D) (3D supported mode automatically)
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode
1 Under 320x240 - - - 2D to 3D
2 Over 320x240 - - - 2D to 3D, Side by Side(Half), Top & Bottom
(8) USB, DLNA -Photo (3D) (3D supported mode manually)
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode
1 1080p 33.75 30 74.25 Side by Side(Half), Top & Bottom, Checker
Board, MPO(Photo), JPS(Photo)
■ Remark: 3D Input mode
No. Side by Side Top & Bottom Checker board Single Frame
Sequential
Frame
Packing
Line
Interleaving
Column
Interleaving 2D to 3D
1
ii.
iii.
iv. v.
vi.
- 13 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
ADJUSTMENT INSTRUCTION
1. Application Range
This specification sheet is applied to all of the LED TV with
LD34D chassis.
2. Designation
(1) Because this is not a hot chassis, it is not necessary to
use an isolation transformer. However, the use of isolation
transformer will help protect test instrument.
(2) Adjustment must be done in the correct order.
(3) The adjustment must be performed in the circumstance of
25 °C ± 5 °C of temperature and 65 % ± 10 % of relative
humidity if there is no specific designation.
(4) The input voltage of the receiver must keep AC 100-240
V~, 50/60 Hz.
(5) The receiver must be operated for about 5 minutes prior to
the adjustment when module is in the circumstance of over
15.
In case of keeping module is in the circumstance of 0 °C, it
should be placed in the circumstance of above 15 °C for 2
hours.
In case of keeping module is in the circumstance of below
-20 °C, it should be placed in the circumstance of above 15
°C for 3 hours.
[Caution]
When still image is displayed for a period of 20 minutes or
longer (Especially where W/B scale is strong. Digital pattern
13ch and/or Cross hatch pattern 09ch), there can some
afterimage in the black level area.
3. Automatic Adjustment
3.1. ADC Adjustment
3.1.1. Overview
ADC adjustment is needed to find the optimum black level
and gain in Analog-to-Digital device and to compensate RGB
deviation.
3.1.2. Equipment & Condition
(1) USB to RS-232C Jig
(2) MSPG-925 Series Pattern Generator(MSPG-925FA,
pattern - 65)
- Resolution : 480i Comp1
1080P Comp1
1920*1080P SCART RGB
- Pattern : Horizontal 100% Color Bar Pattern
- Pattern level : 0.7 ± 0.1 Vp-p
- Image
3.1.3. Adjustment
(1) Adjustment method
- Using RS-232, adjust items in the other shown in
"3.1.3.3)"
(2) Adj. protocol
Ref.) ADC Adj. RS232C Protocol_Ver1.0
(3) Adj. order
- aa 00 00 [Enter ADC adj. mode]
- xb 00 04 [Change input source to Component1 (480i&
1080p)]
- ad 00 10 [Adjust 480i&1080p Comp1]
- xb 00 06 [Change input source to RGB(1024*768)]
- ad 00 10 [Adjust 1920*1080 SCART RGB]
- ad 00 90 End adj.

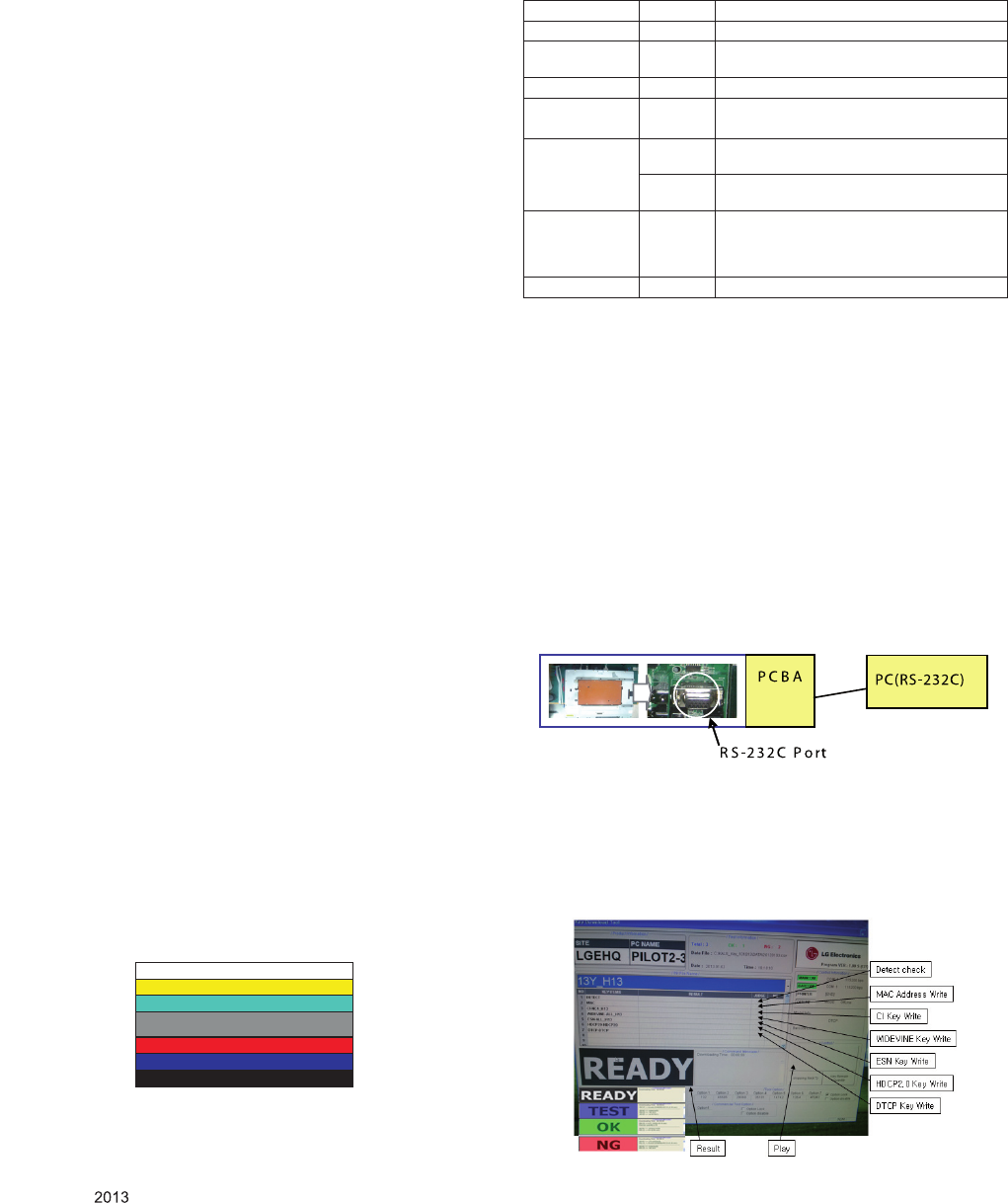

3.2. MAC address D/L, CI+ key D/L, Widevine
key D/L, ESN key D/L, HDCP key D/L,
DTCP key D/L
Connect: PCBA Jig → RS-232C Port== PC → RS-232C Port
Communication Prot connection
▪ Com 1,2,3,4 and 115200(Baudrate)
Mode check: Online Only
▪ Check the test process: DETECT → MAC → CI → Widevine
→ ESN → HDCP → DTCP
▪ Play: START
▪ Result: Ready, Test, OK or NG
▪ Printer Out (MAC Address Label)
Protocol Command Set ACK
Enter adj. mode aa 00 00 a 00 OK00x
Source change xb 00 04
xb 00 06
b 00 OK04x (Adjust 480i, 1080p Comp1 )
b 00 OK06x (Adjust 1920*1080 SCART RGB)
Begin adj. ad 00 10
Return adj. result OKx (Case of Success)
NGx (Case of Fail)
Read adj. data
(main)
ad 00 20
(main)
000000000000000000000000007c007b006dx
(sub )
ad 00 21
(Sub)
000000070000000000000000007c00830077x
Conrm adj. ad 00 99
NG 03 00x (Fail)
NG 03 01x (Fail)
NG 03 02x (Fail)
OK 03 03x (Success)
End adj. aa 00 90 a 00 OK90x
- 14 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes

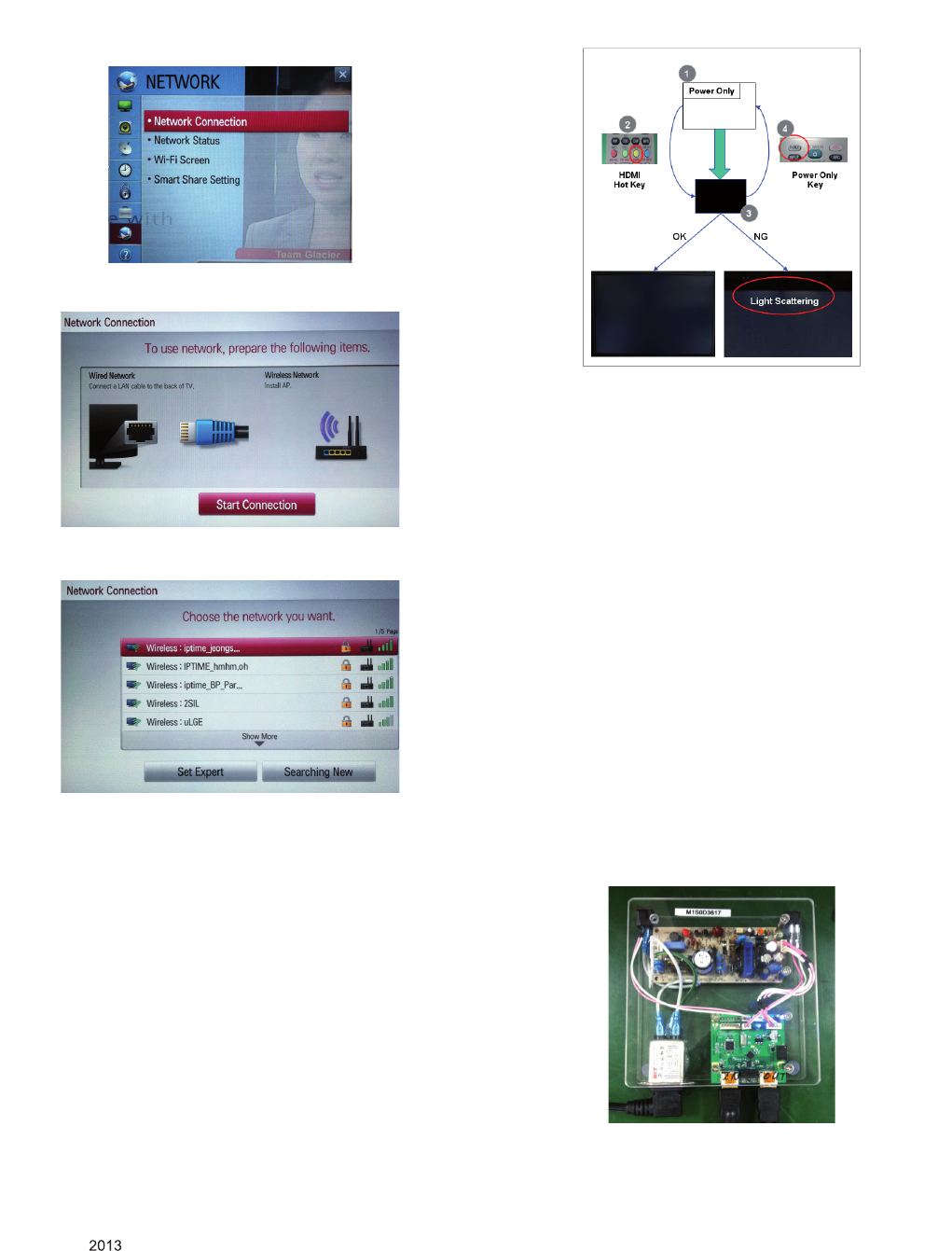

3.3. LAN Inspection
3.3.1. Equipment & Condition
▪ Each other connection to LAN Port of IP Hub and Jig
3.3.2. LAN inspection solution
▪ LAN Port connection with PCB
▪ Network setting at MENU Mode of TV
▪ Setting automatic IP
▪ Setting state confirmation
→ If automatic setting is finished, you confirm IP and MAC
Address.
3.3.3. WIDEVINE key Inspection

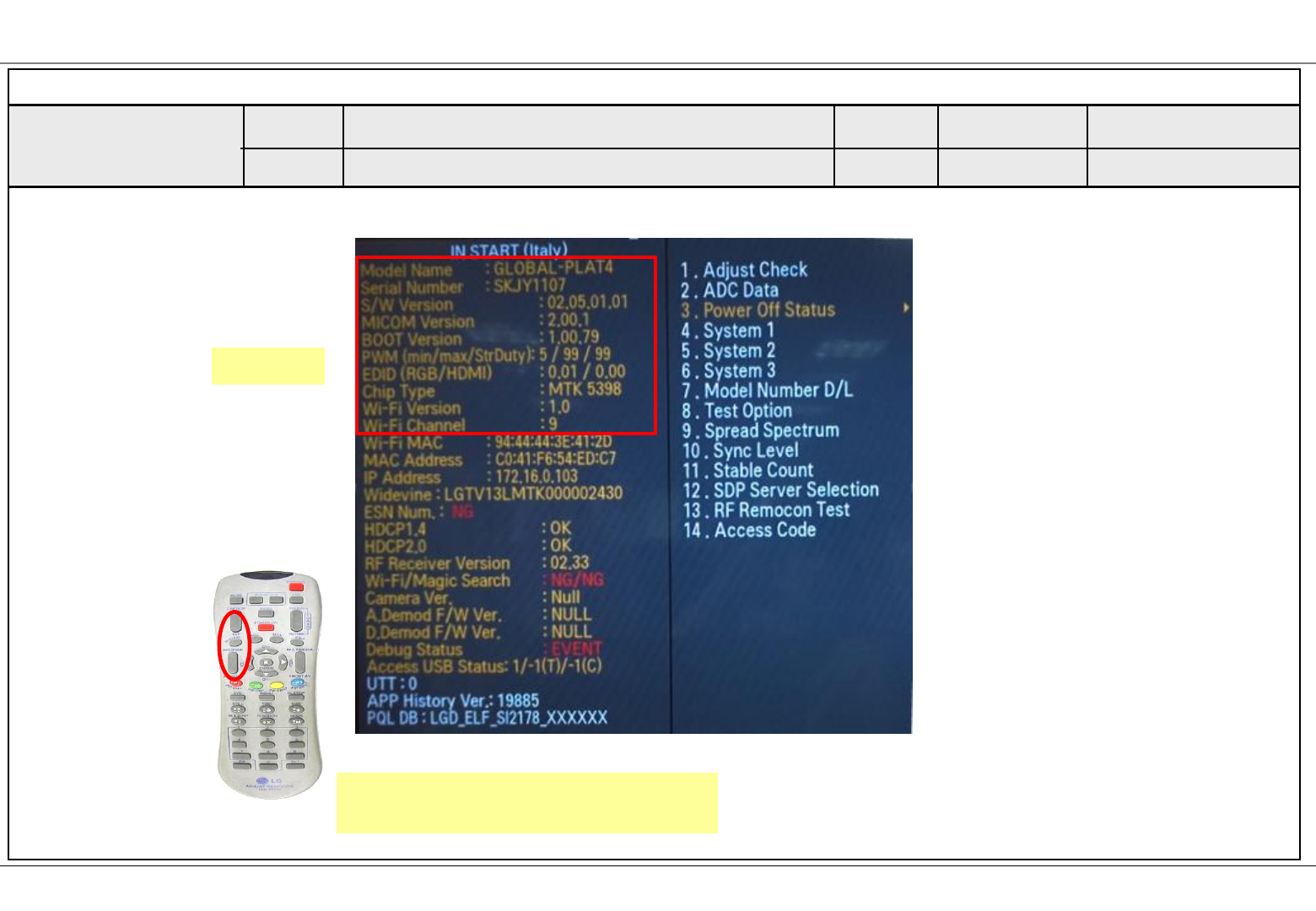

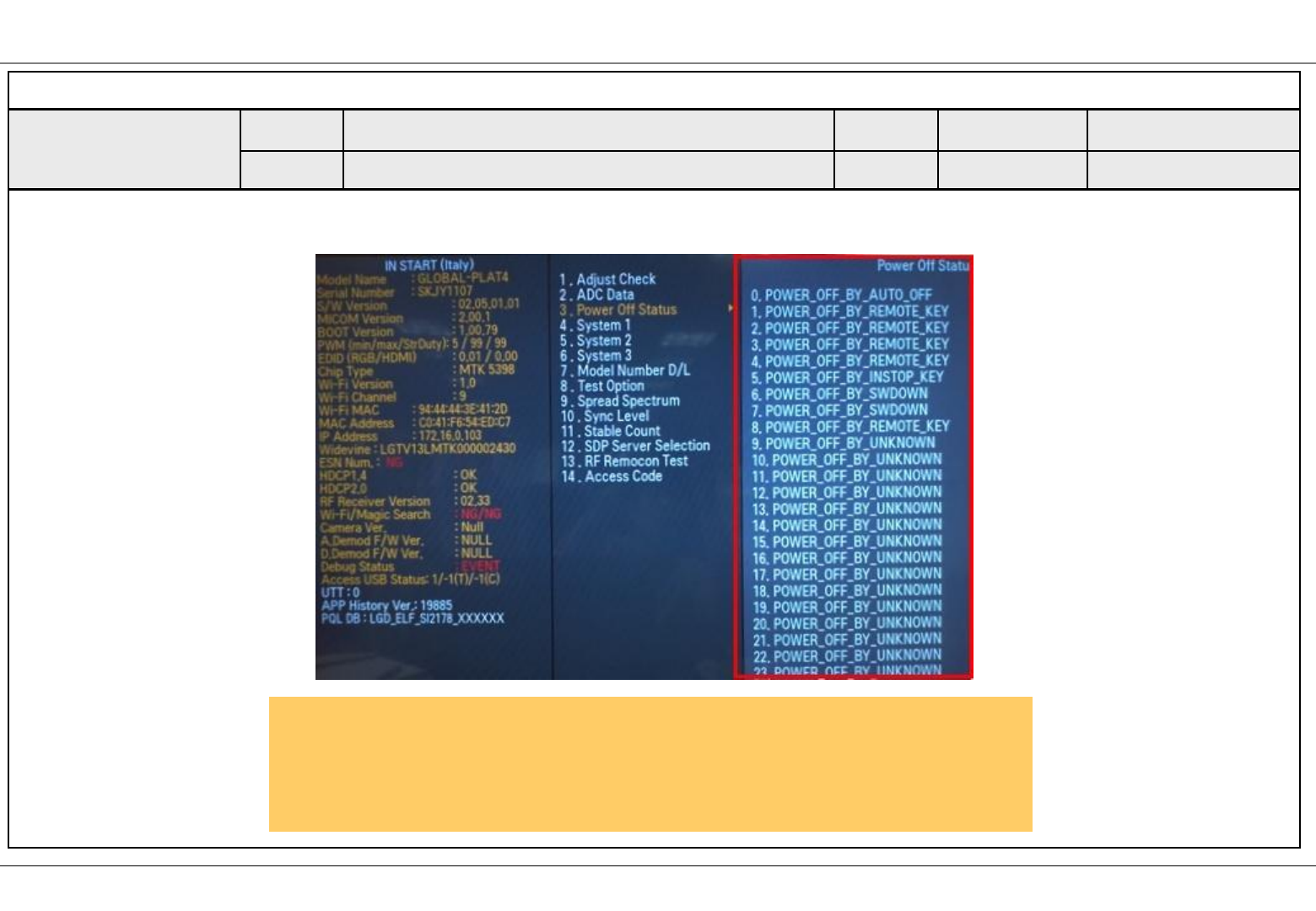

- Confirm key input data at the "IN START" MENU Mode.
3.4. LAN PORT INSPECTION(PING TEST)
Connect SET → LAN port == PC → LAN Port
3.4.1. Equipment setting
(1) Play the LAN Port Test PROGRAM.
(2) Input IP set up for an inspection to Test Program.
*IP Number : 12.12.2.2
3.4.2. LAN PORT inspection(PING TEST)
(1) Play the LAN Port Test Program.
(2) Connect each other LAN Port Jack.
(3) Play Test (F9) button and confirm OK Message.
(4) Remove LAN cable.

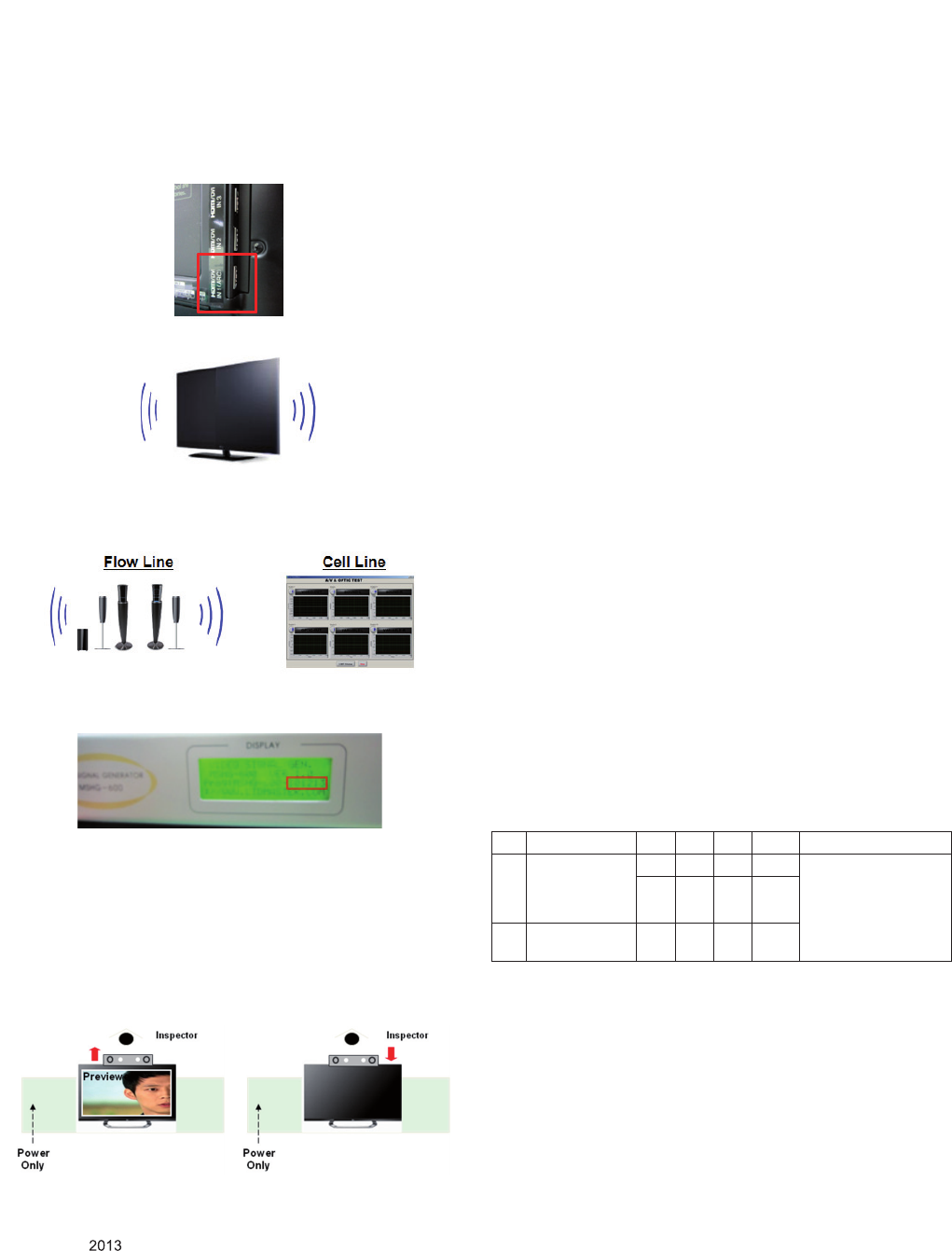

3.5. Camera Port Inspection
(1) Objective : To check PCBA’s CAMERA Port.
(2) How-it-works

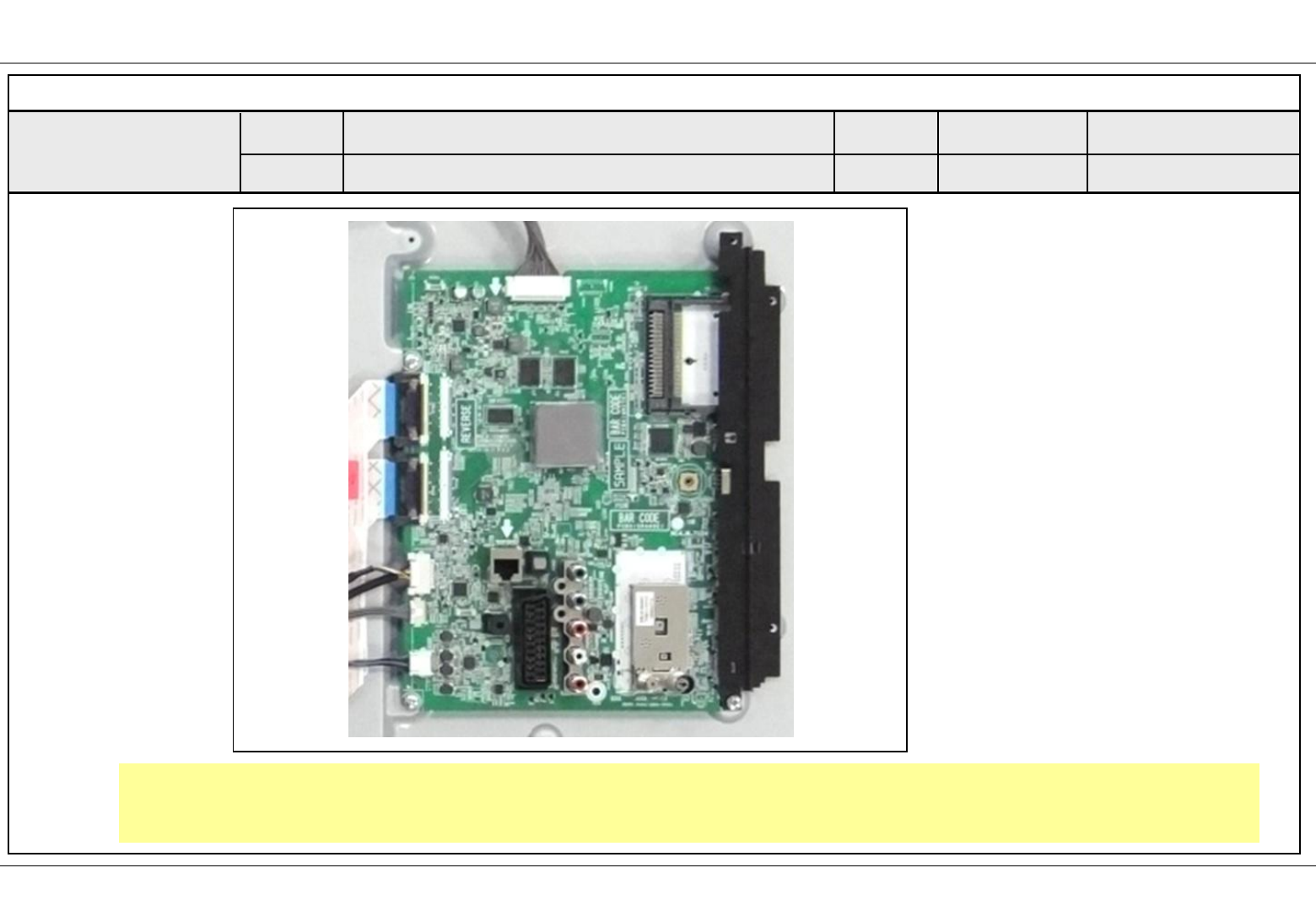

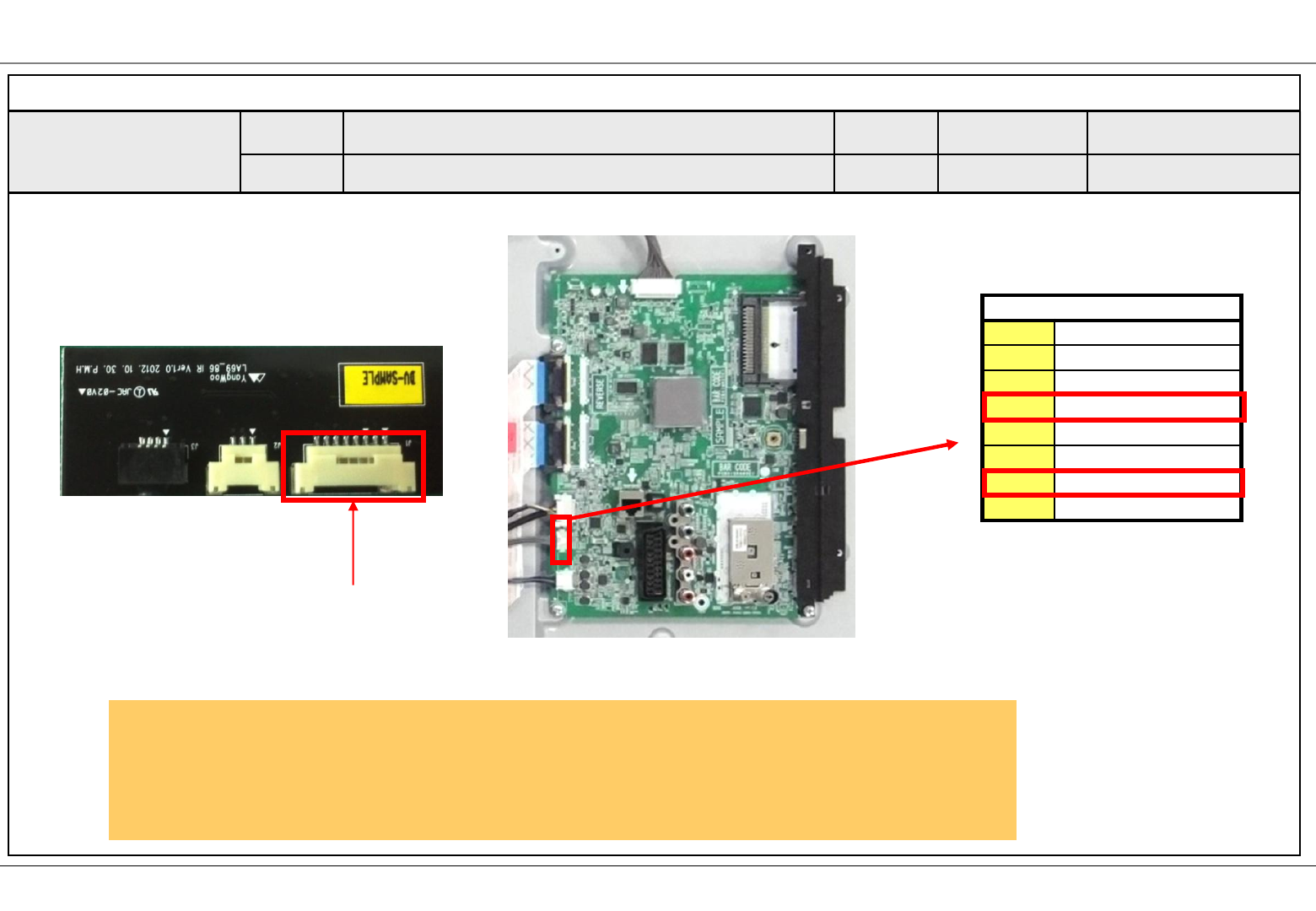

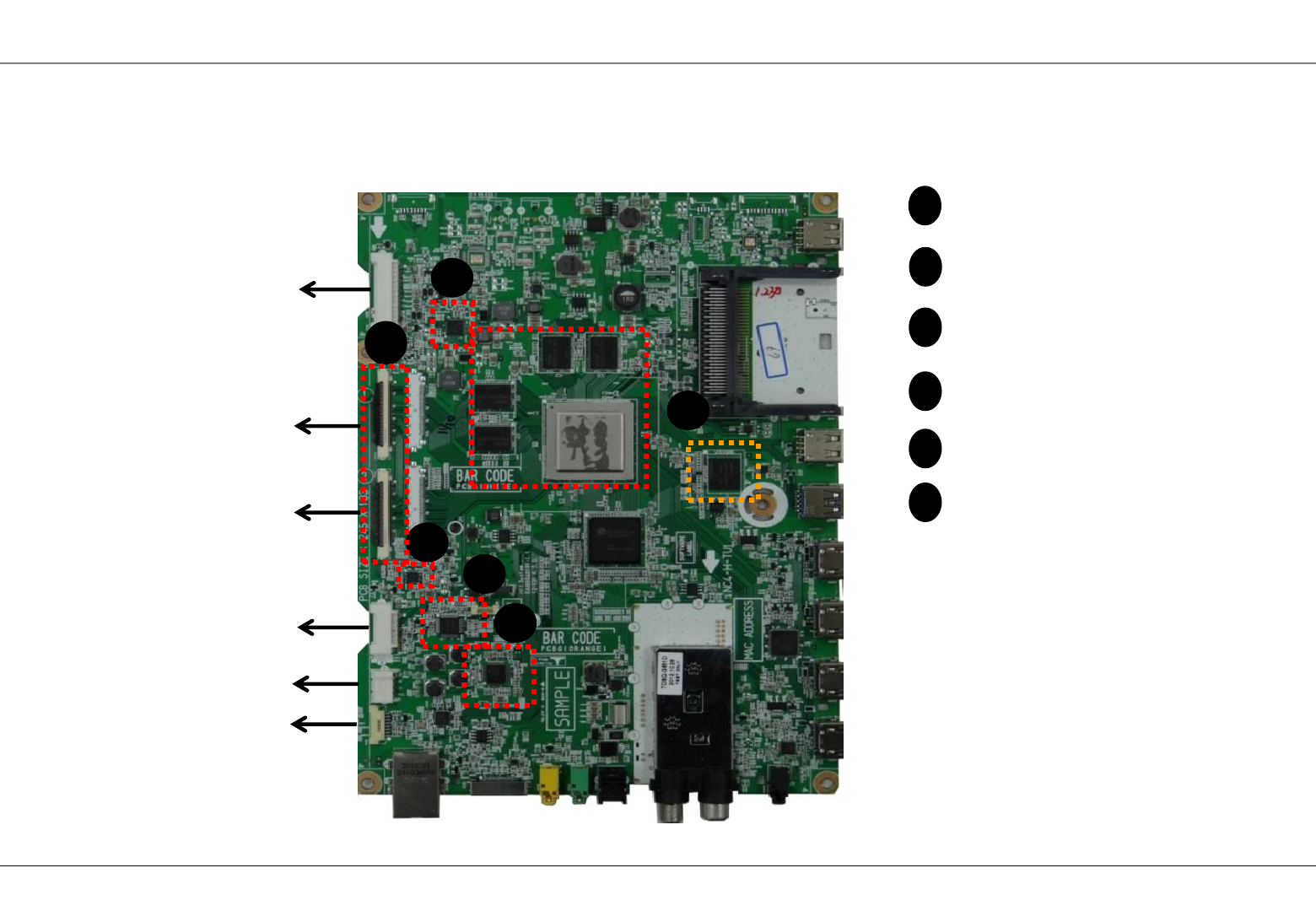

1) Connect the PCBA like below Picture.
2) Send specific RS-232C command for displaying Camera
Preview.
* CAMERA need to be status of Slide up.
3) RS-232C Command
SET PC
RS-232C COMMAND Explanation
CMD DATA ID
ai 00 23 Camera Function Start.
ai 00 24 Camera Function End.
- 15 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes

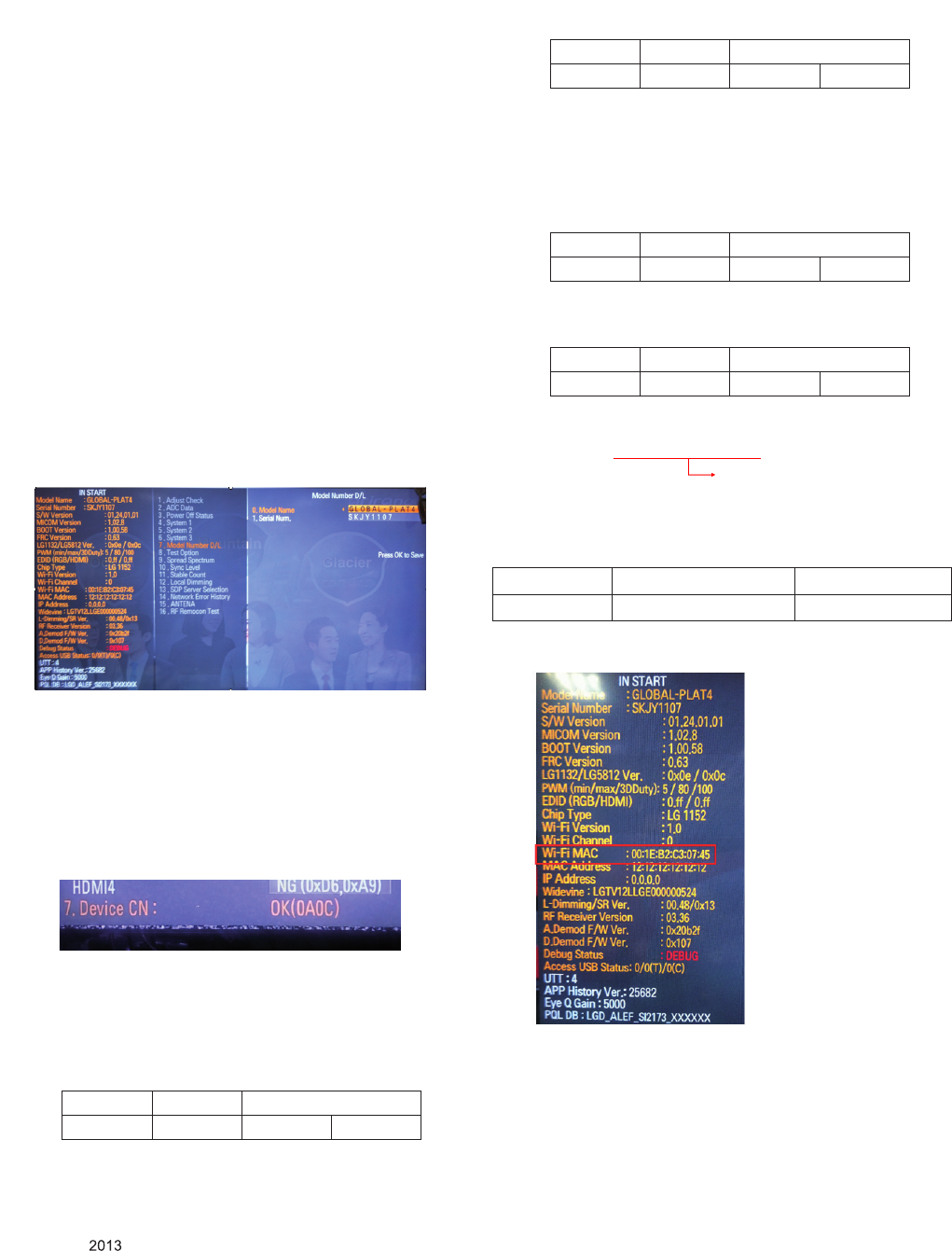

3.6. Model name & Serial number Download
3.6.1. Model name & Serial number D/L
▪ Press "Power on" key of service remote control.
(Baud rate : 115200 bps)
▪ Connect RS-232C Signal to USB Cable to USB.
▪ Write Serial number by use USB port.
▪ Must check the serial number at Instart menu.
3.6.2. Method & notice
(1) Serial number D/L is using of scan equipment.
(2) Setting of scan equipment operated by Manufacturing
Technology Group.
(3) Serial number D/L must be conformed when it is produced
in production line, because serial number D/L is mandatory
by D-book 4.0.
* Manual Download (Model Name and Serial Number)
If the TV set is downloaded by OTA or service man, sometimes
model name or serial number is initialized.(Not always)
It is impossible to download by bar code scan, so It need
Manual download.
1) Press the "Instart" key of Adjustment remote control.
2) Go to the menu "7.Model Number D/L" like below photo.
3) Input the Factory model name(ex 47LM960V-ZB) or Serial
number like photo.
4) Check the model name Instart menu. → Factory name
displayed. (ex 47LM960V-ZB)
5) Check the Diagnostics.(DTV country only) → Buyer
model displayed. (ex 47LM960V-ZB)
3.7. CI+ Key checking method
* Check the Section 3.2
Check whether the key was downloaded or not at ‘In Start’
menu. (Refer to below).
=> Check the Download to CI+ Key value in LGset.
3.7.1. Check the method of CI+ Key value
(1) Check the method on Instart menu
(2) Check the method of RS232C Command
1) Into the main ass’y mode(RS232: aa 00 00)
2) Check the key download for transmitted command
(RS232: ci 00 10)
3) Result value
- Normally status for download : OKx
- Abnormally status for download : NGx
3.7.2. Check the method of CI+ key value(RS232)
1) Into the main ass’y mode(RS232: aa 00 00)
2) Check the mothed of CI+ key by command
(RS232: ci 00 20)
3) Result value
i 01 OK 1d1852d21c1ed5dcx

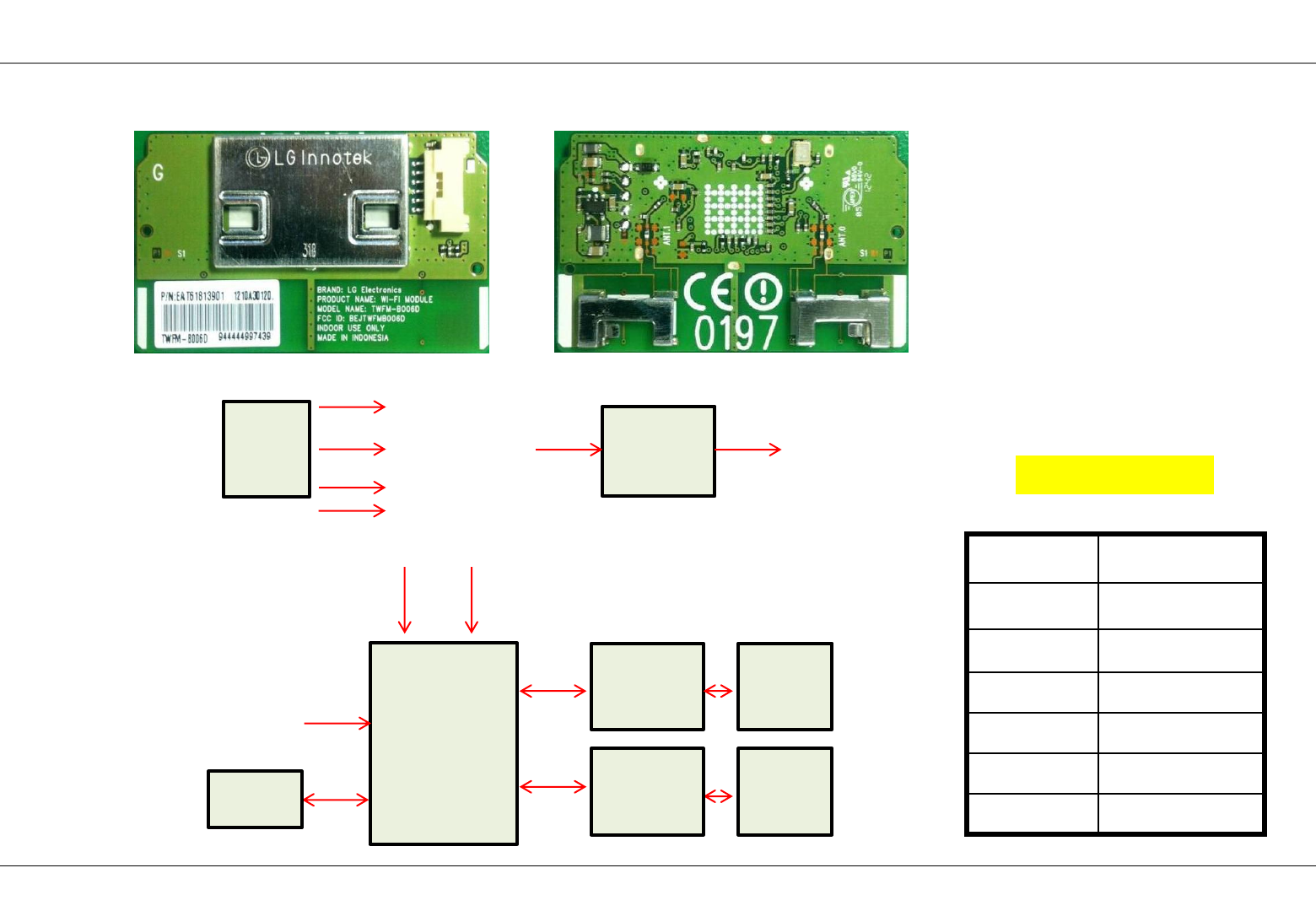

3.8. WIFI MAC ADDRESS CHECK
(1) Using RS232 Command
(2) Check the menu on in-start
H-freq(kHz) V-freq.(Hz)
Transmission [A][I][][Set ID][][20][Cr] [O][K][X] or [NG]
CMD 1 CMD 2 Data 0
A A 0 0
CMD 1 CMD 2 Data 0
C I 1 0
CMD 1 CMD 2 Data 0
A A 0 0
CMD 1 CMD 2 Data 0
C I 2 0
CI+ Key Value
- 16 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
4. Manual Adjustment
* ADC adjustment is not needed because of OTP(Auto ADC
adjustment)
4.1. EDID(The Extended Display Identification
Data)/DDC(Display Data Channel) download
4.1.1. Overview
It is a VESA regulation. A PC or a MNT will display an optimal
resolution through information sharing without any necessity
of user input. It is a realization of "Plug and Play".
4.1.2. Equipment
- Since embedded EDID data is used, EDID download JIG,
HDMI cable and D-sub cable are not need.
- Adjustment remote control
4.1.3. Download method
(1) Press "ADJ" key on the Adjustment remote control then
select "10.EDID D/L", By pressing "Enter" key, enter EDID
D/L menu.
(2) Select "Start" button by pressing "Enter" key, HDMI1/
HDMI2/ HDMI3/ HDMI4/ RGB are writing and display OK
or NG.
4.1.4. EDID DATA
▪ HDMI
▪ Reference
- HDMI1 ~ HDMI4
- In the data of EDID, bellows may be different by S/W or
Input mode.
ⓐ Product ID
ⓑ Serial No: Controlled on production line.
ⓒ Month, Year: Controlled on production line:
ex) Monthly : ‘01’ → ‘01’, Year : ‘2013’ → ‘17’
ⓓ Model Name(Hex): LGTV
Cf) TV set’s model name in EDID data is below.
ⓔ Checksum(LG TV): Changeable by total EDID data.
ⓕ Vendor Specific(HDMI)
(1) EDID
# HDMI 1(C/S : E8 81)
EDID Block 0, Bytes 0-127 [00H-7FH]
EDID Block 1, Bytes 128-255 [80H-FFH]
# HDMI 2(C/S : E8 71)
EDID Block 0, Bytes 0-127 [00H-7FH]
EDID Block 1, Bytes 128-255 [80H-FFH]
For HDMI EDID
DVI-D to HDMI or HDMI to HDMI
0x00 0x01 0x02 0x03 0x04 0x05 0x06 0x07 0x08 0x09 0x0A 0x0B 0x0C 0x0D 0x0E 0x0F
0x00 00 FF FF FF FF FF FF 00 1E 6D ⓐ ⓑ
0x01 ⓒ01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26
0x02 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80
0x03 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C
0x04 45 00 40 84 63 00 00 1E 66 21 50 B0 51 00 1B 30
0x05 40 70 36 00 40 84 63 00 00 1E 00 00 00 FD 00 3A
0x06 3E 1E 53 10 00 0A 20 20 20 20 20 20 ⓓ
0x07 ⓓ01 ⓔ1
0x00 02 03 3A F1 4E 10 9F 04 13 05 14 03 02 12 20 21
0x01 22 15 01 29 3D 06 C0 15 07 50 09 57 07 ⓕ
0x02 ⓕ
0x03 ⓕE3 05 03 01 02 3A 80 18 71 38 40
0x04 2D 40 58 2C 45 00 40 84 63 00 00 1E 01 1D 80 18
0x05 71 1C 16 20 58 2C 25 00 40 84 63 00 00 9E 01 1D
0x06 00 72 51 D0 1E 20 6E 28 55 00 40 84 63 00 00 1E
0x07 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ⓔ2
0 1 2 3 4 5 6 7 8 9 A B C D E F
00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01
10 01 17 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26
20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80
30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C
40 45 00 40 84 63 00 00 1E 66 21 50 B0 51 00 1B 30
50 40 70 36 00 40 84 63 00 00 1E 00 00 00 FD 00 3A
60 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC
70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 E8
0 1 2 3 4 5 6 7 8 9 A B C D E F
80 02 03 3A F1 4E 10 9F 04 13 05 14 03 02 12 20 21
90 22 15 01 29 3D 06 C0 15 07 50 09 57 07 78 03 0C
A0 00 10 00 B8 2D 20 C0 0E 01 4F 3F FC 08 10 18 10
B0 06 10 16 10 28 10 E3 05 03 01 02 3A 80 18 71 38
C0 2D 40 58 2C 45 00 40 84 63 00 00 1E 01 1D 80 18
D0 71 1C 16 20 58 2C 25 00 40 84 63 00 00 9E 01 1D
E0 00 72 51 D0 1E 20 6E 28 55 00 40 84 63 00 00 1E
F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 81
0 1 2 3 4 5 6 7 8 9 A B C D E F
00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01
10 01 17 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26
20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80
30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C
40 45 00 40 84 63 00 00 1E 66 21 50 B0 51 00 1B 30
50 40 70 36 00 40 84 63 00 00 1E 00 00 00 FD 00 3A
60 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC
70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 E8
MODEL NAME HEX EDID Table DDC Function
HD/FHD Model 0001 01 00 Analog/Digital
MODEL NAME MODEL NAME(HEX)
LG TV 00 00 00 FC 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 (LG TV)
EDID C/S data FHD
HDMI
check sum (Hex)
Block 0 42
Block 1 23 (HDMI1)
13 (HDMI2)
INPUT MODEL NAME(HEX)
HDMI1 78030C001000801E
HDMI2 78030C002000801E
0 0 1 2 3 4 5 6 7 8 9 A B C D E F
00 02 03 37 F1 4E 10 9F 04 13 05 14 03 02 12 20 21
10 22 15 01 26 15 07 50 09 57 07 78 03 0C 00 20 00
20 B8 2D 20 C0 0E 01 4F 3F FC 08 10 18 10 06 10 16
30 10 28 10 E3 05 03 01 02 3A 80 18 71 38 2D 40 58
40 2C 45 00 A0 5A 00 00 00 1E 01 1D 80 18 71 1C 16
50 20 58 2C 25 00 A0 5A 00 00 00 9E 01 1D 00 72 51
60 D0 1E 20 6E 28 55 00 A0 5A 00 00 00 1E 00 00 00
70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 01
- 17 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
# HDMI 3(C/S : E8 61)
EDID Block 0, Bytes 0-127 [00H-7FH]
EDID Block 1, Bytes 128-255 [80H-FFH]
# HDMI 4(C/S : E8 51)
EDID Block 0, Bytes 0-127 [00H-7FH]
EDID Block 1, Bytes 128-255 [80H-FFH]
4.2. White Balance Adjustment
4.2.1. Overview
▪ W/B adj. Objective & How-it-works
(1) Objective: To reduce each Panel's W/B deviation
(2) How-it-works : When R/G/B gain in the OSD is at 192, it
means the panel is at its Full Dynamic Range. In order to
prevent saturation of Full Dynamic range and data, one
of R/G/B is fixed at 192, and the other two is lowered to
find the desired value.
(3) Adjustment condition : normal temperature
1) Surrounding Temperature : 25 °C ± 5 °C
2) Warm-up time: About 5 Min
3) Surrounding Humidity : 20 % ~ 80 %
4.2.2. Equipment
(1) Color Analyzer: CA-210 (LED Module : CH 14)
(2) Adjustment Computer(During auto adj., RS-232C protocol
is needed)
(3) Adjustment Remote control
(4) Video Signal Generator MSPG-925F 720p/216-Gray
(Model: 217, Pattern: 78)
→ Only when internal pattern is not available
▪ Color Analyzer Matrix should be calibrated using CS-100.
4.2.3. Equipment connection MAP
4.2.4. Adj. Command (Protocol)
<Command Format>
- LEN: Number of Data Byte to be sent
- CMD: Command
- VAL: FOS Data value
- CS: Checksum of sent data
- A: Acknowledge
Ex) [Send: JA_00_DD] / [Ack: A_00_okDDX]
▪ RS-232C Command used during auto-adjustment.
Ex) wb 00 00 -> Begin white balance auto-adj.
wb 00 10 -> Gain adj.
ja 00 ff -> Adj. data
jb 00 c0
...
...
wb 00 1f → Gain adj. completed
*(wb 00 20(Start), wb 00 2f(end)) → Off-set adj.
wb 00 ff → End white balance auto-adj.
START 6E A 50 A LEN A 03 A CMD A 00 A VAL A CS STOP
Co lo r An alyzer
Co mp ut er
Pat tern Generat or
RS -2 32C
RS-2 32C
RS-2 32C
Probe
Signal Source
* If TV internal pattern is used, not needed
RS-232C COMMAND
[CMD ID DATA] Explantion
wb 00 00 Begin White Balance adjustment
wb 00 10 Gain adjustment(internal white pattern)
wb 00 1f Gain adjustment completed
wb 00 20 Offset adjustment(internal white pattern)
wb 00 2f Offset adjustment completed
wb 00 ff End White Balance adjustment
(internal pattern disappears )
0 0 1 2 3 4 5 6 7 8 9 A B C D E F
00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01
10 01 17 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26
20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80
30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C
40 45 00 40 84 63 00 00 1E 66 21 50 B0 51 00 1B 30
50 40 70 36 00 40 84 63 00 00 1E 00 00 00 FD 00 3A
60 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC
70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 E8
0 0 1 2 3 4 5 6 7 8 9 A B C D E F
00 02 03 3A F1 4E 10 9F 04 13 05 14 03 02 12 20 21
10 22 15 01 29 3D 06 C0 15 07 50 09 57 07 78 03 0C
20 00 30 00 B8 2D 20 C0 0E 01 4F 3F FC 08 10 18 10
30 06 10 16 10 28 10 E3 05 03 01 02 3A 80 18 71 38
40 2D 40 58 2C 45 00 40 84 63 00 00 1E 01 1D 80 18
50 71 1C 16 20 58 2C 25 00 40 84 63 00 00 9E 01 1D
60 00 72 51 D0 1E 20 6E 28 55 00 40 84 63 00 00 1E
70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 61
0 0 1 2 3 4 5 6 7 8 9 A B C D E F
00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01
10 01 17 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26
20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80
30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C
40 45 00 40 84 63 00 00 1E 66 21 50 B0 51 00 1B 30
50 40 70 36 00 40 84 63 00 00 1E 00 00 00 FD 00 3A
60 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC
70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 E8
0 0 1 2 3 4 5 6 7 8 9 A B C D E F
00 02 03 3A F1 4E 10 9F 04 13 05 14 03 02 12 20 21
10 22 15 01 29 3D 06 C0 15 07 50 09 57 07 78 03 0C
20 00 40 00 B8 2D 20 C0 0E 01 4F 3F FC 08 10 18 10
30 06 10 16 10 28 10 E3 05 03 01 02 3A 80 18 71 38
40 2D 40 58 2C 45 00 40 84 63 00 00 1E 01 1D 80 18
50 71 1C 16 20 58 2C 25 00 40 84 63 00 00 9E 01 1D
60 00 72 51 D0 1E 20 6E 28 55 00 40 84 63 00 00 1E
70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 51
- 18 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
▪ Adj. Map
4.2.5. Adj. method
(1) Auto adj. method
1) Set TV in adj. mode using POWER ON key.
2) Zero calibrate probe then place it on the center of the
Display.
3) Connect Cable.(RS-232C to USB)
4) Select mode in adj. Program and begin adj.
5) When adj. is complete (OK Sign), check adj. status pre
mode. (Warm, Medium, Cool)
6) Remove probe and RS-232C cable to complete adj.
▪ W/B Adj. must begin as start command “wb 00 00” , and
finish as end command “wb 00 ff”, and Adj. offset if need.
(2) Manual adjustment. method
1) Set TV in Adj. mode using POWER ON.
2) Zero Calibrate the probe of Color Analyzer, then place it
on the center of LCD module within 10 cm of the
surface.
3) Press ADJ key → EZ adjust using adj. R/C → 9. White-
Balance then press the cursor to the right(key ►). When
right key(►) is pressed 216 Gray internal pattern will be
displayed
4) Adjust Cool modes
a. Fix the one of R/G/B gain to 192 (default data) and
decrease the others. ( If G gain is adjusted over 172
and R and B gain less than 192 , Adjust is O.K.)
b. If G gain is less than 172, Increase G gain by up to
172, and then increase R gain and G gain same
amount of increasing G gain.
c. If R gain or B gain is over 255, Readjust G gain less
than 172, Conform to R gain is 255 or B gain is 255
5) Adjust two modes(Medium/Warm) Fix the one of R/G/B
gain to 192(default data) and decrease the others.
6) Adj. is completed, Exit adjust mode using “EXIT” key on
Remote controller.

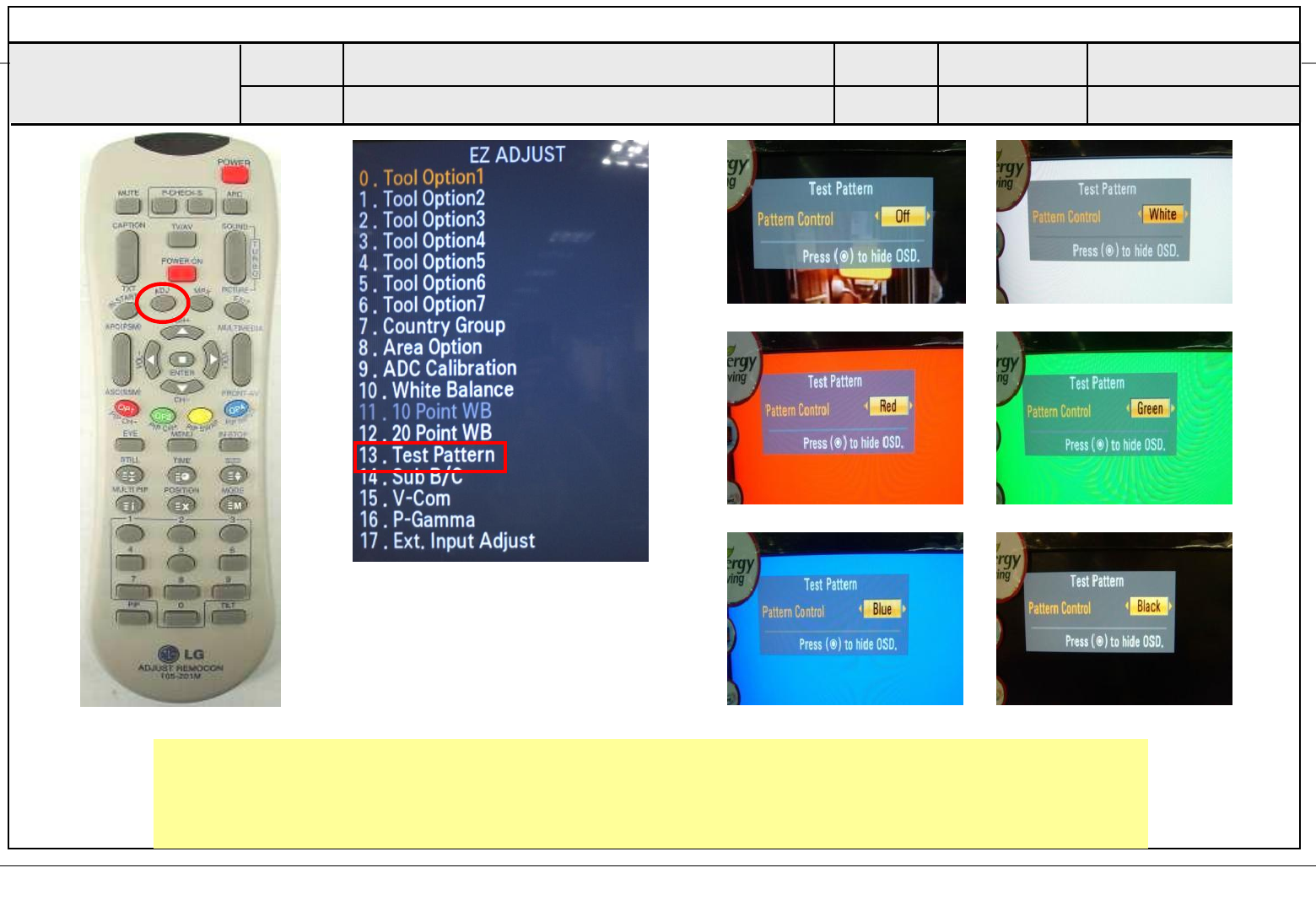

▪ If internal pattern is not available, use RF input. In EZ Adj.
menu 6.White Balance, you can select one of 2 Test-
pattern: ON, OFF. Default is inner(ON). By selecting OFF,
you can adjust using RF signal in 206 Gray pattern.
* CASE Cool
First adjust the coordinate far away from the target
value(x, y).
1. x, y > target
i) Decrease the R, G.
2. x, y < target
i) First decrease the B gain,
3. x > target, y < target
i) First decrease B, so make y a little more than the target.
ii) Adjust x value by decreasing the R
4. x < target, y > target
i) First decrease B, so make x a little more than the target.
ii) Adjust x value by decreasing the G
How to adjust
1. If G gain is adjusted over 172 and R gain and B gain
less than 192 , Adjust is O.K.
2. If G gain is less than 172 , increase G gain by up to
172, and then increase R gain and B gain same
amount of increasing G gain.
3. If R gain or B gain is over 255 , Readjust G gain less
than 172, Conform to R gain is 255 or B gain is 255
* CASE Medium / Warm
First adjust the coordinate far away from the target
value(x, y).
1. x, y > target
i) Decrease the R, G.
2. x, y < target
i) First decrease the B gain,
ii) Decrease the one of the others.
3. x > target, y < target
i) First decrease B, so make y a little more than the target.
ii) Adjust x value by decreasing the R
4. x < target, y > target
i) First decrease B, so make x a little more than the target.
ii) Adjust y value by decreasing the G
▪ Adjustment condition and cautionary items
1) Lighting condition in surrounding area
Surrounding lighting should be lower 10 lux. Try to
isolate adj. area into dark surrounding.
2) Probe location
: Color Analyzer(CA-210) probe should be within 10 cm
and perpendicular of the module surface (80° ~ 100°)
3) Aging time
- After Aging Start, Keep the Power ON status during 5
Minutes.
- In case of LCD, Back-light on should be checked
using no signal or Full-white pattern.
4.2.6. Reference (White balance Adj. coordinate and
color temperature)
▪ Luminance : 206 Gray
▪ Standard color coordinate and temperature using CS-1000
(over 26 inch)
Adj. item Command
(lower caseASCII)
Data Range
(Hex.)
Default
(Decimal)
CMD1 CMD2 MIN MAX
Cool
R Gain j g 00 C0
G Gain j h 00 C0
B Gain j i 00 C0
R Cut
G Cut
B Cut
Medium
R Gain j a 00 C0
G Gain j b 00 C0
B Gain j c 00 C0
R Cut
G Cut
B Cut
Warm
R Gain j d 00 C0
G Gain j e 00 C0
B Gain j f 00 C0
R Cut
G Cut
Mode Coordinate Temp ∆uv
x y
Cool 0.271 0.270 13000 K 0.0000
Medium 0.285 0.293 9300 K 0.0000
Warm 0.310 0.325 6500 K 0.0000
- 19 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes

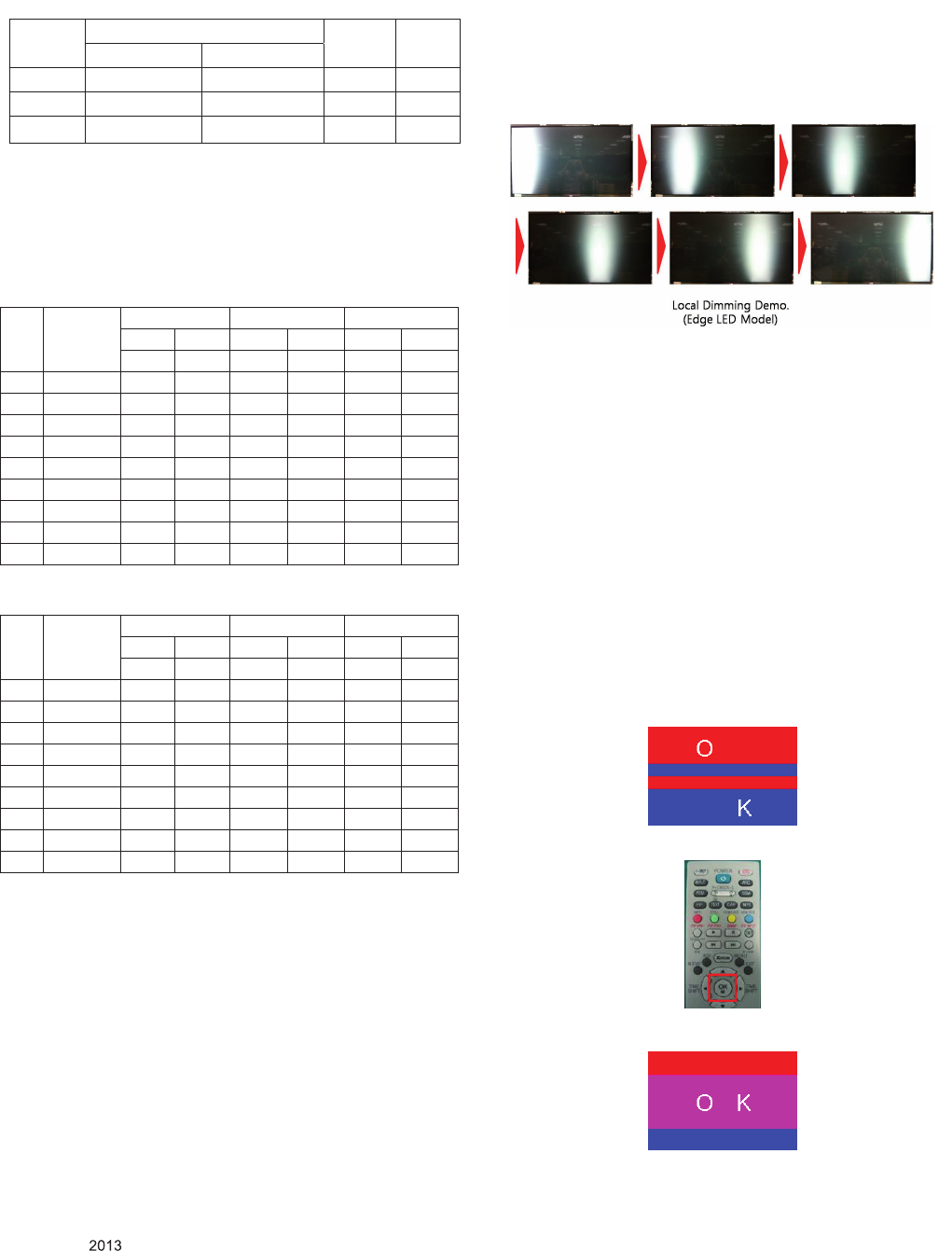

▪ Standard color coordinate and temperature using CA-210(CH 18)
4.2.7. EDGE LED White balance table
(1) EDGE LED module change color coordinate because of
aging time.
(2) Apply under the color coordinate table, for compensated
aging time.
(3) Normal line(Edge)
- Gumi (Mar ~ Dec) & Global
(4) Aging Chamber(Edge)
4.3. Local Dimming Function Check
Step 1) Turn on TV.
Step 2) At the Local Dimming mode, module Edge Backlight
moving right to left Back light of IOP module moving.
Step 3) Confirm the Local Dimming mode.
Step 4) Press "exit" key.

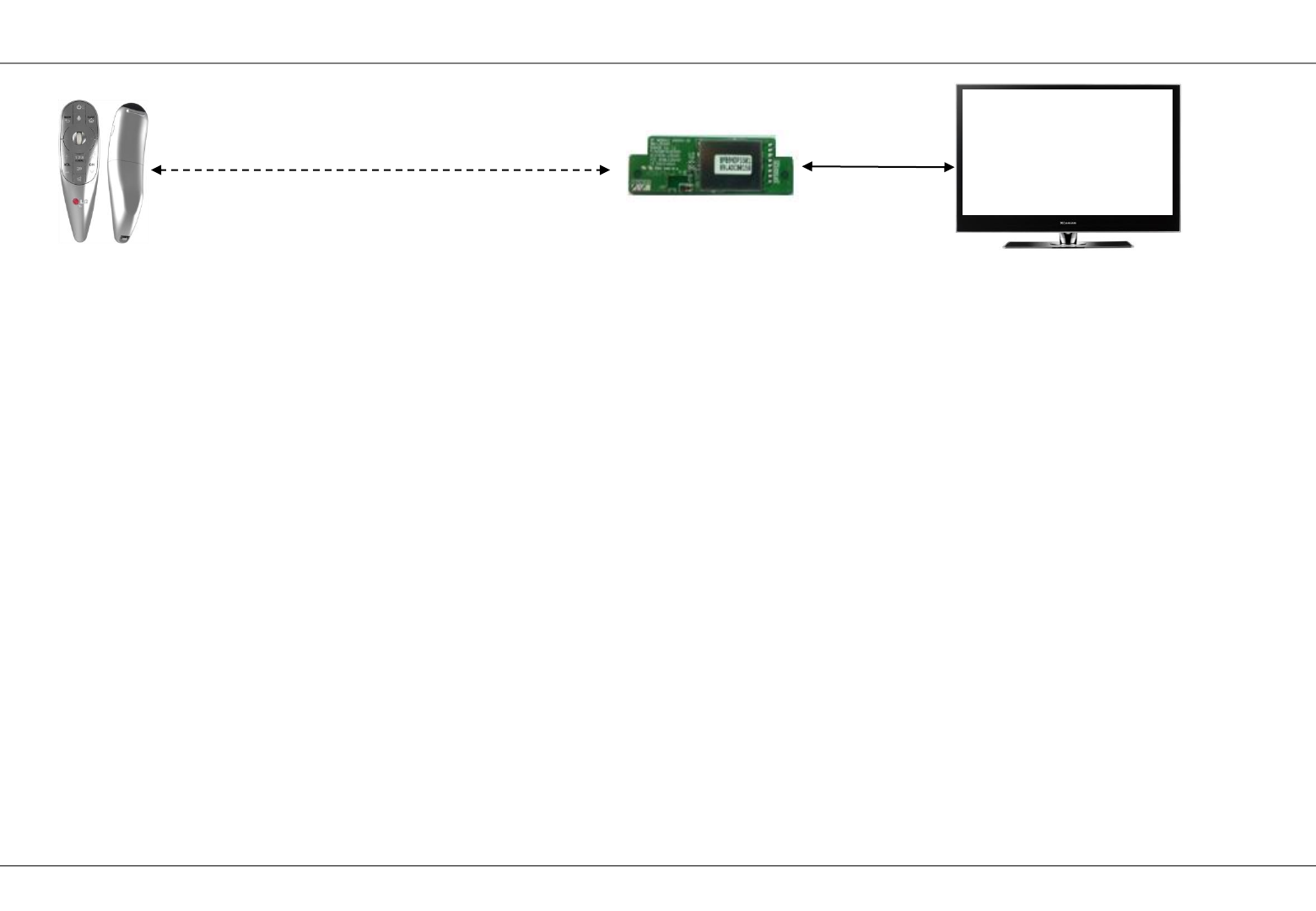

4.4. Magic Motion Remote control test
(1) Equipment : RF Remote control for test, IR-KEY-Code
Remote control for test
(2) You must confirm the battery power of RF-Remote control
before test(recommend that change the battery per every lot)
(3) Sequence (test)
1) if you select the "Start(Mute)" key on the Adjustment
remote control, you can pairing with the TV SET.
2) You can check the cursor on the TV Screen, when select
the "OK" key on the Adjustment remote control.
3) You must remove the pairing with the TV Set by select
"OK" key + "Mute" key on the Adjustment remote control
for 5 seconds.
4.5. 3D function test
(Pattern Generator MSHG-600, MSPG-6100[Support HDMI1.4])
* HDMI mode NO. 872 , pattern No.83
(1) Please input 3D test pattern like below.
(2) When 3D OSD appear automatically, then select OK key.
(3) Don't wear a 3D Glasses, check the picture like below.
Mode Coordinate Temp ∆uv
x y
Cool 0.271±0.002 0.270±0.002 13000K 0.0000
Medium 0.285±0.002 0.293±0.002 9300K 0.0000
Warm 0.310±0.002 0.325±0.002 6500K 0.0000
GP4
Aging
time
(Min)
Cool Medium Warm
X y x y x y
271 270 285 293 313 329
1 0-2 281 287 295 310 320 342
2 3-5 280 285 294 308 319 340
3 6-9 278 284 292 307 317 339
4 10-19 276 281 290 304 315 336
5 20-35 275 277 289 300 314 332
6 36-49 274 274 288 297 313 329
7 50-79 273 272 287 295 312 327
8 80-119 272 271 286 294 311 326
9 Over 120 271 270 285 293 310 325
GP4
Aging
time
(Min)
Cool Medium Warm
X y x y x y
271 270 285 293 313 329
1 0-5 280 285 294 308 319 340
2 6-10 276 280 290 303 315 335
3 11-20 272 275 286 298 311 330
4 21-30 269 272 283 295 308 327
5 31-40 267 268 281 291 306 323
6 41-50 266 265 280 288 305 320
7 51-80 265 263 279 286 304 318
8 81-119 264 261 278 284 303 316
9 Over 120 264 260 278 283 303 315
- 20 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
4.6. Wi-Fi Test
Step 1) Turn on TV
Step 2) Select Network Connection option in Network Menu.
Step 3) Select Start Connection button in Network Connection.
Step 4) If the system finds any AP like blow PIC, it is working
well.
4.7. LNB voltage and 22KHz tone check
(only for DVB-S/S2 model)
▪ Test method
(1) Set TV in Adj. mode using POWER ON.
(2) Connect cable between satellite ANT and test JIG.
(3) Press Yellow key(ETC+SWAP) in Adj Remote control to
make LNB on.
(4) Check LED light ‘ON’ at 18 V menu.
(5) Check LED light ‘ON’ at 22 KHz tone menu.
(6) Press Blue key(ETC+PIP INPUT) in Adjustment Remote
control to make LNB off.
(7) Check LED light ‘OFF’ at 18 V menu.
(8) Check LED light ‘OFF’ at 22 KHz tone menu.
▪ Test result
(1) After press LNB On key, ‘18 V LED’ and ‘22 KHz tone
LED’ should be ON.
(2) After press LNB OFF key, ‘18 V LED’ and ‘22 KHz tone
LED’ should be OFF.
4.8. Inspection of light scattering
▪ Test Method
(1) Push “Power only” key.
(2) Push “HDMI” hot key.
(3) Inspect whether light scattering is occurred in internal
black pattern or not.
(4) Push “Power only” key.
4.9. Option selection per country
4.9.1. Overview
- Option selection is only done for models in Non-EU.
4.9.2. Method
(1) Press ADJ key on the Adjustment Remote Control, then
select Country Group Meun
(2) Depending on destination, select Country Group Code 04
or Country Group EU then on the lower Country option,
select US, CA, MX. Selection is done using +, - or ►◄
key.
4.10. MHL Test
(1) Turn on TV
(2) Select HDMI4 mode using input Menu.
(3) Set MHL Zig(M1S0D3617) using MHL input, output and
power cord.
(4) Connect HDMI cable between MHL Zig and HDMI4 port.
(5) Check LED light of Zig and Module of Set.
Result) If, the LED light is green and the Module shows
normal stream → OK, Else → NG
- 21 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
4.11. HDMI ARC Function Inspection
(1) Test equipment
- Optic Receiver Speaker
- MSHG-600 (SW: 1220 ↑)
- HDMI Cable (for 1.4 version)
(2) Test method
1) Insert the HDMI Cable to the HDMI ARC port from the
master equipment (HDMI1)
2) Check the sound from the TV Set
3) Check the Sound from the Speaker or using AV & Optic
TEST program (It’s connected to MSHG-600)
* Remark: Inspect in Power Only Mode and check SW
version in a master equipment
4.12. Camera Function Inspection
(1) Objective : To check how it connects between Camera and
PCBA normally, and their Function
(2) Test Method : This Inspection is available only Power-Only
Status.
1) Slide Camera Up.
2) Camera’s Preview picture apeears on TV Set.
3) Slide Camera Down.
4.13. Ship-out mode check(In-stop)
▪ After final inspection, press "IN-STOP" key of the Adjustment
remote control and check that the unit goes to Stand-by
mode.
4.14. Tool Option selection
- Method: Press ADJ key on the Adj. R/C, then select Tool option.
4.15. GND and Internal Pressure check
4.15.1. Method
(1) GND & Internal Pressure auto-check preparation
- Check that Power cord is fully inserted to the SET.
(If loose, re-insert)
(2) Perform GND & Internal Pressure auto-check
- Unit fully inserted Power cord, Antenna cable and A/V
arrive to the auto-check process.
- Connect D-terminal to AV JACK TESTER
- Auto CONTROLLER(GWS103-4) ON
- Perform GND TEST
- If NG, Buzzer will sound to inform the operator.
- If OK, changeover to I/P check automatically.
(Remove CORD, A/V form AV JACK BOX.)
- Perform I/P test
- If NG, Buzzer will sound to inform the operator.
- If OK, Good lamp will lit up and the stopper will allow the
pallet to move on to next process.
4.15.2. Checkpoint
▪ TEST voltage
- GND: 1.5 KV / min at 100 mA
- SIGNAL: 3 KV / min at 100 mA
▪ TEST time: 1 second
▪ TEST POINT
- GND TEST = POWER CORD GND & SIGNAL CABLE
METAL GND
- Internal Pressure TEST = POWER CORD GND & LIVE &
NEUTRAL
▪ LEAKAGE CURRENT: At 0.5 mArms
5. Audio
Measurement condition:
(1) RF input: Mono, 1 KHz sine wave signal, 100 % Modulation
(2) CVBS, Component: 1 KHz sine wave signal 0.5 Vrms
(3) RGB PC: 1 KHz sine wave signal 0.7 Vrms
<Slide Up Status> <Slide Down Status>
No. Item Min Typ Max Unit Remark
1.
Audio practical
max Output, L/R
(Distortion=10%
max Output)
9.0 10.0 12.0 W Measurement condition
Auto Volume :Off
Audio EQ : Off
Clear Voice : Off
Virtual Surround:Off
8.5 8.9 9.8 Vrms
2. Speaker (8 Ω
Impedance) 10.0 15.0 W
- 22 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes

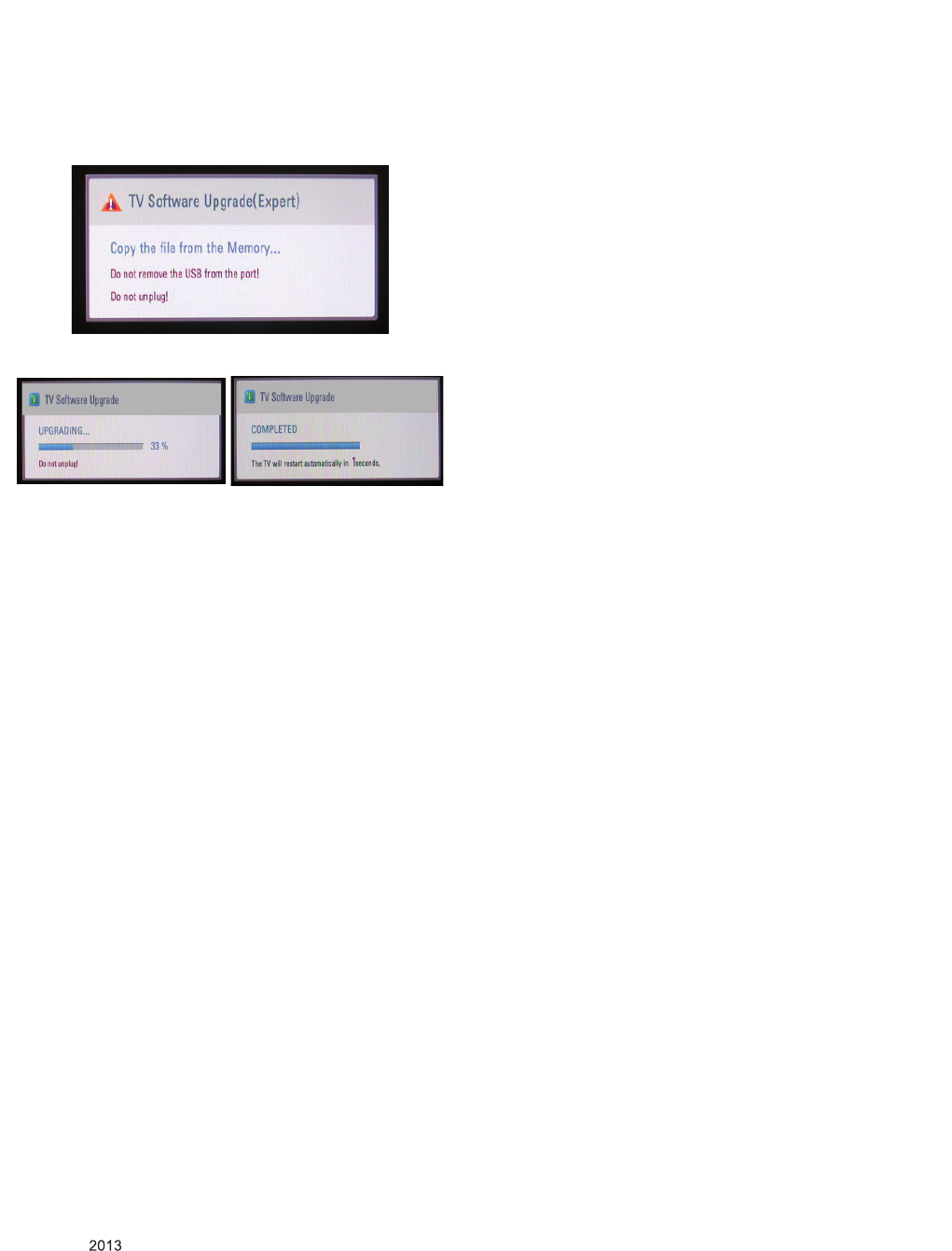

6. USB S/W Download(Service only)
(1) Put the USB Stick to the USB socket.
(2) Automatically detecting update file in USB Stick.
- If your downloaded program version in USB Stick is Low,
it didn't work. But your downloaded version is High, USB
data is automatically detecting.(Download Version High &
Power only mode, Set is automatically Download)
(3) Show the message "Copying files from memory".
(4) Updating is starting.
(5) Updating Completed, The TV will restart automatically.
(6) If your TV is turned on, check your updated version and
Tool option. (explain the Tool option, next stage)
* If downloading version is more high than your TV have, TV
can lost all channel data. In this case, you have to channel
recover. if all channel data is cleared, you didn’t have a DTV/
ATV test on production line.
* After downloading, have to adjust Tool Option again.
(1) Push "IN-START" key in service remote control.
(2) Select "Tool Option 1" and push "OK" key.
(3) Punch in the number. (Each model has their number)
- 23 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
A22 A10 AT1
AG1
900
200
310
CAM1
400
420
410
540
530
120
570
560
300
510
121
820
LV1
* Set + Stand
AG2
Dual Play
LV2
EXPLODED VIEW
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These
parts are identified by in the Schematic Diagram and EXPLODED VIEW.
It is essential that these special safety parts should be replaced with the same components as
recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
IMPORTANT SAFETY NOTICE
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

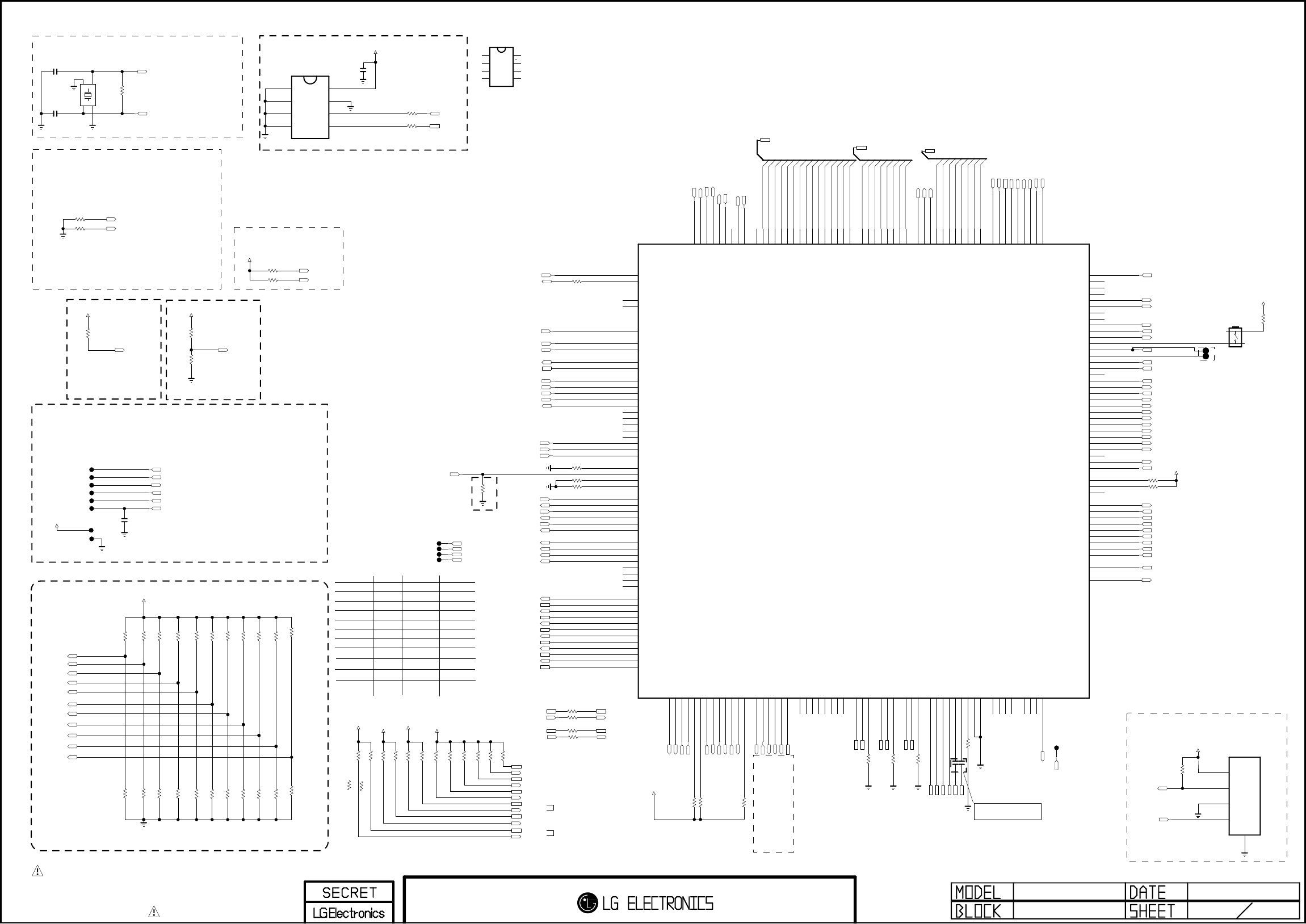

EB_ADDR[13]
EMMC_DATA[5]
EB_ADDR[0]
EB_ADDR[14]
EB_ADDR[8]
EB_DATA[2]
EMMC_DATA[1]
EB_DATA[4]
EB_ADDR[11]
EB_DATA[3]
EB_DATA[5]
EB_ADDR[10]
EB_ADDR[12]
EMMC_DATA[7]
EB_ADDR[1]
EB_DATA[6]
EMMC_DATA[4]
EB_ADDR[6]
EB_ADDR[2]
EB_ADDR[4]
EB_DATA[0]
EMMC_DATA[0]
EMMC_DATA[6]
EMMC_DATA[3]
EB_ADDR[5]
EB_ADDR[3]
EB_ADDR[7]
EMMC_DATA[2]
EB_DATA[7]
EB_ADDR[9]
EB_DATA[1]
EMMC_RST
I2C_SCL_MICOM_SOC
R142
3.3K
TMS0
R174 33
X100
24MHz
4
GND_2 1X-TAL_1
2GND_1
3
X-TAL_2
TCK0
EMMC_CLK
WIFI_DM
RF_SWITCH_CTL
EPHY_EN
+3.3V_NORMAL
I2C_SDA_MICOM_SOC
TCK0
I2C_SCL1
/S2_RESET
HW_OPT_9
SMARTCARD_DATA/SD_EMMC_CLK
USB3_TX0M
UART2_RX
R155
10K
CI
EPHY_RXD1
EPHY_INT
I2C_SDA5
HDMI_S/W_RESET
PLLSET1
SMARTCARD_CLK/SD_EMMC_DATA[0]
+3.3V_NORMAL
HW_OPT_4
HDMI_CLK+
R159 200 1%
/PCM_CE1
SOC_RESET
R169 3.3K
SW100
JTP-1127WEM
DEBUG
12
4 3
HW_OPT_10
R125 10K
NON_DVB_T2_TUNER
R150
3.3K
OPT
+3.3V_NORMAL
R130 10K
NON_AJ_JA
XIN_MAIN
M_REMOTE_RTS
I2C_SDA1
R154
10K
CI
HW_OPT_1
R112 10K
INTERNAL_FRC
I2C_SCL6
R134 33
OPT
TDO0
R170 3.3K
HDMI_RX2-
+3.3V_NORMAL
+3.3V_NORMAL
I2C_SDA6
+3.3V_NORMAL
I2C_SDA5
PLLSET0
IRB_SPI_SS
TMS0
I2C_SDA4
INSTANT_BOOT
R118
3.3K
UART2_TX
+3.3V_NORMAL
R144
3.3K
IRB_SPI_CK
R148
3.3K
HDMI_RX0-
USB3_TX0P
+3.3V_NORMAL
I2C_SDA5
IRB_SPI_MOSI
SOC_TX
C105 0.1uF
UART2_TX
R101 33
OPT
R143
3.3K
OPM1
EB_ADDR[0-14]
R162 200 1%
C101
10pF
CAM_INPACK_N
R123 10K
NON_CP_BOX
+3.3V_NORMAL
R122 10K
OPT
EMMC_DATA[0-7]
I2C_SDA4
R135-*1 1.5K
KR_PIP
M_REMOTE_RX
M_RFModule_RESET
+3.3V_TU
+3.3V_NORMAL
FE_LNA_Ctrl2
HW_OPT_7
PLLSET0
TRST_N0
SMARTCARD_VCC/SD_EMMC_CMD
HW_OPT_5
HP_DET
FRC_RESET
R120 10K
V13_MODULE
I2C_SCL5
PLLSET1
WIFI_DP
I2C_SCL5
SOC_RX
SPDIF_OUT_ARC
SMARTCARD_DET/SD_EMMC_DATA[3]
R137
3.3K
I2C_SCL4
EPHY_MDC
R135
3.3K
KR_PIP_NOT
BOOT_MODE
OPM0
R121 10K
I2C_SCL6
USB3_RX0P
R138
3.3K
CAM_REG_N
R151 33
FE_LNA_Ctrl1
XIN_MAIN
USB2_HUB_IC_IN_DM
CAM_WAIT_N
EPHY_TXD0
R146
3.3K
R117
3.3K
OPT
TDO0
USB3_RX0M
USB3_DP
R129 10K
AJ_JA
R157 200 1%
R103
3.3K
DEBUG
I2C_SDA_MICOM_SOC
I2C_SCL4
R114 10K
FHD
/RST_PHY
HW_OPT_6
R116 10K
OLED
C100
10pF
USB3_DM
HDMI_RX1-
HDMI_RX2+
USB_DM2
R126 10K
DVB_T2_TUNER
HW_OPT_0
R139 33
/RST_HUB
+3.3V_NORMAL
TDI0
I2C_SCL1
R110 10K
TAIWAN
TRST_N0
C103
0.1uF
I2C_SDA6
R140 33
R147
3.3K
VCOM_DYN
INSTANT_BOOT
R106
33
HDMI_RX1+
CAM_CD2_N
CAM_CD1_N
R141
3.3K
R149 33
R165
3.3K
COMP1_DET
R109 10K
NON_TAIWAN
EB_DATA[0-7]
+3.3V_TU
R152 560
I2C_SCL2_SOC
R113 10K
UD
USB_CTL1
EMMC_CMD
+3.3V_NORMAL
EPHY_MDIO
SMARTCARD_PWR_SEL/SD_EMMC_DATA[1]
HW_OPT_2
R153
10K
CI
XO_MAIN
R136
3.3K
KR_PIP_NOT
R131 10K
EPI
SOC_RESET
HDMI_INT
CAM_IREQ_N
SMARTCARD_RST/SD_EMMC_DATA[2]
AMP_RESET_N
I2C_SDA1
USB2_HUB_IC_IN_DP
/TU_RESET1
BOOT_MODE
R133 33
OPT
P101
12507WS-04L
DEBUG
1
2
3
4
5
R132 10K
NON_EPI
OPM1
H13A_SCL
R100 33
OPT
UART2_RX
C104 0.1uF
HDMI_RX0+
OPM0
PMIC_RESET
USB_DP2
M_REMOTE_CTS
R128 10K
DVB_S_TUNER
R108
1M
I2C_SCL2_SOC
R119 10K
V12_MODULE
R145
3.3K
AV1_CVBS_DET
R136-*1 1.5K
KR_PIP
R161 200 1%
I2C_SDA2_SOC
R115 10K
NON_OLED
R127 10K
NON_DVB_S_TUNER
HW_OPT_8
M_REMOTE_TX
R164
33
1/16W
5%
TDI0
I2C_SCL_MICOM_SOC
PCM_5V_CTL
EPHY_RXD0
H13A_SDA
XO_MAIN
R124 10K
CP_BOX
HDMI_CLK-
R10533
CAM_SLIDE_DET
HW_OPT_3
IRB_SPI_MISO
/TU_RESET2
I2C_SCL5
EPHY_TXD1
PCM_RESET
/PCM_CE2
SC_DET
EPHY_REFCLK
R111 10K
NO_FRC
I2C_SDA2_SOC
EPHY_CRS_DV
/USB_OCD1
/USB_OCD2
EB_WE_N
USB_CTL2
USB_CTL3
EB_BE_N1
EB_OE_N
/USB_OCD3
EB_BE_N0
IR_B_RESET
IC102
R1EX24256BSAS0A
EEPROM_RENESAS
3
A2
2
A1
4
VSS
1
A0
5SDA
6SCL
7WP
8VCC
IC102-*1
M24256-BRMN6TP
EEPROM_ST
3
E2
2
E1
4
VSS
1
E0
5SDA
6SCL
7WC
8VCC
I2C_SCL_MICOM I2C_SCL_MICOM_SOC
I2C_SDA_MICOM_SOC
I2C_SDA2_SOC
I2C_SCL2_SOC
R104
33
R10233
I2C_SDA_MICOM
I2C_SCL2
I2C_SDA2
IC100
LG1154D_H13D
XIN
A26
XOUT
B26
XTAL_BYPASS
B27
H13DA_XTAL
AT37
PORES_N
AU16
OPM1
AD34
OPM0
AD33
H13DA_SCL
AT26
H13DA_SDA
AU26
TRST_N0
AP9
TMS0
AN9
TCK0
AP11
TDI0
AN11
TDO0
AN10
TRST_N1
AM10
TMS1
AM9
TCK1
AM11
TDI1
AM12
TDO1
AL11
PLLSET1
AL9
PLLSET0
AL10
BOOT_MODE
AE34
EXT_INTR3/GPIO70
Y33
EXT_INTR2/GPIO69
W32
EXT_INTR1/GPIO68
W33
EXT_INTR0/GPIO67
W34
UART0_RXD
AU12
UART0_TXD
AT12
UART1_RXD
AU13
UART1_TXD
AT13
UART1_RTS
AP12
UART1_CTS
AR12
SPI_CS0/GPIO36
AE35
SPI_DO0/GPIO38
AE36
SPI_DI0/GPIO39
AF36
SPI_SCLK0/GPIO37
AF35
SPI_CS1
AG34
SPI_DO1
AF33
SPI_DI1
AG33
SPI_SCLK1
AG32
SCL0/GPIO66
AR15
SDA0/GPIO65
AP15
SCL1/GPIO64
AR16
SDA1/GPIO79
AP16
SCL2/GPIO78
AP17
SDA2/GPIO77
AR17
SCL3
AP6
SDA3
AR6
SCL4
AH32
SDA4
AJ33
SCL5
AH34
SDA5
AH33
CAM_CE1_N
F33
CAM_CE2_N
F34
CAM_CD1_N/GPIO76
D32
CAM_CD2_N/GPIO75
E32
CAM_VS1_N/GPIO86
G32
CAM_VS2_N/GPIO85
G33
CAM_IREQ_N/GPIO73
F32
CAM_RESET
G34
CAM_INPACK/GPIO74
D33
CAM_VCCEN_N/GPIO87
H32
CAM_WAIT_N/GPIO84
E33
CAM_REG_N/GPIO72
D34
CAM_IOIS16_N/GPIO83
H33
SC_CLK/GPIO130
T33
SC_DETECT/GPIO133
U33
SC_VCCEN/GPIO129
T32
SC_VCC_SEL/GPIO128
V32
SC_RST/GPIO131
V33
SC_DATA/GPIO132
V34
SD_CLK/GPIO125
A25
SD_CMD/GPIO124
C25
SD_CD_N/GPIO123
B25
SD_WP_N/GPIO122
E25
SD_DATA3/GPIO121
D25
SD_DATA2/GPIO120
E24
SD_DATA1/GPIO135
D24
SD_DATA0/GPIO134
C24
USB2_2_DP0
L37
USB2_2_DM0
L36
USB2_2_TXRTUNE
K34
USB2_1_DP0
M37
USB2_1_DM0
M36
USB2_1_TXRTUNE
K33
USB2_0_DP
AU7
USB2_0_DM
AT7
USB2_0_TXRTUNE
AP7
USB3_DP0
P37
USB3_DM0
P36
USB3_RX0P
N36
USB3_RX0M
N37
USB3_TX0P
R36
USB3_TX0M
R37
USB3_RESREF
N34
USB3_REFPADCLKM
P33
USB3_REFPADCLKP
P32
NC_1
L32
NC_2
L33
NC_3
M31
NC_4
AJ31
GPIO136
J32
GPIO137
J33
GPIO138
K32
GPIO139
J34
GPIO31 AL34
GPIO30 AM33
GPIO29 AM32
GPIO28 AF30
GPIO27 AN34
GPIO26 AK34
GPIO25 AL33
GPIO24 AL32
GPIO23/UART2_TX AR9
GPIO22/UART2_RX AM5
GPIO21 AM6
GPIO20 AM7
GPIO19 AL6
GPIO18 AK7
GPIO17 AK6
GPIO16 AK5
GPIO15 AJ5
GPIO14 AJ6
GPIO13 AJ7
GPIO12 AH6
GPIO11 AG7
GPIO10 AG6
GPIO9 AG5
GPIO8 AF5
GPIO7 AH30
GPIO6 AG30
GPIO5 AN33
GPIO4 AK33
GPIO3 AE30
GPIO2 AD30
GPIO1 AN32
GPIO0 AK32
DDCD0_CK AC32
DDCD0_DA AC33
HPD0 AB33
PHY0_ARC_OUT_0 AE37
PHY0_RX0N_0 AC36
PHY0_RX0P_0 AC37
PHY0_RX1N_0 AB36
PHY0_RX1P_0 AB37
PHY0_RX2N_0 AA36
PHY0_RX2P_0 AA37
PHY0_RXCN_0 AD36
PHY0_RXCP_0 AD37
HUB_PORT_OVER0 R32
HUB_VBUS_CTRL0 R33
EB_CS3/GPIO93 K35
EB_CS2/GPIO92 K36
EB_CS1/GPIO91 K37
EB_CS0/GPIO90 L35
EB_WE_N/GPIO95 H35
EB_BE_N1/GPIO81 H36
EB_WAIT/GPIO94 J35
EB_OE_N/GPIO82 J36
EB_BE_N0/GPIO80 H37
EB_ADDR15/GPIO89 G37
EB_ADDR14/GPIO88 G36
EB_ADDR13/GPIO103 G35
EB_ADDR12/GPIO102 F36
EB_ADDR11/GPIO101 F35
EB_ADDR10/GPIO100 E36
EB_ADDR9/GPIO99 E37
EB_ADDR8/GPIO98 E35
EB_ADDR7/GPIO97 D37
EB_ADDR6/GPIO96 D36
EB_ADDR5/GPIO111 D35
EB_ADDR4/GPIO110 C36
EB_ADDR3/GPIO109 C35
EB_ADDR2/GPIO108 B37
EB_ADDR1/GPIO107 B36
EB_ADDR0/GPIO106 B35
EB_DATA7/GPIO105 C32
EB_DATA6/GPIO104 B33
EB_DATA5/GPIO119 A33
EB_DATA4/GPIO118 C33
EB_DATA3/GPIO117 A34
EB_DATA2/GPIO116 B34
EB_DATA1/GPIO115 C34
EB_DATA0/GPIO114 A36
EMMC_CLK Y37
EMMC_CMD Y36
EMMC_RESETN W35
EMMC_DATA7 T36
EMMC_DATA6 W36
EMMC_DATA5 V35
EMMC_DATA4 V37
EMMC_DATA3 V36
EMMC_DATA2 U35
EMMC_DATA1 U36
EMMC_DATA0 U37
RMII_REF_CLK AU11
RMII_CRS_DV AU8
RMII_MDIO AT8
RMII_MDC AR8
RMII_TXEN AR10
RMII_TXD1 AT10
RMII_TXD0 AU10
RMII_RXD1 AT11
RMII_RXD0 AR11
TP102
TP103
TP104
TP105
TP106
TP101
TP108
TP109
TP100 IRB_SPI_SS
TP107 IRB_SPI_MOSI
TP111
TP110
IRB_SPI_CK
IRB_SPI_MISO
IR_B_RESET TP112
C106
33pF
50V
interface
local dimming
I2C port
BOOT MODE
"0 : EMMC
"1 : TEST MODE
OLED option
T2 support
AREA option1
NVRAM
Debug
satellite support
INSTANT_MODE0
EPI PANEL version
INSTANT boot MODE
"1 : Instant boot
"0 : normal
(internal pull down)
AREA option2
System Configuration
AC-coupling CAP
reserved
A0’h
Clock for LG1154D
Jtag I/F For Main
Place near by LG1154D
OP MODE[1:0]
"00" : Normal Mode
"01/10/11" : Internal Test mode
Write Protection
- Low : Normal Operation
- High : Write Protection
BOOT_MODE0
I2C for tuner
PLL SET[1:0] : internal pull up
"00" : CPU(1200Mhz),M0 / M1 DDR(792,792 Mhz)
"01" : CPU(1056Mhz),M0 / M1 DDR(672,672 Mhz)
"10" : CPU(1056Mhz),M0 / M1 DDR(792,792 Mhz)
"11" : CPU( 960Mhz),M0 / M1 DDR(792,792 Mhz)
FRC option
System Clock for Analog block(24Mhz)
Model Option
MAIN Clock(24Mhz)
Pannel Resol
I2C PULL UP
CP BOX
EPI selection
For ISP
I2C for tuner
Only SMART CARD
Not Support
Panel
Area1
Not Support
No FRC(60Hz)
Disable
MODEL_OPT_5
MODEL_OPT_6
OLED
FRCMODEL_OPT_1
CP BOX
LOW
AJ_JA
NON OLED
Enable
MODEL_OPT_3
S Tuner
Support
Default
Area2
V12
HIGH
non Taiwan
MODEL_OPT_4
UD
MODEL_OPT_8
Module
Support
Reserved
OLED
MODEL_OPT_7
V13
FRC(120Hz)
MODEL_OPT_0
EPI
MODEL_OPT_2
Support
MODEL_OPT_10
MODEL_OPT_9
T2 Tuner
FHD
Not Support
Taiwan
BSD-NC4_H001-HD
2012-11-14
H13 D CHIP
non AJ_JA
Copyright © 2013 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
11/05/31
L222
BLM18PG121SN1D
+1.1V_VDD
L225
BLM15BD121SN1
4.7uF
C200
R202
1K 1%
4.7uFC241
L216
BLM18PG121SN1D
VREF_M0_0
4.7uFC239
R300
1K 1%
C283 0.1uF
L228
BLM18PG121SN1D
4.7uFC378
VDDC11_XTAL
VDDC15_M0
4.7uFC201
C274 0.1uF
+3.3V_NORMAL
L238
BLM18PG121SN1D
+1.1V_VDD
4.7uFC211
+1.0V_VDD
+2.5V_Normal
L203
BLM18PG121SN1D
VDD25_XTAL
C208 0.1uF
OPT
AVDD33
AVDD33
L201
BLM18PG121SN1D
VDD25_LTX
VDD10_XTAL
+1.0V_VDD
AVDD25
C206 0.1uF
4.7uFC214
C308
0.1uF
C344
0.1uF
OPT
VDD25_REF
AVDD33_XTAL
VDDC10
C204 0.1uF
4.7uFC209
OPT
C251 0.1uF
+3.3V_NORMAL
VDD25_AUD
+2.5V_Normal
C218 0.1uF
L220
BLM18PG121SN1D
+1.5V_DDR
VDDC15_M1
L207
BLM18PG121SN1D
VDDC15_M0
22uF
C303
+1.5V_DDR
L211
BLM18PG121SN1D
L226
BLM15BD121SN1
+1.1V_VDD
+3.3V_NORMAL
R201
1K 1%
4.7uFC270
C306
0.1uF
R303
1K 1%
4.7uFC216
AVDD33_CVBS
C300 0.1uF
VDDC11_XTAL
R203
1K 1%
4.7uFC279
L200
BLM18PG121SN1D
L234
BLM18PG121SN1D
VDD10_XTAL
VDDC15_M1
C381 0.1uF
VREF_M1_1
VDDC15_M0
C259 0.1uF
AVDD33_CVBS
4.7uFC297
VDD25_LVDS
+2.5V_Normal
VREF_M1_0
+1.1V_VDD
AVDD33_XTAL
C223 0.1uF
AVDD25
4.7uFC298
VREF_M0_1
VSS25_REF
4.7uFC364
VDD25_LVDS
4.7uF
C202
R301
1K 1%
C301 0.1uF
VSS25_REF
C203 0.1uF
VREF_M0_0
C310
0.1uF
OPT
VREF_M1_0
C288 0.1uF
VDD10_XTAL
4.7uFC242
+2.5V_Normal
4.7uFC255
C207 0.1uF
OPT
22uFC299
VDDC15_M1
4.7uFC351
VDD25_XTAL
VDD25_XTAL
C307
0.1uF
C296
0.1uF
OPT
VREF_M0_1
VDDC15_M0
VDDC10
L227
BLM18PG121SN1D
VDD25_LTX
4.7uFC275
C302
0.1uF
VREF_M1_1
VDD25_LTX
VDD11_VTXPHY
R200
1K 1%
L230
BLM18PG121SN1D
L209
BLM18PG121SN1D
C246 0.1uF
VDD33
L206
BLM18PG121SN1D
VDDC15_M1
R302
1K 1%
+2.5V_Normal
VDD25_REF
+3.3V_NORMAL
4.7uFC205
C304
0.1uF
OPT
VDD25_AUD
C368 0.1uF
VDD33
+1.1V_VDD
VDD11_VTXPHY
VDDC11_XTAL
JP202
JP204
JP205
JP203
MDS62110209
M200
GASKET_8.0X6.0X8.5H
NON_LA8600
IC101
LG1154AN_H13A
H13A_NON_BRAZIL
VDD33_1
E11
VDD33_2
F5
VDD33_3
F6
VDD33_4
F11
VDD33_5
G5
VDD33_6
H13
VDD33_7
J13
VDD33_8
P12
VDD33_9
P13
VDD33_10
R5
VDD33_11
R6
VDD33_XTAL
N16
AVDD33_CVBS_1
T13
AVDD33_CVBS_2
T14
VDD25_CVBS_1
N10
VDD25_CVBS_2
N11
VDD25_VSB_1
N12
VDD25_VSB_2
N13
VDD25_REF
U5
VDD25_COMP_1
N7
VDD25_COMP_2
N8
VDD25_COMP_3
N9
VDD25_APLL
F14
VDD25_AUD_1
M6
VDD25_AUD_2
N6
VDD25_AAD
M13
LTX_LVDD_1
F15
LTX_LVDD_2
F16
SDRAM_VDDQ_1
H15
SDRAM_VDDQ_2
J15
SDRAM_VDDQ_3
J16
SDRAM_VDDQ_4
K15
SDRAM_VDDQ_5
K16
VDD10_XTAL
R18
VDDC10_1
G7
VDDC10_2
G8
VDDC10_3
G9
VDDC10_4
H7
VDDC10_5
H12
VDDC10_6
J7
VDDC10_7
J12
VDDC10_8
K7
VDDC10_9
K12
VDDC10_10
L7
VDDC10_11
L12
VDDC10_12
M7
VDDC10_13
M12
AVDD10_CVBS
T17
AVDD10_VSB
T18
AVDD10_LLPLL
M8
DVDD10_APLL_1
G10
DVDD10_APLL_2
G11
LTX_VDD
G12
VSS25_REF
V5
GND_1
C3
GND_2
D3
GND_3
D4
GND_4
D17
GND_5
E4
GND_6
F4
GND_7
F7
GND_8
F8
GND_9
F9
GND_10
F10
GND_11
F12
GND_12
F13
GND_13
F17
GND_14
F18
GND_15
G4
GND_16
G6
GND_17
G13
GND_18
G14
GND_19
G15
GND_20
G16
GND_21
G17
GND_22
G18
GND_23
H4
GND_24
H5
GND_25
H6
GND_26
H8
GND_27
H9
GND_28
H10
GND_29
H11
GND_30 H14
GND_31 J4
GND_32 J5
GND_33 J6
GND_34 J8
GND_35 J9
GND_36 J10
GND_37 J11
GND_38 J14
GND_39 K4
GND_40 K5
GND_41 K6
GND_42 K8
GND_43 K9
GND_44 K10
GND_45 K11
GND_46 K13
GND_47 K14
GND_48 L1
GND_49 L2
GND_50 L3
GND_51 L4
GND_52 L5
GND_53 L6
GND_54 L8
GND_55 L9
GND_56 L10
GND_57 L11
GND_58 L13
GND_59 L14
GND_60 L15
GND_61 L16
GND_62 L17
GND_63 L18
GND_64 M1
GND_65 M2
GND_66 M3
GND_67 M4
GND_68 M5
GND_69 M9
GND_70 M10
GND_71 M11
GND_72 M14
GND_73 M15
GND_74 M16
GND_75 N4
GND_76 N5
GND_77 N14
GND_78 N15
GND_79 N17
GND_80 P4
GND_81 P5
GND_82 P6
GND_83 P7
GND_84 P8
GND_85 P9
GND_86 P10
GND_87 P11
GND_88 P14
GND_89 P15
GND_90 P16
GND_91 R4
GND_92 R7
GND_93 R8
GND_94 R9
GND_95 R10
GND_96 R11
GND_97 R12
GND_98 R13
GND_99 R14
GND_100 R15
GND_101 R16
GND_102 R17
GND_103 T4
GND_104 T7
GND_105 T8
GND_106 T9
GND_107 T10
GND_108 T11
GND_109 T12
GND_110 T15
GND_111 T16
GND_112 U4
GND_113 U6
GND_114 U18
GND_115 V4
GND_116 V16
IC100
LG1154D_H13D
M0_DDR_VREF1
A24
M0_DDR_VREF2
A4
M1_DDR_VREF1
A2
M1_DDR_VREF2
Y1
XTAL_VDD
P26
XTAL_VDDP
N26
VDD33_1
M21
VDD33_2
Y30
VDD33_3
AA30
VDD33_4
AE8
VDD33_5
AF8
VDD33_6
AK13
VDD33_7
AK24
VDD33_8
AK25
AVDD33_USB_1
M22
AVDD33_USB_2
M23
AVDD33_BT_USB_1
AK11
AVDD33_BT_USB_2
AK12
AVDD33_HDMI_1
AF25
AVDD33_HDMI_2
AF26
SP_VQPS
R31
VDD25_LVRX_1
AE23
VDD25_LVRX_2
AF23
VTXPHY_VDD25_1
AE14
VTXPHY_VDD25_2
AF14
VDD25_DR3PLL
N25
GPLL_AVDD25
AD26
VDD15_M0_1
H10
VDD15_M0_2
H11
VDD15_M0_3
H12
VDD15_M0_4
H13
VDD15_M0_5
H14
VDD15_M0_6
H15
VDD15_M0_7
H16
VDD15_M0_8
H17
VDD15_M0_9
H18
VDD15_M0_10
H19
VDD15_M0_11
H20
VDD15_M0_12
H21
VDD15_M0_13
H22
VDD15_M0_14
H23
VDD15_M0_15
H24
VDD15_M0_16
H25
VDD15_M1_1
H7
VDD15_M1_2
H8
VDD15_M1_3
J8
VDD15_M1_4
K8
VDD15_M1_5
L7
VDD15_M1_6
L8
VDD15_M1_7
M8
VDD15_M1_8
N7
VDD15_M1_9
N8
VDD15_M1_10
P8
VDD15_M1_11
R7
VDD15_M1_12
R8
VDD15_M1_13
T8
VDD15_M1_14
U8
VDD15_M1_15
V8
VDD15_M1_16
W8
VDDC11_1 N21
VDDC11_2 N22
VDDC11_3 N23
VDDC11_4 P15
VDDC11_5 P16
VDDC11_6 P17
VDDC11_7 P18
VDDC11_8 R15
VDDC11_9 T15
VDDC11_10 T22
VDDC11_11 T23
VDDC11_12 T24
VDDC11_13 U15
VDDC11_14 U22
VDDC11_15 U23
VDDC11_16 U24
VDDC11_17 V15
VDDC11_18 V22
VDDC11_19 V23
VDDC11_20 V24
VDDC11_21 W22
VDDC11_22 W23
VDDC11_23 W24
VDDC11_24 AB15
VDDC11_25 AB24
VDDC11_26 AC15
VDDC11_27 AC24
VDDC11_28 AD15
VDDC11_29 AD16
VDDC11_30 AD17
VDDC11_31 AD18
VDDC11_32 AD21
VDDC11_33 AD22
VDDC11_34 AD23
VDDC11_35 AD24
VTXPHY_VDD11_1 AB14
VTXPHY_VDD11_2 AC14
VTXPHY_VDD11_3 AD14
AVDD11_DR3PLL P25
AVDD11_DCO AA15
GPLL_VDD11 AC26
IC100
LG1154D_H13D
GND_1
A27
GND_2
B5
GND_3
C5
GND_4
C26
GND_5
C27
GND_6
D5
GND_7
D26
GND_8
E5
GND_9
E6
GND_10
E7
GND_11
E8
GND_12
E22
GND_13
E23
GND_14
E26
GND_15
F7
GND_16
F8
GND_17
F22
GND_18
F23
GND_19
F24
GND_20
F25
GND_21
F26
GND_22
F27
GND_23
F31
GND_24
G7
GND_25
G8
GND_26
G9
GND_27
G10
GND_28
G11
GND_29
G12
GND_30
G13
GND_31
G14
GND_32
G15
GND_33
G16
GND_34
G17
GND_35
G18
GND_36
G19
GND_37
G20
GND_38
G21
GND_39
G22
GND_40
G23
GND_41
G24
GND_42
G25
GND_43
G26
GND_44
G27
GND_45
G28
GND_46
G29
GND_47
G30
GND_48
G31
GND_49
H9
GND_50
H26
GND_51
H27
GND_52
H28
GND_53
H29
GND_54
H30
GND_55
H31
GND_56
J7
GND_57
J30
GND_58
J31
GND_59
K7
GND_60
K30
GND_61
K31
GND_62
L30
GND_63
L31
GND_64
M7
GND_65
M12
GND_66
M13
GND_67
M14
GND_68
M15
GND_69
M16
GND_70
M17
GND_71
M18
GND_72
M19
GND_73
M20
GND_74
M24
GND_75
M25
GND_76
M26
GND_77
M30
GND_78
M32
GND_79
M33
GND_80
M34
GND_81
N12
GND_82
N13
GND_83
N14
GND_84
N15
GND_85
N16
GND_86
N17
GND_87
N18
GND_88
N19
GND_89
N20
GND_90
N24
GND_91
N30
GND_92
N31
GND_93
N32
GND_94
N33
GND_95
P7
GND_96
P12
GND_97
P13
GND_98
P14
GND_99
P19
GND_100
P20
GND_101
P21
GND_102
P22
GND_103
P23
GND_104
P24
GND_105
P30
GND_106
P31
GND_107
R12
GND_108
R13
GND_109
R14
GND_110
R16
GND_111
R17
GND_112
R18
GND_113
R19
GND_114
R20
GND_115
R21
GND_116
R22
GND_117
R23
GND_118
R24
GND_119
R25
GND_120
R26
GND_121
R30
GND_122
R34
GND_123
T7
GND_124
T12
GND_125
T13
GND_126
T14
GND_127
T16
GND_128
T17
GND_129
T18
GND_130
T19
GND_131
T20
GND_132
T21
GND_133
T25
GND_134
T26
GND_135
T30
GND_136
T31
GND_137
T34
GND_138
U7
GND_139
U12
GND_140
U13
GND_141
U14
GND_142
U16
GND_143
U17
GND_144
U18
GND_145
U19
GND_146
U20
GND_147
U21
GND_148
U25
GND_149
U26
GND_150
U30
GND_151
U31
GND_152
V7
GND_153
V12
GND_154
V13
GND_155
V14
GND_156
V16
GND_157
V17
GND_158
V18
GND_159
V19
GND_160
V20
GND_161
V21
GND_162
V25
GND_163
V26
GND_164
V30
GND_165
V31
GND_166
W5
GND_167
W6
GND_168
W7
GND_169
W12
GND_170
W13
GND_171
W14
GND_172
W15
GND_173
W16
GND_174
W17
GND_175
W18
GND_176
W19
GND_177
W20
GND_178
W21
GND_179
W25
GND_180
W26
GND_181
W30
GND_182
W31
GND_183
Y3
GND_184
Y4
GND_185
Y5
GND_186
Y8
GND_187 Y12
GND_188 Y13
GND_189 Y14
GND_190 Y15
GND_191 Y16
GND_192 Y17
GND_193 Y18
GND_194 Y19
GND_195 Y20
GND_196 Y21
GND_197 Y22
GND_198 Y23
GND_199 Y24
GND_200 Y25
GND_201 Y26
GND_202 Y31
GND_203 Y35
GND_204 AA8
GND_205 AA12
GND_206 AA13
GND_207 AA14
GND_208 AA16
GND_209 AA17
GND_210 AA18
GND_211 AA19
GND_212 AA20
GND_213 AA21
GND_214 AA22
GND_215 AA23
GND_216 AA24
GND_217 AA25
GND_218 AA26
GND_219 AA31
GND_220 AB6
GND_221 AB8
GND_222 AB12
GND_223 AB13
GND_224 AB16
GND_225 AB17
GND_226 AB18
GND_227 AB19
GND_228 AB20
GND_229 AB21
GND_230 AB22
GND_231 AB23
GND_232 AB25
GND_233 AB26
GND_234 AB30
GND_235 AB31
GND_236 AC8
GND_237 AC12
GND_238 AC13
GND_239 AC16
GND_240 AC17
GND_241 AC18
GND_242 AC19
GND_243 AC20
GND_244 AC21
GND_245 AC22
GND_246 AC23
GND_247 AC25
GND_248 AC30
GND_249 AC31
GND_250 AD8
GND_251 AD12
GND_252 AD13
GND_253 AD19
GND_254 AD20
GND_255 AD25
GND_256 AD31
GND_257 AE12
GND_258 AE13
GND_259 AE15
GND_260 AE16
GND_261 AE17
GND_262 AE18
GND_263 AE19
GND_264 AE20
GND_265 AE21
GND_266 AE22
GND_267 AE24
GND_268 AE25
GND_269 AE26
GND_270 AE31
GND_271 AF12
GND_272 AF13
GND_273 AF15
GND_274 AF16
GND_275 AF17
GND_276 AF18
GND_277 AF19
GND_278 AF20
GND_279 AF21
GND_280 AF22
GND_281 AF24
GND_282 AF31
GND_283 AG8
GND_284 AG31
GND_285 AH8
GND_286 AH31
GND_287 AJ8
GND_288 AJ30
GND_289 AK8
GND_290 AK9
GND_291 AK10
GND_292 AK14
GND_293 AK15
GND_294 AK16
GND_295 AK17
GND_296 AK18
GND_297 AK19
GND_298 AK20
GND_299 AK21
GND_300 AK22
GND_301 AK23
GND_302 AK26
GND_303 AK27
GND_304 AK28
GND_305 AK29
GND_306 AK30
GND_307 AK31
GND_308 AL8
GND_309 AL12
GND_310 AL13
GND_311 AL14
GND_312 AL15
GND_313 AL16
GND_314 AL17
GND_315 AL18
GND_316 AL19
GND_317 AL20
GND_318 AL21
GND_319 AL22
GND_320 AL23
GND_321 AL24
GND_322 AL25
GND_323 AL26
GND_324 AL27
GND_325 AL28
GND_326 AL29
GND_327 AL30
GND_328 AL31
GND_329 AM8
GND_330 AM13
GND_331 AM14
GND_332 AM15
GND_333 AM16
GND_334 AM17
GND_335 AM18
GND_336 AM19
GND_337 AM20
GND_338 AM21
GND_339 AM22
GND_340 AM23
GND_341 AM24
GND_342 AM25
GND_343 AM26
GND_344 AM27
GND_345 AM28
GND_346 AM29
GND_347 AM30
GND_348 AM31
GND_349 AN6
GND_350 AN12
GND_351 AN13
GND_352 AN15
GND_353 AN16
GND_354 AN17
GND_355 AN18
GND_356 AN19
GND_357 AN20
GND_358 AN21
GND_359 AN22
GND_360 AN23
GND_361 AN24
GND_362 AN25
GND_363 AN26
GND_364 AN27
GND_365 AN28
GND_366 AN29
GND_367 AN30
GND_368 AN31
IC101-*1
LG1154AN_H13A_ISDB-T (LG1154AN-IT)
H13A_BRAZIL
XIN_SUB
P17
XO_SUB
P18
VSB_AUX_XIN
J17
XTAL_BYPASS
N18
CLK_24M
D18
XTAL_SEL0
M18
XTAL_SEL1
M17
PORES_N
E3
OPM0
K3
OPM1
K2
H13A_SCL
A8
H13A_SDA
B8
CVBS_IN3
U13
CVBS_IN2
V14
CVBS_IN1
V15
CVBS_VCM
V13
BUF_OUT1
U15
BUF_OUT2
U14
REFT
U7
REFB
V6
ADC1_COM
V7
ADC2_COM
U10
ADC3_COM
V12
SC1_SID
T5
SC1_FB
T6
PB1_IN
U8
Y1_IN
V8
SOY1_IN
V9
PR1_IN
U9
PB2_IN
V10
Y2_IN
U11
SOY2_IN
V11
PR2_IN
U12
AAD_ADC_SIF H18
AAD_ADC_SIFM H17
AUDA_VBG_EXT P2
AUDA_OUTL N1
AUDA_OUTR N2
AUD_SCART_OUTL N3
AUD_SCART_OUTR P1
AUAD_L_CH4_IN P3
AUAD_R_CH4_IN R1
AUAD_L_CH3_IN R2
AUAD_R_CH3_IN T1
AUAD_L_CH2_IN U2
AUAD_R_CH2_IN U3
AUAD_L_CH1_IN V2
AUAD_R_CH1_IN V3
AUAD_R_REF U1
AUAD_M_REF T3
AUAD_L_REF T2
AUAD_REF_PO R3
ANTCON K17
RFAGC K18
IFAGC J18
ADC_I_INCOM U16
ADC_I_INP U17
ADC_I_INN V17
GPIO0 F3
GPIO1 F2
GPIO2 F1
GPIO3 G3
GPIO4 G2
GPIO5 G1
GPIO6 H3
GPIO7 H2
GPIO8 H1
GPIO9 J3
GPIO10 E18
GPIO11 E17
GPIO12 H16
GPIO13 J2
GPIO14 J1
GPIO15 K1
MAIN POWER
+2.5V_Bypass Cap
+1.0V_Bypass Cap
1005 size bead
Bottom side of chip
+3.3V
+1.5V
LG1154A
(1)
(2)
AFE 3CH Power
+2.5V
+3.3V_Bypass Cap
+3.3V_Bypass Cap
+1.5V_Bypass Cap
(1)
(4)
LG1154A
+1.1V_Bypass Cap
(2)
+0.75V
+2.5V_Bypass Cap
+1.1V
LG1154D
BSD-NC4_H002-HD
2012-12-24
GND JIG POINT SMD TOP for EMI
Copyright © 2013 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

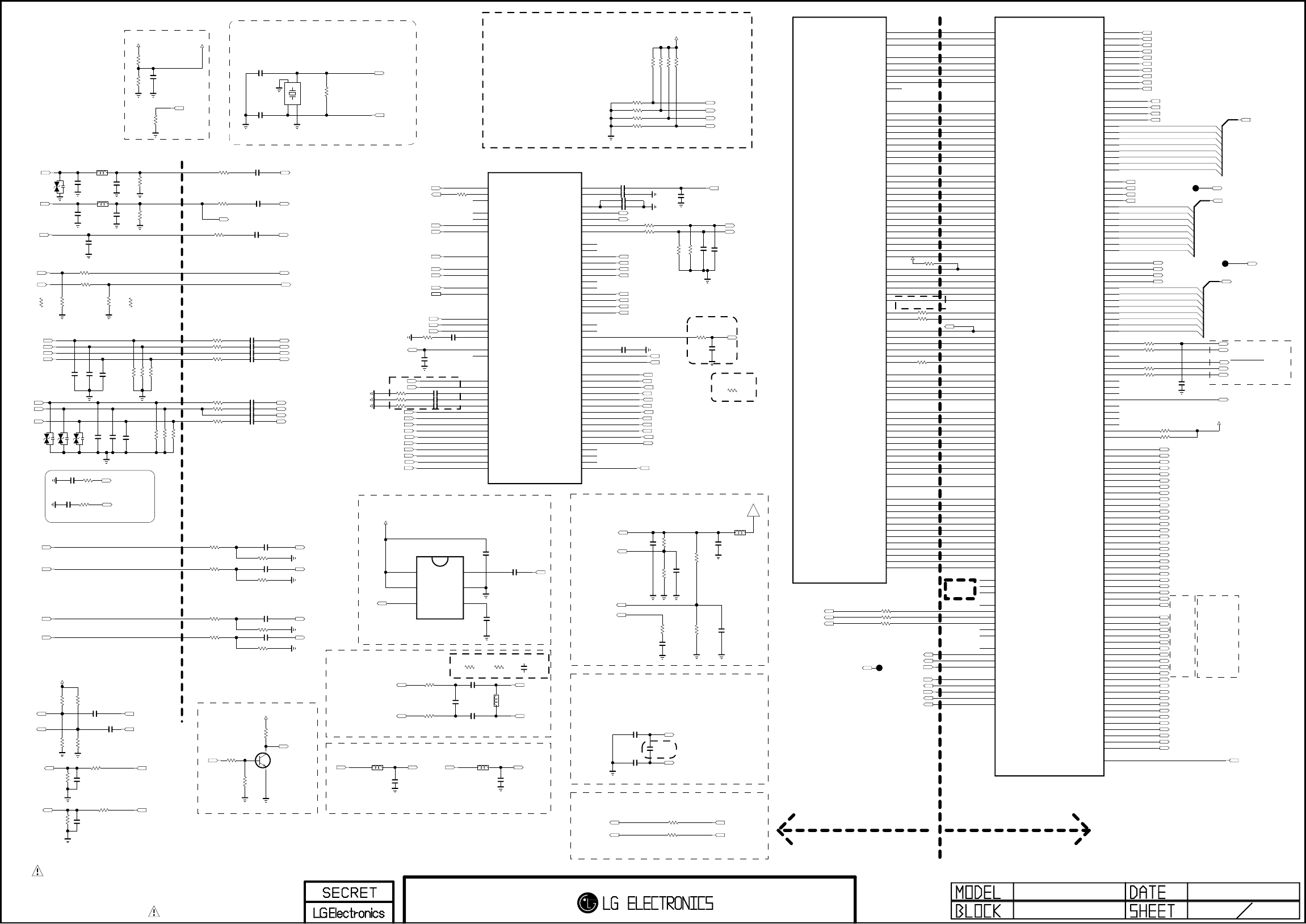

TPO_DATA[0]
TPO_DATA[2]
TPO_DATA[3]
FE_DEMOD1_TS_DATA[1]
TPO_DATA[7]
FE_DEMOD1_TS_DATA[7]
FE_DEMOD1_TS_DATA[3]
FE_DEMOD1_TS_DATA[5]
FE_DEMOD1_TS_DATA[2]
FE_DEMOD1_TS_DATA[6]
TPI_DATA[0]
FE_DEMOD1_TS_DATA[0]
TPI_DATA[7]
TPI_DATA[1]
TPI_DATA[5]
TPO_DATA[6]
TPI_DATA[3]
TPO_DATA[5]
TPI_DATA[6]
TPO_DATA[1]
TPI_DATA[4]
TPI_DATA[2]
FE_DEMOD1_TS_DATA[4]
TPO_DATA[4]
TPO_DATA[0-7]
AUAD_R_REF
R434 100
R404
100K
EU
AUAD_R_CH3_IN
R408
100K
EU
D406
5.5V
D401
5.5V
TXB0P/TX5P
TXA0P/TX11P
R432 100
C402
150pF
50V
OPT
COMP1_Y_IN_SOC_SOY
DTV/MNT_V_OUT_SOC
HW_OPT_2
SC_B
AUAD_REF_PO
COMP2_Y_IN_SOC_SOY
H13A_SDA
C423 0.047uF
C400
0.01uF
COMP2_Y_IN_SOC
TPO_ERR
TPO_SOP
R49433
SCART_Lout
R422
75
SCART_FB_DIRECT
TXC1N
TPO_ERR
R440 10K 1%
C405
150pF
50V
D403
5.5V
C454 0.1uF
H13A_SCL
FE_DEMOD2_TS_CLK
R453 330
R409
100K
EU
COMP2_PR_IN_SOC
R419 27K
1%
SCART_AMP_L_FB
R431
33
COMP2_PB_IN_SOC
AUD_SCK
GST_SOC
SCART_Rout_SOC
R454
2
1/10W
5%
OPT
BPL_IN
R427 33
XOUT_SUB
X400
24MHz
4
GND_2 1X-TAL_1
2GND_1
3
X-TAL_2
R445
22K
C403
2.2uF
10V
EU
C447
1uF
25V
OPT
AV1_CVBS_IN
+3.3V_NORMAL
R481 10K
OPT
SC_CVBS_IN
C420 0.047uF
COMP1/AV1/DVI_L_IN
C424 0.047uF
R439 10K 1%
ADC_I_INP
TXB4N/TX0N
SC_FB
TXA2N/TX9N
SC_R
TPI_DATA[0-7]
TU_CVBS
OPM[1]
C6006
1uF25V
EU
C429 1000pF
PWM_DIM2
TPI_CLK
FE_DEMOD1_TS_DATA[0-7]
SC_CVBS_IN_SOY
R429 33
R416 75
1%
EU
TXBCLKN/TX2N
C406
2.2uF
10V
EU
COMP1_PR_IN_SOC
TXA1N/TX10N
R447 68
R448 68
C425 0.047uF
COMP1_Y_IN_SOC_SOY
R425 33
C458 0.01uF
EU
SC_CVBS_IN_SOY
EO_SOC
FE_DEMOD2_TS_ERROR
COMP2_PR_IN_SOC
L408 1uH
HW_OPT_7
TP400
COMP1_Y_IN_SOC
TXACLKP/TX8P
R435 10K EU
C435 4.7uF
HW_OPT_8
AUAD_M_REF
DPM
TXB0N/TX5N
R438 10K 1%
XTAL_SEL[0]
+12V
COMP1_PR_IN_SOC
FE_DEMOD1_TS_SYNC
FE_DEMOD1_TS_CLK
TPI_SOP
XTAL_SEL[0]
R498 100
C460 0.01uF
EU
XTAL_SEL[1]
AUAD_R_CH2_IN
TXB3N/TX1N
HW_OPT_4
DPM
TXB1N/TX4N
C442 0.047uF
R490 100
R450 68
R49333
COMP2_Y_IN_SOC_SOY
AUAD_L_CH2_IN
TXCCLKP
R482 10K
OPT
R430
22K
TXA3N/TX7N
TXA3P/TX7P
AUAD_R_REF
HW_OPT_10
FE_DEMOD3_TS_CLK
C426
10pF
TUNER_SIF
C450 0.1uF
R480100
EU
R426
22K
EU
C446
0.1uF
C441 0.047uF
SCART_Lout_SOC
C451 0.1uF
TXACLKN/TX8N
SCART_Rout
R420 27K
1%
HW_OPT_6
GCLK_SOC
TXC4P
+2.5V_Normal
FE_DEMOD1_TS_VAL
FE_DEMOD3_TS_ERROR
TPO_CLK
C419 0.047uF
R411
75
1%
EU
C470
10pF
50V
TXB2N/TX3N
SC_FB_SOC
OPM[0]
SC_G
COMP1_PB_IN_SOC
R436
2.7K
EU
C408
150pF
50V
EU
HW_OPT_0
PWM1
COMP1/AV1/DVI_R_IN
C6001
1uF 25V
EU
PWM2
FE_DEMOD2_TS_DATA
HW_OPT_9
OPM[0]
C427
10pF
C432 4.7uF
R417 75
1%
TXC1P
R483 10K
OPT
R462 100
FRC_FLASH_WP
R418 27K
1%
HW_OPT_3
R487
0
NON_TU_W_BR/TW/CO
FE_DEMOD3_TS_DATA
SC_ID_SOC
R437 10K 1%
C440 0.047uF
AUDA_OUTR
REFB
XIN_SUB FE_DEMOD3_TS_VAL
SC_R_IN
AUD_LRCK
TXA1P/TX10P
C421 0.047uF
TXB1P/TX4P
C443 0.047uF
PWM_DIM
COMP2_PB_IN_SOC
HW_OPT_1
COMP1_Y
AUAD_R_CH3_IN
AUAD_L_REF
C473
10pF
50V
OPT
R495 100
C422 0.047uF
C456
4.7uF
10V
AUD_LRCH
C439
100pF
50V
OPT
SPDIF_OUT
AV1_CVBS_IN_SOC
C430
10pF
50V
TXCCLKN
R442
22K
EU
C417 0.047uF
C431
10pF
50V
HP_LOUT_MAIN
SC_L_IN
XOUT_SUB
TXC2N
HP_ROUT_MAIN
TXC2P
C410
150pF
AV1_CVBS_IN_SOC
R424 33
SC_CVBS_IN_SOC
C474
10pF
50V
OPT
R428 33
XTAL_SEL[1]
C472
10pF
50V
OPT
R403
100K
EU
TPI_ERR
MCLK_SOC
XIN_SUB
C448
4.7uF
10V
OPT
AUAD_REF_PO
L409
EU
1uH
REFT
C453 2.2uF
R412 75
1%
EU
TU_CVBS_SOC
R455
51K
1%
COMP2_Y_IN_SOC
R433 100
AUAD_R_CH2_IN
TXC0P
R496 100
TXA2P/TX9P
C4494.7uF
AUAD_L_REF
R436-*1
0
NON_EU
R484 10K
OPT
OPM[1]
HW_OPT_5
C445
0.1uF
TXB2P/TX3P
TXC4N
R6005
10K
EU
C462
150pF
EU
SCART_Rout_SOC
R460 100
FE_DEMOD2_TS_SYNC
R422-*1 0
NON_EU
TPI_ERR
R449 68
C401
0.01uF
COMP1_Pb
AUAD_M_REF
TXC3P
COMP1_Pr
+3.3V_NORMAL
R441
1M
TXB3P/TX1P
PWM2
REFT
SC_FB_SOC
C428 1000pF
R461 100
R459 100
AUDA_OUTL
TXC3N
COMP1_Y_IN_SOC
D404
5.5V
SCART_AMP_R_FB
R421 27K
1%
R423 100
SCART_FB_DIRECT
R410
75
1%
10uFC452
AUAD_L_CH2_IN
C459
0.1uF
TU_W_BR/TW/CO
SC_ID
FE_DEMOD1_TS_ERROR
R479100
EU
AUAD_L_CH3_IN
R457
51K
1%
AUDA_OUTL
TXA4N/TX6N
AUAD_L_CH3_IN
L/DIM0_MOSI
TXB4P/TX0P
TPI_VAL
R415 75
1%
REFB
TPO_VAL
C433 4.7uF
FE_DEMOD3_TS_SYNC
R6450
100
SC_CVBS_IN_SOC
SC_ID_SOC
SCART_Lout_SOC
C418 0.047uF
R6006
10K
EU
SOC_RESET
L/DIM0_VS
AUD_MASTER_CLK
10uF
C455
L407
R497 100
ADC_I_INN
FE_DEMOD2_TS_VAL
R6451
100
R489 100
TXA4P/TX6P
C444
0.1uF
PWM1
TU_CVBS_SOC
COMP1_PB_IN_SOC
TXC0N
R413 75
1%
TXBCLKP/TX2P
TP402
AUDA_OUTR
IF_AGC
L/DIM0_SCLK
R414 75
1%
EU
C457
1000pF
OPT
TXA0N/TX11N
C434 4.7uF
R407 330
R492 330
CLK_54M_VTT
DAC_START_PULLDOWN
R466
82
1/16W
1%
+3.3V_NORMAL
DAC_START_PULLDOWN
CLK_54M_VTT
R464
1K
1/16W
1%
R465
390
1/16W
1%
R467 82
1/16W 1%
TXB0P
TXB0N
TXB1N
TXB1P
TXACLKN
TXA4N
TXA4P
TXACLKP
TXB2N
TXA1P
TXA1N
TXB2P
L401
BLM18PG121SN1D
HP_OUT
HP_ROUT
C436
22pF
NON_TU_W_BR/TW
L400
BLM18PG121SN1D
HP_OUT
IF_P
HP_LOUT_AMP
IF_N
C407
0.22uF
10V
HP_OUT
L406
OPT
ADC_I_INP
R443
51
NON_TU_W_BR/TW
HP_LOUT
C437
0.01uF
HP_ROUT_AMP
C438
0.01uF
R444
51
NON_TU_W_BR/TW
ADC_I_INN
C409
0.22uF
10V
HP_OUT
C411
10pF
50V
OPT
R402 33
R405 33
R400 33
4.7uF
C413
EU
IC400
MM1756DURE
EU
3BIAS
2GND
4
OUT
1IN
6
VCC
5
PS
DTV/MNT_V_OUT_SOC
C414
0.1uF
EU
+3.3V_NORMAL
C412
0.1uF
EU
DTV/MNT_V_OUT
Q400
MMBT3904(NXP)
SCART_FB_BUFFER
E
B
C
R446
4.7K
SCART_FB_BUFFER
SC_FB_BUF
R4061K
1/16W
1%
SCART_FB_BUFFER
SC_FB
+3.3V_NORMAL
SC_FB_BUF
C404
0.01uF
50V
EPI_LOCK6
R401
470
1/16W
5%
SCART_FB_BUFFER
R45647K 1%
R458
47K
1%
IC101
LG1154AN_H13A
H13A_NON_BRAZIL
XIN_SUB
P17
XO_SUB
P18
VSB_AUX_XIN
J17
XTAL_BYPASS
N18
CLK_24M
D18
XTAL_SEL0
M18
XTAL_SEL1
M17
PORES_N
E3
OPM0
K3
OPM1
K2
H13A_SCL
A8
H13A_SDA
B8
CVBS_IN3
U13
CVBS_IN2
V14
CVBS_IN1
V15
CVBS_VCM
V13
BUF_OUT1
U15
BUF_OUT2
U14
REFT
U7
REFB
V6
ADC1_COM
V7
ADC2_COM
U10
ADC3_COM
V12
SC1_SID
T5
SC1_FB
T6
PB1_IN
U8
Y1_IN
V8
SOY1_IN
V9
PR1_IN
U9
PB2_IN
V10
Y2_IN
U11
SOY2_IN
V11
PR2_IN
U12
AAD_ADC_SIF H18
AAD_ADC_SIFM H17
AUDA_VBG_EXT P2
AUDA_OUTL N1
AUDA_OUTR N2
AUD_SCART_OUTL N3
AUD_SCART_OUTR P1
AUAD_L_CH4_IN P3
AUAD_R_CH4_IN R1
AUAD_L_CH3_IN R2
AUAD_R_CH3_IN T1
AUAD_L_CH2_IN U2
AUAD_R_CH2_IN U3
AUAD_L_CH1_IN V2
AUAD_R_CH1_IN V3
AUAD_R_REF U1
AUAD_M_REF T3
AUAD_L_REF T2
AUAD_REF_PO R3
ANTCON K17
RFAGC K18
IFAGC J18
ADC_I_INCOM U16
ADC_I_INP U17
ADC_I_INN V17
GPIO0 F3
GPIO1 F2
GPIO2 F1
GPIO3 G3
GPIO4 G2
GPIO5 G1
GPIO6 H3
GPIO7 H2
GPIO8 H1
GPIO9 J3
GPIO10 E18
GPIO11 E17
GPIO12 H16
GPIO13 J2
GPIO14 J1
GPIO15 K1
IC101
LG1154AN_H13A
H13A_NON_BRAZIL
INTR_GBB E1
INTR_AFE3CH E2
INTR_AGPIO D1
AUD_FS20CLK A6
AUD_FS21CLK B6
AUD_FS23CLK A5
AUD_FS24CLK B5
AUD_FS25CLK A4
AUDCLK_OUT_SUB C4
AUD_HDMI_MCLK C18
AUD_DAC1_LRCK A2
AUD_DAC1_SCK B2
AUD_DAC1_LRCH B1
AUD_DAC0_LRCK C2
AUD_DAC0_SCK C1
AUD_DAC0_LRCH D2
AUD_ADC_LRCK B4
AUD_ADC_SCK A3
AUD_ADC_LRCH B3
BB_SCL A7
BB_SDA B7
BB_TP_CLK E8
BB_TP_ERR D8
BB_TP_SOP C8
BB_TP_VAL E7
BB_TP_DATA7 D7
BB_TP_DATA6 C7
BB_TP_DATA5 E6
BB_TP_DATA4 D6
BB_TP_DATA3 C6
BB_TP_DATA2 E5
BB_TP_DATA1 D5
BB_TP_DATA0 C5
CLK_F54M B10
CVBS_GC2 C9
CVBS_GC1 B9
CVBS_GC0 A9
CVBS_UP D9
CVBS_DN E9
FS00CLK B11
AUDCLK_OUT A11
DAC_START D11
DAC_DATA4 C11
DAC_DATA3 E10
DAC_DATA2 D10
DAC_DATA1 C10
DAC_DATA0 A10
AAD_GC4 D13
AAD_GC3 C13
AAD_GC2 E12
AAD_GC1 D12
AAD_GC0 C12
AAD_DATA9 C17
AAD_DATA8 E16
AAD_DATA7 D16
AAD_DATA6 C16
AAD_DATA5 E15
AAD_DATA4 D15
AAD_DATA3 C15
AAD_DATA2 E14
AAD_DATA1 D14
AAD_DATA0 C14
AAD_DATAEN E13
ADCO_OUT_CLK B18
HSR_AP0 A12
HSR_AM0 B12
HSR_BP0 A13
HSR_BM0 B13
HSR_CP0 A14
HSR_CM0 B14
HSR_CLKP0 A15
HSR_CLKM0 B15
HSR_DP0 A16
HSR_DM0 B16
HSR_EP0 A17
HSR_EM0 B17
IC100
LG1154D_H13D
INTR_GBB
AT16
INTR_AFE3CH
AU17
INTR_AGPIO
AT17
AUD_FS20CLK
AT24
AUD_FS21CLK
AU24
AUD_FS23CLK
AT23
AUD_FS24CLK
AU23
AUD_FS25CLK
AT22
AUD_HDMI_MCLK
AU36
AUD_DAC1_LRCK
AT20
AUD_DAC1_SCK
AU20
AUD_DAC1_LRCH
AT19
AUD_DAC0_LRCK
AU19
AUD_DAC0_SCK
AT18
AUD_DAC0_LRCH
AU18
AUD_ADC_LRCK
AU22
AUD_ADC_SCK
AT21
AUD_ADC_LRCH
AU21
BB_SCL
AT25
BB_SDA
AU25
BB_TPI_CLK
AP23
BB_TPI_ERR
AR23
BB_TPI_SOP
AP22
BB_TPI_VAL
AR22
BB_TPI_DATA7
AP21
BB_TPI_DATA6
AR21
BB_TPI_DATA5
AP20
BB_TPI_DATA4
AR20
BB_TPI_DATA3
AP19
BB_TPI_DATA2
AR19
BB_TPI_DATA1
AP18
BB_TPI_DATA0
AR18
CLK_54M
AU28
CVBS_GC2
AR24
CVBS_GC1
AU27
CVBS_GC0
AT27
CVBS_UP
AP24
CVBS_DN
AR25
FS00CLK
AU29
H13A_AUDCLK_OUT
AT29
DAC_START
AP27
DAC_DATA4
AR27
DAC_DATA3
AP26
DAC_DATA2
AR26
DAC_DATA1
AP25
DAC_DATA0
AT28
AAD_GC4
AR30
AAD_GC3
AP29
AAD_GC2
AR29
AAD_GC1
AP28
AAD_GC0
AR28
AAD_DATA9
AP35
AAD_DATA8
AR35
AAD_DATA7
AP34
AAD_DATA6
AR34
AAD_DATA5
AP33
AAD_DATA4
AR33
AAD_DATA3
AP32
AAD_DATA2
AR32
AAD_DATA1
AP31
AAD_DATA0
AR31
AAD_DATAEN
AP30
ADCO_OUT_CLK
AT36
HSR_AP
AT30
HSR_AM
AU30
HSR_BP
AT31
HSR_BM
AU31
HSR_CP
AT32
HSR_CM
AU32
HSR_CLKP
AT33
HSR_CLKM
AU33
HSR_DP
AT34
HSR_DM
AU34
HSR_EP
AT35
HSR_EM
AU35
AUD_HPDRV_LRCH
AT14
AUD_HPDRV_LRCK
AT15
AUD_HPDRV_SCK
AU15
FRC_LR_O_SYNC_FLAG
AC7
L_VSOUT_LD
AN5
DIM0_SCLK
AR14
DIM0_MOSI
AP14
DIM1_SCLK
AN14
DIM1_MOSI
AP13
PWM0
AF6
PWM1
AF7
PWM2
AD7
PWM_IN
AE6
EPI_EO
AP5
EPI_VST
AN8
EPI_DPM
AP8
EPI_MCLK
AR7
EPI_GCLK
AN7
STPI0_CLK/GPIO47 AK35
STPI0_SOP/GPIO46 AK36
STPI0_VAL/GPIO45 AK37
STPI0_ERR/GPIO44 AJ35
STPI0_DATA/GPIO43 AJ36
STPI1_CLK/GPIO42 AH35
STPI1_SOP/GPIO41 AH37
STPI1_VAL/GPIO40 AH36
STPI1_ERR/GPIO55 AG35
STPI1_DATA/GPIO54 AG36
TP_DVB_CLK AM36
TP_DVB_SOP AL36
TP_DVB_VAL AL35
TP_DVB_ERR AL37
TP_DVB_DATA0 AM35
TP_DVB_DATA1 AN36
TP_DVB_DATA2 AN37
TP_DVB_DATA3 AN35
TP_DVB_DATA4 AP37
TP_DVB_DATA5 AP36
TP_DVB_DATA6 AR37
TP_DVB_DATA7 AR36
TPI_CLK A28
TPI_SOP B29
TPI_VAL B28
TPI_ERR C28
TPI_DATA0 B32
TPI_DATA1 C31
TPI_DATA2 B31
TPI_DATA3 A31
TPI_DATA4 C30
TPI_DATA5 A30
TPI_DATA6 B30
TPI_DATA7 C29
TPIO_CLK/GPIO53 D30
TPIO_SOP/GPIO52 D31
TPIO_VAL/GPIO51 F30
TPIO_ERR/GPIO50 E31
TPIO_DATA0/GPIO58 E30
TPIO_DATA1/GPIO59 F29
TPIO_DATA2/GPIO60 E29
TPIO_DATA3/GPIO61 F28
TPIO_DATA4/GPIO62 E28
TPIO_DATA5/GPIO63 D28
TPIO_DATA6/GPIO48 E27
TPIO_DATA7/GPIO49 D27
AUDCLK_OUT AD5
DACLRCH AD6
DACSLRCH/GPIO127 Y6
PCMI3SCK/GPIO112 Y7
DACSCK AC6
DACLRCK AC5
PCMI3LRCK/GPIO113 AA6
PCMI3LRCH AB7
DACCLFCH/GPIO126 AB5
IEC958OUT AU14
DACSUBMCLK AA32
DACSUBLRCH AA34
DACSUBSCK AA33
DACSUBLRCK AB34
TEST1 AE32
TEST2 AE33
TX0N AT6
TX0P AU6
TX1N AT5
TX1P AU5
TX2N AT4
TX2P AU4
TX3N AU3
TX3P AU2
TX4N AT2
TX4P AT1
TX5N AR4
TX5P AR3
TX6N AP1
TX6P AP2
TX7N AP4
TX7P AP3
TX8N AN4
TX8P AN3
TX9N AM4
TX9P AM3
TX10N AL4
TX10P AL3
TX11N AK1
TX11P AK2
TX12N AK4
TX12P AK3
TX13N AJ4
TX13P AJ3
TX14N AH4
TX14P AH3
TX15N AG4
TX15P AG3
TX16N AF1
TX16P AF2
TX17N AF4
TX17P AF3
TX18N AE4
TX18P AE3
TX19N AD4
TX19P AD3
TX20N AC4
TX20P AC3
TX21N AB1
TX21P AB2
TX22N AB4
TX22P AB3
TX23N AA4
TX23P AA3
TX_LOCKN AR5
R451 330
MHL_ON_OFF
R443-*1
220
TU_W_BR/TW R444-*1
220
TU_W_BR/TW C436-*1
100pF
TU_W_BR/TW
R487-*1
10K
TU_W_BR/TW/CO
MAIN AUDIO/VIDEO
Near Place Scart AMP
Placed as close as possible to SOC
Must be used
Close to IC4300
OP MODE[0:1] : SW[2:1]
00 => Normal Operaiton Mode
/T32 Debug Mode
01 => Internal Test Purpose
10 => Internal Test Purpose
11 => Internal Test Purpose
XTAL SEL[1:0] : SW[4:3]
00 => Xtal Input
01 => CLK 24M from H13D
10 => XTAL Bypass from H13D
OP MODE Setting
& Select XTAL Input
AFE 3CH REF Setting
Place JACK Side
Placed as close as possible to IC4300
MAIN Clock(24Mhz)
Placed as close as possible to IC4300
Clock for H13A
NC
I2S_I/F
DIMMING
Place SOC Side
Close to LG1154A
AUDIO IN
LG1154DLG1154A
FOR EMI
TXDCLKP/TX14P
TXD3N/TX13N
TXD4N/TX12N
TXD1N/TX16N
TXD2P/TX15P
TXD3P/TX13P
TXDCLKN/TX14N
TXD4P/TX12P
TXD2N/TX15N
TXD1P/TX16P
TXD0N/TX17N
TXD0P/TX17P
2012-11-13
BSD-NC4_H004-HD

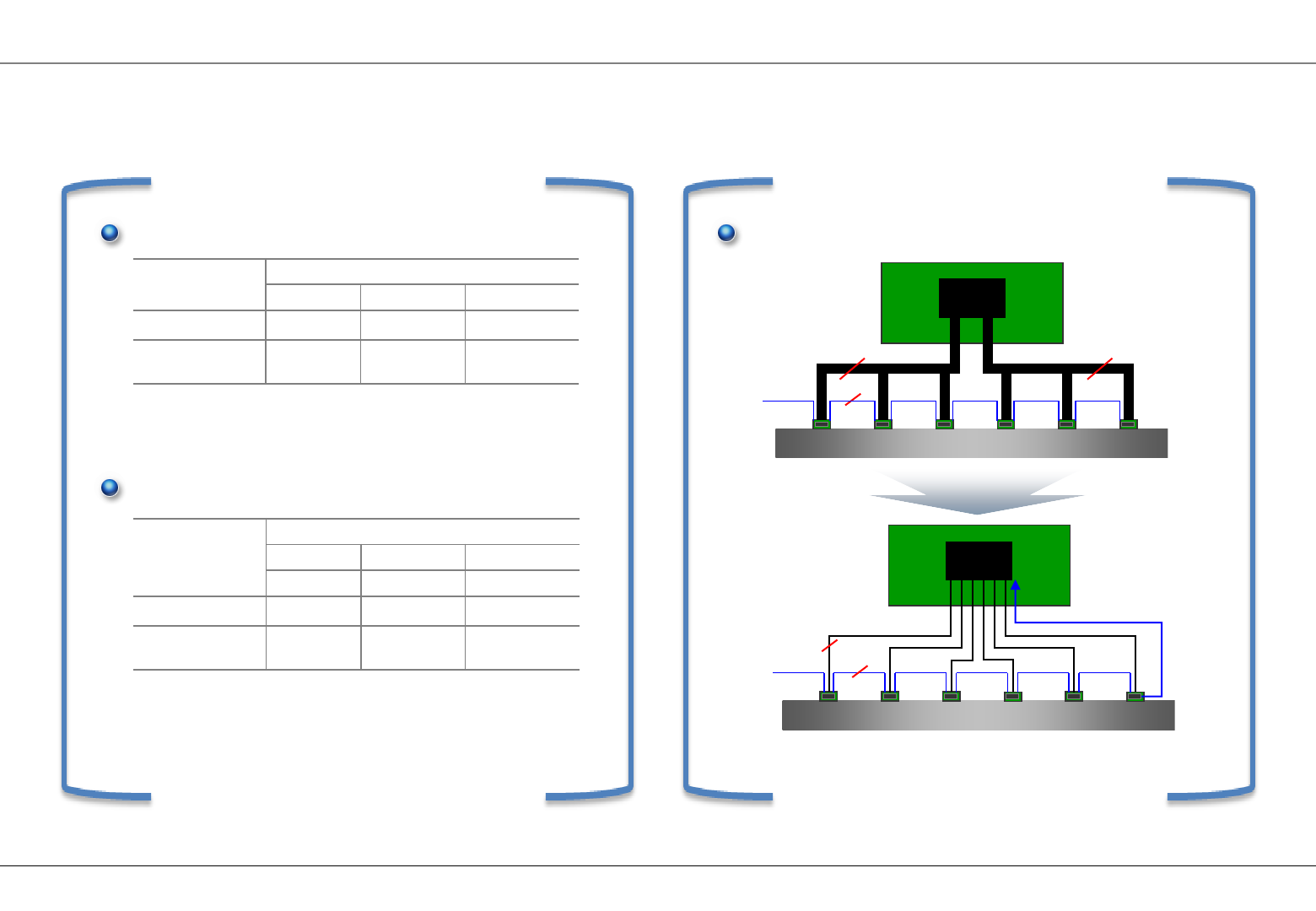

EPI Output
H13 Ball Name
Placed as close as possible to IC100
To ADC
Tuner IF Filter
Place at JACK SIDE
Copyright © 2013 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

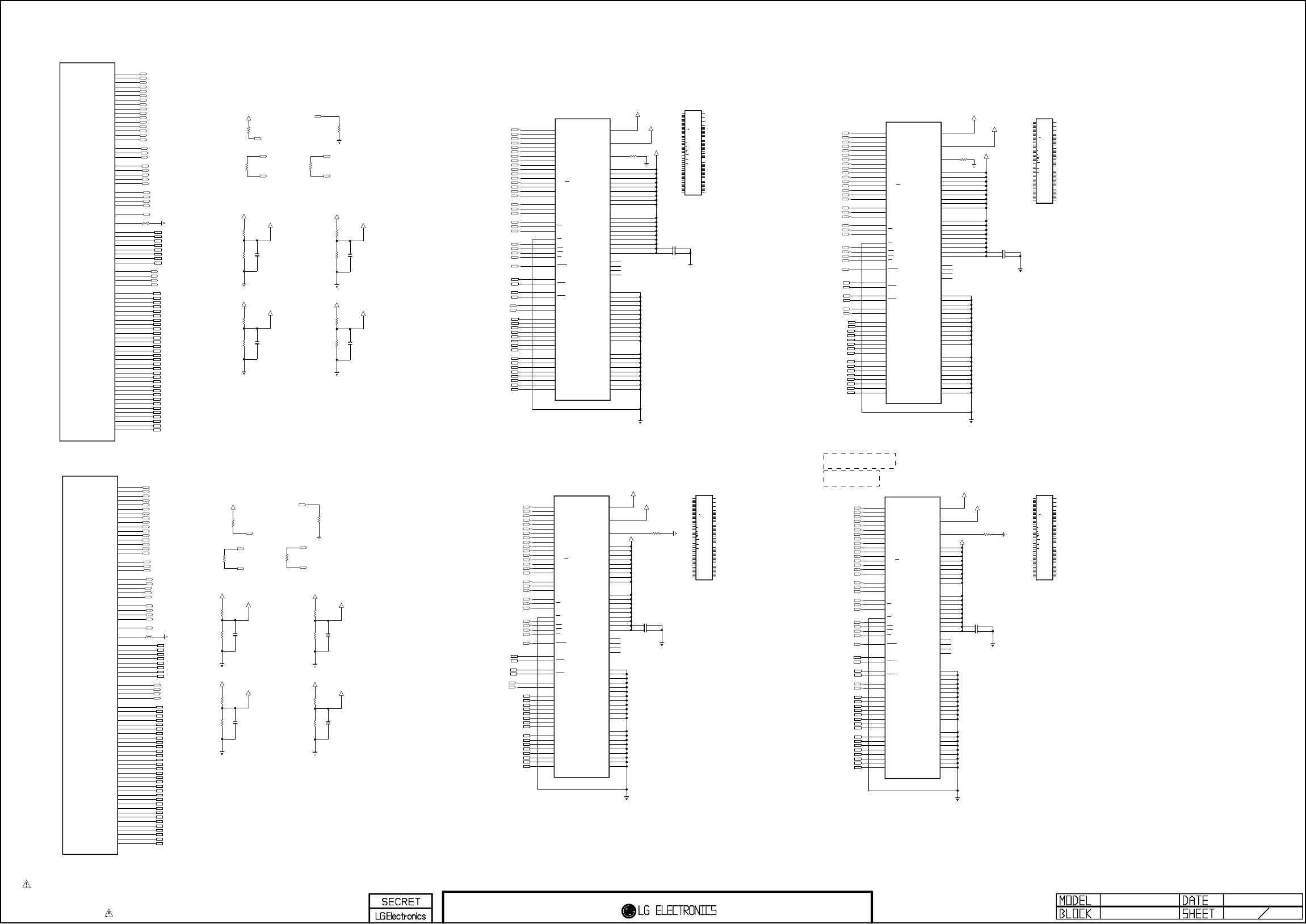

M1_DDR_A5
M0_DDR_DQ10
M0_DDR_CASN
M1_DDR_DM1
M1_DDR_WEN
C535 0.1uF
M1_DDR_DQ30
M0_DDR_DQ14
M0_DDR_VREFDQ
M1_DDR_DQ19
M1_DDR_DQS_N1
M1_DDR_DQS0
M1_DDR_A13
M0_DDR_DQ25
M1_DDR_RESET_N
M1_DDR_DQ28
M1_DDR_DQ29
M1_DDR_DQ4
M0_DDR_DQ4
M0_DDR_ODT
M0_DDR_DQ11
M0_DDR_DQ26
C561 0.1uF
M1_DDR_CKE
M1_DDR_A6
M0_DDR_A4
VDDC15_M1
M0_DDR_DQ10
M0_DDR_A3
M1_DDR_DQ18
M1_DDR_RASN
M1_DDR_DQ20
R544
240
1%
M0_DDR_RESET_N
M0_DDR_DQS2
M1_DDR_DQ7
M0_DDR_DQ26
M0_DDR_DQ25
R513
1K 1%
M1_DDR_DQ3
M0_DDR_A6
C501
0.1uF
M0_DDR_DM2
M1_DDR_DQ14
M1_DDR_DQ28
M1_DDR_DQS_N0
M0_DDR_A6
M0_DDR_DQ27
M0_DDR_A11
M1_DDR_DQ5
M1_DDR_DQ10
M1_DDR_DQ6
M1_DDR_A14
M0_DDR_A2
R541
10K
M1_DDR_DQ12
M0_U_CLKN
M0_DDR_VREFCA
M1_DDR_DQ15
M0_DDR_DQ23
M1_DDR_DQ13
M0_DDR_DQ3
VDDC15_M0
M1_DDR_DM3
M1_1_DDR_VREFCA
M1_DDR_A11
M1_DDR_CKE
M1_D_CLKN
M0_DDR_A7
M0_DDR_A12
M0_1_DDR_VREFDQ
M0_DDR_DQS1
R516
1K 1%
C509
0.1uF
M0_DDR_A11
VDDC15_M1
R518
100
R514
1K 1%
M1_DDR_DQS1 M1_DDR_DQS3
M1_DDR_CKE
M0_DDR_CASN
M1_DDR_A7
M0_DDR_DQS3
M0_DDR_BA0
M0_DDR_DQS_N0
R520
10K
M0_DDR_A1
M1_DDR_DQ11
M1_DDR_A1
M1_DDR_BA2
M0_DDR_DQS_N2
C504
0.1uF
M0_DDR_DM1
M1_DDR_A11
M1_DDR_DQ22
M0_D_CLKN
M1_DDR_A0
M0_DDR_DQ30
M1_DDR_A15
M1_1_DDR_VREFDQ
R538
1K 1%
M0_DDR_DQ18
M0_DDR_DQ0
M1_DDR_A8
M1_DDR_DQ25
M0_DDR_BA2
VDDC15_M1
M0_DDR_DQ24
R532
1K 1%
M1_DDR_BA0
M1_DDR_DQ26
M0_DDR_A8
M0_DDR_RASN
M1_DDR_A2
M1_DDR_A6
M0_U_CLK
R533
1K 1%
M0_DDR_VREFDQ
M1_DDR_VREFDQ
VDDC15_M0
M1_DDR_A9
M1_DDR_DQ16
M0_DDR_DQ29
M1_DDR_A12
M1_DDR_A5
VDDC15_M0
M1_DDR_DQ12
M1_U_CLKN
M1_DDR_RASN
M0_DDR_DM0
M0_DDR_DQ15
M0_DDR_DQ6
C566 0.1uF
M0_DDR_A2
M1_DDR_A3
M1_DDR_DQ8
M0_DDR_DQ9
M0_DDR_DQ20
R501
240
1%
M1_D_CLK
M0_DDR_BA0
M1_DDR_DM2
M0_DDR_DQ30
M0_DDR_DQ27
M1_DDR_VREFCA
M0_D_CLK
C530 0.1uF
M0_DDR_DQ22
M0_DDR_A2
M1_DDR_A13
M0_DDR_BA0
C505
0.1uF
M1_DDR_CASN
M0_1_DDR_VREFCA
C512
0.1uF
R545 240
M0_DDR_DQ17
M0_DDR_DQ15
M1_DDR_DQ0
M1_DDR_A1
M0_DDR_ODT
M1_DDR_BA1
M1_DDR_DQ25
M0_DDR_WEN
M1_DDR_DQ29
M1_DDR_VREFDQ
M1_DDR_DQ9
M0_DDR_DM1
M0_DDR_DQ0
M0_DDR_DQ2
M1_DDR_A7
M1_DDR_DQ21
M0_1_DDR_VREFCA
M0_DDR_A4
M1_DDR_DQ13
M0_DDR_CASN
M1_DDR_A11
C529 0.1uF
M1_DDR_DQ16
C567 0.1uF
M0_DDR_DQ5
M0_DDR_DQ14
M1_DDR_DM2
M1_DDR_DM0
M1_DDR_A0
M0_DDR_A0
M0_DDR_DQS_N1
M1_DDR_DQ10
M1_DDR_A5
M1_U_CLK
M0_DDR_DM0
M1_DDR_DQ18
M0_DDR_DQS_N0
M0_DDR_VREFCA
R535
100
M0_DDR_DQ6
M1_DDR_A7
M1_D_CLKN
M0_DDR_DQ21
VDDC15_M1
M0_DDR_A10
M1_DDR_DQ7
C513
0.1uF
M1_U_CLK
M1_DDR_DQ2
VDDC15_M0
M1_DDR_A10
M0_DDR_A8
M1_DDR_DQ14
M1_DDR_RESET_N
M0_DDR_DQ1
M0_DDR_DQ29
M0_DDR_DQS2
M0_DDR_A13
M1_DDR_A15
M0_DDR_DQS1
M1_DDR_DQ17
R537
1K 1%
M1_DDR_DQ1
M0_DDR_RESET_N
M1_DDR_A10
M1_DDR_A8
M1_DDR_BA1
M1_DDR_DQS_N2
M1_U_CLKN
M0_DDR_A5
M1_DDR_DQ23
M0_DDR_DM3
M0_DDR_DQ19
VDDC15_M0
R512
1K 1%
M1_DDR_CASN
M0_DDR_DQ8
M0_U_CLKN
M0_DDR_DQ22
M1_DDR_A13
M1_DDR_BA2
M0_DDR_BA1
M0_DDR_A15
M0_DDR_DM2
M0_DDR_A9
M1_DDR_DQS_N2
M0_DDR_DQ1
M1_DDR_WEN
M0_DDR_A4
M1_DDR_A4
M1_DDR_DQ5
M1_DDR_A9
M0_DDR_CKE
M0_DDR_DQ16
M0_DDR_A9
M1_DDR_DM1
M0_DDR_DQ5
M1_DDR_A1
R539
1K 1%
C508
0.1uF
M1_DDR_DQ24
M0_DDR_DQ18
M0_U_CLKN
VDDC15_M0
M0_1_DDR_VREFDQ
M1_DDR_DQ31
M1_DDR_DQ21
M0_DDR_CKE
M0_DDR_DQ31
M0_DDR_A15
M0_DDR_DQ8
M0_DDR_DQ13
M0_DDR_A15
M0_DDR_DQ19
M1_1_DDR_VREFCA
M0_D_CLK
M0_DDR_DQ7
M1_DDR_A3
M0_DDR_RASN
M1_DDR_A14
M1_DDR_DQS_N1
M1_DDR_ODT
M1_DDR_DQS2
R511
1K 1%
M0_DDR_WEN
M1_DDR_DQ4
M1_DDR_A2
M0_DDR_DQ12
M0_DDR_A14
M1_DDR_A8
M0_DDR_DQ28
M0_DDR_DQS_N3
R521
10K
R536
1K 1%
M1_DDR_DQ11
M1_DDR_DQ6
M0_DDR_A6
M1_DDR_VREFCA
M0_DDR_DQ3
M1_DDR_DQ27
M0_DDR_A5
M0_DDR_DQ4
M1_DDR_BA0
M0_DDR_DQ7
M0_DDR_A14
M1_DDR_DQ15
R510
1K 1%
M1_DDR_DQ26
M1_DDR_A0
M0_D_CLKN
M1_DDR_A4
M0_DDR_A1
VDDC15_M1
M0_DDR_A0
M1_DDR_DQ22
M0_DDR_CKE
M0_DDR_WEN
VDDC15_M1
M1_DDR_A2
M1_DDR_A3
M1_DDR_DQ17
M1_D_CLK
M1_DDR_DM3
M1_DDR_DQS3
M0_DDR_A12
M0_U_CLK
M1_DDR_DQ30
M1_D_CLK
M0_DDR_A10
R515
1K 1%
M1_DDR_CKE
M0_DDR_DQ31
M0_DDR_ODT
M0_DDR_RESET_N
M0_DDR_A0
M1_DDR_DQS_N3
M0_DDR_DQ24
M1_DDR_DQ2
M0_DDR_CKE
M1_DDR_RESET_N
M1_DDR_A15
M1_DDR_ODT
M1_DDR_DQ19
R517
1K 1%
M1_DDR_CASN
M0_DDR_A13
M0_D_CLK
M0_DDR_DQS0
M0_DDR_DQS_N3
M0_DDR_DQS3
R531
1K 1%
M1_DDR_DQ1
M1_DDR_A12
M0_DDR_DQS_N2
M0_DDR_DQ13
M1_DDR_A9
M0_DDR_A13
M1_DDR_DM0
M0_DDR_BA2
M1_DDR_BA1
M1_DDR_DQ9
M0_DDR_A5
C562 0.1uF
M0_DDR_A9
M0_DDR_DQ2
M1_DDR_DQ3
M0_DDR_DQ11
M1_D_CLKN
M0_DDR_DQS0
M1_DDR_DQ0
M1_DDR_BA2
R519
100
C500
0.1uF
M1_DDR_DQ23
M1_DDR_ODT
M1_DDR_DQ27
M1_DDR_DQ8
M0_U_CLK
M1_DDR_DQS1
M0_DDR_A1
M0_DDR_BA1
M1_DDR_A10
M1_DDR_DQ24
M0_DDR_A10
R530
100
M0_DDR_DQ20
M1_DDR_A14
VDDC15_M0
M0_DDR_A3
M1_DDR_BA0
M1_DDR_DQS_N3
M0_DDR_DM3
M1_DDR_A6
M1_DDR_RESET_N
M0_DDR_RASN
M0_DDR_A7
M0_DDR_DQ28
M0_DDR_RESET_N
R540
10K
M0_DDR_DQ23
R500
240
1%
M0_DDR_BA1
M0_DDR_DQ21
M0_DDR_DQ9
M1_DDR_DQS0
M0_DDR_DQS_N1
M1_DDR_DQ20
M0_DDR_DQ16
M1_U_CLK
M1_1_DDR_VREFDQ
M1_DDR_DQ31
M1_DDR_A12
R543 240
M0_DDR_A8
M0_DDR_A7
M0_DDR_DQ12
VDDC15_M1
M1_U_CLKN
M1_DDR_DQS2
M1_DDR_DQS_N0
M1_DDR_WEN
M0_DDR_A12
M0_DDR_A14
M1_DDR_RASN
M0_DDR_DQ17
R534
1K 1%
M0_D_CLKN
M1_DDR_A4
R542
240
1%
M0_DDR_BA2
M0_DDR_A11
M0_DDR_A3
C534 0.1uF
K4B4G1646B-HCK0
IC500
DDR_SAMSUNG
A0
N3
A1
P7
A2
P3
A3
N2
A4
P8
A5
P2
A6
R8
A7
R2
A8
T8
A9
R3
A10/AP
L7
A11
R7
A12/BC
N7
A13
T3
A15
M7
BA0
M2
BA1
N8
BA2
M3
CK
J7
CK
K7
CKE
K9
CS
L2
ODT
K1
RAS
J3
CAS
K3
WE
L3
RESET
T2
DQSL
F3
DQSL
G3
DQSU
C7
DQSU
B7
DML
E7
DMU
D3
DQL0
E3
DQL1
F7
DQL2
F2
DQL3
F8
DQL4
H3
DQL5
H8
DQL6
G2
DQL7
H7
DQU0
D7
DQU1
C3
DQU2
C8
DQU3
C2
DQU4
A7
DQU5
A2
DQU6
B8
DQU7
A3
VREFCA M8
VREFDQ H1
ZQ L8
VDD_1 B2
VDD_2 D9
VDD_3 G7
VDD_4 K2
VDD_5 K8
VDD_6 N1
VDD_7 N9
VDD_8 R1
VDD_9 R9
VDDQ_1 A1
VDDQ_2 A8
VDDQ_3 C1
VDDQ_4 C9
VDDQ_5 D2
VDDQ_6 E9
VDDQ_7 F1
VDDQ_8 H2
VDDQ_9 H9
NC_1 J1
NC_2 J9
NC_3 L1
NC_4 L9
A14
T7
VSS_1 A9
VSS_2 B3
VSS_3 E1
VSS_4 G8
VSS_5 J2
VSS_6 J8
VSS_7 M1
VSS_8 M9
VSS_9 P1
VSS_10 P9
VSS_11 T1
VSS_12 T9
VSSQ_1 B1
VSSQ_2 B9
VSSQ_3 D1
VSSQ_4 D8
VSSQ_5 E2
VSSQ_6 E8
VSSQ_7 F9
VSSQ_8 G1
VSSQ_9 G9
K4B4G1646B-HCK0
IC501
DDR_SAMSUNG
A0
N3
A1
P7
A2
P3
A3
N2
A4
P8
A5
P2
A6
R8
A7
R2
A8
T8
A9
R3
A10/AP
L7
A11
R7
A12/BC
N7
A13
T3
A15
M7
BA0
M2
BA1
N8
BA2
M3
CK
J7
CK
K7
CKE
K9
CS
L2
ODT
K1
RAS
J3
CAS
K3
WE
L3
RESET
T2
DQSL
F3
DQSL
G3
DQSU
C7
DQSU
B7
DML
E7
DMU
D3
DQL0
E3
DQL1
F7
DQL2
F2
DQL3
F8
DQL4
H3
DQL5
H8
DQL6
G2
DQL7
H7
DQU0
D7
DQU1
C3
DQU2
C8
DQU3
C2
DQU4
A7
DQU5
A2
DQU6
B8
DQU7
A3
VREFCA M8
VREFDQ H1
ZQ L8
VDD_1 B2
VDD_2 D9
VDD_3 G7
VDD_4 K2
VDD_5 K8
VDD_6 N1
VDD_7 N9
VDD_8 R1
VDD_9 R9
VDDQ_1 A1
VDDQ_2 A8
VDDQ_3 C1
VDDQ_4 C9
VDDQ_5 D2
VDDQ_6 E9
VDDQ_7 F1
VDDQ_8 H2
VDDQ_9 H9
NC_1 J1
NC_2 J9
NC_3 L1
NC_4 L9
A14
T7
VSS_1 A9
VSS_2 B3
VSS_3 E1
VSS_4 G8
VSS_5 J2
VSS_6 J8
VSS_7 M1
VSS_8 M9
VSS_9 P1
VSS_10 P9
VSS_11 T1
VSS_12 T9
VSSQ_1 B1
VSSQ_2 B9
VSSQ_3 D1
VSSQ_4 D8
VSSQ_5 E2
VSSQ_6 E8
VSSQ_7 F9
VSSQ_8 G1
VSSQ_9 G9
K4B4G1646B-HCK0
IC503
DDR_SAMSUNG
A0
N3
A1
P7
A2
P3
A3
N2
A4
P8
A5
P2
A6
R8
A7
R2
A8
T8
A9
R3
A10/AP
L7
A11
R7
A12/BC
N7
A13
T3
A15
M7
BA0
M2
BA1
N8
BA2
M3
CK
J7
CK
K7
CKE
K9
CS
L2
ODT
K1
RAS
J3
CAS
K3
WE
L3
RESET
T2
DQSL
F3
DQSL
G3
DQSU
C7
DQSU
B7
DML
E7
DMU
D3
DQL0
E3
DQL1
F7
DQL2
F2
DQL3
F8
DQL4
H3
DQL5
H8
DQL6
G2
DQL7
H7
DQU0
D7
DQU1
C3
DQU2
C8
DQU3
C2
DQU4
A7
DQU5
A2
DQU6
B8
DQU7
A3
VREFCA M8
VREFDQ H1
ZQ L8
VDD_1 B2
VDD_2 D9
VDD_3 G7
VDD_4 K2
VDD_5 K8
VDD_6 N1
VDD_7 N9
VDD_8 R1
VDD_9 R9
VDDQ_1 A1
VDDQ_2 A8
VDDQ_3 C1
VDDQ_4 C9
VDDQ_5 D2
VDDQ_6 E9
VDDQ_7 F1
VDDQ_8 H2
VDDQ_9 H9
NC_1 J1
NC_2 J9
NC_3 L1
NC_4 L9
A14
T7
VSS_1 A9
VSS_2 B3
VSS_3 E1
VSS_4 G8
VSS_5 J2
VSS_6 J8
VSS_7 M1
VSS_8 M9
VSS_9 P1
VSS_10 P9
VSS_11 T1
VSS_12 T9
VSSQ_1 B1
VSSQ_2 B9
VSSQ_3 D1
VSSQ_4 D8
VSSQ_5 E2
VSSQ_6 E8
VSSQ_7 F9
VSSQ_8 G1
VSSQ_9 G9
K4B4G1646B-HCK0
IC502
DDR_SAMSUNG
A0
N3
A1
P7
A2
P3
A3
N2
A4
P8
A5
P2
A6
R8
A7
R2
A8
T8
A9
R3
A10/AP
L7
A11
R7
A12/BC
N7
A13
T3
A15
M7
BA0
M2
BA1
N8
BA2
M3
CK
J7
CK
K7
CKE
K9
CS
L2
ODT
K1
RAS
J3
CAS
K3
WE
L3
RESET
T2
DQSL
F3
DQSL
G3
DQSU
C7
DQSU
B7
DML
E7
DMU
D3
DQL0
E3
DQL1
F7
DQL2
F2
DQL3
F8
DQL4
H3
DQL5
H8
DQL6
G2
DQL7
H7
DQU0
D7
DQU1
C3
DQU2
C8
DQU3
C2
DQU4
A7
DQU5
A2
DQU6
B8
DQU7
A3
VREFCA M8
VREFDQ H1
ZQ L8
VDD_1 B2
VDD_2 D9
VDD_3 G7
VDD_4 K2
VDD_5 K8
VDD_6 N1
VDD_7 N9
VDD_8 R1
VDD_9 R9
VDDQ_1 A1
VDDQ_2 A8
VDDQ_3 C1
VDDQ_4 C9
VDDQ_5 D2
VDDQ_6 E9
VDDQ_7 F1
VDDQ_8 H2
VDDQ_9 H9
NC_1 J1
NC_2 J9
NC_3 L1
NC_4 L9
A14
T7
VSS_1 A9
VSS_2 B3
VSS_3 E1
VSS_4 G8
VSS_5 J2
VSS_6 J8
VSS_7 M1
VSS_8 M9
VSS_9 P1
VSS_10 P9
VSS_11 T1
VSS_12 T9
VSSQ_1 B1
VSSQ_2 B9
VSSQ_3 D1
VSSQ_4 D8
VSSQ_5 E2
VSSQ_6 E8
VSSQ_7 F9
VSSQ_8 G1
VSSQ_9 G9
H5TQ4G63AFR-PBC
IC500-*1
DDR_HYNIX
A0
N3
A1
P7
A2
P3
A3
N2
A4
P8
A5
P2
A6
R8
A7
R2
A8
T8
A9
R3
A10/AP
L7
A11
R7
A12/BC
N7
A13
T3
A15
M7
BA0
M2
BA1
N8
BA2
M3
CK
J7
CK
K7
CKE
K9
CS
L2
ODT
K1
RAS
J3
CAS
K3
WE
L3
RESET
T2
DQSL
F3
DQSL
G3
DQSU
C7
DQSU
B7
DML
E7
DMU
D3
DQL0
E3
DQL1
F7
DQL2
F2
DQL3
F8
DQL4
H3
DQL5
H8
DQL6
G2
DQL7
H7
DQU0
D7
DQU1
C3
DQU2
C8
DQU3
C2
DQU4
A7
DQU5
A2
DQU6
B8
DQU7
A3
VREFCA M8
VREFDQ H1
ZQ L8
VDD_1 B2
VDD_2 D9
VDD_3 G7
VDD_4 K2
VDD_5 K8
VDD_6 N1
VDD_7 N9
VDD_8 R1
VDD_9 R9
VDDQ_1 A1
VDDQ_2 A8
VDDQ_3 C1
VDDQ_4 C9
VDDQ_5 D2
VDDQ_6 E9
VDDQ_7 F1
VDDQ_8 H2
VDDQ_9 H9
NC_1 J1
NC_2 J9
NC_3 L1
NC_4 L9
A14
T7
VSS_1 A9
VSS_2 B3
VSS_3 E1
VSS_4 G8
VSS_5 J2
VSS_6 J8
VSS_7 M1
VSS_8 M9
VSS_9 P1
VSS_10 P9
VSS_11 T1
VSS_12 T9
VSSQ_1 B1
VSSQ_2 B9
VSSQ_3 D1
VSSQ_4 D8
VSSQ_5 E2
VSSQ_6 E8
VSSQ_7 F9
VSSQ_8 G1
VSSQ_9 G9
H5TQ4G63AFR-PBC
IC502-*1
DDR_HYNIX
A0
N3
A1
P7
A2
P3
A3
N2
A4
P8
A5
P2
A6
R8
A7
R2
A8
T8
A9
R3
A10/AP
L7
A11
R7
A12/BC
N7
A13
T3
A15
M7
BA0
M2
BA1
N8
BA2
M3
CK
J7
CK
K7
CKE
K9
CS
L2
ODT
K1
RAS
J3
CAS
K3
WE
L3
RESET
T2
DQSL
F3
DQSL
G3
DQSU
C7
DQSU
B7
DML
E7
DMU
D3
DQL0
E3
DQL1
F7
DQL2
F2
DQL3
F8
DQL4
H3
DQL5
H8
DQL6
G2
DQL7
H7
DQU0
D7
DQU1
C3
DQU2
C8
DQU3
C2
DQU4
A7
DQU5
A2
DQU6
B8
DQU7
A3
VREFCA M8
VREFDQ H1
ZQ L8
VDD_1 B2
VDD_2 D9
VDD_3 G7
VDD_4 K2
VDD_5 K8
VDD_6 N1
VDD_7 N9
VDD_8 R1
VDD_9 R9
VDDQ_1 A1
VDDQ_2 A8
VDDQ_3 C1
VDDQ_4 C9
VDDQ_5 D2
VDDQ_6 E9
VDDQ_7 F1
VDDQ_8 H2
VDDQ_9 H9
NC_1 J1
NC_2 J9
NC_3 L1
NC_4 L9
A14
T7
VSS_1 A9
VSS_2 B3
VSS_3 E1
VSS_4 G8
VSS_5 J2
VSS_6 J8
VSS_7 M1
VSS_8 M9
VSS_9 P1
VSS_10 P9
VSS_11 T1
VSS_12 T9
VSSQ_1 B1
VSSQ_2 B9
VSSQ_3 D1
VSSQ_4 D8
VSSQ_5 E2
VSSQ_6 E8
VSSQ_7 F9
VSSQ_8 G1
VSSQ_9 G9
H5TQ4G63AFR-PBC
IC503-*1
DDR_HYNIX
A0
N3
A1
P7
A2
P3
A3
N2
A4
P8
A5
P2
A6
R8
A7
R2
A8
T8
A9
R3
A10/AP
L7
A11
R7
A12/BC
N7
A13
T3
A15
M7
BA0
M2
BA1
N8
BA2
M3
CK
J7
CK
K7
CKE
K9
CS
L2
ODT
K1
RAS
J3
CAS
K3
WE
L3
RESET
T2
DQSL
F3
DQSL
G3
DQSU
C7
DQSU
B7
DML
E7
DMU
D3
DQL0
E3
DQL1
F7
DQL2
F2
DQL3
F8
DQL4
H3
DQL5
H8
DQL6
G2
DQL7
H7
DQU0
D7
DQU1
C3
DQU2
C8
DQU3
C2
DQU4
A7
DQU5
A2
DQU6
B8
DQU7
A3
VREFCA M8
VREFDQ H1
ZQ L8
VDD_1 B2
VDD_2 D9
VDD_3 G7
VDD_4 K2
VDD_5 K8
VDD_6 N1
VDD_7 N9
VDD_8 R1
VDD_9 R9
VDDQ_1 A1
VDDQ_2 A8
VDDQ_3 C1
VDDQ_4 C9
VDDQ_5 D2
VDDQ_6 E9
VDDQ_7 F1
VDDQ_8 H2
VDDQ_9 H9
NC_1 J1
NC_2 J9
NC_3 L1
NC_4 L9
A14
T7
VSS_1 A9
VSS_2 B3
VSS_3 E1
VSS_4 G8
VSS_5 J2
VSS_6 J8
VSS_7 M1
VSS_8 M9
VSS_9 P1
VSS_10 P9
VSS_11 T1
VSS_12 T9
VSSQ_1 B1
VSSQ_2 B9
VSSQ_3 D1
VSSQ_4 D8
VSSQ_5 E2
VSSQ_6 E8
VSSQ_7 F9
VSSQ_8 G1
VSSQ_9 G9
H5TQ4G63AFR-PBC
IC501-*1
DDR_HYNIX
A0
N3
A1
P7
A2
P3
A3
N2
A4
P8
A5
P2
A6
R8
A7
R2
A8
T8
A9
R3
A10/AP
L7
A11
R7
A12/BC
N7
A13
T3
A15
M7
BA0
M2
BA1
N8
BA2
M3
CK
J7
CK
K7
CKE
K9
CS
L2
ODT
K1
RAS
J3
CAS
K3
WE
L3
RESET
T2
DQSL
F3
DQSL
G3
DQSU
C7
DQSU
B7
DML
E7
DMU
D3
DQL0
E3
DQL1
F7
DQL2
F2
DQL3
F8
DQL4
H3
DQL5
H8
DQL6
G2
DQL7
H7
DQU0
D7
DQU1
C3
DQU2
C8
DQU3
C2
DQU4
A7
DQU5
A2
DQU6
B8
DQU7
A3
VREFCA M8
VREFDQ H1
ZQ L8
VDD_1 B2
VDD_2 D9
VDD_3 G7
VDD_4 K2
VDD_5 K8
VDD_6 N1
VDD_7 N9
VDD_8 R1
VDD_9 R9
VDDQ_1 A1
VDDQ_2 A8
VDDQ_3 C1
VDDQ_4 C9
VDDQ_5 D2
VDDQ_6 E9
VDDQ_7 F1
VDDQ_8 H2
VDDQ_9 H9
NC_1 J1
NC_2 J9
NC_3 L1
NC_4 L9
A14
T7
VSS_1 A9
VSS_2 B3
VSS_3 E1
VSS_4 G8
VSS_5 J2
VSS_6 J8
VSS_7 M1
VSS_8 M9
VSS_9 P1
VSS_10 P9
VSS_11 T1
VSS_12 T9
VSSQ_1 B1
VSSQ_2 B9
VSSQ_3 D1
VSSQ_4 D8
VSSQ_5 E2
VSSQ_6 E8
VSSQ_7 F9
VSSQ_8 G1
VSSQ_9 G9
IC100
LG1154D_H13D
M0_DDR_A[0] F15
M0_DDR_A[1] F13
M0_DDR_A[2] F17
M0_DDR_A[3] F19
M0_DDR_A[4] E10
M0_DDR_A[5] E18
M0_DDR_A[6] E11
M0_DDR_A[7] F18
M0_DDR_A[8] F11
M0_DDR_A[9] F16
M0_DDR_A[10] E9
M0_DDR_A[11] E12
M0_DDR_A[12] E13
M0_DDR_A[13] E16
M0_DDR_A[14] F12
M0_DDR_A[15] F14
M0_DDR_BA[0] E19
M0_DDR_BA[1] F10
M0_DDR_BA[2] E15
M0_DDR_U_CLK B10
M0_DDR_U_CLKN A10
M0_DDR_D_CLK A19
M0_DDR_D_CLKN B19
M0_DDR_CKE E14
M0_DDR_ODT F21
M0_DDR_RASN E21
M0_DDR_CASN E20
M0_DDR_WEN F20
M0_DDR_RESET_N E17
M0_DDR_ZQCAL F9
M0_DDR_DQS[0] B20
M0_DDR_DQS_N[0] A20
M0_DDR_DQS[1] C19
M0_DDR_DQS_N[1] D19
M0_DDR_DQS[2] A11
M0_DDR_DQS_N[2] B11
M0_DDR_DQS[3] C10
M0_DDR_DQS_N[3] D10
M0_DDR_DM[0] D18
M0_DDR_DM[1] C20
M0_DDR_DM[2] D9
M0_DDR_DM[3] C11
M0_DDR_DQ[0] D22
M0_DDR_DQ[1] C15
M0_DDR_DQ[2] C23
M0_DDR_DQ[3] D16
M0_DDR_DQ[4] B24
M0_DDR_DQ[5] B15
M0_DDR_DQ[6] D23
M0_DDR_DQ[7] A15
M0_DDR_DQ[8] C16
M0_DDR_DQ[9] D21
M0_DDR_DQ[10] D17
M0_DDR_DQ[11] C22
M0_DDR_DQ[12] C18
M0_DDR_DQ[13] C21
M0_DDR_DQ[14] C17
M0_DDR_DQ[15] D20
M0_DDR_DQ[16] C13
M0_DDR_DQ[17] D7
M0_DDR_DQ[18] D13
M0_DDR_DQ[19] C6
M0_DDR_DQ[20] D14
M0_DDR_DQ[21] D6
M0_DDR_DQ[22] C14
M0_DDR_DQ[23] A5
M0_DDR_DQ[24] C7
M0_DDR_DQ[25] D12
M0_DDR_DQ[26] D8
M0_DDR_DQ[27] B13
M0_DDR_DQ[28] C9
M0_DDR_DQ[29] C12
M0_DDR_DQ[30] C8
M0_DDR_DQ[31] D11
IC100
LG1154D_H13D
M1_DDR_A[0] N6
M1_DDR_A[1] R6
M1_DDR_A[2] L6
M1_DDR_A[3] J6
M1_DDR_A[4] U5
M1_DDR_A[5] J5
M1_DDR_A[6] T5
M1_DDR_A[7] K6
M1_DDR_A[8] U6
M1_DDR_A[9] M6
M1_DDR_A[10] V5
M1_DDR_A[11] R5
M1_DDR_A[12] P5
M1_DDR_A[13] L5
M1_DDR_A[14] T6
M1_DDR_A[15] P6
M1_DDR_BA[0] H5
M1_DDR_BA[1] V6
M1_DDR_BA[2] M5
M1_DDR_U_CLK R2
M1_DDR_U_CLKN R1
M1_DDR_D_CLK F1
M1_DDR_D_CLKN F2
M1_DDR_CKE N5
M1_DDR_ODT G6
M1_DDR_RASN F5
M1_DDR_CASN G5
M1_DDR_WEN H6
M1_DDR_RESET_N K5
M1_DDR_ZQCAL F6
M1_DDR_DQS[0] E2
M1_DDR_DQS_N[0] E1
M1_DDR_DQS[1] F3
M1_DDR_DQS_N[1] F4
M1_DDR_DQS[2] P1
M1_DDR_DQS_N[2] P2
M1_DDR_DQS[3] R3
M1_DDR_DQS_N[3] R4
M1_DDR_DM[0] G4
M1_DDR_DM[1] E3
M1_DDR_DM[2] T4
M1_DDR_DM[3] P3
M1_DDR_DQ[0] C4
M1_DDR_DQ[1] K3
M1_DDR_DQ[2] B3
M1_DDR_DQ[3] J4
M1_DDR_DQ[4] A3
M1_DDR_DQ[5] K2
M1_DDR_DQ[6] B4
M1_DDR_DQ[7] K1
M1_DDR_DQ[8] J3
M1_DDR_DQ[9] D4
M1_DDR_DQ[10] H4
M1_DDR_DQ[11] C3
M1_DDR_DQ[12] G3
M1_DDR_DQ[13] D3
M1_DDR_DQ[14] H3
M1_DDR_DQ[15] E4
M1_DDR_DQ[16] M3
M1_DDR_DQ[17] V4
M1_DDR_DQ[18] M4
M1_DDR_DQ[19] W3
M1_DDR_DQ[20] L4
M1_DDR_DQ[21] W4
M1_DDR_DQ[22] L3
M1_DDR_DQ[23] Y2
M1_DDR_DQ[24] V3
M1_DDR_DQ[25] N4
M1_DDR_DQ[26] U4
M1_DDR_DQ[27] M2
M1_DDR_DQ[28] T3
M1_DDR_DQ[29] N3
M1_DDR_DQ[30] U3
M1_DDR_DQ[31] P4
MAIN DDR
H5TQ1G63DFR-PBC(x16)
DDR3
4Gbit
(x16)
DDR3
4Gbit
(x16)
4Gbit : T7(A14)
DDR3 1.5V bypass Cap - Place these caps near Memory
1Gbit : T7(NC_6)
Real USE : 1Gbit
DDR3 1.5V bypass Cap - Place these caps near Memory
DDR3
4Gbit
(x16)
DDR3
4Gbit
(x16)
2012-09-14
BSD-NC4_H005-HD
Copyright © 2013 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

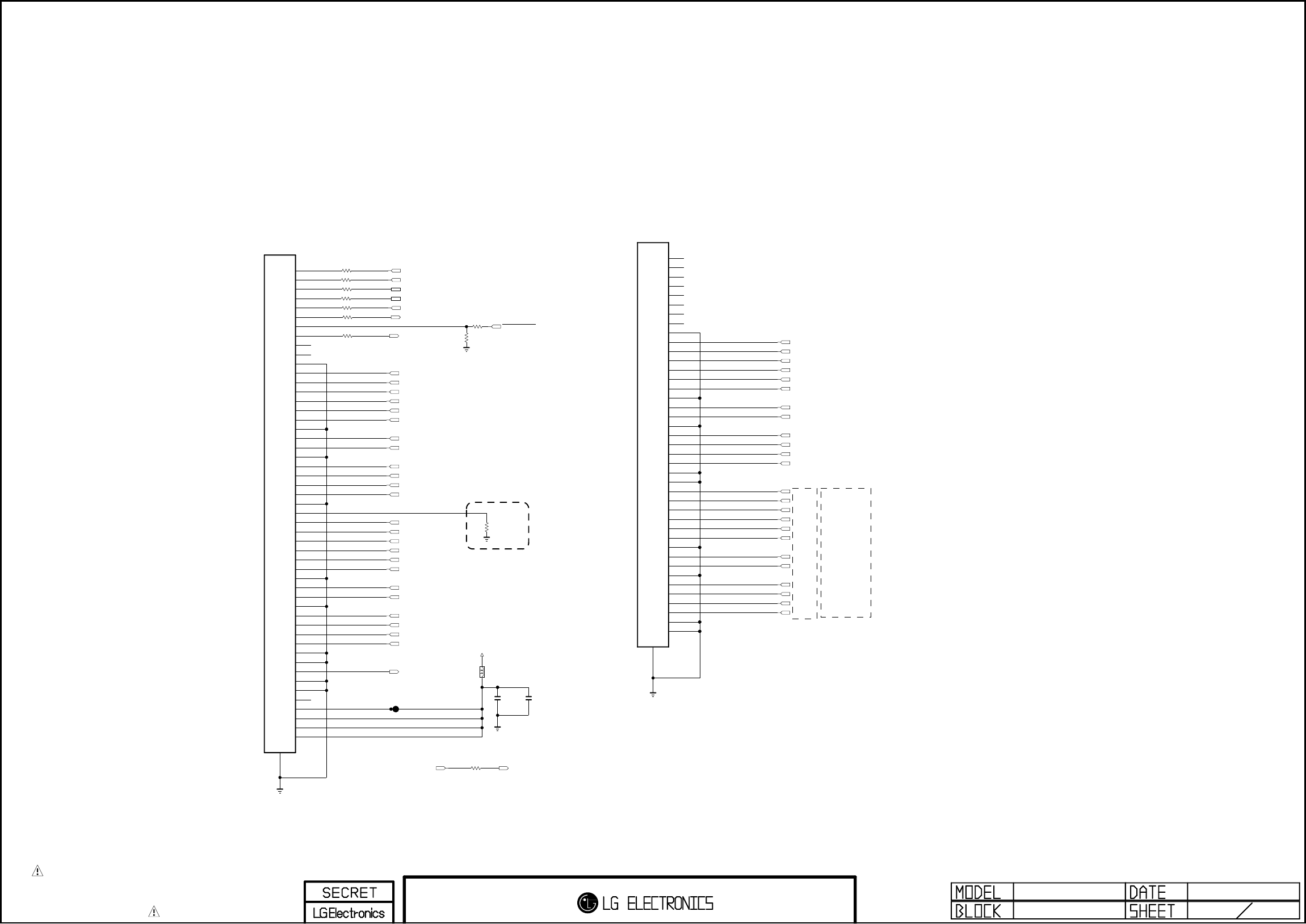

CI_DATA[7]
CI_DATA[1]
CI_DATA[5]
CI_DATA[3]
CI_DATA[2]
CI_DATA[6]
CI_DATA[0]
EB_DATA[0-7]
CI_DATA[4]
TPO_DATA[3]
TPO_DATA[4]
TPO_DATA[0]
TPO_DATA[7]
TPO_DATA[1]
TPO_DATA[5]
TPO_DATA[6]
TPO_DATA[2]
CI_ADDR[9]
CI_DATA[1]
CI_IN_TS_DATA[6]
CI_ADDR[1]
CI_DATA[6]
CI_IN_TS_DATA[3]
CI_ADDR[5]
CI_ADDR[13]
CI_IN_TS_DATA[2]
CI_ADDR[8]
CI_ADDR[2]
CI_ADDR[3]
CI_ADDR[4]
CI_DATA[0]
CI_DATA[7]
CI_DATA[4]
CI_ADDR[12]
CI_ADDR[11]
CI_IN_TS_DATA[0]
CI_DATA[5]
CI_ADDR[14]
CI_DATA[3]
CI_DATA[2]
CI_ADDR[10]
CI_ADDR[0]
CI_IN_TS_DATA[1]
CI_ADDR[7]
CI_IN_TS_DATA[7]
CI_ADDR[6]
CI_IN_TS_DATA[4]
CI_IN_TS_DATA[5]
EB_DATA[0]
EB_DATA[1]
EB_DATA[2]
EB_DATA[3]
EB_DATA[4]
EB_DATA[5]
EB_DATA[6]
EB_DATA[7]
CI_DATA[0-7]
CI_ADDR[13]
CI_ADDR[8]
CI_ADDR[7]
EB_ADDR[12]
/PCM_IOWR
EB_ADDR[0]
CI_ADDR[1]
EB_BE_N1
EB_ADDR[1]
CI_ADDR[11]
EB_ADDR[13]
CI_ADDR[9]
AR708
33
CI
AR709
33
CI
CI_ADDR[5]
CI_ADDR[2]
EB_OE_N
/PCM_OE
EB_ADDR[2]
EB_ADDR[10]
AR711
33
CI
AR712
33
CI
EB_DATA[0-7]
CI_DATA[0-7]
EB_ADDR[6]
CI_ADDR[4]
/PCM_WE
EB_ADDR[5]
EB_ADDR[4]
EB_ADDR[8]
AR707
33
CI
EB_ADDR[11]
EB_WE_N
EB_ADDR[3]
/PCM_IORD
CI_ADDR[0]
CI_ADDR[6]
CI_ADDR[14] EB_ADDR[14]
EB_BE_N0
EB_ADDR[7]
CI_ADDR[12]
CI_ADDR[3] CAM_REG_N
EB_ADDR[9]
CI_ADDR[10]
AR710
33
CI
AR713
33
CI
/PCM_REG
TPO_CLK
TPO_VAL
TPO_DATA[0-7]
TPO_SOP
/PCM_WE
/PCM_OE
PCM_INPACK
+5V_CI_ON
CI_TS_CLK
CI_ADDR[0]
CI_ADDR[10]
/PCM_IORD
/PCM_CE1
CI_ADDR[8]
CI_ADDR[14]
R706
10K
OPT
/PCM_REG
CI_TS_DATA[1]
R715 0
OPT
R713 0
OPT
/PCM_IOWR
CI_ADDR[4]
R704
10K
OPT
CI_TS_DATA[0]
/PCM_IRQA
/CI_CD1
CI_IN_TS_VAL
CI_TS_VAL CI_ADDR[1]
CI_ADDR[11]
PCM_INPACK
CI_VS1
CI_TS_DATA[3]
+5V_CI_ON
CI_TS_DATA[5]
R710 0
OPT
CI_ADDR[9]
R709
10K
CI
R718 0
OPT
CI_TS_DATA[7]
+5V_CI_ON
/CI_CD2
R711
10K
OPT
C706 0.1uF
CI
CI_DATA[0-7]
R707
10K
OPT
CI_TS_DATA[6]
R708
10K
OPT
CI_TS_DATA[4]
CI_TS_SYNC
C702
0.1uF
CI
R712
10K
OPT
CI_TS_DATA[2]
CI_VS1
+5V_CI_ON
R719 10K
OPT
CI_IN_TS_DATA[0-7]
CI_ADDR[7]
R720
10K
OPT
+5V_CI_ON
CI_ADDR[3]
/PCM_CE2
R724
10K
OPT
CI_ADDR[13]
+5V_CI_ON
R714 0 CI
R716 100
CI
R725
10K
OPT
R723
10K
CI
CI_ADDR[5]
/PCM_WAIT
CI_ADDR[2]
CI_ADDR[6]
R717 100
CI
/PCM_CE2
CI_IN_TS_SYNC
PCM_RESET
C707
0.1uF
16V
CI
CI_IN_TS_CLK
CI_ADDR[12]
AR706 33
CI
AR705
33
CI
AR701 33
CI
CI_IN_TS_DATA[7]
CI_IN_TS_DATA[6]
CI_IN_TS_DATA[0]
CI_IN_TS_DATA[1]
CI_IN_TS_DATA[5]
CI_IN_TS_DATA[2]
CI_IN_TS_DATA[4]
CI_IN_TS_DATA[3]
CI_IN_TS_SYNC
CI_IN_TS_VAL
CI_IN_TS_CLK
TPI_DATA[7]
AR700
100
CI
CAM_CD1_N
CAM_INPACK_N
C700
0.1uF
16V
CI
CI_TS_DATA[7]
AR703
100
CI
PCM_INPACK
CI_TS_DATA[2]
CI_TS_SYNC
TPI_VAL
CAM_IREQ_N
TPI_DATA[4]
TPI_DATA[5]
TPI_DATA[2]
CAM_WAIT_N
/PCM_WAIT
TPI_DATA[0]
TPI_SOP
/CI_CD1
TPI_DATA[3]
CI_TS_DATA[1]
/CI_CD2
CI_TS_CLK
CI_TS_DATA[5]
R703
10K
/PCM_IRQA
CI_TS_VAL
CI_TS_DATA[4]
CI_TS_DATA[0]
CAM_CD2_N
TPI_DATA[6]
TPI_CLK
R705
10K
TPI_DATA[1]
C701
0.1uF
16V
CI
+5V_NORMAL
CI_TS_DATA[6]
AR704
100
CI
CI_TS_DATA[3]
AR702
100
R701 33 CI
R702 33 CI
R700 33 OPT
R721 33
CI
R722 33
OPT
C705
12pF
50V
OPT
C704
12pF
50V
OPT
JK700
10120698-015LF
CI
G1G2
57
21
52
16
10
47
41
5
36
59
23
45
54
18
49
43
13
7
38
2
25
56
20
51
15
9
46
40
4
35
58
22
53
17
11
48
42
12
6
37
1
24
55
19
50
44
14
8
39
3
2660
2761
2862
2963
3064
31
32
33
34
65
66
67
68
69
C703
4.7uF
10V
CI
BSD-NC4_H007-HD
2012-10-20
PCMCIA
Copyright © 2013 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

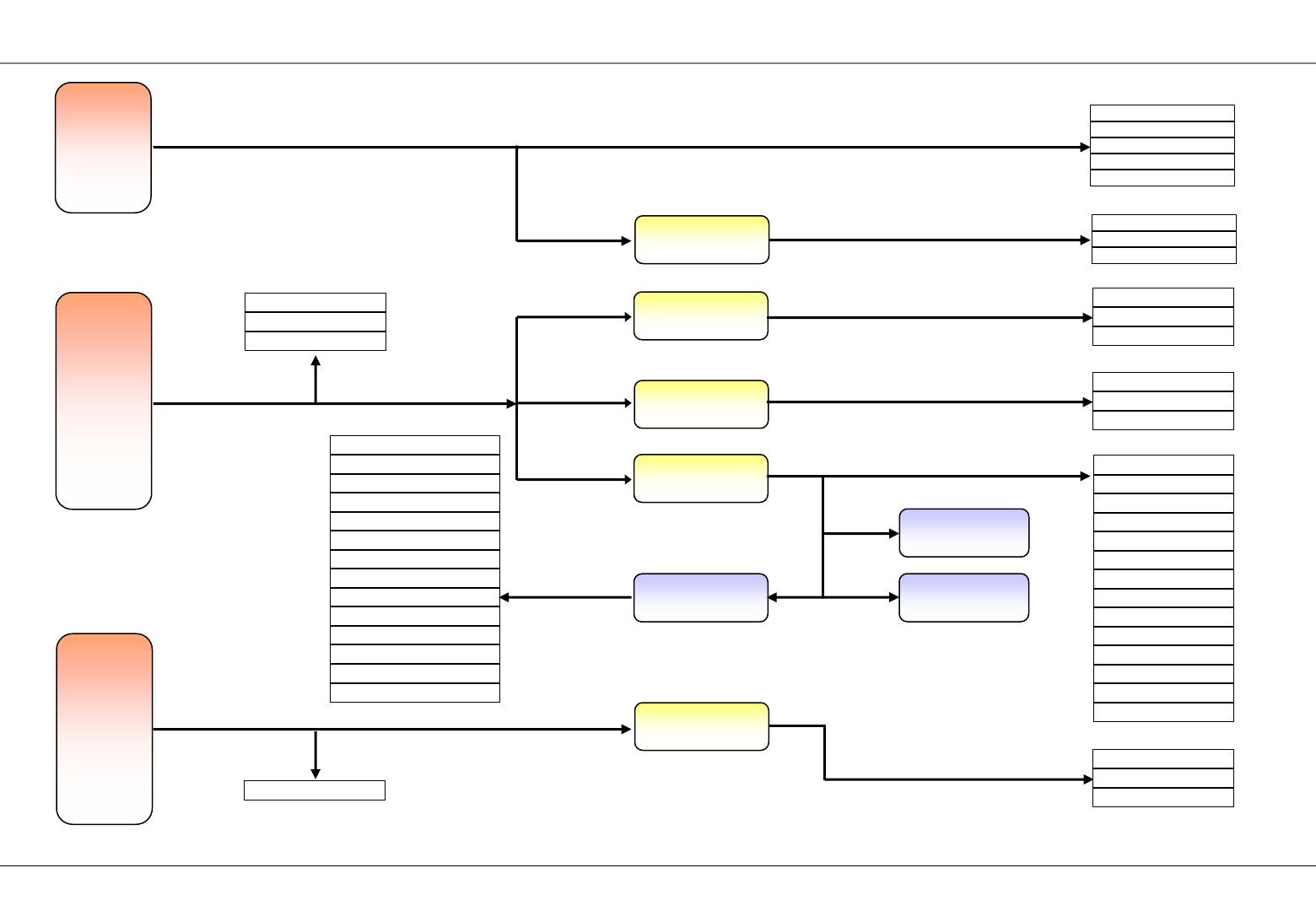

THERMAL
THERMAL
THERMAL
THERMAL
THERMAL
THERMAL
THERMAL
THERMAL
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
L2311
BLM18PG121SN1D
NON_OLED
IC2302
AP7173-SPG-13 HF(DIODES)
3
VCC
2
PG
4
EN
1
IN
5GND
6SS
7FB
8OUT
9
[EP]
L2308
1uH
+24V
POWER_ON/OFF2_2
C2338
0.1uF
50V
C2316
0.1uF
50V
L2300
BLM18PG121SN1D
R2305
15K
1/16W
1%
C2343
22uF
10V
OPT
C2329
150pF
50V
C2307
0.1uF
16V
C2361
22uF
10V
+5V_NORMAL
C2347
0.1uF
50V
R2335
330K1/16W 5%
C2354
0.1uF
16V
C2348
0.1uF
16V
R2331
10K
C2336
10uF
10V
R2300
10K
R2306
33K
1%
C2301
10uF
16V
C2318
0.1uF
16V
R2310
1K
R2340
56K
1/16W
1%
R2301
10K
C2312
3300pF
50V
+24V
R2343
16K
1%
R2304
10K
C2355
0.1uF
16V
Q2301
MMBT3904(NXP)
E
B
C
C2310
1uF
10V
C2303
10uF
16V
R2315 0
1/16W
5%
IC2300
TPS54327DDAR
DCDC_TI
3
VREG5
2
VFB
4
SS
1
EN
5GND
6SW
7VBST
8VIN
9
[EP]GND
R2312
10K
R2309
100
C2308
100pF
50V
DCDC_TI
+3.5V_ST
C2350
10uF
10V
+3.3V_NORMAL
Q2302
AO3407A
G
D
S
R2328
1.5K
1%
PD_24V
C2319
22uF
10V
R2336
100K
PD_20_24V
C2356
0.1uF
16V
PD_20_24V
C2315
4700pF 50V
C2333
10uF
16V
R2322
4.3K
1%
IC2307
NCP803SN293
1
GND
3
VCC 2RESET
R2337
100K
+12V
POWER_ON/OFF2_1
C2324
0.01uF
50V
10uF
C2327
10V
+12V
+12V
R2330
0
5%
PD_+3.5V
POWER_DET
R2328-*1
1.3K
1%
PD_20V

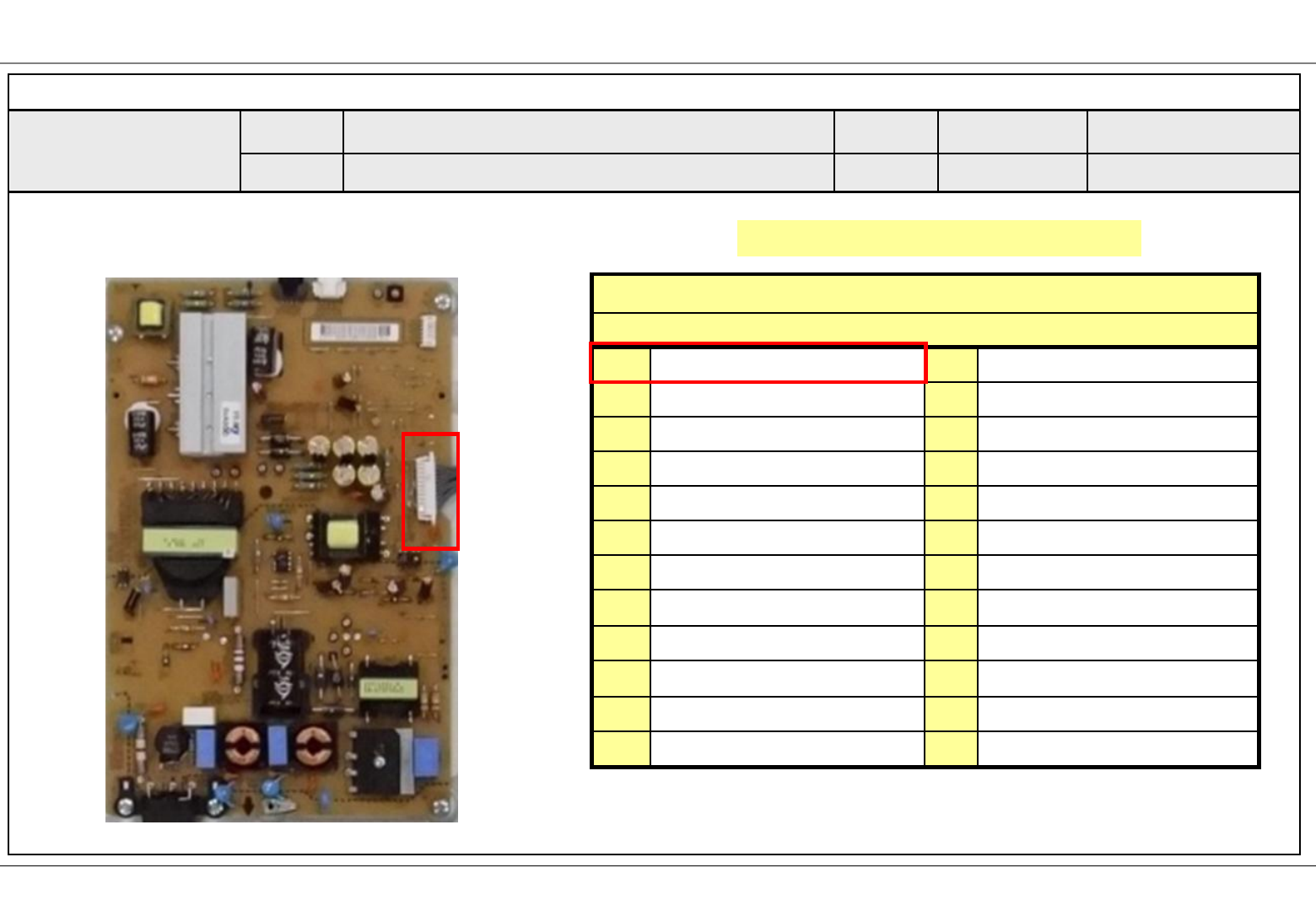

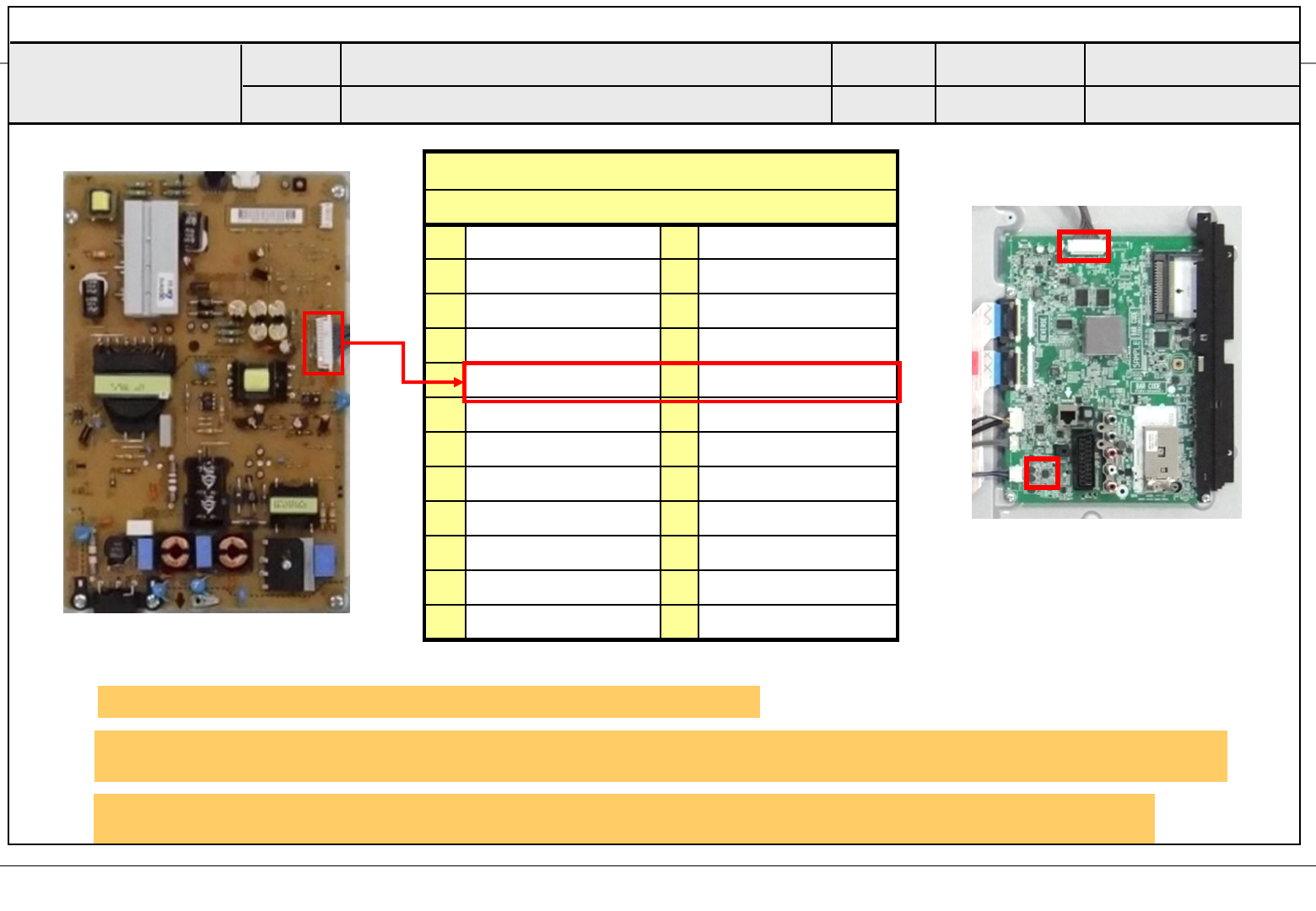

P2300
SMAW200-H18S1
POWER_WAFER_18PIN
14 12V
9
24V
4PDIM#1
18 GND
13
12V
8GND
3
3.5V
17
GND
12 GND
7
GND
2INV ON
16 24V
11
GND
6PDIM#2
1
PWR ON
15
12V
10 24V
5
3.5V
19
+1.1V_VDD
L2307
2.2uH
NR5040T2R2N
C2322
22uF
10V
+2.5V_Normal
POWER_ON/OFF1
R2318
5.6K
C2364
100pF
50V
DCDC_TI
C2334
22uF
10V
IC2308
NCP803SN293
PD_20_24V
1
GND
3
VCC 2RESET
+12V
R2339
47K 1%
C2311
0.1uF
50V
+1.5V_DDR
R2327
8.2K
1%
PD_24V
INV_CTL
L2312
4.7uH
2200pF
C2337
50V
L2318
L2301
IC2303
TPS54821RHL
3
GND_2
2
GND_1
4
PVIN_1
1
RT/CLK
6
VIN
5
PVIN_2
7
VSENSE 8COMP
9SS/TR
10 EN
11 PH_1
12 PH_2
13 BOOT
14 PWRGD
15
[EP]GND
C2359
0.01uF
50V
POWER_ON/OFF2_3
R2325
2.7K
1%
PD_+12V
C2323
22uF
10V
L2314
OLED
C2360
4700pF
50V
C2365
0.1uF
16V
+5V_NORMAL
+3.3V_NORMAL
C2317
22uF
10V
C2335
0.1uF
16V
R2338
10K
OPT
C2362
22uF
10V
C2302
180pF
50V
IC2305
TPS54319TRE
DCDC_TI
1
VIN_1
3
GND_1
7
COMP
9SS/TR
10 PH_1
11 PH_2
12 PH_3
13 BOOT
14 PWRGD
15 EN
16 VIN_3
5
AGND
8
RT/CLK
6
VSENSE
4
GND_2
2
VIN_2 17
EP[GND]
+3.5V_ST
+3.5V_ST
R2314
10K
+24V
PANEL_CTL
R2313
1.3K
+12V
L2320
3.3uH
NR5040T3R3N
D2300
40V
B540C
PANEL_VCC
PWM_DIM2
+1.0V_VDD
R2327-*1
5.6K
1%
PD_20V
RL_ON
C2306
0.1uF
50V
R2326
1.2K
1%
PD_+12V
C2330
22uF
10V
POWER_ON/OFF2_2
C2320
47pF 50V
C2331
0.1uF
50V
C2346
10uF
10V
+3.5V_ST
R2302
11K
1%
PWM_DIM
Q2300 MMBT3906(NXP)
1
2
3
R2344
51K
1%
C2313
4.7uF
16V
+1.1V_VDD
C2358
0.1uF
16V
+3.5V_ST
R2321
2K
1%
R2345
10K
R2317
33K
C2321
22000pF 50V
C2314
0.1uF
16V
R2334
15K
1/16W 5%
+12V
R2316 1K
C2305
0.1uF
16V
+3.3V_NORMAL
L2302
BLM18PG121SN1D
3.3V_EMMC
C2300
22uF
10V
C2309
10uF
35V
IC2304
RT8289GSP
3
NC_2
2
NC_1
4
FB
1
BOOT
5EN
6GND
7VIN
8SW
9
[EP]GND
C2339
22uF
10V
L2305
BLM18PG121SN1D
R2308
51K
1% C2332
0.1uF
16V
+3.3V_NORMAL
R2311
10K
C2325
100pF
50V
OPT
IC2301
TPS54327DDAR
3
VREG5
2
VFB
4
SS
1
EN
5GND
6SW
7VBST
8VIN
9
[EP]GND
R2319
15K
1%
C2304
10uF
16V
C2326
1uF
10V
+12V
C2328
3300pF
50V
C2340
22uF
10V
POWER_ON/OFF1
P2301
SMAW200-H24S2
POWER_WAFER_24PIN
19
14
9
4
18
13
8
3
17
12
7
2
16
11
6
1
20
15
10
5
21 22
23 24
25
L/DIM0_VS
L/DIM0_SCLK
L/DIM0_MOSI
L2309
3.6uH
SM-8040
IC2300-*1
RT7266ZSP
DCDC_RT
3
PVCC
2
FB
4
SS
1
EN
5GND
6SW
7BOOT
8VIN
9
[EP]GND
IC2305-*1
RT8079AGQW
DCDC_RT
3
GND_1
2
VIN_2
4
GND_2
1
VIN_1
5
AGND
6
FB
7
COMP
8
RT/SYNC
9SS/TR
10 SW_1
11 SW_2
12 SW_3
13
BOOT
14
PGOOD
15
EN
16
VIN_3
17
[EP]GND
ZD2303
5V
OPT
ZD2302
5V
OPT
ZD2301
5V
OPT
ZD2300
5V
OPT
C2341
22uF
10V
L2303
UBW2012-121F
L2304
UBW2012-121F
L2306
UBW2012-121F
L2313
UBW2012-121F
R2303
16K
1/16W
1%
L2310
4.7uH
R2347
5.6K
LVDS_DISCHARGE
R2346
5.6K
LVDS_DISCHARGE
R2307
120K
1/16W
1%

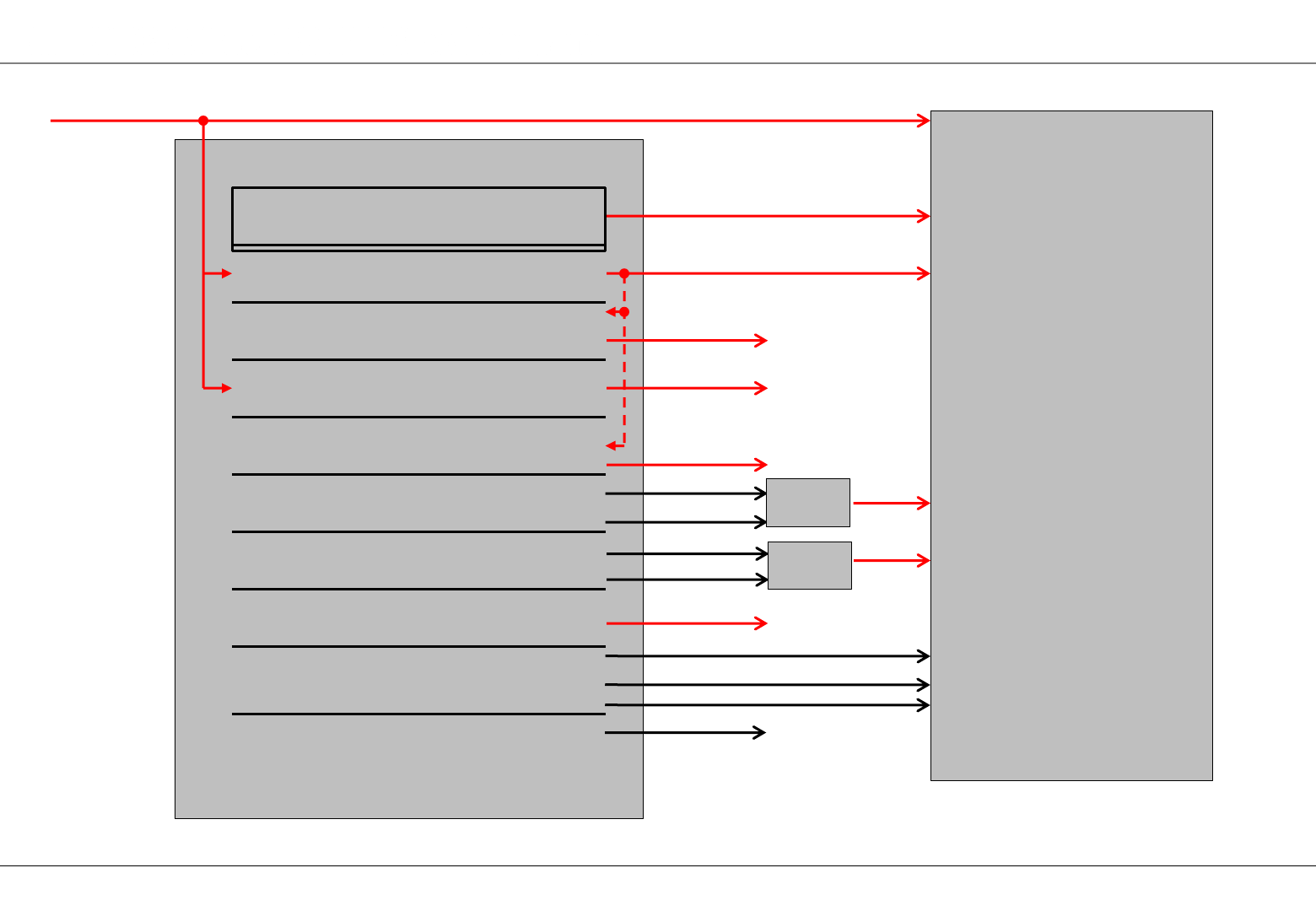

POWER
LG1154
24V-->3.48V
5A
12V-->3.58V
R1
not to RESET at 8kV ESD
R1
8A
Vout=0.765*(1+R1/R2)
+1.1V_CORE
+1.0V_VDD
Vout=0.6*(1+R1/R2)
1.5A
LG1154AN : 3.3V->2.5V->1.0V
LG1154D : 3.3V->2.5V->1.5V->1.1V
Switching freq: 700K
R2
DDR MAIN 1.5V
eMMC POWER
5V/3.3V->2.5V->1.5V/1.1V->1.0V
Vout=0.827*(1+R1/R2)=1.521V
3A
POWER UP SEQUENCE
LG1154A
Vout=0.8*(1+R1/R2)
R2
3A
+2.5V
PANEL_POWER
R1
R1
Vout=1.222*(1+R1/R2)
3A
R2
+5.0V normal & USB
LG1154D
Vout(1.24V)=0.6*(1+16k/15k)
R2
20V-->3.51V
Power_DET
$ 0.145
R2
R1
ST_3.5V-->3.5V
2012-12-07
BSD-NC4_H023-HD
Vout=0.765*(1+R1/R2)
Switching freq: 700K
R1
3A
+3.3V_NORMAL
R2
Copyright © 2013 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
WOL/WIFI_POWER_ON
POWER_ON/OFF1
R3005 10K
MICOM_LCD/OLED
R3004 10K
MICOM_GP3_12/15PIN
I2C_SDA_MICOM
MODEL1_OPT_5
RUE003N02
Q3001
HDMI_CEC_FET_ROHM
S
D
G
+3.5V_ST
R3030 10K
R3014 10K
MICOM_DEBUG
+3.5V_ST
WOL_CTL
C3003 8pF
P3000
12507WS-04L
MICOM_DEBUG
1
2
3
4
5
SCART_MUTE
CAM_CTL
KEY1
MODEL1_OPT_5
CEC_REMOTE
R3012 10K
MICOM_NON_LOGO_LIGHT
POWER_ON/OFF2_4
C3001 0.47uF
SOC_TX
MODEL1_OPT_3
R3013 10K
MICOM_LOGO_LIGHT
R3008 10K
MICOM_TACT_KEY
EDID_WP
CAM_PWR_ON_CMD
LOGO_LIGHT
MODEL1_OPT_1
RL_ON
MODEL1_OPT_2
R3007-*2
22K
MICOM_OLED_FRC
SOC_RX
POWER_DET
R3007-*1
56K
MICOM_OLED_MAIN
R3001 10K
MICOM_M13
MHL_DET
MICOM_RESET
CAM_CTL
MODEL1_OPT_4
R3031
270K
OPT
R3010 10K
MICOM_TOUCH_KEY
R3021
10K
EDID_WP
LED_R
MODEL1_OPT_2
C3004
0.1uF
16V
R3028
4.7M
OPT
POWER_ON/OFF2_4
LED_R
R3007 10K
MICOM_PDP
POWER_ON/OFF2_1
LOGO_LIGHT
MICOM_DEBUG
I2C_SCL_MICOM
R3032
10K
R3033
27K
HDMI_CEC
MODEL1_OPT_1
X3000
32.768KHz
C3002 8pF
+3.5V_ST
PANEL_CTL
MODEL1_OPT_3
MHL_DET
C3000
0.1uF
POWER_ON/OFF2_2
AMP_MUTE
R3034
120K
KEY2
CAM_PWR_ON_CMD
IR
SCART_MUTE
D3000
BAT54_SUZHO
POWER_ON/OFF2_3
SI1012CR-T1-GE3
Q3001-*1
HDMI_CEC_FET_VISHAY
S
D
G
SW3000
JTP-1127WEM
MICOM_RESET_SW
12
4 3
R3002 10K
MICOM_GED
MODEL1_OPT_0
MICOM_DEBUG
MODEL1_OPT_4
R3029 22
MICOM_RESET_22OHM
INV_CTL
+3.5V_ST
SOC_RESET
MODEL1_OPT_0
MICOM_RESET
R3016 1K
+3.5V_ST
GND
SIDE_HP_MUTE
R3003 10K
MICOM_H13
HDMI_CEC
R3000 10K
MICOM_NON_GED
R3006 10K
MICOM_NC4_8PIN
R3029-*1 33
MICOM_RESET_33OHM
ST_BY_DET_CAM
ST_BY_DET_CAM
+3.5V_ST
WOL/ETH_POWER_ON
IC3000
R5F100GEAFB
MICOM_LEAD_Au
1
P60/SCLA0
2
P61/SDAA0
3
P62
4
P63
5
P31/TI03/TO03/INTP4
6
P75/KR5/INTP9/SCK01/SCL01
7
P74/KR4/INTP8/SI01/SDA01
8
P73/KR3/SO01
9
P72/KR2/SO21
10
P71/KR1/SI21/SDA21
11
P70/KR0/SCK21/SCL21
12
P30/INTP3/RTC1HZ/SCK11/SCL11
13
P50/INTP1/SI11/SDA11
14
P51/INTP2/SO11
15
P17/TI02/TO02
16
P16/TI01/TO01/INTP5
17
P15/PCLBUZ1/SCK20/SCL20
18
P14/RXD2/SI20/SDA20
19
P13/TXD2/SO20
20
P12/SO00/TXD0/TOOLTXD
21
P11/SI00/RXD0/TOOLRXD/SDA00
22
P10/SCK00/SCL00
23
P146
24
P147/ANI18
25 P27/ANI7
26 P26/ANI6
27 P25/ANI5
28 P24/ANI4
29 P23/ANI3
30 P22/ANI2
31 P21/ANI1/AVREFM
32 P20/ANI0/AVREFP
33 P130
34 P01/TO00/RXD1
35 P00/TI00/TXD1
36 P140/PCLBUZ0/INTP6
37 P120/ANI19
38 P41/TI07/TO07
39 P40/TOOL0
40 RESET
41 P124/XT2/EXCLKS
42 P123/XT1
43 P137/INTP0
44 P122/X2/EXCLK
45 P121/X1
46 REGC
47 VSS
48 VDD
IC3000-*1
R5F100GEAFB#30
MICOM_LEAD_Cu
1
P60/SCLA0
2
P61/SDAA0
3
P62
4
P63
5
P31/TI03/TO03/INTP4
6
P75/KR5/INTP9/SCK01/SCL01
7
P74/KR4/INTP8/SI01/SDA01
8
P73/KR3/SO01
9
P72/KR2/SO21
10
P71/KR1/SI21/SDA21
11
P70/KR0/SCK21/SCL21
12
P30/INTP3/RTC1HZ/SCK11/SCL11
13
P50/INTP1/SI11/SDA11
14
P51/INTP2/SO11
15
P17/TI02/TO02
16
P16/TI01/TO01/INTP5
17
P15/PCLBUZ1/SCK20/SCL20
18
P14/RXD2/SI20/SDA20
19
P13/TXD2/SO20
20
P12/SO00/TXD0/TOOLTXD
21
P11/SI00/RXD0/TOOLRXD/SDA00
22
P10/SCK00/SCL00
23
P146
24
P147/ANI18
25 P27/ANI7
26 P26/ANI6
27 P25/ANI5
28 P24/ANI4
29 P23/ANI3
30 P22/ANI2
31 P21/ANI1/AVREFM
32 P20/ANI0/AVREFP
33 P130
34 P01/TO00/RXD1
35 P00/TI00/TXD1
36 P140/PCLBUZ0/INTP6
37 P120/ANI19
38 P41/TI07/TO07
39 P40/TOOL0
40 RESET
41 P124/XT2/EXCLKS
42 P123/XT1
43 P137/INTP0
44 P122/X2/EXCLK
45 P121/X1
46 REGC
47 VSS
48 VDD
EYE_SCL
EYE_SDA
R3035
3.3K
EYE_Q_10P
R3036
3.3K
EYE_Q_10P
+3.5V_ST
MICOM 30
2012.02.22
For CEC
HDMI_WAUP:HDMI_INIT
NON_GED
For Debug
Commercial
POWER_ON/OFF2_4
LCD
MICOM MODEL OPTION
/ OLED
Ready for sample set
PDP
0
H13
TACT_KEY
IR_wafer(12/15)
GP4 High/MID Power SEQUENCE
Ready for sample set
1
POWER_ON/OFF2_3
MODEL_OPT_3
M13MODEL_OPT_4
Renesas MICOM
POWER_ON/OFF!
MODEL_OPT_2
MODEL_OPT_0 For LOGO LIGHT
Need to Assign ADC port
MODEL_OPT_5
LOGO
SOC_RESET
POWER_ON/OFF2_2
GED
IR_wafer(10pin)
MODEL_OPT_1
Don’t remove R3014,
not making float P40
MICOM MODEL OPTION
Ready For
NON LOGO
POWER_ON/OFF2_1
TOUCH_KEY
Copyright © 2013 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
THERMAL
THERMAL
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
DDC_SDA_4
R3246
10K
CK+_HDMI1
C3214
1uF
D3202
A2
C
A1
HDMI_CLK+
DDC_SDA_2
D2+_HDMI1
+5V_NORMAL
R3240
10
D3207
5.6V
DDC_SCL_4
C3209
0.1uF
16V
HDMI_S/W_RESET
D0+_HDMI4
VA3207
ESD_HDMI
D0-_HDMI2
L3202
JK3202
51U019S-312HFN-E-R-B-LG
EAG62611204
HDMI_FREEPORT
14 ARC
13
CE_REMOTE
5D1_GND
20
BODY_SHIELD
12
CK-
11
CK_GND
2D2_GND
19
HP_DET
18
5V
10 CK+
4D1+
1D2+
17
GND
9D0-
8D0_GND
3D2-
16
DDC_DATA
7D0+
6D1-
15
DDC_CLK
VA3216
ESD_HDMI
L3203
CK-_HDMI2
D1-_HDMI4
IC3201-*1
SII9587CNUC-3
UD 1
R1XCN
2
R1XCP
3
R1X0N
4
R1X0P
5
R1X1N
6
R1X1P
7
R1X2N
8
R1X2P
9
AVDD12_1
10
VDD12_1
11
R3XCN
12
R3XCP
13
R3X0N
14
R3X0P
15
R3X1N
16
R3X1P
17
R3X2N
18
R3X2P
19
AVDD12_2
20
VDD33_1
21
R4XCN
22
R4XCP
23
R4X0N
24
R4X0P
25
R4X1N
26
R4X1P
27
R4X2N
28
R4X2P
29
VDD12_2
30
DSDA0
31
DSCL0
32
CBUS_HPD0
33
R0PWR5V
34
DSDA1
35
DSCL1
36
CBUS_HPD1
37
R1PWR5V
38
DSDA3
39
DSCL3
40
CBUS_HPD3
41
R3PWR5V
42
DSDA4
43
DSCL4
44
CBUS_HPD4
45 R4PWR5V
46 DSDA5[VGA]
47 DSCL5[VGA]
48 R5PWR5V[VGA]
49 SBVCC5
50 PWRMUX_OUT
51 LPSBV
52 WKUP
53 CD_SENSE0
54 CD_SENSE1
55 GPIO2
56 CD_SENSE3
57 CD-SENSE4
58 GPIO0
59 GPIO1
60 TPWR
61 RESET_N
62 CSDA
63 CSCL
64 INT
65 SPDIF_IN
66 RSVDL
67 VDD12_3
68 ARC
69 TX2P
70 TX2N
71 TX1P
72 TX1N
73 TX0P
74 TX0N
75 TXCP
76 TXCN
77 TCVDD12
78 TPVDD12
79 R0XCN
80 R0XCP
81 R0X0N
82 R0X0P
83 R0X1N
84 R0X1P
85 R0X2N
86 R0X2P
87 AVDD12_3
88 VDD33_2
89
[EP]GND
5V_HDMI_2
DDC_SDA_1
DDC_SDA_2
D3204
A2
C
A1
R3219
47K
D0-_HDMI4
DDC_SDA_3
DDC_SCL_4
C3222
10uF
10V
C3213
1uF
+5V_NORMAL
R3237 33
C3220
1uF
R3228
47K
DDC_SDA_4
CEC_REMOTE
R3234
5.1K
5%
1/16W
MHL_DET
DDC_SCL_1
HDMI_RX0+
CK-_HDMI2
+5V_NORMAL
HDMI_INT
DDC_SDA_3
DDC_SCL_2
D2-_HDMI1
5V_HDMI_4
C3225
0.1uF
16V
R3231
10
C3206
0.1uF
16V
VA3201
ESD_HDMI
CK+_HDMI4
JK3200
51U019S-312HFN-E-R-B-LG
EAG62611204
HDMI_FREEPORT
14
NC
13
CE_REMOTE
5D1_GND
20
BODY_SHIELD
12
CK-
11
CK_GND
2D2_GND
19
HP_DET
18
5V
10 CK+
4D1+
1D2+
17
GND
9D0-
8D0_GND
3D2-
16
DDC_DATA
7D0+
6D1-
15
DDC_CLK
R3241
5.1K
5%
1/16W
HDMI_RX2+
CK-_HDMI3
C3208
0.1uF
CK+_HDMI1
HDMI_HPD_1
HDMI_HPD_4
DDC_SCL_1
R3236 33
D0+_HDMI2
D2+_HDMI4
D2-_HDMI4
R3216
10
5V_HDMI_1
R3247
10K Q3201
MMBT3906(NXP)
E
B
C
DDC_SCL_1
+3.5V_ST
C3218
10uF
10V
D0-_HDMI1
SPDIF_OUT_ARC
VA3206
ESD_HDMI
CK+_HDMI4
D1+_HDMI4
D2+_HDMI2
5V_HDMI_1
CK-_HDMI1
+5V_NORMAL
HDMI_RX0-
DDC_SCL_4
C3223
0.047uF
25V
5V_HDMI_2
CEC_REMOTE
D2-_HDMI4
R3217
47K
R3212
1
1/16W
5%
C3207
0.1uF
16V
+5V_NORMAL
5V_HDMI_4
C3202
1uF
10V
CK-_HDMI4
DDC_SCL_3
HDMI_HPD_1
5V_HDMI_4
VA3215
ESD_HDMI
HDMI_HPD_2
5V_HDMI_3
Q3202
AO3438
G
D
S
D1+_HDMI4
VA3211
ESD_HDMI
D0-_HDMI3
VA3210
ESD_HDMI
DDC_SDA_4
MHL_DET
+5V_NORMAL
C3224
0.1uF
16V
D0+_HDMI1
D2+_HDMI3
HDMI_HPD_2
+3.3V_NORMAL
DDC_SDA_2
+5V_NORMAL
CEC_REMOTE
R3206
220K
1/16W
5%
CK+_HDMI3
D1-_HDMI3
D0-_HDMI3
CK+_HDMI2
I2C_SDA5
D0-_HDMI1
IC3201
SII9587CNUC
FHD
1
R1XCN
2
R1XCP
3
R1X0N
4
R1X0P
5
R1X1N
6
R1X1P
7
R1X2N
8
R1X2P
9
AVDD12_1
10
VDD12_1
11
R3XCN
12
R3XCP
13
R3X0N
14
R3X0P
15
R3X1N
16
R3X1P
17
R3X2N
18
R3X2P
19
AVDD12_2
20
VDD33_1
21
R4XCN
22
R4XCP
23
R4X0N
24
R4X0P
25
R4X1N
26
R4X1P
27
R4X2N
28
R4X2P
29
VDD12_2
30
DSDA0
31
DSCL0
32
CBUS_HPD0
33
R0PWR5V
34
DSDA1
35
DSCL1
36
CBUS_HPD1
37
R1PWR5V
38
DSDA3
39
DSCL3
40
CBUS_HPD3
41
R3PWR5V
42
DSDA4
43
DSCL4
44
CBUS_HPD4
45 R4PWR5V
46 DSDA5[VGA]
47 DSCL5[VGA]
48 R5PWR5V[VGA]
49 SBVCC5
50 PWRMUX_OUT
51 LPSBV
52 WKUP
53 CD_SENSE0
54 CD_SENSE1
55 GPIO2
56 CD_SENSE3
57 CD-SENSE4
58 GPIO0
59 GPIO1
60 TPWR
61 RESET_N
62 CSDA
63 CSCL
64 INT
65 SPDIF_IN
66 RSVDL
67 VDD12_3
68 ARC
69 TX2P
70 TX2N
71 TX1P
72 TX1N
73 TX0P
74 TX0N
75 TXCP
76 TXCN
77 TCVDD12
78 TPVDD12
79 R0XCN
80 R0XCP
81 R0X0N
82 R0X0P
83 R0X1N
84 R0X1P
85 R0X2N
86 R0X2P
87 AVDD12_3
88 VDD33_2
89
[EP]GND
VA3214
ESD_HDMI
R3204
10K
C3217
0.1uF
16V
VA3203
ESD_HDMI
R3226
47K
HDMI_CLK-
HDMI_RX1+
I2C_SCL5
IC3200
AZ1117BH-1.2TRE1
1
GND/ADJ
2OUT
3
IN
CEC_REMOTE
D1+_HDMI3
HDMI_RX2-
D3203
A2
C
A1
C3211
0.1uF
16V
CK-_HDMI1
C3212
1uF
10V
D2-_HDMI3
5V_HDMI_2
R3214 33
D1-_HDMI1
D3206
30V
MBR230LSFT1G
Q3200
MMBT3904(NXP) E
B
C
5V_HDMI_3
C3226
0.1uF
16V
OPT
D1-_HDMI1
R3220
47K
R3233
5.1K
5%
1/16W
R3238
10
D2-_HDMI2
D0+_HDMI3
JK3203
51U019S-312HFN-E-R-B-LG
EAG62611204
HDMI_FREEPORT
14
NC
13
CE_REMOTE
5D1_GND
20
BODY_SHIELD
GND
12
CK-
11
CK_GND
2D2_GND
19
HP_DET
18
5V
10 CK+
4D1+
1D2+
17
GND
9D0-
8D0_GND
3D2-
16
DDC_DATA
7D0+
6D1-
15
DDC_CLK
DDC_SDA_1
5V_HDMI_3
D2+_HDMI3
D2+_HDMI4
D2-_HDMI1
+3.5V_ST
D0+_HDMI2
DDC_SCL_3
D1-_HDMI2
D3200
A2
C
A1
VA3204
ESD_HDMI
R3249
3.9K
OPT
R3229
47K
DDC_SDA_1
D0+_HDMI3
CK-_HDMI4
VA3200
ESD_HDMI
C3210
0.1uF
16V
D2+_HDMI1
D2-_HDMI2
D1+_HDMI2
VA3209
ESD_HDMI
D1+_HDMI1
HDMI_HPD_3
D1+_HDMI1
5V_HDMI_4
DDC_SDA_3
R3211 33
D1+_HDMI3
C3219
1uF
C3201
10uF
10V
R3225
47K
D1-_HDMI2
R3232
10
D3205
A2
C
A1
VA3213
ESD_HDMI
D2+_HDMI2
R3213
5.1K
5%
1/16W
D1-_HDMI4
R3248
1K
OPT
R3244
10K
C3215
0.1uF
16V
D0+_HDMI1
C3200
10uF
10V
MHL_DET
5V_HDMI_1
+3.5V_ST
D0-_HDMI2
HDMI_HPD_3
D0+_HDMI4
R3243
1K
1/16W
5%
CK+_HDMI3
R3202
10K
D3201
A2
C
A1
C3203
10uF
10V
HDMI_HPD_4
D0-_HDMI4
+3.3V_NORMAL
DDC_SCL_2
D1+_HDMI2
R3245
10K
1/16W
5%
R3218
47K
D2-_HDMI3
CK-_HDMI3
HDMI_RX1-
D1-_HDMI3
DDC_SCL_3
R3239
5.1K
5%
1/16W
DDC_SCL_2
JK3201
51U019S-312HFN-E-R-B-LG
EAG62611204
HDMI_FREEPORT
14
NC
13
CE_REMOTE
5D1_GND
20
BODY_SHIELD
12
CK-
11
CK_GND
2D2_GND
19
HP_DET
18
5V
10 CK+
4D1+
1D2+
17
GND
9D0-
8D0_GND
3D2-
16
DDC_DATA
7D0+
6D1-
15
DDC_CLK
CK+_HDMI2
C3204
0.1uF
16V
R3250 33
R3251
33
R3252
33
R3253
33
IC3202
TPS2051BDBVR
3
OC
2
GND
4EN
1
OUT 5IN
C3205
10uF
10V
R3215
100K
D3210
RCLAMP0524PA
HDMI_ESD_SEMTEK
1
8
2
7
3
6
4
5
9
10
D3211
RCLAMP0524PA
HDMI_ESD_SEMTEK
1
8
2
7
3
6
4
5
9
10
D3212
RCLAMP0524PA
HDMI_ESD_SEMTEK
1
8
2
7
3
6
4
5
9
10
D3213
RCLAMP0524PA
HDMI_ESD_SEMTEK
1
8
2
7
3
6
4
5
9
10
D3208
RCLAMP0524PA
HDMI_ESD_SEMTEK
1
8
2
7
3
6
4
5
9
10
D3209
RCLAMP0524PA
HDMI_ESD_SEMTEK
1
8
2
7
3
6
4
5
9
10
D3215
RCLAMP0524PA
HDMI_ESD_SEMTEK
1
8
2
7
3
6
4
5
9
10
D3214
RCLAMP0524PA
HDMI_ESD_SEMTEK
1
8
2
7
3
6
4
5
9
10
R3210 22
R3222 22
R3223 22
R3208 22
R3207 22
R3205 22
R3209 22
R3203 22
VA3205
ESD_HDMI
VA3212
ESD_HDMI
VA3202
ESD_HDMI
VA3208
ESD_HDMI
D3210-*1
IP4283CZ10-TBA
HDMI_ESD_NXP
3
GND_1
2
TMDS_CH1+
4
TMDS_CH2-
1
TMDS_CH1-
5
TMDS_CH2+ 6NC_1
7NC_2
8GND_2
9NC_3
10 NC_4
D3211-*1
IP4283CZ10-TBA
HDMI_ESD_NXP
3
GND_1
2
TMDS_CH1+
4
TMDS_CH2-
1
TMDS_CH1-
5
TMDS_CH2+ 6NC_1
7NC_2
8GND_2
9NC_3
10 NC_4
D3212-*1
IP4283CZ10-TBA
HDMI_ESD_NXP
3
GND_1
2
TMDS_CH1+
4
TMDS_CH2-
1
TMDS_CH1-
5
TMDS_CH2+ 6NC_1
7NC_2
8GND_2
9NC_3
10 NC_4
D3213-*1
IP4283CZ10-TBA
HDMI_ESD_NXP
3
GND_1
2
TMDS_CH1+
4
TMDS_CH2-
1
TMDS_CH1-
5
TMDS_CH2+ 6NC_1
7NC_2
8GND_2
9NC_3
10 NC_4
D3209-*1
IP4283CZ10-TBA
HDMI_ESD_NXP
3
GND_1
2
TMDS_CH1+
4
TMDS_CH2-
1
TMDS_CH1-
5
TMDS_CH2+ 6NC_1
7NC_2
8GND_2
9NC_3
10 NC_4
D3208-*1
IP4283CZ10-TBA
HDMI_ESD_NXP
3
GND_1
2
TMDS_CH1+
4
TMDS_CH2-
1
TMDS_CH1-
5
TMDS_CH2+ 6NC_1
7NC_2
8GND_2
9NC_3
10 NC_4
D3215-*1
IP4283CZ10-TBA
HDMI_ESD_NXP
3
GND_1
2
TMDS_CH1+
4
TMDS_CH2-
1
TMDS_CH1-
5
TMDS_CH2+ 6NC_1
7NC_2
8GND_2
9NC_3
10 NC_4
D3214-*1
IP4283CZ10-TBA
HDMI_ESD_NXP
3
GND_1
2
TMDS_CH1+
4
TMDS_CH2-
1
TMDS_CH1-
5
TMDS_CH2+ 6NC_1
7NC_2
8GND_2
9NC_3
10 NC_4
MHL_ON_OFF
R3254
100
1/16W
5%
OPT
JK3200-*1
DAADR019A
HDMI_FOOSUNG
14
RESERVED
13
CEC
5
TMDS_DATA1_SHIELD
20
BODY_SHIELD
12
TMDS_CLK-
11
TMDS_CLK_SHIELD
2
TMDS_DATA2_SHIELD
19
HOT_PLUG_DETECT
18
VDD[+5V]
10
TMDS_CLK+
4
TMDS_DATA1+
1
TMDS_DATA2+
17
DDC/CEC_GND
9
TMDS_DATA0-
8
TMDS_DATA0_SHIELD
3
TMDS_DATA2-
16
SDA
7
TMDS_DATA0+
6
TMDS_DATA1-
15
SCL
JK3201-*1
DAADR019A
HDMI_FOOSUNG
14
RESERVED
13
CEC
5
TMDS_DATA1_SHIELD
20
BODY_SHIELD
12
TMDS_CLK-
11
TMDS_CLK_SHIELD
2
TMDS_DATA2_SHIELD
19
HOT_PLUG_DETECT
18
VDD[+5V]
10
TMDS_CLK+
4
TMDS_DATA1+
1
TMDS_DATA2+
17
DDC/CEC_GND
9
TMDS_DATA0-
8
TMDS_DATA0_SHIELD
3
TMDS_DATA2-
16
SDA
7
TMDS_DATA0+
6
TMDS_DATA1-
15
SCL
JK3202-*1
DAADR019A
HDMI_FOOSUNG
14
RESERVED
13
CEC
5
TMDS_DATA1_SHIELD
20
BODY_SHIELD
12
TMDS_CLK-
11
TMDS_CLK_SHIELD
2
TMDS_DATA2_SHIELD
19
HOT_PLUG_DETECT
18
VDD[+5V]
10
TMDS_CLK+
4
TMDS_DATA1+
1
TMDS_DATA2+
17
DDC/CEC_GND
9
TMDS_DATA0-
8
TMDS_DATA0_SHIELD
3
TMDS_DATA2-
16
SDA
7
TMDS_DATA0+
6
TMDS_DATA1-
15
SCL
JK3203-*1
DAADR019A
HDMI_FOOSUNG
14
RESERVED
13
CEC
5
TMDS_DATA1_SHIELD
20
BODY_SHIELD
12
TMDS_CLK-
11
TMDS_CLK_SHIELD
2
TMDS_DATA2_SHIELD
19
HOT_PLUG_DETECT
18
VDD[+5V]
10
TMDS_CLK+
4
TMDS_DATA1+
1
TMDS_DATA2+
17
DDC/CEC_GND
9
TMDS_DATA0-
8
TMDS_DATA0_SHIELD
3
TMDS_DATA2-
16
SDA
7
TMDS_DATA0+
6
TMDS_DATA1-
15
SCL

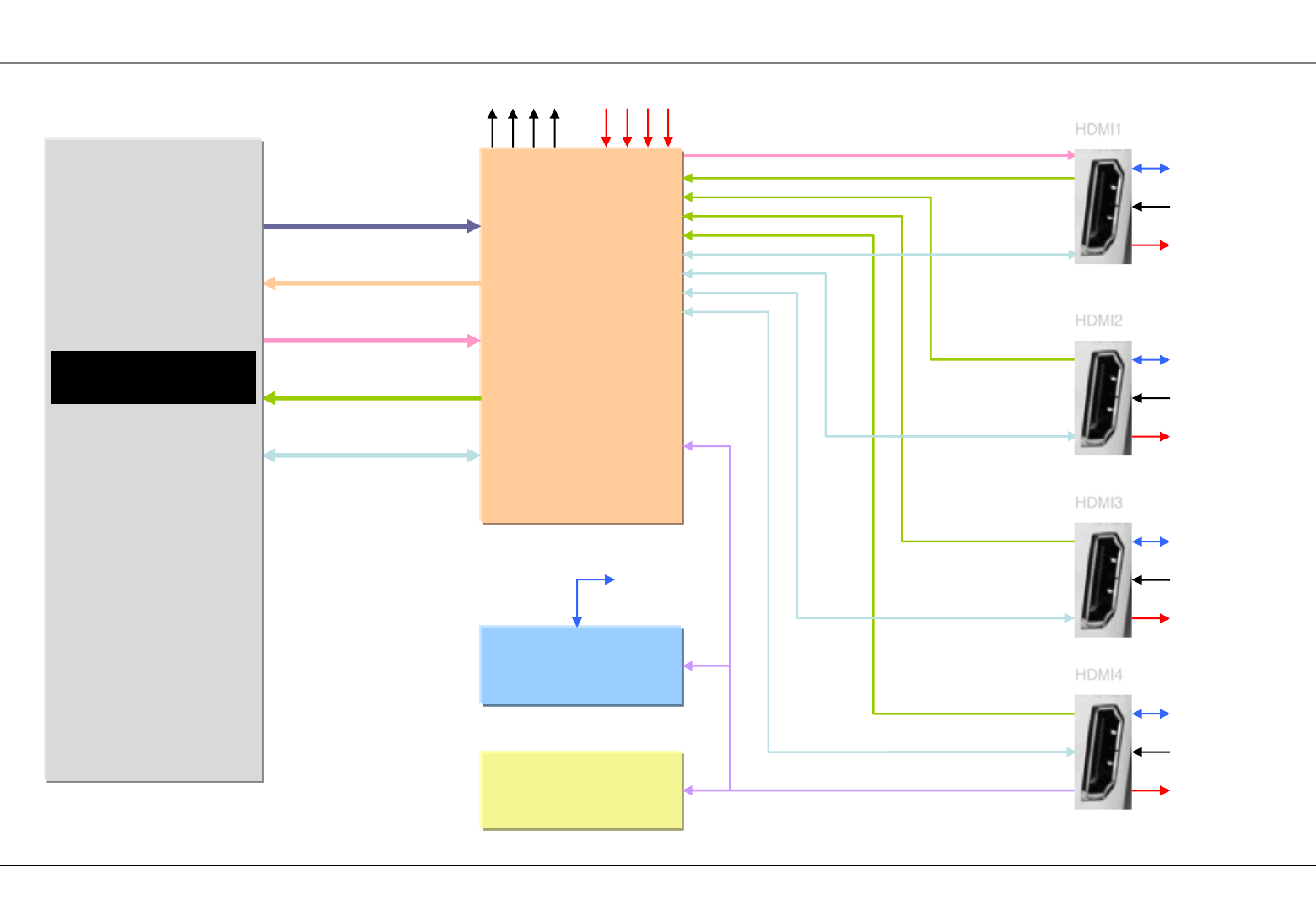

HDMI 32
GP4
HDMI2
HDMI S/W OUTPUT
HDMI3
HDMI1 With ARC
HDMI1
HDMI2
ARC
Device Address : 0XB0
HDMI4
HDMI3
HDMI4 With MHL
Vout=0.8*(1+R1/R2)
Copyright © 2013 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Fiber Optic
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
+3.3V_NORMAL
COMP1/AV1/DVI_R_IN
COMP1/AV1/DVI_L_IN
HP_DET
R3402
10K
VA3405
5.6V
VA3402
5.6V
R3401
10K
+3.3V_NORMAL
VA3404
5.6V
+3.5V_ST
AV1_CVBS_DET
P3400
12507WS-04L
1
2
3
4
5
HP_LOUT
COMP1_Pr
R3406
10K
HP_OUT
COMP1_Y
COMP1_Pb
+3.3V_NORMAL
VA3403
5.6V
R3400
33
+3.3V_NORMAL
COMP1_DET
AV1_CVBS_IN
VA3401
5.6V
VA3400
5.5V
ADUC 5S 02 0R5L
OPT
SOC_RX
SPDIF_OUT
HP_ROUT
C3400
0.1uF
16V
SOC_TX
C3401
18pF
OPT
R3407
100
1/16W
5%
R3408
100
1/16W
5%
R3409
100
1/16W
5%
HP_OUT
R3403
330K
R3404
150
1/10W
5%
R3405
150
1/10W
5%
C3402
47pF
50V
JK3400
PEJ038-4G6
JACK_PARK
EAG61030012
3 M3_DETECT
4 M4
5 M5_GND
1 M1
6 M6
JK3403
PEJ038-3B6
EAG61030009
JACK_PARK
3DETECT
4L
5GND
1R
JK3402
PEJ038-4Y6
JACK_PARK
EAG61030011
3 M3_DETECT
4 M4
5 M5_GND
1 M1
6 M6
JK3401
JSTIB15
C
GND
B
VCC
A
VIN
4
SHIELD
C3403
0.1uF
16V
JK3400-*1
KJA-PH-1-0177-2
JACK_KSD
EAG61030007
3 M3_DETECT
4 M4
5 M5_GND
1 M1
6 M6
JK3402-*1
KJA-PH-1-0177-1
JACK_KSD
EAG61030006
3 M3_DETECT
4 M4
5 M5_GND
1 M1
6 M6
JK3403-*1
KJA-PH-0-0177
JACK_KSD
EAG61030001
3DETECT
4L
5GND
1R
JACK HIGH/MID 2012.10.09
COMPONENT 1 PHONE JACK
SPDIF OUT
CVBS 1 PHONE JACK
BSD-NC4_H034-HD
for audio Hum noise (L)
Copyright © 2013 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
+3.3V_NORMAL
+3.5V_ST
C4007
0.1uF
VA4001
5.6V
AMOTECH CO., LTD.
KEY1
R4008
10K
5%
LOGO_LIGHT
+3.5V_ST
C4006
100pF
50V
NON_OLED
R4000
10K
OPT
P4002
12507WR-08L
NON_EYE_Q_8P
1
2
3
4
5
6
7
8
9
R4003 33
LOGO_LIGHT
WOL/WIFI_POWER_ON
M_REMOTE_TX
VA4002
5.6V
AMOTECH CO., LTD.
NON_OLED
R4004 33
LOGO_LIGHT
AR4000
100
1/16W
R4005
10K
5%
L4000
BLM18PG121SN1D
120-ohm
M_RFModule_RESET
L4002
120-ohm
IR
R4002
1K
LOGO_LIGHT
C4002
0.1uF
M_REMOTE_RX
KEY2
+3.5V_ST
C4000
0.1uF
16V
LOGO_LIGHT
C4001
0.1uF
C4005
1000pF
50V
+3.5V_ST
VA4000
5.6V
AMOTECH CO., LTD.
Q4000
MMBT3904(NXP)
LOGO_LIGHT
E
B
C
L4001
BLM18PG121SN1D
R4001
10K
LOGO_LIGHT
WIFI_DP
R4006
100
+3.5V_WOL
WIFI_DM
R4007
100
R4009
10K
5%
M_REMOTE_CTS
M_REMOTE_RTS
LOGO_LIGHT_WAFER
R4012
100
LOGO_LIGHT_WAFER
P4000
SMAW200-H12S2
NON_OLED
WOL
RTS
TX
USB_DM
CTS
GND
3.3V
GND
RX
+3.5V_WOL
RESET
USB_DP
.
C4008
47pF
50V
C4009
47pF
50V
P4003
SMAW200-H16S2
OLED_DEV
14
9
4
13
8
3
12
7
2
16
11
6
1
15
10
5
17
C4011
1000pF
50V
OLED
+3.5V_ST
L4003
BLM18PG121SN1D
OLED
IR
VA4005
5.6V
AMOTECH CO., LTD.
OPT
C4010
100pF
50V
OPT
R4013
22
OLED
R4014
10K
+3.3V_NORMAL
C4012
1000pF
50V
C4013
47pF
50V
OPT C4014
47pF
50V
OPT
C4015
5pF
50V
C4016
5pF
50V
P4004
12507WR-10L
EYE_Q_10P
1
2
3
4
5
6
7
8
9
10
11
EYE_SDA
VA4003
ADMC 5M 02 200L
OPT
VA4004
ADMC 5M 02 200L
OPT
EYE_SCL
R4011
100
EYE_Q_10P
R4010
100
EYE_Q_10P
C4004
22uF
10V
IR / KEY 2012.10.10
Place Near Micom
MAX 0.4A
BSD-NC4_H040-HD
For EMI
For EMI
Copyright © 2013 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
THERMAL
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

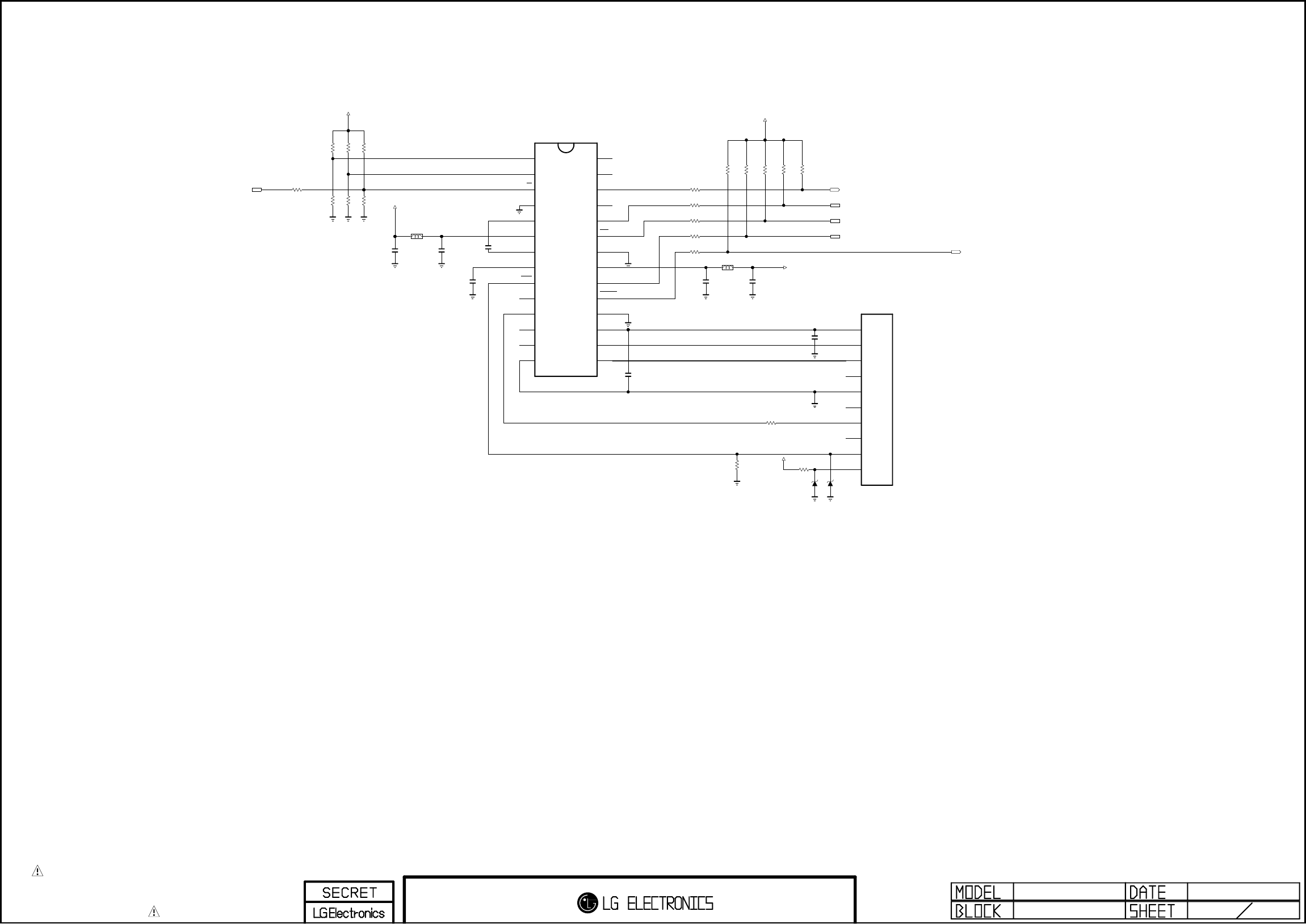

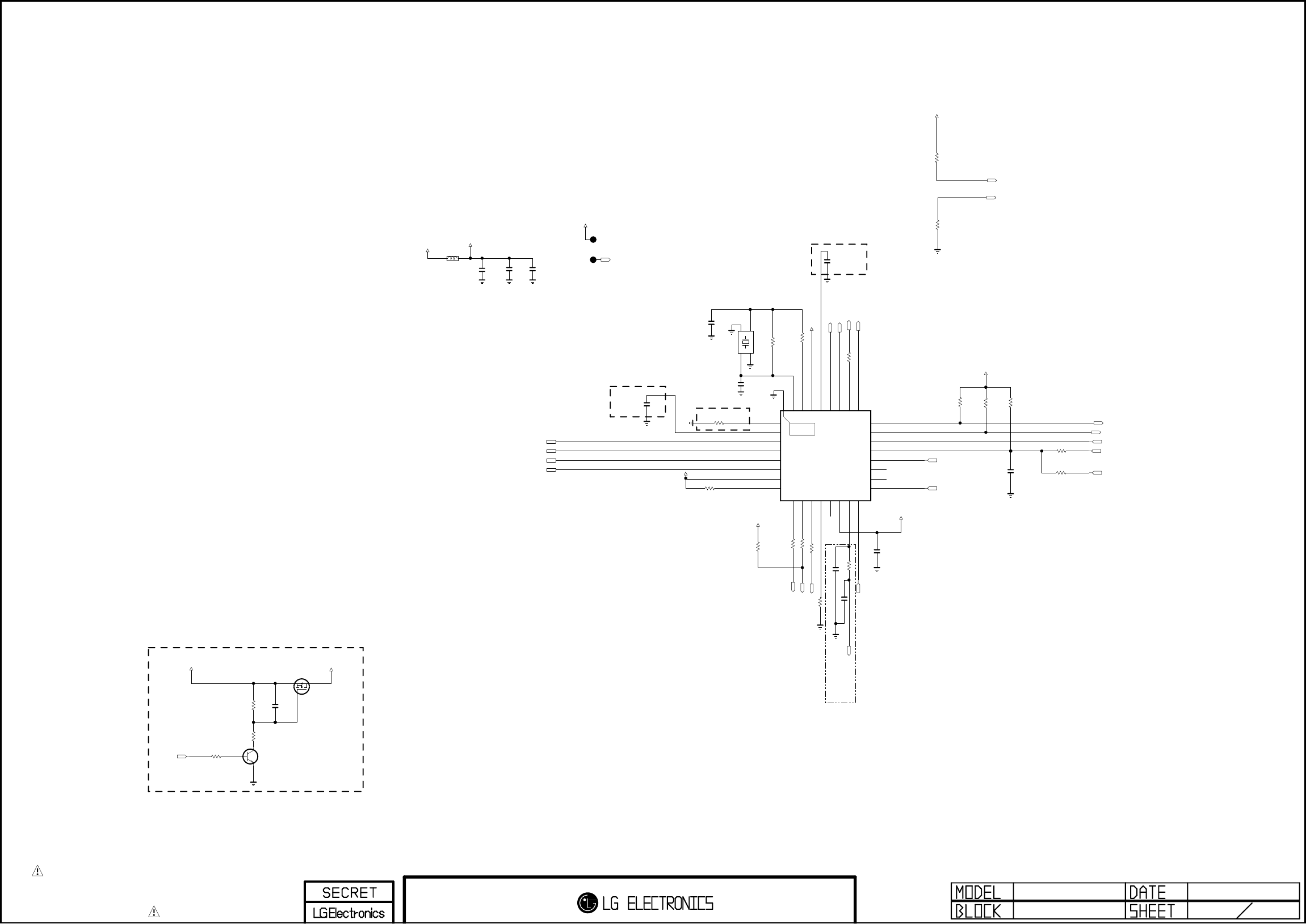

R4208
22K
CAMERA_NON_OLED
R4207
3.3K
CAMERA_NON_OLED
R42020
NON_CAMERA
C4206
0.1uF
CAMERA
C4202
4.7uF
CAMERA
C4212
33pF
50V
CAMERA
R4209
2.2K
CAMERA_NON_OLED
+3.3V_NORMAL
R4213
33
CAMERA
C4200
1uF
25V
CAMERA
Q4201
PMV48XP
CAMERA_NON_OLED
G
D
S
+3.5V_CAM
USB_CAMERA_DP
R4215100KCAMERA
R42060 CAMERA
AUD_SCK
USB_DP3
Q4200
MMBT3904(NXP)
CAMERA_NON_OLED
E
B
C
R42000
NON_CAMERA
C4210
4.7uF
10V
CAMERA_NON_OLED
USB2_HUB_IC_IN_DP
R4220
10K
CAMERA
+3.5V_CAM
R42010
NON_CAMERA
USB_CAMERA_DM
CAM_PWR_ON_CMD
USB_DP3
L4200
BLM18PG121SN1D
CAMERA
120-ohm
USB2_HUB_IC_IN_DM
R42030
NON_CAMERA
C4209
0.1uF
CAMERA
C4205
0.1uF
CAMERA
C4203
0.1uF
CAMERA
R4214
680
1%
CAMERA
C4208
0.1uF
CAMERA
+3.3V_NORMAL
USB2_HUB_IC_IN_DP
USB_CAMERA_DM
R42040 CAMERA
CAM_SLIDE_DET
C4211
33pF
50V
CAMERA
R4211
33 CAMERA
+3.3V_NORMAL
+3.5V_ST
/RST_HUB
USB_CAMERA_DP
CAM_CTL
R4212
33 CAMERA
R421910K
OPT
USB2_HUB_IC_IN_DM
C4214
33pF
50V
CAMERA
R42050 CAMERA
USB_DM3
R421810K
AUD_LRCK
R4217
10K
1/16W
5%
CAMERA
R4216
100KCAMERA
USB_DM3
R42100 CAMERA
C4201
0.1uF
CAMERA
AUD_LRCH
P4200
12507WR-12L
CAMERA
1
2
3
4
5
6
7
8
9
10
11
12
13
ST_BY_DET_CAM
+5V_NORMAL
C4213
4.7uF
10V
CAMERA
C4215
33pF
50V
OPT
C4204
22pF
CAMERA
C4207
22pF
CAMERA
X4200
12MHZ
CAMERA
4GND_2
1
X-TAL_1
2
GND_1 3X-TAL_2
IC4200
GL852G-31
CAMERA
1
DM0
3
DM1
7
DP2
9
AVDD_2
10
X1
11
X2
12
DM3
13
DP3
14
AVDD_3
15 DM4
16 DP4
17 RESET
18 TEST/SCL
19 OVCUR4
20 OVCUR3
21 DVDD
22 PSELF
23 PGANG
24 OVCUR2
25 OVCUR1
26 SDA
27 V5
28 V33
5
AVDD_1
8
RREF
6
DM2
4
DP1
2
DP0 29
[EP]GND
L4201
UBW2012-121F
OLED
D4200
RCLAMP0502BA
OPT
ZD4200
5V
OPT
VA4200
CAMERA
VA4201
CAMERA
USB3_HUB 2012.10.08
USB_Camera
CAMERA POWER ENABLE CONTROL
From HUB
BSD-NC4_H042-HD
Copyright © 2013 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
USB DOWN STREAM
USB DOWN STREAM
THERMAL
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

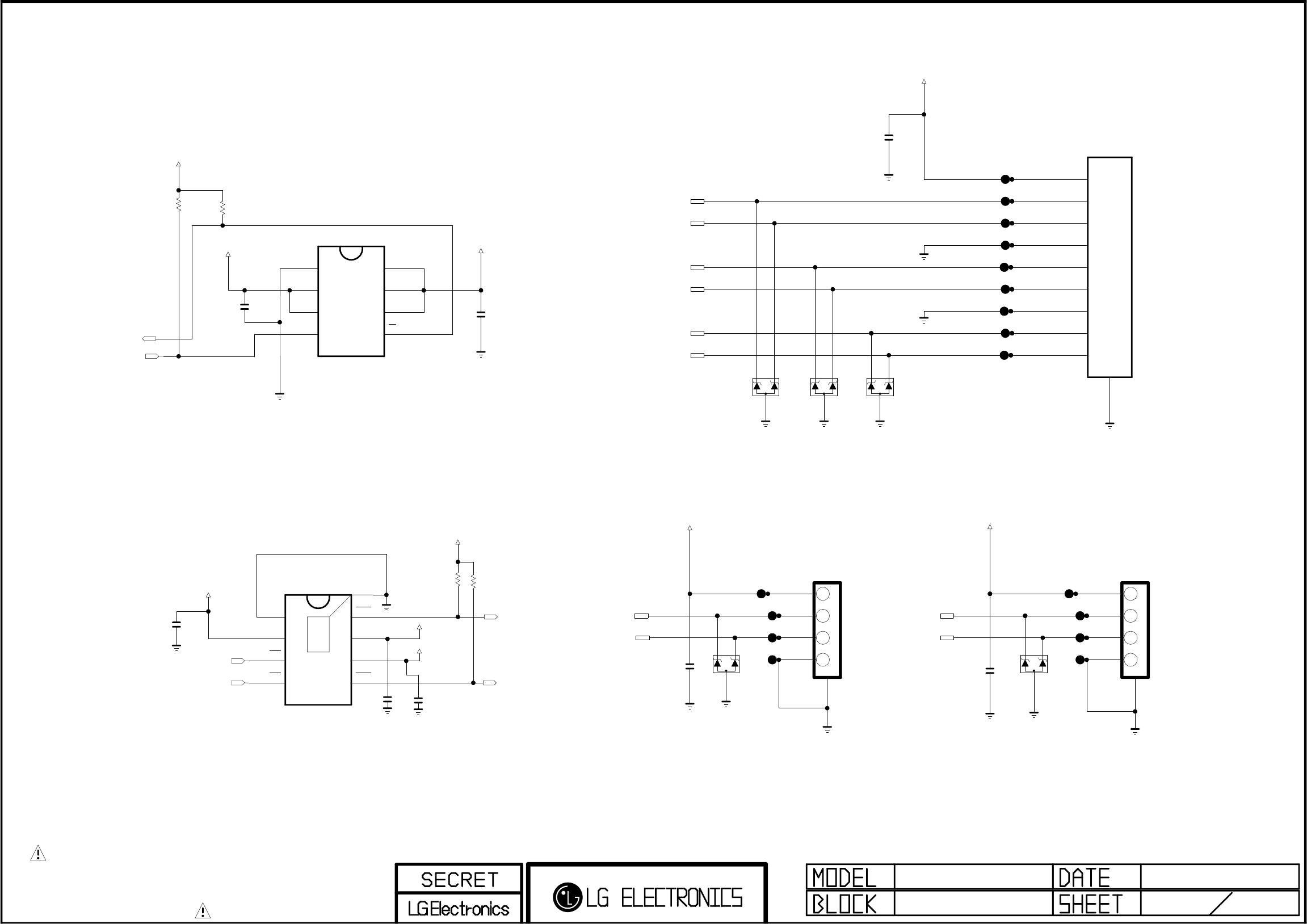

USB_CTL1
/USB_OCD1
USB3_DM
R4501
10K
USB3_TX0M
+3.3V_NORMAL
+5V_USB_1
+5V_NORMAL
R4500
10K
OPT
IC4500
BD82020FVJ
3
IN_2
2
IN_1
4
EN
1
GND
5OC
6OUT_1
7OUT_2
8OUT_3
C4501
10uF
10V
C4400
10uF
10V
+5V_USB_1
D4401
RCLAMP0502BA
USB3_RX0P
D4402
RCLAMP0502BA
USB3_RX0M
D4400
RCLAMP0502BA
C4500
0.1uF
16V
USB3_DP
USB3_TX0P
+5V_USB_2
+5V_NORMAL
/USB_OCD2
USB_CTL2
R4302 10K
USB_CTL3
C4302
0.1uF
16V
+3.3V_NORMAL
+5V_USB_3
/USB_OCD3
R4301 10K
C4337
10uF
10V
C4301
10uF
10V
USB_DM2
D4300
RCLAMP0502BA
+5V_USB_2
USB_DP3
+5V_USB_3
JK4300
3AU04S-305-ZC-(LG)
1234
5
USB_DM3
USB_DP2
D4302
RCLAMP0502BA
C4322
10uF
10V
C4310
10uF
10V
JK4302
3AU04S-305-ZC-(LG)
1234
5
IC4306
TPS2066CDGNR
3
EN1
2
IN
4
EN2
1
GND
5FLT2
6OUT2
7OUT1
8FLT1
9
[EP]GND
JK4400
SJ113262
1
VBUS
2
D-
3
D+
4
GND
5
STDA_SSRX-
6
STDA_SSRX+
7
GND_DRAIN
8
STDA_SSTX-
9
STDA_SSTX+
10
SHIELD
OCP USB1
OCP USB2/3 USB2 (2.0)
MAX 1.0A
USB3 (2.0)
MAX 1.0A
USB1 (3.0)
MAX 1.2A
BSD-NC4_H044-HD
2012-11-09
USB JACK
Copyright © 2013 LG Electronics. Inc. All rights reserved.

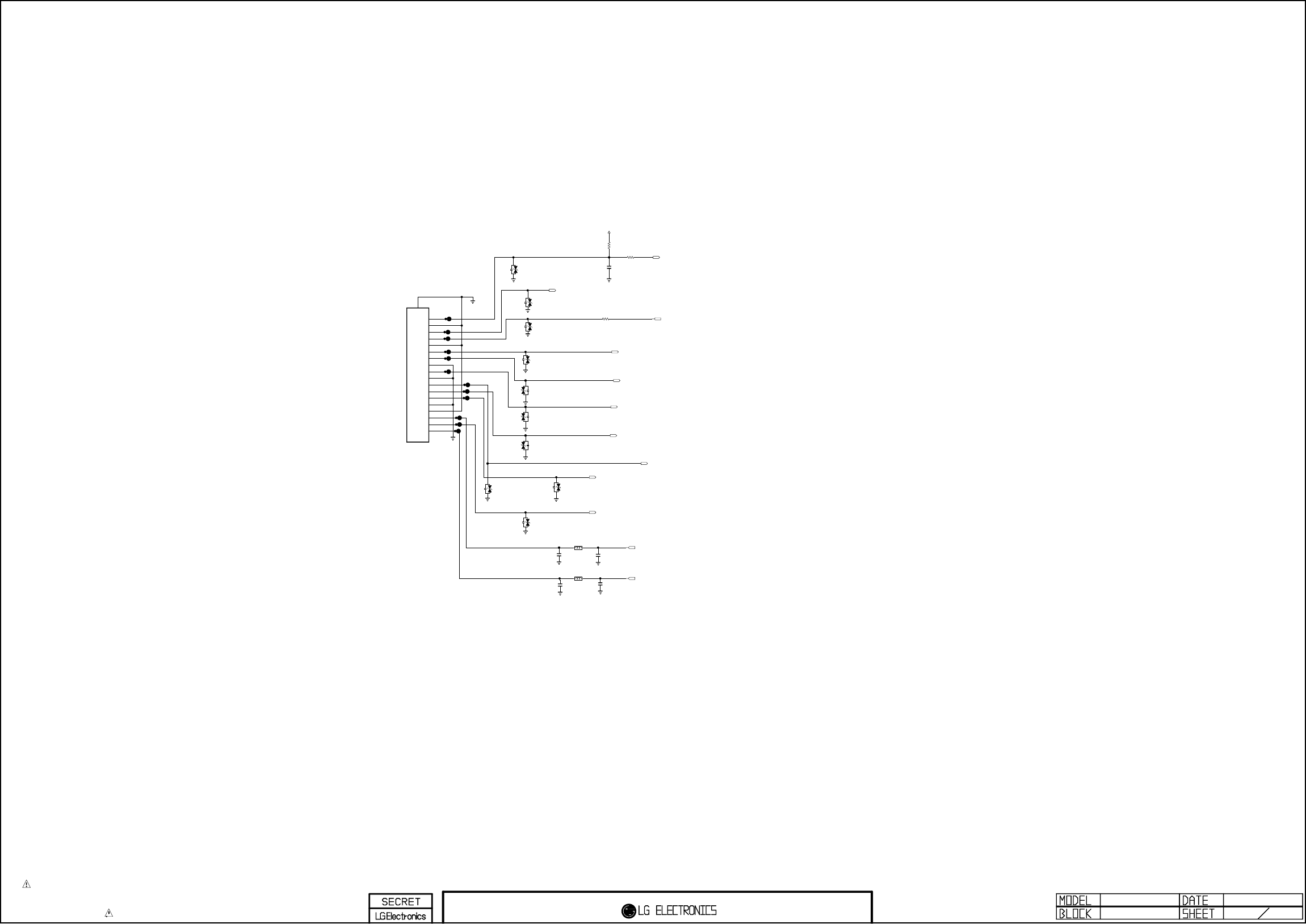

Only for training and service purposes
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
VA4808
5.5V
OPT
C4801
1000pF
50V
EU
VA4804
5.5V
EU
SC_G
VA4800
20V
EU
VA4803
5.5V
EU
VA4805
5.5V
EU
DTV/MNT_V_OUT
SC_CVBS_IN
+3.3V_NORMAL
JK4800
DA1R018H91E
EU
1
AUDIO_R_OUT
2
AUDIO_R_IN
3
AUDIO_L_OUT
4
AUDIO_GND
5
B_GND
6
AUDIO_L_IN
7
B_OUT
8
ID
9
G_GND
10
G_OUT
11
R_GND
12
R_OUT
13
RGB_IO
14
SYNC_GND
15
SYNC_OUT
16
SYNC_IN
17
COM_GND
18
AV_DET
19
SHIELD
C4803
4700pF
EU
SC_FB
VA4802
5.6V
EU
L4801
BLM18PG121SN1D
EU
SC_B
SC_R
C4804
0.1uF
EU
SC_ID
SC_R_IN
R4801
10K
EU
VA4806
5.6V
EU
VA4809
5.6V
EU
SC_L_IN
C4802
4700pF
EU
SC_DET
VA4801
5.6V
EU
DTV/MNT_R_OUT
C4800
1000pF
50V
EU
L4800
BLM18PG121SN1D
EU
VA4807
5.5V
EU
DTV/MNT_L_OUT
R480075
EU
R4802
100
1/16W
5%
EU
SCART GENDER
2012.10.31
CLOSE TO JUNCTION
Full Scart(18 Pin Gender)
BSD-NC4_H048-HD
Copyright © 2013 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

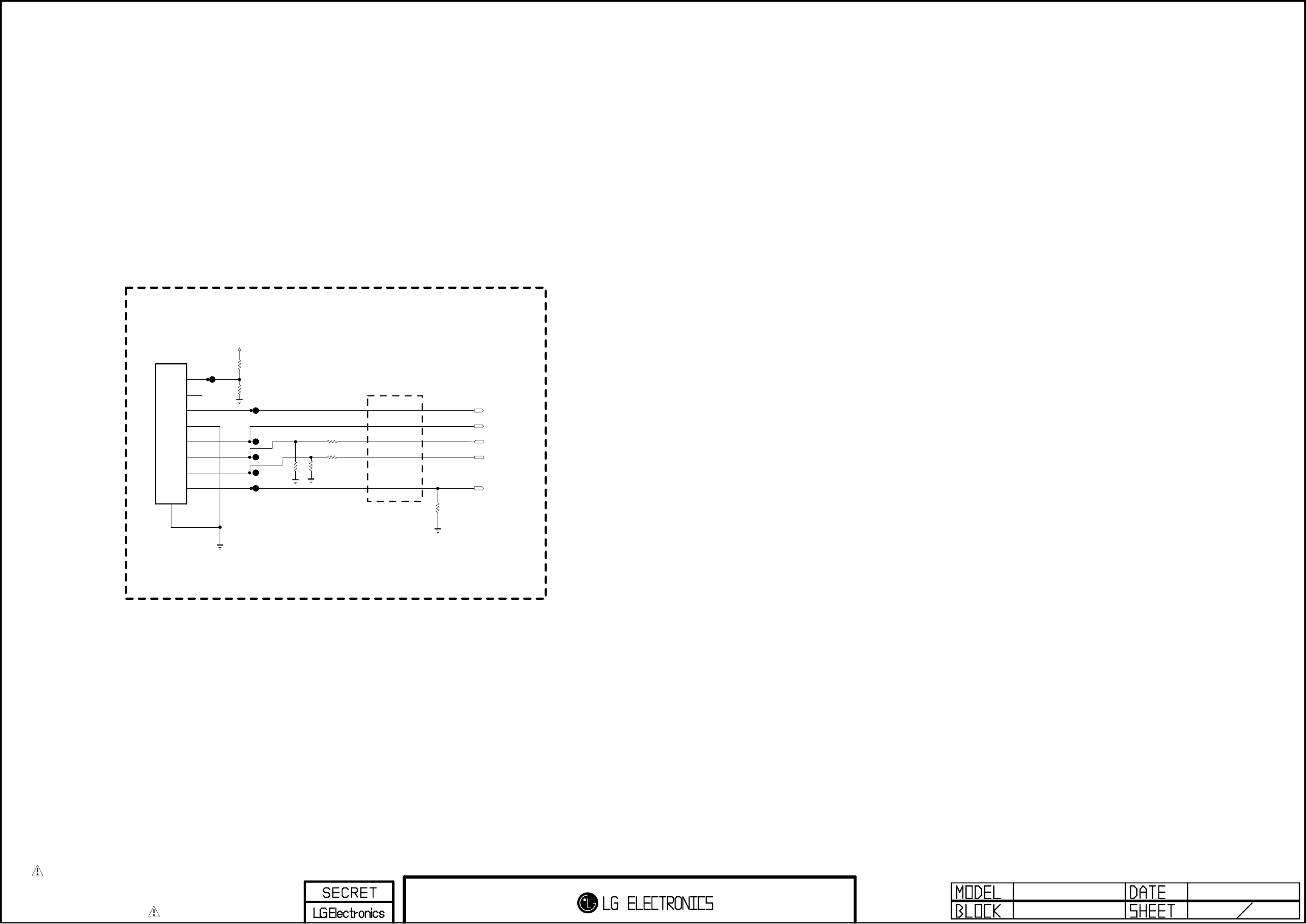

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
VA5102
5.5V
JK5100
XRJH-01A-4-DA7-180-LG(B)
LAN_XML
1P1[CT]
2P2[TD+]
3P3[TD-]
4P4[RD+]
5P5[RD-]
6P6[CT]
7P7
8P8
12
SHIELD
9P9
11 P11
10 P10[GND]
D1 YL_C
D2 YL_A
D3 GN_C
D4 GN_A
EPHY_RDP
LAN_JACK_POWER
VA5100
5.5V
C5100
0.1uF
16V
EPHY_TDN
JK5100-*1
TLA-6T764
LAN_TDK
1R1
2R2
3R3
4R4
5R5
6R6
7R7
8R8
12
SHIELD
9R9
11 R11
10 R10[GND]
D1 YL_C
D2 YL_A
D3 GN_C
D4 GN_A
C5103
0.01uF
50V
EPHY_TDP
VA5103
5.5V
C5101
0.01uF
50V
C5102
0.1uF
16V
VA5101
5.5V
EPHY_RDN
50
LAN_VERTICAL 2011.12.09
Ethernet Block
Copyright © 2013 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
THERMAL
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
EPHY_TXD1
R5215 3.3K
EPHY_TDN
+3.3V_WOL
C5208
0.1uF
16V
EPHY_MDIO
EPHY_MDC
EPHY_EN
C5207
20pF
50V
ET_RXER
R52173.3K
+3.3V_WOL
R5200
3.3K
ET_RXER
+3.5V_WOL
WOL_CTL
C5211
0.1uF
16V
EPHY_RXD1
ET_COL/SNI
R4318
2.2K
EPHY_ACTIVITY
R5207 33
R521033
EPHY_INT
R4316
3.3K
ET_COL/SNI
+3.5V_WOL
C5206
20pF
50V
WOL/ETH_POWER_ON
+3.3V_WOL
EPHY_ACTIVITY
EPHY_RXD0
C5201
0.1uF
16V
R5203
3.3K
+3.3V_WOL
EPHY_TXD0
R5208 3.3K
LAN_JACK_POWER
Q4301
PMV48XP
G
D
S
C5205
0.1uF
16V
/RST_PHY
EPHY_REFCLK
R5201 33
OPT
R4317
22K
R5205
3.3K
L5200
BLM18PG121SN1D
120-ohm
+3.3V_WOL
EPHY_CRS_DV
+3.3V_WOL
R52021M
OPT
R5206 33
+3.5V_ST
Q4300
MMBT3904(NXP)
E
B
C
C4325
4.7uF
10V
R5212
1.5K
1/16W
1%
R5204
2.49K 1%
EPHY_RDP
C5212
0.1uF
OPT
EPHY_RDN
EPHY_TDP
IC5200
RTL8201F-VB-CG
1
RSET
3
MDI+[0]
7
AVDD33_1
9
RXD[0]
10
RXD[1]
11
RXD[2]/INTB
12
RXD[3]/CLK_CTL
13
RXC
14
DVDD33
15
TXC
16
TXD[0]
17 TXD[1]
18 TXD[2]
19 TXD[3]
20 TXEN
21 PHYRSTB
22 MDC
23 MDIO
24 LED0/PHYAD[0]/PMEB
25 LED1/PHYAD[1]
26 CRS/CRS_DV
27 COL
28 RXER/FXEN
29 DVDD10OUT
30 AVDD33_2
31 CKXTAL1
32 CKXTAL2
5
MDI+[1]
8
RXDV
6
MDI-[1]
4
MDI-[0]
2
AVDD10OUT 33
[EP]
C5203
0.1uF
16V
+3.3V_WOL
R5209
51
C5202
5pF
R5218
0
C5209
33pF
X5200
25MHz
4
GND_2 1X-TAL_1
2GND_1
3
X-TAL_2
R5219
10K
1/16W
5%
R522033
R5221
33 OPT
EDID_WP
C5200
4.7uF
10V
ETHERNET
WOL POWER ENABLE CONTROL
Place this cap. near IC
Ethernet Block
Route Single 50 Ohm, Differential 100 Ohm
Place this cap. near IC
Place 0.1uF close to each power pins
Place this Res. near IC
Place near IC
BSD-NC4_H052-HD
2012-09-12
(from SOC)
(PHY reset from MICOM)
Copyright © 2013 LG Electronics. Inc. All rights reserved.

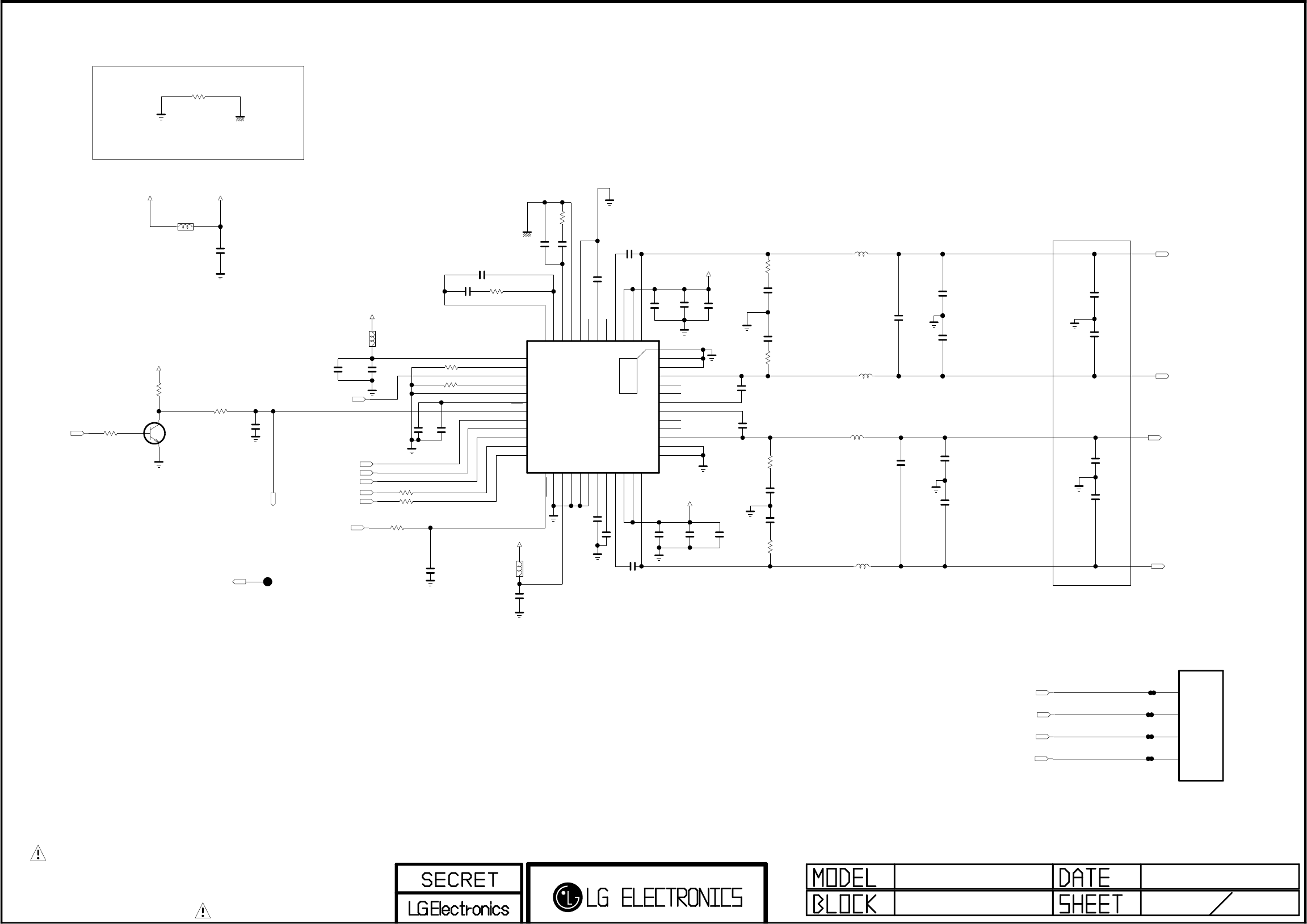

Only for training and service purposes
THERMAL
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
+24V_AMP
I2C_SCL1
C5628
330pF
50V
AUD_MASTER_CLK
WOOFER_MUTE
AUD_SCK
AMP_RESET_N
+24V_AMP
P5600
WAFER-ANGLE
1
2
3
4
C5607
0.1uF
R5601
10K
R5609
470
C5627
330pF
50V
+3.3V_NORMAL
L5602
BLM18PG121SN1D
I2C_SDA1
C5636
2200pF
50V
R5614
18
1/16W
+24V
R5607
18K
1%
C5611 4700pF
AUD_LRCH
AUD_LRCK
C5617 0.033uF
50V
R5611
18
R5613
18
1/16W
R5600
10K
C5601
0.1uF
50V
SPK_R+
R5612
18
33 R5605
C5603
10uF
10V
C5626
330pF
50V
AMP_MUTE
C5609 4700pF
R560433
C5633
0.1uF
50V
C5618
0.1uF
50V
C5639
2200pF
50V
SPK_R-
SPK_L+
L5601
BLM18PG121SN1D
C5613 2200pF
50V
C5630
0.47uF
50V
R5608 15K
C5608
0.047uF
C5635
0.1uF
50V
C5632
0.1uF
50V
C5634
0.1uF
50V
C5606
0.1uF
16V
C56151uF 25V
C5625
0.033uF
50V
SPK_L-
SPK_L-
C5619
0.1uF
50V
C5612
0.047uF
C5610
0.1uF
16V
C5629
330pF
50V
R5610
470
+3.3V_NORMAL
R560633 +24V_AMP
WOOFER_MUTE
C5616
0.033uF
50V
C5637
2200pF
50V
IC5600
TAS5733
1OUT_A
2PVDD_AB_1
3PVDD_AB_2
4BST_A
5NC_1
6SSTIMER
7NC_2
8PBTL
9AVSS
10 PLL_FLTM
11 PLL_FLTP
12 VR_ANA
13
AVDD
14
A_SEL_FAULT
15
MCLK
16
OSC_RES
17
DVSSO
18
VR_DIG
19
PDN
20
LRCLK
21
SCLK
22
SDIN
23
SDA
24
SCL
25
RESET
26
STEST
27
DVDD
28
DVSS
29
GND
30
AGND
31
VREG
32
GVDD_OUT
33
BST_D
34
PVDD_CD_1
35
PVDD_CD_2
36
OUT_D
37 PGND_CD_1
38 PGND_CD_2
39 OUT_C
40 NC_3
41 NC_4
42 BST_C
43 BST_B
44 NC_5
45 NC_6
46 OUT_B
47 PGND_AB_1
48 PGND_AB_2
49
[EP]
C5614
0.1uF
+3.3V_NORMAL
SPK_L+
C5638
2200pF
50V
SPK_R-
R5603
100 C5602
1000pF
50V
SPK_R+
C5624
0.033uF
50V
R5602
0
Q5600
MMBT3904(NXP)
E
B
C
C5604
0.1uF
16V
C5631
0.47uF
50V
C5620
10uF
35V
C5623
10uF
35V
C5622
10uF
35V
C5621
10uF
35V
L5600
UBW2012-121F
L5605
NRS6045T100MMGK
10.0uH
L5603
NRS6045T100MMGK
10.0uH
L5606
NRS6045T100MMGK
10.0uH
L5604
NRS6045T100MMGK
10.0uH
C5605
4.7uF
10V
GP4_MT5369
58
2011.11.21
AUDIO[ST]
Close to Speaker
Separate DGND AND AVSS
SPEAKER_L
This parts are Located
on AVSS area.
SPEAKER_R
Copyright © 2013 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
THERMAL

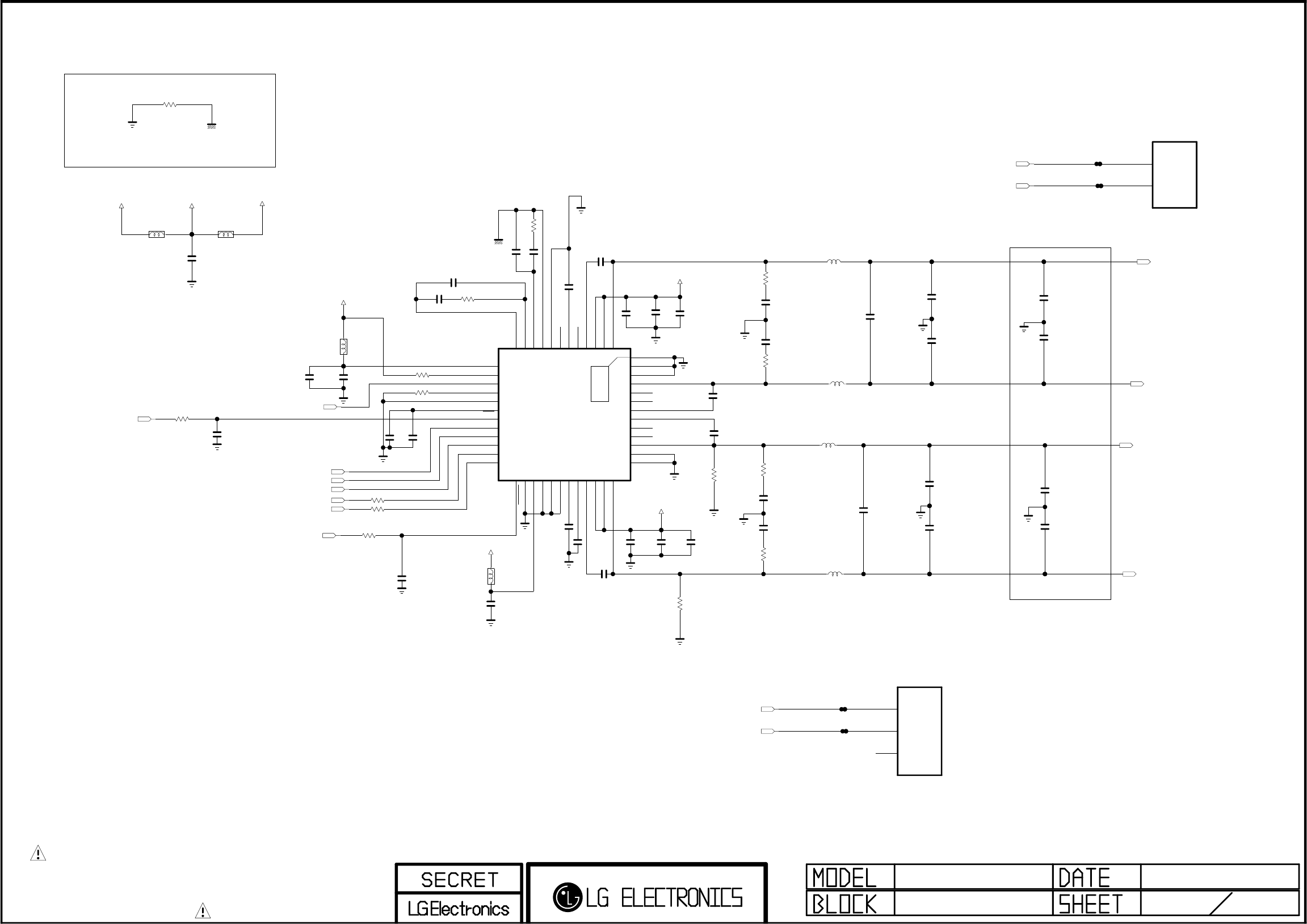

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
C5711 4700pF
WOOFER
C5732
0.1uF
50V
WOOFER
SPK_WOOFER_L+
C5725
0.033uF
50VWOOFER
C5728
330pF
50V
WOOFER
P5701
FW25001-02(SPK 2P)
WOOFER
1
2
C5730
0.47uF
50V
WOOFER
C5733
0.1uF
50V
WOOFER
C5712
0.047uF
WOOFER
I2C_SDA1
C5707
0.1uF
WOOFER
R570233
WOOFER
R5707
470
WOOFER
R5701
100
WOOFER
AUD_SCK
R5708
470
WOOFER
C5729
330pF
50V
WOOFER
R5700
0
WOOFER
C5719
0.1uF
50V
WOOFER
SPK_WOOFER_R+
R5712
18
1/16W
WOOFER_STEREO
SPK_WOOFER_R+
R5713
18
WOOFER
C5708
0.047uF
WOOFER
AMP_RESET_N
C5726
330pF
50V
WOOFER_STEREO
R5714
18
WOOFER
C5702
1000pF
50V
WOOFER
+24V_AMP_WOOFER
C5716
0.033uF
50V
WOOFER
+3.3V_NORMAL
+24V
AUD_MASTER_CLK
I2C_SCL1
+24V_AMP_WOOFER
R5711
18
1/16W
WOOFER_STEREO
C5717 0.033uF
50V
WOOFER
C5737
2200pF
50V
WOOFER
L5702
BLM18PG121SN1D
WOOFER
R570433 WOOFER
C5727
330pF
50V
WOOFER_STEREO
C5735
0.1uF
50V
WOOFER_STEREO
R5705
18K
1%
WOOFER
C5704
0.1uF
16V
WOOFER
R5709
10K
OPT
C5731
0.47uF
50V
WOOFER_STEREO
SPK_WOOFER_L+
C5718
0.1uF
50V
WOOFER
+24V_AMP_WOOFER
WOOFER_MUTE
C5710
0.1uF
16V
WOOFER
SPK_WOOFER_L-
C5739
2200pF
50V
WOOFER_STEREO
C5706
0.1uF
16V
WOOFER
C5736
2200pF
50V
WOOFER
C5724
0.033uF
50V
WOOFER
C5703
10uF
10V
WOOFER
C5738
2200pF
50V
WOOFER_STEREO
P5700
FW25003_03
DEV_WOOFER_STEREO
1
2
3
R5710
10K
OPT
C5701
0.1uF
50V
WOOFER
C57151uF 25V
WOOFER
C5734
0.1uF
50V
WOOFER_STEREO
C5714
0.1uF
WOOFER
IC5700
TAS5733
WOOFER
1OUT_A
2PVDD_AB_1
3PVDD_AB_2
4BST_A
5NC_1
6SSTIMER
7NC_2
8PBTL
9AVSS
10 PLL_FLTM
11 PLL_FLTP
12 VR_ANA
13
AVDD
14
A_SEL_FAULT
15
MCLK
16
OSC_RES
17
DVSSO
18
VR_DIG
19
PDN
20
LRCLK
21
SCLK
22
SDIN
23
SDA
24
SCL
25
RESET
26
STEST
27
DVDD
28
DVSS
29
GND
30
AGND
31
VREG
32
GVDD_OUT
33
BST_D
34
PVDD_CD_1
35
PVDD_CD_2
36
OUT_D
37 PGND_CD_1
38 PGND_CD_2
39 OUT_C
40 NC_3
41 NC_4
42 BST_C
43 BST_B
44 NC_5
45 NC_6
46 OUT_B
47 PGND_AB_1
48 PGND_AB_2
49
[EP]
33 R5703 WOOFER
GND-4
GND-4
R5706 15K
WOOFER
L5701
BLM18PG121SN1D
WOOFER
AUD_LRCH
SPK_WOOFER_R-
C5713 2200pF
50V
WOOFER
C5709 4700pF
WOOFER
AUD_LRCK
SPK_WOOFER_R-
SPK_WOOFER_L-
+3.3V_NORMAL
C5723
10uF
35V
WOOFER_STEREO
C5722
10uF
35V
WOOFER
C5721
10uF
35V
WOOFER_STEREO
C5720
10uF
35V
WOOFER
L5700
UBW2012-121F
WOOFER_NON_OLED
L5704
NRS6045T100MMGK
WOOFER
10.0uH
L5706
NRS6045T100MMGK
WOOFER
10.0uH
L5703
NRS6045T100MMGK
WOOFER_STEREO
10.0uH
L5705
NRS6045T100MMGK
WOOFER_STEREO
10.0uH
C5705
4.7uF
10V
WOOFER
+12V
L5707
UBW2012-121F
WOOFER_OLED
GP4_MT5369
58
2011.11.21
AUDIO[ST]
This parts are Located
on AVSS area.
WOOFER_R
Close to Speaker
Separate DGND AND AVSS
WOOFER_L
Copyright © 2013 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

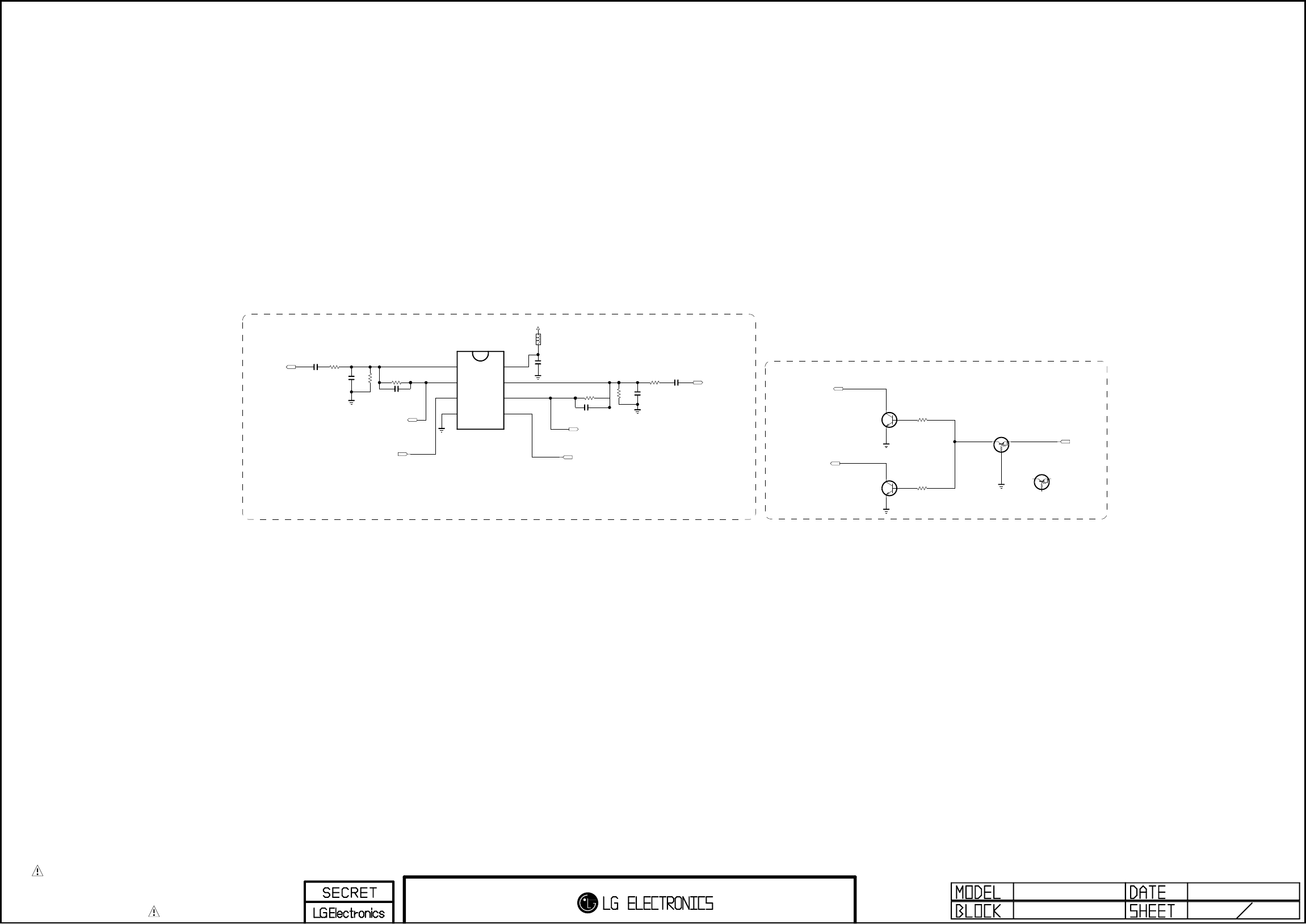

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
SIGN600002
C6004
0.1uF
50V
EU
DTV/MNT_R_OUT
C6008
1uF
25V
EU
SCART_Lout
R6008 33K
EU
C6005
33pF EU
SCART_MUTE
C6003
33pF
EU
DTV/MNT_L_OUT
DTV/MNT_L_OUT
R6002
470K
OPT
Q6000
MMBT3904(NXP)
EU
E
B
C
R60002.2K EU
+12V
C6007
6800pF
OPT
SCART_AMP_L_FB
R6010
470K
OPT
C6000
1uF
25V
EU
R600433K EU
DTV/MNT_R_OUT
C6002
6800pF
OPT
Q6001
MMBT3904(NXP)
EU
E
B
C
L6000
EU
SCART_Rout
SCART_AMP_R_FB
IC6000
AZ4580MTR-E1
EU
3
IN1+
2
IN1-
4
VEE
1
OUT1
5IN2+
6IN2-
7OUT2
8VCC
R6011
2.2K
EU
Q6002
RT1P141C-T112
EU_SCART_MUTE_ISAHAYA
E
B
C
R6014
1K
EU
R6013
1K
EU
Q6002-*1
PDTA114ET
EU_SCART_MUTE_NXP
E
B
C
60
SCART AUDIO AMP 2011.11.21
[SCART AUDIO MUTE]
AUD_OUT >> EU/CHINA_HOTEL_OPT
Copyright © 2013 LG Electronics. Inc. All rights reserved.

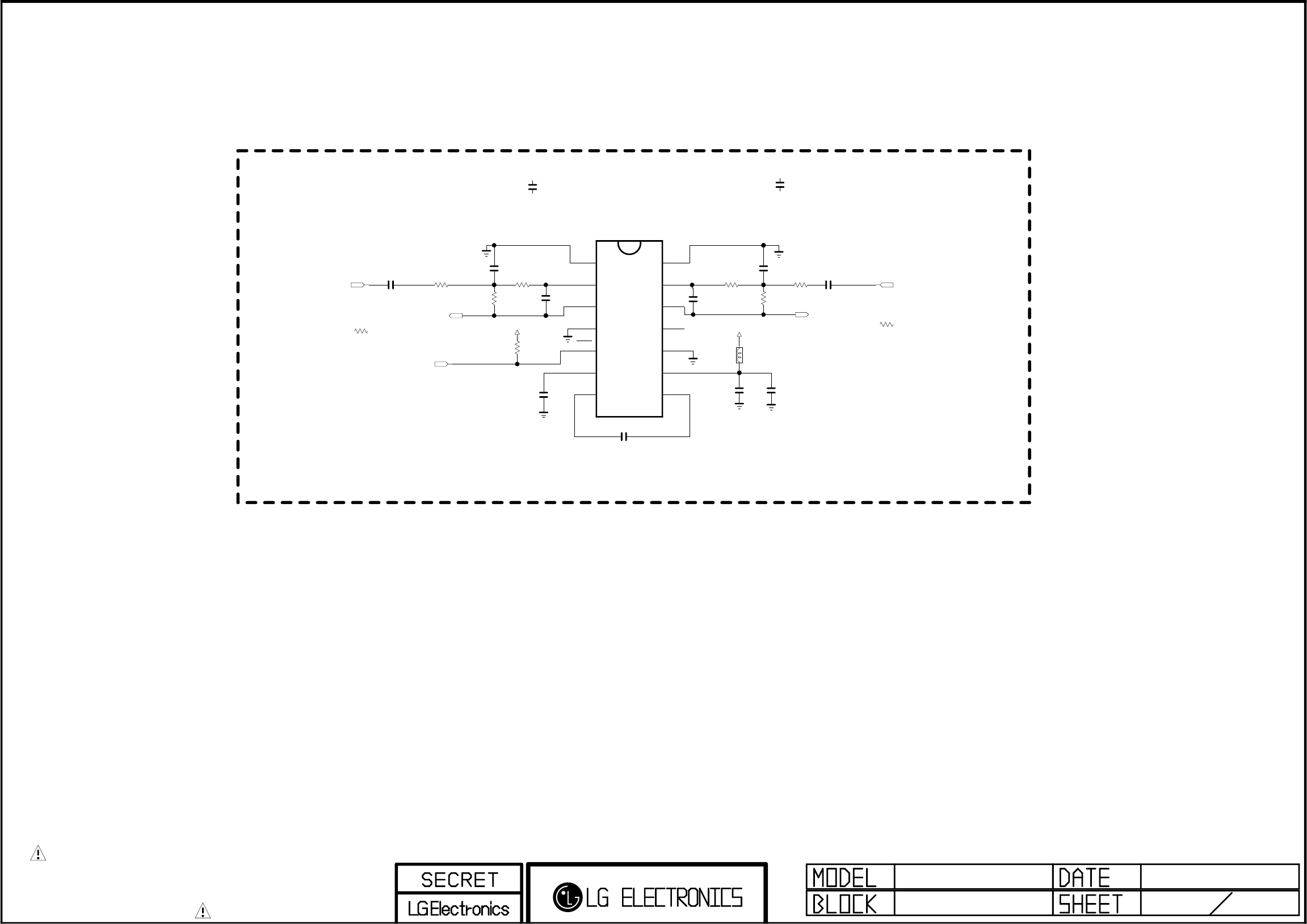

Only for training and service purposes
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
R6100
10K
HP_OUT C6101
1uF
10V
HP_OUT
C6100
1uF
10V
HP_OUT
+3.3V_NORMAL
C6105
1uF
10V
HP_OUT
R6101
10K
HP_OUT
HP_LOUT_AMP
HP_LOUT_MAIN
SIDE_HP_MUTE
+3.3V_NORMAL
R6104
43K
1%
HP_OUT
R6103
33K
HP_OUT_MTK
C6102
1uF
10V
HP_OUT
R6105
4.7K
HP_OUT
C6103
1uF
10V
HP_OUT
HP_ROUT_MAIN
L6100
120-ohm
HP_OUT
BLM18PG121SN1D
C6104
180pF
HP_OUT_MTK
R6106
43K
1%
HP_OUT
C6107
0.1uF
16V
HP_OUT
C6109
180pF
HP_OUT_MTK
R6102
33K
HP_OUT_MTK
HP_ROUT_AMP
C6104-*1
18pF
HP_OUT_H13
C6109-*1
18pF
HP_OUT_H13
C6108
10pF
50V
HP_OUT
C6106
10pF
50V
HP_OUT
IC6100
TPA6138A2
3
OUTR
2
-INR
4
GND_1
1
+INR
6
VSS
5
MUTE
7
CN 8CP
9VDD
10 GND_2
11 UVP
12 OUTL
13 -INL
14 +INL
R6103-*1
43K
1%
HP_OUT_H13 R6102-*1
43K
1%
HP_OUT_H13
2011.09.29
HEADPHONE AMP
61
EARPHONE AMP
Copyright © 2013 LG Electronics. Inc. All rights reserved.

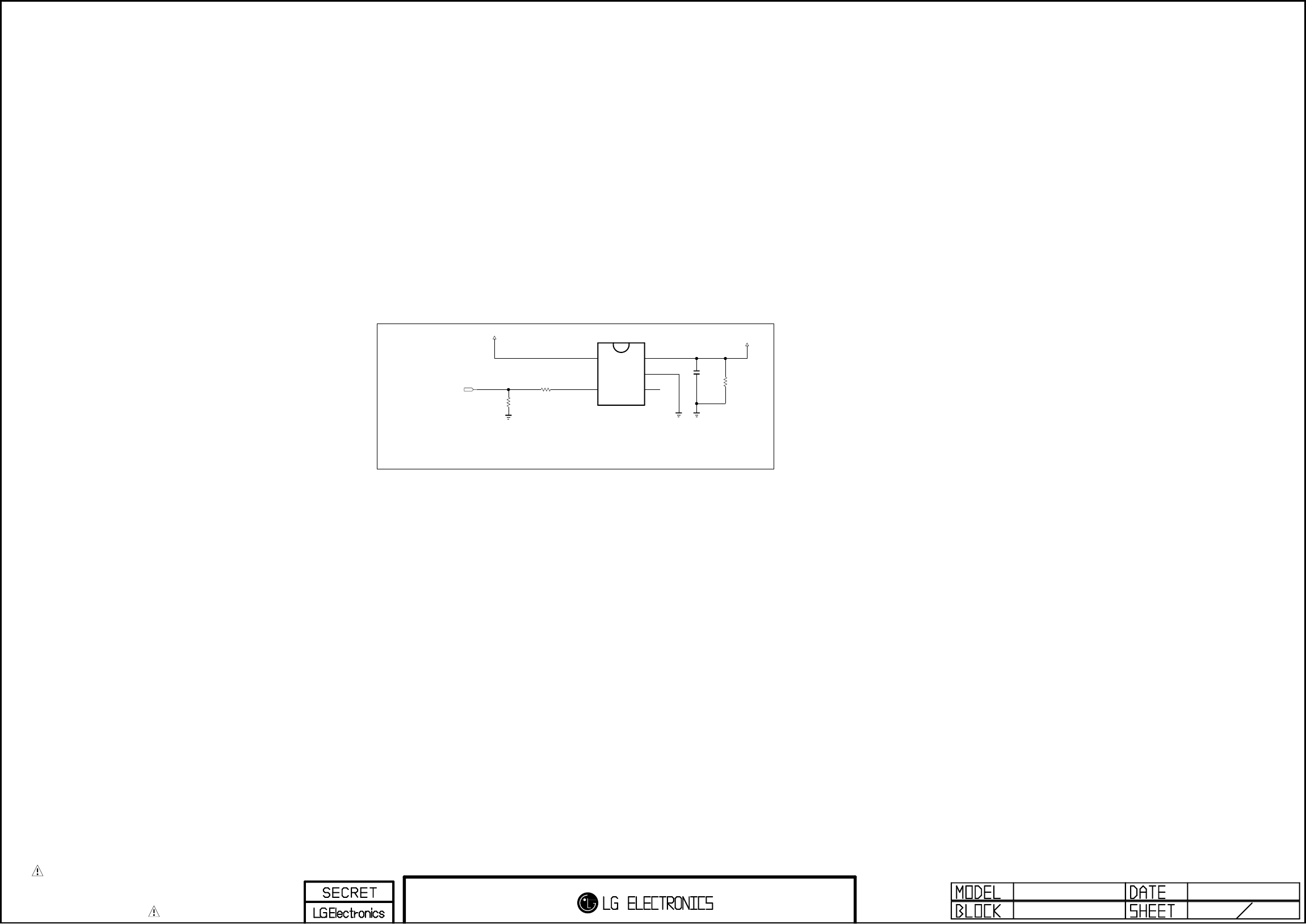

Only for training and service purposes
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
+5V_CI_ON
+5V_NORMAL
R6217
100
CI
C6210
1uF
25V
CI
R6218
10K
CI
PCM_5V_CTL
IC6200
AP2151WG-7
CI
3FLG
2GND
4
EN
1OUT
5
IN
R6219
10K
CI
62
CI SLOT 2011.10.31
CI POWER ENABLE CONTROL
Copyright © 2013 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
SIGN630028
P6300
10057542-1311FLF(B CAS Slot)
JAPAN
C1
VCC
C2
RST
C3
CLK
C4
RESERVED_1
C5
GND
C6
VPP
C7
I/O
C8
RESERVED
S1
SW1
S2
SW2
C6301
10uF
10V
JAPAN
R6301
2.7K
JAPAN
ZD6300
5V
JAPAN
SMARTCARD_VCC/SD_EMMC_CMD
R6302
OPT
R6310 22
JAPAN
C6304
0.1uF
16V
JAPAN
+3.3V_NORMAL
SMARTCARD_PWR_SEL/SD_EMMC_DATA[1]
R6315
1.2K
JAPAN
SMARTCARD_RST/SD_EMMC_DATA[2]
R6316
1.2K
JAPAN
R6300 22
JAPAN
R6305
2.7K
JAPAN
IC6300
TDA8024TT
JAPAN
3
5V/3V
2
CLKDIV2
4
PGND
1
CLKDIV1
6
VDDP
5
S2
7
S1
8
VUP
9
PRES
10
PRES
11
I/O
12
AUX2
13
AUX1
14
CGND 15 CLK
16 RST
17 VCC
18 PORADJ
19 CMDVCC
20 RSTIN
21 VDD
22 GND
23 OFF
24 XTAL1
25 XTAL2
26 I/OUC
27 AUX1UC
28 AUX2UC
R6309 22
JAPAN
+3.3V_NORMAL
C6300
0.1uF
16V
JAPAN C6303
0.1uF
16V
JAPAN
L6300
BLM18PG121SN1D
JAPAN
R6312
10K
JAPAN
R6311 22
JAPAN
SMARTCARD_DATA/SD_EMMC_CLK
C6307
0.33uF
16V
JAPAN
+5V_NORMAL
R6303
OPT
+3.3V_NORMAL
+3.3V_NORMAL
R6304
2.7K
JAPAN
R6306
OPT
R6314
1K
JAPAN
C6306
0.1uF
16V
JAPAN
R6308 22
JAPAN
SMARTCARD_DET/SD_EMMC_DATA[3]
L6301
BLM18PG121SN1D
JAPAN
R6307 22
JAPAN
C6302
0.1uF
16V
JAPAN
R6313
75
JAPAN
ZD6301
5V
JAPAN
SMARTCARD_CLK/SD_EMMC_DATA[0]
C6305
0.1uF
16V
JAPAN
R6317
1.2K
JAPAN
R6318
1.2K
OPT
R6319
1.2K
OPT
CI SLOT 2011.04.17
62
Place CLK C3 far from C2,C7,C4 and C8
75 ohm in I/O is for short circuit Protection
B-CAS SLOT
INT CMDVCC : STATUS
---------------------------------
HIGH HIGH CARD PRESENT
LOW HIGH CARD not PRESENT
CLKDIV1 CLKDIV2 : F_CRD_CLK
-----------------------------
1 0 CLKIN
B-CAS (SMART CARD) INTERFACE
Copyright © 2013 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
THERMAL
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
FE_DEMOD1_TS_DATA[1]
FE_DEMOD1_TS_DATA[0]
FE_DEMOD1_TS_DATA[5]
FE_DEMOD1_TS_DATA[3]
FE_DEMOD1_TS_DATA[2]
FE_DEMOD1_TS_DATA[7]
FE_DEMOD1_TS_DATA[4]
FE_DEMOD1_TS_DATA[6]
RF_SWITCH_CTL_TU
+1.23V_D_Demod
C6515
0.1uF
TU_Q/W
/TU_RESET2
/S2_RESET
C6542
0.1uF
I2C_SCL6_TU
+1.23V_D_Demod
C6529
22uF
10V
85C
+3.3V_TU
R6508
100
TU_S/N/Q/W
R6515
4.7K
OPT
C6550
0.1uF
16V
TU_W_BR/TW/CO/JP/_Q_AU
R6527
20K
1%
TU_Q/N/M/W
I2C_SDA6_TU
IF_P
R6521
200
TU_A_GLOBAL_6/7
Q6500
MMBT3906(NXP)
OPT
E
B
C
I2C_SDA4_TU
C6522
0.1uF 16V
OPT
C6554
100pF
50V
+1.8V_TU
Power_D_Demod_TU
TUNER_SIF_TU
L6503
BLM18PG121SN1D
IF_AGC_TU
+3.3V_TU +1.8V_TU
LNB_TX
FE_DEMOD1_TS_DATA[0]
/TU_RESET1
TUNER_SIF
+1.23V_D_Demod_TU
FE_DEMOD1_TS_SYNC
FE_DEMOD1_TS_VAL
+3.3V_TU
C6500
18pF
50V
TU_Q/W_KR/BR/CO/TW/JP/AU
+3.3V_TU
FE_DEMOD1_TS_ERROR
R6520
200
TU_A_GLOBAL_6/7
R6529
10K
1%
TU_Q/N/M/W
0.1uF
C6540
TU_Q/N/M/W
I2C_SDA6
+3.3V_TU
L6508
BLM18PG121SN1D
TU_Q/W_KR/JP/AU
RF_SWITCH_CTL_50
FE_DEMOD1_TS_CLK
R6500 1K
TU_N/M_TW/BR
FE_DEMOD1_TS_DATA[7]
FE_DEMOD1_TS_ERROR
+3.3V_TU
FE_DEMOD1_TS_DATA[1]
TU_+1.8V_TU
C6504
18pF
50V
TU_Q/W_KR/BR/CO/TW/JP/AU
FE_DEMOD1_TS_DATA[4]
FE_DEMOD1_TS_DATA[5]
RF_SWITCH_CTL_50
+3.3V_NORMAL
R6506 100
TU_S/N/Q_T/US/KR/TW/AU
IF_AGC
FE_DEMOD1_TS_DATA[0-7]
+3.3V_TU
R6516
470
OPT
+3.3V_TU
IF_N
C6521
0.1uF
OPT
CN_RESET_TU
C6526
0.1uF
16V
R6518
82
OPT
R6534 0
TU_A_GLOBAL_6/7
FE_DEMOD1_TS_DATA[6]
R6503 22
TU_Q/W
LNB_OUT
C6520
0.1uF
16V
TU_S/N/Q/W
RF_SWITCH_CTL
L6501
BLM18PG121SN1D
TU_Q/W
+1.8V_TU
L6502
BLM18PG121SN1D
TU_N/M_CN/BR
IF_N
I2C_SCL6
+3.3V_TU
R6528
11K
1%
TU_Q/N/M/W
L6500
BLM18PG121SN1D
FE_DEMOD1_TS_DATA[2]
C6530
0.1uF
16V
C6501
0.1uF
TU_N_TW/BR
IC6501
AP2132MP-2.5TRG1
EAN61387601
TU_Q/N/M/W
3
VIN
2
EN
4
VCTRL
1
PG
5
NC
6
VOUT
7
ADJ
8
GND
9
[EP]
FE_DEMOD1_TS_ERROR
IF_P
FE_DEMOD1_TS_SYNC
TU_CVBS
C6538
10uF
10V
+3.3V_TU
+3.3V_TU
FE_DEMOD1_TS_VAL
L6507
BLM18PG121SN1D
TU_Q/W_KR/BR/TW/CO/JP/AU
Q6501
MMBT3906(NXP)
TU_A_GLOBAL_6/7
E
B
C
I2C_SCL4_TU
R6513
10
TU_Q
I2C_SCL4
I2C_SDA4
+3.3V_TU
R6508-*1
1K 5%
TU_N/M/W_CN/TW/BR/CO
C6503
0.1uF
16V
TU_S/N/Q_T/US/KR/TW/AU
R6502
10
TU_N/M
/S2_RESET_TU
R6510
33
NON_TU_W_BR/TW/CO
FE_DEMOD1_TS_DATA[3]
LNB_OUT
R6531
1
C6531
0.1uF
LNB_TX
/S2_RESET
+1.23V_D_Demod
C6516
0.1uF
16V
TU_N/M/Q/W_KR/CN/BR/JP/AU
IC6503
AZ1117BH-1.8TRE1
1
ADJ/GND
2OUT
3
IN
+5V_NORMAL
FE_DEMOD1_TS_CLK
TU_CVBS_TU
R6509
33
NON_TU_W_BR/TW/CO
C6535
1uF
TU_Q/N/M/W
R6504 22
TU_Q/W
+3.3V_TU
/TU_RESET1_TU
R6523
10K
TU_Q/N/M/W
C6546
10uF
10V
C6548
10uF
10V
R6505
10K
TU_N/M_TW/BR
C6506
47pF
50V
TU_N/Q_KR/TW/BR/CO/AU
C6508
47pF
50V
TU_N/Q_KR/TW/BR/CO/AU
R6502-*1
1K 5%
TU_N_BR
C6502
0.1uF
TU_M/W_BR/TW/CO/CN
R6501 1K
TU_M/W_BR/TW/CO/CN
R6513-*1
1K 5%
TU_W
R6506-*1
100
TU_W_BR/TW
C6514
0.1uF
16V
TU_W_BR/TW/CO/JP/_Q_AU
C6503-*1
0.1uF
16V
TU_W_BR/TW
C6516-*1
0.1uF
16V
TU_W_BR/TW/CO/JP
C6533
10uF
16V
C6549
10uF
16V
R6509-*1
300
TU_W_BR/TW/CO
R6510-*1
220
TU_W_BR/TW/CO
L6508-*1
0
TU_W_BR/TW/CO
C6501-*1
1000pF
TU_W_BR/TW/CO
R6534-*1
150
TU_W_BR/TW/CO C6508-*1
18pF
TU_W_BR/TW/CO C6506-*1
18pF
TU_W_BR/TW/CO
65
TUNER 2012.07.10
T2 : Max 1.7A
6
11
14
12
1608 perallel
because of derating
close to Tuner
25
mA(MAX)
7
27
26
2
3
30
Signal to Signal Width = 12mils
22
Ground Width >= 24mils
23
33
close to TUNER
13’ Tuner Type for Global
TDS’S’-G501D : T/C Half NIM Horizontal Type
TDS’Q’-G501D : T/C/S2 Combo Horizontal type
TDS’Q’-G601D : T2/C/S2 Combo Horizontal Type
TDS’Q’-G651D : T2/C/S2 Combo Vertical Type
TDS’M’-C601D : China NIM with Isolater Type
TDS’W’-J551F : Japan Dual NIM
TDS’W’-B651F : Brazil 2Tuner
TDS’W’-A651F : Taiwan 2Tuner
TDS’W’-K651F : Colombia DVB-T2 2Tuner
18
16
Global F/E Option Name
1. TU
2. Tuner Name = TDS’S’,TDS’Q’...
3. Country Name = T,T2,S2,KR,US,BR ...
Example of Option name
TU_Q_T2 = apply TDSQ type tuner and T2 country
TU_M/W = apply TDSM&TDSW Type Tuner
else : Max mA
36
8
24
CHB : Max mA
21
1. should be guarded by ground
31
R2
Close to the tuner
R1
35
close to TUNER
9
Vout=0.6*(1+R1/R2)
4
19
2A
should be guarded by ground
3. Signal Width >= 12mils
close to Tuner
34
17
1
2. No via on both of them
5
10
32
20
13
else : Max 0.7A
Copyright © 2013 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
FE_DEMOD1_TS_VAL
FE_LNA_Ctrl1
FE_DEMOD1_TS_DATA[7]
FE_DEMOD3_TS_ERROR
I2C_SCL6_TU
+3.3V_TU
FE_DEMOD1_TS_DATA[1]
+3.3V_TU
IF_N
RF_SWITCH_CTL_TU
FE_DEMOD3_TS_DATA
RF_SWITCH_CTL_50
FE_DEMOD1_TS_DATA[2]
LNB_OUT
+3.3V_D_Demod
FE_DEMOD1_TS_DATA[3]
TUNER_SIF_TU
C6700
0.1uF
TU_M/W
I2C_SDA6_TU
LNB_TX
TU_+1.8V_TU
R6700
0
NON_CHINA
I2C_SDA6_TU
TU_PIN2
I2C_SDA6_TU
R6701
0
NON_CHINA
+3.3V_D_Demod
CN_RESET_TU
FE_DEMOD2_TS_ERROR
TU_+1.8V_TU
I2C_SCL6_TU
FE_DEMOD1_TS_DATA[5]
L6700
BLM18PG121SN1D
TU_MNQW
TU_+1.8V_TU
TU_GND_B
C6702
0.1uF
16V
TU_W_JP
FE_LNA_Ctrl2
TU_GND_B
FE_DEMOD3_TS_CLK
RF_SWITCH_CTL_50
/TU_RESET2
FE_DEMOD2_TS_SYNC
FE_DEMOD3_TS_VAL
TU_PIN2
FE_DEMOD1_TS_ERROR
R6704
100
TU_M/W
IF_AGC_TU
TUNER_SIF_TU
TU_GND_B
+3.3V_D_Demod2
I2C_SDA6_TU
FE_DEMOD2_TS_CLK
C6703
0.1uF
TU_MNQW
TU6704-*4
TDSN-T751F
TU_TW_SINGLE
1RF_S/W_CTL
2RESET
3SCL
4SDA
5+B1[3.3V]
6SIF
7+B2[1.8V]
8CVBS
9IF_AGC
10 DIF[P]
11 DIF[N]
12 NC_1
13 NC_2
14 NC_3
15 GND
16 NC_4
17 NC_5
18 NC_6
19 NC_7
20 NC_8
21 NC_9
22 NC_10
23 NC_11
24 NC_12
25 NC_13
26 NC_14
27 NC_15
SHIELD
59
LNA_CTRL1 57
LNA_CTRL2 58
A1 A1B1 B1
TU_CVBS_TU
/S2_RESET_TU
FE_DEMOD2_TS_VAL
+3.3V_TU
TUNER_SIF_TU
FE_DEMOD1_TS_CLK
I2C_SCL6_TU
IF_P
FE_DEMOD1_TS_DATA[4]
FE_DEMOD3_TS_SYNC
TU_GND_B
FE_DEMOD2_TS_DATA
/TU_RESET1_TU
I2C_SCL6_TU
Power_D_Demod_TU
R6703
0
NON_CHINA
TU_GND_A
TU_GND_B
TU_GND_A
TU_GND_B
TU_PIN2
I2C_SCL4_TU
TU6705
TDSN-G351D
TU_T2/C
1
NC_1
2
RESET
3
SCL
4
SDA
5
+B1[3.3V]
6
SIF
7
+B2[1.8V]
8
CVBS
9
NC_2
10
NC_3
11
NC_4
12
+B3[3.3V]
13
+B4[1.23V]
14
NC_5
15
GND
16
ERROR
17
SYNC
18
VALID
19
MCLK
20
D0
21
D1
22
D2
23
D3
24
D4
25
D5
26
D6
27
D7
28
SHIELD
A1 A1
B1
B1
+3.3V_TU
C6701
0.1uF
16V
TU_W_JP
TU_GND_A
TUNER_SIF_TU
TU_+1.8V_TU
FE_DEMOD1_TS_DATA[6]
+3.3V_TU
FE_DEMOD1_TS_DATA[0]
FE_DEMOD1_TS_SYNC
+1.23V_D_Demod_TU
R6702
0
NON_CHINA
TU_GND_B
I2C_SDA4_TU
R6707 0
TU_Q_T2/S2
C6705
10uF
10V
R6708 0
TU_W_JP
TU6702
TDSQ-H651F(B)
TU_Korea_PIP
1+B1[+3.3V_S/P]
2RESET
3TU_SCL
4TU_SDA
5+B2[3.3V_M]
6S_SIF
7+B3[1.8V_M]
8S_CVBS
9M_IF_AGC
10 M_DIF[P]
11 M_DIF[N]
12 +B4[3.3V_S]
13 +B5[1.8V_S]
14 NC_1
15 GND
16 SD_ERROR
17 SD_SYNC
18 SD_VALID
19 SD_MCLK
20 SD_SERIAL_D0
21 NC_2
22 NC_3
23 NC_4
24 NC_5
25 NC_6
26 NC_7
27 NC_8
28 GND_1
29 GND_2
30 +B6[1.23V_SD]
31 SD_RESET
36
SHIELD
32 +B7[3.3V_SD]
33 NC_9
34 SD_SCL
35 SD_SDA
A1 A1
B1
B1
TU6703
TDSQ-G651D(B)
TU_Q_T2/S2
1N.C_1
2RESET
3SCL
4SDA
5+B1[3.3V]
6SIF
7+B2[1.8V]
8CVBS
9NC_2
10 NC_3
11 NC_4
12 NC_5
13 NC_6
14 NC_7
15 GND
16 ERROR
17 SYNC
18 VALID
19 MCLK
20 D0
21 D1
22 D2
23 D3
24 D4
25 D5
26 D6
27 D7
28 GND_2
29 GND_3
30 +B3[1.23V]
31 DEMOD_RESET
38
+B4[3.3V]
32 F22_OUTPUT
33 DEMOD_SCL
34 DEMOD_SDA
35 LNB
36 GND_4
37 SHIELD
A1 A1
B1
B1
TU6704
TDSW-J551F(B)
TU_W_JP
1+5V_OR_+3.3V_SPLITTER
2RESET_T1
3SCL_T
4SDA_T
5+3.3V_T1
6NC_1
7+1.8V_T1
8NC_2
9NC_3
10 NC_4
11 NC_5
12 +3.3V_T2
13 +1.8V_T2
28 GND_2
29 GND_3
30 +B5[1.23V]
31 D_RESET
36 LNB
32 +B6[3.3V]
33 NC_6
34 D_SCL
35 D_SDA
GND_4
37
GND_5
38
GND_6
39
TS1_ERROR
40
TS1_SYNC
41
TS1_VALID
42
TS1_MCLK
43
TS1_DATA
44
TS2_ERROR
45
TS2_SYNC
46
TS2_VALID
47
TS2_MCLK
48
TS2_DATA
49
NC_7 50
RESET_T2 51
LNA_CTR1 57
LNA_CTR2 58
SHIELD
59
NC_8 55
+3.3V_S_TUNER 54
SDA_S 53
SCL_S 52
NC_9 56
A1
A1
B1 B1
TU6700
TDSS-H651F(B)
TU_S_US
5+B1[3.3V]
11 DIF[N]
2RESET
10 DIF[P]
4SDA
1NC
9IF_AGC
8CVBS
3SCL
7+B2[1.8V]
6SIF
12
SHIELD
A1 A1
B1
B1
TU6701
TDSM-C651D(B)
TU_M_CN
8CVBS
9NC_1
10 NC_2
11 NC_3
12 +B3[3.3V]
13 +B4[1.23V]
14 DEMOD_RESET
15 GND
16 NC_4
17 SYNC
18 VALID
19 MCLK
20 D0
21 D1
22 D2
23 D3
24 D4
25 D5
26 D6
27 D7
RF_S/W_CTL 50
RESET 51
SHIELD
59
SIF 55
+B1[3.3V] 54
SDA 53
SCL 52
+B2[1.8V] 56
A1 A1
A2
A2
B1 B1
B2
B2
TU6702-*1
TDSQ-A651D(B)
TU_AJJA
1+B1[+3.3V_S/P]
2RESET
3TU_SCL
4TU_SDA
5+B2[3.3V_M]
6S_SIF
7+B3[1.8V_M]
8S_CVBS
9M_IF_AGC
10 M_DIF[P]
11 M_DIF[N]
12 +B4[3.3V_S]
13 +B5[1.8V_S]
14 NC_1
15 GND
16 SD_ERROR
17 SD_SYNC
18 SD_VALID
19 SD_MCLK
20 SD_SERIAL_D0
21 NC_2
22 NC_3
23 NC_4
24 NC_5
25 NC_6
26 NC_7
27 NC_8
28 GND_1
29 GND_2
30 +B6[1.23V_SD]
31 SD_RESET
36
SHIELD
32 +B7[3.3V_SD]
33 NC_9
34 SD_SCL
35 SD_SDA
A1 A1
B1
B1
C6706
1000pF
630V
TU_M_CN
C6707
1000pF
630V
TU_M_CN
C6709
10uF
10V
TU_QW
+3.3V_TU
L6701
BLM18PG121SN1D
TU_QW
C6708
0.1uF
TU_QW
+3.3V_D_Demod2
C6704
10uF
10V
TU_MNQW
TU6704-*3
TDSW-K651F(B)
TU_CO
1+B1(3.3V)_S/P
2T_RESET
3TU_SCL
4TU_SDA
5+B2[3.3V_M]
6S_SIF
7+B3[1.8V_M]
8S_CVBS
9M_IF_AGC
10 M_DIF[P]
11 M_DIF[N]
12 +B4[3.3V_S]
13 +B5[1.8V_S]
28 GND_1
29 GND_2
30 +B6[1.23V_D]
31 D_RESET
32 +B7[3.3V_D]
33 NC_1
34 D_SCL
35 D_SDA
GND_3
38
GND_4
39
MD_ERROR
40
MD_SYNC
41
MD_VALID
42
MD_MCLK
43
MD_DATA
44
SD_ERROR
45
SD_SYNC
46
SD_VALID
47
SD_MCLK
48
SD_DATA
49
RF_S/W_CTRL 50
NC_2 51
SHIELD
59
A1
A1
B1 B1
TU6704-*1
TDSW-B652F(B)
TU_BR
1+B1(3.3V)_S/P
2T_RESET
3TU_SCL
4TU_SDA
5+B2[3.3V_M]
6S_SIF
7+B3[1.8V_M]
8S_CVBS
9M_IF_AGC
10 M_DIF[P]
11 M_DIF[N]
12 +B4[3.3V_S]
13 +B5[1.8V_S]
28 GND_1
29 GND_2
30 +B6[1.23V_D]
31 D_RESET
32 +B7[3.3V_D]
33 NC_1
34 D_SCL
35 D_SDA
GND_3
38
GND_4
39
MD_ERROR
40
MD_SYNC
41
MD_VALID
42
MD_MCLK
43
MD_DATA
44
SD_ERROR
45
SD_SYNC
46
SD_VALID
47
SD_MCLK
48
SD_DATA
49
RF_S/W_CTRL 50
NC_2 51
SHIELD
59
A1
A1
B1 B1
TU6704-*2
TDSW-A652F(B)
TU_TW
1+B1(3.3V)_S/P
2T_RESET
3TU_SCL
4TU_SDA
5+B2[3.3V_M]
6S_SIF
7+B3[1.8V_M]
8S_CVBS
9M_IF_AGC
10 M_DIF[P]
11 M_DIF[N]
12 +B4[3.3V_S]
13 +B5[1.8V_S]
28 GND_1
29 GND_2
30 +B6[1.23V_D]
31 D_RESET
32 +B7[3.3V_D]
33 NC_1
34 SD_SCL
35 SD_SDA
GND_3
38
GND_4
39
NC_2
40
NC_3
41
NC_4
42
NC_5
43
NC_6
44
SD_ERROR
45
SD_SYNC
46
SD_VALID
47
SD_MCLK
48
SD_DATA
49
RF_S/W_CTRL 50
NC_7 51
SHIELD
59
A1
A1
B1 B1
R6705
10K
TU_W_JP
R6706
10K
TU_W_JP
TU_SYMBOL 2012.09.14
12
18
11
GND seperation for CHINA tuner
9
22
41
42
51
52
40
4
6
50
3
46
44
25
27
5
31
16
47
54
2
14
23
17
49
53
30
35
20
58
43
10
56
45
55
57
34
32
19
7
13
26
24
36
1
33
21
8
48
BSD-NC4_H067-HD
Copyright © 2013 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
THERMAL
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
A_GND
C6905
10uF
25V
LNB
R6900
2.2K
1W
LNB
A_GND
L6900
15uH
SP-7850_15
LNB
R6904
0
I2C_SDA4
C6907
10uF
25V
LNB
R6901 33
LNB
D6901
30V
MBR230LSFT1G
LNB
C6910
0.1uF
50V
LNB
C6911 0.22uF
LNB
+12V
D6900
LNB
LNB_OUT
D6903-*1
40V
LNB_SX34
D6902
30V
LNB
C6903
0.01uF
50V
LNB
R6902 33
LNB
C6906
10uF
25V
LNB
A_GND
D6904-*1
40V
LNB_SX34
A_GND
A_GND
R6903
39K
1/16W
1%
LNB
A_GND
D6903
40V
LNB_SMAB34
D6904
40V
LNB_SMAB34
LNB_TX
C6904
0.1uF
50V
LNB
C6908 0.1uF
LNB
C6909
10uF
25V
LNB
C6912
0.1uF
LNB
C6902
0.22uF
25V
LNB
I2C_SCL4
C6900
18pF
LNB
C6901
33pF
LNB
IC6900
A8303SESTR-T
LNB
1
VCP
3
NC_1
7
SCL
9
ADD
10
TONECTRL
11 TCAP
12 ISET
13 VREG
14 GND
15 VIN
16 LX
17 GNDLX
18 NC_2
19 NC_3
20 BOOST
5
TDO
8
SDA
6
IRQ
4
TDI
2
LNB 21
[EP]GND
69
LNB 2012.03.08
Input trace widths should be sized to conduct at least 3A
Ouput trace widths should be sized to conduct at least 2A
DVB-S2 LNB Part Allegro
Surge protectioin
close to VIN pin(#15)
Max 1.3A
close to Boost pin(#1)
(Option:LNB)
2A
3.5A
Close to Tuner
Caution!! need isolated GND

3A
Copyright © 2013 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
TXBCLKP/TX2P
R7217
0
UD
TXC3N
TXB0N/TX5N
TXC2P
TXB3N/TX1N
TXBCLKN/TX2N
BPL_IN
C7201
10uF
16V
OPT
R7208 0
OLED
TXA0N/TX11N
TXC0P
I2C_SDA1
TXC0N
TXA0P/TX11P
R7214
10K
LVDS_BIT_SEL_LOW
TXC2N
R7204
0
OLED
TXA4P/TX6P
TXCCLKP
L7201
120-ohm
LVDS
R7215
10K
OLED
TXACLKP/TX8P
TXB4N/TX0N
TXA1P/TX10P
R7209 0
OLED
TXB3P/TX1P
TXB2P/TX3P
P7202
FI-RE41S-HF-J-R1500
LVDS 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
TXC4N
TXC4P
TXC1P
TXA4N/TX6N
TXC3P
T_CON_SYS_POWER_OFF
TXA2N/TX9N
TXACLKN/TX8N
TXB0P/TX5P
R7210 33
UD_OLED
R7216
0
OLED
TXA2P/TX9P
TXA3P/TX7P
TXCCLKN
TXC1N
T_CON_SYS_POWER_OFF
P7201
FI-RE51S-HF-J-R1500
LVDS
1NC
2NC
3NC
4NC
5NC
6NC
7LVDS_SEL
8NC
9NC
10 L/DIM_ENABLE
11 GND
12 RA0N
13 RA0P
14 RA1N
15 RA1P
16 RA2N
17 RA2P
18 GND
19 RACLKN
20 RACLKP
21 GND
22 RA3N
23 RA3P
24 RA4N
25 RA4P
26 GND
27 BIT_SEL
28 RB0N
29 RB0P
30 RB1N
31 RB1P
32 RB2N
33 RB2P
34 GND
35 RBCLKN
36 RBCLKP
37 GND
38 RB3N
39 RB3P
40 RB4N
41 RB4P
42 GND
43 GND
44 GND
45 GND
46 GND
47 NC
48 VLCD
49 VLCD
50 VLCD
51 VLCD
52
GND
FRC_RESET
TXA3N/TX7N
R7213
0
ALEF
TXB1N/TX4N
TXB1P/TX4P
TXB4P/TX0P
I2C_SCL1
LED_R
C7203
0.1uF
16V
LVDS
TXB2N/TX3N
FRC_FLASH_WP
INV_CTL
PANEL_VCC
TXA1N/TX10N
TXA1N
TXB2P
TXA4P
TXB2N
TXB1P
TXACLKN
TXA1P
TXB0P
TXB1N
TXA4N
TXACLKP
TXB0N
R7201 0
UD_CPBOX I2C_SCL1
R7200 0
UD_CPBOX I2C_SDA1
LVDS INTERFACE
[41Pin LVDS OUTPUT Connector]
[51Pin LVDS OUTPUT Connector]
BIT_SEL
LVDS
TXD3N/TX13N
TXD2P/TX15P
TXD0N/TX17N
TXD1P/TX16P
TXD2N/TX15N
TXD3P/TX13P
TXD4P/TX12P
TXDCLKN/TX14N
TXD4N/TX12N
TXD1N/TX16N
TXDCLKP/TX14P
TXD0P/TX17P
H13 BALL NAME
BSD-NC4_H072-HD
2012-10-15
OLED : FRC_RESET = LVDS_VAL
INV_CTL = ELVDD_ON
Copyright © 2013 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
I2C_SDA2
I2C_SCL2
R7401
10K
L/DIM_OUT_PULL_DOWN
L/DIM0_VS
+3.3V_NORMAL
L/DIM0_MOSI
L/DIM0_SCLK
P7400
12507WR-08L
L/DIM_OUT
1
2
3
4
5
6
7
8
9
R7400
10K
OPT
R7411 33
L/DIM_OUT_I2C
R7412 33
L/DIM_OUT_I2C
R7407 0
OPT
R7408 0
OPT
R7403
4.7K
LOCAL DIMMING 2012.09.14
LOCAL DIMMING 1
[To LED DRIVER]
BSD-NC4_H074-HD
Copyright © 2013 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
THERMAL
THERMAL
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
H_VDD
VGL
R7705 47
1/16W
GMA18
CLK5
TXA4P
R7751
15K
1/16W
I2C_SDA2
R7756
10K
VGH
R7737
1/16W
OPT
Z_OUT
R7750
20K
1/10W
5%
VGL
C7743
1uF
25V
VGL
GST
VGH_FB
Q7702
MMBT3904(NXP)
E
B
C
GMA5
C7724
1uF
25V
C7734
0.1uF
50V
EO
CLK6_I
CLK3_I
VGH
VCOM_P
R7729
2.7K
1/16W
RE
R7749
1K
1/16W
OPT
C7733
10uF
16V
R7742 3K
1/16W
OPT
GMA10
C7725
10uF
25V
OPT
CTRLP
L7704
22uH
CLK5_I
VGL
PANEL_VCC
MCLK
GMA4
COMP
VGH_EVEN
GMA12
VGH_F
R7740 0
1/16W
C7705
10uF
10V
C7740
1000pF
50V
OPT
R7739
1.5K
1/16W
5%
C7710
10uF
10V
CLK4
R7706 47
1/16W
R7718
9.1K
1/16W
SWN
CLK1_I
CLK3_I
R7724
0
1/16W
OPT
Vcore
VCC
VDD
GMA14
R7747
0
1/16W
OPT
C7704
0.1uF
16V
SS
CLK5
VCOM_P
D7702
40V
OPT
D7705
100V
1N4148W
C7746
1uF 25V
C7741
10uF
16V
R7716
0
1/16W
OPT
CLK1
C7731
0.1uF
16V
R7760
0
1/16W
VCOM_N
R7752
15K
1/16W
VCOML_FB
R7748
1K
1/16W
PANEL_VCC
TXA1N
GMA4
MCLK_SOC
CLK5_I
CLK4
IC7701
TPS65198
EPI
1CLK1
3CLK3
7RE
9
VGH_F
10
ODD
11
EVEN
12
VST
13
RESET
14
DISCHG
15
VGL
16
VGH1
17
VGH2
18
OUT
19
NEG
20
POS
21
AVDD
22 GND
23 VSENSE
24 EO
25 GST
26 MCLK
27 GCLK
28 BI-SCAN
5CLK5
8
VGH_R
6CLK6
4CLK4
2CLK2
29
[EP]VGL
GCLK
VDD
GCLK_SOC
VCOM_IN
CLK2
TXB2P
R7759
0
1/16W
VCC
DISCHG R7743 0
1/16W
OPT
EPI_LOCK6_SOURCE
VGL_I
GMA1
CLK6
R7710 0
1/16W
GIP_RST
GMA4
CLK2
DISCHG
R7736
3K
1/16W
CLK4_I
VGL
CTRLN
VGH_R
R7745 0
1/16W
VCC
SWN
C7732
0.1uF
50V
R7704 47
1/16W
CLK6
VCOM_LOOP
GIP_RST
GIP_RST
C7754
0.1uF
50V
C7715
10uF
16V
TXACLKN
C7712
1uF
10V
R7723
0
1/16W
C7738
0.1uF
50V
C7711
10uF
10V
R7755
100
VGL_FB
GMA5
C7727
0.1uF
50V
PMIC_RESET
R7721
0
1/16W
R7725 0
1/16W
OPT
GMA9
VCC18
L7701
LQM2HPN2R2MG0L
2.2uH
R7733
0
1/16W
I2C_SCL2
VGH_FB
GMA1
H_VDD
R7700
2K
1/16W
R7717
33K
1/16W
CLK2_I
P7703
FL8S050HA1
EPI
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
L7702
22uH
VST
GMA15
VGH_ODD
R7720
47K
1/16W
5%
VCC18
VGH_R
C7747
1uF 25V
VL
GMA7
EPI_LOCK3
R7758
10K
VCOM1
C7720
15pF
50V
CLK4_I
R7730
1/16W
OPT
VCC
GST
Vcore
VCOM_LOOP
GMA16
C7729
1000pF
50V
OPT
GMA7
VGH_F
Q7700
MMBT3904(NXP)
E
B
C
GMA18
R7757
10K
CLK1
CLK2
C7713
10uF
25V
R7744
20K
1/10W
5%
GMA9
RE
VGH_F
TXB0N
C7749
1uF
50V
GMA14
VGH_ODD
GMA10
C7726
1uF
25V
Q7703
MMBT3904(NXP)
E
B
C
C7706
10uF
10V
OPT
TXACLKP
VCOM_N
GMA7
C7723
10uF
25V
R7761
10K
OPT
VST
+3.3V_NORMAL
C7739
0.1uF
50V
VCOM1
C7748
1uF 25V
GMA15
TXB1N
IC7700
TPS65178RSLR
EPI
1
OUT4
2
SWB4
3
RST
4
OUT1
5
OUT2
6
SWB2
7
PGND2
8
SWB1_1
9
SWB1_2
10
NC
11
PVINB1_1
12
PVINB1_2
13
AVIN
14
PVINB3
15
SWB3
16
OUT3
17
PGND3
18
PGND_1
19
PGND_2
20
SW_1
21
SW_2
22
SWI
23
SWO
24
AGND
25 SS
26 COMP
27 SCL
28 SDA
29 VL
30 TCOMP
31 CTRLP
32 VGH
33 SWP
34 SWN
35 VGL
36 CTRLN
37 GMA1
38 GMA2
39 GMA3
40 GMA4
41 GMA5
42 GMA6
43 VCOM
44 NEG
45 POS
46 VCOMFB
47 DYN
48 PGND4
49
[EP]AGND
SWP
C7709
10uF
10V
VCOM_DYN
R7746 0
1/16W
GST_SOC
D7703
100V
1N4148W
C7722
10uF
16V
Q7701
MMBT3906(NXP)
E
B
C
VCC18
C7750
1uF
25V
OPT
R7722
100K
1/16W
1%
VST
CTRLP
SS
R7713
2.2
1/16W
OPT
L7700
LQM2HPN2R2MG0L
2.2uH
R7726
0
1/16W
OPT
TCOMP
R7732
0
1/16W
OPT
TXB1P
P7702
FL8S050HA1
EPI
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
EPI_LOCK3
R7754
15K
1/16W
OPT
C7716
10uF
25V
OPT
VGL_I
L7705
BLM18PG121SN1D
C7736
1000pF
50V
VDD
C7745
1uF 25V
VGH
VGH_R
REVERSE
CLK5
CLK1
C7700
0.01uF
50V
Z_OUT
TCOMP
VCC
VDD
EPI_LOCK6
VGH_EVEN
D7706
100V
1N4148W
CLK3
GMA3
GMA12
C7728
10uF
10V
OPT
CLK3
CLK1_I
VGH_ODD
C7737
0.1uF
50V
VGH_EVEN
CLK3
C7757
1uF
50V
C7714
10uF
25V
MCLK
C7718
15pF
50V
D7701
40V
SX34
VCC18
R7701
10K
1/16W
GMA5
TXA4N
VDD
R7738
0
1/16W
TXA1P
R7741 0
1/16W
OPT
D7700
40V
SX34
L7703
NR6020T6R8NC
6.8uH
CTRLN
VGL_FB
GMA16
GCLK
C7744
1uF
50V
CLK6
R7728 100K
1/16W 5%
R7735
100
1/16W
REVERSE
CLK2_I
GMA12
C7707
10uF
10V
OPT
R7727 100K
1/16W 5%
PANEL_VCC
VDD
C7742
1uF
25V
VGL_I
C7755
1uF
50V
Vcore
GMA14
R7719 0
1/16W
R7734 0
1/16W
OPT
D7704
100V
1N4148W
C7719
15pF
50V
EO_SOC
TXB2N
C7701
0.1uF
50V
C7756
1uF
25V
TH7700
47k-ohm
NCP18WB473F10RB
H_VDD
C7703
0.1uF
50V
R7703 47
1/16W
EPI_LOCK6_SOURCE
C7702
0.01uF
50V
VDD
COMP
TXB0P
GMA3
EO
VL
C7717
15pF
50V
CLK6_I
GMA15
R7753
15K
1/16W
OPT
CLK4
SWP
C7721 0.1uF
50V
OPT
VCOM_IN
VCOM1
VCOM2
VCOM1
VCOM_IN
VCOML_FB
R7768
0
1/16W
VCOM1_FB
VCOM_IN
VCOML_FB
R7769
0
1/16W
OPT
R7766
0
1/16W
OPT
R7767
0
1/16W
OPT
R7765
0
1/16W
VCOM1_FB
IC7702
IML7821BE
OPT
3VIN+
2VS-
4 VIN-
1VOUT 5 VS+
VCOML_FB
R7770
0
1/16W
OPT
R7772
39K
1/16W 1%
OPT
VCOM2
VCOM_P
R7771
0
1/16W
OPT
VDD
L7706
BLM18PG121SN1D
OPT
C7760
1uF 25V
OPT
VDD_EPI
R7731 100
1/16W 1%
R7712
100
R7711
100
R7702
100
R7707
100
R7715
100
R7714
100
C7708
10uF
10V
R7773
1K
T-Con
77
2011.12.01
TO SOC
FROM SOC
<LEVEL SHIFTER BLOCK>
FROM SOC
FROM SOC
CH6
CH5
CH4
<POWER BLOCK>
FROM SOC
FROM SOC
FROM SOC
FROM SOC
FROM SOC
[Left Source(51PIN LOCATION)] [Right Source(41PIN LOCATION)]
INSTEAD OF AMCC0209
FROM SOC
INSTEAD OF AMCC0208
THIS IS REVERSE PATTERN !!!!
Copyright © 2013 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
C7923
10uF
25V
C7928
10uF
25V
C7926
10uF
25V
C7930
10uF
25V
VDD
C7924
10uF
25V
VDD_EPI
EPI_CAP
2012.09.14
locate different direction for each
locate different direction for each
BSD-NC4_H079-HD
Copyright © 2013 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
EMMC_DATA[4]
EMMC_DATA[1]
EMMC_DATA[6]
EMMC_DATA[5]
EMMC_DATA[3]
EMMC_DATA[2]
EMMC_DATA[7]
EMMC_DATA[0]
3.3V_EMMC
AR8101
22
1/16W
EMMC_SERIAL_22
EMMC_RST
EMMC_CMD_BALL
R8104-*1 47K
C8105
0.1uF
16V
EMMC_CMD_BALL
R8106-*1 47K
R8102-*1 47K
R8105-*1 47K
R8101-*1 47K
DAT4
R8104 10K
DAT4
EMMC_RESET_BALL
AR8100
22
1/16W
EMMC_SERIAL_22
DAT6
R8117
10K
R8106 10K
DAT3
EMMC_CLK_BALL
EMMC_CLK_BALL
C8102
0.1uF
16V
EMMC_CLK AR8102 22
EMMC_SERIAL_22
EMMC_VDDI
EMMC_RESET_BALL
DAT5
DAT5
EMMC_DATA[0-7]
C8103
2.2uF
10V
R8116
10K
R8107 10K
R8107-*1 47K
R8103 10K
R8103-*1 47K
R8101 10K
R8105 10K
DAT3
R8100 10K
IC8100-*3
KLM2G1HE3F-B001
SAMSUNG_EMMC_2GB
DAT0
A3
DAT1
A4
DAT2
A5
DAT3
B2
DAT4
B3
DAT5
B4
DAT6
B5
DAT7
B6
CLK
M6
CMD
M5
NC_3
A6
NC_4
A7
NC_23
C5
NC_42
E5
NC_43
E8
NC_44
E9
NC_45
E10
NC_52
F10
NC_58
G3
NC_59
G10
NC_66
H5
NC_73
J5
NC_80
K6
NC_81
K7
NC_82
K10
NC_116
P7
NC_119
P10
RSTN
K5
VDD_1
C6
VDD_2
M4
VDD_3
N4
VDD_4
P3
VDD_5
P5
VDDF_1
E6
VDDF_2
F5
VDDF_3
J10
VDDF_4
K9
VDDI
C2
VSS_1
C4
VSS_2
E7
VSS_3
G5
VSS_4
H10
VSS_5
K8
VSS_6
N2
VSS_7
N5
VSS_8
P4
VSS_9
P6
NC_1
A1
NC_2
A2
NC_5
A8
NC_6
A9
NC_7
A10
NC_8
A11
NC_9
A12
NC_10
A13
NC_11
A14
NC_12
B1
NC_13
B7
NC_14
B8
NC_15
B9
NC_16
B10
NC_17
B11
NC_18
B12
NC_19
B13
NC_20
B14
NC_21
C1
NC_22
C3
NC_24
C7
NC_25 C8
NC_26 C9
NC_27 C10
NC_28 C11
NC_29 C12
NC_30 C13
NC_31 C14
NC_32 D1
NC_33 D2
NC_34 D3
NC_35 D4
NC_36 D12
NC_37 D13
NC_38 D14
NC_39 E1
NC_40 E2
NC_41 E3
NC_46 E12
NC_47 E13
NC_48 E14
NC_49 F1
NC_50 F2
NC_51 F3
NC_53 F12
NC_54 F13
NC_55 F14
NC_56 G1
NC_57 G2
NC_60 G12
NC_61 G13
NC_62 G14
NC_63 H1
NC_64 H2
NC_65 H3
NC_67 H12
NC_68 H13
NC_69 H14
NC_70 J1
NC_71 J2
NC_72 J3
NC_74 J12
NC_75 J13
NC_76 J14
NC_77 K1
NC_78 K2
NC_79 K3
NC_83 K12
NC_84 K13
NC_85 K14
NC_86 L1
NC_87 L2
NC_88 L3
NC_89 L12
NC_90 L13
NC_91 L14
NC_92 M1
NC_93 M2
NC_94 M3
NC_95 M7
NC_96 M8
NC_97 M9
NC_98 M10
NC_99 M11
NC_100 M12
NC_101 M13
NC_102 M14
NC_103 N1
NC_104 N3
NC_105 N6
NC_106 N7
NC_107 N8
NC_108 N9
NC_109 N10
NC_110 N11
NC_111 N12
NC_112 N13
NC_113 N14
NC_114 P1
NC_115 P2
NC_117 P8
NC_118 P9
NC_120 P11
NC_121 P12
NC_122 P13
NC_123 P14
3.3V_EMMC
DAT5
DAT6
C8100
0.1uF
16V
OPT
C8106
2.2uF
10V
R8100-*1 47K
EMMC_VDDI
EMMC_CMD
C8107
10pF
50V
OPT
R8102 10K
3.3V_EMMC
IC8100-*4
THGBM5G7A2JBAIR
TOSHIBA_EMMC_16GB
DAT0
A3
DAT1
A4
DAT2
A5
DAT3
B2
DAT4
B3
DAT5
B4
DAT6
B5
DAT7
B6
CLK
M6
CMD
M5
RFU_1
A6
RFU_2
A7
NC_21
C5
RFU_3
E5
RFU_4
E8
RFU_5
E9
RFU_6
E10
RFU_7
F10
RFU_8
G3
RFU_9
G10
RFU_10
H5
RFU_11
J5
RFU_12
K6
RFU_13
K7
RFU_14
K10
RFU_15
P7
RFU_16
P10
RSTN
K5
VCCQ_1
C6
VCCQ_2
M4
VCCQ_3
N4
VCCQ_4
P3
VCCQ_5
P5
VCC_1
E6
VCC_2
F5
VCC_3
J10
VCC_4
K9
VDDI
C2
VSS_1
E7
VSS_2
G5
VSS_3
H10
VSS_4
K8
VSSQ_1
C4
VSSQ_2
N2
VSSQ_3
N5
VSSQ_4
P4
VSSQ_5
P6
NC_1
A1
NC_2
A2
NC_3
A8
NC_4
A9
NC_5
A10
NC_6
A11
NC_7
A12
NC_8
A13
NC_9
A14
NC_10
B1
NC_11
B7
NC_12
B8
NC_13
B9
NC_14
B10
NC_15
B11
NC_16
B12
NC_17
B13
NC_18
B14
NC_19
C1
NC_20
C3
NC_22
C7
NC_23 C8
NC_24 C9
NC_25 C10
NC_26 C11
NC_27 C12
NC_28 C13
NC_29 C14
NC_30 D1
NC_31 D2
NC_32 D3
NC_33 D4
NC_34 D12
NC_35 D13
NC_36 D14
NC_37 E1
NC_38 E2
NC_39 E3
NC_40 E12
NC_41 E13
NC_42 E14
NC_43 F1
NC_44 F2
NC_45 F3
NC_46 F12
NC_47 F13
NC_48 F14
NC_49 G1
NC_50 G2
NC_51 G12
NC_52 G13
NC_53 G14
NC_54 H1
NC_55 H2
NC_56 H3
NC_57 H12
NC_58 H13
NC_59 H14
NC_60 J1
NC_61 J2
NC_62 J3
NC_63 J12
NC_64 J13
NC_65 J14
NC_66 K1
NC_67 K2
NC_68 K3
NC_69 K12
NC_70 K13
NC_71 K14
NC_72 L1
NC_73 L2
NC_74 L3
NC_75 L12
NC_76 L13
NC_77 L14
NC_78 M1
NC_79 M2
NC_80 M3
NC_81 M7
NC_82 M8
NC_83 M9
NC_84 M10
NC_85 M11
NC_86 M12
NC_87 M13
NC_88 M14
NC_89 N1
NC_90 N3
NC_91 N6
NC_92 N7
NC_93 N8
NC_94 N9
NC_95 N10
NC_96 N11
NC_97 N12
NC_98 N13
NC_99 N14
NC_100 P1
NC_101 P2
NC_102 P8
NC_103 P9
NC_104 P11
NC_105 P12
NC_106 P13
NC_107 P14
AR8100-*1
100
1/16W
EMMC_SERIAL_100
AR8101-*1
100
1/16W
EMMC_SERIAL_100
AR8102-*1
100
1/16W
EMMC_SERIAL_100
IC8100-*5
KLM4G1FE3B-B001
SAMSUNG_EMMC_4GB
DAT0
A3
DAT1
A4
DAT2
A5
DAT3
B2
DAT4
B3
DAT5
B4
DAT6
B5
DAT7
B6
CLK
M6
CMD
M5
NC_3
A6
NC_4
A7
NC_23
C5
NC_42
E5
NC_43
E8
NC_44
E9
NC_45
E10
NC_52
F10
NC_58
G3
NC_59
G10
NC_66
H5
NC_73
J5
NC_80
K6
NC_81
K7
NC_82
K10
NC_116
P7
NC_119
P10
RSTN
K5
VDD_1
C6
VDD_2
M4
VDD_3
N4
VDD_4
P3
VDD_5
P5
VDDF_1
E6
VDDF_2
F5
VDDF_3
J10
VDDF_4
K9
VDDI
C2
VSS_2
E7
VSS_3
G5
VSS_4
H10
VSS_5
K8
VSS_1
C4
VSS_6
N2
VSS_7
N5
VSS_8
P4
VSS_9
P6
NC_1
A1
NC_2
A2
NC_5
A8
NC_6
A9
NC_7
A10
NC_8
A11
NC_9
A12
NC_10
A13
NC_11
A14
NC_12
B1
NC_13
B7
NC_14
B8
NC_15
B9
NC_16
B10
NC_17
B11
NC_18
B12
NC_19
B13
NC_20
B14
NC_21
C1
NC_22
C3
NC_24
C7
NC_25 C8
NC_26 C9
NC_27 C10
NC_28 C11
NC_29 C12
NC_30 C13
NC_31 C14
NC_32 D1
NC_33 D2
NC_34 D3
NC_35 D4
NC_36 D12
NC_37 D13
NC_38 D14
NC_39 E1
NC_40 E2
NC_41 E3
NC_46 E12
NC_47 E13
NC_48 E14
NC_49 F1
NC_50 F2
NC_51 F3
NC_53 F12
NC_54 F13
NC_55 F14
NC_56 G1
NC_57 G2
NC_60 G12
NC_61 G13
NC_62 G14
NC_63 H1
NC_64 H2
NC_65 H3
NC_67 H12
NC_68 H13
NC_69 H14
NC_70 J1
NC_71 J2
NC_72 J3
NC_74 J12
NC_75 J13
NC_76 J14
NC_77 K1
NC_78 K2
NC_79 K3
NC_83 K12
NC_84 K13
NC_85 K14
NC_86 L1
NC_87 L2
NC_88 L3
NC_89 L12
NC_90 L13
NC_91 L14
NC_92 M1
NC_93 M2
NC_94 M3
NC_95 M7
NC_96 M8
NC_97 M9
NC_98 M10
NC_99 M11
NC_100 M12
NC_101 M13
NC_102 M14
NC_103 N1
NC_104 N3
NC_105 N6
NC_106 N7
NC_107 N8
NC_108 N9
NC_109 N10
NC_110 N11
NC_111 N12
NC_112 N13
NC_113 N14
NC_114 P1
NC_115 P2
NC_117 P8
NC_118 P9
NC_120 P11
NC_121 P12
NC_122 P13
NC_123 P14
IC8100-*6
THGBM5G6A2JBAIR
TOSHIBA_EMMC_8GB
DAT0
A3
DAT1
A4
DAT2
A5
DAT3
B2
DAT4
B3
DAT5
B4
DAT6
B5
DAT7
B6
CLK
M6
CMD
M5
RFU_1
A6
RFU_2
A7
NC_21
C5
RFU_3
E5
RFU_4
E8
RFU_5
E9
RFU_6
E10
RFU_7
F10
RFU_8
G3
RFU_9
G10
RFU_10
H5
RFU_11
J5
RFU_12
K6
RFU_13
K7
RFU_14
K10
RFU_15
P7
RFU_16
P10
RSTN
K5
VCCQ_1
C6
VCCQ_2
M4
VCCQ_3
N4
VCCQ_4
P3
VCCQ_5
P5
VCC_1
E6
VCC_2
F5
VCC_3
J10
VCC_4
K9
VDDI
C2
VSS_1
E7
VSS_2
G5
VSS_3
H10
VSS_4
K8
VSSQ_1
C4
VSSQ_2
N2
VSSQ_3
N5
VSSQ_4
P4
VSSQ_5
P6
NC_1
A1
NC_2
A2
NC_3
A8
NC_4
A9
NC_5
A10
NC_6
A11
NC_7
A12
NC_8
A13
NC_9
A14
NC_10
B1
NC_11
B7
NC_12
B8
NC_13
B9
NC_14
B10
NC_15
B11
NC_16
B12
NC_17
B13
NC_18
B14
NC_19
C1
NC_20
C3
NC_22
C7
NC_23 C8
NC_24 C9
NC_25 C10
NC_26 C11
NC_27 C12
NC_28 C13
NC_29 C14
NC_30 D1
NC_31 D2
NC_32 D3
NC_33 D4
NC_34 D12
NC_35 D13
NC_36 D14
NC_37 E1
NC_38 E2
NC_39 E3
NC_40 E12
NC_41 E13
NC_42 E14
NC_43 F1
NC_44 F2
NC_45 F3
NC_46 F12
NC_47 F13
NC_48 F14
NC_49 G1
NC_50 G2
NC_51 G12
NC_52 G13
NC_53 G14
NC_54 H1
NC_55 H2
NC_56 H3
NC_57 H12
NC_58 H13
NC_59 H14
NC_60 J1
NC_61 J2
NC_62 J3
NC_63 J12
NC_64 J13
NC_65 J14
NC_66 K1
NC_67 K2
NC_68 K3
NC_69 K12
NC_70 K13
NC_71 K14
NC_72 L1
NC_73 L2
NC_74 L3
NC_75 L12
NC_76 L13
NC_77 L14
NC_78 M1
NC_79 M2
NC_80 M3
NC_81 M7
NC_82 M8
NC_83 M9
NC_84 M10
NC_85 M11
NC_86 M12
NC_87 M13
NC_88 M14
NC_89 N1
NC_90 N3
NC_91 N6
NC_92 N7
NC_93 N8
NC_94 N9
NC_95 N10
NC_96 N11
NC_97 N12
NC_98 N13
NC_99 N14
NC_100 P1
NC_101 P2
NC_102 P8
NC_103 P9
NC_104 P11
NC_105 P12
NC_106 P13
NC_107 P14
IC8100-*1
THGBM5G5A1JBAIR
TOSHIBA_EMMC_4GB
DAT0
A3
DAT1
A4
DAT2
A5
DAT3
B2
DAT4
B3
DAT5
B4
DAT6
B5
DAT7
B6
CLK
M6
CMD
M5
RFU_1
A6
RFU_2
A7
NC_21
C5
RFU_3
E5
RFU_4
E8
RFU_5
E9
RFU_6
E10
RFU_7
F10
RFU_8
G3
RFU_9
G10
RFU_10
H5
RFU_11
J5
RFU_12
K6
RFU_13
K7
RFU_14
K10
RFU_15
P7
RFU_16
P10
RST_N
K5
VCCQ_1
C6
VCCQ_2
M4
VCCQ_3
N4
VCCQ_4
P3
VCCQ_5
P5
VCC_1
E6
VCC_2
F5
VCC_3
J10
VCC_4
K9
VDDI
C2
VSS_1
E7
VSS_2
G5
VSS_3
H10
VSS_4
K8
VSSQ_1
C4
VSSQ_2
N2
VSSQ_3
N5
VSSQ_4
P4
VSSQ_5
P6
NC_1
A1
NC_2
A2
NC_3
A8
NC_4
A9
NC_5
A10
NC_6
A11
NC_7
A12
NC_8
A13
NC_9
A14
NC_10
B1
NC_11
B7
NC_12
B8
NC_13
B9
NC_14
B10
NC_15
B11
NC_16
B12
NC_17
B13
NC_18
B14
NC_19
C1
NC_20
C3
NC_22
C7
NC_23 C8
NC_24 C9
NC_25 C10
NC_26 C11
NC_27 C12
NC_28 C13
NC_29 C14
NC_30 D1
NC_31 D2
NC_32 D3
NC_33 D4
NC_34 D12
NC_35 D13
NC_36 D14
NC_37 E1
NC_38 E2
NC_39 E3
NC_40 E12
NC_41 E13
NC_42 E14
NC_43 F1
NC_44 F2
NC_45 F3
NC_46 F12
NC_47 F13
NC_48 F14
NC_49 G1
NC_50 G2
NC_51 G12
NC_52 G13
NC_53 G14
NC_54 H1
NC_55 H2
NC_56 H3
NC_57 H12
NC_58 H13
NC_59 H14
NC_60 J1
NC_61 J2
NC_62 J3
NC_63 J12
NC_64 J13
NC_65 J14
NC_66 K1
NC_67 K2
NC_68 K3
NC_69 K12
NC_70 K13
NC_71 K14
NC_72 L1
NC_73 L2
NC_74 L3
NC_75 L12
NC_76 L13
NC_77 L14
NC_78 M1
NC_79 M2
NC_80 M3
NC_81 M7
NC_82 M8
NC_83 M9
NC_84 M10
NC_85 M11
NC_86 M12
NC_87 M13
NC_88 M14
NC_89 N1
NC_90 N3
NC_91 N6
NC_92 N7
NC_93 N8
NC_94 N9
NC_95 N10
NC_96 N11
NC_97 N12
NC_98 N13
NC_99 N14
NC_100 P1
NC_101 P2
NC_102 P8
NC_103 P9
NC_104 P11
NC_105 P12
NC_106 P13
NC_107 P14
IC8100
H26M31002GPR
HYNIX_EMMC_4GB
DAT0
A3
DAT1
A4
DAT2
A5
DAT3
B2
DAT4
B3
DAT5
B4
DAT6
B5
DAT7
B6
CLK
M6
CMD
M5
NC_3
A6
NC_4
A7
NC_23
C5
NC_42
E5
NC_43
E8
NC_44
E9
NC_45
E10
NC_52
F10
NC_58
G3
NC_59
G10
NC_66
H5
NC_73
J5
NC_80
K6
NC_81
K7
NC_82
K10
NC_116
P7
NC_119
P10
RESET
K5
VCCQ_1
C6
VCCQ_2
M4
VCCQ_3
N4
VCCQ_4
P3
VCCQ_5
P5
VCC_1
E6
VCC_2
F5
VCC_3
J10
VCC_4
K9
VDDI
C2
VSS_1
E7
VSS_2
G5
VSS_3
H10
VSS_4
K8
VSSQ_1
C4
VSSQ_2
N2
VSSQ_3
N5
VSSQ_4
P4
VSSQ_5
P6
NC_1
A1
NC_2
A2
NC_5
A8
NC_6
A9
NC_7
A10
NC_8
A11
NC_9
A12
NC_10
A13
NC_11
A14
NC_12
B1
NC_13
B7
NC_14
B8
NC_15
B9
NC_16
B10
NC_17
B11
NC_18
B12
NC_19
B13
NC_20
B14
NC_21
C1
NC_22
C3
NC_24
C7
NC_25 C8
NC_26 C9
NC_27 C10
NC_28 C11
NC_29 C12
NC_30 C13
NC_31 C14
NC_32 D1
NC_33 D2
NC_34 D3
NC_35 D4
NC_36 D12
NC_37 D13
NC_38 D14
NC_39 E1
NC_40 E2
NC_41 E3
NC_46 E12
NC_47 E13
NC_48 E14
NC_49 F1
NC_50 F2
NC_51 F3
NC_53 F12
NC_54 F13
NC_55 F14
NC_56 G1
NC_57 G2
NC_60 G12
NC_61 G13
NC_62 G14
NC_63 H1
NC_64 H2
NC_65 H3
NC_67 H12
NC_68 H13
NC_69 H14
NC_70 J1
NC_71 J2
NC_72 J3
NC_74 J12
NC_75 J13
NC_76 J14
NC_77 K1
NC_78 K2
NC_79 K3
NC_83 K12
NC_84 K13
NC_85 K14
NC_86 L1
NC_87 L2
NC_88 L3
NC_89 L12
NC_90 L13
NC_91 L14
NC_92 M1
NC_93 M2
NC_94 M3
NC_95 M7
NC_96 M8
NC_97 M9
NC_98 M10
NC_99 M11
NC_100 M12
NC_101 M13
NC_102 M14
NC_103 N1
NC_104 N3
NC_105 N6
NC_106 N7
NC_107 N8
NC_108 N9
NC_109 N10
NC_110 N11
NC_111 N12
NC_112 N13
NC_113 N14
NC_114 P1
NC_115 P2
NC_117 P8
NC_118 P9
NC_120 P11
NC_121 P12
NC_122 P13
NC_123 P14
DUMMY_1
DU1
DUMMY_2
DU2
DUMMY_3
DU3
DUMMY_4
DU4
DUMMY_5
DU5
DUMMY_6
DU6
DUMMY_7
DU7
DUMMY_8
DU8
DUMMY_9 DU9
DUMMY_10 DU10
DUMMY_11 DU11
DUMMY_12 DU12
DUMMY_13 DU13
DUMMY_14 DU14
DUMMY_15 DU15
DUMMY_16 DU16
IC8100-*2
H26M21001ECR
HYNIX_EMMC_2GB
DAT0
A3
DAT1
A4
DAT2
A5
DAT3
B2
DAT4
B3
DAT5
B4
DAT6
B5
DAT7
B6
CLK
M6
CMD
M5
NC_3
A6
NC_4
A7
NC_23
C5
NC_42
E5
NC_43
E8
NC_44
E9
NC_45
E10
NC_52
F10
NC_58
G3
NC_59
G10
NC_66
H5
NC_73
J5
NC_80
K6
NC_81
K7
NC_82
K10
NC_116
P7
NC_119
P10
RESET
K5
VCCQ_1
C6
VCCQ_2
M4
VCCQ_3
N4
VCCQ_4
P3
VCCQ_5
P5
VCC_1
E6
VCC_2
F5
VCC_3
J10
VCC_4
K9
VDDI
C2
VSS_1
E7
VSS_2
G5
VSS_3
H10
VSS_4
K8
VSSQ_1
C4
VSSQ_2
N2
VSSQ_3
N5
VSSQ_4
P4
VSSQ_5
P6
NC_1
A1
NC_2
A2
NC_5
A8
NC_6
A9
NC_7
A10
NC_8
A11
NC_9
A12
NC_10
A13
NC_11
A14
NC_12
B1
NC_13
B7
NC_14
B8
NC_15
B9
NC_16
B10
NC_17
B11
NC_18
B12
NC_19
B13
NC_20
B14
NC_21
C1
NC_22
C3
NC_24
C7
NC_25 C8
NC_26 C9
NC_27 C10
NC_28 C11
NC_29 C12
NC_30 C13
NC_31 C14
NC_32 D1
NC_33 D2
NC_34 D3
NC_35 D4
NC_36 D12
NC_37 D13
NC_38 D14
NC_39 E1
NC_40 E2
NC_41 E3
NC_46 E12
NC_47 E13
NC_48 E14
NC_49 F1
NC_50 F2
NC_51 F3
NC_53 F12
NC_54 F13
NC_55 F14
NC_56 G1
NC_57 G2
NC_60 G12
NC_61 G13
NC_62 G14
NC_63 H1
NC_64 H2
NC_65 H3
NC_67 H12
NC_68 H13
NC_69 H14
NC_70 J1
NC_71 J2
NC_72 J3
NC_74 J12
NC_75 J13
NC_76 J14
NC_77 K1
NC_78 K2
NC_79 K3
NC_83 K12
NC_84 K13
NC_85 K14
NC_86 L1
NC_87 L2
NC_88 L3
NC_89 L12
NC_90 L13
NC_91 L14
NC_92 M1
NC_93 M2
NC_94 M3
NC_95 M7
NC_96 M8
NC_97 M9
NC_98 M10
NC_99 M11
NC_100 M12
NC_101 M13
NC_102 M14
NC_103 N1
NC_104 N3
NC_105 N6
NC_106 N7
NC_107 N8
NC_108 N9
NC_109 N10
NC_110 N11
NC_111 N12
NC_112 N13
NC_113 N14
NC_114 P1
NC_115 P2
NC_117 P8
NC_118 P9
NC_120 P11
NC_121 P12
NC_122 P13
NC_123 P14
IC8100-*7
KLMAG2GE4A-A001
SAMSUNG_EMMC_16G
DAT0
A3
DAT1
A4
DAT2
A5
DAT3
B2
DAT4
B3
DAT5
B4
DAT6
B5
DAT7
B6
CLK
M6
CMD
M5
RFU_1
A6
RFU_2
A7
RFU_3
C5
RFU_4
E5
RFU_5
E8
RFU_6
E9
NC_39
E10
RFU_7
F10
RFU_8
G3
RFU_9
G10
RFU_10
H5
RFU_11
J5
RFU_12
K6
RFU_13
K7
RFU_14
K10
RFU_15
P7
NC_104
P10
RESET
K5
VDD_1
C6
VDD_2
M4
VDD_3
N4
VDD_4
P3
VDD_5
P5
VDDF_1
E6
VDDF_2
F5
VDDF_3
J10
VDDF_4
K9
VDDI
C2
VSS_2
E7
VSS_3
G5
VSS_4
H10
VSS_9
K8
VSS_1
C4
VSS_5
N2
VSS_6
N5
VSS_7
P4
VSS_8
P6
NC_1
A1
NC_2
A2
NC_3
A8
NC_4
A9
NC_5
A10
NC_6
A11
NC_7
A12
NC_8
A13
NC_9
A14
NC_10
B1
NC_11
B7
NC_12
B8
NC_13
B9
NC_14
B10
NC_15
B11
NC_16
B12
NC_17
B13
NC_18
B14
NC_19
C1
NC_20
C3
NC_21
C7
NC_22 C8
NC_23 C9
NC_24 C10
NC_25 C11
NC_26 C12
NC_27 C13
NC_28 C14
NC_29 D1
NC_30 D2
NC_31 D3
NC_32 D4
NC_33 D12
NC_34 D13
NC_35 D14
NC_36 E1
NC_37 E2
NC_38 E3
NC_40 E12
NC_41 E13
NC_42 E14
NC_43 F1
NC_44 F2
NC_45 F3
NC_46 F12
NC_47 F13
NC_48 F14
NC_49 G1
NC_50 G2
NC_51 G12
NC_52 G13
NC_53 G14
NC_54 H1
NC_55 H2
NC_56 H3
NC_57 H12
NC_58 H13
NC_59 H14
NC_60 J1
NC_61 J2
NC_62 J3
NC_63 J12
NC_64 J13
NC_65 J14
NC_66 K1
NC_67 K2
NC_68 K3
NC_69 K12
NC_70 K13
NC_71 K14
NC_72 L1
NC_73 L2
NC_74 L3
NC_75 L12
NC_76 L13
NC_77 L14
NC_78 M1
NC_79 M2
NC_80 M3
NC_81 M7
NC_82 M8
NC_83 M9
NC_84 M10
NC_85 M11
NC_86 M12
NC_87 M13
NC_88 M14
NC_89 N1
NC_90 N3
NC_91 N6
NC_92 N7
NC_93 N8
NC_94 N9
NC_95 N10
NC_96 N11
NC_97 N12
NC_98 N13
NC_99 N14
NC_100 P1
NC_101 P2
NC_102 P8
NC_103 P9
RFU_16 P11
NC_105 P12
NC_106 P13
NC_107 P14
DUMMY_1
DU1
DUMMY_2
DU2
DUMMY_3
DU3
DUMMY_4
DU4
DUMMY_5
DU5
DUMMY_6
DU6
DUMMY_7
DU7
DUMMY_8
DU8
DUMMY_9 DU9
DUMMY_10 DU10
DUMMY_11 DU11
DUMMY_12 DU12
DUMMY_13 DU13
DUMMY_14 DU14
DUMMY_15 DU15
DUMMY_16 DU16
IC8100-*8
H26M42002GMR
HYNIX_EMMC_8GB
DAT0
A3
DAT1
A4
DAT2
A5
DAT3
B2
DAT4
B3
DAT5
B4
DAT6
B5
DAT7
B6
CLK
M6
CMD
M5
NC_3
A6
NC_4
A7
NC_23
C5
NC_42
E5
NC_43
E8
NC_44
E9
NC_45
E10
NC_52
F10
NC_58
G3
NC_59
G10
NC_66
H5
NC_73
J5
NC_80
K6
NC_81
K7
NC_82
K10
NC_116
P7
NC_119
P10
RESET
K5
VCCQ_1
C6
VCCQ_2
M4
VCCQ_3
N4
VCCQ_4
P3
VCCQ_5
P5
VCC_1
E6
VCC_2
F5
VCC_3
J10
VCC_4
K9
VDDI
C2
VSS_1
E7
VSS_2
G5
VSS_3
H10
VSS_4
K8
VSSQ_1
C4
VSSQ_2
N2
VSSQ_3
N5
VSSQ_4
P4
VSSQ_5
P6
NC_1
A1
NC_2
A2
NC_5
A8
NC_6
A9
NC_7
A10
NC_8
A11
NC_9
A12
NC_10
A13
NC_11
A14
NC_12
B1
NC_13
B7
NC_14
B8
NC_15
B9
NC_16
B10
NC_17
B11
NC_18
B12
NC_19
B13
NC_20
B14
NC_21
C1
NC_22
C3
NC_24
C7
NC_25 C8
NC_26 C9
NC_27 C10
NC_28 C11
NC_29 C12
NC_30 C13
NC_31 C14
NC_32 D1
NC_33 D2
NC_34 D3
NC_35 D4
NC_36 D12
NC_37 D13
NC_38 D14
NC_39 E1
NC_40 E2
NC_41 E3
NC_46 E12
NC_47 E13
NC_48 E14
NC_49 F1
NC_50 F2
NC_51 F3
NC_53 F12
NC_54 F13
NC_55 F14
NC_56 G1
NC_57 G2
NC_60 G12
NC_61 G13
NC_62 G14
NC_63 H1
NC_64 H2
NC_65 H3
NC_67 H12
NC_68 H13
NC_69 H14
NC_70 J1
NC_71 J2
NC_72 J3
NC_74 J12
NC_75 J13
NC_76 J14
NC_77 K1
NC_78 K2
NC_79 K3
NC_83 K12
NC_84 K13
NC_85 K14
NC_86 L1
NC_87 L2
NC_88 L3
NC_89 L12
NC_90 L13
NC_91 L14
NC_92 M1
NC_93 M2
NC_94 M3
NC_95 M7
NC_96 M8
NC_97 M9
NC_98 M10
NC_99 M11
NC_100 M12
NC_101 M13
NC_102 M14
NC_103 N1
NC_104 N3
NC_105 N6
NC_106 N7
NC_107 N8
NC_108 N9
NC_109 N10
NC_110 N11
NC_111 N12
NC_112 N13
NC_113 N14
NC_114 P1
NC_115 P2
NC_117 P8
NC_118 P9
NC_120 P11
NC_121 P12
NC_122 P13
NC_123 P14
C8104
1uF
10V
11.09.29
81
eMMC
Don’t Connect Power At VDDI
EMMC DATA LINE
10K PULL/UP
FOR M13
EMMC DATA LINE 47K PULL/UP
(Just Interal LDO Capacitor)
eMMC I/F
eMMC serial 100 ohm option
Copyright © 2013 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
2013 LED/LCD TV
Engineering guide
< Applicable Model : High-end Platform >
EPI Interface
EPI(Embedded Point-Point Interface)
Features
•Point-Point topology (support 2 Pair option)
•CDR (Clock Data Recovery)
•Bandwidth up to 1.85Gbps/pair
at FHD 120Hz 10 bit application
•Lock signal cascading and feedback to T-Con
•Embedded Control Data
Merits
•Better reliability on common noise
•No data skew and better EMI margin
•Fewer lines than mini-LVDS
•Slim PCB design
TCON
2
LOCK
VCC 1
Figure1. Topology
EPI Interface (mini-LVDS vs. EPI)
Comparison
HF mini-LVDS
What to change
EPI (Embedded clock P-to-P Interface)
-Difficult to upgrade bandwidth limit
-Multiple number of wires needed for higher bandwidth
HF mini-
LVDS FHD (10bit)
60Hz 120Hz 240Hz
No. of Signal 36 36 72
Connector 60pin
(2ea) 60pin
(2ea) 80pin
(2ea)
-Better reliability on common noise
-No data skew. Better EMI margin
-Lower cost ( Cable, Connector )
-Slim S-PCB design (14mm 10mm) helps slimmer TV
EPI
FHD (10bit)
60Hz 120Hz 240Hz
960ch 960ch 720ch
No. of Signal 12 12 32
Connector - 50 pin
(2ea) 70pin
(2ea)
LCM (T-con to S-Driver IC)
TCON
2
LOCK
VCC 1
TCON
18
VCC 1
18
HF mini-LVDS
EPI
* Bandwidth Capability
- FHD 120Hz 10Bit : 594Mbps@36Lines → 1.65Gbps@12Lines
- FHD 240Hz 10Bit : 594Mbps@72Lines → 1.25Gbps@32Lines
(FHD 120Hz)
(FHD 120Hz)
HF mini-LVDS EPI
Topology
Protocol
Features
@10bit, FHD120
• Multi Drop
• Data rate: 660Mbps
• External clock
• Point to Point
• Data rate : 1.8Gbps
• Embedded clock, Control
Merit • Simple structure
• Standardization
• Fewer Lines : 12
• Embedded clock
: low EMI, Clock skew free
• Easy to PCB design
Demerit
• Too many lines : 36
• Clock skew
• EMI due to clock lines
• Bandwidth limit
• Transmission Overhead
: 4bit delimiter
TCON
Lock
2
1
TCON
EPI Interface (mini-LVDS vs. EPI)
NFC (Near field communication)
Near field communication (NFC) is a set of standards for smartphones and similar devices to establish radio communication
with each other by touching them together or bringing them into close proximity, usually no more than a few centimetres.
Present and anticipated applications include contactless transactions, data exchange, and simplified setup of more complex
communications such as Wi-Fi. Communication is also possible between an NFC device and an unpowered NFC chip, called
a "tag".
User Action Area
Samrt phone close to
NFC Tag Player choose
From Smart phone
to TV
From TV
to Smart phone
Main PCB for Broadband Main + TCON all in one
To PSU
2
6
4
1 Main processor, DDR Memory
eMMC Memory
2
3
4
Micom for Key/IR/Logo sensing
PMIC
Audio AMP
xxLA790V-Zx
Key+IR+Logo
Front Spk
To module
5
5 EPI Wafer
Chassis : LD34D
PCB P/No : EAX65040103
3
6 Level shifter
WIFI/BT
1
Main PCB for Broadband Main + TCON all in one
To PSU
1 Main processor, DDR Memory
eMMC Memory
2
3
4
Micom for Key/IR/Logo sensing
PMIC
Audio AMP
xxLA860V-Zx
Key+IR+Logo
Front Spk
To module 5 EPI Wafer
Chassis : LD34D
PCB P/No : EAX65040103
6 Level shifter
WIFI/BT
2
6
4
5
3
1
To Camera
7 USB 3.0
7
Main PCB for Broadband Main + TCON all in one
To PSU
1 Main processor, DDR Memory
eMMC Memory
2
3
4
Micom for Key/IR/Logo sensing
USB 3.0
Audio AMP
xxLA960V-Zx
Key+IR+Logo
Front Spk
To module 5 LVDS Wafer
Chassis : LD34D
PCB P/No : EAX65040103
WIFI/BT
2
4
5
3
1
4
To Camera To Woofer
To LED Driver
16
DDR3
16
1. H13 Block Diagram (External)
DAC_DATA
HSR_P/M
AAD_DATA
CVBS
BB_TP_DATA
AUD
Tuner
PC_AUDIO PC_Audio_L/R
AV1_Audio L/R
AV1
COMP1
AV1_CVBS
Comp1 Y,Pb,Pr
HDMI
Switch
HDMI2
HDMI3
H13
LG1154AN
USB1(USB3.0)
USB2(USB2.0)
USB3(USB2.0)
Motion-R
M-Remote_Rx/Tx
Audio
AMP
OPTIC
SPK
H/P
Line out
H/P Audio L/R
SPDIF
I2S
DDR3
4Gb×2
(1600) 4Gb×2
(1600)
8
eMMC
4GB×1
SCART
SC_CVBS, RGB, Audio L/R
DTV/MNT_LR/V_OUT
LNB
HDMI_CEC
USB 3.0
USB 2.0
USB 2.0
USB 2.0
USB_W-iFi
PHY RMII
LAN
WOL / WOW
H/P AMP
H13
LG1154D
FRC
TCON
Logo Light
CI
CI
HDMI4
MHL
1A
OCP
1A
OCP
1A
X-TAL
24MHZ
Woofer
HDMI1 SPDIF_OUT_ARC
PMIC
LEVEL
SHIFTER
EPI
IC3201
SII9587CNUC
HDMI_SW
IC7700
TPS65178RSLR
EPI
AR15
[SCL0/GPIO66]
AP15
[SDA0/GPIO65]
I2C_SDA1
IC5600
TAS5733
AMP MAIN
24 [SCL]
23 [SDA]
IC5700
TAS5733
AMP WOOFER
33 Ω
33Ω
IC3000
R5F100GEAFB
RENESAS
MICOM
3.3k Ω
I2C_SCL1
3.3k Ω
+3.3V_NOR
+3.3V_NOR
3.3k Ω
3.3k Ω
AP6
[SCL3]
AR6
[SDA3]
TU6503
TDSQ-G651D
TUNER_T2/C/S2
I2C_SDA4 35
I2C_SCL4 22 Ω
22 Ω
3.3k Ω
3.3k Ω
+3.3V_TU
AR16
[SCL1/GPIO64]
AP16
[SDA1/GPIO79]
I2C_SDA_MICOM_SOC
I2C_SCL_MICOM_SOC
1
2
H13
LG1154D
24 [SCL]
23 [SDA]
AR17
[SDA2/GPIO77]
AP17
[SCL2/GPIO78]
I2C_SDA2_SOC
I2C_SCL2_SOC
+3.3V_NOR
3.3k Ω
3.3k Ω
33 Ω
33 Ω
[P60/SCLA0]
[P61/SDAA0]
27
28
[SCL]
[SDA]
[D_SCL]
[D_SDA]
IC6900
A8303SESTR-T
LNB
7
8
33 Ω
33 Ω
[SCL]
[SDA]
AH32
[SCL4]
AJ33
[SDA4] I2C_SDA5
63
62
I2C_SCL5 33 Ω
33 Ω
3.3k Ω
3.3k Ω
+3.3V_NOR
[CSCL]
[CSDA]
IC102
R1EX24256BSAS0A
NVRAM
6
5
33 Ω
33 Ω
[SCL]
[SDA]
AH34
[SCL5]
AH33
[SDA5] I2C_SDA6
3
4
I2C_SCL6 33 Ω
33 Ω
[SCL_T]
[SDA_T]
3.3k Ω
3.3k Ω
+3.3V_TU
2. LG1154 I2C Map
33 Ω
33Ω
33 Ω
33Ω
1.0V Core
3A
1.8V_TU
5V Normal
5A
1.5V DDR
3A
IR Ass’y
MICOM
Ethernet PHY
Wi-Fi Ass’y
Logo Light Ass’y
H13-D (VDDC)
DDR (VDDQ)
DDR (VDD)
3.5V
12V
24V
H13-A (VDDC10)
H13-A (AVDD10)
H13-A (XTAL)
1.2V Core
8A
H13-D (VDDC11)
H13-D (AVDD11)
H13-D (XTAL)
3.3V Normal
4A
1.23V_TU
2A
HDMI SW
SPDIF
Video Driver
AUDIO AMP
Headphone AMP
NVRAM
H13-D (VDD33)
H13-D (AVDD33)
H13-A (VDD33)
H13-A(AVDD33)
H13-A (VDD_XTAL)
EMMC(VCC)
EMMC(VCCQ)
TUNER(+3.3V_TU)
H13-D (VDD25)
H13-D (AVDD25)
H13-D (XTAL_VDDP)
H13-D (HDMI_VQPS)
H13-A (VDD25_CVBS)
H13-A (VDD25_AUD)
H13-A (VDD25_COMP)
H13-A (VDD25_VSB)
H13-A (VDD25_APLL)
H13-A(AVDD33)
H13-A (VDD_XTAL)
H13-A (SDRAM_VDDQ)
H13-A (AUAD_REF)
H13-A (VDD25_REF)
2.5V Normal
1.5A
AUDIO AMP
PANEL_VCC
LNB
SCART AMP
USB
HDMI SW
CI Slot
3. Power Block Diagram
4. Tuner/CI Block Diagram
LG1154
TDSQ-
G651D
[RESET] 2 AG6[GPIO10]
AH34 [SCL5]
AH33 [SDA5]
[SLC] 3
[SDA] 4
[+3.3V_TUNER] 5
[+.1.8V_TUNER] 7
[CVBS] 8
[ERROR] 16
[SYNC] 17
[VALID] 18
[MCLK] 19
AL37[TP_DVB_ERR]
AL36 [TP_DVB_SOP]
AL35 [TP_DVB_VAL]
AM36 [TP_DVB_CLK]
[D0-7] 20-27
[+1.23V_S2_DEMOD] 30
[S2_RESET] 31 AM18 [ADIN7_SRV]
[+3.3V_S2_DEMOD] 32
LNB
IC6900
A8303SESTR-TB
10 [TONECTRL]
2 [LNB]
7 [SCL]
8 [SDA]
[S2_F22_OUTPUT] 33
[LNB] 36
[S2_SCL] 34
[S2_SDA] 35
AP6 [SCL3]
AR6 [SDA3]
V15[CVBS_IN1]
H18[AAD_ADC_SIF]
/TU_RESET1
IC2_SCL6
IC2_SDA6
FE_DEMOD1_TS_ERROR
FE_DEMOD1_TS_SYNC
FE_DEMOD1_TS_VAL
FE_DEMOD1_TS_CLK
FE_DEMOD1_TS_DATA [0-7]
+1.23V_D_Demod
/S2_RESET
LNB_TX
I2C_SCL4
I2C_SDA4
22 Ω
LNB_OUT
+3.3V_NORMAL
3.3K Ω
+1.8_TU
+3.3V_TU
+3.3V_D_Demod
CVBS
TUNER_SIF
33 Ω 33Ω
33 Ω
CI Slot
100 Ω CI_TS_DATA[0-7]
/PCM_WE
/PCM_OE
/PCM_IRQA
/PCM_REG
PCM_INPACK
/PCM_WAIT
PCM_RST
CI_DATA[0-7] CI_A_DATA[0-7]
CI_ADDR[0-14] CI_A_ADDR[0-14]
/PCM_IORD
/PCM_IOWR
/PCM_CE2
/PCM_CE1
CI_VS1
/CI_CD1
/CI_CD2
CI 5V
Power detect
PCM_5V_CTL +5V_CI_ON
CI_TS_SYNC
CI_TS_VAL
CI_TS_CLK
[TP_DVB_DATA0-7]
TPO_DATA[0-7]
TPI_DATA[0-7]
CI_DET1
D32[CAM_CD1_N]
CI_DET2
E32[CAM_CD2_N]
VS1 G32[CAM_VS1_N]
F33[CAM_CE1_N] CARD_EN1
CARD_EN2
10K Ω
H37[EB_BE_N0]
H36[EB_BE_N1]
IOWR
IORD
[EB_ADDR0-14]
[EB_DATA0-7]
ADDR[0-14]
DATA[0-7]
G34[CAM_RESET]
E33[CAM_WAIT]
D34[CAM_REG]
F32[CAM_IREQ]
J36[EB_OE]
H35[EB_WE]
A28[TPI_CLK]
B28[TPI_VAL]
B29[TPI_SOP]
TS_OUT_CLK
TS_OUT_VAL
TS_OUT_SYNC
CI_RESET
CI_WAIT
INPACK
REG
/IRQA
O_EN
WR_EN
VCC
H32
[CAM_VCCEN_N]
+5V_CI_ON +5V_NORMAL
10K Ω
CI_IN_TS_DATA[0-7]
100Ω
[SIF] 6
F34[CAM_CE2_N]
D33[CAM_INPACK]
COMP1_PR_IN_SOC
COMP1_Y_IN_SOC
COMP1_PB_IN_SOC
COMP1_Y_IN_SOC_SOY
5. Video & Audio IN
H13
(LG1154AN)
[CVBS_IN3]
AV1_CVBS_IN
AV1
Phone JACK
[AUAD_L/R_CH3_IN]
COMP1_Y/Pb/Pr
Component
1
Phone JACK
AV1_CVBS_IN_SOC
COMP2_PB_IN_SOC
COMP2_Y_IN_SOC
COMP2_Y_IN_SOC_SOY
COMP2_PR_IN_SOC
FULL
SCART
(18P)
SC_CVBS_IN
[CVBS_IN2]
SC_CVBS_IN_SOC
SC_R
SC_G
SC_B
SC_CVBS_IN_SOY [PR1/Y1/PB1/SOY1_IN]
SC_L/R_IN AUAD_L/R_CH3_IN
[AUAD_L/R_CH2_IN]
COMP1/AV1/DVI_L_IN AUAD_L/R_CH2_IN
[PB2/Y2/SOY2/PR2_IN]
Tuner TU_CVBS TU_CVBS_ISOC
[CVBS_IN1]
TUNER_SIF_TU
DIF[P/N] TUNER_SIF
ADC_I_INP/INN [AAD_ADC_SIF]
[ADC_I_INP/INN]
Jack Side SOC Side
SC_FB
SC_ID SC_FB_SOC
SC_ID_SOC [SC1_SID]
[SC1_FB]
6. AUDIO OUT
SPDIF_OUT
TAS5733
AZ4580MTR
OP AMP
Mute
CTRL
[TR]
LPF
COMP1/AV1/DVI_L_IN
[IEC958OUT]
Tuner
[AAD_ADC_SIF]
SCART_MUTE
SCART
AUDIO L/R OUT
I2C_SCL1/SDA1
MICOM
MICOM
[AUD_SCART_OUTL/OUTR]
SC_L/R_IN
SCART_Lout/Rout
AUD_SCK/LRCK/LRCH
filter
AMP_MUTE
HP_L/ROUT_MAIN
SIDE_HP_MUTE
[DACSCK]
[DACLRCK]
[DACLRCH]
MAIN 4P wafer
[AUAD_L_CH2_IN]
[AUAD_L_CH3_IN]
[AUDA_OUTL]
H13
LG1154
[PHY0_ARC_OUT_0]
SPDIF_OUT_ARC
DTV/MNT_L/R_OUT
TUNER_SIF
[SCL0/SDA0]
LPF
TPA6138A2
Headphone
AMP LPF
HEADPHONE
LINE OUT
Phone Jack
LPF
AMP_RESET_N
HDMI Switch
(IC3201 / SII9587CNUC)
HDMI1
HDMI_HPD_1 ~ 4 5V_HDMI_1 ~ 4
HDMI Out put 8bits
I2C_SCL/SDA 5 2bits
CEC_REMOTE
MHL OCP
(IC3202 / TPS2554)
MHL_DET
SPDIF_OUT_ARC
HDMI_INT
HDMI_S/W_RESET HDMI_HPD_1
5V_HDMI_1
HDMI2
CEC_REMOTE
HDMI_HPD_2
5V_HDMI_2
HDMI3
CEC_REMOTE
HDMI_HPD_3
5V_HDMI_3
HDMI4
CEC_REMOTE
HDMI_HPD_4
5V_HDMI_4
H13D
(IC100 / LG1154D)
TMDS Link 8bits
TMDS Link 8bits
TMDS Link 8bits
TMDS Link 8bits
DDC_I2C 2bits
DDC_I2C 2bits
DDC_I2C 2bits
DDC_I2C 2bits
MICOM
(IC3000 / R5F100GEAFB)
CEC_REMOTE
SPDIF_OUT_ARC
7. HDMI
(EPI CH1 ±)
(EPI CH3 ±)
TX0P/N
TX2P/N
(EPI CH2 ±)
TX1P/N
EPI 50P_LEFT
(LVDS_51PIN Side)
(EPI CH4 ±)
(EPI CH6 ±)
TX3P/N
TX5P/N
(EPI CH5 ±)
TX4P/N
32/31
GMA_4/5/7/12/14/15
GMA_1/3/4/5/7/9/10/12/14/15/16/18
28/27
24/23
32/31
24/23
20/19
50~39
1~12
EPI_LOCK6_SOURCE
EPI_LOCK3
15
14
36
CLK1/2/3/4/5/6 48~43
3~8
VGH_F/R
10/9
41/42
VGH_EVEN/ODD
12/11
39/40
VCOM_P/N
VCOM
17
34
VCOM_LOOP
VCOMLFB/RFB 16
35
GIP_RST
15
36
14
37
VST
DISCHG
VGL
VGL_I
13
38
TX_LOCKN
Z_OUT
1
50
VCC18
H_VDD
V core
VDD
VCC18
H_VDD
V core
VDD
VCC18
H_VDD
V core
VDD
H13
IC100
LG1154D
LEVEL SHIFTER
IC7701
TPS65198
CTRLN
VGL_FB
SWN
PMIC
IC7700
TPS65178RSLR
VCC
CTRLP
VGH_FB
SWP
VDD
VCOM_DYN
I2C_SDA2
PMIC_RESET
I2C_SCL2
GCLK
GST
MCLK
EO
GCLK
MCLK
EO
PANEL_VCC
VGL
VGH
8. Panel Interface Block Diagram
PMIC
TPS65178
Boost Converter
Buck 1 converter(VCC)
Buck 2 converter(Vcore)
Buck 3 converter(HVdd)
Buck 4 converter(VCC18)
Positive Charge Pump Controller
Negative Charge Pump Controller
6-Ch Gamma Buffer(DAC output)
Vcom reference & gain
Reset
PANEL_VCC
VCC18
VCC
HVdd
Vdd
VCOM_P
VCOM_N
GAM4/5/7/12/14/15
CTRLN
SWP
SWN
CTRLP
VCOM_LOOP
PMIC_RESET
Vcore
Level Shift
TPS65198
TR/
Diode
TR/
Diode
VGL
VGH
9. PMIC & Level Shift Bloc Diagram
10. USB / WIFI / M-REMOTE / UART
LG1154D_H13D
USB1(3.0)
USB3_DP
USB3_DM
[USB3_DP0]
[USB3_RX0M]
[USB3_RX0P]
[USB3_TX0M]
[USB3_TX0P]
[USB3_DM0]
USB2
USB_DP2
USB_DM2
[HUB_PORT_OVER0]
[HUB_VBUS_CTRL0]
OCP
OCP
+5V_USB_1
+5V_USB_2
/USB_OCD1
USB_CTL1
USB_CTL2
/USB_OCD2
USB_WIFI
WIFI_DM
WIFI_DP
Motion Remote
Receiver
M_REMOTE_RX
M_REMOTE_TX
M_RFModule_RESET
[UART1_RXD]
[UART1_TXD]
[UART1_RTS]
[UART1_CTS]
[USB2_0_DM]
[USB2_0_DP]
RENESAS MICOM
[UART0_RXD]
[UART0_TXD]
SOC_TX
SOC_RX
USB_DP3 +5V_USB_3
USB_CTL3
/USB_OCD3
[USB2_1_DM0]
[USB2_1_DP0]
[GPIO93]
[GPIO92]
[USB2_2_DM0]
[USB2_2_DP0]
USB3
USB_DM3
[GPIO91]
[GPIO90]
M_REMOTE_CTS
M_REMOTE_RTS
[GPIO13]
4Pin debugging
Wafer
USB3_RX0P
USB3_RX0M
USB3_TX0P
USB3+TX0M
Interconnection - 1
1 Main PCB
2 Power Board
3 Local key Assy
1
2
3
4
5
Main / LPB 24Pin + Local
Dimming Cable
Main / Module EPI Cable
50& 50Pin
LED driver / PSU
IR 8Pin Cable
WiFi 6Pin + RF 8Pin Cable
SPK Cable
[PCBs]
[Cables]
6
1
2
3
1
2
3
4
5
6
47LA790V-ZA
4 5
4 RF Assy
5 WIFI Assy
8
7
Interconnection - 2
IR to Local Key 3Pin Cable
IR to Logo Assy 4Pin Cable
[Cables]
7
8
[PCBs]
6 IR Assy
6
47LA790V-ZA
Interconnection - 1
1 Main PCB
2 Power Board
3 Local key Assy
1
2
3
4
5
Main / LPB 24Pin + Local
Dimming Cable
Main / Module EPI Cable
50& 50Pin
LED driver / PSU
WiFi 6Pin + RF 8Pin Cable
SPK Cable
[PCBs]
[Cables]
1
2
3
1
2
3
4
5
55LA860V-ZA
4 5
4 RF Assy
5 WIFI Assy
6 Camera Assy
6
6 Camera Cable
6
8
7
Interconnection - 2
IR to Local Key 3Pin Cable
IR cable
[Cables]
7
8
[PCBs]
7 IR Assy
7
55LA860V-ZA
Interconnection - 1
1
2
3
1
2
3
4
5
60LA860V-ZA
4 5
6
6
1 Main PCB
2 Power Board
3 Local key Assy
1
2
3
4
5
Main / PSU 18Pin
Main / T-con LVDS Cable
41& 51Pin
LED driver 14 Pin cable
WiFi 6Pin + RF 8Pin Cable
SPK Cable
[PCBs]
[Cables]
4 RF Assy
5 WIFI Assy
6 Camera Assy
7
6 Camera Cable
7 Local Dimming cable
9
8
Interconnection - 2
IR to Local Key 3Pin Cable
IR 8 Pin Cable
[Cables]
8
8
[PCBs]
6 IR Assy
7
60LA860V-ZA
7 LED Driver
8 T-con
6
8
Interconnection - 1
1
2
3
1
2
3
4
5
6
47LA960V-ZA
4 5
1 Main PCB
2 Power Board
3 Local key Assy
1
2
3
4
5
Main / PSU 18Pin
Main / T-con LVDS Cable
41& 51Pin
LED driver 14 Pin Cable
WiFi 6Pin + RF 8Pin Cable
SPK Cable
[PCBs]
[Cables]
4 RF Assy
5 WIFI Assy
6 Camera Assy
6 Camera Cable
7 Local Dimming cable
6
7
Interconnection - 2
8
9
6
47LA960V-ZA
9
8 IR 5 Pin + Local Key 3 Pin Cable
Woofer Cable
[Cables]
[PCBs]
6 IR Assy
7 LED Driver
8 T-con
7
8
Introductions of 13Y RF ass’y + Magic Remote control
1. System
2. Remote Buttons
3. MR13 Block Diagram
4. Function List
5. Pairing/Un-pairing Method
1. System
Remote
RF Receiver
TV
UART
or USB
RF
Pairing Information Transmission (Send to TV after Paired)
•Static Calibration Data (Bypass only)
•Remote FW ver. (Save also in Receiver)
•BD_ADDR (Save also in Receiver)
•Pairing Information Transmission Sequence
•When it is paired, the remote sends packets(pairing success, F/W version, BD_ADDR) to the receiver.
•The receiver sends the pairing success packet to TV directly.
•F/W version and BD_ADDR packets are just saved on the receiver.
•The receiver sends F/W version or BD_ADDR packet to TV when it is required.
Motion Data Transmission
•Period : 7.5msec
•Motion Data : gyro, accelerometer
Voice Data Transmission
•Period : 10msec
•Voice sampling : 16khz 16bit
2. Remote Buttons (M4 vs. MR13P)
BUTTON RF Unpaired
IR_CODE
RF Paired
RF_CODE
IR continuous
repeat ETC.
Phsical
Buttons
POWER 0x08 NONE Y IR only
BACK 0x28 0x8028 Y
SMART 0x7C 0x807C Y
← 0x07 0x8007 Y
→ 0x06 0x8006 Y
↑ 0x40 0x8040 Y
↓ 0x41 0x8041 Y
OK 0x75 0x8044 Y
VOICE 0xDE 0x808B Y = VOICE_START
3D 0xDC 0x80DC Y
Screen RMT
/ Q.MENU 0xDE 0x80DE Y
CH + 0x00 0x8000 Y
CH - 0x01 0x8001 Y
VOL + 0x02 0x8002 Y
VOL - 0x03 0x8003 Y
MUTE 0x09 0x8009 Y
Logical
Buttons
AUTO_WAKEUP X 0x800C
VOICE_START X 0x800A
VOICE_STOP X 0x800D
POINT_START X 0x803E
POINT_STOP X 0x803F
M4 Remote MR13P Remote
POWER
BACK HOME
↑
OK
← →
↓
MUTE
VOL CH
3D MYAPPS
↑
OK
← →
↓
VOICE
BACK SMART
3D
Screen RMT
Q.MENU
MUTE
VOL CH
POWER
LED
3. MR13P Block Diagram
MPU-6150
(Gyro+ACC)
(Invensense)
BCM20733M A2
(BROADCOM)
Bluetooth 3.0
Key Button
( 4 x 4 )
AA x 2 Battery DC-DC Boost
TI TPS61097
SOT23-5
Power Management
Antenna
Partron
X-tal
24 MHz
2.8V LDO
uP0108NEC5-28
SC70
512Kb
(Serial F/M)
I2C ch1
I2C ch2
WM8950
(Wolfson)
Voice
MIC.
(Knowles)
I2S
4-mode Only
2.8V LDO
uP0108NEC5-28
SC70
Wheel
Encoder
IR Emitter1
IR Emitter2
(Voice Scene IR)
Codec(ADC )
Bluetooth Receiver
BCM20702M
(BROADCOM)
Bluetooth 4.0
Antenna
Connector
X-tal
20 MHz
512Kbit
(Serial Flash)
UART
SPI
Bluetooth Remote control
Light
Control
주요 Item IC Manufacturer Function
Remocon
Voice
Voice Codec WM8950 Wolfson 16KHz Sampling of Audio data
MEMS Mic. SPU0414HR5H Knowles Sensing Voice
Motion
Sensor
Gyro Sensor
+
Accelerometer
MPU-6150 Invensense
Sensing angular velocity of X, Y, Z-axis
Sensing device tilt (Pitch & Roll angle)
RF
+
Micom
RF Antenna SDBTPTR3015 Partron
Wireless communication
X-tal 24MHz Partron
RF + Micom BCM20733A2 Broadcom
DC-DC Converter TPS61097 TI Battery Boost up Regulator
LDO1 uP0108NEC5-28 uPI RF, Gyro, Accelerometer Power Supply
LDO2 uP0108NEC5-28 uPI Audio Codec, Mic. Power Supply
4. Function list
5. RF Pairing / Un-pairing Method
Method Description
RF Pairing
Method1
–If unpaired, just press "OK" button.
–If paired, press "OK" button after
unpairing.
Method 2 (Repairing)
– Press “BACK" button for 5 sec.
•When do pairing, the remote
should make pairing request IR
signal(0x75) to TV.
•When TV receive the IR signal, it
should send "pairing request
packet" to the RF receiver.
•After pairing success, the remote
should blink LED for some time and
TV send "pairing success packet"
back to TV.
•When remote try to unpairing, it
doesn’t care about state of
receiver(stand alone).
RF Unpairing Press “BACK" button and “SMART" button
at the same time for 5 sec.
•When remote try to unpairing, it
doesn’t care about state of
receiver(stand alone).
•After unpairing, all pairing
information should be erased.
•After unpairing, LED should be
blinked for 3sec.
•The remote just becomes to IR
mode.
1. Wi-Fi built in Ass’y feature
2. Wi-Fi built in Ass’y
specification
Introductions of 13Y WIFI built in ass’y
WIFI Built in ass’y feature
PIN USB interface
1 Vcc
2 DM
3 DP
4 GND
5 WOW
6 NC
- Pin map
BCM43236B
Wafer
6pin 1.25mm
3.3V
USB
DP, DN
GND
USB
DP, DN
DCDC
EUP3010
Crystal
20MHz
3.3V 1.2V
3.3V 1.2V
Switch
DM3030 Antenna
2.4G/5G
Antenna
2.4G/5G
RX/TX
RX/TX
WOL
Switch
DM3030
Block diagram
48
30
WIFI Built in ass’y Specification
Contents of LCD TV Standard Repair Process
No. Error symptom (High category) Error symptom (Mid category) Page Remarks
1
A. Video error
No video/Normal audio 1
2 No video/No audio 2
3 Video error, video lag/stop, fail tunning 3, 4
4 Color error 5
5 Vertical/Horizontal bar, residual image, light
spot, external device color error 6
6
B. Power error
No power 7
7 Off when on, off while viewing, power auto
on/off 8
8
C. Audio error
No audio/Normal video 9
9 Wrecked audio/discontinuation/noise 10
10
D. Function error
No response in remote controller, key error,
recording error, memory error 11
11 External device recognition error 12
12 E. Noise Circuit noise, mechanical noise 13
13 F. Exterior error Exterior defect 14
14 G. Network error Connection defect / Network speed low 15
First of all, Check whether there is SVC Bulletin in GCSC System for these model.
Contents of LCD TV Standard Repair Process Detail Technical Manual
No. Error symptom Content Page Remarks
1
A. Video error_ No video/Normal audio
Check LCD back light with naked eye A1
2 LED driver B+ 24V measuring method A2
3 Check White Balance value A3
4 Power Board voltage measuring method A4
6 A. Video error_ No video/Video lag/stop TUNER input signal strength checking method A6
7 LCD-TV Version checking method A7
9
A. Video error_Color error
LCD TV connection diagram A8
10 Tuner Checking Part A9
11 Check Link Cable (LVDS) reconnection
condition
A10
A11
A10 : 32/37/42/47/55
A11 : 32 AUO
12 Adjustment Test pattern - ADJ Key A12
13
A. Video error_Vertical/Horizontal bar,
residual image, light spot
LCD TV connection diagram A8
14 Check Link Cable (LVDS) reconnection
condition
A10
A11
A10 : 32/37/42/47/55
A11 : 32 AUO
15 Adjustment Test pattern - ADJ Key A12
16
<Appendix>
Defected Type caused by T-Con/
Inverter/ Module
Exchange T-Con Board (1) A-1/5
17 Exchange T-Con Board (2) A-2/5
18 Exchange LED driver Board (PSU) A-3/5 55” : driver board
Other : PSU
19 Exchange Module itself (1) A-4/5
20 Exchange Module itself (2) A-5/5
Continue to the next page
Normal
audio
Y
N
Move to No
video/No audio
No video
Normal audio Check Back Light
On with naked eye On Y
N
Check Power Board
12v,3.5v etc. Normal
voltage
Y
N
Replace T-con Board
or module
And Adjust VCOM
Repair Power Board
or parts
Check Power Board 24v output
Normal
voltage Y Replace Inverter
or module
N
Repair Power
Board or parts
End
Always check & record S/W Version and White
Balance value before replacing the Main Board Replace Main Board Re-enter White Balance value
※Precaution
Established
date
Standard Repair Process
Revised date
LCD TV Error
symptom
A. Video error
No video/ Normal audio
☞A4 ☞A1
☞A2
☞A28
☞A7 & A3
First of all, Check whether all of cables between board is inserted properly or not.
(Main B/D↔ Power B/D, LVDS Cable,Speaker Cable,IR B/D Cable,,,)
2012. 12 .06
Normal
voltage?
Check various voltages
of Power Board
( 3.5V,12V,20V or 24V…)
No Video/
No audio
Check and
replace
MAIN B/D
Y
Replace Power
Board and repair
parts
N End
Standard Repair Process
A. Video error
No video/ No audio
☞A4
Established
date
Revised date
LCD TV Error
symptom
2012. 12 .06
A. Picture Problem
Picture broken/ Freezing
Y
N
☞ A6
N
Check RF Signal level
Normal
Signal?
Check RF Cable
Connection
1. Reconnection
2. Install Booster
Check
S/W Version Use Signal Test
Check Signal status
S/W Upgrade
Check whether other equipments have problem or not.
(By connecting RF Cable at other equipment)
→ DVD Player ,Set-Top-Box, Different maker TV etc`
SVC
Bulletin?
Replace
Main B/D
Check
Tuner soldering
Normal
Picture?
Y
N
Y
Close
Normal
Picture?
Y Close
. By using Digital signal level meter
. By using Diagnostics menu on OSD
( Menu→ Set up→ Support → Signal Test )
- Signal strength (Normal : over 50%)
- Signal Quality (Normal: over 50%)
Normal
Picture?
Y
Contact with signal distributor
or broadcaster (Cable or Air)
N N
Normal
Picture?
Y
Close
N
☞ A7
Standard Repair Process
Established
date
Revised date
LCD TV Error
symptom
2012. 12 .06
A. Picture Problem (DVB-S/S2)
Tuning fail, Picture broken/ Freezing
Y N
☞ A6
Check RF Signal level
Normal
Signal? Check
S/W Version
S/W Upgrade
SVC
Bulletin?
Normal
Picture?
Y
N
Y
Close
Check RF signal cable (DVB satellite signal or not)
Check whether other equipments have problem or not.
(By connecting RF Cable at other equipment)
→ Set-Top-Box, Different maker TV etc
Y
Change satellite setting
(match with installed ANT)
N
Normal
Picture?
Y
Close
N
☞ A7
Standard Repair Process
Established
date
Revised date
LCD TV Error
symptom
Check satellite setting.
- Check LNB frequency.
- Check satellite
- Check Satellite connection
(DiSEqC, motor, etc…)
Normal
setting?
Contact with
signal distributor
or broadcaster
(Cable or Air)
Close
N
Check
Tuner soldering Replace
Main B/D
2012. 12 .06
Color
error?
Y
N
※ Check and
replace Link
Cable
(LVDS) and
contact
condition
Y
N
Replace Main B/D
Color
error?
Check error color
input mode
Check color by input
-External Input
-COMPONENT
-RGB
-HDMI/DVI
Y
External device
/Cable
normal
External Input/
Component
error
Check
external
device and
cable
Y
External device
/Cable
normal
RGB/
HDMI/DVI
error
Check external
device and
cable
Replace Main B/D
Replace Main B/D
N
N
A. Video error
Color error
☞A8
N
Y
End
Replace module
Request repair
for external
device/cable
Color
error?
Check Test pattern
☞A12
☞ A10/ A11
Standard Repair Process
Established
date
Revised date
LCD TV Error
symptom
2012. 12 .06
Screen
normal?
N
Y Check external
device
connection
condition
Y
N
Check and
replace Link
Cable
Normal?
Y
N
Screen
normal? Replace Main B/D
(adjust VCOM)
Replace
module
Check color condition by input
-External Input
-Component
-RGB
-HDMI/DVI
End
Vertical/Horizontal bar, residual image, light spot
Request repair
for external
device
A. Video error
Vertical / Horizontal bar, residual image,
light spot, external device color error
☞A12
External device screen error-Color error
External
Input
error
Connect other external
device and cable
(Check normal operation of
External Input, Component,
RGB and HDMI/DVI by
connecting Jig, pattern
Generator ,Set-top Box etc.
N
Y
Replace
Main B/D
Screen
normal?
Check screen
condition by input
-External Input
-Component
-RGB
-HDMI/DVI
Request repair for
external device
Component
error
RGB
error
HDMI/
DVI
Connect other external
device and cable
(Check normal operation of
External Input, Component,
RGB and HDMI/DVI by
connecting Jig, pattern
Generator ,Set-top Box etc.
Replace
Main B/D
Screen
normal?
N
Y
Check S/W Version
Y
N
Check
version
S/W Upgrade
Y
N
Normal
screen?
End
Y
N
Replace Main B/D
For LGD panel
Replace
Module
Screen
normal?
End
Established
date
Revised date
LCD TV Error
symptom
Standard Repair Process
☞A8 ☞ A10/ A11
Check Test pattern
☞ A28
For other panel
2012. 12 .06
B. Power error
No power
Power LED
On?
Y
N
DC Power on
by pressing Power Key
On Remote control
Y
N
Normal
operation? Check Power
On ‘”High”
Check Power cord
was inserted properly
Check
Power LED
Replace
Power
B/D
Measure voltage of each output of Power B/D
N
Y
Normal
voltage? Replace Main B/D
Y
OK?
Replace Main B/D
N
Y
Normal?
Check ST-BY 3.5V
Replace Power B/D
N
Y
Normal
voltage?
Replace Power
B/D
Y
☞A17
☞A18
☞A19
☞A4
Standard Repair Process
Established
date
Revised date
LCD TV Error
symptom
. Stand-By: Red
. Operating: white
Close
2012. 12 .06
B. Power error
Off when on, off while viewing, power auto on/off
Error? N
Y
Check Power Off
Mode
Fix A/C cord & Outlet
and check each 3
phase out
Check A/C cord
Check for all 3- phase
power out
Check outlet
Replace Main B/D
CPU
Abnormal
(If Power Off mode is
not displayed)
Check Power B/D
voltage
Y
N
Replace Main B/D
Normal
voltage?
Replace Power B/D
Replace Power B/D
N
Y
Normal? End
※ Caution
Check and fix exterior
of Power B/D Part
☞A22
☞A19
Established
date
Revised date
LCD TV Error
symptom
Standard Repair Process
Status Power off List Explanation
Normal
"POWEROFF_REMOTEKEY" Power off by REMOTE CONTROL
"POWEROFF_OFFTIMER" Power off by OFF TIMER
"POWEROFF_SLEEPTIMER" Power off by SLEEP TIMER
"POWEROFF_INSTOP" Power off by INSTOP KEY
"POWEROFF_AUTOOFF" Power off by AUTO OFF
"POWEROFF_ONTIMER" Power off by ON TIMER
"POWEROFF_RS232C" Power off by RS232C
"POWEROFF_RESREC" Power off by Reservated Record
"POWEROFF_RECEND" Power off by End of Recording
"POWEROFF_SWDOWN" Power off by S/W Download
"POWEROFF_UNKNOWN" Power off by unknown status except listed case
Abnormal "POWEROFF_ABNORMAL1" Power off by abnormal status except CPU trouble
"POWEROFF_CPUABNORMAL" Power off by CPU Abnormal
* Please refer to the all cases which
can be displayed on power off mode.
Abnormal
1
2012. 12 .06
No audio
Screen normal
Check user
menu >
Speaker off Off N
Y
Cancel OFF
Check audio B+ 24V
of Power Board Normal
voltage
Y
N
Replace Power Board and repair parts
Check Speaker
disconnection
N
Y
Replace Speaker
Replace MAIN Board End
C. Audio error
No audio/ Normal video
☞A24 ☞A25
Disconnection
Established
date
Revised date
LCD TV Error
symptom
Standard Repair Process
2012. 12 .06
→ abnormal audio/discontinuation/noise is same after “Check input signal” compared to No audio
C. Audio error
Wrecked audio/ discontinuation/noise
Wrecked audio/
Discontinuation/
Noise for
all audio
Check and replace
speaker and
connector
Wrecked audio/
Discontinuation/
Noise only
for D-TV
Wrecked audio/
Discontinuation/
Noise only
for Analog
Wrecked audio/
Discontinuation/
Noise only
for External Input
Connect and check
other external device
N
Y
Normal
audio?
Check and fix external device
Replace Power B/D
N
Y
Normal
voltage?
Check input
signal
-RF
-External Input
signal
Signal
normal?
(When RF signal is not
received)
Request repair to external
cable/ANT provider
Y
Check audio
B+ Voltage (24V)
Replace Main B/D
(In case of External
Input signal error)
Check and fix
external device
Replace Main B/D
N
End
Established
date
Revised date
LCD TV Error
symptom
Standard Repair Process
☞A25
2012. 12 .06
D. General Function Problem
Remote control & Local switch checking
Y
N
1. Remote control(R/C) operating error
Check R/C itself
Operation Normal
operating?
Normal
operating?
Y
Close
Replace R/C
If R/C operate,
Explain the customer
cause is interference
from light in room.
Check R/C Operating
When turn off light
in room
Check & Replace
Baterry of R/C
Check & Repair
Cable connection
Connector solder
Normal
operating? Check B+ 3.5V
On Main B/D
☞A27
Normal
Voltage?
Close
N
N
Check 3.5v on Power B/D
Replace Power B/D or
Replace Main B/D
(Power B/D don’t have problem)
☞A4
Check IR
Output signal Normal
Signal?
N
Y
Repair/Replace
IR B/D
N
☞A27
Replace
Main B/D
Y
☞A27
Standard Repair Process
Established
date
Revised date
LCD TV Error
symptom
2012. 12 .06
Check technical
information
- Fix information
- S/W Version
N
Y
Technical
information?
Check
input
signal
Signal
input?
Y
N
External Input and
Component
Recognition error
Check and fix
external device/cable
RGB,HDMI/
DVI, Optical
Recognition error
Replace Main B/D
Replace Main B/D
Fix in
accordance
with technical
information
D. Function error
External device recognition error
Established
date
Revised date
LCD TV Error
symptom
Standard Repair Process
2012. 12 .06
Check location
of noise
Identify
noise type Circuit
noise
Replace PSU(with LED driver)
Replace LED driver
Mechanical
noise Check location of
noise
OR
※ When the nose is severe, replace the module
(For models with fix information, upgrade the S/W or
provide the description)
※ If there is a “Tak Tak” noise from the cabinet,
refer to the KMS fix information and then proceed
as shown in the solution manual
(For models without any fix information, provide
the description)
OR
※ Mechanical noise is a natural
phenomenon, and apply the 1st level
description. When the customer does not
agree, apply the process by stage.
※ Describe the basis of the description in
“Part related to nose” in the Owner’s Manual.
E. Noise
Circuit noise, mechanical noise
Established
date
Revised date
LCD TV Error
symptom
Standard Repair Process
2012. 12 .06
Replace module
Zoom part with
exterior damage Module
damage
Cabinet
damage Replace cabinet
Replace remote controller
Remote
controller
damage
Stand
dent Replace stand
F. Exterior defect
Exterior defect
Adjust VCOM
Established
date
Revised date
LCD TV Error
symptom
Standard Repair Process
☞A28
2012. 12 .06
G. Network Error
Exterior defect
Established
date
Revised date
LCD TV Error
symptom
Standard Repair Process
2012. 12 .06
Y N
Check Network status
Normal
Signal? Check
S/W Version
S/W Upgrade
SVC
Bulletin?
Normal
Picture?
Y
N
Y
Close
Check Wired ethernet cable connection
Check whether AP has a probelm or not.
Setting Network Networ Status
Y
Try to new network connection
(match with AP and ether setting)
N
Normal
Picture?
Y
Close
N
☞ A7
Check Network connection
Case1 WiFi .
- Check AP status
Case2 Wired
- Check ethernet Port
Normal
setting?
Check connection
with AP or internet
(WiFi = AP)
(Wired = ethernet
port)
Close
N
Check
Wired, Wifi status
(Cable / sub Assy)
Replace
Main B/D
G. CI+ Competibility Error
Exterior defect
Established
date
Revised date
LCD TV Error
symptom
Standard Repair Process
2012. 12 .06
Y N
Check CI CAM status
Read
Information? Check
CAM S/W
Version
CAM S/W Upgrade
By OTA
SVC
Bulletin?
Normal
Picture?
Y
N
Y
Close
Check defect CI slot pin
Check it’s worked CI+ 1.2 or 1.3
Setting Antenna CI information
Y
N
Check status of CI+ Key in the
In-start menu Is there
CI+ key?
Check damage of CI slot pin
Or damage of CI CAM
Close
N
Check
Wired, Wifi status
(Cable / sub Assy)
Replace
Main B/D
Replace
Main B/D
Or
Download
CI+ Key
Old version of CI+ 1.2 CAM is not worked at the TV that is supported CI+ 1.3
Check SVC Bulletin
Contents of LCD TV Standard Repair Process Detail Technical Manual
No. Error symptom Content Page Remarks
21
B. Power error_No power
Check front display LED A17
22 Check power input Voltage & ST-BY 3.5V A18
23 Checking method when power is ON A19
24 POWER BOARD voltage measuring method A5
25
26 B. Power error_Off when on, off while
viewing POWER OFF MODE checking method A22
27 B. Power error_Off when on, off while
viewing POWER BOARD PIN voltage checking method A19
28
C. Audio error_No audio/Normal video
Checking method in menu when there is no
audio A24
29 Voltage and speaker checking method when
there is no audio A25
30 C. Audio error_Wrecked
audio/discontinuation
Voltage and speaker checking method in
case of audio error A25
31 D. Function error_ No response in
remote controller, key error Remote controller operation checking method A27
32 D. VCOM Adjustment Sequence of the Vcom adjustment A28
Continued from previous page
Standard Repair Process Detail Technical Manual
Check White Balance value
A. Video error_No video/Normal audio
<ALL MODELS>
A4
Established
date
Revised
date
Error
symptom
Content
LCD TV
Entry method
1. Press the ADJ button on the remote controller for adjustment.
2. Enter into White Balance of item 10.
3. After recording the R, G, B (GAIN, Cut) value of Color Temp (Cool/Medium/Warm), re-
enter the value after replacing the MAIN BOARD.
2012. 12 .06
Standard Repair Process Detail Technical Manual
Power Board voltage measuring method
A. Video error_No video/ Audio
A5
Established
date
Revised
date
Error
symptom
Content
LCD TV
Check the DC 24V, 12V, 3.5V.
24 Pin (Power Board ↔ Main Board)
SMAW200-H24S
1 Power on 2 Inverter On/off
3 3.5V 4 PWM Dim #1
5 3.5V 6 PWM Dim #2
7 GND 8 GND
9 24V 10 24V
11 GND 12 GND
13 12V 14 12V
15 12V 16 24V
17 GND 18 GND
19 GND 20 GND
21 GND 22 L/DIMO_VS
23 L/DIM0_MOSI 24 L/DIM0_SCLK
2012. 12 .06
MENU support signal test
select channel
When the signal is strong, use the
attenuator (-10dB, -15dB, -20dB etc.)
Standard Repair Process Detail Technical Manual
TUNER input signal strength checking method
A. Video error_Video error, video lag/stop
<ALL MODELS>
A6
Established
date
Revised
date
Error
symptom
Content
LCD TV 2012. 12 .06
Standard Repair Process Detail Technical Manual
LCD-TV Version checking method
A. Video error_Video error, video lag/stop
1. Checking method for remote controller for adjustment
Press the IN-START with the remote
controller for adjustment
Version
<ALL MODELS>
A7
Established
date
Revised
date
Error
symptom
Content
LCD TV 2012. 12 .06
Standard Repair Process Detail Technical Manual
LCD TV connection diagram (1)
A. Video error _Vertical/Horizontal bar, residual
image, light spot
As the part connecting to the external input, check the screen condition by signal
A8
Established
date
Revised
date
Error
symptom
Content
LCD TV
<ALL MODELS>
2012. 12 .06
Checking method:
1. Check the signal strength or check whether the screen is normal when the external device is connected.
2. After measuring each voltage from power supply, finally replace the MAIN BOARD.
Standard Repair Process Detail Technical Manual
TUNER checking part
A. Video error_Video error, video lag/stop
<ALL MODELS>
A9
Established
date
Revised
date
Error
symptom
Content
LCD TV 2012. 12 .06
Standard Repair Process Detail Technical Manual
Adjustment Test pattern - ADJ Key
A. Video error_Color error
You can view 6 types of patterns using the ADJ Key
Checking item : 1. Defective pixel 2. Residual image 3. MODULE error (ADD-BAR,SCAN BAR..)
4.Video error (Classification of MODULE or Main-B/D!)
A12
Established
date
Revised
date
Error
symptom
Content
LCD TV 2012. 12 .06
Solder defect, CNT Broken
T-Con Defect, CNT Broken
T-Con Defect, CNT Broken
T-Con Defect, CNT Broken
Solder defect, CNT Broken Solder defect, CNT Broken
Solder defect, CNT Broken Solder defect, CNT Broken Abnormal Power Section
Solder defect, Short/Crack Abnormal Power Section Solder defect, Short/Crack
Appendix : Exchange EPI Cable or Main B/D (1)
Abnormal Power Section Solder defect, Short/Crack
Abnormal Power Section
Solder defect, Short/Crack Fuse Open, Abnormal power section
Noise
GRADATION GRADATION
Abnormal Display
Appendix : Exchange EPI Cable or Main B/D (2)
Appendix : Exchange LPB(LED driver)
No Light Dim Light
Dim Light Dim Light
Appendix : Exchange the Module (1)
Panel Mura, Light leakage Press damage
Crosstalk
Crosstalk Press damage
Panel Mura, Light leakage
Press damage
Un-repairable Cases
In this case please exchange the module.
Vertical Block
Source TAB IC Defect
Horizontal Block
Gate TAB IC Defect Gate TAB IC Defect Gate TAB IC Defect
Vertical Line
Source TAB IC Defect Vertical Block
Source TAB IC Defect
Horizontal Block
Gate TAB IC Defect Horizontal line
Gate TAB IC Defect
Gate TAB IC Defect
Horizontal Block
Gate TAB IC Defect
Appendix : Exchange the Module (2)
Un-repairable Cases
In this case please exchange the module.
Standard Repair Process Detail Technical Manual
Check front display LED
B. Power error _No power
A17
Established
date
Revised
date
Error
symptom
Content
LCD TV
LOGO LED
Front LOGO LED control in the status of
ST-BY Condition:
Menu Option LG Logo Light
Brightness(OFF,LOW,MIDDLE,HIGH)
2012. 12 .06
You can set the LG Logo Light
to on or off by selecting OPTION
in the main menus.
Front LOGO LED control in the status of
Power On Condition:
Menu Option LG Logo Light
Duration(off, off after10min)
24 Pin (Power Board ↔ Main Board)
SMAW200-H24S
1 Power on 2 Inverter On/off
3 3.5V 4 PWM Dim #1
5 3.5V 6 PWM Dim #2
7 GND 8 GND
9 24V 10 24V
11 GND 12 GND
13 12V 14 12V
15 12V 16 24V
17 GND 18 GND
19 GND 20 GND
21 GND 22 L/DIMO_VS
23 L/DIM0_MOSI 24 L/DIM0_SCLK
Standard Repair Process Detail Technical Manual
Check power input voltage and ST-BY 3.5V
B. Power error _No power
A18
Established
date
Revised
date
Error
symptom
Content
LCD TV
For ’10 models, there is no voltage out for st-by purpose.
When st-by, only 3.5V is normally on.
Check the DC 24V, 12V, 3.5V.
2012. 12 .06
Standard Repair Process Detail Technical Manual
Checking method when power is ON
B. Power error _No power
A19
Established
date
Revised
date
Error
symptom
Content
LCD TV
Check “power on” pin is high
2012. 12 .06
24 Pin (Power Board ↔ Main Board)
SMAW200-H24S
1 Power on 2 Inverter On/off
3 3.5V 4 PWM Dim #1
5 3.5V 6 PWM Dim #2
7 GND 8 GND
9 24V 10 24V
11 GND 12 GND
13 12V 14 12V
15 12V 16 24V
17 GND 18 GND
19 GND 20 GND
21 GND 22 L/DIMO_VS
23 L/DIM0_MOSI 24 L/DIM0_SCLK
Entry method
1. Press the IN-START button of the remote controller for adjustment
2. Check the entry into adjustment item 3
Standard Repair Process Detail Technical Manual
POWER OFF MODE checking method
B. Power error _Off when on, off whiling viewing
<ALL MODELS>
A22
Established
date
Revised
date
Error
symptom
Content
LCD TV 2012. 12 .06
Checking method
1. Press the MENU button on the remote controller
2. Select the SOUND function of the Menu
3. Change TV Sound Out to TV Speaker
Standard Repair Process Detail Technical Manual
Checking method in menu when there is no audio
C. Audio error_No audio/Normal video
<ALL MODELS>
A24
Established
date
Revised
date
Error
symptom
Content
LCD TV 2012. 12 .06
24 Pin (Power Board ↔ Main Board)
SMAW200-H24S
1 Power on 2 Inverter On/off
3 3.5V 4 PWM Dim #1
5 3.5V 6 PWM Dim #2
7 GND 8 GND
9 24V 10 24V
11 GND 12 GND
13 12V 14 12V
15 12V 16 24V
17 GND 18 GND
19 GND 20 GND
21 GND 22 L/DIMO_VS
23 L/DIM0_MOSI 24 L/DIM0_SCLK
Checking order when there is no audio
① Check the contact condition of or 24V connector of Main Board
② Measure the 24V input voltage supplied from Power Board
(If there is no input voltage, remove and check the connector)
③ Connect the tester RX1 to the speaker terminal and if you hear the Chik Chik sound when you touch the GND
and output terminal, the speaker is normal.
Standard Repair Process Detail Technical Manual
Voltage and speaker checking method
when there is no audio
C. Audio error_No audio/Normal video
<ALL MODELS>
A25
Established
date
Revised
date
Error
symptom
Content
LCD TV
②
2012. 12 .06
②
①
③
Checking order
1, 2. Check IR cable condition between IR & Main board.
3. Check the st-by 3.5V on the terminal 4.
4. When checking the Pre-Amp when the power is in ON condition, it is normal when the Analog
Tester needle moves slowly, and defective when it does not move at all.
Standard Repair Process Detail Technical Manual
Remote controller operation checking method
D. Function error_ No response in remote controller,
key error
<ALL MODELS>
A27
Established
date
Revised
date
Error
symptom
Content
LCD TV
P4101
1 GND
2 KEY1
3 KEY2
4 +3.5V_ST
5 GND
6 LOGO/LED_R
7 IR
8 GND
①
②
③
④
2012. 12 .06
Standard Repair Process Detail Technical Manual
Sequence of the Vcom adjustment
D. VCOM Adjustment
1. Case
■ LCD module change
■ T-Con board change
2. Equipment
■ Service Remote controller
3. Adjust sequence
■ Press the ‘adj’ key
■ select V-COM
■ As pushing the right or the left button on the remote controller, And find the V-COM value Which is no or minimized the Flicker.
(If there is no flicker at default value, Press the exit key and finish the VCOM adjustment.)
■ Push the OK key to store the value. Then the message “Saving OK” is pop.
■ Press the exit key to finish V-COM adjustment.
A28
Established
date
Revised
date
Error
symptom
Content
LCD TV 2012. 12 .06

Navigation menu
