Lg M208Wa Owner S Manual M8WA PAL_ENG

Lg-M208Wa-Bz-Owner-S-Manual lg-m208wa-bz-owner-s-manual

2014-07-06

: Lg Lg-M208Wa-Owner-S-Manual lg-m208wa-owner-s-manual lg pdf

Open the PDF directly: View PDF PDF.
Page Count: 49

Make sure to read the Safety Precautions before using the product.
Keep the User's Guide(CD) in an accessible place for furture reference.
See the label attached on the product and give the information to your dealer when you ask
for service.
M198WA
M208WA
M228WA
User’s Guide
1
Safety Precautions
Please read these safety precautions carefully before using the product.
If you ignore the caution message, you may be slightly injured or the product may be damaged
If you ignore the warning message, you may be seriously injured or there is a possibility of
accident or death.
Warning
Caution
Precautions in installing the Product
Keep away from heat sources like electrical heaters.
- Electrical shock, fire, malfunction or deformation may occur.
Keep the packing anti-moisture material or vinyl packing out of the reach of children.
- Anti-moisture material is harmful if swallowed. If swallowed by mistake, force the patient to vomit and visit the
nearest hospital. Additionally, vinyl packing can cause suffocation. Keep it out of the reach of children.
Do not put heavy objects on the product or sit upon it.
- If the product collapses or is dropped, you may be injured. Children must pay particular attention.
Do not leave the power or signal cable unattended on the pathway.
- The passerby can falter, which can cause electrical shock, fire, product breakdown or injury.
Install the product in a neat and dry place.
- Dust or moisture can cause electrical shock, fire or product damage.
If you can smell smoke or other odors or hear a strange sound unplug the power cord and contact the
service center.
- If you continue to use without taking proper measures, electrical shock or fire can occur.
If you dropped the product or the case is broken, turn off the product and unplug the power cord.
- If you continue to use without taking proper measures, electrical shock or fire can occur. Contact the service center.
Do not drop an object on or apply impact to the product. Do not throw any toys or objects on the product screen.
- It can cause injury to human, problem to product and damage the display.
Do not let the product fall or drop when connecting it with an external device.
- This may cause injury and/or damage to the product.
When connecting it with a game device, keep a distance of four times as long as the diagonal measurement of the
screen from the device.
- If the product falls because of the short cable, this may cause injury and/or damage to the product.
Leaving a fixed image on the screen for a long time may cause damage to the screen and cause
image burn-in. Make sure to use a screen saver on the product.
Burn-in and related problems are not covered by the warranty on this product.
Make sure the product ventilation hole is not blocked. Install the product in a suitably wide place (more
than 10cm from the wall)
- If you install the product too close to the wall, it may be deformed or fire can break out due to internal heat.
Do not block the ventilation hole of the product by a tablecloth or curtain.
- The product can be deformed or fire can break out due to overheating inside the product.
Install the product on a flat and stable place that has no risk of dropping the product.
- If the product is dropped, you may be injured or the product may be broken.
Install the product where no EMI occurs.
Keep the product away from direct sunlight.
- The product can be damaged.
Warning
Caution
22
Electrical Power Related Precautions
Make sure to connect the power cable to the grounded current.
- You may be electrocuted or injured.
Use the rated voltage only.
- The product can be damaged, or you may be electrocuted.
During a thunder or lightning storm, unplug the power cable or signal cable.
- You may be electrocuted or a fire can break out.
Do not connect several extension cords, electrical appliances or electrical heaters to a single outlet.
Use a power bar with a grounding terminal designed for exclusive use with the computer.
- A fire can break out due to overheating.
Do not touch the power plug with wet hands. Additionally, if the cord pin is wet or covered with dust, dry
the power plug completely or wipe dust off.
- You may be electrocuted due to excess moisture.
If you don’t intend to use the product for a long time, unplug the power cable from the product.
- Covering dust can cause a fire, or insulation deterioration can cause electric leakage, electric shock or fire.
Fix the power cable completely.
- If the power cable is not fixed completely, a fire can break out.
Hold the plug when pulling out the power cable. Do not bend the power cord with excessive force or put
heavy objects on the power cord.
- The power line can be damaged, which may cause electric shock or fire.
Do not insert a conductor (like a metal chopstick) into one end of the power cable while the other end is
connected to the input terminal on the wall. Additionally, do not touch the power cable right after
plugging into the wall input terminal.
- You may be electrocuted.
The power supply cord is used as the main disconnection device. Ensure that the socket-outlet is easily
accessible after installation.
Do not unplug the power cord while the product is in use.
- Electrical shock can damage the product.
Warning
Caution
Precautions in Moving the Product
Warning
Make sure to turn off the product.
- You may be electrocuted or the product can be damaged.
Make sure to remove all cables before moving the product.
- You may be electrocuted or the product can be damaged.
Safety Precautions
3
Safety Precautions
Caution
Precautions in Using the Product
Warning
Do not put or store inflammable substances near the product.
- There is a danger of explosion or fire due to careless handling of the inflammable substances.
When cleaning the brown tube surface, unplug the power cord and scrub with soft cloth to prevent
scratching. Do not clean with a wet cloth.
- The water can sink into the product, which can cause electric shock or serious malfunction.
Take a rest from time to time to protect your vision.
Keep the product clean at all times.
Take a comfortable and natural position when working with a product to relax the muscles.
Take a regular break when working with a product for a long time.
Do not press strongly upon the panel with a hand or sharp object such as nail, pencil or pen, or make
a scratch on it.
Keep the proper distance from the product.
- Your vision may be impaired if you look at the product too closely.
Set the appropriate resolution and clock by referring to the User’s Guide.
- Your vision can be impaired.
Use authorized detergent only when cleaning the product. (Do not use benzene, thinner or alcohol.)
- Product can be deformed.
Caution
Do not shock the product when moving it.
- You may be electrocuted or the product can be damaged.
Do not dispose the product-packing box. Use it when you move.
Make the panel face forward and hold it with both hands to move.
- If you drop the product, the damaged product can cause electric shock or fire. Contact with the service center
for repair.
Do not disassemble, repair or modify the product at your own discretion.
- Fire or electric shock accident can occur.
- Contact the service center for check, calibration or repair.
When cleaning the brown tube surface, unplug the power cord and scrub with soft cloth to prevent
scratching. Do not clean with a wet cloth.
Keep the product away from water.
- Fire or electric shock accident can occur.
The fluorescent lamp used in this product contains a small amount of mercury.
Do not dispose of this product with general household waste.
Disposal of this product must be carried out in accordance to the regulations of your local authority.
On Disposal
4
Before Connecting to the PC

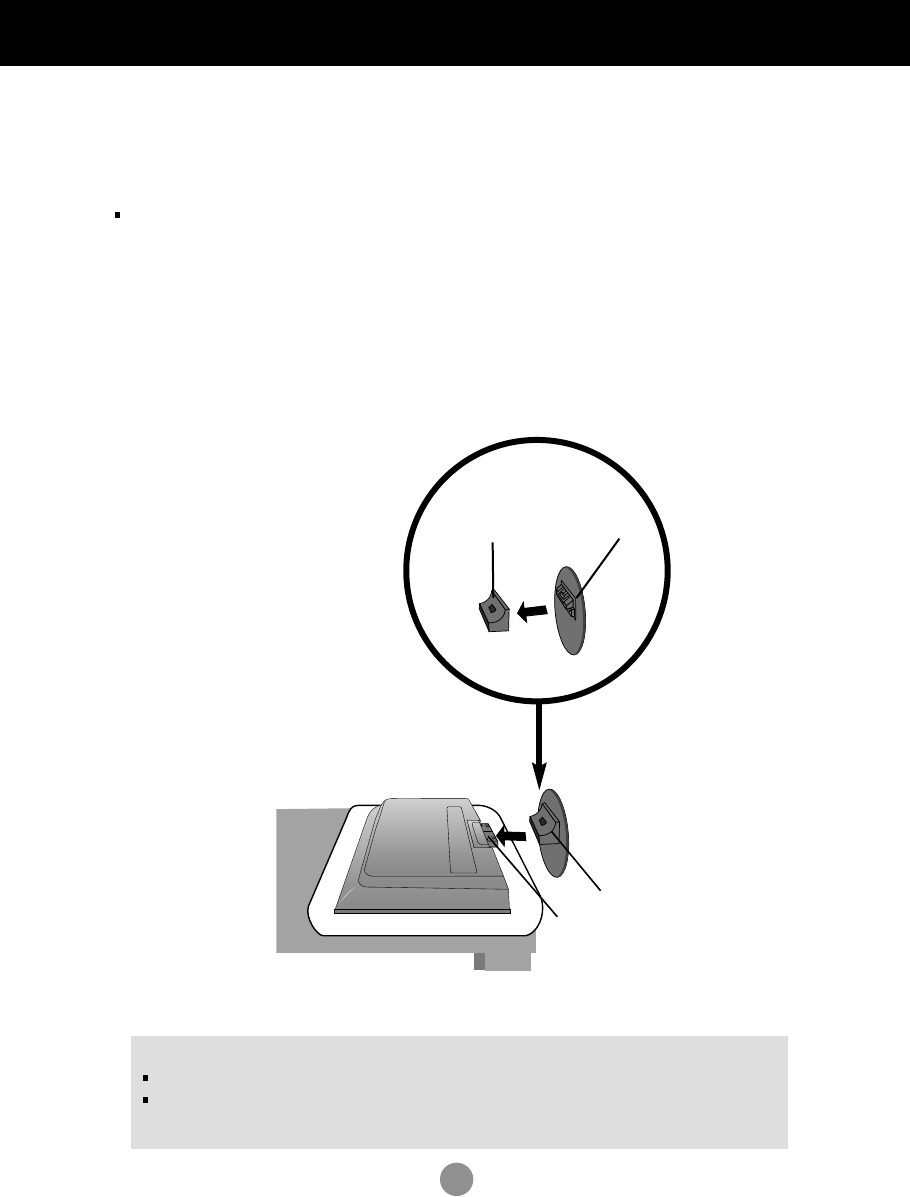

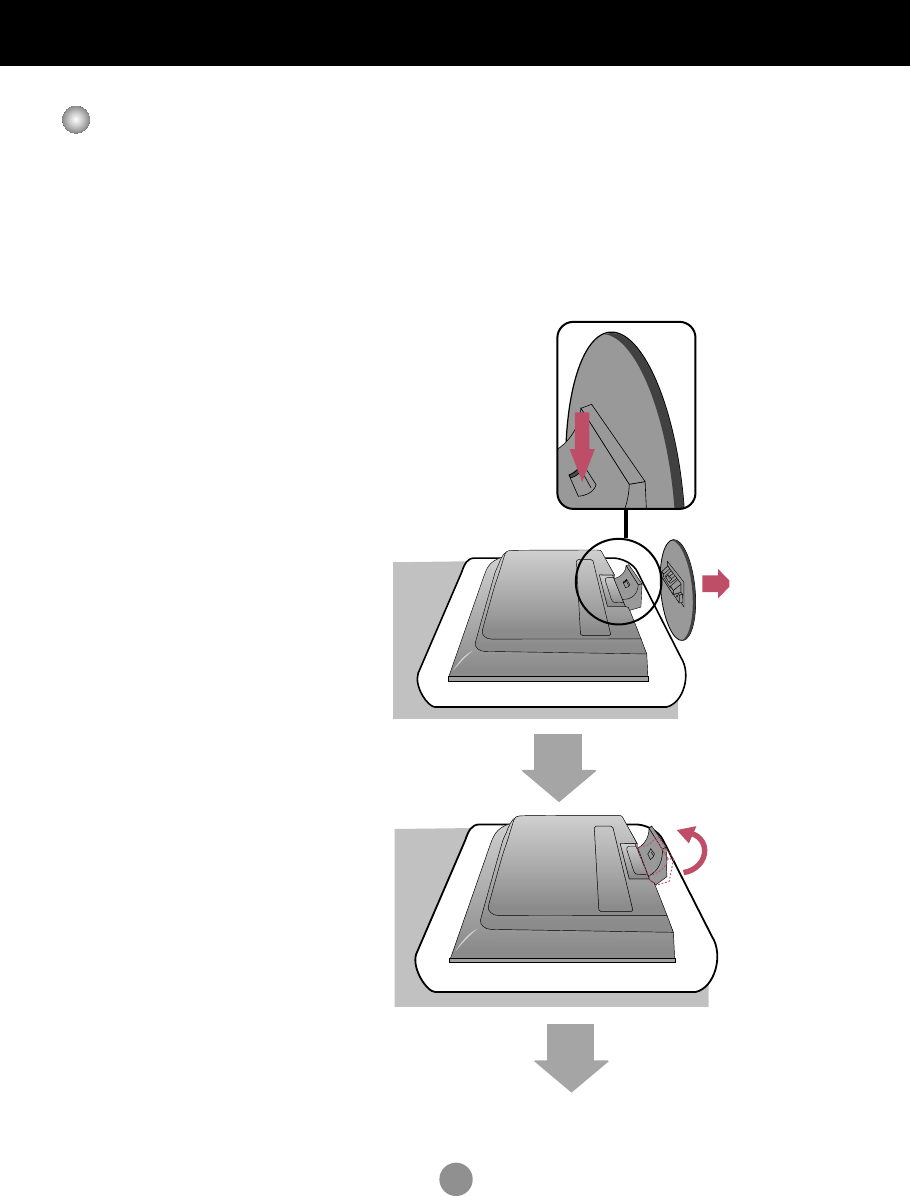

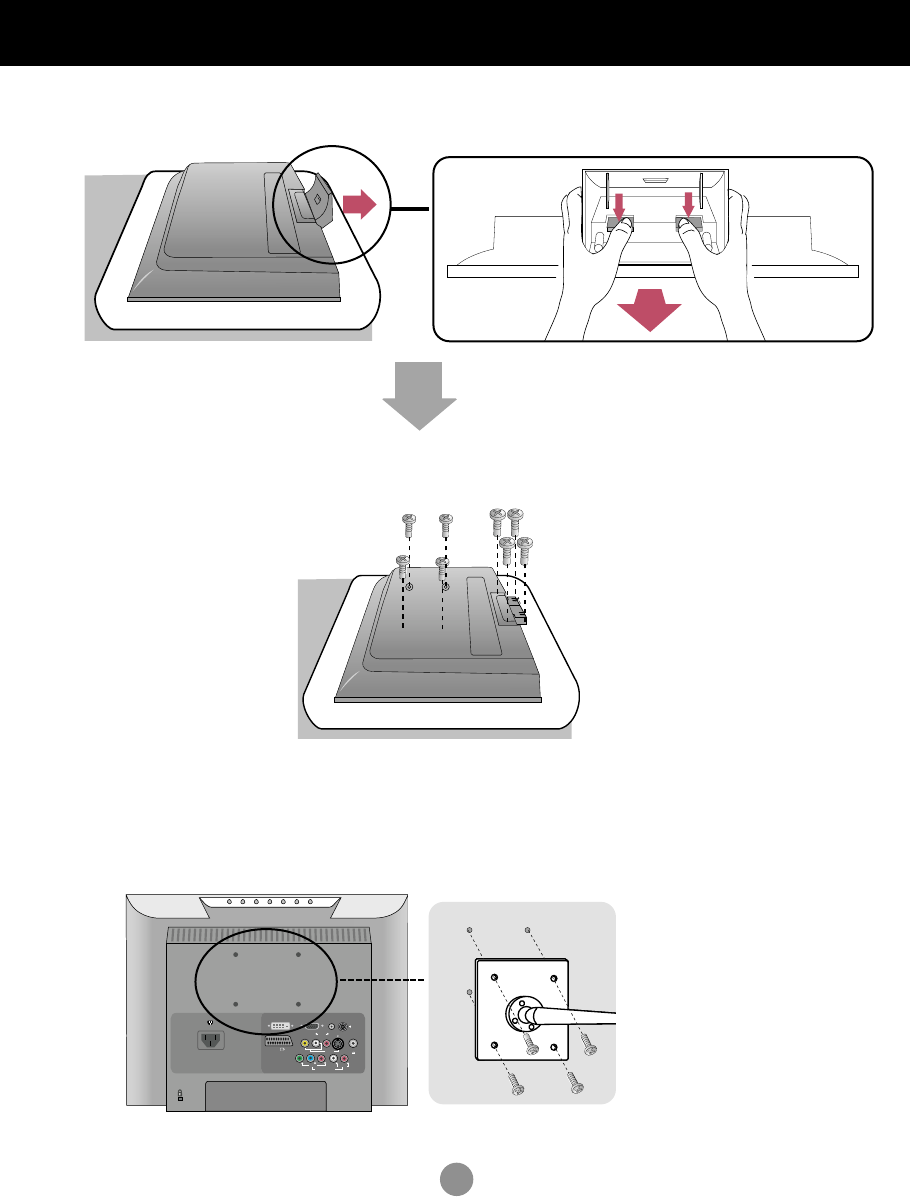

Connecting the stand
Before setting up the product, ensure that the power supply, the computer system,
and other attached devices is turned off.
1. Place the monitor with its front facing downward on a soft cloth.
2. Connect the Stand Base to the Stand Body and press latches at the button toward each end.
3. Connect the Stand, assembled in step 2, to the Monitor Panel until you hear a "Click".
4. Once assembled take the monitor up carefully and face the front side
Important
Once you connect the stand base, try not to disconnect it.
Do not carry the product upside down holding only the stand base. The product may
fall and get damaged or injure your foot.
Stand
Slot
3.
Stand Body Stand Base
2.
5
Before setting up the product, ensure that the power supply, the computer system,
and other attached devices is turned off.

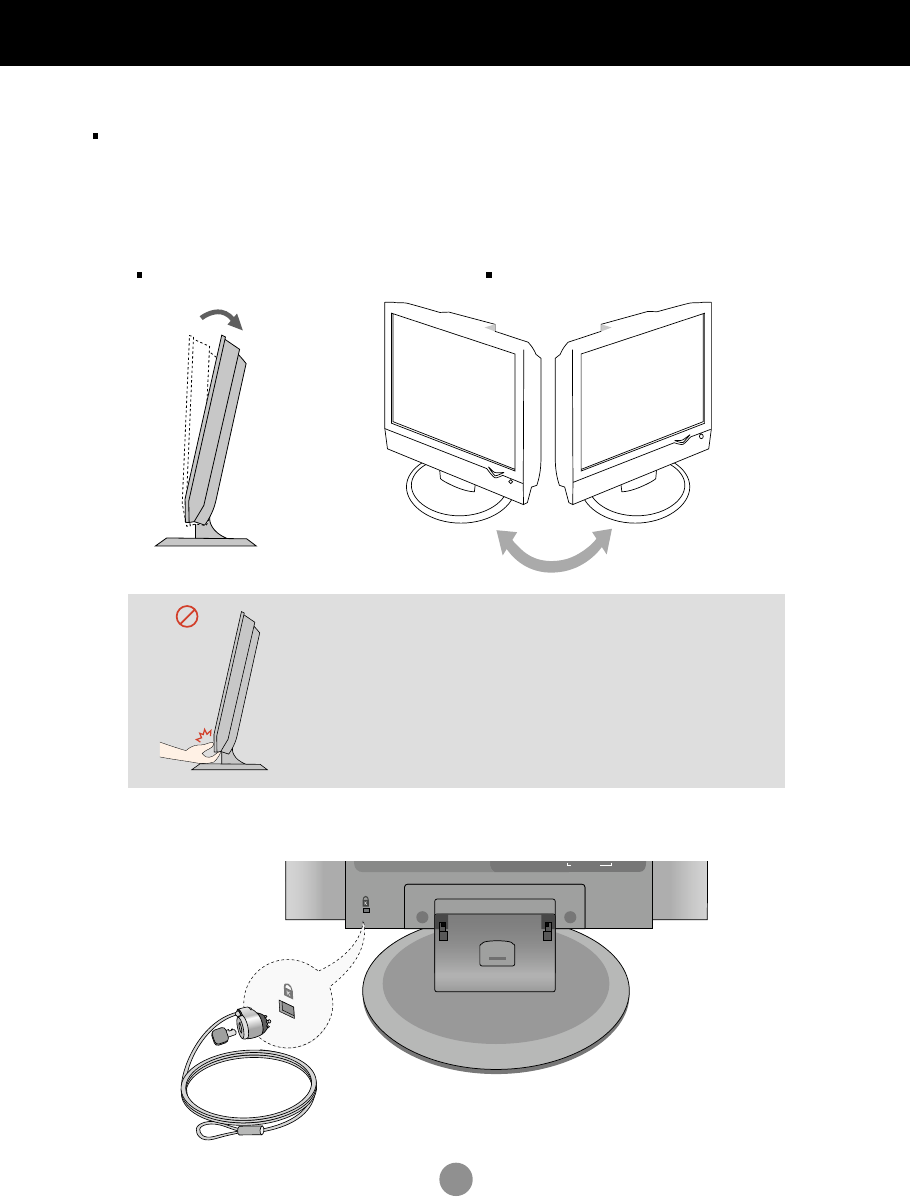

Positioning your display
1. Adjust the position of the panel in various ways for maximum comfort.
Tilt Range : -3˚~10˚ Swivel : 350˚
Before Connecting to the PC
Warning:
When adjusting the angle of the screen, do not put your
finger(s) in between the head of the monitor and the stand
body. You can hurt your finger(s).
AUDI O
COMPONENT IN
Locking Device
Use this locking cable
(This has to be purchased
separately if required.
) to prevent theft.
Theft prevention locking device
6
Name and Function of the Parts

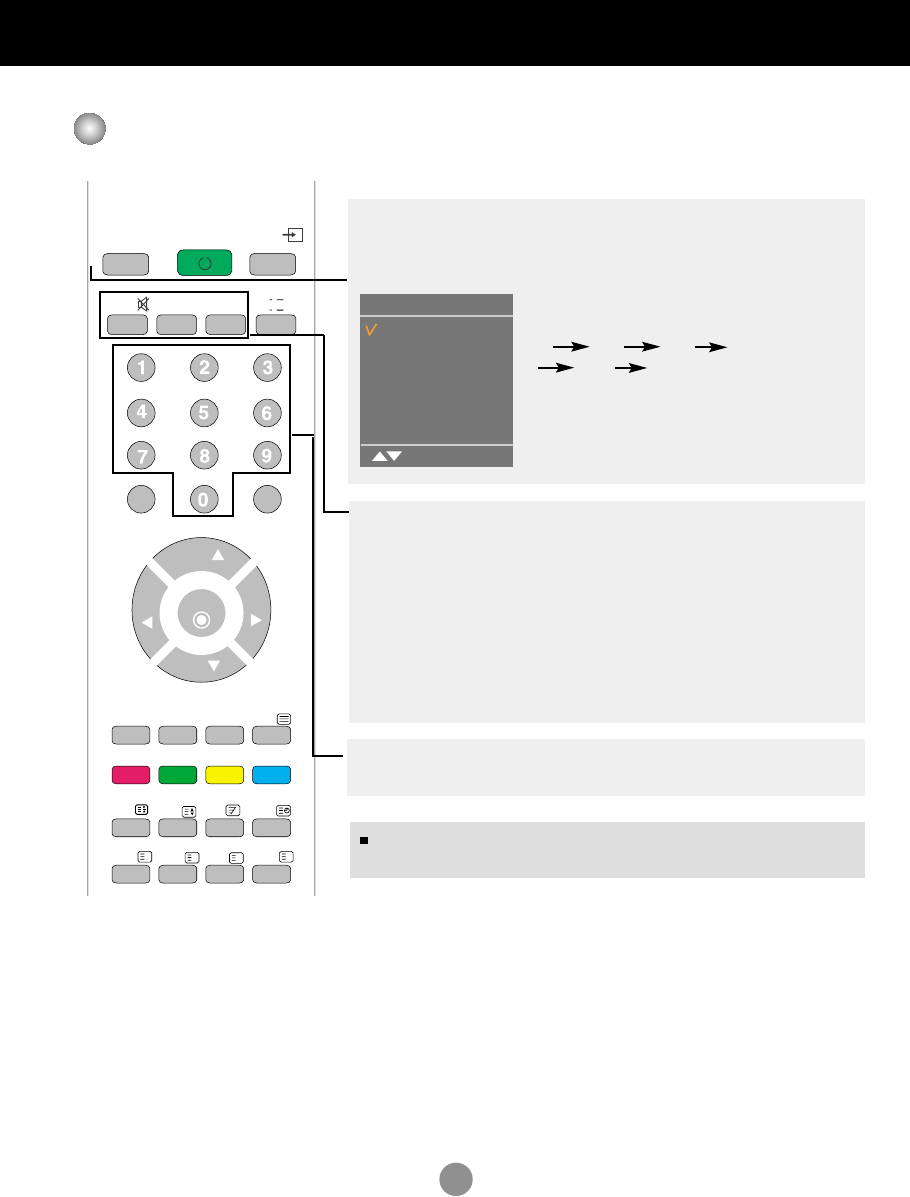

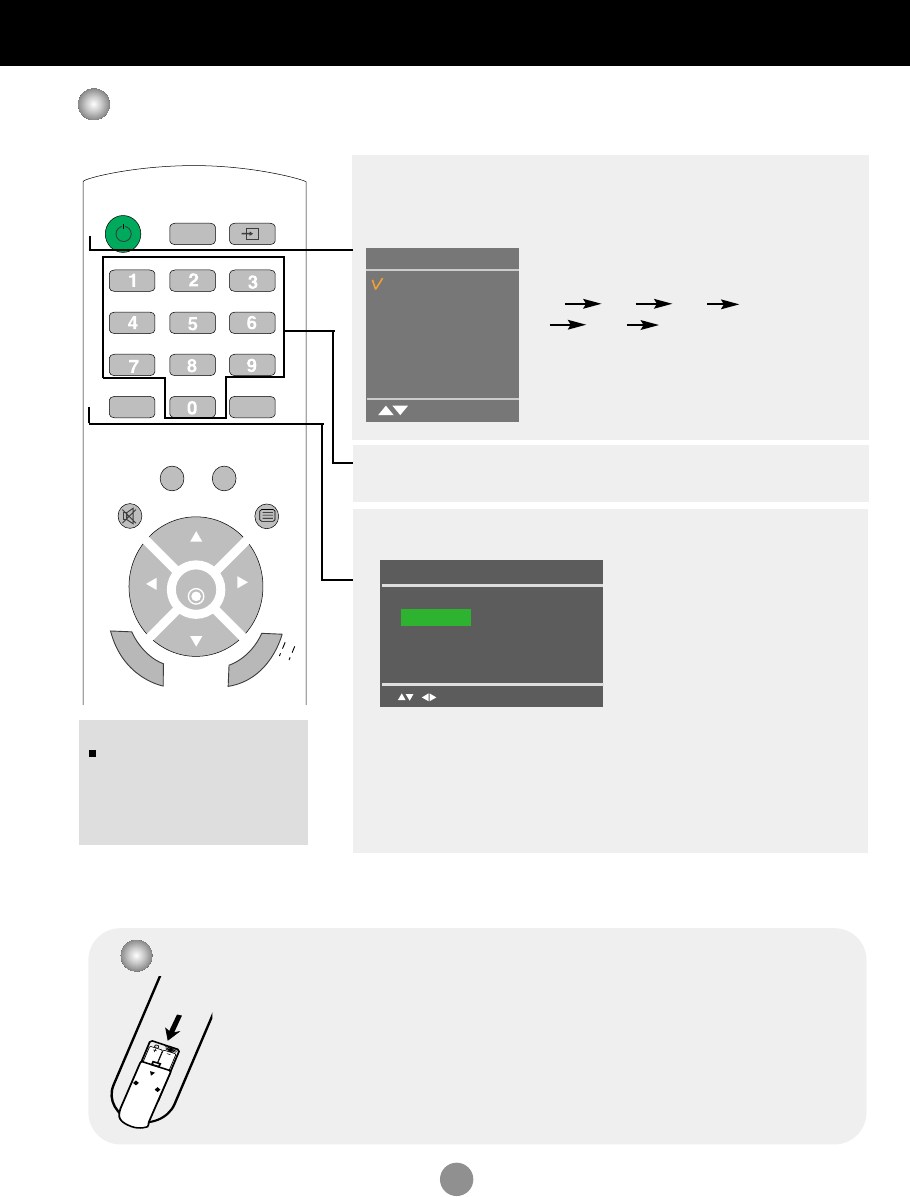

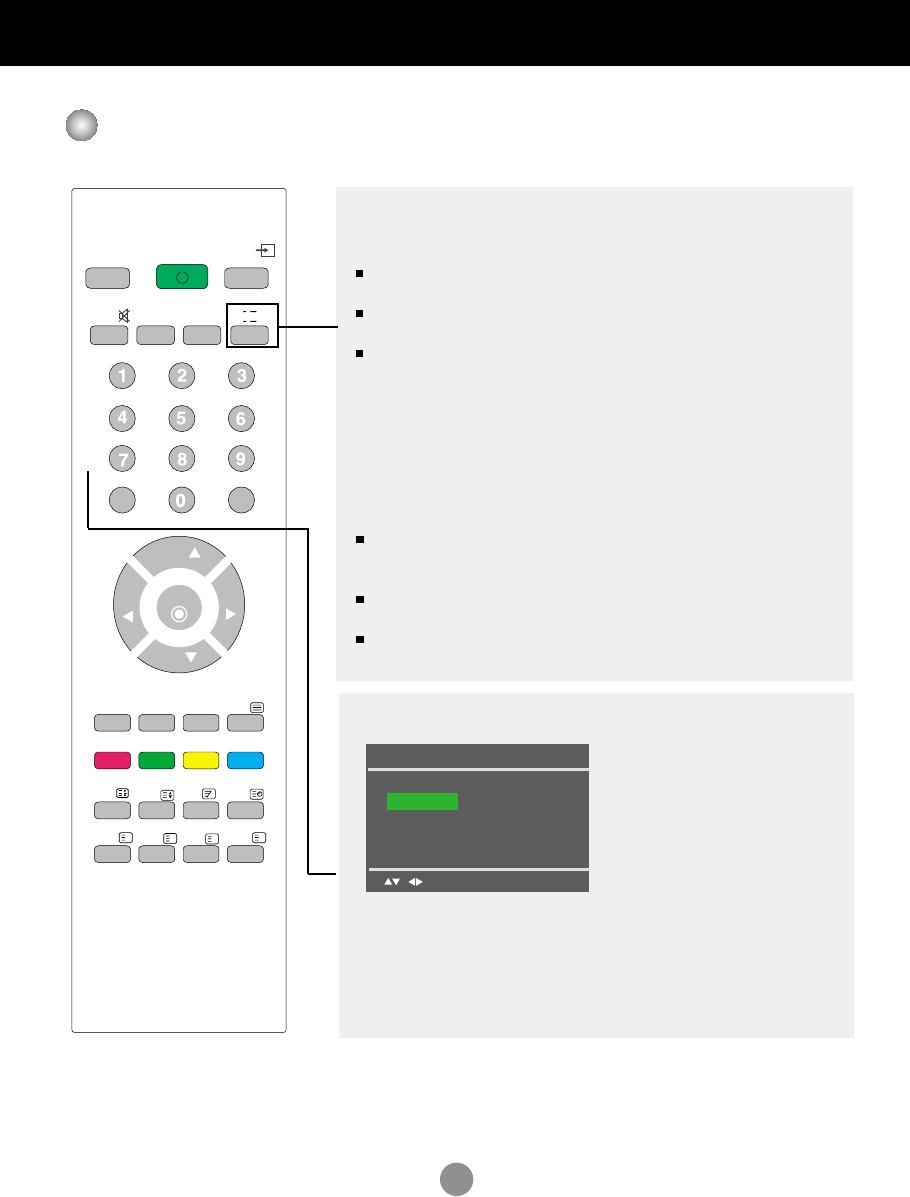

Name of the Remote Control Buttons (A Type)
POWER
TV
INPUT
PR
PR
OK
MUTE
LIST
MENU
Q.VIEW
SLEEP
ARC
SSM
PSM
TEXT
VOL
VOL
I/II
POWER
TV :
TV button
INPUT
NOTE : In case of weak stereo
sound signals, with stereo or
Nicam stereo transmission,
select mono reception.
Each time you press the Input button it will
change to
TV AV1 AV2 Component
RGB DVI.
If nothing is inputted for several seconds the
screen will automatically move to the
selected menu.
1. Take out the battery cap.
2. Insert the batteries with correct polarity (+/-).
3. Close the battery cap.
• Dispose of used batteries in the recycle bin to prevent environmental pollution.
Inserting batteries into remote control.
Number buttons
Able to directly select and change channel.
LIST : Programme list
To display the programme list (0~ 99).
Q.VIEW : QUICK VIEW Button
To display the previously selected TV channel
Note: TV channels displayed in blue have been setup
to be skipped in the Programme Edit menu.
Programme List
OK MENU
0 C 01 5 C 07
1 C 35 6 C 50
2 C 05 7 C 51
3 C 11 8 C 41
4 C 04 9 C 63
Input
TV
AV1
AV2
Component
RGB
DVI
OK
7

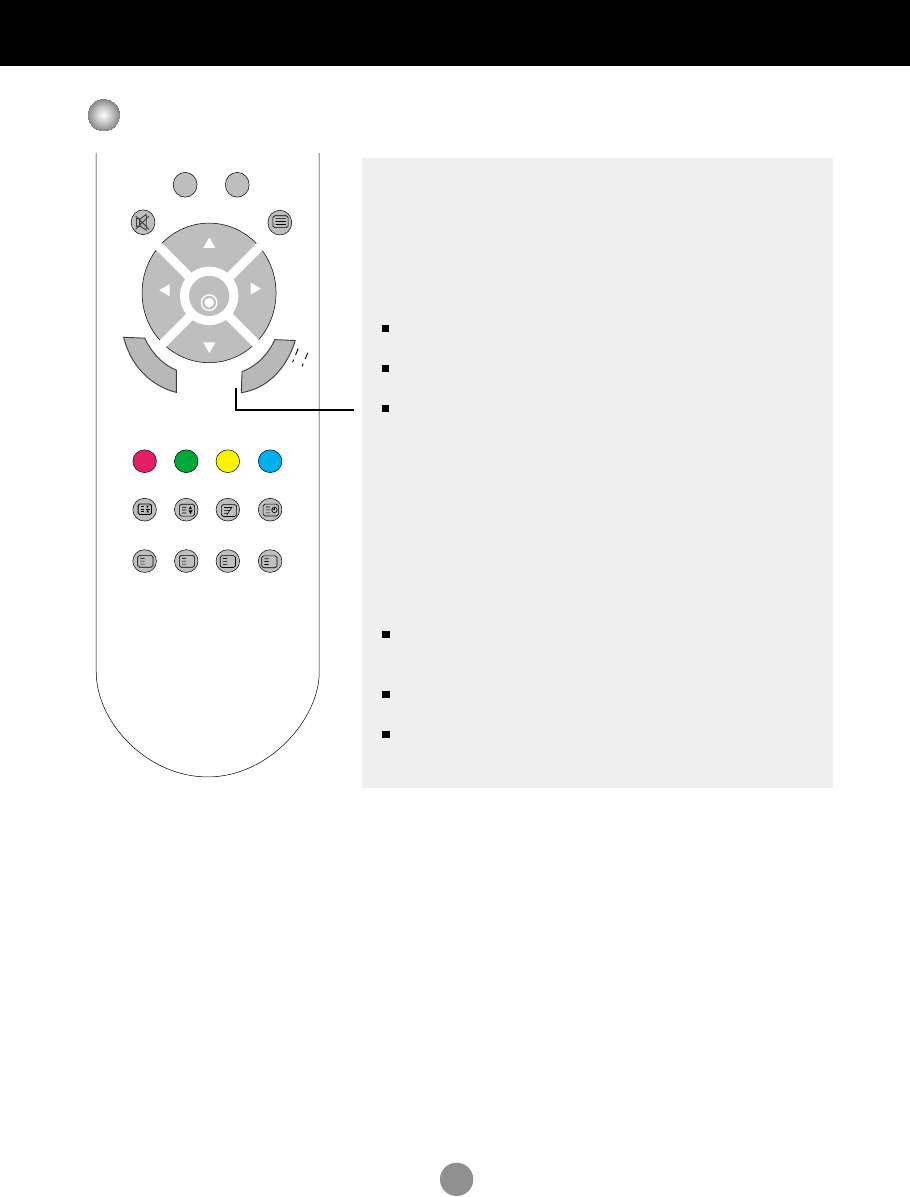

PR ( ) Buttons
Able to change channel.
VOL ( ) Buttons
Able to adjust sound.
OK Button
Use when functional adjustment is completed.
MUTE
Switches the sound on or off.
PSM (Picture Status Memory)
Button
Press repeatedly to select Dynamic, Standard, Mild, Game or User
picture mode.
SSM
(Sound Status Memory)
Button
Use this button to select the sound tone.
Press repeatedly to select Flat, Music, Movie, Sports, User
sound tone.

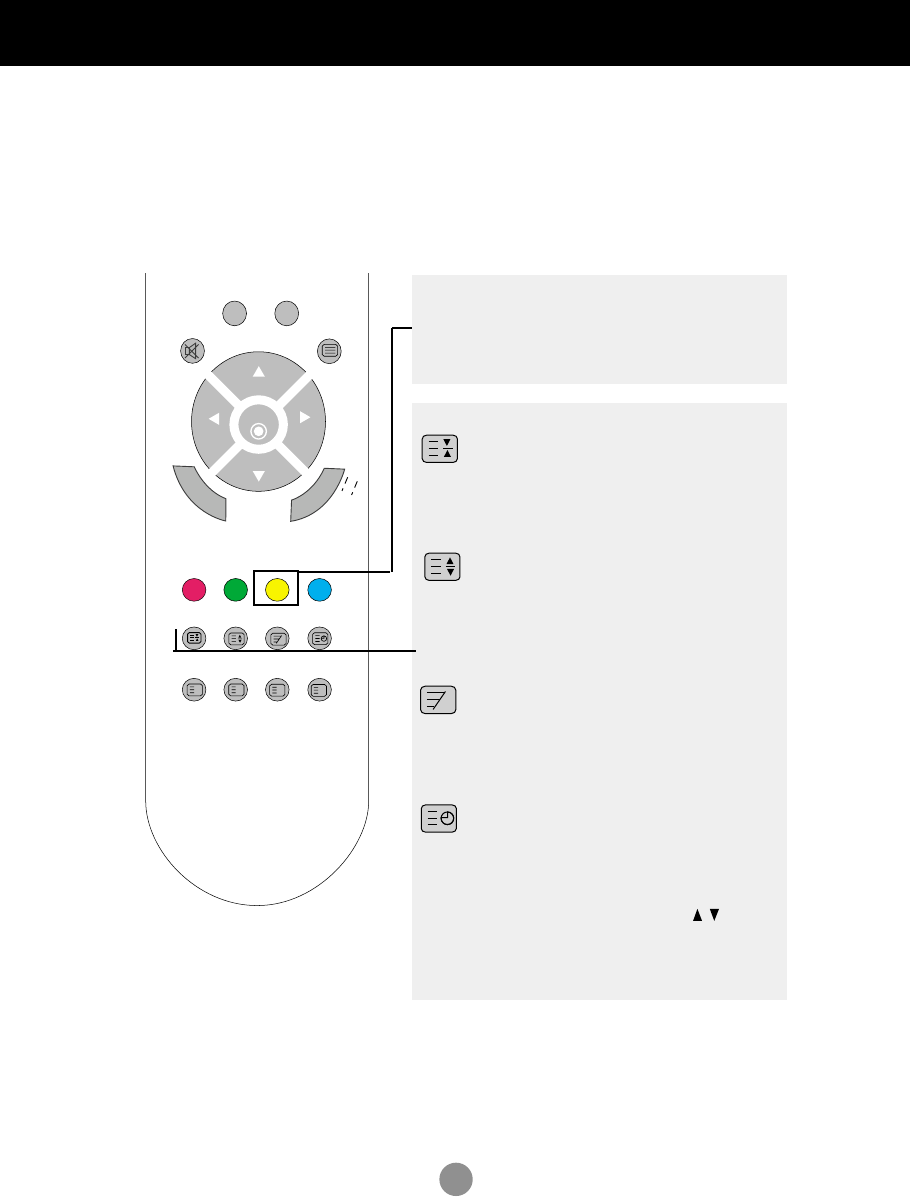

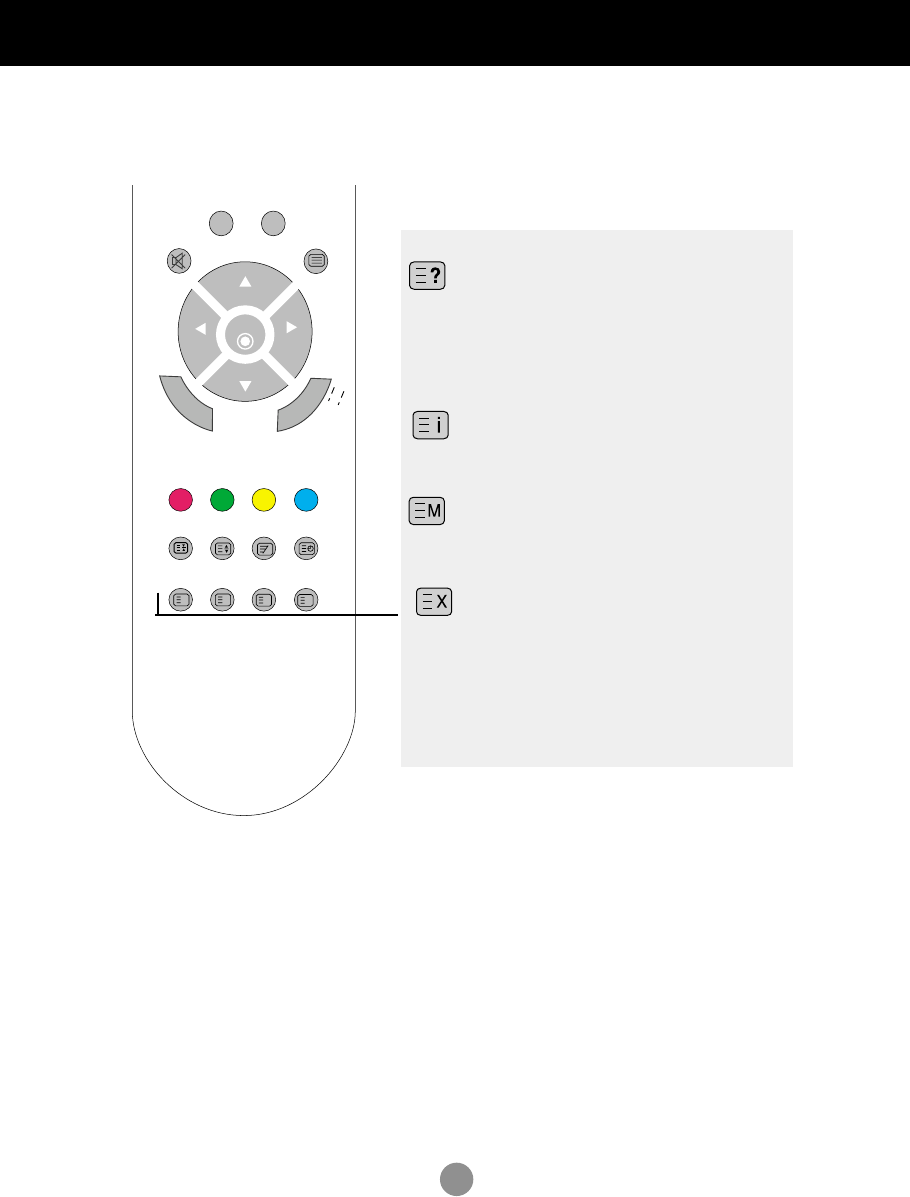

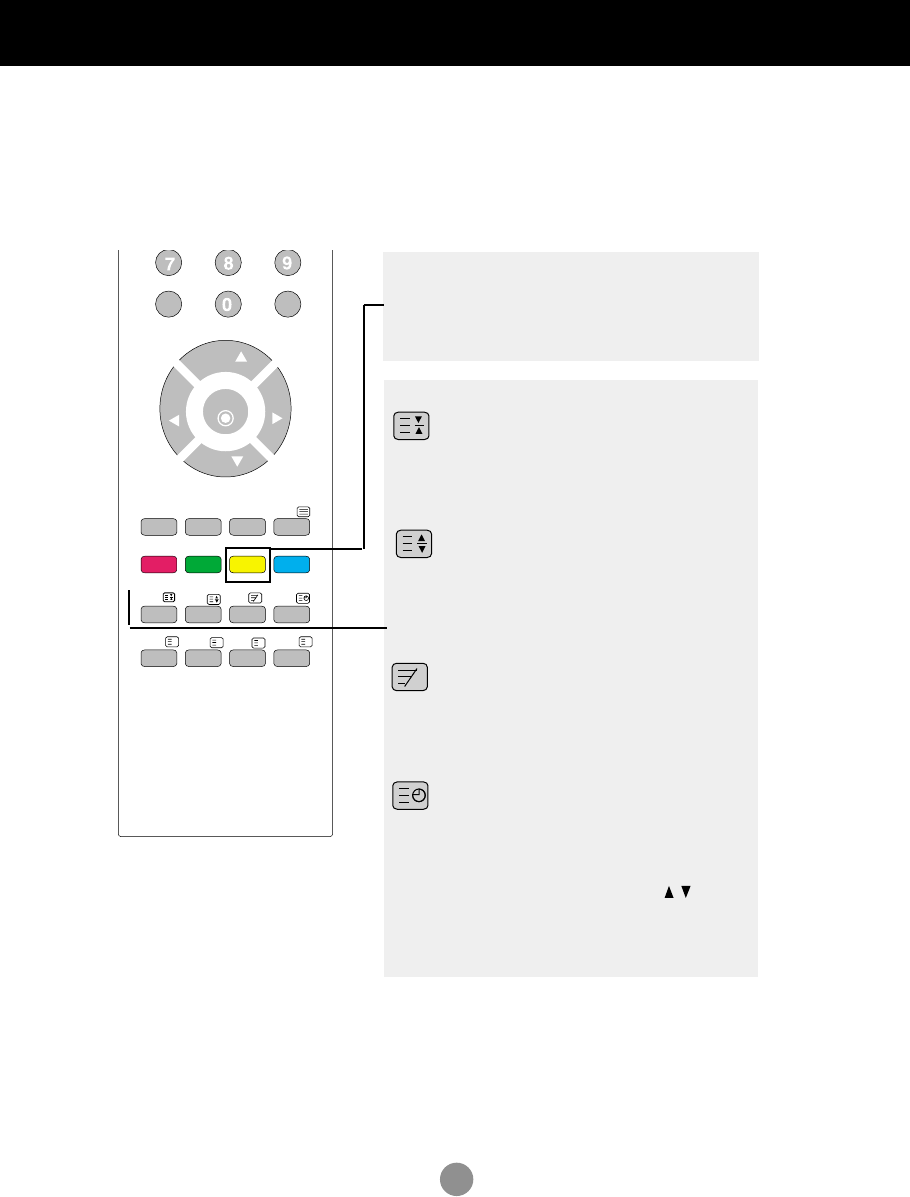

TEXT
To select the teletext on or off. The main index page or the last
selected page appears on the screen together with an information
headline and an option line at the bottom of the screen.
PR
PR
OK
MUTE
MENU
SLEEP
ARC
UPDATE
SIZE
HOLD
INDEX
SSM
PSM
TEXT
TIME
MIX
REVEAL
MODE
VOL
VOL
MX
?
i
I/II
MENU
Use this button to enter the On Screen Display menu.
SLEEP : SLEEP Timer
You can set a time period after which the
TV / AV / RGB / Component / DVI should switch itself to standby.
Press the key repeatedly to select the number of minutes.
10 20 30 60
240 180 120 90
_ _ _ (off)
Name and Function of the Parts

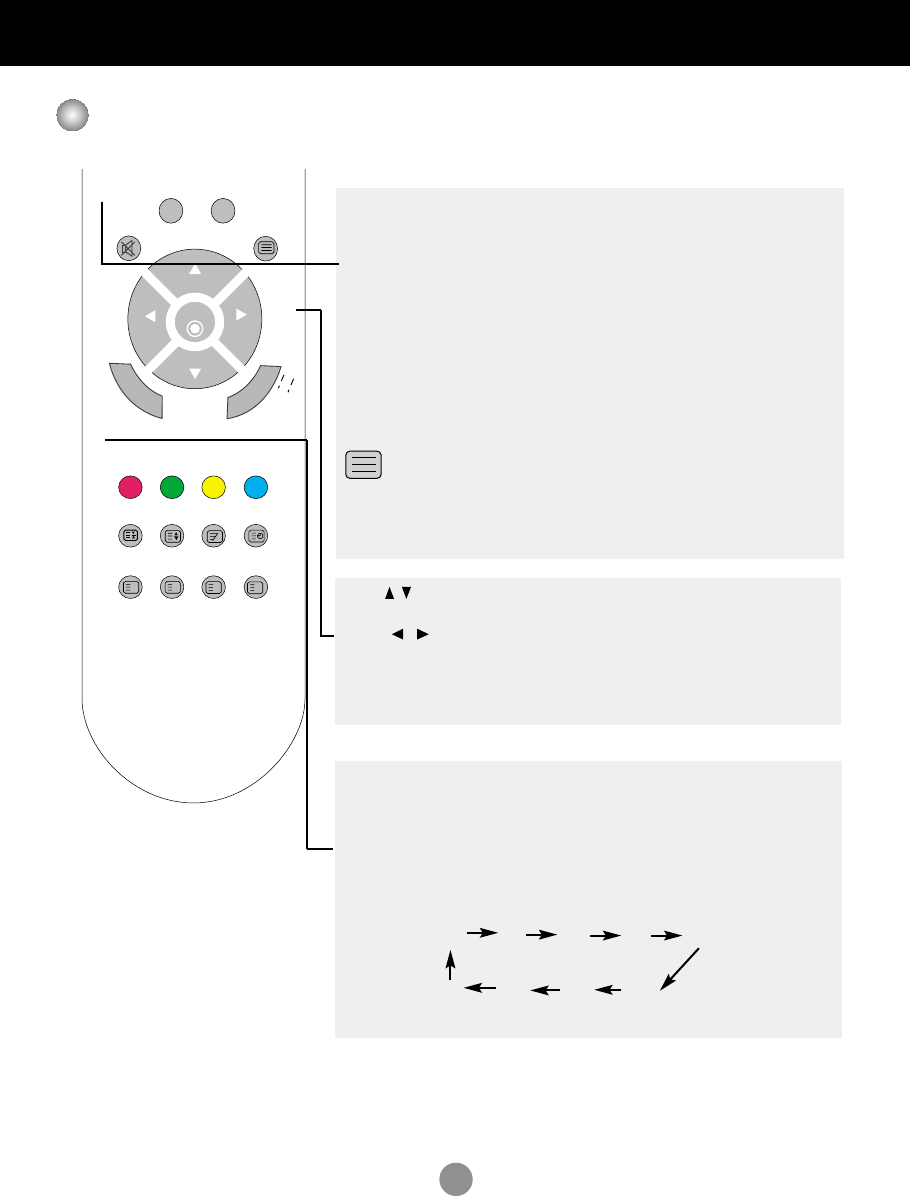

Name of the Remote Control Buttons
8
ARC
To select the image size of the screen.
•
When TV / AV mode: Spectacle, Original, 4:3, 16:9, 14:9, Zoom1, Zoom2
• When RGB/DVI /Componentmode
: 4:3, 16:9
I/II : Bilingual choice and sound mode selection
[TV]
To switch from Stereo to Mono sound in case of stereo
transmission,
or from Nicam Stereo to Nicam Mono, in case of digital
transmission.
to switch from Nicam Dual Ito Nicam Dual II or Nicam Dual
I+II in case of Nicam Dual transmission.
to choose between Dual I, Dual II or Dual I+II in case of
bilingual transmission :
Dual I sends the primary broadcast language to the
loudspeakers ;
Dual II sends the secondary broadcast language to the
loudspeakers ;
Dual I+II sends a separate language to each loudspeakers.
[AV / Component]
In AV/Component mode, you can select output sound for the left and
right loudspeakers. Repeatedly press the I/II button to
select the sound output.
L+R : Audio signal from audio L input is sent to left
loud-speaker and audio signal from audio R input is
sent to right loud-speaker.
L+L : Audio signal from audio L input is sent to left and right
loud-speakers.
R+R : Audio signal from audio R input is sent to left and
right loud-speakers.
PR
PR
OK
MUTE
MENU
SLEEP
ARC
UPDATE
SIZE
HOLD
INDEX
SSM
PSM
TEXT
TIME
MIX
REVEAL
MODE
VOL
VOL
MX
?
i
I/II
Name and Function of the Parts
Name of the Remote Control Buttons
9
HOLD
Press the button to stop the automatically rotating
of the sub pages. Press the button again to
continue the automatic rotating again.
SIZE
Press the button repeatedly to display the upper
part, the lower part and then to return to the
normal page size.
MIX
Display the teletext pages superimposed on
the TV picture. To switch the TV picture off
press this button again.
TIME
Press this button to select a sub page number.
The sub page number is displayed at the
bottom of the screen. To hold or change the
sub page, press the RED/GREEN, or
NUMBER buttons. Press again to exit this
function.

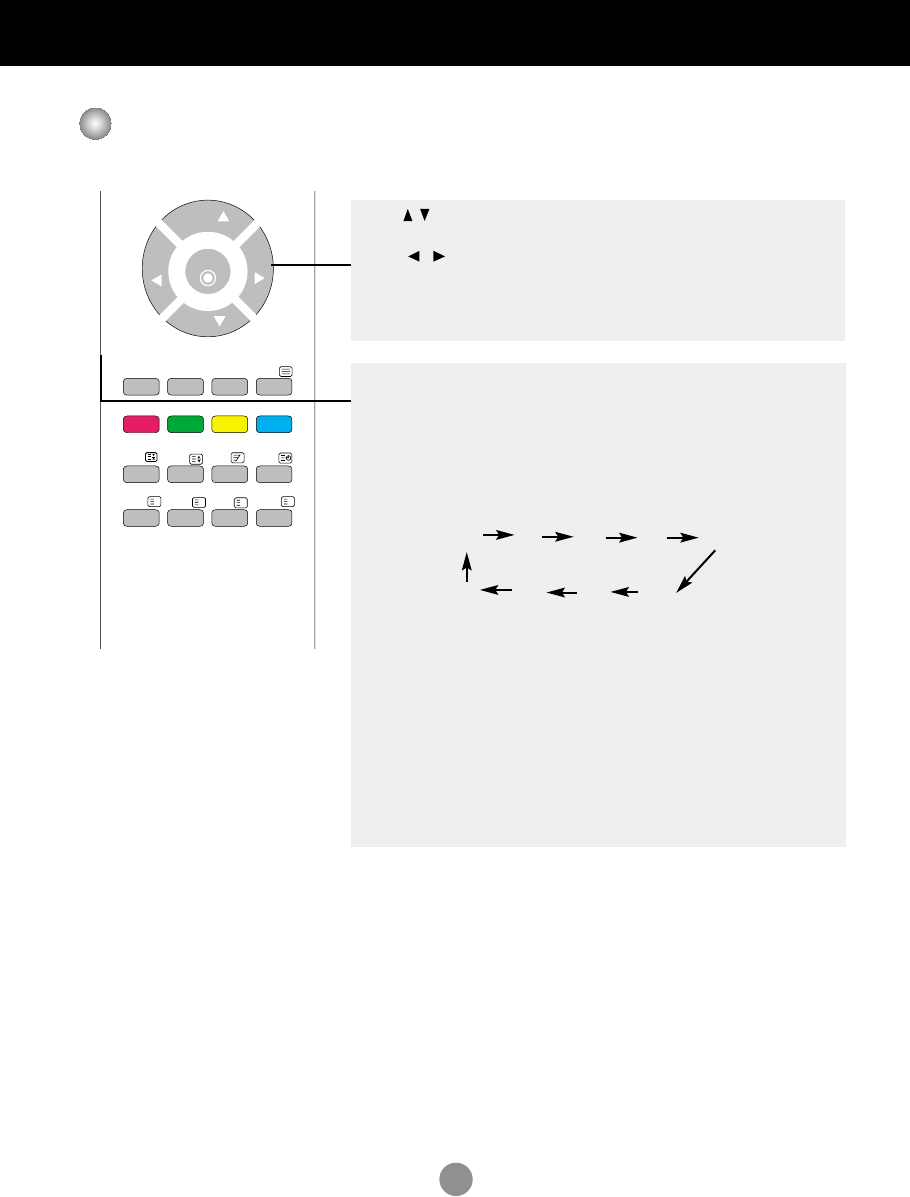

Remote Control - Using the Teletext function
Please select your local teletext language. (page 30)
If you don't, the teletext may not appear correctly on the screen.
Name and Function of the Parts
Yellow key
Favourite Program On : Rotate favourite channel
Favourite Program Off : To display the previously
selected TV channel.
REVEAL
Press the button to reveal/conceal the hidden
information, such as solutions to riddles and
puzzles. Press this button again to remove the
information from the display.
INDEX
To display the main index.
MODE
The mode will be switched in the Teletext mode.
UPDATE
Press the button to appear the TV programme.
At the top of screen indicates that you are still in the
teletext mode. Before interrupting teletext, you may
select a page number. When the page has been
found, the information line appears briefly on your
screen. Press the button again to reappear teletext.
10
Remote Control - Using the Teletext function
PR
PR
OK
MUTE
MENU
SLEEP
ARC
UPDATE
SIZE
HOLD
INDEX
SSM
PSM
TEXT
TIME
MIX
REVEAL
MODE
VOL
VOL
MX
?
i
I/II
Name and Function of the Parts
11
Name of the Remote Control Buttons(B Type)
POWER
TV
INPUT
PR
PR
OK
MUTE
LIST
MENU
Q.VIEW
SLEEP
ARC/*
UPDATE
SIZE
HOLD
INDEX
SSM
PSM
TEXT
TIME
MIX
REVEAL
MODE
VOL
VOL
MX
?
i
I/II
TV :
TV button
POWER
INPUT
NOTE : In case of weak stereo sound signals, with stereo or Nicam stereo
transmission, select mono reception.
Each time you press the Input button it will
change to
TV AV1 AV2 Component
RGB DVI.
If nothing is inputted for several seconds the
screen will automatically move to the
selected menu.
Number buttons
Able to directly select and change channel.
Name and Function of the Parts
MUTE
Switches the sound on or off.
PSM (Picture Status Memory)
Button
Press repeatedly to select Dynamic, Standard, Mild, Game or User
picture mode.
SSM
(Sound Status Memory)
Button
Use this button to select the sound tone.
Press repeatedly to select Flat, Music, Movie, Sports, User
sound tone.
Input
TV
AV1
AV2
Component
RGB
DVI
OK
12
POWER
TV
INPUT
PR
PR
OK
MUTE
LIST
MENU
Q.VIEW
SLEEP
ARC/*
UPDATE
SIZE
HOLD
INDEX
SSM
PSM
TEXT
TIME
MIX
REVEAL
MODE
VOL
VOL
MX
?
i
I/II
Name of the Remote Control Buttons
Name and Function of the Parts
I/II : Bilingual choice and sound mode selection
[TV]
To switch from Stereo to Mono sound in case of stereo
transmission,
or from Nicam Stereo to Nicam Mono, in case of digital
transmission.
to switch from Nicam Dual Ito Nicam Dual II or Nicam Dual I+II in
case of Nicam Dual transmission.
to choose between Dual I, Dual II or Dual I+II in case of bilingual
transmission :
Dual I sends the primary broadcast language to the loudspeakers ;
Dual II sends the secondary broadcast language to the loudspeakers ;
Dual I+II sends a separate language to each loudspeakers.
[AV / Component]
In AV/Component mode, you can select output sound for the left and
right loudspeakers. Repeatedly press the I/II button to
select the sound output.
L+R : Audio signal from audio L input is sent to left
loud-speaker and audio signal from audio R input is
sent to right loud-speaker.
L+L : Audio signal from audio L input is sent to left and right
loud-speakers.
R+R : Audio signal from audio R input is sent to left and
right loud-speakers.
LIST : Programme list
To display the programme list (0~ 99).
Q.VIEW : QUICK VIEW Button
To display the previously selected TV channel
Note: TV channels displayed in blue have been setup
to be skipped in the Programme Edit menu.
Programme List
OK MENU
0 C 01 5 C 07
1 C 35 6 C 50
2 C 05 7 C 51
3 C 11 8 C 41
4 C 04 9 C 63
13
PR
PR
OK
LIST
MENU
Q
.
VIEW
SLEEP
ARC/*
UPDATE
SIZE
HOLD
INDEX
TEXT
TIME
MIX
REVEAL
MODE
VOL
VOL
MX
?
i
Name of the Remote Control Buttons
Name and Function of the Parts
PR ( ) Buttons
Able to change channel.
VOL ( ) Buttons
Able to adjust sound.
OK Button
Use when functional adjustment is completed.
MENU
Use this button to enter the On Screen Display menu.
SLEEP : SLEEP Timer
You can set a time period after which the
TV / AV / RGB / Component / DVI should switch itself to standby.
Press the key repeatedly to select the number of minutes.
ARC
To select the image size of the screen.
•
When TV / AV mode: Spectacle, Original, 4:3, 16:9, 14:9, Zoom1, Zoom2
• When RGB/DVI /Componentmode
: 4:3, 16:9
TEXT
To select the teletext on or off. The main index page or the last
selected page appears on the screen together with an information
headline and an option line at the bottom of the screen.
10 20 30 60
240 180 120 90
_ _ _ (off)
14
HOLD
Press the button to stop the automatically rotating
of the sub pages. Press the button again to
continue the automatic rotating again.
SIZE
Press the button repeatedly to display the upper
part, the lower part and then to return to the
normal page size.
MIX
Display the teletext pages superimposed on
the TV picture. To switch the TV picture off
press this button again.
TIME
Press this button to select a sub page number.
The sub page number is displayed at the
bottom of the screen. To hold or change the
sub page, press the RED/GREEN, or
NUMBER buttons. Press again to exit this
function.
Remote Control - Using the Teletext function
Please select your local teletext language. (page 30)
If you don't, the teletext may not appear correctly on the screen.
PR
PR
OK
LIST
MENU
Q.VIEW
SLEEP
ARC/*
UPDATE
SIZE
HOLD
INDEX
TEXT
TIME
MIX
REVEAL
MODE
VOL
VOL
MX
?
i
Yellow key
Favourite Program On : Rotate favourite channel
Favourite Program Off : To display the previously
selected TV channel.
Name and Function of the Parts
15
REVEAL
Press the button to reveal/conceal the hidden
information, such as solutions to riddles and
puzzles. Press this button again to remove the
information from the display.
INDEX
To display the main index.
MODE
The mode will be switched in the Teletext mode.
UPDATE
Press the button to appear the TV programme.
At the top of screen indicates that you are still in the
teletext mode. Before interrupting teletext, you may
select a page number. When the page has been
found, the information line appears briefly on your
screen. Press the button again to reappear teletext.
Remote Control - Using the Teletext function
PR
PR
OK
LIST
MENU
Q.VIEW
SLEEP
ARC/*
UPDATE
SIZE
HOLD
INDEX
TEXT
TIME
MIX
REVEAL
MODE
VOL
VOL
MX
?
i
Name and Function of the Parts
16
Name and Function of the Parts
RGB(PC/DTV) INDVI IN
ANTENNA IN
AUDIO
(RGB/DVI) IN
H/P
S-VIDEO
AV IN 2
AV1
(MONO)
VIDEO
AUDIO
L R
AUDIO
COMPONENT IN
VIDEO
YPBPRL R
RGB(PC/DTV) INDVI IN
ANTENNA IN
AUDIO
(RGB/DVI) IN
H/P
S-VIDEO
AV IN 2
AV1
(MONO)
VIDEO
AUDIO
L R
AUDIO
COMPONENT IN
VIDEO
YP
B
P
R
L R

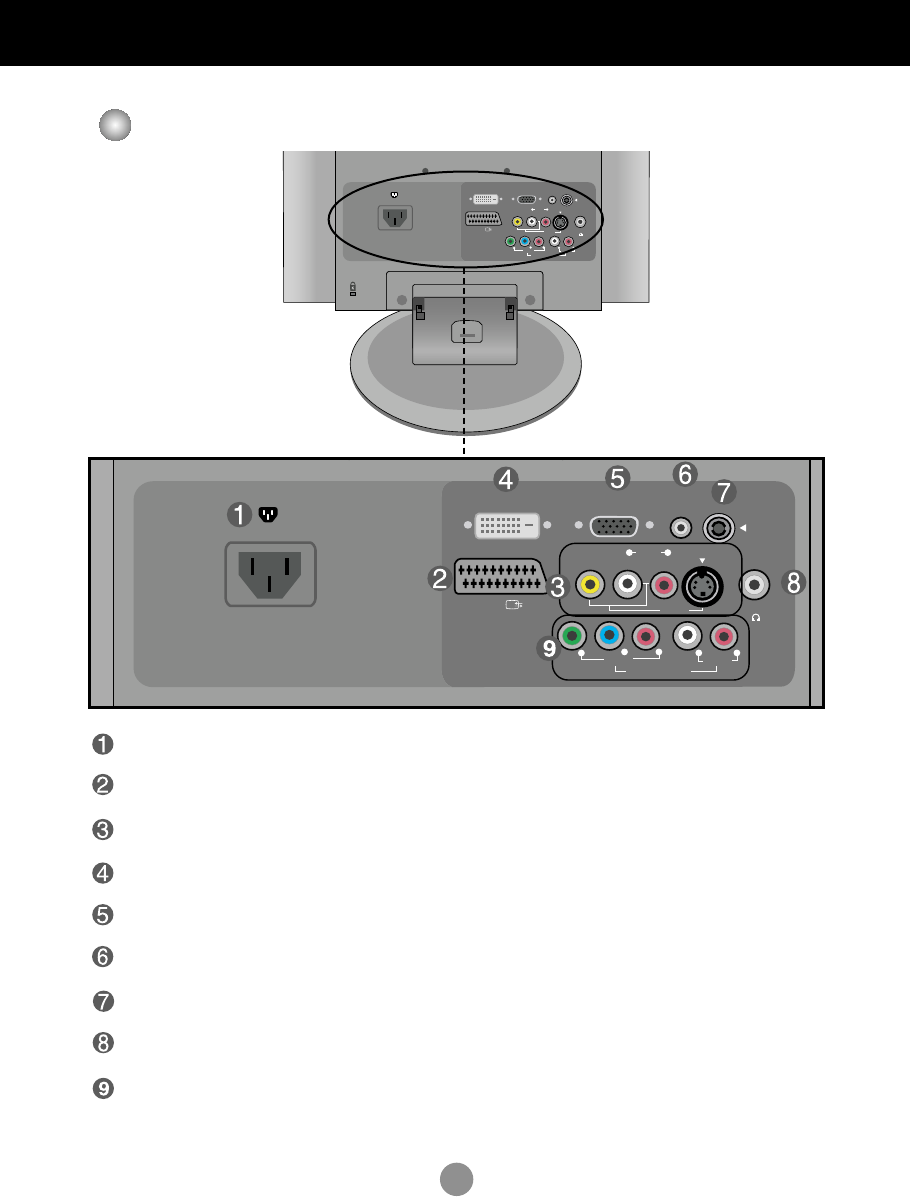

Rear View
Power Connector : Connect the power cord.

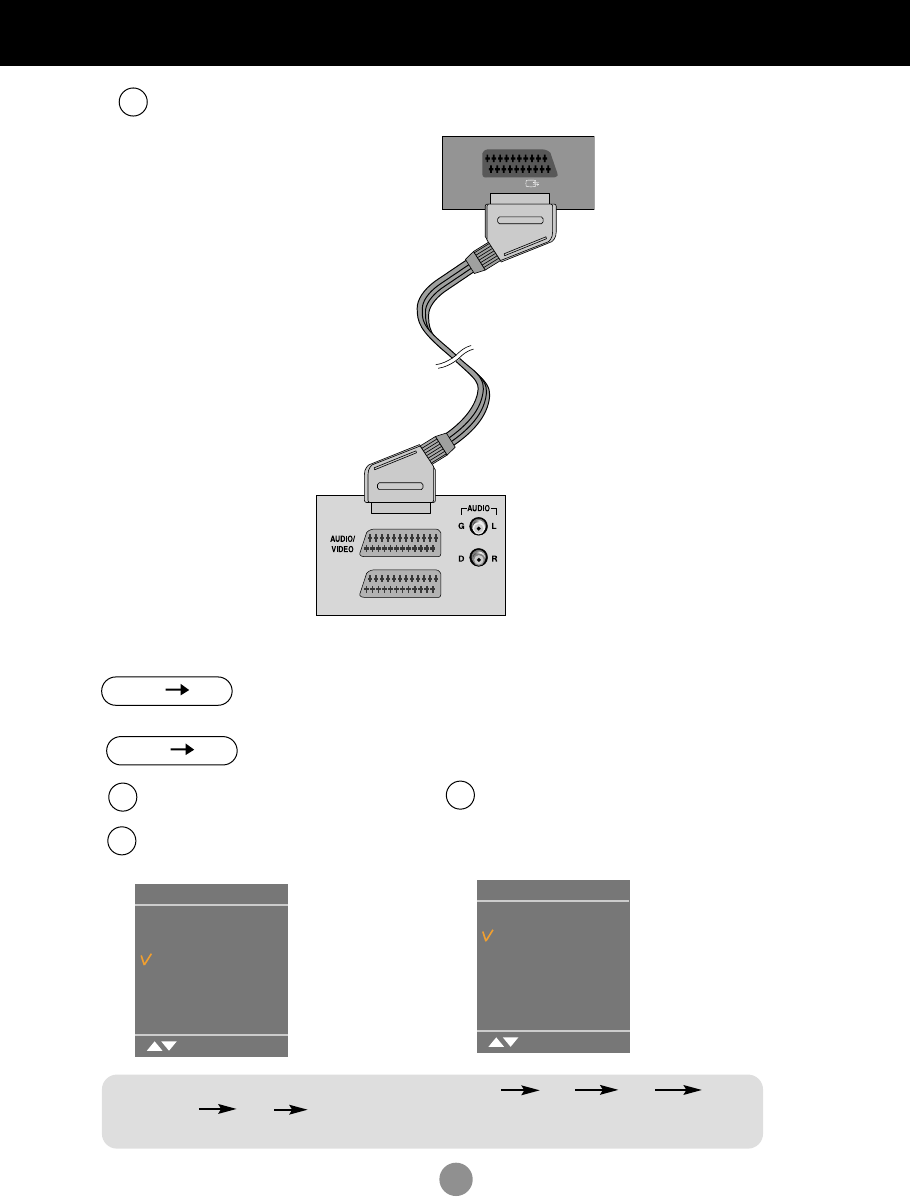

SCART Input/Output Terminal
AV Input Terminal
DVI Digital Signal Connector
D-Sub Analog Signal Connector
RGB, DVI Sound Jack : Connect to the jack in the PC sound card or D-TV sound Output Jack.

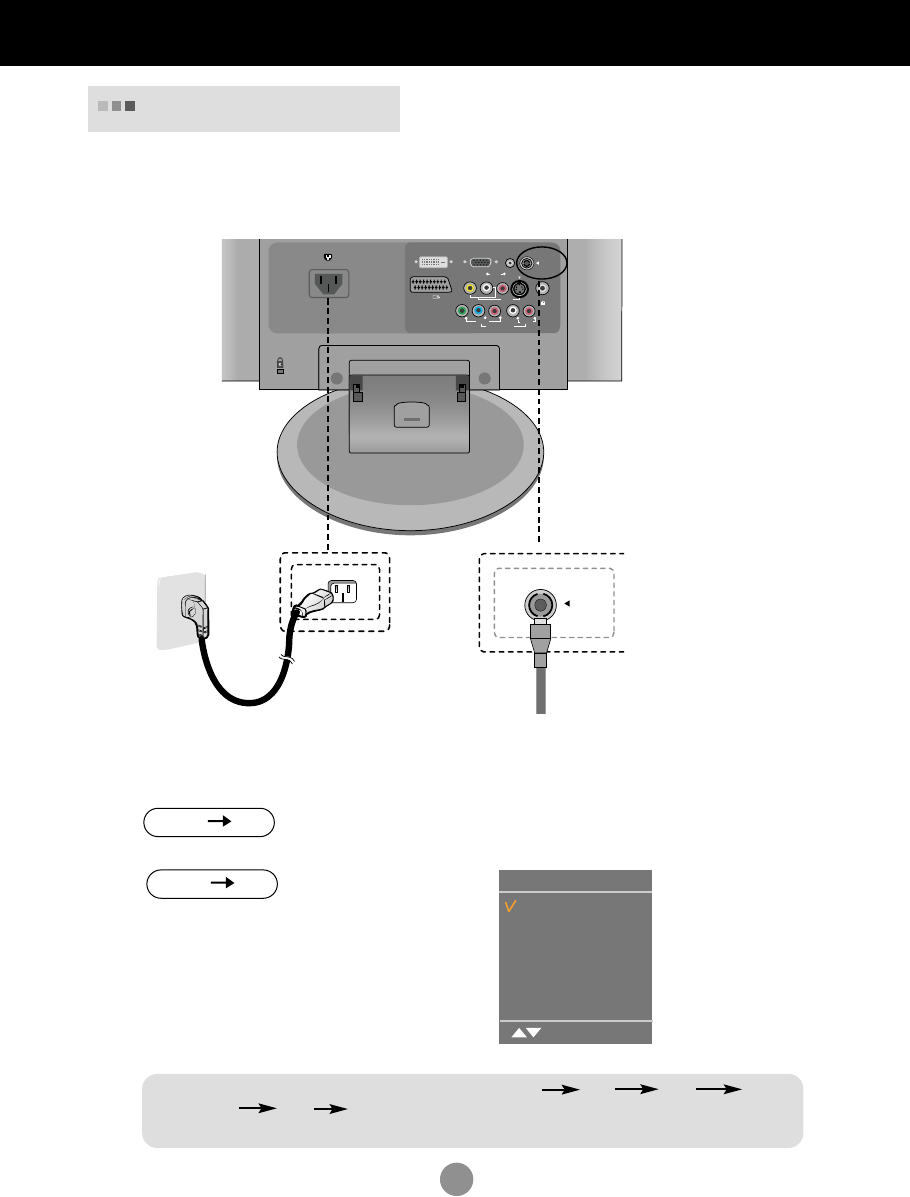

TV Tuner Jack : Connect the antenna.
Headphone/Earphone Connection Terminal

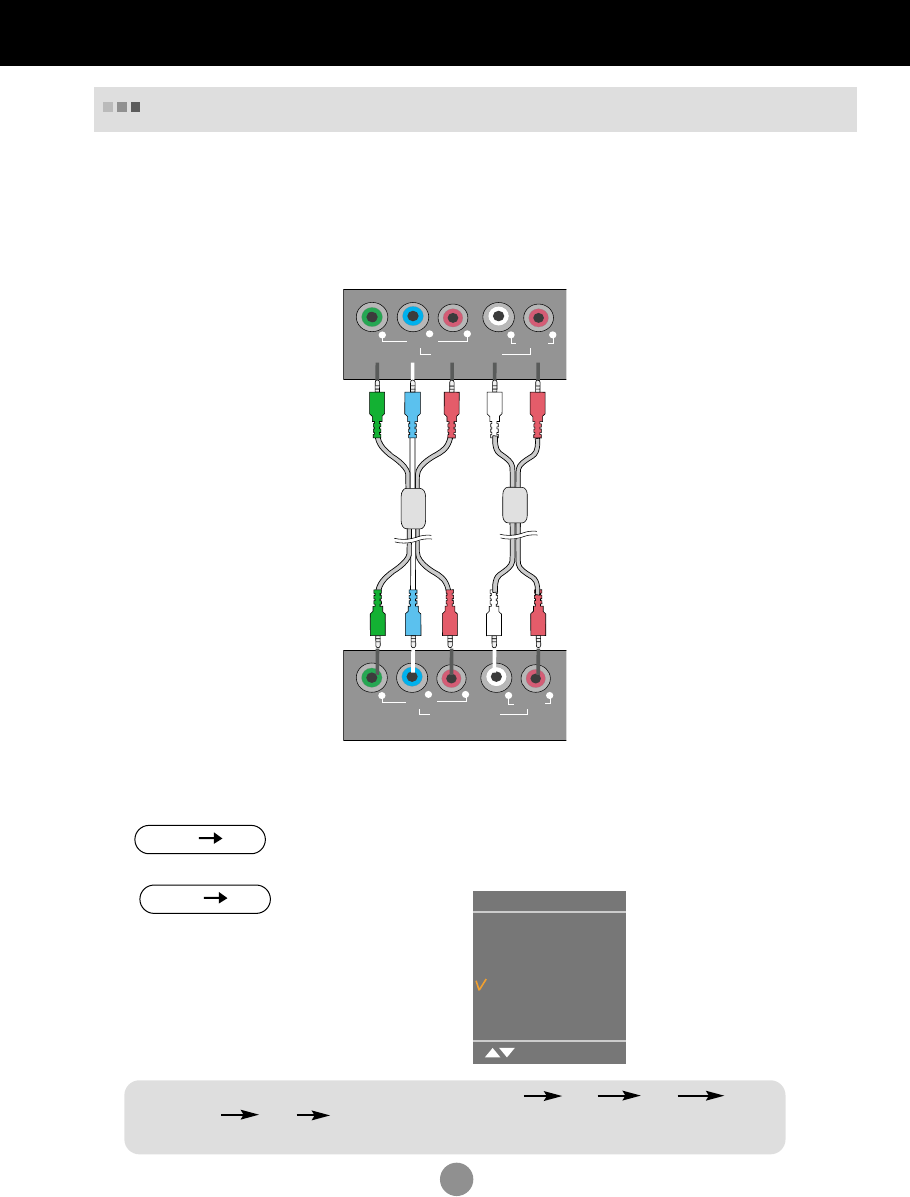

Component Input Terminal
17

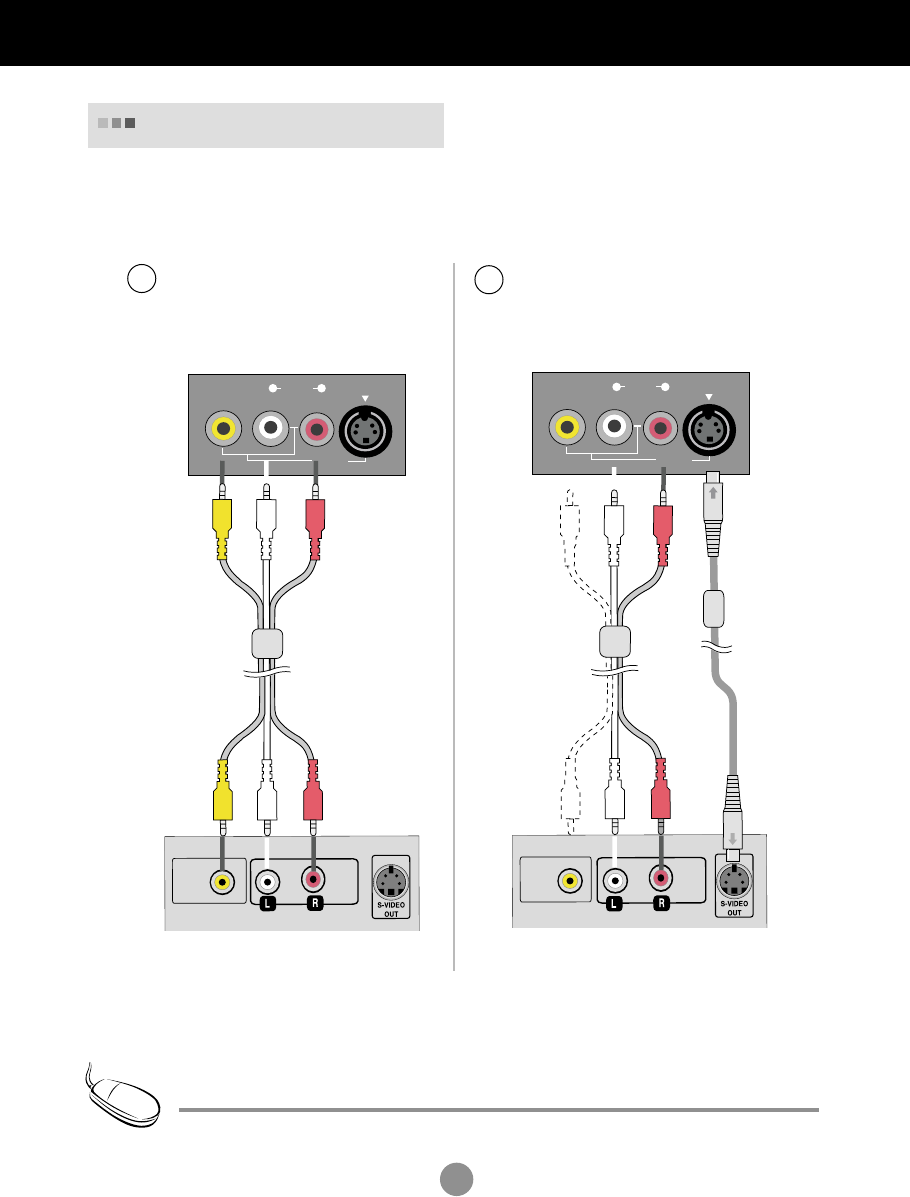

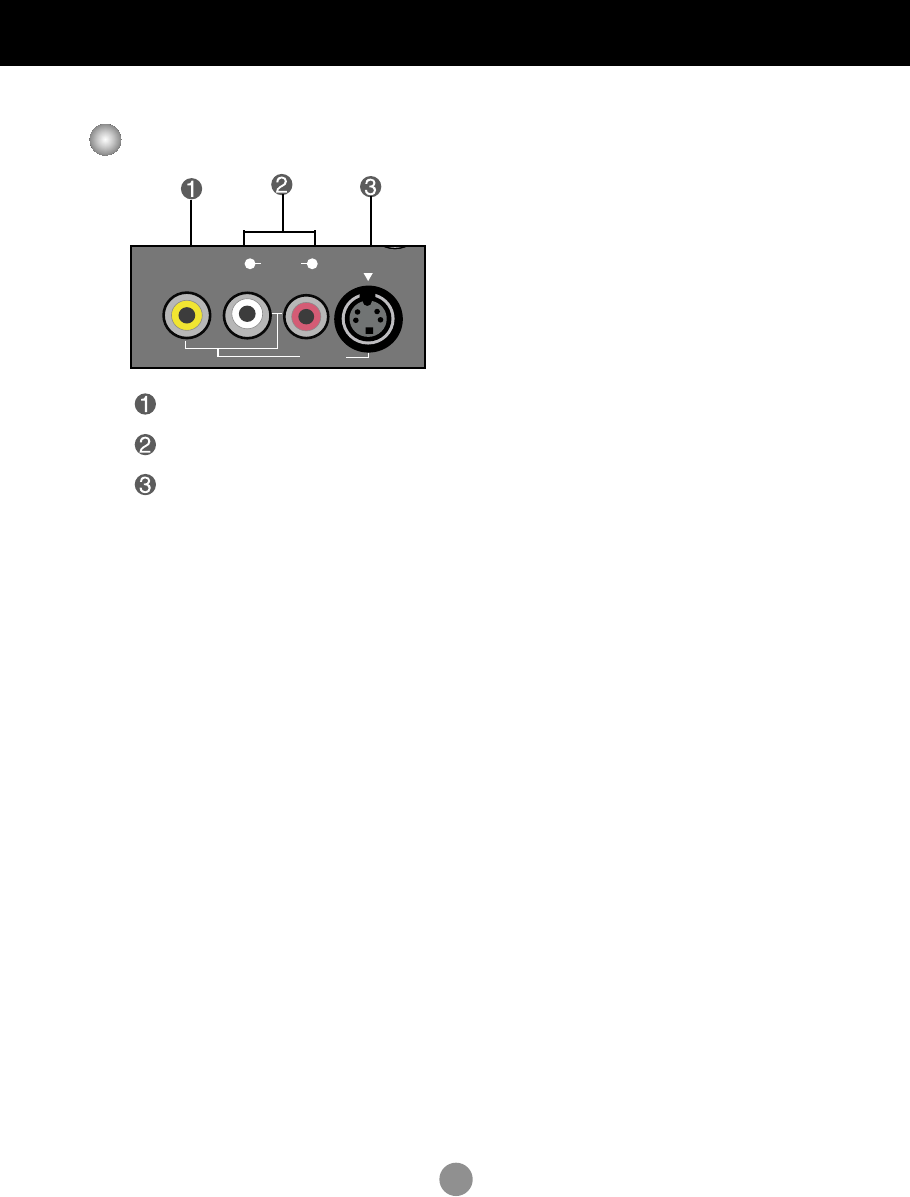

AV Input Terminal
S-VIDEO
AV IN 2
(MONO)
VIDEO
AUDIO
L R
S-Video Input Terminal
Audio Input Terminal
Video Input Terminal
Name and Function of the Parts
18
AUDIO
(RGB/DVI) IN
DVI IN
18

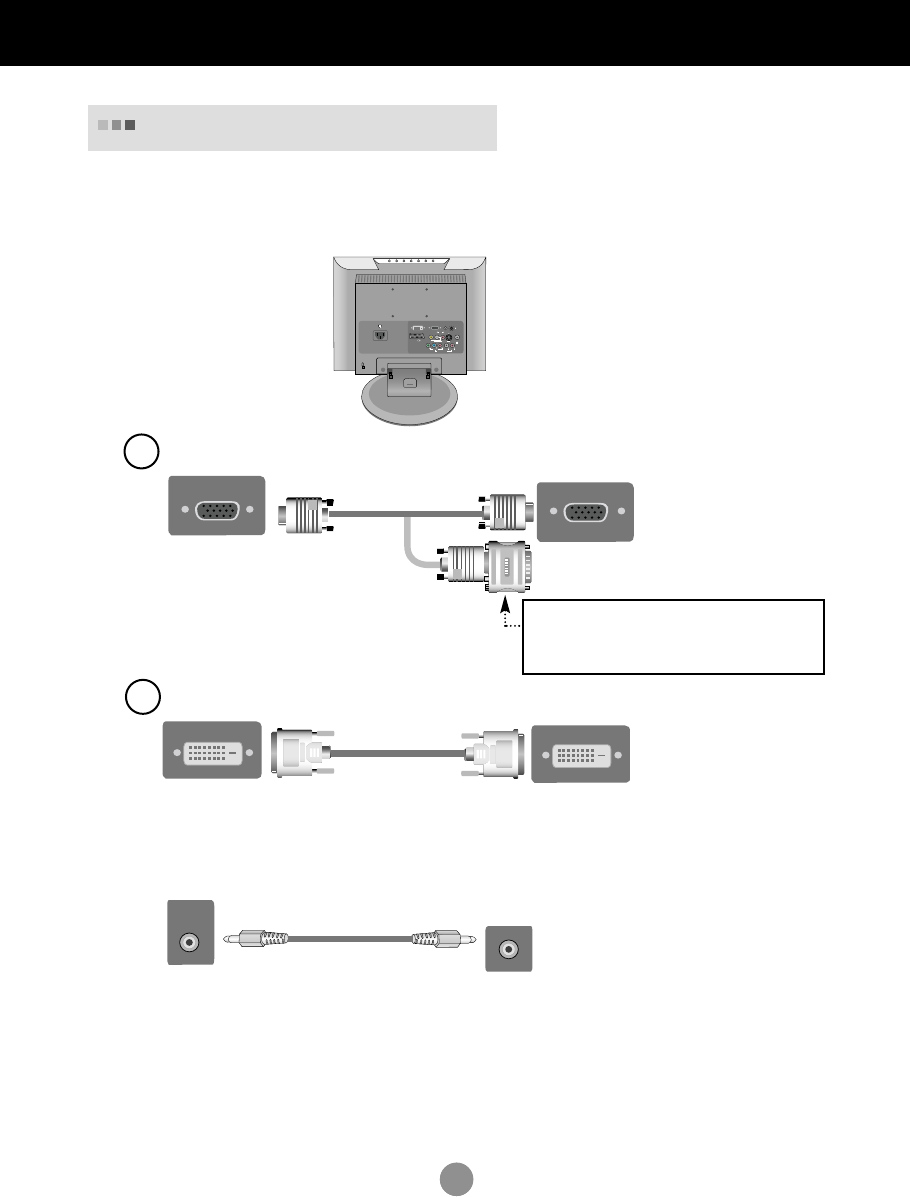

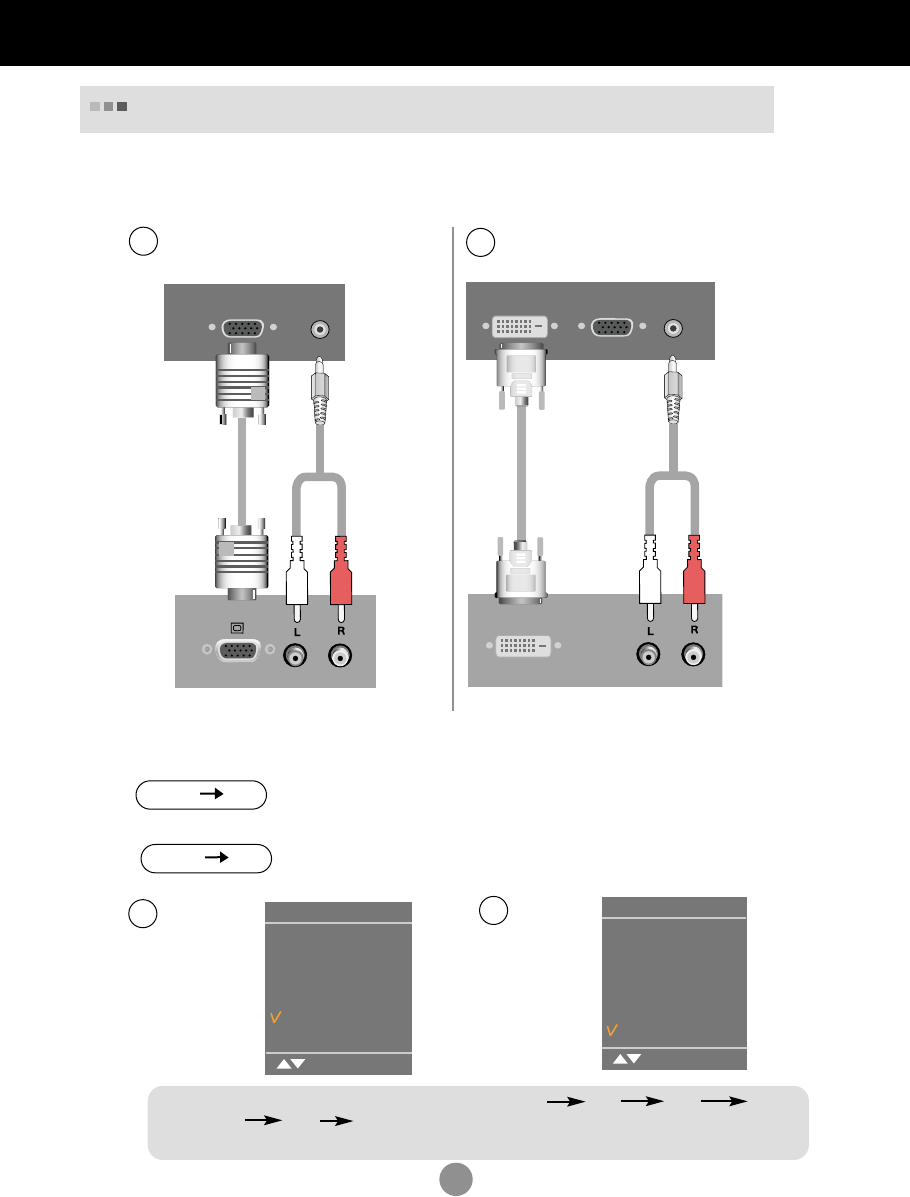

Connecting to your PC
First of all, see if the computer, product and the peripherals are turned off.
Then, connect the signal input cable.
Connecting with the D-Sub signal input cable.
Rear side of the product.
Connecting to External Devices
RGB(PC/DTV) IN
Macintosh Adapter (Not included)
Use the standard Macintosh adapter since an
incompatible adapter is available in the market.
(Different signaling system)
1.
Audio cable
Connecting with the DVI signal input cable.
A
B
2.
Rear side of the product
.
Rear side of the product.
Rear side of the product.
Connect the audio cable.
•
Make sure to check the sound card connection terminal in the PC before connecting to the product.
If the PC sound card supports both Speaker Out and Line Out, change it to Line Out by setting the jumper
or the PC application. (For more details, refer to the sound card user’s guide.)
- Speaker Out : The terminal connected to the speaker that is not equipped with an amplifier.
- *Line Out : The terminal connected to the speaker equipped with an amplifier.
If Audio Out in the PC sound card has only Speaker Out, reduce the PC volume. This product is integrated
with an amplifier.
RGB(PC/DTV) INDVI IN
ANTENNA IN
AUDIO
(RGB/DVI) IN
H/P
S-VIDEO
AV IN 2
AV1
(MONO)
VIDEO
AUDIO
L R
AUDIO
COMPONENT IN
VIDEO
YP
B
P
R
L R
19

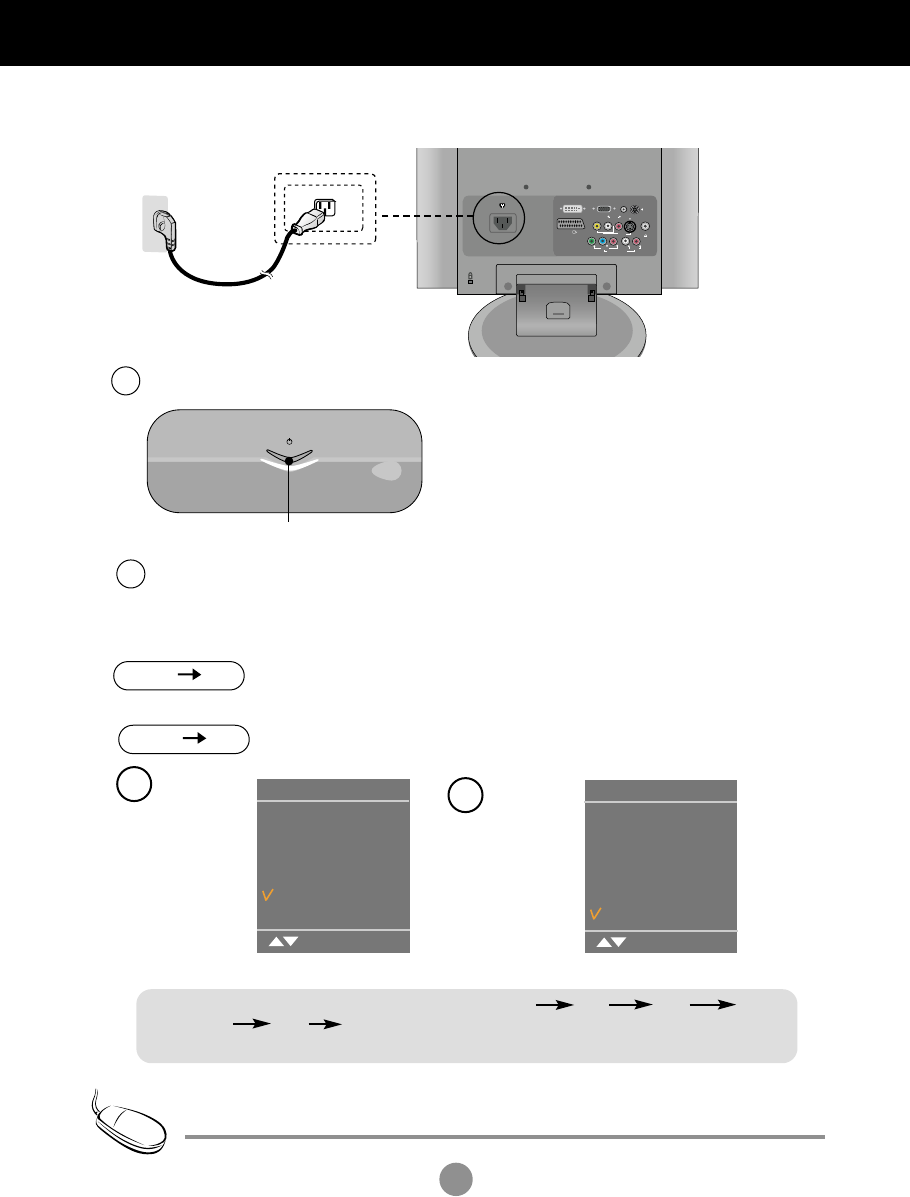

• Directly connect to a grounded power outlet on the wall or a power bar with a ground wire.
Note
Turn on the PC.
2
1
Rear side of the product.
Connect the power cord.
Select an input signal.
Press the INPUT button on the remote control to select the input signal.
Or, press the INPUT button at the top side of the product.
Turn on power by pressing the power button on the product.
Power button
•
Select RGB
RGB(PC/DTV) INDVI I N
ANTENNA IN
AUDIO
(RGB/DVI) IN
H/P
S-VIDEO
AV IN 2
AV1
(MONO)
VIDEO
AUDIO
L R
AUDIO
COMPONENT IN
VIDEO
YP
B
P
R
L R
3.
4.
5.
INPUT OK
Each time you press the Input button it will change to TV AV1 AV2
Component RGB DVI
If nothing is inputted for several seconds the screen will automatically move to the selected menu.
INPUT OK
Connecting to External Devices
Input
TV
AV1
AV2
Component
RGB
DVI
OK
AB•
Select DVI
Input
TV
AV1
AV2
Component
RGB
DVI
OK
20
Connecting to External Devices
When using the RCA cable.
•
Connect the input terminal with a
proper colour match.
When using the S-Video cable.
•
Connect to the S-Video input terminal to
watch high image quality movies.
S-VIDEO
AV IN 2
(MONO)
VIDEO
AUDIO
L R
VIDEO
OUT
AUDIO
OUT
Rear side of the Product
RCA Cable
Connect the video/audio cable as shown in the figure below and then connect the power
cord (See page 19).
Connecting to VCR/DVD
VCR/DVD
B
A
(Not included)
S-VIDEO
AV IN 2
(MONO)
VIDEO
AUDIO
L R
VIDEO
OUT
AUDIO
OUT
RCA Cable
S-Video Cable
VCR/DVD
Rear side of the Product
(Not included)
(Not included)
1.
• In case the RCA cable is connected simultaneously as S-Video cable is connected, S-Video cable is first.
Note
21
Select an input signal.
Press the INPUT button on the remote control to select the input signal.
Or, press the INPUT button at the top side of the product.
AV1
Rear side of the Product
VCR / DVD
When using the SCART cable.
C
When connecting with a RCA cable.
•
Select AV2
When connecting with a S-Video cable.
•
Select AV2
B
A
SCART Cable
Please, use shielded scart cable.
(Not Included)
2.
INPUT OK
INPUT OK
Connecting to External Devices
Input
TV
AV1
AV2
Component
RGB
DVI
OK
Input
TV
AV1
AV2
Component
RGB
DVI
OK
Each time you press the Input button it will change to TV AV1 AV2
Component RGB DVI
If nothing is inputted for several seconds the screen will automatically move to the selected menu.
When connecting with a SCART cable.
•
Select AV1
C
22
Connecting to External Devices
AUDIO
COMPONENT IN
VIDEO
YP
B
P
R
L R
AUDIO
COMPONENT IN
VIDEO
YPb Pr L R
Rear side of the Product
Component Cable
Connect the video/audio cable as shown in the figure below and then connect the power
cord (See page 19).
Connecting to Set-top Box /DVD (480p/576p/720p/1080i/480i/576i)
Set-top Box /DVD
•
Connect the input terminal with a proper colour match.
(Not included)
1.
Audio Cable
(Not included)
Select an input signal.
Press the INPUT button on the remote control to select the input signal.
Or, press the INPUT button at the top side of the product.
•
Select Component
2.
INPUT OK
INPUT OK
Input
TV
AV1
AV2
Component
RGB
DVI
OK
Each time you press the Input button it will change to TV AV1 AV2
Component RGB DVI
If nothing is inputted for several seconds the screen will automatically move to the selected menu.
23
Connecting to External Devices
Connect the D-sub cable, RCA/PC cable as shown in the below figure
and then connect the power cord. (see page 19)
RGB(PC/DTV) IN
AUDIO
(RGB/DVI) IN
[Rear side of the Product]
[Set-top Box/DVD]
D-Sub cable
RCA-Stereo
cable
(not included)
When watching RGB/DVI from the DVD/Set-top Box
Select an input signal.
Press the INPUT button on the remote control to select the input signal.
Or, press the INPUT button at the top side of the product.
2.
1.
INPUT OK
INPUT OK
Input
TV
AV1
AV2
Component
RGB
DVI
OK
Input
TV
AV1
AV2
Component
RGB
DVI
OK
Each time you press the Input button it will change to TV AV1 AV2
Component RGB DVI
If nothing is inputted for several seconds the screen will automatically move to the selected menu.
RGB(PC/DTV) INDVI IN
AUDIO
(RGB/DVI) IN
[Rear side of the Product]
[Set-top Box/DVD]
DVI cable
RCA-Stereo
cable
(not included)
B
A
•
Select RGB
A
•
Select DVI
B
24
Rear Side of the Product
Antenna Cable
(Not included.)
Check if the antenna cable is connected at the rear side of the product
and then, connect the power cord.
When Watching TV
Select an input signal.
Press the INPUT button on the remote control to select the input signal.
Or, press the INPUT button at the top side of the product.
•
Select TV
RGB(PC/DTV) INDVI IN
ANTENNA IN
AUDIO
(RGB/DVI) IN
H/P
S-VIDEO
AV IN 2
AV1
(MONO)
VIDEO
AUDI O
L R
AUDI O
COMPONENT IN
VIDEO
YPBPRL R
ANTENNA IN
1.
2.
INPUT OK
INPUT OK
Connecting to External Devices
Input
TV
AV1
AV2
Component
RGB
DVI
OK
Each time you press the Input button it will change to TV AV1 AV2
Component RGB DVI
If nothing is inputted for several seconds the screen will automatically move to the selected menu.
25

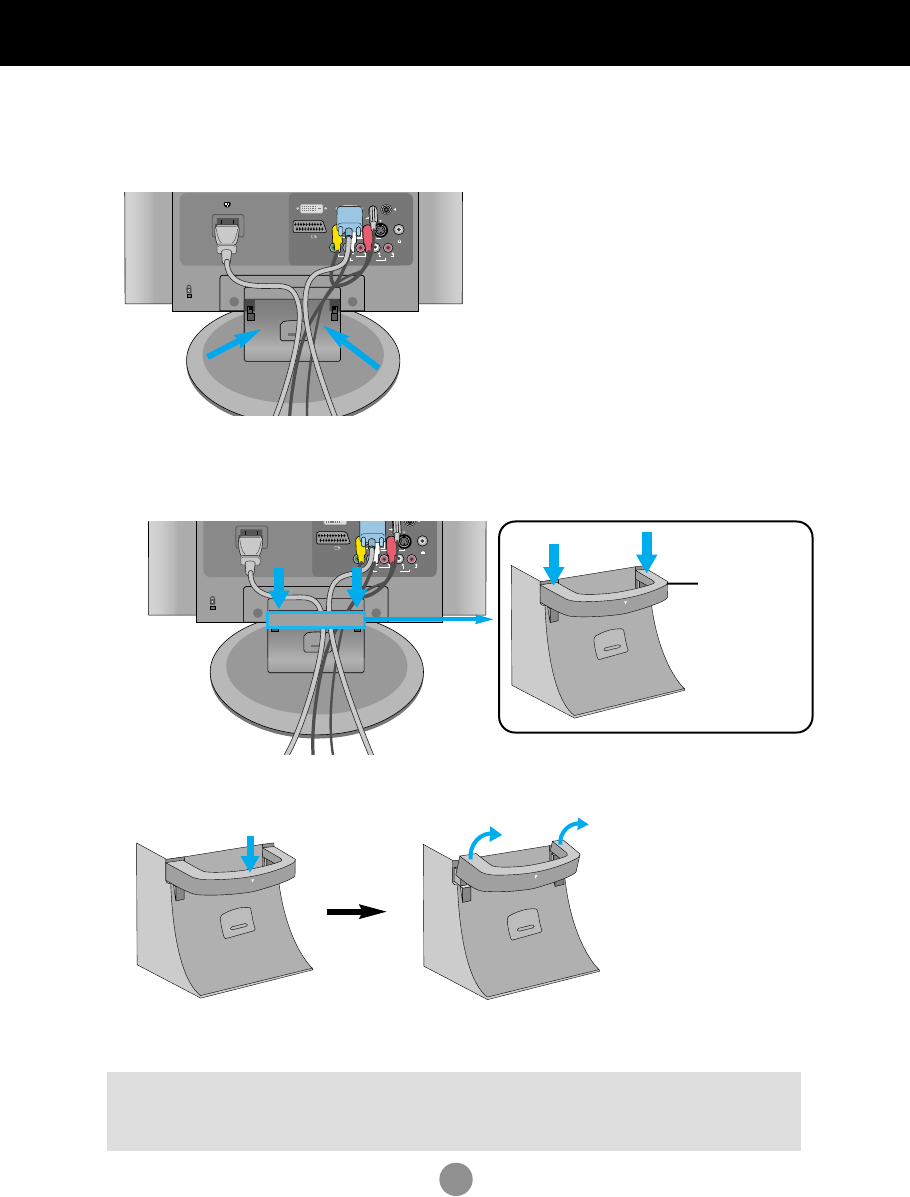

To arrange cables using cable management
RGB(PC/DTV) INDVI I N
ANTENNA IN
AUDIO
(RGB/DVI) IN
H/P
S-VIDEO
AV IN 2
AV1
(MONO)
VIDEO
AUDIO
L R
AUDIO
COMPONENT IN
VIDEO
YP
B
P
R
L R
PUSH
CA
BLEMAN
A
GEMENT
ANTENNA
IN
H/P
S-VIDEO
AV IN 2
AV1
(MONO)
VIDEO
AUDIO
L R
AUDIO
COMPONENT IN
VIDEO
YP
B
P
R
L R
PUSH
C
ABLE M
ANA
GEMENT
cable
management
1.
2.
Arrange the cables in the center as shown in the following picture.
Fit the cable management to the Holder Groove downwards.
Push down slightly.
Warning
• Do not use the cable management as a handle for the Monitor.
• Do not press the cable management.
* When you want remove it.
PUSH
CABLE
M
AN
A
GEMENT
Push up slightly to remove it.
26

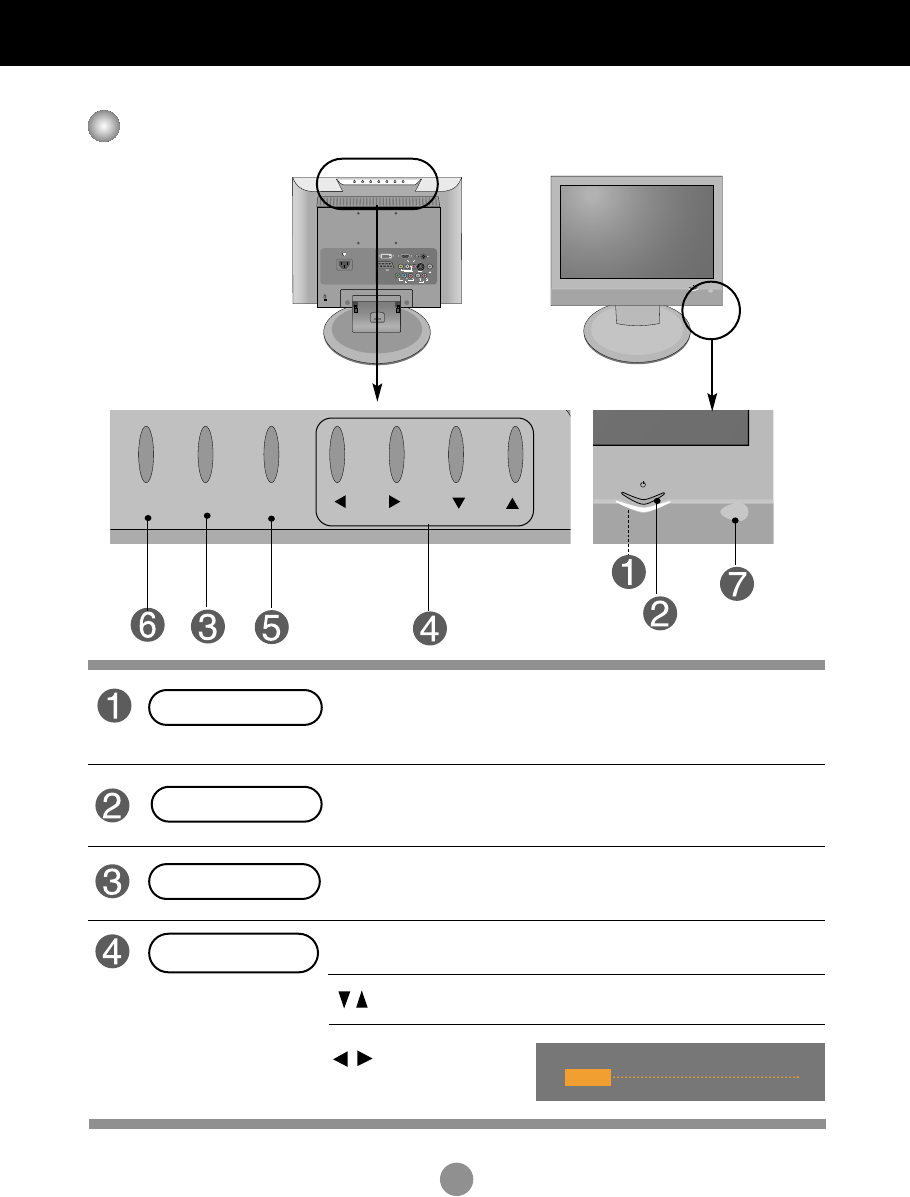

Name of the Buttons in the Screen Adjustment Unit
Power Indicator
• Adjust the volume.
•Use this button to control the channel for the TV signal.
• Use this button to show/hide the OSD (On Screen Display) menu
screen.
MENU Button
•
Use
this
button to select an icon or adjust the setting in the OSD screen.
OSD Select/Adjust Button
Adjusting the Screen
INPUT
MENU
PRVOLOK
Volume 30
• This Indicator lights up blue when the display operates normally
(On Mode). If the display is in Sleep (Energy Saving) Mode, this
indicator colour changes to amber.
• Use this button to turn the product on and off.
Power Button
RGB(PC/DTV) INDVI IN
ANTENNA IN
AUDIO
(RGB/DVI) IN
H/P
S-VIDEO
AV IN 2
AV1
(MONO)
VIDEO
AUDIO
L R
AUDIO
COMPONENT IN
VIDEO
YP
B
P
R
L R
27
Adjusting the Screen
Name of the Buttons in the Screen Adjustment Unit
OK Button
TV Television
AV1 SCART
AV2 CVBS, S-Video
Component HDTV, DVD
RGB D-Sub analog signal
DVI DVI Digital signal
INPUT Button
•The unit that receives the signal from the remote control.
IR Receiver
•OK button is usually used in choosing the MENU.
When there is no MENU on the screen pushing the OK button will
give the information about the current input source.
Each time you press the Input button it will change to TV AV1 AV2
Component RGB DVI
If nothing is inputted for several seconds the screen will automatically move to the selected menu.
Input
TV
AV1
AV2
Component
RGB
DVI
OK
28

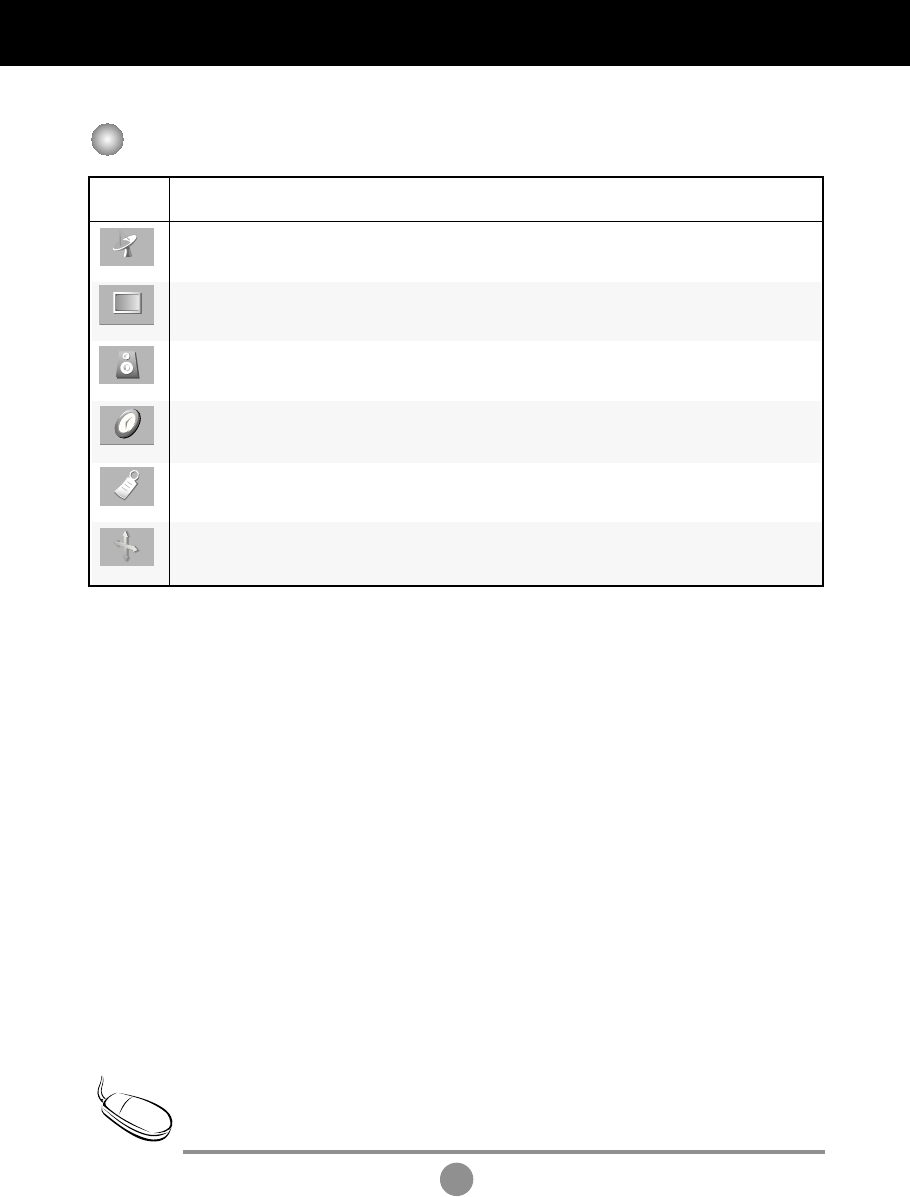

OSD(On Screen Display)
The OSD function enables you to adjust the screen status conveniently since it provides graphical
presentation.
Note
OSD (On Screen Display) Menu
Icon Function Description
Station
Sound
Time
Adjusting the time function.
Adjusting the screen function.
Adjusting the sound function.
Adjusting the picture function.
Set/Select the channel when using the TV
Special
Selecting the special function.
Screen
Adjusting the Screen
29

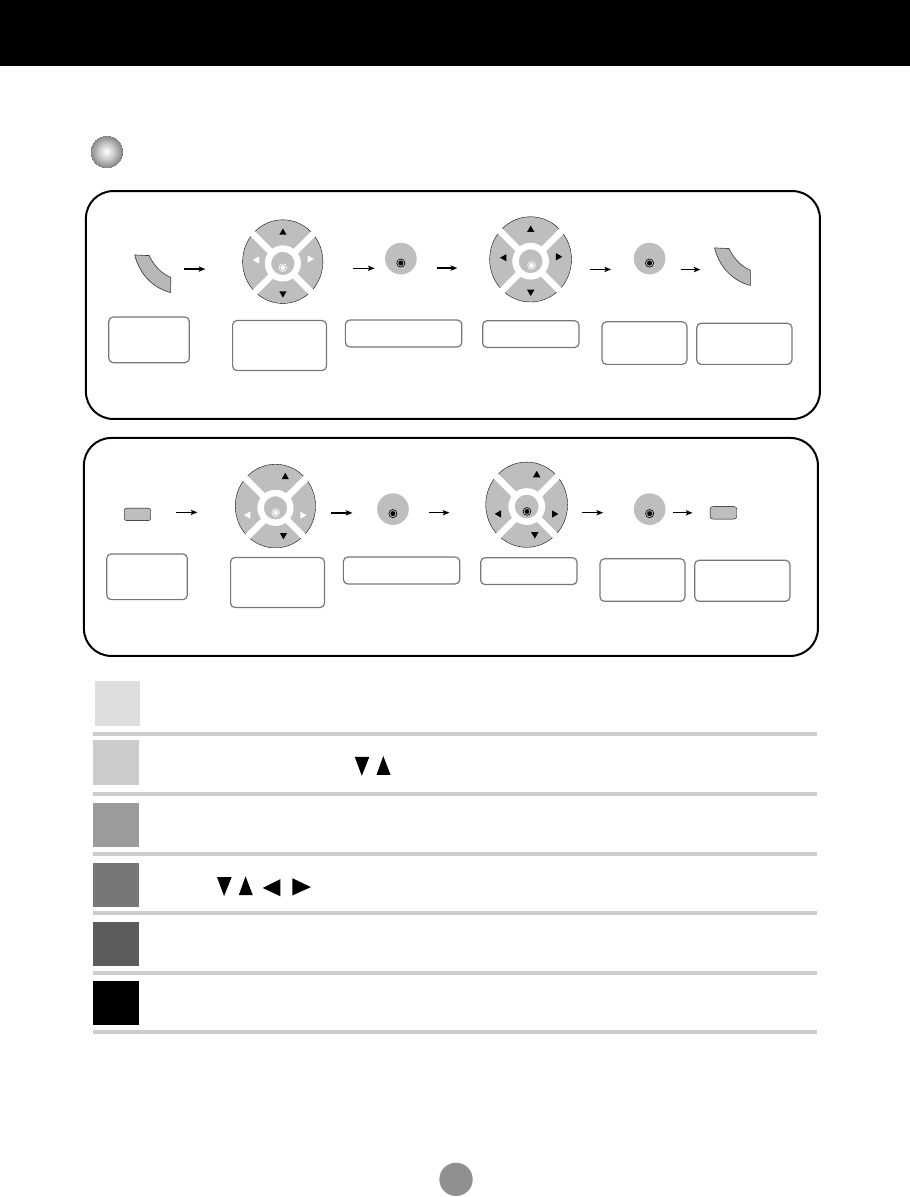

Adjusting the Screen
OSD (On Screen Display) Scree
n Tracking Order
•
Use the remote control to adjust the OSD screen.
Pop up the
menu screen
Move where
you want to
adjust
Select a menu icon Adjust the status Save
adjustment Exit from the
menu screen.
PR
PR
OK
VOL
VOL
PR
PR
OK
VOL
VOL
MENU
MENU
OK OK
Press the MENU Button, then the main menu of the OSD will appear.
To access a control, use the Buttons.
When the icon you want becomes highlighted, press the OK Button.
Use the Buttons to adjust the item to the desired level.
Accept the changes by pressing the OK Button.
Exit the OSD by pressing the MENU Button repeatedly .
1
2
3
4
5
6
•
Use the remote control to adjust the OSD screen.
Pop up the
menu screen
Move where
you want to
adjust
Select a menu icon Adjust the status Save
adjustment Exit from the
menu screen.
MENU MENU
PR
PR
OK
VOL
VOL
PR
PR
OK
VOL
VOL
OK OK
A type
B type
30
Adjusting the Screen
1. Press the button and then, OK button to select your desired language.
2. Press the button and then, OK button to select your country.
* If you want to change Language/ Country selection
1. Press the MENU button and then button to select the Special menu.
2. Press the button and then button to select Language.
The menus can be shown on the screen in the selected language.
Or, Press the button and then button to select Country.
3. Press the button and then button to select your desired language or country.
4. Press the OK button.
5.
Press the MENU button repeatedly to return to normal TV viewing.
Note
•
If you don't finish set up Installation Guide by pressing MENU button or time out of OSD
(On Screen Display) display, it will continuously appear until completing set up whenever
the set is turned on.
•
If you select wrong local country, the teletext may not appear correctly on the screen and
some problem may happen during teletext operation.
•
Hebrew is added to Country of Installation Guide according to the countries which using
Hebrew languages.
On-Screen Menu Language / Country Selection
Installation guide menu appears on product screen when it is turned on for the first time.
Installation guide
OK MENU
Language
Chesky
Dansk
Deutsch
English
Español
Français
Italiano
Magyar
Nederlands
Norsk
Polski
Português
–”——K»…
Romaneste
suomi
Svenska
31

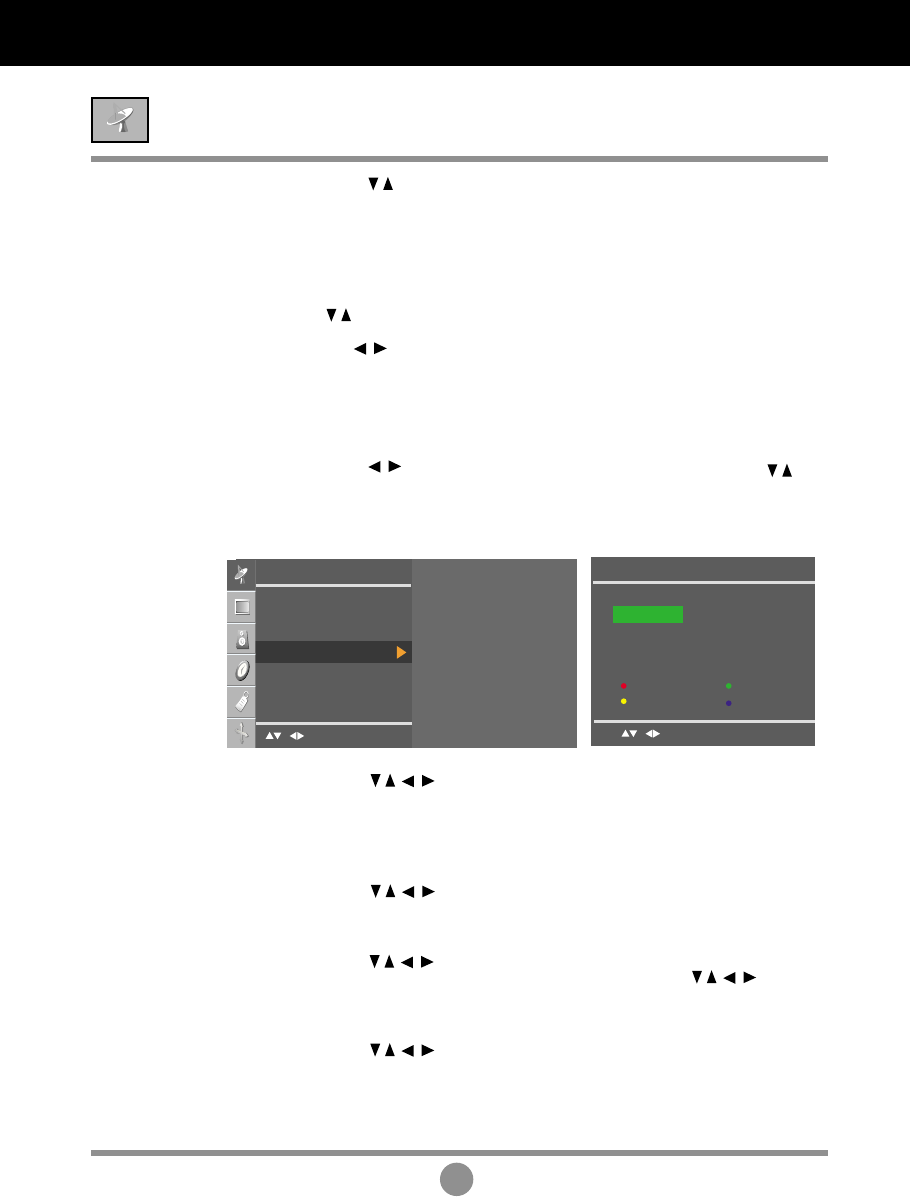

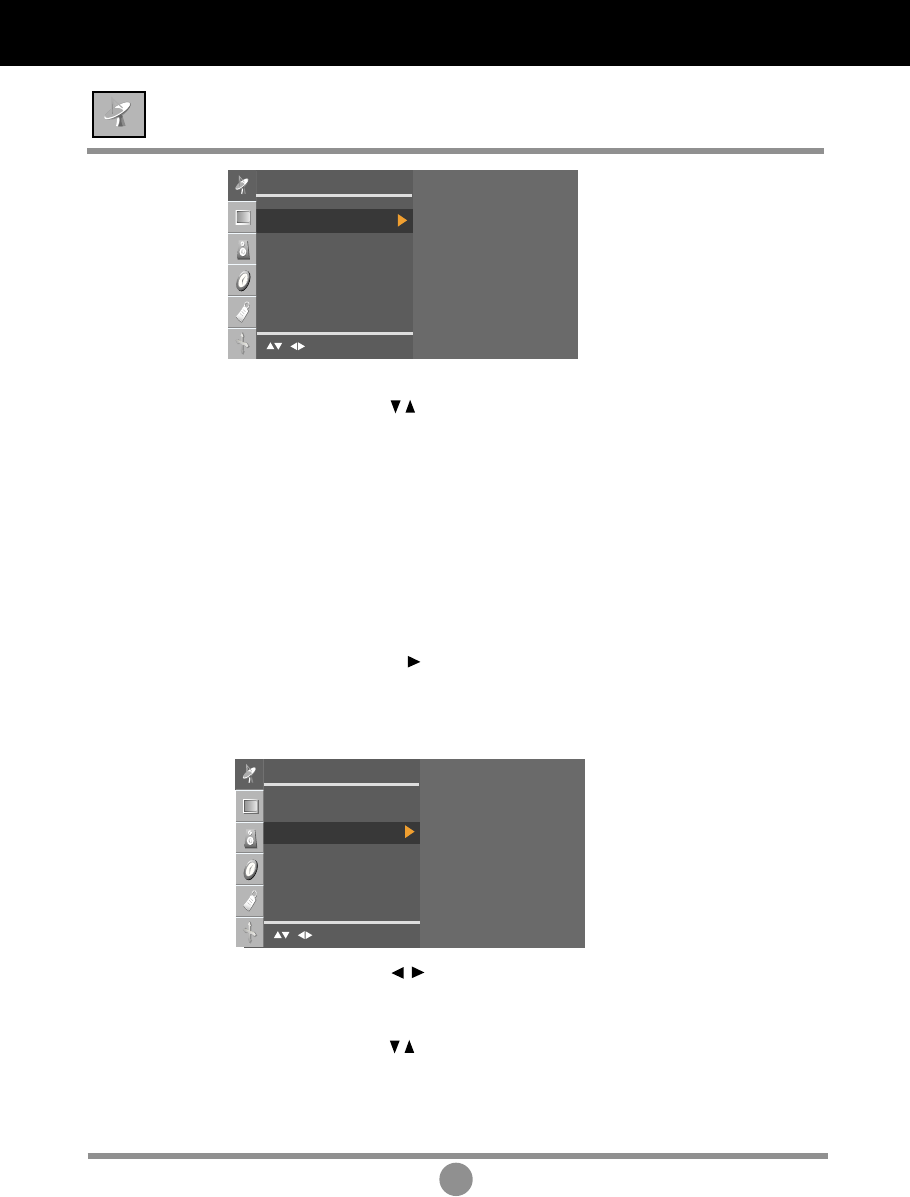

It should be set before run auto searching.
Press the buttons to select the TV system of the country or part of the
world from where you want to receive the TV channels.
* Supporting channel : C(V/UHF 02~69) S(Cable 01~41)
BG : PAL B/G, SECAM B/G (Europe/East Europe)
I : PAL I/II (U.K/Ireland)
DK : PAL D/K, SECAM D/K (East Europe)
L: SECAM L/L' (France)
To select a programme number or enter the programe number with the
number buttons from where you want to start searching for new channels.
If e.g. you want to keep the channels 1 to 10 stored earlier, enter programe
number 11. Your TV search for new channels from number 11 onwards.
* Numbers available to store : 0~99
Press OK or button to start automatic programming. All available TV
channels will be searched and stored automatically. To stop auto
programming, press the MENU button. When auto programming is
completed, the programme list menu appears.
System
Storage
from
Search
Auto programme
Press the buttons to select the channel number or enter the
programme number with the number buttons in where you want to store
channel.
Press the buttons to select the TV system of the country or part of
the world from where you want to receive the TV channels.
BG : PAL B/G, SECAM B/G (Europe/East Europe)
I : PAL I/II (U.K/Ireland)
DK : PAL D/K, SECAM D/K (East Europe)
L: SECAM L/L' (France)
Storage
System
Manual programme
To change the channel.
(Change each item in Manual
Program and press the "MENU"
button to save the settings)
STATION ID set/Select the channel when using the TV
Station
OK MENU
Auto programme
Manual programme
Programme edit
Favourite programme
To set
Adjusting the Screen
Station
OK MENU
Auto programme
Manual programme
Programme edit
Favourite programme
To set
32
Adjusting the Screen
STATION ID set/Select the channel when using the TV
Press the buttons to select a TV channel to be deleted. ->
Press the red key on the remote control -> The background colour of
the selected channel will change to red.
Press the Delete button one more time to delete the selected channel.
All the following channels are shifted up one position.
Press the buttons to select a TV channel to be copied. ->
Press the green key on the remote control. All the following channel
numbers are shifted down one position.
Press the buttons to select a channel number to be moved. ->
Press the yellow key on the remote control. -> Press the
buttons to move the TV channel to the desired channel number. ->
Press the yellow key again to release this function.
Press the buttons to select a channel number to be skipped. ->
Press the blue key on the remote control. The skipped TV channel is
displayed in blue.
Delete
Copy
Move
Skip
Press the buttons to select VHF/UHF for aerial channels or Cable for
cable channels.
To select the channel reception type. : VHF/UHF / Cable.
If you know the channel number, enter it directly with the digit buttons 0 to 9.
In case of poor reception, you can improve the reception by fine tuning. Use
the buttons to fine tune for the best picture and sound.
Use the buttons to search next channel backward or forward direction.
To see the assigned channel name.
It is possible to change the name stored in the memory or to assign a name
to a TV channel which has not yet been entered. A name with up 5 letters or
numbers can be given to the programme numbers 0 to 99.
Press the buttons to move cursor to be changed. -> Press the
buttons to select a character.(space, number 0~9, and alphabet A~Z, +,-) ->
Press OK button or MENU button.
Band
Channel
Fine
Search
Name
Programme edit
Station
OK MENU
Auto programme
Manual programme
Programme edit
Favourite programme
To set
Programme edit
OK MENU
Delete Copy
Move Skip
0 C 01 5 C 07
1 C 35 6 C 50
2 C 05 7 C 51
3 C 11 8 C 41
4 C 04 9 C 63
33
STATION ID set/Select the channel when using the TV
Favourite
programme
This function lets you select your favourite programmes directly. (8 channel)
Press the buttons to select a channel.
* Yellow key (remote control) :
Favourite Program On : Rotate favourite channel
Favourite Program Off : To display the previously selected TV channel.
Adjusting the Screen
Station
OK MENU
Auto programme
Manual programme
Programme edit
Favourite programme
Off
_ _ _ _ _ _ _
_ _ _ _ _ _ _
_ _ _ _ _ _ _
_ _ _ _ _ _ _
_ _ _ _ _ _ _
_ _ _ _ _ _ _
_ _ _ _ _ _ _
_ _ _ _ _ _ _
34

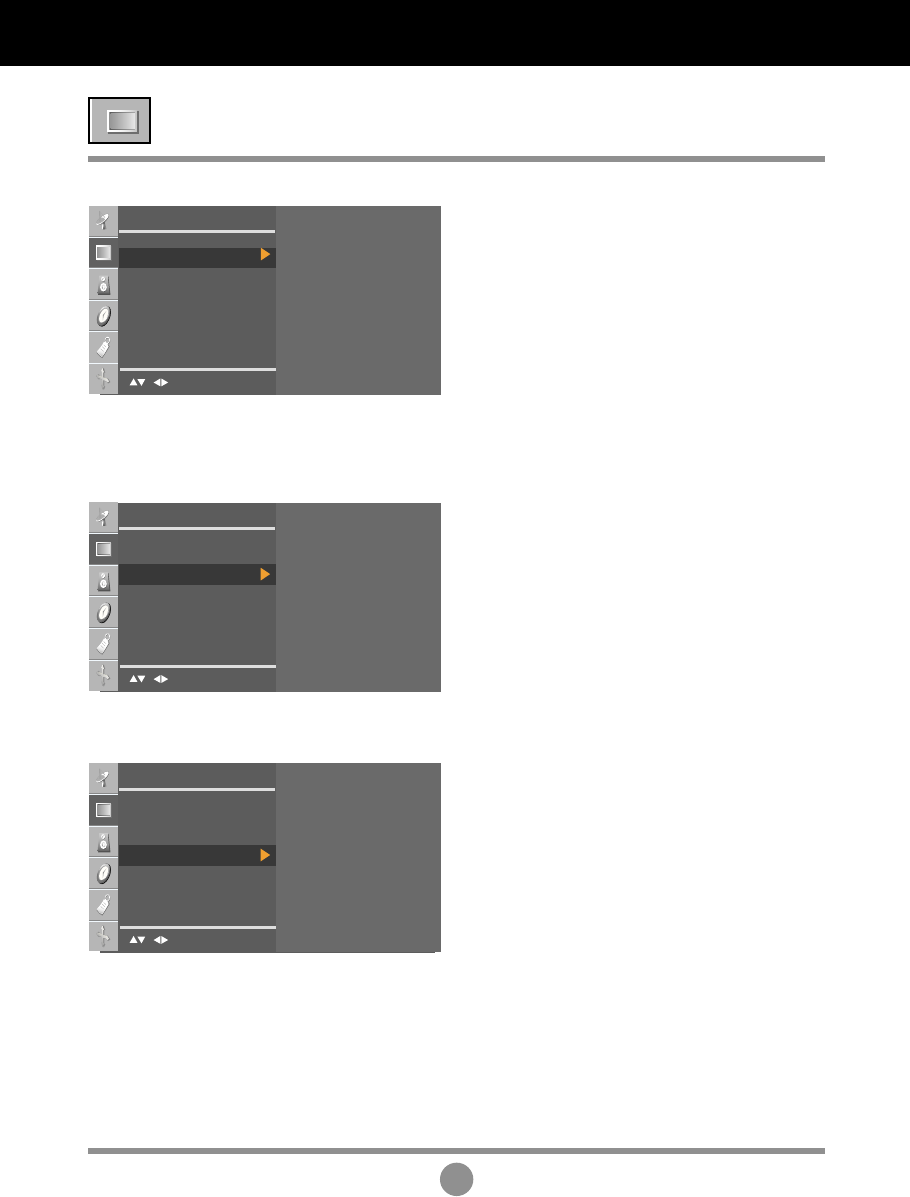

Adjusting the Screen
PICTURE ID adjust the picture function(RGB/DVI)
PSM
The PSM function automatically adjusts the screen
image quality.
• Dynamic
Select this option to display with a sharp image.
• Standard
The most general and natural screen display status.
• Mild
Select this option to display with a mild image.
• Game
Select this option to enjoy dynamic image when
playing a game.
• User
Select this option to use the user-defined settings.
The CSM function automatically adjusts the screen
colour set.
• 9300K
Slightly purplish white.
• 6500K
Slightly bluish white.
• sRGB
Slightly lower brightness.
• User
Select this option to use the user-defined settings.
Red / Green / Blue
Set your own colour levels.
OK MENU
PSM
CSM
XD
Cinema
Reset
Dynamic
Standard
Mild
Game
User
<
CSM
OK MENU
PSM
CSM
XD
Cinema
Reset
9300K
6500K
sRGB
User
<
XD
Return to the default settings PSM, CSM, XD, Cinema at the factory.
Reset
OK MENU
PSM
CSM
XD
Cinema
Reset
Auto
Manual
<
XD is LG Electronics unique picture improving
technology to display a real HD source through an
advanced digital signal processing algorithm.
It's not available to use this function in RGB-PC or
DVI-PC modes.
Manual is activated after selecting the user of PSM.
(It's not working RGB-PC, DVI-PC mode.)
(
Function works in the following mode -TV, AV, Component 480i/576i)
When you watch the movie, this function adjusts the set to the best picture appearance.
(It's not working RGB/DVI mode.)
Cinema
35
PSM
CSM
The PSM function automatically adjusts the screen
image quality.
• Dynamic
Select this option to display with a sharp image.
• Standard
The most general and natural screen display status.
• Mild
Select this option to display with a mild image.
• Game
Select this option to enjoy dynamic image when
playing a game.
• User
Select this option to use the user-defined settings.
The CSM function automatically adjusts the screen
colour set.
• Cool
Slightly purplish white.
• Normal
Slightly bluish white.
• Warm
Slightly reddish white.
• User
Select this option to use the user-defined settings.
Red / Green / Blue
Set your own colour levels.
PICTURE ID adjust the picture function (TV/Video)
XD is LG Electronics unique picture improving
technology to display a real HD source through an
advanced digital signal processing algorithm.
It's not available to use this function in RGB-PC or
DVI-PC modes.
Manual is activated after selecting the user of PSM.
OK MENU
Adjusting the Screen
OK MENU
PSM
CSM
XD
Cinema
Reset
Dynamic
Standard
Mild
Game
User
<
OK MENU
PSM
CSM
XD
Cinema
Reset
Cool
Normal
Warm
User
<
XD
OK MENU
PSM
CSM
XD
Cinema
Reset
Auto
Manual
<
Return to the default settings PSM, CSM, XD, Cinema at the factory.
Reset
(
Function works in the following mode - TV, AV, Component 480i/576i)
When you watch the movie, this function adjusts the set to the best picture appearance.
Cinema
36
Adjusting the Screen
SSM
AVL
Balance
SOUND ID to adjust the sound function
The best sound tone quality will be selected automatically depending on the video type that
you're currently watching.
• Flat : The most commanding and natural audio.
• Music : Select this option to enjoy the original sound when listening to the music.
• Movie : Select this option to enjoy sublime sound.
• Sports : Select this option to watch sports broadcasting.
• User : Select this option to use the user-defined audio settings.
To adjust uneven sound volumes across all channels or signals automatically to the most
appropriate level. To use this feature, select On.
Use this function to balance sound from the left and right speakers.
Sound
OK MENU
SSM
AVL
Balance 0
Flat
Music
Movie
Sports
User
<
37

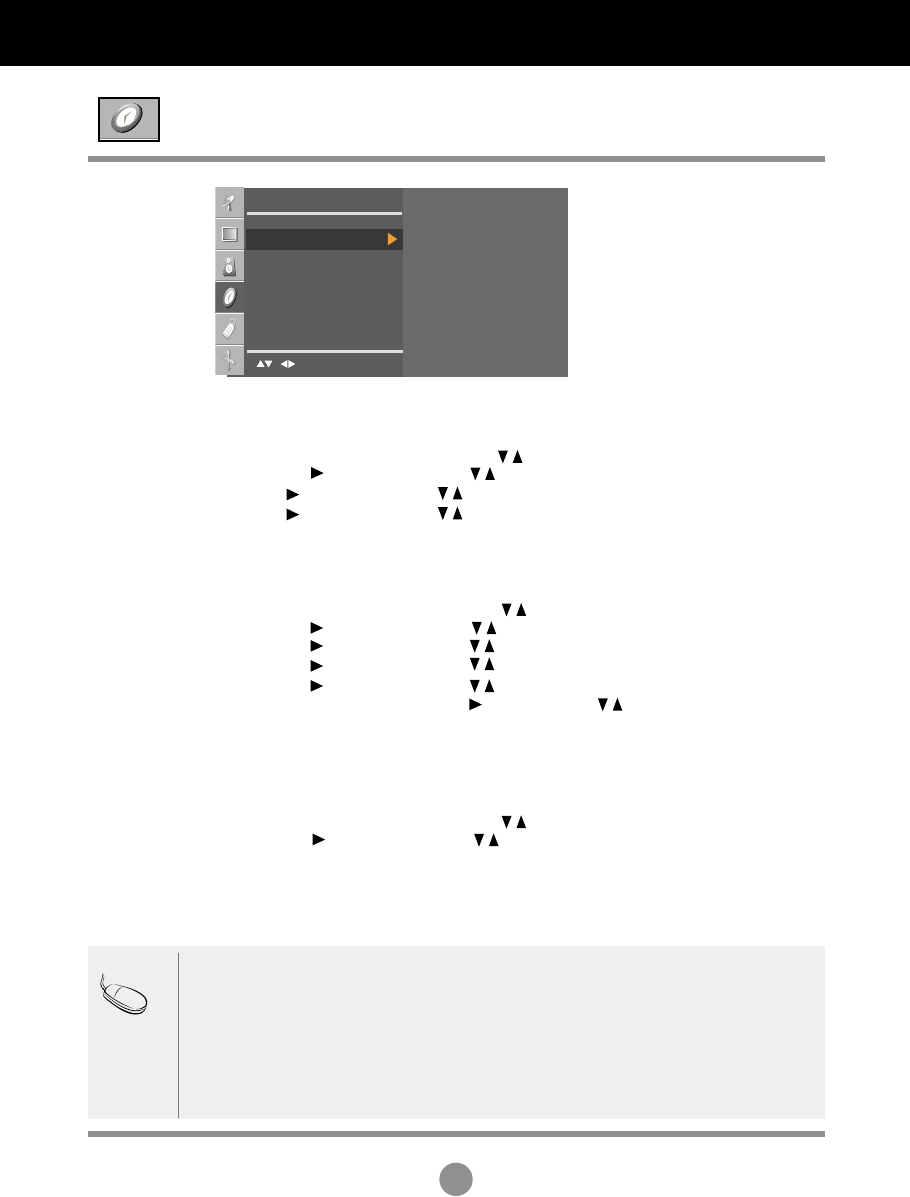

TIME ID to adjust the time function
•In the event of power interruption (disconnection or power failure), the Clock must be reset.
•Two hours after the set is switched on by the On time function it will automatically switch
back to off mode unless a button has been pressed.
•Once the On or Off time is set, these functions operate daily at the preset time.
•Off time function overrides On time function if they are set to the same time.
•The set must be in off mode for the On time to work.
•On time will move on to auto off if no activity is received in 2hours after setting the On time.
Note
Clock
Off/On time
Auto sleep
This function is used to set up of current time.
You must set the time correctly before using On/Off time function.
1) Press the MENU button and then use
button to select the TIME menu.
2) Press the button and then use
button to select the Clock menu.
3
) Press
button and then use button to set the hour(00~23).
4
) Press
button and then use button to set the minutes(00~59).
The default value is -- : --.
5) Press the OK/MENU button to save.
The Off time automatically switches the set to off mode at the pre-set time.
1) Press the MENU button and then use
button to select the TIME menu.
2) Press the button and then use
button to select Off time or On time.
3) Press the button and then use
button to set the hour(00~23).
4) Press the button and then use
button to set the minutes(00~59).
5) Press the button and then use
button to select On or Off.
6) Only On time function; Press the button and then
button to adjust volume level
and programme number
.
7) Press the OK/MENU button to save.
If Auto sleep is active and there is no input signal, the set switches to off mode
automatically after 10 minutes. ( It is not working in PC)
1) Press the MENU button and then use
button to select the
Auto
sleep menu.
2) Press the button and then use
button to select On or Off.
3) Press the OK/MENU button to save .
Adjusting the Screen
Time
OK MENU
Clock
Off time
On time
Auto sleep
-- : --
38
Use the buttons to select On or Off. It can be set up so that it can only be used with
the remote control. This feature can prevent unauthorized viewing.
In order to lock the OSD screen adjustment, set the Child lock tab to the 'On' position.
In order to unlock it, do the following :
* Push the MENU button on the remote control and set Child lock to the 'Off' position.
Adjusting the Screen
SPECIAL ID to Select the special function
Language
Country
Child lock
DDC-CI
XD Demo
To choose the language in which the control names are displayed
.
Please select your local teletext language.
If you don't, the teletext may not appear correctly on the screen.
This feature is not available in all countries.
Special
OK MENU
Language
Country
Child lock
DDC-CI
XD Demo
Use it to see the difference between XD demo on and XD Demo off.
(XD Demo function is not available in RGB PC/ DVI PC mode.)
DDC/CI(Display Data Channel Command Interface) is communication protocol for
communications between PC and monitor.
DDC/CI makes it possible to adjust and setup detailed functions on PC instead of the monitor
OSD.
Monitor can be adjusted with PC by connecting communication between PC and monitor when
DDC/CI is ON, and monitor cannot be adjusted with PC because communication between PC
and monitor is disconnected when DDC/CI is OFF.
39
SCREEN ID to adjust the screen function
Auto
config.
Manual
config.
ARC
Reset
This button is for the automatic adjustment of the screen Position, Clock and Phase.
(It is not working in RGB-DTV, DVI.)
This button is for the manual adjustment of the screen Position, Clock and Phase.
•
H-Position (It is not working In DVI-PC mode.)
To move the displayed image left or right.
•
V-Position (It is not working In DVI-PC mode.)
To move the displayed image up or down.
•
Clock (It is not working In RGB-DTV, DVI mode.)
To minimize any vertical bars or stripes visible on the screen background.
The horizontal screen size will also change.
•
Phase (It is not working In RGB-DTV, DVI mode.)
To adjust the focus of the display. This item allows you to remove any horizontal noise
and clear or sharpen the image of characters.
To select the image size of the screen.
•
When TV/Video mode: Spectacle, Original, 4:3, 16:9, 14:9, Zoom1, Zoom2
•
When RGB/DVI/Component mode: 4:3, 16:9
Use this function to reset the product to the factory default. However, language selection
will not be initialized.(It is working in RGB-PC, RGB-DTV, DVI-DTV mode.)
Adjusting the Screen
Screen
OK MENU
Auto config.
Manual config.
ARC
Reset
To set
40
Troubleshooting
• Install the product driver, which is provided with
the product, or download it from the web site.
(http://www.lge.com)
• See if the plug&play function is supported by
referring to the video card user's guide.
●
Did you install the driver?
'Unknown Product' message appears when the product is connected.
• Check if the power cord is properly connected to
the outlet.
• See if the power switch is turned on.
• Adjust brightness and contrast again.
• If the product is in power saving mode, move the
mouse or press any key.
• In DVD Player or Settop Box, check the power
status of connected device.
• The signal from the PC (video card) is out of the
vertical or horizontal frequency range of the
product. Adjust the frequency range by referring to
the Specifications in this user's guide.
* Maximum resolution
19 inch : RGB : 1440 X 900 @75 Hz
DVI : 1440 X 900 @60 Hz
20.1 inch : 1680 X 1050 @60 Hz
22 inch : 1680 X1050 @60 Hz
• The signal cable between PC and product is not
connected. Check the signal cable.
• Press the 'INPUT' button in the remote control to
check the input signal.
●Is the product's power cord
connected?
●Is the power indicator turning on?
●Power is on, power indicator is blue
but the screen appears extremely
dark.
●Does the power indicator look amber?
●Does the 'Out of range' message
appear?
●Does the 'Check signal cable'
message appear?
No image is displayed
Note
* Vertical frequency: To enable the user to watch the product display, screen image should be changed tens of times
every second like a fluorescent lamp. The vertical frequency or refresh rate is the times of image display per second.
The unit is Hz.
* Horizontal frequency: The horizontal interval is the time to display one vertical line. When the 1 is divided by
horizontal interval, the number of horizontal lines displayed every second can be tabulated as the horizontal
frequency. The unit is kHz.
41
• If you use a fixed image for a long time, the pixels
may be damaged quickly. Use the screen saver
function.
● After-image appears when the
product is turned off.
After-image appears on the product.
●Is the screen position wrong?
●Do thin lines appear on the
background screen?
●Horizontal noise appears or the
characters look blurred.
The screen image looks abnormal.
• Adjust the Position menu in OSD .
• See if the video card resolution and frequency
are supported by the product. If the frequency is
out of range, set to the recommended resolution
in the Control Panel – Display – Setting menu.
• Adjust the Clock menu in OSD.
• Adjust the Phase menu in OSD.
Troubleshooting
42
• Set the colour resolution to more than 24 bits (true
colour)
Select Control Panel – Display – Settings
– Colour Table menu in Windows.
• Check the connection status of the signal cable.
Or, re-insert the PC video card.
• Several pixels (red, green, white or black colour)
may appear on the screen, which can be
attributable to the unique characteristics of the
LCD panel. It is not a malfunction of the LCD.
●Screen has poor colour resolution (16
colours).
●Screen colour is unstable or mono-
colour.
●Do black spots appear on the screen?
Screen colour is abnormal.
• Check if the audio cable is connected properly.
• Adjust the volume.
• Check if the sound is set properly.
• Adjust the volume.
●No sound?
●Sound is too low.
The audio function does not work.
• See if you have selected the proper channel
mode.
• Use the automatic channel setup function.
• Check if the TV antenna is properly connected.
●The TV signal is not being received.
The TV function does not work.
Troubleshooting
43
Specifications
The product specifications can change without prior notice for product improvement.
[19 inch]
Screen Type 19 inches Wide (48.14 cm) TFT (Thin Film Transistor)
LCD (Liquid Crystal Display) Panel
Visible diagonal size: 48.14 cm
Pixel Pitch 0.285 mm
Max. Resolution RGB : 1440 X 900 @75 Hz
DVI : 1440 X 900 @60 Hz
Recommended Resolution
1440 X 900 @60 Hz
Horizontal Frequency 28 - 83 kHz
Vertical Frequency 56 - 75 Hz
Synchronization Type Separate Sync, Digital
S-Video, Composite video, TV, D-Sub Analog, DVI-D
SCART, PC Audio In, Headphone/Earphone, component
Rated Voltage AC 100-240V~ 50/60Hz 1.0A
Power Consumption On Mode : 50 W (Typ.)
Sleep Mode ≤1 W
Off Mode ≤1 W
Tilt Range -3˚ ~ 10˚
Swivel 350˚
Size (WxLxH) 456.8 mm x 230.0 mm x 395.0 mm
Weight (excl. package) 4.9 kg (10.8 Ibs)
Operational Condition Temperature: 10˚C ~ 35˚C , Humidity: 20% ~ 80%
Storage Condition Temperature: -10˚C ~ 60˚C , Humidity: 5% ~ 90%
LCD Panel
Video Signal
Input Connector
Power
Tilt
Dimension/Weight
Environmental Conditions
44
Specifications
The product specifications can change without prior notice for product improvement.
[20.1 inch]
Screen Type
20.1 inches Wide (51.113 cm) TFT (Thin Film Transistor)
LCD (Liquid Crystal Display) Panel
Visible diagonal size: 51.113 cm
Pixel Pitch 0.258 mm
Max. Resolution RGB : 1680 X 1050 @60 Hz
DVI : 1680 X 1050 @60 Hz
Recommended Resolution
1680 X 1050 @60 Hz
Horizontal Frequency 28 - 83 kHz
Vertical Frequency 56 - 75 Hz
Synchronization Type Separate Sync, Digital
S-Video, Composite video, TV, D-Sub Analog, DVI-D
SCART, PC Audio In, Headphone/Earphone, component
Rated Voltage AC 100-240V~ 50/60Hz 1.0A
Power Consumption On Mode : 50 W (Typ.)
Sleep Mode ≤1 W
Off Mode ≤1 W
Tilt Range -3˚ ~ 10˚
Swivel 350˚
Size (WxLxH) 484.3 mm x 230.0 mm x 414.3 mm
Weight (excl. package) 4.8 kg (10.58 Ibs)
Operational Condition Temperature: 10˚C ~ 35˚C , Humidity: 20% ~ 80%
Storage Condition Temperature: -10˚C ~ 60˚C , Humidity: 5% ~ 90%
LCD Panel
Video Signal
Input Connector
Power
Tilt
Dimension/Weight
Environmental Conditions
45
The product specifications can change without prior notice for product improvement.
[22 inch]
Specifications
Screen Type
22 inches Wide (55.868 cm) TFT (Thin Film Transistor)
LCD (Liquid Crystal Display) Panel
Visible diagonal size:
55.868
cm
Pixel Pitch 0.282 mm
Max. Resolution RGB : 1680 X1050 @60 Hz
DVI : 1680 X1050 @60 Hz
Recommended Resolution
1680 X1050 @60 Hz
Horizontal Frequency 28 - 83 kHz
Vertical Frequency 56 - 75 Hz
Synchronization Type Separate Sync, Digital
S-Video, Composite video, TV, D-Sub Analog, DVI-D
SCART, PC Audio In, Headphone/Earphone, component
Rated Voltage AC 100-240V~ 50/60Hz 1.0A
Power Consumption On Mode : 50 W (Typ.)
Sleep Mode ≤1 W
Off Mode ≤1 W
Tilt Range -3˚ ~ 10˚
Swivel 350˚
Size (WxLxH) 525.4 mm x 230.0 mm x 439.0 mm
Weight (excl. package) 5.82 kg (13 Ibs)
Operational Condition Temperature: 10˚C ~ 35˚C , Humidity: 20% ~ 80%
Storage Condition Temperature: -10˚C ~ 60˚C , Humidity: 5% ~ 90%
LCD Panel
Video Signal
Input Connector
Power
Tilt
Dimension/Weight
Environmental Conditions
46
PC Mode – Preset Mode
Preset mode
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
Preset mode
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
1
2
3
4
5
6
7
8
9
10
720 x 400
640 x 480
640 x 480
800 x 600
800 x 600
1024 x 768
1024 x 768
1152 x 864
1280 x 1024
1280 x 1024
31.468
31.469
37.500
37.879
46.875
48.363
60.123
67.500
63.981
79.976
70
60
75
60
75
60
75
75
60
75
11
12
13
1440 x 900
1440 x 900
1440 x 900
55.5
55.935
70.635
60
60
75
Power Indicator
Mode Product
On Mode
Sleep Mode
Off Mode
Blue
Amber
Off
Specifications
DTV -Timming
Preset mode
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
1
2
3
4
5
6
7
8
9
720 x 480/60p
720 x 480/60p
720 x 576/50p
1280 x 720/50p
1280 x 720/60p
1280 x 720/60p
1920 x 1080/60i
1920 x 1080/60i
1920 x 1080/50i
31.47
31.5
31.25
37.5
44.96
45
33.72
33.75
28.125
60
60
50
50
60
60
60
60
50
[19 inch]
[20.1 inch] [22 inch]
Preset mode
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
Preset mode
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
1
2
3
4
5
6
7
8
9
10
720 x 400
640 x 480
640 x 480
800 x 600
800 x 600
1024 x 768
1024 x 768
1152 x 864
1280 x 1024
1280 x 1024
31.468
31.469
37.500
37.879
46.875
48.363
60.123
67.500
63.981
79.976
70
60
75
60
75
60
75
75
60
75
11
12
1680 x 1050
1680 x 1050
64.674
65.290
60
60
* 1~13 : RGB mode * 1~12 : DVI mode
47
This product meets VESA-compliant mounting interface pad specifications.
1.
Put the product on a piece of cloth or other soft surface with the front side facing downward.
Specifications
VESA wall mounting
2.
Please pull and remove the stand base while pressing the
button on the stand body in the direction of the arrows.
3.
Please put the stand body up.
48
RGB(PC/DTV) INDVI I N
ANTENNA IN
AUDIO
(RGB/DVI) IN
H/P
S-VIDEO
AV IN 2
AV1
(MONO)
VIDEO
AUDIO
L R
AUDIO
COMPONENT IN
VIDEO
YPb Pr L R
VESA wall mounting
Connected to another
object (stand type and wall-
mounted type).
This product accepts a
VESA-compliant mounting
interfacepad.
(This has to be purchased
separately if required.)
For further information,
refer to the VESA Wall
Mounting Instruction Guide.
6.
Install the VESA standard wall mounting.
Specifications
5.
Fasten the screw on the backside of the product and the other one in the joint of the stand.
4.
Please pull and remove the stand body while sliding and holding the latches down.

Navigation menu
