www.lg.com

OWNER’S MANUAL

LED LCD/CINEMA 3D

MONITOR TV

M1950D

M2250D

M2350D

M2450D

M2550D

DM2350D

Please read this manual carefully before operating the

your set and retain it for future reference.

LED LCD MONITOR TV

MODELS

CINEMA 3D MONITOR TV

MODEL

ENGLISH

MTV

3D MTV

2

ENGLISH

TABLE OF CONTENTS

CONTENTS

5 LICENSES

6 ASSEMBLING AND PREPARING

6 Unpacking

8 Partsandbuttons

10 LiftingandmovingtheMonitorset

10 SettinguptheMonitorset

10 - AttachingtheStandBase

10 - DetachingtheStandBaseandBody

11 - Mountingonatable

12 - Mountingonawall

13 - Tidyingcables

14 REMOTE CONTROL

17 USING THE MONITOR SET

17 ConnectingtoaPC

17 - HDMIconnection

18 - DVItoHDMIconnection

18 - RGBconnection

19 Adjustingthescreen

19 - Selectinganimagemode

20 - Customizingimageoptions

20 - CustomizingPCdisplayoptions

21 Adjustingthesound

21 - Selectingansoundmode

21 - Customizingsoundoptions

22 WATCHING TV

22 Connectinganantennaorcable

22 - Connectinganantennaorbasiccable

22 - Connectingwithacablebox

23 AccessingtheTVforthefirsttime

24 WatchingTV

24 Managingprogrammes

24 - Automaticallysettingupprogrammes

27 - Manuallysettingupprogrammes(In

digitalmode)

28 - Manuallysettingupprogrammes(In

analoguemode)

29 - CableDTVSetting(InCablemode

only)

29 - Editingyourprogrammelist

30 - InDTV/RADIOmode

30 - InTVmode

31 - SoftwareUpdate

32 - Diagnostics

32 - CI[Commoninterface]Information

33 - Selectingtheprogrammelist

33 - Favouriteprogrammesetup

34 Usingadditionaloptions

34 - Adjustingaspectratio

36 - Usingtheinputlist

37 - On-screenmenulanguage/Country

selection

38 - Languageselection(Indigitalmode

only)

39 UsingtheLockoptions

39 - LockingthebuttonsontheMonitorset.

40 - Parentalcontrol   

(Indigitalmodeonly)

40 UsingtheQuickmenu

41 EPG (ELECTRONIC

PROGRAMME GUIDE)

(IN DIGITAL MODE)

41 UsingElectronicProgrammeGuide

41 - Switchon/offEPG

41 - Selectaprogramme

42 - ButtonFunctioninNOW/NEXTGuide

Mode

42 - ButtonFunctionin8DayGuideMode

42 - ButtonFunctioninDateChangeMode

43 - ButtonFunctioninExtendedDescrip-

tionBox

43 - ButtonFunctioninRecord/RemindSet-

tingMode

3

ENGLISH

TABLE OF CONTENTS

43 - ButtonFunctioninScheduleListMode

44 ENTERTAINMENT

44 Usingintegratedmediafeatures

44 - ConnectingUSBstoragedevices

46 - Browsingfiles

47 - ViewingPhotos

48 - ListeningtoMusic

50 - ViewingMovies

53 - DivXregistrationcode

53 - DeactivatingtheDivXfeature

54 3D IMAGING(ONLY 3D MODEL)

54 3DTechnology

54 Precautionstotakewhenviewing3Dim-

ages

55 Whenusing3DGlasses

56 3DImagingViewingRange

56 Viewing3DImaging

57 3DModeSettingOption

58 CUSTOMIZING SETTINGS

58 Accessingmainmenus

59 Customizingsettings

59 - SETUPsettings

60 - PICTUREsettings

63 - AUDIOsettings

66 - TIMEsettings

67 - OPTIONsettings

68 - LOCKsettings

69 - INPUTsettings

70 - USBsettings

71 MAKING CONNECTIONS

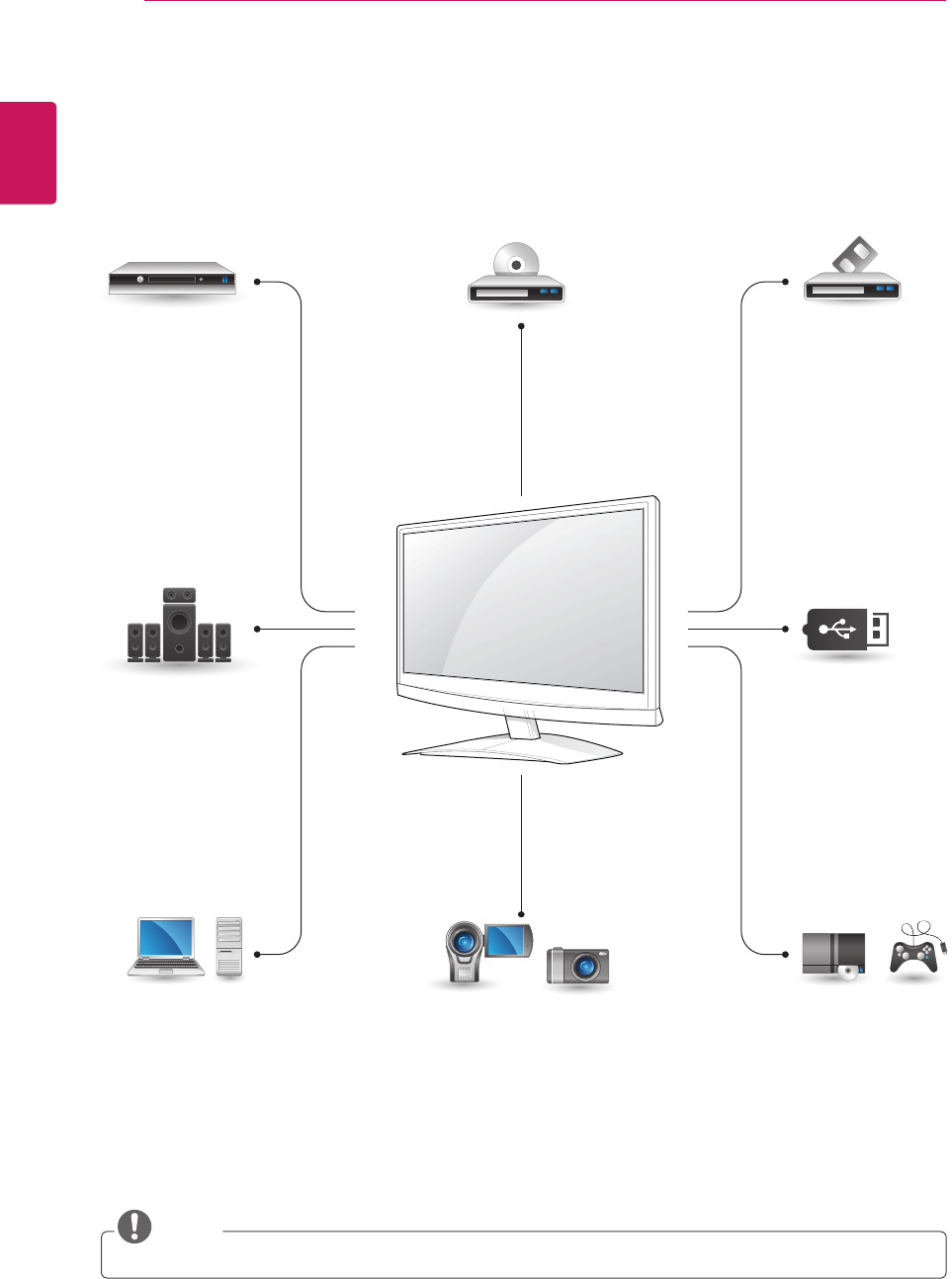

71 Connectionoverview

73 ConnectingtoaCamcorder,Camera,HD

receiver,DVD,VCRplayerorGaming

device

73 - HDMIconnection

73 - DVItoHDMIconnection

74 - Componentconnection

74 - EuroScartconnection

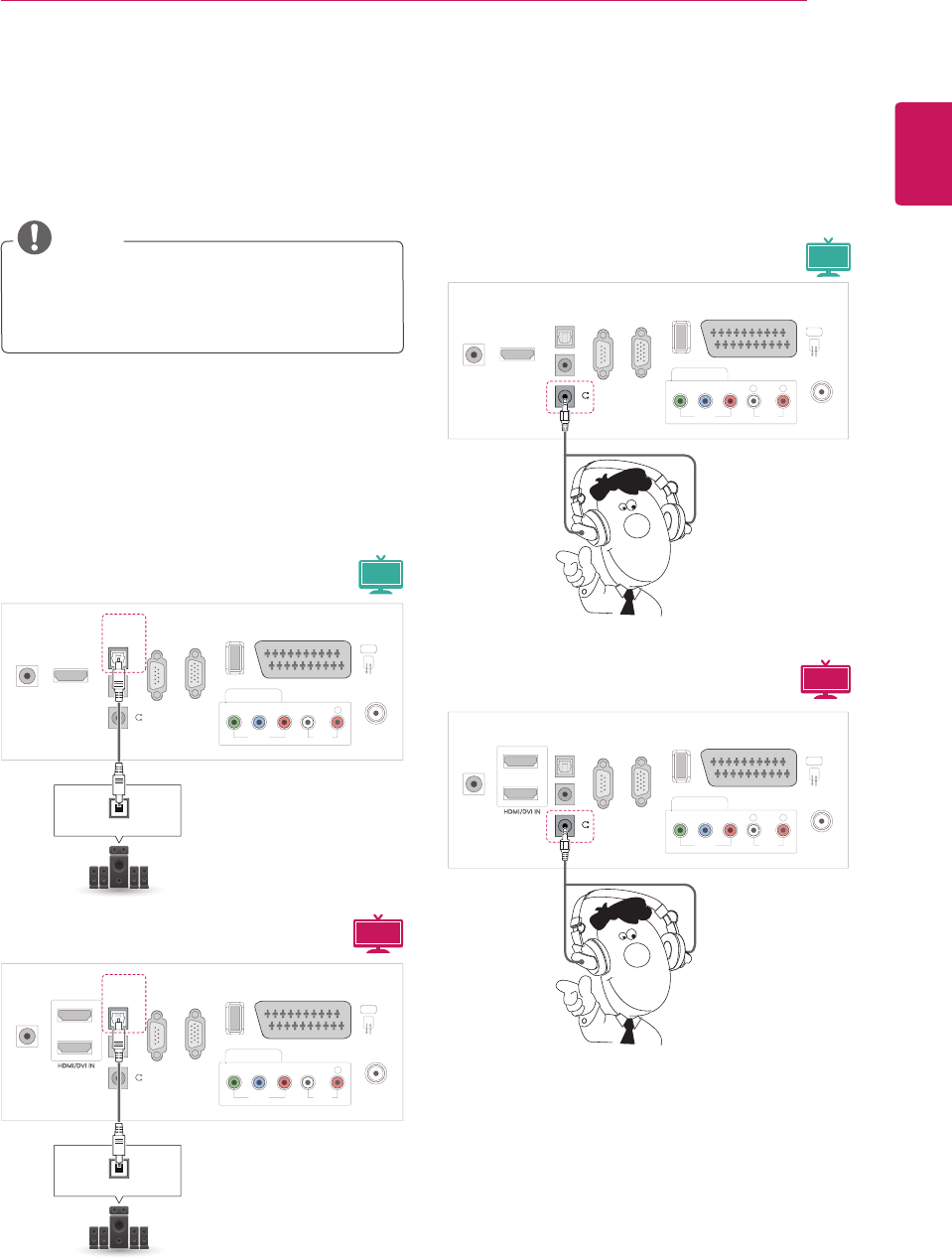

75 Connectingtoanaudiosystem

75 - Digitalopticalaudioconnection

75 - Headphoneconnection

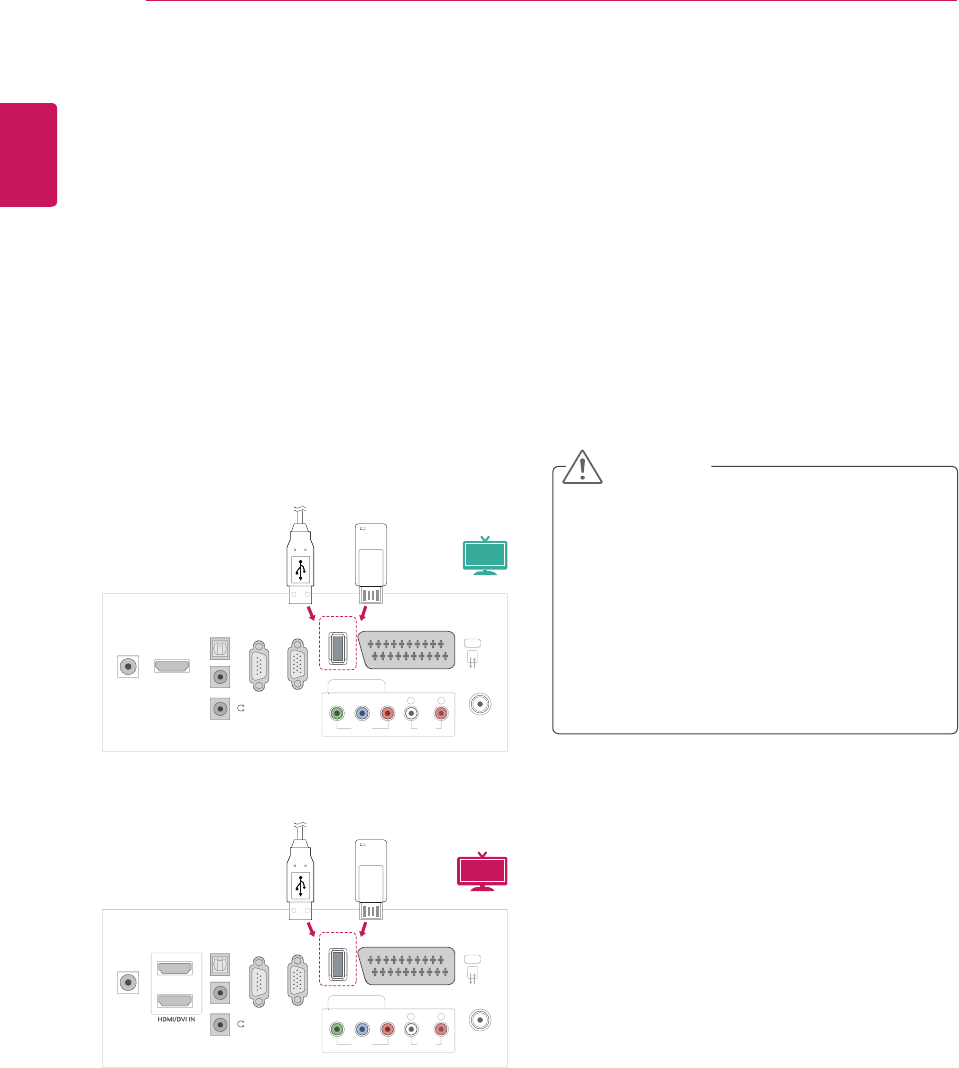

76 ConnectingtoaUSB

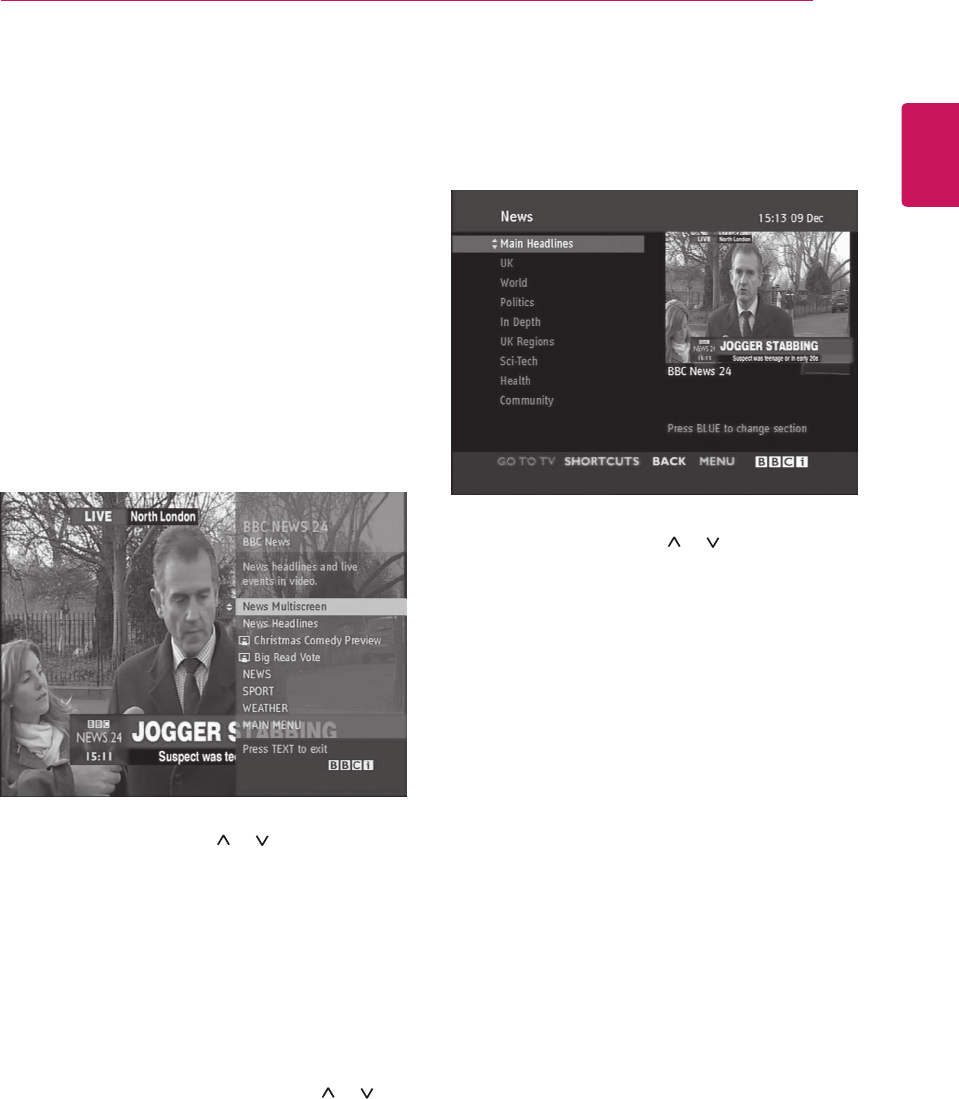

77 TELETEXT

77 SwitchOn/Off

77 SimpleText

77 - Pageselection

77 TopText

77 - Block/Group/PageSelection

77 - DirectPageSelection

78 Fastext

78 - Pageselection

78 SpecialTeletextFunction

78 - TextOption

79 DIGITAL TELETEXT

79 Teletextwithindigitalservice

79 Teletextindigitalservice

80 MAINTENANCE

80 Screenandframe

80 Cabinetandstand

80 Powercord

4

ENGLISH

TABLE OF CONTENTS

81 TROUBLESHOOTING

81 General

82 PCmode

84 TROUBLESHOOTING WHEN

USING 3D MODE

85 SPECIFICATIONS

94 IR CODES

95 EXTERNAL CONTROL DEVICE

SETUP

95 RS-232CSetup

95 Typeofconnector;D-Sub9-PinMale

96 RS-232Cconfigurations

97 CommunicationParameters

97 Commandreferencelist

98 Transmission/Receivingprotocol

ENGLISH

5

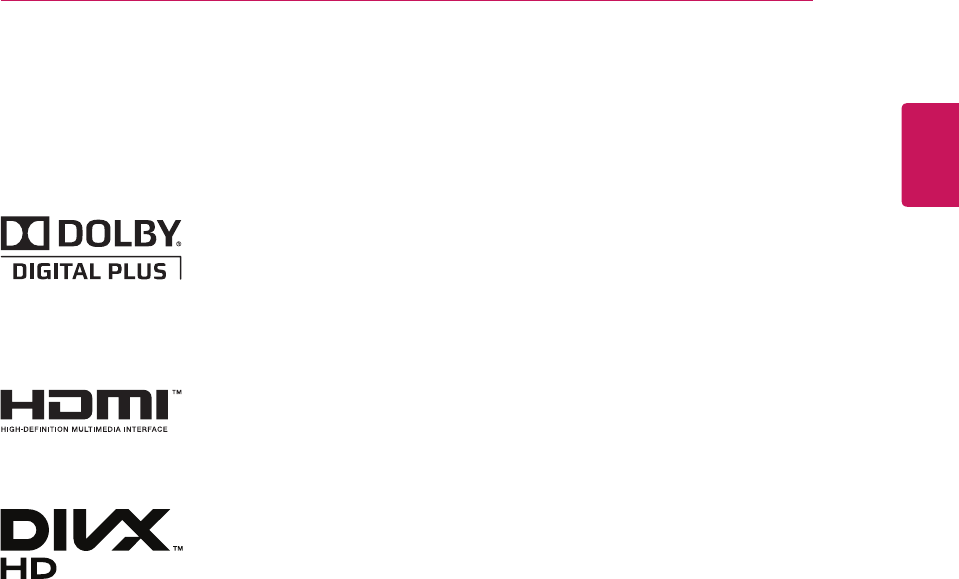

LICENSES

LICENSES

Supportedlicensesmaydifferbymodel.Formoreinformationofthelicenses,visitwww.lg.com.

ManufacturedunderlicensefromDolbyLaboratories.“Dolby“andthe

double-DsymbolaretrademarksofDolbyLaboratories.

HDMI,theHDMIlogoandHigh-DefinitionMultimediaInterfacearetrademarks

orregisteredtrademarksofHDMILicensingLLC.

ABOUTDIVXVIDEO:DivX®isadigitalvideoformatcreatedbyDivX,Inc.

ThisisanofficialDivXCertifieddevicethatplaysDivXvideo.Visitwww.divx.

comformoreinformationandsoftwaretoolstoconvertyourfilesintoDivX

video.

ABOUTDIVXVIDEO-ON-DEMAND:ThisDivXCertified®devicemust

beregisteredinordertoplayDivXVideo-on-Demand(VOD)content.To

generatetheregistrationcode,locatetheDivXVODsectioninthedevice

setupmenu.Gotovod.divx.comwiththiscodetocompletetheregistration

processandlearnmoreaboutDivXVOD.

“DivXCertified®toplayDivX®videouptoHD1080p,includingpremium

content.”

“DivX®,DivXCertified®andassociatedlogosaretrademarksofDivX,Inc.

andareusedunderlicense.”

“Pat.7,295,673;7,460,668;7,515,710;7,519,274”

ENGLISH

6ASSEMBLING AND PREPARING

ASSEMBLING AND PREPARING

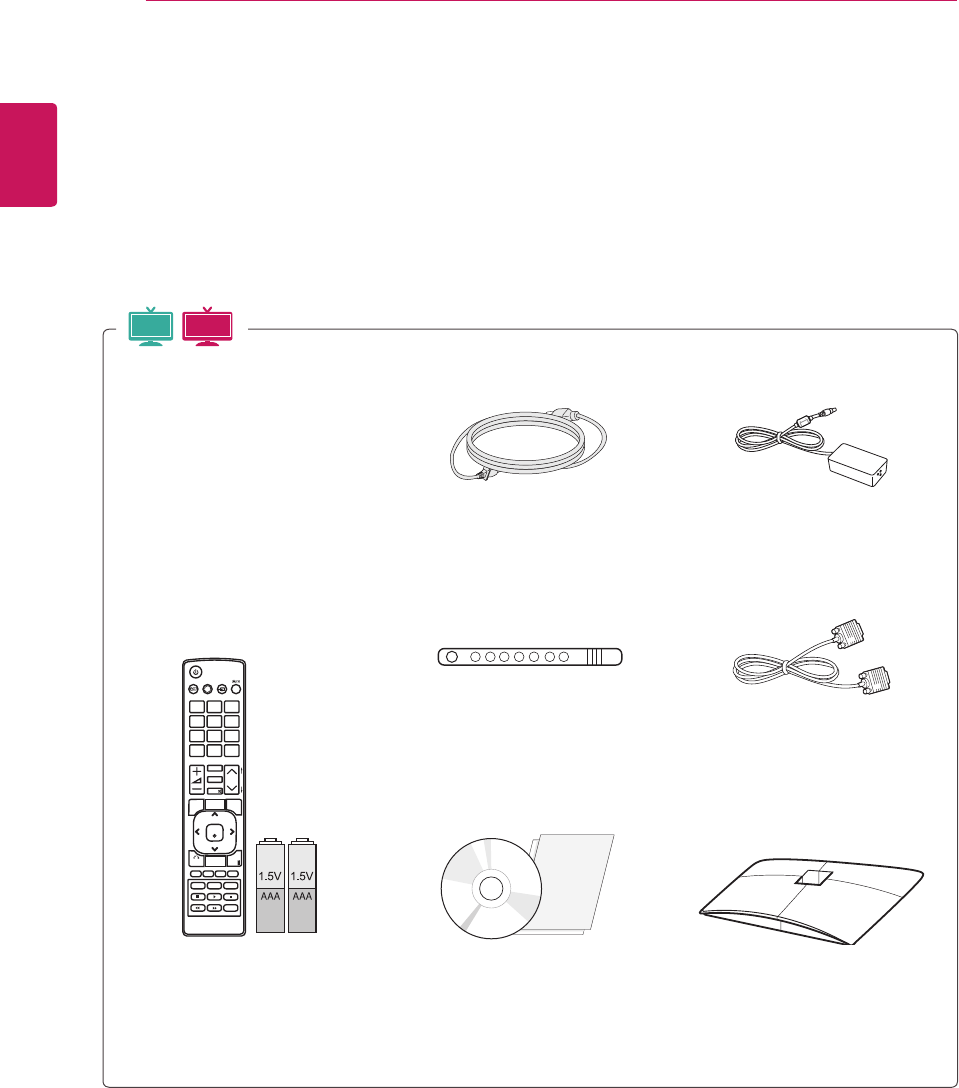

Unpacking

Checkyourproductboxforthefollowingitems.Ifthereareanymissingaccessories,contactthelocal

dealerwhereyoupurchasedyourproduct.Theillustrationsinthismanualmaydifferfromtheactualproduct

andaccessories.

Remote control and Batteries Stand Base

Power Cord

Cable Tie

CD (Owner's Manual) /

Card

AC-DC Adapter

RGB Cable

MTV

3D MTV

ENGLISH

7

ASSEMBLING AND PREPARING

 Donotuseanypirateditemstoensurethesafetyandproductlifespan.

 Anydamagesorinjuriesbyusingpirateditemsarenotcoveredbythewarranty.

 Theaccessoriessuppliedwithyourproductmayvarydependingonthemodel.

 Productspecificationsorcontentsinthismanualmaybechangedwithoutpriornoticeduetoupgrade

ofproductfunctions.

CAUTION

NOTE

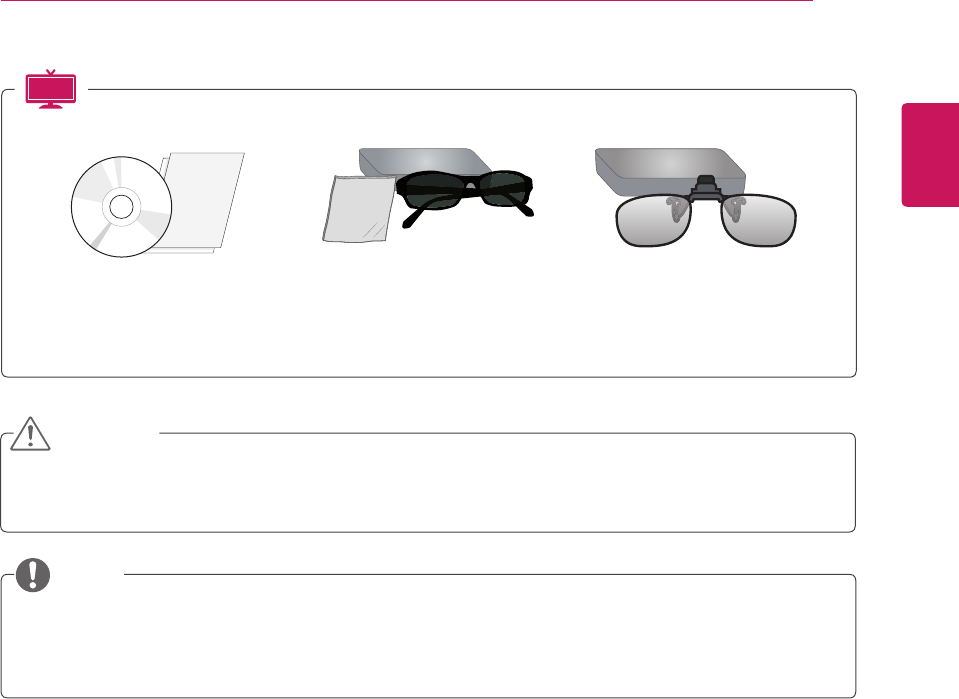

TriDef 3D Game Software CD /

Quick Installation Guide

3D Glasses

(Normaltype)

3D Glasses

(Cliptype)

3D MTV

ENGLISH

8ASSEMBLING AND PREPARING

 YoucansetthePowerindicatortoonoroffbyselectingOPTIONinthemainmenus.

NOTE

Parts and buttons

Touch button Description

INPUT Changestheinputsource.

MENU Accessesthemainmenus,orsavesyourinputandexitsthemenus.

OK Selectsthehighlightedmenuoptionorconfirmsaninput.

◄VOL►Adjuststhevolumelevel.

▼PR▲ Scrollsthroughthesavedprogrammes.

/ITurnsthepoweronoroff.

Allofthebuttonsaretouchsensitiveandcanbeoperatedthroughsimpletouchwithyourfinger.

Remote

Control

Sensor

PCMCIA

Card Slot

Power Indicator

 Lighting On: Turned on

 Lighting Off: Turned off

Connection panel (Seep.71)

Touch Buttons

MTV

ENGLISH

9

ASSEMBLING AND PREPARING

 YoucansetthePowerindicatortoonoroffbyselectingOPTIONinthemainmenus.

NOTE

Touch button Description

INPUT Changestheinputsource.

MENU Accessesthemainmenus,orsavesyourinputandexitsthemenus.

OK Selectsthehighlightedmenuoptionorconfirmsaninput.

◄VOL►Adjuststhevolumelevel.

▼PR▲ Scrollsthroughthesavedprogrammes.

/ITurnsthepoweronoroff.

Allofthebuttonsaretouchsensitiveandcanbeoperatedthroughsimpletouchwithyourfinger.

1

2

Remote

Control

Sensor

PCMCIA

Card Slot

Power Indicator

 Lighting On: Turned on

 Lighting Off: Turned off

Connection panel(Seep.71)

Touch Buttons

3D MTV

ENGLISH

10 ASSEMBLING AND PREPARING

Lifting and moving the

Monitor set

WhenmovingorliftingtheMonitorset,readthe

followingtopreventtheMonitorsetfrombeing

scratchedordamagedandforsavetransportation

regardlessofitstypeandsize.

Setting up the Monitor set

Attaching the Stand Base

1 PlacetheMonitorsetwiththescreenside

downonaflatandcushionedsurface.

Avoidtouchingthescreenatalltimes,asthis

mayresultindamagetothescreenorsome

ofthepixelsusedtocreateimages.

Layafoammatorsoftprotectivecloth

onthesurfacetoprotectthescreenfrom

damage.

CAUTION

CAUTION

 ItisrecommendedtomovetheMonitorsetin

theboxorpackingmaterialthattheMonitor

setoriginallycamein.

 BeforemovingorliftingtheMonitorset,

disconnectthepowercordandallcables.

 HoldthetopandbottomoftheMonitor

setframefirmly.Makesurenottoholdthe

transparentpart,speaker,orspeakergrill

area.

 WhenholdingtheMonitorset,thescreen

shouldfaceawayfromyoutopreventthe

screenfromscratches.



 WhentransportingtheMonitorset,donot

exposetheMonitorsettojoltsorexcessive

vibration.

 WhentransportingtheMonitorset,keepthe

Monitorsetupright,neverturntheMonitor

setonitsside,ortilttowardstheleftorright.

Detaching the Stand Base and Body

1 PlacetheMonitorsetwiththescreenside

downonaflatandcushionedsurface.

2 Turnthescrewtotheleft,andthenpulloutthe

Stand BasefromtheStand Body.

2 AttachtheStand Basefromthesetbyturning

thescrewtotherightwithaCoin.

ENGLISH

11

ASSEMBLING AND PREPARING

Whenyouadjusttheangle,donotholdthe

buttomoftheMonitorsetframeasshownon

thefollowingillustration,asmayinjureyour

fingers.

WARNING

Mounting on a table

1 LiftandtilttheMonitorsetintoitsupright

positiononatable.

Leavea10cm(minimum)spacefromthewall

forproperventilation.

3 Remove2screwsandpullouttheStand Body

fromtheMonitorset.

2 ConnecttheAC-DC AdapterandPower Cord

toawalloutlet.

Disconnectthepowercordfirst,andthenmove

orinstalltheMonitorset.Otherwiseelectric

shockmayoccur.

Tiltfrom+10to-5degreesupordowntoadjust

theangleoftheMonitorsettosuityourview.

CAUTION

NOTE

Front Rear

10 cm

10 cm

10 cm

10 cm

10- 5

ENGLISH

12 ASSEMBLING AND PREPARING

Using the Kensington security system

TheKensingtonsecuritysystemconnectoris

locatedatthebackoftheMonitorset.Formore

informationofinstallationandusing,refertothe

manualsuppliedwiththeKensingtonsecurity

systemorvisit

http://www.kensington.com

.

ConnecttheKensingtonsecuritysystemcable

betweentheMonitorsetandatable.

TheKensingtonsecuritysystemisoptional.

Youcanobtainadditionalaccessoriesfrom

mostelectronicsstores.

NOTE

Mounting on a wall

Forproperventilation,allowaclearanceof10

cmoneachsideandfromthewall.Detailed

installationinstructionsareavailablefromyour

dealer,seetheoptionalTiltWallMountingBracket

InstallationandSetupGuide.

IfyouintendtomounttheMonitorsettoawall,

attachWallmountinginterface(optionalparts)to

thebackoftheset.

WhenyouinstalltheMonitorsetusingthewall

mountinginterface(optionalparts),attachit

carefullysoitwillnotdrop.

PleaseuseVESAstandardasbelow.

 784.8mm(30.9inch)andunder

*WallMountPadThickness:2.6mm

*Screw:Φ4.0mmxPitch0.7mmx

Length10mm

 787.4mm(31.0inch)andabove

*PleaseuseVESAstandardwallmountpad

andscrews.

10 cm

10 cm

10 cm

10 cm

ENGLISH

13

ASSEMBLING AND PREPARING

Tidying cables

Gatherandbindthecableswiththesupplied

cabletie.

 Disconnectthepowercordfirst,andthen

moveorinstalltheMonitorset.Otherwise

electricshockmayoccur.

 IfyouinstalltheMonitorsetonaceilingor

slantedwall,itmayfallandresultinsevere

injury.

 UseanauthorizedLGwallmountand

contactthelocaldealerorqualified

personnel.

 Donotovertightenthescrewsasthismay

causedamagetotheMonitorsetandvoid

yourwarranty.

 Usethescrewsandwallmountsthatmeet

theVESAstandard.Anydamagesorinjuries

bymisuseorusinganimproperaccessory

arenotcoveredbythewarranty.

 UsethescrewsthatarelistedontheVESA

standardscrewspecifications.

 Thewallmountkitincludesaninstallation

manualandnecessaryparts.

 Thewallmountbracketisoptional.Youcan

obtainadditionalaccessoriesfromyourlocal

dealer.

 Thelengthofscrewsmaydifferdepending

onthewallmount.Besuretousetheproper

length.

 Formoreinformation,refertotheinstructions

suppliedwiththewallmount.

CAUTION

NOTE

Model M1950D

M2250D

M2350D 

DM2350D 

M2450D

M2550D

VESA (A x B) 75x75 200x100

Standard screw M4 M4

Number of screws 4 4

Wall mount

bracket (optional)

RW120 RW240

ENGLISH

14 REMOTE CONTROL

REMOTE CONTROL

Thedescriptionsinthismanualarebasedonthebuttonsoftheremotecontrol.

PleasereadthismanualcarefullyandusetheMonitorsetcorrectly.

Toreplacebatteries,openthebatterycover,replacebatteries(1.5VAAA)matching

and endstothelabelinsidethecompartment,andclosethebatterycover.

Toremovethebatteries,performtheinstallationactionsinreverse.

MakesuretopointtheremotecontroltotheremotecontrolsensorontheMonitorset.

CAUTION

Donotmixoldandnewbatteries,asthismay

damagetheremotecontrol.

P

A

G

E

P

1 2 3

4 5

0

6

7 8 9

LIST

Q.VIEW

TV / PC INPUT

TV/

RAD

ENERGY

SAVING

MARK

FAV

RATIO

MUTE

OK

MENU

GUIDE

Q.MENU

BACK

INFO

Auto Config.

EXIT

(POWER)

TurnstheMonitorsetonoroff.

ENERGY SAVING(Seep.60)

Adjuststhebrightnessof

thescreentoreduceenergy

consumption.

TV/PC

SelectsTVorPCmode.

LIST(Seep.33)

Displaystheprogramme

table.

INPUT(Seep.36)

Selectstheinputmode.

TV/RAD(Seep.30)

SelectsRadio,TVandDTV

programme.

Number buttons

Entersnumbers.

Q.VIEW

Returnstothepreviously

viewedprogramme.

P

A

G

E

P

1 2 3

4 5

0

6

7 8 9

LIST

Q.VIEW

TV / PC INPUTENERGY

SAVING

MARK

FAV

3D

MUTE

OK

MENU

GUIDE

Q.MENU

BACK

INFO

Auto Config.

EXIT

P

A

G

E

P

1

2

3

4

5

0

6

7

8

9

L

I

S

T

Q.VIEW

TV

/

P

C

IN

P

UT

ENER

G

Y

S

AVIN

G

MARK

FAV

3D

MUT

E

MARK

Selecttheinputtoapplythe

PictureWizardsettings.

Checkandun-check

programmesintheUSB

menu.

FAV

Displaystheselected

favouriteprogramme.

(VOLUME)

Adjuststhevolumelevel.

RATIO (Seep.34)

Resizesanimage.

Programme

Selectsaprogramme.

PAGE

Movestothepreviousornext

screen.

MUTE

Mutesallsounds.

MTV

Q.MENU (Seep.40)

Accessesthequickmenus.

ENGLISH

15

REMOTE CONTROL

P

A

G

E

P

1 2 3

4 5

0

6

7 8 9

LIST

Q.VIEW

TV / PC INPUT

TV/

RAD

ENERGY

SAVING

MARK

3D SETTING

FAV

3D

MUTE

OK

MENU

GUIDE

Q.MENU

BACK

INFO

Auto Config.

EXIT

(POWER)

TurnstheMonitorsetonoroff.

ENERGY SAVING(Seep.60)

Adjuststhebrightnessof

thescreentoreduceenergy

consumption.

TV/PC

SelectsTVorPCmode.

LIST(Seep.33)

Displaystheprogramme

table.

INPUT(Seep.36)

Selectstheinputmode.

TV/RAD(Seep.30)

SelectsRadio,TVandDTV

programme.

Number buttons

Entersnumbers.

Q.VIEW

Returnstothepreviously

viewedprogramme.

MARK

Selecttheinputtoapplythe

PictureWizardsettings.

Checkandun-check

programmesintheUSB

menu.

FAV

Displaystheselected

favouriteprogramme.

(VOLUME)

Adjuststhevolumelevel.

3D (Seep.54)

Usesforviewing3Dvideo.

Programme

Selectsaprogramme.

PAGE

Movestothepreviousornext

screen.

Q.MENU (Seep.40)

Accessesthequickmenus.

3D SETTING(Only 3D Mode)

(Seep.57)

Viewfor3DModesetting.

MUTE

Mutesallsounds.

P

A

G

E

P

1 2 3

4 5

0

6

7 8 9

LIST

Q.VIEW

TV / PC INPUTENERGY

SAVING

MARK

FAV

3D

MUTE

OK

MENU

GUIDE

Q.MENU

BACK

INFO

Auto Config.

EXIT

P

A

G

E

P

1

2

3

4

5

0

6

7

8

9

L

I

S

T

Q.VIEW

TV

/

P

C

IN

P

UT

ENER

G

Y

S

AVIN

G

MARK

FAV

3D

MUT

E

3D MTV

ENGLISH

16 REMOTE CONTROL

P

A

G

E

P

1 2 3

4 5

0

6

7 8 9

LIST

Q.VIEW

TV / PC INPUT

TV/

RAD

ENERGY

SAVING

MARK

FAV

RATIO

MUTE

OK

MENU

GUIDE

Q.MENU

BACK

INFO

Auto Config.

EXIT

INFO ⓘ

Viewstheinformationofthe

currentlyprogramandthe

screen.

EXIT

Clearsallon-screendisplays

andreturnstoMonitorset

viewingfromanymenu.

Coloured buttons

Thesebuttonsareusedfor

teletext(onTELETEXT

modelsonly),Programme

edit.

SUBTITLE

Recallsyourpreferredsubtitle

indigitalmode.

Auto Config.

Automaticallyadjustspicture

positionandminimizes

imageinstability.

MENU (Seep.58)

Accessesthemainmenus

orsavesyourinputandexit

menus. Navigation buttons

Scrollsthroughmenusor

options.

OK

Selectsmenusoroptionsand

confirmsyourinput.

BACK

Allowstheusertomovereturn

onestepinaninteractive

application,EPGorotheruser

interactionfunction.

Teletext buttons (Seep.77)

Thesebuttonsareusedfor

teletext.Forfurtherdetails,

seethe‘Teletext’section.

USB Menu control

buttons (Seep.44)

USBmenu(PhotoListand

MusicListorMovieList).

P

A

G

E

P

1 2 3

4 5

0

6

7 8 9

LIST

Q.VIEW

TV / PC INPUT

TV/

RAD

ENERGY

SAVING

MARK

FAV

RATIO

MUTE

OK

MENU

GUIDE

Q.MENU

BACK

INFO

Auto Config.

EXIT

OK

M

ENU

GUIDE

Q.MENU

BAC

K

INFO

E

XIT

Auto Config.

GUIDE (Seep.41)

Showsprogrammeguide.

3D MTV

MTV

ENGLISH

17

USING THE MONITOR SET

USING THE MONITOR SET

Connecting to a PC

YourMonitorsetsupportsthePlug&Play*feature

andhasthebuilt-inspeakerswithSurroundXthat

reproducessoundclearlywitharichbass.

*Plug&Play:ThefunctionwhenaPCrecognizes

aconnecteddevicethatusersconnecttoaPC

andturnon,withoutdeviceconfigurationoruser

intervention.

 ItisrecommendedtousetheMonitorset

withtheHDMIconnectionforthebestimage

quality.

 Ifyouwanttouseanoptionalexternal

speakerinsteadofthebuilt-inspeaker,set

theMonitorsetspeakerfeaturetooff

(Seep.63).

 UseaHighSpeedHDMI™Cable.

 PleasecheckthePCenvironmentifyou

cannothearthesoundinHDMImode.

 IfyouwanttouseHDMI-PCmode,youmust

settheinputlabeltoPCmode.

NOTE

NOTE

HDMI connection

Transmitsthedigitalvideoandaudiosignalsfrom

yourPCtotheMonitorset.ConnectthePCand

theMonitorsetwiththeHDMIcableasshownin

thefollowingillustrations.YoushouldsetPCas

aninputlabeltoconnectthePCtotheMonitorset

withanHDMIconnection.Toaddaninputlabel,

seeAddinganInputlabelonSeep.36.

HDMI OUT

PC

V

IDE

O

COMPONENT IN

U

SB IN

AV

A

UDI

O

Y

P

B

P

R

L

R

S

-2

3

2

C

I

N

(CONTROL & SERVICE

)

RGB IN

(

PC

)

O

PTI

C

AL

D

I

G

ITAL A

U

DI

O

OU

T

AUDI

O

IN

(RGB/DVI

)

H

/

P

A

NTENNA

/

C

ABLE IN

HDMI/DVI IN

D

C

-IN

R

HDMI OUT

PC

V

IDE

O

COMPONENT IN

U

SB IN

AV

A

UDI

O

Y

P

B

P

R

L

R

S

-2

3

2

C

I

N

(CONTROL & SERVICE

)

RGB IN

(

PC

)

O

PTI

C

AL

D

I

G

ITAL A

U

DI

O

OU

T

AUDI

O

IN

(RGB/DVI

)

H

/

P

A

NTENNA

/

C

ABLE IN

D

C

-IN

R

1

2

3D MTV

MTV

ENGLISH

18 USING THE MONITOR SET

 IfyouwanttouseHDMI-PCmode,youmust

settheinputlabeltoPCmode.

 Connectthesignal

inputcableandtighten

itbyturningthescrews

clockwise.

NOTE

DVI to HDMI connection

TransmitsthedigitalvideosignalfromyourPCto

theMonitorset.ConnectthePCandtheMonitor

setwiththeDVItoHDMIcableasshownthe

followingillustrations.Totransmitanaudiosignal,

connectanoptionalaudiocable.

RGB connection

TransmitstheanalogvideosignalfromyourPCto

theMonitorset.ConnectthePCandtheMonitor

setwiththeD-sub15pincableasshownthe

followingillustrations.Totransmitanaudiosignal,

connectanoptionalaudiocable.

CAUTION

PC

RGB OUT (PC) AUDIO OUT

V

IDE

O

CO

MP

O

NENT I

N

US

B IN

AV

AU

DI

O

Y

P

B

P

R

L

RS

-2

3

2

C

IN

(CONTROL & SERVICE)

)

RGB IN (PC)

O

PTI

C

AL

AUDIO IN

(RGB/DVI)

H / P

DIGITAL

AUDIO OUT

L

L

A

NTENNA

/

C

ABLE IN

HDMI/DVI IN

D

C

-IN

R

PC

RGB OUT (PC) AUDIO OUT

V

IDE

O

CO

MP

O

NENT I

N

US

B IN

AV

AU

DI

O

Y

P

B

P

R

L

RS

-2

3

2

C

IN

(CONTROL & SERVICE)

)

RGB IN (PC)

O

PTI

C

AL

AUDIO IN

(RGB/DVI)

H / P

DIGITAL

AUDIO OUT

L

L

A

NTENNA

/

C

ABLE IN

D

C

-IN

R

1

2

PC

V

IDE

O

CO

MP

O

NENT IN

US

B IN

AV

A

UDI

O

Y

P

B

P

R

L

R

S

-2

3

2

C

I

N

(CONTROL & SERVICE)

RGB IN (PC)

O

PTI

C

AL

D

I

G

ITAL A

U

DI

O

OU

T

AUDIO IN

(RGB/DVI)

H

/

P

A

NTENNA

/

C

ABLE IN

D

C

-IN

R

AUDIO OUT

DVI OUT

HDMI/DVI IN

V

IDE

O

CO

MP

O

NENT IN

US

B IN

AV

AU

DI

O

Y

P

B

P

R

L

R

S

-2

3

2

C

I

N

(CONTROL & SERVICE

)

RGB IN (PC)

O

PTI

C

AL

D

I

G

ITAL A

U

DI

O

OU

T

AUDIO IN

(RGB/DVI)

H

/

P

A

NTENNA

/

C

ABLE IN

D

C

-IN

R

1

2

PC

AUDIO OUT

DVI OUT

3D MTV 3D MTV

MTV MTV

ENGLISH

19

USING THE MONITOR SET

 Ifyoudonotuseanoptionalexternal

speaker,connectthePCtotheMonitorset

withtheoptionalaudiocable.

 IfyouturntheMonitorsetonwhentheset

becomescold,thescreenmayflicker.Thisis

normal.

 Useashieldedsignalinterfacecable,such

asD-sub15pinsignalcableandDVIto

HDMIcable,withaferritecoretomaintain

standardcompliancefortheproduct.

 Somered,green,orbluespotsmayappear

onthescreen.Thisisnormal.

NOTE

 Donotpressthescreenwithyourfingerfor

alongtimeasthismayresultintemporary

distortiononthescreen.

 Avoiddisplayingafixedimageonthe

screenforalongperiodoftimetoprevent

imageburn.Useascreensaverifpossible.

CAUTION

Adjusting the screen

Selecting an image mode

Displayimagesinitsoptimizedsettingsby

selectingoneofthepresetimagemodes.

1 PressMENUtoaccessthemainmenus.

2 PresstheNavigationbuttonstoscrollto

PICTUREandpressOK.

3 PresstheNavigationbuttonstoscrollto

Picture ModeandpressOK.

4 PresstheNavigationbuttonstoscrolltoan

imagemodeyouwantandpressOK.

Mode Description

Vivid Adjuststhevideoimageforthe

retailenvironmentbyenhancingthe

Contrast, Brightness, Colour,and

Sharpness.

Standard Adjuststheimageforthenormal

environment.

Cinema Optimizesthevideoimageforthe

cinematiclookandenjoymoviesasif

youareinamovietheater.

Sport Optimizesthevideoimageforhigh

anddynamicactionsbyemphasizing

primaryColourssuchaswhite,grass,

orskyblue.

Game Optimizesthevideoimagefora

fastgamingscreensuchasPCsor

games.

Expert1/2 Adjuststhedetailedvideoimage

settingsforvideoexpertsaswellas

generalviewers.

5 Whenyouarefinished,pressEXIT.

Whenyoureturntothepreviousmenu,press

BACK.

ENGLISH

20 USING THE MONITOR SET

Customizing PC display options

Customizeoptionsofeachimagemodeforthe

bestimagequality.

 Thisfunctionworksinthefollowingmode:

RGB[PC]mode.

1 PressMENUtoaccessthemainmenus.

2 PresstheNavigationbuttonstoscrollto

PICTUREandpressOK.

3 PresstheNavigationbuttonstoscrollto

ScreenandpressOK.

4 Selectandadjustfollowingoptions,andthen

pressOK.

Option Description

Resolution MatchtheresolutionofRGBmode.

(ResolutionmenuisEnabledonlyfor

thefollowingresolutionwith60Hz.)

Vertical resolution : 768

M1950D 1024x768

1280x768

1360 x 768(Default)

M2250D

M2350D

M2450D

M2550D

DM2350D

1024 x 768(Default)

1280x768

1360x768

Vertical resolution : 1050

M2250D

M2350D

M2450D

M2550D

DM2350D

1400x1050

1680 x 1050(Default)

Vertical resolution : 900

M2250D

M2350D

M2450D

M2550D

DM2350D

1280x960

1440x900

1600 x 900(Default)

Auto

Configure

SetstoadjustthescreenPosition,

SizeandPhaseautomatically.The

displayedimagemaybeunstablefor

afewsecondswhiletheconfiguration

isinprogress.

Position/

Size/Phase

Adjuststheoptionswhenthe

imageisnotclear,especiallywhen

charactersareshaky,aftertheauto

configuration.

Reset Restorestheoptionstothedefault

setting.

5 Whenyouarefinished,pressEXIT.

Whenyoureturntothepreviousmenu,press

BACK.

Customizing image options

Customizebasicandadvancedoptionsofeach

imagemodeforthebestscreenperformance.

1 PressMENUtoaccessthemainmenus.

2 PresstheNavigationbuttonstoscrollto

PICTUREandpressOK.

3 PresstheNavigationbuttonstoscrollto

Picture ModeandpressOK.

4 PresstheNavigationbuttonstoscrolltoan

imagemodeyouwantandpressOK.

5 Selectandadjustfollowingoptions,andthen

pressOK.

Option Description

Backlight Adjuststhebrightnessofthe

screenbycontrollingtheLCD

backlight.Ifyoudecreasethe

brightnesslevel,thescreen

becomesdarkerandthepower

consumptionwillbereduced

withoutanyvideosignalloss.

Contrast Increasesordecreasesthe

gradientofthevideosignal.

YoumayuseContrastwhen

thebrightpartoftheimageis

saturated.

Brightness Adjuststhebaselevelofthe

signalintheimage.Youmayuse

Brightnesswhenthedarkpartof

theimageissaturated.

Sharpness Adjuststhelevelofcrispnessin

theedgesbetweenthelightand

darkareasofthepicture.The

lowerthelevel,thesofterthe

image.

Colour AdjustsintensityofallColours.

Tint AdjuststhebalancebetweenRed

andGreenlevels.

Color

Temperature

Settowarmtoenhancehotter

colourssuchasred,orsettocool

tomakepicturebluish.

Advanced

Control

Customizestheadvanced

options.Seemoreinformation

aboutadvancedoptionsSeep.62.


Reset

Restorestheoptionstothe

defaultsetting.

6 Whenyouarefinished,pressEXIT.

Whenyoureturntothepreviousmenu,press

BACK.

ENGLISH

21

USING THE MONITOR SET

Adjusting the sound

Selecting an sound mode

Playthesoundinitsoptimizedsettingsby

selectingoneofthepresetsoundmodes.

1 PressMENUtoaccessthemainmenus.

2 PresstheNavigationbuttonstoscrollto

AUDIOandpressOK.

3 PresstheNavigationbuttonstoscrolltoSound

ModeandpressOK.

4 PresstheNavigationbuttonstoscrolltoa

soundmodeyouwantandpressOK.

Mode Description

Standard Selectswhenyouwantstandard-

qualitysound.

Music Selectswhenyoulistentomusic.

Cinema Selectswhenyouwatchmovies.

Sport Selectswhenyouwatchsports

events.

Game Selectswhenyouplaygames.

5 Whenyouarefinished,pressEXIT.

Whenyoureturntothepreviousmenu,press

BACK.

Customizing sound options

Customizeoptionsofeachsoundmodeforthe

bestsoundquality.

1 PressMENUtoaccessthemainmenus.

2 PresstheNavigationbuttonstoscrollto

AUDIOandpressOK.

3 PresstheNavigationbuttonstoscrolltoSound

ModeandpressOK.

4 PresstheNavigationbuttonstoscrolltoa

soundmodeyouwantandpressOK.

5 Selectandadjustfollowingoptions,andthen

pressOK.

Option Description

Surround X Thisoptionenhancessounddepth

andclaritybymaximizingthe

Surroundeffect.

Treble Controlsthedominantsoundsinthe

output.Whenyouturnupthetreble,

itwillincreasetheoutputtothe

higherfrequencyrange.

Bass Controlsthesoftersoundsinthe

output.Whenyouturnupthebass,

itwillincreasetheoutputtothe

lowerfrequencyrange.

Reset Resetsthesoundmodetothe

defaultsetting.

6 Whenyouarefinished,pressEXIT.

Whenyoureturntothepreviousmenu,press

BACK.

 YoucannotadjustTrebleandBassinthe

RGB-PC/HDMI-PCmode.

NOTE

ENGLISH

22 WATCHING TV

WATCHING TV

Connecting an antenna or

cable

Connectanantenna,cable,orcableboxtowatch

TVreferringtothefollowing.Theillustrationsmay

differfromtheactualaccessoriesandanRFcable

isoptional.

Connecting an antenna or basic

cable

ConnecttheMonitorsettoawallantennasocket

withanRFcable(75ohm).

Connecting with a cable box

ConnecttheMonitorsettoacableboxandthe

cableboxtoawallantennasocketwith2RF

cables(75ohm).

 Useasignalsplittertousemorethan2TVs.

 Iftheimagequalityispoor,installasignal

amplifierproperlytoimprovetheimage

quality.

 Iftheimagequalityispoorwithanantenna

connected,aimtheantennatotheproper

direction.

 Visit

http://AntennaWeb.org

formore

informationabouttheantennaandcable

connection.

NOTE  Makesurenottobendthecopperwireofthe

RFcable.

 Completeallconnectionsinstructions

betweendevices,andthenconnectthe

powercordtothepoweroutlettoprevent

damagestoyourMonitorset.

CAUTION

Copper wire

Wall Antenna

Socket

Outdoor

Antenna

ENGLISH

23

WATCHING TV

Accessing the TV for the

first time

WhenyouaccesstheMonitorsetforthefirst

time,theinitialsettingscreenappears.Selecta

languageandcustomizethebasicsettings.

1 Connectthepowercordtoapoweroutlet.

2 Press ontheMonitorsettoturnthe

Monitorseton.

ThePowerindicatorlightingisturnedon.

 YoucanalsoswitchtheMonitorsetfrom

PCmodetoTVmode,pressTV/PC.

 YoucanalsoaccessInitial Settingby

accessingOPTION inthemainmenus.

 IfyoudonotoperatetheMonitorset

within40secondswhenthesettingmenu

screenappears,thesettingmenuswill

disappear.

NOTE

NOTE

NOTE

NOTE

WhentheMonitorsetisinPowersaving

mode,thePowerindicatorlightingblinks.

 Todisplayimagesinthebestqualityfor

yourhomeenvironment,selectHome

Use mode.

 StoreDemomodeissuitablefortheretail

environment.

 IfyouselectStore Demo mode,the

previouslycustomizedsettingswillswitch

tothedefaultsettingsofStore Demo

modein2minutes.

Ifyoudonotcompletetheinitialsetting,it

willappearwheneveryouaccesstheTV.

3 Theinitialsettingscreenappearsifyouaccess

theTVforthefirsttime.

4 Followtheon-screeninstructionstocustomize

yourMonitorsetaccordingtoyourpreferences.

Language



Mode Setting



Country



Auto Tuning

SelectsHome Usefor

thehomeenvironment.

Selectsacountryto

display.

Selectsalanguagefor

thedisplay.

Scansandsaves

availableprogrammes

automatically.

5 Whenthebasicsettingsarecomplete,press

OK.

6 ToturntheMonitorsetoff,press onthe

Monitorset.

ThePowerIndicatorturnsoff.

Disconnectthepowercordfromthepower

outletwhenyoudonotusetheMonitorset

foralongperiodoftime.

CAUTION

ENGLISH

24 WATCHING TV

Watching TV

1 Press ontheRemotecontrolor onthe

MonitorsettoturntheMonitorseton.

2 PressINPUTandselectAntenna.

3 ControltheMonitorsetusingthefollowing

buttonsandmenuswhileyouarewatchingTV.

Button / Menu Description

P( ) or

PR (



)

Scrollsthroughthesaved

programmes

Numbers Selectsaprogrammeby

enteringnumbers

(+ , -)or

VOL (



)

Adjuststhevolumelevel

MUTE Mutesallsounds

PICTURE Selectsoneofthepresetimage

modes(Seep.60)

AUDIO Selectsoneofthepresetaudio

modes.(Seep.63)

RATIO (Except

3DModel)

Resizesanimage(Seep.34)

4 ToturntheMonitorsetoff,Press onthe

Remotecontrolor ontheMonitorset.

Managing programmes

Automatically setting up

programmes

For countries other than Finland, Sweden,

Denmark and Norway)

Usethistoautomaticallyfindandstoreallavailable

programmes.

1 PressMENUtoaccessthemainmenus.

2 PresstheNavigationbuttonstoscrollto

SETUPandpressOK.

3 PresstheNavigationbuttonstoscrollto

Auto TuningandpressOK.

4 SelectStarttostartautomatictuning.

TheTVscansandsavesavailableprogrammes

automatically.

5 Whenyouarefinished,pressEXIT.

Whenyoureturntothepreviousmenu,press

BACK.

NOTE

 UseNumberbuttonstoinputa4-digit

passwordinLock System ‘On’.

 AutomaticNumbering:Decidewhetherto

usetheprogrammenumbersassentby

broadcastingstationsfortuning.

 WhenselectItalyintheCountrymenu,if

thepopupisdisplayedwhentheconflicted

ProgrammeafterAutoTuning,selecta

broadcasterforconflictingprogramme

numbertosolve.

ENGLISH

25

WATCHING TV

Only for Finland, Sweden, Denmark and Norway

DVB-CAutoTuningisamenuforusersin

countriesthatsupportDVBcable.

 IfyouwanttoselecttheAntenna

1 PressMENUtoaccessthemainmenus.

2 PresstheNavigationbuttonstoscrollto

SETUPandpressOK.

3 PresstheNavigationbuttonstoscrollto

Auto TuningandpressOK.

4 PresstheNavigationbuttonstoscrollto

AntennaandpressOK.

5 SelectStarttostartautomatictuning.

TheTVscansandsavesavailableprogrammes

automatically.

6 Whenyouarefinished,pressEXIT.

Whenyoureturntothepreviousmenu,press

BACK.

NOTE

 UseNumberbuttonstoinputa4-digit

passwordinLock System ‘On’.

 AutomaticNumbering:Decidewhetherto

usetheprogrammenumbersassentby

broadcastingstationsfortuning. NOTE

 UseNumberbuttonstoinputa4-digit

passwordinLock System ‘On’.

 AutomaticNumbering:Decidewhetherto

usetheprogrammenumbersassentby

broadcastingstationsfortuning.

 IfyouwanttoselecttheCable

1 PressMENUtoaccessthemainmenus.

2 PresstheNavigationbuttonstoscrollto

SETUPandpressOK.

3 PresstheNavigationbuttonstoscrollto

Auto TuningandpressOK.

4 PresstheNavigationbuttonstoscrollto

CableandpressOK.

5 PresstheNavigationbuttonstoscrollto

Comhem or Other OperatorsandpressOK.

6 PresstheNavigationbuttonstoscrollto

Default, Full or UserandpressOK.

7 PresstheNavigationbuttonsorNumber

buttonstoscrollmakeappropriateadjustments

(ExceptforFullmode)andpressOK.

8 PresstheNavigationbuttonstoscrollto

Close andpressOK.

9 SelectStarttostartautomatictuning.

TheTVscansandsavesavailableprogrammes

automatically.

10Whenyouarefinished,pressEXIT.

Whenyoureturntothepreviousmenu,press

BACK.

ENGLISH

26 WATCHING TV

TowatchDVB-Cinthecountriesexcluding

Finland,Sweden,DenmarkandNorwayselect'--'

astheCountryinOPTION.

YoucanselectUsermodeorFullmodeinAuto

Tuning.

Thecorrespondinghomefrequencyinformation

mayneedtobechangedwhentuningtheUser

mode,andthecorrespondinginformationdepends

ontheCableServiceOperator(SO)inservice.

DuringFullmodetuning,somechannelmaybe

restrictedforsomeCableServiceOperator(SO),

anditmaytakealongtimefortuning.

If you select the “- -” of Country Setting,

(Except for Finland, Sweden, Denmark and

Norway)

NOTE

 Yourcableprovidermaychargefortheir

services,orrequireyoutoagreetoitsitems

andconditionsofbusiness.

 DVB-CCablemaynotoperatecorrectlywith

somecableproviders.

 CompatibilitywithDVB-Cdigitalcable

broadcastsisnotguaranteed.

 WhenyouselecttheCable,theCable

Service Operatorselectionscreencandiffer

ornotexistbytheCablesituationofthe

applicablecountry.

ThepopupwindowtoselectbetweenService

Operatorisonlyshowninitiallyforthe3cases

whenyouaccessingtheInitial Settingmenu,

whenyouchangefromAntennatoCableor

whenyouaccessthemenuafterchangingthe

Country.

WhenyouwanttoselectbetweenService

Operatorasidefromtheabove3cases,you

candosobyselectingSETUP→Cable DTV

Setting→Service Operator.

 AcquiredcertificationSO:Sweden(Comhem,

CanalDigital),Denmark(YouSee,Canal

Digital,Stofa),Norway(CanalDigital).

IftherearenotanyServiceOperatorthatyou

want,selectOther Operators.

Ifyouselect"OtherOperators",ortheselected

countrysupports"OtherOperators"only,itmay

takesometimetosearchallthechannels,orit

maynotsearchsomeofthechannels.

Ifsomeofthechannelsdonotappear,follow

thestepsbelow.

1.SETUP → Auto Tuning → Cable

2.Inputadditionalvaluessuchasthe

frequency,symbolrate,modulation,and

networkID(Youcanaskyourcableservice

providerfortheaboveinformation).

 Thefollowingvaluesareneededinorderto

searchallavailableprogrammesquicklyand

correctly.Thecommonlyusedvaluesare

providedas"default".However,forcorrect

settings,pleaseinquireofthecableservice

provider.WhenrunningAutoTuningin

DVBcablemode,selectingFullwillsearch

throughallfrequenciestofindavailable

channels.Inthecasewhentheprogramme

isnotsearchedbyselectingtheDefault,

performthesearchingbyselectingtheFull.

However,inthecasewhentheprogramme

issearchedbyselectingtheFull,theAuto

Tuningtimecanbetakentoomuch.

»Frequency:Enterauser-definedfrequency

range.

»Symbol rate:Enterauser-definedsymbol

rate(Symbolrate:Speedatwhichadevice

suchasmodemsendssymbolstoa

channel).

»Modulation:Enterauser-defined

modulation.(Modulation:Loadingofaudioor

videosignalsontocarrier).

»Network ID:Uniqueidentifierallocatedfor

eachuser.

ENGLISH

27

WATCHING TV

(When selecting Cable (DVB cable mode) if

Finland, Sweden, Denmark, Norway or “--”

country is chosen)

NOTE

NOTE

 UseNumberbuttonstoinputa4-digit

passwordinLockSystem‘On’.

 Symbol rate:Enterauser-definedsymbol

rate.(symbolrate:Speedatwhicha

devicesuchasmodemsendssymbolstoa

channel.)

 Modulation:Enterauser-defiend

modulation.(Modulation:Loadingofaudioor

videosignalsontocarrier)

 Frequency,Symbolrate,andModulation

modeareneededinordertoadda

programmecorrectlyinDVBcablemode.

Pleaseinquireofthecableserviceprovider

aboutthecorrectvalues.

 UseNumberbuttonstoinputa4-digit

passwordinLockSystem‘On’.

Manually setting up programmes

(In digital mode)

ManualTuningletsyoumanuallyaddaprogramme

toyourprogrammelist.

(For countries other than Finland, Sweden,

Denmark and Norway & When selecting

Antenna if Finland, Sweden, Denmark, Norway

or “--”country is chosen)

1 PressMENUtoaccesstheMainmenus.

2 PresstheNavigationbuttonstoscrollto

SETUPandpressOK.

3 PresstheNavigationbuttonstoscrollto

Manual TuningandpressOK.

4 PresstheNavigationbuttonstoscrolltoDTV.

5 PresstheNavigationbuttonsorNumber

buttonstoscrollSelectthedesiredchannel

number,andthenaddprogrammes.

6 Whenyouarefinished,pressEXIT.

Whenyoureturntothepreviousmenu,press

BACK.

1 PressMENUtoaccesstheMainmenus.

2 PresstheNavigationbuttonstoscrollto

SETUPandpressOK.

3 PresstheNavigationbuttonstoscrollto

Manual TuningandpressOK.

4 PresstheNavigationbuttonstoscrolltoDTV.

5 PresstheNavigationbuttonsorNumber

buttonstoscrollSelectthedesiredFrequency,

SymbolrateandModulation,andthenadd

programmes.

6 Whenyouarefinished,pressEXIT.

Whenyoureturntothepreviousmenu,press

BACK.

ENGLISH

28 WATCHING TV

NOTE

 UseNumberbuttonstoinputa4-digit

passwordinLockSystem‘On’.

 L:SECAML/L(France)

 BG:PALB/G,SECAMB/G(Europe/East

Europe/Asia/NewZealand/M.East/Africa

/Australia)

 I: PALI/II(U.K./Ireland/HongKong/South

Africa)

 DK:PALD/K,SECAMD/K(EastEurope/

China/Africa/CIS)

 Tostoreanotherchannel,repeatsteps4to9.

Manually setting up programmes

(In analogue mode)

ManualTuningletsyoumanuallytuneandarrange

thestationsinwhateverorderyoudesire.

1 PressMENUtoaccessthemainmenus.

2 PresstheNavigationbuttonstoscrollto

SETUPandpressOK.

3 PresstheNavigationbuttonstoscrollto

Manual TuningandpressOK.

4 PresstheNavigationbuttonstoscrollto

TVandpressOK.

5 PresstheNavigationbuttonstoscrollto

System.

6 PresstheNavigationbuttonstoscrollto

V/UHF or Cable.

7 PresstheNavigationbuttonsorNumber

buttonstoscrollSelectthedesiredchannel

number.

8 PresstheNavigationbuttonstoscrollto

Commencesearching.

9 PresstheNavigationbuttonstoscrollto

StoreandpressOK

10Whenyouarefinished,pressEXIT.

Whenyoureturntothepreviousmenu,press

BACK.

Assigning a station name

Youcanassignastationnamewithfivecharacters

toeachprogrammenumber.

1 PressMENUtoaccessthemainmenus.

2 PresstheNavigationbuttonstoscrollto

SETUPandpressOK.

3 PresstheNavigationbuttonstoscrollto

Manual TuningandpressOK.

4 PresstheNavigationbuttonstoscrolltoTV.

5 PresstheNavigationbuttonstoscrolltoName

andpressOK.

6 PresstheNavigationbuttonstoscrolltoTV

System.

7 PresstheNavigationbuttonstoscrolltoV/UHF

or Cable.

8 PresstheNavigationbuttonstoscrollSelect

thepositionandmakeyourchoiceofthe

secondcharacter,andsoon.Youcanusean

thealphabetAtoZ,thenumber0to9,+/-,and

blankandpressOK

9 PresstheNavigationbuttonstoscrolltoClose

andpressOK.

10PresstheNavigationbuttonstoscrolltoStore

andpressOK

11Whenyouarefinished,pressEXIT.

Whenyoureturntothepreviousmenu,press

BACK.

ENGLISH

29

WATCHING TV

Editing your programme list

1 PressMENUtoaccessthemainmenus.

2 PresstheNavigationbuttonstoscrollto

SETUPandpressOK.

3 PresstheNavigationbuttonstoscrollto

Programme EditandpressOK.

4 Editprogrammesusingthefollowingbuttons.

Button Description

Highlightstheprogrammetype

Navigation Scrollsthroughprogrammetypes

orprogrammes

OK Selectsaprogrammetoview

P ( ) Movestothepreviousornext

page

NOTE

 UseNumberbuttonstoinputa4-digit

passwordinLockSystem‘On’.

NOTE

 IfyouselectCable,youcanseeCableDTV

Settingmenu.

 WhenChannelAutoUpdateisOn,the

channelinformationwillbeautomatically

updatedwheneverthenetworkinformation

changes.

 WhenChannelAutoUpdateisOff,the

channelinformationwillnotbeupdated.

Cable DTV Setting (In Cable

mode only)

TherangethatausercanselectfromtheService

Operatormenudiffersdependingonnumberof

ServiceOperatorsupportedbyeachcountry,and

ifnumberofsupportedServiceOperatorforeach

countryis1,correspondingfunctionbecomesnon-

activation.

AfterchangingServiceOperator,awarning

windowsayingthatchannelmapwillbedeleted

whenOKbuttonispressedorCloseisselected,

andaAuto-tuningpop-upwindowappearswhen

'YES'isselected.

SETUP Move OK

Auto Tuning

Manual Tuning

Programme Edit

Software Update : On

Diagnostics

CI Information

Cable DTV Setting ꔉ

1 PressMENUtoaccesstheMainmenus.

2 PresstheNavigationbuttonstoscrollto

SETUPandpressOK.

3 PresstheNavigationbuttonstoscrolltoCable

DTV SettingandpressOK.

4 PresstheNavigationbuttonstoscrollto

Service Operator or Channel Auto update

andpressOK.

5 Whenyouarefinished,pressEXIT.

Whenyoureturntothepreviousmenu,press

BACK.

ENGLISH

30 WATCHING TV

In TV mode

1 PresstheNavigationbuttons,scrolltothe

programmenumberyouwishtodelete.

2 PresstheRedbuttontodeletetheselected

programmenumber.

3 PresstheBluebuttontorelease.

1 PresstheNavigationbuttons,scrolltothe

programmenumberyouwishtomove.

2 PresstheGreenbuttonwiththeprogramme

numberselected,youwishtomove.

3 Pressthenavigationbuttons,movetowhere

youwishtoplacetheprogrammenumber,and

thenpresstheGreenbuttonagain.

1 PresstheYellowbuttontostartAutoSort.

NOTE

NOTE

 Theselectedprogrammeisdeleted,allthe

followingprogrammesareshiftedupone.

 AfteractivatingAutoSortonce,youcanno

longereditprogrammes.

Deleting a programme

Moving a programme

Auto Sort

1 PresstheNavigationbuttons,scrolltothe

programmenumberyouwishtoskip.

2 PresstheBluebuttontoskiptheselected

programmenumber.

3 PresstheBluebuttonagaintorelease.

Skipping a programme number

NOTE

 Youwillbeunabletoselectaskipped

programmeusingP (

) buttonsduring

watchingTV.

 Ifyouwishtowatchaskippedprogramme,

directlyentertheprogrammenumber

usingnumberbuttonsorreleaseitinthe

Programme EditmenuorEPG.

In DTV/RADIO mode

1 PresstheNavigationbuttons,scrolltothe

programmenumberyouwishtoskip.

2 PresstheBluebuttontoskiptheselected

programmenumber.

3 PresstheBluebuttonagaintorelease.

NOTE

 Theskippedprogrammesareshownin

blueontheprogrammelistandthese

programmeswillnotappearonthescreen

whenchangingprogrammesusingP( )

buttonsduringwatchingTV.

 Ifyouwishtowatchaskippedprogramme,

directlyentertheprogrammenumber

usingnumberbuttonsorreleaseitinthe

ProgrammeEditmenuorEPG.

Skipping a programme number

ENGLISH

31

WATCHING TV

Software Update

SoftwareUpdatemeanssoftwarecanbe

downloadedthroughthedigitalterrestrial

broadcastingsystem.

1 PressMENUtoaccessthemainmenus.

2 PresstheNavigationbuttonstoscrollto

SETUPandpressOK.

3 PresstheNavigationbuttonstoscrollto

Software UpdateandpressOK.

4 SelectOnorOff.

IfyouselectOn,auserconfirmmessagebox

willbedisplayedtonotifythatnewsoftwareis

found.

5 Whenyouarefinished,pressEXIT.

Whenyoureturntothepreviousmenu,press

BACK.

When setting “Software Update”

 Occasionally,atransmissionofupdated

digitalsoftwareinformationwillresultinthe

followingmenuontheMonitorsetscreen.

 SimpleUpdate:forcurrentupdatestream.

 ScheduleUpdate:forscheduledupdate

streamWhentheSoftwareUpdatemenu

is"Off",themessagetochangeitto"On"

appears.

 Whenthepoweristurnedoff,downloading

starts.Whenthepoweristurnedonwhile

updating,theprogressstatusisdisplayed.

 SelecttheYesusingthe < >buttonandyou

willseethefollowingpicture.

 AftertheSoftwareUpdateiscomplete,the

Systemrestarts.

Yes Close

Software update is available.

Would you like to download now?

(approximately 30 Min ~ 2 hours)

Your TV software is updated when you turn off the TV

using the remote control or local key.

Do not unplug!

Yes Close

A new software update is available at 00/00/0 00:00.

Do you want to update the software when available?

Hide Stop

Software downloading progress.

Ver. 03.01.00 Ver. 03.02.00

65 %

New Software is successfully installed.

 DuringProgressofaSoftwareUpdate,

pleasenotethefollowing



»TheMonitorSetmustnotbeswitchedoff.



»Theantennamustnotbedisconnected.



»AfterSoftwareUpdate,youcanconfirmthe

updatedsoftwareversioninDiagnostics

menu.



»Itmaytakehourstodownloadthesoftware,

somakesurethatthepowerstaysonduring

thedownload.

NOTE

ENGLISH

32 WATCHING TV

Diagnostics

Thisfunctionenablesyoutoviewinformationon

theManufacturer,Model/Type,SerialNumberand

SoftwareVersion.

 Thisdisplaystheinformationandsignal

strengthofthetuned*MUX.

 Thisdisplaysthesignalinformationand

servicenameoftheselected*MUX.

 *MUX:Ahigherdirectoryofchannelsin

digitalbroadcasting(asingleMUXcontains

multiplechannels.)

1 PressMENUtoaccessthemainmenus.

2 PresstheNavigationbuttonstoscrollto

SETUPandpressOK.

3 PresstheNavigationbuttonstoscrollto

DiagnosticsandpressOK.

4 DisplayManufacturer,Model/Type,Serial

NumberandSoftwareVersion.

5 Whenyouarefinished,pressEXIT.

Whenyoureturntothepreviousmenu,press

BACK.

CI [Common interface]

Information

Thisfunctionenablesyoutowatchsomeencrypted

services(payservices).IfyouremovetheCI

Module,youcannotwatchpayservices.

WhenthemoduleisinsertedintotheCIslot,you

canaccessthemodulemenu.Topurchasea

moduleandsmartcard,contactyourdealer.Donot

repeatedlyinsertorremoveaCImodule

fromtheMonitorset.Thismaycauseamalfunction.

WhentheMonitorsetisturnedonafterinsertinga

CIModule,youmaynothaveanysoundoutput.

ThismaybeincompatiblewiththeCImoduleand

smartcard.

CI(CommonInterface)functionsmaynotbe

possibledependinguponthecountrybroadcasting

circumstances.

WhenusingaCAM(ConditionalAccessModule),

pleasemakesureitmeetsfullytherequirementsof

eitherDVBCIorCIplus.

1 PressMENUtoaccessthemainmenus.

2 PresstheNavigationbuttonstoscrolltoSETUP

andpressOK.

3 PresstheNavigationbuttonstoscrolltoCI

Information.andpressOK.

4 Selectthedesireditem:Moduleinformation,

smartcardinformation,language,orsoftware

downloadetcandpressOK.

5 Whenyouarefinished,pressEXIT.

Whenyoureturntothepreviousmenu,press

BACK.

 ThisOSDisonlyforillustrationandthemenu

optionsandscreenformatwillvaryaccording

totheDigitalpayservicesprovider.

 ItispossibleforyoutochangeCI(Common

Interface)menuscreenandserviceby

consultingyourdealer.

NOTE

ENGLISH

33

WATCHING TV

Selecting the programme list

Youcancheckwhichprogrammesarestoredin

thememorybydisplayingtheprogrammelist.

Displaying programme LIST

1 PressLISTtoaccesstheProgrammeList.

2 Whenyouarefinished,pressMENU or EXIT.

NOTE

 Youmayfindsomeblueprogrammes.

Thesehavebeensetuptobeskippedby

autoprogrammingorintheprogramme

editmode.

 Someprogrammeswiththechannel

numbershownintheprogramme

LISTindicatethereisnostationname

assigned.

Selecting a programme in the programme list

1 PresstheNavigationbuttonstoprogramme.

2 Switchtothechosenprogrammenumberand

pressOK.

NOTE

 PressTV/RAD in Digital TV. (Themode

willbeswitchedbetweenTV,DTVand

Radiofromtheprogramyouarecurrently

watching.)

Paging through a programme list

1 PresstheNavigationbuttonstoturnthepages.

2 ReturntonormalTVviewingandPressLIST.

Favourite programme setup

Selecting favourite programme

Favouriteprogrammeisaconvenientfeaturethat

letsyouquiklyscanuptoprogrammesofyour

choicewithouthavingtowaitfortheTVtoscan

throughallthein-betweenprogrammes.

1 Selectyourdesiredprogramme.

2 PressQ.MENUtoaccesstheFavouritemenu.

3 PresstheNavigationbuttons

toscrollto

Favourite.

4 Whenyouarefinished,pressOK or Q.MENU.

NOTE

 Thiswillautomaticallyincludethe

selectedprogrammeintoyourfavourite

programmelist.

Displaying the favourite programme list

1 PressFAVtoaccesstheFavouriteProgramme

List.

2 Whenyouarefinished,pressEXIT.

ENGLISH

34 WATCHING TV

Using additional options

Adjusting aspect ratio

Resizetheimagetoviewtheimageatitsoptimal

sizebypressingRATIO(Except3DModel) or

Q.MENU whileyouarewatchingMonitorset.

 Ifafixedimagedisplaysonthescreenfora

longperiodoftime,itwillbeimprintedand

becomeapermanentdisfigurementonthe

screen.Thisis“imageburn”or“burn-in”and

notcoveredbythewarranty.

 Iftheaspectratioissetto4:3foralong

periodoftime,imageburnmayoccuron

theletterboxedareaofthescreen.

CAUTION

Youcanalsochangetheimagesizeby

accessingthequickmenusorthemainmenus.

NOTE

-16:9:Thefollowingselectionwillallowyou

toadjustthepicturehorizontally,inlinear

proportion,tofilltheentirescreen(usefulfor

viewing4:3formattedDVDs).

Just Scan

-Just Scan:FollowingSelectionwillleadtoyou

viewthepictureofbestqualitywithoutlossof

originalpictureinhighresolutionimage.

Note:IfthereisnoiseinoriginalPicture,You

canseethenoiseattheedge.

-Original:WhenyourMonitorsetreceivesawide

screensignalitwillautomaticallychangetothe

pictureformatbroadcast.

-Full Wide:WhenMonitorsetreceivesthewide

screensignal,itwillleadyoutoadjustthepicture

horizontallyorvertically,inalinearproportion,to

filltheentirescreenfully.

Original

Full Wide

ENGLISH

35

WATCHING TV

-4:3:Thefollowingselectionwillallowyoutoview

apicturewithanoriginal4:3aspectratio,gray

barswillappearonboththeleftandrightofthe

screen.

-14:9:Youcanviewapictureformatof14:9or

ageneralMonitorsetprogrammeinthe14:9

mode.The14:9screenisviewedinthesame

wayasin4:3,butismagnifiedtotheleftand

right.

-Zoom:Thefollowingselectionwillallowyouto

viewthepicturewithoutanyalteration,while

fillingtheentirescreen.However,thetopand

bottomofthepicturewillbecropped.

 Youcanonlyselect4:3, 16:9 (Wide), 14:9,

Zoom/Cinema ZoominComponentmode.

 Youcanonlyselect4:3, Original, 16:9

(Wide), 14:9, Zoom/Cinema ZoominHDMI

mode.

 Youcanonlyselect4:3, 16:9 (Wide) in

RGB-PC, HDMI-PCmodeonly.

 InDTV/HDMI/Component(over720p)mode,

Just Scanisavailable.

 InAnalogue/AVmode,Full Wideisavailable.

NOTE

-Cinema Zoom:ChooseCinemaZoomwhenyou

wanttoenlargethepictureincorrectproportion.

Note:Whenenlargingorreducingthepicture,

theimagemaybecomedistorted.

 < or >button:Adjustenlargeproportionof

CinemaZoom.Theadjustmentrangeis1to

16.

 or button:Movethescreen.

ENGLISH

36 WATCHING TV

NOTE

 IfyouwanttouseHDMI-PCmode,you

mustsettheinputlabeltoPCmode.

NOTE

Using the input list

Selecting an input source

1 PressINPUTtoaccesstheinputsourcelist.

-Theconnecteddevicedisplaysoneachinput

source.

2 PresstheNavigationbuttonstoscrolltooneof

theinputsourcesandpressOK.

Input source Description

Antenna or

Cable

WatchTVovertheair,cable,and

digitalcablebroadcast

RGB ViewaPCdisplayonthescreen

AV WatchthecontentsinaVCRor

otherexternaldevices

Component WatchthecontentsinaDVDor

otherexternaldevices,orthrough

adigitalset-topbox

HDMI WatchcontentsinaPC,DVD

orDigitalsettopboxotherhigh

definitiondevices

Theconnectedinputsourcesdisplayinblack

andthedisconnectedinputsourcesingrey.

-Ifyouaddaninputlabeltoeachinput

sources,youcaneasilyidentifyadevice

connectedtoeachinputsource.

Adding an Input label

1 PressMENUtoaccessthemainmenus.

2 PresstheNavigationbuttonstoscrollto

OPTION andpressOK.

3 PresstheNavigationbuttonstoscrollto

Input LabelandpressOK.

4 PresstheNavigationbuttonstoscrolltooneof

theinputsources.

5 PresstheNavigationbuttonstoscrolltooneof

theinputlabelandpressOK.

6 Whenyouarefinished,press EXIT.

Whenyoureturntothepreviousmenu,press

BACK.

 Ifyouselect"Yes"thesizeandimagequality

areoptimisedforyourPC.

 Ifyouselect"No"thesizeandimagequality

areoptimisedfortheAVdevice (DVD

player, set-top box, gaming device).

 Ifyouselect"Do not show message

again"thismessagedoesnotappearuntil

themonitorisreset.Youcanchangetheset

valueinMenu ► OPTION ► Input Label.

 ThevaluessetforHDMI1/HDMI2aresaved

independently.(OnlyDM2350DModel)

 TheOSD (On Screen Display)isdisplayed

onthescreenasshownbelow.



»WhenturningtheproductoninHDMIinput.



»WhenswitchingtoHDMIinput.



»WhenconnectinganHDMIcablewithno

signal.

Is the input connected to your PC?

Do not show message again.

Yes No

ENGLISH

37

WATCHING TV

On-screen menu language /

Country selection

Theinstallationguidemenuappearsonthe

Monitorsetscreenwhenitisswitchedonforthe

firsttime.

1 PresstheNavigationbuttonstoscrollto

Desired Language andpressOK.

2 PresstheNavigationbuttonstoscrollto

Country andpressOK.

If you want to change Language /

Country selection

1 PressMENUtoaccessthemainmenus.

2 PresstheNavigationbuttonstoscrollto

OPTION andpressOK.

3 PresstheNavigationbuttonstoscrollto

Menu Language orCountry andpressOK.

4 PresstheNavigationbuttonstoscrollto

Desired Language orCountry optionyou

wantandpressOK.

5 Whenyouarefinished,pressEXIT.

Whenyoureturntothepreviousmenu,press

BACK.

 WhenFranceisselectedforCountry,

passwordisnot'0','0','0','0'but'1','2','3',

'4'.

 Ifyoudonotfinishtheset-up Installation

GuidebypressingBACKorifyoutime

outontheOSD(OnScreenDisplay)the

installationmenuwillcontinuouslyappear

untilthesetupiscompletedwheneverthe

Monitorsetisswitchedon.

 Ifyouselectthewronglocalcountry,teletext

maynotappearcorrectlyonthescreenand

someproblemsmayoccurduringteletext

operation.

 TheCI(CommonInterface)functionmaynot

beappliedbasedoncountrybroadcasting

circumstances.

 DTVmodecontrolbuttonsmaynot

functionbasedoncountrybroadcasting

circumstances.

 IncountrythatDigitalbroadcastingregulation

isn’tfixed,someDTVfunctionmaynot

workdependingondigitalbroadcasting

circumstances.

 TheCountrySetting"UK"shouldonlybe

activatedinUK.

 Ifthecountrysettingissetto"--",European

terrestrial/cabledigitalstandardbroadcasting

programmesareavailable,butsomeDTV

functionsmaynotworkproperly.

NOTE

ENGLISH

38 WATCHING TV

Language selection (In digital

mode only)

TheAudiofunctionallowsselectionofapreferred

language.

Ifaudiodatainaselectedlanguageisnot

broadcast,thedefaultlanguageaudiowillbe

played.

UsetheSubtitlefunctionwhentwoormoresubtitle

languagesarebroadcast.Ifsubtitledataina

selectedlanguageisnotbroadcast,thedefault

languagesubtitlewillbedisplayed.

Whenthelanguagesyouselectedastheprimary

forAudio LanguageandSubtitle Language

arenotsupported,youcanselectlanguagein

secondarycategory.

1 PressMENUtoaccessthemainmenus.

2 PresstheNavigationbuttonstoscrollto

OPTION andpressOK.

3 PresstheNavigationbuttonstoscrollto

Audio Language orSubtitle Language and

pressOK.

4 PresstheNavigationbuttonstoscrollto

Desired Language optionyouwantandpress

OK.

5 Whenyouarefinished,pressEXIT.

Whenyoureturntothepreviousmenu,press

BACK.

Audio Language Selection

Whentwoormoreaudiolanguagesarebroadcast,

youcanselecttheaudiolanguage.

1 PressQ.MENUtoaccessthequickmenu.

2 PresstheNavigationbuttonstoscrolltoAudio.

3 PresstheNavigationbuttonstoscrollto

Audio Language optionyouwantandpress

OK.

4 Whenyouarefinished,pressQ.MENU or

EXIT.

Audio Language OSD Information

Display Status

NotAvailable

MPEGAudio

DolbyDigitalAudio

Audiofor“VisualImpaired”

Audiofor“HearingImpaired”

DolbyDigitalPlusAudio

AACAudio

ENGLISH

39

WATCHING TV

Subtitle Language Selection

Whentwoormoresubtitlelanguagesare

broadcast,youcanselectthesubtitlelanguage

withtheSUBTITLEbuttonontheremotecontrol.

PresstheNavigationbuttonstoselectasubtitle

language.

Subtitle Language OSD Information

Display Status

NotAvailable

TeletextSubtitle

Subtitlefor“HardofHearing”

 Theaudio/subtitlescanbedisplayedina

simplerformwith1to3charactersbroadcast

bytheserviceprovider.

 WhenyouselectsupplementaryAudio(Audio

for“Visual/HearingImpaired”)theTVmay

outputapartoftheMainaudio.

Using the Lock options

Locking the buttons on the

Monitor set.

Enterthepassword,press‘0’, ‘0’, ‘0’, ‘0’onthe

remotecontrolhandset.

WhenFranceisselectedforCountry,passwordis

not‘0’, ‘0’, ‘0’, ‘0’but‘1’,’2’,’3’,’4’.

LockthebuttonsontheMonitorsettopreventany

unwantedoperationsoraccidentsbychildren.

1 PressMENUtoaccessthemainmenus.

2 PresstheNavigationbuttonstoscrolltoLOCK

andpressOK.

3 PresstheNavigationbuttonstoscrollto

Key LockandpressOK.

4 PresstheNavigationbuttons

toscrolltoOn

andpressOKtoactivatetheKeylockfeature.

-TodeactivatetheKeylockfeature,selectOff.

5 Whenyouarefinished,pressEXIT.

Whenyoureturntothepreviousmenu,press

BACK.

 TheMonitorsetisprogrammedtoremember

thelastsettingafteryouturntheMonitorset

off.

 Ifyouturnthemonitorsetoffwhilethekey

lockfeatureisactivatedandwishtoturnit

backon,pressthe onthemonitorset.

Youcanalsoswitchthedeviceonusingthe

remotecontrolbypressingthe , INPUT ,P

orNumberbuttons.

 IfyoupressanybuttonontheMonitorset

withtheKeylockfeatureactivated, Key

Lock Onappearsonthescreen.

NOTE

ENGLISH

40 WATCHING TV

Parental control

(In digital mode only)

Thisfunctionoperatesaccordingtoinformation

fromthebroadcastingstation.Thereforeifthe

signalhasincorrectinformation,thisfunctiondoes

notoperate.

Apasswordisrequiredtogainaccesstothis

menu.

Thissetisprogrammedtorememberwhichoption

itwaslastsettoevenifyouswitchthesetoff.

Preventschildrenfromwatchingcertainadult’sTV

programmes,accordingtotheratingslimitset.

Enterapasswordtowatchablockedprogramme.

Using the Quick menu

Customizethefrequentlyusingmenus.

1 PressQ.MENUtoaccessthequickmenu.

2 PresstheNavigationbuttonstoscrollthrough

thefollowingmenus.

Menu Description

Aspect Ratio Resizesanimage.(16:9,Just

Scan,Original, Full Wide, 4:3,

14:9, Zoom,CinemaZoom1)

Clear Voice ll Bydifferentiatingthehuman

soundrangefromothers,it

helpsuserslistentohuman

voicesbetter.

Picture Mode Selectsoneofthepresetimage

modes(Vivid,Standard,

Cinema,Sport,Game)

Sound Mode Selectsoneofthesoundmodes

(Standard,Music,Cinema,

Sport,Game)

Audio Selectsthesoundoutput.

Sleep Timer Setsthelengthoftimeuntilthe

Monitorsettoturnsoff

Favourite Selectsthefavourite

programme.

USB Device Selects“Eject”inordertoeject

USBdevice.

Aspect Ratio

16:9

Theavailablemenusandoptionsmaydiffer

fromtheinputsourcethatyouareusing.

NOTE

3 PresstheNavigationbuttonstoscrolltoan

optionyouwantandpressOK.

1 PressMENUtoaccessthemainmenus.

2 PresstheNavigationbuttonstoscrolltoLOCK

andpressOK.

3 PresstheNavigationbuttonstoscrollto

Parental Guidance andpressOK.

4 PresstheNavigationbuttonstoscrollto

MakeappropriateadjustmentsandpressOK.

5 Whenyouarefinished,pressEXIT.

Whenyoureturntothepreviousmenu,press

BACK.

(ExceptforFrance)

(OnlyFrance)

Blocking Off ꔓ

10 and above

11 and above

12 and above

13 and above

14 and above

15 and above

16 and above

17 and above

18 and above

Blocking Off : Permits all

programmes

10 and above

11 and above

12 and above

13 and above

14 and above

15 and above

16 and above

17 and above

18 and above

Blocking Off : Permits all

programmes

Blocking Off ꔓ

ENGLISH

41

EPG (ELECTRONIC PROGRAMME GUIDE) (IN DIGITAL MODE)

EPG (ELECTRONIC PROGRAMME GUIDE) (IN

DIGITAL MODE)

Using Electronic

Programme Guide

ThissystemhasanElectronicProgrammeGuide

(EPG)tohelpyournavigationthroughallthe

possibleviewingoptions.

TheEPGsuppliesinformationsuchasprogramme

listings,startandendtimesforallavailable

services.Inaddition,detailedinformationabout

theprogrammeisoftenavailableintheEPG(the

availabilityandamountoftheseprogrammedetails

willvary,dependingontheparticularbroadcaster).

ThisfunctioncanbeusedonlywhentheEPG

informationisbroadcastbybroadcasting

companies.

TheEPGdisplaystheprogrammedetailsfornext

8days.

1 PressINFO toshowsthepresentscreen

information.

Icon Description

DisplayedwithaDTVProgramme.

DisplayedwithaRadioProgramme.

DisplayedwithaMHEGProgramme.

DisplayedwithaAACProgramme.

Aspectratioofbroadcastingprogramme.

DisplayedwithaTeletextProgramme.

DisplayedwithaSubtitleProgramme.

DisplayedwithaScrambleProgramme.

DisplayedwithaDolbyProgramme.

DisplayedwithaDolbyDigitalPLUS

Programme.

Broadcastedprogrammewiththeicon

maynotbedisplayedinMonitorOut

dependingontheinformationofthe

programme.

 576i/p,720p,1080i/p:Resolutionof

broadcastingprogramme

NOTE

Switch on/off EPG

1 PressGUIDEtoswitchonoroffEPG.

Select a programme

1 PresstheNavigationbuttonsorPAGE buttons

toselectdesiredprogramme.

2 TheEPGwilldisappearaftermovingtoa

selectedprogram,pressOK.

ENGLISH

42 EPG (ELECTRONIC PROGRAMME GUIDE) (IN DIGITAL MODE)

Button Function in Date Change

Mode

Button Description

Green

Button

SwitchoffDatesettingmode.

OK Changetotheselecteddate.

or Selectadate.

SwitchoffDatesettingmode.

GUIDE SwitchoffEPG.

BACK

EXIT

Button Function in 8 Day Guide

Mode

Button Description

Red Button ChangeEPGmode.

Green

Button

EnterDatesettingmode.

Yellow

Button

EnterTimerRecord/Remindsetting

mode.

Blue Button EnterTimerRecord/Remindlistmode.

OK TheEPGwilldisappearaftermovingto

aselectedprogram.

or SelectNOWorNEXTProgramme.

or SelecttheBroadcastProgramme.

PAGE ( , ) PageUp/Down.

GUIDE SwitchoffEPG.

BACK

EXIT

TV/RAD SelectTVorRADIOProgramme.

INFO Detailinformationonoroff

FAV Thisdisplaysthe8DayGuidemodefor

theprogrammeintheFavouriteList.

Programme Guide

ALL NOW NEXT

1 YLE TV1

Keno

World Business

2 YLE TV2

4 TV..

Your World Today

Fantomen

Legenen om Den....

Kritiskt

Naturtimmen

ABC

Lyssna

Tänään otsikoissa

Glamour

5 YLE FST

6 CNN

8 YLE24

RADIOPr. Change

▲

Favourite

Mode Schedule Schedule List

Information

That ’70s show

1 YLE TV1 6 Apr. 2007 15:09

▲

Button Function in NOW/NEXT

Guide Mode

Youcanviewaprogrambeingbroadcastedand

onescheduledtofollow.

Button Description

Red Button ChangeEPGmode.

Yellow

Button

EnterTimerRecord/Remindsetting

mode.

Blue Button EnterTimerRecord/Remindlistmode.

OK TheEPGwilldisappearaftermovingto

aselectedprogram.

or SelectNOWorNEXTProgramme.

or SelecttheBroadcastProgramme.

PAGE ( , ) PageUp/Down.

GUIDE SwitchoffEPG.

BACK

EXIT

TV/RAD SelectTVorRADIOProgramme.

INFO Detailinformationonoroff

FAV Thisdisplaysthenow/nextmodeforthe

programmeintheFavouriteList.

ENGLISH

43

EPG (ELECTRONIC PROGRAMME GUIDE) (IN DIGITAL MODE)

Button Function in Extended

Description Box

Button Description

or TextUp/Down.

Yellow

Button

EnterTimerRecord/Remindsetting

mode.

INFO Thedetailinformationonoroff.

BACK

GUIDE SwitchoffEPG.

Button Function in Record/

Remind Setting Mode

Setsastartorendtimeforrecording,andsets

onlyastarttimeforthereminder.

Thisfunctionisavailableonlywhenrecording

equipmentthatusepin8recordingsignalinghas

beenconnectedtotheAVterminal,usingaSCART

cable.

Button Description

BACK ChangetoGuideorSchedulemode.

or SelectRecordorRemind.

Functionsetting.

or SelectDate,Start/Endtimeor

Programme.

OK SaveTimerRecord/Remind.

Button Function in Schedule List

Mode

Ifyou’vecreatedaschedulelist,ascheduled

programisdisplayedatthescheduledtimeeven

whenyouarewatchingadifferentprogramatthe

time.

OnlytheUp/Down/OK/BACKkeyswillworkwhen

apopupwindowisopen.

Button Description

Red Button AddnewManualRecordingsetting

mode.

Green

Button

AddnewTimerWatchingsettingmode.

Blue Button ChangetoGuidemode.

GUIDE

BACK SwitchoffEPG.

EXIT

OK SelectyourdesiredOption(Modify/

Delete/DeleteAll).

or SelectScheduleList.

PAGE ( , ) PageUp/Down.

ENGLISH

44 ENTERTAINMENT

V

IDE

O

C

OMPONENT I

N

USB IN

AV

A

UDI

O

Y

P

B

P

R

L

RS

-2

3

2

C

IN

(CONTROL & SERVICE

)

RGB IN (PC)

O

PTI

C

AL

AUDI

O

IN

(RGB/DVI

)

H

/

P

DI

G

ITAL

AU

DI

O

OUT

ANTENNA/

C

ABLE IN

HDMI/DVI IN

D

C

-IN

R

V

IDE

O

C

OMPONENT I

N

USB IN

AV

A

UDI

O

Y

P

B

P

R

L

RS

-2

3

2

C

IN

(CONTROL & SERVICE

)

RGB IN (PC)

O

PTI

C

AL

AUDI

O

IN

(RGB/DVI

)

H

/

P

DI

G

ITAL

AU

DI

O

OUT

ANTENNA/

C

ABLE IN

D

C

-IN

R

1

2

ENTERTAINMENT

Using integrated media

features

Connecting USB storage devices

ConnectUSBstoragedevicessuchasaUSB

flashmemory,externalharddrive,orMP3player

totheMonitorsetandusemultimediafeatures

(“Browsing files”Seep.46).

ConnectaUSBflashmemoryorUSBmemory

cardreadertotheMonitorsetasshownonthe

followingillustration.TheUSBscreenappears.

TodisconnectaUSBstoragedevice,

makesuretoendtheconnectionproperlyto

preventdamagestotheMonitorsetorfiles.

or

or

1 PressQ.MENUtoaccessthequickmenus.

2 PresstheNavigationbuttonstoscrolltoUSB

DeviceandpressOK.

3 DisconnecttheUSBstoragedeviceonlywhen

themessagesaysthatitissafetoremove.

 DonotturntheMonitorsetofforremovea

USBstoragedevicewhiletheUSBstorage

deviceisconnectedtotheMonitorset,as

thiscouldresultinlossoffilesordamageto

theUSBstoragedevice.

 BackupyourfilessavedonaUSBstorage

devicefrequently,asyoumayloseor

damagethefilesandthismaybenot

coveredbythewarranty.

CAUTION

3D MTV

MTV

ENGLISH

45

ENTERTAINMENT

Tips for using USB storage devices

 OnlyaUSBstoragedeviceisrecognizable.

 IftheUSBstoragedeviceisconnected

throughaUSBhub,thedeviceisnot

recognizable.

 AUSBstoragedeviceusinganautomatic

recognitionprogrammemaynotbe

recognized.

 AUSBstoragedevicewhichusesitsown

drivermaynotberecognized.

 TherecognitionspeedofaUSBstorage

devicemaydependoneachdevice.

 PleasedonotturnofftheMonitorsetor

unplugtheUSBdevicewhentheconnected

USBstoragedeviceisworking.Whensuch

deviceissuddenlyseparatedorunplugged,

thestoredfilesortheUSBstoragedevice

maybedamaged.

 PleasedonotconnecttheUSBstorage

devicewhichwasartificiallymaneuveredon

thePC.Thedevicemaycausetheproductto

malfunctionorfailtobeplayed.Neverforget

touseonlyaUSBstoragedevicewhichhas

normalmusicfiles,imagefilesormoviefiles.

 PleaseuseonlyaUSBstoragedevicewhich

wasformattedasaFAT,FAT16,FAT32,

NTFSfilesystemprovidedwiththewindows

operatingsystem.Incaseofastoragedevice

formattedasadifferentutilityprogramme

whichisnotsupportedbyWindows,itmay

notberecognized.

 PleaseconnectpowertoaUSBstorage

device(over0.5A)whichrequiresanexternal

powersupply.Ifnot,thedevicemaynotbe

recognized.

 PleaseconnectaUSBstoragedevicewith

thecableofferedbythedevicemaker.

 SomeUSBstoragedevicesmaynotbe

supportedoroperatedsmoothly.

 FilealignmentmethodofUSBstoragedevice

issimilartoWindowXPandfilenamecan

recognizeupto100Englishcharacters.

 Besuretobackupimportantfilessincedata

storedinaUSBmemorydevicemaybe

damaged.Wewillnotberesponsibleforany

dataloss.

 IftheUSBHDDdoesnothaveanexternal

powersource,theUSBdevicemaynotbe

detected.Sobesuretoconnecttheexternal

powersource.

-Pleaseuseapoweradaptorforanexternal

powersource.WedonotguaranteeanUSB

cableforanexternalpowersource.

 DatainaUSBstoragedevicecannotbe

deletedintheNTFSfilesystem.

 IfyourUSBmemorydevicehasmultiple

partitionsorifyouuseaUSBmulti-card

reader,youcanuseupto4partitionsorUSB

memorydevices.

 OnlytheFAT,FAT16,FAT32filesystem

supportsthedeletefunction.

 IfaUSBmemorydeviceisconnectedtoa

USBmulti-cardreader,itsvolumedatamay

notbedetected.

 IftheUSBmemorydevicedoesnotwork

properly,disconnectandreconnectit.

 HowfastaUSBmemorydeviceisdetected

differsfromdevicetodevice.

 IftheUSBisconnectedinStandbyMode,

specificharddiskwillautomaticallybeloaded

whentheMonitorsetisturnedon.

 Therecommendedcapacityis1TBorless

foraUSBexternalharddiskand32GBor

lessforUSBmemory.

 Anydevicewithmorethantherecommended

capacitymaynotworkproperly.

 IfaUSBexternalharddiskwitha“Energy

Saving”functiondoesnotwork,turnthe

harddiskoffandonagaintomakeitwork

properly.

 USBstoragedevicesbelowUSB2.0are

supportedaswell.Buttheymaynotwork

properlyinthemovielist.

 WhenabrokenfileisplayedintheUSB

storage,theMonitorsetmayturnofforwork

abnormally.

ENGLISH

46 ENTERTAINMENT

Browsing files

AccessthePhoto,MusicorMovielistsand

browsefiles.

1 ConnectaUSBstoragedevice.

2 PresstheNavigationbuttonstoscrollto

PHOTO LIST,MUSIC LISTorMOVIE LIST

andpressOK.

3 SelectDrive1toaccesstheconnectedUSB

storagedevice

4 Selectafolderyouwant.

-Toreturntothepreviouslevel,select

Up Folder.

PHOTO LIST

Photo List

Photo List

USB

USB

Up Folder

Up Folder

Drive 1

Drive 1

Drive 1

SG 001 SG 003

SG 002 SG 004

Page 1/1

Page 1/1

No Marked

No Marked

Navigation

Navigation

Popup Menu

Popup Menu

Page Change

Page Change

Mark

Mark

Exit

Exit

0 folder(s), 0 file(s)

0 folder(s), 0 file(s)

MOVIE LISTMUSIC LIST

5 PresstheNavigationbuttonstobrowsefiles.

Thehighlightedfilewilldisplayinthepreview

window.

No. Description

1Currentpagenumber/totalnumberofpages

2Thenumberofselectedfiles

3FileandFoldername

4Previewwindow

5Filesize,information.

6Returntothepreviouslevel

7Availablebuttonsontheremotecontrol

Supported file format

Type Supported file format

Photo 

JPG



Availablesize

Baseline:64pixel(W)x64pixel(H)-

15360pixel(W)x8640pixel(H)

Progressive:64pixel(W)x64pixel(H)-

1920pixel(W)x1440pixel(H)

Music 

MP3



Bitraterange32Kbps-320Kbps



Samplingrate(SamplingFrequency)

MPEG1layer3:32kHz,44.1kHz,

48kHz

MPEG2layer3:16kHz,22.05kHz,

24kHz

MPEG2.5layer3:8kHz,11.025kHz,

12kHz

* Acopy-protectedfilewillnotplay.

Video 

dat,mpg,mpeg,ts,trp,tp,vob,mp4,mkv,

avi,divx



Maxbitrateofplayablemoviefile:

20Mbps(Megabitpersecond)



Bitrateofaudioformat:within32-

320kbps(MP3)



Supportedsubtitleformat:*.smi,*.srt,

*.sub(MicroDVD,SubViewer1.0/2.0),

*.ass,*.ssa,*.txt(TMPlayer),

*.psb(PowerDivx)

Photo List

USB

Up Folder

Drive 1 Up Folder

SG kim 002 10/01/2010 SG kim 003 10/01/2010

SG kim 001 10/01/2010

SG kim 004 10/01/2010 SG kim 005 10/01/2010

SG kim 006 10/01/2010 SG kim 007 10/01/2010

Page 1/1 No Marked

Navigation Popup Menu Page Change Mark Exit

0 folder(s), 0 file(s)

1

3

4

5

6

7

2

ENGLISH

47

ENTERTAINMENT

Viewing Photos

ViewimagefilessavedinaUSBstoragedevice.

Thedisplaysonthescreenmaydifferfromthe

model.

1 PresstheNavigationbuttonstoscrolltoUSB

andpressOK.

2 PresstheNavigationbuttonstoscrolltoPhoto

ListandpressOK.

3 PresstheNavigationbuttonstoselectDrive1

toaccesstheconnectedUSBstoragedevice.

4 PresstheNavigationbuttonstoscrolltoa

folderyouwantandpressOK.

5 PresstheNavigationbuttonstoscrolltoafile

youwantandpressOK.

Apop-upwindowwillappears.

6 Viewphotosbyusingthefollowingmenus.

Menu Description

View Displaystheselectedphotoinafull-

screenview.



Drive:Viewsphotossavedina

USBstoragedrive.

Mark All

or Unmark

All

Selectsallfilesorclearsallofyour

selections

Delete DeletesafilesavedinaUSBstorage

device.

NOTE

Youcannotdeletethefilessaved

inasharedfolderofaPC.

Close Closesthepop-upmenu.

Photo List

Drive 1

Up Folder

SG 001 Up Folder

SG 002 10/01/2010 SG 003 10/01/2010

SG 001 10/01/2010

SG 004 10/01/2010 SG 005 10/01/2010

SG 006 10/01/2010 SG 007 10/01/2010

Page 2/3 No Marked

Navigation Popup Menu Page Change Mark Exit

1 folder(s),7 file(s)

1366x768, 125KB

View

Mark All

Delete

Close

ꔗ 1/17 ꔃ

Slideshow BGM Delete Q.MENU Option Hide

Using photo options

Usethefollowingoptionswhileviewingphotos.

Number of selected photos

Options

Option Description

Slideshow Startsorstopsaslideshowwithselected

photos.

Iftherearenoselectedphotos,all

photossavedinthecurrentfolder

displayduringaslideshow.

Tosetaslideshowspeed,selectOption.

BGM Turnsthebackgroundmusiconoroff.

Tosetthebackgroundmusicfolder,

selectOption.

(Rotate) Rotatesphotosclockwise(90°,180°,

270°,360°).

NOTE

Thesupportedphotosizeislimited.

Youcannotrotateaphotoifthe

resolutionoftherotatedwidthis

largerthanthesupportedresolution

size.

Delete Deletesaphoto.

Option 

Slide Speed:Selectsaslideshow

speed(Fast, Medium, Slow).



Music Album:Selectsamusicfolder

forthebackgroundmusic.

NOTE

Youcannotchangethemusicfolder

whilethebackgroundmusicis

playing.

Hide Hidestheoptionwindow.

Todisplaytheoptions,pressOK.

ENGLISH

48 ENTERTAINMENT

Q.MENU options for Photo List.

WhenyouselecttheSet Photo View.

1 PressQ. MENUtoaccessthePop-Upmenus.

2 PresstheNavigationbuttonstoscrolltoSlide

Speed or Music Folder.

3 PresstheNavigationbuttons tomake

appropriateadjustmentsandpressOK.

Whenyouselectthe Set Video.

1 PresstheNavigationbuttons tomake

appropriateadjustments.(Seep.61)

WhenyouselecttheSet Audio.

1 PresstheNavigationbuttons

toshowthe

Sound Mode, Auto Volume, Clear Voice II,

Balance.

2 PresstheNavigationbuttons tomake

appropriateadjustments.(Seep.63)

 When“Off”isselectedinRepeatmenu,

replaywillstoponcethelastfileinthelist

finishesplaying.But,when“ ”buttonis

pressedwhilethelastfileinthelistisinthe

middleofreplayand“Repeat”isin“Off”

position,thefirstfileinthelistwillbeplay.

NOTE

Choose Options.

Set Photo View.

Set Video.

Set Audio.

ꕉ Previous

1 PressQ. MENUtoaccessthePop-Upmenus.

2 PresstheNavigationbuttons toscrolltoSet

Photo View or Set Video, Set Audioand

PressOK

Listening to Music

1 PresstheNavigationbuttonstoscrolltoUSB

andpressOK.

2 PresstheNavigationbuttonstoscrolltoMusic

ListandpressOK.

3 SelectDrive1toaccesstheconnectedUSB

storagedevice.

4 PresstheNavigationbuttonstoscrolltoa

folderyouwantandpressOK.

5 PresstheNavigationbuttonstoscrolltoafile

youwantandpressOK.

Apop-upwindowwillappears.

6 Playmusicbyusingthefollowingmenus.

Menu Description

Play, Stop

Play, or

Play

Marked

Playsmusic,stopsplayback,orplays

theselectedmusicfile.Ifyouplay

musicwithoutselectingmusicfiles,all

ofthemusicfilessavedinthecurrent

folderwillplay.

The iconwillappearinfrontofthe

durationonthecurrentlyplayingfile.



Drive:Listentomusicfilessavedin

aUSBstoragedrive.

Play with


Displaysphotosduringplayback.

Mark All

or Unmark

All

Selectsallfilesorclearsallofyour

selections

Delete DeletesafilesavedinaUSBstorage

device.

Close Closesthepop-upmenu.

Music List

Music

SG 001

Page 2/3

Title

No Marked

Navigation Popup Menu Page Change Mark

1 folder(s), 3 file(s)

Up Folder

Up Folder

SG 001.mp3 03:50

SG 002.mp3 03:55

SG 003.mp3 03:35

3945 KB

128 Kbps

Play

Play with Photo

Mark All

Delete

Close

Exit

ENGLISH

49

ENTERTAINMENT

Music

S003

0:27 / 3:67

Option

 Adamagedorcorruptedfilewillnotplayand

thedurationofthefiledisplayas00:00.

 Acopy-protectedfilewillnotplay.

 IftheMonitorsetisnotinuseforsometime

duringplayback,theinformationboxasa

screensaverwillappeartopreventimage

burn.

ToreturntotheMusiclistscreen,pressOK

orBACK.

NOTE

7 Controlplaybackbyusingthefollowing

buttons.

Button Description

Stopsplayback

Playsamusicfile

Pausesorresumesplayback

Skipstothenextfile

Skipstothepreviousfile

Time elapsed / Duration

Folder name / file name

Q.MENU

Q.MENU options for Music List

1 PressQ. MENUtoaccessthePop-Upmenus.

2 PresstheNavigationbuttonstoscrolltoSet

Audio Play or Set AudioandPressOK.

Whenyouselectthe Set Audio Play.

1 PresstheNavigationbuttonstoshowtheSet

Audio Play.

2 PresstheNavigationbuttonstomake

appropriateadjustments.

WhenyouselecttheSet Audio.

1 PresstheNavigationbuttonsto

toshowthe

Sound Mode, Auto Volume, Clear Voice II,

Balance.

2 PresstheNavigationbuttonsto tomake

appropriateadjustments.(Seep.63)

 When“Off”isselectedinRepeatmenu,

replaywillstoponcethelastfileinthelist

finishesplaying.But,when“ ”buttonis

pressedwhilethelastfineinthelistisin

themiddleofreplayand“Repeat”isin“Off”

position,thefirstfileinthelistwillbeplay.

NOTE

Choose Options.

Set Audio Play.

Set Audio.

ꕉ Previous

ENGLISH

50 ENTERTAINMENT

Viewing Movies

PlayvideofilesontheMonitorset.YourMonitor

setdisplaysallofthevideofilessavedinaUSB

storagedevice.

 Movie(*.dat/*.mpg/*.mpeg/*.ts/*.trp

/*.tp/*.vob/*.mp4/*.mkv/*.avi/*.divx)

supportingfile.

 Videoformat:DivX3.11,DivX4.12,DivX5.

x,DivX6,Xvid1.00,Xvid1.01,Xvid1.02,

Xvid1.03,Xvid1.10-beta-1/beta-2,Mpeg-1,

Mpeg-2,Mpeg-4,H.264/AVC

 Audioformat:DolbyDigital,AAC,Mpeg,

MP3,LPCM,HE-AAC

 Bitrate:within32kbpsto320kbps(MP3)

 Subtitleformat:*.smi/*.srt/*.sub(Micro

DVD,SubViewer1.0/2.0)/*.ass/*.ssa/*.txt

(TMPlayer)/*.psb(PowerDivx).

 Someuser-createdsubtitlesmaynotwork

properly.

 Somespecialcharactersarenotsupported

insubtitles.

 HTMLtagsarenotsupportedinsubtitles.

 Subtitlesinlanguagesotherthanthe

supportedlanguagesarenotavailable.

 Timeinformationinanexternalsubtitlefile

shouldbearrangedinascendingordertobe

played.

 Thescreenmaysuffertemporary

interruptions(imagestoppage,faster

playback,etc.)whentheaudiolanguageis

changed.

 Adamagedmoviefilemaynotbeplayed

correctly,orsomeplayerfunctionsmaynot

beusable.

 Moviefilesproducedwithsomeencoders

maynotbeplayedcorrectly.

 Ifthevideoandaudiostructureofrecorded

fileisnotinterleaved,eithervideooraudiois

outputted.

 HDvideoswithamaximumof1920x1080

@25/30Por1280x720@50/60Pare

supported,dependingontheframe.

 Videoswithresolutionshigherthan1920x

1080@25/30Por1280x720@50/60P

maynotworkproperlydependingonthe

frame.

 Moviefilesotherthanthespecifiedtypesand

formatsmaynotworkproperly.

 Max bit rate of playable movie file is 20

Mbps.

 Wedonotguaranteesmoothplaybackof

profilesencodedlevel4.1orhigherinH.264

/AVC.

 DTSAudiocodecisnotsupported.

 Amoviefilemorethan30GBinfilesizeisnot

supportedforplayback.

 ADivXmoviefileanditssubtitlefilemustbe

locatedinthesamefolder.

 Avideofilenameanditssubtitlefilename

mustbeidenticalforittobedisplayed.

 PlayingavideoviaaUSBconnectionthat

doesn’tsupporthighspeedmaynotwork

properly.

 FilesencodedwithGMC(GlobalMotion

Compensation)maynotbeplayed.

 WhenyouarewatchingthemoviebyMovie

Listfunction,youcanadjustanimageby

Energy Savingkeyontheremotecontrol.

Usersetupforeachimagemodedoesnot

operate.

Video Decoder

 mpeg, vob: MPEG1,MPEG2

 dat: MPEG1

 ts,trp,tp: MPEG2,H.264/AVC

 mp4: MPEG4SP,MPEG4ASP,Divx3.11,

Dvix4.12,Dvix5.x,Dvix6,Xvid1.00,Xvid

1.01,Xvid1.02,Xvid1.03,Xvid1.10–beta1,

Xvid1.10-beta2,H.264/AVC

 avi: MPEG2,MPEG4SP,MPEG4ASP,

Divx3.11,Divx4,Divx5,Divx6,Xvid1.00,

Xvid1.01,Xvid1.02,Xvid1.03,Xvid1.10–

beta1,Xvid1.10–beta2,H.264/AVC

 mkv: H.264/AVC,MPEG1,MPEG2,

MPEG4SP,MPEG4ASP

 divx: MPEG2,MPEG4SP,MPEG4ASP,

Divx3.11,Divx4,Divx5,Divx6,Xvid1.00,

Xvid1.01,Xvid1.02,Xvid1.03,Xvid1.10–

beta1,Xvid1.10–beta2,H.264/AVC

Audio Codec

 mpeg, vob:DolbyDigital,MPEG,MP3,

LPCM

 dat:DolbyDigital,MPEG,MP3,LPCM

 ts,trp,tp:DolbyDigital,AAC,MPEG

 mp4:DolbyDigital,HE-AAC,AAC,MPEG,

MP3,LPCM

ENGLISH

51

ENTERTAINMENT

 avi:DolbyDigital,HE-AAC,AAC,MPEG,

MP3,LPCM

 mkv:DolbyDigital,HE-AAC,AAC,MPEG,

MP3,LPCM

 divx:DolbyDigital,HE-AAC,AAC,MPEG,

MP3,LPCM

Max Resolution

 1920 x 1080 @ 30p

1 PresstheNavigationbuttonstoscrolltoUSB

andpressOK.

2 PresstheNavigationbuttonstoscrolltoMovie

ListandpressOK.

3 SelectDrive1toaccesstheconnectedUSB

storagedevice.

4 PresstheNavigationbuttonstoscrolltoa

folderyouwantandpressOK.

5 PresstheNavigationbuttonstoscrolltoafile

youwantandpressOK.

Apop-upwindowwillappears.

6 Playvideobyusingthefollowingmenus.

Menu Description

Play or

Play

Marked

Playsamovieorplaystheselected

movie.



Drive:ViewsvideossavedinaUSB

storagedrive.

Mark All

or Unmark

All

Selectsallfilesorclearsallofyour

selections.

Delete or

Delete

marked

DeletesafileformattedontheFAT32

filesystemandsavedinaUSB

storagedevice.

Close Closesthepop-upmenu.

The imageunderthepreviewwindow

willappearifyouselectanon-supported

file.

NOTE

Movie List

Moive

SG 001.avi

Page 2/3

Title Duration

No Marked

Navigation Popup Menu Page Change Mark

Exit

640x480, 720KB

Up Folder

Up Folder

SG 001.avi 03:50

SG 002.avi 03:55

SG 003.avi 03:35

640x480, 720KB

Play

Mark All

Delete

Close

7 Controlplaybackbyusingthefollowing

buttons.

Button Description

INFO Viewstheinformationofthe

currentlyplayingvideo

Stopstheplayback

Playsavideo

Pausesorresumestheplayback

Scansbackwardinafile

Scansforwardinafile

< or > Skipstospecificpointsinafile

duringplayback.Thetimeofa

specificpointwillappearonthe

statusbar.Insomefiles,this

functionmaynotworkproperly.

orPlaysvideosinslowmotion

ENERGY

SAVING

PresstheENERGY SAVING

buttonrepeatedlytoincreasethe

brightnessofyourscreen.

Q.MENU options for Movie List

1 PressQ. MENUtoaccessthePop-Upmenus.

2 PresstheNavigationbuttonandOKtoscroll

toSet Video Play, Set Video or Set Audio.

Choose Options.

Set Video Play.

Set Video.

Set Audio.

ꕉ Previous

ENGLISH

52 ENTERTAINMENT

 OnlythefilessavedinASCIICODEis

supportedfortheexternalsubtitlesofthe

movie.

 Only500alphabetsand500numbersare

supportedforeachlineofthesubtitle.

 Only10,000ofsyncblockscanbe

supportedwithinthesubtitlefile.

NOTE

WhenyouselecttheSet Video.

1 PresstheNavigationbutton tomake

appropriateadjustments.(Seep.61)

WhenyouselecttheSet Audio,

1 PresstheNavigationbutton toshowthe

Sound Mode, Auto Volume, Clear Voice II,

Balance.

2 PresstheNavigationbutton tomake

appropriateadjustments.(Seep.63)

Usingtheremotecontrol.

Button Description

Whenplaying,

repeatedly,presstheREW( )button

tospeedup (x2) (x4)

(x8) (x16) (x32).

repeatedly,presstheFF( )button

tospeedup (x2) (x4) (x8)

(x16) (x32).



Pressingthesebuttonsrepeatedly

increasesthefastforward/reverse

speed.

Pause( ) Duringplayback,pressthePause( )

button.



Stillscreenisdisplayed.



Ifnobuttonsarepressedonthe

remotecontrolfor10minutesafter

pausing,theMonitorsetreturnsto

theplaybackstate.



PressthePause( )buttonand

thenusetheFF( )buttonforslow

motion.

< or > Whenusingthe< or>buttonduring

playbackacursorindicatingthe

positioncanbeviewedonthescreen.

Play( ) PressthePlay( )buttontoreturnto

normalplayback.

ENERGY

SAVING

PresstheENERGY SAVINGbutton

repeatedlytoincreasethebrightness

ofyourscreen.(Seep.60)

When you select the Set Video Play.

Menu Description


Size

Selectsyourdesiredpictureformatduring

movieplay

Audio

Language

or Subtitle

Language

ChangestheLanguageGroupofthe

audio/subtitleduringmovieplay.

Sync Adjuststhetimesynchronisationofthe

subtitlefrom-10secsto+10secsby

stepsof0.5secsduring

movieplay.

Position Changesthepositionofthesubtitleeither

upordownduringmovieplay.

Size SelectsyourdesiredSubtitlesizeduring

movieplay.

1 PresstheNavigationbutton toshowthe

Picture Size, Audio LanguageorSubtitle

Language.

2 PresstheNavigationbutton tomake

appropriateadjustments.

Subtitle

Language Support Language

Latin1 English,Spanish,French,German,

Italian,Swedish,Finnish,Dutch,

Portuguese,Danish,Romanian,

Norwegian,Albanian,Gaelic,Welsh,

Irish,Catalan,Valencian

Latin2 Bosnian,Polish,Croatian,Czech,

Slovak,Slovenian,Serbian,Hungarian

Latin4 Estonian,Latvian,Lithuanian

Cyrillic Bulgarian,Macedonian,Russian,

Ukrainian,Kazakh

Greek Greek

Turkish Turkish

ENGLISH

53

ENTERTAINMENT

DivX registration code

CheckandregistertheDivXregistrationcodeof

yourMonitorsetsothatyoucanrentorpurchase

thelatestmoviesat

www.divx.com/vod

.Toplaya

rentedorpurchasedDivXfile,thefile’sregistration

codeshouldbesamewithyourMonitorset’sDivX

registrationcode.

1 PressMENUtoaccesstheUSBmenus.

2 PresstheNavigationbuttontoscrolltoDivX

Reg. CodeandpressOK.

3 ViewtheregistrationcodeofyourMonitorset.

ABOUTDIVXVIDEO:DivX®isadigitalvideo

formatcreatedbyDivX,Inc.Thisisanofficial

DivXCertifieddevicethatplaysDivXvideo.

Visitwww.divx.comformoreinformationand

softwaretoolstoconvertyourfilesintoDivX

video.

ABOUTDIVXVIDEO-ON-DEMAND:ThisDivX

Certified®devicemustberegisteredinorderto

playDivXVideo-on-Demand(VOD)content.To

generatetheregistrationcode,locatetheDivX

VODsectioninthedevicesetupmenu.Goto

vod.divx.comwiththiscodetocompletethe

registrationprocessandlearnmoreaboutDivX

VOD.

“DivXCertified®toplayDivX®videouptoHD

1080p,includingpremiumcontent.”

“DivX®,DivXCertified®andassociatedlogos

aretrademarksofDivX,Inc.andareused

underlicense.”

“Pat.7,295,673;7,460,668;7,515,710;

7,519,274”

 Whileyouarecheckingtheregistrationcode,

somebuttonsmaynotwork.

 IfyouusetheDivXregistrationcodeof

anotherdevice,youcannotplaytherented

orpurchasedDivXfile.Makesuretouse

theDivXregistrationcodeassignedtoyour

Monitorset.

 Thevideooraudiofilesthatarenot

convertedbythestandardDivXcodecmay

becorruptedornotbeplayed.

 TheDivXVODcodeallowsyoutoactivate

upto6devicesunderoneaccount.

NOTE

Deactivating the DivX feature

Deactivateallofthedevicesthroughtheweb

serverandblockdevicesfromactivating.

Deletetheexistingauthenticationinformationto

receiveanewDivXuserauthenticationforthe

Monitorset.Oncethisfunctionisexecuted,aDivX

userauthenticationisrequiredagaintoseeDivX

DRMfiles.

1 PressMENUtoaccesstheUSBmenus.

2 PresstheNavigationbuttontoscrollto

DeactivationandpressOK.

3 SelectYestoconfirm.

4 SelectClose.

5 Whenyouarefinished,pressEXIT.

Whenyoureturntothepreviousmenu,press

BACK.

DivX(R) Video On Demand

Your registration Code is: xxxxxxxxxx

To learn more visit www.divx.com/vod.

DivX(R) Video On Demand

Do you want to deactivate your device?

DivX(R) Video On Demand

This device is deactivated.

Your deactivation code is: xxxxxxxx

To learn more visit www.divx.com/vod.

Close

Close

NoYes

ENGLISH

54 3D IMAGING

 Ifyouview3Dimagesfromtooclosea

distance,youreyesightmaydeteriorate.

 Ifyouviewimagesin3Dforalongperiod

oftime,youmayfeeldizzyorexperience

blurredvision.

 Ifyouarepregnant,elderly,haveheart

problems,experienceseverenauseaor

ifyouareundertheinfluenceofalcohol,

werecommendthatyoudonotview3D

images.

 Thisisbecausethe3Dimagescancause

disorientationandconfusion.

 Putfragileorbreakableobjectsawaywhen

viewing3Dimages.

 Suchobjectsmaybreak,orcausepersonal

injurieswhenyouarestartledbythe

realistic3Dimages.

 Parentsshouldpreventchildrenwhoare5

yearsoryoungerfromwatching3Dimages

becauseviewing3Dimagescanbeharmful

tovisiondevelopment.

 Warningaboutphotosensitivityseizures

Someusersmayhaveaseizureorother

abnormalreactionswhentheyareexposed

toaflashinglightoraparticularpattern

inavideogameorfilm.Ifanyoneinyour

familyhasahistoryofepilepsyorhasever

experiencedanykindofseizure,please

consultyourdoctorbeforeviewing3Dimages.

Ifyouexhibitanyofthesymptomslisted

belowwhenviewing3Dimages,stopviewing

immediatelyandhaveabreak.



»Dizziness,blurredvisionorfacialtics,

involuntarymovements,twitching,

blackouts,confusionanddisorientation.

Pleaseconsultyourdoctorifsuch

symptomspersist.

 Topreventaphotosensitivityseizure,please

takethefollowingprecautions.



»Havea5-to15-minutebreakeveryhour.



»Ifyourleftandrighteyesightissignificantly

different,correctthesightdifferencefirst.



»Youshouldbeabletoseeallofthescreen

ateyelevel.

3D IMAGING(ONLY 3D MODEL)

3D Technology

ThisMonitorsetcandisplayin3Dvia3D

broadcastingorwhentheMonitorsetisconnected

toacompatibledevice,suchasaBlu-ray3D

Player.Theviewermustwearcompatible3D

glassesinordertoseetheseimagesin3Dformat.

Precautions to take when

viewing 3D images

 AfterpoweringontheMonitorset,afew

secondsmaybeneededforyourMonitorset

tocalibrate.

 WhenwatchingdigitalMonitorsetin3D

imagingmode,monitoroutsignalscannotbe

outputthroughtheSCARTcable.

 Ifyousetthe3DmodetoOnwhilea

scheduledrecordingisperformedondigital

Monitorset,Monitorsetoutsignalscannot

beoutputthroughtheSCARTcable,andthe

recordingcannotbeperformed.

NOTE

WARNING

ENGLISH

55

3D IMAGING

When using 3D Glasses

 Donotusethe3Dglassestoreplaceyour

correctiveglasses,sunglassesorprotective

goggles.

 Donotstorethe3Dglassesinhotorcold

locations.

 Donotdropobjectsontothe3Dglasses.Do

notdroporbendtheglasses.

 Sincethelensesofthe3Dglassesareeasily

scratched,makesuretocleanonlywitha

softcloth.Shakeoffanydustbeforeusing

thecloth

 Donotscratchthesurfaceofthe

lens(Polarizedfilm)of3Dglasseswitha

sharptoolorwipethelenswithchemicals.

 Thelensofthe3Dglassesisdifferentfrom

thoseofgeneralglasses,andisverythin.

Thereforebecarefulwiththeglassesasthe

lenscanbepoppedouteasily.

CAUTION

CAUTION

 Parents/guardiansshouldmonitorchildren’s

viewingof3Dimagesbecausetheymaynot

beusedtothe3Dviewingexperienceand

lackknowledgeonhowtohandlepotential

risks.



»Ifyouexperienceheadaches,fatigueor

dizziness,stopviewingandhavearest.



»Donotview3Dimageswhenyouaretired

orill.

ENGLISH

56 3D IMAGING

Viewing 3D Imaging

1 Playthevideoproducedin3D.

2 Press3D.

3 Wearthe3Dglasses.

4 PresstheNavigationbuttonstoscrolltheOK

andpressOK.

5 PresstheNavigationbuttonstoscrollthe

shapeandpressOK.

Mode Description

2D 3D Changedfrom2Dimagingto3D

imaging.

2D 3D

Side by Side

Top & Bottom

Checker Board

Frame

Sequential

6 Press3Dbuttontoto2D Offor3D Off.

Mode Description

3D 2D Displaysimagesin2Dwithout

any3Deffects.

2D 3D Displaysimagesin3D.

3D Off Displaysimagesinoriginalformat.

Cancel Closethepop-upwindow.



3D Imaging Viewing Range

Monitorsetsize,viewingangle&other

circumstancesmaychangetheviewingdistance

andtheangleofview.

Mode Whenviewing3Dimages

Size(Inch) 584mm

Optimal viewing

distance (L)

50cmto90cm

Up/Down Optimal

viewing angle (D)

12°

No. Description

1

AdjustyourdistancefromtheMonitorsetto

allowyoutoviewimagesfromtheoptimal

distance(L).

2

AdjusttheMonitorsetandyourposture

toallowyoutoviewimagesattheoptimal

viewingangle(D).

3

Placeyourhandsgentlyonthekeyboard,

keepingyourarmsbentattheelbowsand

horizontallyoutright.

4AdjustthelocationoftheMonitorsettoavoid

itreflectinglight.

1

3

4

2

ENGLISH

57

3D IMAGING

3D Mode Setting Option

1 Press3D SETTINGtoaccessthePop-Upmenus.

2 PresstheNavigationbuttonstoscrolltooneofthe

followingoptionsandpressOK

 Somemenusmaynotworkwhileviewing3Dimaging.

 The3DimagingisdisabledautomaticallywhenswitchingDTVchannelsorinputsource.

 Thescreenmaynotbedisplayedproperlyifyouview2Dimagesin3Dimagingmode.

 3Deffectcanbeseenwhen3DModeisselectedappropriatelyforthe3Dinputsignalsuppliedtothe

Monitorset.

CAUTION

 TheImageViewModeoptionisdisabledwhen2Dimagesareconvertedinto3D.

 The3DDepthoptionisenabledwhen2Dimagesareconvertedinto3D.

 YoucannotentertheMainmenuwhilewatching3Dfiles.

NOTE

3D Mode Setting

Left/Right

Vivid

◄

◄

◄

◄

Close

3D Picture Correction

3D Depth 15

3D Viewpoint 0

Picture Mode

TheavailableProgrammesettingsaredescribedinthefollowing:

Option Description

3D Picture

Correction

SelectLeft/RightorRight/Left.

Selectthescreenwith3Dvideowithbettervisibility.

3D Depth Adjuststhestereoscopiceffectofthe3Dimageconvertedfroma2Dimage.

3D Viewpoint Movesthe3Dimagetothefrontandbacktoadjustthe3Dperspectiveview.

Picture Mode SelectsoneofthepresetimageorcustomizesoptionsineachmodeforthebestMonitorset

screenperformance.Youarealsoabletocustomizeadvancedoptionsofeachmode.

TheavailablepresetpicturemodesvarydependingontheMonitorset.

Mode

Vivid Adjuststhevideoimagefortheretailenvironmentbyenhancingthecontrast,

brightness,Colour,andsharpness.

Standard Adjuststheimageforthenormalenvironment.

Cinema Optimizesthevideoimageforacinematiclooktoenjoymoviesasifyouareina

movietheater.

Sport Optimizesthevideoimageforhighanddynamicactionsbyemphasizingprimary

Colourssuchaswhite,grass,orskyblue.

Game OptimizesthevideoimageforafastgamingscreensuchasPCsorgames.

ENGLISH

58 CUSTOMIZING SETTINGS

CUSTOMIZING SETTINGS

Accessing main menus

1 PressMENUtoaccessthemainmenus.

2 PresstheNavigationbuttonstoscrolltooneofthefollowingmenusand

pressOK.

3 PresstheNavigationbuttonstoscrolltothesettingoroptionyouwant

andpressOK.

4 Whenyouarefinished,pressEXIT.

Whenyoureturntothepreviousmenu,pressBACK. 

SETUP

OPTION


LOCK

AUDIO

INPUT

TIME

USB

AUDIO(Seep.63)

Adjuststhesoundquality,

effect,orvolumelevel

PICTURE (Seep.60)

Adjuststheimagesize,

quality,oreffect

TIME(Seep.66)

Setsthetime,dateor

Timerfeature

SETUP(Seep.59)

Setsupandedit

programmes

USB(Seep.70)

Usingintegratedmedia

features

LOCK(Seep.68)

Locksorunlocks

channelsandprograms

INPUT(Seep.69)

Viewstheinputsources

withtheirlabels

OPTION (Seep.67)

Customizesthegeneral

settings

ENGLISH

59

CUSTOMIZING SETTINGS

Customizing settings

SETUP settings

1 PressMENUtoaccessthemainmenus.

2 PresstheNavigationbuttonstoscrolltoSETUPandpressOK.

3 PresstheNavigationbuttonstoscrolltothesettingoroption

youwantandpressOK.

-Toreturntothepreviouslevel,pressBACK.

4 Whenyouarefinished,pressEXIT.

Whenyoureturntothepreviousmenu,pressBACK. 

TheavailableProgrammesettingsaredescribedinthefollowing:

Setting Description

Auto Tuning Tunesandstoresallavailableprogrammesthroughantennasorcableinputs(Seep.24).

Manual Tuning Tunesandstorestheprogrammesyouwantmanually(Seep.27to28).

Programme Edit Addsordeletespregrammesontheprogramme(Seep.29).

Software Update Thisautomaticallyupdatesyourmonitor'ssoftware.(Seep.31).

Diagnostics Thisshowsyouthemanufacturer,modelortypenumber,serialnumberandsoftwareinformation.

(Seep.32).

CI information Enablesyoutowatchsomeencryptedservices(payservices)(Seep.32).

Cable DTV Setting

(In Cable Mode

Only)

Youcanruntheserviceoperatorortheprogrammeautoupdate.(OnlyincountrieswhereDBV-C

issupported).(Seep.29).

SETUP Move OK

Auto Tuning

Manual Tuning

Programme Edit

Software Update : On

Diagnostics

CI Information

Cable DTV Setting

ENGLISH

60 CUSTOMIZING SETTINGS

PICTURE settings

1 PressMENUtoaccessthemainmenus.

2 PresstheNavigationbuttonstoscrolltoPICTUREand

pressOK.

3 PresstheNavigationbuttonstoscrolltothesettingor

optionyouwantandpressOK.

-Toreturntothepreviouslevel,pressBACK.

4 Whenyouarefinished,pressEXIT.

Whenyoureturntothepreviousmenu,press

BACK. 

Theavailablepicturesettingsaredescribedinthefollowing:

Setting Description

Aspect Ratio Changestheimagesizetoviewimagesatitsoptimalsize.(Seep.34)

Set 3D Video

(Only 3D

model)

Setsthe3Dimagingoption.(Seep.54)

Picture Wizard Adjuststheimagequalityandcalibratesthescreenbyfollowingtheon-screeninstructions.

ThecustomizedoptionswillbesavedasExpert1inthepicturemodes.

Energy Saving Setstoautomaticallyadjustthescreenbrightnesscorrespondingtothesurroundings.

Option

Off Thebacklightisoff.

Minimum/

Medium/

Maximum

Selectsthebrightnesslevelofthebacklight.

Screenoff Thescreenturnsoffin3seconds.

Colour

Tint

PictureWizard

Dynamic

Contrast

ColourGain

BlackLevel

Backlight

Colour

Temperature

WhiteLevel

Complete

Horizontal/

Vertical

Sharpness

IfyouusePicture wizard,theEnergysavingfeaturewillturnoffautomatically.

NOTE


Aspect Ratio : 16:9

Set 3D Video

Picture Wizard

ꕊ Energy Saving : Off

Picture Mode : Vivid

ꔈBacklight 100

ꔈContrast 100

ꔈBrightness 70

ꔈSharpness 50

ꔈColour 45

ꔈTint 0

ꔈColour Temperature 0

ꔈAdvanced Control

ꔈPicture Reset

Screen

Move OK

RG

WC

ENGLISH

61

CUSTOMIZING SETTINGS

Setting Description

Picture Mode SelectsoneofthepresetimageorcustomizesoptionsineachmodeforthebestMonitorsetscreen

performance.Youarealsoabletocustomizeadvancedoptionsofeachmode.

TheavailablepresetpicturemodesvarydependingontheMonitorset.

Mode

Vivid Adjuststhevideoimagefortheretailenvironmentbyenhancingthecontrast,

brightness,Colour,andsharpness.

Standard Adjuststheimageforthenormalenvironment.

Cinema Optimizesthevideoimageforacinematiclooktoenjoymoviesasifyouareina

movietheater.

Sport Optimizesthevideoimageforhighanddynamicactionsbyemphasizingprimary

Colourssuchaswhite,grass,orskyblue.

Game OptimizesthevideoimageforafastgamingscreensuchasPCsorgames.

Expert1/2 Adjuststhedetailedvideoimagesettingsforvideoexpertsaswellasgeneral

viewers.

Screen

(In RGB-PC

Mode Only)

CustomizesthePCdisplayoptionsinRGBmode.

Option

Resolution Selectsaproperresolution.See“CustomizingPCdisplayoptions”,p.20

AutoConfigure Setstoadjustthescreenposition,clock,andphaseautomatically.

Thedisplayedimagemaybeunstableforafewsecondswhiletheconfigurationis

inprogress.

Position/Size/

Phase

Adjuststheoptionswhenthepictureisnotclear,especiallywhencharactersare

shaky,aftertheautoconfiguration.

Reset Restorestheoptionstothedefaultsetting.

Basic image options

Setting Description

Backlight AdjuststhebrightnessofthescreenbycontrollingtheLCDbacklight.Ifyoudecreasethe

brightnesslevel,thescreenbecomesdarkerandthepowerconsumptionwillbereduced

withoutanyvideosignalloss.

Contrast Increasesordecreasesthegradientofthevideosignal.YoumayuseContrastwhenthe

brightpartofthepictureissaturated.

Brightness Adjuststhebaselevelofthesignalinthepicture.YoumayuseBrightnesswhenthedark

partofthepictureissaturated.

Sharpness Adjuststhelevelofcrispnessintheedgesbetweenthelightanddarkareasofthepicture.

Thelowerthelevel,thesoftertheimage.

Colour AdjustsintensityofallColours.

Tint Adjuststhebalancebetweenredandgreenlevels.

Colour Temperature Settowarmtoenhancehottercolourssuchasred,orsettocooltomakepicturebluish.

Advanced Control Customizestheadvancedoptions.

Reset Restorestheoptionstothedefaultsetting.

NOTE

 YoucannotadjustColourandTintintheRGB-PC/HDMI-PCmode.

 WhentheExpert1/2isselected,youcanselectBacklight, Contrast, Brightness, H Sharpness,

V Sharpness, ColourorTint.

ENGLISH

62 CUSTOMIZING SETTINGS

Advanced image options

Setting Description

Dynamic Contrast

(Off/Low/High)

Adjuststhecontrasttokeepitatthebestlevelaccordingtothebrightnessofthescreen.The

pictureisimprovedbymakingbrightpartsbrighteranddarkpartsdarker.

Dynamic Colour

(Off/Low/High )

Adjustsscreencolourssothattheylooklivelier,richerandclearer.Thisfeatureenhances

hue,saturationandluminancesothatred,blue,greenandwhitelookmorevivid.

Noise Reduction

(Off/Low/Medium/

High)

Reducesscreennoisewithoutcompromisingvideoquality.

Gamma

(Low/Medium/High)

Youcanadjustbrightnessofdarkareaandmiddlegraylevelareaofthepicture.



»Low:Makedarkandmiddlegraylevelareaofthepicturebrighter.



»Medium:Expressoriginalpicturelevels.



»High:Makedarkandmiddlegraylevelareaofthepicturedarker.

Black Level

(Low/High/Auto)



»Low:Thepictureofthescreengetsdarker.



»High:Thepictureofthescreengetsbrighter.



»Auto:RealizingtheblacklevelofthescreenandsetittoHighorLowautomatically.

Setblacklevelofthescreentoproperlevel.

Thisfunctionenablestoselect'Low'or'High'inthefollowingmode:AV(NTSC-M),HDMIor

Component.Otherwise,'Blacklevel'issetto'Auto'.

Film Mode

(On/Off)

Youcanwatchacinema-likevideobyeliminatingjuddereffect.

Usethisfunctionwhenyouwatchmovies.

Colour Standard

(SD/HD)

ConvertsthecolourofadifferentvideotoHDcolour.ThisfunctionissetforSDvideo(BT-601)

andHDvideo(BT-709)colourformat.

Expert Pattern

(Off/Expert 1/Expert 2)

Thisisthepatternnecessaryforexpertadjustment.

Thisfunctionisenabledin"PictureMode-Expert"whenyouwatchDTV.

Colour Filter

(Off/Red/Green/Blue)

Thisisthefunctiontofilterthespecificcoloursofthevideo.

YoucanusetheRGBfiltertosetcoloursaturationandhueaccurately.

Colour Temperature

(Medium/Warm/Cool)

Thisisthefunctiontoadjusttheoverallcolourofthescreentothefeelingyouwant.



A



»Method:2Points



»Pattern:Inner,Outer



»Red/Green/BlueContrast,Red/Green/BlueBrightness:



»Theadjustmentrangeis-50to+50.



B



»Method:10pointIRE



»Pattern:Inner/Outer



»IRE(InstituteofRadioEngineers)istheunittodisplaythesizeofthevideosignaland

canbesetamong10,20,30to100.YoucanadjustRed,GreenorBlueaccordingto

eachsetting.



»Red/Green/Blue:Theadjustmentrangeis-50to+50.

Colour Management

System

Asthetoolusedbytheexpertstomakeadjustmentsbyusingthetestpatterns,thisdoesnot

affectothercoloursbutcanbeusedtoselectivelyadjustthe6colourareas(Red/Green/Blue/

Cyan/Magenta/Yellow).Colourdifferencemaynotbedistinctiveevenwhenyoumakethe

adjustmentsforthegeneralvideo.

AdjustsRed/Green/Blue/Yellow/Cyan/Magenta.



»Red/Green/Blue/Yellow/Cyan/MagentaColour:Theadjustmentrangeis-30to+30.



»Red/Green/Blue/Yellow/Cyan/MagentaTint:Theadjustmentrangeis-30to+30.

ThisfeatureisdisableinRGB-PCandHDMI(PC)mode.



ENGLISH

63

CUSTOMIZING SETTINGS

AUDIO settings

1 PressMENUtoaccessthemainmenus.

2 PresstheNavigationbuttonstoscrolltoAUDIOandpress

OK.

3 PresstheNavigationbuttonstoscrolltothesettingor

optionyouwantandpressOK.

-Toreturntothepreviouslevel,pressBACK.

4 Whenyouarefinished,pressEXIT.

Whenyoureturntothepreviousmenu,press

BACK. 



Theavailableaudiooptionsaredescribedinthefollowing:

Setting Description

Auto Volume ActivatestheAutoVolumefeaturetokeepthevolumelevelconsistentwheneveryouchange

programmes.Thevolumelevelmaynotbeconsistentduetodifferentsignalconditionsof

broadcastingstations.

Clear Voice ll Bydifferentiatingthehumansoundrangefromothers,ithelpsuserslistentohumanvoicesbetter.

Balance Adjustsbalancebetweentheleftandrightspeakersaccordingtoyourroomenvironment.

Sound Mode Selectsoneofthepresetsoundmodesorcustomizeeachoptionineachmode.

Mode

Standard Selectwhenyouwantstandard-qualitysound.

Music Selectwhenyoulistentomusic.

Cinema Selectwhenyouwatchmovies.

Sport Selectwhenyouwatchsportsevents.

Game Selectwhenyouplaygames.

NOTE

Ifsoundqualityorvolumeisnotatthelevelyouwant,itisrecommendedtouseaseparate

hometheatersystemoramplifiertocopewithdifferentuserenvironments.

Option

SurroundX Providesanenvelopingsurroundsoundwithcleardialogandbassusing

justtwospeakers.SurroundXisapatentedSurroundtechnologythat

solvestheproblemofplaying5.1multichannelcontentsovertwospeakers.

Treble Controlsthedominantsoundsintheoutput.Whenyouturnupthetreble,it

willincreasetheoutputtothehigherfrequencyrange.

Bass Controlsthesoftersoundsintheoutput.Whenyouturnupthebass,itwill

increasetheoutputtothelowerfrequencyrange.

Reset Resetsthesoundmodetothedefaultsetting.

NOTE

YoucannotadjustTrebleandBassintheRGB-PC/HDMI-PCmode.

AUDIO

Auto Volume : Off

Clear Voice ll : Off 3

Balance 0

Sound Mode : Music

ꔈSurround X : Off

ꔈTreble 50

ꔈBass 50

ꔈReset

Digital Audio Out : PCM

TV Speaker : On

DTV Audio Setting : Auto

Move OK

LR

ENGLISH

64 CUSTOMIZING SETTINGS

Setting Description

Digital Audio Out ThisfunctionallowsyoutoselectyourpreferredDigitalAudioOutput.

WhenDolbyDigitalisavailable,selectingAutointheDigitalAudioOutmenuwillsetSPDIF(Sony

PhilipsDigitalInterFace)outputtoDolbyDigital.

IfAutoisselectedinthedigitalaudiooutmenuwhenDolbyDigitalisnotavailable,SPDIFoutput

willbePCM(Pulse-codemodulation).

EvenifbothDolbyDigitalandAudiolanguagehavebeensetinachannelwhichbroadcastDolby

DigitalAudio,onlyDolbyDigitalwillbeplayed.

NOTE

ManufacturedunderlicensefromDolbyLaboratories.“Dolby“andthe

double-DsymbolaretrademarksofDolbyLaboratories.

ThereisapossibilitythatwhenHDMImode,someDVDplayersdonotmakeSPDIFsound.

Atthattime,settheoutputofthedigitalaudiooftheDVDplayertoPCM.(InHDMI,Dolby

DigitalPlusisnotsupported).

Mode Audio Input Digital Audio output

Auto(SpeakerOn) MPEG

DolbyDigital

DolbyDigitalPlus

HE-AAC

PCM

DolbyDigital

DolbyDigital

PCM

Auto(SpeakerOff) MPEG

DolbyDigital

DolbyDigitalPlus

HE-AAC

PCM

DolbyDigital

DolbyDigital

DolbyDigital

PCM PCM PCM

TV Speaker TurnsontheinternalspeakeroftheMonitorsetwhenusinganexternalHi-FiorSRSsystem.You

canusetheTVspeakerasanaudiooutputdeviceevenifthereisnovideoinput.

DTV Audio Setting

(In Digital Mode

Only)

Whendifferentaudiotypesexistinaninputsignal,thisfunctionallowsyoutoselecttheaudiotype

youwant.

NOTE



Auto:AutomaticallyoutputsintheorderHE-AAC DolbyDigital MPEG.



HE-AAC,DolbyDigital,MPEG:Allowsuserstoselecttheaudiotypetheywant.



»IfMPEGisselected,MPEGisalwaysoutputted.



»IfMPEGisnotsupported,HE-AACandDolbyDigitalareselectedinthatorder.

ENGLISH

65

CUSTOMIZING SETTINGS

Stereo/Dual Reception (In Analogue Mode Only)

Whenaprogrammeisselected,thesoundinformationforthestationappearswiththeprogrammenumber

andstationname.

1 PressQ. MENUandpresstheNavigationtoaccesstheAUDIOandpressOK.

2 PresstheNavigationbuttontoscrolltosoundoutput andpressOK.

Broadcast On Screen Display

Mono

Stereo

Dual

MONO

STEREO

DUALI,DUALII,DUALI+II

Mono sound selection

Ifthestereosignalisweakinstereoreception,youcanswitchtomono.Inmonoreception,theclarityof

soundisimproved.

Language selection for dual language broadcast

aprogrammecanbereceivedintwolanguages(duallanguage),youcanswitchtoDUALI,DUALIIor

DUALI+II.

DUAL I Sendstheprimarybroadcastlanguagetotheloudspeakers.

DUAL I I  Sendsthesecondarybroadcastlanguagetotheloudspeakers.

DUAL I+I I  Sendsaseparatelanguagetoeachloudspeaker.

Stereo/Dual Reception (In Analogue Mode Only)

IftheMonitorSetisequippedwithareceiverforNICAMreception,highqualityNICAM(NearInstantaneous

CompandingAudioMultiplex)digitalsoundcanbereceived.

Soundoutputcanbeselectedaccordingtothetypeofbroadcastreceived.

1 WhenNICAMmonoisreceived,youcanselectNICAMMONOorMONO.

2 WhenNICAMstereoisreceived,youcanselectNICAMSTEREOorMONO.

Ifthestereosignalisweak,switchtoMONO.

3 WhenNICAMdualisreceived,youcanselectNICAMDUALI, NICAM DUAL II orNICAM DUAL I+IIor

MONO.

Speaker Sound Output Selection

InAV,Component,RGBandHDMImode,youcanselectoutputsoundfortheleftandrightloudspeakers.

Selectthesoundoutput.

L+R: AudiosignalfromaudioLinputissenttotheleftloudspeakerandaudiosignalfromaudioRinputis

senttotherightloudspeaker.

L+L:AudiosignalfromaudioLinputissenttoleftandrightloudspeakers.

R+R: AudiosignalfromaudioRinputissenttoleftandrightloudspeakers.

ENGLISH

66 CUSTOMIZING SETTINGS

TIME settings

1 PressMENUtoaccessthemainmenus.

2 PresstheNavigationbuttonstoscrolltoTIMEandpressOK.

3 PresstheNavigationbuttonstoscrolltothesettingoroptionyou

wantandpressOK.

-Toreturntothepreviouslevel,pressBACK.

4 Whenyouarefinished,pressEXIT.

Whenyoureturntothepreviousmenu,pressBACK. 



Theavailabletimesettingsaredescribedinthefollowing:

Setting Description

Clock Setsthetime,date,timezone,anddaylight-savingtimefeature.Thetimewillbesetautomatically

accordingtoadigitalchannelsignalwhichincludestimeinformationprovidedbythebroadcasting

station.Ifnot,setthetimeanddatemanually.

NOTE

Ifyouturnthepoweroffbydisconnectingthepowercord,thecurrenttimesettingwillbe

reset.

Off Time/On Time SetsthetimetoturnonorofftheMonitorsetautomatically.Tousethisfunction,youshouldset

thecurrenttimeanddateintheClockmenu.

NOTE

 Ifyoudonotpressanybuttonwithin2hoursaftertheMonitorsetturnsonbytheOn

Timefeature,theMonitorsetenterstheStandbymodeautomatically.

 IfyousettheOnTimefeatureandturntheMonitorsetoffbypressingMainpower

switch,theOnTimefeaturewillnotwork.ToactivatetheOnTimefeature,theMonitor

setmustbeinStandbymode.

 IfyousetbothOffTimeandOnTimefeaturestothesametime,theOffTimefunction

overridestheOnTimefeature,whentheMonitorsetison.

Sleep Timer SetsthelengthoftimeuntiltheMonitorsettoturnsoff.WhenyouturntheMonitorsetoffandturn

itonagain,theSleepTimerwillbesettooff.

TIME

Clock

Off Time : Off

On Time : Off

Sleep Timer : Off

Move OK

ENGLISH

67

CUSTOMIZING SETTINGS

Setting Description

Language Selectsalanguageforthedisplayoraudio(Seep.38).

Disabled

Assistance

Thisfunctionisfortheblind,andprovidesexplanatoryaudiodescribingthecurrentsituationina

TVprogrammeinadditiontothebasicaudio.

Data Service

(only in Ireland.)

ThisfunctionallowuserstochoosebetweenMHEG(DigitalTeletext)andTeletextifbothexistat

thesametime.(Seep.77to79)

Country Selectsadesiredcountry.(Seep.37)

Input Label Selectsalabelforaninputsourcetoidentifyadeviceconnectedtoeachinputsource.

NOTE

IfyouwanttouseHDMI-PCmode,youmustsettheinputlabeltoPCmode.

Set ID AddsanIDtotheconnecteddevices.(Seep.96)

Power Indicator SetstoturnonoroffthePowerindicatorontheMonitorset.

Demo Mode DisplaytheslideshowtoexplainthevariouslogoofthisMonitorset.

Mode Setting CustomizestheMonitorsetsettingstosuityourpreference.Theinitialsetupscreenwillappear

whenyouturnontheMonitorsetforthefirsttime.

Setting

ModeSetting SelectsHome Use modeforthehomeenvironment.

Selects Store Demomodefortheretailenvironment.

Factory Reset Thisfunctioninitializesallsettings.

NOTE

InLock System "On",ifyouforgetyourpassword,press'0', '3', '2', '5'ontheremote

controlhandset.

OPTION settings

1 PressMENUtoaccessthemainmenus.

2 PresstheNavigationbuttonstoscrolltoOPTIONandpressOK.

3 PresstheNavigationbuttonstoscrolltothesettingoroptionyou

wantandpressOK.

-Toreturntothepreviouslevel,pressBACK.

4 Whenyouarefinished,pressEXIT.

Whenyoureturntothepreviousmenu,pressBACK. 

Theavailableoptionsettingsaredescribedinthefollowing:

OPTION

Menu Language : English

Audio Language : English

Subtitle Language : English

Disabled Assistance

Data Service : MHEG

Country : UK

Input Label

Set ID : 1

Power Indacator : On

Demo Mode : Off

Mode Setting : Home Use

Factory Reset

Move OK

ENGLISH

68 CUSTOMIZING SETTINGS

LOCK settings

1 PressMENUtoaccessthemainmenus.

2 PresstheNavigationbuttonstoscrolltoLOCKandpress

OK.

3 PresstheNavigationbuttonstoscrolltothesettingor

optionyouwantandpressOK.

-Toreturntothepreviouslevel,pressBACK.

4 Whenyouarefinished,pressEXIT.

Whenyoureturntothepreviousmenu,press

BACK. 



Theavailablelocksettingsaredescribedinthefollowing:

Setting Description

Set Password Changesthe4-digitpassword.Thedefaultpasswordis‘0’, ‘0’, ‘0’, ‘0’.

WhenFranceisselectedforCountry,thedefaultpasswordisnot ‘0’, ‘0’, ‘0’, ‘0’ but‘1’,’2’,’3’,’4’.

NOTE

Ifyouforgetthepassword,press'0' '3' '2' '5'andsetthenewpassword.

Lock System Activatesordeactivatesthelocksystem

Rating

Block

Programme

Blocksanyprogrammesthatyoudonotwanttowatchorthatyoudonotwant

yourchildrentowatch.



ThisfunctionisavailableinLock System “On”.



Enterapasswordtowatchablockedprogramme.

Parental

Guidance

Thisfunctionoperatesaccordingtoinformationfromthebroadcastingstation.

Thereforeifthesignalhasincorrectinformation,thisfunctiondoesnotoperate.

(Seep.40)

InputBlock Blockstheinputsources

Key Lock TheMonitorsetcanbesetsothattheremotecontrolisrequiredtocontrolit.Thisfeaturecanbe

usedtopreventunauthorizedviewing.

NOTE

 InKey Lock ‘On’,iftheMonitorsetisturnedoff,presstheINPUT, P buttonon

theMonitorsetorPOWER, INPUT, P , TV/PCorNUMBERbuttonsontheremote

controlthenthesetwillbeturnedon.

 WiththeKeyLockOn,thedisplay‘ Key Lock On’appearsonthescreenifany

buttononthefrontpanelispressedwhileviewingtheMonitorset.

LOCK

Set Password

Lock System : Off

ꔈBlock Programme

ꔈParental Guidance

ꔈInput Block

key Lock : On

MOVE OK

ENGLISH

69

CUSTOMIZING SETTINGS

INPUT settings

1 PressMENUtoaccessthemainmenus.

2 PresstheNavigationbuttonstoscrolltoINPUTandpressOK.

3 PresstheNavigationbuttonstoscrolltothesettingoroptionyouwantandpressOK.

-Toreturntothepreviouslevel,pressBACK.

4 Whenyouarefinished,pressEXIT.

Whenyoureturntothepreviousmenu,pressBACK. 

Theavailableinputsettingsaredescribedinthefollowing:

Setting Description

Antenna SelectitwhenwatchingtheDTV/TV.(Seep.22).

AV SelectitwhenwatchingtheVCRorexternalequipment.(Seep.74).

Component SelectitwhenusingtheDVDortheDigitalset-topboxdependsonconnector.(Seep.74).

RGB SelectitwhenusingPCdependsonconnector.(Seep.17).

HDMI SelectitwhenusingDVD,PCorDigitalset-topboxdependonconnector.(Seep.17or73).

INPUT

Antenna

AV

Component

RGB

HDMI

MOVE OK INPUT

Antenna

AV

Component

RGB

HDMI1

HDMI2

MOVE OK

3D MTV

MTV

ENGLISH

70 CUSTOMIZING SETTINGS

USB settings

1 PressMENUtoaccessthemainmenus.

2 PresstheNavigationbuttonstoscrolltoUSBandpressOK.

3 PresstheNavigationbuttonstoscrolltothesettingoroptionyou

wantandpressOK.

-Toreturntothepreviouslevel,pressBACK.

4 Whenyouarefinished,pressEXIT.

Whenyoureturntothepreviousmenu,pressBACK. 

Theavailableusbsettingsaredescribedinthefollowing:

Setting Description

Photo List YoucanviewphotofilesonUSBstoragedevice.(Seep.47)

Music List YoucanplaymusicfilesonUSBstoragedevice.(Seep.48)

Movie List YoucanplaymoviefilesonaUSBstoragedevice.(Seep.50)

Divx Reg. Code CheckandregistertheDivXregistrationcodeofyourMonitorSetsothatyoucanrentorpurchase

thelatestmoviesat

www.divx.com/vod

.(Seep.53).

Deactivation Thepurposeofdeactivationistoallowdeactivationofdevicesforuserswhohaveactivatedallthe

availabledevicesthroughthewebserverandareblockedfromactivatingmoredevices.(Seep.53)

USB

Photo List

Music List

Movie List

Divx Reg. Code

Deactivation

MOVE OK

ENGLISH

71

MAKING CONNECTIONS

ConnectvariousexternaldevicestotheMonitorsetandswitchinputmodestoselectanexternaldevice.

Formoreinformationaboutanexternaldevice’sconnection,refertothemanualsuppliedwitheachdevice.

Availableexternaldevicesare:HDreceivers,DVDplayers,VCRs,audiosystems,USBstoragedevices,

PC,camcordersorcameras,gamingdevices,andotherexternaldevices.

NOTE

 IfyourecordaTVprogramonaDVDrecorderorVCR,makesuretoconnecttheMonitorsetsignal

inputcabletotheMonitorsetthroughaDVDrecorderorVCR.Formoreinformationaboutrecording,

refertothemanualsuppliedwiththeconnecteddevice.

 Theexternaldeviceconnectionmaydifferfromthemodel.

ConnectexternaldevicestotheMonitorsetbyreferringtothefollowingtable.

Connection overview

Connection type Video Audio

Digital Analog Digital Analog

HDMI (highly recommended) O - O -

Component - O - -

RGB - O - -

Optical audio - - O -

Analog audio - - - O

MAKING CONNECTIONS

ENGLISH

72 MAKING CONNECTIONS

ConnectvariousexternaldevicestotheportsontheMonitorset’sbackpanel.

1 FindanexternaldeviceyouwanttoconnecttoyourMonitorsetshownonthefollowingillustration.

2 Checktheconnectiontypeoftheexternaldevice.

3 Gototheappropriateillustrationandchecktheconnectiondetails.

NOTE

IfyouconnectagamingdevicetotheMonitorset,usethecablesuppliedwiththegamingdevice.



HDMI – See p.73

DVI – See p.73

Component – See p.74

Digital optical audio

– See p.75

Headphone

– See p.75

HDMI – See p.17

DVI – See p.18

RGB – See p.18

HDMI – See p.73

DVI – See p.73

Component – See p.74

Euro Scart – See p.74

HDMI – See p.73

DVI – See p.73

Component – See p.74

Component – See p.74

Euro Scart – See p.74

Memory storage

– See p.76

Memory card reader

– See p.76

HDMI – See p.73

Component – See p.73

HD Receiver

Speaker

PC Camcorder/Camera Gaming device

DVD VCR

USB

ENGLISH

73

MAKING CONNECTIONS

Connecting to a Camcorder,

Camera, HD receiver, DVD,

VCR player or Gaming

device

ConnectaCamcorder,Camera,HDreceiver,DVD,

VCRplayerorGamingdevicetotheMonitorset

andselectanappropriateinputmode.

NOTE

AUDIO OUT

DVI OUT

VIDE

O

COMPONENT IN

U

SB IN

AV

AUDIO

O

Y

P

B

P

R

L

RS

-2

3

2

C

IN

(

CONTROL & SERVICE)

RGB IN

(

PC

)

O

PTI

C

AL

AUDIO IN

(RGB/DVI)

H

/

P

D

I

G

ITAL

AU

DI

O

OU

T

ANTENNA/

C

ABLE I

N

D

C

-IN HDMI/DVI IN

R

AUDIO OUT

DVI OUT

VIDE

O

COMPONENT IN

U

SB IN

AV

AUDIO

O

Y

P

B

P

R

L

RS

-2

3

2

C

IN

(

CONTROL & SERVICE)

RGB IN

(

PC

)

O

PTI

C

AL

AUDIO IN

(RGB/DVI)

H

/

P

D

I

G

ITAL

AU

DI

O

OU

T

ANTENNA/

C

ABLE I

N

D

C

-IN

R

1

2

HDMI connection

Transmitsthedigitalvideoandaudiosignalsfrom

anexternaldevicetotheMonitorset.Connectthe

externaldeviceandtheMonitorsetwiththeHDMI

cableasshownonthefollowingillustration.

HDMI OUT

V

IDE

O

CO

MP

O

NENT I

N

US

B IN

AV

AU

DI

O

Y

P

B

P

R

L

RS

-2

3

2

C

IN

(CONTROL & SERVICE)

RGB IN

(

PC

)

O

PTI

C

AL

AUDI

O

I

N

(RGB/DVI

)

H

/

P

DI

G

ITAL

AU

DI

O

OU

T

A

NTENNA

/

C

ABLE IN

HDMI/DVI IN

DC-IN

R

HDMI OUT

V

IDE

O

CO

MP

O

NENT I

N

US

B IN

AV

AU

DI

O

Y

P

B

P

R

L

RS

-2

3

2

C

IN

(CONTROL & SERVICE)

RGB IN

(

PC

)

O

PTI

C

AL

AUDI

O

I

N

(RGB/DVI

)

H

/

P

DI

G

ITAL

AU

DI

O

OU

T

A

NTENNA

/

C

ABLE IN

DC-IN

R

1

2

DVI to HDMI connection

Transmitsthedigitalvideosignalfromanexternal

devicetotheMonitorset.Connecttheexternal

deviceandtheMonitorsetwiththeDVI-HDMI

cableasshowninthefollowingillustration.To

transmitanaudiosignal,connectanoptionalaudio

cable.

 UseaHighSpeedHDMI™Cable.

 HighSpeedHDMI™Cablesaretestedto

carryanHDsignalupto1080pandhigher.

3D MTV

3D MTV

MTV

MTV

ENGLISH

74 MAKING CONNECTIONS

VIDEO AUDIO

Y P

B

P

R

L R

VIDEO

COMPONENT IN

AUDIO

Y P

B

P

R

LR

AV

RS

-2

3

2

C

IN

(

CONTROL & SERVICE)

R

GB IN (PC

)

O

PTI

C

AL

D

I

G

ITAL A

U

DI

O

OU

T

AUDI

O

IN

(RGB/DVI)

H

/

P

A

NTENNA

/

C

ABLE IN

HDMI

/

DVI IN

D

C

-IN

VIDEO AUDIO

Y P

B

P

R

L R

VIDEO

COMPONENT IN

AUDIO

Y P

B

P

R

LR

AV

RS

-2

3

2

C

IN

(

CONTROL & SERVICE)

RGB IN (PC)

O

PTI

C

AL

D

I

G

ITAL A

U

DI

O

OU

T

AUDI

O

IN

(RGB/DVI)

H

/

P

ANTENNA/

C

ABLE IN

D

C

-IN

1

2

Component connection

Transmitstheanalogvideoandaudiosignalsfrom

anexternaldevicetotheMonitorset.Connect

theexternaldeviceandtheMonitorsetwiththe

componentcableasshownonthefollowing

illustration.Todisplayimagesbyusingprogressive

scan,makesuretousethecomponentcable.

3D MTV 3D MTV

MTV MTV

V

IDE

O

CO

MP

O

NENT I

N

US

B IN

AV

AU

DI

O

Y

P

B

P

R

L

R

S

-2

3

2

C

I

N

(CONTROL & SERVICE

)

RGB IN

(

PC

)

O

PTI

C

AL

AUDI

O

I

N

(RGB/DVI)

H

/

P

D

I

G

ITAL

AU

DI

O

OU

T

A

NTENNA

/

C

ABLE IN

HDMI/DVI IN

D

C

-IN

R

AUDIO/ VIDEO

V

IDE

O

CO

MP

O

NENT I

N

US

B IN

AV

AU

DI

O

Y

P

B

P

R

L

R

S

-2

3

2

C

I

N

(CONTROL & SERVICE)

RGB IN

(

PC

)

O

PTI

C

AL

AUDI

O

I

N

(RGB/DVI

)

H / P

D

I

G

ITAL

AU

DI

O

OU

T

A

NTENNA

/

C

ABLE IN

D

C

-IN

R

AUDIO/ VIDEO

1

2

Euro Scart connection

Transmitsthevideoandaudiosignalsfroman

externaldevicetotheMonitorset.Connectthe

externaldeviceandtheMonitorsetwiththeEuro

Scartcableasshownonthefollowingillustration.

Todisplayimagesbyusingprogressivescan,

makesuretousetheEuroScartcable.

ENGLISH

75

MAKING CONNECTIONS

Connecting to an audio

system

Useanoptionalexternalaudiosysteminsteadof

thebuilt-inspeaker.

NOTE

 Ifyouuseanexternalaudiodeviceinstead

ofthebuilt-inspeaker,settheTVspeaker

featuretooff(Seep.63).

Digital optical audio connection

TransmitsthedigitalaudiosignalfromtheMonitor

settoanexternaldevice.Connecttheexternal

deviceandtheMonitorsetwiththeopticalaudio

cableasshownonthefollowingillustration

VIDE

O

CO

MP

O

NENT IN

US

B IN

AV

AUDIO

O

Y

P

B

P

R

L

RS

-2

3

2

C

IN

(CONTROL & SERVICE

)

RGB IN

(

PC

)

OPTICAL

OPTICAL AUDIO IN

AUDI

O

IN

(RGB/DVI

)

H / P

DIGITAL AUDIO OUT

A

NTENNA

/

C

ABLE I

N

D

C

-IN HDMI

/

DVI I

N

R

1

2

VIDE

O

CO

MP

O

NENT IN

US

B IN

AV

AUDIO

O

Y

P

B

P

R

L

RS

-2

3

2

C

IN

(CONTROL & SERVICE

)

RGB IN

(

PC

)

OPTICAL

OPTICAL AUDIO IN

AUDI

O

IN

(RGB/DVI

)

H / P

DIGITAL AUDIO OUT

A

NTENNA

/

C

ABLE I

N

D

C

-IN

R

V

IDE

O

CO

MP

O

NENT I

N

US

B IN

AV

AU

DI

O

Y

P

B

P

R

L

RS

-2

3

2

C

IN

(

CONTROL & SERVICE)

R

GB IN

(

PC

)

O

PTI

C

ALAUDI

O

IN

(RGB/DVI)

H / P

D

I

G

ITAL

AU

DI

O

OU

T

A

NTENNA

/

C

ABLE IN

D

C

-IN HDMI

/

DVI IN

R

V

IDE

O

CO

MP

O

NENT I

N

US

B IN

AV

AU

DI

O

Y

P

B

P

R

L

RS

-2

3

2

C

IN

(

CONTROL & SERVICE)

R

GB IN

(

PC

)

O

PTI

C

ALAUDI

O

IN

(

RGB/DVI)

H / P

D

I

G

ITAL

AU

DI

O

OU

T

A

NTENNA

/

C

ABLE IN

D

C

-IN

R

1

2

Headphone connection

TransmitstheheadphonesignalfromtheMonitor

settoanexternaldevice.Connecttheexternal

deviceandtheMonitorsetwiththeheadphoneas

shownonthefollowingillustration.

3D MTV

3D MTV

MTV

MTV

ENGLISH

76 MAKING CONNECTIONS

Connecting to a USB

ConnectaUSBstoragedevicesuchassUSB

flashmemory,externalharddrive,MP3playeror

aUSBmemorycardreadertotheMonitorsetand

accesstheUSBmenutousevariousmultimedia

files."Connecting USB storage devices"onSee

p.44and“Browsing files”onSeep.46

V

IDE

O

C

OMPONENT I

N

USB IN

AV

A

UDI

O

Y

P

B

P

R

L

RS

-2

3

2

C

IN

(CONTROL & SERVICE

)

RGB IN (PC)

O

PTI

C

AL

AUDI

O

IN

(RGB/DVI)

H

/

P

DI

G

ITAL

AU

DI

O

OUT

A

NTENNA

/

C

ABLE IN

HDMI/DVI IN

D

C

-IN

R

V

IDE

O

C

OMPONENT I

N

USB IN

AV

A

UDI

O

Y

P

B

P

R

L

RS

-2

3

2

C

IN

(CONTROL & SERVICE

)

RGB IN (PC)

O

PTI

C

AL

AUDI

O

IN

(RGB/DVI)

H

/

P

DI

G

ITAL

AU

DI

O

OUT

A

NTENNA

/

C

ABLE IN

D

C

-IN

R

1

2

or

or

3D MTV

MTV

ENGLISH

77

TELETEXT

P

A

G

E

P

1 2 3

4 5

0

6

7 8 9

LIST

Q.VIEW

TV / PC INPUT

TV/

RAD

ENERGY

SAVING

MARK

FAV

RATIO

MUTE

OK

MENU

GUIDE

Q.MENU

INFO

Auto Config.

EXIT

P

A

G

E

P

1 2 3

4 5

0

6

7 8 9

LIST

Q.VIEW

TV / PC INPUT

TV/

RAD

ENERGY

SAVING

MARK

FAV

3D

MUTE

OK

MENU

GUIDE

Q.MENU

INFO

Auto Config.

EXIT

3D SETTING

TELETEXT

 Thisfeatureisnotavailableinallcountries.

TeletextisafreeservicebroadcastbymostTV

stationswhichgivesup-to-the-minuteinformation

onnews,weather,televisionprogrammes,share

pricesandmanyothertopics.Theteletextdecoder

ofthisTVcansupporttheSIMPLE,TOPand

FASTEXTsystems.SIMPLE(standardteletext)

consistsofanumberofpageswhichareselected

bydirectlyenteringthecorrespondingpage

number.TOPandFASTEXTaremoremodern

methodsallowingquickandeasyselectionof

teletextinformation.

Switch On/Off

Simple Text

Page selection

1 Enterthedesiredpagenumberasathree-digit

numberwiththeNumberbuttons.Ifduring

selectionyoupressawrongnumber,youmust

completethethree-digitnumberandthenre-

enterthecorrectpagenumber.

2 ThePor buttoncanbeusedtoselectthe

previousornextpage.

Top Text

Theuserguidedisplaysfourfields-red,green,

yellowandblueatthebottomofthescreen.The

yellowfielddenotesthenextgroupandtheblue

fieldindicatesthenextblock.

Block / Group / Page Selection

1 WiththeBluebuttonyoucanprogressfrom

blocktoblock.

2 UsetheYellowbuttontoproceedtothenext

groupwithautomaticoverflowtothenextblock.

3 WiththeGreenbuttonyoucanproceedtothe

nextexistingpagewithautomaticoverflowto

thenextgroup.Alternatively,theP button

canbeused.

4 TheRedbuttonpermitsyoutoreturnto

previousselection.Alternatively,theP button

canbeused.

Direct Page Selection

AswithSIMPLEteletextmode,youcanselecta

pagebyenteringitasathreedigitnumberusing

theNumberbuttonsinTOPmode.

PresstheTEXTbuttontoswitchtoteletext.The

initialpageorlastpageappearsonthescreen.

Twopagenumbers,TVstationname,dateand

timearedisplayedonthescreenheadline.The

firstpagenumberindicatesyourselection,while

thesecondshowsthecurrentpagedisplayed.

PresstheTEXTorEXITbuttontoswitchoff

teletext.Thepreviousmodereappears.

3D MTV

MTV

ENGLISH

78 TELETEXT

Fastext

Theteletextpagesarecolourcodedalongthe

bottomofthescreenandareselectedbypressing

thecorrespondingcolouredbutton.

Page selection

1 PresstheT.OPTbuttonandthenusethe

Navigationbuttontoselect menu.Display

theindexpage.

2 Youcanselectthepageswhicharecolour

codedalongthebottomlinewithcorresponding

colouredbuttons.

3 ASwithSIMPLEteletextmode,youcanselect

apagebyenteringitsthreedigitpagenumber

withtheNUMBERbuttonsinFastextmode.

4 TheP

^

or

v

buttoncanbeusedtoselectthe

precedingorfollowingpage.

Special Teletext Function

 Index

Selecttheeachindexpage.

Time

WhenviewingaTVprogramme,selectthis

menutodisplaythetimeatthetoprighthand

cornerofthescreen.

Intheteletextmode,pressthisbuttontoselect

asubpagenumber.Thesubpagenumberis

displayedatthebottomofthescreen.Tohold

orchangethesubpage,presstheRedbuttons

/Greenbuttons,<>orNumberbuttons.

Hold

Stopstheautomaticpagechangewhichwill

occurifateletextpageconsistsof2ormore

subpages.

Thenumberofsubpagesandthesubpage

displayedis,usually,shownonthescreen

belowthetime.Whenthismenuisselectedthe

stopsymbolisdisplayedatthetopleft-hand

cornerofthescreenandtheautomaticpage

changeisinactive.

Reveal

Selectthismenutodisplayconcealed

information,suchassolutionstoriddlesor

puzzles.

Update

DisplaystheTVpictureonthescreenwhile

waitingforanewteletextpage.Thedisplay

willappearatthetoplefthandcornerofthe

screen.Whentheupdatedpageisavailable

thendisplaywillchangetothepagenumber.

Selectthismenuagaintoviewtheupdated

teletextpage.

Index

Time

Hold

Reveal

Update

Close

Text Option

ENGLISH

79

DIGITAL TELETEXT

DIGITAL TELETEXT

 ThisfunctionworksinUK,Irelandonly.

TheTVgivesyouaccesstodigitalteletextwhichis

greatlyimprovedinvariousaspectssuchastext,

graphicsetc.Thisdigitalteletextcanaccess

specialdigitalteletextservicesandspecific

serviceswhichbroadcastdigitalteletext.

Youshouldselectoffinthesubtitlelanguagemenu

todisplayteletextbypressingtheSUBTITLE

button.

Teletext within digital

service

Teletext in digital service

1 PressthenumericorP or buttontoselect

adigitalservicewhichbroadcastsdigital

teletext.

2 Followtheindicationsondigitalteletextand

moveontothenextstepbypressingTEXT,

OK, Navigation button, Red button, Green

button, Yellow button, Blue button or

Number buttonsandetc.

3 Tochangedigitalteletextservice,selecta

differentservicebythenumericorP or 

button.

1 PressthenumericorP or buttontoselect

acertainservicewhichbroadcastsdigital

teletext.

2 PresstheTEXTorcolouredbuttontoswitchon

teletext.

3 Followtheindicationsondigitalteletextand

moveontothenextstepbypressingOK,

Navigation button, Red button, Green

button, Yellow button, Blue button or

Number buttonsandsoon.

4 PresstheTEXTorcolourbuttontoswitchoff

digitalteletextandreturntoTVviewing.

Someservicesmayallowyoutoaccesstext

servicesbypressingtheRedbutton.

ENGLISH

80 MAINTENANCE

MAINTENANCE

CleanyourMonitorsetregularlytokeepthebest

performanceandtoextendtheproductlifespan.

CAUTION

 Makesuretoturnthepoweroffand

disconnectthepowercordandallother

cablesfirst.

 WhentheMonitorsetisleftunattendedand

unusedforalongtime,disconnectthepower

cordfromthewalloutlettopreventpossible

damagefromlightningorpowersurges.

Screen and frame

Toremovedust,wipethesurfacewithadryand

softcloth.

Toremovemajordirt,wipethesurfacewithasoft

clothdampenedincleanwateroradilutedmild

detergent.Thenwipeimmediatelywithacleanand

drycloth.

CAUTION

 Donotpush,rub,orhitthesurfacewith

yourfingernailorasharpobject,asthismay

resultinscratchesonthescreenandimage

distortions.

 Donotuseanychemicals,suchaswaxes,

benzene,alcohol,thinners,insecticides,

airfresheners,lubricants,asthesemay

damagethescreen’sfinishandcause

discolorations.

Cabinet and stand

Toremovedust,wipethecabinetwithadryand

softcloth.

Toremovemajordirt,wipethecabinetwitha

softclothdampenedinacleanwaterorwater

containingasmallamountofmilddetergent.

CAUTION

 Donotsprayliquidontothesurface.Ifwater

enterstheMonitorset,itmayresultinfire,

electricshock,ormalfunction.

 Donotuseanychemicalsasthismay

deterioratethesurface.



Power cord

Removetheaccumulateddustordirtonthepower

cordregularly.

ENGLISH

81

TROUBLESHOOTING

TROUBLESHOOTING

General

The operation does not work normally.

Problem Resolution

Theremotecontroldoesn’twork 

Checktoseeifthereisanyobjectbetweentheproductandthe

remotecontrolcausingobstruction.Ensureyouarepointingthe

remotecontrol



Ensurethatthebatteriesareinstalledwithcorrectpolarity( to , 

to ).



Ensurethatthecorrectremoteoperatingmodeisset:TV,VCR,etc.



Installnewbatteries.

Powerissuddenlyturnedoff 

Isthesleeptimerset?



Checkthepowercontrolsettings.Powerinterrupted.



IftheMonitorSetisswitchedonandthereisnoinputsignal,it

willswitchoffautomaticallyafter15minutestosavethepower

consumption.



WhenabrokenfilewasplayedintheUSBmode,theMonitorsetmay

turnoff.Pleasecheckthefileinyourusbstorage.



Exceptthescreenoffmodeoftheenergysavingmenu.

The video function does not work.

Problem Resolution

Nopicture&Nosound 

Checkwhethertheproductisturnedon.



Tryanotherchannel.Theproblemmaybewiththebroadcast.



Isthepowercordinsertedintowallpoweroutlet?



Checkyourantennadirectionand/orlocation.



Testthewallpoweroutlet,pluganotherproduct’spowercordintothe

outletwheretheproduct’spowercordwaspluggedin.

Pictureappearsslowlyafter

switchingon



Thisisnormal,theimageismutedduringtheproductstartupprocess.

Pleasecontactyourservicecentre,ifthepicturehasnotappeared

afterfiveminutes.

NoColour,poorcolour,orpoor




AdjustColourinmenuoption.



KeepasufficientdistancebetweentheproductandtheVCR.



Tryanotherchannel.Theproblemmaybewiththebroadcast.



Arethevideocablesinstalledproperly?



Activateanyfunctiontorestorethebrightnessofthepicture.

Horizontal/verticalbarsorpicture

shaking



Checkforlocalinterferencesuchasanelectricalapplianceorpower

tool.

Poorreceptiononsomechannels 

Stationorcableproductexperiencingproblems,tunetoanother

station.



Stationsignalisweak,reorientantennatoreceiveweakerstation.



Checkforsourcesofpossibleinterference.

Linesorstreaksinpictures 

Checkantenna(Changethedirectionoftheantenna).

ENGLISH

82 TROUBLESHOOTING

The audio function does not work.

Problem Resolution

PictureOK&Nosound 

Pressthe (+ , -)buttonor VOL (

,

)button.



Soundmuted?PressMUTEbutton.



Tryanotherchannel.Theproblemmaybewiththebroadcast.



Aretheaudiocablesinstalledproperly?

Nooutputfromoneofthespeakers 

AdjustBalanceinmenuoption.

Unusualsoundfrominsidethe

product



Achangeinambienthumidityortemperaturemayresultinanunusual

noisewhentheproductisturnedonoroffanddoesnotindicatea

problemwiththeproduct.

NosoundwhenconnectingHDMI

orUSB



CheckHDMIcableisHighSpeedHDMICable.



CheckUSBcableoverversion2.0.



IfthesoundisabnormalintheHDMI,checktheaudioformatinyour

externalequipments.



»AudioSupportedformat:DolbyDigital,PCM

There is a problem with PICTURE settings.

Problem Resolution

Whentheuserchangesthe

picturesettings,theMonitorset

automaticallyconvertsbacktothe

initialsettingsafteracertainperiod

oftime.



ItmeansthattheMonitorsetiscurrentlysettoStore Demomode.

ToswitchtoHomeusemodeyoushoulddothefollowings:From

theMonitorsetMenu,chooseOPTION→ChooseMode Setting→

ChooseHomeuse.Now,youhavecompletedswitchingtotheHome

usemode.

PC mode

No image is displayed.

Problem Resolution

Powerison,powerindictorisblue

butthescreenappearsextremely

dark.



Adjustbrightnessandcontrastagain.

Doesthe‘Invalidformat’

messageappear?



ThesignalfromthePC(Videocard)isoutoftheverticalorhorizontal

frequencyrangeoftheproduct.Adjustthefrequencyrangeby

referringtotheSpecificationsinthisuser’sguide.

Doesthe‘Checksignalcable’

messageappear?



ThesignalcablebetweenPCandproductisnotconnected.Check

thesignalcable.



Pressthe‘INPUT’buttonintheremotecontroltochecktheinput

signal.

Problem Resolution

NopicturewhenconnectingHDMI 

CheckthatyourHDMIcableisHighSpeedHDMICable.

IftheHDMIcablesarenotHighSpeedHDMICable,flickeringorno

screendisplaycanresult.PleaseusetheHighSpeedHDMICable.

ENGLISH

83

TROUBLESHOOTING

‘Unknown Product’ message appears when the product is connected.

Problem Resolution

Didyouinstallthedriver? 

Installtheproductdriver,whichisprovidedwiththeproduct,or

downloaditfromthewebsite.(http://www.lg.com)



Seeiftheplug&playfunctionissupportedbyreferringtothevideo

carduser’sguide.

After-image appears on the product.

Problem Resolution

After-imageappearswhen

theproductisturnedoff.



Ifyouuseafixedimageforalongtime,thepixelsmaybedamaged

quickly.Usethescreensaverfunction.

Screen Colour is abnormal.

Problem Resolution

ScreenhaspoorColourresoluion

(16_Colours).



SetscreenColourresolutiontomorethan24bits(trueColour)Select

controlPane→Display→Settings→ColourTablemenuinWindows.

ScreenColourisunstableormono

Colour.



Checktheconnectionstatusofthesignalcable.

Dobackspotsappearonthe

screen?



Severalpixels(red,green,whiteorblackColour)mayappearonthe

screen,whichcanbeattributabletotheuniquecharacteristicsofthe

LCDpanel.ItisnotamalfunctionoftheLCD.

The screen image looks abnormal.

Problem Resolution

Isthescreenpositionwrong? 

AdjustthePositionmenuinOSD.



ASeeifthevideocardresolutionandfrequencyaresupportedby

theproduct.Ifthefrequencyisoutofrange,settotherecommended

resolutionintheControlPanel→Display→Settingmenu.

Dothinlinesappearonthe

backgroundscreen?



AdjusttheClockmenuinOSD.

Horizontalnoiseappearsorthe

characterslookblurred.



AdjustthePhasemenuinOSD.

ENGLISH

84 TROUBLESHOOTING WHEN USING 3D MODE

TROUBLESHOOTING WHEN USING 3D MODE

I can see a swirling oil-like pattern on the Monitor set when the Monitor set is turned off.

ThisiscausedbytheinterferenceofexternallightintheairlayerbetweentheLCDsurfaceand3Dfilter.

Thepatternbecomesalmostinvisiblewhenyouturnonthepoweragain.

I cannot see 3D image properly

Problem Resolution

Ifyouarenotusingtheglasses

providedwiththemonitor.

Whenyouview3Dimageswiththismonitor,itisveryimportantthatyouuse

theglassesprovidedwiththemonitor.Theglassesaredesignedtocompensate

opticallyforthe3Dfilterattachedtothesurfaceofthemonitor.Ifyouwearthird-

partyglasses,youmaynotsee3Dimagesproperlyonthemonitor.

Ifyouview3Dimagesoutsidethe

optimalviewingangleordistance.

Theoptimalviewingangleofthismonitorisbetween12°degrees;theoptimal

viewingdistanceisbetween50cmto90cmfromthemonitor.Whenyouview3D

imagesoutsidetheoptimalviewingangleorviewingdistance,theimagesmay

lookoverlappedornotbedisplayedproperlyin3D.

Notes for Viewing 3D Image with 3D Digital Brodcating

*In Analogue Brodcating, 3D Imaging does not work.

Problem Resolution

Whenswitchingthe2Dimage

displaytothe3Dimagedisplay

withthe3Dbuttonontheremote

control,theoverlappedimagemay

bedisplayed.



Disablethe3Dimagingmodewiththe3Dbutton.



The3Dimagingmodeisdisabledautomaticallyifyouchangethechannel.

Ifthescreenisdividedintoleft/right

ortop/bottomwhenyouchangethe

channel

 

Thischannelsupportsthe3Dimagingmode.Selectthe3Dimagingtype

displayedonthescreenbypressingthe3Dbuttonontheremotecontrol.

Ifyoureyesaresoreorthescreen

looksblurrywhileviewing3D

images.

SelectLeft/RightorRight/Leftoption,whichyoufindbetterforviewing3D

images.

ENGLISH

85

SPECIFICATIONS

SPECIFICATIONS

LCDPanel ScreenType 470.1mmWide(18.51inch)TFT(ThinFilmTransistor)

LCD(LiquidCrystalDisplay)Panel.

Visiblediagonalsize:470.1mm

PixelPitch 0.3mm(H)x0.3mm(V)

VideoSignal Max.Resolution 1360x768@60Hz

RecommendedResolution 1360x768@60Hz

HorizontalFrequency 30kHzto61kHz

VerticalFrequency 56Hzto75Hz

SynchronizationType SeparateSync,Digital

InputConnector TV,D-SubAnalog,SCART,PCAudioIn,Component,

HDMI

Power RatedVoltage 19V 2.0A

PowerConsumption OnMode:30W(typ.)

OffMode 0.5W

AC/DCAdapter Manufacturer:LITE-ON,ModelPA-1650-68

Tilt TiltRange -5°to10°

Dimensions(WidthxHeightxDepth)

Weight

443.9mmx365mmx164mm

2.96kg

Environmental

conditions

OperatingTemperature

OperatingHumidity

10°Cto35°C

20%to80%

StorageTemperature

StorageHumidity

-10°Cto60°C

5%to90%

Productspecificationsshownabovemaybechangedwithoutpriornoticeduetoupgradeofproduct

functions.

M1950D

ENGLISH

86 SPECIFICATIONS

LCDPanel ScreenType 546.86mmWide(21.53inch)TFT(ThinFilmTransistor)

LCD(LiquidCrystalDisplay)Panel.

Visiblediagonalsize:546.86mm

PixelPitch 0.248mm(H)x0.248mm(V)

VideoSignal Max.Resolution 1920×1080@60Hz

RecommendedResolution 1920×1080@60Hz

HorizontalFrequency 30kHzto83kHz

VerticalFrequency 56Hzto75Hz

SynchronizationType SeparateSync,Digital

InputConnector TV,D-SubAnalog,SCART,PCAudioIn,Component,

HDMI

Power RatedVoltage 19V 2.2A

PowerConsumption OnMode:35W(typ.)

OffMode 0.5W

AC/DCAdapter Manufacturer:LITE-ON,ModelPA-1650-68

Tilt TiltRange -5to10°

Dimensions(WidthxHeightxDepth)

Weight

509.1mmx404.2mmx164mm

3.37kg

Environmental

conditions

OperatingTemperature

OperatingHumidity

10°Cto35°C

20%to80%

StorageTemperature

StorageHumidity

-10°Cto60°C

5%to90%

Productspecificationsshownabovemaybechangedwithoutpriornoticeduetoupgradeofproduct

functions.

M2250D

ENGLISH

87

SPECIFICATIONS

M2350D

LCDPanel ScreenType 584.2mmWide(23inch)TFT(ThinFilmTransistor)

LCD(LiquidCrystalDisplay)Panel.

Visiblediagonalsize:584.2mm

PixelPitch 0.265mm(H)x0.265mm(V)

VideoSignal Max.Resolution 1920×1080@60Hz

RecommendedResolution 1920×1080@60Hz

HorizontalFrequency 30kHzto83kHz

VerticalFrequency 56Hzto75Hz

SynchronizationType SeparateSync,Digital

InputConnector TV,D-SubAnalog,SCART,PCAudioIn,Component,

HDMI

Power RatedVoltage 19V 2.4A

PowerConsumption OnMode:40W(typ.)

OffMode 0.5W

AC/DCAdapter Manufacturer:LITE-ON,ModelPA-1650-68

Tilt TiltRange -5to10°

Dimensions(WidthxHeightxDepth)

Weight

546.7mmx423.8mmx180mm

3.86kg

Environmental

conditions

OperatingTemperature

OperatingHumidity

10°Cto35°C

20%to80%

StorageTemperature

StorageHumidity

-10°Cto60°C

5%to90%

Productspecificationsshownabovemaybechangedwithoutpriornoticeduetoupgradeofproduct

functions.

ENGLISH

SPECIFICATIONS

88

DM2350D

LCDPanel ScreenType 584.2mmWide(23inch)TFT(ThinFilmTransistor)

LCD(LiquidCrystalDisplay)Panel.

Visiblediagonalsize:584.2mm

PixelPitch 0.265mm(H)x0.265mm(V)

VideoSignal Max.Resolution 1920×1080@60Hz

RecommendedResolution 1920×1080@60Hz

HorizontalFrequency 30kHzto83kHz

VerticalFrequency 56Hzto75Hz

SynchronizationType SeparateSync,Digital

InputConnector TV,D-SubAnalog,SCART,PCAudioIn,Component,

HDMI*2

Power RatedVoltage 19V 3.0A

PowerConsumption OnMode:48W(typ.)

OffMode 0.5W

AC/DCAdapter Manufacturer:LITE-ON,ModelPA-1650-68

Tilt TiltRange -5to10°

Dimensions(WidthxHeightxDepth)

Weight

546.7mmx423.8mmx180mm

4kg

Environmental

conditions

OperatingTemperature

OperatingHumidity

10°Cto35°C

20%to80%

StorageTemperature

StorageHumidity

-10°Cto60°C

5%to90%

Productspecificationsshownabovemaybechangedwithoutpriornoticeduetoupgradeofproduct

functions.

ENGLISH

89

SPECIFICATIONS

M2450D

LCDPanel ScreenType 609.7mmWide(24inch)TFT(ThinFilmTransistor)

LCD(LiquidCrystalDisplay)Panel.

Visiblediagonalsize:609.7mm

PixelPitch 0.276mm(H)x0.276mm(V)

VideoSignal Max.Resolution 1920×1080@60Hz

RecommendedResolution 1920×1080@60Hz

HorizontalFrequency 30kHzto83kHz

VerticalFrequency 56Hzto75Hz

SynchronizationType SeparateSync,Digital

InputConnector TV,D-SubAnalog,SCART,PCAudioIn,Component,

HDMI

Power RatedVoltage 19V 2.4A

PowerConsumption OnMode:40W(typ.)

OffMode 0.5W

AC/DCAdapter Manufacturer:LITE-ON,ModelPA-1650-68

Tilt TiltRange -5°to10°

Dimensions(WidthxHeightxDepth)

Weight

569.9mmx435.8mmx180mm

4.43kg

Environmental

conditions

OperatingTemperature

OperatingHumidity

10°Cto35°C

20%to80%

StorageTemperature

StorageHumidity

-10°Cto60°C

5%to90%

Productspecificationsshownabovemaybechangedwithoutpriornoticeduetoupgradeofproduct

functions.

ENGLISH

90 SPECIFICATIONS

M2550D

LCDPanel ScreenType 634.4mmWide(25inch)TFT(ThinFilmTransistor)

LCD(LiquidCrystalDisplay)Panel.

Visiblediagonalsize:634.4mm

PixelPitch 0.288mm(H)x0.288mm(V)

VideoSignal Max.Resolution 1920×1080@60Hz

RecommendedResolution 1920×1080@60Hz

HorizontalFrequency 30kHzto83kHz

VerticalFrequency 56Hzto75Hz

SynchronizationType SeparateSync,Digital

InputConnector TV,D-SubAnalog,SCART,PCAudioIn,Component,

HDMI

Power RatedVoltage 19V 2.8A

PowerConsumption OnMode:50W(typ.)

OffMode 0.5W

AC/DCAdapter Manufacturer:LITE-ON,ModelPA-1650-68

Tilt TiltRange -5°to10°

Dimensions(WidthxHeightxDepth)

Weight

594.9mmx451mmx180mm

4.85kg

Environmental

conditions

OperatingTemperature

OperatingHumidity

10°Cto35°C

20%to80%

StorageTemperature

StorageHumidity

-10°Cto60°C

5%to90%

Productspecificationsshownabovemaybechangedwithoutpriornoticeduetoupgradeofproduct

functions.

ENGLISH

SPECIFICATIONS 91

RGB (PC) supported mode

M1950D

Resolution Horizontal

Frequency(kHz)

Vertical

Frequency(Hz)

640x480 31.469 59.940

640x480 37.500 75.000

800x600 37.879 60.317

800x600 46.875 75.000

1024x768 48.363 60.004

1024x768 60.023 75.029

1280x768 47.776 59.870

1280x800 49.306 59.910

1360x768 47.712 60.015

M2250D M2350D M2450D M2550D

DM2350D

Resolution Horizontal

Frequency(kHz)

Vertical

Frequency(Hz)

720x400 31.468 70.080

640x480 31.469 59.940

640x480 37.500 75.000

800x600 37.879 60.317

800x600 46.875 75.000

1024x768 48.363 60.004

1024x768 60.023 75.029

1152x864 67.500 75.000

1280x720 45.000 60.000

1280x800 49.702 59.810

1280x1024 63.981 60.020

1280x1024 79.976 75.025

1400x1050 65.317 59.978

1440x900 55.935 59.887

1600x900 60.000 60.000

1680x1050 64.674 59.883

1680x1050 65.290 59.954

1920x1080 67.500 60.000

HDMI (PC) supported mode

M1950D

Resolution Horizontal

Frequency(kHz)

Vertical

Frequency(Hz)

720x400 31.468 70.080

640x480 31.469 59.940

640x480 37.500 75.000

800x600 37.879 60.317

800x600 46.875 75.000

1024x768 48.363 60.004

1024x768 60.023 75.029

1152x864 67.500 75.000

1280x960 60.000 60.000

1280x1024 63.981 60.020

1280x1024 79.976 75.025

1440x900 55.935 59.887

1680x1050 64.674 59.883

1680x1050 65.290 59.954

1920x1080 67.500 60.000

M2250D M2350D M2450D M2550D

DM2350D

Resolution Horizontal

Frequency(kHz)

Vertical

Frequency(Hz)

720x400 31.468 70.080

640x480 31.469 59.940

640x480 37.500 75.000

800x600 37.879 60.317

800x600 46.875 75.000

1024x768 48.363 60.004

1024x768 60.023 75.029

1152x864 67.500 75.000

1280x720 45.000 60.000

1280x800 49.702 59.810

1280x1024 63.981 60.020

1280x1024 79.976 75.025

1400x1050 65.317 59.978

1440x900 55.935 59.887

1600x900 60.000 60.000

1680x1050 64.674 59.883

1680x1050 65.290 59.954

1920x1080 67.500 60.000

ENGLISH

92 SPECIFICATIONS

NOTE

 Avoidkeepingafixedimageontheset’s

screenforprolongedperiodsoftime.The

fixedimagemaybecomepermanently

imprintedonthescreen.Useascreensaver

whenpossible.

 Theremaybeinterferencerelatingto

resolution,verticalpattern,contrastor

brightnessinPCmode.ChangethePC

modetoanotherresolutionorchangethe

refreshratetoanotherrateoradjustthe

brightnessandcontrastonthemenuuntilthe

pictureisclear.IftherefreshrateofthePC

graphiccardcannotbechanged,changethe

PCgraphiccardorconsultthemanufacturer

ofthePCgraphiccard.

 Thesynchronizationinputwaveformfor

HorizontalandVerticalfrequenciesare

separate.

 Connectthesignalcablefromthemonitor

outputportofthePCtotheRGB(PC)portof

theMonitorsetorthesignalcablefromthe

HDMIoutputportofthePCtotheHDMI/DVI

INportontheMonitorset.

 ConnecttheaudiocablefromthePCtothe

AudioinputontheMonitorset.(Audiocables

arenotincludedwiththeMonitorset).

 Ifusingasoundcard,adjustPCsoundas

required.

 IfthegraphiccardonthePCdoesnotoutput

analogueanddigitalRGBsimultaneously,

connectonlyoneofeitherRGBorHDMI/DVI

INtodisplaythePCoutputontheMonitor

set.

 IfthegraphiccardonthePCdoesoutput

analogueanddigitalRGBsimultaneously,

MonitorsettheMonitorsettoeitherRGBor

HDMI.(TheothermodeissettoPlugand

PlayautomaticallybytheMonitorset.)

 DOSmodemaynotworkdependingonthe

videocardifyouuseanHDMItoDVIcable.

 IfyouusetoolonganRGB-PCcablethatis

toolong,theremaybeinterferenceonthe

screen.Werecommendusingunder5mof

cable.Thisprovidesthebestpicturequality.

HDMI (DTV) supported mode

Resolution Horizontal

Frequency(kHz)

Vertical

Frequency(Hz)

720x480 31.469

31.500

59.940

60.000

720x576 31.250 50.000

1280x720 37.500 50.000

1280x720 44.960

45.000

59.940

60.000

1920x1080 33.720

33.750

59.940

60.000

1920x1080 28.125 50.000

1920x1080 27.000 24.000

1920x1080 33.750 30.000

1920x1080 56.250 50.000

1920x1080 67.430

67.500

59.940

60.000

Component supported mode

Resolution Horizontal

Frequency(kHz)

Vertical

Frequency(Hz)

720x480 15.730 59.940

720x480 15.750 60.000

720x576 15.625 50.000

720x480 31.470 59.940

720x480 31.500 60.000

720x576 31.250 50.000

1280x720 44.960 59.940

1280x720 45.000 60.000

1280x720 37.500 50.000

1920x1080 33.720 59.940

1920x1080 33.750 60.000

1920x1080 28.125 50.000

1920x1080 56.250 50.000

1920x1080 67.432 59.940

1920x1080 67.500 60.000

Component port connecting informatio

Componentportsonthe

Monitorset Y PBPR

Videooutputports

onDVDplayer

Y PBPR

Y B-Y R-Y

Y Cb Cr

Y Pb Pr

ENGLISH

93

SPECIFICATIONS

3D video input format supported. (Only 3D Model)

Signal Resolution Horizontal

Frequency

(kHz)

Vertical

Frequency

(Hz)

Playable 3D video format

HDMI

720p 1280x720 45 60 Top&Bottom,SidebySide

89.9

90

59.94

60

HDMIFramePacking

37.5 50 Top&Bottom,SidebySide

75 HDMIFramePacking

1080i 1920x1080 33.75 60 Top&Bottom,SidebySide

28.125 50

1080p 1920x1080 67.50 60 Top&Bottom,SidebySide,

CheckerBoard,SingleFrameSequential

56.250 50 Top&Bottom,SidebySide,

CheckerBoard,SingleFrameSequential

27 24 Top&Bottom,SidebySide,CheckerBoard

53.95

54

2398

24

HDMIFramePacking

33.75 30 Top&Bottom,SidebySide,CheckerBoard

USB 1080p 1920x1080 33.75 30 Top&Bottom,SidebySide,CheckerBoard

RGB 1080p 1920x1080 66.587 59.93 Top&Bottom,SidebySide

Signal Playable 3D video format

DTV 720p,1080i Top&Bottom,SidebySide

NOTE

 IfHDMIinputisreceivedin3DFramePackingformat,imagesareautomaticallyconvertedinto3D.

 2D 3Dmodeisavailabletowatchforallsignals.

 Ifyouchange2D 3Dmode,theleftandrightedgesofthescreenareclipped.

 Whenyouplaya3Dgame,change2D 3Dmode.

 IfyouselectHDMI3D,3Dmodeisautomaticallyenabled,whichmaycausethedelayofscreen

turningon.

 Forsome3Dcontentfiles,ifa3Dfileisconvertedinto2D,theleftandrightedgesofthescreenmay

appeartruncated.

ENGLISH

94 IR CODES

IR CODES

 Thisfeatureisnotavailableforallmodels.

Code (Hexa) Function Note

95 EnergySaving( ) R/CBUTTON

08 (POWER) R/CBUTTON(POWERON/OFF)

50 TV/PC R/CBUTTON

0B INPUT R/CBUTTON

79 RATIO R/CBUTTON

F0 TV/RAD R/CBUTTON

45 Q.MENU R/CBUTTON

43 MENU R/CBUTTON

AB GUIDE R/CBUTTON

40 Up( ) R/CBUTTON

41 Down( ) R/CBUTTON

07 Left(<) R/CBUTTON

06 Right(>) R/CBUTTON

44 OK( ) R/CBUTTON

28 BACK( ) R/CBUTTON

5B EXIT R/CBUTTON

AA INFO R/CBUTTON

02 (+) R/CBUTTON

03 (-) R/CBUTTON

1E FAV(MARK) R/CBUTTON

09 MUTE R/CBUTTON

00 P( ) R/CBUTTON

01 P( ) R/CBUTTON

10to19 NumberKey0to9 R/CBUTTON

53 LIST R/CBUTTON

1A Q.VIEW R/CBUTTON

72 RedKey R/CBUTTON

71 GreenKey R/CBUTTON

63 YellowKey R/CBUTTON

61 BlueKey R/CBUTTON

20 TEXT R/CBUTTON

21 T.OPT(T.Option) R/CBUTTON

39 SUBTITLE R/CBUTTON

99 AutoConfig. R/CBUTTON

B1 R/CBUTTON

B0 R/CBUTTON

BA R/CBUTTON

8F R/CBUTTON

8E R/CBUTTON

Only 3D Model

Code (Hexa) Function Note

DC 3D R/CBUTTON

45 Q.MENU(3DSETTING) R/CBUTTON

ENGLISH

95

EXTERNAL CONTROL DEVICE SETUP

NOTE

RS-232Conthisunitisintendedtobeused

withthirdpartyRS-232Ccontrolhardwareand

software.Theinstructionsbelowareprovided

tohelpwithprogrammingsoftwareortotest

functionalityusingtelenetsoftware.RS-232C

connectioncablesarenotsuppliedwiththe

product.

EXTERNAL CONTROL DEVICE SETUP

RS-232C Setup

ConnecttheRS-232C(serialport)inputjackto

anexternalcontroldevice(suchasacomputer

oranA/Vcontrolsystem)tocontroltheproduct’s

functionsexternally.

Connecttheserialportofthecontroldevicetothe

RS-232Cjackontheproductbackpanel.



Type of connector; D-Sub

9-Pin Male

1 5

6 9

RS-232C IN

(CONTROL & SERVICE)

No. Pin name

1 Noconnection

2 RXD(Receivedata)

3 TXD(Transmitdata)

4 DTR(DTEsideready)

5 GND

6 DSR(DCEsideready)

7 RTS(Readytosend)

8 CTS(Cleartosend)

9 NoConnection

RS-232C IN

(CONTROL & SERVICE)

ENGLISH

96 EXTERNAL CONTROL DEVICE SETUP

Set ID

SetIDnumber."Real Data Mapping"onSeep.102

1 PressMENUtoaccessthemainmenus.

2 PresstheNavigationbuttonstoscrollto

OPTIONandpressOK.

3 PresstheNavigationbuttonstoscrolltoSet ID

andpressOK.

4 ScrollleftorrighttoselectasetIDnumberand

selectClose.Theadjustmentrangeis1-99.

5 Whenyouarefinished,pressEXIT.

Whenyoureturntothepreviousmenu,press

BACK.

RS-232C configurations

7-WireConfiguration

(Serialfemale-femaleNULLmodemcable)

3-WireConfigurations(Notstandard)

PC TV

RXD 2 3 TXD

TXD 3 2 RXD

GND 5 5 GND

DTR 4 6 DSR

DSR 6 4 DTR

RTS 7 8 CTS

CTS 8 7 RTS

D-Sub 9 D-Sub 9

PC TV

RXD 2 3 TXD

TXD 3 2 RXD

GND 5 5 GND

DTR 4 6 DSR

DSR 6 4 DTR

RTS 7 8 CTS

CTS 8 7 RTS

D-Sub 9 D-Sub 9

OPTION MOVE OK

Menu Language : English

Audio Language : English

Subtitle Language : English

Disabled Assistance

Data Service : MHEG

Country : UK

Input Label

Set ID : 1 ꔉ

Power Indacator : On

Demo Mode : Off

Mode Setting : Home Use

Factory Reset

ENGLISH

97

EXTERNAL CONTROL DEVICE SETUP

Command reference list

Communication Parameters

 Baudrate:9600bps(UART)

 Datalength:8bits

 Parity:None

 Stopbit:1bit

 Communicationcode:ASCIIcode

 Useacrossed(reverse)cable.

COMMAND1 COMMAND2 DATA

(Hexadecimal)

01.Power k a 00to01

02.AspectRatio x c Seep.99

03.ScreenMute k d 00to01

04.VolumeMute k e 00to01

05.VolumeControl k f 00to64

06.Contrast k g 00to64

07.Brightness k h 00to64

08.Colour k i 00to64

09.Tint k j 00to64

10.Sharpness k k 00to64

11.OSDSelect k l 00to01

12.Remotecontrollockmode k m 00to01

13.Treble k r 00to64

14.Bass k s 00to64

15.Balance k t 00to64

16.ColourTemperature x u 00to64

17.EnergySaving j q 00to05

18.AutoConfiguration j u 01

19.TuneCommand m a Seep.101

20.ProgrammeAdd/Skip m b 00to01

21.Key m c KeyCode

22.BackLight m g 00to64

23.Inputselect(Main) x b Seep.102

24.3D x t Seep.103

25.Extended3D x v Seep.103

 Note:DuringUSBoperationssuchasDvixorEMF,allcommandsexceptPower(ka)andKey(mc)are

notexecutedandtreatedasNG.

ENGLISH

98 EXTERNAL CONTROL DEVICE SETUP

Transmission / Receiving protocol

Transmission

[Command1][Command2][ ][Set ID][ ][Data][Cr]

[Command1]:Firstcommandtocontroltheset.(j,k,morx)

[Command2]:Secondcommandtocontroltheset.

[SetID]:YoucanadjustthesetIDtochoosedesiredmonitorIDnumberinoptionmenu.Adjustmentrange

is1to99.WhenselectingSetID‘0’,everyconnectedsetiscontrolled.SetIDisindicatedas

decimal(1to99)onmenuandasHexadecimal(0x0to0x63)ontransmission/receivingprotocol.

*[DATA]:Totransmitcommanddata.

Transmit‘FF’datatoreadstatusofcommand.

*[Cr]:CarriageReturn

ASCIIcode‘0x0D’

*[]:ASCIIcode‘space(0x20)’

OK Acknowledgement

[Command2][ ][Set ID][ ][OK][Data][x]

ThesettransmitsACK(acknowledgement)basedonthisformatwhenreceivingnormaldata.Atthistime,

ifthedataisdatareadmode,itindicatespresentstatusdata.Ifthedataisdatawritemode,itreturnsthe

dataofthePCcomputer.

Error Acknowledgement

[Command2][ ][Set ID][ ][NG][Data][x]

*ThesettransmitsACK(acknowledgement)basedonthisformatwhenreceivingabnormaldatafromnon-

viablefunctionsorcommunicationerrors.Data00:IllegalCode

ENGLISH

99

EXTERNAL CONTROL DEVICE SETUP

01. Power (Command: k a)

TocontrolPowerOn/Offoftheset.

Transmission

[k][a][][SetID][][Data][Cr]

Data00:PowerOff Data01:PowerOn

Acknowledgement

[a][][SetID][][OK/NG][Data][x]

ToshowPowerOn/Off.

Transmission

[k][a][][SetID][][FF][Cr]

Acknowledgement

[a][][SetID][][OK/NG][Data][x]

*Similarly,ifotherfunctionstransmit‘0xFF’data

basedonthisformat,Acknowledgementdatafeed

backpresentsstatusabouteachfunction.

*OKAck.,ErrorAck.andothermessagemaydisplay

onthescreenwhenMonitorSetispowerOn.

02. Aspect Ratio (Command: k c) (Main Picture Size)

Toadjustthescreenformat.(Mainpictureformat)

Youcanalsoadjustthescreenformatusingthe

AspectRatiointheQ.MENU.orPICTUREmenu.

Transmission

[k][c][][SetID][][Data][Cr]

Data01:Normalscreen(4:3)

 02:Widescreen(16:9)

 04:Zoom

 06:Original

 07:14:9

 09:JustScan

 0B:FullWide

 10to1F:CinemaZoom1to16

Acknowledgement

[c][][SetID][][OK/NG][Data][x]

*UsingthePCinput,youselecteither16:9or4:3

screenaspectratio.

*InDTV/HDMI(1080i50Hz/60Hz,720p50Hz

/60Hz,1080p24Hz/30Hz/50Hz/60Hz),

Component(720p,1080i,1080p50Hz/60Hz)

mode,JustScanisavailable.

*FullWideissupportedonlyforAnalogue,AV.

03. Screen Mute (Command: k d)

Toselectscreenmuteon/off.

Transmission

[k][d][][SetID][][Data][Cr]

Data00:Screenmuteoff(Pictureon)

 Videomuteoff

 01:Screenmuteon(Pictureoff)

 10:Videomuteon

Acknowledgement

[d][][SetID][][OK/NG][Data][x]

*Incaseofvideomuteononly,MonitorSetwill

displayOnScreenDisplay(OSD).But,incaseof

Screenmuteon,MonitorSetwillnotdisplayOSD.

04. Volume Mute (Command: k e)

Tocontrolvolumemuteon/off.

YoucanalsoadjustmuteusingtheMUTEbuttonon

remotecontrol.

Transmission

[k][e][][SetID][][Data][Cr]

Data00:Volumemuteon(Volumeoff)

 01:Volumemuteoff(Volumeon)

Acknowledgement

[e][][SetID][][OK/NG][Data][x]

05. Volume Control (Command: k f)

Toadjustvolume.

YoucanalsoadjustvolumewiththeVOLUME

buttonsonremotecontrol.

Transmission

[k][f][][SetID][][Data][Cr]

DataMin:00toMax:64

*Referto‘Realdatamapping’.Seep.102

Acknowledgement

[f][][SetID][][OK/NG][Data][x]

06. Contrast (Command: k g)

Toadjustscreencontrast.

YoucanalsoadjustcontrastinthePICTUREmenu.

Transmission

[k][g][][SetID][][Data][Cr]

DataMin:00toMax:64

*Referto‘Realdatamapping’.Seep.102

Acknowledgement

[g][][SetID][][OK/NG][Data][x]

ENGLISH

100 EXTERNAL CONTROL DEVICE SETUP

07. Brightness (Command: k h)

Toadjustscreenbrightness.

YoucanalsoadjustbrightnessinthePICTURE

menu.

Transmission

[k][h][][SetID][][Data][Cr]

DataMin:00toMax:64

*Referto‘Realdatamapping’.Seep.102

Acknowledgement

[h][][SetID][][OK/NG][Data][x]

08. Colour (Command: k i)

Toadjustthescreencolour.(ExceptPCmode)

YoucanalsoadjustcolourinthePICTUREmenu.

Transmission

[k][i][][SetID][][Data][Cr]

DataMin:00toMax:64

*Referto‘Realdatamapping’.Seep.102

Acknowledgement

[i][][SetID][][OK/NG][Data][x]

09. Tint (Command: k j)

Toadjustthescreentint.(ExceptPCmode)

YoucanalsoadjusttintinthePICTUREmenu.

Transmission

[k][j][][SetID][][Data][Cr]

DataMin:00toMax:64

*Referto‘Realdatamapping’.Seep.102

Acknowledgement

[j][][SetID][][OK/NG][Data][x]

10. Sharpness (Command: k k)

Toadjustthescreensharpness.

YoucanalsoadjustsharpnessinthePICTURE

menu.

Transmission

[k][k][][SetID][][Data][Cr]

DataMin:00toMax:64

*Referto‘Realdatamapping’.Seep.102

Acknowledgement

[k][][SetID][][OK/NG][Data][x]

11. OSD Select (Command: k l)

ToselectOSD(OnScreenDisplay)on/offwhen

controllingremotely.

Transmission

[k][l][][SetID][][Data][Cr]

Data00:OSDoff 01:OSDon

Acknowledgement

[l][][SetID][][OK/NG][Data][x]

12. Remote control lock mode (Command: k m)

Tolockthefrontpanelcontrolsonthemonitorand

remotecontrol.

Transmission

[k][m][][SetID][][Data][Cr]

Data00:Lockoff 01:Lockon

Acknowledgement

[m][][SetID][][OK/NG][Data][x]

*Ifyouarenotusingtheremotecontrol,usethis

mode.Whenmainpowerison/off,externalcontrol

lockisreleased.

*LocalPowerKeywillworkproperly.

13. Treble (Command: k r)

Toadjusttreble.

YoucanalsoadjusttrebleintheAUDIOmenu.

Transmission

[k][r][][SetID][][Data][Cr]

DataMin:00toMax:64

*Referto‘Realdatamapping’.Seep.102

Acknowledgement

[r][][SetID][][OK/NG][Data][x]

14. Bass (Command: k s)

Toadjustbass.

YoucanalsoadjustbassintheAUDIOmenu.

Transmission

[k][s][][SetID][][Data][Cr]

DataMin:00toMax:64

*Referto‘Realdatamapping’.Seep.102

Acknowledgement

[s][][SetID][][OK/NG][Data][x]

ENGLISH

101

EXTERNAL CONTROL DEVICE SETUP

15. Balance (Command: k t)

Toadjustbalance.

YoucanalsoadjustbalanceintheAUDIOmenu.

Transmission

[k][t][][SetID][][Data][Cr]

DataMin:00toMax:64

*Referto‘Realdatamapping’.Seep.102

Acknowledgement

[t][][SetID][][OK/NG][Data][x]

16. Colour Temperature (Command: x u)

Toadjustcolourtemperature.Youcanalsoadjust

Colour.

TemperatureinthePICTUREmenu.

Transmission

[x][u][][SetID][][Data][Cr]

DataMin:00toMax:64

*Referto‘Realdatamapping’.Seep.102

Acknowledgement

[u][][SetID][][OK/NG][Data][x]

17. Energy Saving (Command: j q)

ToreducethepowerconsumptionoftheMonitorSet.

You

canalsoadjustEnergySavinginOPTIONmenu.

Transmission

[j][q][][SetID][][Data][Cr]

Power

Saving

Function

Level Description

7654 3210

0 0 0 0 LowPower 0 0 0 0 Off

0 0 0 0 LowPower 0 0 0 1 Minimum

0 0 0 0 LowPower 0 0 1 0 Medium

0 0 0 0 LowPower 0 0 1 1 Maximum

0 0 0 0 LowPower 0 1 0 1 ScreenOff

Acknowledgement

[q][][SetID][][OK/NG][Data][x]

18. Auto Configure(Command: j u)

Toadjustpicturepositionandminimizeimage

shaking

automatically.ItworksonlyinRGB(PC)mode.

Transmission

[j][u][][SetID][][Data][Cr]

Data01:Toset

Acknowledgement

[u][][SetID][][OK/NG][Data][x]



19.Tune Command (Command: m a)

Selectchanneltofollowingphysicalnumber.

Transmission

[m][a][][SetID][][Data0][][Data1][][Data2][Cr]

Data00:Highchanneldata

Data01:Lowchanneldata

 ex.No.47->002F(2FH)

 No.394->018A(18AH),

 DTVNo.0->Don’tcare

Data02:0x00:AnalogueMain

0x10:DTVMain

0x20:Radio

Channeldatarange

Analogue-Min:00toMax:63(0to99)

Digital-Min:00toMax:3E7(0to999)

(ExceptForSweden,Finland,Norway,Denmark,

Ireland)

Digital-Min:00toMax:270F(0to9999)

(OnlySweden,Finland,Norway,Denmark,Ireland)

Acknowledgement

[a][][SetID][][OK/NG][Data][x]

DataMin:00toMax:7DH

ENGLISH

102 EXTERNAL CONTROL DEVICE SETUP

20. Programme Add/Skip (Command: m b)

TosetskipstatusforthecurrentProgramme.

Transmission

[m][b][][SetID][][Data][Cr]

Data00:Skip  01:Add

Acknowledgement

[b][][SetID][][OK/NG][Data][x]

Real data mapping

00:Step0 Tint

: Step0:R50

A:Step10(SetID10) :

: Step49:R1

F:Step15(SetID15) Step50:0

10:Step16(SetID16) Step51:G1

: :

64:Step100 Step100:G50

:

6E:Step110 Balance

:

73:Step115 Step0:L50

74:Step116 :

: Step49:L1

CF:Step199 Step50:0

: Step51:R1

FE:Step254 :

FF:Step255 Step100:R50

Colour Temperature

Step0:W50

:

Step49:W1

Step50:0

Step51:C1

:

Step100:C50

21. Key (Command: m c)

TosendIRremotekeycode.

Transmission

[m][c][][SetID][][Data][Cr]

DataMin:00toMax:64

*DataKeycod-Seep.94

Acknowledgement

[c][][SetID][][OK/NG][Data][x]

22. Back Light (Command: m g)

ToControlthebacklight.

Transmission

[m][g][][SetID][][Data][Cr]

Data:dataMin:00toMax:64

Acknowledgement

[g][][SetID][][OK/NG][Data][x]

23. Input select (Command: x b) (Main Picture Input)

Toselectinputsourceformainpicture.

Transmission

[x][b][][SetID][][Data][Cr]

DataStructure

Data00:DTV  40:Component

 10:Analogue 60:RGB

 20:AV  90:HDMI

Acknowledgement

[b][][SetID][][OK/NG][Data][x]

ENGLISH

103

EXTERNAL CONTROL DEVICE SETUP

24. 3D(Command: x t) (only 3D model)

Tochange3DmodeforMonitorset.

Transmission

[x][t][][SetID][][Data01][][Data02][][Data03][]

[Data04][Cr]

Data01

00:3DOn

01:3DOff

02:3Dto2D

03:2Dto3D

Data02

00:TopandBottom

01:SidebySide

02:CheckBoard

03:FrameSequential

Data03

00:RighttoLeft

01:LefttoRight

Data04

3DDepth:Min:0toMax:14

*Referto‘Realdatamapping’.Seep.102

*Ifdata1is00(3DOn),data4hasnomeaning.

*Ifdata1is01(3DOff)or02(3Dto2D),data2,data3

anddata4havenomeaning.

*Ifdata1is03(2Dto3D),data2anddata3haveno

meaning.

Data1 Data2 Data3 Data4

00 O O X

01 X X X

02 X X X

03 X X O

X:don'tcare

Acknowledgement

[t][][OK][Data01][Data02][Data03][Data04][x]

[t][][NG][Data01][x]

25. Extended 3D(Command: x v) (only 3D model)

Tochange3DmodeforMonitorset.

Transmission

[x][v][][SetID][][Data01][][Data02][Cr]

Data01:3Doption

00:3DPictureCorrection

01:3DDepth(2Dto3DOnly)

02:3DViewpoint

Data02Ithasownrangeforeach3Doption

determinedbyData01.

1)WhenData01is00

00:RighttoLeft

01:LefttoRight

2)WhenData01is01

DataMin:0toMax:14

3)WhenData01is02

DataMin:0toMax:14

DataMin:0toMax:06

*Referto‘Realdatamapping’.Seep.102

Acknowledgement

[v][][OK][Data01][Data02][x][v][][NG][Data01][x]

UK Only

Make sure to read the Safety Precautions before

using the product.

Keep the Owner’s Manual (CD) in an accessible

place for future reference.

The model and serial number of the SET is

located on the back and one side of the SET.

Record it below should you ever need service.

MODEL

SERIAL
