www.lg.com

OWNER’S MANUAL

MONITOR TV

MONITOR TV MODELS

M1962DP

M2062DP

M2262DP

M2362DP

M2762DP

Please read this manual carefully before operating

your set and retain it for future reference.

ENGLISH

CONTENTS

CONTENTS

2

PREPARATION

FRONT PANEL CONTROLS ..............................4

BACK PANEL INFORMATION ............................5

STAND INSTALLATION ......................................6

DETACHING STAND ..........................................8

DETACHING STAND BODY .............................10

WALL MOUNT : HORIZONTAL INSTALLATION ....11

DESKTOP PEDESTAL INSTALLATION ...........12

POSITIONING YOUR DISPLAY .......................12

SWIVEL STAND(Only M2762DP) .....................13

LOCATION ........................................................13

SECURING THE SET TO THE WALL TO

PREVENT FALLING WHEN THE SET IS USED ON

A STAND (Only M2762DP) ...............................14

ATTACHING THE TV TO A DESK (Only

M2762DP) .........................................................15

KENSINGTON SECURITY SYSTEM ...............16

EXTERNAL EQUIPMENT SETUP

ANTENNA CONNECTION ................................17

HD RECEIVER SETUP ....................................18

DVD SETUP ......................................................21

VCR SETUP ......................................................24

INSERTION OF CI MODULE ...........................26

DIGITAL AUDIO OUT SETUP...........................27

USB SETUP ......................................................28

HEADPHONE SETUP ......................................29

PC SETUP ........................................................30

BACK COVER FOR WIRE ARRANGEMENT .....33

SUPPORTED DISPALY RESOLUTION ...........34

WATCHING TV / PROGRAMME

CONTROL

REMOTE CONTROL KEY FUNCTIONS ..........36

TURNING ON THE TV .....................................38

PROGRAMME SELECTION .............................38

VOLUME ADJUSTMENT ..................................38

QUICK MENU ...................................................39

ON SCREEN MENUS SELECTION AND

ADJUSTMENT ..................................................40

AUTO PROGRAMME TUNING ........................41

CABLE DTV SETTING (IN CABLE MODE ONLY) ........46

MANUAL PROGRAMME TUNING

(IN DIGITAL MODE) ...................................47

MANUAL PROGRAMME TUNING

(IN ANALOGUE MODE) .............................49

PROGRAMME EDIT .........................................51

IN DTV/RADIO MODE ......................................52

IN TV MODE .....................................................52

SOFTWARE UPDATE ......................................54

DIAGNOSTICS .................................................56

CI [COMMON INTERFACE] INFORMATION ...57

SELECTING THE PROGRAMME LIST ............58

FAVOURITE PROGRAMME SETUP ................59

INPUT LIST .......................................................60

EPG (ELECTRONIC PROGRAMME

GUIDE)(IN DIGITAL MODE)

Switch on/off EPG .............................................61

Select a programme ..........................................61

Button Function in NOW/NEXT Guide Mode ...62

Button Function in 8 Day Guide Mode .............62

Button Function in Date Change Mode ............63

Button Function in Extended Description Box ..63

Button Function in Record/Remind Setting Mode ........64

Button Function in Schedule List Mode ............64

PICTURE CONTROL

PICTURE SIZE (ASPECT RATIO) CONTROL .65

PICTURE WIZARD ...........................................67

ꕊ ENERGY SAVING .......................................68

PRESET PICTURE SETTINGS ........................69

MANUAL PICTURE ADJUSTMENT .................70

PICTURE IMPROVEMENT TECHNOLOGY ....71

EXPERT PICTURE CONTROL ........................72

PICTURE RESET .............................................75

SCREEN SETUP FOR PC MODE ...................76

SOUND CONTROL

AUTO VOLUME LEVELER ...............................81

CLEAR VOICE II ...............................................82

BALANCE ..........................................................83

CONTENTS

3

PRESET SOUND SETTINGS-SOUND MODE ......84

PRESET SOUND SETTINGS-USER MODE ...85

Surround X ........................................................85

AUDIO RESET ..................................................86

DIGITAL AUDIO OUT ........................................87

TV SPEAKERS ON / OFF SETUP ...................88

DTV AUDIO SETTING

(IN DIGITAL MODE ONLY) ........................89

I/II

Stereo/Dual Reception

(In Analogue Mode Only) ......................90

NICAM Reception

(In Analogue Mode Only) ......................91

Speaker Sound Output Selection ...............91

TIME SETTING

CLOCK SETUP .................................................92

AUTO ON/OFF TIME SETTING .......................93

SLEEP TIMER SETTING ..................................94

OPTION SETTING

ON-SCREEN MENU LANGUAGE / COUNTRY

SELECTION ......................................................95

LANGUAGE SELECTION

(IN DIGITAL MODE ONLY) .......................96

AUDIO DESCRIPTION

(IN DIGITAL MODE ONLY) .......................97

DATA SERVICE .................................................98

INPUT LABEL ...................................................99

POWER INDICATOR ......................................100

DEMO MODE ..................................................101

MODE SETTING .............................................102

INITIALIZING(RESET TO ORIGINAL FACTORY

SETTINGS) .........................................................103

PARENTAL CONTROL / RATINGS

SET PASSWORD & LOCK SYSTEM .............104

BLOCK PROGRAMME ...................................105

PARENTAL CONTROL

(IN DIGITAL MODE ONLY) ......................106

INPUT BLOCK ................................................107

KEY LOCK ......................................................108

TO USE A USB DEVICE

WHEN CONNECTING A USB DEVICE..........109

PHOTO LIST ...................................................111

MUSIC LIST ....................................................117

MOVIE LIST ....................................................121

DIVX REGISTRATION CODE ........................128

DEACTIVATION ..............................................129

TELETEXT

SWITCH ON/OFF ...........................................130

SIMPLE TEXT .................................................130

TOP TEXT .......................................................130

FASTEXT ........................................................131

SPECIAL TELETEXT FUNCTION ..................131

DIGITAL TELETEXT

TELETEXT WITHIN DIGITAL SERVICE ........132

TELETEXT IN DIGITAL SERVICE ..................132

APPENDIX

TROUBLESHOOTING ....................................133

MAINTENANCE ..............................................137

PRODUCT SPECIFICATIONS .......................138

IR CODES .......................................................143

EXTERNAL CONTROL DEVICE SETUP

RS-232C Setup ........................................144

Type of Connector; D-Sub 9-Pin Male .....144

RS-232C Configurations ..........................144

Set ID ........................................................145

Communication Parameters .....................146

4

PREPARATION

PREPARATION

FRONT PANEL CONTROLS

■ This is a simplified representation of the front panel. The image shown may be somewhat different

from your set.

Headphone Jack

IR receiver (Remote controller receiver)

INPUT Button

MENU Button

OK Button

VOLUME Button

PROGRAMME Button

Power Button

Power Indicator

Illuminates blue when the set is switched on.

Note: You can adjust Power indicator in the OPTION menu.

1

1

5

3

7

2

6

4

8

9

2

3 4 5 6 7 8

9

5

PREPARATION

■ This is a simplified representation of the front panel. The image shown may be somewhat different from your

set.

BACK PANEL INFORMATION

PCMCIA (PERSONAL COMPUTER MEMORY CARD

INTERNATIONAL ASSOCIATION) CARD SLOT

Insert the CI Module to PCMCIA CARD SLOT.

(This feature is not available in all countries.)

HDMI/DVI INPUT

Connect a HDMI signal to HDMI IN.

Or DVI (VIDEO) signal to HDMI IN with DVI to HDMI

cable.

RGB/DVI AUDIO INPUT

Connect the audio from a PC.

OPTICAL DIGITAL AUDIO OUT

Connect digital audio to various types of equipment.

Connect to a Digital Audio Component.

Use an Optical audio cable.

USB Input

Euro Scart Socket (AV IN)

Connect scart socket input or output from an external

device to these jacks.

Power Cord Socket

This set operates on AC power. The voltage is indi-

cated on the Specifications page. Never attempt to

operate the set on DC power.

RS-232C IN (CONTROL & SERVICE) PORT

Connect to the RS-232C port on a PC.

This port is used for Service or Hotel mode.

COMPONENT INPUT

Connect a component video/audio device to these

jacks.

RGB INPUT (PC)

Connect the output from a PC.

ANTENNA / CABLE INPUT

Connect over-the-air signals to this jack.

1

5

6

7

8

9

10

11

2

3

4

1

2

3 4 5 6

7 9 1110

8

6

PREPARATION

PREPARATION

STAND INSTALLATION

■ The image shown may be somewhat different from your set.

Carefully place the product screen side down

on a cushioned surface that will protect prod-

uct and screen from damage.

Insert the Stand Base into the product.

Turn the Stand Base Lock through 90° to fix the Stand Base to the Stand Body.

1 2

3

4 5

<M1962DP/M2062DP/M2262DP/M2362DP>

Stand Base

Base Lock

<Locked>

7

PREPARATION

STAND INSTALLATION

■ The image shown may be somewhat different from your set.

Carefully place the product screen side down on a

cushioned surface that will protect product and

screen from damage.

Insert the stand base into the product.

Use a Coin on the bottom of the stand base

and turn the screw clockwise to tighten.

1

2

3

<M2762DP>

Stand Base

Coin

8

PREPARATION

PREPARATION

DETACHING STAND

■ The image shown may be somewhat different from your set.

<M1962DP/M2062DP/M2262DP/M2362DP>

Place the set screen side down on a cushion

or soft cloth.

Detach the monitor to the Stand Base by

turning the screw to the left.

Turn the Stand Base Lock through 90° to separate the Stand Base from the Stand Body.

Pushing Latch inside, Take the stand base from stand body.

1 2

3

4

Latch

9

PREPARATION

DETACHING STAND

■ The image shown may be somewhat different from your set.

1

2

3

Place the set screen side down on a cushion or soft

cloth.

Pull the stand base.

Detach the monitor to the Stand Base by turning the

screw to the left.

Turn the screw by using a Coin.

<M2762DP>

Coin

10

PREPARATION

PREPARATION

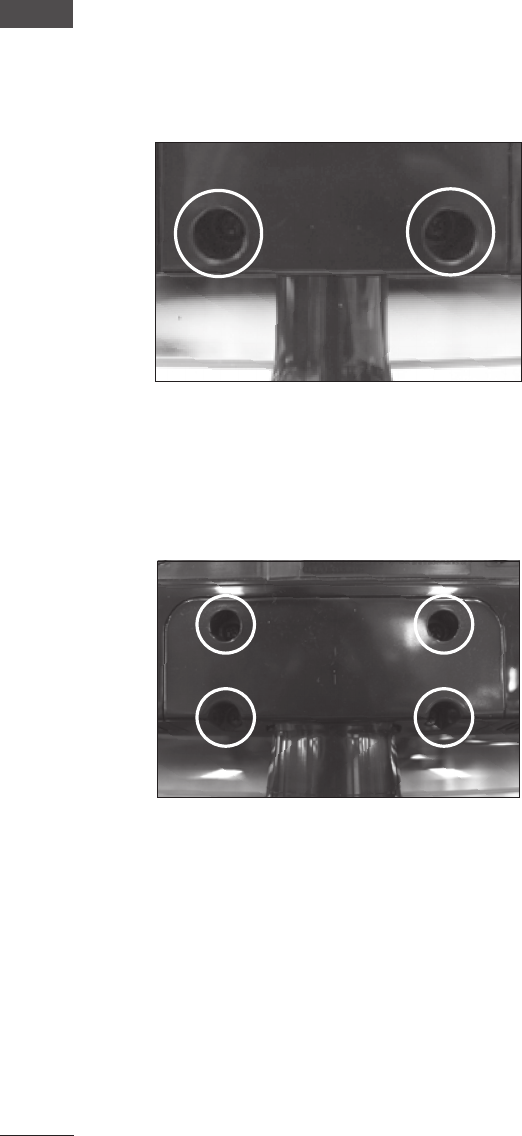

DETACHING STAND BODY

■ The image shown may be somewhat different from your set.

■ Remove the Stand Body in the same way as the following when using it as a Wall Hook.

1. Remove the screw 2 point.

2. Pull the stand body.

1. Remove the screw 4 point.

2. Pull the stand body.

<M1962DP/M2062DP/M2262DP/M2362DP>

<M2762DP>

11

PREPARATION

WALL MOUNT : HORIZONTAL INSTALLATION

For proper ventilation, allow a clearance of 10 cm on each side and from the wall. Detailed installation

instructions are available from your dealer, see the optional Tilt Wall Mounting Bracket Installation and

Setup Guide.

If you intend to mount the set to a wall, attach Wall mounting interface (optional parts) to the back of the set.

When you install the set using the wall mounting interface (optional parts), attach it carefully so it will not drop.

1. Be sure to use screws and a wall mount that meet VESA standards.

2. Using screws longer than those recommended might damage the product.

3. Using screws that do not meet VESA standards might either damage the product or result in it coming

away from the wall. We will not be held responsible for any damage resulting from failure to follow these

instructions.

4. VESA compatible only with respect to screw mounting interface dimensions and mounting screw speci-

fications

5. Please use VESA standard as below.

5-1) 784.8 mm (30.9 inch) and under

* Wall Mount Pad Thickness : 2.6 mm

* Screw : Φ 4.0 mm x Pitch 0.7 mm x Length 10 mm

5-2) 787.4 mm (31.0 inch) and above

* Please use VESA standard wall mount pad and screws.

< Screw Mounting Interface Dimension >

▪ M1962DP/M2062DP/M2262DP/M2362DP : 100 mm x 100 mm hole spacing

▪ M2762DP : 200 mm x 100 mm hole spacing

10 cm

10 cm

10 cm 10 cm

10 cm

Wall Mount Pad

12

PREPARATION

PREPARATION

DESKTOP PEDESTAL INSTALLATION

POSITIONING YOUR DISPLAY

For proper ventilation, allow a clearance of 10 cm on each side and from the wall.

■ The image shown may be somewhat different from your set.

■ The image shown may be somewhat different from your set.

Adjust the position of the panel in various ways for maximum comfort.

* Tilt range

-5° 15°

10 cm

10 cm

10 cm 10 cm

13

PREPARATION

LOCATION

■ When adjusting the angle of the screen, do not put your

finger(s) in between the head of the monitor and the stand

body.

You can hurt your finger(s).

Position your set so that no bright light or sunlight falls directly onto the screen. Care should be taken not to

expose the set to any unnecessary vibration, moisture, dust or heat. Also, ensure that the set is placed in a

position to allow a free flow of air. Do not cover the ventilation openings on the back cover.

WARNING

SWIVEL STAND(Only M2762DP)

■ The image shown may be somewhat different from your set.

After installing the set, you can adjust the set manually to the left or right direction by 179 degrees to

suit your viewing position.

14

PREPARATION

PREPARATION

SECURING THE SET TO THE WALL TO PREVENT FALLING

WHEN THE SET IS USED ON A STAND (Only M2762DP)

■ The image shown may be somewhat different from your set.

■ Use a sturdy rope or cord (sold separately) to tie the product. It is

safer to tie the rope so it becomes horizontal between the wall and

the product.

We recommend that you set up the set close to a wall so it cannot fall over if pushed backwards.

Additionally, we recommend that the set be attached to a wall so it cannot be pulled in a forward direction,

potentially causing injury or damaging the product.

Caution: Please make sure that children don’t climb on or hang from the set.

■ Insert the eye-bolts (or set brackets and bolts) to tighten the product to the wall as shown in the picture.

* If your product has the bolts in the eye-bolts position before inserting the eye-bolts, loosen the bolts.

* Insert the eye-bolts or set brackets/bolts and tighten them securely in the upper holes.

Secure the wall brackets with the bolts (sold separately) to the wall. Match the height of the bracket that is

mounted on the wall to the holes in the product.

Ensure the eye-bolts or brackets are tightened securely.

NOTE

►When moving the set, undo the cords first.

► Use a platform or cabinet strong enough and large enough to support the size and weight of the set.

► To use the set safely make sure that the height of the bracket on the wall and the one on the set are the

same.

!

15

PREPARATION

WARNING

■ The image shown may be somewhat different from your set.

The SET must be attached to desk so it cannot be pulled in a forward/backward direction, potentially causing

injury or damaging the product. Use only an attached screw.

1-Screw

(provided as parts of the product)

Stand

Desk

►To prevent SET from falling over the SET should be securely attached to the floor/wall per installation

instructions. Tipping,shaking, or rocking the machine may cause injury.

ATTACHING THE TV TO A DESK (Only M2762DP)

16

PREPARATION

PREPARATION

KENSINGTON SECURITY SYSTEM

- The product is equipped with a Kensington Security System connector on the back panel. Connect the

Kensington Security System cable as shown below.

- For detailed installation and use of the Kensington Security System, refer to the user’s guide provided

with the Kensington Security System.

For further information, contact http://www.kensington.com, the internet homepage of the Kensington

company. Kensington sells security systems for expensive electronic equipment such as notebook

PCs and LCD projectors.

NOTE

- The Kensington Security System is an optional accessory.

NOTES

a. If the product feels cold to the touch, there may be a small “flicker” when it is turned on.

This is normal, there is nothing wrong with product.

b. Some minute dot defects may be visible on the screen, appearing as tiny red, green, or blue spots.

However, they have no adverse effect on the monitor’s performance.

c. Avoid touching the LCD screen or holding your finger(s) against it for long periods of time.

Doing so may produce some temporary distortion effects on the screen.

17

EXTERNAL EQUIPMENT SETUP

ANTENNA CONNECTION

■ To prevent damage do not connect to the mains outlet until all connections are made between the devices.

■ For optimum picture quality, adjust antenna direction.

■ An antenna cable and converter are not supplied.

Multi-family Dwellings / Apartments

(Connect to wall antenna socket)

Wall

Antenna

Socket

Outdoor

Antenna Single-family Dwellings / Houses

(Connect to wall jack for outdoor antenna)

RF Coaxial Wire (75 Ω)

■ In poor signal areas, to get better picture quality, install a signal amplifier to the antenna as shown above.

■ If signal needs to be split for two sets, use an antenna signal splitter for connection.

EXTERNAL EQUIPMENT SETUP

Antenna Signal

Amplifier

UHF

VHF

18

EXTERNAL EQUIPMENT SETUP

EXTERNAL EQUIPMENT SETUP

HD RECEIVER SETUP

Connecting with a component cable

■ To avoid damaging any equipment, never plug in any power cords until you have finished connecting all equipment.

■ The image shown may be somewhat different from your set.

►HDMI Audio Supported format : Dolby Digital, PCM

►DTS Audio format is not supported.

Signal Component HDMI

480i / 576i YES No

480p / 576p YES YES

720p / 1080i YES YES

1080p YES

(50 Hz / 60Hz only)

YES

(24 Hz / 30 Hz / 50Hz / 60Hz)

Connect the video outputs (Y, PB, PR) of the digital

set-top box to the COMPONENT IN VIDEO jacks on

the SET.

Connect the audio output of the digital set-top box

to the COMPONENT IN AUDIO jacks on the SET.

Turn on the digital set-top box.

(Refer to the owner’s manual for the digital set-top

box.)

Select COMPONENT input source using the INPUT

button on the remote control

1

2

3

412

19

EXTERNAL EQUIPMENT SETUP

Connecting a set-top box with a HDMI cable

Connect the digital set-top box to HDMI/DVI IN jack

on the SET

Turn on the digital set-top box.

(Refer to the owner’s manual for the digital set-top box.)

Select HDMI input source using the INPUT button on

the remote control.

1

2

3

NOTE

►Check that your HDMI cable is High Speed HDMI Cable. If the HDMI cables are not High Speed

HDMI Cable, flickering or no screen display can result. Please use the High Speed HDMI Cable.

!

1

20

EXTERNAL EQUIPMENT SETUP

EXTERNAL EQUIPMENT SETUP

Connect the digital set-top box to HDMI/DVI IN jack on the SET.

Connect the audio output of the digital set-top box to the AUDIO IN (RGB/DVI) jack on the SET.

Turn on the digital set-top box.

(Refer to the owner’s manual for the digital set-top box.)

Select HDMI input source using the INPUT button on the remote control.

Connecting with an HDMI to DVI cable

1

2

3

4

1

2

21

EXTERNAL EQUIPMENT SETUP

DVD SETUP

Connecting with a component cable

Connect the video outputs (Y, PB, PR) of the DVD

to the COMPONENT IN VIDEO jacks on the SET.

Connect the audio outputs of the DVD to the

COMPONENT IN AUDIO jacks on the SET.

Turn on the DVD player, insert a DVD.

Select Component input source using the INPUT

button on the remote control.

Refer to the DVD player's manual for operating

instructions.

1

2

3

4

5

Component Input ports

To achieve better picture quality, connect a DVD player to the component input ports as shown below.

Component ports on the SET Y PBPR

Video output ports

on DVD player

Y PBPR

Y B-Y R-Y

Y Cb Cr

Y Pb Pr

12

22

EXTERNAL EQUIPMENT SETUP

EXTERNAL EQUIPMENT SETUP

Connecting with a Euro Scart cable

Connect the Euro scart socket of the DVD to the AV

IN Euro scart socket on the SET.

Turn on the DVD player, insert a DVD.

Select AV input source using the INPUT button on the

remote control.

Refer to the DVD player's manual for operating

instructions.

1

2

3

4

NOTE

►Signal type RGB, i.e. the signals red, green and blue can only be selected for the Euro scart and the

AV can be received. These signals are transmitted, for example, by a paid TV decoder, game

machine or photo CD unit, etc.

►Please use shielded scart cable.

► TV Out : Outputs Analogue TV

or Digital TV signals.

!

Scart Input Output

Video Audio RGB Video, Audio

AV O O O Analogue TV, Digital TV

Output Type

Current input mode

AV

(TV Out)

AV

(When DTV scheduled recoring is in

progress using recording equipment)

Digital TV Digital TV O

Analogue TV, AV Analogue TV O

(The input mode is converted

to DTV)

Component / RGB Analogue TV

HDMI X

23

EXTERNAL EQUIPMENT SETUP

Connecting the HDMI cable

Connect the HDMI output of the DVD to the HDMI/DVI

IN jack on the SET

Select HDMI input source using the INPUT button on

the remote control.

Refer to the DVD player's manual for operating

instructions.

1

2

3

NOTE

►Check that your HDMI cable is High Speed HDMI Cable. If the HDMI cables are not High Speed

HDMI Cable, flickering or no screen display can result. Please use the High Speed HDMI Cable.

!

1

24

EXTERNAL EQUIPMENT SETUP

EXTERNAL EQUIPMENT SETUP

VCR SETUP

Connecting with a RF cable

■ To avoid picture noise (interference), allow adequate distance between the VCR and SET.

Connect the ANT OUT socket of the VCR to the ANTENNA / CABLE IN socket on the SET.

Connect the antenna cable to the ANT IN socket of the VCR.

Press the PLAY button on the VCR and match the appropriate channel between the SET and VCR

for viewing.

1

2

3

1

2Wall Jack

Antenna

25

EXTERNAL EQUIPMENT SETUP

Connecting with a Euro Scart cable

Connect the Euro scart socket of the VCR to the AV

IN Euro scart socket on the SET.

Insert a video tape into the VCR and press PLAY on

the VCR. (Refer to the VCR owner’s manual.)

Select AV input source using the INPUT button on the

remote control.

Refer to the VCR player's manual for operating

instructions.

1

2

3

4

NOTE

►Signal type RGB, i.e. the signals red, green and blue can only be selected for the Euro scart and the

AV can be received. These signals are transmitted, for example, by a paid TV decoder, game

machine or photo CD unit, etc.

►Please use shielded scart cable.

!

1

► TV Out : Outputs Analogue TV

or Digital TV signals.

Scart Input Output

Video Audio RGB Video, Audio

AV O O O Analogue TV, Digital TV

Output Type

Current input mode

AV

(TV Out)

AV

(When DTV scheduled recoring is in

progress using recording equipment)

Digital TV Digital TV O

Analogue TV, AV Analogue TV O

(The input mode is converted

to DTV)

Component / RGB Analogue TV

HDMI X

26

EXTERNAL EQUIPMENT SETUP

EXTERNAL EQUIPMENT SETUP

INSERTION OF CI MODULE

Insert the CI Module to PCMCIA (Personal Computer Memory Card International Association)

CARD SLOT of SET as shown.

For further information, see p.57

1

NOTE

►Check if the CI module is inserted into the PCMCIA card slot in the right direction. If the module is

not inserted properly, this can cause damage to the SET and the PCMCIA card slot.

!

- To view the encrypted (pay) services in digital TV mode.

- This feature is not available in all countries.

HDMI/DVI IN

27

EXTERNAL EQUIPMENT SETUP

DIGITAL AUDIO OUT SETUP

Connect one end of an optical cable to the TV Digital Audio (Optical) Output port.

Connect the other end of the optical cable to the digital audio (Optical) input on the audio equipment.

Set the “TV Speaker option - Off ” in the AUDIO menu. (► P. 88)

Refer to the external audio equipment instruction manual for operation.

1

2

3

CAUTION

►Do not look into the optical output port. Looking at the laser beam may damage your vision.

Sending the TV’s audio signal to external audio equipment via the Digital Audio Output (Optical) port.

If you want to enjoy digital broadcasting through 5.1-channel speakers, connect the OPTICAL DIGITAL AUDIO OUT

terminal on the back of TV to a Home Theater (or amp).

1

2

28

EXTERNAL EQUIPMENT SETUP

EXTERNAL EQUIPMENT SETUP

USB SETUP

Connect the USB device to the USB IN jacks on the side of SET.

After connecting the USB IN jacks, you use the USB function. (► p.109)

1

2

Memory Stick USB Cable

29

EXTERNAL EQUIPMENT SETUP

HEADPHONE SETUP

Plug the headphone into the headphone socket.

To adjust the headphone volume, press the + or - button. If you press the MUTE button, the

sound from the headphone is switched off.

1

2

You can listen the sound through the headphone.

NOTE

► AUDIO menu items are disabled when connecting a headphone.

► Optical Digital Audio Out is not available when connecting a headphone.

!

30

EXTERNAL EQUIPMENT SETUP

EXTERNAL EQUIPMENT SETUP

PC SETUP

When using the remote control, aim it at the remote control sensor on the SET.

When connecting with a D-sub 15 pin cable

Connect the signal cable from the monitor output socket

of the PERSONAL COMPUTER to the PC input socket

of the SET.

Connect the audio cable from the PC to the AUDIO IN

(RGB/DVI) sockets of the SET.

Press the INPUT button to select RGB.

Switch on the PC, and the PC screen appears on the set.

The set can be operated as a PC monitor.

1

2

3

41 2

►Connect the signal input cable and tighten it up by turning in

the direction of the arrow as shown in the figure.

NOTE

!

31

EXTERNAL EQUIPMENT SETUP

Connecting with an HDMI to DVI cable

Connect the DVI output of the PC to the HDMI/DVI IN jack on the SET.

Connect the PC audio output to the AUDIO IN (RGB/DVI) jack on the SET.

Turn on the PC and the SET.

Select HDMI input source using the INPUT button on the remote control.

1

2

3

4

1

2

►Connect the signal input cable and tighten it up by turning in

the direction of the arrow as shown in the figure.

NOTE

!

►If you want to use HDMI-PC mode, you must set the input label to PC mode.

32

EXTERNAL EQUIPMENT SETUP

EXTERNAL EQUIPMENT SETUP

Connecting with an HDMI to HDMI cable

Connect the HDMI output of the PC to the HDMI/DVI IN

jack on the SET.

Turn on the PC and the SET.

Select HDMI input source using the INPUT button on the

remote control.

1

2

3

NOTE

► Check that your HDMI cable is High Speed HDMI Cable. If the HDMI cables are not High Speed

HDMI

Cable, flickering or no screen display can result. Please use the High Speed HDMI Cable.

►If you want to use HDMI-PC mode, you must set the input label to PC mode.

!

1

33

EXTERNAL EQUIPMENT SETUP

BACK COVER FOR WIRE ARRANGEMENT

Tie cables together with a cable management as shown in the illustration.

34

EXTERNAL EQUIPMENT SETUP

EXTERNAL EQUIPMENT SETUP

SUPPORTED DISPALY RESOLUTION

RGB[PC] / HDMI[PC] mode

Resolution Horizontal

Frequency(kHz)

Vertical

Frequency(Hz)

640 x 480 31.469 59.94

640 x 480 37.5 75

800 x 600 37.879 60.317

800 x 600 46.875 75.0

1024 x 768 48.363 60.0

1280 x 768 47.776 59.87

1360 x 768 47.712 60.015

Resolution Horizontal

Frequency(kHz)

Vertical

Frequency(Hz)

640 x 480 31.469 59.94

640 x 480 37.5 75

800 x 600 37.879 60.317

800 x 600 46.875 75

832 x 624 49.725 64.55

1024 x 768 48.363 60

1024 x 768 60.023 75.029

1280 x 1024 63.981 60.02

1280 x 1024 79.976 75.025

1600 x 900 60 60

Resolution Horizontal

Frequency(kHz)

Vertical

Frequency(Hz)

720 x 400 31.468 70.08

640 x 480 31.469 59.94

640 x 480 37.5 75

800 x 600 37.879 60.317

800 x 600 46.875 75.0

1024 x 768 48.363 60.0

1024 x 768 60.023 75.029

1152 x 864 67.500 75.000

1280 x 1024 63.981 60.02

1280 x 1024 79.976 75.025

1680 x 1050 64.674 59.883

1680 x 1050 65.290 59.954

1600 x 1200 75.0 60.0

1920 x 1080 67.5 60

M1962DP

M2062DP

Only HDMI[PC] Mode

M2262DP/M2362DP/M2762DP

35

EXTERNAL EQUIPMENT SETUP

HDMI - DTV mode Component mode

Resolution Horizontal

Frequency(kHz)

Vertical

Frequency(Hz)

720 x 480 31.469

31.5 59.94

60

720 x 576 31.25 50

1280 x 720 37.500 50

1280 x 720 44.96

45 59.94

60

1920 x 1080 33.72

33.75 59.94

60

1920 x 1080 28.125 50.00

1920 x 1080 27 24

1920 x 1080 33.75 30.00

1920 x 1080 56.250 50

1920 x 1080 67.43

67.5 59.94

60

Resolution Horizontal

Frequency(kHz)

Vertical

Frequency(Hz)

720 x 480 15.73 59.94

720 x 480 15.75 60.00

720 x 576 15.625 50.00

720 x 480 31.47 59.94

720 x 480 31.50 60.00

720 x 576 31.25 50.00

1280 x 720 44.96 59.94

1280 x 720 45.00 60.00

1280 x 720 37.50 50.00

1920 x 1080 33.72 59.94

1920 x 1080 33.75 60.00

1920 x 1080 28.125 50.00

1920 x 1080 56.25 50

1920 x 1080 67.432 59.94

1920 x 1080 67.5 60.00

NOTE

►Avoid keeping a fixed image on the set’s screen

for prolonged periods of time. The fixed image

may become permanently imprinted on the

screen use a screen saver when possible.

► There may be interference relating to resolution,

vertical pattern, contrast or brightness in PC

mode. Change the PC mode to another resolution

or change the refresh rate to another rate or adjust

the brightness and contrast on the menu until the

picture is clear. If the refresh rate of the PC graph-

ic card can not be changed, change the PC

graphic card or consult the manufacturer of the PC

graphic card.

► The synchronization input waveform for Horizontal

and Vertical frequencies are separate.

► Connect the signal cable from the monitor output

port of the PC to the RGB (PC) port of the SET or

the signal cable from the HDMI output port of the

PC to the HDMI/DVI IN port on the SET.

► Connect the audio cable from the PC to the Audio

input on the SET. (Audio cables are not included

with the SET).

► If using a sound card, adjust PC sound as

required.

► If the graphic card on the PC does not output ana-

logue and digital RGB simultaneously, connect

only one of either RGB or HDMI/DVI IN to display

the PC output on the SET.

► If the graphic card on the PC does output ana-

logue and digital RGB simultaneously, set the SET

to either RGB or HDMI. (The other mode is set to

Plug and Play automatically by the SET.)

► DOS mode may not work depending on the video

card if you use an HDMI to DVI cable.

► If you use too long an RGB-PC cable that is too

long, there may be interference on the screen. We

recommend using under 5m of cable. This pro-

vides the best picture quality.

!

36

WATCHING TV / PROGRAMME CONTROL

WATCHING TV / PROGRAMME CONTROL

REMOTE CONTROL KEY FUNCTIONS

When using the remote control, aim it at the remote control sensor on the set.

ꔰ

(POWER)

ENERGY

SAVING

TV/PC

INPUT

TV/RAD

Switches the set on from standby or off to standby.

Adjust the Energy Saving mode of the SET.

(► P. 68)

Selects TV or PC mode.

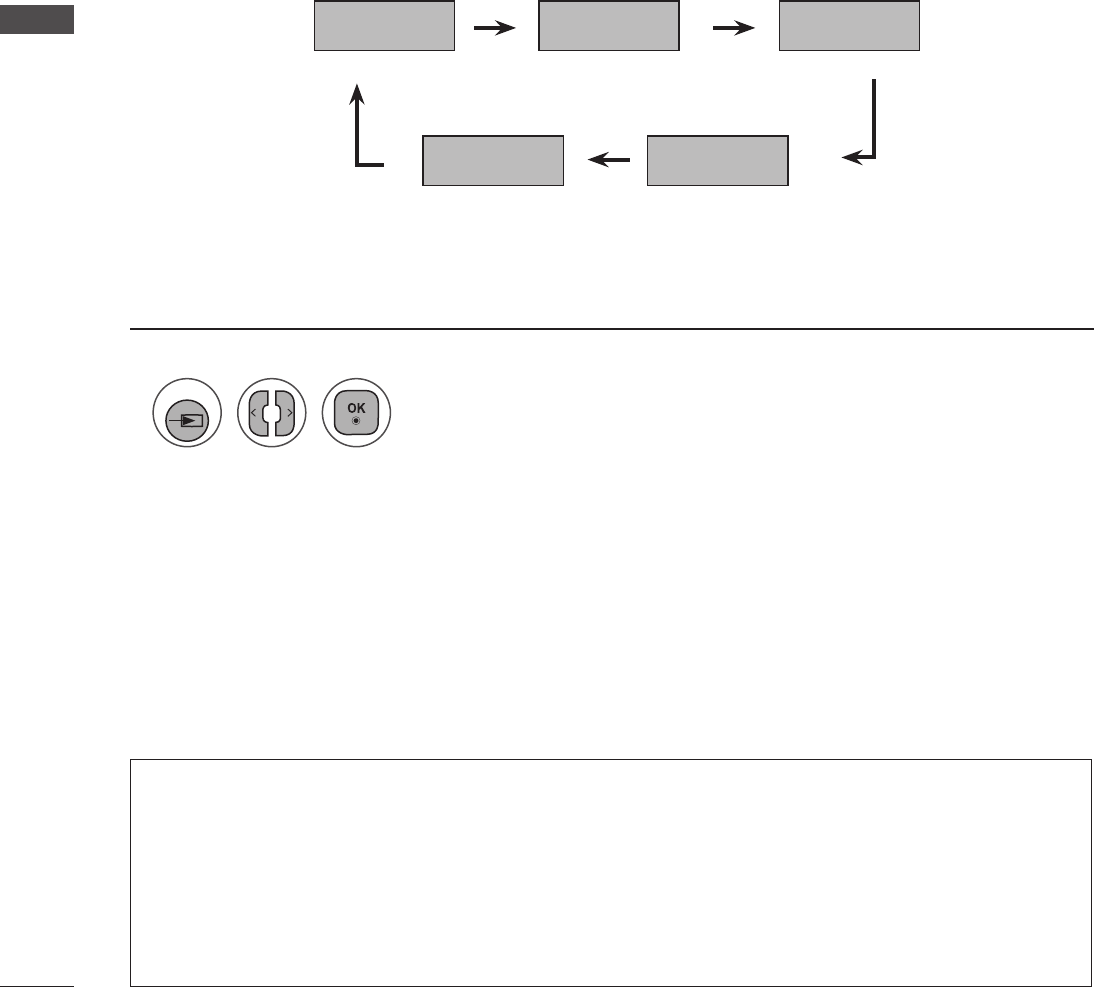

External input mode rotates in regular sequence.

Selects Radio, TV and DTV channel.

0~9 number

button

LIST

Q.VIEW

MENU

GUIDE

Q. MENU

THUMBSTICK

(Up/Down/Left/Right)

OK

BACK

꘍

EXIT

Selects a programme.

Selects numbered items in a menu.

Displays the programme table. (► P. 58)

Returns to the previously viewed programme.

Selects a menu.

Clears all on-screen displays and returns to TV

viewing from any menu. (► P. 40)

Shows programme schedule. (► P. 61 to 64)

Select the desired quick menu source. (Aspect

Ratio, Clear Voice II , Picture Mode, Sound Mode,

Audio, Sleep Timer, Favourite, USB Device). (►P.39)

Allows you to navigate the on-screen menus and

adjust the system settings to your preference.

Accepts your selection or displays the current mode.

Allows the user to move return one step in an inter-

active application, EPG or other user interaction

function.

Shows the present screen information.

Clears all on-screen displays and returns to TV

viewing from any menu

Coloured

buttons

These buttons are used for teletext (on TELETEXT

models only) , Programme edit.

37

WATCHING TV / PROGRAMME CONTROL

VOLUME

UP/DOWN

FAV

MARK

RATIO

MUTE

Programme

UP/DOWN

PAGE

UP/DOWN

TELETEXT

BUTTONS

SUBTITLE

USB Menu

control

buttons

Auto Config.

Adjusts the volume.

Displays the selected favourite programme.

(► P. 59)

Check and un-check programmes in the USB menu.

Selects your desired Aspect Ratio of picture.

Switches the sound on or off.

Selects a programme.

Move from one full set of screen information to the

next one.

These buttons are used for teletext.

For further details, see the ‘Teletext’ section.

(► P. 130 to 131)

Recalls your preferred subtitle in digital mode.

USB menu(Photo List and Music List or Movie List ).

Automatically adjusts picture position and mini-

mizes image instability.

1

1

Installing Batteries

■ Open the battery compartment cover on the back side and

install the batteries matching correct polarity (+with +, -with -)

■ Install two 1.5 V AAA batteries. Don’t mix old or used batteries

with new ones.

■ Close cover.

■ To remove the batteries, perform the installation actions in

reverse.

38

WATCHING TV / PROGRAMME CONTROL

WATCHING TV / PROGRAMME CONTROL

TURNING ON THE TV

- When your TV is turned on, you will be able to use its features.

PROGRAMME SELECTION

VOLUME ADJUSTMENT

Firstly, connect the power cord correctly.

At this stage, the TV switches to standby mode.

In standby mode to turn TV on, press the / I, INPUT or Pꕌꕍ button on the TV or press the

POWER, INPUT, Pꕌꕍor NUMBER button on the remote control and the TV will switch on.

Initializing setup

If the OSD (On Screen Display) is displayed on the screen after turning on the TV, you can adjust the

Language, Mode Setting, Country or Set Password (When France is selected for Country), Auto

Tuning.

Note:

a. If you close without completing the initial setting, the Initial Setting menu can be displayed again.

b. Press the BACK button to change the current OSD to the previous OSD.

c. For those countries without confirmed DTV broadcasting standards, some DTV features might not work,

depending on the DTV broadcasting environment.

d. "Home Use” mode is the optimal setting for home environments, and is the TV's default mode.

e. "Store Demo" mode is the optimal setting for store environments. If a user modifies image quality data, “Store

Demo” mode initializes the product to the image quality set by us after a certain period of time.

f. The mode (Home Use, Store Demo) can be changed by executing Mode Setting in the OPTION menu.

g. When France is selected for Country, password is not ‘0’, ‘0’, ‘0’, ‘0’ but ‘1’, ‘2’, ‘3’, ‘4’.

Press the P ꕌ ꕍ or NUMBER buttons to select a programme number.

Press the + or - button to adjust the volume.

If you wish to switch the sound off, press the MUTE button.

You can cancel this function by pressing the MUTE, + , - button.

1

2

1

1

2

39

WATCHING TV / PROGRAMME CONTROL

QUICK MENU

Your TV's OSD (On Screen Display) may differ slightly from that shown in this manual.

Q.Menu (Quick Menu) is a menu of features which users might use frequently.

ꔣ Aspect Ratio: Selects your desired picture for-

mat.For Zoom Setting, select 14:9, Zoom and

Cinema Zoom in Ratio Menu. After completing

Zoom Setting, the display goes back to Q.Menu.

ꕅ Clear Voice II: By differentiating the human sound

range from others, it helps users listen to human

voices better.

ꕇ Picture Mode: Selects your desired Picture

Mode.

ꕈ Sound Mode: It is a feature to automatically set

the sound combination which it deems the best

for the images being watched. Selects your

desired Sound Mode.

ꔴ Audio: Selects the sound output.

ꔤ Sleep Timer: Sets the sleep timer.

ꔲ Favourite: Selects the favourite programme.

ꔢ USB Device: Selects “Eject” in order to eject

USB device.

◄ Aspect Ratio ►

1

2

3

Display each menu.

Select your desired Source.

• Press the BACK button to move to the previous menu screen.

16:9

40

WATCHING TV / PROGRAMME CONTROL

WATCHING TV / PROGRAMME CONTROL

ON SCREEN MENUS SELECTION AND ADJUSTMENT

Your set's OSD (On Screen Display) may differ slightly from what is shown in this manual.

SETUP

SETUP Move Move Move

OK OK OK

OPTION



LOCK

AUDIO

AUDIO

TIME

USB

INPUTLOCK

OPTION

INPUT

TIME

USB

Move OK

Move Move Move

Move

OK OK OK

OK

Auto Tuning

Manual Tuning

Programme Edit

Software Update : ON

Diagnostics

CI Information

Menu Language : English

Audio Language : English

Subtitle Language : English

Disabled Assistance

Country : - -

Input Label

Set ID : 1

Power Indicator : On

▼

Set Password

Lock System : Off

• Block Programme

• Parental Guidance

• Input Block

Key Lock : Off

Antenna

AV

Component

RGB

HDMI

Photo List

Music List

Movie List

DivX Reg. Code

Deactivation

Aspect Ratio : 16:9

Picture Wizard

ꕊ Energy Saving : Off

Picture Mode : Vivid

• Backlight 100

• Contrast 100

• Brightness 50

• Sharpness 70

▼

Auto Volume : Off

Clear Voice II : Off ꕅ3

Balance 0

Sound Mode : Music

• Surround X : Off

• Treble 50

• Bass 50

• Reset

▼

Clock

Off Time : Off

On Time : Off

Sleep Timer : Off

1

2

3

MENU

Select a menu item.

Display each menu.

Move to the pop up menu.

• Press the MENU or EXIT button to close the menu window.

• Press the BACK button to move to the previous menu screen.

NOTE

►It is not possible to use CI Information in Analogue mode.

!

41

WATCHING TV / PROGRAMME CONTROL

AUTO PROGRAMME TUNING

Use this to automatically find and store all available programmes.

When you start auto programming, all previously stored service information will be deleted.

The maximum number of programmes that can be stored is 1000. But the number may differ slightly

depending on broadcasting signals.

(For countries other than Finland, Sweden, Denmark and Norway)

SETUP SETUP

Move Move

OK OK

Auto Tuning

Manual Tuning

Programme Edit

Software Update : ON

Diagnostics

CI Information

Auto Tuning

Manual Tuning

Programme Edit

Software Update : ON

Diagnostics

CI Information

1

2

4

3

MENU

Select Auto Tuning.

Select Antenna.

Select SETUP.

Run Auto tuning.

• Press the MENU or EXIT button to close the menu window.

• Press the BACK button to move to the previous menu screen.

Auto Tuning ꔉAuto Tuning ꔉ

➩ ➩

• Use NUMBER buttons to input a 4-digit

password in Lock System ‘On’.

• If you wish to keep on auto tuning select

Start using the ꕌꕍ button. Then, press

the OK button. Otherwise select Close.

• Automatic Numbering: Decide wheth-

er to use the programme numbers as

sent by broadcasting stations for tuning.

• When select Italy in the County menu, if

the pop up is displayed when the con-

flicted Programme after Auto Tuning,

select a broadcaster for conflicting pro-

gramme number to solve.

Check your antenna connection.

The previous channel information will

be updated during Auto Tuning.

□ SECAM L Search

□ Automatic Numbering

Start

Close

42

WATCHING TV / PROGRAMME CONTROL

WATCHING TV / PROGRAMME CONTROL

If you want to select the Antenna,

AUTO PROGRAMME TUNING

DVB-C Auto Tuning is a menu for users in countries that support DVB cable.

Use this to automatically find and store all available programmes.

When you start auto programming, all previously stored service information will be deleted.

SETUP SETUP

Auto Tuning

Manual Tuning

Programme Edit

Software Update : ON

Diagnostics

CI Information

Auto Tuning

Manual Tuning

Programme Edit

Software Update : ON

Diagnostics

CI Information

1

2

4

5

3

MENU

Select Auto Tuning.

Select Start.

Select Antenna.

Select SETUP.

(Only for Finland, Sweden, Denmark and Norway)

Run Auto tuning.

• Press the MENU or EXIT button to close the menu window.

• Press the BACK button to move to the previous menu screen.

Auto Tuning ꔉAuto Tuning ꔉ

Please select your TV Connection.

Antenna Cable

Close

➩ ➩

• Use NUMBER buttons to input a 4-digit

password in Lock System ‘On’.

• If you wish to keep on auto tuning select

Start using the ꕌꕍbutton. Then, press

the OK button. Other wise select Close.

• Automatic Numbering: Decide wheth-

er to use the programme numbers as

sent by broadcasting stations for tuning.

Move OK Move OK

Check your antenna connection.

The previous channel information will

be updated during Auto Tuning.

□ SECAM L Search

□ Automatic Numbering

Start

Close

43

WATCHING TV / PROGRAMME CONTROL

SETUP

SETUP

SETUP SETUP

Move

Move

Move Move

OK

OK

OK OK

Auto Tuning

Manual Tuning

Programme Edit

Software Update : ON

Diagnostics

CI Information

Auto Tuning

Manual Tuning

Programme Edit

Software Update : ON

Diagnostics

CI Information

Auto Tuning

Manual Tuning

Programme Edit

Software Update : ON

Diagnostics

CI Information

Auto Tuning

Manual Tuning

Programme Edit

Software Update : ON

Diagnostics

CI Information

If you want to select the Cable,

Auto Tuning ꔉ

Auto Tuning ꔉ

Auto Tuning ꔉAuto Tuning ꔉ

Please select your TV Connection.

Antenna Cable

Close

➩ ➩

➩ ➩

OK

Close

640AM

362000

0

6875

◄ Default ►

Frequency(kHz)

Symbol rate(kS/s)

Modulation

Network ID

1

28

9

5

6

4

7

3

MENU

Select Auto Tuning. Select Start.

Run Auto tuning.

Make appropriate adjust-

ments. (Except for Full

mode)

Select Close.

Select Cable.

Select Comhem or Other

Operators.

Select Default, Full or User

Select SETUP.

• Press the MENU or EXIT button to close the menu window.

• Press the BACK button to move to the previous menu screen.

Check your antenna connection.

The previous channel information will

be updated during Auto Tuning.

□ SECAM L Search

Start

Close

Comhem ꔉ

Other Operators

Next

Previous

Service Operator

• Use NUMBER buttons to input a 4-digit

password in Lock System ‘On’.

• If you wish to keep on auto tuning select

Start using the ꕌꕍ button. Then, press

the OK button. Other wise select Close.

• Automatic Numbering: Decide wheth-

er to use the programme numbers as

sent by broadcasting stations for tuning.

■ The image shown may be somewhat different from your set.

44

WATCHING TV / PROGRAMME CONTROL

WATCHING TV / PROGRAMME CONTROL

The following values are needed in order to search all available programmes quickly and correctly.

The commonly used values are provided as "default".

However, for correct settings, please inquire of the cable service provider.

When running Auto Tuning in DVB cable mode, selecting Full will search through all frequencies to find avail-

able channels.

In the case when the programme is not searched by selecting the Default, perform the searching by select-

ing the Full.

However, in the case when the programme is searched by selecting the Full, the Auto Tuning time can be

taken too much.

• Frequency: Enter a user-defined frequency range.

• Symbol rate: Enter a user-defined symbol rate (Symbol rate: Speed at which a device such as modem

sends symbols to a channel).

• Modulation: Enter a user-defined modulation. (Modulation: Loading of audio or video signals onto carrier).

• Network ID: Unique identifier allocated for each user.

• Acquired certification SO: Sweden(Comhem), Denmark(YouSee, Stofa).

• If there are not any Service Operator that you want, select Other Operators.

• If you select "Other Operators", or the selected country supports "Other Operators" only, it may take some

time to search all the channels, or it may not search some of the channels.

If some of the channels do not appear, follow the steps below.

1. SETUP → Auto Tuning → Cable

2. Input additional values such as the frequency, symbol rate, modulation, and network ID

(You can ask your cable service provider for the above information

• When you select the Cable, the Cable Service Operator selection screen can differ or not exist by the

Cable situation of the applicable country

• The popup window to select between Service Operator is only shown initially for the 3 cases when you

accessing the Initial Setting menu, when you change from Antenna to Cable or when you access the

menu after changing the Country.

• When you want to select between Service Operator aside from the above 3 cases, you can do so by

selecting SETUP → Cable DTV Setting → Service Operator.

45

WATCHING TV / PROGRAMME CONTROL

To watch DVB-C in the countries excluding Finland, Sweden, Denmark and Norway select '- -' as the

Country in OPTION.

You can select User mode or Full mode in Auto Tuning.

The corresponding home frequency information may need to be changed when tuning the User mode, and

the corresponding information depends on the Cable Service Operator (SO) in service.

During Full mode tuning, some channel may be restricted for some Cable Service Operator (SO), and it may

take a long time for tuning.

Note

► Your cable provider may charge for their services, or require you to agree to its items and conditions of business.

► DVB-C Cable may not operate correctly with some cable providers.

► Compatibility with DVB-C digital cable broadcasts is not guaranteed.

AUTO PROGRAMME TUNING

If you select the “- -” of Country Setting, (Except for Finland, Sweden,

Denmark and Norway)

46

WATCHING TV / PROGRAMME CONTROL

WATCHING TV / PROGRAMME CONTROL

CABLE DTV SETTING (IN CABLE MODE ONLY)

The range that a user can select from the Service Operator menu differs depending on number of Service

Operator supported by each country, and if number of supported Service Operator for each country is 1, cor-

responding function becomes non-activation.

After changing Service Operator, a warning window saying that channel map will be deleted when OK button

is pressed or Close is selected, and a Auto-tuning pop-up window appears when 'YES' is selected.

SETUP SETUP

Auto Tuning

Manual Tuning

Programme Edit

Software Update : ON

Diagnostics

CI Information

Cable DTV Sttiing

Auto Tuning

Manual Tuning

Programme Edit

Software Update : ON

Diagnostics

CI Information

Cable DTV Sttiing

1

2

4

3

MENU

Select Cable DTV Setting.

Select your desired source.

Select Service Operator or

Channel Auto Update.

Select SETUP.

• Press the MENU or EXIT button to close the menu window.

• Press the BACK button to move to the previous menu screen.

Cable DTV Settiing ꔉCable DTV Settiing ꔉ

➩

• If you select Cable, you can see Cable

DTV Setting menu.

• When Channel Auto Update in On, the

channel information will be automatically

updated whenever the network information

changes.

• When Channel Auto Update is Off, the

channel information will not be updated.

Move OK Move OK

◄ Comhem ►

On

Service Operator

Channel Auto Update

Close

47

WATCHING TV / PROGRAMME CONTROL

MANUAL PROGRAMME TUNING (IN DIGITAL MODE)

Manual Tuning lets you manually add a programme to your programme list.

(For countries other than Finland, Sweden, Denmark and Norway &

When selecting Antenna if Finland, Sweden, Denmark, Norway or “--”

country is chosen)

SETUP SETUP

Move Move

OK OK

Auto Tuning

Manual Tuning

Programme Edit

Software Update : ON

Diagnostics

CI Information

Auto Tuning

Manual Tuning

Programme Edit

Software Update : ON

Diagnostics

CI Information

Manual Tuning ꔉManual Tuning ꔉ

➩

30

◄ DTV ►

UHF CH.

Your receiver will add this channel

to your channel list.

Update

Bad normal Good

Close

1

2

4

3

MENU

Select Manual Tuning.

Select the desired channel number.

Select DTV.

Select SETUP. • Use NUMBER buttons to input a 4-digit

password in Lock System ‘On’.

• Press the MENU or EXIT button to close the menu window.

• Press the BACK button to move to the previous menu screen.

48

WATCHING TV / PROGRAMME CONTROL

WATCHING TV / PROGRAMME CONTROL

(When selecting Cable (DVB cable mode) if Finland, Sweden, Denmark,

Norway or “--” country is chosen)

SETUP SETUP

Move Move

OK OK

Auto Tuning

Manual Tuning

Programme Edit

Software Update : ON

Diagnostics

CI Information

Auto Tuning

Manual Tuning

Programme Edit

Software Update : ON

Diagnostics

CI Information

Manual Tuning ꔉManual Tuning ꔉ

➩

640AM

6875

36200

◄ DTV ►

Modulation

Symbol rate(kS/s)

Frequency(kHz)

Add

Bad normal Good

Close

1

2

4

3

MENU

Select Manual Tuning.

Select the desired channel number.

Select DTV.

Select SETUP.

• Use NUMBER buttons to input a 4-digit

password in Lock System ‘On’.

• Symbol rate: Enter a user-defined sym-

bol rate. (symbol rate: Speed at which a

device such as modem sends symbols

to a channel.)

• Modulation: Enter a user-defiend mod-

ulation. (Modulation: Loading of audio or

video signals onto carrier)

Frequency, Symbol rate, and Modulation mode are needed in order to add a programme correctly in

DVB cable mode. Please inquire of the cable service provider about the correct values.

• Press the MENU or EXIT button to close the menu window.

• Press the BACK button to move to the previous menu screen.

49

WATCHING TV / PROGRAMME CONTROL

• Use NUMBER buttons to input a 4-digit password in Lock System ‘On’.

• L: SECAM L/L (France)

BG: PAL B/G, SECAM B/G (Europe / East Europe / Asia / New Zealand / M.East / Africa / Australia)

I: PAL I/II (U.K. / Ireland / Hong Kong / South Africa)

DK: PAL D/K, SECAM D/K (East Europe / China / Africa / CIS)

• To store another channel, repeat steps 4 to 9.

• Press the MENU or EXIT button to close the menu window.

• Press the BACK button to move to the previous menu screen.

MANUAL PROGRAMME TUNING (IN ANALOGUE MODE)

Manual Tuning lets you manually tune and arrange the stations in whatever order you desire.

SETUP SETUP

Move Move

OK OK

Auto Tuning

Manual Tuning

Programme Edit

Software Update : ON

Diagnostics

CI Information

Auto Tuning

Manual Tuning

Programme Edit

Software Update : ON

Diagnostics

CI Information

Manual Tuning ꔉManual Tuning ꔉ

➩

3

V/UHF

BG

0

◄ ►

C 02

◄ TV ►

Storage

System

Band

Channel

Search

Name

Store

Close

1

2

4

7

5

9

8

3

6

MENU

Select Manual Tuning.

Select the desired

programme num-

ber on.

Select the desired

channel number.

or

or

Select TV.

Select V/UHF or Cable.

Select a TV system.

Select Store.

Commence searching..

Select SETUP.

50

WATCHING TV / PROGRAMME CONTROL

WATCHING TV / PROGRAMME CONTROL

SETUP SETUP

Move Move

OK OK

Auto Tuning

Manual Tuning

Programme Edit

Software Update : ON

Diagnostics

CI Information

Auto Tuning

Manual Tuning

Programme Edit

Software Update : ON

Diagnostics

CI Information

Manual Tuning ꔉManual Tuning ꔉ

➩

3

V/UHF

BG

0

◄ ►

C 02

◄ TV ►

Storage

System

Band

Channel

Search

Name

Store

Close

• Press the MENU or EXIT button to close the menu window.

• Press the BACK button to move to the previous menu screen.

1

2

4

6

7

5

3

MENU

Select Manual Tuning.

Select TV.

Select Name.

Select Close.

Select the position and make your choice of the second character, and so on.

You can use an the alphabet A to Z, the number 0 to 9, +/ -, and blank.

Select SETUP.

Select Store.

■Assigning a station name

You can assign a station name with five characters to each programme number.

51

WATCHING TV / PROGRAMME CONTROL

• Press the MENU or EXIT button to close the menu window.

• Press the BACK button to move to the previous menu screen.

PROGRAMME EDIT

When a programme number is skipped, it means that you will be unable to select it using P ꕌꕍ button

during TV viewing.

If you wish to select the skipped programme, directly enter the programme number with the NUMBER

buttons or select it in the Programme edit menu.

This function enables you to skip the stored programmes.

You can change the programme number using “Move” function, if “Automatic Numbering” is unchecked

when you start Auto Tuning.

SETUP Move OK

Auto Tuning

Manual Tuning

Programme Edit

Software Update : ON

Diagnostics

CI Information

Programme Edit ꔉ

➩

1 YLE TV1

DTV RADIO TV

YLE TV11

Pr. Change Navigation Page Change Previous

Skip

2 YLE TV2

24 TV4 Fakta 50 TV400

6 CNN 8 YLE24

24 TV4 Fakta 86 Info/3sat

4 TV4 Stockholm 5 YLE FST

24 TV4 Fakta 84 Kanal Lokal

9 YLE Teema 14 TV4 Film

87 Doku/Kika 88 TVE 1

1

2

4

3

MENU

Select Programme Edit.

Select a programme to be stored or skipped.

Enter the Programme Edit.

Select SETUP. • Use NUMBER buttons to input a 4-digit

password in Lock System "On".

52

WATCHING TV / PROGRAMME CONTROL

WATCHING TV / PROGRAMME CONTROL

IN DTV/RADIO MODE

IN TV MODE

■Skipping a programme number

■Deleting a programme

■Moving a programme

1

1

1

2

2

2

3

3

3

Turn the programme number to blue.

Turn the programme number to red.

Turn the programme number to green.

Release.

Delete.

Release.

Release.

Select a programme number to be skipped.

Select a programme number to be skipped.

Select a programme number to be skipped.

BLUE

RED

GREEN

BLUE

RED

GREEN

BLUE

• When programmes are to be skipped,

the skipped programme shows in blue

and these programmes will not be

selected by the P ꕌꕍ buttons during TV

viewing.

• If you wish to select a skipped pro-

gramme, directly enter the programme

number with the NUMBER buttons or

select it in the programme edit or EPG.

This function enables you to delete or skip the stored programmes.

You can also move some channels and use other programme numbers.

• The selected programme is deleted, all

the following programmes are shifted up

one.

53

WATCHING TV / PROGRAMME CONTROL

■Skipping a programme number

■Auto Sort

1

1

2

3

Turn the programme number to blue.

Release.

Select a programme number to be skipped.

Start Auto Sort.

BLUE

BLUE

• When a programme number is skipped it

means that you will be unable to select it

using the P ꕌꕍ button during normal TV

viewing.

• If you wish to select a skipped pro-

gramme, directly enter the programme

number with the NUMBER buttons or

select it in the programme edit or EPG.

• After activating Auto Sort once, you can

no longer edit programmes.

YELLOW

54

WATCHING TV / PROGRAMME CONTROL

WATCHING TV / PROGRAMME CONTROL

SOFTWARE UPDATE

Software Update means software can be downloaded through the digital terrestrial broadcasting system.

SETUP SETUP

Move Move

OK OK

Auto Tuning

Manual Tuning

Programme Edit

Software Update : ON

Diagnostics

CI Information

Auto Tuning

Manual Tuning

Programme Edit

Software Update : ON

Diagnostics

CI Information

Software Update : On ꔉ Software Update : On ꔉ

➩

1

2

4

3

MENU

Select Software Update.

Save.

Select On or Off.

• If you select On, a user confirm message box will be displayed to notify

that new software is found.

Select SETUP.

Off

On

On ꔉ

55

WATCHING TV / PROGRAMME CONTROL

* When setting “Software Update”

Occasionally, a transmission of

updated digital software infor-

mation will result in the following

menu on the TV screen.

Simple Update: for current

update stream

Schedule Update: for scheduled update stream

When the Software Update menu is "Off", the

message to change it to "On" appears.

When the power is turned off, downloading starts.

When the power is turned on while updating, the

progress status is displayed.

Select the Yes using the < > but-

ton and you will see the following

picture.

After the Software Update is

complete, the System restarts.

YES

YES

HIDE

Close

Close

Stop

Software update is available.

Would you like to download now?

(approximately 30 Min ~ 2 hours)

Your TV software is updated when you turn off the TV

using the remote control or local key.

Do not unplug!

A new software update is available at 00/00/0 00:00.

Do you want to update the software when available?

Software downloading progress.

Ver. 03.01.00 ► Ver. 03.02.00

New Software is successfully installed.

65 %

- During Progress of a Software Update, please note the following:

• Power to the TV must not be interrupted.

• The TV must not be switched off.

• The antenna must not be disconnected.

• After Software Update, you can confirm the updated software version in Diagnostics menu.

• It may take hours to download the software, so make sure that the power stays on during the download.

56

WATCHING TV / PROGRAMME CONTROL

WATCHING TV / PROGRAMME CONTROL

DIAGNOSTICS

This function enables you to view information on the Manufacturer, Model/Type, Serial Number and

Software Version.

This displays the information and signal strength of the tuned *MUX.

This displays the signal information and service name of the selected MUX.

(*MUX: A higher directory of channels in digital broadcasting (a single MUX contains multiple channels.))

SETUP Move OK

Auto Tuning

Manual Tuning

Programme Edit

Software Update : ON

Diagnostics

CI Information

Diagnostics ꔉ

➩

CH 30 ꔉ

CH 36

CH 54

CH 34

CH 38

CH 60

▼

▼

ExitPopupPrev.

Engineering Diagnostics

Manufacturer : LG Electronics Inc.

Model / Type : M2762DP

Serial No. : SKJY1107

Software Version : V01.08.00

1

2

4

3

MENU

Select Diagnostics.

Display the information of Channel.

Display Manufacturer, Model / Type, Serial Number and Software Version.

Select SETUP.

• Press the MENU or EXIT button to close the menu window.

• Press the BACK button to move to the previous menu screen.

57

WATCHING TV / PROGRAMME CONTROL

• Press the BACK button to move to the previous menu screen.

CI [COMMON INTERFACE] INFORMATION

This function enables you to watch some encrypted services (pay services). If you remove the CI Module, you

cannot watch pay services.

When the module is inserted into the CI slot, you can access the module menu.

To purchase a module and smart card, contact your dealer. Do not repeatedly insert or remove a CI module

from the TV. This may cause a malfunction. When the TV is turned on after inserting a CI Module, you may not

have any sound output.

This may be incompatible with the CI module and smart card.

CI (Common Interface) functions may not be possible depending upon the country broadcasting circumstanc-

es.

When using a CAM(Conditional Access Module), please make sure it meets fully the requirements of either

DVB CI or CI plus.

SETUP Move OK

Auto Tuning

Manual Tuning

Programme Edit

Software Update : ON

Diagnostics

CI Information

CI Information ꔉ

➩

Viaccess Module

Select the item

• This OSD is only for illustration and the menu options and screen format will vary according to the

Digital pay services provider.

• It is possible for you to change CI (Common Interface) menu screen and service by consulting your

dealer.

1

2

4

3

MENU

Select CI Information.

Save.

Select the desired item: Module information, smart card information, language, or soft-

ware download etc.

Select SETUP.

Consultations

Authorizations

Module information

58

WATCHING TV / PROGRAMME CONTROL

WATCHING TV / PROGRAMME CONTROL

SELECTING THE PROGRAMME LIST

You can check which programmes are stored in the memory by displaying the programme list.

• You may find some blue programmes. These

have been set up to be skipped by auto program-

ming or in the programme edit mode.

• Some programmes with the channel number

shown in the programme LIST indicate there is

no station name assigned.

The mode will be switched between

TV, DTV, and Radio from the pro-

gram you are currently watching.

Displayed when the

Locked Programme.

1

1

2

2

Switch to the chosen programme number.

Return to normal TV viewing.

Select a programme.

Turn the pages.

Mini Glossary

Programme List

1 BBC

2 BBC ꔉ

3 BBC

Exit.

■Displaying programme LIST

■Selecting a programme in the programme list

■Paging through a programme list

1Display the Programme List.

LIST

LIST

TV/

RAD

59

WATCHING TV / PROGRAMME CONTROL

FAVOURITE PROGRAMME SETUP

Favourite programme is a convenient feature that lets you quikly scan up to programmes of your choice

without having to wait for the TV to scan through all the in-between programmes.

■Selecting favourite programme

◄ Favourite ►

Favourite

1

24

3

3

Select Favourite.

Select Favourite.

Display the Favourite Programme List.

Return to TV viewing.

Select your desired

programme.

or

• This will automatically include the selected programme into your favourite programme list.

■Displaying the favourite programme list

♥ Favourite List

1 BBC

2 BBC ꔉ

3 BBC

Exit.

FAV

MARK

60

WATCHING TV / PROGRAMME CONTROL

WATCHING TV / PROGRAMME CONTROL

INPUT LIST

HDMI, AV, COMPONENT and RGB can be recognized by a detect pin and thus enabled only when an

external device approves voltage.

By using TV/RAD button, you can move from External Input to RF Input and to the last watched pro-

gramme in DTV/RADIO/TV mode.

Antenna

RGB

AV

HDMI

Component

1

Select the input source.

INPUT

• Antenna or Cable : Select it when watching the DTV/TV. (Digital cable input is available only at Finland,

Sweden and “--” country)

• AV : Select it when watching the VCR or external equipment.

• Component : Select it when using the DVD or the Digital set-top box depends on connector.

• RGB : Select it when using PC depends on connector.

• HDMI : Select it when using DVD, PC or Digital set-top box depend on connector.

61

EPG (ELECTRONIC PROGRAMME GUIDE)(IN DIGITAL MODE)

Select a programme

Switch on/off EPG

This system has an Electronic Programme Guide (EPG) to help your navigation through all the possible

viewing options.

The EPG supplies information such as programme listings, start and end times for all available services.

In addition, detailed information about the programme is often available in the EPG (the availability and

amount of these programme details will vary, depending on the particular broadcaster).

This function can be used only when the EPG information is broadcast by broadcasting companies.

The EPG displays the programme details for next 8 days.

1

2

1

Switch on or off EPG.

Select desired programme.

The EPG will disappear after moving to a selected program.

or

EPG (ELECTRONIC PROGRAMME GUIDE)

(IN DIGITAL MODE)

Shows the present screen information.

Displayed with a DTV Programme.

Displayed with a Radio Programme.

Displayed with a MHEG Programme.

Displayed with a AAC Programme.

Aspect ratio of broadcasting programme.

Aspect ratio of broadcasting programme.

Displayed with a Teletext Programme.

Displayed with a Subtitle Programme.

Displayed with a Scramble Programme.

Displayed with a Dolby Programme.

Displayed with a Dolby Digital PLUS

Programme.

Broadcasted programme with the icon may not be

displayed in Monitor Out depending on the informa-

tion of the programme.

GUIDE

576i/p, 720p, 1080i/p: Resolution of broadcasting programme

ꔖ

ꔕ

꘎

ꔰ

ꔶ

ꔷ

ꔇ

ꔚ

ꔨ

ꔩ

62

EPG (ELECTRONIC PROGRAMME GUIDE)

(IN DIGITAL MODE)

EPG (ELECTRONIC PROGRAMME GUIDE)(IN DIGITAL MODE)

Button Function in NOW/NEXT Guide Mode

Button Function in 8 Day Guide Mode

You can view a program being broadcasted and one scheduled to follow.

RED

RED

GREEN

BLUE

BLUE

YELLOW

YELLOW

GUIDE

GUIDE

TV/

RAD

TV/

RAD

Change EPG mode.

Change EPG mode.

Enter Timer Record/Remind list mode.

Enter Timer Record/Remind setting mode.

Enter Timer Record/Remind list mode.

Select NOW or NEXT Programme.

Select Programme.

Switch off EPG.

Switch off EPG.

or

or

or

or

Select the Broadcast Programme.

Select the Broadcast Programme.

Select TV or RADIO Programme.

Select TV or RADIO Programme.

Enter Timer Record/Remind setting mode.

Enter Date setting mode.

The EPG will disappear after moving to a

selected program.

The EPG will disappear after moving to a

selected program.

Page Up/Down.

Page Up/Down.

Detail information on or off

Detail information on or off

Programme Guide

ALL NOW NEXT

1 YLE TV1

Keno

World Business

2 YLE TV2

4 TV..

Your World Today

Fantomen

Legenen om Den....

Kritiskt

Naturtimmen

ABC

Lyssna

Tänään otsikoissa

Glamour

5 YLE FST

6 CNN

8 YLE24

RADIO

Pr. Change

▲

Favourite

Mode Schedule Schedule List

Information

That ’70s show

1 YLE TV1 6 Apr. 2007 15:09

▲

EXIT

EXIT

BACK

BACK

Programme Guide

ALL 6 Apr. (Fri.)

14:00 15:00

1 YLE TV1

Kungskonsumente

2 YLE TV2 Mint Extra

The Drum

TV2: Farmen

4 TV.. The Drum

You Call The Hits

Fashion Essentials

... ... ... ... Tänään otsikoissa

5 YLE FST

6 CNN

8 YLE24

▲

Antigues Roadshow

1 YLE TV1 6 Apr. 2007 15:09

▲

Mode Date Schedule Schedule List

RADIO

Pr. ChangeFavourite Information

63

EPG (ELECTRONIC PROGRAMME GUIDE)(IN DIGITAL MODE)

Button Function in Date Change Mode

Button Function in Extended Description Box

GREEN

YELLOW

GUIDE

GUIDE

Switch off Date setting mode.

Enter Timer Record/Remind setting mode.

Select a date.

Text Up/Down.

Switch off EPG.

Switch off Date setting mode.

Switch off EPG.

The detail information on or off.

or

or

or

Change to the selected date.

EXIT

BACK

BACK

Programme Guide

ALL ◄ 6 Apr. (Fri.) ►

14:00 15:00

1 YLE TV1

Kungskonsumente

2 YLE TV2 Mint Extra

The Drum

TV2: Farmen

4 TV.. The Drum

You Call The Hits

Fashion Essentials

... ... ... ... Tänään otsikoissa

5 YLE FST

6 CNN

8 YLE24

▲

Antigues Roadshow

1 YLE TV1 6 Apr. 2007 15:09

▲

Date Exit

Date. Change

Information

Information

Schedule

▲

▲

64

EPG (ELECTRONIC PROGRAMME GUIDE)

(IN DIGITAL MODE)

EPG (ELECTRONIC PROGRAMME GUIDE)(IN DIGITAL MODE)

Button Function in Record/Remind Setting Mode

Button Function in Schedule List Mode

Sets a start or end time for recording, and sets only a start time for the reminder with the end time grayed out.

This function is available only when recording equipment that use pin8 recording signalling has been con-

nected to the TV-OUT(AV) terminal, using a SCART cable.

If you’ve created a schedule list, a scheduled program is displayed at the scheduled time even when you

are watching a different program at the time.

Only the Up/Down/OK/BACK keys will work when a popup window is open.

BACK

Change to Guide or Schedule mode.

Select Date, Start/End time or Programme.

Select Record or Remind.

Function setting.

Save Timer Record/Remind.

OK

▼

▼

6 Mar. That ’70s sh15:09 17:30

Date Start Time End Time

Programme

Prev.

Select the date to record.

GREEN

BLUE Change to Guide mode.

Add new Timer Watching setting mode.

Add new Manual Recording setting mode.

GUIDE

or

Switch off EPG.

or

EXIT

BACK

Select your desired Option(Modify/Delete/Delete All).

Select Schedule List.

Page Up/Down.

Schedule List

Title

Start Date

6 May 16:00 Friend1

6 May 18:00 Friend2

Start Time

New RemindNew Record Programme Guide

Page1/1 Fri. 6 Apr. 2007 15:09

Exit

Friend2

16:00

Modify/Delete

Remind

DTV 19 Dave

(Fri.)06/05/2007

16:00

Page Change

Move

Modify

Delete

Delete All

Close

RED

65

PICTURE CONTROL

You can watch the screen in various picture formats: 16:9, Just Scan, Original, Full Wide, 4:3, 14:9,

Zoom and Cinema Zoom.

If a fixed image is displayed on the screen for a long time, that fixed image may become imprinted on

the screen and remain visible.

You can adjust the enlarge proportion using ꕌꕍ button.

This function works in the following signal.

PICTURE CONTROL

PICTURE SIZE (ASPECT RATIO) CONTROL

1

2

Select Aspect Ratio.

Select the desired picture format.

• You can also adjust Aspect Ratio in the PICTURE

menu.

• For Zoom Setting, select 14:9, Zoom and Cinema

Zoom in Ratio Menu. After completing Zoom

Setting, the display goes back to Q.Menu.

• 16:9

The following selection will allow you to

adjust the picture horizontally, in linear pro-

portion, to fill the entire screen(useful for

viewing 4:3 formatted DVDs).

• Just Scan

Following Selection will lead to you view the

picture of best quality without loss of original

picture in high resolution image.

Note : If there is noise in original Picture, You

can see the noise at the edge.

• Original

When your TV receives a wide screen signal

it will automatically change to the picture

format broadcast.

• Full Wide

When TV receives the wide screen signal,it

will lead you to adjust the picture horizontally

or vertically, in a linear proportion,to fill the

entire screen fully.

Full WideJust Scan

Original

66

PICTURE CONTROL

PICTURE CONTROL

• 4:3

The following selection will allow you to view

a picture with an original 4:3 aspect ratio,

gray bars will appear on both the left and

right of the screen.

• 14 : 9

You can view a picture format of 14:9 or a

gen eral TV programme in the 14:9 mode.

The 14:9 screen is viewed in the same way

as in 4:3, but is magnified to the left and right.

• Zoom

The following selection will allow you to view

the picture without any alteration, while filling

the entire screen. However, the top and bot-

tom of the picture will be cropped.

• Cinema Zoom

Choose Cinema Zoom when you want to

enlarge the picture in correct proportion.

Note:When enlarging or reducing the picture,

the image may become distorted.

◄ or ► button: Adjust enlarge proportion of

Cinema Zoom. The adjustment range is 1 to 16.

▼ or ▲ button: Move the screen.

NOTE

►You can only select 4:3, 16:9 (Wide), 14:9, Zoom/Cinema Zoom in Component mode.

►You can only select 4:3, Original, 16:9 (Wide), 14:9, Zoom/Cinema Zoom in HDMI mode.

►You can only select 4:3, 16:9 (Wide) in RGB-PC, HDMI-PC mode only.

►In DTV/HDMI/Component (over 720p) mode, Just Scan is available.

►In Analogue/AV mode, Full Wide is available.

!

67

PICTURE CONTROL

This feature lets you adjust the picture quality of the original image.

Use this to calibrate the screen quality by adjusting the Black and White Level etc. General users can

calibrate the screen quality by easily following each stage.

When you adjust the image to Low, Recommended or High, you can see the changed result as an

example.

In RGB-PC / HDMI-PC mode, the changed Colour, Tint and H/V Sharpness values are not applied.

PICTURE WIZARD

Move OK


Aspect Ratio : 16:9

Picture Wizard

ꕊ Energy Saving : Off

Picture Mode : Vivid

• Backlight 100

• Contrast 100

• Brightness 50

• Sharpness 70

▼

Picture Wizard ꔉ

➩

Next

Previous

Picture Wizard

With Picture Wizard, you can adjust the picture quality of the

original image.

1

2

4

5

3

MENU

Select Picture Wizard.

Select input source to apply the settings.

Adjust Black level, White level, Colour, Tint, Horizontal Sharpness, Vertical Sharpness,

Colour Temperature, Dynamic Contrast , Colour Gain, Backlight.

Select PICTURE. • If you stop the setting before the final stage, the

changes will not be applied

• The adjustment value is saved to Expert 1.

• Press the MENU or EXIT button to close the menu window.

• Press the BACK button to move to the previous menu screen.

68

PICTURE CONTROL

PICTURE CONTROL

It reduces the TV’s power consumption.

The default factory setting is adjusted to the comfortable level to be viewed at home.

You can increase the brightness of your screen by adjusting the Energy Saving level or by setting the

Picture Mode.

When adjusting Energy Saving in MHEG mode, the Energy Saving setting is applied after MHEG is fin-

ished.

Selecting ‘Screen Off’ while tuned to a radio station channel will reduce power consumption.

ꕊ ENERGY SAVING

Move Move

OK OK

PICTURE PICTURE

Aspect Ratio : 16:9

Picture Wizard

ꕊ Energy Saving : Off

Picture Mode : Vivid

• Backlight 100

• Contrast 100

• Brightness 50

• Sharpness 70

▼

Aspect Ratio : 16:9

Picture Wizard

ꕊ Energy Saving : Off

Picture Mode : Vivid

• Backlight 100

• Contrast 100

• Brightness 50

• Sharpness 70

▼

ꕊ Energy Saving : Off ꔉ ꕊ Energy Saving : Off ꔉ

➩

Off

Minimum

Medium

Maximum

Screen Off

Off ꔉ

1

2

3

4

MENU

Select

ꕊ

Energy Saving.

Select Off, Minimum, Medium, Maximum or Screen Off.

Select PICTURE.

• Press the MENU or EXIT button to close the menu window.

• Press the BACK button to move to the previous menu screen.

• When you select Screen Off, the screen will be turned off in 3 seconds and Screen Off will start. And the

TV is disabled to be automatically turned off.

• You can also adjust this feature by selecting Energy Saving button on the remote control.

• If you want to return from Screen off, input any key.

69

PICTURE CONTROL

Vivid Strengthen the contrast, brightness, colour and sharpness for vivid picture.

Standard The most general screen display status.

Cinema Optimizes video for watching movies.

Sport Optimizes video for watching sports events.

Game Optimizes video for playing games.

Picture Mode-Preset

PRESET PICTURE SETTINGS

Move Move

OK OK

PICTURE PICTURE

Aspect Ratio : 16:9

Picture Wizard

ꕊ Energy Saving : Off

Picture Mode : Vivid

• Backlight 100

• Contrast 100

• Brightness 50

• Sharpness 70

▼

Aspect Ratio : 16:9

Picture Wizard

ꕊ Energy Saving : Off

Picture Mode : Vivid

• Backlight 100

• Contrast 100

• Brightness 50

• Sharpness 70

▼

Picture Mode : Vivid ꔉ Picture Mode : Vivid ꔉ

➩

1

2

3

4

MENU

Select Picture Mode.

Select Vivid, Standard, Cinema, Sport or Game

Select PICTURE.

• Press the MENU or EXIT button to close the menu window.

• Press the BACK button to move to the previous menu screen.

• Picture Mode adjusts the TV for the best picture appearance. Select the preset value in the Picture

Mode menu based on the programme category.

• You can also adjust Picture Mode in the Q. Menu.

Vivid

Standard

Cinema

Sport

Game

ꕋ Expert 1

ꕋ Expert 2

Vivid ꔉ

70

PICTURE CONTROL

PICTURE CONTROL

Backlight

To control the brightness of the screen, adjust the brightness of LCD panel.

Adjusting the backlight when setting the brightness of the set is recommended.

Contrast

Adjusts the signal level between black and white in the picture. You may use Contrast when the bright

part of the picture is saturated.

Brightness

Adjusts the base level of the signal in the picture.

Sharpness

Adjusts the level of crispness in the edges between the light and dark areas of the picture.

The lower the level, the softer the image.

Colour

Adjusts intensity of all colours.

Tint

Adjusts the balance between red and green levels.

Colour Temperature

Set to warm to enhance hotter colours such as red, or set to cool to make picture bluish.

Picture Mode-User option

MANUAL PICTURE ADJUSTMENT

Move Move

OK OK

PICTURE PICTURE

Aspect Ratio : 16:9

Picture Wizard

ꕊ Energy Saving : Off

Picture Mode : Standard

• Backlight 100

• Contrast 100

• Brightness 50

• Sharpness 70

▼

Aspect Ratio : 16:9

Picture Wizard

ꕊ Energy Saving : Off

Picture Mode : Standard

• Backlight 100

• Contrast 100

• Brightness 50

• Sharpness 70

▼

Picture Mode : Vivid ꔉ Picture Mode : Vivid ꔉ

➩

1

4

2

5

3

MENU

Select Picture Mode.

Make appropriate adjustments.

Select Vivid, Standard, Cinema, Sport or Game

Select PICTURE.

Select Backlight, Contrast, Brightness, Sharpness, Colour, Tint or Colour

Temperature.

• Press the MENU or EXIT button to close the menu window.

• Press the BACK button to move to the previous menu screen.

NOTE

►You cannot adjust colour and tint in the RGB-PC / HDMI-PC mode.

►When the Expert 1/2 is selected, you can select Backlight, Contrast, Brightness, H Sharpness, V

Sharpness, Colour or Tint .

!

Vivid

Standard

Cinema

Sport

Game

ꕋ Expert 1

ꕋ Expert 2

Vivid ꔉ

71

PICTURE CONTROL

You can calibrate the screen for each Picture Mode or set the video value according to the special video

screen.

You can set the video value differently for each input.

To reset to the factory default screen after making adjustments to each video mode, execute the “Picture

Reset” function for each Picture Mode.

PICTURE IMPROVEMENT TECHNOLOGY

Move Move

OK OK

PICTURE PICTURE

▲

• Brightness 50

• Sharpness 70

• Colour 50

• Tint 0

• Colour Temperature 0

• Advanced Control

• Picture Reset

Screen

▲

• Brightness 50

• Sharpness 70

• Colour 50

• Tint 0

• Colour Temperature 0

• Advanced Control

• Picture Reset

Screen

• Advanced Control ꔉ • Advanced Control ꔉ

➩

• Press the MENU or EXIT button to close the menu window.

• Press the BACK button to move to the previous menu screen.

◄ High ►

Off

Off

Off

Off

Off

Dynamic Contrast

Dynamic Colour

Noise Reduction

Gamma

Black Level

Film Mode

Close

1

2

3

4

MENU

Select Advanced Control.

Select your desired Source.

Select Dynamic Contrast, Dynamic Colour, Noise Reduction, Gamma, Black Level

or Film Mode. (Refer to p. 73 to 74)

Select PICTURE.

72

PICTURE CONTROL

PICTURE CONTROL

By segmenting categories, Expert 1 and Expert 2 provide more categories which users can set as they

see fit, offering the optimal picture quality for users.

This may also be used to help a professional optimize the TV performance using specific videos.

EXPERT PICTURE CONTROL

Move OK


Aspect Ratio : 16:9

Picture Wizard

ꕊ Energy Saving : Off

Picture Mode : Standard

• Backlight 70

• Contrast 90

• Brightness 50

• H Sharpness 70

▼

Picture Mode : ꕋ Expert 1 ꔉ

➩

Move OK


▲

• Contrast 90

• Brightness 50

• H Sharpness 50

• V Sharpness 49

• Colour 50

• Tint 0

• Advanced Control

• Picture Reset

▼

• Expert Control ꔉ

◄ Medium ►

Off

Off

Off

High

HD

Off

Off

Warm

Dynamic Contrast

Nosie Reduction

Gamma

Black Level

Film Mode

Colour Standard

Expert Pattern

Colour Filter

Colour Temperature

Close

1

2

3

4

5

6

MENU

Select Picture Mode.

Select Expert Control.

Select your desired Source.

Make appropriate adjustments.

Select ꕋ Expert 1 or ꕋ Expert 2.

Select PICTURE.

• Press the MENU or EXIT button to close the menu window.

• Press the BACK button to move to the previous menu screen.

Vivid

Standard

Cinema

Sport

Game

ꕋ Expert 1

ꕋ Expert 2

ꕋ Expert 1 ꔉ

73

PICTURE CONTROL

Dynamic Contrast

(Off/Low/High)

■ Adjusts the contrast to keep it at the best level according to the brightness

of the screen. The picture is improved by making bright parts brighter and

dark parts darker.

Dynamic Colour

(Off/Low/High )

■ Adjusts screen colours so that they look livelier, richer and clearer. This

feature enhances hue, saturation and luminance so that red, blue, green

and white look more vivid.

Noise Reduction

(Off/Low/Medium/High) ■ Reduces screen noise without compromising video quality.

Gamma

(Low/Medium/High)

■ You can adjust brightness of dark area and middle gray level area of

the picture.

• Low: Make dark and middle gray level area of the picture brighter.

• Medium: Express original picture levels.

• High: Make dark and middle gray level area of the picture darker.

Black Level

(Low/High/Auto)

• Low: The picture of the screen gets darker.

• High: The picture of the screen gets brighter.

• Auto: Realizing the black level of the screen and set it to High or Low

automatically.

■ Set black level of the screen to proper level.

■ This function enables to select 'Low' or 'High' in the following mode:

AV(NTSC-M), HDMI or Component. Otherwise, 'Black level' is set to

'Auto'.

Film Mode

(On/Off)

■ You can watch a cinema-like video by eliminating judder effect.

■ Use this function when you watch movies.

Colour Standard

(SD/HD)

■ Converts the colour of a different video to HD colour. This function is

set for SD video (BT-601) and HD video (BT-709) colour format.

74

PICTURE CONTROL

PICTURE CONTROL

Expert Pattern

(Off/Expert 1/Expert 2)

■ This is the pattern necessary for expert adjustment.

■ This function is enabled in "Picture Mode - Expert" when you watch DTV.

Colour Filter

(Off/Red/Green/Blue)

■ This is the function to filter the specific colours of the video.

You can use the RGB filter to set colour saturation and hue accurately.

Colour Temperature

(Medium/Warm/Cool)

■ This is the function to adjust the overall colour of the screen to the

feeling you want.

a. • Method: 2 Points

• Pattern: Inner, Outer

• Red/Green/Blue Contrast, Red/Green/Blue Brightness :

The adjustment range is -50 to +50.

b. • Method: 10 point IRE

• Pattern: Inner / Outer

• IRE (Institute of Radio Engineers) is the unit to display the size of

the video signal and can be set among 10, 20, 30 to 100. You can

adjust Red, Green or Blue according to each setting.

• Red/Green/Blue: The adjustment range is -50 to +50.

Colour Management

System

■ As the tool used by the experts to make adjustments by using the

test patterns, this does not affect other colours but can be used to

selectively adjust the 6 colour areas (Red/Green/Blue/Cyan/

Magenta/Yellow).

Colour difference may not be distinctive even when you make the

adjustments for the general video.

■ Adjusts Red/Green/Blue/Yellow/Cyan/Magenta.

• Red/Green/Blue/Yellow/Cyan/Magenta Colour: The adjustment

range is -30 to +30.

• Red/Green/Blue/Yellow/Cyan/Magenta Tint: The adjustment range

is -30 to +30.

■ This feature is disable in RGB-PC and HDMI (PC) mode.

75

PICTURE CONTROL

Settings of the selected picture modes BACK to the default factory settings.

PICTURE RESET

Move Move

OK OK

PICTURE PICTURE

▲

• Brightness 50

• Sharpness 70

• Colour 50

• Tint 0

• Colour Temperature 0

• Advanced Control

• Picture Reset

Screen

▲

• Brightness 50

• Sharpness 70

• Colour 60

• Tint 0

• Colour Temperature 0

• Advanced Control

• Picture Reset

Screen

• Picture Reset ꔉ • Picture Reset ꔉ

➩

NO

Yes

?

All picture setting will be resetted.

continue?

1

2

3

4

MENU

Select Picture Reset.

Select Yes or No.

Select PICTURE.

• Press the MENU or EXIT button to close the menu window.

• Press the BACK button to move to the previous menu screen.

76

PICTURE CONTROL

PICTURE CONTROL

Selecting Resolution

To view a normal picture, match the resolution of RGB mode and selection of PC mode.

This function works in the following mode: RGB[PC] mode.

<Vertical resolution : 768>

<Vertical resolution : 900>

SCREEN SETUP FOR PC MODE

Move OK


▲

• Brightness 50

• Sharpness 70

• Colour 50

• Tint 0

• Colour Temperature 0

• Advanced Control

• Picture Reset

Screen

Screen ꔉ

➩

Resolution ►

Auto Config.

Position

Size

Phase

Reset

1024 x 768

1280 x 768

1360 x 768

Move Prev.

SCREEN

1

2

3

4

5

MENU

Select Screen.

Select Resolution.

Select the desired resolution.

Select PICTURE.

• Press the MENU or EXIT button to close the menu window.

• Press the BACK button to move to the previous menu screen.

1280 x 960

1400 x 900

1600 x 900

Resolution ►

Auto Config.

Position

Size

Phase

Reset

SCREEN Move Prev.

77

PICTURE CONTROL

Auto Configure (RGB [PC] mode only)

Automatically adjusts picture position and minimizes image instability. After adjustment, if the image is

still not correct, your set is functioning properly but needs further adjustment.

Auto configure

This function is for automatic adjustment of the screen position, clock, and phase The displayed image

will be unstable for a few seconds while the auto configuration is in progress.

1. Using OSD

Move OK


▲

• Brightness 50

• Sharpness 70

• Colour 50

• Tint 0

• Colour Temperature 0

• Advanced Control

• Picture Reset

Screen

Screen ꔉ

➩

1

2

3

4

5

MENU

Select Screen.

Select Auto Config.

Select Yes.

Run Auto Config.

Select PICTURE.

• Press the MENU or EXIT button to close the menu window.

• Press the BACK button to move to the previous menu screen.

Resolution

Auto Config. ►

Position

Size

Phase

Reset

SCREEN

To Set

Yes No

• If the position of the image is still not correct, try

Auto adjustment again.

• If picture needs to be adjusted again after Auto

adjustment in RGB (PC), you can adjust the Posi

tion, Size or Phase.

Move Prev.

78

PICTURE CONTROL

PICTURE CONTROL

2. Using Auto Config. (Remocon)

This function is available for RGB signals only.

<1600 x 900 Resolution>

<1360 x 768 Resolution>

<Others Resolution>

<Others Resolution>

<Others Resolution>

<1920 x 1080 Resolution>

Press Auto Config.

Press Auto Config.

<M2062DP>

<M1962DP>

<M2262DP/M2362DP/M2762DP>

Press Auto Config.

Auto Config.

Auto Config.

Auto Config.

Auto in progress

Auto in progress

Auto in progress

For optimal display

change resolution 1600 x 900

Auto in progress

For optimal display

change resolution 1360 x 768

Auto in progress

For optimal display

change resolution 1920 x 1080

Auto in progress

79

PICTURE CONTROL

Adjustment for screen Position, Size, Phase

If the picture is not clear after auto adjustment and especially if characters are still trembling, adjust the

picture phase manually.

This function works in the following mode: RGB[PC].

Move OK


▲

• Brightness 50

• Sharpness 70

• Colour 50

• Tint 0

• Colour Temperature 0

• Advanced Control

• Picture Reset

Screen

Screen ꔉ

➩

Resolution

Auto Config.

Position ►

Size

Phase

Reset

SCREEN

1

2

3

4

5

MENU

Select Screen.

Select Position, Size or Phase.

Make appropriate adjustments.

Select PICTURE.

• Press the MENU or EXIT button to close the menu window.

• Press the BACK button to move to the previous menu screen.

Move Prev.

80

PICTURE CONTROL

PICTURE CONTROL

Screen Reset

Returns Position, Size and Phase to the factory default settings.

This function works in the following mode: RGB[PC].

Move OK


▲

• Brightness 50

• Sharpness 70

• Colour 50

• Tint 0

• Colour Temperature 0

• Advanced Control

• Picture Reset

Screen

Screen ꔉ

➩

1

2

3

4

5

MENU

Select Screen.

Select Reset.

Select Yes.

Run Reset.

Select PICTURE.

• Press the MENU or EXIT button to close the menu window.

• Press the BACK button to move to the previous menu screen.

Resolution

Auto Config.

Position

Size

Phase

Reset ►

SCREEN

To Set

Yes No

Move Prev.

81

SOUND CONTROL

SOUND CONTROL

1

2

3

4

MENU

Select Auto Volume.

Select On or Off.

Select AUDIO.

• Press the MENU or EXIT button to close the menu window.

• Press the BACK button to move to the previous menu screen.

AVL automatically remains on the same level of volume if you change programmes.

Because each broadcasting station has its own signal conditions, volume adjustment may be needed

every time the channel is changed. This feature allows users to enjoy stable volume levels by making

automatic adjustments for each program.

If sound quality or volume is not at the level you want, it is recommended to use a separate home theater

system or amp to cope with different user environments.

AUTO VOLUME LEVELER

Move Move

OK OK

AUDIO AUDIO

Auto Volume : Off

Clear Voice II : Off ꕅ3

Balance 0

Sound Mode : Music

• Surround X : Off

• Treble 50

• Bass 50

• Reset

▼

Auto Volume : Off

Clear Voice II : Off ꕅ3

Balance 0

Sound Mode : Music

• Surround X : Off

• Treble 50

• Bass 50

• Reset

▼

Auto Volume : Off ꔉAuto Volume : Off ꔉ

➩

Off

On

Off ꔉ

82

SOUND CONTROL

SOUND CONTROL

1

2

4

3

5

MENU

Select Clear Voice II.

Select Level.

Select On or Off.

Make desired adjustment.

Adjustment for Clear Voice Level With selecting On

Select AUDIO.

• Press the MENU or EXIT button to close the menu window.

• Press the BACK button to move to the previous menu screen.

By differentiating the human sound range from others, it helps users listen to human voices better.

CLEAR VOICE II

Move Move

OK OK

AUDIO AUDIO

Auto Volume : Off

Clear Voice II : Off ꕅ3

Balance 0

Sound Mode : Music

• Surround X : Off

• Treble 50

• Bass 50

• Reset

▼

Auto Volume : Off

Clear Voice II : Off ꕅ3

Balance 0

Sound Mode : Music

• Surround X : Off

• Treble 50

• Bass 50

• Reset

▼

Clear Voice II : Off ꕅ3 ꔉClear Voice II : Off ꕅ3 ꔉ

➩

• If you select “On” for Clear Voice II, Surround X

feature will not work.

• Select levels from ‘-6’ to ’+6’.

◄ Off ►

• Clear Voice II

• Level 3

Close

83

SOUND CONTROL

1

2

3

MENU

Select Balance.

Make desired adjustment.

Select AUDIO.

• Press the MENU or EXIT button to close the menu window.

• Press the BACK button to move to the previous menu screen.

You can adjust the sound balance of the speakers to preferred levels.

BALANCE

Move Move

OK OK

AUDIO AUDIO

Auto Volume : Off

Clear Voice II : Off ꕅ3

Balance 0

Sound Mode : Music

• Surround X : Off

• Treble 50

• Bass 50

• Reset

▼

Auto Volume : Off

Clear Voice II : Off ꕅ3

Balance 0

Sound Mode : Standard

• Surround X : Off

• Treble 50

• Bass 50

• Reset

▼

Balance 0 ꔉBalance 0 ꔉ

➩

Balance 0 ◄ ►

Close

84

SOUND CONTROL

SOUND CONTROL

1

2

3

4

MENU

• Press the MENU or EXIT button to close the menu window.

• Press the BACK button to move to the previous menu screen.

You can select your preferred sound setting; Standard, Music, Cinema, Sport or Game and you can

also adjust the Treble, Bass.

Sound Mode lets you enjoy the best sound without any Special adjustment as the TV sets the appropri-

ate sound options based on the programme content.

Standard, Music, Cinema, Sport and Game are preset for optimum sound quality at the factory.

Standard Offers standard-quality sound.

Music Optimizes sound for listening to music.

Cinema Optimizes sound for watching movies.

Sport Optimizes sound for watching sports events.

Game Optimizes sound for playing games.

PRESET SOUND SETTINGS-SOUND MODE

Move Move

OK OK

AUDIO AUDIO

Auto Volume : Off

Clear Voice II : Off ꕅ3

Balancze 0

Sound Mode : Standard

• Surround X : Off

• Treble 50

• Bass 50

• Reset

▼

Auto Volume : Off

Clear Voice II : Off ꕅ3

Balance 0

Sound Mode : Standard

• Surround X : Off

• Treble 50

• Bass 50

• Reset

▼

Sound Mode : Music ꔉSound Mode : music ꔉ

➩

• You can also adjust Sound Mode in the Q. Menu.

Standard

Music

Cinema

Sport

Game

music ꔉ

Select Sound Mode.

Select Standard, Music, Cinema, Sport or Game.

Select AUDIO.

85

SOUND CONTROL

Move Move

Move

OK OK

OK

AUDIO AUDIO

AUDIO

Auto Volume : Off

Clear Voice II : Off ꕅ3

Balance 0

Sound Mode : Standard

• Surround X : Off

• Treble 50

• Bass 50

• Reset

▼

Auto Volume : Off

Clear Voice II : Off ꕅ3

Balance 0

Sound Mode : Standard

• Surround X : Off

• Treble 50

• Bass 50

• Reset

▼

Auto Volume : Off

Clear Voice II : Off ꕅ3

Balance 0

Sound Mode : Music

• Surround X : Off

• Treble 50

• Bass 50

• Reset

▼

Sound Mode : Music (User) ꔉSound Mode : Music (User) ꔉ

• Surround X : Off ꔉ

➩

Standard

Music

Cinema

Sport

Game

Music ꔉ

1

1

2

2

3

3

4

4

5

MENU

MENU

Select Sound Mode.

Select Surround X.

Select Standard, Music, Cinema, Sport or Game.

Select On or off

Select Treble or Bass.

Set the desired sound level.

Select AUDIO.

Select AUDIO.

• Press the MENU or EXIT button to close the menu window.

• Press the BACK button to move to the previous menu screen.

PRESET SOUND SETTINGS-USER MODE

Surround X

Select this option to sound realistic.

Enhance sound depth and darity by maximizing Surround effect.

◄ Off ►

• Surround X

• Treble 50

• Bass 50

Close

86

SOUND CONTROL

SOUND CONTROL

1

2

3

MENU

Select Reset.

Initialize the adjusted value.

Select AUDIO.

• Press the MENU or EXIT button to close the menu window.

• Press the BACK button to move to the previous menu screen.

AUDIO RESET

Move Move

OK OK

AUDIO AUDIO

▲

Sound Mode : Music

• Surround X : Off

• Treble 50

• Bass 50

• Reset

Digital Audio Out : PCM

TV Speaker : On

DTV Audio Setting : Auto

▲

Sound Mode : Music

• Surround X : Off

• Treble 50

• Bass 50

• Reset

Digital Audio Out : PCM

TV Speaker : On

DTV Audio Setting : Auto

• Reset ꔉ • Reset ꔉ

➩

Settings of the selected Sound Mode return to the default factory settings.

Resetting sound mode configuration...

87

SOUND CONTROL

1

2

3

4

MENU

Select Digital Audio Out.

Select Auto or PCM.

Select AUDIO.

• Press the MENU or EXIT button to close the menu window.

• Press the BACK button to move to the previous menu screen.

DIGITAL AUDIO OUT

Move Move

OK OK

AUDIO AUDIO

▲

Sound Mode : Music

• Surround X : Off

• Treble 50

• Bass 50

• Reset

Digital Audio Out : PCM

TV Speaker : On

DTV Audio Setting : Auto

▲

Sound Mode : Music

• Surround X : Off

• Treble 50

• Bass 50

• Reset

Digital Audio Out : PCM

TV Speaker : On

DTV Audio Setting : Auto

Digital Audio Out : PCM ꔉ Digital Audio Out : PCM ꔉ

➩

This function allows you to select your preferred Digital Audio Output.

The TV can only output DOLBY Digital if a channel is broadcast with Dolby Digital audio.

When Dolby digital is available, selecting Auto in the Digital Audio Out menu will set SPDIF (Sony Philips

Digital InterFace) output to Dolby Digital.

If Auto is selected in the digital audio out menu when dolby digital is not available, SPDIF output will be

PCM (Pulse-code modulation).

Even if both Dolby Digital and Audio language have been set in a channel which broadcast Dolby Digital

Audio, only Dolby Digital will be played.

Auto

PCM

PCM ꔉ

Manufactured under license from

Dolby Laboratories. “Dolby “and

the double-D symbol are trade-

marks of Dolby Laboratories.

• There is a possibility that when HDMI mode,

some DVD players do not make SPDIF sound.

At that time, set the output of the digital audio

of the DVD player to PCM. (In HDMI, Dolby

Digital Plus is not supported).

Item Audio Input Digital Audio output

Auto (Speaker On)

MPEG

Dolby Digital

Dolby Digital Plus

HE-AAC

PCM

Dolby Digital

Dolby Digital

PCM

Auto (Speaker Off)

MPEG

Dolby Digital

Dolby Digital Plus

HE-AAC

PCM

Dolby Digital

Dolby Digital

Dolby Digital

PCM PCM PCM

88

SOUND CONTROL

SOUND CONTROL

1

2

3

4

MENU

Select TV Speaker.

Select On or Off.

Select AUDIO.

• Press the MENU or EXIT button to close the menu window.

• Press the BACK button to move to the previous menu screen.

TV SPEAKERS ON / OFF SETUP

Move Move

OK OK

AUDIO AUDIO

▲

Sound Mode : Music

• Surround X : Off

• Treble 50

• Bass 50

• Reset

Digital Audio Out : PCM

TV Speaker : On

DTV Audio Setting : Auto

▲

Sound Mode : Music

• Surround X : Off

• Treble 50

• Bass 50

• Reset

Digital Audio Out : PCM

TV Speaker : On

DTV Audio Setting : Auto

TV Speaker : On ꔉ TV Speaker : On ꔉ

➩

You can adjust the TV internal speaker status.

In AV, COMPONENT, RGB and HDMI with HDMI to DVI cable, the TV speaker can be operational even

when there is no video signal.

If you wish to use an external Hi-Fi system, turn off the TV’s internal speakers.

Off

On

On ꔉ

NOTE

►When the TV speaker is turned off while the Simplink home theater is operating, the sound output auto-

matically switches to the Home theater speaker, but when the TV speaker is turned on, the sound output

the TV speaker.

►Some menus in AUDIO are disabled when TV Speaker is set to Off.

!

89

SOUND CONTROL

1

2

3

4

MENU

Select DTV Audio Setting.

Select Auto, HE-AAC, Dolby Digital or MPEG.

Select AUDIO.

• Press the MENU or EXIT button to close the menu window.

• Press the BACK button to move to the previous menu screen.

DTV AUDIO SETTING (IN DIGITAL MODE ONLY)

Move Move

OK OK

AUDIO AUDIO

▲

Sound Mode : Music

• Surround X : Off

• Treble 50

• Bass 50

• Reset

Digital Audio Out : PCM

TV Speaker : On

DTV Audio Setting : Auto

▲

Sound Mode : Music

• Surround X : Off

• Treble 50

• Bass 50

• Reset

Digital Audio Out : PCM

TV Speaker : On

DTV Audio Setting : Auto

DTV Audio Setting : Auto ꔉ DTV Audio Setting : Auto ꔉ

➩

When different audio types exist in an input signal, this function allows you to select the audio type you want.

Auto

HE-AAC

Dolby Digital

MPEG

Auto ꔉ

• Auto: Automatically outputs in the order HE - AAC ► Dolby Digital ► MPEG.

• HE - AAC, Dolby Digital, MPEG: Allows users to select the audio type they want.

If MPEG is selected, MPEG is always outputted.

If MPEG is not supported, HE - AAC and Dolby Digital are selected in that order.

• Refer to p. 96 (Audio Language Selection)

90

SOUND CONTROL

SOUND CONTROL

I/II

Stereo/Dual Reception (In Analogue Mode Only)

When a programme is selected, the sound information for the station appears with the programme num-

ber and station name.

■Mono sound selection

If the stereo signal is weak in stereo reception, you can switch to mono. In mono reception, the clarity

of sound is improved.

■Language selection for dual language broadcast

If a programme can be received in two languages (dual language), you can switch to DUAL I, DUAL II or

DUAL I + II.

DUAL I Sends the primary broadcast language to the loudspeakers.

DUAL I I Sends the secondary broadcast language to the loudspeakers.

DUAL I+I I Sends a separate language to each loudspeaker.

1

2

Select Audio.

Select the sound output.

Broadcast On Screen Display

Mono

Stereo

Dual

MONO

STEREO

DUAL I , DUAL II , DUAL I + II

91

SOUND CONTROL

NICAM Reception (In Analogue Mode Only)

Speaker Sound Output Selection

If the TV is equipped with a receiver for NICAM reception, high quality NICAM (Near Instantaneous

Companding Audio Multiplex) digital sound can be received.

Sound output can be selected according to the type of broadcast received.

In AV, Component, RGB and HDMI mode, you can select output sound for the left and right loudspeakers.

Select the sound output.

L+R: Audio signal from audio L input is sent to the left loudspeaker and audio signal from audio R input

is sent to the right loudspeaker.

L+L: Audio signal from audio L input is sent to left and right loudspeakers.

R+R: Audio signal from audio R input is sent to left and right loudspeakers.

When NICAM mono is received, you can select NICAM MONO or MONO.

When NICAM stereo is received, you can select NICAM STEREO or MONO.

If the stereo signal is weak, switch to MONO.

When NICAM dual is received, you can select NICAM DUAL I, NICAM DUAL II or NICAM DUAL

I+II or MONO.

1

2

3

92

TIME SETTING

TIME SETTING

The clock is set automatically when receiving a digital signal. (You can set the clock manually only if the

TV has no DTV signal.)

You must set the time correctly before using on/off timer function.

When you select a Time Zone city, the TV time is set by the time offset information based on Time Zone

and GMT (Greenwich Mean Time) which is received with the broadcast signal and the time is set auto-

matically by a digital signal.

Once Clock is set in DTV mode, you cannot change time, but if the city name in Time Zone is changed

into offset, you can change time by 1 hour.

CLOCK SETUP

TIME TIME

Move MoveOK OK

Clock

Off Time : Off

On Time : Off

Sleep Timer : Off

Clock

Off Time : Off

On Time : Off

Sleep Timer : Off

Clock ꔉ Clock ꔉ

➩

2010

Mar

09

GMT

01

16

London

Date

Month

Year

Hour

Minute

Time Zone

Close

1

2

3

4

MENU

Select Clock.

Select either the year, month, date, time or Time Zone option.

Set the year, month, date, time or Time Zone option.

Select TIME.

• Press the MENU or EXIT button to close the menu window.

• Press the BACK button to move to the previous menu screen.

93

TIME SETTING

The Off time function automatically switches the TV to standby at a preset time.

Two hours after the TV is switched on by the on time function it will automatically switch back to standby

mode unless a button has been pressed.

The Off time function overrides the On time function if both are set to the same time.

The TV must be in standby mode for the On time to work.

AUTO ON/OFF TIME SETTING

TIME TIME

Move MoveOK OK

Clock

Off Time : Off

On Time : Off

Sleep Timer : Off

Clock

Off Time : Off

On Time : Off

Sleep Timer : Off

On Time : Off ꔉ On Time : Off ꔉ

➩

00

00

TV1

ꔐ 18 Jun. 2010 12:00

◄ Off ►

Antenna

30

Repeat

Hour

Minute

Input

Programme

Volume

Close

1

1

2

3

4

2

3

4

5

6

MENU

Select Off Time or On Time.

Select Repeat.

Select Off, Once, Daily, Mon ~ Fri,

Mon ~ Sat, Sat ~ Sun or Sun.

Set the hour.

Set the minutes.

Select TIME.

Select Input.

Select the input source.

Set the programme.

Adjust volume level at

switch-on.

• Press the MENU or EXIT button to close the menu window.

• Press the BACK button to move to the previous menu screen.

• To cancel On/Off Time function, select Off.

• For On Time function only

94

TIME SETTING

TIME SETTING

You do not have to remember to switch the TV off before you go to sleep.

The sleep timer automatically switches the TV to standby after the preset time has elapsed.

SLEEP TIMER SETTING

• When you switch the TV off, the preset sleep timer is cancelled.

• You can also adjust Sleep Timer in the TIME menu.

1

2

Select Sleep Timer.

Select Off, 10, 20, 30, 60, 90, 120, 180 or 240 min.

95

OPTION SETTIN

• When France is selected for Country,

password is not '0' , '0' , '0' , '0' but '1' , '2'

, '3' , '4' .

OPTION SETTING

The installation guide menu appears on the TV screen when it is switched on for the first time.

• If you want to change Language/ Country selection

ON-SCREEN MENU LANGUAGE / COUNTRY SELECTION

1

2

Select your country.

Select your desired language.

1

2

3

4

MENU

Select Menu Language or Country.

Select your desired language or country.

Save.

Select OPTION.

• Press the MENU or EXIT button to close the menu window.

• Press the BACK button to move to the previous menu screen.

NOTE

►If you do not finish the set-up Installation Guide by pressing RETURN or if you time out on the OSD (On

Screen Display) the installation menu will continuously appear until the set up is completed whenever the

TV is switched on.

►If you select the wrong local country, teletext may not appear correctly on the screen and some problems

may occur during teletext operation.

►The CI (Common Interface) function may not be applied based on country broadcasting circumstances.

►DTV mode control buttons may not function based on country broadcasting circumstances.

►In country that Digital broadcasting regulation isn’t fixed, some DTV function may not work depending on

digital broadcasting circumstances.

►The Country Setting "UK" should only be activated in UK.

►If the country setting is set to "--", European terrestrial/cable digital standard broadcasting programmes

are available, but some DTV functions may not work properly.

!

96

OPTION SETTING

OPTION SETTIN

The Audio function allows selection of a preferred language.

If audio data in a selected language is not broadcast, the default language audio will be played.

Use the Subtitle function when two or more subtitle languages are broadcast. If subtitle data in a select-

ed language is not broadcast, the default language subtitle will be displayed.

When the languages you selected as the primary for Audio Language and Subtitle Language are not

supported, you can select language in secondary category.

< Audio Language Selection >

►When two or more audio languages are broad-

cast, you can select the audio language.

< Subtitle Language Selection >

►When two or more subtitle languages are broad-

cast, you can select the subtitle language with

the SUBTITLE button on the remote control.

►Press the ꕌꕍ button to select a subtitle lan-

guage.

• The audio/subtitles can be displayed in a simpler form with 1 to 3 characters broadcast by the service

provider.

• When you select supplementary Audio (Audio for “Visual/Hearing Impaired”) the TV may output a part

of the Main audio.

LANGUAGE SELECTION (IN DIGITAL MODE ONLY)

• Press the BACK button to move to the previous menu screen.

1 1

2 2

3 3

4

4

MENU MENU

Select Audio Language or

Subtitle Language.

Select Hard of Hearing(ꔞ).

Select your desired language.

Select On or Off.

Save.

Select OPTION. Select OPTION.

Select Disabled Assistance.

1

2

3

Select Audio.

Select an audio language.

Select L+R, L+L or R+R.

Display Status

N.A Not Available

꘏MPEG Audio

ꕂDolby Digital Audio

ꔔAudio for “Visual Impaired”

ꔬAudio for “Hearing Impaired”

ꔩDolby Digital Plus Audio

ꔰAAC Audio

Display Status

N.A Not Available

ꔇTeletext Subtitle

ꔬSubtitle for “Hard of Hearing”

Audio Language OSD Information

Subtitle Language OSD Information

97

OPTION SETTIN

This function is for the blind, and provides explanatory audio describing the current situation in a TV

programme in addition to the basic audio.

When Audio Description On is selected, basic audio and Audio Description are provided only for those

programmes that have Audio Description included.

Adjustment for Audio Description Volume With selecting On

AUDIO DESCRIPTION (IN DIGITAL MODE ONLY)

1

2

5

3

4

6

MENU

Select On or Off.

Make desired adjustment.

Select OPTION.

Select Disabled Assistance.

Select Volume.

Select Audio Description.

OPTION OPTION

Menu Language : English

Audio Language : English

Subtitle Language : English

Disabled Assistance

Data Service : MHEG

Country : Ireland

Input Label

Set ID : 1

▼

Menu Language : English

Audio Language : English

Subtitle Language : English

Disabled Assistance

Data Service : MHEG

Country : Ireland

Input Label

Set ID : 1

▼

Move MoveOK OK

Disabled Assistance ꔉ Disabled Assistance ꔉ

➩

◄ Off ►

Antenna

Hard of Hearing(

ꔞ

)

Audio Description

● Volume 0

Close

• Press the MENU or EXIT button to close the menu window.

• Press the BACK button to move to the previous menu screen.

98

OPTION SETTING

OPTION SETTIN

(This menu is enabled only in Ireland. )

This function allow users to choose between MHEG (Digital Teletext) and Teletext if both exist at the

same time.

If only one of them exists, either MHEG or Teletext is enabled regardless of which option you selected.

DATA SERVICE

OPTION OPTION

Menu Language : English

Audio Language : English

Subtitle Language : English

Disabled Assistance

Data Service : MHEG

Country : Ireland

Input Label

Set ID : 1

▼

Menu Language : English

Audio Language : English

Subtitle Language : English

Disabled Assistance

Data Service : MHEG

Country : Ireland

Input Label

Set ID : 1

▼

Move MoveOK OK

Data Service : MHEG ꔉ Data Service : MHEG ꔉ

➩

MHEG

Teletext

MHEG ꔉ

1

2

3

4

MENU

Select Data Service.

Select MHEG or Teletext.

Save.

Select OPTION.

• Press the MENU or EXIT button to close the menu window.

• Press the BACK button to move to the previous menu screen.

99

OPTION SETTIN

Selects a label for each input source.

If you want to use HDMI-PC mode, you must set the input label to PC mode.

(Refer to the below figure)

INPUT LABEL

1

2

3

4

MENU

Select Input Label.

Select the source.

Select the label.

Select OPTION.

OPTION OPTION

OPTION

Menu Language : English

Audio Language : English

Subtitle Language : English

Disabled Assistance

Country : Ireland

Input Label

Set ID : 1

Power Indicator : On

▼

Menu Language : English

Audio Language : English

Subtitle Language : English

Disabled Assistance

Country : Ireland

Input Label

Set ID : 1

Power Indicator : On

▼

Menu Language : English

Audio Language : English

Subtitle Language : English

Disabled Assistance

Country : Ireland

Input Label

Set ID : 1

Power Indicator : On

▼

Move Move

Move

OK OK

OK

Input Label ꔉ Input Label ꔉ

Input Label ꔉ

➩

◄ ►

AV

Component

RGB

HDMI

Close

◄ PC ►

AV

Component

RGB

HDMI

Close

• Press the MENU or EXIT button to close the menu window.

• Press the BACK button to move to the previous menu screen.

100

OPTION SETTING

OPTION SETTIN

Select the power indicator on of off.

Power indicator On

- Normal Mode: Blue LED On.

- Off Mode: LED Off

Power indicator Off

- Normal Mode: Blue LED Off.

- Off Mode: LED Off

POWER INDICATOR

1

2

3

4

MENU

Select Power Indicator.

Select On or Off.

Select OPTION.

OPTION OPTION

▲

Disabled Assistance

Country : - -

Input Label

Set ID : 1

Power Indicator : On

Demo Mode : Off

Mode Setting : Home Use

Factory Reset

▲

Disabled Assistance

Country : - -

Input Label

Set ID : 1

Power Indicator : On

Demo Mode : Off

Mode Setting : Home Use

Factory Reset

Move MoveOK OK

Power Indicator : On ꔉ Power Indicator : On ꔉ

➩

• Press the MENU or EXIT button to close the menu window.

• Press the BACK button to move to the previous menu screen.

Off

On

On ꔉ

101

OPTION SETTIN

Display the slide show to explain the various logo of this TV.

It is not possible to use Demo Mode in Home Use mode.

In Store Demo, Demo Mode is automatically set to On.

Once Demo Mode is set to Off in Store Demo, Demo Mode does not run and only the screen is reset.

The screen is reset automatically after 5 minutes in Demo Mode.

DEMO MODE

1

2

3

4

MENU

Select Demo Mode.

Select On to show the various logo of TV.

Return to TV viewing.

If you want to stop the demo, press any button. (Except for MUTE, + , - button)

Select OPTION.

OPTION OPTION

▲

Disabled Assistance

Country : - -

Input Label

Set ID : 1

Power Indicator : On

Demo Mode : Off

Mode Setting : Home Use

Factory Reset

▲

Disabled Assistance

Country : - -

Input Label

Set ID : 1

Power Indicator : On

Demo Mode : Off

Mode Setting : Home Use

Factory Reset

Move MoveOK OK

Demo Mode : Off ꔉ Demo Mode : Off ꔉ

➩

• Press the MENU or EXIT button to close the menu window.

• Press the BACK button to move to the previous menu screen.

Off

On

Off ꔉ

102

OPTION SETTING

OPTION SETTIN

We recommend setting the TV to “Home Use” mode for the best picture in your home environment.

“Store Demo” mode is an optimal setting for displaying at stores..

MODE SETTING

1

2

3

4

MENU

Select Mode Setting.

Select Store Demo or Home Use.

Save.

Select OPTION.

OPTION OPTION

▲

Disabled Assistance

Country : - -

Input Label

Set ID : 1

Power Indicator : On

Demo Mode : Off

Mode Setting : Home Use

Factory Reset

▲

Disabled Assistance

Country : - -

Input Label

Set ID : 1

Power Indicator : On

Demo Mode : Off

Mode Setting : Home Use

Factory Reset

Move MoveOK OK

Mode Setting : Home Use ꔉ Mode Setting : Home Use ꔉ

➩

• Press the MENU or EXIT button to close the menu window.

• Press the BACK button to move to the previous menu screen.

Home Use

Store Demo

Selecting the environment.

Choose the setting mode you want.

Select [Home Use] to use this TV at home.

To use this TV at store, select [Store Demo].

103

OPTION SETTIN

This function initializes all settings.

But the settings of ꕋ Day and ꕋ Night of the Picture Mode cannot be initialized.

It is useful to initialize the product or when you move to other city or country.

When the Factory Reset is completed, you must restart the Initializing setup.

When the Lock System menu is "On", the message to enter the password appears.

INITIALIZING(RESET TO ORIGINAL FACTORY SETTINGS)

1

2

3

4

MENU

Select Factory Reset.

Select Yes.

Start Factory Reset.

Select OPTION.

OPTION OPTION

▲

Disabled Assistance

Country : - -

Input Label

Set ID : 1

Power Indicator : On

Demo Mode : Off

Mode Setting : Home Use

Factory Reset

▲

Disabled Assistance

Country : - -

Input Label

Set ID : 1

Power Indicator : On

Demo Mode : Off

Mode Setting : Home Use

Factory Reset

Move MoveOK OK

Factory Reset ꔉ Factory Reset ꔉ

➩

• Press the MENU or EXIT button to close the menu window.

• Press the BACK button to move to the previous menu screen.

No

Yes

All user settings and channel

settings will be reset. Still

Continue?

• In Lock System "On", if you forget your pass-

word, press '0', '3', '2', '5' on the remote control

handset.

104

PARENTAL CONTROL / RATINGS

PARENTAL CONTROL / RATINGS

Enter the password, press ‘0’, ‘0’, ‘0’, ‘0’ on the remote control handset.

When France is selected for Country, password is not ‘0’, ‘0’, ‘0’, ‘0’ but ‘1’,’2’,’3’,’4’.

When France is selected for Country, password cannot be set as ‘0’, ‘0’, ‘0’, ‘0’.

If a channel is locked, enter the password to unlock it temporarily.

SET PASSWORD & LOCK SYSTEM

LOCK LOCK

Move MoveOK OK

Set Password

Lock System : Off

• Block Programme

• Parental Guidance

• Input Block

Key Lock : Off

Set Password

Lock System : Off

• Block Programme

• Parental Guidance

• Input Block

Key Lock : Off

Lock System : Off ꔉ Lock System : Off ꔉ

➩

Off

On

Off ꔉ

1

2

3

4

5

MENU

Select Lock System.

Select On.

Set the password.

Input a 4-digit password.

Be sure to remember this number!

Re-enter new password for confirm.

Select LOCK.

• Press the MENU or EXIT button to close the menu window.

• Press the BACK button to move to the previous menu screen.

• If you forget your password, press ‘0’, ‘3’, ‘2’, ‘5’ on

the remote control handset.

105

PARENTAL CONTROL / RATINGS

RADIO

Blocks any programmes that you do not want to watch or that you do not want your children to watch.

This function is available in Lock System “On”.

Enter a password to watch a blocked programme.

BLOCK PROGRAMME

LOCK Move OK

Set Password

Lock System : ON

• Block Programme

• Parental Guidance

• Input Block

Key Lock : Off

• Block Programme ꔉ

➩

1

2

3

4

MENU

Select Block Programme.

Select a programme to be locked.

Enter the Block Programme.

Select LOCK.

• Press the MENU or EXIT button to close the menu window.

• Press the BACK button to move to the previous menu screen.

1 YLE TV1

DTV TV

YLE TV11

Pr. Change Navigation

Block / Unblock

Page Change Previous

2 YLE TV2

24 TV4 Fakta

24 TV4 Fakta

24 TV4 Fakta

87 Doku/Kika

50 TV400

84 Kanal Lokal

86 Info/3sat

88 TVE 1

6 CNN 8 YLE24

4 TV4 Stockholm 5 YLE FST

9 YLE Teema 14 TV4 Film

GREEN

106

PARENTAL CONTROL / RATINGS

PARENTAL CONTROL / RATINGS

This function operates according to information from the broadcasting station. Therefore if the signal has

incorrect information, this function does not operate.

A password is required to gain access to this menu.

This set is programmed to remember which option it was last set to even if you switch the set off.

Prevents children from watching certain adult’s TV programmes, according to the ratings limit set.

Enter a password to watch a blocked programme.

PARENTAL CONTROL (IN DIGITAL MODE ONLY)

LOCK LOCK

Move MoveOK OK

Set Password

Lock System : ON

• Block Programme

• Parental Guidance

• Input Block

Key Lock : Off

Set Password

Lock System : ON

• Block Programme

• Parental Guidance

• Input Block

Key Lock : Off

• Parental Guidance ꔉ • Parental Guidance ꔉ

➩

1

2

3

4

MENU

Select Parental Guidance.

(Except for France)

(Only France)

Make appropriate adjustments.

Save

Select LOCK.

• Press the MENU or EXIT button to close the menu window.

• Press the BACK button to move to the previous menu screen.

Blocking Off ꔓ

10 and above

11 and above

12 and above

13 and above

14 and above

15 and above

16 and above

17 and above

18 and above

Blocking Off : Permits all

programmes

10 and above

11 and above

12 and above

13 and above

14 and above

15 and above

16 and above

17 and above

18 and above

Blocking Off : Permits all

programmes

18 and above ꔓ

107

PARENTAL CONTROL / RATINGS

Save

Enables you to block an input.

It is available to use this function in Lock System ”On”.

INPUT BLOCK

LOCK LOCK

Move MoveOK OK

Set Password

Lock System : ON

• Block Programme

• Parental Guidance

• Input Block

Key Lock : Off

Set Password

Lock System : ON

• Block Programme

• Parental Guidance

• Input Block

Key Lock : Off

• Input Block ꔉ • Input Block ꔉ

➩

1

2

3

4

5

MENU

Select Input Block.

Select input source.

Select On or Off.

Select LOCK.

• Press the MENU or EXIT button to close the menu window.

• Press the BACK button to move to the previous menu screen.

Off

Off

Off

◄ Off ►

AV

Component

RGB

HDMI

Close

108

PARENTAL CONTROL / RATINGS

PARENTAL CONTROL / RATINGS

LOCK LOCK

Move MoveOK OK

Set Password

Lock System : Off

• Block Programme

• Parental Guidance

• Input Block

Key Lock : Off

Set Password

Lock System : Off

• Block Programme

• Parental Guidance

• Input Block

Key Lock : Off

Key Lock : Off ꔉ Key Lock : Off ꔉ

➩

The TV can be set so that the remote control is required to control it. This feature can be used to prevent

unauthorized viewing.

KEY LOCK

1

2

3

4

MENU

Select Key Lock.

Select On or Off.

Select LOCK.

• Press the MENU or EXIT button to close the menu window.

• Press the BACK button to move to the previous menu screen.

Off

On

On ꔉ

• In Key Lock ‘On’, if the TV is turned off, press

the INPUT, P ꕌ ꕍ button on the TV or

POWER, INPUT, P ꕌ ꕍ, TV/PC or NUMBER

buttons on the remote control then the set will

be turned on.

• With the Key Lock On, the display ‘ Key Lock

On ’ appears on the screen if any button on the

front panel is pressed while viewing the TV.

Save

109

TO USE A USB DEVICE

TO USE A USB DEVICE

WHEN CONNECTING A USB DEVICE

When you connect a USB device, this pop up menu is displayed, automatically.

“POP UP MENU” will not be displayed while the OSD including Menu, EPG or Schedule list is activated

or while the Bluetooth Headset is connected.

When the Pop Up menu does not appear, you can select Music List, Photo List or Movie List in the

USB menu.

In USB device, you can not add a new folder or delete the existing folder.

Select the USB Device menu before removing

the USB device.

1

2

3

Select PHOTO LIST, MUSIC LIST or

MOVIE LIST

Connect the USB device to the USB IN jack

on the TV.

When removing the USB device

PHOTO LIST MUSIC LIST MOVIE LIST

• Only photo(JPEG), music (MP3) and movie (DAT,

MPG, MPEG, VOB, AVI, DIVX, MP4, MKV, TS,

TRP, TP) are supported.

1

2

Select USB Device.

Select Eject.

USB IN

110

TO USE A USB DEVICE

TO USE A USB DEVICE

Precautions when using the USB device

► Only a USB storage device is recognizable.

► If the USB storage device is connected through a USB hub, the device is not recognizable.

► A USB storage device using an automatic recognition programme may not be recognized.

► A USB storage device which uses its own driver may not be recognized.

► The recognition speed of a USB storage device may depend on each device.

► Please do not turn off the TV or unplug the USB device when the connected USB storage device is working. When

such device is suddenly separated or unplugged, the stored files or the USB storage device may be damaged.

► Please do not connect the USB storage device which was artificially maneuvered on the PC. The device may cause

the product to malfunction or fail to be played. Never forget to use only a USB storage device which has normal

music files, image files or movie files.

► Please use only a USB storage device which was formatted as a FAT, FAT16, FAT32, NTFS file system provided

with the windows operating system. In case of a storage device formatted as a different utility programme which is

not supported by Windows, it may not be recognized.

► If the file system of a USB storage is not FAT systems, the HD movies are abnormally played sometime.

► Please connect power to a USB storage device(over 0.5 A) which requires an external power supply. If not, the

device may not be recognized.

► Please connect a USB storage device with the cable offered by the device maker.

► Some USB storage devices may not be supported or operated smoothly.

► File alignment method of USB storage device is similar to Window XP and filename can recognize up to 100 English

characters.

► Be sure to back up important files since data stored in a USB memory device may be damaged. We will not be

responsible for any data loss.

► If the USB HDD does not have an external power source, the USB device may not be detected. So be sure to

connect the external power source.

- Please use a power adaptor for an external power source. We do not guarantee an USB cable for an external

power source.

► Data in a USB storage device cannot be deleted in the NTFS file system.

► If your USB memory device has multiple partitions, or if you use a USB multi-card reader, you can use up to 4

partitions or USB memory devices.

► Only the FAT, FAT16, FAT32 file system supports the delete function.

► If a USB memory device is connected to a USB multi-card reader, its volume data may not be detected.

► If the USB memory device does not work properly, disconnect and reconnect it.

► How fast a USB memory device is detected differs from device to device.

► If the USB is connected in Standby Mode, specific hard disk will automatically be loaded when the TV is turned on.

► The recommended capacity is 1 TB or less for a USB external hard disk and 32 GB or less for USB memory.

► Any device with more than the recommended capacity may not work properly.

► If a USB external hard disk with a "Energy Saving" function does not work, turn the hard disk off and on again to

make it work properly.

► USB storage devices below USB 2.0 are supported as well. But they may not work properly in the movie list.

► When a broken file is played in the USB storage, the TV may turn off or work abnormally.

111

TO USE A USB DEVICE

You can view photo files on USB storage device.

The On Screen Display may be different from your TV. Images are an example to assist with the TV operation.

When you are watching the photo by the Photo List function, you can not change the picture mode.

Moves to upper level folder.

Current page / Total pages.

Total number of marked photos.

Corresponding buttons on the

remote control.

PHOTO LIST

Screen Components

PHOTO(*.JPEG) supporting file

Baseline : 64 x 64 to 15360 x 8640

Progressive : 64 x 64 to 1920 x 1440

• You can play JPEG files only.

• Non-supported files are displayed in the form of predefined icon.

12

MENU

Select Photo List.

Select USB.

1

2

3

4

1

4

2 3

Photo List

Page 2/3

Drive1

SGKIM001

1366x768, 125KB

Up Folder

Up Folder

SG101 02/12/2010

SG102 02/12/2010

SGKIM001 02/12/2010

SGKIM002 02/12/2010

SGKIM003 02/12/2010

SGKIM004 02/12/2010

SG103 02/12/2010

SG104 02/12/2010

SG105 02/12/2010

SGKIM005 02/12/2010

SGKIM006 02/12/2010

SGKIM007 02/12/2010

SGKIM008 02/12/2010

No Marked

Popup MenuNavigation MarkPage Change Exit

MARK

112

TO USE A USB DEVICE

TO USE A USB DEVICE

Photo List Page 2/3

Drive1

SGKIM001

1366x768, 125KB

Up Folder

Up Folder

SG101 02/12/2010

SG102 02/12/2010

SGKIM001 02/12/2010

SGKIM002 02/12/2010

SGKIM003 02/12/2010

SGKIM004 02/12/2010

SG103 02/12/2010

SG104 02/12/2010

SG105 02/12/2010

SGKIM005 02/12/2010

SGKIM006 02/12/2010

SGKIM007 02/12/2010

SGKIM008 02/12/2010

No Marked

Popup MenuNavigation MarkPage Change Exit

MARK

Photo List Page 2/3

Drive1

SGKIM001

1366x768, 125KB

Up Folder

Up Folder

SG101 02/12/2010

SG102 02/12/2010

SGKIM001 02/12/2010

SGKIM002 02/12/2010

SGKIM003 02/12/2010

SGKIM004 02/12/2010

SG103 02/12/2010

SG104 02/12/2010

SG105 02/12/2010

SGKIM005 02/12/2010

SGKIM006 02/12/2010

SGKIM007 02/12/2010

SGKIM008 02/12/2010

No Marked

Popup MenuNavigation MarkPage Change Exit

MARK

►View: Display the selected item.

►Mark All: Mark all photos on the screen.

►Unmark All: Deselect all marked photos.

►Delete or Delete Marked: Delete the selected

photo item.

►Close: Close the PopUp menu.

Photo Selection and PopUp Menu

➩

1366x768, 125KB

View ꔉ

Mark All

Delete

Close

1

2

3

4

Select the desired photos.

Show the PopUp menu.

Select the desired PopUp menu.

Select the target folder or drive.

• Press the BACK button to move to the previous menu screen.

• Use the P ꕌꕍ button to navigation in the

photo page.

• Use the MARK button to mark or unmark a

photo. When one or more photos are marked,

you can view each marked photo or a slide

show of the marked photos. If no photos are

marked, you can view every individual photo

in the folder or a slide show of all photos in the

folder.

113

TO USE A USB DEVICE

How to view photo

➩

1

2

3

5

4

Select the desired photos.

Show the PopUp menu.

Select View.

The selected photo is displayed in full size.

Select the target folder or drive.

• Press the BACK button to move to the previous menu screen.

• Use the P ꕌꕍ button to navigation in the

photo page.

Detailed operations are available on full-sized photo view screen.

The aspect ratio of a photo may change the size of the photo

displayed on the screen in full size.

Press the BACK button to move to the previous menu screen.

◄ 1/17 ►

Slideshow ꘡BGM ꘡Delete Q.MENU Option Hide

꘤

Photo List Page 2/3

Drive1

SGKIM001

1366x768, 125KB

Up Folder

Up Folder

SG101 02/12/2010

SG102 02/12/2010

SGKIM001 02/12/2010

SGKIM002 02/12/2010

SGKIM003 02/12/2010

SGKIM004 02/12/2010

SG103 02/12/2010

SG104 02/12/2010

SG105 02/12/2010

SGKIM005 02/12/2010

SGKIM006 02/12/2010

SGKIM007 02/12/2010

SGKIM008 02/12/2010

No Marked

Popup MenuNavigation MarkPage Change Exit

MARK

Photo List Page 2/3

Drive1

SGKIM001

1366x768, 125KB

Up Folder

Up Folder

SG101 02/12/2010

SG102 02/12/2010

SGKIM001 02/12/2010

SGKIM002 02/12/2010

SGKIM003 02/12/2010

SGKIM004 02/12/2010

SG103 02/12/2010

SG104 02/12/2010

SG105 02/12/2010

SGKIM005 02/12/2010

SGKIM006 02/12/2010

SGKIM007 02/12/2010

SGKIM008 02/12/2010

No Marked

Popup MenuNavigation MarkPage Change Exit

MARK

➩

1366x768, 125KB

View ꔉ

Mark All

Delete

Close

114

TO USE A USB DEVICE

TO USE A USB DEVICE

6Select the Slideshow , BGM,

꘤(Rotate), Delete , Option or

Hide.

• Use < > button to select the previous or

next photo.

• Use < > button to select and control the

menu on the full-sized screen.

►Slideshow : When no picture is selected, all photos in the current folder

are displayed during slide show. If some photos are selected, those

photos are displayed in a slide show.

■ Set the time interval of the slide show in Option.

►BGM (Background Music): Listen to music while viewing photos in full

size.

■ Set the Music Folder for BGM in Options before using

this function.

► ꘤

(Rotate): Rotate photos.

■ Rotates the photo 90°, 180°, 270°, 360° clockwise.

■ It can not be rotate when the width of a picture is bigger

than supported height.

►Delete: Delete photos.

►Option: Set values for Slide Speed and Music Folder for BGM.

■ Use ꕌꕍ < > button and OK button to set values. Press

OK to save the settings.

■ You cannot change Music Folder while BGM is playing.

►Hide: Hide the menu on the full-sized screen.

■ To see the menu again on the full-sized screen, press OK

button to display.

◄ 1/17 ►

Slideshow ꘡BGM ꘡Delete Q.MENU Option Hide

꘤

115

TO USE A USB DEVICE

Using the Photo List function

◄ 1/17 ►

Slideshow ꘡BGM ꘡Delete Q.MENU Option Hide

꘤

Choose Options.

Set Photo View

Set Video.

Set Audio.

ꕉ Previous

Set Photo View.

Slide Speed

Music Folder

Repeat

Random

Fast◄ ►

On◄ ►

Off◄ ►

...

ꕉ Previous

1

1

2

2

Select Set Photo View, Set Video or Set Audio.

Make appropriate adjustments.

Show the PopUp menu.

Show the Slide Speed or Music Folder.

►When you select the Set Photo View,

• When “Off” is selected in Repeat menu,

replay will stop once the last file in the list

finishes playing. But, when “►►” button is

pressed while the last fine in the list is in

the middle of replay and “Repeat” is in

“Off” position, the first file in the list will be

played and “Repeat” menu will be activat-

ed.

116

TO USE A USB DEVICE

TO USE A USB DEVICE

Set Audio.

Sound Mode

• Auto Volume

• Clear Voice II

• Balance 0

Standrd◄ ►

Off◄ ►

Off◄ ►

ꕉ Previous

1

1

2

Make appropriate adjustments. (Refer to p. 81 to 85)

Show the Sound Mode, Auto Volume, Clear Voice II, Balance.

Make appropriate adjustments.(Refer to p. 70, 73, 74)

►When you select the Set Audio,

►When you select the Set Video,

Set Video.

Picture Mode

● Backlight 100

● Contrast 100

● Brightness 50

● Colour 50

● Dynamic Contrast

● Noise Reduction

● Picture Reset

Vivid◄ ►

Medium◄ ►

Medium◄ ►

ꕉ Previous

117

TO USE A USB DEVICE

Music List

Page 2/3

Music

SGKIM003

00:00/01:34

Up Folder

Title Duration

Up Folder

SGKIM001

SGKIM002

SGKIM003

SGKIM004

SGKIM005

03:33

04:45

01:30

02:37

01:58

No Marked

You can play music files on USB storage device.

Purchased music files(*.MP3) may contain copyright restrictions. Playback of these files may not be sup-

ported by this model.

Music file on your USB device can be played by this unit.

The On Screen Display may be different from your TV. Images are an example to assist with the TV

operation.

Preview: If any album jacket for

the file (Album Art Image) exists,

this jacket is displayed.

Moves to upper level folder.

Current page / Total pages.

Total number of marked music

title.

Corresponding buttons on the

remote control.

MUSIC LIST

Screen Components

MUSIC (*.MP3) supporting file

Bit rate 32 to 320

• Sampling rate MPEG1 Layer3: 32 kHz, 44.1 kHz, 48 kHz

• Sampling rate MPEG2 Layer3: 16 kHz, 22.05 kHz, 24 kHz

• Sampling rate MPEG2.5 Layer3: 8 kHz, 11.025 kHz, 12 kHz

12

MENU

Select Music List.

Select USB.

1

2

3

4

5

1

2

5

3 4

Popup MenuNavigation Mark OptionPage Change Exit

MARK Q.MENU

118

TO USE A USB DEVICE

TO USE A USB DEVICE

Music List Page 2/3

Music

SGKIM003

00:00/01:34

Up Folder

Title Duration

Up Folder

SGKIM001

SGKIM002

SGKIM003

SGKIM004

SGKIM005

03:33

04:45

01:30

02:37

01:58

No Marked

Popup MenuNavigation MarkPage Change Exit

MARK

Music List Page 2/3

Music

SGKIM003

00:00/01:34

Up Folder

Title Duration

Up Folder

SGKIM001

SGKIM002

SGKIM003

SGKIM004

SGKIM005

03:33

04:45

01:30

02:37

01:58

No Marked

Music Selection and PopUp Menu

➩

➩

4395KB 1Kbps

Play ꔉ

Play with Photo

Mark All

Delete

Close

1

2

3

4

Select the desired photos.

Show the PopUp menu.

Select the desired PopUp menu.

Select the target folder or drive.

• Press the BACK button to move to the previous menu screen.

• Use the P ꕌꕍ button to navigate up/down in

the music page.

• Use MARK button to mark or unmark a

music. When one or more music files are

marked, the marked music title will be played

in sequence. For example, if you want to lis-

ten to only one music repeatedly, just mark

the music only and play it. If no music is

marked, all the music in the folder will be

played in sequence.

As shown, up to 6 music titles are listed per page.

►Play (During stop): Play the selected music titles.

One playback of a piece of music finishes, the

next selected one will be played. When there

are no selected music titles to play, the next

one in the current folder will be played. If you

go to a different folder and press the OK but-

ton, the current music in playback will stop.

►Play Marked: Play the selected music titles. Once a

music finishes playing, the next selected one will be

played automatically.

►Stop Play (During playback): Stop the playing music

titles.

►Play with Photo: Start playing the selected music titles

and then move to the Photo List.

►Mark All: Mark all music titles in the folder.

►Unmark All: Deselect all marked music titles.

►Delete or Delete Marked: Delete the selected music

titles.

►Close: Close the PopUp menu.

Option

Q.MENU

Popup MenuNavigation MarkPage Change Exit

MARK Option

Q.MENU

119

TO USE A USB DEVICE

■ If you don't press any button for a while during the playing, the play

information box (as shown in the below) will float as a screen saver.

■ The ‘Screen Saver’?

Screen saver is to prevent screen pixel damage due to an fixed image

remaining on the screen for a extended period of time.

NOTE

►When a music file is played, ♪ is displayed behind the title.

►A damaged or corrupted music does not play but displays 00:00 in play time.

►A music downloaded from a paid service with copyright protection does not start but displays inappropriate

information in playtime.

►If you press OK, ꔠ buttons, screen saver is stopped.

►The PLAY(►), Pause(II), ꔠ, ►►, ◄◄ buttons on the remote control are also available in this mode.

►You can use the ►► button to select the next music and the ◄◄ button to select the previous music.

!

Music

S003

► 0:27 / 3:67

Q.MENU Option

Using the Music List function, play

1

2

Select Set Audio Play or Set Audio.

Show the PopUp menu.

Music List Page 2/3

Music

SG003

00:00/01:34

Up Folder

Title Duration

Up Folder

S001

S002

S003

S004

S005

03:33

04:45

01:30

02:37

01:58

No Marked

Choose Options.

Set Audio Play.

Set Audio.

ꕉ Previous

Popup MenuNavigation MarkPage Change Exit

MARK Option

Q.MENU

120

TO USE A USB DEVICE

TO USE A USB DEVICE

Set Audio Play.

Repeat

Random

◄ On ►

Off

ꕉ Previous

►When you select the Set Audio Play,

1

2

Make appropriate adjustments.

Show the Set Audio Play. • When “Off” is selected in Repeat menu,

replay will stop once the last file in the list

finishes playing. But, when “►►” button is

pressed while the last fine in the list is in the

middle of replay and “Repeat” is in “Off”

position, the first file in the list will be played

and “Repeat” menu will be activated.

Set Audio.

Sound Mode

• Auto Volume

• Clear Voice II

• Balance 0

Standard◄ ►

Off◄ ►

Off◄ ►

ꕉ Previous

1

2

Make appropriate adjustments. (Refer to p. 81 to 85)

Show the Sound Mode, Auto Volume, Clear Voice II, Balance.

►When you select the Set Audio,

121

TO USE A USB DEVICE

You can play movie files on a USB storage device.

The movie list is activated once USB is detected. It is used when playing movie files on TV.

Displays the movies in the USB folder and supports Play.

Allows playback of all movies in the folder and user desired files.

It is a movie list that displays folder information and movie file.

The On Screen Display may be different from your TV. Images are an example to assist with the TV

operation.

Movie(*.dat / *.mpg / *.mpeg / *.ts / *.trp / *.tp / *.vob/ *.mp4 / *.mkv / *.avi / *.divx) supporting file

Video format :DivX3.11, DivX4.12, DivX5.x, DivX6, Xvid1.00, Xvid1.01, Xvid1.02, Xvid1.03, Xvid 1.10- beta-

1/beta-2, Mpeg-1, Mpeg-2, Mpeg-4, H.264/AVC

Audio format: Dolby Digital, AAC, Mpeg, MP3, LPCM, HE-AAC

Bit rate: within 32 kbps to 320 kbps (MP3)

Subtitle format: *.smi / *.srt / *.sub (MicroDVD, SubViewer1.0/2.0) / *.ass / *.ssa / *.txt (TMPlayer) / *.psb

(PowerDivx).

• Some user-created subtitles may not work properly.

• Some special characters are not supported in subtitles.

• HTML tags are not supported in subtitles.

• Subtitles in languages other than the supported languages are not available.

• Time information in an external subtitle file should be arranged in ascending order to be played.

• The screen may suffer temporary interruptions (image stoppage, faster playback, etc.) when the audio

language is changed.

• A damaged movie file may not be played correctly, or some player functions may not be usable.

• Movie files produced with some encoders may not be played correctly.

• If the video and audio structure of recorded file is not interleaved, either video or audio is outputted.

• HD videos with a maximum of 1920 x 1080 @ 25/30P or 1280 x 720 @ 50 / 60P are supported, depend-

ing on the frame.

• Videos with resolutions higher than 1920 x 1080 @ 25 / 30P or 1280 x 720 @ 50 / 60P may not work

properly depending on the frame.

• Movie files other than the specified types and formats may not work properly.

• Max bitrate of playable movie file is 20 Mbps.

• We do not guarantee smooth playback of profiles encoded level 4.1 or higher in H.264 / AVC.

• DTS Audio codec is not supported.

• A movie file more than 30GB in file size is not supported for playback.

• A DivX movie file and its subtitle file must be located in the same folder.

• A video file name and its subtitle file name must be identical for it to be displayed.

• Playing a video via a USB connection that doesn’t support high speed may not work properly..

• Files encoded with GMC (Global Motion Compensation) may not be played.

• When you are watching the movie by Movie List function, you can adjust an image by Energy Saving key

on the remote control. User setup for each image mode does not operate.

MOVIE LIST

122

TO USE A USB DEVICE

TO USE A USB DEVICE

Page 2/3

Movie

SGKIM002

640x480, 720KB

Up Folder

Title Duration

Up Folder

Favorite Music

SGKIM001

SGKM002

SGKIM001

SGKIM001

01:34:15

01:35:30

01:30:20

No Marked

Movie List

Popup MenuNavigation MarkPage Change Exit

MARK

File

Extension name Video Decoder Audio Codec Max

Resolution

mpeg, vob MPEG1, MPEG2 Dolby Digital, MPEG, MP3, LPCM

1920 x 1080 @ 30p

dat MPEG1 Dolby Digital, MPEG, MP3, LPCM

ts,trp,tp MPEG2, H.264 / AVC Dolby Digital, AAC, MPEG

mp4

MPEG4 SP, MPEG4 ASP, Divx 3.11, Dvix 4.12,

Dvix 5.x, Dvix 6, Xvid 1.00, Xvid 1.01, Xvid

1.02, Xvid 1.03, Xvid 1.10–beta 1, Xvid 1.10-

beta 2, H.264/AVC

Dolby Digital, HE-AAC,

AAC, MPEG, MP3, LPCM

avi

MPEG 2, MPEG 4 SP, MPEG4 ASP, Divx 3.11, Divx 4,

Divx 5, Divx 6, Xvid 1.00, Xvid 1.01, Xvid 1.02, Xvid

1.03, Xvid 1.10–beta 1, Xvid 1.10–beta 2, H.264/AVC

Dolby Digital, HE-AAC,

AAC, MPEG, MP3, LPCM

mkv H.264 / AVC, MPEG 1, MPEG 2, MPEG 4 SP , MPEG4

ASP Dolby Digital, HE-AAC, AAC,

MPEG, MP3, LPCM

divx

MPEG 2, MPEG 4 SP, MPEG4 ASP, Divx 3.11, Divx 4,

Divx 5, Divx 6, Xvid 1.00, Xvid 1.01, Xvid 1.02, Xvid

1.03, Xvid 1.10–beta 1, Xvid 1.10–beta 2, H.264 / AVC

Dolby Digital,HE-AAC,AAC,MPEG,

MP3,LPCM

Moves to upper level folder.

Current page/Total pages.

Total number of marked movie

title.

Corresponding buttons on the

remote control.

Screen Components

12

MENU

Select Movie List.

Select USB.

1

2

3

4

1

4

2 3

123

TO USE A USB DEVICE

Page 2/3

Movie

SGKIM002

640x480, 720KB

Up Folder

Title Duration

Up Folder

Favorite Music

SGKIM001

SGKM002

SGKIM001

SGKIM001

01:34:15

01:35:30

01:30:20

No Marked

Movie List

Popup MenuNavigation MarkPage Change Exit

MARK

Page 2/3

Movie

SGKIM002

640x480, 720KB

Up Folder

Title Duration

Up Folder

Favorite Music

SGKIM001

SGKM002

SGKIM001

SGKIM001

01:34:15

01:35:30

01:30:20

No Marked

Movie List

Popup MenuNavigation MarkPage Change Exit

MARK

Movie Selection and PopUp Menu

➩

1366x768, 125KB

Play ꔉ

Mark All

Delete

Close

1

2

3

4

Select the desired movie title

Show the PopUp menu.

Select the desired PopUp menu.

Select the target folder or drive.

• Press the BACK button to move to the previous menu screen.

• Use the P ꕌꕍ button to navigation in the

movie page.

• Use MARK button to mark or unmark a

movie. When one or more movie files are

marked, the marked movies will be played in

sequence.

►Play: Play the selected movie. Divx Play is executed while

screen changes.

►Mark All: Mark all Movie in the folder.

►Unmark All: Deselect all marked movies.

►Delete or Delete Marked: Delete the selected Movie item.

►Close: Close the PopUp menu.

NOTE

►In the case of files not supported, a message regarding non-supported file is displayed.

!

124

TO USE A USB DEVICE

TO USE A USB DEVICE

Using the Movie List function, play

Q.MENU Option

Choose Options.

Set Video Play.

Set Video.

Set Audio.

ꕉ Previous

1

2

Select Set Video Play, Set Video or Set Audio.

Show the PopUp menu.

125

TO USE A USB DEVICE

►Picture Size: Selects your desired picture format during

movie play.

►Audio Language & Subtitle Language: Changes the

Language Group of the audio/subtitle during movie play.

►Sync: Adjusts the time synchronisation of the subtitle

from -10 secs to +10 secs by steps of 0.5 secs during

movie play.

►Position: Changes the position of the subtitle either

up or down during movie play.

►Size: Selects your desired Subtitle size during movie

play.

ꕉ Previous

1

2

Make appropriate adjustments.

Show the Picture Size, Audio Language or Subtitle Language.

►When you select the Set Video Play,

Picture Size

Audio Language

Subtitle Language

. Sync

. Position

. Size

◄ Full ►

1

Off

0

0

Normal

ꕉ Previous

NOTE

►Only the files saved in ASCII CODE is supported for the external subtitles of the movie.

►Only 500 alphabets and 500 numbers are supported for each line of the subtitle.

►Only 10,000 of sync blocks can be supported within the subtitle file.

Subtitle Language Support Language

Latin1

English, Spanish, French, German, Italian, Swedish, Finnish, Dutch,

Portuguese, Danish, Romanian, Norwegian, Albanian, Gaelic, Welsh,

Irish, Catalan, Valencian

Latin2 Bosnian, Polish, Croatian, Czech, Slovak, Slovenian, Serbian, Hungarian

Latin4 Estonian, Latvian, Lithuanian

Cyrillic Bulgarian, Macedonian, Russian, Ukrainian, Kazakh

Greek Greek

Turkish Turkish

!

126

TO USE A USB DEVICE

TO USE A USB DEVICE

Set Audio.

Sound Mode

• Auto Volume

• Clear Voice II

• Balance 0

Standard◄ ►

Off◄ ►

Off◄ ►

ꕉ Previous

1

1

2

Make appropriate adjustments. (Refer to p. 81 to 85)

Show the Sound Mode, Auto Volume, Clear Voice II, Balance.

Make appropriate adjustments.(Refer to p. 70, 73, 74)

►When you select the Set Audio,

►When you select the Set Video,

Set Video.

Picture Mode

● Backlight 100

● Contrast 100

● Brightness 50

● Colour 50

● Dynamic Contrast

● Noise Reduction

● Picture Reset

Vivid◄ ►

Medium◄ ►

Medium◄ ►

ꕉ Previous

127

TO USE A USB DEVICE

Using the remote control

◄◄ / ►►

When playing,

repeatedly, press the REW(◄◄) button to speed up ◄◄(x2) → ◄◄◄ (x4)

→ ◄◄◄◄(x8) → ◄◄◄◄◄(x16) →◄◄◄◄◄◄(x32) .

repeatedly, press the FF(►►) button to speed up ►►(x2) → ►►► (x4) →

►►►► (x8) → ►►►►►(x16) → ►►►►►►(x32).

■ Pressing these buttons repeatedly increases the fast forward/reverse speed.

During playback, press the Pause (II) button.

■ Still screen is displayed.

■ If no buttons are pressed on the remote control for 10 minutes after paus-

ing, the TV returns to the playback state.

■ Press the Pause (II) button and then use the FF (►►) button for slow motion.

< > When using the < or > button during playback a cursor indicating the position

can be viewed on the screen.

Play(►) Press the Play(►) button to return to normal playback.

Press the ENERGY SAVING button repeatedly to increase the brightness of

your screen. (Refer to p. 68)

128

TO USE A USB DEVICE

TO USE A USB DEVICE

Confirm the DivX registration code number of the TV. Using the registration number, movies can be

rented or purchased at www.divx.com/vod.

With a DivX registration code from other TV, playback of rented or purchased DivX file is not allowed.

(Only DivX files matched with the registration code of the purchased TV are playable.)

DIVX REGISTRATION CODE

USB USB

Move MoveOK OK

Photo List

Music List

Movie List

DivX Reg. Code

Deactivation

Photo List

Music List

Movie List

DivX Reg. Code

Deactivation

DivX Reg. Code ꔉDivX Reg. Code ꔉ

➩

DivX(R) Video On Demand

Your registration Code is: xxxxxxxxxx

To learn more visit www.divx.com/vod.

Close

1

2

3

Select DivX Reg. Code.

Display DivX Reg. Code.

Select USB.

MENU

• Press the MENU or EXIT button to close the menu window.

• Press the BACK button to move to the previous menu screen.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX,Inc. This is an official

DivX Certified device that plays DivX video. Visit www.divx.com for more information and

software tools to convert your files into DivX video.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in

order to play DivX Video-on-Demand (VOD) content. To generate the registration code,

locate the DivX VOD section in the device setup menu. Go to vod.divx.com with this code

to complete the registration process and learn more about DivX VOD.

“DivX Certified to play DivX video up to HD 1080p, including premium content”

“Pat. 7,295,673; 7,460,688; 7,519,274”

NOTE

►Movie files are supported as follows

Resolution: under 1920x1080 WxH pixels

Frame rate: under 30 frames/sec(1920x1080), under 60 frames/sec(under 1280x720)

►Video Codec: MPEG 1, MPEG 2, MPEG 4, H.264/AVC, DivX 3.11, DivX 4.12, DivX 5.x, DivX 6, Xvid

1.00, Xvid 1.01, Xvid 1.02, Xvid 1.03, Xvid 1.10-beta1, Xvid 1.10-beta2

!

129

TO USE A USB DEVICE

The purpose of deactivation is to allow deactivation of devices for users who have activated all the avail-

able devices through the web server and are blocked from activating more devices. DivX VOD allowed

the consumer to activate up to 6 devices under one account, but to replace or deactivate any of those

devices, the consumer had to contact DivX Support and request deletion. Now with this added feature,

consumers will be able to deactivate the device themselves and hence better manage their DivX VOD

devices.

DEACTIVATION

USB USB

Move MoveOK OK

Photo List

Music List

Movie List

DivX Reg. Code

Deactivation

Photo List

Music List

Movie List

DivX Reg. Code

Deactivation

Deactivation ꔉDeactivation ꔉ

➩

➩

DivX(R) Video On Demand

Do you want to deactivate your device?

Yes No

1

2

3

4

Select Deactivation.

Select Yes.

Display Deactivation.

Select USB.

MENU

• Press the MENU or EXIT button to close the menu window.

• Press the BACK button to move to the previous menu screen.

DivX(R) Video On Demand

This device is deactivated.

Your deactivation code is: xxxxxxxx

To learn more visit www.divx.com/vod.

Close

130

TELETEXT

TELETEXT

Teletext is a free service broadcast by most TV stations which gives up-to-

the-minute information on news, weather, television programmes, share

prices and many other topics.

The teletext decoder of this TV can support the SIMPLE, TOP and

FASTEXT systems. SIMPLE (standard teletext) consists of a number of

pages which are selected by directly entering the corresponding page

number. TOP and FASTEXT are more modern methods allowing quick

and easy selection of teletext information.

Enter the desired page number as a three-digit number with the NUMBER buttons. If during selection you

press a wrong number, you must complete the three-digit number and then re-enter the correct page

number.

The P ꕌꕍ button can be used to select the previous or next page.

With the blue button you can progress from block to block.

Use the yellow button to proceed to the next group with automatic overflow to the next block.

With the green button you can proceed to the next existing page with automatic overflow to the next group.

Alternatively, the P ꕌ button can be used.

The RED button permits you to return to previous selection. Alternatively, the P ꕍ button can be used.

As with SIMPLE teletext mode, you can select a page by entering it as a three digit number using the

NUMBER buttons in TOP mode.

This feature is not available in all countries.

■Page selection

■Block / group / page selection

■Direct page selection

Press the TEXT button to switch to teletext. The initial page or last page

appears on the screen.

Two page numbers, TV station name, date and time are displayed on the

screen headline. The first page number indicates your selection, while the

second shows the current page displayed.

Press the TEXT or EXIT button to switch off teletext. The previous mode

reappears.

The user guide displays four fields-red, green, yellow and blue at the bottom of the screen. The yellow

field denotes the next group and the blue field indicates the next block.

SWITCH ON/OFF

TOP TEXT

SIMPLE TEXT

1

1

2

2

3

4

131

TELETEXT

Press the T.OPT button and then use ꕌꕍ button to select ꔻ menu. Display the index page.

You can select the pages which are colour coded along the bottom line with corresponding coloured

buttons.

AS with SIMPLE teletext mode, you can select a page by entering its three digit page number with

the NUMBER buttons in FASTEXT mode.

The P ꕌꕍ button can be used to select the preceding or following page.

■Page selection

■ Press the T. OPT button and then use ꕌꕍ button to select the Text Option menu.

ꔻ Index

Select the each index page.

ꔾ Time

When viewing a TV programme, select this menu to display the time at the top

right hand corner of the screen.

In the teletext mode, press this button to select a sub page number. The sub

page number is displayed at the bottom of the screen. To hold or change the sub

page, press the RED/GREEN, < > or NUMBER buttons.

ꕀ Hold

Stops the automatic page change which will occur if a teletext page consists of 2 or more sub pages.

The number of sub pages and the sub page displayed is, usually, shown on the screen below the

time. When this menu is selected the stop symbol is displayed at the top left-hand corner of the

screen and the automatic page change is inactive.

ꔽ Reveal

Select this menu to display concealed information, such as solutions to riddles or puzzles.

ꔼ Update

Displays the TV picture on the screen while waiting for a new teletext page. The display will appear

at the top left hand corner of the screen. When the updated page is available then display will change

to the page number. Select this menu again to view the updated teletext page.

The teletext pages are colour coded along the bottom of the screen and are selected by pressing the

corresponding coloured button.

FASTEXT

SPECIAL TELETEXT FUNCTION

1

2

3

4

Index

Time

Hold

Reveal

Update

Text Option

Close

132

DIGITAL TELETEXT

DIGITAL TELETEXT

The TV gives you access to digital teletext which is greatly improved in various aspects such as text,

graphics etc.

This digital teletext can access special digital teletext services and specific services which broadcast

digital teletext.

You should select off in the subtitle language menu to display teletext by pressing the SUBTITLE button.

*This function works in UK, Ireland only.

TELETEXT WITHIN DIGITAL SERVICE

TELETEXT IN DIGITAL SERVICE

Press the numeric or P ꕌꕍ button to select a digital

service which broadcasts digital teletext.

Follow the indications on digital teletext and move

onto the next step by pressing TEXT, OK, ꕌꕍ< > ,

RED, GREEN, YELLOW, BLUE or NUMBER buttons

and etc.

To change digital teletext service, select a different

service by the numeric or P ꕌꕍ button.

Press the numeric or P ꕌꕍ button to select a certain

service which broadcasts digital teletext.

Press the TEXT or coloured button to switch on tele-

text.

Follow the indications on digital teletext and move

onto the next step by pressing OK, ꕌꕍ< > , RED,

GREEN, YELLOW, BLUE or NUMBER buttons and

so on.

Press the TEXT or colour button to switch off digital

teletext and return to TV viewing.

Some services may allow you to access text services

by pressing the RED button.

1

1

2

2

3

3

4

133

APPENDIX

APPENDIX

TROUBLESHOOTING

The operation does not work normally.

The remote control

doesn’t work

■ Check to see if there is any object between the product and the remote

control causing obstruction. Ensure you are pointing the remote control

directly at the set.

■ Ensure that the batteries are installed with correct polarity (+ to +, - to -).

■ Ensure that the correct remote operating mode is set: TV, VCR, etc.

■ Install new batteries.

Power is suddenly

turned off

■ Is the sleep timer set?

■ Check the power control settings. Power interrupted.

■ If the TV is switched on and there is no input signal, it will switch off

automatically after 15 minutes to save the power consumption.

■ When a broken file was played in the USB mode, the TV may turn off.

Please check the file in your usb storage.

■ Except the screen off mode of the energy saving menu.

The video function does not work.

No picture &No sound

■ Check whether the product is turned on.

■ Try another channel. The problem may be with the broadcast.

■ Is the power cord inserted into wall power outlet?

■ Check your antenna direction and/or location.

■ Test the wall power outlet, plug another product’s power cord into the

outlet where the product’s power cord was plugged in.

Picture appears slowly

after switching on

■ This is normal, the image is muted during the product startup process.

Please contact your service centre, if the picture has not appeared

after five minutes.

No color, poor colour,

or poor picture

■ Adjust Colour in menu option.

■ Keep a sufficient distance between the product and the VCR.

■ Try another channel. The problem may be with the broadcast.

■ Are the video cables installed properly?

■ Activate any function to restore the brightness of the picture.

Horizontal / vertical bars

or picture shaking

■ Check for local interference such as an electrical appliance or power

tool.

134

APPENDIX

APPENDIX

The audio function does not work.

Picture OK & No sound

■ Press the + or - button.

■ Sound muted? Press MUTE button.

■ Try another channel. The problem may be with the broadcast.

■ Are the audio cables installed properly?

No output from one

of the speakers ■ Adjust Balance in menu option.

Unusual sound from

inside the product

■ A change in ambient humidity or temperature may result in an unusual

noise when the product is turned on or off and does not indicate a

problem with the product.

No sound when

connecting HDMI

or USB

■ Check HDMI cable is High Speed HDMI Cable.

■ Check USB cable over version 2.0.

■ If the sound is abnormal in the HDMI, check the audio format in your

external equipments

► Audio Supported format : Dolby Digital, PCM

The video function does not work.

Poor reception on

some channels

■ Station or cable product experiencing problems, tune to another sta-

tion.

■ Station signal is weak, reorient antenna to receive weaker station.

■ Check for sources of possible interference.

Lines or streaks

in pictures ■ Check antenna (Change the direction of the antenna).

No picture

when connecting HDMI

■ Check that your HDMI cable is High Speed HDMI Cable.

If the HDMI cables are not High Speed HDMI Cable, flickering or no

screen display can result. Please use the High Speed HDMI Cable.

135

APPENDIX

No image is displayed.

Power is on, power indictor

is blue but the screen

appears extremely dark.

■ Adjust brightness and contrast again.

Does the ‘Invalid format’

message appear?

■ The signal from the PC (Video card) is out of the vertical or horizontal

frequency range of the product.

Adjust the frequency range by referring to the Specifications in this

user’s guide.

Does the ‘Check signal

cable’ message appear?

■ The signal cable between PC and product is not connected. Check the

signal cable.

■ Press the ‘INPUT’ button in the remote control to check the input sig-

nal.

Only PC mode applied

There is a problem with PICTURE settings.

When the user changes

the picture settings, the

TV automatically converts

back to the initial settings

after a certain period of

time.

■ It means that the TV is currently set to Store Demo mode.

To switch to Home use mode you should do the followings:

From the TV Menu, choose OPTION → Choose Mode Setting →

Choose Home use. Now, you have completed switching to the Home

use mode.

‘Unknown Product’ message appears when the product is connected.

Did you install the driver?

■ Install the product driver, which is provided with the product, or down-

load it from the web site. (http://www.lg.com)

■ See if the plug & play function is supported by referring to the video

card user’s guide.

After-image appears on the product.

After-image appears when

the product is turned off.

■ If you use a fixed image for a long time, the pixels may be damaged

quickly.

Use the screen saver function.

136

APPENDIX

APPENDIX

Screen color is abnormal.

Screen has poor color res-

oluion (16_colors).

■ Set screen color resolution to more than 24 bits (true color)

Select control Pane → Display → Settings → Color Table menu in

Windows.

Screen color is unstable

or mono color. ■ Check the connection status of the signal cable.

Do back spots appear on

the screen?

■ Several pixels (red, green, white or black color) may appear on the

screen, which can be attributable to the unique characteristics of the

LCD panel.

It is not a malfunction of the LCD.

The screen image looks abnormal.

Is the screen position

wrong?

■ Adjust the Position menu in OSD.

■ A See if the video card resolution and frequency are supported by the

product. If the frequency is out of range, set to the recommended reso-

lution in the Control Panel → Display → Setting menu.

Do thin lines appear on

the background screen? ■ Adjust the Clock menu in OSD.

Horizontal noise appears

or the characters look

blurred.

■ Adjust the Phase menu in OSD.

137

APPENDIX

MAINTENANCE

Early malfunctions can be prevented. Careful and regular cleaning can prolong the life of your new set.

Caution: Be sure to switch the power off and unplug the power cord before you begin any cleaning.

A good way to keep the dust off your screen for a while is to wet a soft cloth in a mixture of lukewarm

water and a little fabric softener or dish washing detergent. Wring the cloth until it is almost dry, and

then use it to wipe the screen.

Ensure there is no excess water on the screen. Allow any water or dampness to evaporate before

switching on.

■ To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth.

■ Do not to use a wet cloth..

Cleaning the Screen

Cleaning the Cabinet

Extended Absence

1

2

► If you expect to leave your TV dormant for prolonged periods (such as a holiday), unplug the power cord

to protect against possible damage from lightning or power surges.

WARNING

138

APPENDIX

APPENDIX

■ The specifications shown above may be changed without prior notice for quality improvement.

PRODUCT SPECIFICATIONS

<M1962DP>

LCD Panel

Screen Type

470.1mm Wide (18.51 inch) TFT (Thin Film Transistor)

LCD (Liquid Crystal Display) Panel

Visible diagonal size: 470.1mm

Pixel Pitch 0.30 mm (H) x 0.30 mm (V)

Video Signal

Max. Resolution 1360 x 768 @ 60 Hz

Recommended Resolution 1360 x 768 @ 60 Hz

Horizontal Frequency 30 kHz to 61 kHz

Vertical Frequency 56 Hz to 75 Hz

Synchronization Type Separate Sync, Digital

Input Connector TV, D-Sub Analog, SCART, PC Audio In, component, HDMI

Power

Rated Voltage AC 100-240 V~ 50 / 60 Hz 0.8 A

Power Consumption On Mode : 35 W (typ.)

Off Mode ≤ 0.5 W

Tilt Tilt Range -5° to 15°

Dimensions (Width x Height x Depth)

Weight

449.7 mm x 367.3 mm x 221.6 mm (17.70 inch x 14.46 inch x 8.72 inch)

3.8 kg (8.38 lb)

Environmental

conditions

Operating Temperature

Operating Humidity

10 °C to 35 °C

20 % to 80 %

-10 °C to 60 °C

5 % to 90 %

Storage Temperature

Storage Humidity

139

APPENDIX

<M2062DP>

LCD Panel

Screen Type

508.5 mm Wide (20.0 inch) TFT (Thin Film Transistor)

LCD (Liquid Crystal Display) Panel

Visible diagonal size : 508.5 mm

Pixel Pitch 0.2766 mm (H) x 0.2766 mm (V)

Video Signal

Max. Resolution 1600 x 900 @ 60 Hz

Recommended Resolution 1600 x 900 @ 60 Hz

Horizontal Frequency 30 kHz to 65 kHz

Vertical Frequency 56 Hz to 75 Hz

Synchronization Type Separate Sync, Digital

Input Connector TV, D-Sub Analog, SCART, PC Audio In, component, HDMI

Power

Rated Voltage AC 100-240 V~ 50 / 60 Hz 1.2 A

Power Consumption On Mode : 50 W (typ.)

Off Mode ≤ 0.5 W

Tilt Tilt Range -5° to 15°

Dimensions (Width x Height x Depth)

Weight

482.3 mm x 384.2 mm x 221.6 mm (18.99 inch x 15.13 inch x 8.72 inch)

4.3 kg ( 9.48 lb)

Environmental

conditions

Operating Temperature

Operating Humidity

10 °C to 35 °C

20 % to 80 %

-10 °C to 60 °C

5 % to 90 %

Storage Temperature

Storage Humidity

■ The specifications shown above may be changed without prior notice for quality improvement.

140

APPENDIX

APPENDIX

■ The specifications shown above may be changed without prior notice for quality improvement.

<M2262DP>

LCD Panel

Screen Type

546.86 mm Wide (21.53 inch) TFT (Thin Film Transistor)

LCD (Liquid Crystal Display) Panel

Visible diagonal size: 546.86 mm

Pixel Pitch 0.248 mm (H) x 0.248 mm (V)

Video Signal

Max. Resolution 1920 x 1080 @ 60 Hz

Recommended Resolution 1920 x 1080 @ 60 Hz

Horizontal Frequency 30 kHz to 83 kHz

Vertical Frequency 56 Hz to 75 Hz

Synchronization Type Separate Sync, Digital

Input Connector TV, D-Sub Analog, SCART, PC Audio In, component, HDMI

Power

Rated Voltage AC 100-240 V~ 50 / 60 Hz 1.2 A

Power Consumption On Mode : 53 W (typ.)

Off Mode ≤ 0.5 W

Tilt Tilt Range -5° to 15°

Dimensions (Width x Height x Depth)

Weight

517.2 mm x 399.8 mm x 221.6 mm (20.36 inch x 15.74 inch x 8.72 inch)

4.7 kg ( 10.36 lb)

Environmental

conditions

Operating Temperature

Operating Humidity

10 °C to 35 °C

20 % to 80 %

-10 °C to 60 °C

5 % to 90 %

Storage Temperature

Storage Humidity

141

APPENDIX

<M2362DP>

LCD Panel

Screen Type

584.2 mm Wide (23 inch) TFT (Thin Film Transistor)

LCD (Liquid Crystal Display) Panel

Visible diagonal size : 584.2 mm

Pixel Pitch 0.265 mm (H) x 0.265 mm (V)

Video Signal

Max. Resolution 1920 x 1080 @ 60 Hz

Recommended Resolution 1920 x 1080 @ 60 Hz

Horizontal Frequency 30 kHz to 83 kHz

Vertical Frequency 56 Hz to 75 Hz

Synchronization Type Separate Sync, Digital

Input Connector TV, D-Sub Analog, SCART, PC Audio In, component, HDMI

Power

Rated Voltage AC 100-240 V~ 50 / 60 Hz 1.2 A

Power Consumption On Mode : 55 W (typ.)

Off Mode ≤ 0.5 W

Tilt Tilt Range -5° to 15°

Dimensions (Width x Height x Depth)

Weight

551.8 mm x 419.5 mm x 221.6 mm (21.72 inch x 16.32 inch x 8.72 inch)

5.18 kg ( 11.4 lb)

Environmental

conditions

Operating Temperature

Operating Humidity

10 °C to 35 °C

20 % to 80 %

-10 °C to 60 °C

5 % to 90 %

Storage Temperature

Storage Humidity

■ The specifications shown above may be changed without prior notice for quality improvement.

142

APPENDIX

APPENDIX

■ The specifications shown above may be changed without prior notice for quality improvement.

<M2762DP>

LCD Panel

Screen Type

686 mm Wide (27 inch) TFT (Thin Film Transistor)

LCD (Liquid Crystal Display) Panel

Visible diagonal size: 686 mm

Pixel Pitch 0.3114 mm (H) x 3114 mm (V)

Video Signal

Max. Resolution 1920 x 1080 @ 60 Hz

Recommended Resolution 1920 x 1080 @ 60 Hz

Horizontal Frequency 30 kHz to 83 kHz

Vertical Frequency 56 Hz to 75 Hz

Synchronization Type Separate Sync, Digital

Input Connector TV, D-Sub Analog, SCART, PC Audio In, component, HDMI

Power

Rated Voltage AC 100-240 V~ 50 / 60 Hz 1.2 A

Power Consumption On Mode : 63 W (typ.)

Off Mode ≤ 0.5 W

Tilt Tilt Range -5° to 15°

Dimensions (Width x Height x Depth)

Weight

649.1 mm x 485 mm x 210 mm (25.56 inch x 19.09 inch x 8.27 inch)

7.2 kg ( 15.87lb)

Environmental

conditions

Operating Temperature

Operating Humidity

10 °C to 35 °C

20 % to 80 %

-10 °C to 60 °C

5 % to 90 %

Storage Temperature

Storage Humidity

143

APPENDIX

IR CODES

• This feature is not available for all models.

Code (Hexa) Function Note

95 Energy Saving R/C BUTTON

08 POWER R/C BUTTON (POWER ON/OFF)

50 TV / PC R/C BUTTON

0B INPUT R/C BUTTON

79 RATIO R/C BUTTON

F0 TV/RAD R/C BUTTON

45 Q.MENU R/C BUTTON

43 MENU R/C BUTTON

AB GUIDE R/C BUTTON

40 Up (ꕌ) R/C BUTTON

41 Down (ꕍ) R/C BUTTON

07 Left (<) R/C BUTTON

06 Right (>) R/C BUTTON

44 OK(ꔉ) R/C BUTTON

28 BACK R/C BUTTON

5B EXIT R/C BUTTON

AA ꘍ R/C BUTTON

02 ( + ) R/C BUTTON

03 ( - ) R/C BUTTON

1E FAV ( MARK ) R/C BUTTON

09 MUTE R/C BUTTON

00 P (ꕌ) R/C BUTTON

01 P (ꕍ) R/C BUTTON

10 to 19 Number Key 0 to 9 R/C BUTTON

53 LIST R/C BUTTON

1A Q.VIEW R/C BUTTON

72 RED Key R/C BUTTON

71 GREEN Key R/C BUTTON

63 YELLOW Key R/C BUTTON

61 BLUE Key R/C BUTTON

20 TEXT R/C BUTTON

21 T.OPT (T.Option) R/C BUTTON

39 SUBTITLE R/C BUTTON

99 Auto Config. R/C BUTTON

B1 ▀ R/C BUTTON

B0 ► R/C BUTTON

BA

l l

R/C BUTTON

8F ◄◄ R/C BUTTON

8E ►► R/C BUTTON

144

APPENDIX

APPENDIX

EXTERNAL CONTROL DEVICE SETUP

RS-232C Setup

Connect the RS-232C (serial port) input jack to an

external control device (such as a computer or an

A/V control system) to control the product’s func-

tions externally.

Connect the serial port of the control device to the

RS-232C jack on the product back panel.

Note: RS-232C connection cables are not supplied

with the product.

1 5

6 9

RS-232C Configurations

7-Wire Configurations (Standard RS-232C cable)

PC TV

RXD 2 3 TXD

TXD 3 2 RXD

GND 5 5 GND

DTR 4 6 DSR

DSR 6 4 DTR

RTS 7 8 CTS

CTS 8 7 RTS

D-Sub 9 D-Sub 9

3-Wire Configurations(Not standard)

PC TV

RXD 2 3 TXD

TXD 3 2 RXD

GND 5 5 GND

DTR 4 6 DTR

DSR 6 4 DSR

RTS 7 7 RTS

CTS 8 8 CTS

D-Sub 9 D-Sub 9

Type of Connector; D-Sub 9-Pin Male

No. Pin Name

1

2

3

4

5

6

7

8

9

No connection

RXD (Receive data)

TXD (Transmit data)

DTR (DTE side ready)

GND

DSR (DCE side ready)

RTS (Ready to send)

CTS (Clear to send)

No Connection

145

APPENDIX

Set ID

Use this function to specify a set ID number.

Refer to ‘Real Data Mapping’. ► p.150

OPTION OPTION

Menu Language : English

Audio Language : English

Subtitle Language : English

Disabled Assistance

Country : - -

Input Label

Set ID : 1

Power Indicator :On

▼

Menu Language : English

Audio Language : English

Subtitle Language : English

Disabled Assistance

Country : - -

Input Label

Set ID : 1

Power Indicator :On

▼

Move MoveOK OK

Set ID : 1 ꔉ Set ID : 1 ꔉ

➩

◄ 1 ►

Close

1

2

3

MENU

Select Set ID.

Adjust Set ID to choose the desired TV ID number.

The adjustment range of SET ID is 1 to 99.

Select OPTION.

• Press the MENU or EXIT button to close the menu window.

• Press the BACK button to move to the previous menu screen.

146

APPENDIX

APPENDIX

Communication Parameters

■ Baud rate: 9600 bps (UART)

■ Data length: 8 bits

■ Parity : None

■ Stop bit: 1 bit

■ Communication code: ASCII code

■ Use a crossed (reverse) cable.

Transmission

* [Command 1] : First command to control the TV.

(j, k, m or x)

* [Command 2] : Second command to control the TV.

* [Set ID] : You can adjust the set ID to choose

desired monitor ID number in option

menu. Adjustment range is 1 to 99.

When selecting Set ID ‘0’, every con-

nected set is controlled.

Set ID is indicated as decimal (1 to 99) on

menu and as Hexa decimal (0x0 to 0x63)

on transmission/receiving protocol.

* [DATA] : To transmit command data.

Transmit ‘FF’ data to read status of com-

mand.

* [Cr] : Carriage Return

ASCII code ‘0x0D’

* [ ] : ASCII code ‘space (0x20)’

[Command1][Command2][ ][Set ID][ ][Data][Cr]

OK Acknowledgement

* The set transmits ACK (acknowledgement) based

on this format when receiving normal data. At this

time, if the data is data read mode, it indicates pres-

ent status data. If the data is data write mode, it

returns the data of the PC computer.

[Command2][ ][Set ID][ ][OK][Data][x]

Error Acknowledgement

* The set transmits ACK (acknowledgement) based

on this format when receiving abnormal data from

non-viable functions or communication errors.

Data 00: Illegal Code

[Command2][ ][Set ID][ ][NG][Data][x]

Transmission / Receiving Protocol

Command Reference List

* When setting the 17 to 24, a menu does not appear on

screen.

* Note : During USB operations such as Dvix or EMF, all

commands except Power(ka) and Key(mc) are not exe-

cuted and treated as NG.

COMMAND

1

COMMAND

2

DATA

(Hexadecimal)

01. Power k a 00

to

01

02. Aspect Ratio k c Refer to p. 147

03. Screen Mute k d 00

to

01

04. Volume Mute k e 00

to

01

05. Volume Control k f 00

to

64

06. Contrast k g 00

to

64

07. Brightness k h 00

to

64

08. Colour k i 00

to

64

09. Tint k j 00

to

64

10. Sharpness k k 00

to

64

11. OSD Select k l 00

to

01

12.

Remote control lock mode

k m 00

to

01

13. Treble k r 00

to

64

14.

Bass

k s 00

to

64

15. Balance k t 00

to

64

16.

Colour Temperature

x u 00

to

64

17. Energy Saving j q 00

to

05

18. Auto Configuration j u 01

19. Tune Command m a Refer to p. 149

20. Programme Add/Skip m b 00

to

01

21. Key m c Key Code

22. Back Light m g 00

to

64

23. Input select (Main) x b Refer to p. 150

147

APPENDIX

04. Volume Mute (Command: k e)

► To control volume mute on/off.

You can also adjust mute using the MUTE button on

remote control.

Transmission

Data 00 : Volume mute on (Volume off)

01 : Volume mute off (Volume on)

[k][e][ ][Set ID][ ][Data][Cr]

Ack

[e][ ][Set ID][ ][OK/NG][Data][x]

02. Aspect Ratio (

Command: k

c) (Main Picture Size)

► To adjust the screen format. (Main picture format)

You can also adjust the screen format using the

Aspect Ratio in the Q.MENU. or PICTURE menu.

Transmission

Data 01 : Normal screen (4:3)

02 : Wide screen (16:9)

04 : Zoom

06 : Original

07 : 14:9

09 : Just Scan

0B : Full Wide

10 to 1F : Cinema Zoom 1 to 16

[k][c][ ][Set ID][ ][Data][Cr]

Ack

* Using the PC input, you select either 16:9 or 4:3

screen aspect ratio.

* In DTV/HDMI (1080i 50 Hz / 60 Hz, 720p 50 Hz /

60 Hz, 1080p 24 Hz / 30 Hz / 50 Hz / 60 Hz),

Component( 720p, 1080i, 1080p 50 Hz / 60 Hz)

mode, Just Scan is available.

* Full Wide is supported only for Analogue, AV.

[c][ ][Set ID][ ][OK/NG][Data][x]

03. Screen Mute (Command: k d)

► To select screen mute on/off.

Transmission

Data 00 : Screen mute off (Picture on)

Video mute off

01 : Screen mute on (Picture off)

10 : Video mute on

* In case of video mute on only, TV will display On

Screen Display(OSD). But, in case of Screen mute

on, TV will not display OSD.

[k][d][ ][Set ID][ ][Data][Cr]

Ack

[d][ ][Set ID][ ][OK/NG][Data][x]

05. Volume Control (Command: k f)

► To adjust volume.

You can also adjust volume with the VOLUME but-

tons on remote control.

Transmission

Data Min : 00 to Max : 64

* Refer to ‘Real data mapping 1’. See page 150.

[k][f][ ][Set ID][ ][Data][Cr]

Ack

[f][ ][Set ID][ ][OK/NG][Data][x]

06. Contrast (Command: k g)

► To adjust screen contrast.

You can also adjust contrast in the PICTURE menu.

Transmission

Data Min : 00 to Max : 64

* Refer to ‘Real data mapping 1’. See page 150.

[k][g][ ][Set ID][ ][Data][Cr]

[g][ ][Set ID][ ][OK/NG][Data][x]

01. Power (Command: k a)

► To control Power On/Off of the set.

Transmission

Data 00 : Power Off 01 : Power On

[k][a][ ][Set ID][ ][Data][Cr]

Ack

[a][ ][Set ID][ ][OK/NG][Data][x]

► To show Power On/Off.

Transmission

[k][a][ ][Set ID][ ][FF][Cr]

Ack

* Similarly, if other functions transmit ‘0xFF’ data

based on this format, Acknowledgement data feed

back presents status about each function.

* OK Ack., Error Ack. and other message may dis-

play on the screen when TV is power On.

[a][ ][Set ID][ ][OK/NG][Data][x]

Ack

148

APPENDIX

APPENDIX

12. Remote control lock mode (Command: k m)

► To lock the front panel controls on the monitor and

remote control.

Transmission

[k][m][ ][Set ID][ ][Data][Cr]

Ack

Data 00 : Lock off 01 : Lock on

* If you are not using the remote control, use this

mode.

When main power is on/off, external control lock is

released.

* Local Power Key will work properly.

[m][ ][Set ID][ ][OK/NG][Data][x]

11. OSD Select (Command: k l)

► To select OSD (On Screen Display) on/off when control-

ling remotely.

Transmission

[k][l][ ][Set ID][ ][Data][Cr]

Ack

Data 00 : OSD off 01 : OSD on

[l][ ][Set ID][ ][OK/NG][Data][x]

09. Tint (Command: k j)

► To adjust the screen tint. (Except PC mode)

You can also adjust tint in the PICTURE menu.

Transmission

Data Red : 00 to Green : 64

* Refer to ‘Real data mapping 1’. See page 150.

[k][j][ ][Set ID][ ][Data][Cr]

Ack

[j][ ][Set ID][ ][OK/NG][Data][x]

► To adjust the screen sharpness.

You can also adjust sharpness in the PICTURE menu.

Transmission

10. Sharpness (Command: k k)

Data Min : 00 to Max : 64

* Refer to ‘Real data mapping 1’. See page 150.

[k][k][ ][Set ID][ ][Data][Cr]

Ack

[k][ ][Set ID][ ][OK/NG][Data][x]

14.

Bass (Command: k s)

► To adjust bass.

You can also adjust bass in the AUDIO menu.

Transmission

Data Min : 00 to Max : 64

* Refer to ‘Real data mapping 1’. See page 150.

[k][s][ ][Set ID][ ][Data][Cr]

Ack

[s][ ][Set ID][ ][OK/NG][Data][x]

13. Treble (Command: k r)

► To adjust treble.

You can also adjust treble in the AUDIO menu.

Transmission

Data Min : 00 to Max : 64

* Refer to ‘Real data mapping 1’. See page 150 .

[k][r][ ][Set ID][ ][Data][Cr]

Ack

[r][ ][Set ID][ ][OK/NG][Data][x]

08. Colour (Command: k i)

► To adjust the screen colour. (Except PC mode)

You can also adjust colour in the PICTURE menu.

Transmission

Data Min : 00 to Max : 64

* Refer to ‘Real data mapping 1’. See page 150.

[k][i][ ][Set ID][ ][Data][Cr]

Ack

[i][ ][Set ID][ ][OK/NG][Data][x]

07. Brightness (Command: k h)

► To adjust screen brightness.

You can also adjust brightness in the PICTURE menu.

Transmission

Data Min : 00 to Max : 64

* Refer to ‘Real data mapping 1’. See page 150.

[k][h][ ][Set ID][ ][Data][Cr]

Ack

[h][ ][Set ID][ ][OK/NG][Data][x]

149

APPENDIX

15. Balance (Command: k t)

► To adjust balance.

You can also adjust balance in the AUDIO menu.

Transmission

Data Min : 00 to Max : 64

* Refer to ‘Real data mapping 1’. See page 150.

[k][t][ ][Set ID][ ][Data][Cr]

Ack

[t][ ][Set ID][ ][OK/NG][Data][x]

16. Colour Temperature (Command: x u)

► To adjust colour temperature. You can also adjust Colour

Temperature in the PICTURE menu.

Transmission

Data Min : 00 to Max : 64

* Refer to ‘Real data mapping 1’. See page 150.

[x][u][ ][Set ID][ ][Data][Cr]

Ack

[u][ ][Set ID][ ][OK/NG][Data][x]

18. Auto Configure(Command: j u)

► To adjust picture position and minimize image shaking

automatically. It works only in RGB (PC) mode.

Transmission

Data 01: To set

[j][u][ ][Set ID][ ][Data][Cr]

Ack

Ack

[u][ ][Set ID][ ][OK/NG][Data][x]

[q][ ][Set ID][ ][OK/NG][Data][x]

17. Energy Saving (Command: j q)

► To reduce the power consumption of the TV. You

can also adjust Energy Saving in OPTION menu.

Transmission

[j][q][ ][Set ID][ ][Data][Cr]

Power Saving

Function

Level Description

7 6 5 4 3 2 1 0

0 0 0 0 Low Power 0 0 0 0 Off

0 0 0 0 Low Power 0 0 0 1 Minimum

0 0 0 0 Low Power 0 0 1 0 Medium

0 0 0 0 Low Power 0 0 1 1 Maximum

0 0 0 0 Low Power 0 1 0 1 Screen Off

19.Tune Command (Command: m a)

► Select channel to following physical number.

Transmission

Data00 : High channel data

Data01 : Low channel data

ex. No. 47 -> 00 2F (2FH)

No. 394 -> 01 8A (18AH),

DTV No. 0 -> Don’t care

Data02 : 0x00 :

Analogue

Main

0x10 : DTV Main

0x20 : Radio

Channel data range

Analogue - Min: 00 to Max: 63 (0 to 99)

Digital - Min: 00 to Max: 3E7 (0 to 999)

(Except For Sweden, Finland, Norway, Denmark,

Ireland)

Digital - Min: 00 to Max: 270F (0 to 9999)

(Only Sweden, Finland, Norway, Denmark, Ireland)

[m][a][ ][Set ID][ ][Data0][ ][Data1][ ][Data2][Cr]

Ack

[a][ ][Set ID][ ][OK/NG][Data][x]

Data Min: 00 to Max: 7DH

150

APPENDIX

APPENDIX

23

. Input select (

Command: x

b)

(Main Picture Input)

► To select input source for main picture.

Transmission

Data Structure

[x][b][ ][Set ID][ ][Data][Cr]

22. Back Light (Command: m g)

► To Control the back light.

Transmission

[m][g][ ][Set ID][ ][Data][Cr]

Ack

[g][ ][Set ID][ ][OK/NG][Data][x]

Ack

[b][ ][Set ID][ ][OK/NG][Data][x]

Data : data Min: 00 to Max: 64

21. Key(Command: m c)

► To send IR remote key code.

Transmission

Data Key code - Refer to page 147.

[m][c][ ][Set ID][ ][Data][Cr]

Ack

[c][ ][Set ID][ ][OK/NG][Data][x]

20. Programme Add/Skip(Command: m b)

► To set skip status for the current Programme.

Transmission

Data 00 : Skip 01 : Add

[m][b][ ][Set ID][ ][Data][Cr]

Ack

[b][ ][Set ID][ ][OK/NG][Data][x]

* Real data mapping 1

00 : Step 0 Tint

Step 0 : R50

A : Step 10 (Set ID 10)

Step 49 : R1

F : Step 15 (Set ID 15) Step 50 : 0

10 : Step 16 (Set ID 16) Step 51 : G1

64 : Step 100 Step 100 : G50

6E : Step 110 Balance

Step 0 : L50

73 : Step 115

74 : Step 116 Step 49 : L1

Step 50 : 0

CF : Step 199 Step 51 : R1

FE : Step 254 Step 100 : R50

FF : Step 255

Colour Temperature

Step 0 : W50

Step 49 : W1

Step 50 : 0

Step 51 : C1

Step 100 : C50

Data 00: DTV 40: Component

10: Analogue 60: RGB

20: AV 90: HDMI

UK Only

Make sure to read the Safety Precautions before

using the product.

Keep the Owner’s Manual (CD) in an accessible

place for future reference.

The model and serial number of the SET is

located on the back and one side of the SET.

Record it below should you ever need service.

MODEL

SERIAL
