CAUTION

BEFORE SERVICING THE UNIT, READ THE “SAFETY PRECAUTIONS”

IN THIS MANUAL.

ALARM

KEY

LOCK PAUSE / STILL

POWER / TIMER

MENU REC

REC / PB SPEED

TRACKING

MOVE SEL

DOWN UP

REV

REW

F. F

CUE

STOP / EJECTPLAY / REC CHK

TIME LAPSE VCR

SERVICE MANUAL

APRIL, 2006

Printed in Korea

TABLE OF CONTENTS

SECTION 1

SUMMARY

• SPECIFICATIONS......................................................1-1

• LOCATION OF CUSTOMER CONTROLS.................1-2

• CRITICAL PARTS REPLACING TIME TABLE...........1-5

• CRITICAL PARTS DESCRIPTION.............................1-5

SECTION 2

CABINET & MAIN FRAME

EXPLODED VIEWS........................................................2-1

1. Cabinet and Main Frame Section ............................2-1

2. Packing & Accessory Section ..................................2-3

SECTION 3

ELECTRICAL

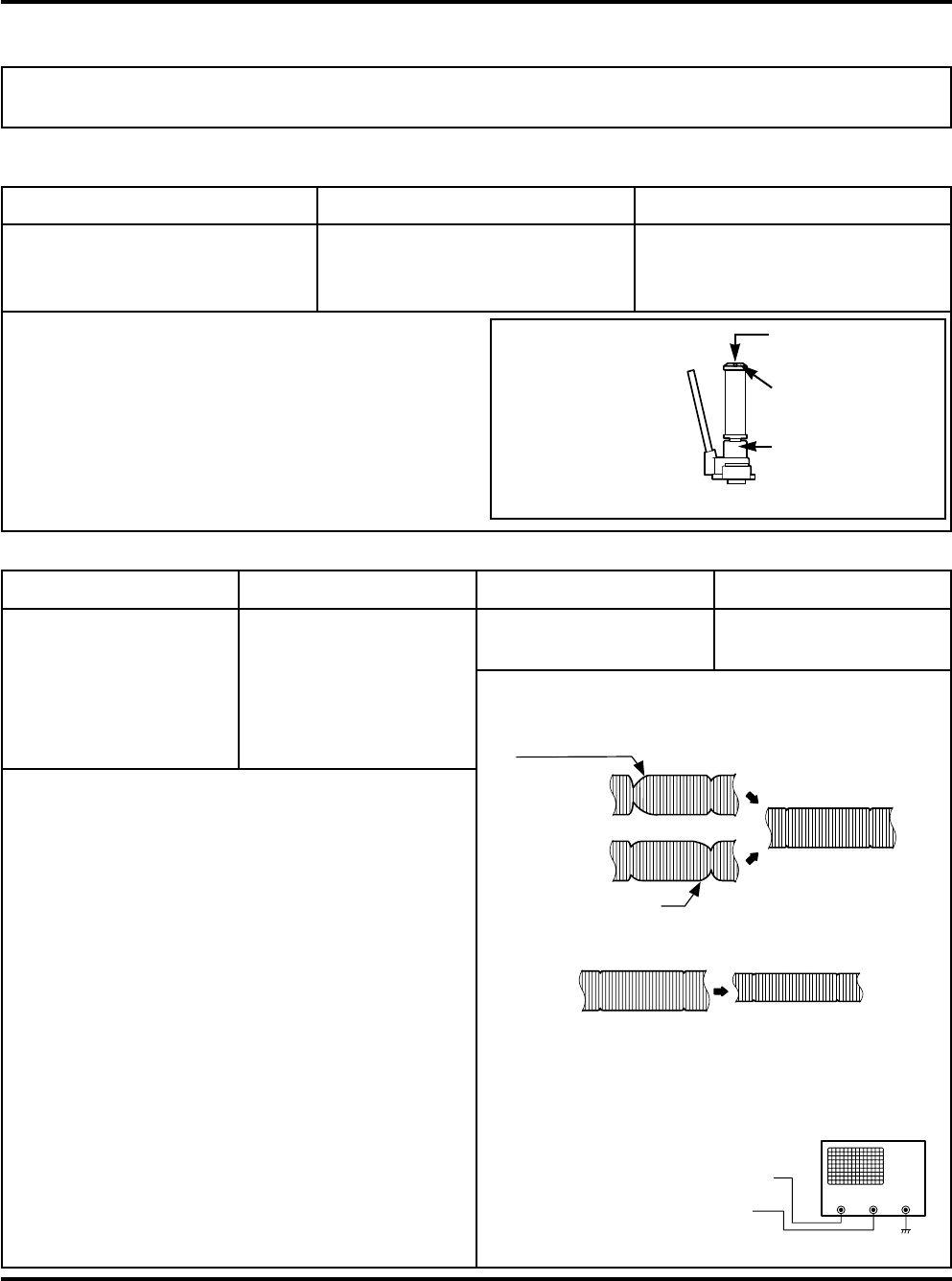

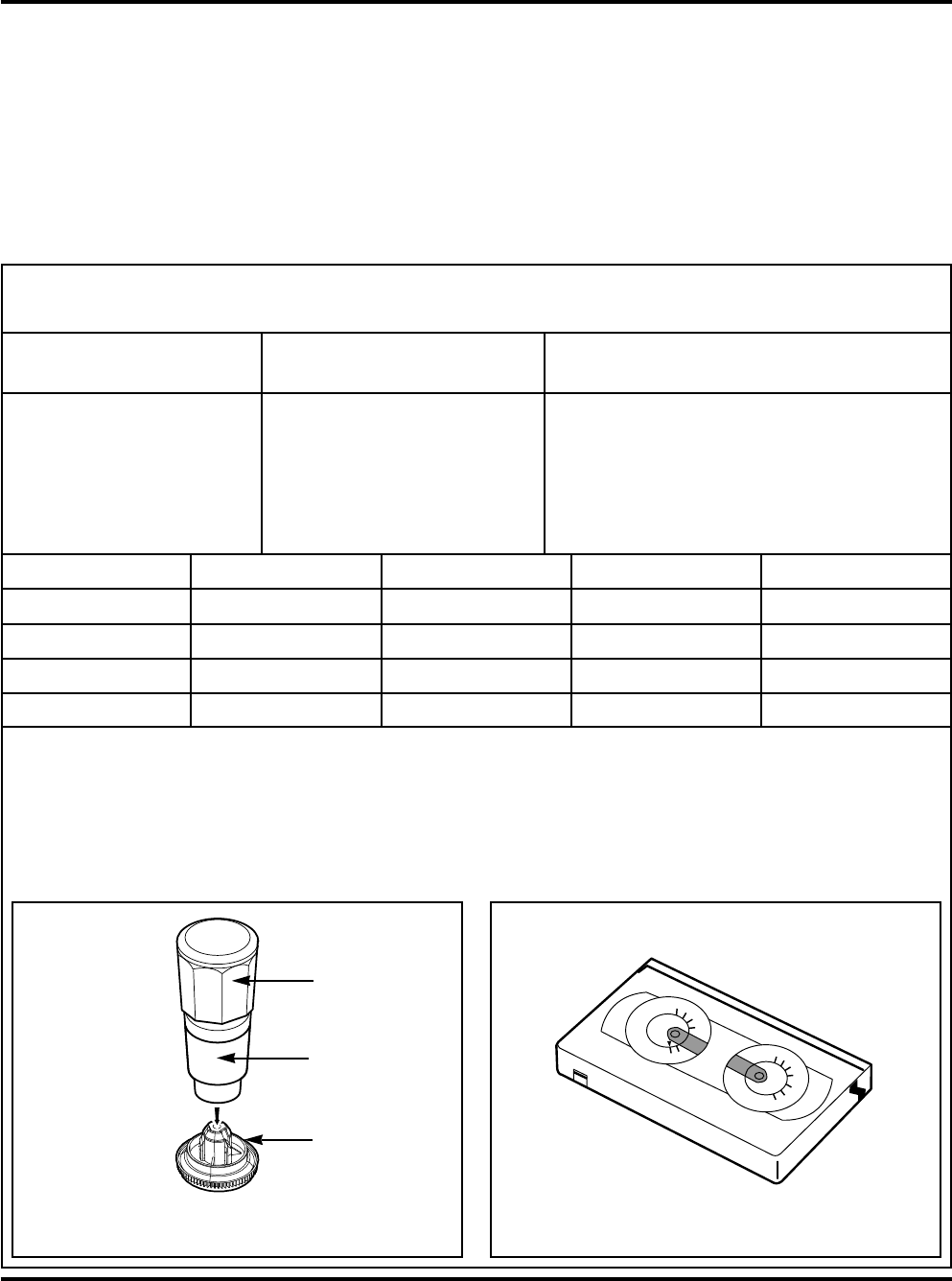

ELECTRICAL ADJUSTMENT PROCEDURES .............3-1

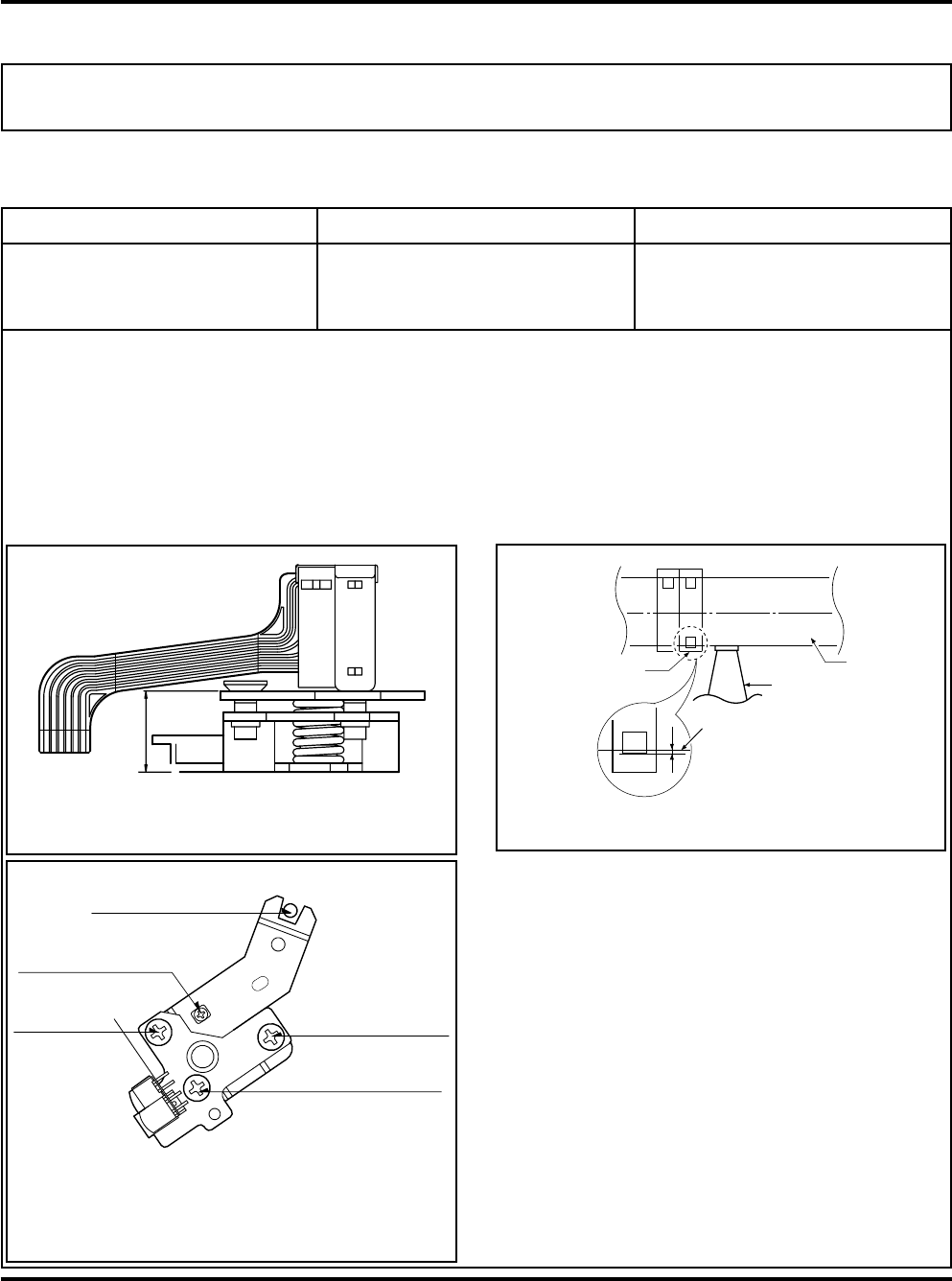

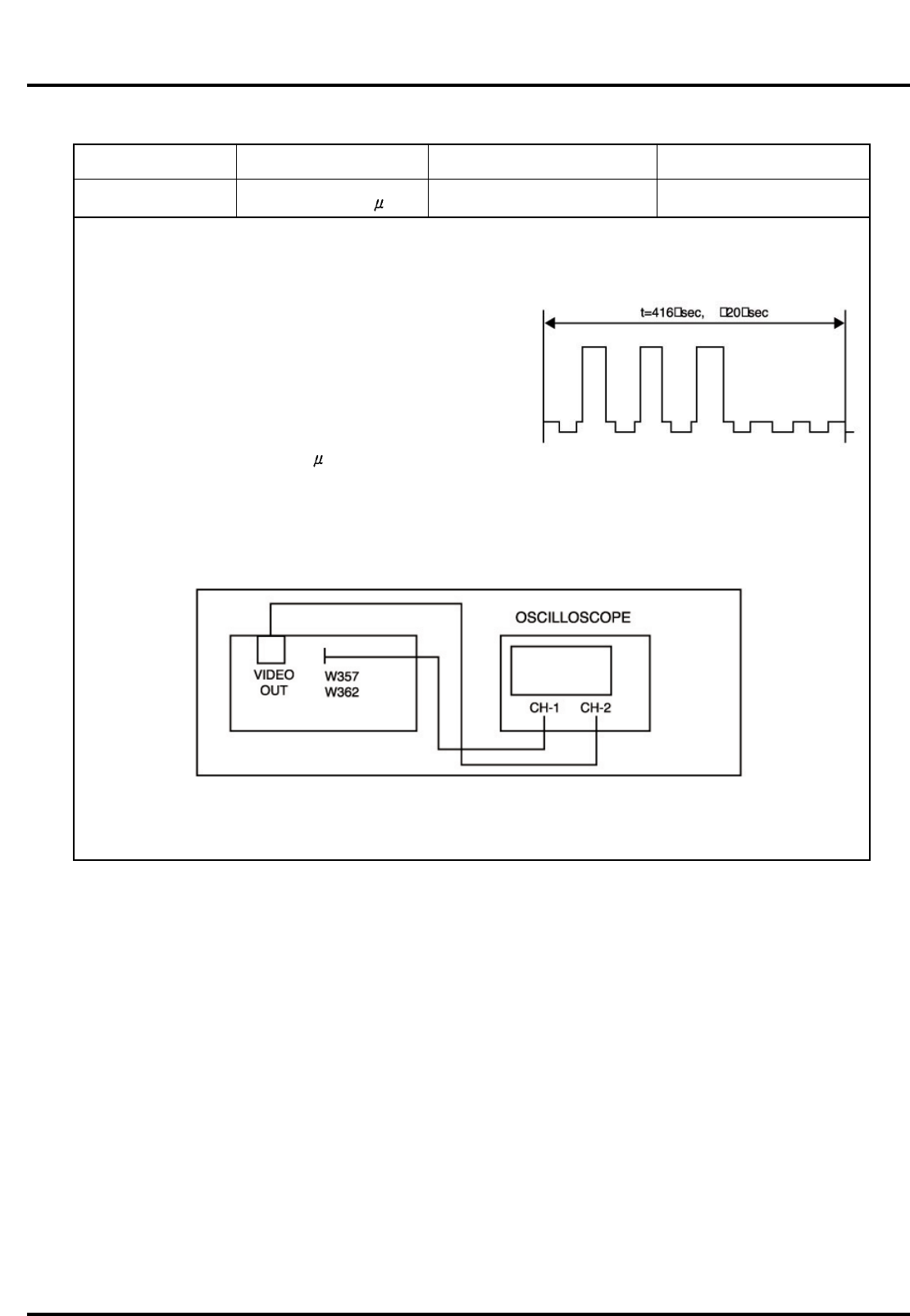

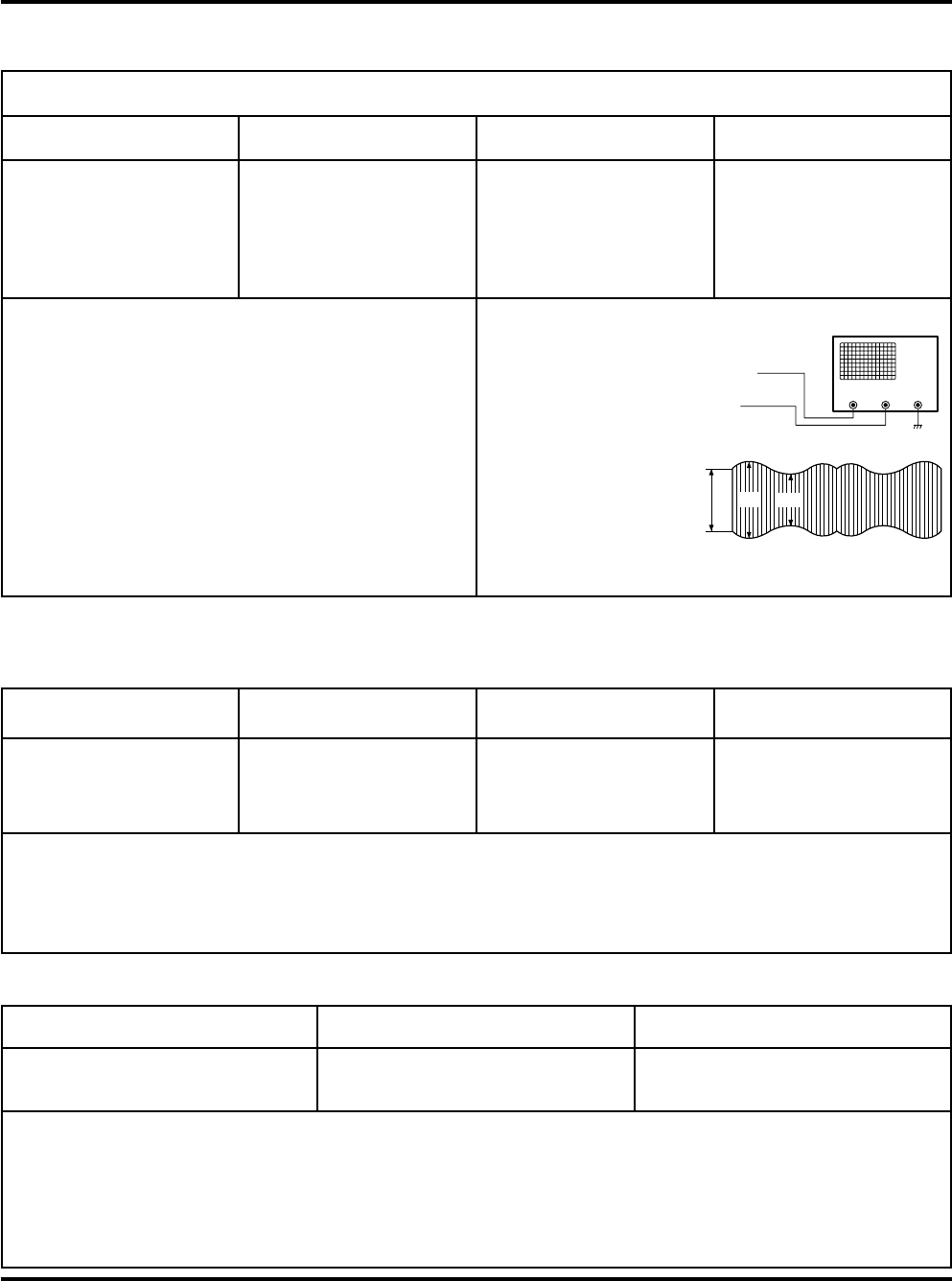

1. PG ADJUSTMENT..................................................3-1

ELECTRICAL TROUBLESHOOTING GUIDE ...............3-2

1. POWER(SMPS) CIRCUIT ......................................3-2

2. SERVO CIRCUIT....................................................3-4

3. Y/C CIRCUIT ..........................................................3-6

4. AUDIO CIRCUIT.....................................................3-9

5. SYSTEM/KEY CIRCUIT .........................................3-11

6. OSD CIRCUIT.........................................................3-12

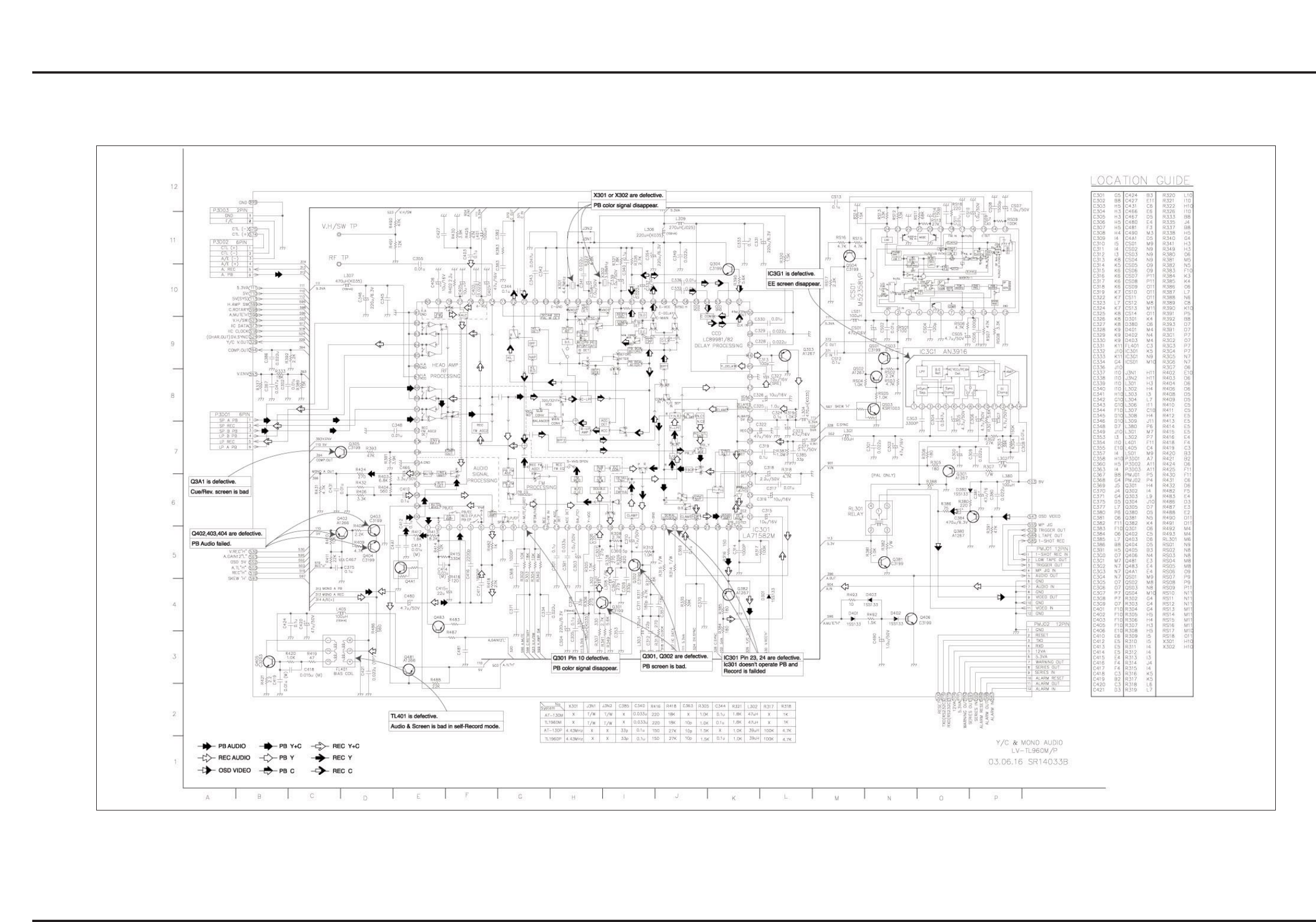

BLOCK & CIRCUIT DIAGRAMS....................................3-13

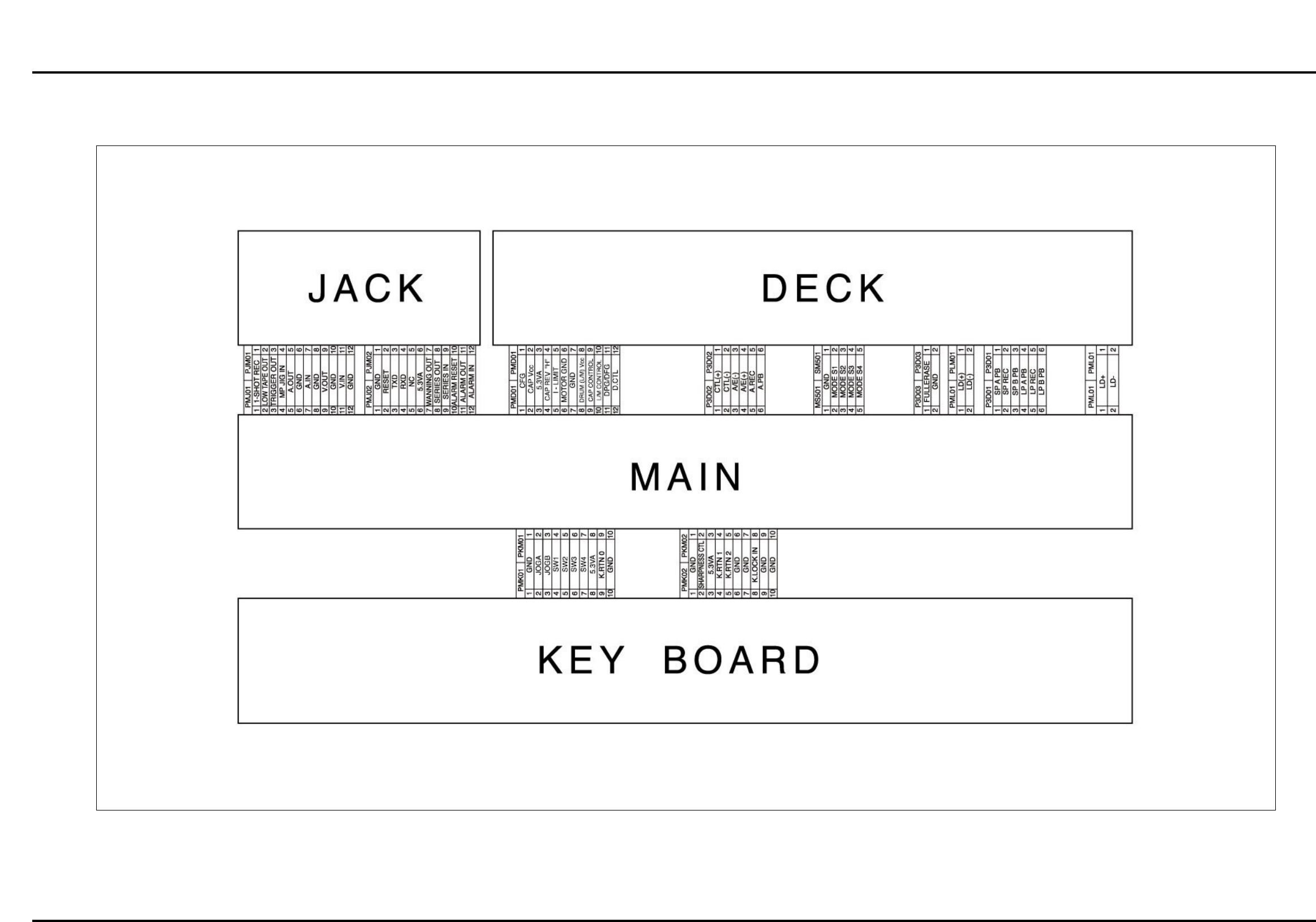

1. OVERALL WIRING DIAGRAM ...............................3-13

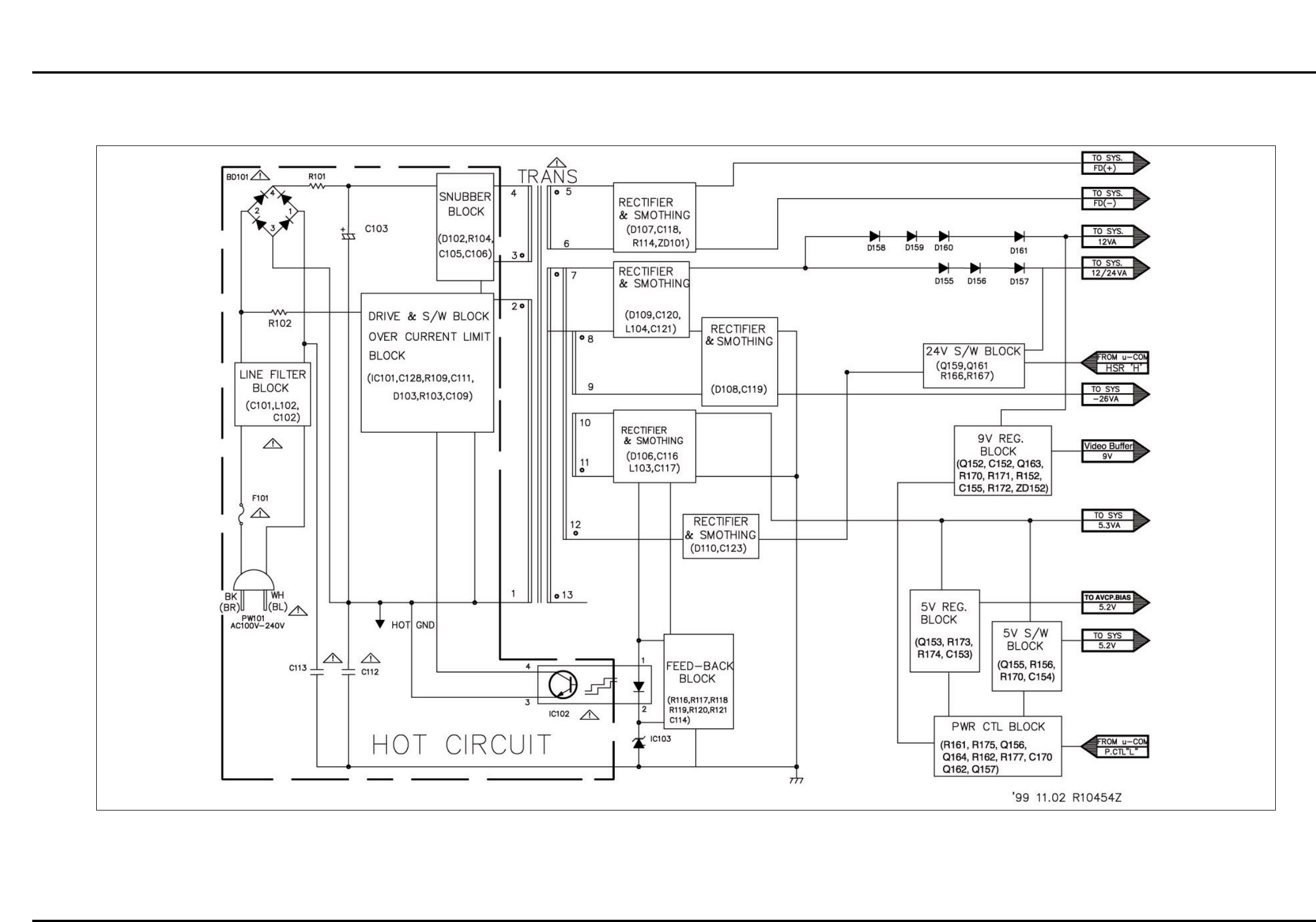

2. POWER BLOCK DIAGRAM ...................................3-15

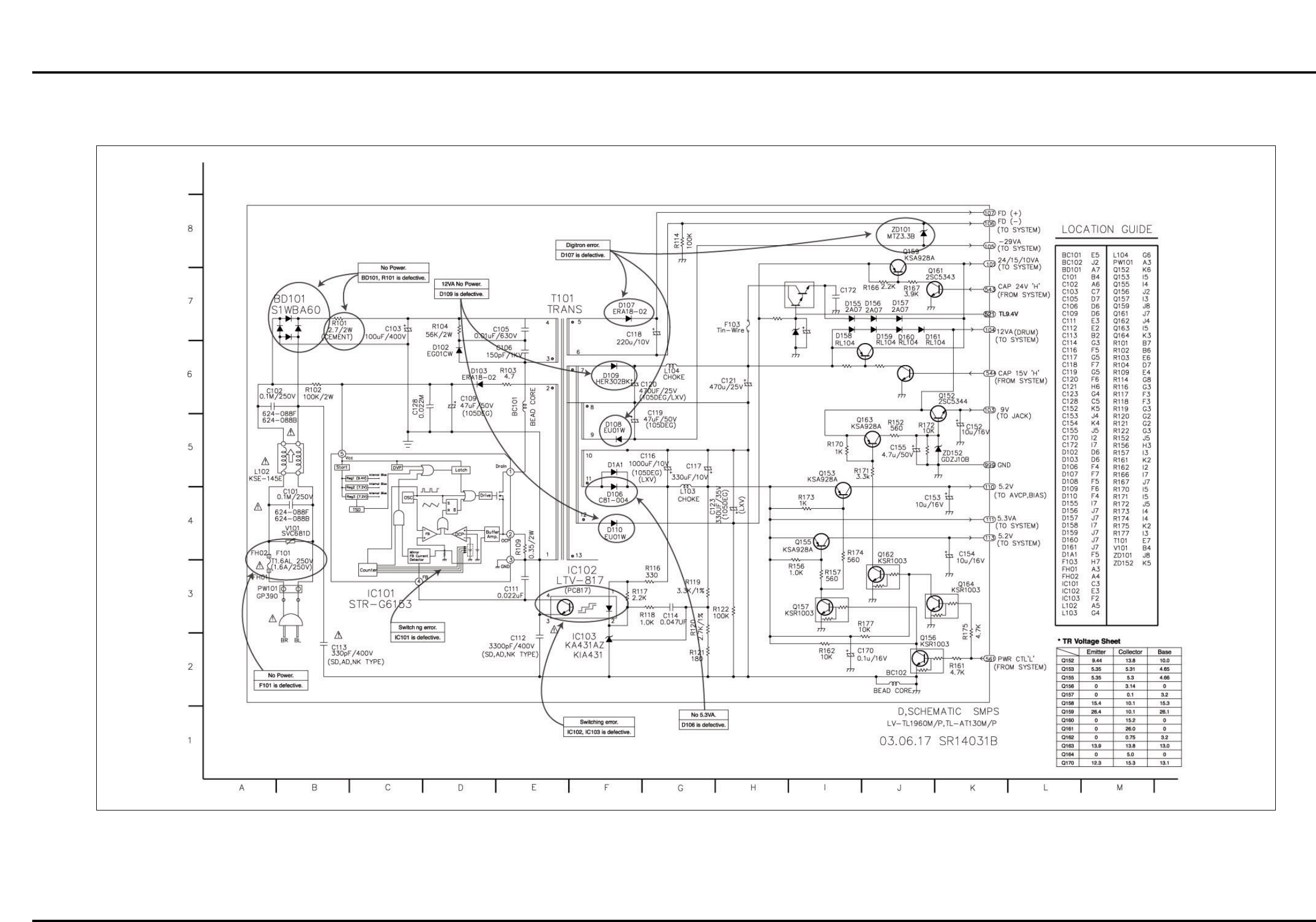

3. POWER CIRCUIT DIAGRAM.................................3-17

4. AUDIO BLOCK DIAGRAM......................................3-19

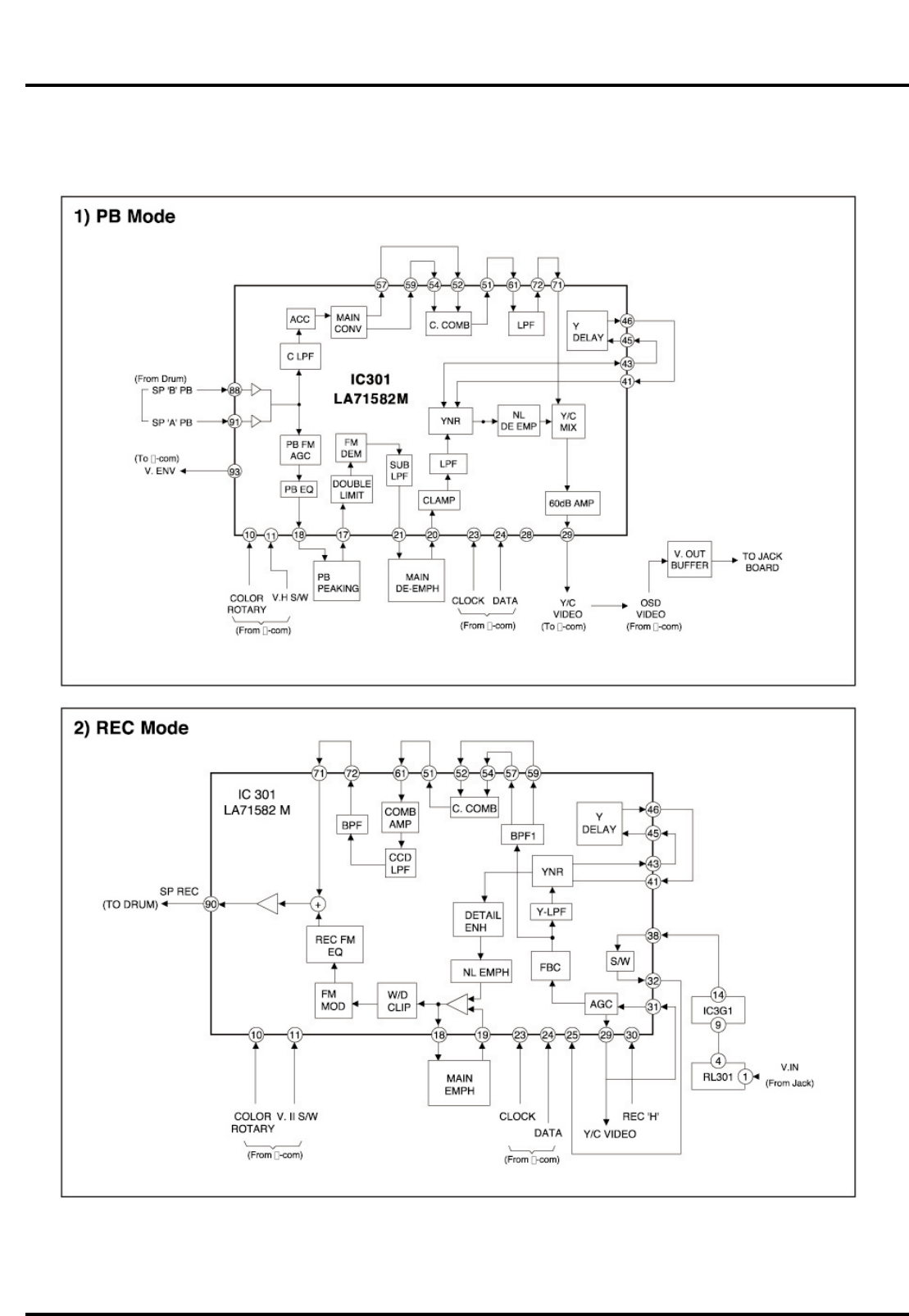

5. Y/C BLOCK DIAGRAM...........................................3-20

6. A/V CIRCUIT DIAGRAM.........................................3-21

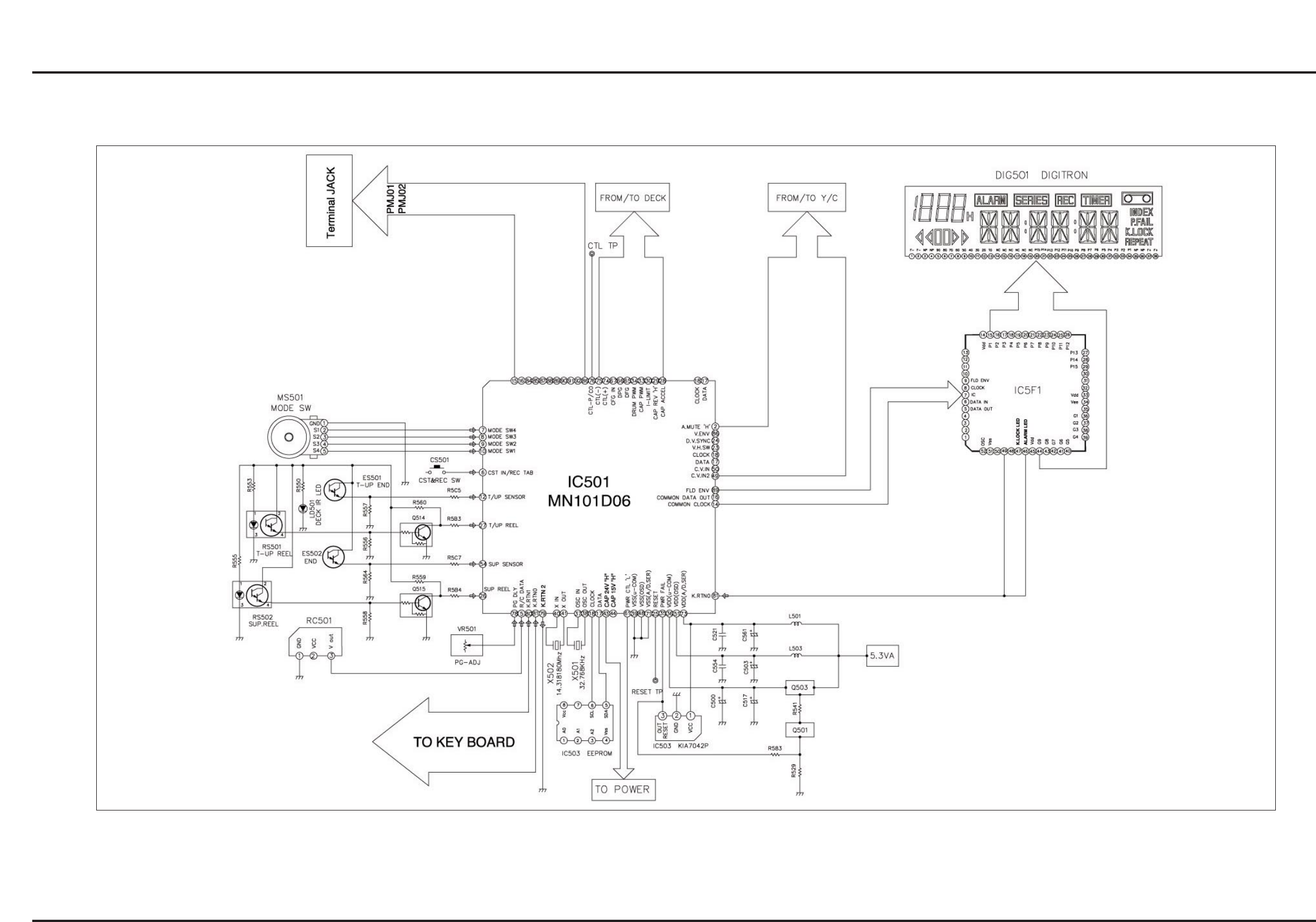

7. SYSTEM BLOCK DIAGRAM ..................................3-24

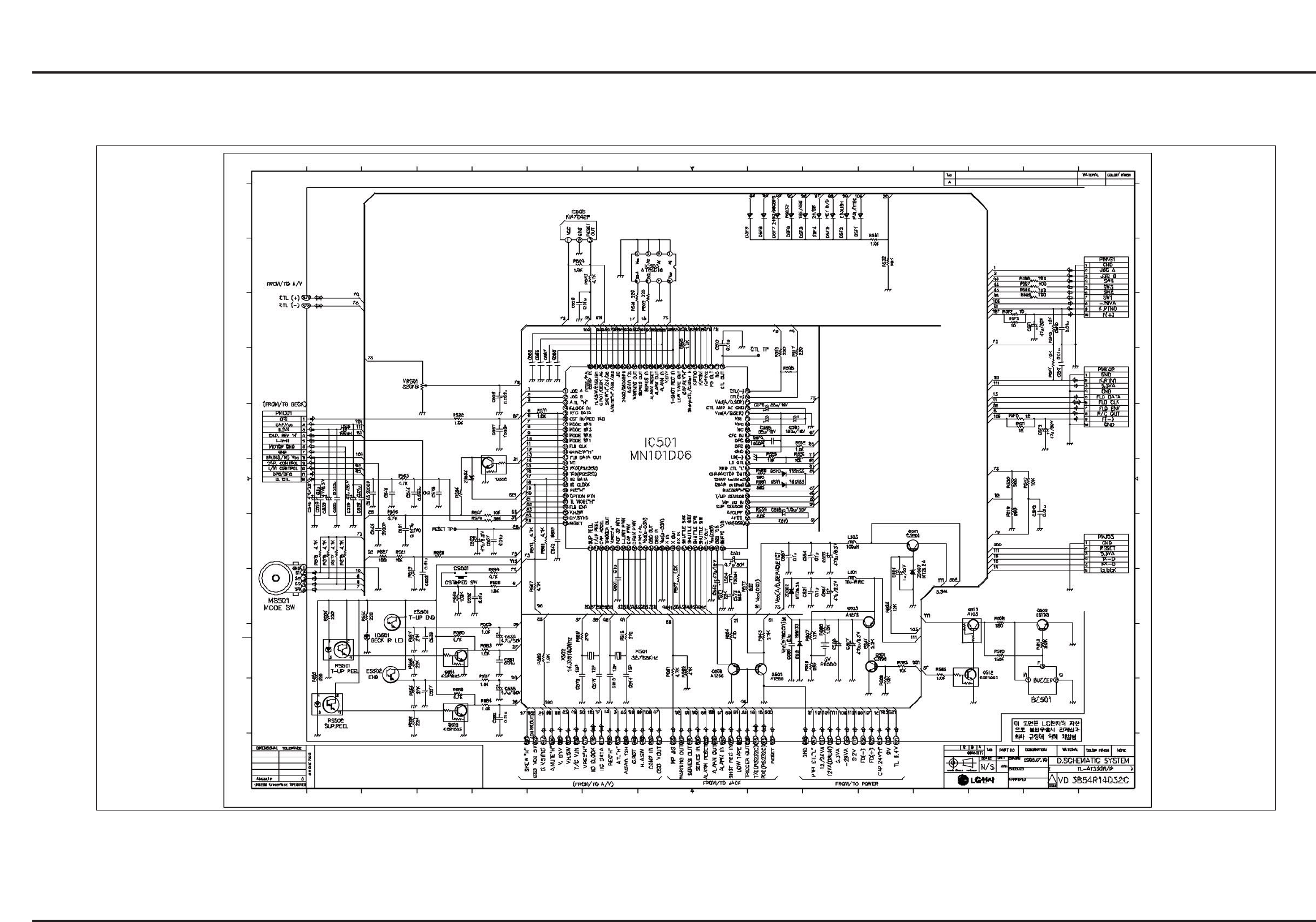

8. SYSTEM CIRCUIT DIAGRAM................................3-27

9. JACK CIRCUIT DIAGRAM .....................................3-29

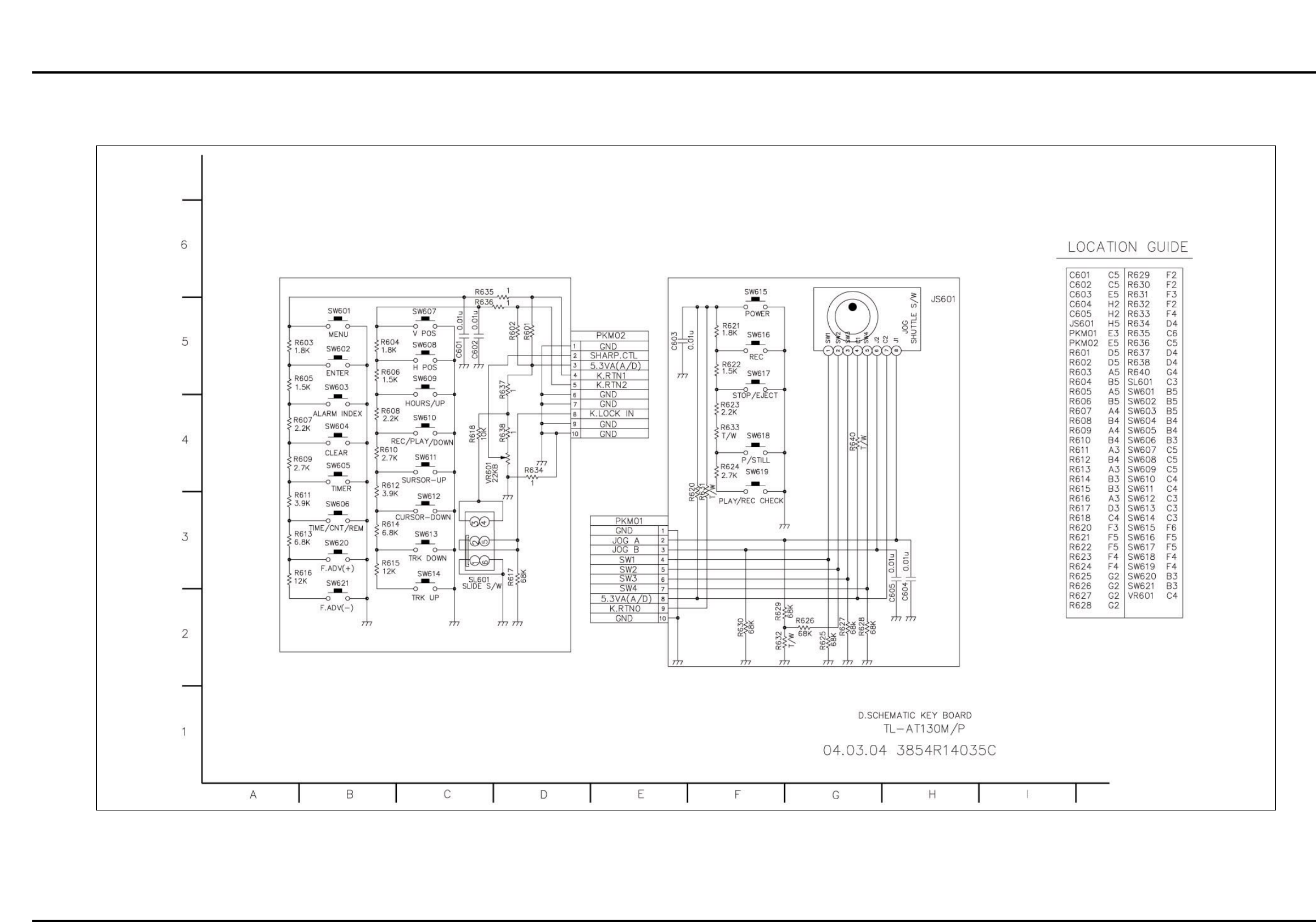

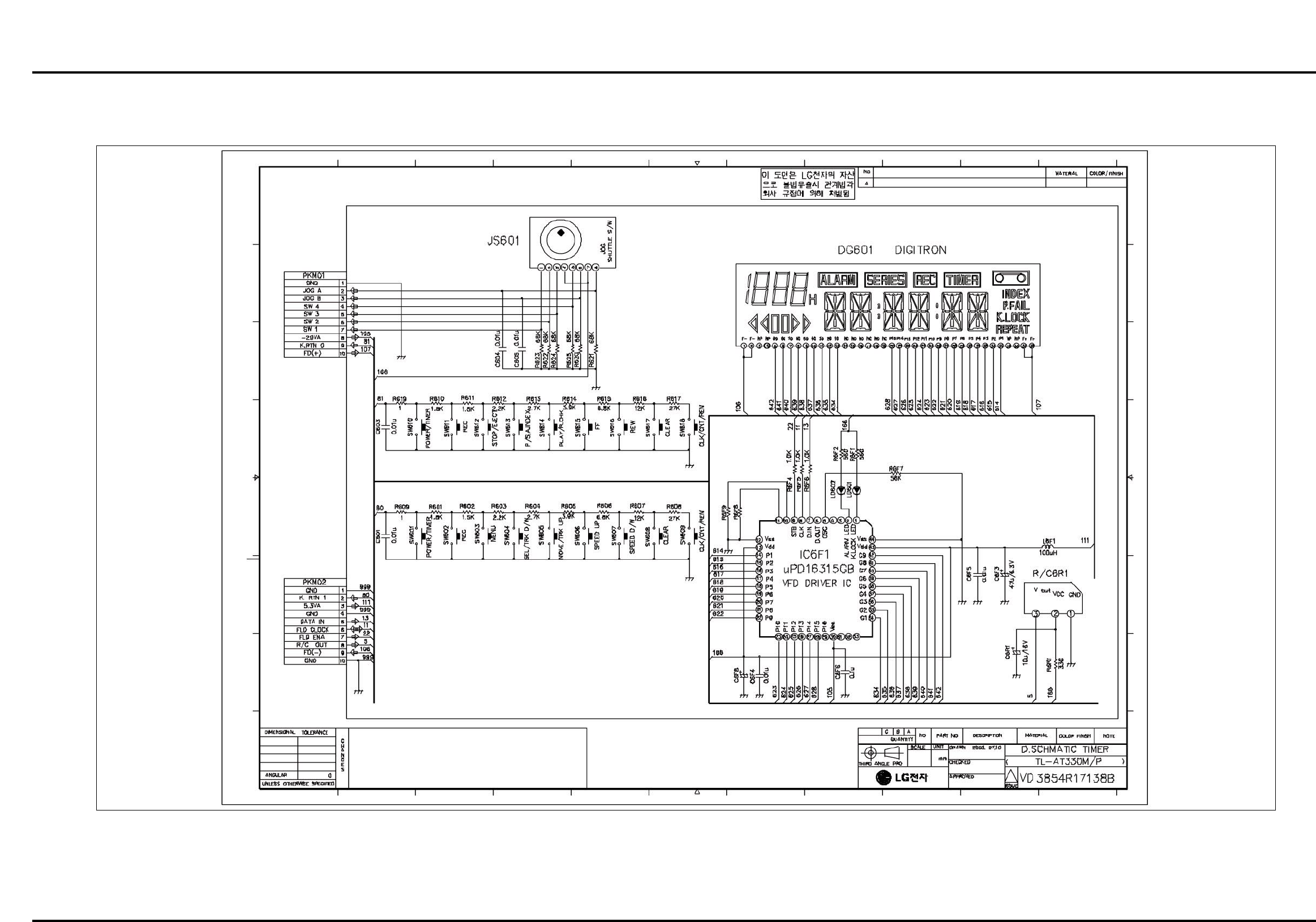

10. KEY-BOARD CIRCUIT DIAGRAM..........................3-31

PRINTED CIRCUIT DIAGRAMS ....................................3-33

1. MAIN P.C.BOARD ..................................................3-33

2. KEY 1 P.C.BOARD.................................................3-35

3. KEY 2 P.C.BOARD.................................................3-35

4. JACK P.C.BOARD..................................................3-35

SECTION 4

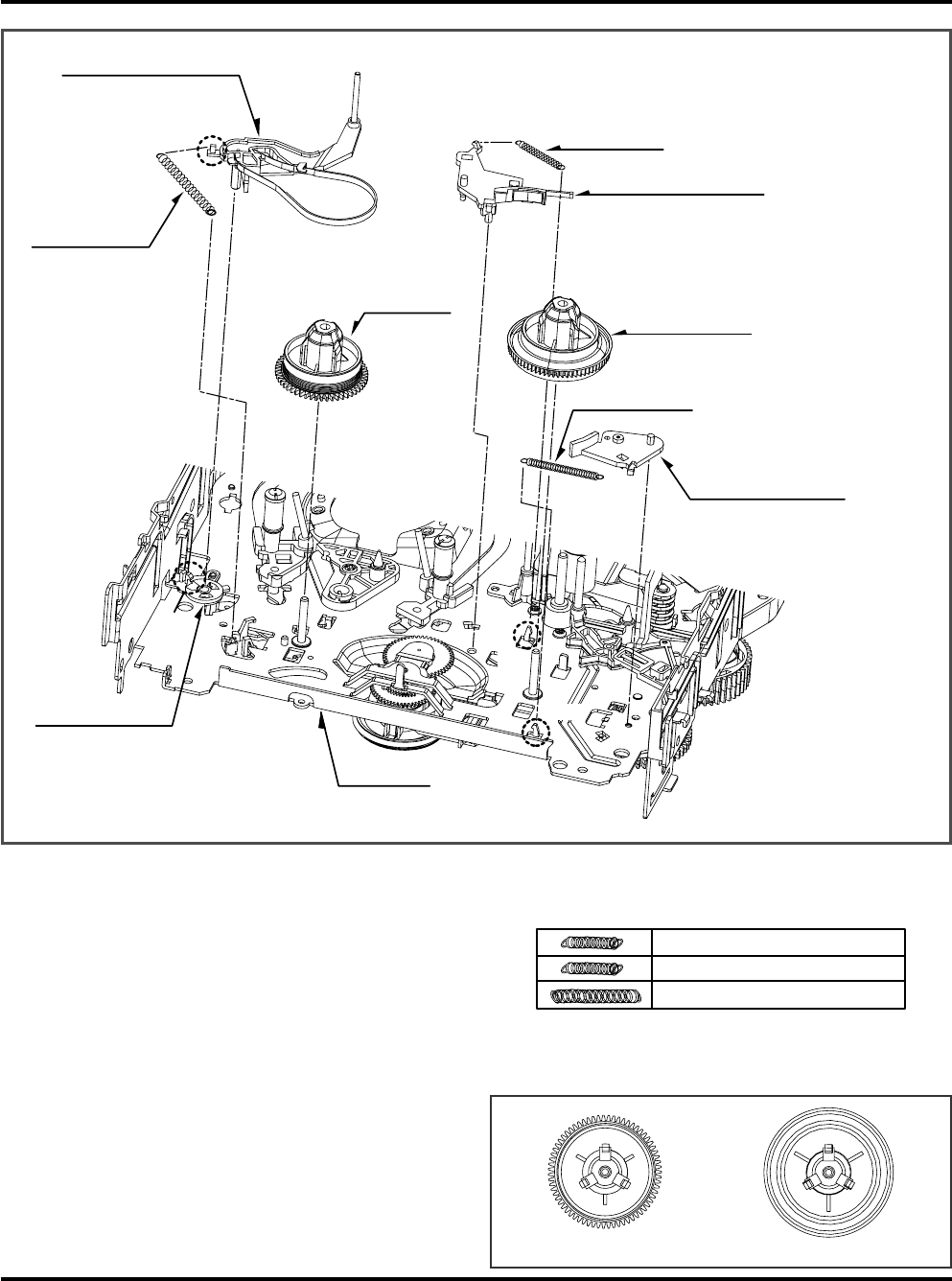

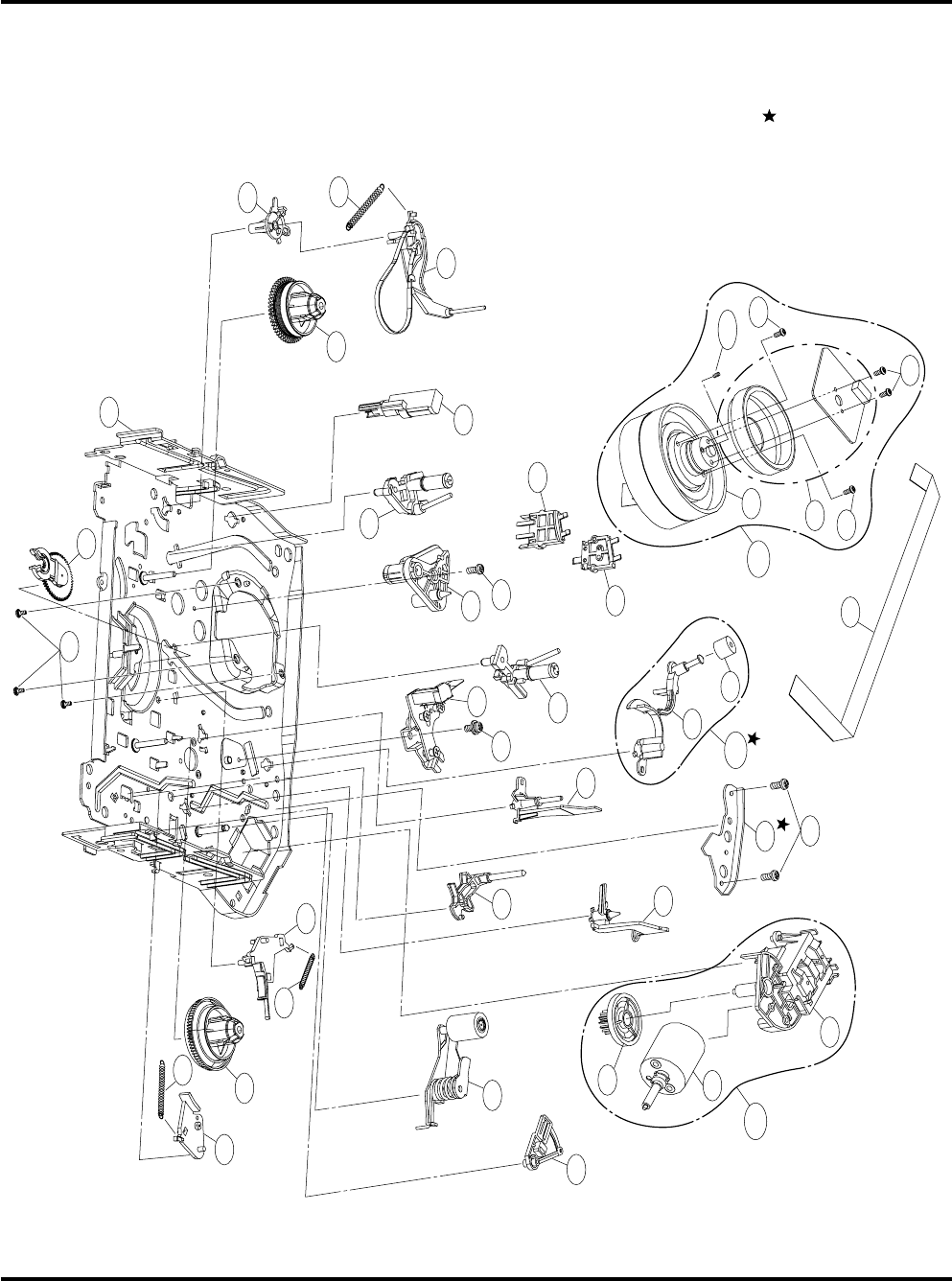

MECHANISM

SECTION 5

REPLACEMENT PARTS LIST

• Mechanical Section.....................................................5-1

• Electrical Section ........................................................5-3

NOTE) The table of contents for this section is edited

separately.

SECTION1 SUMMARY

SPECIFICATIONS

1-1

GENERAL

Head System Four head helical scan azimuth system

Power Source AC 100-240V, 50/60Hz

Power Consumption Approx. 15 Watts

Back up time (clock) 30 days

Dimensions (WxHxD) 14.2” x 3.7” x 10.7” (360 x 94 x 273 mm)

Operating Temperature 41 °F~105 °F (5 °C~40 °C)

Operating Humidity Less than 80% RH

Timer 24-hour display type

Weight Approx. 8.4 lb (3.8 kg)

Tape Speed (NTSC) 11.12 mm/sec (6H) , 3.70 mm/sec (18H),

2.22 mm/sec (30H), 72H ~ 960H

Tape Speed (PAL) 11.695 mm/sec (6H) , 3.89 mm/sec (18H),

2.33 mm/sec (30H), 72H ~ 960H

Maximum Recording Time 6 hours (NT:T-120/PAL:E-180, 6H),

18 hours (NT:T-120/PAL:E-180, 18H),

30 hours (NT:T-120/PAL:E-180, 30H), 72H ~ 960H

Tape Width 0.5 in. (12.7 mm)

Rewind Time About 65 seconds (NT:T-120)(PAL:E-180)

Video Signal System(PAL) CCIR Standard (625 lines, 50 fields)

PAL type color signal

Video Signal System(NTSC) EIA Standard (525 lines, 60 fields)

NTSC type color signal

Video Input 1.0 Vp-p 75 ohms unbalanced

Video Output 1.0 Vp-p 75 ohms unbalanced

Signal to Noise Ratio More than 43 dB (6H mode)

Conventional audio

Input (LINE) -6.0 dBm more than 47 kohms

Output (LINE) -6.0 dBm less than 1.5 kohms

S/N Ratio More than 43 dB (6H mode)

Frequency Range 200 Hz to 10kHz (6H mode)

* Designs and specifications are subject to change without notice.

* Weight and dimensions shown are approximate.

SECTION1 SUMMARY

LOCATION OF CUSTOMER CONTROLS

1-2

1 POWER/TIMER BUTTON

2 MENU BUTTON

3 REC (RECORD) BUTTON

4 MOVE BUTTON

5 SEL (SELECT) BUTTON

6 DOWN BUTTON

7 UP BUTTON

8 ALARM INDICATOR

9 KEY LOCK INDICATOR

10 CASSETTE LOADING SLOT

11 CLEAR, KEY LOCK OFF, BUZZER OFF

12 CLOCK, COUNT, REMAIN

13 SHUTTLE RING

14 JOG RING

15 PAUSE/STILL BUTTON

16 PLAY/REC CHECK BUTTON

17 STOP/EJECT BUTTON

FRONT

REAR

1 POWER CORD

2 AUDIO IN/OUT JACK

3 VIDEO IN/OUT JACK

4 RESET BUTTON

5 12-PIN TERMINAL BLOCK

1-3

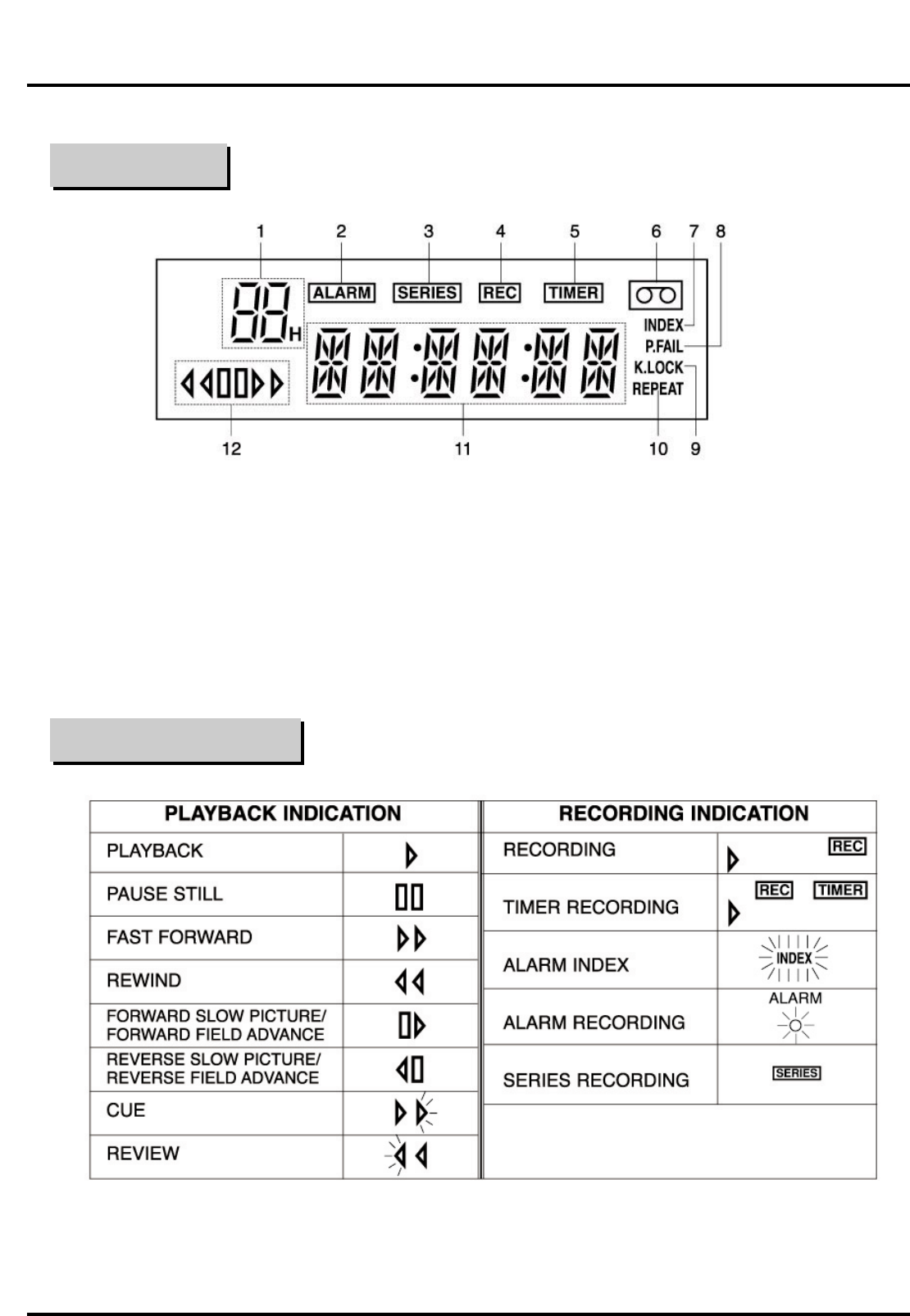

1 TIME LAPSE VCR TIME INDICATION

2 ALARM INDICATION

3 SERIES INDICATION

4 RECORD INDICATION

5 TIMER INDICATION

6 CASSETTE INDICATION

7 INDEX INDICATION

8 POWER FAILURE INDICATION

9 KEY LOCK INDICATION

10 REPEAT INDICATION

11 FUNCTION INDICATION

12 VCR FUNCTION INDICATION

INDICATOR PANEL

VCR FUNCTION INDICATION

SECTION1 SUMMARY

LOCATION OF CUSTOMER CONTROLS

1-4

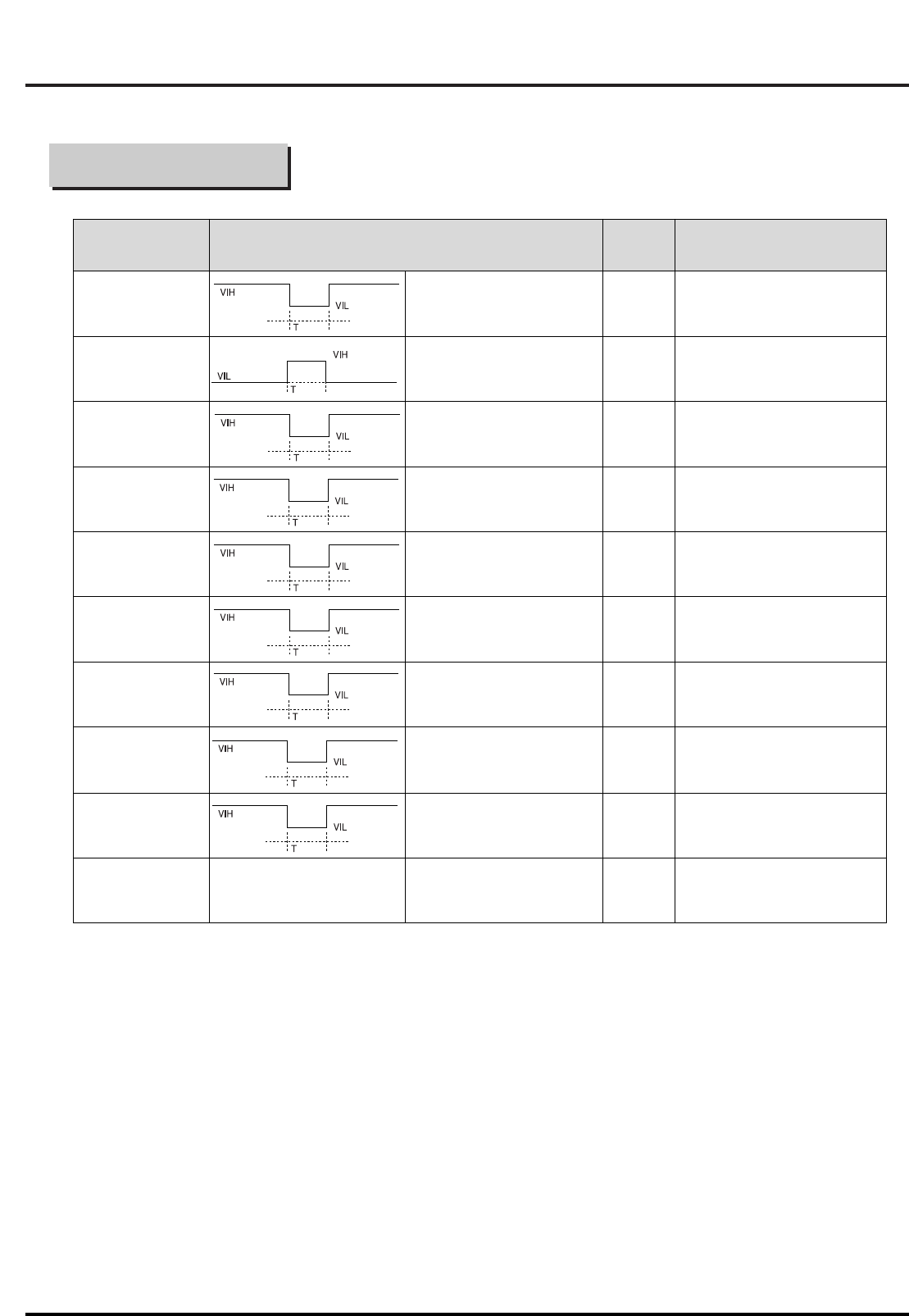

TERMINAL SIGNAL LEVELS

SECTION1 SUMMARY

LOCATION OF CUSTOMER CONTROLS

INPUT

OUTPUT

INPUT

OUTPUT

INPUT

COMMON

The input signal that makes

‘Alarm Record’ work

Output signal appears when the

tape reaches to end or deck is

error in recording.

Outputs whether VCR deck is

error.

The terminal that makes ‘1-short

Record’ work in Auto mode

As the terminal that outputs that tape

remains less than 5 minutes in

recording, it isn’t output in ‘1-shot

Record’.

The signal is output which is used by

switching several cameras in

general space with using camera

multi-plexer.

Outputs whether ‘Alarm

Recording’ is working

The terminal that stops ‘Alarm

Record’ in Auto mode

The input terminal to make

‘Series Record’ work

1. ALARM IN

2. ALARM OUT

3.ALARM RESET

5. SERIES IN

6. SERIES OUT

7. WARNING OUT

8. TRIGGER OUT

10. LOW TAPE OUT

11. 1-SHOT REC IN

4, 9, 12. GND

VIH : 4 ~ 5V

VIL : 0 ~ 0.6V

T : above 250 msec

VIH : 4 ~ 5V

VIL : 0 ~ 0.6V

T : ALARM REC STATE

VIH : 4 ~ 5V

VIL : 0 ~ 0.6V

T : above 250 msec

VIH : 4 ~ 5V

VIL : 0 ~ 0.6V

T : above 250 msec

VIH : 4 ~ 5V

VIL : 0 ~ 0.6V

T : above 250 msec

VIH : 4 ~ 5V

VIL : 0 ~ 0.6V

T : above 250 msec

0V-

VIH : 4 ~ 5V

VIL : 0 ~ 0.6V

T : until any-key is pressed

VIH : 4 ~ 5V, VIL : 0 ~ 0.6V

8 msec : NTSC

10 msec : PAL

VIH : 4 ~ 5V

VIL : 0 ~ 0.6V

T : below 5 min, end of tape

TERMINAL SIGNAL LEVEL IN/OUT DESCRIPTION

1-5

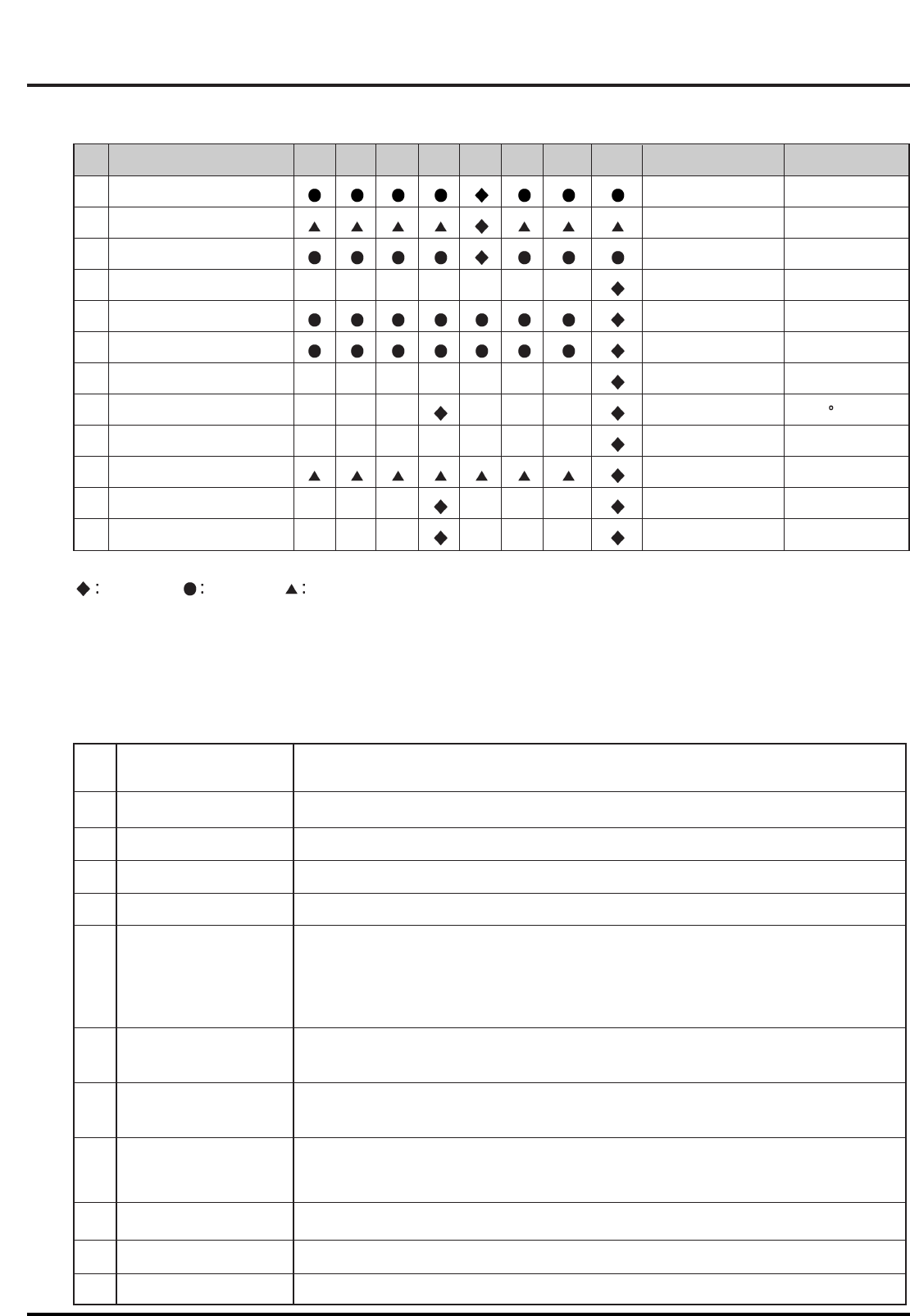

No. DESCRIPTION 1500 3000 5000 6000 7500 9000 10000 12000 Test freatures Specification

1 DRUM ASSY RF out level -4dB and below

2 ARM ASSY CLEANER Wear status

3 MOTOR CAPSTAN (D-35) W/F(WTD) 0.4% and below

4 BELT CAPSTAN Belt tension

5 BASE ASSY A/C -6dB and below

6 HEAD F/E 45dB min

7 ARM ASSY IDLER 4~12 g

8 HOLDER ASSY PINCH 60~90

9 BAND ASSY TENSION Back Torque 40~70 g

10 HOUSING ASSY CST loading status

11 CAPSTAN SOFT BRAKE Felt wear

12 CLUTCHAY Torque(Play, Rev)

there shouldn’t be any space

betwween CST and compartment

whether there is

touch noise

40~140gcm, 100~210gcm

1. Drum Ass’y

Consists of video head, rotary trans and motor. records video and audio information on

the tape, and play the tape back.

(Audio information is recorded only on the Hi-Fi models)

2. Arm Ass’y Cleaner Cleans video head and rotation head automatically.

4. Motor Capstan Moves the tape with regular speed.

5. Belt Capstan Transfers rotative energy of capstan motor to the driving system.

6. Brake Ass’y Capstan Brakes rotative energy of capstan motor.

7. Base Ass’y A/C Consists of three head.

Audio erase head in the left upper erases audio signal in dubbing.

Audio head in the right upper records and playes the audio signal.

CTL head in the right lower records and detects CTL pulse to control tape speed.

8. Head F/E Is abbreviation of Full Erased Head.

erases the signal recorded on a tape clearly and absorb vibration of tape.

12. Arm Ass’y Idler Is located between T/UP reel and supply reel.

Transfers ratative energy of capstan motor to T/UP reel or supply reel.

13. Holder Ass’y Pinch Sticks a video tape to capstan motor and has the tape played without being

slipped from capstan motor axle.

14. Band Ass’y Tension Has supply reel loosened properly with giving it some tensile force.

15. Arm Ass’y Makes the cassette tape inserted be loaded and ejected precisly and safely.

16. Clutch Ass’y Plays the tape with trasfering rotative energy of capstan motor to idler reel.

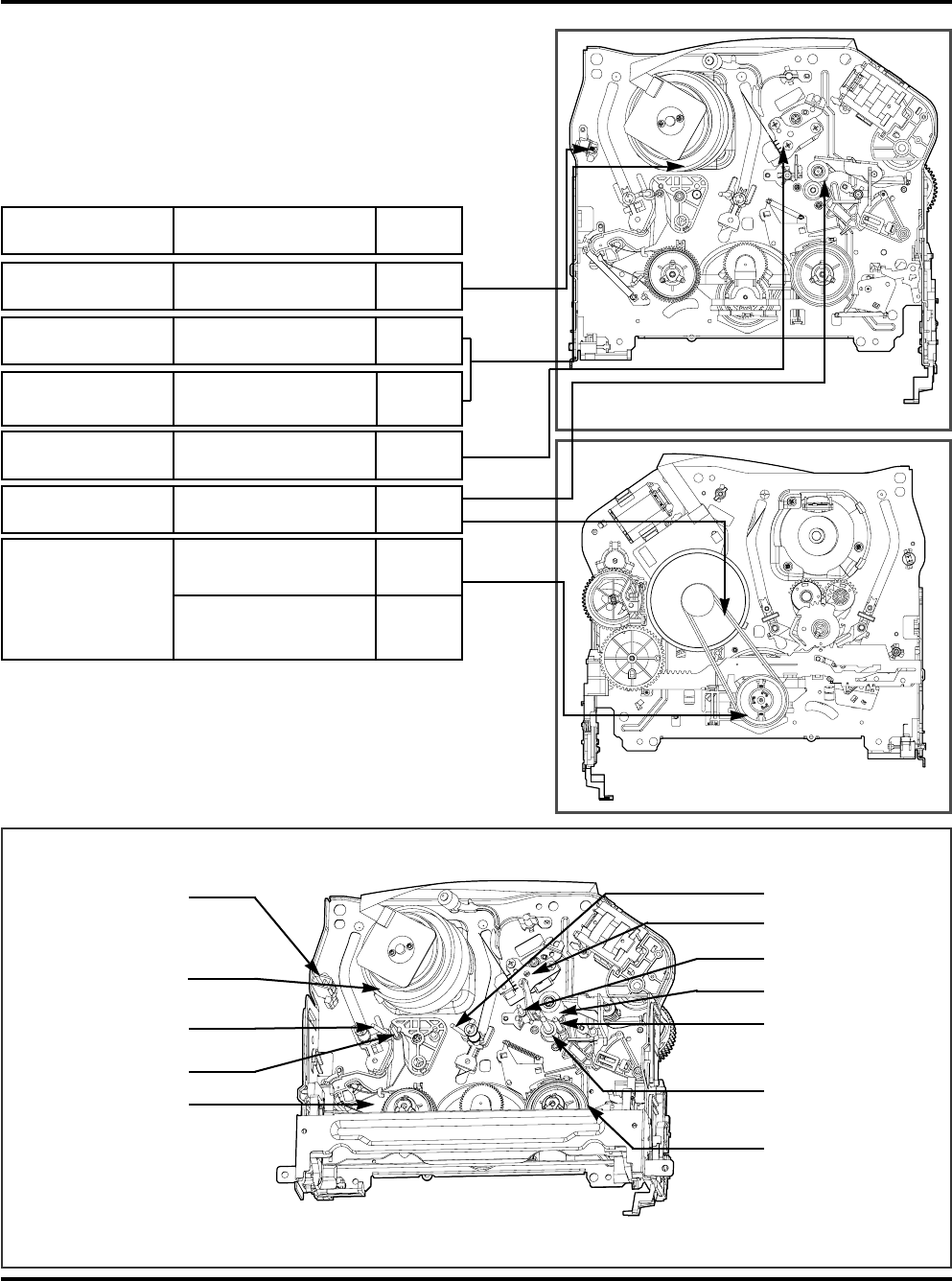

SECTION1 SUMMARY

CRITICAL PARTS REPLACING TIME TABLE

Audio and CTL out

level

Whether extraneous

matters come out

Variation amount :

within 40%

The rate of erasing

(1KHz)

The capacity of ldler

for moving

Surrace solidity of

Roller

Reference :

Changing Cleaning Checking

Notes :

• Check the running path adjustment when you change the itens 1, 3, 5, 6 and 10.

• Check the back tension when you change Band Assy Tension.

CRITICAL PARTS DESCRIPTION

2-1

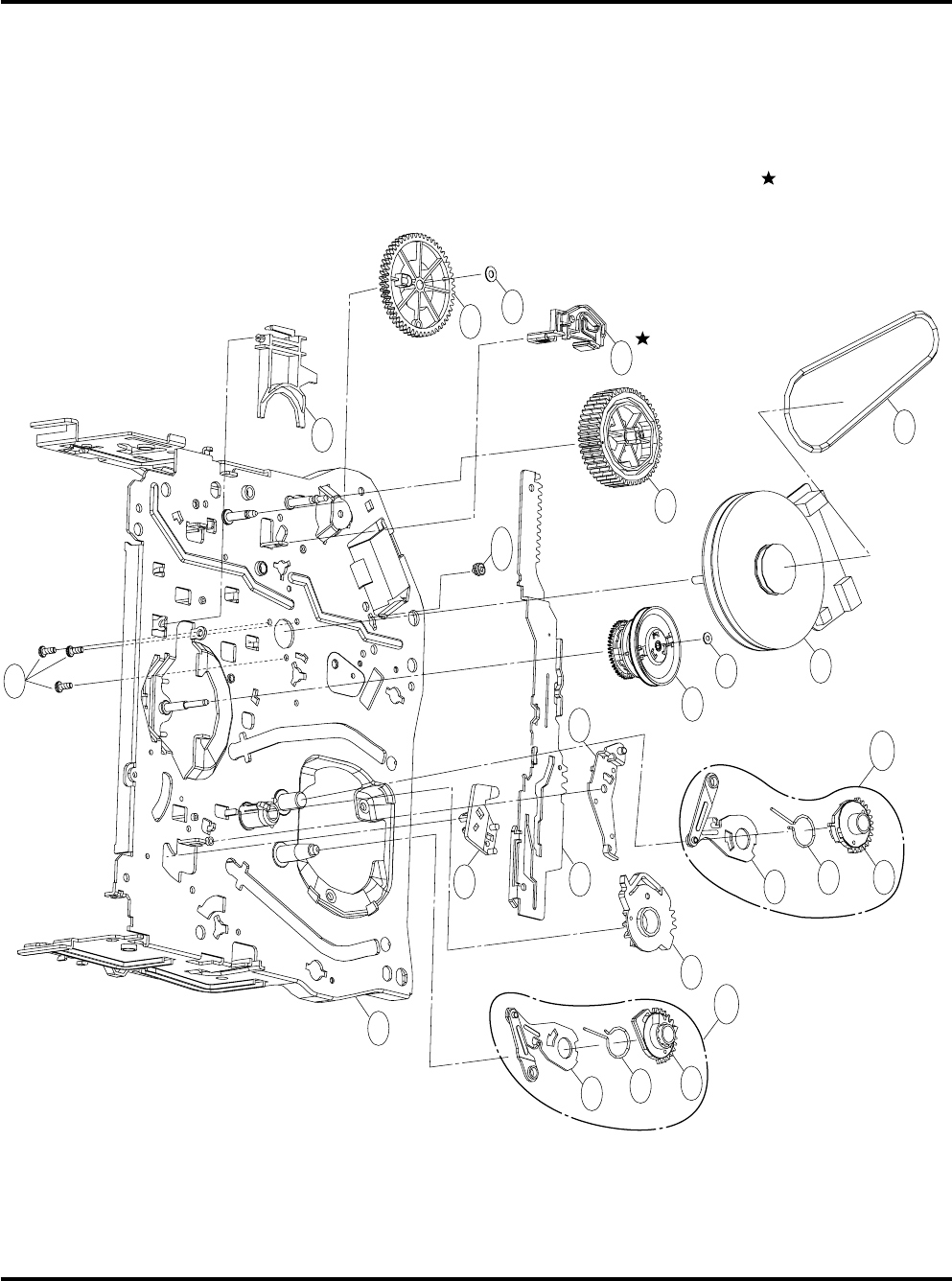

SECTION2 CABINET & MAIN FRAME

EXPLODED VIEWS

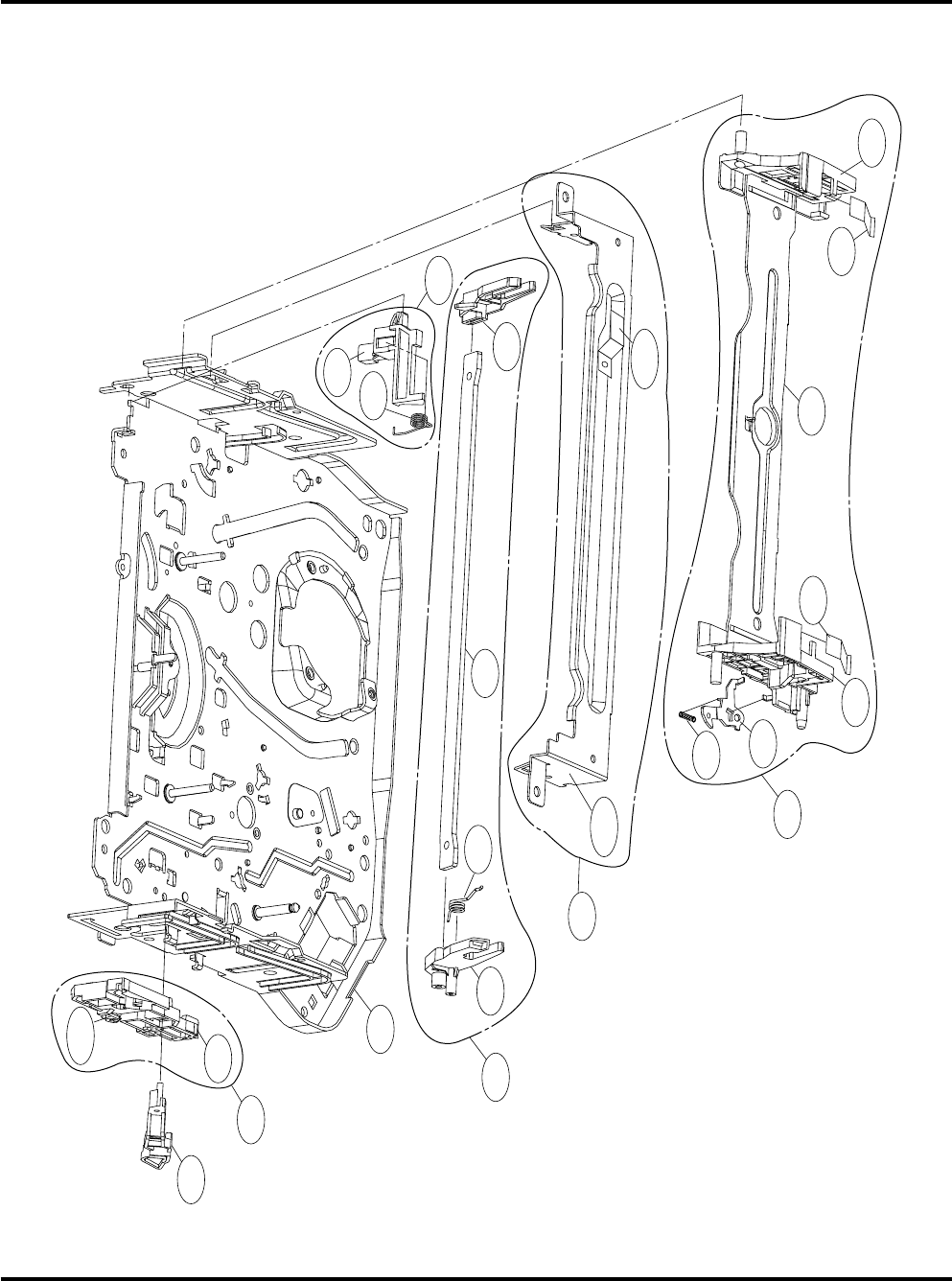

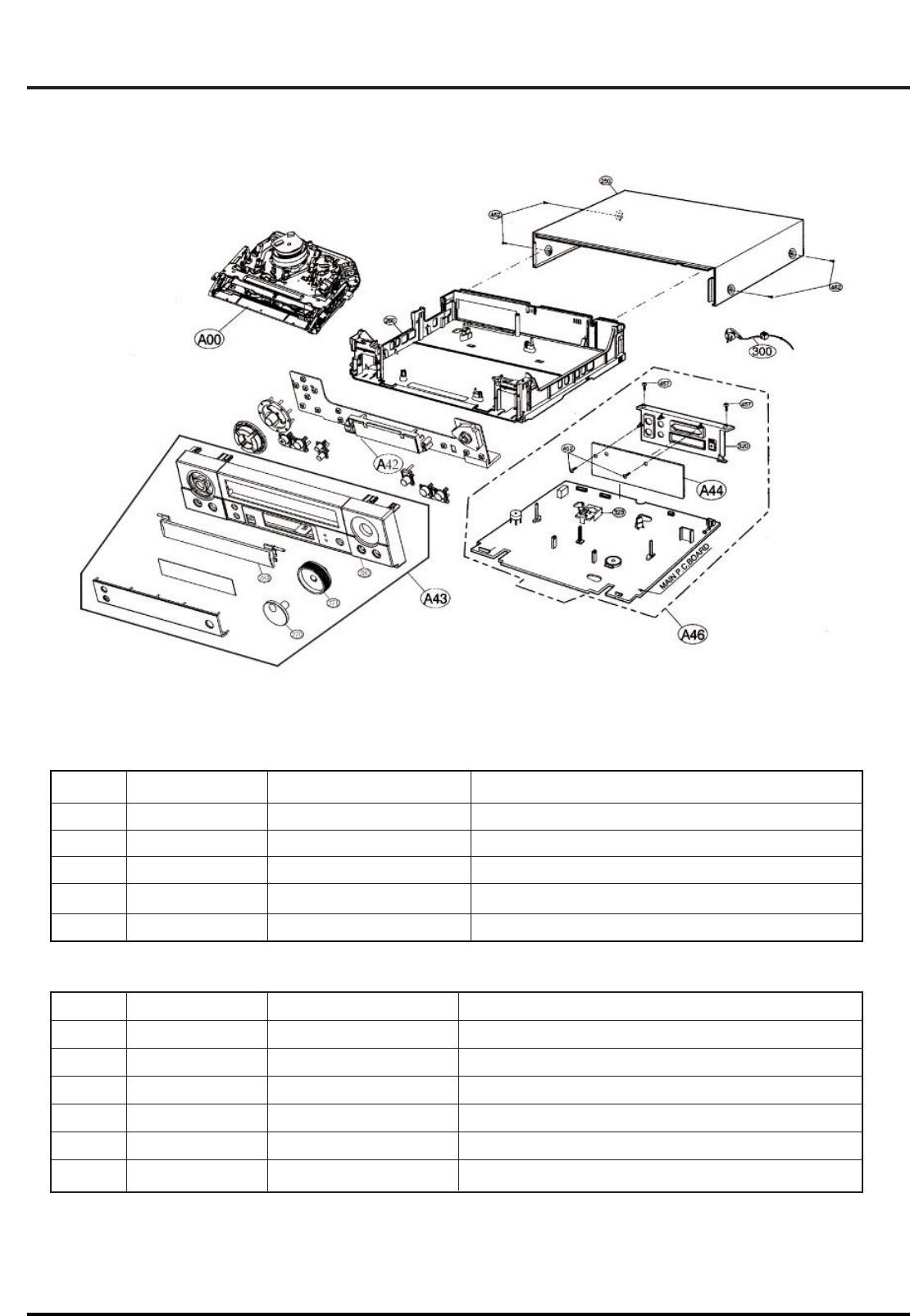

1. Cabinet and Main Frame Section

Cabinet & Main Frame Section Parts list

MODEL : TL-AT130M

S AL LOCA.NO. PART NO DESCRIPTION SPECIFICATION REMARKS

ASSEMBLY SECTION

A00 6721R-0771U DECK ASSEMBLY,VIDEO DECK/MECHA D35 LG T/L (4HD(ALL

A42 6871R-8283A PWB(PCB) ASSEMBLY,TOTAL T/L VCR KEY2 JOG/SHUTTLE

A43 3721R-F826D PANEL ASSEMBLY,FRONT CCD TIME LAPSE PANEL FRONT ASS

A44 6871R-4462A PWB(PCB) ASSY,TOTAL TL-AR30 (SERIES) - W. RS232C -

A45 6871R-7050B PWB(PCB) ASSEMBLY,TOTAL T/L VCR TL-AT130M MAIN

A46 3501R-7050B BOARD ASSEMBLY VCR TL-AT130M MAIN

PARTS SECTION

250 3110R-S040F CASE LV-TL1960 2960 MOLD AIRHALL BA

260 3210R-0023A FRAME VCR - MAIN

277 4940R-Z075A KNOB SHUTTLE(TL-AR30M)

278 4940R-Z076B KNOB CCD TL-AT130 MOLD

280 3720R-F721D PANEL,VIDEO CCD LV-TL1960 S MOLD HIPS 40AF

281 524-013A MAGNET VCR - ASSY DOOR

283 3580R-V090A DOOR CCD TIME LAPSE MOLD DOOR CST

284 442-681A SPRING DOOR

285 4940R-Z086A KNOB CCD LV-TL124 MOLD

286 4940R-S017A KNOB SLIDE (LV-TL24)

300 6410RZHV01A POWER CORD IT10S2(6A/250V) VOLEX IMMETRO

320 3721R-D031N PANEL ASSEMBLY, LV-TL1960S 2960S NEW ASSY (RS-

DISTRIBUTOR[NOR

323 3111R-0089B CASE ASSY PRE-AMP (PBSB-SH)

325 4931R-0024D HOLDER ASSEMBLY DIGI(MONO-ENABLE)

330 3550R-0210A COVER BOTTOM(LARGE)

SCREW

452 353-051A SCREW,DRAWING SPECIAL

457 353-051E SCREW,DRAWING SPECIAL (3X12)

462 353-136A SCREW,DRAWING SPECIAL(FBK) (353S353A)

RUN DATE : 2004.03.12

1-1. Cabinet and Main Frame Section

2-2

Cabinet & Main Frame Section Parts list

ASSEMBLY PARTS SECTION

A42 6871RK5700K Ass'y Front PCB SNILN4T3526

A43 05503805 ASS'Y FRONT CAVINET NTH960 C-TYPE

A44 6871R-4462A Ass'y Ant. PCB TL-AR30(SERIES)

A46 3501RK3200B Ass'y Main PCB CCD LV-TL1960

SECTION2 CABINET & MAIN FRAME

EXPLODED VIEWS

2-3

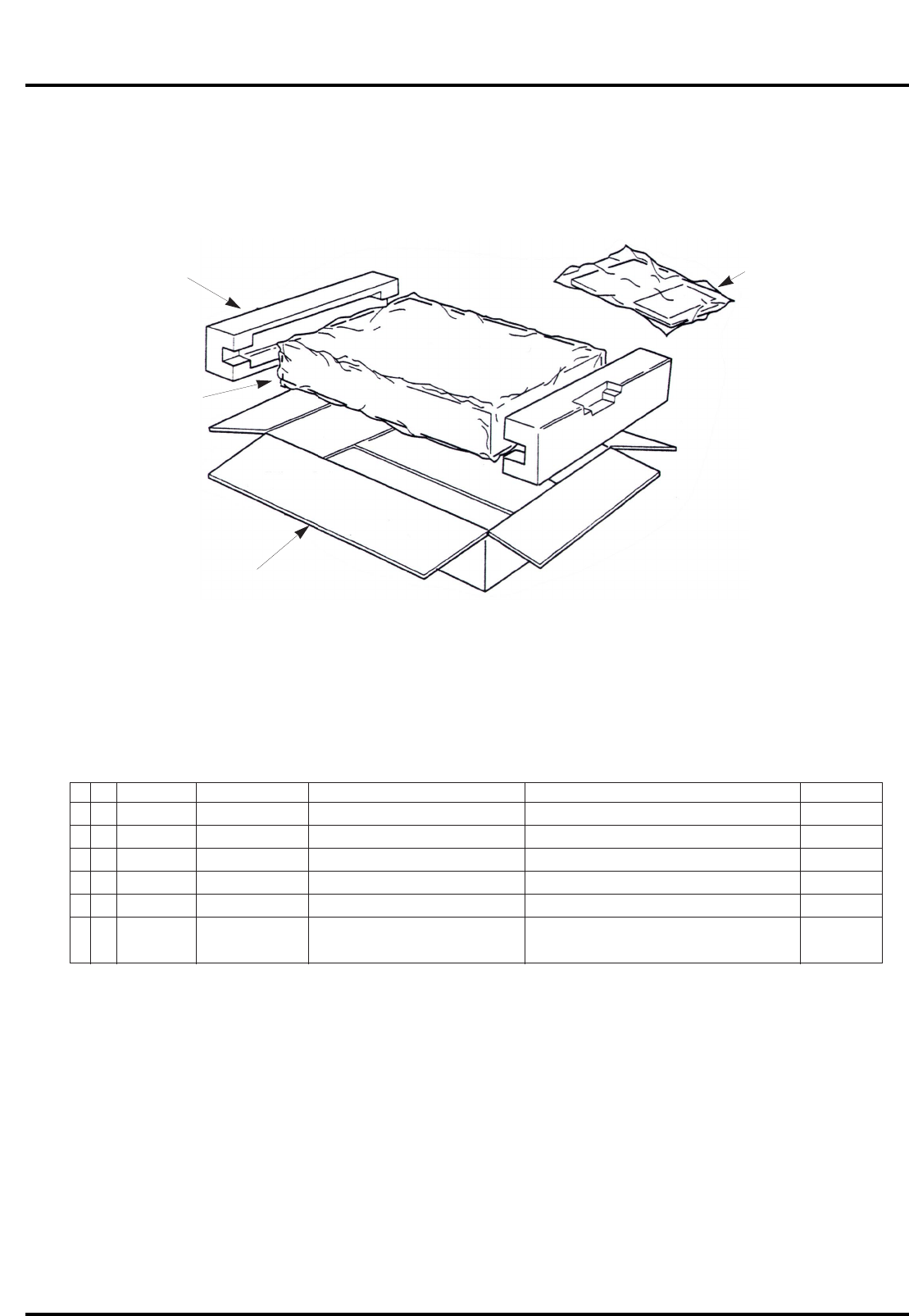

2. Packing & Accessory Section

✒ NOTE

NOTE

Refer to “REPLACEMENT PARTSLIST” in order to look

for the part number of each part.

801 INSTRUCTION ASS’Y

803 : PACKING

804: SHEET ROLL

802: BOX CARTON

SECTION2 CABINET & MAIN FRAME

EXPLODED VIEWS

S AL LOCA.NO. PART NO DESCRIPTION SPECIFICATION REMARKS

801 3835RS0069N INSTRUCTION ASSEMBLY CCD TL-AT330M-AABBDL1_ENG_POR_

802 3890R-C065K BOX,MASTER TL-AT330M AABBDL . 1

803 3920R-E016A PACKING Packing LV-TL24I 0.02 0 EPS 10

804 3858R-S001A SHEET (MECH) Packing LDPE 600M 630MM 0.5 VC

808 534-008C BATTERY,MANGANESE AAAM(R03) SEOTONG 1-5 V - 1PA

900 6711R1P041H REMOTE CONTROLLER P9 LV-TL1960

ASSEMBLY

MODEL : TL-AT130M

• Packing Accessory Section Parts list

RUN DATE : 2004.03.12

3-1

SECTION3 ELECTRICAL

ELECTRICAL ADJUSTMENT PROCEDURES

1. PG ADJUSTMENT

MODE SPECIFICATION OBJECT MEASURED OBJECT ADJUSTED

PLAYBACK IN SP PG : 416 ± 20 sec V.OUT JACK VR501

1. Connect CH-1 of the oscilloscope to W357 and W362,

and adjust it to 1Vp-p as TRIGGER.

(In case of 10:1 Probe, adjust it 50m Vp-p)

2. Connect CH-2 of the oscilloscope to V.OUT JACK and

adjust it to 0.5Vp-p.

(In case of 10:1 Probe, adjust it 50 Vp-p)

3. Adjust time of the oscilloscope to 0.1 msec.

4. Adjust the range between FLLING EDGE part of video

vertical trigger signal and video vertical trigger signal

to the specification(416±20 sec) with changing VR501.

WAVEFORM

• CONNECTION CHART OF MAIN PWB

Fig 3-1. Connection chart of PG adjustment

✒ Caution

Caution

When repairing the power part just after pulling out the power code, there is hazard of electical shock caused by the

charged electricity at the peripheral circuit component(primary power) such as condenser C807(150µF). So begin

repairing after doing procedure below.

1. Set the volt meter up to resistance measurement.(In case of digital volt meter, set it up to over 20MΩ.)

2. Discharge electicity with putting the measuring terminal lines(+, 1 probe) of volt meter at the ends of condenser

C103.(You don’t have to put the polarity of the measuring terminal lines on the same polarity of the condenser.)

3-2

SECTION3 ELECTRICAL

ELECTRICAL TROUBLESHOOTING GUIDE

1. Power Circuit(SMPS)

(1) No 5.3 A (2) No 9V

Is R101 normal?

YES

Is there Vcc (about 13~19V) at

IC101 pin 5?

Is Q170 normal?

Is D110 normal?

Is Q152 normal?

Replace F101(Use a specified

fuse).

Replace BD101.

Replace R101.

Is D103 normal?

Check/

Replace D103

No 5.3V

Is F101 normal? Check/Replace D109

No 12V

Is D109 normal?

YES

Is BD101 normal?

Replace D110

YES

Replace Q170

Replace Q152

Check/ Replace Q163

YES

Is Q159 normal?

Check ‘H’ signal at Q161

Base terminal

Check/Replace D110

No 24V

Is D110 normal? NO

Check/Replace Q152

(3) No 24 V

Is D109 normal?

YES

Is L103 normal?

Replace IC103.

Replace D109.

Is L103 normal?

YES

Is there about 2.5V at

IC103 pin 1?

YES

Replace D106.

YES

Is D106 normal?

YES

Check the power terminal at main

PCB short.

3-3

(4) No 5.2 A (TO AVCP, BIAS) (5) No 10V

Is there voltage (about 0V)

at Q157 collector.

YES

Is Q170 normal?, Is there about

13.5V at Q107 Base?

Check/ Replace

D155, D156, D157/\.

Replace D106.

Replace Q153.

Replace Q157.

No 5.2V

Is D106 normal? Replace D109

No 10V

Is D109 normal?

YES

Is Q153 normal?

YES

Check/

Replace Q156

YES

Check/ Replace

Q107, ZD103

SECTION3 ELECTRICAL

ELECTRICAL TROUBLESHOOTING GUIDE

3-4

SECTION3 ELECTRICAL

ELECTRICAL TROUBLESHOOTING GUIDE

2. SERVO CIRCUIT

(1) Video is unstable in PB mode

Does CTL pulse move on tracking?

YES

Does Video Envelope wave form

appear at IC501 pin 86?

YES

Replace IC501.

Is adjusting height of CTL

head accurate?

Replace IC501.

Check the Pre-Amp circuit

In PB mode

Does noise level on the screen

change periodically?

YES

Does CTL pulse appear at

IC501 Pin 76?

YES

Readjust the height

of CTL fead.

(2) Drum motor stops

Check the Ass’s between

connector(PMC01) and Drum motor

YES

Aren’t pattern or componets between

IC501 Pin34 and PMC01 Pin12 short?

Does Drum PWM pulse

appear at IC501 Pin34?

Does DFG pulse appear at

IC501 Pin65?

Does Drum PWM pulse appear

at IC501 Pin34?

When the drum moter stop

Is there 12V at PMC01 Pin8?

YES

Is there 2.8V at PMC01 Pin12?

YES

Does DFG pulse appear at

PMC01 Pin3?

Check Power circuit

YES

Aren’t pattern or componets between

IC501 Pin34 and PMC01 Pin12 short?

YES

Replace IC501

Check the Ass’y between

junction PCB and Drum motor

Aren’t pattern or componets between

IC501 Pin34 and PMC12 Pin1 short?

(3) Capstan motor stops

3-5

SECTION3 ELECTRICAL

ELECTRICAL TROUBLESHOOTING GUIDE

Check the Ass’y between PMC01

and Capstan motor

YES

Aren’t pattern or componets between

IC501 Pin33 and PMC01 Pin9 short?

Check Power circuit

Does CFG signal appear at PMC01 Pin1?

Check the Ass’y of Capstan motor

When the capstan motor stops

Is it 12VA at PMC01 Pin2?

YES

Is there 2.8V at PMC01 Pin9?

YES

Does PWM signal appear at IC501 Pin 33?

Aren’t pattern or componets between IC501 Pin67 and

PMC01 Pin1 short?

Replace IC501

YES

Check CFG signal appear at IC501

Pin67?

Does Capstan PWM signal appear

at IC501 Pin33?

YES

Aren’t pattern or componets between

IC501 Pin33 and PMC01 Pin1 short?

YES

3-6

SECTION3 ELECTRICAL

ELECTRICAL TROUBLESHOOTING GUIDE

3. Y/C CIRCUIT

(1) No Video in EE Mode

Does the Video signal appear

at the IC301 Pin29?

Check the IC3G1 Pin14

and Q3G1 emitter.

Check the path of the signal between

the IC301 Pin29 and IC501 Pin49.

Is there 9V on the plus

terminal of the C381?

No Video in EE Mode

Does the Video signal appear at the

IC3G1 Pin9?

YES

Does the Video signal appear

at the IC301 Pin38?

YES

Check the Video input Jack &

jack Board connection.

YES

Is I2C BUS signal applied to the

IC301 Pin 23, 24?

Check C316.(AGC)

Replace the Q380.

Check the System Circuit. (Refer to

‘SYSTEM I2C BUS Trouble Shooting’)

Does the Video signal appear

at the IC501 Pin 47?

YES

Does the Video signal appear at

the Emitter terminal of the Q380?

YES

Replace the IC301.

YES

Check the 9V Line.

(Power Circuit)

Is 5V applied to the

IC301 Pin16, 40, 55, 58, 75, 87?

YES

Check the 5VA Line.

(Power Circuit)

(2) When the Y(Luminance)signal doesn’t appear on the screen in PB Mode.

3-7

Clean the Drum.

Is the V.H.S/W "H" about

3.4V to the IC301 Pin11 ?

Check the path of the Y(Luminance)

RF signal.(Check the Q301)

Check the path of the Y(Luminance)

RF signal.(Check Q302, Q303)

Is 5V applied to the IC301

Pin 16, 40, 55, 58, 87?

Is the I2C Bus signal applied

to the IC301 Pin 23, 24?

YES

Does the normal RF signal

appear at the IC301 Pin74?

YES

Check the System Circuit. (Refer to

‘SYSTEM I2C BUS Trouble Shooting’)

YES

Replace the IC301.

Does the Y(Luminance) RF signal

appear at the IC301 Pin 17?

YES

Is the Y(Luminance) Video waveform

showed up at the IC301 Pin 41?

YES

Check the System Circuit.

(IC501 Pin 23)

Is V.H.S/W "H" about 3.4V at the

IC301 Pin 11?

YES

Check the V.H.S/W level.

(Check R304, R305)

Check the line of the 5.3VA

Line. (Power Circuit)

SECTION3 ELECTRICAL

ELECTRICAL TROUBLESHOOTING GUIDE

3-8

SECTION3 ELECTRICAL

ELECTRICAL TROUBLESHOOTING GUIDE

(3) When the C(Color) signal doesn't appear on the screen in PB Mode

Check the circuit of the

IC301 Pin 35, 62.

Check the Color Rotary level.

(Check the R302, R303)

Is 5V applied to the IC301

Pin 16, 40, 55, 58, 87?

Is the Color Rotary signal applied to

the IC301 Pin 10?

YES

Is Color Rotary "H" about

1.6V?

YES

Check the Color Rotary

Circuit. (IC501 pin 98)

Replace the IC301.

Does the Color signal appear at

the IC301 Pin 71?

Replace the IC301.

YES

Does the Color signal appear

at the IC301 Pin 61?

Check the Color Pass.

(Check the Q304)

Check the line of the 5.3VA

Line. (Power Circuit)

Replace the X301 or the X302.

Does the X301(4.43MHz) or

X302(3.58MHz) oscillate?

YES

(4) When the Video signal doesn't appear on the screen in REC Mode.

Check the circuit of the

IC301 Pin 90, 92, 94

Check PB Mode.

Is the EE signal normal?

Is 5V applied to the IC301

Pin 16, 40, 55, 58, 87?

YES

Does PB Mode operate

normally?

YES

Check the line of the 5.3VA

Line.(Power Circuit)

Check the Drum &

Drum Connector

Does the RF signal appear at

the IC301 Pin 12?

Does the REC RF signal appear at

the IC301 Pin90?

YES

Check REC Luminance

Pass & Color Pass. Replace the IC301.

YES

Check EE Mode.

Check the System of REC 'H'

(the IC501 Pin 30 / the D301)

Is the REC 'H' signal (about

4V)applied to the IC301 Pin 30?

YES

3-9

SECTION3 ELECTRICAL

ELECTRICAL TROUBLESHOOTING GUIDE

4. AUDIO CIRCUIT

(1) No sound in EE Mode

Is the Audio signal applied to the

IC301 Pin 76?

Check the path of

LINE/AUDIO.

Check the IC501 Pin 2.

(Audio Mute "H".)

Check the IC501 Pin18(CLK),

17(Data) Line.

Does the CLK/Data signal(I2C)

appear at the IC301 Pin 23, 24?

No sound in EE Mode.

No sound.

YES

Is 5V applied to the IC301

Pin 75?

YES

Check the line of the 5V Line.

(Power Circuit)

YES

Is the Audio Mute "High" signal applied

to the IC301 Pin 10?

Check the connection of the Audio

out Jack.

YES

Does the Audio signal appear

at the IC301 Pin 96?

YES

Replace the IC301

YES

(2) No sound in PB MODE

Does the CLK/Data signal(I2C)

appear at the IC301 Pin 23, 24?

Check the IC501 Pin 18(CLK),

17(Data) Line.

Is the Audio Mute "H" applied to

the IC301 Pin 10?

No sound in PB Mode.

No sound.

YES

Is 5V applied to the

IC301 Pin 75?

YES

Check the line of the 5V Line.

(Power Circuit)

YES

Check the connecting State between

the P3D02 Pin 6 and A/C Head.

Does the Audio signal appear

at the IC301 Pin 96?

YES

Does the Audio signal appear

at the IC301 Pin 1?

YES

Replace the IC301 Check the IC501 Pin2.

YES

3-10

SECTION3 ELECTRICAL

ELECTRICAL TROUBLESHOOTING GUIDE

(3) No sound in REC Mode.

Is the Audio signal applied

to the IC301 Pin 76?

Check the path of Line Audio.

Is the “High” signal applied to the

IC301 Pin 10?

Is 5V applied to the FL401

Pin 2?

NO sound in REC Mode.

Sound is not recorded.

YES

Is Playback O.K.?

YES

Refer to "No sound in PB

Mode,".

YES YES

Does the Audio waveform appear

at the IC301 Pin 7?

Check the CLK/Date line and

replace the IC301

Check the Audio R/P/E

connector and Head.

YES

Check the IC501 Pin 96

(Audio Mute “H”).

Is 3.0~4.5V applied to the Emitter

of the Q481?

YES

Check the line of the 5V

Power Circuit.

Does the Erase signal

appear at the FL401 Pin 6?

YES

Is the Voltage level of the IC301

Pin6 850mVp-p?

YES

Replace the FL401 or the

Q405.

YES

3-11

SECTION3 ELECTRICAL

ELECTRICAL TROUBLESHOOTING GUIDE

5. SYSTEM/KEY CIRCUIT

(1) AUTO STOP

Does T/up reel pulse appear

at Q514 Base terminal?

Auto Stop

Does SW waveform appear at IC501

pin23?

YES

Does T/up reel pulse appear

at IC501 Pin27?

Check Drum motor signal

YES

Is there 5.3V at RS501?

Replace T/up reel sensor of deck

Check power circuit

YES

Check DP06, LP03

Replace IC501

YES

(2) No cassette tape loading

Is there 5.3V at IC501 Pin73?

Check IC501 Pin7, 8, 9, 10

No cassette tape loading

Is there REG. 12V at PMCQ1

Pin8?

YES

Does 'H' signal appear at IC501

Pin62 while inserting CST?

Check power circuit L104.

Check power circuit

Check D106, L103.

Check Deck mechanism

YES

Check CST SW and peripheral circuit

YES

*Caution : Auto stop can occur because Grease or Oil is dried up

3-12

SECTION3 ELECTRICAL

ELECTRICAL TROUBLESHOOTING GUIDE

(2) No F.OSD display.

(3) No Key display

Is there 5.3V IC501 Pin 51?

Replace bad switches

Replace X502.

No Key display

Is there 5.2VA at IC501

Pin79, 80, 81?

YES

As pressing the byttons doeseach

function work properly?

YES

Check power circuit

Check 5.3V Line of power

circuity.

Does oscillation appear at the

IC501 Pins 40, 41?

YES

Does oscillation appear at the

IC501 PIns 37, 38?

YES

Check peripheral circuit and

replace X501

YES

No OSD display.

6. OSD CIRCUIT

(1) No OSD display.

Does Video signal appear at the

IC501 Pin 47?

YES NO

Check the signal between

IC501 Pin47 and V.out Jack.

Replace IC501.

YES

Refer to “(5) No OSD picture”

Check the signal between IC301

Pin 29 and IC501 Pin 49.

YES

Check power Vcc 9V

Replace IC501

YES

Does video signal appear at

IC501 Pin 50?

YES

No F.OSD display.

3-143-13

SECTION3 ELECTRICAL

BLOCK & CIRCUIT DIAGRAMS

1. OVERALL WIRING DIAGRAM

3-163-15

SECTION3 ELECTRICAL

BLOCK & CIRCUIT DIAGRAMS

2. POWER

BLOCK DIAGRAM

3-183-17

SECTION3 ELECTRICAL

BLOCK & CIRCUIT DIAGRAMS

3. POWER

CLRCUIT DIAGRAM

3-19

SECTION3 ELECTRICAL

BLOCK & CIRCUIT DIAGRAMS

4. AUDIO BLOCK DIAGRAM

3-20

SECTION3 ELECTRICAL

BLOCK & CIRCUIT DIAGRAMS

5. Y/C BLOCK DIAGRAM

3-223-21

SECTION3 ELECTRICAL

BLOCK & CIRCUIT DIAGRAMS

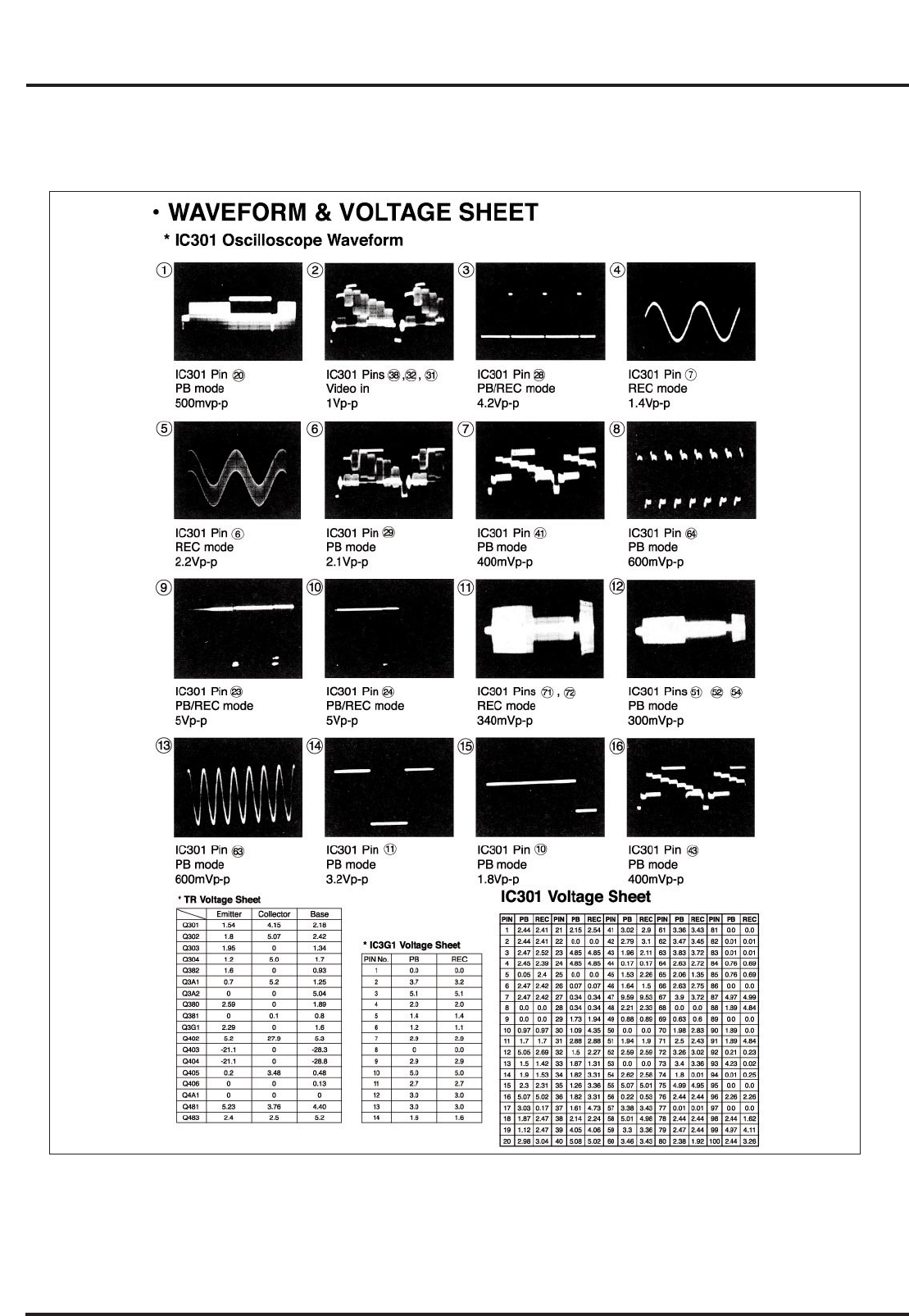

6. A/V

CIRCUIT DIAGRAM

3-23

SECTION3 ELECTRICAL

BLOCK & CIRCUIT DIAGRAMS

3-253-24

SECTION3 ELECTRICAL

BLOCK & CIRCUIT DIAGRAMS

7. SYSTEM

BLOCK DIAGRAM

3-26

SECTION3 ELECTRICAL

BLOCK & CIRCUIT DIAGRAMS

3-283-27

SECTION3 ELECTRICAL

BLOCK & CIRCUIT DIAGRAMS

8. SYSTEM

CLRCUIT DIAGRAM

3-303-29

SECTION3 ELECTRICAL

BLOCK & CIRCUIT DIAGRAMS

9. JACK

CLRCUIT DIAGRAM

3-323-31

SECTION3 ELECTRICAL

BLOCK & CIRCUIT DIAGRAMS

10. KEY-BOARD

CLRCUIT DIAGRAM

3-343-33

SECTION3 ELECTRICAL

PRINTED CIRCUIT DIAGRAMS

1. MAIN P.C.BOARD

3-35

SECTION3 ELECTRICAL

PRINTED CIRCUIT DIAGRAMS

PRINTED CIRCUIT BOARD DIAGRAMS

2. KEY 1 P.C.BOARD 3. KEY 2 P.C.BOARD

4. JACK P.C.BOARD

DECK MECHANISM PARTS

LOCATIONS

• Top View......................................................4-1

• Bottom View ...............................................4-1

DECK MECHANISM

DISASSEMBLY

1. Drum Assembly .........................................4-2

2. Plate Top ...................................................4-4

3. Holder Assembly CST...............................4-4

4. Opener Door .............................................4-4

5. Bracket Assembly L/D Motor.....................4-4

6. Gear Assembly Rack F/L ..........................4-4

7. Arm Assembly F/L.....................................4-4

8. Lever Assembly S/W.................................4-4

9. Arm Assembly Cleaner..............................4-5

10.Head F/E ...................................................4-5

11. Base Assembly A/C Head .........................4-5

12.Brake Assembly T .....................................4-6

13.Brake Assembly RS ..................................4-6

14.Arm Assembly Tension..............................4-6

15.Reel S / Reel T..........................................4-6

16.Base Assembly P4 ....................................4-7

17.Opener Lid ................................................4-7

18.Arm Assembly Pinch .................................4-7

19.Lever T/up / Arm T/up ...............................4-7

20.Belt Capstan/Motor Capstan.....................4-8

21.Lever F/R ..................................................4-8

22.Clutch Assembly D35 ................................4-8

23. Brake Assembly Capstan .........................4-8

24.Gear Drive/Gear Cam ...............................4-9

25.Gear Sector...............................................4-9

26.Plate Slider................................................4-9

27.Lever Tension............................................4-9

28.Lever Spring..............................................4-9

29.Gear Assembly P2/

Gear Assembly P3 ..................................4-10

30.Base Assembly P2/

Base Assembly P3 ..................................4-10

31.Base Loading ..........................................4-11

32.Base Tension ...........................................4-11

33.Arm Assembly Idler .................................4-11

DECK MECHANISM ADJUSTMENT

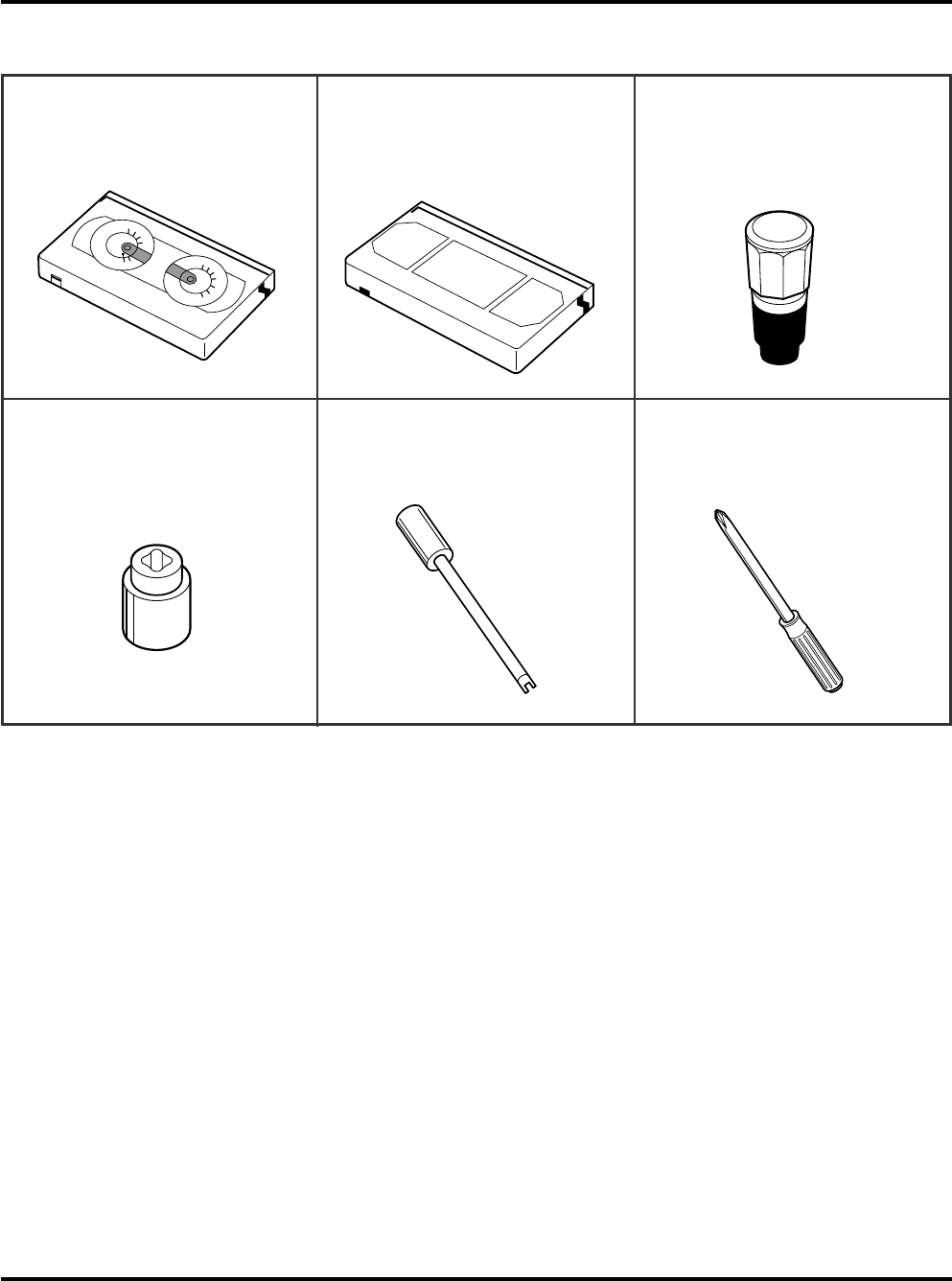

• Tools and Fixtures for Service ...............4-12

1. Mechanism Alignment Position Check....4-13

2. Preparation for Adjustment......................4-14

3. Checking Torque .....................................4-14

4. Guide Roller Height Adjustment..............4-15

4-1. Preliminary Adjustment ....................4-15

4-2. Precise Adjustment ..........................4-15

5. Audio/Control (A/C) Head Adjustment ....4-16

5-1. Preliminary Adjustment ....................4-16

5-2. Confirmation of Tape Path between

Pinch Roller and Take-up Guide......4-17

5-3. Precise Adjustment(Azimuth Adjustment)

.........................................................4-17

6. X-Value Adjustment.................................4-17

7. Adjustment after Replacing Drum Assembly

(Video Heads) .........................................4-18

8. Check the Tape Travel after Reassembling

Deck Mechanism.....................................4-18

8-1. Checking Audio and RF Locking Time

during Playback after CUE or REV

.........................................................4-18

8-2. Checking for Tape Curling or

Jamming ..........................................4-18

MAINTENANCE/INSPECTION

PROCEDURE

1. Check before starting Repairs ................4-19

2. Required Maintenance ............................4-20

3. Scheduled Maintenance..........................4-20

4. Supplies Required for Inspection and

Maintenance............................................4-20

5. Maintenance Procedure ..........................4-20

5-1. Cleaning...........................................4-20

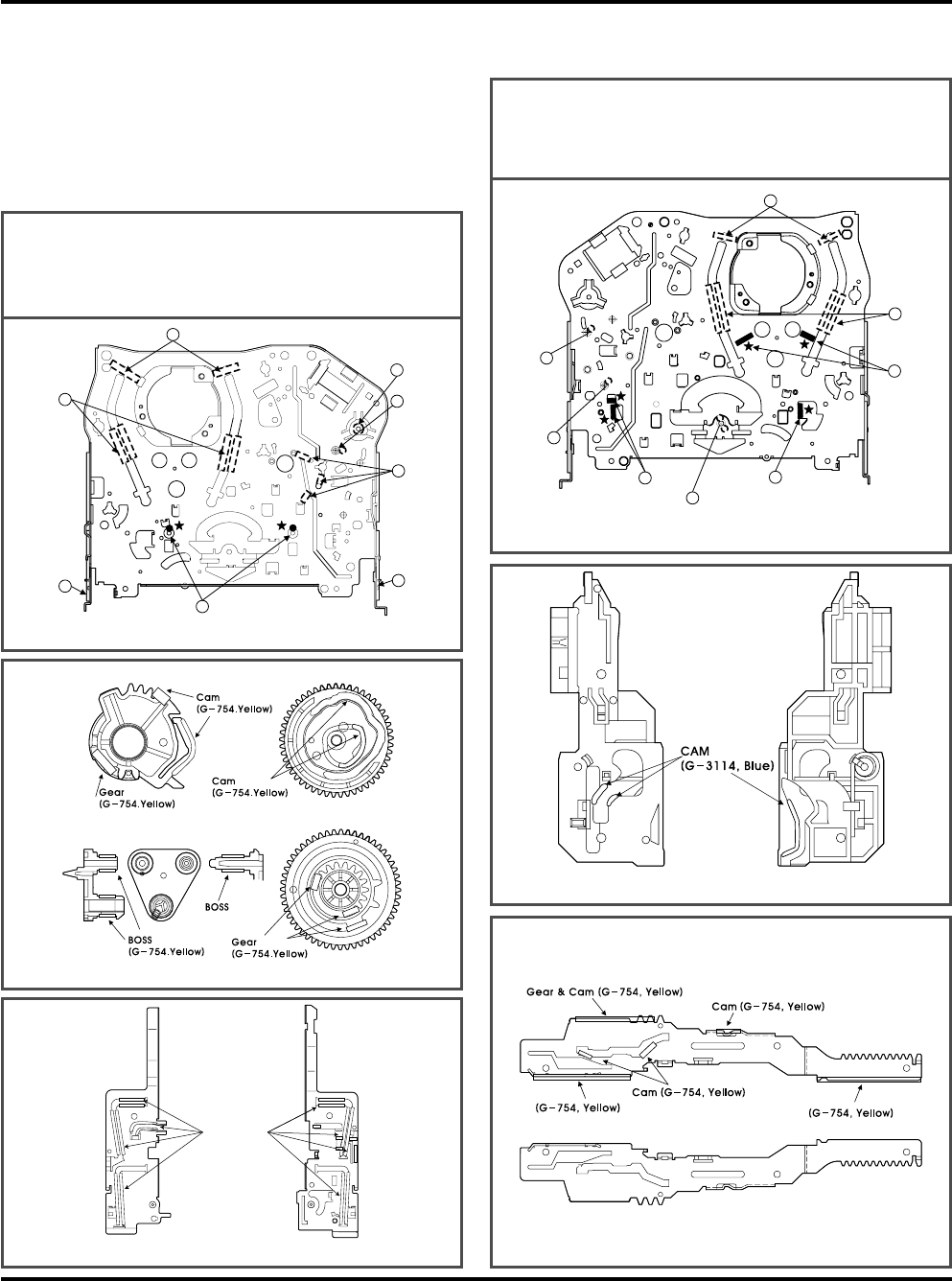

5-2. Greasing ..........................................4-21

MECHANISM TROUBLESHOOTING

GUIDE

1. Deck Mechanism.....................................4-23

2. Front Loading Mechanism.......................4-26

EXPLODED VIEWS

1. Front Loading Mechanism Section .........4-28

2. Moving Mechanism Section (1)...............4-29

3. Moving Mechanism Section (2)...............4-30

SECTION 4 MECHANISM

CONTENTS

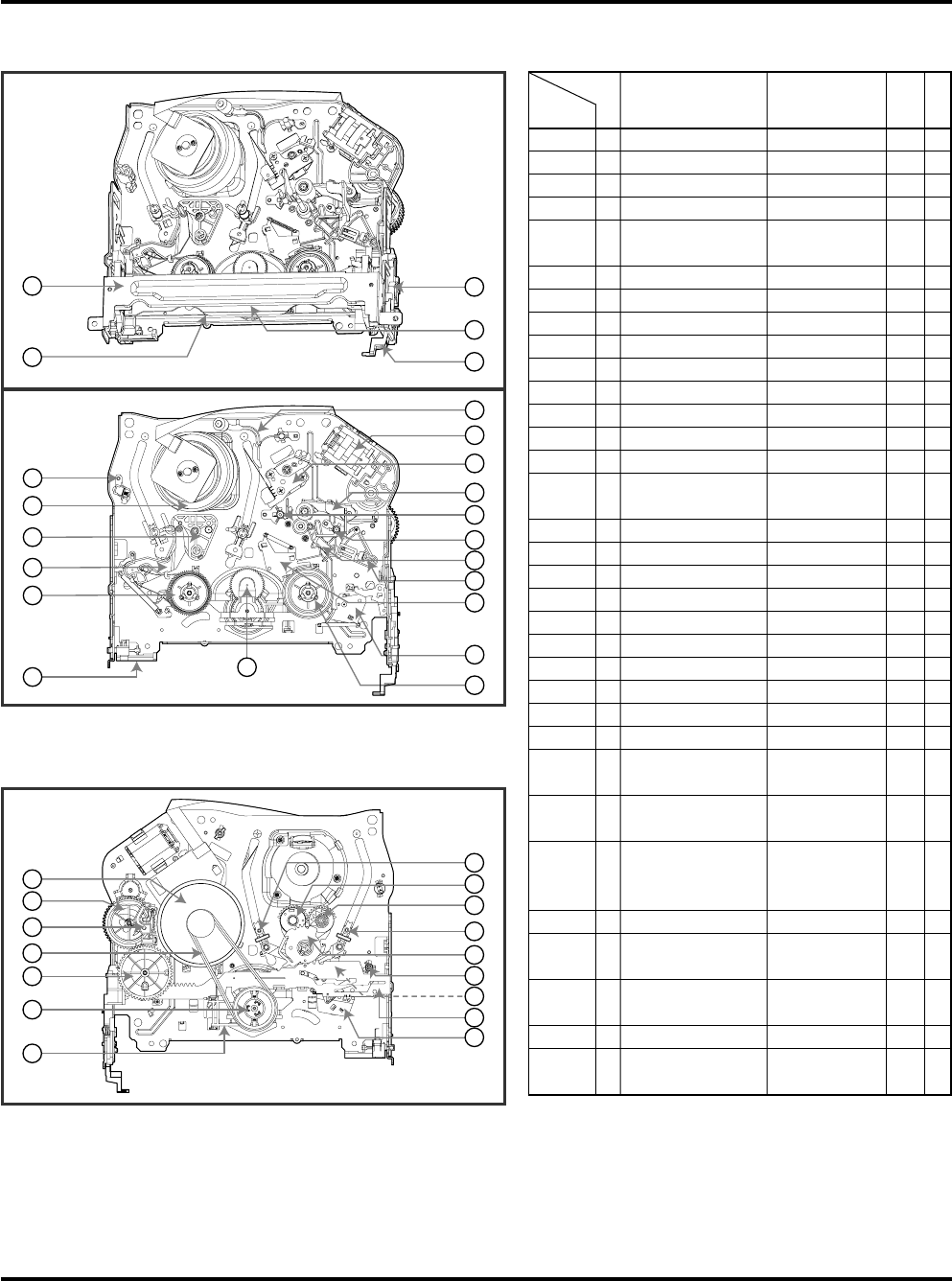

DECK MECHANISM PARTS LOCATIONS

4-1

• Top View

• Bottom View

NOTE : When reassembly perform the

procedure in the reverse order.

1 Drum Assembly 3 Screw A-1 T

2 Plate Top 2 Hook A-2 T

2 3 Holder Assembly CST Chassis Hole A-2 T

2 4 Opener Door Chassis Hole A-2 T

5 Bracket Assembly 3 Hook A-2 T

L/D Motor

2,3,4 6 Gear Assembly Rack F/L 1 Hook, Chassis Hole A-2 T

2,3,4,6 7 Arm Assembly F/L Chassis Hole A-2 T

8 Lever Assembly S/W 1 Hook A-2 T

9 Arm Assembly Cleaner Chassis Embossing A-3 T

10 Head F/E Chassis Embossing A-3 T

11 Base Assembly A/C Head 1 Screw A-3 T

2,3 12 Brake Assembly T 1 Hook A-4 T

2,3 13 Brake Assembly RS 1 Hook A-4 T

2,3 14 Arm Assembly Tension 2 Hook A-4 T

2,3,12,13, 15 Reel S/Reel T A-4 T

16 Base Assembly P4 Chassis Embossing A-5 T

17 Opener Lid Chassis Embossing A-5 T

17 18 Arm Assembly Pinch Shaft A-5 T

17 19 Lever T/Up / Arm T/Up 1 Hook A-5 T

17,18 20

Belt Capstan/Motor Capstan

3 Screw A-6 B

21 Lever F/R Locking Tab A-6 B

20, 21 22 Clutch Assembly D35 Washer A-6 B

23 Brake Assembly Capstan Locking Tab A-6 B

24 Gear Drive/Gear Cam Washer/Hook A-7 B

25 Gear Sector 1 Hook A-7 B

20,21,23, 26 Plate Slider Shaft Guide A-7 B

24,25

20,21,23, 27 Lever Tension 1 Hook A-7 B

24,25,26

2,3,14,20, 28 Lever Spring Locking Tab A7 B

21,25,23,

24,26

25 29

Gear Assembly P2/Gear Assembly P3

Boss A-8 B

2,3,14,25, 30

Base Assembly P2/Base Assembly P3

Chassis Slot A-8 B

2,3,14,25, 31 Base Loading 1 Screw A-9 T

2,3,14 32 Base Tension Chassis Embossing A-9 B

2,3,20,21, 33 Arm Assembly Idler Locking Tab A-9 T

Starting

No.

Procedure

Part Fixing Type

Fig-

ure

Vi-

1) When reassembling, confirm Mechanism and Mode

Switch Alignment Position (Refer to Page 4-13)

2) When disassembling, the Parts for Starting No. Should

be removed first.

T:Top, B:Bottom

4-2

DECK MECHANISM DISASSEMBLY

(S3)

(S2)

(S3)

(A)

Stator

Carbon Brush

Drum Motor

Rotor

Drum Sub Assembly

Drum FPC

(S1)

Holder FPC

1. Drum Assembly (Fig. A-1-1)

1) Unplug the Drum FPC Connector.

2) Remove three Screws(S1) on bottom side and separate

the Drum assembly.

3) Unhook (H1), (H2) and separate the Holder FPC and

Cap FPC.

1-1. Drum Motor

1) Remove two Screws(S2) and disassemble the Stator of

the Drum Motor.

2) Remove two Screws(S3) and separate the Rotor of the

Drum Motor from the Drum Sub assembly.

NOTE

When reassembling, confirm (A) portion of the Drum Sub

assembly whether the Carbon Brush is in there or not.

Fig. A-1

(Fig. B-1)

Holder FPC

Drum FPC

Cap FPC

Figure in the opposite direction

(Fig. A-1-1)

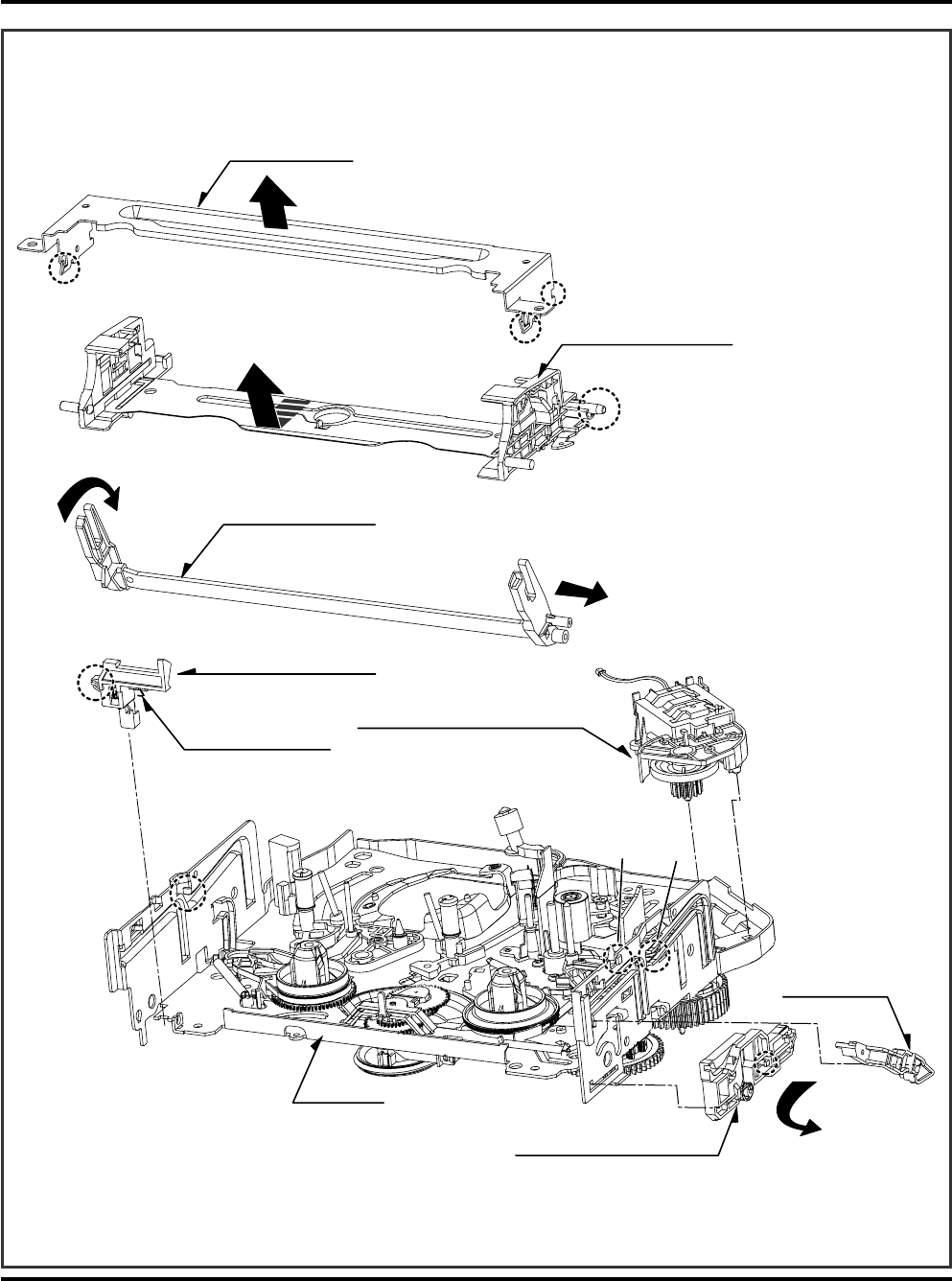

DECK MECHANISM DISASSEMBLY

4-3

(B)

(E)

(C1)

(C)

Plate Top

Arm Assembly F/L

Spring Lever S/W

Gear Assembly Rack F/L

Chassis

Opener Door

Bracket Assembly L/D Motor

Holder Assembly CST

(B')

(C')

(D) (E')

(H6)

(A) (B)

Lever Assembly S/W

(H8)

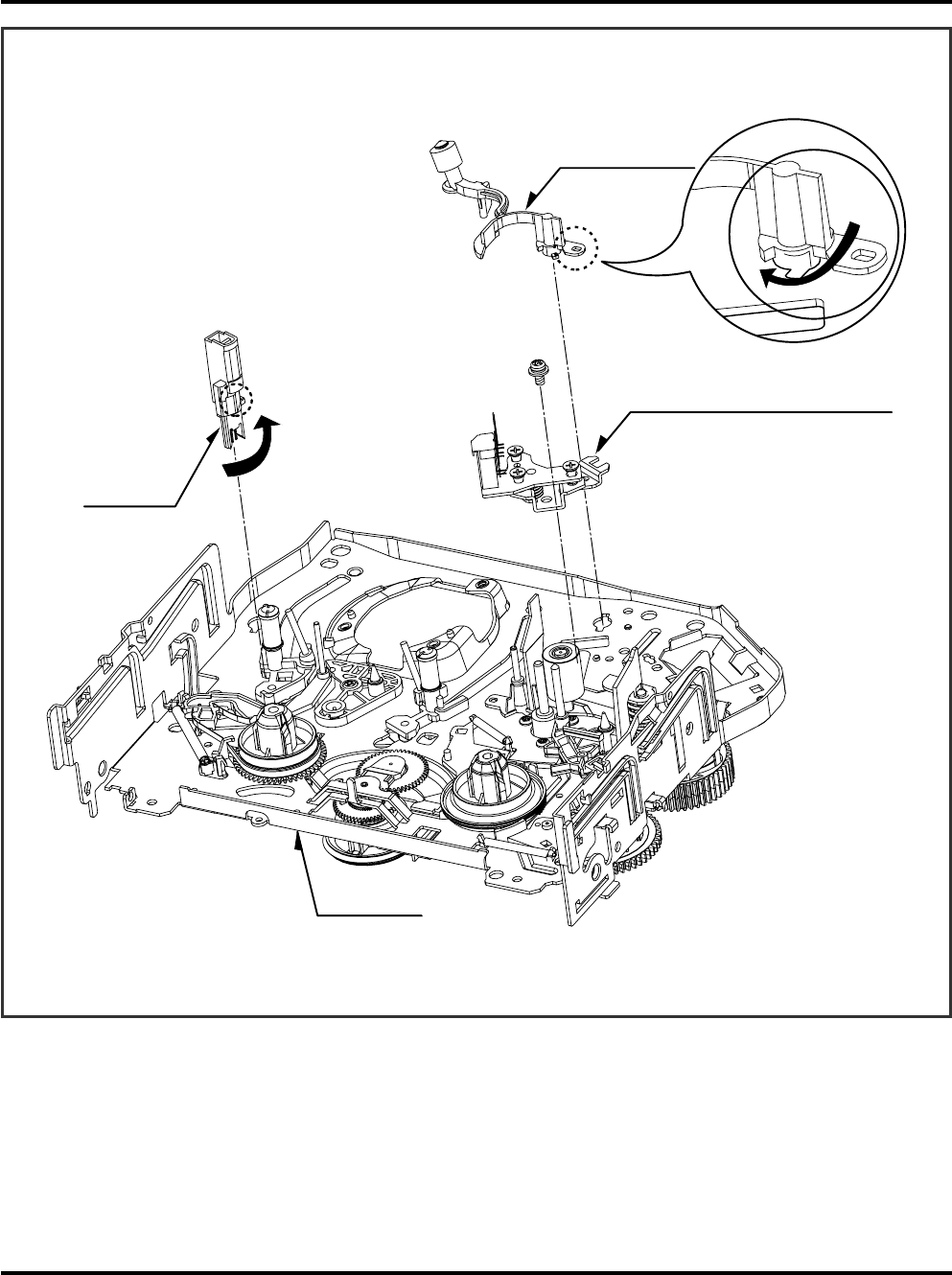

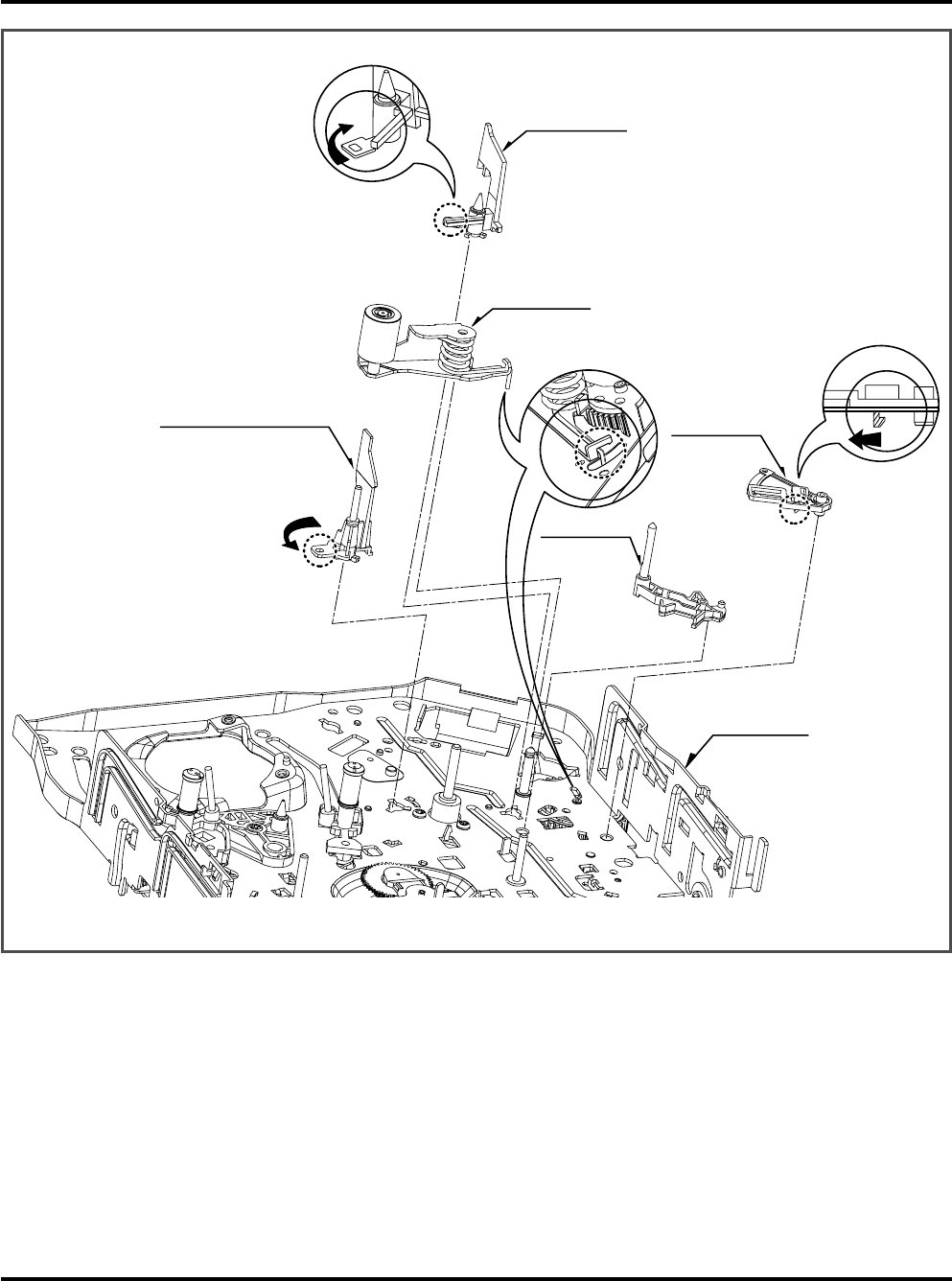

Fig. A-2

(Fig. A-2-1)

(Fig. A-2-2)

(Fig. A-2-6)

(Fig. A-2-7)

(Fig. A-2-5)

(Fig. A-2-3)

(Fig. A-2-4)

4-4

DECK MECHANISM DISASSEMBLY

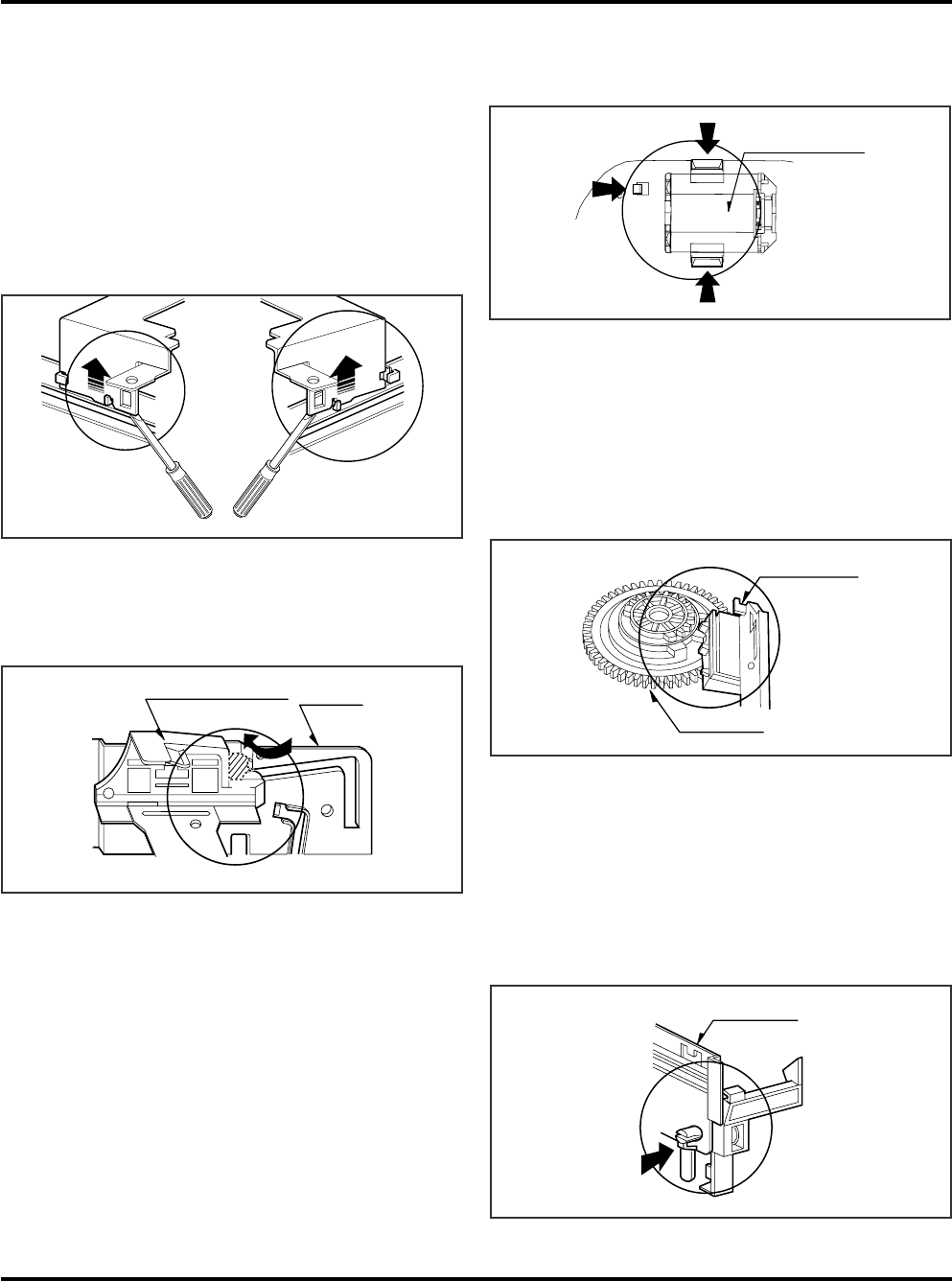

2. Plate Top (Fig. A-2-1)

1) Pull the (B) portion of the Plate Top back in direction of

arrow and separate the right side of it.

2) pull the (B’) portion of the Plate Top back in direction of

arrow and separate the left side of it.

(Used tools : (-) type driver, anything tool with sharp

point or flat point.)

NOTE

(1) When reassembling, push the Plate Top after alignment

the two position(C), (C’) as below Fig.

3. Holder Assembly CST (Fig.A-2-2)

1) Move the Holder Assembly CST in direction of arrow and

separate the left side of it first through the (D) position of

the Chassis.

2) Disassemble the right side of the Holder Assembly CST

from each guided hole of the Chassis.

NOTE

When reassembling, insert the (E) part of the Holder

Assembly CST in the (E’) hole of the Chassis first and

assemble the left side of it.

4. Opener Door (Figure. A-2-3)

1) Turn the Opener Door clockwise and remove it through

the guide hole of the Chassis.

5. Bracket Assembly L/D Motor

(Fig. A-2-4)

1) Unplug the Connector(C1).

2) Unhook three Hooks(H3, H4, H5) on bottom side of the

Chassis, lift up the Bracket Assembly L/M and disassem-

ble the Bracket Assembly L/D Motor.

6. Gear Assembly Rack F/L (Fig. A-2-5)

1) Move the Gear Assembly Rack F/L in direction of

arrow(A) and unhook the Hook(H6) pulling back in front.

2) Separate the Gear Rack F/L in direction of arrow(B).

NOTE

When reassembling, align the gear part of the Gear

Assembly Rack F/L with the Gear Drive as below Fig.

7. Arm Assembly F/L (Fig. A-2-6)

1) Move the Arm Assembly F/L in direction of arrow and

separate the left side of it first.

2) Disassemble the Arm Assembly F/L from each guided

hole of the Chassis.

8. Lever Assembly S/W(Fig. A-2-7)

1) Unhook the Hook(H8) in the left side of the Chassis and

remove the Lever Assembly S/W.

(B')

(C')

(C)

(B)

(D)

Holder assembly CST Chassis

Gear Rack F/L

Gear Drive

(H8)

Chassis

(H3)

(H4)

(H5)

Bracket assembly L/M

DECK MECHANISM DISASSEMBLY

4-5

9. Arm Assembly Cleaner (Fig. A-3-1)

1) Breakaway the (A) portion as Fig. A-3-1 from the

embossing of the Chassis, turn the Arm assembly

Cleaner to clockwise direction and lift it up.

10. Head F/E (Fig. A-3-2)

1) Breakaway the (A) portion of the Head F/E from the

embossing of the Chassis, turn it to counterclockwise

direction and lift it up.

11. Base Assembly A/C Head (Fig. A-3-3)

1) Remove the Screw(S4) and lift the Base Assembly A/C

Head up.

(A)

Arm Assembly

Cleaner

Base Assembly A/C Head

(S4)

Head F/E

(A)

Chassis

Fig. A-3

(Fig. A-3-1)

(Fig. A-3-3)

(Fig. A-3-2)

4-6

DECK MECHANISM DISASSEMBLY

Brake Assembly T

Spring TB

(H9)

Reel T

Brake Assembly RS

Spring RS

Arm Assembly Tension

Spring Tension

Reel S

Base Tension

(H11)

(H12)

Chassis

(H10)

Fig. A-4

12. Brake Assembly T (Fig. A-4-1)

1) Unhook the Spring TB from the Hook(H9) of the Chassis.

2) Lift the Brake Assembly T up.

13. Brake Assembly RS (Fig. A-4-2)

1) Unhook the Spring RS from the Hook(H10) of the

Chassis.

2) Lift the Brake Assembly T up.

14. Arm Assembly Tension (Fig. A-4-3)

1) Unhook the Spring Tension from the Hook(H11) of the

Arm Assembly Tension.

2) Unhook the Hook(H12) of the Base Tension and lift the

Arm Assembly Tension up.

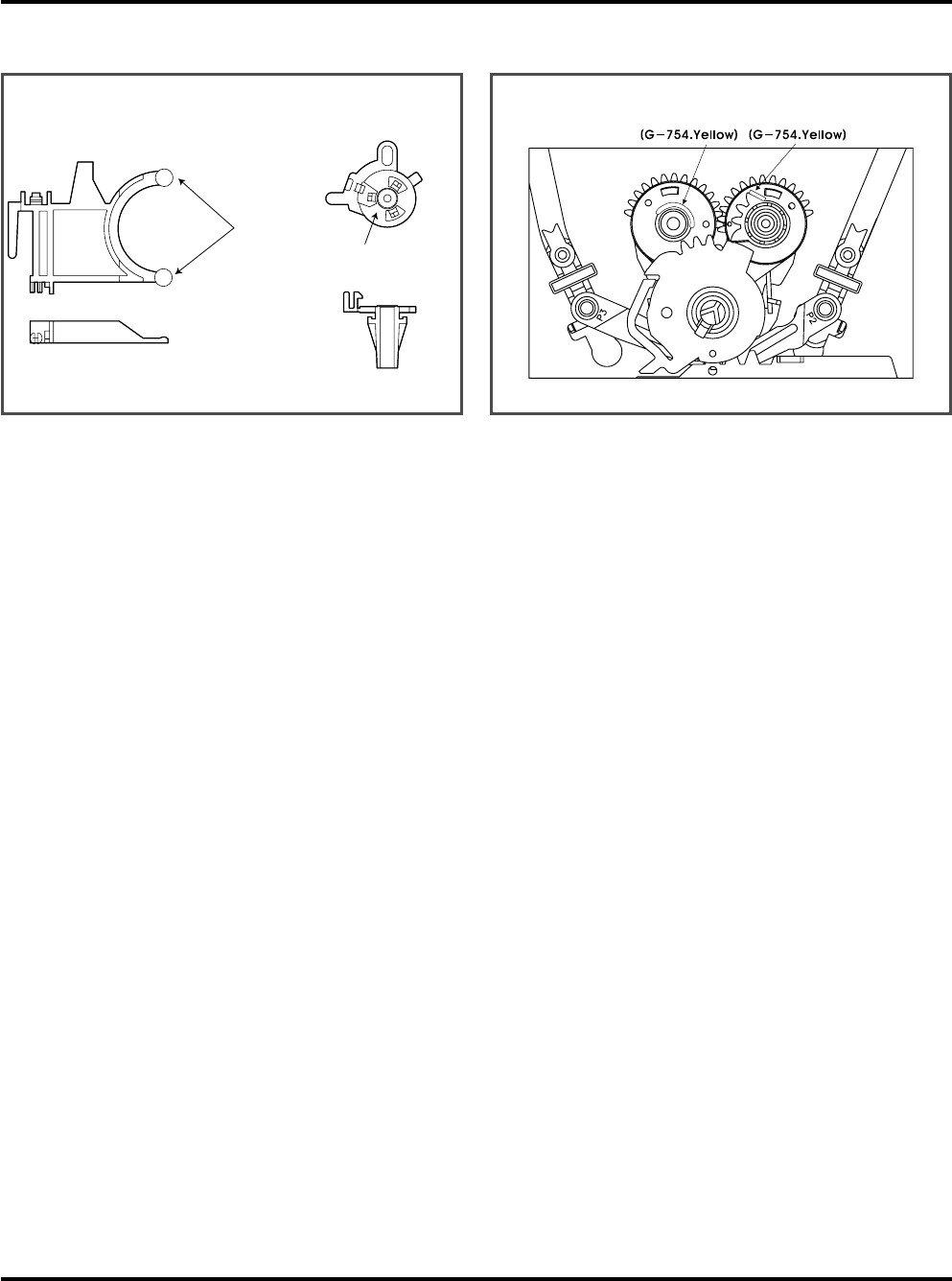

NOTE

Difference for Springs

15. Reel S / Reel T (Fig. A-4-4)

1) Difference for Reel S / Reel T

Spring TB

Spring RS Color (Black)

Spring Tension

Reel S Reel T

(Fig. A-4-1)

(Fig. A-4-3)

(Fig. A-4-4)

(Fig. A-4-2)

DECK MECHANISM DISASSEMBLY

4-7

Opener Lid

Arm

Assembly

Pinch

Base Assembly P4

Arm T/up

Lever T/up

(A)

(B)

(C)

(H13)

(B)

(H13)

Chassis

Fig. A-5

16. Base Assembly P4 (Fig. A-5-1)

1) Breakaway the (A) portion of the Base Assembly P4 from

the embossing of the Chassis.

2) Turn the Base Assembly P4 to counterclockwise direction

and lift it up.

17. Opener Lid (Fig. A-5-2)

1) Breakaway the (B) portion of the Opener Lid from the

embossing of the Chassis.

2) Turn the Opener Lid to clockwise direction and lift it up.

18. Arm Assembly Pinch (Fig. A-5-3)

1) Lift the Arm Assembly Pinch up.

NOTE

When reassembling, confirm the (C) portion of the Arm

Assembly Pinch is inserted to the Chassis hole correctly as

Fig.

19. Lever T/up (Fig. A-5-4)/

Arm T/up (Fig. A-5-5)

1) Unhook the Hook(H13) of the bottom Chassis and lift the

Lever T/up up.

2) Lift the Arm T/up up.

(Fig. A-5-2)

(Fig. A-5-1)

(Fig. A-5-3)

(Fig. A-5-5)

(Fig. A-5-4)

4-8

DECK MECHANISM DISASSEMBLY

Chassis

(S5)

Belt Capstan

Motor Capstan

Washer(W1)

Lever F/R

Clutch Assembly D35

Brake Assembly Capstan

(L1)

(L2)

(L1)

Fig. A-6

20. Belt Capstan (Fig. A-6-1)/

Motor Capstan (Fig. A-6-2)

1) Remove the Belt Capstan.

2) Remove the three Screws(S5) on bottom Chassis and lift

the Motor Capstan up.

21. Lever F/R (Fig. A-6-3)

1) Unlock the Locking Tab(L1) as Fig. A-6-3 and lift the

Lever F/R up.

22. Clutch Assembly D35 (Fig. A-6-4)

1) Remove the Washer(W1) and lift the Clutch Assembly

D35 up.

23. Brake Assembly Capstan

(Fig. A-6-5)

1) Pull the Locking Tab(L2) back in direction of arrow and lift

it up.

(Fig. A-6-1)

(Fig. A-6-2)

(Fig. A-6-3)

(Fig. A-6-5)

(Fig. A-6-4)

DECK MECHANISM DISASSEMBLY

4-9

Gear Drive

Washer (W2)

Gear Cam

Plate Slider

Lever Tension

Lever spring

Base Loading

Gear Sector

(L3)

(H15)

(H16)

(H14)

(A)

Chassis

Gear Drive Hole(C)

Gear Cam Hole(B)

Gear Drive Hole(A)

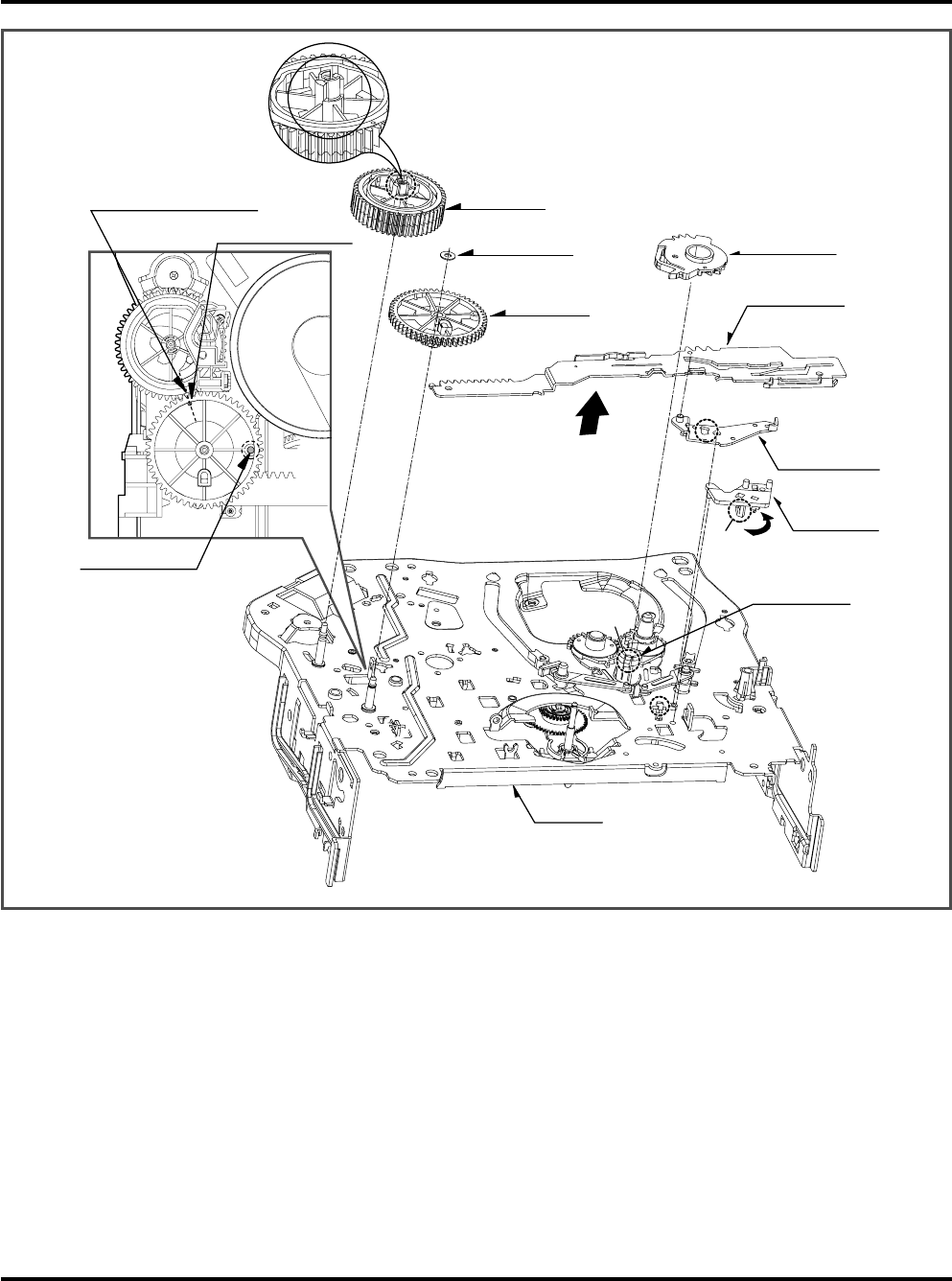

Fig. A-7

24. Gear Drive (Fig. A-7-1)/

Gear Cam (Fig. A-7-2)

1) Remove the Washer(W2) and lift the Gear Drive up.

2) Unhook the Hook(H14) of the Gear Cam and lift the Gear

Cam up.

NOTE

When reassembling, align the Gear Drive Hole(A) and the

Gear Cam Hole(B) in a straight line after the Gear Drive

Hole(C) is aligned with the Chassis Hole as Fig.

25. Gear Sector (Fig. A-7-3)

1) Unhook the Hook(H15) of the Base Loading on bottom

Chassis and lift the Gear Sector up.

26. Plate Slider (Fig. A-7-4)

1) Just lift the Plate Slider up.

27. Lever Tension (Fig. A-7-5)

1) Unhook the (A) portion of the Lever Tension from the

Hook(H16) of the Chassis.

2) Turn the Lever Tension to counterclockwise direction and

lift it up.

28. Lever Spring (Fig. A-7-6)

1) Unlock the Locking Tab(L3) of the bottom Chassis and lift

the Lever Spring up.

(Fig. A-7-4)

(Fig. A-7-5)

(Fig. A-7-6)

(Fig. A-7-1)

(Fig. A-7-2)

(Fig. A-7-3)

4-10

DECK MECHANISM DISASSEMBLY

Gear Assembly P3

Gear Assembly P2

Base Assembly P2

Base Assembly P3

(A)

(B)

Chassis

Gear Assembly P2 Hole

Gear Sector Hole(A)

Plate Slider Hole(B)

Lever Spring Boss

Gear Assembly P3 Hole

Fig. A-8

29. Gear Assembly P2 (Fig. A-8-1)/

Gear Assembly P3 (Fig. A-8-2)

1) Just lift the Gear Assembly P2 up.

2) Just lift the Gear Assembly P3 up.

NOTE

When reassembling, align the two holes of the Gear

Assembly P2 and P3 in a straight line after confirmation

whether the Gear Sector Hole(A) and the Plate Slider

Hole(B) are aligned or not as Fig.

30. Base Assembly P2 (Fig. A-8-3)/

Base Assembly P3 (Fig. A-8-4)

1) Move the Base Assembly P2 in direction of arrow(A)

along the guide hole of the Chassis and disassemble it

on bottom side.

2) Move the Base Assembly P3 in direction of arrow(B)

along the guide hole of the Chassis and disassemble it

on bottom side.

(Fig. A-8-1)

(Fig. A-8-2)

(Fig. A-8-3)

(Fig. A-8-4)

DECK MECHANISM DISASSEMBLY

4-11

(A)

(B) (C)

(S7)

Arm Assembly Idler

Base Loading

Base Tension

Chassis

(D)

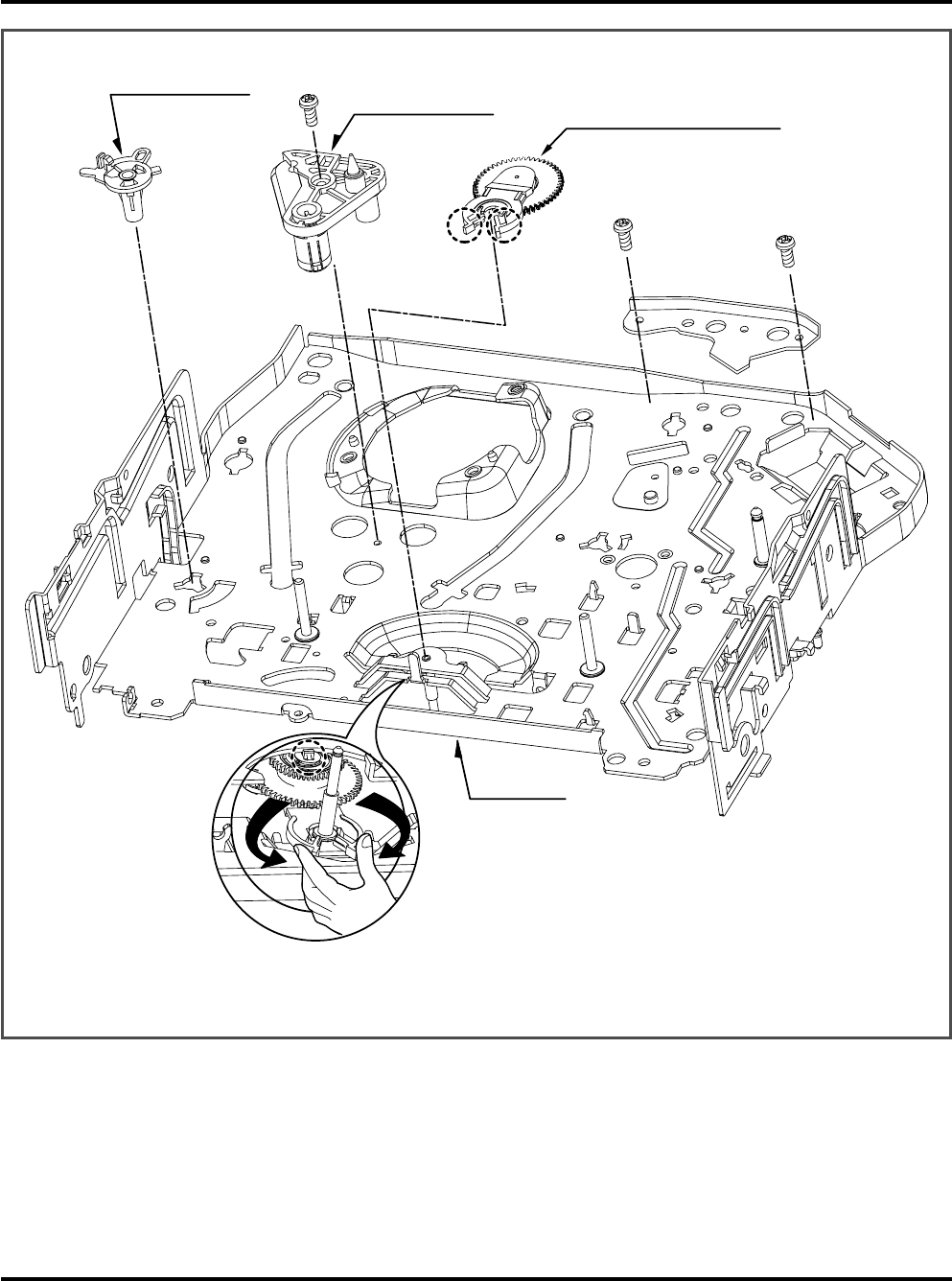

Fig. A-9

31. Base Loading (Fig. A-9-1)

1) Remove the Screw(S7).

2) Lift the Base Loading up.

32. Base Tension (Fig. A-9-2)

1) Breakaway the (A) portion of the Base Tension from the

embossing of the Chassis.

2) Turn the Base Tension to counterclockwise direction and

lift it up.

33. Arm Assembly Idler (Fig. A-9-3)

1) Make narrower the two parts, (B) and (C), as Fig. A-9-3.

2) Lift the Arm assembly Idler up.

NOTE

When disassembling, be careful not to be caught the (D) part

by the Chassis as Fig.

(Fig. A-9-1)

(Fig. A-9-2)

(Fig. A-9-3)

DECK MECHANISM ADJUSTMENT

4-12

• Tools and Fixfures for Service

1. Cassette Torque Meter

1. SRK-VHT-303(Not SVC part)

1. Parts No: D00-D006

4. Torque Gauge Adaptor

Parts No:D09-R001

5. Post Height Adjusting Driver

Parts No:DTL-0005

6. + Type Driver (ø 5)

2. Alignment Tape

Parts No NTSC: DTN-001

PAL:DTN-0002

3. Torque Gauge

3. 600g.Cm ATG

3. Parts No:D00-D002

SRK

VIDEO

CASSETTE

TORQUE

METER

VHT-303

-S

-T

300

250

200

150

300

250

200

150

100

DECK MECHANISM ADJUSTMENT

4-13

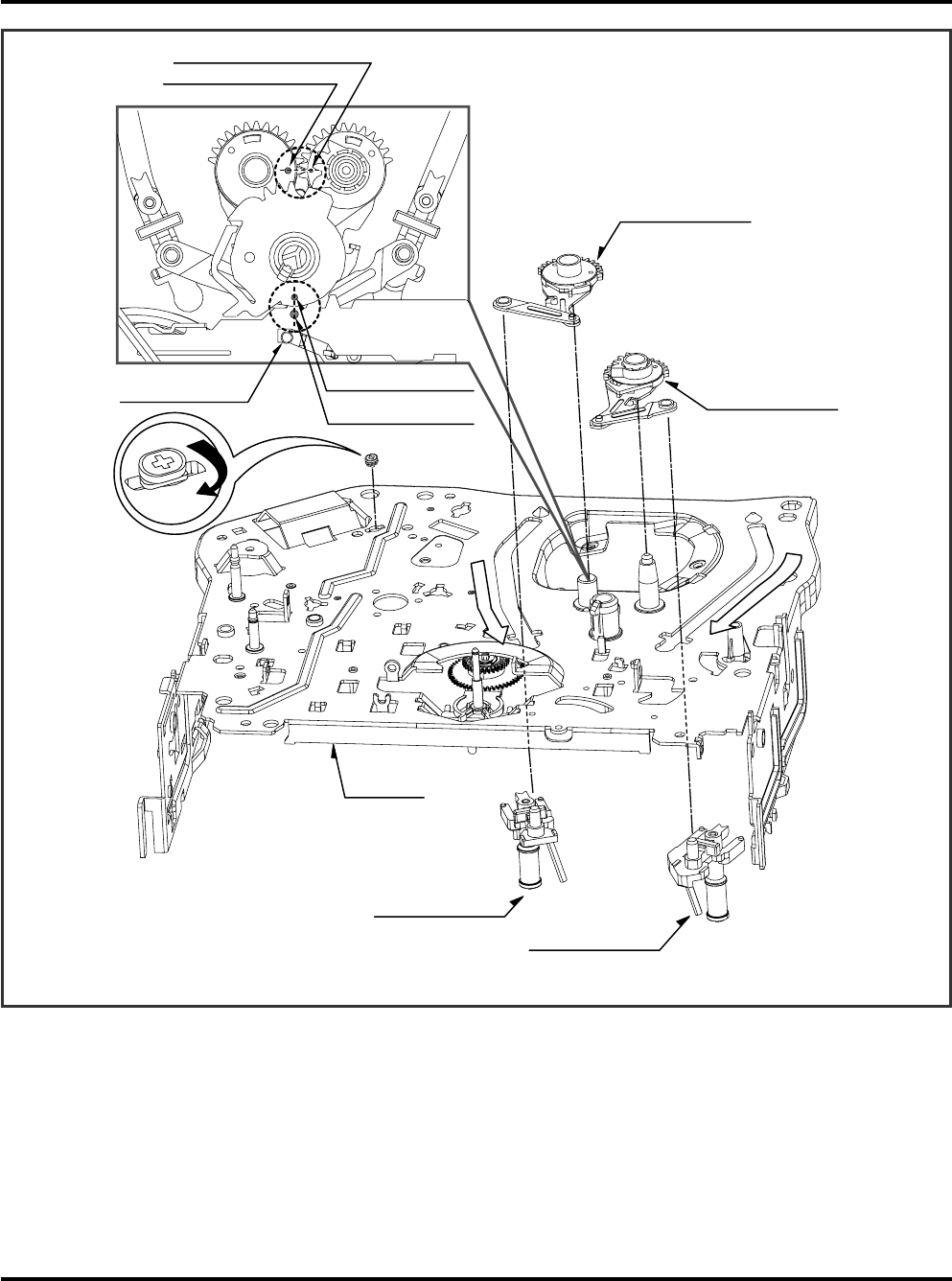

Purpose:To determine if the Mechanism is in the correct position, when a Tape is ejected.

1. Mechanism Alignment Position Check

1) Turn the Power S/W on and eject the Cassette by press-

ing the Eject Button.

2) Remove the Top Cover and Plate Assembly Top, visual-

ly check if the Gear Cam Hole is aligned with the

Chassis Hole as below Fig. C-2.

3) IF not, rotate the Shaft of the Loading Motor to either

clockwise or counterclockwise until the alignment is as

below Fig. C-2.

4) Remove the Screw which fixes the Deck Mechanism and

Main Frame and confirm if the Gear Cam is aligned with

the Gear Drive as below Fig. C-1(A).

5) Confirm if the Mode S/W on the Main P.C.Board is

aligned as below Fig. C-1(B).

6) Remount the Deck Mechanism on the Main P.C.Board

and check each operation.

Gear Cam

Gear Drive

(A)

Mode S/W

(B)

L/D Motor Assembly

Gear Cam

Chassis Hole Gear Cam Hole

(A)

(B)

(A')

(B')

Gear Drive Hole

Test Equipment/ Fixture

• Blank tape

Test Conditions (Mechanism

Condition)

• Eject Mode (with Cassette ejected)

Check Point

• Mechanism and Mode Switch Position

Fig. C-1

Fig. C-2

CHECK DIAGRAM

BOTTOM VIEW

TOP VIEW

Gear Cam (o) and Gear Drive (o) groove alignment

4-14

DECK MECHANISM ADJUSTMENT

Purpose: To insure smooth transport of the tape during each mode of operation.

If the tape transport is abnormal, then check the torque as indicated by the chart below.

2. Preparation for Adjustment (To set the

Deck Mechanism of the loading state

without inserting a cassette tape).

1) Unplug the power cord from the AC outlet.

2) Disassemble the Top Cover and Plate Assembly Top.

3) Plug the power cord into the AC outlet.

4) Turn the power S/W on and push the Lever Stopper of

the Holder Assembly CST to the back for loading the

cassette without tape.

Cover the holes of the End Sensors at the both sides of

the Chassis to prevent a light leak.

Then the Deck Mechanism drives to the Stop Mode.

In this case, the Deck Mechanism can accept inputs of

each mode, however the Rewind and Review operation

can not be performed for more than a few seconds

because the Take-up Reel Table is in the Stop State

and can not be detected the Reel Pulses.

3. Checking Torque

NOTE:

The values are measured by using a Torque Gauge and

Torque Gauge Adaptor with the Torque Gauge affixed.

NOTE:

The torque reading to measure occurs when the tape

abruptly changes direction from Fast Forward to Rewind

Mode, when quick braking is applied to both Reels.

SRK

VIDEO

CASSETTE

TORQUE

METER

VHT-303

-S

-T

300

250

200

150

300

250

200

150

100

Test Equipment/ Fixture

• Torque Gauge(600g/cm ATG)

• Torque Gauge Adaptor

• Cassette Torque Meter

SRK-VHT-303

Checking Method

• Perform each Deck Mechanism mode without

inserting a cassette tape(Refer to above No.2

Preparation for Adjustment).

• Read the measurement of the Take-up or Supply

Reels on the Cassette Torque Meter(Fig. C-3-2).

• Attach the Torque Gauge Adaptor to the Torque

Gauge and then read the value of it(Fig. C-3-1).

Fig. C-3-2Fig. C-3-1

Torque Gauge

Adaptor

Reel Table

Item

Fast Forward Torque

Rewind Torque

Play Take-Up Torque

Review Torque

Mode

Fast Forward

Rewind

Play

Review

Test Equipment

Cassette Torque Gauge

Cassette Torque Meter

Measurement Reel

Take-Up Reel

Supply Reel

Take-Up Reel

Supply Reel

Measurement Values

More than 400g/cm

40~100g/cm

120~210g/cm

Test Conditions

(Mechanism Condition)

• Play (FF) or Review (REW) Mode

• Cassette Torque Meter (SRK-VHT-303)• Torque Gauge (600g.cm ATG)

DECK MECHANISM ADJUSTMENT

4-15

4.Guide Roller Height Adjustment

Adjustment Procedure

1) Confirm if the tape runs along the tape guide line of the

Lower Drum.

2) If the tape runs the bottom of the guide line, turn the

Guide Roller Height Adjustment Screw to clockwise

direction.

3) If it runs the top, turn to counterclockwise direction.

4) Adjust the height of the Guide Roller to be guided to the

guide line of the Lower Drum from the starting and end-

ing point of the Drum.

Purpose: To regulate the height of the tape so that the bottom of the tape runs along the

tape guide line on the Lower Drum.

Test Equipment/ Fixture

• Post Height Adjusting Driver

Test Conditions (Mechanism Condition)

• Play or Review Mode

Adjustment Point

• Guide Roller Height Adjustment

screws on the Supply and Take-Up

Guide Rollers.

Fig. C-4-1

Upper Flange

Guide Roller

Retaining Screw

Guide Roller Height

Adjustment screw

ADJUSTMENT DIAGRAM

Test Equipment/Fixture

• Oscilloscope

• Alignment Tape

• Post Height Adjusting

Driver

Test Equipment Connection Points

• CH-1:PB RF Envelope

• CH-2:NTSC: SW 30Hz

PAL: SW 25Hz

• Head Switching Output

Point

• RF Envelope Output

Point

Test Conditions VCR(VCP) State

• Play an Alignment Tape

Adjustment Point

• Guide Roller Height

Adjustment Screws

Fig. C-4-2

Fig. C-4-3

P3 POST

ADJUSTMENT

P2 POST

ADJUSTMENT

Turn the Roller Guide Height

Adjustment Screw slightly

to flatten the waveform.

Tracking Control at center

RF ENVELOPE OUTPUT TEST POINT

OSCILLOSCOPE

HEAD SWITCHING OUTPUT TEST

POINT

Turn(Move) the Tracking

Control to both directions

4-1. Preliminary Adjustment

4-2. Precise Adjustment

Adjustment Procedure

1) Play an Alignment Tape after connecting the probe of the

Oscilloscope to the RF Envelope Output Test Point and

Head Switching Output Test Point.

2) Tracking Control(in PB Mode) : Center Position(When

this adjustment is performed after the Drum Assembly

has been replaced, set the Tracking Control so that the

RF Output is Maximum).

3) Height Adjustment Screw : Flatten the RF waveform.

(Fig. C-4-2)

4) Turn(Move) the Tracking Control(in PB Mode) clockwise

and counterclockwise.(Fig. C-4-3)

5) Check that any drop of RF Output is uniform at the start

and end of the waveform.

NOTE

If the adjustment is excessive or insufficient the tape will

jam or fold.

Waveform Diagrams

Connection Diagram

4-16

DECK MECHANISM ADJUSTMENT

5. Audio/Control (A/C) Head Adjustment

10.9

Purpose: To insure that the tape passes accurately over the Audio and Control Tracks in

exact alignment of the both Record and Playback Modes.

Test Equipment/ Fixture

• Blank Tape

• Screw Driver(+) Type 5mm • Play the blank tape

Test Conditions (Mechanism Condition)

Adjustment Point

• Tilt Adjustment Screw(C)

• Height Adjustment Screw(B)

• Azimuth Adjustment Screw(A)

Fig. C-5-1

A/C Head Base

Fig. C-5-2

Height Adjustment

Screw(B)

Tilt Adjustment

Screw(C)

Azimuth Adjustment

Screw(A)

X-Value Adjustment

Hole

Fixed Screw

Fig. C-5-3

A/C Head Tape

Tape

0.2~0.25mm

5-1. Preliminary Adjustment (Height and Tilt Adjustment)

Perform the Preliminary Adjustment, when there is no Audio Output Signal with the Alignment Tape.

1) Initially adjust the Base Assembly A/C Head as shown

Fig. C-5-1 by using the Height Adjustment Screw(B).

2) Play a blank tape and observe if the tape passes accu-

rately over the A/C Head without tape curling or folding.

3) If folding or curling is occured then adjust the Tilt

Adjustment Screw(C) while the tape is running to resem-

ble Fig. C-5-3.

4) Reconfirm the tape path after Playback about 4~5 sec-

onds.

NOTE

Ideal A/C head height occurs when the tape runs between

0.2~0.25mm above the bottom edge of the A/C Head core.

Adjustment Procedure/Diagrams

A/C Head Assembly

DECK MECHANISM ADJUSTMENT

4-17

Purpose: To obtain compatibility with the other VCR(VCP) Models.

5-2. Confirm that the tape passes smoothly

between the Take-up Guide and Pinch

Roller(using a mirror or the naked eye).

1) After completing Step 5-1.(Preliminary Adjustment), check

that the tape passes around the Take-up Guide and Pinch

Roller without folding or curling at the top or bottom.

(1) If folding or curling is observed at the bottom of the

Take-up Guide then slowly turn the Tilt Adjustment

Screw(C) in the clockwise direction.

(2) If folding or curling is observed at the top of it then

slowly turn the Tilt Adjustment Screw(C) in the

counterclockwise direction.

NOTE:

Check the RF envelope after adjusting the A/C Head, if the

RF waveform differs from Fig. C-5-4, performs Precise

Adjustment to flat the RF waveform.

Test Equipment/ Fixture

• Oscilloscope

• Alignment Tape(SP)

• Screw Driver(+) Type 5mm

Connection Point

• Audio output jack

Test Conditions

(Mechanism Condition)

• Play an Alignment Tape

1KHz, 7KHz Sections

Adjustment Point

• Azimuth Adjustment Screw(A)

• Height Adjustment Screw(B)

1) Connect the probe of the oscilloscope to Audio Output

Jack.

2) Alternately adjust the Azimuth Adjustment Screw(A) and

the Tilt Adjustment Screw(C) for maximum output of the

1KHz and 7KHz segments, while maintaining the flattest

envelope differential between the two frequencies.

Adjustment Procedure

5-3. Precise Adjustment (Azimuth adjustment)

6. X-Value Adjustment

Fig. C-5-4

1KHZ

• Oscilloscope

• Alignment Tape(SP only)

• Screw Driver(+) Type 5mm

• CH-1: PB RF Envelope

• CH-2: NTSC: SW 30Hz

PAL: SW 25Hz

• Head Switching Output

Test Point

• RF Envelope Output Test

Point

Test Conditions

(Mechanism Condition)

• Play an Alignment Tape

Adjustment PointConnection PointTest Equipment/ Fixture

Adjustment Procedure

1) Release the Automatic Tracking to run long enough for

tracking to complete it’s cycle.

2) Loosen the Fixed Mounting Screw and move the Base

Assembly A/C Head in the direction as shown in the dia-

gram to find the center of the peak that allows for the max-

imum waveform envelope.

This method should allow the 31µm Head to be centrally

located over the 58µm tape track.

3) Tighten the Base Assembly A/C Head mounting Screw.

7KHZ

A:Maximum B:Maximum

Left

Right

Groove at the

Base A/C

Height Adjustment Screw(B)

Tilt Adjustment Screw(C)

Azimuth Adjustment

Screw(A)

X-Value Adjustment Hole

Fixed Screw

RF ENVELOPE OUTPUT TEST POINT

OSCILLOSCOPE

HEAD SWITCHING OUTPUT TEST POINT

Connection Diagram

Adjustment Diagram

CH-1 CH-2

4-18

DECK MECHANISM ADJUSTMENT

Purpose: To correct for shift in the Roller Guide and X value after replacing the Drum.

8-2. Checking for tape curling or jamming

Test Equipment/ Fixture

• T-160 Tape

• T-120 Tape

Specification

• Be sure there is no tape jamming or curling at

the begining, middle or end of the tape.

VCR(VCP) State

•

Run the CUE, REV, Play mode at the

beginning and the end of the tape.

Test Conditions (Mechanism Condition)

1) Confirm that the tape runs smoothly around the roller

guides, Drum and A/C Head Assemblies while abruptly

changing operating modes from Play to CUE or REV.

This is to be checked at the begining, middle and end

sections of the tape.

2) Confirm that the tape passes over the A/C Head

Assembly as indicated by proper audio reproduction and

proper tape counter performance.

Checking Procedure

7. Adjustment after Replacing Drum Assembly (Video Heads)

Test Equipment/ Fixture

• Oscilloscope

• Alignment Tapes

• Blank Tape

• Post Height Adjusting Driver

• Screw Driver(+) Type 5mm

Connection Point

• CH-1: PB RF Envelope

• CH-2: NTSC: SW 30Hz

PAL: SW 25Hz

• Head Switching Output

Test Point

• RF Envelope Output Test Point

Test Conditions

(Mechanism Condition)

• Play the Blank Tape

• Play an Alignment Tape

Adjustment Points

• Guide Roller Precise

Adjustment

• Switching Point

• Tracking Preset

• X-Value

Checking/Adjustment Procedure

Play a blank tape and check for tape curling or creasing around

the Roller Guide. If there is a problem then follow the procedure

4. "Guide Roller Height" and 5. "Audio Control(A/C) Head

Adjustment".

RF ENVELOPE OUTPUT TEST POINT

OSCILLOSCOPE

HEAD SWITCHING OUTPUT TEST

POINT

Connection Diagram

Waveform

V1/V MAX EE0.7

V2/V MAX EE0.8

RF ENVELOPE OUTPUT

Fig. C-7

8. Check the Tape Travel after Reassembling Deck Assembly.

8-1. Checking Audio and RF Locking Time during playback and after CUE or REV (FF/REW)

Test Equipment/ Fixture

• Oscilloscope

• Alignment Tapes(with 6H

3KHz Color Bar Signal)

• Stop Watch

Specification

• RF Locking Time: Less than 5

sec.

• Audio Locking Time:Less than

10sec

Test Equipment

Connection Points

• CH-1: PB RF Envelope

• CH-2: Audio Output

• RF Envelope Output Point

• Audio Output Jack

Test Conditions

(Mechanism Condition)

• Play an Alignment Tape

(with 6H 3kHz Color Bar

Signal)

Checking Procedure

Play an Alignment Tape then change the operating mode to

CUE or REV and confirm if the unit meets the above listed

specifications.

NOTES:

1) CUE is the forward search mode

2) REV is the backward search mode

3) Refer to the Play mede

V1 VV2

CH1 CH2

Connection Points

MAINTENANCE/INSPECTION PROCEDURE

4-19

(3) F/E Head

(5) Drum Assembly

(Video Head)

(4) Base

Assembly P2

(2) Tension Post

(1) Supply Reel

(6) Base Assembly P3

1. Check before starting repairs

The following faults can be remedied by cleaning and oil-

ing. Check the needed lubrication and the conditions of

cleanliness in the unit.

Check with the customer to find out how often the unit is

used, and then determine that the unit is ready for inspec-

tion and maintenance. Check the following parts.

Phenomenon Inspection Replace-

ment

Color beats Dirt on Full-Erase Head o

Poor S/N, no color Dirt on Video Head

Vertical or

Horizontal jitter

Dirt on Audio/Control Head

Dirt on Pinch Roller

NOTE

If locations marked with odo not operate normally after

cleaning, check for wear and replace.

See the EXPLODED VIEWS at the end of this manual as

well as the above illustrations and see the Greasing (Page

4-21, 22) for the sections to be lubricated and greased.

Dirt on Video Head

Dirt on tape transport system

Low volume,

Sound distorted

Tape does not run.

Tape is slack

In Review and

Unloading (off mode),

the tape is rolled up

loosely.

Clutch Assembly D35

torque reduced

Cleaning Drum and

transport system Fig. C-9-3

(7) A/C Head

(8) P4 Post

(10) Pinch Roller

(11) Take-up Guide Post

(9) Capstan Shaft

(12) Take-up Reel

* No. (1)~(12) Indicates the Tape Path to be traveled from Supply Reel to Take-up Reel.

Fig. C-9-1 Top View

Fig. C-9-2 Bottom View

F/E Head

Video Head

A/C Head

Pinch Roller

Belt Capston

Clutch

Assembly D35

Fig. C-9-3 Tape Transport System

MAINTENANCE/INSPECTION PROCEDURE

4-20

2. Required Maintenance

The recording density of a VCR(VCP) is much higher than

that of an audio tape recorder. VCR(VCP) components must

be very precise, at tolerances of 1/1000mm, to ensure com-

patibility with the other VCRs. If any of these components are

worn or dirty, the symptoms will be the same as if the part is

defective. To ensure a good picture, periodic inspection and

maintenance, including replacement of worn out parts and

lubrication, is necessary.

3. Scheduled Maintenance

Schedules for maintenance and inspection are not fixed

because they vary greatly according to the way in which the

customer uses the VCR(VCP), and the environment in which

the VCR(VCP) is used.

But, in general home use, a good picture will be maintained

if inspection and maintenance is made every 1,000 hours.

The table below shows the relation between time used and

inspection period.

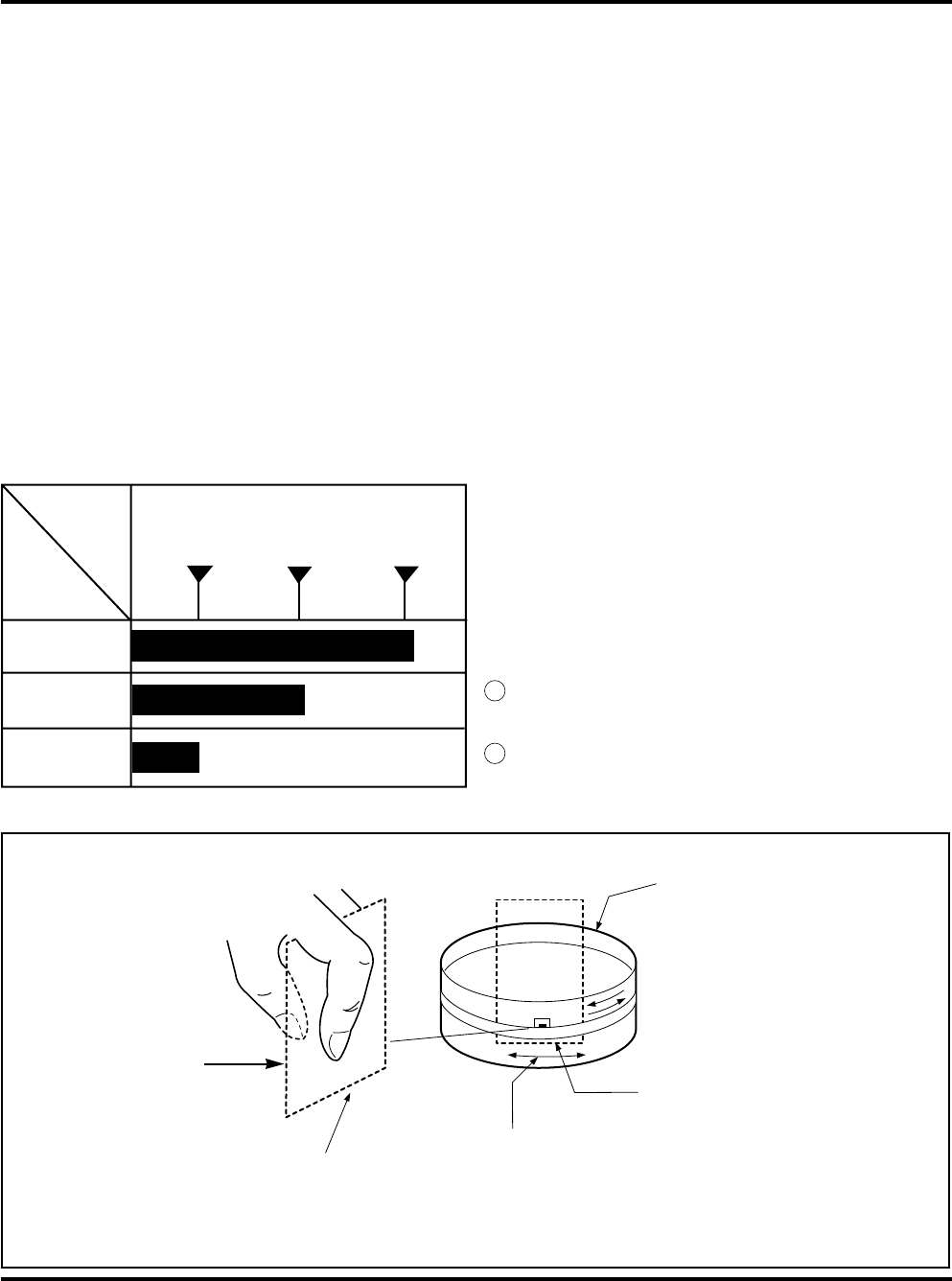

Table 1

4. Supplies Required for Inspection and

Maintence

(1) Grease : Kanto G-311G (Blue) or equivalent

(2) Isopropyl Alcohol or equivalent

(3) Cleaning Patches

(4) Grease : Kanto G-381(Yellow)

5. Maintenance Procedure

5-1) Cleaning

(1) Cleaning video head

First use a cleaning tape. If the dirt on the head is too

stubborn to remove by tape, use the cleaning patch. Coat

the cleaning patch with Isopropyl Alcohol. Touch the

cleaning patch to the head tip and gently turn the

head(rotating cylinder) right and left.

(Do not move the cleaning patch vertically. Make sure

that only the buckskin on the cleaning patch comes into

contact with the head. Otherwise, the head may be dam-

aged.)

Thoroughly dry the head. Then run the test tape. If lso-

propyl Alcohol remains on the video head, the tape may

be damaged when it comes into contact with the head

surface.

(2) Clean the tape transport system and drive system, etc, by

wiping with a cleaning patch wetted with Isopropyl

Alcohol.

NOTES:

1 It is the tape transport system which comes into contact

with the running tape. The drive system consists of those

parts which moves the tape.

2 Make sure that during cleaning you do not touch the tape

transport system with excessive force that would cause

deformation or damage to the system.

About 1

year

One hour

Two hours

Three hours

When

inspection is

necessary

Average

hours used

per day

About 18

months

About 3

years

Fig. C-9-4

Drum

(Rotating Cylinder)

Head Tip

Coat With Isopropyl Alcohol

Touch this section of cleaning

patch to the head tip and gently

turn the Drum (Rotating Cylinder)

Cleaning Patch

MAINTENANCE/INSPECTION PROCEDURE

4-21

5-2) Greasing

(1) Greasing guidelines

Apply grease, with a cleaning patch. Do not use exces-

sive grease. It may come into contact with the tape

transport or drive system. Wipe excessive grease and

clean with cleaning patch wetted in Isopropyl Alcohol.

(2) Periodic greasing

Grease specified locations every 5,000 hours.

NOTE:Greasing Points

1) Loading Path Inside & Top side

2) Base Assembly P2, P3 stopper

3) Shaft

4) L/D Motor Gear Wheel Part

5) Arm Take-up Rubbing Sections

6)Reel S,T shaft(G381:Yellow)

7) Arm Assembly F/L Rotating

Sections

Guide Rail

Base Loading Gear Drive

Gear Sector Gear Cam

Gear Part

Chassis (Left Side) Chassis (Right Side)

Slider Guide

1) Loading Path Inside & Top side

2) Base Assembly P2,P3 stopper

3) Shaft

4) Shaft

5) Clutch Assembly D35 Shaft

6) Plate Slider Guide Sections

7) Plate Slider Guide Sections

8) Gear Assembly P2, P2 Rubbing

Sections

Chassis (Top)

Chassis (Bottom)

Gear Rack F/L

Plate Slider

MAINTENANCE/INSPECTION PROCEDURE

4-22

Lever, F/R, Base, Tension GEAR AY, P2 & P3

Lever, F/R Base, Tension

Arm Tension

Guide Hole

Clutch

(G-754. Yellow)

Boss Cam

MECHANISM TROUBLESHOOTING GUIDE

4-23

Auto REW doesn't work.

Is the output of END sensor of

supply side "H"?

“H”: more than 3.5V

“L”: less than 0.7V~1V

Is the voltage across IR LED

between 0.8~1.5V? Replace the IR LED.

Is the Vcc. voltage of End

sensor 5V? Check the syscon power.

Replace the End sensor.

Check the syscon circuit.

YES

1.Deck Mechanism

No F/R modes.

Is the present mode

F/R Mode?

Is the mode SW assembled

correctly? (refer to page 4-13.)

Is the normal voltage supplied to

the Capstan Motor Vcc1, Vcc2?

Does terminal voltage(Vctl) of

Capstan Motor supply side more

than 4V?

Check the servo, power

circuits.

Replace the Capstan Motor.

Does the Capstan Motor rotate?

Do the T/Up, Supply Reel

rotate?

Check the syscon circuit.

YES

4-24

MECHANISM TROUBLESHOOTING GUIDE

AUTO STOP.

(PLAY/CUE/REV)

Are there T/up and Supply Reel

pulses.

In Play/Cue/Rev, Is the Pinch

Roller in contact with the

Capstan Shaft?

Replace the Reel Sensor.

Is the output of DFG, DPG OK?

Check alignment positions

(page 4-13).

Replace the Drum Motor.

Check the Servo, Syscon.

Check the Syscon, µ-COM.

Cassette doesn’t load.

Insert the cassette.

Check Lever Assembly S/W.

Is there variation for CST IN S/W

Output?

(In Tape with REC Tab

“L”→“H”→“L”)

(In Tape without REC Tab

“L”→“H”→“L”→“H”)

Does the CST IN S/W work

normally?

Does the Lever Assembly S/W

work normally?

Check the Syscon Circuit. Check the Syscon Circuit.

Replace the CST IN S/W.

YES

YES YES

YES

NO NO

YES

4-25

MECHANISM TROUBLESHOOTING GUIDE

In PB mode Tape Presence

not sensed.

Is the Pinch Roller attached

to the Capstan Motor Shaft?

Check Alignment positions

(page 4-13).

Does the T/Up Reel turn? Replace the Belt.

Is the Belt ok?

Does the Drum Motor turn?

Are there DPG, DFG pulses?

Are the T/Up and Supply Reel

Sensors ok?

Check the Syscon, Circuit.

Check the Servo, Syscon.

Does the Capstan Motor turn?

Is the terminal voltage(vctl) of the

Drum Motor more than 4V?

Replace the

Drum Motor.

Is the Vcc voltage of the Drum

Motor normal?

Check the Clutch and Idler

Assembly.

YES

Is the terminal voltage(vctl) of

Capstan Motor supplied more

than 4V?

Replace the Capstan Motor.

Is the voltage supplied to the

Capstan Motor Vcc1,Vcc2 each?

YES

Check the Servo, Power.

MECHANISM TROUBLESHOOTING GUIDE

4-26

Cassette cannot be inserted.

Does the Lever Assembly

Switch work?

Is the Lever Assembly Switch

Spring damaged or omitted?

Does the CST IN Switch work

normally?

Replace or add the Lever

Assembly Switch Spring.

Is the Vcc of Main P.C.Board

5V?

YES

Check the syscon circuit.

YES

Check the power circuit.

Is the voltage between cassette

switch and GND on Main

P.C.Board 5V??

YES

Is there a short circuit between cassette

switch and GND on main P.C.Board?

Remove the short circuit part or

Replace the main P.C.Board.

Check the Mode switch location

and syscon circuit.

Replace the CST IN Switch.

YES

NO NO

Replace the CST IN Switch.

Cassette does not eject.

Does the L/D Motor rotate in reverse? Check the L/D Motor or Drive IC.

Replace the Lever Assembly Switch.

Does the Lever Assembly Switch work?

YES

Does the Arm Assembly F/L work normally?

YES

Does the Opener Door work?

YES

Replace the Arm Assembly F/L.

Replace the Opener Door.

2. Front Loading Mechanism

MECHANISM TROUBLESHOOTING GUIDE

4-27

Cassette does not load.

Does the cassette insert?

Does the Opener Lid work?

Check the opener Door assembled

correctly.

Replace the Opener Lid.

Replace the Arm Assembly F/L.

Check the power of L/D Motor.

Check the Holder Assembly Cassette

assembled correctly.

Replace the Gear Rack F/L.

Does the Gear Assembly Rack F/L

work?

Does the Opener Door work?

Does the Arm Assembly F/L work?

Does the L/D Motor work?

Does the Holder Assembly Cassette

move the Arm Assembly F/L?

Replace the Front Loading

Mechanism Assembly.

YES

YES NO

4-28

EXPLODED VIEWS

117

103

105 117

100

106

107

A21

114

113

112

110

115

A24

116

102

A23

032

A22

109

054

054A

100A

100B

1. Front Loading Mechanism Section

EXPLODED VIEWS

4-29

401

402

001

008

011

031

079

017

032

024

406

020

021

028

019

018

029

030

026

A03

A04

A01

002

002A

025

027

022

003

004

006

007

010

405

014

015

009

409

013

023 016

405

012

402

OPTIONAL PART

2. Moving Mechanism Section(1)

EXPLODED VIEWS

4-30

051

052

517

061

056

058

518 052A

055

060

410

070

069

076

032

077

068

064

066

065

067

A11

078

A12

OPTIONAL PART

3. Moving Mechanism Section(2)

- 5-1 -

SECTION 5. REPLACEMENT PARTS LIST

NOTE: Warning

Parts that are shaded are critical With respect

to risk of fire or electrical shock.

MODEL : NTH960N

NSP : Not Service Part

MECHANICAL SECTIONRUN DATE : 2004.05.01

S AL LOCA.NO PART NO. DESCRIPTION SPECIFICATION REMARKS

ASSEMBLY PARTS SECTION

A00 6721R-0771U DECK ASSEMBLY,VIDEO DECK/MECHA D35 LG T/L (4HD(ALL

A01 6723R-D402G DRUM(CIRC) ASSEMBLY DECK/MECHA (8N4T) D35-4CH NTSC

A04 4811R-0038B BRACKET ASSEMBLY L/D

A114471R-0005AGEAR ASSYP3

A12 4471R-0004A GEAR ASSY P2

A21 4931R-0047A HOLDER ASSY CST

A22 4471R-0006A GEAR ASSY RACK F/L

A23 4261R-0023A ARM ASSY F/L

A24 4510R-0046A LEVER ASSY SWITCH

PARTS SECTION

001 6723R-D305G DRUM(CIRC) ASSEMBLY DECK/MECHA SUB D35-4CH NT (8N4

002 4680R-B008A MOTOR(MECH) DRUM VH4302-800 SANYO FOR D35K

002A 5202R00002C BRUSH,CARBON ASSY D33 (TIP+2 SPRING) 1.4,

003 4930R-0285A HOLDER FPCB(4CH)

004 5006R-0034A CAP FPC

008 6850R-HG18Z CABLE,FLAT P=1.25 FFC UL2896(0.05X0.8) 7

009 4260R-0038A ARM T/UP(D35)

011 4261R-0022A ARM ASSY TENSION(D35)

012 3041R-0037A BASE ASSY P2

013 3041R-0038A BASE ASSY P3

014 3041R-0039A BASE ASSY P4

015 5870R-0005A OPENER LID(D35)

016 3041R-0036A BASE ASSEMBLY A/C HEAD (ALPS)

017 4408R-0003A REEL S

018 4970R-0140A SPRING COIL RS D35

019 4421R-0008A BRAKE ASSEMBLY RS

020 4970R-0128A SPRING COIL D35 (TB)

021 4421R-0006A BRAKE ASSY T

022 6520D00002A HEAD(CIRC) D35 FE ST FE HEAD

023 3040R-0057A BASE LOADING

024 4261R-0024A ARM ASSEMBLY IDLER (H)

025 4810R-0111A BRACKET L/D

026 4680R-D006A MOTOR(MECH) LOADING RF-370CA-12560 MABUCHI

027 4470R-0093A GEAR DECK/MECHA WHEEL OTHER

028 4408R-0004A REEL T

029 4261R-0019E ARM ASSEMBLY DECK/MECHA PINCH

030 4510R-0043A LEVER T/UP

031 4970R-0123A SPRING COIL TENSION(D35)

032 3141R-0040A CHASSIS ASSEMBLY D35

051 4400R-0005A BELT CAPSTAN

052 4680R-A012B MOTOR(MECH) CAPSTAN MCVC-035TB LGIT FOR T/

052A 4980R-0023A SUPPORTER CAPSTAN(D35)

054 4470R-0100A GEAR RACK F/L

054A 4970R-0124B SPRING COIL D35 (RACK F/L)

055 4470R-0097A GEAR DRIVE(D35)

056 4470R-0096A GEAR CAM(D35)

058 4421R-0007A BRAKE ASSY CAPSTAN

060 4510R-0040A LEVER F/R(D35)

061 4265R-0005A CLUTCH ASSEMBLY D35 (M)

064 4470R-0098A GEAR SECTOR(D35)

065 4261R-0021A ARM ASSY P3

066 4970R-0122A SPRING COIL D35

067 4470R-0095A GEAR P3

068 4470R-0094A GEAR P2

069 4970R-0122A SPRING COIL D35

070 4261R-0020A ARM ASSY P2

076 4510R-0047A LEVER SPRING

077 3300R-M116A PLATE SLIDER

078 4510R-0041A LEVER TENSION

- 5-2 -

S AL LOCA.NO. PART NO DESCRIPTION SPECIFICATION REMARKS

ASSEMBLY SECTION

A00 6721R-0771U DECK ASSEMBLY,VIDEO DECK/MECHA D35 LG T/L (4HD(ALL

A426871RK5700K PWB(PCB) ASSEMBLY,C/SKD SNILN4T3526

A4305503807 PANEL ASSEMBLY,FRONTNTH960 C-TYPE

A44 3211RKS008B FRAME ASSEMBLY VCR MAIN(S008B) + PACKING

A45 3501RK3200B BOARD ASSEMBLY CCD TL-AT230

PARTS SECTION

250 3110R-S040F CASE LV-TL1960 2960 MOLD AIRHALL BA

260 3210R-0023A FRAME VCR - MAIN

277 4940R-Z075A KNOB SHUTTLE(TL-AR30M)

278 4940R-Z076B KNOB CCD TL-AT130 MOLD

280 3720R-F721D PANEL,VIDEO CCD LV-TL1960 S MOLD HIPS 40AF

281 524-013A MAGNET VCR - ASSY DOOR

28350502527 DOORHRV30C

284442-681ASPRINGDOOR

2854940R-Z086AKNOBCCD LV-TL124 MOLD

286 4940R-S017A KNOB SLIDE (LV-TL24)

3006410RZHV01APOWER CORDIT10S2(6A/250V) VOLEX IMMETRO

32050502166 PANEL NTH960C

3233111R-0089BCASE ASSYPRE-AMP (PBSB-SH)

3254930R-0190B HOLDER ASSEMBLYLCD PWB(ABS XR-401))

3303550R-0210ACOVERBOTTOM(LARGE)

SCREW

452 353-051A SCREW,DRAWING SPECIAL

457 353-051E SCREW,DRAWING SPECIAL (3X12)

462 353-136A SCREW,DRAWING SPECIAL(FBK) (353S353A)

Packing & Accessory Section

S AL LOCA.NO. PART NO DESCRIPTION SPECIFICATION REMARKS

8013835RS0069NINSTRUCTION ASSEMBLYCCD TL-AT230M-AABBDL1_ENG_POR_

802 3890R-C065K BOX,MASTER TL-AT130M AABBDL . 1

803 3920R-E016A PACKING Packing LV-TL24I 0.02 0 EPS 10

804 3858R-S001A SHEET (MECH) Packing LDPE 600M 630MM 0.5 VC

808 534-008C BATTERY,MANGANESE AAAM(R03) SEOTONG 1-5 V - 1PA

900 6711R1P041H REMOTE CONTROLLER ASSEMBLY P9 LV-TL1960

S AL LOCA.NO PART NO. DESCRIPTION SPECIFICATION REMARKS

079 3040R-0056A BASE TENSION(D35)

100 3301R-M022A PLATE ASSEMBLY TOP

102 4970R-0130A SPRING COIL D35 (STOPPER)

103 4930R-0276A HOLDER SIDE(L)

105 4930R-0274A HOLDER CST

106 4930R-0275A HOLDER SIDE(R)

107 4510R-0044A LEVER STOPPER

109 5870R-0004A OPENER DOOR

110 4260R-0035A ARM F/L(L)

112 3070R-0002A BODY F/L

113 4970R-0127A SPRING COIL D35 (F/L(R))

114 4260R-0036A ARM F/L(R)

115 4510R-0042A LEVER SWITCH

116 4970R-0138A SPRING COIL D35 SWITCH

117 3300R-M137A PLATE SPRING CST

116 4970R-0138A SPRING COIL D35 SWITCH

117 3300R-M137A PLATE SPRING CST NSP

SCREW

402 1MPC0261418 SCREW MACHINE,PAN HEAD D 2.6 L 4.0 MSWR3/FZY

405 1SZZR-0031B SCREW,DRAWING + 1 D2.6 L5.8 SWRCH16A/FZY TAP

406 1MEC0302018 PAN HEAD MACHINE SCREW S/W + D 3.0 L 6.0 MSWR3/FZY

409 1SZZR-0032B SCREW,DRAWING + 1 D2.6 L5.0 SWRCH18A/FZY TAP

410 1APF0262218 SCREW TAP TITE(B),PAN HEAD #NAME?

452 353-051A SCREW,DRAWING SPECIAL

517 1WZZR-0004D WASHER,DRAWING STOPPER

518 1WZZR-0004A WASHER,DRAWING STOPPER

Cabinet & Main Frame Section

MODEL : NTH960 RUN DATE : 2004.05.01

- 5-3 -

MODEL : NTH960 RUN DATE : 2004.05.01

Electrecal section

S AL LOCA.NO. PART NO DESCRIPTION SPECIFICATION REMARK

BATTERY,LITHIUM

RB500 534-059AAAA BATTERY,LITHIUM LR6A-2S/ MATUSHITA - - LITHUM

BUZZER

BZ501 6908RB0001A BUZZER PKM24SP-3801 PKM24SP-3801 MURA

RL301 6920R-B201A BUZZER UT205-5SC YUYU AC 250 V 5-0 A

CAPACITOR

C101 624-088F CAPACITOR,DRAWING PCX2 275V 0.1UF,M (PILKO)

C102 624-088F CAPACITOR,DRAWING PCX2 275V 0.1UF,M (PILKO)

C103 624-082C CAPACITOR,AL.ELECTROLYTIC 100MF/400V SHL SMPS S/Y

C105 0CQ1031Y519 CAPACITOR,FIXED FILM 0.01UF D 630V 10% PE NI TP5

C106 624-087A CAPACITOR HIGH-VOL 150P/1KV SMPS NEW-KOR

C109 624-085D CAPACITOR CE 47UF/50V KME (SMPS)

C111 0CN223AK948 CAPACITOR,TUBULAR(HIGH DIELEC) 0.022UF 50V Z F TA26 S

C112 0CG3320U630 CAPACITOR,SEMI CERAMIC 3300 PF 400V M E R(NK,AD,SD)

C113 0CG3310U510 CAPACITOR,FIXED CERAMIC(TEMP.C 330PF D 400V 10% B(Y5P) R

C114 0CQ4732K409 CAPACITOR,FIXED FILM 0.047UF S 50V 5% PE TP5

C116 0CE108BF630 CAPACITOR,FIXED ELECTROLYTIC 1000UF KME 16V M FM5 BULK

C117 624-082H CAPACITOR CE 1000UF/10V SHL(10*12.5)T/P

C118 0CE2276D638 CAPACITOR,FIXED ELECTROLYTIC 220M SMS 10V M FM5 TP(5)

C119 624-085D CAPACITOR CE 47UF/50V KME (SMPS)

C120 0CE477BH630 CAPACITOR,AL.ELECTROLYTIC 470UF KME TYPE 25V M FM5 BULK

C121 624-082G CAPACITOR,FIXED ELECTROLYTIC CE 470UF/25V SHL(10*12.5)T/P

C123 0CE337BJ610 CAPACITOR,FIXED ELECTROLYTIC 330UF KME TYPE 35V 20% FL BULK

C128 0CN223AK948 CAPACITOR,TUBULAR(HIGH DIELEC) 0.022UF 50V Z F TA26 S

C152 0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)

C153 0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)

C154 0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)

C155 0CE4754K638 CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5

C170 0CE1044K638 CAPACITOR,ELECTROLYTIC 0.1M SRA 50V M FM5 TP(5)

C172 0CN1040K948 CAPACITOR,FIXED TUBULAR(HIGH D 0.1UF D 50V 80%,-20% F(Y5V) TA

C173 0CE4764J638 CAPACITOR,AL.ELECTROLYTIC 47UF SRA,SS 35V M FM5 TP 5

C301 0CN1040K948 CAPACITOR,FIXED TUBULAR(HIGH D 0.1UF D 50V 80%,-20% F(Y5V) TA

C302 0CN1030F678 CAPACITOR TUBULA(HIGH DIELE) 0.01M 16V M Y TA26

C303 0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)

C304 0CE2274C638 CAPACITOR,ELECTROLYTIC 220M SRA 6.3V M FM5 TP(5)

C305 0CN1040K948 CAPACITOR,FIXED TUBULAR(HIGH D 0.1UF D 50V 80%,-20% F(Y5V) TA

C306 0CN1030F678 CAPACITOR TUBULA(HIGH DIELE) 0.01M 16V M Y TA26

C307 0CX2700K408 CAPACITOR TUBULA(T.C) 27P 50V J SL TA26

C308 0CX3300K408 CAPACITOR TUBULA(T.C) 33P 50V J SL TA26

C309 0CN3310K518 CAPACITOR TUBULA(HIGH DIELE) 330P 50V K B TA26

C310 0CE4754K638 CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5

C311 0CN1810K518 CAPACITOR,FIXED TUBULAR(High d 180P 50V K B TA26

C312 0CX2200K408 CAPACITOR TUBULA(T.C) 22P 50V J SL TP26

C313 0CN1010K418 CAPACITOR,TUBULAR(HIGH DIELEC) 100PF 50V J B TA26

C314 0CN1020K518 CAPACITOR TUBULA(HIGH DIELE) 1000P 50V K B TA26

C315 0CE1063F638 CAPACITOR,AL.ELECTROLYTIC 10M SRE/SE 16V M FM5 TP(5)

C316 0CE1063F638 CAPACITOR,AL.ELECTROLYTIC 10M SRE/SE 16V M FM5 TP(5)

C317 0CN1030F678 CAPACITOR TUBULA(HIGH DIELE) 0.01M 16V M Y TA26

C318 0CE2254K638 CAPACITOR,FIXED ELECTROLYTIC 2.2UF SRA,SS 50V 20% FM5 TP 5

C319 0CN1040K948 CAPACITOR,FIXED TUBULAR(HIGH D 0.1UF D 50V 80%,-20% F(Y5V) TA

C322 0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)

C323 0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)

C324 0CN1040K948 CAPACITOR,FIXED TUBULAR(HIGH D 0.1UF D 50V 80%,-20% F(Y5V) TA

C325 0CN1050K948 CAPACITOR,TUBULAR(HIGH DIELEC) 1UF 50V Z F TA26 D

C326 0CE1063F638 CAPACITOR,AL.ELECTROLYTIC 10M SRE/SE 16V M FM5 TP(5)

C327 0CE1063F638 CAPACITOR,AL.ELECTROLYTIC 10M SRE/SE 16V M FM5 TP(5)

C328 0CN223AK948 CAPACITOR,TUBULAR(HIGH DIELEC) 0.022UF 50V Z F TA26 S

C329 0CN223AK948 CAPACITOR,TUBULAR(HIGH DIELEC) 0.022UF 50V Z F TA26 S

C330 0CN1030F678 CAPACITOR TUBULA(HIGH DIELE) 0.01M 16V M Y TA26

C331 0CE2274C638 CAPACITOR,ELECTROLYTIC 220M SRA 6.3V M FM5 TP(5)

S AL LOCA.NO. PART NO DESCRIPTION SPECIFICATION REMARK

C332 0CN1030F678 CAPACITOR TUBULA(HIGH DIELE) 0.01M 16V M Y TA26

C333 0CN1040K948 CAPACITOR,FIXED TUBULAR(HIGH D 0.1UF D 50V 80%,-20% F(Y5V) TA

C334 0CN223AK948 CAPACITOR,TUBULAR(HIGH DIELEC) 0.022UF 50V Z F TA26 S

C336 0CN1030F678 CAPACITOR TUBULA(HIGH DIELE) 0.01M 16V M Y TA26

C337 0CE4754K638 CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5

C338 0CN223AK948 CAPACITOR,TUBULAR(HIGH DIELEC) 0.022UF 50V Z F TA26 S

C339 0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)

C340 0CN3330K518 CAPACITOR,FIXED TUBULAR(High d 0.033UF 50V K B TA26

C341 0CN223AK948 CAPACITOR,TUBULAR(HIGH DIELEC) 0.022UF 50V Z F TA26 S

C343 0CN4730K948 CAPACITOR,FIXED TUBULAR(High d 0.047UF D 50V 80%,-20% F(Y5V)

C344 0CN1040K948 CAPACITOR,FIXED TUBULAR(HIGH D 0.1UF D 50V 80%,-20% F(Y5V) TA

C345 0CN1040K948 CAPACITOR,FIXED TUBULAR(HIGH D 0.1UF D 50V 80%,-20% F(Y5V) TA

C346 0CE2274C638 CAPACITOR,ELECTROLYTIC 220M SRA 6.3V M FM5 TP(5)

C348 0CN1030F678 CAPACITOR TUBULA(HIGH DIELE) 0.01M 16V M Y TA26

C349 0CN223AK948 CAPACITOR,TUBULAR(HIGH DIELEC) 0.022UF 50V Z F TA26 S

C354 0CE2274C638 CAPACITOR,ELECTROLYTIC 220M SRA 6.3V M FM5 TP(5)

C355 0CN1030F678 CAPACITOR TUBULA(HIGH DIELE) 0.01M 16V M Y TA26

C358 0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)

C360 0CC0500K015 CAPACITOR,CERAMIC(TEMP COMP) 5P 50V C NP0 TR

C368 0CN1020K518 CAPACITOR TUBULA(HIGH DIELE) 1000P 50V K B TA26

C369 0CN1040K948 CAPACITOR,FIXED TUBULAR(HIGH D 0.1UF D 50V 80%,-20% F(Y5V) TA

C375 0CN1040K948 CAPACITOR,FIXED TUBULAR(HIGH D 0.1UF D 50V 80%,-20% F(Y5V) TA

C377 0CE1044K638 CAPACITOR,ELECTROLYTIC 0.1M SRA 50V M FM5 TP(5)

C380 0CN223AK948 CAPACITOR,TUBULAR(HIGH DIELEC) 0.022UF 50V Z F TA26 S

C381 0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)

C384 0CE4774C638 CAPACITOR,FIXED ELECTROLYTIC 470UF SRA,SS 6.3V 20% FM5 TP 5

C386 0CN223AK948 CAPACITOR,TUBULAR(HIGH DIELEC) 0.022UF 50V Z F TA26 S

C3B1 0CN3330K518 CAPACITOR,FIXED TUBULAR(High d 0.033UF 50V K B TA26

C3G1 0CN223AK948 CAPACITOR,TUBULAR(HIGH DIELEC) 0.022UF 50V Z F TA26 S

C3G2 0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)

C3G3 0CN3320F668 CAPACITOR,TUBULAR(HIGH DIELEC) 3300P 16V M TA26

C3G4 0CN4730K948 CAPACITOR,FIXED TUBULAR(High d 0.047UF D 50V 80%,-20% F(Y5V)

C3G5 0CE4754K638 CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5

C3G6 0CE4754K638 CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5

C3G7 0CE4754K638 CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5

C3G8 0CN1030F678 CAPACITOR TUBULA(HIGH DIELE) 0.01M 16V M Y TA26

C3G9 0CN223AK948 CAPACITOR,TUBULAR(HIGH DIELEC) 0.022UF 50V Z F TA26 S

C401 0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)

C402 0CN223AK948 CAPACITOR,TUBULAR(HIGH DIELEC) 0.022UF 50V Z F TA26 S

C403 0CN1040K948 CAPACITOR,FIXED TUBULAR(HIGH D 0.1UF D 50V 80%,-20% F(Y5V) TA

C405 0CE1063F638 CAPACITOR,AL.ELECTROLYTIC 10M SRE/SE 16V M FM5 TP(5)

C406 0CE1063F638 CAPACITOR,AL.ELECTROLYTIC 10M SRE/SE 16V M FM5 TP(5)

C410 0CN1040K948 CAPACITOR,FIXED TUBULAR(HIGH D 0.1UF D 50V 80%,-20% F(Y5V) TA

C412 0CN1040K948 CAPACITOR,FIXED TUBULAR(HIGH D 0.1UF D 50V 80%,-20% F(Y5V) TA

C413 0CQ1032K409 CAPACITOR,FIXED FILM 0.01UF S 50V 5% PE TP5

C414 0CQ1032K409 CAPACITOR,FIXED FILM 0.01UF S 50V 5% PE TP5

C415 0CE2264F638 CAPACITOR,FIXED ELECTROLYTIC 22UF SRA,SS 16V 20% FM5 TP 5

C416 0CN2220F668 CAPACITOR,TUBULAR(HIGH DIELEC) 2200P 16V M X TA26

C417 0CN1820F668 CAPACITOR TUBULA(HIGH DIELE) 1800P 16V M X TA26

C418 0CQ1532K409 CAPACITOR,FIXED FILM 0.015UF S 50V 5% PE TP5

C419 0CQ1032K409 CAPACITOR,FIXED FILM 0.01UF S 50V 5% PE TP5

C420 0CE4765K618 CAPACITOR,AL.ELECTROLYTIC 47UF SR,SV 50V M FL TP 5

C421 0CQ2232L559 CAPACITOR,FIXED FILM 0.022UF S 63V 10% PP NI TP5

C424 0CN1040K948 CAPACITOR,FIXED TUBULAR(HIGH D 0.1UF D 50V 80%,-20% F(Y5V) TA

C431 0CN1030F678 CAPACITOR TUBULA(HIGH DIELE) 0.01M 16V M Y TA26

C466 0CE3354K638 CAPACITOR,FIXED ELECTROLYTIC 3.3UF SRA,SS 50V 20% FM5 TP 5

C480 0CE4754K638 CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5

C490 0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)

C501 0CN1040K948 CAPACITOR,FIXED TUBULAR(HIGH D 0.1UF D 50V 80%,-20% F(Y5V) TA

C502 0CE4764C638 CAPACITOR,ELECTROLYTIC 47M SRA 6.3V M FM5 TP(5)

- 5-4 -

MODEL : NTH960 RUN DATE : 2004.05.01

- 5-5 -

MODEL : NTH960 RUN DATE : 2004.05.01

S AL LOCA.NO. PART NO DESCRIPTION SPECIFICATION REMARK

C503 0CE4774C638 CAPACITOR,FIXED ELECTROLYTIC 470UF SRA,SS 6.3V 20% FM5 TP 5

C505 0CE1074F638 CAPACITOR,ELECTROLYTIC 100U SRA 16V M FM5 TP(5)

C507 0CN1030F678 CAPACITOR TUBULA(HIGH DIELE) 0.01M 16V M Y TA26

C509 0CN223AK948 CAPACITOR,TUBULAR(HIGH DIELEC) 0.022UF 50V Z F TA26 S

C510 0CN1030F678 CAPACITOR TUBULA(HIGH DIELE) 0.01M 16V M Y TA26

C514 0CC1500K415 CAPACITOR,CERAMIC(TEMP COMP) 15P 50V J NP0 TS

C515 0CC1200K415 CAPACITOR,FIXED CERAMIC(TEMP.C 12PF D 50V 5% TR NP0

C516 0CE1054K636 CAPACITOR,ELECTROLYTIC 1.0U SRA 50V M FM5 BP TP(D)

C517 0CE4774C638 CAPACITOR,FIXED ELECTROLYTIC 470UF SRA,SS 6.3V 20% FM5 TP 5

C520 0CN1030F678 CAPACITOR TUBULA(HIGH DIELE) 0.01M 16V M Y TA26

C521 0CN1040K948 CAPACITOR,FIXED TUBULAR(HIGH D 0.1UF D 50V 80%,-20% F(Y5V) TA

C522 0CN1030F678 CAPACITOR TUBULA(HIGH DIELE) 0.01M 16V M Y TA26

C525 0CN223AK948 CAPACITOR,TUBULAR(HIGH DIELEC) 0.022UF 50V Z F TA26 S

C526 0CE4764J638 CAPACITOR,AL.ELECTROLYTIC 47UF SRA,SS 35V M FM5 TP 5

C528 0CN1030F678 CAPACITOR TUBULA(HIGH DIELE) 0.01M 16V M Y TA26

C529 0CN1040K948 CAPACITOR,FIXED TUBULAR(HIGH D 0.1UF D 50V 80%,-20% F(Y5V) TA

C530 0CE4764C638 CAPACITOR,ELECTROLYTIC 47M SRA 6.3V M FM5 TP(5)

C534 0CE4754K638 CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5

C535 0CE4754K638 CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5

C540 0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)

C541 0CE4754K638 CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5

C542 0CN6810K518 CAPACITOR TUBULA(HIGH DIELE) 680P 50V K B TA26

C543 0CN2220F668 CAPACITOR,TUBULAR(HIGH DIELEC) 2200P 16V M X TA26

C544 0CQ3332K409 CAPACITOR,FIXED FILM 0.033UF S 50V 5% PE TP5

C545 0CN2220F668 CAPACITOR,TUBULAR(HIGH DIELEC) 2200P 16V M X TA26

C546 0CE4764H638 CAPACITOR,FIXED ELECTROLYTIC 47M SRA 25V M FM5 TP(5)

C551 0CQ4732K409 CAPACITOR,FIXED FILM 0.047UF S 50V 5% PE TP5

C552 0CN1030F678 CAPACITOR TUBULA(HIGH DIELE) 0.01M 16V M Y TA26

C554 0CN1040K948 CAPACITOR,FIXED TUBULAR(HIGH D 0.1UF D 50V 80%,-20% F(Y5V) TA

C555 0CE2264F638 CAPACITOR,FIXED ELECTROLYTIC 22UF SRA,SS 16V 20% FM5 TP 5

C557 0CN1040K948 CAPACITOR,FIXED TUBULAR(HIGH D 0.1UF D 50V 80%,-20% F(Y5V) TA

C561 0CE4764C638 CAPACITOR,ELECTROLYTIC 47M SRA 6.3V M FM5 TP(5)

C567 0CN1020K518 CAPACITOR TUBULA(HIGH DIELE) 1000P 50V K B TA26

C570 0CC1200K415 CAPACITOR,FIXED CERAMIC(TEMP.C 12PF D 50V 5% TR NP0

C571 0CC1500K415 CAPACITOR,CERAMIC(TEMP COMP) 15P 50V J NP0 TS

C573 0CN5610K518 CAPACITOR TUBULA(HIGH DIELE) 560P 50V K B TA26

C574 0CN1020K518 CAPACITOR TUBULA(HIGH DIELE) 1000P 50V K B TA26

C576 0CE2264F638 CAPACITOR,FIXED ELECTROLYTIC 22UF SRA,SS 16V 20% FM5 TP 5

C581 0CN1030F678 CAPACITOR TUBULA(HIGH DIELE) 0.01M 16V M Y TA26

C582 0CN1030F678 CAPACITOR TUBULA(HIGH DIELE) 0.01M 16V M Y TA26

C583 0CN1040K948 CAPACITOR,FIXED TUBULAR(HIGH D 0.1UF D 50V 80%,-20% F(Y5V) TA

C584 0CE1054K636 CAPACITOR,ELECTROLYTIC 1.0U SRA 50V M FM5 BP TP(D)

C5F1 0CE4766K638 CAPACITOR,ELECTROLYTIC 47M SMS 50V M FM5 TP

C5F2 0CE4766K638 CAPACITOR,ELECTROLYTIC 47M SMS 50V M FM5 TP

C6F30CE4764C638CAPACITOR,ELECTROLYTIC47M SRA 6.3V M FM5 TP(5)

C6F4 0CN1030F678CAPACITOR TUBULA(HIGH DIELE)0.01M 16V M Y TA26

C6F50CN1030F678CAPACITOR TUBULA(HIGH DIELE)0.01M 16V M Y TA26

C6F8 0CE4766K638CAPACITOR,ELECTROLYTIC47M SMS 50V M FM5 TP

C5K0 0CN1030F678 CAPACITOR TUBULA(HIGH DIELE) 0.01M 16V M Y TA26

C5K1 0CN1030F678 CAPACITOR TUBULA(HIGH DIELE) 0.01M 16V M Y TA26

C5K2 0CN1030F678 CAPACITOR TUBULA(HIGH DIELE) 0.01M 16V M Y TA26

C6R10CE4764C638CAPACITOR,ELECTROLYTIC47M SRA 6.3V M FM5 TP(5)

C601 0CN1030F678 CAPACITOR TUBULA(HIGH DIELE) 0.01M 16V M Y TA26

C6020CN1030F678CAPACITOR TUBULA(HIGH DIELE)0.01M 16V M Y TA26

C603 0CN1030F678 CAPACITOR TUBULA(HIGH DIELE) 0.01M 16V M Y TA26

C604 0CN1030F678 CAPACITOR TUBULA(HIGH DIELE) 0.01M 16V M Y TA26

C605 0CN1030F678 CAPACITOR TUBULA(HIGH DIELE) 0.01M 16V M Y TA26

C901 0CN1020K518 CAPACITOR TUBULA(HIGH DIELE) 1000P 50V K B TA26

C902 0CN1020K518 CAPACITOR TUBULA(HIGH DIELE) 1000P 50V K B TA26

C903 0CN1020K518 CAPACITOR TUBULA(HIGH DIELE) 1000P 50V K B TA26

C904 0CN1020K518 CAPACITOR TUBULA(HIGH DIELE) 1000P 50V K B TA26

- 5-6 -

MODEL : NTH960 RUN DATE : 2004.05.01

S AL LOCA.NO. PART NO DESCRIPTION SPECIFICATION REMARK

C906 0CN223AK948 CAPACITOR,TUBULAR(HIGH DIELEC) 0.022UF 50V Z F TA26 S

C907 0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)

C908 0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)

C909 0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)

C910 0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)

C911 0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)

C917 0CN223AK948 CAPACITOR,TUBULAR(HIGH DIELEC) 0.022UF 50V Z F TA26 S

C918 0CE4754K638 CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5

C919 0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)

C921 0CE1074F638 CAPACITOR,ELECTROLYTIC 100U SRA 16V M FM5 TP(5)

C922 0CX2700K408 CAPACITOR TUBULA(T.C) 27P 50V J SL TA26

C923 0CE2264F638 CAPACITOR,FIXED ELECTROLYTIC 22UF SRA,SS 16V 20% FM5 TP 5

C924 0CE4774C638 CAPACITOR,FIXED ELECTROLYTIC 470UF SRA,SS 6.3V 20% FM5 TP 5

COIL

FL401 633-032K COIL,IFT NON BIAC OSC,1CHIP 5V(KS-75M)

L103 633-088G COIL,CHOKE 22MH TOKO 5MM TP

L104 633-088G COIL,CHOKE 22MH TOKO 5MM TP

L301 0LR1800K035 INDUCTOR RADIAL LEAD 180M K 6X6 L5 TP

L302 0LA0472K018 INDUCTOR AXIAL LEAD 47M K 2.3X3.4 L5 TP

L303 0LA1200K018 INDUCTOR AXIAL LEAD 120M K 2.3X3.4 L5 TP

L304 0LR4700K035 INDUCTOR RADIAL LEAD 470M K 6X6 L5 TP

L306 0LR2200K035 INDUCTOR RADIAL LEAD 220M K 6X6 L5 TP

L307 0LR4700K035 INDUCTOR RADIAL LEAD 470M K 6X6 L5 TP

L309 0LR2700J025 INDUCTOR,RADIAL LEAD 270UH 5% 4X5 TR5

L380 0LR1000K035 INDUCTOR RADIAL LEAD 100M K 6X6 L5 TP

L3G1 0LR1000K035 INDUCTOR RADIAL LEAD 100M K 6X6 L5 TP

L401 0LR1000K035 INDUCTOR RADIAL LEAD 100M K 6X6 L5 TP

L405 0LR1000K035 INDUCTOR RADIAL LEAD 100M K 6X6 L5 TP

L503 0LR1000K035 INDUCTOR RADIAL LEAD 100M K 6X6 L5 TP

L504 0LA1000K018 INDUCTOR AXIAL LEAD 100M K 2.3X3.4 L5 TP

L505 0LR1000K035 INDUCTOR RADIAL LEAD 100M K 6X6 L5 TP

L901 0LA1000K018 INDUCTOR AXIAL LEAD 100M K 2.3X3.4 L5 TP

L902 0LA1000K018 INDUCTOR AXIAL LEAD 100M K 2.3X3.4 L5 TP

L904 0LR1000K035 INDUCTOR RADIAL LEAD 100M K 6X6 L5 TP

DIODE

BD101 0DD160000DA DIODE,RECTIFIERS S1WBA60 BK SHINDENGEN - 600V -

D102 0DD010009CA DIODE,RECTIFIERS EG01C TP SANKEN - - - - - -

D103 0DR180209AA DIODE,RECTIFIERS ERA18-02KFRB TP FUJI DO204AL 2

D106 0DR158220AA DIODE,RECTIFIERS 1N5822 BK RECTRON DO201AD 40V

D107 0DR180209AA DIODE,RECTIFIERS ERA18-02KFRB TP FUJI DO204AL 2

D108 0DD010009AC DIODE,RECTIFIERS EU01W(R-FORM) TP SANKEN

D109 0DR302000AB DIODE,RECTIFIERS HER302 BK RECTRON DO201AD 100V

D110 0DD010009AC DIODE,RECTIFIERS EU01W(R-FORM) TP SANKEN

D154 0DD207000AB DIODE,RECTIFIERS 2A07 2A RECT(T/S)P=12.5 F DELT

D155 0DD207000AB DIODE,RECTIFIERS 2A07 2A RECT(T/S)P=12.5 F DELT

D156 0DD207000AB DIODE,RECTIFIERS 2A07 2A RECT(T/S)P=12.5 F DELT

D158 0DR104009AB DIODE,RECTIFIERS RL104 R. TP GULF SEMICONDUCTOR

D159 0DR104009AB DIODE,RECTIFIERS RL104 R. TP GULF SEMICONDUCTOR

D161 0DR104009AB DIODE,RECTIFIERS RL104 R. TP GULF SEMICONDUCTOR

D301 0DD133009AA DIODE,SWITCHING 1SS133 DETECT,SW TP

D380 0DD133009AA DIODE,SWITCHING 1SS133 DETECT,SW TP

D401 0DD133009AA DIODE,SWITCHING 1SS133 DETECT,SW TP

D402 0DD133009AA DIODE,SWITCHING 1SS133 DETECT,SW TP

D403 0DD133009AA DIODE,SWITCHING 1SS133 DETECT,SW TP

D501 0DD133009AA DIODE,SWITCHING 1SS133 DETECT,SW TP

D510 0DD133009AA DIODE,SWITCHING 1SS133 DETECT,SW TP

D511 0DD133009AA DIODE,SWITCHING 1SS133 DETECT,SW TP

D5F6 0DD133009AA DIODE,SWITCHING 1SS133 DETECT,SW TP

D901 0DD133009AA DIODE,SWITCHING 1SS133 DETECT,SW TP

D902 0DD133009AA DIODE,SWITCHING 1SS133 DETECT,SW TP

- 5-7 -

S AL LOCA.NO. PART NO DESCRIPTION SPECIFICATION REMARK

D903 0DD133009AA DIODE,SWITCHING 1SS133 DETECT,SW TP

D904 0DD133009AA DIODE,SWITCHING 1SS133 DETECT,SW TP

D905 0DD133009AA DIODE,SWITCHING 1SS133 DETECT,SW TP

DIGITRON

DG6016302R-V106ADIGITRON9MT-173GNK FUTABA UNIVERSAL LV

FILTER

BC101 636-004C FILTER(CIRC),EMC BEAD CORE BFS3550R2FD8,R T/P

BD901 636-004C FILTER(CIRC),EMC BEAD CORE BFS3550R2FD8,R T/P

BD902 636-004C FILTER(CIRC),EMC BEAD CORE BFS3550R2FD8,R T/P

BD903 636-004C FILTER(CIRC),EMC BEAD CORE BFS3550R2FD8,R T/P

BD904 636-004C FILTER(CIRC),EMC BEAD CORE BFS3550R2FD8,R T/P

BD905 636-004C FILTER(CIRC),EMC BEAD CORE BFS3550R2FD8,R T/P

BD906 636-004C FILTER(CIRC),EMC BEAD CORE BFS3550R2FD8,R T/P

BD907 636-004C FILTER(CIRC),EMC BEAD CORE BFS3550R2FD8,R T/P

BD908 636-004C FILTER(CIRC),EMC BEAD CORE BFS3550R2FD8,R T/P

BD909 636-004C FILTER(CIRC),EMC BEAD CORE BFS3550R2FD8,R T/P

BD910 636-004C FILTER(CIRC),EMC BEAD CORE BFS3550R2FD8,R T/P

BD911 636-004C FILTER(CIRC),EMC BEAD CORE BFS3550R2FD8,R T/P

BD922 636-004C FILTER(CIRC),EMC BEAD CORE BFS3550R2FD8,R T/P

L102 616-145H FILTER(CIRC),DRAWING SHT LFS2020V4-04350

W1A2 636-004C FILTER(CIRC),EMC BEAD CORE BFS3550R2FD8,R T/P

FUSE

F101 0FS1601B51B FUSE,SLOW BLOW 1600MA 250 V 5.2X20 CY/GL KS /

HOLDER

ES501 4931R-0050A HOLDER ASSY END

ES502 4931R-0050A HOLDER ASSY END

FH01 586-008B HOLDER FUSE CLIP TP SINSUNG

FH02 586-008B HOLDER FUSE CLIP TP SINSUNG

LD501 4931R-0017A HOLDER ASSEMBLY MV995A NON LED

F104 GIRH100000B IC,ROHM ICP-N10 T104 TP IC DETACT

IC101 0ISK615300A IC,SANKEN STR-G6153T 5PIN FM CUT BK PWM

IC103 0ISS431000A IC,SAMSUNG ELECTRONICS KA431AZ (LM431AZ)

IC301 0ISA715820A IC,SANYO LA71582M 100QFP BK AVCP TIMELA

IC3G1 0IMA391600A IC,MATSUSHITA AN3916 SDIP ST AGC IC

IC501 0IMCRMA024B IC,MICRO CONTROLLER MN101D06F LE 2ND MATSUSHITA 10

IC503 0ICS241600B IC,CATALYST CAT24WC16P 8P DIP ST 16K SERIA

IC505 0IKE704200B IC,KEC KIA7042P 3P 4.2V RESET(TAPING)

IC6F10IPRPPY002AIC,PERIPHERALSPT6315 PTC 44 LQFP TRAY VFD DR

IC901 0IJR641300A IC,JRC NJU6413AD 16P DIP ST RS232C DR

JACK

JK901 572-034R JACK,RCA BJP-202-WH BAE EUN (WHITE) ST,

JK902 572-034R JACK,RCA BJP-202-WH BAE EUN (WHITE) ST,

LED

LD601 6301R1K001ALED ASSYLTL16KEEH74 LITEON KOREA 17

LD602 6301R1K001ALED ASSYLTL16KEEH74 LITEON KOREA 17

RESISTOR

FR101 0RF0471Q619 RESISTOR,DRAWING 4.7 OHM 1/4 W(3.4) 5.00% TR

R101 614-007A RESISTOR 2.7/2W CEMENT SMPS V

R102 0RS1003K619 RESISTOR,FIXED METAL OXIDE FIL 100K OHM 2 W 5.00% TR

R103 0RD0681F608 RESISTOR,FIXED CARBON FILM 6.8 OHM 1/6 W 5.00% TA26

R104 0RS5602K619 RESISTOR,FIXED METAL OXIDE FIL 56K OHM 2 W 5.00% TR

R107 0RD1504H632 RESISTOR,FIXED CARBON FILM 1.5M OHM 1/2 W 5.00% MF10

R109 0RS0350K619 RESISTOR,FIXED METAL OXIDE FIL 0.35 OHM 2 W 5.00% TR

R114 0RD1003F608 RESISTOR,FIXED CARBON FILM 100K OHM 1/6 W 5% TA26

R116 0RD3300F608 RESISTOR,FIXED CARBON FILM 330 OHM 1/6 W 5% TA26

R117 0RD2201F608 RESISTOR,FIXED CARBON FILM 2.2K OHM 1/6 W 5% TA26

R118 0RD1001F608 RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26

R119 0RN3301F408 RESISTOR,FIXED METAL FILM 3.3K OHM 1/6 W 1% TA26

R120 0RN2701F408 RESISTOR,FIXED METAL FILM 2.7K OHM 1/6 W 1% TA26

MODEL : NTH960 RUN DATE : 2004.05.01

- 5-8 -

MODEL : NTH960 RUN DATE : 2004.05.01

S AL LOCA.NO. PART NO DESCRIPTION SPECIFICATION REMARK

R121 0RD1800F608 RESISTOR,FIXED CARBON FILM 180 OHM 1/6 W 5% TA26

R122 0RD1003F608 RESISTOR,FIXED CARBON FILM 100K OHM 1/6 W 5% TA26

R152 0RD5600F608 RESISTOR,FIXED CARBON FILM 560 OHM 1/6 W 5% TA26

R156 0RD1001F608 RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26

R157 0RD3300F608 RESISTOR,FIXED CARBON FILM 330 OHM 1/6 W 5% TA26

R161 0RD4701F608 RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26

R162 0RD4701F608 RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26

R166 0RD2201F608 RESISTOR,FIXED CARBON FILM 2.2K OHM 1/6 W 5% TA26

R167 0RD3901F608 RESISTOR,FIXED CARBON FILM 3.9K OHM 1/6 W 5% TA26

R168 0RD4701F608 RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26

R170 0RD1001F608 RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26

R171 0RD3301F608 RESISTOR,FIXED CARBON FILM 3.3K OHM 1/6 W 5% TA26

R172 0RD4701F608 RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26

R173 0RD1001F608 RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26

R174 0RD3300F608 RESISTOR,FIXED CARBON FILM 330 OHM 1/6 W 5% TA26

R175 0RD4701F608 RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26

R177 0RD4701F608 RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26

R302 0RD1002F608 RESISTOR,FIXED CARBON FILM 10K OHM 1/6 W 5% TA26

R303 0RD1802F608 RESISTOR,FIXED CARBON FILM 18K OHM 1/6 W 5% TA26

R304 0RD1002F608 RESISTOR,FIXED CARBON FILM 10K OHM 1/6 W 5% TA26

R305 0RD1001F608 RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26

R306 0RD2700F608 RESISTOR,FIXED CARBON FILM 270 OHM 1/6 W 5% TA26

R307 0RD3300F608 RESISTOR,FIXED CARBON FILM 330 OHM 1/6 W 5% TA26

R308 0RD2701F608 RESISTOR,FIXED CARBON FILM 2.7K OHM 1/6 W 5% TA26

R309 0RD6800F608 RESISTOR,FIXED CARBON FILM 680 OHM 1/6 W 5% TA26

R310 0RD1001F608 RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26

R311 0RD4701F608 RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26

R312 0RD1801F608 RESISTOR,FIXED CARBON FILM 1.8K OHM 1/6 W 5% TA26

R313 0RD2700F608 RESISTOR,FIXED CARBON FILM 270 OHM 1/6 W 5% TA26

R316 0RD1500F608 RESISTOR,FIXED CARBON FILM 150 OHM 1/6 W 5% TA26

R317 0RD6802F608 RESISTOR,FIXED CARBON FILM 68K OHM 1/6 W 5% TA26

R318 0RD1001F608 RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26

R319 0RD1001F608 RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26

R320 0RD1501F608 RESISTOR,FIXED CARBON FILM 1.5K OHM 1/6 W 5% TA26

R321 0RD1801F608 RESISTOR,FIXED CARBON FILM 1.8K OHM 1/6 W 5% TA26

R322 0RD8201F608 RESISTOR,FIXED CARBON FILM 8.2K OHM 1/6 W 5% TA26

R326 0RD2701F608 RESISTOR,FIXED CARBON FILM 2.7K OHM 1/6 W 5% TA26

R335 0RD3902F608 RESISTOR,FIXED CARBON FILM 39K OHM 1/6 W 5% TA26

R338 0RD2700F608 RESISTOR,FIXED CARBON FILM 270 OHM 1/6 W 5% TA26

R340 0RD1802F608 RESISTOR,FIXED CARBON FILM 18K OHM 1/6 W 5% TA26

R341 0RD2701F608 RESISTOR,FIXED CARBON FILM 2.7K OHM 1/6 W 5% TA26

R349 0RD5601F608 RESISTOR,FIXED CARBON FILM 5.6K OHM 1/6 W 5% TA26

R380 0RD2200F608 RESISTOR,FIXED CARBON FILM 220 OHM 1/6 W 5% TA26

R381 0RD1001F608 RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26

R384 0RD1800F608 RESISTOR,FIXED CARBON FILM 180 OHM 1/6 W 5% TA26

R385 0RD1800F608 RESISTOR,FIXED CARBON FILM 180 OHM 1/6 W 5% TA26

R386 0RD0752F608 RESISTOR,FIXED CARBON FILM 75 OHM 1/6 W 5.00% TA26

R387 0RD1004F608 RESISTOR,FIXED CARBON FILM 1M OHM 1/6 W 5% TA26

R388 0RD0752F608 RESISTOR,FIXED CARBON FILM 75 OHM 1/6 W 5.00% TA26

R389 0RD1502F608 RESISTOR,FIXED CARBON FILM 15K OHM 1/6 W 5% TA26

R390 0RD5601F608 RESISTOR,FIXED CARBON FILM 5.6K OHM 1/6 W 5% TA26

R391 0RD4702F608 RESISTOR,FIXED CARBON FILM 47K OHM 1/6 W 5% TA26

R392 0RD2201F608 RESISTOR,FIXED CARBON FILM 2.2K OHM 1/6 W 5% TA26

R393 0RD4702F608 RESISTOR,FIXED CARBON FILM 47K OHM 1/6 W 5% TA26

R3B1 0RD3901F608 RESISTOR,FIXED CARBON FILM 3.9K OHM 1/6 W 5% TA26

R3G1 0RD5601F608 RESISTOR,FIXED CARBON FILM 5.6K OHM 1/6 W 5% TA26

R3G2 0RD2702F608 RESISTOR,FIXED CARBON FILM 27K OHM 1/6 W 5% TA26

R3G3 0RD3902F608 RESISTOR,FIXED CARBON FILM 39K OHM 1/6 W 5% TA26

R3G4 0RD1503F608 RESISTOR,FIXED CARBON FILM 150K OHM 1/6 W 5% TA26

R3G5 0RD1800F608 RESISTOR,FIXED CARBON FILM 180 OHM 1/6 W 5% TA26

- 5-9 -

S AL LOCA.NO. PART NO DESCRIPTION SPECIFICATION REMARK

R3G6 0RD1800F608 RESISTOR,FIXED CARBON FILM 180 OHM 1/6 W 5% TA26

R402 0RD2204F608 RESISTOR,FIXED CARBON FILM 2.2M OHM 1/6 W 0.05 TA26

R403 0RD6801F608 RESISTOR,FIXED CARBON FILM 6.8K OHM 1/6 W 5% TA26

R404 0RD5600F608 RESISTOR,FIXED CARBON FILM 560 OHM 1/6 W 5% TA26

R406 0RD3301F608 RESISTOR,FIXED CARBON FILM 3.3K OHM 1/6 W 5% TA26

R408 0RD2201F608 RESISTOR,FIXED CARBON FILM 2.2K OHM 1/6 W 5% TA26

R409 0RD4701F608 RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26

R410 0RD1002F608 RESISTOR,FIXED CARBON FILM 10K OHM 1/6 W 5% TA26

R411 0RD2202F608 RESISTOR,FIXED CARBON FILM 22K OHM 1/6 W 5% TA26

R412 0RD1801F608 RESISTOR,FIXED CARBON FILM 1.8K OHM 1/6 W 5% TA26

R413 0RD8201F608 RESISTOR,FIXED CARBON FILM 8.2K OHM 1/6 W 5% TA26

R414 0RD1202F608 RESISTOR,FIXED CARBON FILM 12K OHM 1/6 W 5% TA26

R415 0RD3303F608 RESISTOR,FIXED CARBON FILM 330K OHM 1/6 W 5% TA26

R416 0RD1800F608 RESISTOR,FIXED CARBON FILM 180 OHM 1/6 W 5% TA26

R418 0RD1802F608 RESISTOR,FIXED CARBON FILM 18K OHM 1/6 W 5% TA26

R419 0RD0472F608 RESISTOR,FIXED CARBON FILM 47 OHM 1/6 W 5% TA26

R420 0RD1001F608 RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26

R421 0RD0221F608 RESISTOR,FIXED CARBON FILM 2.2 OHM 1/6 W 5% TA26

R424 0RD2700F608 RESISTOR,FIXED CARBON FILM 270 OHM 1/6 W 5% TA26

R425 0RD4702F608 RESISTOR,FIXED CARBON FILM 47K OHM 1/6 W 5% TA26

R430 0RD3901F608 RESISTOR,FIXED CARBON FILM 3.9K OHM 1/6 W 5% TA26

R431 0RD4701F608 RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26

R482 0RD1001F608 RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26

R486 0RD5600F608 RESISTOR,FIXED CARBON FILM 560 OHM 1/6 W 5% TA26

R488 0RD2202F608 RESISTOR,FIXED CARBON FILM 22K OHM 1/6 W 5% TA26

R490 0RD4702F608 RESISTOR,FIXED CARBON FILM 47K OHM 1/6 W 5% TA26

R491 0RD1202F608 RESISTOR,FIXED CARBON FILM 12K OHM 1/6 W 5% TA26

R492 0RD1501F608 RESISTOR,FIXED CARBON FILM 1.5K OHM 1/6 W 5% TA26

R493 0RD0102F608 RESISTOR,FIXED CARBON FILM 10 OHM 1/6 W 5% TA26

R501 0RD2200F608 RESISTOR,FIXED CARBON FILM 220 OHM 1/6 W 5% TA26

R502 0RD2200F608 RESISTOR,FIXED CARBON FILM 220 OHM 1/6 W 5% TA26

R504 0RD1001F608 RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26

R505 0RD1001F608 RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26

R507 0RD1201F608 RESISTOR,FIXED CARBON FILM 1.2K OHM 1/6 W 5% TA26

R508 0RD5600F608 RESISTOR,FIXED CARBON FILM 560 OHM 1/6 W 5% TA26

R509 0RD6800F608 RESISTOR,FIXED CARBON FILM 680 OHM 1/6 W 5% TA26

R510 0RD1503F608 RESISTOR,FIXED CARBON FILM 150K OHM 1/6 W 5% TA26

R511 0RD1001F608 RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26

R512 0RD1001F608 RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26

R513 0RD3901F608 RESISTOR,FIXED CARBON FILM 3.9K OHM 1/6 W 5% TA26

R515 0RD2700F608 RESISTOR,FIXED CARBON FILM 270 OHM 1/6 W 5% TA26

R516 0RD2200F608 RESISTOR,FIXED CARBON FILM 220 OHM 1/6 W 5% TA26

R517 0RD2200F608 RESISTOR,FIXED CARBON FILM 220 OHM 1/6 W 5% TA26

R6F1 0RD5600F608RESISTOR,FIXED CARBON FILM560 OHM 1/6 W 5% TA26

R6F2 0RD5600F608RESISTOR,FIXED CARBON FILM560 OHM 1/6 W 5% TA26

R521 0RD1002F608 RESISTOR,FIXED CARBON FILM 10K OHM 1/6 W 5% TA26

R522 0RD1001F608 RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26

R525 0RD1002F608 RESISTOR,FIXED CARBON FILM 10K OHM 1/6 W 5% TA26

R526 0RD1002F608 RESISTOR,FIXED CARBON FILM 10K OHM 1/6 W 5% TA26

R527 0RD1000F608 RESISTOR,FIXED CARBON FILM 100 OHM 1/6 W 5% TA26

R529 0RD1002F608 RESISTOR,FIXED CARBON FILM 10K OHM 1/6 W 5% TA26

R532 0RD6802F608 RESISTOR,FIXED CARBON FILM 68K OHM 1/6 W 5% TA26

R534 0RD2201F608 RESISTOR,FIXED CARBON FILM 2.2K OHM 1/6 W 5% TA26

R541 0RD2201F608 RESISTOR,FIXED CARBON FILM 2.2K OHM 1/6 W 5% TA26

R543 0RD2701F608 RESISTOR,FIXED CARBON FILM 2.7K OHM 1/6 W 5% TA26

R544 0RD4701F608 RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26

R546 0RD4701F608 RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26

R547 0RD1002F608 RESISTOR,FIXED CARBON FILM 10K OHM 1/6 W 5% TA26

R548 0RD1003F608 RESISTOR,FIXED CARBON FILM 100K OHM 1/6 W 5% TA26

R550 0RD2200F608 RESISTOR,FIXED CARBON FILM 220 OHM 1/6 W 5% TA26

- 5-10 -

MODEL : NTH960 RUN DATE : 2004.05.01

S AL LOCA.NO. PART NO DESCRIPTION SPECIFICATION REMARK

R553 0RD2200F608 RESISTOR,FIXED CARBON FILM 220 OHM 1/6 W 5% TA26

R554 0RD4700F608 RESISTOR,FIXED CARBON FILM 470 OHM 1/6 W 5% TA26

R555 0RD2200F608 RESISTOR,FIXED CARBON FILM 220 OHM 1/6 W 5% TA26

R556 0RD2202F608 RESISTOR,FIXED CARBON FILM 22K OHM 1/6 W 5% TA26

R557 0RD2702F608 RESISTOR,FIXED CARBON FILM 27K OHM 1/6 W 5% TA26

R558 0RD2202F608 RESISTOR,FIXED CARBON FILM 22K OHM 1/6 W 5% TA26

R559 0RD4701F608 RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26

R560 0RD4701F608 RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26

R563 0RD4701F608 RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26

R564 0RD2702F608 RESISTOR,FIXED CARBON FILM 27K OHM 1/6 W 5% TA26

R567 0RD4701F608 RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26

R569 0RD4701F608 RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26

R570 0RD4701F608 RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26

R571 0RD2202F608 RESISTOR,FIXED CARBON FILM 22K OHM 1/6 W 5% TA26

R572 0RD1001F608 RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26

R573 0RD8200F608 RESISTOR,FIXED CARBON FILM 820 OHM 1/6 W 5% TA26

R574 0RD4701F608 RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26

R575 0RD4701F608 RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26

R576 0RD4701F608 RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26

R577 0RD4701F608 RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26

R578 0RD4701F608 RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26

R579 0RD5602F608 RESISTOR,FIXED CARBON FILM 56K OHM 1/6 W 5% TA26

R580 0RD5600F608 RESISTOR,FIXED CARBON FILM 560 OHM 1/6 W 5% TA26

R581 0RD5600F608 RESISTOR,FIXED CARBON FILM 560 OHM 1/6 W 5% TA26

R582 0RD1001F608 RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26

R583 0RD1002F608 RESISTOR,FIXED CARBON FILM 10K OHM 1/6 W 5% TA26

R585 0RD1001F608 RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26

R589 0RD2700F608 RESISTOR,FIXED CARBON FILM 270 OHM 1/6 W 5% TA26

R590 0RD1001F608 RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26

R591 0RD4701F608 RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26

R592 0RD4702F608 RESISTOR,FIXED CARBON FILM 47K OHM 1/6 W 5% TA26

R593 0RD1202F608 RESISTOR,FIXED CARBON FILM 12K OHM 1/6 W 5% TA26

R595 0RD1000F608 RESISTOR,FIXED CARBON FILM 100 OHM 1/6 W 5% TA26

R596 0RD1000F608 RESISTOR,FIXED CARBON FILM 100 OHM 1/6 W 5% TA26

R597 0RD1000F608 RESISTOR,FIXED CARBON FILM 100 OHM 1/6 W 5% TA26

R598 0RD1000F608 RESISTOR,FIXED CARBON FILM 100 OHM 1/6 W 5% TA26

R5B1 0RD1001F608 RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26

R5B3 0RD1001F608 RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26

R5B4 0RD1001F608 RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26

R5C5 0RD1001F608 RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26

R5C6 0RD1001F608 RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26

R5C7 0RD1001F608 RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26

R5F0 0RD0122F608 RESISTOR,FIXED CARBON FILM 12 OHM 1/6 W 5.00% TA26

R5F1 0RD0122F608 RESISTOR,FIXED CARBON FILM 12 OHM 1/6 W 5.00% TA26

R5F2 0RD0102F608 RESISTOR,FIXED CARBON FILM 10 OHM 1/6 W 5% TA26

R5F3 0RD0102F608 RESISTOR,FIXED CARBON FILM 10 OHM 1/6 W 5% TA26

R6F40RD1001F608RESISTOR,FIXED CARBON FILM1K OHM 1/6 W 5% TA26

R6F5 0RD1001F608RESISTOR,FIXED CARBON FILM1K OHM 1/6 W 5% TA26

R6F60RD1001F608RESISTOR,FIXED CARBON FILM1K OHM 1/6 W 5% TA26

R6F7 0RD5602F608RESISTOR,FIXED CARBON FILM56K OHM 1/6 W 5% TA26

R5K0 0RD1002F608 RESISTOR,FIXED CARBON FILM 10K OHM 1/6 W 5% TA26

R5K1 0RD1002F608 RESISTOR,FIXED CARBON FILM 10K OHM 1/6 W 5% TA26

R5K2 0RD1002F608 RESISTOR,FIXED CARBON FILM 10K OHM 1/6 W 5% TA26

R6R10RD3300F608RESISTOR,FIXED CARBON FILM330 OHM 1/6 W 5% TA26

R603 0RD1801F608 RESISTOR,FIXED CARBON FILM 1.8K OHM 1/6 W 5% TA26

R604 0RD1801F608 RESISTOR,FIXED CARBON FILM 1.8K OHM 1/6 W 5% TA26

R605 0RD1501F608 RESISTOR,FIXED CARBON FILM 1.5K OHM 1/6 W 5% TA26

R606 0RD1501F608 RESISTOR,FIXED CARBON FILM 1.5K OHM 1/6 W 5% TA26

R607 0RD2201F608 RESISTOR,FIXED CARBON FILM 2.2K OHM 1/6 W 5% TA26

R608 0RD2201F608 RESISTOR,FIXED CARBON FILM 2.2K OHM 1/6 W 5% TA26

R609 0RD2701F608 RESISTOR,FIXED CARBON FILM 2.7K OHM 1/6 W 5% TA26

- 5-11 -

S AL LOCA.NO. PART NO DESCRIPTION SPECIFICATION REMARK

R610 0RD2701F608 RESISTOR,FIXED CARBON FILM 2.7K OHM 1/6 W 5% TA26

R611 0RD3901F608 RESISTOR,FIXED CARBON FILM 3.9K OHM 1/6 W 5% TA26

R612 0RD3901F608 RESISTOR,FIXED CARBON FILM 3.9K OHM 1/6 W 5% TA26

R613 0RD6801F608 RESISTOR,FIXED CARBON FILM 6.8K OHM 1/6 W 5% TA26

R614 0RD6801F608 RESISTOR,FIXED CARBON FILM 6.8K OHM 1/6 W 5% TA26

R615 0RD1202F608 RESISTOR,FIXED CARBON FILM 12K OHM 1/6 W 5% TA26

R616 0RD1202F608 RESISTOR,FIXED CARBON FILM 12K OHM 1/6 W 5% TA26

R617 0RD6802F608 RESISTOR,FIXED CARBON FILM 68K OHM 1/6 W 5% TA26

R618 0RD1002F608 RESISTOR,FIXED CARBON FILM 10K OHM 1/6 W 5% TA26

R621 0RD1801F608 RESISTOR,FIXED CARBON FILM 1.8K OHM 1/6 W 5% TA26

R622 0RD1501F608 RESISTOR,FIXED CARBON FILM 1.5K OHM 1/6 W 5% TA26

R623 0RD2201F608 RESISTOR,FIXED CARBON FILM 2.2K OHM 1/6 W 5% TA26

R624 0RD2701F608 RESISTOR,FIXED CARBON FILM 2.7K OHM 1/6 W 5% TA26

R625 0RD6802F608 RESISTOR,FIXED CARBON FILM 68K OHM 1/6 W 5% TA26

R626 0RD6802F608 RESISTOR,FIXED CARBON FILM 68K OHM 1/6 W 5% TA26

R627 0RD6802F608 RESISTOR,FIXED CARBON FILM 68K OHM 1/6 W 5% TA26

R628 0RD6802F608 RESISTOR,FIXED CARBON FILM 68K OHM 1/6 W 5% TA26

R629 0RD6802F608 RESISTOR,FIXED CARBON FILM 68K OHM 1/6 W 5% TA26

R630 0RD6802F608 RESISTOR,FIXED CARBON FILM 68K OHM 1/6 W 5% TA26

R634 0RD0101F608 RESISTOR,FIXED CARBON FILM 1 OHM 1/6 W 5.00% TA26

R635 0RD0101F608 RESISTOR,FIXED CARBON FILM 1 OHM 1/6 W 5.00% TA26

R636 0RD0101F608 RESISTOR,FIXED CARBON FILM 1 OHM 1/6 W 5.00% TA26

R637 0RD0101F608 RESISTOR,FIXED CARBON FILM 1 OHM 1/6 W 5.00% TA26

R638 0RD0101F608 RESISTOR,FIXED CARBON FILM 1 OHM 1/6 W 5.00% TA26

R904 0RD1001F608 RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26

R905 0RD1001F608 RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26

R906 0RD1001F608 RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26

R907 0RD1001F608 RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26

R908 0RD1001F608 RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26

R909 0RD1001F608 RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26

R910 0RD1001F608 RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26

R911 0RD1001F608 RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26

R912 0RD1001F608 RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26

R914 0RD1001F608 RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26

R915 0RD1001F608 RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26

R916 0RD1002F608 RESISTOR,FIXED CARBON FILM 10K OHM 1/6 W 5% TA26

R917 0RD1002F608 RESISTOR,FIXED CARBON FILM 10K OHM 1/6 W 5% TA26

R918 0RD1002F608 RESISTOR,FIXED CARBON FILM 10K OHM 1/6 W 5% TA26

R919 0RD1002F608 RESISTOR,FIXED CARBON FILM 10K OHM 1/6 W 5% TA26

R920 0RD1002F608 RESISTOR,FIXED CARBON FILM 10K OHM 1/6 W 5% TA26

R921 0RD1002F608 RESISTOR,FIXED CARBON FILM 10K OHM 1/6 W 5% TA26

R922 0RD1002F608 RESISTOR,FIXED CARBON FILM 10K OHM 1/6 W 5% TA26

R923 0RD1002F608 RESISTOR,FIXED CARBON FILM 10K OHM 1/6 W 5% TA26

R924 0RD1002F608 RESISTOR,FIXED CARBON FILM 10K OHM 1/6 W 5% TA26

R925 0RD1002F608 RESISTOR,FIXED CARBON FILM 10K OHM 1/6 W 5% TA26

R926 0RD1002F608 RESISTOR,FIXED CARBON FILM 10K OHM 1/6 W 5% TA26

R927 0RD1002F608 RESISTOR,FIXED CARBON FILM 10K OHM 1/6 W 5% TA26

R928 0RD1002F608 RESISTOR,FIXED CARBON FILM 10K OHM 1/6 W 5% TA26

R929 0RD1002F608 RESISTOR,FIXED CARBON FILM 10K OHM 1/6 W 5% TA26

R930 0RD1001F608 RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26

R931 0RD5600F608 RESISTOR,FIXED CARBON FILM 560 OHM 1/6 W 5% TA26

R932 0RD1002F608 RESISTOR,FIXED CARBON FILM 10K OHM 1/6 W 5% TA26

R933 0RD1001F608 RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26

R934 0RD2201F608 RESISTOR,FIXED CARBON FILM 2.2K OHM 1/6 W 5% TA26

R935 0RD1001F608 RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26

R936 0RD1002F608 RESISTOR,FIXED CARBON FILM 10K OHM 1/6 W 5% TA26

R937 0RD2702F608 RESISTOR,FIXED CARBON FILM 27K OHM 1/6 W 5% TA26

R938 0RD8201F608 RESISTOR,FIXED CARBON FILM 8.2K OHM 1/6 W 5% TA26

R939 0RD2200F608 RESISTOR,FIXED CARBON FILM 220 OHM 1/6 W 5% TA26

R940 0RD0562F608 RESISTOR,FIXED CARBON FILM 56 OHM 1/6 W 5% TA26

MODEL : NTH960 RUN DATE : 2004.05.01

- 5-12 -

S AL LOCA.NO. PART NO DESCRIPTION SPECIFICATION REMARK

VR501 613-032W RESISTOR,DRAWING RH063MCJ5R (220K)

VR601 611-024B RESISTOR,DRAWING RK09K113000123B

REMOTE CONTROLLER RECEIVER

RC6R16712R2938GAREMOTE CONTROLLER RECEIVERTSOP1238SP1 VISHAY(TEMIC) 37-9

SENSOR

IC102 657-063A SENSOR LTV-817B,PHOTO COUPLER(LITEON)

RS501 6500RAB003A SENSOR SG-260 KODENSHI D33 REEL SENSO

RS502 6500RAB003A SENSOR SG-260 KODENSHI D33 REEL SENSO

SWITCH

CS501 6600M000026 SWITCH,PUSH MPU12970MLB0 VCR CST IN S/W MI

JS601 556-272A SWITCH JRS0000-0502 SMK NON 1V 10MA V

MS501 6600JB8005B SWITCH,MODE NON 5V 1MA VERTICAL -G

SL601 6600Q000007 SWITCH,SLIDE CSS-2201A CHANG SHIN 30V DC 0.

SW601 556-219B SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-

SW602 556-219B SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-

SW603 556-219B SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-

SW604 556-219B SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-

SW605 556-219B SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-

SW606 556-219B SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-

SW607 556-219B SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-

SW608 556-219B SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-

SW609 556-219B SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-

SW610 556-219B SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-

SW611 556-219B SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-

SW612 556-219B SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-

SW613 556-219B SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-

SW614 556-219B SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-

SW615 556-219B SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-

SW616 556-219B SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-

SW617 556-219B SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-

SW618 556-219B SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-

SW619 556-219B SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-

SW620 556-219B SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-

SW621 556-219B SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-

SW901 556-219B SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-

TRANSISTOR

Q152 0TR320309AA TRANSISTOR,BIPOLARS KTC3203 KEC TP TO92 50V 150MA

Q153 0TR127309AA TRANSISTOR KTA1273-TP-Y (KTA966A)KEC

Q155 0TR127309AA TRANSISTOR KTA1273-TP-Y (KTA966A)KEC

Q156 0TR120309AE TRANSISTOR SRC1203 TP AUK TO92 22K,22K

Q157 0TR120309AE TRANSISTOR SRC1203 TP AUK TO92 22K,22K

Q159 0TR127309AA TRANSISTOR KTA1273-TP-Y (KTA966A)KEC

Q161 0TR319809AC TRANSISTOR KTC3198-TP-BL (KTC1815)KEC

Q162 0TR120309AE TRANSISTOR SRC1203 TP AUK TO92 22K,22K

Q163 0TR127309AA TRANSISTOR KTA1273-TP-Y (KTA966A)KEC

Q164 0TR120309AE TRANSISTOR SRC1203 TP AUK TO92 22K,22K

Q301 0TR319809AC TRANSISTOR KTC3198-TP-BL (KTC1815)KEC

Q302 0TR319809AC TRANSISTOR KTC3198-TP-BL (KTC1815)KEC

Q303 0TR126609AE TRANSISTOR KTA1266-GR,TP(KTA1015),KEC

Q304 0TR319809AC TRANSISTOR KTC3198-TP-BL (KTC1815)KEC

Q305 0TR319809AC TRANSISTOR KTC3198-TP-BL (KTC1815)KEC

Q380 0TR126609AE TRANSISTOR KTA1266-GR,TP(KTA1015),KEC

Q381 0TR319809AC TRANSISTOR KTC3198-TP-BL (KTC1815)KEC

Q382 0TR126609AE TRANSISTOR KTA1266-GR,TP(KTA1015),KEC

Q3G1 0TR126609AE TRANSISTOR KTA1266-GR,TP(KTA1015),KEC

Q402 0TR126609AE TRANSISTOR KTA1266-GR,TP(KTA1015),KEC

Q403 0TR319809AC TRANSISTOR KTC3198-TP-BL (KTC1815)KEC

Q404 0TR319809AC TRANSISTOR KTC3198-TP-BL (KTC1815)KEC

Q405 0TR320309AA TRANSISTOR,BIPOLARS KTC3203 KEC TP TO92 50V 150MA

Q406 0TR319809AC TRANSISTOR KTC3198-TP-BL (KTC1815)KEC

Q481 0TR126609AE TRANSISTOR KTA1266-GR,TP(KTA1015),KEC

- 5-13 -

MODEL : NTH960 RUN DATE : 2004.05.01

S AL LOCA.NO. PART NO DESCRIPTION SPECIFICATION REMARK

Q501 0TR319809AC TRANSISTOR KTC3198-TP-BL (KTC1815)KEC

Q502 0TR319809AA TRANSISTOR,BIPOLARS KTC3198(KTC1815) KEC TP TO92 5

Q503 0TR127309AA TRANSISTOR KTA1273-TP-Y (KTA966A)KEC

Q504 0TR126609AE TRANSISTOR KTA1266-GR,TP(KTA1015),KEC

Q506 0TR126609AE TRANSISTOR KTA1266-GR,TP(KTA1015),KEC

Q512 0TR120309AE TRANSISTOR SRC1203 TP AUK TO92 22K,22K

Q513 0TR103009AF TRANSISTOR,BIPOLARS KRA103M(KRA2203) KEC TP TO92M

Q514 0TR120309AE TRANSISTOR SRC1203 TP AUK TO92 22K,22K

Q515 0TR120309AE TRANSISTOR SRC1203 TP AUK TO92 22K,22K

Q521 0TR320309AA TRANSISTOR,BIPOLARS KTC3203 KEC TP TO92 50V 150MA

Q901 0TR120309AE TRANSISTOR SRC1203 TP AUK TO92 22K,22K

Q902 0TR120309AE TRANSISTOR SRC1203 TP AUK TO92 22K,22K

Q903 0TR120309AE TRANSISTOR SRC1203 TP AUK TO92 22K,22K

Q904 0TR120309AE TRANSISTOR SRC1203 TP AUK TO92 22K,22K

Q905 0TR120309AE TRANSISTOR SRC1203 TP AUK TO92 22K,22K

Q906 0TR120309AE TRANSISTOR SRC1203 TP AUK TO92 22K,22K

Q907 0TR120309AE TRANSISTOR SRC1203 TP AUK TO92 22K,22K

Q908 0TR120309AE TRANSISTOR SRC1203 TP AUK TO92 22K,22K

Q909 0TR120309AE TRANSISTOR SRC1203 TP AUK TO92 22K,22K

Q910 0TR120309AE TRANSISTOR SRC1203 TP AUK TO92 22K,22K

Q911 0TR320309AA TRANSISTOR,BIPOLARS KTC3203 KEC TP TO92 50V 150MA

Q912 0TR534309BA TRANSISTOR,BIPOLARS 2SC5343-L TP AUK TO92 -

Q913 0TR198009CA TRANSISTOR 2SA1980G TP AUK TO92

Q914 0TR198009CA TRANSISTOR 2SA1980G TP AUK TO92

TRANSFORMER

T101 642-023U TRANSFORMER,SMPS[COIL] SJE-023U SJ/CS WIDE EER2828

VARISTOR

V101 656-004C VARISTOR,DRAWING SVC681D-10A SAMHWA 4.O CUT

X-TAL

X302 6202R2357AE RESONATOR,CRYSTAL HC49U SSANG TAE 3-579575MHZ 1

X501 6202R-DA01A RESONATOR,CRYSTAL CFS-308 CITIZEN 32-768KHZ 20

X502 6202R1143DC RESONATOR,CRYSTAL H49U BUBANG 14-31818HZ 25PPM 1

ZENER DIODE

ZD101 0DZ332609FA DIODE,ZENER UZ-3.3BSB 26MM TP PYUNG CHANG

ZD152 0DZ910009BB DIODE,ZENER MTZJ9.1C TP ROHM-K DO34 0.5W 8

ZD502 0DZ622609AB DIODE,ZENER UZ-6.2BSA 26MM TP PYUNG CHANG

ZD503 0DZ622609AB DIODE,ZENER UZ-6.2BSA 26MM TP PYUNG CHANG

ZD901 0DZ132609BB DIODE,ZENER UZ-13BSA 26MM TP PYUNG CHANG

ZD902 0DZ132609BB DIODE,ZENER UZ-13BSA 26MM TP PYUNG CHANG

ZD903 0DZ132609BB DIODE,ZENER UZ-13BSA 26MM TP PYUNG CHANG

ZD904 0DZ132609BB DIODE,ZENER UZ-13BSA 26MM TP PYUNG CHANG

ZD905 0DZ132609BB DIODE,ZENER UZ-13BSA 26MM TP PYUNG CHANG

ZD906 0DZ132609BB DIODE,ZENER UZ-13BSA 26MM TP PYUNG CHANG

ZD907 0DZ132609BB DIODE,ZENER UZ-13BSA 26MM TP PYUNG CHANG

ZD908 0DZ132609BB DIODE,ZENER UZ-13BSA 26MM TP PYUNG CHANG

ZD909 0DZ132609BB DIODE,ZENER UZ-13BSA 26MM TP PYUNG CHANG

ZD910 0DZ132609BB DIODE,ZENER UZ-13BSA 26MM TP PYUNG CHANG

ZD911 0DZ132609BB DIODE,ZENER UZ-13BSA 26MM TP PYUNG CHANG

ZD912 0DZ132609BB DIODE,ZENER UZ-13BSA 26MM TP PYUNG CHANG

ZD913 0DZ132609BB DIODE,ZENER UZ-13BSA 26MM TP PYUNG CHANG

ZD914 0DZ132609BB DIODE,ZENER UZ-13BSA 26MM TP PYUNG CHANG

ZD915 0DZ132609BB DIODE,ZENER UZ-13BSA 26MM TP PYUNG CHANG

ZD916 0DZ132609BB DIODE,ZENER UZ-13BSA 26MM TP PYUNG CHANG

ZD917 0DZ132609BB DIODE,ZENER UZ-13BSA 26MM TP PYUNG CHANG

ZD920 0DZ910009BB DIODE,ZENER MTZJ9.1C TP ROHM-K DO34 0.5W 8

Lg Tl At130M Users Manual NTH960_0419

TL-AT130M to the manual aded5342-41ba-46df-aead-42c2d335967c

Navigation menu

Versions of this User Manual:

Views

Navigation
