Libre Wireless Technologies LS5BVD-N11S WiFi Media Streaming Module User Manual

Libre Wireless Technologies Inc. WiFi Media Streaming Module

User manual

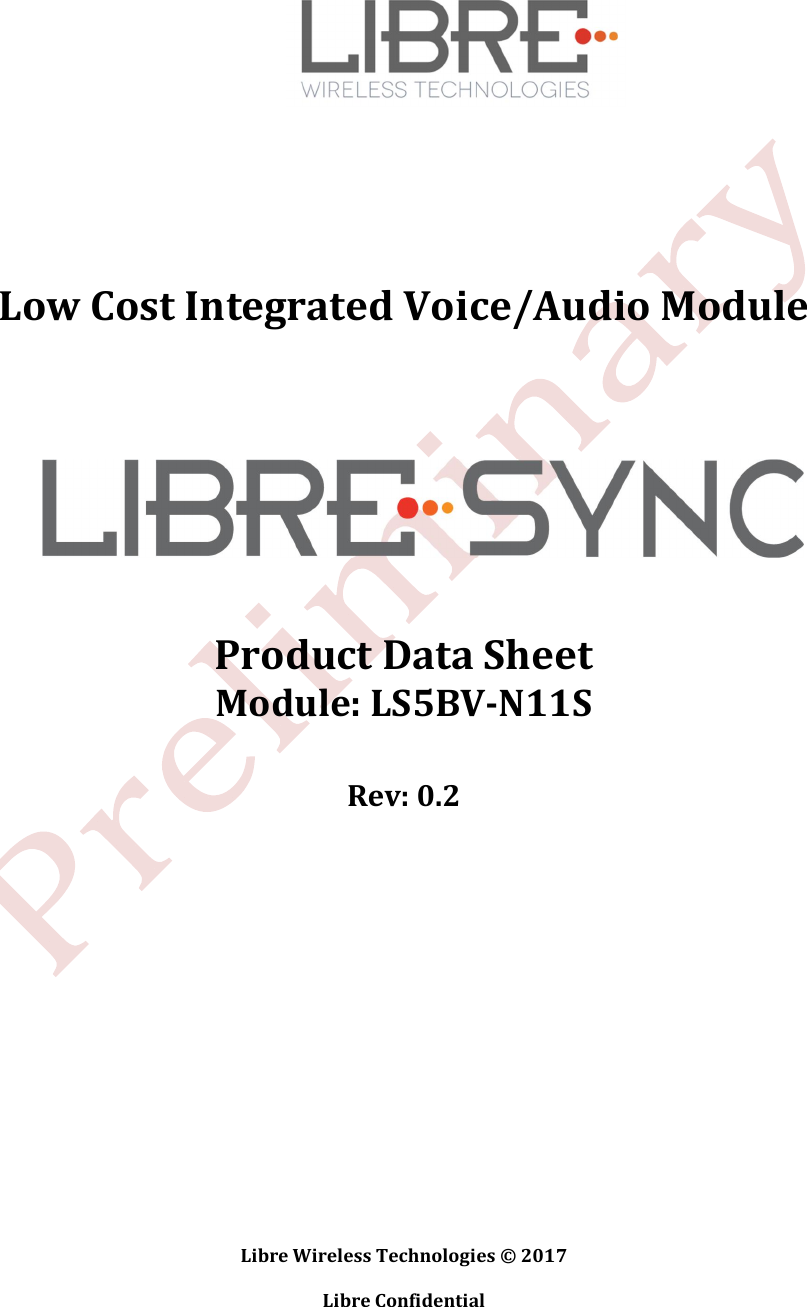

 Libre Wireless Technologies © 2017  Libre Confidential           Low Cost Integrated Voice/Audio Module        Product Data Sheet Module: LS5BV-N11S  Rev: 0.2

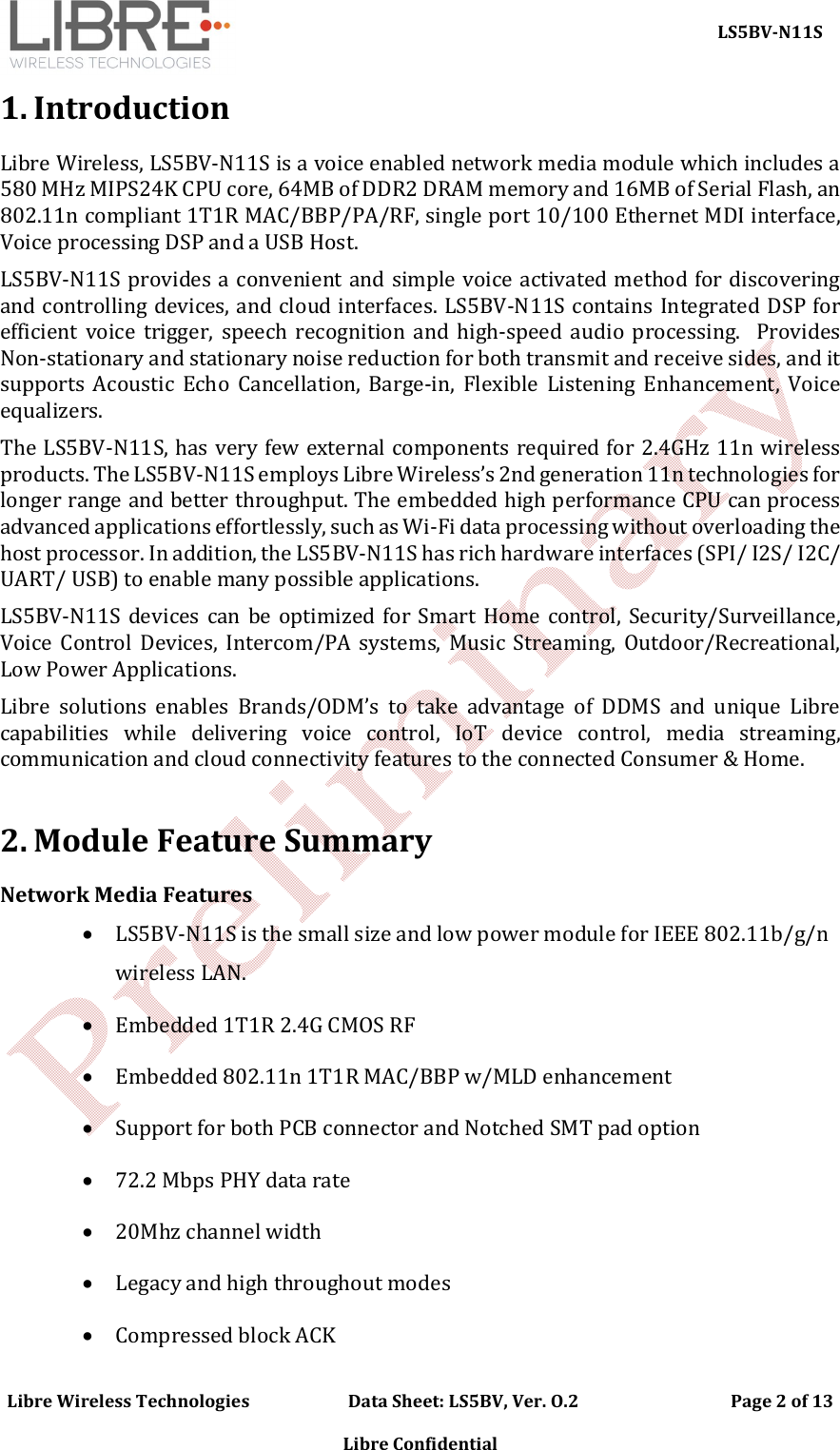

    LS5BV-N11S Libre Wireless Technologies                        Data Sheet: LS5BV, Ver. O.2                                     Page 2 of 13  Libre Confidential 1. Introduction Libre Wireless, LS5BV-N11S is a voice enabled network media module which includes a 580 MHz MIPS24K CPU core, 64MB of DDR2 DRAM memory and 16MB of Serial Flash, an 802.11n compliant 1T1R MAC/BBP/PA/RF, single port 10/100 Ethernet MDI interface, Voice processing DSP and a USB Host.  LS5BV-N11S provides a convenient and simple voice activated method for discovering and controlling devices, and cloud interfaces. LS5BV-N11S contains Integrated DSP for efficient  voice  trigger,  speech  recognition  and  high-speed  audio  processing.    Provides Non-stationary and stationary noise reduction for both transmit and receive sides, and it supports  Acoustic  Echo  Cancellation,  Barge-in,  Flexible  Listening  Enhancement,  Voice equalizers. The LS5BV-N11S, has very few external components required for 2.4GHz 11n wireless products. The LS5BV-N11S employs Libre Wireless’s 2nd generation 11n technologies for longer range and better throughput. The embedded high performance CPU can process advanced applications effortlessly, such as Wi-Fi data processing without overloading the host processor. In addition, the LS5BV-N11S has rich hardware interfaces (SPI/ I2S/ I2C/ UART/ USB) to enable many possible applications.  LS5BV-N11S devices  can  be optimized  for  Smart Home control,  Security/Surveillance, Voice  Control  Devices,  Intercom/PA  systems,  Music  Streaming,  Outdoor/Recreational, Low Power Applications.  Libre  solutions  enables  Brands/ODM’s  to  take  advantage  of  DDMS  and  unique  Libre capabilities  while  delivering  voice  control,  IoT  device  control,  media  streaming, communication and cloud connectivity features to the connected Consumer & Home.  2. Module Feature Summary Network Media Features  LS5BV-N11S is the small size and low power module for IEEE 802.11b/g/n wireless LAN.  Embedded 1T1R 2.4G CMOS RF  Embedded 802.11n 1T1R MAC/BBP w/MLD enhancement  Support for both PCB connector and Notched SMT pad option  72.2 Mbps PHY data rate  20Mhz channel width  Legacy and high throughout modes  Compressed block ACK

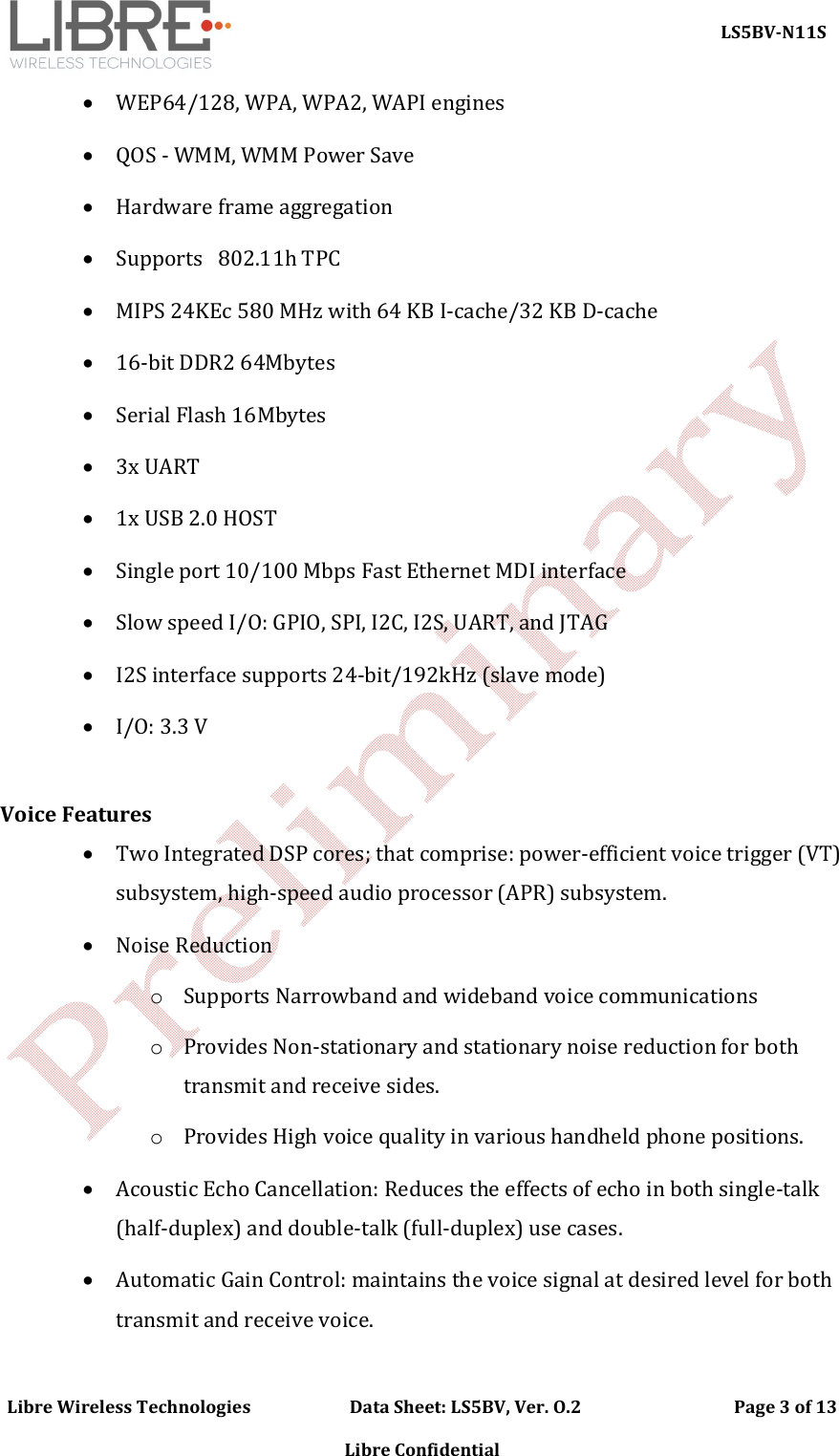

    LS5BV-N11S Libre Wireless Technologies                        Data Sheet: LS5BV, Ver. O.2                                     Page 3 of 13  Libre Confidential  WEP64/128, WPA, WPA2, WAPI engines  QOS - WMM, WMM Power Save  Hardware frame aggregation  Supports   802.11h TPC  MIPS 24KEc 580 MHz with 64 KB I-cache/32 KB D-cache  16-bit DDR2 64Mbytes    Serial Flash 16Mbytes   3x UART   1x USB 2.0 HOST  Single port 10/100 Mbps Fast Ethernet MDI interface  Slow speed I/O: GPIO, SPI, I2C, I2S, UART, and JTAG  I2S interface supports 24-bit/192kHz (slave mode)  I/O: 3.3 V   Voice Features  Two Integrated DSP cores; that comprise: power-efficient voice trigger (VT) subsystem, high-speed audio processor (APR) subsystem.  Noise Reduction o Supports Narrowband and wideband voice communications o Provides Non-stationary and stationary noise reduction for both transmit and receive sides. o Provides High voice quality in various handheld phone positions.  Acoustic Echo Cancellation: Reduces the effects of echo in both single-talk (half-duplex) and double-talk (full-duplex) use cases.  Automatic Gain Control: maintains the voice signal at desired level for both transmit and receive voice.

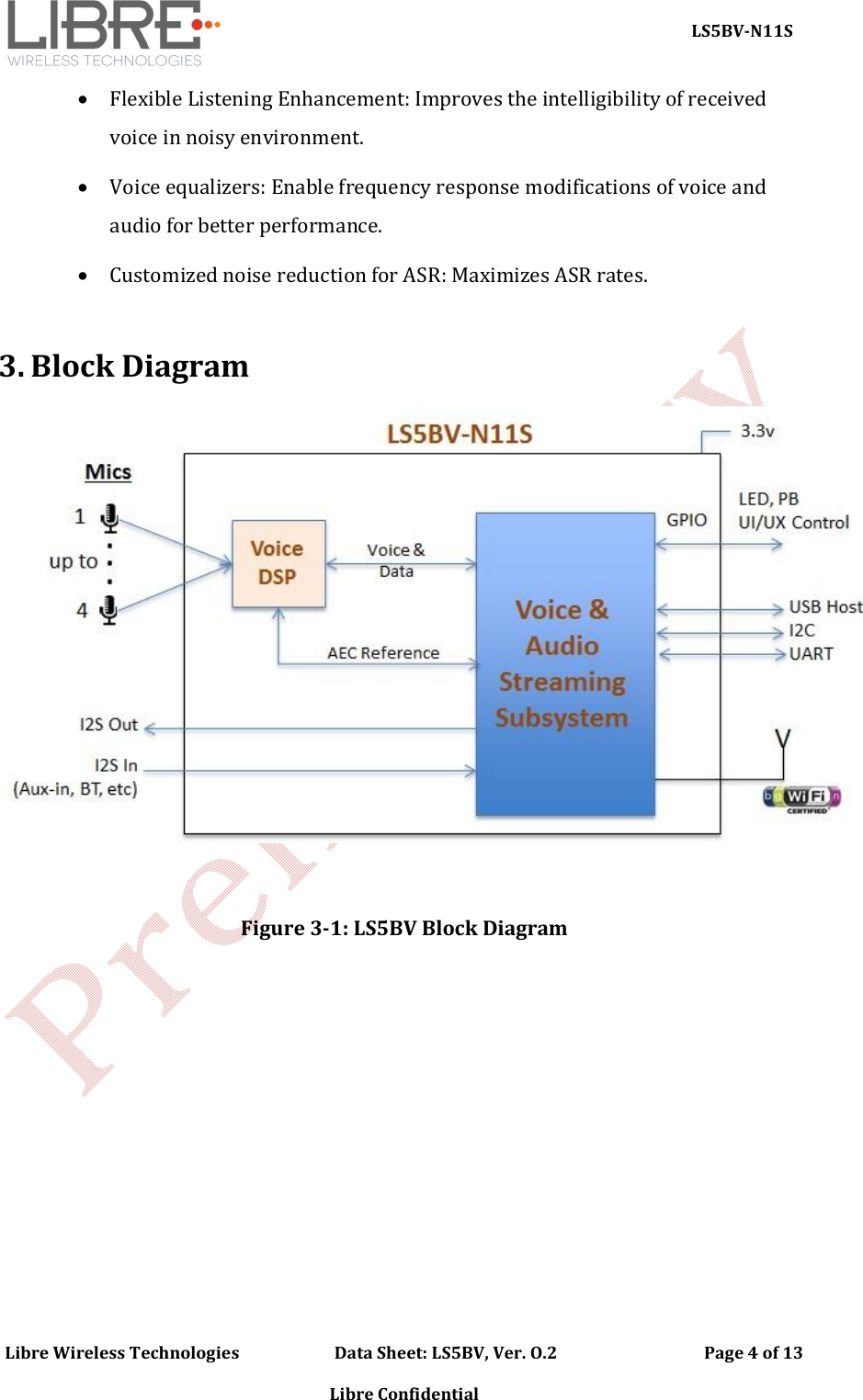

    LS5BV-N11S Libre Wireless Technologies                        Data Sheet: LS5BV, Ver. O.2                                     Page 4 of 13  Libre Confidential  Flexible Listening Enhancement: Improves the intelligibility of received voice in noisy environment.  Voice equalizers: Enable frequency response modifications of voice and audio for better performance.  Customized noise reduction for ASR: Maximizes ASR rates.  3. Block Diagram   Figure 3-1: LS5BV Block Diagram

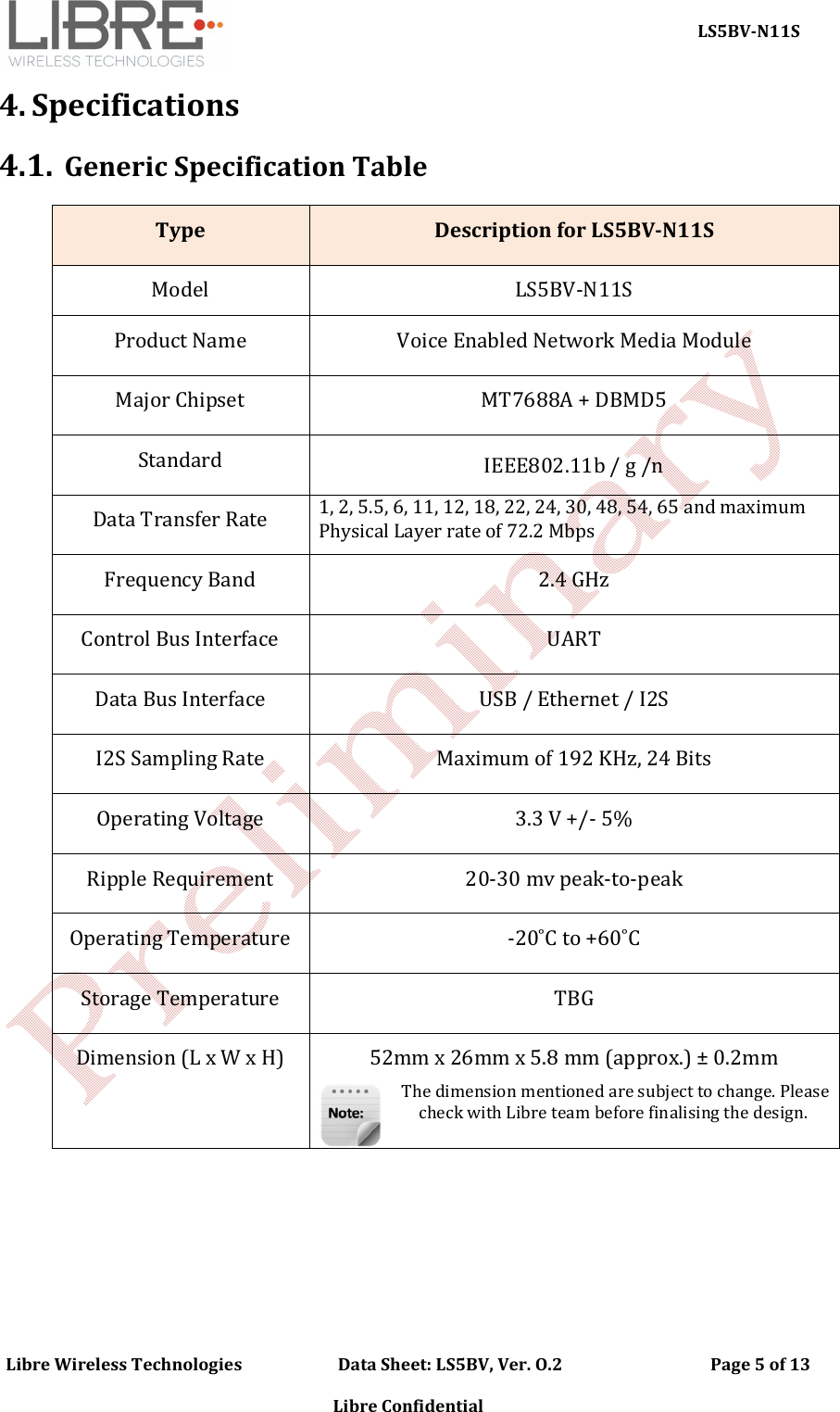

    LS5BV-N11S Libre Wireless Technologies                        Data Sheet: LS5BV, Ver. O.2                                     Page 5 of 13  Libre Confidential 4. Specifications 4.1. Generic Specification Table   Type  Description for LS5BV-N11S  Model  LS5BV-N11S Product Name  Voice Enabled Network Media Module Major Chipset  MT7688A + DBMD5 Standard  IEEE802.11b / g /n Data Transfer Rate 1, 2, 5.5, 6, 11, 12, 18, 22, 24, 30, 48, 54, 65 and maximum Physical Layer rate of 72.2 Mbps Frequency Band  2.4 GHz  Control Bus Interface  UART Data Bus Interface  USB / Ethernet / I2S I2S Sampling Rate  Maximum of 192 KHz, 24 Bits Operating Voltage  3.3 V +/- 5% Ripple Requirement  20-30 mv peak-to-peak Operating Temperature  -20˚C to +60˚C Storage Temperature  TBG Dimension (L x W x H)  52mm x 26mm x 5.8 mm (approx.) ± 0.2mm  The dimension mentioned are subject to change. Please check with Libre team before finalising the design.

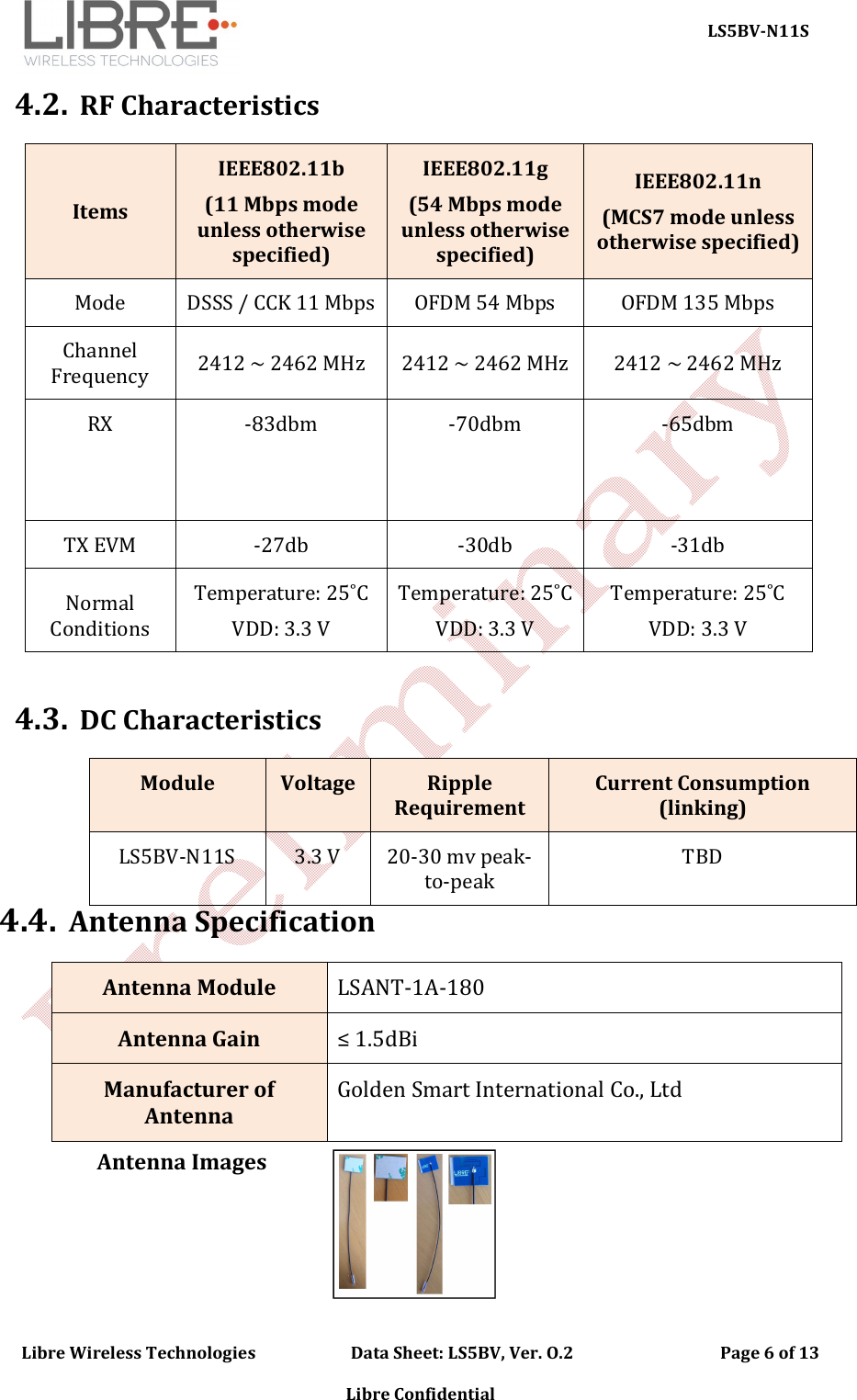

LS5BV-N11S Libre Wireless Technologies        Data Sheet: LS5BV, Ver. O.2    Page 6 of 13 Libre Confidential 4.2. RF Characteristics  Items IEEE802.11b (11 Mbps mode unless otherwise specified) IEEE802.11g (54 Mbps mode unless otherwise specified) IEEE802.11n (MCS7 mode unless otherwise specified) Mode  DSSS / CCK 11 Mbps OFDM 54 Mbps  OFDM 135 Mbps Channel Frequency  2412 ~ 2462 MHz  2412 ~ 2462 MHz  2412 ~ 2462 MHz RX  -83dbm  -70dbm  -65dbm TX EVM  -27db  -30db  -31db Normal Conditions Temperature: 25˚C VDD: 3.3 V Temperature: 25˚C VDD: 3.3 V  Temperature: 25˚C VDD: 3.3 V 4.3. DC Characteristics Module Voltage  Ripple Requirement Current Consumption (linking) LS5BV-N11S  3.3 V  20-30 mv peak-to-peak TBD 4.4. Antenna Specification Antenna Module  LSANT-1A-180 Antenna Gain  ≤ 1.5dBi Manufacturer of Antenna Golden Smart International Co., Ltd Antenna Images

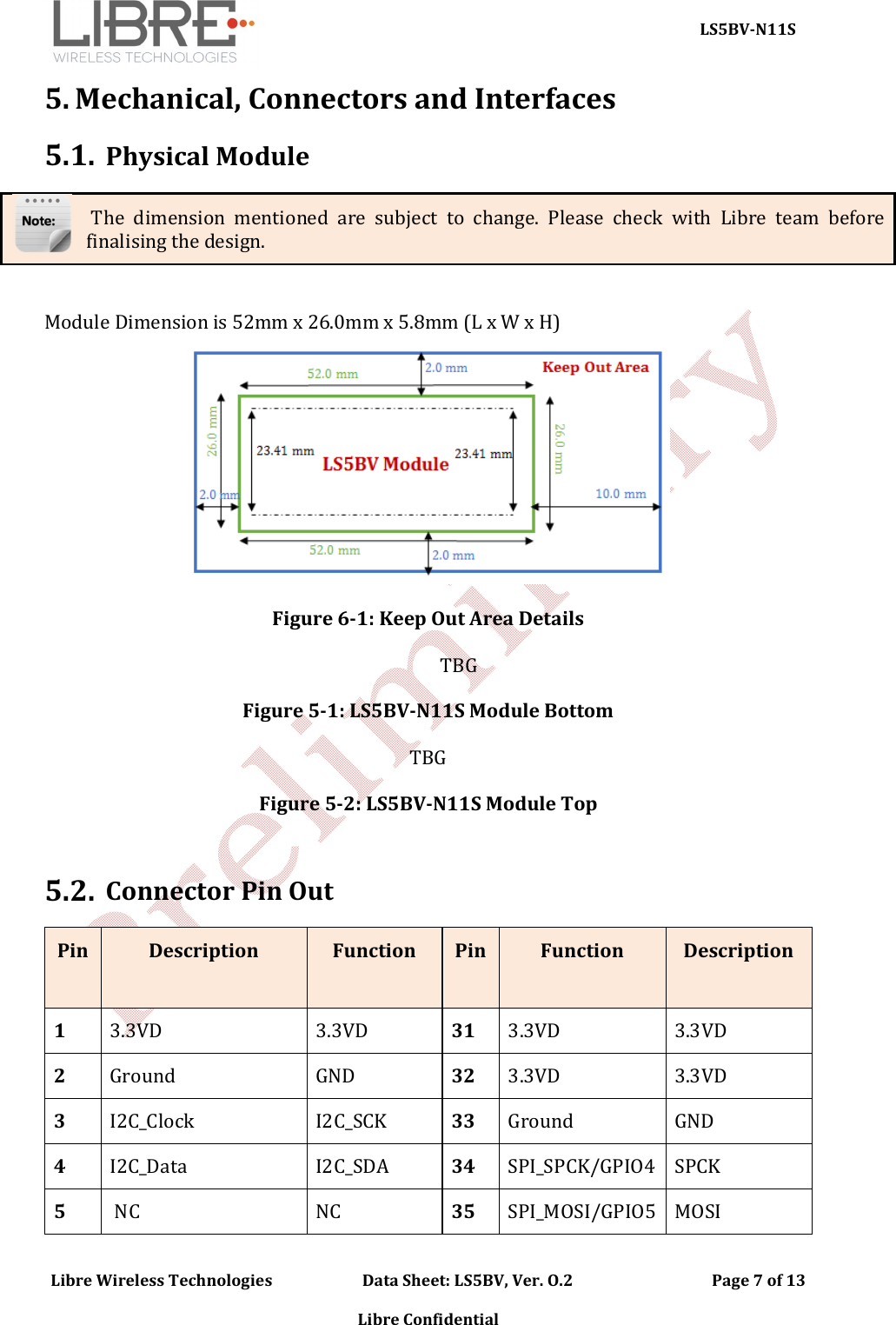

LS5BV-N11S Libre Wireless Technologies        Data Sheet: LS5BV, Ver. O.2    Page 7 of 13 Libre Confidential 5. Mechanical, Connectors and Interfaces5.1. Physical Module  The  dimension  mentioned  are  subject  to  change.  Please  check  with  Libre  team  before finalising the design. Module Dimension is 52mm x 26.0mm x 5.8mm (L x W x H) Figure 6-1: Keep Out Area Details TBG Figure 5-1: LS5BV-N11S Module Bottom TBG Figure 5-2: LS5BV-N11S Module Top 5.2. Connector Pin Out Pin  Description   Function   Pin  Function  Description 1  3.3VD  3.3VD  31  3.3VD  3.3VD 2  Ground  GND  32  3.3VD  3.3VD 3  I2C_Clock  I2C_SCK  33  Ground  GND 4  I2C_Data  I2C_SDA  34  SPI_SPCK/GPIO4 SPCK 5   NC  NC  35  SPI_MOSI/GPIO5 MOSI

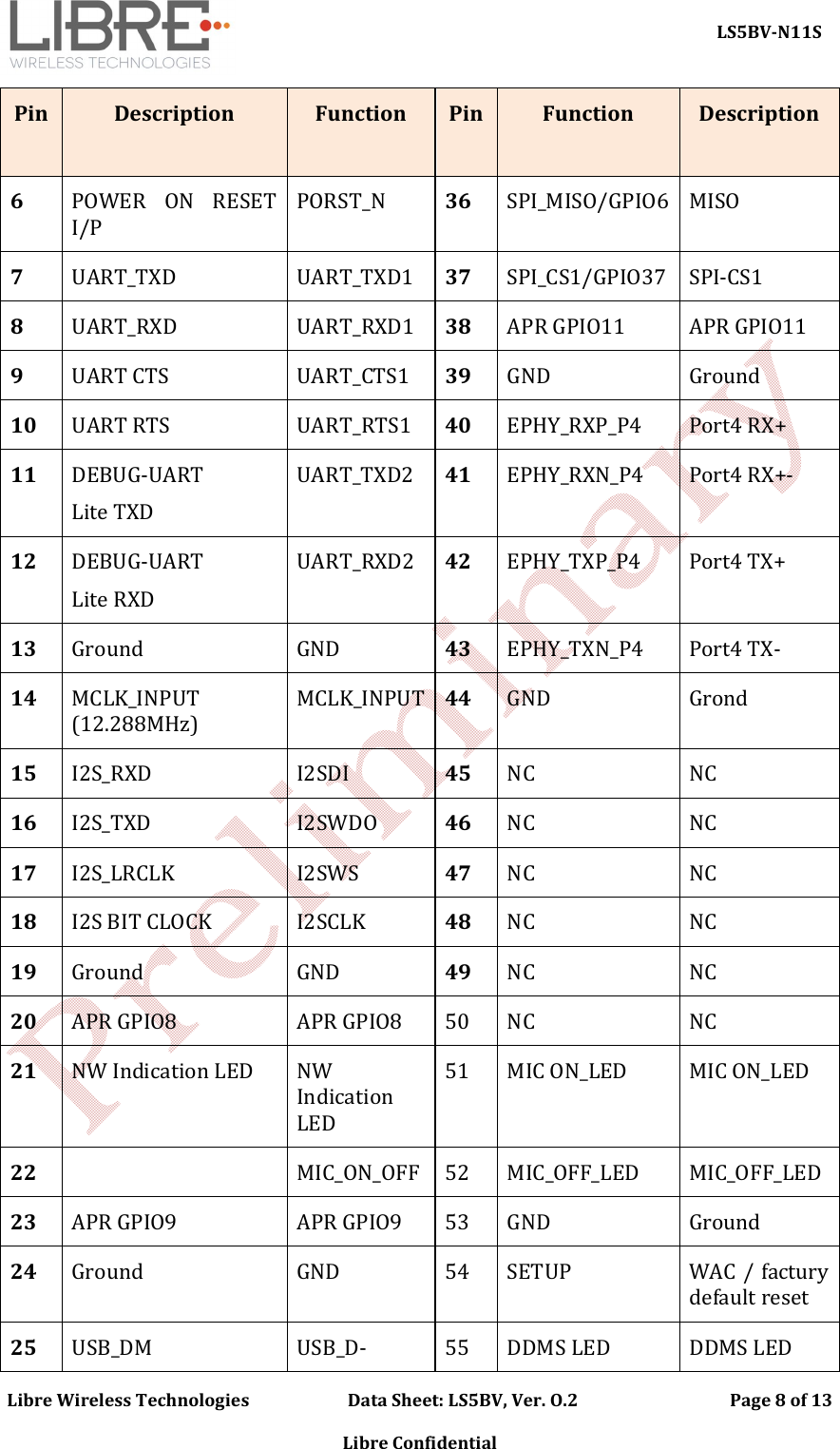

    LS5BV-N11S Libre Wireless Technologies                        Data Sheet: LS5BV, Ver. O.2                                     Page 8 of 13  Libre Confidential Pin  Description   Function   Pin  Function   Description  6  POWER  ON  RESET I/P PORST_N  36  SPI_MISO/GPIO6 MISO 7  UART_TXD  UART_TXD1  37  SPI_CS1/GPIO37  SPI-CS1 8  UART_RXD  UART_RXD1  38  APR GPIO11  APR GPIO11 9  UART CTS  UART_CTS1  39  GND   Ground 10  UART RTS  UART_RTS1  40  EPHY_RXP_P4  Port4 RX+  11  DEBUG-UART  Lite TXD UART_TXD2  41  EPHY_RXN_P4  Port4 RX+-  12  DEBUG-UART  Lite RXD UART_RXD2  42  EPHY_TXP_P4  Port4 TX+  13  Ground   GND   43  EPHY_TXN_P4  Port4 TX-  14  MCLK_INPUT (12.288MHz) MCLK_INPUT 44  GND   Grond  15  I2S_RXD  I2SDI   45  NC  NC 16  I2S_TXD  I2SWDO   46  NC  NC 17  I2S_LRCLK  I2SWS   47  NC  NC 18  I2S BIT CLOCK  I2SCLK   48  NC  NC 19  Ground   GND   49  NC  NC 20  APR GPIO8  APR GPIO8  50  NC  NC 21  NW Indication LED  NW Indication LED 51  MIC ON_LED  MIC ON_LED 22     MIC_ON_OFF  52  MIC_OFF_LED  MIC_OFF_LED 23  APR GPIO9  APR GPIO9  53  GND   Ground 24  Ground   GND   54  SETUP  WAC / factury default reset 25  USB_DM   USB_D-   55  DDMS LED  DDMS LED

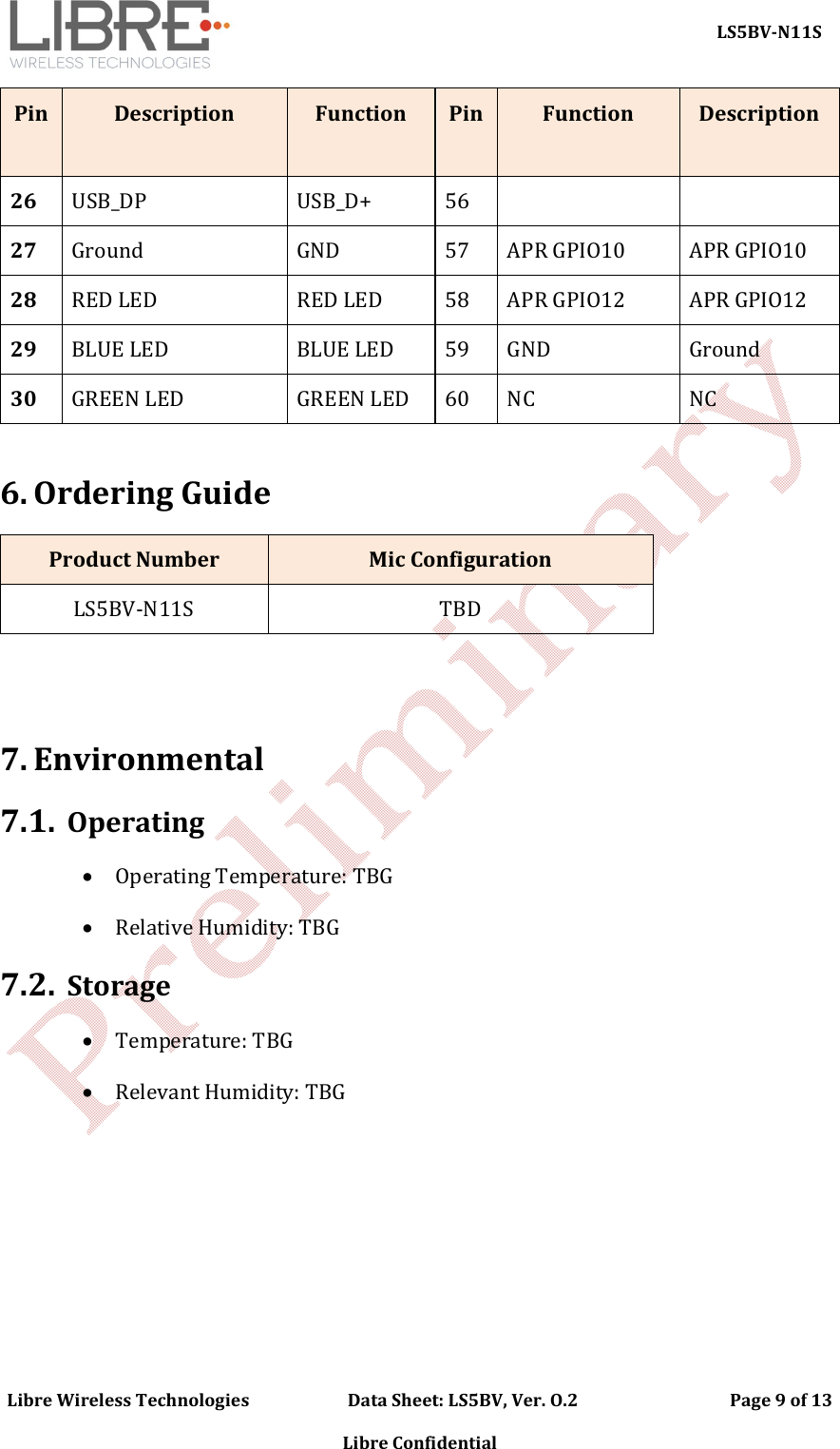

    LS5BV-N11S Libre Wireless Technologies                        Data Sheet: LS5BV, Ver. O.2                                     Page 9 of 13  Libre Confidential Pin  Description   Function   Pin  Function   Description  26  USB_DP   USB_D+   56       27  Ground   GND   57  APR GPIO10  APR GPIO10 28  RED LED  RED LED  58  APR GPIO12  APR GPIO12 29  BLUE LED  BLUE LED  59  GND   Ground 30  GREEN LED  GREEN LED  60  NC  NC  6. Ordering Guide Product Number  Mic Configuration LS5BV-N11S  TBD     7. Environmental  7.1. Operating  Operating Temperature: TBG  Relative Humidity: TBG 7.2. Storage  Temperature: TBG   Relevant Humidity: TBG

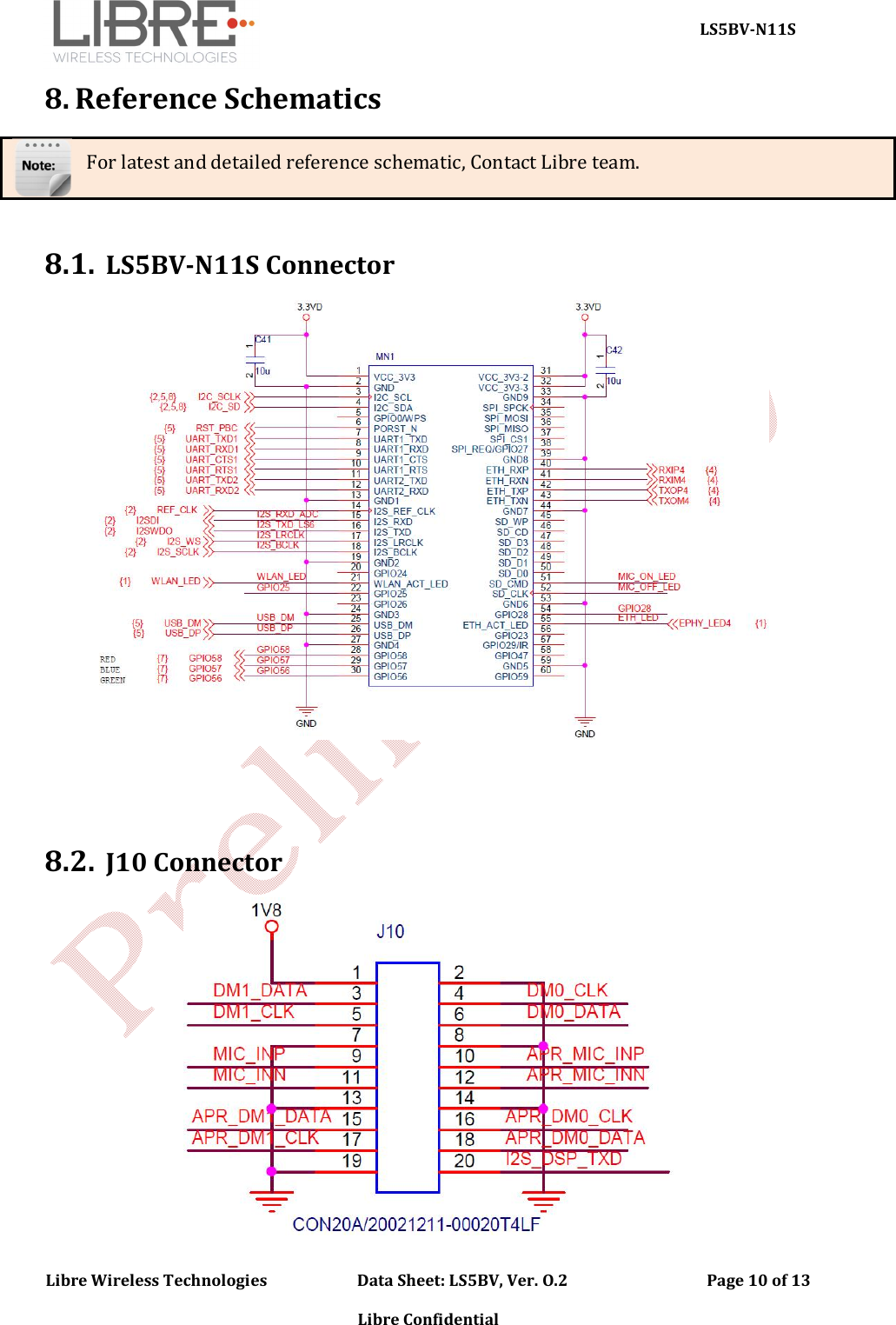

    LS5BV-N11S Libre Wireless Technologies                        Data Sheet: LS5BV, Ver. O.2                                     Page 10 of 13  Libre Confidential 8. Reference Schematics For latest and detailed reference schematic, Contact Libre team.   8.1. LS5BV-N11S Connector    8.2. J10 Connector

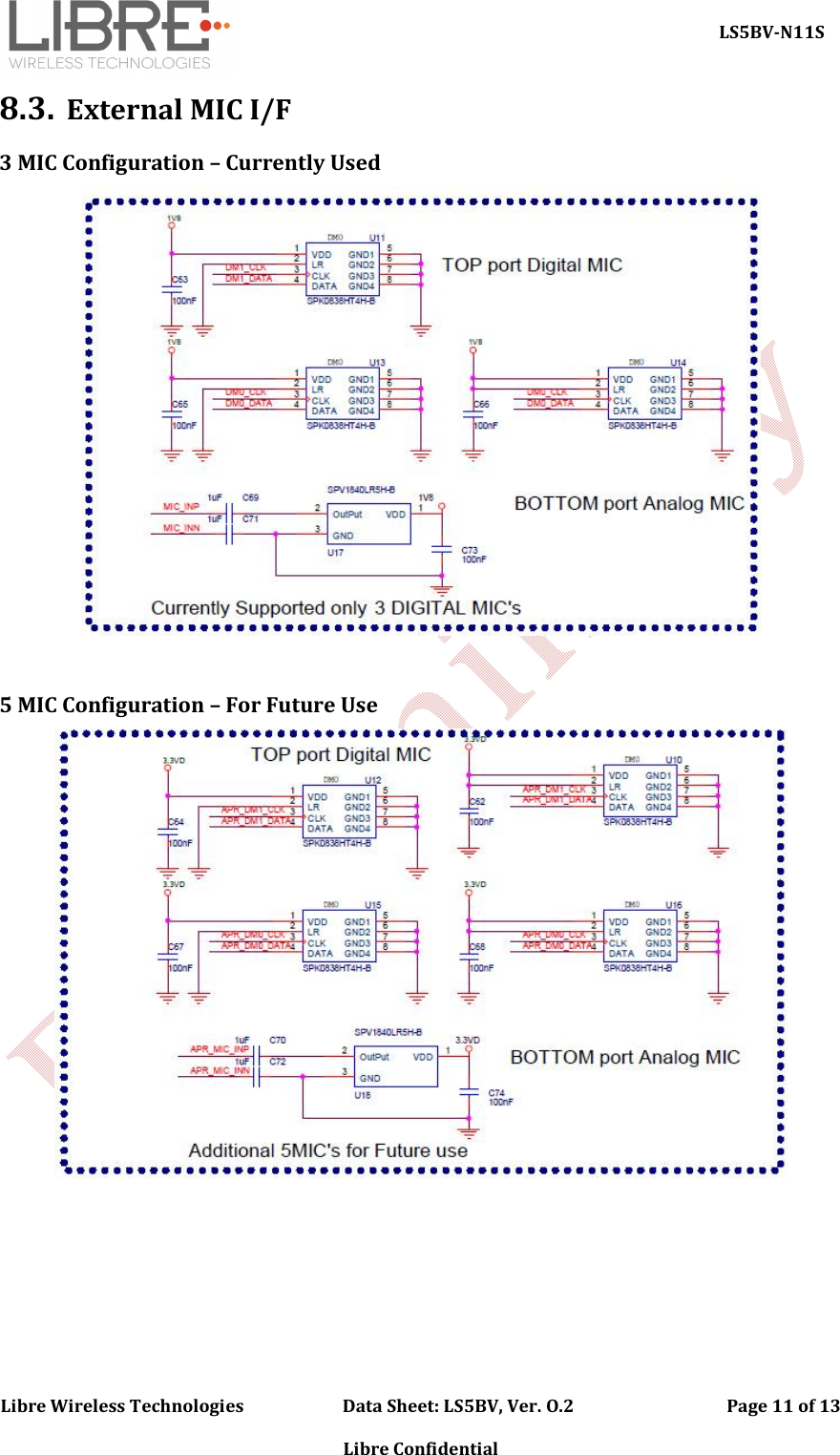

    LS5BV-N11S Libre Wireless Technologies                        Data Sheet: LS5BV, Ver. O.2                                     Page 11 of 13  Libre Confidential 8.3. External MIC I/F 3 MIC Configuration – Currently Used   5 MIC Configuration – For Future Use

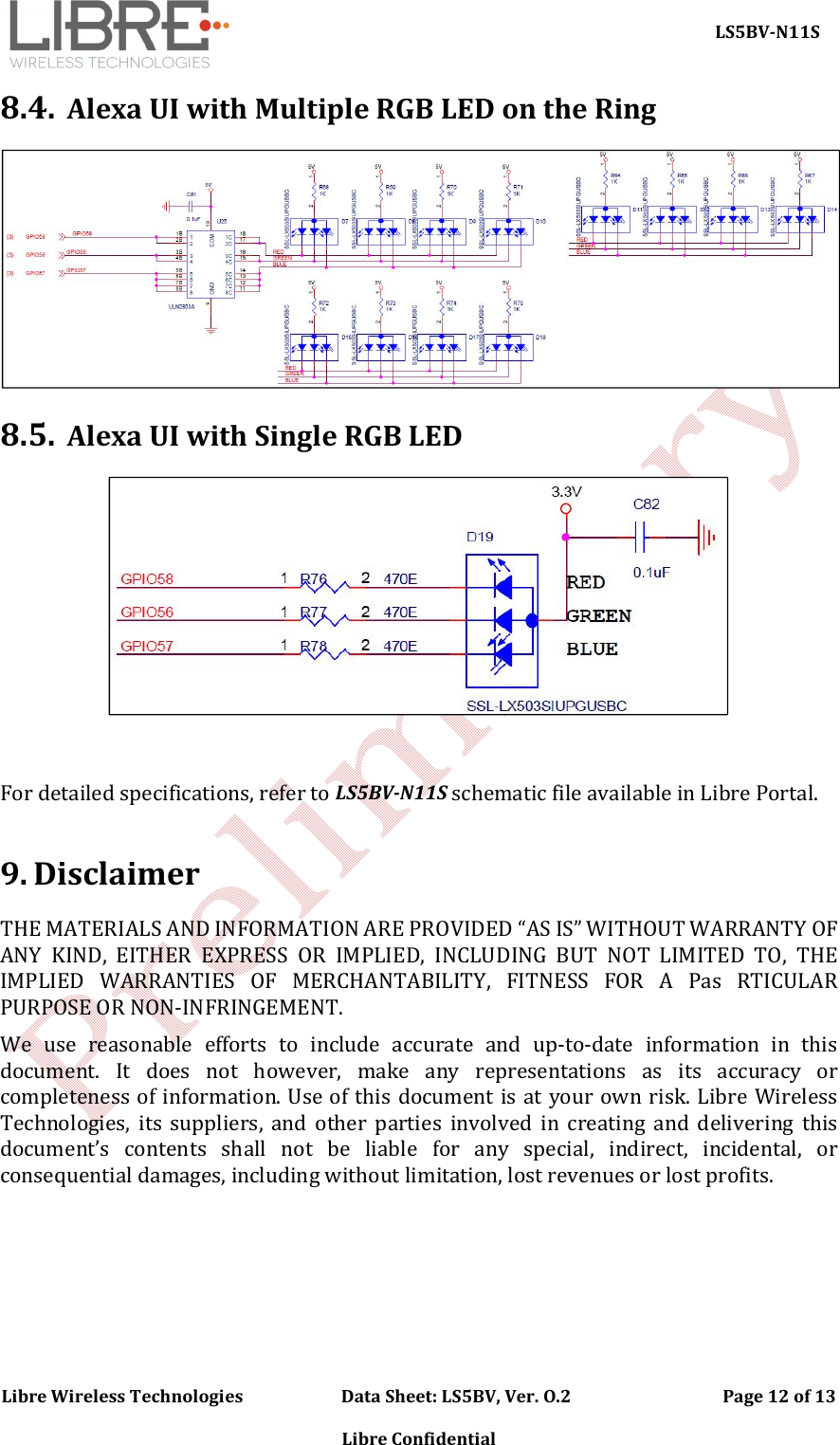

    LS5BV-N11S Libre Wireless Technologies                        Data Sheet: LS5BV, Ver. O.2                                     Page 12 of 13  Libre Confidential 8.4. Alexa UI with Multiple RGB LED on the Ring  8.5. Alexa UI with Single RGB LED   For detailed specifications, refer to LS5BV-N11S schematic file available in Libre Portal.   9. Disclaimer THE MATERIALS AND INFORMATION ARE PROVIDED “AS IS” WITHOUT WARRANTY OF ANY  KIND,  EITHER  EXPRESS  OR  IMPLIED,  INCLUDING  BUT  NOT  LIMITED  TO,  THE IMPLIED  WARRANTIES  OF  MERCHANTABILITY,  FITNESS  FOR  A  Pas  RTICULAR PURPOSE OR NON-INFRINGEMENT. We  use  reasonable  efforts  to  include  accurate  and  up-to-date  information  in  this document.  It  does  not  however,  make  any  representations  as  its  accuracy  or completeness of information. Use of this document is at your own risk. Libre Wireless Technologies,  its  suppliers,  and  other  parties  involved  in  creating  and  delivering  this document’s  contents  shall  not  be  liable  for  any  special,  indirect,  incidental,  or consequential damages, including without limitation, lost revenues or lost profits.

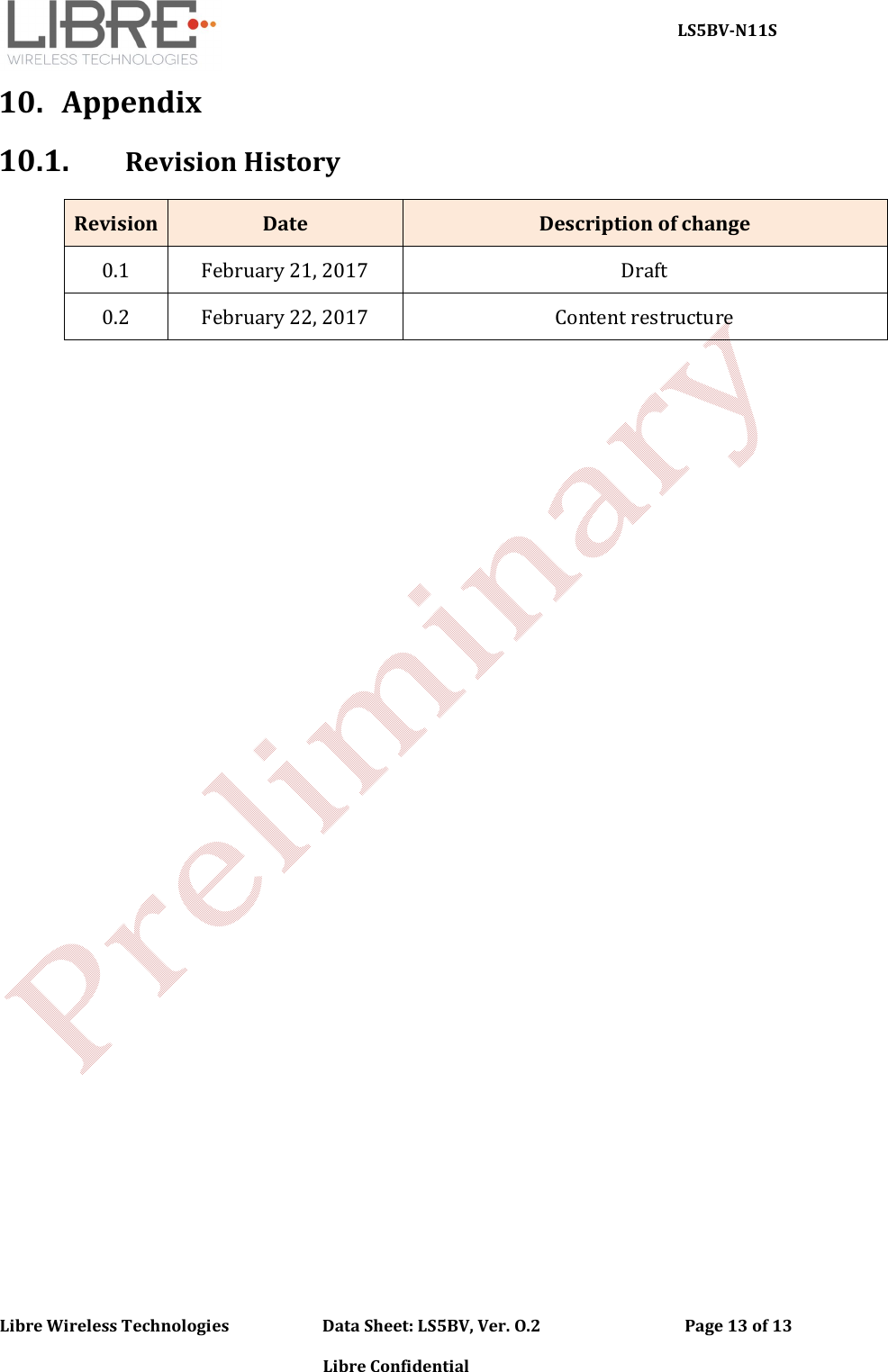

    LS5BV-N11S Libre Wireless Technologies                        Data Sheet: LS5BV, Ver. O.2                                     Page 13 of 13  Libre Confidential 10. Appendix 10.1. Revision History Revision Date  Description of change 0.1  February 21, 2017  Draft 0.2  February 22, 2017  Content restructure

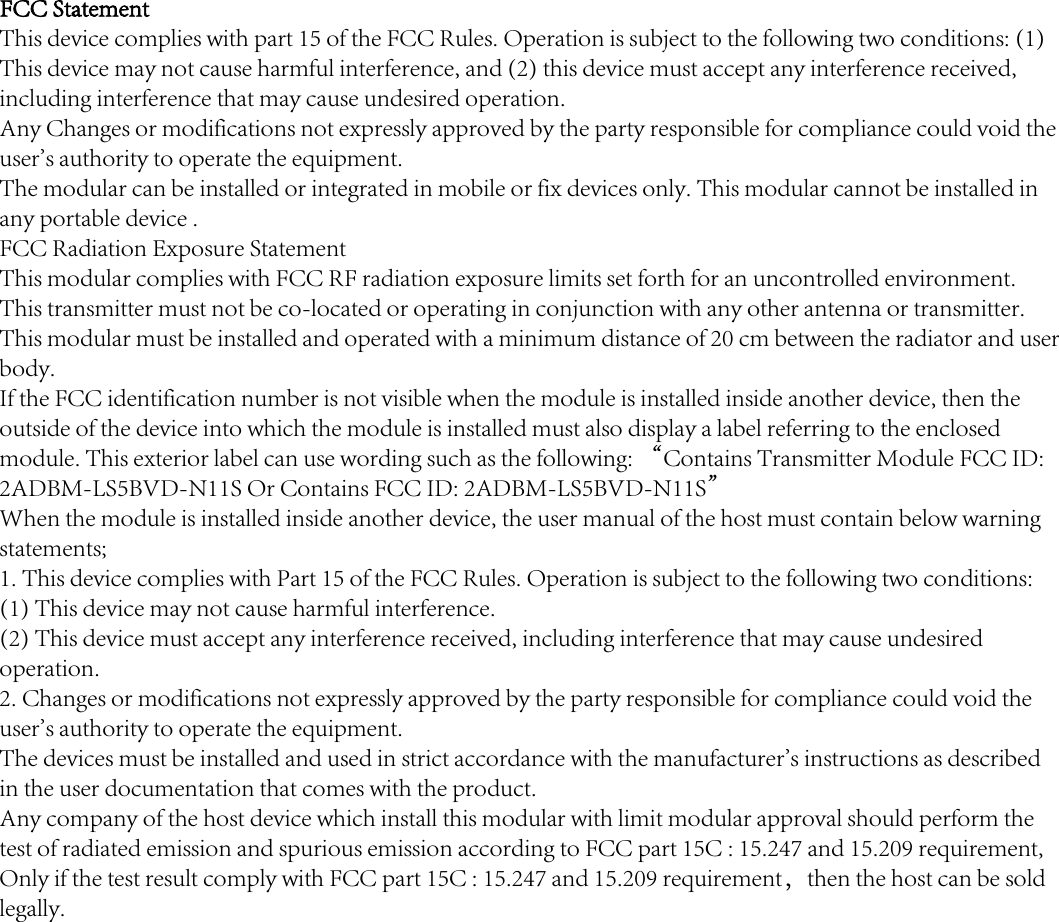

FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.  The modular can be installed or integrated in mobile or fix devices only. This modular cannot be installed in any portable device .FCC Radiation Exposure StatementThis modular complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This modular must be installed and operated with a minimum distance of 20 cm between the radiator and user body.     If the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: 2ADBM-LS5BVD-N11S Or Contains FCC ID: 2ADBM-LS5BVD-N11S”When the module is installed inside another device, the user manual of the host must contain below warning statements;1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference.(2) This device must accept any interference received, including interference that may cause undesired operation.2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.The devices must be installed and used in strict accordance with the manufacturer's instructions as described in the user documentation that comes with the product.Any company of the host device which install this modular with limit modular approval should perform the test of radiated emission and spurious emission according to FCC part 15C : 15.247 and 15.209 requirement, Only if the test result comply with FCC part 15C : 15.247 and 15.209 requirement,then the host can be sold legally.
