Process Fluid Chiller Designed for Marconi Medical Infinion 1.5T, PD3000 1

Keeping Business in Business

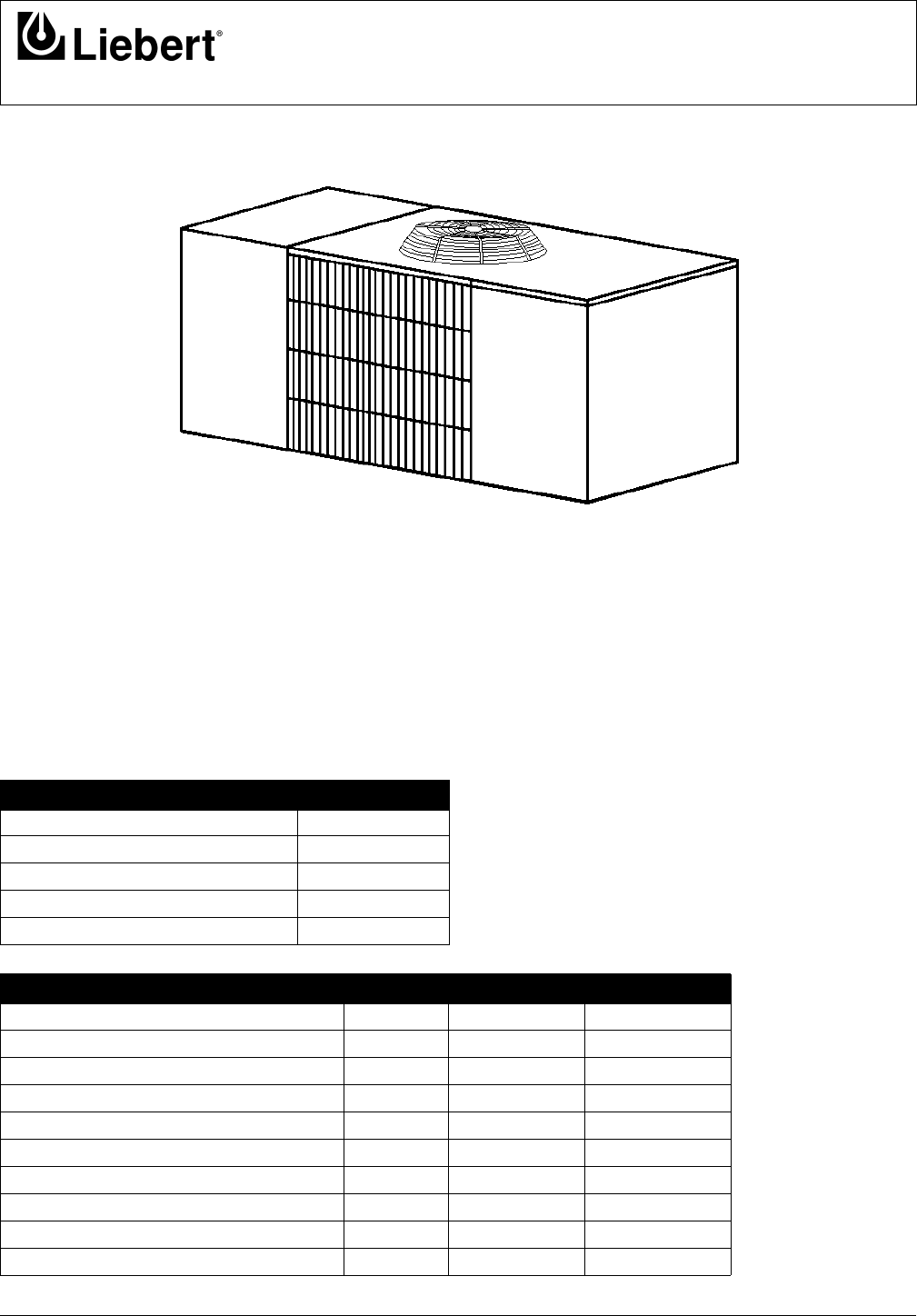

Process Fluid Chiller Designed for Marconi Medical

Infinion 1.5T, PD3000

• Dedicated, equipment-matched cooling supplies the proper temperature and water flow year round.

• Factory-tested, piped, wired and charged for hassle-free startup and operation.

• Clean, non-ferrous cooling loop, required for sensitive medical equipment.

• Local service and parts for quick and knowledgeable maintenance and service.

• Optional switch-over to alternate water source provides redundant, continuous operation.

• Optional remote monitoring systems keep you informed of chiller operation.

• UL/CSA certified.

• ISO 9001 certified company.

Infinion 1.5T Specifications

Fluid Specified Glycol

Max Heat Dissipation—BTUH (kW) 90,000 (26)

Fluid Temperature Range—°F (°C) 40-55 (4.4-12.7)

Fluid Flow Rate—GPM (l/m) 18.0 (68.0)

Fluid Pressure Drop—PSI (kPa) 25.0 (172.0)

Process Fluid Chiller Specifications

Model Number PS120A PS120A PS120A

Fluid Circulated Water Ethylene Glycol Propylene Glycol

Net Cooling Capacity—BTUH (kW) 94,300 (28) 94,900 (28) 90,100 (26)

Leaving Fluid Temperature—°F (°C) 45 (7.2) 50 (10) 50 (10)

Fluid Flow Rate—GPM (l/m) 15 (57) 18 (68) 18 (68)

Infinion 1.5T Pressure Drop—PSI (kPa) 25.0 (172) 25.0 (172) 25.0 (172)

Chiller Pressure Drop—PSI (kPa) 7.6 (52.4) 10.2 (70.3) 12.0 (82.7)

Pump Total Head—PSI (kPa) 60.6 (418) 60.6 (418) 60.6 (418)

Head Available for Piping Circuit—PSI (kPa) 28.0 (193) 25.4 (175) 23.6 (163)

Pump HP (kW) 3 (2.2) 3 (2.2) 3 (2.2)

Process Fluid Chiller Designed for Marconi Medical Infinion 1.5T, PD3000 2

1050 Dearborn Drive

P.O. Box 29186

Columbus, OH 43229

Phone: 800.877.9222

Fax: 614.841.6022

Via Leonardo Da Vinci 8

Zona Industriale Tognana

35028 Piove Di Sacco

Italy

Phone: 39.049.9719.111

Fax: 39.049.5841257

23/F Allied Kajima Bldg.

138 Gloucester Road

Wanchai

Hong Kong

Phone: 852.2.572.2201

Fax: 852.2.572.1182

©2000 Liebert Corporation. All rights

reserved throughout the world.

Specifications subject to change without

notice.

®Liebert and the Liebert logo are

registered trademarks of Liebert

Corporation. All names referred to are

trademarks or regisered trademarks of

their respective owners.

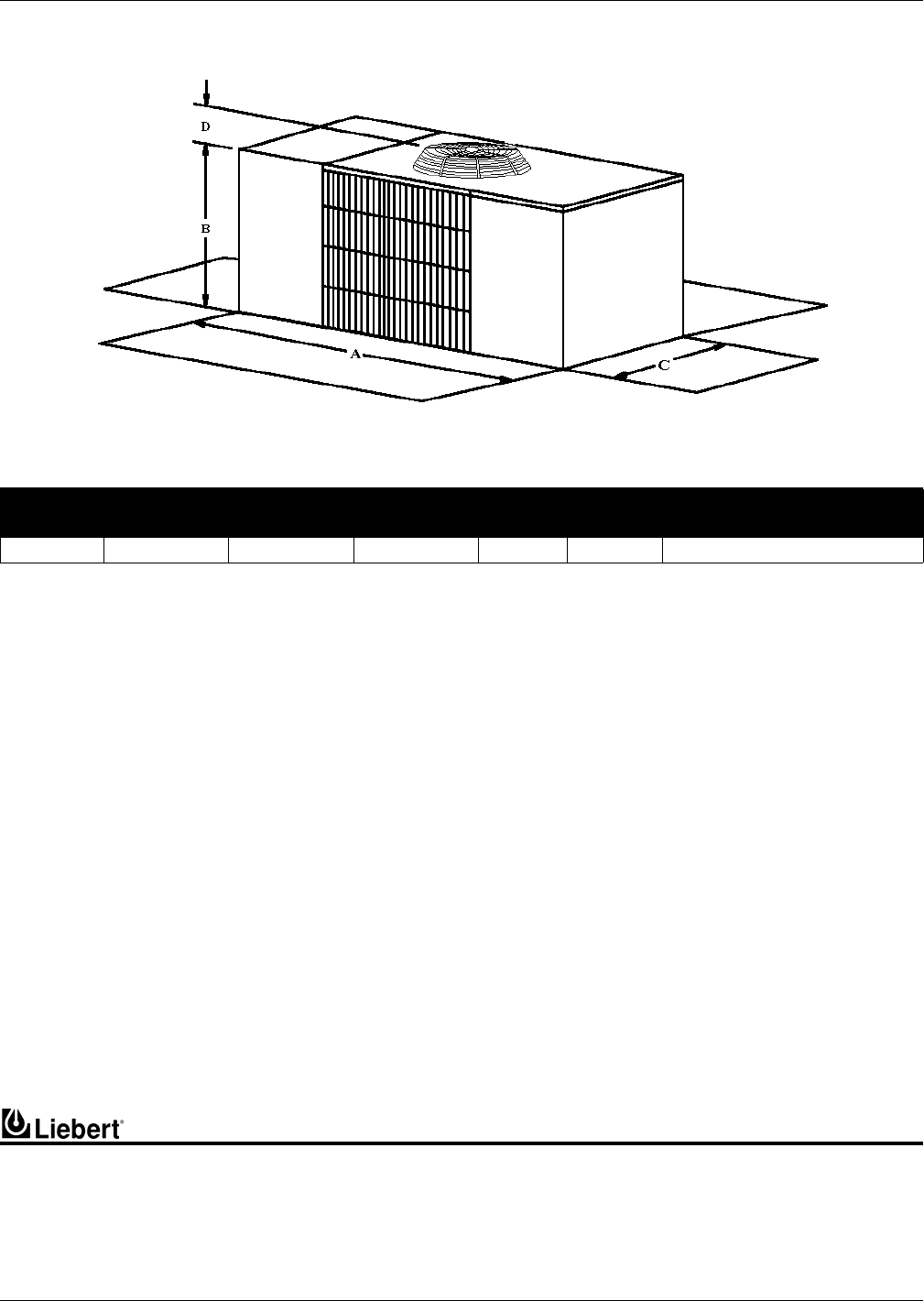

Model No.

A - Width

Inches (mm)

B - Height

Inches (mm)

C - Depth

Inches (mm) D

Weight

Lbs. (kg)

Voltage

(60 Hz)

PS120A 77 (1956) 40 (1016) 38.5 (978) 5.5 (140) 750 (340) 460, 3-phase; 208/230, 3-phase

Standard Features

• Indoor/outdoor cabinet

• Hermetic compressor

• Refrigerant dehydrator

• Expansion valve

• Refrigerant receiver

• Stainless steel fluid reservoir expansion tank

• Pressure relief valve

• Hot gas bypass valve capacity control

• Stainless steel pump

Optional Features

• Refrigerant gauges and reservoir heater

Accessories

• Emergency water bypass

• Enviro-source emergency bypass

• Water level control and alarm system

•Fluid pressure gauge

•Check valve

• Dial thermometer

• Relief valve

• Circuit Setter

Recommended Options

• Part #EWB15W—Wallbox with flow meter, filter,

thermometers, flow switch and ball valves

Note: Contact Liebert Application Engineering for gradient upgrades or Medical Marconi systems without heat

exchangers.
