Use and Care
Manual
Combined fridge-freezer, fully
integrated
HC 1011/1060 HC 1001/1050
121113 7082698 - 00
Contents
1 The appliance at a glance............................. 2
1.1 Additional benefits............................................ 2
1.2 Overview.......................................................... 3
1.3 Range of appliance use.................................... 3
1.4 Conformity........................................................ 3
1.5 Energy saving.................................................. 4
2 General safety information........................... 4
3 Controls and displays................................... 5
3.1 Operating and control elements....................... 5
3.2 Temperature display........................................ 5
4 Start-up........................................................... 5
4.1 Transporting the appliance............................... 5
4.2 Setting up the appliance................................... 5
4.3 Disposal of packaging...................................... 6
4.4 Connecting the appliance................................. 6
4.5 Switching on the appliance............................... 7
5 Operation........................................................ 7
5.1 Temperature display unit.................................. 7
5.2 Brightness of the temperature display.............. 7
5.3 Child-proof lock................................................ 7
5.4 Door alarm....................................................... 8
5.5 Temperature alarm........................................... 8
5.6 Fridge compartment......................................... 8
5.7 Freezer compartment....................................... 10
6 Maintenance................................................... 12
6.1 Defrosting with NoFrost.................................... 12
6.2 Cleaning the appliance..................................... 12
6.3 Cleaning the IceMaker..................................... 13
6.4 Replacing the interior light................................ 13
6.5 Customer service............................................. 13
6.6 Appliance Information...................................... 14
7 Troubleshooting............................................ 14
8 Putting appliance out of service.................. 17
8.1 Vacation Tips................................................... 17
8.2 Switching off the appliance............................... 17
8.3 Decommissioning ............................................ 17
9 Disposing of the appliance........................... 17
10 Liebherr Warranty Plan................................. 17
Congratulations on the purchase of your new appliance.
With this purchase, you have chosen all the advantages
of the latest refrigeration technology, guaranteeing you a
high-quality appliance with a long life span and high oper-
ating safety.
The equipment of your appliance gives you the highest
level of day-to-day ease of operation.
Together we are making an active contribution to the
conservation of our environment by purchasing this appli-
ance which is manufactured in an environmentally friendly
process with the use of recyclable materials.
We hope you enjoy your new appliance.
The manufacturer is constantly working to improve all
models. Therefore please understand that we reserve the
right to make design, equipment and technical modifica-
tions.
To get to know all the benefits of your new appliance,
please read the information contained in these instruc-
tions carefully.
The instructions apply to several models, so there may be
differences. Sections which only apply to certain appli-
ances are indicated with an asterisk (*).
Instructions for action are marked with a , the
results of action are marked with a .
1 The appliance at a glance
1.1 Additional benefits
-CFC free
-Energy-optimized refrigerant circuit
-Energy-efficient insulation
-Low energy consumption
-User-friendly electronic controls
-Active function indicators
-Temperature can be controlled in the appliance inde-
pendent of ambient conditions according to its climate
rating - Temperature can be displayed as °C or °F
-The appliance defrosts automatically - no need to
spend time defrosting
-Large refrigeration capacity
-Safety glass storage shelves
-Adjustable door shelves for tall bottles
-Large freezing capacity
-Shelves can be removed to make space for large
items.
-Freezer over-temperature alarm
-Quick-freeze feature for fresh food (SuperFrost)
-Power failure/“frost-control” display
-All freezer drawers suitable for quick-freeze
-Freezer compartment light
-Bright LED interior light*
-Door ajar alarm
-Handle grips on all extra-large drawers for easy trans-
port
-Integrated transport grips on appliance housing
-Transport castors at back
-Easy to clean
-Door hinges can be reversed
-Door-on-door system for easy kitchen cabinet installa-
tion
-Soft stop mechanisms on both doors*
The appliance at a glance
2 * Depending on model and options

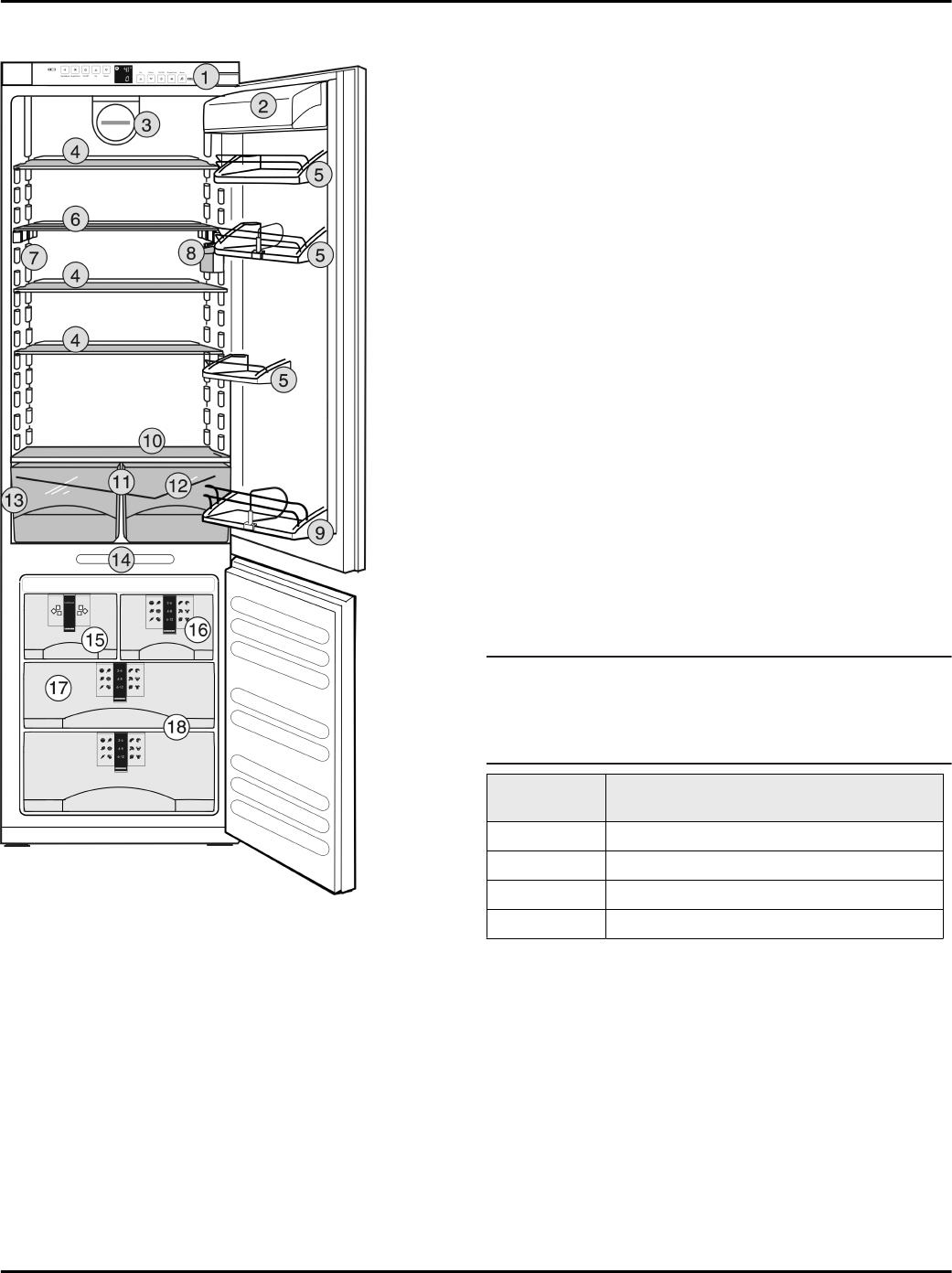

1.2 Overview
Fig. 1
(1) Operating and control
elements
(10)Coldest zone
(2) Butter and cheese
compartment
(11)Vegetable drawer
(3) Fan (12)Drain hole
(4) Shelf, moveable (13)Rating plate
(5) Storage rack for jars (14)LED lighting, freezer
compartment*
(6) Shelf, can be split (15)IceMaker*
(7) LED lighting, refriger-
ator compartment*
(16)Info system*
(8) Lighting with incan-
descent lamp, refrig-
erator compartment*
(17)Freezer compartment
(9) Door rack for tall
bottles
(18)VarioSpace
1.3 Range of appliance use
The appliance is only suitable for refrigerating
food in a domestic environment or an environ-
ment that is similar to a domestic one. This
includes, for example, use
-in staff kitchens, bed and breakfast establish-
ments,
-by guests in country houses, hotels, motels
and other accommodation facilities,
-for catering and similar services in wholesale
premises
Only use the appliance in a normal domestic
setting. No other types of use are permissible.
The appliance is not suitable for storing and
refrigerating medicines, blood plasma, labora-
tory preparations or similar substances and
products referred to in CMDCAS and FDA 510
(k). Misuse of the appliance may lead to damage
to or spoiling of the goods stored. In addition the
appliance is not suitable for operating in areas at
risk of explosions.
The appliance is set to operate within specific
ambient temperature limits according to its
climate rating. The climate rating for your appli-
ance is printed on the rating plate.
Note
uCompliance with the specified ambient
temperatures is required, otherwise the refrig-
eration performance is reduced.
Climate
rating
for ambient temperatures from
SN 50 °F (10 °C) to 90 °F (32 °C)
N 61 °F (16 °C) to 90 °F (32 °C)
ST 61 °F (16 °C) to 101 °F (38 °C)
T 61 °F (16 °C) to 110 °F (43 °C)
1.4 Conformity
The refrigerant circuit has been tested for leaks. When
installed, the appliance complies with the relevant safety
regulations and the safety standards UL250 and
CAN/CSA C22.2 No. 63-93.
Instructions for testing institutes:
Tests must be carried out in accordance with the appli-
cable standards and guidelines.
The preparation and testing of the appliance must be
carried out taking account of the manufacturer's
loading plans and the instructions in the operating
manual .
The appliance at a glance
* Depending on model and options 3
1.5 Energy saving
-Always ensure good ventilation. Do not obstruct venti-
lation openings or grilles.
-Do not install the appliance in direct sunlight or next to
an oven, heater, or similar heat source.
-Energy consumption depends on installation conditions
such as the ambient temperature (see 1.3) .
-Avoid opening the appliance door for any longer then
neccesary.
-The lower the temperature is set the higher the energy
consumption.
-All food stored in the appliance should be well wrapped
and covered. This prevents frost buildup.
-Only take food out for as long as necessary so that it
does not get too warm.
-Storing hot food: let it cool to room temperature first.
-Defrost frozen food in the fridge.
2 General safety information
Read and follow these instructions. They contain
safety advice which is important for safe and
problem-free installation and operation. Always
read and follow the safety advice.
Dangers for the user:
-This appliance can be operated by children 8
years and older as well as by persons with
reduced physical, sensory or mental capabili-
ties or lack of experience and knowledge if
they are supervised or have been instructed in
the safe use of the appliance and understand
the associated risks. Children must not play
with the appliance. Cleaning and user mainte-
nance must not be performed by children
unless they are supervised.
-When disconnecting the appliance from the
outlet, always take hold of the plug. Do not pull
on the cable.
-Disconnect the power plug or switch off the
power if a fault occurs.
-Do not damage the mains power line. Do not
operate the appliance from a defective mains
power line.
-Repairs, work on the appliance and replace-
ment of the power cord should only be carried
out by the customer service department.
-Only install, connect and dispose of the appli-
ance in accordance with the instructions.
-Only operate the appliance after it has been
installed.
-Please keep the instructions and pass them on
to any future owner.
-All repairs to or work on the IceMaker must
only be carried out by the customer service
department or other specialist engineers
trained to do this.*
-The manufacturer is not liable for damage
arising from incorrect connection to the water
supply.*
Risk of fire:
-Do not operate the appliance near explosive
gases.
-Do not store explosive materials or spray cans
with flammable propellants, such as e.g.
butane, propane, pentane, etc. in the appli-
ance. You can recognize such spray cans by
the printed contents or a flame symbol. Any
leaking gasses can be ignited by electrical
components.
-Alcoholic beverages or other containers
holding alcohol must always be tightly sealed
for storage purposes. Any leaking alcohol can
be ignited by electrical components
Tipover hazard:
-Do not stand or climb on the base, drawers,
doors, etc. This applies in particular to chil-
dren.
Risk of food poisoning:
-Do not consume food that has passed its best
before date.
Danger of frostbite, feelings of numbness
and pain:
-Avoid continued skin contact with the cold
surfaces or chilled/frozen food or adopt protec-
tive measures, e. g. use gloves. Do not
consume ice cream (especially sherbets) and
ice cubes immediately when they are too cold.
Risk of injury and damage:
-Hot steam may lead to injuries. Do not use any
electrical heating or steam cleaning equip-
ment, naked flames or defrosting sprays for
defrosting
-Do not remove ice with sharp objects
Follow the specific instructions in the other
sections:
DANGER indicates a hazardous situation,
which if not avoided, will result in
death or serious injury.
WARNING indicates a hazardous situation,
which if not avoided, could result in
death or serious injury.
General safety information
4 * Depending on model and options
CAUTION indicates a hazardous situation,
which if not avoided, will result in
minor or moderate injury.
NOTICE indicates a hazardous situation,
which if not avoided, could result in
damage to property.
Note indicates useful advice and tips.
3 Controls and displays
3.1 Operating and control elements
Fig. 2
(1) Alarm button (8) Child safety symbol
(2) SuperFrost button (9) Fridge compartment
Down
(3) Freezer compartment
On/Off button
(10)Fridge compartment Up
(4) Freezer compartment
Down button
(11)Fridge compartment
On/Off button
(5) Freezer compartment
Up button
(12)SuperCool button
(6) Freezer compartment
temperature display
(13)Ventilation button
(7) Fridge compartment
temperature display
3.2 Temperature display
The following is displayed in normal operation:
-the highest freezer temperature
-the average fridge temperature
The freezer compartment temperature display is flashing:
-the temperature setting has been changed
-after switch-on the temperature is not yet cold enough
-the temperature has risen several degrees
Dashes are shown on the display:
-the freezer temperature is above 32 °F (0 °C).
The following displays indicate malfunction. Possible
causes and corrective actions: (see Troubleshooting).
-nA
-F0 through F5
4 Start-up
4.1 Transporting the appliance
CAUTION
Risk of injury or damage if incorrectly transported.
uTransport the appliance in its packaging.
uTransport the appliance upright.
uDo not move the appliance on your own.
4.2 Setting up the appliance
WARNING
Risk of fire due to moisture!
If live parts or the power cord get wet, this can cause a
short circuit.
uThe appliance is designed for use in enclosed spaces.
Do not operate the appliance in open space or in damp
areas or where there is spray.
uOnly operate the appliance after it has been installed.
WARNING
Risk of fire due to short circuit.
If the power cable or plug of the appliance or another
appliance and the back of the appliance touch each other
the power cable or plug will be damaged by the vibrations
of the appliance which could lead to a short circuit.
uInstall the appliance so that it does not touch any plugs
or power cables.
uDo not connect the appliance or other appliances to the
sockets on the back of the appliance.
WARNING
Danger of fire and damage!
uDo not place devices that give off heat, e.g. micro-
waves, toasters, etc. on the appliance.
CAUTION
Risk of personal injury!
uHave two people move this appliance into place.
Controls and displays
* Depending on model and options 5
NOTICE
Risk of damage caused by condensation
Installing the appliance next to any other refrigerator or
freezer can cause condensation or damage to the
Liebherr appliance.
uDo not install this appliance next to any other refriger-
ator or freezer except another Liebherr model. Liebherr
models are designed to allow side-by-side installation.
They are equipped with a heating system to eliminate
condensation when refrigerators or freezers are
installed side-by-side.
NOTICE
Risk of damage for the finished floor surface!
uProtect the finished floor surface before you uncrate the
unit.
Verify that:
qThe floor under the appliance is flat and level.
qThe floor can support the appliance's weight plus
approximately 1200 pounds (544 kg) of food weight.
qThe appliance is not placed in direct sunlight or near
the stove, range top, radiators and similar heat
sources.
qThe kitchen cabinet that the appliance is installed in is
shimmed to the floor level if the floor heights are not
equal.
qCutout dimensions are accurate.
qElectrical outlet is in correct location.
qThe air flow is not restricted. Air flow must be provided
for the appliance to operate properly. The factory air
vents provide 31 square inches (200 cm2) of air flow
per appliance. If you are replacing the air vents with an
overlay, the air flow must be the same or greater than
the factory air vents.
uExamine the unit and packaging for shipping damage.
Contact the carrier immediately if you suspect there is
any damage.
uNote the type (model, number), index, appliance/serial
number, date of purchase and where purchased
(see 6.6) .
uRemove anything attached to the rear or side walls of
appliance that would prevent proper installation or
impede proper ventilation.
uUnscrew the red transport
lock. Close the vacated
retaining hole using the
stopper (70).
Note
uClean the appliance (see 6.2) .
If the appliance is set up in humid areas, condensation
may build on the outside of the appliance.
uAlways ensure proper ventilation.
4.3 Disposal of packaging
WARNING
Danger of suffocation from packaging materials and films!
uDo not allow children to play with packaging materials.
The packaging is made from recyclable materials:
-Corrugated card/cardboard
-Parts made of foamed polystyrene
-Films and bags from polyethylene
-Packing bands from polypropylene
-Wood frame nailed together with a polyethylene
window*
uTake the packaging material to an official collection
point.
4.4 Connecting the appliance
WARNING
Electrical shock hazard!
uStart-up should only take place once the appliance has
been installed according to these instructions.
uElectrically ground appliance.
uDo not ground to a gas pipe.
uCheck with a qualified electrician if you are not sure the
appliance is properly grounded.
uDo not have a fuse in the neutral or grounding circuit.
uDo not use an extension cord, power bar or a multiple
socket adapter.
uDo not use a power cord that is frayed or damaged.
WARNING
Electrical shock hazard!
This appliance is equipped with a three-prong (grounding)
polarized plug for your protection against possible shock
hazards. Electrical Grounding Required.
uDo not remove the round grounding prong from the
plug.
uUse only an grounded adapter.
-Wait 1 hour after installation before you plug in the
appliance. This allows the refrigerant and system lubri-
cation to reach equilibrium.
-Make sure incoming voltage is the same as the appli-
ance rating. A 110-120 Volt, 60 Hz, 15 Amp electrical
supply (20 Amp for side-by-side installations) circuit
that is controlled by a circuit breaker or fuse is required.
-We recommend using a dedicated circuit for this appli-
ance to prevent electrical overload.
-Follow all Federal, State and local electrical, fire and
building codes and ordinances when installing the
receptacle and / or the appliance.
-In some communities, a wall switch is required to turn
power to the appliance ON and OFF.
Start-up
6 * Depending on model and options
-To reduce the risk of fire, electric shock, or personal
injury, installation work and electrical wiring must be
done by a qualified electrician in accordance with all
applicable codes and standards, including fire-rated
construction.
-The Power Plug must be easily accessible so that the
appliance can be disconnected from the mains quickly
in an emergency. It must not be behind the back of the
appliance.
-The top of the electric outlet must be located within
82-5/8 in. (2100 mm) from the top of the base in the
cabinet.
4.5 Switching on the appliance
Note
uTo switch on the entire appliance, only the freezer
compartment needs to be switched on.
Switch on the appliance 2 hours before loading
with frozen food for the first time.
Do not load frozen foods until the temperature
display reads 0 °F (-18 °C).
4.5.1 Switching on the freezer compartment
uOpen the door.
uPress On/Off button, freezer compartment
Fig. 2 (3)
.
wThe refrigerator compartment temperature display indi-
cates the set temperature.
wThe temperature display for the freezer compartment
will flash until the temperature is cold enough. If the
temperature is greater than 32 °F (0 °C), flashing
dashes will appear; if the temperature is lower than this,
the set temperature will flash on the display.
4.5.2 Switching on the fridge compartment
uOpen the door.
uPress Fridge compartment On/Off button
Fig. 2 (11)
.
wThe interior light comes on when the door is opened.
wThe temperature display flashes. The fridge compart-
ment is switched on.
5 Operation
5.1 Temperature display unit
The temperature display can be changed from °F to °C.
5.1.1 To change the unit
uActivate setting mode: Press SuperFrost button
Fig. 2 (2)
for about 5 seconds.
wThe SuperFrost button
Fig. 2 (2)
will flash.
wc is displayed in the temperature display.
uUsing Freezer compartment Up button
Fig. 2 (5)
/ Freezer compartment Down button
Fig. 2 (4)
select °.
uTo confirm: Briefly press SuperFrost button
Fig. 2 (2)
.
uUsing Freezer compartment Up button
Fig. 2 (5)
/ Freezer compartment Down button
Fig. 2 (4)
select °F or °C.
uTo confirm: Briefly press SuperFrost button
Fig. 2 (2)
.
uTo exit setting mode: Press Freezer compartment
On/Off button
Fig. 2 (3)
.
-or-
uWait 5 minutes.
wThe temperature is again displayed in the temperature
display.
5.2 Brightness of the temperature
display
You can adapt the brightness of the temperature display
to the light conditions in the room in which it is installed.
5.2.1 Setting the brightness
The brightness can be set between h1 (minimum lumi-
nosity) and h5 (maximum luminosity).
uTo activate setting mode: Press SuperFrost button
Fig. 2 (2)
for about 5 seconds.
wc is shown on the display.
wThe SuperFrost button will flash.
uPress Freezer compartment Up button
Fig. 2 (5)
or
Freezer compartment Down button
Fig. 2 (4)
to select h.
uTo confirm: Briefly press SuperFrost button
Fig. 2 (2)
.
uTo set the display brighter: Press Freezer
compartment Up button
Fig. 2 (5)
.
uTo set the display darker: Press Freezer
compartment Down button
Fig. 2 (4)
.
uTo confirm: Press SuperFrost button
Fig. 2 (2)
.
wThe brightness is set to the new value.
uTo deactivate setting mode: Press Freezer compart-
ment On/Off button
Fig. 2 (3)
.
-or-
uWait 5 minutes.
wThe temperature is again displayed in the temperature
display.
5.3 Child-proof lock
You can use the child-proof lock to lock the
buttons. This means that children cannot acci-
dentally switch off the appliance when playing.
5.3.1 Switching on the child-proof lock
uTo activate setting mode: Press SuperFrost button
Fig. 2 (2)
for about 5 seconds.
wc is shown on the display.
wThe SuperFrost button will flash.
Operation
* Depending on model and options 7
uPress the SuperFrost button
Fig. 2 (2)
briefly to confirm.
uTo switch on: Using Freezer compartment Up
button
Fig. 2 (5)
or Freezer compartment Down
button
Fig. 2 (4)
select c1.
uTo switch off: Using Freezer compartment Up
button
Fig. 2 (5)
or Freezer compartment Down
button
Fig. 2 (4)
select c0.
uTo confirm: Press SuperFrost button
Fig. 2 (2)
.
wIf the Child-proof lock symbol
Fig. 2 (8)
lights up, the
child-proof lock is switched on.
uTo deactivate setting mode: Press Freezer compart-
ment On/Off button
Fig. 2 (3)
.
-or-
uWait for 5 minutes.
wThe temperature is again displayed in the temperature
display.
5.4 Door alarm
If the door is open for longer than 180 seconds,
the acoustic warning sounds.
The acoustic warning stops automatically when
the door is closed.
5.4.1 Switching off the door alarm
The acoustic warning can be switched off when the door
is open. The acoustic warning remains switched off as
long as the door is open. When the door is closed, the
alarm function is active again.
uPress Alarm button
Fig. 2 (1)
.
wThe door alarm stops.
5.5 Temperature alarm
If the freezer temperature is not cold enough,
the audible warning sounds.
At the same time, the temperature display will
flash.
The cause of a temperature being too high may be:
-Hot fresh food was placed in the appliance.
-When sorting and removing food from the appliance,
too much warm ambient air got in.
-The power was cut off for a while.
-The appliance is faulty.
The audible warning automatically ceases, and the
temperature display stops flashing when the temperature
is cold enough again.
If the alarm status remains: (see Troubleshooting).
Note
If the temperature is not cold enough, food may spoil.
uCheck the quality of the food. Do not consume spoiled
food.
5.5.1 Switching off the temperature alarm
The acoustic warning can be switched off. When the
temperature is cold enough again, the alarm function is
active again.
uPress Alarm button
Fig. 2 (1)
.
wThe acoustic warning ceases.
5.6 Fridge compartment
The natural circulation of air in the refrigerator compart-
ment results in zones with differing temperatures. It is
coldest directly above the vegetable drawers and at the
rear wall. It is warmest at the top front of the compartment
and in the door.
5.6.1 Arranging Food
Fig. 3
5.6.2 Refrigerating food
Note
uDo not load the door with more than 35 lbs (16 kg) of
food.
Note
Insufficient ventilation results in an increase in energy
consumption and reduction of the refrigerating perform-
ance.
uNever block the air slits in the fan.
uUse recyclable plastic, metal, aluminum and glass
containers and cling film to wrap foods.
uAlways use closed containers for liquids and for food
that may give off or be tainted by odor or flavor transfer
or cover them.
uFoods which give off a large amount of ethylene gas
and those that are sensitive to this gas, such as fruit,
vegetables and salad, should always be separated or
wrapped so as not to reduce the storage life; for
example, do not store tomatoes together with kiwi fruits
or cabbage.
uUse the front floor area of the fridge compartment only
to set down food to be refrigerated temporarily, e.g.,
when rearranging or sorting the contents of the fridge.
Do not leave the food there, as it may be pushed back
or tipped over when the door is closed.
uDo not store food too close together to enable sufficient
air circulation.
Operation
8 * Depending on model and options
uTo ensure bottles do not tip over: move the bottle
holder.
5.6.3 Setting the temperature
The temperature depends on the following factors:
-the number of times the door is opened
-the room temperature of the installation location
-the type, temperature and amount of food.
The temperature can be set from 46 °F (7 °C) to (2 °C),
(5 °C) is recommended.
uTo set a higher temperature: press the Fridge compart-
ment Up button
Fig. 2 (10)
.
uTo set a lower temperature: press the Fridge compart-
ment Down button
Fig. 2 (9)
.
wWhen pressed once the previously set fridge compart-
ment temperature display value will flash.
uTo change the temperature in 1 °F (1 °C) increments:
briefly press the button.
uTo change the temperature continuously: hold the
button down.
wThe value is displayed flashing during the setting oper-
ation.
wThe actual temperature is displayed about 5 seconds
after the last press of a button. The temperature slowly
adjusts to the new value.
5.6.4 SuperCool
With SuperCool you switch to the highest cooling
performance to reach lower cooling tempera-
tures. Use SuperCool to rapidly cool large quan-
tities of food.
When SuperCool is activated, the fan* runs. The appli-
ance operates with maximum refrigeration. The noise of
the refrigeration unit may be temporarily louder as a
result.
SuperCool will use more energy than normal operation.
Cooling with SuperCool
uBriefly press the SuperCool button
Fig. 2 (12)
.
wThe SuperCool button
Fig. 2 (12)
lights up.
wThe cooling temperature drops to the coldest value.
SuperCool is switched on.
wSuperCool automatically switches itself off after about
6-12 hours. The appliance returns to work in the
energy-saving normal mode.
To prematurely switch off SuperCool
uBriefly press the SuperCool button
Fig. 2 (12)
.
wThe SuperCool button
Fig. 2 (12)
goes out.
wSuperCool is switched off.
5.6.5 Fan
The fan allows you to rapidly cool large amounts
of fresh food or to achieve a relatively even
distribution of temperature across all the storage
levels.
Re-circulated air cooling is advisable:
-at high room temperatures (from approx. 95 °F
(35 °C) )
-in the case of high humidity
Re-circulated air cooling has a somewhat higher energy
consumption. To save energy, the fan automatically
switches off when the door is open.
Switching on the fan
uBriefly press Ventilation button
Fig. 2 (13)
.
wThe Ventilation button lights up.
wThe fan is switched on.
Switching the fan off (default)
uBriefly press Ventilation button
Fig. 2 (13)
.
wThe Ventilation button lights up.
wThe fan is switched off.
5.6.6 Shelves
Repositioning the shelves
CAUTION
Danger of lacerations!
The storage shelf can shatter if dropped or mishandled.
You could cut yourself on the pieces of broken glass.
uOnly remove storage shelves when there is nothing on
them.
Extension stops secure the shelves against being acci-
dentally pulled out.
uLift the shelf and pull out
forward.
uInsert the shelf with the
raised edge to the back
pointing upwards.
wThis prevents food from
contacting and freezing to
the back wall.
To dismantle shelves
uThe shelves can be
dismantled for cleaning.
5.6.7 Using the split shelf
CAUTION
Danger of lacerations!
The storage shelf can shatter if dropped or mishandled.
You could cut yourself on the pieces of broken glass.
uOnly remove storage shelves when there is nothing on
them.
Operation
* Depending on model and options 9
Fig. 4
uThe glass shelf with stop face (2) has to be at the back.
5.6.8 Door racks
Note
uDo not load the door with more than 35 lbs (16 kg) of
food.
Repositioning the door racks
uPush rack up, pull forward, and reinsert in the reverse
order.
Always take the butter and cheese
compartment out together with the
cover.
uTo remove the cover: press one
side of the butter and cheese
compartment outwards until the
hinge pin of the cover is released,
then remove the cover sideways.
To dismantle door racks
uThe door racks can be dismantled for cleaning.
5.6.9 Removing the bottle holder
uRemove the bottle holder as per the
illustration.
uAlways take hold of the bottle
holder by the plastic part.
5.7 Freezer compartment
You can store frozen food, make ice cubes and freeze
fresh food in the freezer compartment.
5.7.1 Freezing food
Each drawer can hold up to 55.12 lbs (25 kg) of frozen
food; each plate can hold up to 77.16 lbs (35 kg).
After the door is closed, a vacuum is created. After
closing the door, wait about 1 minute, then the door is
easier to open.
CAUTION
There is a risk of injury from pieces of broken glass.
Bottles and cans containing drinks can split or crack when
frozen. This applies in particular to carbonated drinks.
uDo not freeze bottles and cans containing drinks.
So that the food is rapidly frozen through to the core, do
not exceed the following quantities per pack:
- fruit, vegetables up to 2.2 lb (1 kg)
- meat up to 5.51 lbs (2.5 kg)
uPack the food in portions in freezer bags, reusable
plastic, metal or aluminum containers.
5.7.2 Defrosting food
- in the fridge compartment
- at room temperature
- in the microwave
- in the oven/fan oven
WARNING
Danger of food poisoning!
uDo not re-freeze defrosted food.
uOnly take out the amount of food that is required. Use
defrosted food as quickly as possible.
5.7.3 Setting the temperature in the freezer
compartment
The appliance is set as standard for normal operation.
The temperature can be set between 8 °F (-14 °C) and
-14 °F (-26 °C), 0 °F (-18 °C) is recommended.
uTo set a higher temperature: press the Freezer
compartment Up button
Fig. 2 (5)
.
uTo set a lower temperature: press the Freezer compart-
ment Down button
Fig. 2 (4)
.
wWhen the button is pressed for the first time, the
previous value is indicated on the freezer compartment
temperature display.
uTo change the temperature in 1 °F (1 °C) increments:
briefly press the button.
-or-
uTo change the temperature continuously: hold the
button down.
Operation
10 * Depending on model and options
wThe value is displayed flashing during the setting oper-
ation.
wThe actual temperature is displayed about 5 seconds
after the last press of a button. The temperature slowly
adjusts to the new setting.
5.7.4 SuperFrost
With this function you can rapidly freeze fresh
food through to the core. The appliance works
with maximum refrigerating performance. The
sound of the refrigeration unit may be tempora-
rily louder as a result.
Depending on how much fresh food is to be frozen you
must switch SuperFrost on in advance - for a small
amount of food to be frozen, about 6 hours, for the
maximum amount about 24 hours before putting the food
in.
Package the food and place it inside across as wide an
area as possible. Do not bring food that is to be frozen
into contact with products that are already frozen to
prevent these items from starting to thaw.
You do not need to switch SuperFrost on in the following
cases:
-when placing frozen food in the freezer
-when freezing up to about 2 kg of fresh food a day
Freezing with SuperFrost
uBriefly press the SuperFrost button
Fig. 2 (2)
once.
wThe SuperFrost button
Fig. 2 (2)
lights up.
wThe freezing temperature drops and the appliance
operates at its maximum refrigeration power rating.
When a small amount of food is to be frozen.
uWait approx. 6 hrs.
uPlace packaged food in the upper drawers.
When the maximum amount of food is to be frozen.
uWait approx. 24 hrs.
wSuperFrost is automatically switched off. At the earliest
after 30 hours, at the latest after 65 hours, depending
on the quantity placed inside the appliance.
wThe SuperFrost button
Fig. 2 (2)
goes out when the
freezing process is complete.
wThe appliance returns to work in the energy-saving
normal mode.
5.7.5 Drawers
Note
Insufficient ventilation results in an increase in energy
consumption and reduction of the refrigerating perform-
ance.
For appliances with NoFrost:
uLeave the bottom drawer in the appliance.
uNever block the air slits in the fan on the rear wall.
uTo store frozen food directly on the shelves: pull the
drawer forward and lift it out.
5.7.6 Shelves
uTo remove shelf: lift it at the front and
pull out forward.
uTo reinsert shelf: simply slide it in as
far as it will go.
5.7.7 VarioSpace
In addition to the drawers, you
can also take out the shelves.
This gives you space for large
frozen items. Poultry, meat,
large joints of game and tall
bakery items can be frozen
and then presented whole.
uEach drawer can hold up to
55.12 lbs (25 kg) of frozen
food; each plate can hold
up to 77.16 lbs (35 kg).
5.7.8 Info system*
Fig. 5
(1) Ready meals, ice
cream
(4) Sausages, bread
(2) Pork, fish (5) Game, mushrooms
(3) Fruit, vegetables (6) Poultry, beef/veal
The numbers indicate the storage time in months for
different types of frozen foods. The storage times given
are guidelines.
5.7.9 IceMaker*
The IceMaker is in the top drawer. The drawer is labeled
“IceMaker”.
Make sure that the following conditions are fulfilled:
-The appliance is level.
-The appliance is connected to the electricity supply.
-The freezer compartment is switched on.
-The minimum freezer temperature is 14 °F (-10 °C).
Operation
* Depending on model and options 11
-The IceMaker is connected to the water supply.
-All air was bled from the waterline before starting the
icemaker. The icemaker will only work if there is no air
in the waterline.
Switching on the IceMaker*
Fig. 6
uPull out the drawer.
uPress On/Off button
Fig. 6 (1)
so that the LED
Fig. 6 (2)
lights up.
uPush in the drawer.
Note
uThe IceMaker only produces ice cubes when the
drawer is completely closed.
Producing ice cubes*
The production capacity depends on the freezer tempera-
ture. The lower the temperature, the more ice cubes can
be produced in a certain period.
The production capacity is 90- 100 ice cubes in 24 hours
at a freezing temperature of 0 °F (-18 °C).
To have the maximum capacity of approx. 130 ice cubes
in 24 hours, activate the SuperFrost Function. Be aware
that this increases the energy consumption because the
compressor will run constantly.
The ice cubes fall out of the IceMaker into the drawer.
When the ice cubes reach a certain height in the drawer,
no more ice cubes can be produced. The IceMaker will
not fill the drawer to the top.
If large quantities of ice cubes are required, the complete
IceMaker drawer can be swapped with the neighboring
drawer. When you close the drawer, the IceMaker auto-
matically restarts production.
When the IceMaker is switched on for the first time, it may
take up to 24 hours for the first ice cubes to be produced.
Note
Particles may accumulate in the IceMaker or water line
the first time the appliance is used or after an extended
period out of service.
uTo achieve this, do not consume or use the ice cubes
that are produced within 24 hours.
Switching off the IceMaker*
If ice cubes are not required, the IceMaker can be
switched off independently of the freezer compartment.
When the IceMaker is switched off, the drawer of the
IceMaker can also be used for freezing and storing food.
uPress the On/Off button for about 1 second until the
LED goes out.
uClean the IceMaker.
wThis ensures that no water or ice remains in the
IceMaker.
6 Maintenance
6.1 Defrosting with NoFrost
The NoFrost system defrosts the appliance automatically.
Fridge compartment:
The defrosted water is evaporated by the heat of the
compressor. Drops of water on the back wall are a func-
tional feature and completely normal.
uClean the drain opening regularly so that the defrosted
water can flow away (see 6.2) .
Freezer compartment:
The moisture condenses on the evaporator and is periodi-
cally defrosted and evaporated.
uThe appliance does not need to be defrosted manually.
6.2 Cleaning the appliance
WARNING
Danger of electric shock.
uUnplug refrigerator or disconnect power.
WARNING
Risk of injury or damage due to hot steam.
Hot steam can cause scalding/burns and damage to
surfaces.
uDo not use steam cleaners.
NOTICE
Incorrect cleaning damages the appliance.
uDo not use concentrated cleaning agents.
uDo not use steel wool or sponges that scour or scratch.
uDo not use caustic or abrasive cleaning materials or
those containing sand, chloride, chemicals or acids.
uDo not use chemical solvents.
uDo not damage or remove the rating plate on the inside
of the appliance. It is vital for the customer service
department.
uDo not pull off, kink or damage any cables or other
components.
uDo not let cleaning water get into the drain gutter, the
ventilation grille and electrical parts.
uUse soft cleaning cloths and a multi-purpose cleaning
agent with a neutral pH value.
uOnly use food-compatible cleaning and care agents
inside the appliance.
uEmpty the appliance.
uDisconnect the power plug.
Maintenance
12 * Depending on model and options
uClean the plastic surfaces, outside and inside, by
hand using lukewarm water and a little dish washing
liquid.
uTo clean the drain opening:
Remove deposits with a thin
instrument, e.g. a cotton bud.
uMost of the equipment parts can be dismantled for
cleaning: see the respective chapter.
uClean the roller plates for the vegetable trays in the
dishwasher.
uClean the other fittings by hand using lukewarm water
and a little dish washing liquid.
After cleaning:
uWipe the appliance and accessories dry.
uConnect the appliance and switch it on again.
uSwitch on SuperFrost (see 5.7.4) .
When the temperature is sufficiently cold:
uput the food back in the appliance.
6.3 Cleaning the IceMaker*
Fig. 7
The IceMaker must be switched on.
uPull out the drawer and take out the ice.
uClean the drawer with warm water and mild dish deter-
gent.
uWith the drawer pulled out, press and hold the On/Off
button (for about 10 seconds).
wAfter about 1 second the LED goes out, the IceMaker is
switched off.
wAfter about 10 seconds the LED flashes for about 60
seconds.
uPush the drawer in while the LED is flashing.
wThe ice tray of the IceMaker rotates and tilts.
uTake out the drawer.
uClean the ice tray with warm water. If necessary, use a
mild dish detergent. Then rinse.
To switch the IceMaker on again:
uPress the ON/OFF button until the LED lights up, then
push the drawer in.
wThe IceMaker starts to produce ice cubes.
If dish detergent was used:
uThrow out the first three batches of ice cubes to get rid
of any soapy residues.
6.4 Replacing the interior light*
Light bulb data
qmax. 25 W (25 W)
q120 V
qBulb fitting: E14
qCurrent and voltage must agree with the details on the
rating plate.
WARNING
Danger of electric shock.
uFirst, remove the plug or switch off the fuse.
CAUTION
Cutting hazard!
uTo prevent possible injury due to broken glass, use
hand protection when replacing the interior light.
uTake hold of the light cover at
the top and bottom
Fig. 8 (1)
.
u.Unclip light cover
Fig. 8 (2)
at
the back and unhook.
uReplace the light bulb
Fig. 8 (3)
.
When turning it, use a little more
force to overcome the static fric-
tion of the seal. Make sure the
seal sits cleanly in the light
socket.
uHook the cover in again at the
back and clip in at the sides.
Fig. 8
6.5 Customer service
First check whether you can remedy the fault yourself
(see Troubleshooting). If this is not the case, please
contact a qualified service provider.
WARNING
Risk of injury from repairs by non-professionals.
uRepairs and work on the appliance and the power
supply cable not described in the Manual (see Mainte-
nance) should only be carried out by a qualified service
provider.
uRead the appliance
designation
Fig. 9 (1)
, service no.
Fig. 9 (2)
and serial
no.
Fig. 9 (3)
from the
rating plate. The
rating plate is
located inside the
appliance on the
left-hand side.
Fig. 9
uNotify a qualified service provider, specifying the fault,
appliance designation
Fig. 9 (1)
, service no.
Fig. 9 (2)
and serial
Fig. 9 (3)
no.
wThis will help us to provide you with a faster and more
accurate service.
Maintenance
* Depending on model and options 13
uKeep the appliance closed until the Customer Service
engineer arrives.
wThe food will stay cool longer.
uDisconnect the power plug (do not pull on the power
cord to do this) or switch off the fuse.
6.6 Appliance Information
Make a note of this information when the appliance is
installed:
Type Designation: _____________________
Service Number: _____________________
Appliance / Serial Number: _____________________
Date of purchase: _____________________
Where purchased: _____________________
7 Troubleshooting
Your appliance is designed and manufactured for reliable
operation and a long lifespan. If a malfunction nonethe-
less occurs during operation, please determine if the
malfunction is due to an operating error. If a service call
determines operator error, you will be charged for the
costs incurred, even during the warranty period. You may
be able to rectify the following problems yourself:
Problem Possible Cause Correction
The appliance
does not work.
The appliance is not switched on. uSwitch on the appliance.
The power plug is not properly
inserted in the wall socket.
uCheck the power plug.
The fuse in the wall socket is not OK. uCheck the fuse.
Power failure uKeep the appliance closed.
uProtect the food: place dry ice on top of the food or
use an alternate freezer, if the power failure persists
for some time.
uDo not re-freeze defrosted food.
The compressor
runs for a long
time.
When less refrigeration is required,
the speed-controlled compressor
switches to a low speed. Although
the running time is increased as a
result, energy is saved.
uThis is normal in energy-saving models.
SuperFrost function is activated. uThe compressor runs long to rapidly freeze food.
This is normal.
SuperCool function is activated. uThe compressor runs long to rapidly cool food. This
is normal.
A LED at the
lower rear of the
appliance (for
the compressor)
flashes regularly
every 15
seconds*.
The inverter is equipped wth a diag-
nostic LED.
uThe flashing is normal.
Noises are too
loud.
The different speed levels of speed-
controlled* compressors can cause
them to generate various noises
during operation.
uThese noises are normal.
A gurgling
sound
This sound comes from the refrig-
erant flowing in the refrigeration
circuit.
uThe sound is normal.
Troubleshooting
14 * Depending on model and options
Problem Possible Cause Correction
A faint clicking
sound
The sound always occurs when the
refrigeration unit (the motor) auto-
matically switches on or off.
uThe sound is normal.
A hum. It is
briefly a little
louder when the
refrigeration unit
(the motor)
switches on.
The refrigeration increases automati-
cally when the SuperFrost function is
activated, fresh food has just been
placed in the appliance or the door
has been left open for a while.
uThe sound is normal.
The refrigeration increases automati-
cally when the SuperCool function is
activated, fresh food has just been
placed in the appliance or the door
has been left open for a while.
uThe sound is normal.
The ambient temperature is too high. uSolution: (see 1.3)
A low hum The sound occurs as a result of fan
air flow.
uThe sound is normal.
Flow noise on
the soft stop
mechanism.*
The sound is caused by the soft stop
mechanism.
uThe sound is normal.
The temperature
display indi-
cates: F0 to F5.
There is a fault. uContact the customer service department (see Main-
tenance).
The temperature
display indi-
cates: nA.
The freezer temperature rose too
high during the last hours or days
due to power failure or power inter-
ruption. When the power interruption
is over, the appliance will continue to
operate at the last temperature
setting.
uPress the Alarm button
Fig. 2 (1)
.
wThe warmest temperature reached during the power
failure is displayed in the temperature display for
about 60 seconds. Then the electronics again indi-
cate the current freezer temperature
uTo delete the display of the warmest temperature
ahead of time: Press the Alarm button
Fig. 2 (1)
.
uCheck the quality of the food. Do not consume
spoiled food. Do not re-freeze defrosted food.
The outside
surfaces of the
appliance are
hot*.
The heat of the refrigerant circuit is
used to prevent condensate from
forming.
uThis is normal.
The IceMaker
cannot be
switched on.*
The appliance and therefore the
IceMaker are not connected.
uConnect the appliance (see Start-up).
The IceMaker is
not making ice
cubes.*
The IceMaker is not switched on. uSwitch the IceMaker on.
The drawer of the IceMaker is not
properly closed.
uClose the drawer properly.
The water connection is not open. uOpen the water connection.
The water supply to the IceMaker
was interrupted.
uCheck the connection to the water supply (see the
Assembly Instructions, Connecting the Water
Supply).*
uCheck the pipes and hoses (see the Assembly
Instructions, Connecting the Water Supply).*
Troubleshooting
* Depending on model and options 15
Problem Possible Cause Correction
There is a blocked filter at the end of
the water supply hose or at the
connecting part on the machine.
uClean the filters.
The waterline was not bled of all air
during installation
uPlease contact your qualified installation plumber to
ensure the above criteria is met before calling for
service.
The temperature
is not cold
enough.
The door of the appliance is not
closed properly.
uClose the appliance door.
Insufficient ventilation. uClear ventilation grilles.
The ambient temperature is too high. uSolution: (see 1.3)
The appliance was opened too
frequently or for too long.
uWait to see whether the required temperature resets
itself by itself. If not, contact the customer service
department (see Maintenance).
Too much fresh food was placed
inside without SuperFrost.
uSolution: (see 5.7.4)
The temperature is incorrectly set. uSet to a colder temperature and check after 24 hours
The appliance is too near to a heat
source (stove, heater etc).
uChange location of appliance or the heat source.
Display show
two dashes (“-
-”).
The freezer temperature display will
only show temperatures that are
below freezing.
uWhen initially starting the appliance it will not be
below freezing. It will take three to five hours
(depending on ambient conditions) for freezing
temperatures to be achieved and thus displayed
numerically.
The freezer temperature has risen
above zero degrees due to a power
failure or power interruption.
uSee also “Power failure” and “nA”
The interior light
is not on.
The appliance is not switched on. uSwitch on the appliance.
The door was open for longer than
15 minutes.
uThe interior light automatically switches itself off if
the door has been open for about 15 minutes.
The LED interior light is faulty or the
cover is damaged* WARNING*
Risk of injury from electrical shock.
Live parts are under the cover.
uThe LED interior light should only be replaced or
repaired by the Customer Service department or by
engineers trained to do so.
WARNING*
Risk of injury from LED lamp!
The lighting intensity of the LED light complies with laser
class 1/1M.
If the cover is faulty:
uDo not gaze directly at this lighting unit with optical
lenses while very close to the light source. This can
cause damage to your eyes.
Troubleshooting
16 * Depending on model and options
Problem Possible Cause Correction
If the interior light is not on but the
temperature display is lit, the bulb is
faulty.*
uChange the bulb (see Maintenance).*
8 Putting appliance out of
service
8.1 Vacation Tips
Short vacations: If you will be away for less than four
weeks
uUse all perishables.
uFreeze other items.
uTurn off the refrigerator compartment.
uTurn off the icemaker.*
uShut down the water supply to the icemaker.*
Long vacations: If you will be away for a month or more
uRemove all food from the appliance.
uTurn OFF the appliance.
uClean the appliance (see 6.2) .
uLeave the door open to prevent unpleasant odors.
wThis will also keep mold from building up.
uTurn off the icemaker.*
uShut off the water supply to the icemaker.*
8.2 Switching off the appliance
Note
uTo switch off the entire appliance, only the freezer
compartment needs to be switched off.
8.2.1 Switching off the freezer compartment
uPress and hold down the freezer compart-
ment On/Off button
Fig. 2 (3)
for approx. 2
seconds.
wThe temperature displays are dark. The
appliance is switched off.
8.2.2 Switching off the fridge compartment
Note
uThe fridge compartment can be switched off independ-
ently of the freezer.
uPress and hold down the chiller compartment On/Off
button
Fig. 2 (11)
for approx. 2 seconds.
wThe fridge compartment temperature display
Fig. 2 (7)
is
dark. The fridge compartment is switched off.
8.3 Decommissioning *
uEmpty the appliance.
uPut the IceMaker in the cleaning position (see Mainte-
nance).
uDisconnect the power plug.
uClean the appliance (see 6.2) .
uLeave the door open to prevent bad smells.
9 Disposing of the appliance
Follow the local regulations for the disposal of appliances.
Old appliances can be dangerous. Contact the local
refuse collection department for additional information.
DANGER
There is a risk of suffocation.
Children playing can shut themselves in and suffocate.
uTake the door(s) off.
uRemove the drawers.
uLeave the storage shelves in the appliance so that chil-
dren cannot easily climb into the appliance.
WARNING
Danger of electric shock.
uCut off the plug from the power cord and discard.
uCut off the power cord from the discarded appliance.
Dispose of separately from the appliance.
Ensure during and after disposal that the appliance isn't
stored in the vicinity of gasoline or other flammable vapors
and liquids.
When disposing of the appliance, ensure that the refriger-
ation circuit is not damaged to prevent uncontrolled
escape of the refrigerant it contains (data on type plate)
and oil.
10 Liebherr Warranty Plan
FULL TWO YEAR WARRANTY - For two years from the
date of original purchase, your Liebherr warranty covers
all parts and labor to repair or replace any part of the
product which proves to be defective in materials or work-
manship.
FULL FIVE YEAR WARRANTY - For five years from the
date of original purchase, your Liebherr warranty covers
all parts and labor to repair or replace any components
that prove to be defective in materials or workmanship in
the sealed system. The “Sealed System” means only the
Putting appliance out of service
* Depending on model and options 17
compressor, condenser, evaporator, drier and all
connecting tubing.
LIMITED 6TH THROUGH 12TH YEAR WARRANTY -
From the 6th through 12th year from the date of original
purchase, your Liebherr warranty covers all parts that
prove to be defective in materials or workmanship in the
Sealed System (parts only).
TERMS APPLICABLE TO EACH WARRANTY
All service provided by Liebherr under the warranty must
be performed by authorized Liebherr service representa-
tives, unless otherwise specified by Liebherr. Service will
be provided in the home during normal business hours.
This warranty applies only to products installed for normal
residential use. Details regarding a non-residential
warranty are available on request.
The warranty applies only to products installed in any one
of the fifty states of the United States or the District of
Columbia. The warranty does not cover any parts or labor
to correct any defect caused by negligence, accident or
improper use, maintenance, installation, service or repair,
including but not limited to improper removal and reinstal-
lation of the condensing unit.
THE WARRANTIES DESCRIBED ABOVE ARE MADE
EXPRESSLY IN LIEU OF ANY OTHER WARRANTIES,
EXPRESSED OR IMPLIED, INCLUDING ANY IMPLIED
WARRANTY OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE, AND OF ANY OTHER
OBLIGATION OR LIABILITY ON THE PART OF
LIEBHERR. IN NO EVENT SHALL LIEBHERR BE
LIABLE FOR SPECIAL, INCIDENTAL OR CONSE-
QUENTIAL DAMAGES ARISING FROM THE BREACH
OF THESE WARRANTIES OR ANY OTHER WARRAN-
TIES, WHETHER EXPRESS, IMPLIED OR STATU-
TORY.
Some states do not allow the exclusion or limitation of
incidental or consequential damages so the above limita-
tion or exclusion may not apply to you. This warranty
gives you specific legal rights and you may also have
other legal rights which very from state to state.
To receive parts and/or service and the name of the
Liebherr authorized service representative nearest you,
contact your Liebherr dealer or distributor or contact the
Liebherr designated national service provider:
in the US: Liebherr@adcoservice.com or call 1-866-
LIEBHER (1-866-543-2437).
in Canada: www.euro-parts.ca or call 1-888-LIEBHER
(1-888-543-2437).
Liebherr Warranty Plan
18 * Depending on model and options
Liebherr Warranty Plan
* Depending on model and options 19
For Service in the U.S.:
Liebherr Service Center
15545 N. 77th Street
Scottsdale, AZ 85260
Phone: (480) 998-0141
Fax: (480) 998-7877
Toll Free: 1-866-LIEBHER or 1-866-543-2437
Liebherr@adcoservice.com
For Service in Canada:
EURO-PARTS CANADA
39822 Belgrave Road,
BELGRAVE, Ontario, N0G 1E0
Phone: (519) 357-3320
Fax: (519) 357-1326
Toll Free: 1-888-LIEBHER or 1-888-543-2437
www.euro-parts.ca
Part No. 7082698 - 00
www.liebherr-appliances.com

Navigation menu
