Operating instructions

Combined fridge-freezer

230610 7084376 - 03

CN(es) ... 3

Contents

1 Appliance at a glance............................................ 2

1.1 Description of appliance and equipment.................. 2

1.2 Range of appliance use............................................ 2

1.3 Conformity................................................................ 3

1.4 External dimensions of the appliance....................... 3

1.5 Saving energy.......................................................... 3

2General safety information................................... 3

3Controls and displays........................................... 4

3.1 Operating and control elements............................... 4

3.2 Temperature display................................................. 4

4 Putting into operation............................................ 4

4.1 Changing over the door hinges................................ 4

4.2 Insertion into a row of kitchen units........................... 6

4.3 Transporting the appliance....................................... 6

4.4 Installing the appliance............................................. 6

4.5 Disposing of packaging............................................ 7

4.6 Connecting the appliance......................................... 7

4.7 Switching on the appliance....................................... 7

5Control.................................................................... 7

5.1 Door alarm................................................................ 7

5.2 Temperature alarm................................................... 7

5.3 Refrigerator compartment........................................ 7

5.4 Freezer compartment............................................... 9

6Maintenance........................................................... 11

6.1 Defrosting with NoFrost............................................ 11

6.2 Cleaning the appliance............................................. 11

6.3 Cleaning the IceMaker............................................. 11

6.4 Changing the interior light with bulb.......................... 12

6.5 Customer service..................................................... 12

7 Malfunction............................................................. 12

8 Decommissioning.................................................. 13

8.1 Switching off the appliance....................................... 13

8.2 Taking the appliance out of service.......................... 13

9 Disposing of the appliance................................... 13

The manufacturer works constantly on the further development

of all the types and models. Therefore please understand that we

have to reserve the right to make design, equipment and tech-

nical modifications.

To get to know all the benefits of your new appliance, please read

the information contained in these instructions carefully.

The instructions apply to several models. Differences may occur.

Text relating only to specific appliances is marked with an

asterisk (*).

Instructions for action are marked with a , the results of

action are marked with a .

1 Appliance at a glance

1.1 Description of appliance and equip-

ment

Note

uPlace food inside the appliance as shown in the diagram. This

allows the appliance to save energy during operation.

uShelves, drawers and baskets are arranged for optimum

energy efficiency on delivery.

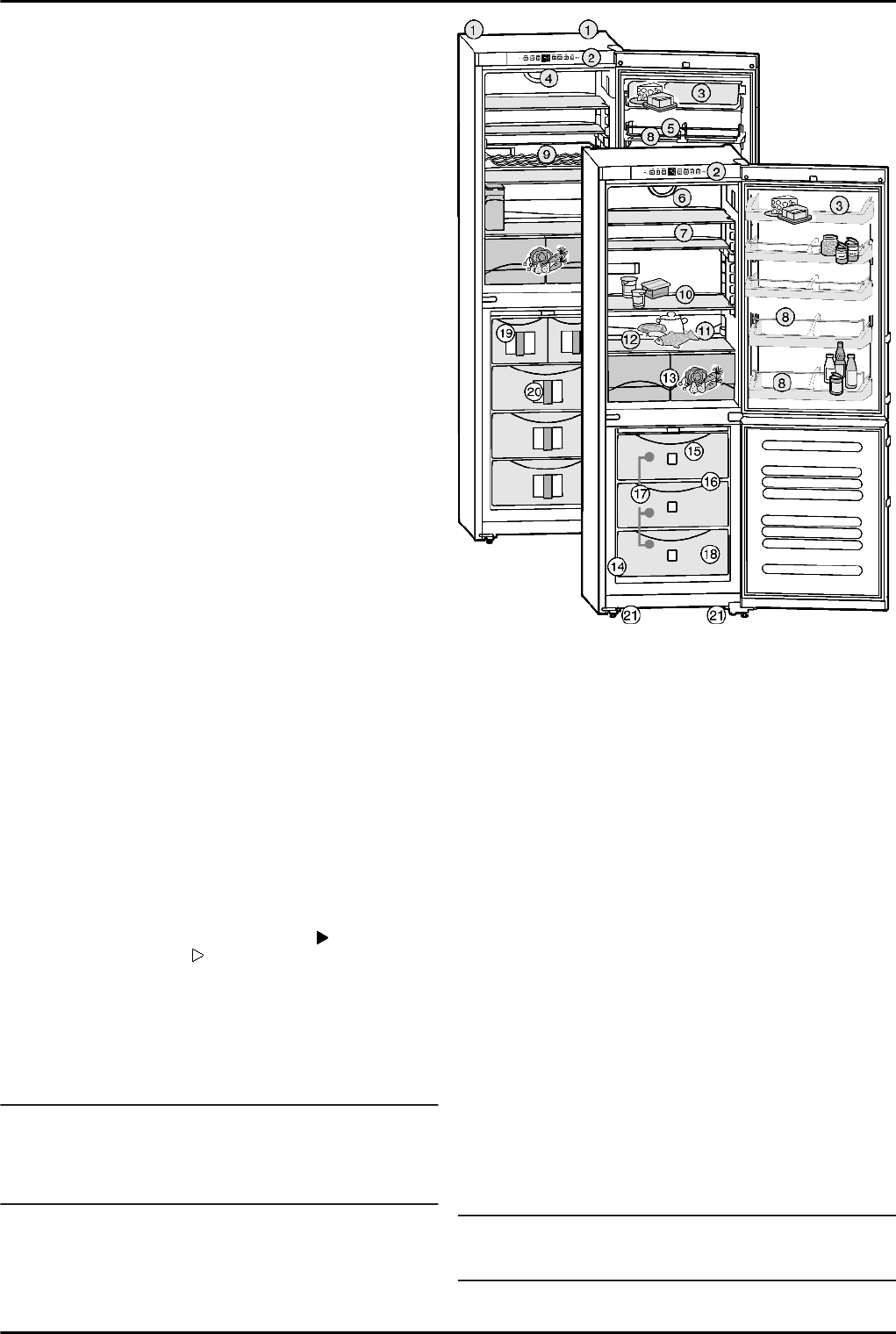

Fig. 1

(1) Transport grips at back (12) Coldest zone

(2) Operating and control

elements

(13) Vegetable bin

(3) Butter and cheese

compartment

(14) Type plate

(4) Fan* (15) Cold storage accumula-

tors*

(5) Door rack (16) VarioSpace

(6) Interior light (17) Freezer drawer

(7) Shelf, sectioned (18) Ice-cube tray

(8) Bottle holder (19) IceMaker*

(9) Bottle shelf (20) Information system

(10) Shelf, relocatable (21) Adjustable feet, transport

grips at front, transport

castors at back

(11) Drain hole

1.2 Range of appliance use

The appliance is suited only for cooling food.

In the case of commercial food cooling, the pertinent statutory

regulations have to be observed. The appliance is not suited for

storing and cooling pharmaceuticals, blood plasma, laboratory

preparations or similar substances and products subject to the

Medical Devices Directive 2007/47/EC. Any misuse of the appli-

ance may result in damage to or spoilage of the stored goods.

Furthermore, the appliance is unsuited for use in areas exposed

to an explosion hazard.

The appliance is set to operate within specific ambient temper-

ature limits according to its climate rating. The correct climate

rating for your appliance is indicated on the type plate.

Note

uCompliance with the ambient temperatures indicated is

required, otherwise the cooling performance is reduced.

Appliance at a glance

2

Climate

rating

for ambient temperatures of

SN 10 °C to 32 °C

N 16 °C to 32 °C

ST 16 °C to 38 °C

T 16 °C to 43 °C

1.3 Conformity

The refrigerant circuit has been tested for leaks. The appliance

complies with current safety regulations and EC directives

2006/95/EC and 2004/108/EC.

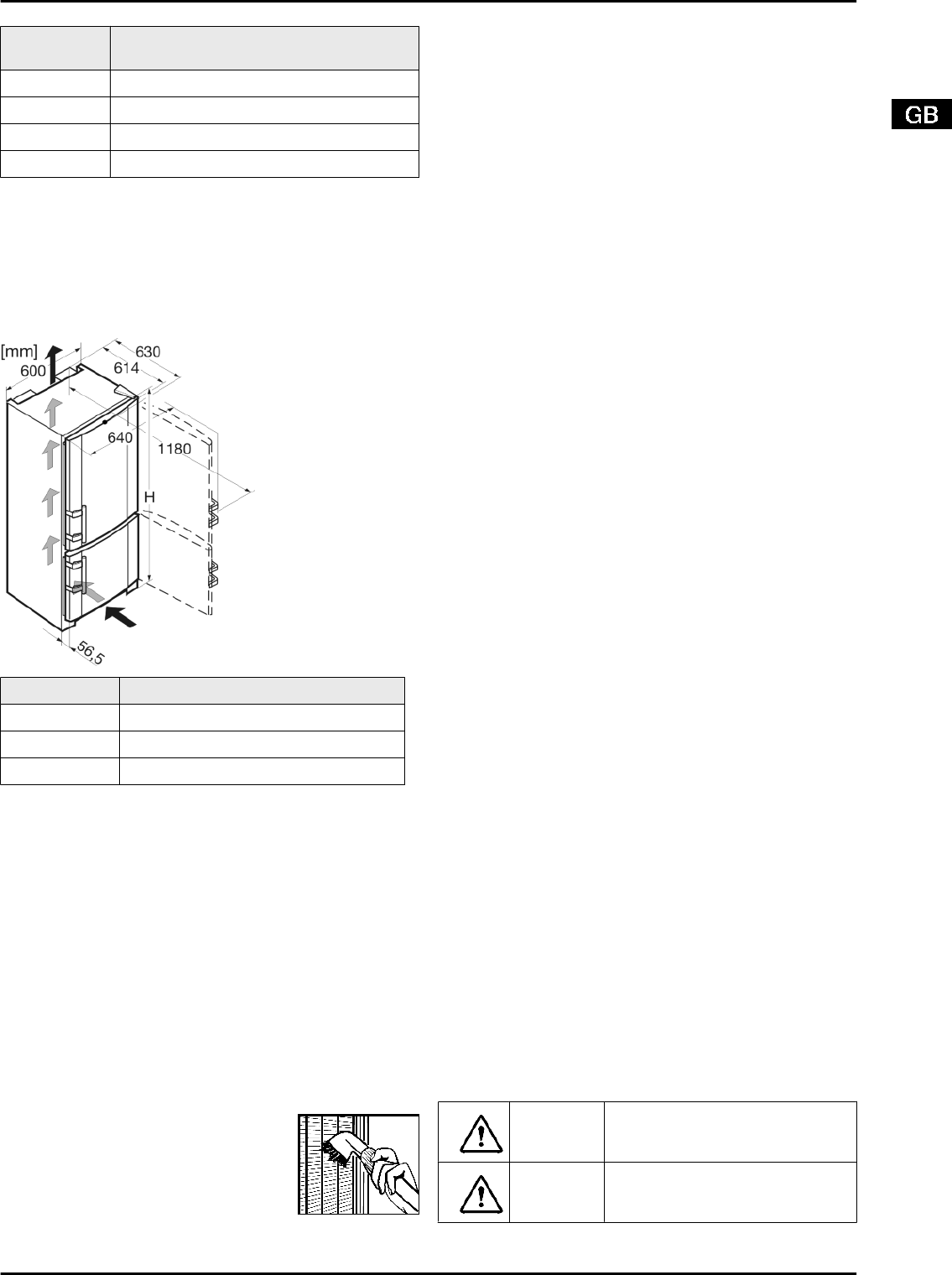

1.4 External dimensions of the appliance

Fig. 2

Model Height of appliance H (mm)

CN(es) 35.. 1817

CN 39.. 2011

CN(es/esf) 40.. 2011

1.5 Saving energy

-Always ensure good ventilation. Do not cover ventilation

openings or grille.

-Always keep fan louvres clear.

-Do not place appliance in areas of direct sunlight or next to a

stove, heater or similar object.

-The energy consumption depends on the installation condi-

tions, e.g. the ambient temperature (see 1.2) .

-Keep the time the appliance is open to a minimum.

-Store food logically.

-Ensure that all food is well packed and covered for storage.

This will prevent frost from forming.

-First cool warm food to room temperature before storing it .

-Defrost frozen food in the refrigerator.

-Empty and switch off refrigerating unit for longer vacation

periods.

Accumulated dust increases the energy

consumption:

-Once a year, dust the refrigerating unit

together with the metal grille of the heat

exchanger at the back of the appliance.

2 General safety information

Danger for the user:

-This appliance is not designed for persons (including children)

with physical, sensory or mental impairment or persons not

having sufficient experience and knowledge, unless they are

instructed in the use of the appliance and are initially super-

vised by a person responsible for their safety. Keep children

under supervision to ensure they do not play with the appli-

ance.

-In case of a fault, pull out the mains plug (not by pulling the

connecting cable) or switch off the fuse.

-Have any repairs to or intervention in the appliance, and any

change of the mains power cable, carried out by the customer

service only or by other specialised personnel trained for the

purpose.

-When disconnecting the appliance from the supply, always

take hold of the plug. Do not pull the cable.

-Install and connect the appliance only as instructed.

-Please keep these instructions in a safe place and pass them

on to any subsequent owners.

-All repairs to and intervention in the IceMaker may be carried

out only by service personnel or by other skilled personnel

trained for the purpose.*

-Special-purpose lamps (incandescent lamps, LEDs, fluores-

cent tubes) in the appliance serve to illuminate the appliance

interior and are not suited for room illumination.

Fire hazard:

-The refrigerant R 600a is environmentally friendly but flam-

mable. Escaping refrigerant may ignite.

•Do not damage the refrigerant circuit pipes.

•Do not allow naked flames or ignition sources to enter the

appliance.

•Do not use any electrical appliances in the interior (e.g.

steam cleaners, heaters, ice cream maker etc.).

•If refrigerant escapes: eliminate naked flames or sources

of ignition from the vicinity. Pull out the power plug. Venti-

late the area well. Notify customer service.

-Do not store explosives or sprays using combustible propel-

lants such as butane, propane, pentane, etc. in the appliance.

Respective spray cans can be identified by reference to the

contents printed on the can or by a flame symbol. Gases

possibly escaping may ignite due to electrical components.

-Do not place any burning candles, lamps or other items with

naked flames on or in the appliance.

-Only store high-percentage alcohol in tightly sealed, upright

containers. Alcohol possibly escaping may ignite due to elec-

trical components.

Danger of tipping and falling:

-Do not misuse the plinth, drawers, doors etc. as a step or for

support. This applies particularly to children.

Danger of food poisoning:

-Do not consume food which has been stored too long.

Danger of frostbite, numbness and pain:

-Avoid lasting skin contact with cold surfaces or refrigerated/

frozen food or take protective steps, e.g. wear gloves. Do not

consume ice cream, water ice or ice cubes immediately and

do not consume them too cold.

Please observe the specific information in the other

sections:

DANGER identifies a situation involving direct

danger which, if not obviated, may

result in death or severe bodily injury.

WARNING identifies a dangerous situation

which, if not obviated, may result in

death or severe bodily injury.

General safety information

3

CAUTION identifies a dangerous situation

which, if not obviated, may result in

minor or medium bodily injury.

NOTICE identifies a dangerous situation

which, if not obviated, may result in

damage to property.

Note identifies useful information and tips.

3 Controls and displays

3.1 Operating and control elements

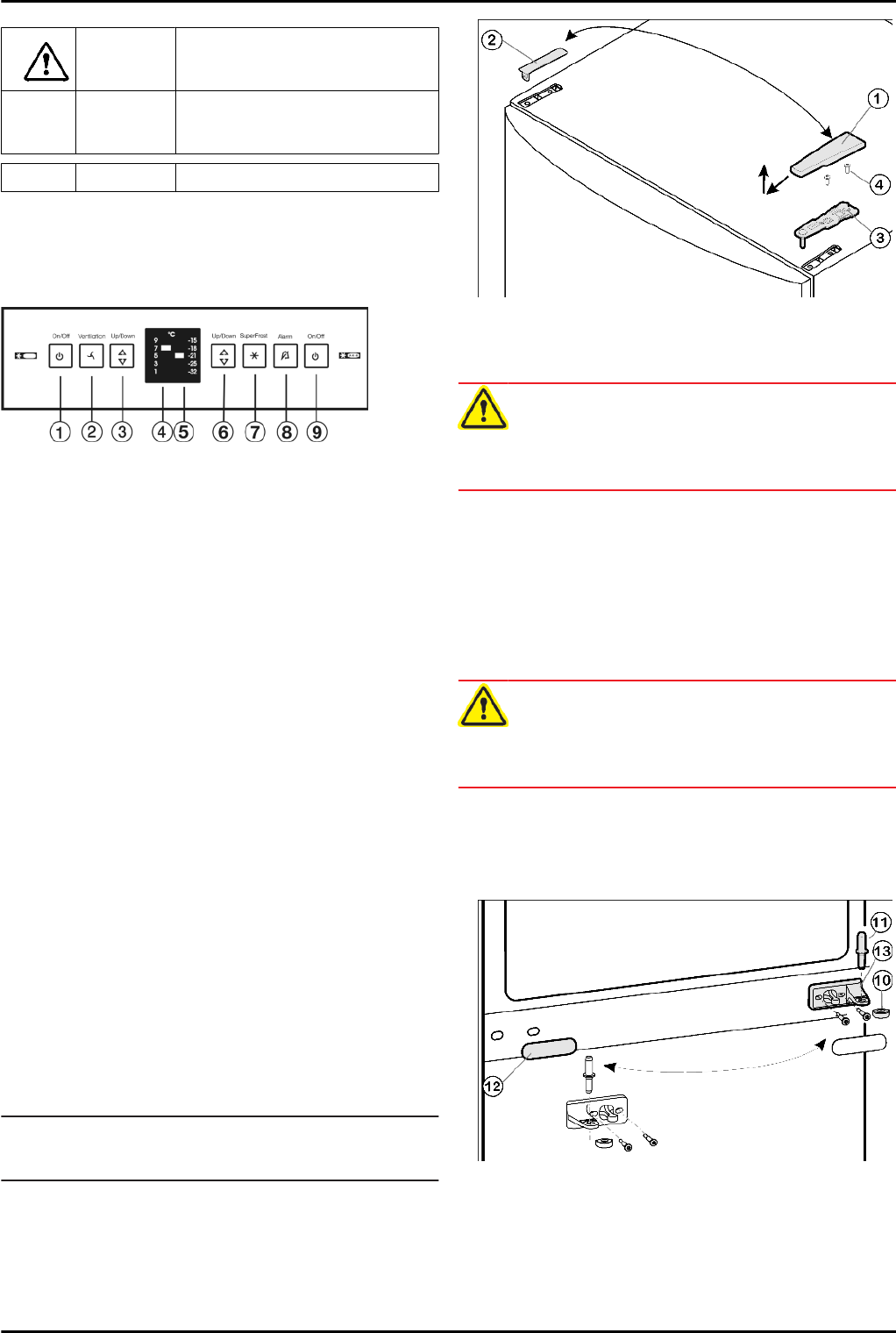

Fig. 3

(1) On/Off button, refriger-

ator compartment

(6) Setting button, freezer

compartment

(2) Fan button (7) SuperFrost buttont

(3) Setting button, refriger-

ator compartment

(8) Alarm button

(4) Refrigerator compart-

ment temperature

display

(9) On/Off button, freezer

compartment

(5) Freezer compartment

temperature display

3.2 Temperature display

The following are displayed in normal operation:

-the set freezing temperature

-the set cooling temperature

The freezer compartment temperature display flashes:

-the temperature setting is being changed

-after switch-on the temperature is not yet cold enough

-the temperature has risen several degrees

4 Putting into operation

4.1 Changing over the door hinges

Ensure that the following tools are to hand:

qTorx 25

qTorx 15

qScrewdriver

qCordless screwdriver, if necessary

qSecond person for fitting work, if needed

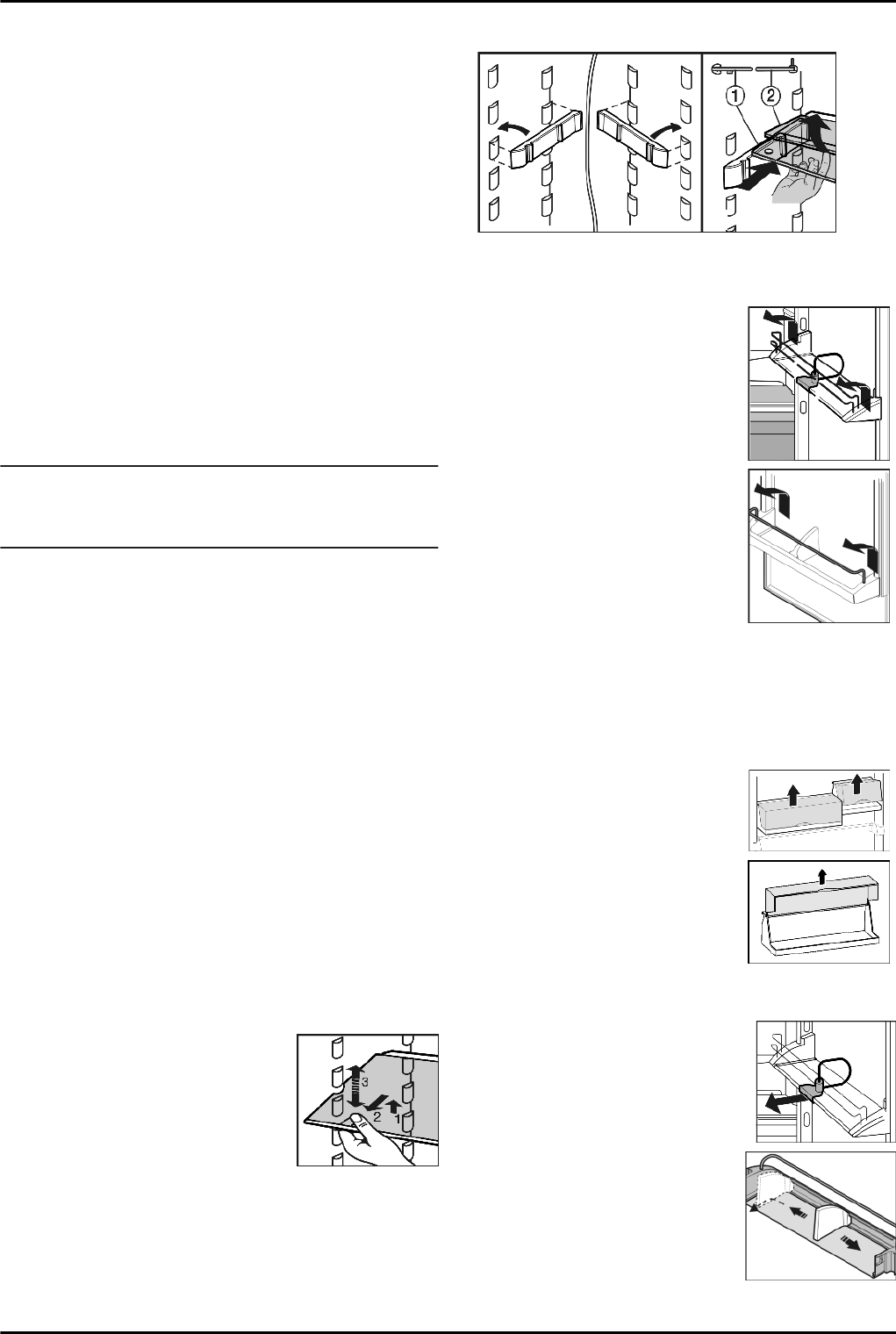

4.1.1 Detaching the upper door

Note

uRemove any food from the door racks before removing the

door, so that no food falls out.

Fig. 4

uClose the upper door.

uPull off the cover

Fig. 4 (1)

forwards and upwards.

uLift off the cover

Fig. 4 (2)

CAUTION

Risk of injury if the door tips!

uTake good hold of the door.

uSet down the door carefully.

uUnscrew the upper turn hinge

Fig. 4 (3)

(2 Torx 25)

Fig. 4 (4)

and raise it for removal.

uLift up the upper door and set it aside.

4.1.2 Detaching the lower door

uClose the lower door.

uDraw the middle bearing pin

Fig. 5 (11)

out of the turn hinge

and lower door.

uRemove the plastic cap

Fig. 5 (10)

.

CAUTION

Risk of injury if the door tips!

uTake good hold of the door.

uSet down the door carefully.

uOpen the lower door.

uDetach the middle turn hinge

Fig. 5 (13)

.

uLift up the door and set it aside.

4.1.3 Transferring the middle bearing elements

Fig. 5

uCarefully detach the cover panel

Fig. 5 (12)

.

uTurn the middle turn hinge

Fig. 5 (13)

through 180° and screw

it firmly into place on the new hinge side (with 4 Nm).

uTurn the cover panel

Fig. 5 (12)

through 180° and snap it into

place again on the new handle side.

Controls and displays

4

4.1.4 Transferring the lower bearing elements

Fig. 6

uDraw the safety lock

Fig. 6 (21)

.

uRemove the cover

Fig. 6 (27)

.*

uFully retract the adjustable-height foot

Fig. 6 (22)

.

uIf necessary, tip the appliance back a little with the assistance

of a second person for removal of the bearing pin.

uPull out the bearing pin

Fig. 6 (22)

downwards and forwards.

In so doing, pay attention to the hinge bush

Fig. 6 (20)

.

uUnscrew the turn hinge

Fig. 6 (23)

(3 Torx 25)

Fig. 6 (24)

.

uUnscrew the bearing part

Fig. 6 (26)

(1 Torx 25),

Fig. 6 (28)

.

uCarefully lift off and transfer the cover

Fig. 6 (25)

on the handle

side.

uScrew the turn hinge

Fig. 6 (23)

firmly into place on the new

hinge side, possibly using a cordless screwdriver (with

4 Nm).

uTip the appliance back a

little again and re-insert the

bearing pin

Fig. 7 (22)

. The

notch has to point forwards.

uPlace the cover

Fig. 6 (27)

on the opposite side.*

Fig. 7

CAUTION

Risk of injury if the door tips!

uThe safety lock

(21)

has to engage with the turn hinge at the

side so that the bearing pin and therefore the door are

secured.

u

uSnap the safety lock

(21)

onto the turn hinge again.

uPut on the hinge bush

Fig. 6 (20)

.

4.1.5 Transferring the handles

uDisengage the spring clip

Fig. 8 (31)

from the upper door and

transfer it to the new hinge side.

uLift the stoppers

Fig. 8 (30)

out of the door bearing bushes and

transfer them.

Fig. 8

uDetach the door handles

Fig. 8 (32)

, stoppers

Fig. 8 (33)

and

pressure plates

Fig. 8 (34)

and transfer to the opposite side.

uWhen fitting the pressure plates at the opposite side, pay

attention that they engage properly.

4.1.6 Fitting the lower door

uPlace the lower door from above onto the lower bearing pin

Fig. 6 (22)

.

uClose the door.

uPlace the plastic cap

Fig. 5 (10)

back onto the middle turn

hinge

Fig. 5 (13)

.

uPlace the middle bearing pin

Fig. 5 (11)

in the lower door, on

the new hinge side, through the middle turn hinge

Fig. 5 (13)

.

4.1.7 Fitting the upper door

uPlace the upper door on the middle bearing pin

Fig. 5 (11)

.

uInsert the upper turn hinge

Fig. 4 (3)

in the door on the new

hinge side.

uScrew the top turn hinge firmly into place (with 4 Nm).(2x Torx

25)

Fig. 4 (4)

. Possibly make preliminary holes with a bradawl

or use a cordless screwdriver.

uApply the cover

Fig. 4 (1)

and cover

Fig. 4 (2)

to the opposite

side from the outside and snap them into place.

4.1.8 Aligning the doors

uIf necessary, align the doors to the appliance housing by way

of the two oblong holes in the lower turn hinge

Fig. 6 (23)

and

middle turn hinge

Fig. 5 (13)

. To do so, unscrew the middle

screw in the lower turn hinge

Fig. 6 (23)

.

WARNING

Risk of injury due to the door dropping out!

If the bearing parts are not screwed into place firmly enough, the

door may drop out. This may lead to severe injuries. What is

more, the door may not close and therefore the appliance may

fail to cool properly.

uScrew the turn hinges firmly into place with 4 Nm.

uCheck all of the screws and retighten if necessary.

Putting into operation

5

4.2 Insertion into a row of kitchen units

Fig. 9

(1) Stack cabinet (3) Kitchen cabinet

(2) Appliance (4) Wall

The appliance can be inserted into a row of kitchen units. To

match the appliance

Fig. 9 (2)

to the height of the row of units, a

suitable stack cabinet

Fig. 9 (1)

can be fitted above the appliance.

When inserting the appliance into a row of standard kitchen units

(max. depth 580 mm), the appliance can be installed directly next

to the kitchen unit

Fig. 9 (3)

. The appliance door projects relative

to the front of the kitchen unit by 34 mm at the side and by

50 mm in the middle of the appliance. It can be opened and

closed perfectly as a result.

Important for the ventilation:

-At the back of the stack cabinet there has to be a ventilation

duct of at least 50 mm depth throughout the width of the stack

cabinet.

-The ventilation space under the ceiling has to be at least

300 cm2.

If the appliance is installed with the hinges next to a wall

Fig. 9 (4)

, the distance between appliance and wall has to be at

least 36 mm. This corresponds to the projection of the handle

when the door is open.

4.3 Transporting the appliance

CAUTION

Risk of injury and danger of damage as a result of incorrect trans-

port!

uTransport the appliance in a packed condition.

uTransport the appliance upright.

uDo not transport the appliance without assistance.

4.4 Installing the appliance

In the event that the appliance is damaged, contact the supplier

immediately before connecting to the mains.

The floor at the site must be flat and level.

Do not install the appliance in a location where it is exposed to

direct radiation of the sun, next to a cooker, heater and similar.

Always install the appliance directly against the wall.

Do not install the appliance without assistance.

Standard EN 378 specifies that the room in which you install your

appliance must have a volume of 1 m2 per 8 g of R 600a refrig-

erant used in the appliance. If the room in which the appliance is

installed is too small, a flammable gas-air mixture may form in the

event of a leakage in the refrigeration circuit. The quantity of

refrigerant used in your appliance is indicated on the type plate

on the inside of the appliance.

WARNING

Fire hazard due to dampness!

If live parts or the mains lead become damp this may cause short

circuits.

uThe appliance is designed for use in enclosed areas. Do not

operate the appliance outdoors or in areas where it is exposed

to splash water or damp conditions.

WARNING

Fire hazard due to refrigerant!

The refrigerant R 600a is environmentally friendly but flammable.

Escaping refrigerant may ignite.

uDo not damage the piping of the refrigeration circuit.

WARNING

Fire hazard and danger of damage!

uDo not place appliances emitting heat e.g. microwaves,

toasters etc. on the appliance!

WARNING

Fire hazard and risk of damage due to blocked ventilation grille!

uAlways keep the ventilation grille free. Always ensure that the

appliance is properly ventilated.

uDetach the connecting cable from the rear of the appliance,

removing the cable holder at the same time because other-

wise there will be vibratory noise!

uRemove the protective film from the outside of the appli-

ance.*

NOTICE*

The stainless steel doors are provided with a high-quality surface

coating and must not be treated using the accompanying care

product.

Otherwise the surface coating will be affected.

uWipe the coated door surfaces using a soft, clean cloth only.

uApply a stainless steel cleaner only to the stainless steel

side walls evenly, wiping with the grain. Subsequent cleaning

becomes easier as a result.

uWipe side walls with a paint finish using a soft, clean cloth

only.

uRemove the protective film from the decorative trims and

drawer fronts.*

uRemove all transit supports.

uDispose of packaging material (see 4.5) .

NOTICE

Risk of damage due to condensate!

uDo not install the appliance directly alongside a further refrig-

erator/freezer.

uAlign the appliance so that it

stands firmly and on a level by

applying the accompanying

spanner to the adjustable-

height feet (A) and using a spirit

level.

uThen support the door: Extend

the adjustable foot at the turn

hinge (B) until it rests on the

floor and then make a further

90° turn.

Putting into operation

6

If the appliance is installed in a very damp environment, conden-

sate may form on the outside of the appliance.

uAlways see to good ventilation at the installation site.

4.5 Disposing of packaging

WARNING

Danger of suffocation due to packing material and plastic film!

uDo not allow children to play with packing material.

The packaging is made of recyclable materials:

-corrugated board/cardboard

-expanded polystyrene parts

-polythene bags and sheets

-polypropylene straps

uTake the packaging material to an official collecting point.

4.6 Connecting the appliance

NOTICE

Risk of damage to the electronic control system!

uDo not use stand-alone inverters (conversion of d.c. to a.c./

three-phase) or energy saving plugs.

WARNING

Fire and overheating hazard!

uDo not use extension cables or multiple socket outlets.

The type of current (alternating current) and voltage at the instal-

lation site have to conform with the data on the type plate (see

Appliance at a glance).

Connect the appliance only with a properly installed

socket outlet with earthing contact. The socket outlet

must be fused with 10 A or higher.

It must be easily accessible so that the appliance can

be quickly disconnected from the supply in an emer-

gency.

uCheck the electrical connection.

uClean the appliance (see 6.2) .

uPlug in the power plug.

4.7 Switching on the appliance

Note

uTo switch on the entire appliance it is necessary only to switch

on the freezer compartment. In so doing, the refrigerator

compartment is automatically switched on as well.

Put the appliance into operation about 2 hours before first loading

food to be frozen.

4.7.1 Switching on the freezer compartment

uPressOn/Off button, freezer compartment

Fig. 3 (9)

.

wThe appliance is switched on. The refrigerator compartment

temperature display indicates the set temperature. The

freezer compartment temperature display and the alarm

button flash until the temperature is sufficiently low.

4.7.2 Switching on the refrigerator compart-

ment

Note

uWhen the refrigerator compartment is switched on, the freezer

compartment is automatically switched on as well.

uPress On/Off button, refrigerator compartment

Fig. 3 (1)

.

wThe interior light is on when the door is open.

wThe temperature display shines. Refrigerator compartment

and freezer compartment are switched on.

5 Control

5.1 Door alarm

For refrigerator and freezer compartment

If the door is open longer then 60 s, the audible alarm sounds.

The audible alarm is automatically silenced when the door is

closed.

5.1.1 Muting the door alarm

The audible alarm can be muted when the door is open. The

sound switch-off function is active as long as the door is left open.

uPress alarm button

Fig. 3 (8)

.

wThe door alarm is silenced.

5.2 Temperature alarm

The audible alarm sounds if the freezer temperature is not cold

enough.

The alarm button flashes at the same time.

The cause of the temperature being too high may be:

-warm fresh food was placed inside

-too much warm ambient air flowed in when rearranging and

removing food

-power failure for some time

-the appliance is faulty

The audible alarm is automatically silenced, the alarm button

Fig. 3 (8)

goes out and the temperature display stops flashing

when the temperature is sufficiently cold again.

If the alarm status persists: (see Malfunction).

Note

Food may be spoilt if the temperature is not cold enough.

uCheck the quality of the food. Do not consume spoiled food.

5.2.1 Muting the temperature alarm

The audible alarm can be muted. When the temperature is suffi-

ciently cold again, the alarm function is active again.

uPress alarm button

Fig. 3 (8)

.

wThe audible alarm is silenced.

5.3 Refrigerator compartment

The natural circulation of air in the refrigerator compartment

results in zones differing in temperature. It is coldest directly

above the vegetable drawers and at the rear wall. It is warmest

at the top front of the compartment and in the door.

5.3.1 Food refrigeration

Note

The energy consumption increases and the cooling performance

decreases if the ventilation is inadequate.

uAlways keep the air slits of the fan free.

uStore perishable food such as ready-to-serve dishes, meat

products and sausages in the coldest zone. Place butter and

preserves in the upper area and in the door (see Appliance

at a glance).

uUse recyclable plastic, metal, aluminium and glass containers

and cling film for wrapping.

Control

7

uUse the front area of the refrigerator compartment floor only

for briefly putting down cooled products, e.g. when rear-

ranging and sorting. However do not leave cooled products

there otherwise they may be pushed back or tipped over when

the door is closed.

uDo not store food too close together to enable good air circu-

lation.

uTo safeguard bottles from tipping over: move the bottle holder.

5.3.2 Setting the temperature

The temperature depends on the following factors:

-the door opening frequency

-the room temperature at the site where the appliance is

installed

-the type, temperature and quantity of frozen food

Temperature setting to be recommended: 5 °C

The temperature can be changed continuously. Once the 1 °C

setting is reached, it starts again with 9 °C.

uTo access temperature adjustment: press the setting button,

refrigerator compartment

Fig. 3 (3)

once.

uPress the setting button, refrigerator compartment

Fig. 3 (3)

the number of times needed until the required temperature

shines in the LED display.

Note

uLong pressing of the setting button sets a slightly colder value

within a small temperature range (e.g.: between "5" and "7"),

but it is not visible in the display.

5.3.3 Fan

With the fan you can rapidly cool large quantities of fresh food or

achieve a relatively even distribution of temperature across all

the storage levels.

The forced-air cooling is to be recommended:

-at high room temperature (from approx. 30 °C )

-at high humidity

The forced-air cooling uses slightly more energy. To save

energy, the fan switches off automatically when the door is open.

Switching on the fan

uBriefly press the fan button

Fig. 3 (2)

.

wThe fan button shines.

wThe fan is active. It switches on automatically when the

compressor runs.

To switch off the fan

uBriefly press the fan button

Fig. 3 (2)

.

wThe fan button goes out.

wThe fan is switched off.

5.3.4 Relocating the shelves

The shelves have stops preventing them from being unintention-

ally pulled out.

uLift the shelf and draw it out forwards.

uInsert shelf with the raised edge pointing upwards at the back.

wThe food does not freeze onto the rear wall.

5.3.5 Using the sectioned shelf

Fig. 10

uThe glass shelf with stop face (2) has to be at the back.

5.3.6 Moving the storage rack

*

uRemove storage rack according to

illustration.

*

The boxes can be removed and placed on the table as a single

unit.*

Only one box or both boxes can be used. If particularly tall bottles

are to be stored, attach only the wide box above the bottle

rack.*

Three small boxes are available through the customer service as

optional equipment instead of one wide and one small box.*

uRe-positioning the boxes: Lift them for

removal and re-position them as

required.*

*

uTo detach lid: Open 90° and raise to

disengage.*

*

5.3.7 Removing the bottle holder*

uAlways take hold of the bottle holder

on the plastic part.

Control

8

5.4 Freezer compartment

You can store frozen food, make ice cubes and freeze fresh food

in the freezer compartment.

5.4.1 Freezing food

The maximum weight of fresh food which can be frozen within 24

h is indicated on the type plate under "freezing capacity ... kg/

24h".

The maximum load of frozen food for the drawers is 25 kg each

and for the shelves 35 kg each.

CAUTION

Risk of injury due to broken glass!

Bottles and cans containing drinks may burst when being frozen.

This applies particularly to sparkling drinks.

uDo not freeze bottles and cans containing drinks!

In order that the food is rapidly frozen through to the core, do not

exceed the following quantities per pack:

- Fruit, vegetables up to 1 kg

- Meat up to 2.5 kg

uPack the food in portions in freezer bags, reusable plastic,

metal or aluminium containers.

5.4.2 Thawing food

- in the refrigerator compartment

- at room temperature

- in a microwave oven

- in a conventional or fan oven

uFood once thawed should be re-frozen only in exceptional

cases.

5.4.3 Setting the temperature

Temperature setting to be recommended: -18 °C

The temperature can be changed continuously. Once the

-32 °C setting is reached, it starts again with -15 °C.

uTo access temperature adjustment: press setting button,

freezer compartment

Fig. 3 (6)

once.

uPress the setting button, freezer compartment

Fig. 3 (6)

the

number of times needed until the required temperature shines

in the LED display.

Note

uLong pressing of the setting button sets a slightly colder value

within a small temperature range (e.g.: between -15 °C and

-18 °C) but it is not visible in the display.

5.4.4 SuperFrost

With this function you can freeze fresh food quickly through to

the core. The appliance operates with maximum refrigeration.

The noise of the refrigeration unit may be temporarily louder as

a result.

The maximum amount of fresh food which can be frozen in 24 h

is indicated on the type plate under "freezing capacity ... kg/

24h". This amount varies according to the model and climate

rating.

Freezing with SuperFrost

You do not have to activate SuperFrost in the following cases:

- when placing frozen food in the freezer

uBriefly press the SuperFrost button

Fig. 3 (7)

.

wThe SuperFrost button shines.

wThe freezer temperature drops, the appliance operates with

the maximum refrigerating capacity.

In case of a small amount of food to be frozen:

uwait about 6 h.

uPlace the fresh food in the top drawers.

In case of the maximum amount of food to be frozen (see type

plate):

uwait about 24 h.

uPlace food in the drawers.

wSuperFrost is automatically deactivated after about 65 h.

wThe SuperFrost button is dark.

wThe appliance continues to operate in the energy-saving,

normal mode.

5.4.5 Drawers

Note

The energy consumption increases and the cooling performance

decreases if there is insufficient ventilation.

For appliances with NoFrost:

uLeave the bottom drawer in the appliance!

uAlways keep the air slits of the fan free at the rear wall!

uTo store frozen food directly on the shelves: pull the drawer

forwards and lift it out.

5.4.6 Shelves

uTo remove the shelf: lift up at the front and

pull out.

uTo put the shelf back: simply push in as far

as it will go.

5.4.7 VarioSpace*

Apart from being able to remove

the drawers, you can also remove

the shelves, creating space for

large items of frozen food.

Poultry, meat, large pieces of

game and high bakery products

can be frozen in one piece and

prepared.

uThe maximum load of frozen

food for the drawers is 25 kg

each and for the shelves

35 kg each.

5.4.8 Information system*

Fig. 11

(1) Ready-made meals, ice

cream

(4) Sausages, bread

(2) Pork, fish (5) Game, mushrooms

(3) Fruit, vegetables (6) Poultry, beef/veal

The figures indicate the storage time in months for several types

of frozen food in each case. Storage times given are guide times.

Control

9

5.4.9 Cold storage accumulators

The cold storage accumulators prevent the temperature from

rising too fast in the event of power failure.

Using cold storage accumulators

uPlace the cold storage accumula-

tors in the top freezer compart-

ment to save space.

uPlace the frozen cold storage

accumulators on the frozen food

in the upper front area of the

freezer compartment.

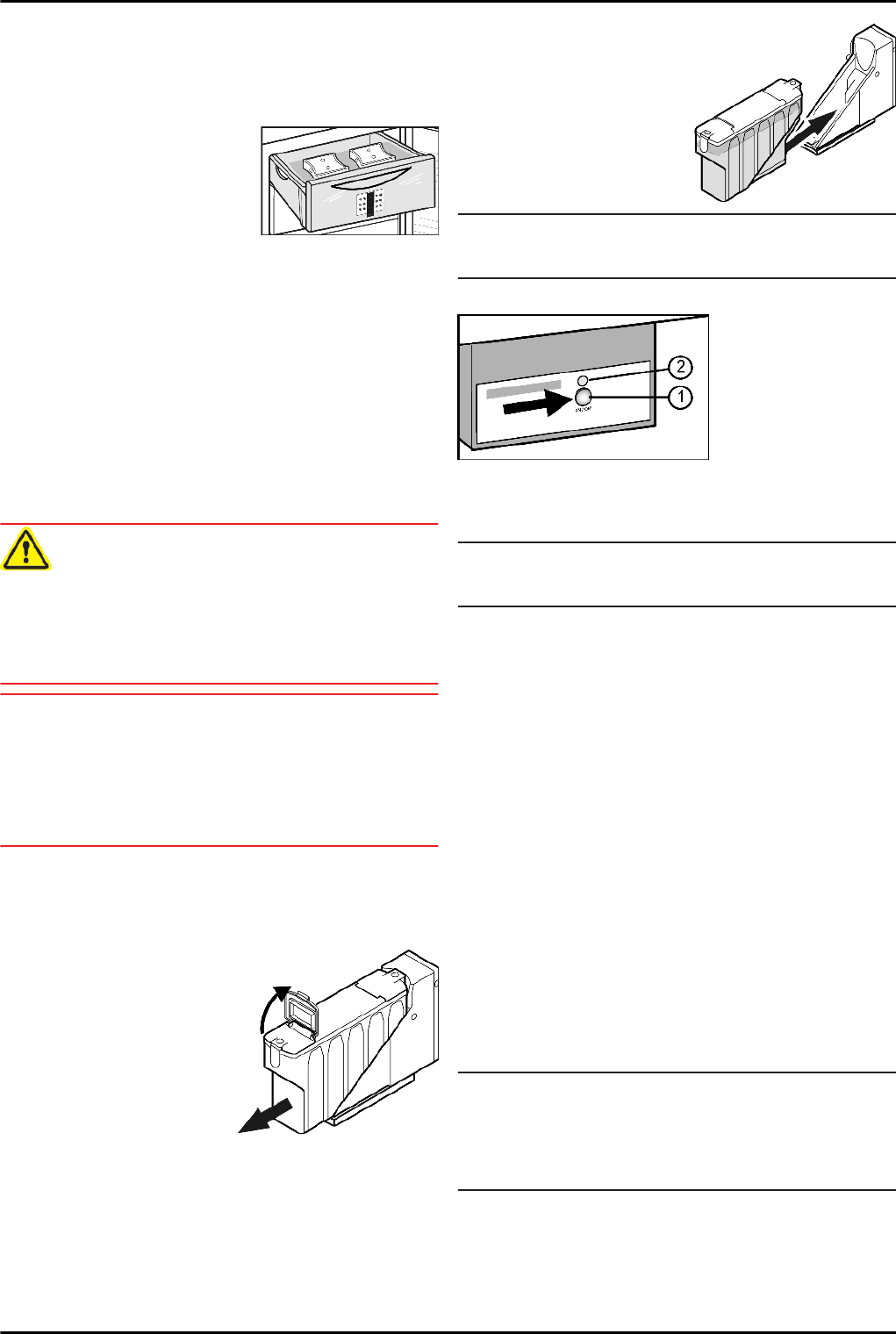

5.4.10 IceMaker*

The IceMaker and the water reservoir situated in the refrigerator

compartment can be used to produce ice cubes or to provide

chilled drinking water.

The IceMaker is in the top drawer of the freezer compartment.

The drawer is marked "IceMaker".

Make certain that the following conditions are met:

-The appliance is level.

-The appliance is connected.

-The freezer compartment is switched on.

-The water tank was cleaned with water and is filled.

Filling the water tank*

WARNING

Risk of poisoning!

uThe water quality has to comply with the drinking water ordi-

nance of the respective country (e.g. 98/8

uThe IceMaker serves exclusively for making ice cubes in

household quantities and has to be operated with water suit-

able for the purpose.

NOTICE

Risk of damage to the IceMaker!

Liquids containing sugar, such as soft drinks, fruit juices or

similar, gum up the pump and therefore lead to total pump failure

and, as a consequence, to damage to the IceMaker.

uFill the water reservoir with drinking water only! Do not use any

liquids containing sugar, such as soft drinks, fruit juices or

similar!

The IceMaker is supplied with water from a water tank in the

refrigerator compartment (see Appliance at a glance).

Before initial operation:

uclean the water tank thoroughly with water to remove any dust

etc.

uPull the water tank forwards.

uOpen the front flap and fill the

tank with water.

uPlace the filled water tank in

the holder and slide it all the

way back.

Note

uThe water reservoir has to be slid all the way into the bracket

provided for the purpose in the refrigerator compartment!

Switching on the IceMaker*

Fig. 12

uPull out the drawer.

uPress the On/Off button

Fig. 12 (1)

so that the LED

Fig. 12 (2)

shines.

uPush in the drawer.

Note

uThe IceMaker produces ice cubes only if the drawer is fully

closed.

Switching off the IceMaker*

If no ice cubes are needed, the IceMaker can be switched off

independently of the freezer compartment.

When the IceMaker is switched off, the IceMaker drawer can also

be used for freezing and storing food.

uPress the On/Off button for about 1 second until the LED goes

out.

uClean the IceMaker.

wThis ensures that no water or ice remains in the IceMaker.

Producing ice cubes*

The production capacity depends on the freezer temperature.

The lower the temperature, the more ice cubes can be produced

in a specific period.

The ice cubes drop from the IceMaker into the drawer. When a

certain filling level has been reached, no further ice cubes are

produced. The IceMaker does not fill the drawer right up to the

brim.

If large quantities of ice cubes are needed, the complete

IceMaker drawer can be exchanged for the adjacent drawer.

When the drawer is closed, the IceMaker automatically re-

commences production.

Once the IceMaker has been switched on for the first time, it may

take up to 24 hours until the first ice cubes are produced.

Note

When the appliance is used for the first time or if has not been

used for a long time, the IceMaker has to be rinsed to remove any

particles present.

uTherefore do not use or consume the ice cubes made in the

first 24 hours.

Control

10

6 Maintenance

6.1 Defrosting with NoFrost

The NoFrost system automatically defrosts the appliance.

Refrigerator compartment:

The defrost water evaporates due to the compressor heat. Drops

of water on the rear wall are perfectly normal.

uRegularly clean the drain opening to allow the water to flow

away (see 6.2) .

Freezer compartment:

The moisture condenses on the evaporator, is periodically

defrosted and evaporates.

uThe appliance does not have to be manually defrosted.

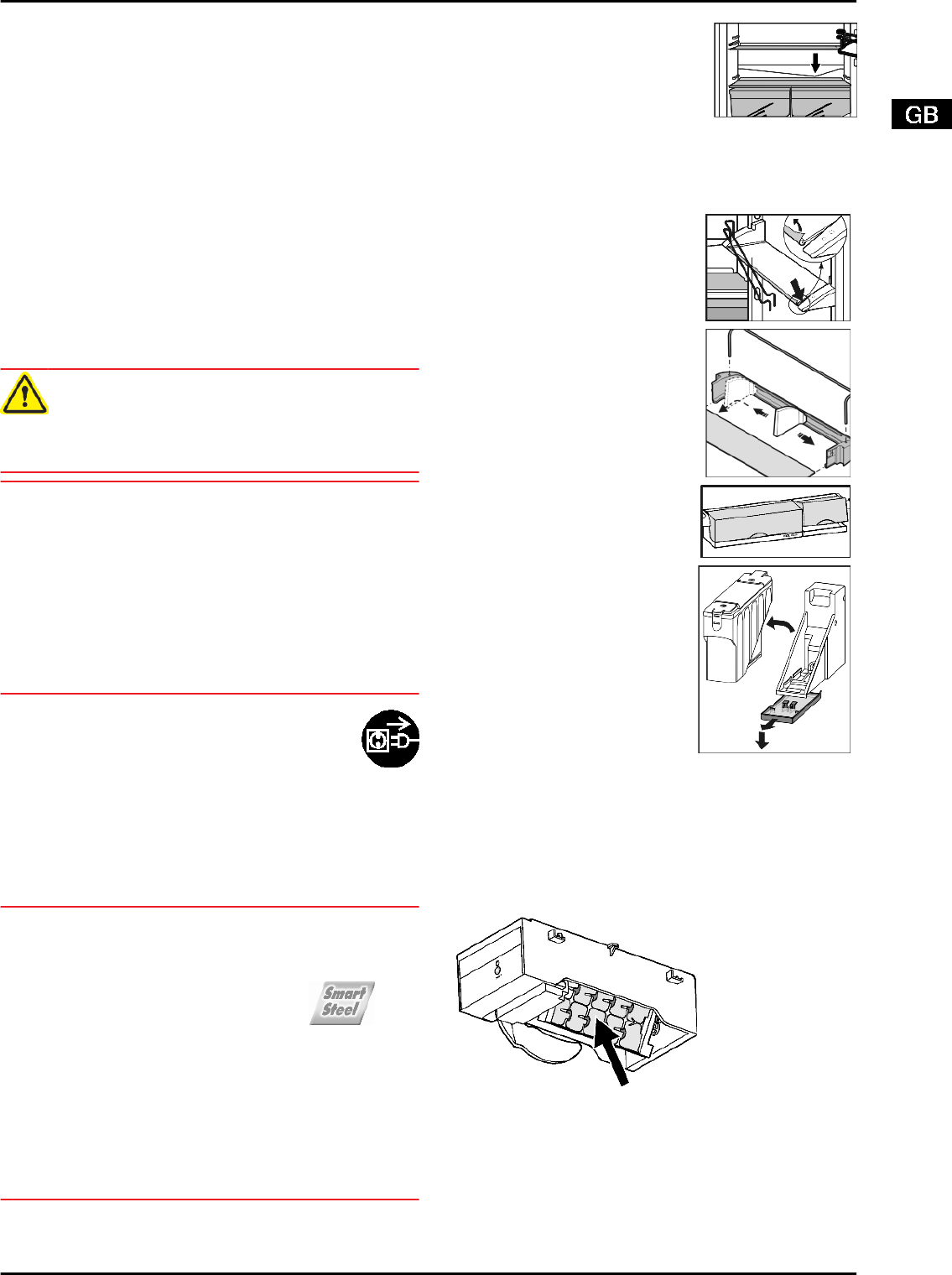

6.2 Cleaning the appliance

Before cleaning:

CAUTION

Risk of injury and damage as a result of hot steam!

Hot steam may damage the surfaces and cause burns.

uDo not use any steam cleaners!

NOTICE

Incorrect cleaning damages the appliance!

uDo not use cleaning agents in concentrated form.

uDo not use any scouring or abrasive sponges or steel wool.

uDo not use any cleaning agents containing sand, chloride,

chemicals or acid.

uDo not use chemical solvents.

uDo not damage or remove the type plate on the inside of the

appliance. It is important for the customer service.

uDo not pull off, bend or damage cables or other components.

uDo not allow any cleaning water to enter the drain channel,

ventilation grille or electrical parts.

uEmpty the appliance.

uPull out the plug.

- Use soft cleaning cloths and a multi-purpose

cleaning agent with neutral pH value.

- Only use food compatible cleaning and care agents

on the inside of the appliance.

uRegularly clean ventilation grilles.

wDust deposits increase energy consumption.

Outside surfaces and interior:

uClean the plastic surfaces, outside and inside, by hand using

lukewarm water and a little washing-up liquid.

NOTICE*

The stainless steel doors are provided with a high-quality surface

coating and must not be treated using the accompanying care

product.

Otherwise the surface coating will be affected.

uWipe the coated door surfaces using a soft, clean cloth only.

In case of stubborn dirt, use a little water or a neutral cleaning

agent. A microfibre cloth can be optionally used.

uIf the stainless steel side walls are dirty, clean them using

a commercially available stainless steel cleaning agent. Then

evenly apply the accompanying stainless steel care product,

making strokes in the direction of the grain.

uWipe side walls with a paint finish using a soft, clean cloth

only. In case of stubborn dirt, use a little water or a neutral

cleaning agent. A microfibre cloth can be optionally used.

uTo clean the drain opening: remove

any deposits with a fine instrument,

e.g. a cotton bud.

Items of equipment:

uClean items of equipment by hand with lukewarm water and

a little washing-up liquid.

uFor cleaning, remove the support rails for the half-sized glass

shelves.

*

uTo dismantle the shelves: remove

the trims and side parts.*

uTo dismantle the storage rack:

remove the protective film from the

decorative trims.*

*

uLift out the boxes and lift the covers

for removal.*

*

uTo empty the water collecting tray:

Remove the water tank. Carefully

disengage the tray forwards and

then lower for removal.*

*

After cleaning:

uWipe dry the appliance and items of equipment.

uConnect the appliance and switch it on again.

uSwitch on SuperFrost (see 5.4.4) .

When the temperature is sufficiently cold:

uPut the food back inside.

6.3 Cleaning the IceMaker*

Fig. 13

The IceMaker has to be switched on.

uPull out the drawer and remove the ice cubes.

uClean the drawer with warm water and mild washing-up liquid.

uWhen the drawer is pulled out, hold down the On/Off button

(about 10 seconds).

wAfter about 1 s the LED goes out, the IceMaker is switched off.

wAfter about 10 s the LED flashes for about 60 s.

uSlide in the drawer while the LED is flashing.

wThe ice-cube tray of the IceMaker turns to a skew position.

Maintenance

11

uRemove the drawer.

uClean the ice cube tray with warm water. If necessary, use mild

washing-up liquid. Then rinse.

Switch the IceMaker on again.

uPress the ON/OFF button until the LED shines, then slide in

the drawer.

wThe IceMaker starts producing ice cubes.

If washing-up liquid was used:

uthrow away the first three loads of ice cubes to get rid of any

remaining washing-up liquid.

6.4 Changing the interior light with bulb

Bulb data

max. 25 W

Fitting: E14

Type of current and voltage must conform with the details on

the type plate

uSwitch off the appliance.

uPull out the power plug or

switch off the fuse.

uTake holder of the cover

Fig. 14 (1)

at the front and

unhook it at the back.

uChange the bulb

Fig. 14 (2)

.

uPut the cover

Fig. 14 (1)

back in place.

Fig. 14

6.5 Customer service

First check whether you can correct the fault yourself by refer-

ence to the list (see Malfunction). If this is not the case, please

contact the customer service whose address is given in the

enclosed customer service list.

WARNING

Risk of injury if repair work is not carried out professionally!

uHave any repairs to and intervention in the appliance and

mains power cable, which are not expressly mentioned in the

(see Maintenance) carried out by the customer service only.

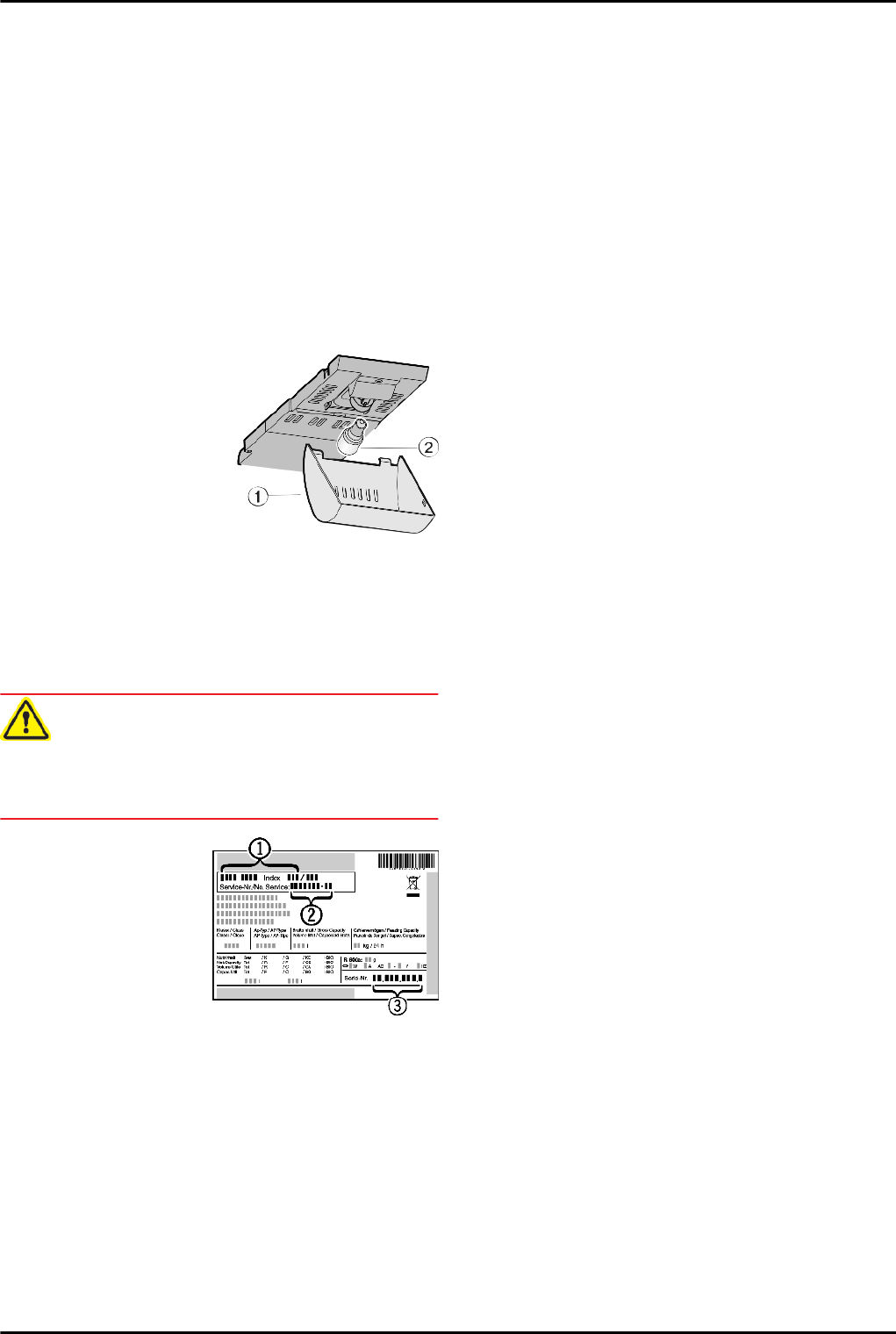

uRead the appliance

designation

Fig. 15 (1)

, service

No.

Fig. 15 (2)

and

serial No.

Fig. 15 (3)

off

the type plate located

inside the appliance

on the left-hand side.

Fig. 15

uNotify the customer service, specifying the fault, appliance

designation

Fig. 15 (1)

, service No.

Fig. 15 (2)

and serial No.

Fig. 15 (3)

.

wThis will help us to provide you with a faster and more accurate

service.

uKeep the appliance closed until the customer service arrives.

wThe food will stay cool longer.

uPull out the mains plug (not by pulling the connecting cable)

or switch off the fuse.

7 Malfunction

Your appliance is designed and manufactured for a long life span

and reliable operation. If a malfunction nonetheless occurs

during operation, check whether it is due to a handling error. In

this case you will have to be charged for the costs incurred, even

during the warranty period. You may be able to rectify the

following faults yourself:

Appliance does not work.

→The appliance is not switched on.

uSwitch on the appliance.

→The power plug is not properly inserted in the wall socket.

uCheck power plug.

→The fuse of the wall socket is not in order.

uCheck fuse.

The compressor runs for a long time.

→The compressor switches to a low speed when little cold is

needed. Although the running time is increased as a result,

energy is saved.

uThis is normal in energy-saving models.

→SuperFrost is activated.

uThe compressor runs for longer in order to rapidly cool the

food. This is normal.

Excessive noise.

→Speed-controlled* compressors may produce varying

running noise due to different speed steps.

uThe sound is normal.

A bubbling and gurgling noise.

→This noise comes from the refrigerant flowing in the refriger-

ation circuit.

uThe sound is normal.

A quiet clicking noise.

→The noise is produced whenever the refrigeration unit (motor)

automatically switches on or off.

uThe sound is normal.

A hum. It is briefly a little louder when the refrigeration unit

(the motor) switches on.

→The refrigeration increases automatically when the Super-

Frost, function is activated, fresh food has just been placed

in the appliance or the door has been left open for a while.

uThe sound is normal.

→The ambient temperature is too high.

uSolution: (see 1.2)

A low hum.

→The sound is produced by air flow noise of the fan.

uThe sound is normal.

Vibratory noise.

→The appliance is not standing firmly on the floor. As a result,

adjoining units or objects are set into vibration by the running

refrigeration unit.

uMove the appliance away a little and align it using the adjust-

able feet.

uMove bottles and containers apart.

Hum of the water tank pump.*

→When water is pumped out of the water reservoir, a brief hum

of the pump can be heard.

uThe sound is normal.

The SuperFrost button flashes together with the tempera-

ture display.

→There is a fault.

uContact the customer service. (see Maintenance).

The IceMaker cannot be switched on. *

→The appliance and therefore the IceMaker are not connected.

uConnect the appliance. (see Putting into operation).

The IceMaker does not make any ice cubes.*

→The IceMaker is not switched on.

uSwitch on the IceMaker.

→The drawer of the IceMaker is not properly closed.

uClose the drawer properly.

→The water tank is not correctly inserted.

Malfunction

12

uInsert the water tank.

→There is not enough water in the water tank.

uFill the water tank.

The LED of the IceMaker flashes.*

→There is not enough water in the water tank.

uFill the water tank.

→If the LED flashes and the water tank is full, the IceMaker is

defective.

uContact the customer service. (see Maintenance).

The temperature is not cold enough.

→The door of the appliance is not properly closed.

uClose the door of the appliance.

→Insufficient ventilation.

uClear ventilation grilles.

→The ambient temperature is too high.

uSolution: (see 1.2) .

→The appliance was opened too frequently or for too long.

uWait until the appliance reaches the required temperature

itself. If not, contact the customer service. (see Mainte-

nance).

→Too much fresh food was placed inside without SuperFrost.

uSolution: (see 5.4.4)

→The appliance is too close to a heat source.

uSolution: (see Putting into operation).

The interior light is not on.

→The appliance is not switched on.

uSwitch on the appliance.

→The door was open longer than 15 min.

uThe interior light automatically switches off if the door has

been open for about 15 min.

→If the interior light is not on but the temperature display is lit,

the bulb is faulty.

uChange the bulb. (see Maintenance).

8 Decommissioning

8.1 Switching off the appliance

Note

uTo switch on the entire appliance it is necessary only to switch

off the freezer compartment. In so doing, the refrigerator

compartment is automatically switched off as well.

8.1.1 Switching off the freezer compartment

uPress ON/OFF button, freezer compartment

Fig. 3 (9)

for at

least 3 seconds.

wThe temperature displays are dark. The entire appliance is

switched off.

8.1.2 Switching off the refrigerator compart-

ment

uPress ON/OFF button, refrigerator compartment

Fig. 3 (1)

for

at least 3 seconds.

wThe interior light is off.

wThe temperature display of the refrigerator compartment is

dark.

Note

uIf only the refrigerator compartment is to be switched off, e.g

during holidays, then always pay attention: the freezer

compartment temperature display has to shine.

8.2 Taking the appliance out of service

uEmpty the appliance.

uPut the IceMaker in the cleaning position (see Mainte-

nance).

uPull out the power plug.

uClean the appliance (see 6.2) .

uLeave the door open to prevent odour.

9 Disposing of the appliance

The appliance contains some reusable materials

and should be disposed of properly - not simply with

unsorted household refuse. Appliances which are no

longer needed must be disposed of in a professional

and appropriate way, in accordance with the current

local regulations and laws.

When disposing of the appliance, ensure that the refrigeration

circuit is not damaged to prevent uncontrolled escape of the

refrigerant it contains (data on type plate) and oil.

uDisable the appliance.

uPull out the plug.

uCut through the connecting cable.

Decommissioning

13

Disposing of the appliance

14
