CS 1400

7082 663-00

Use and

Care Manual

For “NoFrost”combined

refrigerator-freezer

Contents Page

Safety ..................................................................... 3

Disposal of old appliance ................................. 3

Electrical safety ................................................ 3

Important safety information ............................ 4

Safety regulations ............................................ 5

Disposal of carton ............................................ 5

Features ................................................................. 6

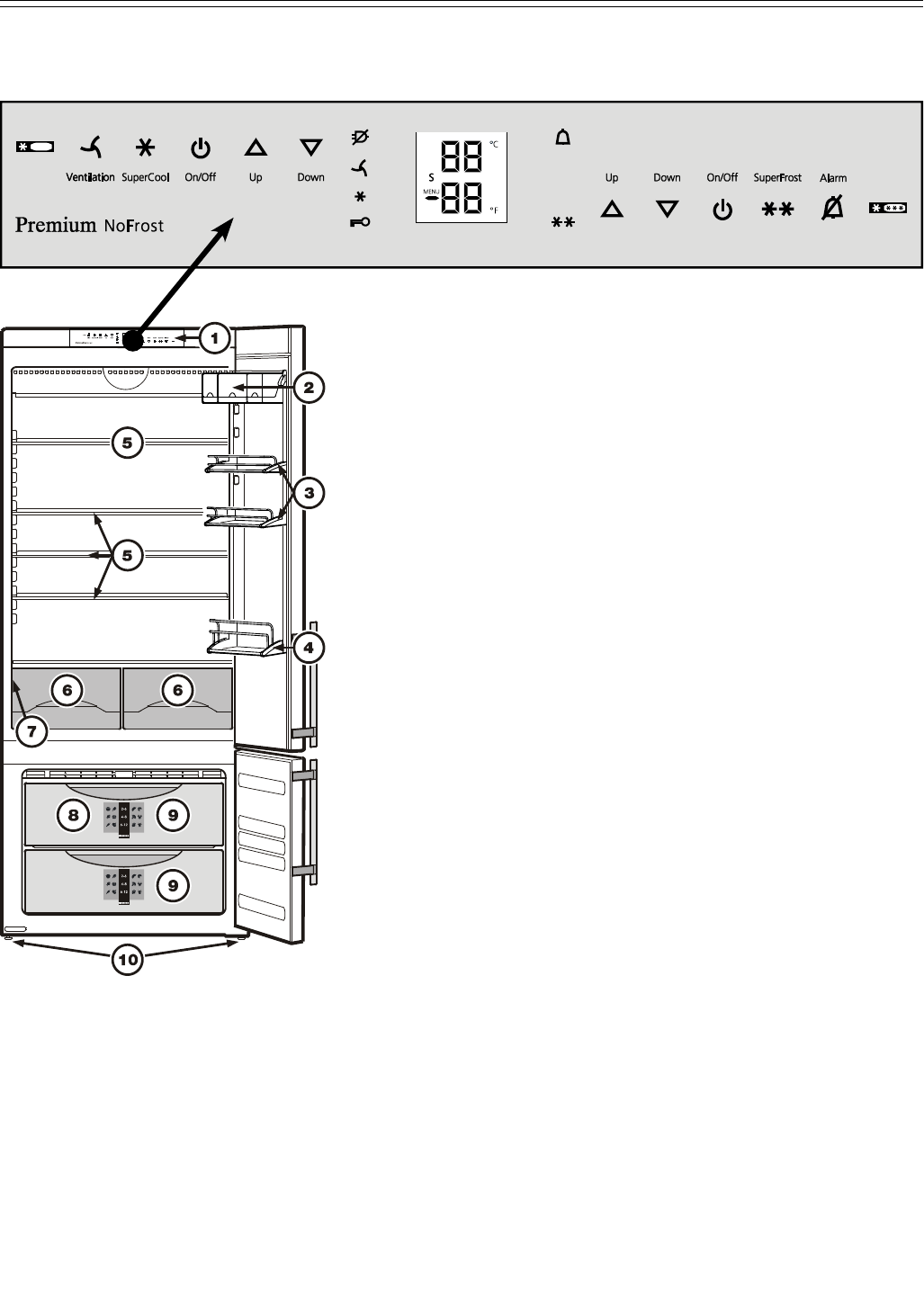

Description of appliance and equipment ........ 6

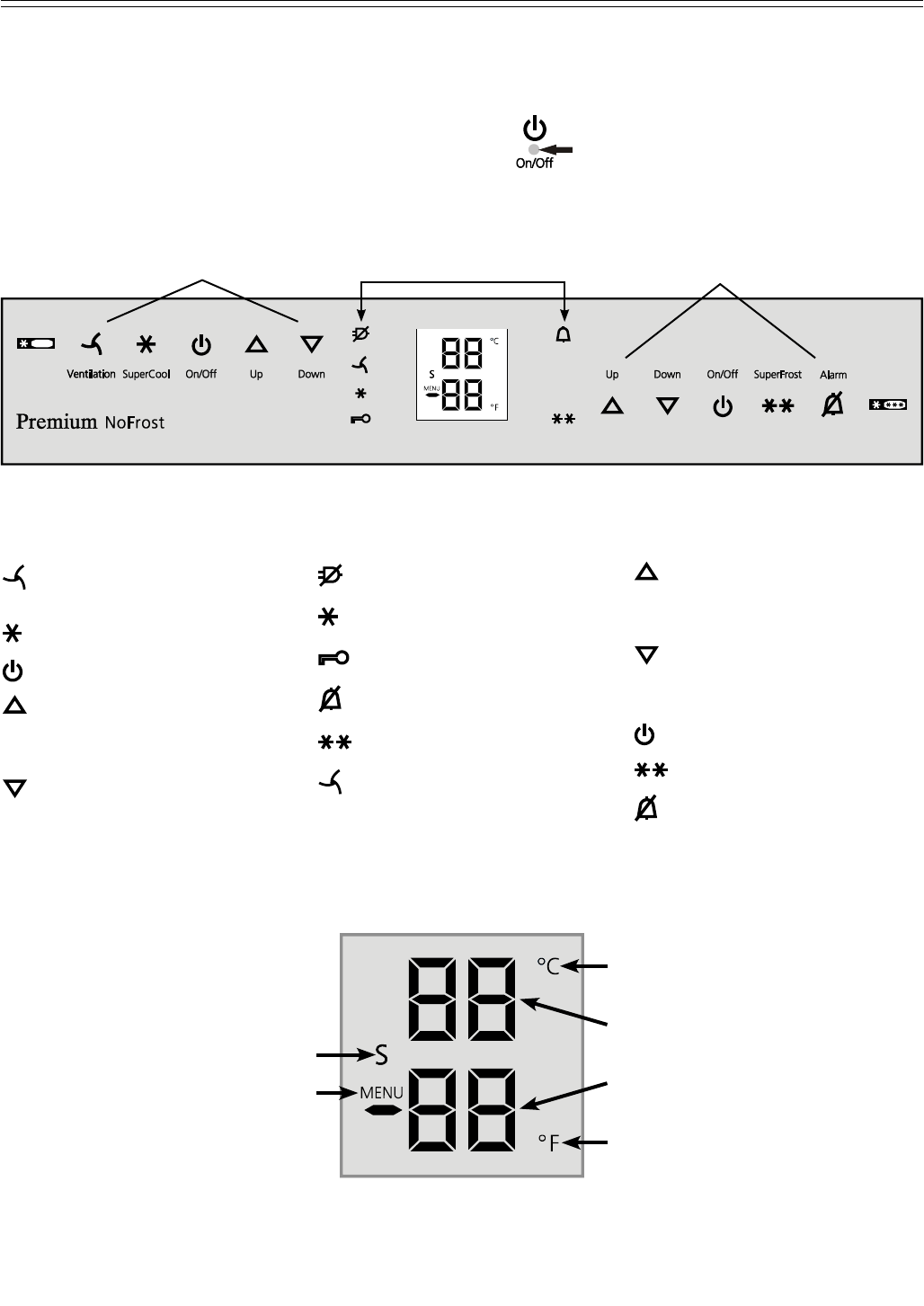

Operating and control elements ...................... 7

Operation................................................................ 8

Turning the appliance on and off ..................... 8

Setting the temperature ................................... 8

Temperature display ......................................... 9

Ventilation ......................................................... 9

Audible alarm signal ........................................ 9

Power failure/Frost-control display ................... 9

Supercooling .................................................. 10

Setup mode ............................................ 10 - 12

Refrigerator compartment .................................... 13

Arranging food................................................ 13

Equipment ...................................................... 13

Interior light .................................................... 15

Freezer compartment ........................................... 16

Freezing ......................................................... 16

Information system ........................................ 16

Freezing with Superfrost ................................. 16

Freezing and storage ..................................... 17

Cleaning ............................................................... 18

Defrosting/Vacation .............................................. 19

Defrosting ....................................................... 19

Vacation tips ................................................... 19

Troubleshooting .................................................... 20

Customer service ........................................... 21

Appliance information .................................... 21

Liebherr Warranty Plan ........................................ 22

IMPORTANT

All types and models are subject to continuous improvement. The manufacturer reserves the right to

make modifications in the shape, equipment and technology.

Table of ConTenTs

Additional benefits

• CFC-free

• Energy-optimized refrigerant circuit

• Energy-efficient insulation

• Low energy consumption

• User-friendly electronic controls

• Display of functions switched on

• Temperature can be controlled within climate rat-

ing range, regardless of room temperature

• Refrigerator and freezer compartments defrost

automatically - no need to spend time defrosting

• Big net refrigerator capacity

• Variable and practical features

• Safety-glass storage shelves

• Big net freezer capacity

• Freezer temperature increase alarm

• Audible door open alarm

• Power failure/“frost-control” display

• Fresh food can be fast-frozen as required

• All drawers suitable for fast freezing

• Integrated transport grips on appliance housing

• Transport castors

• Easy to clean

• This unit is certified as Sabbath compliant by the

Star-K organization thus allowing the appliance

to be used during religious holidays. For more

information please visit Star-K on the web at

www.star-k.org.

safeTy

Please read and follow these

instructions

These instructions contain Warning and Caution

statements. This information is important for safe

and efficient installation and operation.

Always read and follow all Warning and Caution

statements!

Danger indicates a hazard which

will cause serious injury or death if

precautions are not followed.

Warning indicates a potentially hazardous

situation which, if not avoided, could

result in death or serious injury.

Caution indicates a potentially hazardous

situation which, if not avoided, may result

in minor or moderate injury.

IMPORTANT

This highlights information that is especially

relevant to a problem-free installation and

operation.

Make sure incoming voltage is the same as the

appliance rating.

To reduce the risk of fire, electric shock, or

personal injury, installation work and electrical

wiring must be done by a qualified electrician

in accordance with all applicable codes and

standards, including fire-rated construction.

Disposal of Old Appliance

Risk of child entrapment. Before you

discard your old refrigerator or freezer:

• Be sure to follow your local require-

ments for disposal of appliances. Dis-

carded appliances can be dangerous.

• Remove the doors.

• Remove the freezer drawers.

• Leave the shelves in place so that

children may not easily climb inside.

• Cut off the power cable from the

discarded refrigerator. Discard

separately from the refrigerator.

Following these instructions reduces the

possibility of causing personal injury,

especially to children playing.

Contact the trash collection agency in

your area for additional information.

Electrical Safety

Connect this appliance to a 110-120 VAC, 15 amp

circuit that is controlled by a circuit breaker or

fuse. This appliance should have its own separate

grounded circuit. Do not use an extension cord.

The power cord is equipped with a three-prong

(grounding) plug for your protection against

possible shock hazards. To maintain this protection:

• Do not modify the plug by removing the round

grounding prong.

• Do not use a two-prong adapter. Where a two-

prong wall receptacle is encountered, contact

a qualified electrician and have it replaced with

a three-prong receptacle in accordance with all

local codes and ordinances.

• Do not use a power cord that is frayed or

damaged.

safeTy

• To prevent possible injury due to an electrical

shock, be sure to disconnect the power cord or

turn off the circuit breaker before cleaning the

appliance.

• To avoid injury or damage to the appliance, do

not use steam cleaning equipment to clean the

appliance.

• Do not operate the refrigerator in the presence

of explosive fumes.

• In the event of a power outage, minimize

opening the refrigerator door(s). Protect the food

either by placing dry ice on top of the packages

or using a local frozen food locker if the power

failure is of a long duration. Do not attempt to

re-freeze any previously frozen food that has

thawed.

• To avoid possible injury, only adjust an empty

shelf. Do not attempt to adjust a shelf with food

on it.

• To protect the refrigerator from possible damage,

allow the appliance to stand 1/2 to 1 hour in

place before turning the electricity on. This

allows the refrigerant and system lubrication to

reach equilibrium.

Important Safety Information

This appliance is intended for domestic use only.

Use the appliance only for its intended purpose,

the storage of food products. Follow the cautions

and safety warnings throughout this instruction

manual including the following:

• To prevent injury to you or damage to the unit,

the appliance should be unpacked and set up by

two people.

• If the appliance is damaged on delivery, contact

the supplier immediately before connecting to

the power source.

• To guarantee safe operation, ensure that the

appliance is set up and connected as described

in these operating instructions.

• Disconnect the appliance from the power source

if a fault occurs. Pull out the plug, turn off or

remove the fuse.

• When disconnecting the appliance, use the plug.

Do not pull on the cable.

• Any repairs and work on the appliance should

only be carried out by the customer service

department. Unauthorized work may be

dangerous to the user. Changing the power

source cable should only be done by the

customer service department.

• Do not eat ice cream, particularly ice cream

treats, or ice cubes, immediately from the

freezer compartment. There is a risk of “burning”

because of the very cold temperatures.

• Do not consume food which has been stored for

too long; it could cause food poisoning.

• The appliance is designed for cooling, freezing

and storage of food, and for making ice. It is

intended for domestic use.

• Do not store explosives or sprays using

combustible propellants such as butane,

propane, pentane, etc. in the appliance.

Electrical components might cause leaking gas

to ignite. You may identify such sprays by the

printed contents or a flame symbol.

• Do not use electrical appliances inside the

appliance.

• Do not allow children to play with the appliance.

Children must not climb, sit or stand on the

shelves, drawers or door.

safeTy

Avoid placing the appliance in direct sunlight or

near the stove, range top, radiators and similar heat

sources. Do not place microwave ovens, toaster

ovens or other heat-emitting appliances on top of

this unit.

The floor under the appliance should be flat and

level.

Keep the appliance out of the weather. The

ventilation grilles should not be obstructed. Always

ensure there is good ventilation all around the

appliance.

As soon as you uncrate the unit:

• Examine the unit and packaging for shipping

damage. Contact the carrier immediately if you

suspect there is any damage.

• Note the type (model number), index, serial

number, date of purchase and where purchased

on the spaces provided in the back of this

manual.

Disposal of Carton

The packaging is designed to protect the appliance

and individual components during moving and is

made of recyclable materials.

Keep packaging materials away from

children. Polythene sheets and bags can

cause suffocation!

• Please take the packaging material to your local

recycling facility.

Safety Regulations

The appliance complies with UL 250 / CSA C22.2

#63 and is designed to cool, freeze and store food

and to make ice (if equipped). It is designed as a

household appliance.

The appliance is set to operate within specific

ambient temperature limits according to its climate

rating. These temperature limits should not be

exceeded. The correct climate rating for your

appliance is indicated on the model plate.

This is explained as follows:

Climate

Rating Set for Ambient Temperatures of

SN 50°F to 90°F (10°C to 32°C)

N 61°F to 90°F (16°C to 32°C)

ST 61°F to 100°F (16°C to 38°C)

SN-ST 50°F to 100°F (10°C to 38°C)

SN-T 50°F to 109°F (10°C to 43°C)

T 61°F to 109°F (16°C to 43°C)

We recommend cleaning the appliance before

turning it on for the first time. See Cleaning. Turn

on the appliance several hours before loading

it with frozen food for the first time. Do not load

with frozen food until the temperature shows

approximately 0°F (-18°C).

Do not allow children to play with the

appliance. Children must not climb, sit

or stand on the freezer drawers. Failure

to follow these instructions may result in

death or serious injury.

To avoid risk of personal injury or property

damage, have two people unpack and

move this appliance into place.

Protect the finished floor surface before

you uncrate the unit.

feaTures

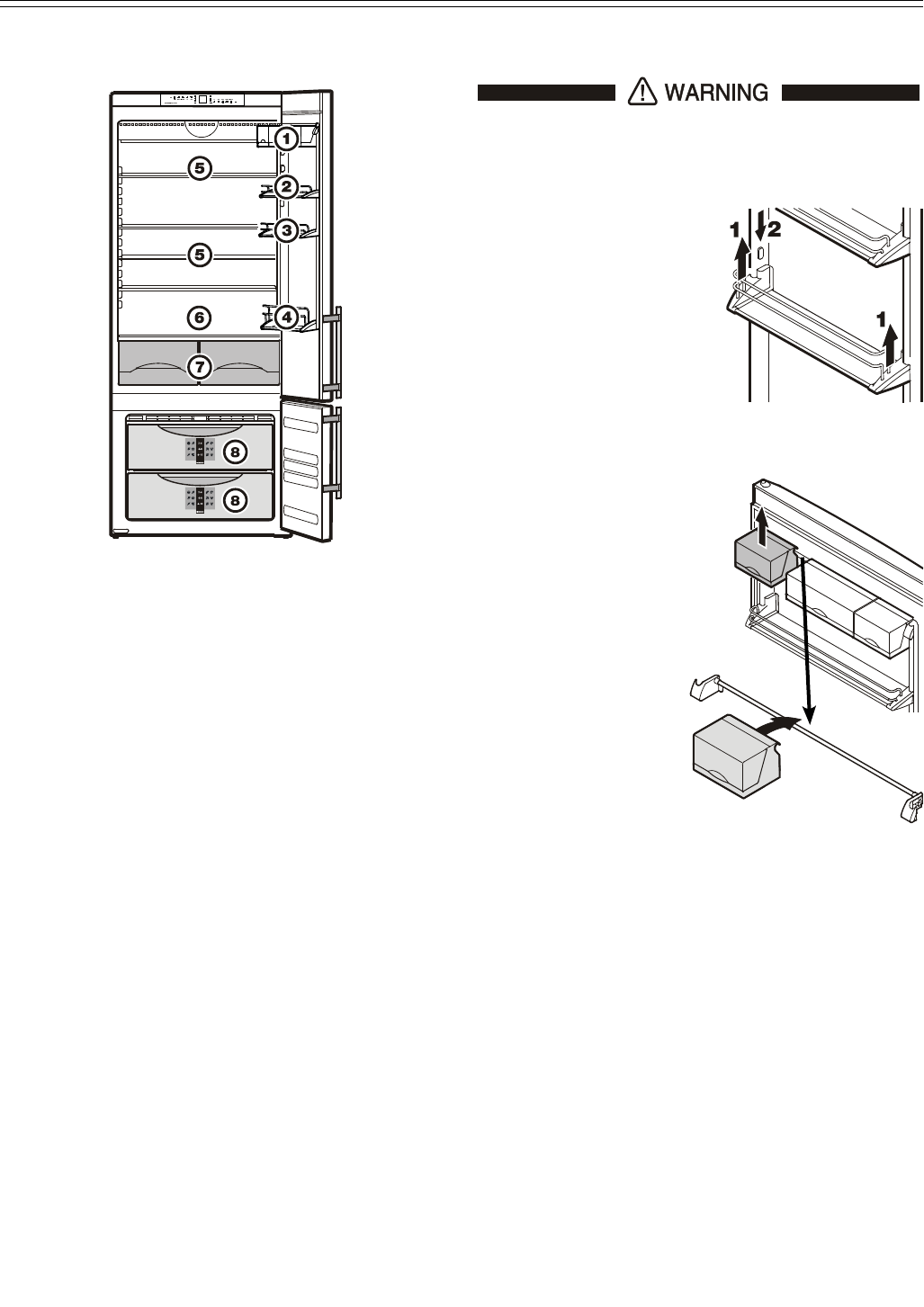

Description of refrigerator

(1) Operating and control elements

(2) Butter and cheese compartment - Vario box

(3) Adjustable door racks

(4) Gallon rack

(5) Adjustable shelves

(6) Vegetable drawers

(7) Model plate (behind the vegetable drawer on the left hand

side)

Description of freezer

(8) Freezer drawers

(9) Information system

(10) Adjustable-height feet

Figure 1

Description of Appliance and Equipment - Figure 1

feaTures

Freezer operating icons

Temperature Up control (to

increase the freezer tem-

perature)

Temperature Down control

(to reduce the freezer tem-

perature)

Freezer On/Off

Superfrost

Alarm mute (refrigerator and

freezer)

Figure 6

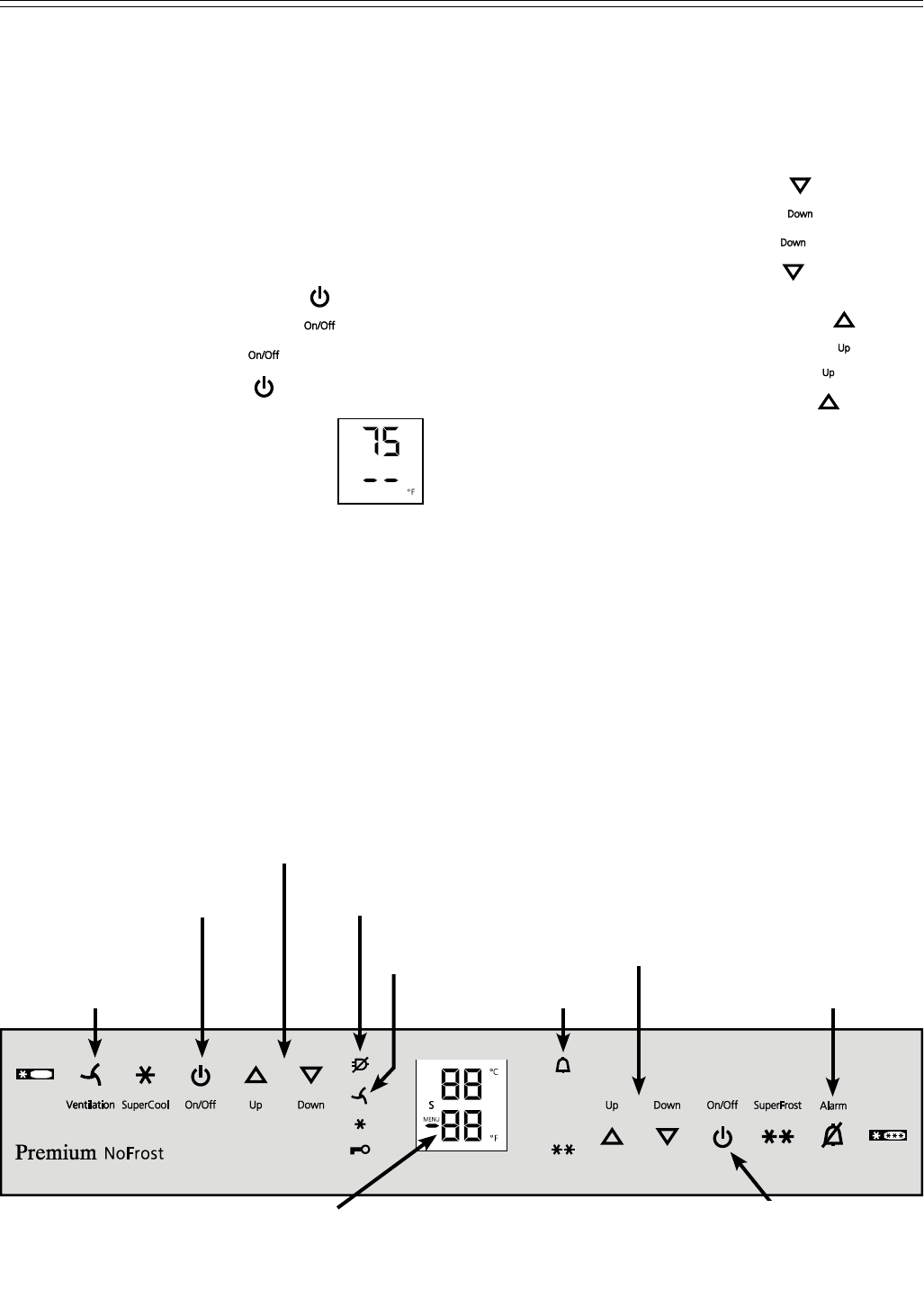

Operating and Control Elements - Figure 2, Figure 3

The electronic control panel has the new “Touch capacitance technology”. Any function can be activated

by a fingertip on the symbol of the operating icons.

The exact contact point is between the symbol and its label

Refrigerator

operating icons

Appliance

control icons

Refrigerator operating icons

Ventilation (circulation) On/

Off

Supercool

Refrigerator On/Off

Temperature Up control (to

increase the refrigerator

temperature)

Temperature Down control

(to reduce the refrigerator

temperature)

Freezer

operating icons

Temperature and control display

Figure 3

Display mode degrees Celsius

Display mode degrees Fahrenheit

Refrigerator temperature display

Freezer temperature display

Sabbath mode is activated

Menu mode is activated

(for setting additional functions)

Appliance control icons

Power failure LED

Supercooling LED

Child lock LED

Alarm LED

Superfrost LED

Ventilation ON LED

Turning the Appliance On and

Off - Figure 4

Clean the appliance before turning it on for the first

time. See Cleaning.

Do not place frozen food in the freezer until the

temperature shows at least 0°F / -18°C. The refrig-

erator and freezer compartments can be operated

separately.

1. Turning on:

Touch the Refrigerator On/Off icon

and the Freezer On/Off icon

so the Temperature Displays light up.

The interior light will turn on when the refrigerator

door is open.

2. Turning off: To turn off the refrigerator or

freezer, touch the corresponding On/Off icon for

approximately 3 seconds so the temperature dis-

play and interior lights go out.

Figure 4

operaTion

Setting the Temperature - Figure 4

The appliance is pre-set for normal operation. We

recommend temperatures of 38°F (3°C) in the

refrigerator and 0°F (-18°C) in the freezer.

To reduce the temperature:

Touch the DOWN icon on the left to

reduce the refrigerator temperature

and the DOWN icon on the right to

reduce the freezer temperature.

To increase the temperature:

Touch the UP icon on the left to increase

the refrigerator temperature

and on the right to increase the freezer

temperature.

1. While you are entering the temperature, the set

temperature will flash on the display.

2. When you touch the temperature setting icons

for the first time, the most recent setting is dis-

played.

3. You can change the settings in increments of

1°F (1°C) by briefly touching the icons again. If

the icons are held the temperature setting will

change faster.

4. Approximately five seconds after the icon has

been released, the display will automatically

show the actual freezing or cooling temperature.

5. You can change the temperatures:

• In the refrigerator – between 36°F and 44°F

(2°C and 7°C) and

• In the freezer – between -15°F and 6°F

(-26°C and -14°C).

Refrigerator On/Off icon

Freezer On/Off icon

Temperature control icons - Refrigerator

Temperature control icons - Freezer

Alarm icon

Alarm LED

Freezer temperature display

Power failure LED

Ventilation icon

Ventilation LED

operaTion

Temperature Display - Figure 4

In normal operation, the following settings will be

displayed:

• the average refrigerator temperature

• the warmest frozen food temperature.

When starting up for the first time or

when the appliance is warm, dashes

will appear in the freezer temperature

display, until the temperature in the

freezer compartment is 32°F (0°C).

The display will flash:

• if you change the temperature or

• if the temperature rises by several degrees, indi-

cating cold loss, e.g. if you place fresh, “warm”

food in the freezer or if you remove or repack

frozen food, the temperature may rise for a short

time due to warm air flowing into the freezer.

• If “F1” to “F5” appears in the display, the appli-

ance has a fault. Have the fault number available

when you contact the customer service depart-

ment.

Ventilation - Figure 4

The ventilation switch is used for re-circulated cool

air:

You can use the switch as required to:

• chill large quantities of fresh food fast.

• keep the temperature evenly distributed through-

out the entire refrigerator compartment. The air

will circulate more intensively, keeping all the

different areas in the compartment at the same

temperature and ensuring all the food inside is

chilled at the same temperature.

We recommended you use the ventilation fan if:

• room temperatures are too high (approximately

95°F [35°C] or higher).

• the air humidity is high, during high heat and

humidity.

Turning on: Touch the Ventilation icon briefly so the

LED turns on.

Turning off: Touch the Ventilation icon again until

the LED turns off.

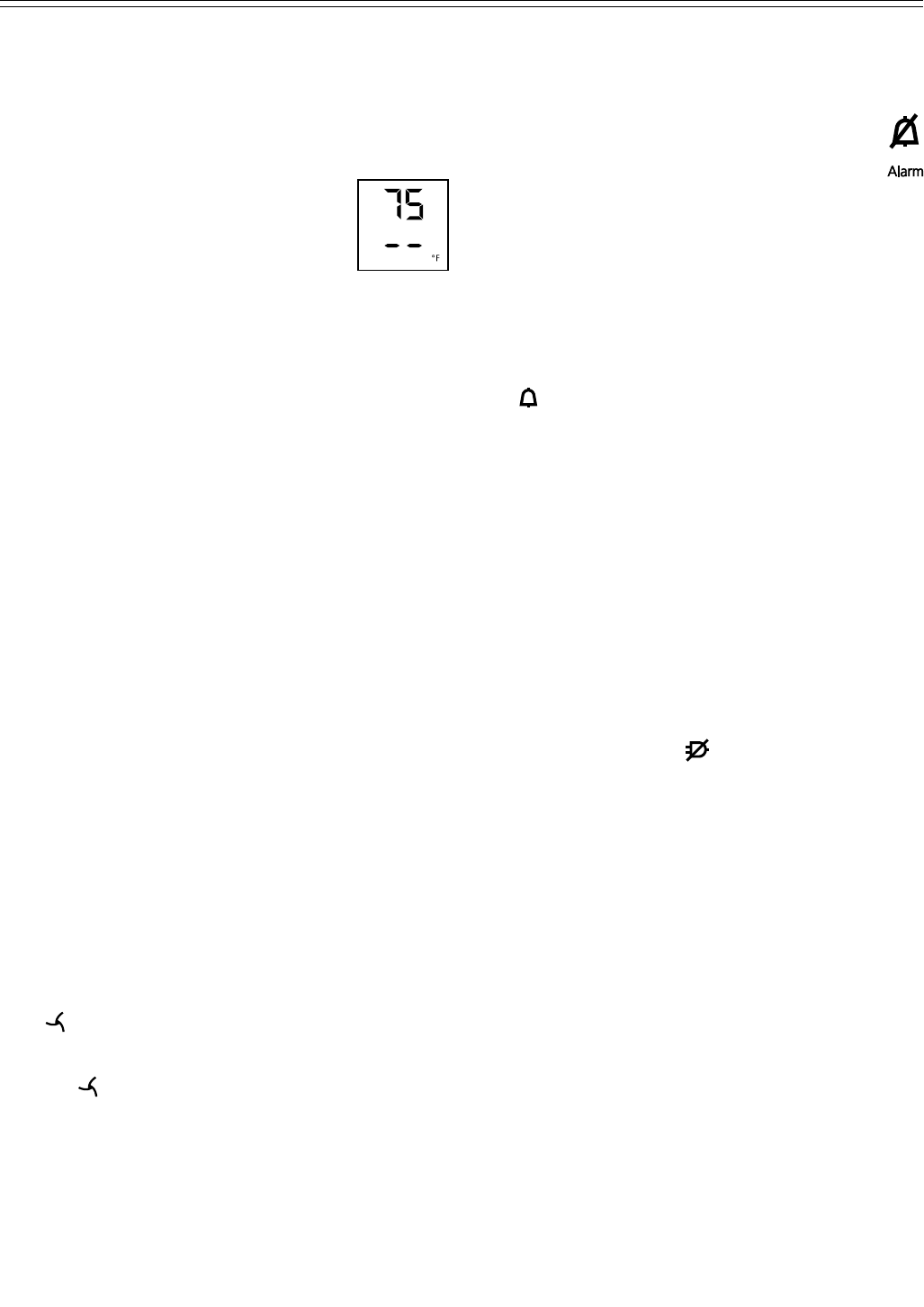

Audible Alarm Signal - Figure 4

The audible alarm signal helps to protect frozen

food and to save energy.

The audible alarm signal is switched off by

touching the alarm icon.

Audible door alarm

This sounds when the door has been left open for

longer than about 180 seconds. The sound switch-

off function is active as long as the door is left open.

The alarm automatically switches back to standby

when the door is shut.

Audible/visual temperature alarm

It always sounds if the freezer temperature is not

low enough. The temperature display and the alarm

LED ﬂashes at the same time.

This can be caused by:

- warm, fresh food being placed in the freezer;

- too much warm air from the outside entering

when re-arranging or removing frozen food,

- a fault in the appliance.

The temperature display will continue to ﬂash until

the cause of the alarm has been rectiﬁed. It will then

stop ﬂashing and light up continually. The audible

warning signal is now automatically reset.

Power Failure/Frost-Control

Display - Figure 4

If the power failure LED is lit, this means the

freezer temperature has risen too high during the

last few hours or days due to a power failure. The

freezer temperature display flashes at the same

time.

• If you touch the Alarm icon now, the highest

temperature registered during the power failure

will be displayed.

• Check the quality of the food in case it has

become too warm or even defrosted.

• The highest temperature will appear for

approximately one minute. After that, the actual

temperature in the freezer will reappear.

The display can be turned off by touching the

Alarm icon again.

operaTion

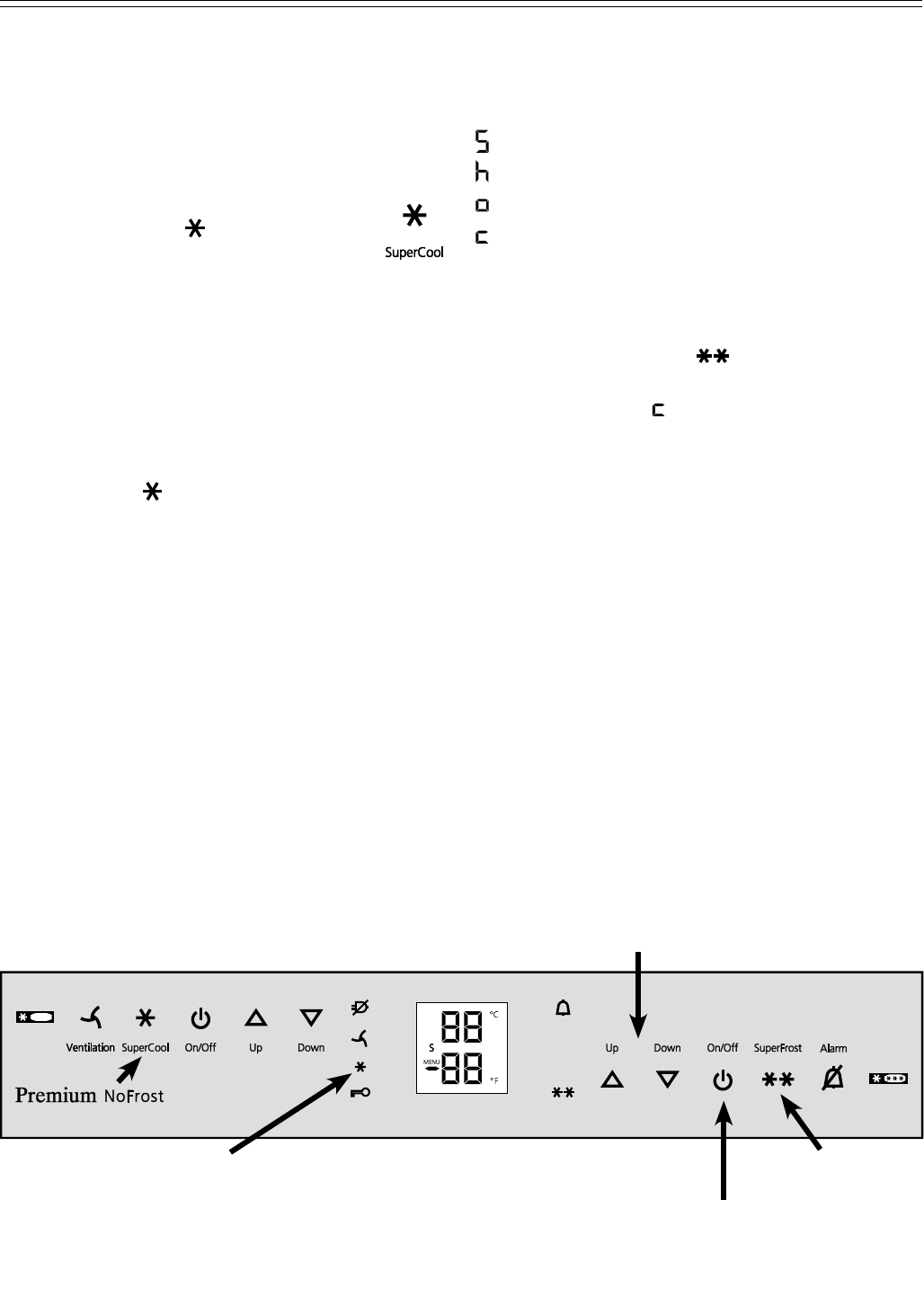

Supercool - Figure 5

Touching the Supercool icon switches the

refrigerator compartment to maximum cooling. It is

recommended particularly if you wish to cool large

quantities of food, drinks, freshly baked goods or

meals rapidly.

• Turning on: Touch the Supercool icon

briefly so the LED turns on. The

refrigerator temperature will drop to its

lowest value.

IMPORTANT

The Supercool function uses slightly more

energy. After approximately six hours,

however, the refrigerator switches back

automatically to normal energy-saving

operation. If required, the Supercooling

function can be turned off sooner.

• Turning off: Touch the Supercool icon again

until the LED turns off.

Figure 5

Supercool icon

Supercool LED Superfrost icon

Freezer compartment Up/Down icons

Freezer compartment On/Off icon

Setup Mode - Figure 5

In the setup mode you can activate the following

functions:

= Sabbath mode

= Display brightness

= Temperature display mode

= Child lock

How to activate the setup mode:

• Touch the Superfrost icon for approximately five

seconds

- the Superfrost LED turns on for 5 sec-

onds

- after 5 seconds will flash in the display.

The appliance is in the setup mode now.

You can select the setup mode functions by

touching the freezer compartment Up/Down icons.

Note

In the setup mode the display will flash continu-

ously.

Exit setup mode:

• Touch the freezer compartment On/Off icon. The

appliance will change back to normal operation.

operaTion

= Sabbath Mode

This feature considers the Religious requirements

on Sabbath or Holidays. When the Sabbath Mode

is active some functions of the electronic controls

are switched off.

The door can be opened and closed at any time.

• The lighting remains off.

• The cooling fan remains in its actual state: If it is

on it remains on, if it is off it remains off.

• There is no door alarm.

• There is no temperature alarm.

• Defrost cycles are independent of the number of

times and length of door openings.

• The unit will return into Sabbath Mode after a

power failure.

How to activate the Sabbath Mode

• Activate the setup mode by touching the

Superfrost icon for 5 seconds.

- the display shows

• Touch the Superfrost icon

- the display shows

• Touch the Superfrost icon again

- the display shows

- the Sabbath mode is activated.

• Exit setup mode by touching the

freezer compartment On/Off icon.

How to deactivate the Sabbath Mode

• Activate the setup mode by touching the

Superfrost icon for 5 seconds.

- the display shows

• Touch the Superfrost icon

- the display shows

• Touch the Superfrost icon again

- the S symbol

in the Display disappears,

the Sabbath mode is deactivated.

• Exit setup mode by touching the

freezer compartment On/Off icon.

= Display brightness

How to adjust the display brightness

• Activate the setup mode by touching the

Superfrost icon for 5 seconds.

• Touch the freezer compartment Down icon until

appears in the freezer temperature display.

• Touch the Superfrost icon

- the display shows

• Touch freezer compartment

Up/Down icons to select

0 = minimum to

5 = maximum brightness

• Touch the Superfrost icon at the desired value.

• Exit setup mode by touching the freezer

compartment On/Off icon.

= Temperature display mode

You can choose the unit of temperature for the

display in degrees Fahrenheit or degrees Celsius.

Note

The factory setting is degrees Fahrenheit.

How to change the temperature display to

degrees Celsius

• Activate the setup mode by touching the

Superfrost icon for 5 seconds.

• Touch the freezer compartment Down icon

until appears in the freezer temperature dis-

play.

• Touch the Superfrost icon

- the display shows

• Touch the Superfrost icon again

- the temperature reading is now displayed in

degree Celsius.

• Exit setup mode by touching the freezer

compartment On/Off icon.

Note

To change the temperature display back to degrees

Fahrenheit, follow the steps above.

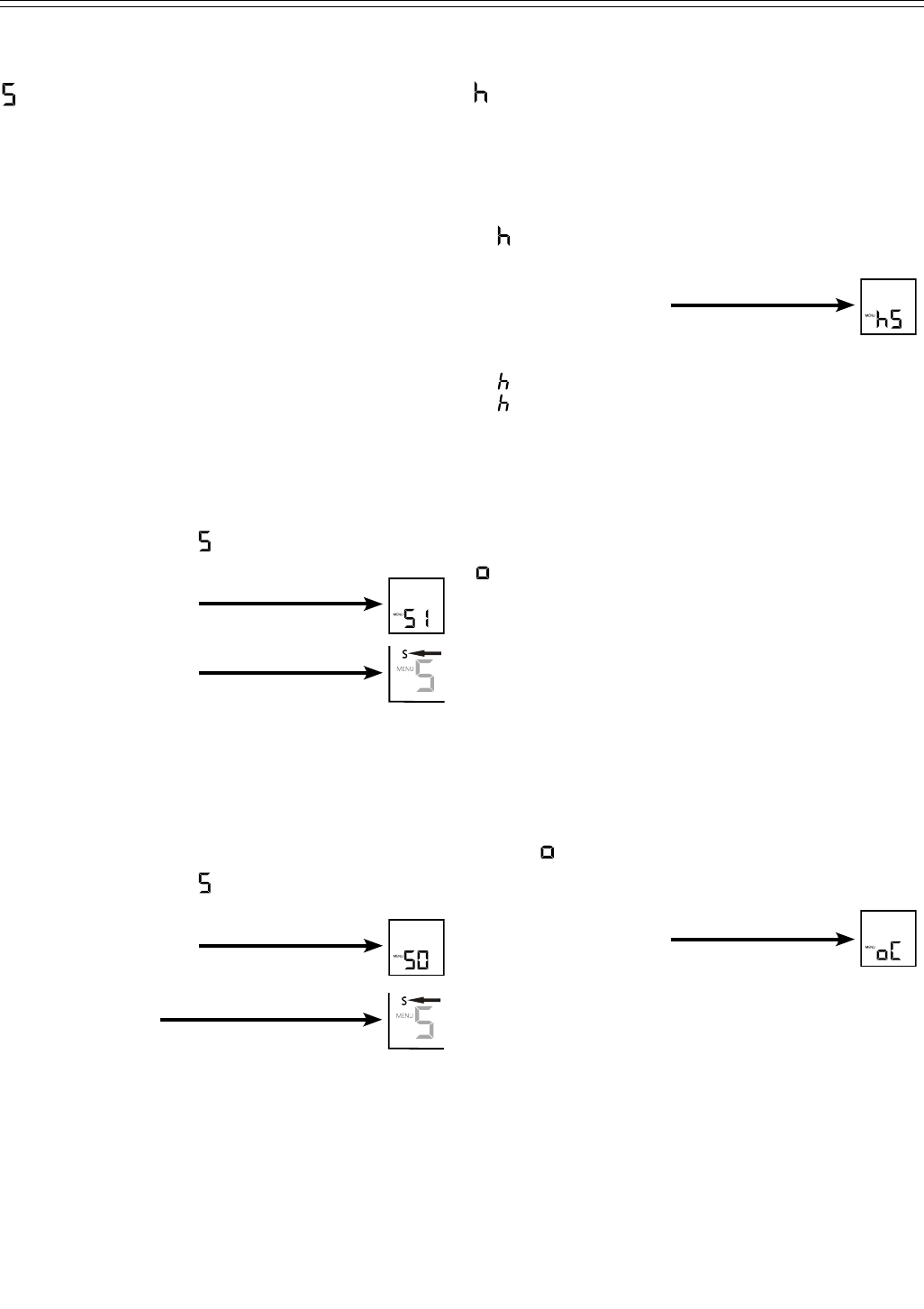

Setup Mode - Figure 6

= Child lock

The child lock is designed to protect the appliance

from being turned OFF accidentally.

How to activate the child lock

• Activate the setup mode by touching the

Superfrost icon for 5 seconds

• Touch the freezer compartment Down icon

until appears in the freezer temperature dis-

play.

• Touch the Superfrost icon

- the display shows

• Touch the Superfrost icon again

- the LED is lit and the child lock is activated.

• Exit setup mode by touching the freezer

compartment On/Off icon.

How to deactivate the child lock

• Activate the setup mode by touching the

Superfrost icon for 5 seconds.

• Touch the freezer compartment Down icon

until appears in the freezer temperature dis-

play.

• Touch the Superfrost icon

- the display shows

• Touch the Superfrost icon again

- the LED goes out. The child lock is deacti-

vated.

• Exit setup mode by touching the freezer

compartment On/Off icon.

Figure 6

Superfrost icon

Freezer compartment Up/Down icons

Freezer compartment On/Off icon

operaTion

Freezer temperature display

Child lock LED

refrigeraTor ComparTmenT

Arranging Food - Figure 7

Figure 7

(1) Butter, cheese

(2) Eggs

(3) Cans, drinks

(4) Gallon containers, bottles

(5) Meat and sausage products, dairy products

(6) Baked goods, pre-cooked meals

(7) Fruit, vegetables, salad

(8) Frozen food

IMPORTANT

• Liquids and food which give off or absorb odors

and flavors should always be stored covered or

in closed containers.

• High-percentage alcohols should be tightly

sealed and stored upright.

• Fruit, vegetables and salad can be stored

unpacked in the bins.

Vario Box - Figure 9

The boxes can be removed

and placed on the table as a

single unit.

Re-positioning the boxes:

Lift them for removal and re-

position them as required.

The box support bar

can be removed by

lifting upwards and

inserted in another

position (e.g. swapped

with a door rack).

Important! Box lids

must be shut when you

close the door - risk of

damage.

Equipment

To avoid possible injury, only adjust an

empty shelf or door rack. Do not attempt to

adjust a shelf or door rack with food on it.

You can rearrange the

height of the shelves and

door racks as required.

Repositioning the door

racks - Figure 8

Slide the door rack up, pull

out toward you and replace

in reverse order.

Figure 8

Figure 9

refrigeraTor ComparTmenT

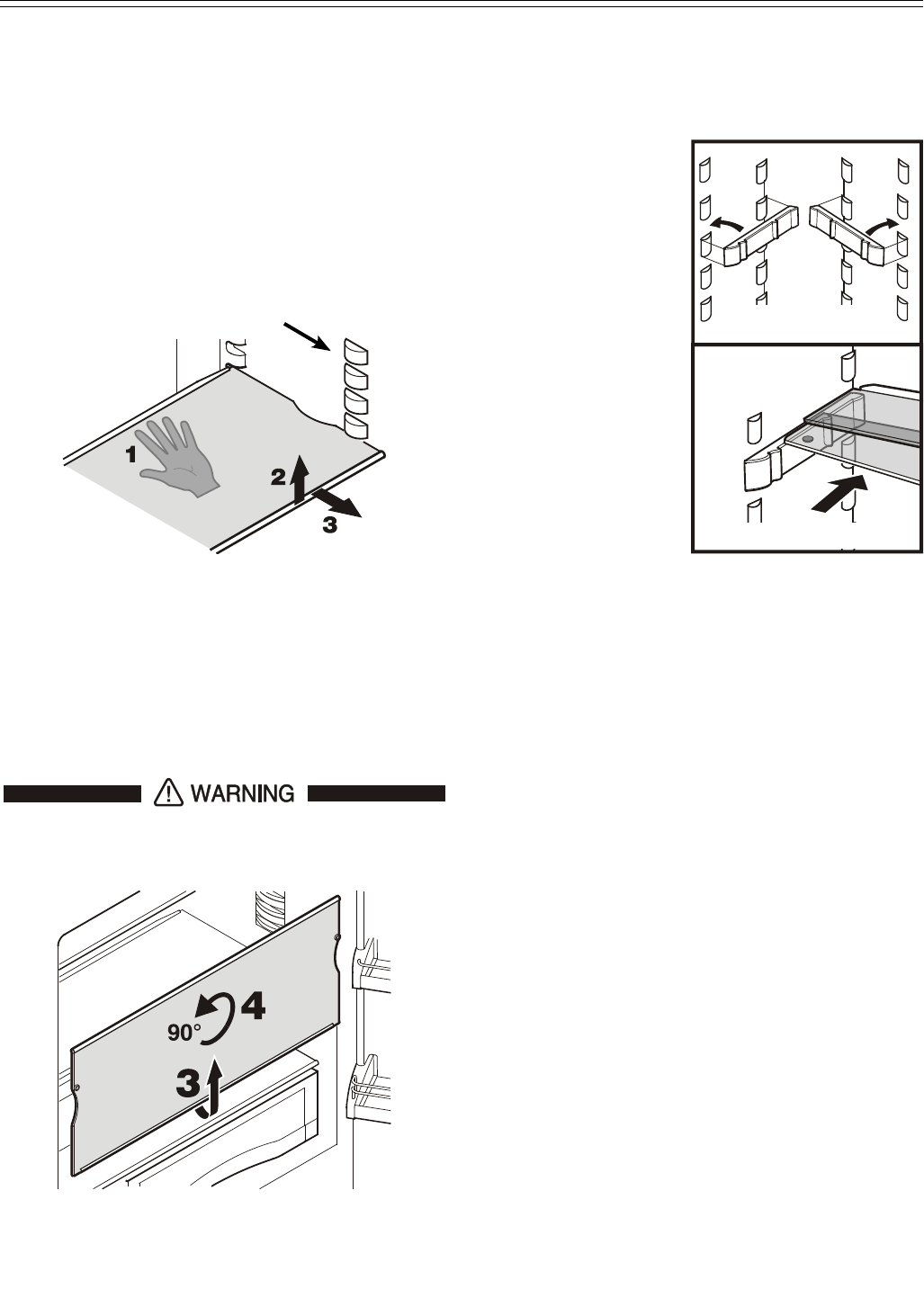

Removing the shelves - Figure 11

1. Follow the first three steps in the chapter above.

2. Lift the shelf down and stop just over the upper

vegetable bin.

3. Move the front of the shelf upwards until the

shelf is in a vertical position.

4. Turn the shelf counterclockwise and remove.

To avoid from falling down, always hold

the shelf with both hands when removing.

Figure 11

If you need space for large bottles and con-

tainers.

Place the shelf rails

provided on the sup-

ports on the left and

right at the desired

height - Figure 12.

Insert the glass shelves

as shown in fig. 13.

The glass shelf with the

raised edge must go at

the back.

If you need to make

space for tall contain-

ers, simply slide the

front half of the sec-

tioned glass shelf care-

fully underneath the

back half - Figure 13.

Figure 12

Figure 13

Repositioning the shelves - Figure 10

1. Hold the shelf underneath with your hand

to avoid from tipping down backwards when

removing.

2. Lift the shelf at the front.

3. Remove the shelf forward until the circular cutout

of the shelf is in line with the front supports.

4. Lift the shelf up or down and replace in the

desired position.

Figure 10

Front supports

refrigeraTor ComparTmenT

Figure 15

IMPORTANT

The glass plate must be inserted to the back

completely, otherwise it is not possible to click

the cover into place correctly.

Figure 14

Figure 16

Interior Light

This turns OFF automatically after the door has

been opened for approximately 15 minutes. If it

does not turn ON when the door is opened briefly,

but the temperature display is working, the bulb(s)

may be defective.

The light is located behind the cover located at the

top of the refrigerator compartment and has two

bulbs.

Bulb data:

125-130 V, Maximum wattage - 25 W

Bulb fitting - E14

Current and voltage must agree with details on the

model plate.

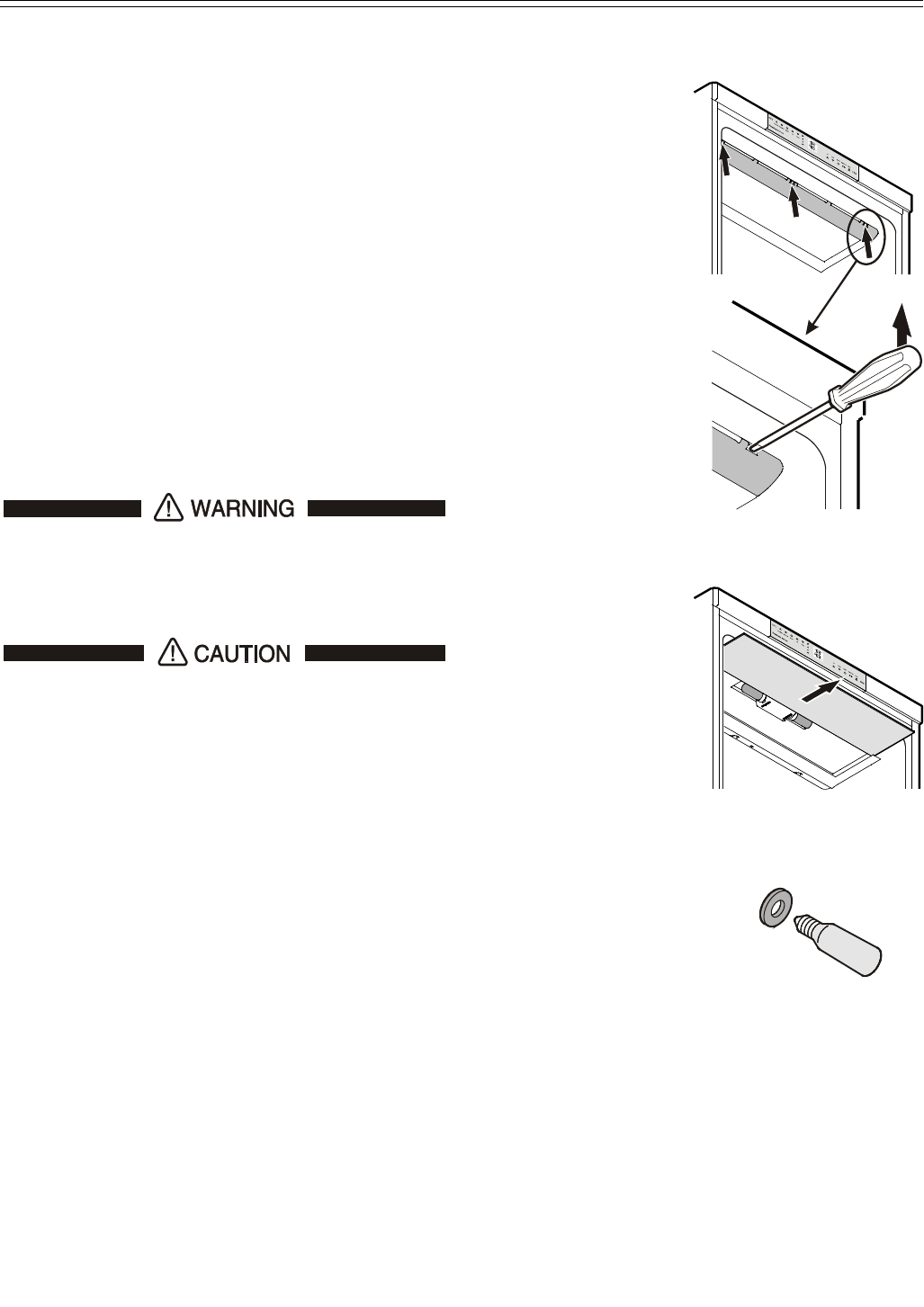

Replacing the bulb:

To prevent possible injury due to an elec-

trical shock, be sure to disconnect the

power cord or turn OFF the circuit breaker

before replacing the interior light bulb(s).

To prevent possible injury due to broken

glass, use hand protection when replacing

the interior light bulb(s).

2. Remove the glass

plate - Fig. 15.

1. Unlatch carefully the

cover at left, middle

and right using a

screwdriver - Fig. 14.

Remove the cover.

3. Remove the defective

bulb. Make sure the seal

(Fig. 16) is placed on the

new bulb before installing it.

4. Install glass plate and

cover.

freezer ComparTmenT

Freezing

Fresh food should be frozen completely and as rap-

idly as possible. This is provided by the Superfrost

feature and ensures that the nutritional value,

appearance and flavor of the food remains intact.

Freezing with Superfrost - Figure 18

• Touch the Superfrost icon briefly

so the LED turns on.

The freezer temperature will decrease and the

appliance will change to the lowest temperature.

• For small amounts of frozen food, it is normally

sufficient to turn on Superfrost six hours before-

hand. For the maximum amount (see freezing

capacity on the model plate) you will need to

turn it on 24 hours before.

• Then place the fresh food inside the freezer.

• The Superfrost function turns off automatically.

Depending on the quantity of food placed in the

freezer, this will normally be between 30 and

maximum of 65 hours.

The freezing process is now complete; the

Superfrost LED will turn off, and the freezer

will change back to normal energy-saving opera-

tion.

IMPORTANT

You should not turn on the Superfrost function:

• when placing frozen food in the freezer;

• when freezing up to approximately 4-1/2 lbs

(2 kg) fresh food daily.

Figure 18

Superfrost icon

Superfrost LED

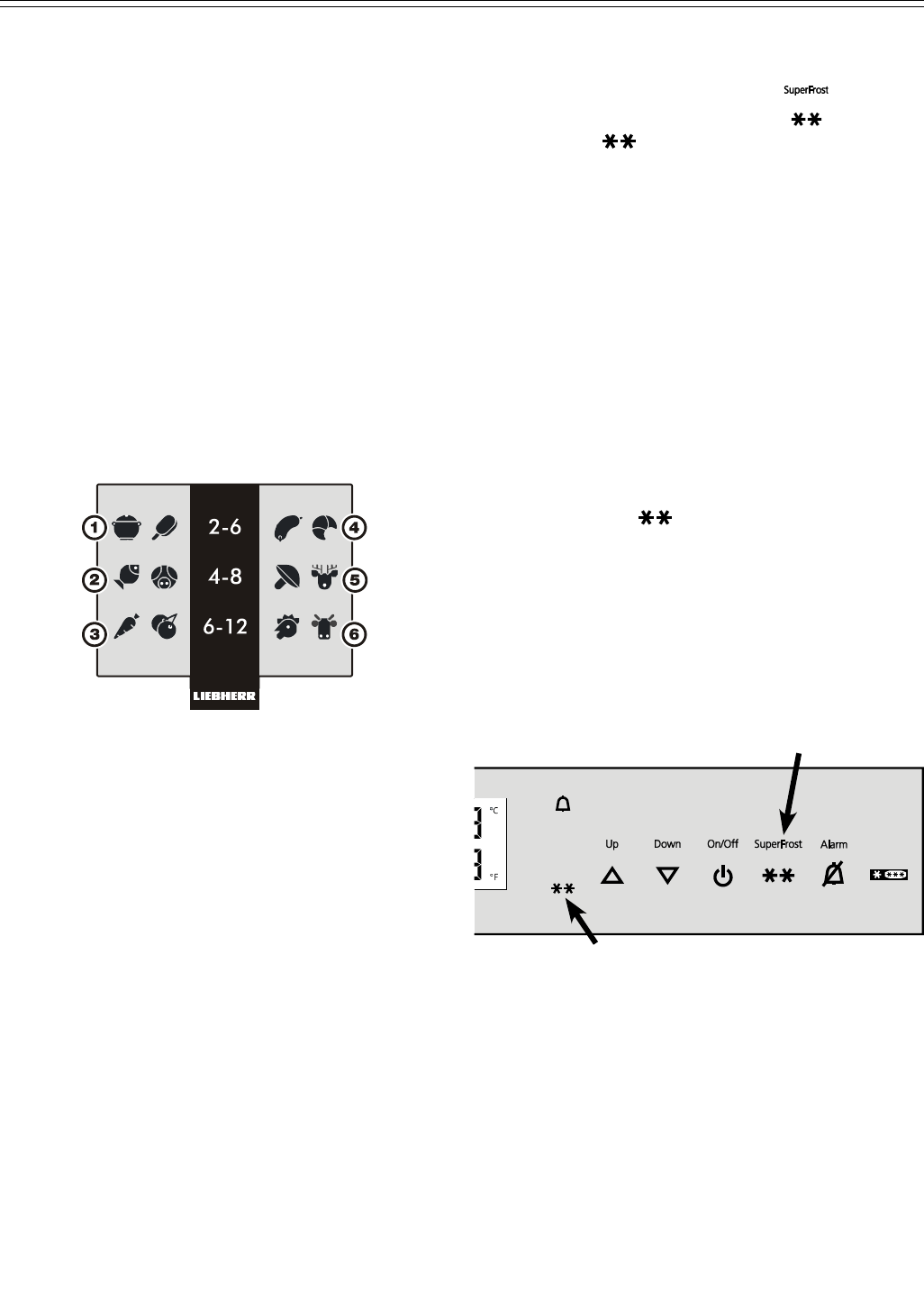

Information System - Figure 17

Use frozen food within the recommended period.

The numbers between the symbols indicate the

storage period in months for different kinds of

frozen foods. Storage times given are guidelines

for food frozen at home. Whether or not the lower

or upper value is applicable depends on the food

quality and how it was processed prior to freezing.

The lower values always apply to food with a high

fat content.

(1) Pre-cooked meals, ice cream

(2) Fish, pork

(3) Vegetables, fruit

(4) Sausages, bread

(5) Mushrooms, game

(6) Poultry, beef

Figure 17

freezer ComparTmenT

Freezing and Storage

• Pack frozen food in standard freezer bags or

reusable plastic, metal or aluminum containers.

• Do not allow fresh food which is to be frozen

to come into contact with food already frozen.

Always keep packages dry in order to avoid

them sticking together.

• Always write the date and contents on the pack-

age and do not exceed the stated storage time

for the food. This prevents spoiling.

• Pack food which you are freezing yourself in

quantities right for your household. To ensure the

food freezes right through quickly, the following

quantities should not be exceeded per package:

- fruit, vegetables: up to 2-1/4 lbs (1 kg);

- meat: up to 5-1/2 lbs (2.5 kg).

• Do not freeze bottles and cans which contain

carbonated drinks as they might burst. Drinks

can be cooled down quickly, but take the bottles

out of the freezer compartment after an hour at

the most.

• Only take out as much food as needed for thaw-

ing. Cook food which has been thawed as quick-

ly as possible. Frozen food can be thawed in the

following ways:

- in a microwave oven

- in the refrigerator: the safer way to thaw food

because there is less chance of bacteria

growth. Use this method for high density food

such as roasts or poultry.

Cleaning

• To prevent possible injury due to an

electrical shock, be sure to disconnect the

power cord or turn off the circuit breaker

before cleaning the appliance.

• To avoid injury or damage, do not use steam

cleaning equipment to clean the appliance.

• To avoid short-circuits, ensure no cleaning

water penetrates into the electrical

components when cleaning the appliance.

Do not use a sponge or cloth that is overly

wet.

• First clean the side panels with a conventional

stainless steel cleaner. Subsequently, apply the

enclosed stainless steel care product evenly

onto the surfaces in the same direction in with

they have been ground or polished.

• Only clean the door surfaces with a clean and

soft cloth. If necessary, moisten the cloth (water

+ detergent). Alternatively, use a micro-fibre

cloth.

Do not use abrasive or scouring sponges. Do not

use concentrated cleaning agents. NEVER use

abrasive or acid cleaners or chemical solvents.

Cleaning

• Remove all food from the refrigerator and freezer

compartments and store on a cool place tempo-

rarily. Store frozen food in other freezers if avail-

able.

• Remove the door racks as shown in Figure 8, 9.

• Remove glass shelves as shown in Figure 11.

• Remove vegetable drawers.

• Clean the equipment parts by hand with luke-

warm water and dishwasher detergent.

Do not clean the equipment parts in a

dishwasher. Strips of these parts could

get loose.

• Clean the refrigerator and freezer drawers inte-

rior with lukewarm water and dishwasher deter-

gent.

• Dry all parts well with a cloth.

• Do not damage or remove the model plate on

the inside of the appliance. It is very important

for servicing your appliance.

DefrosTing/VaCaTion

Defrosting

Refrigerator compartment:

The refrigerator compartment defrosts automatical-

ly. The water that forms on the rear wall drains into

a reservoir at the back of the appliance and evapo-

rates automatically through the compressor heat.

Freezer compartment:

The No-frost system automatically defrosts the

freezer compartment. Any moisture will collect on

the evaporator and freeze. It will periodically defrost

and evaporate.

Vacation Tips

Short vacations:

It is not necessary to turn off the refrigerator and

freezer if you will be away for less than four weeks.

• Use all perishables.

• Freeze other items.

Long vacations:

If you will be away for a month or more:

• Remove all food from the refrigerator and freezer

compartments.

• Turn off the refrigerator and freezer compart-

ments.

• Clean the appliance. Refer to Cleaning.

• Leave the door open to prevent unpleasant

odors. This will also keep mold from building up.

TroubleshooTing

Motor seems to

run too long

- Is the ambient temperature too hot? See Safety Regulations.

- Has the appliance been opened too often or left open too long?

- A large amount of food has been added.

- Unit is in Supercooling mode. Verify unit is in normal operation mode.

The temperature is

not cold enough

Appliance does not work,

display is off

The interior light does

not come on

Loud running noise

- Is the appliance turned on properly?

- Is the power source plug properly inserted in the socket?

- Is the circuit breaker or fuse in operating condition?

- Is the refrigerator compartment turned on?

- Has the door been open for more than 15 minutes?

- Is the temperature setting correct? See Setting the Temperature.

- Has an excessive amount of fresh food been placed in the appliance?

- Does a separately installed thermometer show the correct reading?

- Is the ventilation system working properly?

- Is the appliance set up too close to a heat source?

- Is the appliance standing firmly on the floor, or does the compressor

cause nearby items of furniture or objects to vibrate? If necessary, move

the appliance slightly, align by adjusting the adjustable feet, or move

bottles and containers apart.

If a problem occurs during operation, check whether it is due to an operating error.

Please note that even during the warranty period, some repair costs may be your responsibility.

You may be able to correct the following faults by checking the possible causes yourself:

Problem Possible Cause and Remedy

Freezer temperature

display shows two

dashes ‘‘- -”.

The freezer temperature display will only show temperatures that are

below freezing. When initially starting the freezer it will not be below

freezing. It will take three to five hours (depending on ambient conditions)

for freezing temperatures to be achieved and thus displayed numerically.

This may also occur after a power failure.

Appliance Information

Record this information when the appliance is

installed.

Type Designation: _________________________

Service Number: __________________________

Appliance / Serial Number: __________________

Date of Purchase: _________________________

Where Purchased: _________________________

Customer Service - Figure 19

If none of the above causes apply and you can-

not correct the fault yourself this means there is a

fault. Please contact your nearest customer service

department (see enclosed list for addresses).

Give the fault number displayed, together with the

Type Designation 1,

Service Number 2 and

Appliance / Serial Number 3

as given on the model plate, to ensure prompt,

accurate servicing. The model plate is located

inside the appliance on the left-hand side.

Leave the appliance closed until the customer ser-

vice engineer arrives to prevent any further cold

loss.

Figure 19

TroubleshooTing

WarranTy

LIEBHERR WARRANTY PLAN

FULL TWO YEAR WARRANTY - For two years from the date of original purchase, your Liebherr warranty

covers all parts and labor to repair or replace any part of the product which proves to be defective in mate-

rials or workmanship.

FULL FIVE YEAR WARRANTY - For five years from the date of original purchase, your Liebherr warranty

covers all parts and labor to repair or replace any components that prove to be defective in materials or

workmanship in the sealed system. The “Sealed System” means only the compressor, condenser, evapo-

rator, drier and all connecting tubing.

LIMITED 6TH THROUGH 12TH YEAR WARRANTY - From the 6th through 12th year from the date of

original purchase, your Liebherr warranty covers all parts that prove to be defective in materials or work-

manship in the Sealed System (parts only).

TERMS APPLICABLE TO EACH WARRANTY

All service provided by Liebherr under the warranty must be performed by authorized Liebherr service rep-

resentatives, unless otherwise specified by Liebherr. Service will be provided in the home during normal

business hours. This warranty applies only to products installed for normal residential use. Details regard-

ing a non-residential warranty are available on request.

The warranty applies only to products installed in Canada and any one of the fifty States of the United

States or the District of Columbia.This warranty does not cover any parts or labor to correct any defect

caused by negligence, accident or improper use, maintenance, installation,service or repair, including but

not limited to improper removal and reinstallation of the condensing unit.

The remedies described above for each warranty are the only ones which Liebherr will provide,

either under these warranties or under any warranty arising by operation of law. Liebherr will not

be responsible for any consequential or incidental damages arising from the breach of these war-

ranties or any other warranties, whether express, implied or statutory.

Some states do not allow the exclusion or limitation of incidental or consequential damages so the above

limitation or exclusion may not apply to you.This warranty gives you specific legal rights and you may also

have other rights which vary from State to State.

To receive parts and/or service and the name of the Liebherr authorized service representative nearest

you, contact your Liebherr dealer or distributor or contact the Liebherr designated national service pro-

vider:

in the US: Liebherr@adcoservice.com, or call 1-866-LIEBHERR or 1-866-543-2437

in Canada: www.euro-parts.ca, or call 1-888-LIEBHERR or 1-888-543-2437.

Liebherr Nofrost Combined Refrigerator Freezer Cs 1400 7082 663 00 Users Manual

CS 1400 7082 663-00 to the manual 853205ef-b518-4083-bc3a-df2892097509

Navigation menu

Versions of this User Manual:

Views

Navigation
