Lierda Science and Technology Group DLPDONGLE DLP® Interactive Projector Communication Dongle User Manual
Lierda Science & Technology Group Co.,Ltd DLP® Interactive Projector Communication Dongle Users Manual
Users Manual
LSD SCIENCE & TECHNOLOGY CO., LTD. 利尔达科技有限公司 WWW.LIERDA.COM
Address: Lierda Building, 425 Dengyun Road, Hangzhou Tel: +86-571-88256222 Fax: +86-571-89908543
LSDSCIENCE&TECHNOLOGYCO.,LTD.
DLP®InteractiveProjectorCommunicationDongle
User Manual
ProductName:DLP®InteractiveProjectorCommunicationDongle
P/N:DLP1S001/DLP2C001
Version:V1.0
Installing the Dongle:
To install the dongle, plug the dongle into the 10 pin socket of DLP® Interactive Projector. Please see the
LSD SCIENCE & TECHNOLOGY CO., LTD. 利尔达科技有限公司 WWW.LIERDA.COM
Address: Lierda Building, 425 Dengyun Road, Hangzhou Tel: +86-571-88256222 Fax: +86-571-89908543
projector operation manual for details.

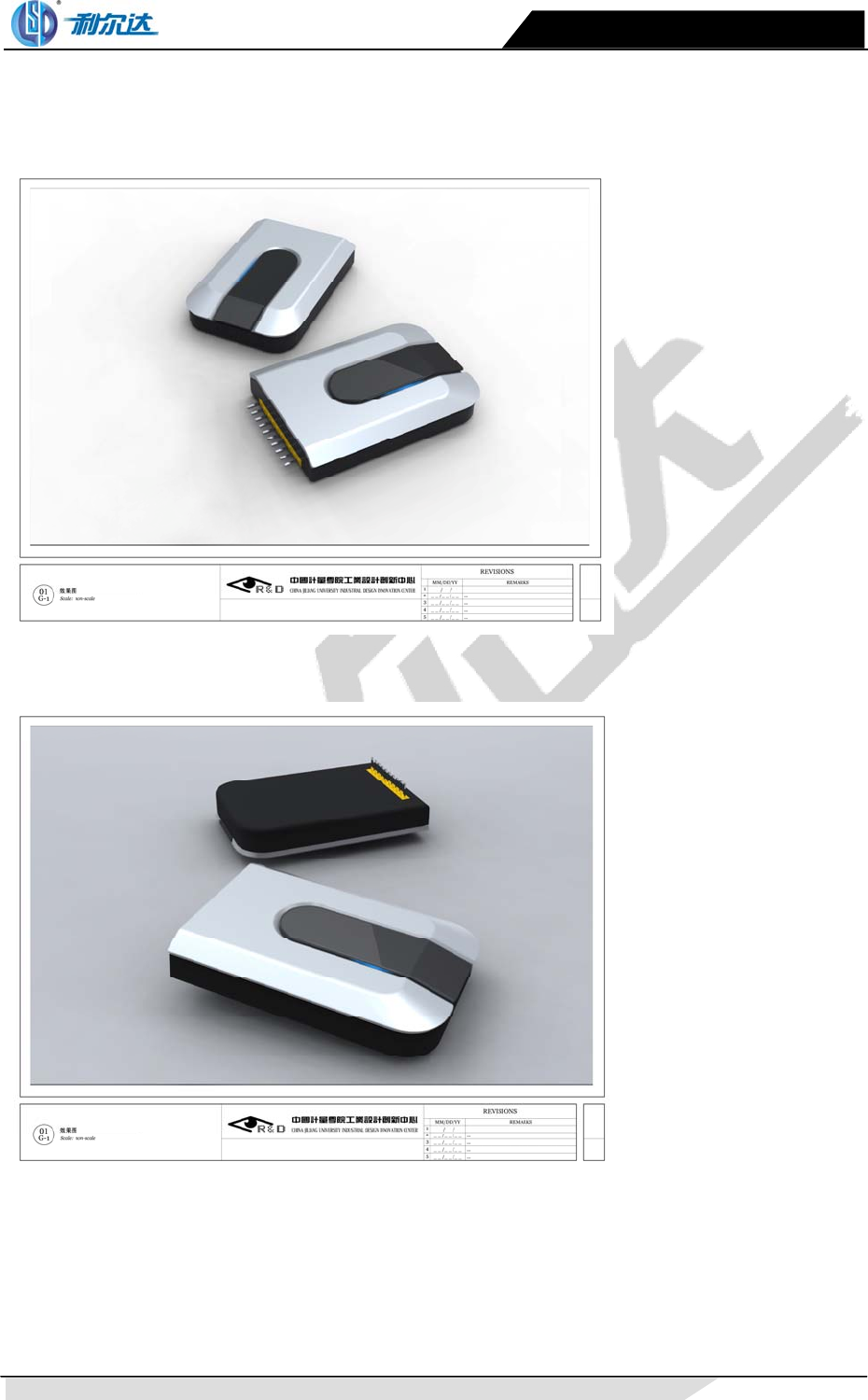

Enclosure design drawing:
-Horizontal version:
-Vertical version:
Synchronizing the Dongle with Interactivity Devices:
Please see the projector operation manual for details.
LSD SCIENCE & TECHNOLOGY CO., LTD. 利尔达科技有限公司 WWW.LIERDA.COM
Address: Lierda Building, 425 Dengyun Road, Hangzhou Tel: +86-571-88256222 Fax: +86-571-89908543
LED Status Signals Defination:
LED Behavior Status
Blinks blue every 1.5 seconds Wireless channel search
OR
Dongle is synchronizing with interactivity
device(s)
Blinks blue every 3 seconds Wireless channel selected to use for
synchronization with interactivity device(s)
Blinks blue every 6 seconds Dongle successfully synchronized with
interactivity device(s)
Blinks blue every 10 seconds Wireless channel selected to use for
synchronization with interactivity device(s) is
noisy
LSD SCIENCE & TECHNOLOGY CO., LTD. 利尔达科技有限公司 WWW.LIERDA.COM
Address: Lierda Building, 425 Dengyun Road, Hangzhou Tel: +86-571-88256222 Fax: +86-571-89908543
