Lierda Science and Technology Group LSD4BT212-06D0 Bluetooth Module User Manual
Lierda Science & Technology Group Co.,Ltd Bluetooth Module
Users Manual
LSD4BT212-06D0
BT Module Product Specification
and User Manual
Name:
BT Module
Model:
LSD4BT212-02D0
Version:
V1.0
FCC Caution:
Any Changes or modifications not expressly approved by the responsible
party could void the user’s authority to operate the equipment.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth
for an uncontrolled environment. This transmitter must not be co-located
or operating in conjunction with any other antenna or transmitter.
To satisfy FCC RF Exposure requirements for this transmission devices, a
separation distance of 20 cm or more should be maintained between the
antenna of this device and persons during operation.
If used in portable product to do SAR evaluation and testing.
This equipment complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
1).This device may not cause harmful interference, and
2).This device must accept any interference received, including
interference that may cause undesired operation.
OEM Labeling Requirements:
NOTICE: The OEM or final integrator must ensure that FCC labeling
requirement are met. This includes an additional label on the outside of
the final product housing with the following contents:
Company Name
MODEL:
Contains Model: LSD4BT212-06D0, FCC ID:N8NLSD4BT212-06D0
This device complies with Part 15 of the FCC Rules. Operation is subjected to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
1. Functional characteristics
LSD4BT212-06D0 is based on Broadcom Bluetooth chip
BCM20705, designed specifically for Hisense TV Bluetooth module, can
be widely applied in the field of short-range wireless communications for
all occasions, it has small size, low power consumption, transmission
distance, anti-interference ability, and low cost.
The module antenna is ceramic antenna, the overall design is
compact, small size, the interface is completely open, customers in the
use of RF hardware design eliminates the difficulty, while the software
and product structure more flexible secondary development of space.

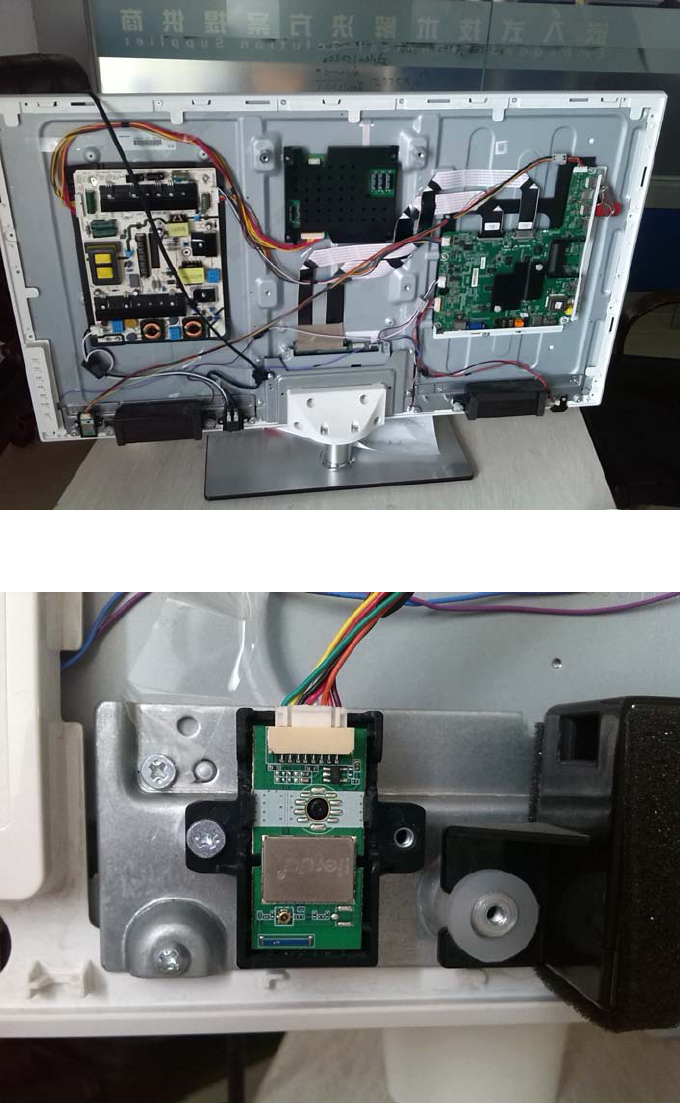

Installed location
Figure 1
Figure 2
2. Feature
z support Bluetooth 4.0 and EDR mode;
z Built-PA, to support Class1 mode;
z Supply voltage support 5.5V, can be used directly USB powered;
z Working frequency: 2402MHz ~ 2480 MHz;
z Channel spacing: 1MHz;
z Modulation: FHSS / GFSK, π/4-DQPSK, 8DPSK;
z Communication speed: 1Mbps (GFSK), 2Mbps (π/4-DQPSK), 3Mbps
(8DPSK);
z The module with a standard USB interface and IO ports ，can be used
in applications such as television sets;
z Software programmable output power;
3.Module Characteristics
Parameters Performance
DC Input 5V(MAX:5.5 V)
Operating Temperature 0℃～60 ℃
BT Output Power(Conducted Output Power) ＜6dBm
Initial Carrier Frequency Tolerance/Average Offset ±75kHz
Carrier Drift/Drift Rate/DH1 ±20kHz/50us
Carrier Drift/Drift Rate/DH3 ±20kHz/50us
Carrier Drift/Drift Rate/DH5 ±20kHz/50us
Carrier Drift/Average Drift/DH1 ±25kHz
Carrier Drift/Average Drift/DH3 ±40kHz
Carrier Drift/Average Drift/DH5 ±40kHz
Modulation Characteristic/F1avg 155kHz
Modulation Characteristic/F2max 130kHz
Modulation Characteristic/F1/F2 Ratio 0.94
4.Hardware layout and interface description

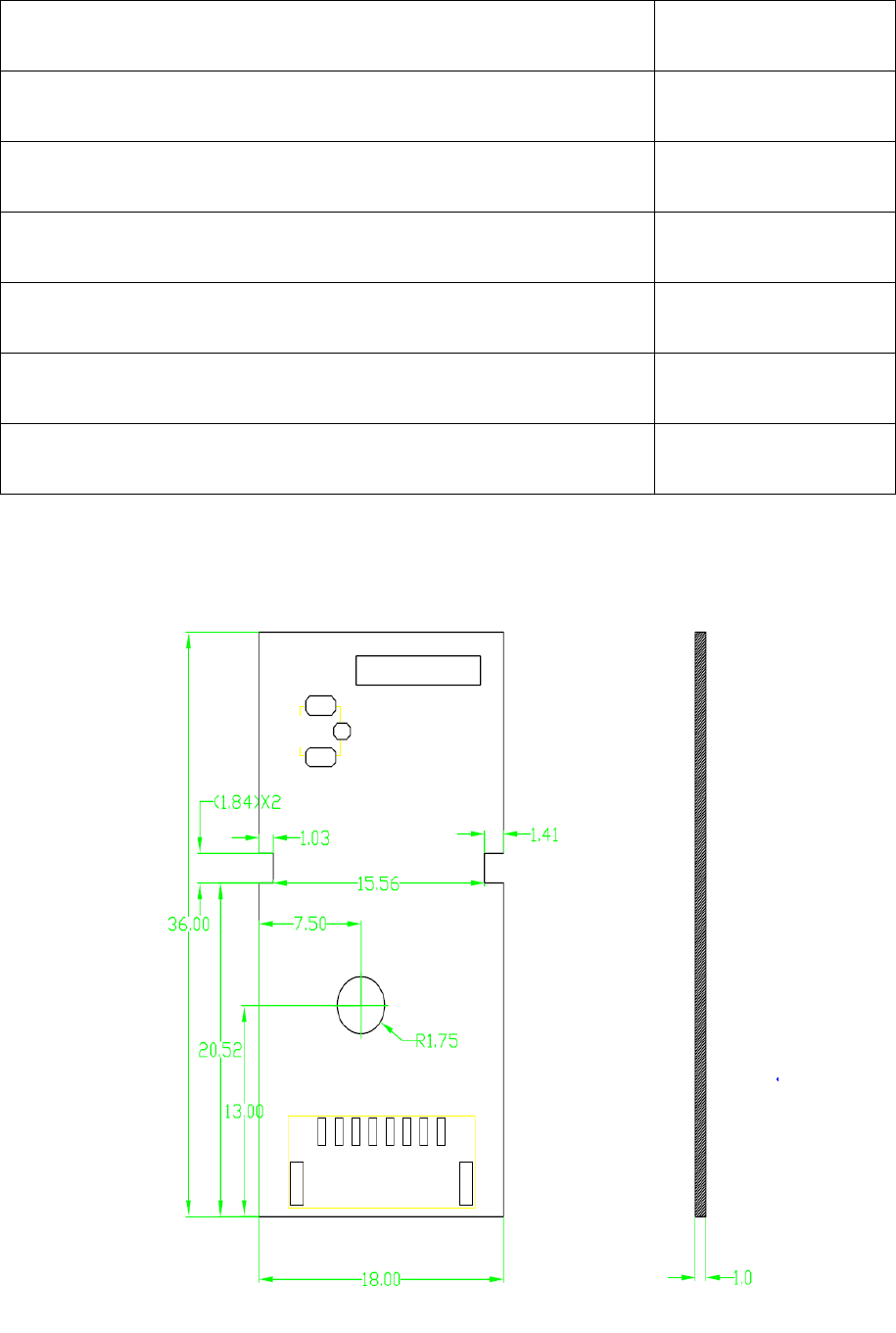

PACKAGE INFORMATION

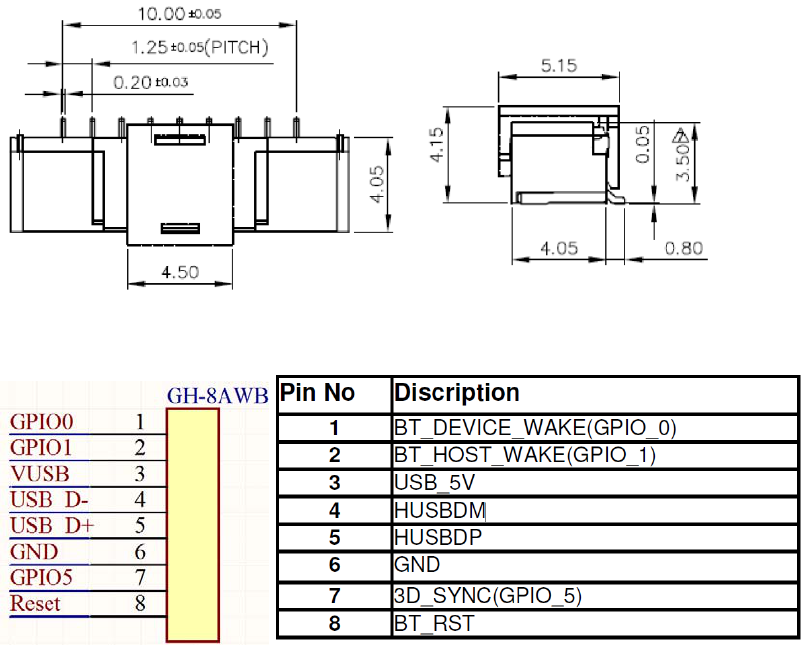

Interface size
Pin Description
