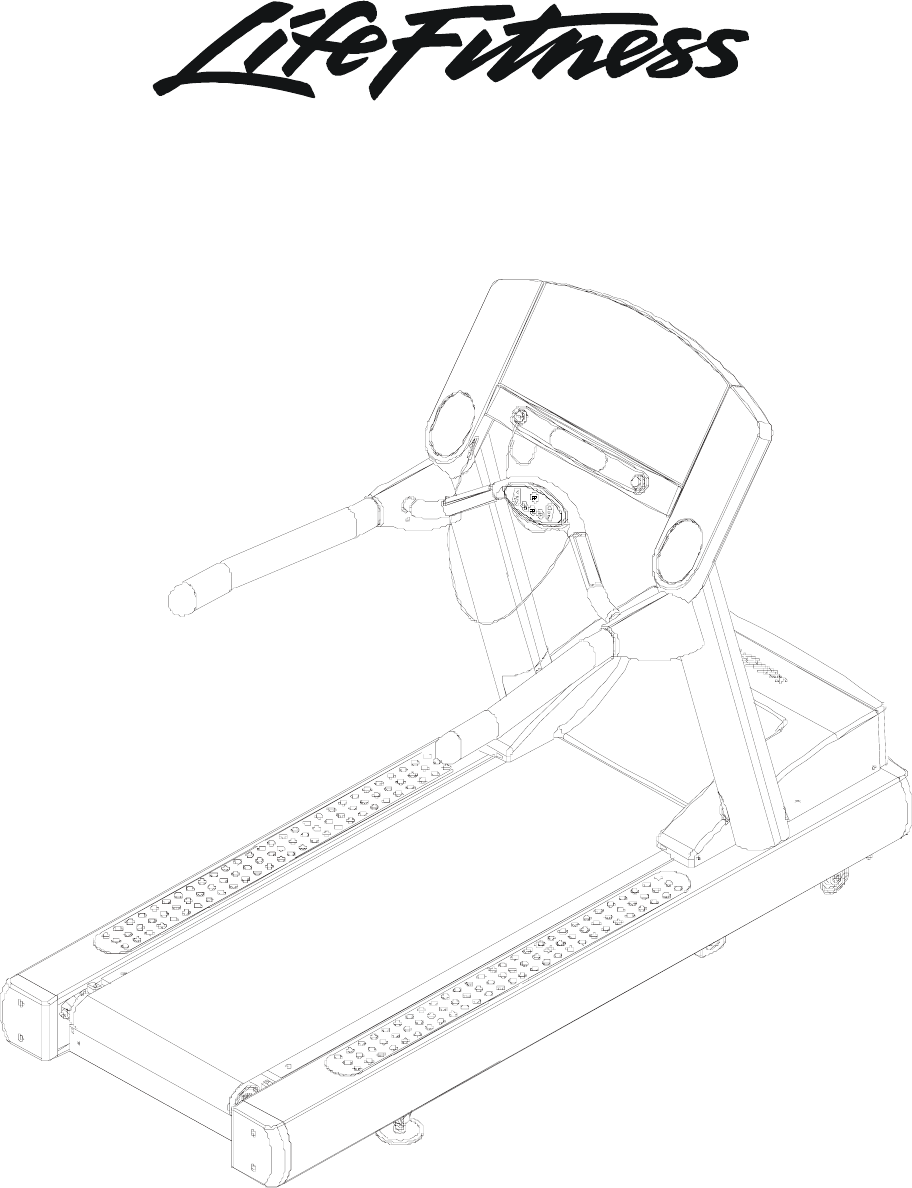

ARCTIC SILVER 97T TREADMILL
Customer Support Services
PARTS MANUAL rev 23 May 2008
2
Page
CONSOLE, OVERLAY ASSEBLEY & OVERLAY................................................................ 5
CONSOLE COMPONENTS ...................................................................................... 6
UPRIGHTS & HANDRAILS...................................................................................... 7
ERGO BAR, HEART RATE SENSORS & ACTIVITY ZONE .................................................... 8
A-Z MODULE WITH OVERLAY ASSY .......................................................................... 9
REAR ENDCAPS & CUP HOLDERS ............................................................................ 10
MOTOR COVER, FRONT COVER & ENDCAPS................................................................ 11
SCUFF PAD & TINSEL.......................................................................................... 12
ON-OFF SWITCH, ACCESS PLATE & GROMMETS ........................................................... 13
BELT, DECK & REAR ROLLER................................................................................. 14
LIFT FRAME & IEC RECEPTACLE ............................................................................. 15
LIFT MOTOR ASSY.............................................................................................. 16
IDLER ARM ASSEMBLY ......................................................................................... 17
LEG LEVELER ASSEMBLY ...................................................................................... 18
FRONT ROLLER ASSEMBLY.................................................................................... 19

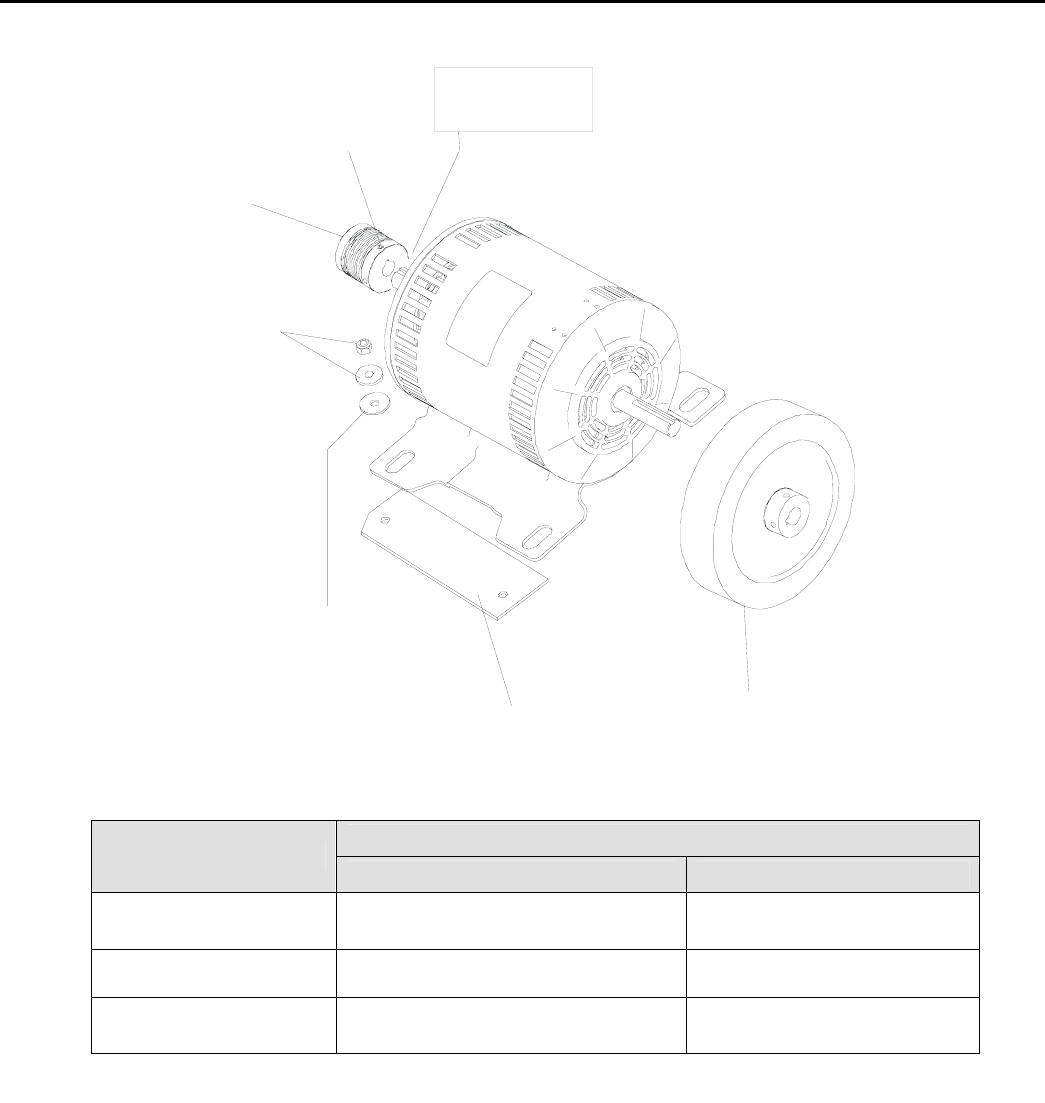

DRIVE MOTOR ASSEMBLY ..................................................................................... 20
STRIDE SENSOR ASSY & STRIDE SENSOR PCB ASSY........................................................ 21
DSP-CONTROLLER ASSEMBLY ................................................................................ 22
LINE-CORDS & LINE-CORD OPTIONS ........................................................................ 23
CABLES FOR UNITS BETWEEN 0100 - 0104................................................................. 24
CABLES FOR UNITS BETWEEN 0105 - 0300................................................................. 25
CABLES FOR UNITS BETWEEN 0301 - 0601................................................................. 26
CABLES FOR UNITS BETWEEN 0705 - 1601................................................................. 27
ARCTIC SILVER 97T 97T-XXXX-07
CONTENTS S/N TST100000 and up
3
*All Operation, Instruction assembly, and Instruction Bag assemblies may not be available.
ARCTIC SILVER 97T 97T-XXXX-07
MISCELLANEOUS PARTS S/N TST100000 and up
LANGUAGE OPERATION
MANUAL INSTRUCTION
ASSEMBLY INSTRUCTION
BAG ASSY. SERVICE
MANUAL
ENGLISH M051-00K58-A272 M051-00K58-A322
AK58-00578-0000
FRENCH
PORTUGUESE
SPANISH
M051-00K58-A273 M051-00K58-A323
AK58-00578-0001
DUTCH
GERMAN
ITALIAN
M051-00K58-A274 M051-00K58-A324
AK58-00578-0002
JAPANESE M051-00K58-A275 M051-00K58-A325
AK58-00578-0003
EUR M051-00K58-A272 M051-00K58-A322
AK58-00578-0004
M051-00K58-A253
AK58-00226-0000 Hardware Bag Assembly: MFG;95T/97T
Item Description Qty
0K58-01305-0002 PLUG: UPRIGHT S/C-C 2
0K58-01347-0000 GASKET: ERGOBAR C 2
0017-00009-1049 WRENCH: TORX; T27 B 1
0017-00042-0326 GROMMET: PLASTI; .130/.005 S/C#13-B 2
0017-00042-0840 CLIP: WIRE; PUSH-MTG; 3/4"; S/C#80-B 5
0017-00101-1770 8-15X 8 PHL PAN A SS NO B 6
0017-00101-1772 10-16X 8 PHL PAN B ST ZS B 6
0017-00101-1773 1/4 -20X 8 TRX BUT CS SS NO B 6
0017-00101-1774 5/16-18X40 TRX FLT CS ST ZS B 4
0017-00101-1778 1/2 -13X16 UNS HEX CS G5 ZB B 4
0017-00101-1780 8- X20 PHL TRS AB SS NO B 8
0017-00104-0325 WSH 516-.873-125 SL-D ST ZN B 4
0017-00103-0327 NUT 5/16-18 HEX; JAM D ST ZS B 4
4
ARCTIC SILVER 97T 97T-XXXX-07
MISCELLANEOUS PARTS S/N TST100000 and up
GK58-00002-0096 KIT: SERV; ROLLER-GUARDS; 97Ti BM
Part Number Description Qty
AK58-00361-0001 GUARD-ASSY: MFG; RT; 5.00 B 1
AK58-00361-0002 GUARD-ASSY: MFG; LT; 5.00 B 1
M051-00K58-B128 INSTR: SERV; ROLLER-GUARDS + 1
0017-00042-0326 GROMMET: PLASTI; .130/.005 S/C#13-B 2
0017-00042-1147 GROMMET: NYLON; SCREW B 2
0017-00101-1776 10-16X 8 PHL PAN B ST ZB B 4
GK58-00002-0071 KIT: SERV; ANTI-SLIP RAIL BM
Part Number Description Qty
Only available in the kit INSTR:TEMPLT; ANTI-SLIP RAIL B 4
Only available in the kit INSTR: KIT; ANTI-SLIP RAIL + 1
0K58-01376-0000 RAIL: ANTI-SLIP;STEALTH-GREY E 2
Only available in the kit PAD: WIPE; ALCOHOL/DRY B
TOUCH UP PAINT
0017-00008-0204 PAINT: CAN; SPRAY; ARCTIC SILVER
0017-00008-0205 PAINT: BOTTLE; ARCTIC SILVER ( .5 OZ )
0017-00008-0206 PAINT: PEN; ARCTIC SILVER ( .33 OZ )
INK TRANSFER TOUCH-UP PAINT: SB No. GN05032101N
0017-00008-0210 PAINT: TOUCH-UP; SHADOW-GRAY; .6 OZ BTL.
0017-00008-0211 PAINT: TOUCH-UP; SHADOW-GRAY; .6 OZ. PEN
5
ARCTIC SILVER 97T 97T-XXXX-07

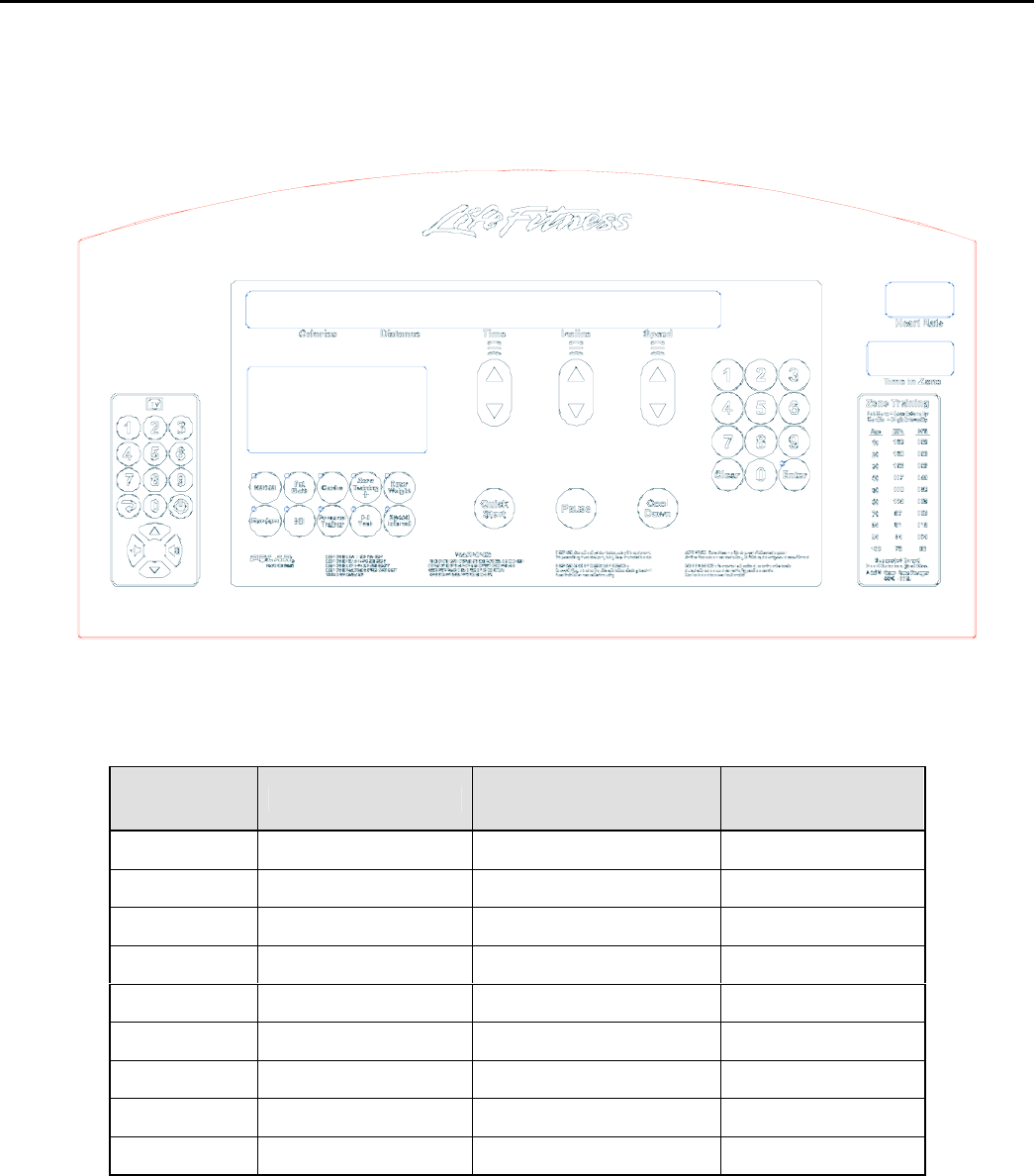

Console, Overlay Assembly & Overlay S/N TST100000 and up
*All console, overlay/bezel assembly, or overlay may not be available.
LANGUAGE CONSOLE OVERLAY/BEZEL ASSY OVERLAY
ENG/ENG AK58-00582-0001 AK58-00202-0001 0K58-01296-0001
ENG+MET AK58-00582-0002 AK58-00202-0002 0K58-01296-0001
GERMAN AK58-00582-0003 AK58-00202-0003 0K58-01296-0003
SPANISH AK58-00582-0004 AK58-00202-0004 0K58-01296-0004
JAPANESE AK58-00582-0006 AK58-00202-0006 0K58-01296-0006
FRENCH AK58-00582-0007 AK58-00202-0007 0K58-01296-0007
ITALIAN AK58-00582-0008 AK58-00202-0008 0K58-01296-0008
DUTCH AK58-00582-0009 AK58-00202-0009 0K58-01296-0009
PORUGUESE AK58-00582-0010 AK58-00202-0010 0K58-01296-0010
6

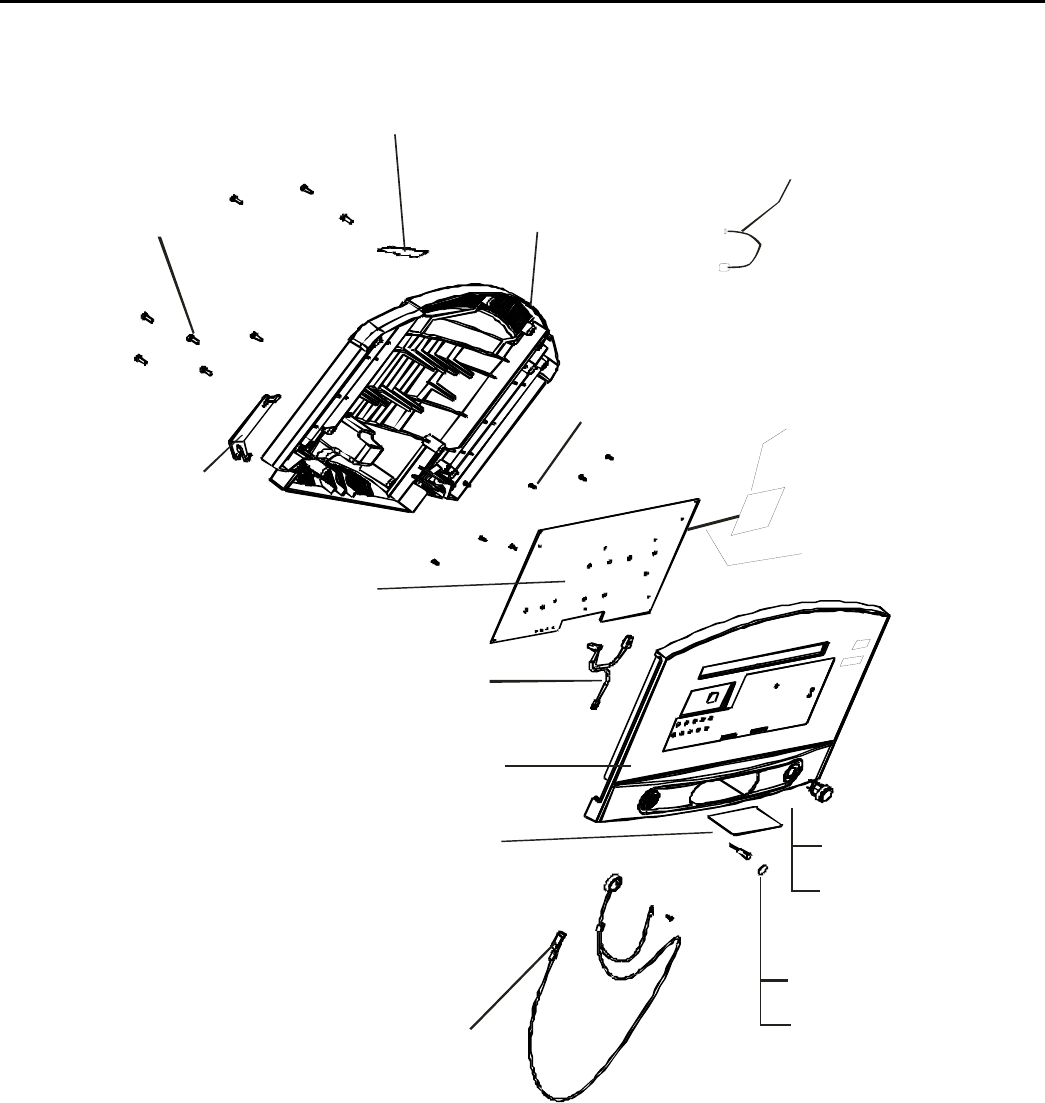

Qty needed is 8
10-32X 8 PHL PAN
1 ST BZ B
0017-00101-1288
DECAL: CONSOLE; REA
R
0K58-01357-0000
BEZEL: CASE; CONSOLE;
FRONT; STEALTH S/C-E
0K58-01273-0000
Accessory Cover
0K58-01280-0000
Qty needed is 13
6-19X 6 PHL PAN
PLT G5 ZN B
0017-00101-1275
PROG CONS PCB ASSY:
PURCH; MULTI; 97Ti
A084-92185-A009
CBL-ASSY: POLAR/E-STOP
AK58-00237-0000
Stop Switch
0K58-01321-000
0
Micro Switch
0017-00032-018
5
Rubber Pad
0K58-01359-0000
Disc Magnet
0K40-01070-0000
Stop Tether Assembly
AK58-00322-0000
POLAR PCB W/HEADER
AK39-00064-0000
PCB-ASSY: H/R;
SIDE-CONSOLE B
B084-92255-B000
CBL-ASSY:
SIDE-CONSOLE
AK58-00031-0000
CASE: CONSOLE; REAR
0K58-01272-0000
Tape: Adhesive
0K40-01070-0000
ARCTIC SILVER 97T 97T-XXXX-07
Console Components S/N TST100000 and up
7

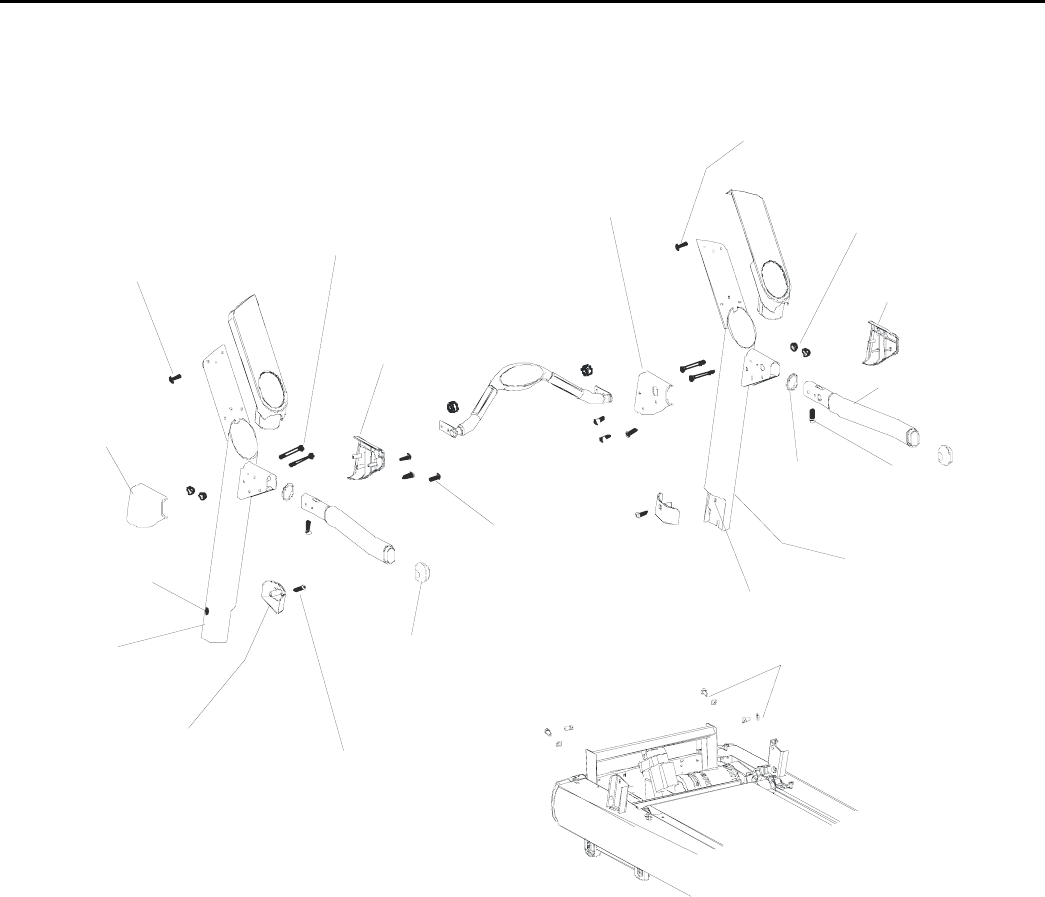

ARCTIC SILVER 97T 97T-XXXX-07
Uprights & Handrails S/N TST100000 and up
Handrail Hex Nut (4)
0017-00103-0327
Handrail-Assy: Boxe
d
AK58-00256-0000
Top RT Handrail Boot
0K58-01303-0001
Console/Cup Holder
Mounting Screw (8)
0017-00101-1780
Bottom RT
Handrail Boot
0K58-01304-0001
Handrail Mounting
Screw (4)
0017-00101-1774
Handrail Boot
Screws (6)
0017-00101-1770
Bottom LT
Handrail Boot
0K58-01304-0002
Console Mounting
Screw (4)
0017-00101-1773
Top LT Handrail Boot
0K58-01303-0002
Handrail Screw (2)
0017-00101-1773
Handrail Tube Caps (2)
0K58-01396-0000
Upright, RT
AK58-00311-0003
Upright, LT
AK58-00311-0004
Upright Tube Cap (2)
0K58-01302-0000 Upright Tube
Cap Screw (2)
0017-00101-1772
Grommet (2)
0017-00042-0326
Upright Mounting
Screw - 0017-00101-1778 (6)
Washer - 0017-00104-0325 (6)
Upright, Plug (2)
0K58-01305-0002
Handrail Collar (2)
0K58-01348-0000
8
ARCTIC SILVER 97T 97T-XXXX-07

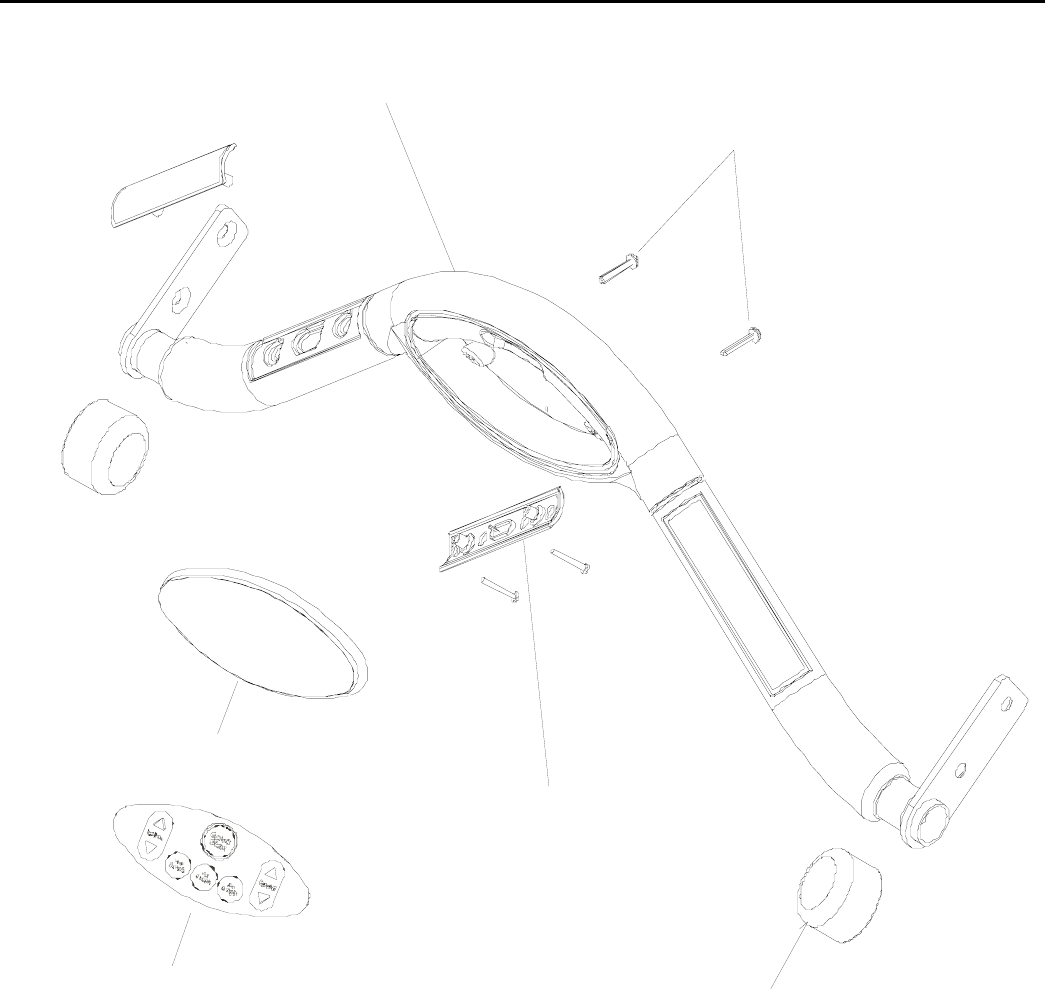

Ergo Bar, Heart Rate Sensors & Activity Zone S/N TST100000 and up
8-16X18 PHL PAN PLT ST BO B ( 2 )
0017-00101-0824
SEE NEXT PAGE
Heart Rate Sensor Kit
KIT: SERV; MFG; ELECTRODES; LARGE
GK20-00002-0005
GASKET: ERGOBAR ( 2 )
0K58-01347-0000
ACTIVITY-ZONE MODULE ASSY
AK58-00554-0000
ERGO-BAR OVERMOLD ASSY: PURCH. D
AK58-00376-0000
9
ARCTIC SILVER 97T 97T-XXXX-07

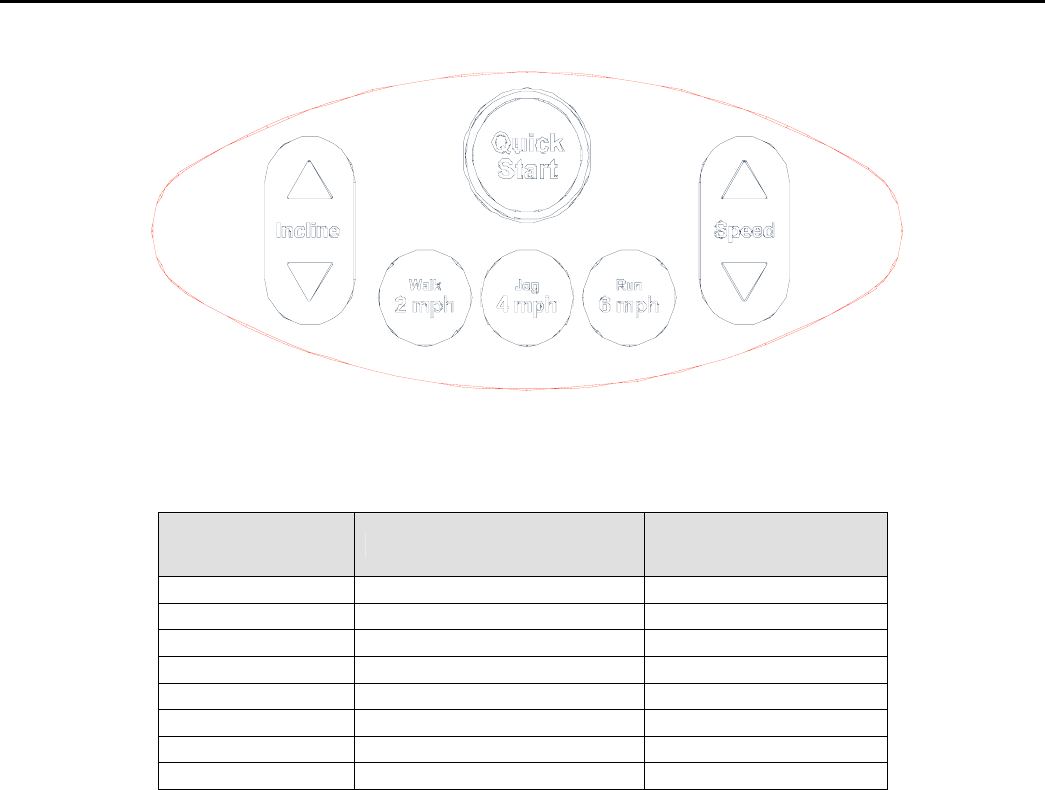

A-Z Module With Overlay Assembly S/N TST100000 and up
*All activity zones and/or overlays may not be available.
LANGUAGE ACTIVITY ZONE ASSY AZ OVERLAY
ENG/ENG AK58-00555-0001 0K58-01459-0001
ENG/MET AK58-00555-0002 0K58-01459-0002
GERMAN AK58-00555-0003 0K58-01459-0003
SPANISH AK58-00555-0004 0K58-01459-0004
JAPANESE AK58-00555-0006 0K58-01459-0006
FRENCH AK58-00555-0007 0K58-01459-0007
ITALIAN AK58-00555-0008 0K58-01459-0008
DUTCH AK58-00555-0009 0K58-01459-0009
10
ARCTIC SILVER 97T 97T-XXXX-07
Rear End Caps & Cup Holders S/N TST100000 and up
CUP-COVER ASSY, LT
AK58-00247-0002
CUP-COVER ASSY, R
T
AK58-00247-0001
Qty needed ( 4 )
10-16X 8 PHL PAN
B ST ZS B
0017-00101-1772
ENDCAP: REAR
0K58-01268-0000
ENDCAP: REAR
0K58-01268-0000
11

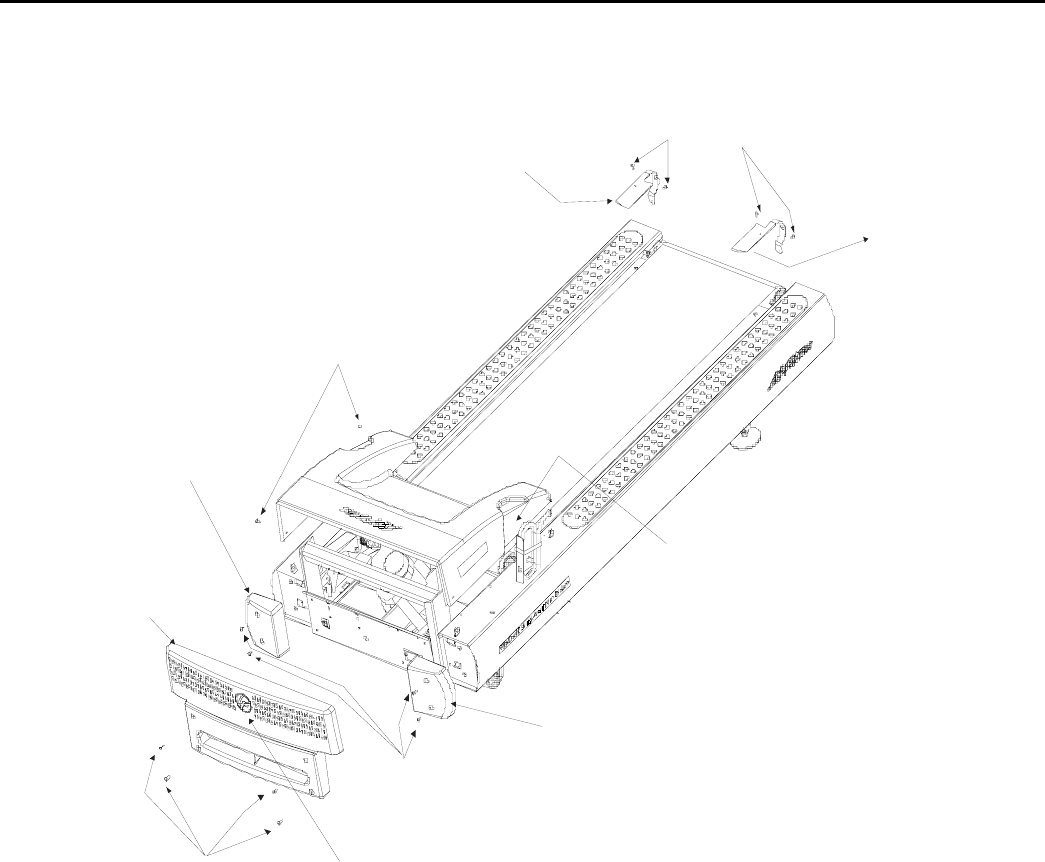

ARCTIC SILVER 97T 97T-XXXX-07

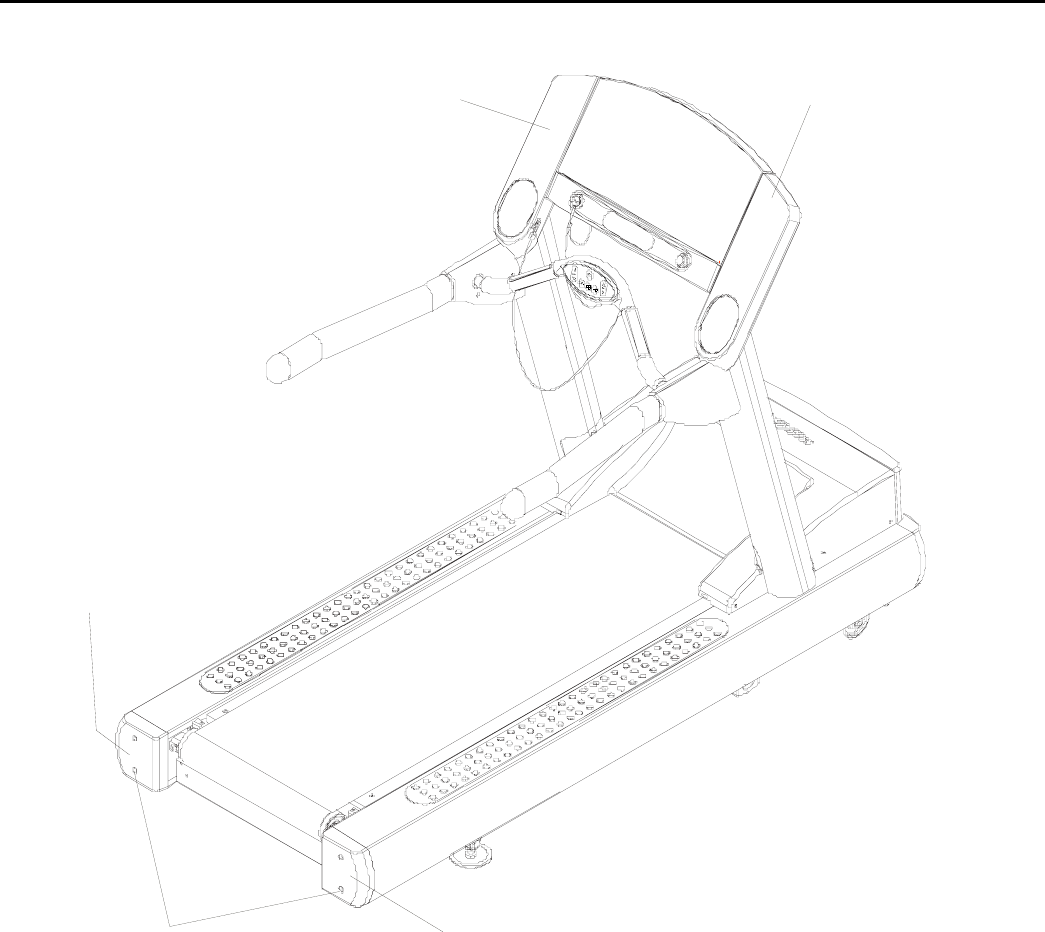

Motor Cover, Front Cover & Front End Caps S/N TST100000 and up
10-16X 8 PHL PAN
B ST ZS B ( 4 )
0017-00101-1772
GUARD-ASSY: MFG;
RT; 5.00 B
AK58-00361-0001
MOTOR-SHROUD ASSY:
MFG; 97Ti D
AK58-00385-0000
10-16X 8 PHL PAN
B ST ZB B
0017-00101-1776
GUARD-ASSY: MFG;
LT; 5.00 B
AK58-00361-0002
10-32x10 PHL PAN
MS ST ZS B ( 4 )
AK58-00360-0001
FRONT-PANEL
W/MEDALLION ASSY
AK58-00272-0000
MEDALLION-ASSY:
PURCH;LF-BUG B
AK58-00245-0000
ENDCAP: FRONT
0K58-01267-0000
ENDCAP: FRONT
0K58-01267-0000
10-16X 8 PHL PAN
B ST ZS B ( 4 )
0017-00101-1772
12
ARCTIC SILVER 97T 97T-XXXX-07

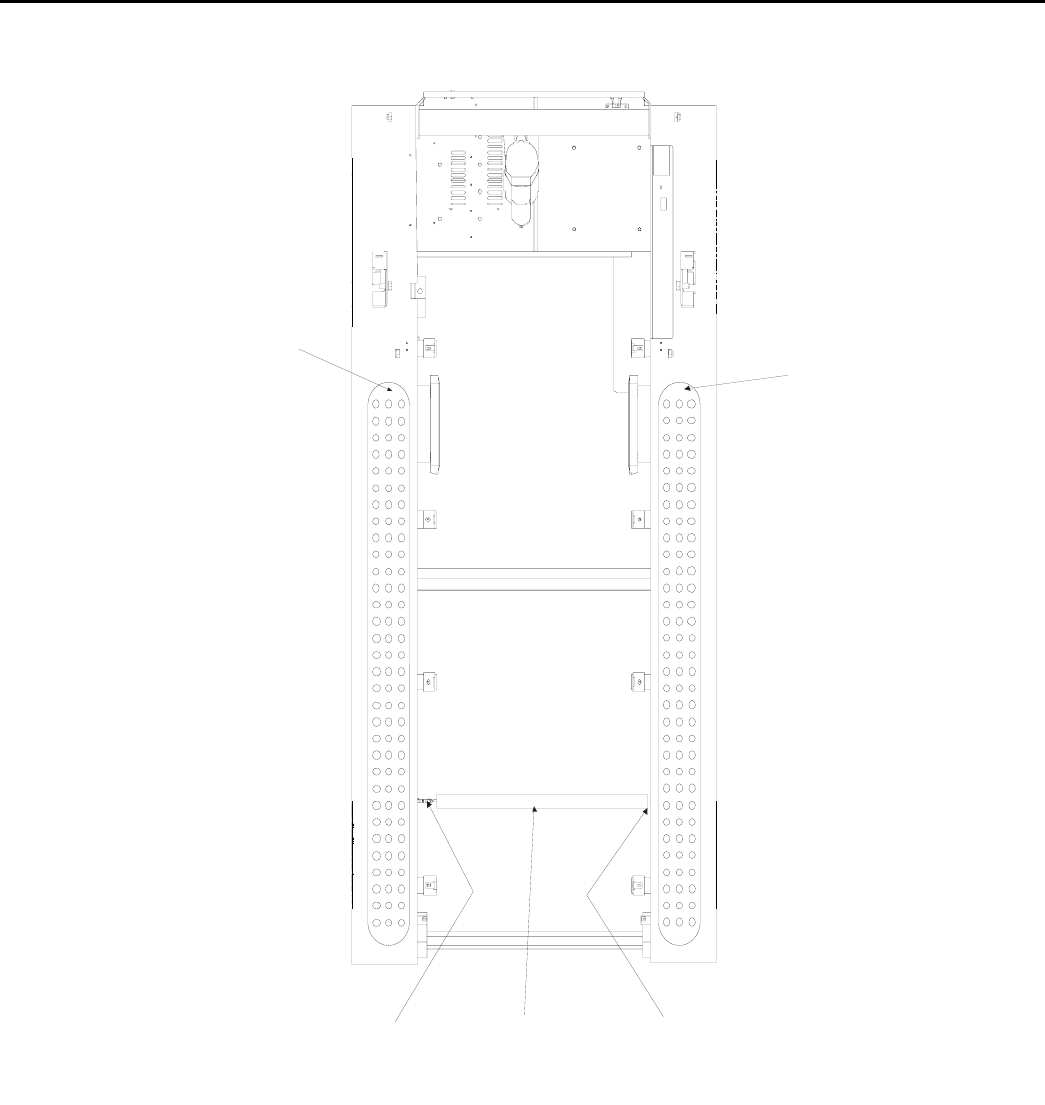

Scuff Pad & Tinsel S/N TST100000 and up
RAIL: ANTI-SLIP;
STEALTH-GREY
0K58-01376-0000
SPRING: EXTENSION; TINSEL
0017-00009-0901
TINSEL:
0K58-01102-0001
8-32X 6 SLT HXW
TT ST ZN B
0017-00101-0975
RAIL: ANTI-SLIP;
STEALTH-GREY
0K58-01376-0000
13

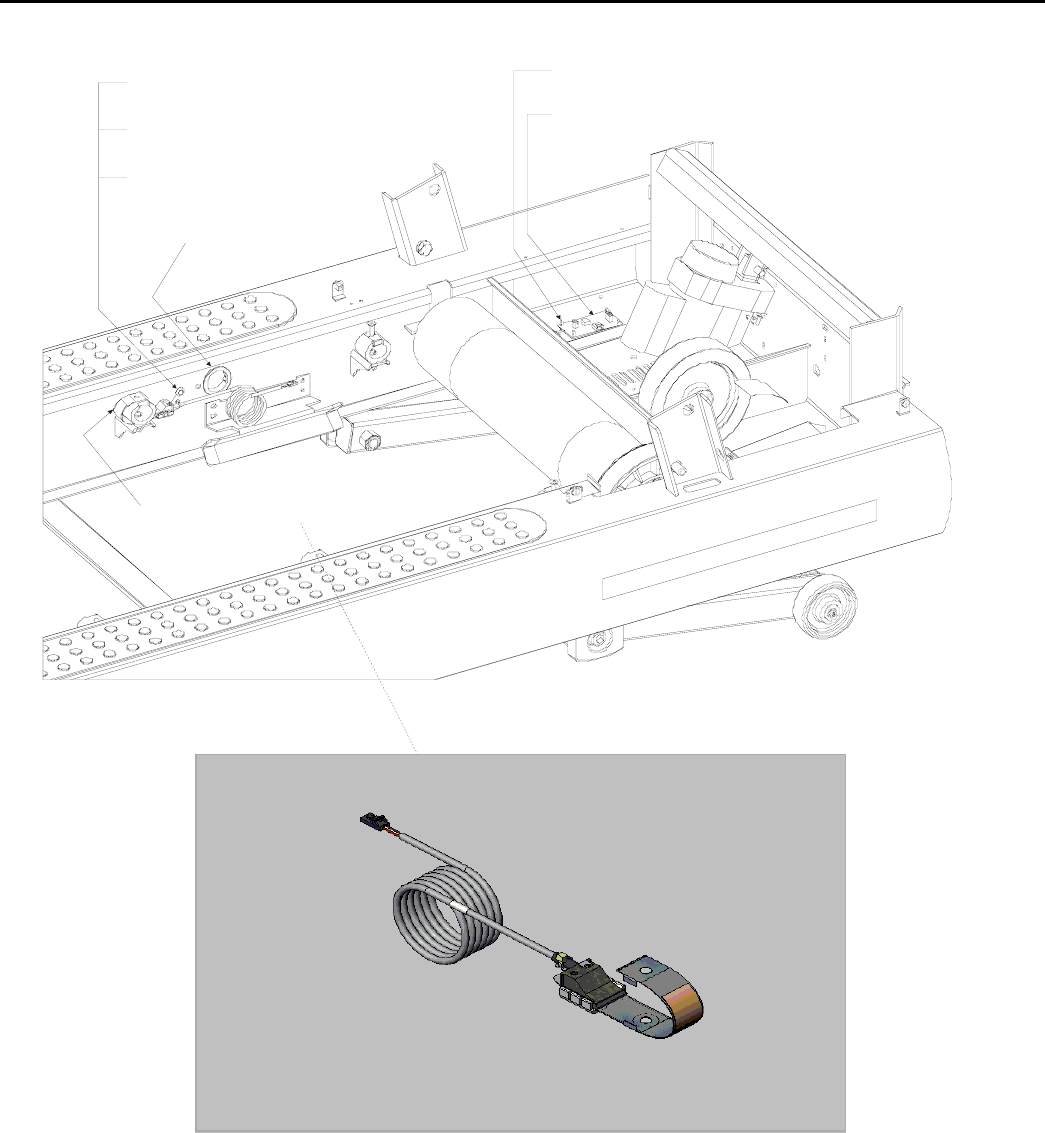

ARCTIC SILVER 97T 97T-XXXX-07

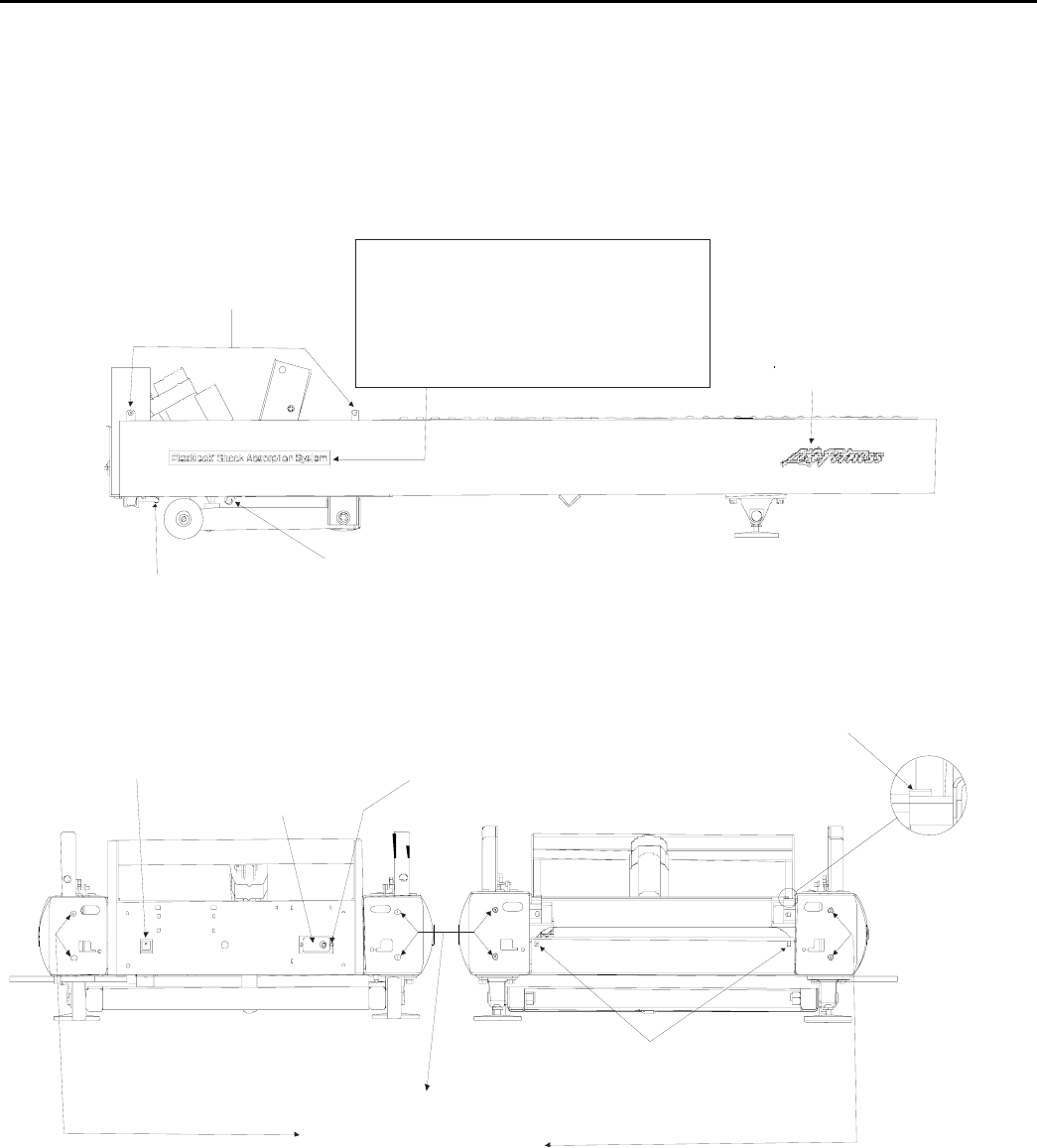

On-Off Switch, Access Plate & Grommets S/N TST100000 and up
FRONT VIEW
SWITCH: ROCKER;
22A DPST
0017-00032-0198
BACK VIEW
ACCESS-PLATE ASSY
AK58-00329-0000
GROMMET:
NYLON; SCREW ( 2 )
0017-00042-1147
GROMMET: PLASTI; .
130/.005 S/C#13-B ( 8 )
0017-00042-0326
CLIP: WIRE; PUSH-
MTG; 3/4"; S/C#80-B
0017-00042-0840
CLAMP: WIRE; 5/8"
0017-00042-1072
Ink transfer decal can not
be replaced in the field,
it can only be touched up.
( See SB No. GN05032101N )
DECAL: FRAME; LF-LOGO
0K60-01193-0000
GROMMET: PLASTI; .
130/.005 S/C#13-B ( 2 )
0017-00042-0326
8-32X 6 PHL PAN
TT ST PH B ( 2 )
0017-00101-0162
GROMMET: PLASTI; .
130/.005 S/C#13-B ( 4 )
0017-00042-0326
14

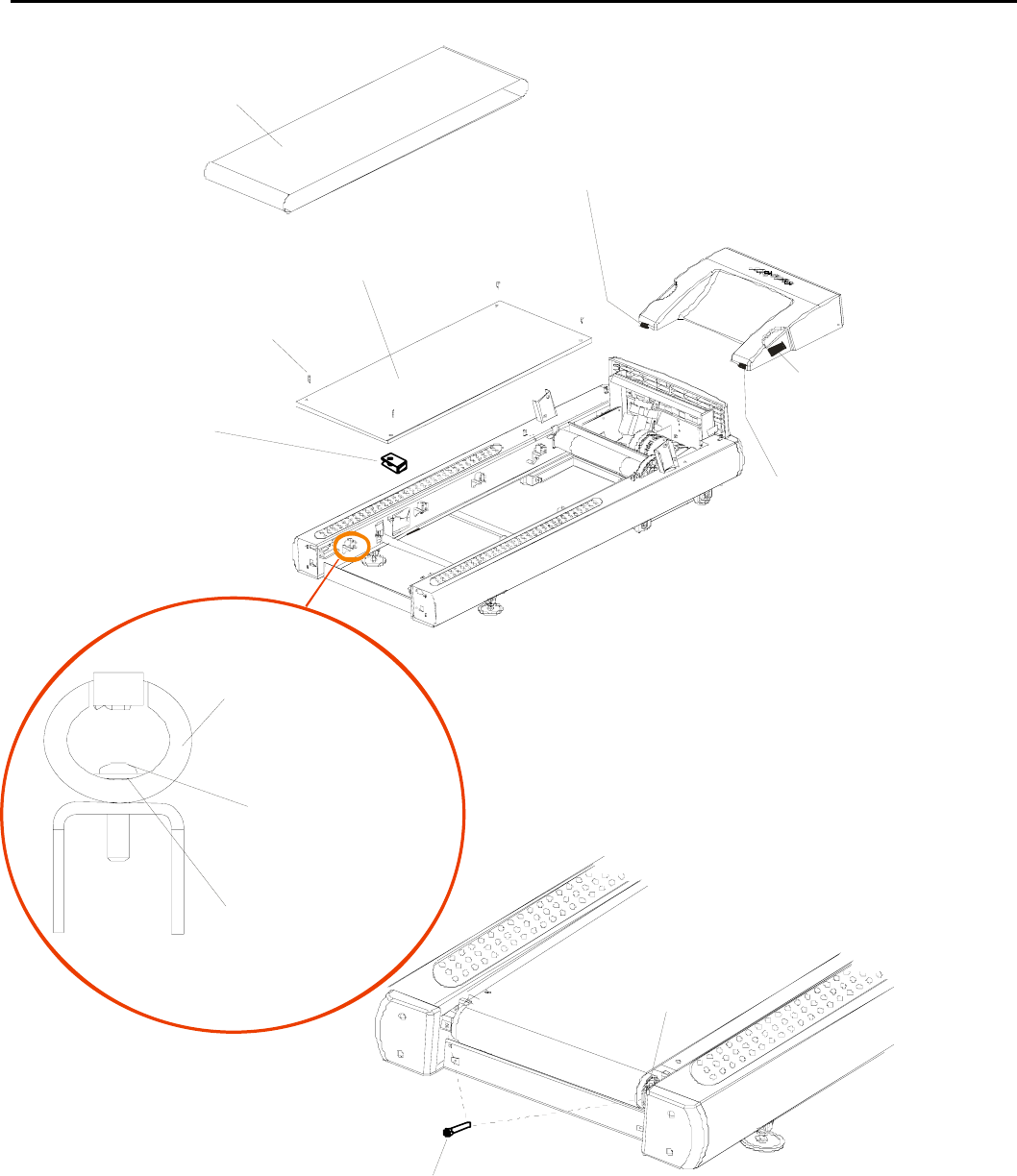

ARCTIC SILVER 97T 97T-XXXX-07
Belt, Deck & Rear Roller S/N TST100000 and up
DECK: TREADMILL; WAXLESS
0K58-01091-0002
1/4 -20x20 HXS FLT L
CS ST ZB B (4)
0017-00101-1775
SPRING: TECSPAK,
BLACK S/C-B (8)
0K40-01026-0002
LBL: BELT-LIMIT; RT.
M051-00K58-A100
LBL: CAUTION;
HI-VOLT;ENG+FRN B
M051-00K58-A014
BELT: WALKING; BLK;
W/LOGO; NP7131 C
0K58-01397-0000
LBL: BELT-LIMIT; LT.
M051-00K58-A101
ROLLER: REAR; 5"
0K58-01068-0000
Rear Roller Adjusting Bolt ( 2 )
3/8 -16X48 HEX SOC L CS ST SS B
0017-00101-1880
NUT 1/4 -20 TINNERMAN
D ST ZN B (4)
0017-00103-0198
1/4 -20X16 HXS BUT
L CS G8 BO B (8)
0017-00101-1652
WSH 255-.562-046
FL-D ST ZN B (8)
0017-00104-0072
15
70-XXXX-T79 T79 REVLIS CITCRA

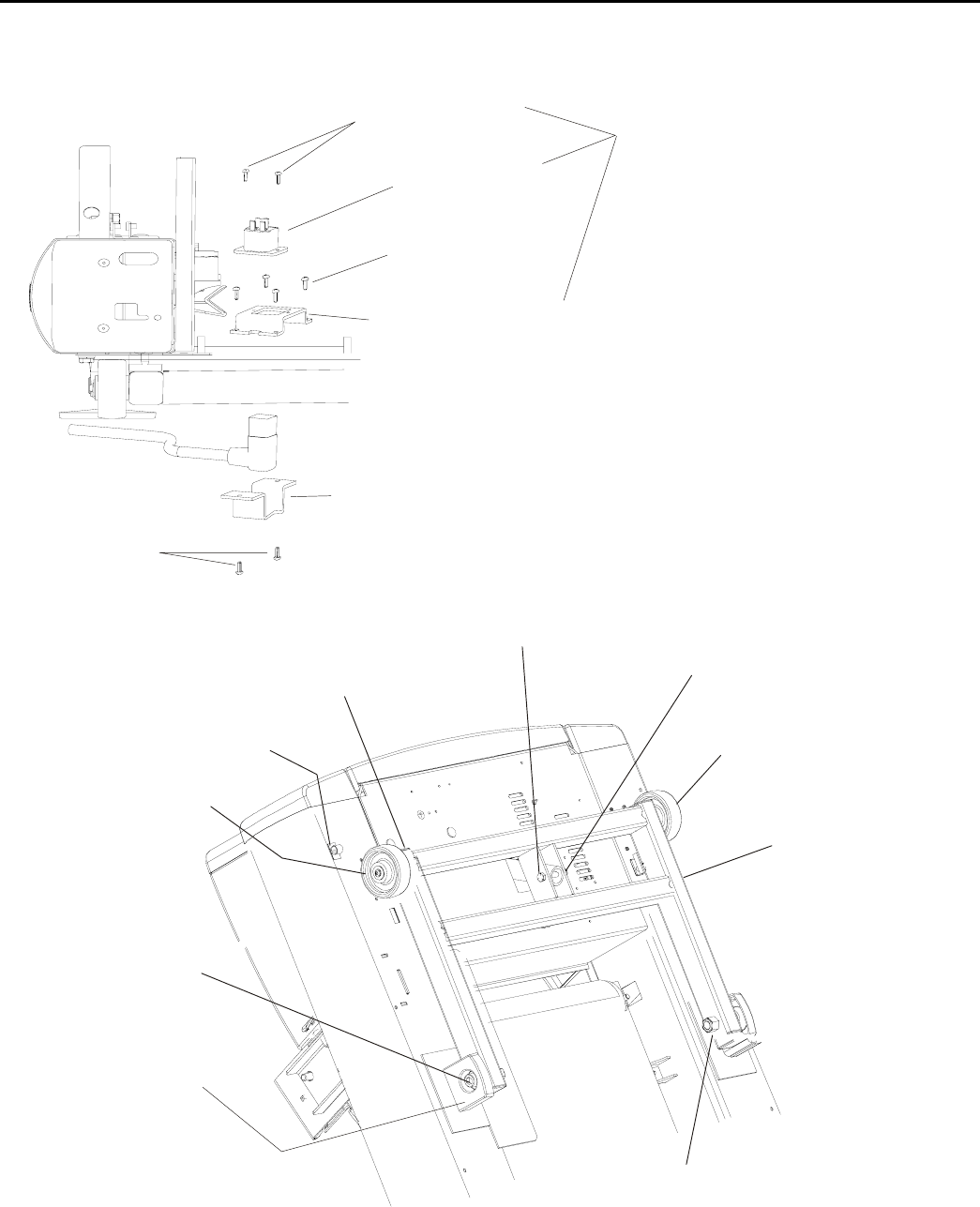

Lift Frame & Receptacle Assembly S/N TST100000 and up
Lock Nut (2)
0017-00103-0285
Hex Screw (2)
0017-00101-1777
Flat Washer (2)
0017-00104-0259
Bronze Sleeve (2)
0K58-01089-0000
Line Cord Clip
0017-00042-0840
Lift Frame
0K58-01066-0000
Lock Nut
0017-00103-0025
Lift Motor Hex Bolt
0017-00101-1021
Vinyl Cap
0017-00042-1075
Wheel (2)
0K58-01071-0000
Phillips Screw (2)
0017-00101-1612
Washer (2)
0017-00104-0189
Lift Frame End Cap (4)
0017-00042-1076
Frame Screws (2)
0017-00101-1723
*
Frame Screws (4)
0017-00101-1723
Line-Cord Socket Brkt
0K58-01419-0000
*
Line-Cord
Lower Receptacle Brkt
0K58-01420-0000
Frame Screws (2)
0017-00101-1723
IEC Receptacle
0017-00003-0949
*
*
RECEPTACLE-ASSY:
MFG; RECESS B
AK58-00514-0000
COVER: PIVOT;
LIFT-FRAME (2)
0K58-01322-0000
16
ARCTIC SILVER 97T 97T-XXXX-07

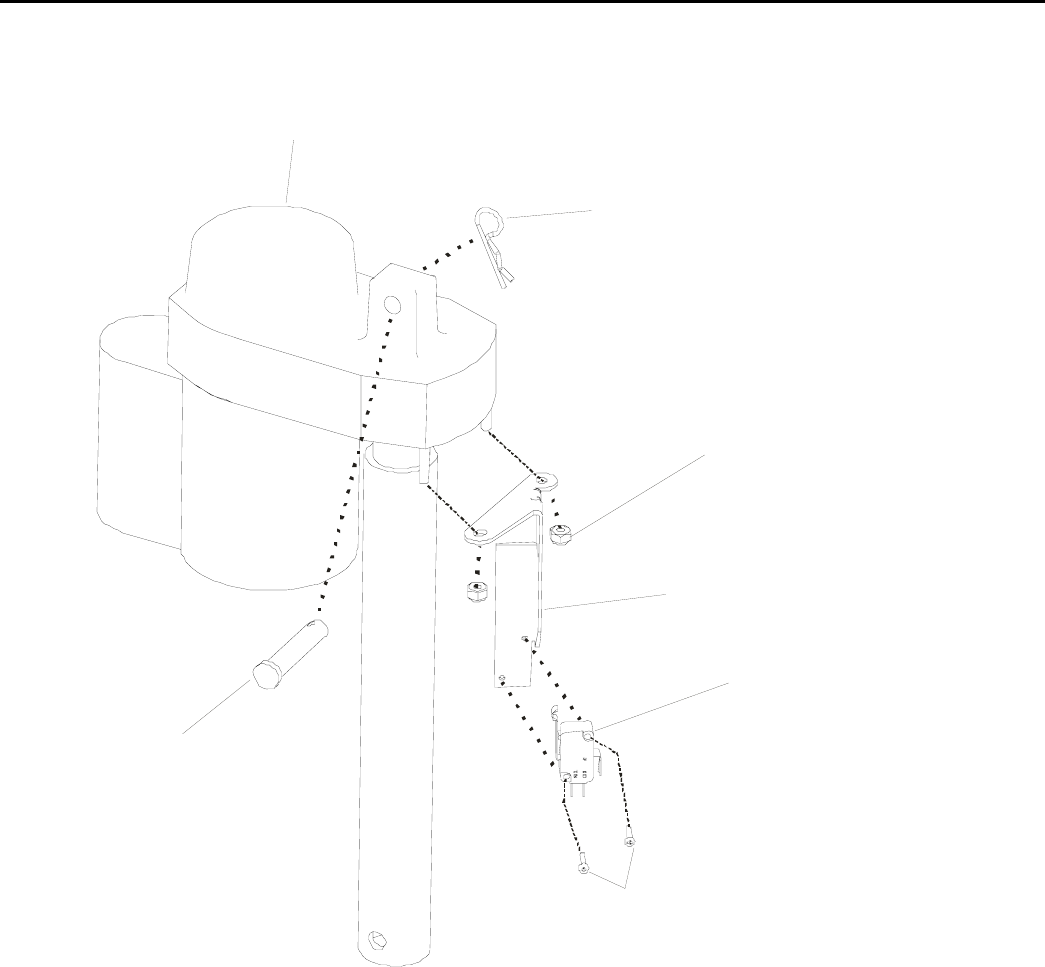

Lift Motor Assembly - AK58-00075-0000 S/N TST100000 and up
Clevis Pin
0017-00007-0214
Cotter Pin
0017-00007-0208
Nut 10-24 Locking
D ST ZN B (2)
0017-00103-0283
Actuator: Linear
0K58-01062-0000
Decline Switch Bracket (
0K58-01150-0003 * )
Mini Switch ( * )
0017-00032-0194
4-40X10 PHL PAN
F ST ZN B ( * )
0017-00101-1629
( * ) Decline Switch Bracket Assy
.
AK58-00116-0000
17
ARCTIC SILVER 97T 97T-XXXX-07

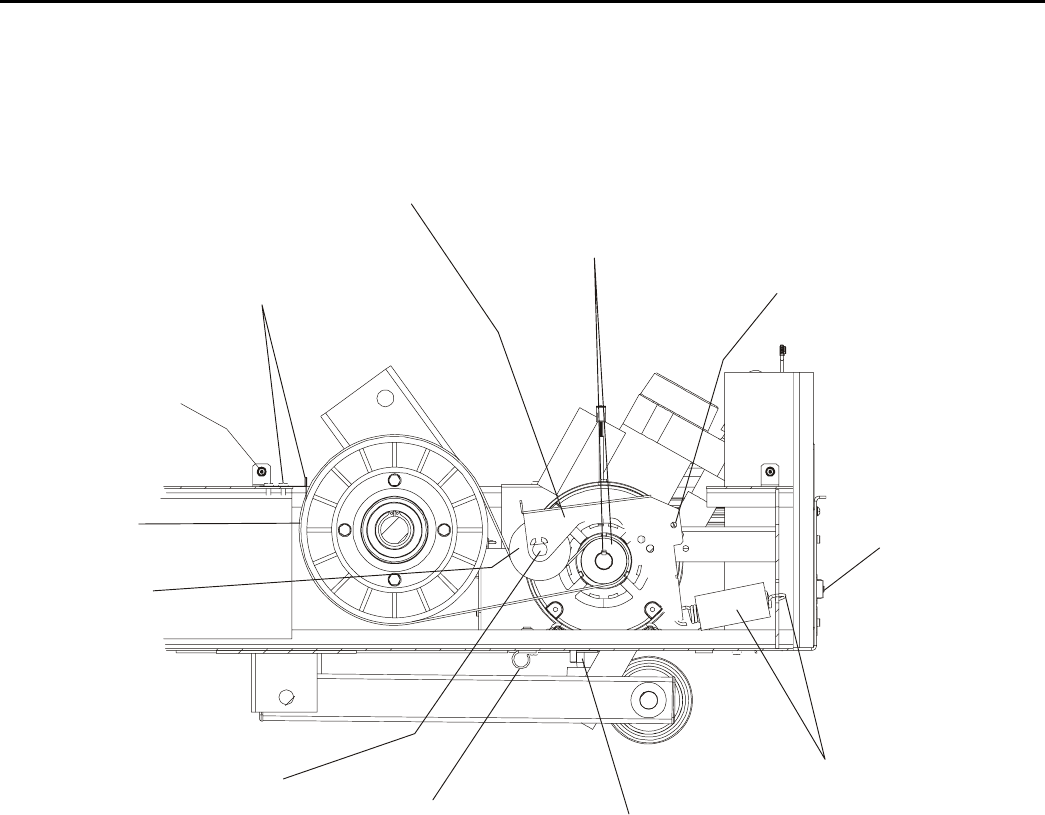

Idler Arm Assembly S/N TST100000 and up
Idler Arm Assembly
AK58-00053-0002
Idler Pin
0017-00007-0248
Idler Spring Damper
0K26-02055-0000
Idler Spring
0k58-01085-0000
Wire Clamp
0017-00042-1072
Screw
0017-00101-1193
Limit Switch
0017-00032-0195
Limit Switch Cable
AK58-00027-0000
Motor Pulley
0K58-01057-0001
Allen Screw
0017-00101-0333
Grommet
0017-00042-0326
Drive Belt
0K58-01115-0000
Idler Pulley
0K26-01731-0000
Threaded Idler
0K58-01084-0002
Lock Nut: Idler
0017-00103-0324
Shaft
Anti Static Brush
0K58-01263-0001
Tinsel Bracket Screw(2)
0017-00101-1193
Plug
0017-00042-1053
(For units not
equipped with
circuit breaker.)
18
ARCTIC SILVER 97T 97T-XXXX-07
Leg Leveler Assembly – AK58-00464-0000 S/N TST100000 and up
Lever W/Bush Assy.
AK58-00089-0000
Pivot Pin
0K58-01098-0001
Leveling Foot
0K58-01110-0000
Stop Nut
0K58-01099-0000
Hex Nut (4)
0017-00101-1652
Lock Washer (4)
0017-00104-0333
Flat Washer (4)
0017-00104-0190
19
ARCTIC SILVER 97T 97T-XXXX-07

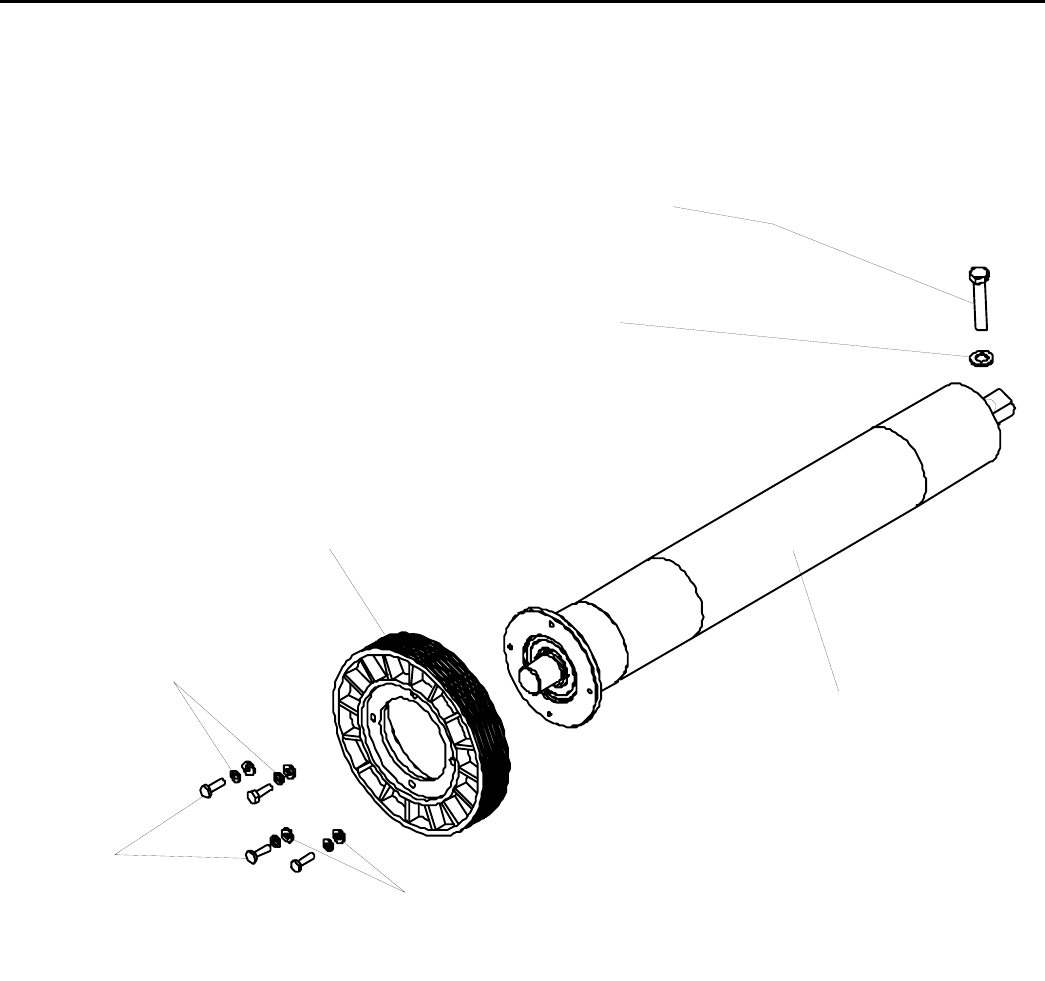

Front Roller Assembly– AK58-00067-0000 S/N TST100000 and up
Polley V Pulley 8”
0K58-01105-0000
Hex Bolt
0017-00101-1632 Flat Washer
0017-00104-0330
Lock Washer
0017-00104-0005
Flat Washer
0017-00104-0043
Mounting Bolt
0017-00101-0974
ROLLER: FRONT; 5"
0K58-01067-0001
20
ARCTIC SILVER 97T 97T-XXXX-07
Drive Motor Assembly S/N TST100000 and up
Poly-V Pulley
0K58-01056-0001
Locking Nuts (4)
0017-00103-0027
Washers (4)
0017-00104-0409
Insulating Shoulder
Washers (4)
0K58-01255-0000
Insulating Pads (2)
0K58-01256-0001
FLYWHEEL
Setscrews (2)
0017-00101-0333
The key is part of the
drive motor (not
available separately).
Part Nos.
Description S/N TST100000—TST100343 S/N TST100344 and up
Drive Motor
Assembly AK58-00171-0001
(dual cable) AK58-00171-0002
(tapered shaft)
Cast Iron Flywheel 0K58-01092-0002 0K58-01092-0004
Drive Motor
Setscrews/Bolt 0017-00101-0975
(uses setscrews) 0017-00101-1885
(uses bolt)
Ref: technical bulletin TR07060101N
21
ARCTIC SILVER 97T 97T-XXXX-07
Stride Sensor Assembly & Stride Sensor PCB S/N TST100000 and up
STRIDE-SENSOR ASSY
AK58-00560-0000
CBL-ASSY: JUMPER; GR/YL; 7"
AK58-00083-0001
10- X 6 UNS HXW L B ST GR B
0017-00101-0883
WSH 8 172-.562-025 DS-D ST ZN B
0017-00104-0460
BUSHING: SNAP; 1.75"
0017-00042-1180
SUPPORT: PCB; 3/8"
0017-00042-1057
PCB-ASSY: STRIDE SENSE ISO
B084-92329-0000
22
ARCTIC SILVER 97T 97T-XXXX-07
DSP-Controller Assembly S/N TST100000 and up
VOLTAGE PART NUMBER PART DESCRIPTION
100-120 GK58-00002-0118 KIT: SERV; MFG; DSP CONTROLLER 100-120; LED
200-240 GK58-00002-0120 KIT: SERV; MFG; DSP CONTROLLER 200-240; LED
23
ARCTIC SILVER 97T 97T-XXXX-07
Line-Cords & Line Cord Options S/N TST100000 and up
OPTIONAL LINE CORDS
0017-00003-0947 LINE-CORD: 120V; 20A; 12'
0017-00003-0915 LINE-CORD: R/A 120V 8'
0017-00003-0980 LINE-CORD: R/A; NEMA 5-20 144" 12'
0017-00003-0981 LINE-CORD: R/A; W/PLUG 220/60 7.5'
0017-00003-0948 LINE-CORD: 220V; 15A; 12'
MODEL # MODEL DESCRIPTION STANDARD LINE CORDS
97T-0100-02 97T ENG/ENG 120/60 DOM
97T-0300-02 97T FRN/MET 120/60 DOM
97T-0400-02 97T SPN/MET 120/60 DOM
97T-0800-02 97T POR/MET 120/60 DOM
0017-00003-0974
LINE-CORD: R/A; 96"; W/RECP S/C-C
97T-0103-02 97T ENG+MET 220/60 DOM
97T-0105-02 97T ENG+MET 100/50 DOM
97T-0106-02 97T ENG+MET 200/50 DOM
97T-0705-02 97T JAP/MET 100/50 DOM
97T-0706-02 97T JAP/MET 200/50 DOM
0017-00003-0781
LINE-CORD: R/A; 220V; USA D
97T-0101-02 97T ENG+MET 230/50 CON
97T-0201-02 97T GER/MET 230/50 CON
97T-0301-02 97T FRN/MET 230/50 CON
97T-0401-02 97T SPN/MET 230/50 CON
97T-0501-02 97T ITL/MET 230/50 CON
97T-0601-02 97T DUT/MET 230/50 CON
97T-0801-02 97T POR/MET 230/50 CON
97T-1601-02 97T ENG/TUR 230/50 CON
0017-00003-0696
LINE-CORD: R/A; CEE7; 103" 10A 250V D
97T-0102-02 97T ENG+MET 240/50 UK
97T-0109-02 97T ENG+MET 230/50 UK 0017-00003-0890
LINE-CORD: U.K; R/A
97T-0104-02 97T ENG+MET 240V+ AUS 0017-00003-0996
LINE-CORD: IEC; AUSTRALIAN; 230/50 C
24
ARCTIC SILVER 97T 97T-XXXX-07
CABLES FOR UNITS BETWEEN 0100 - 0104 S/N TST100000 and up
97T-XXXX-07
PART NUMBER PART DESCRIPTION 0100
120/60
DOM
0101
230/50
CON
0102
240/50
UK
0103
220/6
0
DOM
0104
240V+
CON
0017-00003-0626 CIRCUIT-BREAKER: 2A S/C#18-D X X X X
0017-00003-0898 FILTER: LINE; 10-AMP 4-SHT C X X
0017-00003-0950 CIRCUIT-BREAKER: 4A S/C#18-D
0017-00003-1015 FILTER: LINE; 20A 3-SHTS C X X X
AK32-00020-0002 CBL-ASSY: COAX; 120" S/C-B X X X X X
AK32-00078-0001 CBL-ASSY: PWR EXT; 120" S/C-C X X X X X
AK58-00027-0000 CBL-ASSY: ZERO-SWITCH C X X X X X
AK58-00031-0000 CBL-ASSY: SIDE-CONSOLE C X X X X X
AK58-00032-0000 CBL-ASSY: USER SENSE PROX. C X X X X X
AK58-00034-0001 CBL-ASSY: CONSOLE; PWR; UPR C X X X X X
AK58-00036-0000 CBL-ASSY: EMERGENCY-STOP C X X X X X
AK58-00041-0001 CBL-ASSY: H/R SENSORS C X X X X X
AK58-00081-0000 CBL-ASSY: JUMPER; BLK; 4" B X X X X X
AK58-00082-0000 CBL-ASSY: JUMPER; WHT; 6" B X X X X X
AK58-00083-0000 CBL-ASSY: JUMPER; GR/YL; 5" B X X X X X
AK58-00083-0001 CBL-ASSY: JUMPER; GR/YL; 7" B X X X X X
AK58-00210-0000 XFRMR-BRKT ASSY: MFG. C X X X X
AK58-00224-0001 CBL-ASSY: MOV; FILTER C X X X X X
AK58-00237-0000 CBL-ASSY: POLAR/E-STOP C X X X X X
AK58-00263-0000 CBL-ASSY: HI-POT JUMPER B X X X X X
AK58-00520-0000 CBL-ASSY: POWER; 100-200V C X
AK58-00522-0000 CBL-ASSY: JUMPER; POWER; LED-CONS B X X X X X
AK58-00524-0000 CBL-ASSY: THERMAL ADAPTER B X X X X X
AK58-00596-0001 CBL-ASSY: POWER; 230-240V; LED; S/C-C X X X X
AK58-00597-0000 CBL-ASSY: EXT ISO SENSOR C X X X X X
AK58-00598-0000 CBL-ASSY: ISO POWER C X X X X X
AK60-00009-0001 CBL-ASSY: ZERO-NEGATIVE SW; 15" S/C-C X X X X X
25
ARCTIC SILVER 97T 97T-XXXX-07
CABLES FOR UNITS BETWEEN 0105 - 0300 S/N TST100000 and up
97T-XXXX-07
PART NUMBER PART DESCRIPTION 0105
100/50
DOM
0106
200/50
DOM
0109
230/50
CON
0201
230/50
CON
0300
120/60
DOM
0017-00003-0626 CIRCUIT-BREAKER: 2A S/C#18-D X X X
0017-00003-0898 FILTER: LINE; 10-AMP 4-SHT C X X
0017-00003-0950 CIRCUIT-BREAKER: 4A S/C#18-D X
0017-00003-1015 FILTER: LINE; 20A 3-SHTS C X X X
AK32-00020-0002 CBL-ASSY: COAX; 120" S/C-B X X X X X
AK32-00078-0001 CBL-ASSY: PWR EXT; 120" S/C-C X X X X X
AK58-00027-0000 CBL-ASSY: ZERO-SWITCH C X X X X X
AK58-00031-0000 CBL-ASSY: SIDE-CONSOLE C X X X X X
AK58-00032-0000 CBL-ASSY: USER SENSE PROX. C X X X X X
AK58-00034-0001 CBL-ASSY: CONSOLE; PWR; UPR C X X X X X
AK58-00036-0000 CBL-ASSY: EMERGENCY-STOP C X X X X X
AK58-00041-0001 CBL-ASSY: H/R SENSORS C X X X X X
AK58-00081-0000 CBL-ASSY: JUMPER; BLK; 4" B X X X X X
AK58-00082-0000 CBL-ASSY: JUMPER; WHT; 6" B X X X X X
AK58-00083-0000 CBL-ASSY: JUMPER; GR/YL; 5" B X X X X X
AK58-00083-0001 CBL-ASSY: JUMPER; GR/YL; 7" B X X X X X
AK58-00210-0000 XFRMR-BRKT ASSY: MFG. C X X X
AK58-00224-0001 CBL-ASSY: MOV; FILTER C X X X X X
AK58-00237-0000 CBL-ASSY: POLAR/E-STOP C X X X X X
AK58-00263-0000 CBL-ASSY: HI-POT JUMPER B X X X X X
AK58-00520-0000 CBL-ASSY: POWER; 100-200V C X X
AK58-00522-0000 CBL-ASSY: JUMPER; POWER; LED-CONS B X X X X X
AK58-00524-0000 CBL-ASSY: THERMAL ADAPTER B X X X X X
AK58-00596-0001 CBL-ASSY: POWER; 230-240V; LED; S/C-C X X X
AK58-00597-0000 CBL-ASSY: EXT ISO SENSOR C X X X X X
AK58-00598-0000 CBL-ASSY: ISO POWER C X X X X X
AK60-00009-0001 CBL-ASSY: ZERO-NEGATIVE SW; 15" S/C-C X X X X X
26
ARCTIC SILVER 97T 97T-XXXX-07
CABLES FOR UNITS BETWEEN 0301 - 0601 S/N TST100000 and up
97T-XXXX-07
PART NUMBER PART DESCRIPTION 0301
230/50
CON
0400
120/60
DOM
0401
230/50
CON
0501
230/50
CON
0601
230/50
CON
0017-00003-0626 CIRCUIT-BREAKER: 2A S/C#18-D X X X X
0017-00003-0898 FILTER: LINE; 10-AMP 4-SHT C X X X X
0017-00003-0950 CIRCUIT-BREAKER: 4A S/C#18-D
0017-00003-1015 FILTER: LINE; 20A 3-SHTS C X
AK32-00020-0002 CBL-ASSY: COAX; 120" S/C-B X X X X X
AK32-00078-0001 CBL-ASSY: PWR EXT; 120" S/C-C X X X X X
AK58-00027-0000 CBL-ASSY: ZERO-SWITCH C X X X X X
AK58-00031-0000 CBL-ASSY: SIDE-CONSOLE C X X X X X
AK58-00032-0000 CBL-ASSY: USER SENSE PROX. C X X X X X
AK58-00034-0001 CBL-ASSY: CONSOLE; PWR; UPR C X X X X X
AK58-00036-0000 CBL-ASSY: EMERGENCY-STOP C X X X X X
AK58-00041-0001 CBL-ASSY: H/R SENSORS C X X X X X
AK58-00081-0000 CBL-ASSY: JUMPER; BLK; 4" B X X X X X
AK58-00082-0000 CBL-ASSY: JUMPER; WHT; 6" B X X X X X
AK58-00083-0000 CBL-ASSY: JUMPER; GR/YL; 5" B X X X X X
AK58-00083-0001 CBL-ASSY: JUMPER; GR/YL; 7" B X X X X X
AK58-00210-0000 XFRMR-BRKT ASSY: MFG. C X X X X
AK58-00224-0001 CBL-ASSY: MOV; FILTER C X X X X X
AK58-00237-0000 CBL-ASSY: POLAR/E-STOP C X X X X X
AK58-00263-0000 CBL-ASSY: HI-POT JUMPER B X X X X X
AK58-00520-0000 CBL-ASSY: POWER; 100-200V C X
AK58-00522-0000 CBL-ASSY: JUMPER; POWER; LED-CONS B X X X X X
AK58-00524-0000 CBL-ASSY: THERMAL ADAPTER B X X X X X
AK58-00596-0001 CBL-ASSY: POWER; 230-240V; LED; S/C-C X X X X
AK58-00597-0000 CBL-ASSY: EXT ISO SENSOR C X X X X X
AK58-00598-0000 CBL-ASSY: ISO POWER C X X X X X
AK60-00009-0001 CBL-ASSY: ZERO-NEGATIVE SW; 15" S/C-C
X X X X X
27
ARCTIC SILVER 97T 97T-XXXX-07
CABLES FOR UNITS BETWEEN 0705 - 1601 S/N TST100000 and up
97T-XXXX-07
PART NUMBER PART DESCRIPTION 0705
100/50
DOM
0706
200/50
DOM
0800
120/50
DOM
0801
230/50
CON
1601
230/50
CON
0017-00003-0626 CIRCUIT-BREAKER: 2A S/C#18-D X X X
0017-00003-0898 FILTER: LINE; 10-AMP 4-SHT C X X
0017-00003-0950 CIRCUIT-BREAKER: 4A S/C#18-D
0017-00003-1015 FILTER: LINE; 20A 3-SHTS C X X X
AK32-00020-0002 CBL-ASSY: COAX; 120" S/C-B X X X X X
AK32-00078-0001 CBL-ASSY: PWR EXT; 120" S/C-C X X X X X
AK58-00027-0000 CBL-ASSY: ZERO-SWITCH C X X X X X
AK58-00031-0000 CBL-ASSY: SIDE-CONSOLE C X X X X X
AK58-00032-0000 CBL-ASSY: USER SENSE PROX. C X X X X X
AK58-00034-0001 CBL-ASSY: CONSOLE; PWR; UPR C X X X X X
AK58-00036-0000 CBL-ASSY: EMERGENCY-STOP C X X X X X
AK58-00041-0001 CBL-ASSY: H/R SENSORS C X X X X X
AK58-00081-0000 CBL-ASSY: JUMPER; BLK; 4" B X X X X X
AK58-00082-0000 CBL-ASSY: JUMPER; WHT; 6" B X X X X X
AK58-00083-0000 CBL-ASSY: JUMPER; GR/YL; 5" B X X X X X
AK58-00083-0001 CBL-ASSY: JUMPER; GR/YL; 7" B X X X X X
AK58-00210-0000 XFRMR-BRKT ASSY: MFG. C X X X
AK58-00224-0001 CBL-ASSY: MOV; FILTER C X X X X X
AK58-00237-0000 CBL-ASSY: POLAR/E-STOP C X X X X X
AK58-00263-0000 CBL-ASSY: HI-POT JUMPER B X X X X X
AK58-00520-0000 CBL-ASSY: POWER; 100-200V C X X
AK58-00522-0000 CBL-ASSY: JUMPER; POWER; LED-CONS B X X X X X
AK58-00524-0000 CBL-ASSY: THERMAL ADAPTER B X X X X X
AK58-00596-0001 CBL-ASSY: POWER; 230-240V; LED; S/C-C X X X
AK58-00597-0000 CBL-ASSY: EXT ISO SENSOR C X X X X X
AK58-00598-0000 CBL-ASSY: ISO POWER C X X X X X
AK60-00009-0001 CBL-ASSY: ZERO-NEGATIVE SW; 15" S/C-C
X X X X X
