Customer Support Services

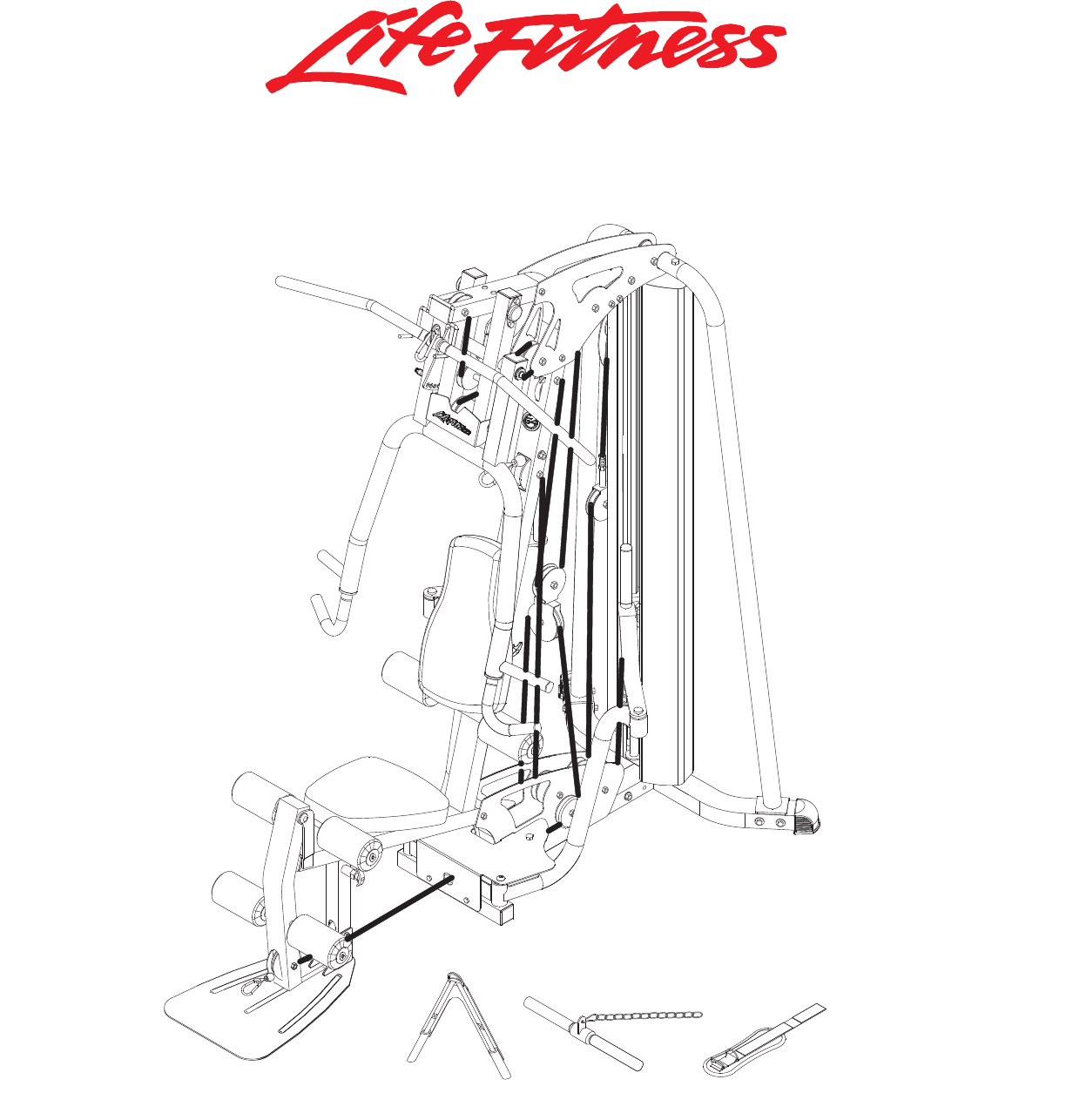

PARTS MANUAL
G4 HOME GYM
G4-001
Page 2
CONTENTS
______________________________________
G4-001 G4 HOME GYM
PAGE
COMPONENT ASSEMBLY I 3
COMPONENT ASSEMBLY I LEGEND 4
COMPONENT ASSEMBLY II 5
COMPONENT ASSEMBLY II LEGEND 6
COMPONENT ASSEMBLY III 7
COMPONENT ASSEMBLY IV 8
COMPONENT ASSEMBLY V 9
COMPONENT ASSEMBLY V LEGEND 10
LAT CABLE 11
PEC FLY CABLE 12
GUIDE CABLE 13
LOW CABLE 14
WEIGHT STACK ASSEMBLY 15
SUPPLIED ACCESSORIES 16
HARDWARE BAG 17
1
2
3
3
4
5
6
7
8
9
10
11
11
12
21
13
14
15
16
17
18
19
20
22
23
24 25
26
27
28
29
30
31
32
33
33
34
35
36
37
38
41
41
39
40
42
42
43
43
41
44
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
60

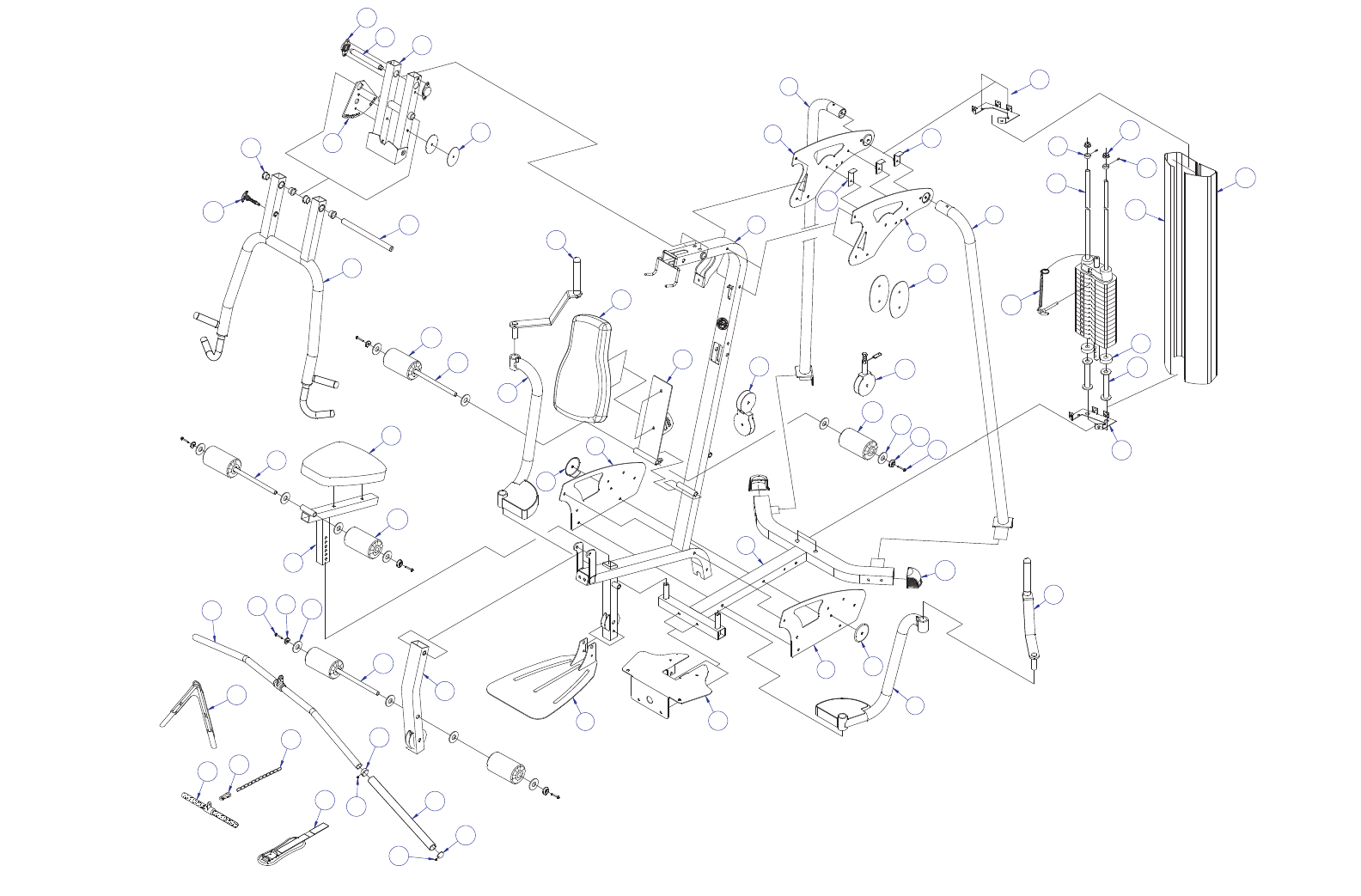

COMPONENT ASSEMBLY I
______________________________________
G4-001 G4 HOME GYM
LEGEND ON PAGE 4
Page 3
COMPONENT ASSEMBLY I LEGEND
______________________________________
Page 4
G4-001 G4 HOME GYM
ITEM NO. QTY. PART NO. DESCRIPTION 31 1 8591201 T HANDLE SPRING PIN
1 1 8589201 ASSY, FRAME, G4 32 2 8589801 CAP, COVER 2 X 2
2 1 8589501 ASSY, BASE, G4 33 2 8591601 GUARD, 3-1/2 PULLEY
3 2 8602501 BASE PLATE 34 2 8578901 PLATE, PULLEY
4 1 8587801 WLDMT, FOOT PLATE 35 1 7316201 3/4 X 17-7/8 TUBE
5 1 8602601 BOOM PLATE LEFT 36 1 7316202 3/4 X 18-7/8 TUBE
6 1 8602701 BOOM PLATE RIGHT 37 1 7316203 3/4 X 21 TUBE
7 1 8589901 ASSY, LEFT REAR UPRIGHT 38 2 8591501 ASSY, BEARING BLOCK
8 1 8590201 ASSY, RIGHT REAR UPRIGHT 39 1 8594301 PAD, CONSUMER, SEAT
9 1 8590401 ASSY, LEFT PEC FLY ARM 40 1 8594201 PAD, CONSUMER, BACK
10 1 8590701 ASSY, RIGHT PEC FLY ARM 41 6 8578401 PAD, ROLLER
11 2 8599901 ASSY, PEC FLY HANDLE 42 12 8584201 WASHER, PLASTIC
12 1 8591001 ASSY, PRESS ARM 43 6 8598001 AL CAP, ROLLER PAD END
13 1 8590901 WLDMT, BRACE 44 6 3268301 CAP SCREW, BTN HD 3/8-16 BO
14 1 8577801 ASSY, LEG PEDESTAL 45 1 8587601 WEIGHT STACK PIN
15 1 8585201 ASSY, SEAT ADJUST 46 2 3108002 CUSHION, WEIGHT STACK 3/4 ID
16 1 8591301 ASSY, PRESS ARM SUPPORT FRAME 47 2 8588601 WLDMT, WEIGHT STACK SPACER
17 1 8599801 PRESS ARM ADJUST PLATE 48 2 6224501 SOCKET BUSHING
18 1 8603301 BACK INCLINE ADJUSTMENT 49 2 8588501 COLLAR, SHAFT, AL 32.5 OD X 11.1H
19 1 8595501 PTD ASSY, SHROUD BRKT - TOP 50 2 3247701 M4 X 0.7 X 3 HZS NO CUP ST BO
20 1 8595601 PTD ASSY, SHROUD BRKT - BTM 51 2 6523401 GUIDE ROD, 3/4 OD X 72-3/8
21 1 8597401 SHROUD, LEFT 52 1 8603601 AB STRAP
22 1 8597501 SHROUD, RIGHT 53 1 6409101 STRAP, ANKLE STANDARD
23 2 8595701 PLATE, DOUBLE PULLEY 54 1 6075906 CHAIN, 12 LINK
24 1 8596901 ASSY, DOUBLE FLOAT PULLEY BRKT 55 4 3103801 LINK, SNAP 5/16 DIA
25 1 8597301 BRKT, FLOATING PULLEY 56 1 8588301 ASSY, LOW ROW BAR
26 2 8603501 L CABLE RETAINER 57 1 8598701 ASSY, LAT BAR, G4
27 1 8595401 4-1/2 CABLE GUARD 58 2 8598901 HAND GRIP - 25MM OD X 580L
28 1 8599501 SHAFT, PRESS ARM PIVOT 59 2 7662801 RING, GRIP 1.25 OD
29 1 8602901 PRESS ARM SUPPORT PIVOT 60 8 3247701 M4 X 0.7 X 3 HZS NO CUP ST BO
30 4 3268501 BUSHING 31 OD X 25.1 ID X 20H 61 2 7662901 CAP; GRIP 1.25 OD
2
1
3
4
5
6
7
8
9
10
11
12
12
12
13
10
10
10
10
14
15

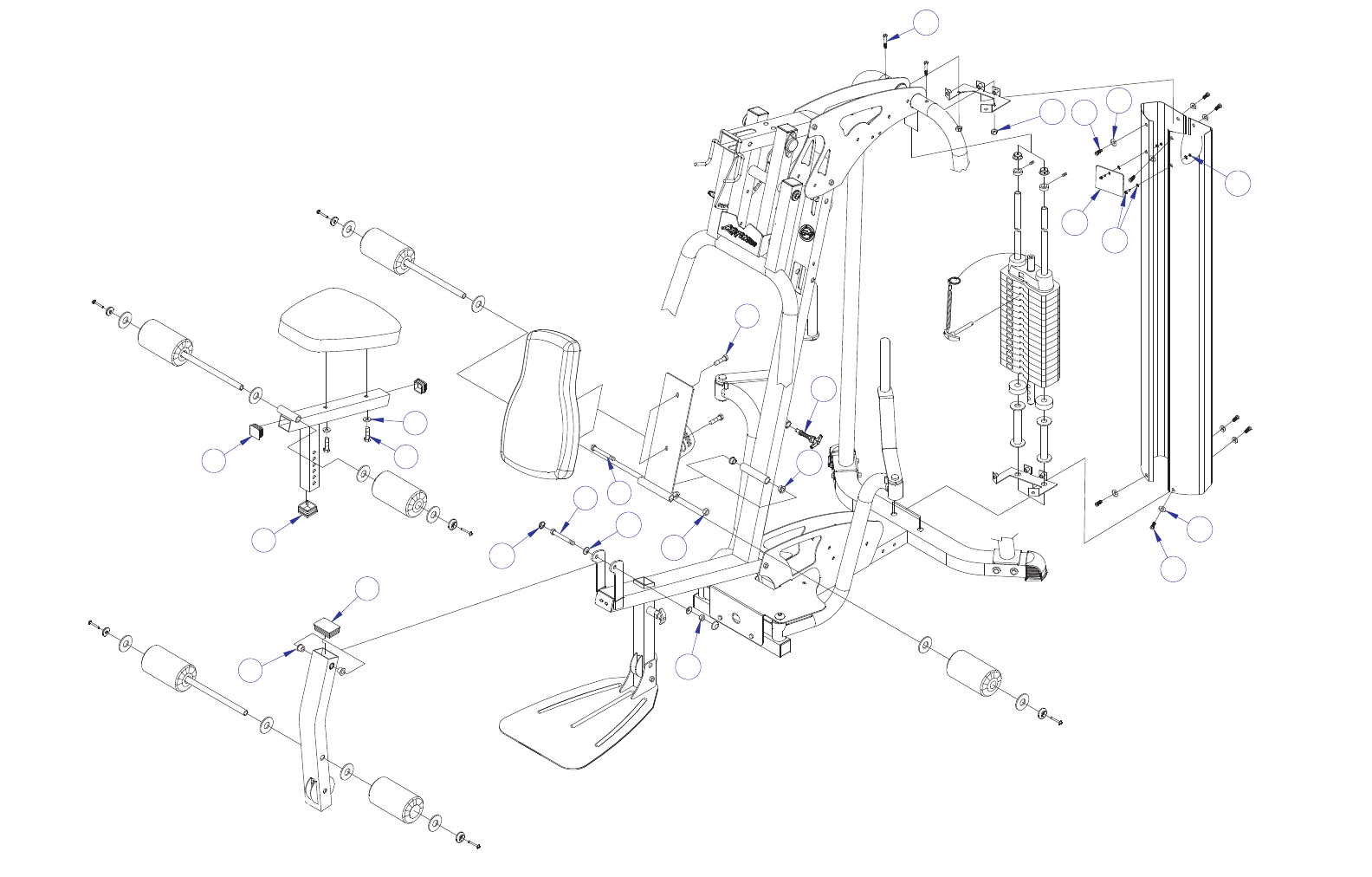

COMPONENT ASSEMBLY II
______________________________________
G4-001 G4 HOME GYM
Page 5
LEGEND ON PAGE 6
COMPONENT ASSEMBLY II LEGEND
______________________________________
Page 6
G4-001 G4 HOME GYM
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 8582201 CAP, END 75 X 50
2 2 8582101 LAT BAR HOOK COVER - 3/8 ID X 4-3/8 L
3 1 8584301 ADJUSTABLE GLIDE
4 1 8589401 GS4 ALUMINUM LOGO
5 1 8599401 SLEEVE, AL 13 OD X 10 ID X 12L
6 1 8582001 T-HANDLE SPRING PIN
7 1 8599101 BUMPER
8 1 8580401 KNOB, SEAT ADJUSTER
9 1 3102904 3/8-16X3 UNS HEX FHB G2 ZN
10 10 3102807 NUT, NYLOCK 3/8-16 LOW HT
11 2 8589701 END CAP, 2 SQ
12 9 3102905 3/8-16 X 3-3/4 UNS HEX FHB G2 ZN
13 2 3102965 3/8-16 X 3/4 UNS HEX FHB G2 ZN
14 4 3102514 WASHER, FLAT 3/8 IN SAE ST ZN
15 1 7611601 V PULLEY
1
1
2
3
4
5
5
6
7
8
9
10
13
12
11

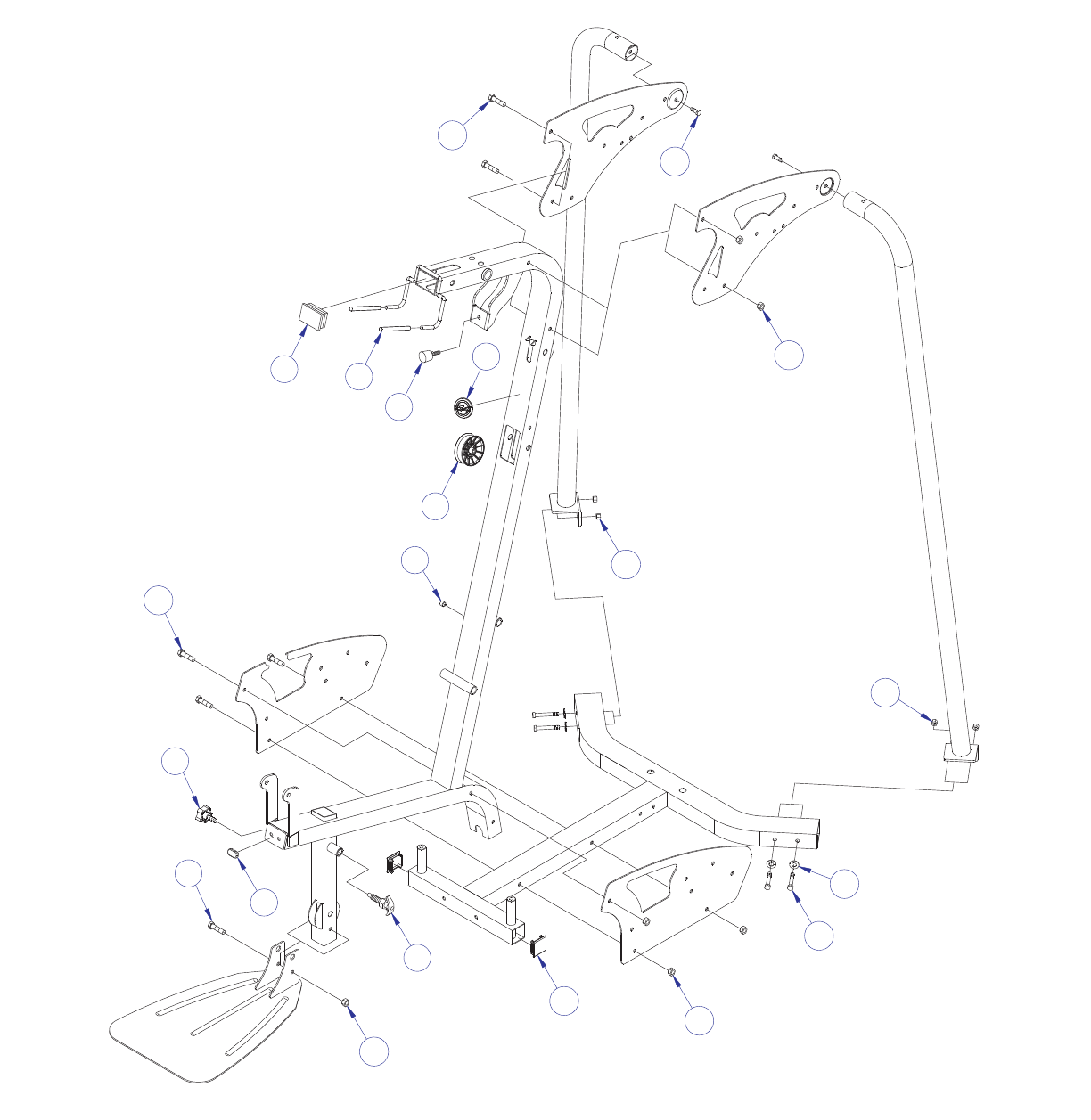

COMPONENT ASSEMBLY III
______________________________________
Page 7
G4-001 G4 HOME GYM
ITEM NO. QTY. PART NO. DESCRIPTION
1 6 8589701 END CAP, 2 SQ
2 1 8580601 LABEL, LF LOGO 6.63
3 4 3268901 WASHER, SPRING - 3/8
4 2 3269101 SCREW, FLAT HEAD ALLEN - 3/8 X 1L
5 4 3268601 SCREW, SET 5/16 - 18UNC X 1/4L
6 4 3102965 3/8-16 X 3/4 UNS HEX FHB G2 ZN
7 2 3202401 3/8-16 X 1 HXS BUT CS G8 BO
8 2 3228501 WASHER, FLAT 3/8 ID SAE BZ
9 2 8599201 HAND GRIP 5.12L
10 2 8599301 HAND GRIP 10.4L
11 4 8588501 COLLAR, SHAFT, AL 32.5 OD X 11.1H
12 16 3247701 M4 X 0.7 X 3 HZS NO CUP ST BO
13 4 8587901 CAP AL 38.1 OD X 32.3 ID X 22.2H
1
2
3
4
5
6
7
8
6
9
10
9
11
12
14 13
14

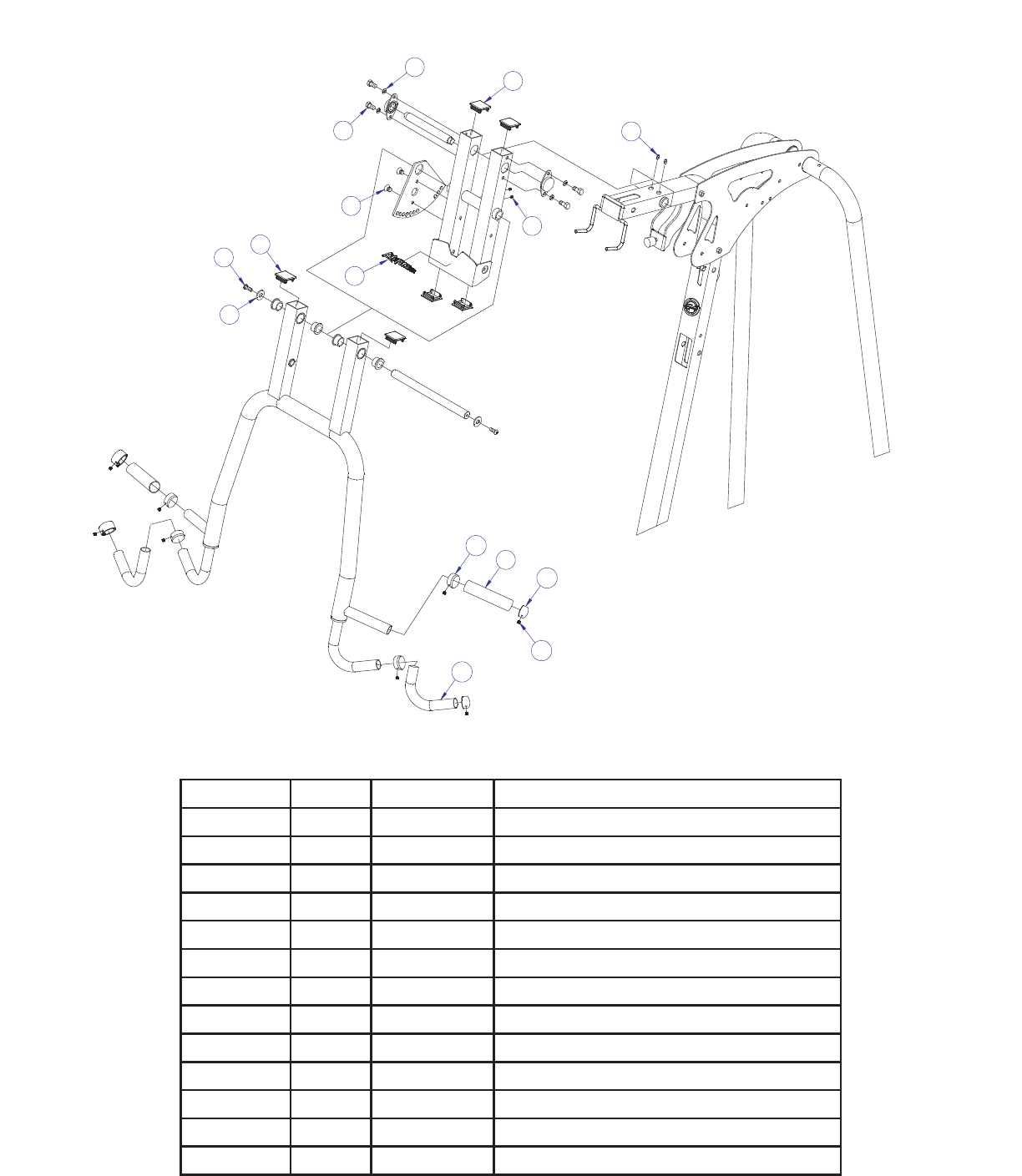

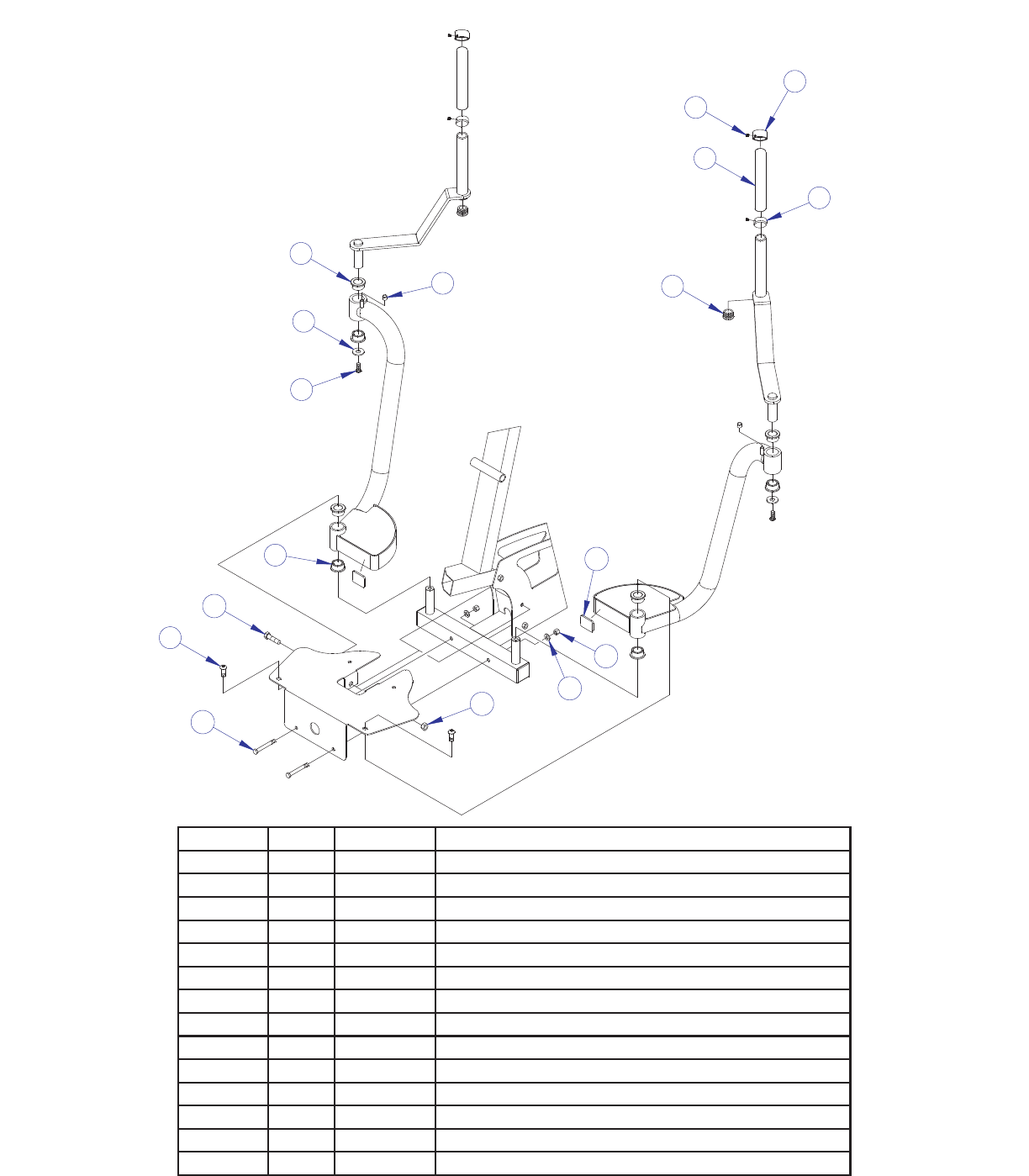

COMPONENT ASSEMBLY IV
______________________________________
Page 8
G4-001 G4 HOME GYM
ITEM NO. QTY. PART NO. DESCRIPTION
1 2 8587901 CAP AL 38.1 OD X 32.3 ID X 22.2H
2 8 3247701 M4 X 0.7 X 3 HZS NO CUP ST BO
3 2 8602401 HAND GRIP 1-1/4 X 180L
4 2 8588501 COLLAR, SHAFT, AL 32.5 OD X 11.1H
5 2 8602301 END CAP - 1-1/4 RD
6 8 3268401 BEARING, FLANGE -35 OD X 25.1 ID X 20H
7 2 8609101 SLEEVE, AL
8 2 3102512 WSHR, FLAT 1/2 ID X1-3/4 OD ZN
9 2 3269001 SCREW, BUTTON HEAD ALLEN - 1/2 X 3/4L W/LOCKTITE
10 2 8590601 BUMPER, 1-1/2 X 2
11 1 3102906 3/8-16X4 UNS HEX FHB G2 ZN
12 2 3102922 3/8-16X2-3/4 UNS HEX FHB G2 ZN
13 2 3102514 WASHER, FLAT 3/8 IN SAE ST ZN
14 3 3102807 NUT, NYLOCK 3/8-16 LOW HT
1
3
2
4
5
6
7
8
9
10
11
11
12
13
14
15
16 17 18
17
18
19
19
20
______________________________________
G4-001 G4 HOME GYM
COMPONENT ASSEMBLY V
Page 9 LEGEND ON PAGE 10
______________________________________
G4-001 G4 HOME GYM
COMPONENT ASSEMBLY V LEGEND
Page 10

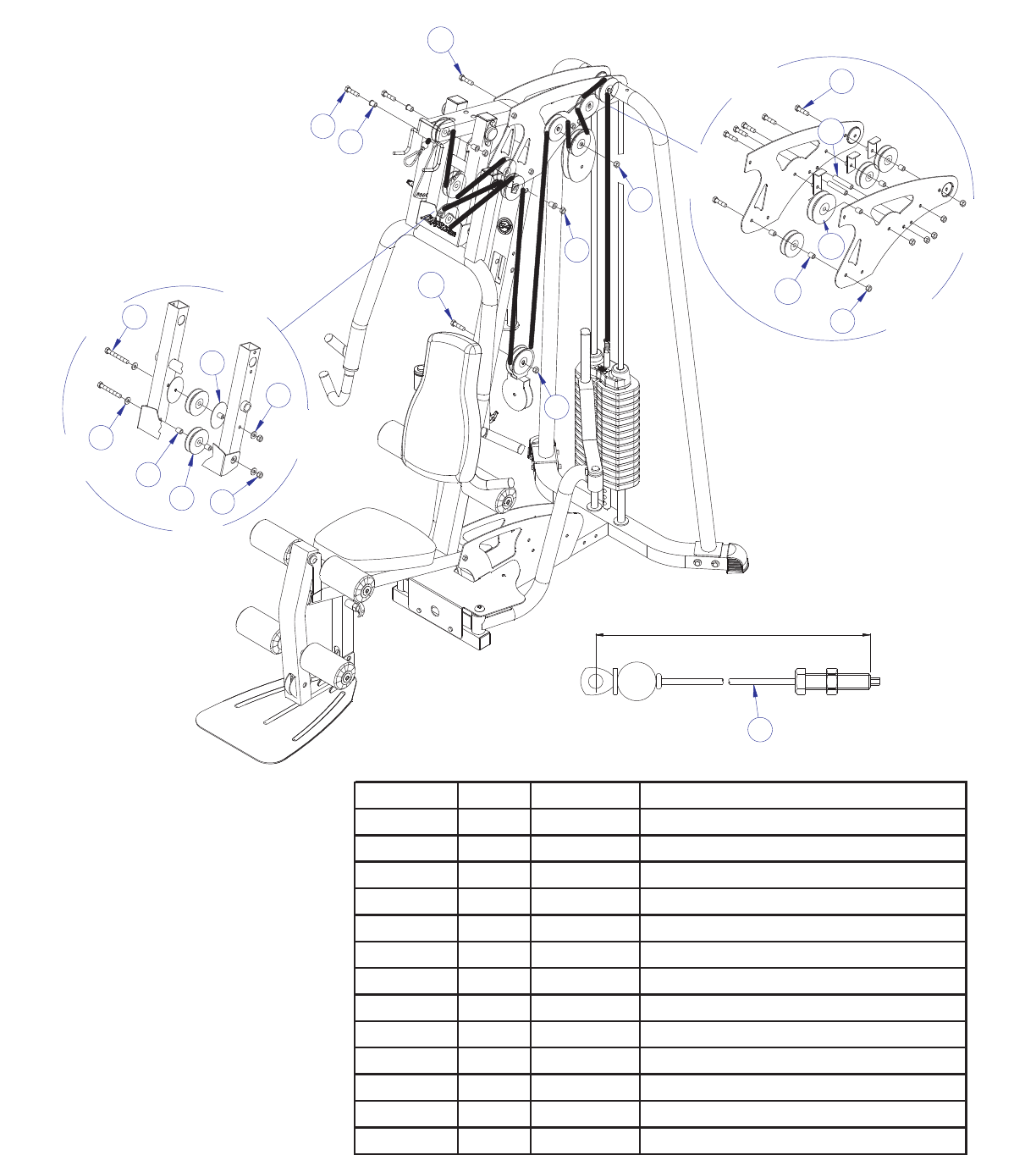

LAT CABLE
______________________________________
G4-001 G4 HOME GYM
Page 11
199.75" 5075mm
1
2
3
4
5
67
89
10
10
7
7
4
8
7
11
12
13
7
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 8603701 LAT CABLE - 199.75L
2 2 3102967 3/8-16 X 8 UNS HEX FHB G2 ZN
3 2 8644701 WLDMT, PULLEY GUARD/SPACER G4
4 4 3102514 WASHER, FLAT 3/8 IN SAE ST ZN
5 2 8597703 SPACER, 3/8 X 32 MM LG
6 12 3116201 PULLEY, 3-1/2 OD X 3/8 ID X 1
7 11 3102807 NUT, NYLOCK 3/8-16 LOW HT
8 8 3102905 3/8-16 X 3-3/4 UNS HEX FHB G2 ZN
9 4 8604701 SPACER, STEP
10 2 3102924 3/8-16X1-3/4 UNS HEX FHB G2 ZN
11 5 8597702 SPACER, 3/8 X 1 LG
12 1 3116101 PULLEY, 4-1/2 OD X 3/8 ID X 1
13 2 8604401 SLEEVE, PLASTIC

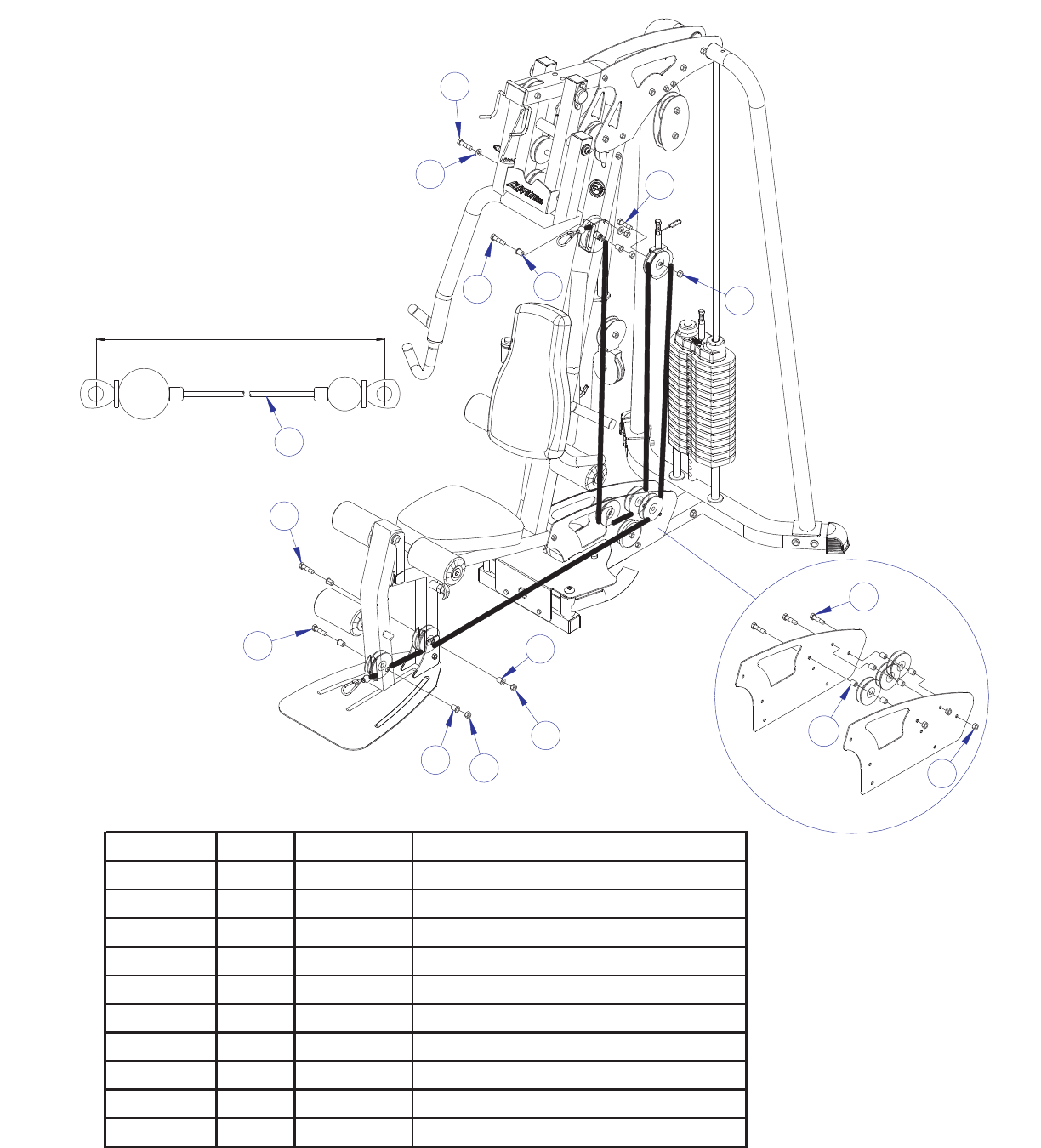

PEC FLY CABLE
______________________________________
G4-001 G4 HOME GYM
Page 12
90.5" 2959mm
1
2
3
4
5
6
7
8
4
4
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 8604001 PEC FLY CABLE - 90.5L
2 5 3116201 PULLEY, 3-1/2 OD X 3/8 ID X 1
3 2 8603501 L CABLE RETAINER
4 4 3102807 NUT, NYLOCK 3/8-16 LOW HT
5 2 3102915 3/8-16X3-1/4 UNS HEX FHB G2 ZN
6 1 3116101 PULLEY, 4-1/2 OD X 3/8 ID X 1
7 1 3102924 3/8-16X1-3/4 UNS HEX FHB G2 ZN
8 1 3102966 3/8-16 X 5-3/4 UNS HEX FHB G2 ZN
96" 2440mm
1
2
3
3
4
5
6
7
8

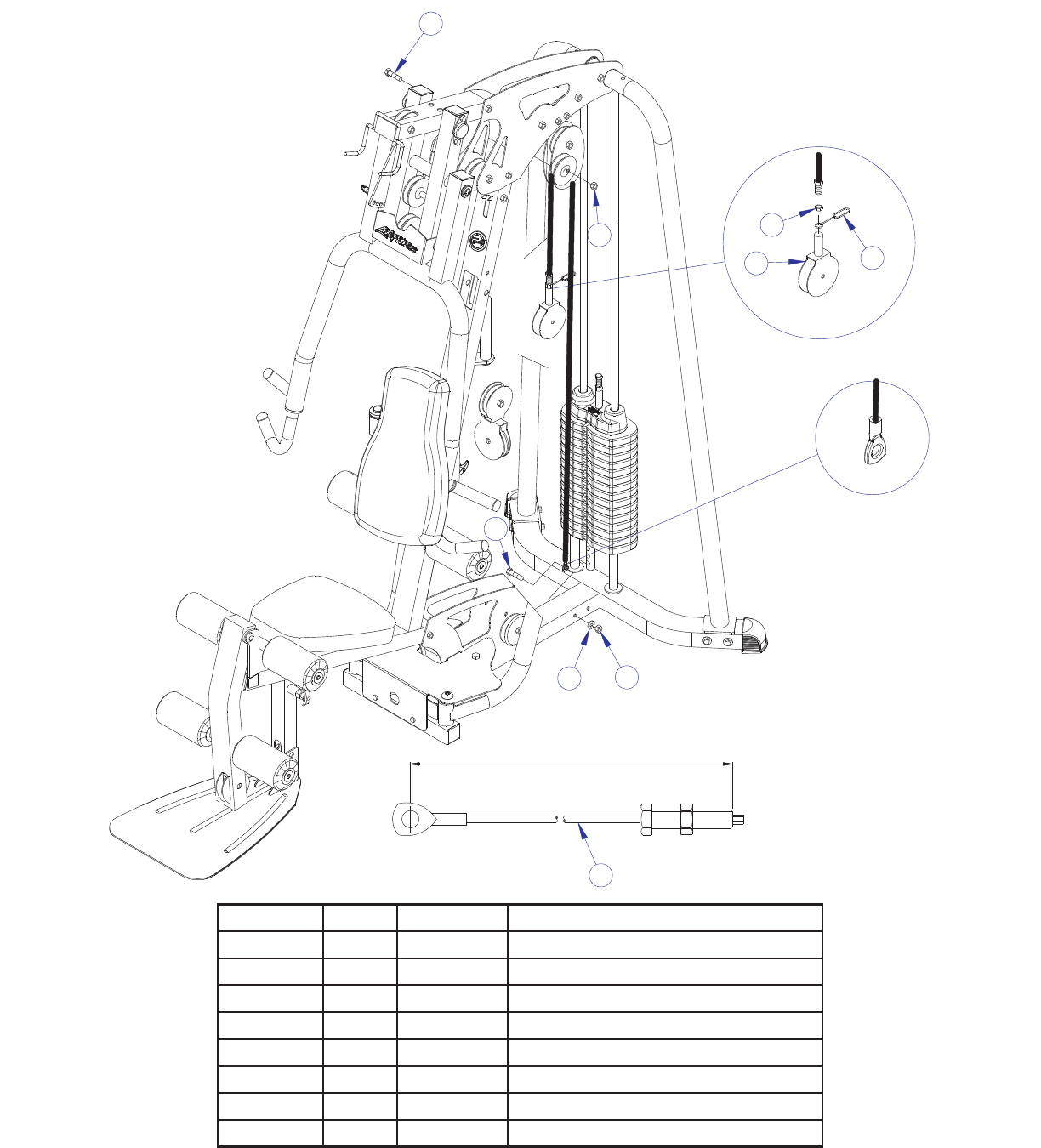

GUIDE CABLE
______________________________________
G4-001 G4 HOME GYM
Page 13
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 8603901 GUIDE CABLE - 96L
2 1 3102924 3/8-16X1-3/4 UNS HEX FHB G2 ZN
3 2 3102807 NUT, NYLOCK 3/8-16 LOW HT
4 1 3102514 WASHER, FLAT 3/8 IN SAE ST ZN
5 1 8604501 CABLE WIRE GUIDE
6 1 8603101 NUT, HEX 3/8 - 16
7 1 8597301 BRKT, FLOATING PULLEY
8 1 3102905 3/8-16 X 3-3/4 UNS HEX FHB G2 ZN
168" 4270mm
2
1
2
3
4
2
2
5
6
7
7
8
7
9
7
10

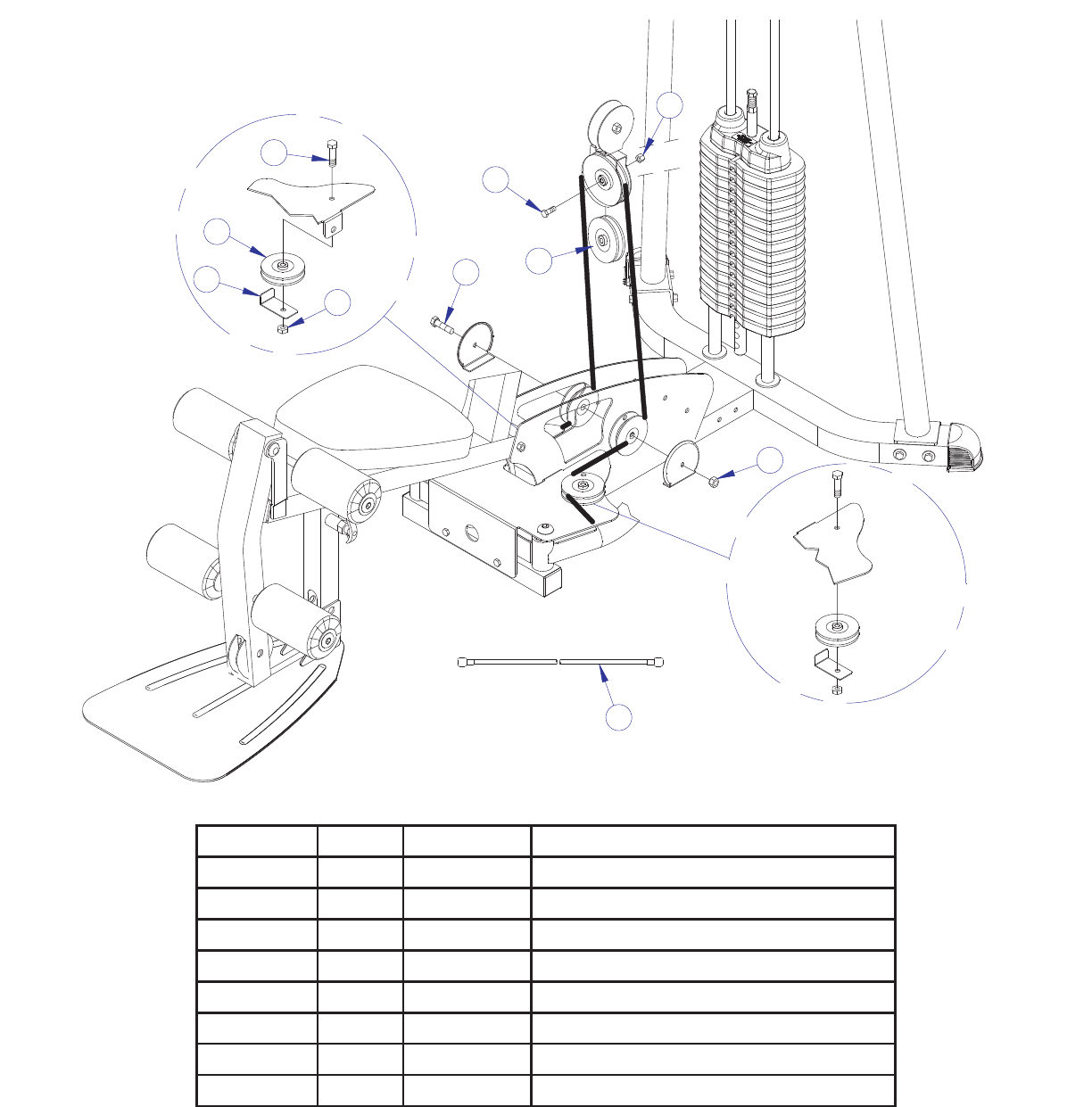

LOW CABLE
______________________________________
G4-001 G4 HOME GYM
Page 14
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 8603801 LOW CABLE - 168L
2 6 3102905 3/8-16 X 3-3/4 UNS HEX FHB G2 ZN
3 2 3102514 WASHER, FLAT 3/8 IN SAE ST ZN
4 2 8604703 SPACER, STEP
5 1 3102904 3/8-16X3 UNS HEX FHB G2 ZN
6 2 8604702 SPACER, STEP
7 6 3102807 NUT, NYLOCK 3/8-16 LOW HT
8 2 8604701 SPACER, STEP
9 1 3102924 3/8-16X1-3/4 UNS HEX FHB G2 ZN
10 6 8597702 SPACER, 3/8 X 1 LG
1
3
2
4
5
6

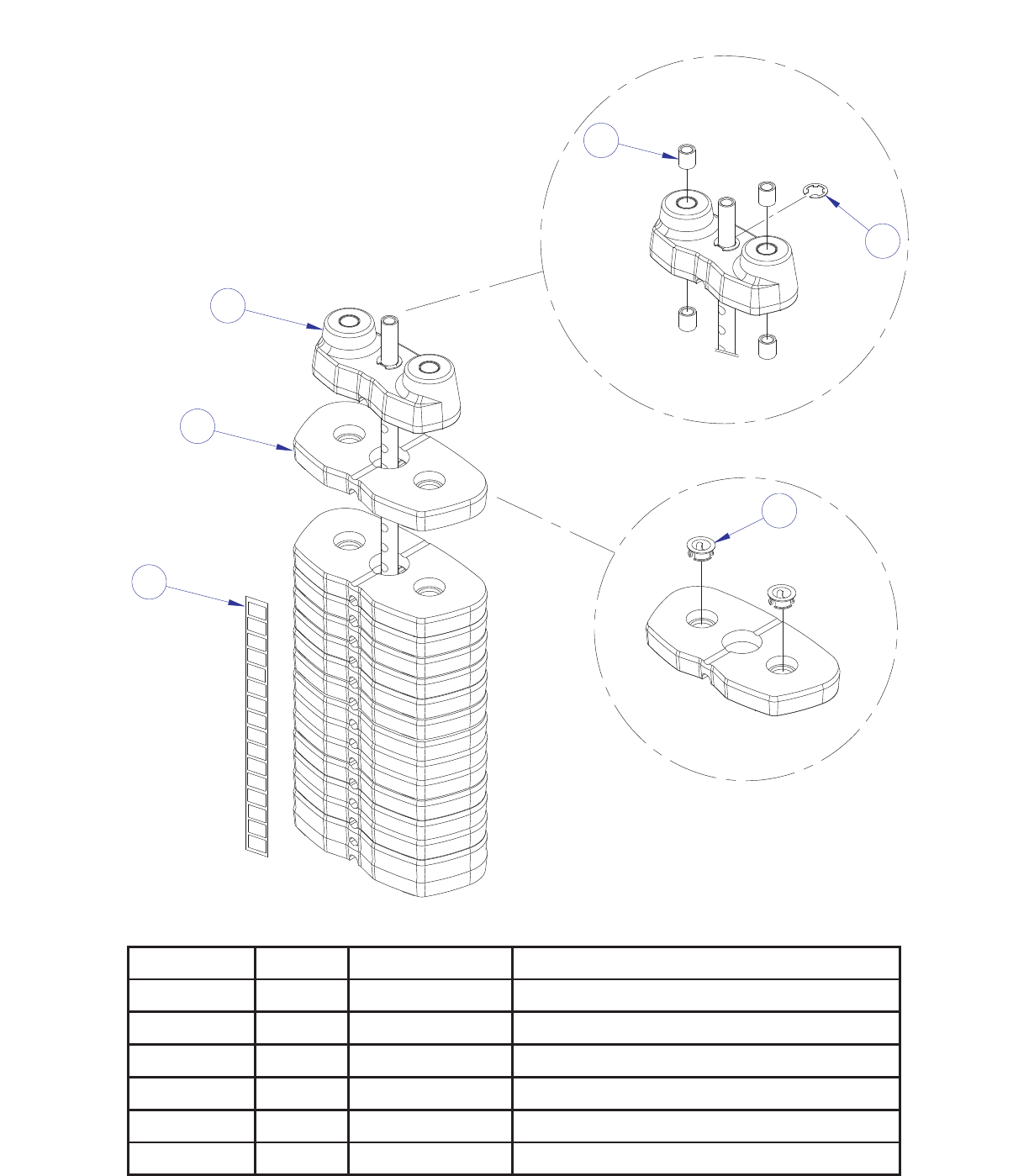

WEIGHT STACK ASSEMBLY
______________________________________
G4-001 G4 HOME GYM
Page 15
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 7292801 PTD ASSY, HEAD PLATE 20 HOLE
2 15 ACUWT-PLATE 215102 SINGLE WT PLATE 10 LBS
3 1 7308601 LABEL;WEIGHT STACK 1-26
4 4 7286601 BEARING,SLEEVE 20ID X23 X 15MM
5 1 3221702 E-RING, EXTERNAL 3/4
6 30 6224501 SOCKET BUSHING
G4-001 HOME GYM
USER GUIDE
LIFE FITNESS
G4-001 HOME GYM
G4-001 HOME GYM
G4-001 HOME GYM
G4-001 HOME GYM
G4-001 HOME GYM
G4-001 HOME GYM 10
4
1
2
3
SILICONE
GEL
5
67
8
9
11

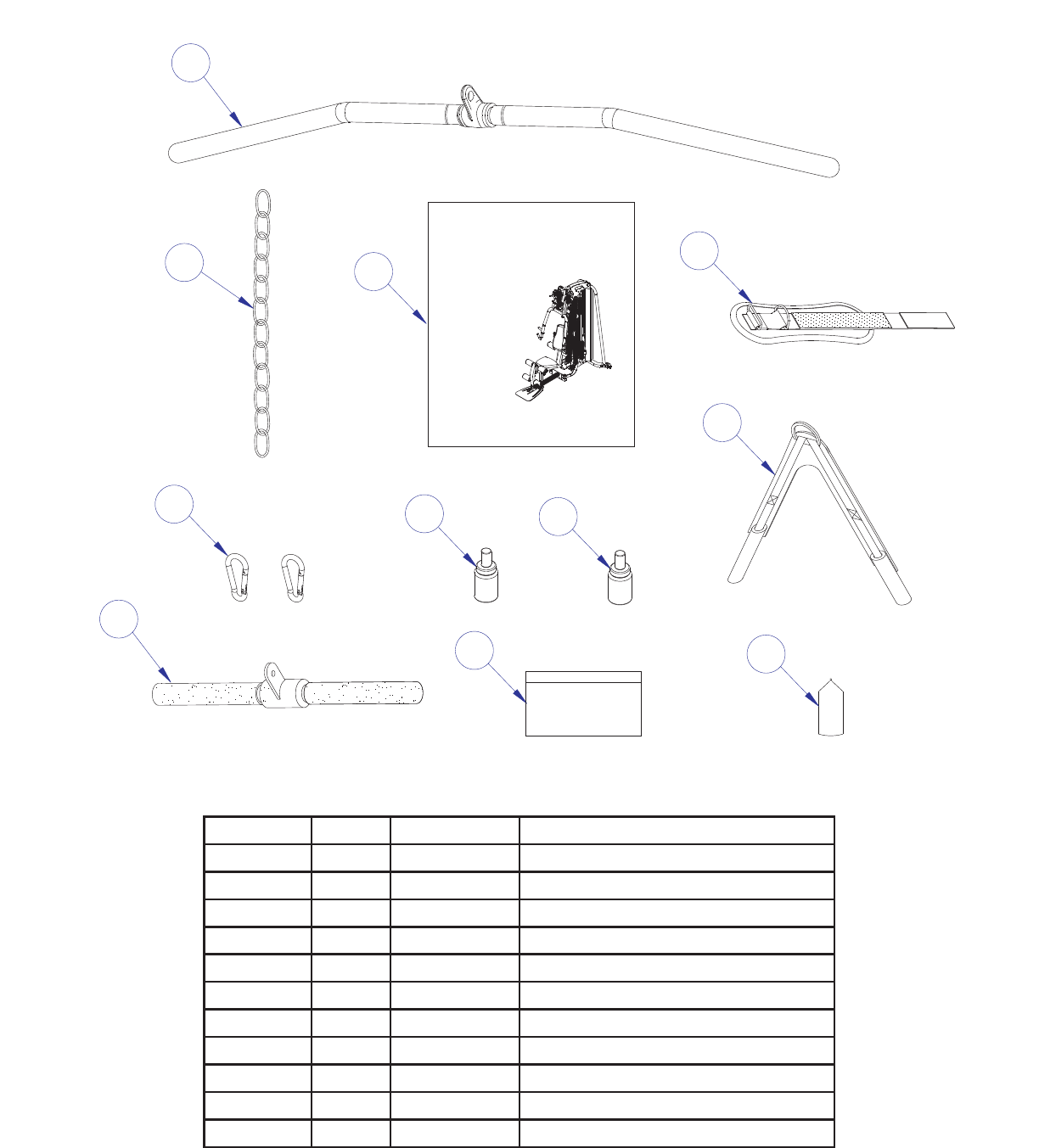

SUPPLIED ACCESSORIES
______________________________________
G4-001 G4 HOME GYM
Page 16
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 8598701 ASSY, LAT BAR, G4
2 1 6075906 CHAIN, 12 LINK
3 4 3103801 LINK, SNAP 5/16 DIA
4 1 8588301 ASSY, LOW ROW BAR
5 1 8604101 G4, ASSY INSTR
6 1 8598401 PAINT, TOUCH UP, PLATINUM
7 1 8599601 PAINT, TOUCH UP, SHADOW GREY
8 1 8604301 G4, EXERCISE CARDS
9 1 6409101 STRAP, ANKLE STANDARD
10 1 8603601 AB STRAP
11 1 8598301 SILICONE GEL
HARDWARE BAG
______________________________________
Page 17
G4-001 G4 HOME GYM
HARDWARE BAG PART NUMBER
8607801
BAG CONTAINS:
ITEM DESCRIPTION QTY
3102970 .50- 13 X 5.75 HEX HEAD BOLT 1
3102917 1/2-13X4 UNS HEX FHB G2 ZN 1
3102967 3/8-16 X 8 UNS HEX FHB G2 ZN 2
3102966 3/8-16 X 5-3/4 UNS HEX FHB G2 ZN 1
3102906 3/8-16X4 UNS HEX FHB G2 ZN 1
3102905 3/8-16 X 3-3/4 UNS HEX FHB G2 ZN 25
3102915 3/8-16X3-1/4 UNS HEX FHB G2 ZN 2
3102904 3/8-16X3 UNS HEX FHB G2 ZN 2
3102922 3/8-16X2-3/4 UNS HEX FHB G2 ZN 3
3102933 3/8-16X2 UNS HEX FHB G2 ZN 2
3102924 3/8-16X1-3/4 UNS HEX FHB G2 ZN 5
3102901 3/8-16X1-1/4 UNS HEX FHB G2 ZN 2
3102965 3/8-16 X 3/4 UNS HEX FHB G2 ZN 2
3269001 SCREW, BUTTON HEAD ALLEN - 1/2 X 3/4L W/LOCKTITE 4
3269101 SCREW, FLAT HEAD ALLEN - 3/8 X 1L 2
3102512 WSHR, FLAT 1/2 ID X1-3/4 OD ZN 2
3102514 WASHER, FLAT 3/8 IN SAE ST ZN 19
3102804 NUT, NYLOCK 1/2-13 LOW HT 2
3102807 NUT, NYLOCK 3/8-16 LOW HT 41
8604601 WASHER, SHIM 2
3103801 LINK, SNAP 5/16 DIA 4
3103302 SHAFT COLLAR, 13/16 ID ZINC 2
8604501 CABLE WIRE GUIDE 1
8597702 SPACER, 3/8 X 1 LG 11
8597703 SPACER, 3/8 X 32 MM LG 2
8604701 SPACER, STEP 6
8604702 SPACER, STEP 2
8604703 SPACER, STEP 2
8598001 AL CAP, ROLLER PAD END 6
3268301 CAP SCREW, BTN HD 3/8-16 BO 6
8597705 SPACER, 3/8 X 30 MM LG 2
8603601 AB STRAP 1
6409101 STRAP, ANKLE STANDARD 1
8603701 LAT CABLE - 199.75L 1
8603801 LOW CABLE - 168L 1
8603901 GUIDE CABLE - 96L 1
8604001 PEC FLY CABLE - 90.5L 1
8598401 PAINT, TOUCH UP, PLATINUM 1
8599601 PAINT, TOUCH UP, SHADOW GREY 1

Navigation menu
