Treadmill 95TE
Customer Support Services
PARTS MANUAL rev 11 Jan 2008
2
Treadmill 95TE 95TE-0_ _ _ 01
Contents S/N TTE100000 and up
Miscellaneous ..........................................................................................................3
Frame Assembly .......................................................................................................4
Console Assembly .....................................................................................................5
Console Components..................................................................................................6
Handrail Assembly.....................................................................................................7
Covers, End Caps, and Hardware ...................................................................................8
Belt, Deck, and Rear Roller..........................................................................................9
Wax/lift Assembly....................................................................................................10
Motor Controller Assembly..........................................................................................11
Lift Motor and Frame ................................................................................................12
Drive Motor Assembly................................................................................................13
Wax Components.....................................................................................................14
Idler Arm and Static Brush..........................................................................................15
Leveler Assembly.....................................................................................................16
Front Roller Assembly ...............................................................................................17
Ergo Bar with Lifepulse..............................................................................................18
Power Components ..................................................................................................19
Cable ...................................................................................................................20
3
Treadmill 95TE 95TE-0_ _ _ 01
Miscellaneous S/N TTE100000 and up
Miscellaneous Parts
Description Part No.
Operation Manual, Eng M051-00K58-A111
Service Manual M051-00K58-B097
Bottle 0017-00008-0196
Color: Silver Bullet Spray Can 0017-00008-0197
Bottle 0017-00008-0198
Touchup
Paint
Color: Stealth Gray
Spray Can 0017-00008-0199
4
Treadmill 95TE 95TE-0_ _ _ 01

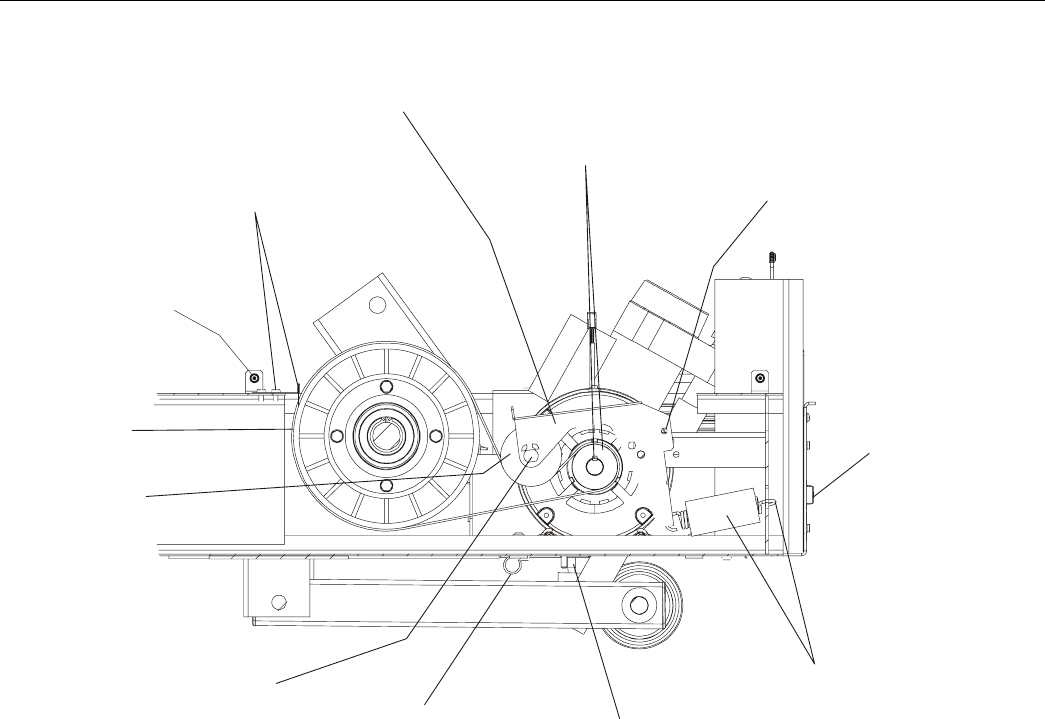

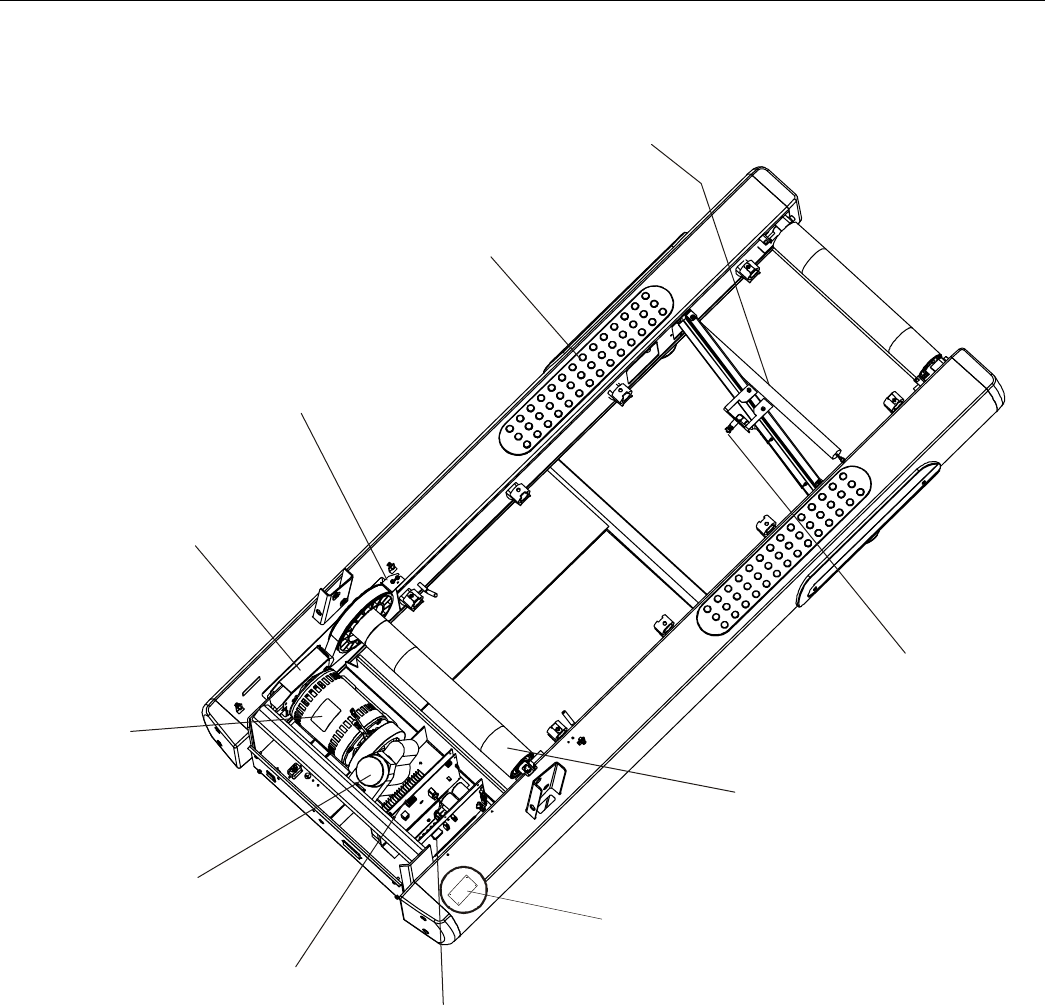

Frame Assembly S/N TTE100000 and up
Idler Arm
Assembly
Lift Motor
and Frame
Motor
Controller
Assembly Wax/Lift
Board Assembly
Anti-Scuff Pad
0K58-01306-0000 (2)
Wax Components
Static Brush
Drive Motor
Assembly
Anti-Static Tinsel
Tinsel Spring
0017-00009-0901
0K58-01102-0001
Front Roller
Assembly
Frame Tag PCB
B084-92187-D000
5
10 _ _ _0-ET59 ET59 llimdaerT

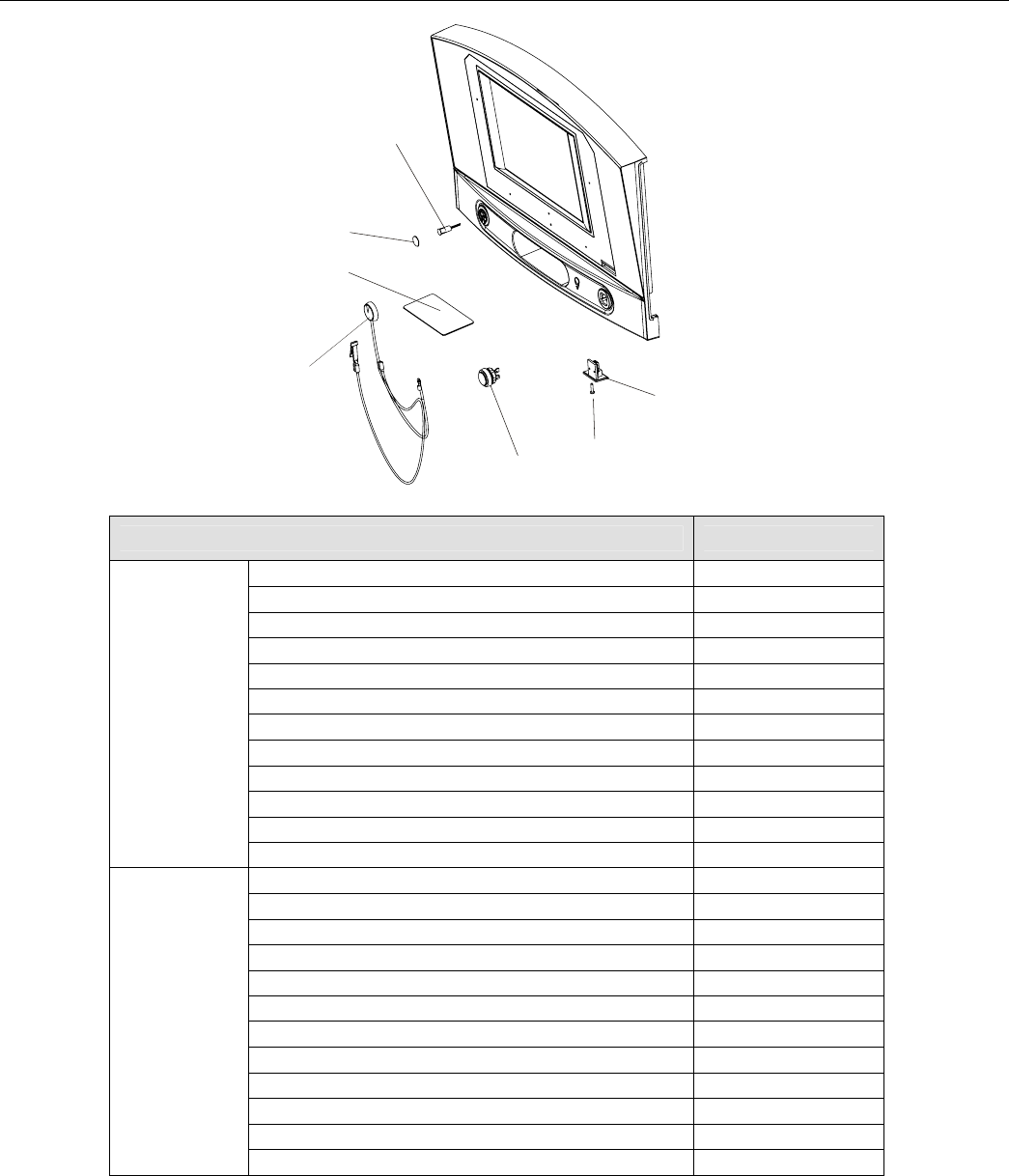

Console Assembly S/N TTE100000 and up
Description Part number
SERV KIT LCD CONS NTSC ENG GK58-00002-0077
SERV KIT LCD CONS NTSC SPN GK58-00002-0078
SERV KIT LCD CONS NTSC JAP GK58-00002-0079
SERV KIT LCD CONS NTSC FRN GK58-00002-0080
SERV KIT LCD CONS NTSC POR GK58-00002-0081
SERV KIT LCD CONS PAL ENG GK58-00002-0082
SERV KIT LCD CONS PAL GER GK58-00002-0083
SERV KIT LCD CONS PAL SPN GK58-00002-0084
SERV KIT LCD CONS PAL FRN GK58-00002-0085
SERV KIT LCD CONS PAL ITL GK58-00002-0086
SERV KIT LCD CONS PAL DUT GK58-00002-0087
Console
Assemblies
SERV KIT LCD CONS PAL POR GK58-00002-0088
BZL/SW W/OVERLAY ASSY: MFG; ENG/NTSC AK58-00516-0001
BZL/SW W/OVERLAY ASSY: MFG; SPN/NTSC AK58-00516-0004
BZL/SW W/OVERLAY ASSY: MFG; JAP/NTSC AK58-00516-0006
BZL/SW W/OVERLAY ASSY: MFG; FRN/NTSC AK58-00516-0007
BZL/SW W/OVERLAY ASSY: MFG; POR/NTSC AK58-00516-0010
BZL/SW W/OVERLAY ASSY: MFG; ENG/PAL AK58-00517-0001
BZL/SW W/OVERLAY ASSY: MFG; GER/PAL AK58-00517-0003
BZL/SW W/OVERLAY ASSY: MFG; SPN/PAL AK58-00517-0004
BZL/SW W/OVERLAY ASSY: MFG; FRN/PAL AK58-00517-0007
BZL/SW W/OVERLAY ASSY: MFG; ITL/PAL AK58-00517-0008
BZL/SW W/OVERLAY ASSY: MFG; DUT/PAL AK58-00517-0009
Overlay
Bezel
Assemblies
BZL/SW W/OVERLAY ASSY: MFG; POR/PAL AK58-00517-0010
Emergency
Stop Switch
AK58-00036-0000
Disk Magnet
0K40-01070-0000
Rubber Pad
0K58-01359-0000
Tether
AK58-00246-0000
Stop Stitch
0K58-01321-0000
Screw
0017-00101-1811
Headphone Jack Assy
AK32-00043-0000
6
Treadmill 95TE 95TE-0_ _ _ 01

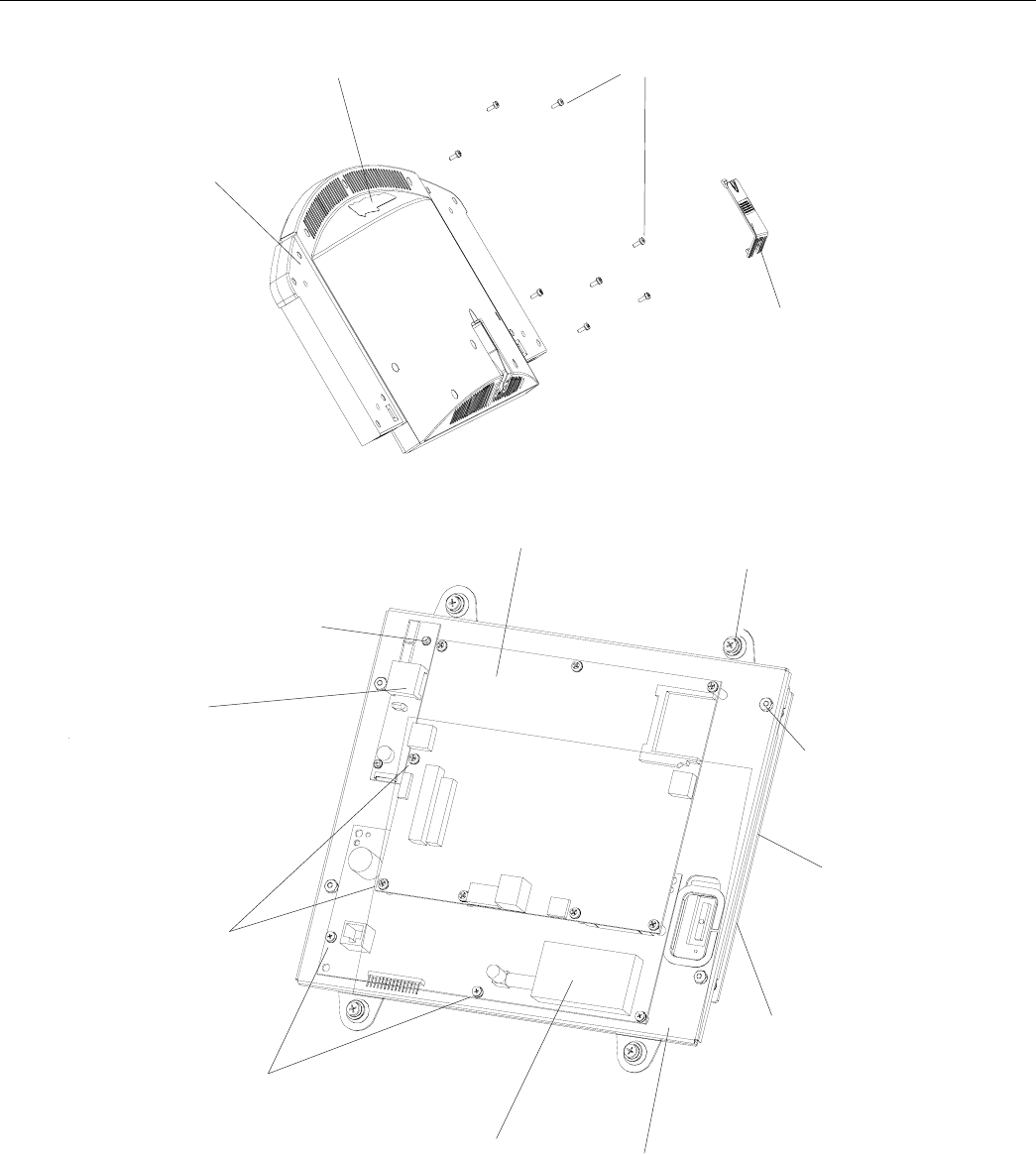

Console Components S/N TTE100000 and up
Access cover
0K58-01280-0000
Screws (8)
0017-00101-1288
Back cover
AK58-00281-0000
Decal
0K58-01357-0000
Inverter Board
135E-00002-0002
Single board Computer
A084-92251-A002
Interface Board
A084-92248-A001 NTSC
A084-92248-A002 PAL/SECAM
Screw (4)
0017-00101-1843
Spacer
0K58-01381-0000
Grommet
0017-00042-1160
Torx Screw (2)
0017-00101-1813
Screws (8)
0017-00101-1810
Nuts (4)
0017-00103-0084
LCD TOUCH Assembly
0K32-01001-0013
Bracket
0K58-01370-0000
Screws (3)
0017-00101-1814
Edge Trim
0017-00042-1156
7
Treadmill 95TE 95TE-0_ _ _ 01

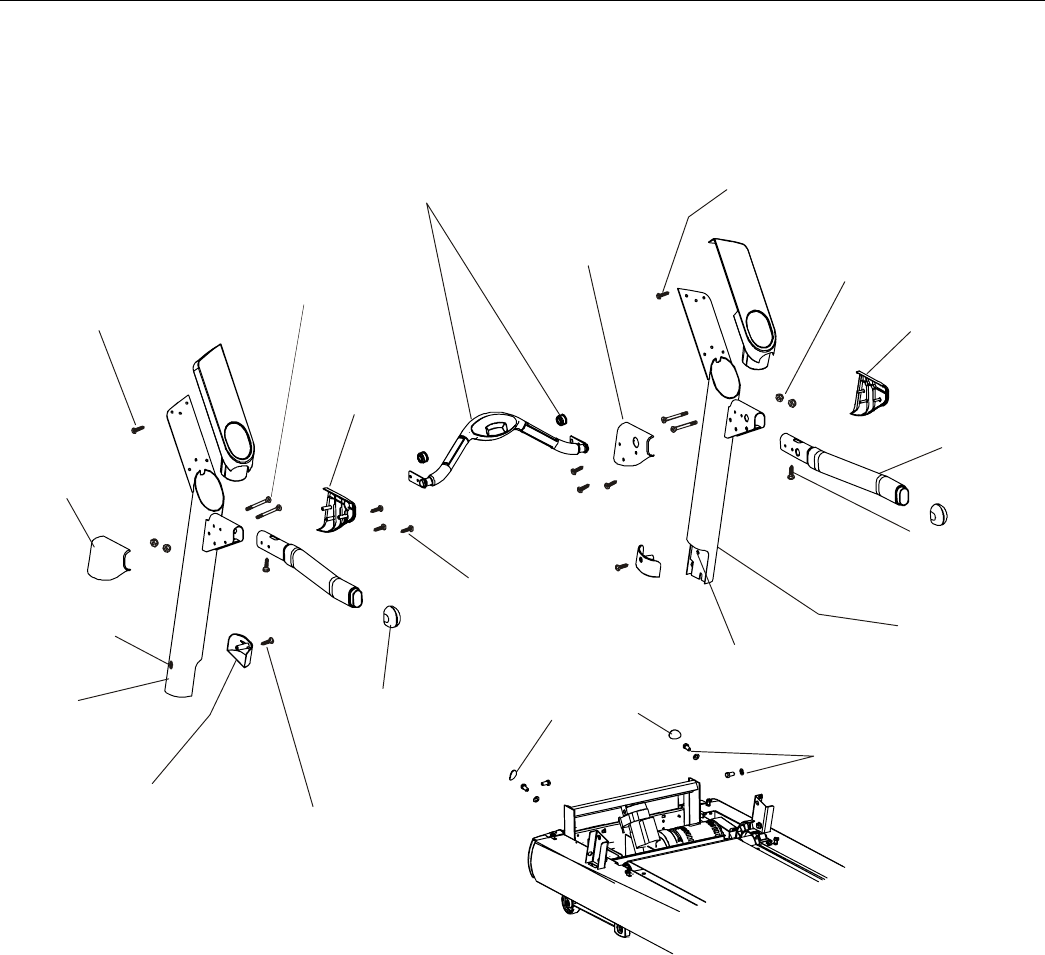

Handrail Assembly S/N TTE100000 and up
Hardware Bag Assembly
AK58-00226-0000
Handrail Hex Nut (4)
0017-00103-0327
Handrail (2)
AK58-00192-0000
Top RT Handrail Boot
0K58-01303-0001
Console/Cup Holder
Mounting Screw (8)
0017-00101-1780
Bottom RT
Handrail Boot
0K58-01304-0001
Handrail Mounting
Screw (4)
0017-00101-1774
Handrail Boot
Screws (6)
0017-00101-1770
Bottom LT
Handrail Boot
0K58-01304-0002
Console Mounting
Screw (4)
0017-00101-1773
Top LT Handrail Boot
0K58-01303-0002
Handrail Screw (2)
0017-00101-1773
Handrail Tube Cap (2)
0K58-01289-0000
Upright, RT
AK58-00311-0001
Upright, LT
AK58-00311-0002
Upright Tube Cap (2)
0K58-01302-0000 Upright Tube
Cap Screw (2)
0017-00101-1772
Grommet (2)
0017-00042-0326
Upright Plug (2)
0K58-01305-0000
Upright Mounting
Screw - 0017-00101-1778 (6)
W
asher - 0017-00104-0335 (6)
Upright, Plug (2)
0K58-01305-0000
ERGO Bar Assembly
AK58-00219-0000
ERGO Bar Gasket (2)
0K58-01347-0000
8
Treadmill 95TE 95TE-0_ _ _ 01

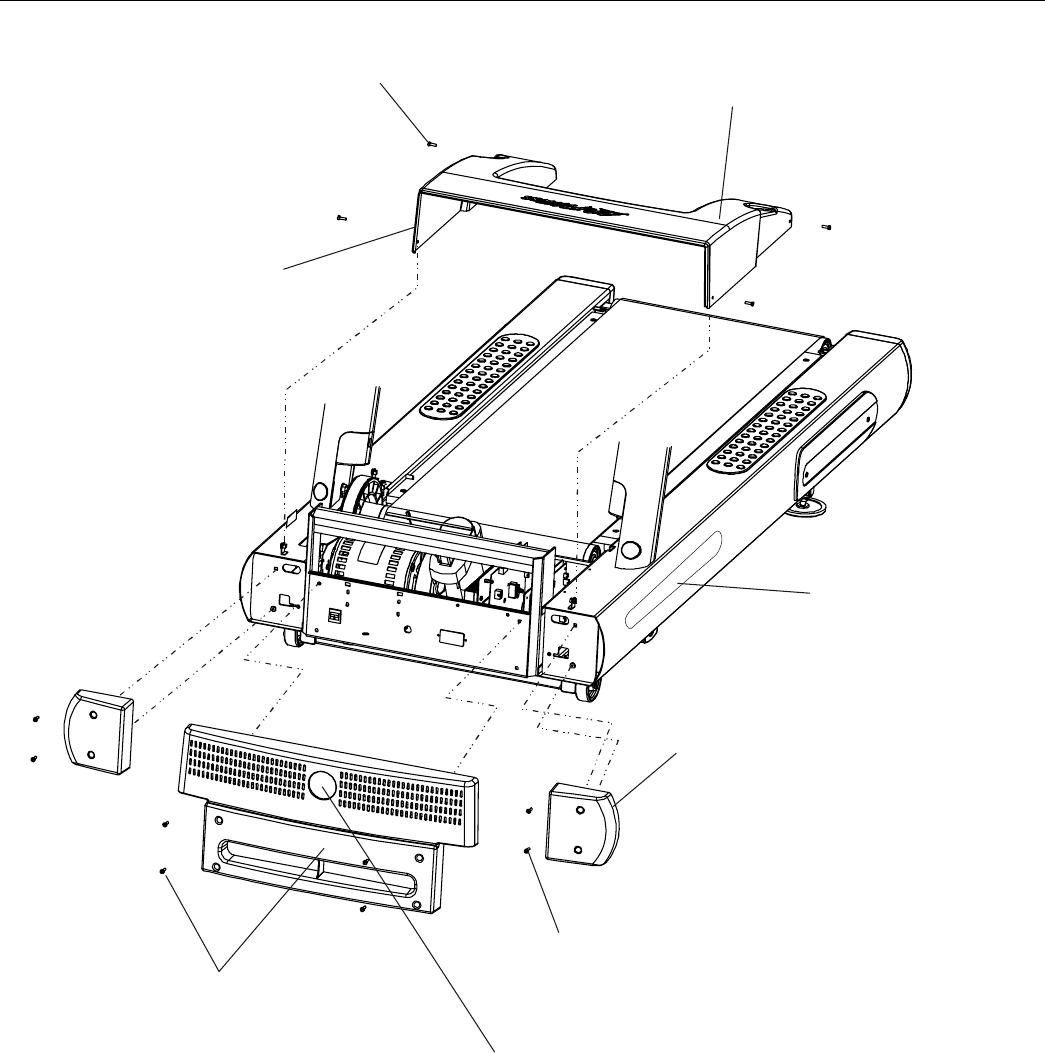

Covers, End Caps, and Hardware S/N TTE100000 and up
Front End Cap (2)
0K58-01267-0000
End Cap Screws (4)
0017-00101-1772
Front Cover
0K58-01266-0000
0017-00101-1771
Screws (4)
Motor Cover Screws (4)
0017-00101-1772
Motor Cover
A
K58-00228-0000
Bug Medallion Assembly
A
K58-00245-0000
Felt Strip - 28”
0017-00081-0294
Flex Deck Decals(2)
0K58-01365-0000
9
Treadmill 95TE 95TE-0_ _ _ 01

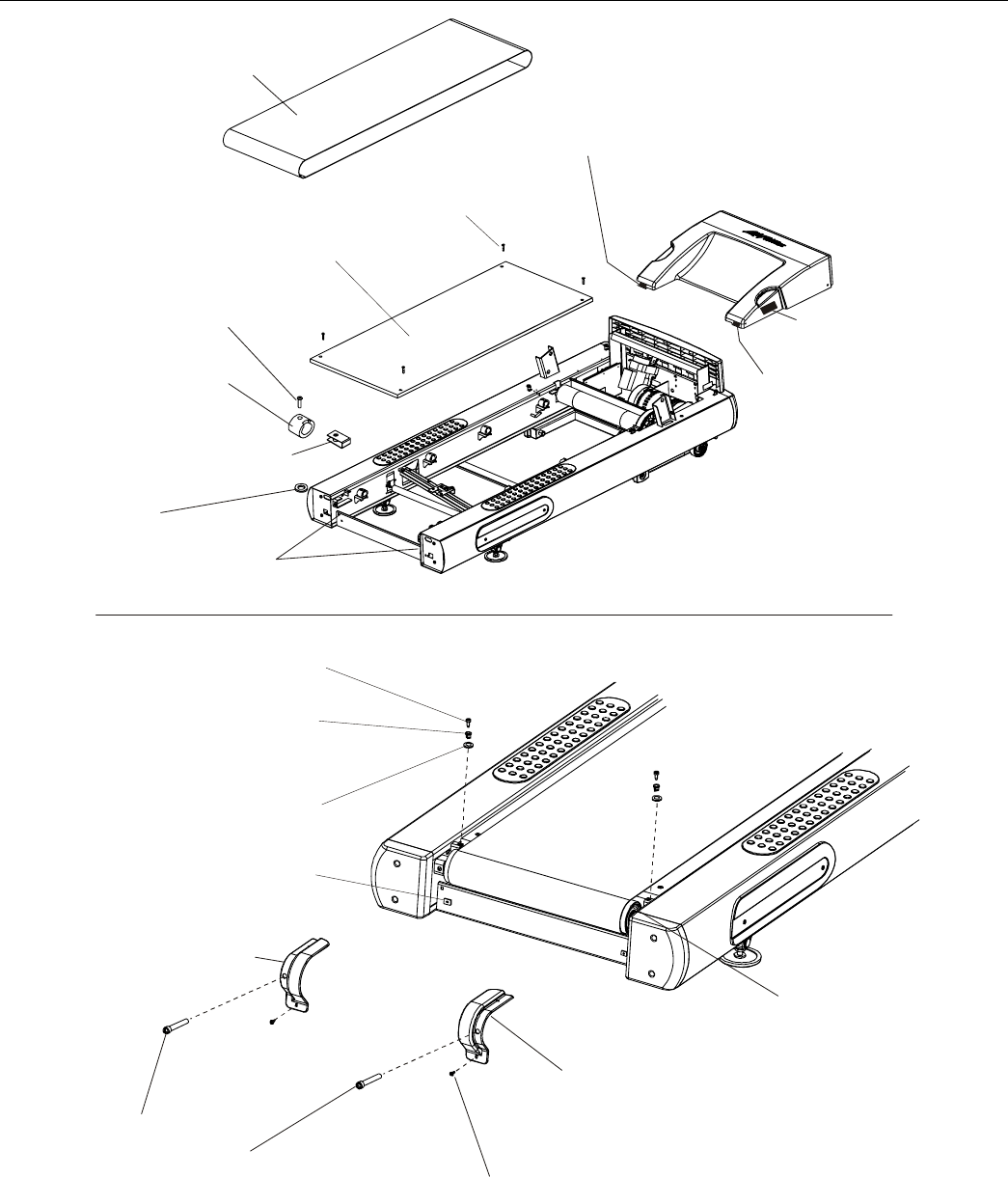

Belt, Deck, and Rear Roller S/N TTE100000 and up
Deck
0K58-01091-0001
Deck Mounting Screws (4)
0017-00101-1775
Grommet (2)
0017-00042-1147
TECSPAK Spring (8)
0K40-01026-0002
Washer (8)
0017-00104-0101
TECSPAK Tinnerman Clip (8)
0017-00103-0198
TECSPAK Mounting Screw (8)
0017-00101-1652
Belt Limit Label, RT
M051-00K58-A100
Caution Label
M051-00K58-A014
Striding Belt
0K58-01180-0000
Belt Limit Label, LT
M051-00K58-A101
Rear Roller Guard, LF
0K58-01349-0002
Round Grommet
0017-00042-0326
Roller Guard Screw (4)
0017-00101-1776
Rear Roller Guard, RT
0K58-01349-0001
Square Grommet
0017-00042-1147
Screw
0017-00101-1776
Washer
0017-00104-0043
Rear Roller
0K58-01002-0000
Rear Roller
Adjusting Screws
0017-00101-1779
10
Treadmill 95TE 95TE-0_ _ _ 01

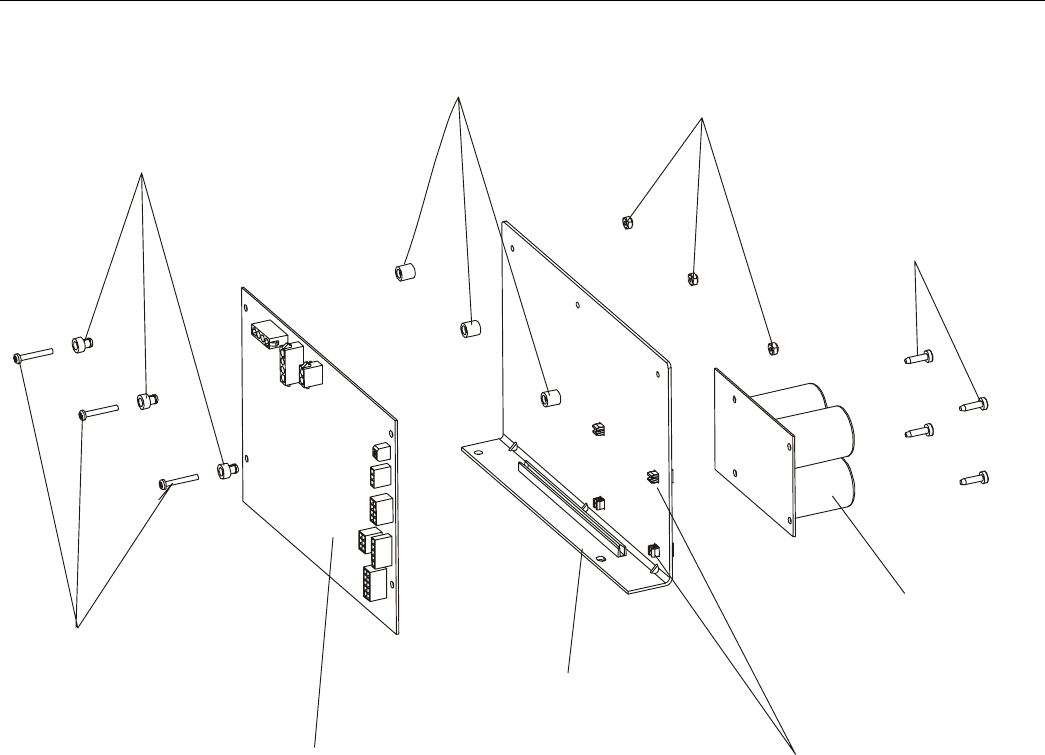

Wax/Lift Assembly S/N TTE100000 and up
Wax Lift Mounting Screw (3)
0017-00101-1641
Pin Collar Spacer (3)
0017-00042-1070
Wax/Lift PCB
A084-92253-A001
Spacer (3)
0017-00042-1149
Mounting Bracket
0K58-01316-0000
Plastic Grommet (4)
0017-00042-082
1
Locking Nut (3)
0017-00103-0052
Motor Capacitor
PCB Assembly
B084-92241-A000
Motor Capacitor
PCB Mounting
Screw (4)
0017-00101-1253
11
Treadmill 95TE 95TE-0_ _ _ 01

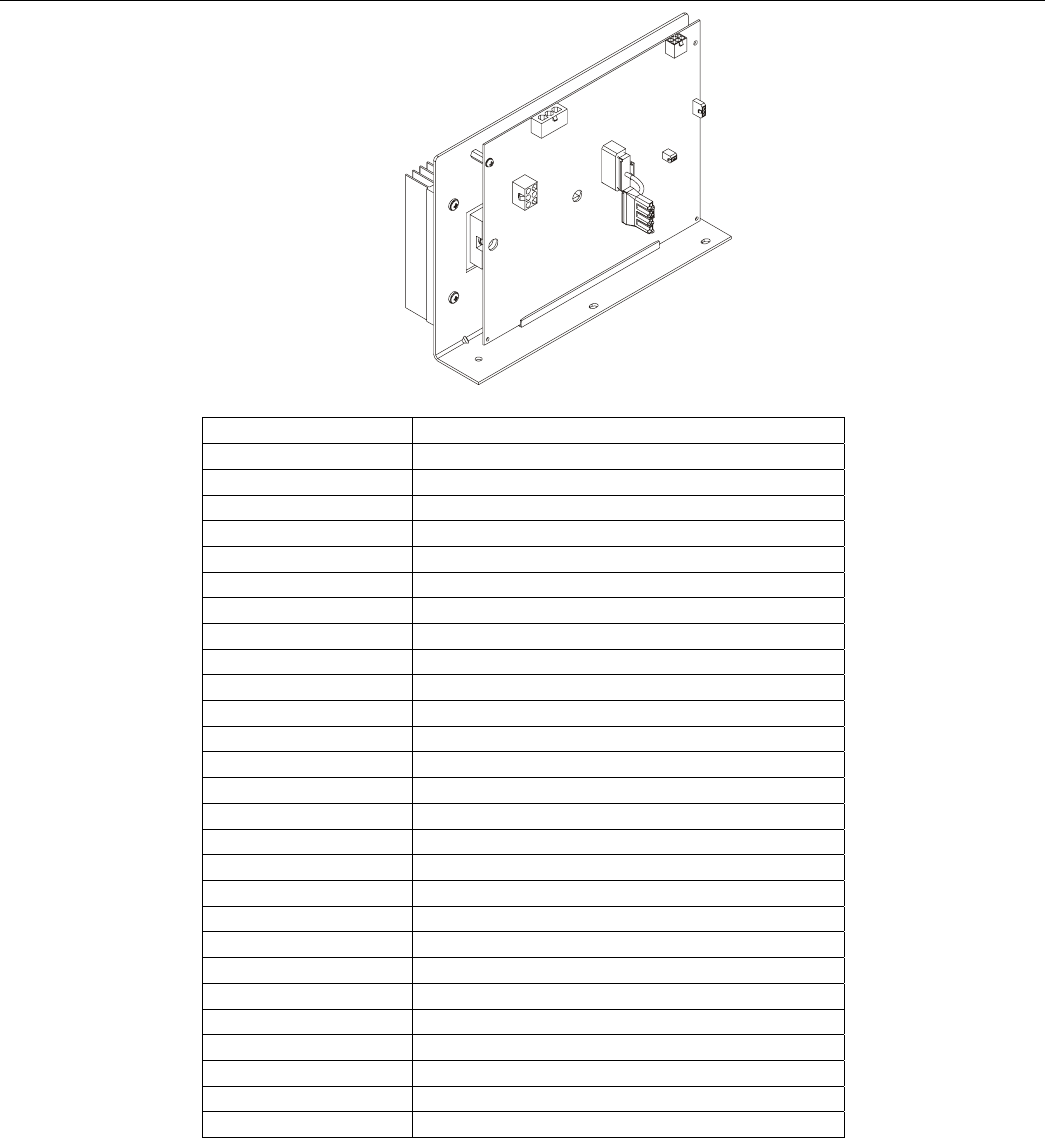

Motor Controller Assembly S/N TTE100000 and up
AK60-00171-0002 (100-120V) with Ferrite
AK60-00171-0003 (200-240V) with Ferrite
AK58-00372-0002 MTR-CNTRL W/FERRITE ASY: 100-120
Model SKU Description
95TE-0100-01 95Te.ENG/ENG.120/60.DOM.NTSC
95TE-0105-01 95Te.ENG+MET.100/50.DOM.NTSC
95TE-0300-01 95Te.FRN/MET.120/60.DOM.NTSC
95TE-0400-01 95Te.SPN/MET.120/60.DOM.NTSC
95TE-0705-01 95Te.JAP/MET.100/50.DOM.NTSC
95TE-0800-01 95Te.POR/MET.120/60.DOM.NTSC
97TE-0100-01 97Te.ENG/ENG.120/60.DOM.NTSC
97TE-0105-01 97Te.ENG+MET.100/50.DOM.NTSC
97TE-0300-01 97Te.FRN/MET.120/60.DOM.NTSC
97TE-0400-01 97Te.SPN/MET.120/60.DOM.NTSC
97TE-0705-01 97Te.JAP/MET.100/50.DOM.NTSC
97TE-0800-01 97Te.POR/MET.120/60.DOM.NTSC
AK58-00372-0003 MTR-CNTRL W/FERRITE ASY: MFG.200-240
Model SKU Description
95TE-0101-01 95Te.ENG+MET.230/50.CON.PAL
95TE-0102-01 95Te.ENG+MET.240/50.U.K.PAL
95TE-0103-01 95Te.ENG+MET.220/60.DOM.NTSC
95TE-0104-01 95Te.ENG+MET.240V+. AUS.PAL
95TE-0106-01 95Te.ENG+MET.200/50.DOM.NTSC
95TE-0109-01 95Te.ENG+MET.230/50.U.K.PAL
95TE-0201-01 95Te.GER/MET.230/50.CON.PAL
95TE-0301-01 95Te.FRN/MET.230/50.CON.PAL
95TE-0401-01 95Te.SPN/MET.230/50.CON.PAL
95TE-0501-01 95Te.ITL/MET.230/50.CON.PAL
95TE-0601-01 95Te.DUT/MET.230/50.CON.PAL
95TE-0801-01 95Te.POR/MET.230/50.CON.PAL
12
Treadmill 95TE 95TE-0_ _ _ 01

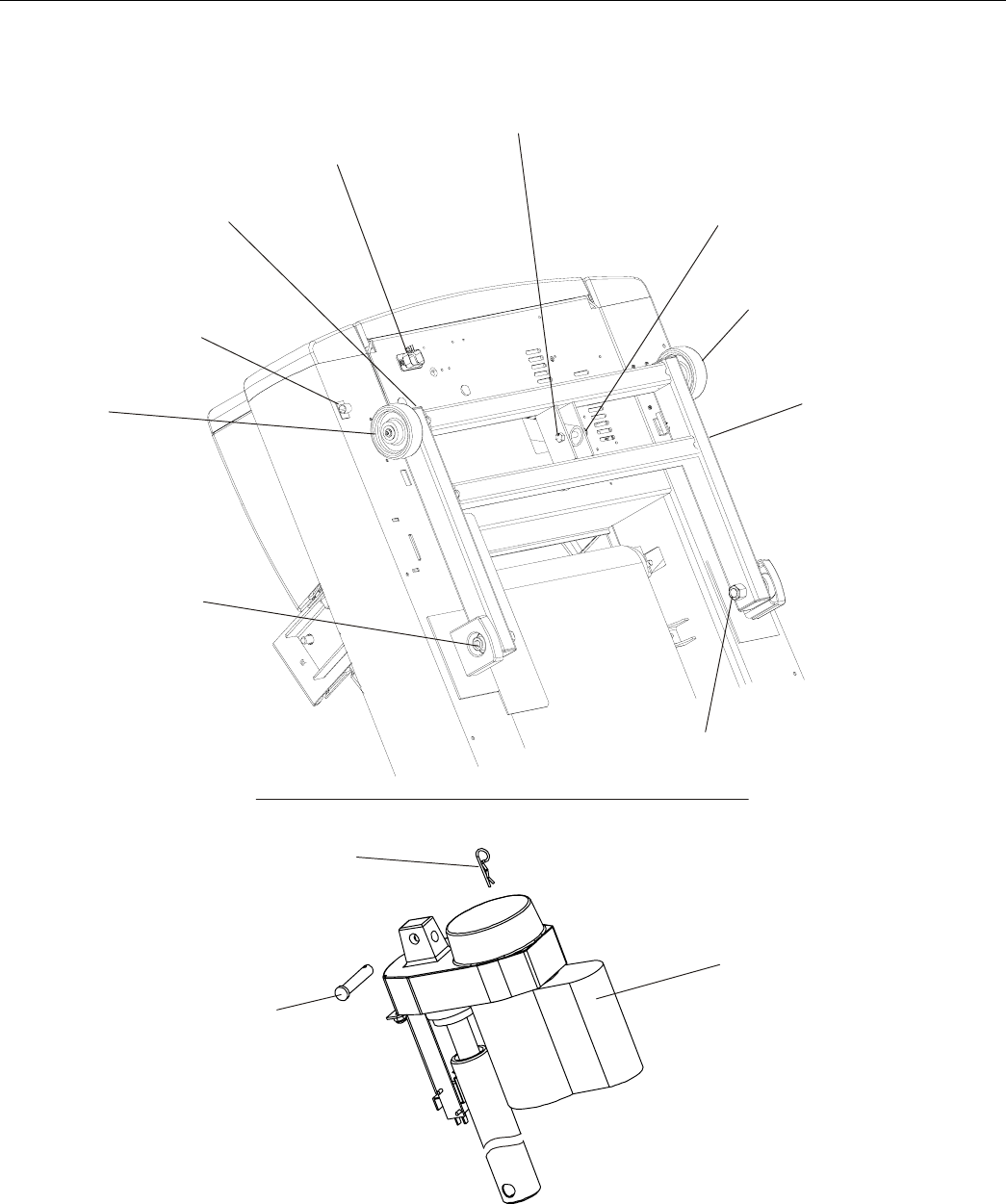

Lift Motor and Frame S/N TTE100000 and up
Clevis Clip
0017-00007-0208
Clevis Pin
0017-00007-0214
Lift Motor
0K58-01062-0000
Lock Nut (2)
0017-00103-0285
Hex Screw (2)
0017-00101-1777
Flat Washer (2)
0017-00104-0259
Bronze Sleeve (2)
0K58-01089-0000
Line Cord Clip
0017-00042-0840
Lift Frame
0K58-01066-0000
Lock Nut
0017-00103-0025
Lift Motor Hex Bolt
0017-00101-1021
Vinyl Cap
0017-00042-1075
Wheel
0K58-01071-0000
Phillips Screw
0017-00101-1621
Washer
0017-00104-0189
Lift Frame End Cap
0017-00042-1076
IEC Receptacle
0017-00003-0949
Retainer Bracket w/Screw
0017-00042-1145
Frame Screws
0017-00101-1723
13
Treadmill 95TE 95TE-0_ _ _ 01

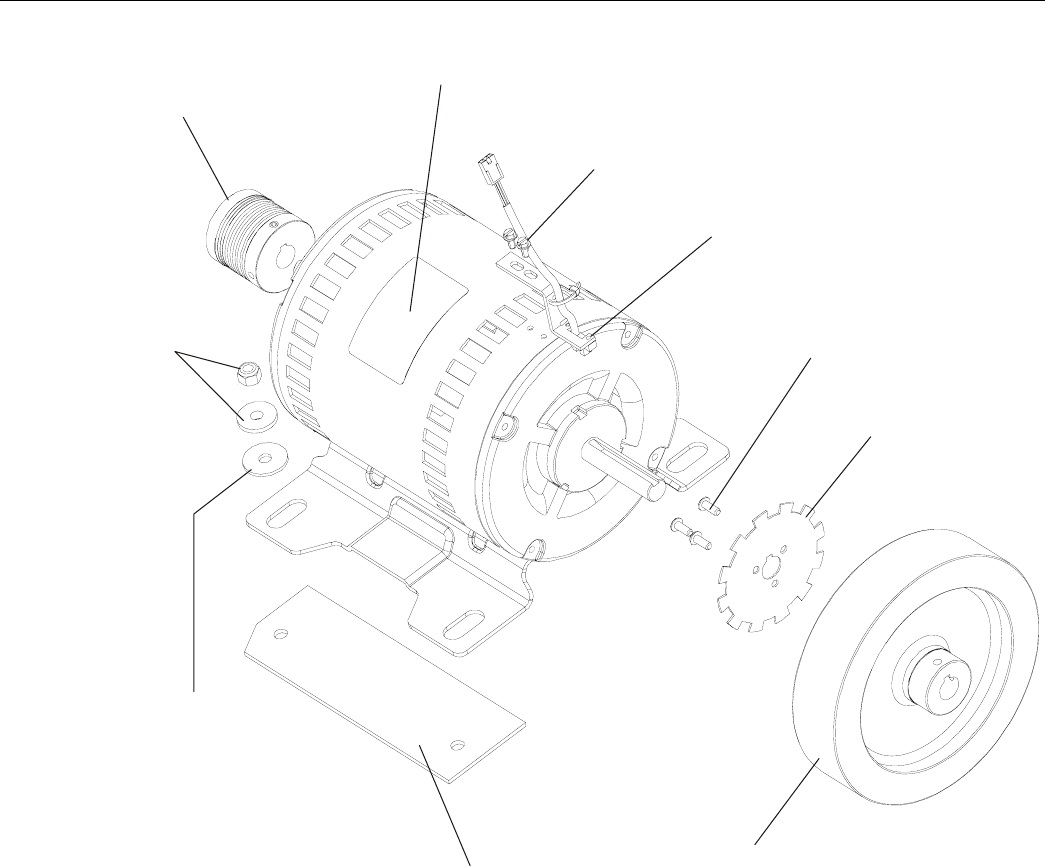

Drive Motor Assembly S/N TTE100000 and up
Poly-V Pulley
0K58-01057-0001
Motor w/Caution Label
AK58-00171-0000
Slotted Hex Screw (2)
0017-00101-0975
Speed Sensor Assembly
AK58-00073-0001
Sensor Wheel
Mounting Screw (3)
0017-00101-1631
Sensor Wheel
0K58-01094-0000
Locking Nut (4)
0017-00103-0027
Washer (4)
0017-00104-0409
Insulating Shoulder
Washer (4)
0K58-01255-0000
Insulating Pad (2)
0K58-01256-0001
Flywheel Assembly
AK58-00090-0002
14
Treadmill 95TE 95TE-0_ _ _ 01

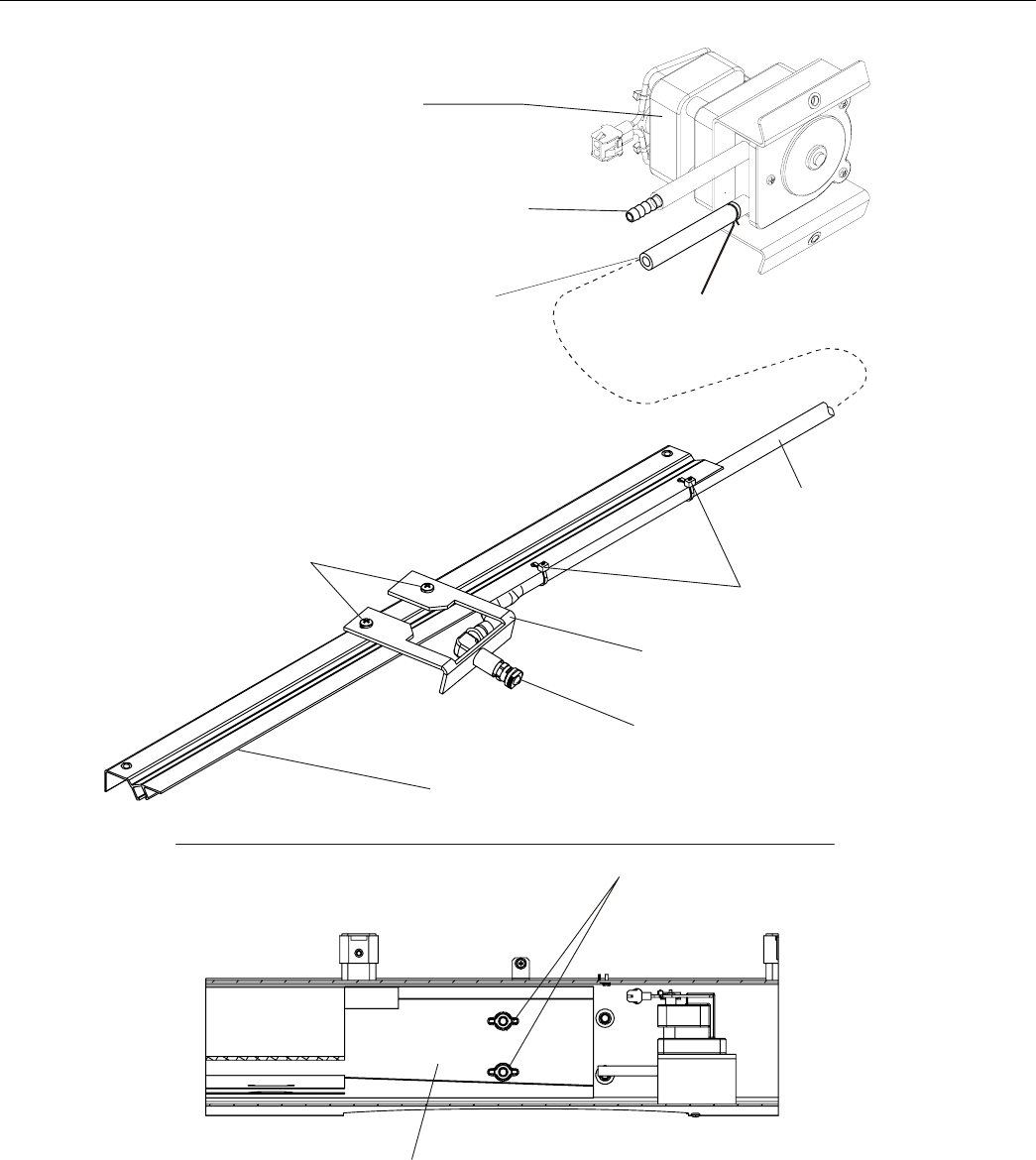

Wax Components S/N TTE100000 and up
Brass Spray Tip
0017-00009-0842
Extrusion
0K58-01111-0001
Phillip Screws
0017-00101-0658
Tie Straps
0017-00042-0622
PVC Tube - 22”
0017-00041-0830
Spray Nozzle Assembly
AK58-00046-0000
Protective Sleeve
0K58-01080-0000
Wax Refill Bag
GK58-00002-0002
Wing Nuts
0017-00103-0284
Tube Reducer Connector
0017-00021-2188
Hose Clamp
0017-00042-0842
Wax Pump
AK58-00187-0000
Replacement Hose
AK58-00148-0000
15
Treadmill 95TE 95TE-0_ _ _ 01
Idler Arm Assembly and Static Brush S/N TTE100000 and up
Idler Arm Assembly
AK58-00053-0002
Idler Pin
0017-00007-0248
Idler Spring Damper
0K26-02055-0000
Idler Spring
0k58-01085-0000
Wire Clamp
0017-00042-1072
Screw
0017-00101-1193
Limit Switch
0017-00032-0195
Limit Switch Cable
AK58-00027-0000
Motor Pulley
0K58-01057-0001
Allen Screw
0017-00101-0333
Grommet
0017-00042-0326
Drive Belt
0K58-01114-0000
Idler Pulley
0K26-01731-0000
Threaded Idler
0K58-01084-0002
Lock Nut: Idler
0017-00103-0324
Shaft
Tinsel Bracket
0K58-01263-0001
Tinsel Bracket Screw(2)
0017-00101-1193
Plug
0017-00042-1053
(For units not
equipped with
circuit breaker.)
16
Treadmill 95TE 95TE-0_ _ _ 01
Leveler Assembly AK58-00052-0000 S/N TTE100000 and up
Bracket Leveler
0K58-01083-0000
Pivot Pin
0K58-01098-0000
Leveling Foot
0K58-01110-0000
Stop Nut
0K58-01099-0000
Hex Nut (4)
0017-00101-1253
Lock Washer (4)
0017-00104-0333
Flat Washer (4)
0017-00104-0190
17
10 _ _ _0-ET59 ET59 llimdaerT

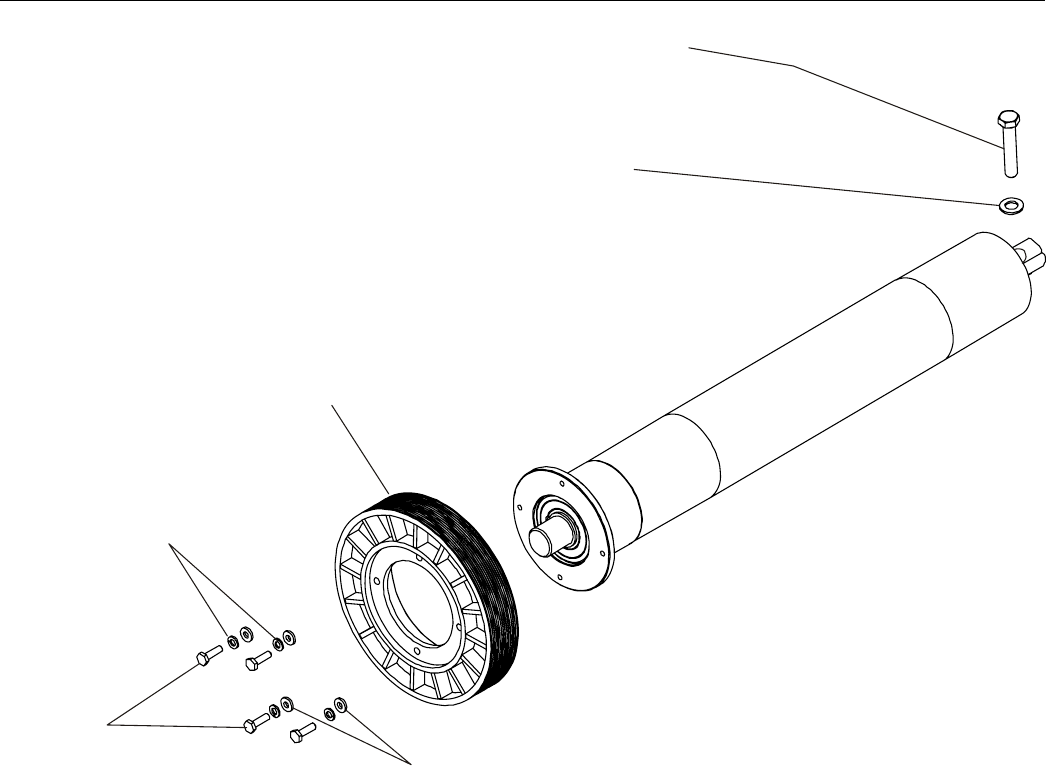

Front Roller Assembly AK58-00066-0000 S/N TTE100000 and up
Polley V Pulley 8”
0K58-01105-0000
Hex Bolt
0017-00101-1632Flat Washer
0017-00104-033
0
Lock Washer
0017-00104-0005
Flat Washer
0017-00104-0043
Mounting Bolt
0017-00101-0974
18
Treadmill 95TE 95TE-0_ _ _ 01
ERGO Bar with Lifepulse S/N TTE100000 and up
Lens Cover
Mounting Screw (2)
0017-00101-0824
Lens Cover Assembly
AK58-00064-0000
Heart Rate Electrode Kit
GK20-00002-0005
Ergo Bar Gasket (2)
0K58-01347-0000
19
10 _ _ _0-ET59 ET59 llimdaerT
Power Components S/N TTE100000 and up
Voltage Power Cable Part No. Breaker AMP/Part No.
120v AK58-00222-0000 NONE
100v AK58-00302-0001 4 AMP/0017-00003-0950
200v AK58-00302-0002 2 AMP/0017-00003-0626
220/230v AK58-00302-0003 2 AMP/0017-00003-0626
240+ AK58-00302-0004 2 AMP/0017-00003-0626
10 Amp Line Filter
units with 220v or lower
0017-00003-0898
20 Amp Line Filter
units with 230v or higher
0017-00003-0943
On/Off switch
0017-00032-0198
4” Black Wire
AK58-00081-0000
6” White Wire
AK58-00082-0000
5” Green/Yellow Wire
AK58-00083-0000
Xformer Bracket Assembly
(foreign units only)
AK58-00210-0000
MOV/Filter Cable Assy.
AK58-00224-0001
Line Cord (Plug End Changes)
0017-00003-0947 12’ 120v
0017-00003-0923 Domestic
0017-00003-0948 12’ 220v
0017-00003-0915 RT Angle Plug
0017-00003-0781 220v/60Hz
0017-00003-0696 Continental
0017-00003-0890 Uk
MOV/Filter Cable Assy.
AK58-00224-0001
Power Cable
Power Cable
20
Treadmill 95TE 95TE-0_ _ _ 01
Cables S/N TTE100000 and up
MACHINE INTERFACE BOARD
LCD INTERFACE BOARD
CA PACITOR B OARD
WAX/LIFT POW ER SUPPLY BOARD
MOTOR CONTROLLER BOARD
0% SWITCH
Polar & Stop switches
AK58-00274-0000
HR Sensors Cable
AK58-00041-0001
Cable Assembly Stub
AK58-00273-0000
Headphone Jack Cable
AK32-00009-0000
Inverter Cable Assy
AK32-00043-0000
Flat-FlexCable
118E-00001-0172
Coax-Cable
AK32-00020-0001
Main Console Cable
AK58-00034-0000
Level & Home
Switch Cable
AK58-00027-0000
Frame Tag Cable
AK58-00030-0000
Wax Pump
Cable
AK58-00029-0000
Cable Motor Drive Extension
AK58-00042-0002 DOM
AK58-00042-0003 Forn
Cable MTR-CNTR Interface
AK58-00035-0001
Cap Board Cable
AK58-00077-0001 4-Wire
AK58-00181-0000 3-Wire
Speed Sensor Cable
AK58-00043-0000
