PRO 2 SERIES
PSADCSE ASSISTED DIP CHIN
Customer Support Services
PARTS MANUAL
Page 1
PSADCSE ASSISTED DIP CHIN
Page 2
CONTENTS
________________________________________
Page
COMPONENT ASSEMBLY 3
COMPONENT ASSEMBLY LEGEND 4
STACK FRAME ASSEMBLY 5
STACK FRAME ASSEMBLY LEGEND 6
SIDE FRAME ASSEMBLY 7
SIDE FRAME ASSEMBLY LEGEND 8
CHIN BAR ASSEMBLY 9
CHIN BAR ASSEMBLY LEGEND 10
CARRIAGE ASSEMBLY 11
CARRIAGE ASSEMBLY LEGEND 12
5LB INCREMENT WEIGHT ASSEMBLY 13
INCREMENT WEIGHT ASSEMBLY W/STRIKER 14
WEIGHT STACK (225LB) 15
REAR SHROUD KIT 16
OPTIONAL FULL SHROUD KIT 17

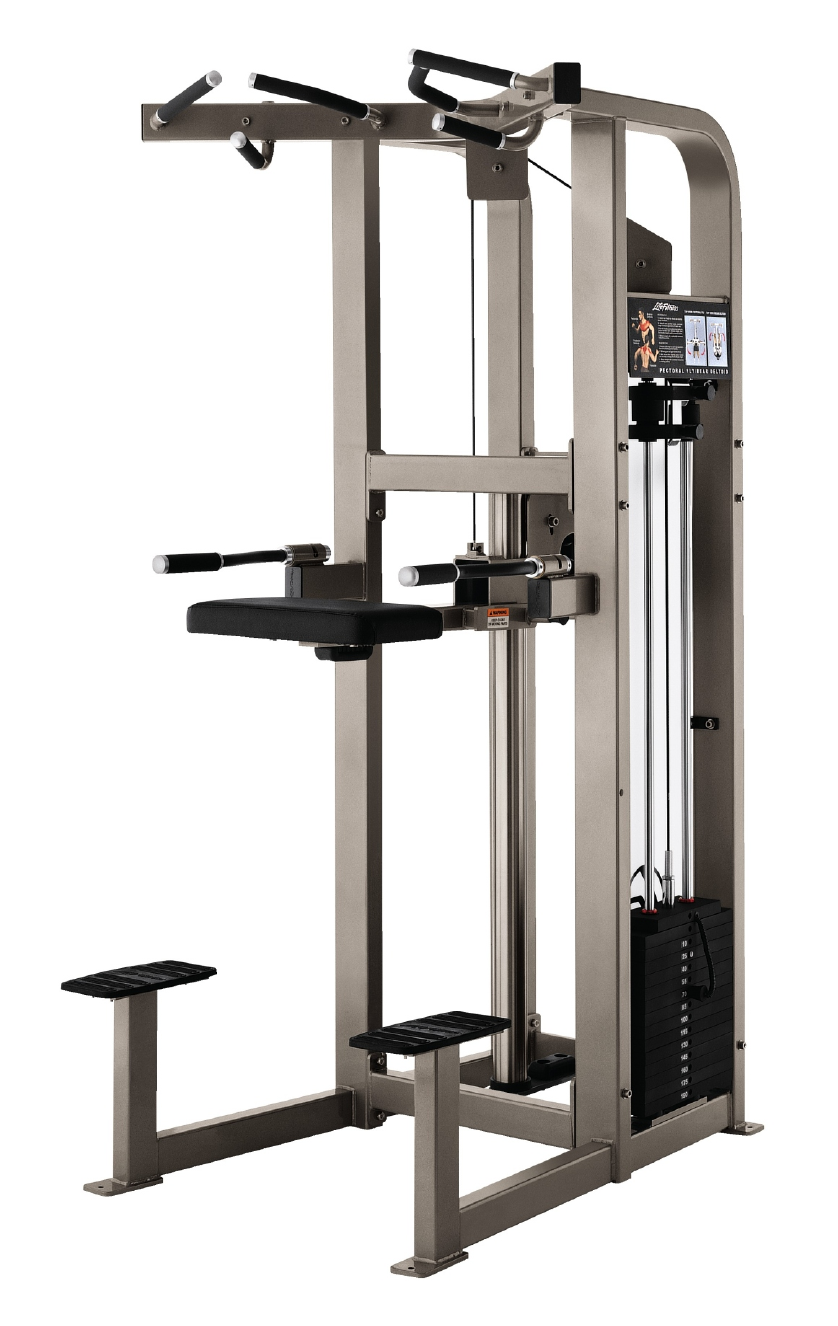

IMAGE 18

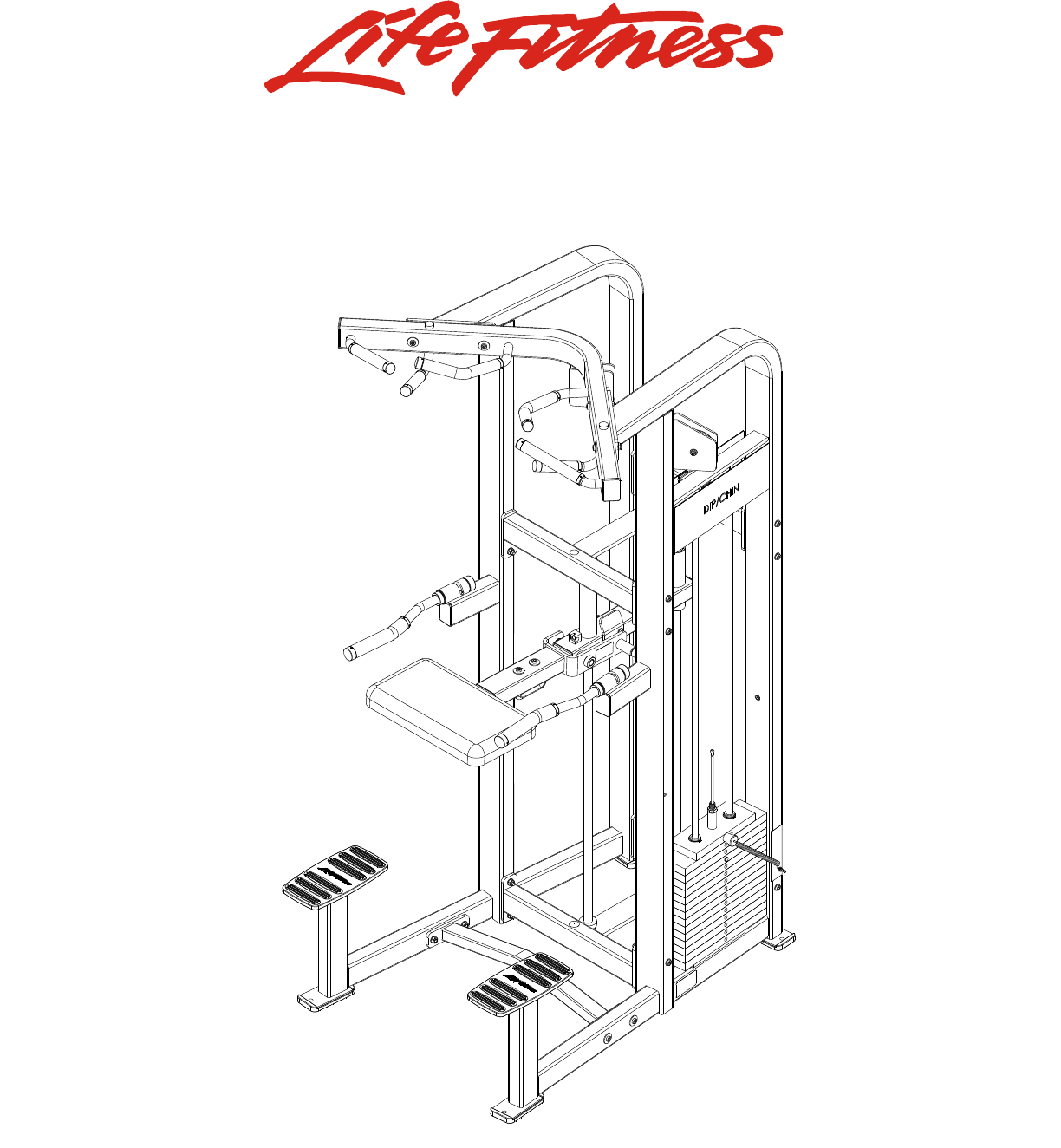

COMPONENT ASSEMBLY
________________________________________
Page 3

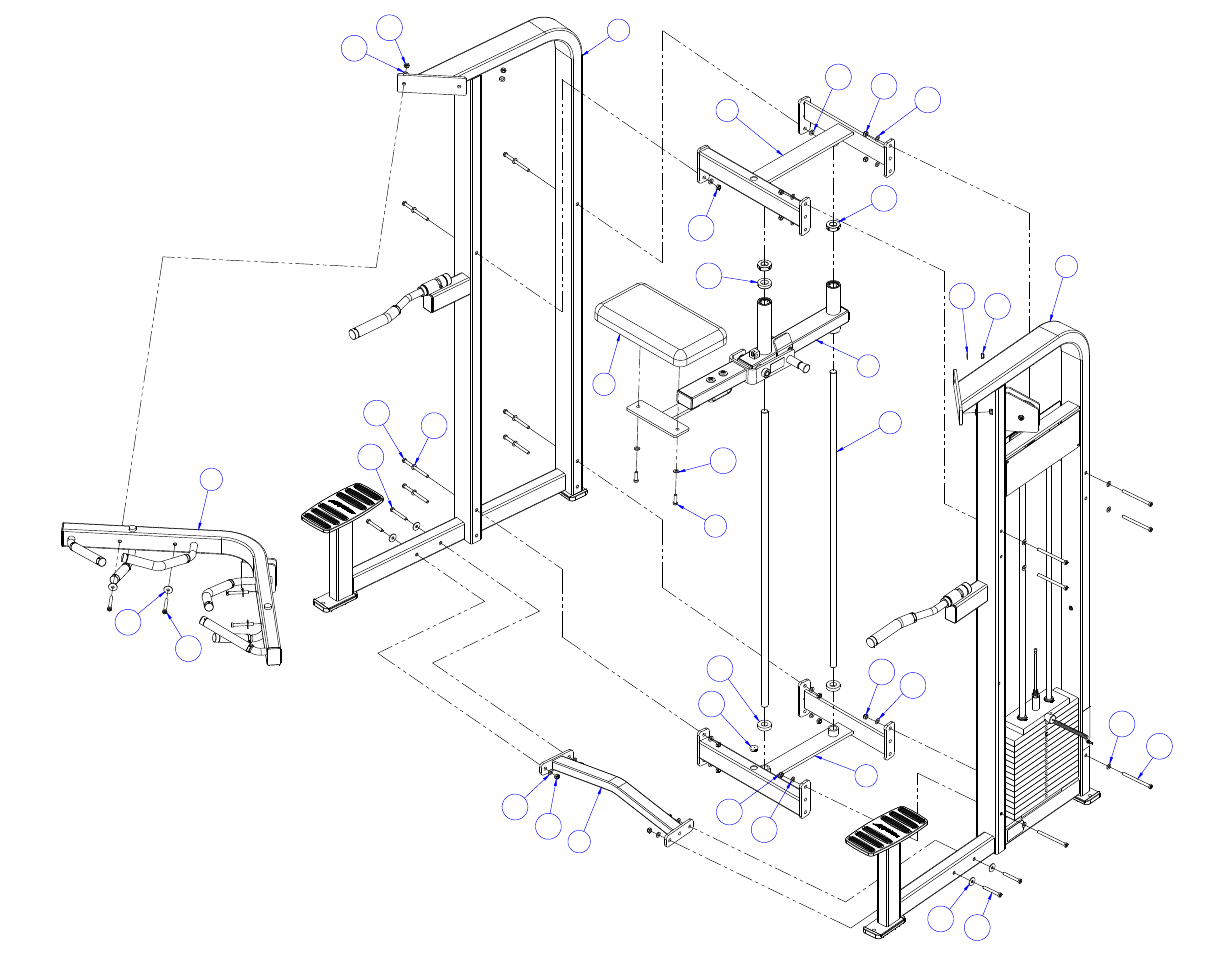

SEE PAGE 4 FOR LEGEND
PSADCSE ASSISTED DIP CHIN
3
1
8
5
9
7
2
6
1
4
10
10
10
10
10
10
10
10
10
10
12
12
12
12
12
12
12
16
11
13
14
17
15
13
11
14
13
18

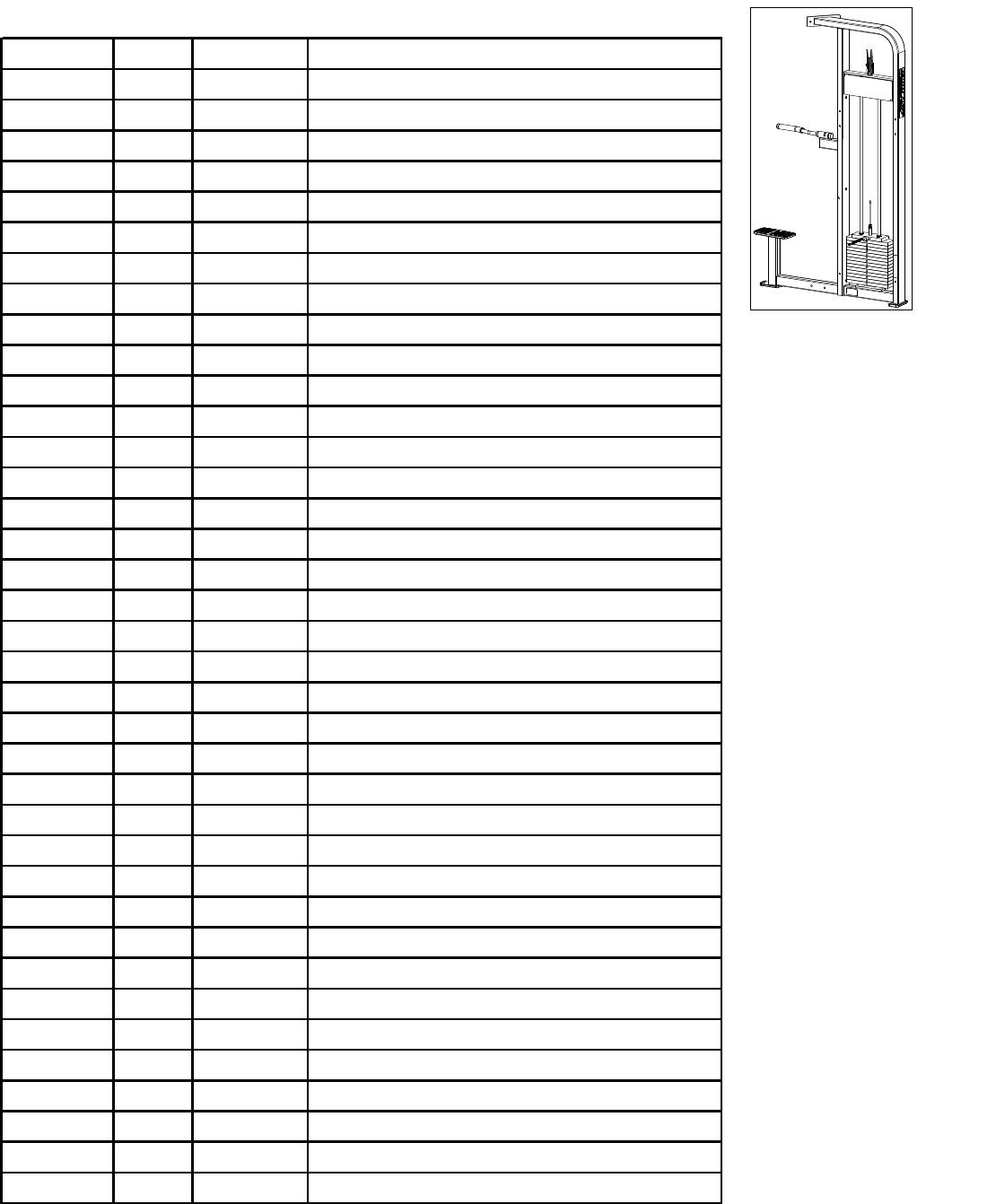

COMPONENT ASSEMBLY LEGEND
________________________________________
Page 4
PSADCSE ASSISTED DIP CHIN
ITEM NO. QTY. PART NO. DESCRIPTION
1 2 7892801 WLDMT, PSADC H-SUPPORT
2 1 7574901 ASSY, PSADC LSF
3 1 7575901 ASSY, PSADC STACK
4 2 7619801 GUIDE ROD, 1" DIA CASE HARDNED X 52"
5 1 72973XX PAD, ASSY 18 X 10
6 1 7782601 WLDMT, PSADC ARM SUPPORT
7 1 7577001 ASSY, PSADC CHIN BAR
8 1 7892601 ASSY, PSADC CARRIAGE
9 2 3236204 SCREW, M10 X1.5 35MM
10 34 3236601 WASHER, 3/8 SAE SS
11 12 3236220 SCREW, M10 X1.5 130MM
12 20 3236801 NUT, M10 HEX NYLOCK SS
13 8 3236212 SCREW, M10 X1.5 75MM
14 8 3236602 WASHER, 3/8 ID X 1.25 OD SS
15 2 7901201 BUMPER, 2 OD X 1 ID X 1/2
16 2 7901101 SHAFT COLLAR, 1" ID ALUM
17 1 3237403 PLUG, 1" HOLE
18 1 7946201 BUMPER, PSADC CARRIAGE
Page 5

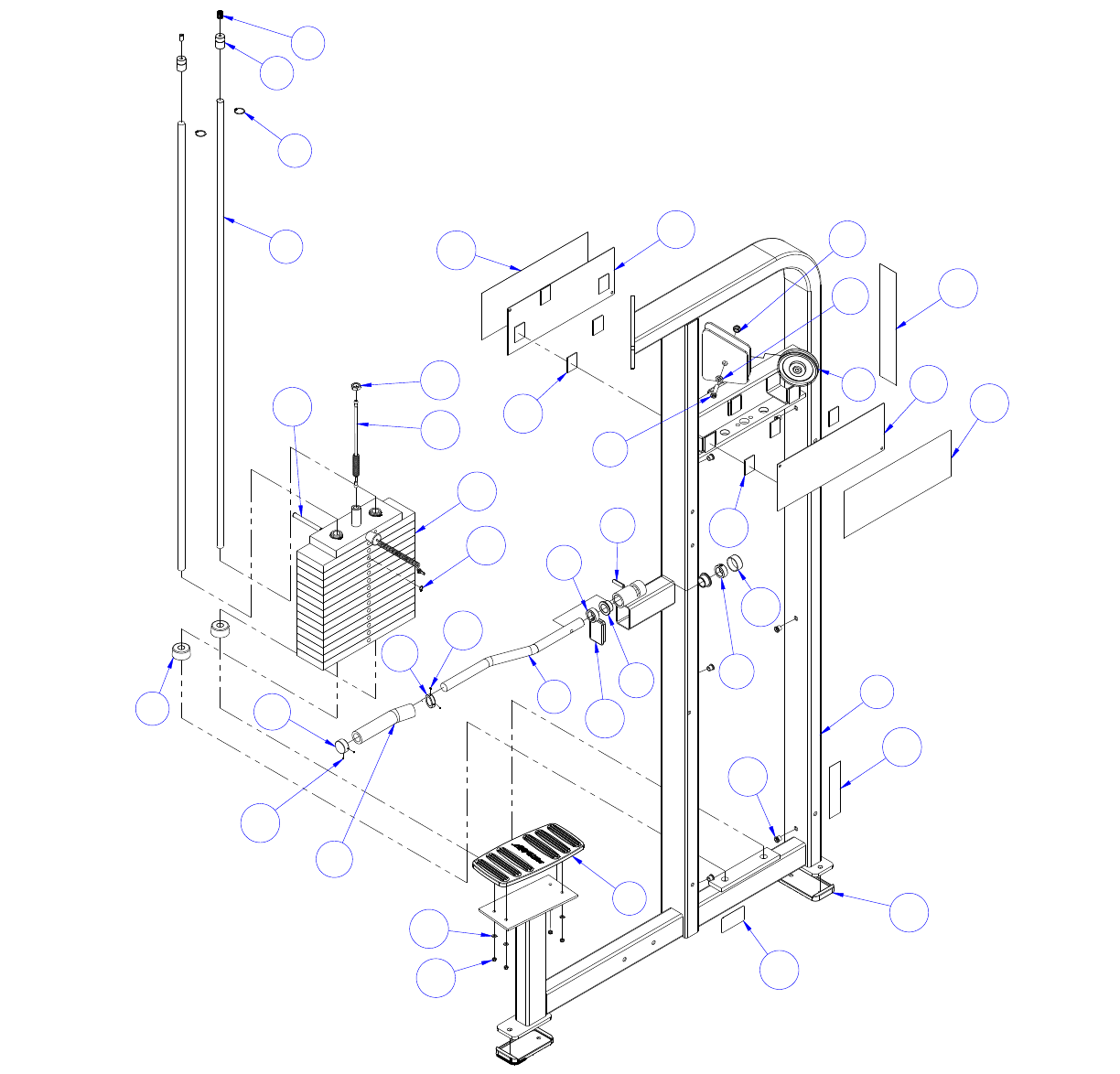

STACK FRAME ASSEMBLY - 7575901
________________________________________

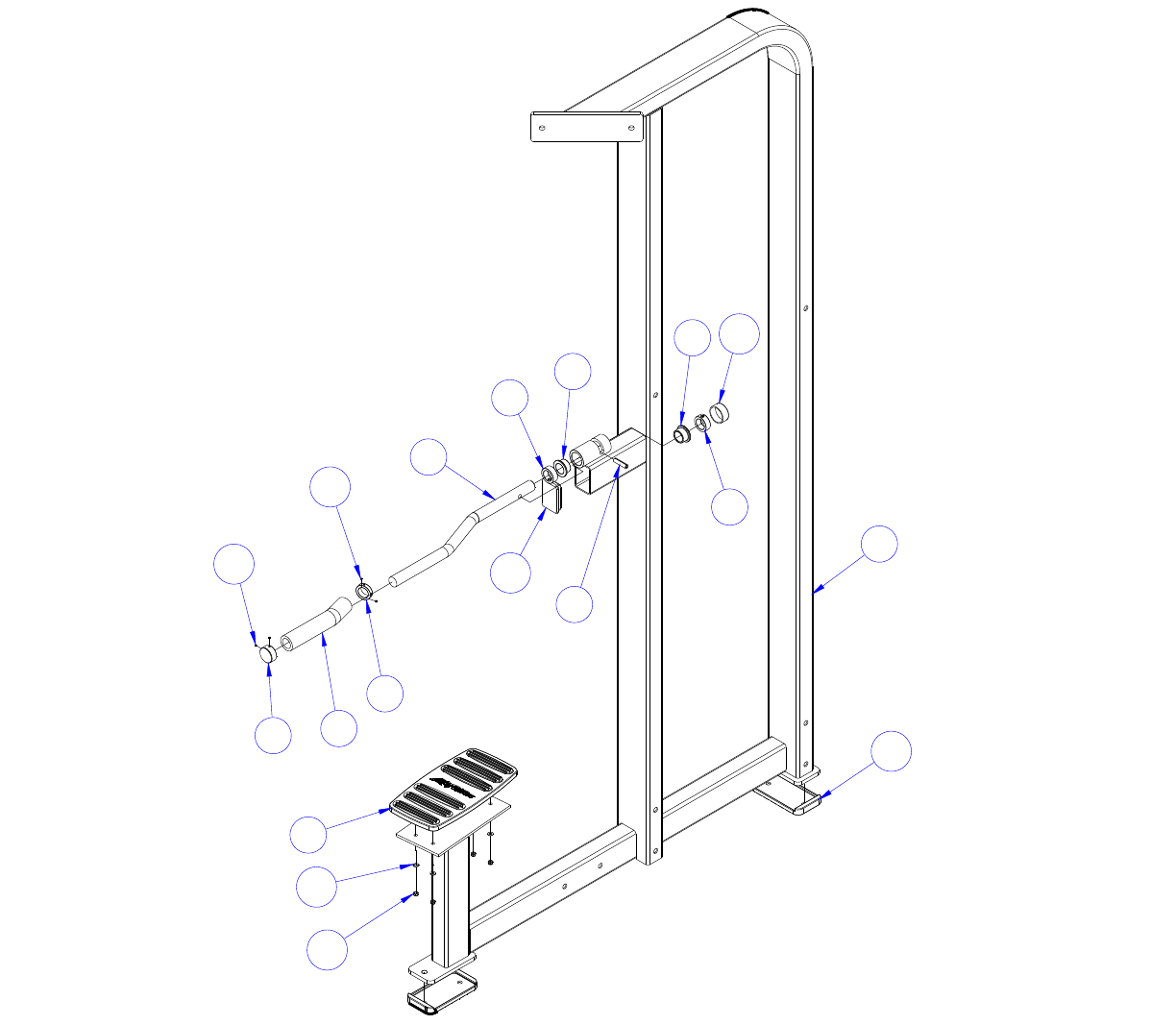

SEE PAGE 6 FOR LEGEND
PSADCSE ASSISTED DIP CHIN
3
5
7
22
6
8
9
2
1
10
20
30
37
31
23
33
33
25
26 27
32
28
34
36
29
35
24
20
18
18
19
17
16
21 15
14
21
13
12
11 4
________________________________________
Page 6
STACK FRAME ASSEMBLY LEGEND
PSADCSE ASSISTED DIP CHIN
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 7576001 WLDMNT, PSADC STACK
2 1 7424101 FOOTPLATE, PRO2
3 1 3237801 PULLEY, 4.5" OD
4 1 7575895 BROUND, PSADC DIP HANDLE
5 2 3240501 M10 X 1.5 HXS NO CUP ST BO
6 2 3232421 RING, BRE .940, 5100-100 ST PP B
7 2 7402301 RETAINER, GUIDEROD
8 2 7328606 GUIDE ROD, .75 OD SOLID 59.63
9 2 7352101 CUSHION, WEIGHT STACK
10 1 7574101 ASSY, 225LB STACK
11 1 7662902 CAP, GRIP 1.50 OD
12 1 3235802 GRIP, SHADOW GRAY, 8.00"
13 1 7662802 RING, GRIP 1.50 OD
14 1 7348101 WASHER, SPACER
15 1 7335401 NUT, M10 X 1.5 SOCKET HEAD
16 1 3236206 SCREW, M10 X1.5 45MM
17 2 3104903 1.00" ID 1.25" OD BRONZ BUSHING
18 2 7435301 COLLAR, SHAFT 1.020 ID
19 1 3110004 ROLL PIN
20 12 7544202 PAD, DUAL LOCK 250 1.5" X 2.0"
21 2 7415402 COVER, STACK-PRO2 RECT.
22 1 7582101 LABEL, PSADC PLACARD
23 1 7584201 LABEL, PSADC LOGO PANEL
24 1 7348001 LABEL, LIFE FITNESS LOGO
25 4 3241801 WASHER, FLAT 6MM SS
26 4 3236802 NUT, M6 HEX NYLOCK SS
27 1 7571301 LABEL, SERIAL NUMBER
28 1 7422000 LABEL, 2" ASTM WARN
29 1 7352301 CAP, END 2 X 3
30 1 7423723 CABLE, PSADC 105-3/4
31 1 3236902 NUT, M16 X 2 HEX JAM SS
32 2 7388201 FOOTPAD, PS RUBBER
33 4 3247701 M4 X .7 HXS NO CUP ST BO
34 6 3238101 NUT, BLIND INSERT M10 X 1.5
35 1 7564501 PIN, FZ/PS, WEIGHT PLATE
36 1 3242601 CAP, END, 1.375 X .750 RD, BLACK VINYL
37 1 3243901 RING, BRE M11, ST, PP
SEE PAGE 8 FOR LEGEND
LEFT SIDE FRAME ASSEMBLY - 7574901
Page 7
________________________________________
PSADCSE ASSISTED DIP CHIN
3
2
56
7
8
9
9
1
4
4
10
11
13
12
14
14
15

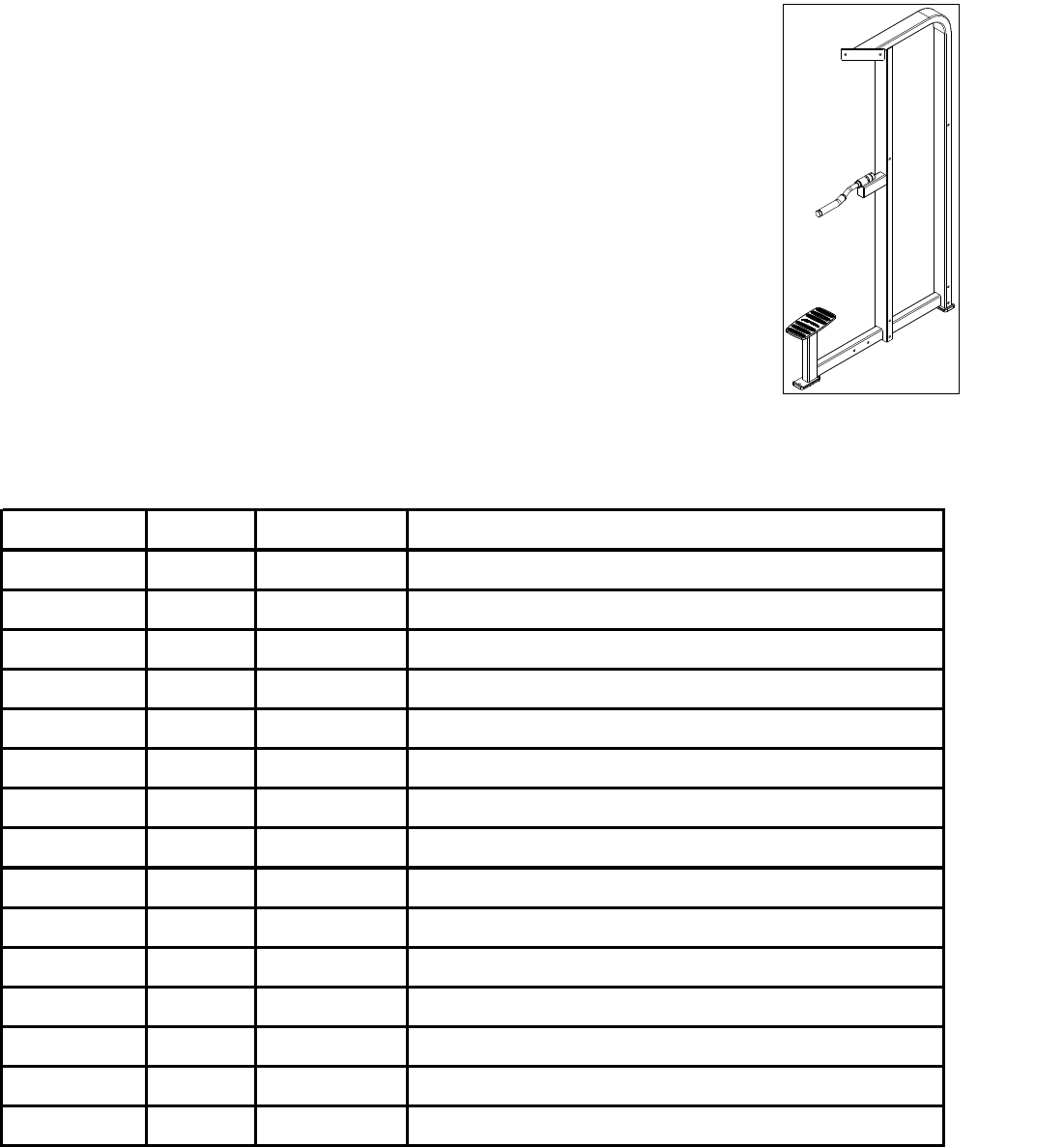

MOVEMENT ARM ASSEMBLY LEGEND
________________________________________
Page 8
PSADCSE ASSISTED DIP CHIN
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 7575001 WLDMNT, PSADC LSF
2 1 7424101 FOOTPLATE, PRO2
3 1 7575895 BROUND, PSADC DIP HANDLE
4 2 3104903 1.00" ID 1.25" OD BRONZ BUSHING
5 1 7662902 CAP, GRIP 1.50 OD
6 1 3235802 GRIP, SHADOW GRAY, 8.00"
7 1 7662802 RING, GRIP 1.50 OD
8 1 3110004 ROLL PIN
9 2 7435301 COLLAR, SHAFT 1.020 ID
10 4 3241801 WASHER, FLAT 6MM SS
11 4 3236802 NUT, M6 HEX NYLOCK SS
12 1 7352301 CAP, END 2 X 3
13 2 7388201 FOOTPAD, PS RUBBER
14 4 3247701 M4 X .7 HXS NO CUP ST BO
15 1 3242601 CAP, END, 1.375 X .750 RD, BLACK VINYL
________________________________________

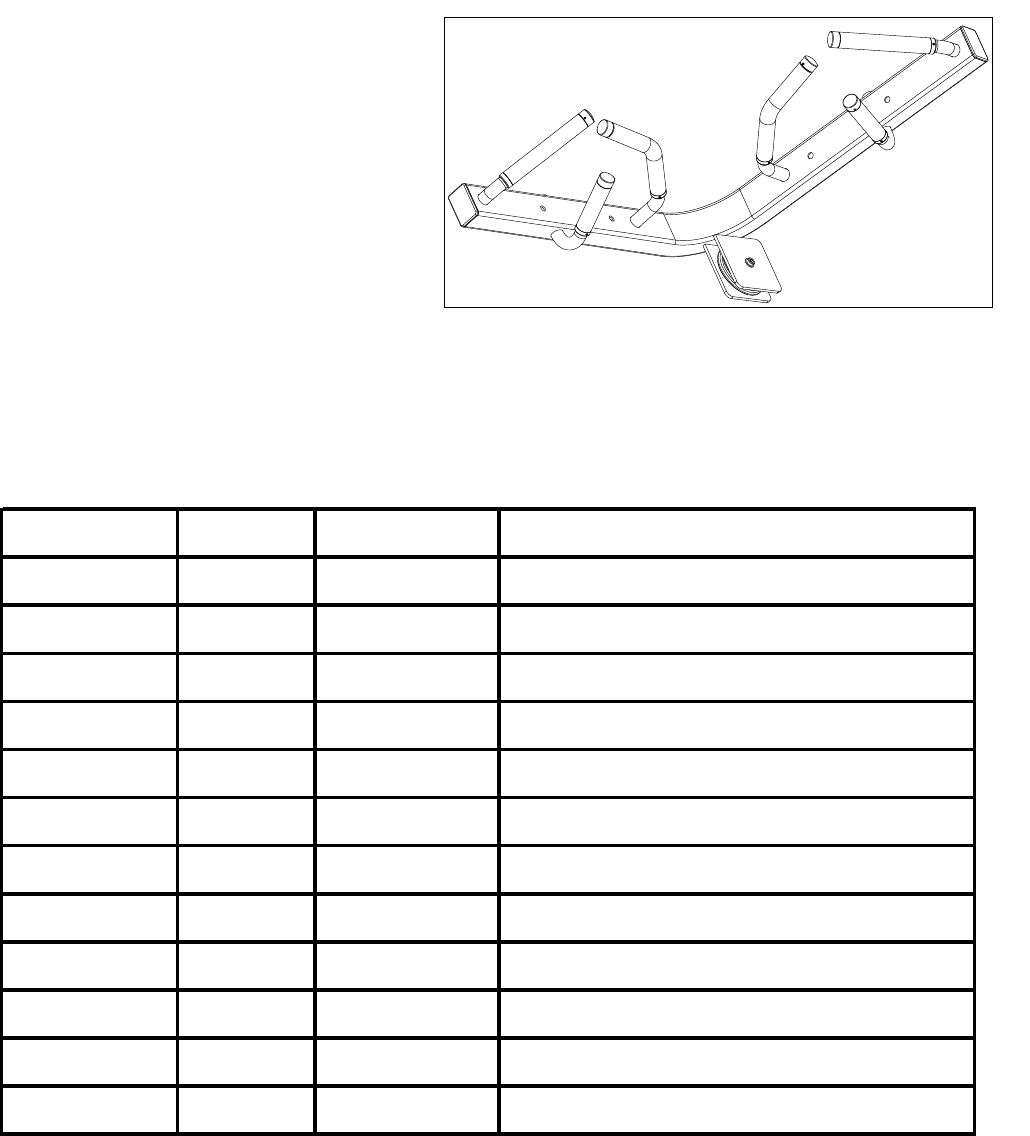

CHIN BAR ASSEMBLY - 7577001

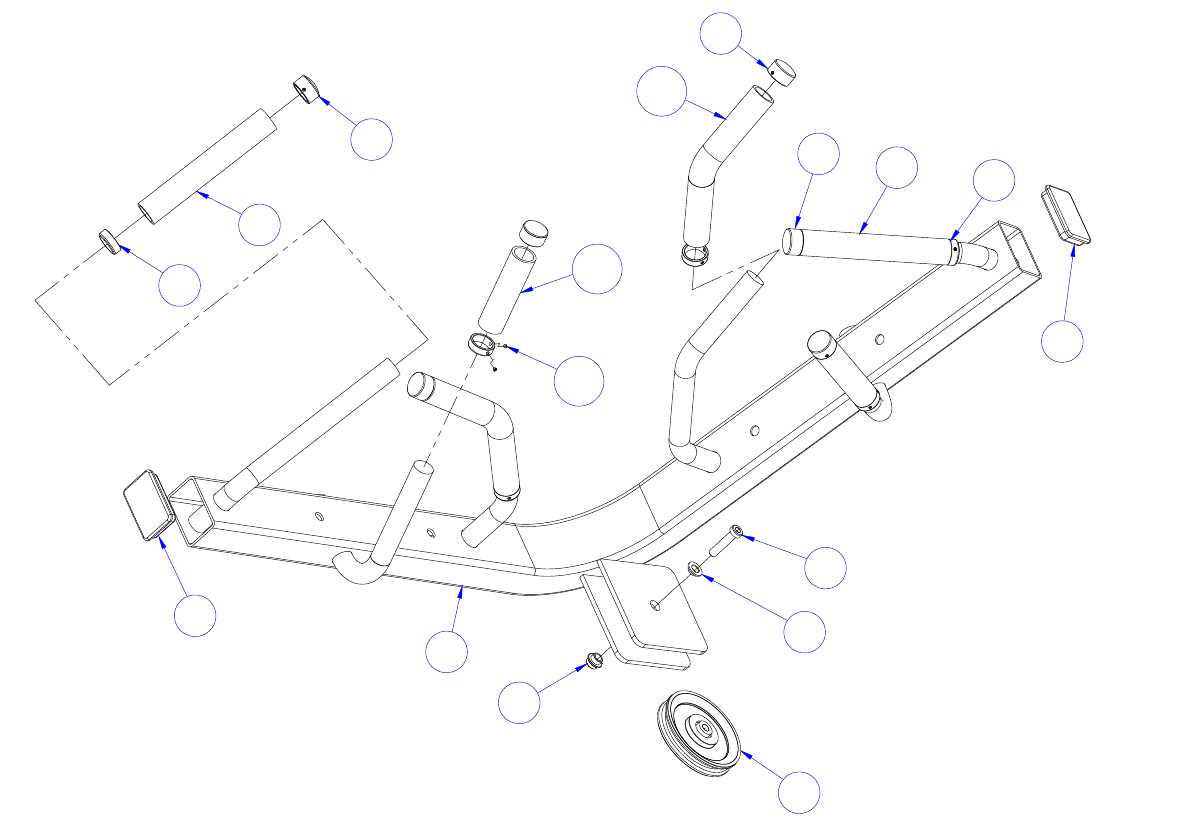

SEE PAGE 10 FOR LEGEND
Page 9
PSADCSE ASSISTED DIP CHIN
3
5
2
1
6
4
9
8
7789
6
7
10
11
12
________________________________________
CHIN BAR ASSEMBLY LEGEND
Page 10
PSADCSE ASSISTED DIP CHIN
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 7577101 WLDMNT, PSADC CHIN BAR
2 1 3237801 PULLEY, 4.5" OD
3 1 7348101 WASHER, SPACER
4 1 7335401 NUT, M10 X 1.5 SOCKET HEAD
5 1 3236206 SCREW, M10 X1.5 45MM
6 2 7352301 CAP, END 2 X 3
7 6 7662901 CAP, GRIP 1.25 OD
8 2 3235801 GRIP, SHADOW GRAY, 8.00"
9 6 7662801 RING, GRIP 1.25 OD
10 2 3235801 GRIP, SHADOW GRAY, 5.00"
11 2 3235801 GRIP, SHADOW GRAY, 10.00"
12 24 3247701 M4 X .7 HXS NO CUP ST BO
________________________________________

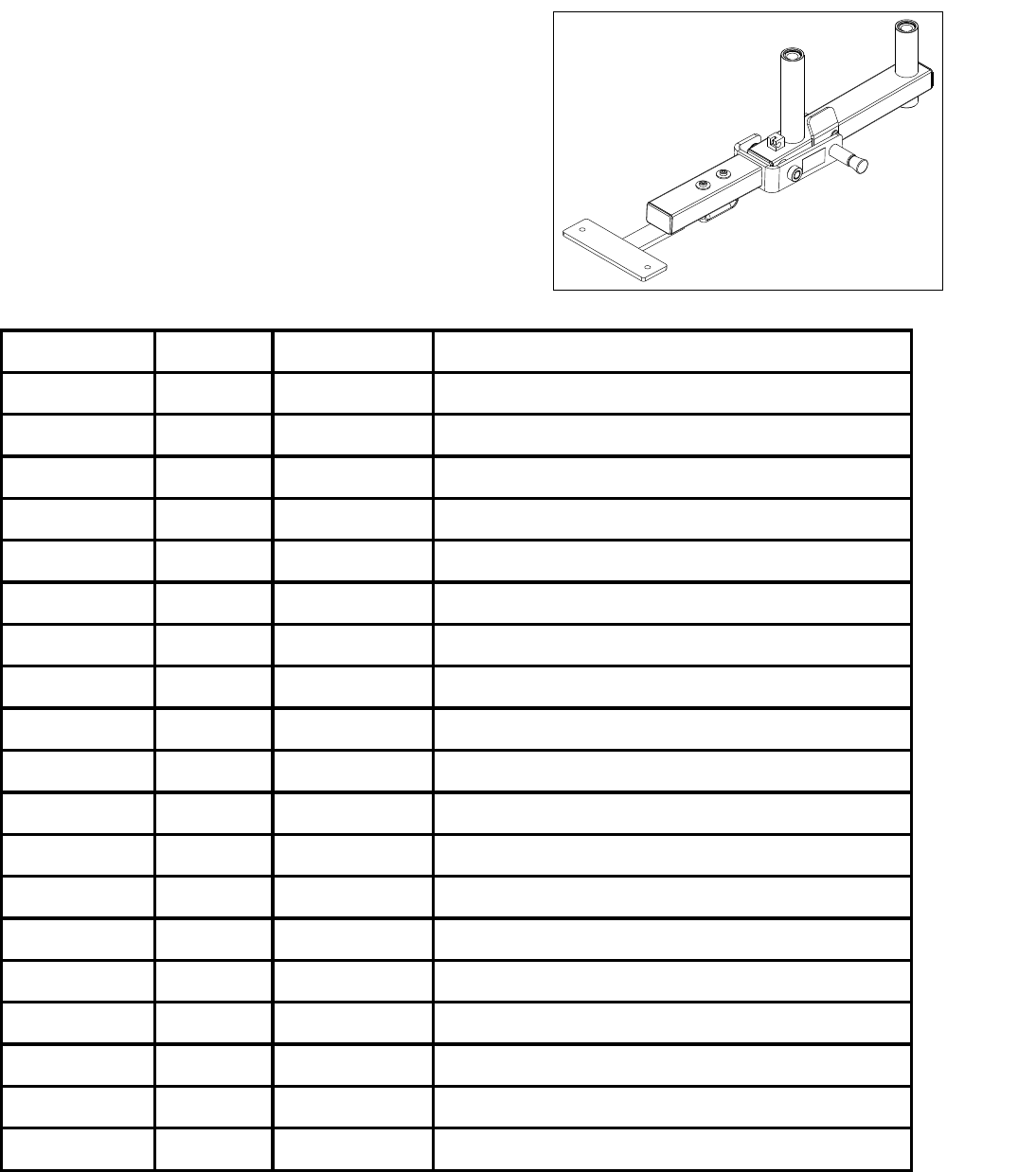

CARRIAGE ASSEMBLY - 7892601

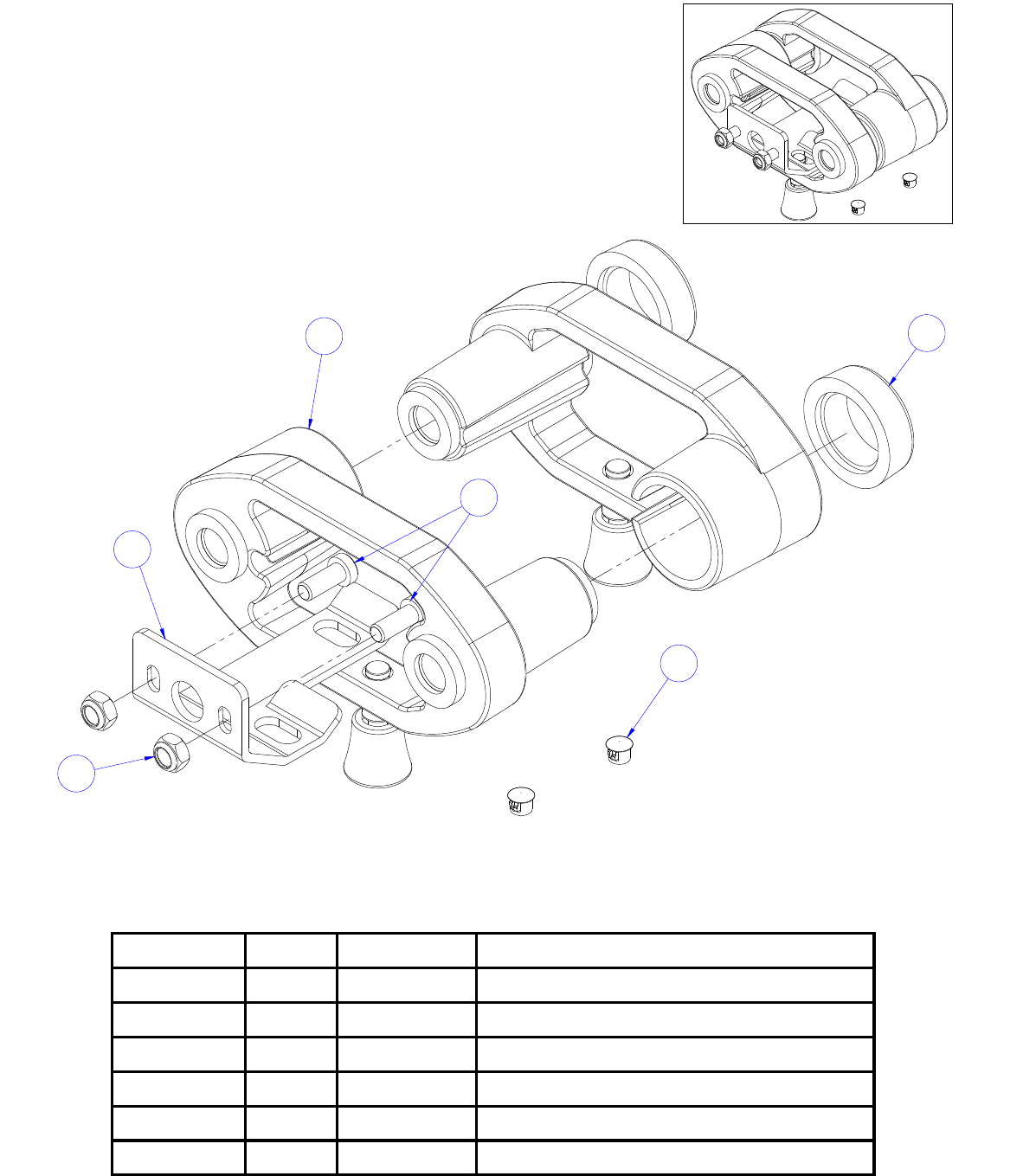

SEE PAGE 12 FOR LEGEND
Page 11
PSADCSE ASSISTED DIP CHIN
3
1
7
9
2
8
9
5
6
4
15
19
17
10
13
12
18
16
14
11
13
12
10
13
CARRIAGE ASSEMBLY LEGEND
________________________________________
Page 12
PSADCSE ASSISTED DIP CHIN
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 7892701 WLDMT, PSADC CARRIAGE
2 1 7892901 WLDMT, PSADC WORK ARM
3 1 7900901 BRKT, PSADC STRIKER
4 1 7901001 SHAFT, PSADC ARM PIVOT
5 4 3245601 BEARING, LINEAR 1" ID
6 4 3202601 RET RING, INT 1-3/4 DIA X1/16
7 1 7352001 BUMPER, 2-1/8 X 4-5/8
8 2 3236602 WASHER, 3/8 ID X 1.25 OD SS
9 6 3236601 WASHER, 3/8 SAE SS
10 4 3236801 NUT, M10 HEX NYLOCK SS
11 2 3236213 SCREW, M10 X1.5 80MM
12 2 3104901 .75" ID 1.00" OD BRONZE BUSHING
13 3 7352301 CAP, END 2 X 3
14 1 7351301 PIN, PULL X 4.375
15 1 7351401 KNOB, TULIP STYLE
16 1 7351501 SPRING; PULL PIN LARGE
17 2 3242901 SCREW, SET BO
18 2 3236217 SCREW, M10 X1.5 100MM
19 1 7422003 LABEL, MOVING PARTS
________________________________________

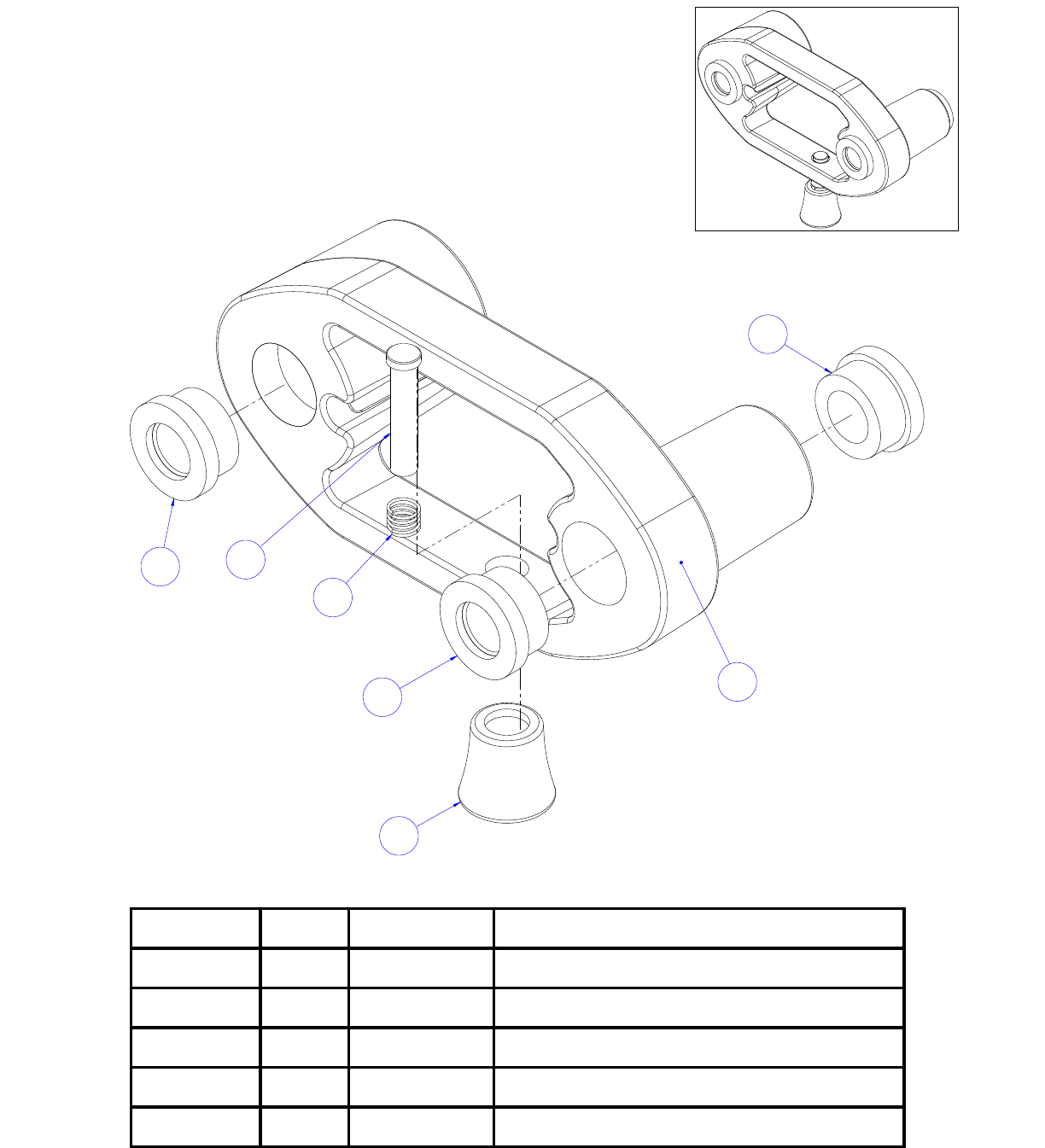

5LB INCREMENT WEIGHT ASSEMBLY - 7446501
3
2
5
1
4
4
4
ITEM NO QTY PART NO DESCRIPTION
1 1 7446602 BODY, 5LB INCREMENT WEIGHT
2 1 7446901 PIN, RETAINING
3 1 7447001 SPRING, COMPRESSION
4 3 7560001 BUSHING, MTS, INC WEIGHT
5 1 7351401 KNOB, TULIP STYLE
Page 13
PSADCSE ASSISTED DIP CHIN
________________________________________
INCREMENT WEIGHT W/STRIKER - 7415101
3
2
6
5
1
4
ITEM NO QTY PART NO DESCRIPTION
1 2 7446501 ASSY, 5LB INCREMENT WEIGHT
2 1 8002601 PLATE, INCR. WT STRIKER
3 2 3236202 SCREW, M10 X1.5 25MM
4 2 3236801 NUT, M10 HEX NYLOCK SS
5 2 7767601 BUMPER, PS INCREMENT WT
6 2 3237401 PLUG, 7/16" HOLE
Page 14
PSADCSE ASSISTED DIP CHIN
________________________________________

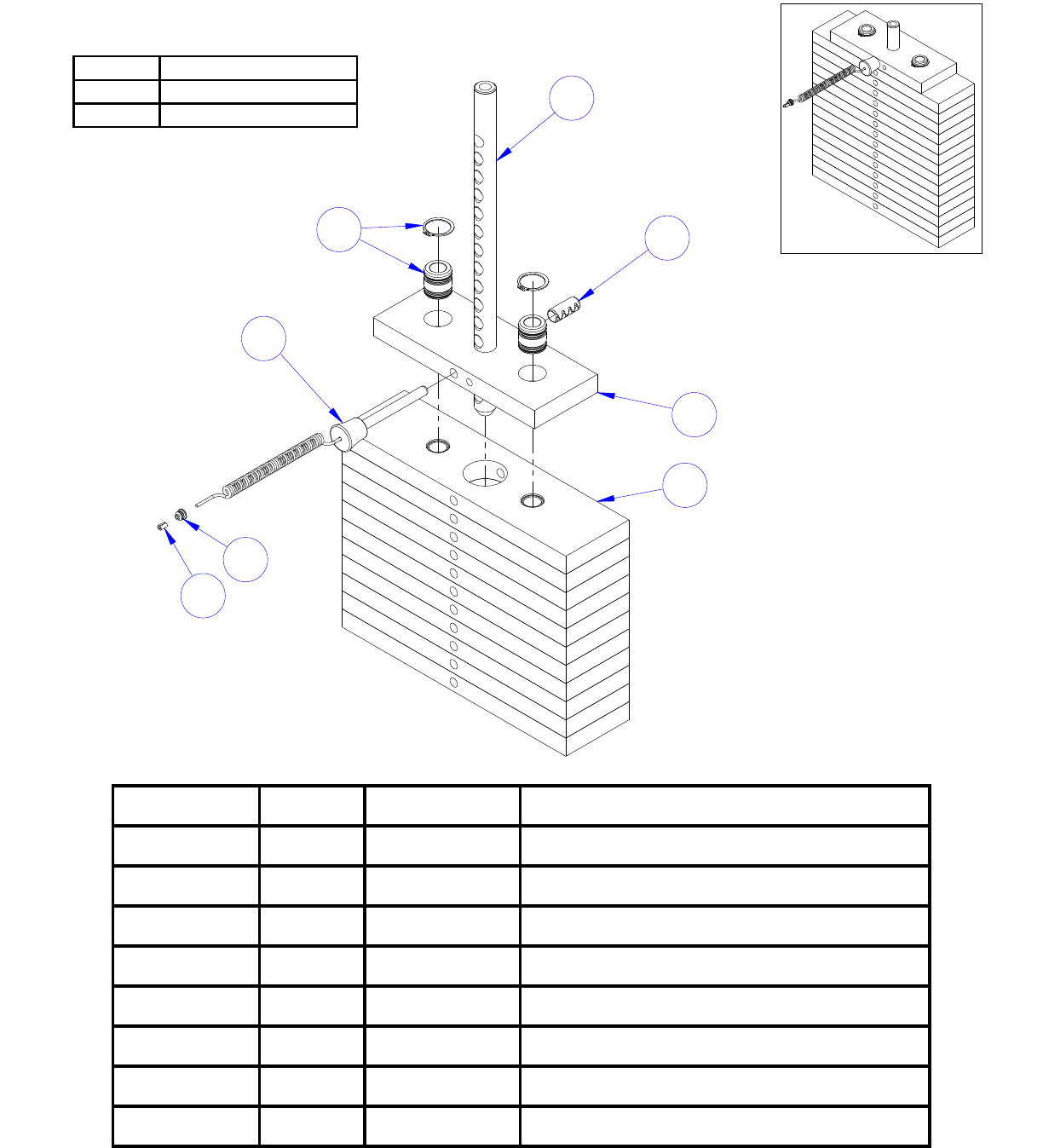

WEIGHT STACK ASSY 225LB - 7574101
Page 15
PSADCSE ASSISTED DIP CHIN
3
6
8
9
7
1
5
2
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 7353901 HEADPLATE, WT. STACK
2 1 7352601 BAYONET, 14 PLATE
3 2 7338001 BUSHING, HEADPLATE
5 1 3236001 BUSHING, SPRING PIN
6 1 7353001 ASSY, SELECTOR PIN
7 14 7353801 ASSY, 15 LB PLATE
8 1 7356501 PLUG, LANYARD ATTACHMENT
9 1 7523601 CRIMP, CABLE
WEIGHT STACK LABELS
PART NO DESCRIPTION
7987201 LABEL, 300 LB STACK
7987401 LABEL, 138 KG STACK
________________________________________

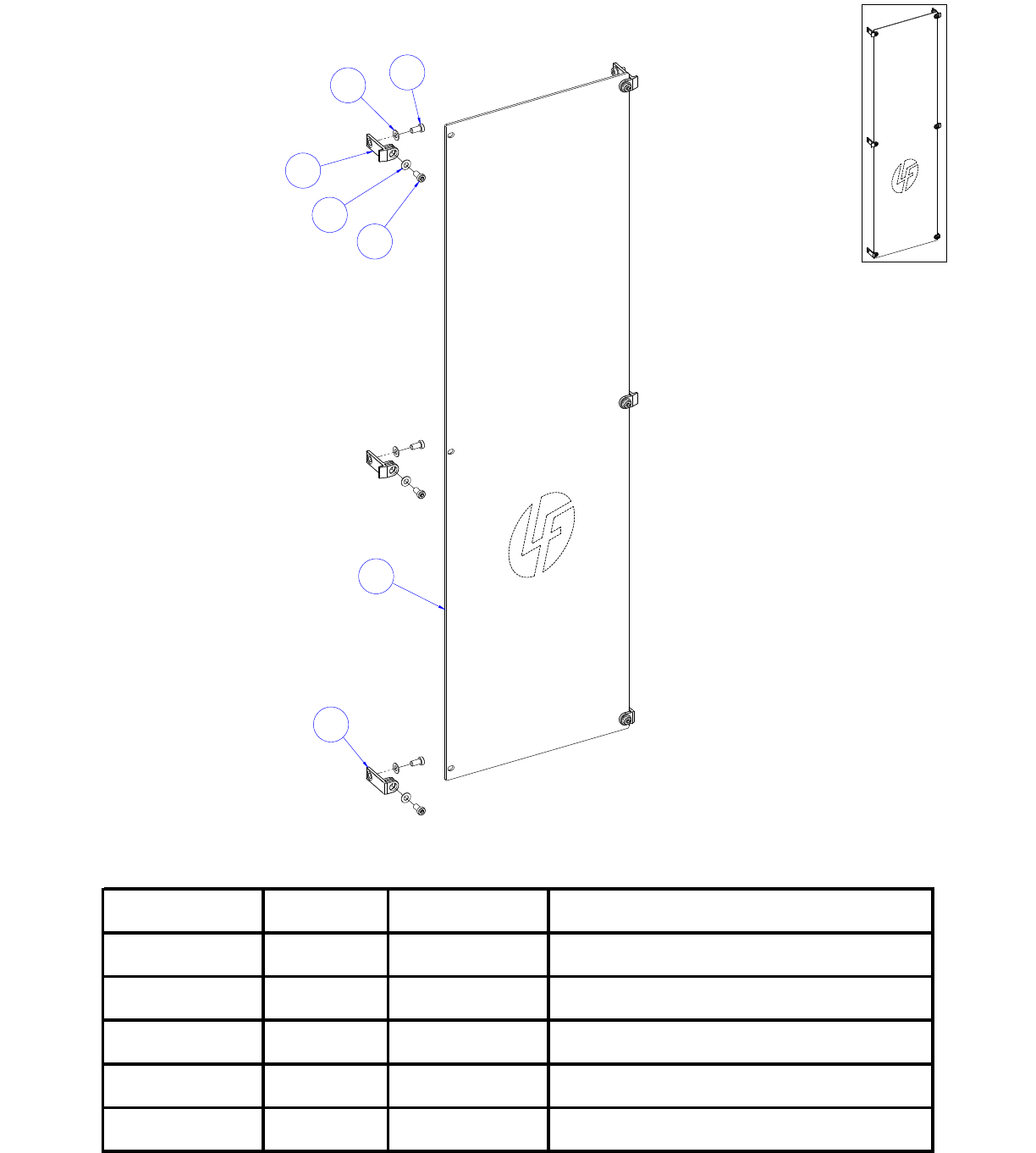

REAR SHROUD KIT - 7782801
Page 16
PSADCSE ASSISTED DIP CHIN
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 7376806 SHIELD, PS REAR
2 4 7655301 BRACKET, PS REAR SHIELD
3 12 3236601 WASHER, 3/8 SAE SS
4 12 3236201 SCREW, M10 X1.5 20MM
5 2 7782701 BRKT, PSADC REAR SHIELD
3
2
3
1
5
4
4
________________________________________

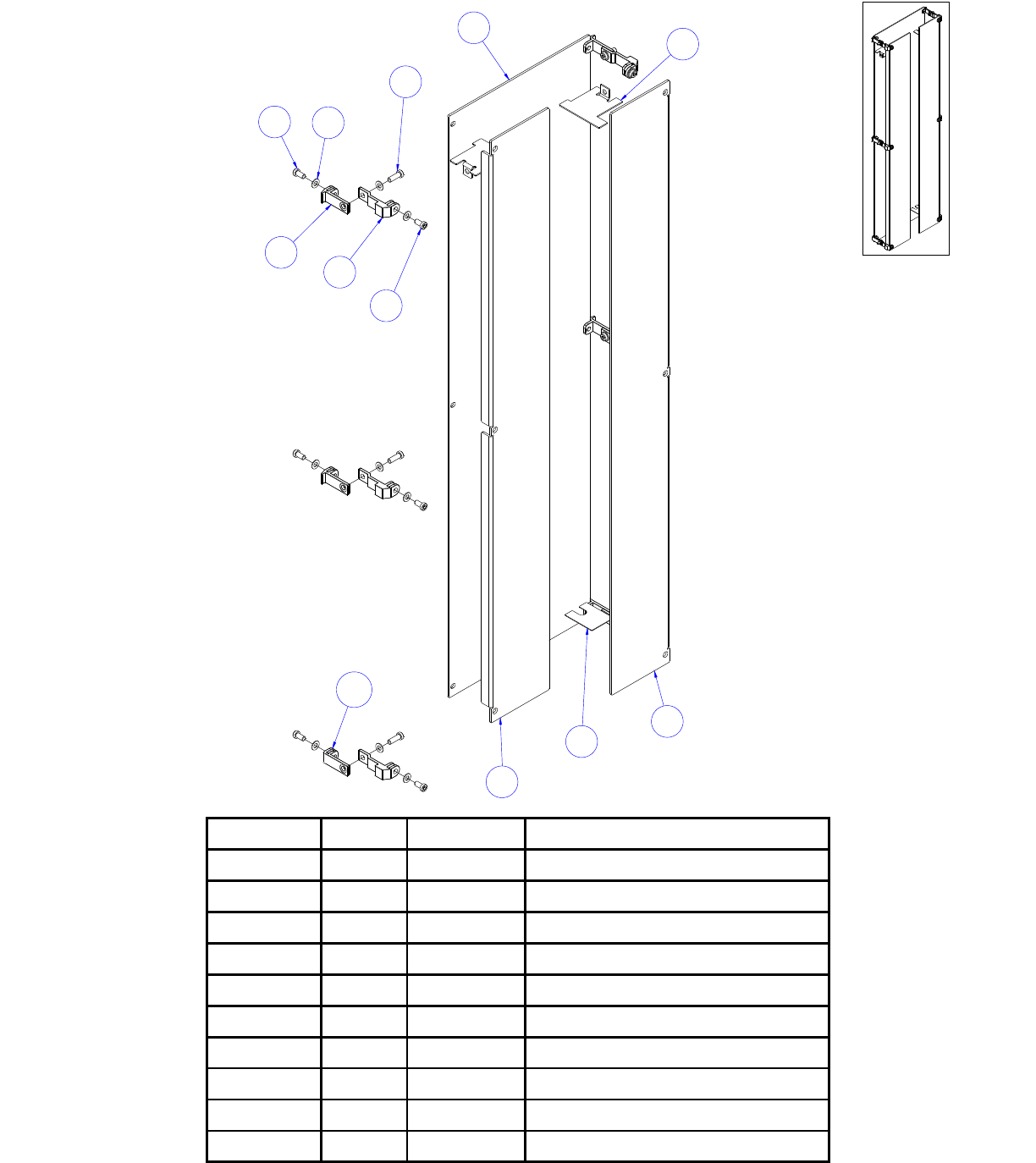

OPTIONAL FULL SHROUD KIT - 7782901
Page 17
PSADCSE ASSISTED DIP CHIN
3
5
9
26
1
8
7
7
10
4
4
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 7376806 SHIELD, PS REAR
2 4 7655301 BRACKET, PS REAR SHIELD
3 18 3236601 WASHER, 3/8 SAE SS
4 12 3236201 SCREW, M10 X1.5 20MM
5 6 3236203 SCREW, M10 X1.5 30MM
6 6 7376601 BRACKET, PS FRONT SHIELD
7 2 7376906 SHIELD, PS - FRONT
8 2 7570901 PLATE, PS SHIELD STAND-OFF
9 2 7657401 PLATE, PRO2 SHROUD SPCR
10 2 7782701 BRKT, PSADC REAR SHIELD
________________________________________
Page 18
