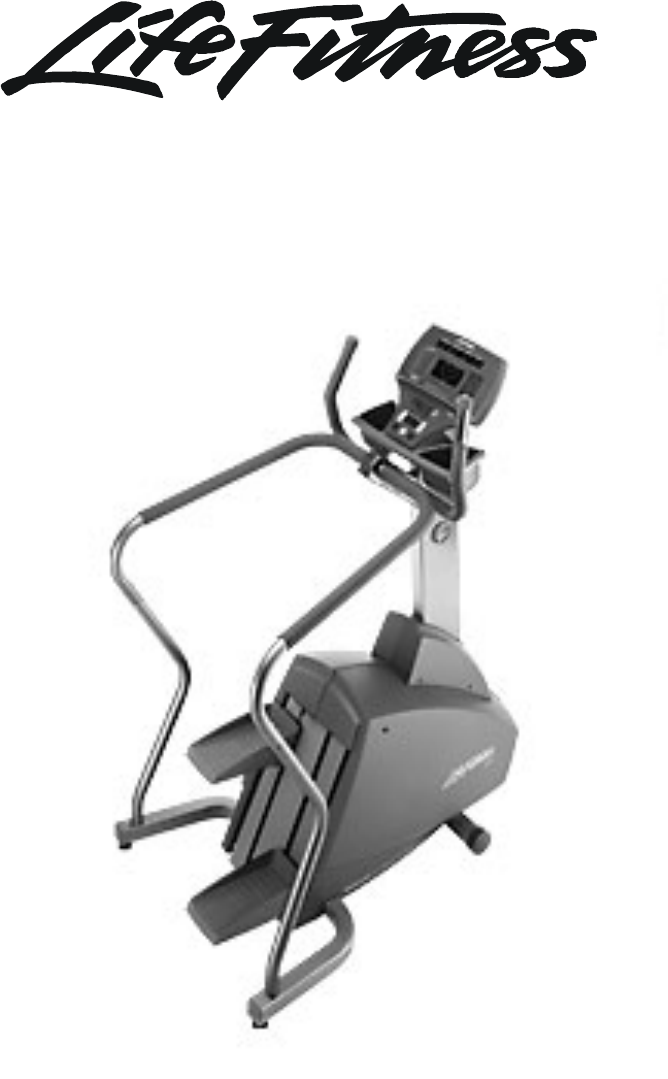

ARCTIC SILVER 95SWEZ Stairclimber
Customer Support Services
PARTS MANUAL revised 14 Jul 2008
2
Miscellaneous ..........................................................................................................3
Console Components..................................................................................................4
Frame Components ...................................................................................................5
Shrouds and Pedal Tube..............................................................................................6
Pedal Assembly ........................................................................................................7
Clutch/Shaft/Pulley Assembly ......................................................................................8
Left Clutch Assembly .................................................................................................9
Crossover Pulley Assembly..........................................................................................10
Alternator Assembly .................................................................................................11
Guide Rollers..........................................................................................................12
Power Control Board and Resistor.................................................................................13
Polar Receiver Assembly ............................................................................................14
Cables..................................................................................................................15
ARCTIC SILVER 95SWEZ 95SWEZ-0XXX-04
Contents S/N MSW100000 and up
3
ARCTIC SILVER 95SWEZ 95SWEZ-0XXX-04
Miscellaneous S/N MSW100000 and up
OPERATION MANUAL – (ENG)
OPERATION MANUAL – (F/S/P)
OPERATION MANUAL – (G/D/I)
OPERATION MANUAL – (JAP)
M051-00K47-A129
M051-00K47-A130
M051-00K47-A131
M051-00K47-A132
HARDWARE BAG AK47-00106-0000
TOUCH UP PAINT:
SPRAY CAN
.5 OZ BOTTLE W/APPLICATOR
.33 OZ PEN
0017-00008-0204
0017-00008-0205
0017-00008-0206
ACCESS PANEL ASSEMBLY
CONSISTS OF:
1) COAX CABLE
2) POWER EXT. CABLE
3) MOUNTING PLATE
4) F TYPE CONNECTOR
AK47-00122-0001
AK32-00020-0002
AK32-00078-0001
0K47-01197-0001
0017-00021-2846
SERVICE MANUAL M051-00K47-A013
Note: This model is a combination of the attachable
LCD TV ( LCDSEZ-XXXX-01 and the base unit
(95SWEZ-XXXX-04). It has both Life Pulse sensors
and Telemetry for reading Heart Rate.
4
ARCTIC SILVER 95SWEZ 95SWEZ-0XXX-04
Console Components S/N MSW100000 and up
AK47-00167-0001 CONS-ASSY: 95SEZ; ENG AK47-00150-0001 BZL/SW/OVERLAY ASSY: 95SEZ; ENG
AK47-00167-0002 CONS-ASSY: 95SEZ; ENG AK47-00150-0001 BZL/SW/OVERLAY ASSY: 95SEZ; ENG
AK47-00167-0003 CONS-ASSY: 95SEZ; GER AK47-00150-0003 BZL/SW/OVERLAY ASSY: 95SEZ; GER
AK47-00167-0004 CONS-ASSY: 95SEZ; SPN AK47-00150-0004 BZL/SW/OVERLAY ASSY: 95SEZ; SPN
AK47-00167-0006 CONS-ASSY: 95SEZ; JAP AK47-00150-0006 BZL/SW/OVERLAY ASSY: 95SEZ; JAP
AK47-00167-0007 CONS-ASSY: 95SEZ; FRN AK47-00150-0007 BZL/SW/OVERLAY ASSY: 95SEZ; FRN
AK47-00167-0008 CONS-ASSY: 95SEZ; ITL AK47-00150-0008 BZL/SW/OVERLAY ASSY: 95SEZ; ITL
AK47-00167-0009 CONS-ASSY: 95SEZ; DUT AK47-00150-0009 BZL/SW/OVERLAY ASSY: 95SEZ; DUT
AK47-00167-0010 CONS-ASSY: 95SEZ; POR AK47-00150-0010 BZL/SW/OVERLAY ASSY: 95SEZ; POR
AK47-00167-0014 CONS-ASSY: 95SEZ; TUR AK47-00150-0001 BZL/SW/OVERLAY ASSY: 95SEZ; ENG
Headphone Jack Assy
AK32-00134-0000
PROG CONS PCB ASSY
A084-92219-A025
PCB-ASSY: CONSOLE; LOWER
B084-92222-B000
Screw
0017-00101-1650
Screw
0017-00101-1650
Battery Door
0K63-01029-0001
CONS-CASE W/DECAL
AK63-00121-0001
CBL-ASSY: CONSOLE; LOWER
A
K63-00038-0000
CBL-ASSY: HEADPHONE/C-SAFE
AK32-00147-0000
5
ARCTIC SILVER 95SWEZ 95SWEZ-0XXX-04

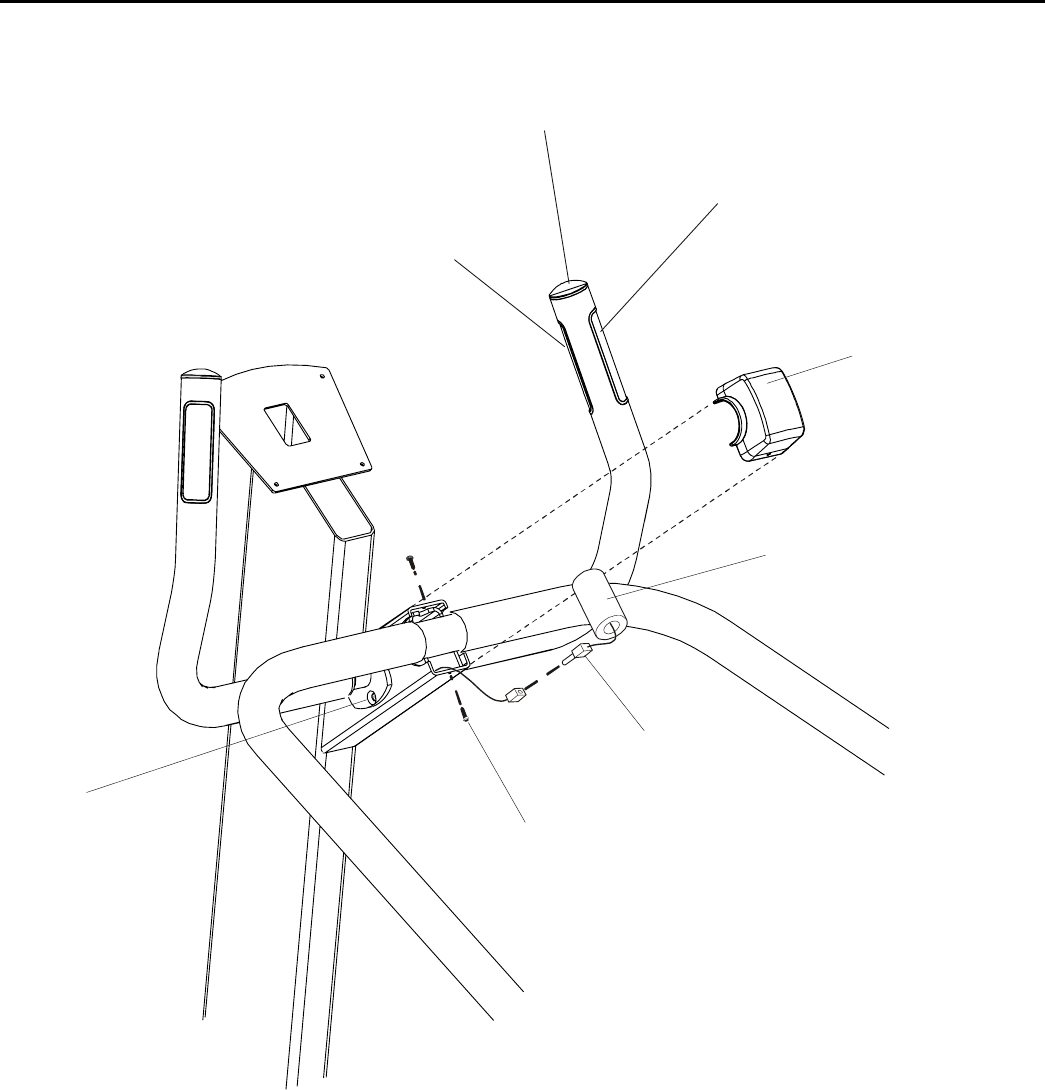

Frame Components S/N MSW100000 and up
Mono-Column
AK47-00068-0003
Bull Horn w/HR - LT
AK47-00110-0002
Bull Horn w/HR - RT
AK47-00110-0001
Accessory Tray
0K63-01030-0001
Mounting Screws
0017-00101-1744
Handlebar
AK47-00057-0002
Leg Levelers
AK61-00035-0000
Jam Nut
0017-00103-0273
Leveler
0017-00009-0795
Vertical Handrail
0K47-01030-0002
Wheel
0K63-01040-0001
Wheel w/Bearings
AK63-00016-0001
Console Mounting Screws
0017-00101-1744
TORX Cap Screw (4)
0017-00101-1760
End Cap
0K47-01156-0001
Handlebar
Hex Screws(2)
0017-00101-0933
Wheel Insert
0K47-01085-0000
Washer
0K63-01041-0000
Screw
0017-00101-1611
6
ARCTIC SILVER 95SWEZ 95SWEZ-0XXX-04

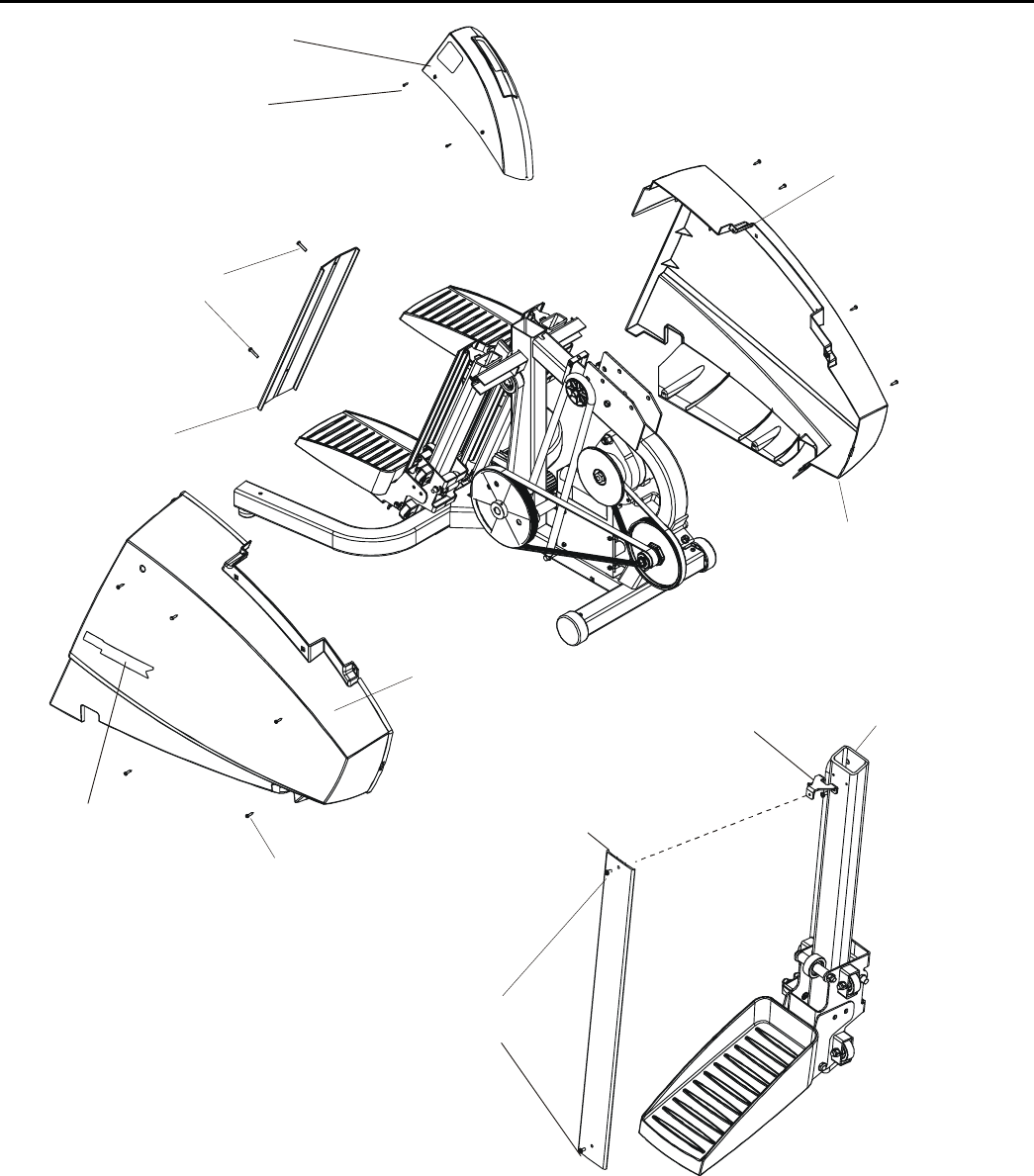

Shrouds and Pedal Tube S/N MSW100000 and up
Phillips Pan Screw(9)
0017-00101-1769
Phillips Pan Screws(2)
0017-00101-1764
Left Shroud w/Cable
AK47-00111-0009
Access Panel Assy.
AK47-00122-0001
( see Page 2 for
panel breakdown)
Right Shroud
AK47-00111-0007
Center Shroud
0K47-01165-0001
Mono-Column Shroud
AK47-00082-0001
Phillips Pan Screw(2)
0017-00101-1769
Track Cover
0K47-01164-0001
Cover Screw(2)
0017-00101-1763
Pedal Tube Track
0K47-01132-0001
Pedal Tube
Mounting Bolts
0017-00101-1719
Decal; ISO Track
0K47-01181-0000
Track Cover Bracket
0K47-01146-0001
Bracket Screw
0017-00101-1763
Grommets
0017-00042-0754
7
40-XXX0-ZEWS59 ZEWS59 REVLIS CITCRA

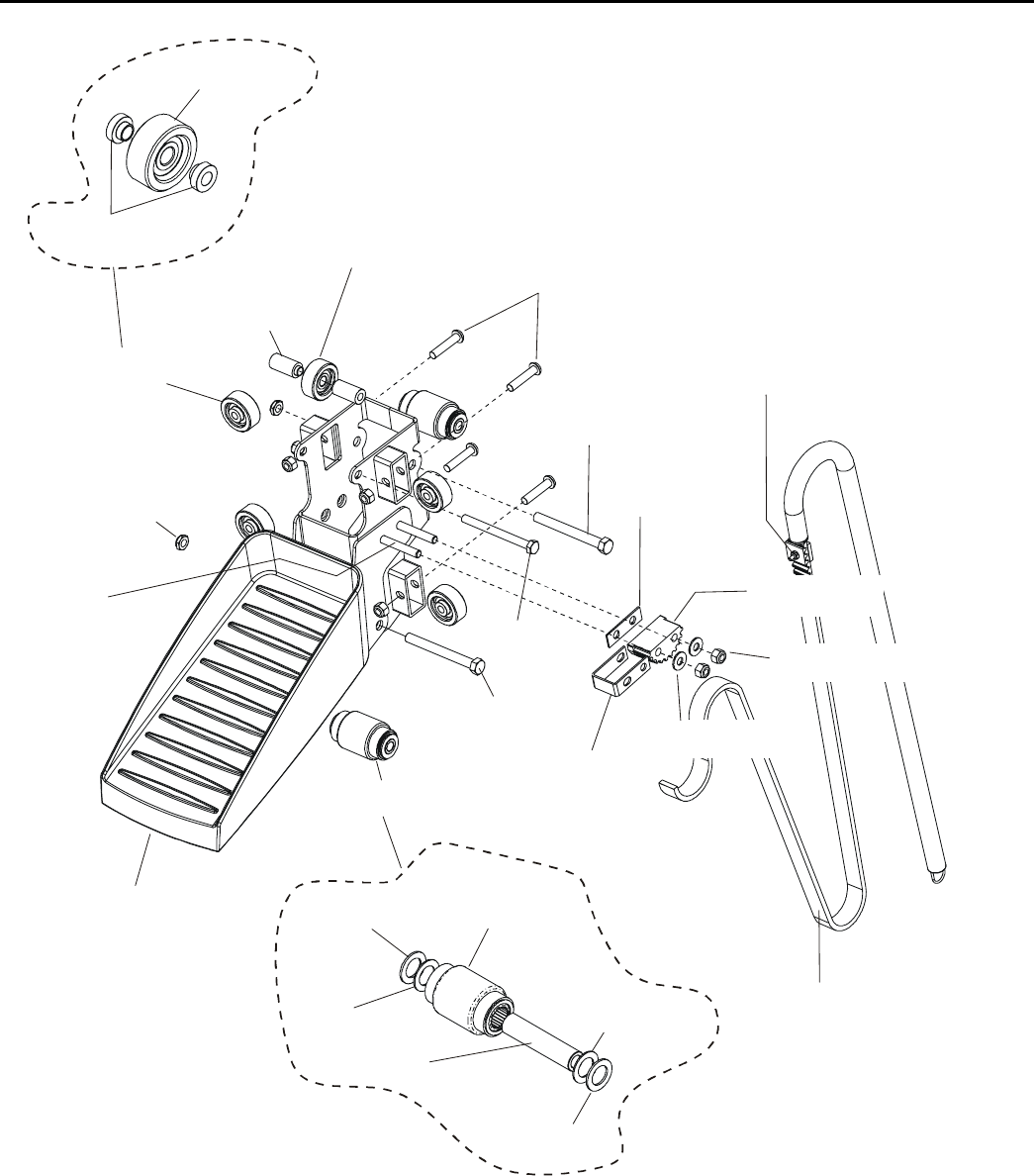

pu dna 000001WSM N/S ylbmessA ladeP
Roller Sleeve (2)
0K47-01136-0000
Side Roller Hex Bolt(4)
0017-00101-1609
Track Roller(4)
w/Busshing Assy
AK47-00087-0000
Side Track Roller
0K47-01084-0000
Thin Lock Nut(2)
0017-00103-0324
Pedal Bracket Assembly
w/o Rollers
AK47-00086-0002
Pedal Assembly LT
w/Rollers
AK47-00072-0002
Pedal Assembly RT
w/Rollers
AK47-00073-0002
Pedal Only: RH or LT
0K47-1046-0001
Mono-roller Hex Bolt(2)
0017-00101-1730
Center Hex Bolt
0017-00101-1729
Belt/Spring Assembly
Left
GK47-00002-0033
Right
GK47-00002-0034
Spacer Plate
0K47-01148-0000
Lock Nut(11)
0017-00103-0282
W
asher(2)
0017-00104-0159
Belt Terminator
0K35-01105-0000
Belt Bracket
0K35-01142-0000
Low Head
Terminator Screw(2)
0K47-01153-0000
Roller Sleeve(2)
0K47-01138-0000
Side Track Roller
0K47-01084-0000
Mono Roller w/Bearings
AK47-00071-0000
Mono Roller &
Shaft Assy (2)
AK47-00076-0000
Shaft
0K47-01134-0000
Washer
0K47-01151-0000
Thrust Washer
0K47-01144-0000
Thrust Washer
0K47-01144-0000
Washer
0K47-01151-0000
Mono-roller Hex Bolt(2)
0017-00101-1730
Retainer, Bottom
0K35-01144-0001
Retainer, Top
0K35-01144-0003
Allen Screw
0017-00101-1348
Nut - 0017-00103-0052

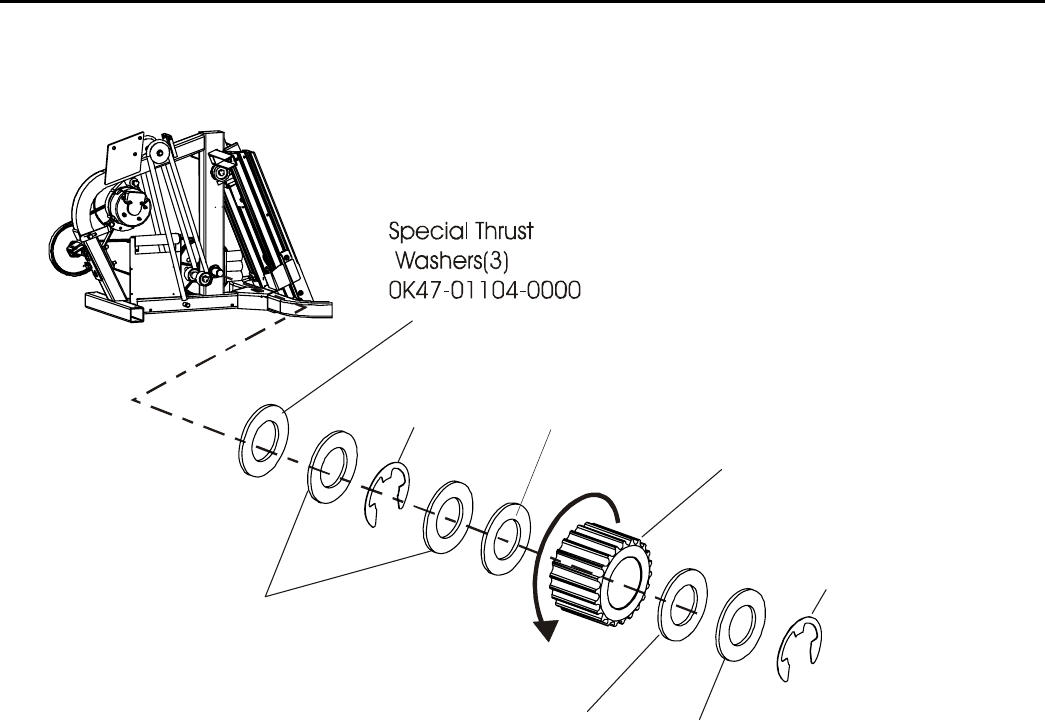

8
ARCTIC SILVER 95SWEZ 95SWEZ-0XXX-04

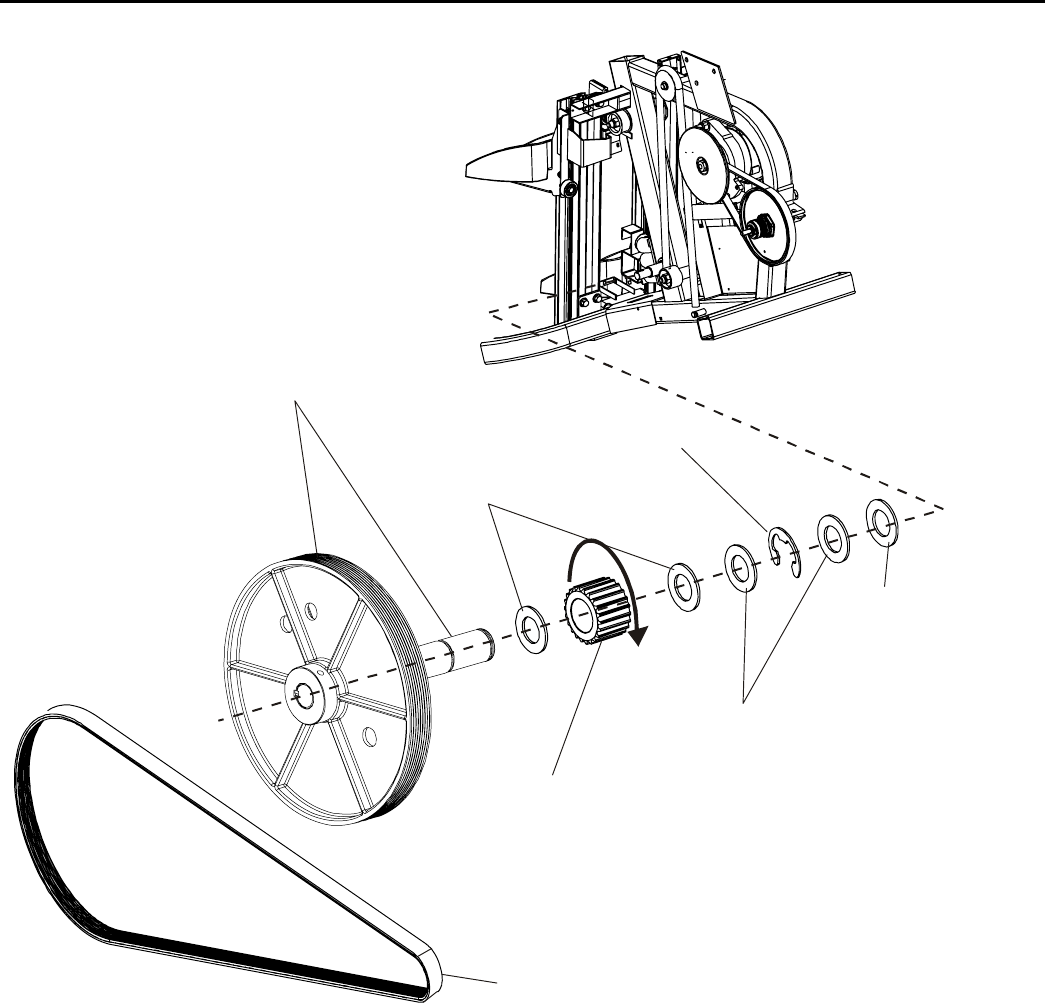

Clutch/Shaft/Pulley Assembly S/N MSW100000 and up
Special Thrust
Washer(3)
0K47-01104-0000
Right Drive
Clutch Assembly
AK47-00043-0001
Hardened Thrust Washers
0K47-01105-0000
Special Thrust
Washers
E-ring
0017-00100-0107
Clutch/Shaft/Pulley Assy.
AK47-00006-0000
Main Drive Belt
0K47-01054-0000
9
ARCTIC SILVER 95SWEZ 95SWEZ-0XXX-04
Left Clutch Assembly S/N MSW100000 and up
Special
Thrust
W
asher
Left Clutch/Sprocket Assy.
AK47-00043-0002
E-Rings(2)
0017-00100-0107
Special Thrust
Washer
Hardened Thrust
Washer
E-Ring
Hardened Thrust
Washers(3)
0K47-01105-0000
10
ARCTIC SILVER 95SWEZ 95SWEZ-0XXX-04

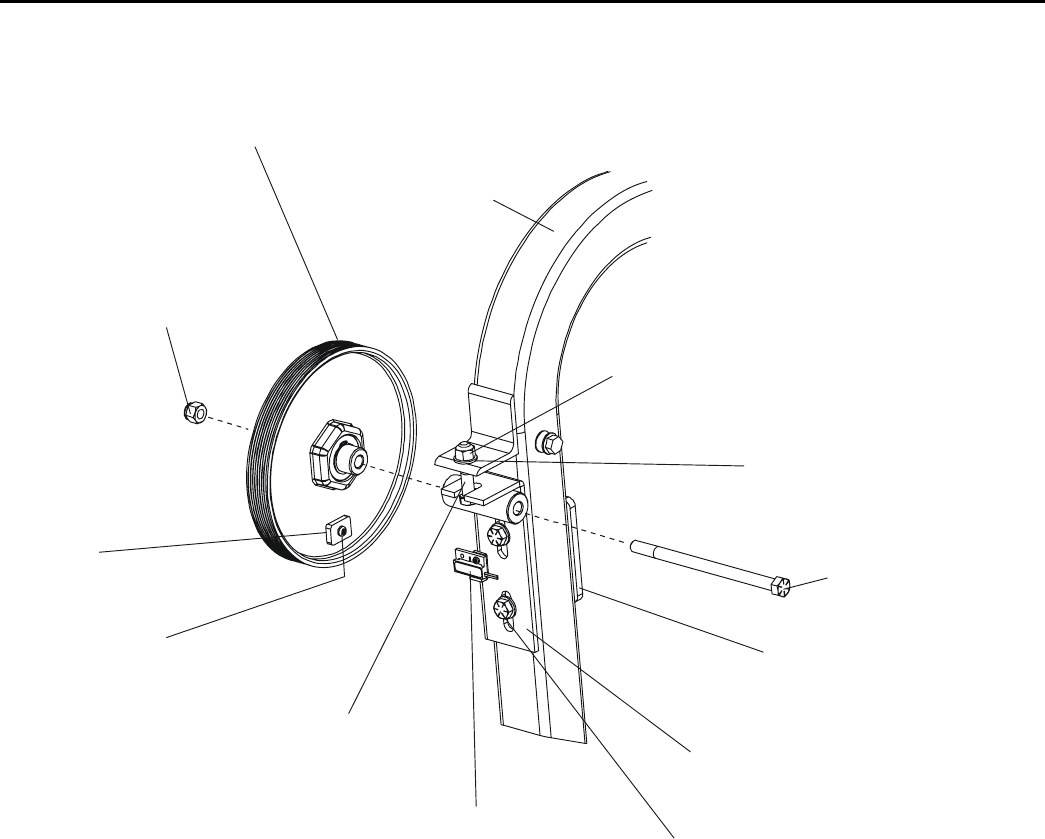

Crossover Pulley Assembly S/N MSW100000 and up
Bolt
0017-00101-1717
Lock Nut
0017-00103-0025
Frame
Nut
0017-00103-0026
Washer
0017-00104-0043
Reed Switch
and Cable Assy.
118E-00001-0140
Intermediate Pulley
Bracket
0K47-01052-0000
Backing Plate
0K47-01056-0000
Bolts(2)
0017-00101-1048
Magnet
118E-00001-0124
Screw
0017-00101-1148
Crossover Pulley Assy
AK47-00007-0000
Tensioning Bolt
0017-00101-0928
11
ARCTIC SILVER 95SWEZ 95SWEZ-0XXX-04

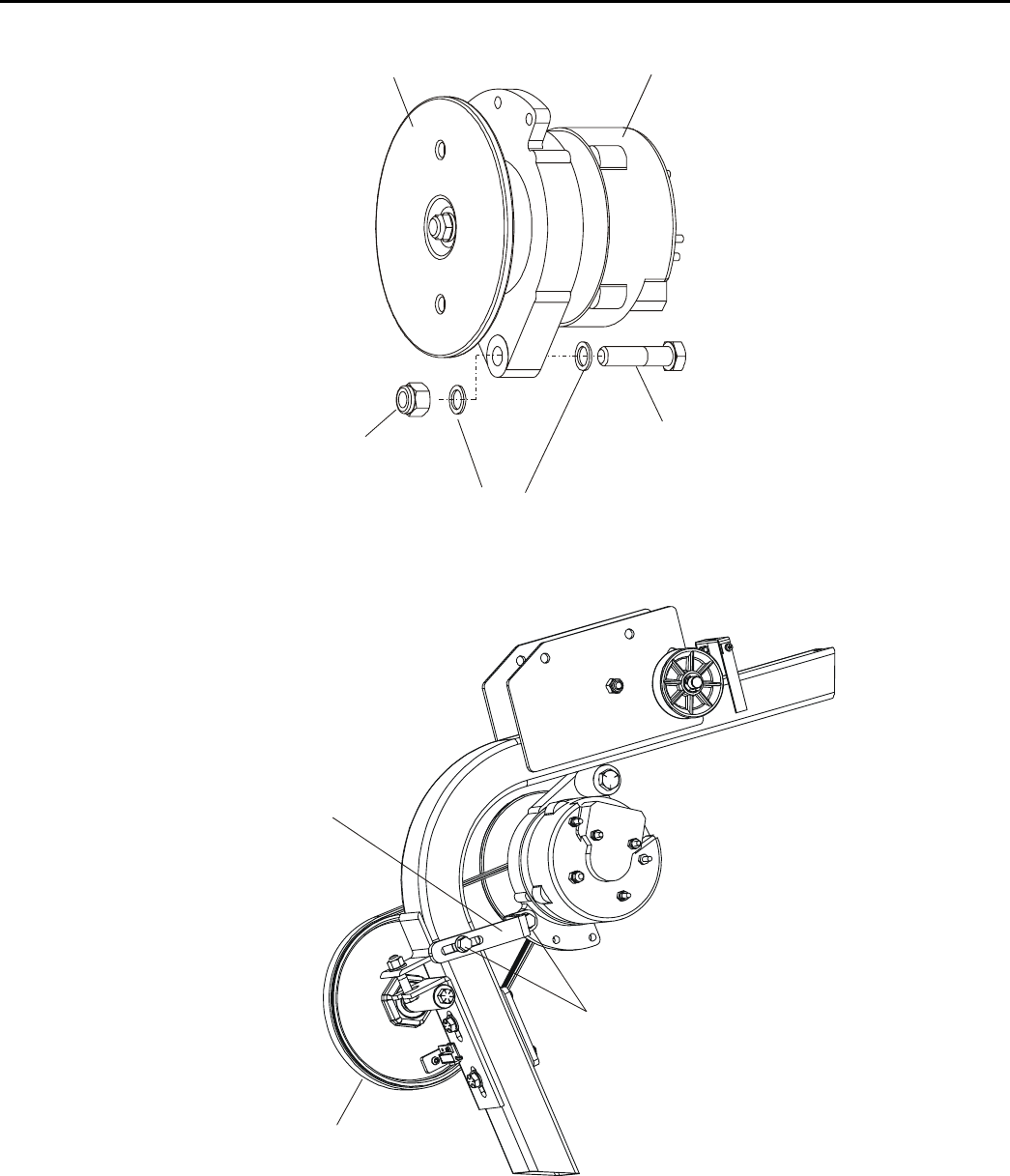

Alternator Assembly S/N MSW100000 and up
Alternator Belt
0K47-01106-0000
Tensioning Bracket Bolt
0017-00101-0986
Alternator w/Flywheel
AK47-00038-0000
Locking Nut
0017-00103-0117 Washer
0017-00104-0043
Alternator Pivot Bolt
0017-00101-0962
Alternator Flywheel
0K47-01069-0000
Alternator Strap
0K47-01053-0000
12
ARCTIC SILVER 95SWEZ 95SWEZ-0XXX-04

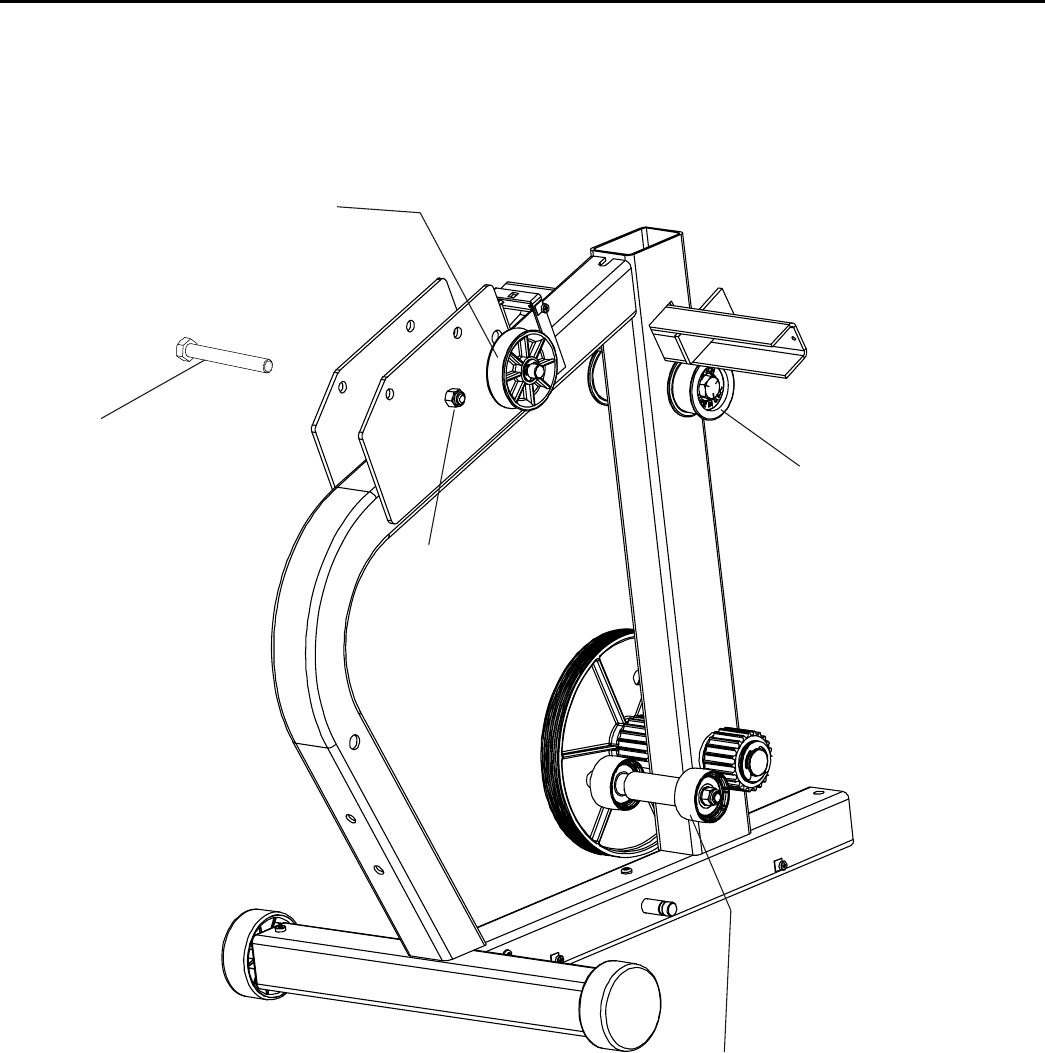

Guide Rollers S/N MSW100000 and up
Return Spring Pulley(2)
0K47-01066-0000
Snap Ring(6)
0017-00100-0050
Pulley Spring Shaft
0K47-01154-0000
Idler w/Bearing(2)
AK63-00008-0000
Bolt - 0017-00101-1722
Nut - 0017-00103-0025
Belt Idler Pulley(2)
0017-00009-1147
Bolt(2)
0017-00101-1098
Nut
0017-00103-0025
Bolt
0017-00101-1048
13
40-XXX0-ZEWS59 ZEWS59 REVLIS CITCRA
Power Control Board and Re pu dna 000001WSM N/S rotsis
Plastic Grommet(4)
0017-00042-0821
Phillips Screw(4)
0017-00101-0823
Power Control Board
B084-92239-0000
PCB Bracket
0K47-01087-0000
Resistor Assembly
AK47-00037-0000
14
ARCTIC SILVER 95SWEZ 95SWEZ-0XXX-04
Polar Receiver Assembly S/N MSW100000 and up
Polar Receiver
SK40-00045-0001
Screw
0017-00101-1761
Screw
0017-00101-1844
Electrode, Bottom
AK47-00061-0001
Screws(2)
0017-00101-1277
Polar Cap
0K47-01075-0002
Isolator
0K36-01059-0002
Cap
0K63-01114-0001
Electrode, Top
AK47-00060-0001
15
ARCTIC SILVER 95SWEZ 95SWEZ-0XXX-04
Cables S/N MSW100000 and up
Description Part Number
Domestic 120/60 Battery Charge w/Cord 118E-00001-0165
Universal Battery Charger w/o Line Cord 118E-00001-0166
Line Cord 220V/60Hz
Line Cord 100V/50Hz 0017-00003-0704
Line Cord 240+ 0017-00003-0918
Line Cord 220V/50Hz
Line Cord 200V/50Hz
Line Cord 230V/50Hz
0017-00003-0691
