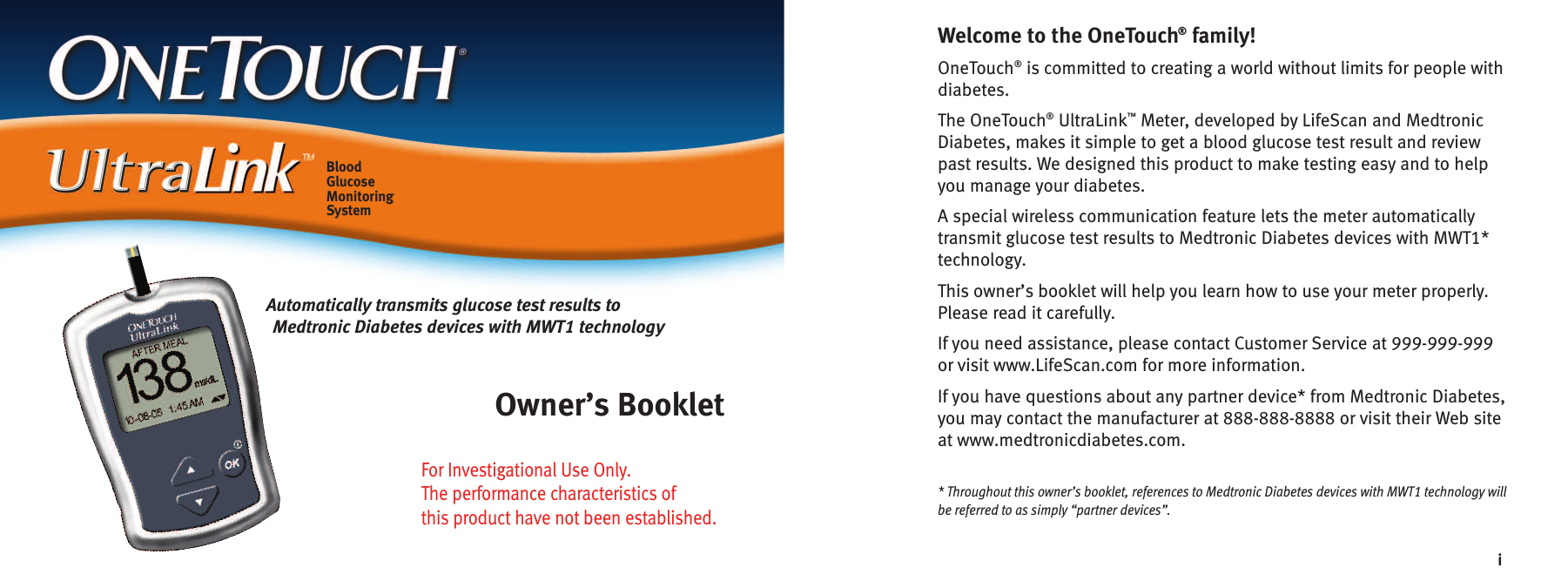

Welcome to the OneTouch®family!OneTouch®is committed to creating a world without limits for people withdiabetes.The OneTouch®UltraLink™Meter, developed by LifeScan and MedtronicDiabetes, makes it simple to get a blood glucose test result and reviewpast results. We designed this product to make testing easy and to helpyou manage your diabetes.A special wireless communication feature lets the meter automaticallytransmit glucose test results to Medtronic Diabetes devices with MWT1*technology.This owner’s booklet will help you learn how to use your meter properly.Please read it carefully.If you need assistance, please contact Customer Service at 999-999-999or visit www.LifeScan.com for more information.If you have questions about any partner device* from Medtronic Diabetes,you may contact the manufacturer at 888-888-8888 or visit their Web siteat www.medtronicdiabetes.com.* Throughout this owner’s booklet, references to Medtronic Diabetes devices with MWT1 technology willbe referred to as simply “partner devices”.iOwner’s BookletBloodGlucoseMonitoringSystemAutomatically transmits glucose test results toMedtronic Diabetes devices with MWT1 technologyFor Investigational Use Only.The performance characteristics ofthis product have not been established.

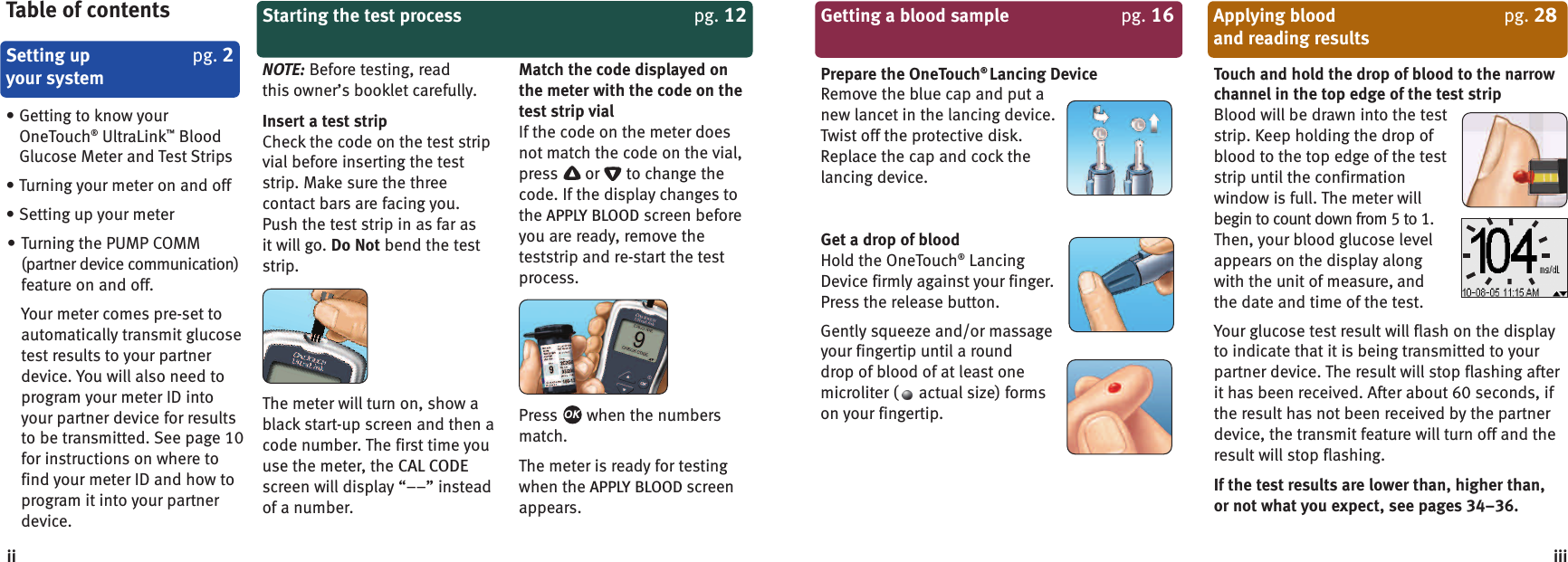

Getting a blood sample pg. 16Prepare the OneTouch®Lancing DeviceRemove the blue cap and put anew lancet in the lancing device.Twist off the protective disk.Replace the cap and cock thelancing device.Get a drop of bloodHold the OneTouch®LancingDevice firmly against your finger.Press the release button.Gently squeeze and/or massageyour fingertip until a rounddrop of blood of at least onemicroliter ( actual size) formson your fingertip.Applying blood pg. 28and reading resultsTouch and hold the drop of blood to the narrowchannel in the top edge of the test stripBlood will be drawn into the teststrip. Keep holding the drop ofblood to the top edge of the teststrip until the confirmationwindow is full. The meter willbegin to count down from 5 to 1.Then, your blood glucose levelappears on the display alongwith the unit of measure, andthe date and time of the test.Your glucose test result will flash on the displayto indicate that it is being transmitted to yourpartner device. The result will stop flashing afterit has been received. After about 60 seconds, ifthe result has not been received by the partnerdevice, the transmit feature will turn off and theresult will stop flashing.If the test results are lower than, higher than,or not what you expect, see pages 34–36.iiiSetting up pg. 2your systemTable of contents• Getting to know yourOneTouch®UltraLink™BloodGlucose Meter and Test Strips• Turning your meter on and off• Setting up your meter• Turning the PUMP COMM(partner device communication)feature on and off.Your meter comes pre-set toautomatically transmit glucosetest results to your partnerdevice. You will also need toprogram your meter ID intoyour partner device for resultsto be transmitted. See page 10for instructions on where tofind your meter ID and how toprogram it into your partnerdevice.Starting the test process pg. 12NOTE: Before testing, readthis owner’s booklet carefully.Insert a test stripCheck the code on the test stripvial before inserting the teststrip. Make sure the threecontact bars are facing you.Push the test strip in as far asit will go. Do Not bend the teststrip.The meter will turn on, show ablack start-up screen and then acode number. The first time youuse the meter, the CAL CODEscreen will display “––” insteadof a number.Match the code displayed onthe meter with the code on thetest strip vialIf the code on the meter doesnot match the code on the vial,press or to change thecode. If the display changes tothe APPLY BLOOD screen beforeyou are ready, remove theteststrip and re-start the testprocess.Press when the numbersmatch.The meter is ready for testingwhen the APPLY BLOOD screenappears.OKii
Add a meal flag to trackdifferent types of averagesWhile viewing your test result,(or after it stops flashing if thePUMP COMM feature is turnedon), press to get to the MEALFLAG screen.Press or to highlightBEFORE MEAL or AFTER MEAL.To confirm your selection,press .The meal flag you chose willappear above the result.If you do not wish to add ameal flag, select NO FLAG andpress .This will return youto the glucose result screen.Add a commentWhile viewing your test result(or after it stops flashing if thePUMP COMM feature is turnedon), press to get to theCOMMENT screen.Press or to highlightan appropriate comment.To confirm your selection,press .The comment you choseappears below the result.OKOKOKCaring for your pg. 54systemControl solution pg. 48testingTroubleshooting pg. 60Detailed information pg. 68about your systemIndex pg. 73• Last result• All results• Result averages• Downloading resultsMeal flagCommentReviewing past pg. 42results and averagesAttaching flags or comments to your results pg. 38iv

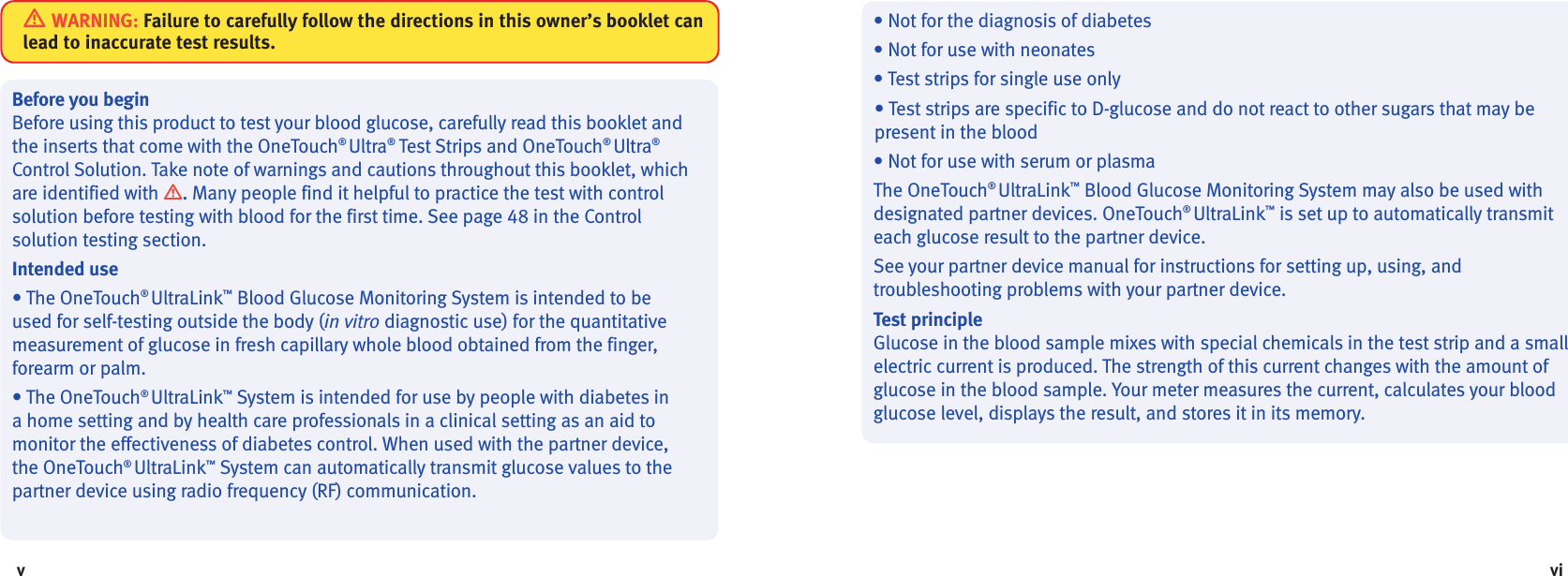

vivBefore you beginBefore using this product to test your blood glucose, carefully read this booklet andthe inserts that come with the OneTouch®Ultra®Test Strips and OneTouch®Ultra®Control Solution. Take note of warnings and cautions throughout this booklet, whichare identified with .Many people find it helpful to practice the test with controlsolution before testing with blood for the first time. See page 48 in the Controlsolution testing section.Intended use• The OneTouch®UltraLink™Blood Glucose Monitoring System is intended to beused for self-testing outside the body (in vitro diagnostic use) for the quantitativemeasurement of glucose in fresh capillary whole blood obtained from the finger,forearm or palm.• The OneTouch®UltraLink™System is intended for use by people with diabetes ina home setting and by health care professionals in a clinical setting as an aid tomonitor the effectiveness of diabetes control. When used with the partner device,the OneTouch®UltraLink™System can automatically transmit glucose values to thepartner device using radio frequency (RF) communication.• Not for the diagnosis of diabetes• Not for use with neonates• Test strips for single use only• Test strips are specific to D-glucose and do not react to other sugars that may bepresent in the blood• Not for use with serum or plasmaThe OneTouch®UltraLink™Blood Glucose Monitoring System may also be used withdesignated partner devices. OneTouch®UltraLink™is set up to automatically transmiteach glucose result to the partner device.See your partner device manual for instructions for setting up, using, andtroubleshooting problems with your partner device.Test principleGlucose in the blood sample mixes with special chemicals in the test strip and a smallelectric current is produced. The strength of this current changes with the amount ofglucose in the blood sample. Your meter measures the current, calculates your bloodglucose level, displays the result, and stores it in its memory.WARNING: Failure to carefully follow the directions in this owner’s booklet canlead to inaccurate test results.

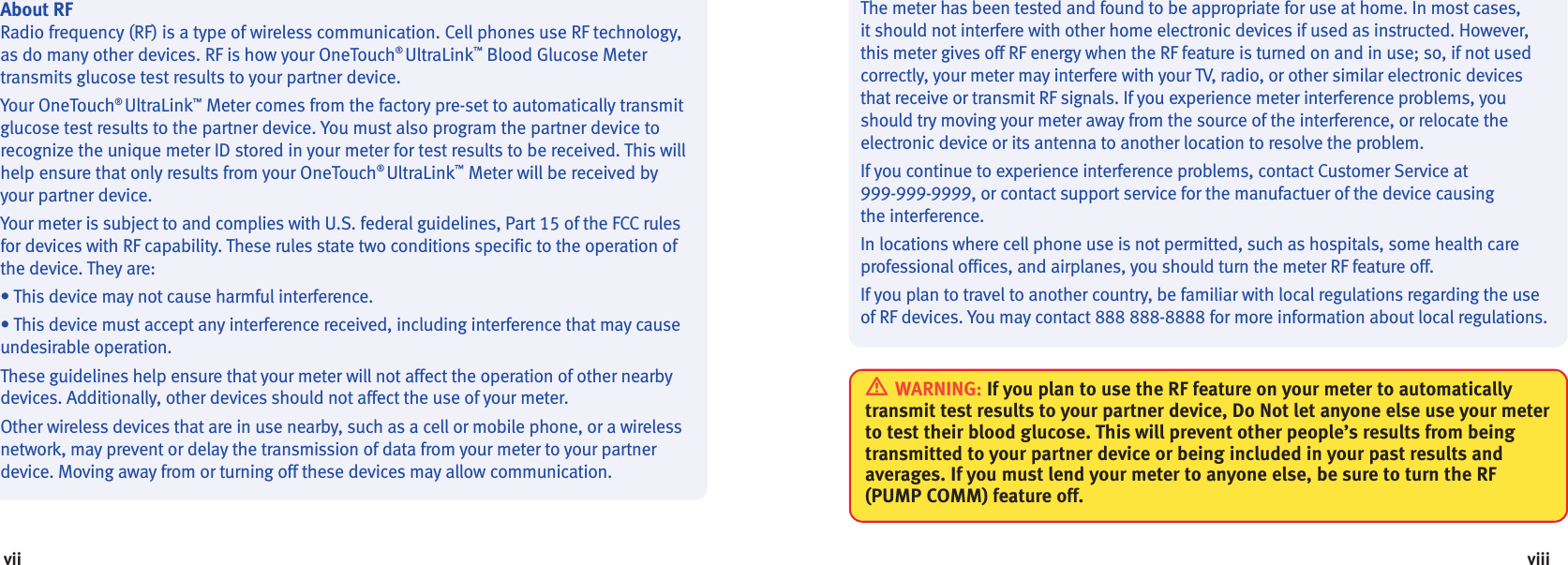

viiiviiAbout RFRadio frequency (RF) is a type of wireless communication. Cell phones use RF technology,as do many other devices. RF is how your OneTouch®UltraLink™Blood Glucose Metertransmits glucose test results to your partner device.Your OneTouch®UltraLink™Meter comes from the factory pre-set to automatically transmitglucose test results to the partner device. You must also program the partner device torecognize the unique meter ID stored in your meter for test results to be received. This willhelp ensure that only results from your OneTouch®UltraLink™Meter will be received byyour partner device.Your meter is subject to and complies with U.S. federal guidelines, Part 15 of the FCC rulesfor devices with RF capability. These rules state two conditions specific to the operation ofthe device. They are:• This device may not cause harmful interference.• This device must accept any interference received, including interference that may causeundesirable operation.These guidelines help ensure that your meter will not affect the operation of other nearbydevices. Additionally, other devices should not affect the use of your meter.Other wireless devices that are in use nearby, such as a cell or mobile phone, or a wirelessnetwork, may prevent or delay the transmission of data from your meter to your partnerdevice. Moving away from or turning off these devices may allow communication.The meter has been tested and found to be appropriate for use at home. In most cases,it should not interfere with other home electronic devices if used as instructed. However,this meter gives off RF energy when the RF feature is turned on and in use; so, if not usedcorrectly, your meter may interfere with your TV, radio, or other similar electronic devicesthat receive or transmit RF signals. If you experience meter interference problems, youshould try moving your meter away from the source of the interference, or relocate theelectronic device or its antenna to another location to resolve the problem.If you continue to experience interference problems, contact Customer Service at999-999-9999, or contact support service for the manufactuer of the device causingthe interference.In locations where cell phone use is not permitted, such as hospitals, some health careprofessional offices, and airplanes, you should turn the meter RF feature off.If you plan to travel to another country, be familiar with local regulations regarding the useof RF devices. You may contact 888 888-8888 for more information about local regulations.WARNING: If you plan to use the RF feature on your meter to automaticallytransmit test results to your partner device, Do Not let anyone else use your meterto test their blood glucose. This will prevent other people’s results from beingtransmitted to your partner device or being included in your past results andaverages. If you must lend your meter to anyone else, be sure to turn the RF(PUMP COMM) feature off.

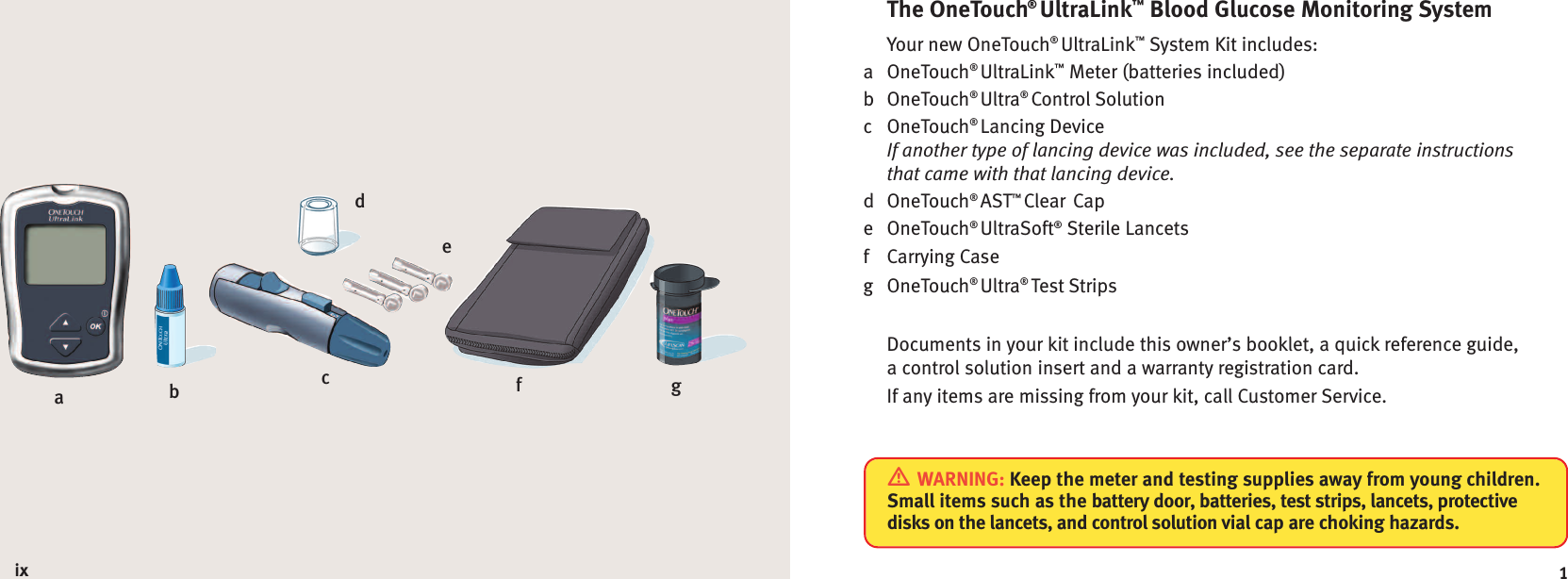

1The OneTouch®UltraLink™Blood Glucose Monitoring SystemYour new OneTouch®UltraLink™System Kit includes:a OneTouch®UltraLink™Meter (batteries included)b OneTouch®Ultra®Control Solutionc OneTouch®Lancing DeviceIf another type of lancing device was included, see the separate instructionsthat came with that lancing device.d OneTouch®AST™Clear Cape OneTouch®UltraSoft®Sterile Lancetsf Carrying Caseg OneTouch®Ultra®Test StripsDocuments in your kit include this owner’s booklet, a quick reference guide,a control solution insert and a warranty registration card.If any items are missing from your kit, call Customer Service.WARNING: Keep the meter and testing supplies away from young children.Small items such as the battery door, batteries, test strips, lancets, protectivedisks on the lancets, and control solution vial cap are choking hazards.abefdgcix

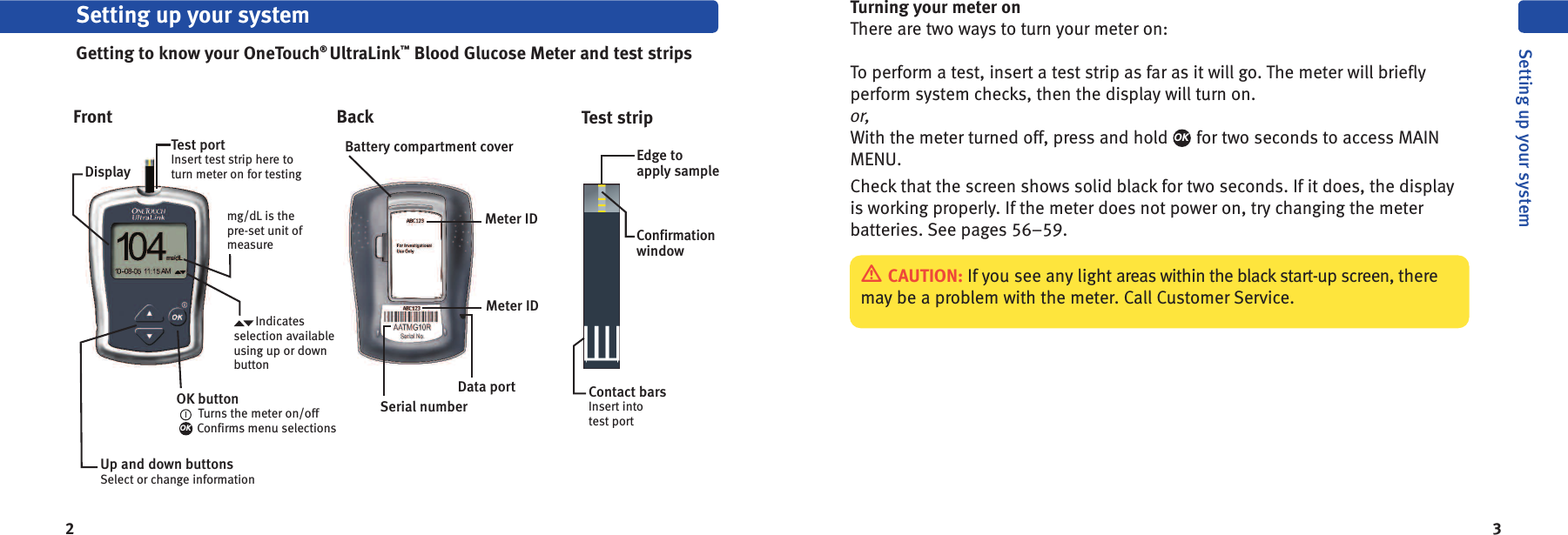

2 3Turning your meter onThere are two ways to turn your meter on:To perform a test, insert a test strip as far as it will go. The meter will brieflyperform system checks, then the display will turn on.or,With the meter turned off, press and hold for two seconds to access MAINMENU.Check that the screen shows solid black for two seconds. If it does, the displayis working properly. If the meter does not power on, try changing the meterbatteries. See pages 56–59.OKDisplayTest portInsert test strip here toturn meter on for testingmg/dL is thepre-set unit ofmeasureOK buttonTurns the meter on/offConfirms menu selectionsOKSetting up your systemGetting to know your OneTouch®UltraLink™Blood Glucose Meter and test stripsFront Back Test stripBattery compartment coverMeter IDMeter IDConfirmationwindowContact barsInsert intotest portEdge toapply sampleData portSerial numberCAUTION: If you see any light areas within the black start-up screen, theremay be a problem with the meter. Call Customer Service.Setting up your systemIndicatesselection availableusing up or downbuttonUp and down buttonsSelect or change information

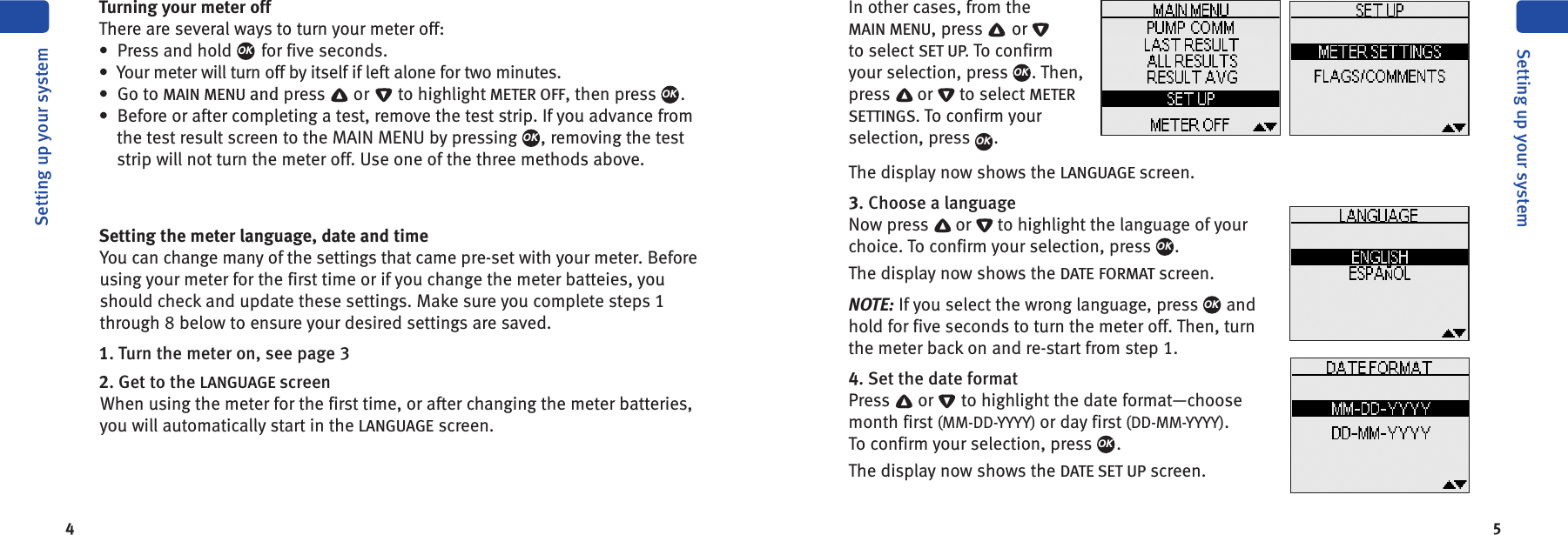

4 5Turning your meter offThere are several ways to turn your meter off:• Press and hold for five seconds.• Your meter will turn off by itself if left alone for two minutes.• Go to MAIN MENU and press or to highlight METER OFF, then press .• Before or after completing a test, remove the test strip. If you advance fromthe test result screen to the MAIN MENU by pressing , removing the teststrip will not turn the meter off. Use one of the three methods above.Setting the meter language, date and timeYou can change many of the settings that came pre-set with your meter. Beforeusing your meter for the first time or if you change the meter batteies, youshould check and update these settings. Make sure you complete steps 1through 8 below to ensure your desired settings are saved.1. Turn the meter on, see page 32. Get to the LANGUAGE screenWhen using the meter for the first time, or after changing the meter batteries,you will automatically start in the LANGUAGE screen.OKOKOKSetting up your systemSetting up your systemIn other cases, from theMAIN MENU, press orto select SET UP. To confirmyour selection, press . Then,press or to select METERSETTINGS. To confirm yourselection, press .The display now shows the LANGUAGE screen.3. Choose a languageNow press or to highlight the language of yourchoice. To confirm your selection, press .The display now shows the DATE FORMAT screen.NOTE: If you select the wrong language, press andhold for five seconds to turn the meter off. Then, turnthe meter back on and re-start from step 1.4. Set the date formatPress or to highlight the date format—choosemonth first (MM-DD-YYYY) or day first (DD-MM-YYYY).To confirm your selection, press .The display now shows the DATE SET UP screen.OKOKOKOKOK

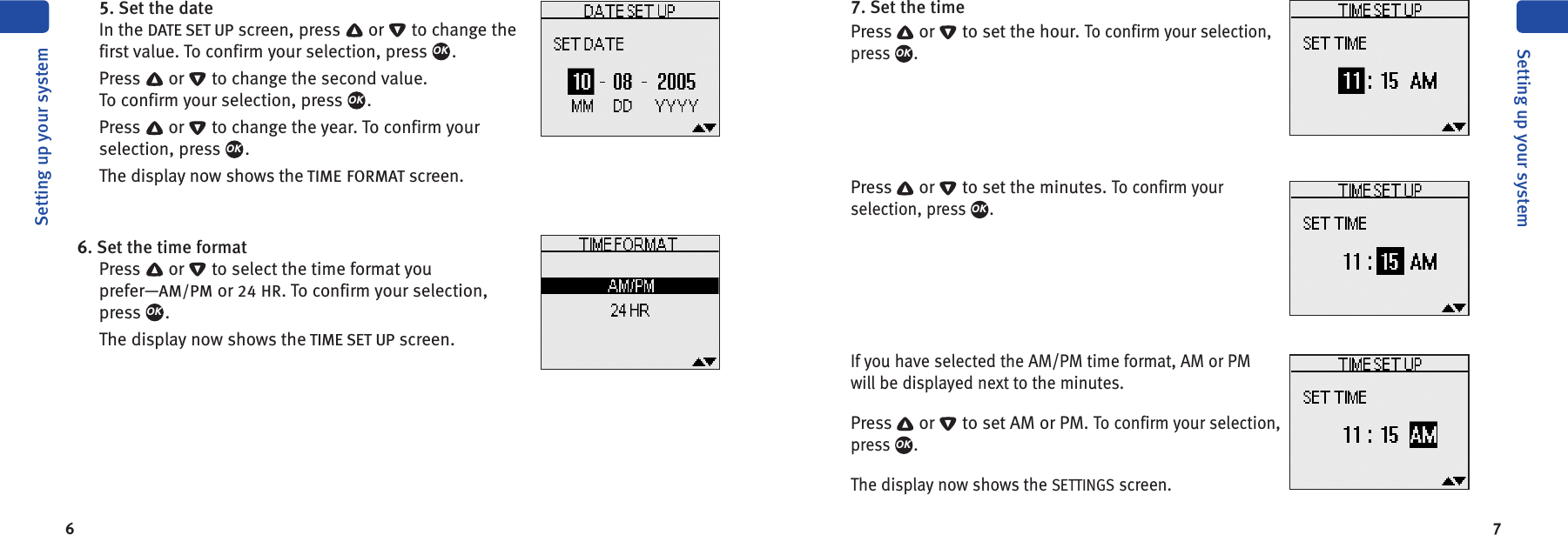

6 75. Set the dateIn the DATE SET UP screen, press or to change thefirst value. To confirm your selection, press .Press or to change the second value.To confirm your selection, press .Press or to change the year. To confirm yourselection, press .The display now shows the TIME FORMAT screen.6. Set the time formatPress or to select the time format youprefer—AM/PM or 24 HR. To confirm your selection,press .The display now shows the TIME SET UP screen.OKOKOKOKSetting up your systemSetting up your system7. Set the timePress or to set the hour.To confirm your selection,press .Press or to set the minutes.To confirm yourselection, press .If you have selected the AM/PM time format, AM or PMwill be displayed next to the minutes.Press or to set AM or PM.To confirm your selection,press .The display now shows the SETTINGS screen.OKOKOK

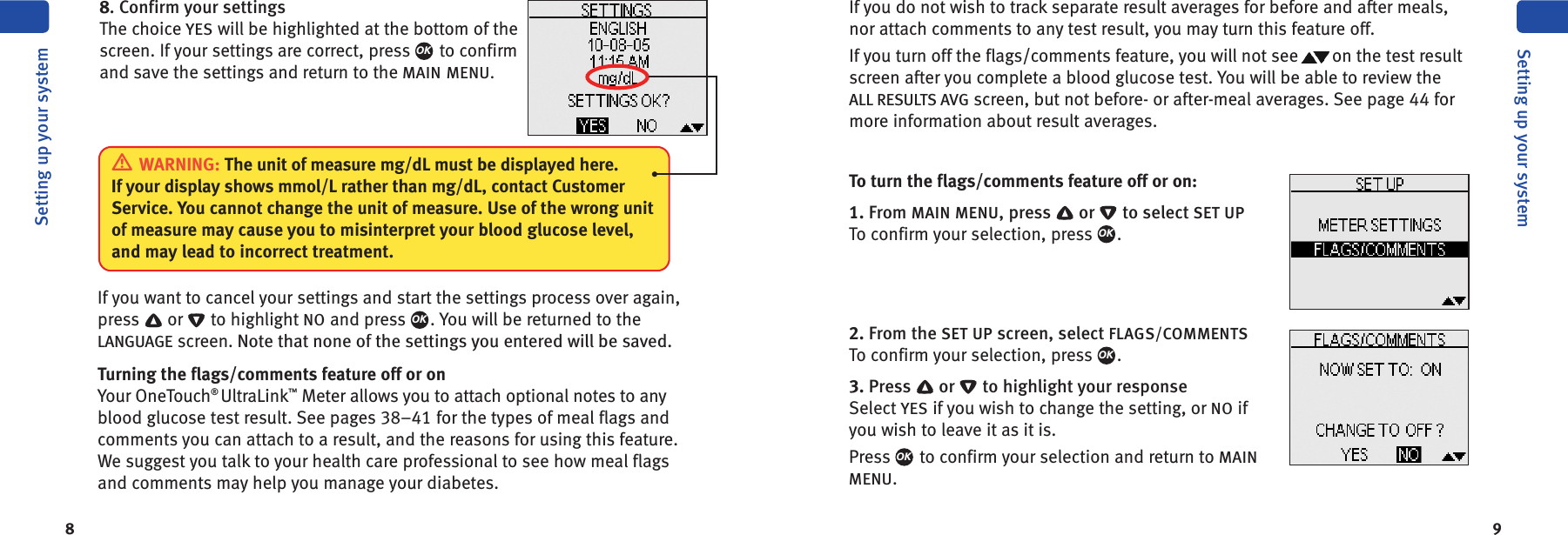

8 9To turn the flags/comments feature off or on:1. From MAIN MENU, press or to select SET UPTo confirm your selection, press .2. From the SET UP screen, select FLAGS/COMMENTSTo confirm your selection, press .3. Press or to highlight your responseSelect YES if you wish to change the setting, or NO ifyou wish to leave it as it is.Press to confirm your selection and return to MAINMENU.OKOKOKIf you want to cancel your settings and start the settings process over again,press or to highlight NO and press . You will be returned to theLANGUAGE screen. Note that none of the settings you entered will be saved.Turning the flags/comments feature off or onYour OneTouch®UltraLink™Meter allows you to attach optional notes to anyblood glucose test result. See pages 38–41 for the types of meal flags andcomments you can attach to a result, and the reasons for using this feature.We suggest you talk to your health care professional to see how meal flagsand comments may help you manage your diabetes.OKSetting up your systemSetting up your systemIf you do not wish to track separate result averages for before and after meals,nor attach comments to any test result, you may turn this feature off.If you turn off the flags/comments feature, you will not see on the test resultscreen after you complete a blood glucose test. You will be able to review theALL RESULTS AVG screen, but not before- or after-meal averages. See page 44 formore information about result averages.8. Confirm your settingsThe choice YES will be highlighted at the bottom of thescreen. If your settings are correct, press to confirmand save the settings and return to the MAIN MENU.OKWARNING: The unit of measure mg/dL must be displayed here.If your display shows mmol/L rather than mg/dL, contact CustomerService. You cannot change the unit of measure. Use of the wrong unitof measure may cause you to misinterpret your blood glucose level,and may lead to incorrect treatment.

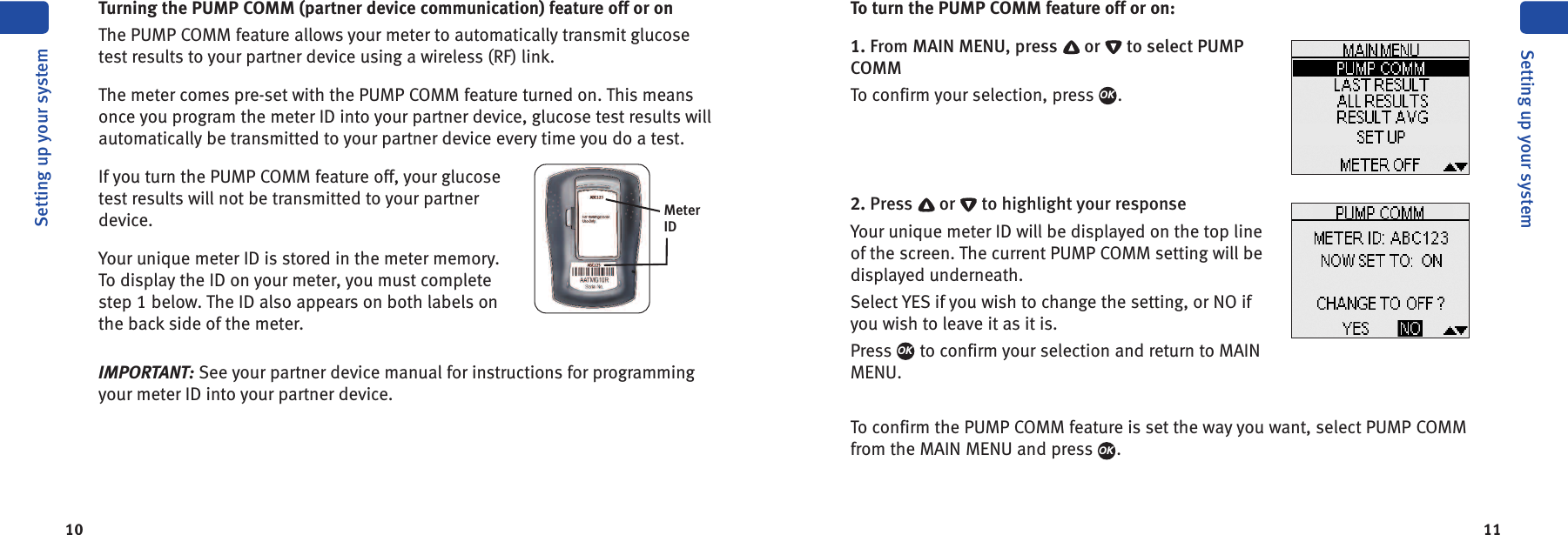

1110Setting up your systemSetting up your systemTurning the PUMP COMM (partner device communication) feature off or onThe PUMP COMM feature allows your meter to automatically transmit glucosetest results to your partner device using a wireless (RF) link.The meter comes pre-set with the PUMP COMM feature turned on. This meansonce you program the meter ID into your partner device, glucose test results willautomatically be transmitted to your partner device every time you do a test.If you turn the PUMP COMM feature off, your glucosetest results will not be transmitted to your partnerdevice.Your unique meter ID is stored in the meter memory.To display the ID on your meter, you must completestep 1 below. The ID also appears on both labels onthe back side of the meter.IMPORTANT: See your partner device manual for instructions for programmingyour meter ID into your partner device.MeterIDTo turn the PUMP COMM feature off or on:1. From MAIN MENU, press or to select PUMPCOMMTo confirm your selection, press .2. Press or to highlight your responseYour unique meter ID will be displayed on the top lineof the screen. The current PUMP COMM setting will bedisplayed underneath.Select YES if you wish to change the setting, or NO ifyou wish to leave it as it is.Press to confirm your selection and return to MAINMENU.To confirm the PUMP COMM feature is set the way you want, select PUMP COMMfrom the MAIN MENU and press .OKOKOK

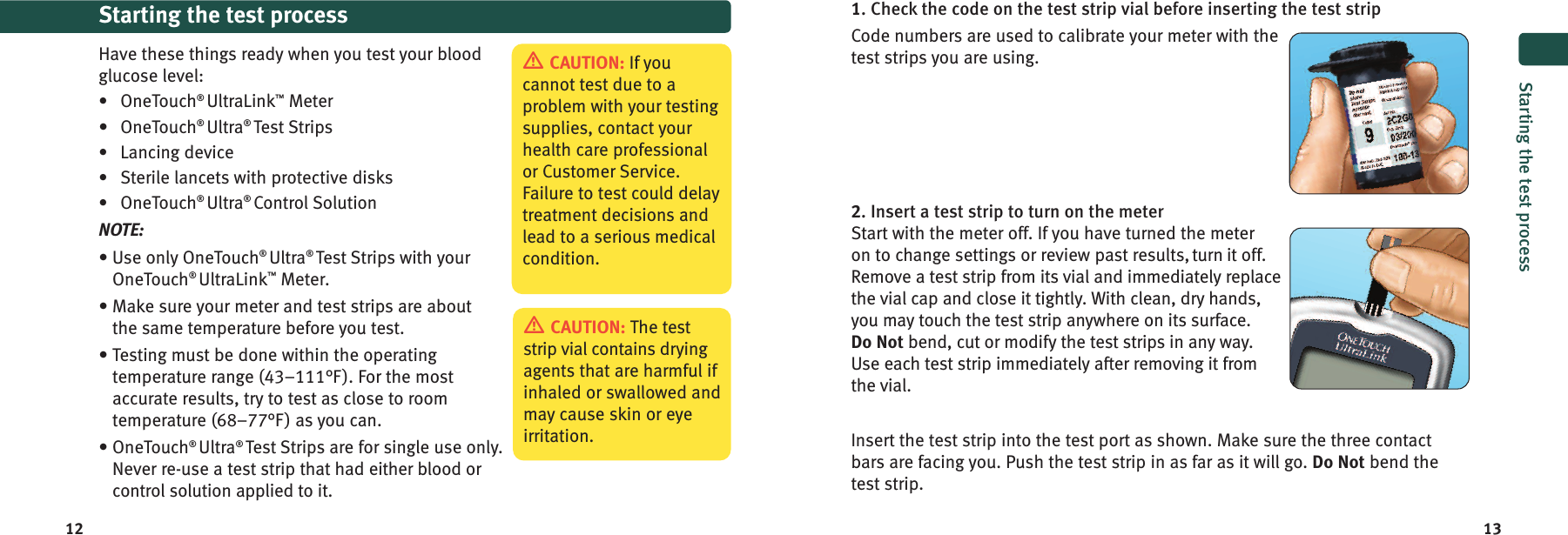

12 13Starting the test processHave these things ready when you test your bloodglucose level:•OneTouch®UltraLink™Meter• OneTouch®Ultra®Test Strips•Lancing device•Sterile lancets with protective disks•OneTouch®Ultra®Control SolutionNOTE:• Use only OneTouch®Ultra®Test Strips with yourOneTouch®UltraLink™Meter.• Make sure your meter and test strips are aboutthe same temperature before you test.• Testing must be done within the operatingtemperature range (43–111°F). For the mostaccurate results, try to test as close to roomtemperature (68–77°F) as you can.• OneTouch®Ultra®Test Strips are for single use only.Never re-use a test strip that had either blood orcontrol solution applied to it.CAUTION: The teststrip vial contains dryingagents that are harmful ifinhaled or swallowed andmay cause skin or eyeirritation.CAUTION: If youcannot test due to aproblem with your testingsupplies, contact yourhealth care professionalor Customer Service.Failure to test could delaytreatment decisions andlead to a serious medicalcondition.1. Check the code on the test strip vial before inserting the test stripCode numbers are used to calibrate your meter with thetest strips you are using.2. Insert a test strip to turn on the meterStart with the meter off. If you have turned the meteron to change settings or review past results, turn it off.Remove a test strip from its vial and immediately replacethe vial cap and close it tightly. With clean, dry hands,you may touch the test strip anywhere on its surface.Do Not bend, cut or modify the test strips in any way.Use each test strip immediately after removing it fromthe vial.Insert the test strip into the test port as shown. Make sure the three contactbars are facing you. Push the test strip in as far as it will go. Do Not bend thetest strip.Starting the test process
14 15After the black start-up screen appears, the meter willdisplay the code from your last test. If a flashing “––”appears instead of a code number, such as when youare first using the meter, follow the instructions instep 3 to change to a numerical code.3. Match the code on the meter with the code on the test strip vialIf the code on the meter does not match the code on thetest strip vial, press or to match the code numberon the test strip vial. The new code number will flash onthe display for three seconds, then briefly stop flashing,after which the display will advance to the APPLY BLOODscreen.Starting the test processCAUTION: Matching the code on the meter and the code on the test stripvial is essential to obtaining accurate results. Each time you test, check tomake sure the code numbers match.NOTE:•If the APPLY BLOOD screen appears before you are sure the codes match,remove the test strip, and re-start from step 1, see page 13.• If you change APPLY BLOOD to APPLY CONTROL by mistake, press to changeit back to APPLY BLOOD.Starting the test processIf the codes already match, press to go to the APPLYBLOOD screen. When you do not make a change afterfive seconds, the display will advance to the APPLYBLOOD screen.The meter is now ready to perform a blood glucose test.OK

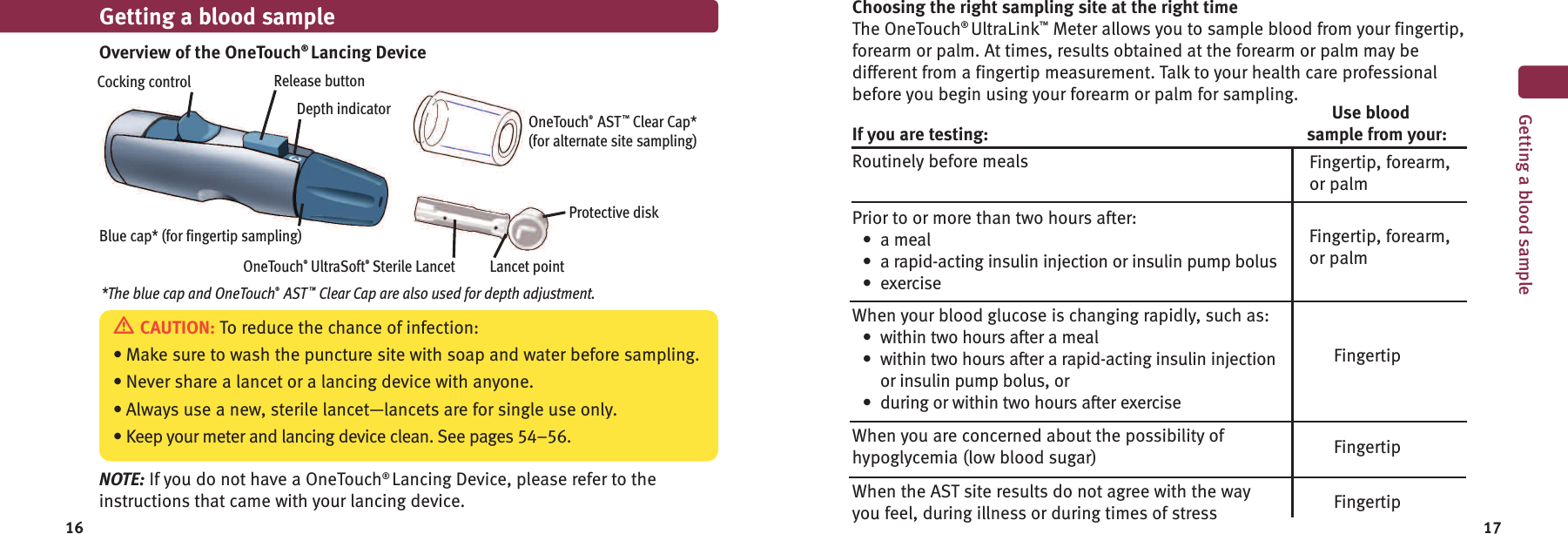

16 17Overview of the OneTouch®Lancing DeviceCAUTION: To reduce the chance of infection:• Make sure to wash the puncture site with soap and water before sampling.• Never share a lancet or a lancing device with anyone.• Always use a new, sterile lancet—lancets are for single use only.• Keep your meter and lancing device clean. See pages 54–56.NOTE: If you do not have a OneTouch®Lancing Device, please refer to theinstructions that came with your lancing device.Getting a blood sample Choosing the right sampling site at the right timeThe OneTouch®UltraLink™Meter allows you to sample blood from your fingertip,forearm or palm. At times, results obtained at the forearm or palm may bedifferent from a fingertip measurement. Talk to your health care professionalbefore you begin using your forearm or palm for sampling.Use bloodIf you are testing: sample from your:Routinely before mealsPrior to or more than two hours after:• a meal• a rapid-acting insulin injection or insulin pump bolus• exerciseWhen your blood glucose is changing rapidly, such as:• within two hours after a meal• within two hours after a rapid-acting insulin injectionor insulin pump bolus, or• during or within two hours after exerciseWhen you are concerned about the possibility ofhypoglycemia (low blood sugar)When the AST site results do not agree with the wayyou feel, during illness or during times of stressFingertipFingertip, forearm,or palmGetting a blood sampleFingertip, forearm,or palmFingertipFingertipOneTouch®UltraSoft®Sterile LancetBlue cap* (for fingertip sampling)Depth indicator*The blue cap and OneTouch®AST ™Clear Cap are also used for depth adjustment.Cocking control Release buttonOneTouch®AST™Clear Cap*(for alternate site sampling)Lancet pointProtective disk

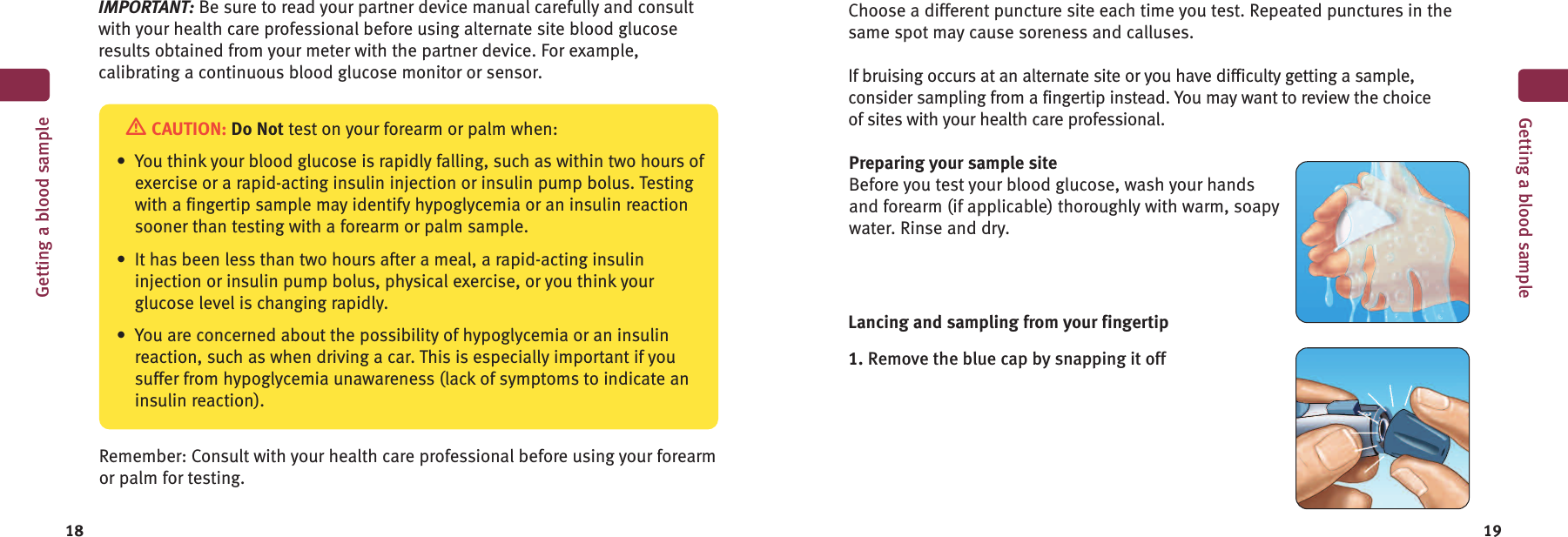

18 19Getting a blood sampleCAUTION: Do Not test on your forearm or palm when:• You think your blood glucose is rapidly falling, such as within two hours ofexercise or a rapid-acting insulin injection or insulin pump bolus. Testingwith a fingertip sample may identify hypoglycemia or an insulin reactionsooner than testing with a forearm or palm sample.• It has been less than two hours after a meal, a rapid-acting insulininjection or insulin pump bolus, physical exercise, or you think yourglucose level is changing rapidly.• You are concerned about the possibility of hypoglycemia or an insulinreaction, such as when driving a car. This is especially important if yousuffer from hypoglycemia unawareness (lack of symptoms to indicate aninsulin reaction).Remember: Consult with your health care professional before using your forearmor palm for testing.Choose a different puncture site each time you test. Repeated punctures in thesame spot may cause soreness and calluses.If bruising occurs at an alternate site or you have difficulty getting a sample,consider sampling from a fingertip instead. You may want to review the choiceof sites with your health care professional.Preparing your sample siteBefore you test your blood glucose, wash your handsand forearm (if applicable) thoroughly with warm, soapywater. Rinse and dry.Lancing and sampling from your fingertip1. Remove the blue cap by snapping it offGetting a blood sampleIMPORTANT: Be sure to read your partner device manual carefully and consultwith your health care professional before using alternate site blood glucoseresults obtained from your meter with the partner device. For example,calibrating a continuous blood glucose monitor or sensor.

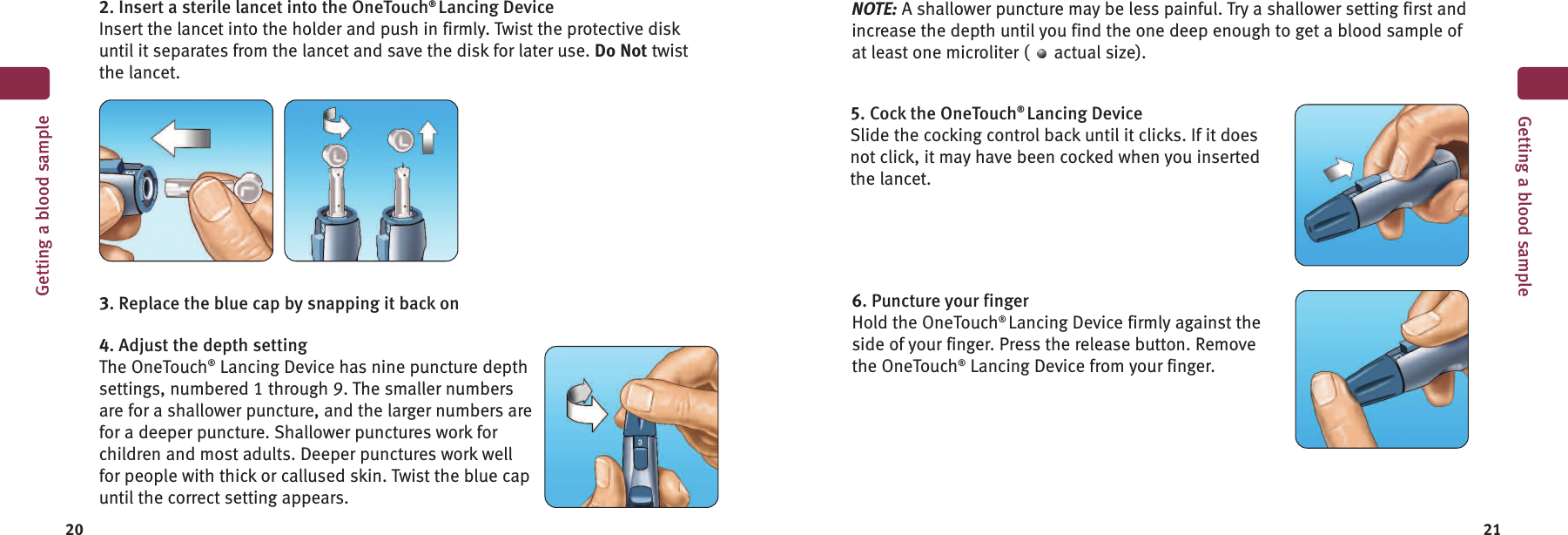

20 21Getting a blood sample2. Insert a sterile lancet into the OneTouch®Lancing DeviceInsert the lancet into the holder and push in firmly. Twist the protective diskuntil it separates from the lancet and save the disk for later use. Do Not twistthe lancet.3. Replace the blue cap by snapping it back on4. Adjust the depth settingThe OneTouch®Lancing Device has nine puncture depthsettings, numbered 1 through 9. The smaller numbersare for a shallower puncture, and the larger numbers arefor a deeper puncture. Shallower punctures work forchildren and most adults. Deeper punctures work wellfor people with thick or callused skin. Twist the blue capuntil the correct setting appears.5. Cock the OneTouch®Lancing DeviceSlide the cocking control back until it clicks. If it doesnot click, it may have been cocked when you insertedthe lancet.6. Puncture your fingerHold the OneTouch®Lancing Device firmly against theside of your finger. Press the release button. Removethe OneTouch®Lancing Device from your finger.Getting a blood sampleNOTE: A shallower puncture may be less painful. Try a shallower setting first andincrease the depth until you find the one deep enough to get a blood sample ofat least one microliter ( actual size).

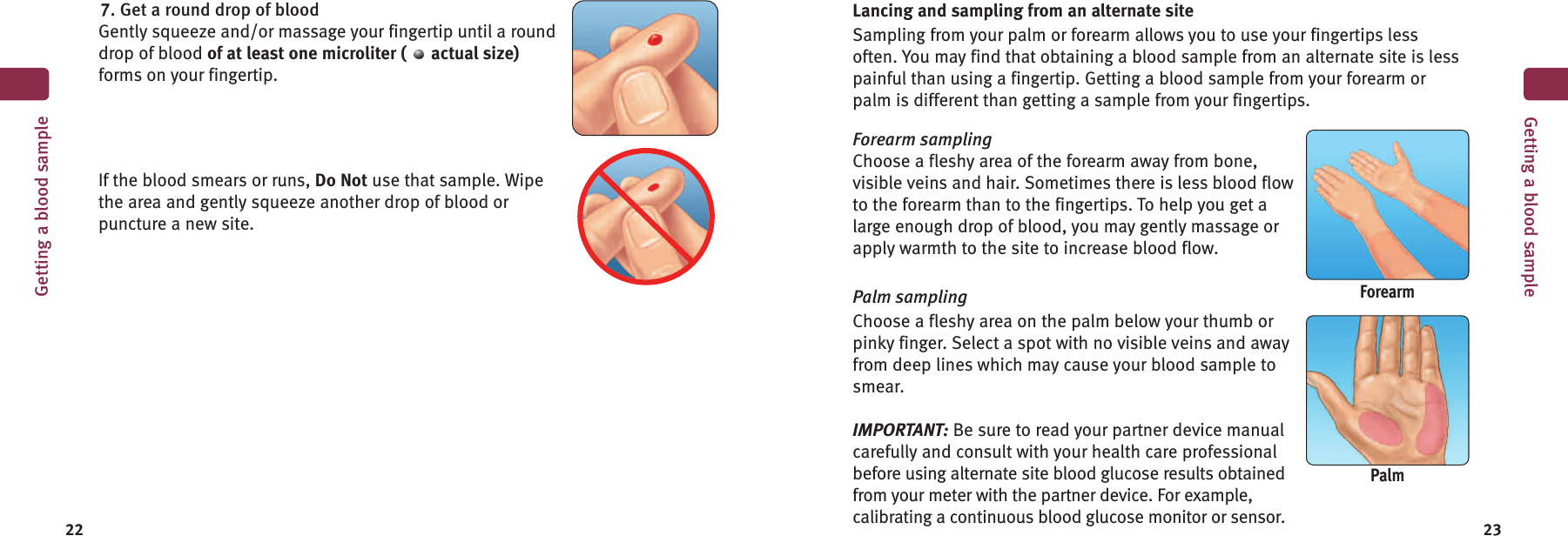

Lancing and sampling from an alternate siteSampling from your palm or forearm allows you to use your fingertips lessoften. You may find that obtaining a blood sample from an alternate site is lesspainful than using a fingertip. Getting a blood sample from your forearm orpalm is different than getting a sample from your fingertips.Forearm samplingChoose a fleshy area of the forearm away from bone,visible veins and hair. Sometimes there is less blood flowto the forearm than to the fingertips. To help you get alarge enough drop of blood, you may gently massage orapply warmth to the site to increase blood flow.Palm samplingChoose a fleshy area on the palm below your thumb orpinky finger. Select a spot with no visible veins and awayfrom deep lines which may cause your blood sample tosmear.IMPORTANT: Be sure to read your partner device manualcarefully and consult with your health care professionalbefore using alternate site blood glucose results obtainedfrom your meter with the partner device. For example,calibrating a continuous blood glucose monitor or sensor.22 23Getting a blood sample7. Get a round drop of bloodGently squeeze and/or massage your fingertip until a rounddrop of blood of at least one microliter ( actual size)forms on your fingertip.If the blood smears or runs, Do Not use that sample. Wipethe area and gently squeeze another drop of blood orpuncture a new site.ForearmPalmGetting a blood sample

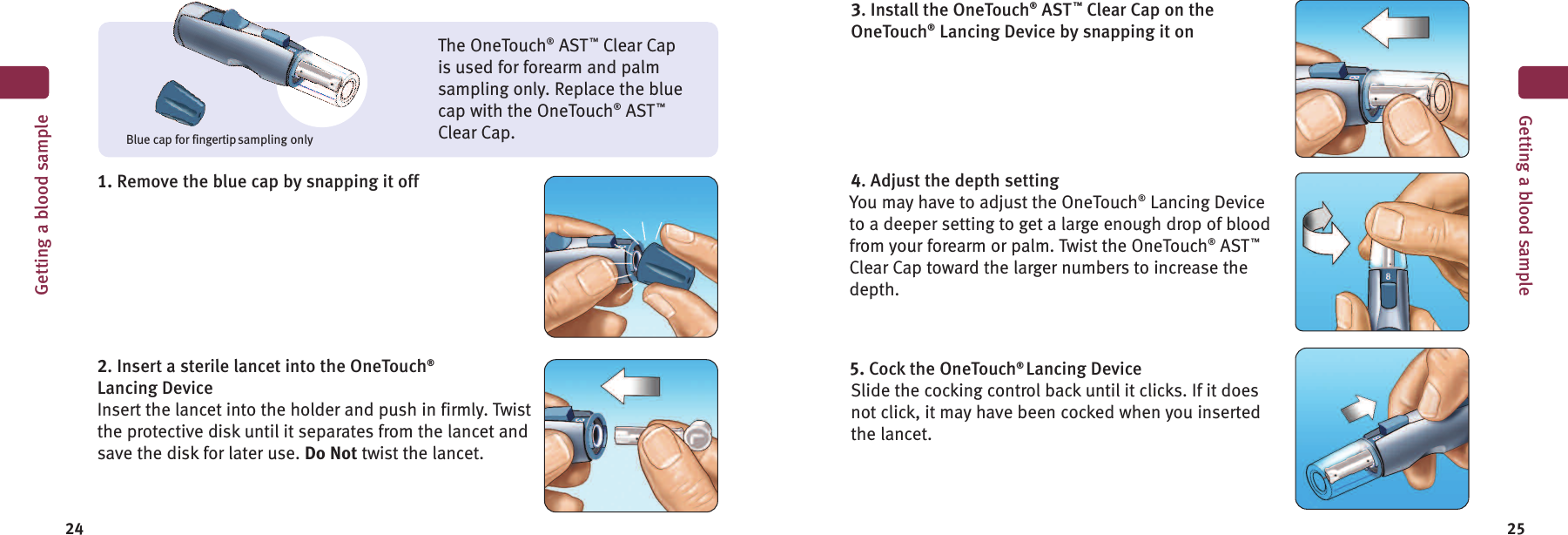

24 25Getting a blood sample1. Remove the blue cap by snapping it off2. Insert a sterile lancet into the OneTouch®Lancing DeviceInsert the lancet into the holder and push in firmly. Twistthe protective disk until it separates from the lancet andsave the disk for later use. Do Not twist the lancet.The OneTouch®AST™Clear Capis used for forearm and palmsampling only. Replace the bluecap with the OneTouch®AST™Clear Cap.Blue cap for fingertipsampling only3. Install the OneTouch®AST™Clear Cap on theOneTouch®Lancing Device by snapping it on4. Adjust the depth settingYou may have to adjust the OneTouch®Lancing Deviceto a deeper setting to get a large enough drop of bloodfrom your forearm or palm. Twist the OneTouch®AST™Clear Cap toward the larger numbers to increase thedepth.5. Cock the OneTouch®Lancing DeviceSlide the cocking control back until it clicks. If it doesnot click, it may have been cocked when you insertedthe lancet.Getting a blood sample

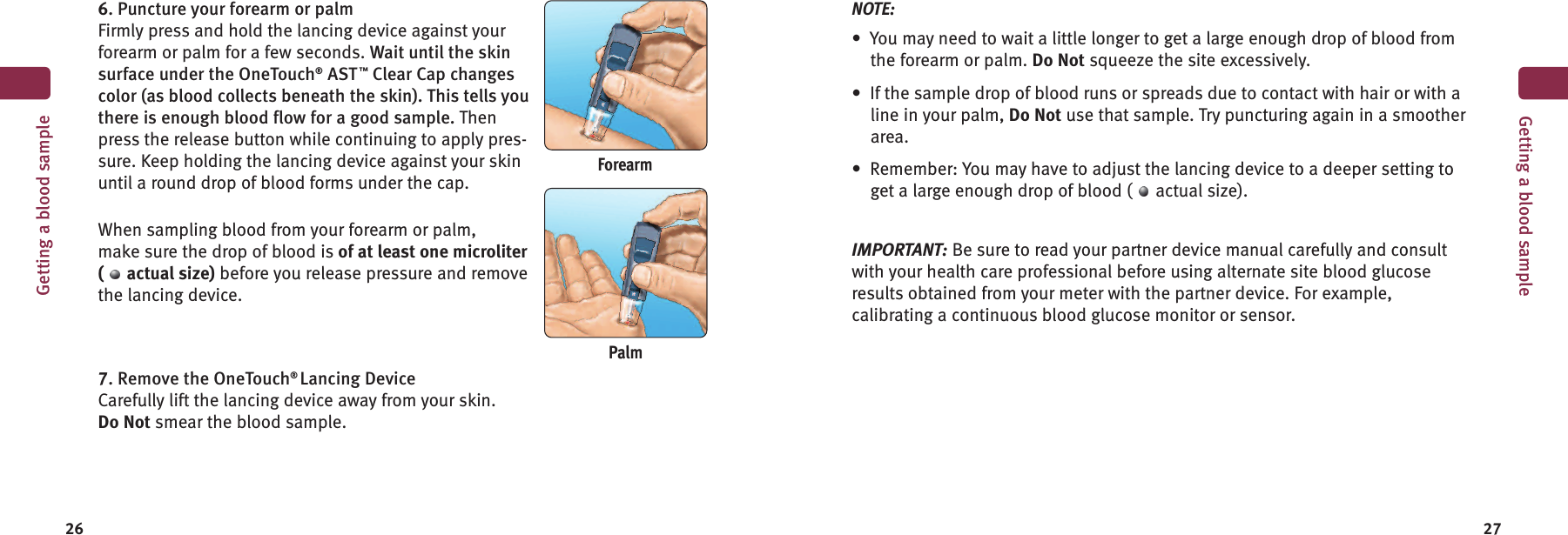

26 27Getting a blood sampleForearm6. Puncture your forearm or palmFirmly press and hold the lancing device against yourforearm or palm for a few seconds. Wait until the skinsurface under the OneTouch®AST™Clear Cap changescolor (as blood collects beneath the skin). This tells youthere is enough blood flow for a good sample. Thenpress the release button while continuing to apply pres-sure. Keep holding the lancing device against your skinuntil a round drop of blood forms under the cap.When sampling blood from your forearm or palm,make sure the drop of blood is of at least one microliter( actual size) before you release pressure and removethe lancing device.7. Remove the OneTouch®Lancing DeviceCarefully lift the lancing device away from your skin.Do Not smear the blood sample.NOTE:• You may need to wait a little longer to get a large enough drop of blood fromthe forearm or palm. Do Not squeeze the site excessively.• If the sample drop of blood runs or spreads due to contact with hair or with aline in your palm, Do Not use that sample. Try puncturing again in a smootherarea.• Remember: You may have to adjust the lancing device to a deeper setting toget a large enough drop of blood ( actual size).IMPORTANT: Be sure to read your partner device manual carefully and consultwith your health care professional before using alternate site blood glucoseresults obtained from your meter with the partner device. For example,calibrating a continuous blood glucose monitor or sensor.PalmGetting a blood sample

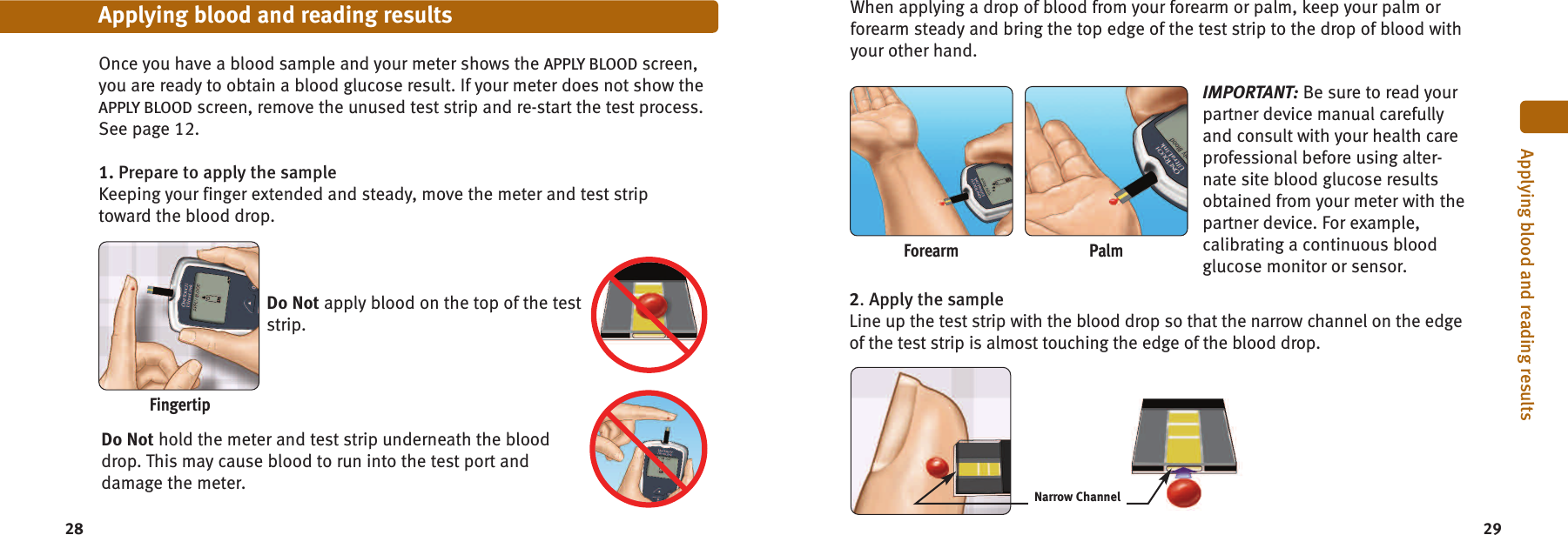

2928Once you have a blood sample and your meter shows the APPLY BLOOD screen,you are ready to obtain a blood glucose result. If your meter does not show theAPPLY BLOOD screen, remove the unused test strip and re-start the test process.See page 12.1. Prepare to apply the sampleKeeping your finger extended and steady, move the meter and test striptoward the blood drop.Do Not apply blood on the top of the teststrip.Do Not hold the meter and test strip underneath the blooddrop. This may cause blood to run into the test port anddamage the meter.Applying blood and reading resultsForearmFingertipPalmWhen applying a drop of blood from your forearm or palm, keep your palm orforearm steady and bring the top edge of the test strip to the drop of blood withyour other hand.Applying blood and reading resultsNarrow Channel2.Apply the sampleLine up the test strip with the blood drop so that the narrow channel on the edgeof the test strip is almost touching the edge of the blood drop.IMPORTANT: Be sure to read yourpartner device manual carefullyand consult with your health careprofessional before using alter-nate site blood glucose resultsobtained from your meter with thepartner device. For example,calibrating a continuous bloodglucose monitor or sensor.

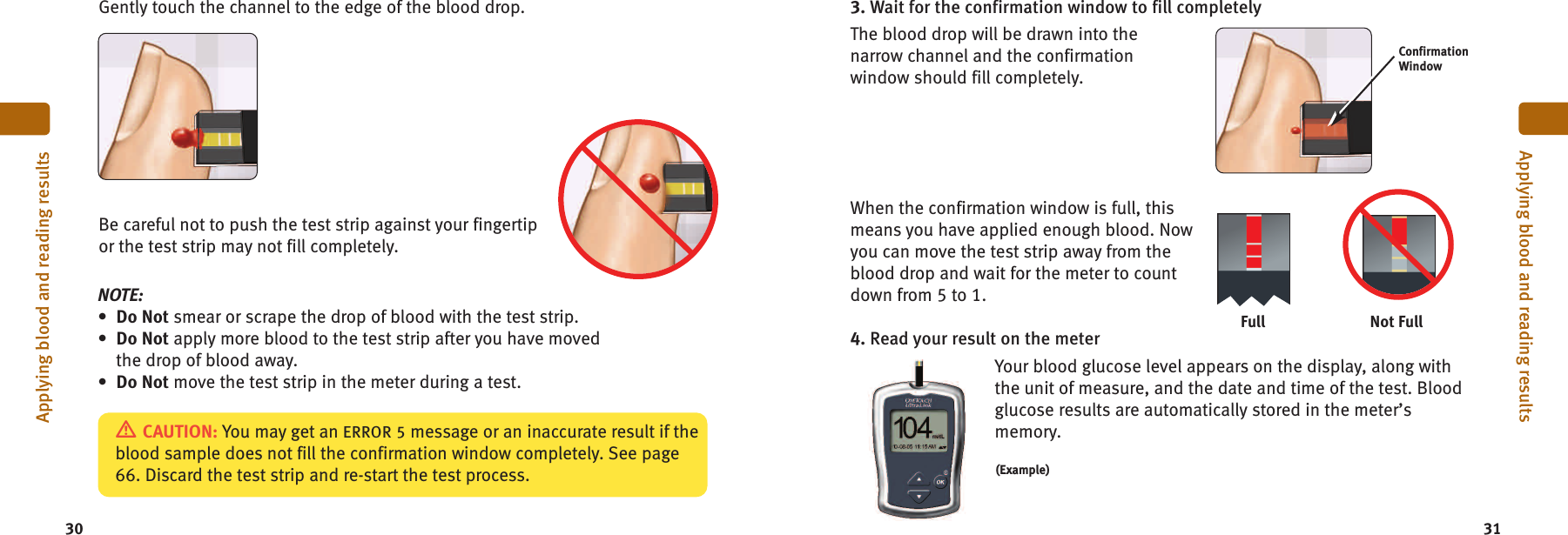

3. Wait for the confirmation window to fill completelyThe blood drop will be drawn into thenarrow channel and the confirmationwindow should fill completely.When the confirmation window is full, thismeans you have applied enough blood. Nowyou can move the test strip away from theblood drop and wait for the meter to countdown from 5 to 1.4. Read your result on the meterYour blood glucose level appears on the display, along withthe unit of measure, and the date and time of the test. Bloodglucose results are automatically stored in the meter’smemory.3130Applying blood and reading resultsApplying blood and reading resultsGently touch the channel to the edge of the blood drop.Be careful not to push the test strip against your fingertipor the test strip may not fill completely.NOTE:•Do Not smear or scrape the drop of blood with the test strip.•Do Not apply more blood to the test strip after you have movedthe drop of blood away.•Do Not move the test strip in the meter during a test.ConfirmationWindowCAUTION: You may get an ERROR 5 message or an inaccurate result if theblood sample does not fill the confirmation window completely. See page66. Discard the test strip and re-start the test process.Not FullFull(Example)

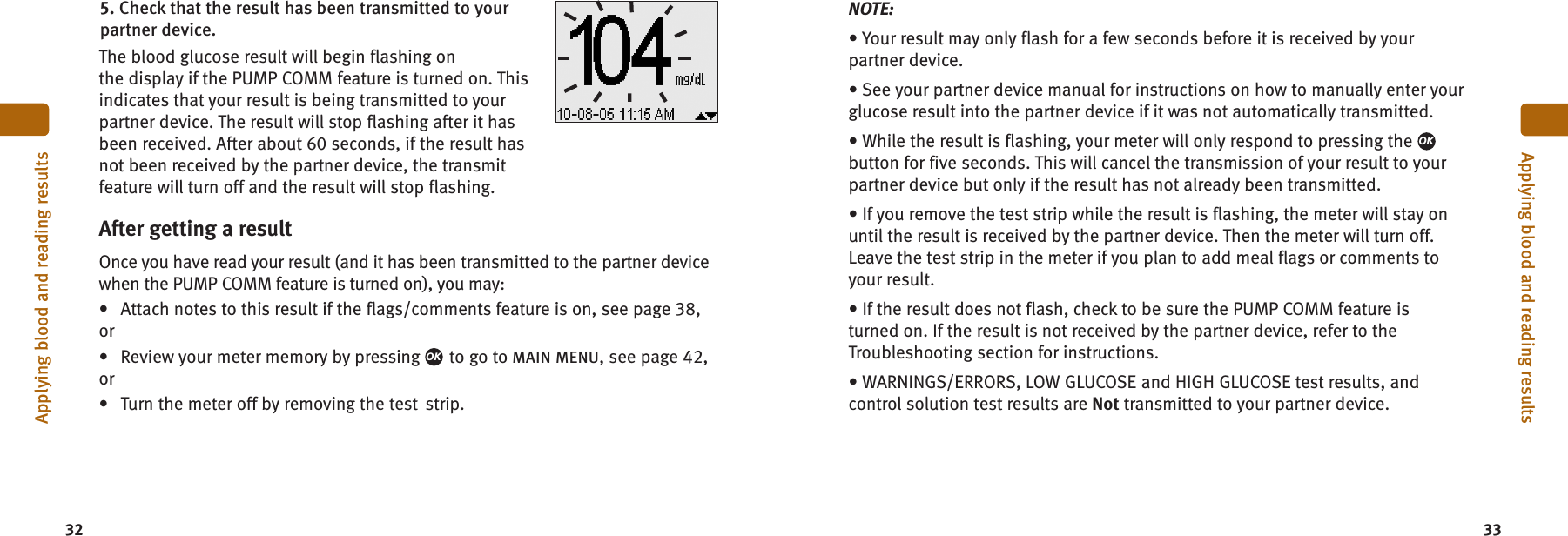

3332Applying blood and reading resultsApplying blood and reading results5. Check that the result has been transmitted to yourpartner device.The blood glucose result will begin flashing onthe display if the PUMP COMM feature is turned on. Thisindicates that your result is being transmitted to yourpartner device. The result will stop flashing after it hasbeen received. After about 60 seconds, if the result hasnot been received by the partner device, the transmitfeature will turn off and the result will stop flashing.NOTE:• Your result may only flash for a few seconds before it is received by yourpartner device.• See your partner device manual for instructions on how to manually enter yourglucose result into the partner device if it was not automatically transmitted.• While the result is flashing, your meter will only respond to pressing thebutton for five seconds. This will cancel the transmission of your result to yourpartner device but only if the result has not already been transmitted.• If you remove the test strip while the result is flashing, the meter will stay onuntil the result is received by the partner device. Then the meter will turn off.Leave the test strip in the meter if you plan to add meal flags or comments toyour result.• If the result does not flash, check to be sure the PUMP COMM feature isturned on. If the result is not received by the partner device, refer to theTroubleshooting section for instructions.• WARNINGS/ERRORS, LOW GLUCOSE and HIGH GLUCOSE test results, andcontrol solution test results are Not transmitted to your partner device.OKAfter getting a resultOnce you have read your result (and it has been transmitted to the partner devicewhen the PUMP COMM feature is turned on), you may:• Attach notes to this result if the flags/comments feature is on, see page 38,or• Review your meter memory by pressing to go to MAIN MENU, see page 42,or• Turn the meter off by removing the test strip.OK

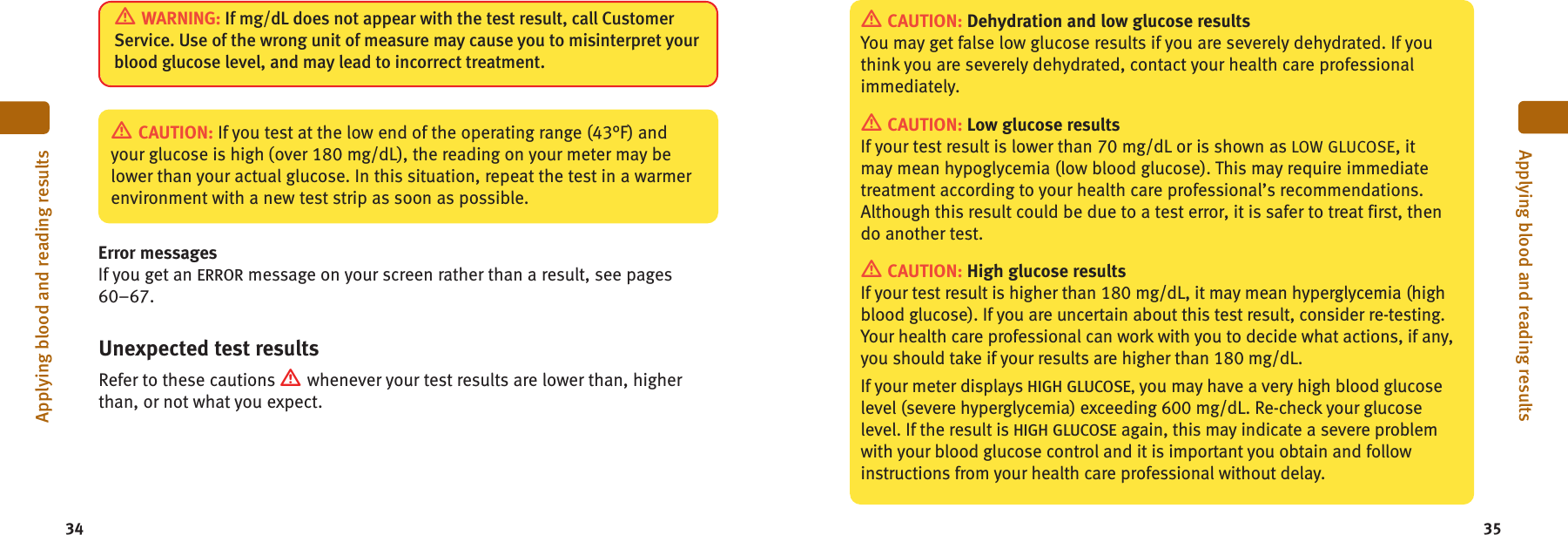

34 35Applying blood and reading resultsApplying blood and reading resultsWARNING: If mg/dL does not appear with the test result, call CustomerService. Use of the wrong unit of measure may cause you to misinterpret yourblood glucose level, and may lead to incorrect treatment.Error messagesIf you get an ERROR message on your screen rather than a result, see pages60–67.CAUTION: If you test at the low end of the operating range (43°F) andyour glucose is high (over 180 mg/dL), the reading on your meter may belower than your actual glucose. In this situation, repeat the test in a warmerenvironment with a new test strip as soon as possible.Unexpected test resultsRefer to these cautions whenever your test results are lower than, higherthan, or not what you expect.CAUTION: Dehydration and low glucose resultsYou may get false low glucose results if you are severely dehydrated. If youthink you are severely dehydrated, contact your health care professionalimmediately.CAUTION: Low glucose resultsIf your test result is lower than 70 mg/dL or is shown as LOW GLUCOSE, itmay mean hypoglycemia (low blood glucose). This may require immediatetreatment according to your health care professional’s recommendations.Although this result could be due to a test error, it is safer to treat first, thendo another test.CAUTION: High glucose resultsIf your test result is higher than 180 mg/dL, it may mean hyperglycemia (highblood glucose). If you are uncertain about this test result, consider re-testing.Your health care professional can work with you to decide what actions, if any,you should take if your results are higher than 180 mg/dL.If your meter displays HIGH GLUCOSE,you may have a very high blood glucoselevel (severe hyperglycemia) exceeding 600 mg/dL. Re-check your glucoselevel. If the result is HIGH GLUCOSE again, this may indicate a severe problemwith your blood glucose control and it is important you obtain and followinstructions from your health care professional without delay.

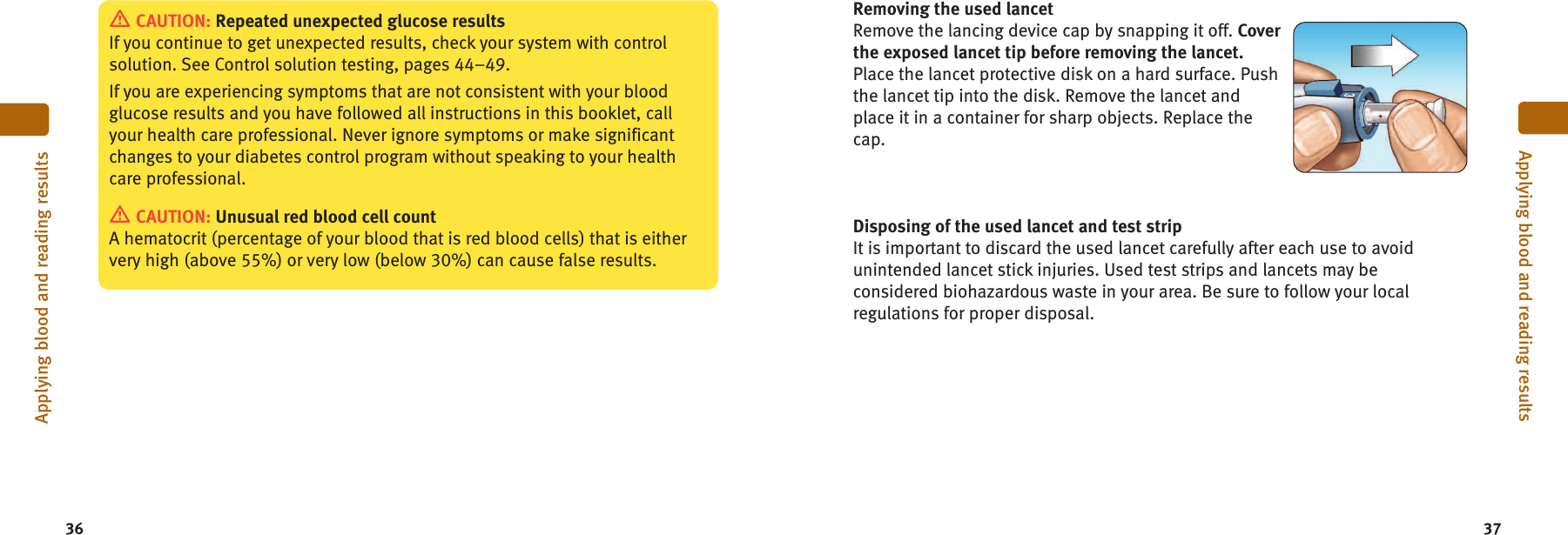

36 37Applying blood and reading resultsApplying blood and reading resultsCAUTION: Repeated unexpected glucose resultsIf you continue to get unexpected results, check your system with controlsolution. See Control solution testing, pages 44–49.If you are experiencing symptoms that are not consistent with your bloodglucose results and you have followed all instructions in this booklet, callyour health care professional. Never ignore symptoms or make significantchanges to your diabetes control program without speaking to your healthcare professional.CAUTION: Unusual red blood cell countA hematocrit (percentage of your blood that is red blood cells) that is eithervery high (above 55%) or very low (below 30%) can cause false results.Removing the used lancetRemove the lancing device cap by snapping it off. Coverthe exposed lancet tip before removing the lancet.Place the lancet protective disk on a hard surface. Pushthe lancet tip into the disk. Remove the lancet andplace it in a container for sharp objects. Replace thecap.Disposing of the used lancet and test stripIt is important to discard the used lancet carefully after each use to avoidunintended lancet stick injuries. Used test strips and lancets may beconsidered biohazardous waste in your area. Be sure to follow your localregulations for proper disposal.

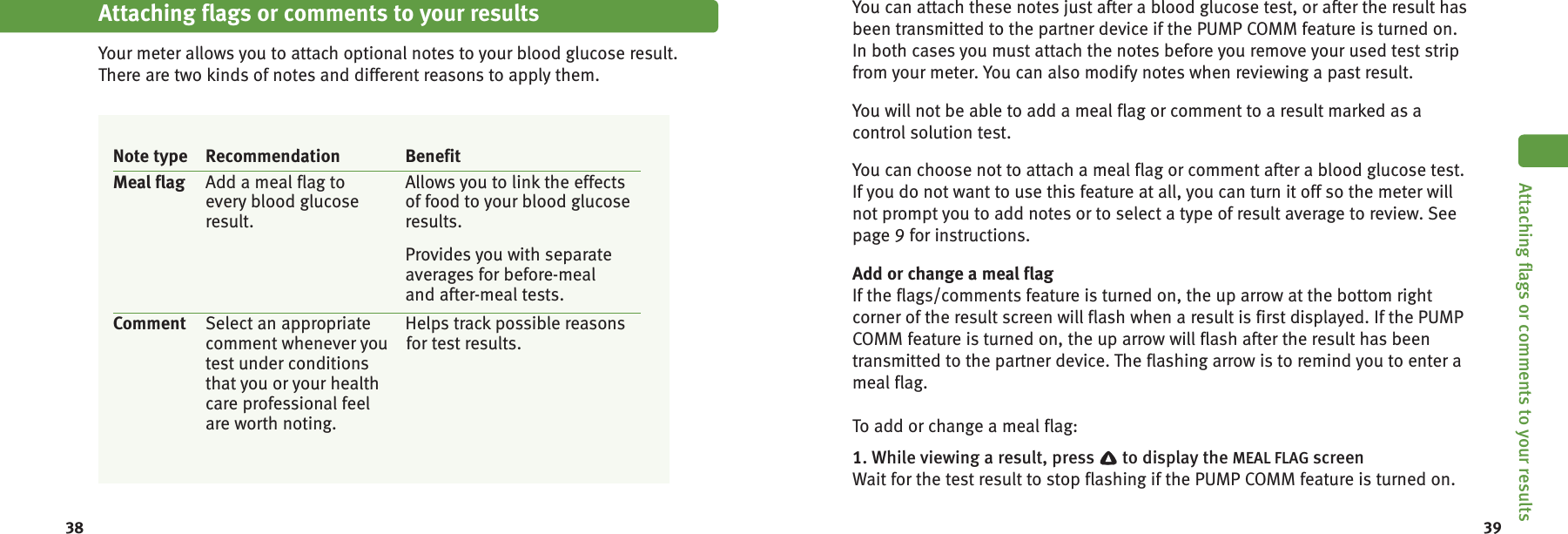

38 39Attaching flags or comments to your resultsYour meter allows you to attach optional notes to your blood glucose result.There are two kinds of notes and different reasons to apply them.Note type Recommendation BenefitMeal flag Add a meal flag to Allows you to link the effectsevery blood glucose of food to your blood glucoseresult. results.Provides you with separateaverages for before-mealand after-meal tests.Comment Select an appropriate Helps track possible reasonscomment whenever you for test results.test under conditionsthat you or your healthcare professional feelare worth noting.Attaching flags or comments to your resultsYou can attach these notes just after a blood glucose test, or after the result hasbeen transmitted to the partner device if the PUMP COMM feature is turned on.In both cases you must attach the notes before you remove your used test stripfrom your meter. You can also modify notes when reviewing a past result.You will not be able to add a meal flag or comment to a result marked as acontrol solution test.You can choose not to attach a meal flag or comment after a blood glucose test.If you do not want to use this feature at all, you can turn it off so the meter willnot prompt you to add notes or to select a type of result average to review. Seepage 9 for instructions.Add or change a meal flagIf the flags/comments feature is turned on, the up arrow at the bottom rightcorner of the result screen will flash when a result is first displayed. If the PUMPCOMM feature is turned on, the up arrow will flash after the result has beentransmitted to the partner device. The flashing arrow is to remind you to enter ameal flag.To add or change a meal flag:1. While viewing a result, press to display the MEAL FLAG screenWait for the test result to stop flashing if the PUMP COMM feature is turned on.

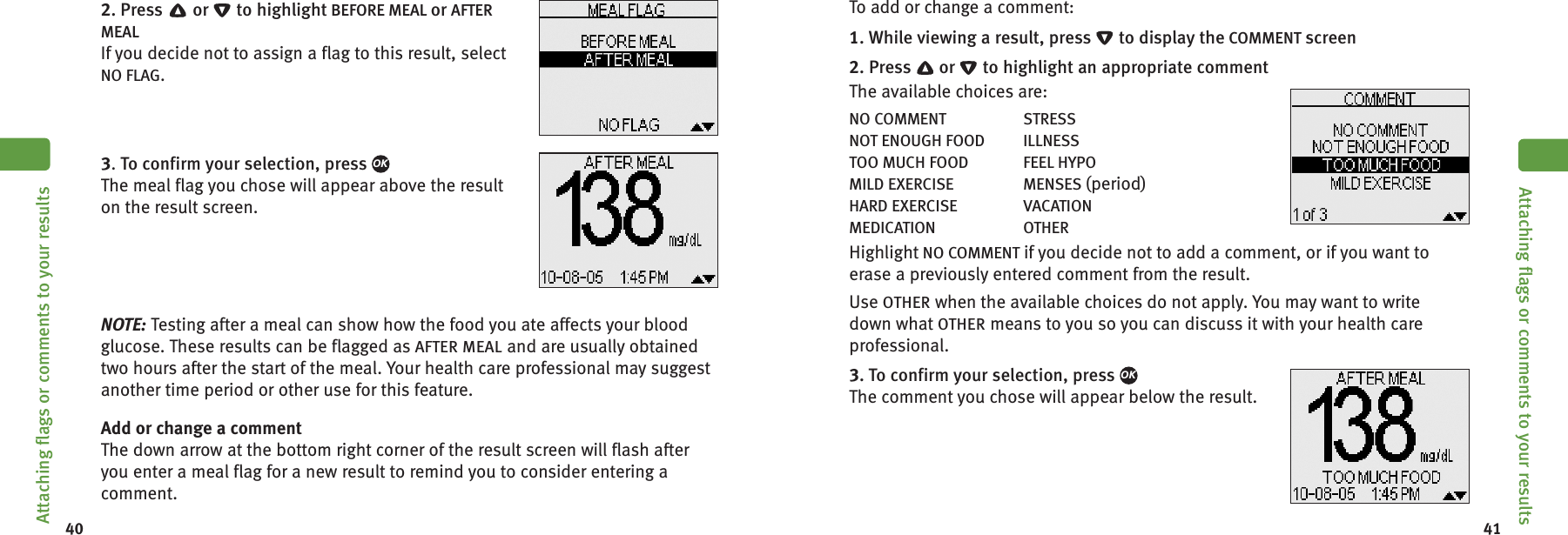

40 412. Press or to highlight BEFORE MEAL or AFTERMEALIf you decide not to assign a flag to this result, selectNO FLAG.3.To confirm your selection, pressThe meal flag you chose will appear above the resulton the result screen.NOTE: Testing after a meal can show how the food you ate affects your bloodglucose. These results can be flagged as AFTER MEAL and are usually obtainedtwo hours after the start of the meal. Your health care professional may suggestanother time period or other use for this feature.Add or change a commentThe down arrow at the bottom right corner of the result screen will flash afteryou enter a meal flag for a new result to remind you to consider entering acomment.OKAttaching flags or comments to your resultsTo add or change a comment:1. While viewing a result, press to display the COMMENT screen2. Press or to highlight an appropriate commentThe available choices are:NO COMMENT STRESSNOT ENOUGH FOOD ILLNESSTOO MUCH FOOD FEEL HYPOMILD EXERCISE MENSES (period)HARD EXERCISE VACATIONMEDICATION OTHERHighlight NO COMMENT if you decide not to add a comment, or if you want toerase a previously entered comment from the result.Use OTHER when the available choices do not apply. You may want to writedown what OTHER means to you so you can discuss it with your health careprofessional.3. To confirm your selection, pressThe comment you chose will appear below the result.OKAttaching flags or comments to your results
42 43If you have just completed a test, press to get tothe MAIN MENU screen. If your meter is off, press andhold to turn it on. From the MAIN MENU screen youcan choose:•LAST RESULT to view your most recent result,•ALL RESULTS to review up to 500 of your mostrecent results four at a time, or•RESULT AVG to select one of three types of result averages.Press or to highlight LAST RESULT, ALL RESULTS, or RESULT AVG.To confirm your selection, press .Last resultThe meter will display your most recent result. This result will include the unit ofmeasure and the date and time of the test. If the result was marked as CONTROLSOLUTION or with either a meal flag or comment, these notes will be shown aswell. Press to return to MAIN MENU. If you wish to add or change a meal flagor comment for this result, see pages 39–41.OKOKOKOKAll resultsThe meter will display four results at a time, in the order the tests were done,starting with the most recent. For each test result, the meter will display the dateand time of the test. Results may also contain the following symbols:HI if the result was above 600 mg/dL,LO if the result was below 20 mg/dL,if a comment has been chosen for the result,Cif the result is from a control solution test,–if the result is flagged BEFORE MEAL, and+if the result is flagged AFTER MEAL.The meter stores a maximum of 500 blood glucose or control solution testresults. When the memory is full, the oldest result is dropped as the newest isadded.To view details of an individual result, press or to highlight the result youwant, then press . If you wish to add or change a meal flag or comment forthis result, see pages 39–41. To return to the list of all results from an individualresult, press .To view more recent results, continue to press after the top result onthe display is highlighted. If you press when the most recent result ishighlighted, you will see the oldest stored results.OKOKReviewing past results and averagesReviewing past results and averages

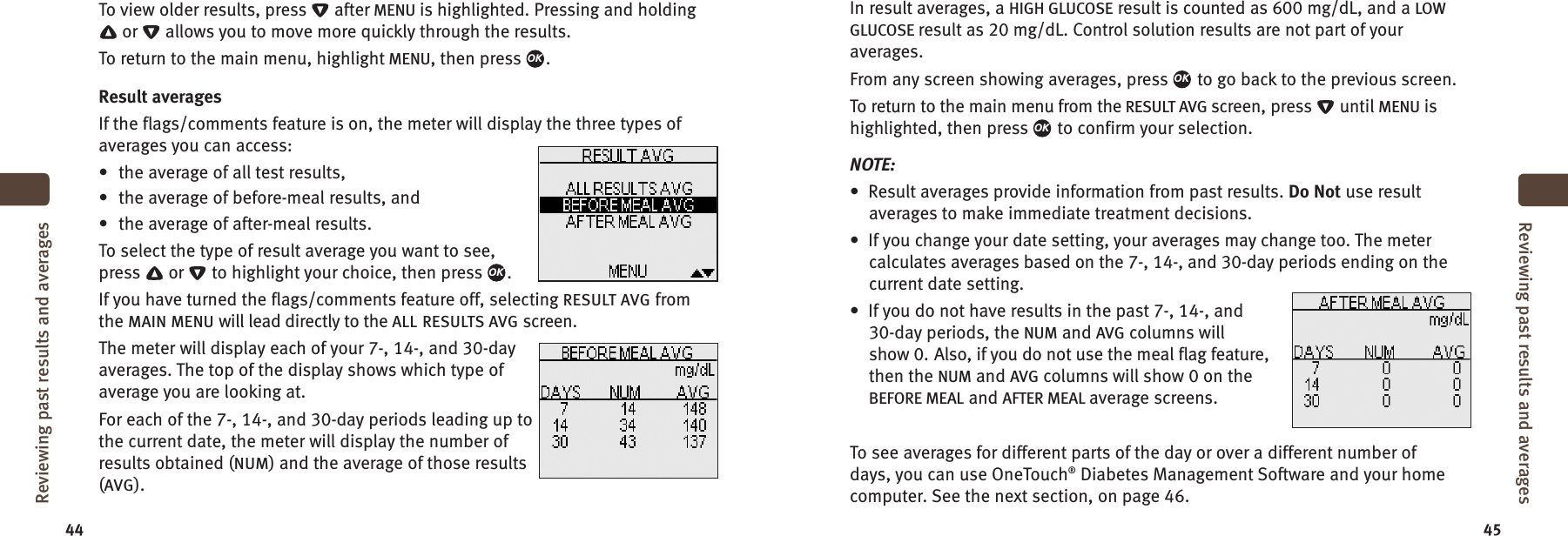

44 45To view older results, press after MENU is highlighted. Pressing and holdingor allows you to move more quickly through the results.To return to the main menu, highlight MENU, then press .Result averagesIf the flags/comments feature is on, the meter will display the three types ofaverages you can access:• the average of all test results,• the average of before-meal results, and• the average of after-meal results.To select the type of result average you want to see,press or to highlight your choice, then press .If you have turned the flags/comments feature off, selecting RESULT AVG fromthe MAIN MENU will lead directly to the ALL RESULTS AVG screen.The meter will display each of your 7-, 14-, and 30-dayaverages. The top of the display shows which type ofaverage you are looking at.For each of the 7-, 14-, and 30-day periods leading up tothe current date, the meter will display the number ofresults obtained (NUM) and the average of those results(AVG).OKOKReviewing past results and averagesReviewing past results and averagesIn result averages, a HIGH GLUCOSE result is counted as 600 mg/dL, and a LOWGLUCOSE result as 20 mg/dL. Control solution results are not part of youraverages.From any screen showing averages, press to go back to the previous screen.To return to the main menu from the RESULT AVG screen, press until MENU ishighlighted, then press to confirm your selection.NOTE:• Result averages provide information from past results. Do Not use resultaverages to make immediate treatment decisions.• If you change your date setting, your averages may change too. The metercalculates averages based on the 7-, 14-, and 30-day periods ending on thecurrent date setting.• If you do not have results in the past 7-, 14-, and30-day periods, the NUM and AVG columns willshow 0. Also, if you do not use the meal flag feature,then the NUM and AVG columns will show 0 on theBEFORE MEAL and AFTER MEAL average screens.To see averages for different parts of the day or over a different number ofdays, you can use OneTouch®Diabetes Management Software and your homecomputer. See the next section, on page 46.OKOK

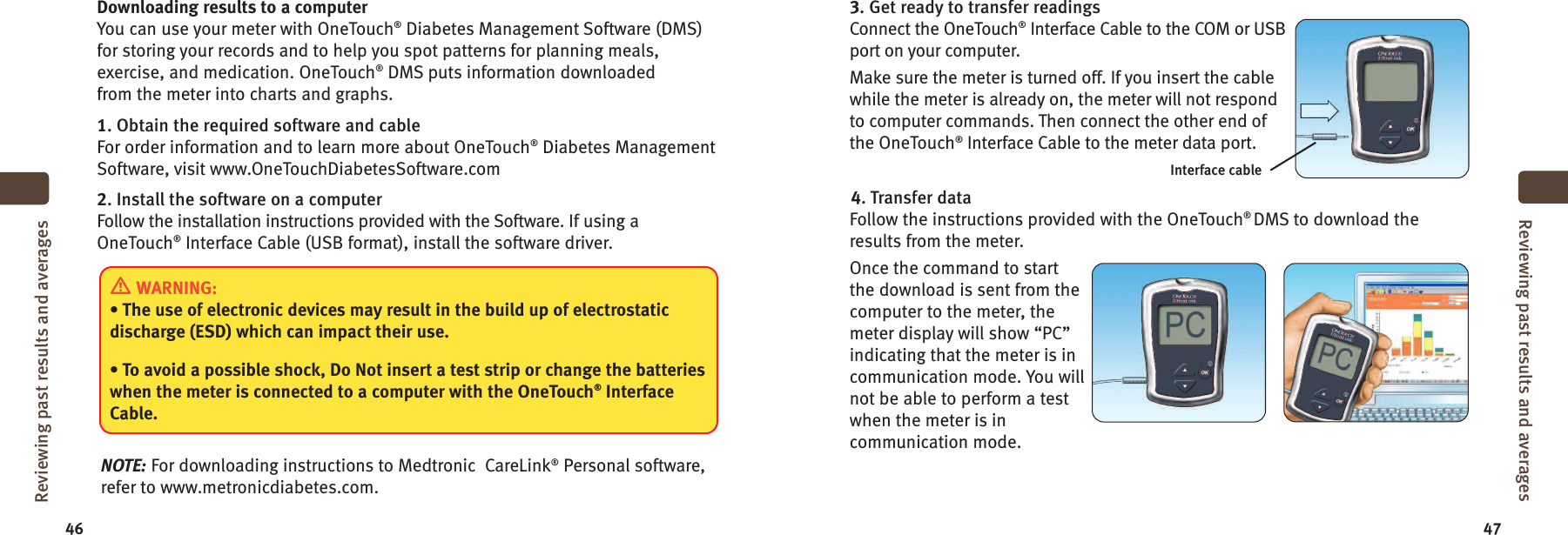

46 47Downloading results to a computerYou can use your meter with OneTouch®Diabetes Management Software (DMS)for storing your records and to help you spot patterns for planning meals,exercise, and medication. OneTouch®DMS puts information downloadedfrom the meter into charts and graphs.1. Obtain the required software and cableFor order information and to learn more about OneTouch®Diabetes ManagementSoftware, visit www.OneTouchDiabetesSoftware.com2. Install the software on a computerFollow the installation instructions provided with the Software. If using aOneTouch®Interface Cable (USB format), install the software driver.NOTE: For downloading instructions to Medtronic CareLink®Personal software,refer to www.metronicdiabetes.com.WARNING:• The use of electronic devices may result in the build up of electrostaticdischarge (ESD) which can impact their use.• To avoid a possible shock, Do Not insert a test strip or change the batterieswhen the meter is connected to a computer with the OneTouch®InterfaceCable.Reviewing past results and averages3. Get ready to transfer readingsConnect the OneTouch®Interface Cable to the COM or USBport on your computer.Make sure the meter is turned off. If you insert the cablewhile the meter is already on, the meter will not respondto computer commands. Then connect the other end ofthe OneTouch®Interface Cable to the meter data port.4. Transfer dataFollow the instructions provided with the OneTouch®DMS to download theresults from the meter.Once the command to startthe download is sent from thecomputer to the meter, themeter display will show “PC”indicating that the meter is incommunication mode. You willnot be able to perform a testwhen the meter is incommunication mode.Reviewing past results and averagesInterface cable

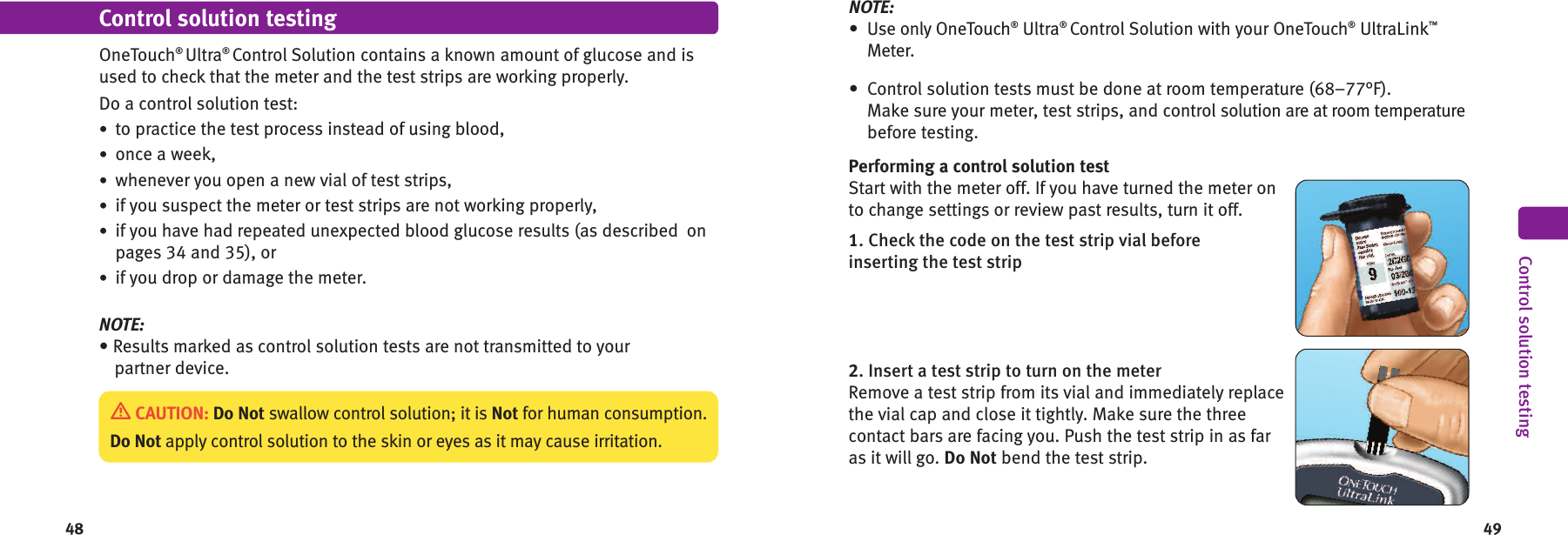

48 49OneTouch®Ultra®Control Solution contains a known amount of glucose and isused to check that the meter and the test strips are working properly.Do a control solution test:•to practice the test process instead of using blood,•once a week,•whenever you open a new vial of test strips,•if you suspect the meter or test strips are not working properly,•if you have had repeated unexpected blood glucose results (as described onpages 34 and 35), or•if you drop or damage the meter.NOTE:• Results marked as control solution tests are not transmitted to yourpartner device.Control solution testingPerforming a control solution testStart with the meter off. If you have turned the meter onto change settings or review past results, turn it off.1. Check the code on the test strip vial beforeinserting the test strip2. Insert a test strip to turn on the meterRemove a test strip from its vial and immediately replacethe vial cap and close it tightly. Make sure the threecontact bars are facing you. Push the test strip in as faras it will go. Do Not bend the test strip.CAUTION: Do Not swallow control solution; it is Not for human consumption.Do Not apply control solution to the skin or eyes as it may cause irritation.Control solution testing NOTE:• Use only OneTouch®Ultra®Control Solution with your OneTouch®UltraLink™Meter.• Control solution tests must be done at room temperature (68–77°F).Make sure your meter, test strips, and control solution are at room temperaturebefore testing.

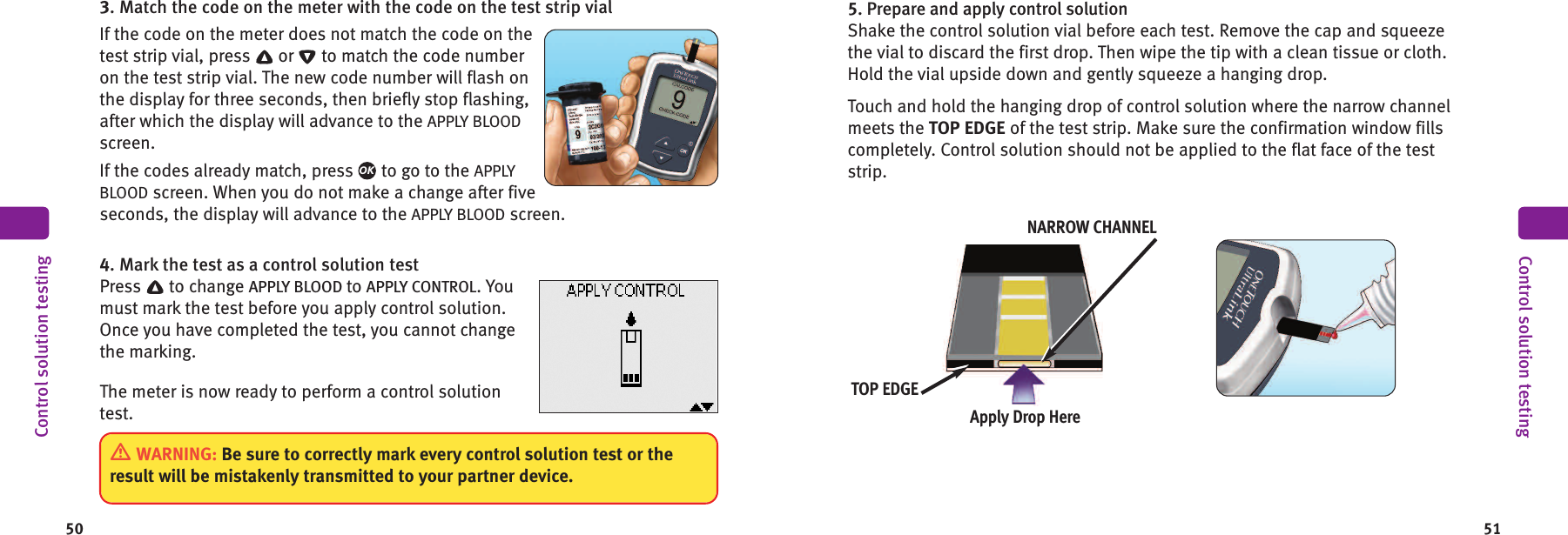

50 513. Match the code on the meter with the code on the test strip vialIf the code on the meter does not match the code on thetest strip vial, press or to match the code numberon the test strip vial. The new code number will flash onthe display for three seconds, then briefly stop flashing,after which the display will advance to the APPLY BLOODscreen.If the codes already match, press to go to the APPLYBLOOD screen. When you do not make a change after fiveseconds, the display will advance to the APPLY BLOOD screen.4. Mark the test as a control solution testPress to change APPLY BLOOD to APPLY CONTROL. Youmust mark the test before you apply control solution.Once you have completed the test, you cannot changethe marking.The meter is now ready to perform a control solutiontest.OKControl solution testing5. Prepare and apply control solutionShake the control solution vial before each test. Remove the cap and squeezethe vial to discard the first drop. Then wipe the tip with a clean tissue or cloth.Hold the vial upside down and gently squeeze a hanging drop.Touch and hold the hanging drop of control solution where the narrow channelmeets the TOP EDGE of the test strip. Make sure the confirmation window fillscompletely. Control solution should not be applied to the flat face of the teststrip.Control solution testingApply Drop HereNARROW CHANNELTOP EDGEWARNING: Be sure to correctly mark every control solution test or theresult will be mistakenly transmitted to your partner device.

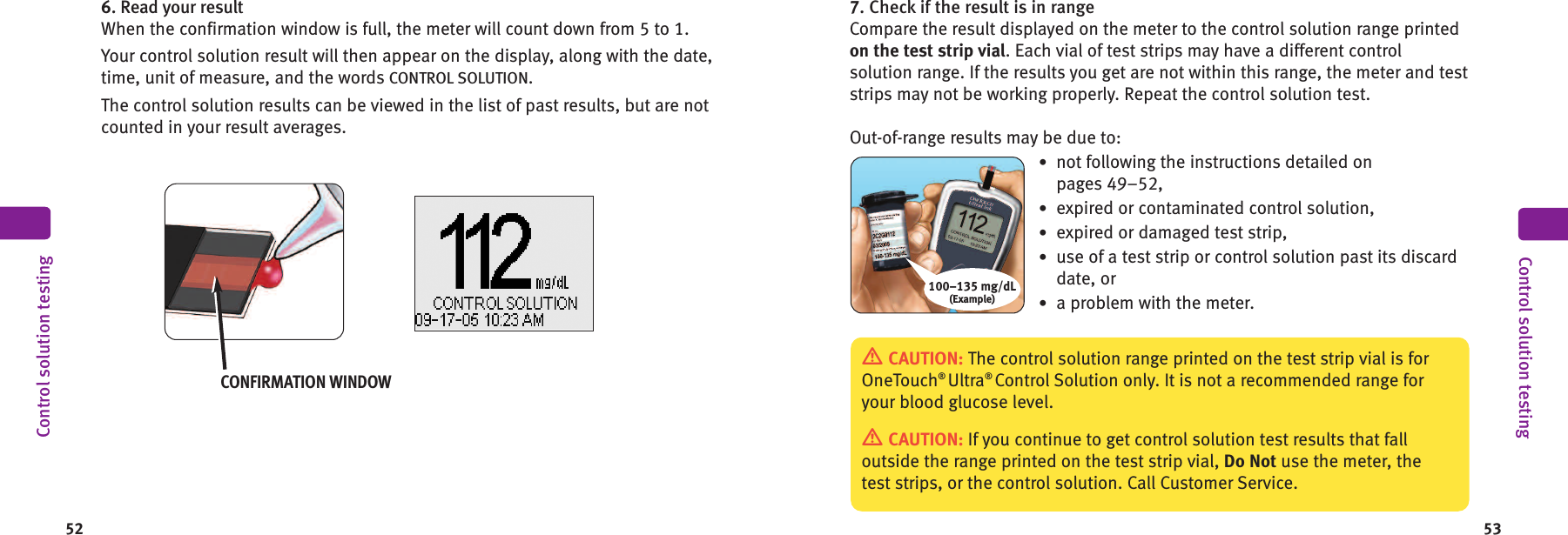

537. Check if the result is in rangeCompare the result displayed on the meter to the control solution range printedon the test strip vial. Each vial of test strips may have a different controlsolution range. If the results you get are not within this range, the meter and teststrips may not be working properly. Repeat the control solution test.Out-of-range results may be due to:•not following the instructions detailed onpages 49–52,•expired or contaminated control solution,•expired or damaged test strip,•use of a test strip or control solution past its discarddate, or•a problem with the meter.100–135 mg/dL(Example)CAUTION: The control solution range printed on the test strip vial is forOneTouch®Ultra®Control Solution only. It is not a recommended range foryour blood glucose level.CAUTION: If you continue to get control solution test results that falloutside the range printed on the test strip vial, Do Not use the meter, thetest strips, or the control solution. Call Customer Service.Control solution testing526. Read your resultWhen the confirmation window is full, the meter will count down from 5 to 1.Your control solution result will then appear on the display, along with the date,time, unit of measure, and the words CONTROL SOLUTION.The control solution results can be viewed in the list of past results, but are notcounted in your result averages.CONFIRMATION WINDOWControl solution testing
5554Cleaning your meterTo clean your meter, wipe the outside with a soft cloth dampened with waterand mild detergent. Do Not use alcohol or another solvent to clean your meter.Do Not get any liquids, dirt, dust, blood, or control solution inside the meterthrough the test port or the data port. Never spray cleaning solution on themeter or immerse it in any liquid.Cleaning your OneTouch®Lancing Device and OneTouch®AST™Clear CapTo clean these items, wipe them with a soft cloth dampened with water andmild detergent. Do Not immerse the OneTouch®Lancing Device in any liquid.To disinfect these items, prepare a solution of one part household bleach to tenparts water. Wipe the OneTouch®Lancing Device with a soft cloth dampenedCAUTION: Do Not use the test strips or control solution after the expira-tion date printed on the vial or the discard date, whichever comes first, oryour results may be inaccurate.CAUTION: Do Not use your test strips if your vial is damaged or left opento air. This could lead to error messages or tests that read higher than theactual value. Call Customer Service immediately if the test strip vial isdamaged.Your OneTouch®UltraLink™Blood Glucose Monitoring System does not need anyspecial maintenance.Storing your systemStore your meter, test strips, control solution and other items in your carryingcase after each use. Store each item in a cool, dry place below 86°F, but Do Notrefrigerate. Keep all items away from direct sunlight and heat.Tightly close the cap on the test strip vial and/or control solution vialimmediately after use to avoid contamination or damage. Store test stripsonly in their original vial.Checking for expiration or damage to test strips and control solutionTest strips and control solution have expiration dates printed on their vials.When you first open a test strip or control solution vial, you must record thediscard date (date opened plus three months) in the space provided on thelabel.Caring for your systemCaring for your system

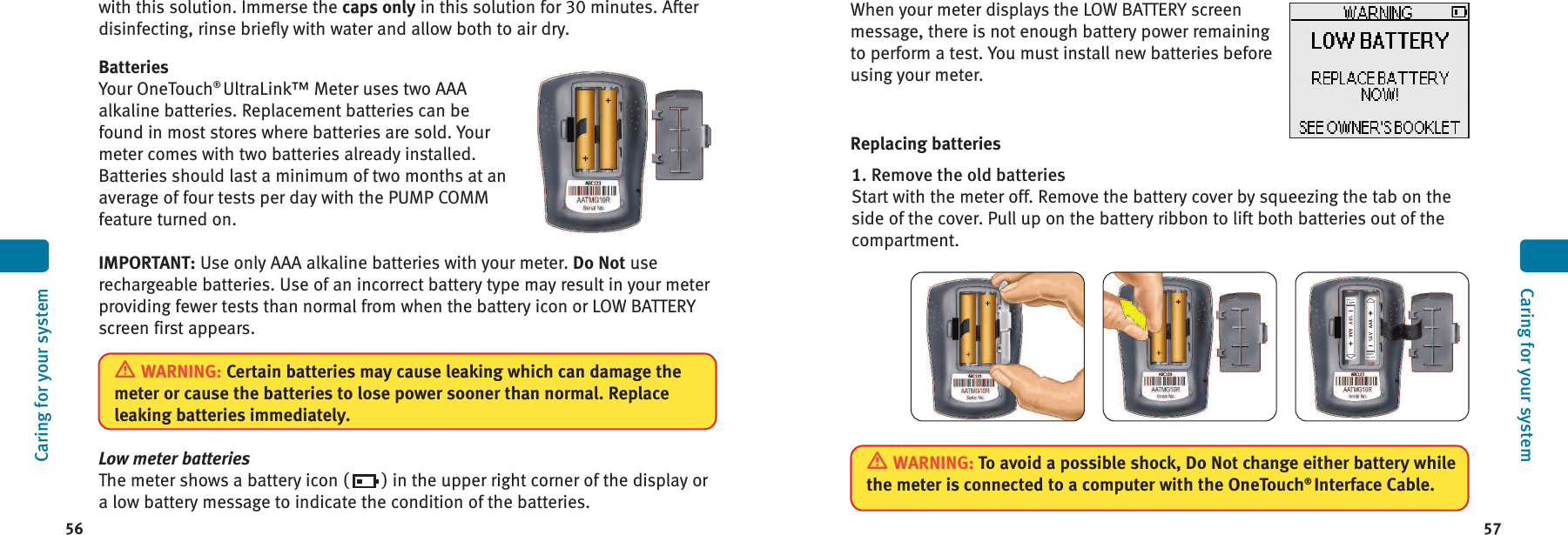

5756When your meter displays the LOW BATTERY screenmessage, there is not enough battery power remainingto perform a test. You must install new batteries beforeusing your meter.Replacing batteries1. Remove the old batteriesStart with the meter off. Remove the battery cover by squeezing the tab on theside of the cover. Pull up on the battery ribbon to lift both batteries out of thecompartment.Caring for your systemCaring for your systemwith this solution. Immerse the caps only in this solution for 30 minutes. Afterdisinfecting, rinse briefly with water and allow both to air dry.BatteriesYour OneTouch®UltraLink™ Meter uses two AAAalkaline batteries. Replacement batteries can befound in most stores where batteries are sold. Yourmeter comes with two batteries already installed.Batteries should last a minimum of two months at anaverage of four tests per day with the PUMP COMMfeature turned on.IMPORTANT: Use only AAA alkaline batteries with your meter. Do Not userechargeable batteries. Use of an incorrect battery type may result in your meterproviding fewer tests than normal from when the battery icon or LOW BATTERYscreen first appears.Low meter batteriesThe meter shows a battery icon ( ) in the upper right corner of the display ora low battery message to indicate the condition of the batteries.WARNING: To avoid a possible shock, Do Not change either battery whilethe meter is connected to a computer with the OneTouch®Interface Cable.WARNING: Certain batteries may cause leaking which can damage themeter or cause the batteries to lose power sooner than normal. Replaceleaking batteries immediately.
59584. Replace the coverInsert the two battery cover tabs into the matching holes, andpush down until you hear the cover click into place.5. Dispose of batteries according to your local environmental regulationsNOTE: When the PUMP COMM feature is turned on the meter will use morebattery power.Caring for your systemCaring for your system2. Insert the new batteriesInsert two AAA alkaline batteries on top of the blackribbon. Plus (+) and minus (–) signs will guide you inplacing the batteries.If the meter does not power on after you have replaced the meter batteries,check that the batteries are correctly installed. If the meter still does not poweron, call Customer Service.3. Check your meter settingsRemoving the meter batteries will not affect your stored results. However, youmay need to re-set your meter settings. See pages 4–8.

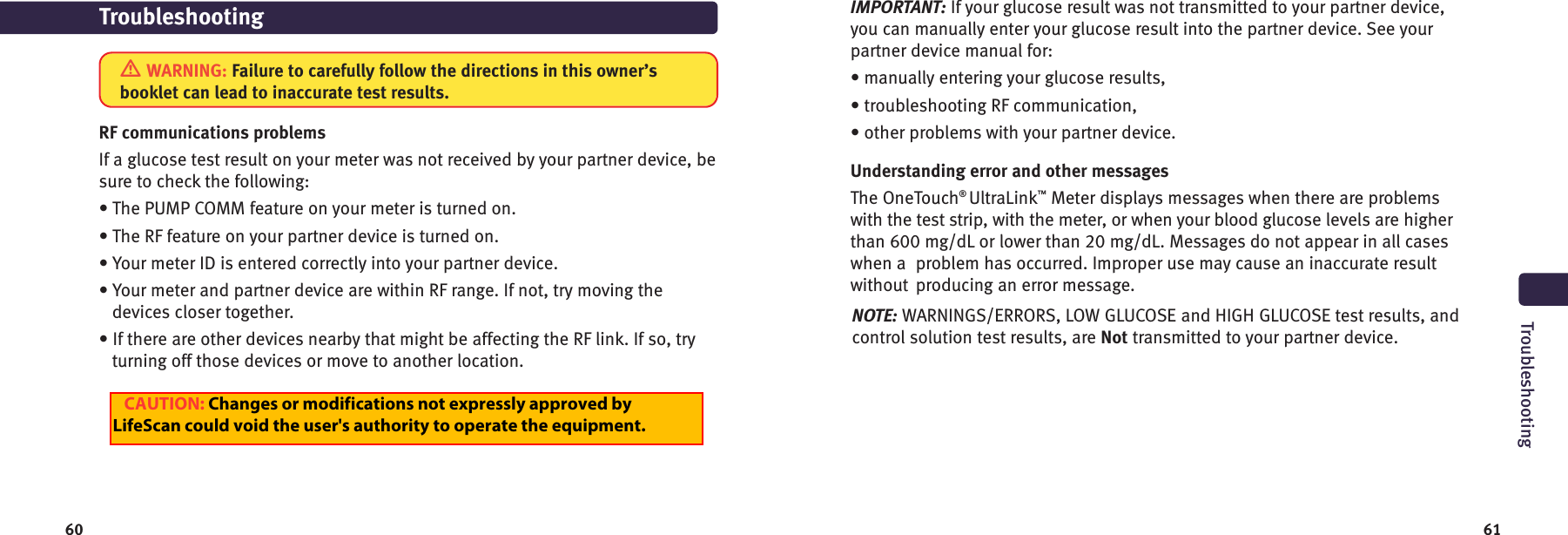

6160RF communications problemsIf a glucose test result on your meter was not received by your partner device, besure to check the following:• The PUMP COMM feature on your meter is turned on.• The RF feature on your partner device is turned on.• Your meter ID is entered correctly into your partner device.• Your meter and partner device are within RF range. If not, try moving thedevices closer together.• If there are other devices nearby that might be affecting the RF link. If so, tryturning off those devices or move to another location.TroubleshootingWARNING: Failure to carefully follow the directions in this owner’sbooklet can lead to inaccurate test results.IMPORTANT: If your glucose result was not transmitted to your partner device,you can manually enter your glucose result into the partner device. See yourpartner device manual for:• manually entering your glucose results,• troubleshooting RF communication,• other problems with your partner device.Understanding error and other messagesThe OneTouch®UltraLink™Meter displays messages when there are problemswith the test strip, with the meter, or when your blood glucose levels are higherthan 600 mg/dL or lower than 20 mg/dL. Messages do not appear in all caseswhen a problem has occurred. Improper use may cause an inaccurate resultwithout producing an error message.NOTE: WARNINGS/ERRORS, LOW GLUCOSE and HIGH GLUCOSE test results, andcontrol solution test results, are Not transmitted to your partner device.Troubleshooting CAUTION: Changes or modifications not expressly approved by LifeScan could void the user's authority to operate the equipment.

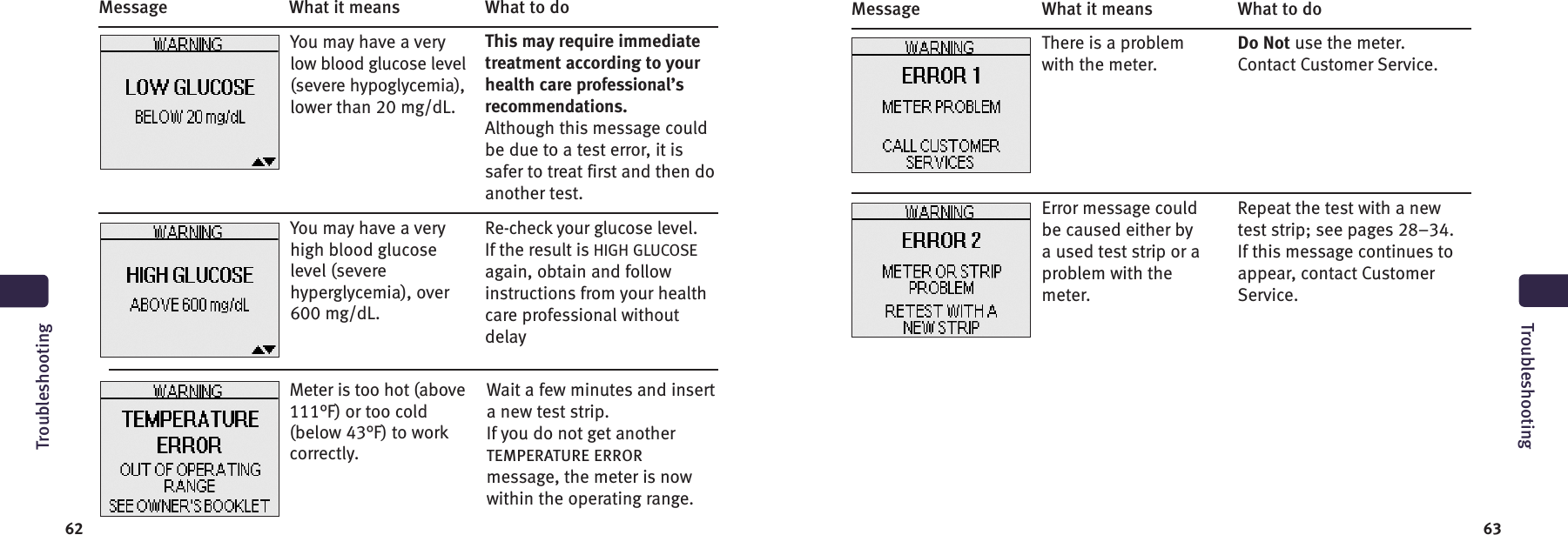

6362TroubleshootingMessage What it means What to doDo Not use the meter.Contact Customer Service.Repeat the test with a newtest strip; see pages 28–34.If this message continues toappear, contact CustomerService.There is a problemwith the meter.Error message couldbe caused either bya used test strip or aproblem with themeter.Message What it means What to doThis may require immediatetreatment according to yourhealth care professional’srecommendations.Although this message couldbe due to a test error, it issafer to treat first and then doanother test.Re-check your glucose level.If the result is HIGH GLUCOSEagain, obtain and followinstructions from your healthcare professional withoutdelayYou may have a verylow blood glucose level(severe hypoglycemia),lower than 20 mg/dL.You may have a veryhigh blood glucoselevel (severehyperglycemia), over600 mg/dL.TroubleshootingWait a few minutes and inserta new test strip.If you do not get anotherTEMPERATURE ERRORmessage, the meter is nowwithin the operating range.Meter is too hot (above111°F) or too cold(below 43°F) to workcorrectly.

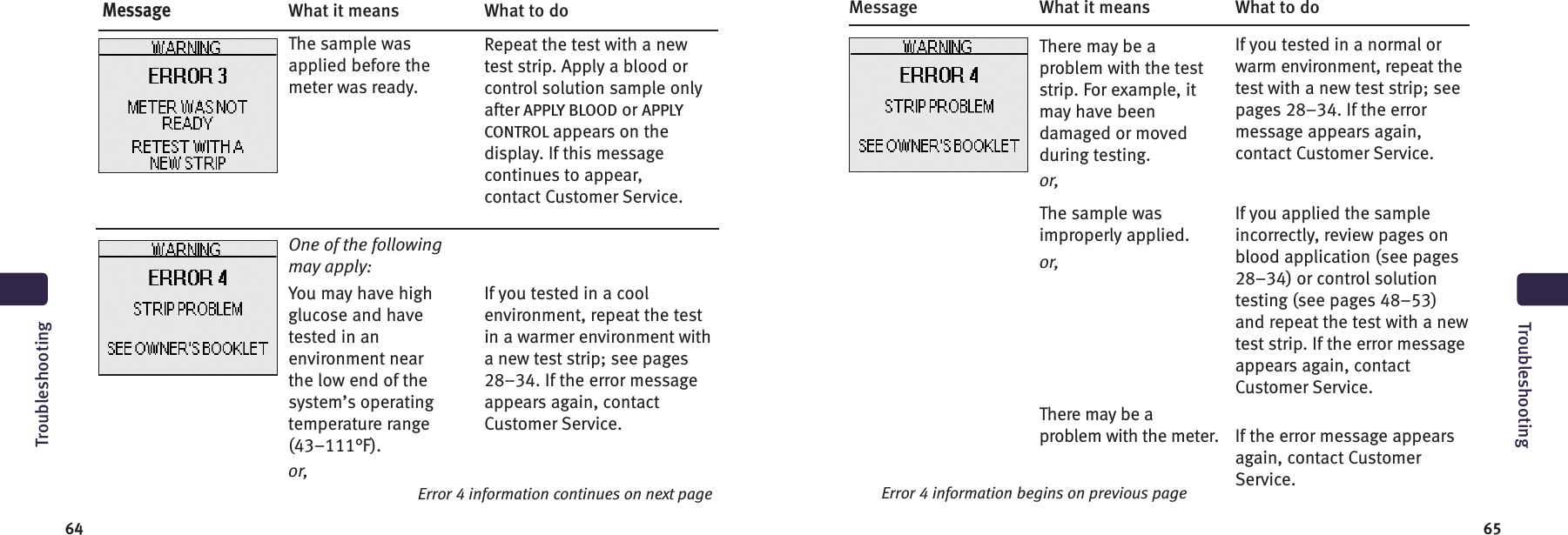

Message What it means What to do6564TroubleshootingIf you tested in a normal orwarm environment, repeat thetest with a new test strip; seepages 28–34. If the errormessage appears again,contact Customer Service.If you applied the sampleincorrectly, review pages onblood application (see pages28–34) or control solutiontesting (see pages 48–53)and repeat the test with a newtest strip. If the error messageappears again, contactCustomer Service.If the error message appearsagain, contact CustomerService.There may be aproblem with the teststrip. For example, itmay have beendamaged or movedduring testing.or,The sample wasimproperly applied.or,There may be aproblem with the meter.Error 4 information begins on previous pageMessageWhat it means What to doRepeat the test with a newtest strip. Apply a blood orcontrol solution sample onlyafter APPLY BLOOD or APPLYCONTROL appears on thedisplay. If this messagecontinues to appear,contact Customer Service.If you tested in a coolenvironment, repeat the testin a warmer environment witha new test strip; see pages28–34. If the error messageappears again, contactCustomer Service.The sample wasapplied before themeter was ready.One of the followingmay apply:You may have highglucose and havetested in anenvironment nearthe low end of thesystem’s operatingtemperature range(43–111°F).or,Error 4 information continues on next pageTroubleshooting
6766Message What it means What to doYou can still perform a bloodglucose test and get an accu-rate result. Contact CustomerService to report thisoccurrence if this is not:1. Your first time use of themeter, or2. After you just downloadedresults from your meter.You can still perform a bloodglucose test and get an accu-rate result, but contactCustomer Service to reportthis occurrence.No result in memory,such as the first timeuse of the meter orafter a download of alldata to a computer.or,Your meter was unableto recall this result.This result will not beincluded in resultaverages.Your meter was unableto recall this result.This result will not beincluded in resultaverages.TroubleshootingMessage What it means What to doRepeat the test with a new teststrip. Refer to information onblood application (see pages28–34) or control solutiontesting (see pages 48–53).When the battery icon firstappears, there is enoughpower for about 25 more testsif using alkaline batteries. Testresults will still be accurate,but replace the batteries assoon as possible.Replace meter batteries.The meter has detecteda problem with the teststrip. Possible causesare test strip damage oran incompletely filledconfirmation window.Meter batteries are lowbut still have enoughpower to performa test.Meter batteries donot have enoughpower to performa test.Troubleshooting

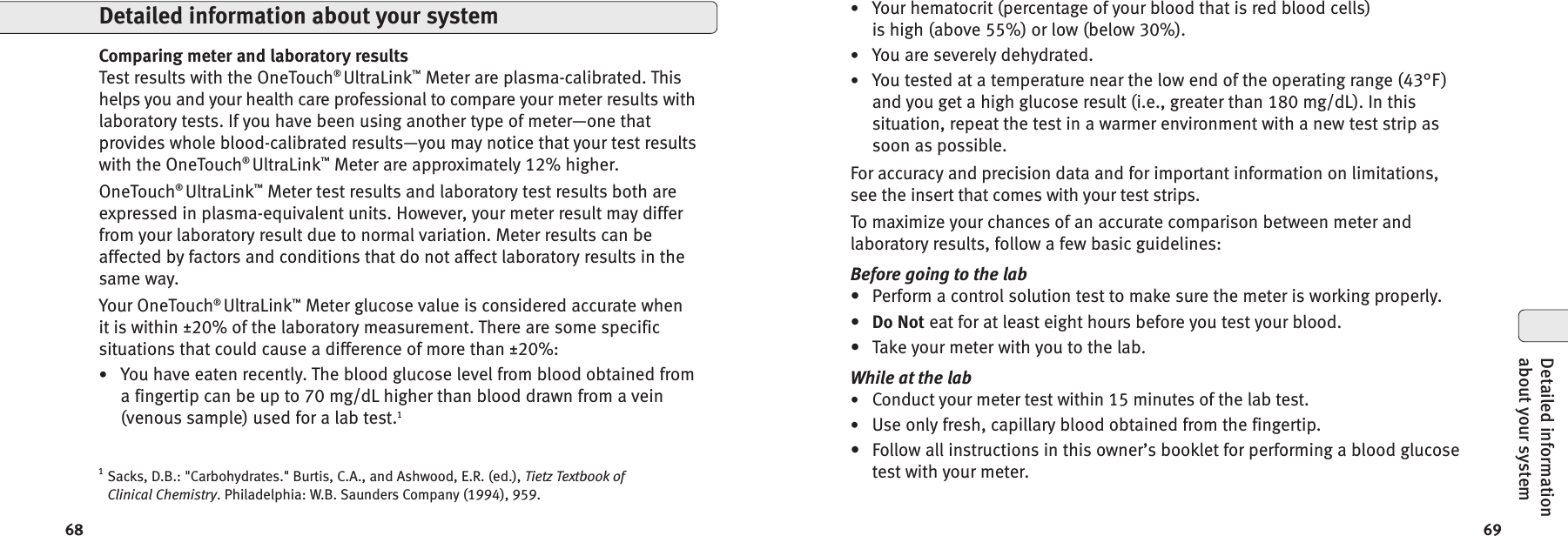

6968•Your hematocrit (percentage of your blood that is red blood cells)is high (above 55%) or low (below 30%).•You are severely dehydrated.•You tested at a temperature near the low end of the operating range (43°F)and you get a high glucose result (i.e., greater than 180 mg/dL). In thissituation, repeat the test in a warmer environment with a new test strip assoon as possible.For accuracy and precision data and for important information on limitations,see the insert that comes with your test strips.To maximize your chances of an accurate comparison between meter andlaboratory results, follow a few basic guidelines:Before going to the lab• Perform a control solution test to make sure the meter is working properly.•Do Not eat for at least eight hours before you test your blood.• Take your meter with you to the lab.While at the lab•Conduct your meter test within 15 minutes of the lab test.•Use only fresh, capillary blood obtained from the fingertip.• Follow all instructions in this owner’s booklet for performing a blood glucosetest with your meter.Comparing meter and laboratory resultsTest results with the OneTouch®UltraLink™Meter are plasma-calibrated. Thishelps you and your health care professional to compare your meter results withlaboratory tests. If you have been using another type of meter—one thatprovides whole blood-calibrated results—you may notice that your test resultswith the OneTouch®UltraLink™Meter are approximately 12% higher.OneTouch®UltraLink™Meter test results and laboratory test results both areexpressed in plasma-equivalent units. However, your meter result may differfrom your laboratory result due to normal variation. Meter results can beaffected by factors and conditions that do not affect laboratory results in thesame way.Your OneTouch®UltraLink™Meter glucose value is considered accurate whenit is within ±20% of the laboratory measurement. There are some specificsituations that could cause a difference of more than ±20%:•You have eaten recently. The blood glucose level from blood obtained froma fingertip can be up to 70 mg/dL higher than blood drawn from a vein(venous sample) used for a lab test.11Sacks, D.B.: "Carbohydrates." Burtis, C.A., and Ashwood, E.R. (ed.), Tietz Textbook ofClinical Chemistry. Philadelphia: W.B. Saunders Company (1994), 959.Detailed information about your systemDetailed informationabout your system
7170GuaranteeLifeScan guarantees that the OneTouch®UltraLink™ Meter will be free of defectsin material and workmanship for three years, valid from the date ofpurchase. The guarantee extends only to the original purchaser and is nottransferable.SymbolsCautions and Warnings. Refer to safety-related notes in the owner’sbooklet and inserts that came with your meter and testing supplies.Low batteryDirect currentOperating ranges Temperature: 43–111°FRelative humidity: 10–90%Altitude: up to 10,000 feetHematocrit: 30–55%Battery ratings 2 x 1.5 V d.c., 40 mA(2 x CR 2032 batteries)direct currentDetailed informationabout your systemTechnical specificationsReported result range 20–600 mg/dLCalibration Plasma-equivalentSample Fresh capillary whole bloodSample size Minimum 1 microliterTest time 5 secondsRadio Frequency (RF) 916.5MhzAssay method Glucose oxidase biosensorMeter power source Two replaceable AAA alkaline batteries. Expectedbattery life is a minimum of 2 months at an average of4 tests per day with the PUMP COMM feature turned on.Unit of measure mg/dLMemory500 blood glucose or control solution test resultsAutomatic shutoff 2 minutes after last actionSize 3.5 x 2.4 x 1.0 inchesWeight Approximately 3 ounces, with batteriesDetailed informationabout your system

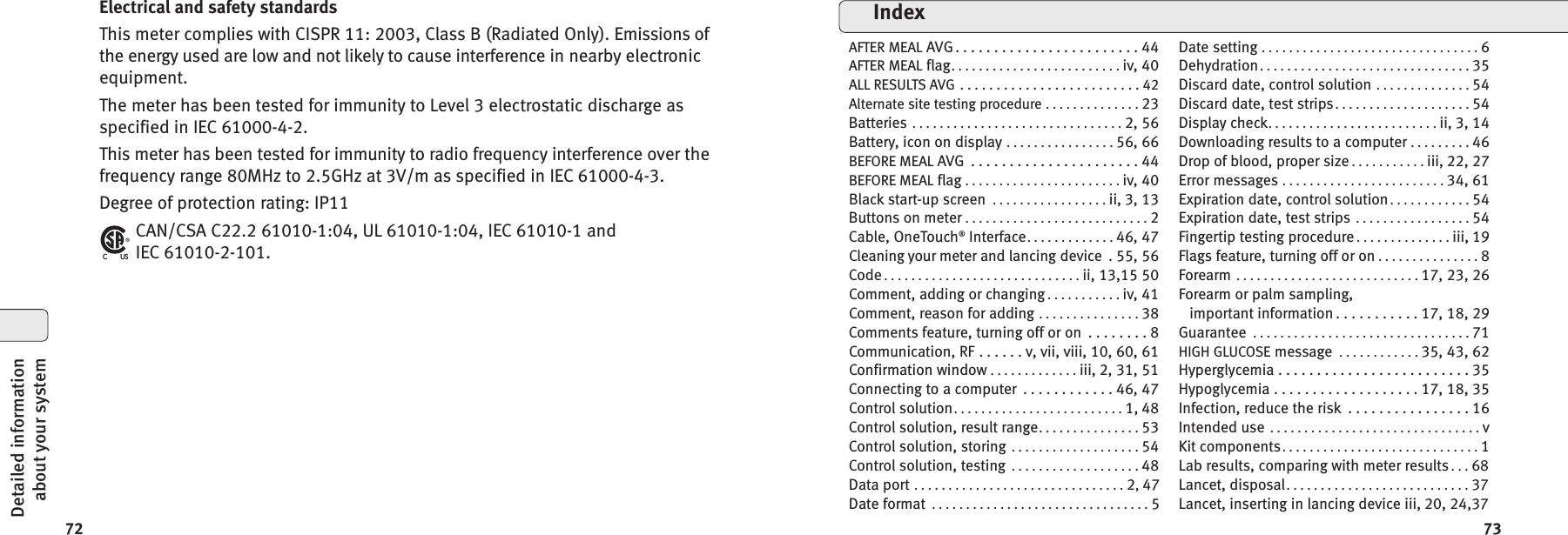

7372IndexAFTER MEAL AVG........................44AFTER MEAL flag.........................iv, 40ALLRESULTSAVG .........................42Alternate site testing procedure ..............23Batteries ...............................2, 56Battery, icon on display ................56, 66BEFORE MEAL AVG ......................44BEFORE MEAL flag .......................iv, 40Black start-up screen .................ii, 3, 13Buttons on meter ...........................2Cable, OneTouch®Interface.............46, 47Cleaning your meter and lancing device . 55, 56Code .............................ii, 13,15 50Comment, adding or changing ...........iv, 41Comment, reason for adding ...............38Comments feature, turning off or on . . . . . . . . 8Communication, RF . . . . . . v, vii, viii, 10, 60, 61Confirmation window .............iii, 2, 31, 51Connecting to a computer . . . . . . . . . . . . 46, 47Control solution.........................1, 48Control solution, result range...............53Control solution, storing ...................54Control solution, testing ...................48Data port ...............................2,47Date format ................................5Date setting ................................6Dehydration...............................35Discard date, control solution ..............54Discard date, test strips....................54Display check.........................ii, 3, 14Downloading results to a computer .........46Drop of blood, proper size ...........iii, 22, 27Error messages ........................34, 61Expiration date, control solution ............54Expiration date, test strips .................54Fingertip testing procedure ..............iii, 19Flags feature, turning off or on ...............8Forearm ...........................17, 23, 26Forearm or palm sampling,important information . . . . . . . . . . . 17, 18, 29Guarantee ................................71HIGH GLUCOSE message ............35, 43, 62Hyperglycemia.........................35Hypoglycemia . . . . . . . . . . . . . . . . . . . 17, 18, 35Infection, reduce the risk . . . . . . . . . . . . . . . . 16Intended use ...............................vKit components.............................1Lab results, comparing with meter results ...68Lancet, disposal...........................37Lancet, inserting in lancing device iii, 20, 24,37Electrical and safety standardsThis meter complies with CISPR 11: 2003, Class B (Radiated Only). Emissions ofthe energy used are low and not likely to cause interference in nearby electronicequipment.The meter has been tested for immunity to Level 3 electrostatic discharge asspecified in IEC 61000-4-2.This meter has been tested for immunity to radio frequency interference over thefrequency range 80MHz to 2.5GHz at 3V/m as specified in IEC 61000-4-3.Degree of protection rating: IP11CAN/CSA C22.2 61010-1:04, UL 61010-1:04, IEC 61010-1 andIEC 61010-2-101.C USDetailed informationabout your system
7574Patent informationThe system described herein is covered by one or more of the following U.S.patents: 5,708,247, 5,951,836, 6,241,862, 6,284,125, 7,112,265, D522,656,and D542,681. Use of the monitoring device included herein is protected underone or more of the following U.S. patents: 6,413,410, 6,733,655. Purchase ofthis device does not act to grant a use license under these patents. Such alicense is granted only when the device is used with OneTouch®Ultra®Test Strips.No test strip supplier other than LifeScan is authorized to grant such a license.The accuracy of results generated with LifeScan meters using test stripsmanufactured by anyone other than LifeScan has not been evaluated by LifeScan.RemindersYour target rangesTime of day from your health care professionalBefore breakfastBefore lunch or dinner1 hour after meals2 hours after mealsBetween 2 a.m. and 4 a.m.Lancet, protective disk ..........iii, 16, 20, 24Lancing ............................iii, 19, 23Lancing device and cap..........iii, 16, 20, 55Lancing device,OneTouch®AST™Clear Cap .......1,16, 24, 55Lancing device, depth setting .......16, 20, 25Language, choosing in set up................5LOW BATTERY message .................57, 66LOW GLUCOSE message .............35, 43, 62MAIN MENU screen ......................3, 42Meal flag, adding or changing ...........iv, 39Meal flag, reason for adding................38Meter ID.........................ii, vii, 10, 11mg/dL ..............................8, 34, 70mmol/L ....................................8Palm .......................17,23,26,29PC communication mode ..................47Plasma calibration .....................68, 70PUMP COMM feature.......................10Radio Frequency (RF)communication .........v, vii, viii, 10, 60, 61Repeated unexpected glucose results. . . . . . 36Result averages, before or after meal .......44Result averages, 7-, 14-, and 30-day ........44Result screen ......................31, 40, 43Result, last ................................42Results, all ................................43Results, reviewing past ....................43RF (Radio Frequency)communication .............v, vii, viii, 60, 61Set up .....................................4Software, OneTouch®Diabetes Management 46Start-up screen . . . . . . . . . . . . . . . . . . . . ii, 3, 13Storing your control solution ...............54Storing your meter .........................54Storing your test strips .....................54Symbols.............................2,43,71Technical specifications....................70Temperature . . . . . . . . . . 12, 49, 54, 62, 69, 71TEMPERATURE ERROR message.............. 62Testing procedure .........................13Test strip, applying drop of blood ........iii, 29Test strip, confirmation window . . . iii, 2, 31, 51Test strip, contact bars ............ii,2, 13, 49Test strip, disposal ........................37Time format ................................6Time setting ................................7Troubleshooting ...........................60Turning meter off ...........................3Turning meter on for reviewing results ....3, 42Turning meter on for testing ...........ii,3, 13Unexpected test results ....................34Unit of measure. . . . . . . . . . . . . . . . . . . 8, 34, 70Index
76Call Customer Service toll-free,24 hours a day, 7 days a weekEnglish999 999-9999Español999 999-9999OrVisit us at www.LifeScan.com© 2007 LifeScan, Inc., Milpitas, CA 95035Rev. date: 09/2007AW05931201
