LifeShield HSC1000 Wireless Grid Controller User Manual
LifeShield, Inc. Wireless Grid Controller
User Manual
Handset and Charger Installation
Instructions
Model HSC2000 Handset Kit
InGrid Handset Kit Contents
HSC1000 Handset
CHC1000 Charging Cradle
PSC0101 Power Supply
Belt Clip
IG80 Ni-MH Rechargeable Battery Pack
Install the Handset and Charger

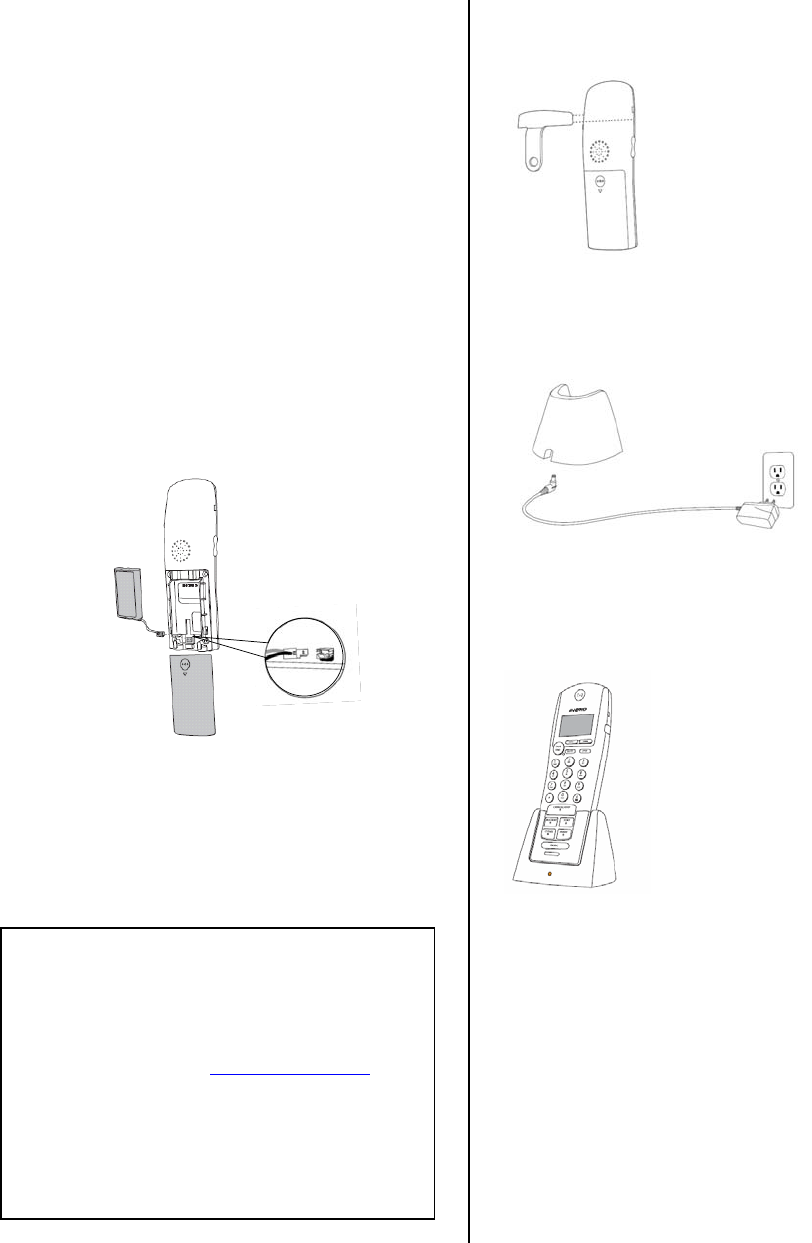

Connect Battery Pack -- The battery pack is
shipped in the Handset, but it is not connected.
a) Open the battery compartment and remove
the battery
b) Insert the battery plug into the two-pin jack,
and insert the battery.
Note: The jack is keyed so that the plug can
only be inserted in one direction. Be careful not
to crimp wire.
c) Replace the battery cover.
d) The handset display will illuminate when
battery is connected.
Attach Belt Clip – Snap the Belt Clip onto the
sides of the Handset.
Connect Charging Cradle – Connect the
Charging Cradle power supply to the bottom of
the charging cradle and to the electrical wall
outlet.
Charge Handset – Place the Handset in the
Charging Cradle. When properly seated on the
cradle, the amber light on the front of the cradle
will be illuminated.
1. Immediately place the Handset in the Charging Cradle
that came packed with the Handset. THE HANDSET
MUST CHARGE AT LEAST 2 HOURS PRIOR TO
ATTEMPTING ANY SECURITY SYSTEM
INSTALLATION. IT MUST CHARGE 12 HOURS
BEFORE MAKING PHONE CALLS.
2. The phone system comes with various settings pre-
defined from the factory. Should you want to change
these settings we suggest waiting until after you
activate your system. These settings include, ring
tones, ring volume, distinctive ringing, display contrast
etc.
Note:
o Use only InGrid IG80 rechargeable battery packs
supplied with your various Home Protection
components.
o Replacement battery packs are also available
through the InGrid’s customer service at 1-877-
INGRID7 or on-line at www.InGridHome.comUse
only the supplied AC power adapter. Do not use
any other adapter.
o Place the power cord so that it does not create a
trip hazard or where it could become pinched and
create an electrical hazard.
o Do NOT use AC power outlets that are controlled
by a wall switch
Add the Handset to your InGrid
System
These devices may be added to the InGrid
System up to the number shown in the table:
Device Device
Maximum System
Maximum
Handsets 6
Consoles 4 9*
Grid Extenders 4
*The system will allow a maximum of 9 Handset/Console or
Grid Extender combinations
After the Handset and Charger are installed, use
a Handset or Console that is already registered
on the System to enter the Security Menu and
follow the steps for installing new hardware.
Enter the Security Menu
After installing the hardware, enter Menu on
your Handset or Console.
o Scroll to Setup and press SELECT
o Scroll to Security and press SELECT
o Enter Master Code and press SELECT
Add the Handset
1. Using the scroll and SELECT buttons on
your existing Handset or Console, navigate
to GC or Handset (Menu/Setup/Security/GC
or Handset/<Add New>).
SELECTBACK
<Add New>
GCs or Handset
2. Press the SELECT key to <Add New>. The
system will begin searching for the new
Handset or Console you are looking to add.
3. On the New Handset or Console press the
SEARCH key.
4. The system will inform you when it has
found and added the Handset via the display
and an audio signal. Press OK when you
have been informed that the Handset or
Console has been added.
5. You will then be given the option to edit the
default name.
FCC Information
FCC Part 15
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
CAUTION:
Changes and modifications to this product not expressly
approved by InGrid, Inc. could void not only the user’s
authority to operate this device, but also the limited warranty.
Note:
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, three is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more
of the following measures:
o Reorient or relocate the receiving antenna
o Reorient or relocate and increase the separation
between the equipment and receiver
o Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
Some cordless telephones operate at frequencies that may
cause interference to nearby TVs or VCRs. To minimize or
prevent such interference, the base or the cordless
telephone should not be placed near or on top of a TV or
VCR. If interference is experienced, move the cordless
telephone further away from the TV or VCR. This will often
reduce, or eliminate, interference. Consult an experienced
radio/TV technician for help if these measures do not
eliminate the interference.
This equipment should be serviced only by Ingrid, Inc. or its
authorized agents.
FCC RF Exposure Warning
This product complies with FCC radiation exposure limits set
forth for an uncontrolled environment. To comply with FCC
RF exposure requirements the base unit must be installed
and operated with this antenna located 20 cm or more
between the antenna and all person’s body (excluding
extremities of hands, wrist and feet). The Handset unit may
be carried and operated with only the specific provided belt-
clip. Other non-tested belt-clips or similar body-worn
accessories must be avoided. The base and Handset units
must not be co-located or operated in conjunction with any
other antenna or transmitter.
This equipment is hearing aid compatible as defined by the
FCC in 47 CFR Section 68.316.
When you hold the phone to your ear, noise may be heard in
your Hearing Aid. Some Hearing Aids are not adequately
shielded from external RF (radio frequency) energy. If noise
occurs, use an optional headset accessory or the
speakerphone option (if applicable) when using this phone.
Consult your audiologist or Hearing Aid manufacturer about
the availability of Hearing Aids which provide adequate
shielding to RF energy commonly emitted by digital devices.
A TIA/EIA-IS-968 compliant telephone cord and modular
plug is provided with this equipment. This equipment is
designed to be connected to the telephone network or
premises wiring using a compatible modular jack that is also
TIA/EIA-IS-968 compliant.
To ensure safety of users, the FCC has established criteria
for the amount of radio frequency energy various products
may produce depending on their intended usage. This
product has been tested and found to comply with the FCC’s
exposure criteria. For body worn operation, the FCC RF
exposure guidelines were also met when used with the
InGrid accessories supplied or designed for this product.
Use of other accessories may not ensure compliance with
FCC RF exposure guidelines and should be avoided.
Privacy of communications may not be ensured when using
this phone.
FCC Part 68
This equipment complies with Part 68 of the FCC rules and
the requirements adopted by the ACTA. On the equipment
there is a label that contains, among other information, a
product identifier in the format US:AAAEQ##TXXXX. If
requested, this number must be provided to the telephone
company.
A plug and jack used to connect this equipment to the
premises wiring and telephone network must comply with the
applicable FCC Part 68 rules and requirements adopted by
the ACTA. A compliant telephone cord and modular plug is
provided with this product. It is designed to be connected to
a compatible modular jack that is also compliant.
Registration No.: Found on the bottom of the unit.
The REN is used to determine the number of devices that
may be connected to a telephone line. Excessive RENs on
a telephone line may result in the devices not ringing in
response to an incoming call. In most but not all areas, the
sum of RENs should not exceed five (5.0). To be certain of
the number of devices that may be connected to a line, as
determined by the total RENs, contact the local telephone
company. For products approved after July 23, 2001, the
REN for this product is part of the product identifier that has
the format US:AAAEQ##TXXXX. The digits represented by
## are the REN without a decimal point (e.g., 03 is a REN of
0.3).
If this equipment causes harm to the telephone network, the
telephone company will notify you in advance that a
temporary discontinuance of service may be required. But if
advance notice isn’t practical, the telephone company will
notify you as soon as possible. Also, you will be advised of
your right to file a complaint with the FCC if you believe it is
necessary.
The telephone company may make changes in its facilities,
equipment, operations or procedures that could affect the
operation of the equipment. If this happens, the telephone
company will provide advance notice in order for you to
make necessary modifications to maintain uninterrupted
service.
If trouble is experienced with this equipment, for repair or
warranty information, please contact InGrid, Inc. at 877-
INGRID7 or techsupport@ingridhome.com. If the equipment
is causing harm to the telephone network, the telephone
company may request that you disconnect the equipment
until the problem is resolved.
Connection to a party line service is subject to state tariffs.
Contact the state public utility commission, public service
commission or corporation commission for information.
You must not connect your phone to:
o Coin operated systems
o Most electronic key telephone systems
If you home has specially wired alarm equipment connected
to the telephone line, ensure the installation of this
equipment does not disable your alarm equipment. If you
have questions about what will disable the equipment,
consult your telephone company or a qualified installer.
Caution – To ensure proper operation, this equipment must
be installed according to the enclosed installation
instructions. To verify that the equipment is operating
properly and can successfully report an alarm, this
equipment must be tested immediately after installation, and
periodically thereafter, according to the enclosed test
instructions.
Caution – This equipment cannot report an alarm when
other equipment (telephone, answering system, computer
modem, etc.) connected to the same line is in use.
Functionally equivalent equipment or wiring used to provide
Line Seizure capability without the use of an RJ31X or
RJ38X jack may be used. See Line Seizure instructions.
Caution – Verification of line Seize capability should be
made immediately after installation, and periodically
thereafter, in order to ensure that this equipment can initiate
a call even when other equipment (telephone, answering
system, computer modem, etc.) connected to the same line
is in use.
Industry Canada (I.C.) Notice
Terminal Equipment
Notice: This equipment meets the applicable Industry
Canada Terminal Equipment Technical Specifications. This
is confirmed by the registration number. The abbreviation,
IC, before the registration number signifies that registration
was performed based on a Declaration of Conformity
indicating that Industry Canada technical specifications were
met. It does not imply that Industry Canada approved this
equipment.
Notice: The Ringer Equivalence Number (REN) for this
terminal equipment is marked on the equipment itself. The
REN assigned to each terminal equipment provides and
indication of the maximum number of terminals allowed to be
connected to a telephone interface. The termination on an
interface may consist of any combination of devices subject
only to the requirement that the sum of the Ringer
Equivalence Numbers of all the devices not exceed five.
Radio Equipment
The term “IC:” before the radio certification number only
signifies that Industry Canada technical specifications were
met.
Operation is subject to the following two conditions: (1) this
device may not cause interference, and (2) this device must
accept any interference, including interference that my cause
undesired operation of the device. “Privacy of
communications may not be ensured when using this
telephone”.
Telephone Line Jacks
There are two types of jacks:
Modular Jack – Most phone equipment available now uses
modular jacks. Phone cords are fitted with a molded plastic
connector which plugs into this type of jack. If you don not
have modular jacks, contact your local telephone company
for information about their installation.
Hardwired Jack – Some equipment is wired directly to a
phone jack, and these types of installations require a
modular jack converter. This type of installation is not
difficult; however, you should contact your telephone supply
store for advice about the proper adapter or converter for
your particular situation.
Connecting the Telephone Cords
CAUTION! Consider these safety guidelines before
connecting the telephone cords:
o Never install telephone wiring during a lightning
storm
o Never touch uninsulated telephone wires or
terminals unless the telephone line has been
disconnected.
o Use caution when installing or modifying
telephone lines
Warranty
One Year Limited Warranty
For Consumer Products and Accessories purchased in the
United States and Canada.
What this Warranty Covers
Subject to the exclusions contained below, InGrid, Inc.
warrants its products (“Products”) and InGrid-branded or
certified accessories sold for use with these Products
(“Accessories”) to be free from defects in materials and
workmanship under normal consumer usage for a period of
one (1) year as outlined below. This limited warranty is a
consumer's exclusive remedy, and applies as follows to new
InGrid Products and Accessories purchased by consumers
in the United States and Canada which are accompanied by
this written warranty.
EXCLUSIONS
Normal Wear and Tear. Periodic maintenance, repair and
replacement of parts due to normal wear and tear are
excluded from coverage.
Batteries. Only batteries whose fully charged capacity falls
below 60% of their rated capacity and batteries that leak are
covered by this limited warranty.
Abuse & Misuse. Defects or damage that result from: (a)
improper operation, storage, misuse or abuse, accident or
neglect, such as physical damage (cracks, scratches, etc.) to
the surface of the product
resulting from misuse; (b) contact with liquid, water, rain,
extreme humidity or heavy perspiration, sand, dirt or the like,
extreme heat, or food; (c) use of the Products or Accessories
for commercial purposes
or subjecting the Product or Accessory to abnormal usage or
conditions; or (d) other acts which are not the fault of
Motorola, are excluded from coverage.
Use of Non-InGrid Products and Accessories. Defects or
damage that result from the use of Non-InGrid branded or
certified Products, Accessories or other peripheral
equipment are excluded from coverage.
Unauthorized Service or Modification. Defects or
damages resulting from service, testing, adjustment,
installation, maintenance, alteration, or modification in any
way by someone other than InGrid Inc., or its authorized
service centers, are excluded from coverage.
Altered Products. Products or Accessories with (a) serial
numbers or date tags that have been removed, altered or
obliterated; (b) broken seals or that show evidence of
tampering; (c) mismatched board serial
numbers; or (d) nonconforming or non-InGrid housings, or
parts, are excluded from coverage.
Who is Covered
This warranty extends only to the first consumer purchaser,
and is not transferable.
What InGrid Will Do
InGrid, at its option, will at no charge repair, replace or
refund the purchase price of any Products or Accessories
that does not conform to this warranty. We may use
functionally equivalent
reconditioned/refurbished/pre-owned or new Products or
Accessories.
Other Limitations
ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION
THE IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED TO
THE DURATION OF THIS LIMITED WARRANTY, OTHERWISE THE
REPAIR, REPLACEMENT, OR REFUND AS PROVIDED UNDER
THIS EXPRESS LIMITED WARRANTY IS THE EXCLUSIVE
REMEDY OF THE CONSUMER, AND IS PROVIDED IN LIEU OF
ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. IN NO EVENT
SHALL INGRID BE LIABLE, WHETHER IN CONTRACT OR TORT
(INCLUDING NEGLIGENCE) FOR DAMAGES IN EXCESS OF THE
PURCHASE PRICE OF THE PRODUCT OR ACCESSORY, OR FOR
ANY INDIRECT, INCIDENTAL, SPECIAL OR
CONSEQUENTIAL DAMAGES OF ANY KIND, OR LOSS OF
REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF
INFORMATION OR DATA, SOFTWARE OR APPLICATIONS OR
OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION
WITH THE ABILITY OR INABILITY TO USE THE PRODUCTS OR
ACCESSORIES TO THE FULL EXTENT THESE DAMAGES MAY
BE DISCLAIMED BY LAW. Some states do not allow this
exclusion or limitation of incidental or consequential
damages so the above limitation or exclusion may not apply
to you.
LEGAL REMEDIES: This warranty gives you specific legal
rights, and you may also have other rights which vary from
state to state. This warranty is void outside the United States
of America and Canada.
How to Obtain Warranty Service or Other Information
If, after following the instructions in the owner's manual you
are certain that the Product (or Accessory) is defective, pack
the Product (or Accessory) carefully (preferably in its original
packaging). The Product should include all parts and
accessories originally packaged with the Product. Include
(a) a copy of your receipt, bill of sale or other comparable
proof of purchase; (b) a written description of the problem;
(c) the name of your broadband service provider, if
applicable; and, most importantly; (d) your address and
telephone number. The Product (or Accessory) should be
shipped freight prepaid, by traceable means, to InGrid at:
InGrid Incorporated
Parts and Service Division
920 Cassatt Road, Suite 200
Berwyn, PA
