LifeShield SDC1000 Siren Detector User Manual 10289 siren back v12 copy
LifeShield, Inc. Siren Detector 10289 siren back v12 copy
User Manual

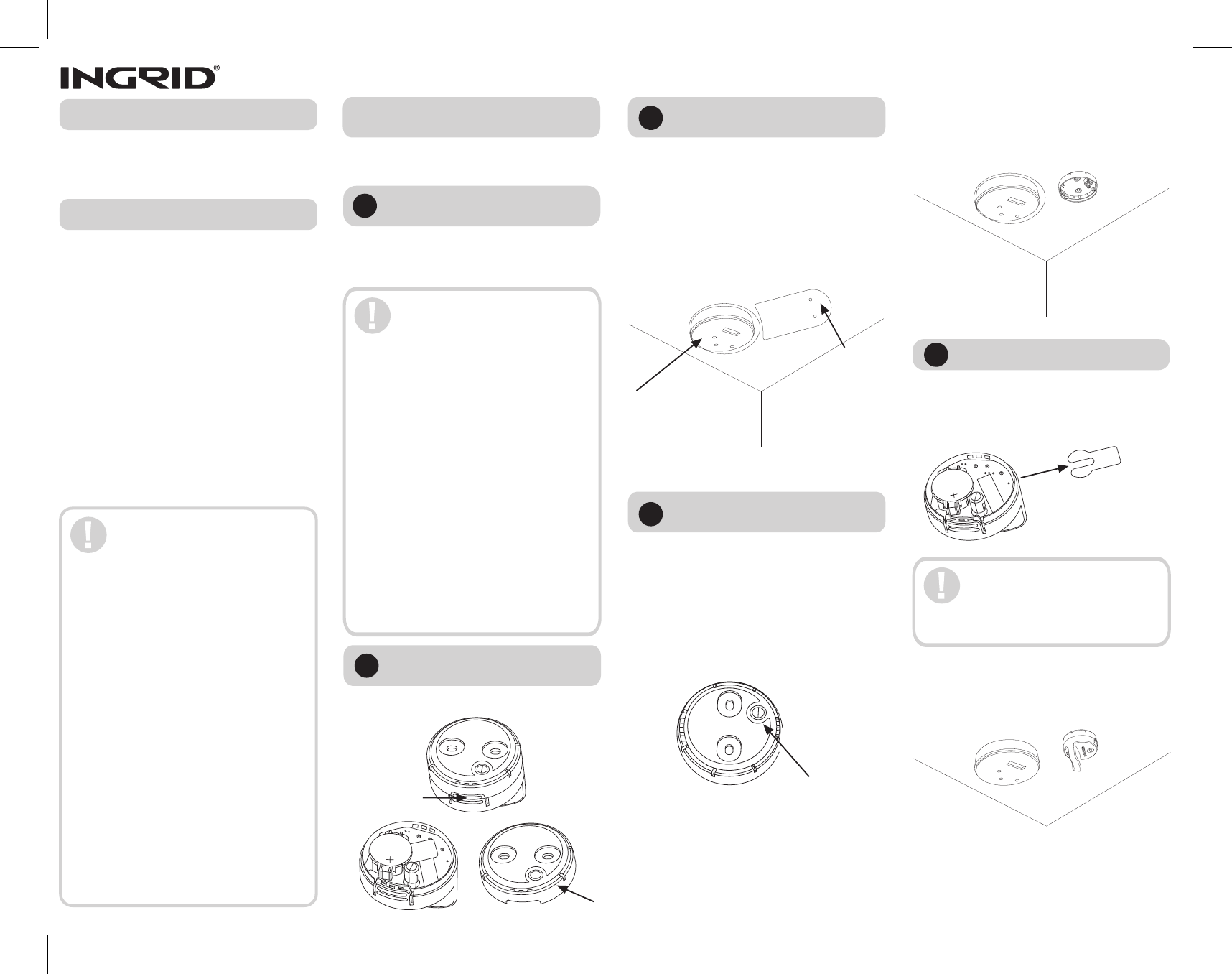

Siren Detector Installation Instructions
Model SDC1000
FCC Information
FCC Part 15
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
Caution:
Changes and modifications to this product not expressly approved by InGrid, Inc.
could void not only the user’s authority to operate this device, but also the
limited warranty.
Note:
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the radio or television receiving antenna
• Reorient or relocate and increase the separation between the InGrid
equipment and radio or television receiver
• Connect the InGrid equipment into an outlet on a circuit different from
that to which the radio or television receiver is connected
• Consult the dealer or an experienced radio/TV technician for help
This equipment should be serviced only by InGrid, Inc. or its authorized agents.
1. On the Handset (or Console), Press MENU.
2. Scroll to Security Setup, press SELECT and enter the Master Code
3. Scroll to Sensors, press SELECT.
4. Scroll to <Add New>, press SELECT.
5. Scroll to Siren Detector, press SELECT.
6. Following the instructions displayed
on the Handset (or Console)… wait
5 seconds, then press the button on
the Siren Detector.
Note: Once the Siren Detector is “found”, the
InGrid system will require you to perform an audio
test to determine if the siren from the target
hazard detector can be detected by the
Siren Detector.
7. Following the instructions displayed on
the Handset (or Console)… press the
“test” button on the hazard detector
until Handset (or Console) displays
"Siren Detector Added", which indicates
that the test has passed.
If the test does not pass within 10 to 12
seconds of the siren sounding, the Hazard
Detector may not meet the requirements
described earlier and may need to be
replaced. If the test fails, the InGrid system
will not permit the Siren Detector to be added.
Note: When the Siren Detector has
successfully been added, you will hear 4 fast
confirmation beeps from the InGrid System. If
there are no confirmation beeps, check to
make sure the Siren Detector is correctly
attached to the mounting bracket, then
repeat the steps above.
Once the Siren Detector has been added
to the InGrid system…
8. Use the Edit feature to rename the
device (optional). NOTE: Press DELETE
to erase text and use the keypad keys to type in a new name.
Once you are satisfied with the entered name, press OK.
9. Scroll down to select the type of hazard detector to which this Siren
Detector will be associated (Smoke/Fire, Carbon Monoxide or Both)
and press SELECT.
Important: the selection you make during this
configuration step will determine the type of message that is sent
to the monitoring center as described earlier in this document.
10. Press OK to return to the Main menu.
InGrid Limited Product Warranty
INGRID LIMITED WARRANTY FOR PRODUCTS AND ACCESSORIES
PURCHASED IN THE UNITED STATES OR CANADA
What Does this Warranty Cover?
Subject to the exclusions contained below, InGrid, Inc. (“InGrid”) warrants the
InGrid-branded or certified accessories (including all embedded software) sold by InGrid for
use with the InGrid Home Security System (the “Products”) to be free from defects in
materials and workmanship under normal consumer usage and in accordance with the
accompanying instructions and documentation, for the period(s) outlined below. This
limited warranty is the consumer’s exclusive remedy, and applies as follows to new
Products purchased by consumers in the United States or Canada, which are accompanied
by this written warranty:
PRODUCTS COVERED/LENGTH OF COVERAGE (the “Warranty Period”)
New Products:
One (1) year from the date of purchase by the first consumer purchaser of the Product.
Products that are Repaired or Replaced.
The balance of the original warranty or for ninety (90) days from the date
returned to the consumer, whichever expires later.
WHAT IS NOT COVERED? (EXCLUSIONS)
Normal Wear and Tear. Periodic maintenance, repair and replacement of parts due to
normal wear and tear are excluded from coverage.
Ornamental Decorations. Ornamental decorations such as emblems and graphics
and other decorative elements, are excluded from coverage.
Batteries. Only batteries whose fully charged capacity falls below 80% of their rated
capacity and batteries that leak are covered by this limited warranty.
Abuse & Misuse. Defects or damage that result from the following are excluded from
coverage under this limited warranty:
a) improper operation, storage, misuse or abuse, accident or neglect, such as physical
damage (cracks, scratches, etc.) to the surface of the Product resulting from misuse;
b) contact with moisture, liquids, water, rain, extreme humidity, heavy perspiration or
makeup, sand, dirt or the like, food, or proximity to or exposure to heat or cold, fire,
flood, or lightning;
c) other acts which are inconsistent with the instructions and documentation that
accompany the Products; and
d) use of the Products with any system other than the InGrid Home Security System.
Use of Non-InGrid Products and Accessories. Defects or damage that result
from the use of Non-InGrid branded or certified products, accessories, software or other
peripheral equipment are excluded from coverage, including without limitation defects or
damage to Products that result from such use.
Unauthorized Service or Modification. Defects or damages resulting from
service, testing, adjustment, installation, maintenance, alteration, including without
limitation, software changes, or modification in any way by someone other than InGrid, or
its authorized agents, are excluded from coverage.
Altered Products. Products with the following characteristics are excluded from coverage:
a) serial numbers or date tags that have been removed, altered or obliterated;
b) broken seals or Products that show evidence of tampering;
c) mismatched board serial numbers; or
d) nonconforming or non-InGrid housings, antennas, or parts.
Communication Services. Defects, damages, or the failure of Products due to any
communication service or signal not provided directly by InGrid is excluded from coverage.
Out of Warranty Products. Defects or damages reported to InGrid after the Warranty
Period are excluded from coverage.
WHO IS COVERED?
This warranty extends only to the first consumer purchaser, and is not transferable.
WHAT WILL INGRID DO?
InGrid, at its option, will at no charge repair, replace or refund the purchase price of any
Products that do not conform to this limited warranty. We may use functionally equivalent
reconditioned/refurbished/pre-owned or new Products or parts. No data, added to your Products,
including but not limited to component names, and system preferences, will be reinstalled.
HOW TO OBTAIN WARRANTY SERVICE OR OTHER INFORMATION?
To obtain service or information, please call:
InGrid Customer Support at: 1-877 InGrid-7 (1-877-464-7437)
Or email us at: warranty@ingridhome.com
You will receive instructions on how to ship the Products, at your expense, to an InGrid
Authorized Repair Center. To obtain service, you must include:
a) a copy of your receipt, bill of sale or other comparable proof of purchase;
b) a written description of the problem;
c) the complete physical address of the location where the system was installed and
most importantly;
d) your address and telephone number; and,
e) the “Return Merchandise Authorization” or “RMA” number that InGrid provides to you.
WHAT OTHER LIMITATIONS ARE THERE?
ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY DISCLAIMED
TO THE MAXIMUM EXTENT PERMITTED BY LAW. THE REPAIR OR REPLACEMENT AS
PROVIDED UNDER THIS EXPRESS LIMITED WARRANTY IS THE SOLE AND EXCLUSIVE
REMEDY OF THE CONSUMER, AND INGRID’S SOLE AND EXCLUSIVE LIABILITY HEREUNDER,
AND IS PROVIDED IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. IN NO EVENT
SHALL INGRID BE LIABLE, WHETHER IN CONTRACT, TORT (INCLUDING NEGLIGENCE) OR
OTHERWISE, FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE PRODUCT GIVING
RISE TO THE DAMAGES, OR FOR ANY INDIRECT, INCIDENTAL, SPECIAL, PUNITIVE,
EXEMPLARY OR CONSEQUENTIAL DAMAGES OF ANY KIND, OR LOSS OF REVENUE OR
PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR DATA, SOFTWARE OR
APPLICATIONS OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE
USE OF OR THE ABILITY OR INABILITY TO USE THE PRODUCTS OR SOFTWARE TO THE FULL
EXTENT THESE DAMAGES MAY BE DISCLAIMED BY LAW.
Some states and jurisdictions do not allow the limitation or exclusion of incidental or
consequential damages, or limitation of implied warranties, so the above limitations
or exclusions may not apply to you. This warranty gives you specific legal rights, and
you may also have other rights that vary from state to state or from one jurisdiction
to another.
© InGrid, Inc., 2008.
InGrid Home Security
© 2008 InGrid, Inc.
All rights reserved.
InGrid logo is a registered trademark.
Protected by US patents and patents pending.
7,202,789, 7,119,658, 7,091,827, 7,084,756, 7,079,034, 7,079,020,
7,057,512, 7,053,764,7,042,353, 7,023,341, 7,019,639, 6,888,459,
D538,797, D534,519, D534,146
Press button on
Siren Detector
30 Seconds
Siren Det Found
Please Wait
30 Seconds

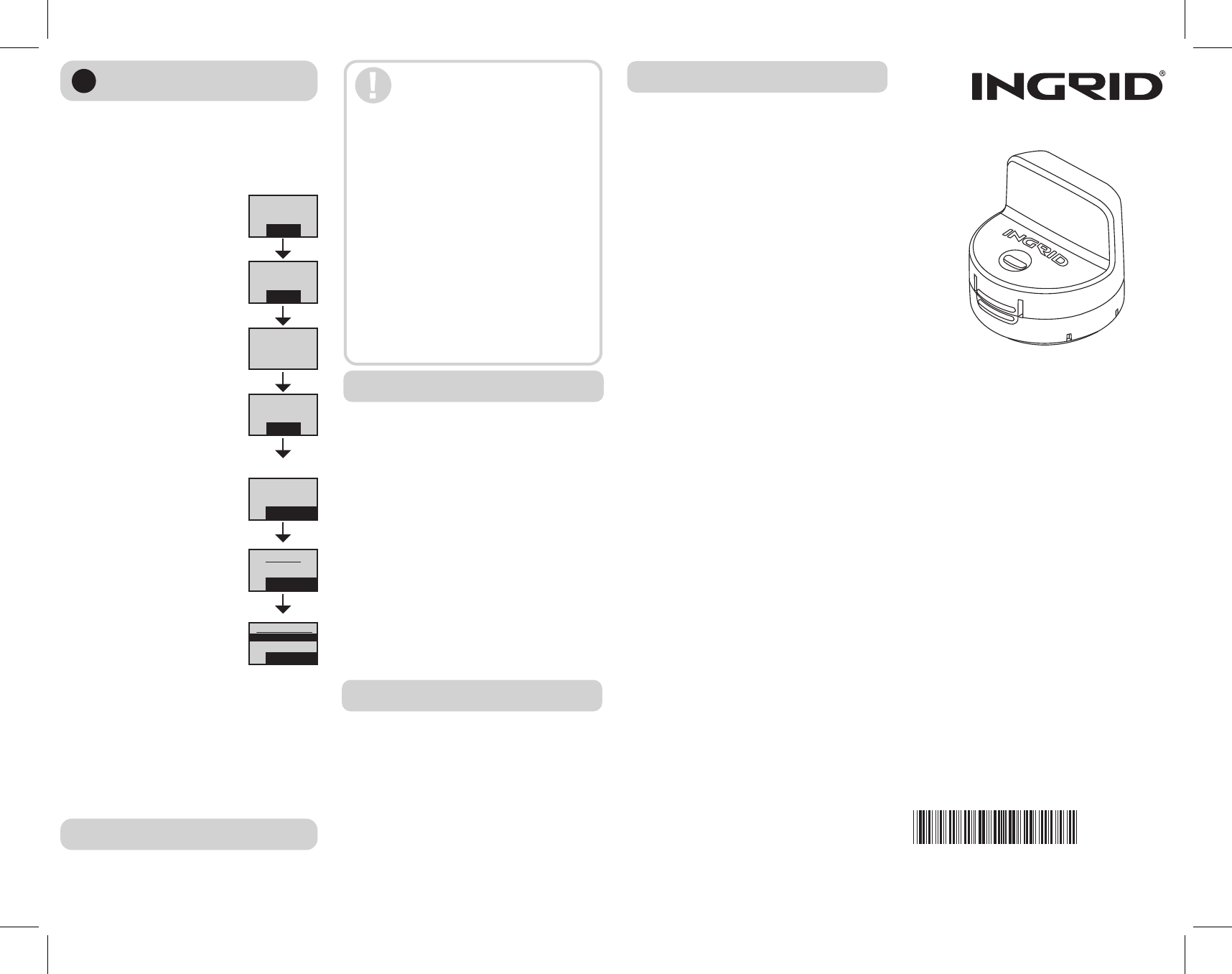

Add The Siren Detector To
The InGrid System
6
Testing your Siren Detector
Once the Siren Detector has been mounted it must then be “added” to
the InGrid System. You will need a Handset (or Console) to add the
Siren Detector.
Preparing for
audio test
Press button on
hazard detector
30 Seconds
Siren Detector
Added
Edit Name
Siren Det 1_
BACK SELECT
Immediately replace the battery on any Siren Detector when you are
notified that the battery condition is low. Replace the battery on your
hazard detectors at least once per year or whenever you see and/or
hear a low battery indication. Hazard detectors and/or the Siren
Detector may not operate properly when the battery condition is low.
Important:
Hazard Det Type
Smoke/Fire
Carbon Monoxide
DELETE OK
CANCEL OK
CANCEL
CANCEL
CANCEL
Part No. 100000772
Rev. B
Printed in China
Industry Canada (I.C.) Notice
Terminal Equipment
Notice: This equipment meets the applicable Industry Canada Terminal
Equipment Technical Specifications. This is confirmed by the registration
number. The abbreviation, IC, before the registration number signifies that
registration was performed based on a Declaration of Conformity indicating that
Industry Canada technical specifications were met. It does not imply that
Industry Canada approved this equipment.
Notice: The REN for this terminal equipment is marked on the equipment itself.
The REN assigned to each terminal equipment provides an indication of the
maximum number of terminals allowed to be connected to a telephone
interface. The termination on an interface may consist of any combination of
devices subject only to the requirement that the sum of the RENs of all the
devices not exceed five.
Radio Equipment
The term “IC:” before the radio certification number only signifies that Industry
Canada technical specifications were met.
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, including
interference that my cause undesired operation of the device.
THE SIREN DETECTOR MUST BE SUCCESSFULLY TESTED
(TOGETHER WITH THE HAZARD DETECTOR) AT LEAST
TWICE PER YEAR. A LOW BATTERY OR OTHER CONDITION
CHANGES MAY CAUSE POOR PERFORMANCE OF THE
HAZARD DETECTOR AND/OR SIREN DETECTOR.
ONCE SIREN DETECTORS ARE INSTALLED, TESTING THE
SIRENS WITH EXISTING HAZARD DETECTORS MAY RESULT
IN A FIRE OR CARBON MONOXIDE MESSAGE BEING SENT
TO THE MONITORING CENTER, RESULTING IN AN
EMERGENCY DISPATCH TO YOUR PREMISES.
THERE ARE TWO OPTIONS TO AVOID THIS SITUATION.
OPTION A. TEMPORARILY DISABLE THE MONITORING OF
YOUR SYSTEM THROUGH YOUR MY INGRID WEB PORTAL
ACCOUNT PRIOR TO TESTING THE HAZARD DETECTORS.
RE-ENABLE MONITORING AFTER YOU HAVE COMPLETED
TESTING.
OPTION B. ON THE HANDSET OR CONSOLE, PUT THE
SYSTEM INTO "SENSOR TEST" MODE (UTILITIES ->
SYSTEM TEST -> SENSOR TEST ) PRIOR TO TESTING THE
HAZARD DETECTORS. THE SYSTEM WILL RETURN TO
NORMAL OPERATION WHEN THE TEST IS COMPLETED.
Select The “Target”
Hazard Detector(s)
Prior to adding a Siren Detector it is necessary to first
install and activate your InGrid System and to have a Handset and/or
Console available for use in the Siren Detector installation process.
Important:
THE INGRID MODEL SDC1000 SIREN DETECTOR
DOES NOT DETECT THE EXISTENCE OF HAZARDS
SUCH AS FIRE, SMOKE, OR CARBON MONOXIDE.
INSTEAD, IT MONITORS FOR AND DETECTS THE
SOUND OF HAZARD DETECTOR SIRENS THAT
FEATURE ALL FOUR OF THE FOLLOWING
CHARACTERISTICS: 1. ARE LOCATED WITHIN 4
INCHES OF THE SIREN DETECTOR, 2. ARE
MANUFACTURED IN THE LAST 10 YEARS IN
ACCORDANCE WITH UL985 INDUSTRY STANDARDS,
3. CREATE SOUND VOLUME OF AT LEAST 85 DBA
AT 10 FEET AT 3000 HZ, AND 4. SOUND FOR AT
LEAST 20 CONTINUOUS SECONDS. WHILE MOST
HAZARD DETECTORS LESS THAN 10 YEARS OLD
MEET THESE REQUIREMENTS, SIREN DETECTOR
USERS ARE EXPECTED TO SUCCESSFULLY TEST
THE SIREN DETECTOR TOGETHER WITH THE
HAZARD DETECTOR AT LEAST TWICE PER YEAR. IF
A SIREN DETECTOR DOES NOT SUCCESSFULLY
RESPOND TO A HAZARD DETECTOR SIREN DURING
A TEST, IT MUST NOT BE RELIED UPON TO DETECT
A SIREN DURING AN ACTUAL HAZARD CONDITION.
THE NATIONAL FIRE PROTECTION ASSOCIATION
(NFPA) RECOMMENDS REPLACEMENT OF HAZARD
DETECTORS THAT ARE 10 YEARS (OR MORE) OLD
SINCE THE INTERNAL ELECTRONICS MAY NO
LONGER RELIABLY DETECT HAZARDS.
USERS ARE EXPECTED TO REPLACE HAZARD
DETECTOR BATTERIES AT LEAST ONCE PER YEAR
SO THAT THE ELECTRONICS (INCLUDING THE
SIREN) OPERATE PROPERLY DURING A HAZARD
CONDITION.
Important:
IF HAZARD DETECTORS ARE INTERCONNECTED
WITHIN A PROTECTED PREMISES, ONE HAZARD
DETECTOR MAY SOUND ITS SIREN BASED UPON A
SIGNAL RECEIVED FROM ANOTHER INTERCON-
NECTED HAZARD DETECTOR. IN THIS MANNER,
ONE SIREN DETECTOR MAY BE USEFUL FOR
MONITORING HAZARDS REPORTED BY MORE
THAN ONE HAZARD DETECTOR.
DETERMINE IF ONE OR MORE HAZARD
DETECTORS ARE INTERCONNECTED BY PRESSING
AND HOLDING THE TEST BUTTON ON ONE HAZARD
DETECTOR FOR AT LEAST 30 SECONDS. IF SIRENS
ON OTHER HAZARD DETECTORS SOUND DURING
THIS TEST, THESE OTHER HAZARD DETECTORS
ARE INTERCONNECTED. IF HAZARD DETECTORS IN
THE PROTECTED PREMISES ARE NOT INTERCON-
NECTED, A SIREN DETECTOR IS REQUIRED FOR
EACH EXISTING HAZARD DETECTOR IN THE
PROTECTED PREMISES THAT NEEDS TO BE
MONITORED.
THE USE OF AT LEAST TWO (2) INDIVIDUAL SIREN
DETECTORS (MONITORING TWO INDIVIDUAL
HAZARD DETECTORS) IS STRONGLY
RECOMMENDED, REGARDLESS OF THE EXISTING
HAZARD DETECTOR INSTALLATION TYPE.
Important:
AFTER REMOVING THE BATTERY
INSULATOR TAB, PRESS DOWN ON THE TOP
OF THE BATTERY TO MAKE SURE IT HAS NOT
BEEN DISLODGED IN THE PROCESS OF
REMOVING THE TAB.
Introduction
Installing Your InGrid
Siren Detector
Siren Detector Kit Contents
Locate and remove the Installation Template on the bottom of the
Siren Detector box.
Place the Installation Template directly next to the (existing) hazard
detector so that the large curved side of the template rests against the
outer edge of the hazard detector.
Using a pencil or pen, mark the location of the two (screw) hole
openings in the template on the ceiling. These marks will be used as
a mounting location reference in the next step.
Select And Mark The
Bracket Mounting Location
Mount The Siren Detector
3
Install The Siren
Detector Bracket
4
Remove The Siren
Detector Bracket
2
5
1
Siren Detectors operate in tandem with existing home hazard
detectors. A “hazard detector” is a device which monitors the home
environment for the existence of a hazard condition, such as smoke,
fire or carbon monoxide. Hazard detectors utilize internal electronics to
sample the surrounding air and monitor for conditions that indicate the
occurrence of the targeted hazard. If a hazard condition is sensed, the
device typically responds with a visual and/or siren alert.
InGrid Siren Detectors operate differently. InGrid Siren Detectors are
designed to monitor for the occurrence of siren sounds coming
from a nearby hazard detector. When they detect the siren sound of a
hazard detector (located no more than 4 inches away) and the sound
meets certain pre-determined audio requirements, the Siren Detector
will report this event back to the InGrid system. Upon receiving the
siren detection message, the InGrid system will sound an audio alert on
all pre-programmed audio alert devices and (if the InGrid system is
actively monitored under a current service plan and is connected to an
operating telecommunications circuit) will send a corresponding
message to the monitoring center. This message will be based upon the
type of hazard detector for which the siren detector has been configured
("Fire/Smoke" or "Both" setting - a fire alarm message will be sent,
"Carbon Monoxide" - a carbon monoxide message will be sent).
SDC1000 Siren Detector
#6 screw (2) and wall anchor (2)
Device Guide
CR2450 battery
Choose which existing hazard detector(s) in your home you would like
to have monitored. NOTE: Siren Detectors are designed to be mounted
within 4 inches of an existing hazard detector and may not operate
properly if mounted farther away.
Turn the Siren Detector over and press the Bracket release tab while
gently pulling the bracket away from the device.
Press tab here to
release bracket
Bracket
Double-faced
adhesive tape
Existing hazard
detector
Installation
Template
Attach the Siren Detector Bracket to the ceiling using either of the two
methods described below. Materials for both options are provided.
a. Double-faced adhesive tape installation
• Remove the paper backing from the double-faced adhesive tape.
Position the Siren Detector Bracket slightly below the ceiling (over
the marks made in the previous step) such that the arrow on the
inside of the bracket faces the hazard detector. Press the bracket
onto the ceiling.
b. Screws & wall anchor installation
• Drill a 1/4 inch hole in each of the marked locations from the
previous step and insert the (provided) wall anchors. Secure with
the screws provided, making sure that the arrow on the bracket
faces the hazard detector.
Remove battery insulator tab
Turn the Siren Detector over and locate the battery insulator tab.
Remove the tab by pulling it straight out. Discard the battery insulator
tab once it is removed.
Install the Siren Detector
With the Siren Detector Bracket securely mounted on the ceiling next to
the hazard detector, align the Siren Detector with the bracket (as
shown) and snap it securely onto the Bracket.
